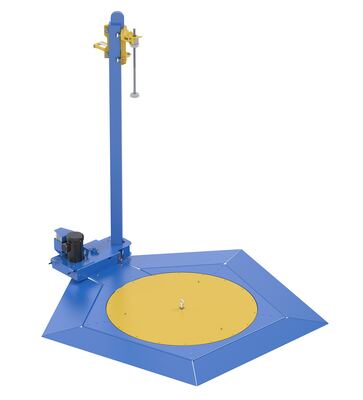

Low Profile Stretch Wrap Machine
SERIES: SWA

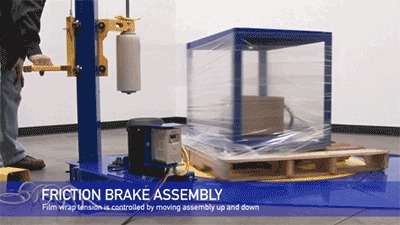

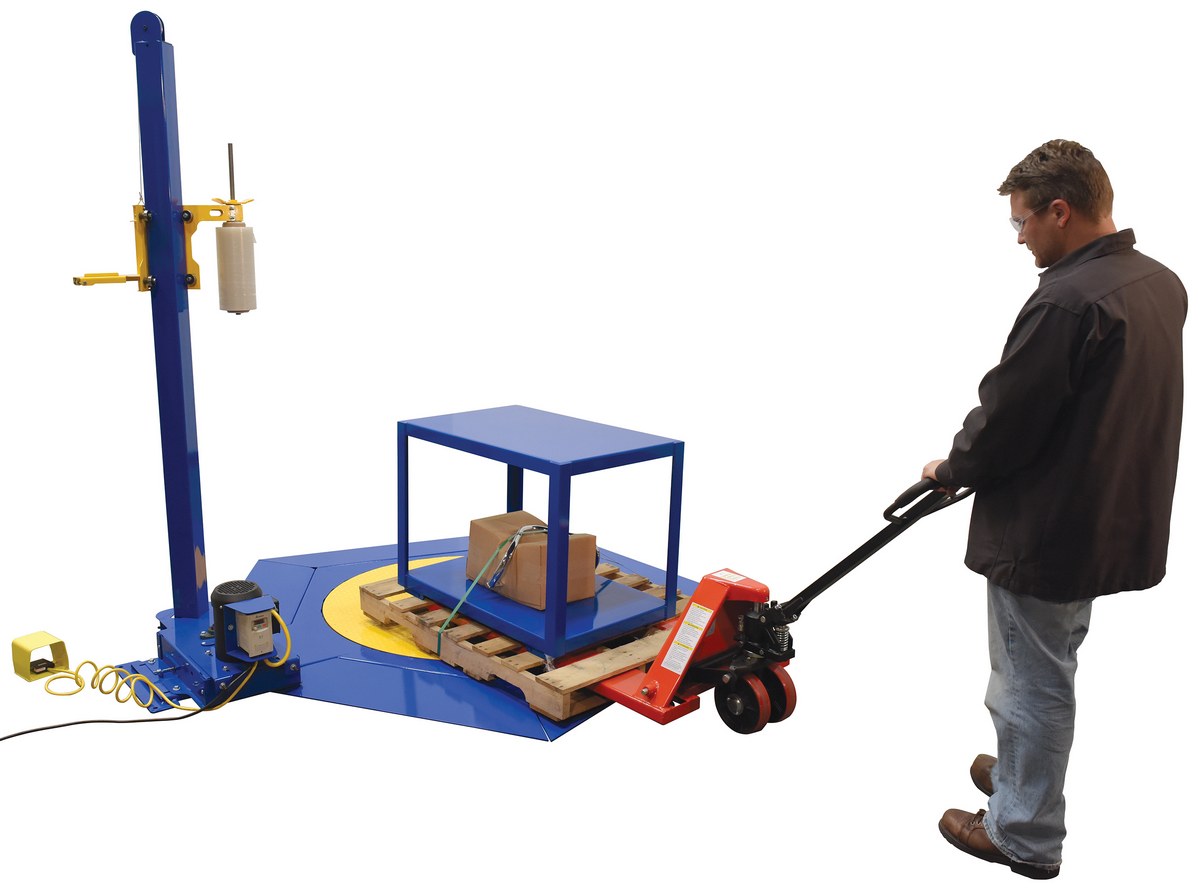

The Low Profile Stretch Wrap Machine features a thin-spin carousel with the added benefit of a stretch wrap machine with powered rotation. The rotation is controlled by a foot switch, while the power input has a variable AC motor that allows adjustable deck speed and includes soft start/stop. RPM is variable from 3 to 12. The loading and unloading is possible by the use of a manual or powered pallet truck. The unit has a built-in perimeter ramp and comes standard with a manual stretch wrap mast. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely, making film application fast and easy. Optional 115V, 1 phase AC powered mast option (PMO) includes hand control with up and down buttons. Maximum load is 64-11/16" in diameter (wrap height is 83-1/4" high).

  • Approachable from all sides
  • Minimizes surfaces change during transition
  • Manually controlled for better positioning
  • Large capacity for wrapping oversized products

The Low Profile Stretch Wrap Machine features a thin-spin carousel with the added benefit of a stretch wrap machine with powered rotation. The rotation is controlled by a foot switch, while the power input has a variable AC motor that allows adjustable deck speed and includes soft start/stop. RPM is variable from 3 to 12. The loading and unloading is possible by the use of a manual or powered pallet truck. The unit has a built-in perimeter ramp and comes standard with a manual stretch wrap mast. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely, making film application fast and easy. Optional 115V, 1 phase AC powered mast option (PMO) includes hand control with up and down buttons. Maximum load is 64-11/16" in diameter (wrap height is 83-1/4" high).

  • Approachable from all sides
  • Minimizes surfaces change during transition
  • Manually controlled for better positioning
  • Large capacity for wrapping oversized products

Other Stretch Wrap Machines

 Low Profile Stretch Wrap Machine Medium Duty Powered Stretch Wrap Machines Medium Duty High Performance Auto-Wrap Stretch Wrap Machine Powered Stretch Wrap Machines

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SWA-51-AR5 SWA-51-AR590 Days Limited WarrantySteel Semi-Automatic Stretch Wrap Machine 51 In. Turntable Diameter 4,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 4,000
Turntable Diameter (in.): 51		766

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SWA-51-AR5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 51
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 51
For More Details of the Option Click the Red Model Button

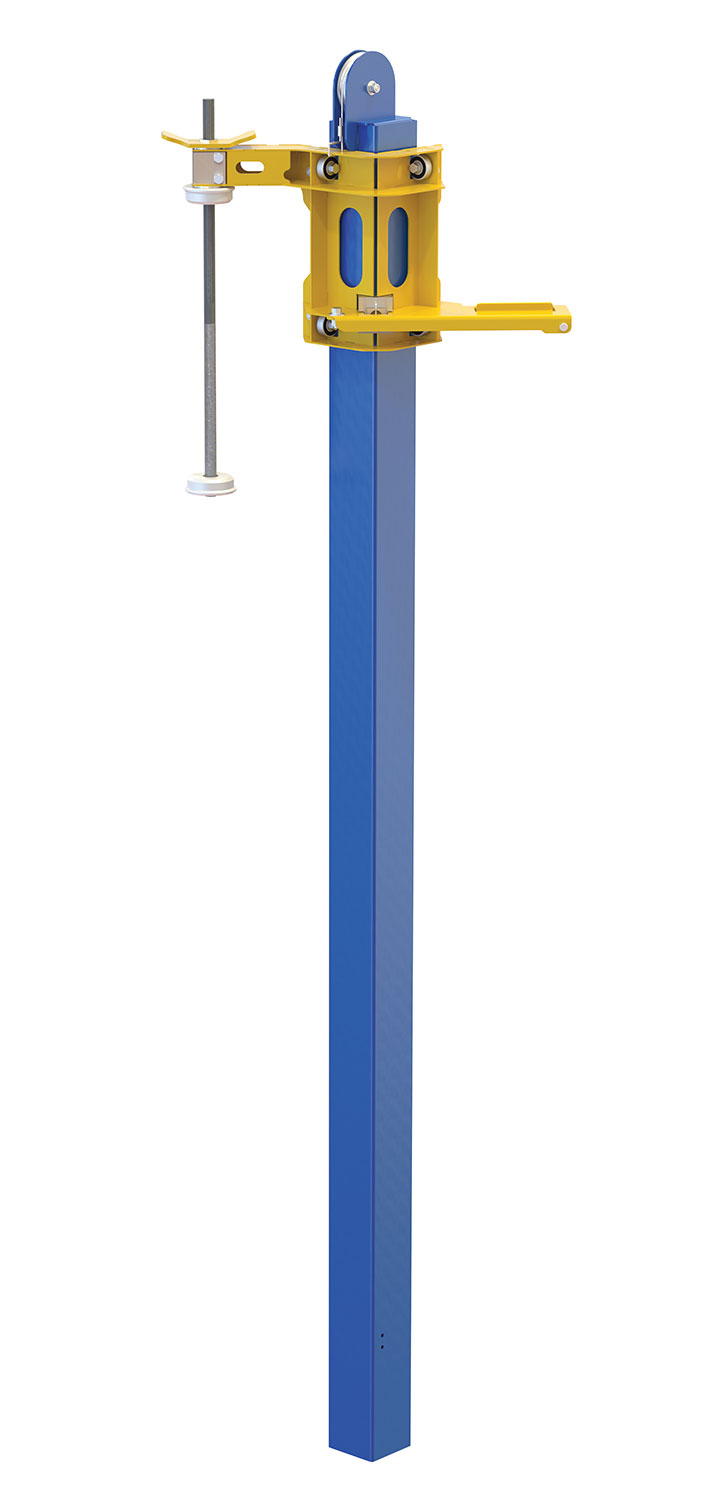

SWA-51-AR5-M-RF SWA-51-AR5-M-RF90 Days Limited WarrantySteel Manual Mast Option 84 In. Wrap Height Blue / Yellow For Use With Model SWA-51Wrap Height (in.): 84
621
SWA-51-AR5-PMO SWA-51-AR5-PMO90 Days Limited WarrantyFactory Installed AC Powered 115 Volt Single Phase Unit For Stretch Wrap Machine SWA-51-AR5Wrap Height (in.): 80-9/16
Voltage/Phase: 115/1		621
SWA-51-AR5-PMO-RF SWA-51-AR5-PMO-RF90 Days Limited WarrantySteel Retrofit Power Mast Wrap Machine 80-13/16 In. Wrap Height Blue / Yellow For Use With SWA-51Wrap Height (in.): 80-9/16
Voltage/Phase: 115/1		621
SWA-MST-FLR SWA-MST-FLR30 Days Limited WarrantySteel Floor Mounting Mast Bracket For Use With SWA ModelsMounting Holes Quantity/Diameter (in.): 4/3/8
21

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Low Profile Stretch Wrap Machine PDF's will open in a new window when clicked.

Manuals


SWA-50, SWA-51-AR, SWA-70
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SWA-51-AR5

SWA-51-AR5-M-RF

SWA-51-AR5-PMO

SWA-51-AR5-PMO-RF

SWA-MST-FLR

Testing Certificates


SWA-51-AR5

SWA-51-AR5-M-RF

SWA-51-AR5-PMO

SWA-51-AR5-PMO-RF

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Low Profile Stretch Wrap Machine Mailing Brochure
