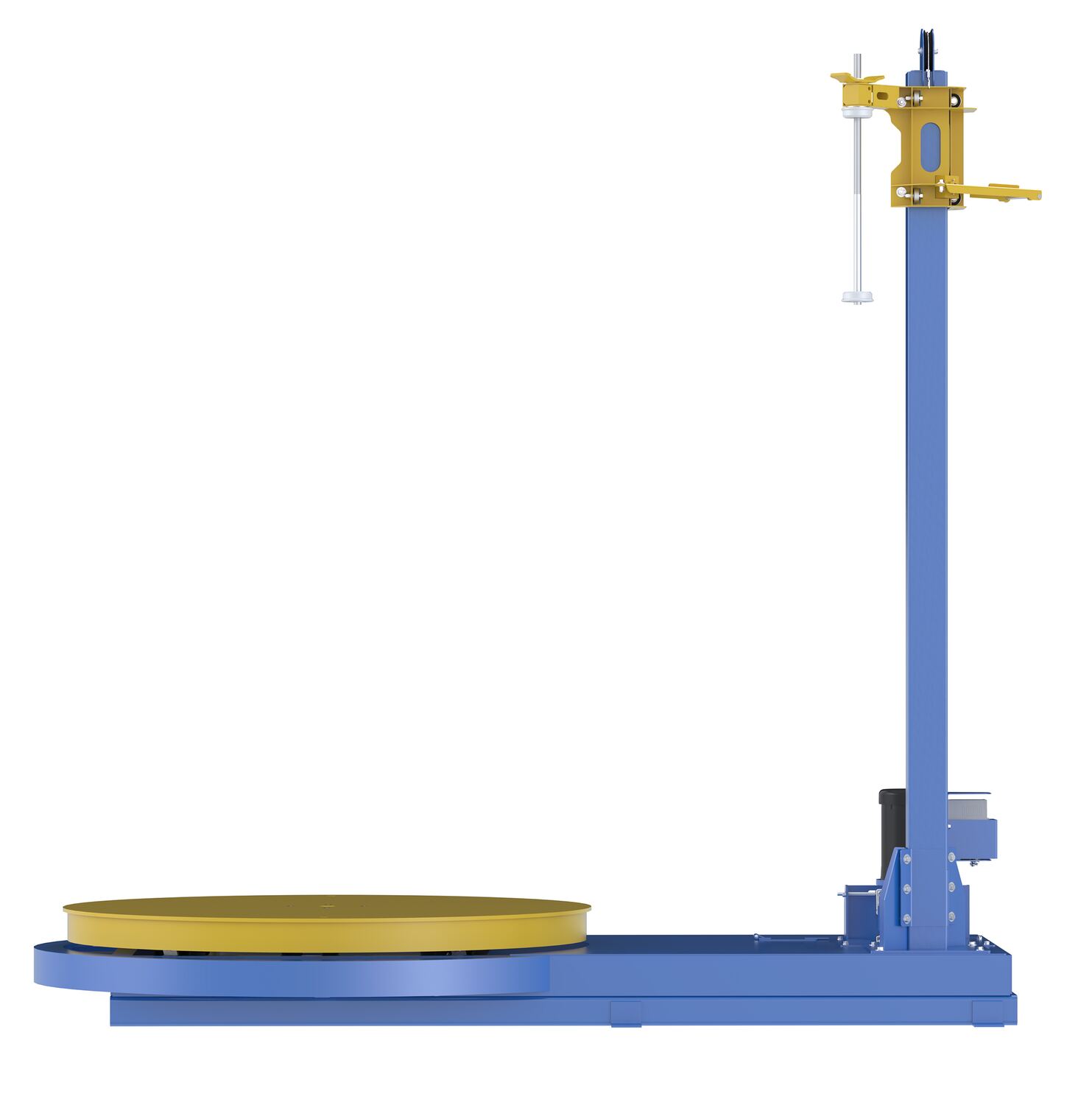

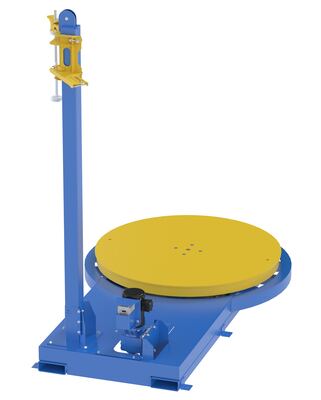

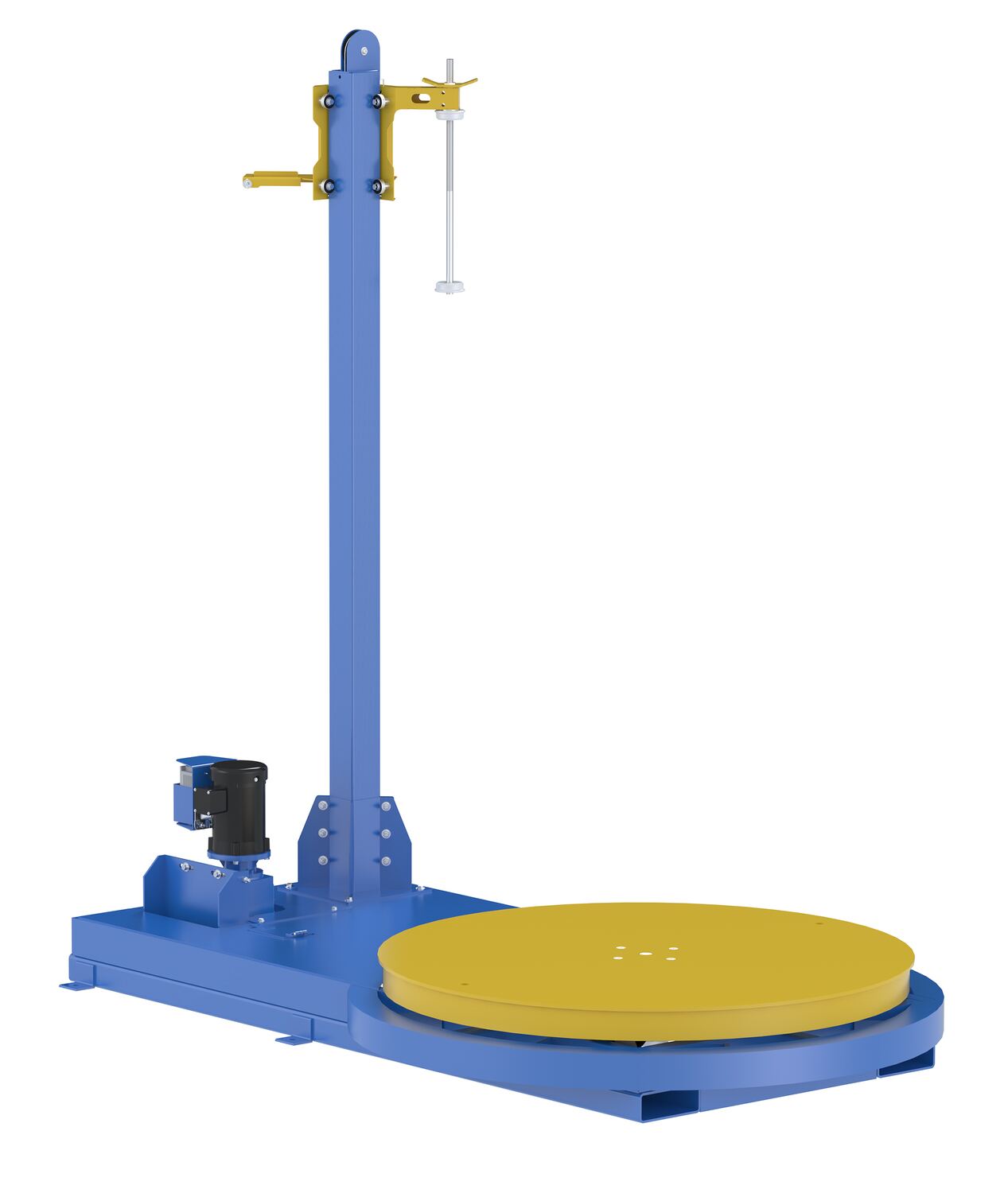

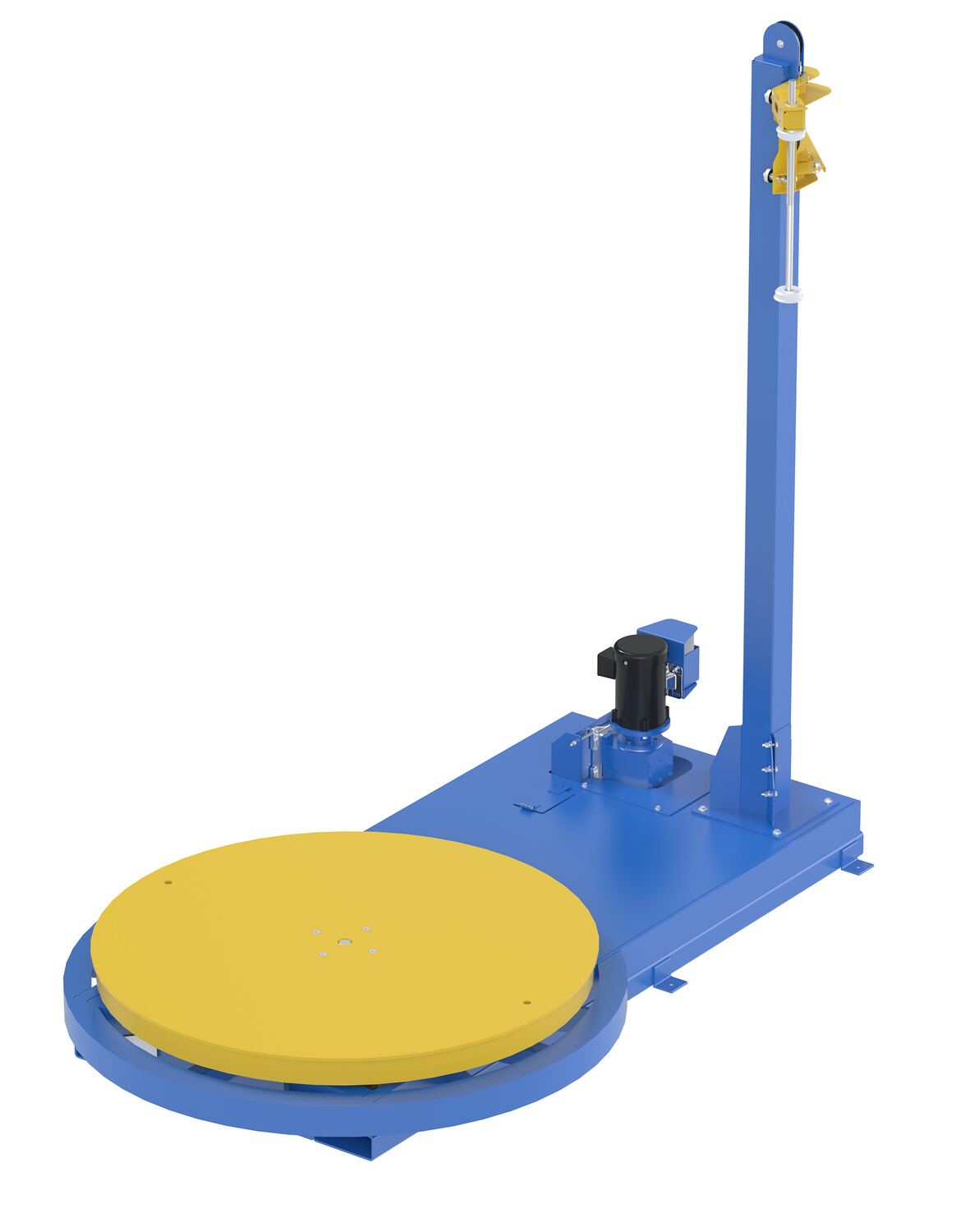

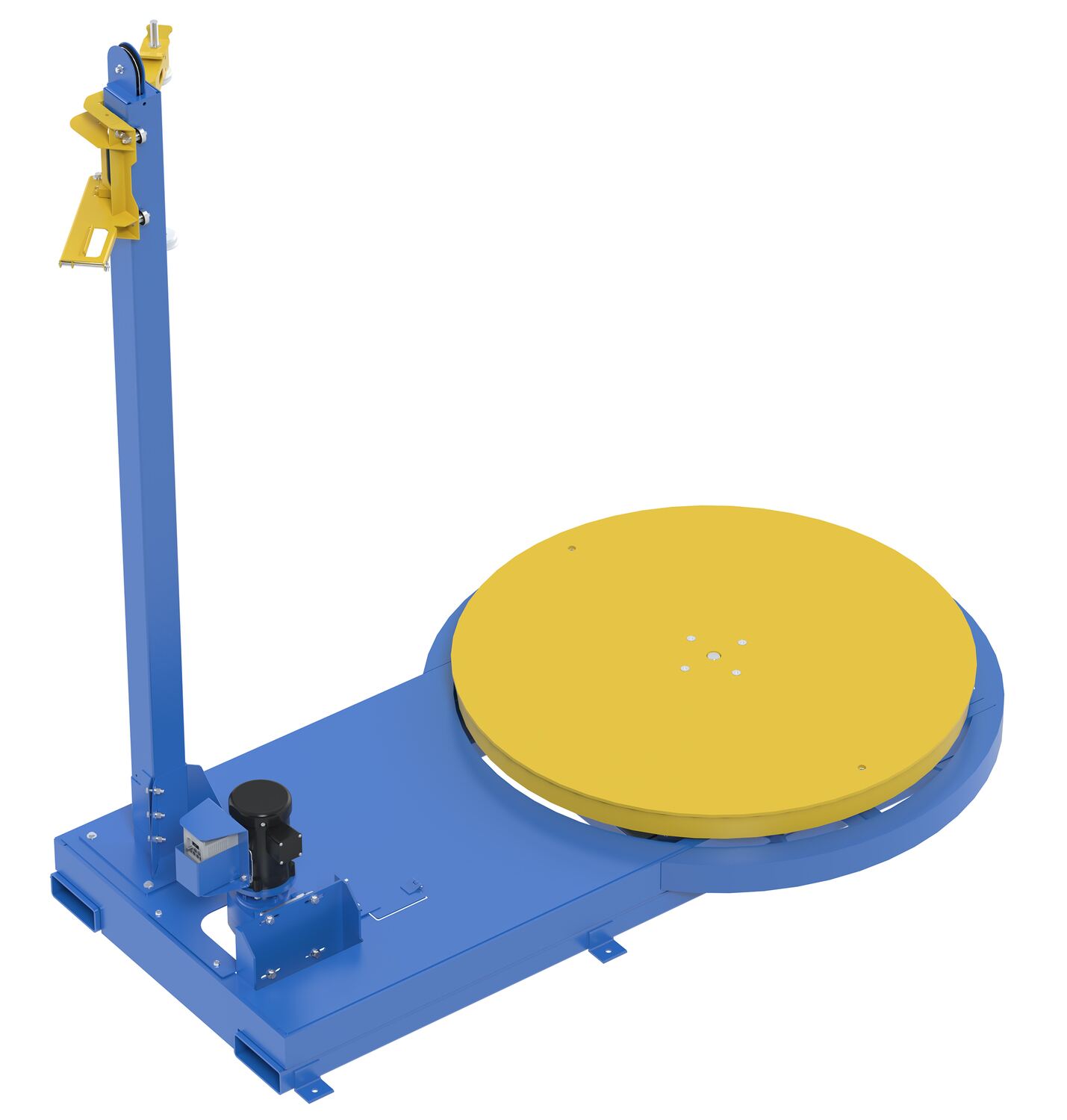

model: SWA-54

SERIES: SWA
Medium Duty Powered Stretch Wrap Machines

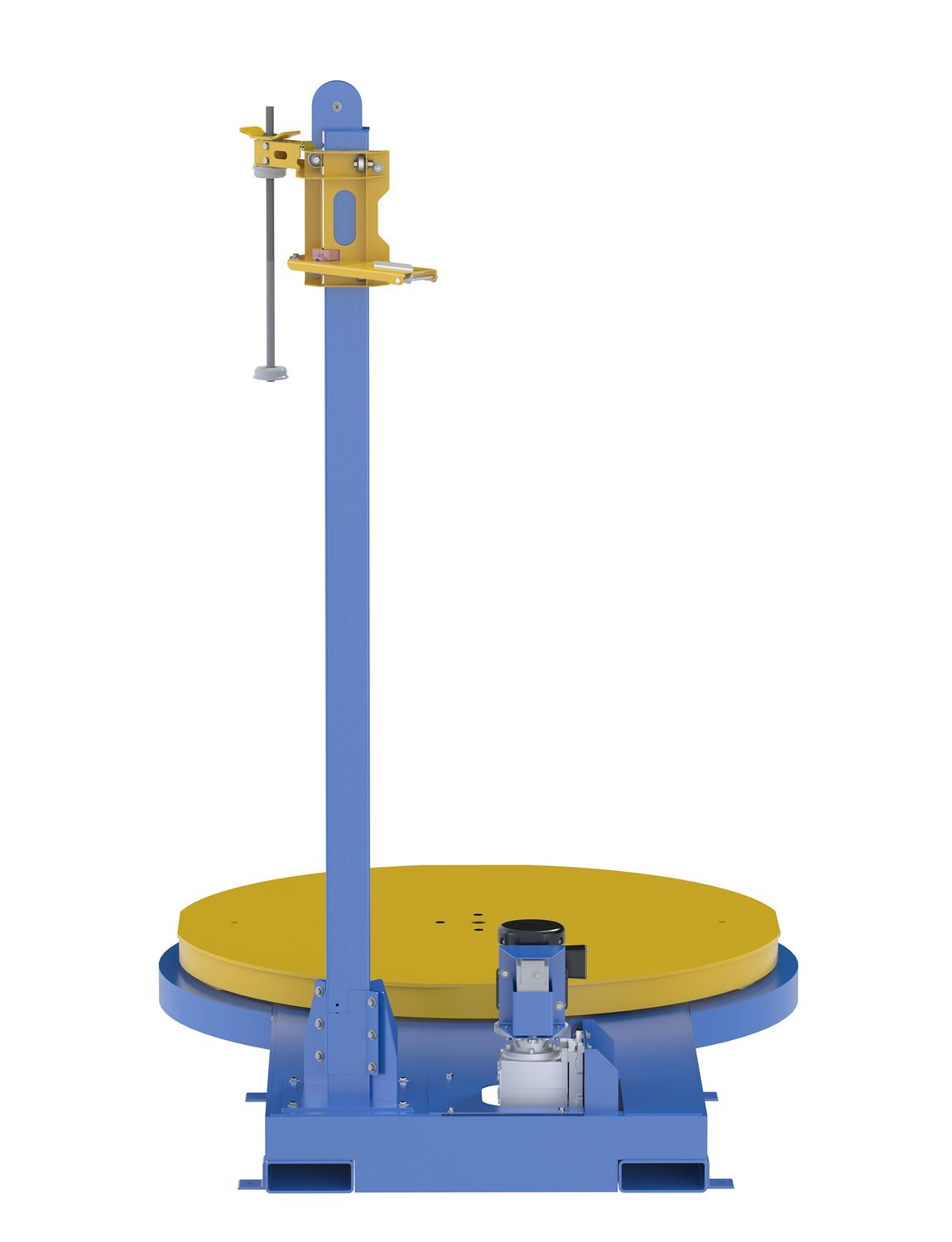

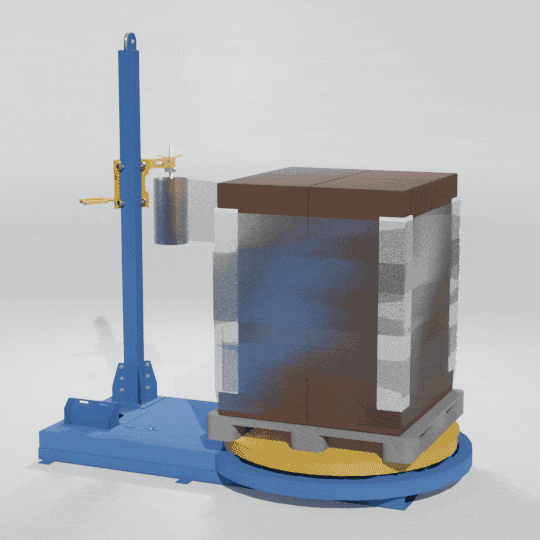

Vestil's Medium Duty Powered Stretch Wrap Machines offer the same great features as our standard duty machines in a 5,000-lb capacity unit. Complete with a powered turntable (RPM is vairable from 3 and 12) and counter-balanced stretch film mast. To operate, depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. A hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

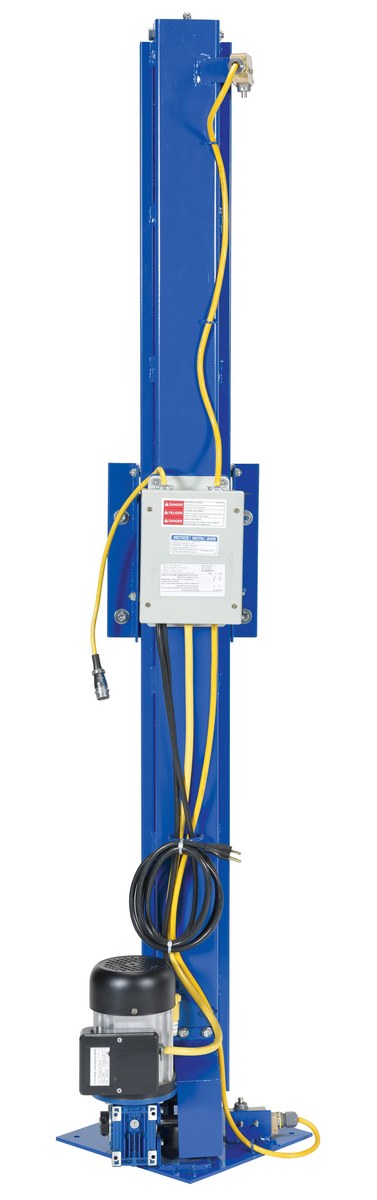

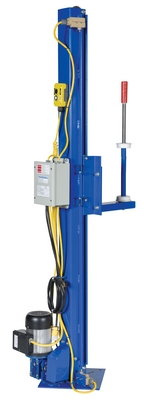

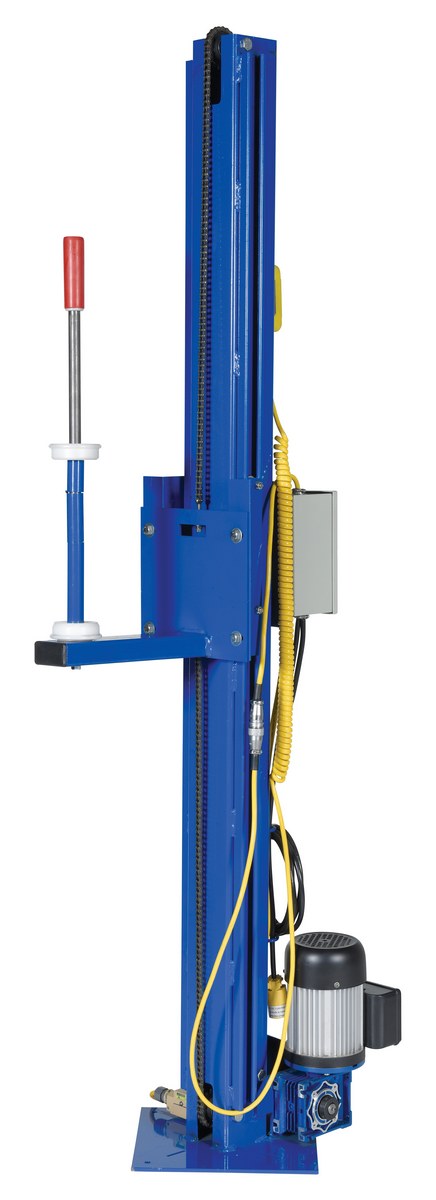

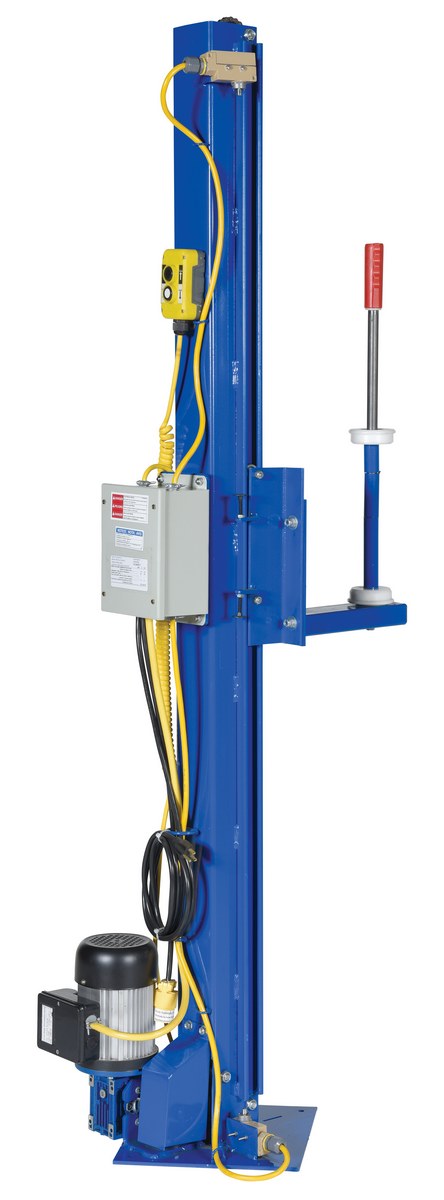

The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Please contact factory for Approach Ramp options on these models.

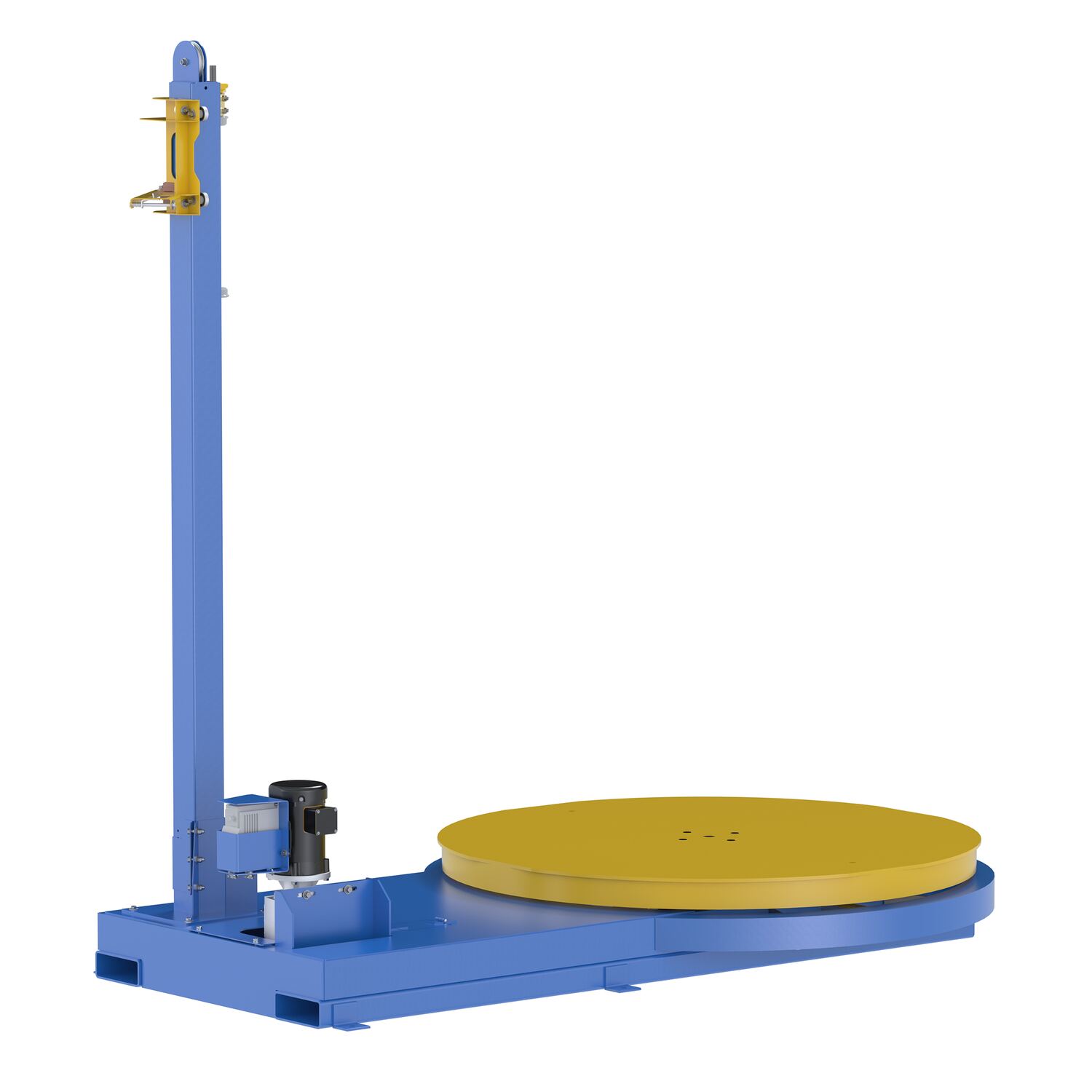

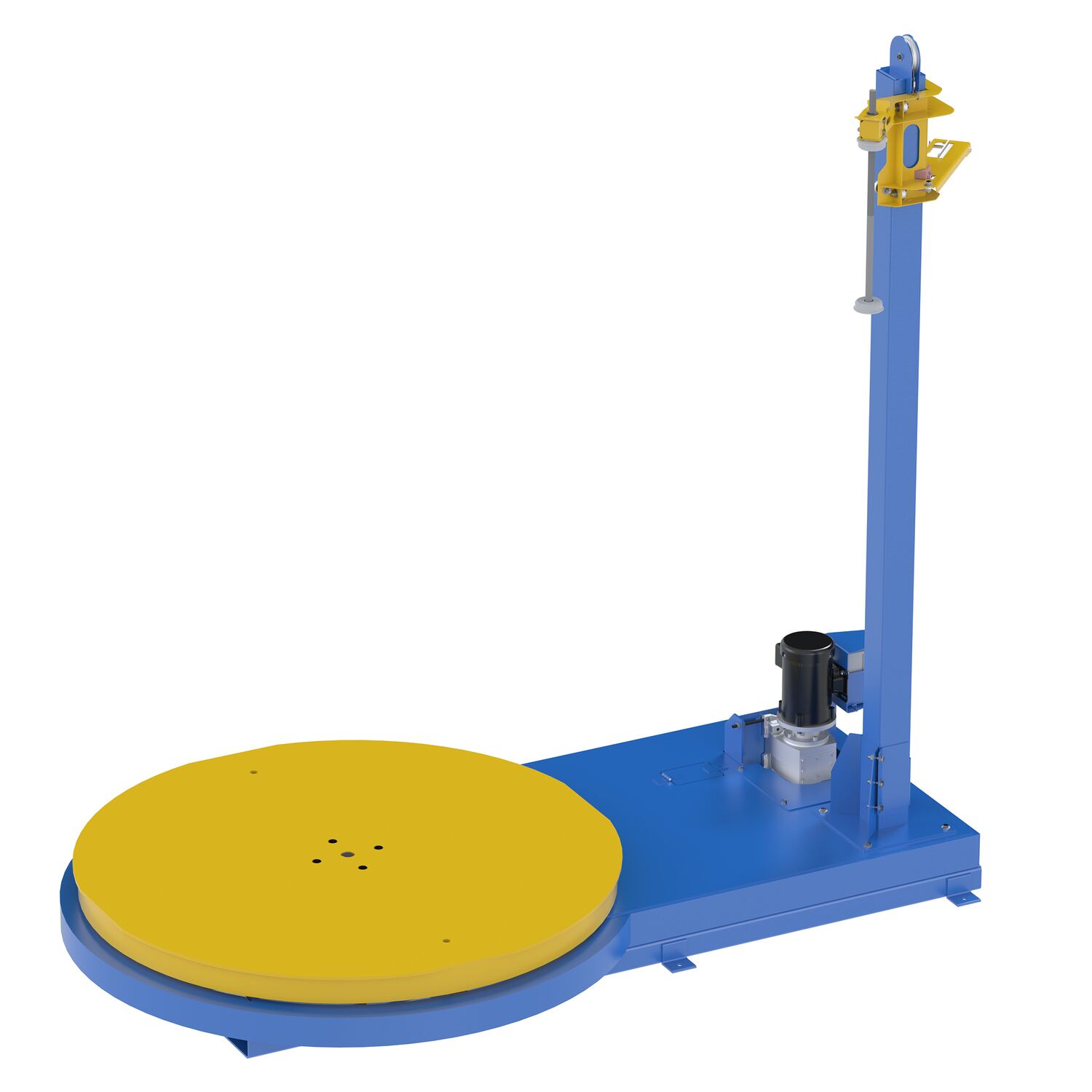

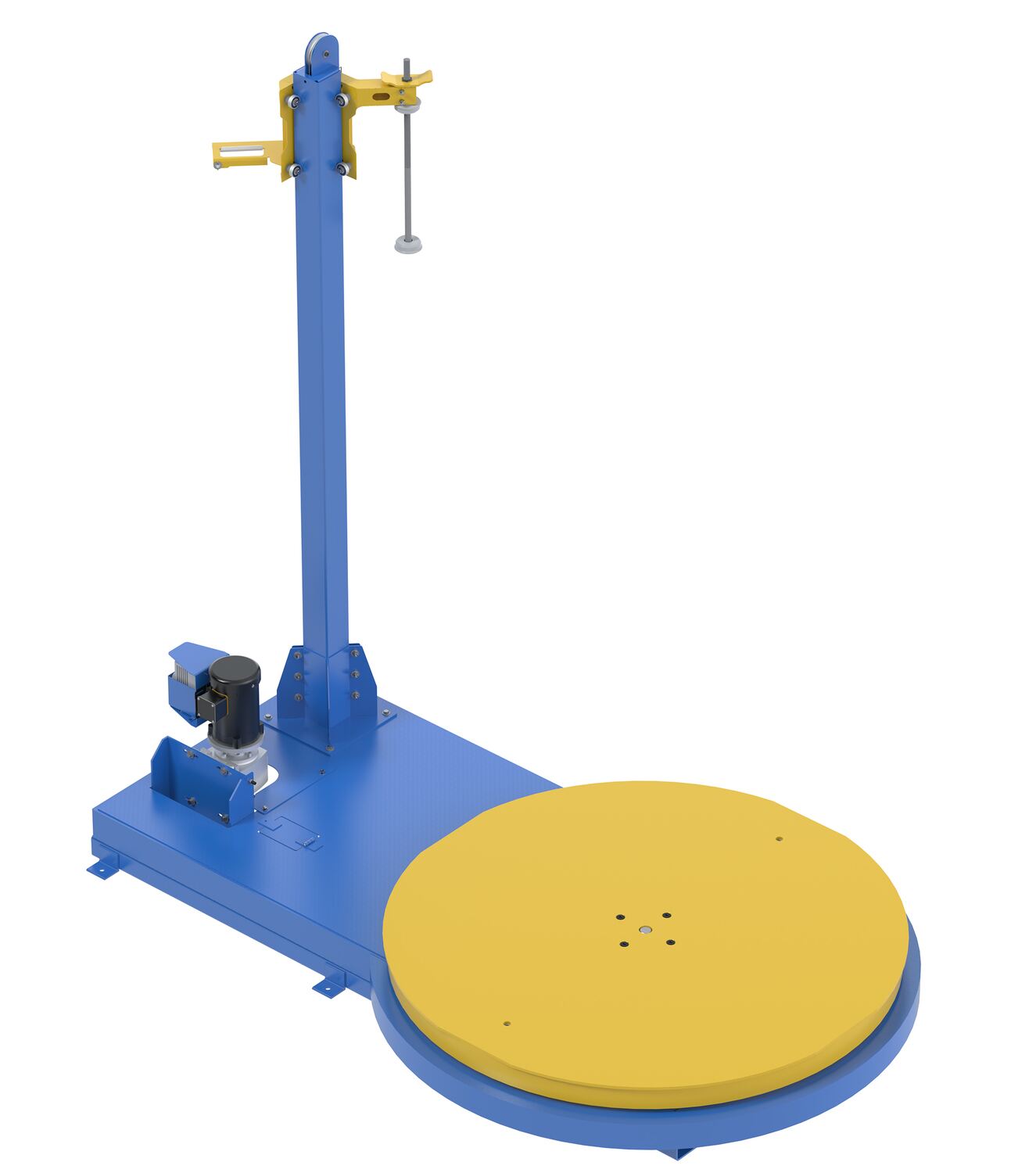

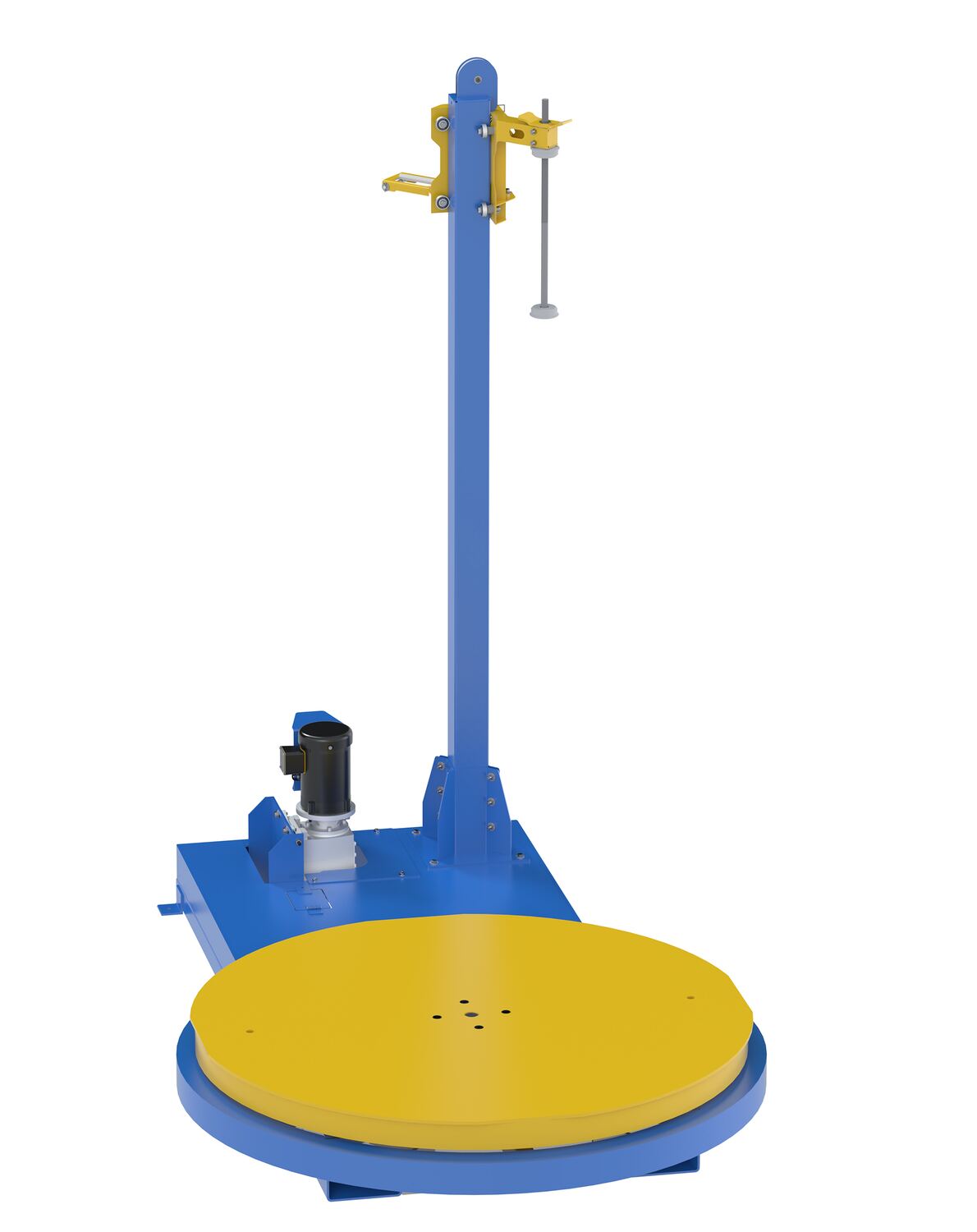

SWA-60

model SWA-60

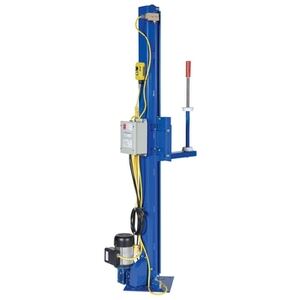

SWA-5460-PMO

model SWA-5460-PMO

SWA-COUNT

model SWA-COUNT


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Medium Duty High Performance Semi-Automatic Stretch Wrap Machine
Model PDFs Turntable
Diameter
Turntable
Height
Max. Load
Diameter
Max. Load
Wrap Height*
Capacity
(lbs)
Wt. (lbs)
SWA-54 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 54" 11-1/16" 90" 80-5/16" 5,000 1305
SWA-60 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60" 11-1/16" 90" 80-5/16" 5,000 1393
*Based on 20" high roll of stretch wrap material

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Medium Duty High Performance Semi-Automatic Stretch Wrap Machine
Model PDFs Details Wt.
(lbs)
SWA-5460-PMO - Powered Mast Option (54" & 60" Dia.) Factory installed 144

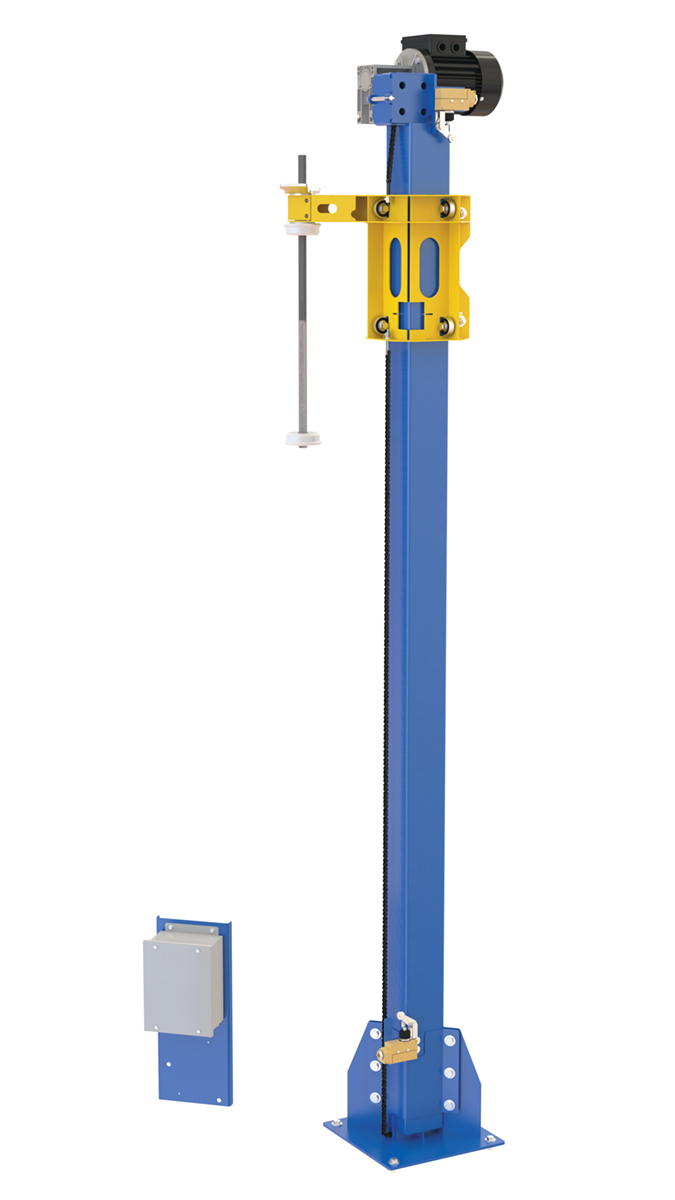

SWA-5460-PMO-RF - 115V Powered mast option (retrofit - field installed) 194

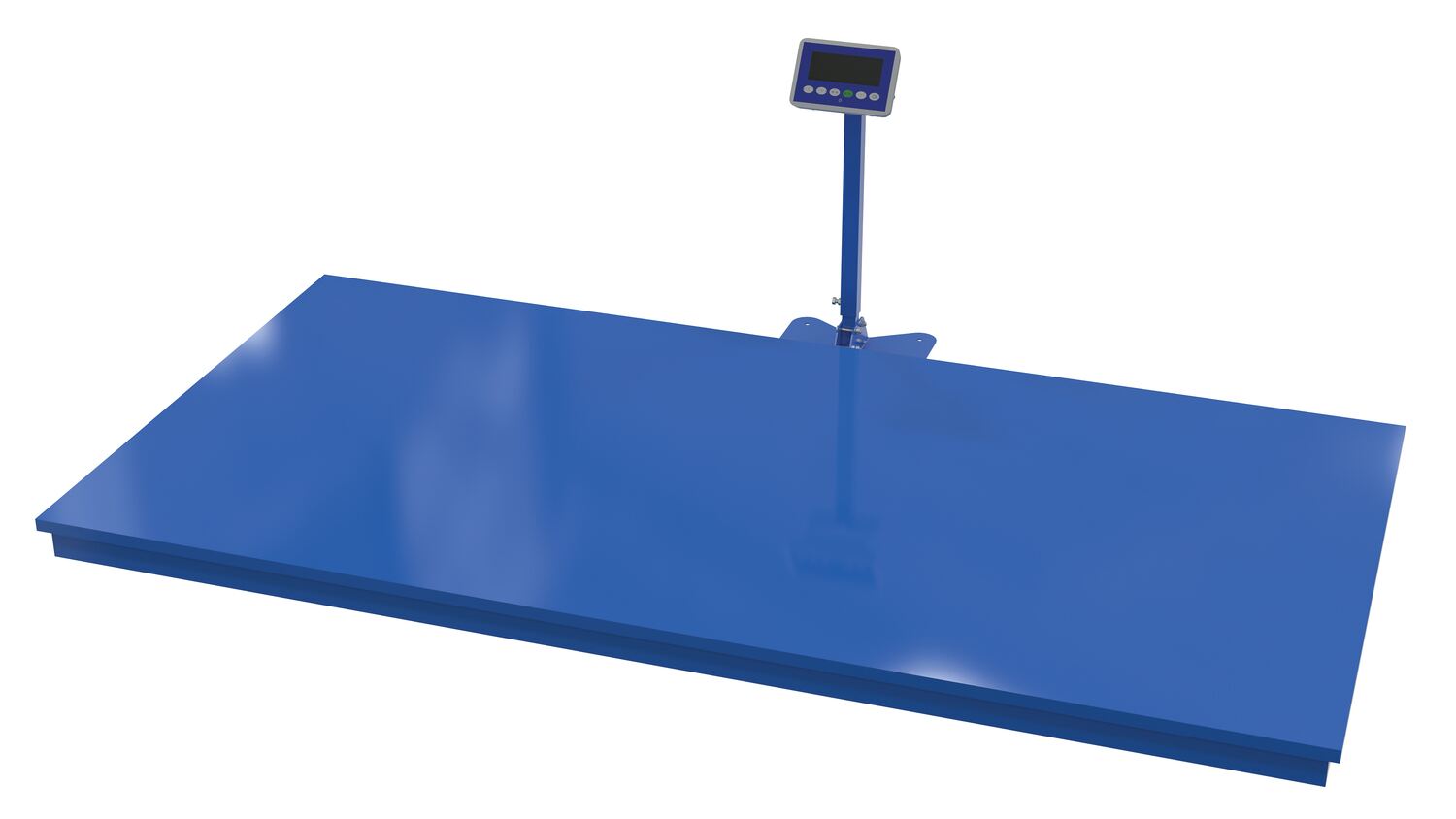

SWA-54-SCALE - Digital Scale Option for SWA-54 (adds 3-1/2" to turntable height - factory installed) 838

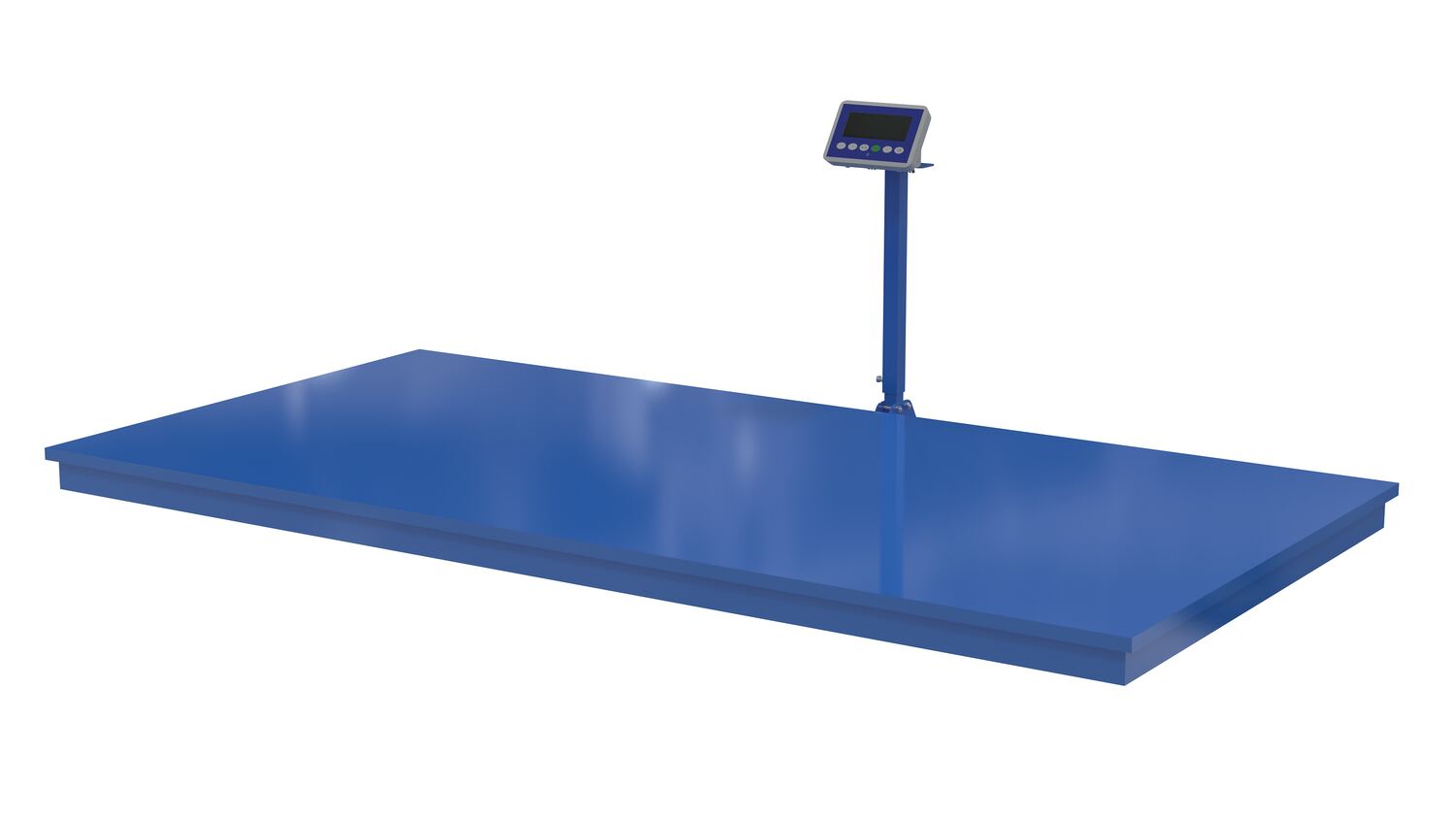

SWA-60-SCALE - Digital Scale Option for SWA-60 (adds 3-1/2" to turntable height - factory installed) 838
SWA-COUNT - Counter option, keep track of carousel rotations 1
SWA-NRTL-COMP - UL Approved components --
SWA-INDEX - Auto-Indexing 90 degrees, 120 degrees, or 180 degrees 1

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

SWA-54

SWA-54

SWA-54-SCALE

SWA-54-SCALE

SWA-5460-PMO

SWA-5460-PMO

SWA-5460-PMO-RF

SWA-5460-PMO-RF

SWA-60

SWA-60

SWA-60-SCALE

SWA-60-SCALE
