Click Image to Enlarge

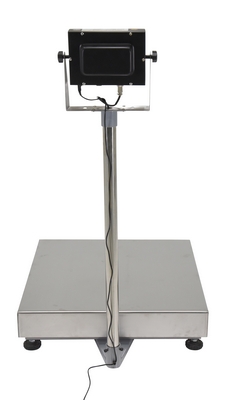

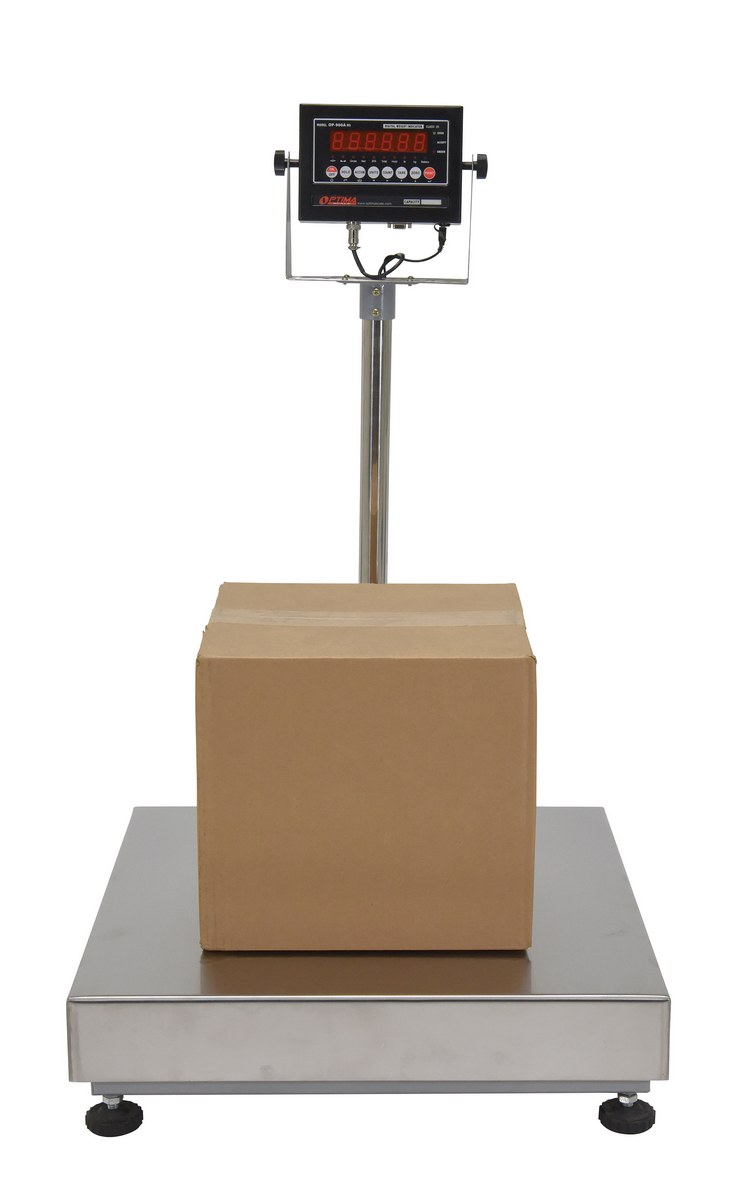

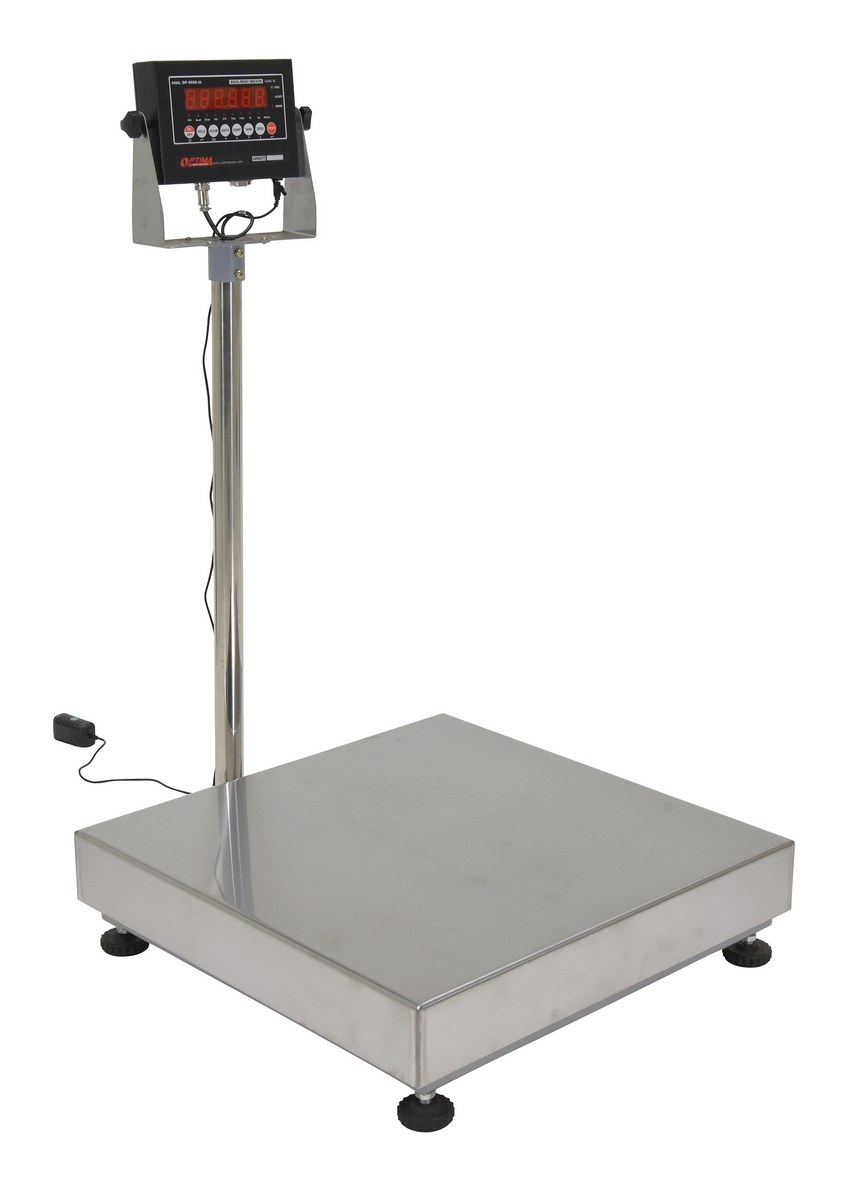

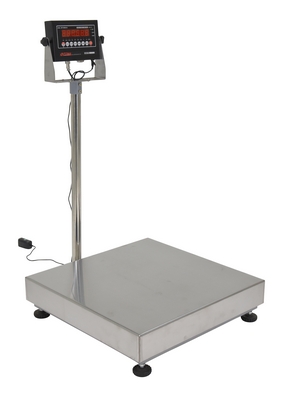

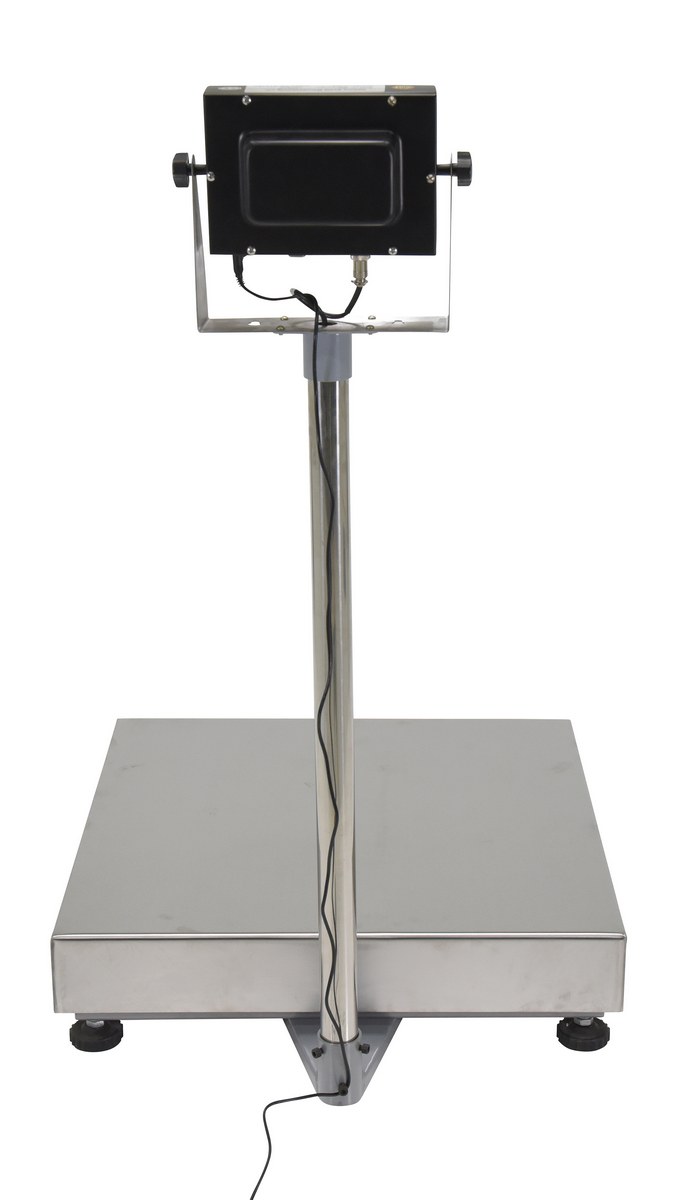

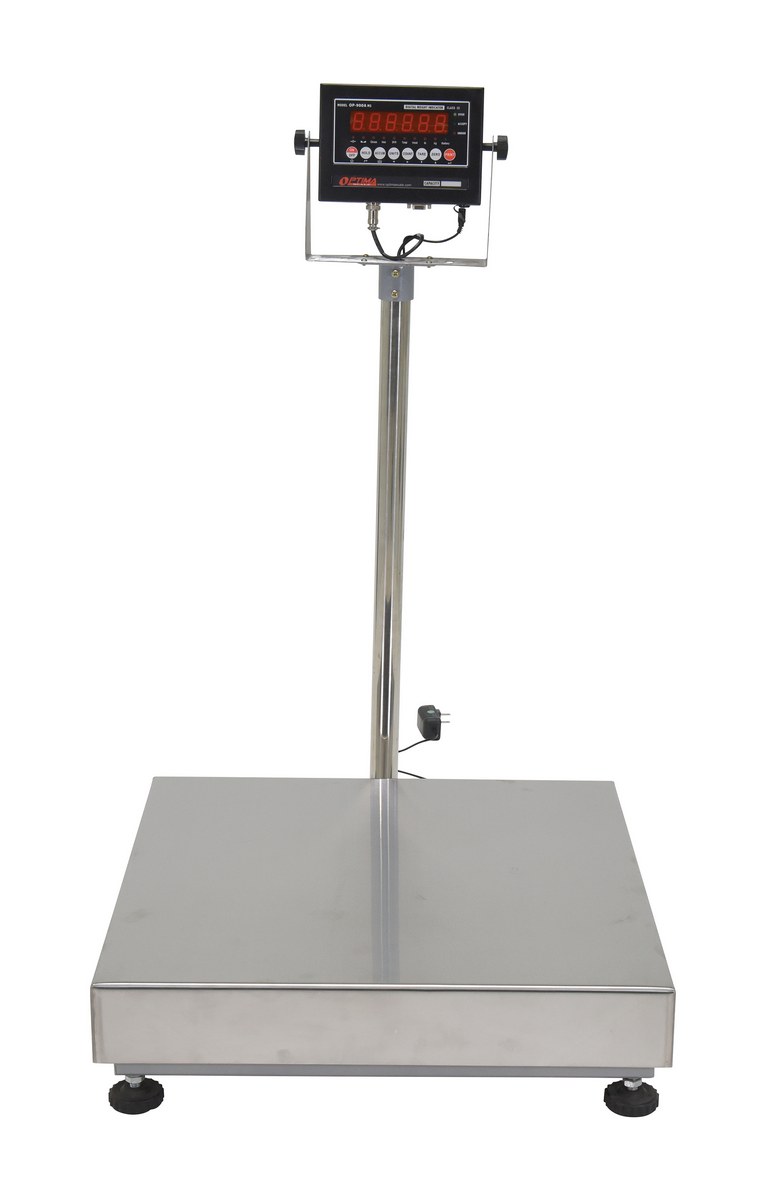

model: BS-915-2424-1000


Bench Scales - Legal for Trade
SERIES: BS

Designed for speed, accuracy, and high usage. Ideal for busy shipping docks, outdoor markets, and food processing. Mild steel platform, interlocking 304 stainless steel tray for easy cleaning. Adjustable tilt display for convenient viewing angles. Rechargeable battery and AC adapter. Aluminum environmentally sealed single point load cell. Adjustable feet provides exceptional traction. Removable column for indicator to work up to 4ft from the base. International protection IP65. Weight and count. Connection Port RS-232. LCD display (lbs, kgs, ounces, and grams).

Designed for speed, accuracy, and high usage. Ideal for busy shipping docks, outdoor markets, and food processing. Mild steel platform, interlocking 304 stainless steel tray for easy cleaning. Adjustable tilt display for convenient viewing angles. Rechargeable battery and AC adapter. Aluminum environmentally sealed single point load cell. Adjustable feet provides exceptional traction. Removable column for indicator to work up to 4ft from the base. International protection IP65. Weight and count. Connection Port RS-232. LCD display (lbs, kgs, ounces, and grams).

Share This Page

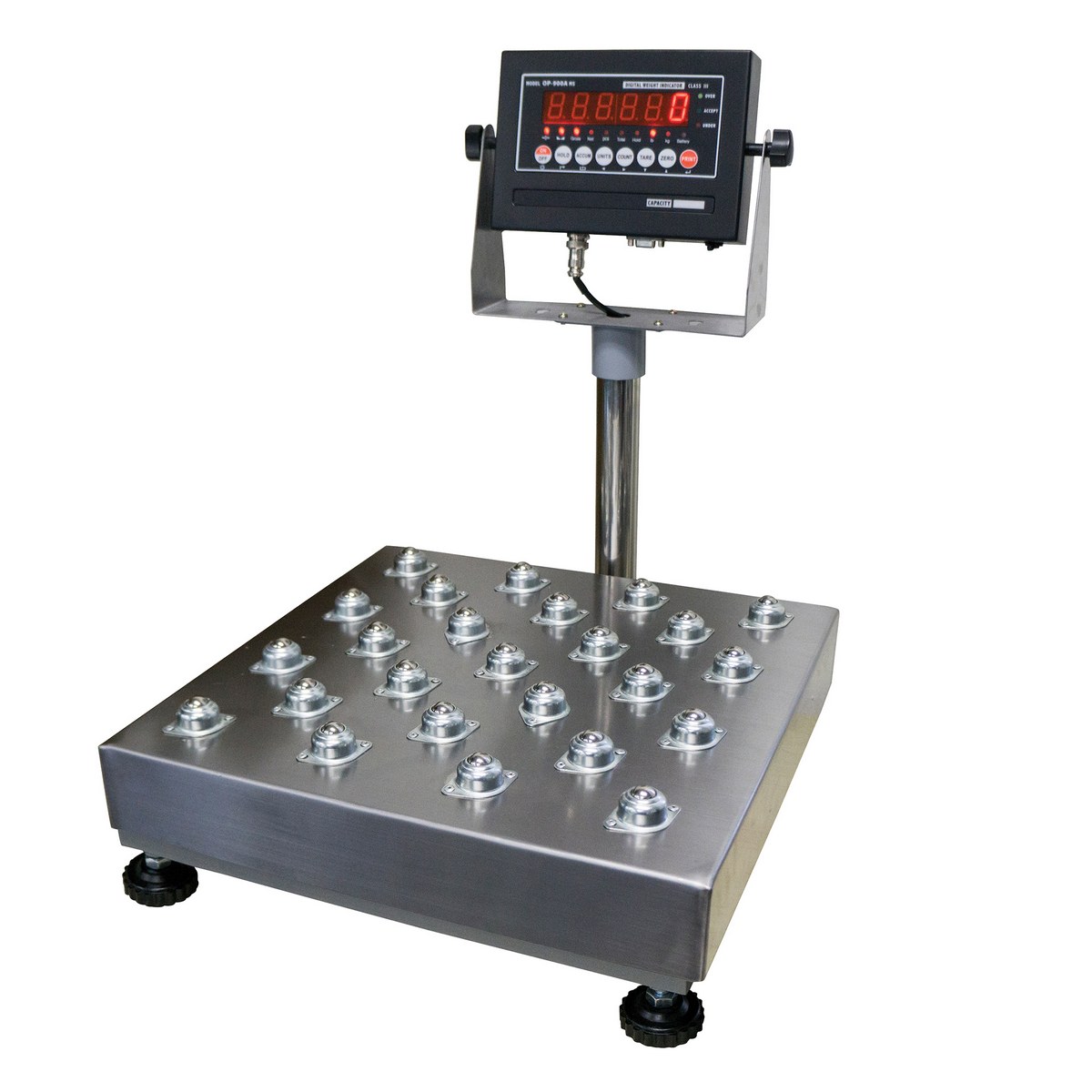

BS-915BT-2424-1000

model BS-915BT-2424-1000

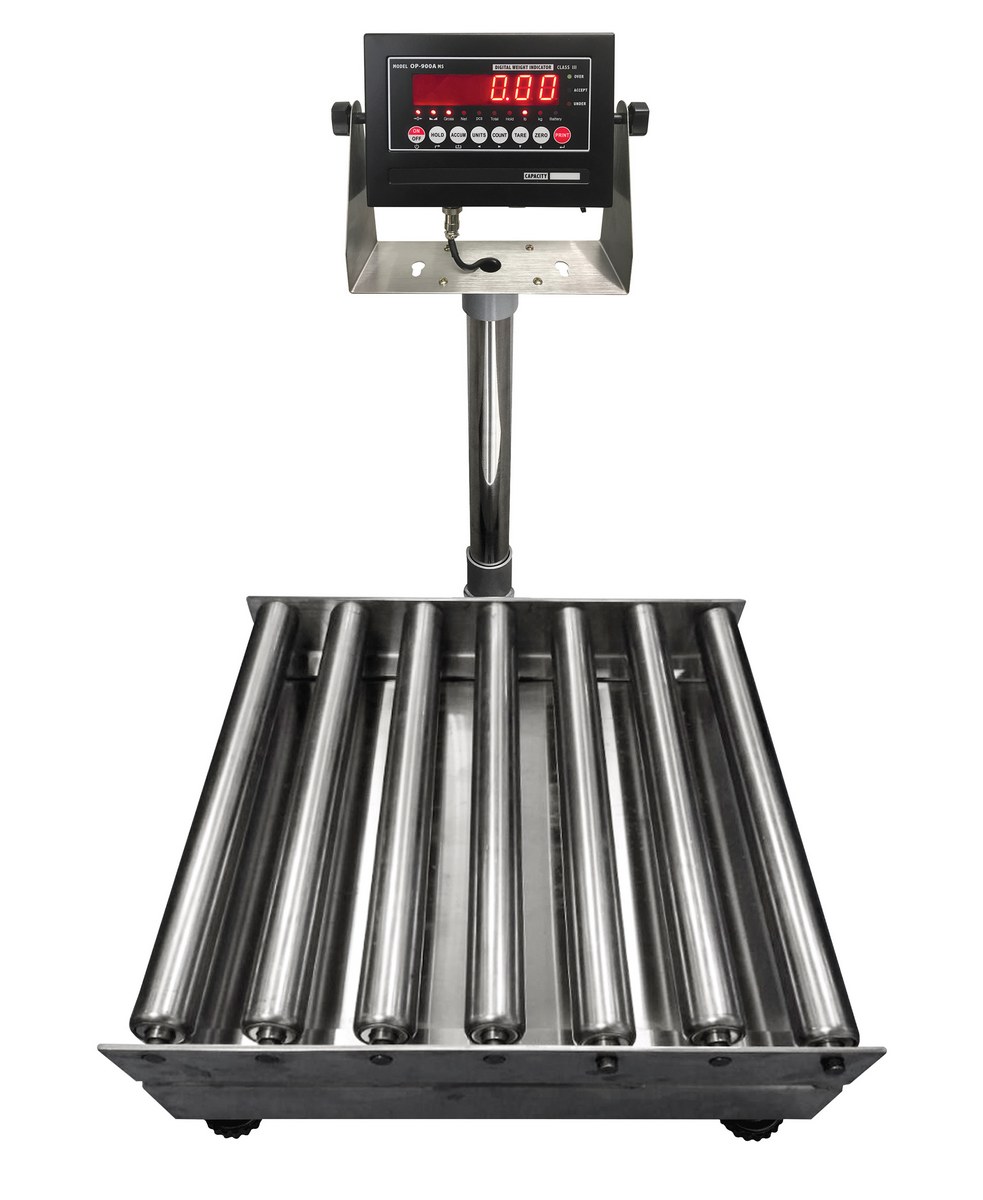

BS-915RT-2424-1000

model BS-915RT-2424-1000




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Bench Scales - Legal for Trade (NTEP)
Model Image PDFs Platform
Size (WxL)
Capacity x
Readability
Overall Size
(WxLxH)
Wt.
(lbs)
BS-915-1212-100 Warranty PDF 12"x12" 100 lb. x 0.2 lbs 12"x16"x17" 25
BS-915-1214-150 Warranty PDF 12"x14" 150 lb. x 0.2 lbs 14"x18"x17" 26
BS-915-1616-300 Warranty PDF 16"x16" 300 lb. x 0.5 lbs 16"x20"x26" 34

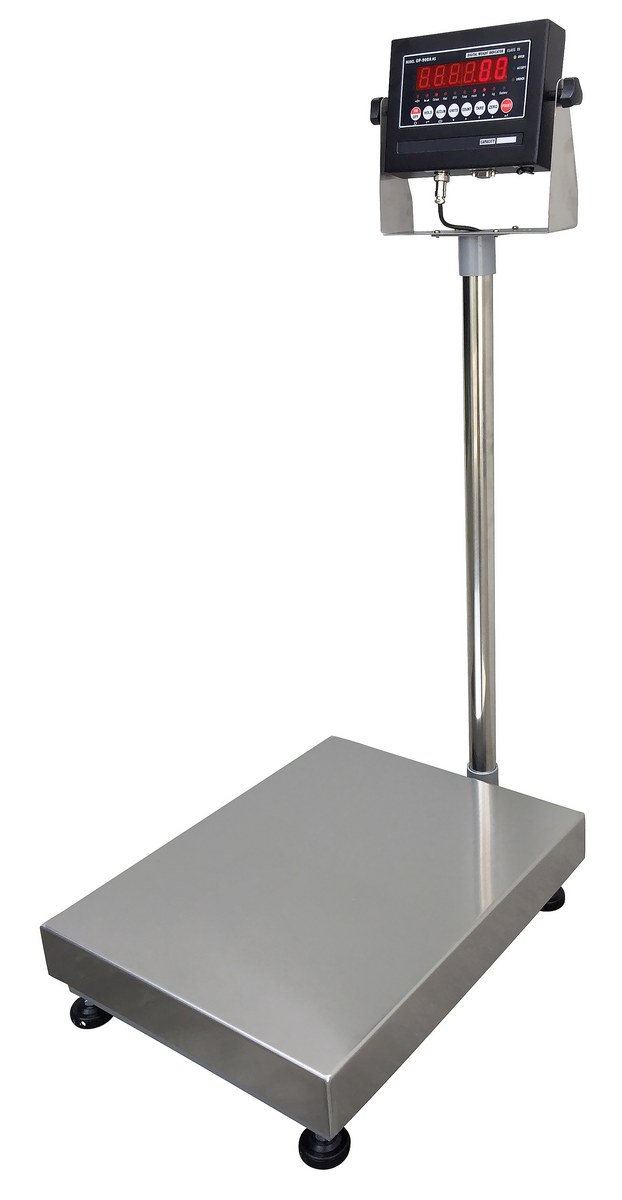

BS-915-1620-400 Warranty PDF 16"x20" 400 lb. x 0.5 lbs 16"x24"x26" 40
BS-915-1818-400 Warranty PDF 18"x18" 400 lb. x 0.5 lbs 18"x22"x26" 42
BS-915-1824-500 Warranty PDF 18"x24" 500 lb. x 0.1 lbs 18"x28"x33" 66
BS-915-2020-500 Warranty PDF 20"x20" 500 lb. x 0.1 lbs 20"x24"x33" 64

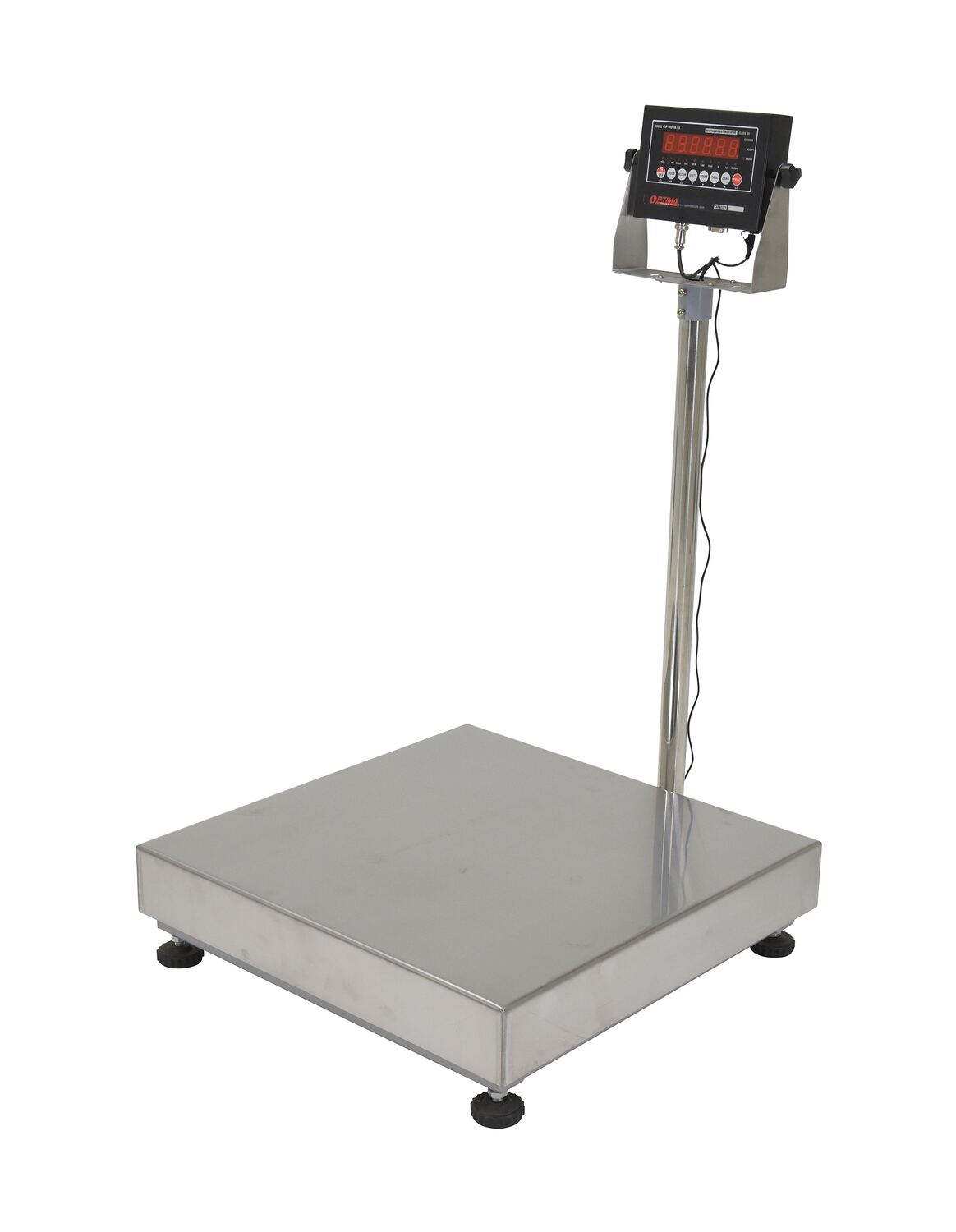

BS-915-2424-500 Warranty PDF 24"x24" 500 lb. x 0.1 lbs 24"x28"x33" 72
BS-915-2424-1000 Warranty PDF 24"x24" 1000 lb. x 0.2 lbs 24"x28"x33" 72
BS-915BT-2424-1000* Warranty PDF 24"x24" 1000 lb. x 0.2 lbs 24"x28"x33" 74
BS-915RT-2424-1000** Warranty PDF 24"x24" 1000 lb. x 0.2 lbs 24"x28"x33" 76
*BT (Ball Transfer Top)
**RT (Roller Top)

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate


Model Image PDFs Description * Net Wt.
(lbs)
BS-915-1212-100 30 Days WarrantyBENCH SCALE SS TRAY 12X12 100 LB CAPCapacity x Readability (lb.): 100 x 0.223
BS-915-1214-150 30 Days WarrantyBENCH SCALE SS TRAY 12X14 150 LB CAPCapacity x Readability (lb.): 150 x 0.224
BS-915-1616-300 30 Days WarrantyBENCH SCALE SS TRAY 16X16 300 LB CAPCapacity x Readability (lb.): 300 x 0.532
BS-915-1620-400 30 Days WarrantyBENCH SCALE SS TRAY 16X20 400 LB CAPCapacity x Readability (lb.): 400 x 0.538
BS-915-1818-400 30 Days WarrantyBENCH SCALE SS TRAY 18X18 400 LB CAPCapacity x Readability (lb.): 400 x 0.540
BS-915-1824-500 30 Days WarrantyBENCH SCALE SS TRAY 18X24 500 LB CAPCapacity x Readability (lb.): 500 x 0.164
BS-915-2020-500 30 Days WarrantyBENCH SCALE SS TRAY 20X20 500 LB CAPCapacity x Readability (lb.): 500 x 0.162
BS-915-2424-1000 30 Days WarrantyBENCH SCALE SS TRAY 24X24 1000 LB CAPCapacity x Readability (lb.): 1000 x 0.270
BS-915-2424-500 30 Days WarrantyBENCH SCALE SS TRAY 24X24 500 LB CAPCapacity x Readability (lb.): 500 x 0.170
BS-915BT-2424-1000 30 Days WarrantyBENCH SCALE SS TRAY BALL TOP 24X24 1000Capacity x Readability (lb.): 1000 x 0.272
BS-915RT-2424-1000 30 Days WarrantyBENCH SCALE SS TRAY ROLL TOP 24X24 1000Capacity x Readability (lb.): 1000 x 0.274



Bench Scales - Legal for Trade PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Bench Scales - Legal for Trade




Designed for speed, accuracy, and high usage. Ideal for busy shipping docks, outdoor markets, and food processing. Mild steel platform, interlocking 304 stainless steel tray for easy cleaning. Adjustable tilt display for convenient viewing angles. Rechargeable battery and AC adapter. Aluminum environmentally sealed single point load cell. Adjustable feet provides exceptional traction. Removable column for indicator to work up to 4ft from the base. International protection IP65. Weight and count. Connection Port RS-232. LCD display (lbs, kgs, ounces, and grams).


Bench Scales - Legal for Trade (NTEP)
Model Image PDFs Platform
Size (WxL)
Capacity x
Readability
Overall Size
(WxLxH)
Wt.
(lbs)
BS-915-1212-100 Warranty PDF 12"x12" 100 lb. x 0.2 lbs 12"x16"x17" 25
BS-915-1214-150 Warranty PDF 12"x14" 150 lb. x 0.2 lbs 14"x18"x17" 26
BS-915-1616-300 Warranty PDF 16"x16" 300 lb. x 0.5 lbs 16"x20"x26" 34
BS-915-1620-400 Warranty PDF 16"x20" 400 lb. x 0.5 lbs 16"x24"x26" 40
BS-915-1818-400 Warranty PDF 18"x18" 400 lb. x 0.5 lbs 18"x22"x26" 42
BS-915-1824-500 Warranty PDF 18"x24" 500 lb. x 0.1 lbs 18"x28"x33" 66
BS-915-2020-500 Warranty PDF 20"x20" 500 lb. x 0.1 lbs 20"x24"x33" 64
BS-915-2424-500 Warranty PDF 24"x24" 500 lb. x 0.1 lbs 24"x28"x33" 72
BS-915-2424-1000 Warranty PDF 24"x24" 1000 lb. x 0.2 lbs 24"x28"x33" 72
BS-915BT-2424-1000* Warranty PDF 24"x24" 1000 lb. x 0.2 lbs 24"x28"x33" 74
BS-915RT-2424-1000** Warranty PDF 24"x24" 1000 lb. x 0.2 lbs 24"x28"x33" 76
*BT (Ball Transfer Top)
**RT (Roller Top)
