Electronic Digital Floor Scales

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

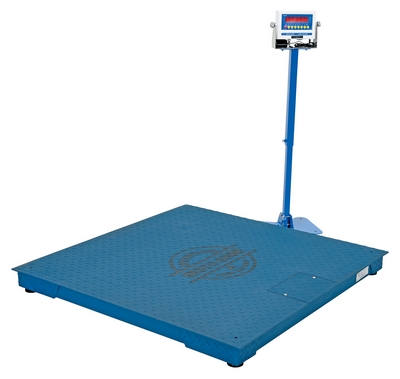

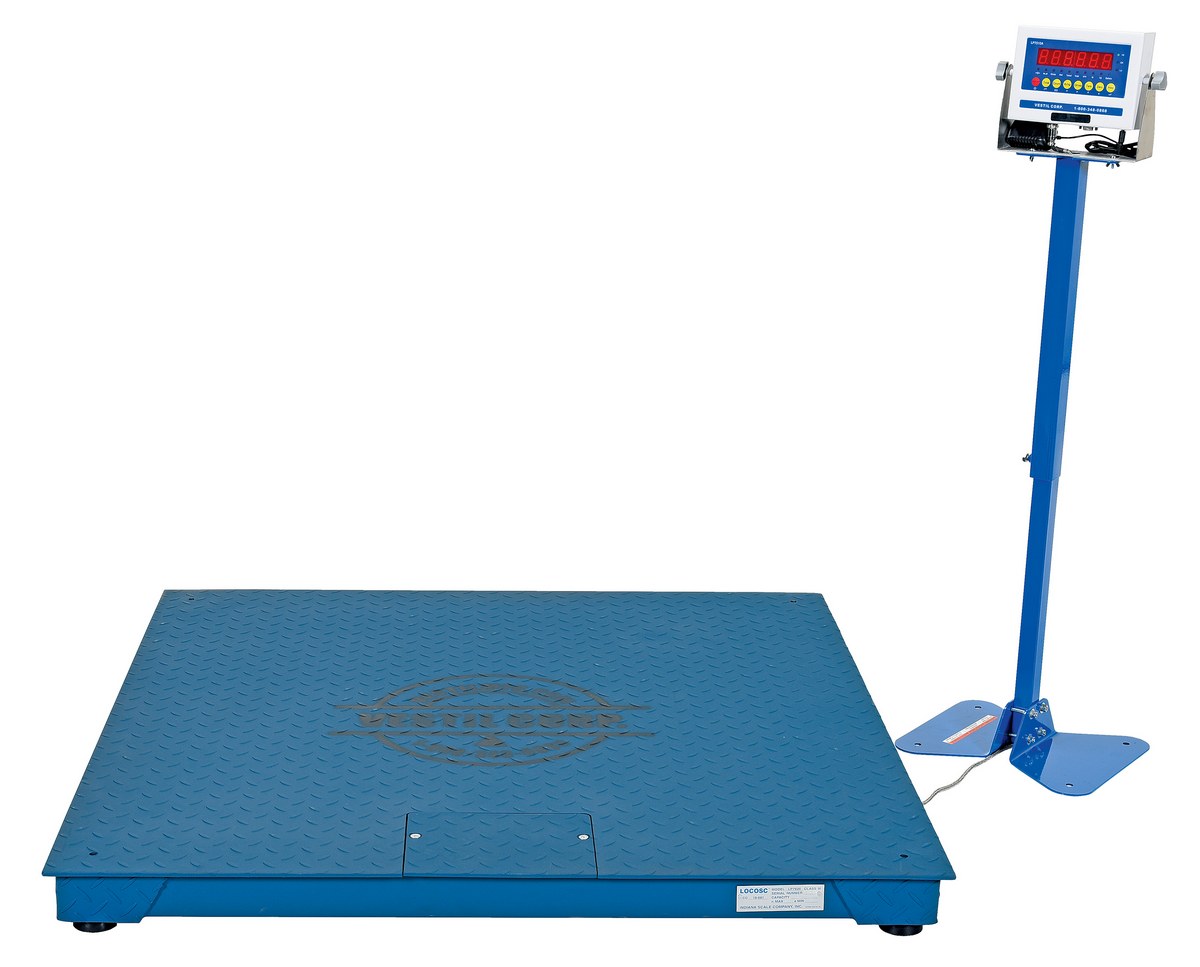

SCALE-S-CFT-44-10K_E.jpg SCALE-S-CFT-44-5K_A.jpg SCALE-S-CFT-44-5K_B.jpg SCALE-S-CFT-44-5K_C.jpg

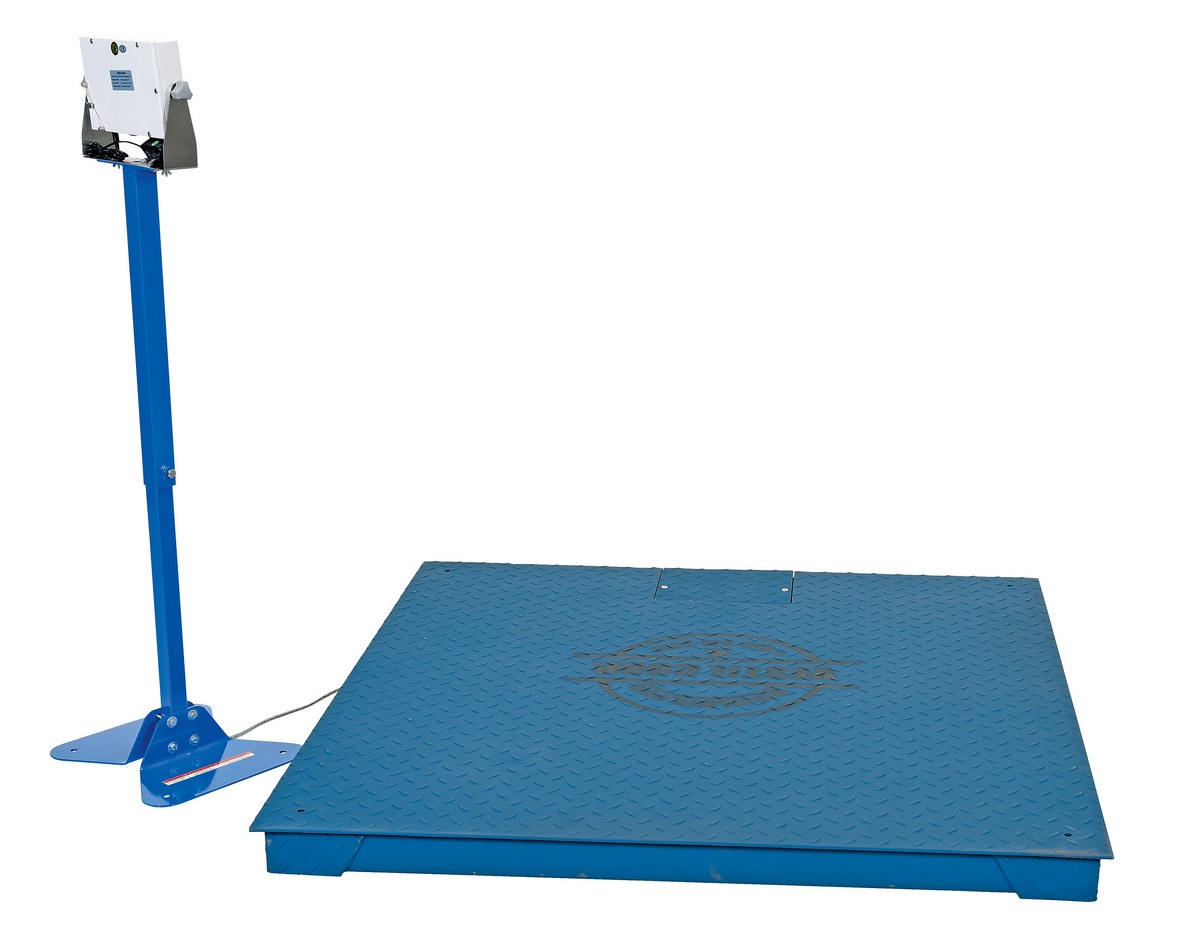

SCALE-S-CFT-44-5K_D.jpg SCALE-S-CFT-44-10K_1.jpg SCALE-S-CFT-44-10K_2.jpg
Electronic Digital Floor Scales

model: SCALE-S-CFT-44-10K



Featured Packaging Equipment


Edge Guards
Stand Alone Powered Carousels
Galvanized Welded Wire Pallets
Hook & Loop Straps
U Shaped Platform Scales
Pallets
Multi-Purpose Packaging Bench
Powered Stretch Wrap Machines
Recycled Nestable Presswood Pallets
model chart

Product Family Overview

Print Friendly

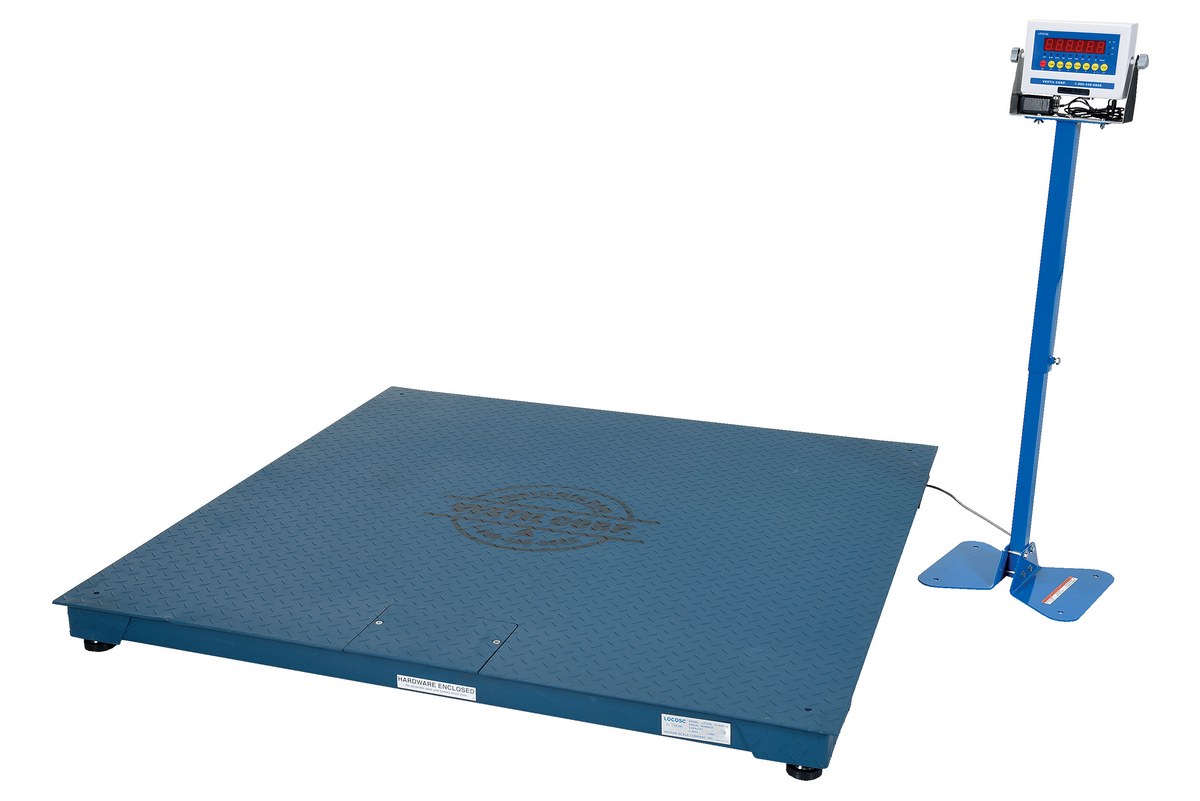

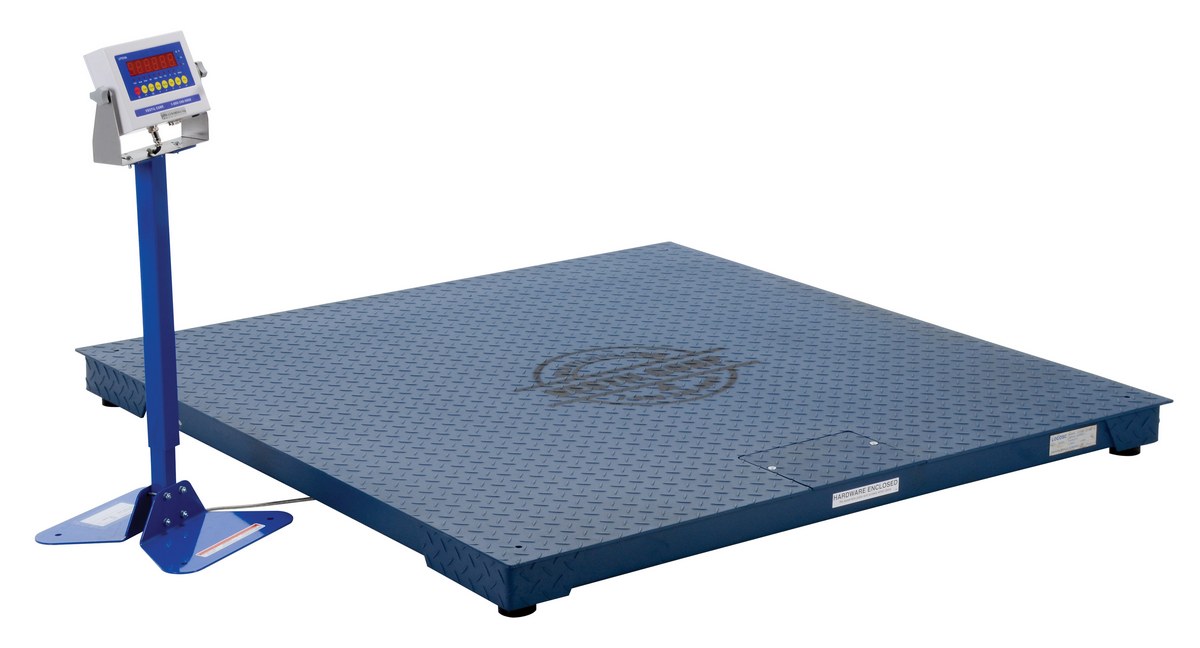

Electronic Digital Floor Scales
SERIES: SCALE

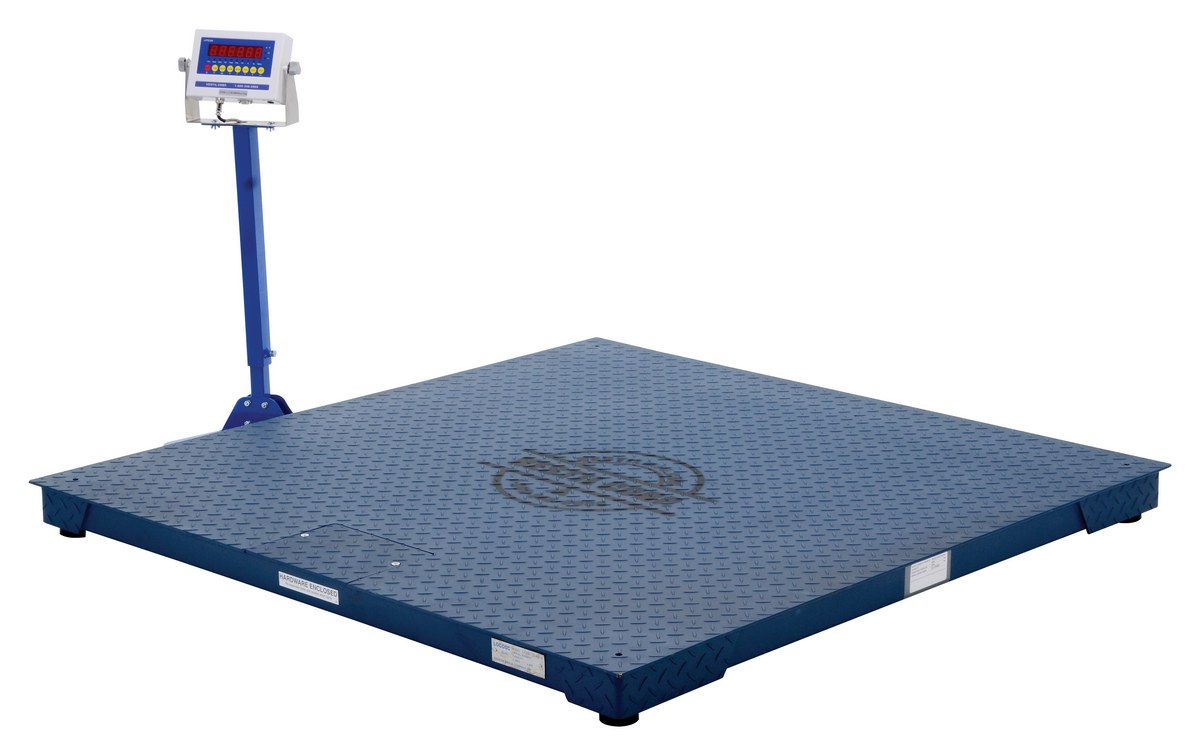

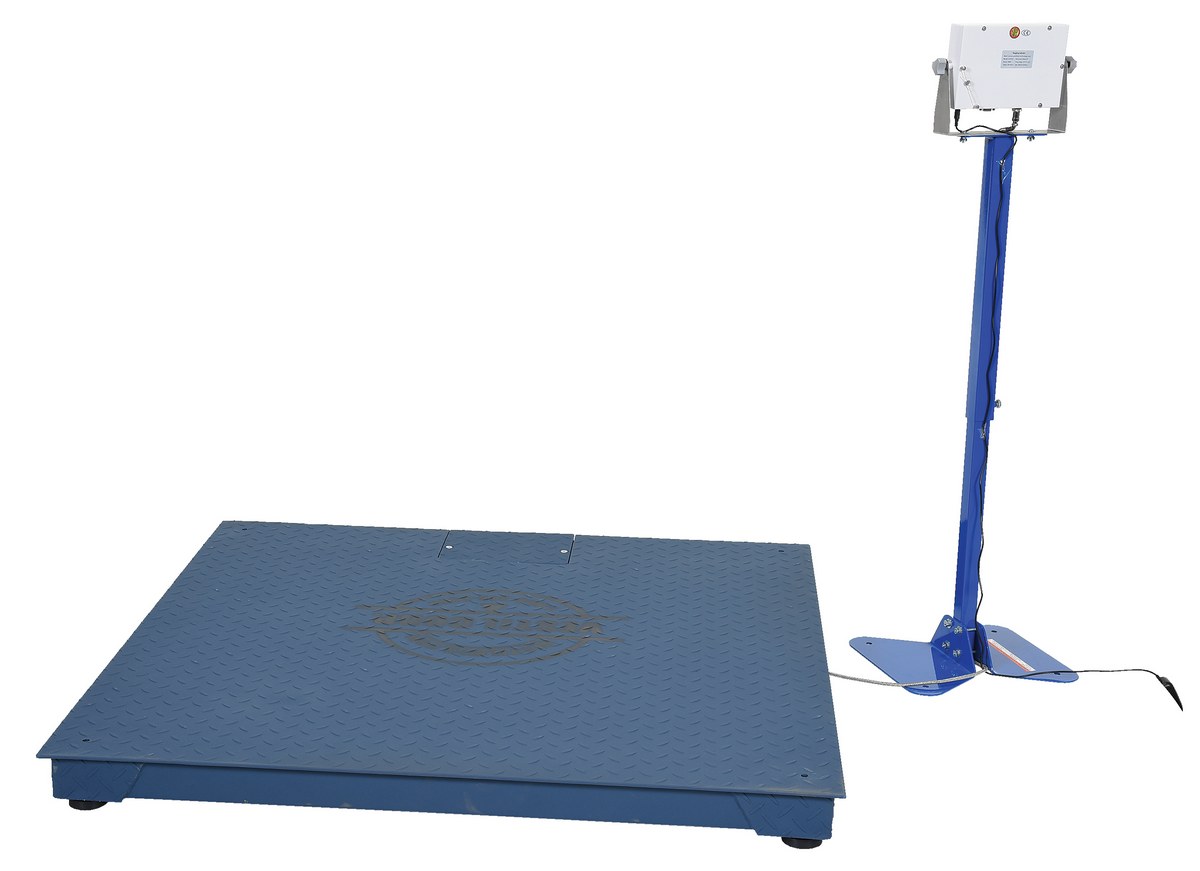

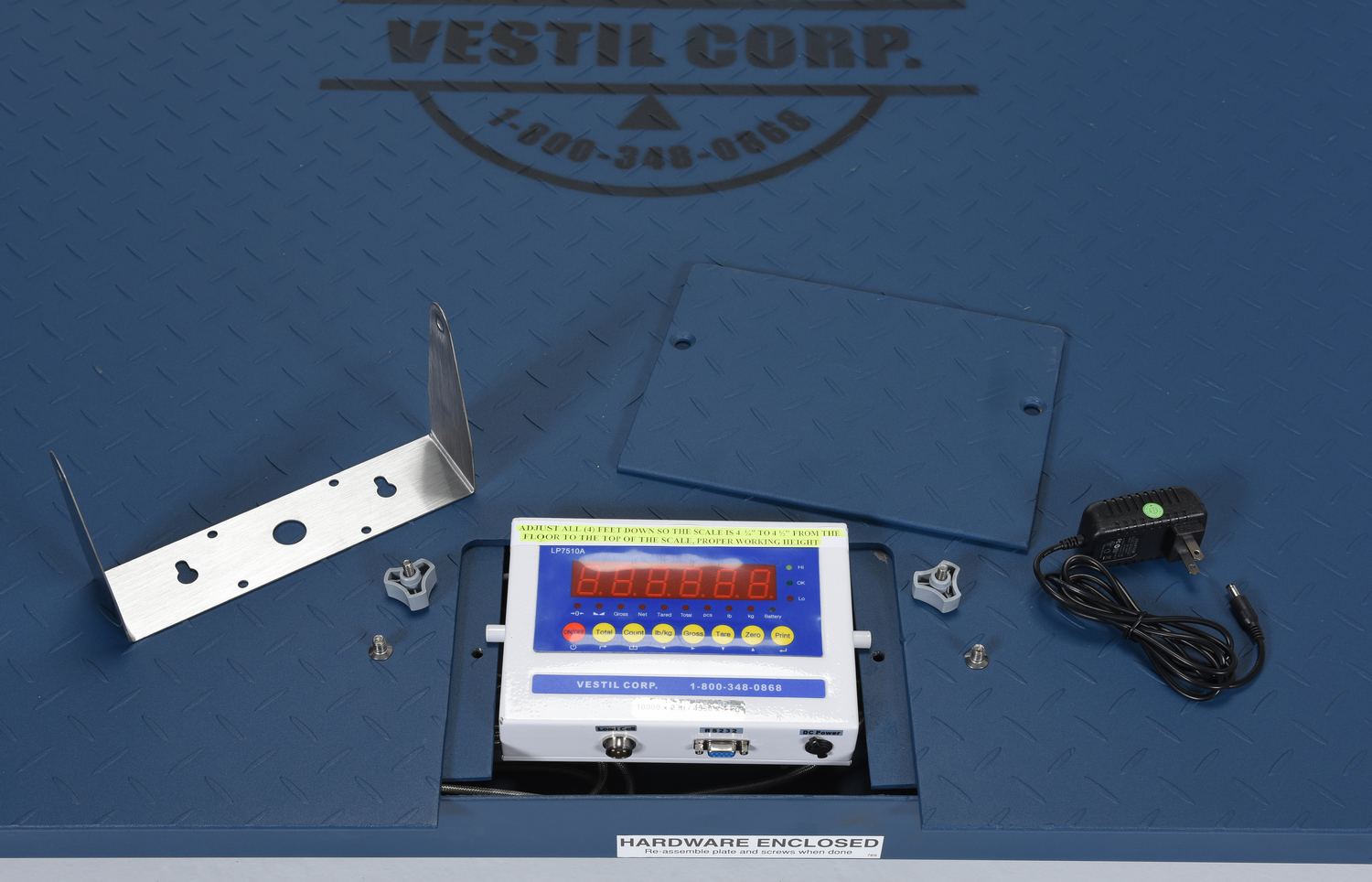

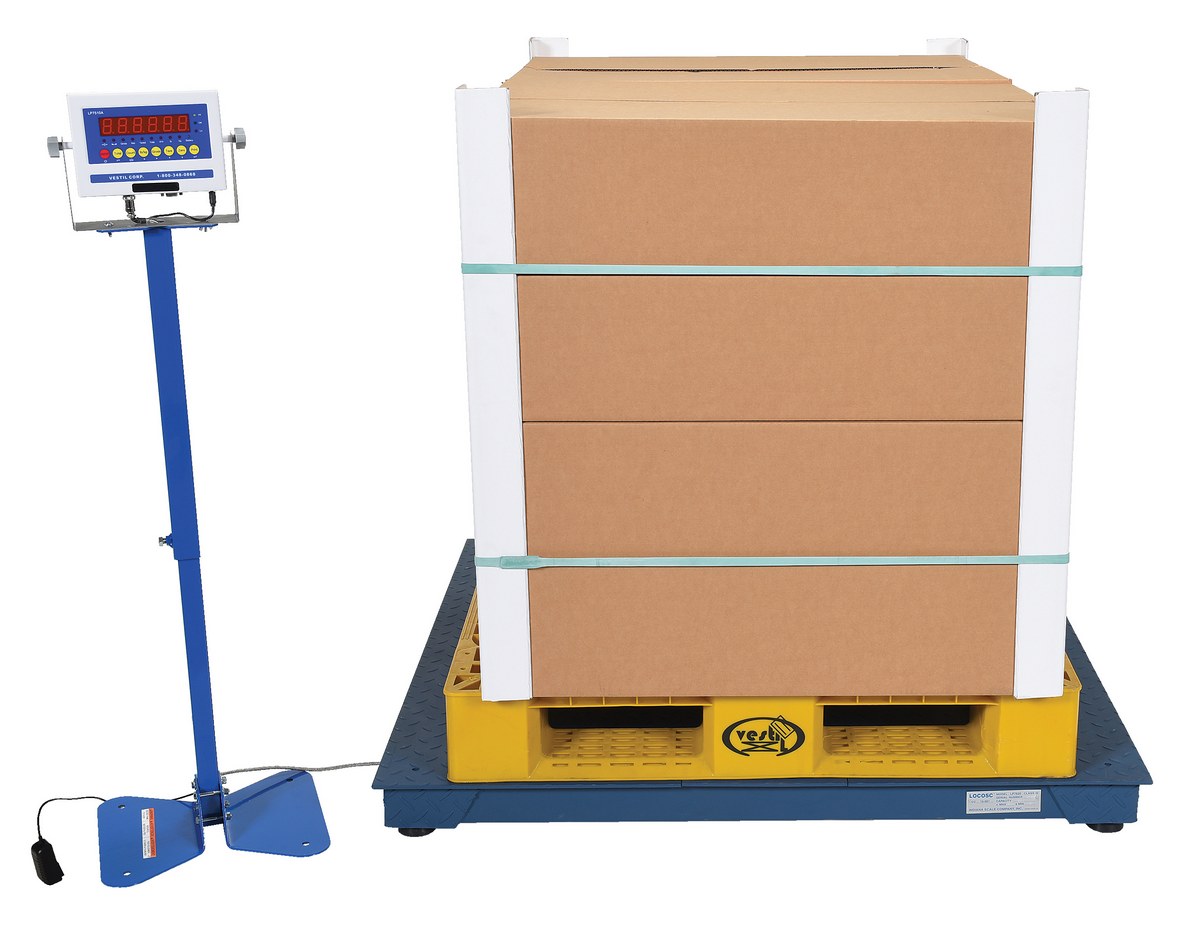

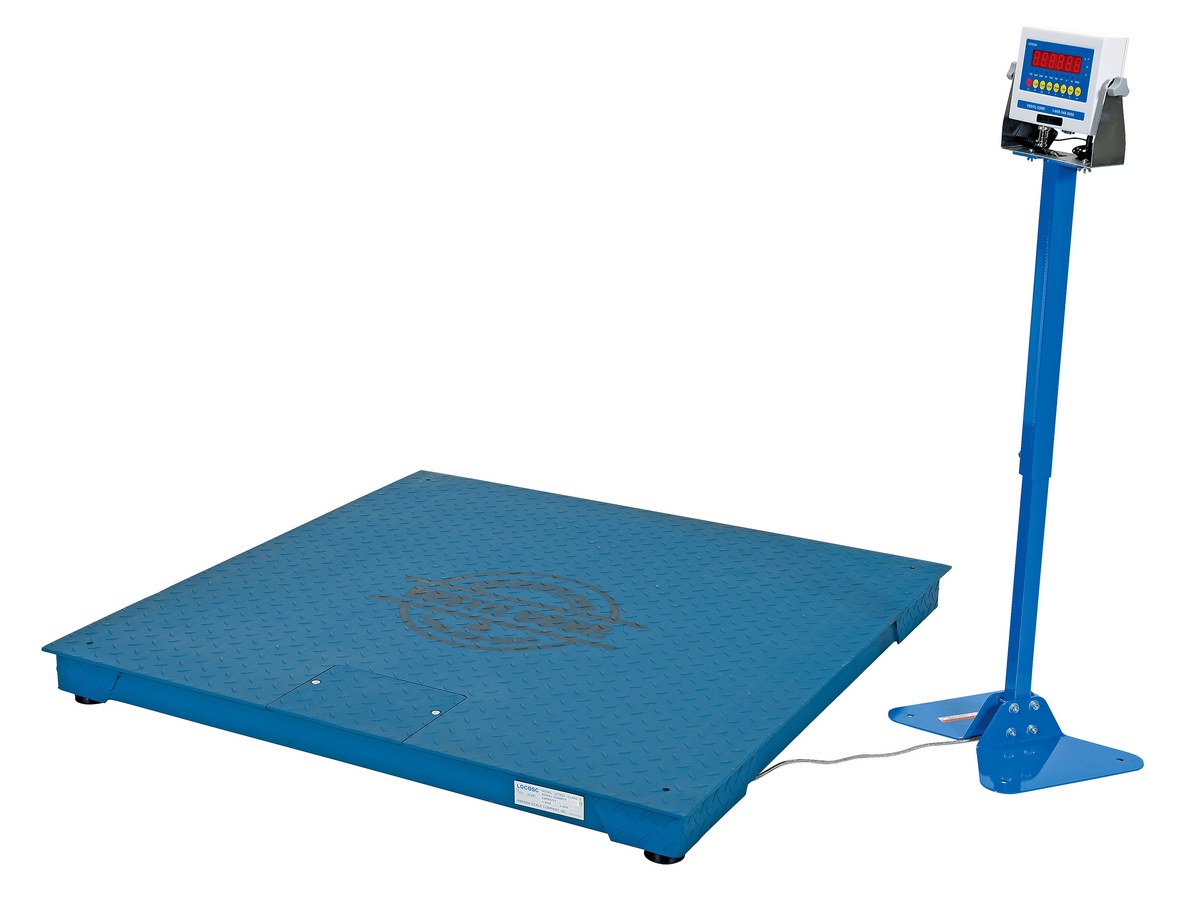

This scale has a low profile, allowing easy loading and unloading of heavy equipment. The rugged design has a tread plate top surface. Customer is responsible for contacting the local Weights and Measures Department or a state certified scale dealer before putting Legal for Trade (NTEP) scale into service for certification and is responsible for re-certification as required by local codes by certified personnel. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stand is adjustable up to 42" high and is 115V, 1 phase AC power, cord included. Optional Approach Ramp for pallet truck accessibility - order two for drive-on, drive-off convenience. Color may vary.

Legal for trade in US only- not legal for trade in Canada

  • Low-profile design allows easy product loading and unloading
  • Adjustable-height legs allow use on uneven floors
  • Programmable scale reads in multiple units of measure
  • Solid steel construction offers long lasting rugged use

This scale has a low profile, allowing easy loading and unloading of heavy equipment. The rugged design has a tread plate top surface. Customer is responsible for contacting the local Weights and Measures Department or a state certified scale dealer before putting Legal for Trade (NTEP) scale into service for certification and is responsible for re-certification as required by local codes by certified personnel. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stand is adjustable up to 42" high and is 115V, 1 phase AC power, cord included. Optional Approach Ramp for pallet truck accessibility - order two for drive-on, drive-off convenience. Color may vary.

Legal for trade in US only- not legal for trade in Canada

  • Low-profile design allows easy product loading and unloading
  • Adjustable-height legs allow use on uneven floors
  • Programmable scale reads in multiple units of measure
  • Solid steel construction offers long lasting rugged use

Other Scales

 Low Profile Scales & Ramps Electronic Digital Floor Scales Bench Scales - Legal for Trade Stainless Steel Bench Scales - Legal for Trade

Additional Models In This Family
view entire Image Gallery

SCALE-R-CS-44

SCALE-R-CS-44

SCALE-S-CFT-55-5K

SCALE-S-CFT-55-5K

SCALE-R-CS-44

SCALE-R-CS-44

SCALE-S-CFT-44-10K

SCALE-S-CFT-44-10K

SCALE-R-CS-54

SCALE-R-CS-54

SCALE-S-CFT-PRINTER

SCALE-S-CFT-PRINTER

SCALE-S-CFT-44-10K

SCALE-S-CFT-44-10K

SCALE-S-CFT-44-10K

SCALE-S-CFT-44-10K

SCALE-S-CFT-55-5K

SCALE-S-CFT-55-5K

SCALE-S-CFT-44-5K

SCALE-S-CFT-44-5K

SCALE-S-CFT-44-5K

SCALE-S-CFT-44-5K

SCALE-S-CFT-44-5K

SCALE-S-CFT-44-5K

SCALE-S-CFT-PRINTER

SCALE-S-CFT-PRINTER

SCALE-S-CFT-55-5K

SCALE-S-CFT-55-5K

SCALE-R-CS-44

SCALE-R-CS-44

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

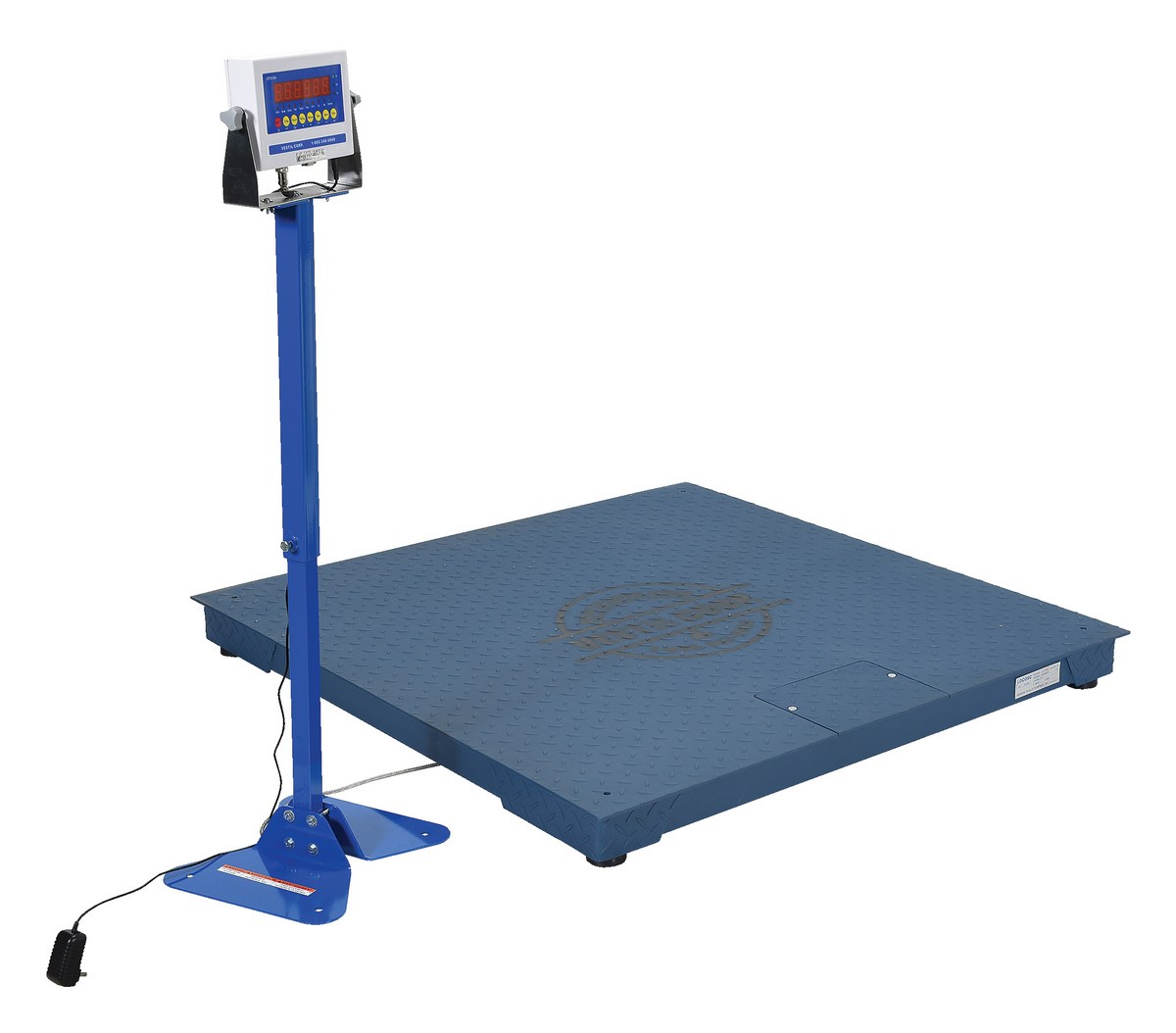

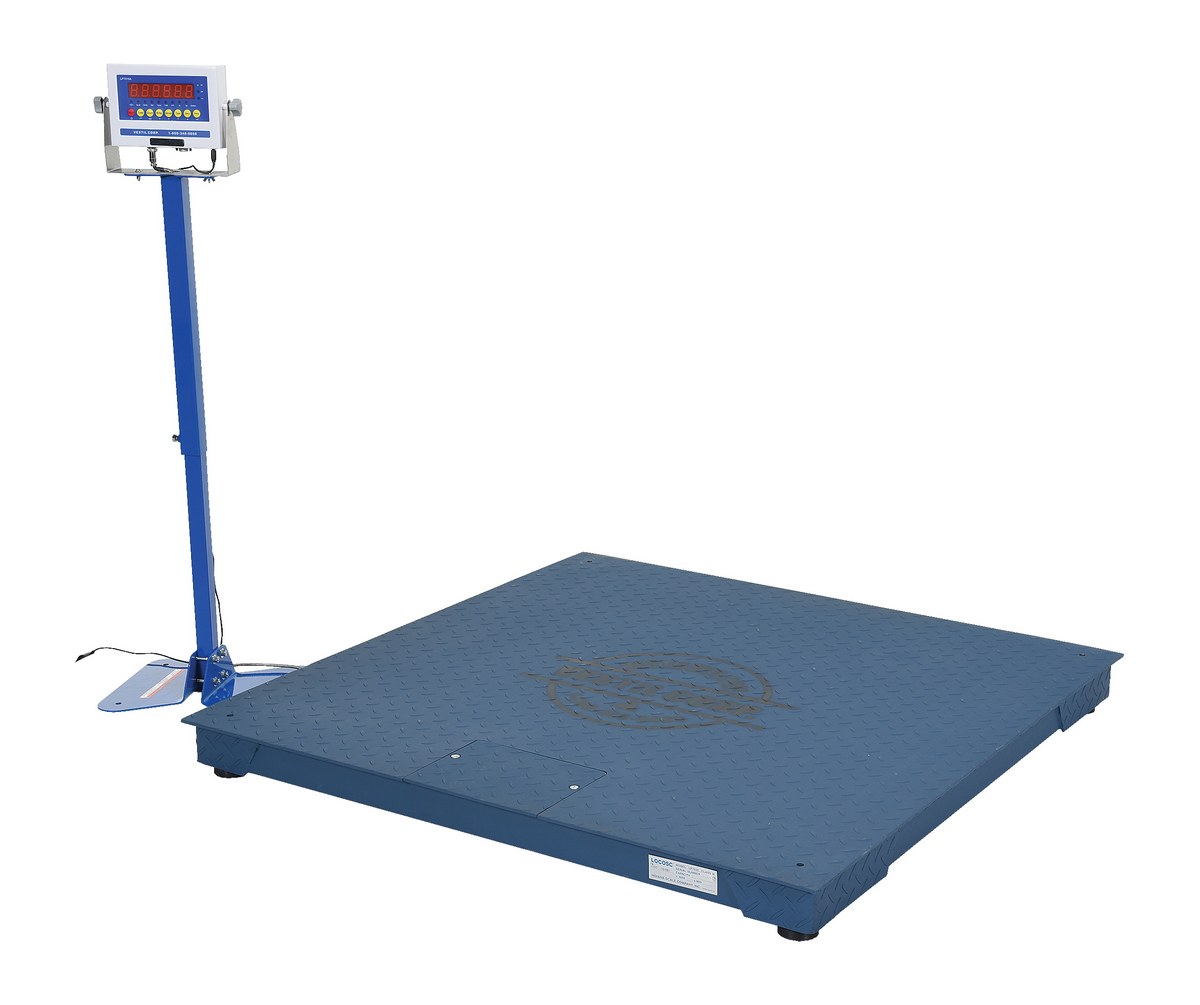

SCALE-S-CFT-44-10K SCALE-S-CFT-44-10K90 Days Limited WarrantySteel Electronic Digital Floor Scale 48 In. x 48 In. x 4-1/2 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Digital Display Height (in.): 42		373
SCALE-S-CFT-44-5K SCALE-S-CFT-44-5K90 Days Limited WarrantySteel Electronic Digital Floor Scale 48 In. x 48 In. x 4-1/2 In. 5,000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Digital Display Height (in.): 42		323

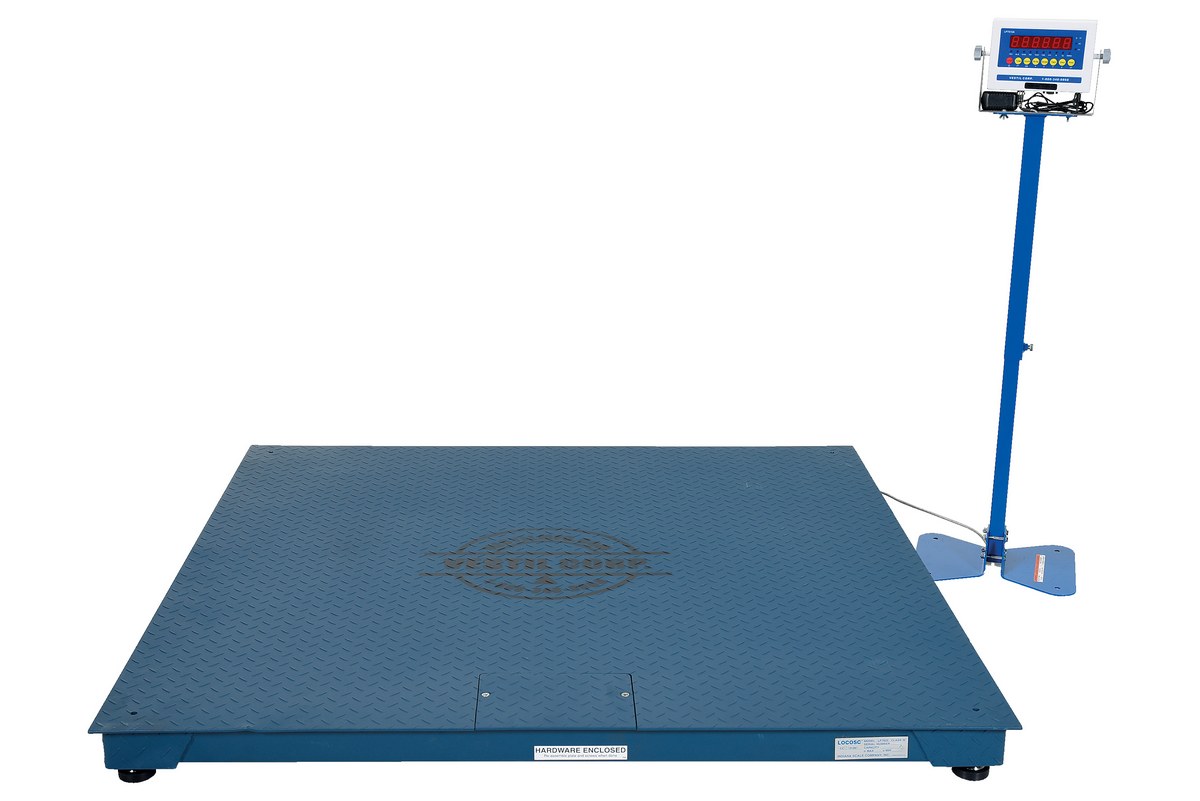

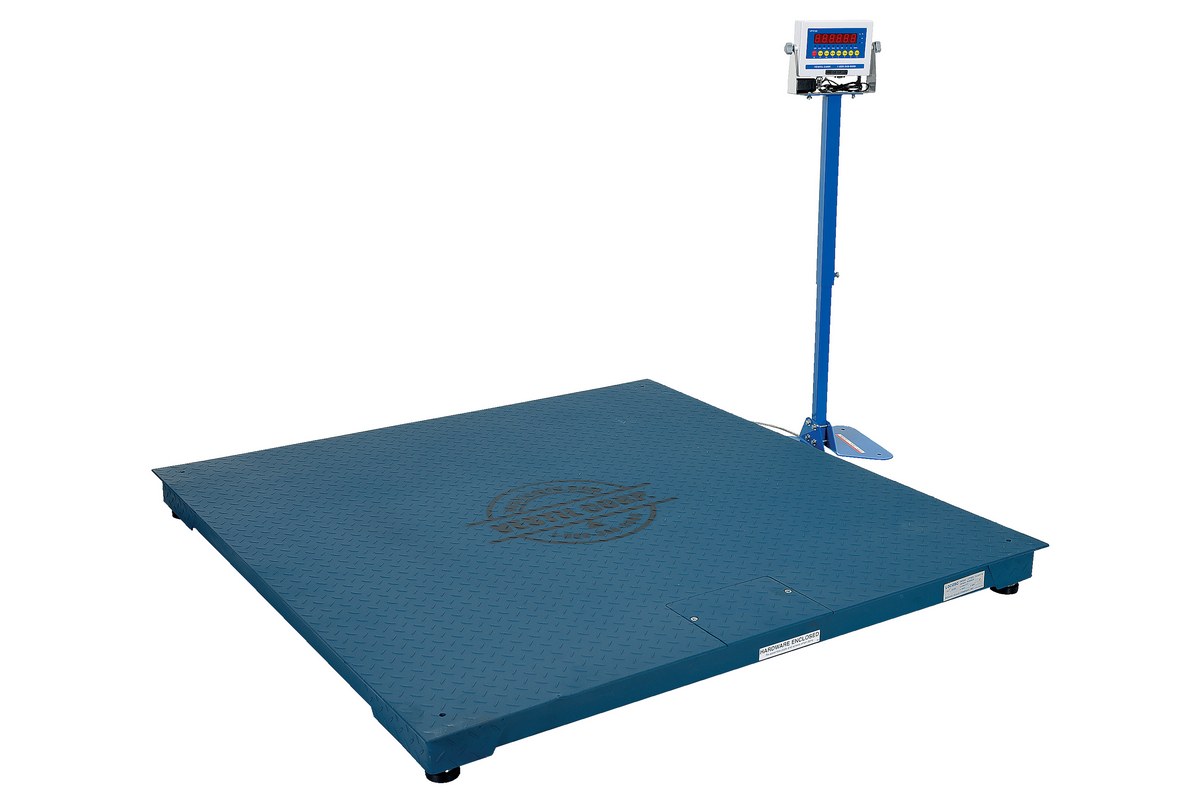

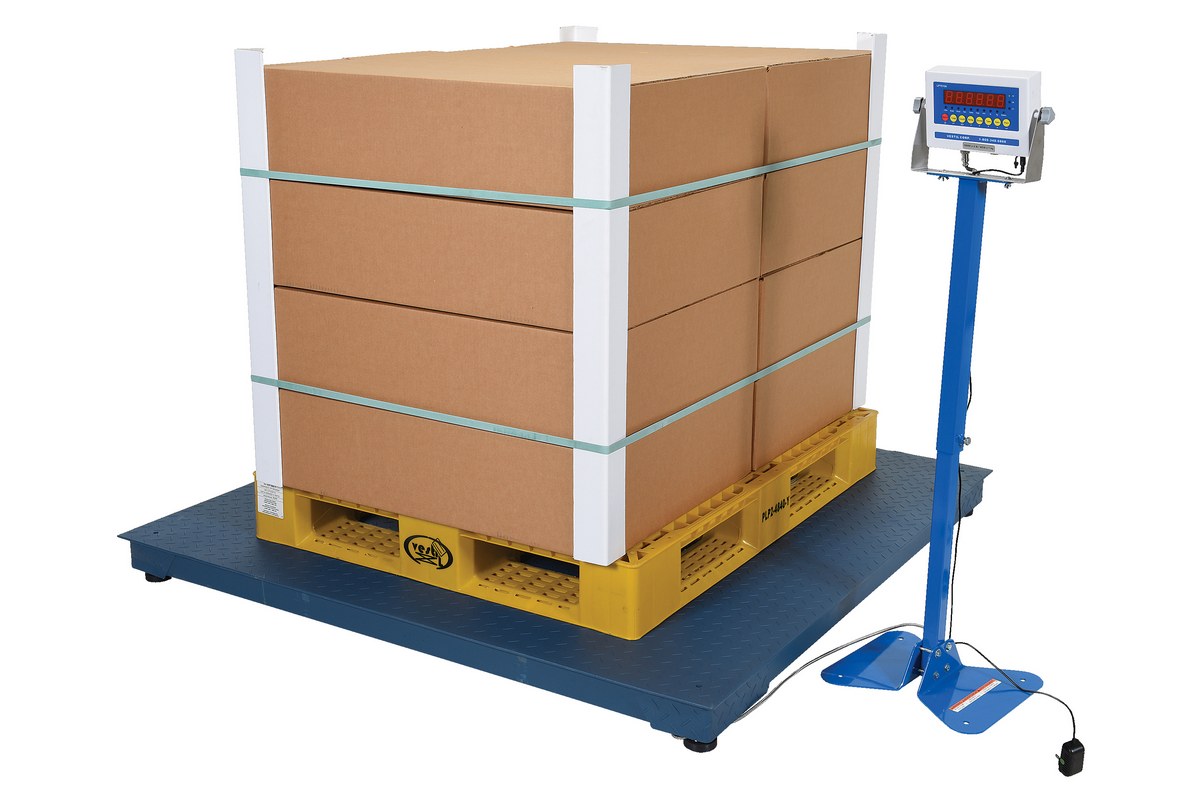

SCALE-S-CFT-55-10K SCALE-S-CFT-55-10K90 Days Limited WarrantySteel Electronic Digital Floor Scale 60 In. x 60 In. x 4-1/2 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Digital Display Height (in.): 42		471

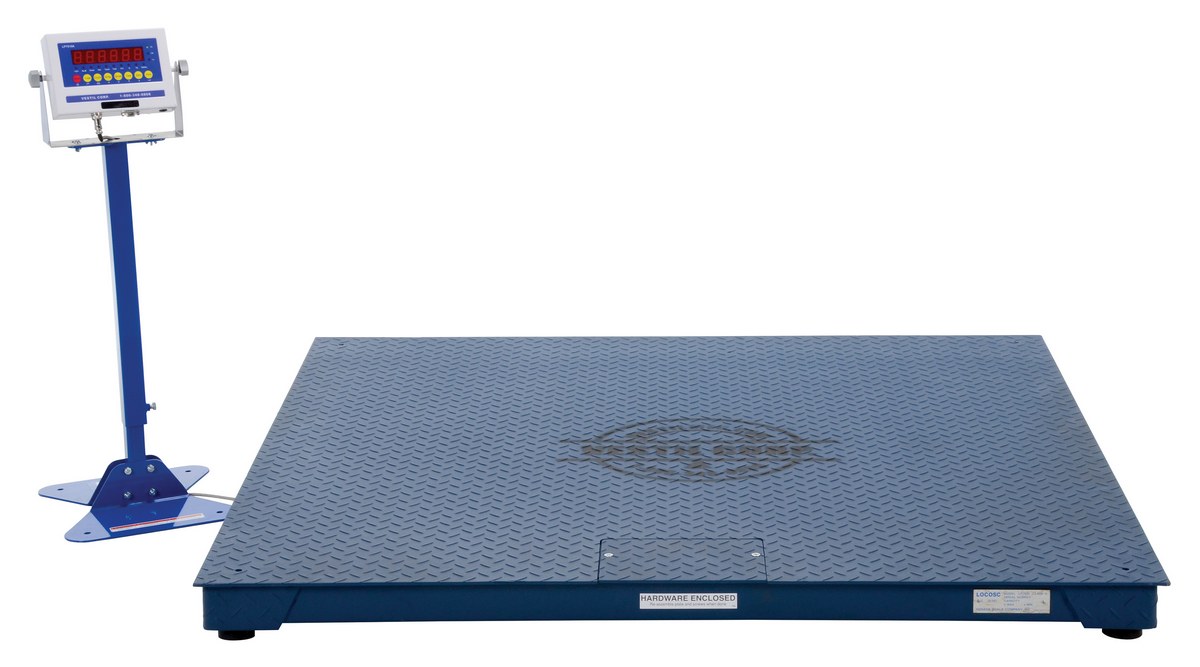

SCALE-S-CFT-55-5K SCALE-S-CFT-55-5K90 Days Limited WarrantySteel Electronic Digital Floor Scale 60 In. x 60 In. x 4-1/2 In. 5,000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Digital Display Height (in.): 42		474

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SCALE-S-CFT-44-10K
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Digital Display Height (in.): 42
Uniform Capacity (lb.): 10,000
Digital Display Height (in.): 42

SCALE-S-CFT-44-5K
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Digital Display Height (in.): 42
Uniform Capacity (lb.): 5,000
Digital Display Height (in.): 42

SCALE-S-CFT-55-10K
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Digital Display Height (in.): 42
Uniform Capacity (lb.): 10,000
Digital Display Height (in.): 42

SCALE-S-CFT-55-5K
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Digital Display Height (in.): 42
Uniform Capacity (lb.): 5,000
Digital Display Height (in.): 42
For More Details of the Option Click the Red Model Button

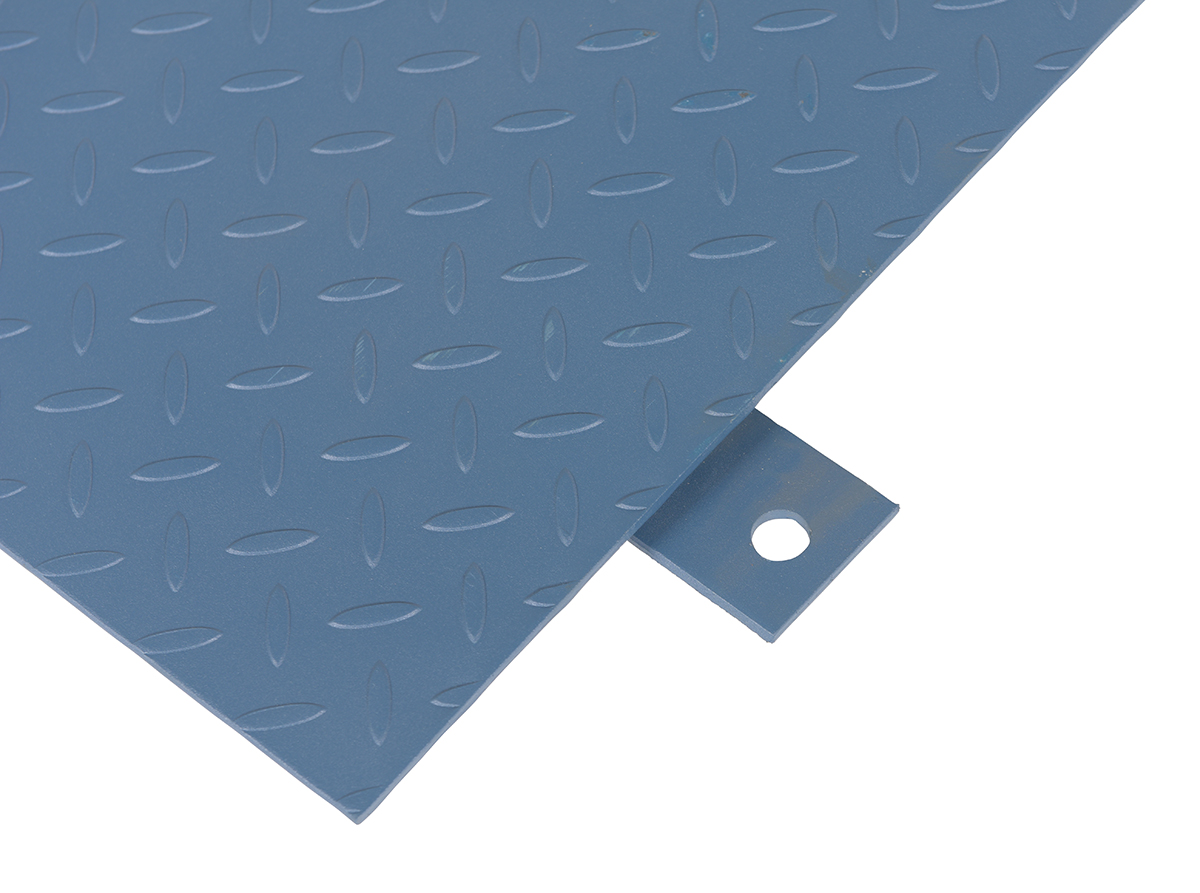

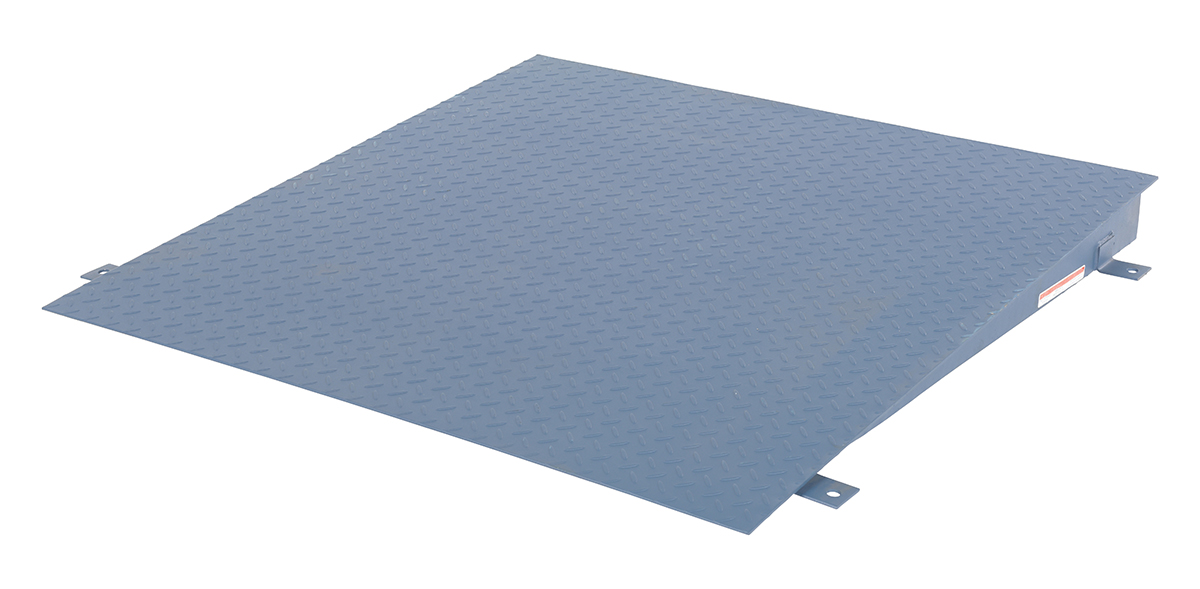

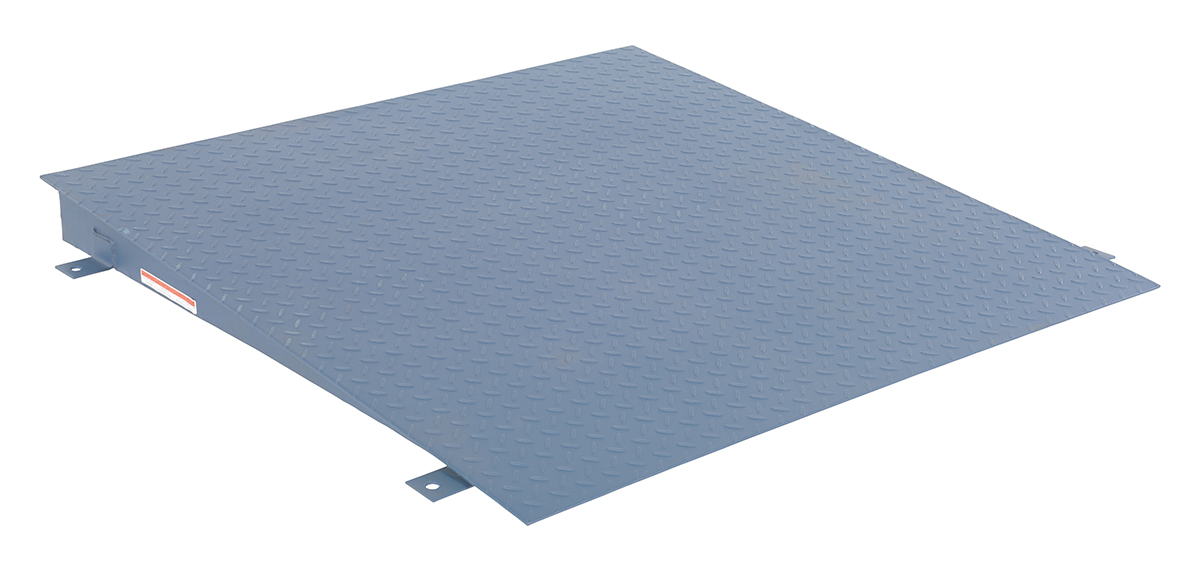

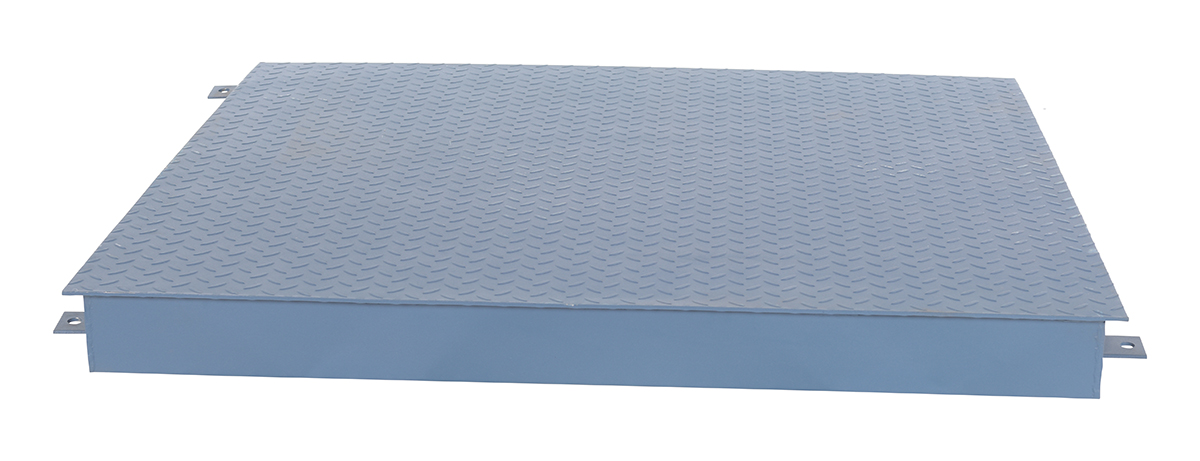

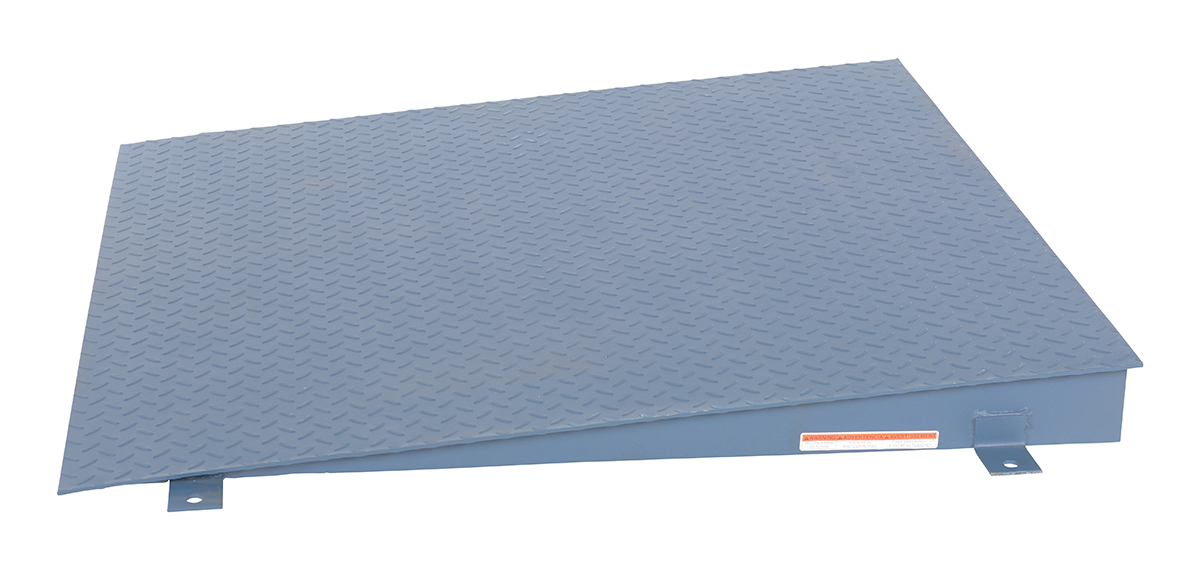

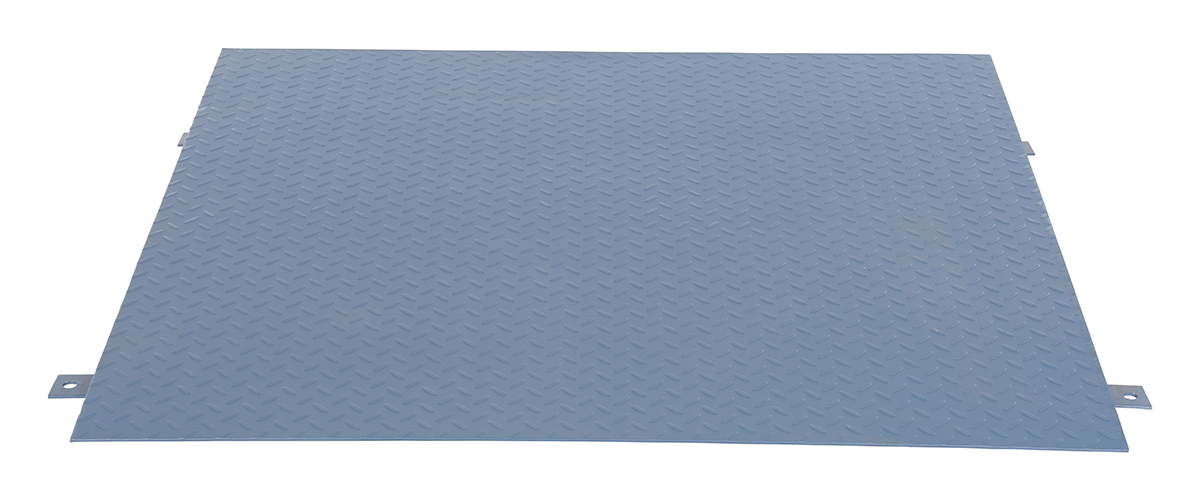

SCALE-R-CS-44 SCALE-R-CS-4490 Days Limited WarrantySteel Electronic Digital Floor Ramp Scale 48 In. x 48 In. 4-1/2 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10,000
Application Modes: Ramp		272

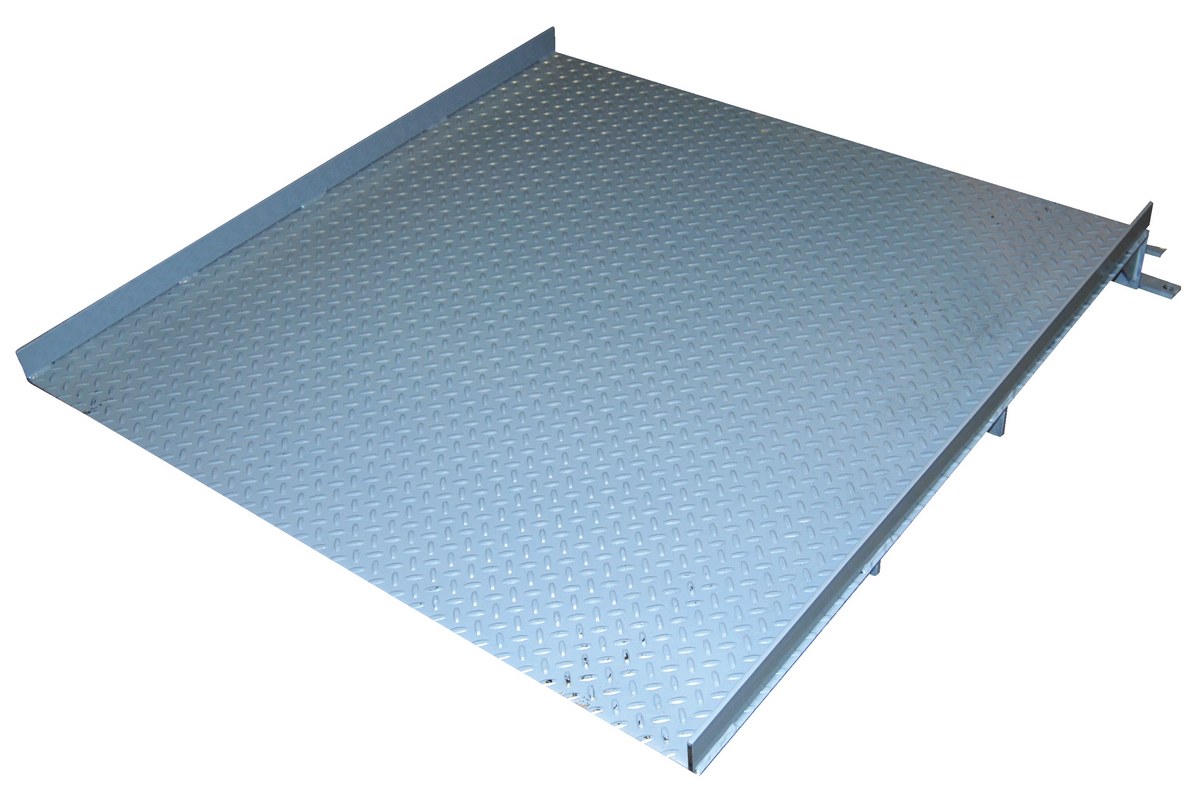

SCALE-R-CS-54 SCALE-R-CS-5490 Days Limited WarrantySteel Electronic Digital Floor Ramp Scale 48 In. x 60 In. 4-1/2 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10,000
Application Modes: Ramp		272

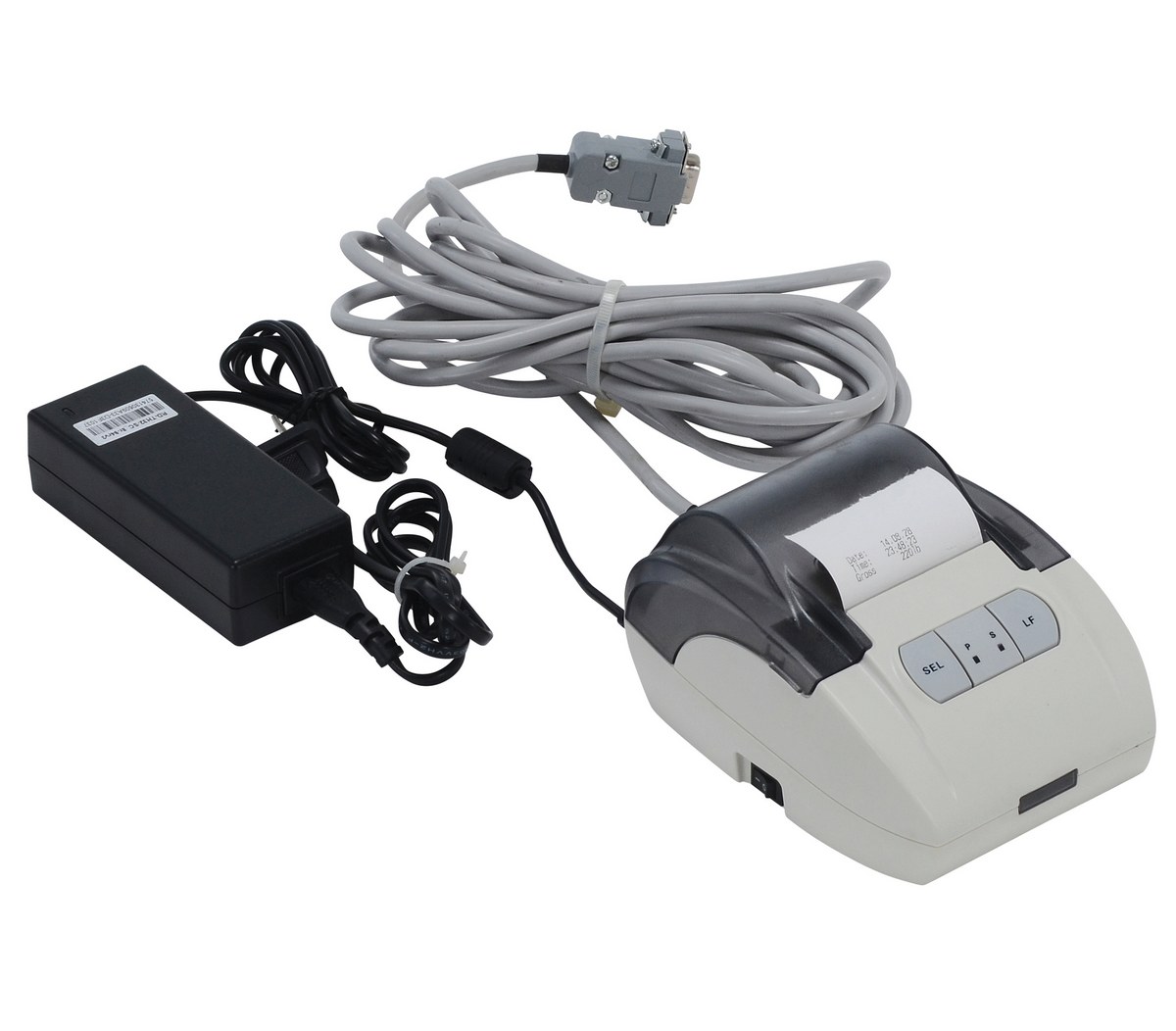

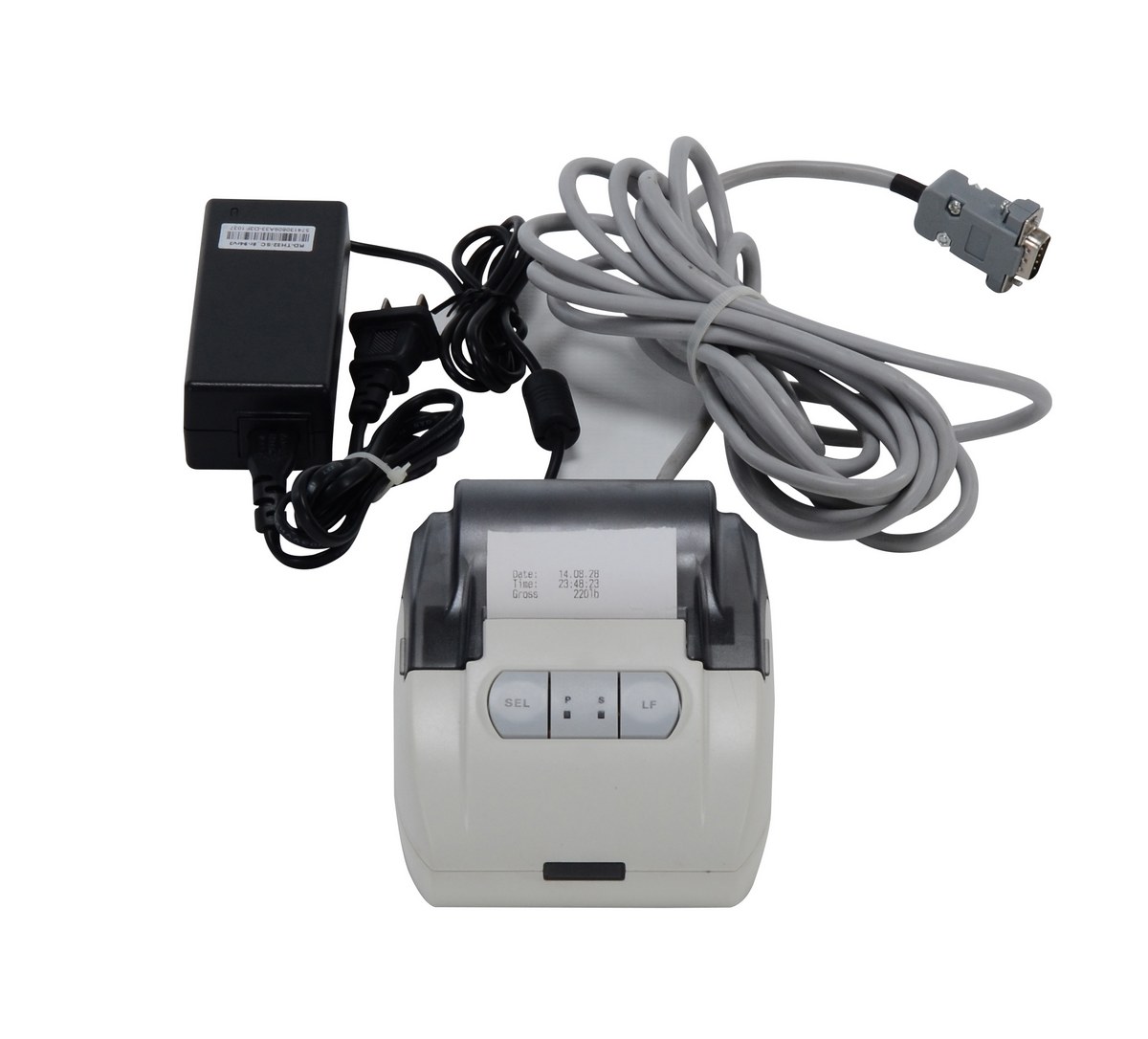

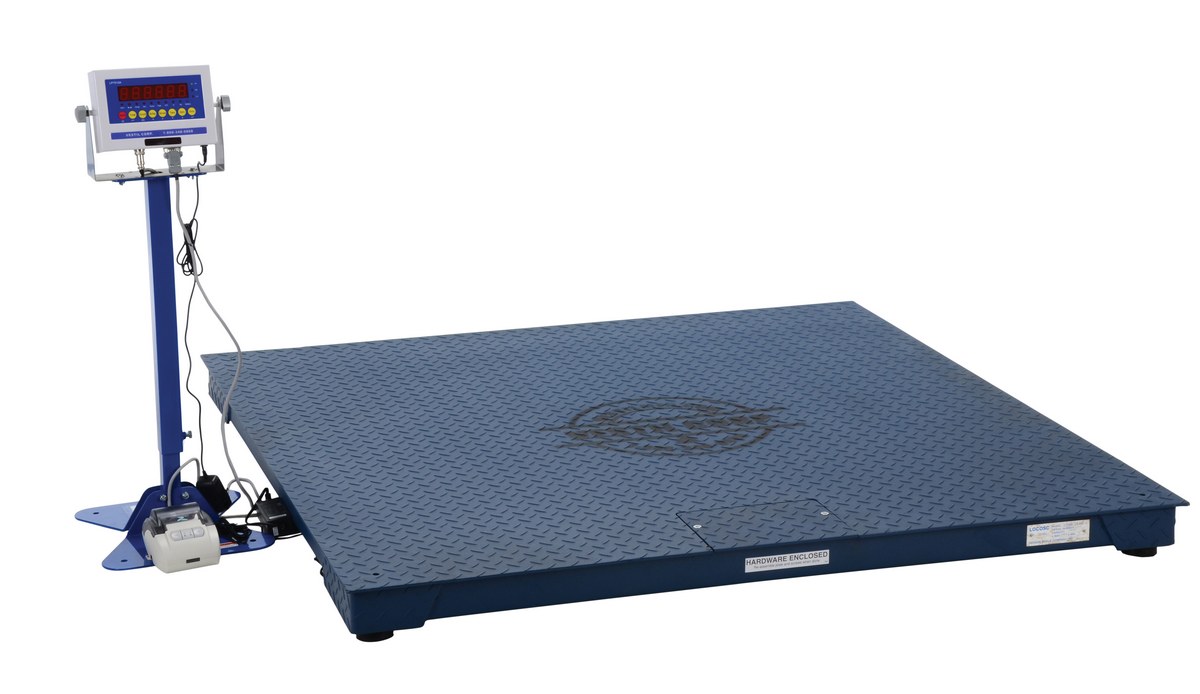

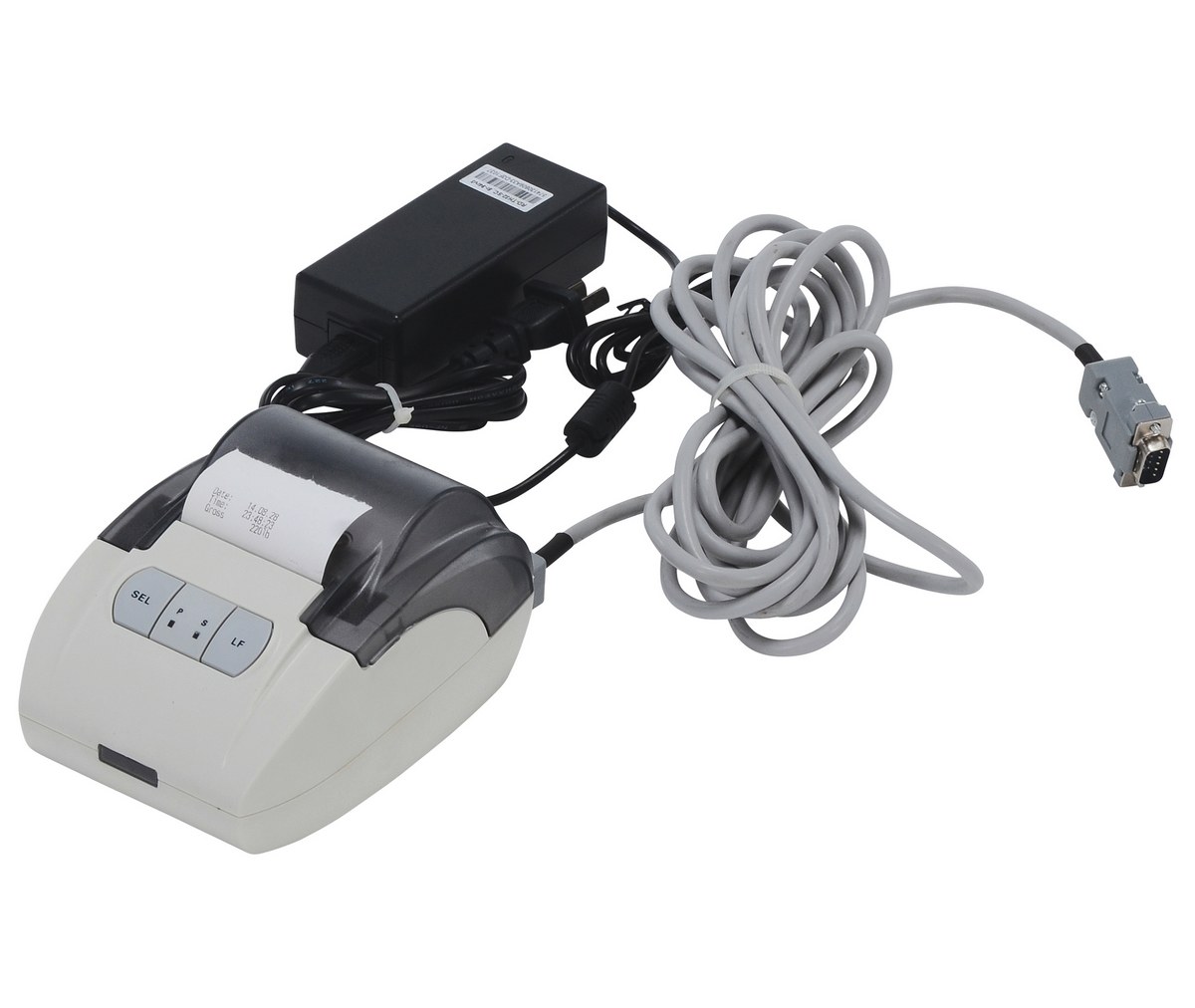

SCALE-S-CFT-PRINTER SCALE-S-CFT-PRINTER90 Days Limited WarrantyPlastic Electronic Digital Printer For Floor Scale ModelsApplication Modes: Printer
Connection Ports: Yes		5

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Electronic Digital Floor Scales PDF's will open in a new window when clicked.

Manuals


SCALE-S-CFT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SCALE-S-CFT-44-10K

SCALE-S-CFT-44-5K

SCALE-S-CFT-55-10K

SCALE-S-CFT-55-5K

Testing Certificates


SCALE-R-CS-44

SCALE-R-CS-54

SCALE-S-CFT-44-10K

SCALE-S-CFT-44-5K

SCALE-S-CFT-55-10K

SCALE-S-CFT-55-5K

SCALE-S-CFT-PRINTER

SDS Sheets

Hydraulic Oil SDS Sheet for: SCALE-R-CS-44
Hydraulic Oil SDS Sheet for: SCALE-R-CS-54
Hydraulic Oil SDS Sheet for: SCALE-S-CFT-44-10K
Hydraulic Oil SDS Sheet for: SCALE-S-CFT-44-5K
Hydraulic Oil SDS Sheet for: SCALE-S-CFT-55-10K
Hydraulic Oil SDS Sheet for: SCALE-S-CFT-55-5K

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Is the scale calibrated before it is shipped?

A: Yes the scales are calibrated before shipping. There is no need to set the GEO code after receiving. The scales are self adjusting.

Q: What is the length of the power cord?

A: The power cord is 5 ft.

Q: Are the scales LEGAL FOR TRADE in Canada?

A: The scales are not currently legal for trade anywhere but the USA.
