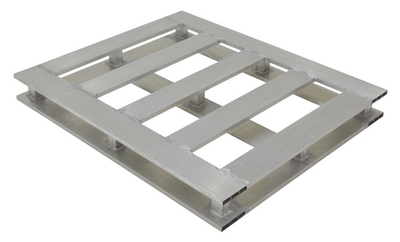

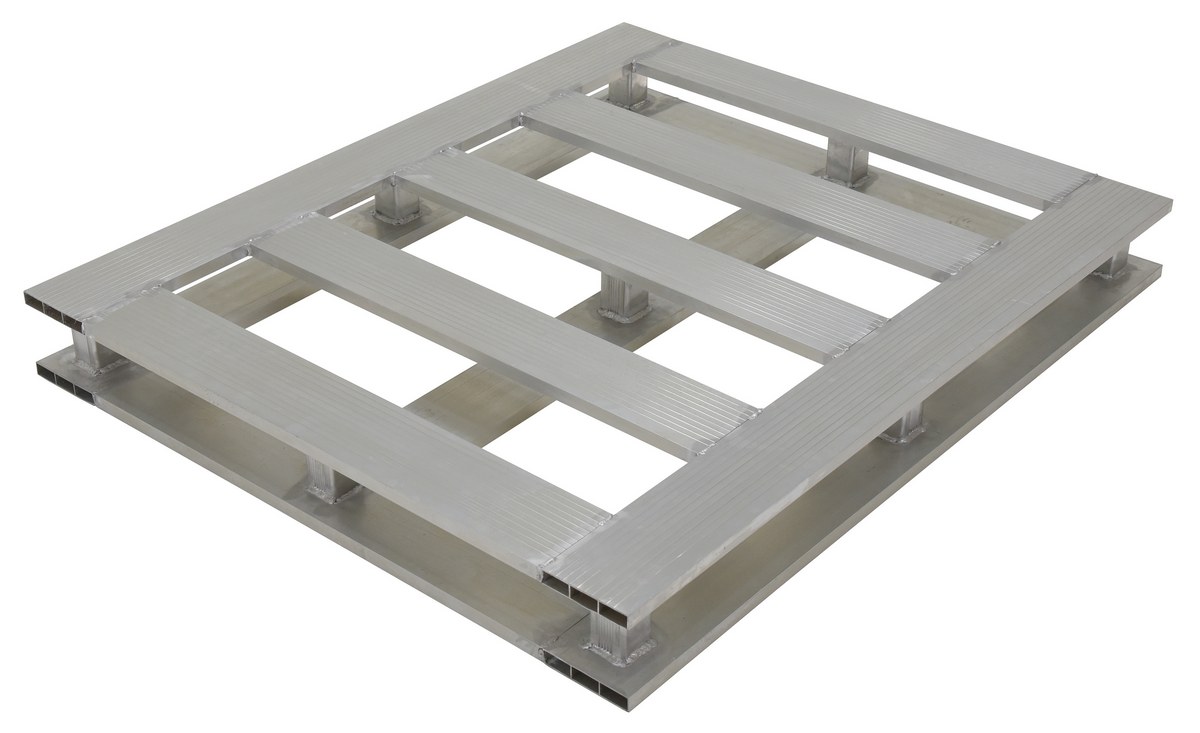

AP-4048-4W_F.jpg AP-4048-4W_A.jpg AP-4048-4W_B.jpg AP-4048-4W_C.jpg

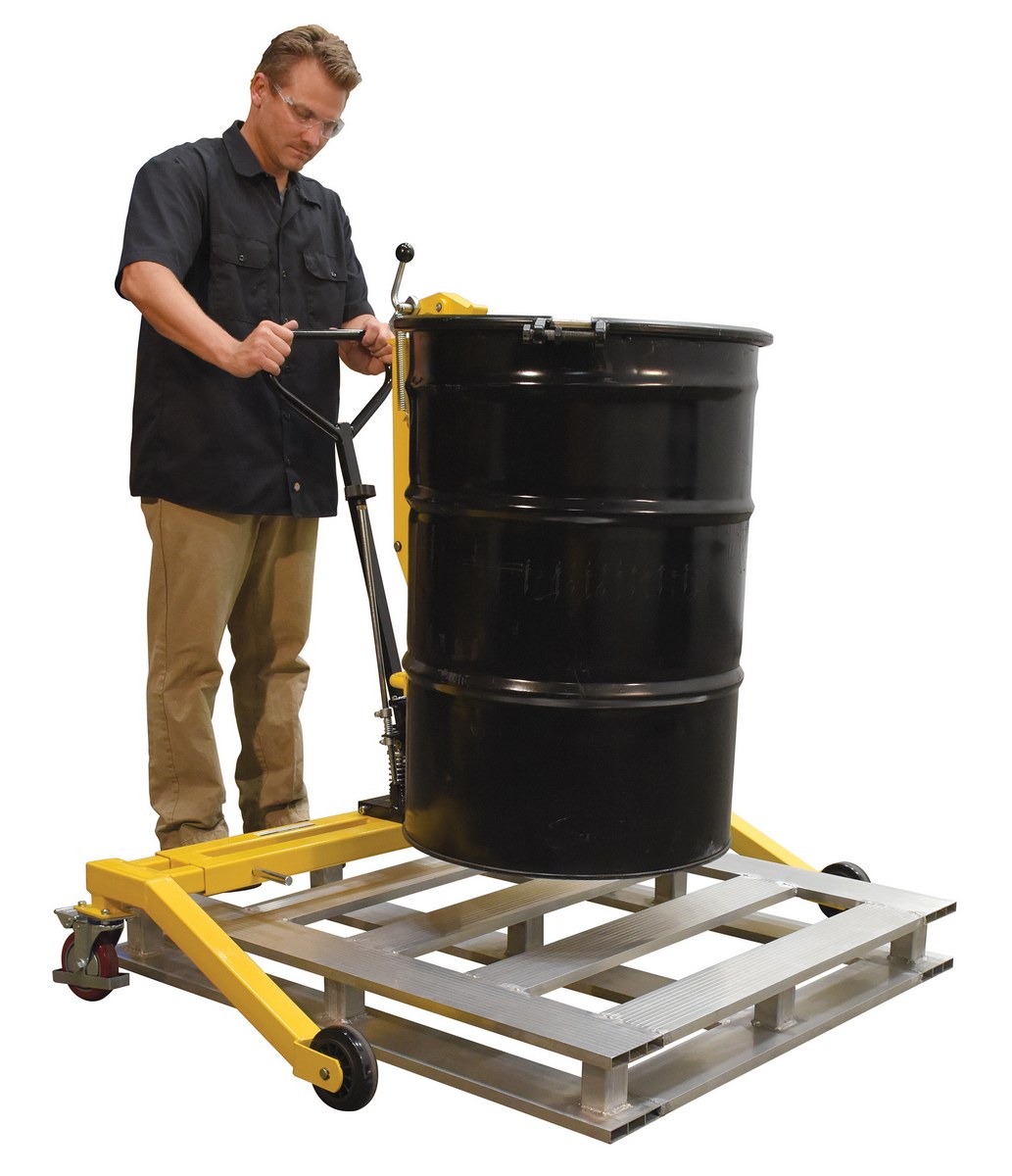

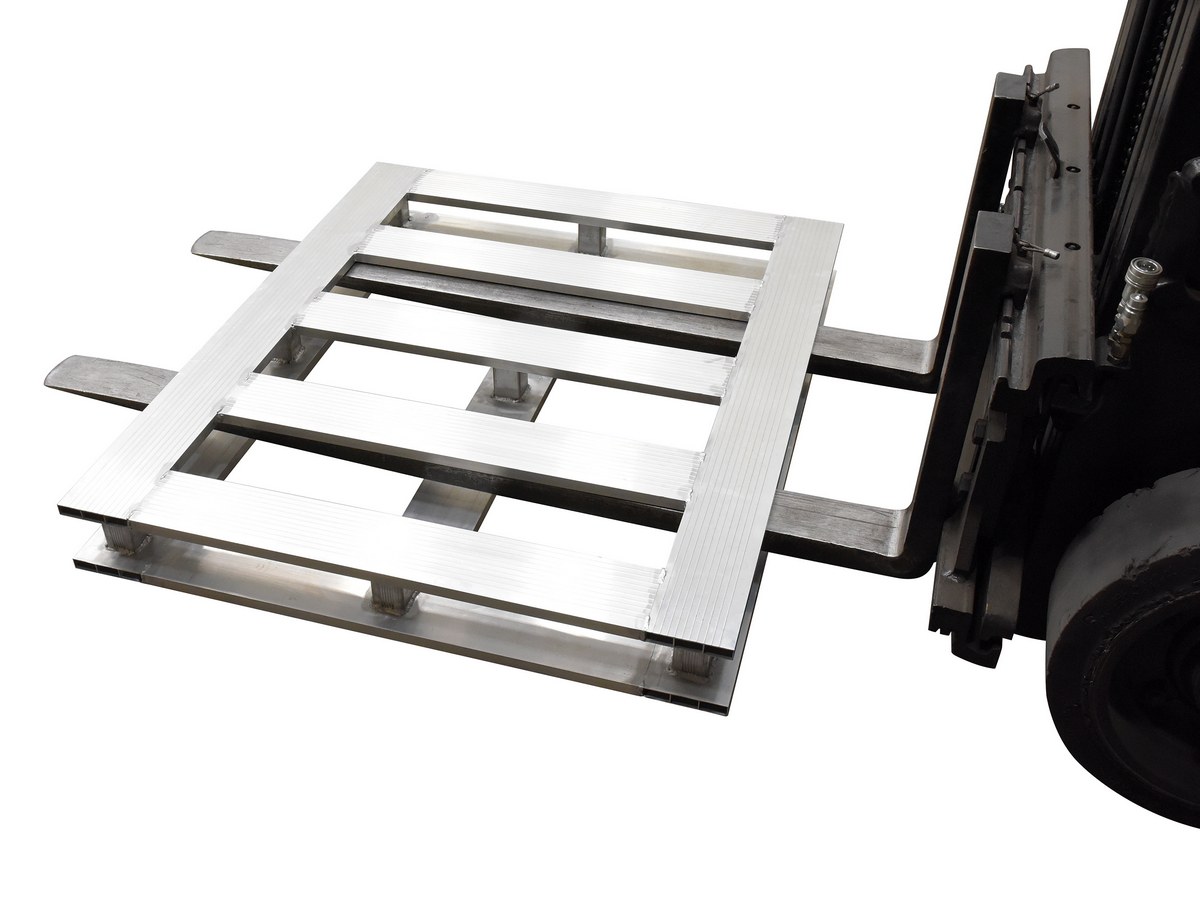

AP-4048-4W_D.jpg AP-4048-4W_E.jpg
Aluminum Pallets & Skids

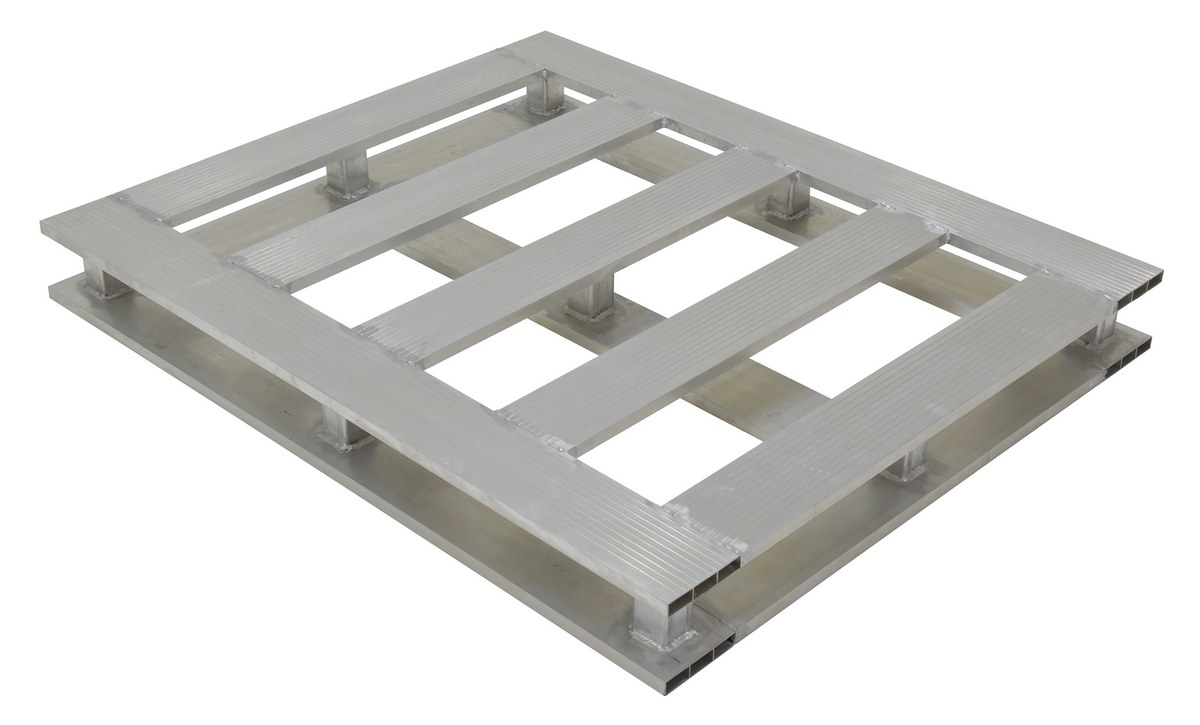

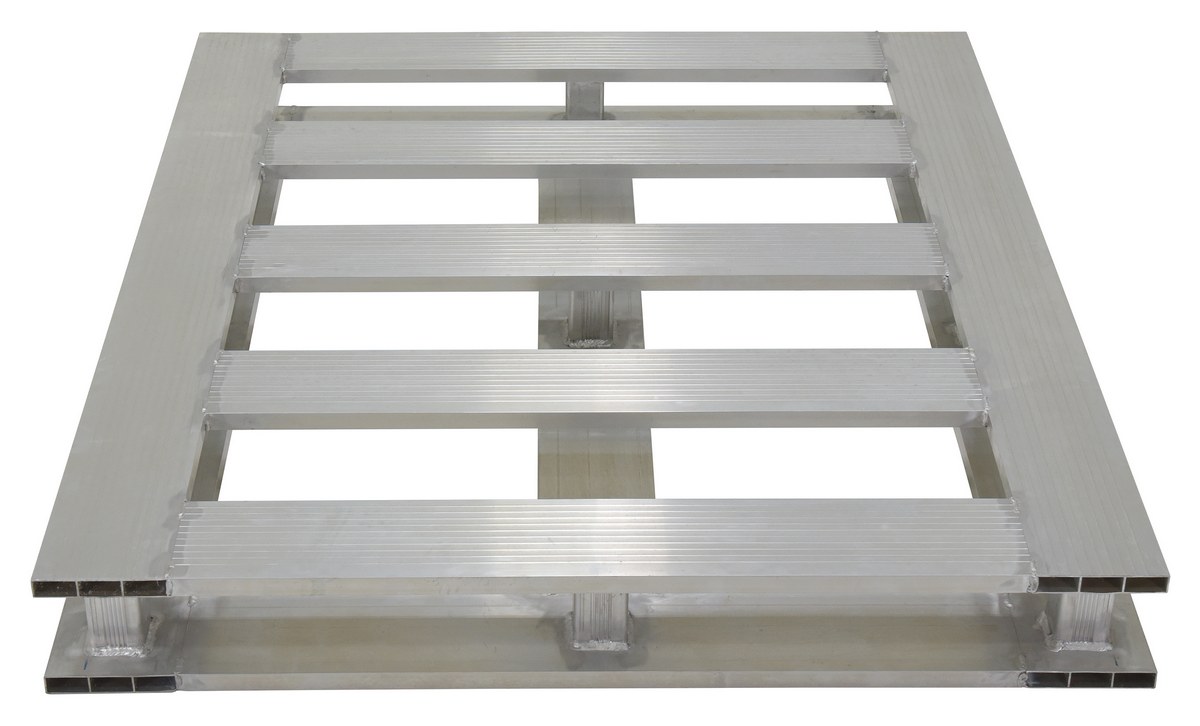

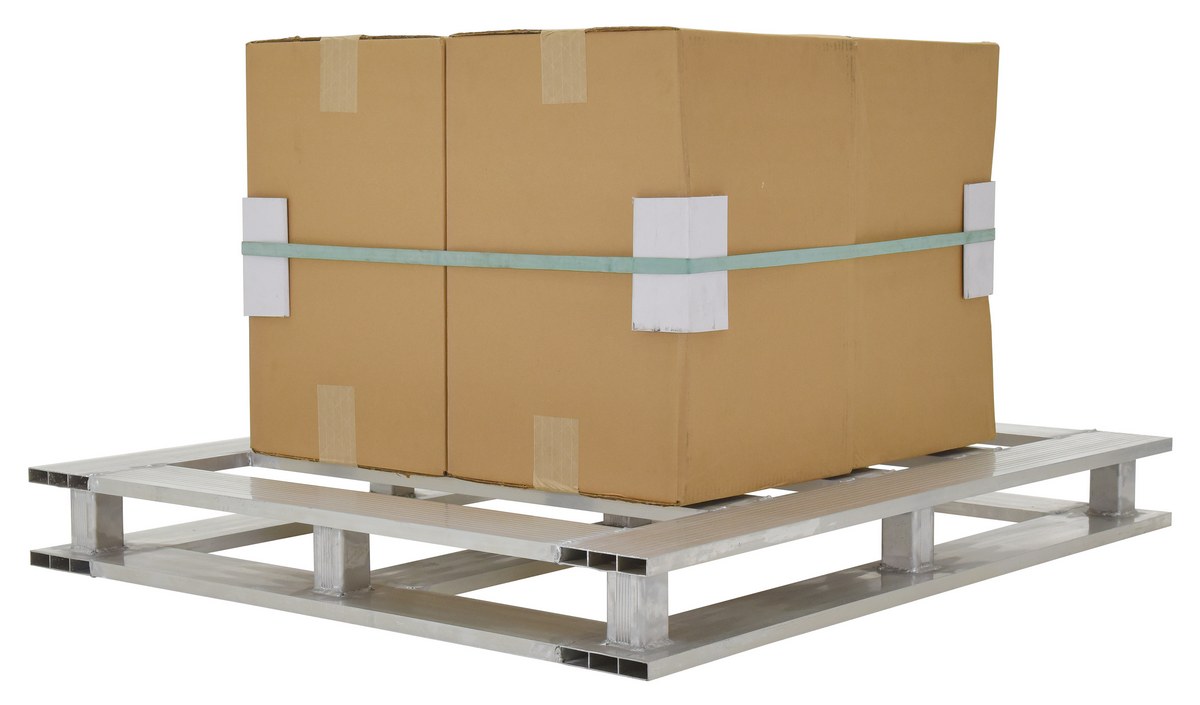

model: AP-4048-4W



Featured Packaging Equipment:


Poly Strapping & Seals
Strapping Equipment
Semi-Automatic Strapping Machine
Cargo Protectors
Medium Duty Powered Stretch Wrap Machines
Stand Alone Powered Carousels
Heavy-Duty Banding Cart
Turntables with Powered Height Adjustment
Paper Dispenser Stands
model chart

Product Family Overview

Print Friendly
Aluminum Pallets & Skids
SERIES: AP

A welded Aluminum Pallet is a great asset for a variety of industries. The open design enables quick and simple cleaning. This pallet is durable and re-usable with a two-way entry for pallet and fork truck use. Large static capacity allows for load both big and small.

  • Solid top surface provides easy transportation of products
  • Simple access points for quick lifting
  • Sleek surface limits abrasions

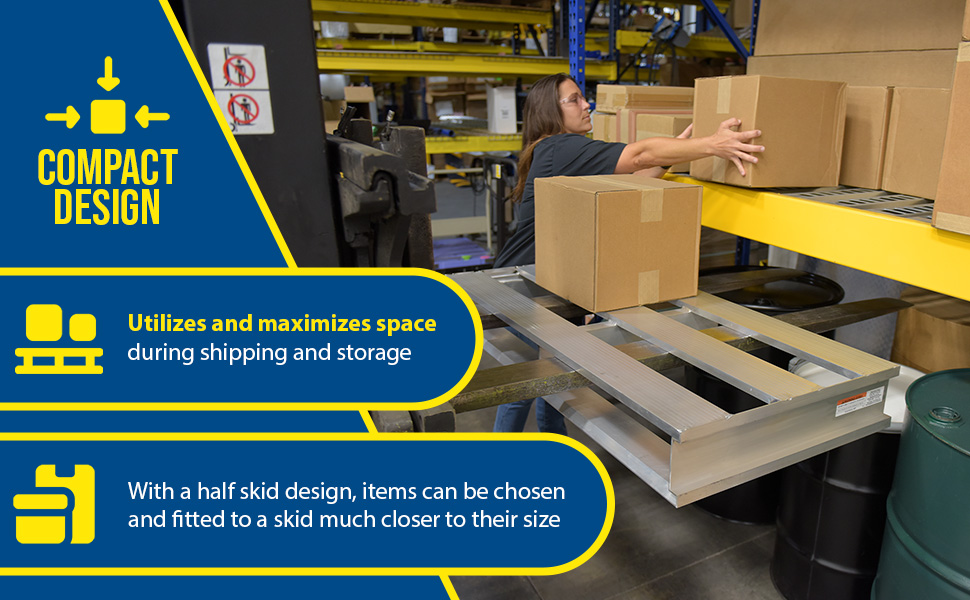

  • Compact design for minimal storage

An Aluminum Half Pallet is a great asset for a variety of industries. With the half pallet design, items can be chosen and fitted to a pallet much closer to their size. This utilizes and maximizes space during shipping and floor space during any storage. The open design enables quick and simple cleaning.

A welded Aluminum Pallet is a great asset for a variety of industries. The open design enables quick and simple cleaning. This pallet is durable and re-usable with a two-way entry for pallet and fork truck use. Large static capacity allows for load both big and small.

  • Solid top surface provides easy transportation of products
  • Simple access points for quick lifting
  • Sleek surface limits abrasions
  • Compact design for minimal storage

An Aluminum Half Pallet is a great asset for a variety of industries. With the half pallet design, items can be chosen and fitted to a pallet much closer to their size. This utilizes and maximizes space during shipping and floor space during any storage. The open design enables quick and simple cleaning.

Other Pallets

 Multi-Height Container Pallet Washing Cabinet & Optional Pressure Washer Steel Pallets with Hot-Dipped Galvanized Finish Pallet Wedge

Additional Models In This Family
view entire Image Gallery

AP-4048-SB

AP-4048-SB

AP-4848-4W

AP-4848-4W

SKID-4048-A

SKID-4048-A

AP-4248

AP-4248

AP-4024-SB

AP-4024-SB

AP-4824

AP-4824

SKID-4824-A

SKID-4824-A

AP-4048-4W

AP-4048-4W

AP-4824

AP-4824

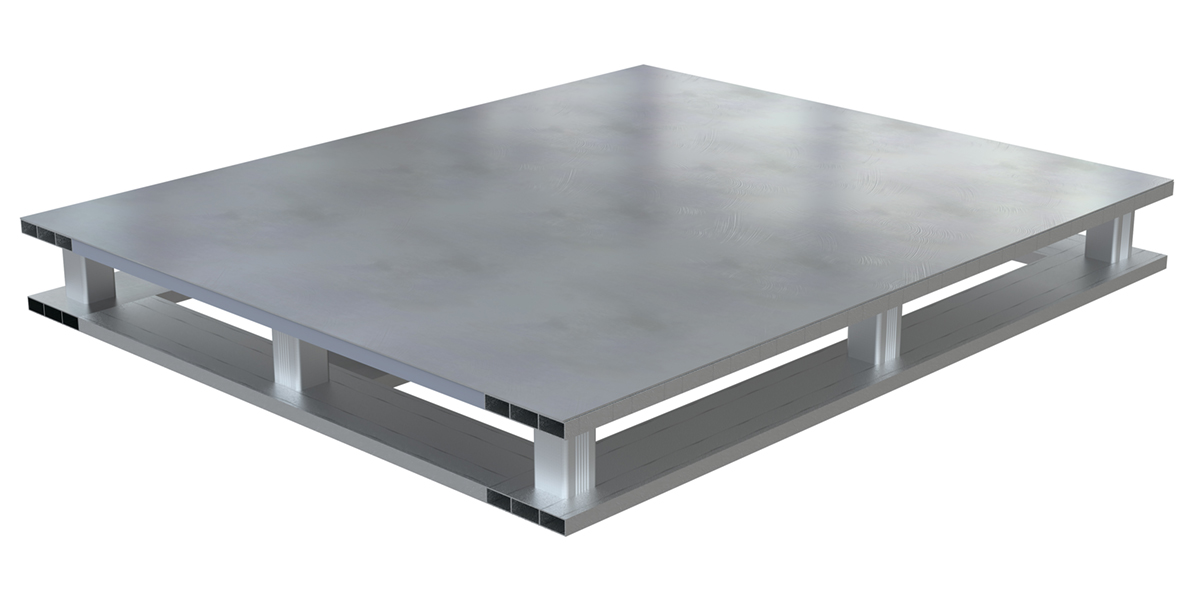

AP-ST-4048-4W

AP-ST-4048-4W

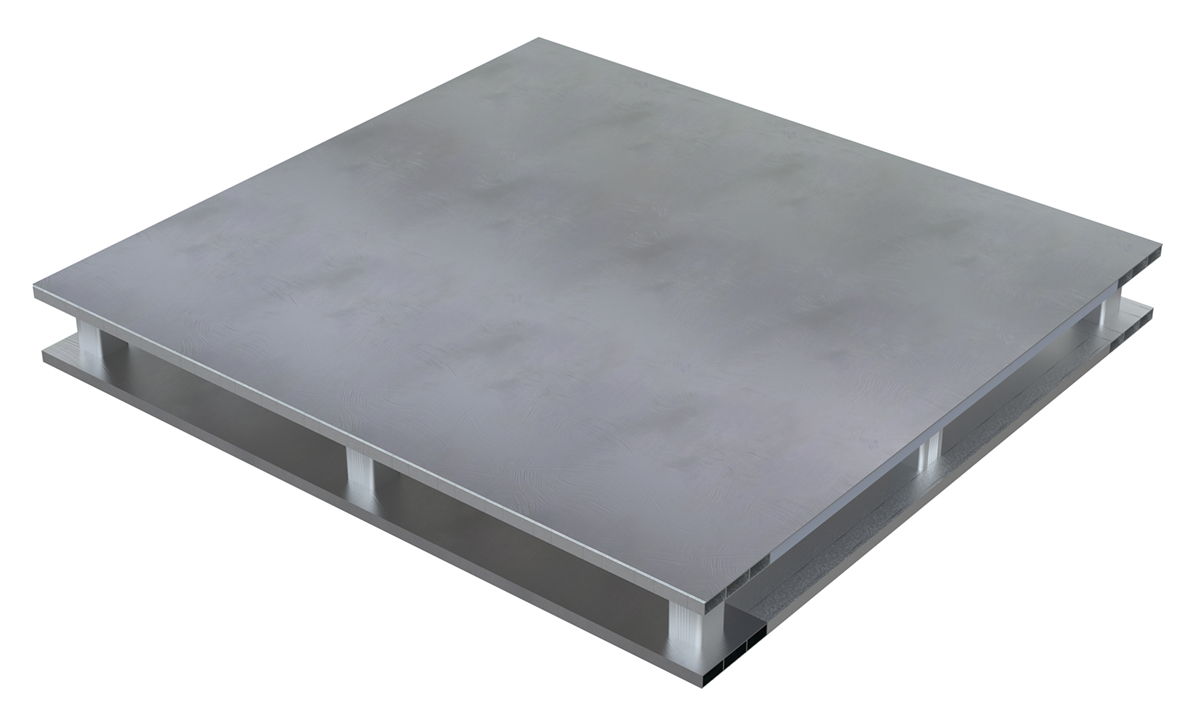

AP-ST-4848-4W

AP-ST-4848-4W

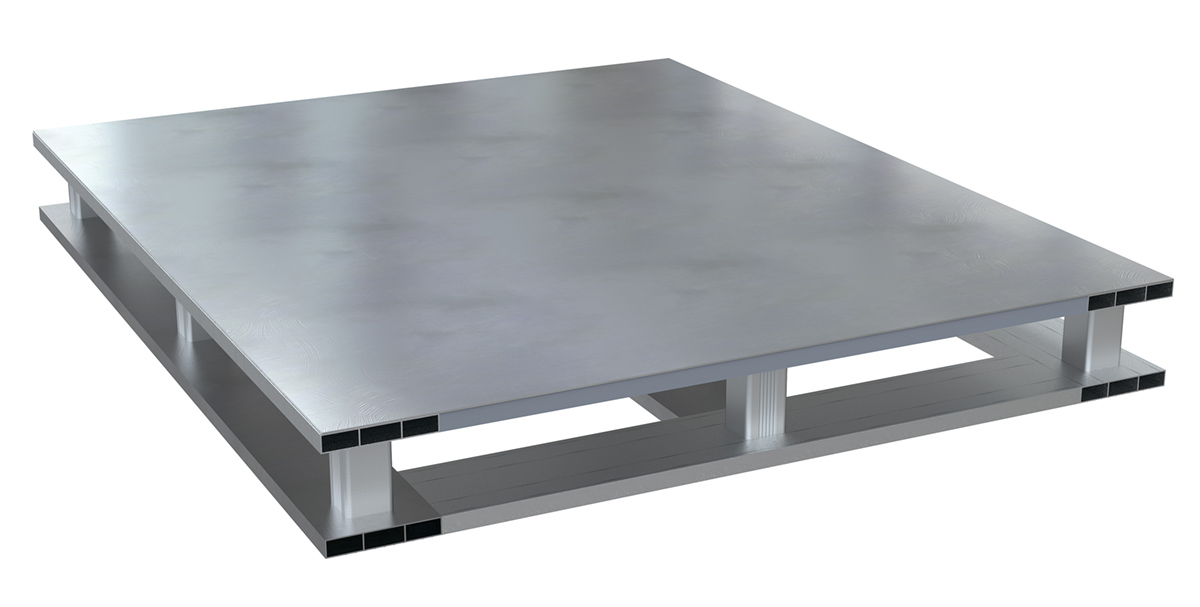

AP-ST-4248-4W

AP-ST-4248-4W

SKID-4248-A

SKID-4248-A

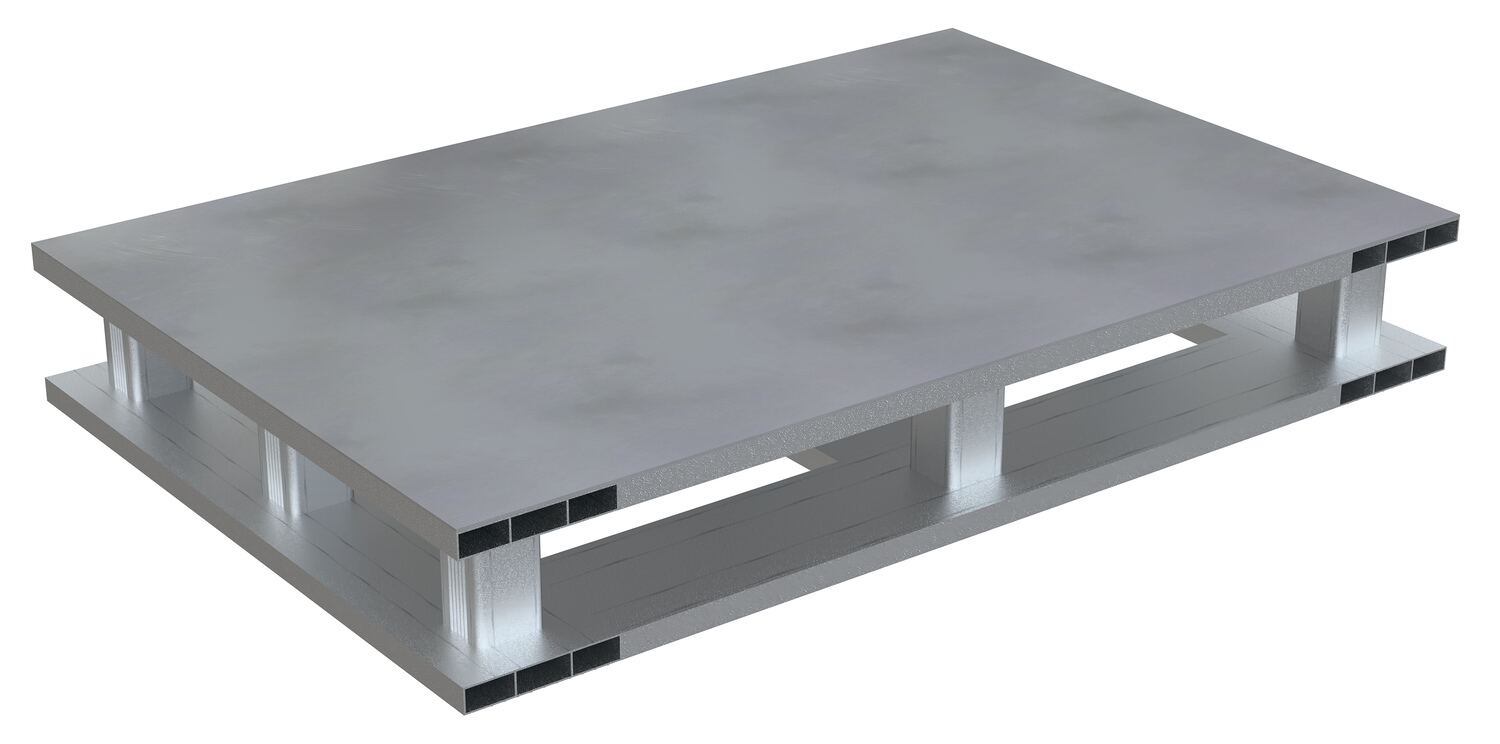

AP-ST-3624

AP-ST-3624

AP-4048-4W

AP-4048-4W

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Aluminum Pallets
Model Image PDF Overall Size
(W x D x H)		 Uniform Supported Weight Capacity Wt.
(lbs)
Floor
(Static)		 Fork
(Dynamic)		 Unsupported
Pallet Rack
2-Way Entry

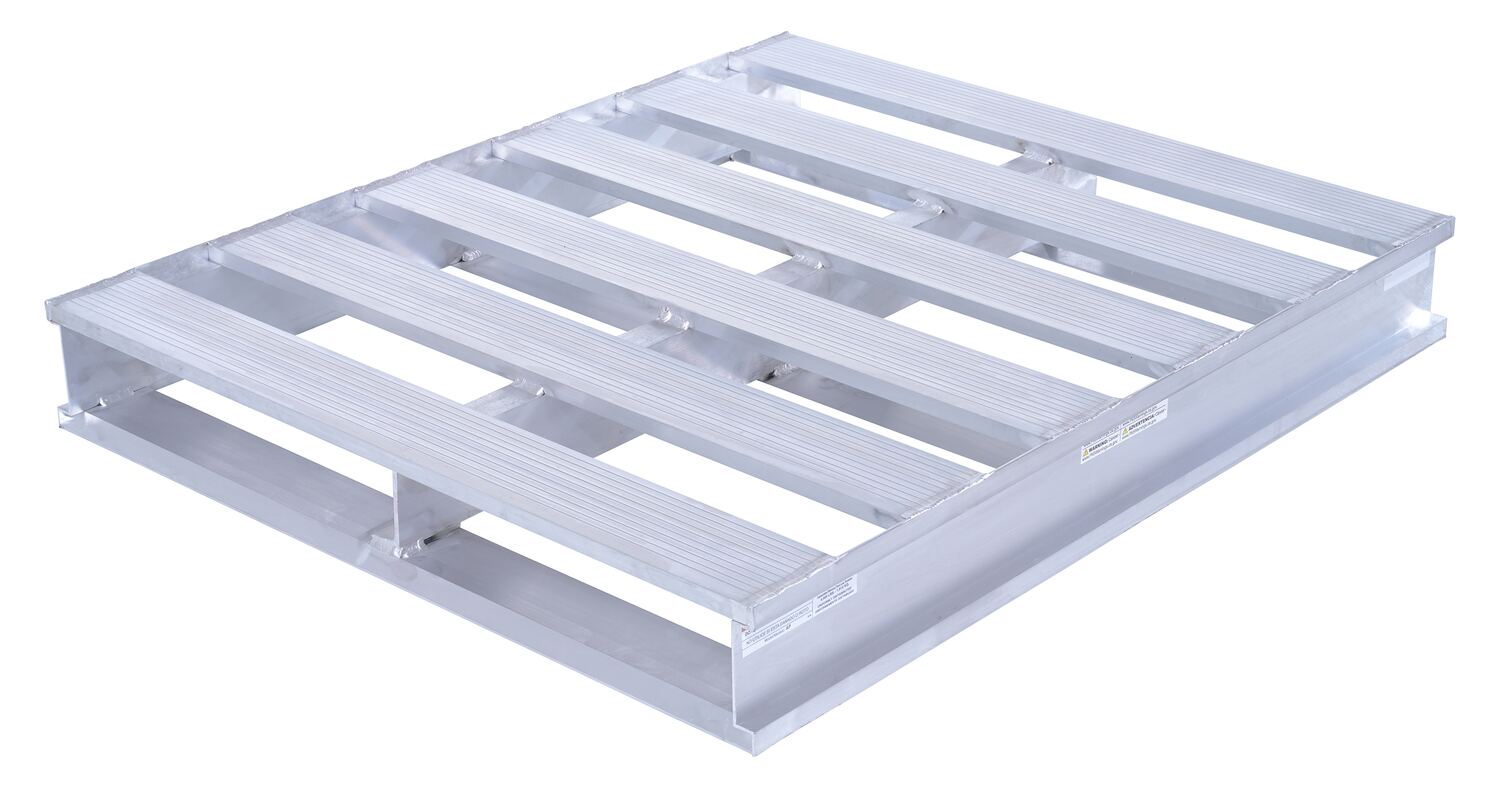

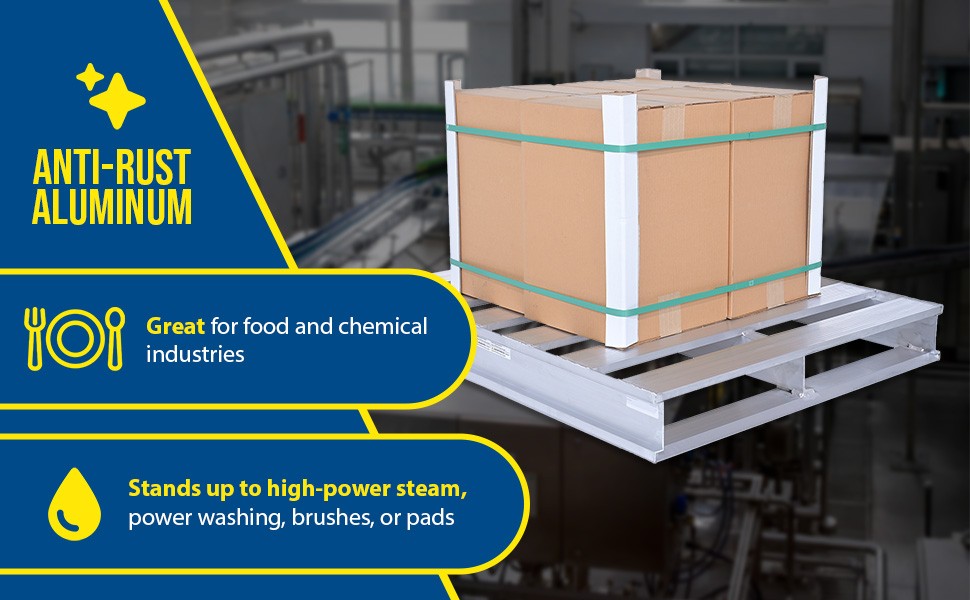

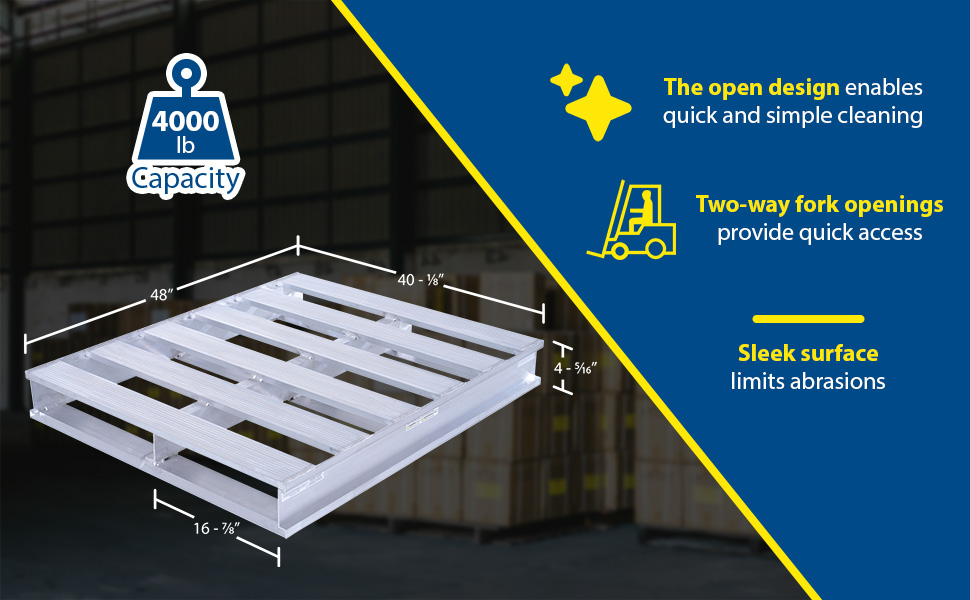

AP-4048 icon_approvaldrawings.jpgWarranty PDF 40-1/8" x 48" x 6" 6,000 lbs. 4,000 lbs. 6,000 lbs. 85

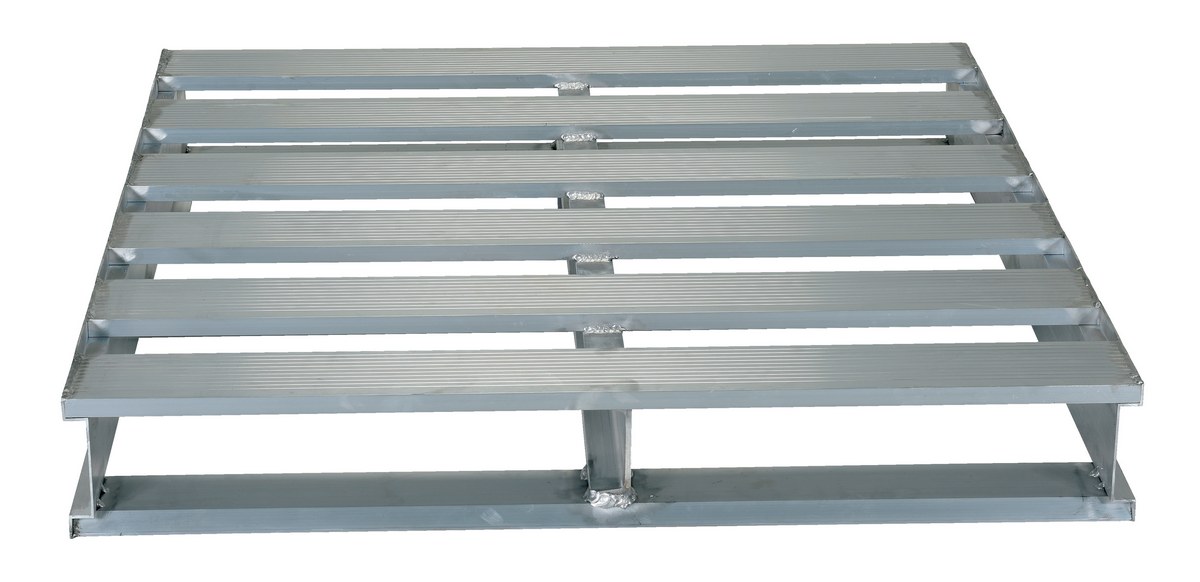

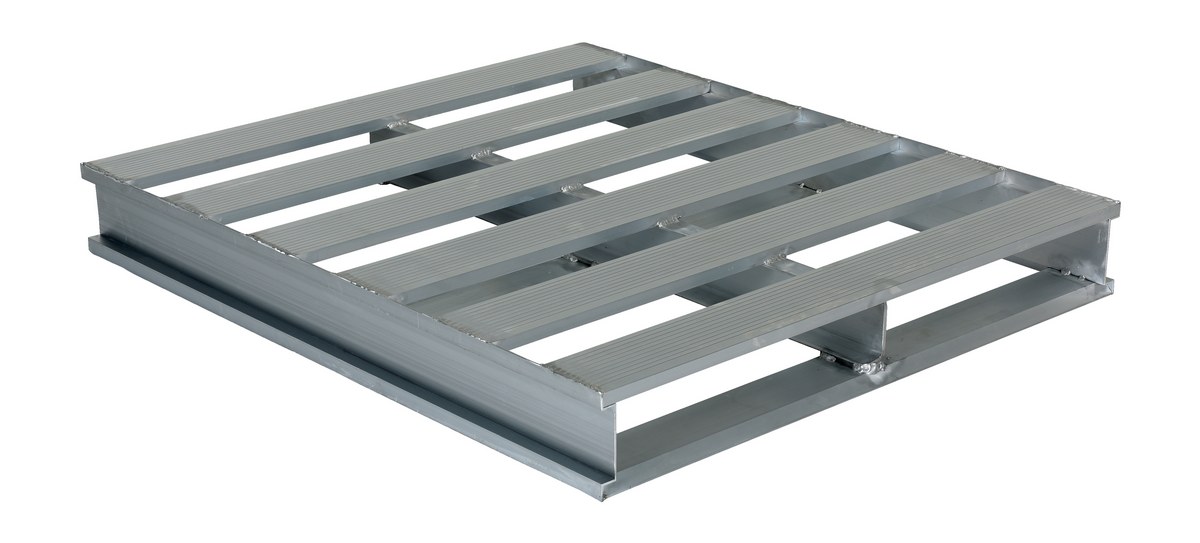

AP-4248 icon_approvaldrawings.jpgWarranty PDF 42-1/8" x 48" x 6" 6,000 lbs. 4,000 lbs. 6,000 lbs. 86

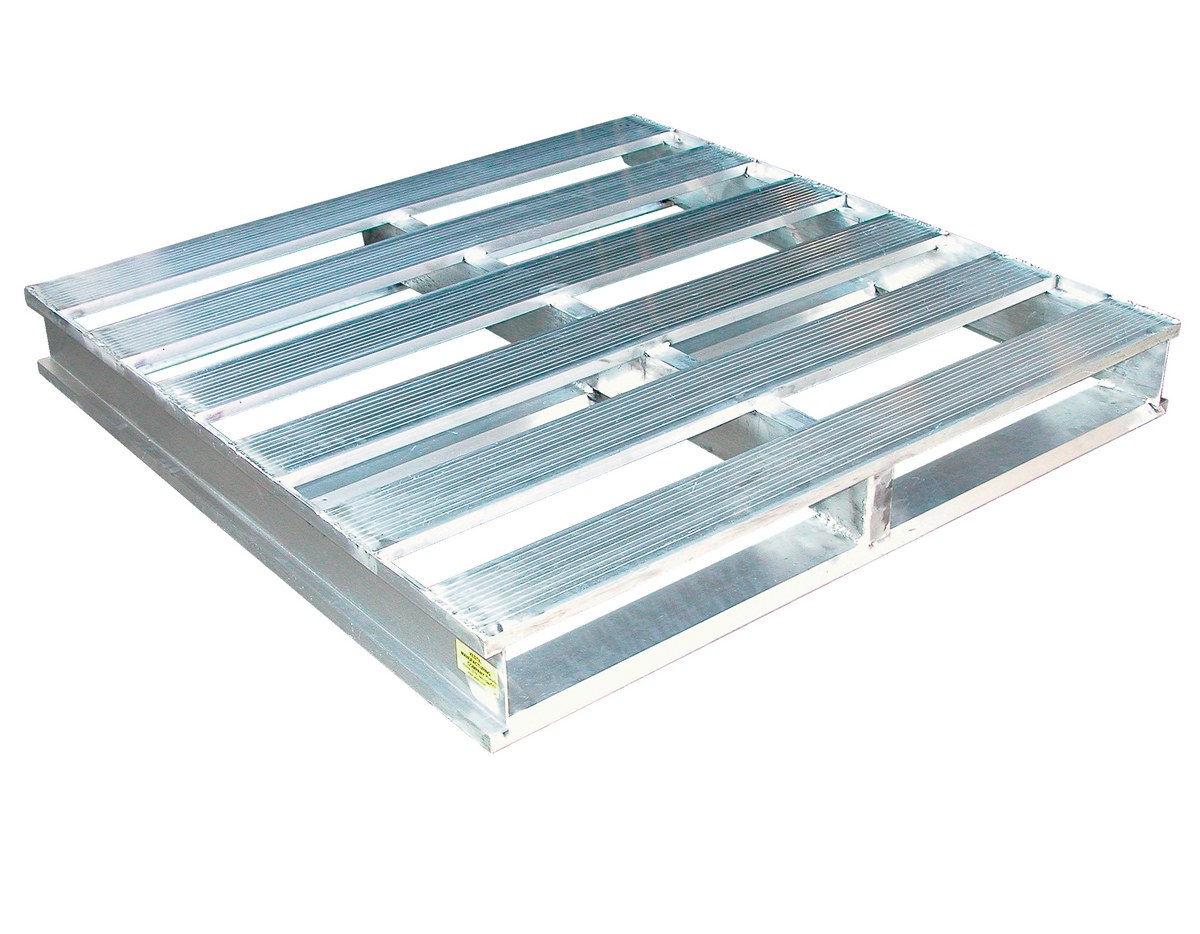

AP-4848 icon_approvaldrawings.jpgWarranty PDF 48-1/8" x 48" x 6" 6,000 lbs. 4,000 lbs. 6,000 lbs. 89

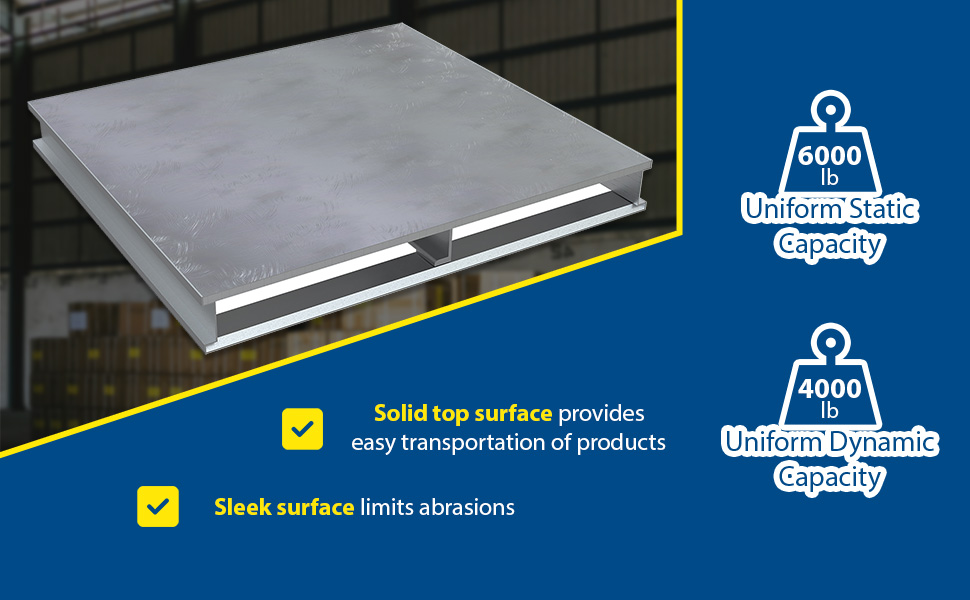

Solid Top 2-Way Entry

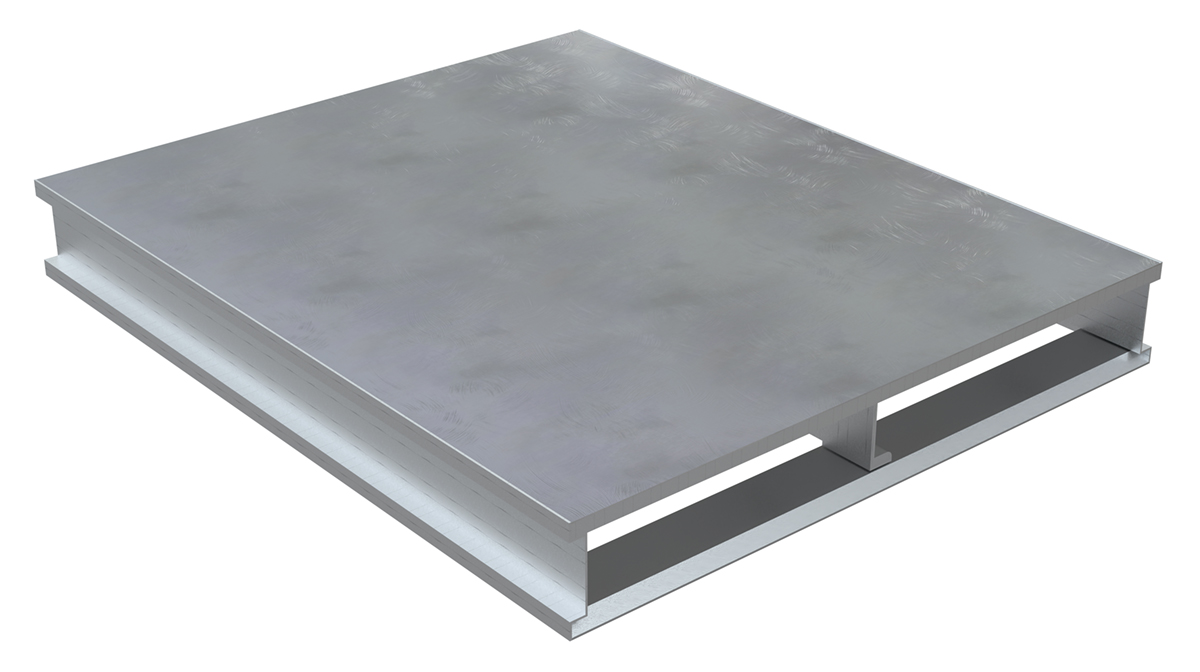

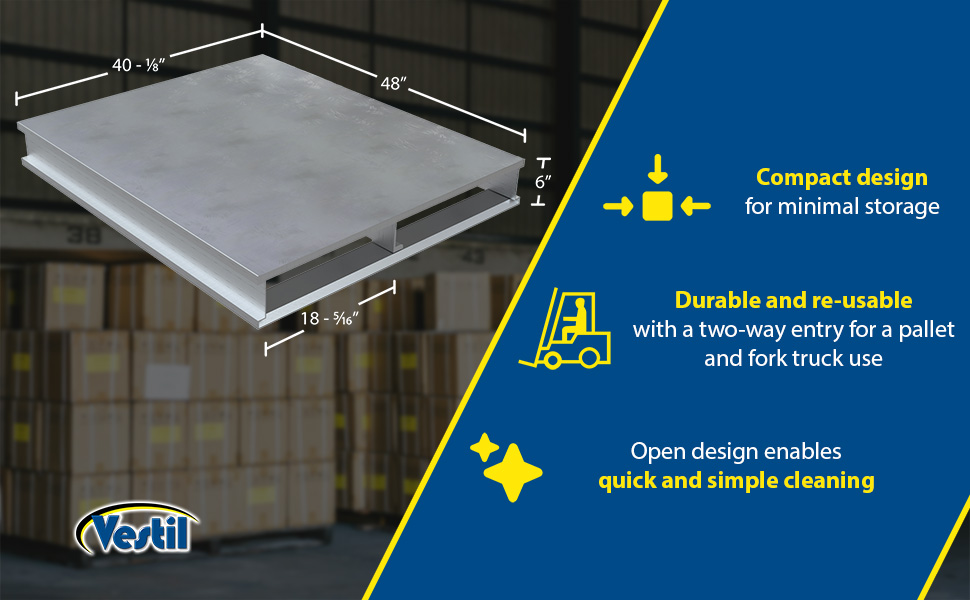

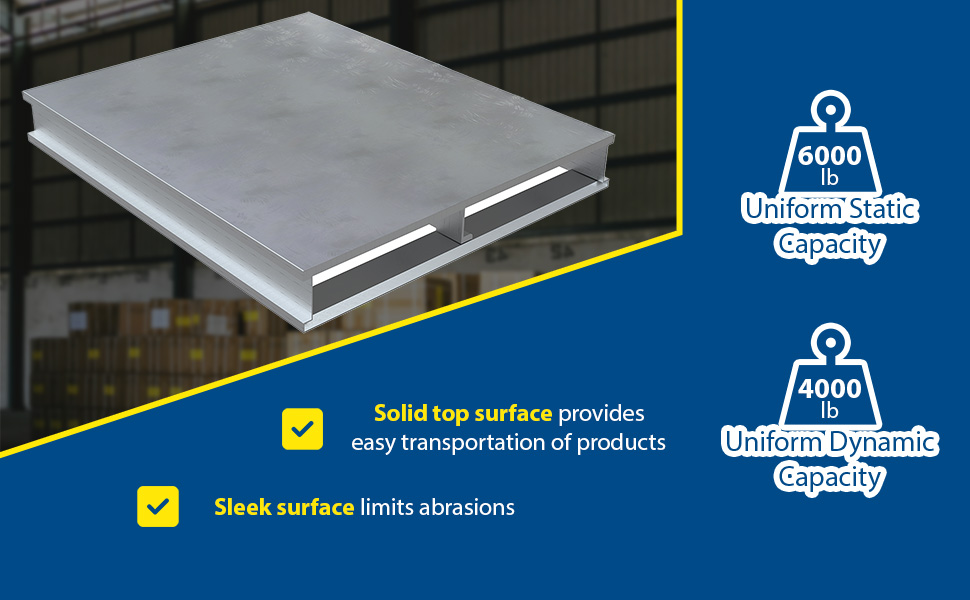

AP-ST-4048 icon_approvaldrawings.jpgWarranty PDF 40-1/8" x 48" x 6" 6,000 lbs. 4,000 lbs. 6,000 lbs. 71

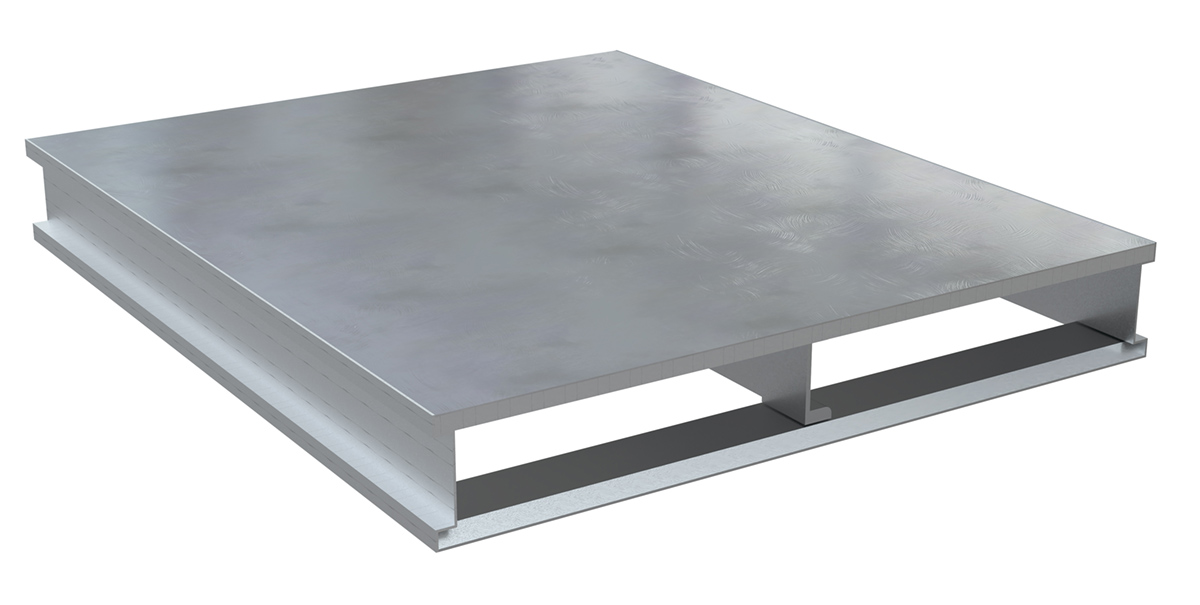

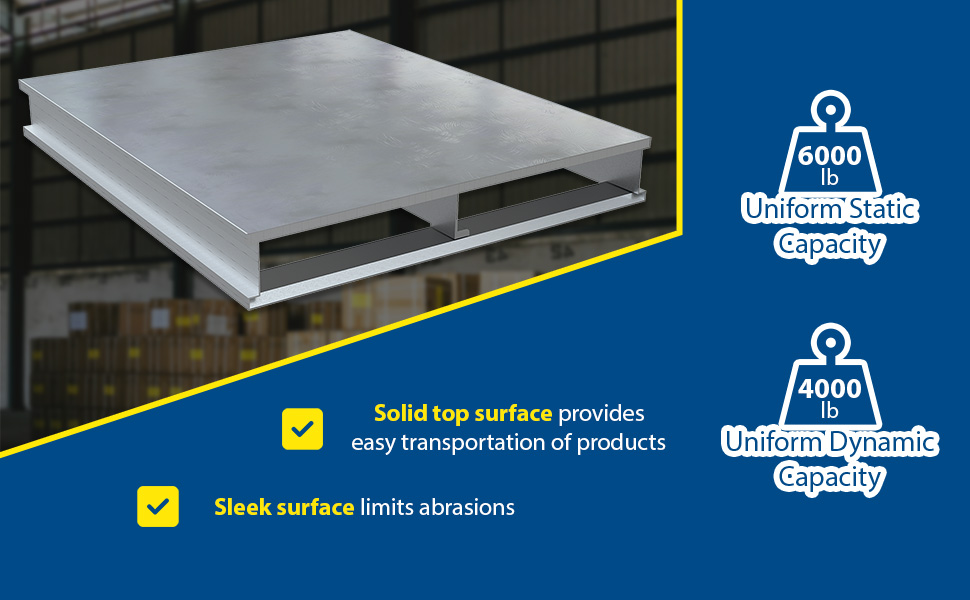

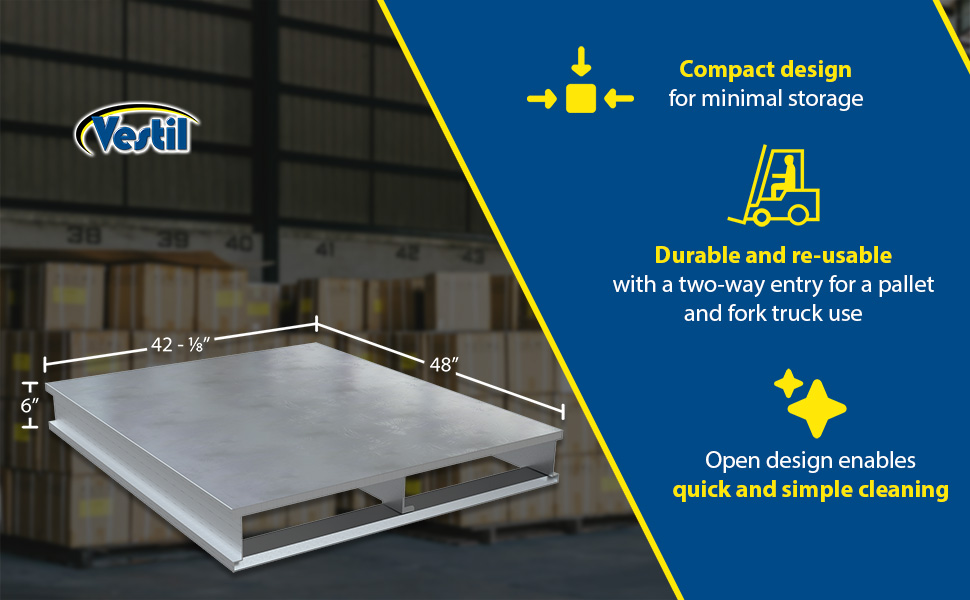

AP-ST-4248 icon_approvaldrawings.jpgWarranty PDF 42-1/8" x 48" x 6" 6,000 lbs. 4,000 lbs. 6,000 lbs. 73

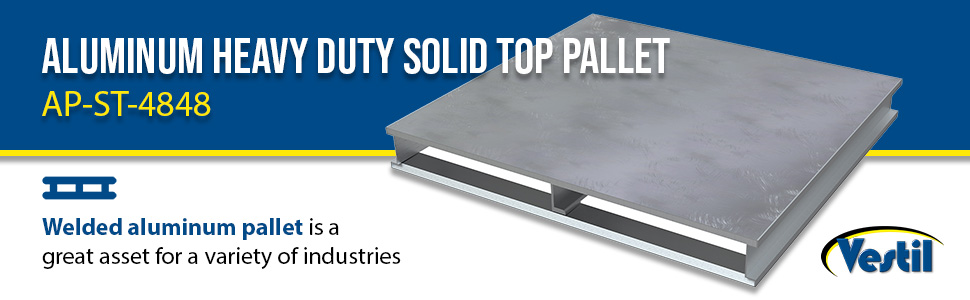

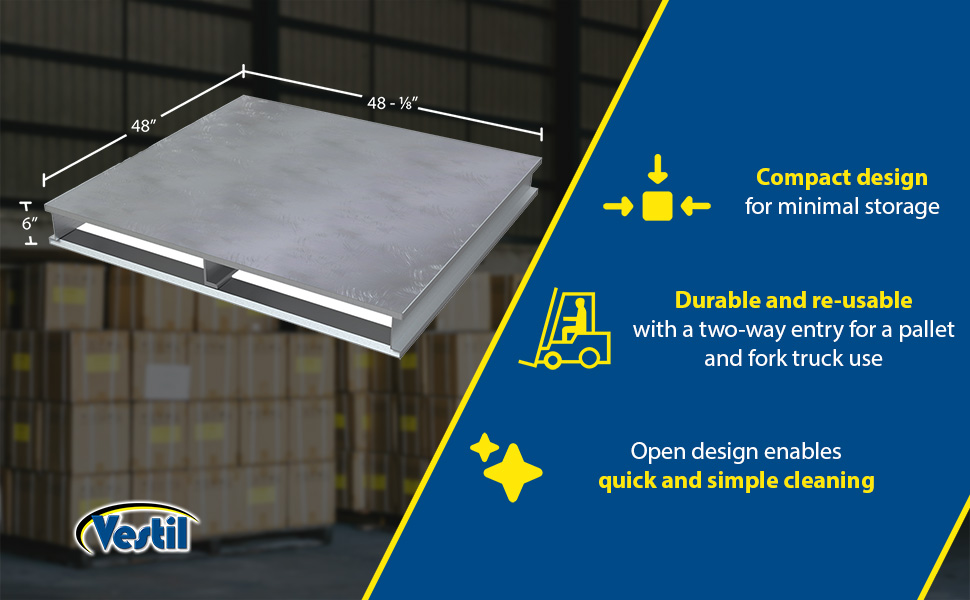

AP-ST-4848 icon_approvaldrawings.jpgWarranty PDF 48-1/8" x 48" x 6" 6,000 lbs. 4,000 lbs. 6,000 lbs. 76
4-Way Entry
AP-4048-4W icon_approvaldrawings.jpgWarranty PDF 40" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 86
AP-4248-4W icon_approvaldrawings.jpgWarranty PDF 42" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 87
AP-4848-4W icon_approvaldrawings.jpgWarranty PDF 47-7/8" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 90
Solid Top 4-Way Entry
AP-ST-4048-4W icon_approvaldrawings.jpgWarranty PDF 40" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 86
AP-ST-4248-4W icon_approvaldrawings.jpgWarranty PDF 42" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 87
AP-ST-4848-4W icon_approvaldrawings.jpgWarranty PDF 47-7/8" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 90
Skid Bottom
AP-4048-SB icon_approvaldrawings.jpgWarranty PDF 40" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 85

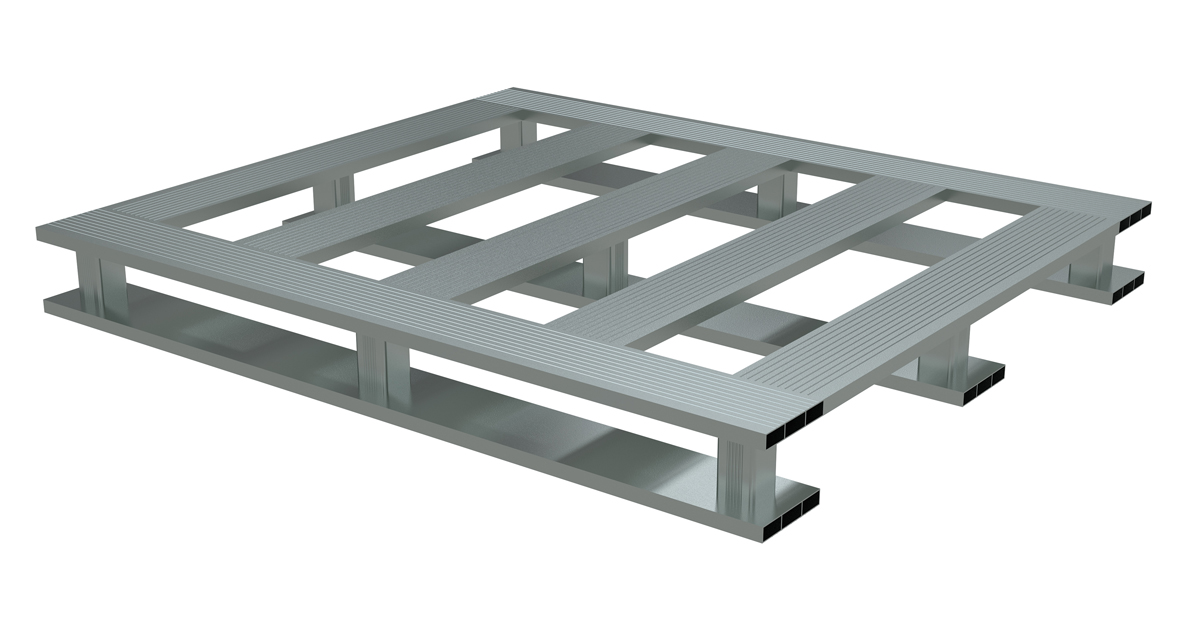

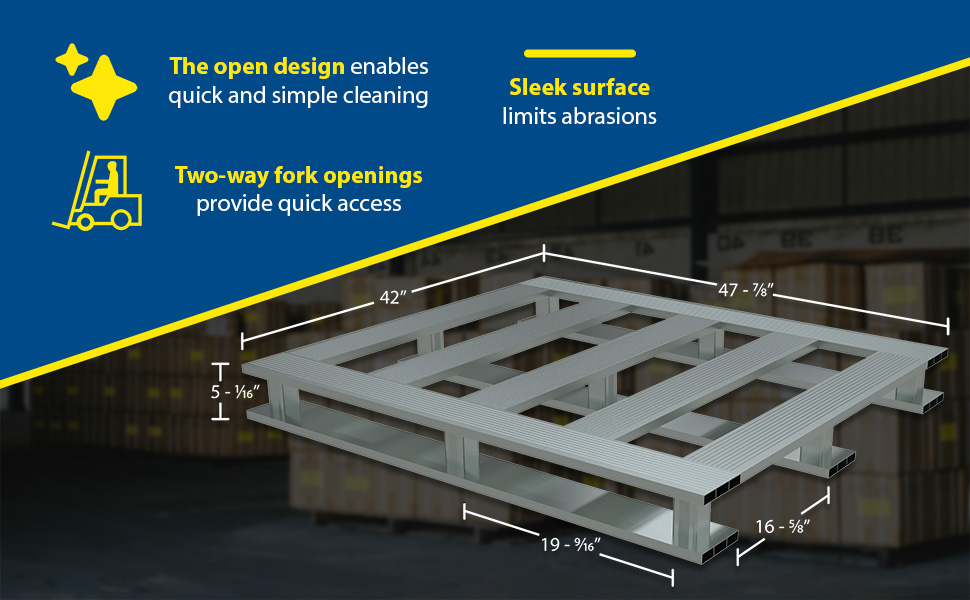

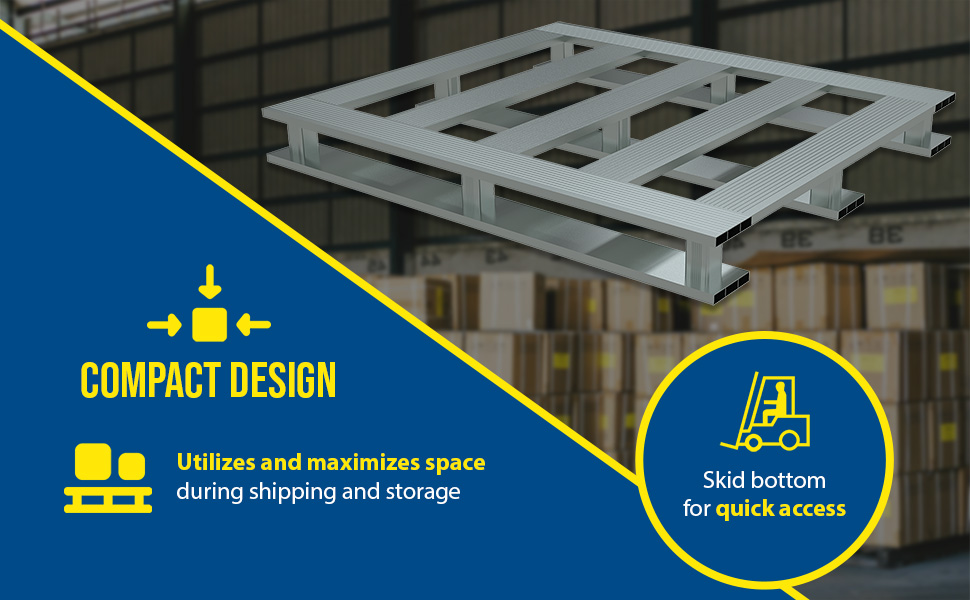

AP-4248-SB icon_approvaldrawings.jpgWarranty PDF 42" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 87
AP-4848-SB icon_approvaldrawings.jpgWarranty PDF 47-7/8" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 89

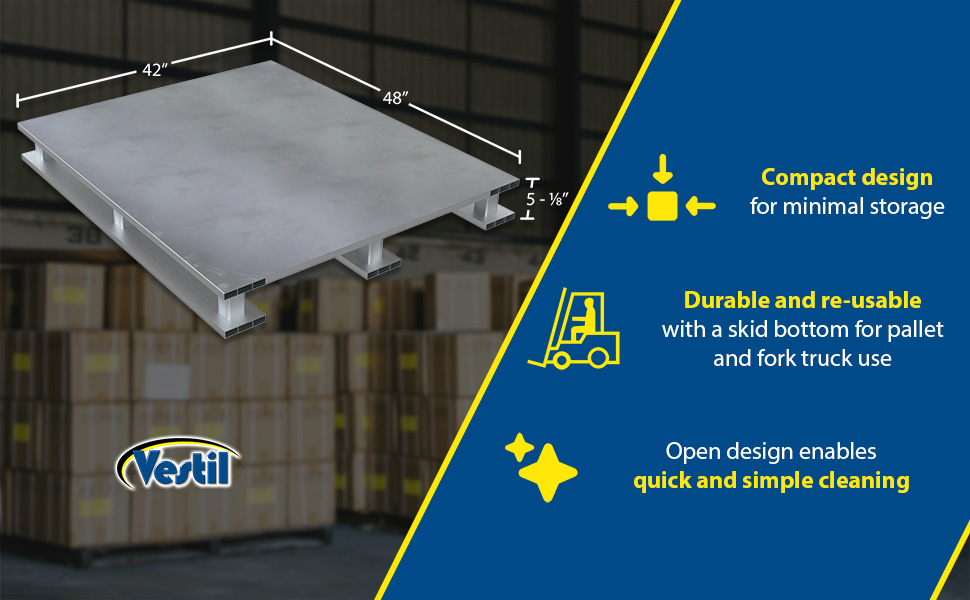

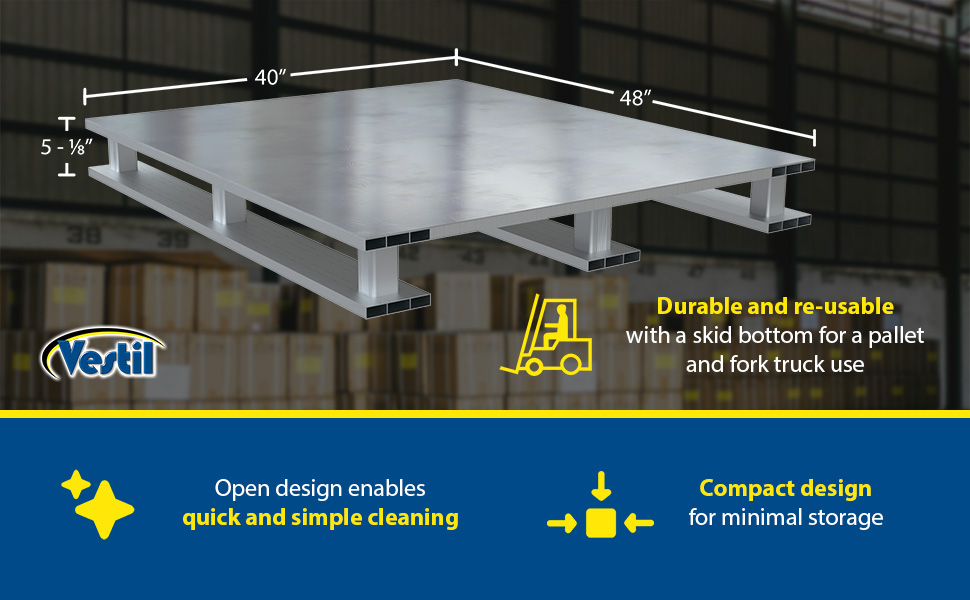

Solid Top With Skid Bottom

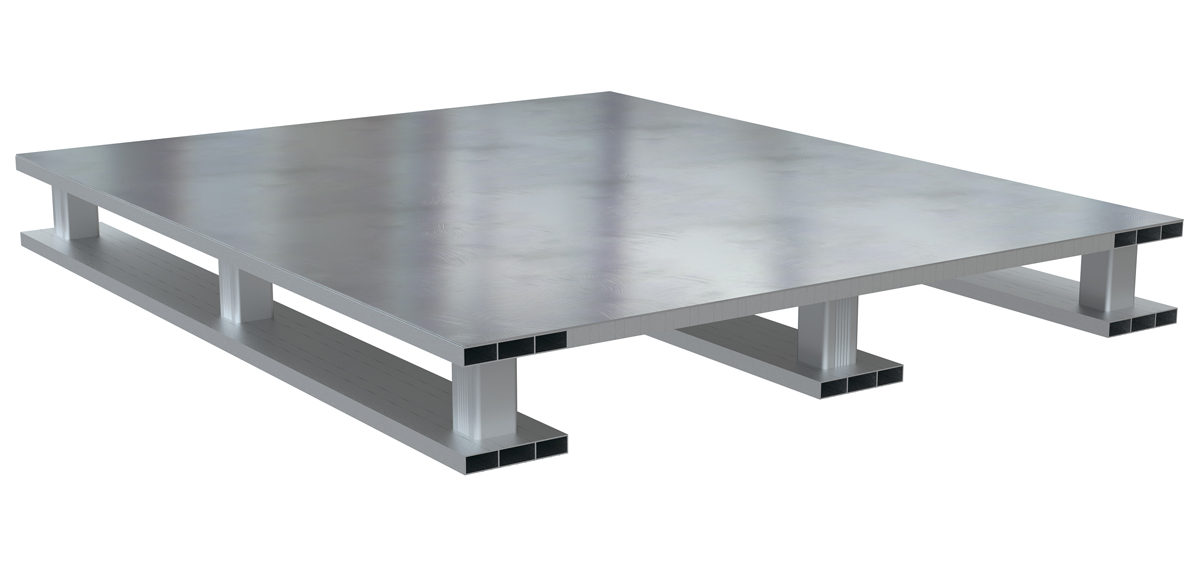

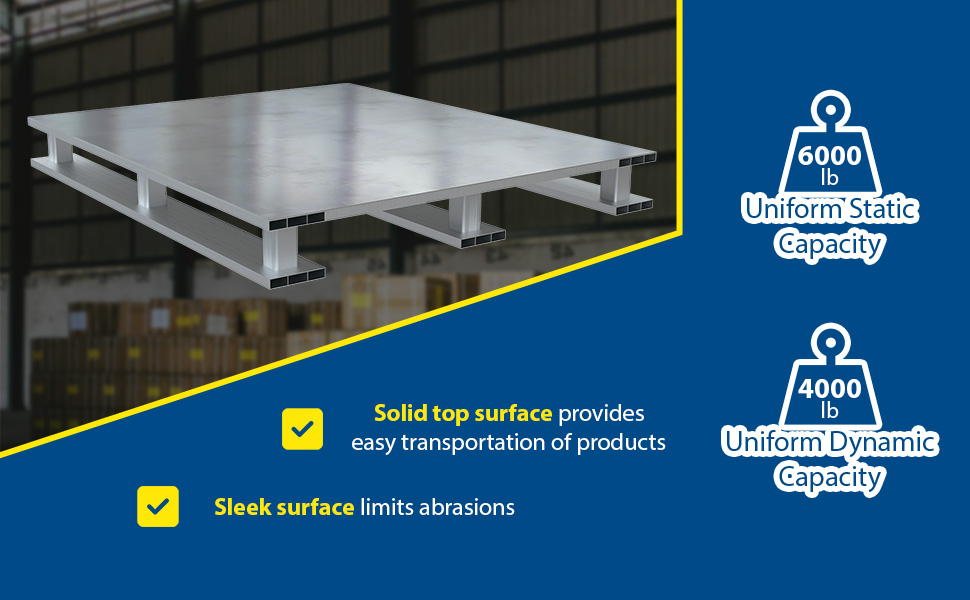

AP-ST-4048-SB icon_approvaldrawings.jpgWarranty PDF 40" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 59

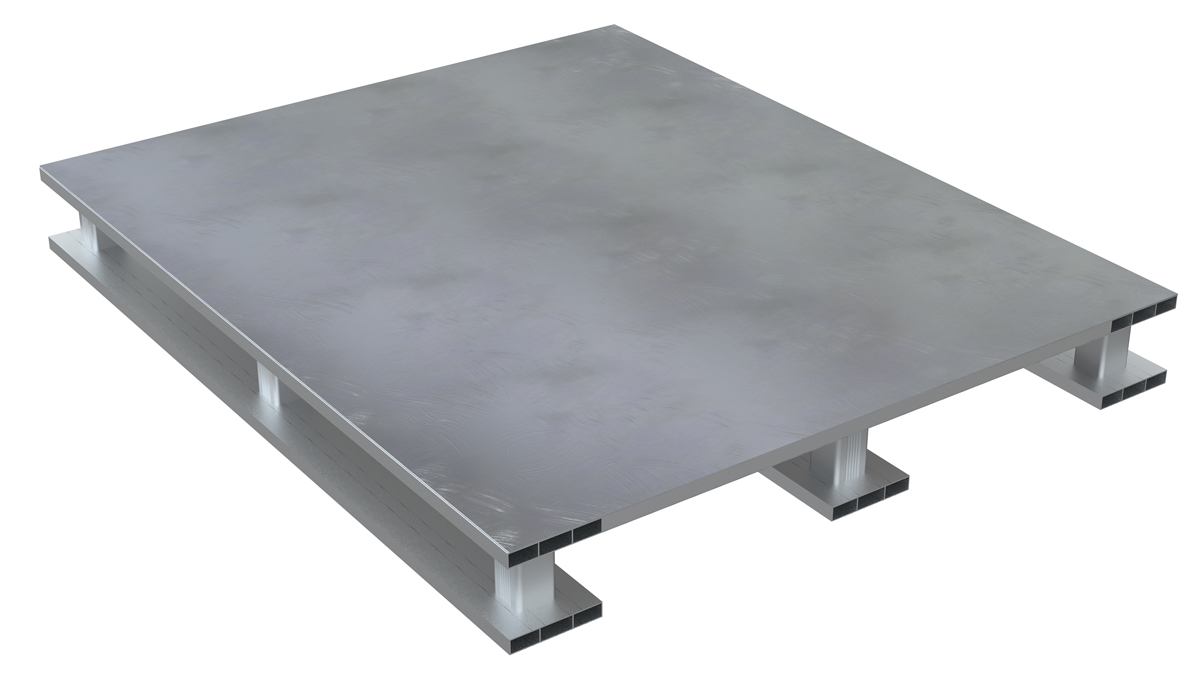

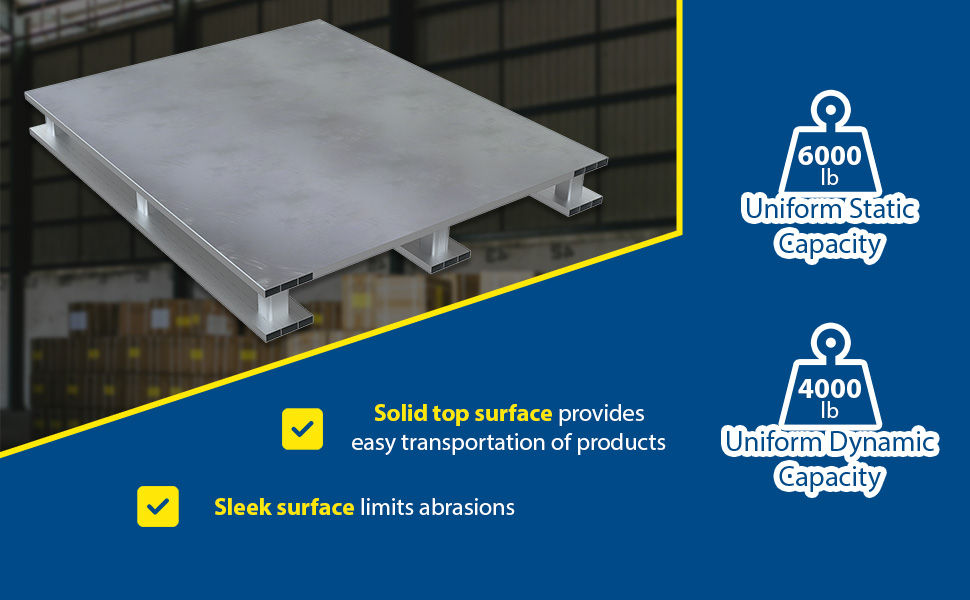

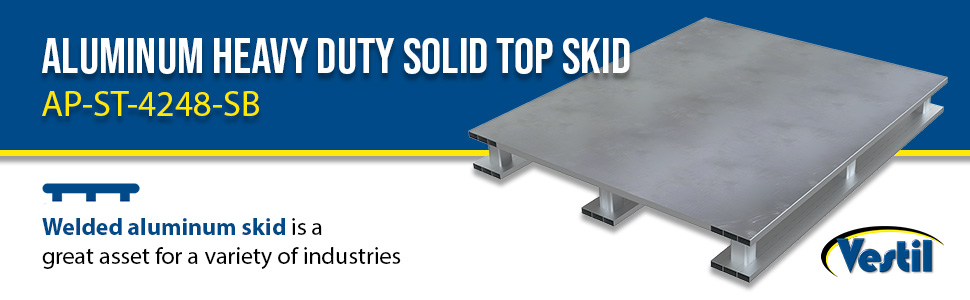

AP-ST-4248-SB icon_approvaldrawings.jpgWarranty PDF 42" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 60
AP-ST-4848-SB icon_approvaldrawings.jpgWarranty PDF 47-7/8" x 47-7/8" x 5-1/16" 6,000 lbs. 4,000 lbs. 4,000 lbs. 63
Skid

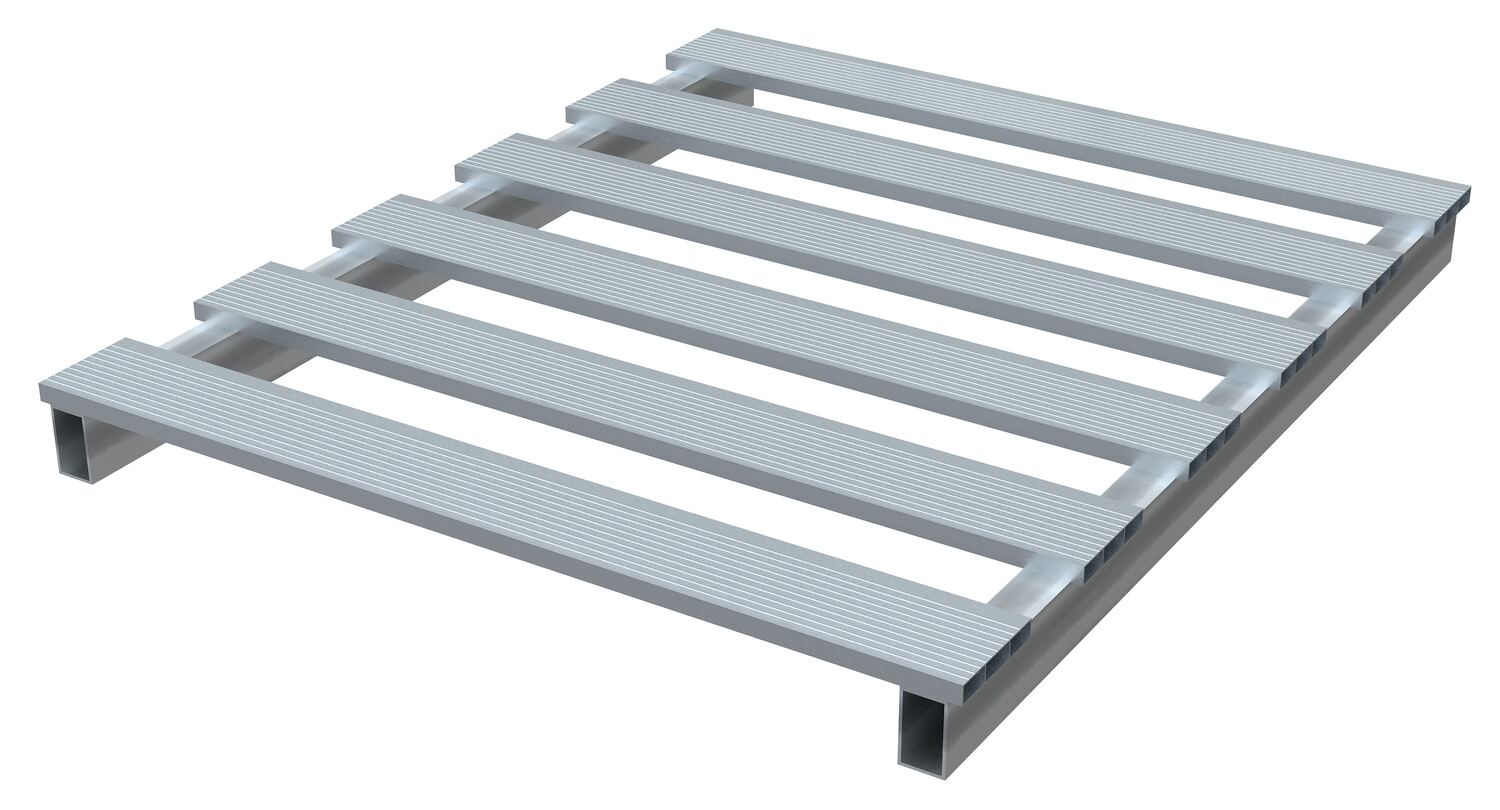

SKID-4048-A icon_approvaldrawings.jpgWarranty PDF 39-7/8" x 48" x 3-3/4" 4,000 lbs. 4,000 lbs. 4,000 lbs. 27

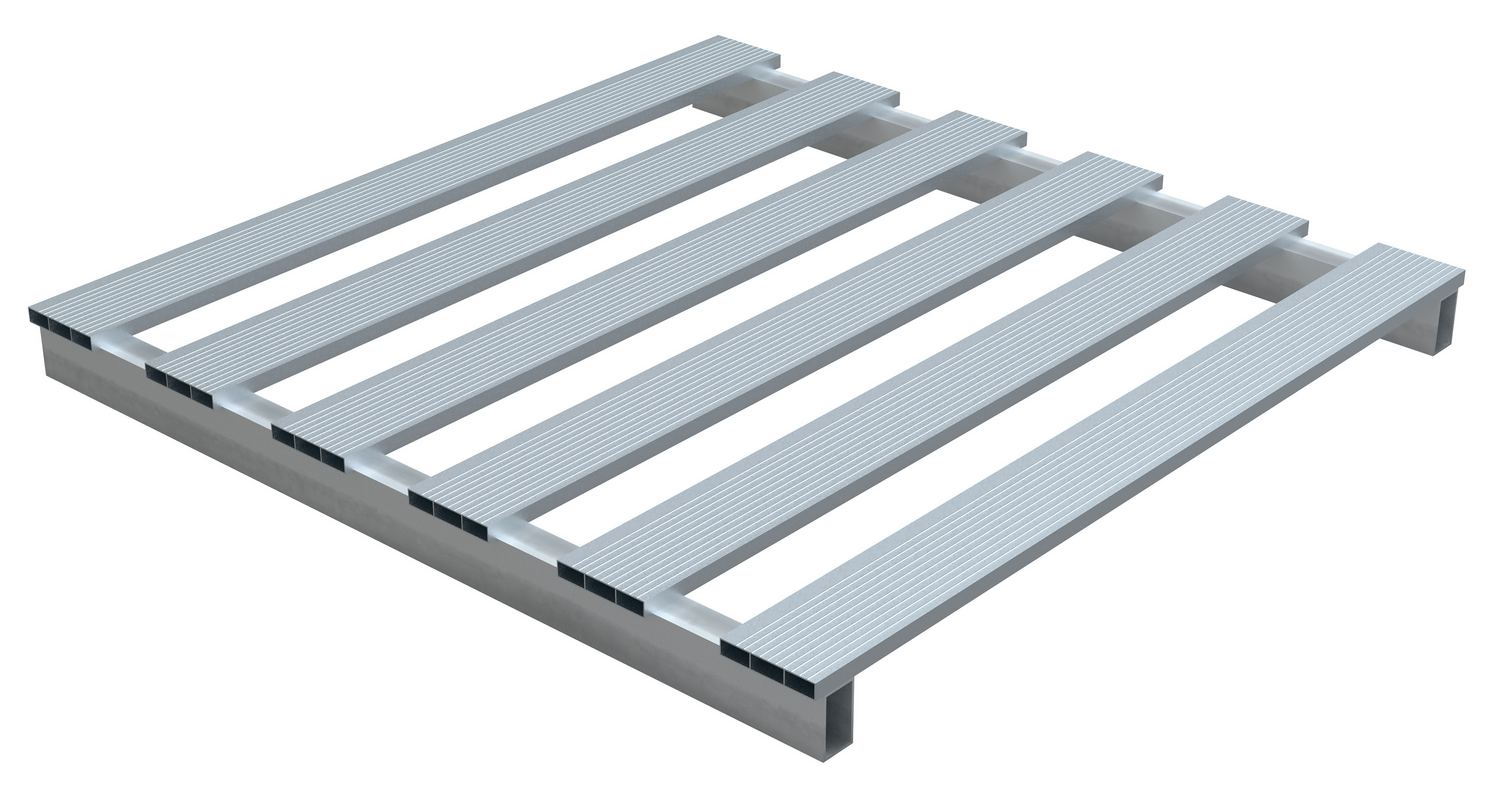

SKID-4248-A icon_approvaldrawings.jpgWarranty PDF 41-7/8" x 48" x 3-3/4" 4,000 lbs. 4,000 lbs. 4,000 lbs. 27
SKID-4848-A icon_approvaldrawings.jpgWarranty PDF 47-7/8" x 48" x 3-3/4" 4,000 lbs. 4,000 lbs. 4,000 lbs. 30
Aluminum Half Pallets
Model Image PDF Overall Size
(W x D x H)		 Uniform Supported Weight Capacity Wt.
(lbs)
Floor
(Static)		 Fork
(Dynamic)		 Unsupported
Pallet Rack

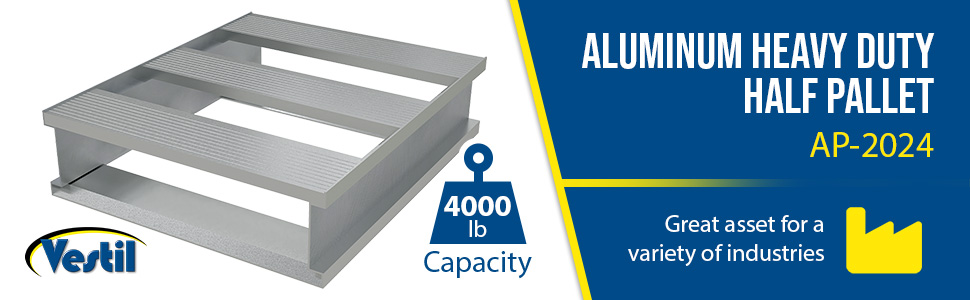

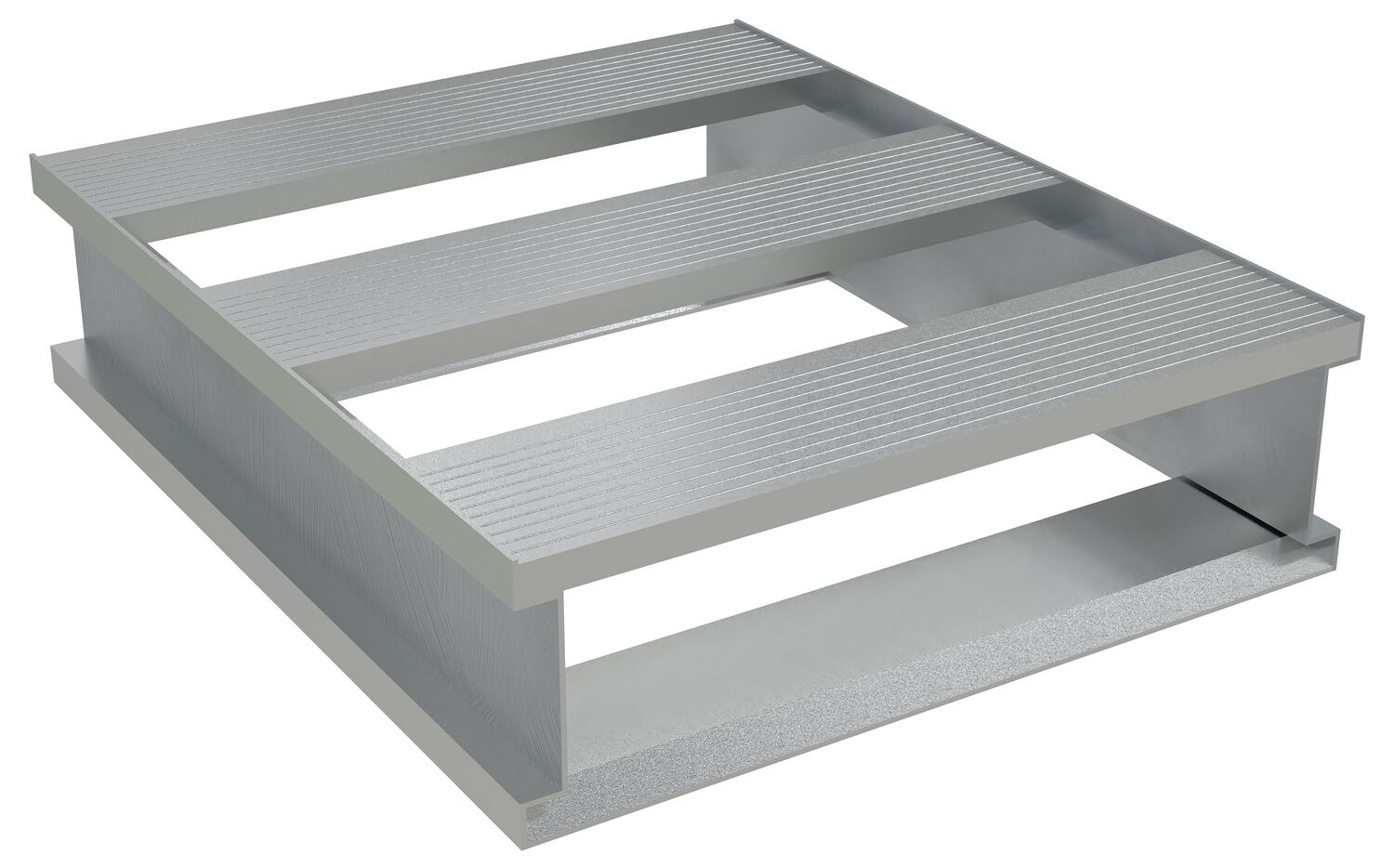

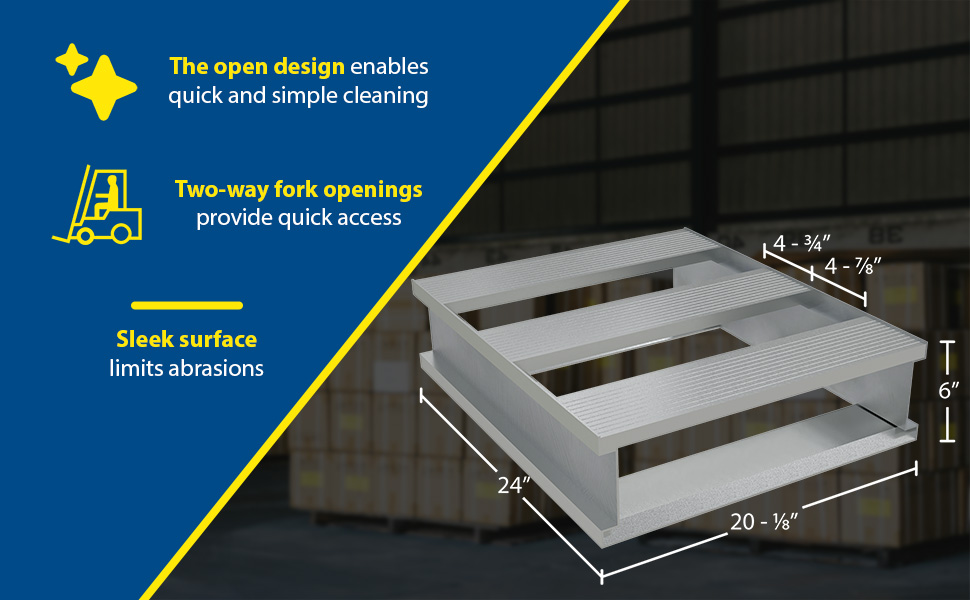

AP-2024 Warranty PDF 20" x 24" x 6" 4,000 lbs. 4,000 lbs. 4,000 lbs. 12

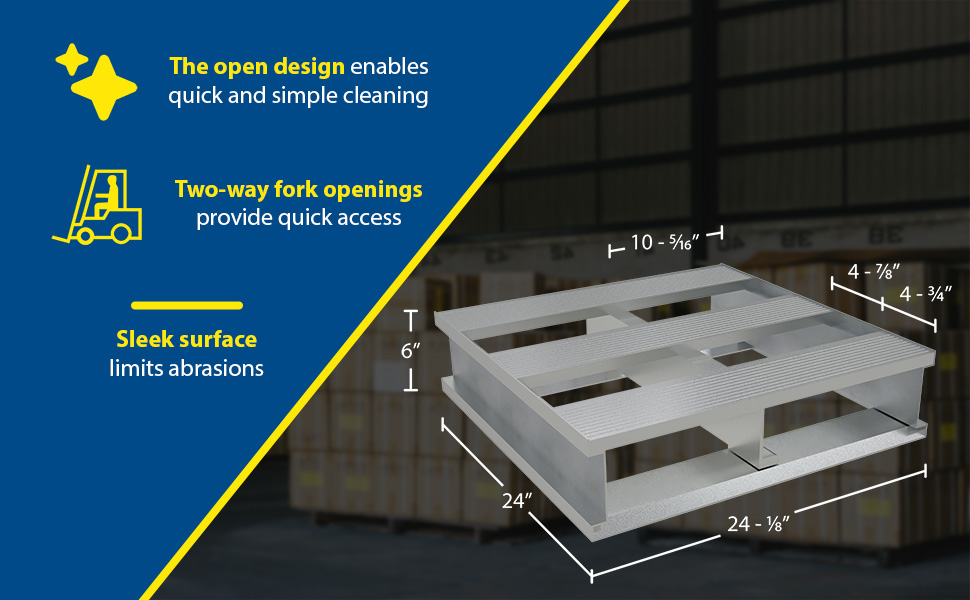

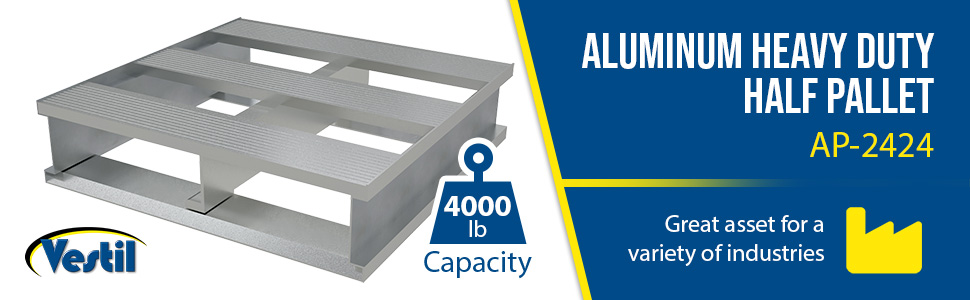

AP-2424 icon_approvaldrawings.jpgWarranty PDF 24" x 24" x 6" 4,000 lbs. 4,000 lbs. 4,000 lbs. 13

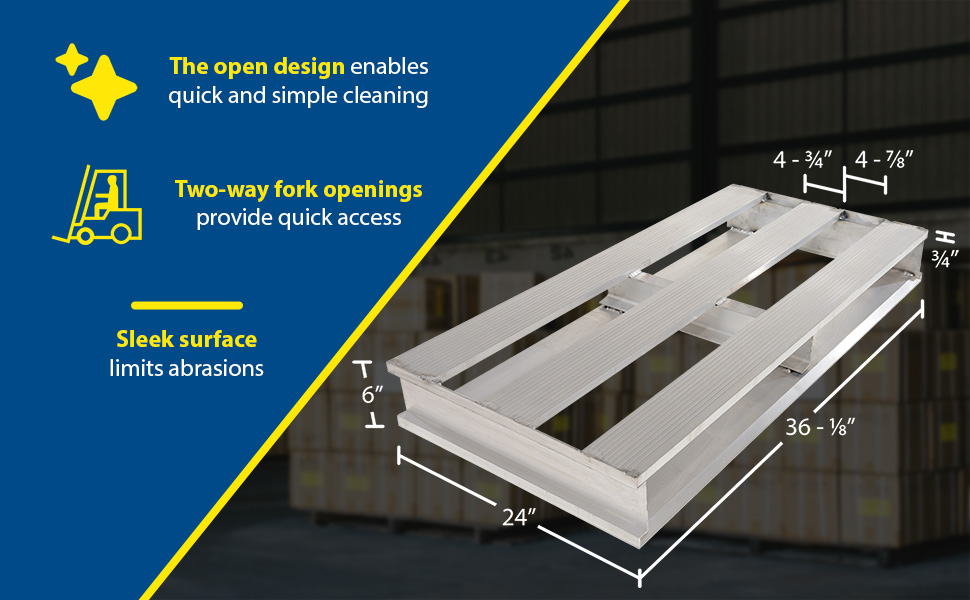

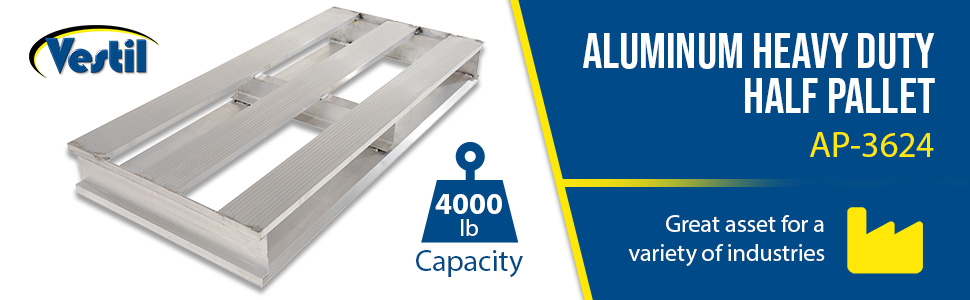

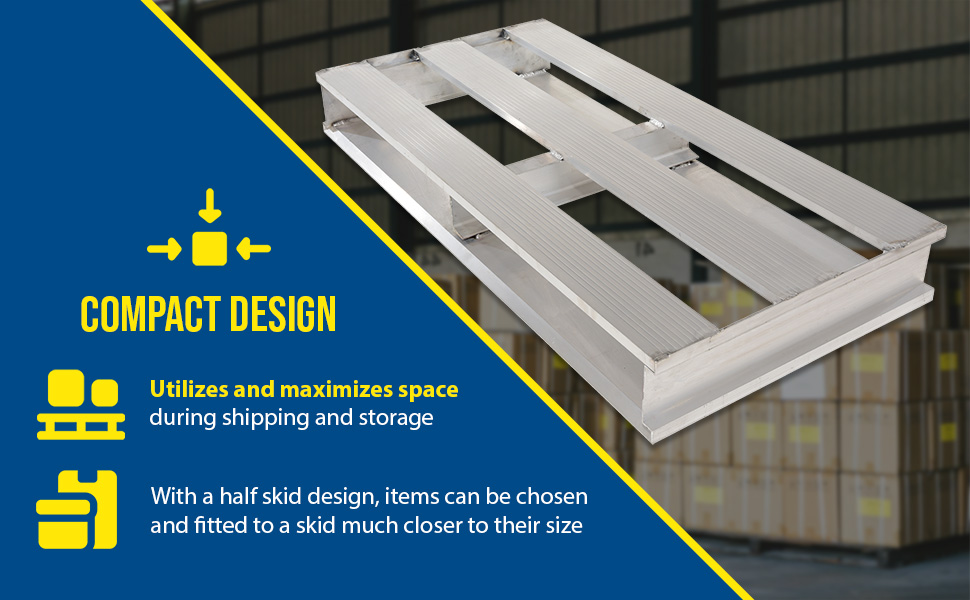

AP-3624 icon_approvaldrawings.jpgWarranty PDF 36" x 24" x 6" 4,000 lbs. 4,000 lbs. 4,000 lbs. 17
AP-4024 icon_approvaldrawings.jpgWarranty PDF 40" x 24" x 6" 4,000 lbs. 4,000 lbs. 4,000 lbs. 21

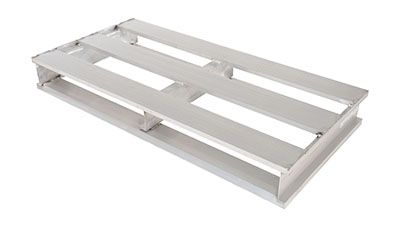

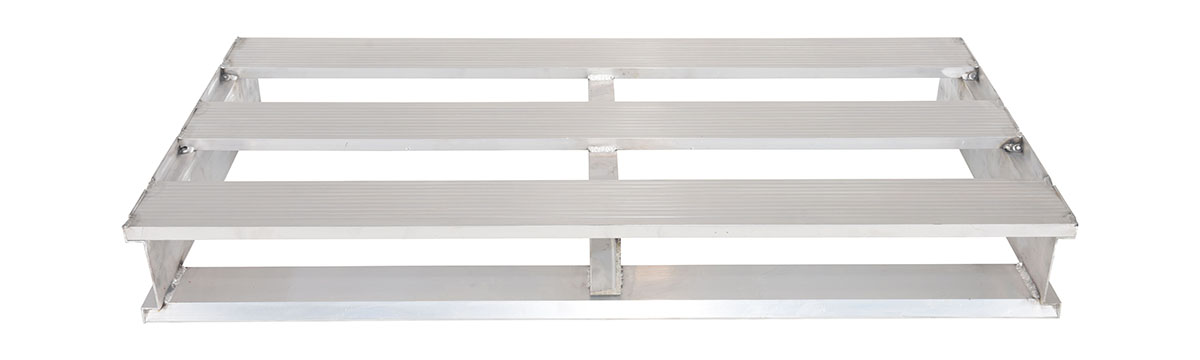

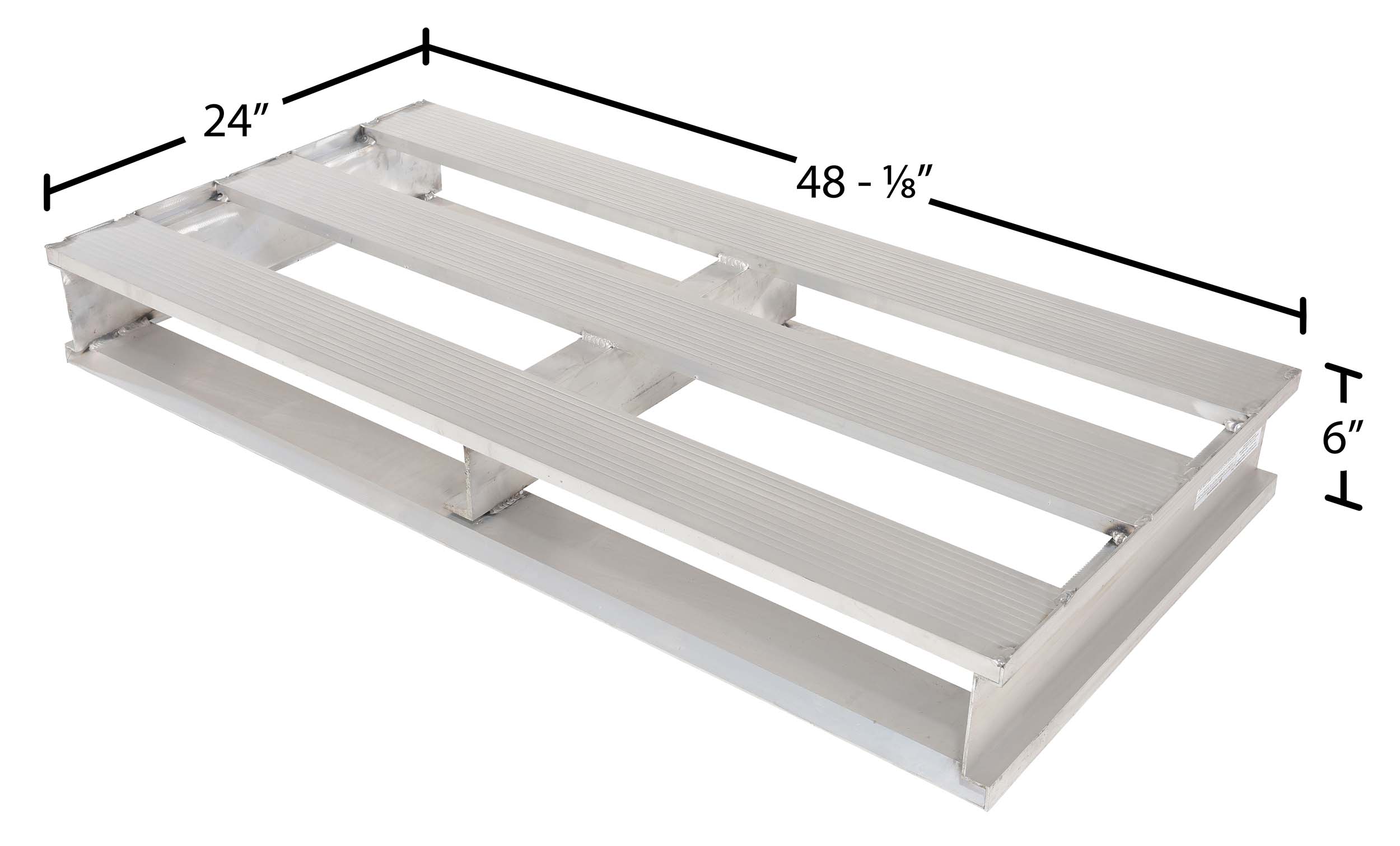

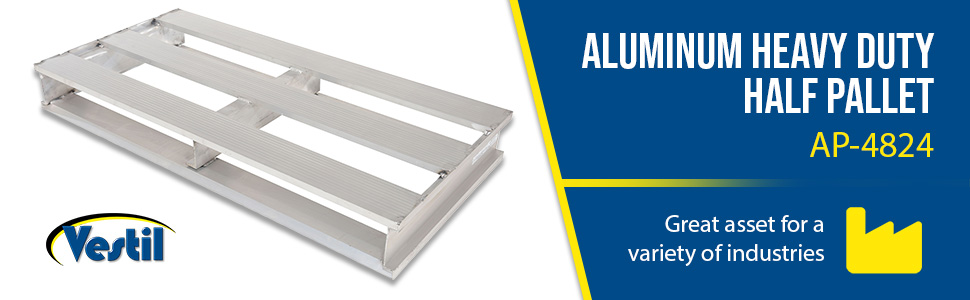

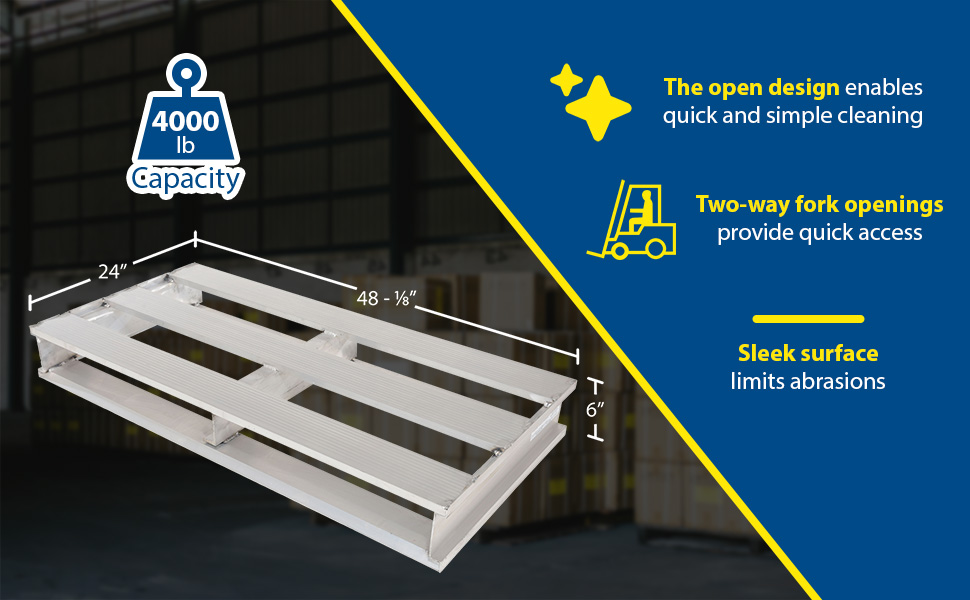

AP-4824 icon_approvaldrawings.jpgWarranty PDF 48" x 24" x 6" 4,000 lbs. 4,000 lbs. 4,000 lbs. 26
Aluminum Half Pallet 4-Way Entry

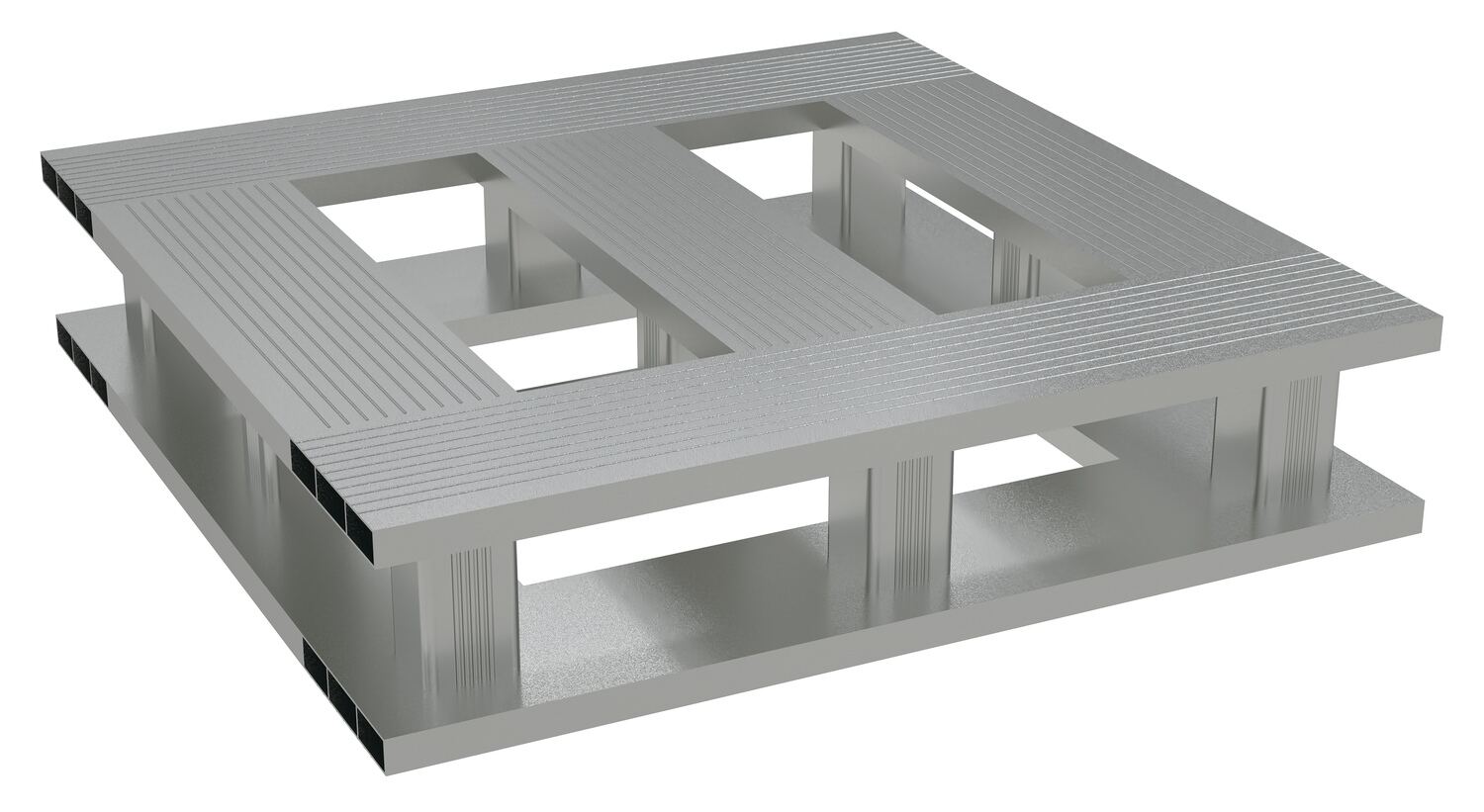

AP-2424-4W icon_approvaldrawings.jpgWarranty PDF 24" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 13
AP-3624-4W icon_approvaldrawings.jpgWarranty PDF 36" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 16
AP-4024-4W icon_approvaldrawings.jpgWarranty PDF 40" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 21
AP-4824-4W icon_approvaldrawings.jpgWarranty PDF 48" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 24

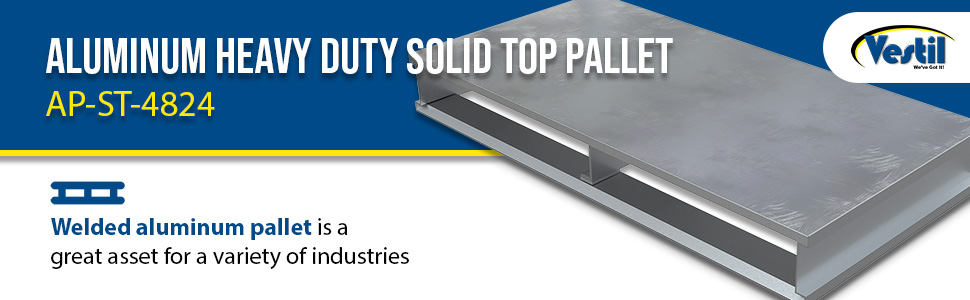

Aluminum Solid Top Half Pallet

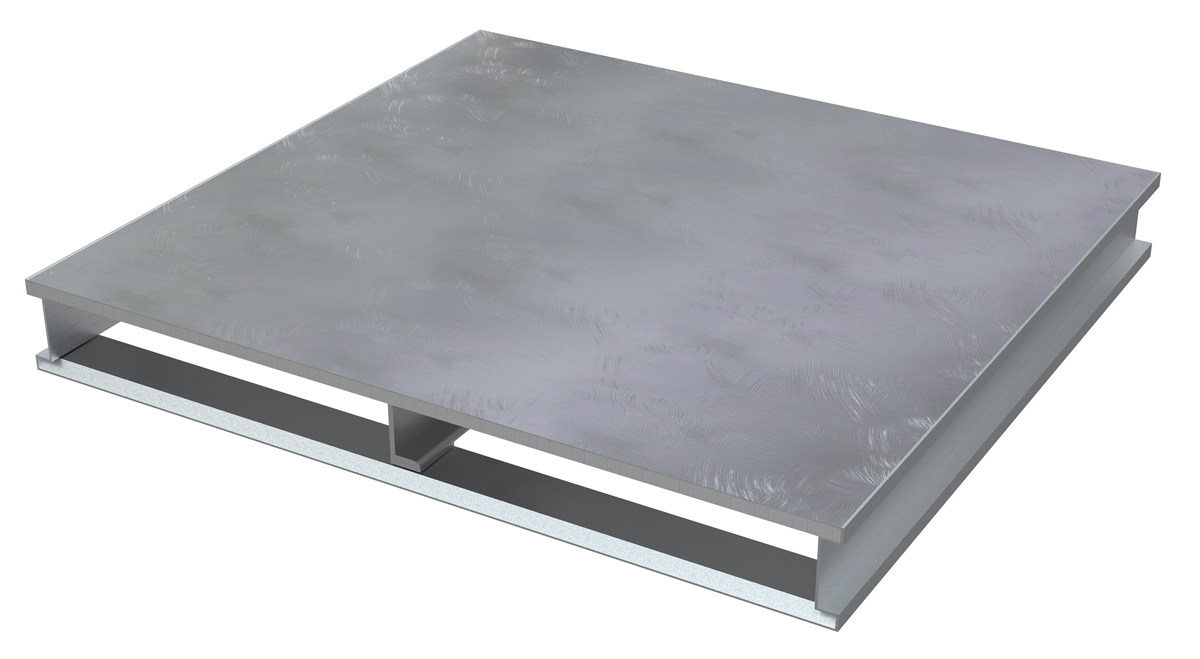

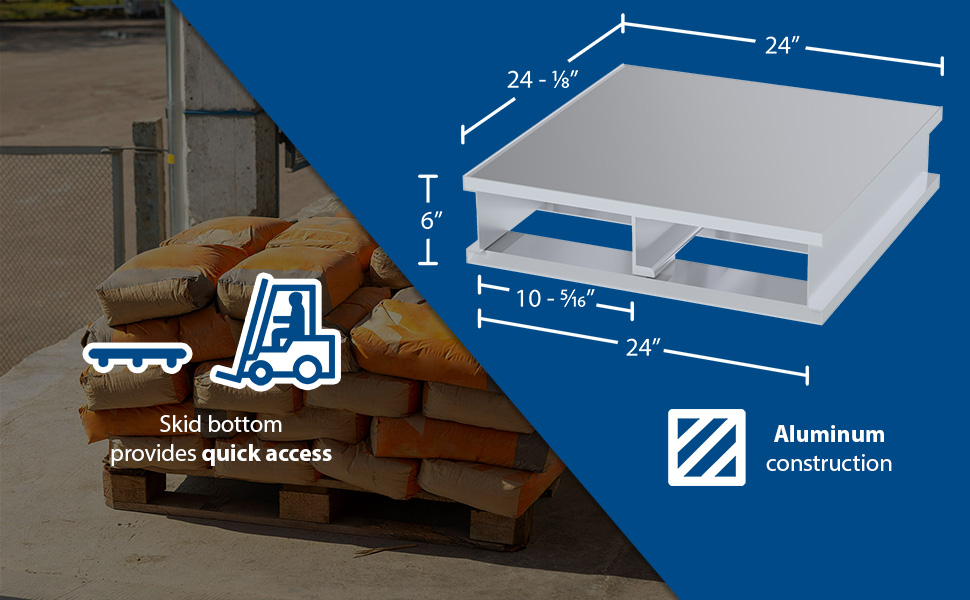

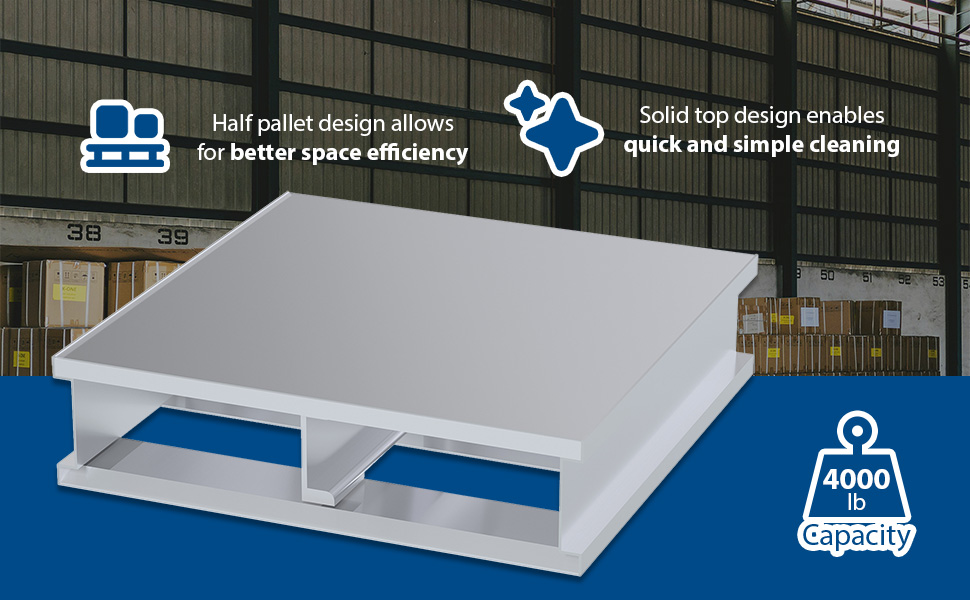

AP-ST-2424 icon_approvaldrawings.jpg Warranty PDF 24" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 13

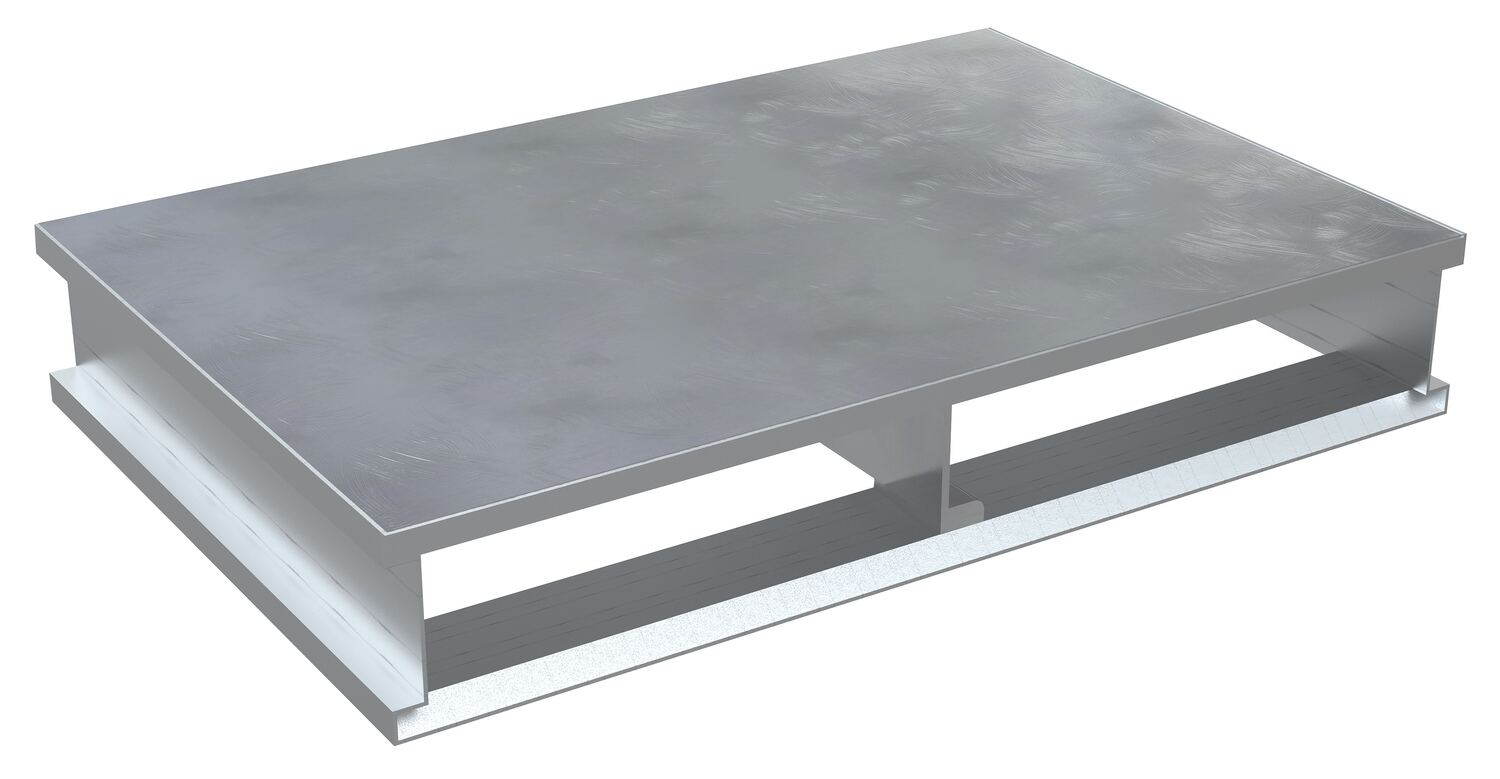

AP-ST-3624 icon_approvaldrawings.jpgWarranty PDF 36" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 17

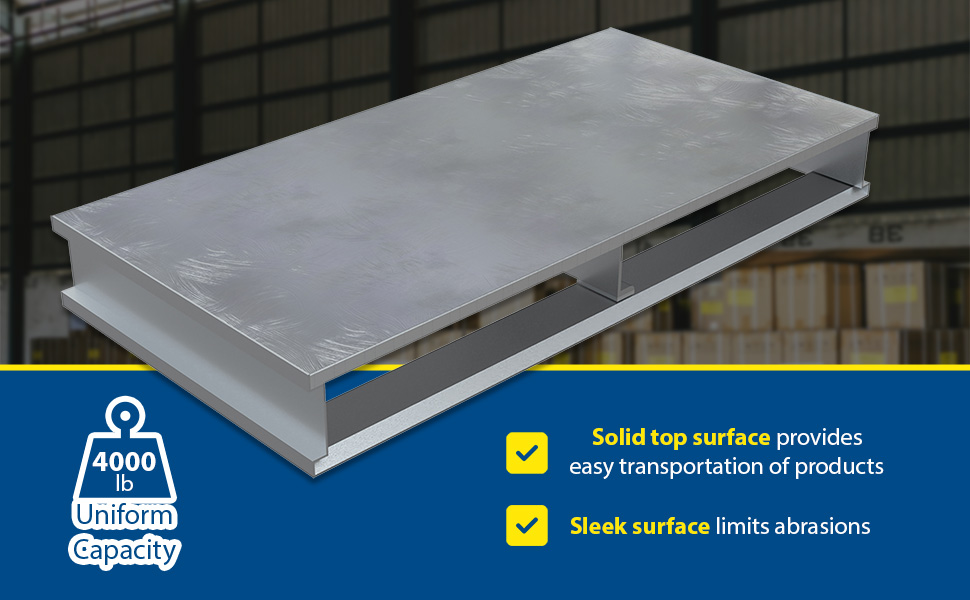

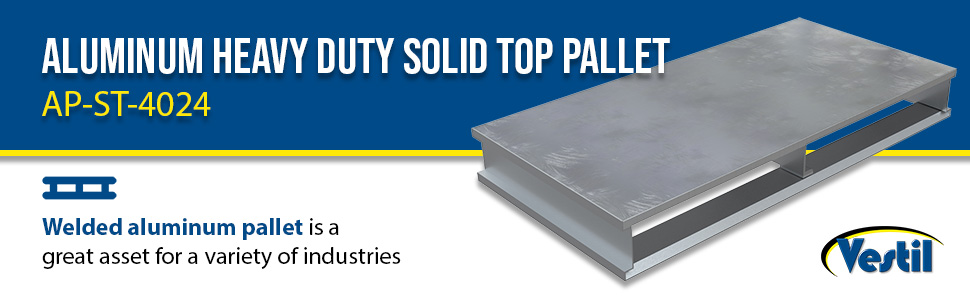

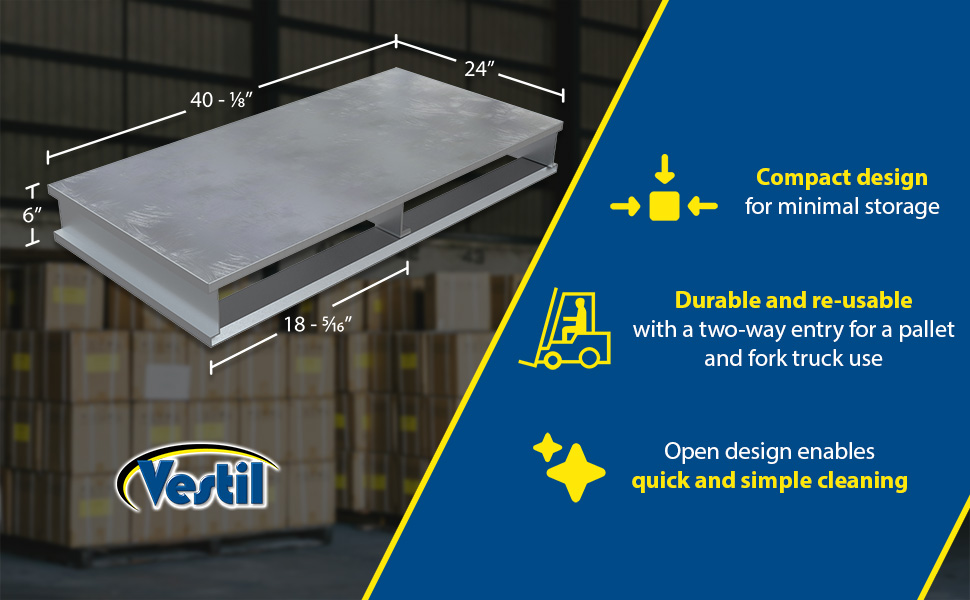

AP-ST-4024 icon_approvaldrawings.jpgWarranty PDF 40" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 33

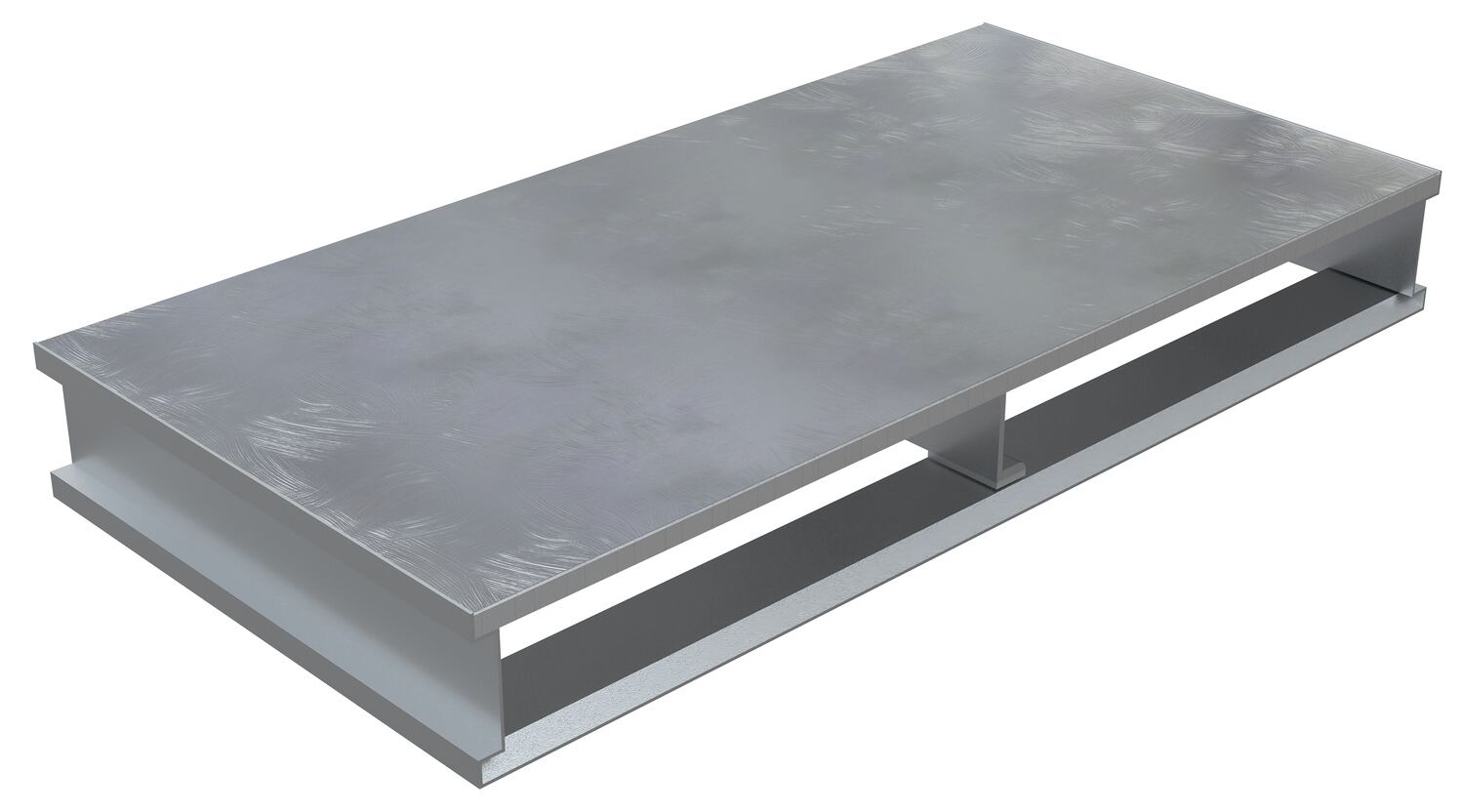

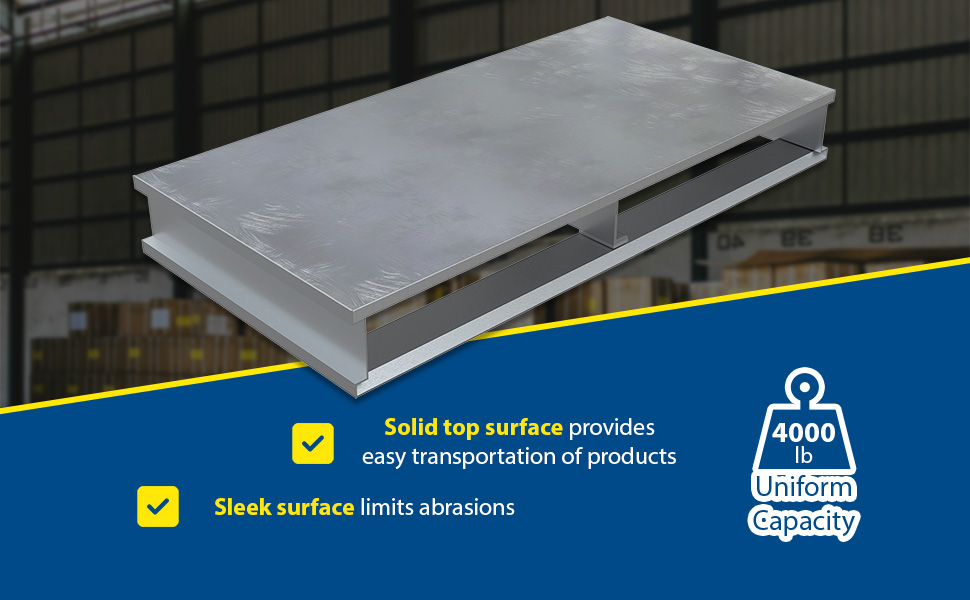

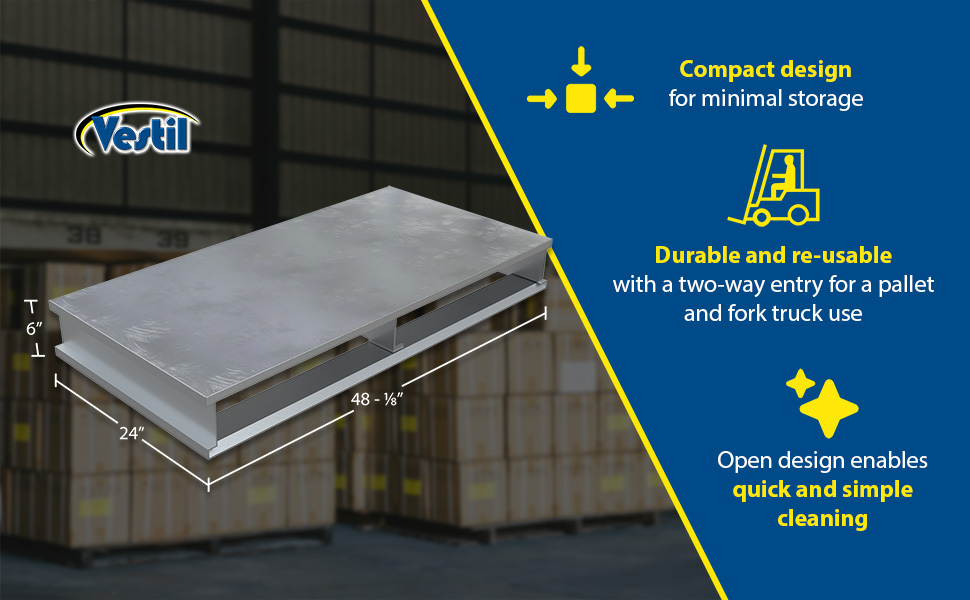

AP-ST-4824 icon_approvaldrawings.jpgWarranty PDF 48" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 36
Aluminum Half Pallet Solid Top 4-Way Entry
AP-ST-2424-4W icon_approvaldrawings.jpgWarranty PDF 24" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 18
AP-ST-3624-4W - 36" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 26
AP-ST-4024-4W icon_approvaldrawings.jpgWarranty PDF 40" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 30
AP-ST-4824-4W icon_approvaldrawings.jpgWarranty PDF 48" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 33

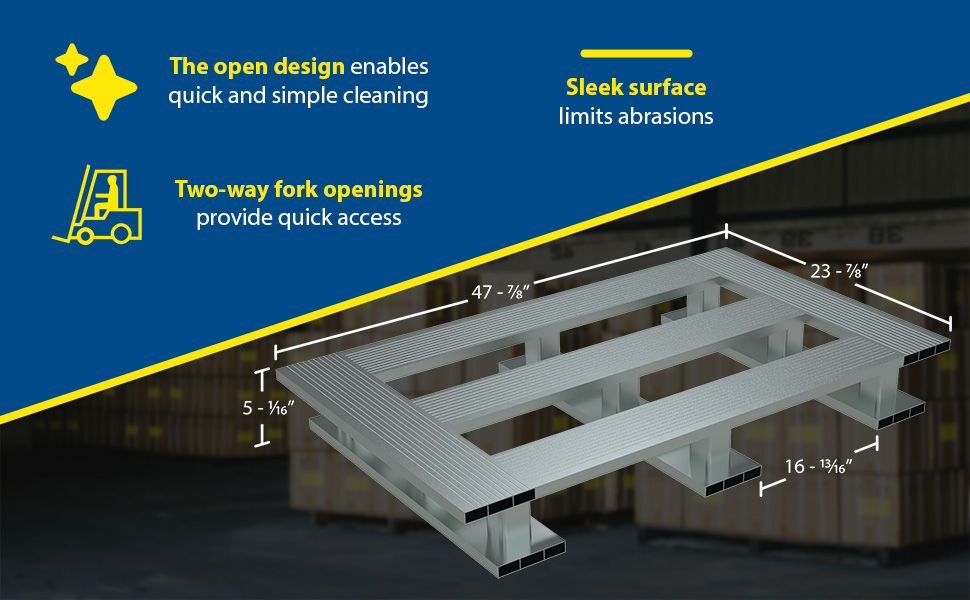

Aluminum Half Skid Bottom

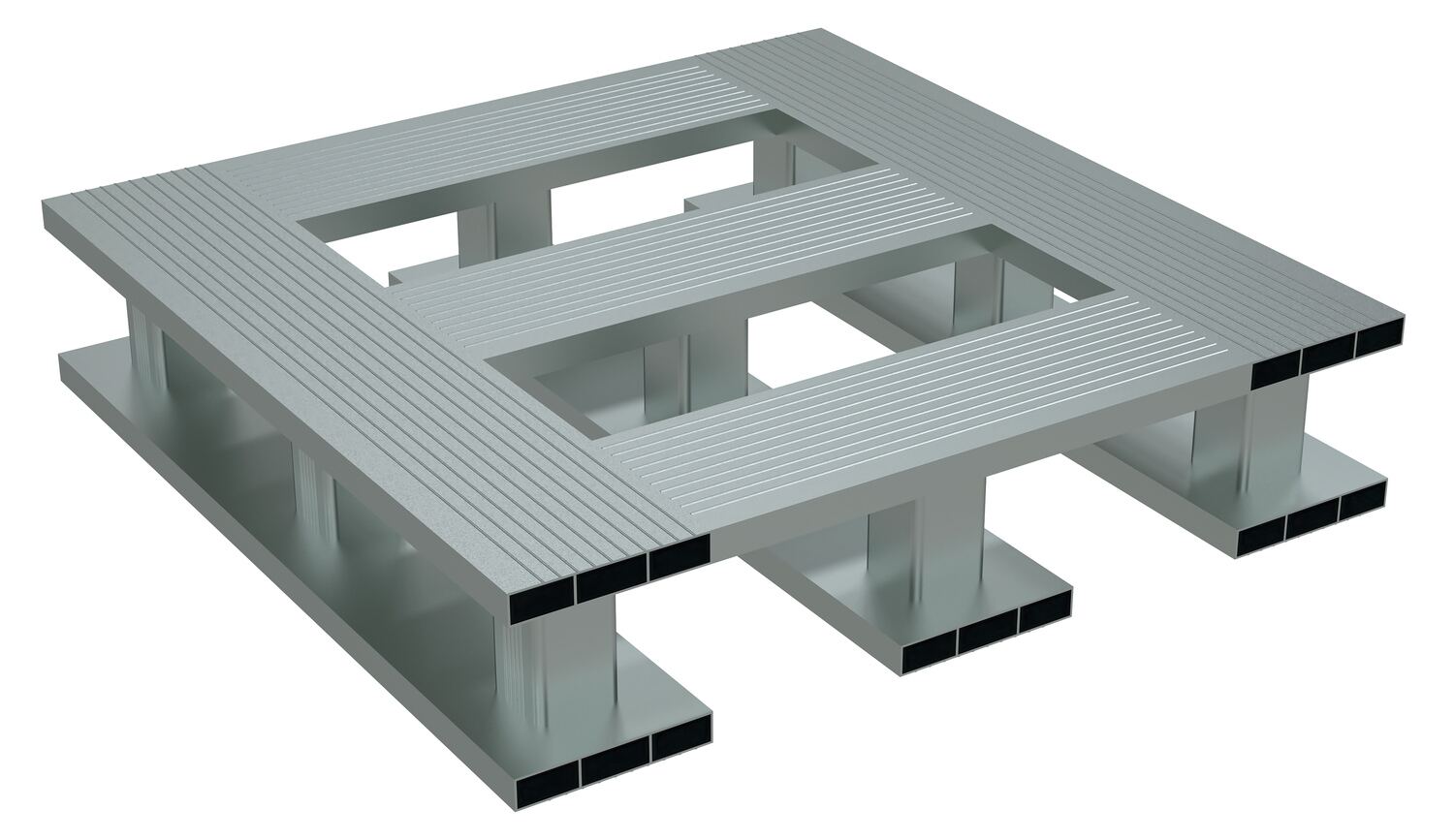

AP-2424-SB icon_approvaldrawings.jpgWarranty PDF 24" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 12
AP-3624-SB icon_approvaldrawings.jpgWarranty PDF 36" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 14

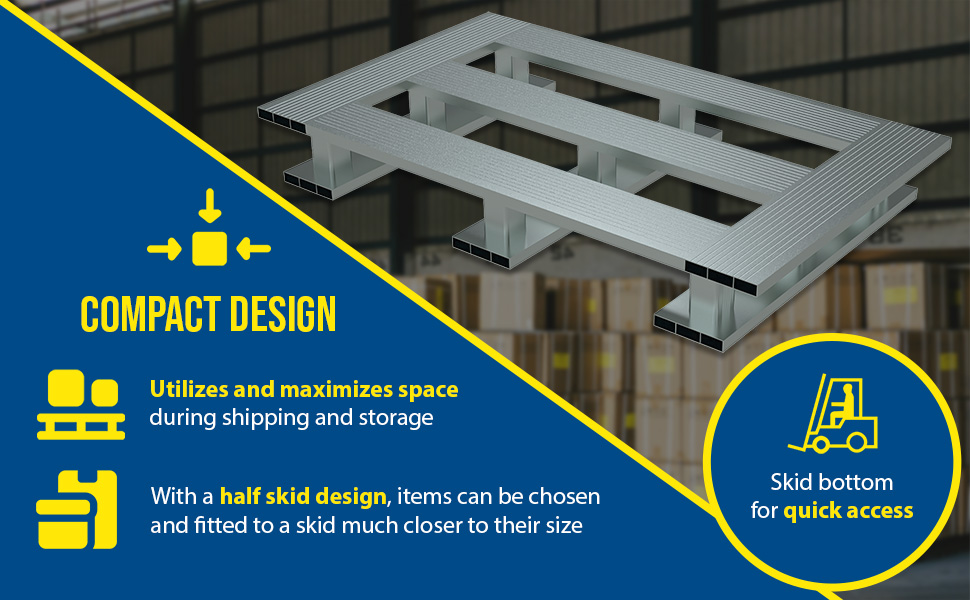

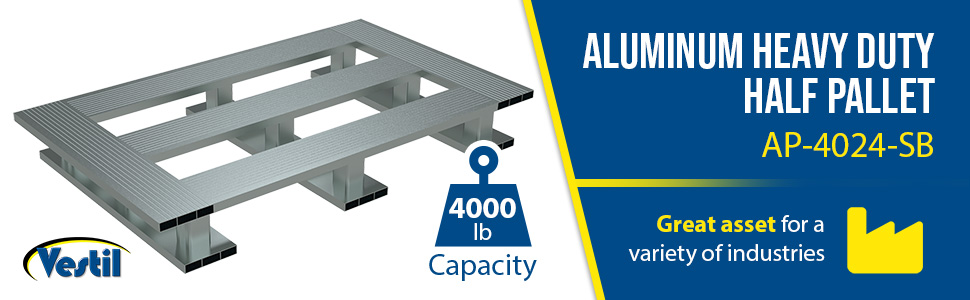

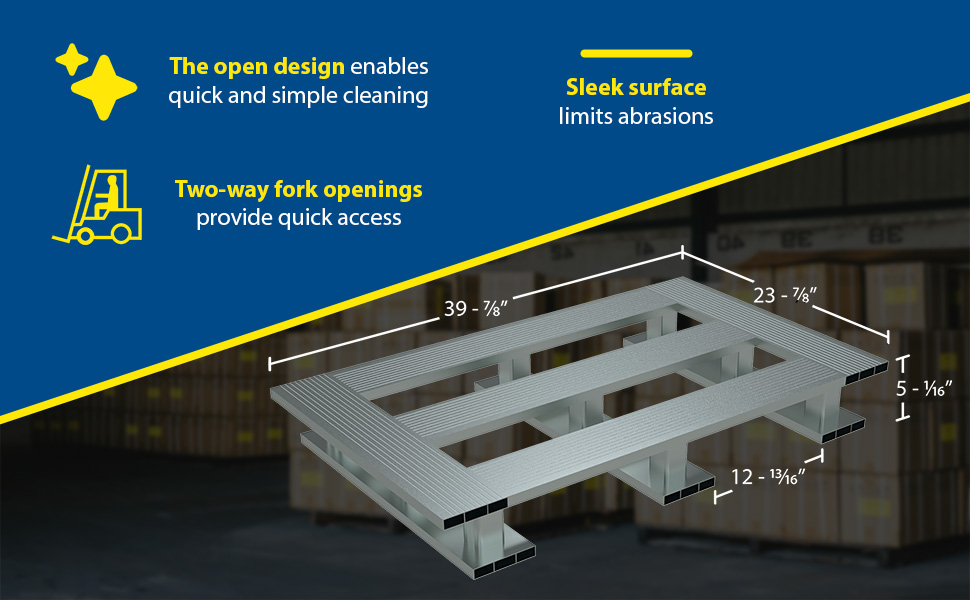

AP-4024-SB icon_approvaldrawings.jpgWarranty PDF 40" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 19
AP-4824-SB icon_approvaldrawings.jpgWarranty PDF 48" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 23

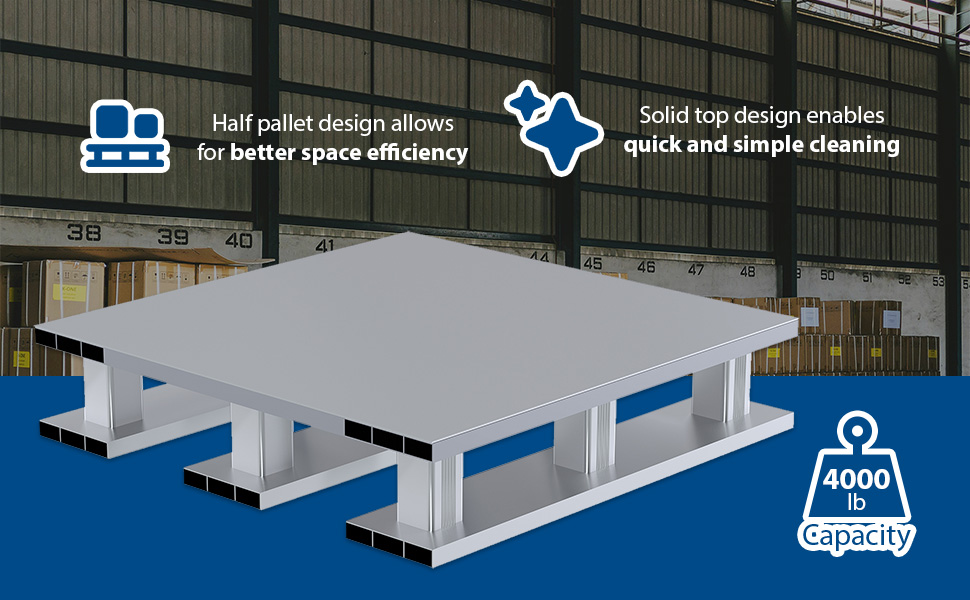

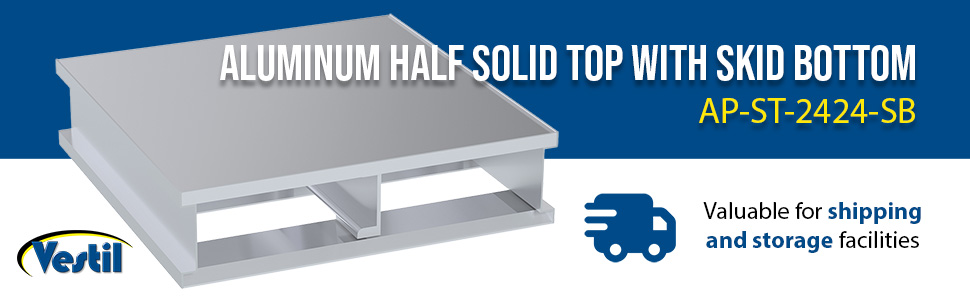

Aluminum Half Solid Top With Skid Bottom

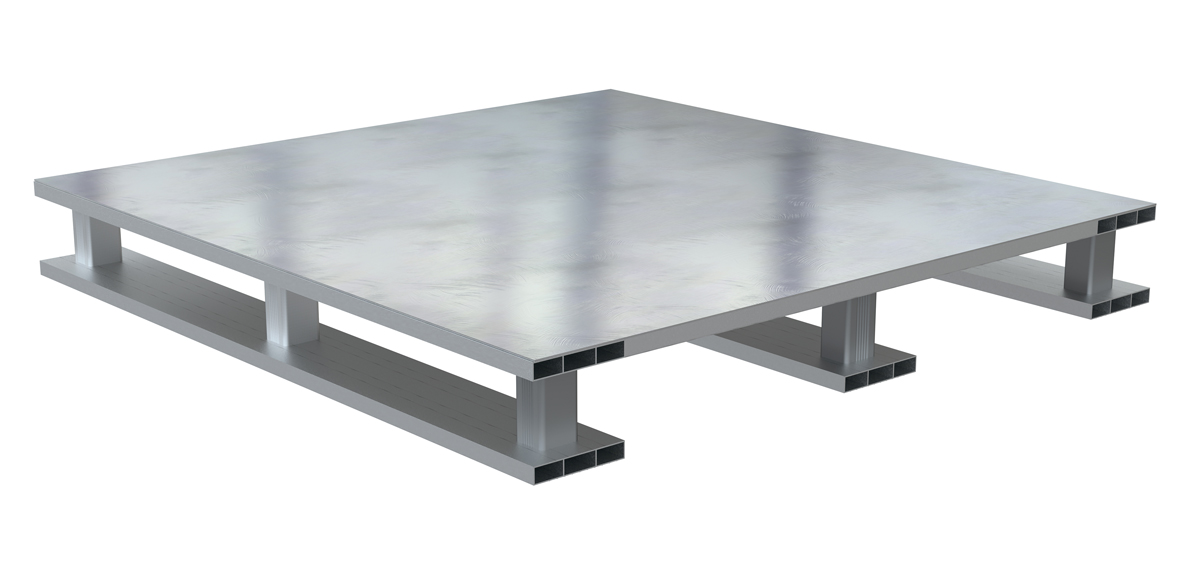

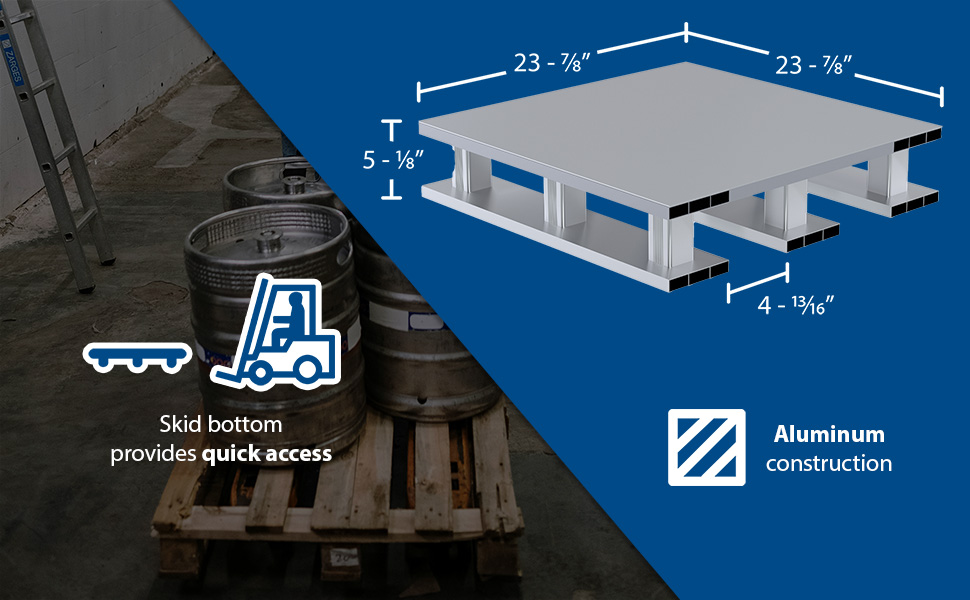

AP-ST-2424-SB icon_approvaldrawings.jpgWarranty PDF 24" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 17

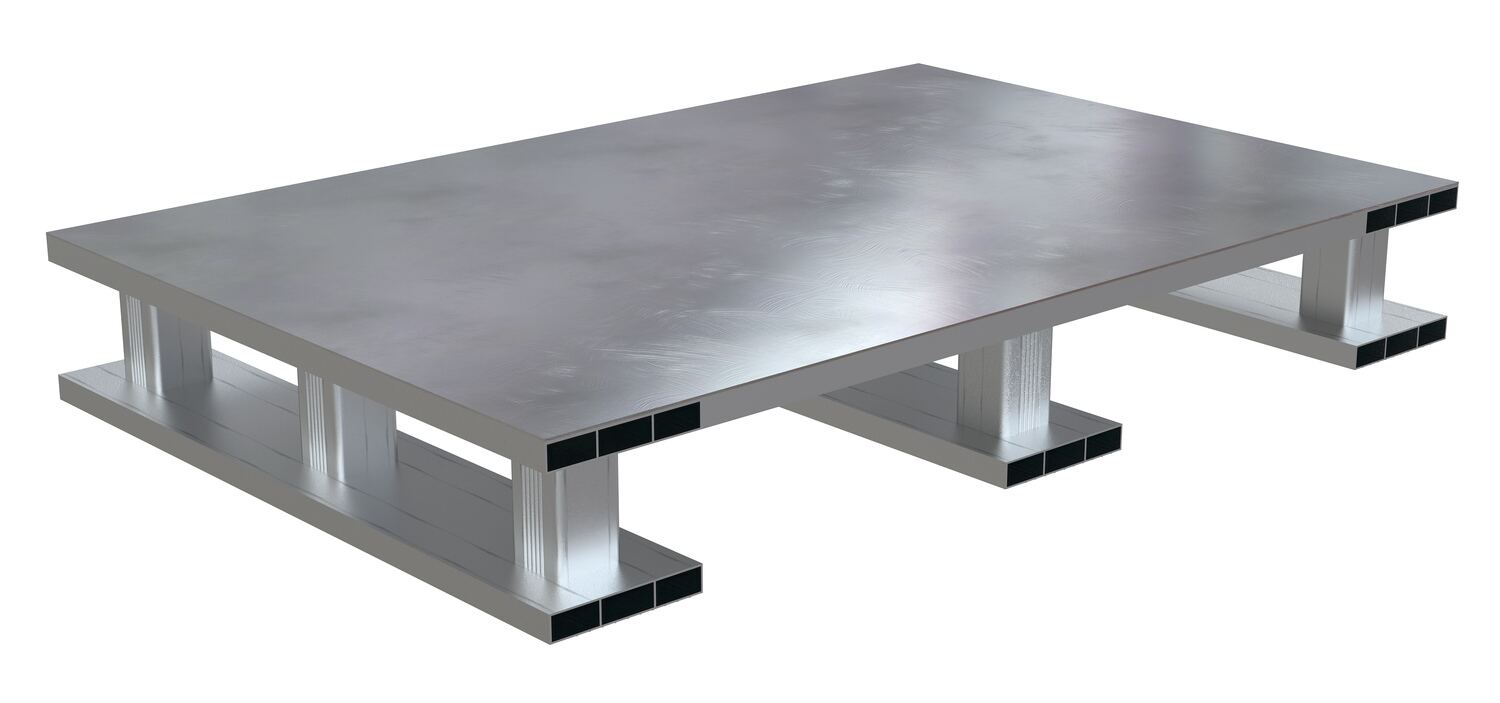

AP-ST-3624-SB - 36" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 24

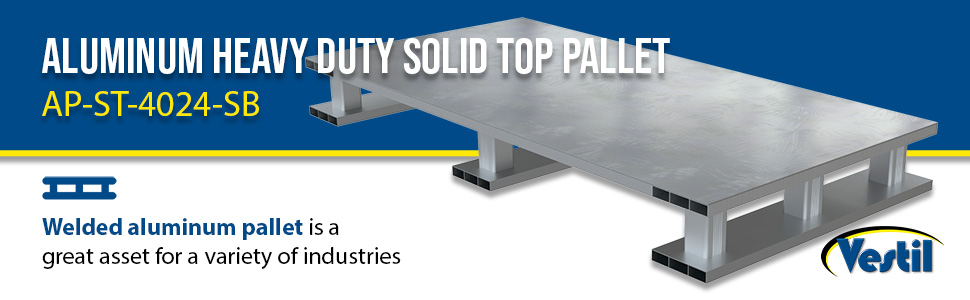

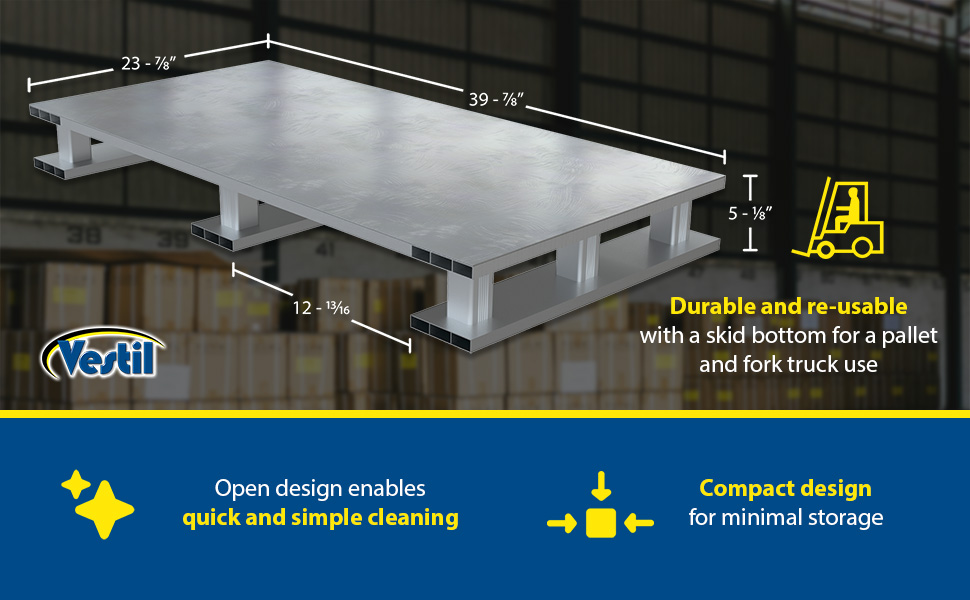

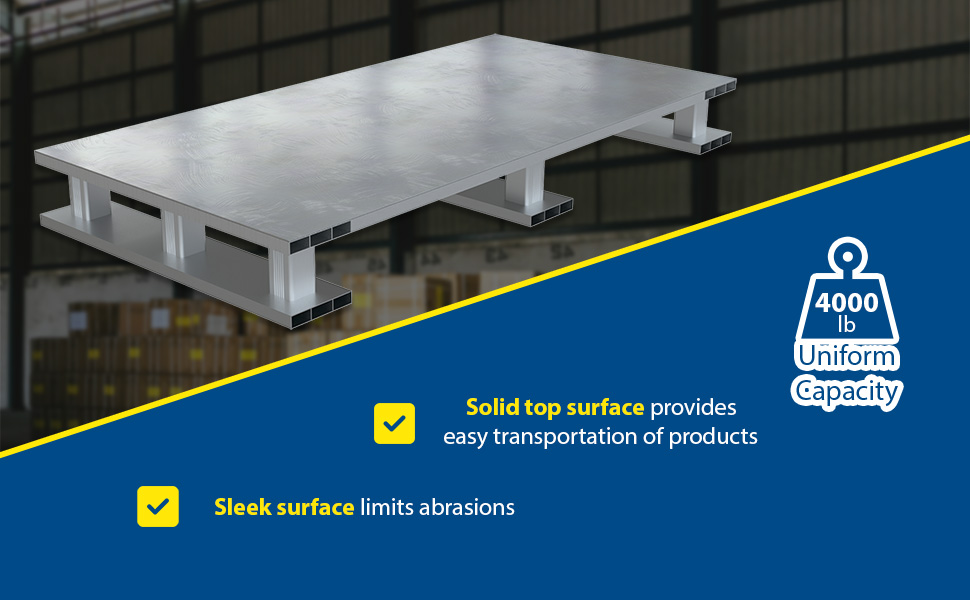

AP-ST-4024-SB icon_approvaldrawings.jpgWarranty PDF 40" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 28

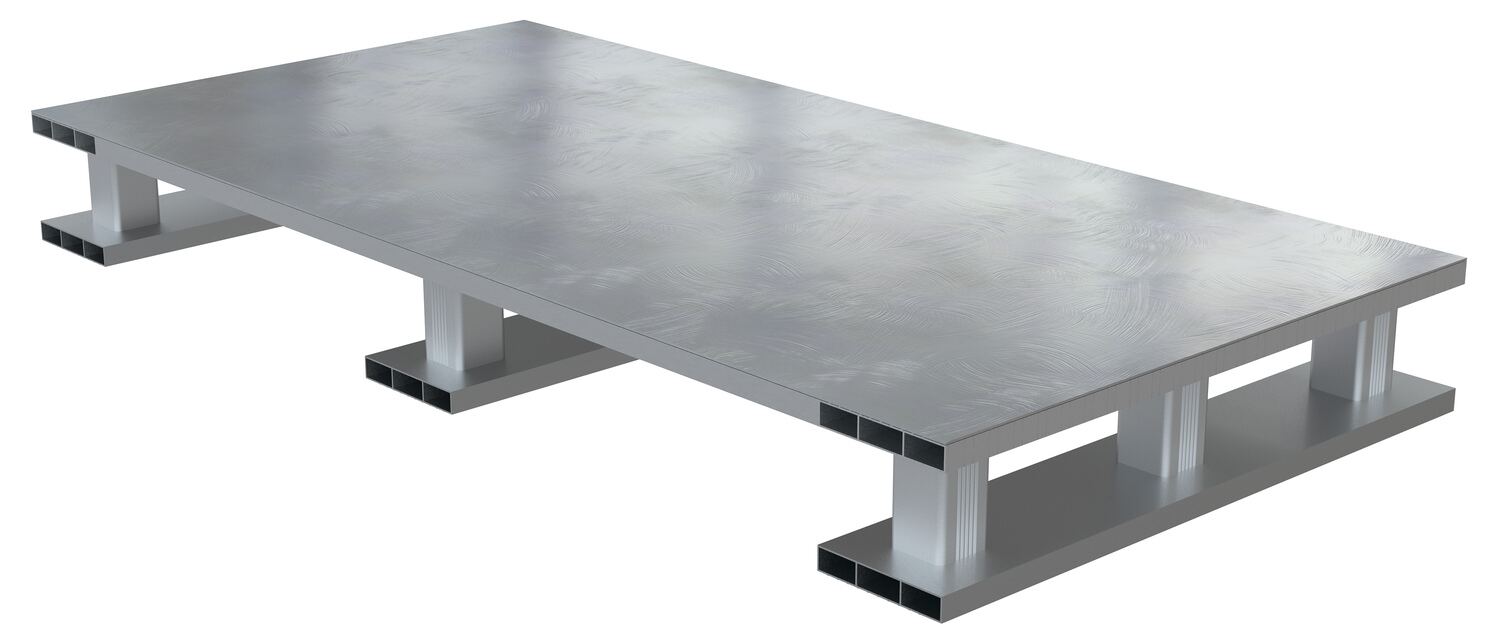

AP-ST-4824-SB icon_approvaldrawings.jpgWarranty PDF 48" x 24" x 5-1/16" 4,000 lbs. 4,000 lbs. 4,000 lbs. 32

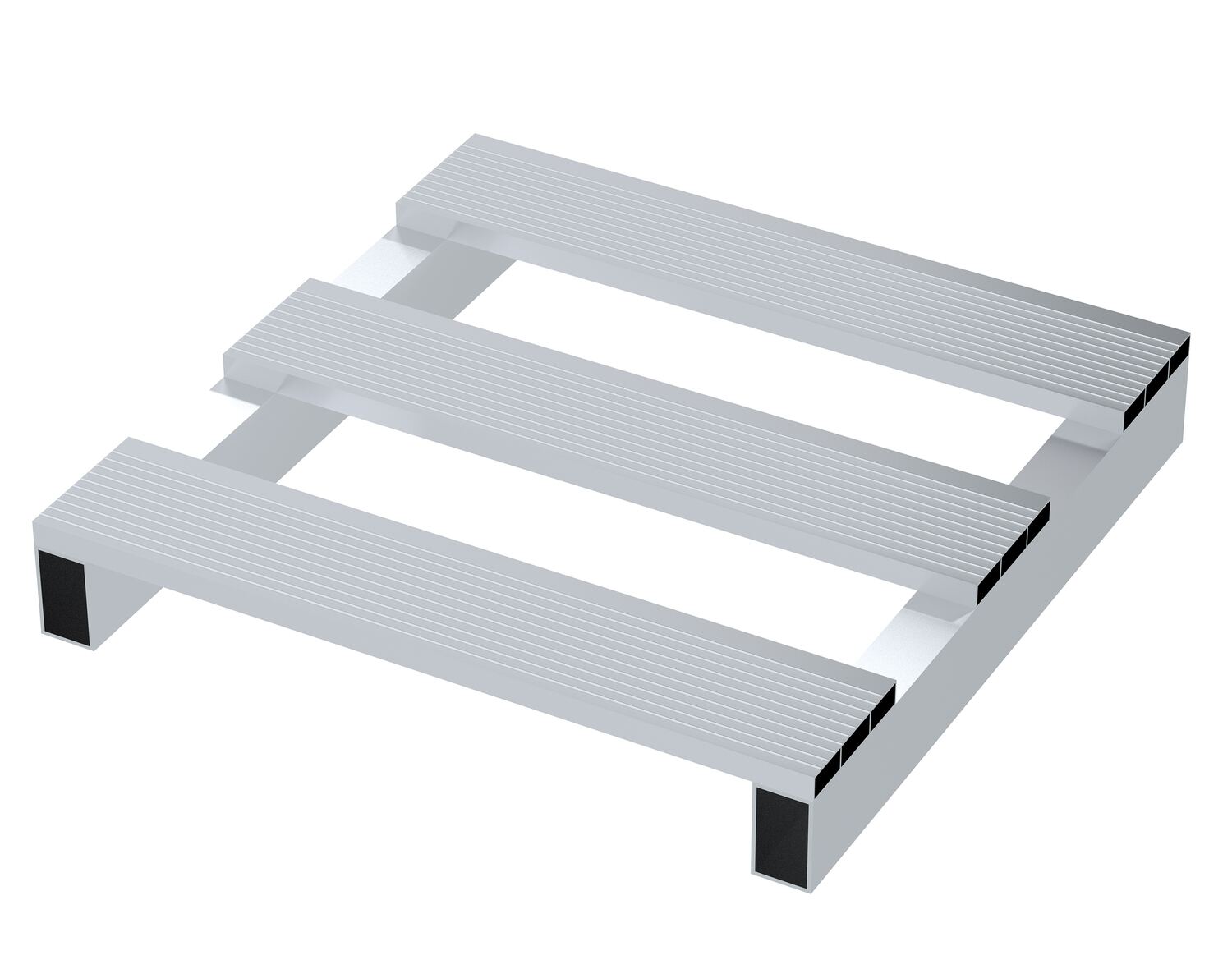

Aluminum Half Skid
SKID-2024-A Warranty PDF 20" x 24" x 3-3/4" 4,000 lbs. 4,000 lbs. 4,000 lbs. 7
SKID-2424-A icon_approvaldrawings.jpgWarranty PDF 24" x 24" x 3-3/4" 4,000 lbs. 4,000 lbs. 4,000 lbs. 8
SKID-3624-A icon_approvaldrawings.jpgWarranty PDF 36" x 24" x 3-3/4" 4,000 lbs. 4,000 lbs. 4,000 lbs. 10
SKID-4024-A icon_approvaldrawings.jpgWarranty PDF 40" x 24" x 3-3/4" 4,000 lbs. 4,000 lbs. 4,000 lbs. 13
SKID-4824-A icon_approvaldrawings.jpgWarranty PDF 48" x 24" x 3-3/4" 4,000 lbs. 4,000 lbs. 4,000 lbs. 15

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

AP-2024
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625

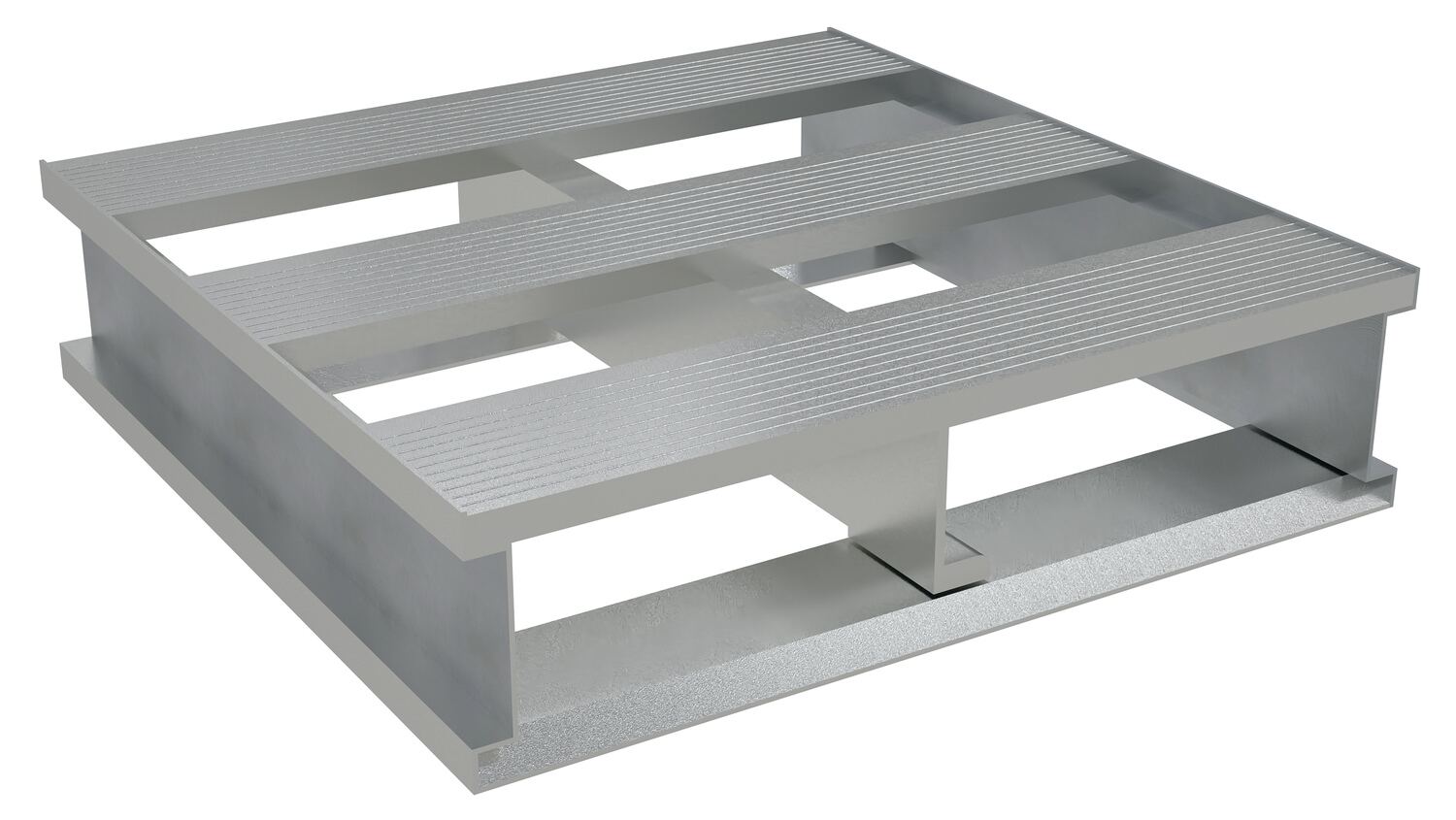

AP-2424
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625

AP-2424-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

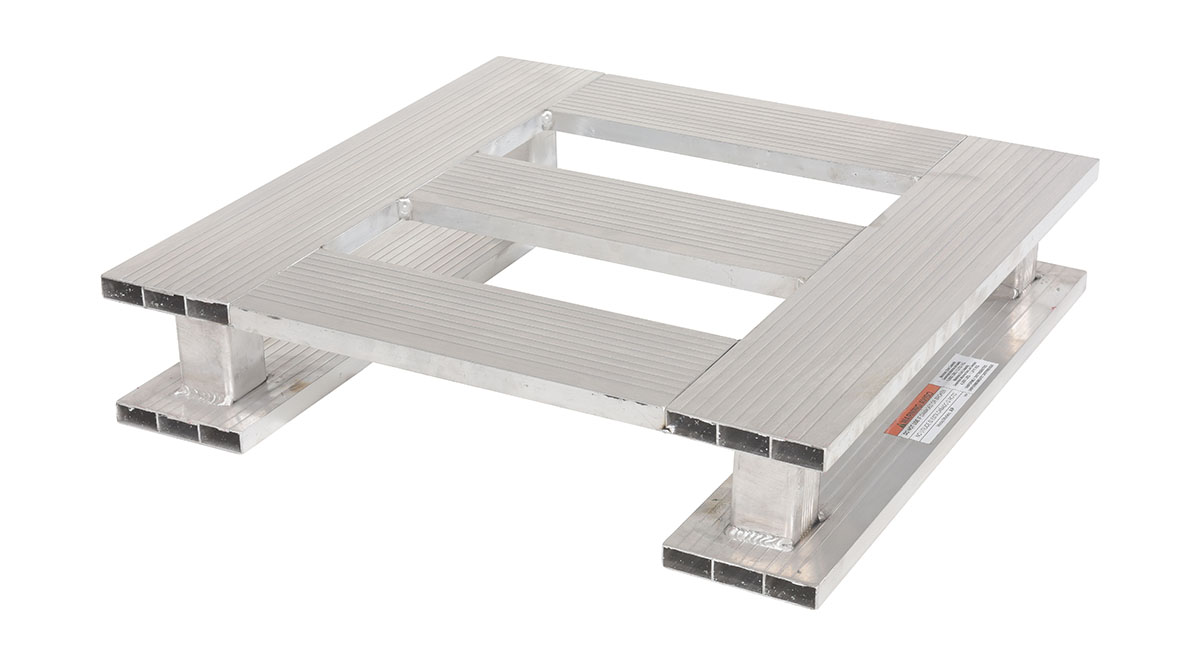

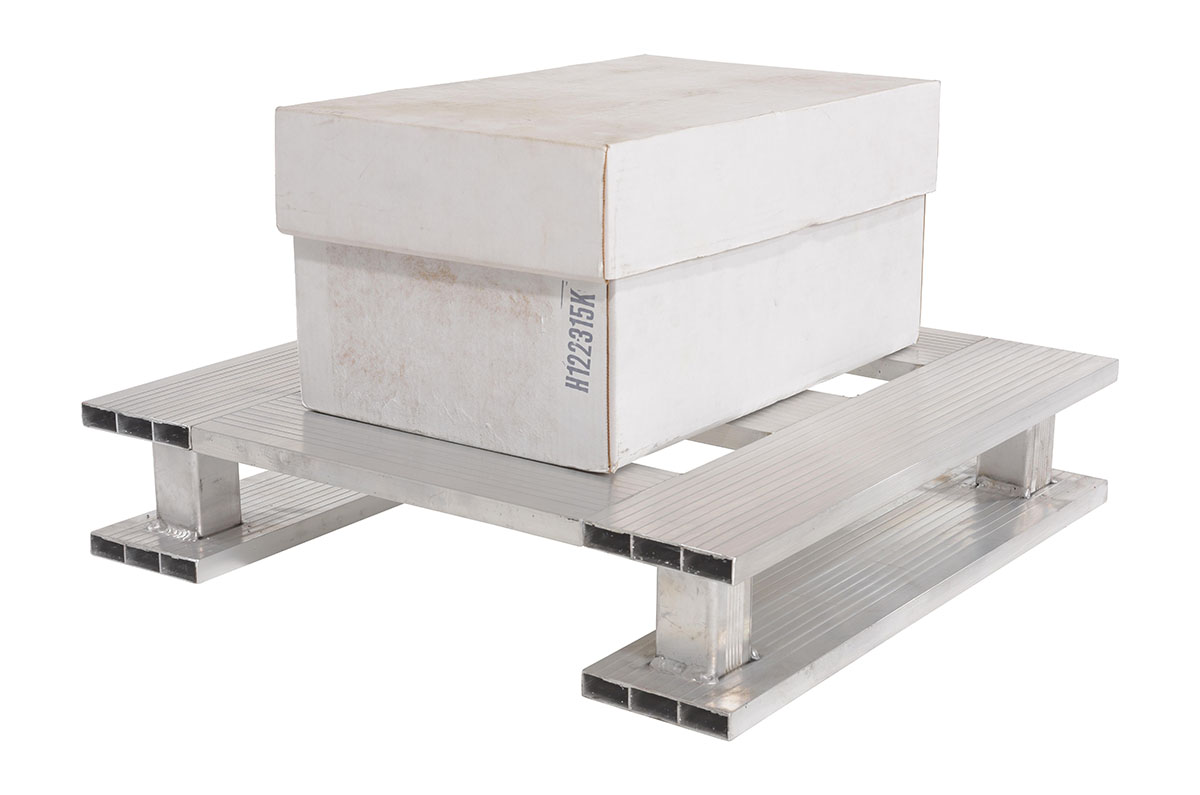

AP-2424-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

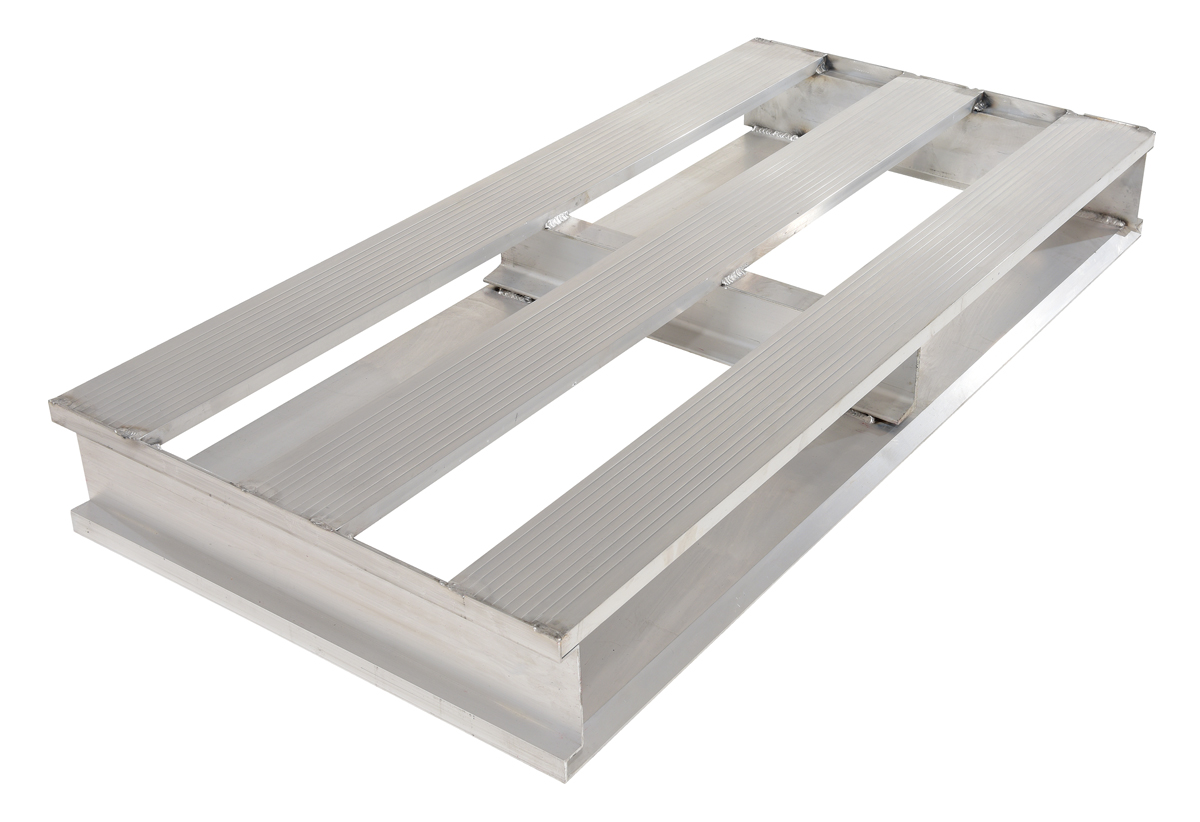

AP-3624
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 8.3125
Uniform Capacity: 4000
Fork Pocket Width(in.): 8.3125

AP-3624-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 11.625
Uniform Capacity: 4000
Fork Pocket Width(in.): 11.625

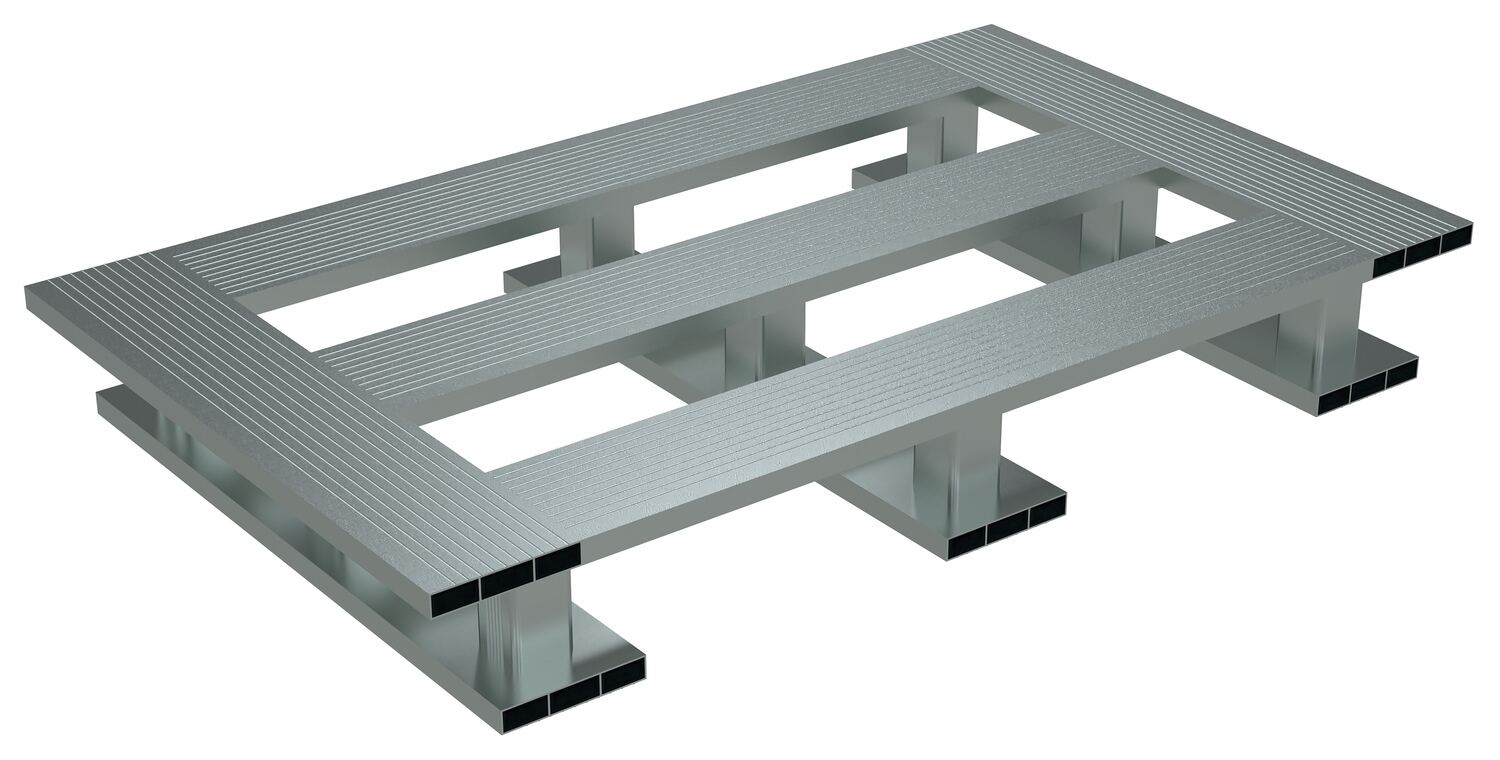

AP-3624-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 11.625
Uniform Capacity: 4000
Fork Pocket Width(in.): 11.625

AP-4024
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 16.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 16.5625

AP-4024-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.5625

AP-4024-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.625
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.625

AP-4048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-4048-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

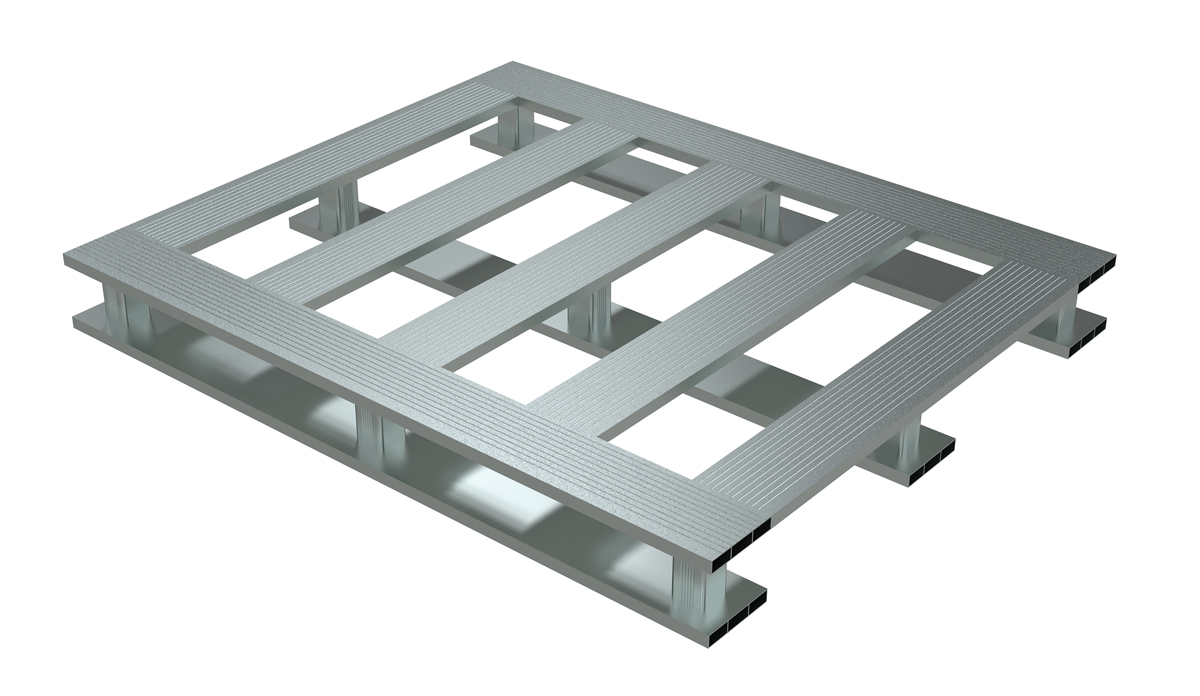

AP-4048-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

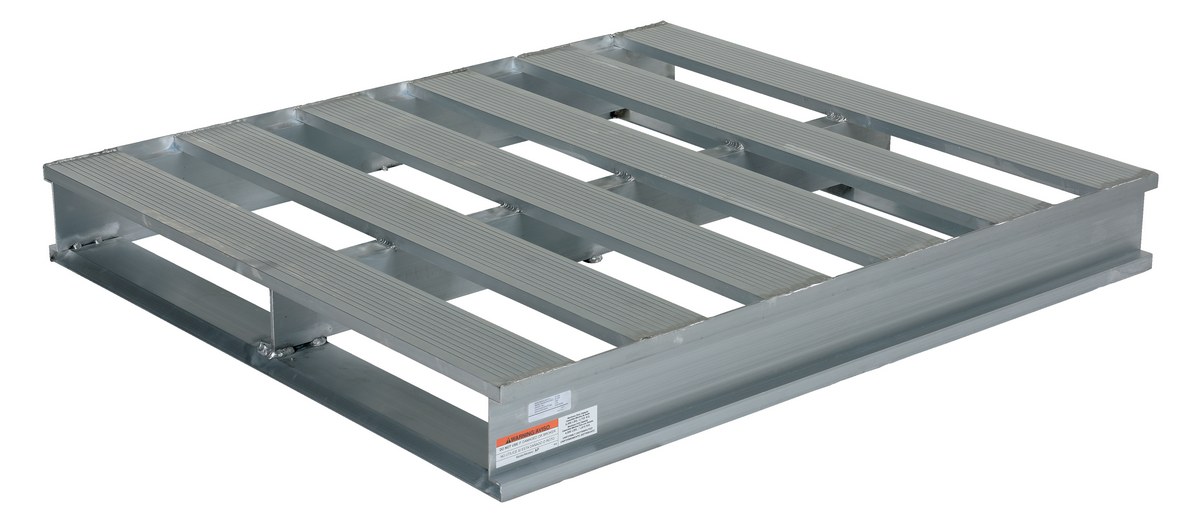

AP-4248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-4248-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-4248-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

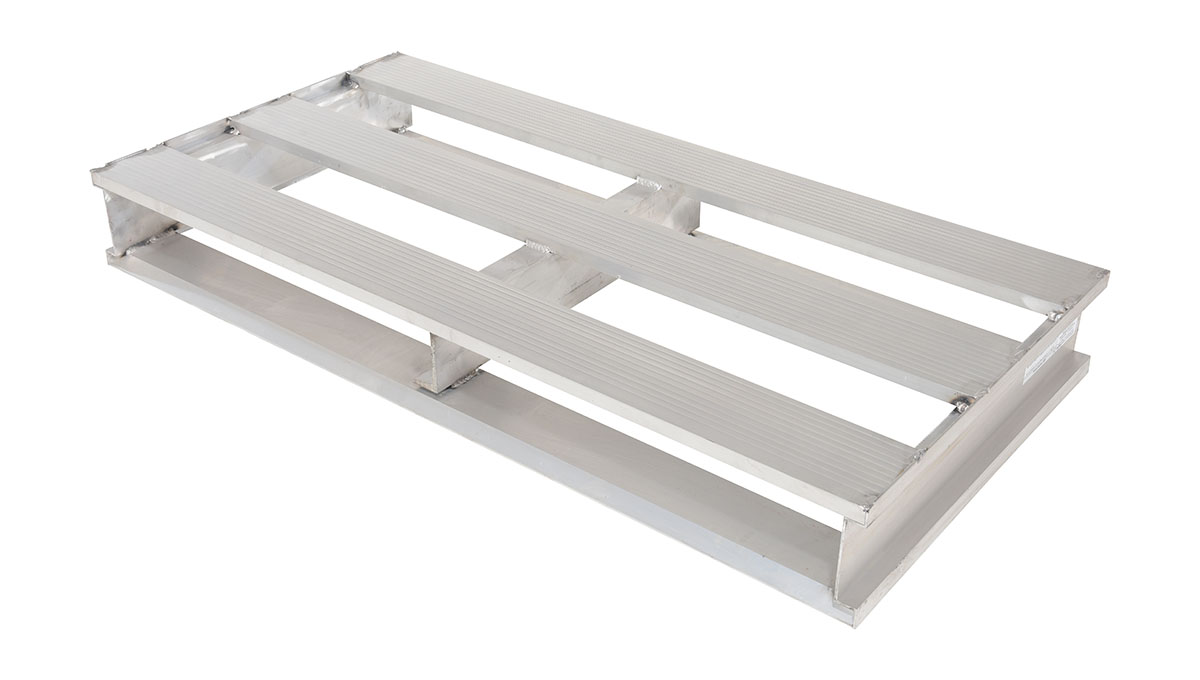

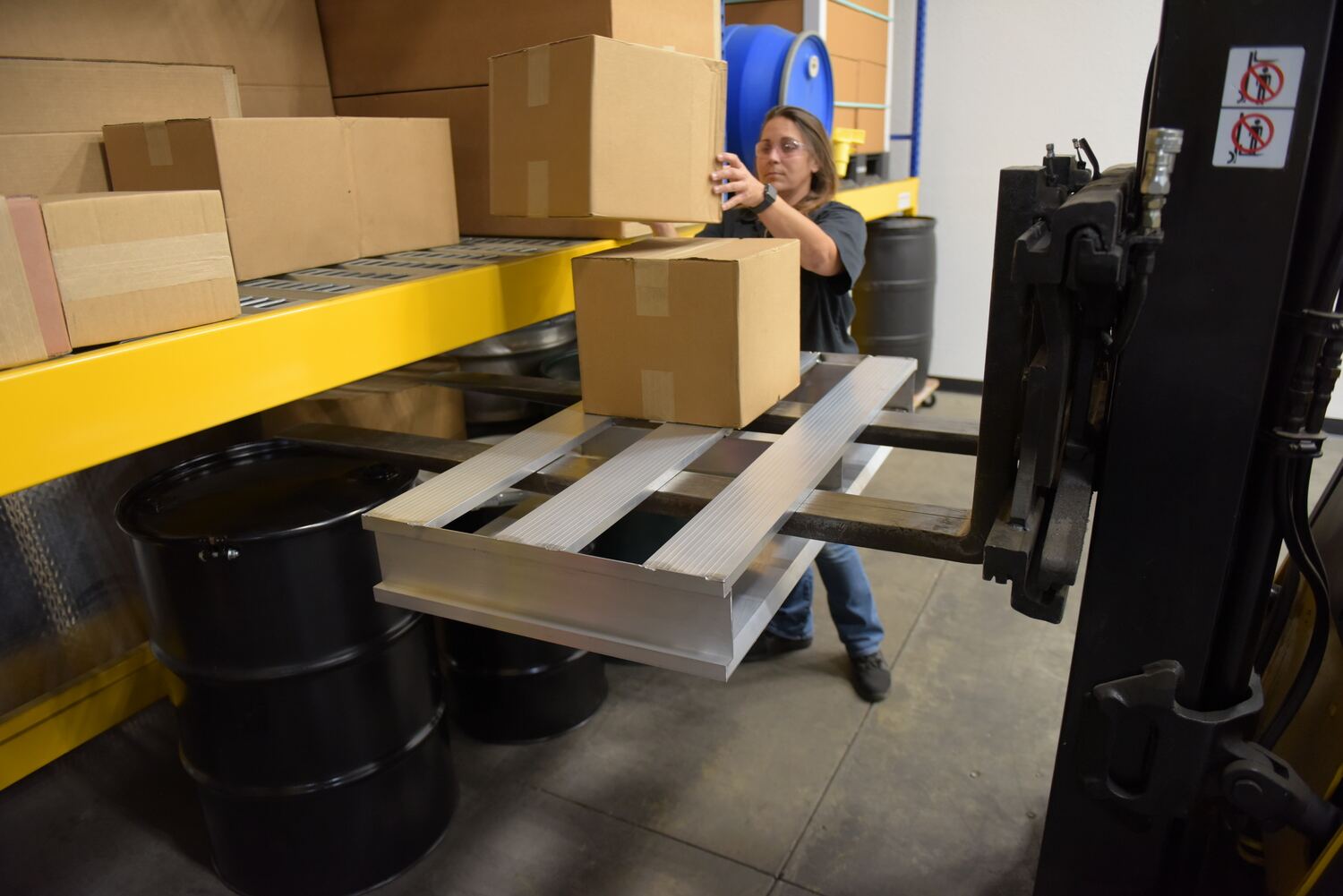

AP-4824
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625

AP-4824-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

AP-4824-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

AP-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-4848-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

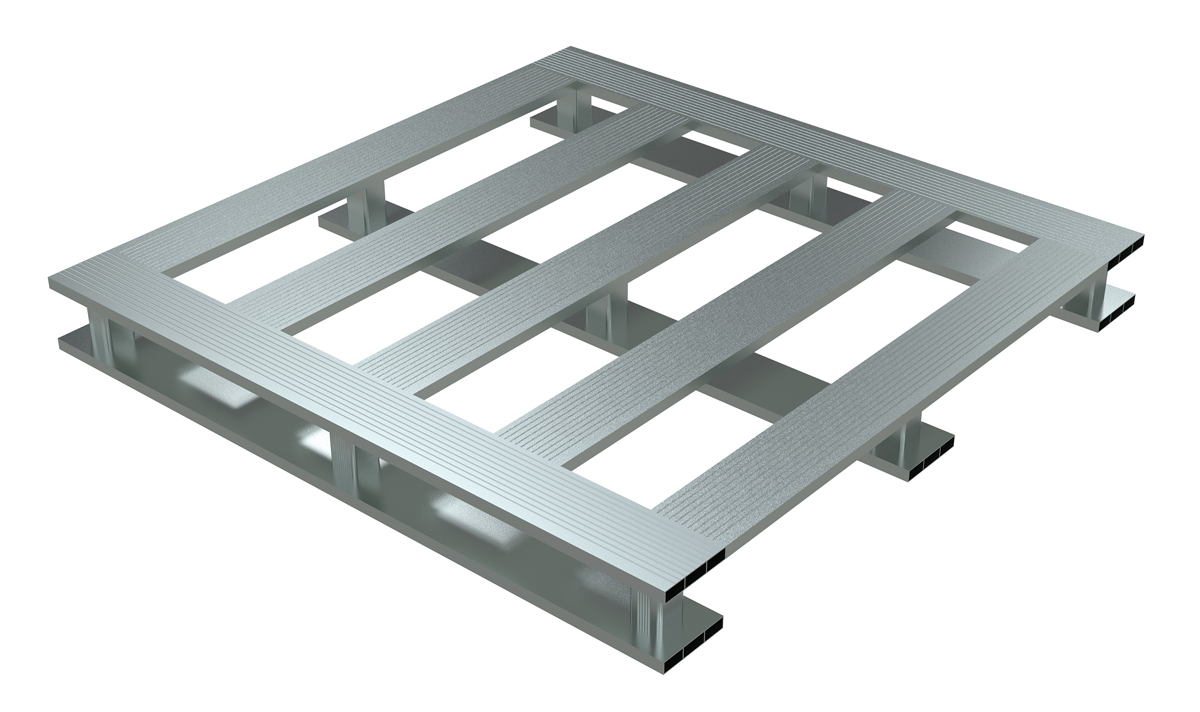

AP-4848-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-ST-2424
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625

AP-ST-2424-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

AP-ST-2424-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

AP-ST-3624
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width (in.): 16-5/16
Uniform Capacity: 4000
Fork Pocket Width (in.): 16-5/16

AP-ST-3624-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 7-9/16 & 13-9/16
Uniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 7-9/16 & 13-9/16

AP-ST-3624-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 10-13/16
Uniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 10-13/16

AP-ST-4024
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 16.333
Uniform Capacity: 4000
Fork Pocket Width(in.): 16.333

AP-ST-4024-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.5625

AP-ST-4024-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.625
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.625

AP-ST-4048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-ST-4048-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-ST-4048-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-ST-4248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-ST-4248-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-ST-4248-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-ST-4824
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625

AP-ST-4824-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

AP-ST-4824-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

AP-ST-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-ST-4848-4W
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

AP-ST-4848-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

SKID-2024-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 12.375
Uniform Capacity: 4000
Fork Pocket Width(in.): 12.375

SKID-2424-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 12.375
Uniform Capacity: 4000
Fork Pocket Width(in.): 12.375

SKID-3624-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 24.375
Uniform Capacity: 4000
Fork Pocket Width(in.): 24.375

SKID-4024-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 28.375
Uniform Capacity: 4000
Fork Pocket Width(in.): 28.375

SKID-4048-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 28 3/8
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 28 3/8

SKID-4248-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 30 3/8
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 30 3/8

SKID-4824-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 36.375
Uniform Capacity: 4000
Fork Pocket Width(in.): 36.375

SKID-4848-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 36 3/8
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 36 3/8
Aluminum Pallets & Skids PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


AP-2024

AP-2424

AP-2424-4W

AP-2424-SB

AP-3624

AP-3624-4W

AP-3624-SB

AP-4024

AP-4024-4W

AP-4024-SB

AP-4048

AP-4048-4W

AP-4048-SB

AP-4248

AP-4248-4W

AP-4248-SB

AP-4824

AP-4824-4W

AP-4824-SB

AP-4848

AP-4848-4W

AP-4848-SB

AP-ST-2424

AP-ST-2424-4W

AP-ST-2424-SB

AP-ST-3624

AP-ST-3624-4W

AP-ST-3624-SB

AP-ST-4024

AP-ST-4024-4W

AP-ST-4024-SB

AP-ST-4048

AP-ST-4048-4W

AP-ST-4048-SB

AP-ST-4248

AP-ST-4248-4W

AP-ST-4248-SB

AP-ST-4824

AP-ST-4824-4W

AP-ST-4824-SB

AP-ST-4848

AP-ST-4848-4W

AP-ST-4848-SB

SKID-2024-A

SKID-2424-A

SKID-3624-A

SKID-4024-A

SKID-4048-A

SKID-4248-A

SKID-4824-A

SKID-4848-A

Testing Certificates


AP-2024

AP-2424

AP-2424-4W

AP-2424-SB

AP-3624

AP-3624-4W

AP-3624-SB

AP-4024

AP-4024-4W

AP-4024-SB

AP-4048

AP-4048-4W

AP-4048-SB

AP-4248

AP-4248-4W

AP-4248-SB

AP-4824

AP-4824-4W

AP-4824-SB

AP-4848

AP-4848-4W

AP-4848-SB

AP-ST-2424

AP-ST-2424-4W

AP-ST-2424-SB

AP-ST-3624

AP-ST-3624-4W

AP-ST-3624-SB

AP-ST-4024

AP-ST-4024-4W

AP-ST-4024-SB

AP-ST-4048

AP-ST-4048-4W

AP-ST-4048-SB

AP-ST-4248

AP-ST-4248-4W

AP-ST-4248-SB

AP-ST-4824

AP-ST-4824-4W

AP-ST-4824-SB

AP-ST-4848

AP-ST-4848-4W

AP-ST-4848-SB

SKID-2024-A

SKID-2424-A

SKID-3624-A

SKID-4024-A

SKID-4048-A

SKID-4248-A

SKID-4824-A

SKID-4848-A

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Aluminum Half Pallets Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What material is used for the solid top pallet?

A: The top plate on the solid top units is aluminum tread plate with the tread pattern facing down. It is 3003-H22 aluminum. The frame cross members are extruded aluminum - 6063-T6 The riser tubes in the middle are extruded aluminum - 6105-T5




Related or Similar Products:

Single Fork Skid Positioner Lifter
Product

Single Fork Skid Positioner Lifter

Roll Dollies
Product

Roll Dollies

Shrink Wrap Cart
Product

Shrink Wrap Cart

Polypropylene Woven Parts/Sand Bags
Product

Polypropylene Woven Parts/Sand Bags

Blue Silica Gel
Product

Blue Silica Gel

Pallet Washing Cabinet & Optional Pressure Washer
Product

Pallet Washing Cabinet & Optional Pressure Washer

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Aluminum Pallets & Skids




A welded Aluminum Pallet is a great asset for a variety of industries. The open design enables quick and simple cleaning. This pallet is durable and re-usable with a two-way entry for pallet and fork truck use. Large static capacity allows for load both big and small.

  • Solid top surface provides easy transportation of products
  • Simple access points for quick lifting
  • Sleek surface limits abrasions
  • Compact design for minimal storage

An Aluminum Half Pallet is a great asset for a variety of industries. With the half pallet design, items can be chosen and fitted to a pallet much closer to their size. This utilizes and maximizes space during shipping and floor space during any storage. The open design enables quick and simple cleaning.


Model # Description Attributes Net Wt.
(lbs)
AP-2024 AP-2024Aluminum Heavy Duty Half Pallet 20 In x 24 In x 6 In 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625		12
AP-2424 AP-2424Aluminum Heavy Duty Half Pallet 24 In. x 24 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625		13
AP-2424-4W AP-2424-4WAluminum Four Way Entry Heavy Duty Half Pallet 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		13
AP-2424-SB AP-2424-SBAluminum Half Skid Bottom Pallet 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		12
AP-3624 AP-3624Aluminum Heavy Duty Half Pallet 24 In. x 36 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 8.3125		17
AP-3624-4W AP-3624-4WAluminum Four Way Entry Heavy Duty Half Pallet 24 In. x 36 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 11.625		24
AP-3624-SB AP-3624-SBAluminum Half Skid Bottom Pallet 24 In. x 36 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 11.625		16
AP-4024 AP-4024Aluminum Heavy Duty Half Pallet 24 In. x 40 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 16.5625		21
AP-4024-4W AP-4024-4WAluminum Four Way Entry Heavy Duty Half Pallet 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 15.5625		21
AP-4024-SB AP-4024-SBAluminum Skid Bottom Half Pallet 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 15.625		19

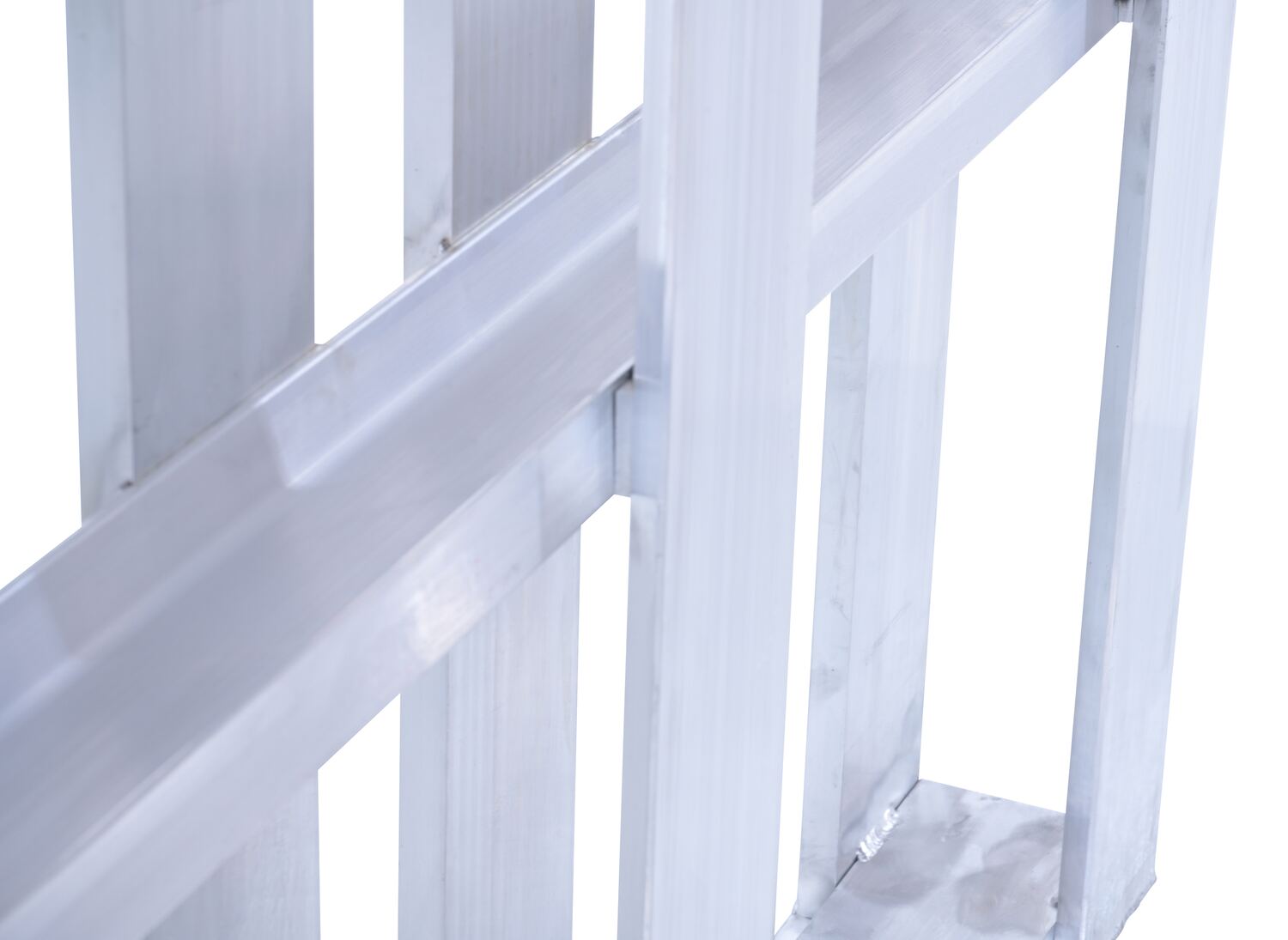

AP-4048 AP-4048Aluminum Heavy Duty Pallet 48 In. x 40-1/8 In. x 6 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		85
AP-4048-4W AP-4048-4WAluminum Four Way Entry Heavy Duty Pallet 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		86
AP-4048-SB AP-4048-SBAluminum Skid Bottom Pallet 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		85
AP-4248 AP-4248Aluminum Heavy Duty Pallet 48 In. x 42-1/8 In. x 6 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		86
AP-4248-4W AP-4248-4WAluminum Four Way Entry Heavy Duty Pallet 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		87
AP-4248-SB AP-4248-SBAluminum Skid Bottom Pallet 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		87
AP-4824 AP-4824Aluminum Heavy Duty Pallet 24 In. x 48 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625		26
AP-4824-4W AP-4824-4WAluminum Four Way Entry Heavy Duty Pallet 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		24
AP-4824-SB AP-4824-SBAluminum Skid Bottom Pallet 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		23
AP-4848 AP-4848Aluminum Heavy Duty Pallet 48 In. x 48-1/8 In. x 6 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		89
AP-4848-4W AP-4848-4WAluminum Four Way Entry Heavy Duty Pallet 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		90
AP-4848-SB AP-4848-SBAluminum Skid Bottom Pallet 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		89
AP-ST-2424 AP-ST-2424Aluminum Heavy Duty Solid Top Half Pallet 24 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625		18
AP-ST-2424-4W AP-ST-2424-4WAluminum Four Way Entry Half Pallet Solid Top 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		18
AP-ST-2424-SB AP-ST-2424-SBAluminum Half Solid Top with Skid Bottom 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		17
AP-ST-3624 AP-ST-3624Aluminum Heavy Duty Solid Top Pallet 36 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity: 4000
Fork Pocket Width (in.): 16-5/16		26
AP-ST-3624-4W AP-ST-3624-4WAluminum Solid Top 4 Way Pallet 36 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 7-9/16 & 13-9/16		26
AP-ST-3624-SB AP-ST-3624-SBAluminum Solid Top Skid Bottom Pallet 36 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 10-13/16		24
AP-ST-4024 AP-ST-4024Aluminum Heavy Duty Solid Top Half Pallet 24 In. x 40 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 16.333		33
AP-ST-4024-4W AP-ST-4024-4WAluminum Four Way Entry Half Pallet Solid Top 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 15.5625		30
AP-ST-4024-SB AP-ST-4024-SBAluminum Half Solid Top with Skid Bottom 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 15.625		28
AP-ST-4048 AP-ST-4048Aluminum Heavy Duty Solid Top Pallet 48 In. x 40-1/8 In. x 6 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		113
AP-ST-4048-4W AP-ST-4048-4WAluminum Four Way Entry Pallet Solid Top 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		114
AP-ST-4048-SB AP-ST-4048-SBAluminum Solid Top with Skid Bottom 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		113
AP-ST-4248 AP-ST-4248Aluminum Heavy Duty Solid Top Pallet 48 In. x 42-1/8 In. x 6 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		114
AP-ST-4248-4W AP-ST-4248-4WAluminum Four Way Entry Pallet Solid Top 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		115
AP-ST-4248-SB AP-ST-4248-SBAluminum Solid Top with Skid Bottom 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		115
AP-ST-4824 AP-ST-4824Aluminum Heavy Duty Solid Top Pallet 24 In. x 48 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625		36
AP-ST-4824-4W AP-ST-4824-4WAluminum Four Way Entry Pallet Solid Top 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		33
AP-ST-4824-SB AP-ST-4824-SBAluminum Solid Top with Skid Bottom 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625		32
AP-ST-4848 AP-ST-4848Aluminum Heavy Duty Solid Top Pallet 48 In. x 48-1/8 In. x 6 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		117
AP-ST-4848-4W AP-ST-4848-4WAluminum Four Way Entry Pallet Solid Top 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		118
AP-ST-4848-SB AP-ST-4848-SBAluminum Solid Top with Skid Bottom 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000		117
SKID-2024-A SKID-2024-AAluminum Skid 20 In x 24 In 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 12.375		7
SKID-2424-A SKID-2424-AAluminum Half Skid 24 In. x 24 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 12.375		8
SKID-3624-A SKID-3624-AAluminum Half Skid 24 In. x 36 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 24.375		11
SKID-4024-A SKID-4024-AAluminum Half Skid 24 In. x 40 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 28.375		13
SKID-4048-A SKID-4048-AAluminum Skid 48 In. x 39-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 28 3/8		28
SKID-4248-A SKID-4248-AAluminum Skid 48 In. x 41-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 30 3/8		29
SKID-4824-A SKID-4824-AAluminum Half Skid 24 In. x 48 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 36.375		15
SKID-4848-A SKID-4848-AAluminum Skid 48 In. x 47-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 36 3/8		31

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
