Product Family Overview

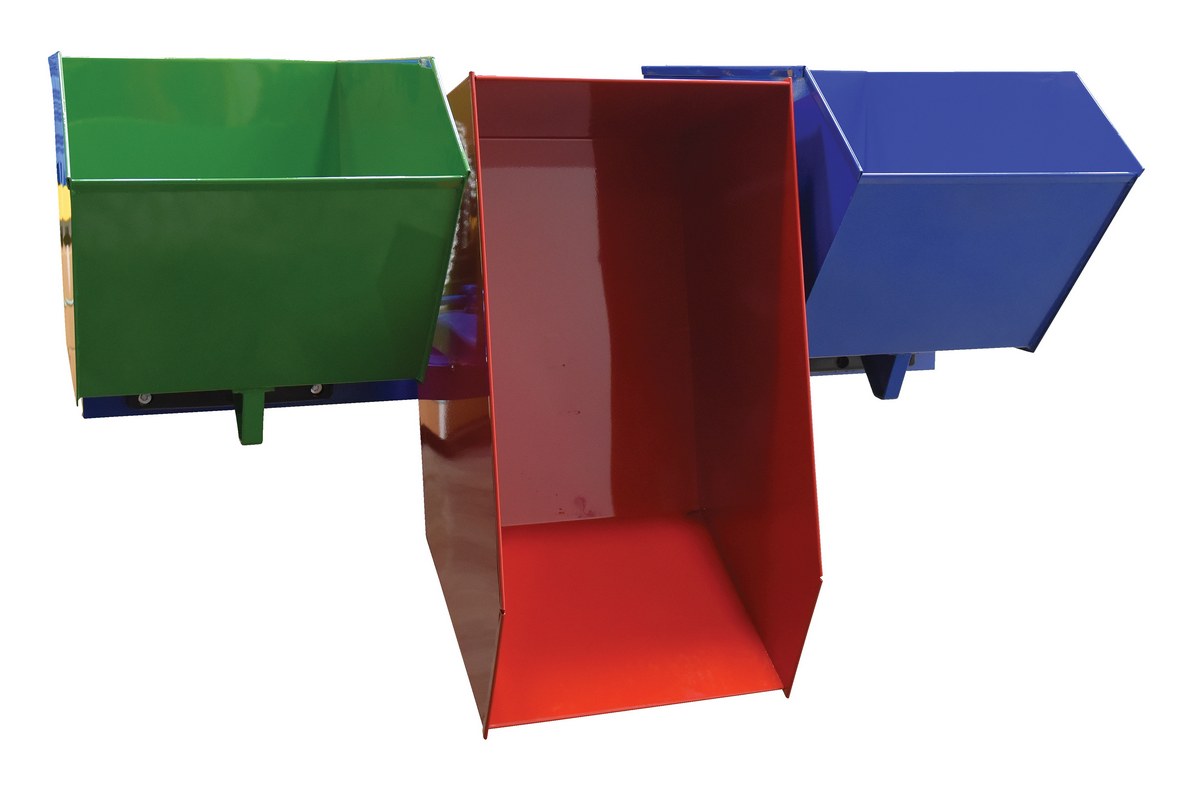

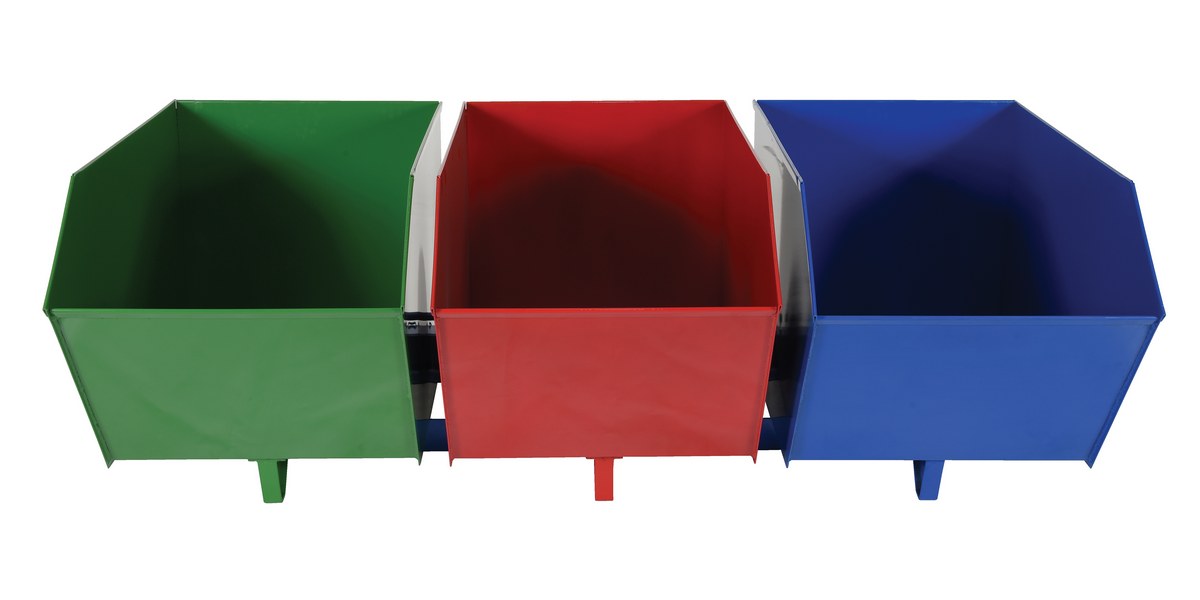

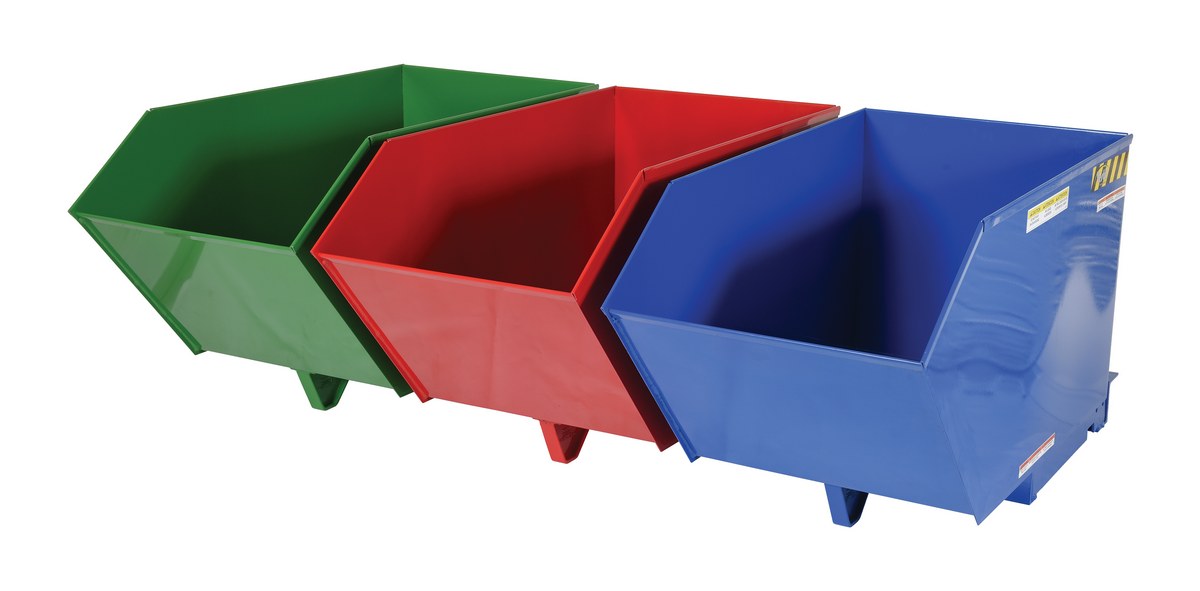

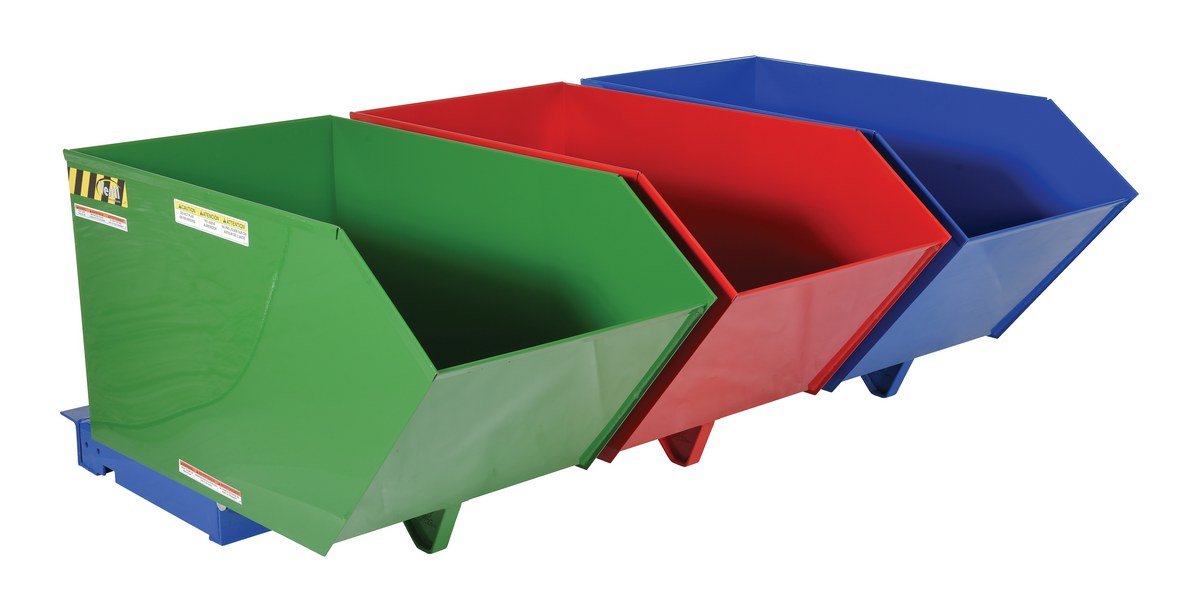

Triple-Bin Recycling Hopper
SERIES: ENVIR

Unique triple-bin design for holding & dumping different materials!

This unique triple-bin recycling Hopper is designed for holding different materials. Bins are painted three different colors; green red and blue and include a manual pull-cable to dump from the seat of a fork truck. Each bin may be dumped independently and returns to upright position when lowered to the ground. Includes a safety strap to secure hopper to forklift. (Poly lids are sold separately.) Hoppers have a durable powder-coat paint finish.

Standard Features:

  • Each bin holds up to 1/2 cubic yards of material
  • Bins are painted 3 different colors: Green, Red, and Blue
  • Fork pockets are 7" wide X 2" high X 22" long

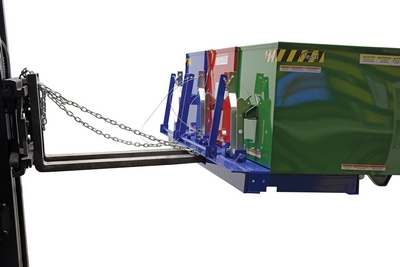

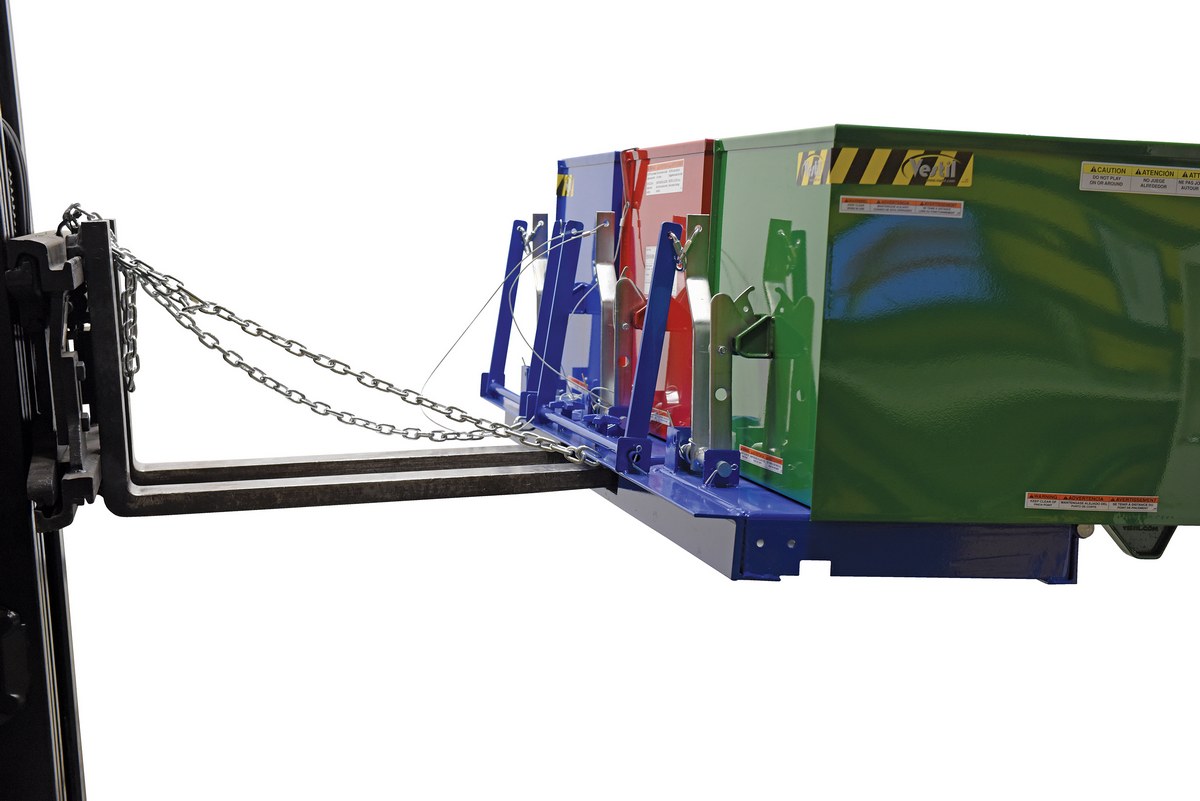

  • Safety strap to secure recycling hopper to fork truck
  • Maximum total weight capacity is 2,000 pounds evenly distributed

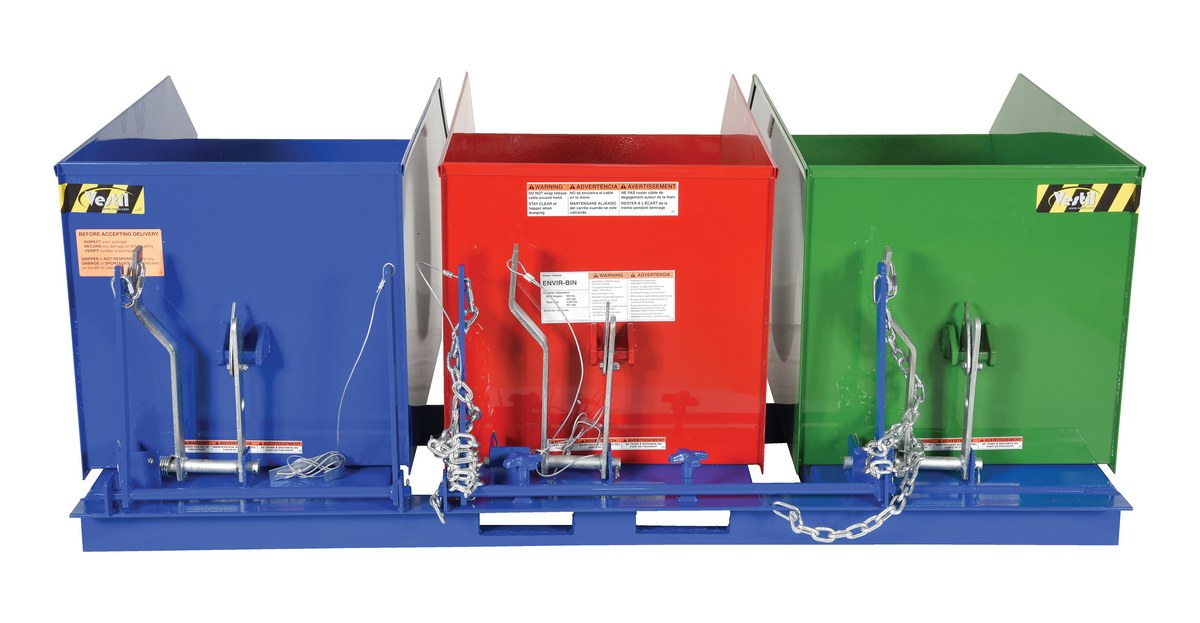

  • Includes manual pull cables to dump bins from seat of fork truck
  • 90 degree dump angle returns to upright position when lowered to ground
  • Durable powder coat paint finish
  • Polyethylene lids are sold separately

Unique triple-bin design for holding & dumping different materials!

This unique triple-bin recycling Hopper is designed for holding different materials. Bins are painted three different colors; green red and blue and include a manual pull-cable to dump from the seat of a fork truck. Each bin may be dumped independently and returns to upright position when lowered to the ground. Includes a safety strap to secure hopper to forklift. (Poly lids are sold separately.) Hoppers have a durable powder-coat paint finish.

Standard Features:

  • Each bin holds up to 1/2 cubic yards of material
  • Bins are painted 3 different colors: Green, Red, and Blue
  • Fork pockets are 7" wide X 2" high X 22" long
  • Safety strap to secure recycling hopper to fork truck
  • Maximum total weight capacity is 2,000 pounds evenly distributed
  • Includes manual pull cables to dump bins from seat of fork truck
  • 90 degree dump angle returns to upright position when lowered to ground
  • Durable powder coat paint finish
  • Polyethylene lids are sold separately

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ENVIR-BIN ENVIR-BIN90 Days Limited WarrantySteel Triple Bin Recycling Hopper 2000 Lb. CapacityMaximum Uniform Capacity (lb.): 2000
Dump Angle (degree): 90
900

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

ENVIR-BIN
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Uniform Capacity (lb.): 2000
Dump Angle (degree): 90
Maximum Uniform Capacity (lb.): 2000
Dump Angle (degree): 90
For More Details of the Option Click the Red Model Button
Optional Bin Lids
PLID-H-50 Available colors: Black, Blue and Yellow

Other Identifiable Hopper Colors:

hopper55.jpghopper56.jpghopper57.jpghopper58.jpghopper59.jpghopper60.jpghopper61.jpghopper62.jpg

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Triple-Bin Recycling Hopper PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


ENVIR-BIN

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Triple-Bin Recycling Hopper




Unique triple-bin design for holding & dumping different materials!

This unique triple-bin recycling Hopper is designed for holding different materials. Bins are painted three different colors; green red and blue and include a manual pull-cable to dump from the seat of a fork truck. Each bin may be dumped independently and returns to upright position when lowered to the ground. Includes a safety strap to secure hopper to forklift. (Poly lids are sold separately.) Hoppers have a durable powder-coat paint finish.

Standard Features:

  • Each bin holds up to 1/2 cubic yards of material
  • Bins are painted 3 different colors: Green, Red, and Blue
  • Fork pockets are 7" wide X 2" high X 22" long
  • Safety strap to secure recycling hopper to fork truck
  • Maximum total weight capacity is 2,000 pounds evenly distributed
  • Includes manual pull cables to dump bins from seat of fork truck
  • 90 degree dump angle returns to upright position when lowered to ground
  • Durable powder coat paint finish
  • Polyethylene lids are sold separately


Model # Description Attributes Net Wt.
(lbs)
ENVIR-BIN ENVIR-BINSteel Triple Bin Recycling Hopper 2000 Lb. CapacityMaximum Uniform Capacity (lb.): 2000
Dump Angle (degree): 90
900

Options


Optional Bin Lids
PLID-H-50 Available colors: Black, Blue and Yellow

Other Identifiable Hopper Colors:

hopper55.jpghopper56.jpghopper57.jpghopper58.jpghopper59.jpghopper60.jpghopper61.jpghopper62.jpg
