Click Image to Enlarge

model: HOP-250-MD


SERIES: HOP
Steel Self-Dumping Hoppers

All welded Self-Dumping Hoppers handle bulk materials and scrap easily. Must transport and dump with a forklift or make the unit mobile with the optional casters. Self dumping hoppers are engineered to dump when the safety latch is tripped and to return to an upright locked position when empty. All units come with safety retaining chain and a trip rope assembly. The 1/4 to 2-1/2 cubic yard hoppers have a formed stackable base (stackable when empty). The 3 to 5 cubic yard hoppers have structural bases with stackable re-enforced rockers for heavy use. Options include: casters, lids (1 to 2-1/2 cubic yard), lifting lugs, and paint colors. Paint finish is vista green. Must be attached to fork truck when dumping.

All welded Self-Dumping Hoppers handle bulk materials and scrap easily. Must transport and dump with a forklift or make the unit mobile with the optional casters. Self dumping hoppers are engineered to dump when the safety latch is tripped and to return to an upright locked position when empty. All units come with safety retaining chain and a trip rope assembly. The 1/4 to 2-1/2 cubic yard hoppers have a formed stackable base (stackable when empty). The 3 to 5 cubic yard hoppers have structural bases with stackable re-enforced rockers for heavy use. Options include: casters, lids (1 to 2-1/2 cubic yard), lifting lugs, and paint colors. Paint finish is vista green. Must be attached to fork truck when dumping.

Other Hoppers

Heavy-Duty Poly Lids for D & H series Hoppers

Heavy-Duty Poly Lids for D & H series Hoppers

Specialty Colors for Self-Dumping Hoppers

Specialty Colors for Self-Dumping Hoppers

Casters For Self-Dumping Hoppers (D & H)

Casters For Self-Dumping Hoppers (D & H)

D Style - Self-Dumping Steel Hoppers with Bumper Release

D Style - Self-Dumping Steel Hoppers with Bumper Release

Portable Steel Hoppers

Portable Steel Hoppers

Share This Page

HOP-100-LD

model HOP-100-LD

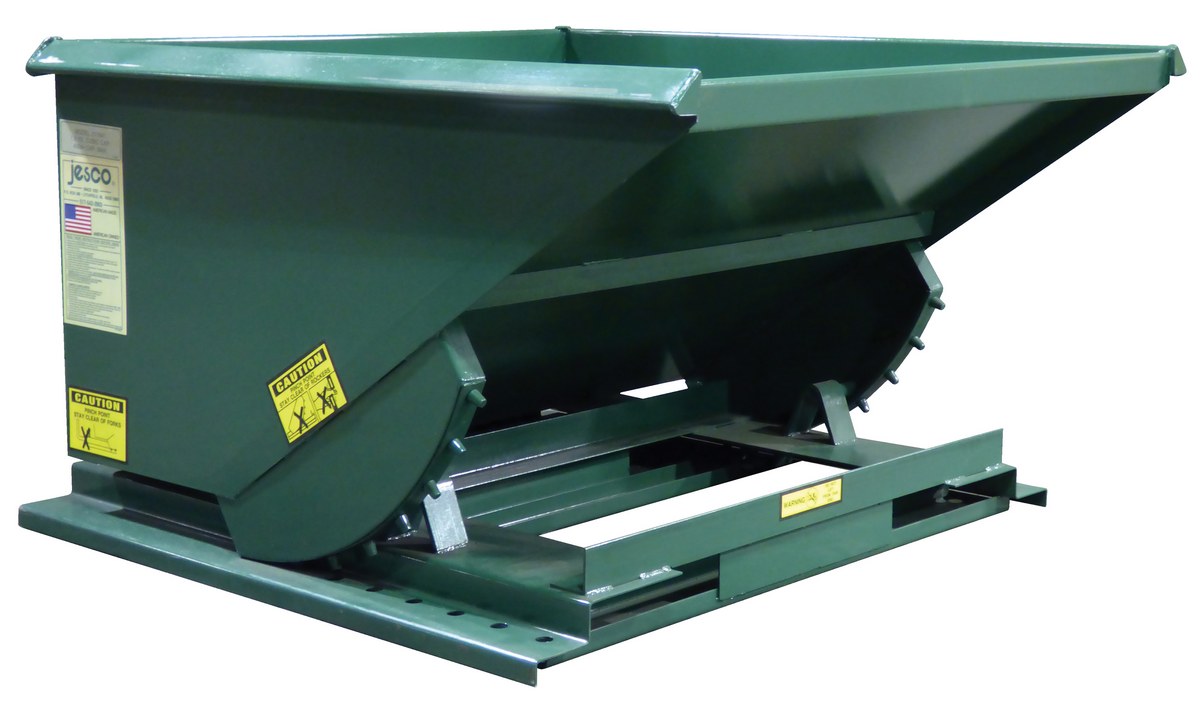

HOP-150-MD

model HOP-150-MD

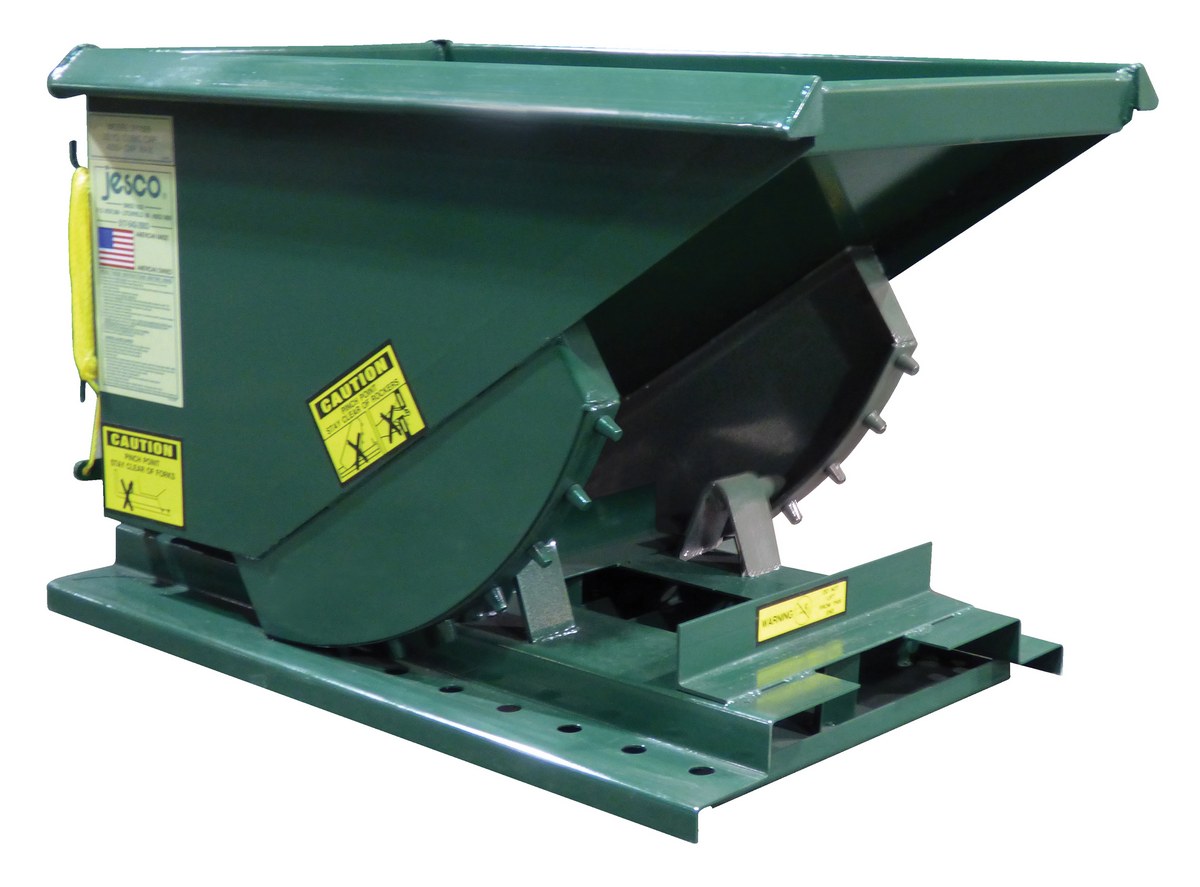

HOP-33-HD

model HOP-33-HD

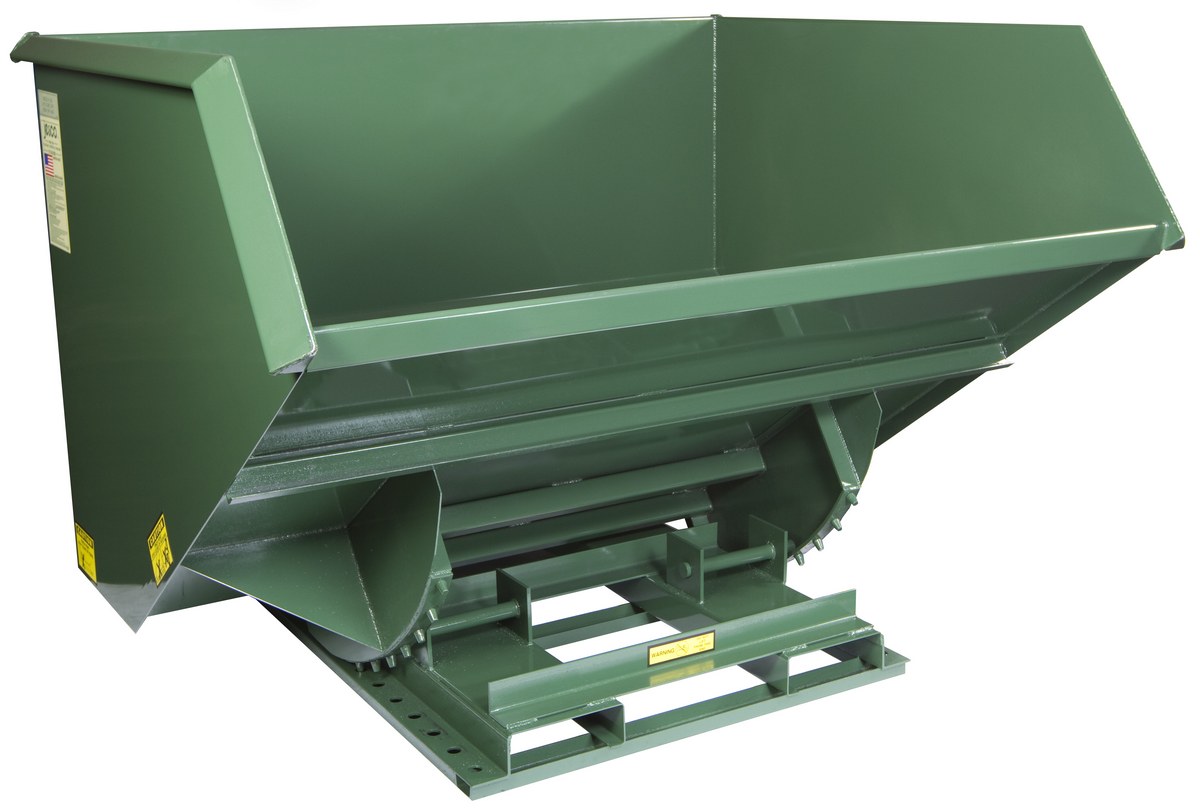

HOP-400-HD

model HOP-400-HD

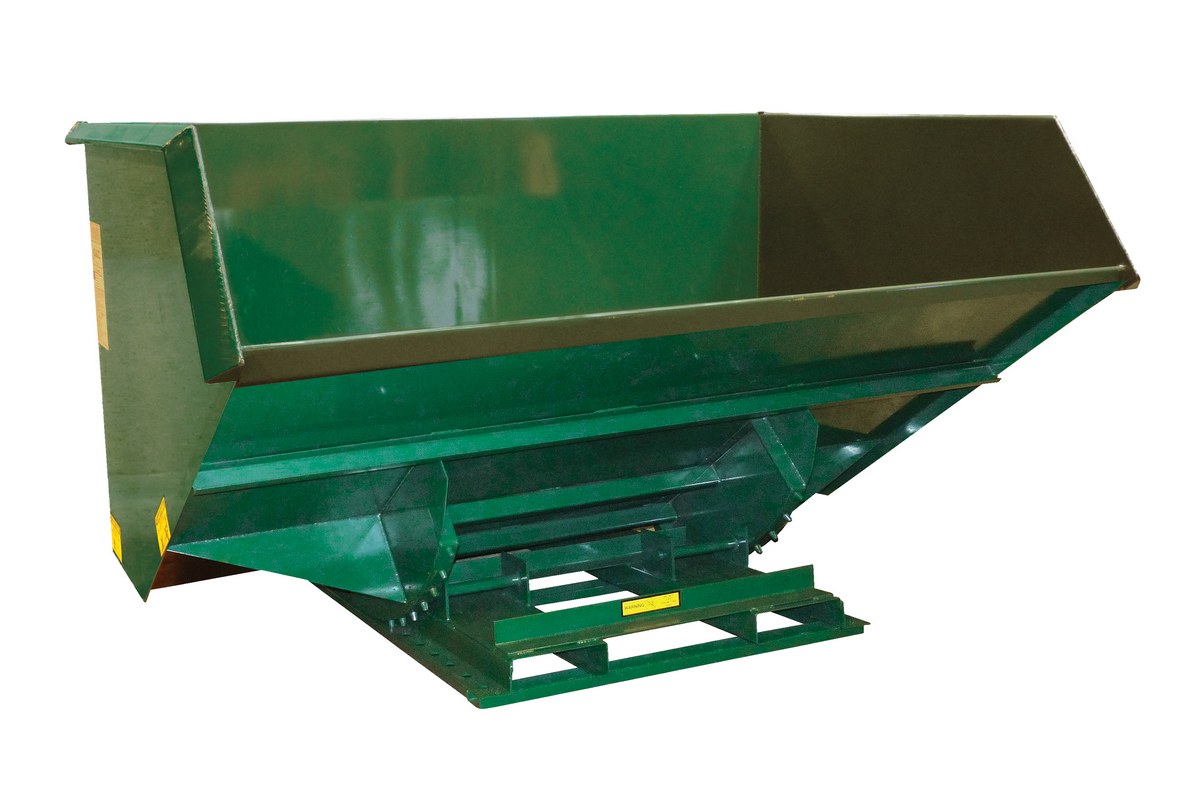

HOP-500-HD

model HOP-500-HD




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Steel Self-Dumping Hoppers

Model Image PDF Volume
Cubic
Yards
Capacity
(lbs)
Overall Size
(WxDxH)
Stackable Gauge
of Steel
Body/Base
Wt.
(lbs)
HOP-100-LD Warranty PDF 1 2,000 41-1/2"x62"x37" Yes 12/8 445
HOP-150-LD Warranty PDF 1-1/2 2,000 59-1/2"x62"x37" Yes 12/8 540
HOP-200-LD icon_approvaldrawings.jpgWarranty PDF 2 2,000 59-1/2"x64"x46" Yes 12/8 600

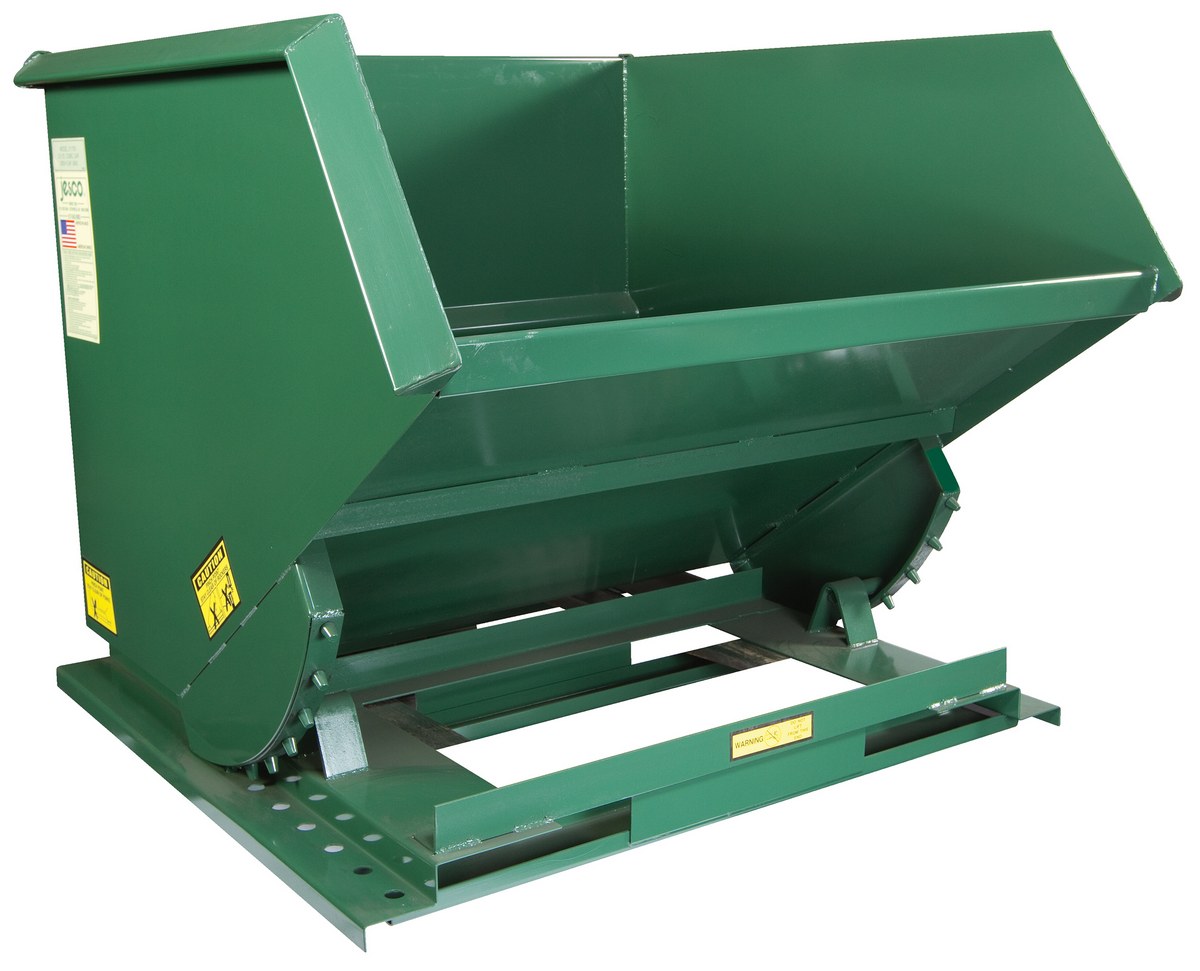

HOP-250-LD icon_approvaldrawings.jpgWarranty PDF 2-1/2 2,000 59-1/2"x64"x51" Yes 12/8 620
HOP-100-MD Warranty PDF 1 4,000 41-1/2"x62"x37" Yes 10/8 495
HOP-150-MD Warranty PDF 1-1/2 4,000 59-1/2"x62"x37" Yes 10/8 630
HOP-200-MD icon_approvaldrawings.jpgWarranty PDF 2 4,000 59-1/2"x64"x46" Yes 10/8 705
HOP-250-MD Warranty PDF 2-1/2 4,000 59-1/2"x64"x51" Yes 10/8 750

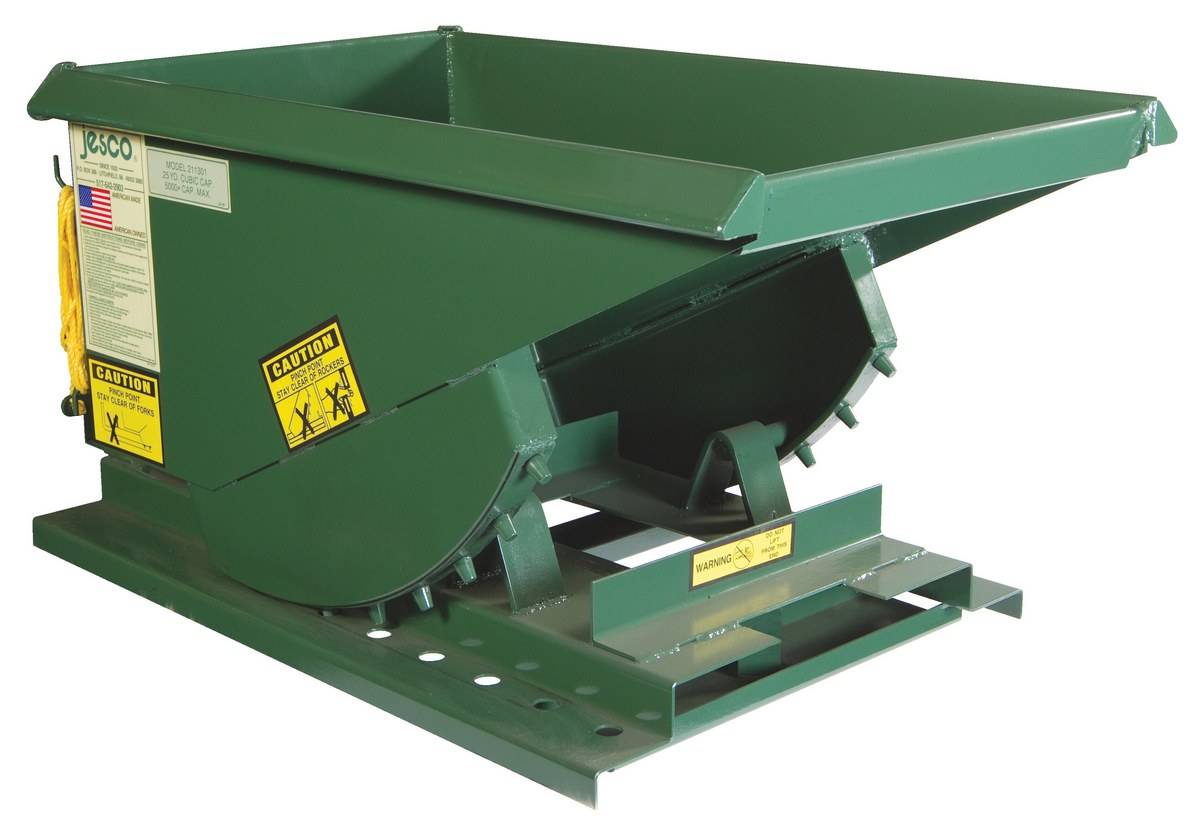

HOP-25-HD icon_approvaldrawings.jpgWarranty PDF 1/4 4,000 30-3/4"x49"x26-1/2" Yes 7/8 375
HOP-33-HD icon_approvaldrawings.jpgWarranty PDF 1/3 4,000 30-3/4"x48-1/2"x31-1/2" Yes 7/8 405

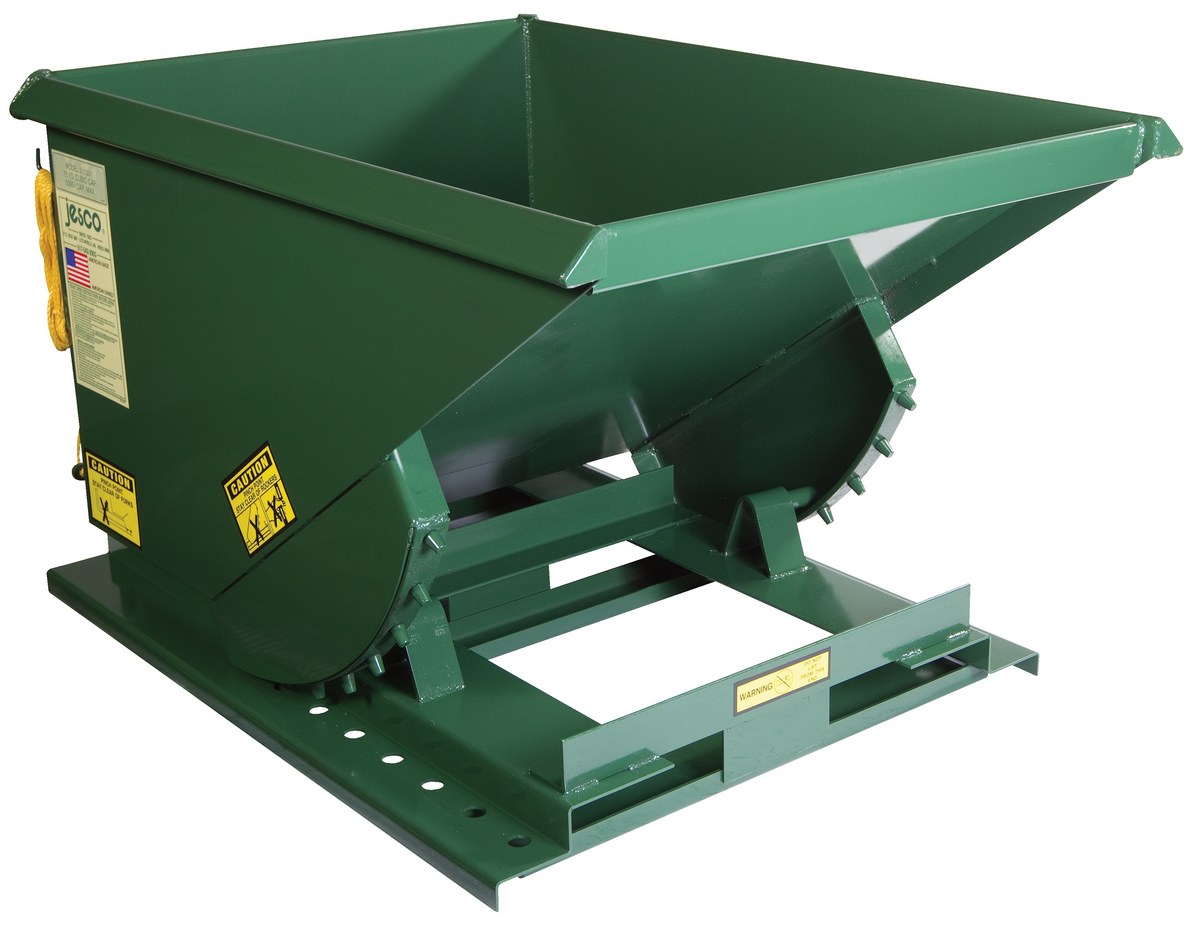

HOP-50-HD icon_approvaldrawings.jpgWarranty PDF 1/2 4,000 41-1/2"x48-1/2"x31-1/2" Yes 7/8 470

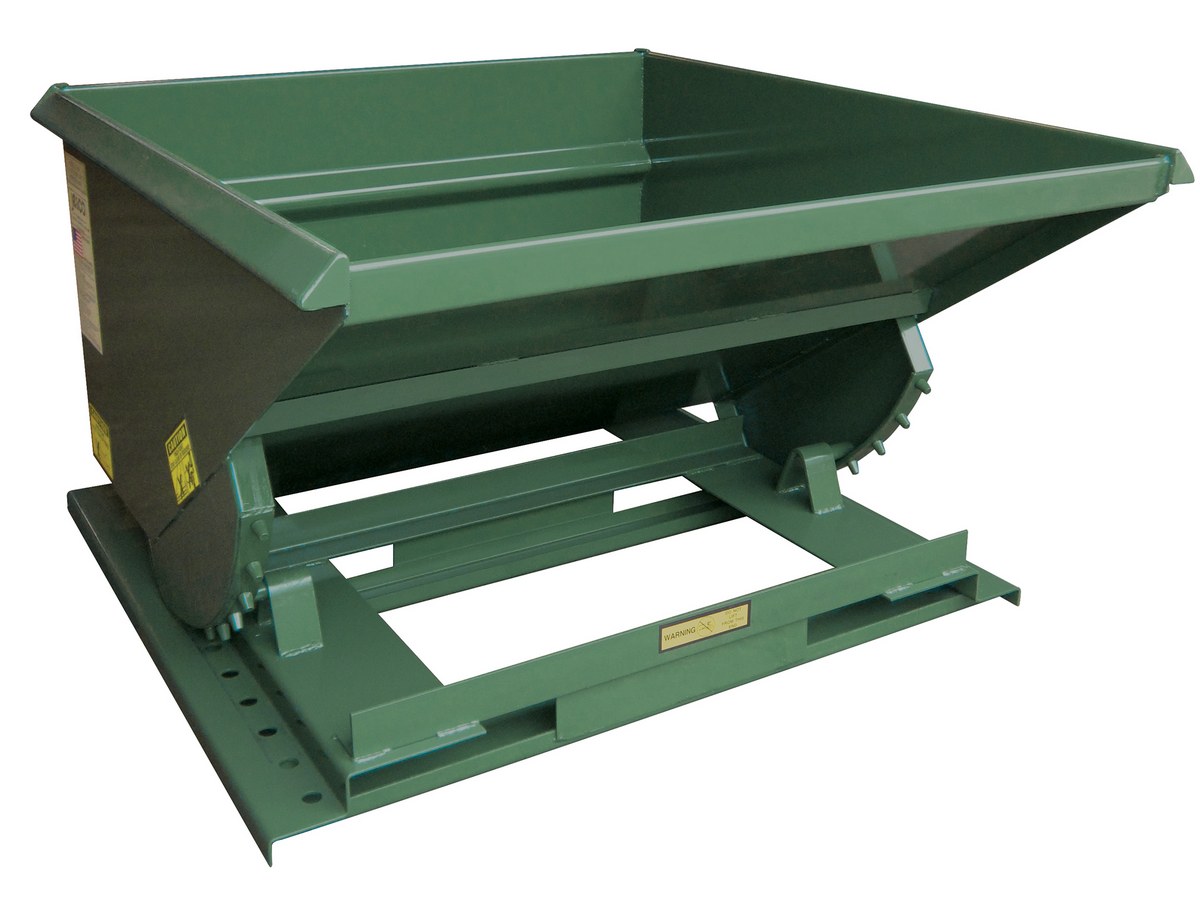

HOP-75-HD icon_approvaldrawings.jpgWarranty PDF 3/4 5,000 41-1/2"x56-3/4"x35-1/2" Yes 7/.220 575
HOP-100-HD Warranty PDF 1 6,000 41-1/2"x62"x37" Yes 7/.220 625
HOP-150-HD Warranty PDF 1-1/2 6,000 59-1/2"x62"x37" Yes 7/.220 785
HOP-200-HD icon_approvaldrawings.jpgWarranty PDF 2 6,000 59-1/2"x64"x46" Yes 7/.220 880

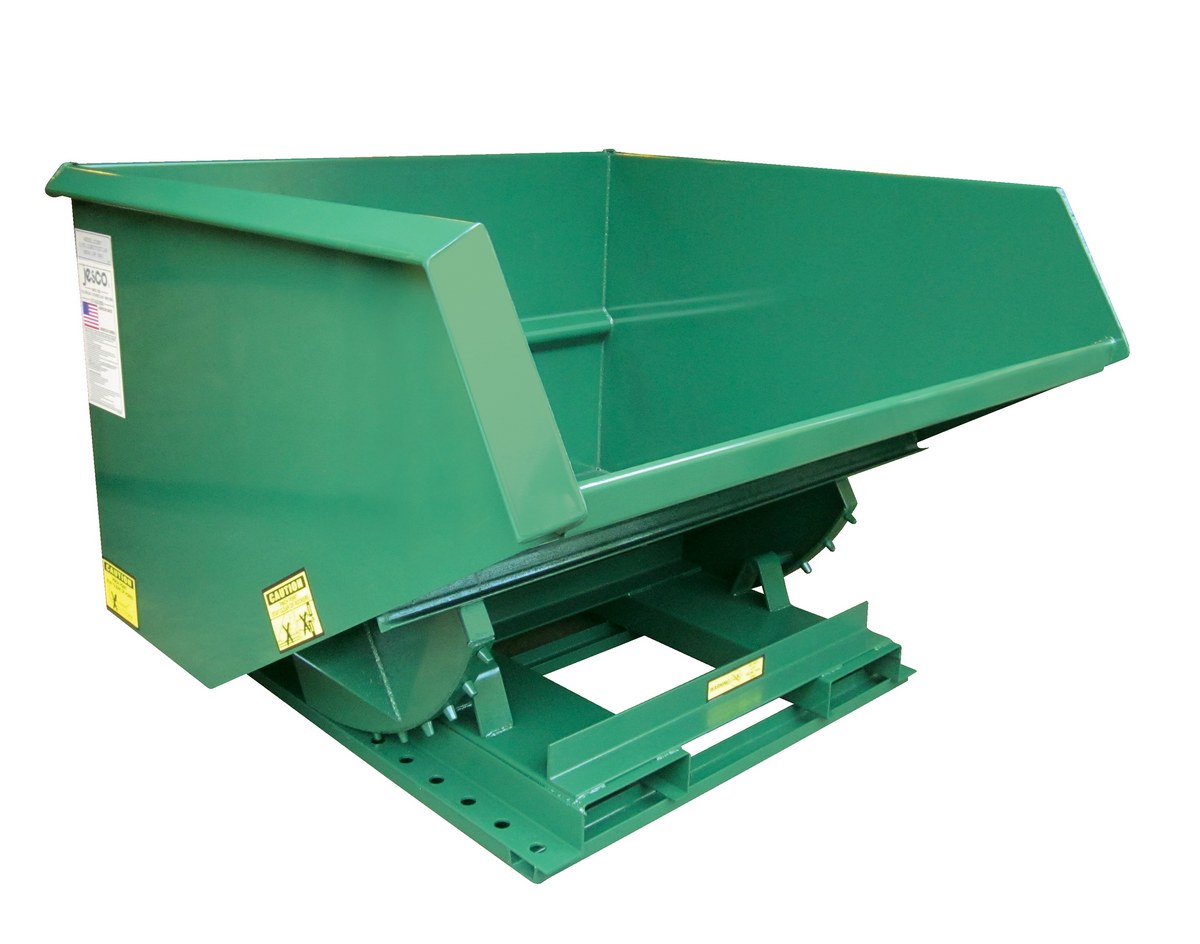

HOP-250-HD Warranty PDF 2 1/2 6,000 59-1/2"x64"x51" Yes 7/.220 930

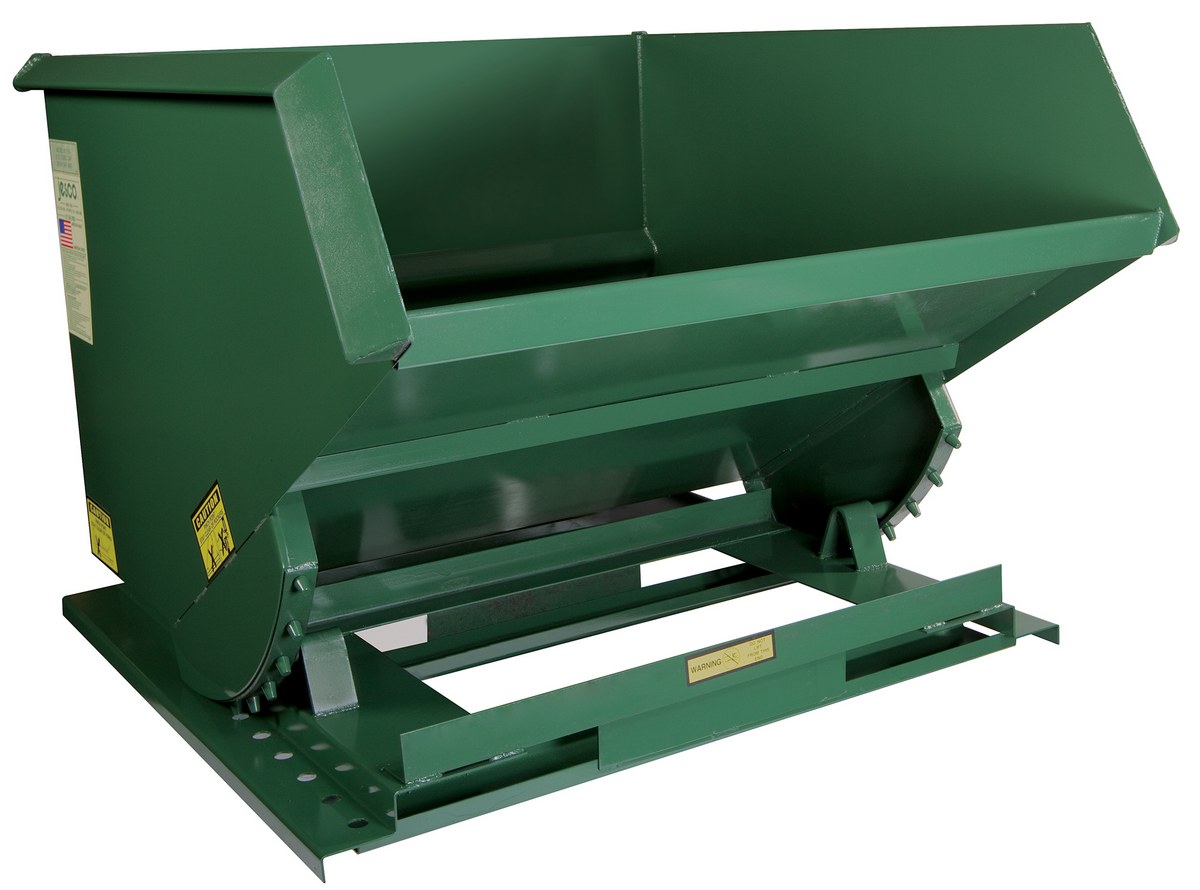

HOP-300-HD* icon_approvaldrawings.jpgWarranty PDF 3 6,000 65-1/2"x71-1/2"x59-1/2" No 7/ 1/4" 1250
HOP-400-HD* icon_approvaldrawings.jpgWarranty PDF 4 6,000 85-1/2"x71-1/2"x59-1/2" No 7/ 1/4" 1385
HOP-500-HD* icon_approvaldrawings.jpgWarranty PDF 5 6,000 105-1/2"x71-1/2"x59-1/2" No 7/ 1/4" 1560
*Caster Base for Caster option, HOP-CASTER-BASE (for HOP-300, 400, 500 HD series only)

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Specialty Steel Lids for Hoppers (Series HOP only)
Model PDFs Hopper
Cubic Yards
Specify Lid Style
(add suffix to model #)
Wt.
(lbs)
LID-100-A - 1 Style A Lid 65
LID-100-C - 1 Style C Lid 65
LID-150-A icon_approvaldrawings.jpg 1-1/2 Style A Lid 92
LID-150-C icon_approvaldrawings.jpg 1-1/2 Style C Lid 92
LID-200-A - 2 Style A Lid 106
LID-200-C - 2 Style C Lid 106
LID-250-A - 2-1/2 Style A Lid 106

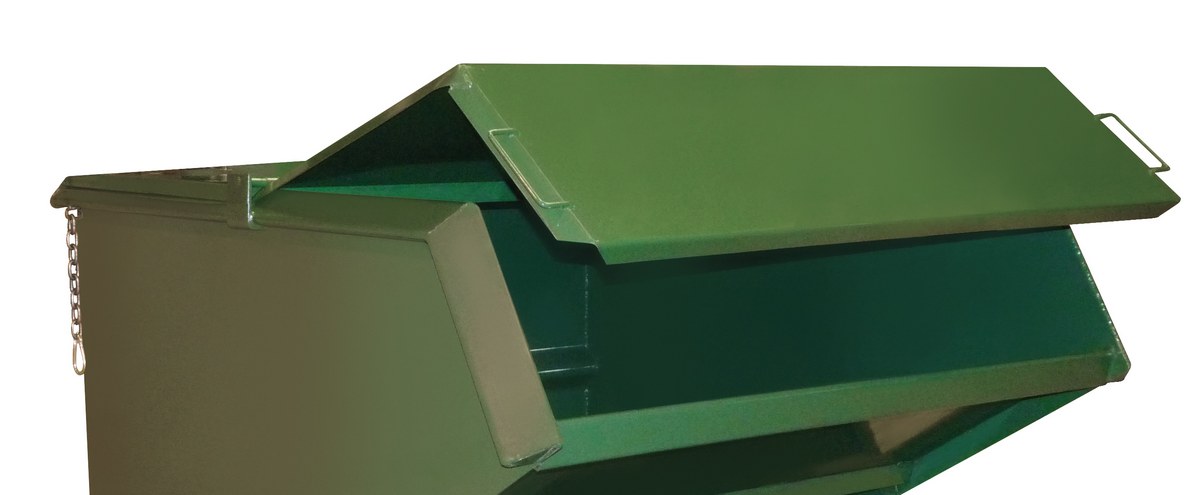

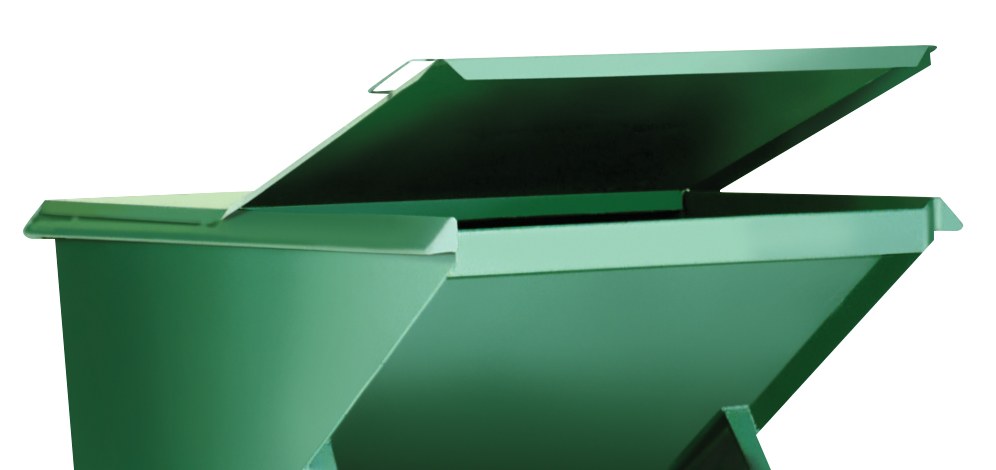

Steel Lid Style A

model LID-150-A

Single hinge in the center of the hopper with the back half welded closed

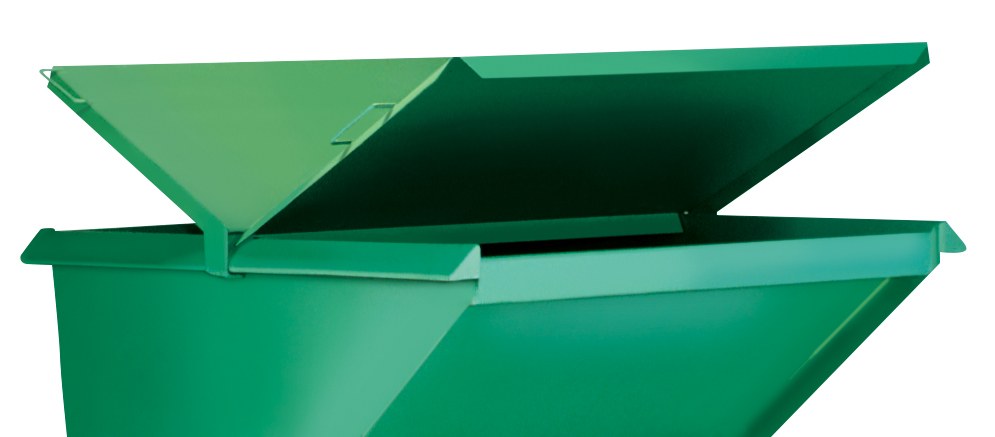

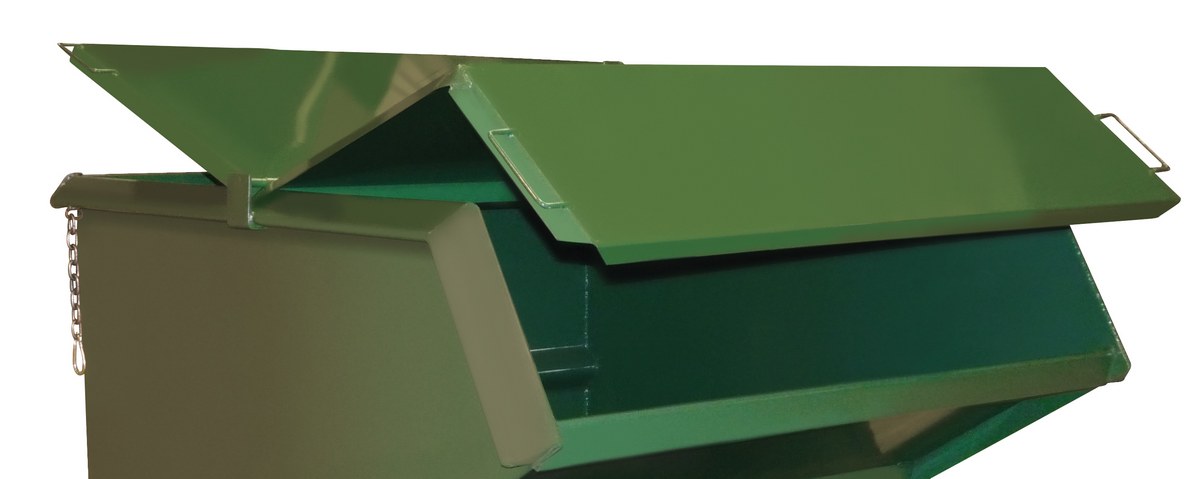

Steel Lid Style C

model LID-150-C

Single hinge in the center, but both front and back lids can be opened.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
