model: FM-T-DUMP

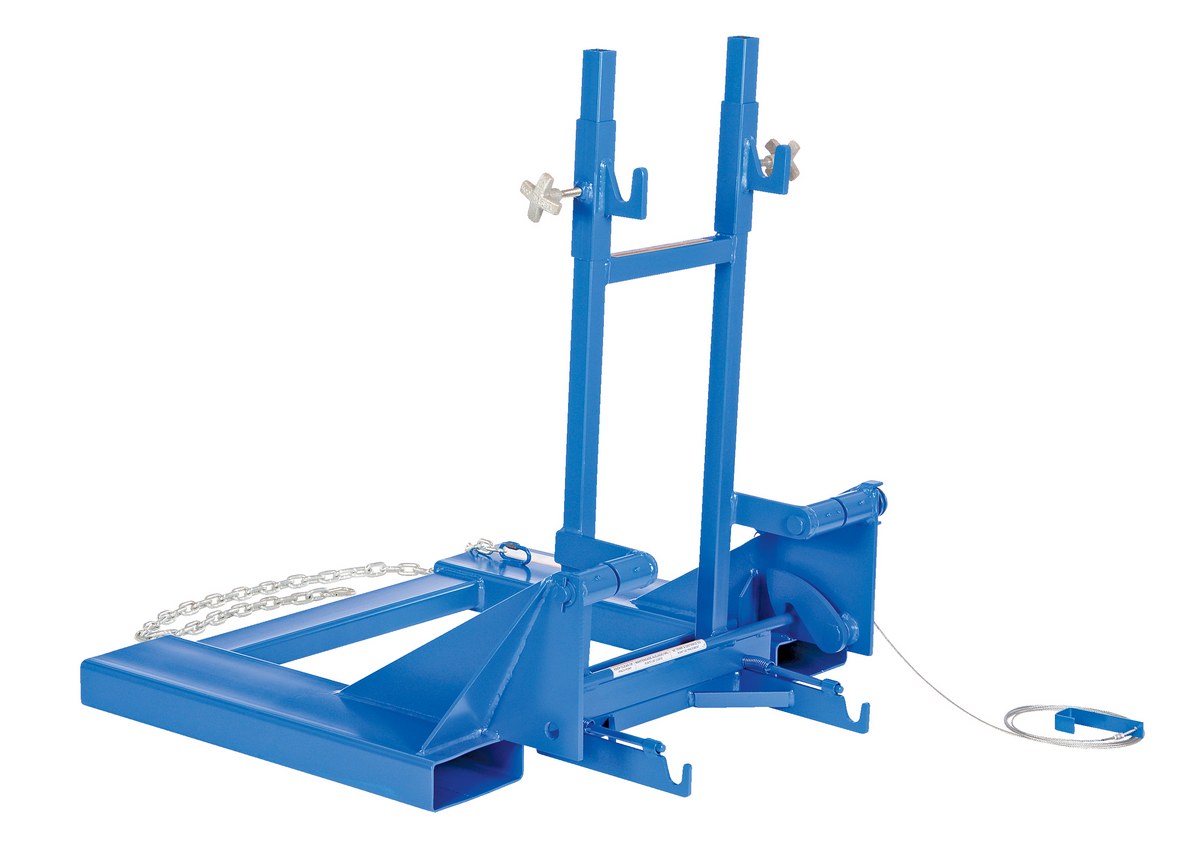

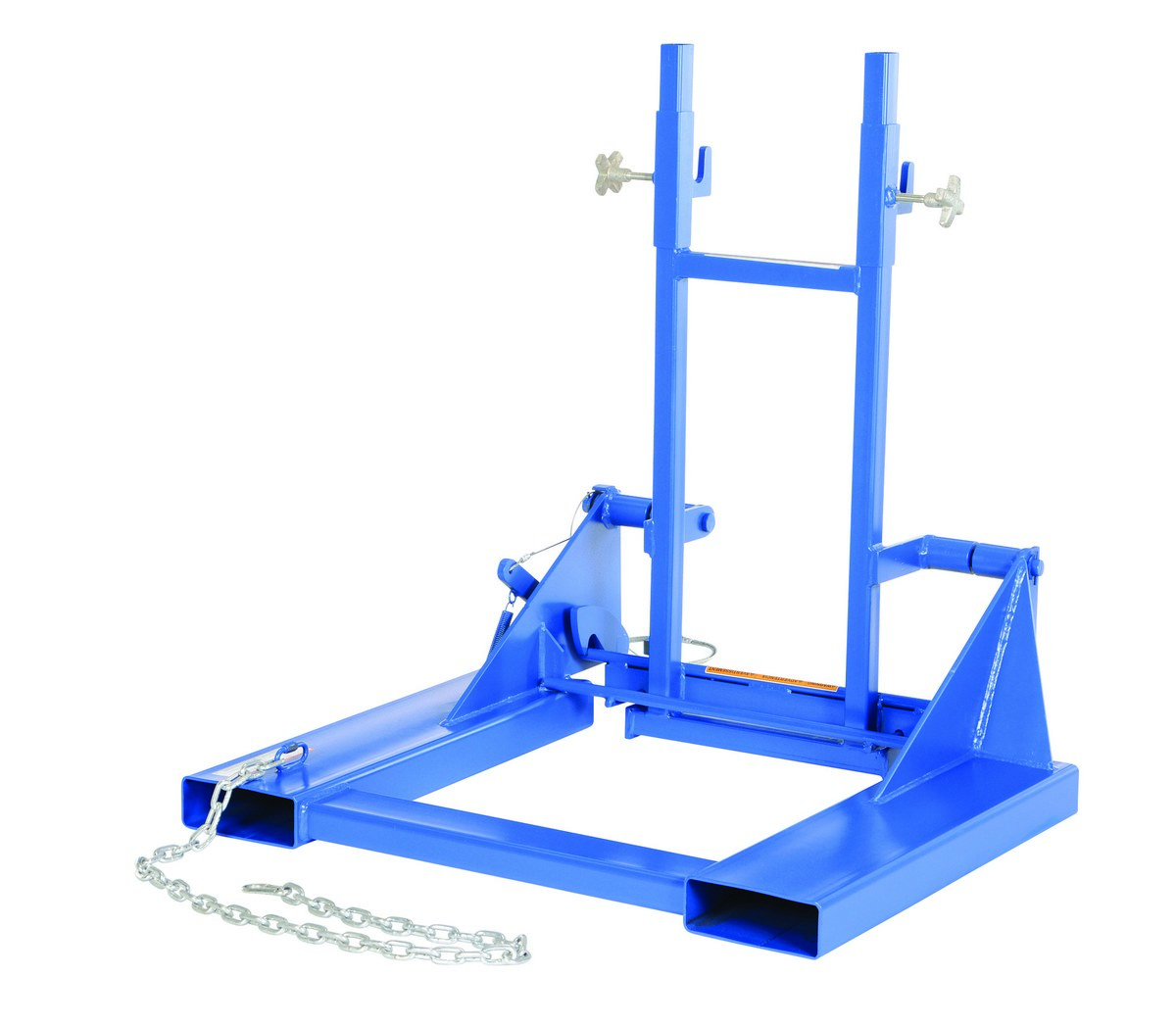

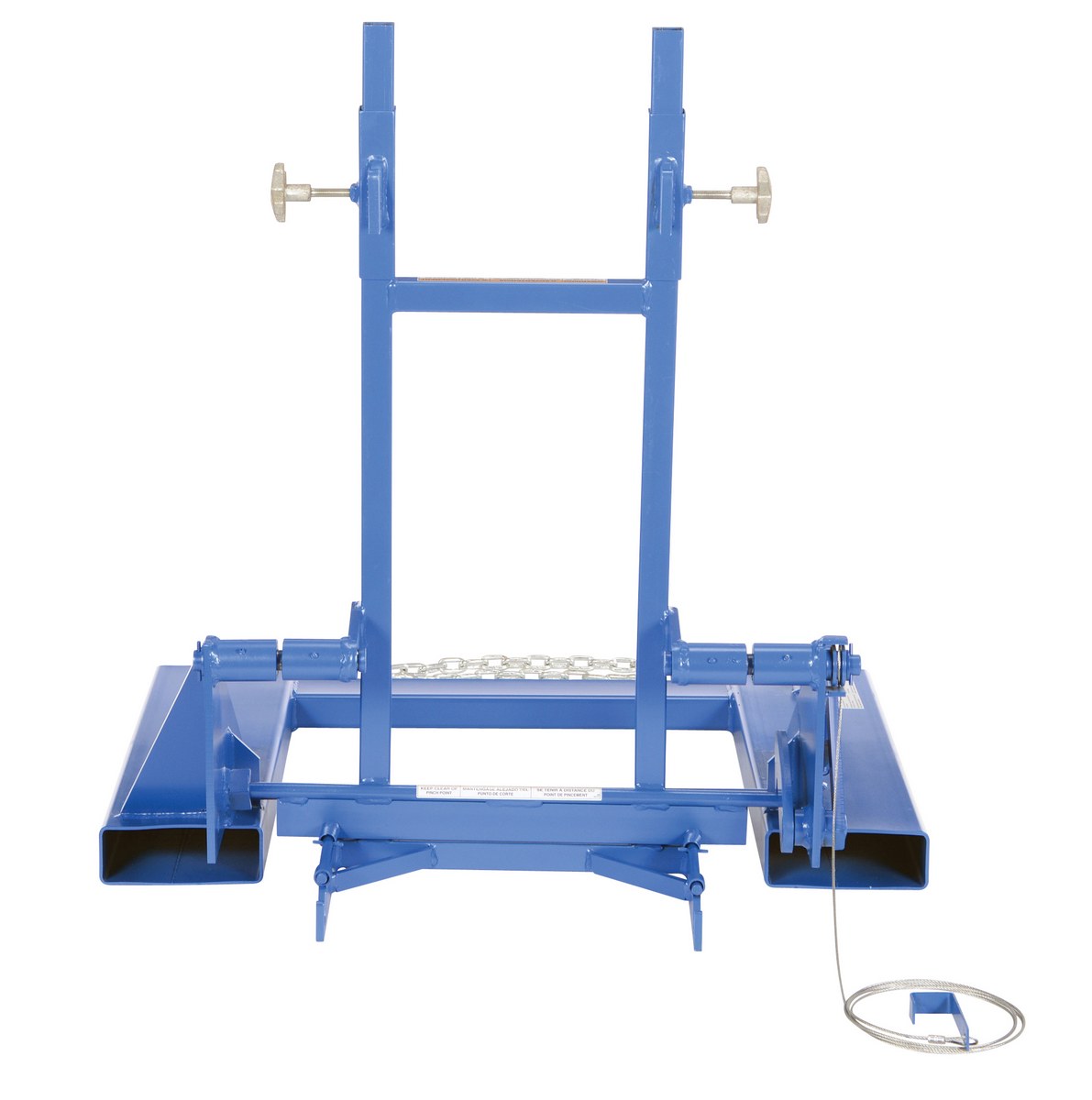

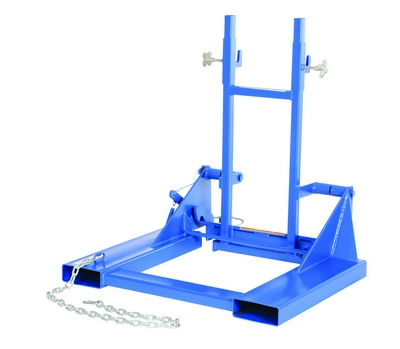

Fork Truck Mounted Trash Can Dumper
SERIES: FM-T

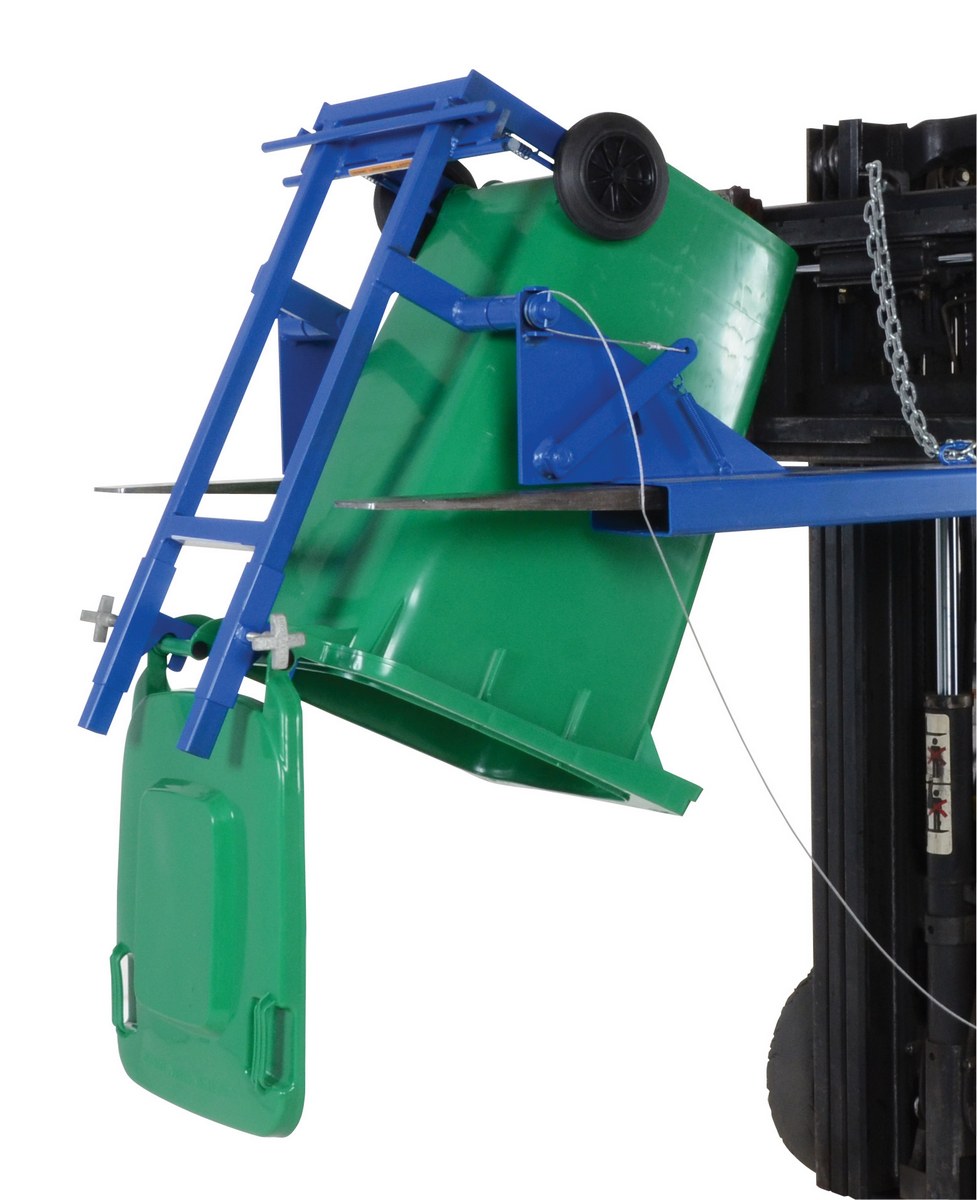

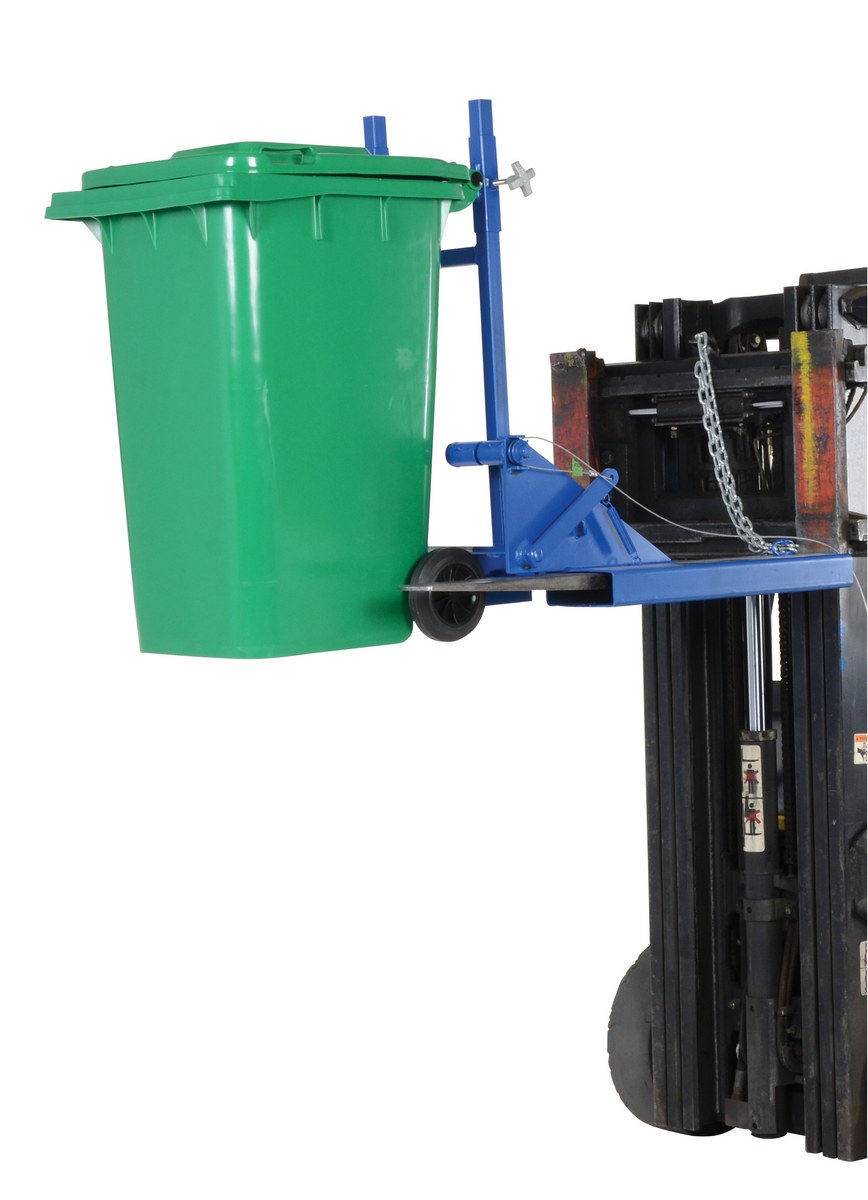

Save time and reduce work-related injuries caused by lifting and dumping heavy waste containers. This innovative product will allow a fork truck driver to lift and dump refuse containers weighing up to 1,000 pounds without ever leaving the seat of the fork truck! Secure dumper to fork truck with safety chain and run cable to driver's seat. Align trash can with dumper and lock into place. Once locked in place, transport trash can to refuse container, align, and pull chain to dump refuse container contents. Only for use with 64 gallon trash can, series TH-64 or approved equal. Fork pockets are 2-5/8" high by 7-5/8" wide usable. Steel construction for years of dependable use.

Save time and reduce work-related injuries caused by lifting and dumping heavy waste containers. This innovative product will allow a fork truck driver to lift and dump refuse containers weighing up to 1,000 pounds without ever leaving the seat of the fork truck! Secure dumper to fork truck with safety chain and run cable to driver's seat. Align trash can with dumper and lock into place. Once locked in place, transport trash can to refuse container, align, and pull chain to dump refuse container contents. Only for use with 64 gallon trash can, series TH-64 or approved equal. Fork pockets are 2-5/8" high by 7-5/8" wide usable. Steel construction for years of dependable use.

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Fork Mounted Trash Can Dumpers
Model Image PDF Description Overall Size
(WxLxH)
Capacity
(lbs.)
Wt.
(lbs.)
FM-T-DUMP icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Fork Mounted Dumper 40-5/8"x39-9/16"x41-15/16" 1,000 lbs. 254
Works With Our Link Series TH-64 Trash Cans

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Works With Our Link Series TH-64 Trash Cans

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Model Image PDFs Description * Net Wt.
(lbs)
FM-T-DUMP 90 Days Limited WarrantyFORK MOUNT TRASH CAN DUMPER 1K CAPACITYUniform Capacity (lb.): 1,000254



Fork Truck Mounted Trash Can Dumper PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

Testing Certificates

FM-T-DUMP

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




We are hoping to continue adding new product pictures to each gallery. Check back soon.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fork Truck Mounted Trash Can D...




Save time and reduce work-related injuries caused by lifting and dumping heavy waste containers. This innovative product will allow a fork truck driver to lift and dump refuse containers weighing up to 1,000 pounds without ever leaving the seat of the fork truck! Secure dumper to fork truck with safety chain and run cable to driver's seat. Align trash can with dumper and lock into place. Once locked in place, transport trash can to refuse container, align, and pull chain to dump refuse container contents. Only for use with 64 gallon trash can, series TH-64 or approved equal. Fork pockets are 2-5/8" high by 7-5/8" wide usable. Steel construction for years of dependable use.


Fork Mounted Trash Can Dumpers
Model Image PDF Description Overall Size
(WxLxH)
Capacity
(lbs.)
Wt.
(lbs.)
FM-T-DUMP icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Fork Mounted Dumper 40-5/8"x39-9/16"x41-15/16" 1,000 lbs. 254
Works With Our Link Series TH-64 Trash Cans

Options


Works With Our Link Series TH-64 Trash Cans
