Product Family Overview


Aluminum Vehicle Twin Ramps
SERIES: VTR

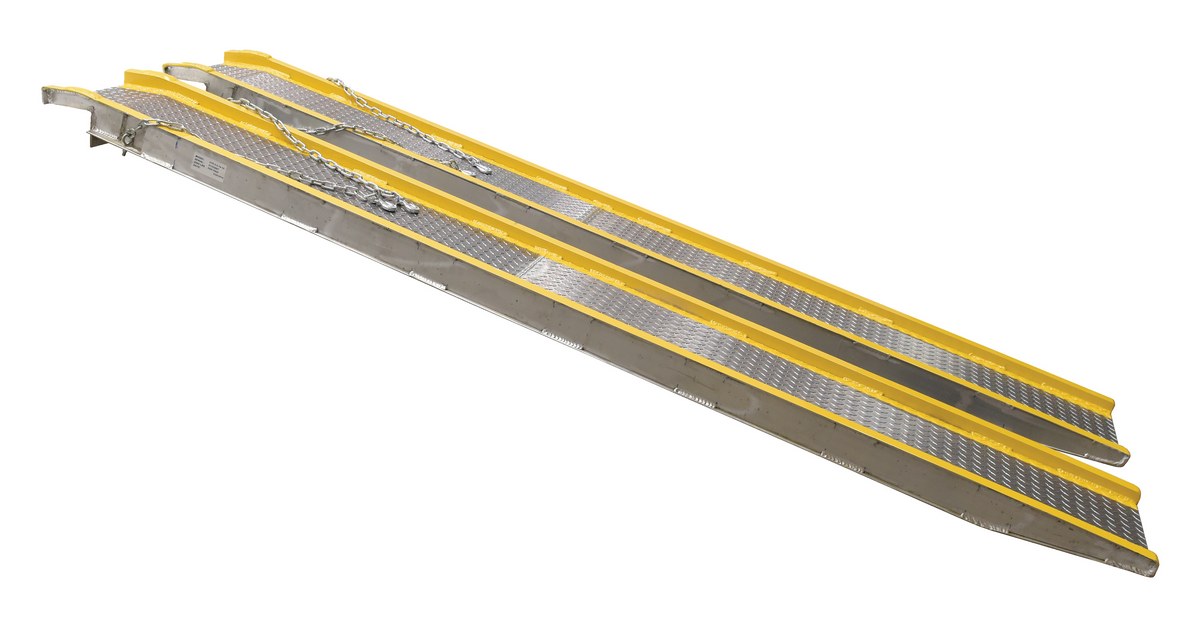

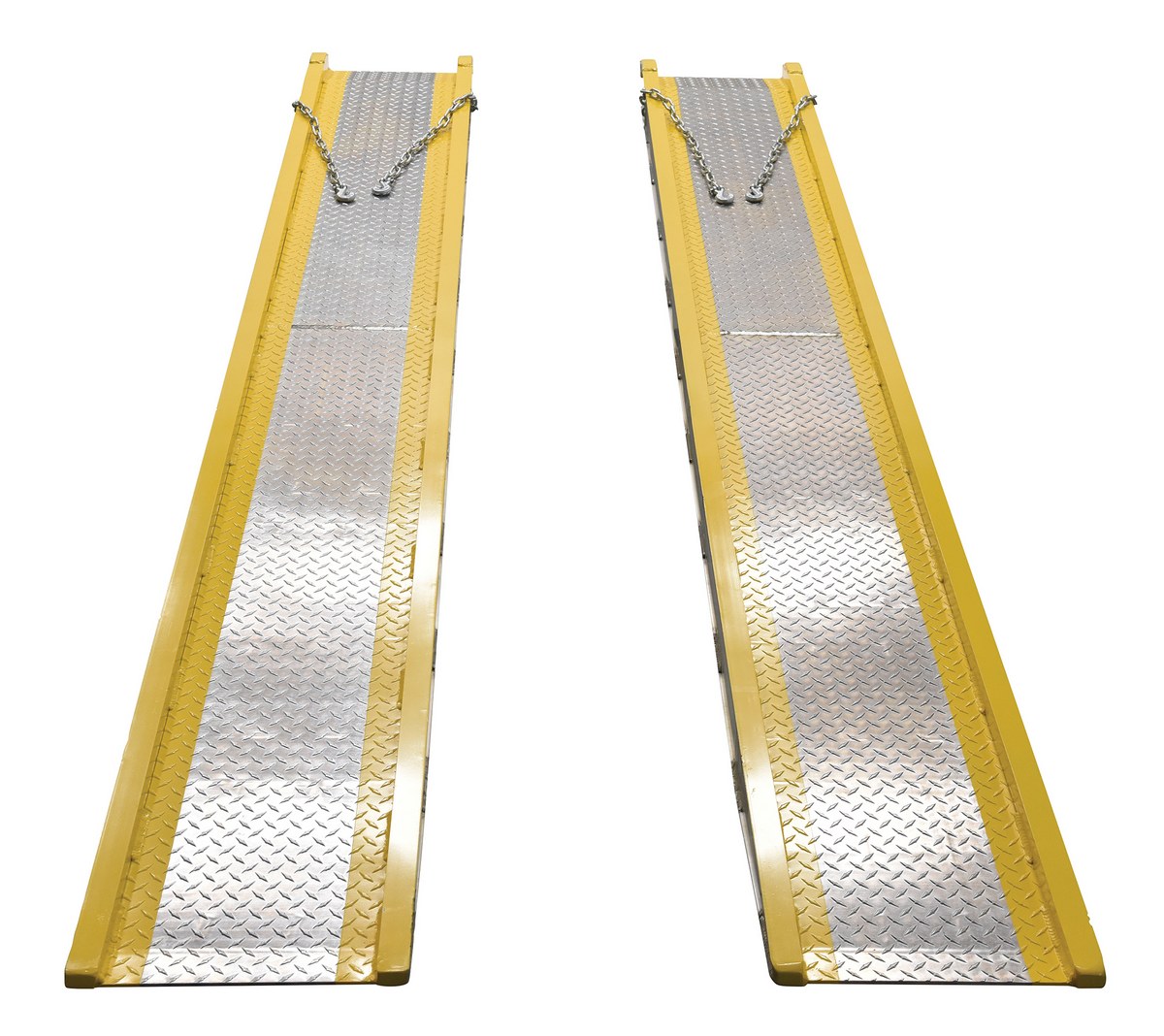

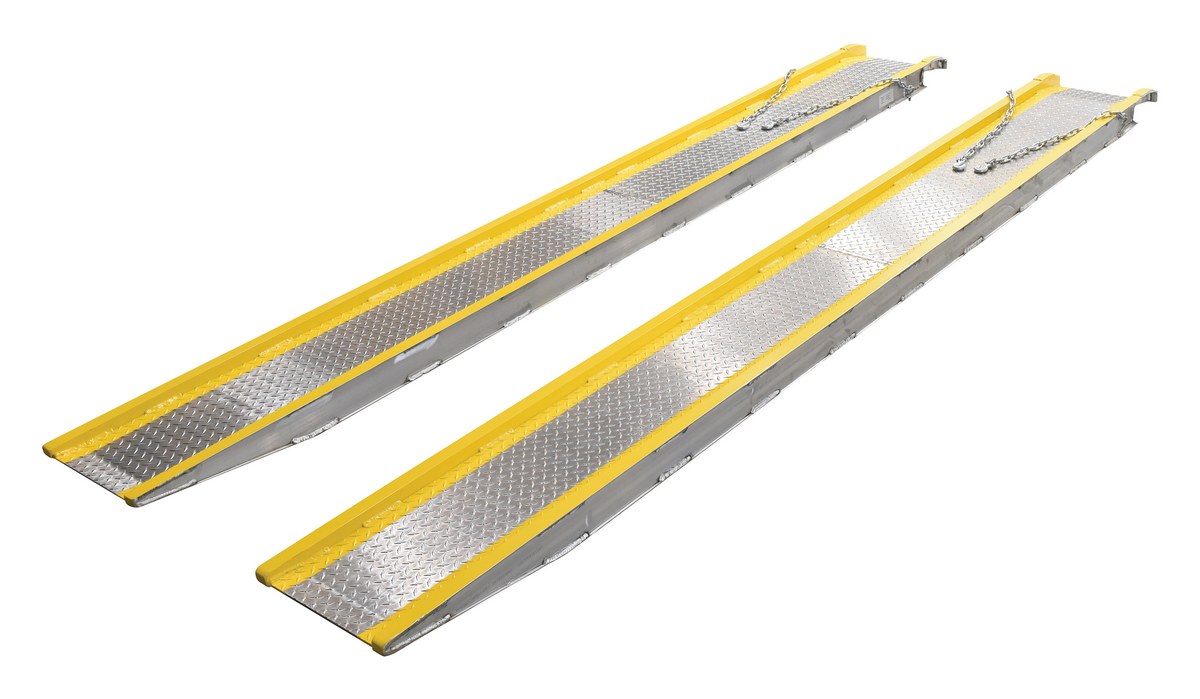

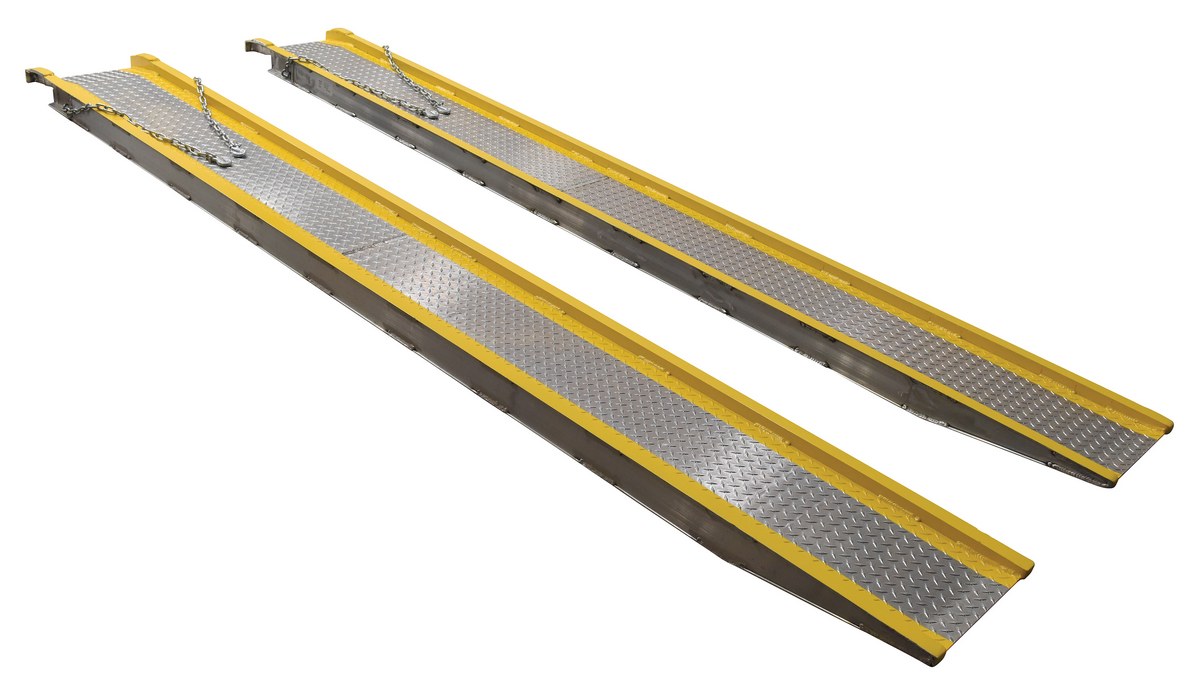

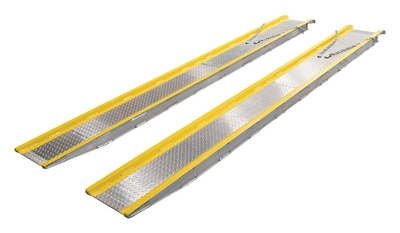

Provide a safe means for driving vans, pick-up trucks and some passenger vehicles from ground level into and out of high building entrances. Ramps can be securely fastened to dock with w/ chains (34") attached to ramps with hook on the end. To avoid hang-ups measure under clearance and wheelbase of vehicle. The usable width is 14". Side curbs are 1-1/4" high. Welded aluminum construction. Models are sold in pairs.

  • 5,500 lb to 7,000 lb capacity available

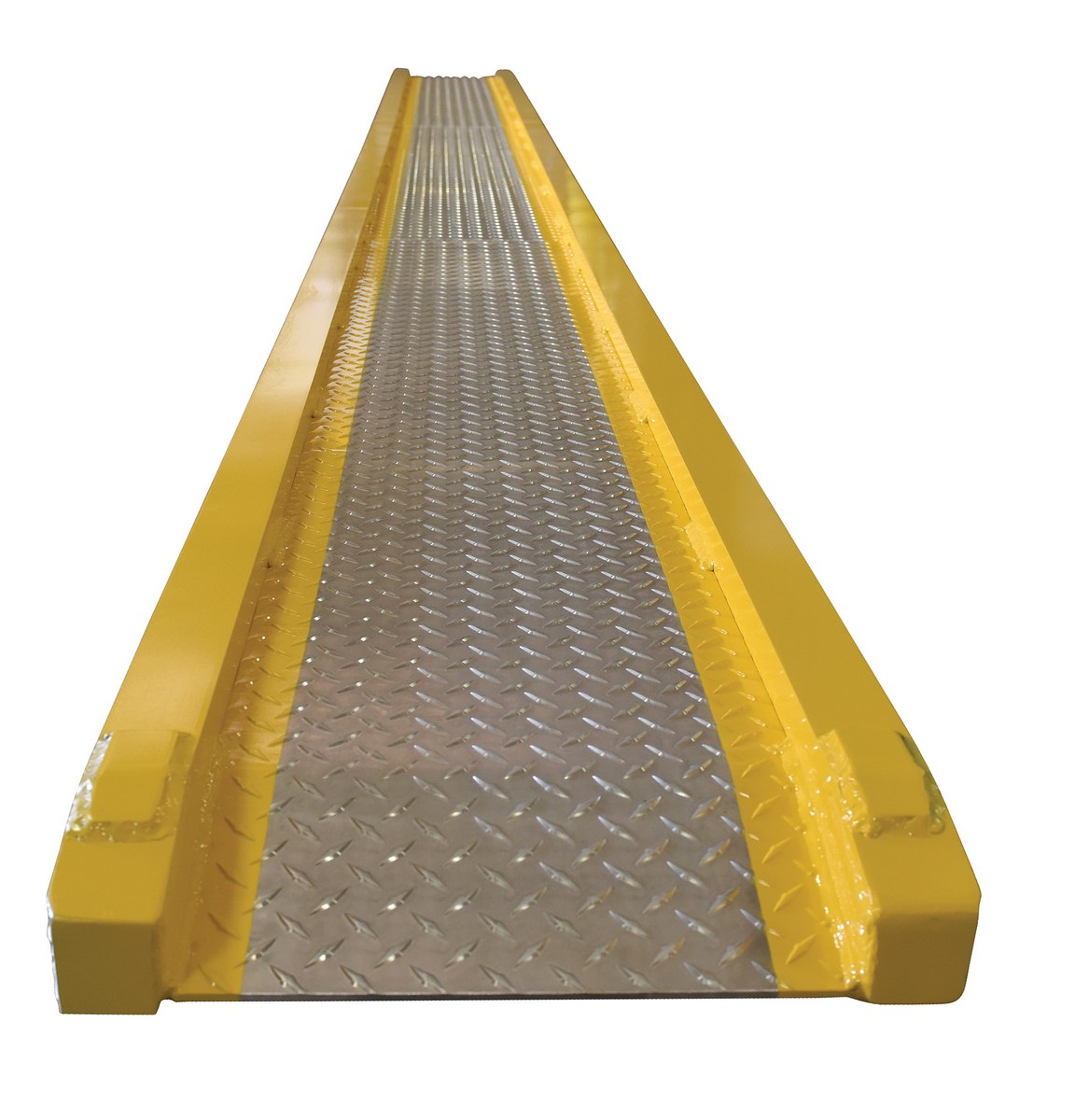

  • 1-1/4" high steel curbs help keep wheels centered on ramps

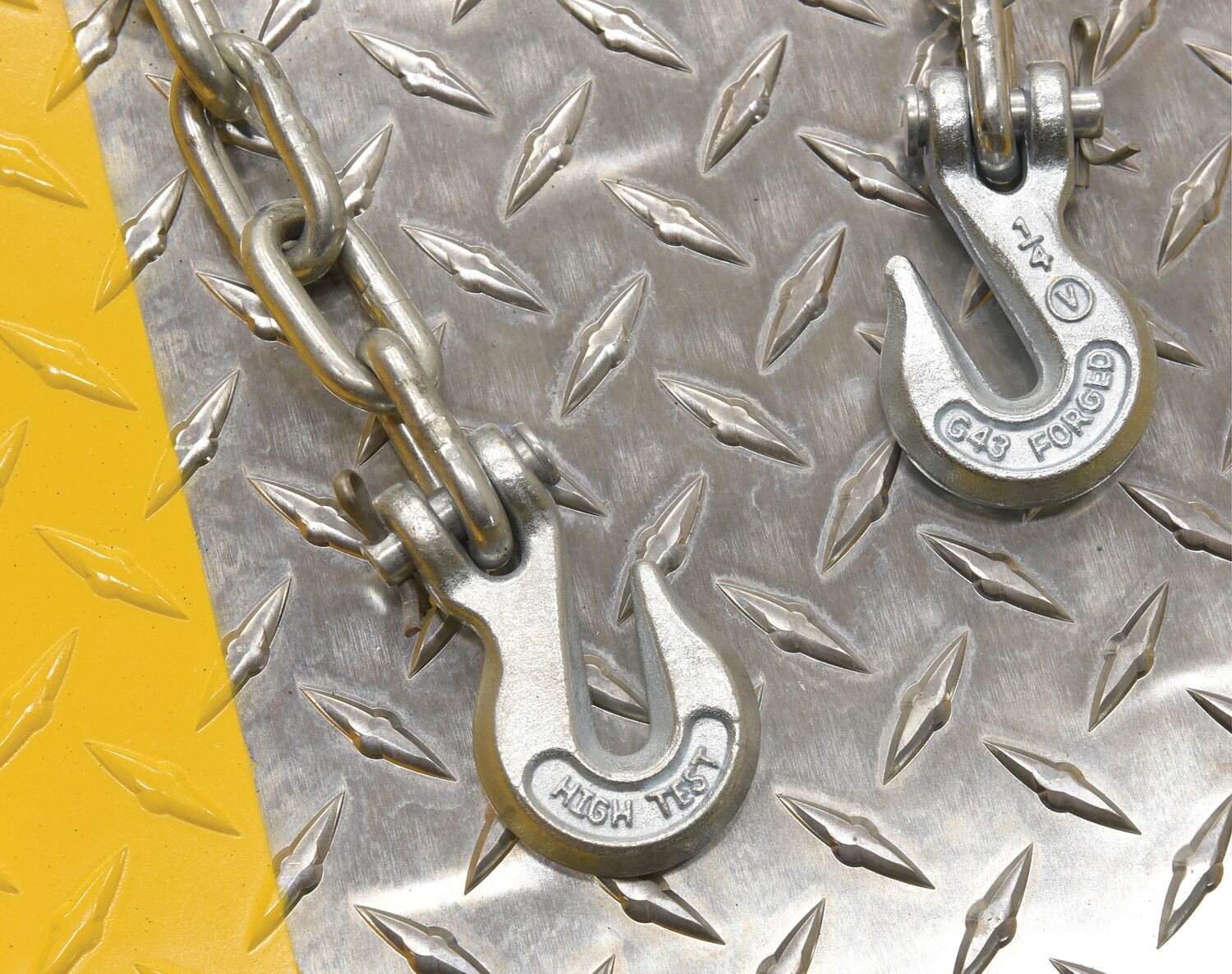

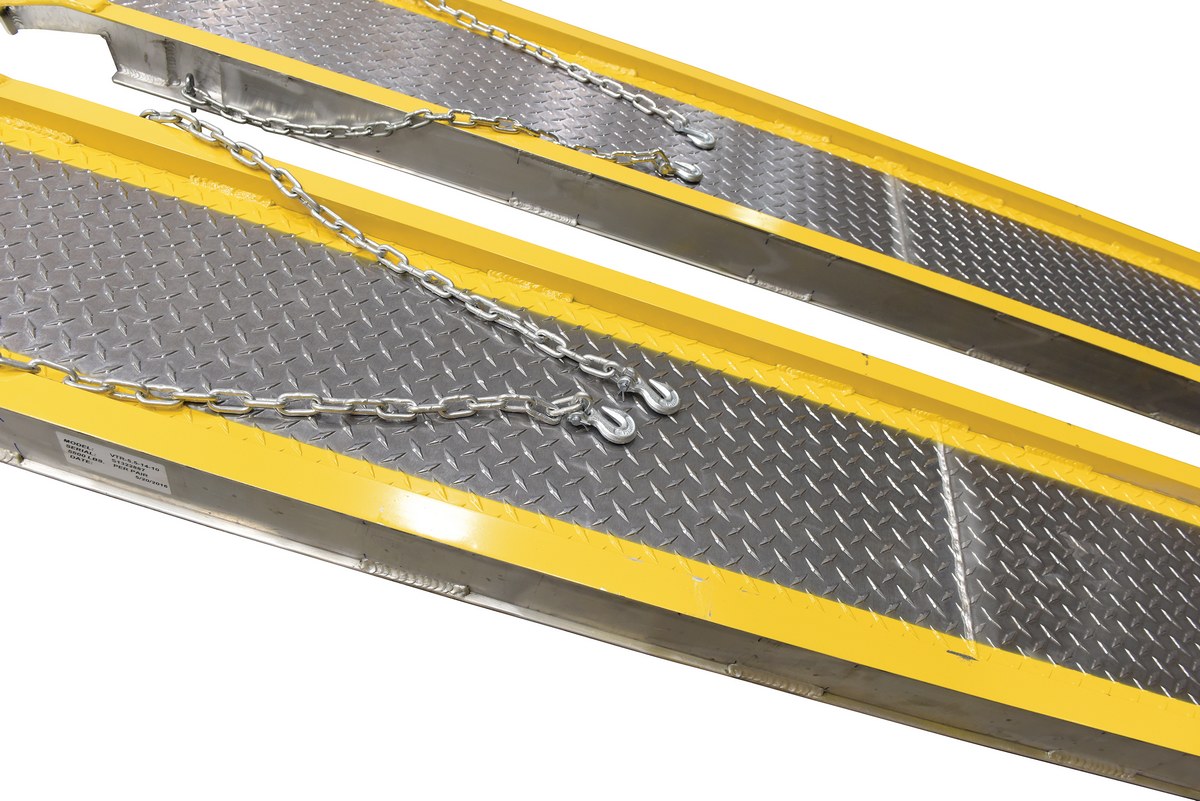

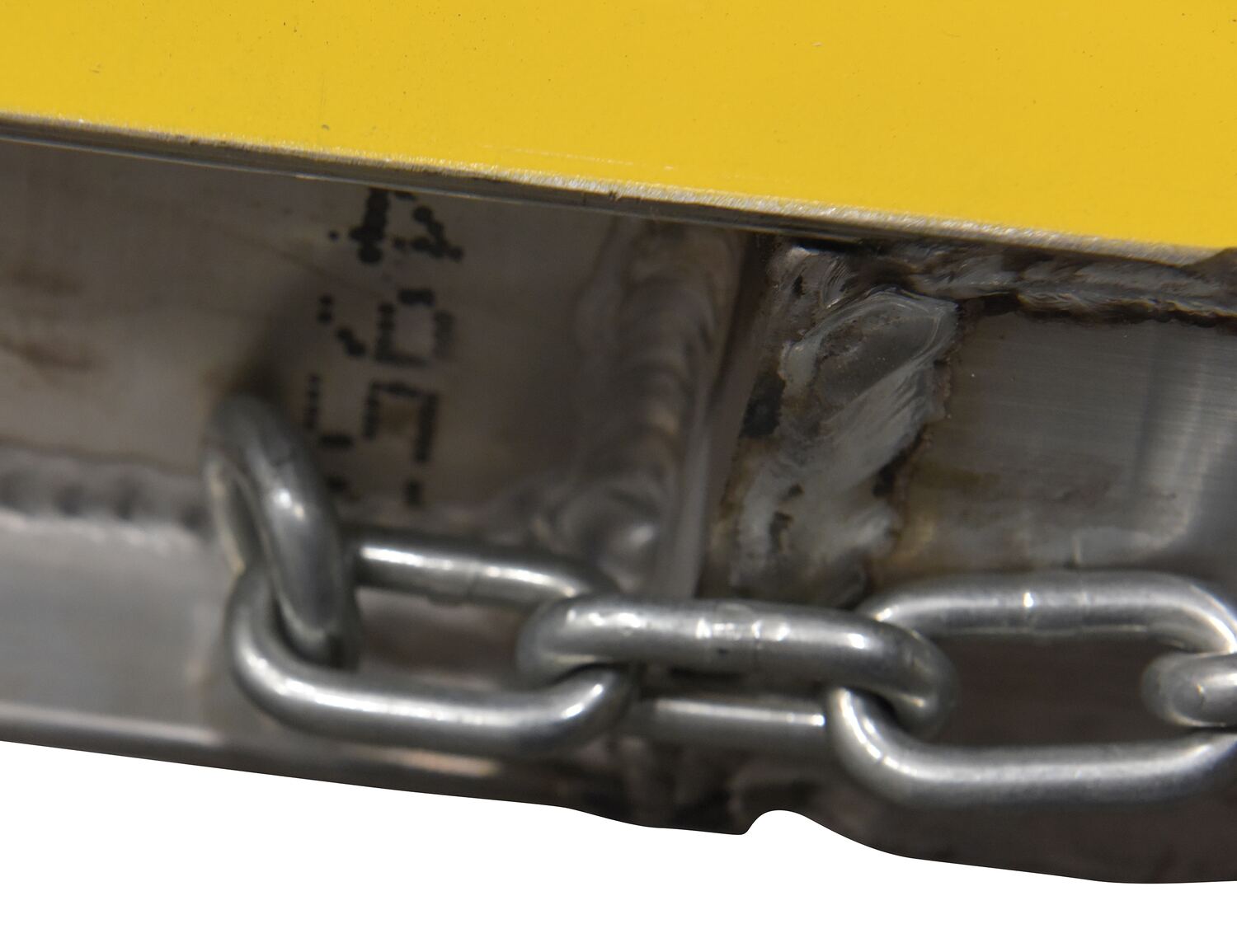

  • Hooks and chains are included to stabilize ramps when in use

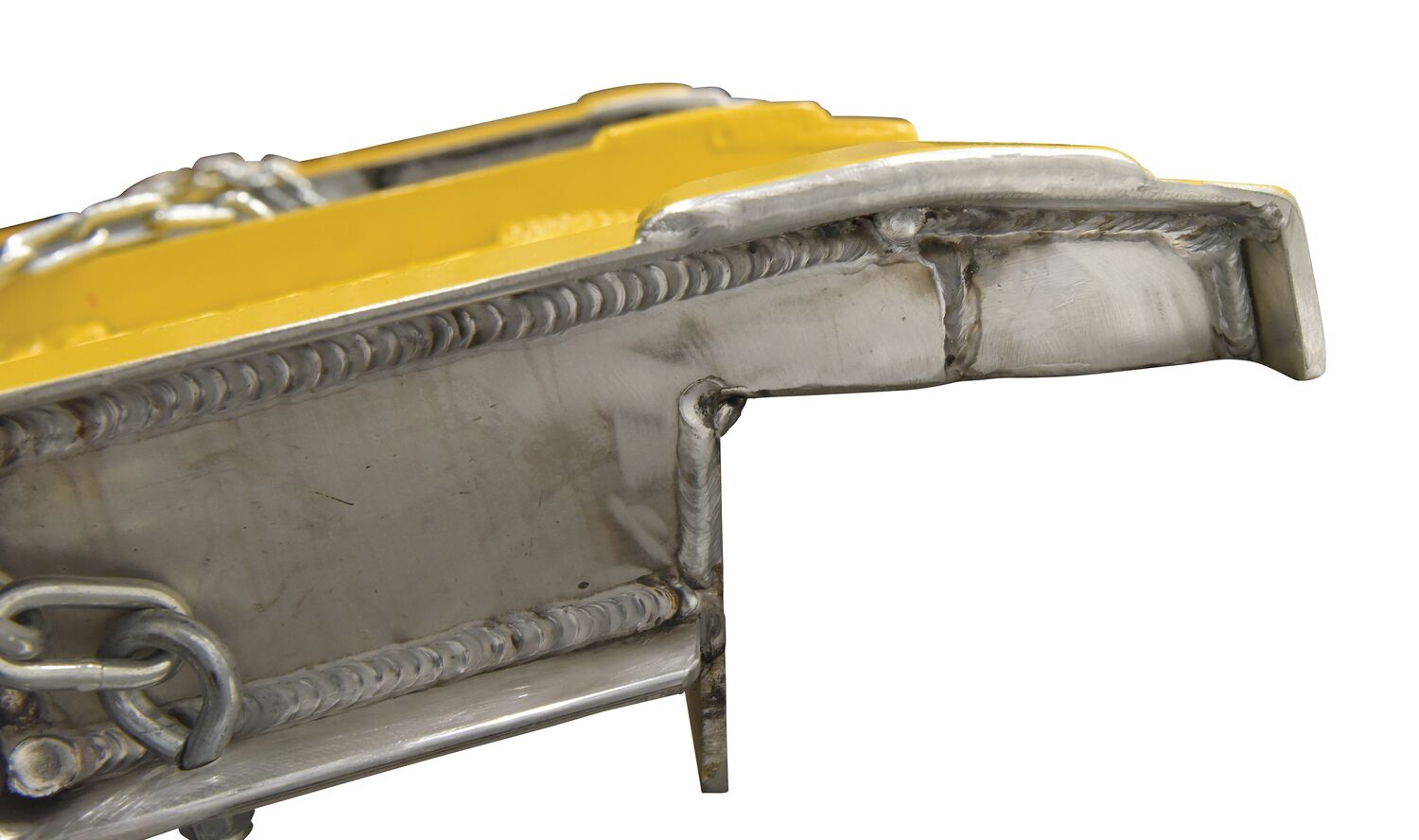

  • Constructed of robust welded aluminum tread plate for maximum strength and durability

Provide a safe means for driving vans, pick-up trucks and some passenger vehicles from ground level into and out of high building entrances. Ramps can be securely fastened to dock with w/ chains (34") attached to ramps with hook on the end. To avoid hang-ups measure under clearance and wheelbase of vehicle. The usable width is 14". Side curbs are 1-1/4" high. Welded aluminum construction. Models are sold in pairs.

  • 5,500 lb to 7,000 lb capacity available
  • 1-1/4" high steel curbs help keep wheels centered on ramps
  • Hooks and chains are included to stabilize ramps when in use
  • Constructed of robust welded aluminum tread plate for maximum strength and durability

Additional Models In This Family

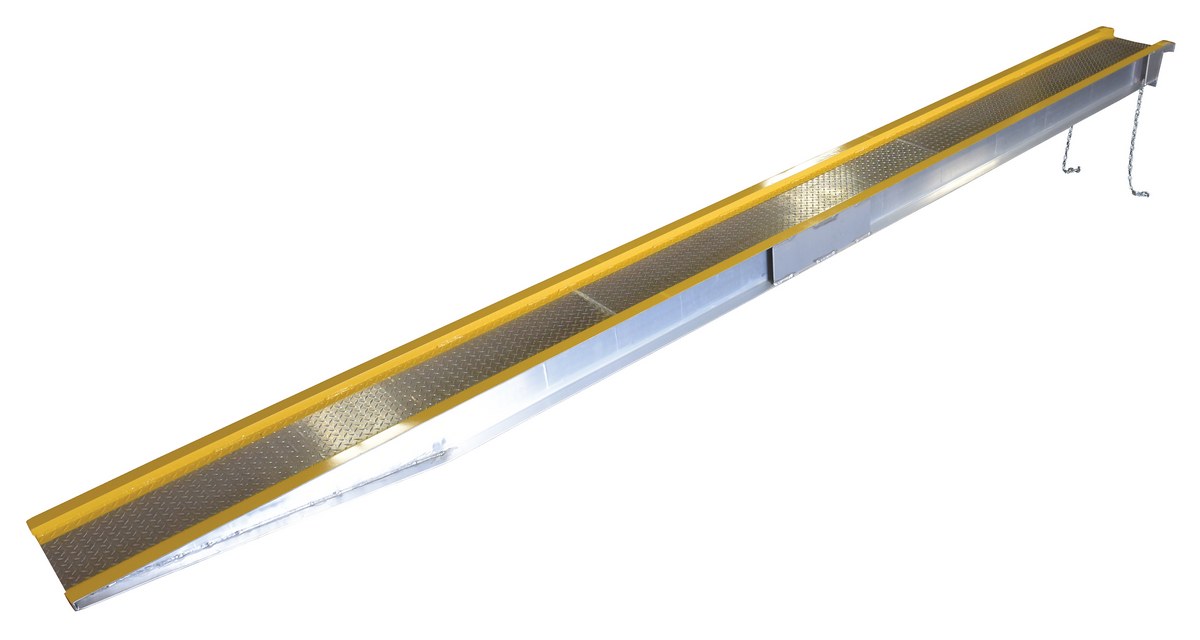

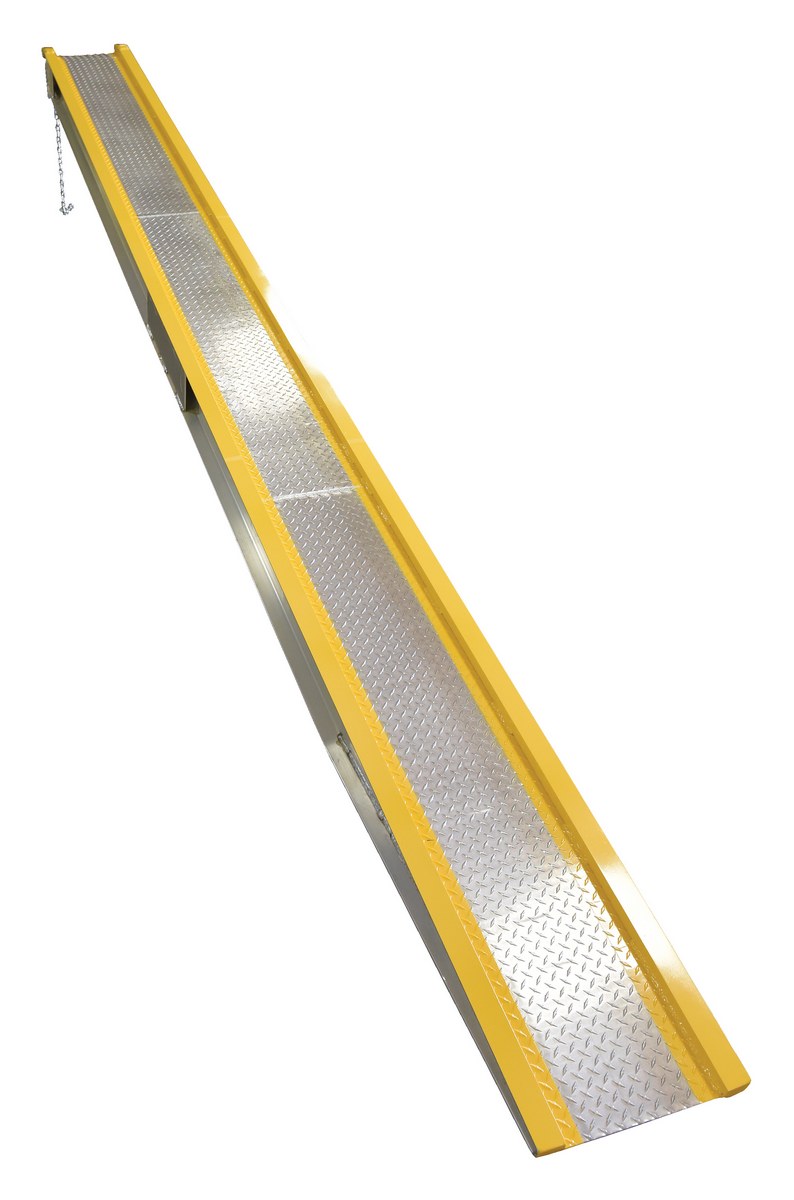

VTR-5.5-14-20

model VTR-5.5-14-20

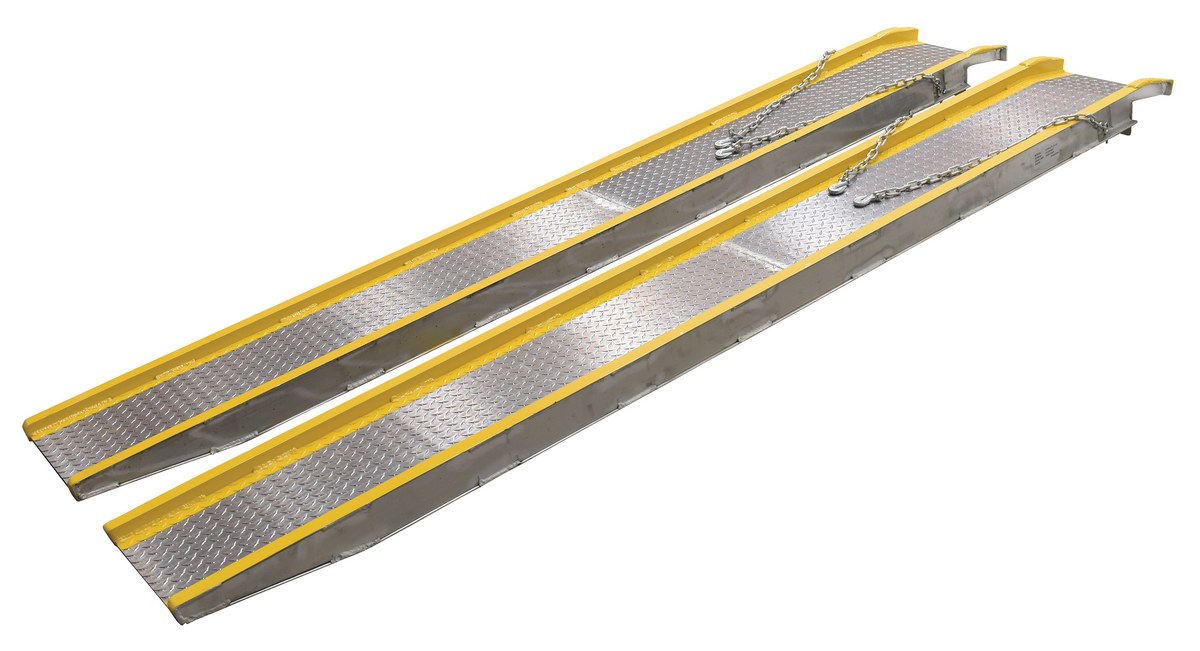

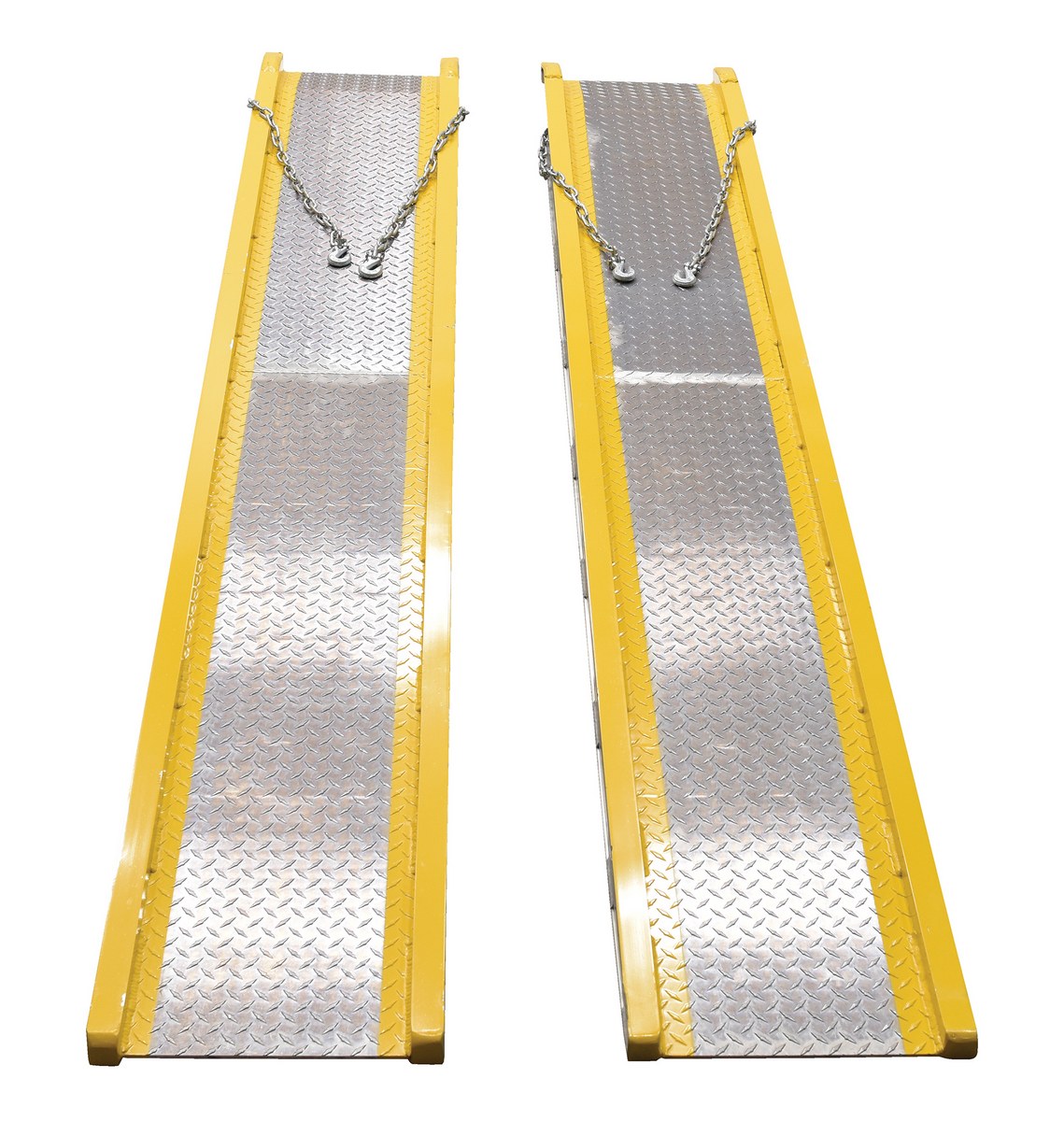

VTR-5.5-14-10

model VTR-5.5-14-10

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
VTR-5.5-14-10
VTR-5.5-14-1090 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 120 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 16
382
VTR-5.5-14-16
VTR-5.5-14-1690 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 192 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 25-1/2
586
VTR-5.5-14-20
VTR-5.5-14-2090 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 240 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 32-1/2
889
VTR-5.5-14-24
VTR-5.5-14-2490 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 288 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 39
1083
VTR-6-14-14
VTR-6-14-1490 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 168 In. x 18 In. 6,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 22-1/2
487
VTR-6-14-18
VTR-6-14-1890 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 216 In. x 18 In. 6,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 29
801

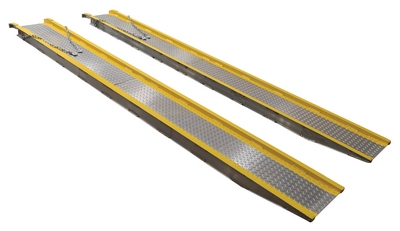

VTR-7-14-12
VTR-7-14-1290 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 144 In. x 18 In. 7,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 19
417
VTR-7-14-8
VTR-7-14-890 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 96 In. x 18 In. 7,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 12-1/2
226

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

VTR-5.5-14-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 16
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 16

VTR-5.5-14-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 25-1/2
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 25-1/2

VTR-5.5-14-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 32-1/2
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 32-1/2

VTR-5.5-14-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 39
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 39

VTR-6-14-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 22-1/2
Uniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 22-1/2

VTR-6-14-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 29
Uniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 29

VTR-7-14-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 19
Uniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 19

VTR-7-14-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 12-1/2
Uniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 12-1/2

Aluminum Vehicle Twin Ramps PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


VTR-5.5-14-10

VTR-5.5-14-16

VTR-5.5-14-20

VTR-5.5-14-24

VTR-6-14-14

VTR-6-14-18

VTR-7-14-12

VTR-7-14-8

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Aluminum Vehicle Twin Ramps




Provide a safe means for driving vans, pick-up trucks and some passenger vehicles from ground level into and out of high building entrances. Ramps can be securely fastened to dock with w/ chains (34") attached to ramps with hook on the end. To avoid hang-ups measure under clearance and wheelbase of vehicle. The usable width is 14". Side curbs are 1-1/4" high. Welded aluminum construction. Models are sold in pairs.

  • 5,500 lb to 7,000 lb capacity available
  • 1-1/4" high steel curbs help keep wheels centered on ramps
  • Hooks and chains are included to stabilize ramps when in use
  • Constructed of robust welded aluminum tread plate for maximum strength and durability


Model # Description Attributes Net Wt.
(lbs)
VTR-5.5-14-10 VTR-5.5-14-10Portable Aluminum Twin Vehicle Ramp 120 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 16
382
VTR-5.5-14-16 VTR-5.5-14-16Portable Aluminum Twin Vehicle Ramp 192 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 25-1/2
586
VTR-5.5-14-20 VTR-5.5-14-20Portable Aluminum Twin Vehicle Ramp 240 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 32-1/2
889
VTR-5.5-14-24 VTR-5.5-14-24Portable Aluminum Twin Vehicle Ramp 288 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 39
1083
VTR-6-14-14 VTR-6-14-14Portable Aluminum Twin Vehicle Ramp 168 In. x 18 In. 6,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 22-1/2
487
VTR-6-14-18 VTR-6-14-18Portable Aluminum Twin Vehicle Ramp 216 In. x 18 In. 6,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 29
801
VTR-7-14-12 VTR-7-14-12Portable Aluminum Twin Vehicle Ramp 144 In. x 18 In. 7,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 19
417
VTR-7-14-8 VTR-7-14-8Portable Aluminum Twin Vehicle Ramp 96 In. x 18 In. 7,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 12-1/2
226
