model: D-TR-72


SERIES: D
Wheel Chair Ramps

The Americans with Disabilities Act requires that all buildings must be accessible to disabled persons. Failure to comply may result in monetary damages and civil penalties. According to ADA rules and regulations, for every inch of rise you must have a foot of ramp in length.

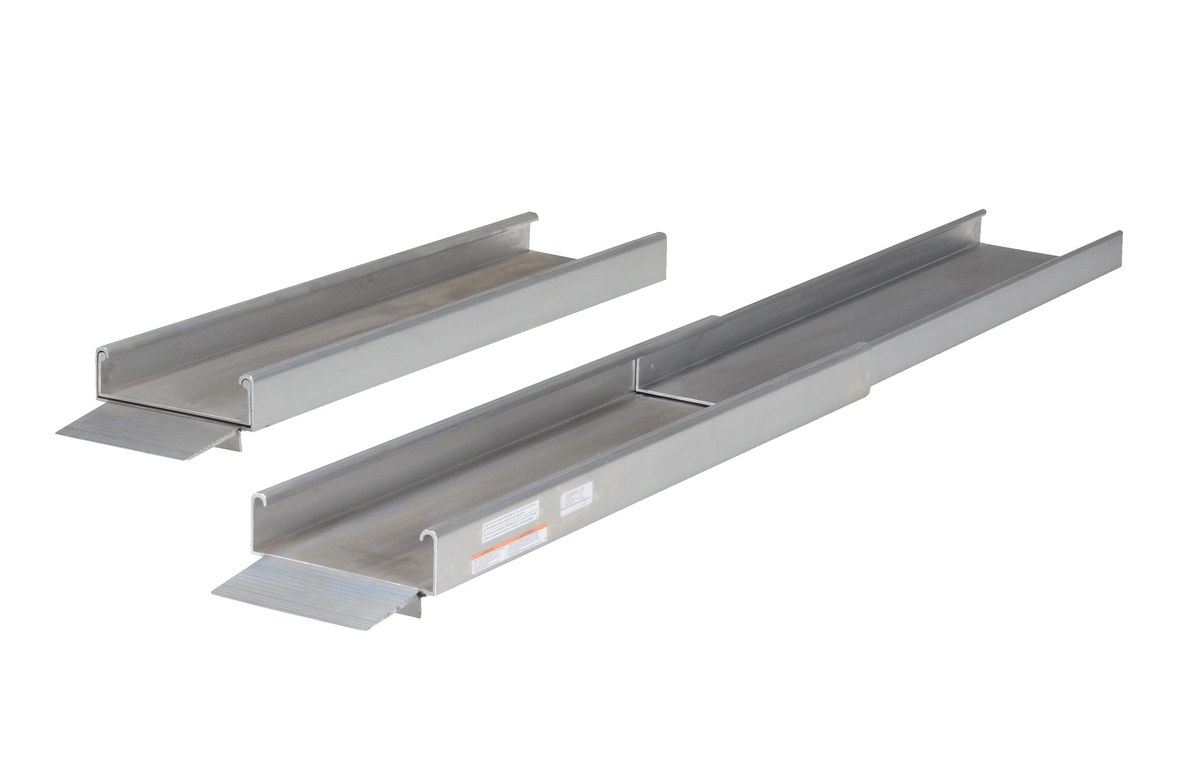

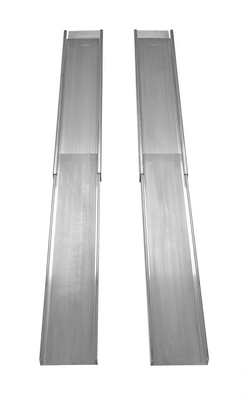

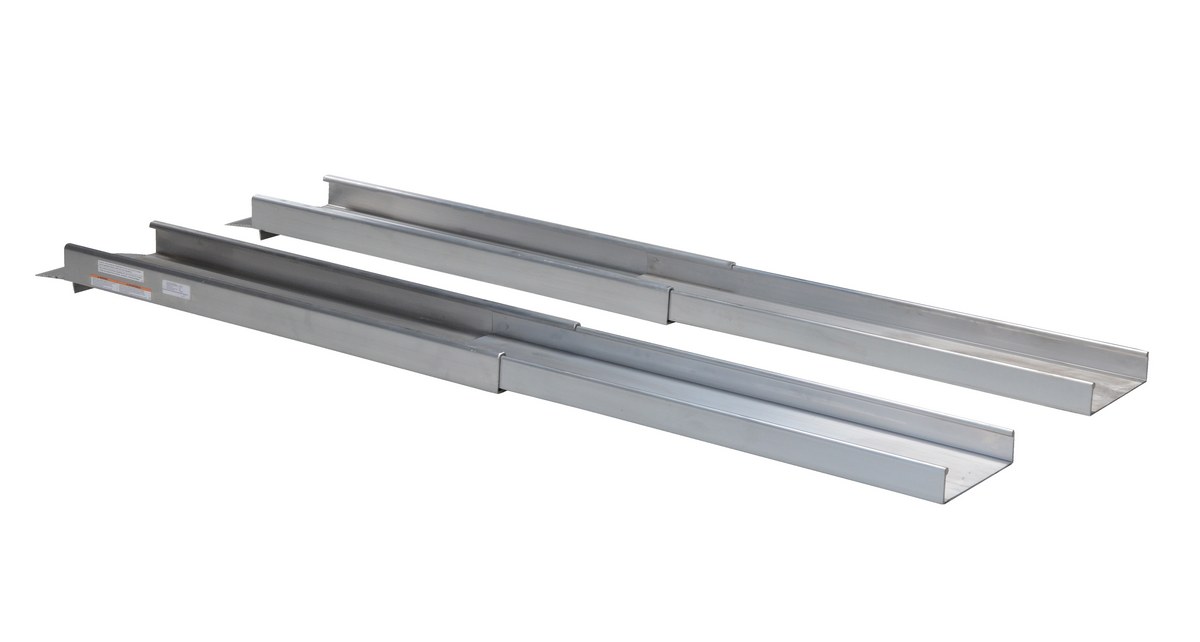

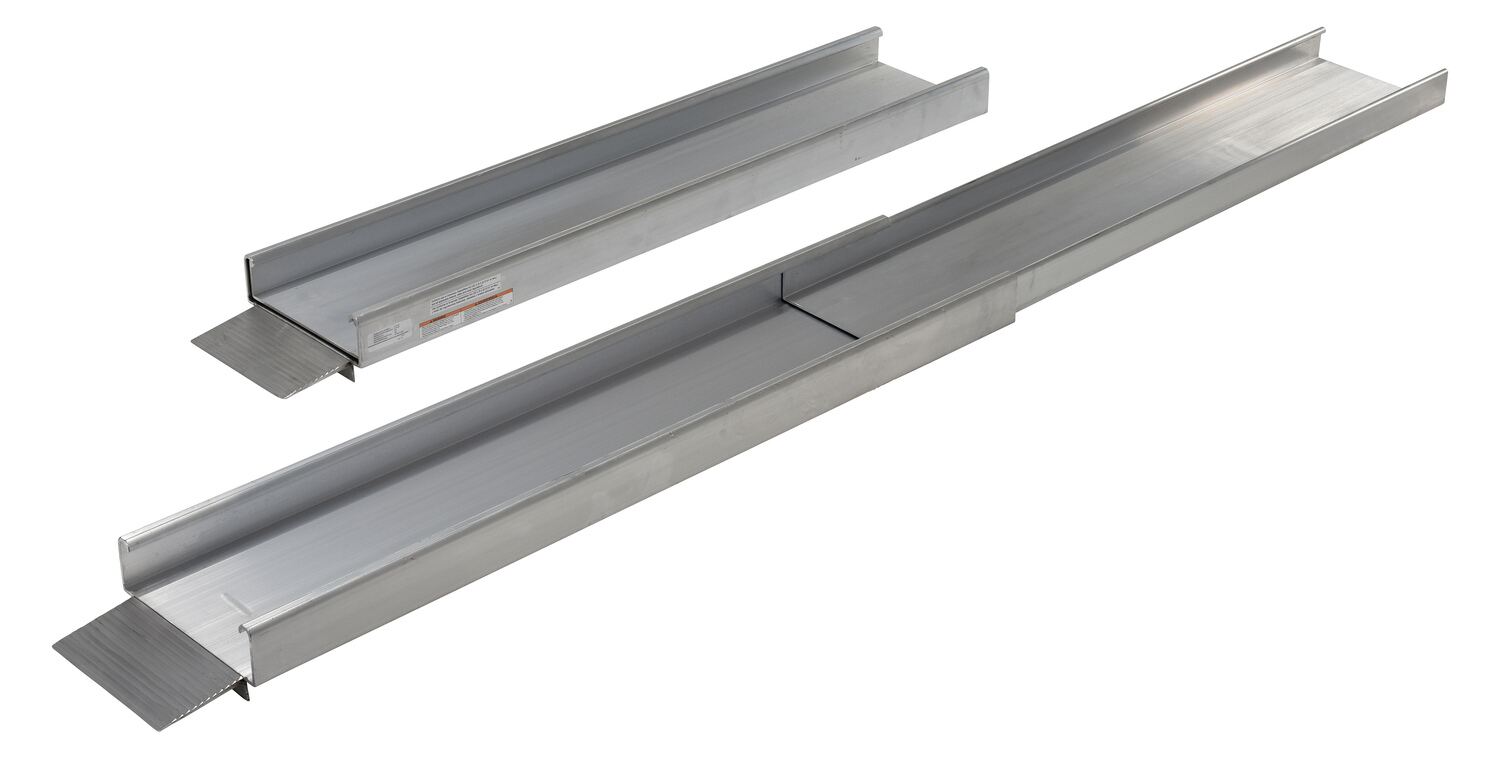

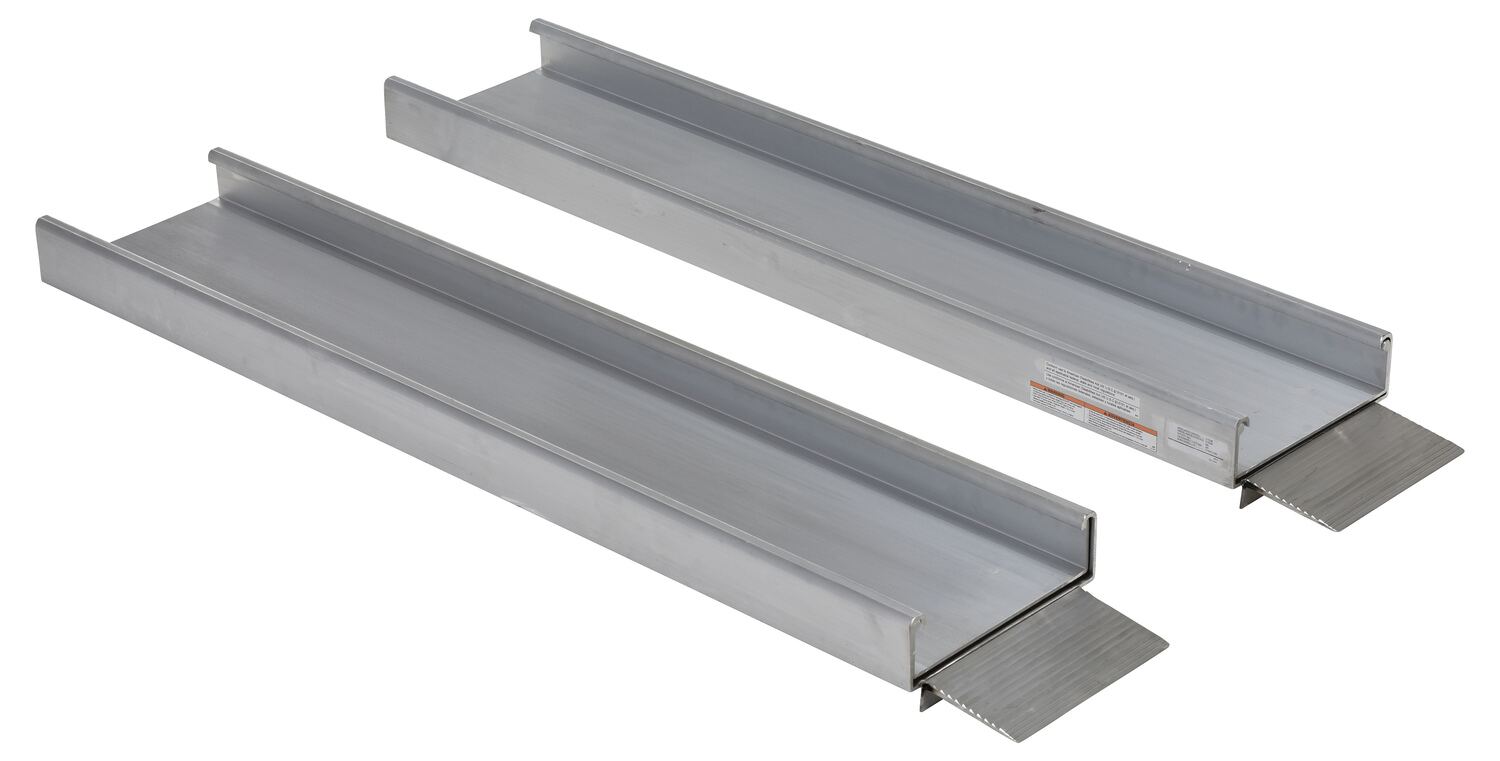

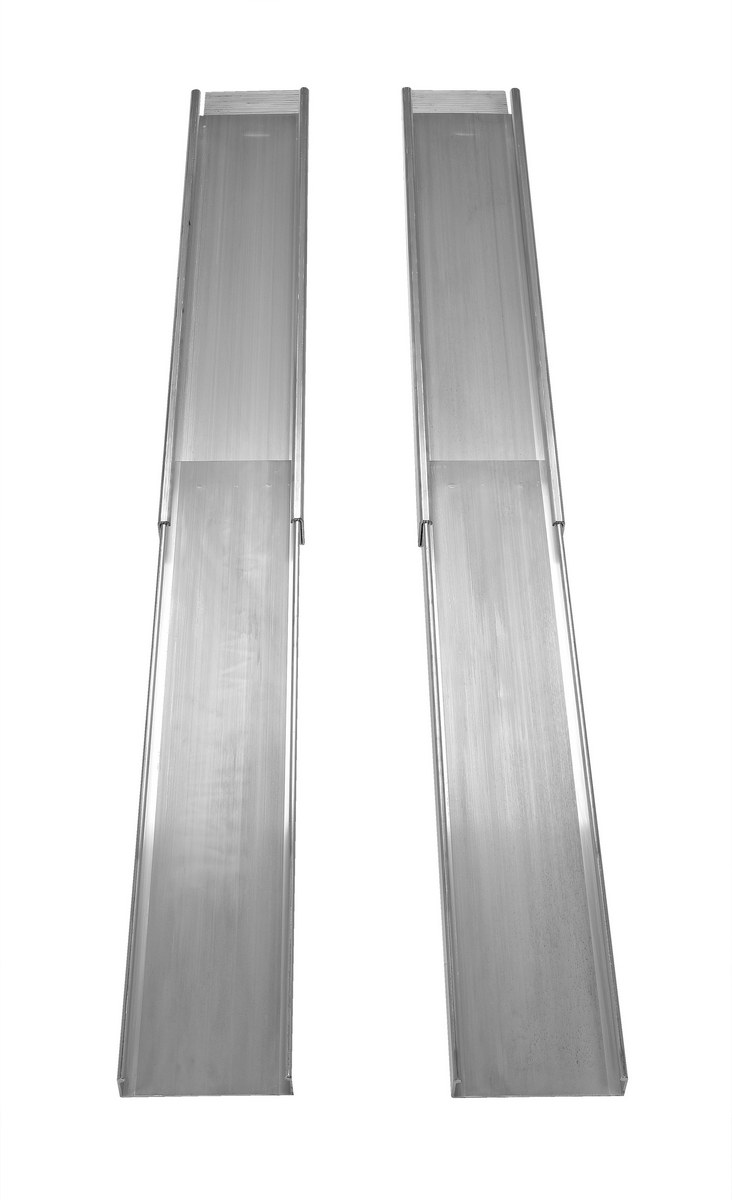

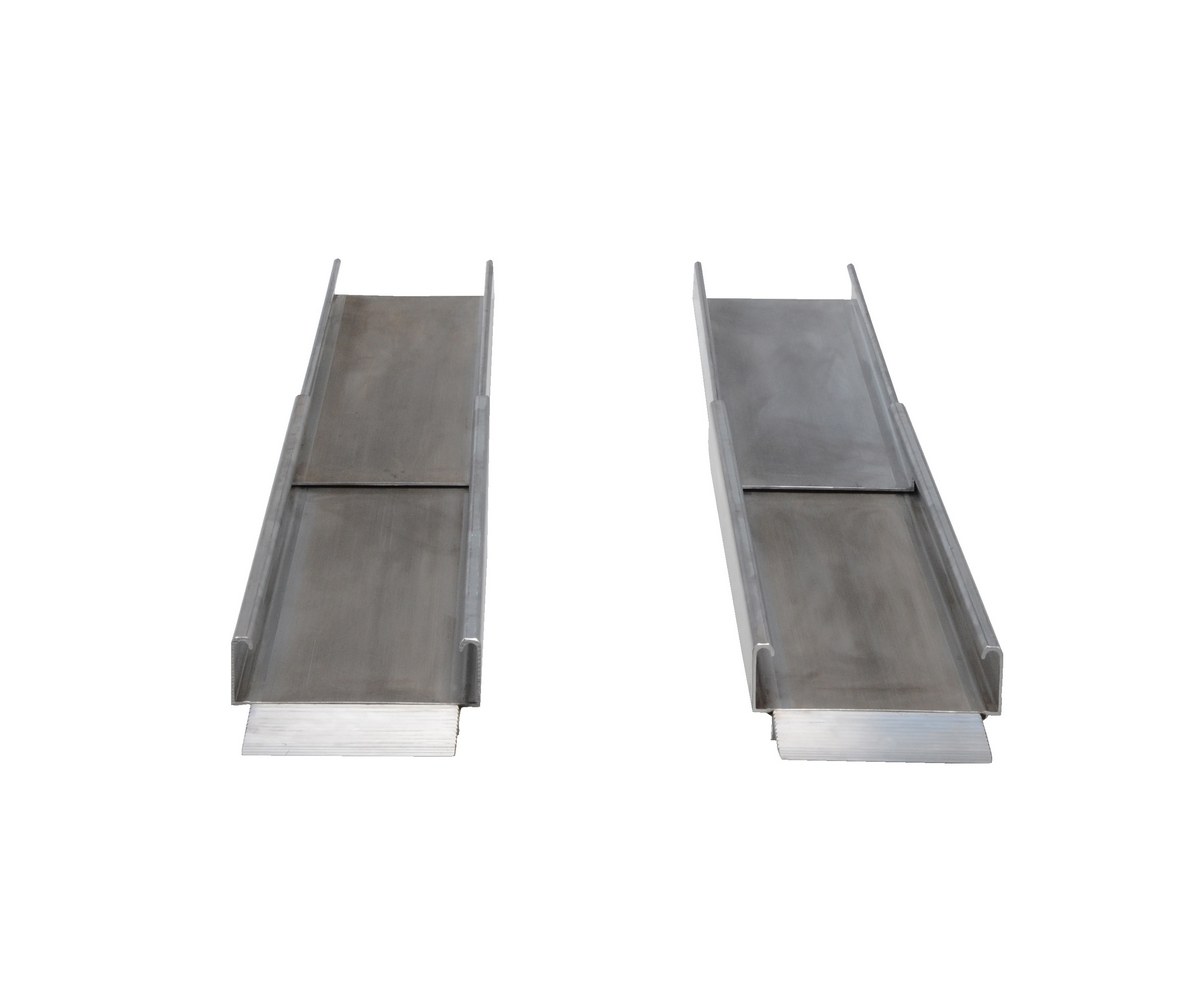

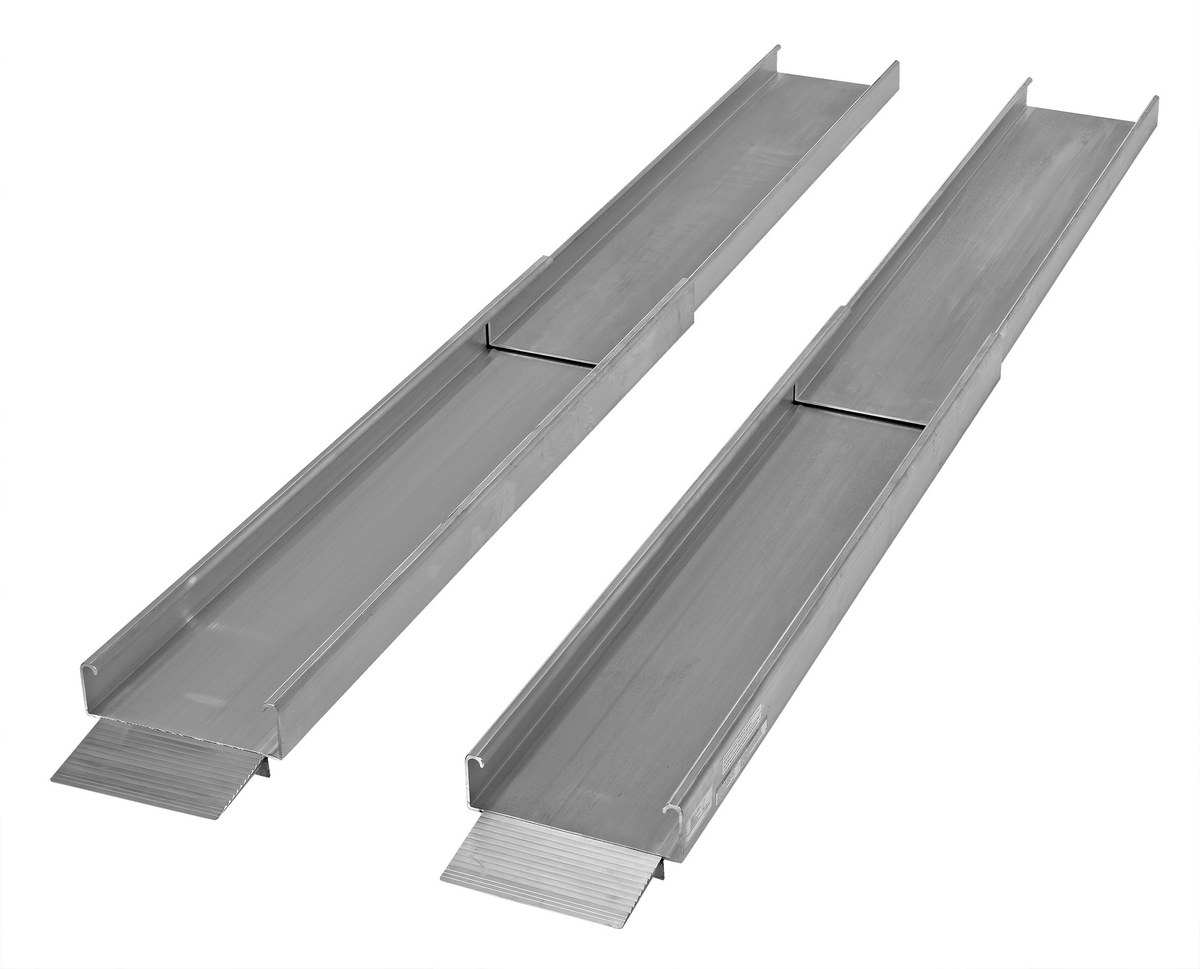

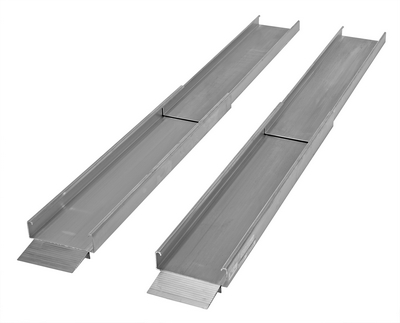

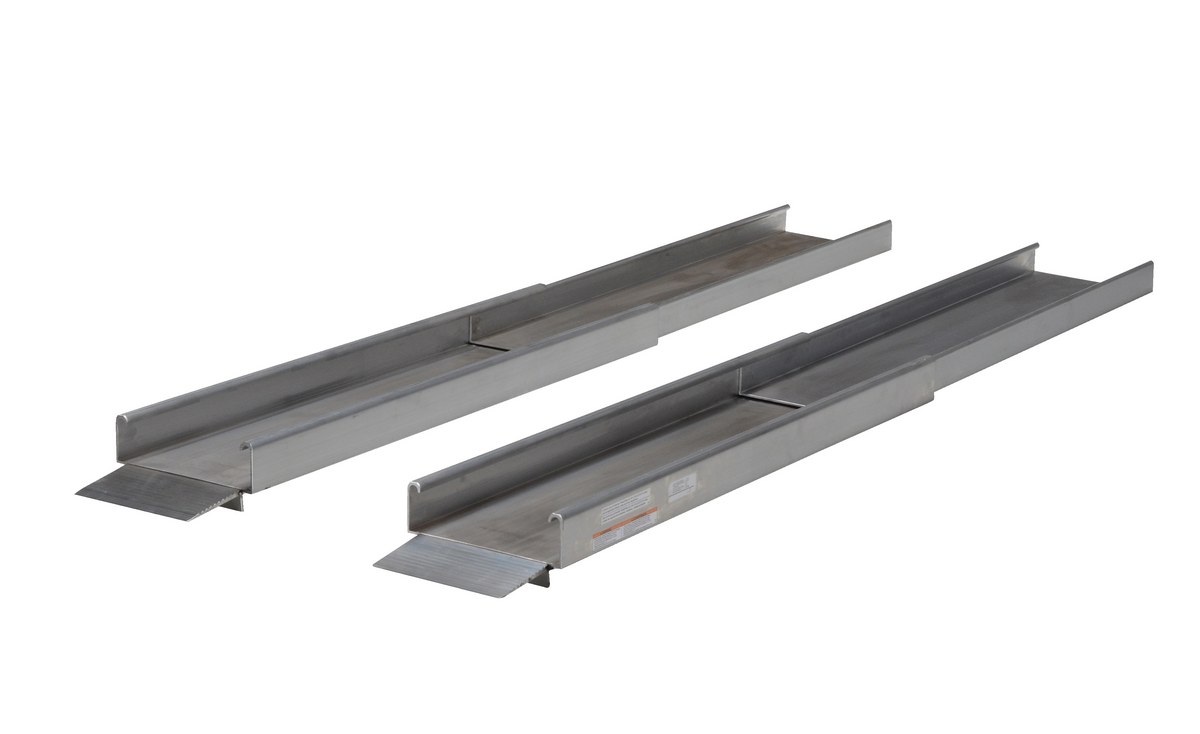

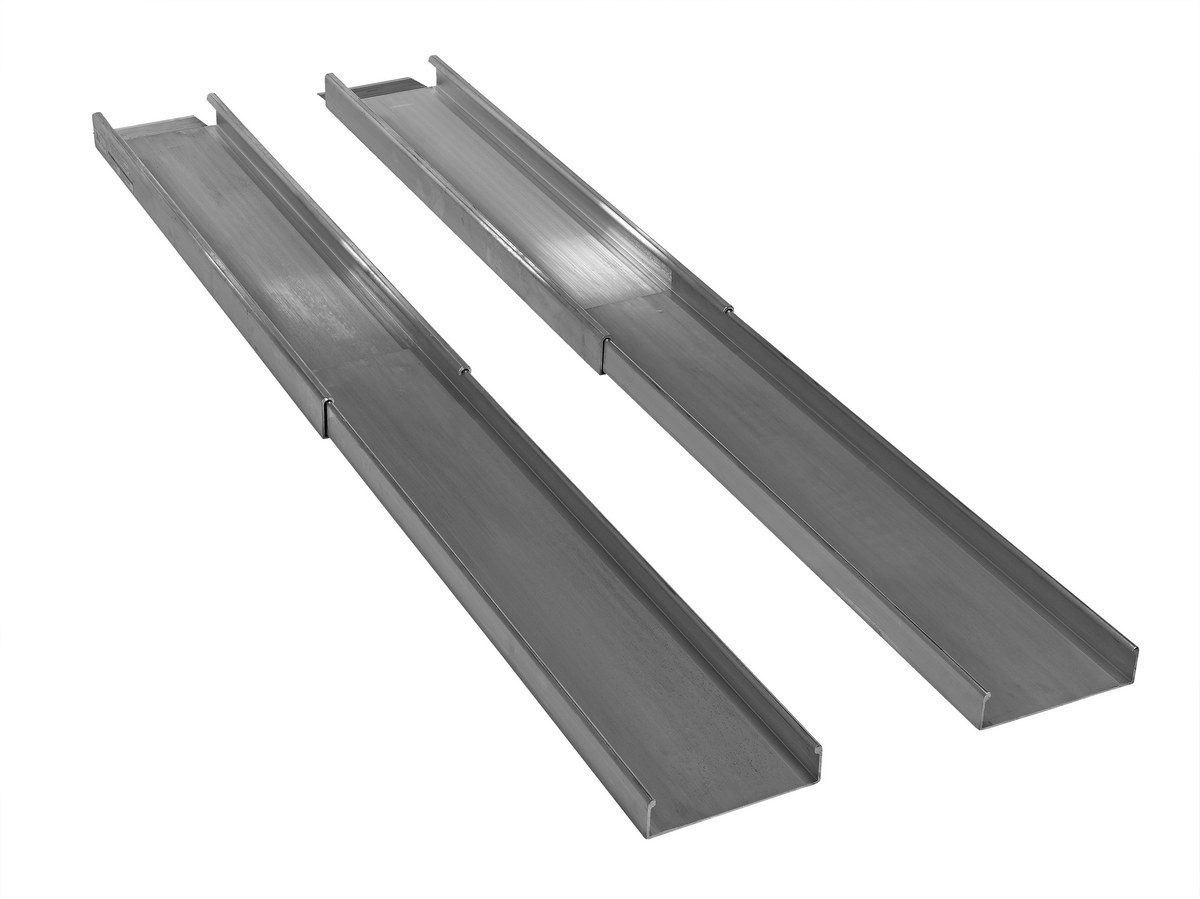

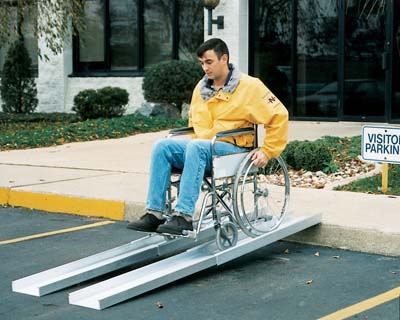

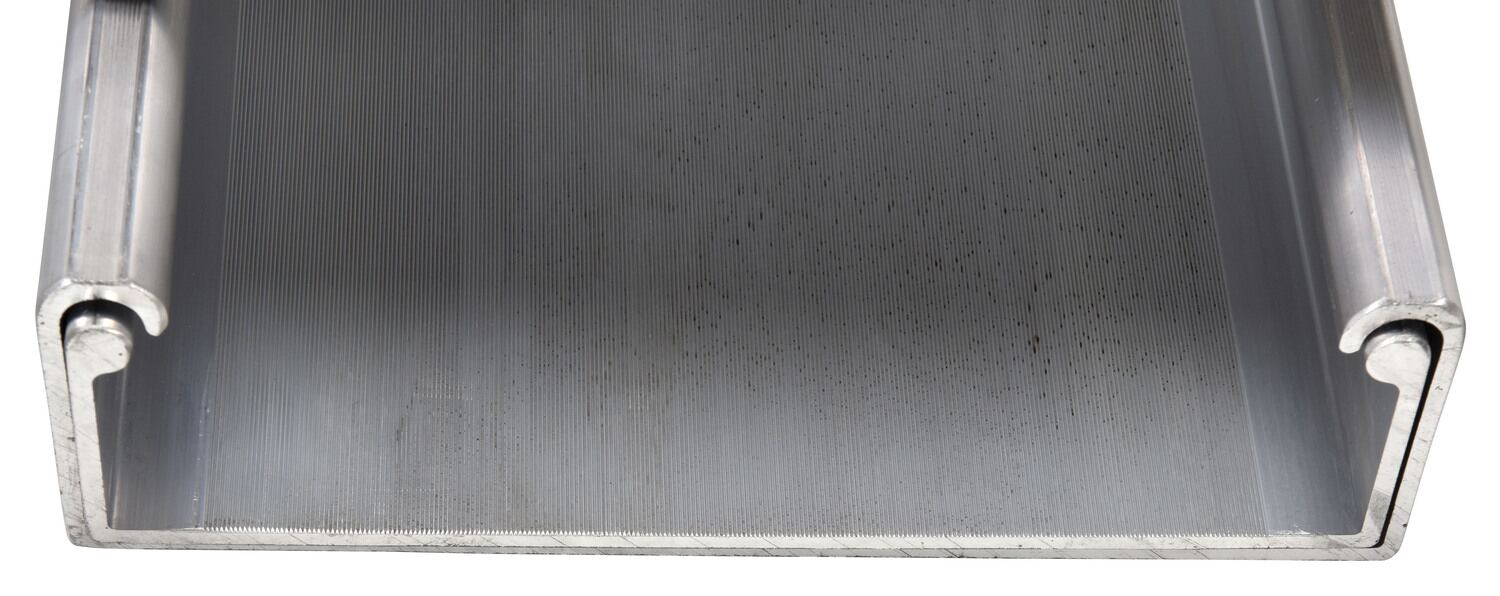

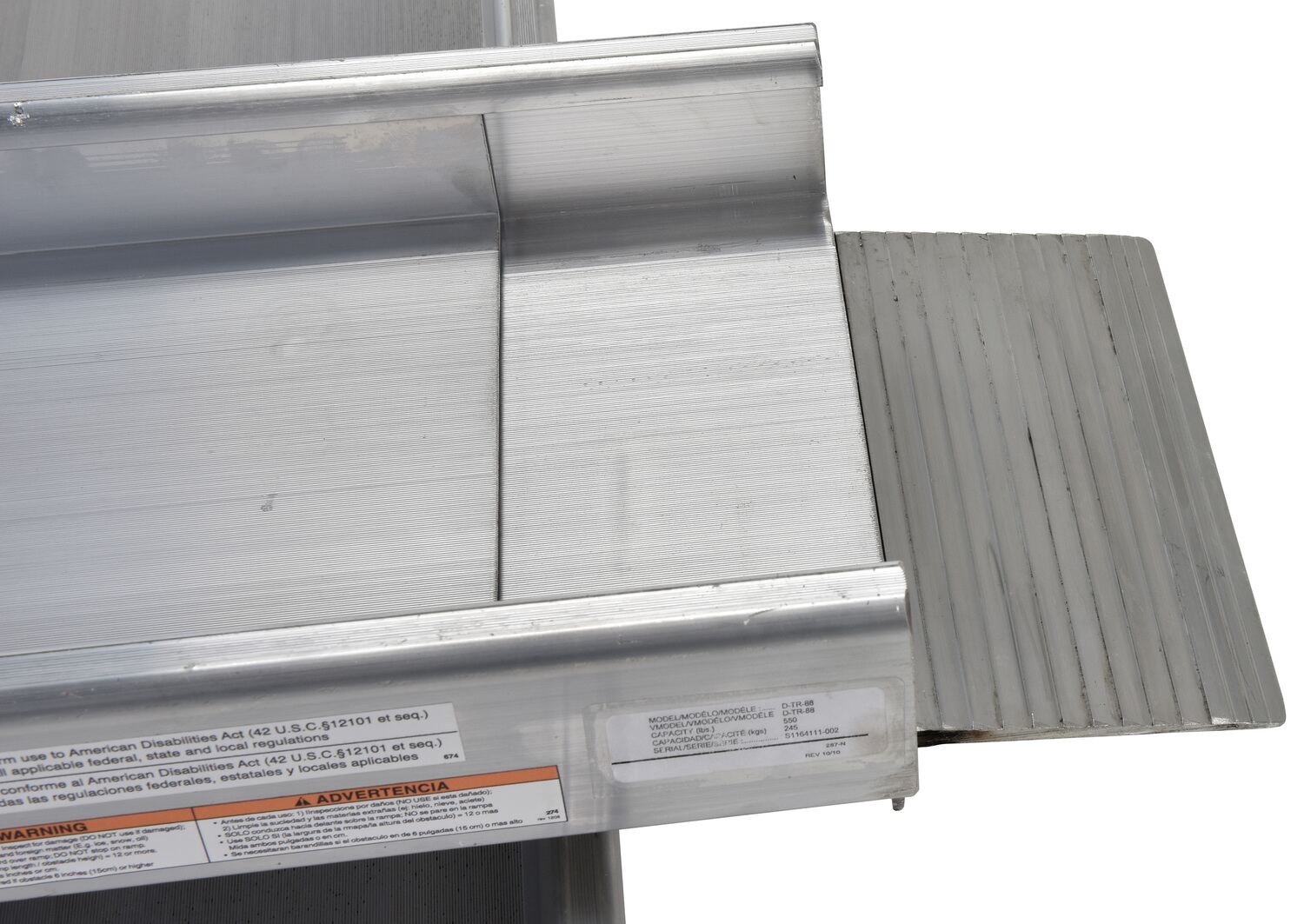

TELESCOPIC RAMP is constructed of lightweight aluminum extrusion. Top surface is serrated for positive traction.

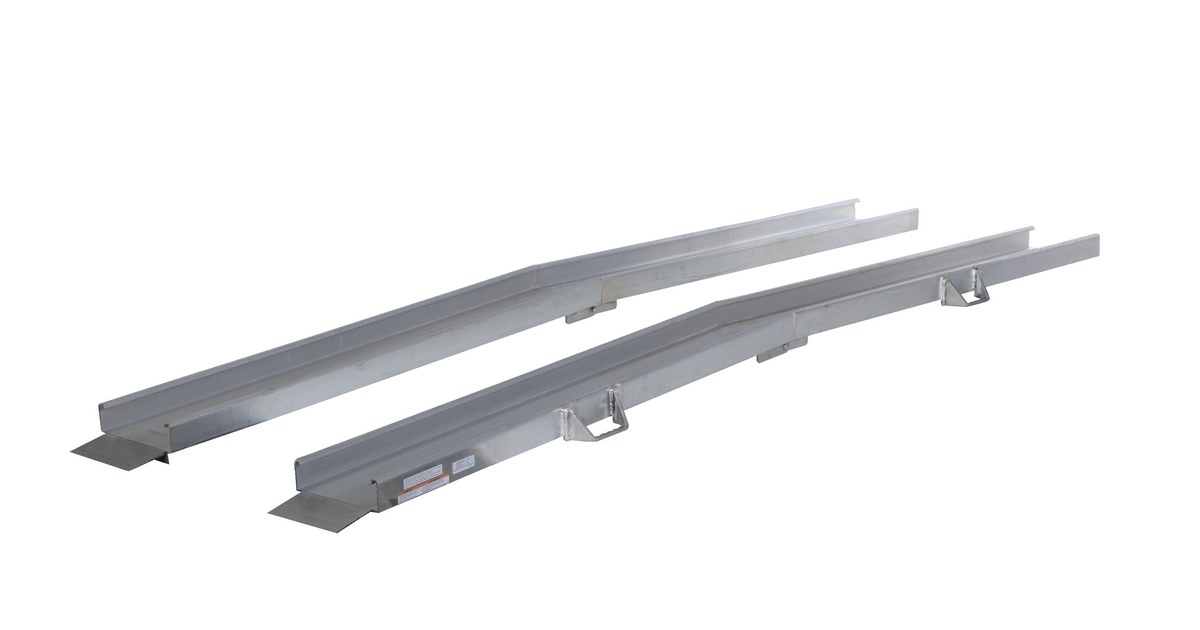

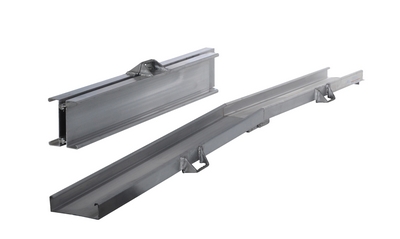

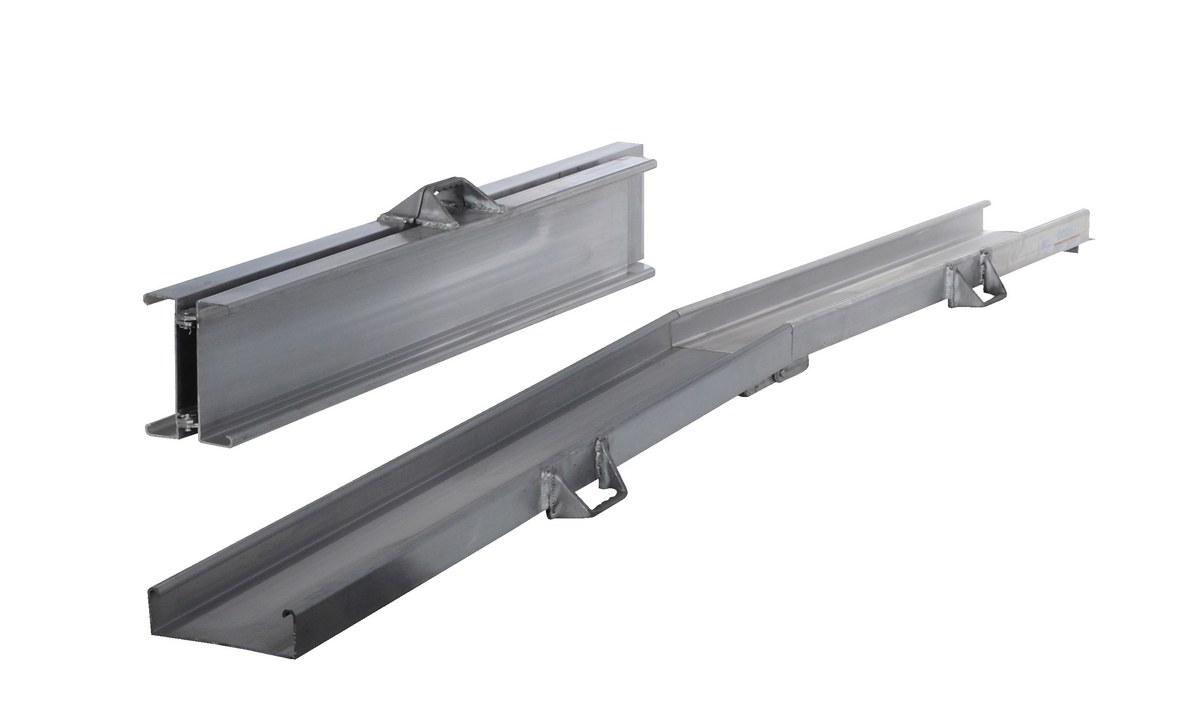

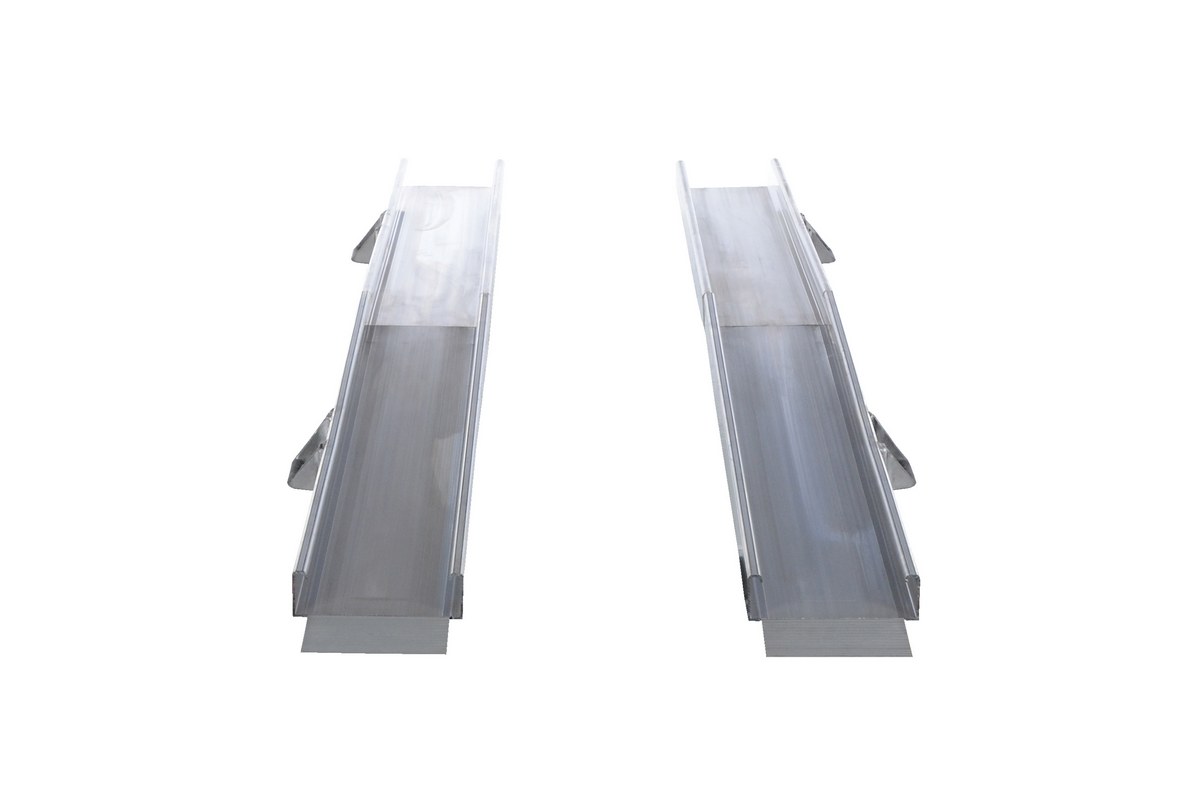

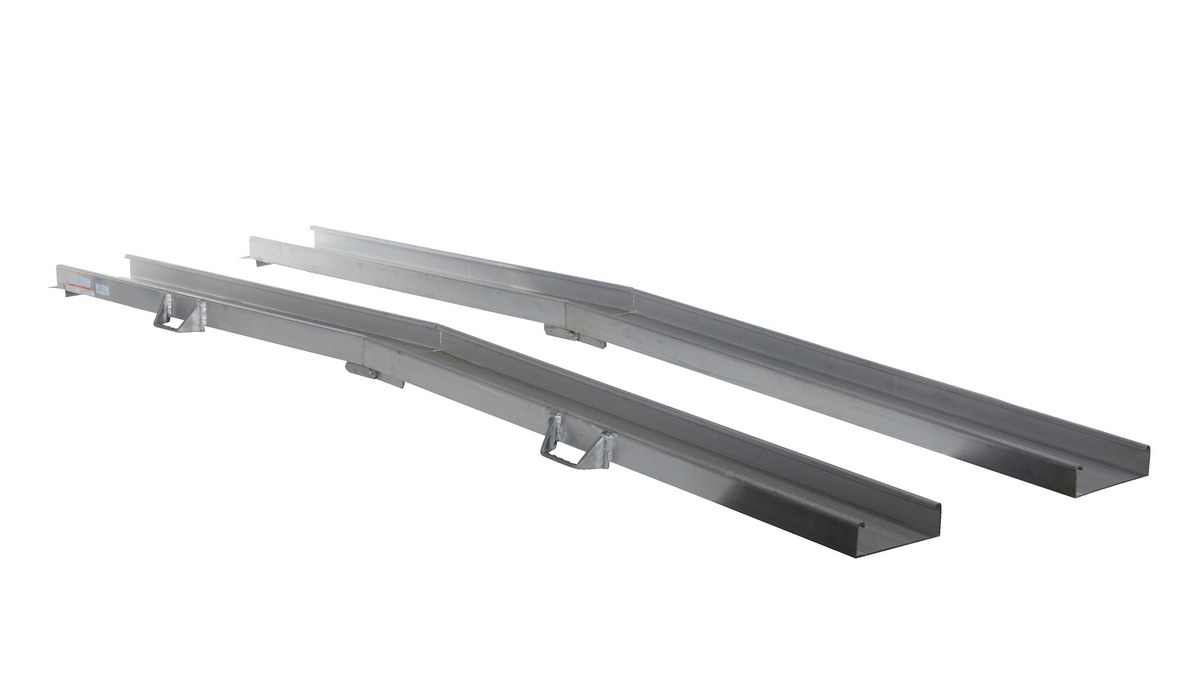

FOLD-A-WAY RAMP easy, one person storage and handling. Slip-resistant surface provides extra traction. Each ramp comes with 2 handles for easy positioning.

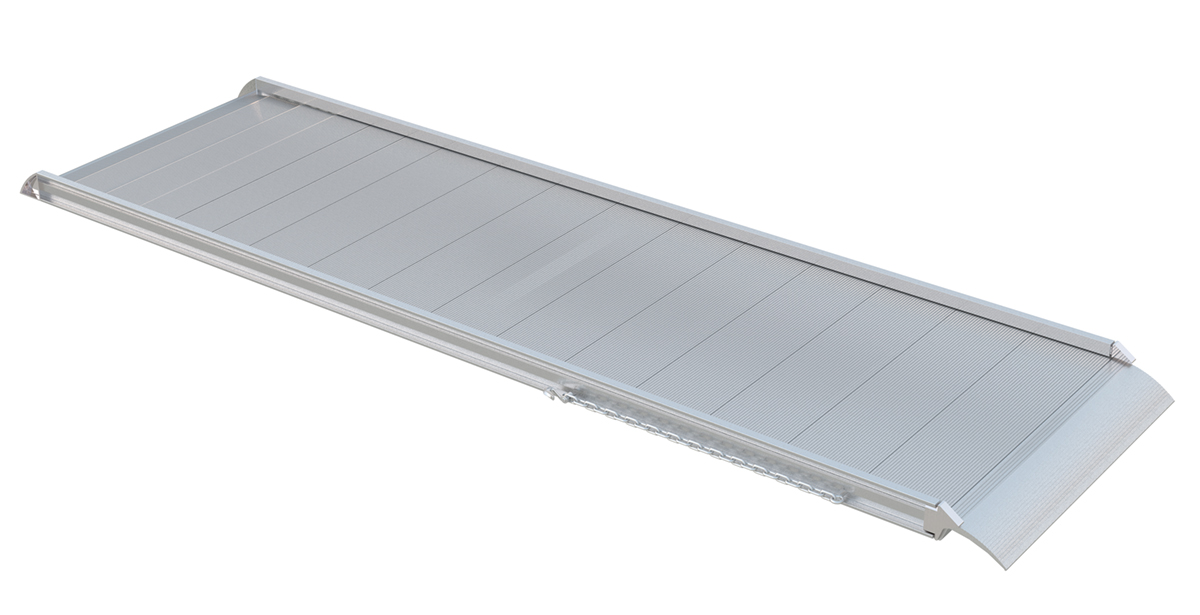

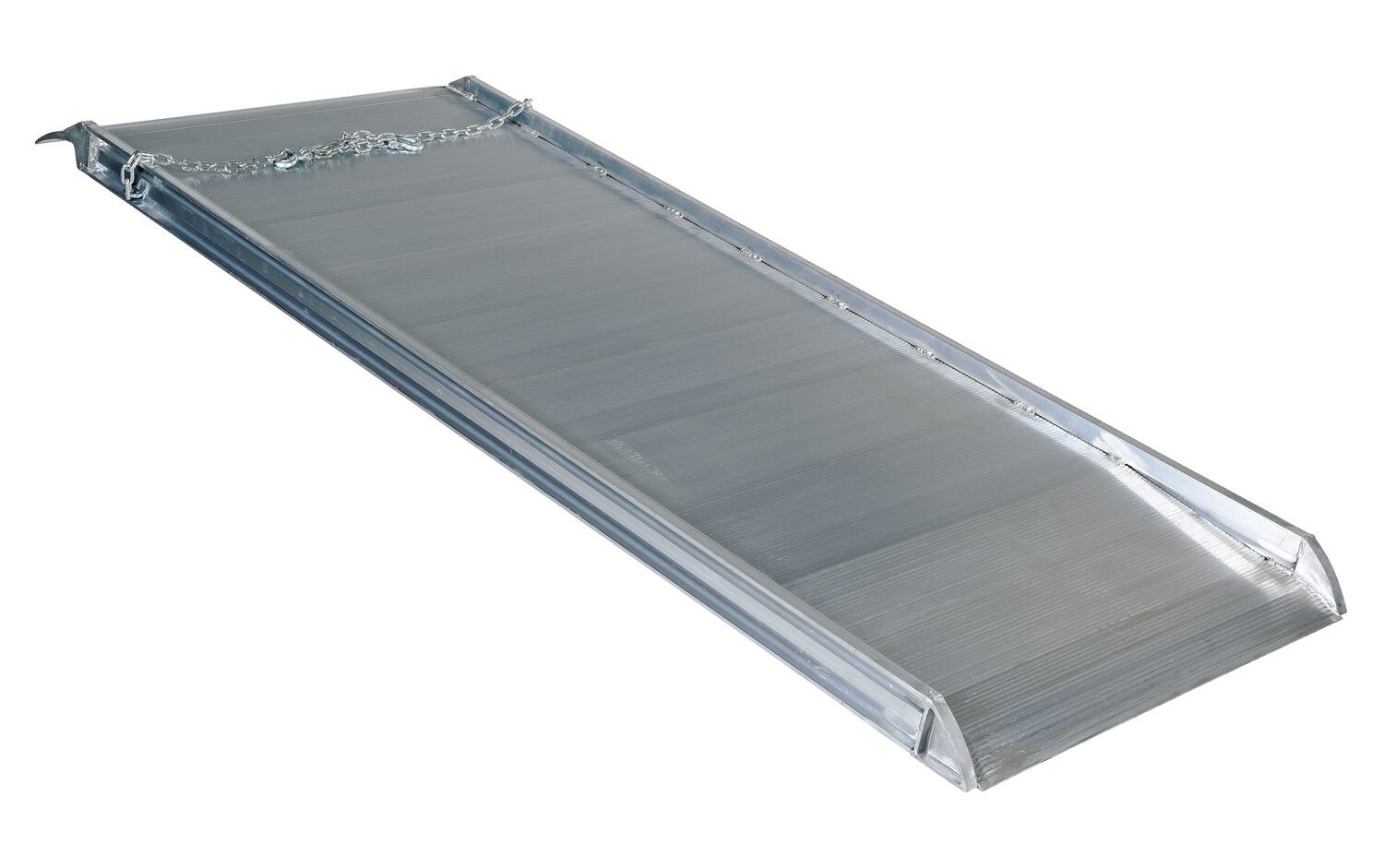

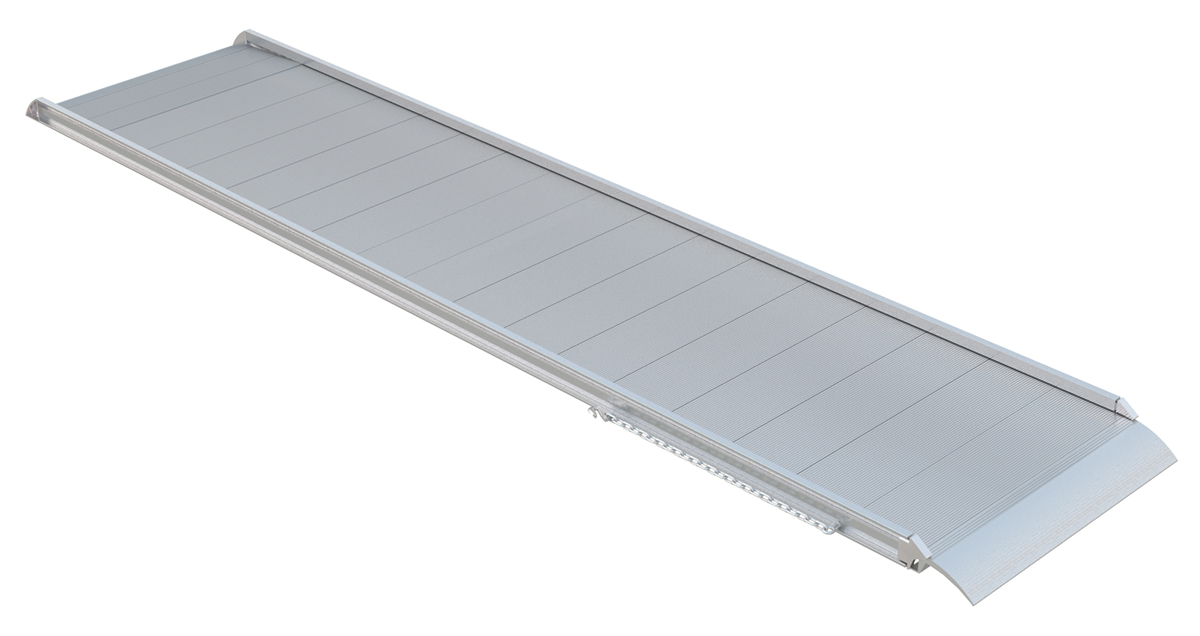

GRATE RAMP is a semi-permanent ramp that is ideal for high traffic areas. Handrails are available.

ROLL-O-RAMP provides access over curbs. Wheels installed on curb of ramp for portability. Beveled edges create smooth transition between ramp and ground.



D-TR-88

model D-TR-88

D-FAR-120

model D-FAR-120

D-ROL-48

model D-ROL-48

D-AW-132

model D-AW-132

D-AW-168

model D-AW-168


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Telescopic Ramp
Model Image PDFs Dimensions
(WxL)
Capacity
(lbs)
Wt.
(lbs)
D-TR-72 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 9-9/16"x76-1/16" 550 38/pr
D-TR-88 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 9-9/16"x88-1/16" 550 44/pr
Grate Ramp
D-AW-88 - Warranty PDFCompliance Certificate 36"x88" 500 182
D-AW-132 Warranty PDFCompliance Certificate 36"x132" 500 177
D-AW-168 Warranty PDFCompliance Certificate 36"x168" 500 227
Roll-O-Ramp With Wheels
D-ROL-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 50-7/16"Wx48"L 500 52
Fold-Away Ramp
D-FAR-120 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 12-1/16"x124" 550 78/pr
Fold-Away Ram
