Click Image to Enlarge

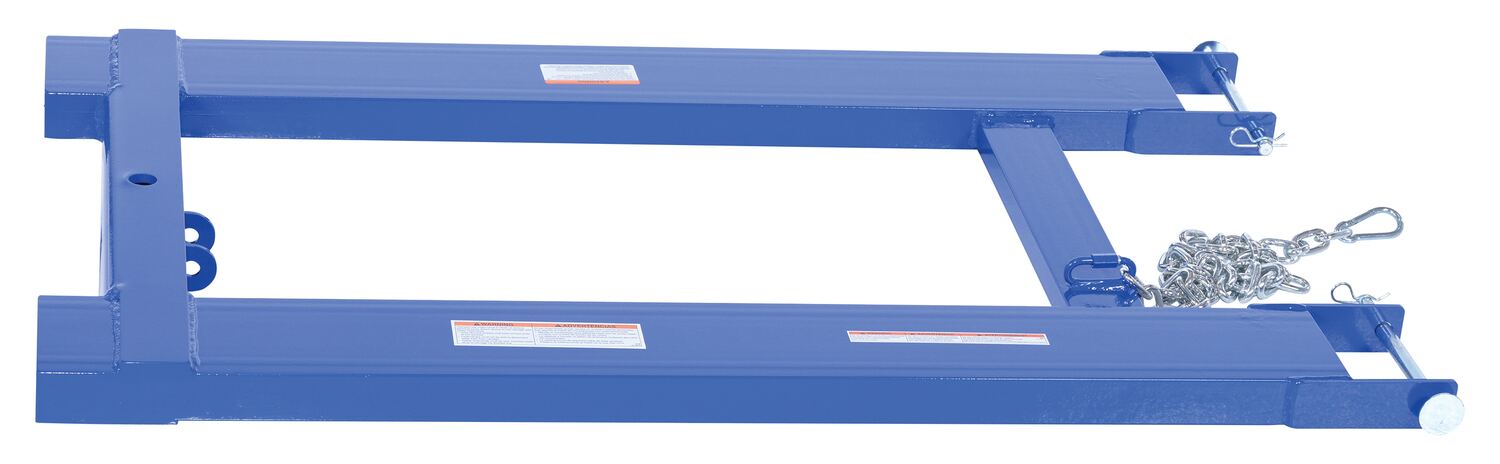

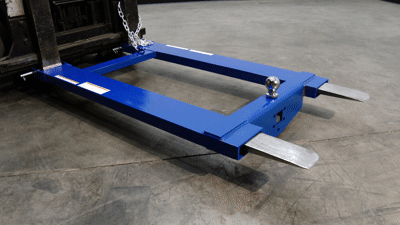

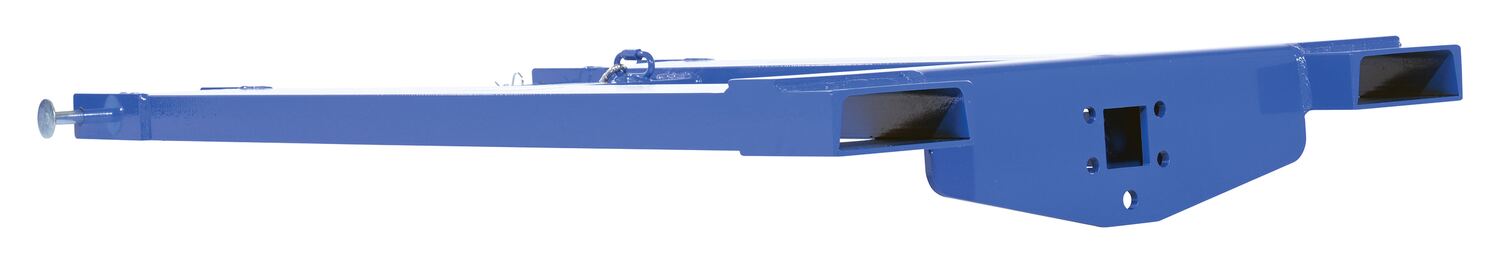

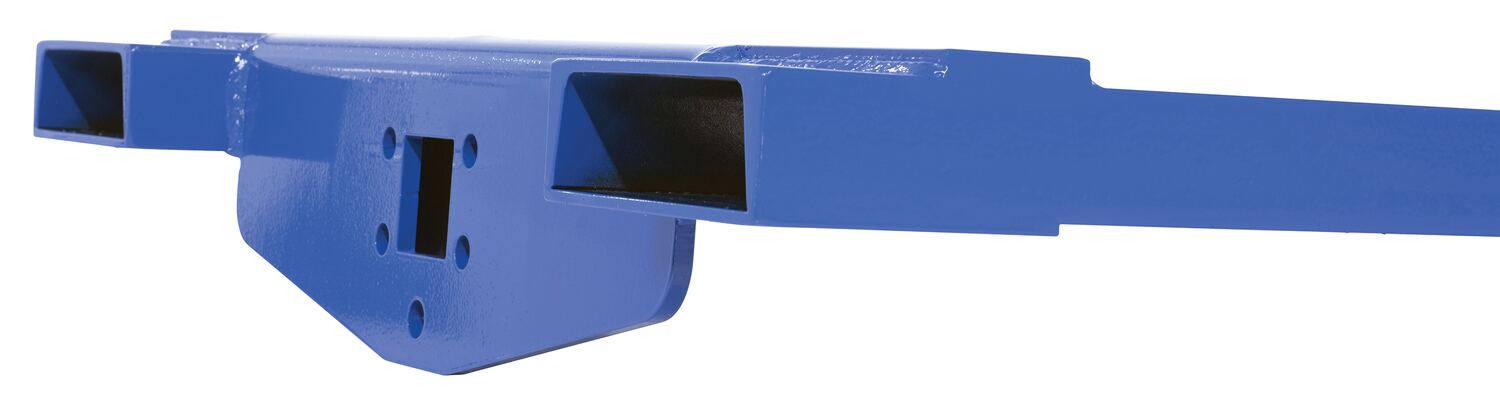

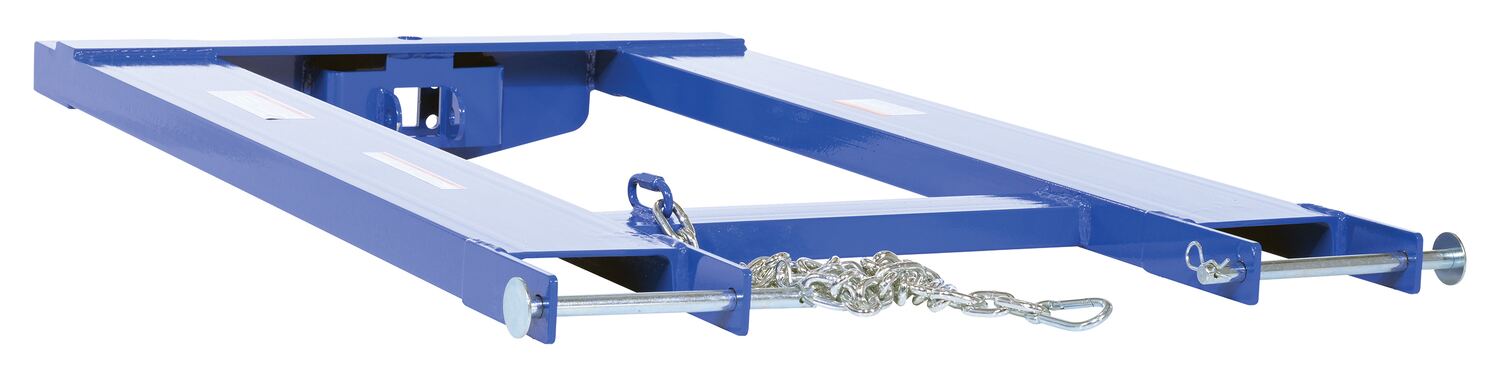

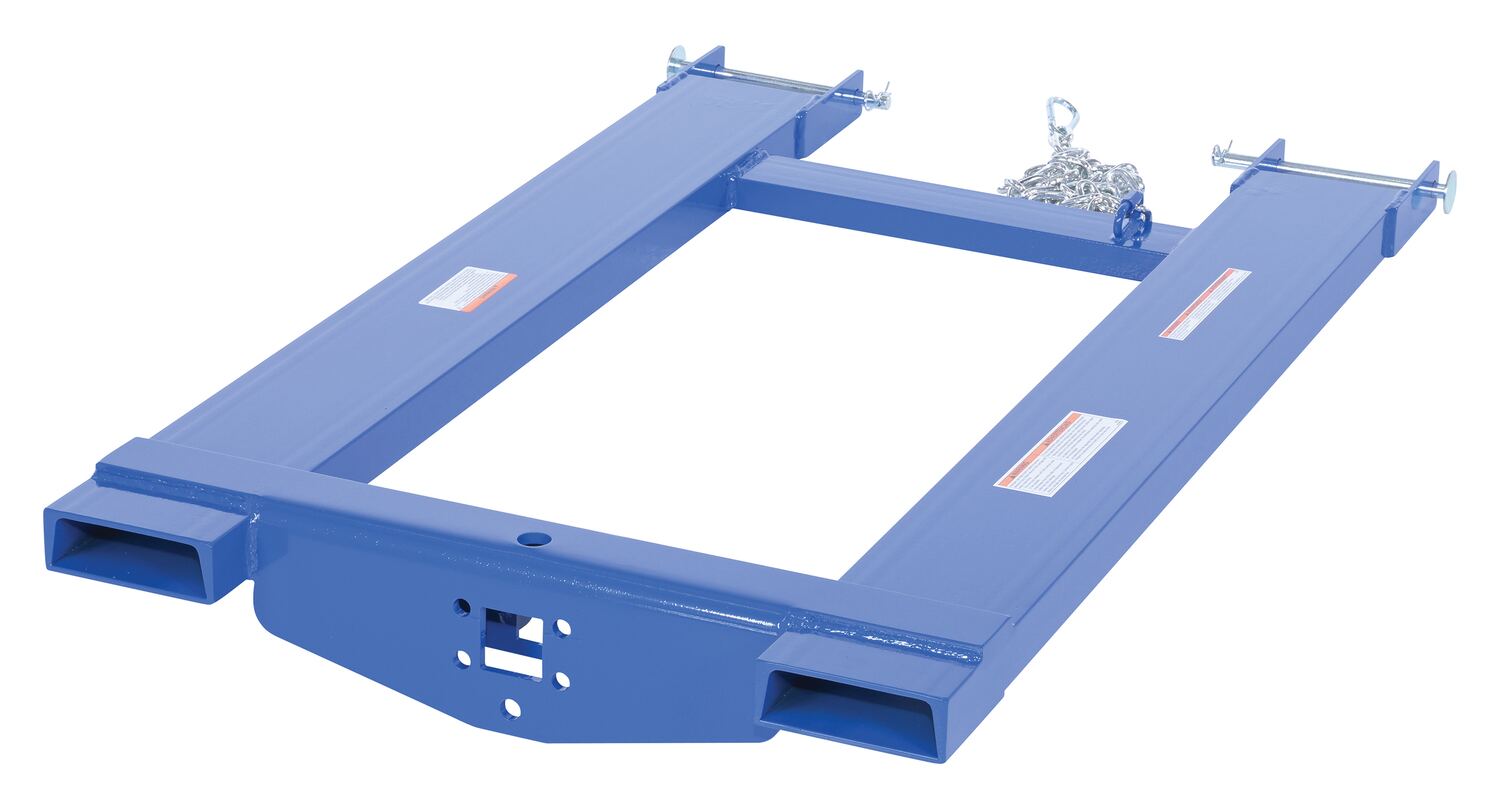

model: HOOK-BASE-44


Fork Truck Bases with Optional Tow Balls & Pintle Hook
SERIES: HOOK

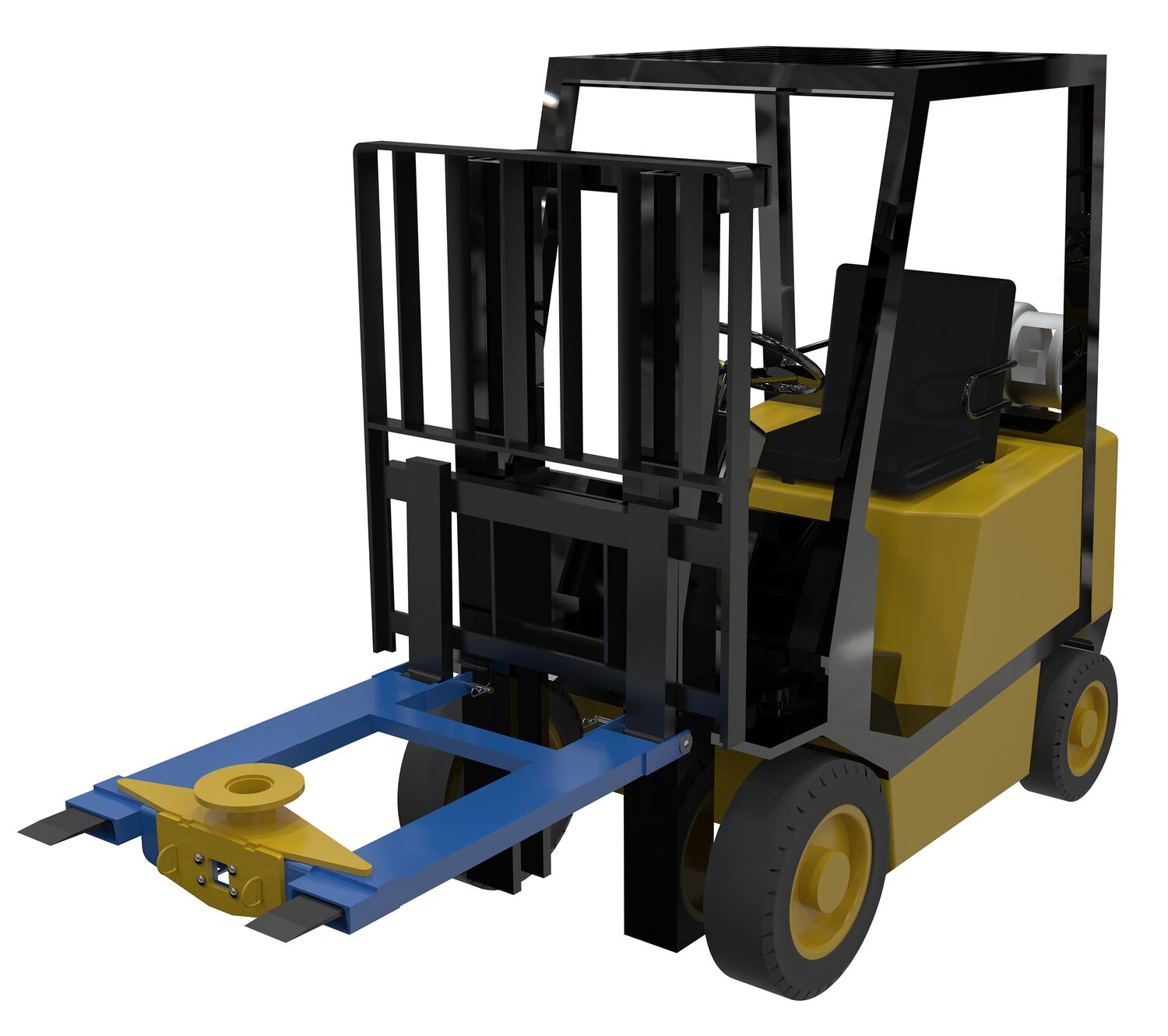

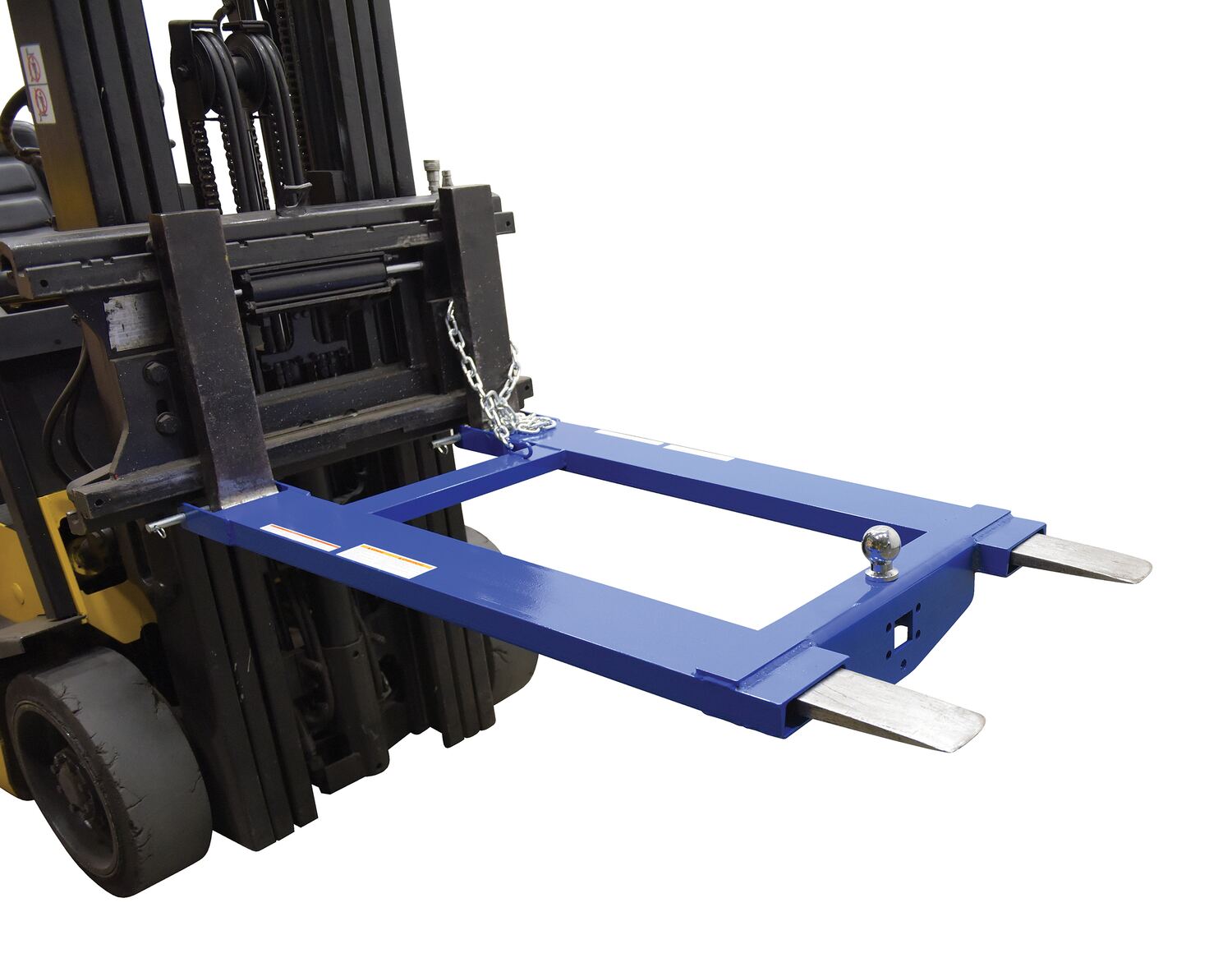

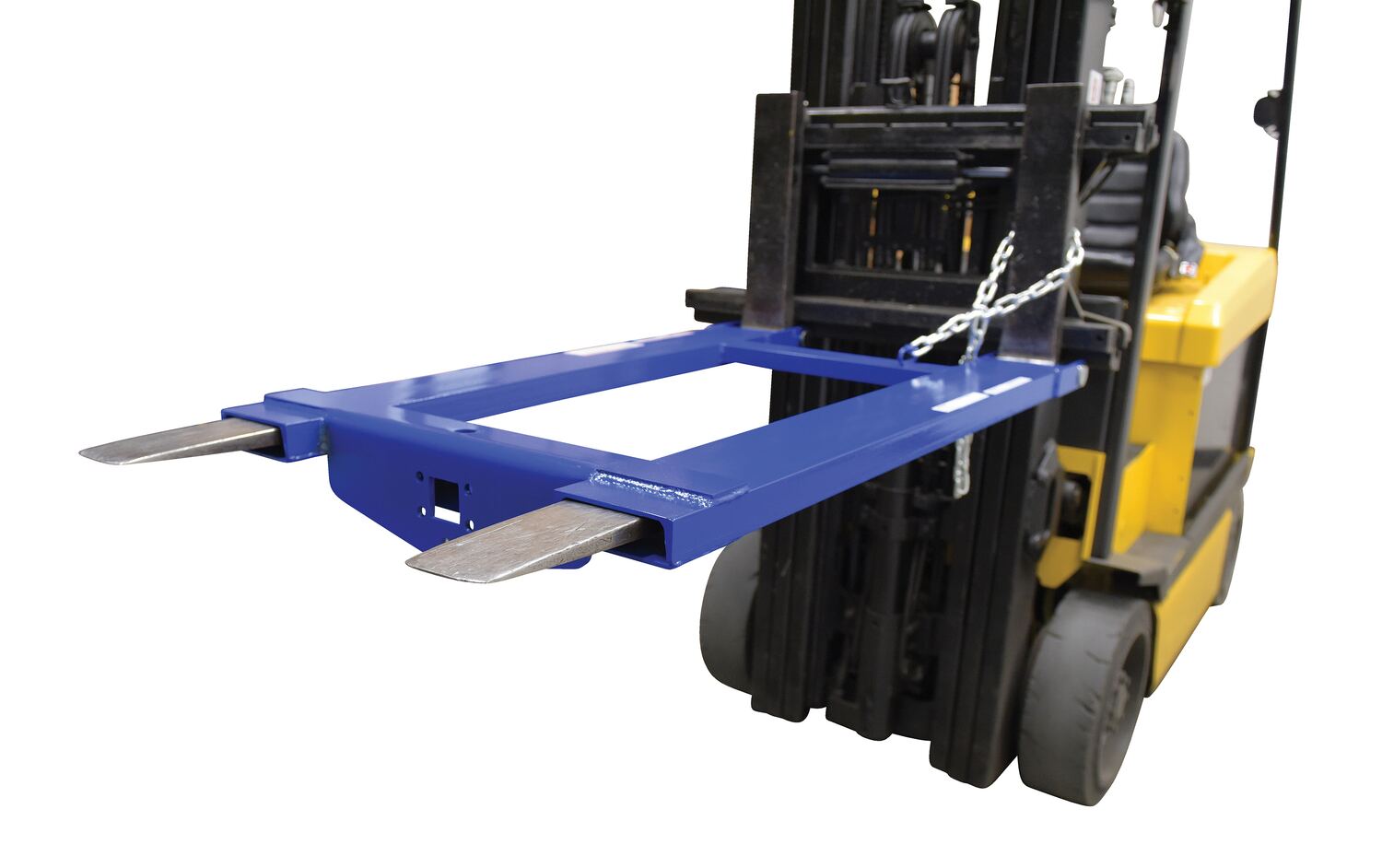

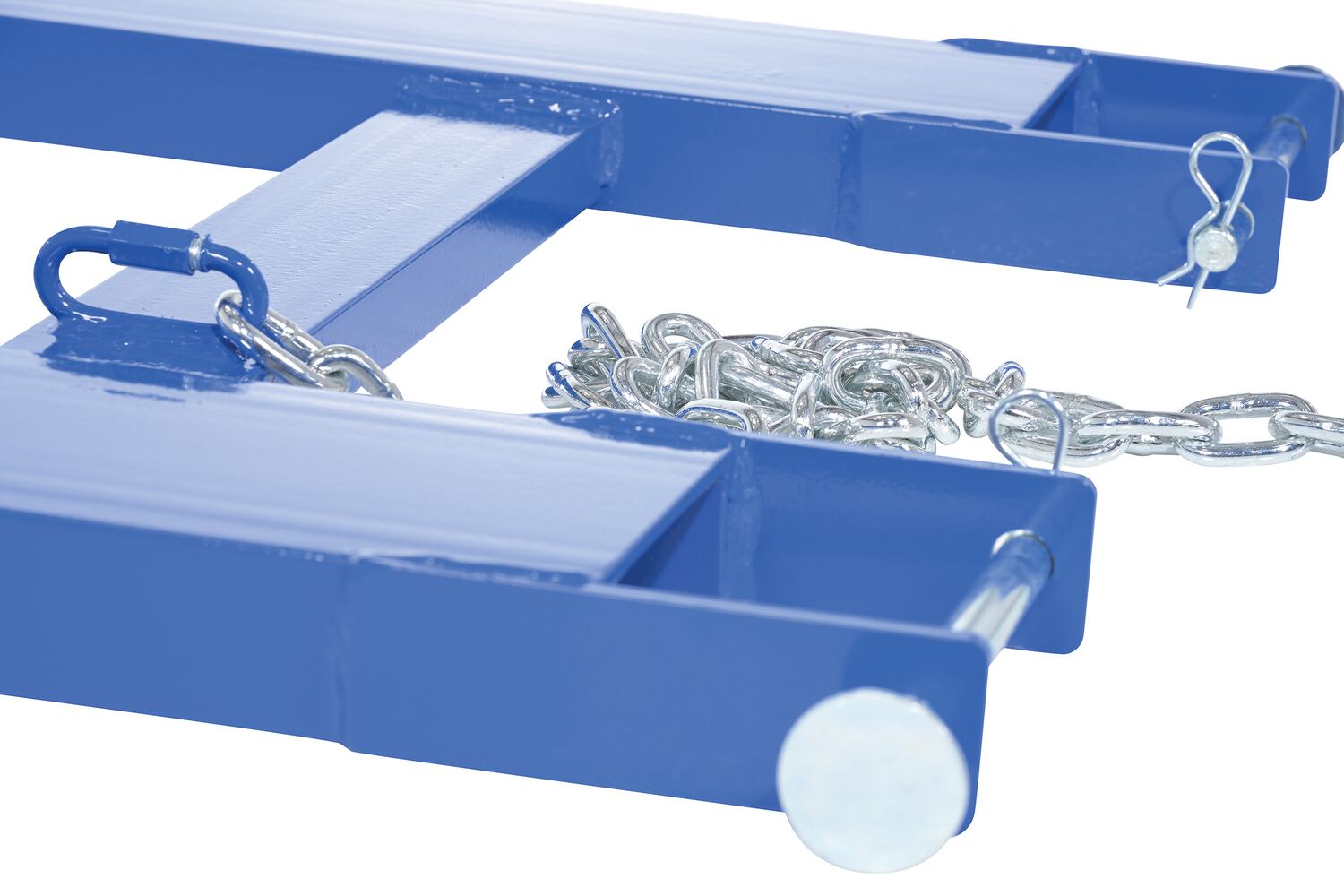

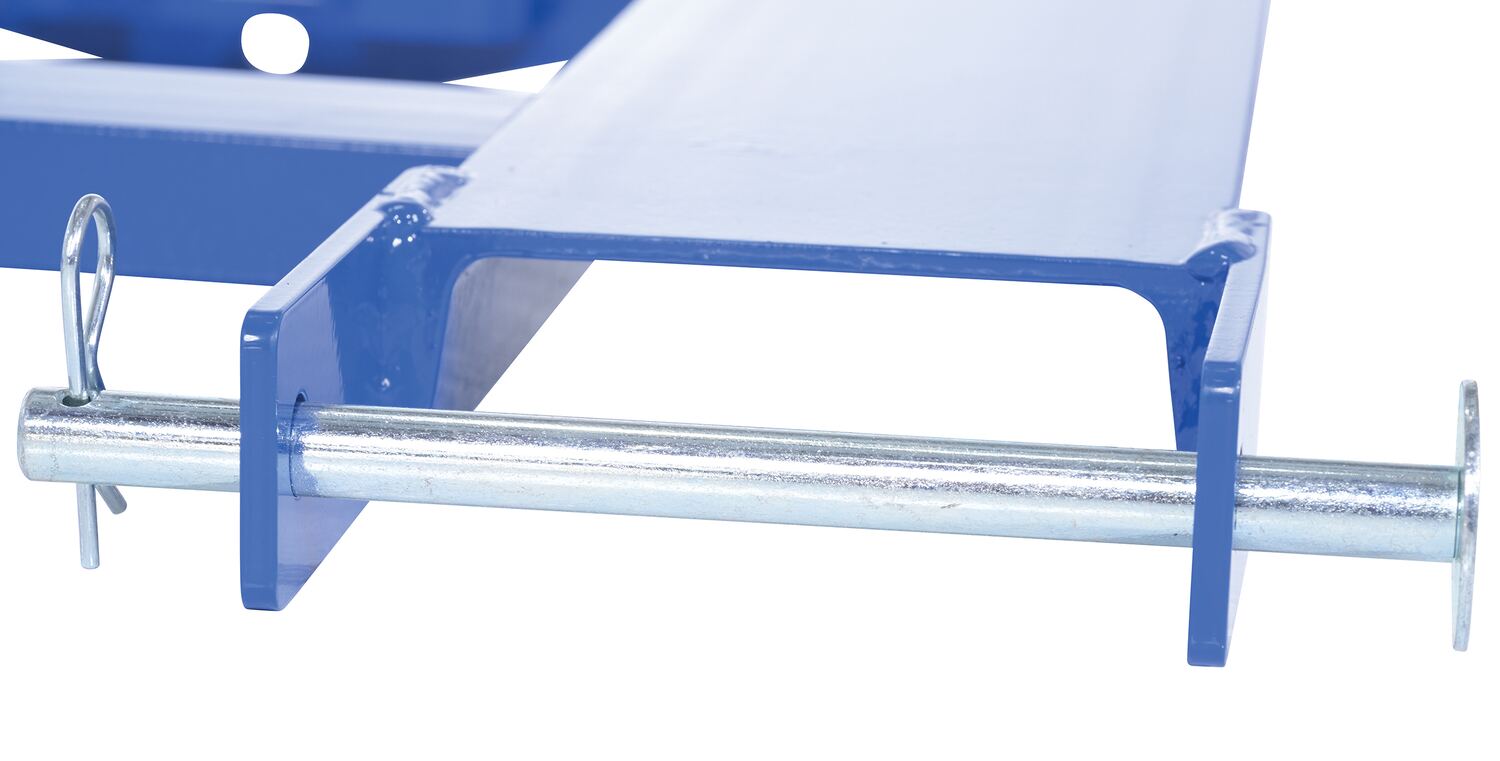

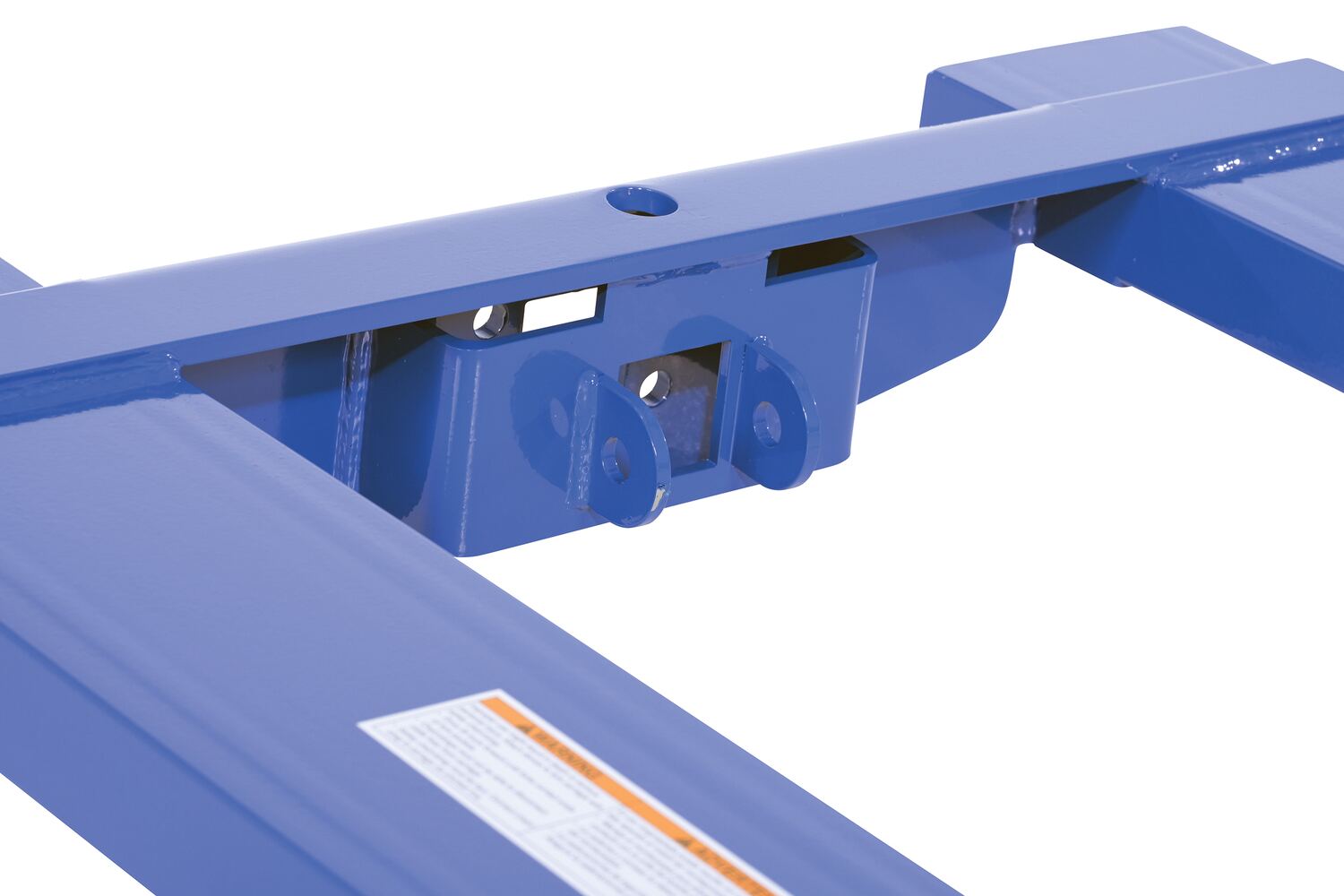

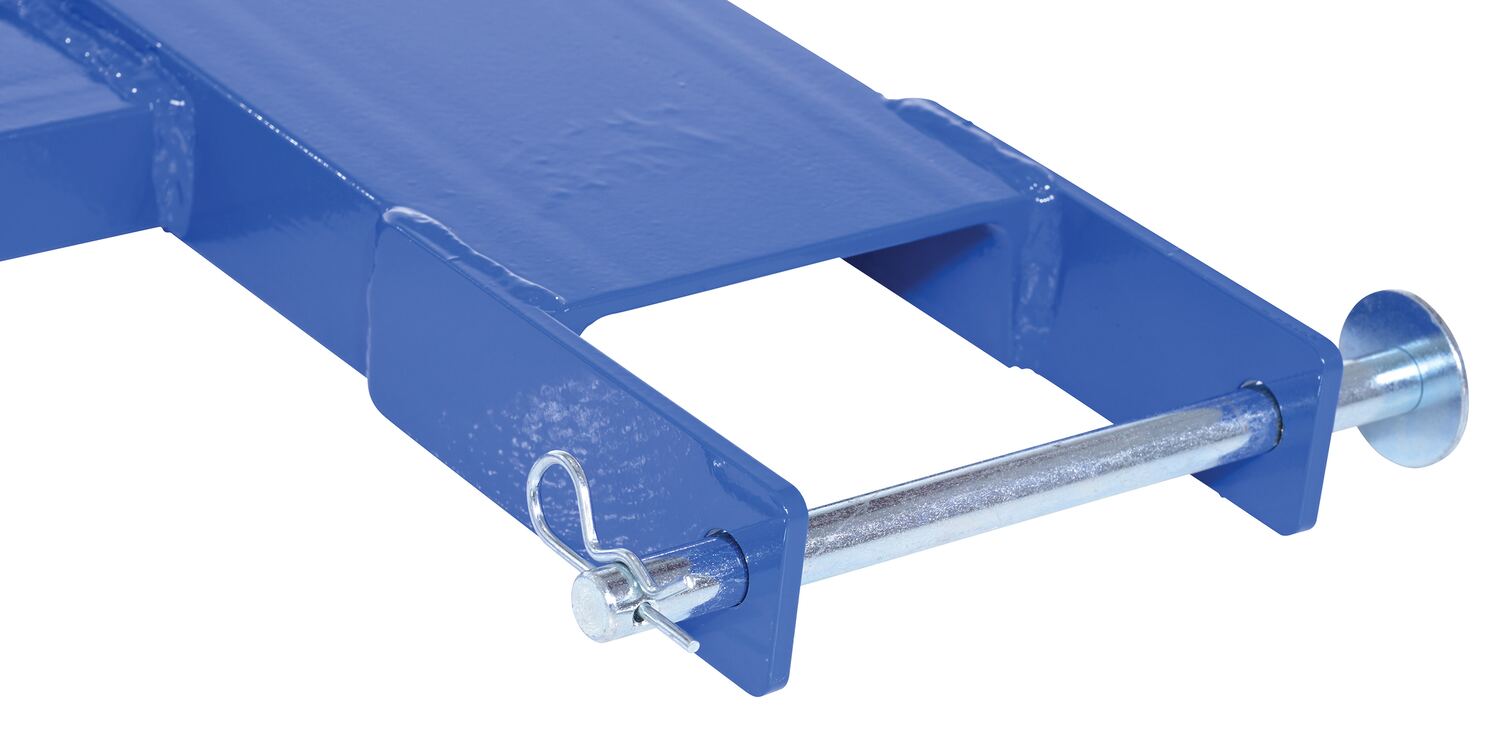

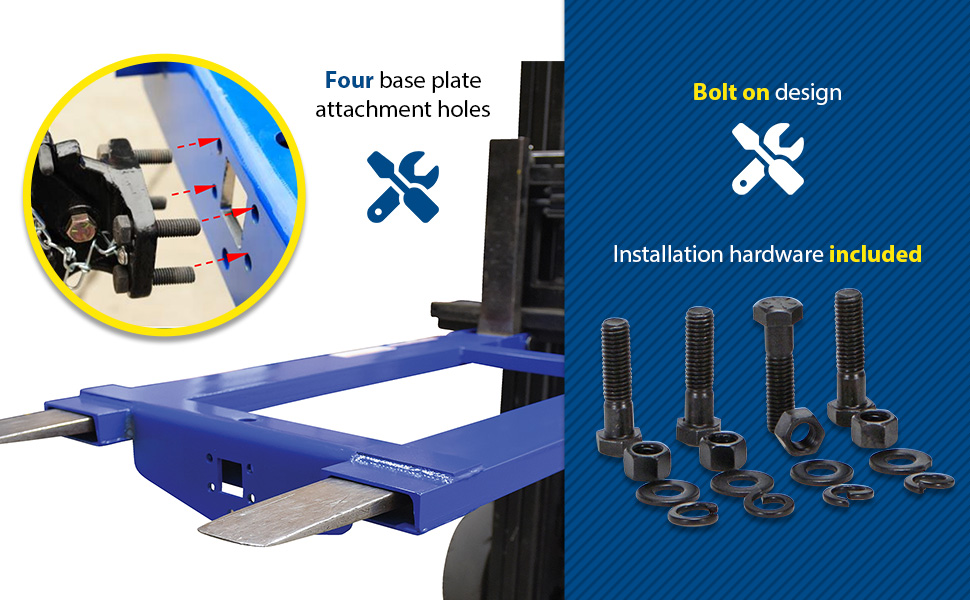

Convert your fork truck into a tow truck for moving trailers and other portable equipment. Simple design slides onto forks and secures into place with pin style tine locks and a safety restraint.. . Welded steel construction with blue baked-in powder-coat finish for added toughness. 5"W x 2"H usable fork pockets. Optional pintle hook, tow balls, lifting hooks and hitch available. Bolt on design. Never exceed the 4,000 lb. capacity of the hook base. An attachment does not increase the total capacity of the unit.

Convert your fork truck into a tow truck for moving trailers and other portable equipment. Simple design slides onto forks and secures into place with pin style tine locks and a safety restraint.. . Welded steel construction with blue baked-in powder-coat finish for added toughness. 5"W x 2"H usable fork pockets. Optional pintle hook, tow balls, lifting hooks and hitch available. Bolt on design. Never exceed the 4,000 lb. capacity of the hook base. An attachment does not increase the total capacity of the unit.

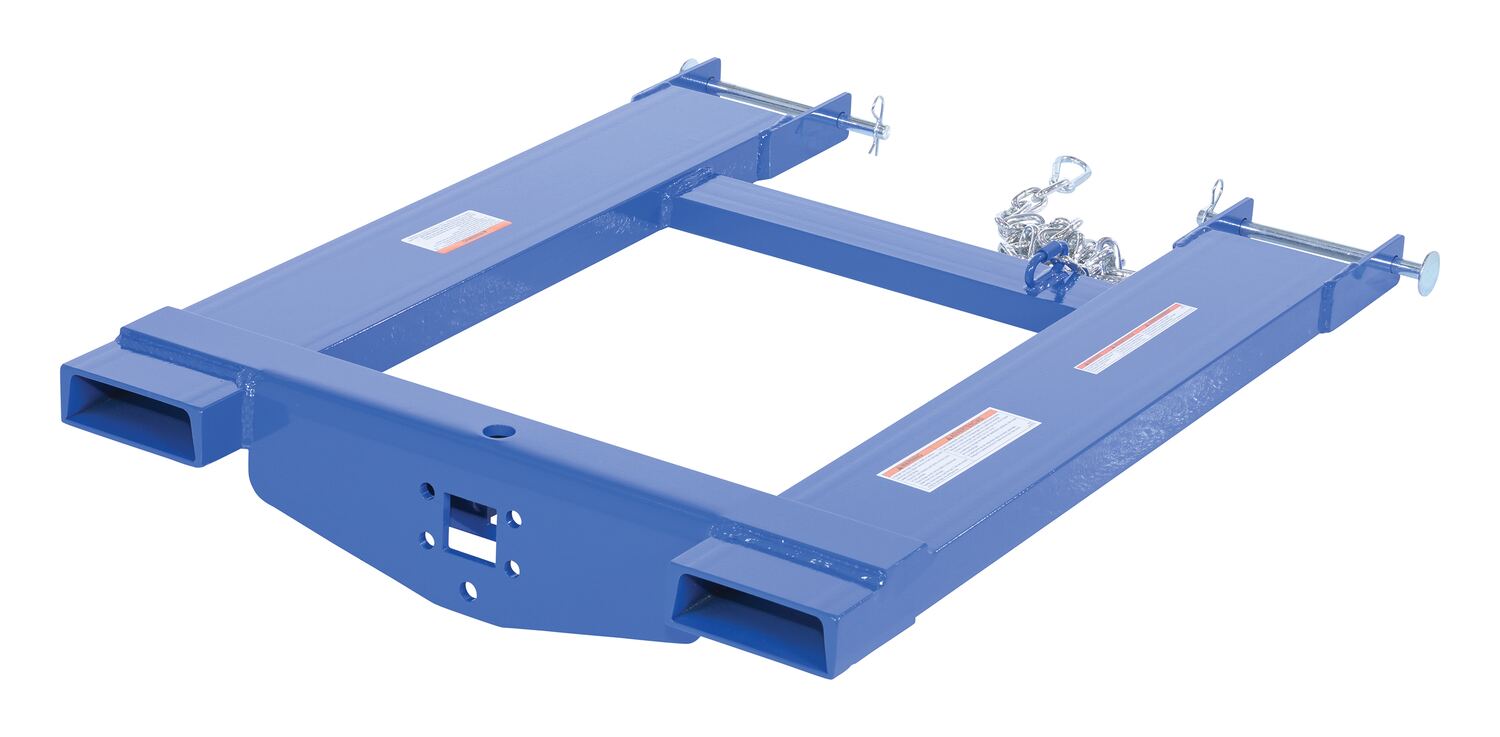

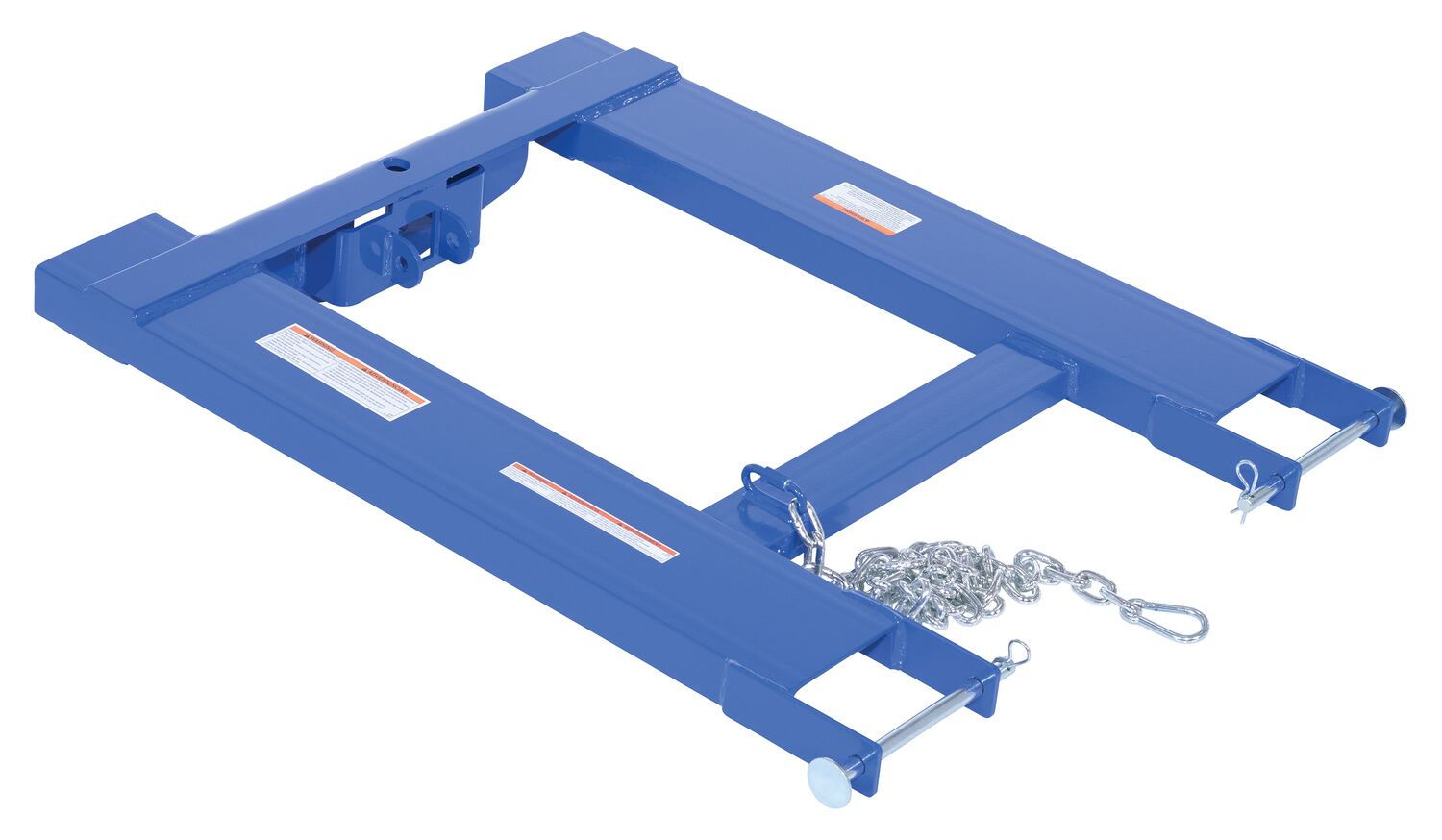

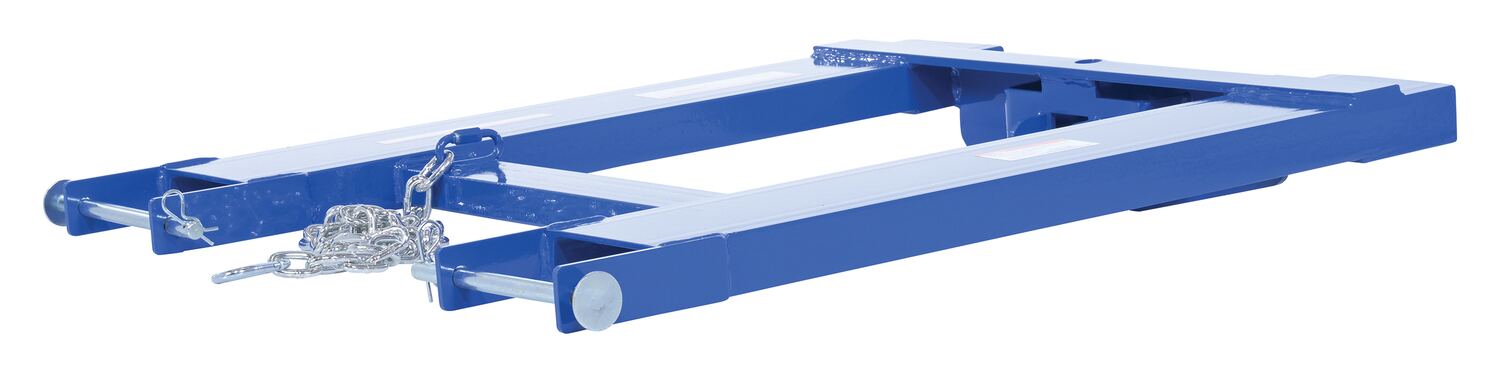

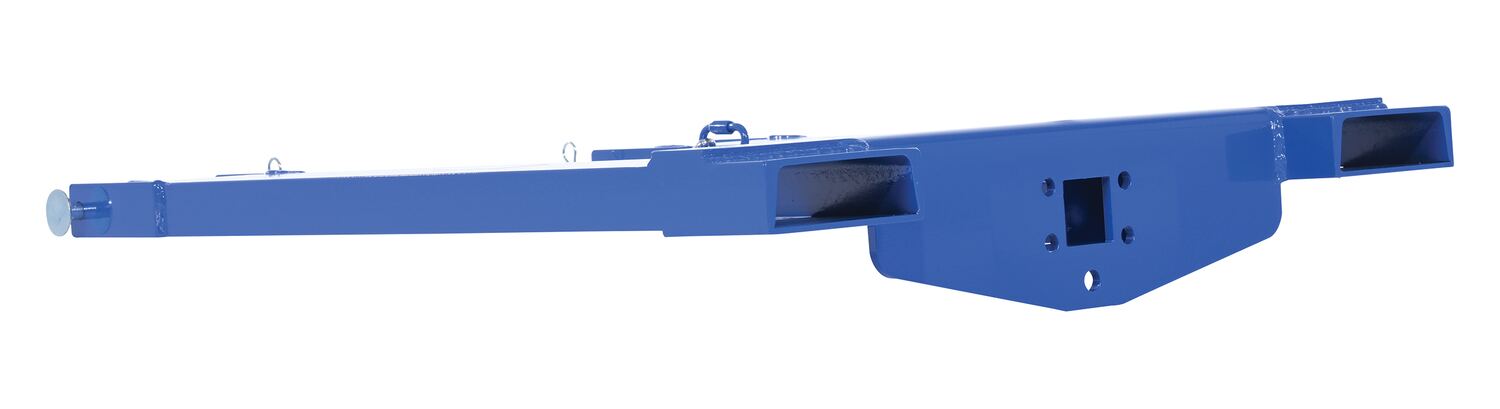

HOOK-BASE-32

model HOOK-BASE-32

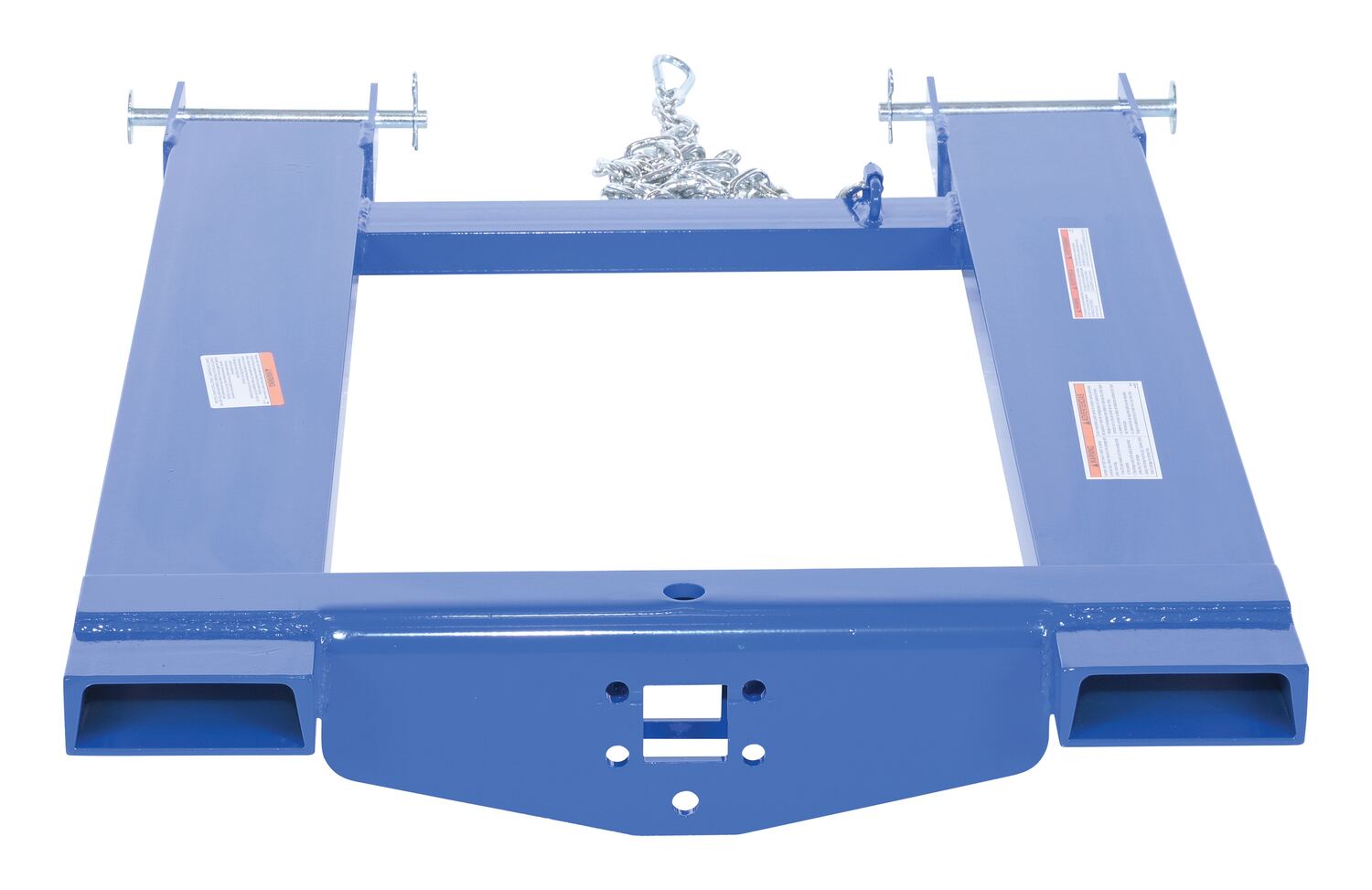

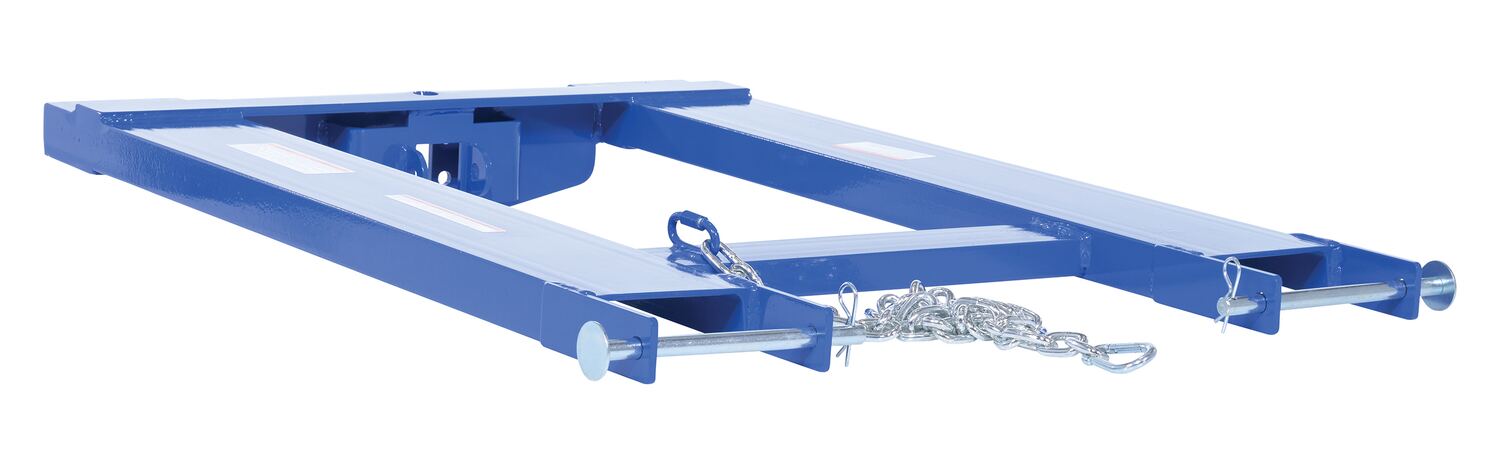

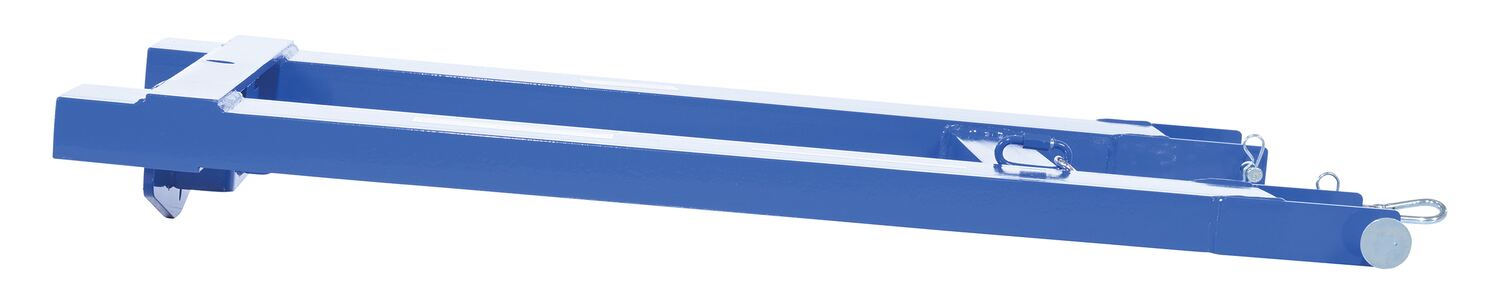

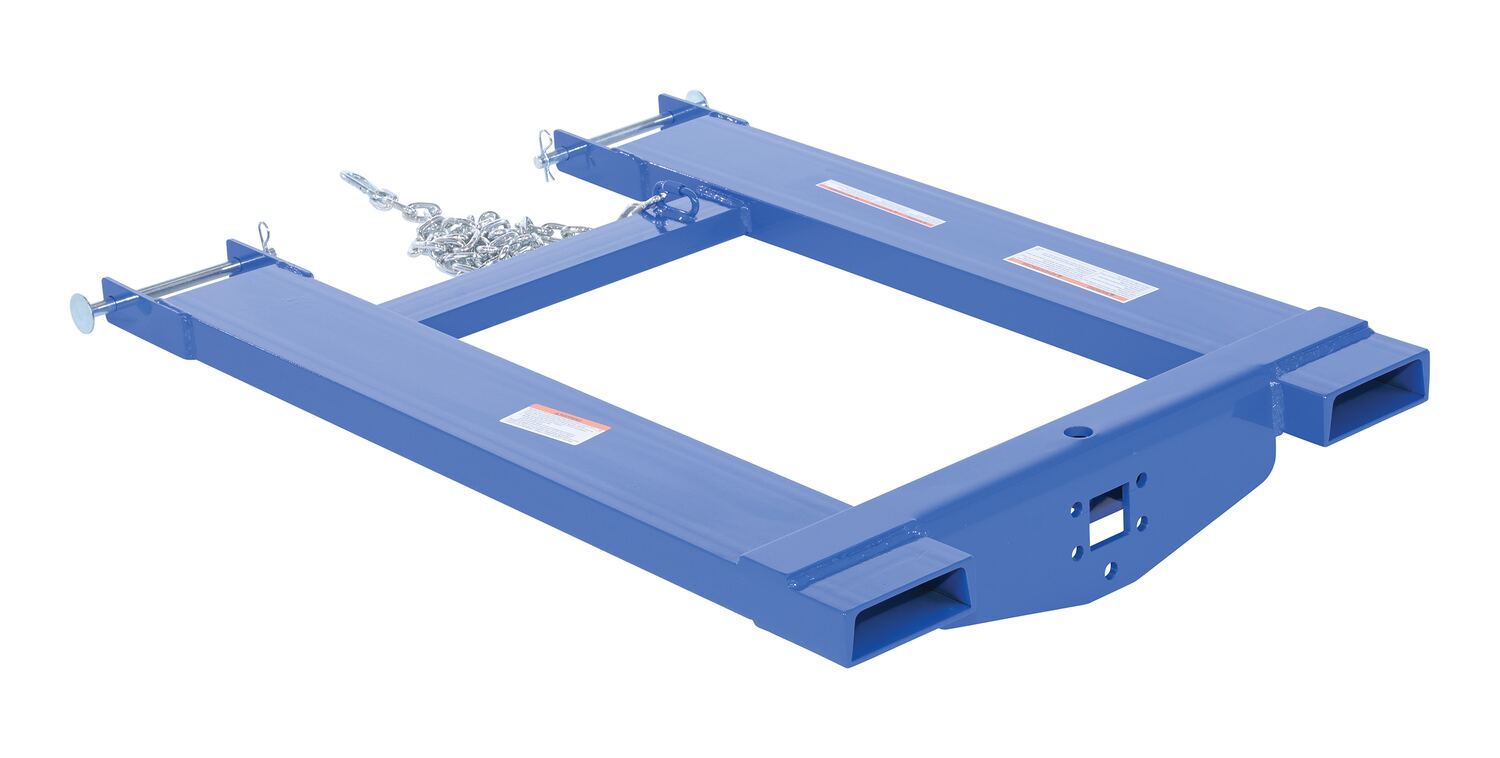

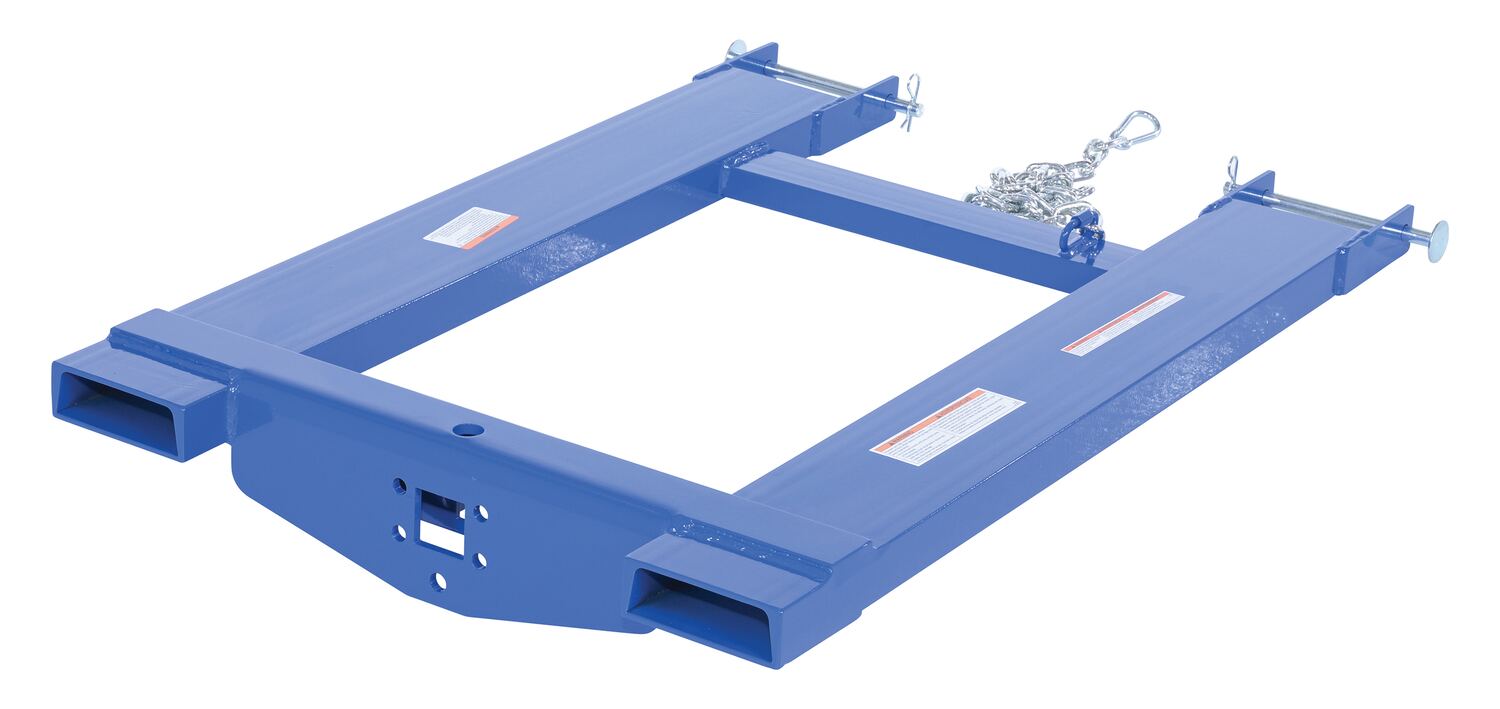

HOOK-BASE-38

model HOOK-BASE-38

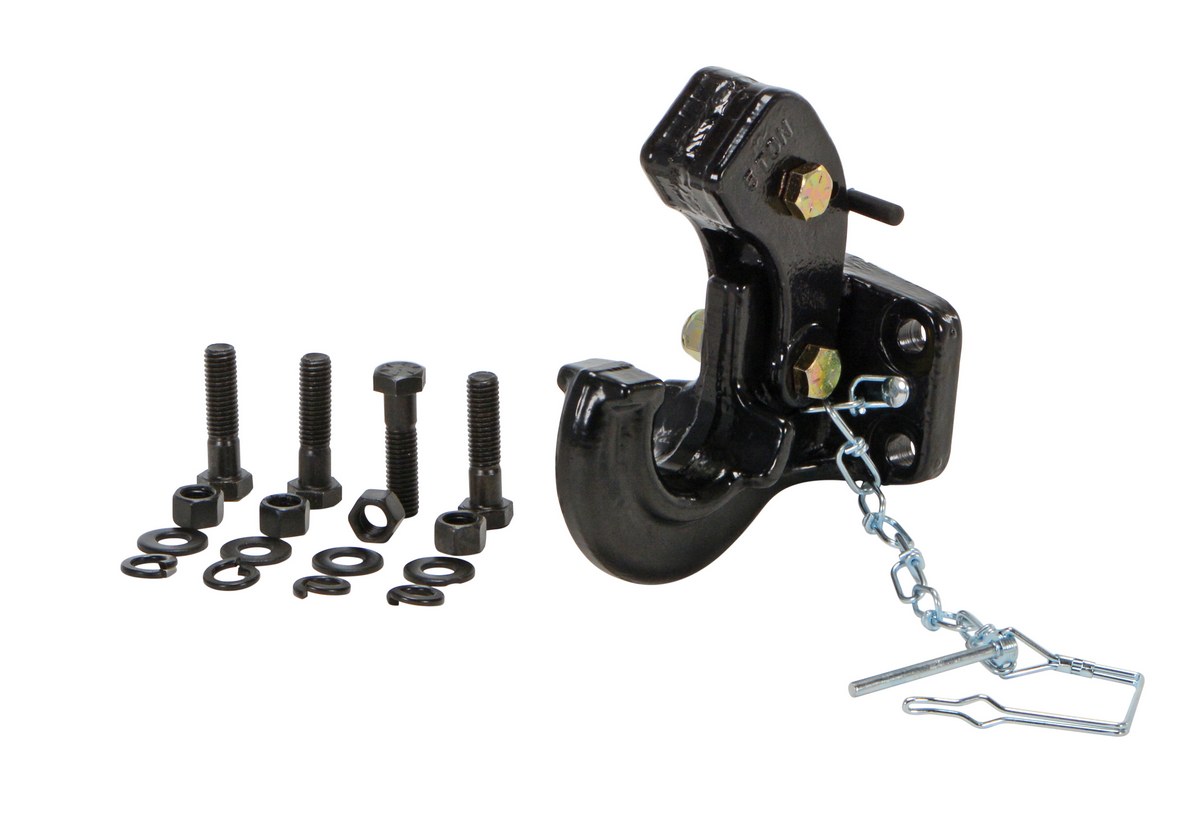

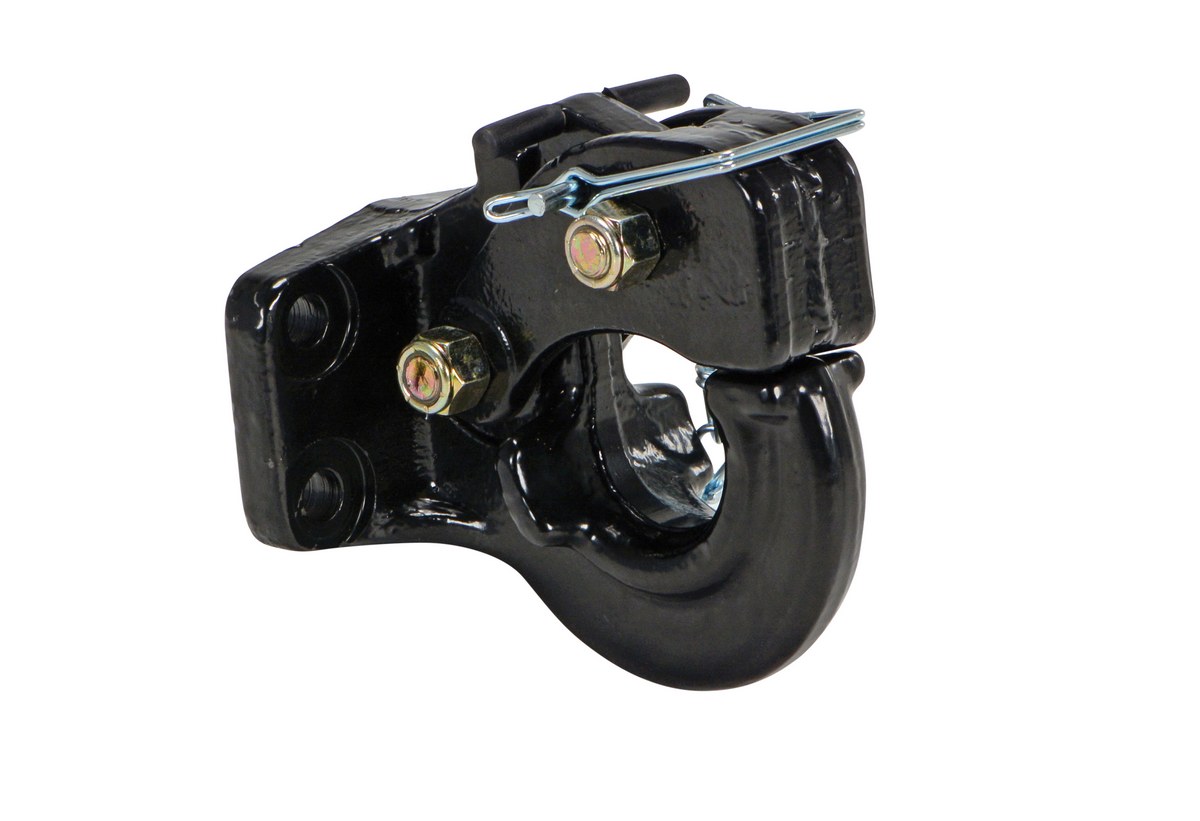

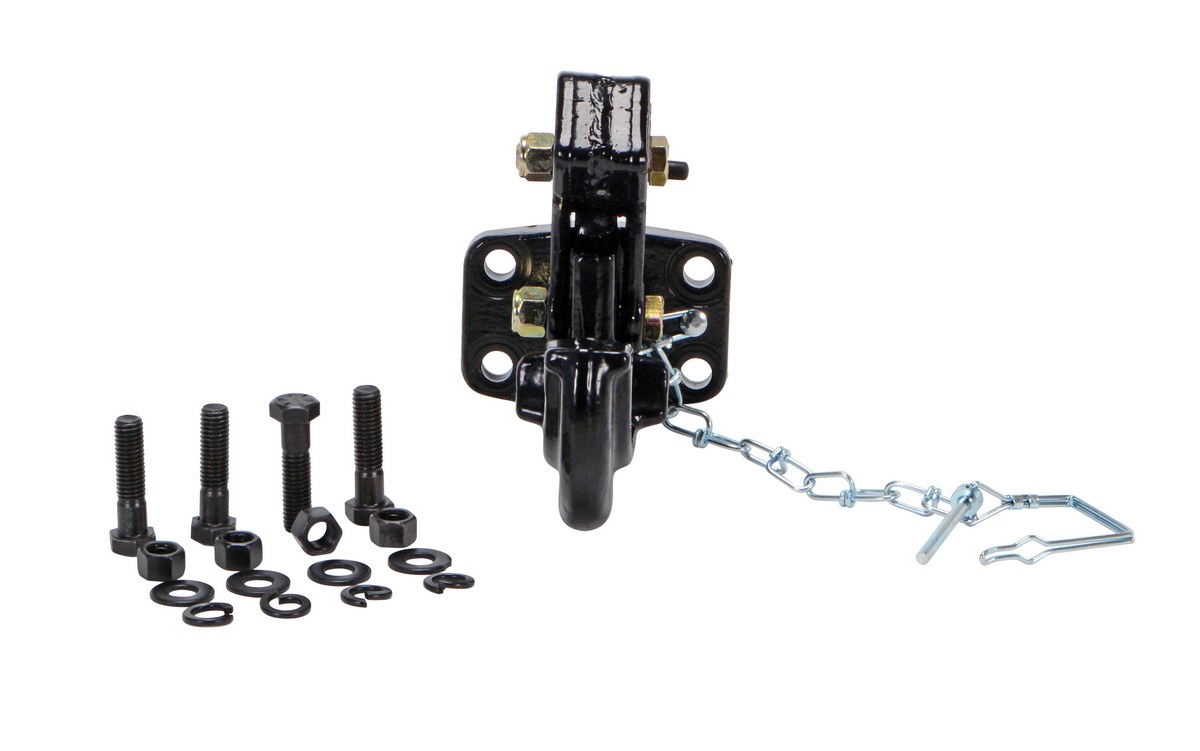

PINTLE

model PINTLE

BALL-178

model BALL-178

BALL-200

model BALL-200

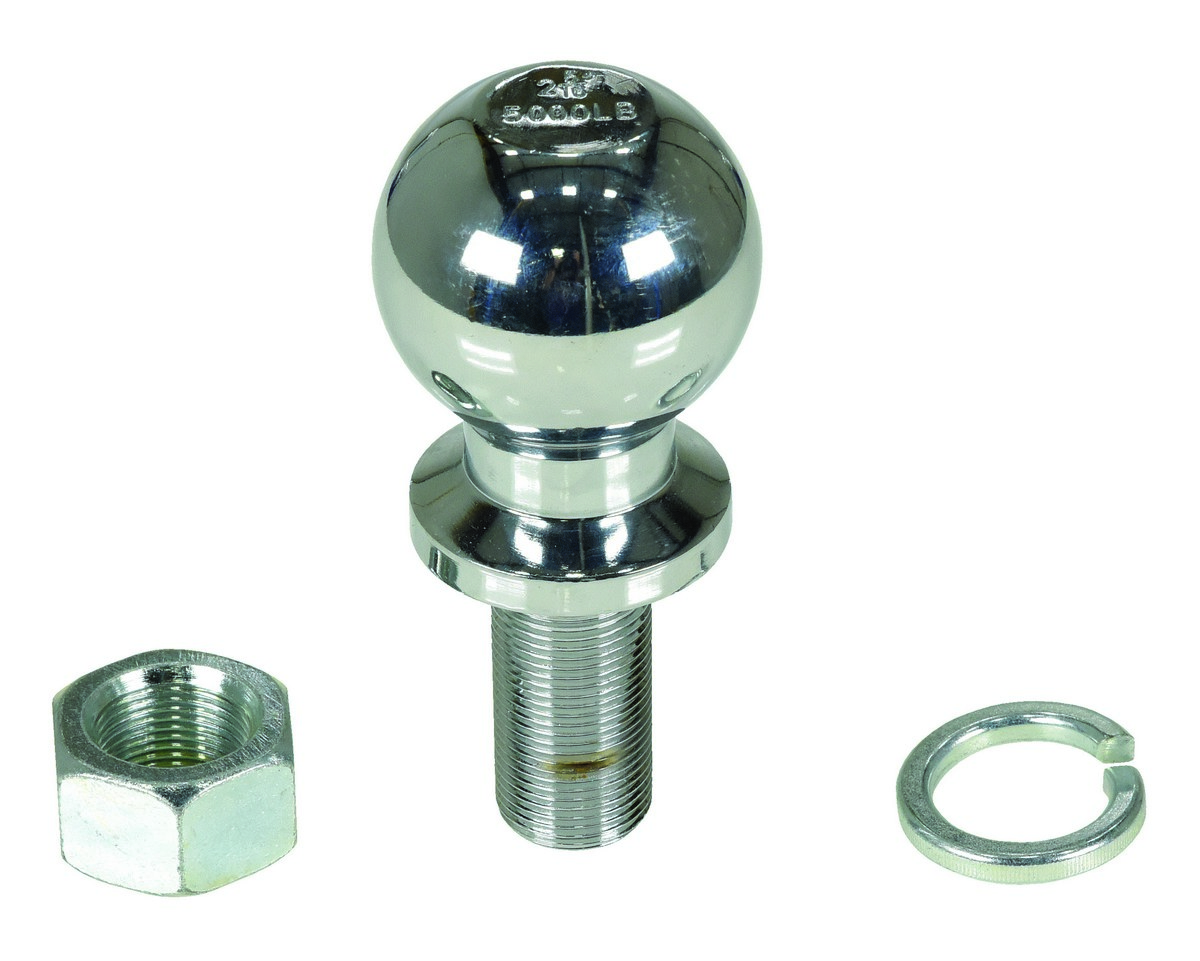

BALL-2516

model BALL-2516




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description * Net Wt.
(lbs)
HOOK-BASE-32 90 Days Limited WarrantyFORK TRUCK HOOK BASE 32.375 IN 4000 LBUniform Capacity (lb.): 4,000139
HOOK-BASE-38 90 Days Limited WarrantyFORK TRUCK HOOK BASE 38.375 IN 4000 LBUniform Capacity (lb.): 4,000162
HOOK-BASE-44 90 Days Limited WarrantyFORK TRUCK HOOK BASE 44.375 IN 4000 LBUniform Capacity (lb.): 4,000166
PINTLE 30 Days Limited WarrantyPINTLE HOOK FOR FORK TRUCK BASEUniform Lifting Capacity (lb.): 2,00010

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

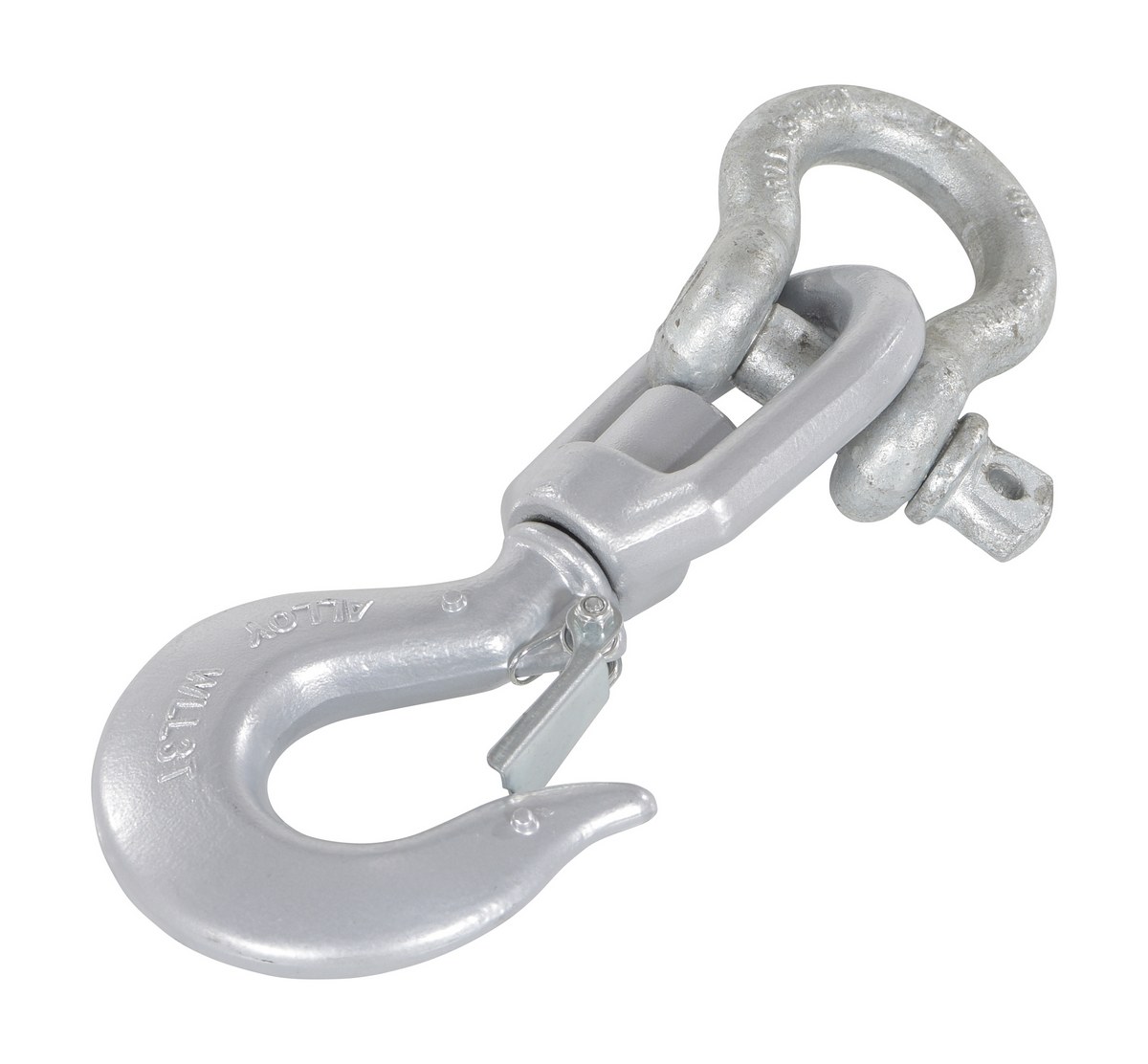

Fork Truck Tow Balls, Pintle Hook and Rigid Hooks
Model Image PDF's Fork
Length
Length To
Center of Ball
Capacity
(lbs)
Wt
(lbs)
HOOK-BASE-32 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 32-3/8" 4,000 139
HOOK-BASE-38 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42" 38-3/8" 4,000 162
HOOK-BASE-44 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" 44-3/8" 4,000 166
Above Models Work with BALL-178, BALL-200, BALL-2516, HOOK-S-4, HOOK-R-4, PINTLE, HITCH-3B

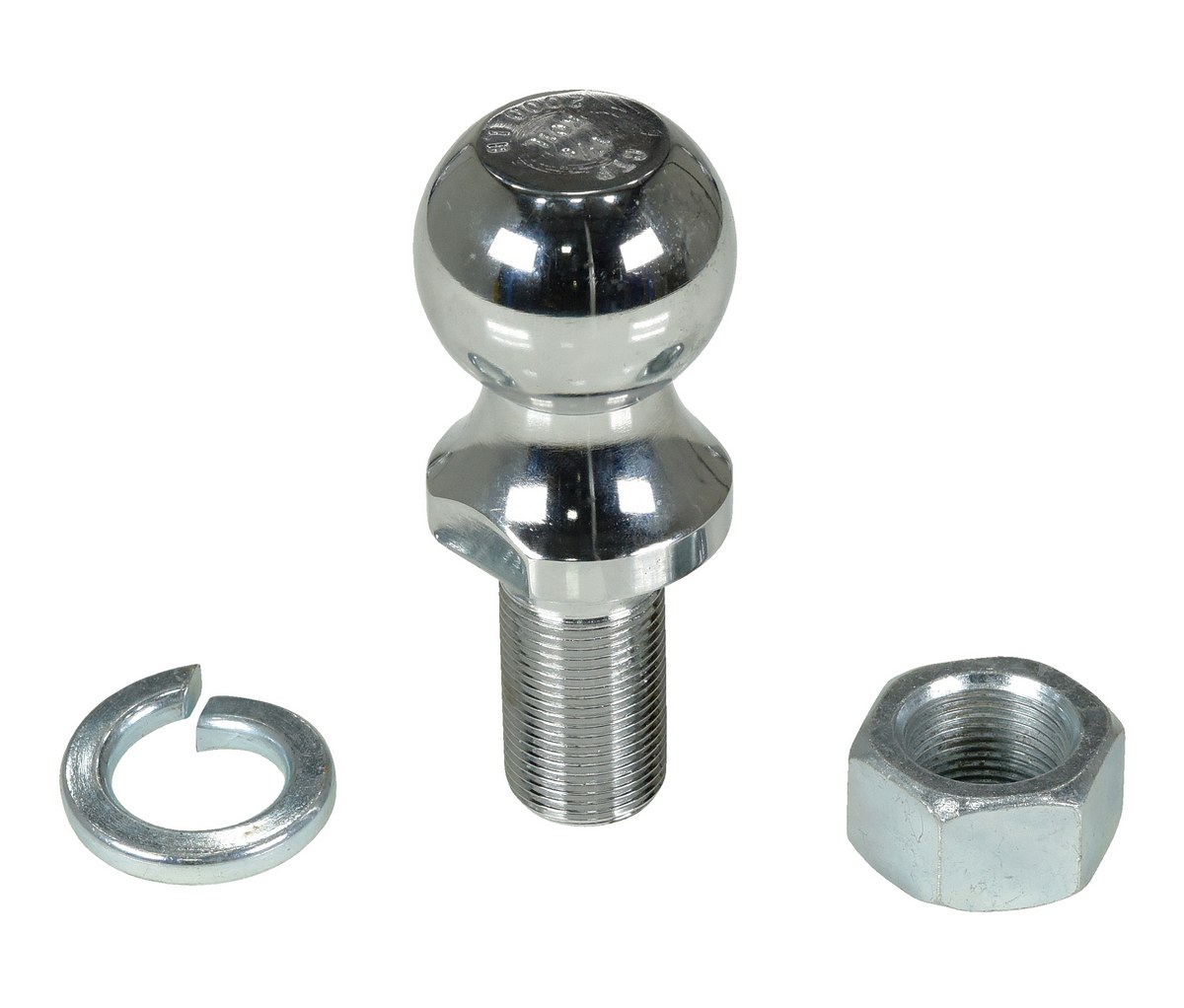

Tow Balls
Model Image PDF Ball
Diameter
Shank
Diameter
Capacity
(lbs)
Wt
(lbs)
BALL-178 Warranty PDFCompliance Certificate 1-7/8" 1" 2,000 3
BALL-200 Warranty PDFCompliance Certificate 2" 1" 5,000 3
BALL-2516 Warranty PDFCompliance Certificate 2-5/16" 1" 5,000 4
Pintle Hook
Model Image PDF Jaw
Opening
Vertical
Capacity (lbs)
Trailer
Capacity (lbs)
Wt
(lbs)
PINTLE Warranty PDFCompliance Certificate 1-3/4" 2,000 10,000 11

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Fork Truck Bases with Optional Tow Balls & Pintle Hook PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fork Truck Bases with Optional...




Convert your fork truck into a tow truck for moving trailers and other portable equipment. Simple design slides onto forks and secures into place with pin style tine locks and a safety restraint.. . Welded steel construction with blue baked-in powder-coat finish for added toughness. 5"W x 2"H usable fork pockets. Optional pintle hook, tow balls, lifting hooks and hitch available. Bolt on design. Never exceed the 4,000 lb. capacity of the hook base. An attachment does not increase the total capacity of the unit.


Fork Truck Tow Balls, Pintle Hook and Rigid Hooks
Model Image PDF's Fork
Length
Length To
Center of Ball
Capacity
(lbs)
Wt
(lbs)
HOOK-BASE-32 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 32-3/8" 4,000 139
HOOK-BASE-38 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42" 38-3/8" 4,000 162
HOOK-BASE-44 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" 44-3/8" 4,000 166
Above Models Work with BALL-178, BALL-200, BALL-2516, HOOK-S-4, HOOK-R-4, PINTLE, HITCH-3B
Tow Balls
Model Image PDF Ball
Diameter
Shank
Diameter
Capacity
(lbs)
Wt
(lbs)
BALL-178 Warranty PDFCompliance Certificate 1-7/8" 1" 2,000 3
BALL-200 Warranty PDFCompliance Certificate 2" 1" 5,000 3
BALL-2516 Warranty PDFCompliance Certificate 2-5/16" 1" 5,000 4
Pintle Hook
Model Image PDF Jaw
Opening
Vertical
Capacity (lbs)
Trailer
Capacity (lbs)
Wt
(lbs)
PINTLE Warranty PDFCompliance Certificate 1-3/4" 2,000 10,000 11
