Click Image to Enlarge

model: FL-4000

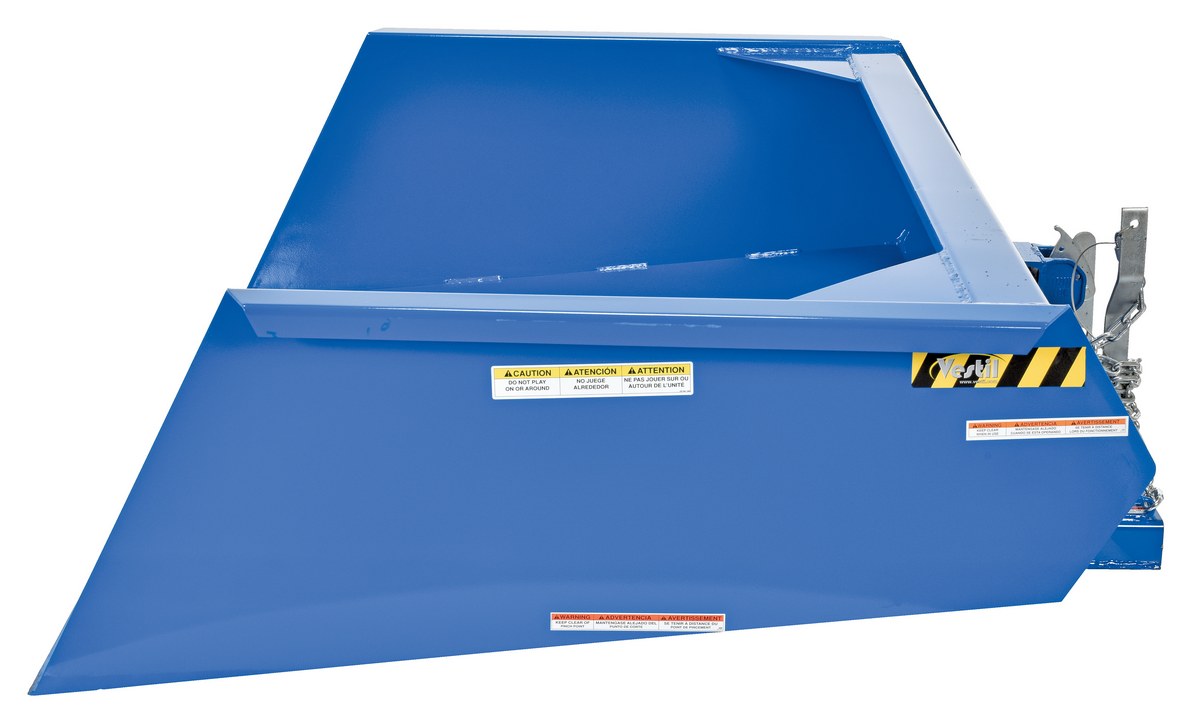

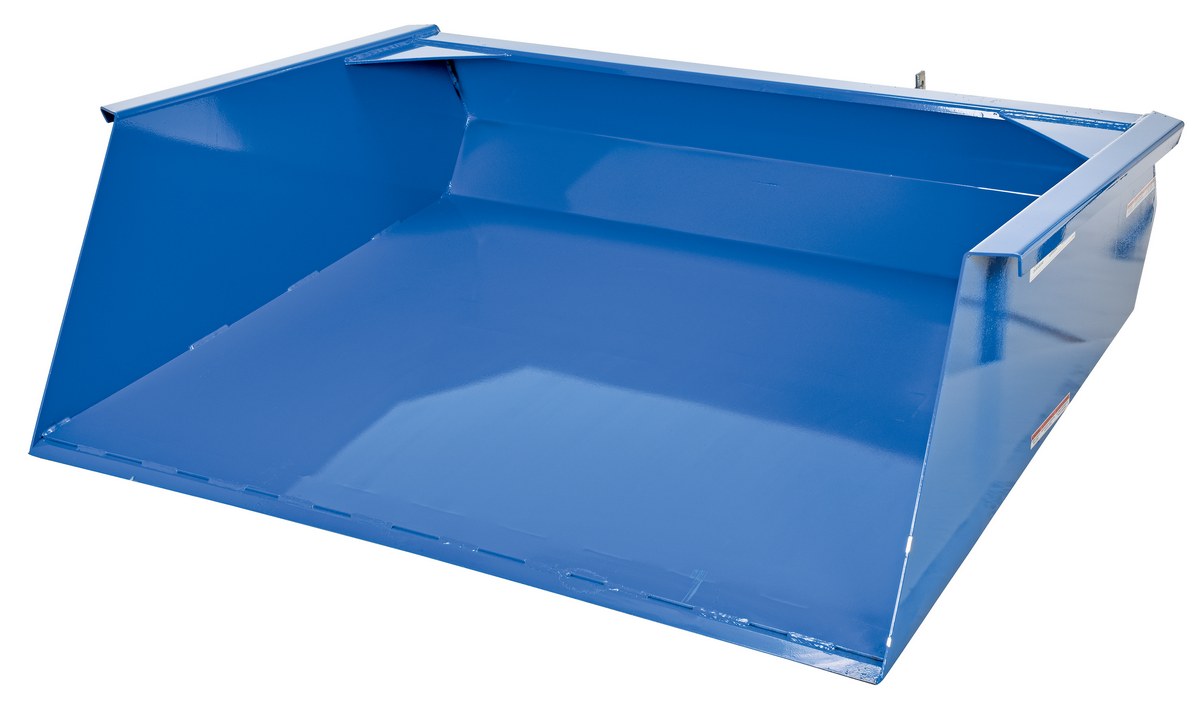

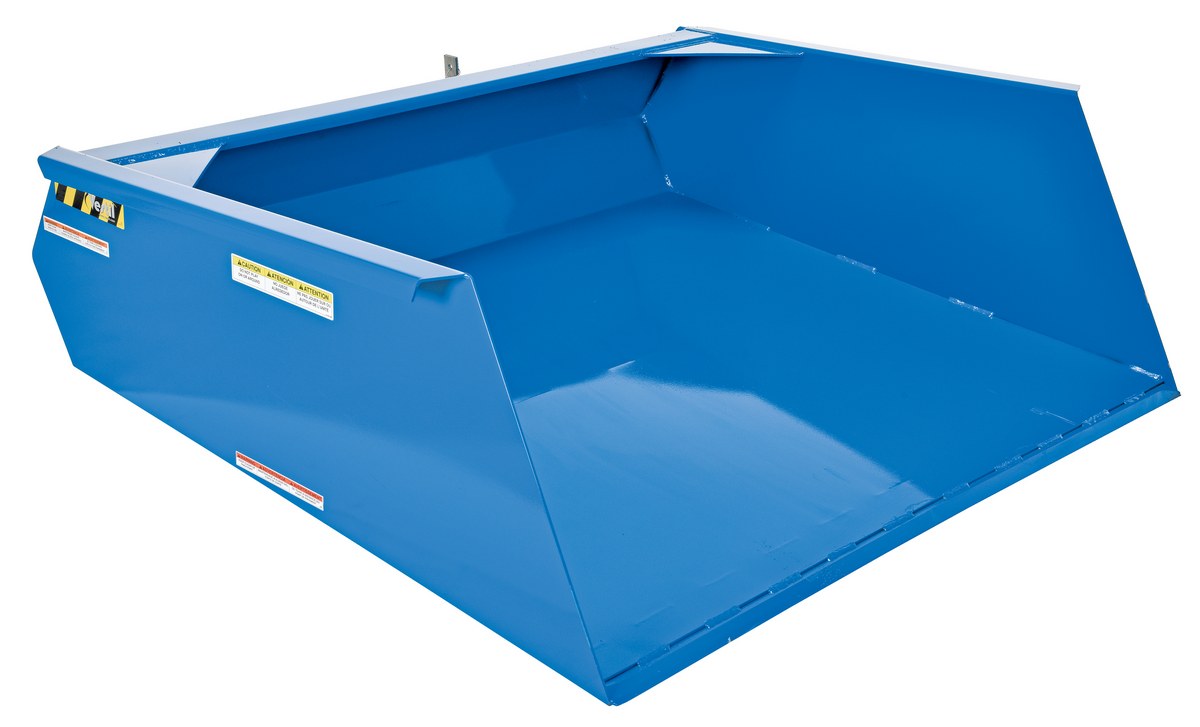

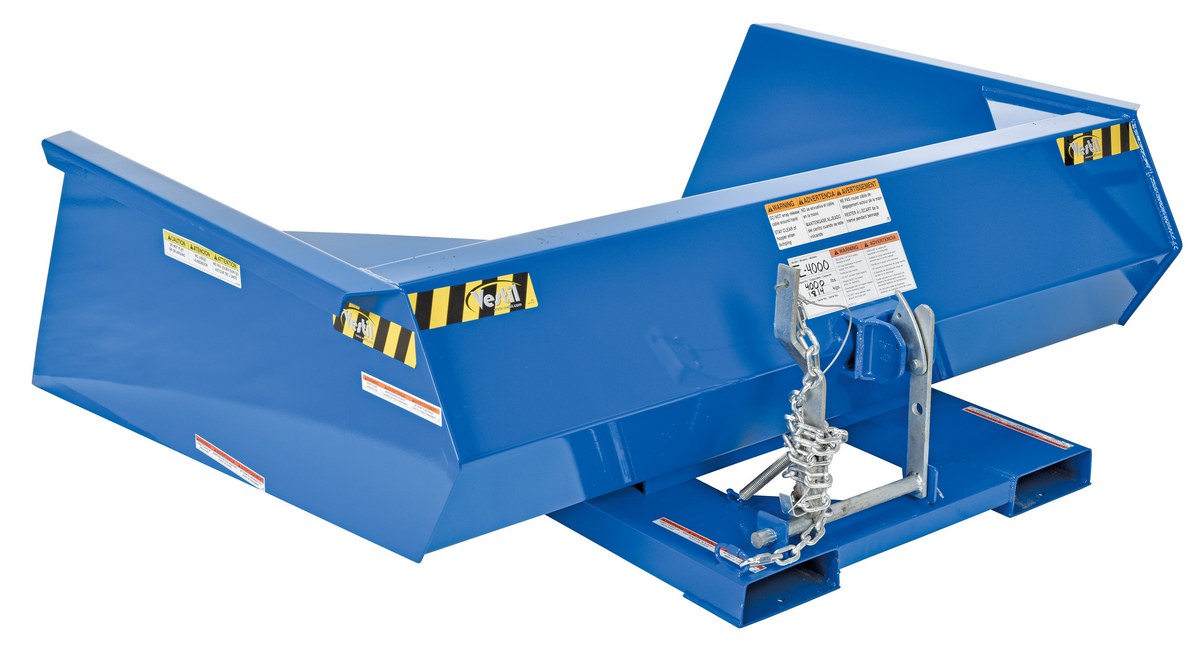

Fork Mounted Front Loaders
SERIES: FL

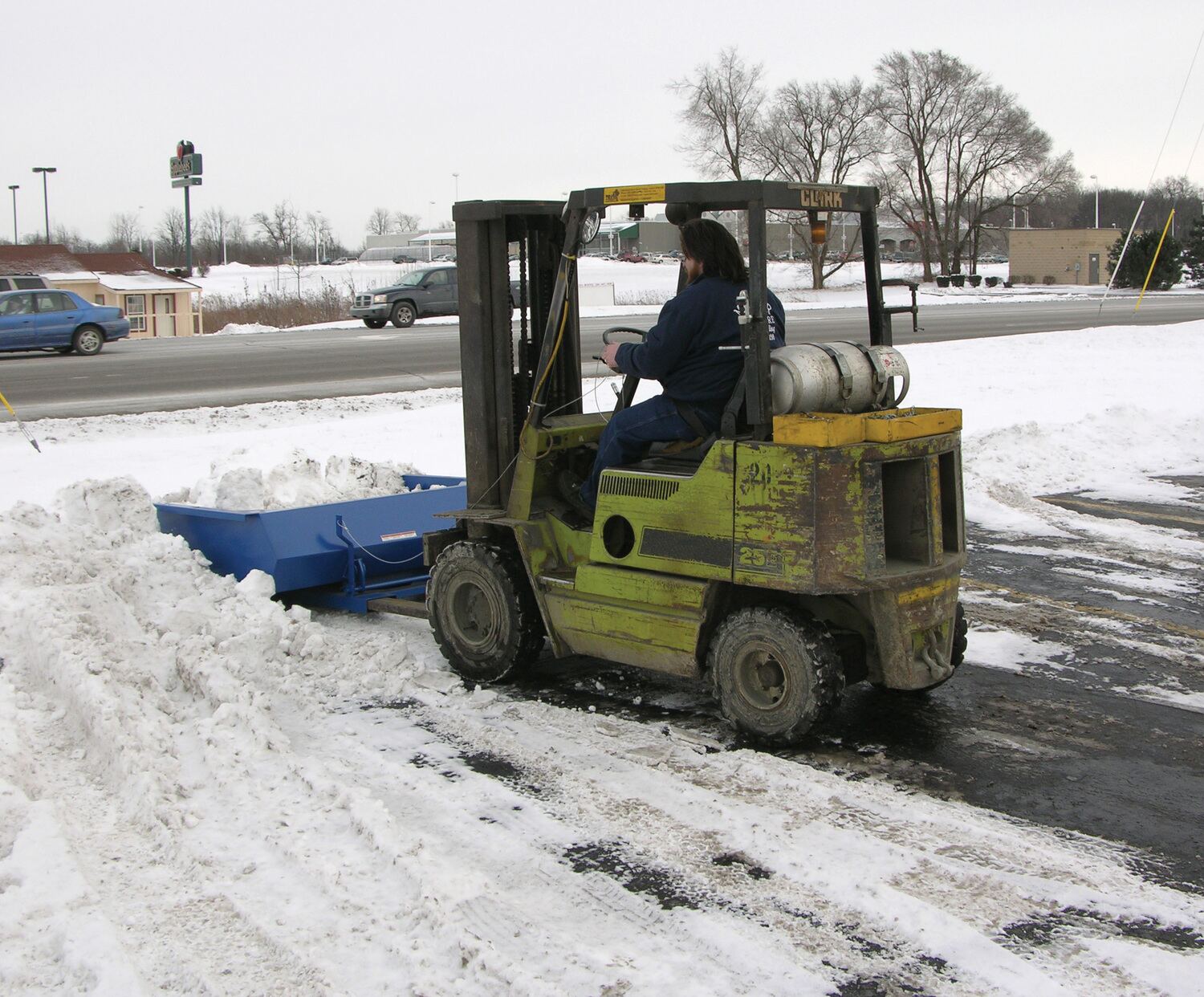

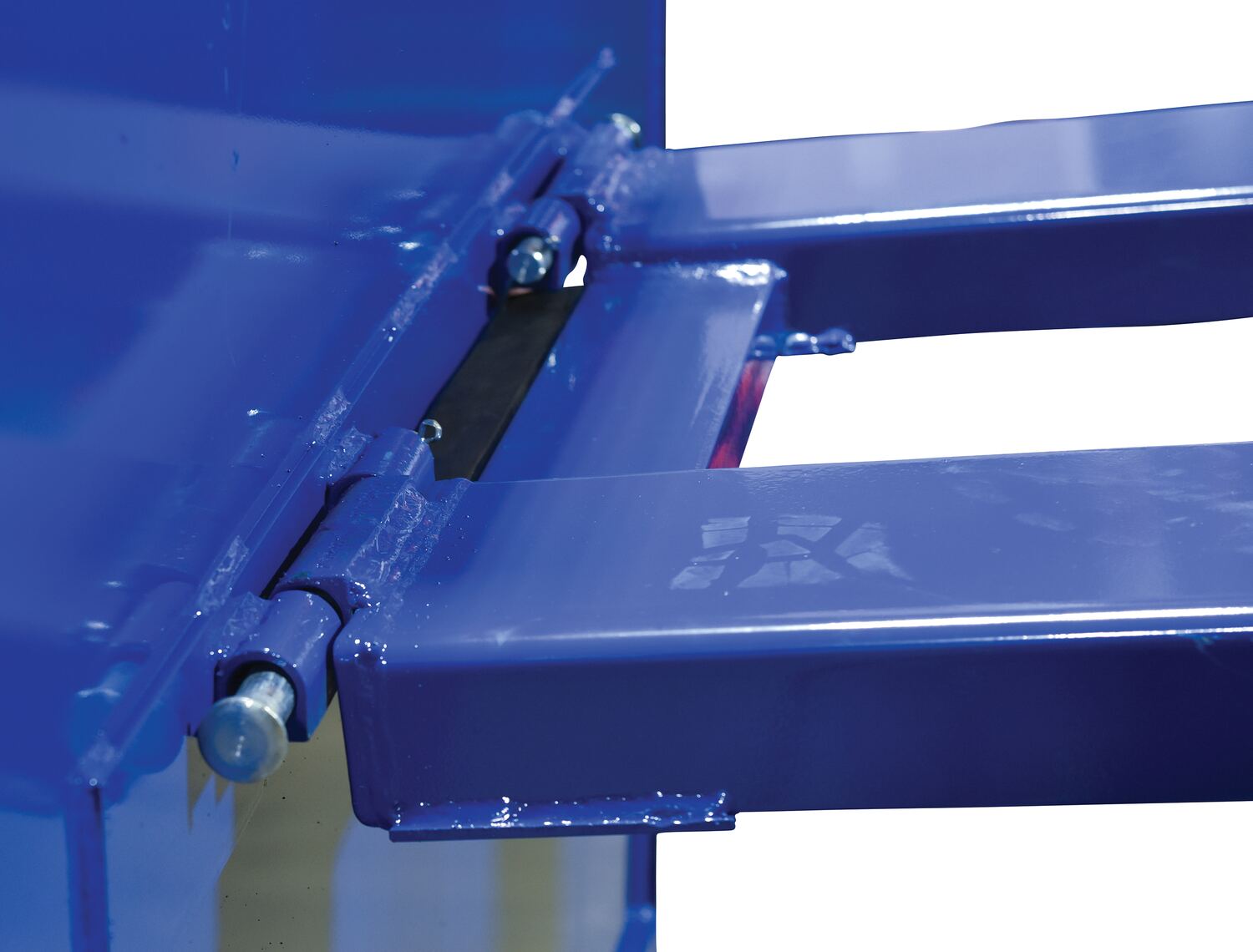

The Front Loader is engineered for use with your existing fork truck. "Dust Pan" design is ideal for transporting snow, gravel, sand or refuse. Pull release cable to dump contents of scoop.. Attaches quickly and easily to most fork trucks. Beveled front edge for better scooping ability. The fork pockets measure 7-1/2"W x 2-1/2"H on 24" centers. All welded steel construction with a baked-in blue powder coat finish for toughness.

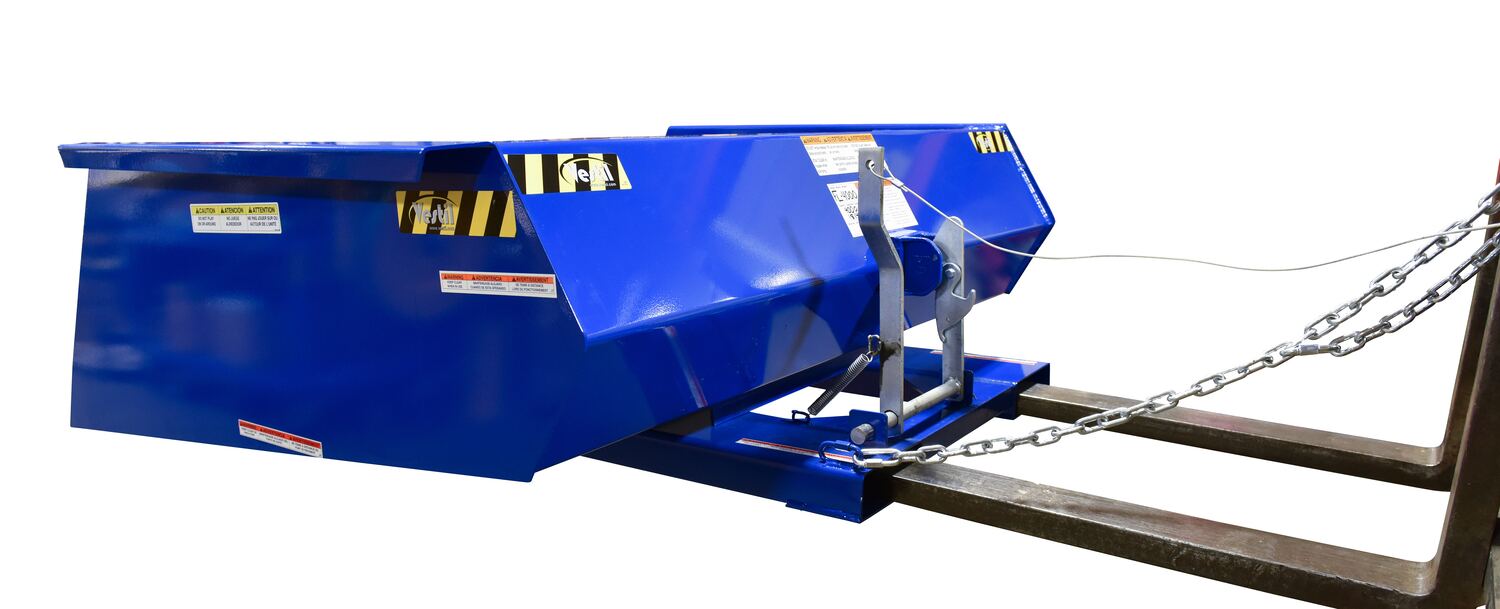

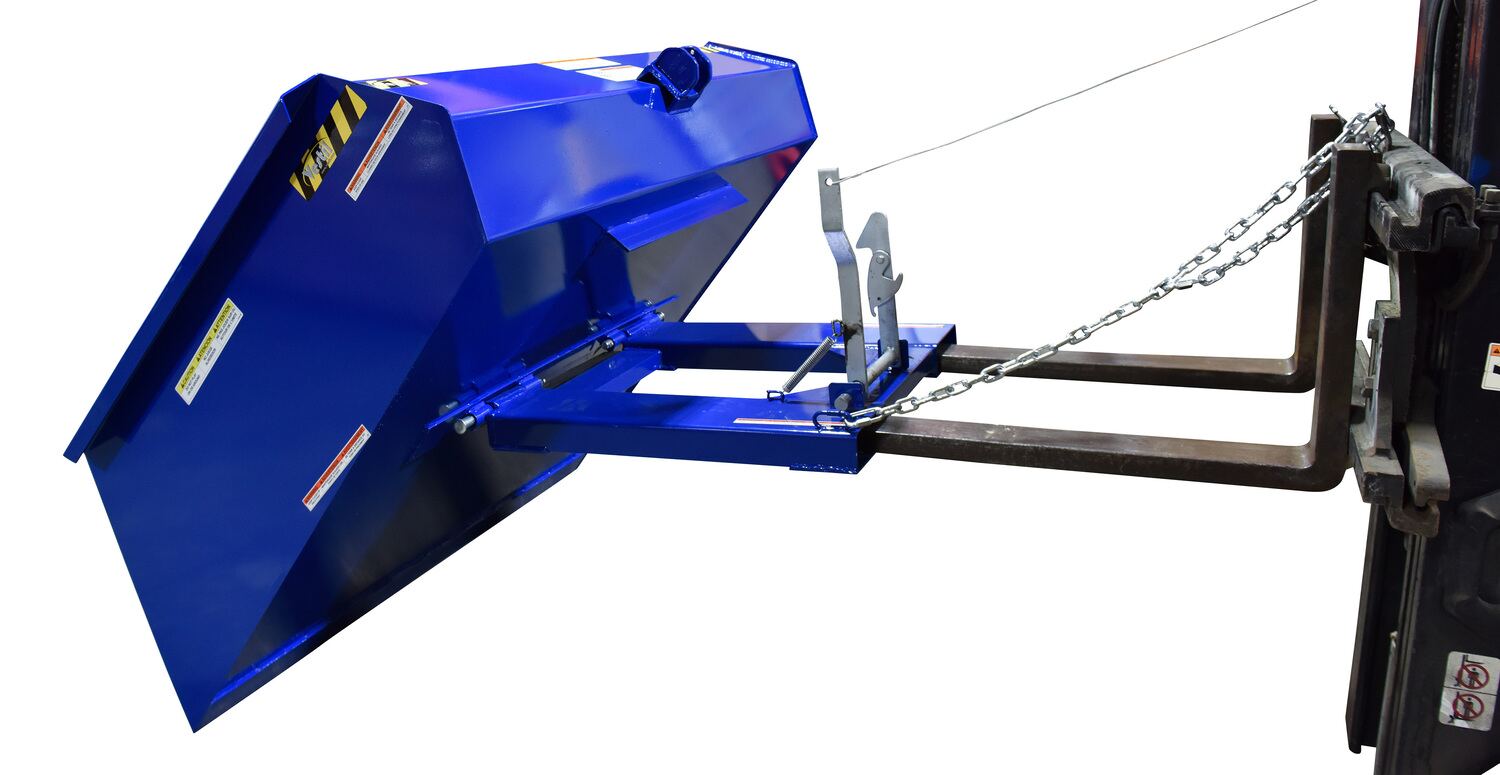

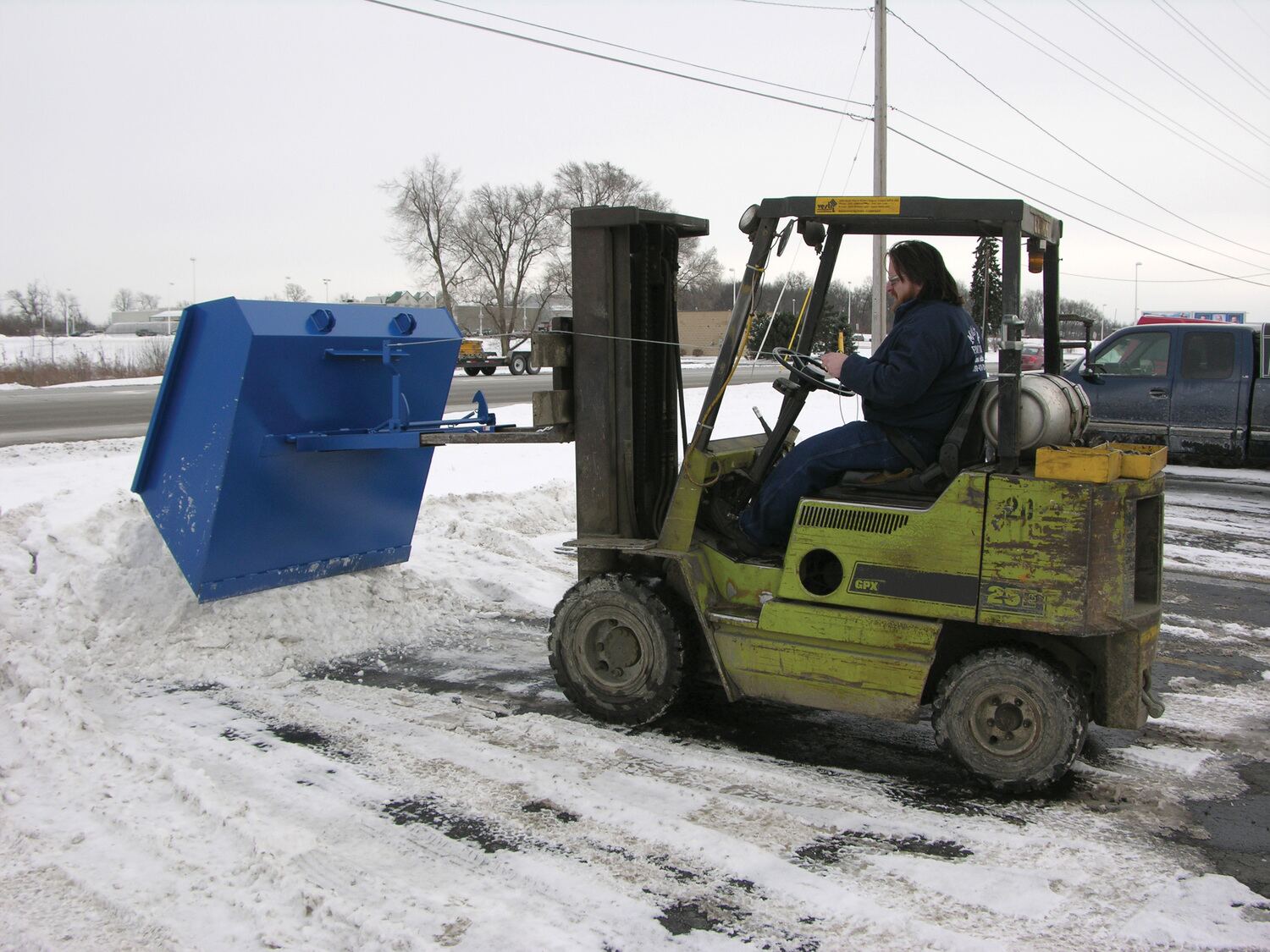

Operation: Drive into Front Loader; Secure unit to fork truck mast with safety chain; Run release cable to fork truck driver; Drive Loader into the material your transporting; Drive to destination; Raise forks and pull release to dump load; Unit returns to locked upright position when set down on ground.

  • Fork Truck attachable

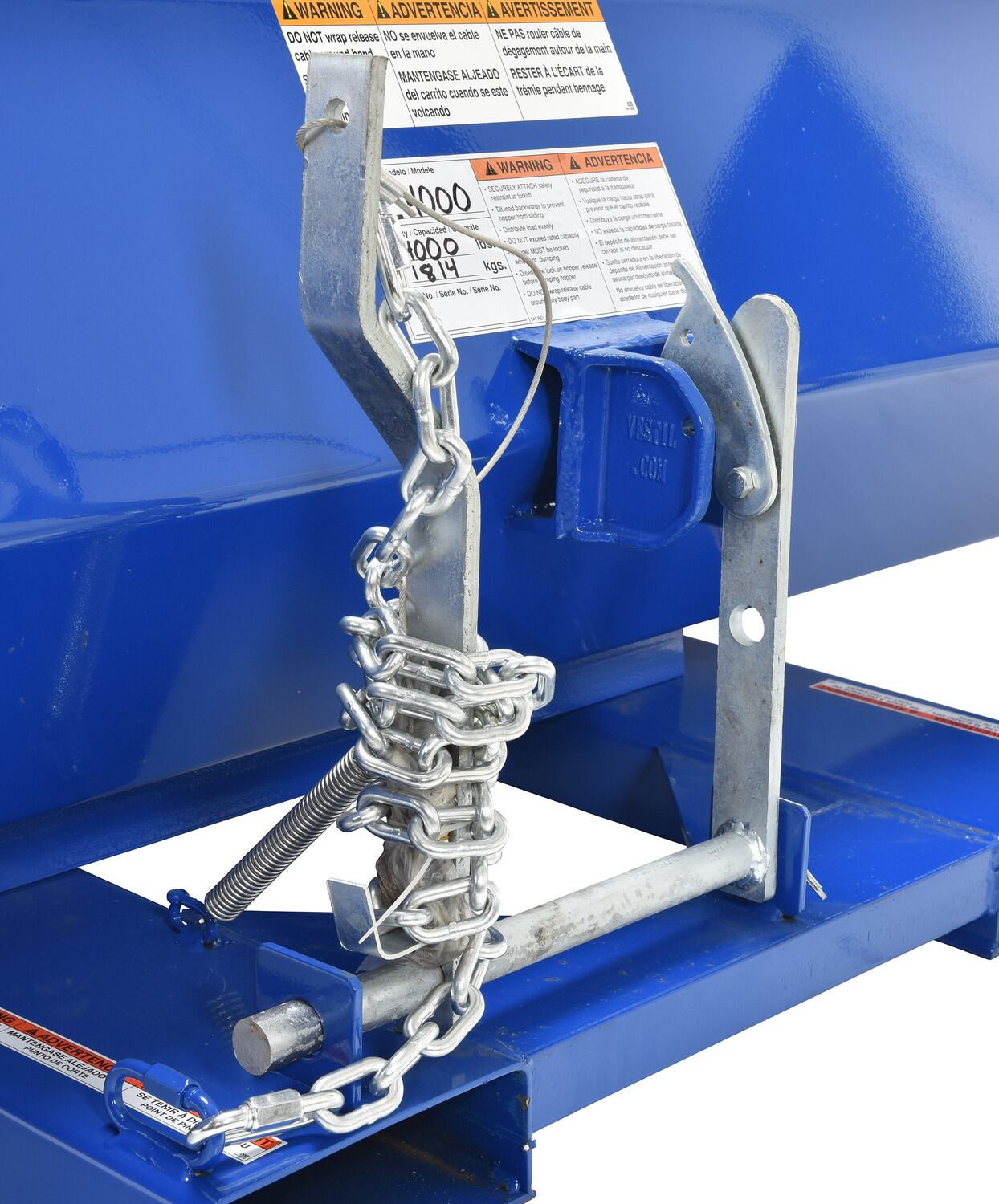

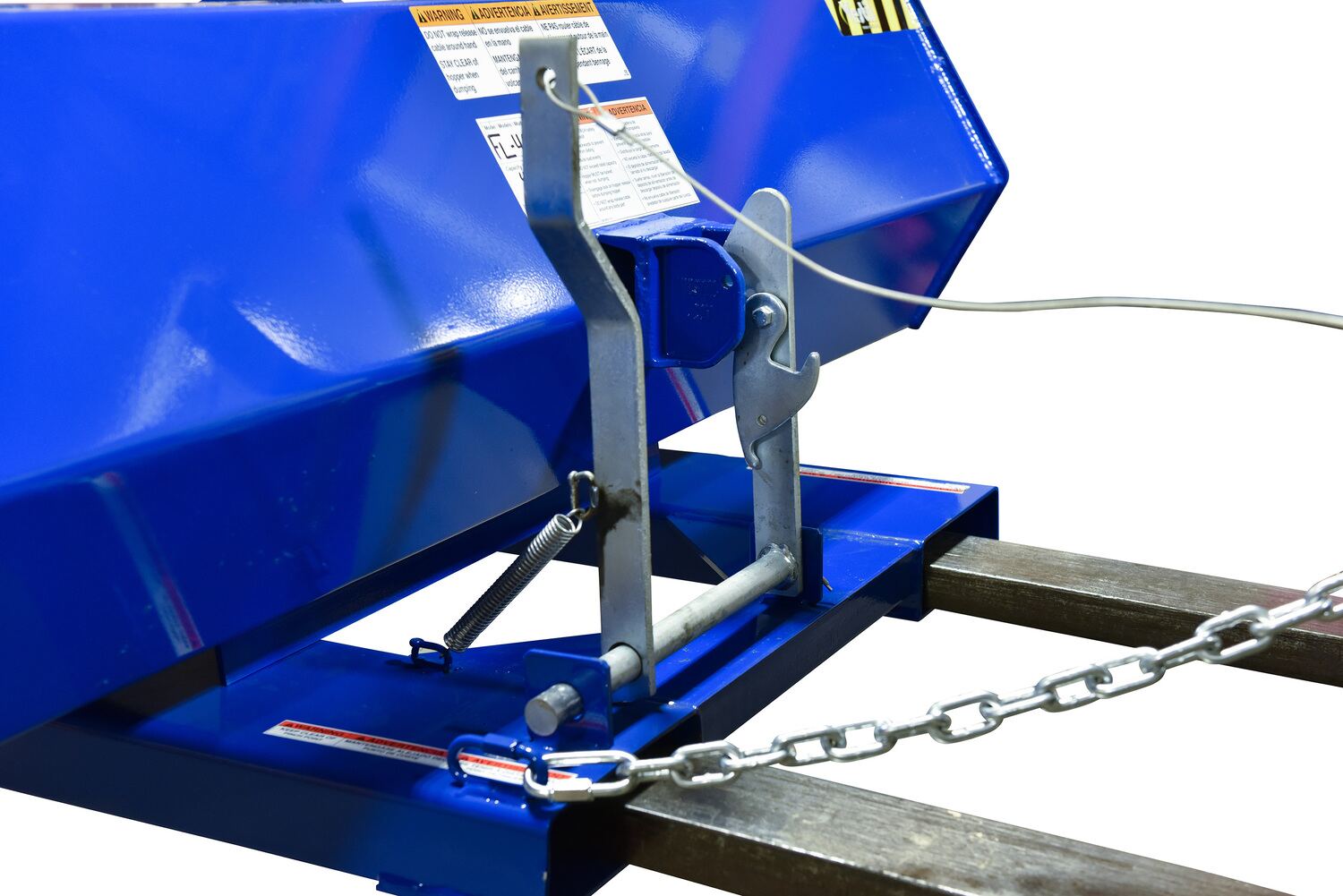

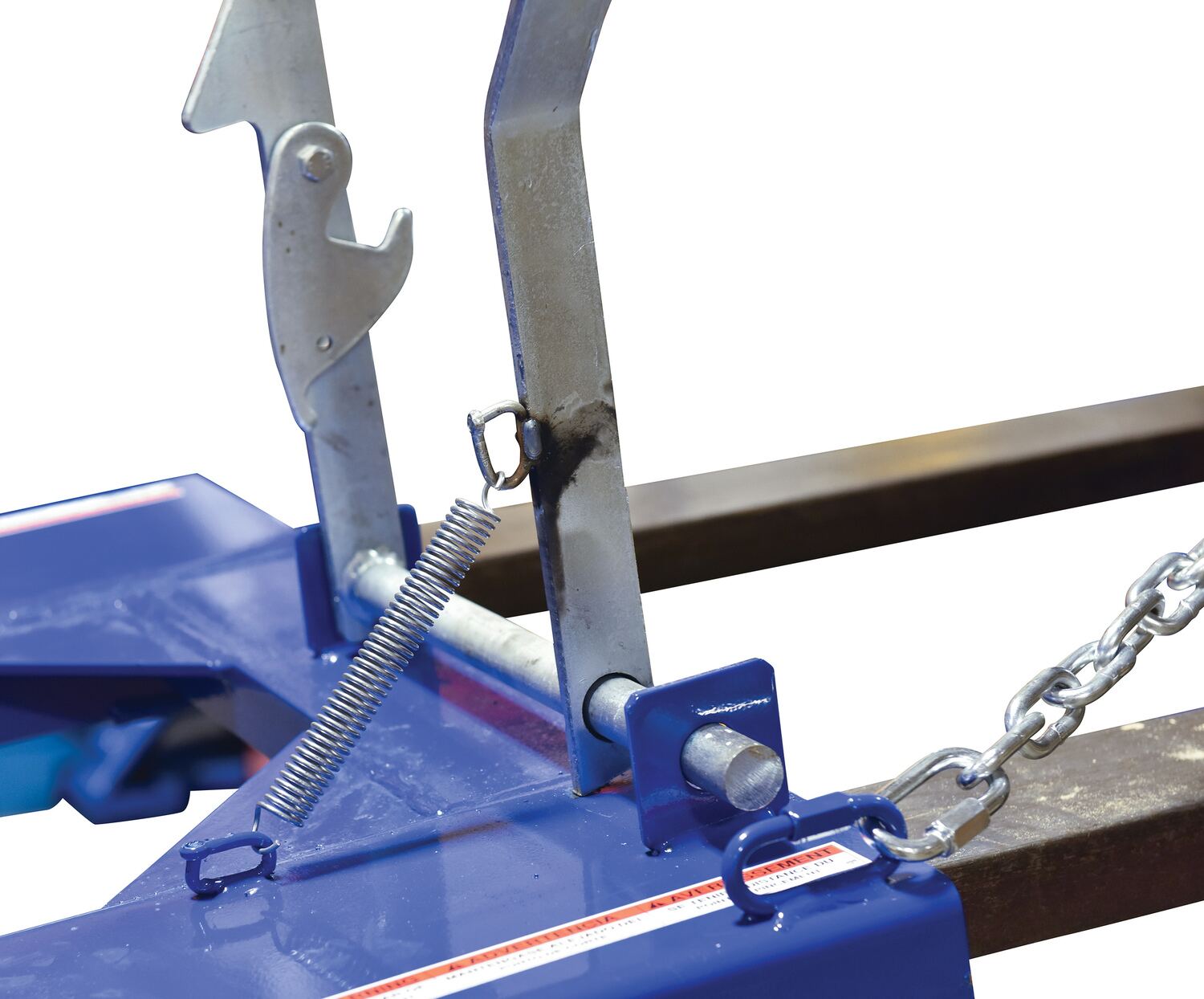

  • Trip Cord Release
  • 90 degrees Dump Angle
  • Capacity 4000 lbs.
  • Perfect for Snow, Gravel, Sand, or Refuse

The Front Loader is engineered for use with your existing fork truck. "Dust Pan" design is ideal for transporting snow, gravel, sand or refuse. Pull release cable to dump contents of scoop.. Attaches quickly and easily to most fork trucks. Beveled front edge for better scooping ability. The fork pockets measure 7-1/2"W x 2-1/2"H on 24" centers. All welded steel construction with a baked-in blue powder coat finish for toughness.

Operation: Drive into Front Loader; Secure unit to fork truck mast with safety chain; Run release cable to fork truck driver; Drive Loader into the material your transporting; Drive to destination; Raise forks and pull release to dump load; Unit returns to locked upright position when set down on ground.

  • Fork Truck attachable
  • Trip Cord Release
  • 90 degrees Dump Angle
  • Capacity 4000 lbs.
  • Perfect for Snow, Gravel, Sand, or Refuse



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description * Net Wt.
(lbs)
FL-4000 90 Days Limited WarrantyFORK MOUNTED FRONT LOADER 69.75 INUniform Capacity (lb.): 4,000525
FL-4000-N 90 Days Limited WarrantyFORK MOUNTED FRONT LOADER 48.5 INUniform Capacity (lb.): 4,000427

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below
Fork Mounted Front Loader
Model Image PDF Overall Size
(WxLxH)
Capacity
(lbs)
Dump
Angle
Cubic Yard
Capacity
Wt.
(lbs)
FL-4000 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 69-3/4"x 63-1/4"x 22-5/8" 4,000 lb 90 degrees 1 1/3 525
FL-4000-N icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48-1/2"x63-1/4"x22-5/8" 4,000 lb 90 degrees 1 427

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Model PDFs Description
FL-LEKP Warranty PDF WELDED LEAK PROOF OPTION

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Fork Mounted Front Loaders PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




We are hoping to continue adding new product pictures to each gallery. Check back soon.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fork Mounted Front Loaders




The Front Loader is engineered for use with your existing fork truck. "Dust Pan" design is ideal for transporting snow, gravel, sand or refuse. Pull release cable to dump contents of scoop.. Attaches quickly and easily to most fork trucks. Beveled front edge for better scooping ability. The fork pockets measure 7-1/2"W x 2-1/2"H on 24" centers. All welded steel construction with a baked-in blue powder coat finish for toughness.

Operation: Drive into Front Loader; Secure unit to fork truck mast with safety chain; Run release cable to fork truck driver; Drive Loader into the material your transporting; Drive to destination; Raise forks and pull release to dump load; Unit returns to locked upright position when set down on ground.

  • Fork Truck attachable
  • Trip Cord Release
  • 90 degrees Dump Angle
  • Capacity 4000 lbs.
  • Perfect for Snow, Gravel, Sand, or Refuse

Fork Mounted Front Loader
Model Image PDF Overall Size
(WxLxH)
Capacity
(lbs)
Dump
Angle
Cubic Yard
Capacity
Wt.
(lbs)
FL-4000 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 69-3/4"x 63-1/4"x 22-5/8" 4,000 lb 90 degrees 1 1/3 525
FL-4000-N icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48-1/2"x63-1/4"x22-5/8" 4,000 lb 90 degrees 1 427

Options


Model PDFs Description
FL-LEKP Warranty PDF WELDED LEAK PROOF OPTION
