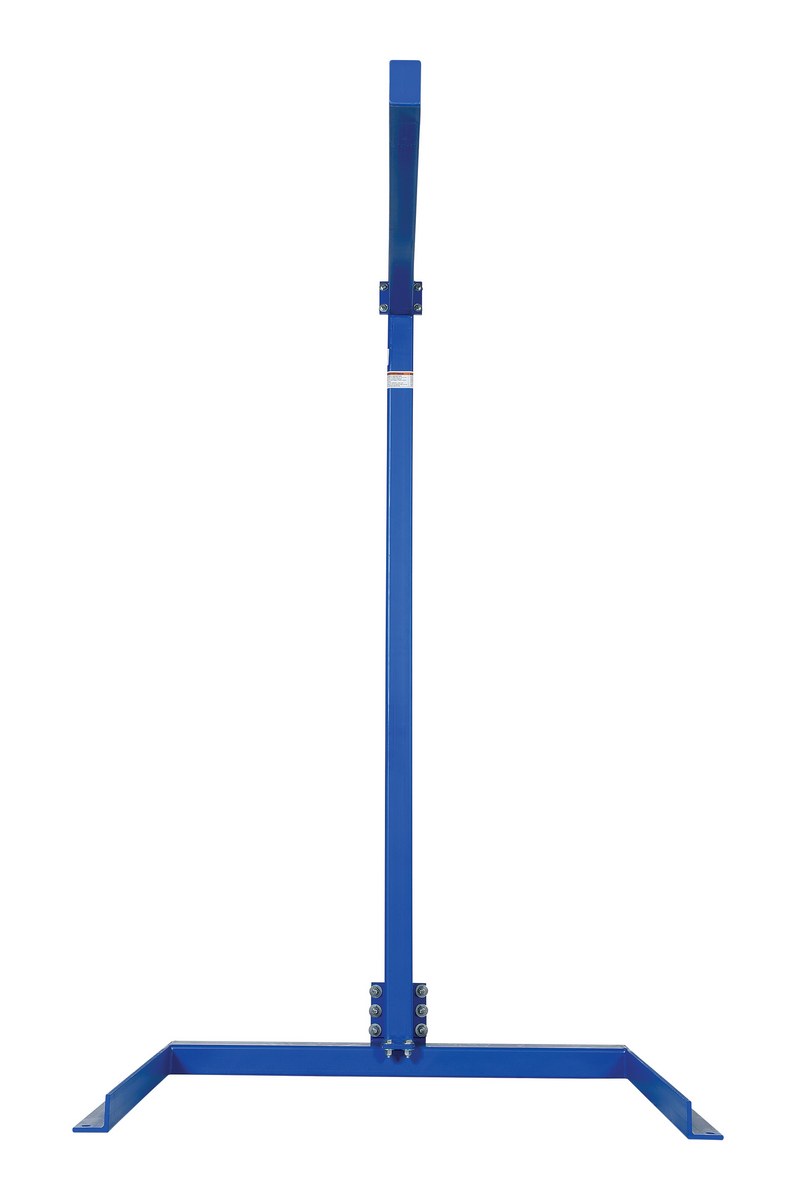

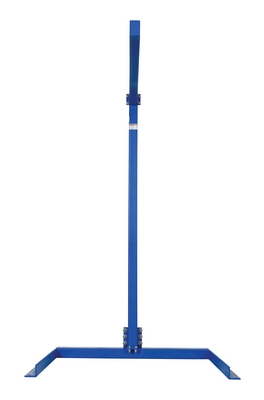

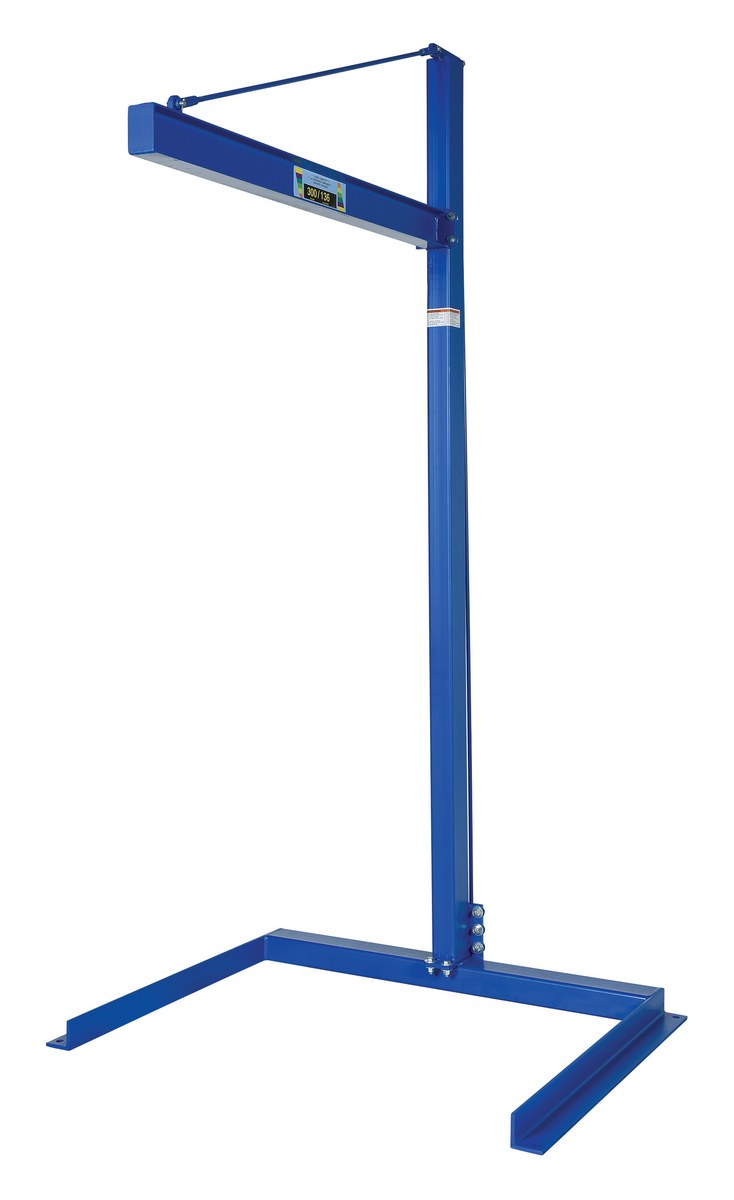

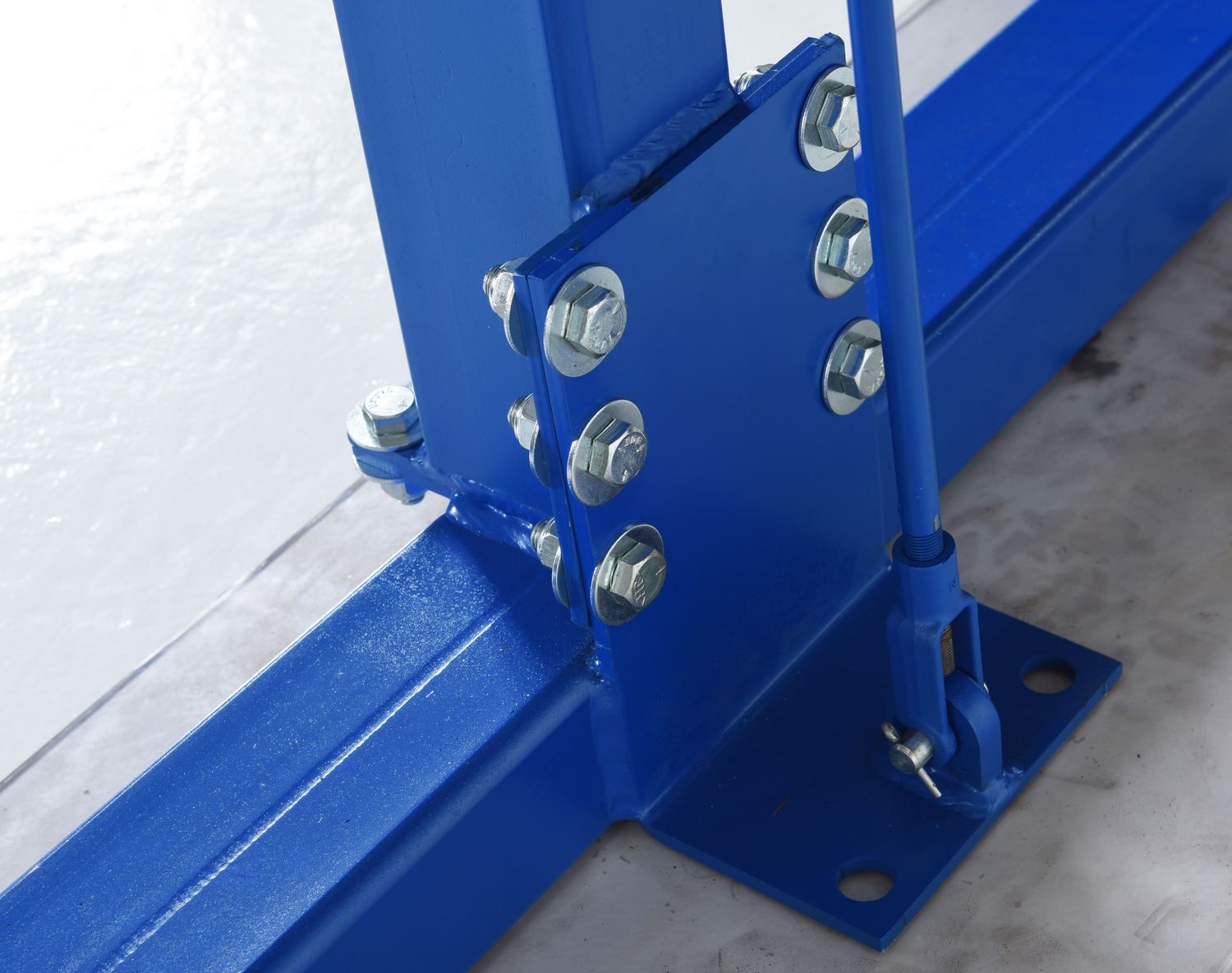

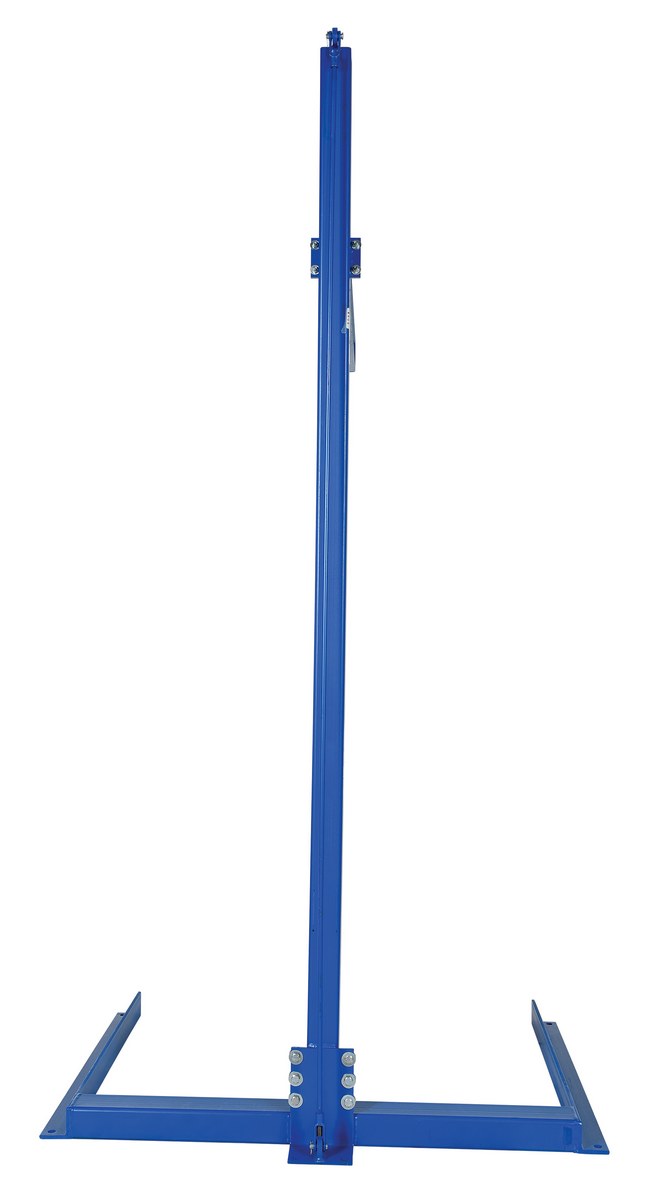

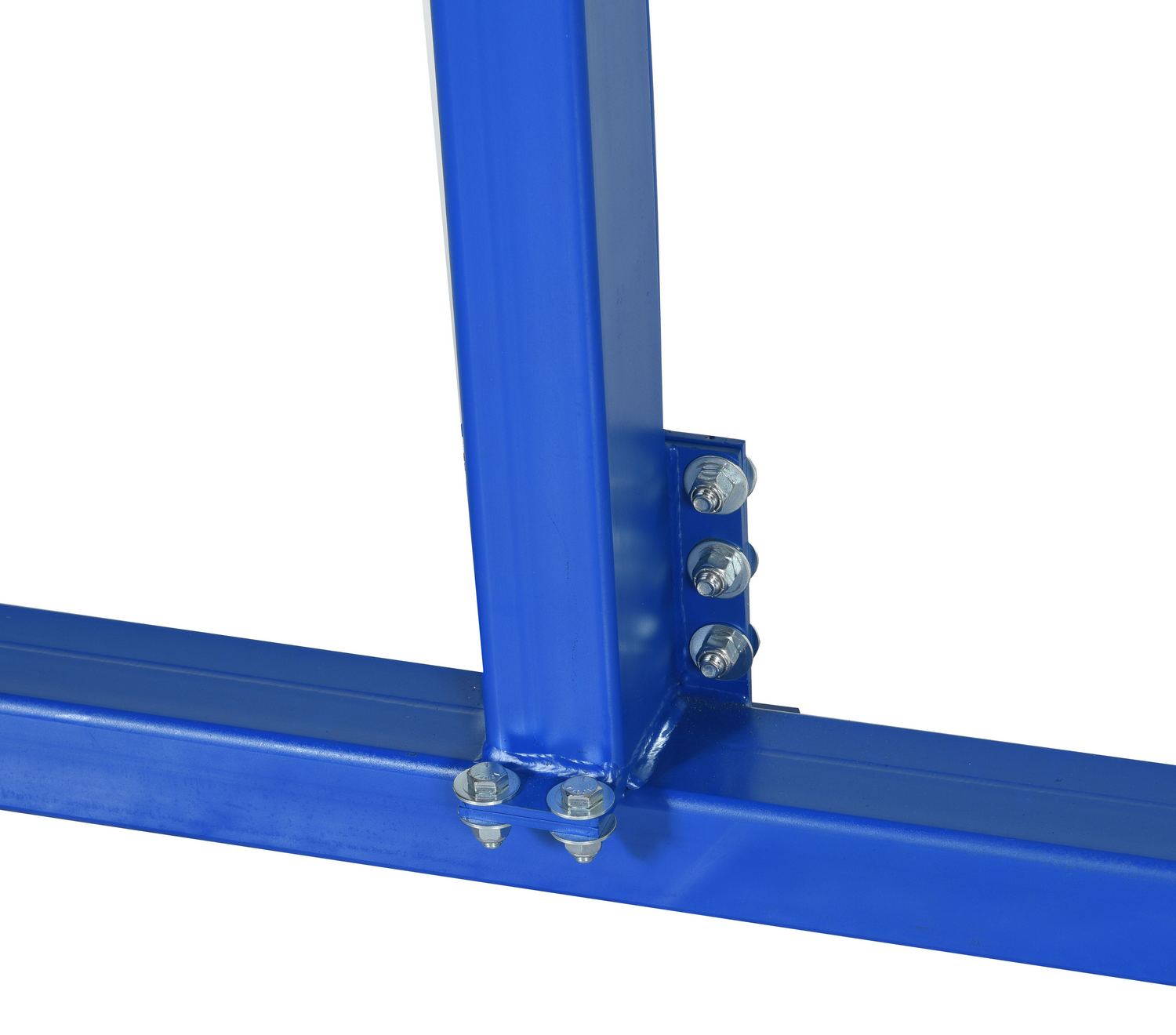

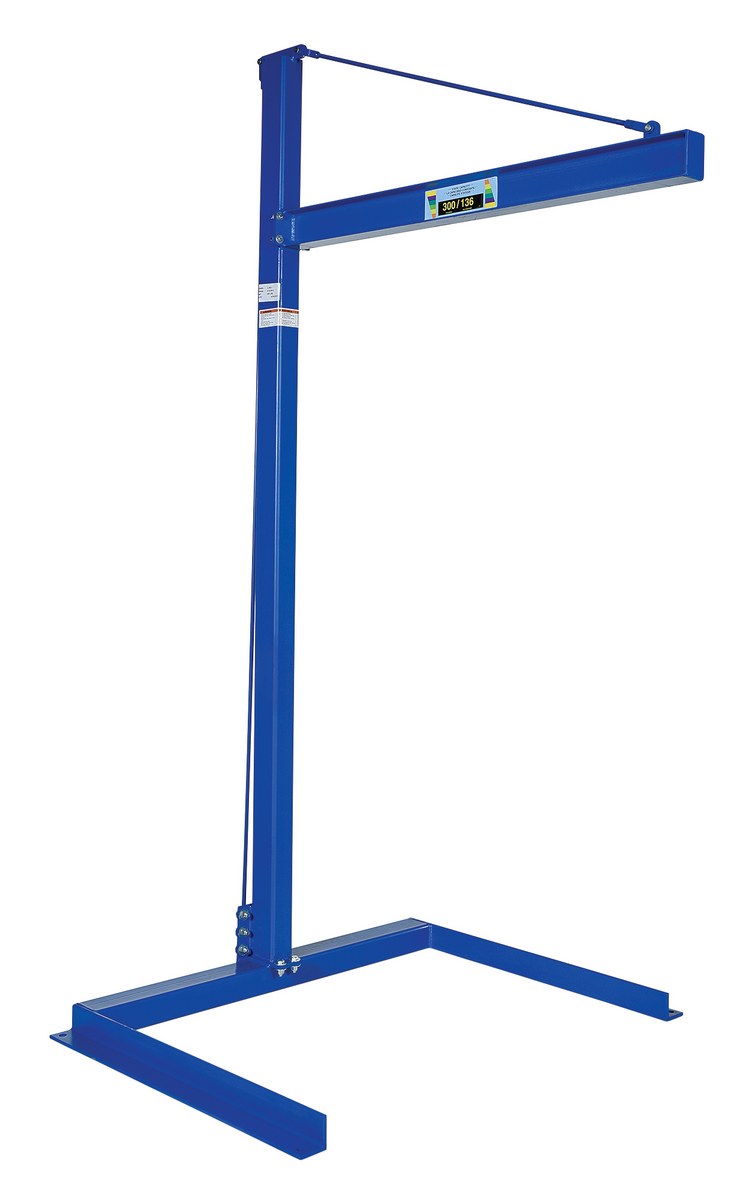

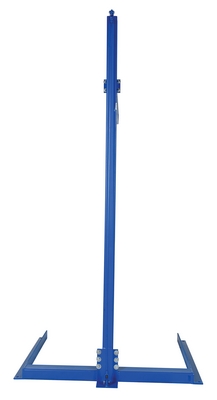

model: CJIB-3


SERIES: CJIB
Mini Overhead Cantilever Jibs

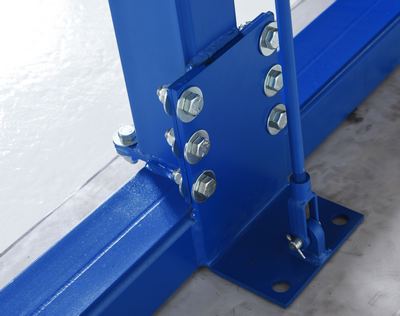

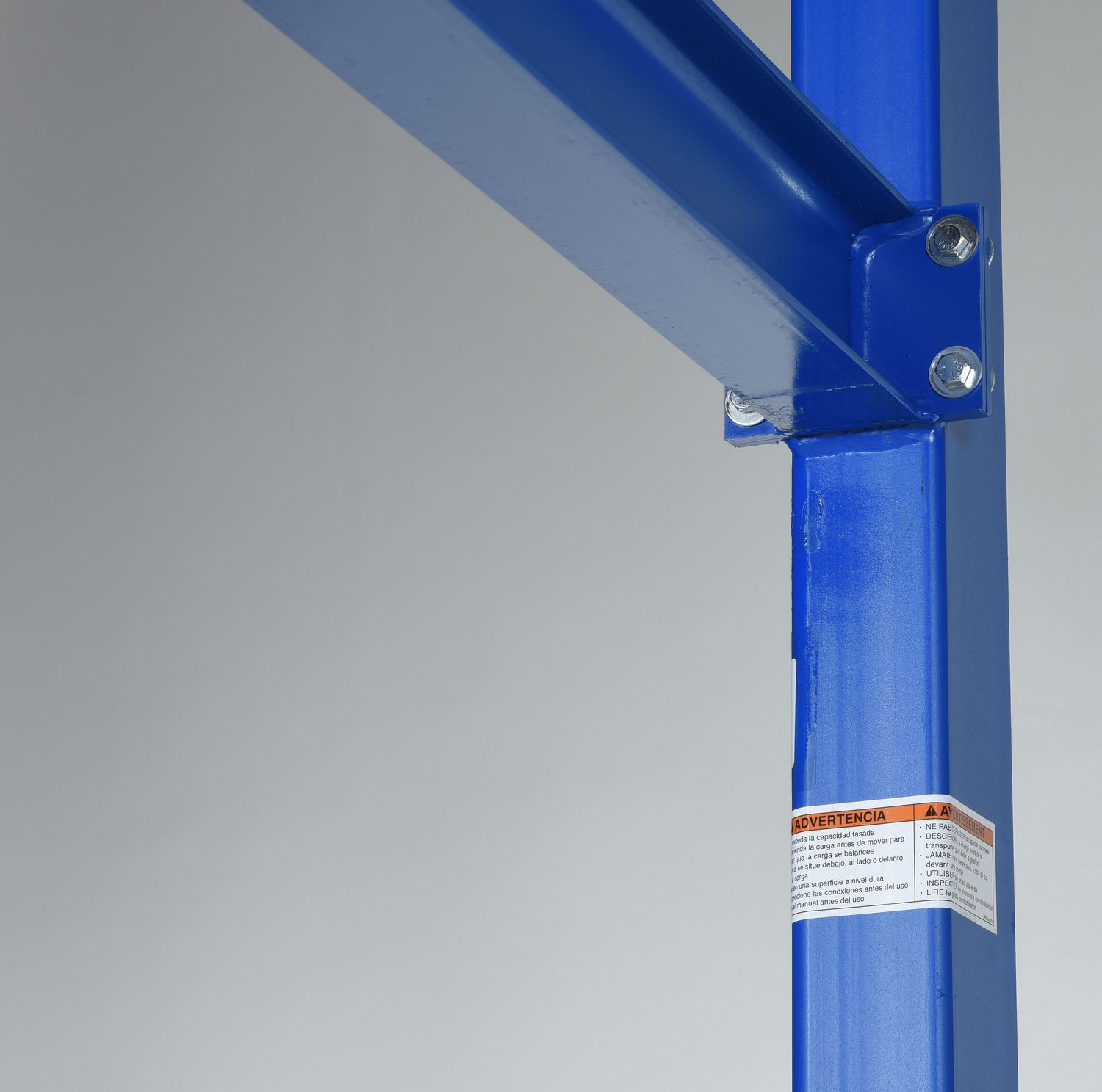

Utilize this unique jib in work cells and work areas. Unique fixed-height design allows for the 39-3/4" long outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Straddle width is 47-3/4" (ID). Hoist, trolley and cart not included. Steel construction. Durable blue powder coat finish.

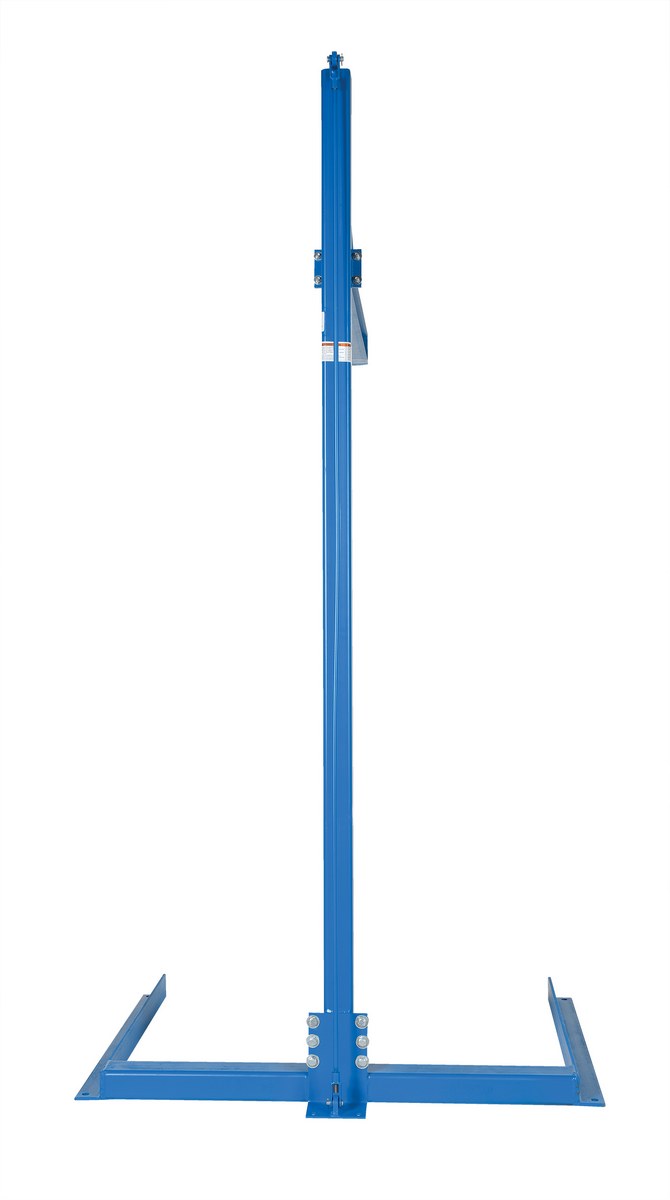

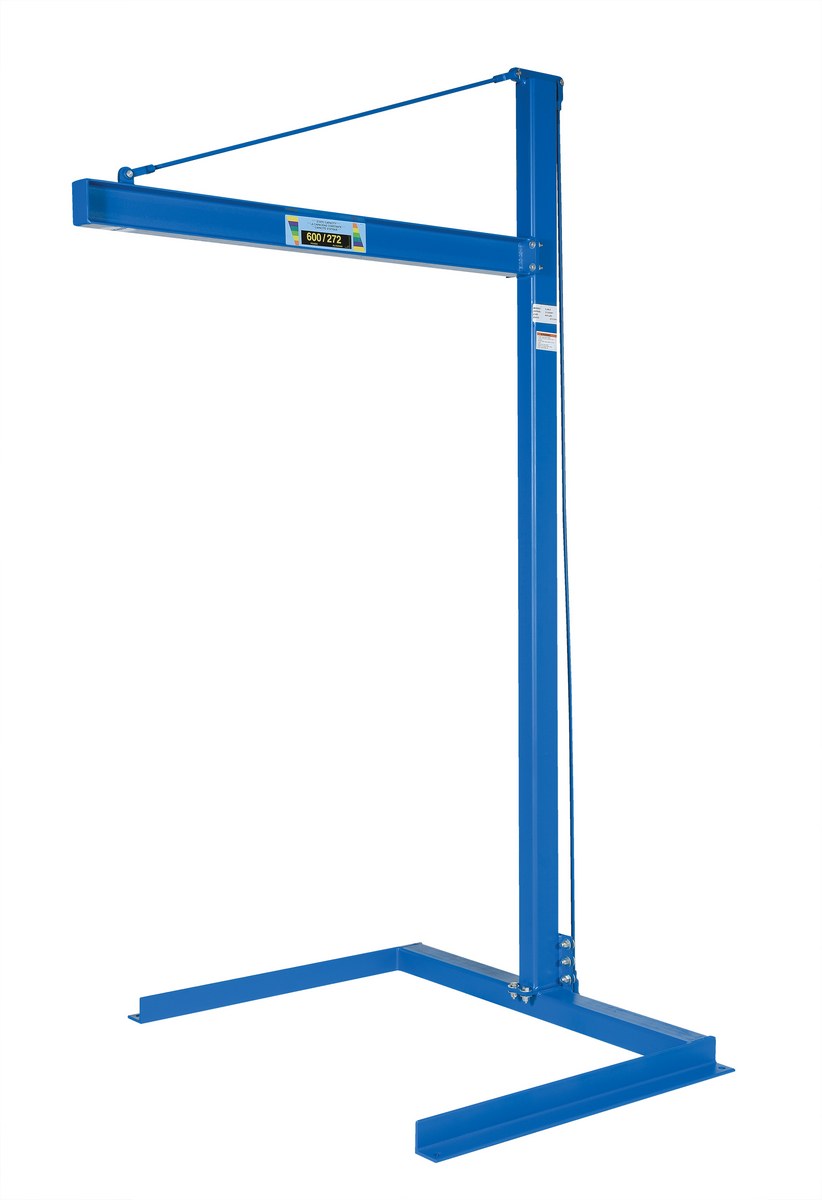

CJIB-6

model CJIB-6

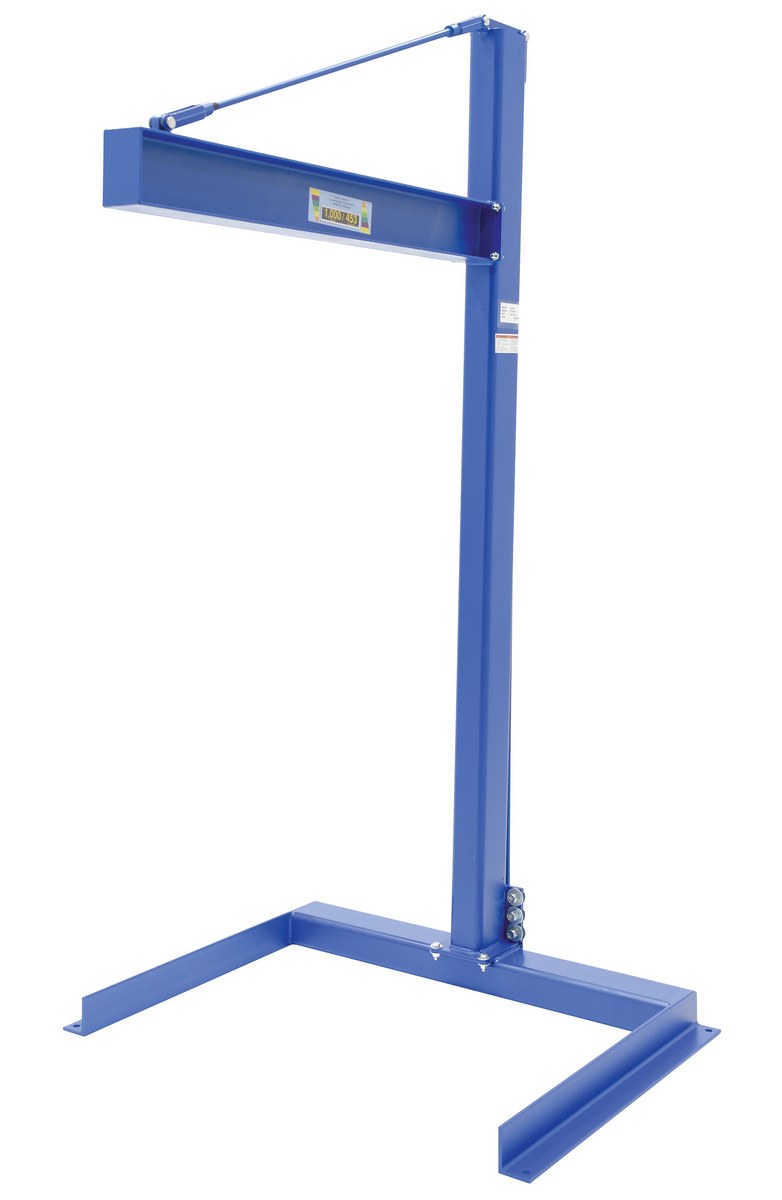

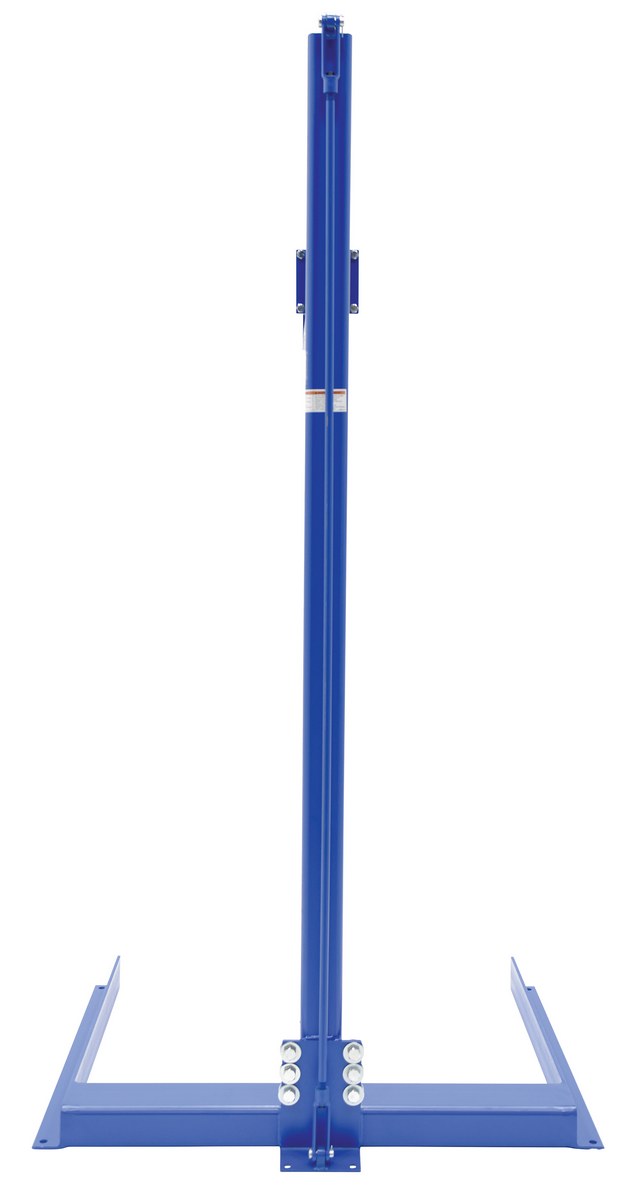

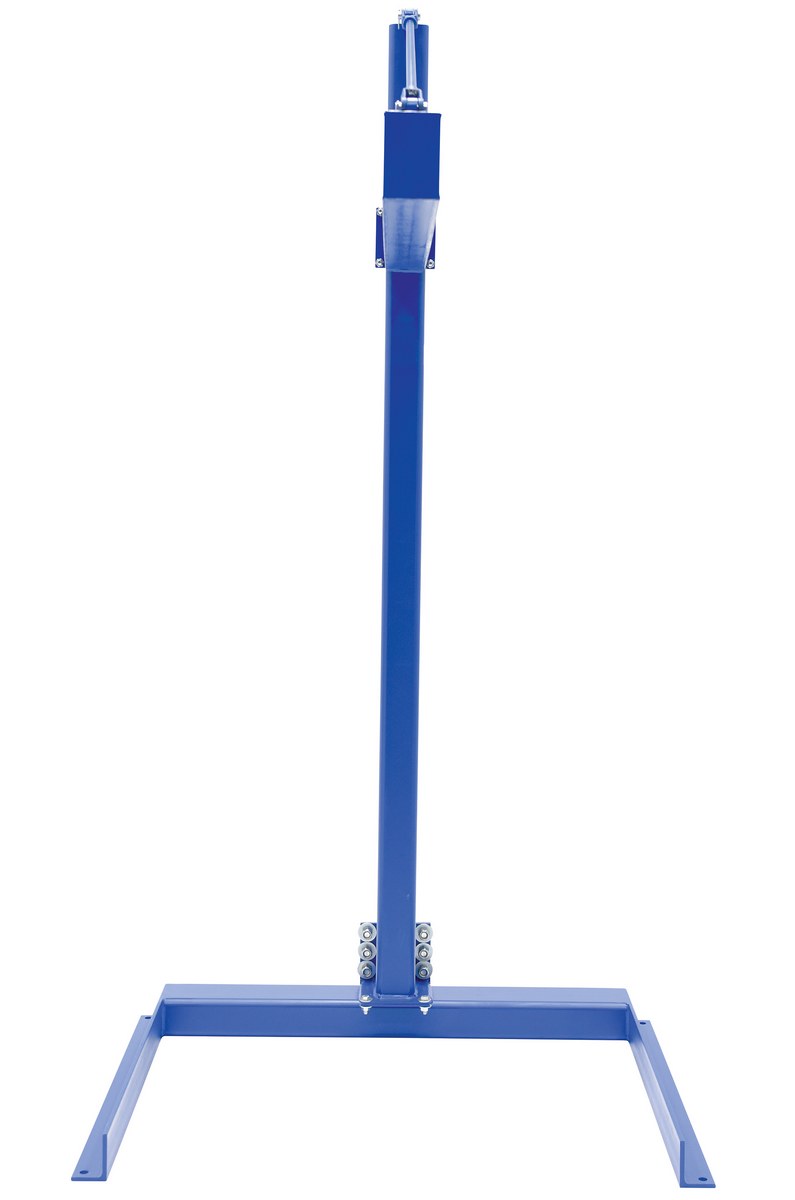

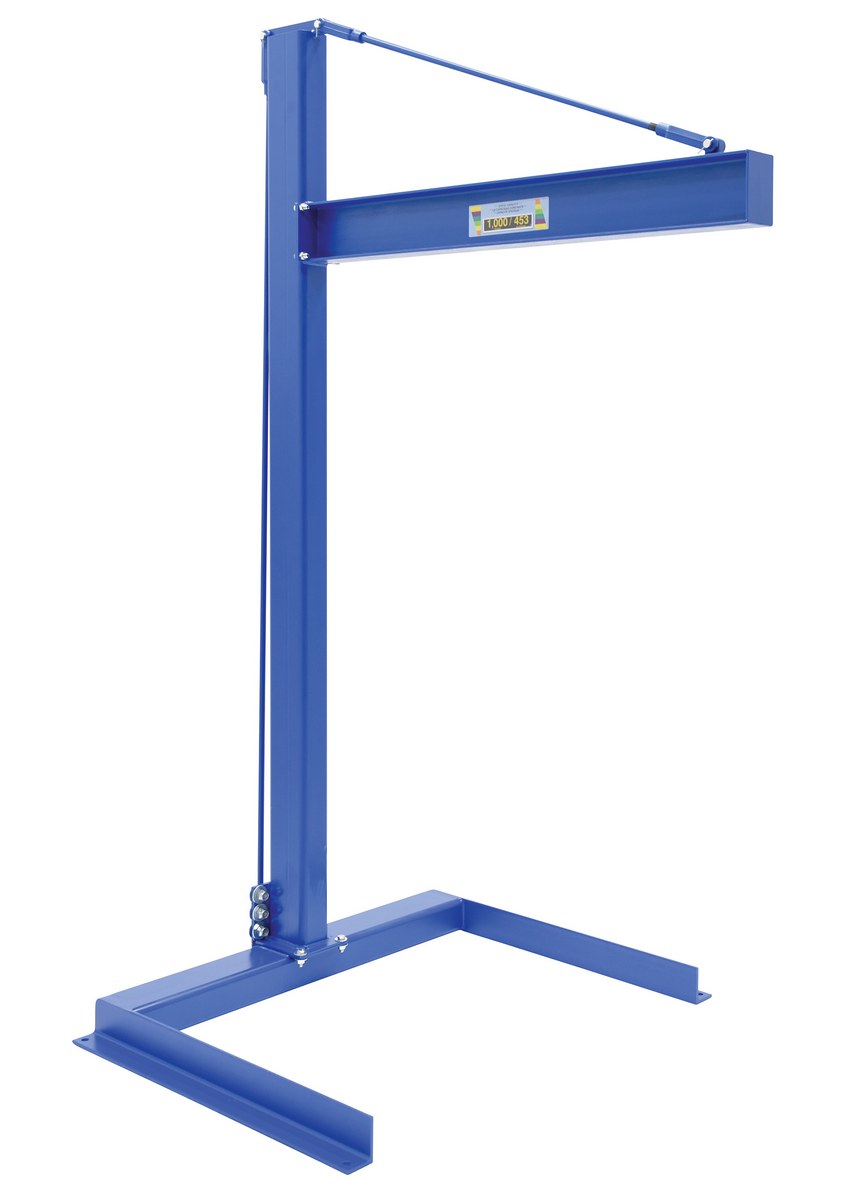

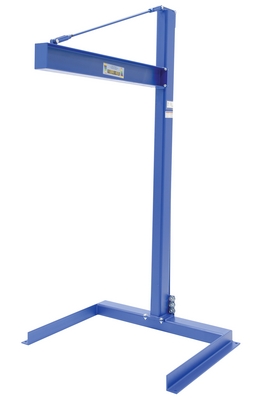

CJIB-10

model CJIB-10


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Mini Overhead Cantilever Jibs
Model PDF Under
I-Beam To
Ground
Overall
Height
I-Beam
Usable
Length
I-Beam
Flange
(WxL)
Capacity
(lbs)
Wt.
(lbs)
CJIB-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 84" 106-11/16" 54" 2.66"x4.00" 300 318
CJIB-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 84" 106-11/16" 54" 2.66"x4.00" 600 327
CJIB-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 78-1/2" 103-11/16" 54" 4.00"x6.00" 1,000 496

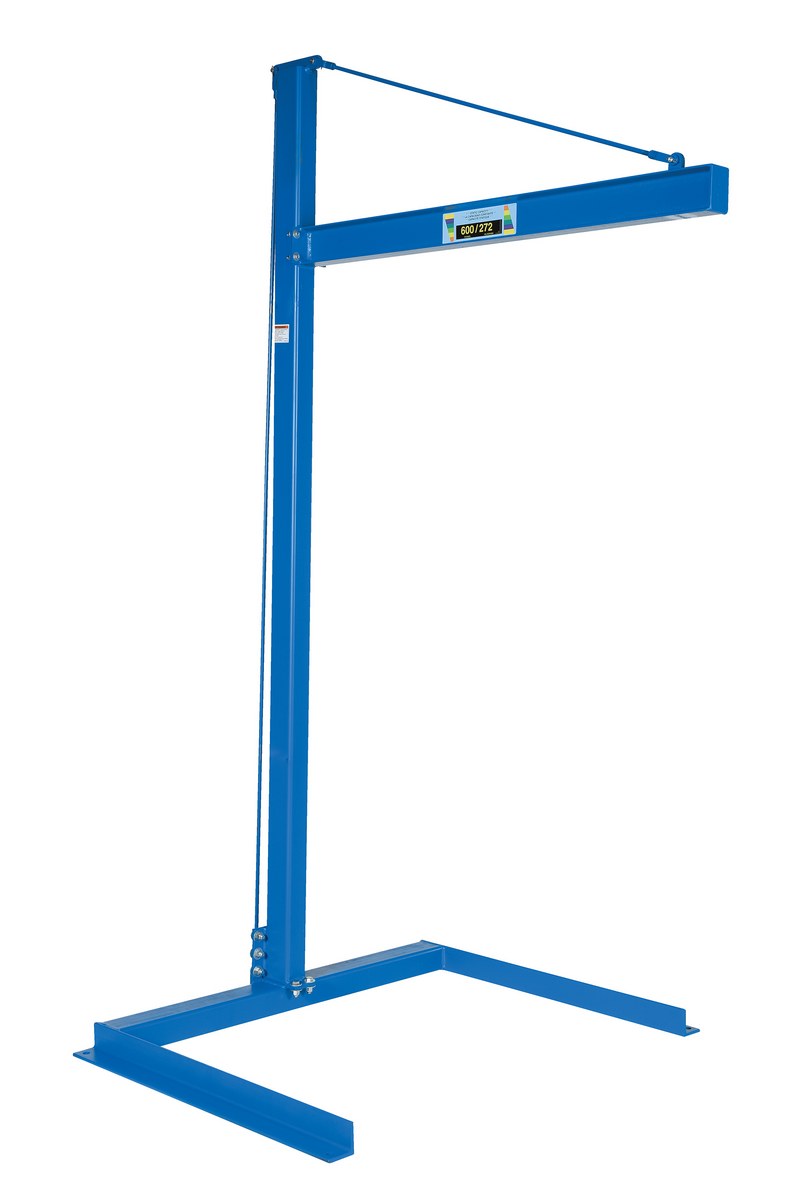

CJIB-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 78-1/2" 103-11/16" 54" 4.00"x6.00" 2,000 512

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

CJIB-10

CJIB-10

CJIB-20

CJIB-20

CJIB-3

CJIB-3

CJIB-6

CJIB-6






Mini Overhead Cantilever Jibs PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

CJIB-3
CJIB-6
CJIB-10
CJIB-20

Testing Certificates

CJIB-3
CJIB-6
CJIB-10
CJIB-20

Other PDF's

No "Other PDFs" For This Product...
