Click Image to Enlarge

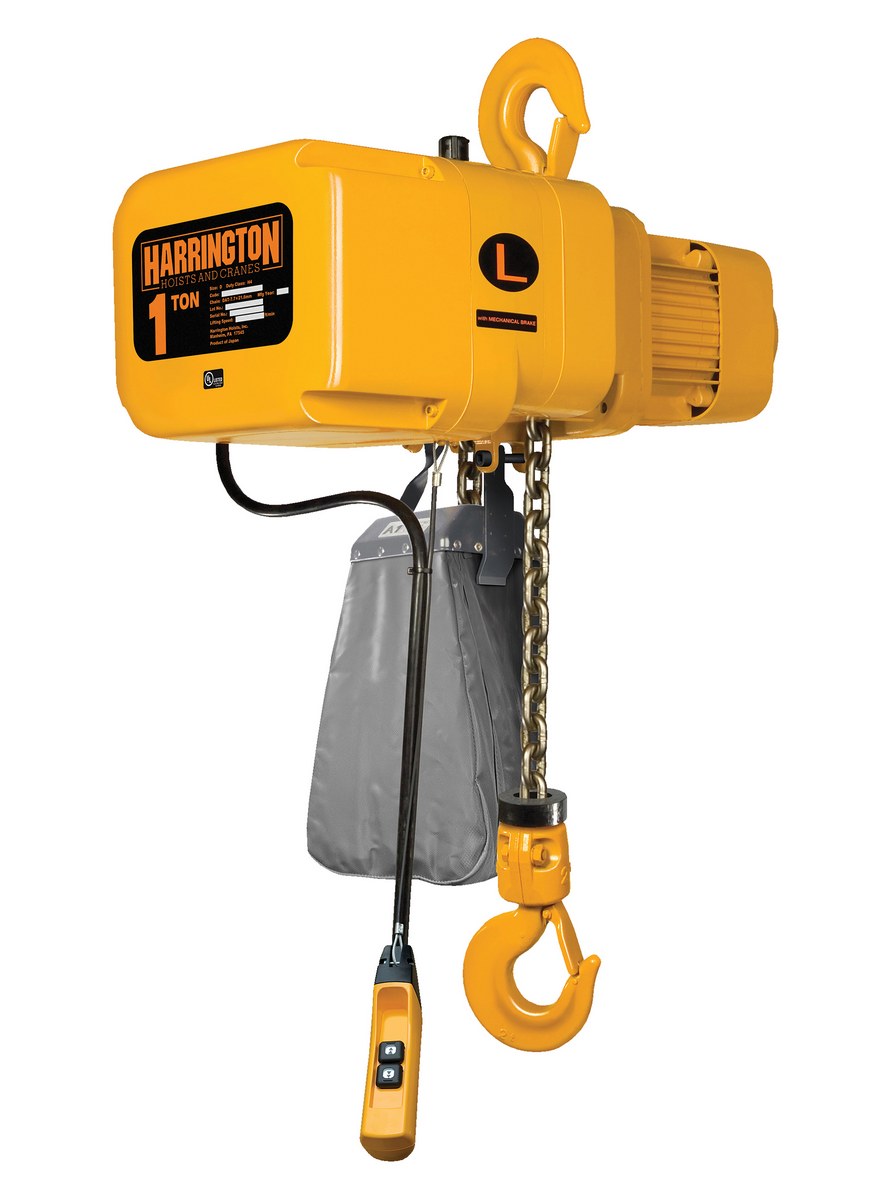

model: ECH-10-3PH


Electric Chain Hoists
SERIES: ECH

Ruggedly built with power to handle most industrial lifting applications. Includes push-button hand pendant with raise and lower functions on a 6' cord. Single and three phase AC power available. Optional Chain Container stores surplus chain overhead to keep from interfering with operation. Additional lifting heights and speeds available, contact factory. Single Phase units can be configured for 115 or 230 Volts. Contact factory for assistance.

Ruggedly built with power to handle most industrial lifting applications. Includes push-button hand pendant with raise and lower functions on a 6' cord. Single and three phase AC power available. Optional Chain Container stores surplus chain overhead to keep from interfering with operation. Additional lifting heights and speeds available, contact factory. Single Phase units can be configured for 115 or 230 Volts. Contact factory for assistance.

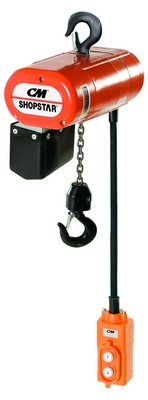

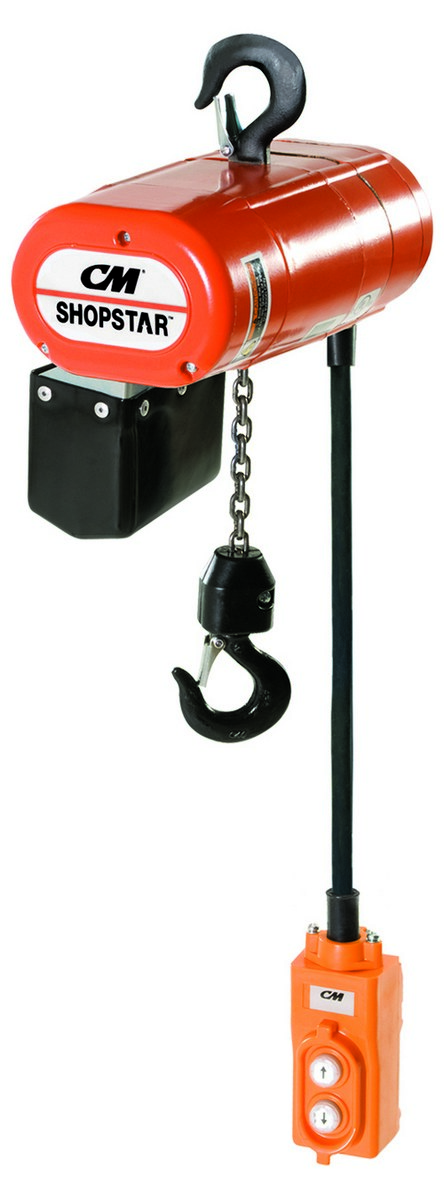

ECH-06

model ECH-06

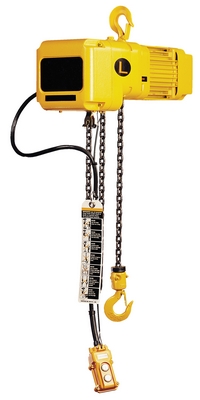

ECH-20-1PH

model ECH-20-1PH

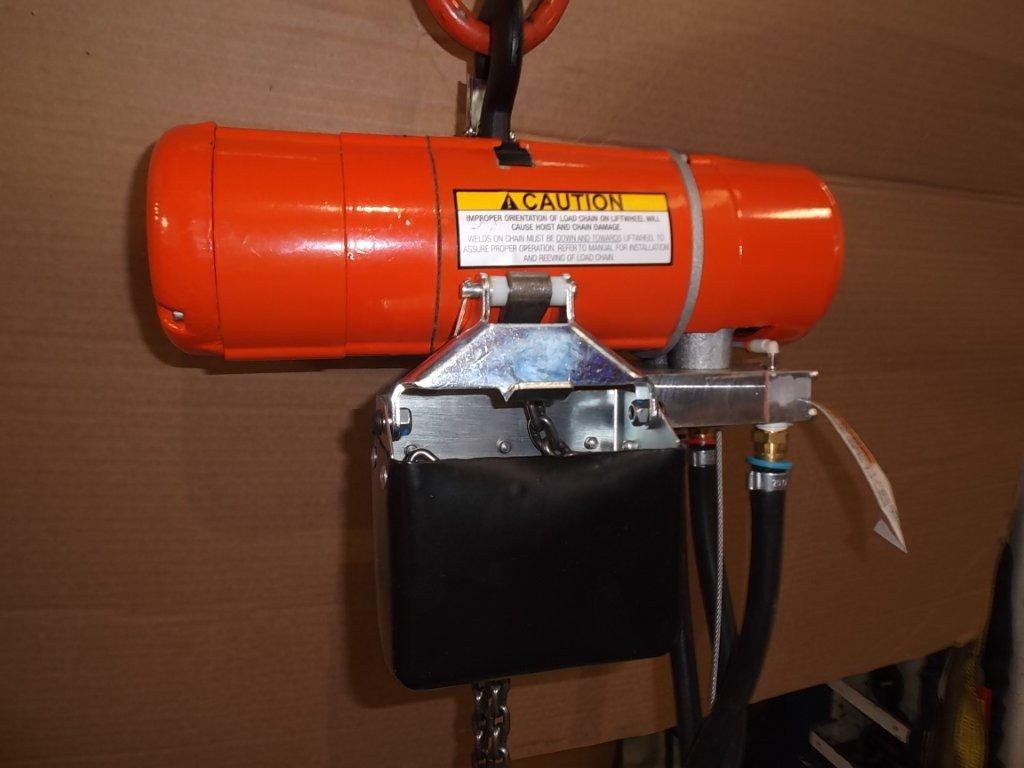

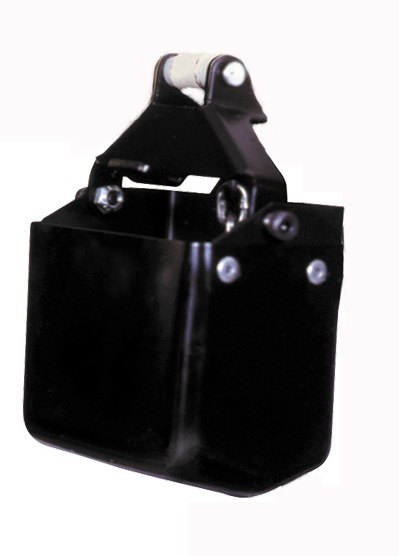

ECH-CC

model ECH-CC




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)

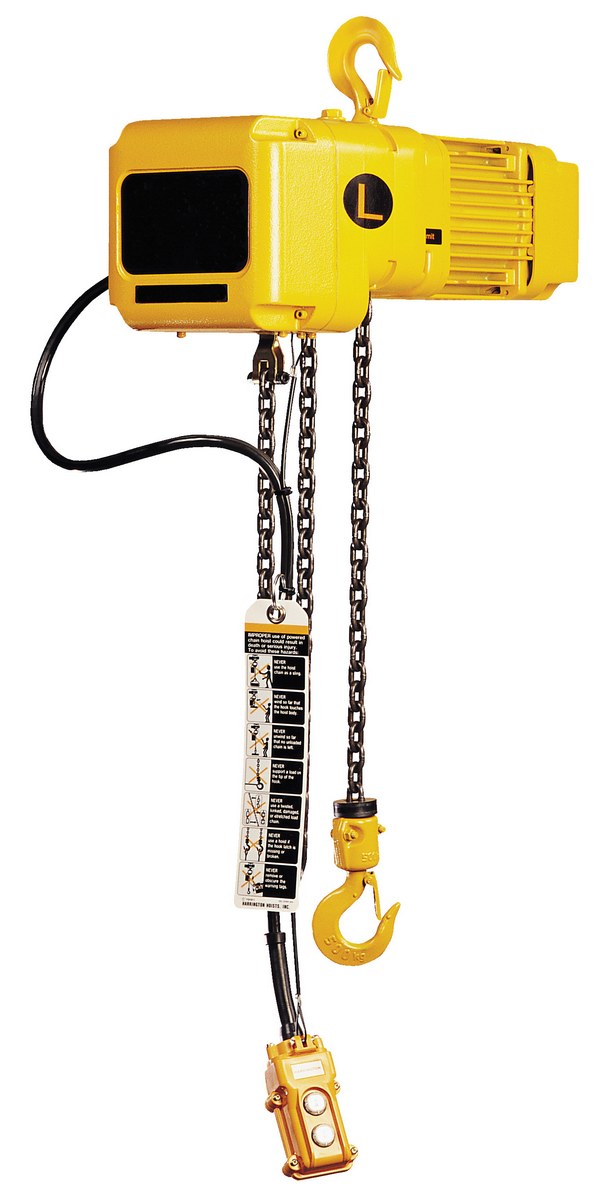

ECH-10-1PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST 1000 LB 1 PHASEUniform Capacity (lb.): 1,000
Standard Lift (ft.): 10
105
ECH-10-3PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST 1000 LB 3 PHASEUniform Capacity (lb.): 1,000
Standard Lift (ft.): 10
106
ECH-60-1PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST 6000 LB 1 PHASEUniform Capacity (lb.): 6,000
Standard Lift (ft.): 10
207
ECH-03 1 Year Limited WarrantyELECTRIC CHAIN HOIST 300 LB 1 PHASEUniform Capacity (lb.): 300
Standard Lift (ft.): 10
26
ECH-06 1 Year Limited WarrantyELECTRIC CHAIN HOIST 600 LB 1 PHASEUniform Capacity (lb.): 600
Standard Lift (ft.): 10
28
ECH-100-3PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST 10000 LB 3 PHASEUniform Capacity (lb.): 10,000
Standard Lift (ft.): 10
315
ECH-20-1PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST 2000 LB 1 PHASEUniform Capacity (lb.): 2,000
Standard Lift (ft.): 10
122
ECH-20-3PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST 2000 LB 3 PHASEUniform Capacity (lb.): 2,000
Standard Lift (ft.): 10
122
ECH-40-1PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST 4000 LB 1 PHASEUniform Capacity (lb.): 4,000
Standard Lift (ft.): 10
152
ECH-40-3PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST 4000 LB 3 PHASEUniform Capacity (lb.): 4,000
Standard Lift (ft.): 10
152

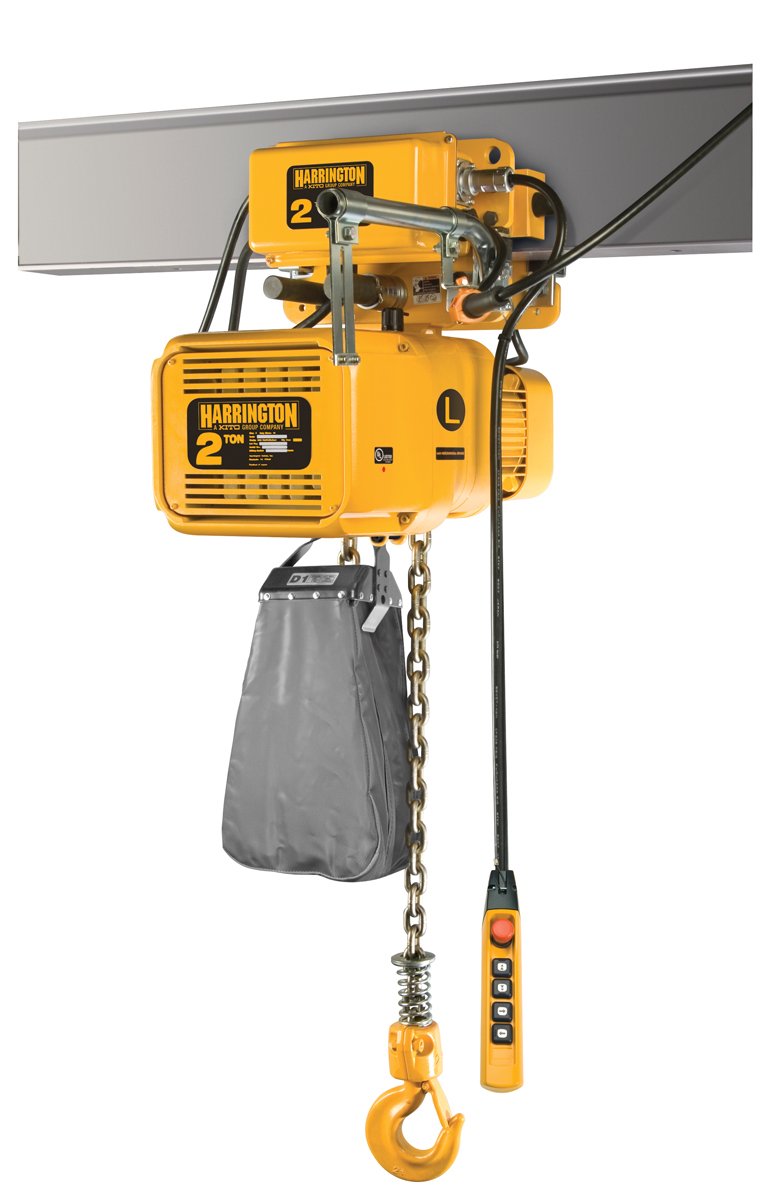

ECH-40-DS-3PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST-4000 LB 3 PHASEUniform Capacity (lb.): 4,000
Supply Power: 460v 3-Ph
ECH-60-3PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST 6000 LB 3 PHASEUniform Capacity (lb.): 6,000
Standard Lift (ft.): 10
269
ECH-80-3PH 1 Year Limited WarrantyELECTRIC CHAIN HOIST 8000 LB 3 PHASEUniform Capacity (lb.): 8,000
Standard Lift (ft.): 10
306

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Model Image PDFs Description Wt (lbs.)
ECH-CC Warranty PDFCompliance Certificate CHAIN CONTAINER (FOR 300 TO 600 LB UNITS ONLY) 2
ECH-CC-K
Warranty PDFCompliance Certificate CHAIN CONTAINER FOR 1,000 TO 4,000 LB UNITS ONLY 5
ECH-CC-6-K
Warranty PDFCompliance Certificate CHAIN CONTAINER FOR 6,000 LB UNIT ONLY 6
ECH-CC-810-K
Warranty PDFCompliance Certificate CHAIN CONTAINER FOR 8,000 TO 10,000 LB UNITS ONLY 7

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Electric Chain Hoists PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Electric Chain Hoists




Ruggedly built with power to handle most industrial lifting applications. Includes push-button hand pendant with raise and lower functions on a 6' cord. Single and three phase AC power available. Optional Chain Container stores surplus chain overhead to keep from interfering with operation. Additional lifting heights and speeds available, contact factory. Single Phase units can be configured for 115 or 230 Volts. Contact factory for assistance.


Electric Chain Hoists
Model Image PDFs Standard
Lift (Ft.)
Feet Per
Minute
Head
Room
Capacity
(lbs.)
Wt.
(lbs)
ECH-03 Warranty PDFCompliance Certificate 10' 16 11-1/16" 300 26
ECH-06 Warranty PDFCompliance Certificate 10' 8 11-1/16" 600 28
ECH-10-1PH icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 10' 15 14" 1,000 105
ECH-20-1PH Warranty PDFCompliance Certificate 10' 14 16" 2,000 122
ECH-40-1PH Warranty PDFCompliance Certificate 10' 7 22-1/2" 4,000 152
ECH-60-1PH icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 10' 3.5 29-1/2" 6,000 207
ECH-10-3PH icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 10' 15 14" 1,000 106
ECH-20-3PH Warranty PDFCompliance Certificate 10' 14 16" 2,000 122
ECH-40-3PH Warranty PDFCompliance Certificate 10' 14 22" 4,000 152
ECH-60-3PH Warranty PDFCompliance Certificate 10' 17 26" 6,000 269
ECH-80-3PH Warranty PDFCompliance Certificate 10' 11 32" 8,000 306
ECH-100-3PH Warranty PDFCompliance Certificate 10' 11 32" 10,000 315

Options


Model Image PDFs Description Wt (lbs.)
ECH-CC Warranty PDFCompliance Certificate CHAIN CONTAINER (FOR 300 TO 600 LB UNITS ONLY) 2
ECH-CC-K
Warranty PDFCompliance Certificate CHAIN CONTAINER FOR 1,000 TO 4,000 LB UNITS ONLY 5

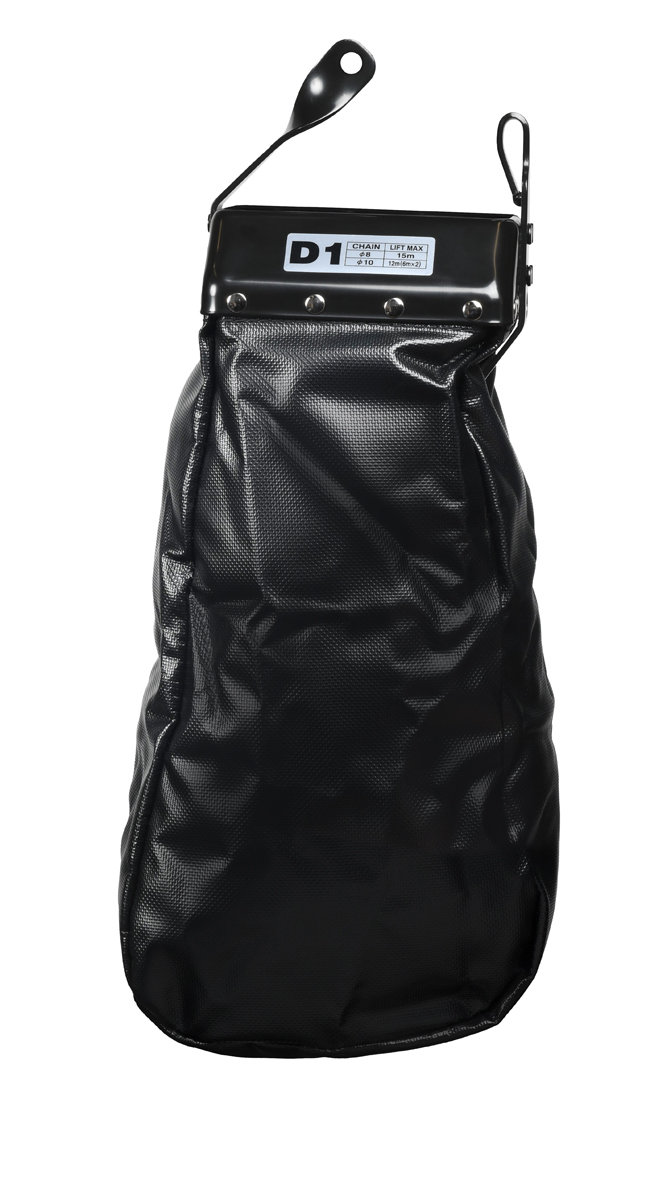

ECH-CC-6-K
Warranty PDFCompliance Certificate CHAIN CONTAINER FOR 6,000 LB UNIT ONLY 6
ECH-CC-810-K
Warranty PDFCompliance Certificate CHAIN CONTAINER FOR 8,000 TO 10,000 LB UNITS ONLY 7
