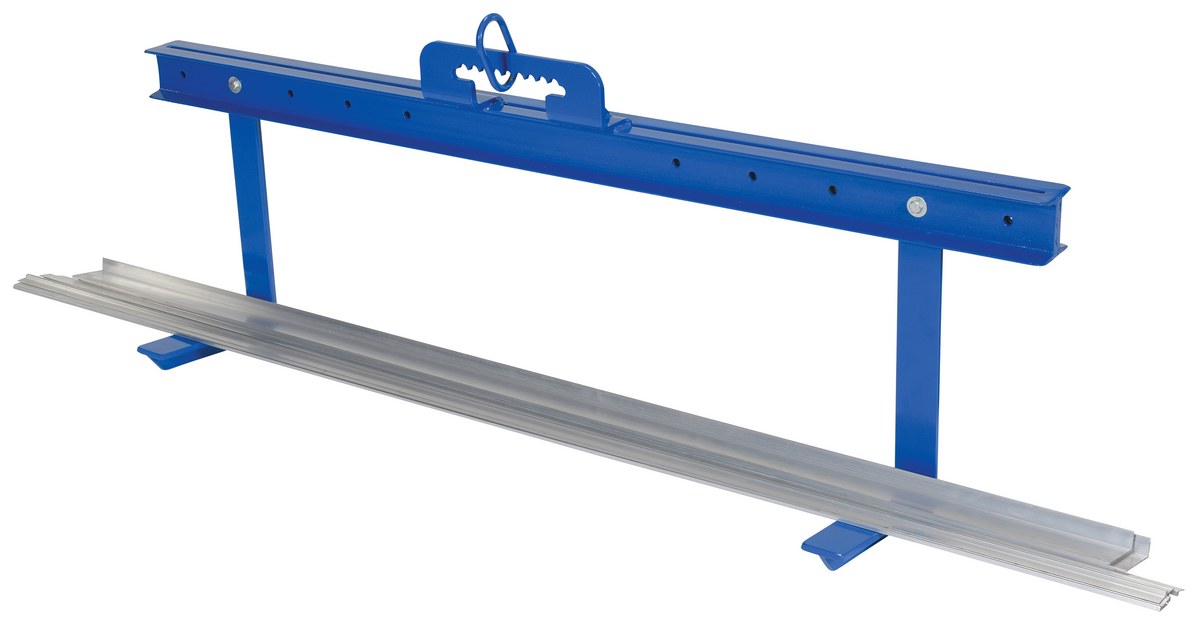

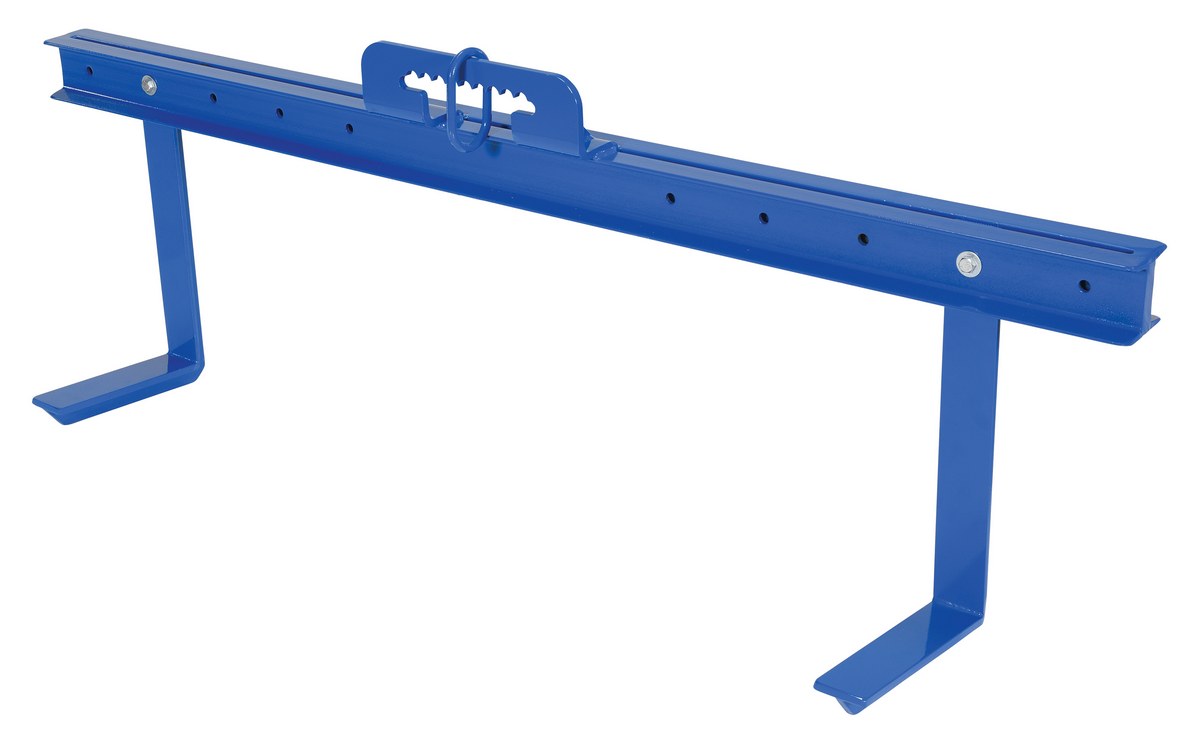

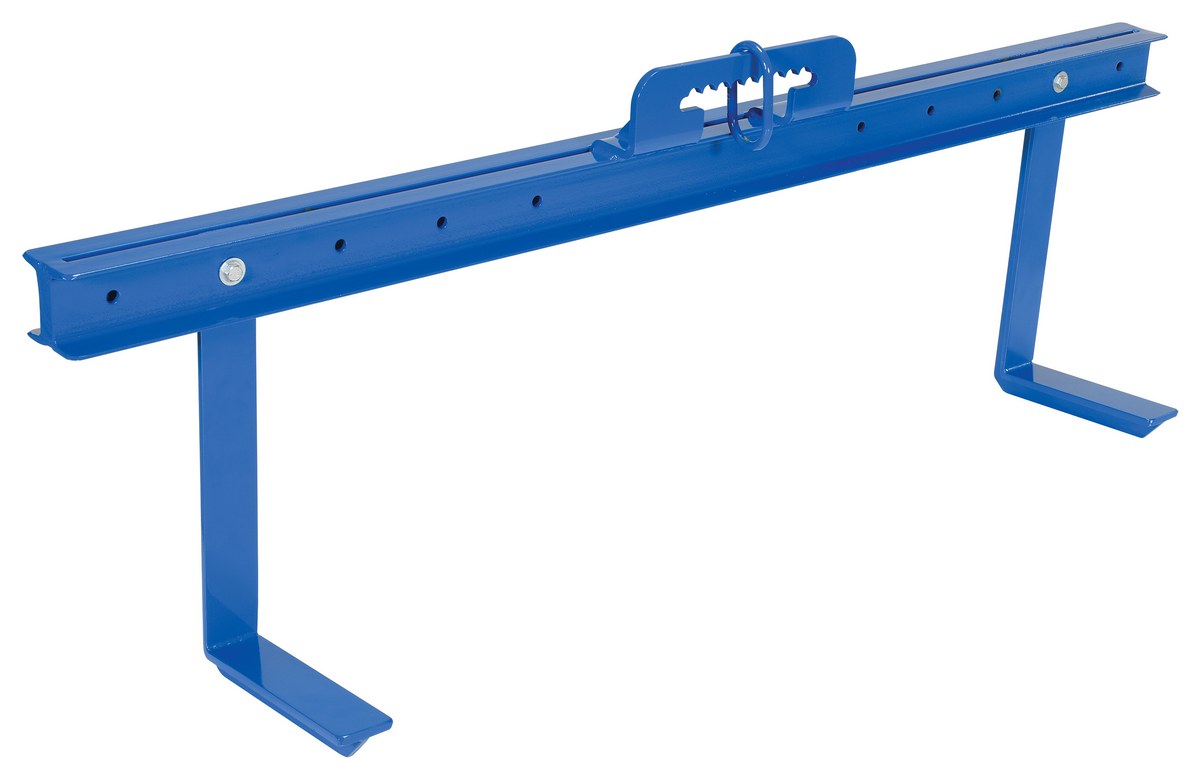

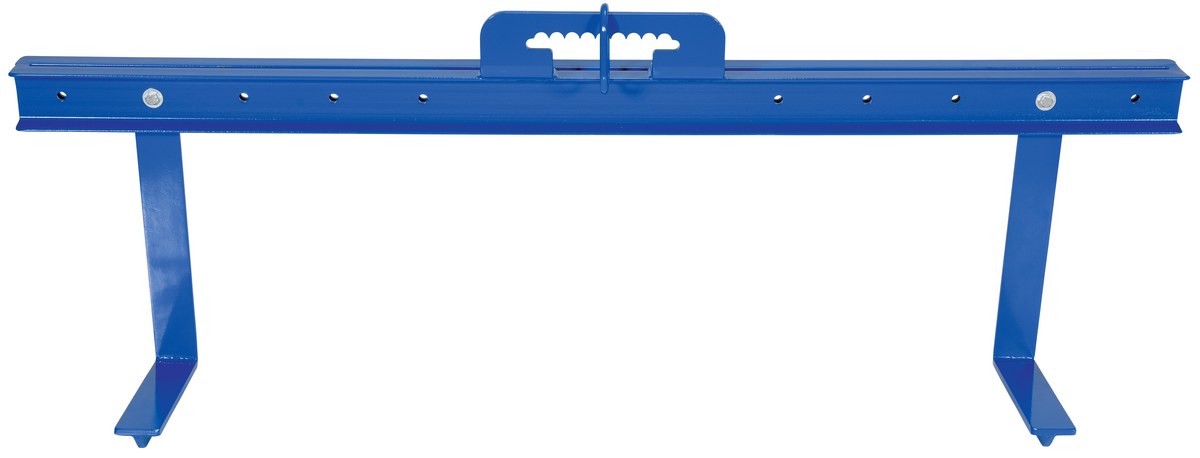

MATL-72_E.jpg MATL-72_A.jpg MATL-72_B.jpg MATL-72_C.jpg
Bar Stock Material Positioners

model: MATL-72



Featured Overhead Lifting


Lifter Jibs
Overhead Load Lifters
Hoist Trailer
Short Span Steel Lifting Plate
Portable Jib Cranes
Adjustable Steel Gantry Cranes with Total Locking Casters - Knockdown
Sheet Handlers
Clamps & Tongs
Positive Locking Plate Clamps
model chart

Product Family Overview

Print Friendly
Bar Stock Material Positioners
SERIES: MATL

Bar-stock material positioners. Includes two adjustable-width lifting arms. Lifting arm width is adjustable in 6" increments along entire span. Lifting arm usable height is 18" while the length is 12". Arms are sloped back for material retention. Features adjustable overhead lifting bale for leveling load.

  • Unique design safely positions material where needed
  • Adjustable lifting bale allows user to level out load when lifting
  • Two adjustable-width lifting arms work with different sized loads
  • Sloped back arms help improve material retention

Bar-stock material positioners. Includes two adjustable-width lifting arms. Lifting arm width is adjustable in 6" increments along entire span. Lifting arm usable height is 18" while the length is 12". Arms are sloped back for material retention. Features adjustable overhead lifting bale for leveling load.

  • Unique design safely positions material where needed
  • Adjustable lifting bale allows user to level out load when lifting
  • Two adjustable-width lifting arms work with different sized loads
  • Sloped back arms help improve material retention

Other Overhead Load Lifters

 Reel Lifter Coil Lifter Overhead Self Dumping Bin Pallet Lifters

Additional Models In This Family
view entire Image Gallery

MATL-ARM

model MATL-ARM

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

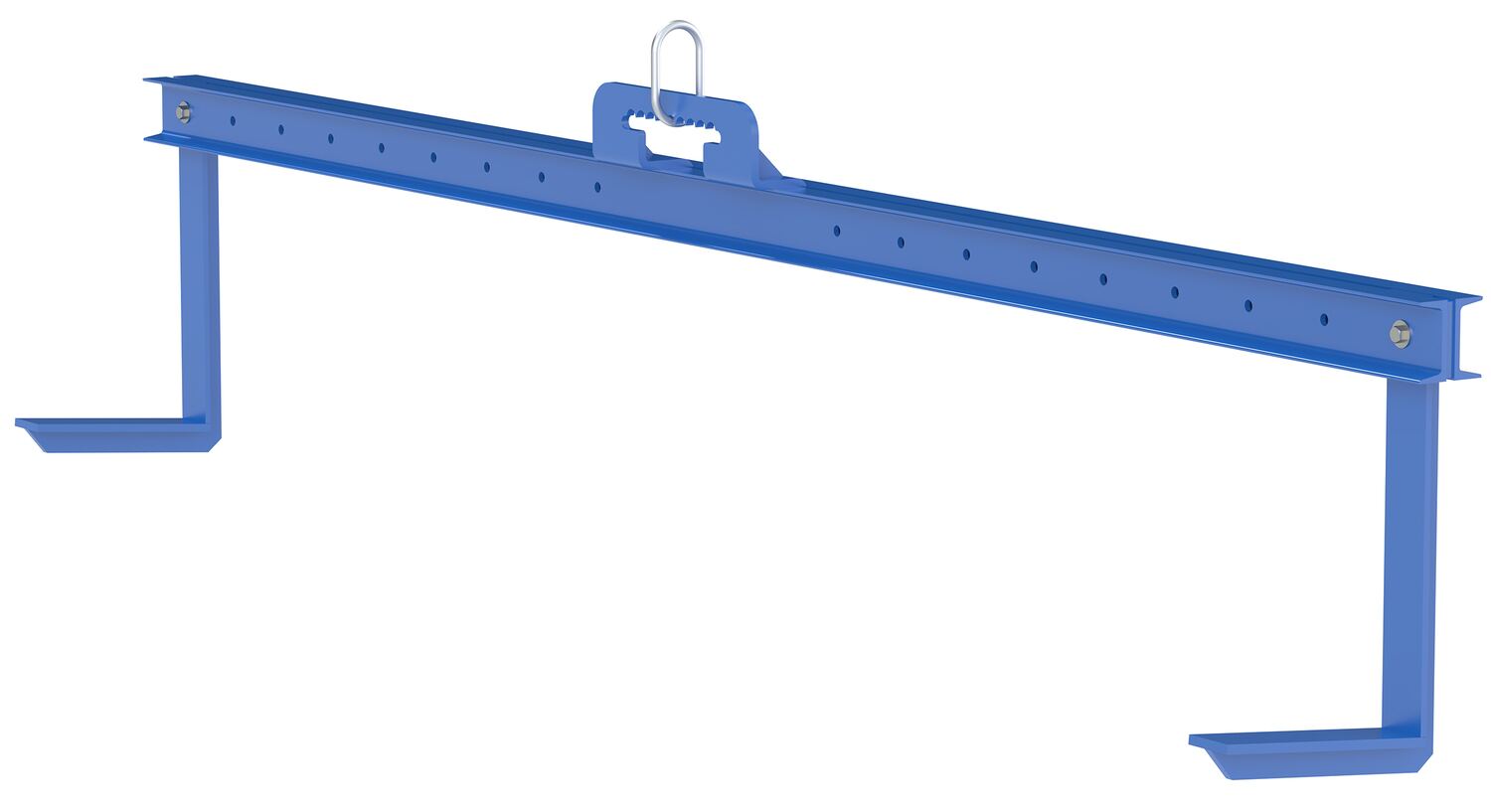

MATL-120 MATL-12090 Days Limited WarrantySteel Bar Stock Material Positioned Arm 126 In. x 14 In. x 27-3/16 In. BlueUniform Capacity (lb.): 2,000
Maximum Arm Width (in.): 120		280

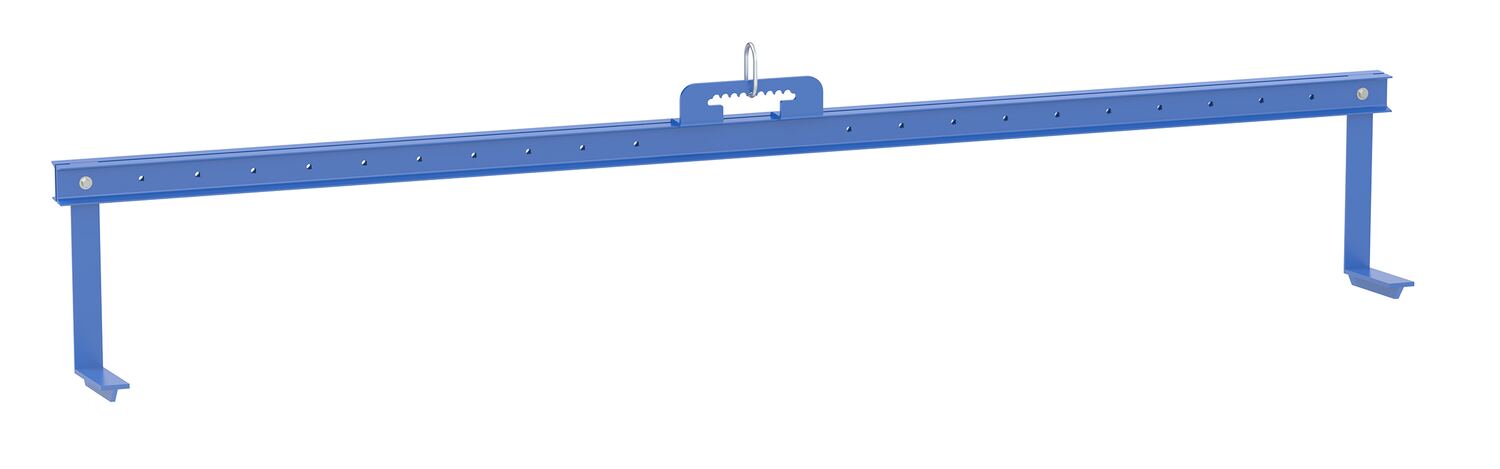

MATL-144 MATL-14490 Days Limited WarrantySteel Bar Stock Material Positioned Arm 144 In. x 14 In. x 27-3/16 In. BlueUniform Capacity (lb.): 2,000
Maximum Arm Width (in.): 144		320
MATL-72 MATL-7290 Days Limited WarrantySteel Bar Stock Material Positioned Arm 72 In. x 14 In. x 27-3/16 In. BlueUniform Capacity (lb.): 2,000
Maximum Arm Width (in.): 72		186

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

MATL-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Maximum Arm Width (in.): 120
Uniform Capacity (lb.): 2,000
Maximum Arm Width (in.): 120

MATL-144
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Maximum Arm Width (in.): 144
Uniform Capacity (lb.): 2,000
Maximum Arm Width (in.): 144

MATL-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Maximum Arm Width (in.): 72
Uniform Capacity (lb.): 2,000
Maximum Arm Width (in.): 72
For More Details of the Option Click the Red Model Button

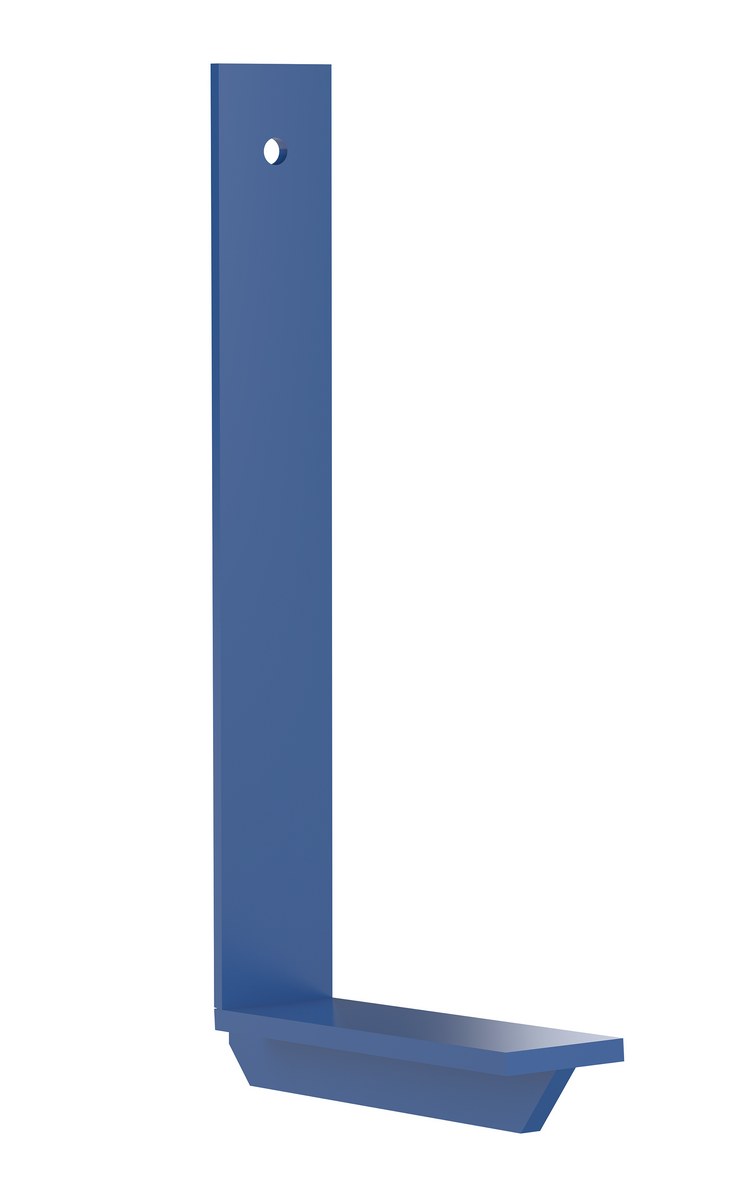

MATL-ARM MATL-ARM90 Days Limited WarrantySteel Bar Stock Additional Lifting Arm 3 In. x 14 In. x 23-15/16 In. BlueFor Use with: MATL-144
35

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Bar Stock Material Positioners PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


MATL-120

MATL-144

MATL-72

MATL-ARM

Testing Certificates


MATL-120

MATL-144

MATL-72

MATL-ARM

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
