SERIES: H-TRAIL

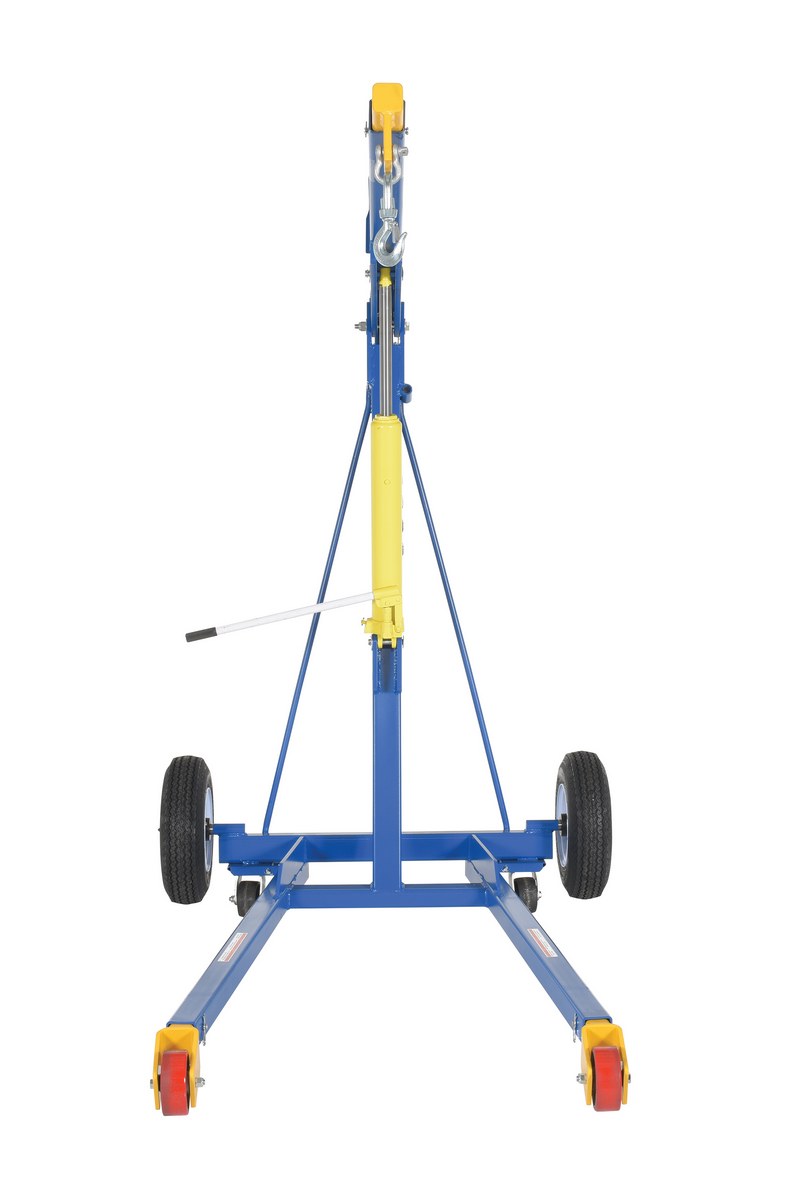

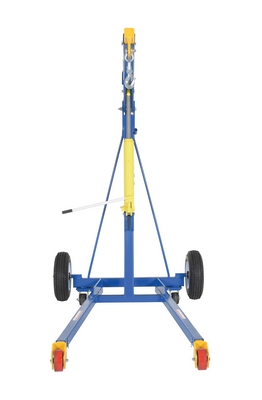

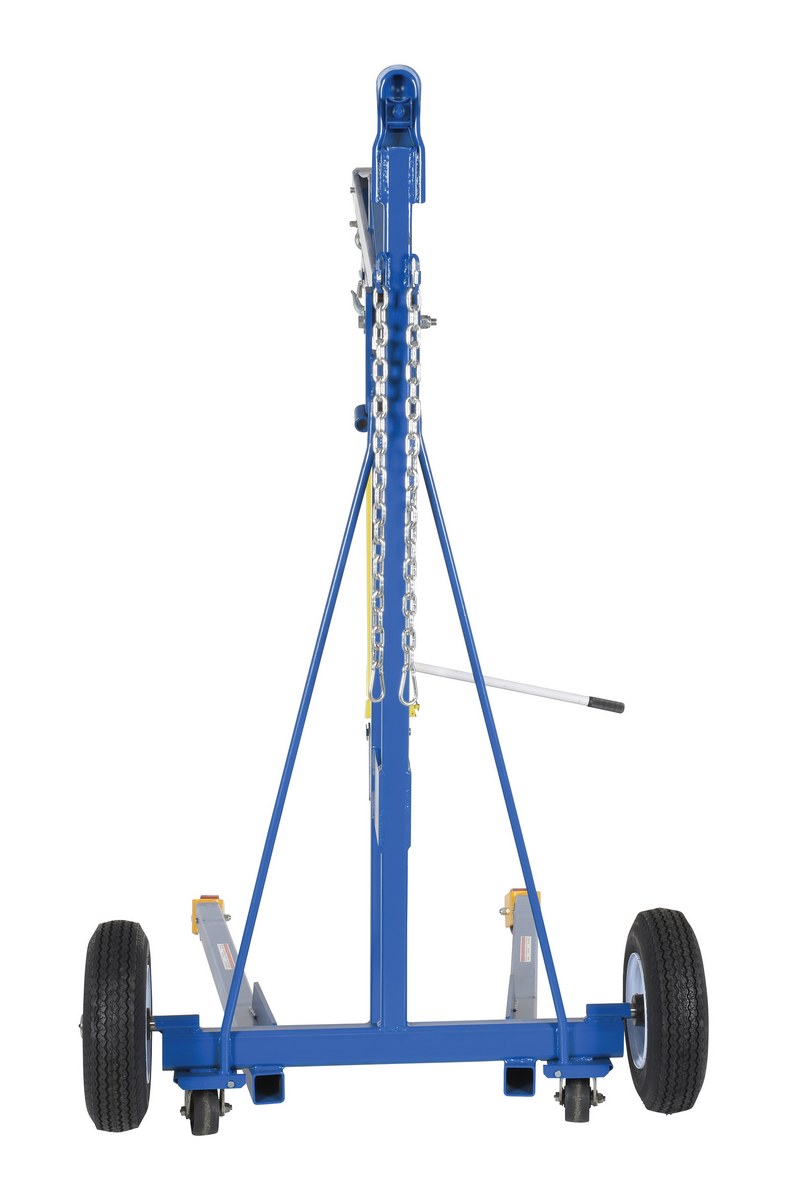

Hoist Trailer

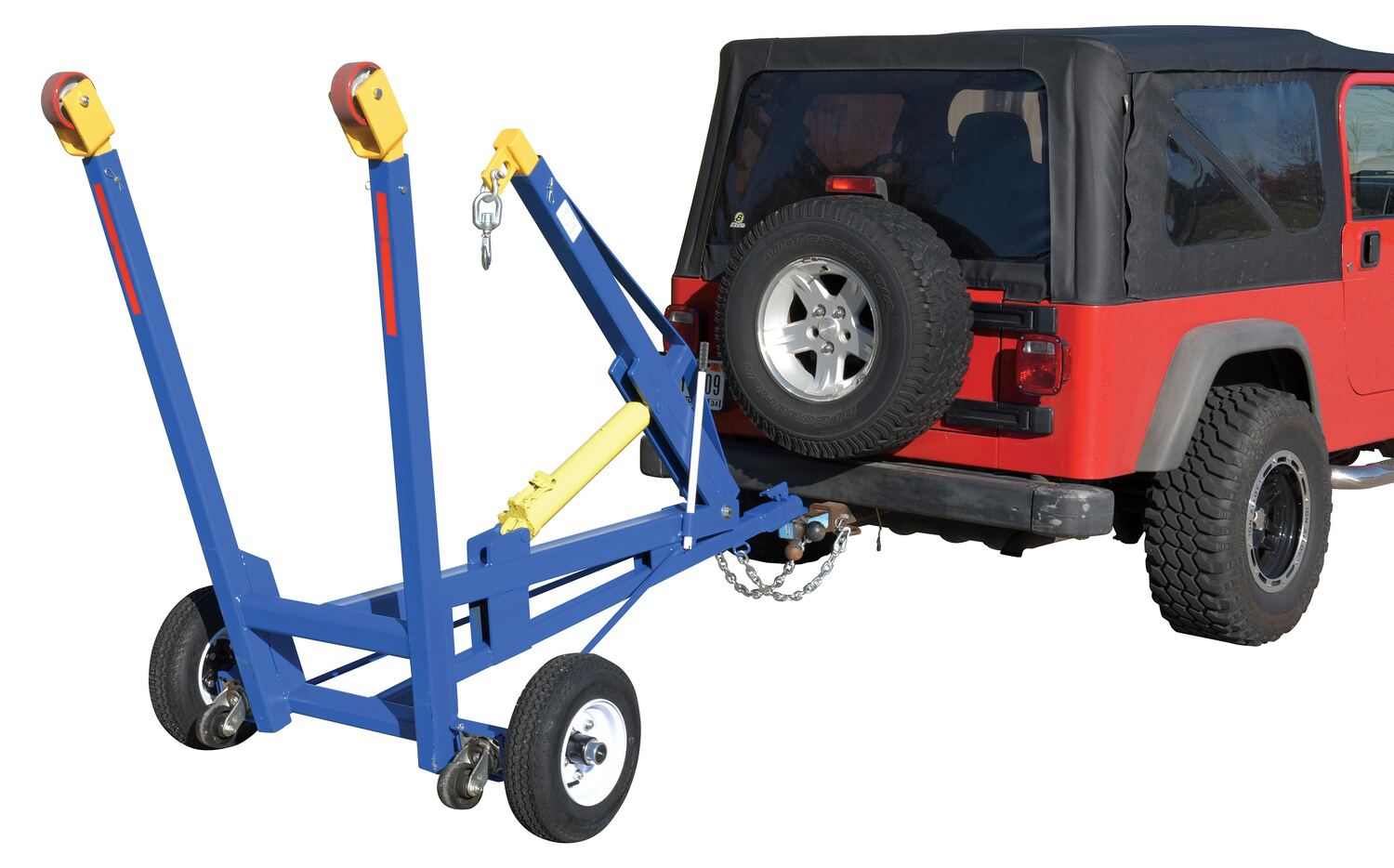

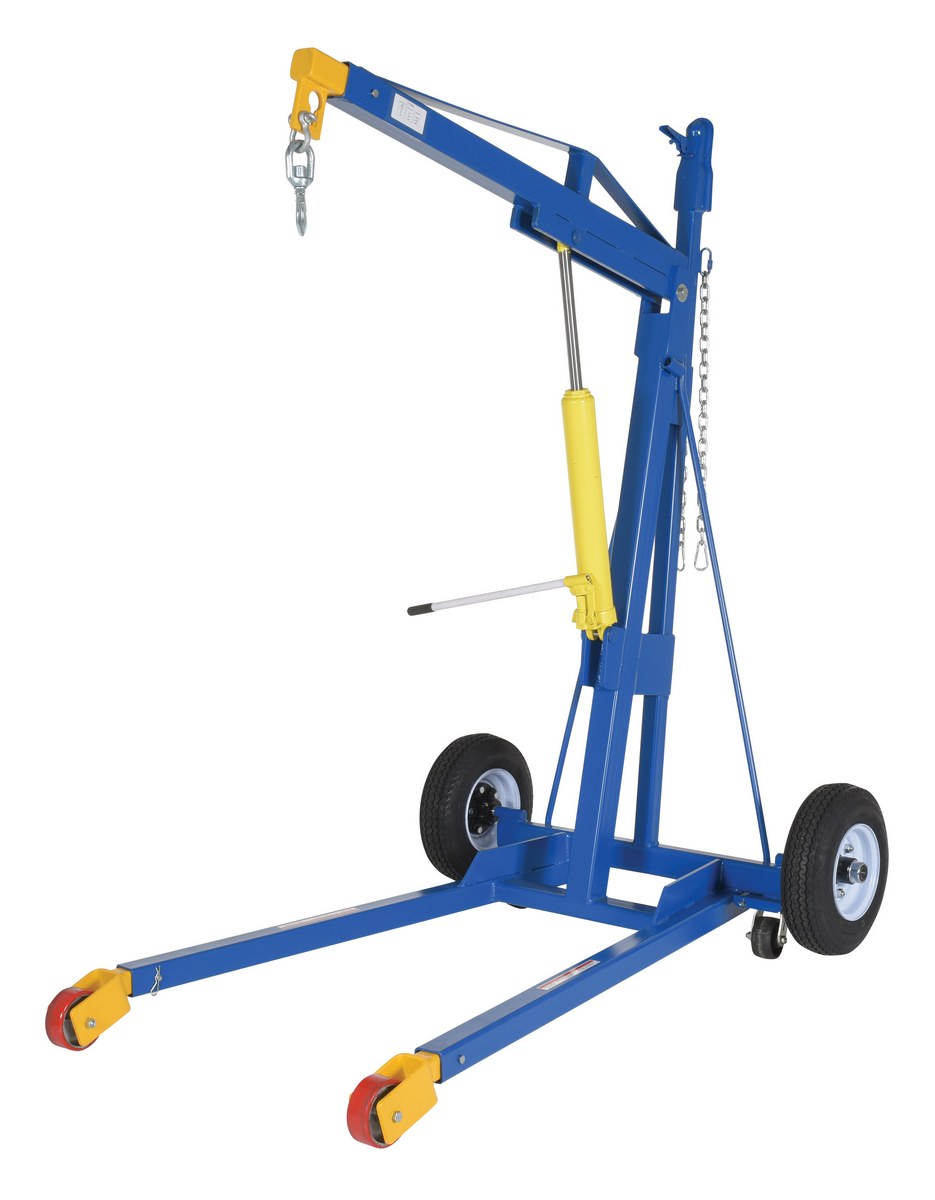

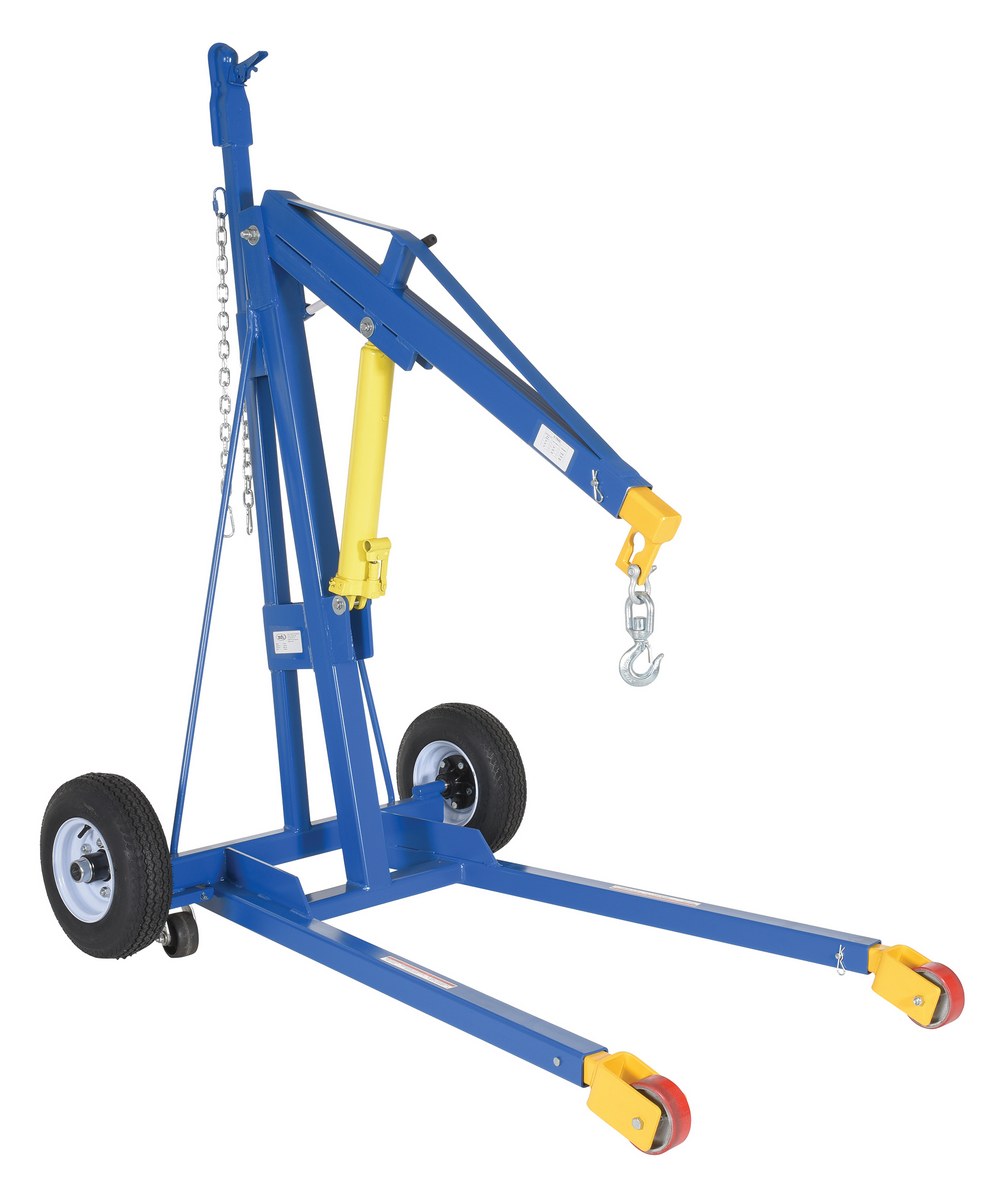

Unique hoist may be towed behind a car or truck to job site and then used for hundreds of applications. Includes a class 2 ball coupler, accommodating a 1-7/8" ball and safety chains for use with most common hitches. Features (2) large 16" diameter pneumatic wheels, (2) swivel casters 4" x 2" in rear, (2) rigid 5" x 2" in front and one swivel clevis hook with safety latch at the end of the boom. Telescoping lift arm and legs and a removable jack handle standard. Welded steel construction with painted finish. Optional brake light kit with wiring harness available.





KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Hoist Trailer
Model PDF Arm Length Raised Height Lowered Height Overall Size (WxL) Uniform Capacity (lbs) Wt. (lbs)
H-TRAIL icon_approvaldrawings.jpgWarranty PDF 53-3/4" 78-3/8" 26-1/4" 47-1/2" x 71" 4,000 529
65-3/4" 84-5/16" 20" 47-1/2" x 81-7/8" 1,150
77-3/4" 90" 13-3/4" 47-1/2" x 93-3/4" 650

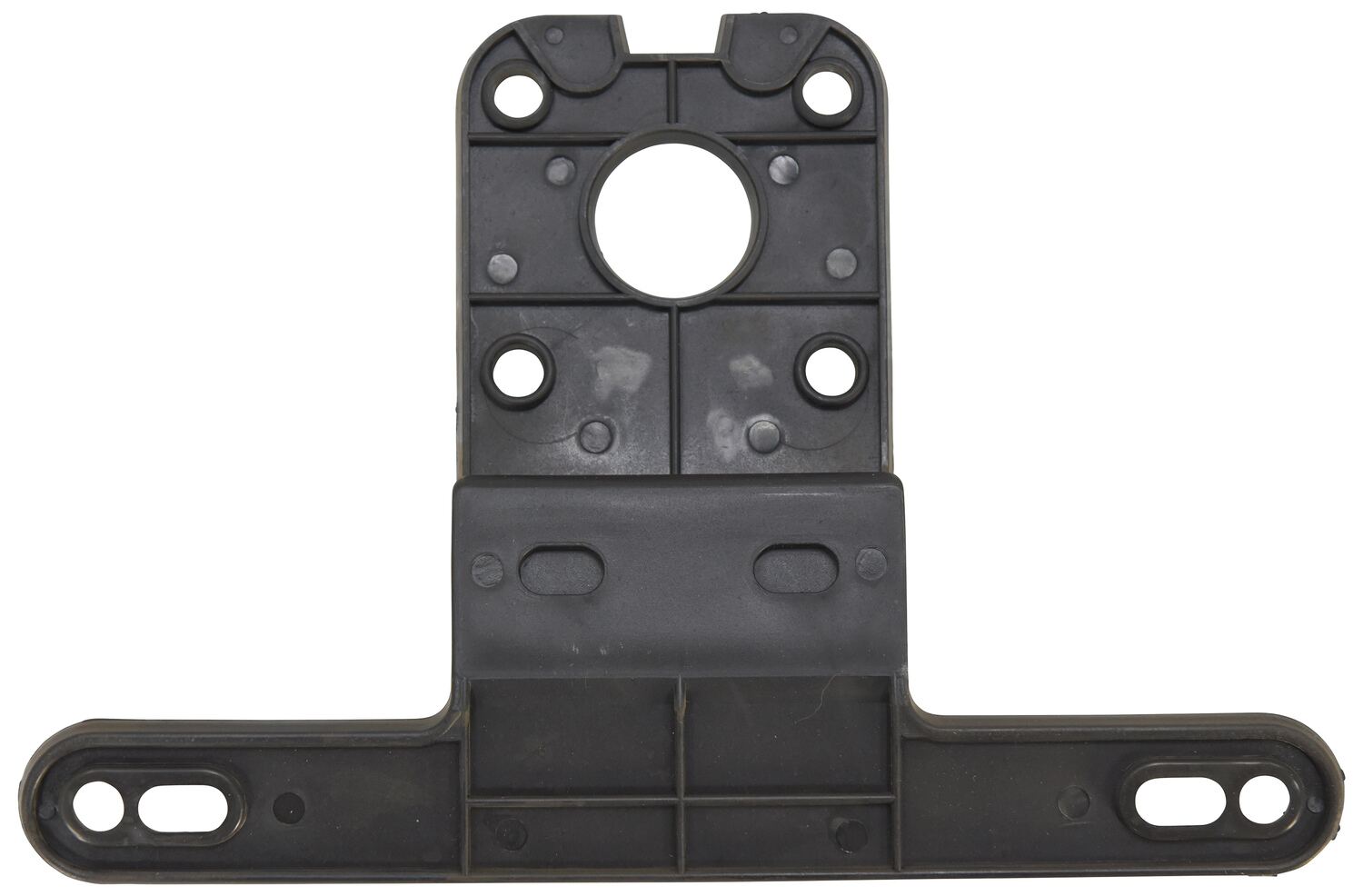

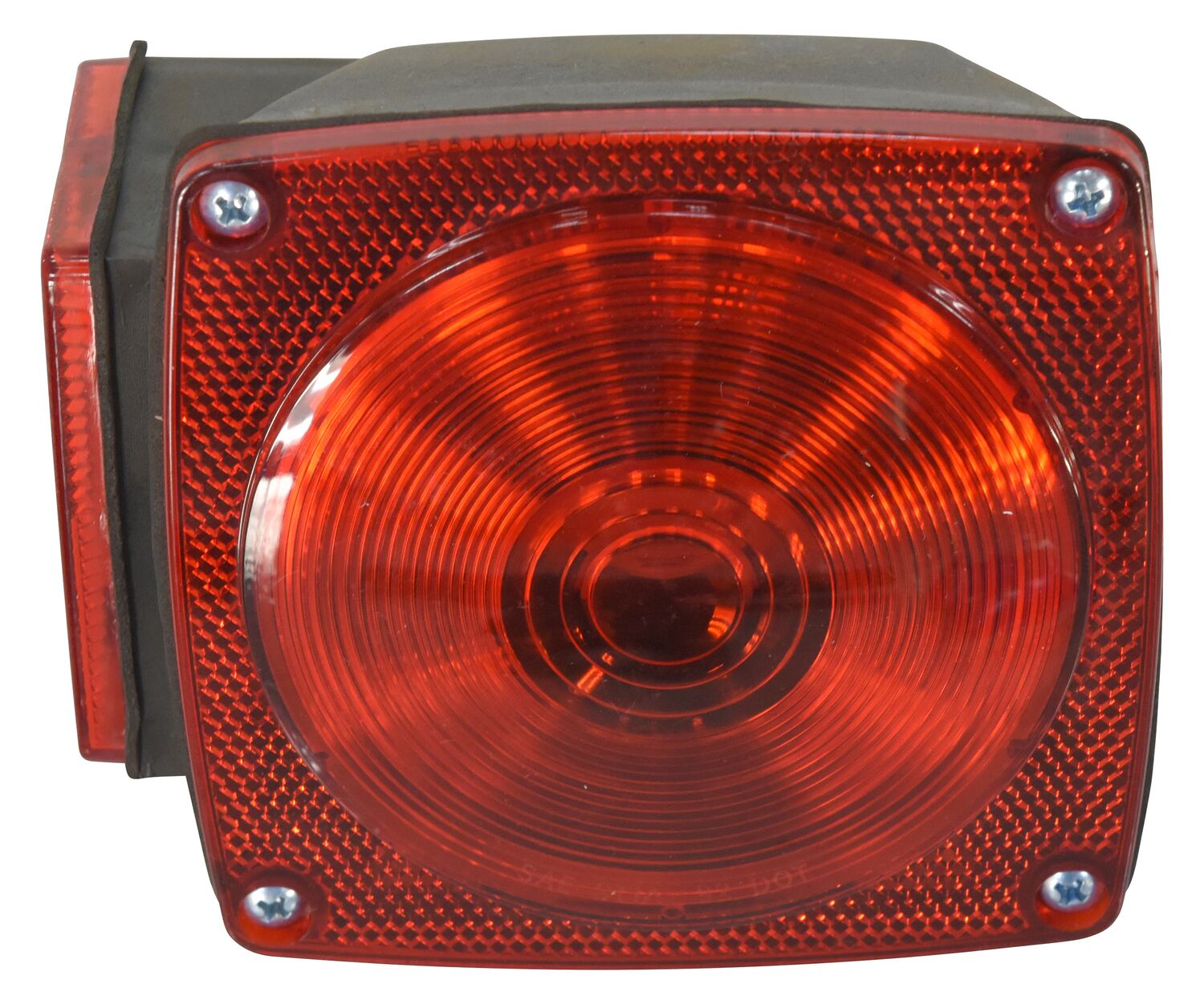

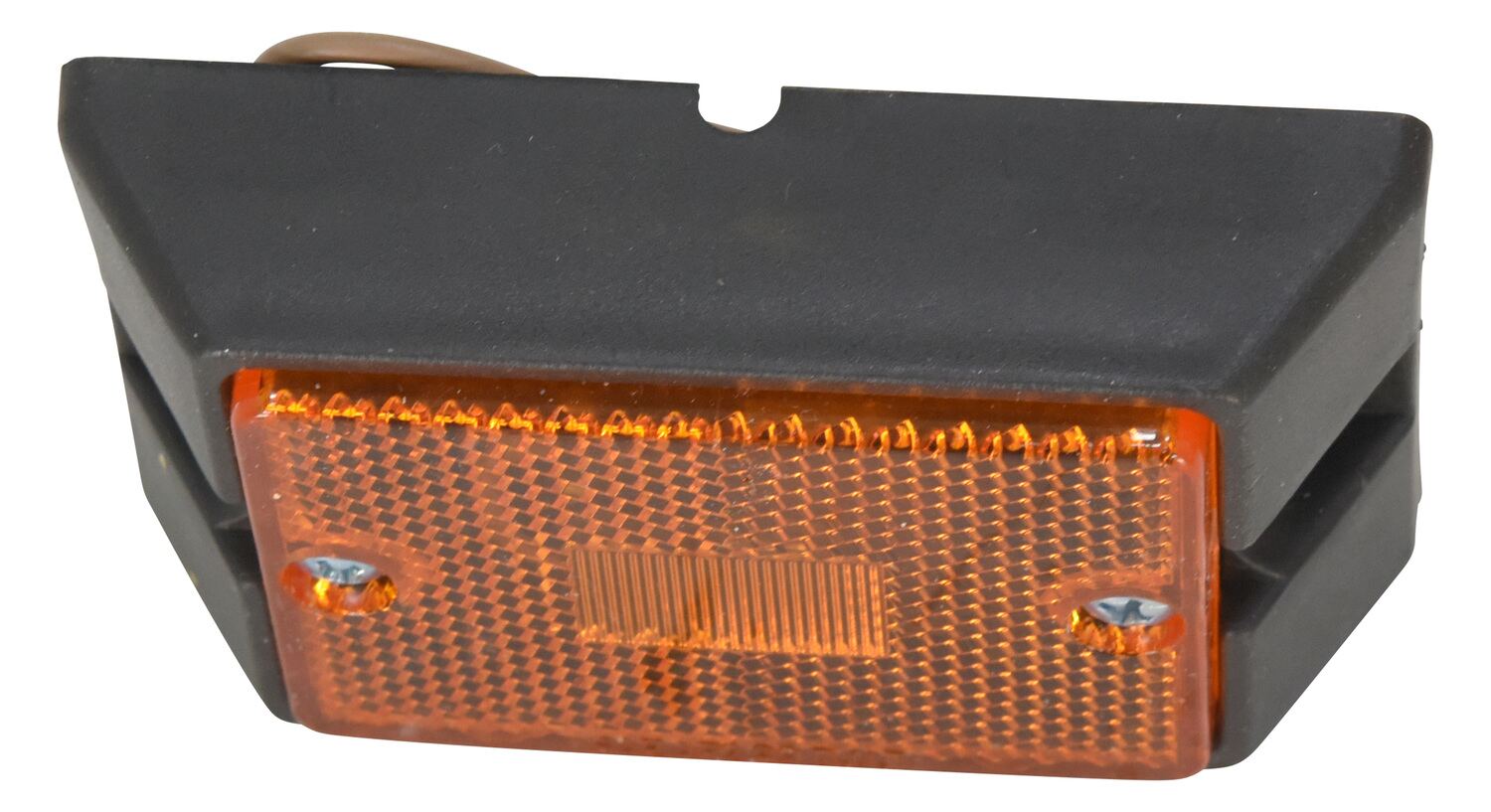

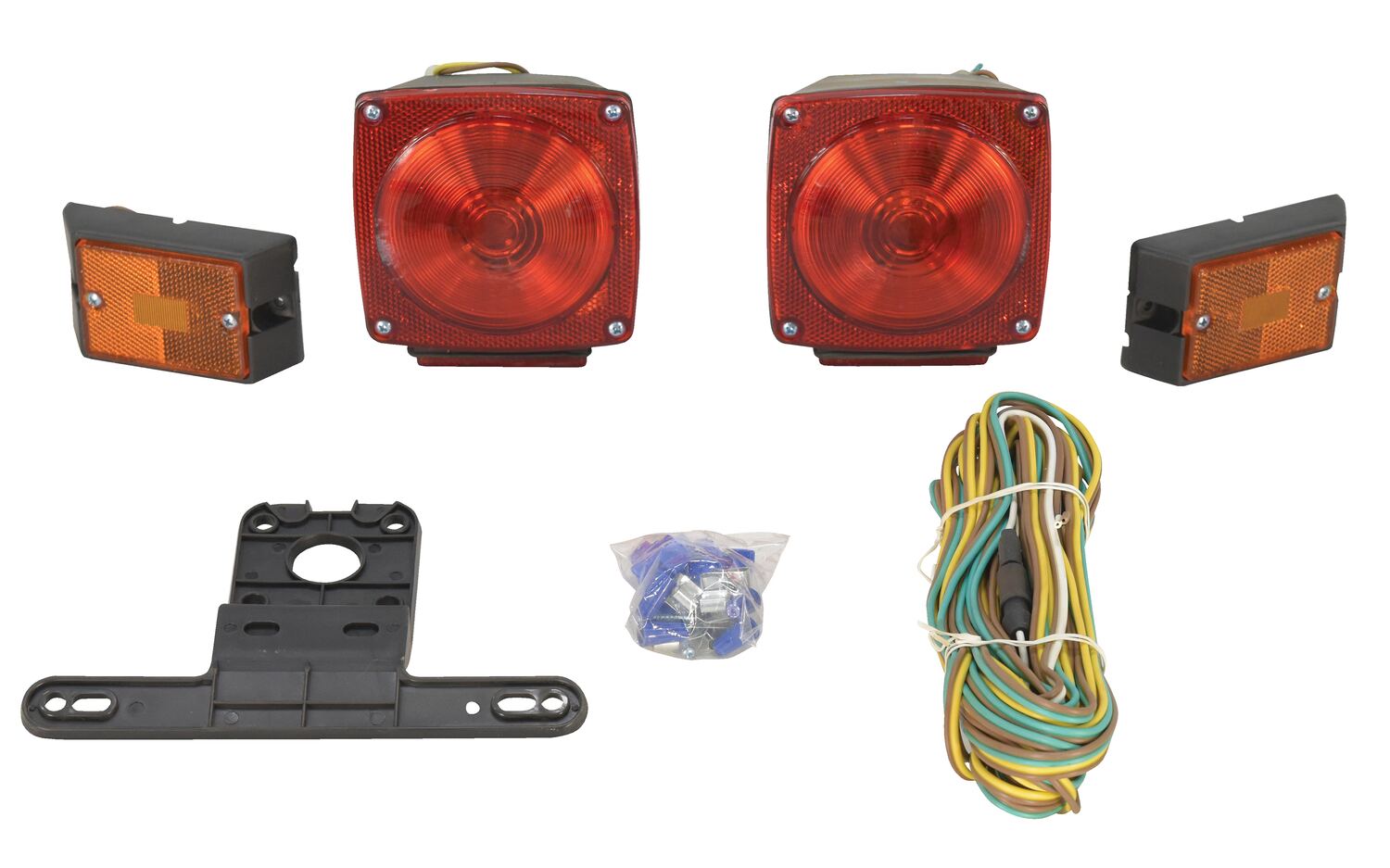

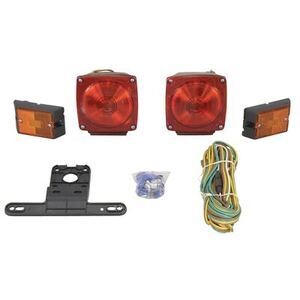

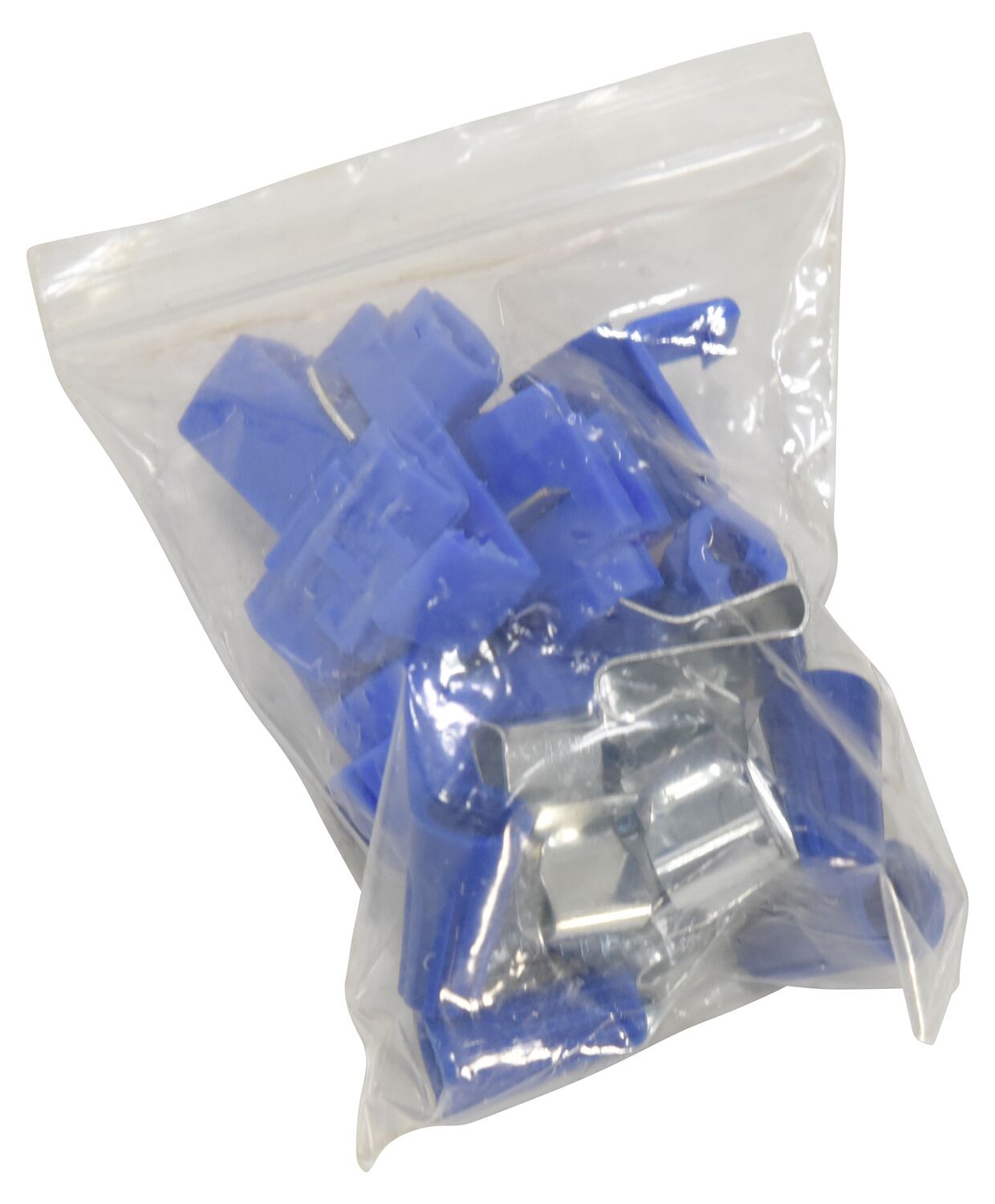

H-TRAIL-HTH Warranty PDF Optional Brake Light Kit w/ Wiring Harness 15

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


H-TRAIL-HTH Warranty PDF Optional Brake Light Kit w/ Wiring Harness 15

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

H-TRAIL

H-TRAIL

H-TRAIL-HTH

H-TRAIL-HTH
