Highway Guard Rail Systems

- - - -
Click Image to Enlarge

model: GR



Featured Protective Barriers:


Dock Barricades
Rack Shields
Low Profile Machinery Guards
Barricade
Heavy Duty Column Protectors
Rack Guards with Rubber Bumper Insert
Self-Closing Steel Gates (Adjustable Width)
High Profile Machinery Guards with Welded Mesh
Foam Edge Guards

Product Family Overview

Print Friendly
Highway Guard Rail Systems
SERIES: GR

Protect personnel and equipment both visually and physically with our Guard Rail Systems. These economical systems can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Tubular posts are machined for continuous or perpendicular rail mounting. GR series has rail slotted mounting holes 3/4" x 2-1/2" provided, mounting hardware not included Floor mounting kit sold separately. Deduct 5" when overlapping on a shared post. Units are rated for 4,000 lbs. at 4 mph.

Model # Guide
Guard Rail old Model # to new Model # Conversion Guide

Protect personnel and equipment both visually and physically with our Guard Rail Systems. These economical systems can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Tubular posts are machined for continuous or perpendicular rail mounting. GR series has rail slotted mounting holes 3/4" x 2-1/2" provided, mounting hardware not included Floor mounting kit sold separately. Deduct 5" when overlapping on a shared post. Units are rated for 4,000 lbs. at 4 mph.

Model # Guide
Guard Rail old Model # to new Model # Conversion Guide

Other Guard Rail Systems

 Structural Guard Rails (drop-in and bolt-on style) Wall Mount Guard Rails Curved Guardrail Reflectors Highway Guard Rail Systems

Additional Models In This Family

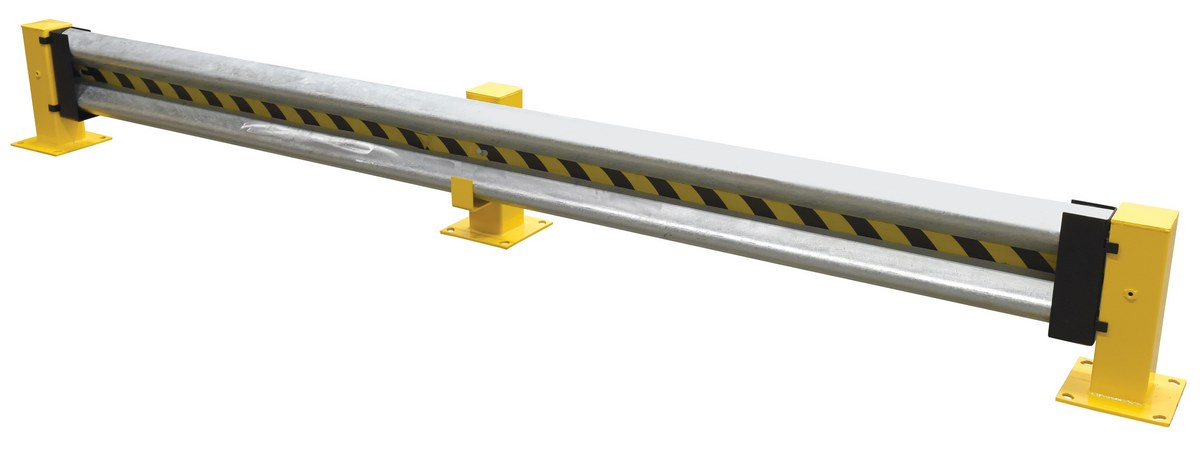

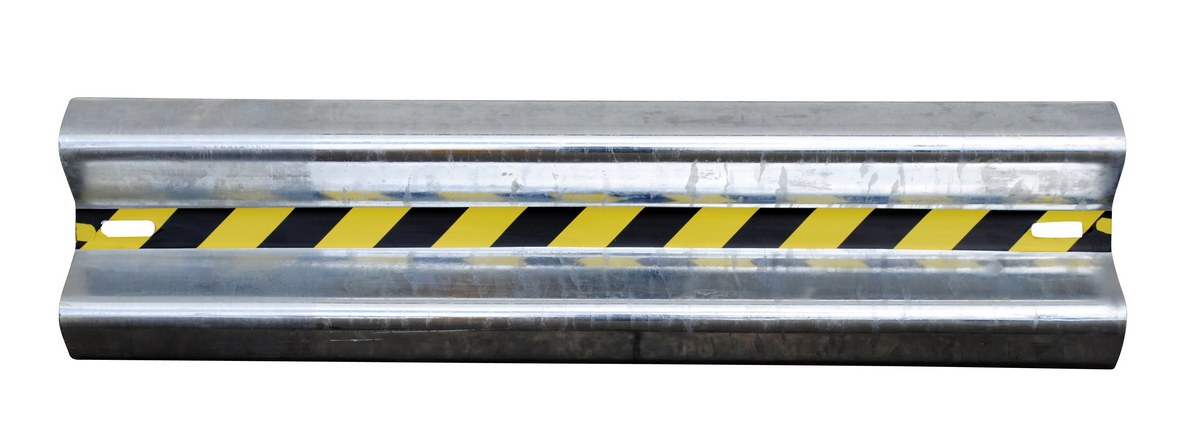

GR-H2R-BO-4-HDG

model GR-H2R-BO-4-HDG

GR-H2R-BO-4-YL

model GR-H2R-BO-4-YL

GR-H2R-BO-8-HDG

model GR-H2R-BO-8-HDG

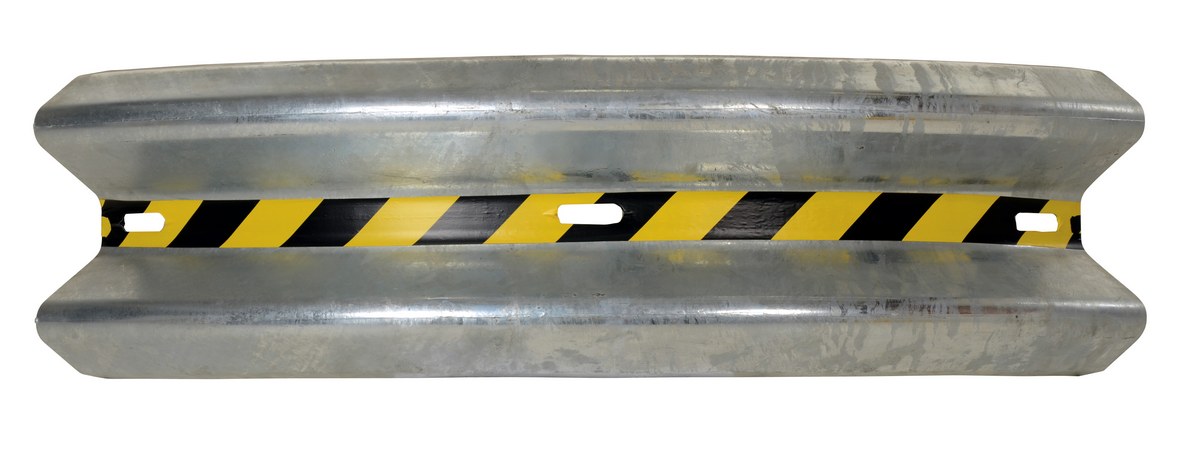

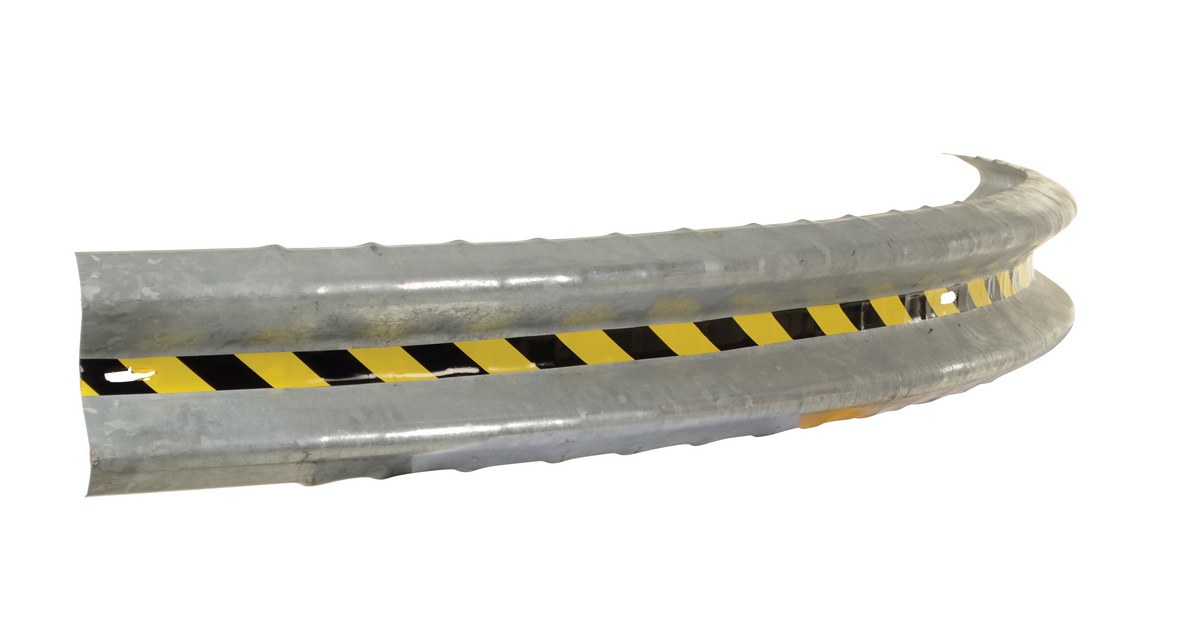

GR-H2R-CRV-BO-10-HDG

model GR-H2R-CRV-BO-10-HDG

GR-H2R-DI-10-HDG

model GR-H2R-DI-10-HDG

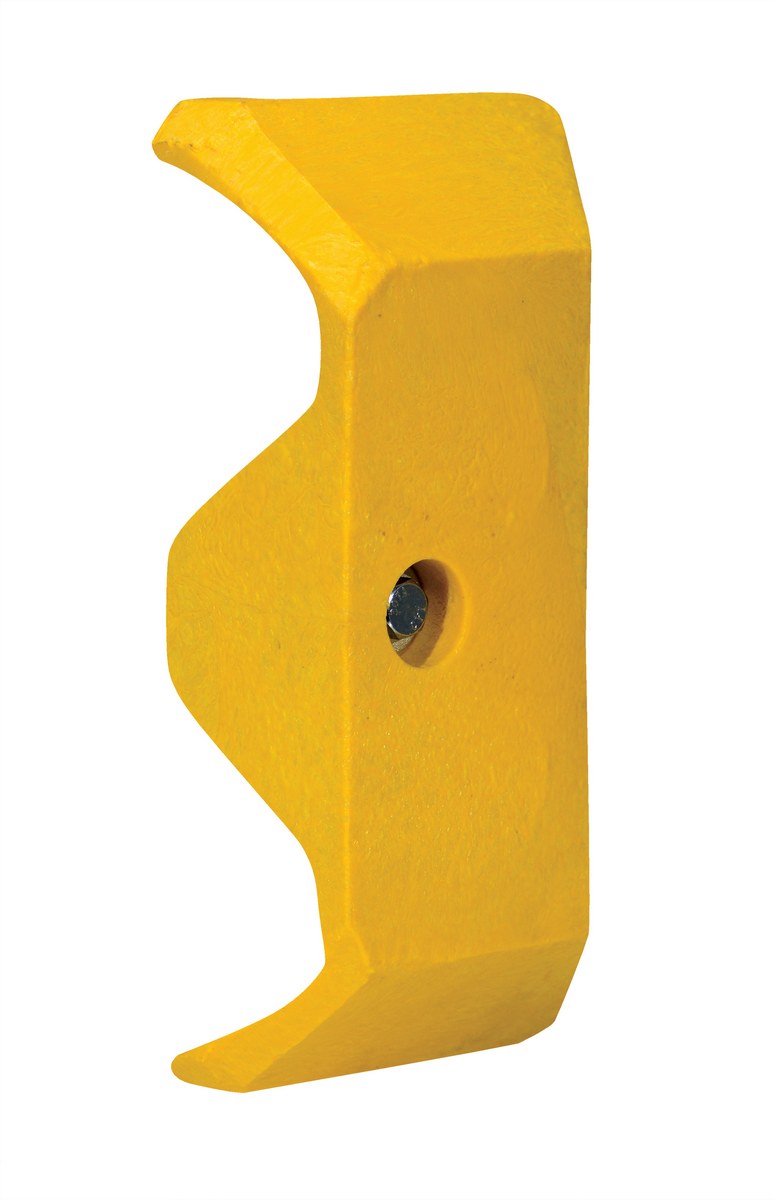

GR-H2R-CAP

model GR-H2R-CAP

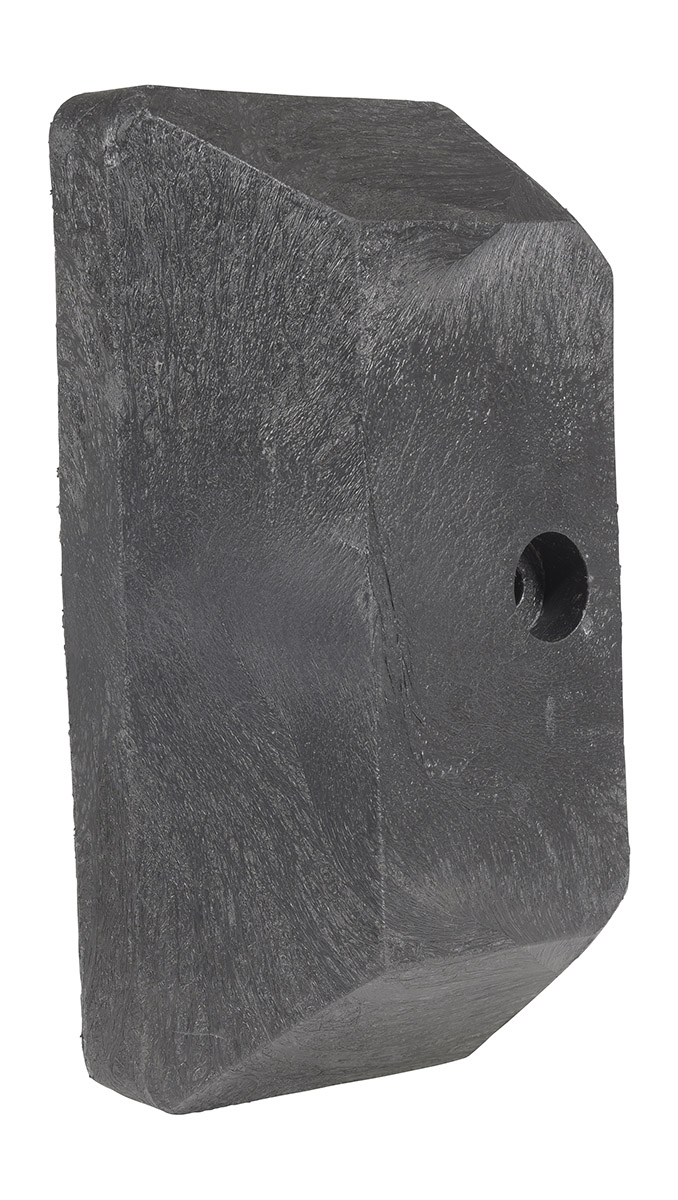

GR-H2R-CAP-BK

model GR-H2R-CAP-BK

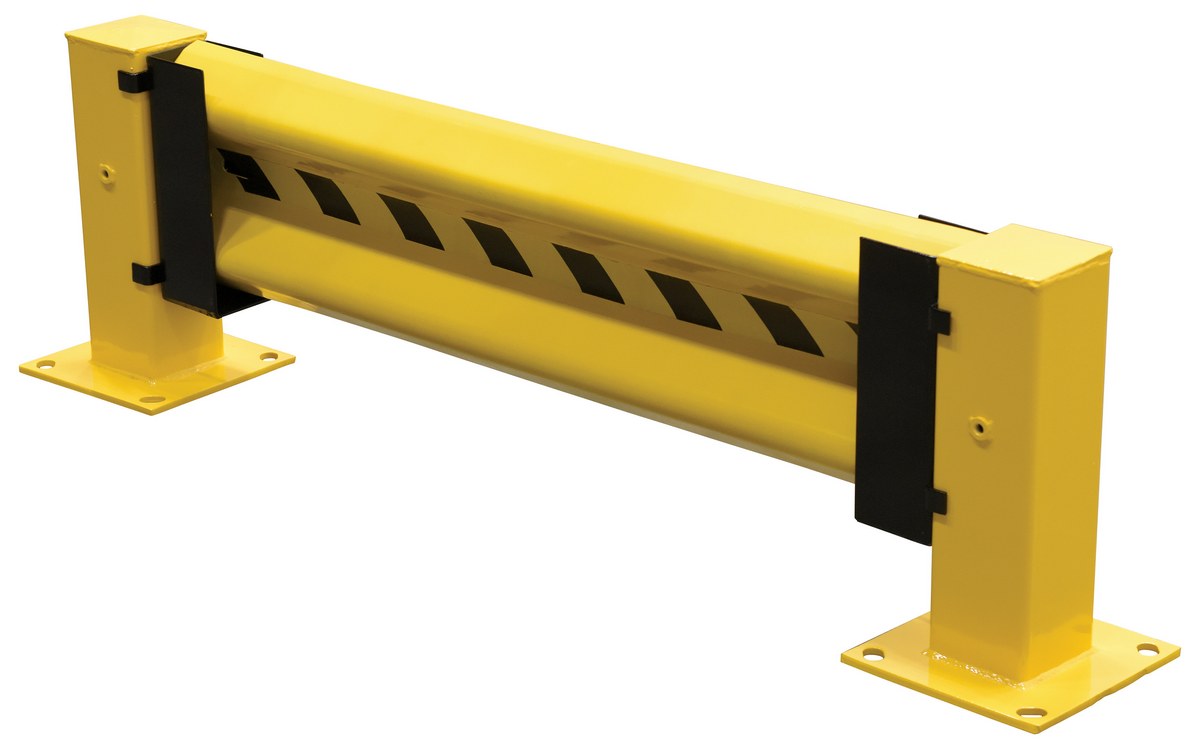

GR-H2R-DI-4-YL

model GR-H2R-DI-4-YL

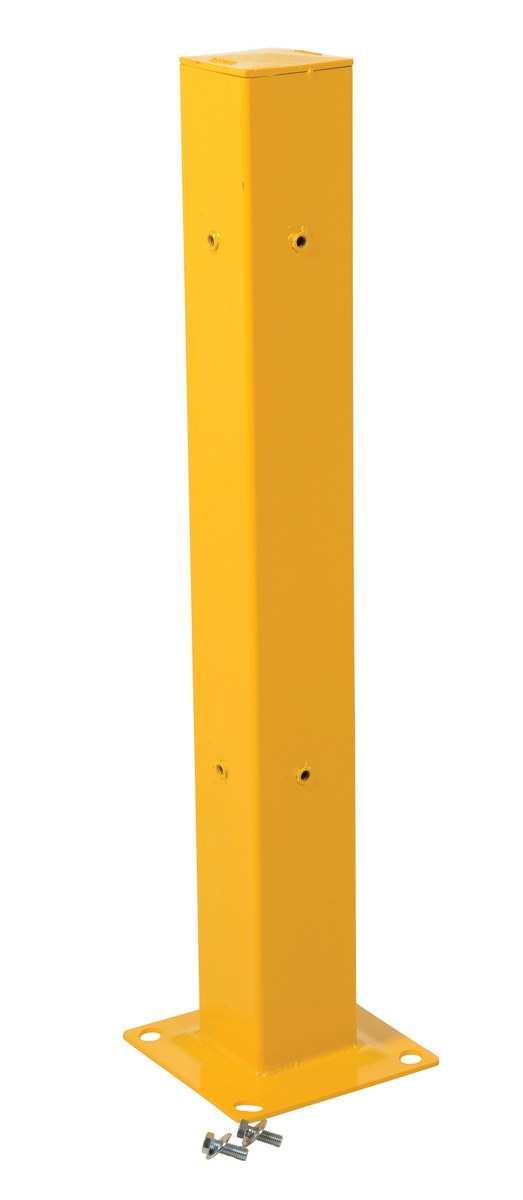

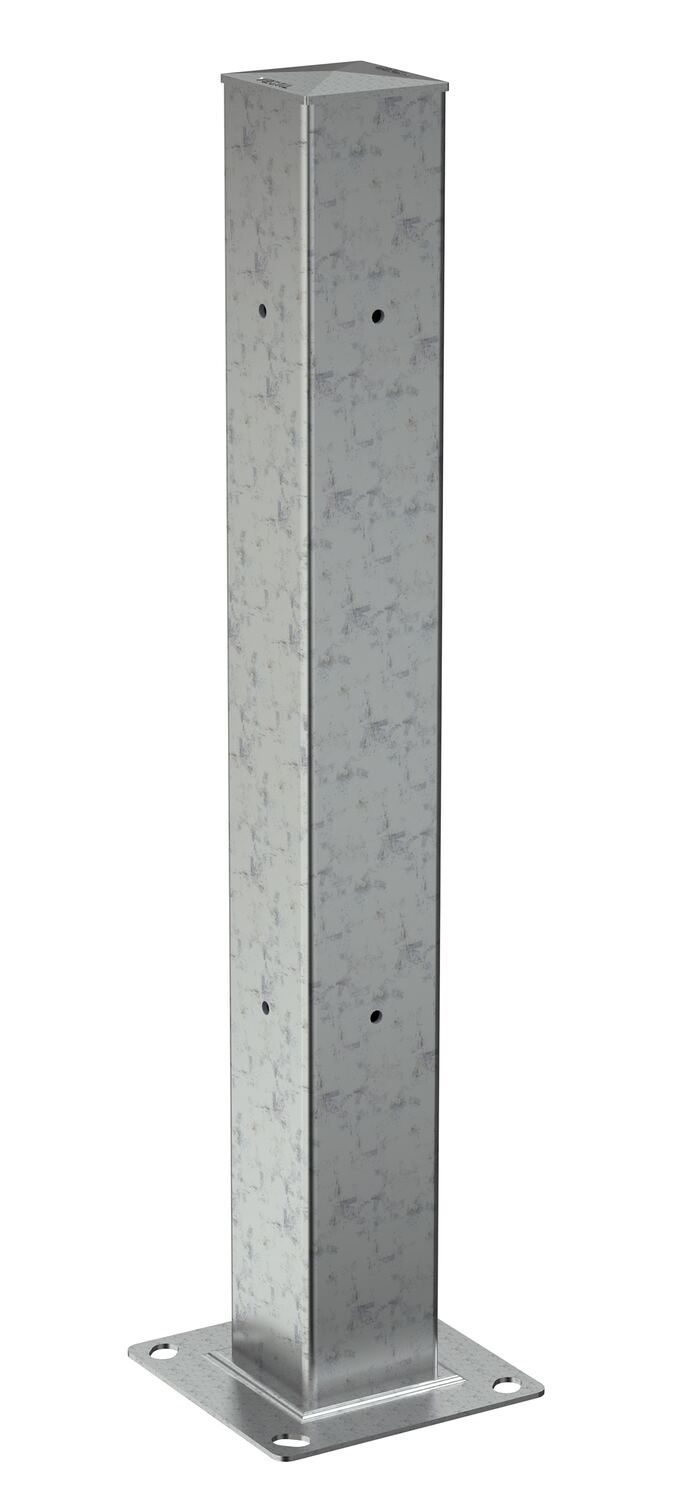

GR-H2R-DI-TP42-YL

model GR-H2R-DI-TP42-YL

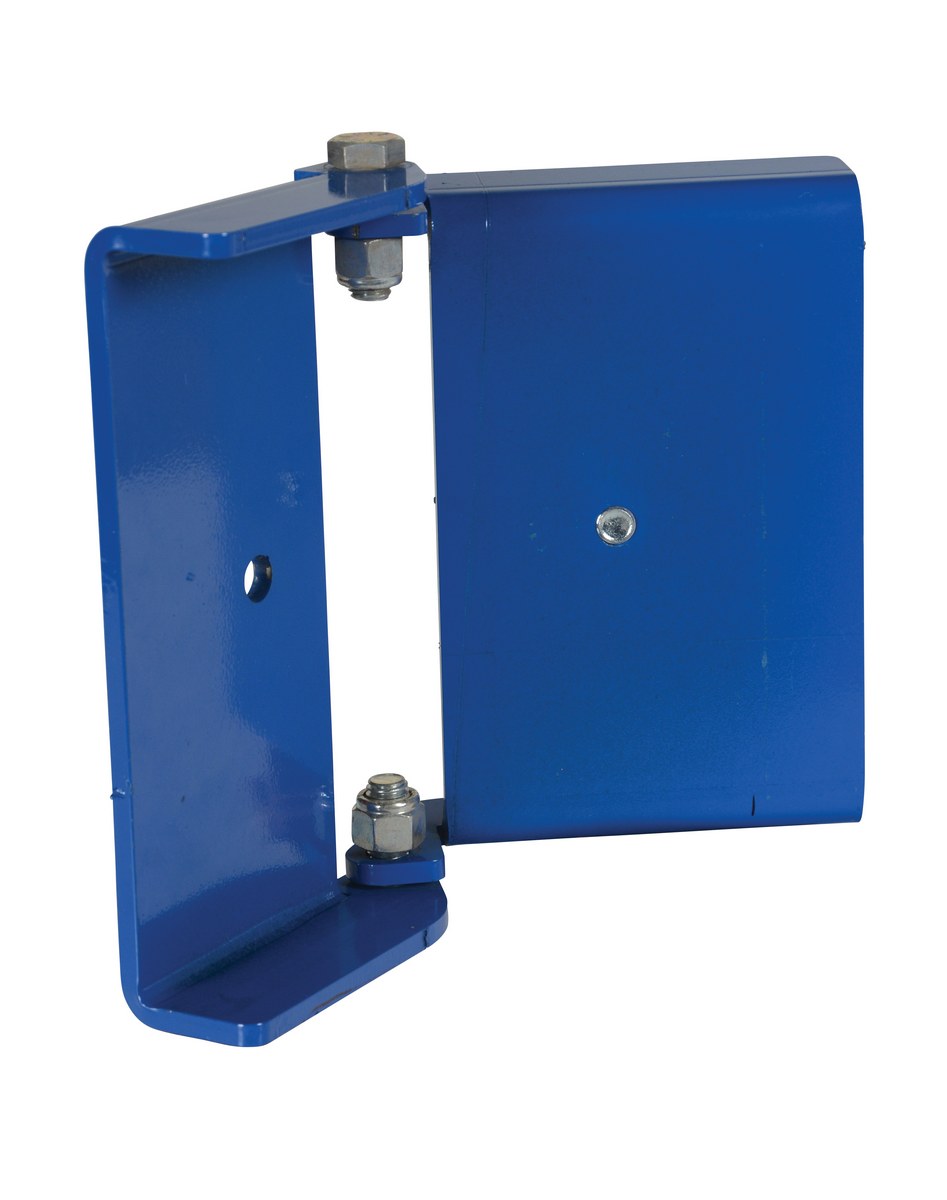

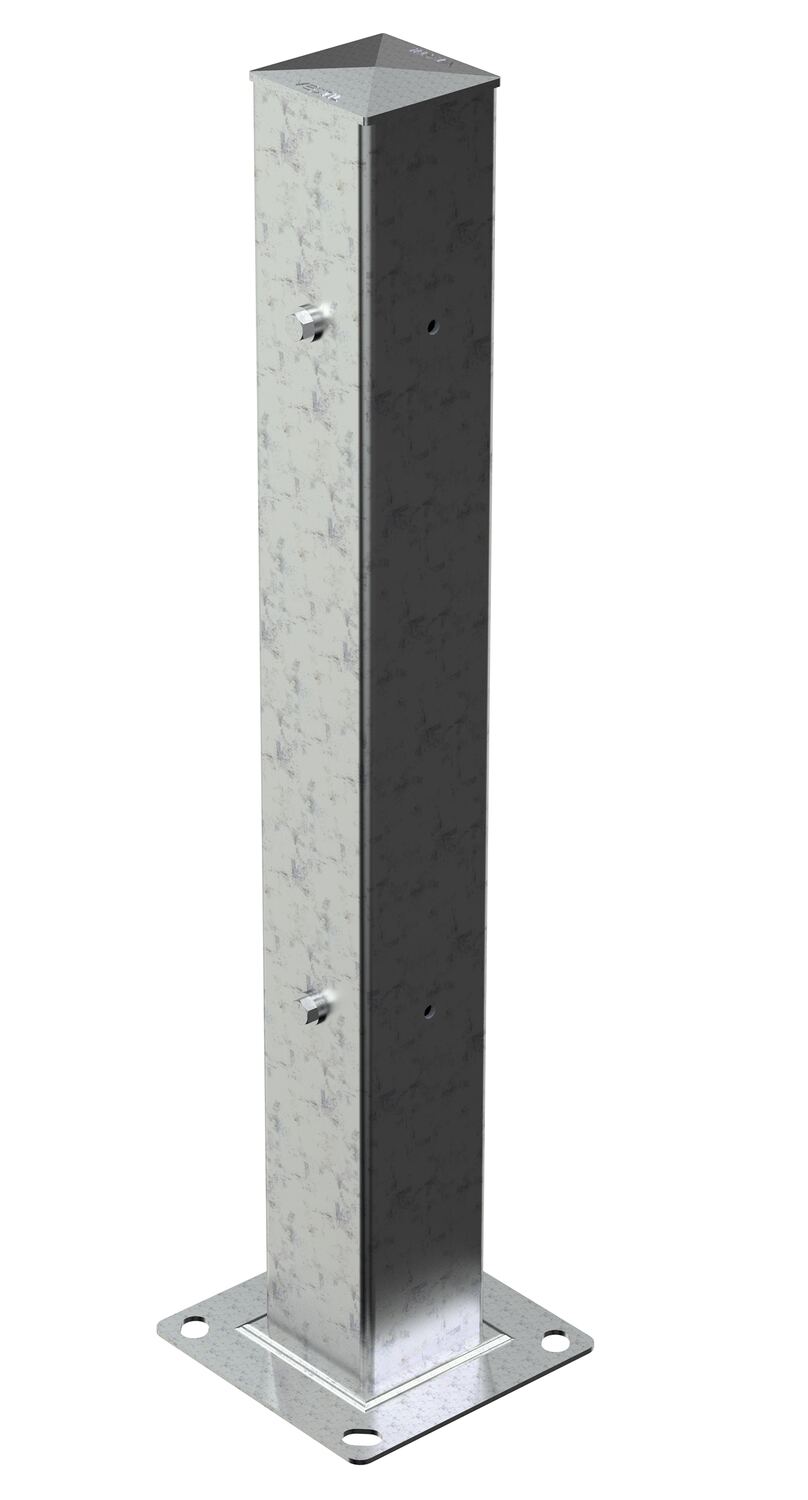

GR-H2R-TP-ADJBKT

model GR-H2R-TP-ADJBKT

How To Order
Share:

Model Specific Details



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

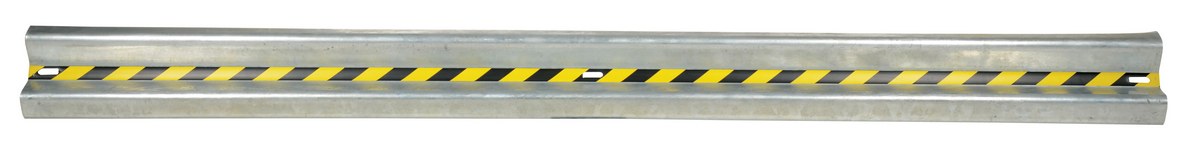

GR-H2R-BO-10-HDG GR-H2R-BO-10-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 113.875 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight		104
GR-H2R-BO-10-YL GR-H2R-BO-10-YL90 Days Limited WarrantySteel Straight Guard Rail 113.875 In. Length YellowMounting Posts Required (qty.): 3
Rail Style: Straight		104
GR-H2R-BO-11-HDG GR-H2R-BO-11-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 112 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight		112
GR-H2R-BO-11-YL GR-H2R-BO-11-YL90 Days Limited WarrantySteel Straight Guard Rail 112 In. Length YellowMounting Posts Required (qty.): 3
Rail Style Curved (degrees): 90		112
GR-H2R-BO-12-HDG GR-H2R-BO-12-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 124 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight		120
GR-H2R-BO-12-YL GR-H2R-BO-12-YL90 Days Limited WarrantySteel Straight Guard Rail 124 In. Length YellowMounting Posts Required (qty.): 3
Rail Style: Straight		120
GR-H2R-BO-3-HDG GR-H2R-BO-3-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 29.875 In Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight		20
GR-H2R-BO-3-YL GR-H2R-BO-3-YL90 Days Limited WarrantySteel Straight Guard Rail 29.875 In Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight		20

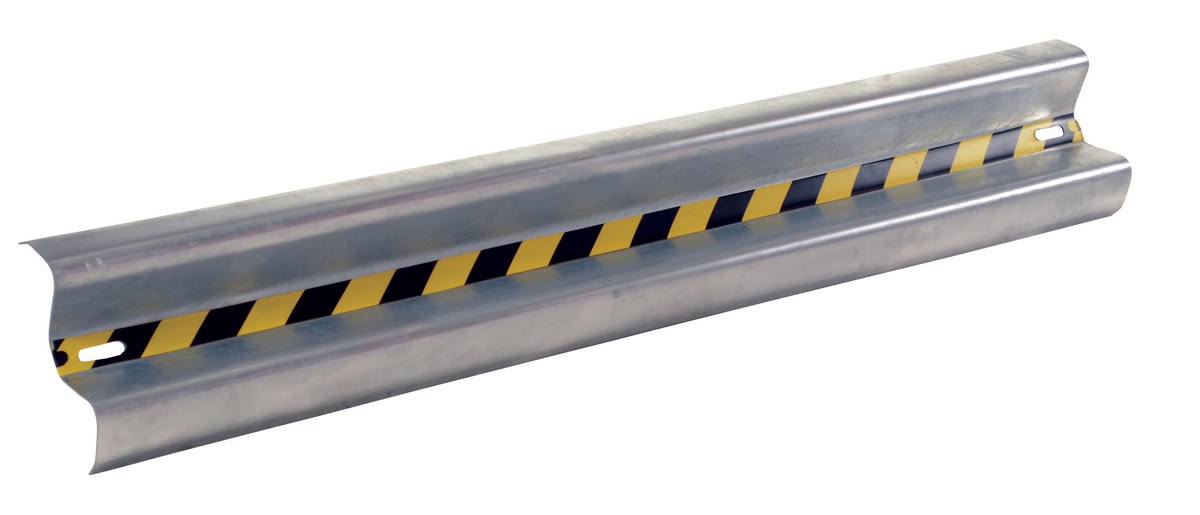

GR-H2R-BO-4-HDG GR-H2R-BO-4-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 41.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight		30
GR-H2R-BO-4-YL GR-H2R-BO-4-YL90 Days Limited WarrantySteel Straight Guard Rail 41.875 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight		30
GR-H2R-BO-5-HDG GR-H2R-BO-5-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 53.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight		41
GR-H2R-BO-5-YL GR-H2R-BO-5-YL90 Days Limited WarrantySteel Straight Guard Rail 53.875 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight		41
GR-H2R-BO-6-HDG GR-H2R-BO-6-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 65.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight		48
GR-H2R-BO-6-YL GR-H2R-BO-6-YL90 Days Limited WarrantySteel Straight Guard Rail 65.875 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight		48
GR-H2R-BO-7-HDG GR-H2R-BO-7-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 77.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight		76
GR-H2R-BO-7-YL GR-H2R-BO-7-YL90 Days Limited WarrantySteel Straight Guard Rail 77.875 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight		76
GR-H2R-BO-8-HDG GR-H2R-BO-8-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 89.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style: Straight		78
GR-H2R-BO-8-YL GR-H2R-BO-8-YL90 Days Limited WarrantySteel Straight Guard Rail 89.875 In. Length YellowMounting Posts Required (qty.): 2
Rail Style: Straight		78
GR-H2R-BO-9-HDG GR-H2R-BO-9-HDG90 Days Limited WarrantyGalvanized Steel Straight Guard Rail 101.875 In. Length GrayMounting Posts Required (qty.): 3
Rail Style: Straight		86
GR-H2R-BO-9-YL GR-H2R-BO-9-YL90 Days Limited WarrantySteel Straight Guard Rail 101.875 In. Length YellowMounting Posts Required (qty.): 3
Rail Style: Straight		86

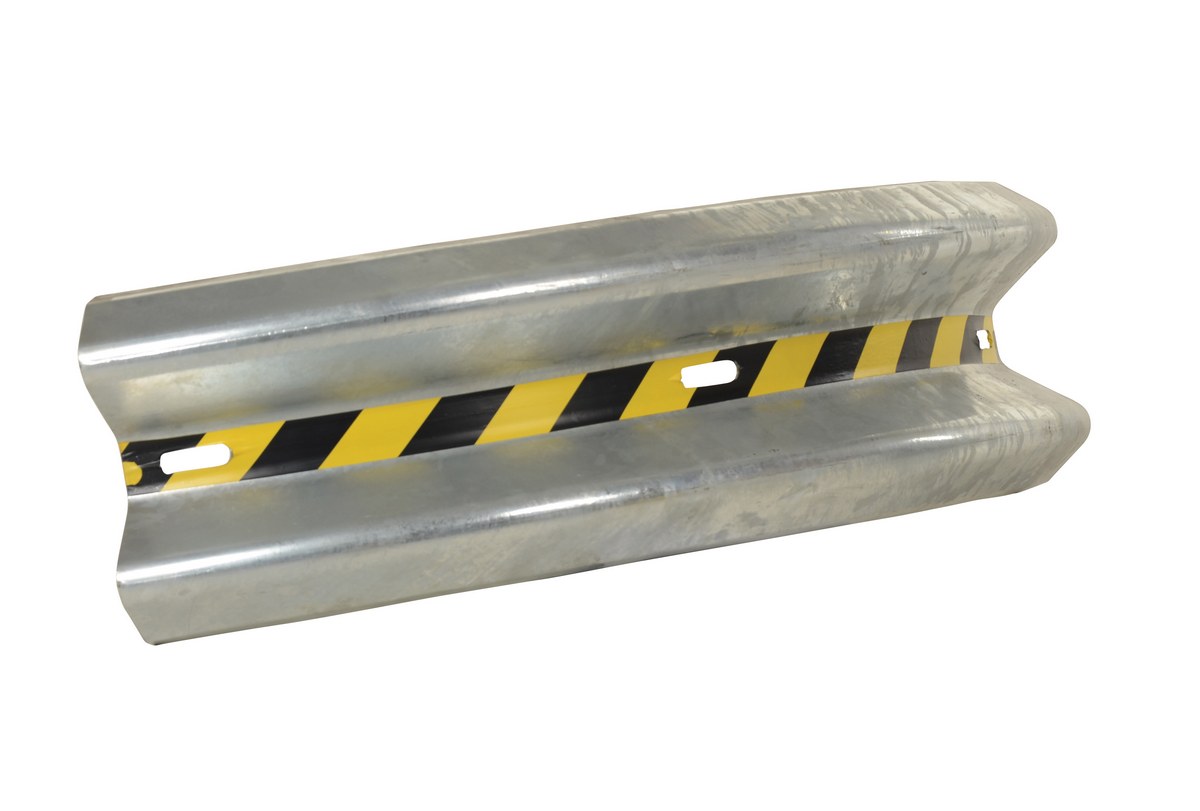

GR-H2R-CRV-BO-10-HDG GR-H2R-CRV-BO-10-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 113.875 In. Length GrayMounting Posts Required (qty.): 3
Rail Style Curved (degrees): 90		85
GR-H2R-CRV-BO-12-HDG GR-H2R-CRV-BO-12-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 124 In. Length GrayMounting Posts Required (qty.): 3
Rail Style Curved (degrees): 90		122
GR-H2R-CRV-BO-4-HDG GR-H2R-CRV-BO-4-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 41.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style Curved (degrees): 90		32
GR-H2R-CRV-BO-6-HDG GR-H2R-CRV-BO-6-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 65.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style Curved (degrees): 90		55

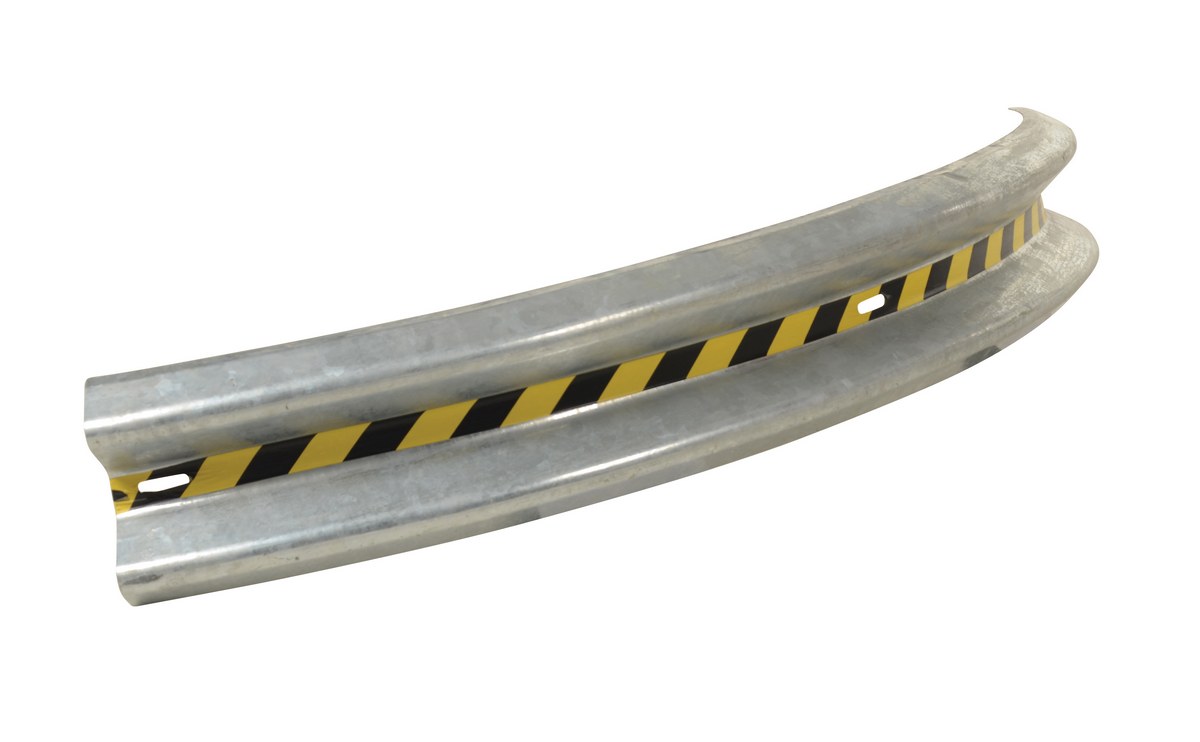

GR-H2R-CRV-BO-8-HDG GR-H2R-CRV-BO-8-HDG90 Days Limited WarrantyGalvanized Steel Curved Guard Rail 89.875 In. Length GrayMounting Posts Required (qty.): 2
Rail Style Curved (degrees): 90		69
GR-H2R-DI-10-HDG GR-H2R-DI-10-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 113.875 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3		123
GR-H2R-DI-10-YL GR-H2R-DI-10-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 113.875 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3		123
GR-H2R-DI-11-HDG GR-H2R-DI-11-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 112 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3		137
GR-H2R-DI-11-YL GR-H2R-DI-11-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 112 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3		137

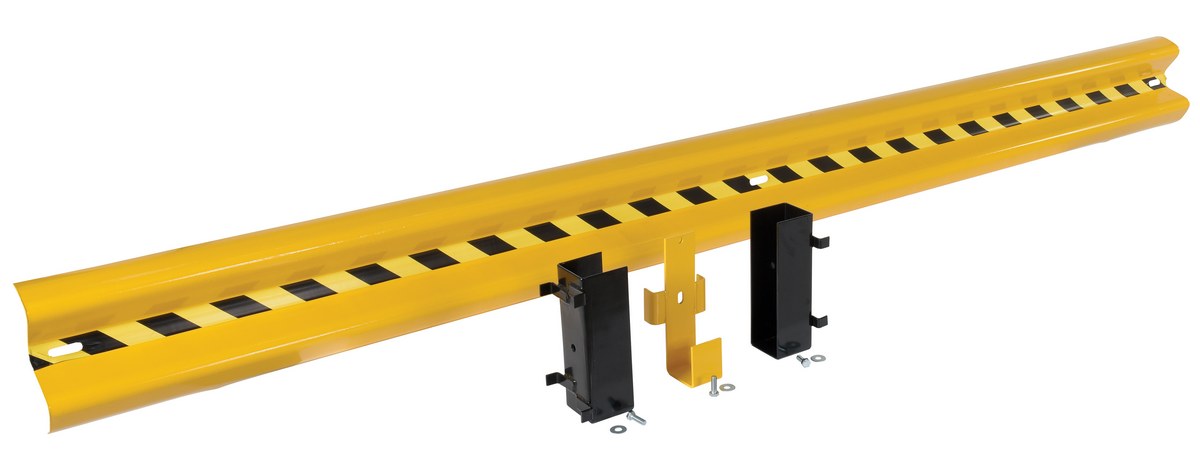

GR-H2R-DI-12-HDG GR-H2R-DI-12-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 124 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3		131
GR-H2R-DI-12-YL GR-H2R-DI-12-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 124 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3		131
GR-H2R-DI-3-HDG GR-H2R-DI-3-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 29.875 In Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		49
GR-H2R-DI-3-YL GR-H2R-DI-3-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 29.875 In Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		49
GR-H2R-DI-4-HDG GR-H2R-DI-4-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 41.875 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		54
GR-H2R-DI-4-YL GR-H2R-DI-4-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 41.875 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		54
GR-H2R-DI-5-HDG GR-H2R-DI-5-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 53.875 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		70
GR-H2R-DI-5-YL GR-H2R-DI-5-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 53.875 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		70
GR-H2R-DI-6-HDG GR-H2R-DI-6-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 65.875 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		72
GR-H2R-DI-6-YL GR-H2R-DI-6-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 65.875 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		72
GR-H2R-DI-7-HDG GR-H2R-DI-7-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 77.875 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		91
GR-H2R-DI-7-YL GR-H2R-DI-7-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 77.875 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		91

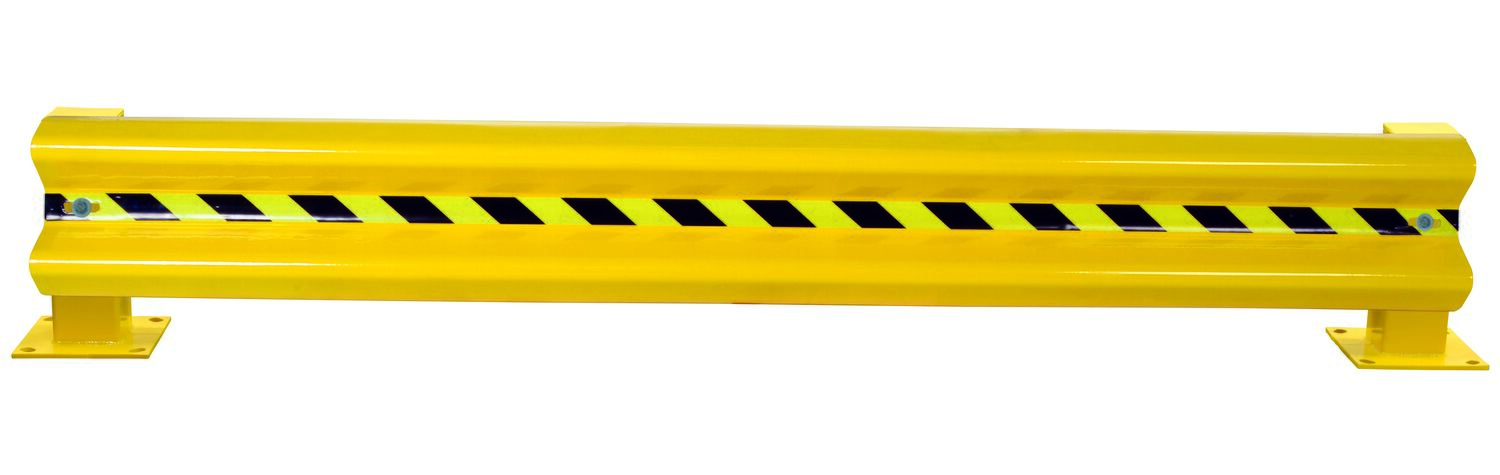

GR-H2R-DI-8-HDG GR-H2R-DI-8-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 89.875 In. Length GrayMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		90
GR-H2R-DI-8-YL GR-H2R-DI-8-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 89.875 In. Length YellowMounting Posts Required (qty.): 2
Brackets and Hardware Included (qty.): 2		90
GR-H2R-DI-9-HDG GR-H2R-DI-9-HDG90 Days Limited WarrantyGalvanized Steel Drop In Guard Rail 2 Ribbed 101.875 In. Length GrayMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3		116
GR-H2R-DI-9-YL GR-H2R-DI-9-YL90 Days Limited WarrantySteel Drop In Guard Rail 2 Ribbed 101.875 In. Length YellowMounting Posts Required (qty.): 3
Brackets and Hardware Included (qty.): 3		116

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below
