Lights minimize freight damage while expediting loading and unloading operations. Provides uniform visibility inside trailers or around dock areas. Model LL-SAI and LL-SAF are ETL C/U.S. listed, while all others are UL listed.
Incandescent Lights, Series LL, offer good color, low replacement cost and turn on instantly even in cold environments. It utilizes up to a 100 watt incandescent bulb, (not included) or a Halogen Bulb model PAR-38-90, sold separately. Adjustable arm knuckle joint allows vertical and horizontal positioning.
Halogen Lights, model HLGN-40, typically provides more lumens/watt, better energy efficiency, has a longer service life and experiences less light depreciation over its lifetime. It is supplied with a 500 watt bulb. Full illumination is instantaneous.
High Pressure Sodium Lights, series LLS and AALLS, offers much higher lumens/watt output and a very long lamp life. Its illumination color rendition (yellowish) is not as desirable as an incandescent. It typically requires several minutes to turn on, and even longer if in a cold environment. Low operating cost.
Spun Aluminum Dock Lights, stays cool to the touch. Units with strut arms offer both horizontal and vertical adjustments without tools. Available in a standard incandescent lamp head or a fluorescent lamp head.
115V 1-PHASE STANDARD
Lights minimize freight damage while expediting loading and unloading operations. Provides uniform visibility inside trailers or around dock areas. Model LL-SAI and LL-SAF are ETL C/U.S. listed, while all others are UL listed.
Incandescent Lights, Series LL, offer good color, low replacement cost and turn on instantly even in cold environments. It utilizes up to a 100 watt incandescent bulb, (not included) or a Halogen Bulb model PAR-38-90, sold separately. Adjustable arm knuckle joint allows vertical and horizontal positioning.
Halogen Lights, model HLGN-40, typically provides more lumens/watt, better energy efficiency, has a longer service life and experiences less light depreciation over its lifetime. It is supplied with a 500 watt bulb. Full illumination is instantaneous.
High Pressure Sodium Lights, series LLS and AALLS, offers much higher lumens/watt output and a very long lamp life. Its illumination color rendition (yellowish) is not as desirable as an incandescent. It typically requires several minutes to turn on, and even longer if in a cold environment. Low operating cost.
Spun Aluminum Dock Lights, stays cool to the touch. Units with strut arms offer both horizontal and vertical adjustments without tools. Available in a standard incandescent lamp head or a fluorescent lamp head.
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 40 Voltage/Phase: 115/1 Arm Length (in.): 40 Voltage/Phase: 115/1
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 60 Voltage/Phase: 115/1 Arm Length (in.): 60 Voltage/Phase: 115/1
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 40 Extended Arm Length (in.): 48-7/8 Arm Length (in.): 40 Extended Arm Length (in.): 48-7/8
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 24 Extended Arm Length (in.): 24-1/4 Arm Length (in.): 24 Extended Arm Length (in.): 24-1/4
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 40 Extended Arm Length (in.): 40-1/4 Arm Length (in.): 40 Extended Arm Length (in.): 40-1/4
Unit: Size: W x L x H Weight: Limited Warranty Arm Length Extended (in.): 48 Light Voltage/Phase: 115/1 Arm Length Extended (in.): 48 Light Voltage/Phase: 115/1
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 60 Extended Arm Length (in.): 70-7/8 Arm Length (in.): 60 Extended Arm Length (in.): 70-7/8
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 90 Extended Arm Length (in.): 95-1/2 Arm Length (in.): 90 Extended Arm Length (in.): 95-1/2
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 24 Extended Arm Length (in.): 30-1/4 Arm Length (in.): 24 Extended Arm Length (in.): 30-1/4
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 40 Voltage/Phase: 115/1 Arm Length (in.): 40 Voltage/Phase: 115/1
Unit: Size: W x L x H Weight: Limited Warranty Arm Length Extended (in.): 48 Light Voltage/Phase: 115/1 Arm Length Extended (in.): 48 Light Voltage/Phase: 115/1
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 60 Voltage/Phase: 115/1 Arm Length (in.): 60 Voltage/Phase: 115/1
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 24 Voltage/Phase: 115/1 Arm Length (in.): 24 Voltage/Phase: 115/1
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 40 Voltage/Phase: 115/1 Arm Length (in.): 40 Voltage/Phase: 115/1
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 60 Voltage/Phase: 115/1 Arm Length (in.): 60 Voltage/Phase: 115/1
Unit: Size: W x L x H Weight: Limited Warranty Arm Length (in.): 90 Voltage/Phase: 115/1 Arm Length (in.): 90 Voltage/Phase: 115/1
For More Details of the Option Click the Red Model Button
Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
Dock Loading Lights
115V 1-PHASE STANDARD
Lights minimize freight damage while expediting loading and unloading operations. Provides uniform visibility inside trailers or around dock areas. Model LL-SAI and LL-SAF are ETL C/U.S. listed, while all others are UL listed.
Incandescent Lights, Series LL, offer good color, low replacement cost and turn on instantly even in cold environments. It utilizes up to a 100 watt incandescent bulb, (not included) or a Halogen Bulb model PAR-38-90, sold separately. Adjustable arm knuckle joint allows vertical and horizontal positioning.
Halogen Lights, model HLGN-40, typically provides more lumens/watt, better energy efficiency, has a longer service life and experiences less light depreciation over its lifetime. It is supplied with a 500 watt bulb. Full illumination is instantaneous.
High Pressure Sodium Lights, series LLS and AALLS, offers much higher lumens/watt output and a very long lamp life. Its illumination color rendition (yellowish) is not as desirable as an incandescent. It typically requires several minutes to turn on, and even longer if in a cold environment. Low operating cost.
Spun Aluminum Dock Lights, stays cool to the touch. Units with strut arms offer both horizontal and vertical adjustments without tools. Available in a standard incandescent lamp head or a fluorescent lamp head.
Model #
Description
Attributes
Net Wt. (lbs)

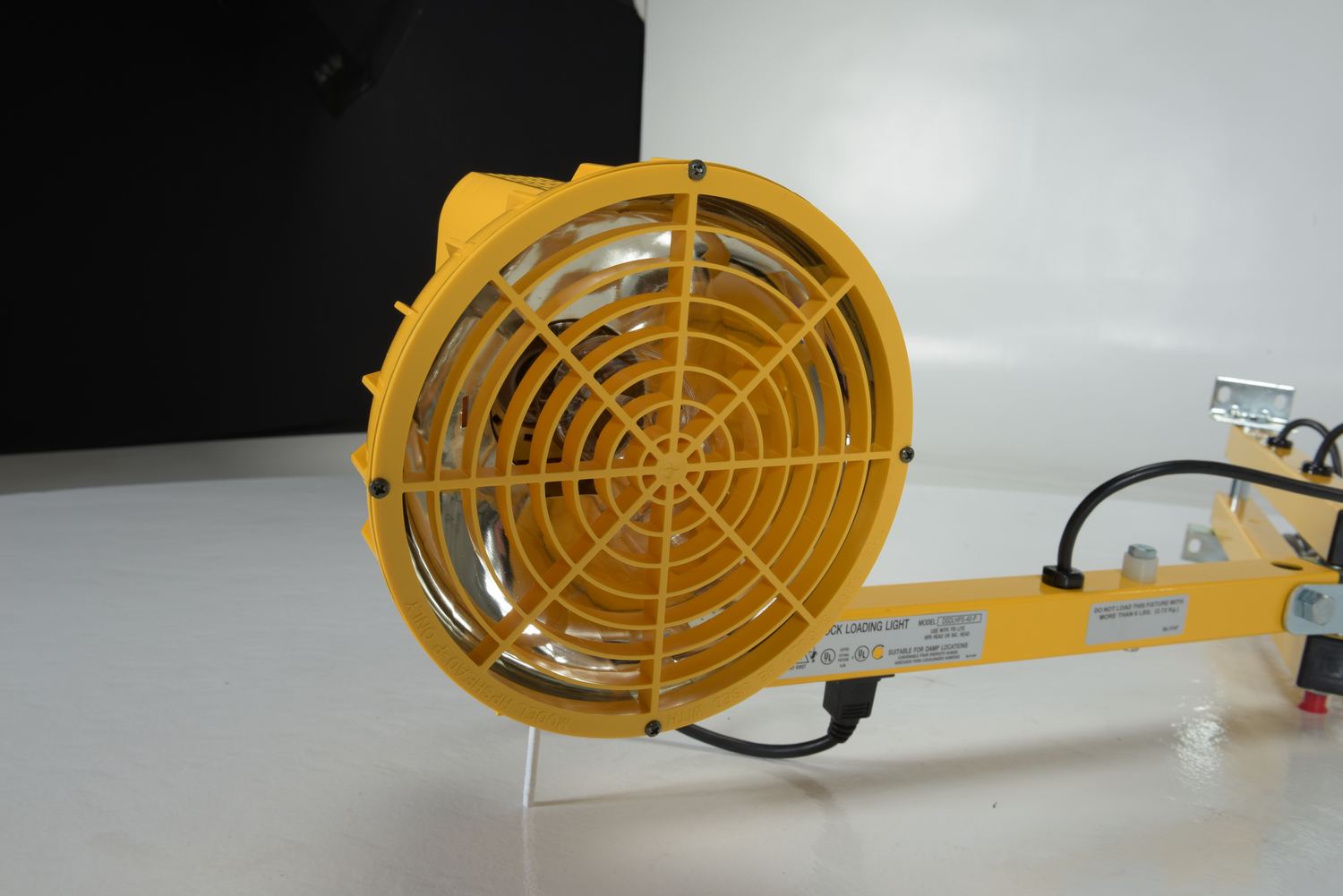

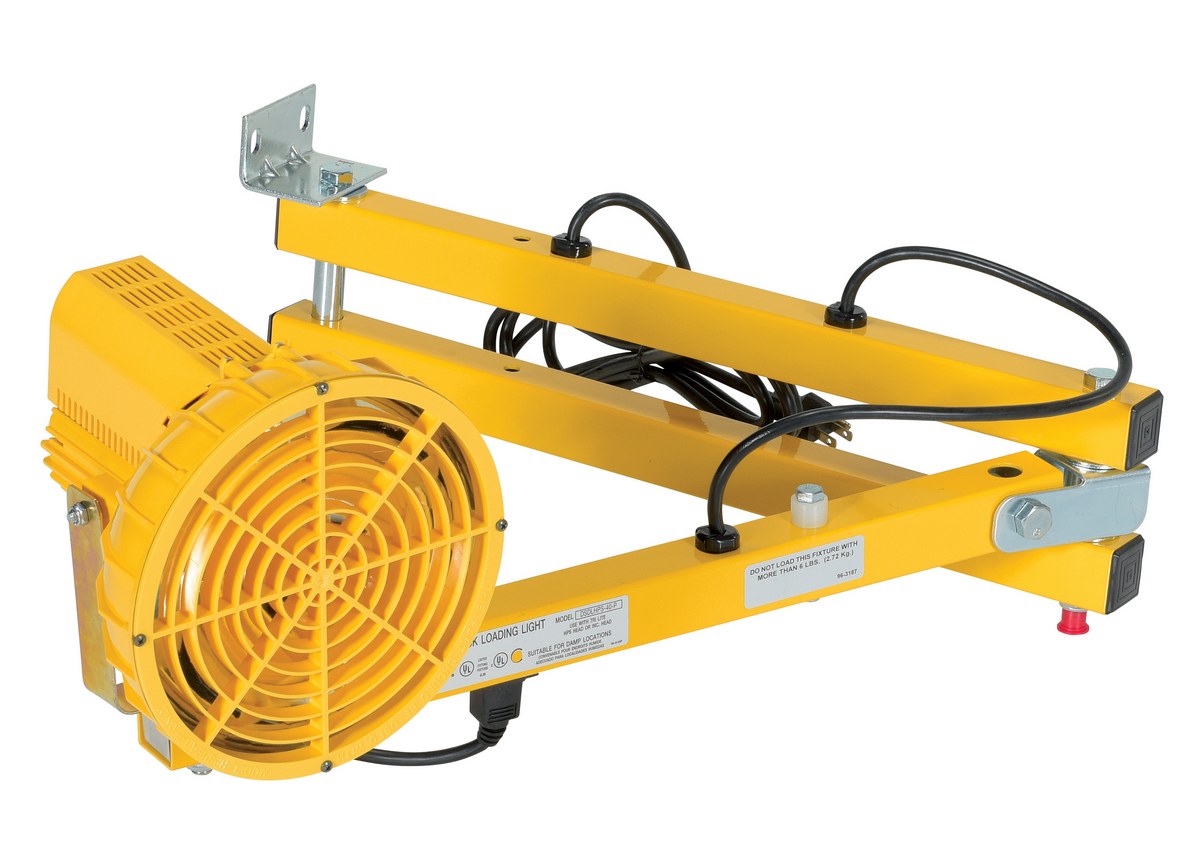

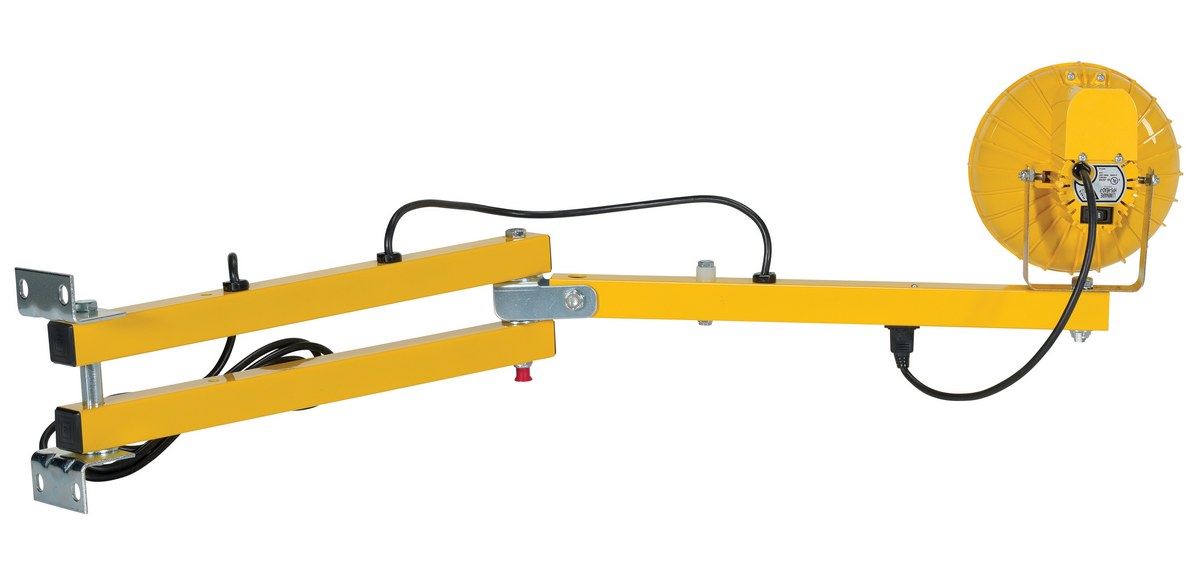

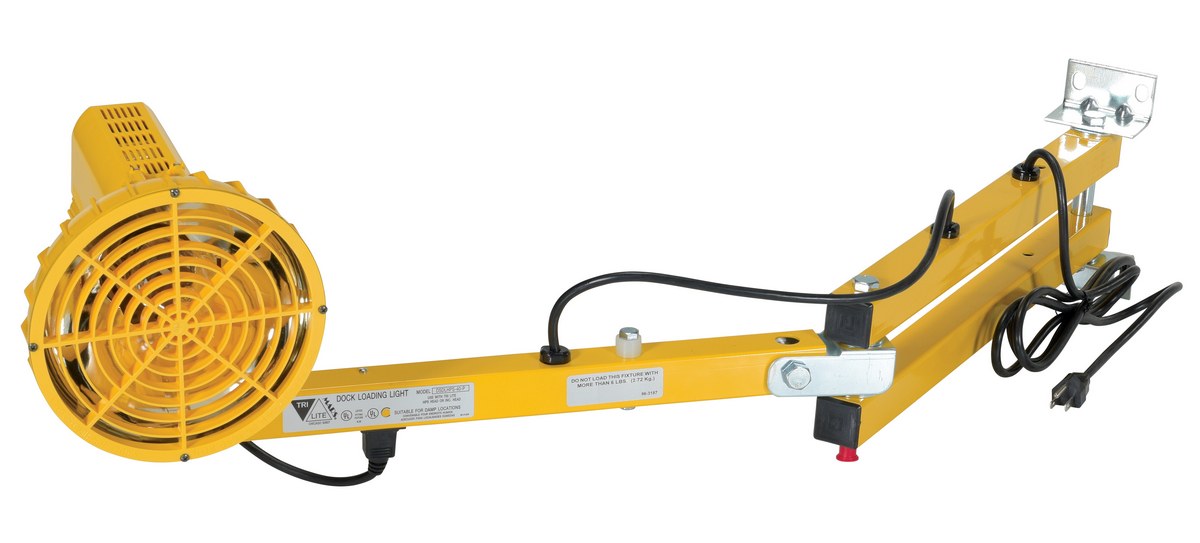

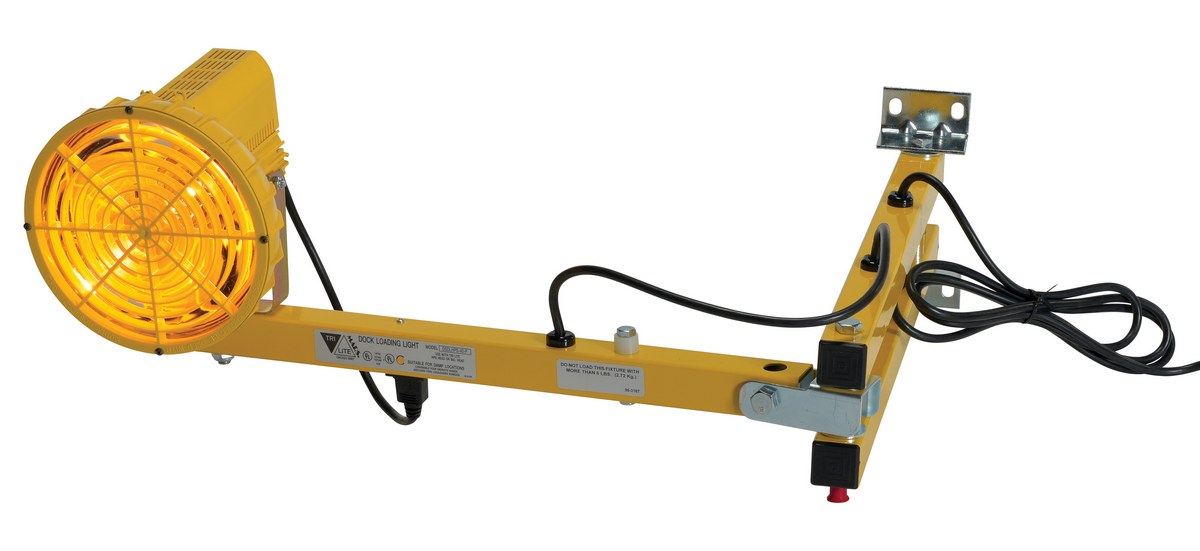

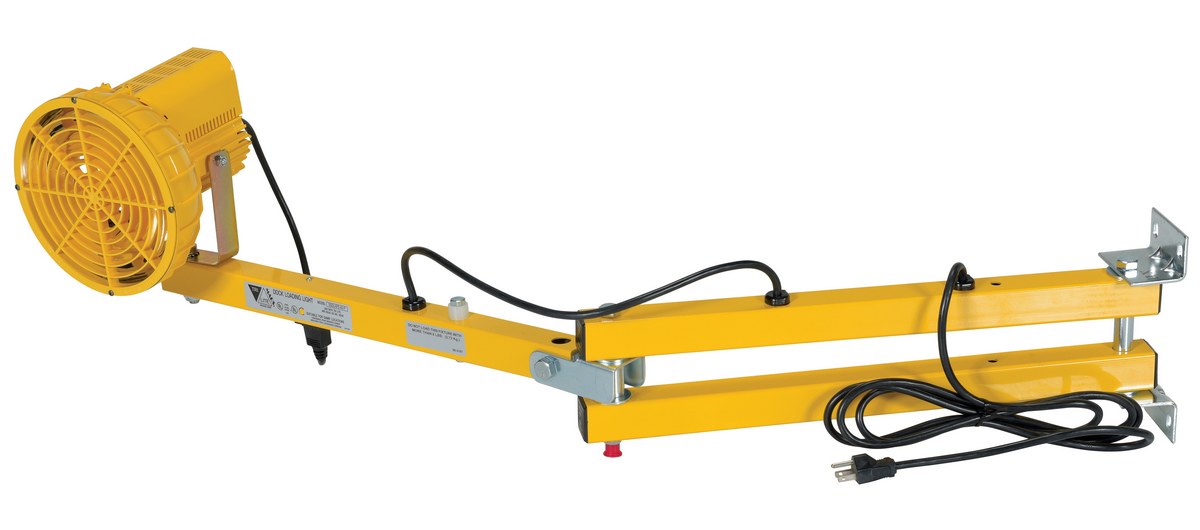

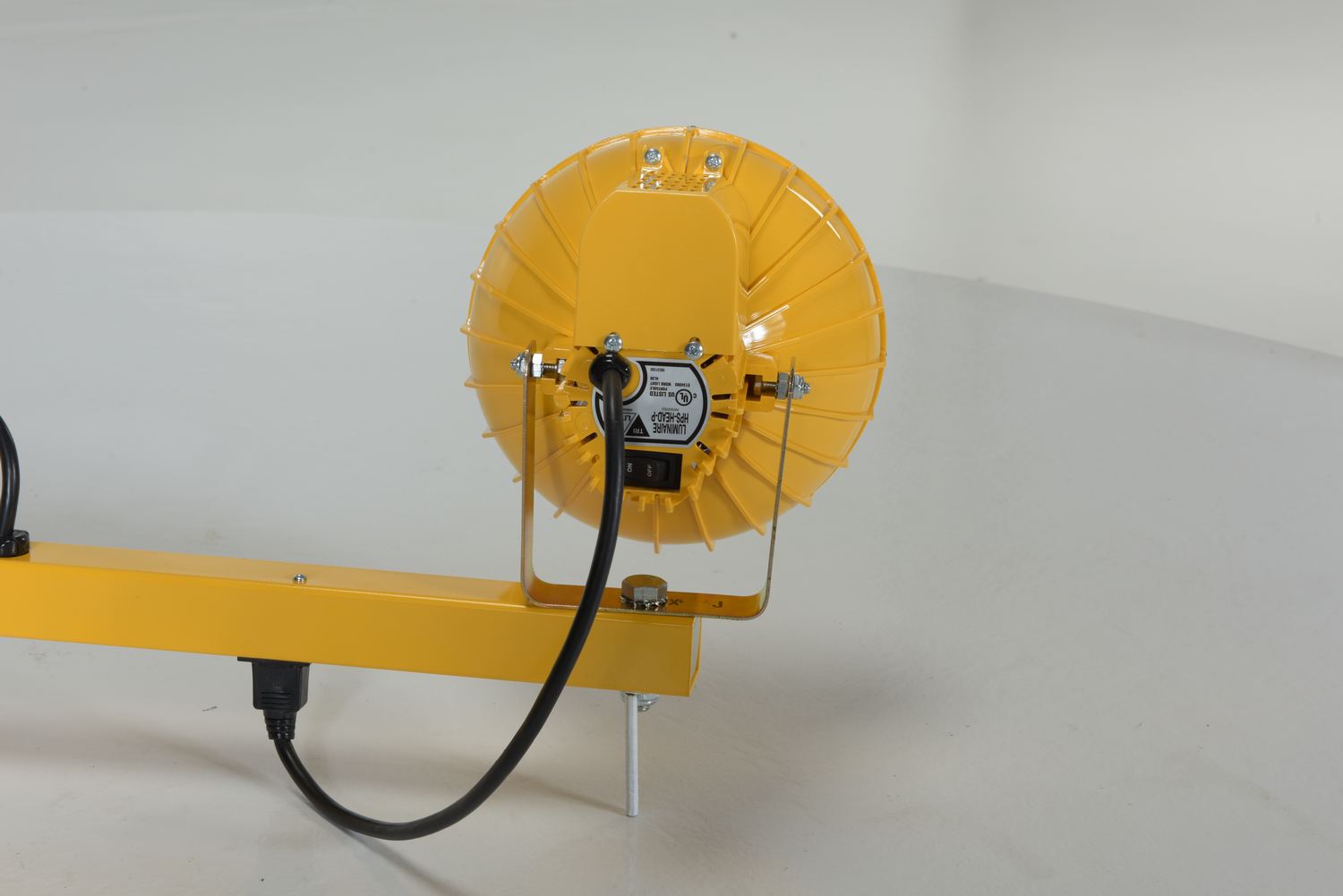

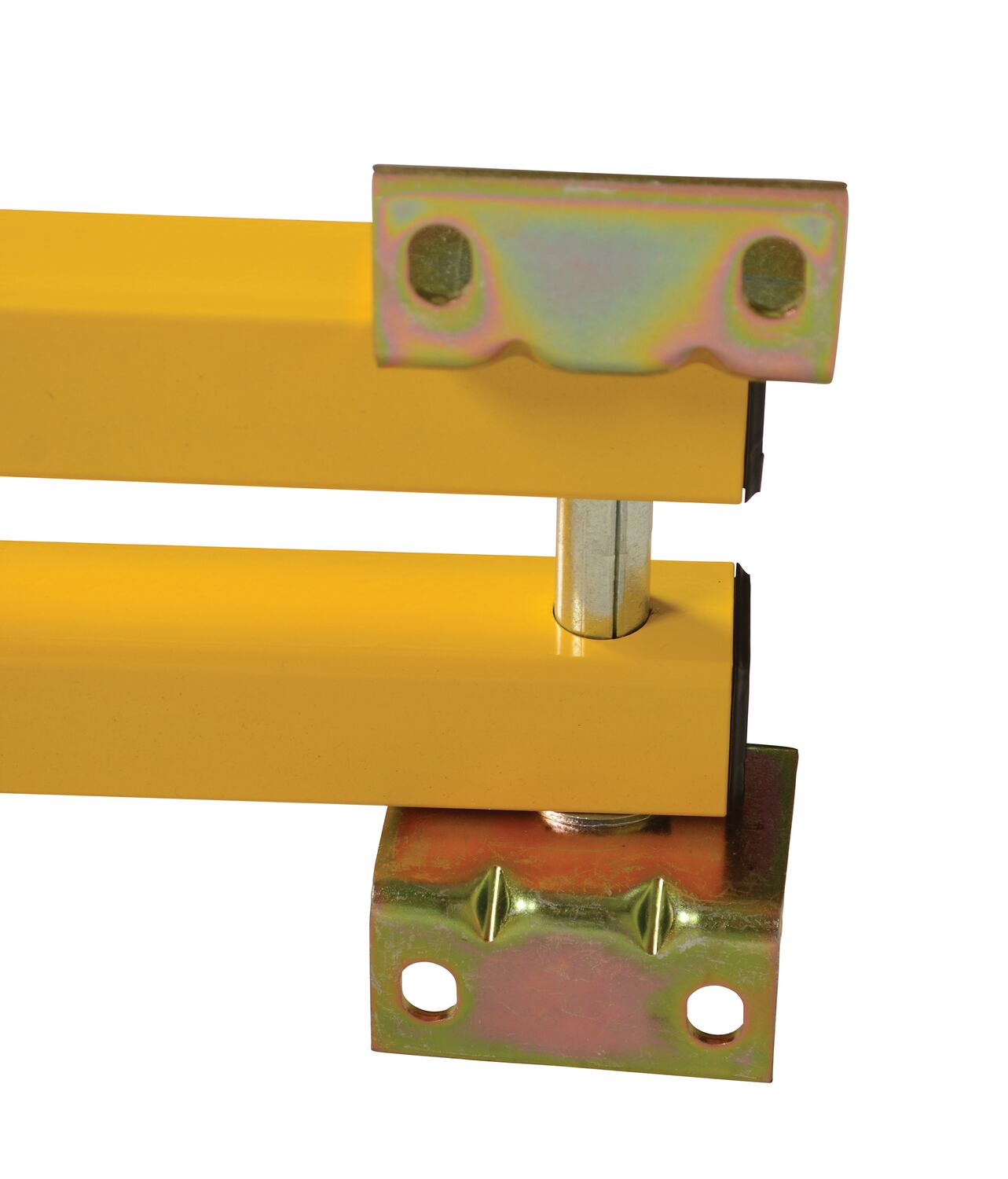

AALLS-40
Aluminum Adjustable High Pressure Sodium Double Arm Loading Dock Light 40 In. Yellow
Arm Length (in.): 40 Voltage/Phase: 115/1
17

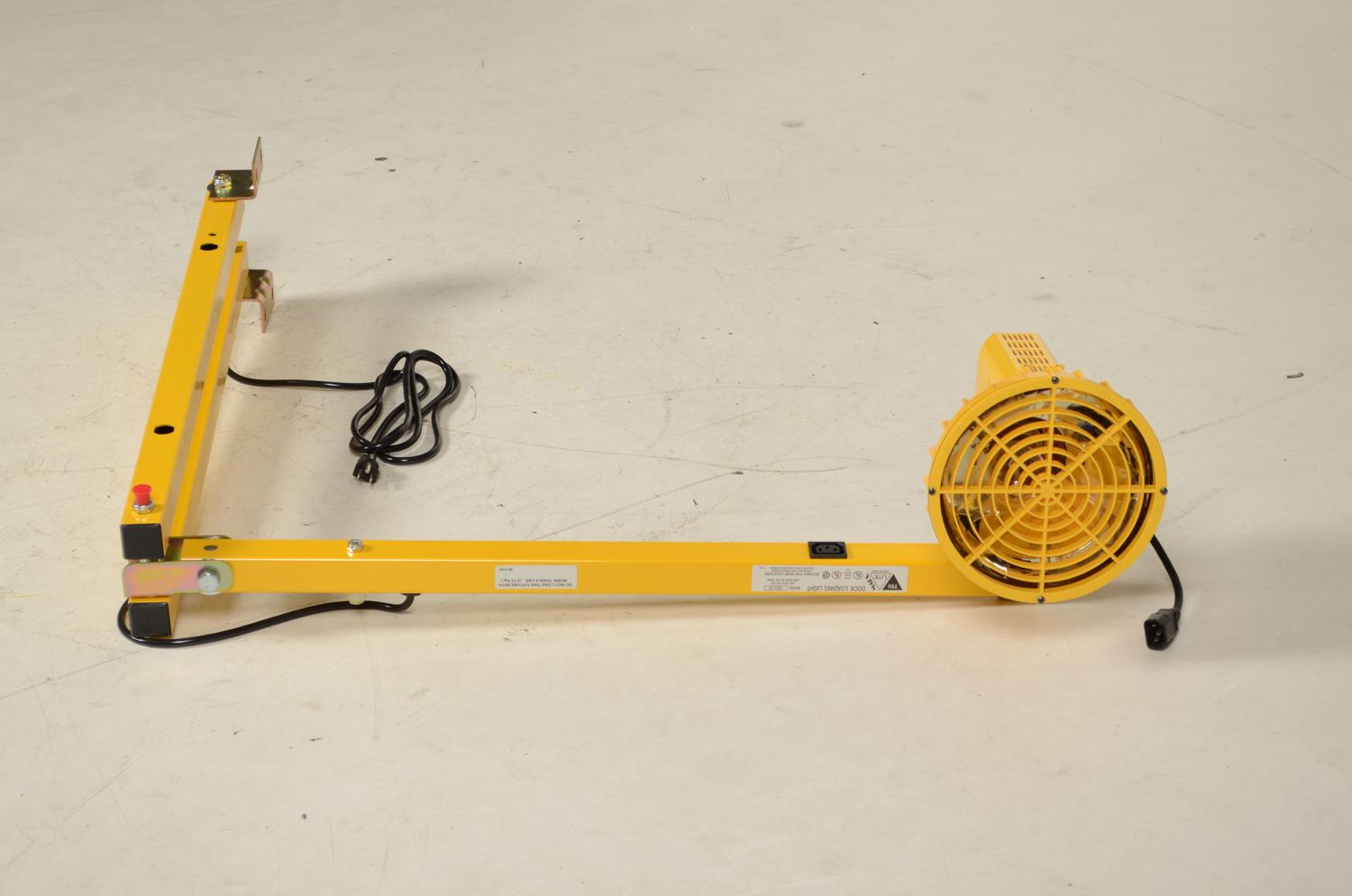

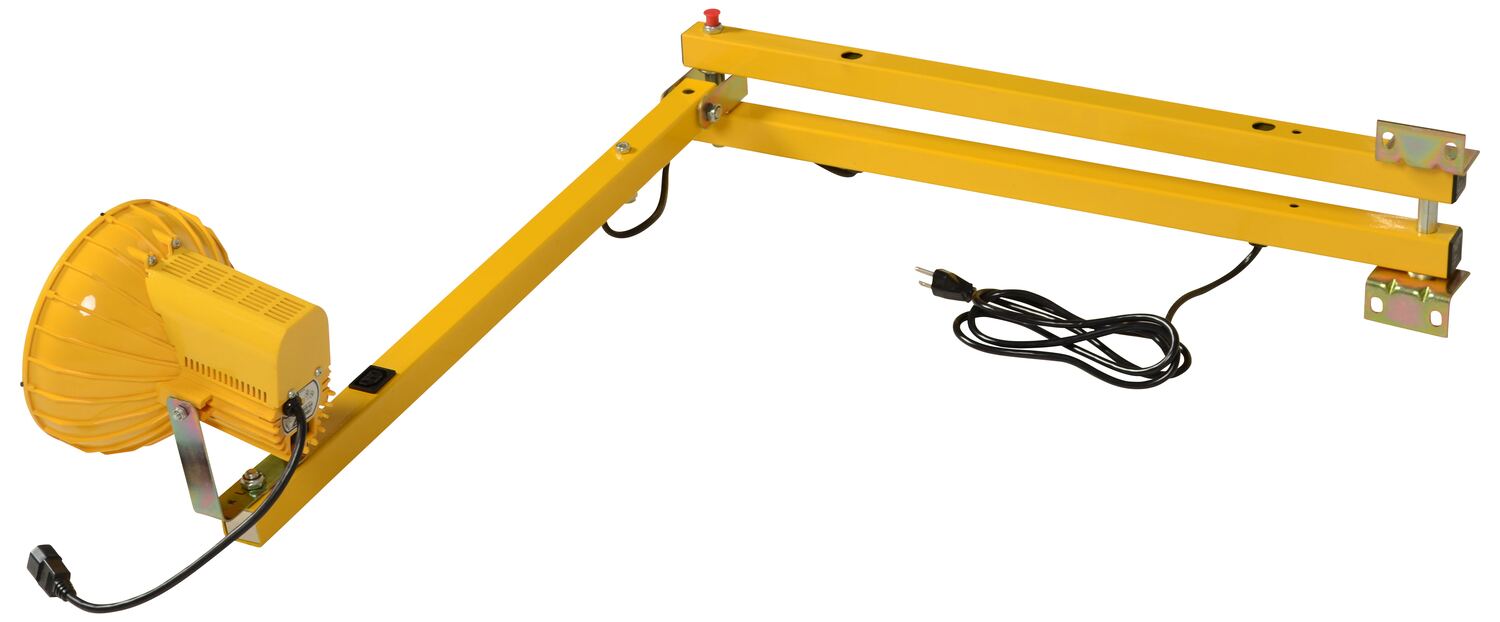

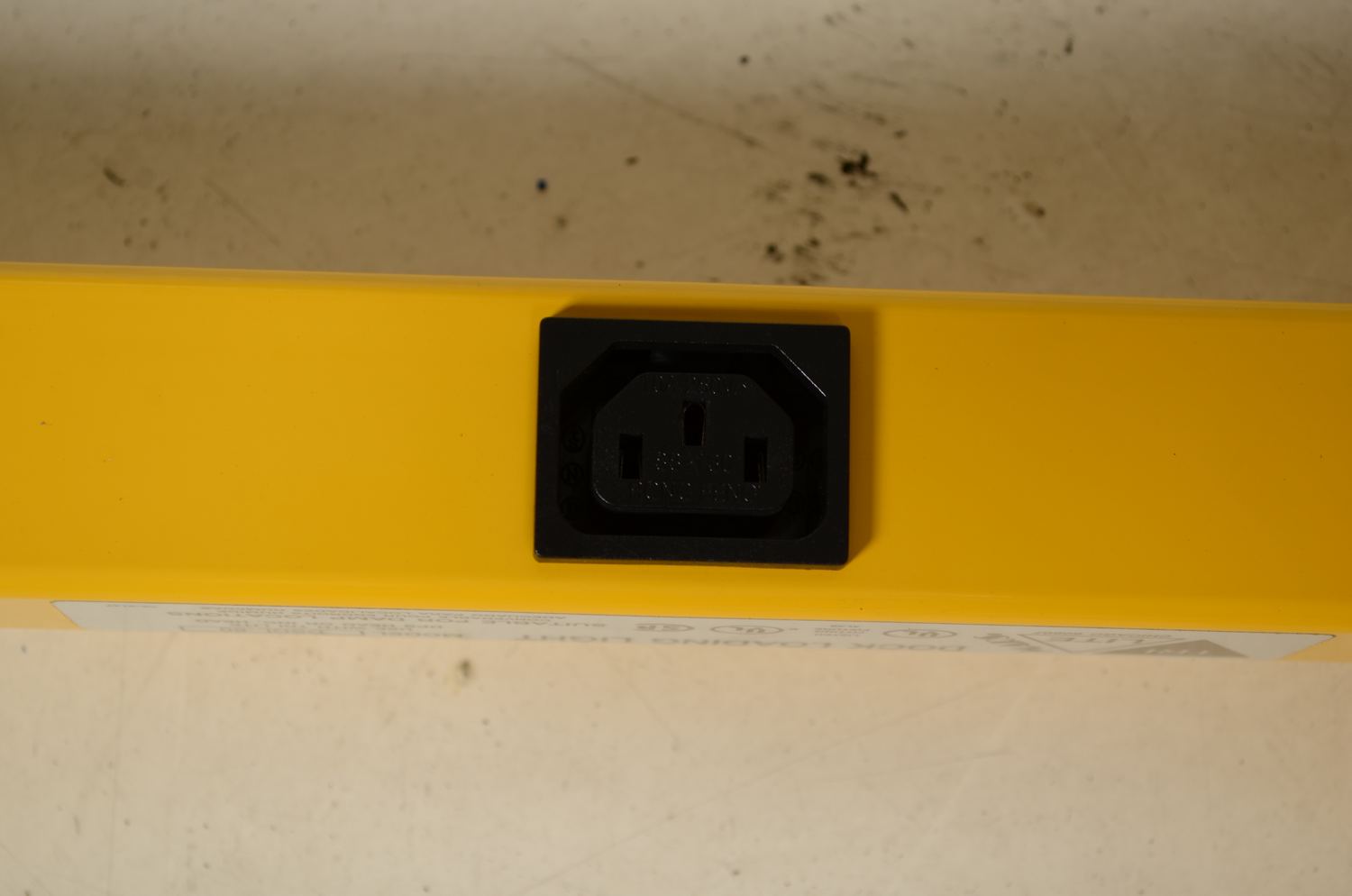

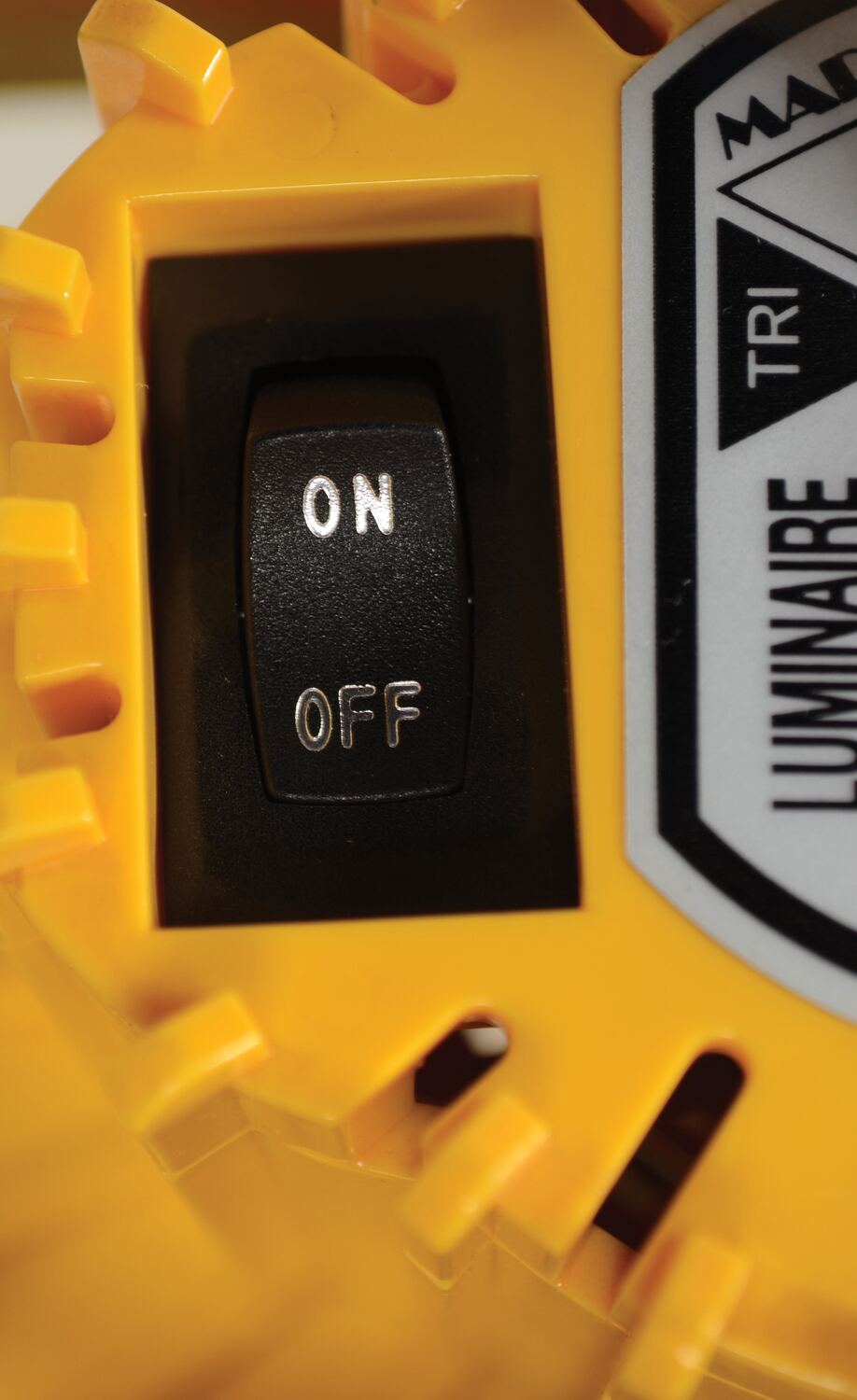

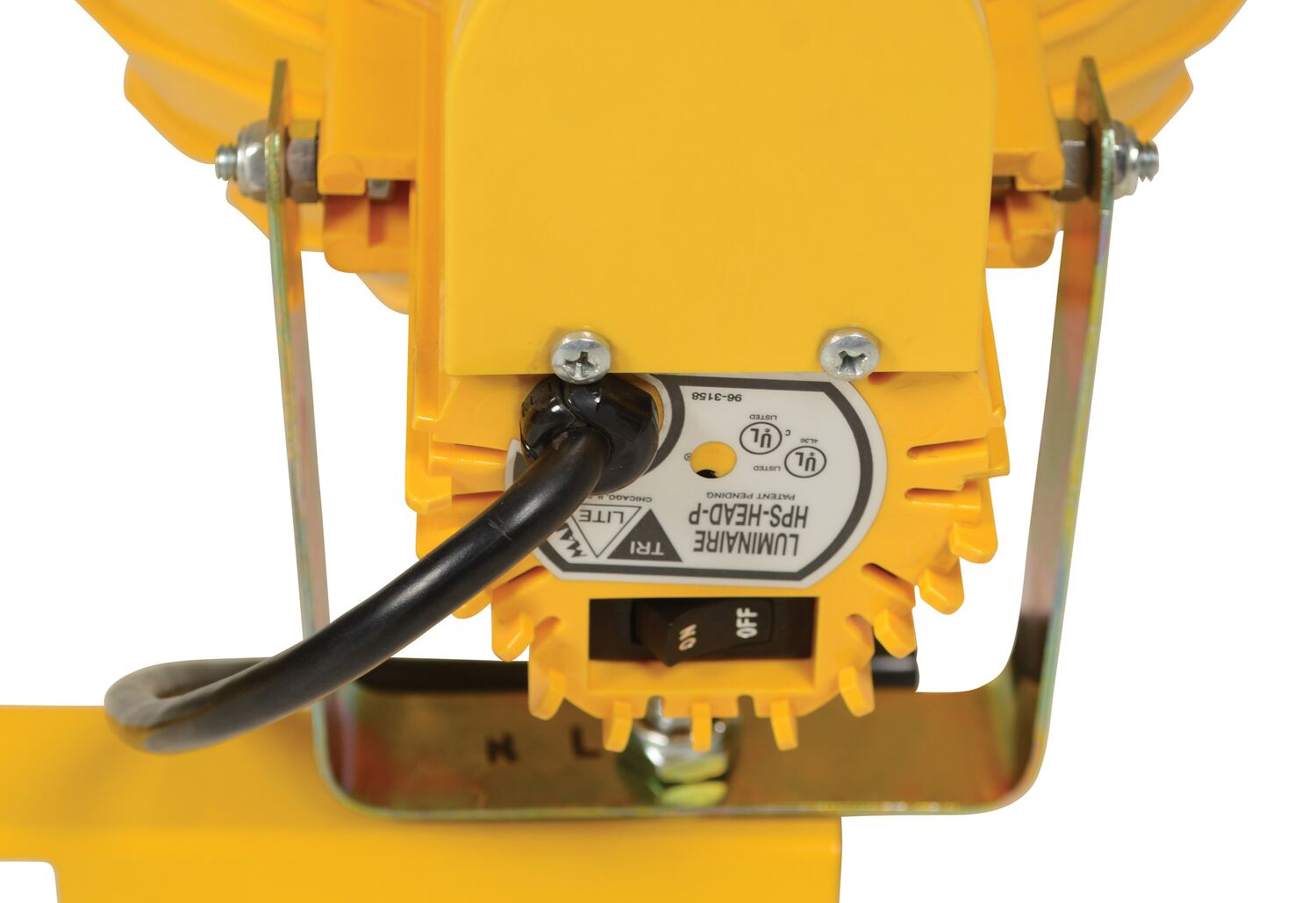

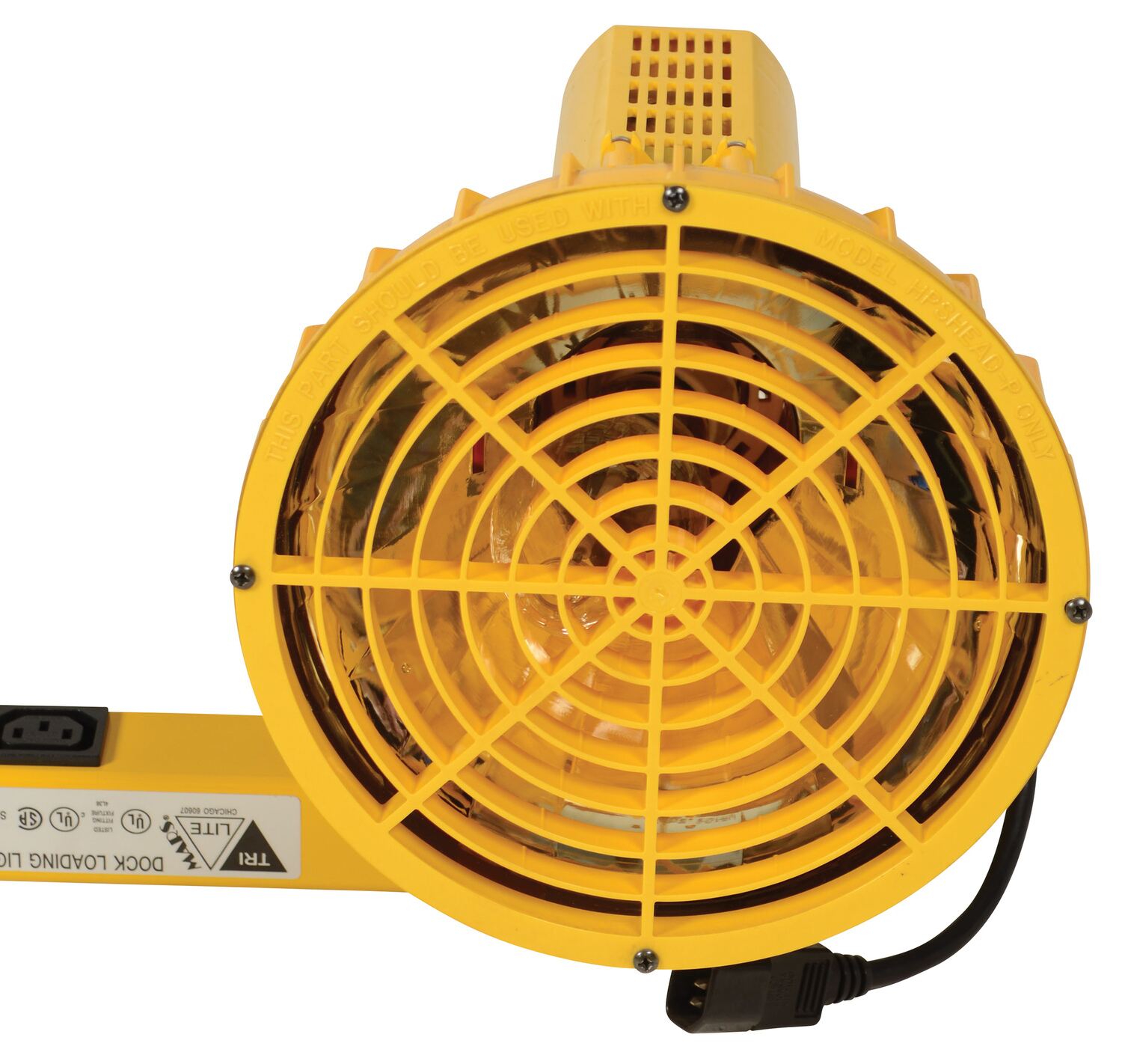

AALLS-60
Aluminum Adjustable High Pressure Sodium Double Arm Loading Dock Light 60 In. Yellow
Arm Length (in.): 60 Voltage/Phase: 115/1
19
HLGN-40
Steel Double Arm Strut Halogen Light 40 In. Length Yellow
Arm Length (in.): 40 Extended Arm Length (in.): 48-7/8
16

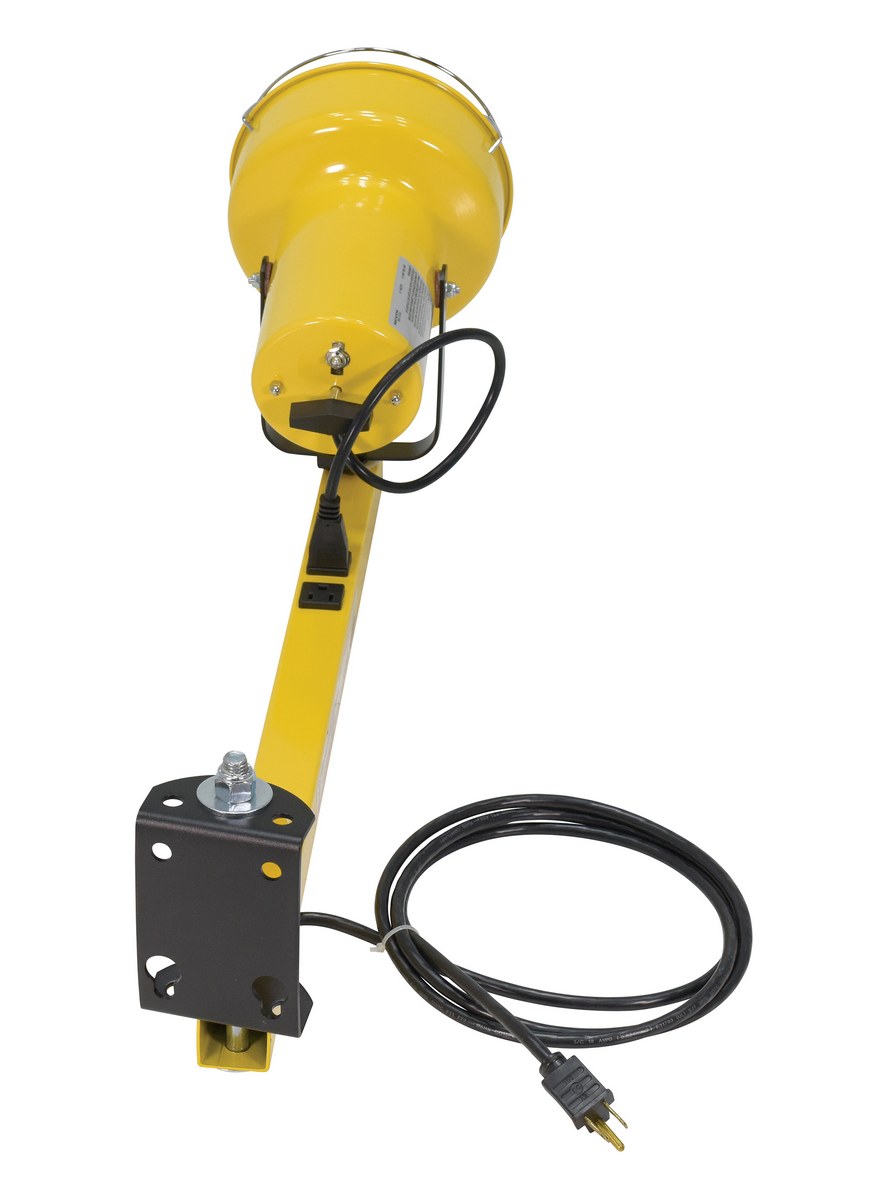

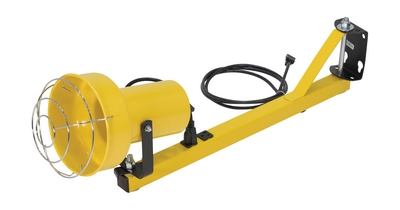

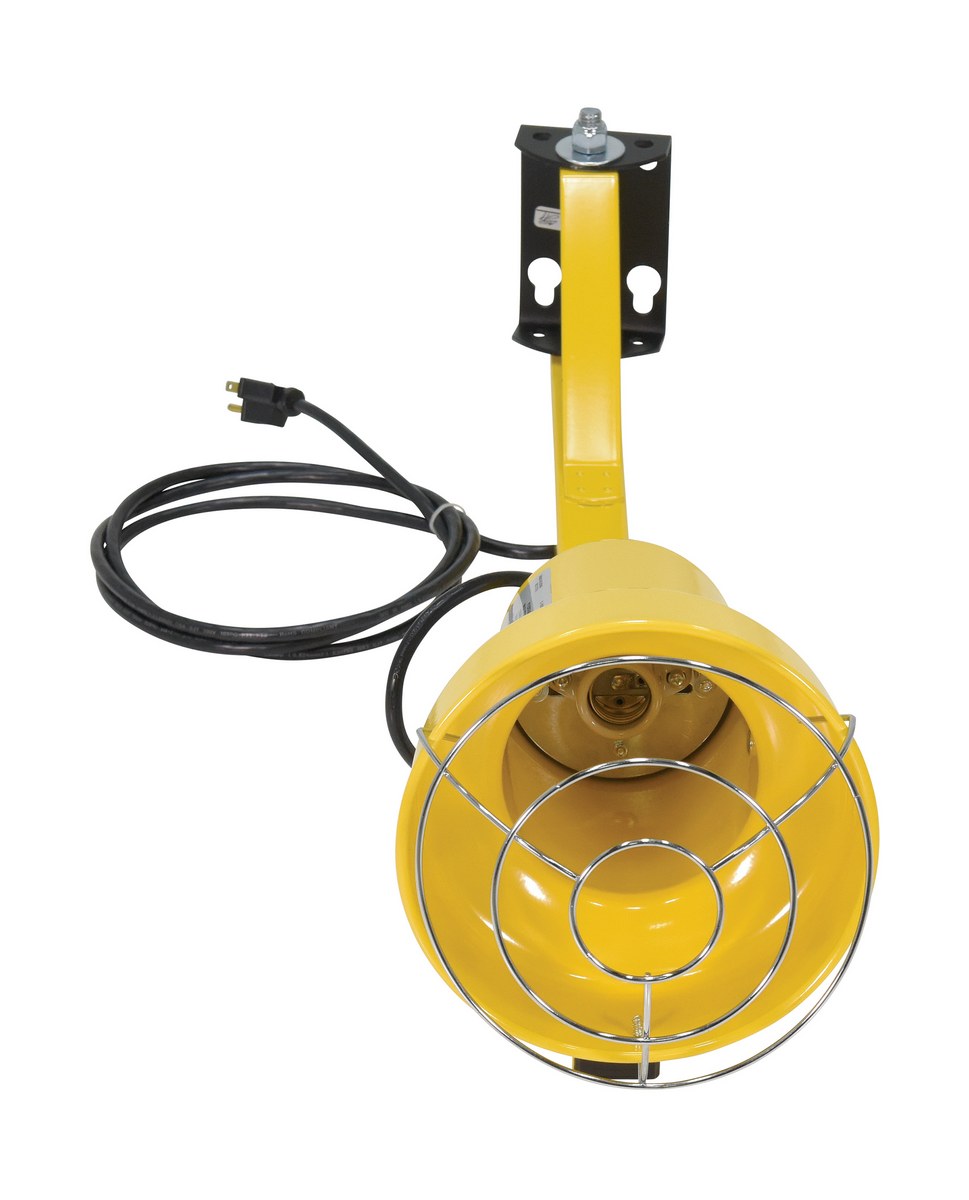

LL-24
Steel Incandescent Single Arm Load Light 24 In. Length Yellow
Arm Length (in.): 24 Extended Arm Length (in.): 24-1/4
14

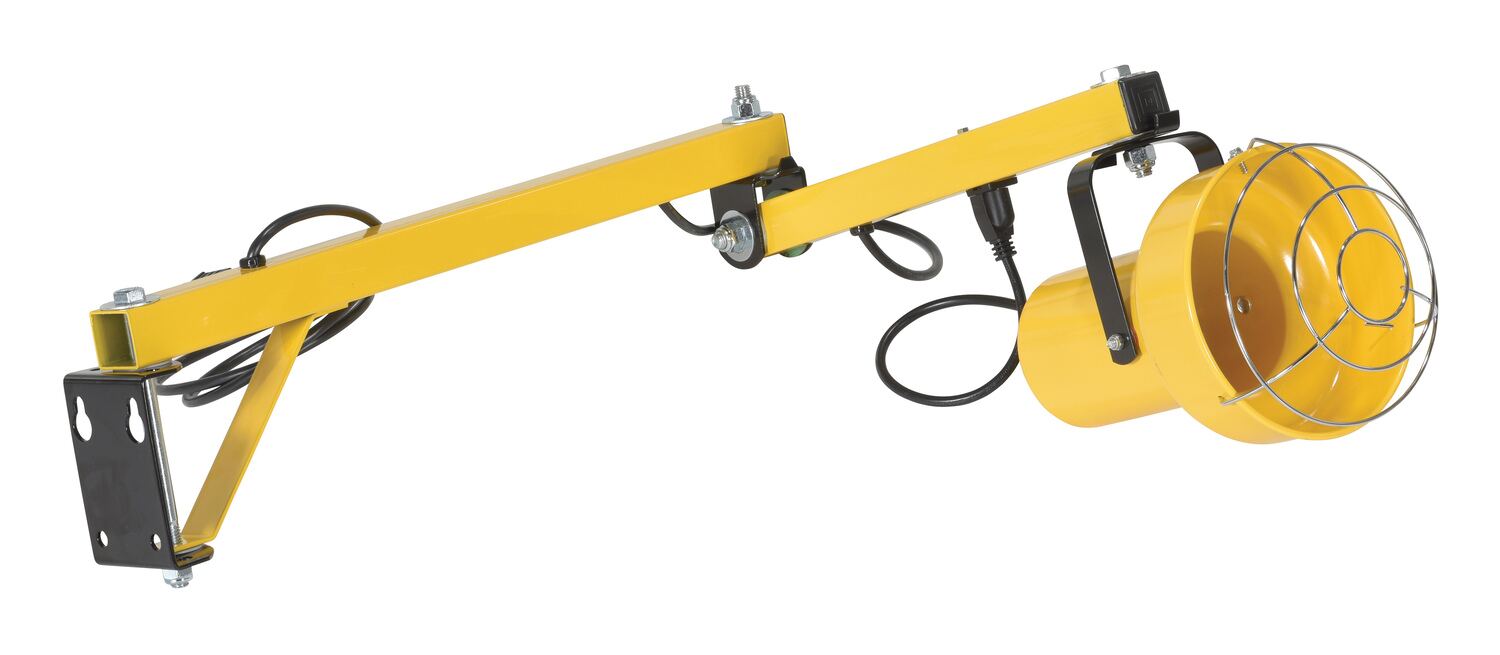

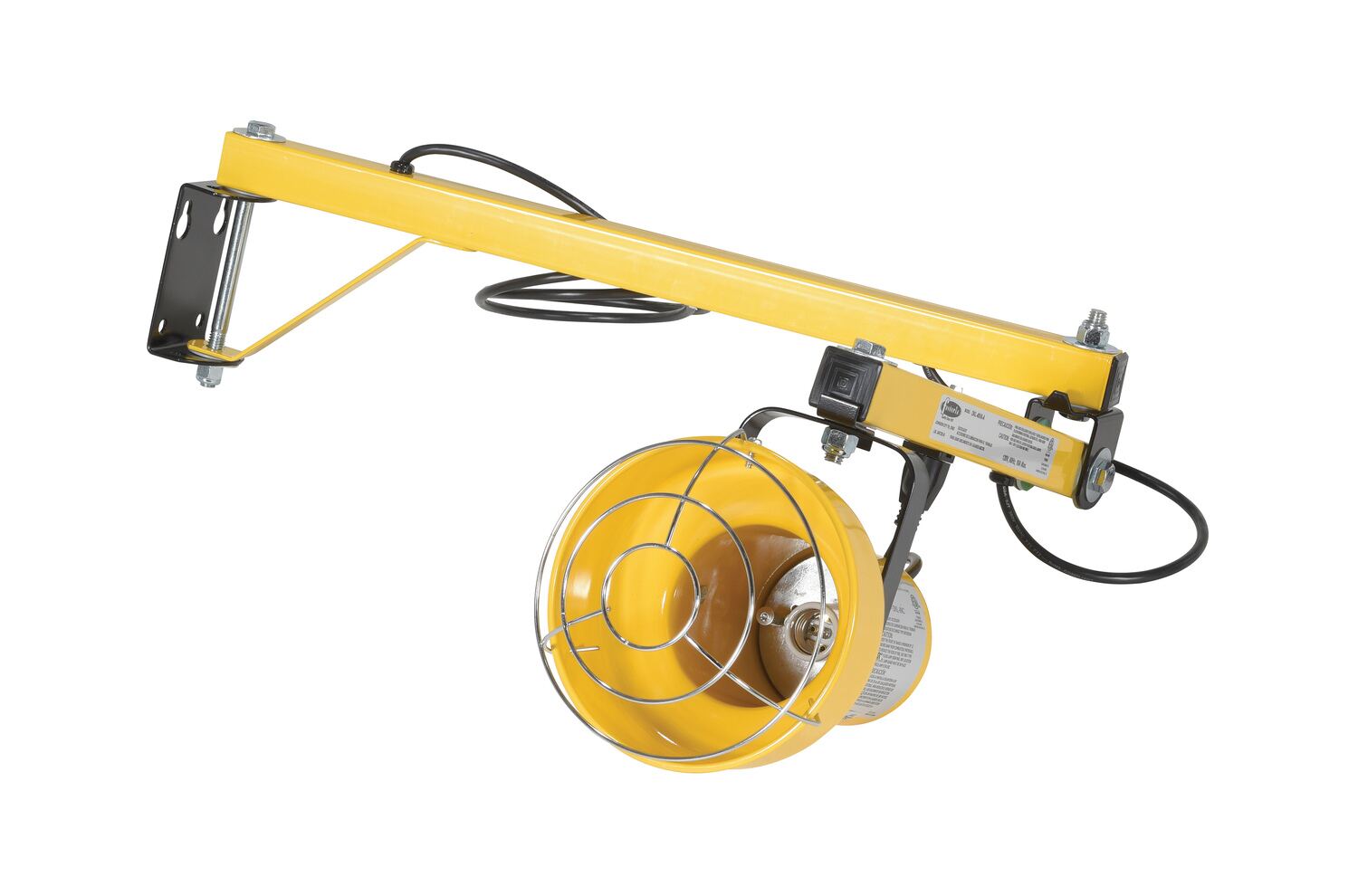

LL-40
Steel Incandescent Double Arm Load Light 40 In. Length Yellow
Arm Length (in.): 40 Extended Arm Length (in.): 40-1/4
16

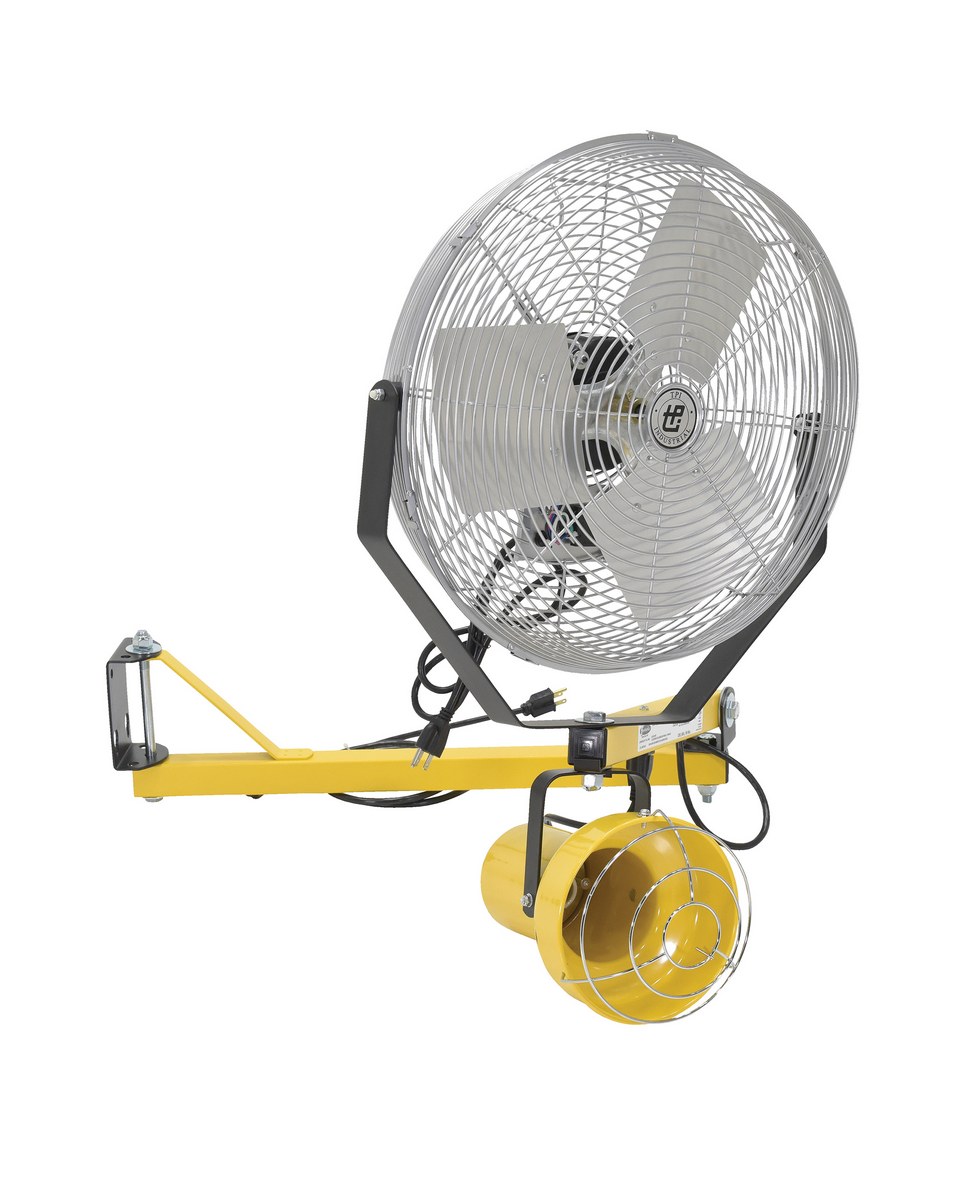

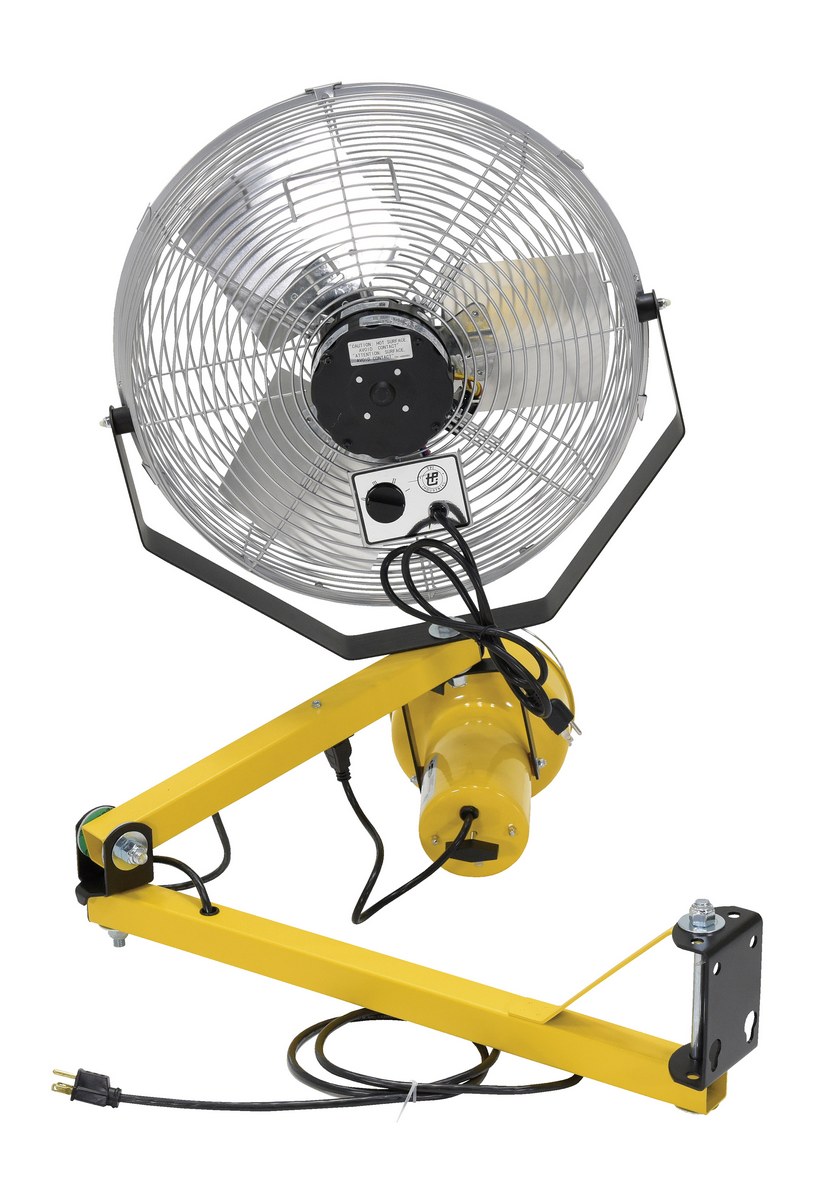

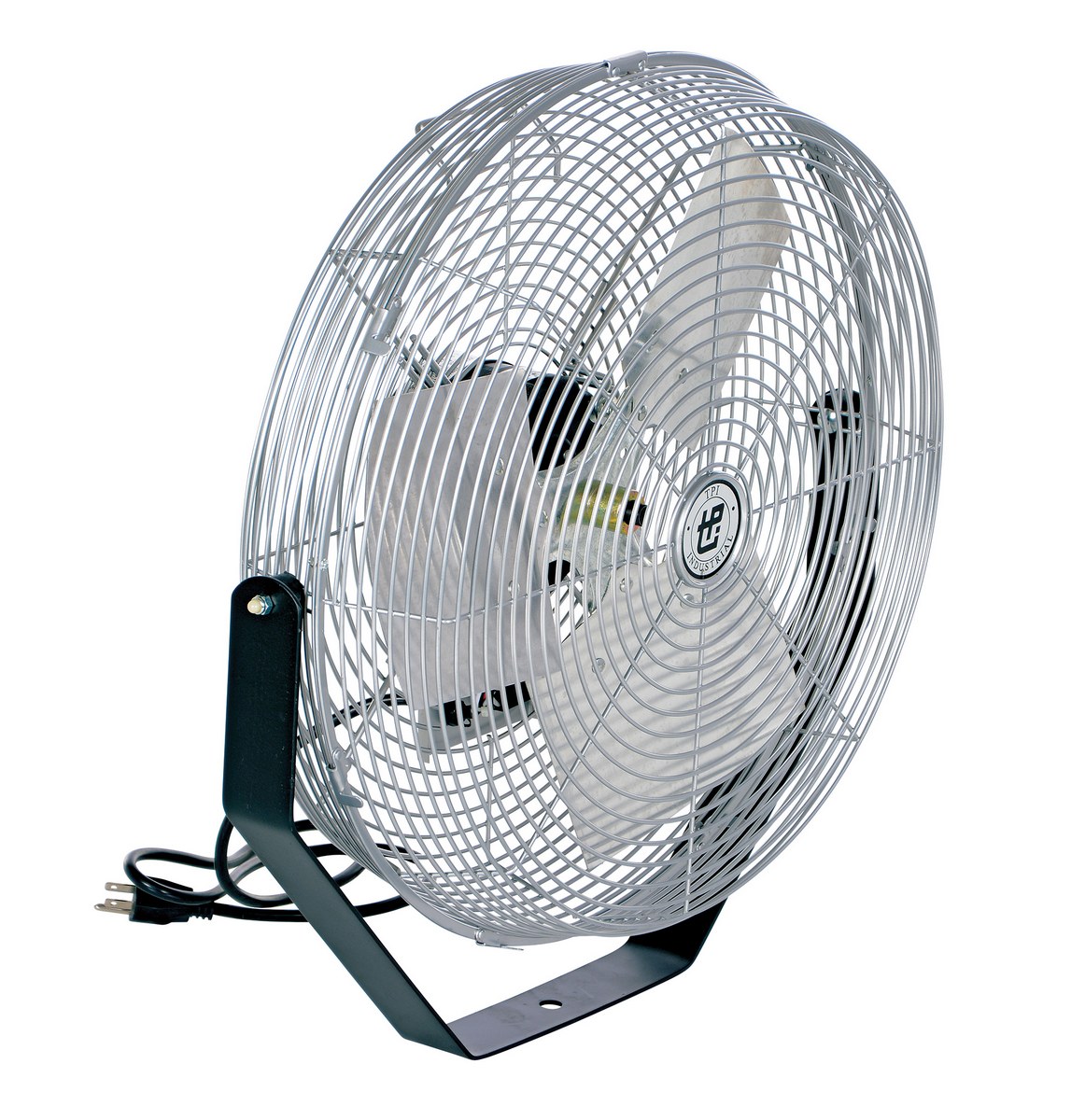

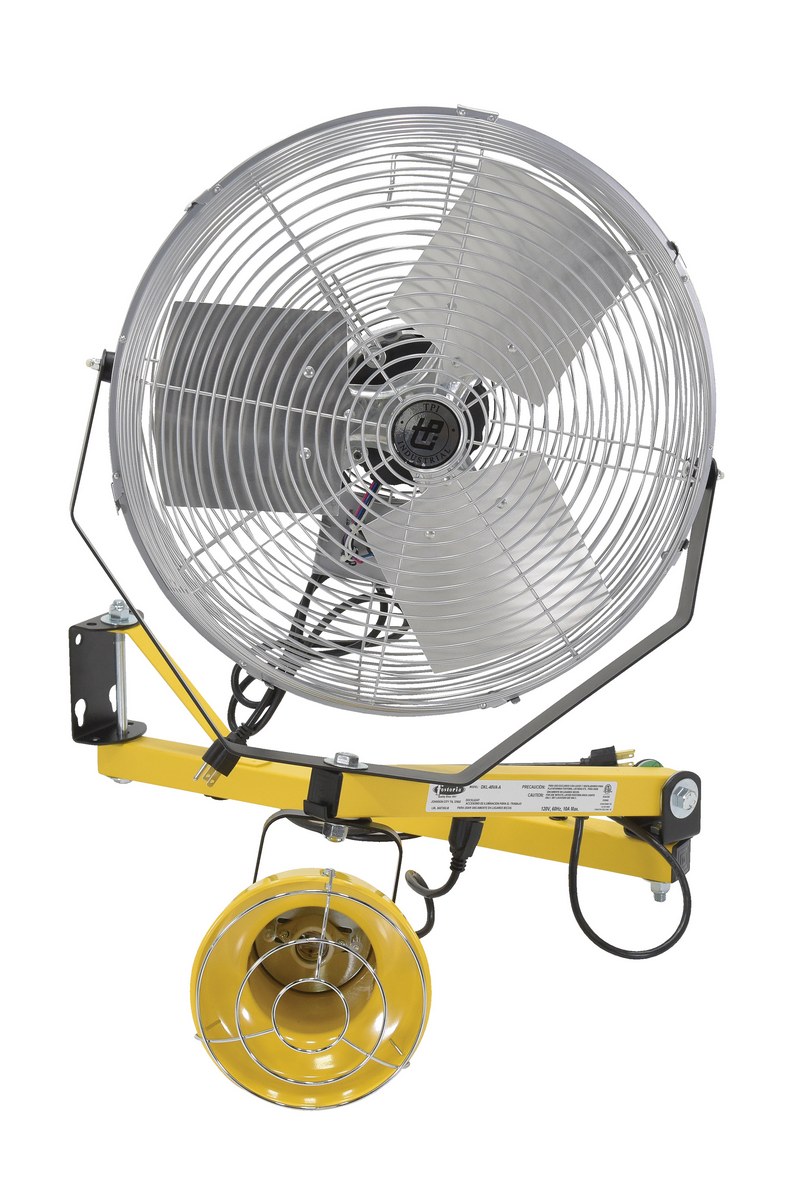

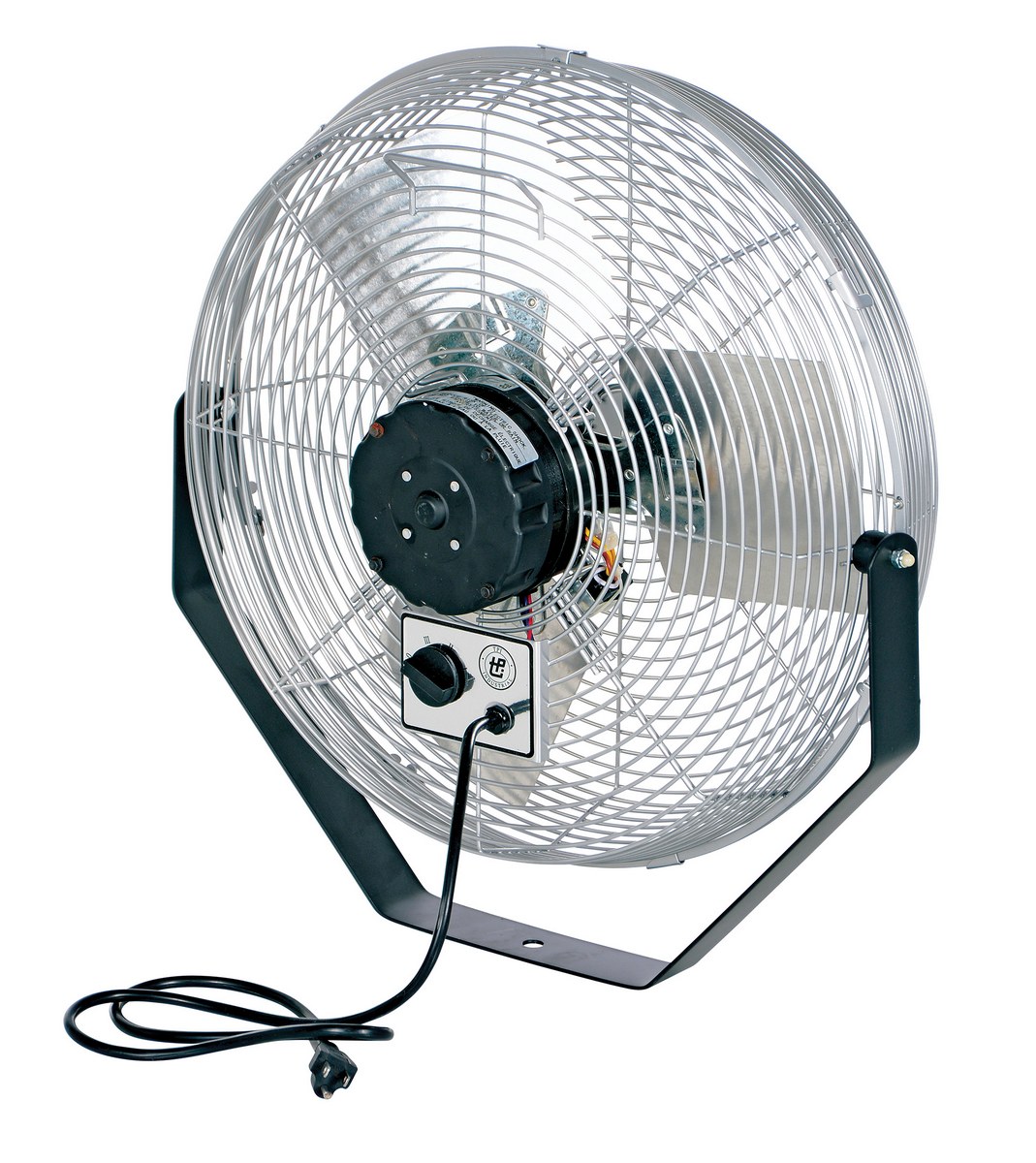

LL-40-FAN
Steel Incandescent Double Arm Load Light with Fan 40 In. Length Yellow
Arm Length Extended (in.): 48 Light Voltage/Phase: 115/1
37

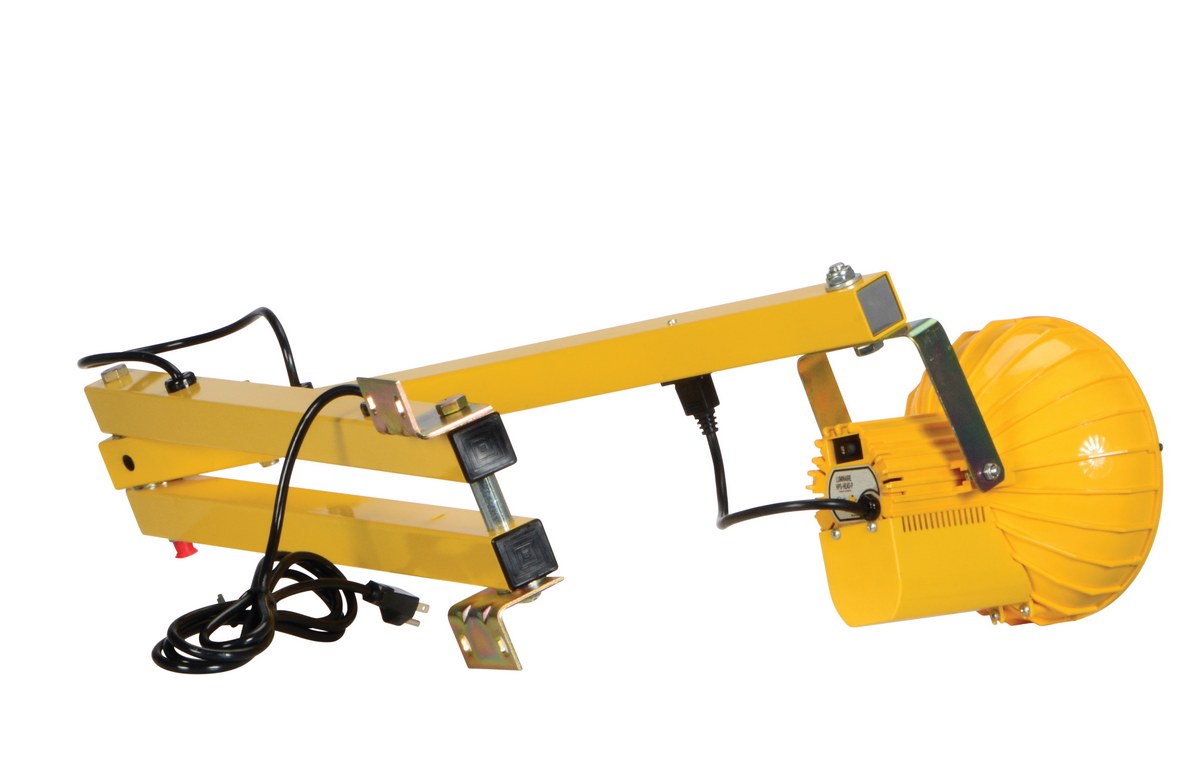

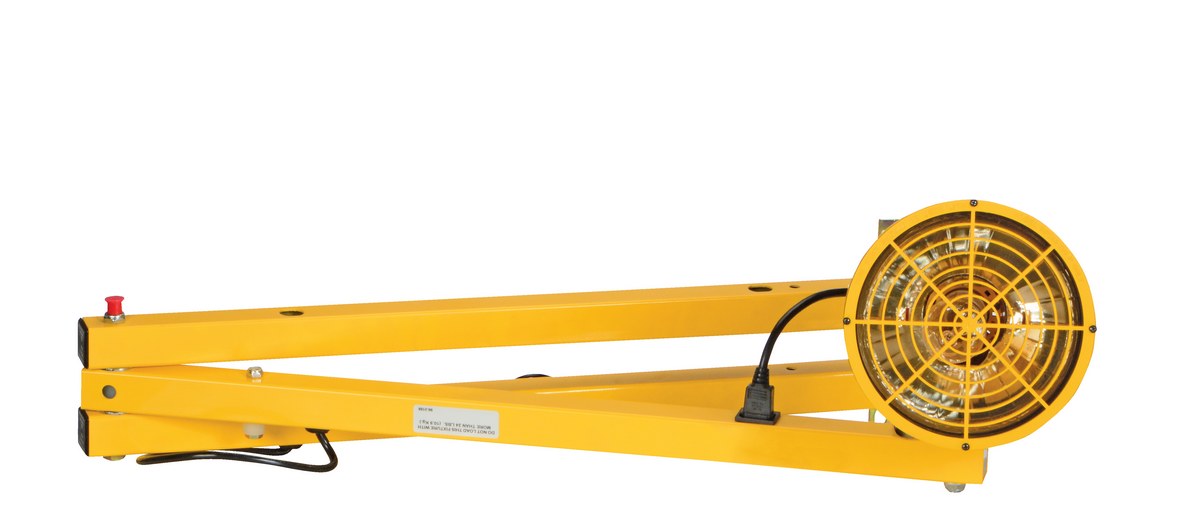

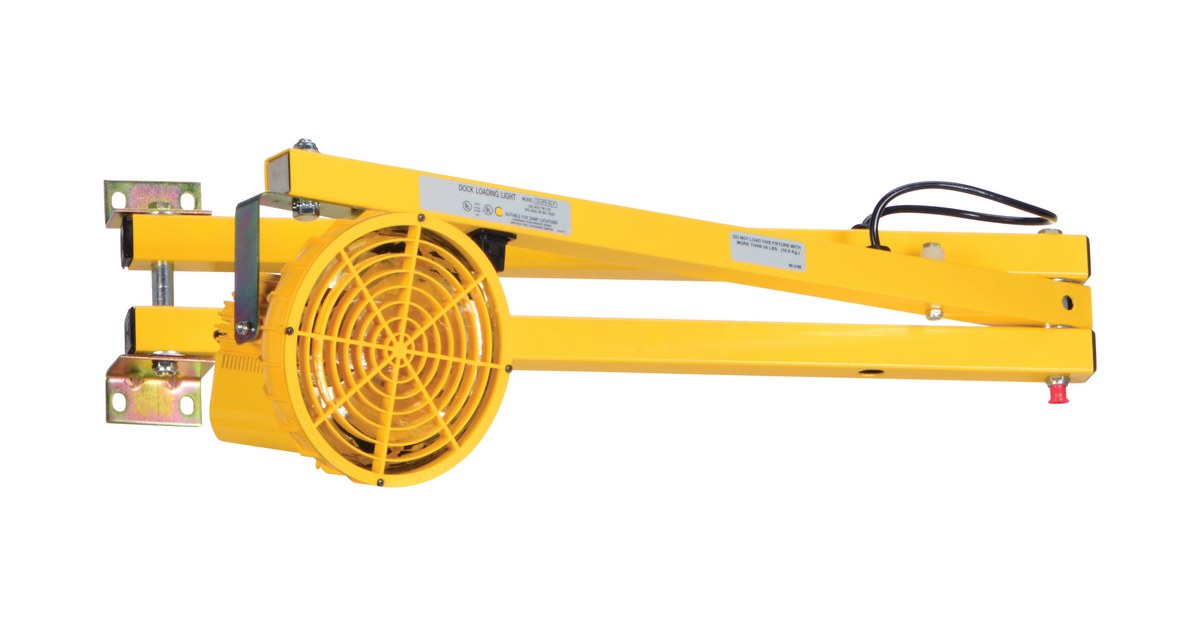

LL-60
Steel Incandescent Double Arm Load Light 60 In. Length Yellow
Arm Length (in.): 60 Extended Arm Length (in.): 70-7/8
21

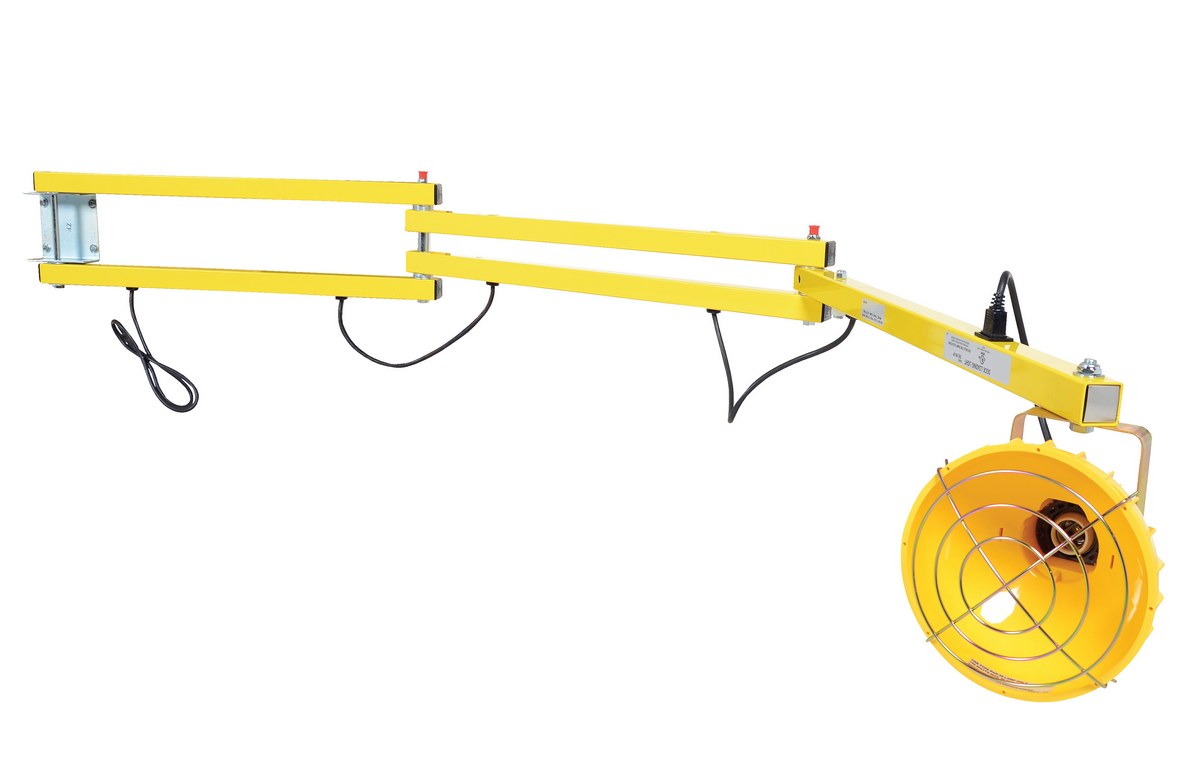

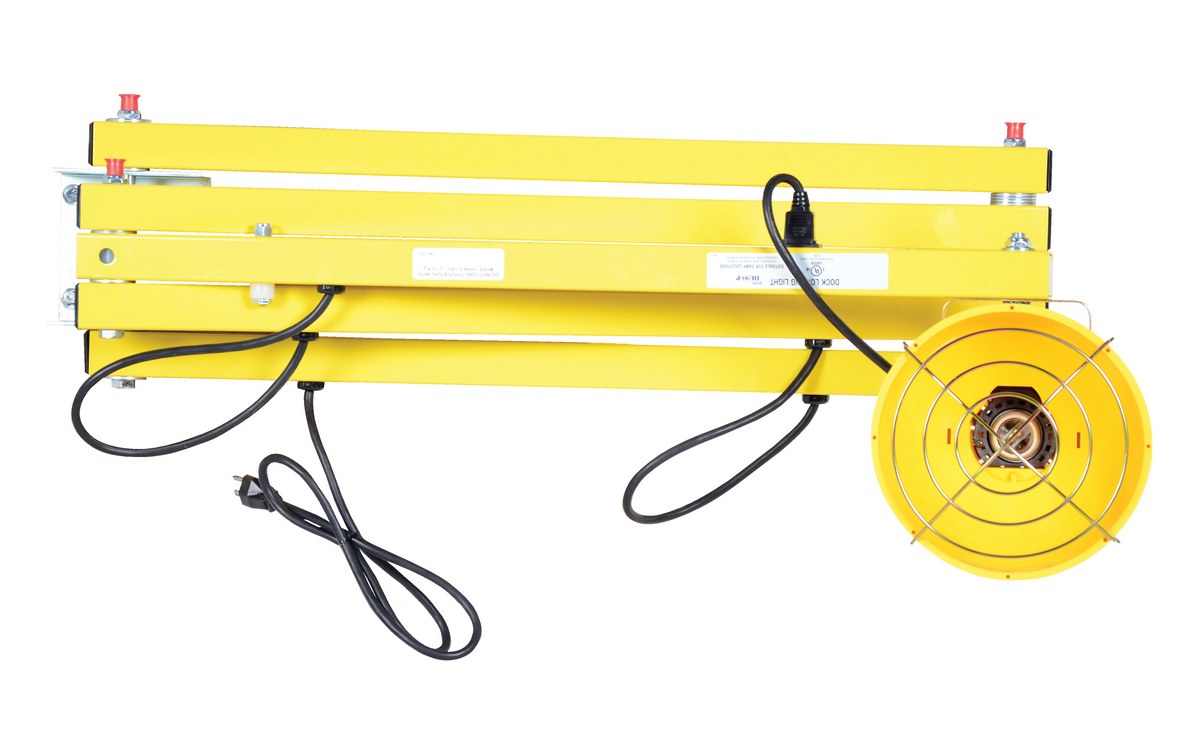

LL-90
Steel Incandescent Triple Arm Load Light 90 In. Length Yellow
Arm Length (in.): 90 Extended Arm Length (in.): 95-1/2
30

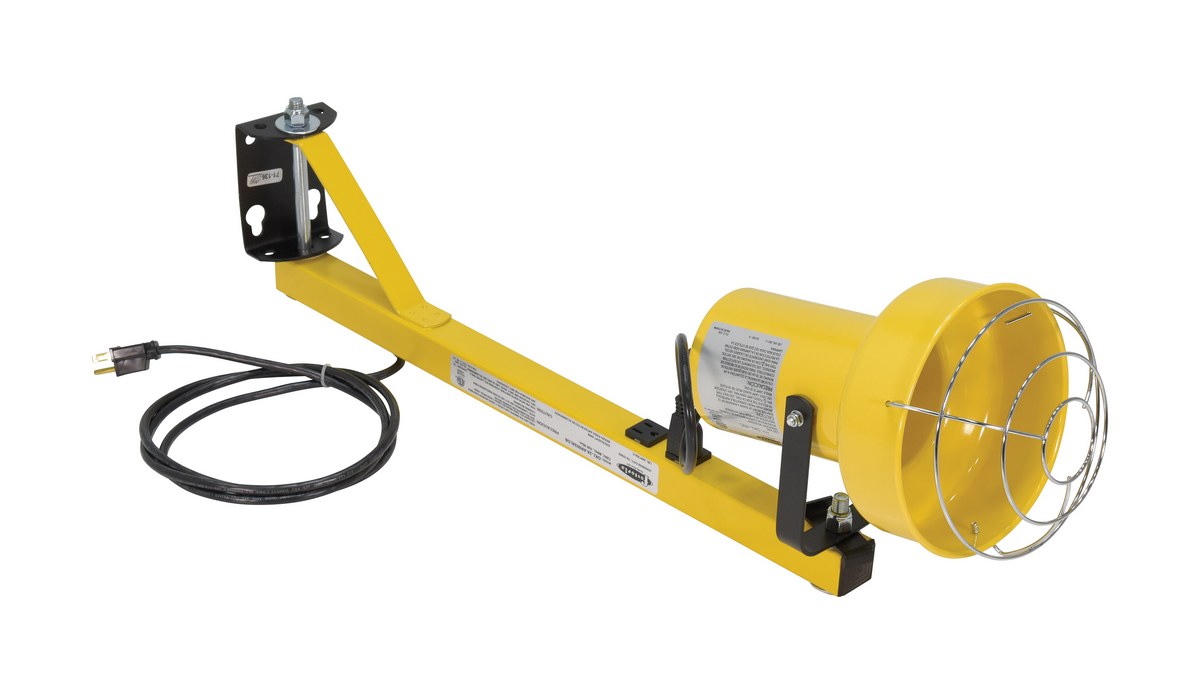

LL-SAI-24
Steel Incandescent Single Arm Load Light 24 In. Length Yellow
Arm Length (in.): 24 Extended Arm Length (in.): 30-1/4
13

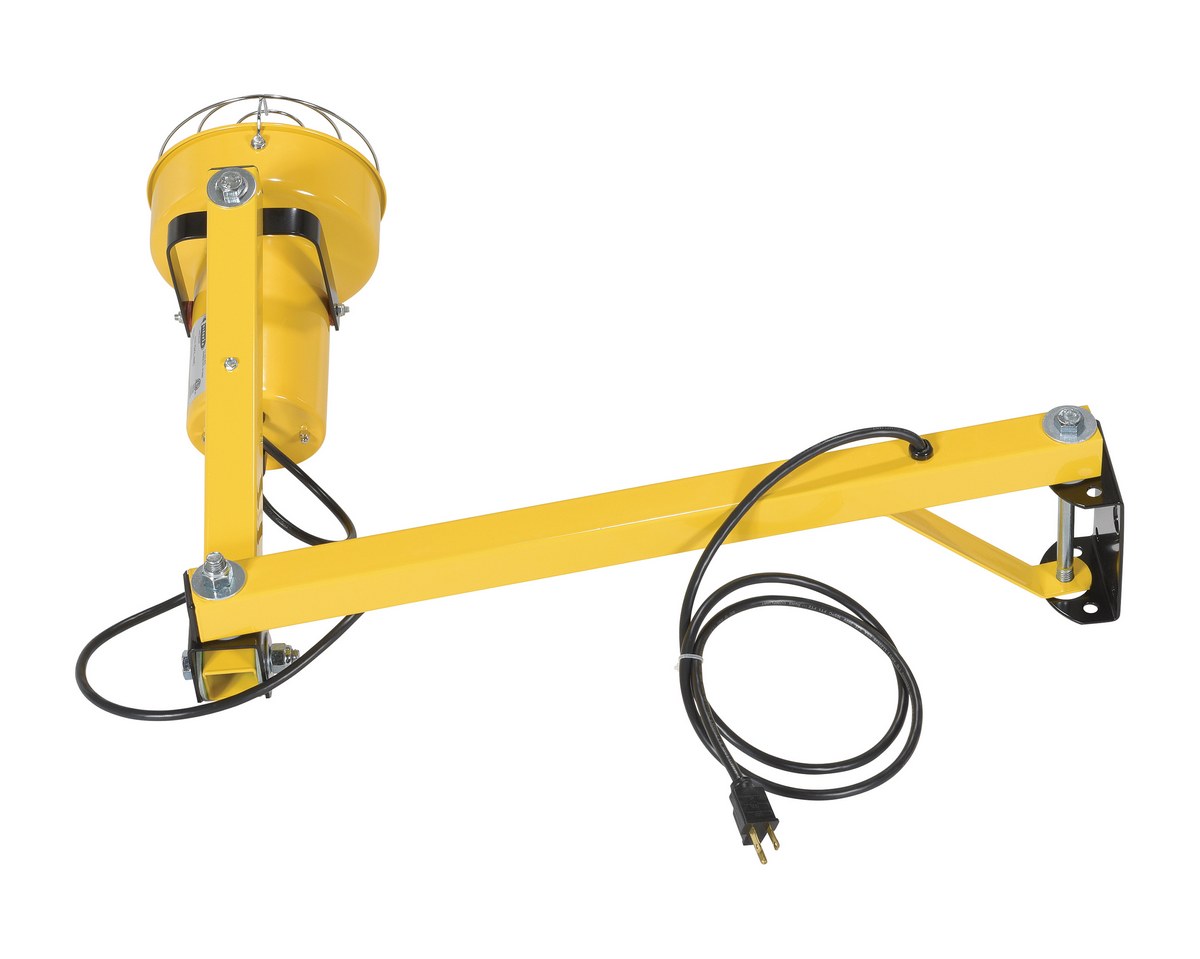

LL-SAI-40
Steel Incandescent Double Arm Load Light 40 In. Length Yellow
Arm Length (in.): 40 Voltage/Phase: 115/1
11

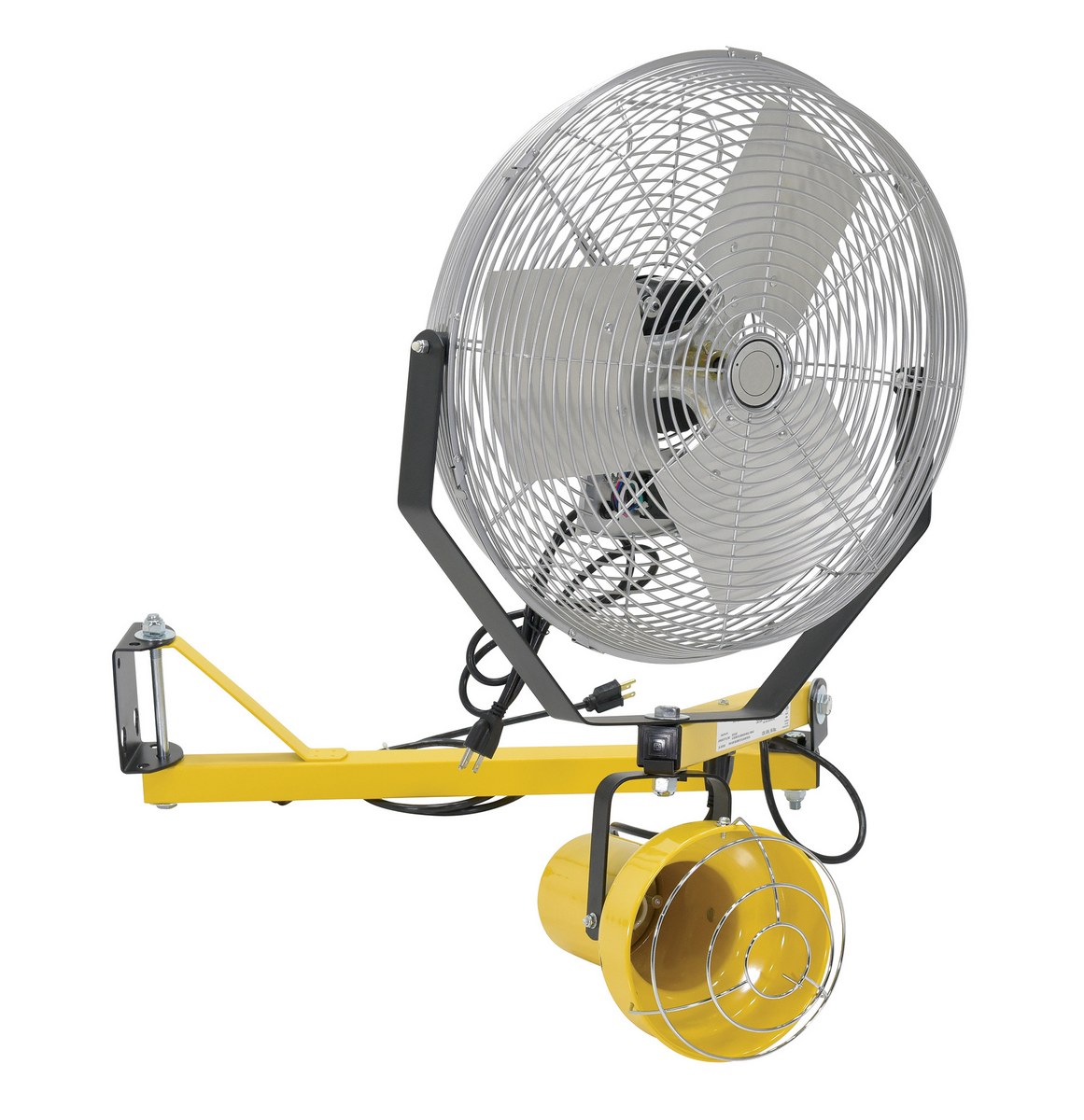

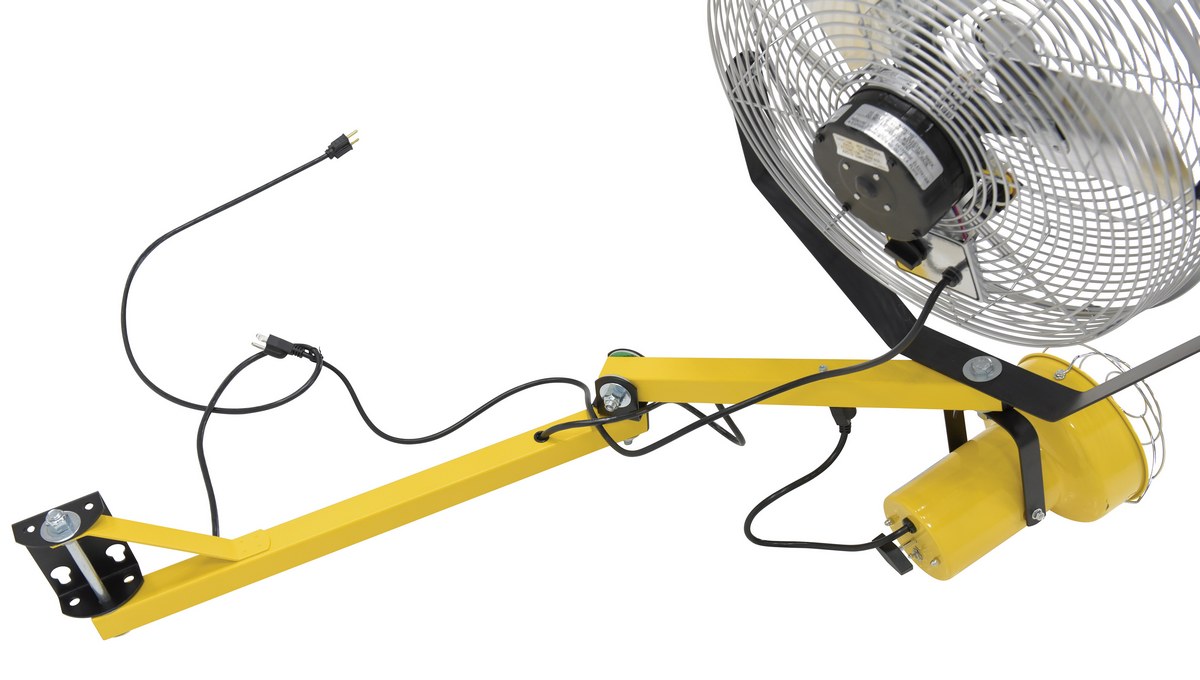

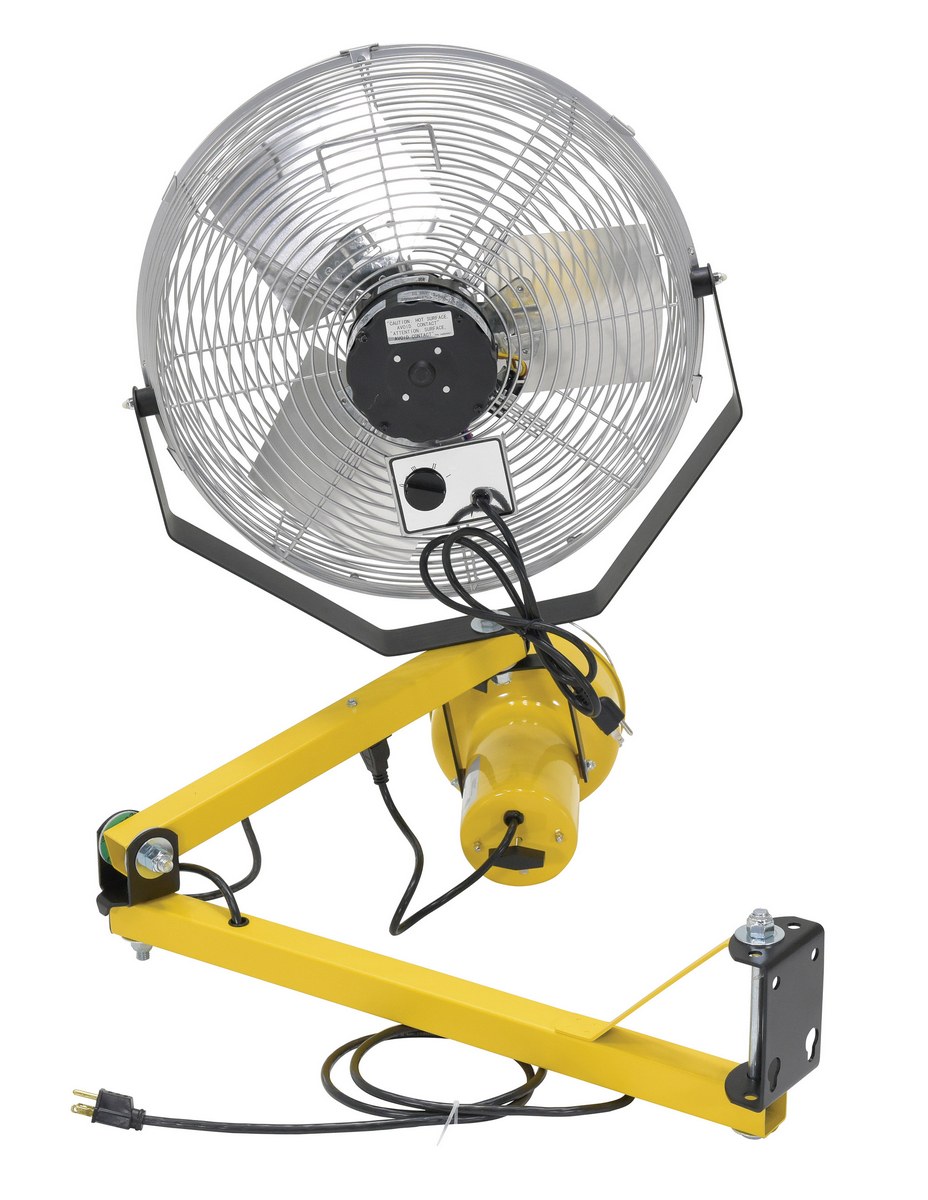

LL-SAI-40-FAN
Steel Incandescent Double Arm Strut with Fan 40 In. Length Yellow
Arm Length Extended (in.): 48 Light Voltage/Phase: 115/1
20

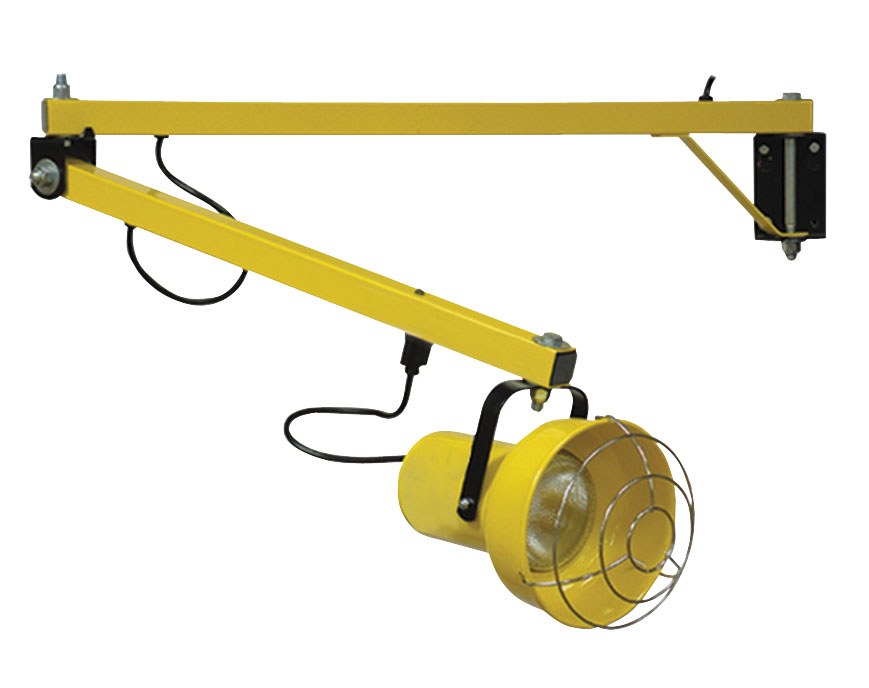

LL-SAI-60
Steel Incandescent Double Arm Load Light 60 In. Length Yellow
Arm Length (in.): 60 Voltage/Phase: 115/1
15

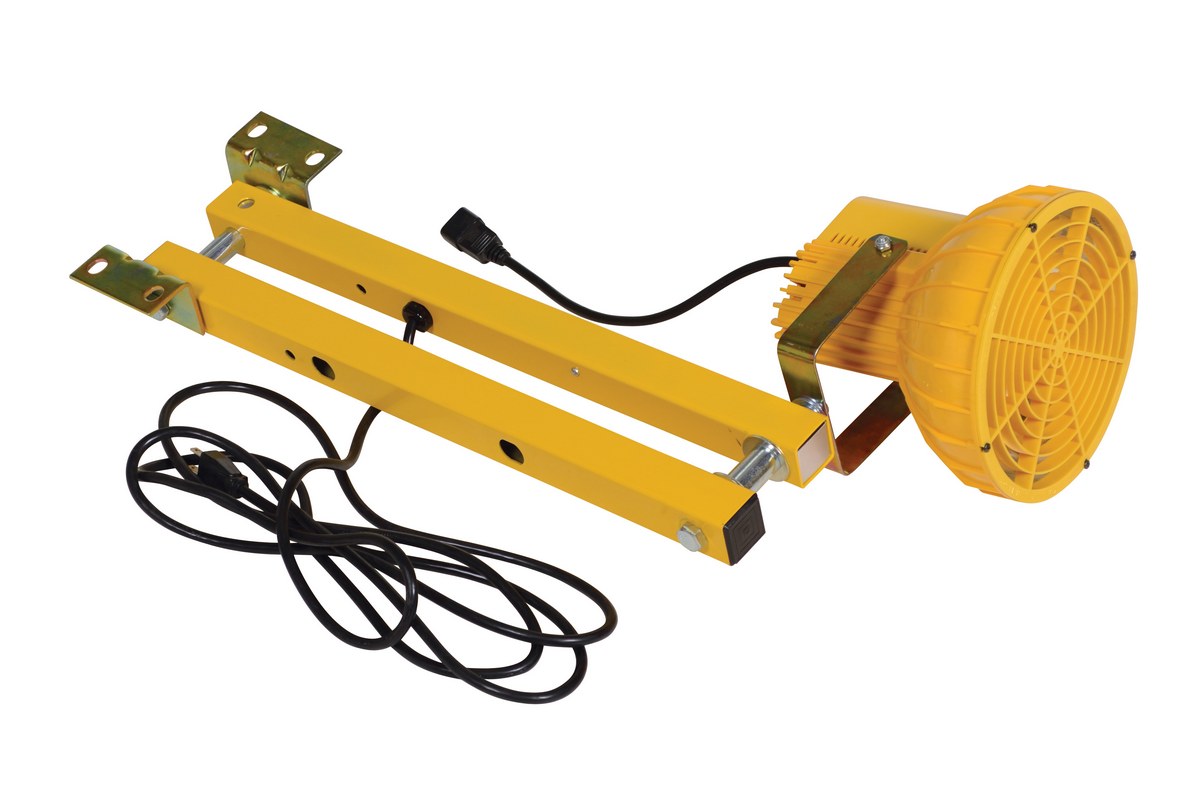

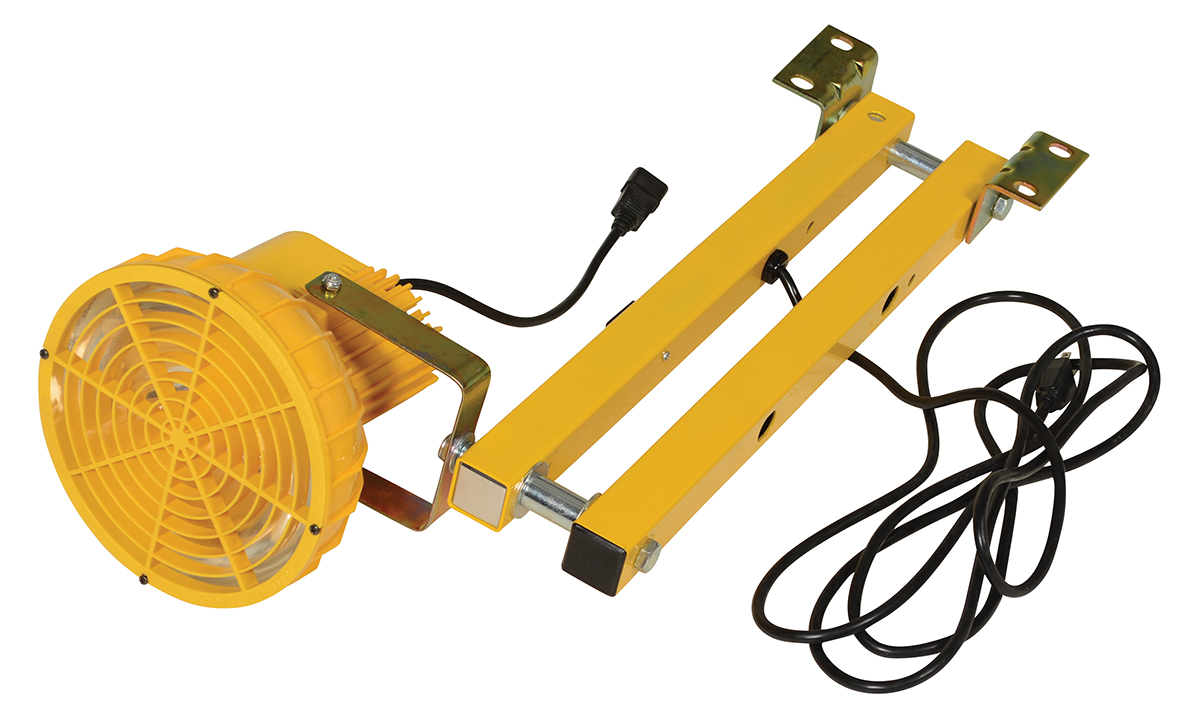

LLS-24
Steel Single Arm Sodium Dock Light 24 In. Length Yellow
Arm Length (in.): 24 Voltage/Phase: 115/1
10

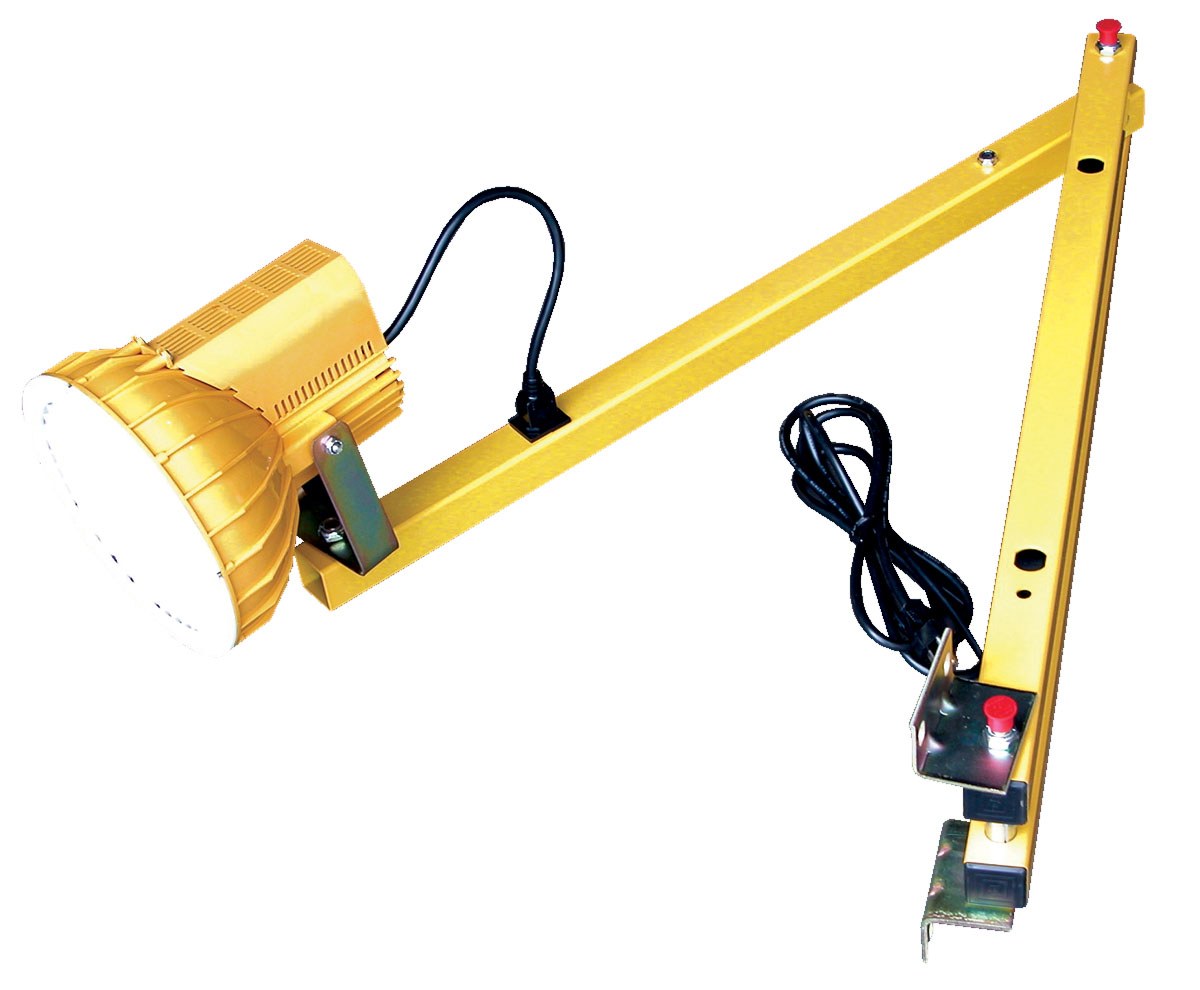

LLS-40
Steel Double Arm Sodium Dock Light 40 In. Length Yellow
Arm Length (in.): 40 Voltage/Phase: 115/1
18
LLS-60
Steel Double Arm Sodium Dock Light 60 In. Length Yellow
Arm Length (in.): 60 Voltage/Phase: 115/1
21

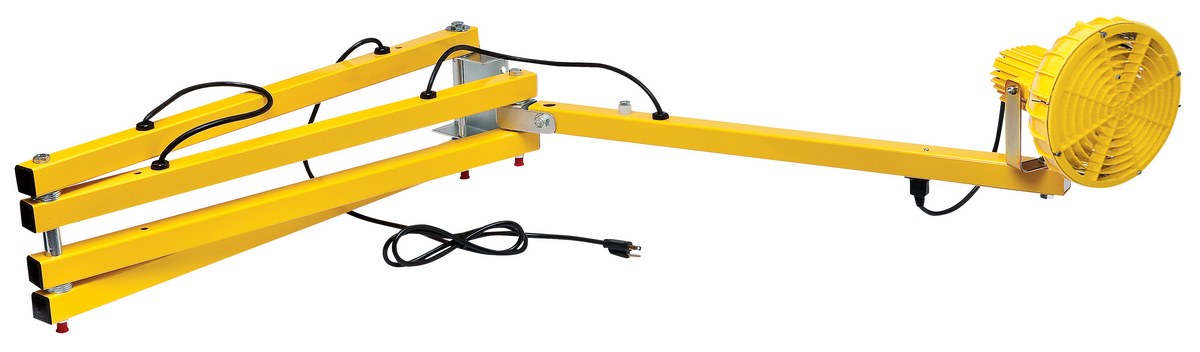

LLS-90
Steel Triple Arm Sodium Dock Light 90 In. Length Yellow
Arm Length (in.): 90 Voltage/Phase: 115/1
30
Options
.
