Click Image to Enlarge

model: DRUM-RACK-3


Stackable Drum Racks
SERIES: DRUM

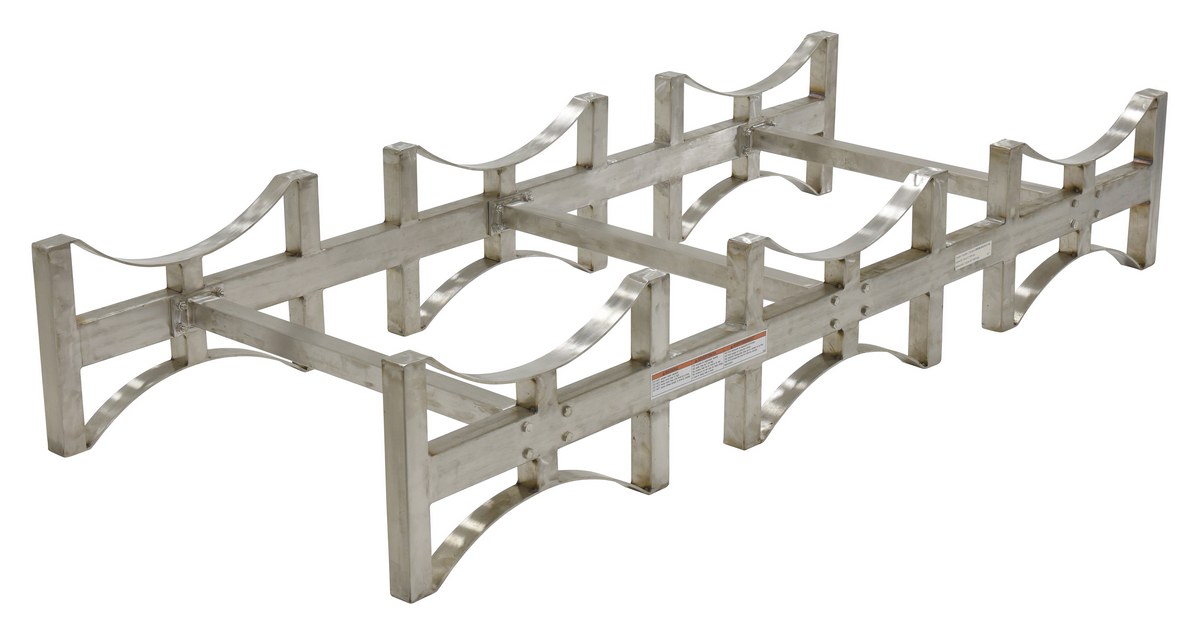

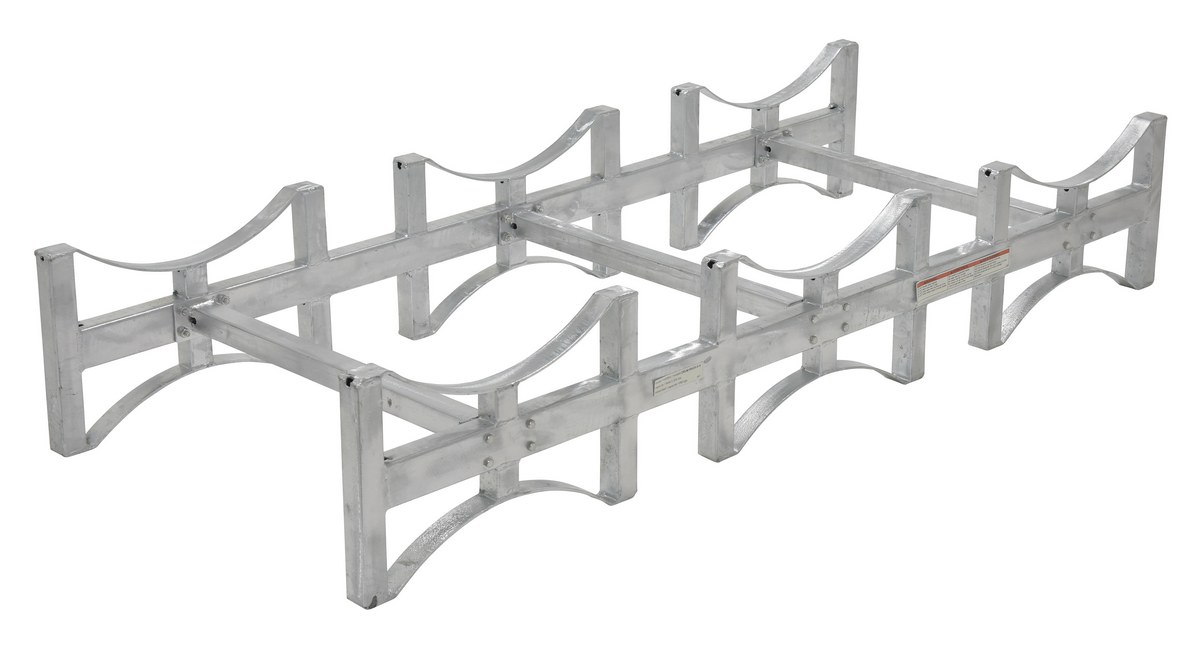

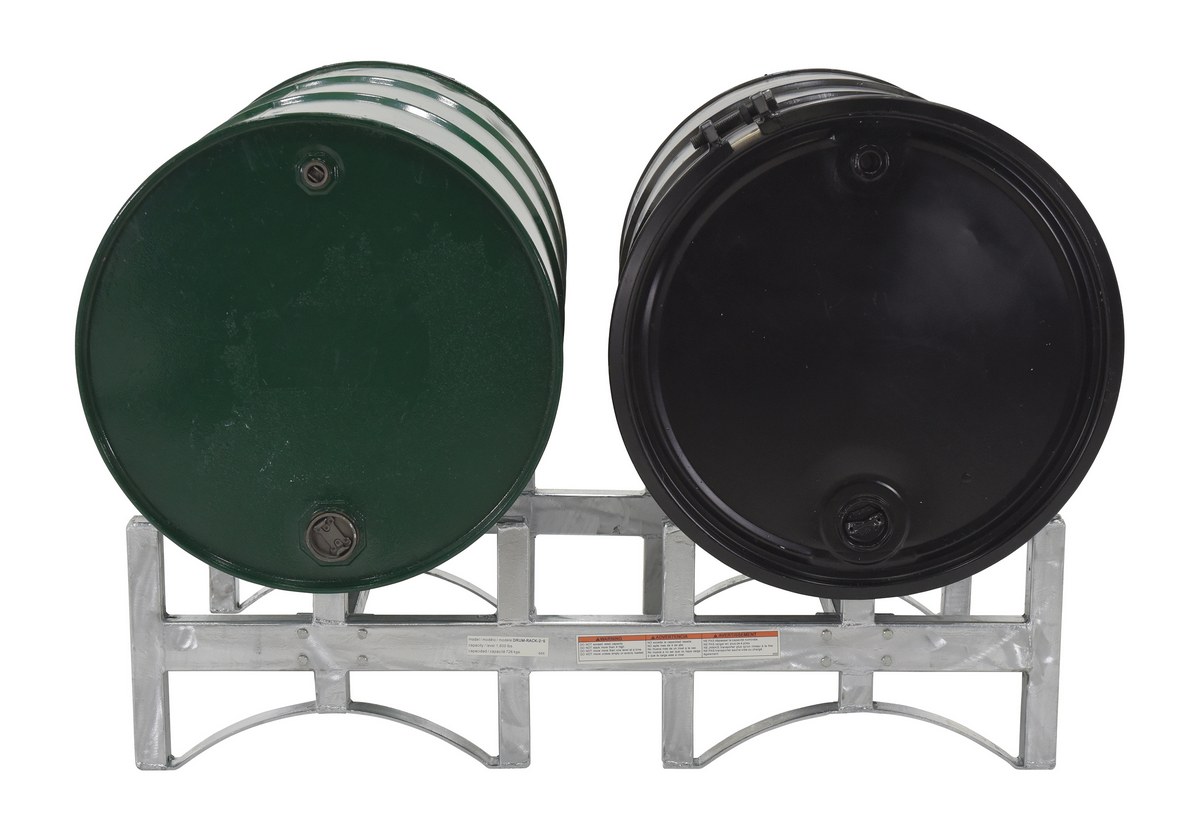

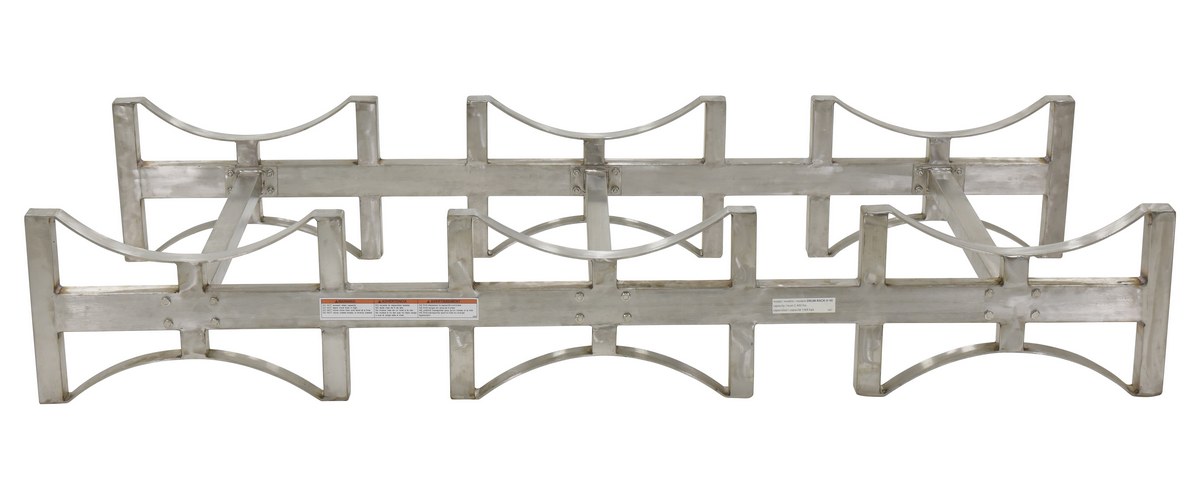

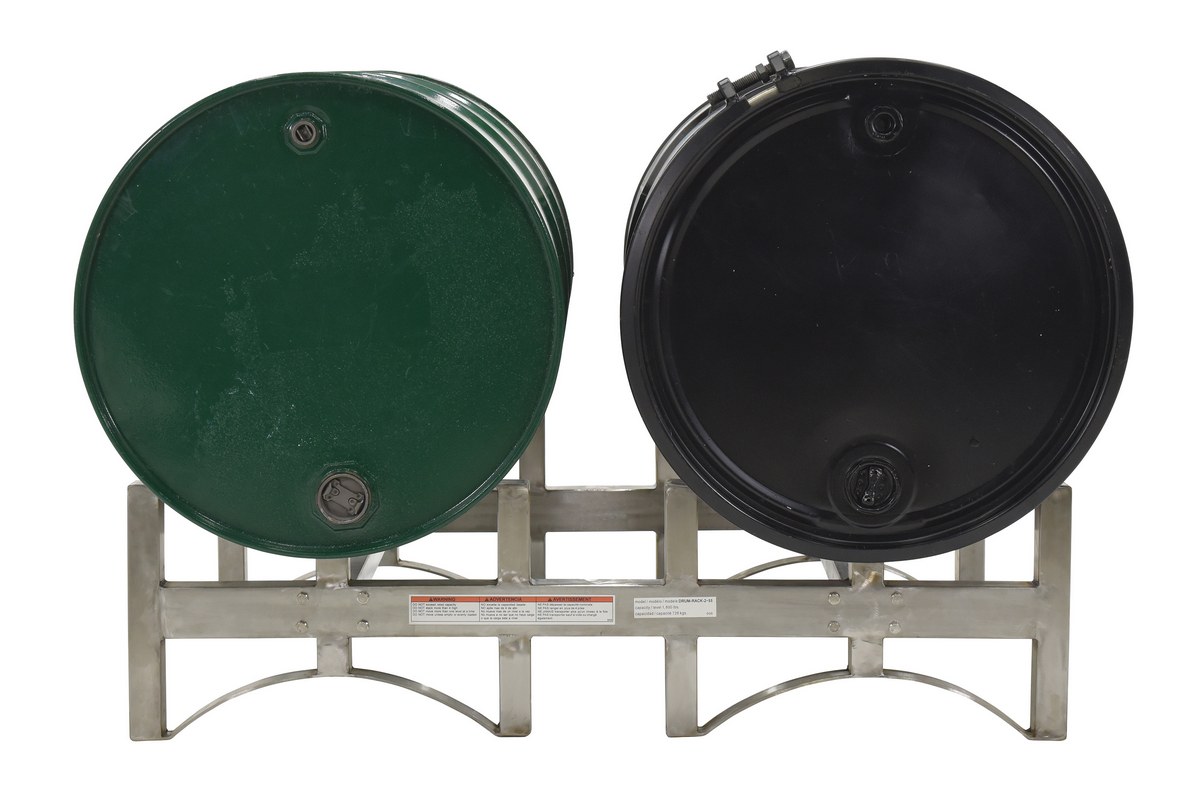

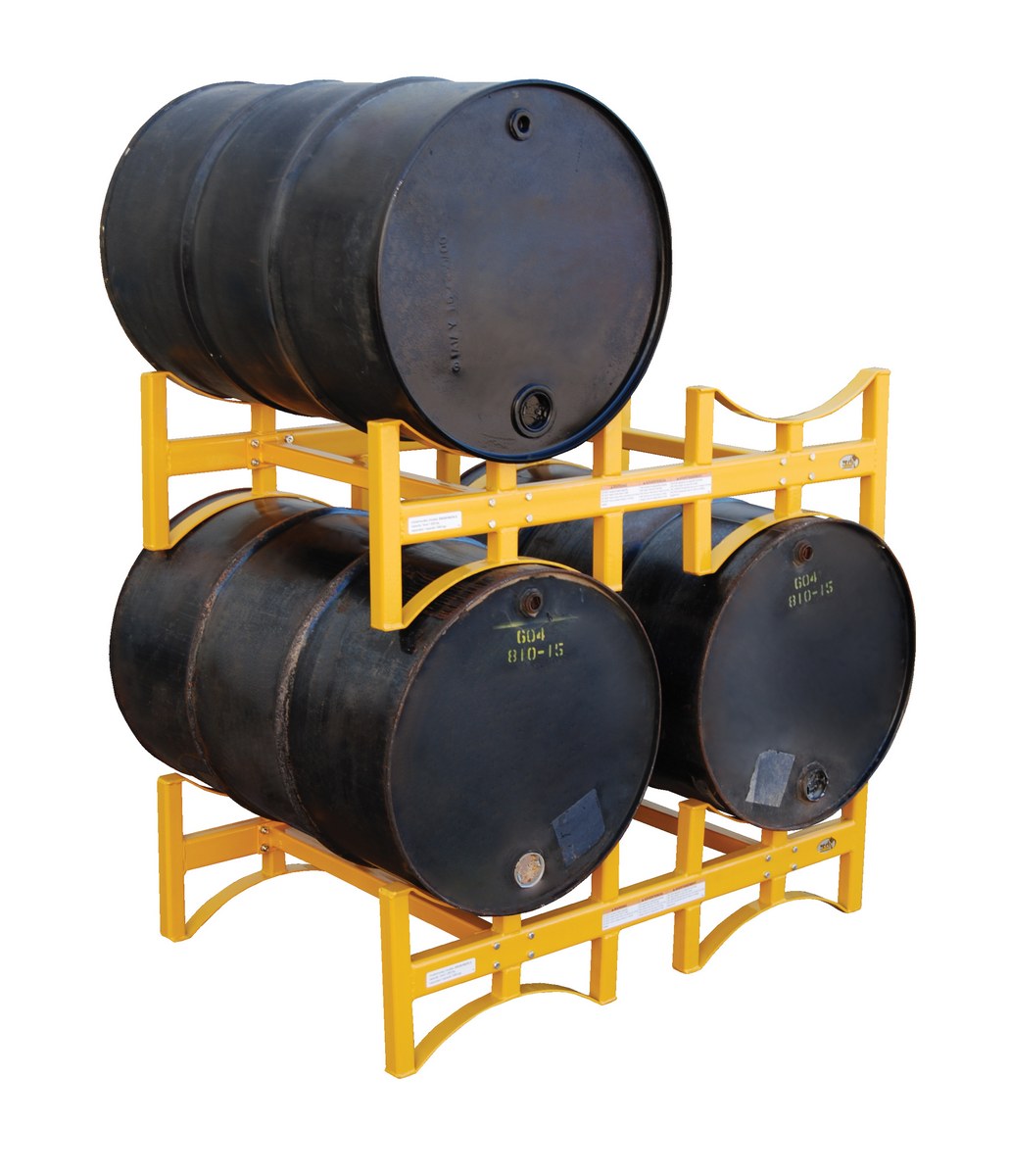

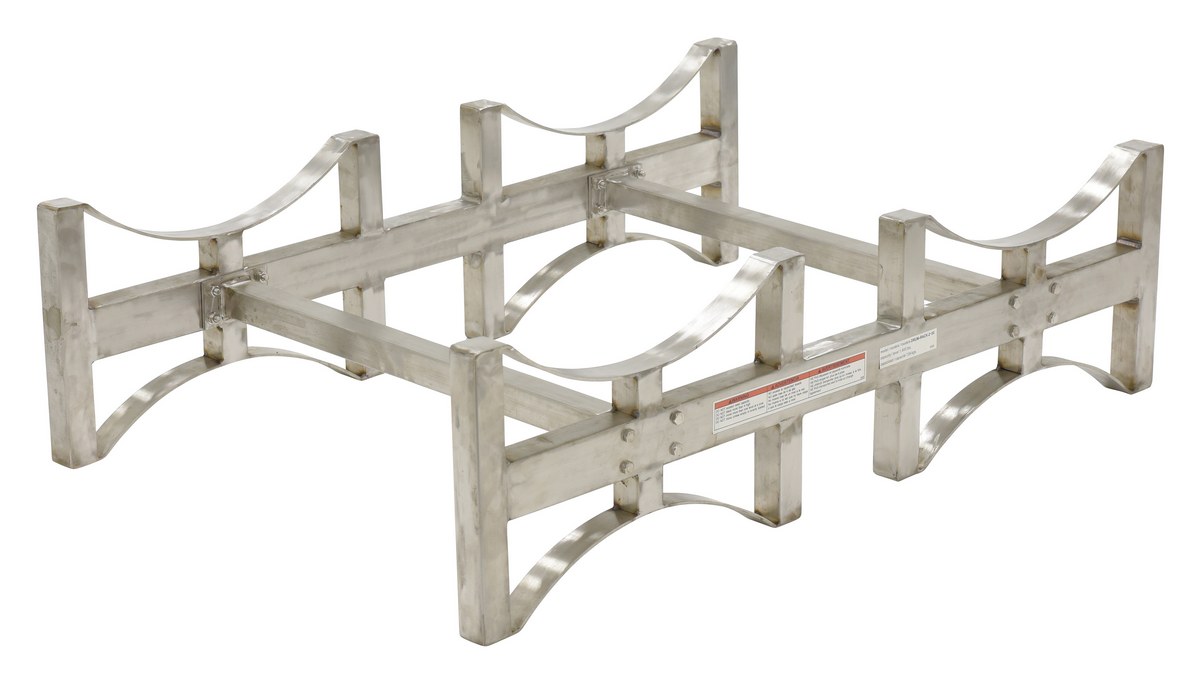

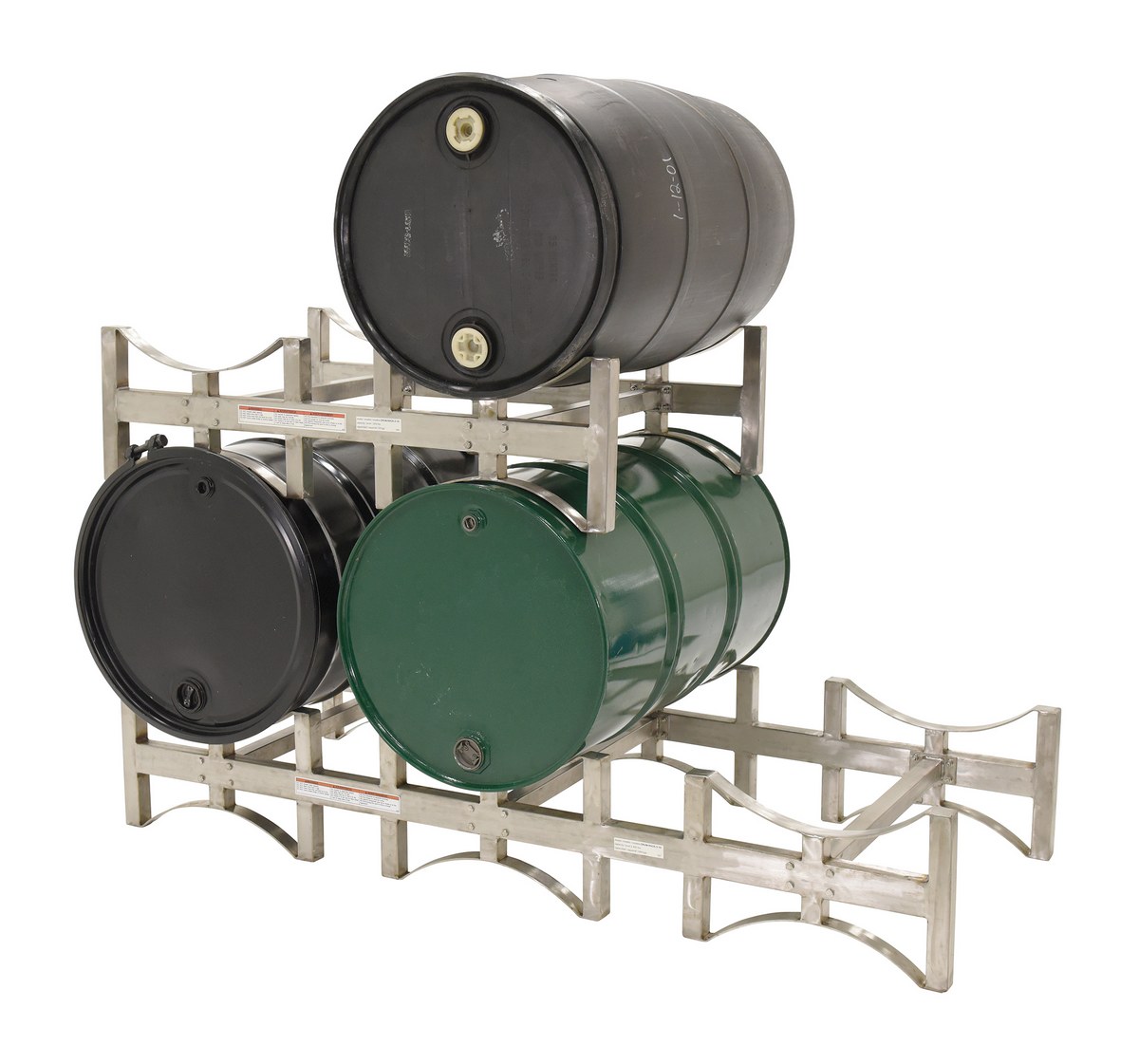

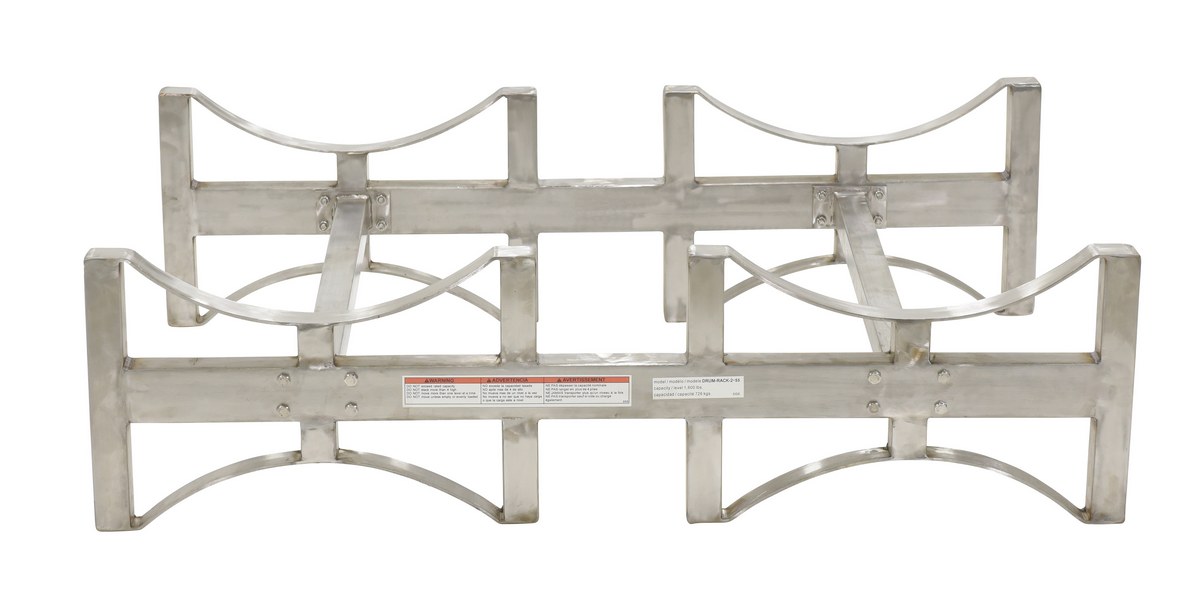

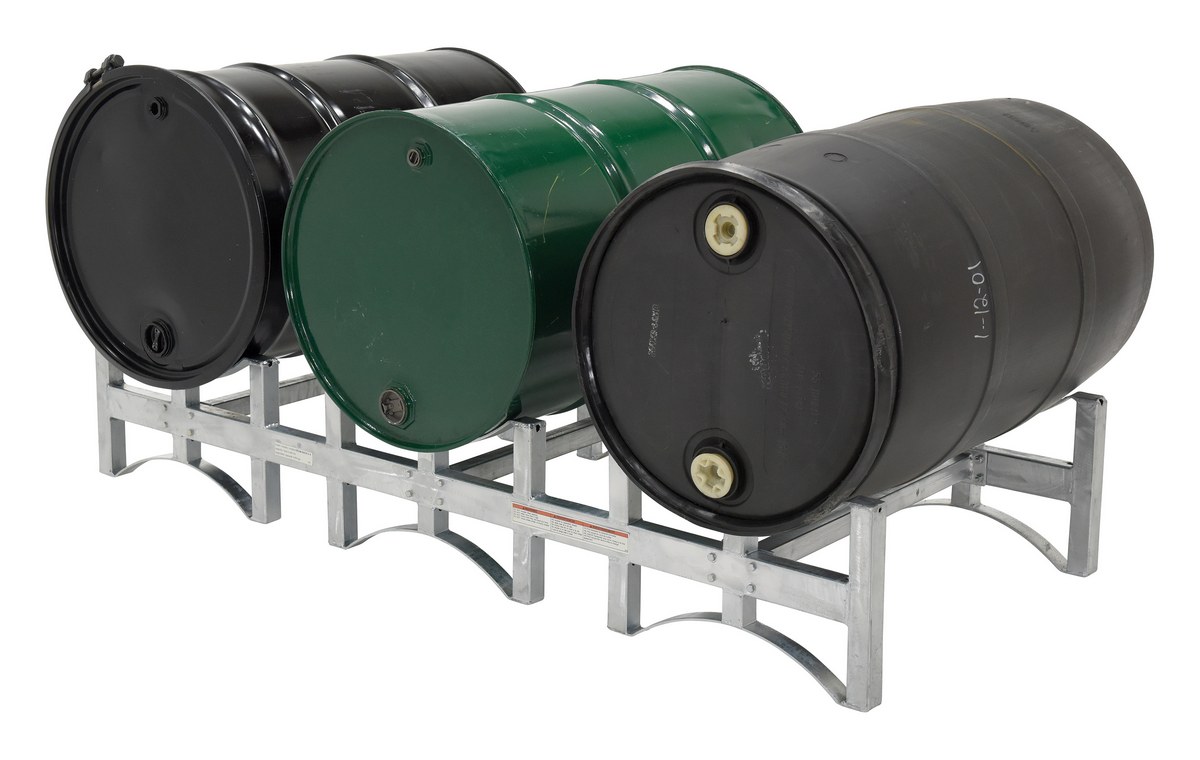

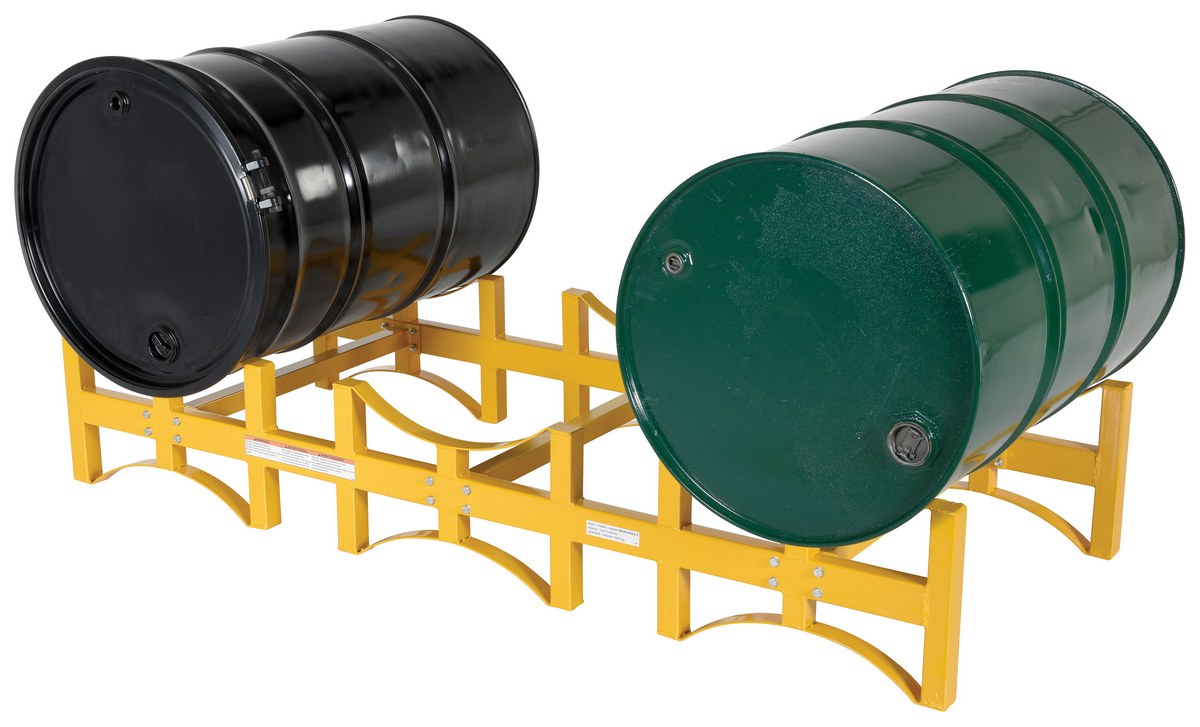

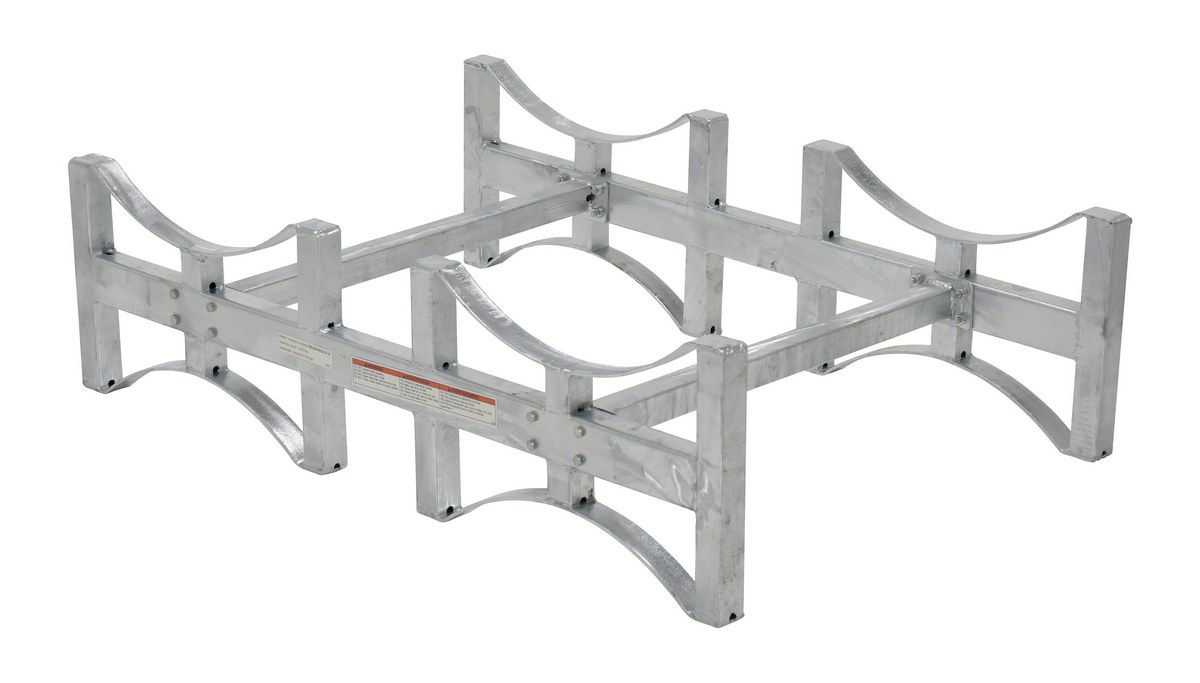

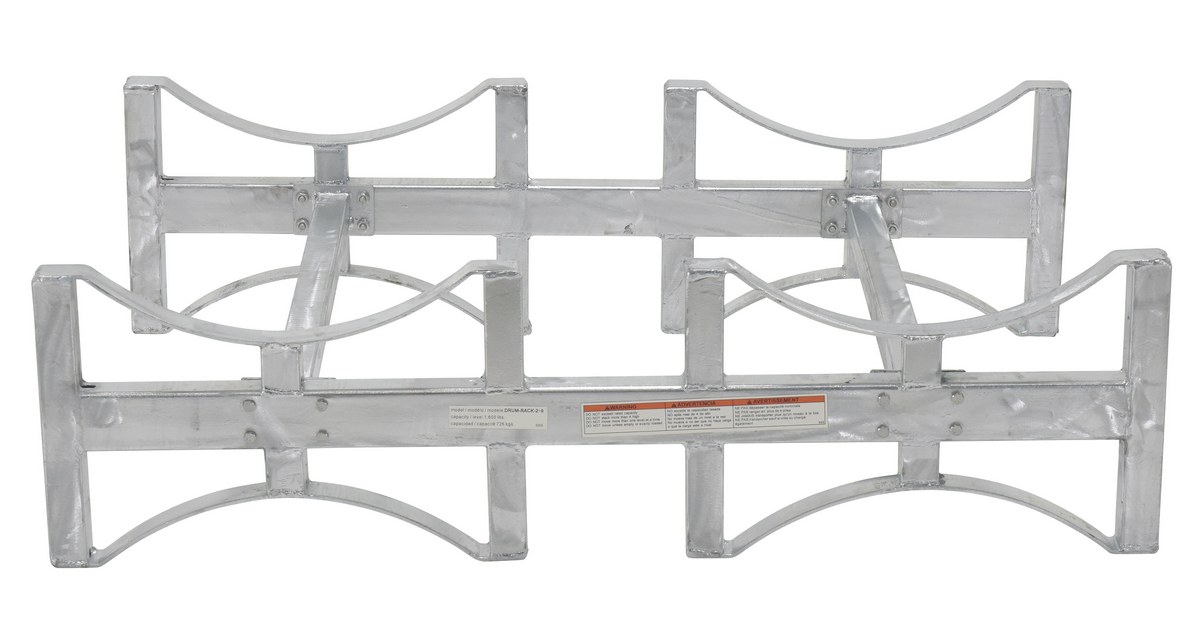

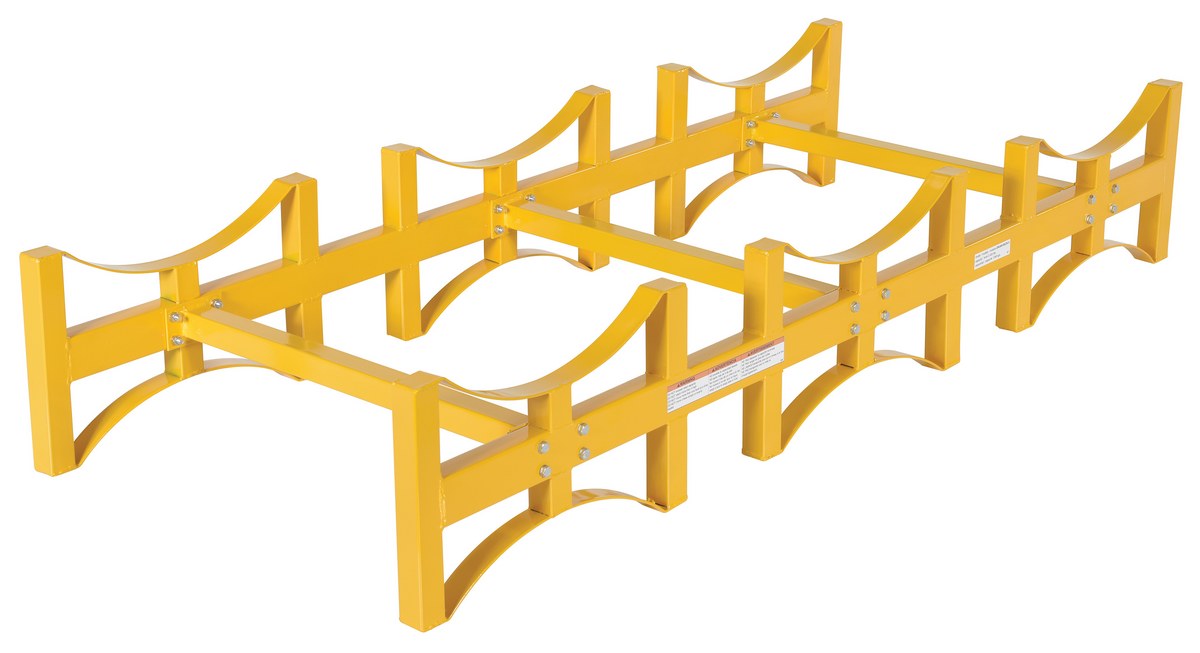

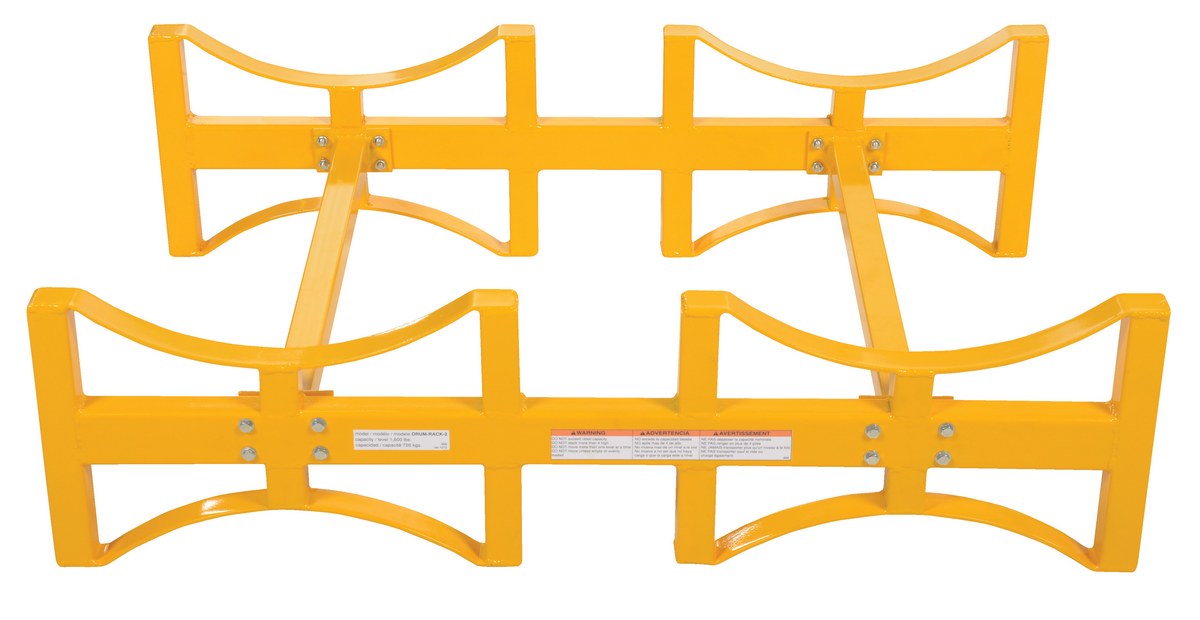

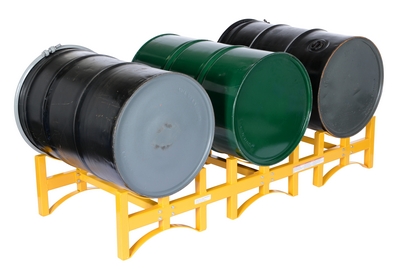

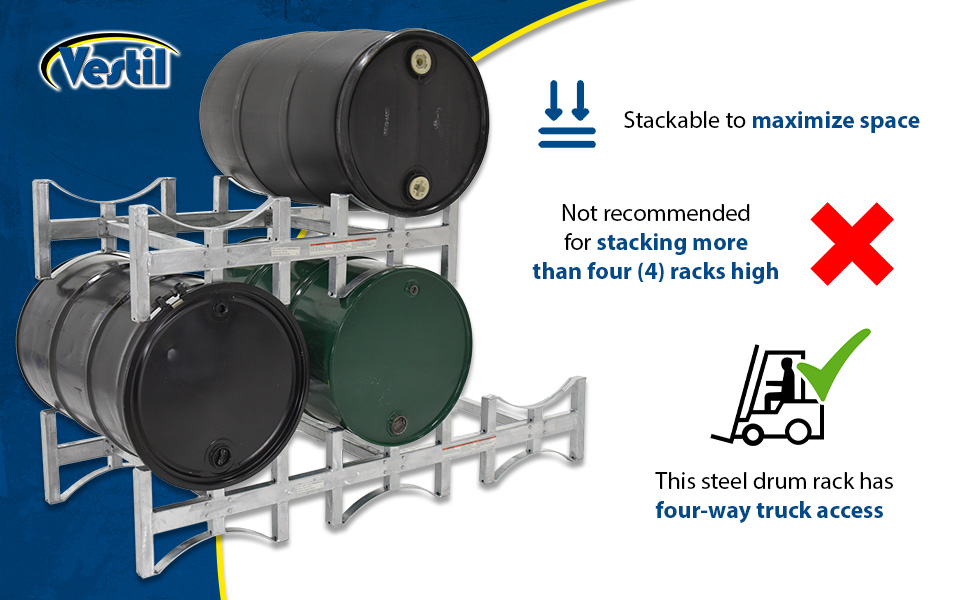

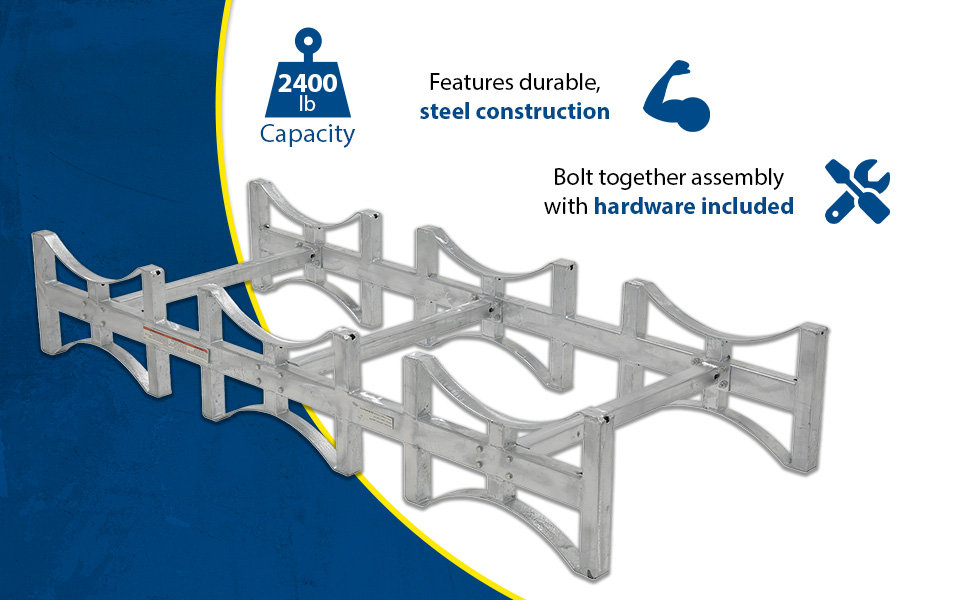

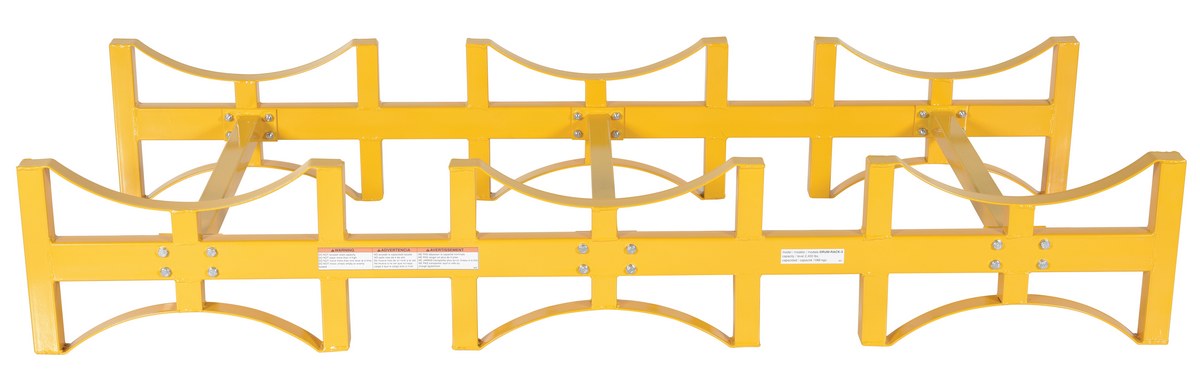

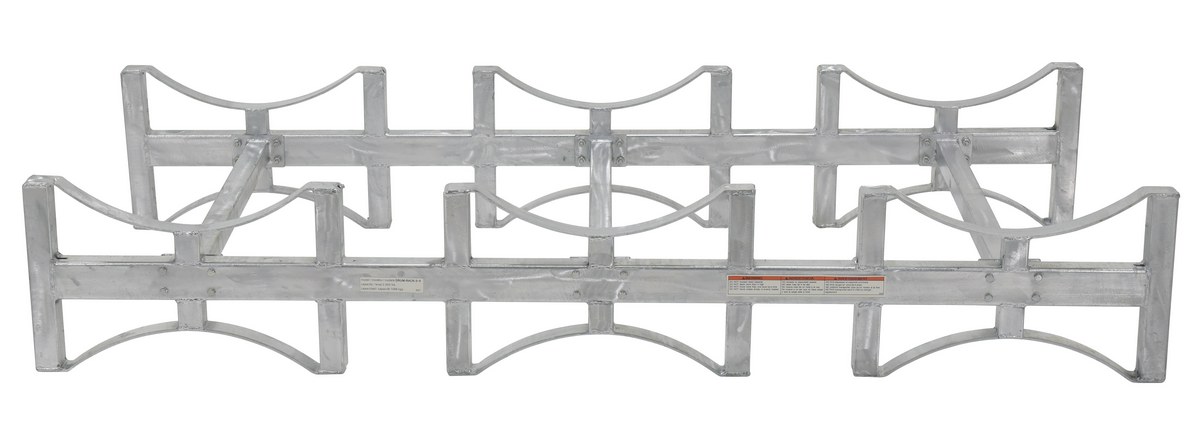

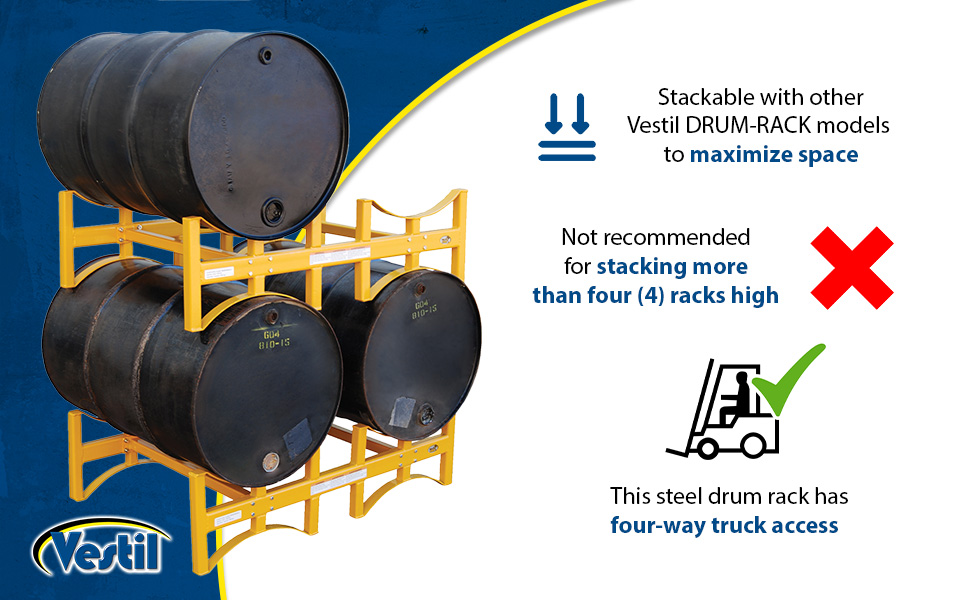

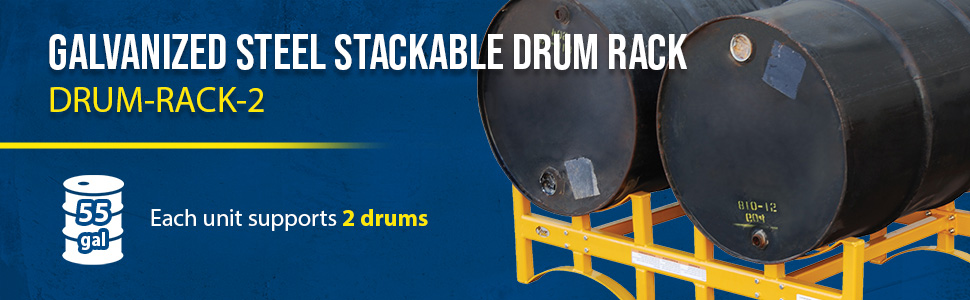

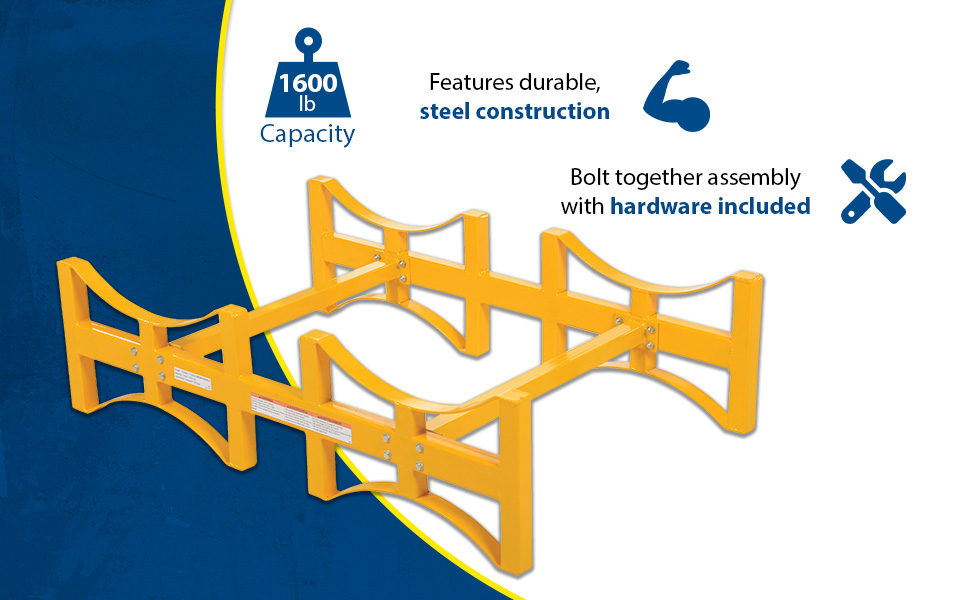

Steel Drum Racks accommodate 55 gallon drums and feature four-way fork truck access. Not recommended for stacking more than four (4) racks high. All steel construction with 1/4" formed steel cradles. Bolt together assembly with hardware included. Yellow painted finish. Models with suffix -SS are stainless steel. Models with suffix -G are galvanized. Drums, drum racks, and drum carts all sold separately.

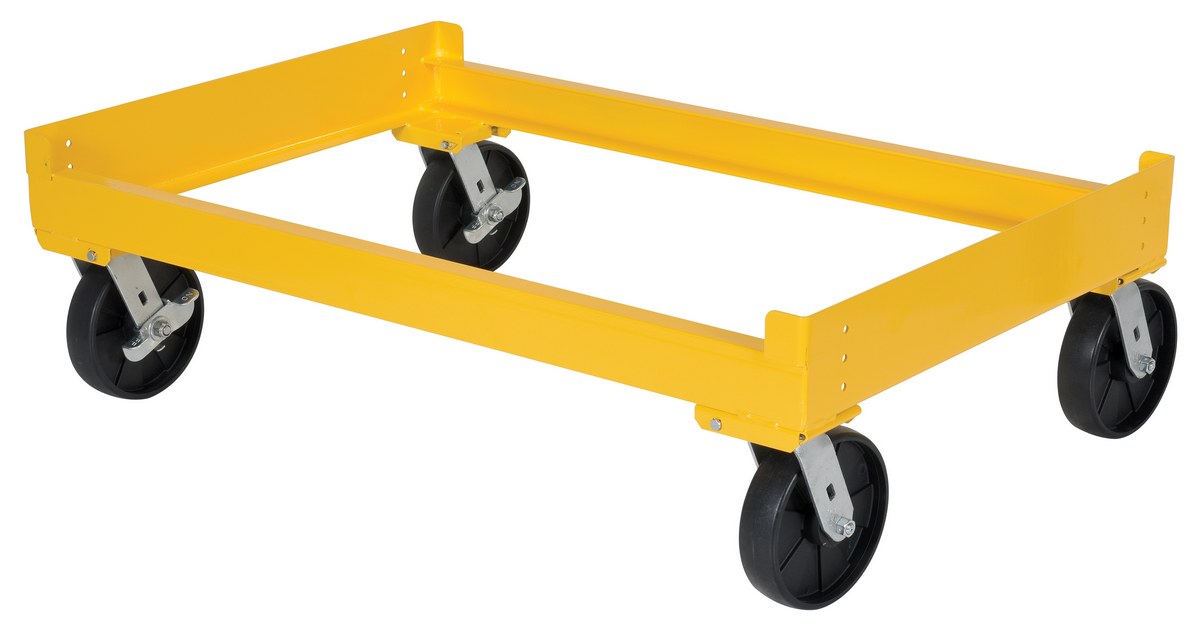

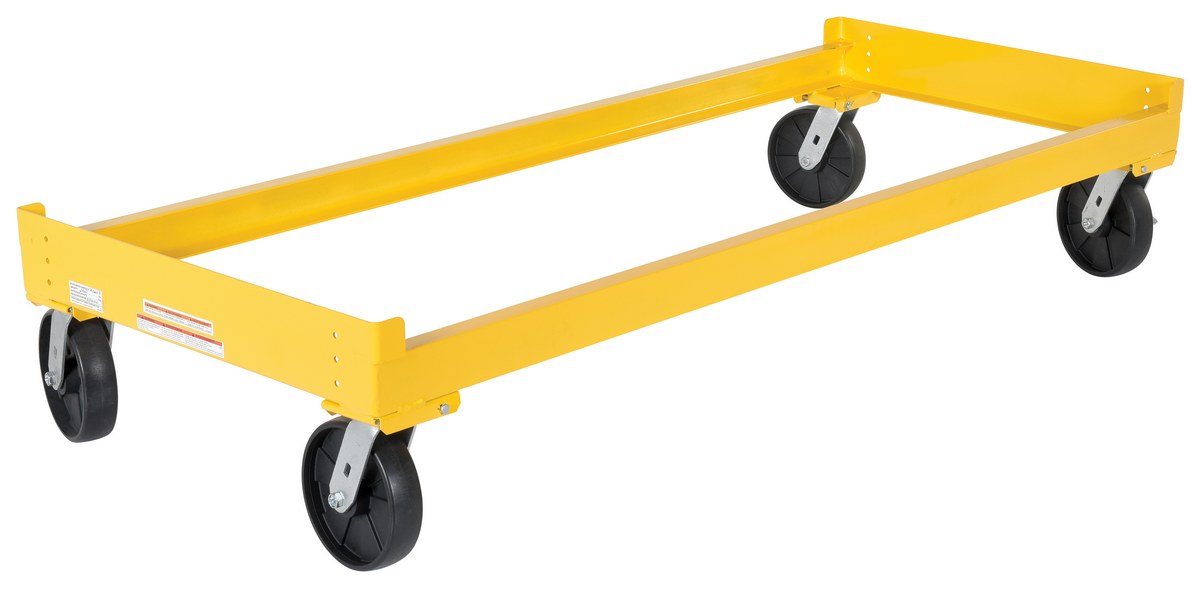

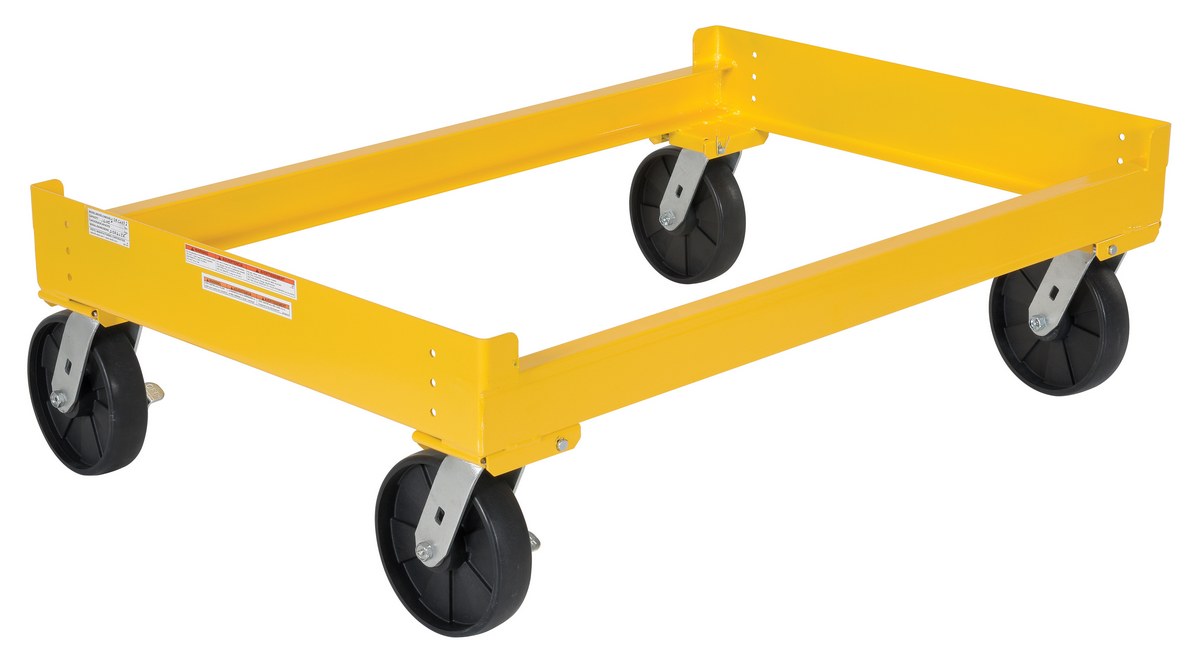

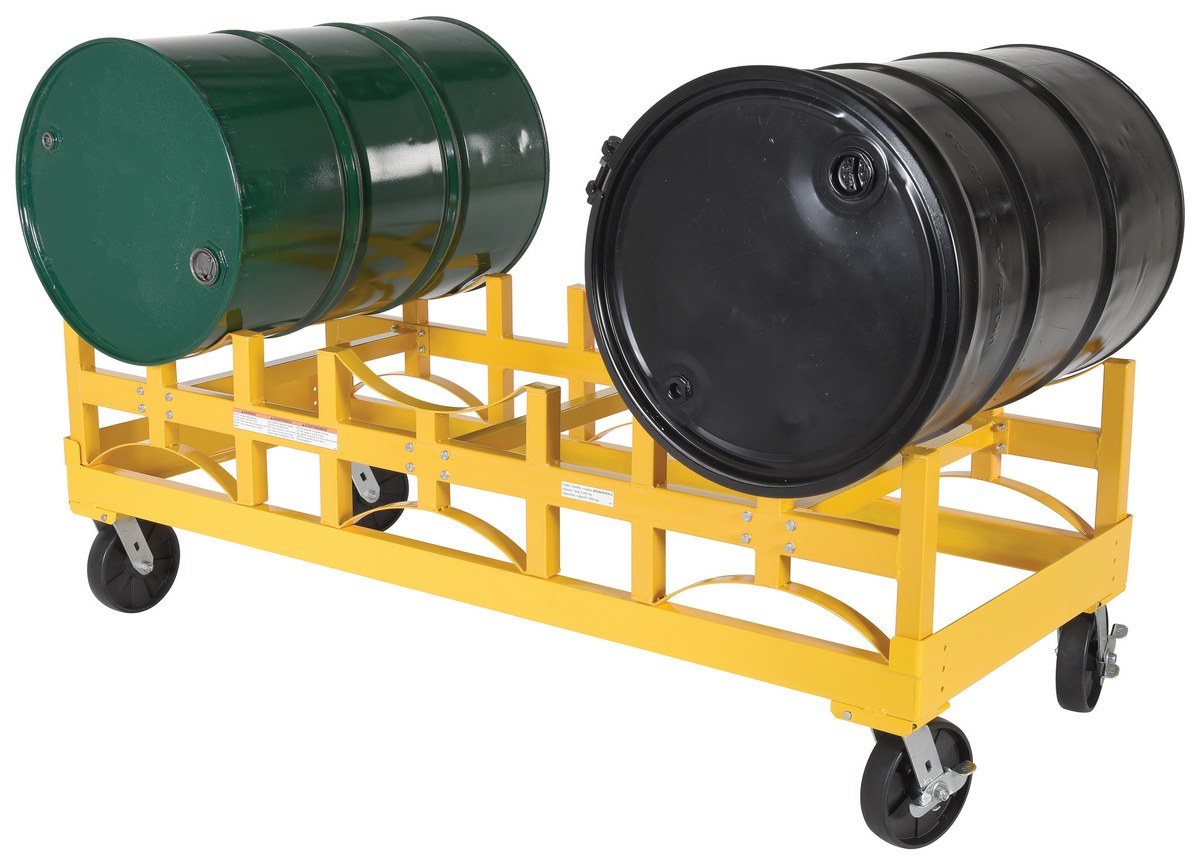

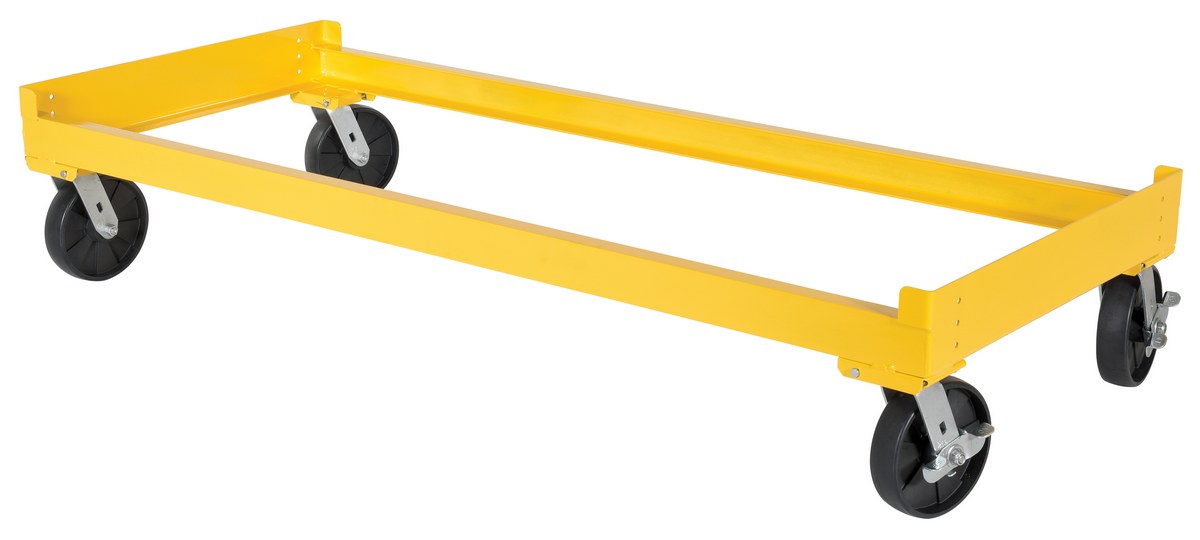

Models DR-CART-2 & DR-CART-3 Portable Drum Dollies accommodate one drum rack and feature two (2) 8" swivel casters and two (2) 8" swivel casters with wheel brake.

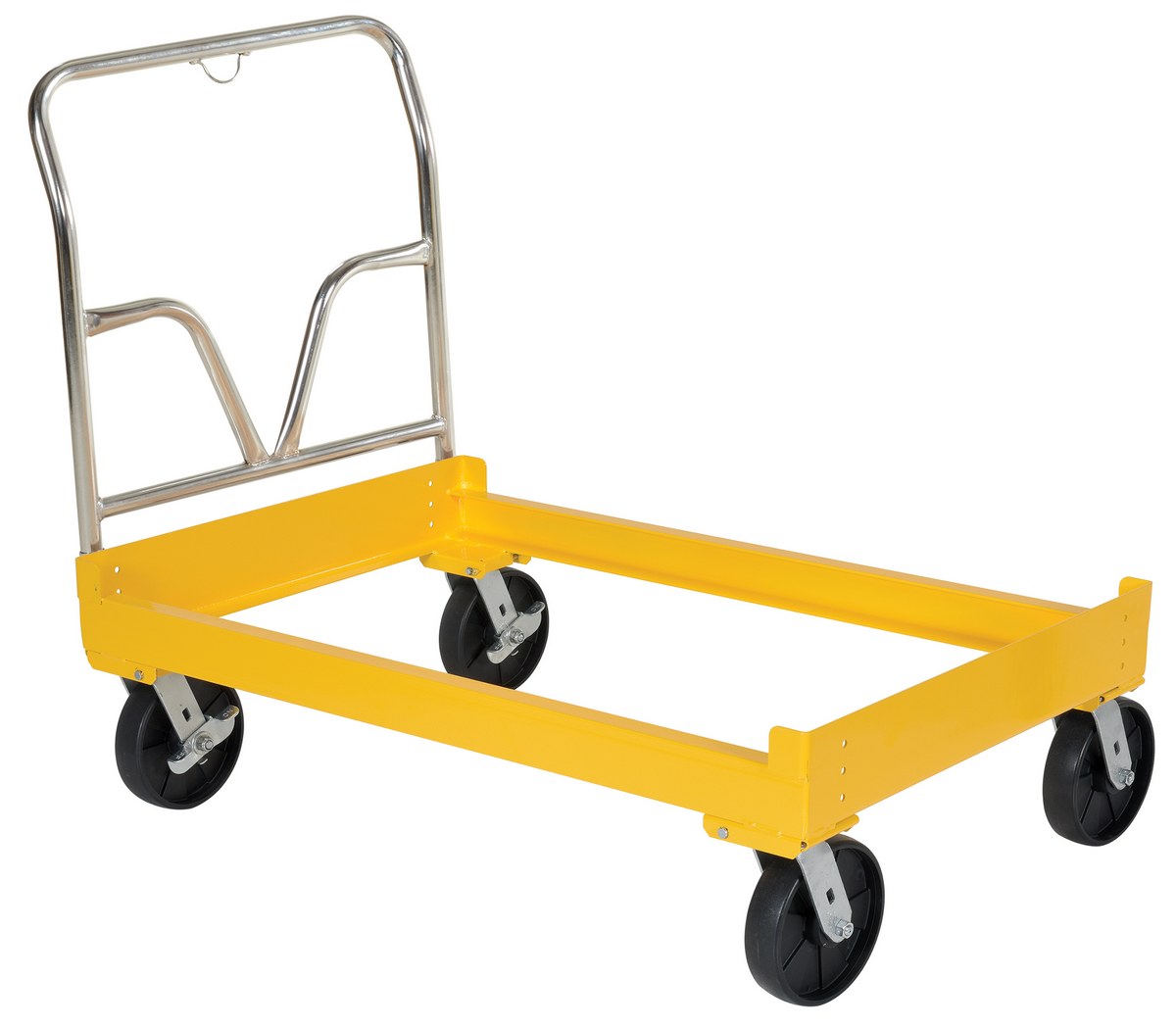

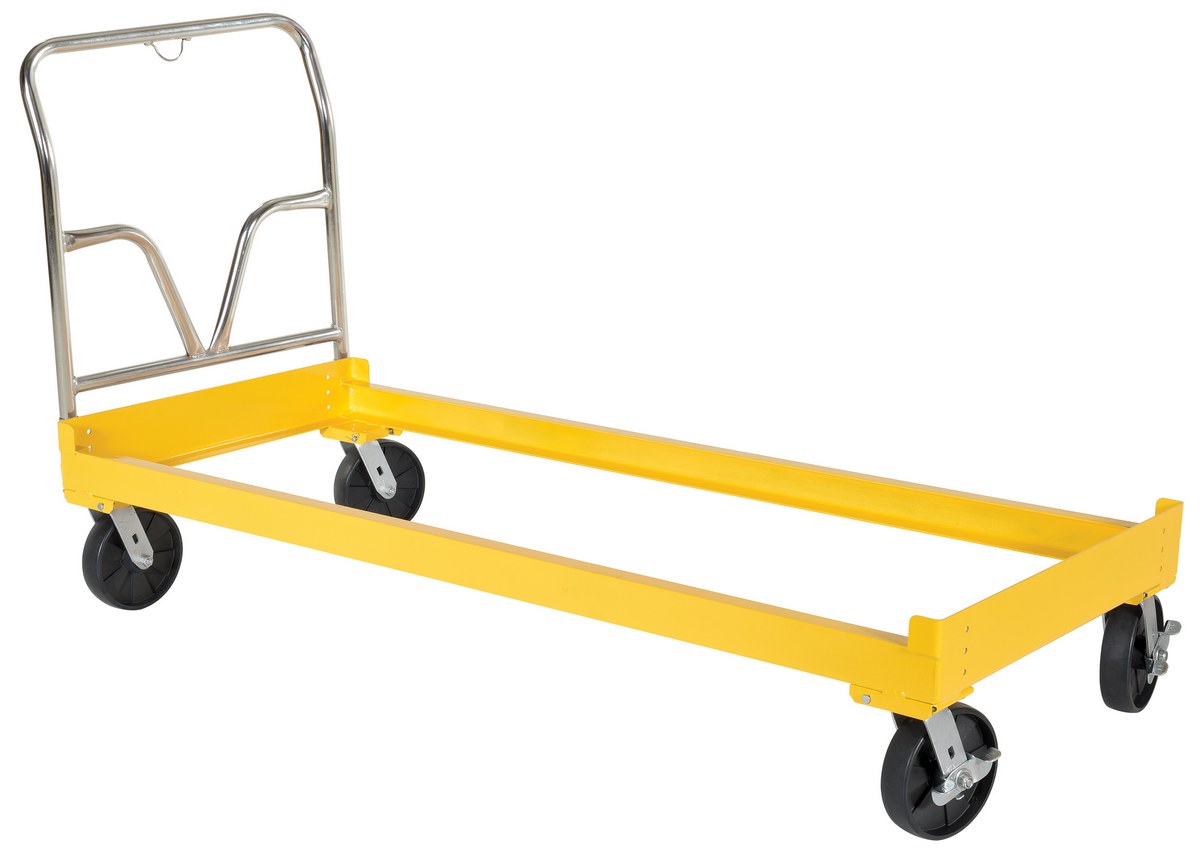

Models DR-CART-2-HLK & DR-CART-3-HLK Portable Drum Carts feature removable push handle and two (2) 8" swivel casters and two (2) 8" swivel casters with wheel brake.

Steel Drum Racks accommodate 55 gallon drums and feature four-way fork truck access. Not recommended for stacking more than four (4) racks high. All steel construction with 1/4" formed steel cradles. Bolt together assembly with hardware included. Yellow painted finish. Models with suffix -SS are stainless steel. Models with suffix -G are galvanized. Drums, drum racks, and drum carts all sold separately.

Models DR-CART-2 & DR-CART-3 Portable Drum Dollies accommodate one drum rack and feature two (2) 8" swivel casters and two (2) 8" swivel casters with wheel brake.

Models DR-CART-2-HLK & DR-CART-3-HLK Portable Drum Carts feature removable push handle and two (2) 8" swivel casters and two (2) 8" swivel casters with wheel brake.

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Stackable Drum Racks
Model Image PDF Drum Capacity Overall Size
(LxDxH)
Weight
Capacity (lbs)
Wt.
(lbs)
Drum Racks

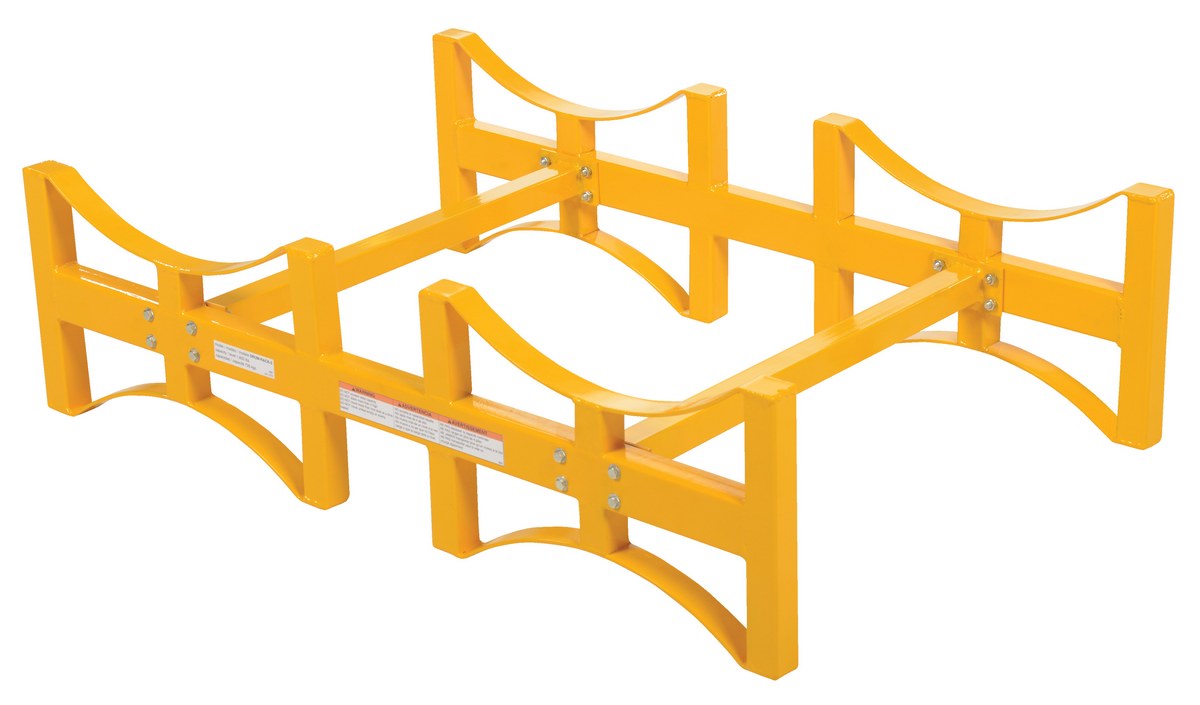

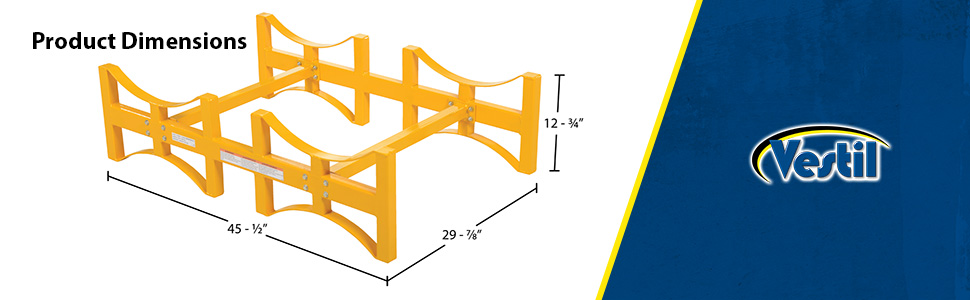

DRUM-RACK-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate (2) 55 Gal. Steel 45-1/2"x29-7/8"x12-3/4" 1,600 51

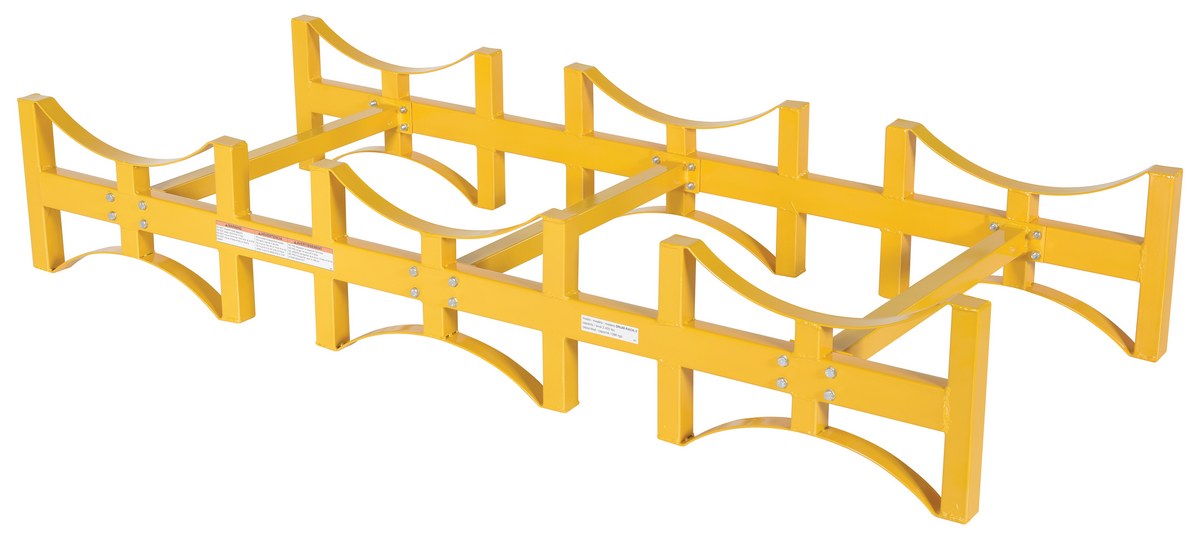

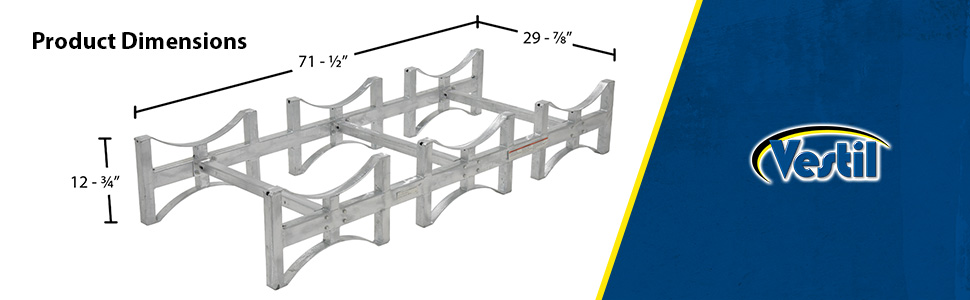

DRUM-RACK-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate (3) 55 Gal. Steel 71-1/2"x29-7/8"x12-3/4" 2,400 101

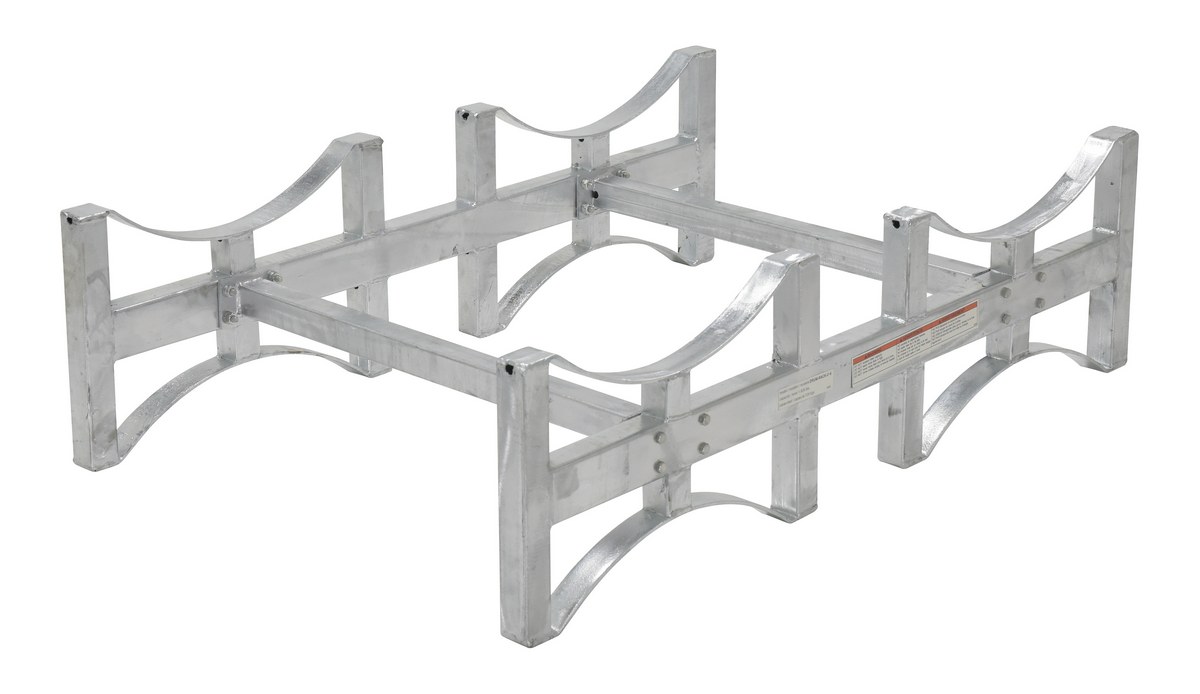

DRUM-RACK-2-G - Warranty PDFCompliance Certificate (2) 55 Gal. Steel 45-1/2"x29-7/8"x12-3/4" 1,600 90

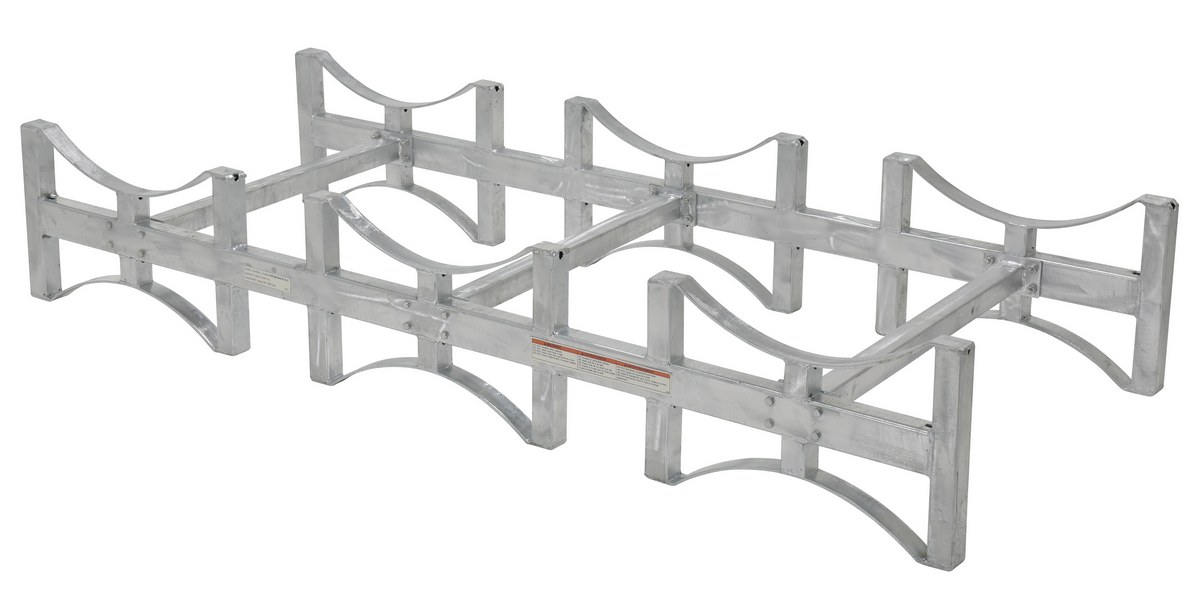

DRUM-RACK-3-G Warranty PDFCompliance Certificate (3) 55 Gal. Steel 71-1/2"x29-7/8"x12-3/4" 2,400 105

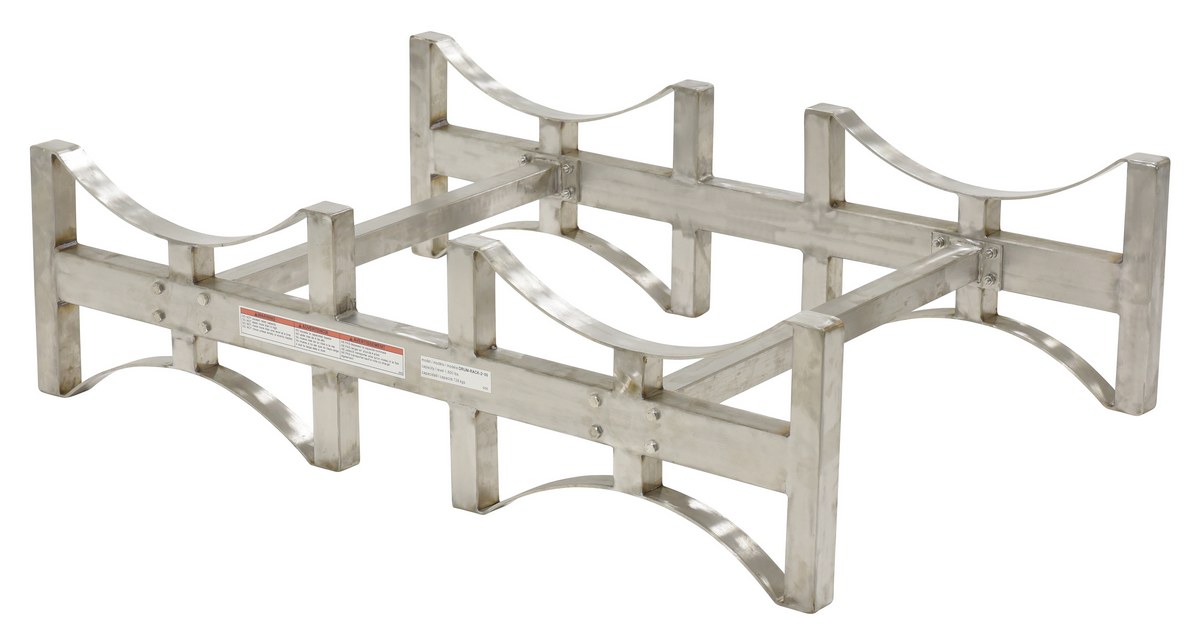

DRUM-RACK-2-SS Warranty PDFCompliance Certificate (2) 55 Gal. Steel 45-1/2"x29-7/8"x12-3/4" 1,600 91

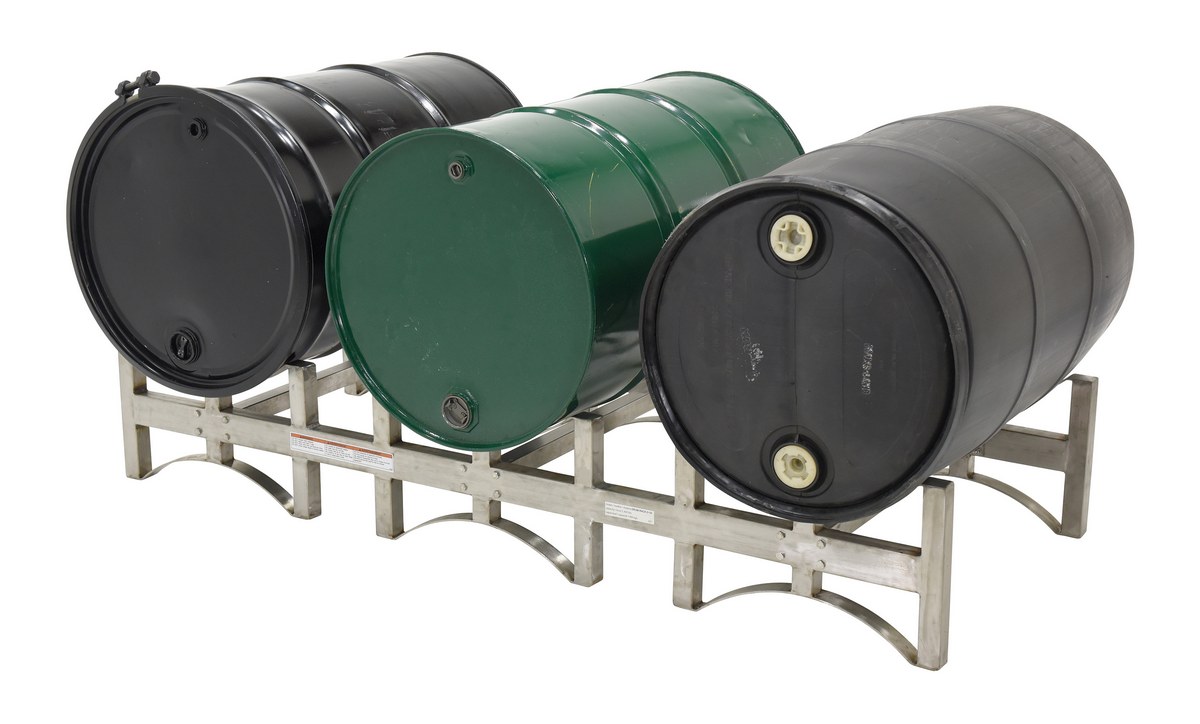

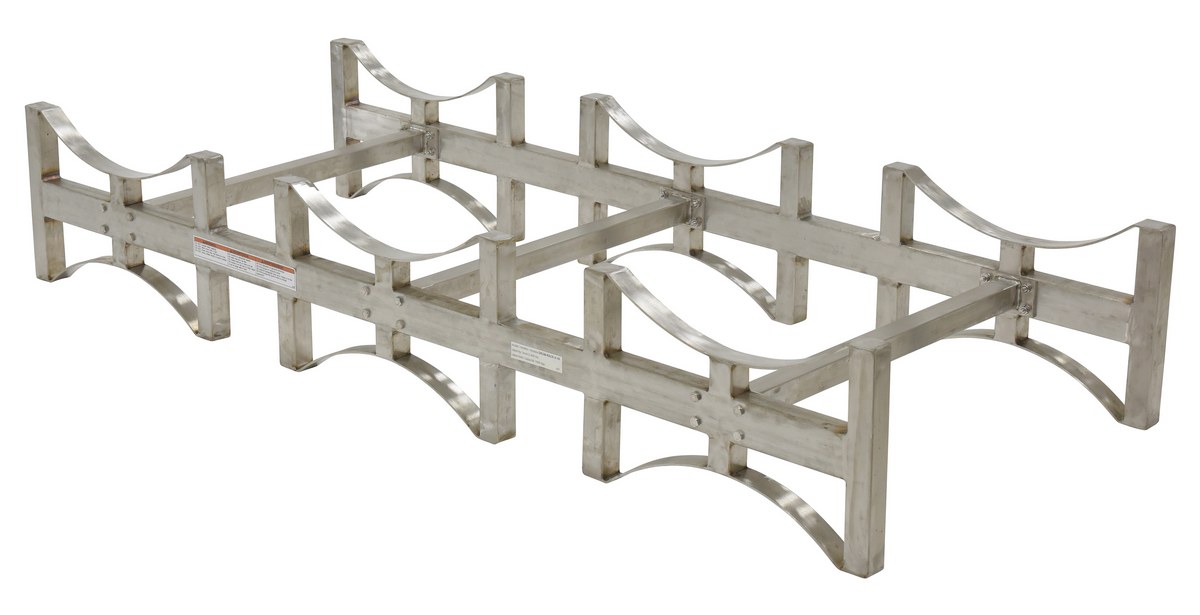

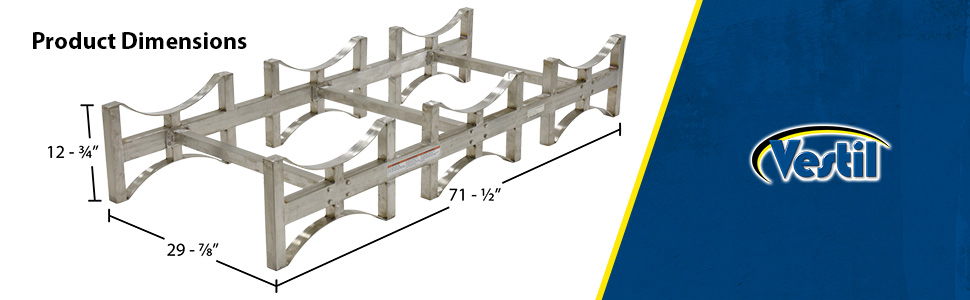

DRUM-RACK-3-SS Warranty PDFCompliance Certificate (3) 55 Gal. Steel 71-1/2"x29-7/8"x12-3/4" 2,400 106
Portable Drum Dollies*
DR-CART-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate -- 30-5/8"x49-1/2"x14-9/16" 1,600 102
DR-CART-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate -- 30-5/8"x72-1/2"x14-9/16" 2,400 155
Portable Drum Carts*
DR-CART-2-HLK icon_approvaldrawings.jpgWarranty PDFCompliance Certificate -- 30-5/8"x54-1/16"x39-13/16" 1,600 102
DR-CART-3-HLK icon_approvaldrawings.jpgWarranty PDFCompliance Certificate -- 30-5/8"x54-1/16"x39-13/16" 2,400 155

*Drum Racks Sold Separately

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate


Model Image PDFs Description * Net Wt.
(lbs)
DR-CART-2 download.gif90 Days Limited WarrantyCART FOR TWO DRUM STORAGE RACKUniform Capacity (lb.): 1,600102
DR-CART-2-HLK download.gif90 Days Limited WarrantyCART FOR TWO DRUM STORAGE RACK W/HANDLEUniform Capacity (lb.): 1,600107
DR-CART-3 download.gif90 Days Limited WarrantyCART FOR THREE DRUM STORAGE RACKUniform Capacity (lb.): 2,400155
DR-CART-3-HLK download.gif90 Days Limited WarrantyCART FOR THREE DRUM STORAGE RACK/HANDLEUniform Capacity (lb.): 2,400160
DRUM-RACK-2 download.gif90 Days Limited WarrantySTACKABLE DRUM RACK 2 DRUM 55 GALLONUniform Capacity (lb.): 1,60051
DRUM-RACK-2-G 90 Days Limited WarrantySTACKABLE DRUM RACK GALV 2 DRUM-55Uniform Capacity (lb.): 1,60090
DRUM-RACK-2-SS 90 Days Limited WarrantySTACKABLE DRUM RACK SS 2 DRUM-55Uniform Capacity (lb.): 1,600101
DRUM-RACK-3 download.gif90 Days Limited WarrantySTACKABLE DRUM RACK 3 DRUM 55 GALLONUniform Capacity (lb.): 2,400101
DRUM-RACK-3-G 90 Days Limited WarrantySTACKABLE DRUM RACK GALV 3 DRUM-55Uniform Capacity (lb.): 2,40090
DRUM-RACK-3-SS 90 Days Limited WarrantySTACKABLE DRUM RACK SS 3 DRUM-55Uniform Capacity (lb.): 2,400101



Stackable Drum Racks PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

Testing Certificates

DR-CART-2
DR-CART-2-HLK
DR-CART-3
DR-CART-3-HLK
DRUM-RACK-2
DRUM-RACK-2-G
DRUM-RACK-2-SS
DRUM-RACK-3
DRUM-RACK-3-G
DRUM-RACK-3-SS

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Stackable Drum Racks




Steel Drum Racks accommodate 55 gallon drums and feature four-way fork truck access. Not recommended for stacking more than four (4) racks high. All steel construction with 1/4" formed steel cradles. Bolt together assembly with hardware included. Yellow painted finish. Models with suffix -SS are stainless steel. Models with suffix -G are galvanized. Drums, drum racks, and drum carts all sold separately.

Models DR-CART-2 & DR-CART-3 Portable Drum Dollies accommodate one drum rack and feature two (2) 8" swivel casters and two (2) 8" swivel casters with wheel brake.

Models DR-CART-2-HLK & DR-CART-3-HLK Portable Drum Carts feature removable push handle and two (2) 8" swivel casters and two (2) 8" swivel casters with wheel brake.


Stackable Drum Racks
Model Image PDF Drum Capacity Overall Size
(LxDxH)
Weight
Capacity (lbs)
Wt.
(lbs)
Drum Racks
DRUM-RACK-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate (2) 55 Gal. Steel 45-1/2"x29-7/8"x12-3/4" 1,600 51
DRUM-RACK-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate (3) 55 Gal. Steel 71-1/2"x29-7/8"x12-3/4" 2,400 101
DRUM-RACK-2-G - Warranty PDFCompliance Certificate (2) 55 Gal. Steel 45-1/2"x29-7/8"x12-3/4" 1,600 90
DRUM-RACK-3-G Warranty PDFCompliance Certificate (3) 55 Gal. Steel 71-1/2"x29-7/8"x12-3/4" 2,400 105
DRUM-RACK-2-SS Warranty PDFCompliance Certificate (2) 55 Gal. Steel 45-1/2"x29-7/8"x12-3/4" 1,600 91
DRUM-RACK-3-SS Warranty PDFCompliance Certificate (3) 55 Gal. Steel 71-1/2"x29-7/8"x12-3/4" 2,400 106
Portable Drum Dollies*
DR-CART-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate -- 30-5/8"x49-1/2"x14-9/16" 1,600 102
DR-CART-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate -- 30-5/8"x72-1/2"x14-9/16" 2,400 155
Portable Drum Carts*
DR-CART-2-HLK icon_approvaldrawings.jpgWarranty PDFCompliance Certificate -- 30-5/8"x54-1/16"x39-13/16" 1,600 102
DR-CART-3-HLK icon_approvaldrawings.jpgWarranty PDFCompliance Certificate -- 30-5/8"x54-1/16"x39-13/16" 2,400 155

*Drum Racks Sold Separately
