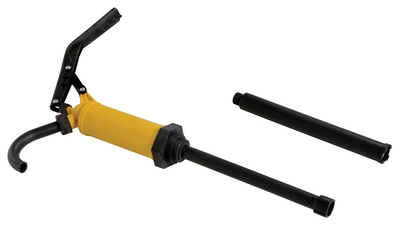

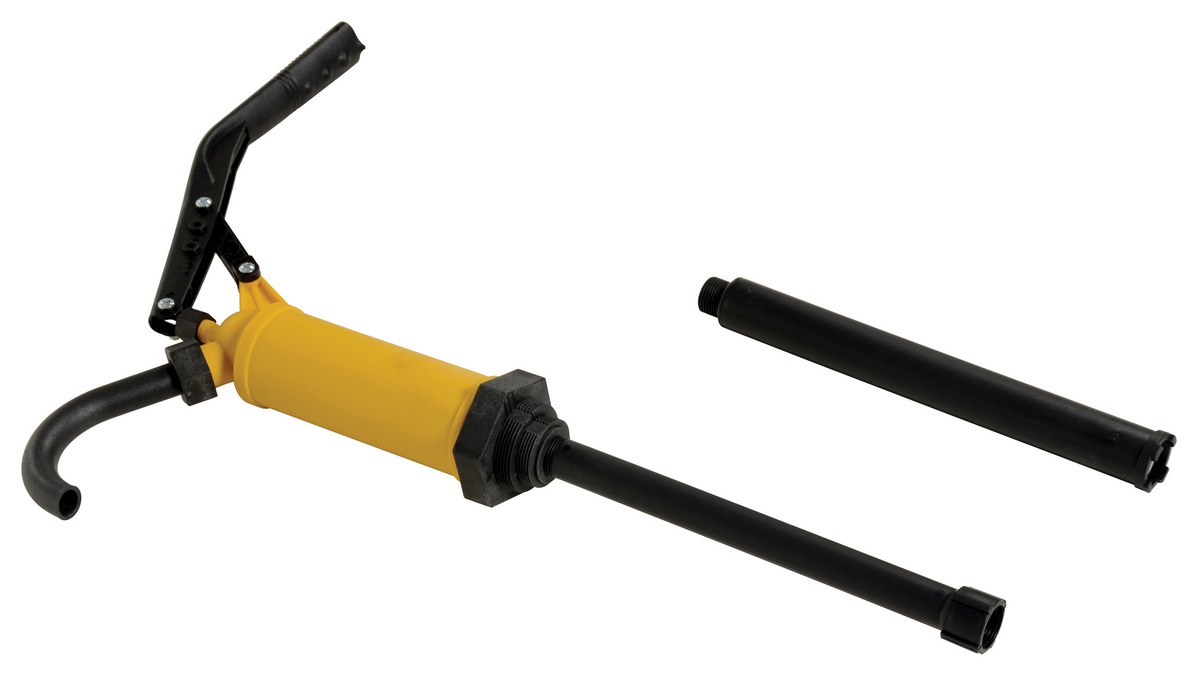

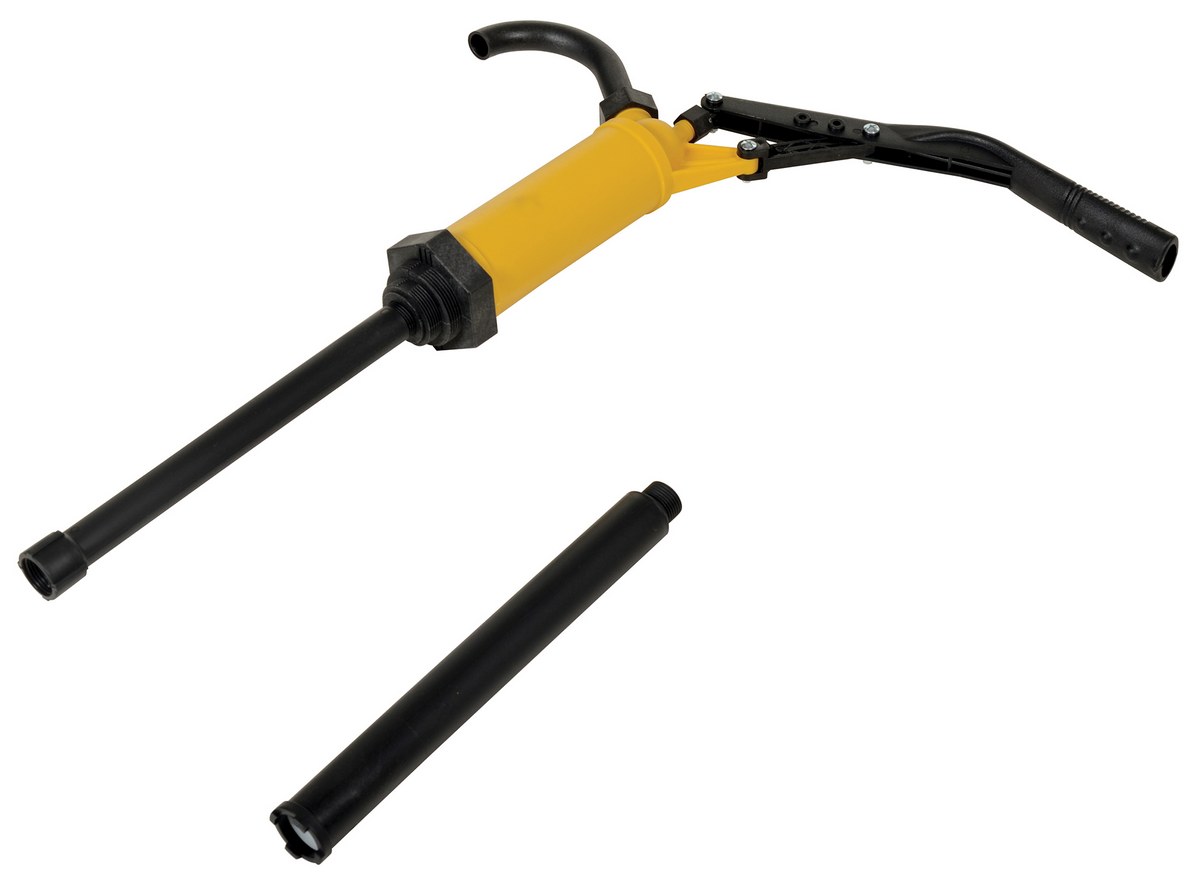

model: LDP-POLY-304


Lever Action Drum Pumps
SERIES: LDP

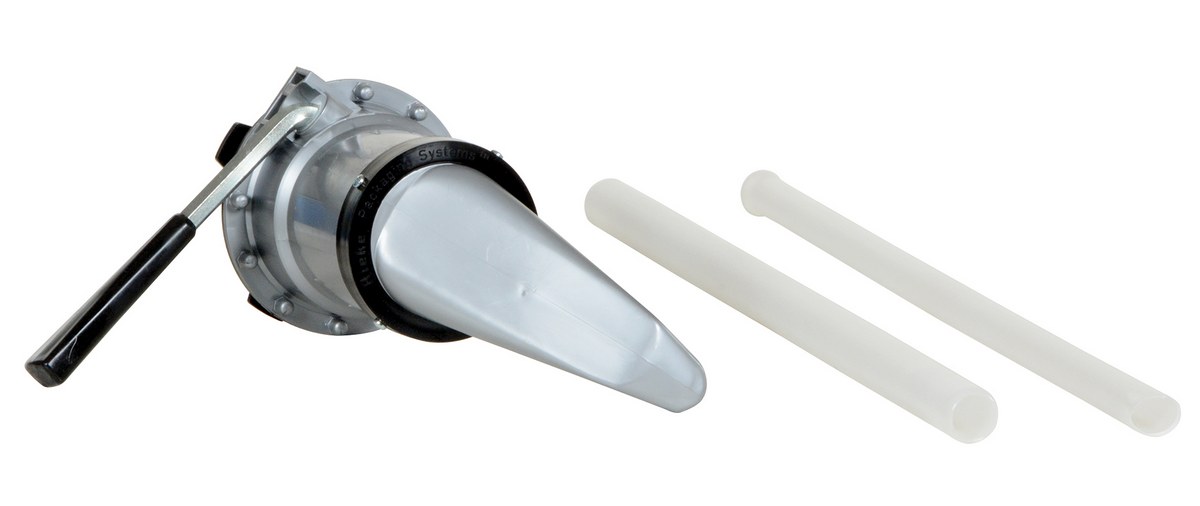

Designed for dispensing and transferring liquids out of 55-gallon drums. VLDP - Handles viscous liquids up to 12,000 cPs (equivalent to SAE 90 oil). Not for use above 125 degrees Fahrenheit or with heated drums. Includes 35" long dip tube.

LDP-ST - For petroleum products up to 200 cPs.

Designed for dispensing and transferring liquids out of 55-gallon drums. VLDP - Handles viscous liquids up to 12,000 cPs (equivalent to SAE 90 oil). Not for use above 125 degrees Fahrenheit or with heated drums. Includes 35" long dip tube.

LDP-ST - For petroleum products up to 200 cPs.

Share This Page

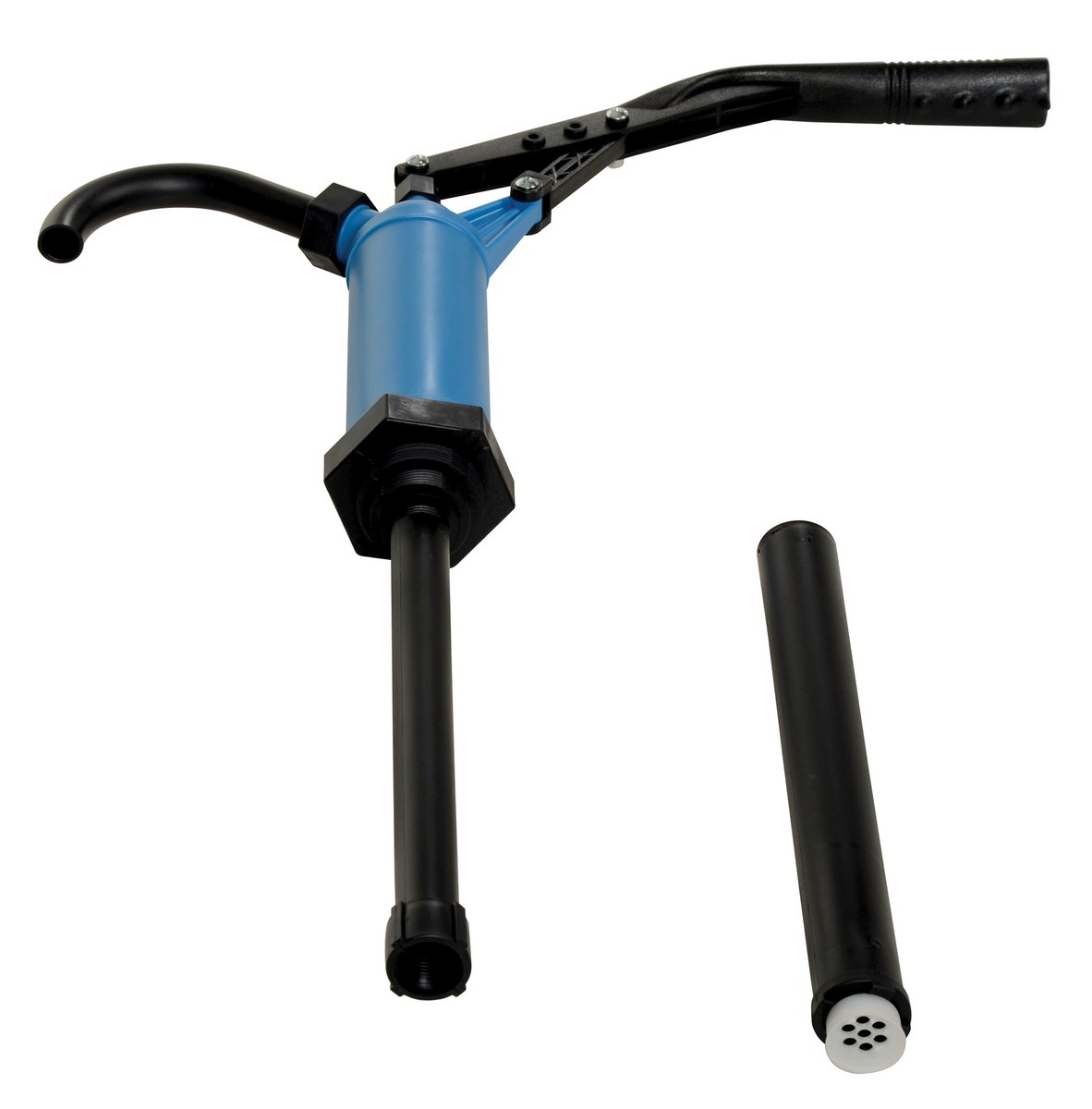

LDP-POLY

model LDP-POLY

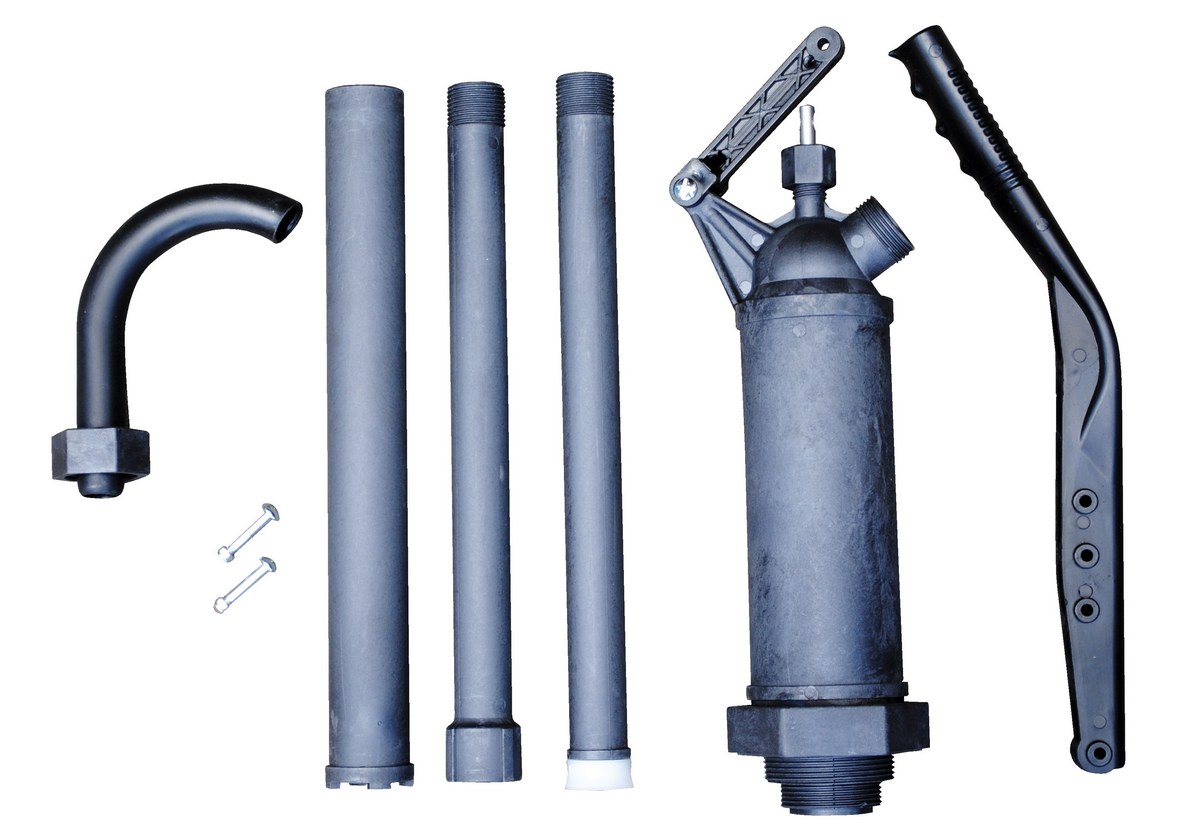

LDP-RYT

model LDP-RYT

LDP-SS-316

model LDP-SS-316

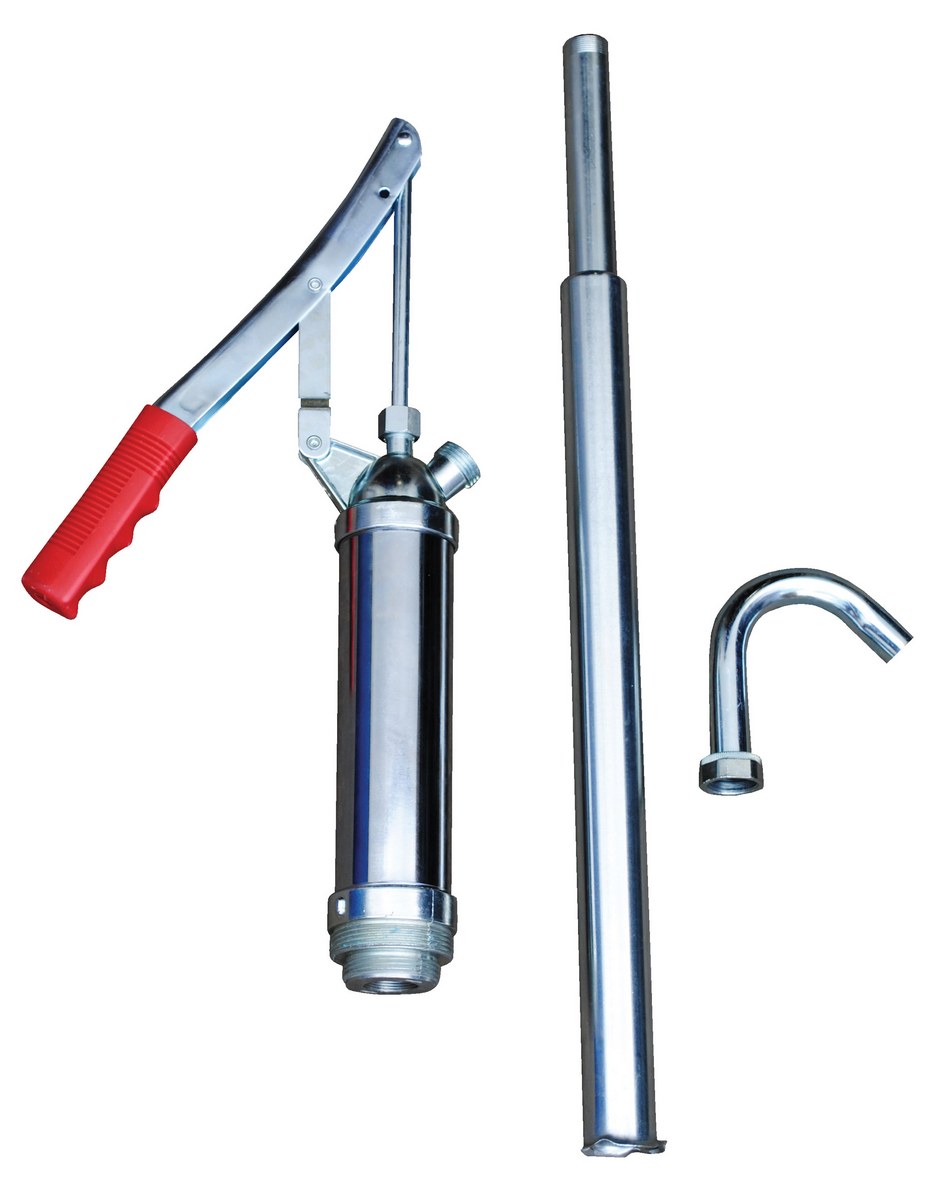

LDP-ST

model LDP-ST

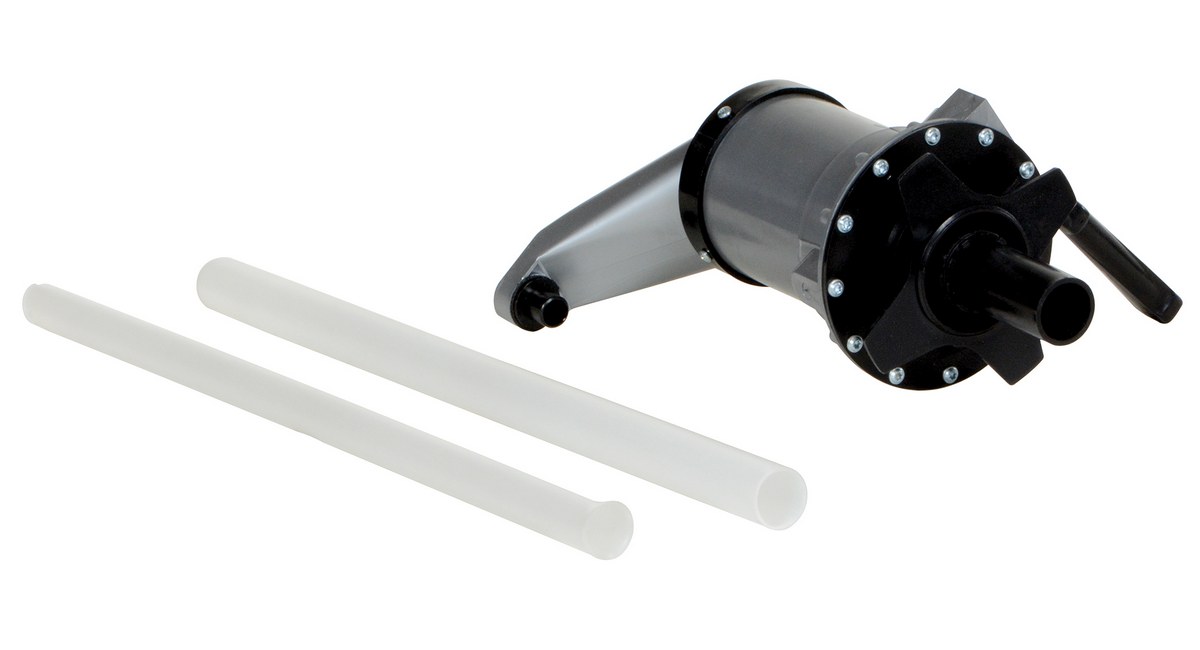

VLDP

model VLDP




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Lever Action Drum Pumps
Model Image PDF's Description Construction Displacement Per Stroke Bung Size Wt. (lbs)

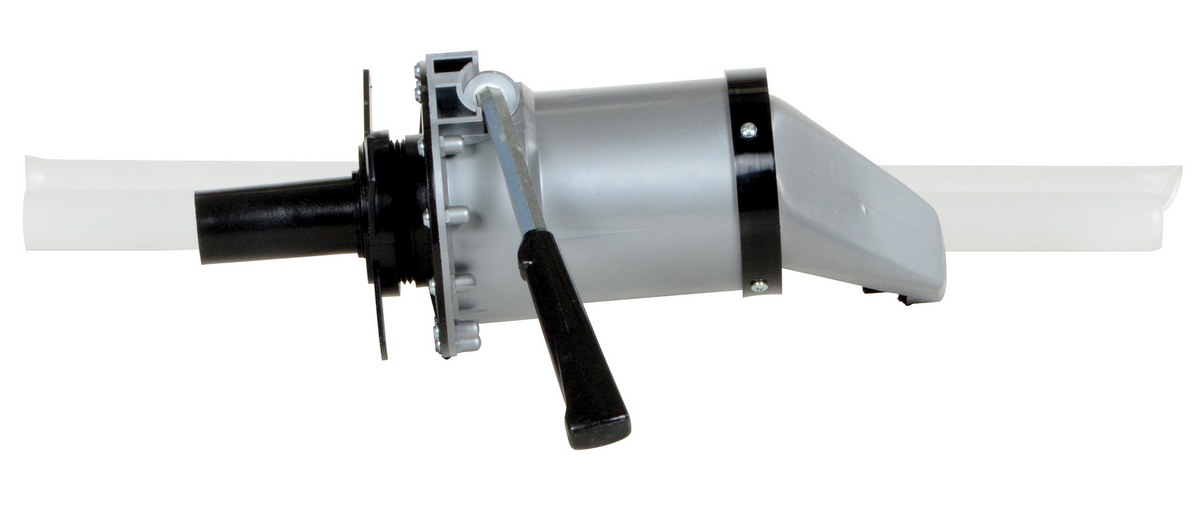

VLDP icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Lever Action Polypropylene 10 oz. 2" 2

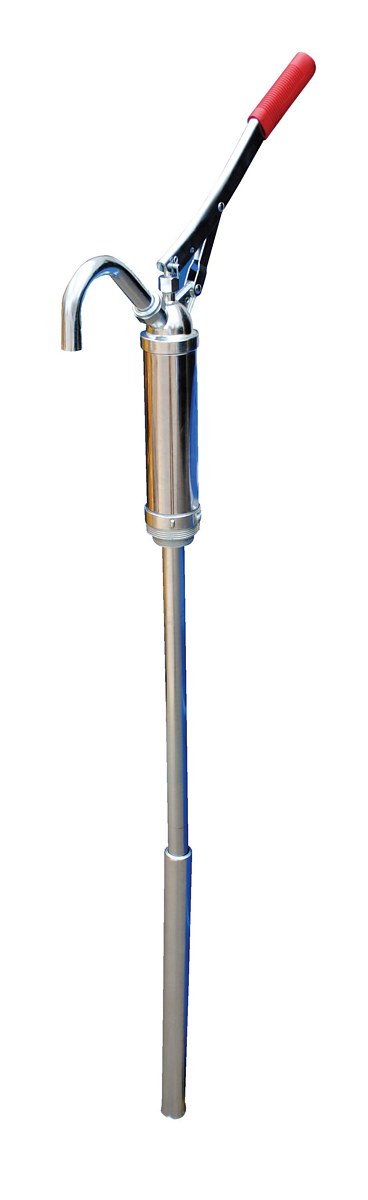

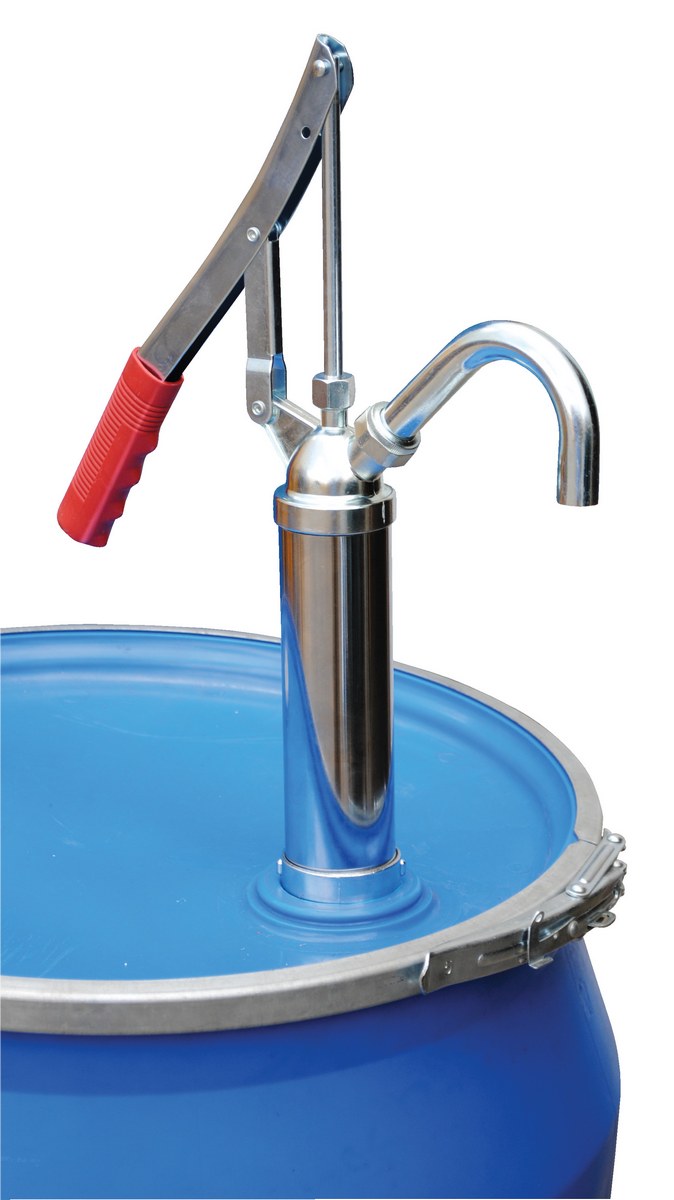

LDP-ST icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Lever Action Steel 12 oz. 2" 5

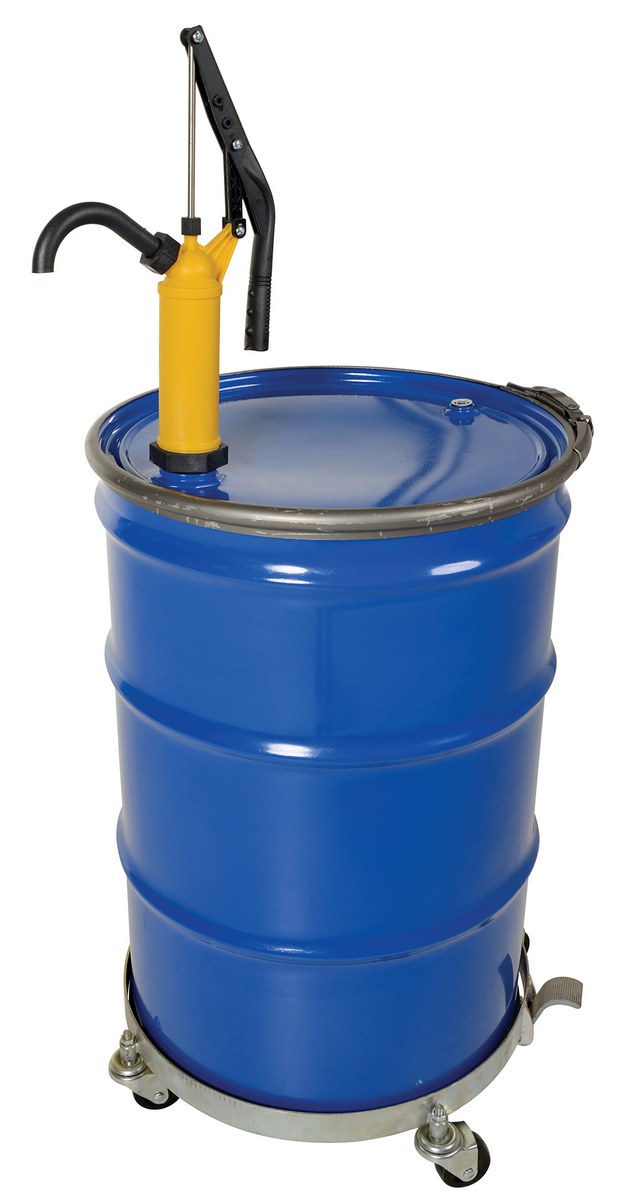

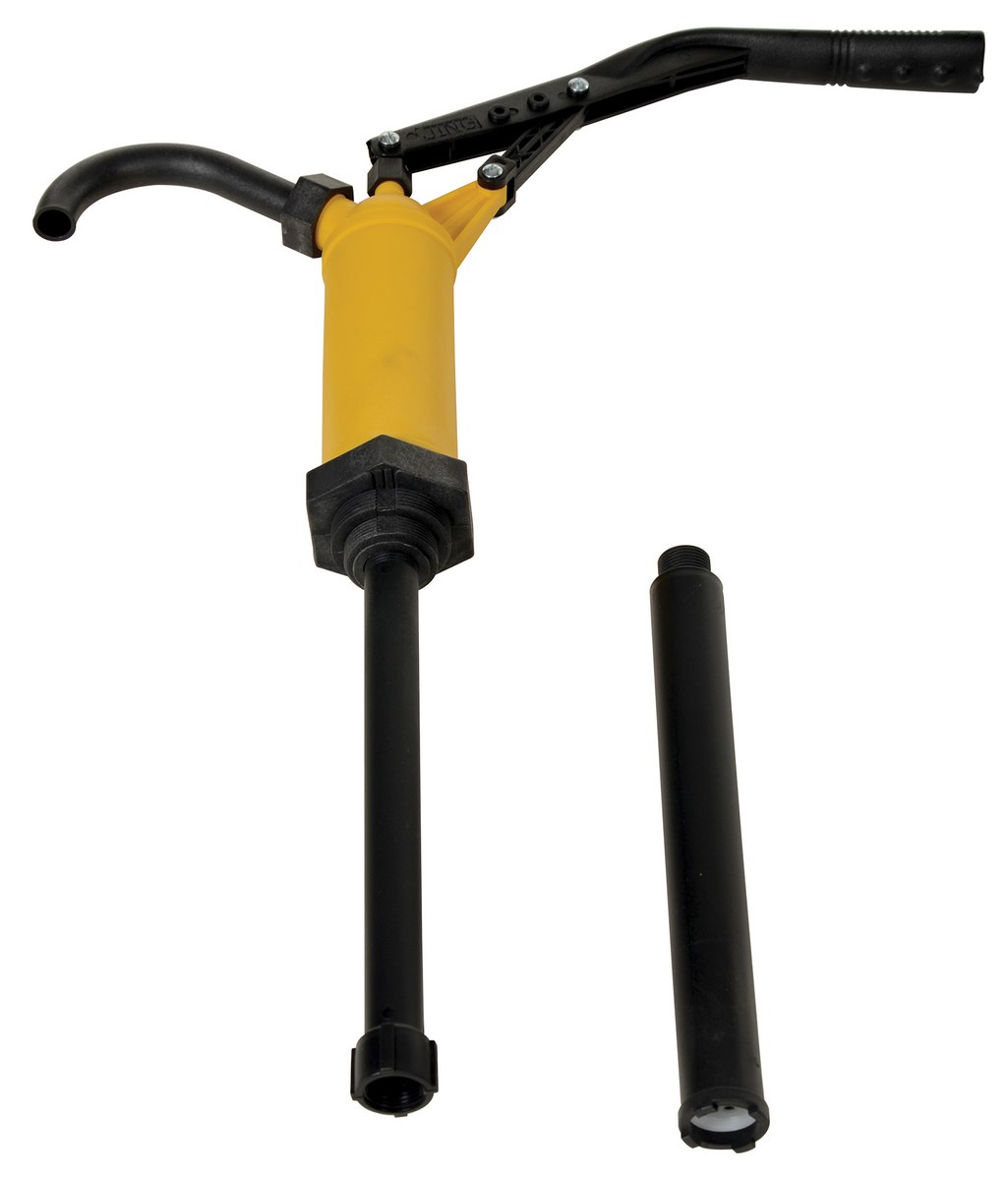

LDP-POLY-304 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Lever Action Polypropylene, 304 SS Rod 12 oz. 2" 4

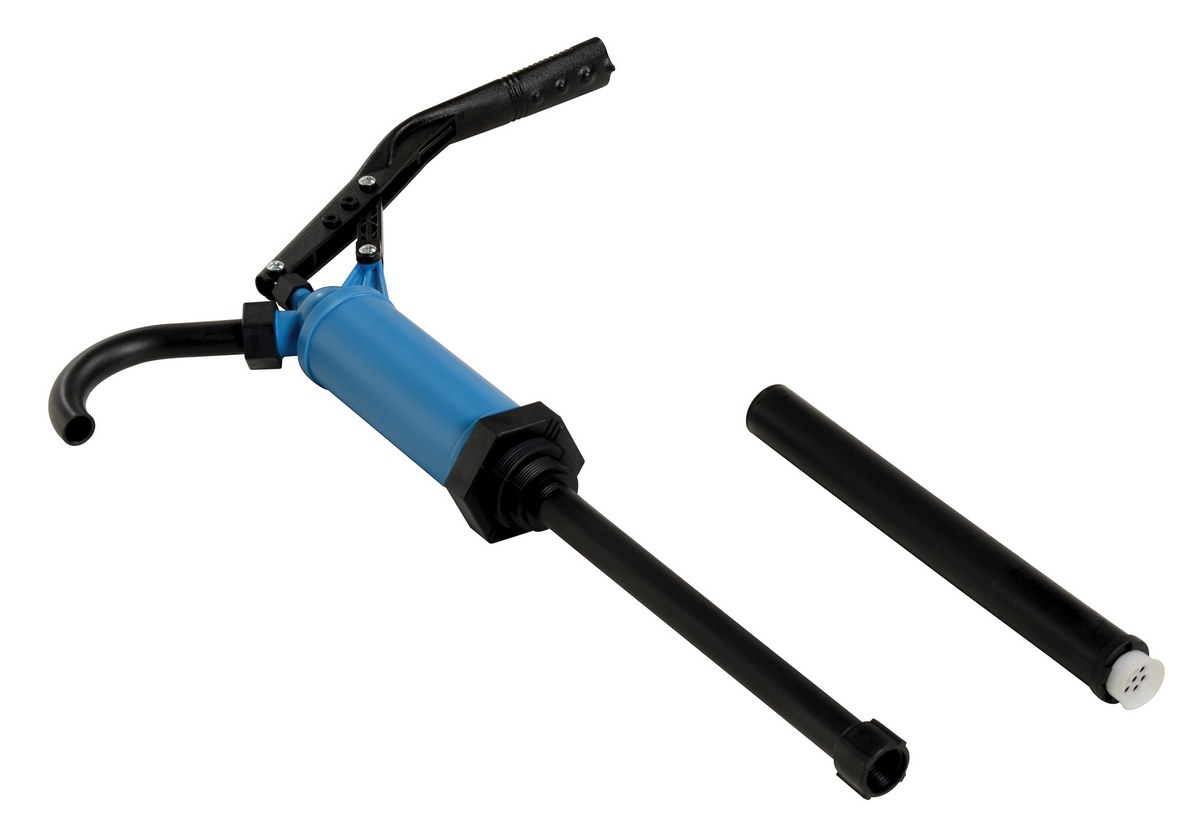

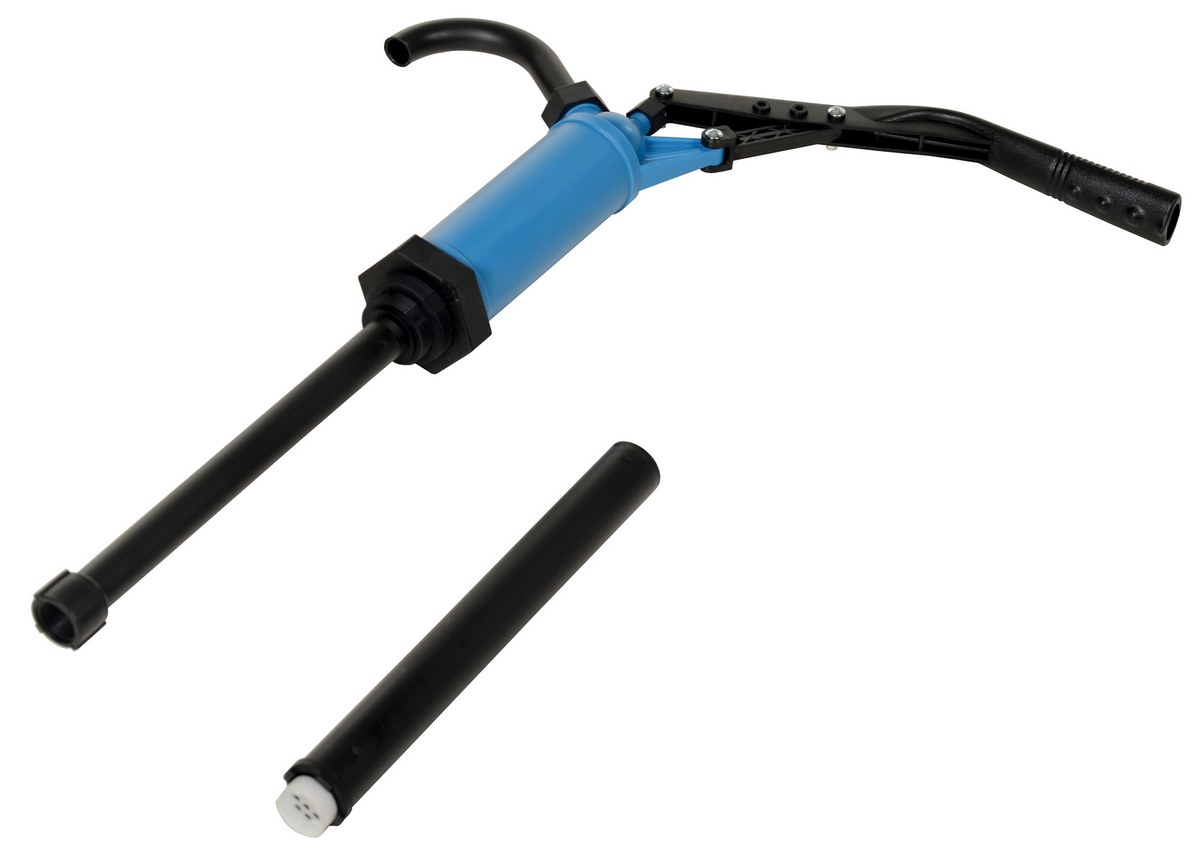

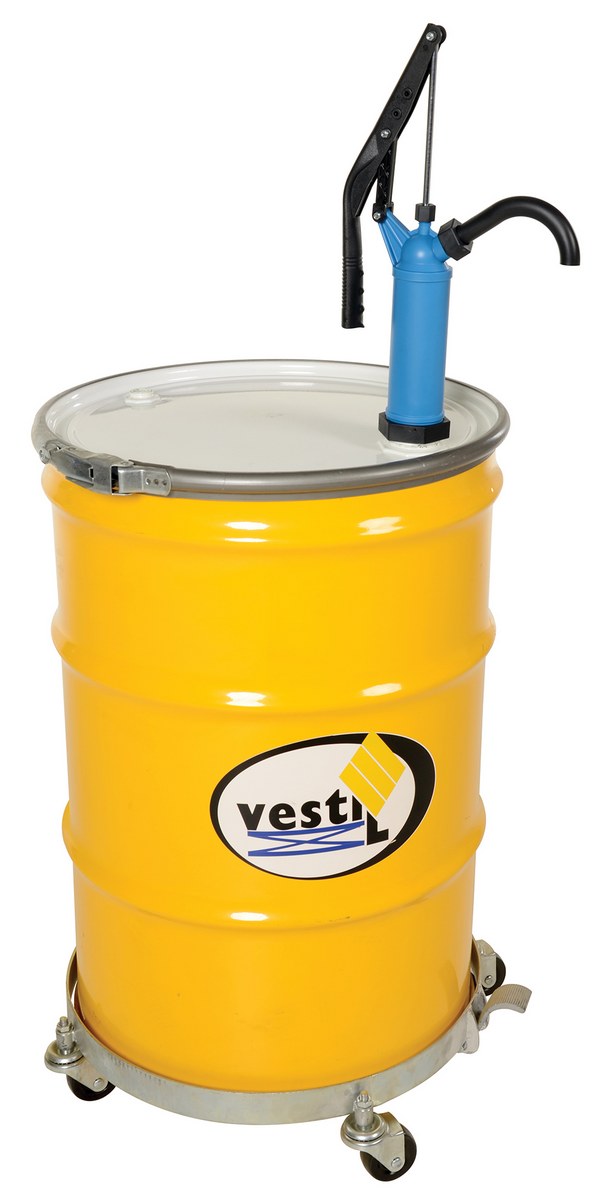

LDP-POLY icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Lever Action Polypropylene, Plated Steel Rod 12 oz. 2" 4

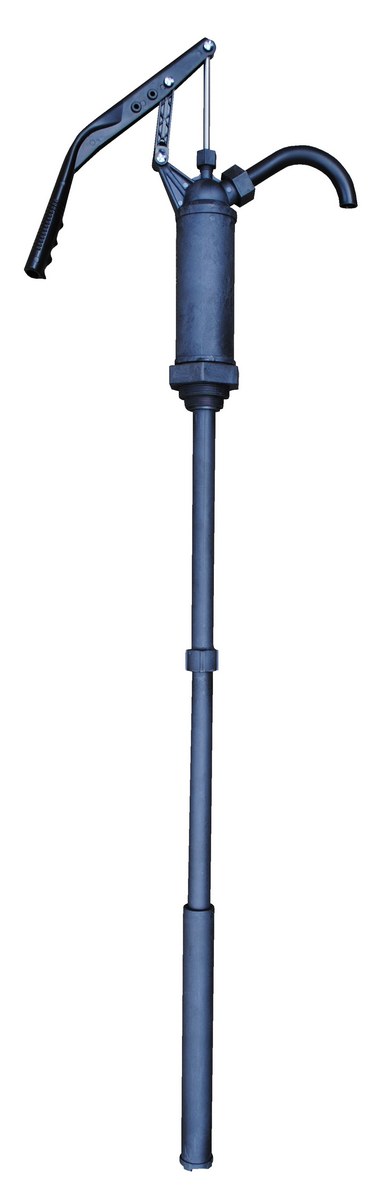

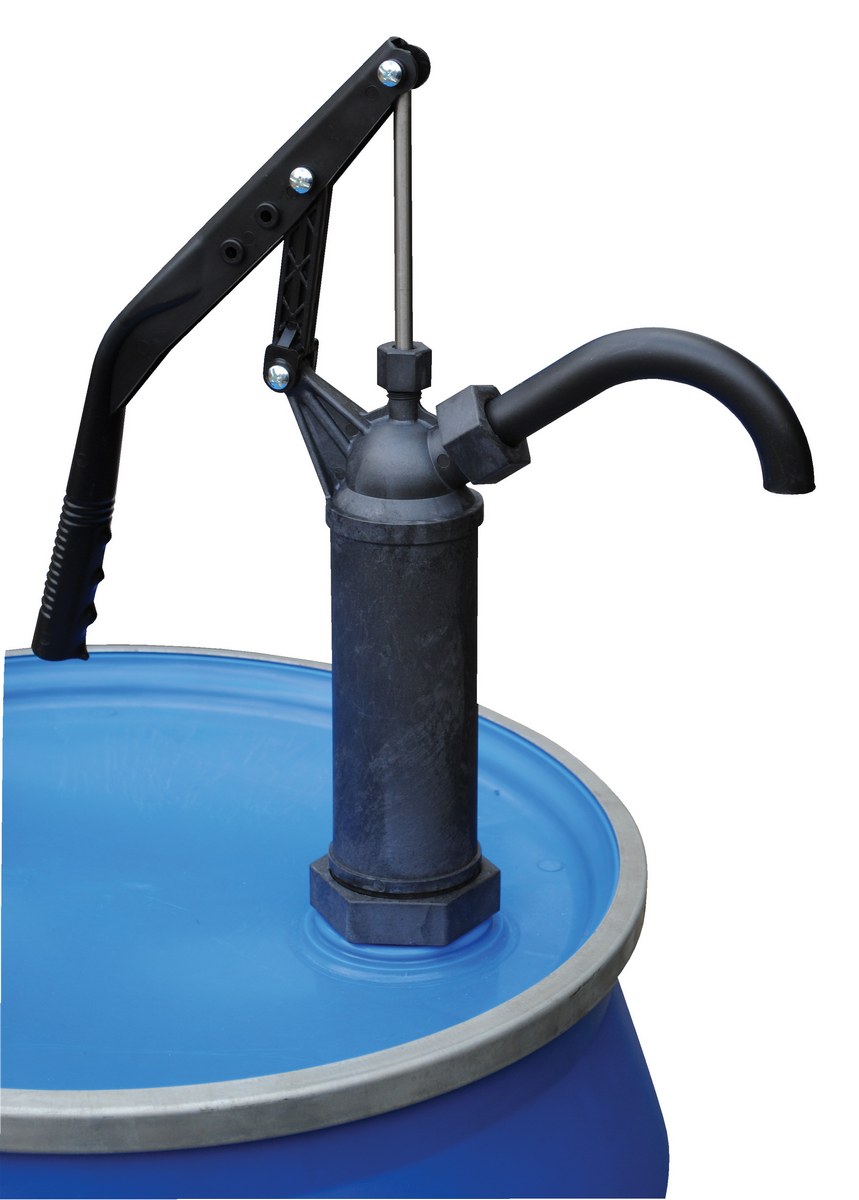

LDP-RYT icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Lever Action Polyphenylene sulfide (PPS), 316 SS Rod 12 oz. 2" 4

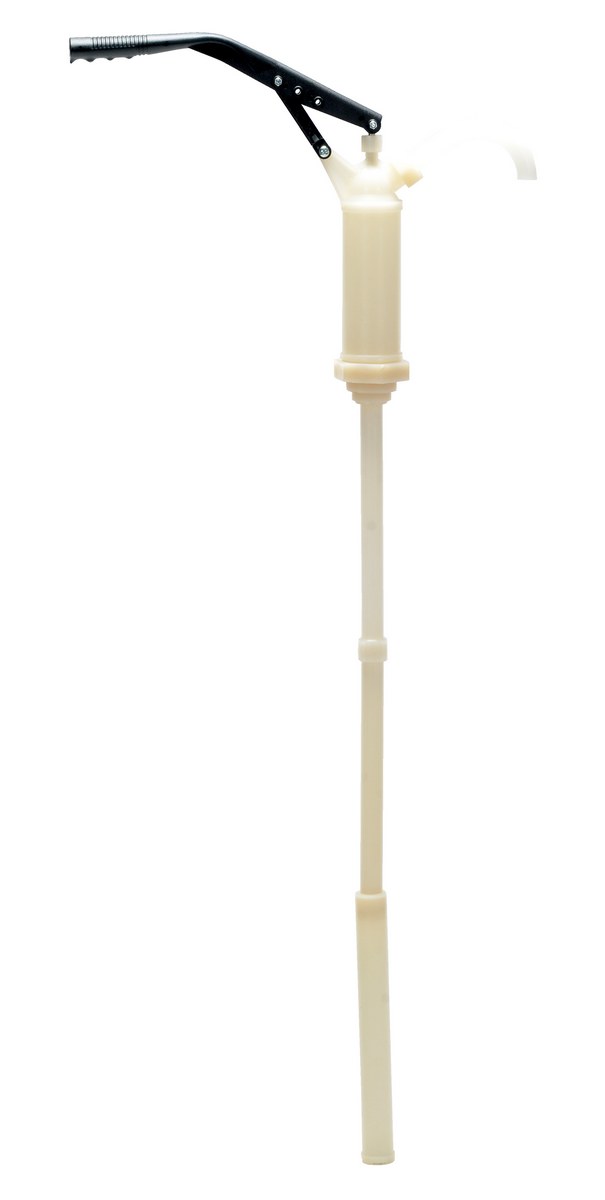

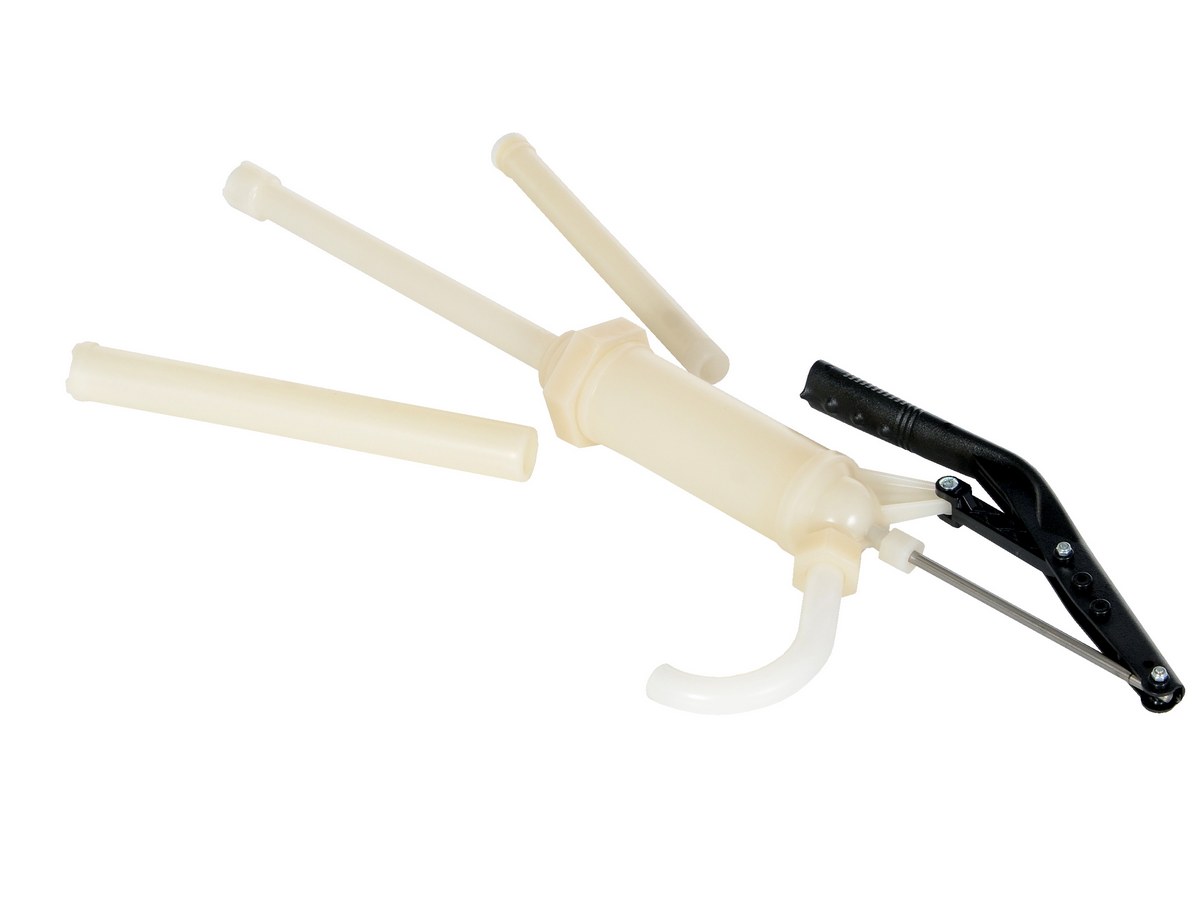

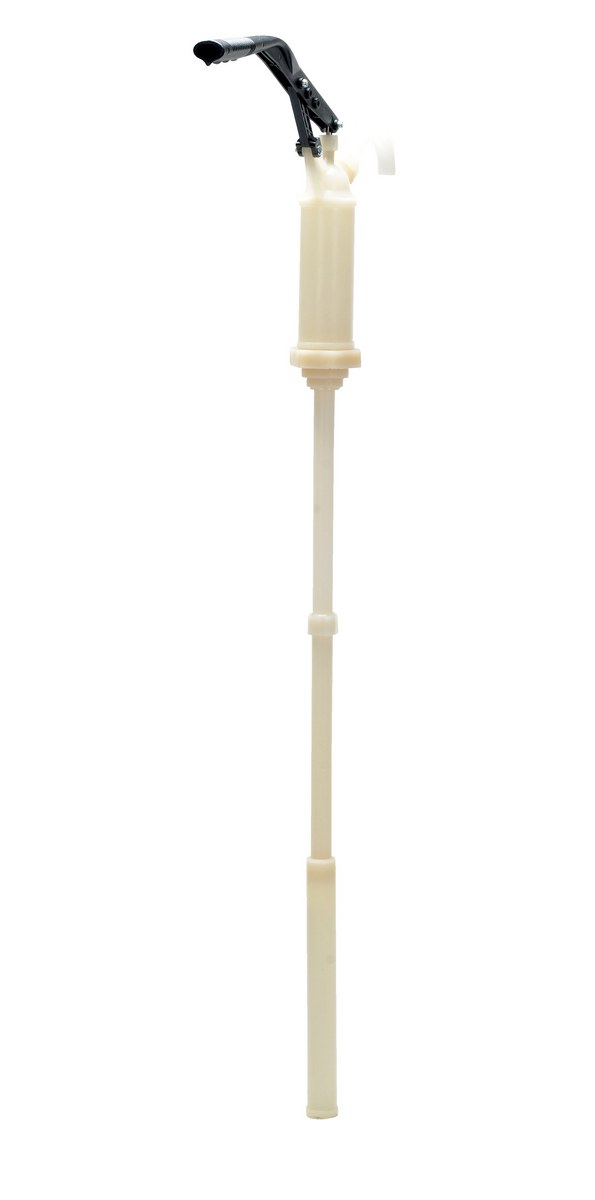

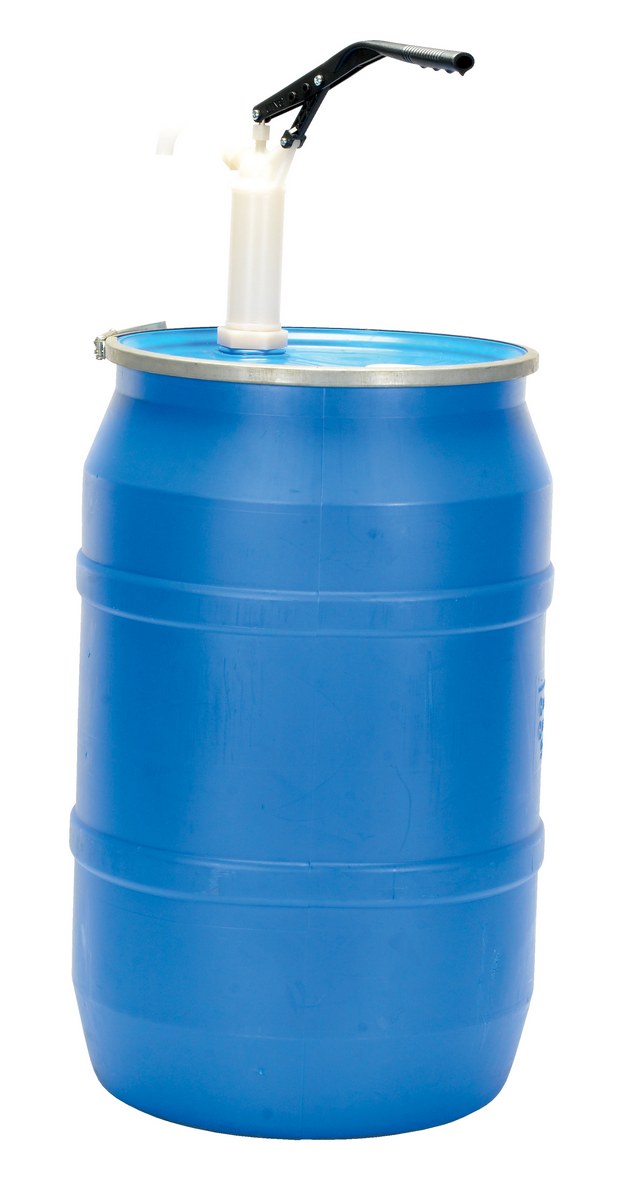

LDP-FG Compliance Certificate Lever Action PTFE with Stainless Steel Piston Rod 12 oz. 2" 4

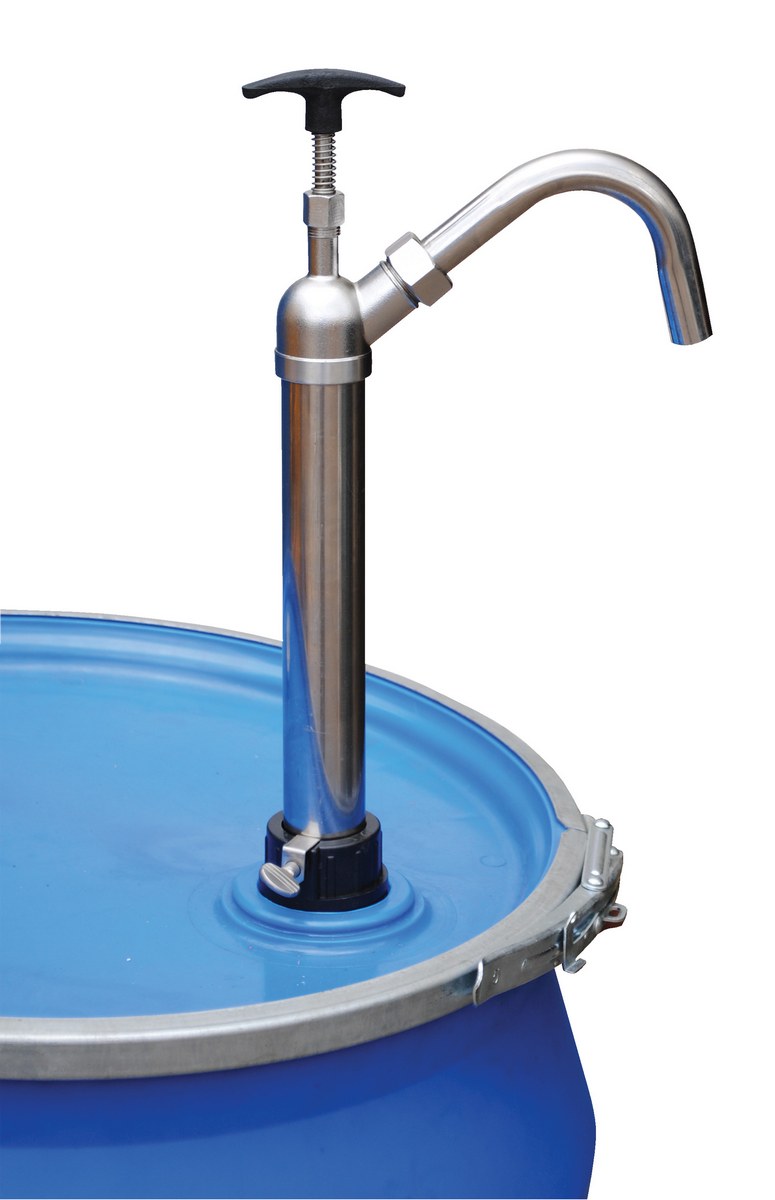

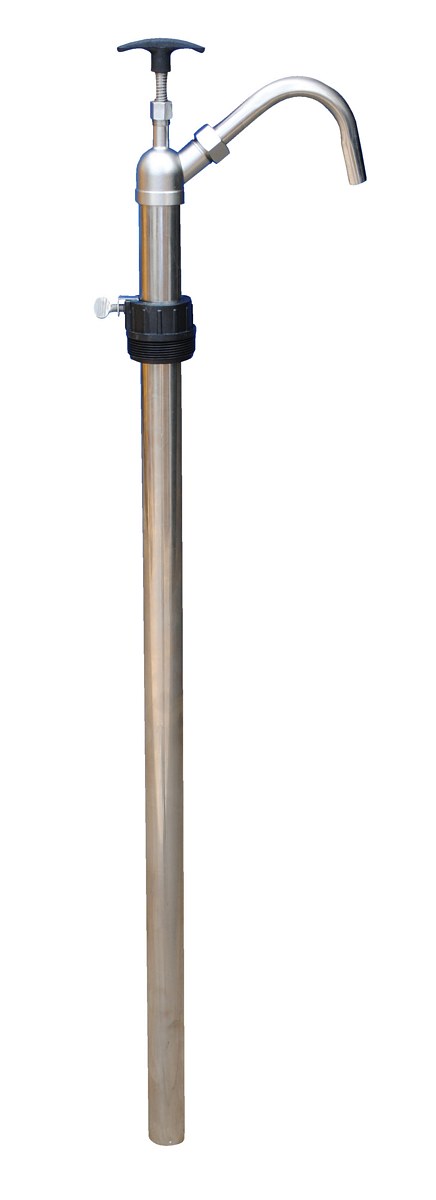

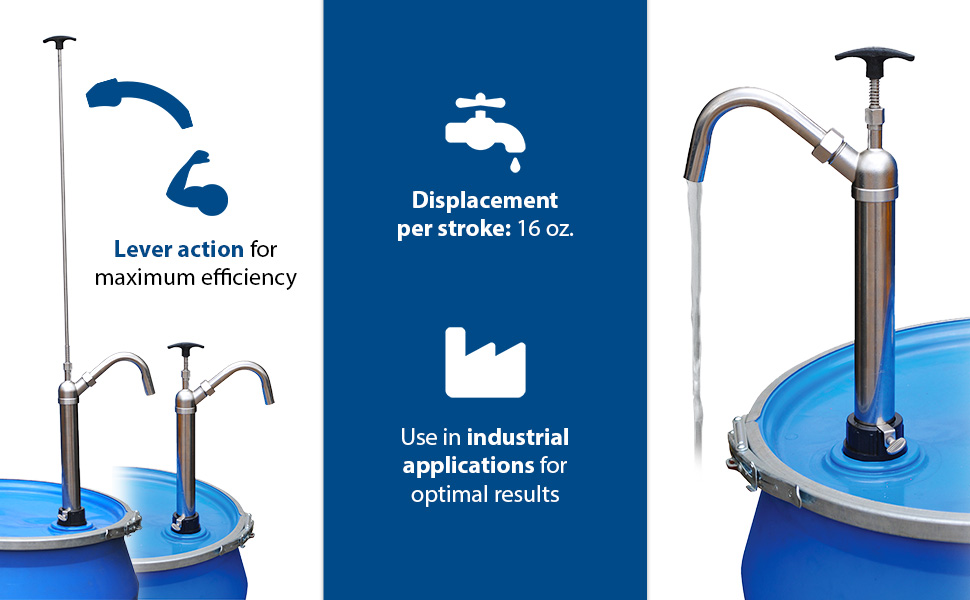

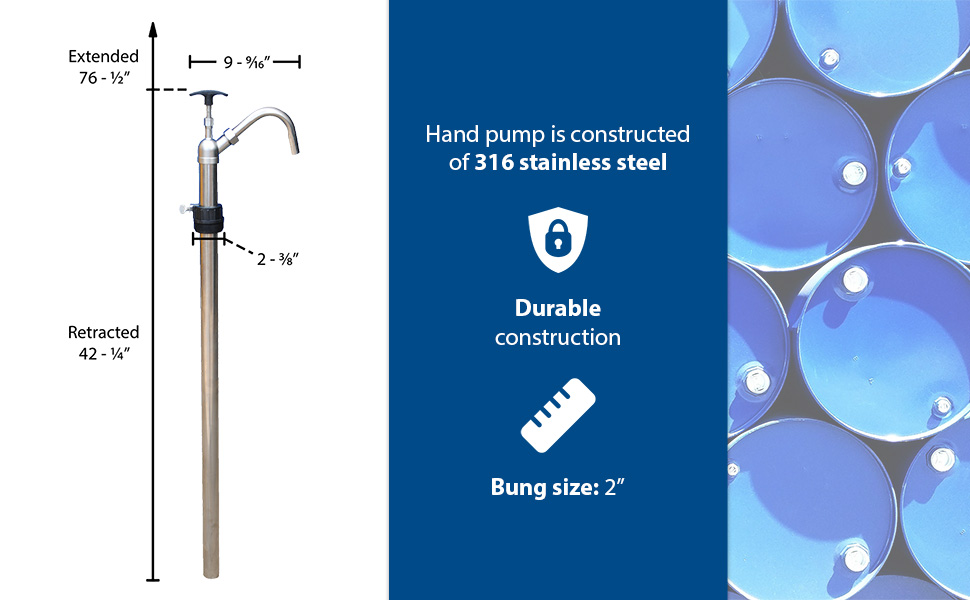

LDP-SS-316 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Hand Pump 316 Stainless Steel 16 oz. 2" 12

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate


Model Image PDFs Description * Net Wt.
(lbs)
LDP-FG 30 Days WarrantyDRUM PUMP LEVER ACTION PTFEAccommodates: 55 gallon drum3
LDP-POLY download.gif30 Days WarrantyDRUM PUMP LEVER ACTION POLY 2 IN BUNGAccommodates: 55 gallon drum4
LDP-POLY-304 download.gif30 Days WarrantyDRUM PUMP LEVER ACTION POLY SS 2 IN BUNGAccommodates: 55 gallon drum4
LDP-RYT download.gif30 Days WarrantyDRUM PUMP LEVER ACTION PPS 2 IN BUNGAccommodates: 55 gallon drum4
LDP-SS-316 download.gif30 Days WarrantyDRUM PUMP HAND PUMP SS 2 IN BUNGAccommodates: 55 gallon drum5
LDP-ST download.gif30 Days WarrantyDRUM PUMP LEVER ACTION STEEL 2 IN BUNGAccommodates: 55 gallon drum5
VLDP download.gif30 Days WarrantyMANUAL LEVER ACTION DRUM&PAIL PUMP 10 OZAccommodates: 55 gallon drum2



Lever Action Drum Pumps PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

LDP-POLY
LDP-POLY-304
LDP-RYT
LDP-SS-316
LDP-ST
VLDP

Testing Certificates

LDP-FG
LDP-POLY
LDP-POLY-304
LDP-RYT
LDP-SS-316
LDP-ST
VLDP

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: Can you attach a hose to this drum pump?

A: It is not recommended to attach a hose to the drum pump.
