model: CYL-H-4


SERIES: CYL
Cylinder Storage Cabinets (USA sales)

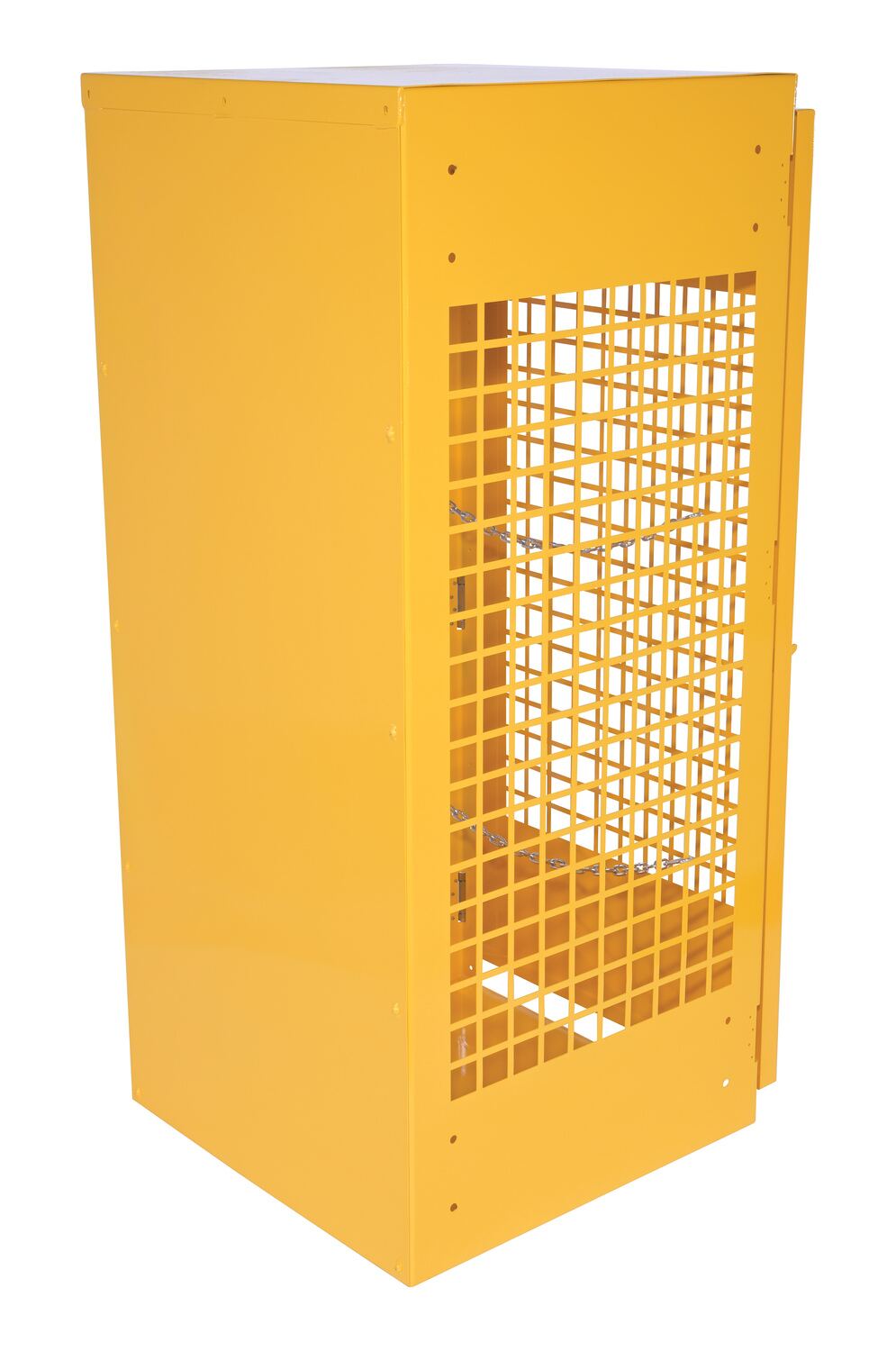

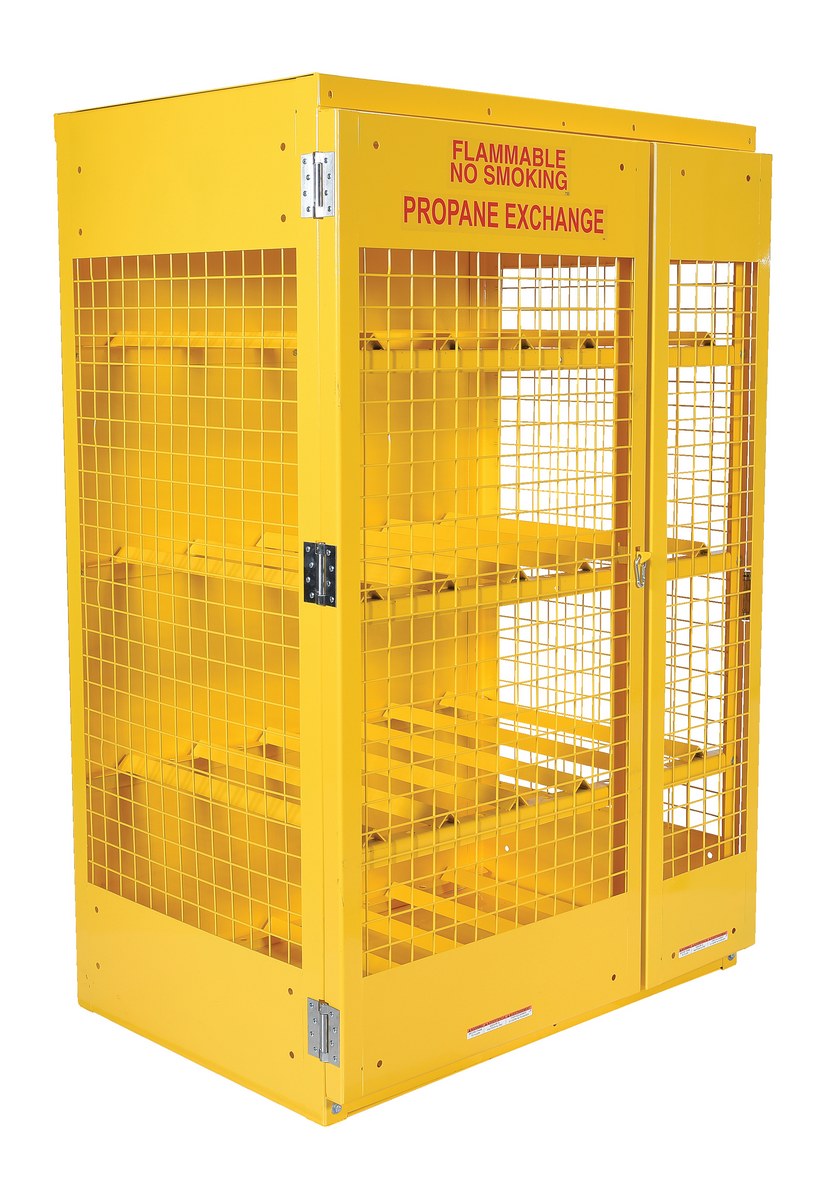

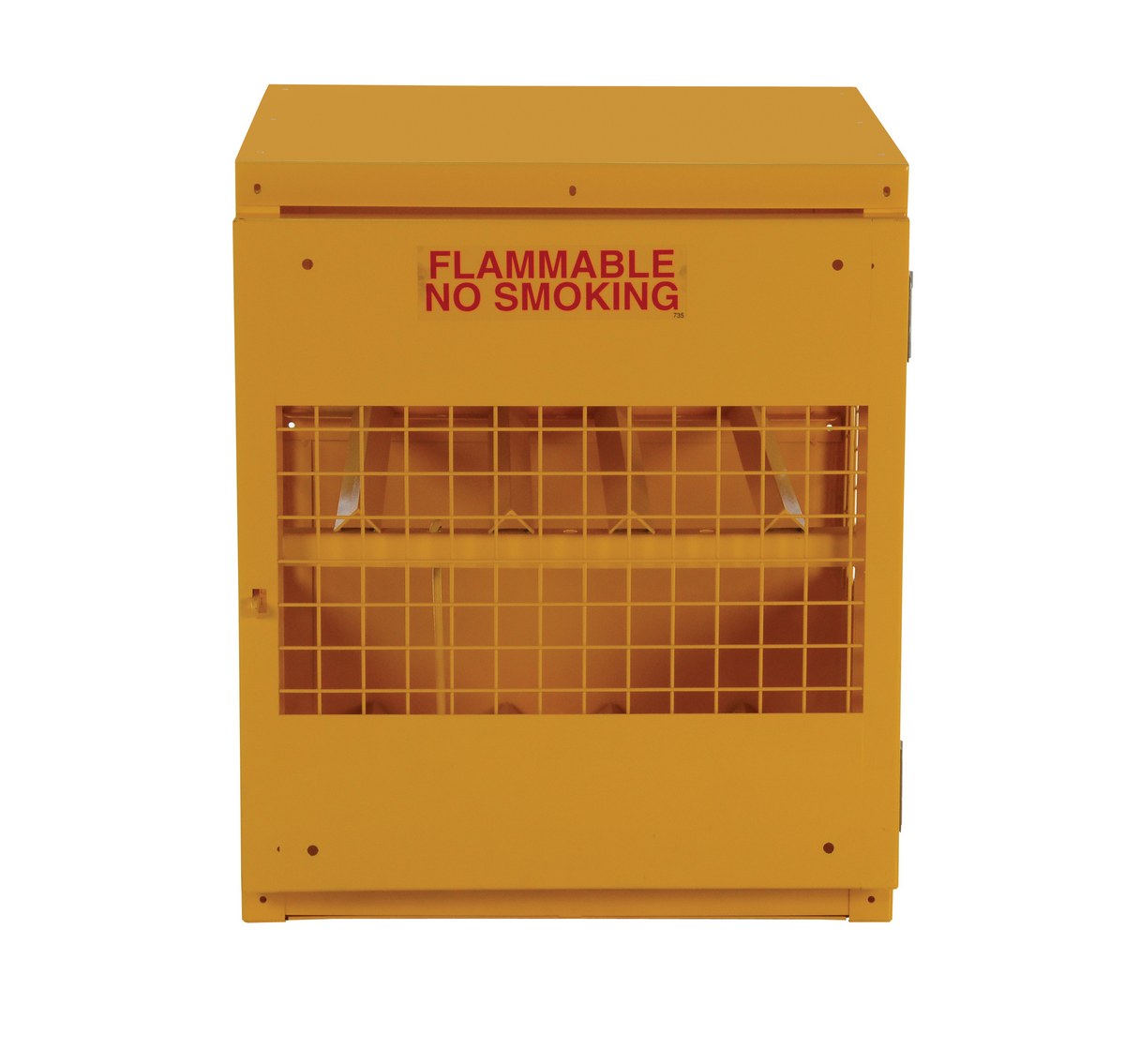

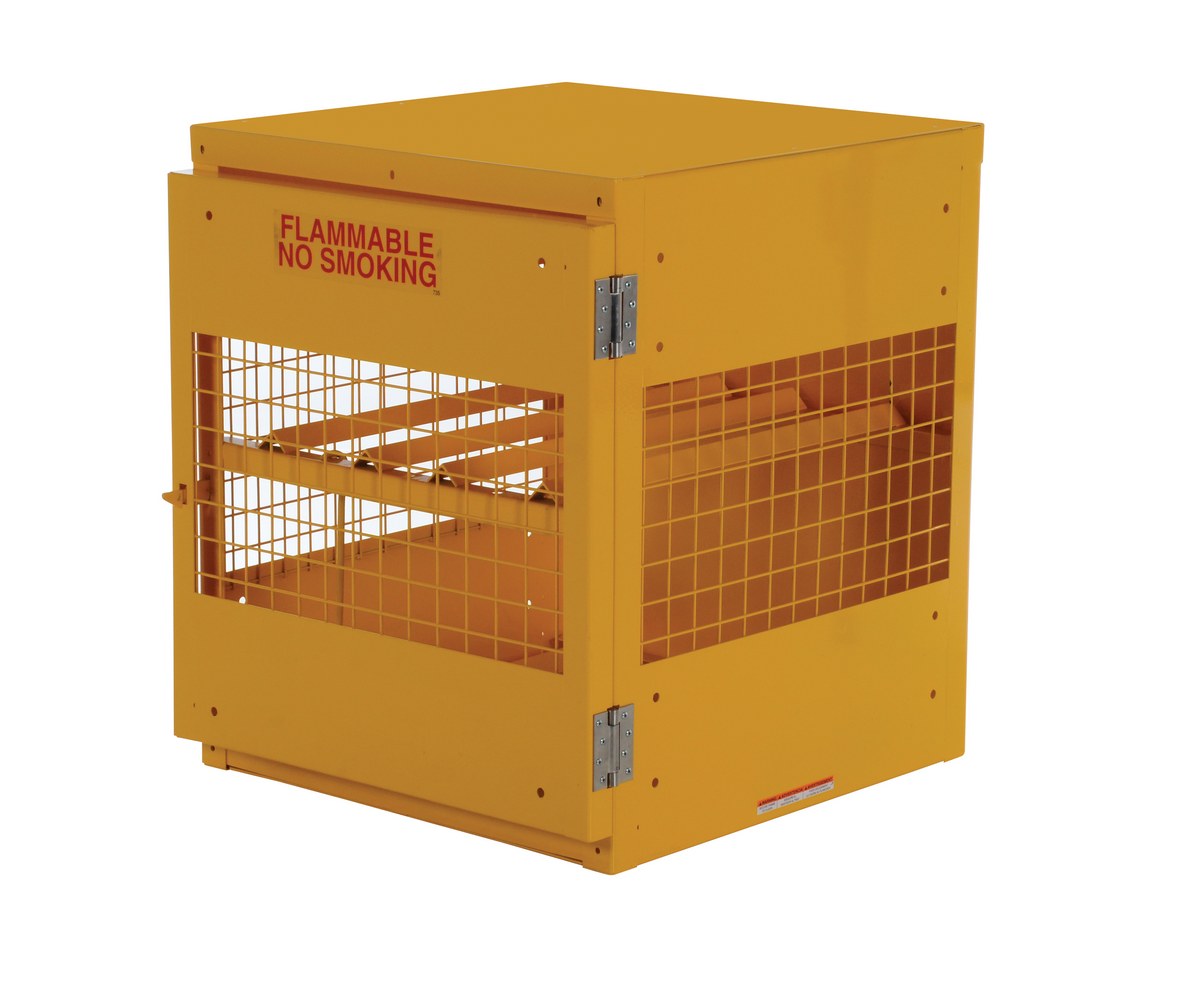

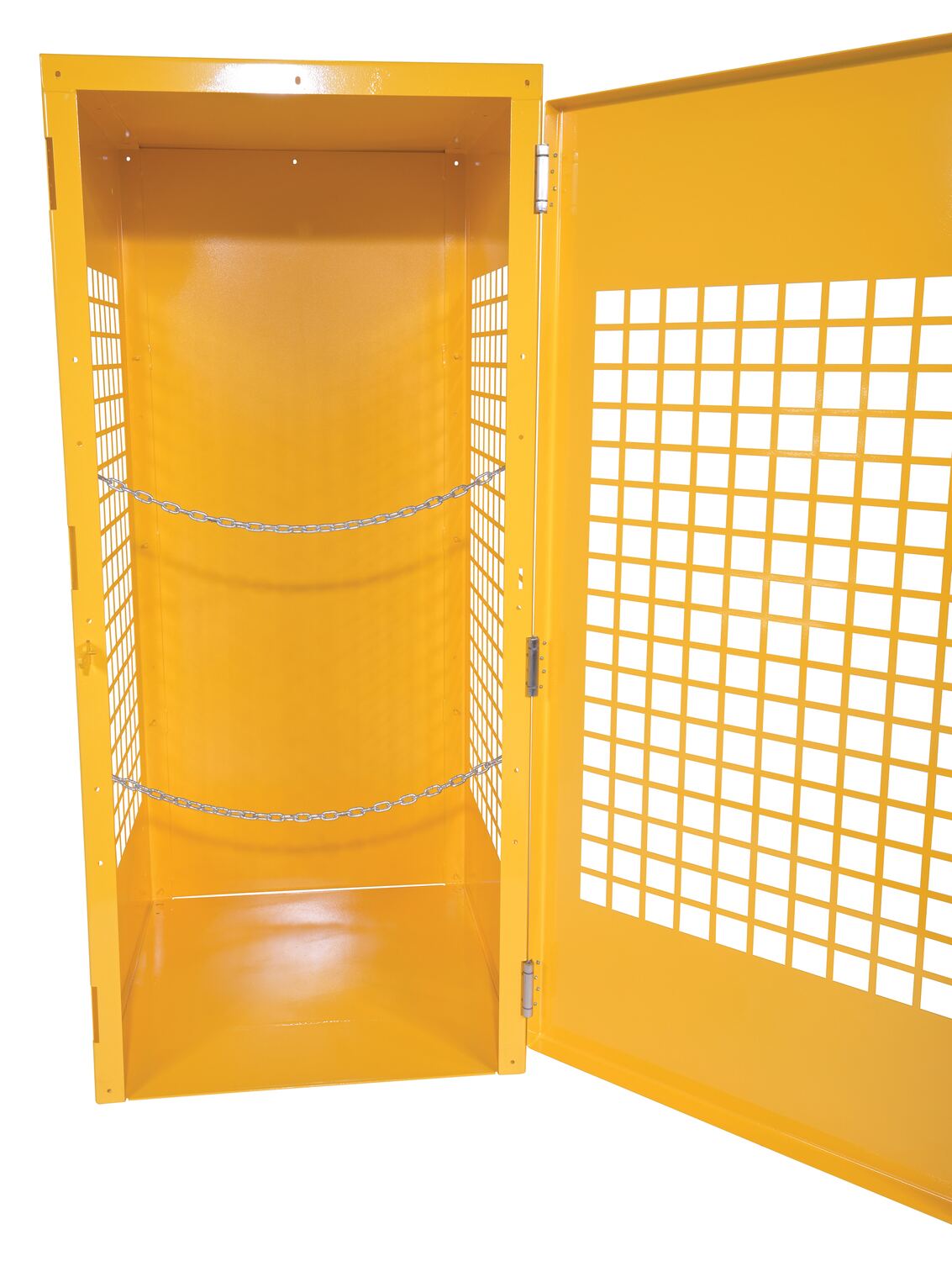

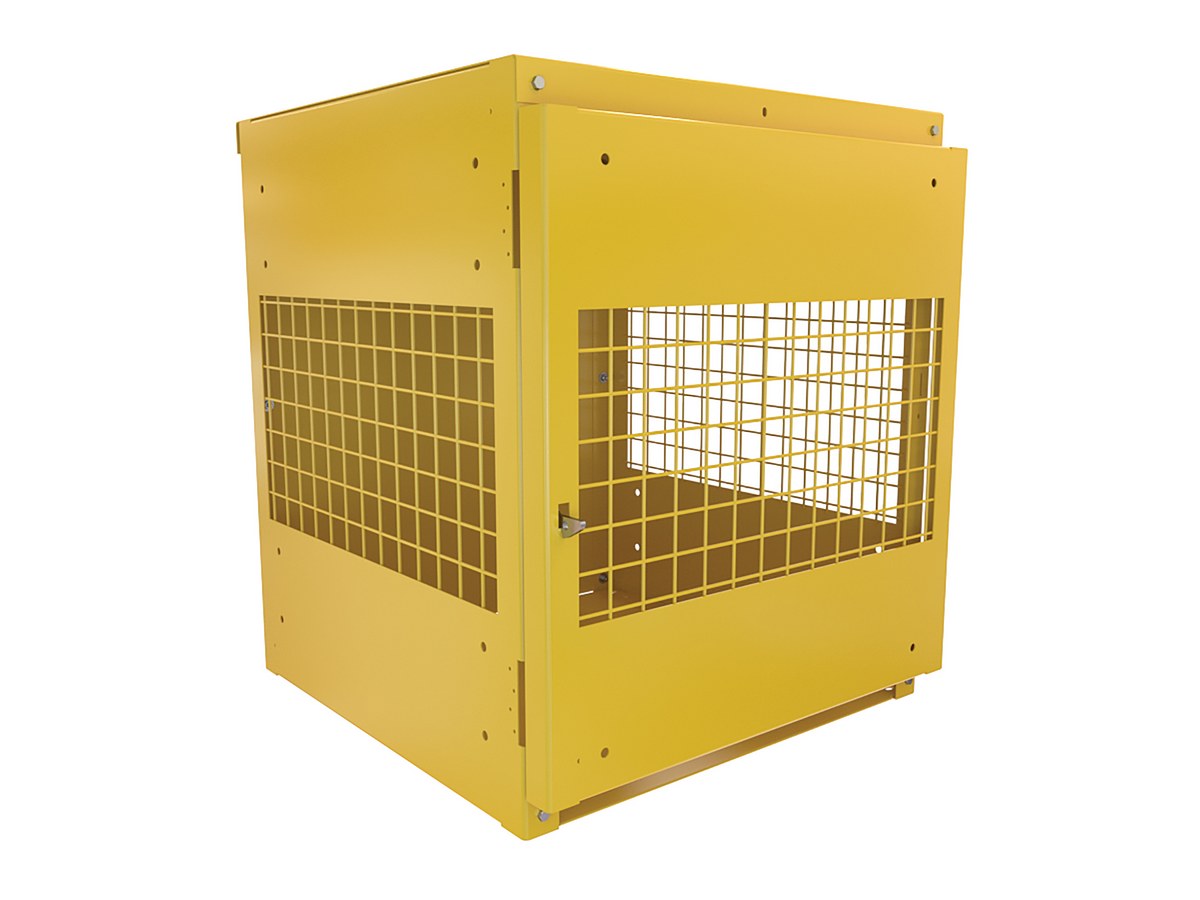

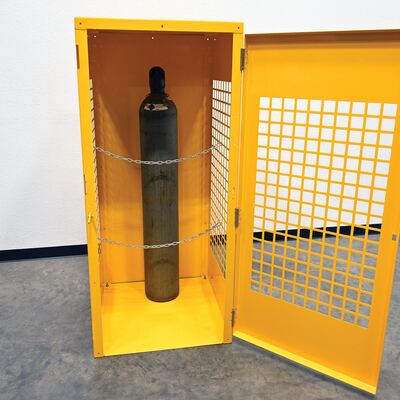

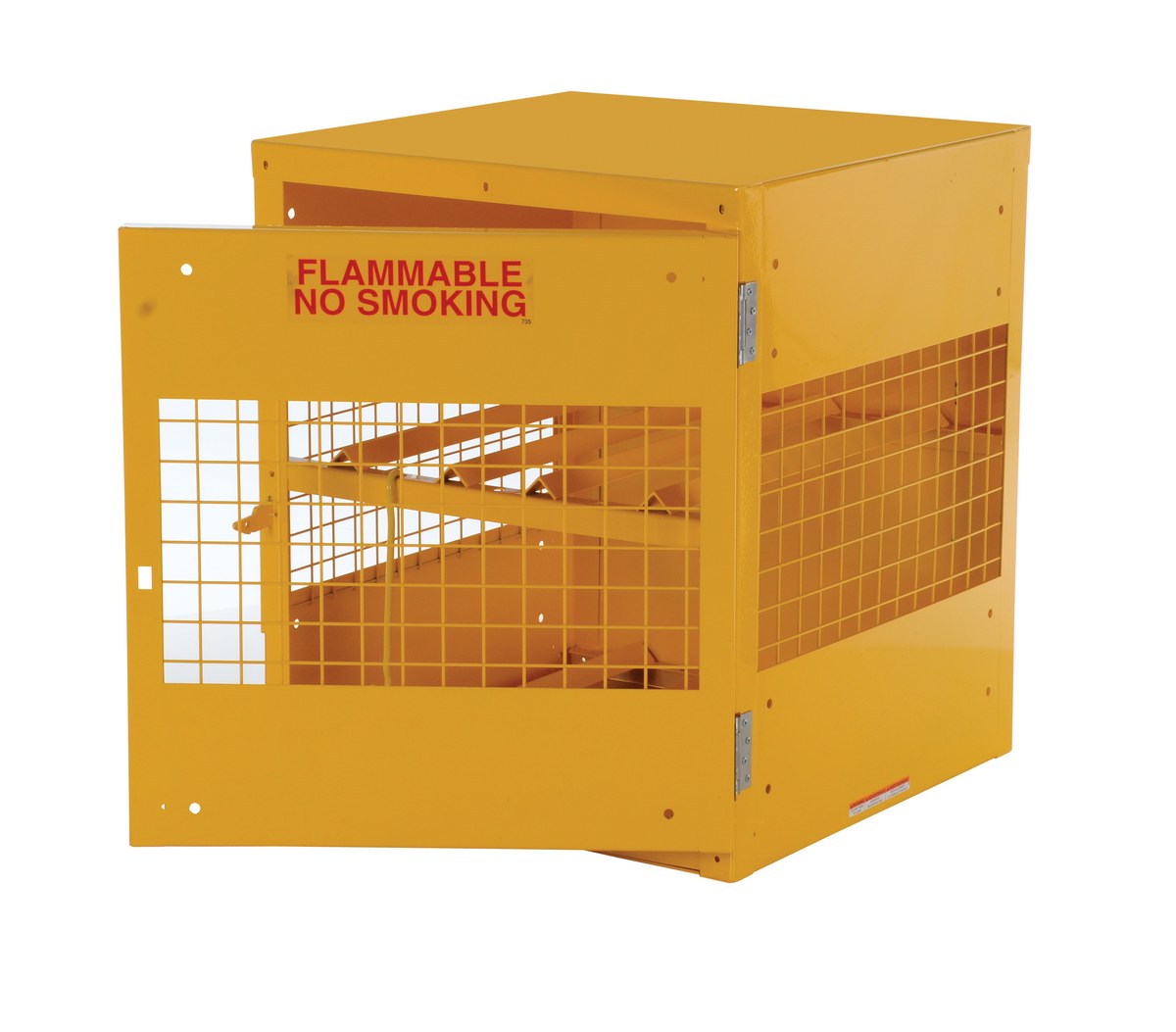

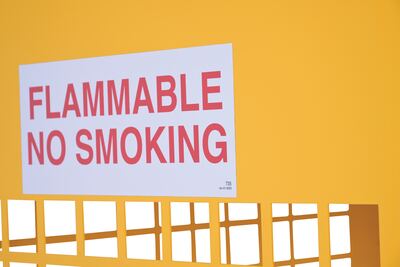

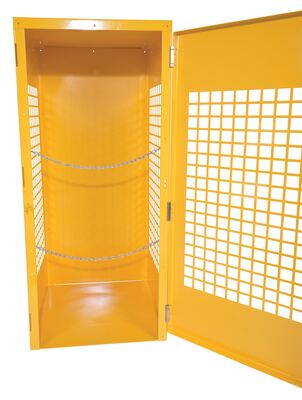

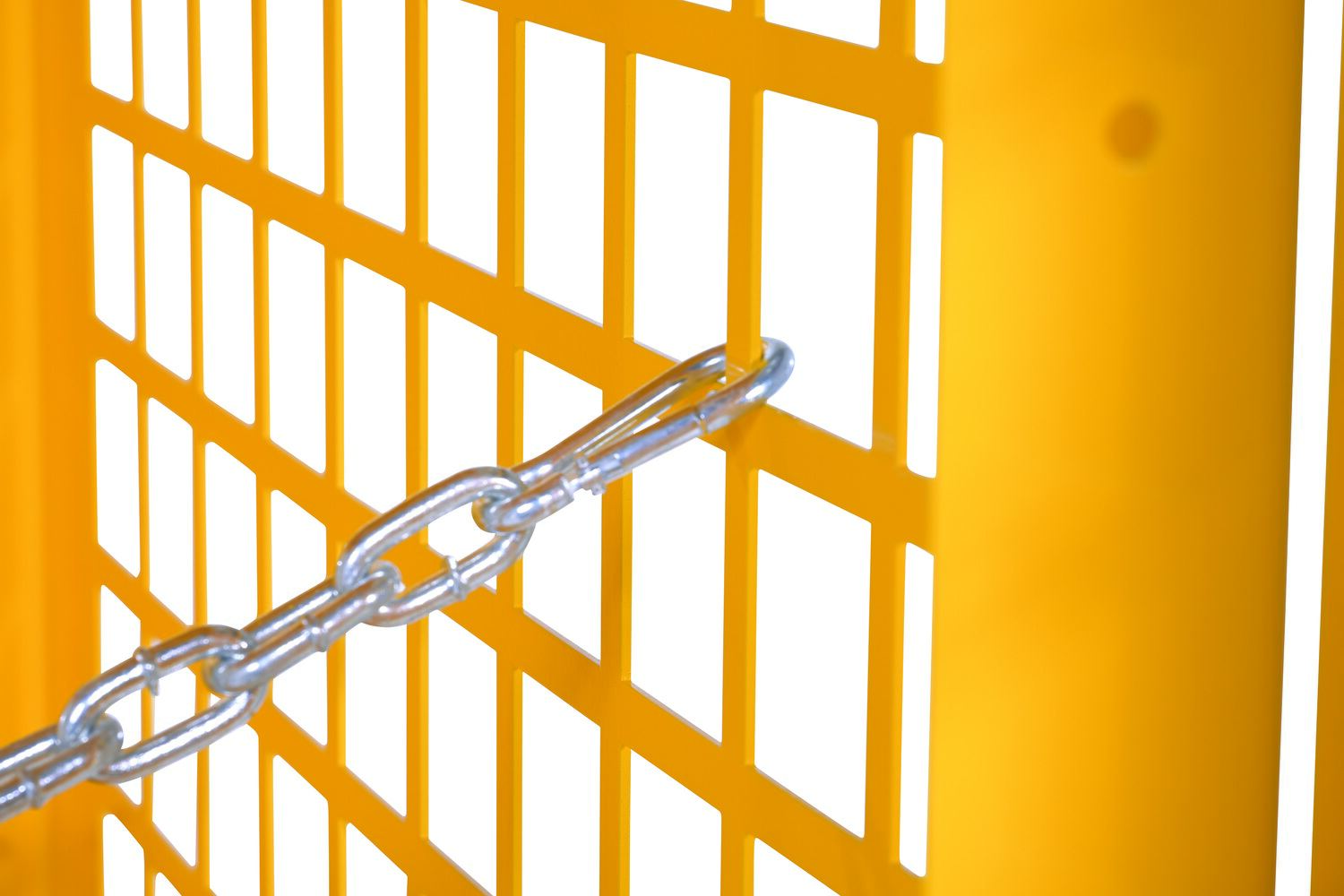

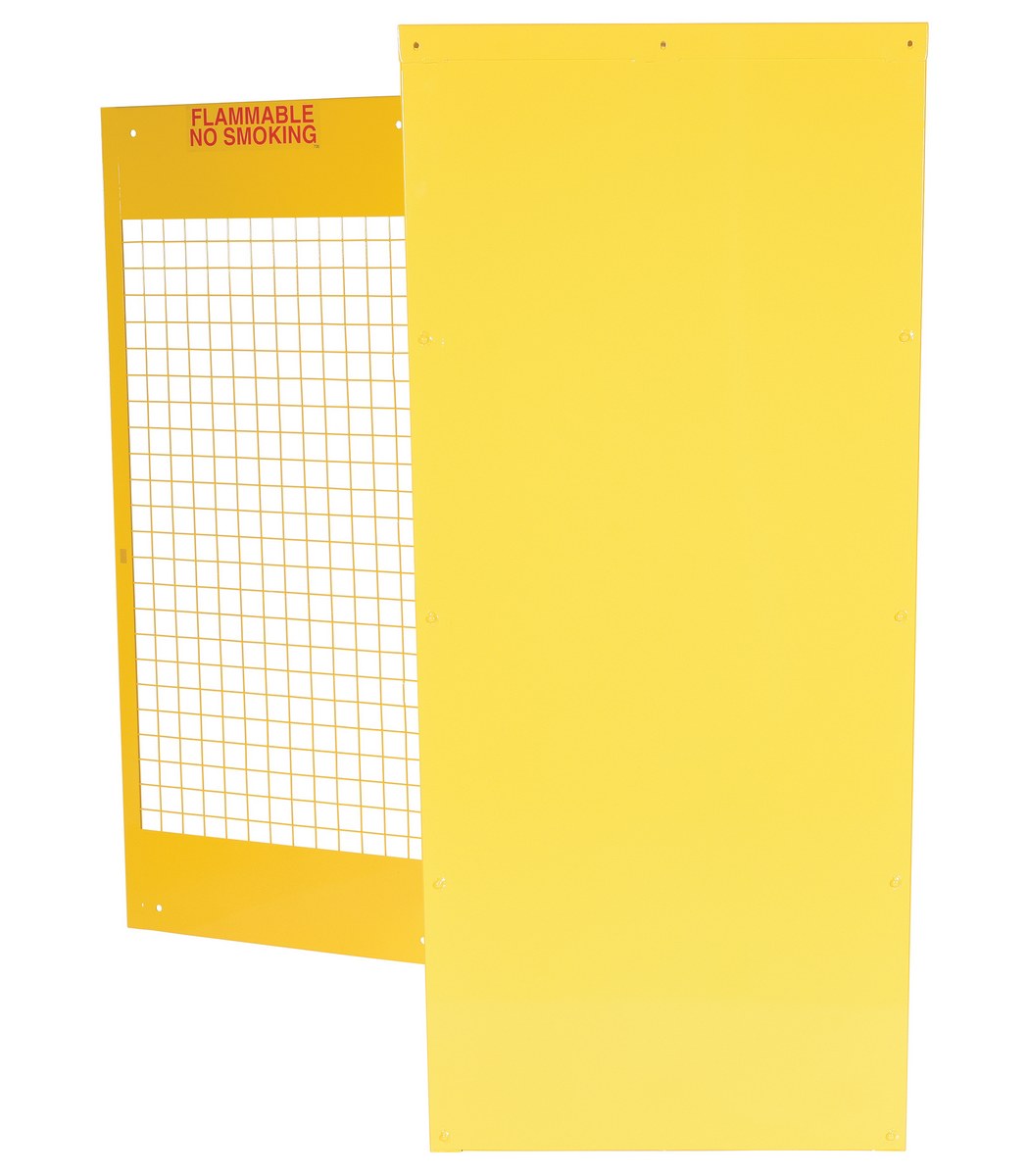

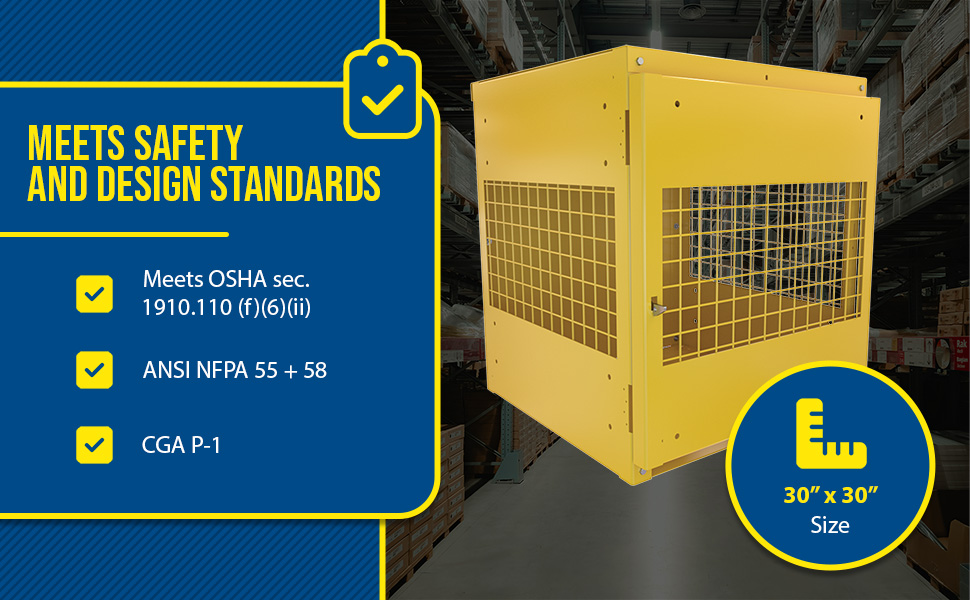

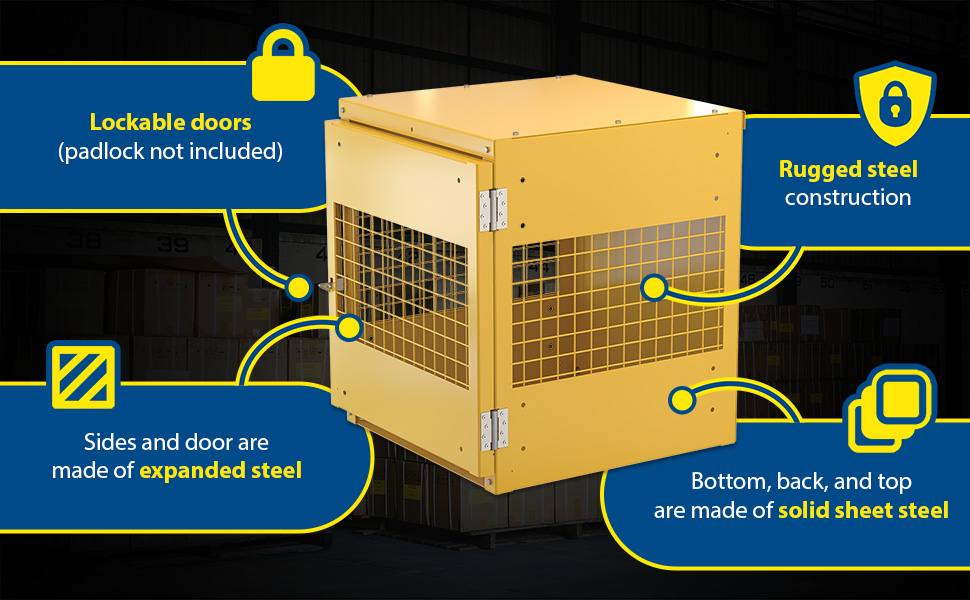

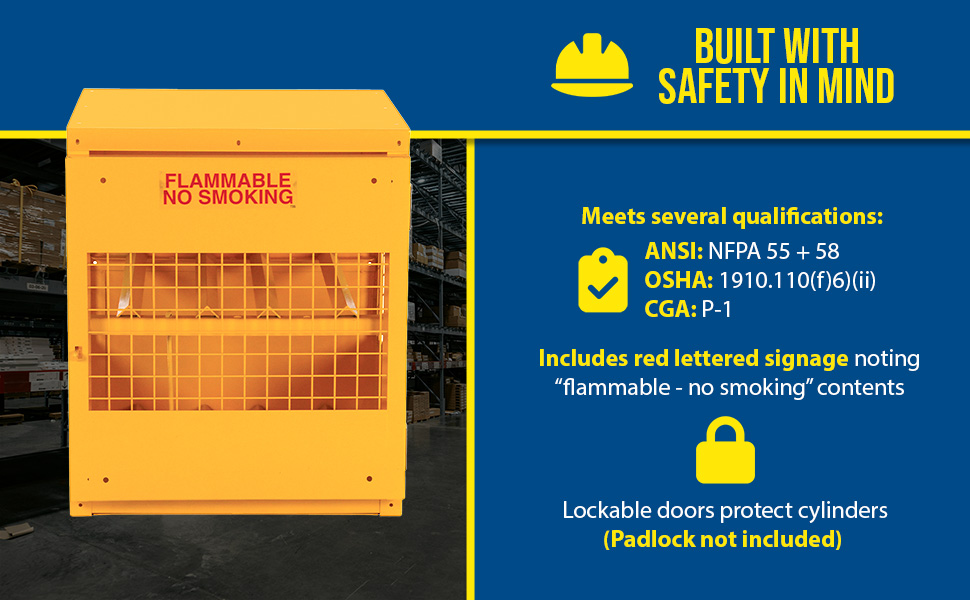

Steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides are made of expanded steel for an open view design. The top, back, and bottom is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cylinders. Vertical units include chains for securing cylinders. Includes red lettered signage noting "Flammable-No Smoking" contents. Meets OSHA 1910.110 (f)(6)(ii), ANSI NFPA 55 + 58 and CGA P-1 design standards. Rugged steel construction with a baked-in powder coated safety yellow finish for toughness.



CYL-H-4-KD

model CYL-H-4-KD

CYL-H-8

model CYL-H-8

CYL-H8-V510

model CYL-H8-V510

CYL-H-12

model CYL-H-12

CYL-H-16

model CYL-H-16


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Cylinder Storage Cabinets (For USA)
Model PDF Cylinder
Capacity
Overall Size
(WxLxH)
Type Wt.
(lbs)
Horizontal Storage Cabinets

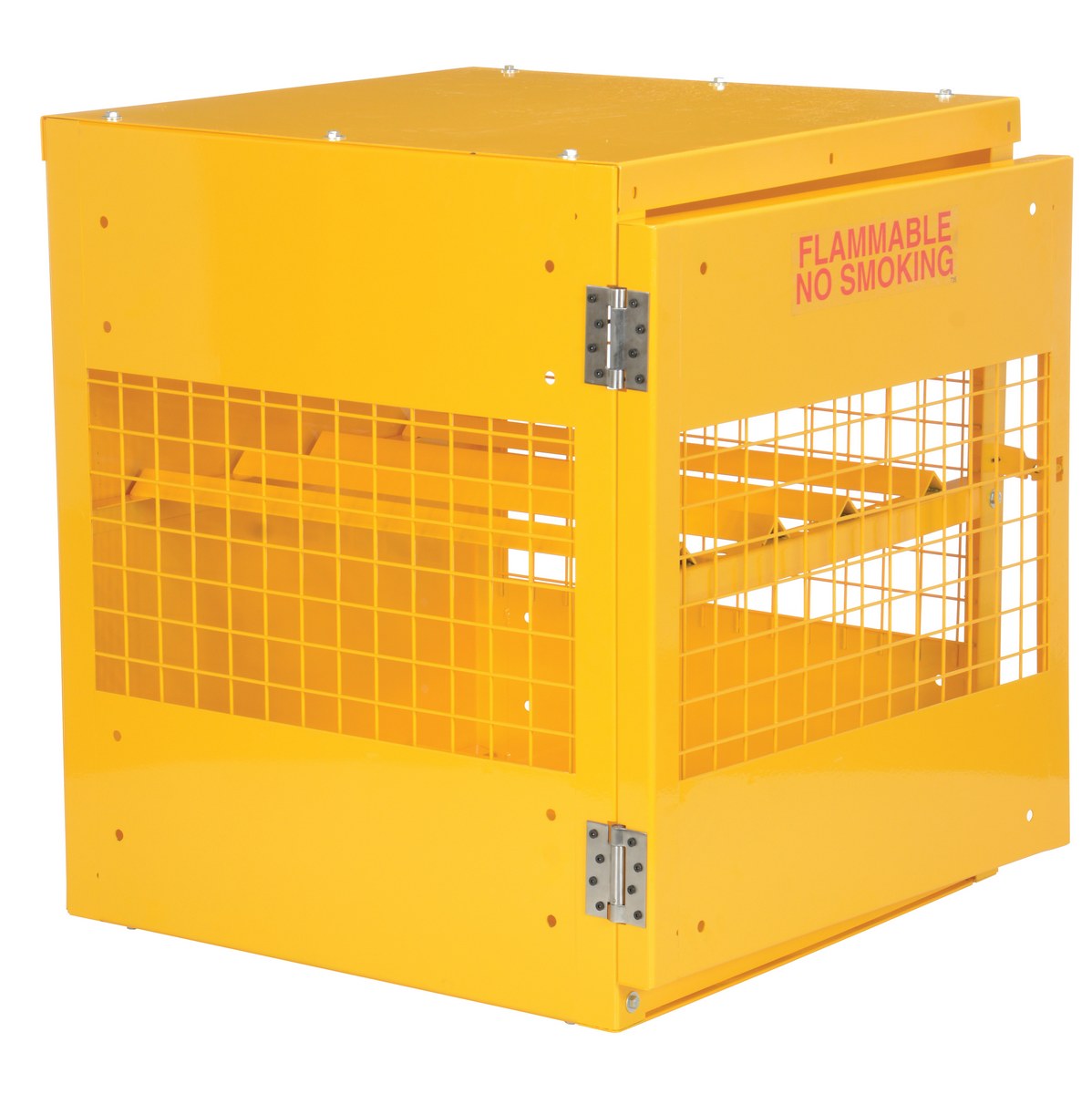

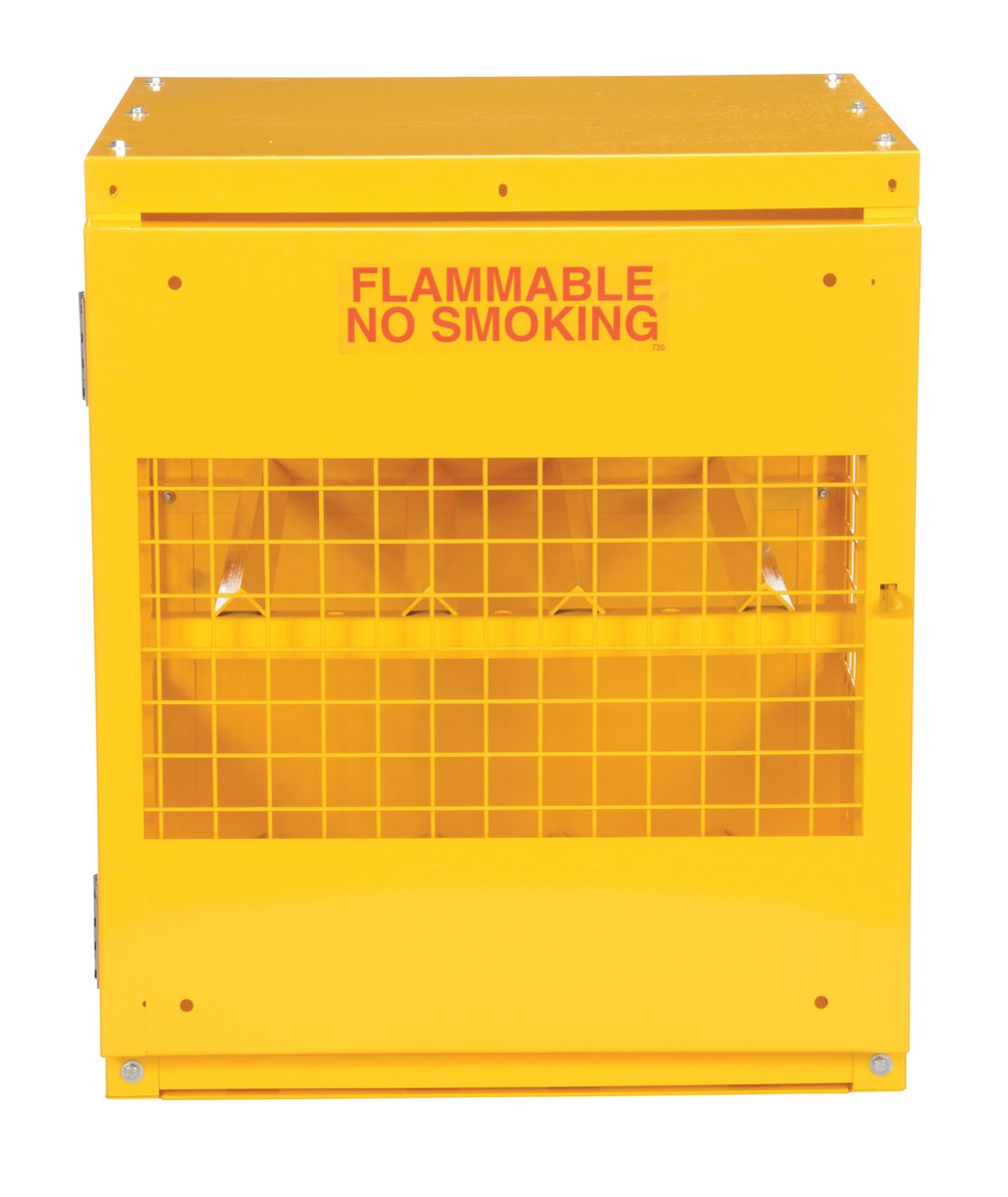

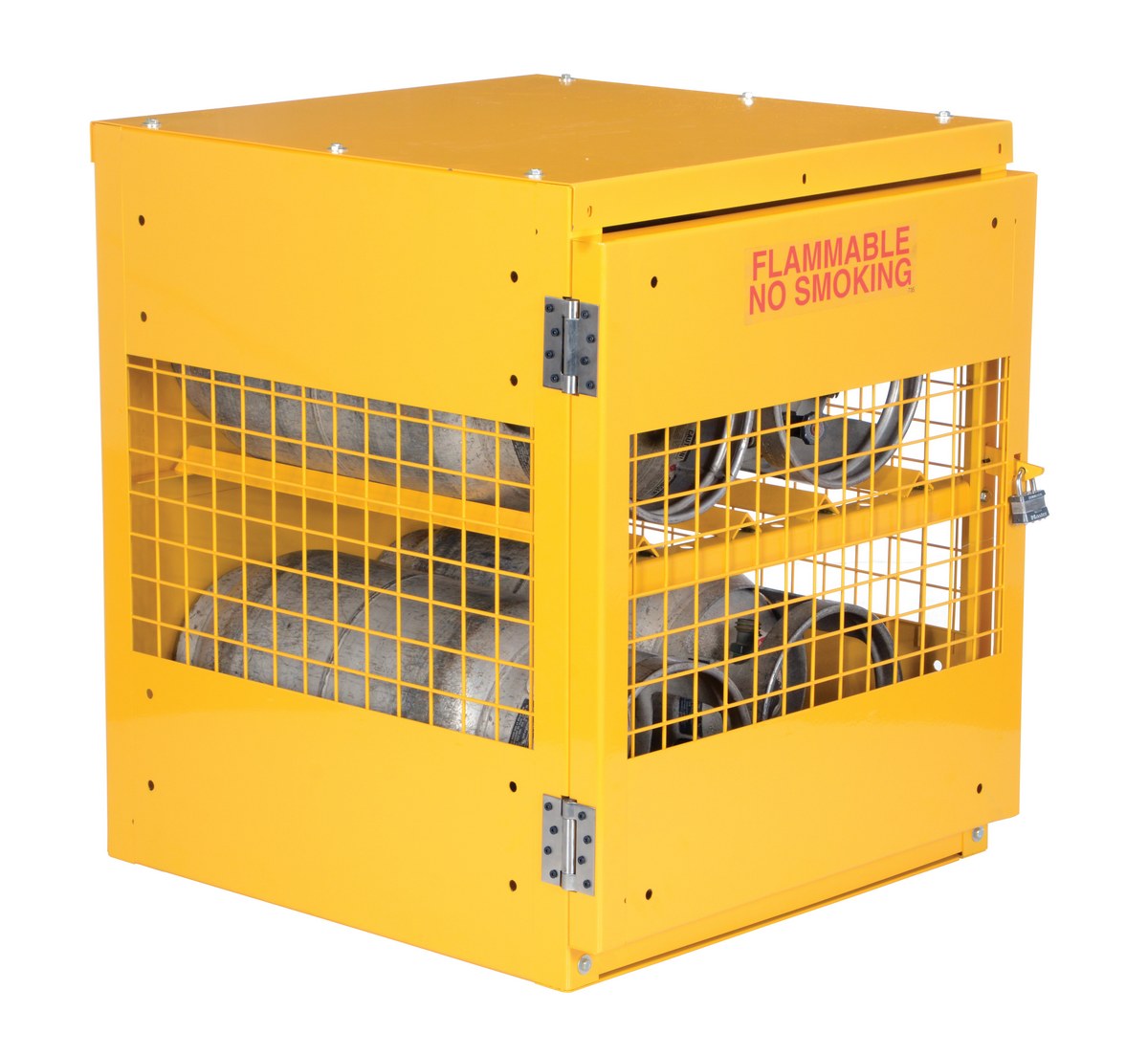

CYL-H-4-KD icon_approvaldrawings.jpgicon_warranty.jpg 4 30"x 32"x 35-1/4" Unassembled 184

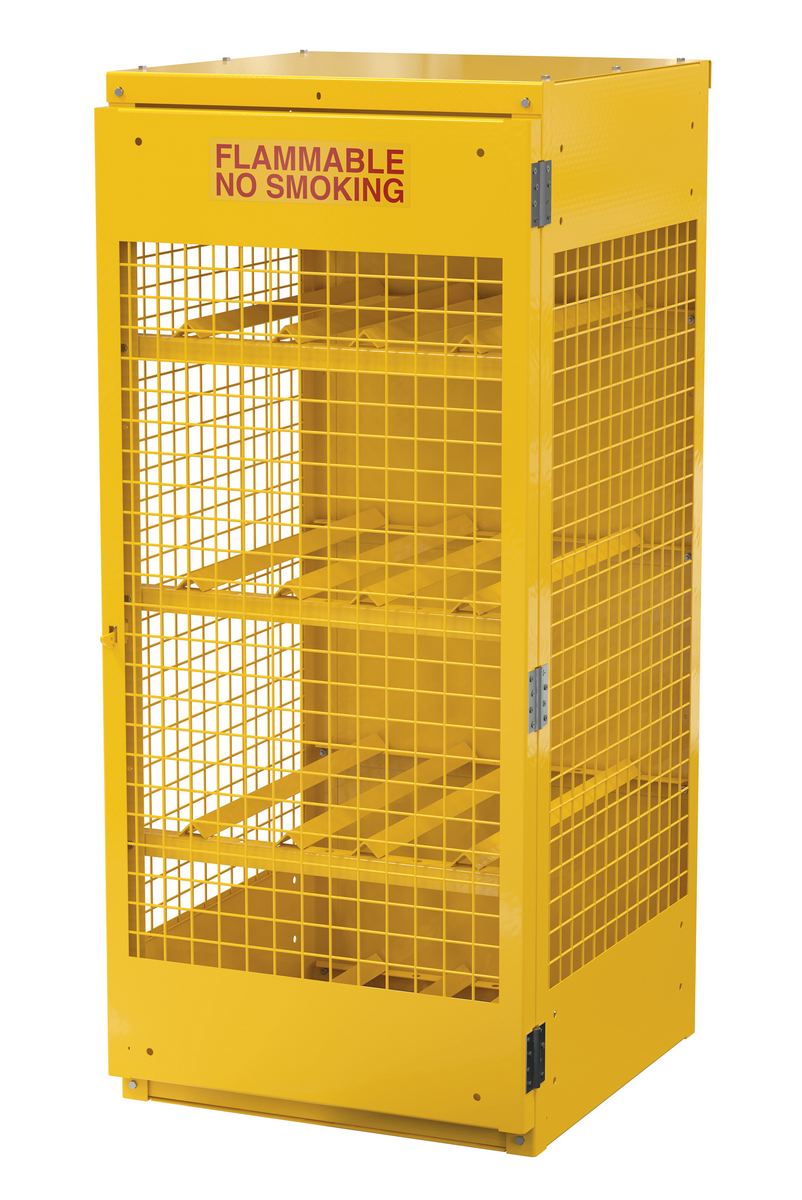

CYL-H-8-KD icon_approvaldrawings.jpgicon_warranty.jpg 8 30"x 32"x 68-1/4" Unassembled 341

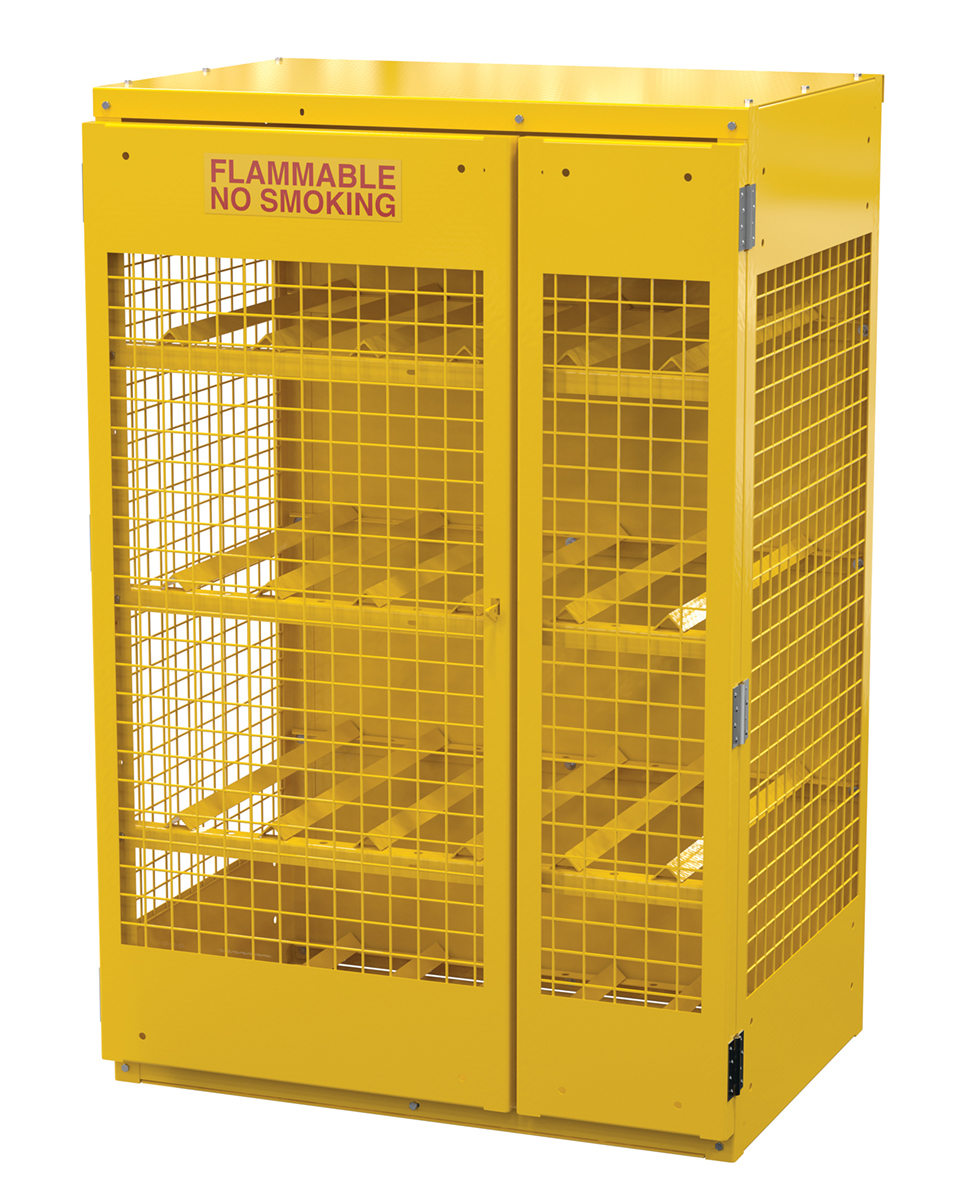

CYL-H-12-KD -- 12 45"x 32"x 68-1/4" Unassembled 358

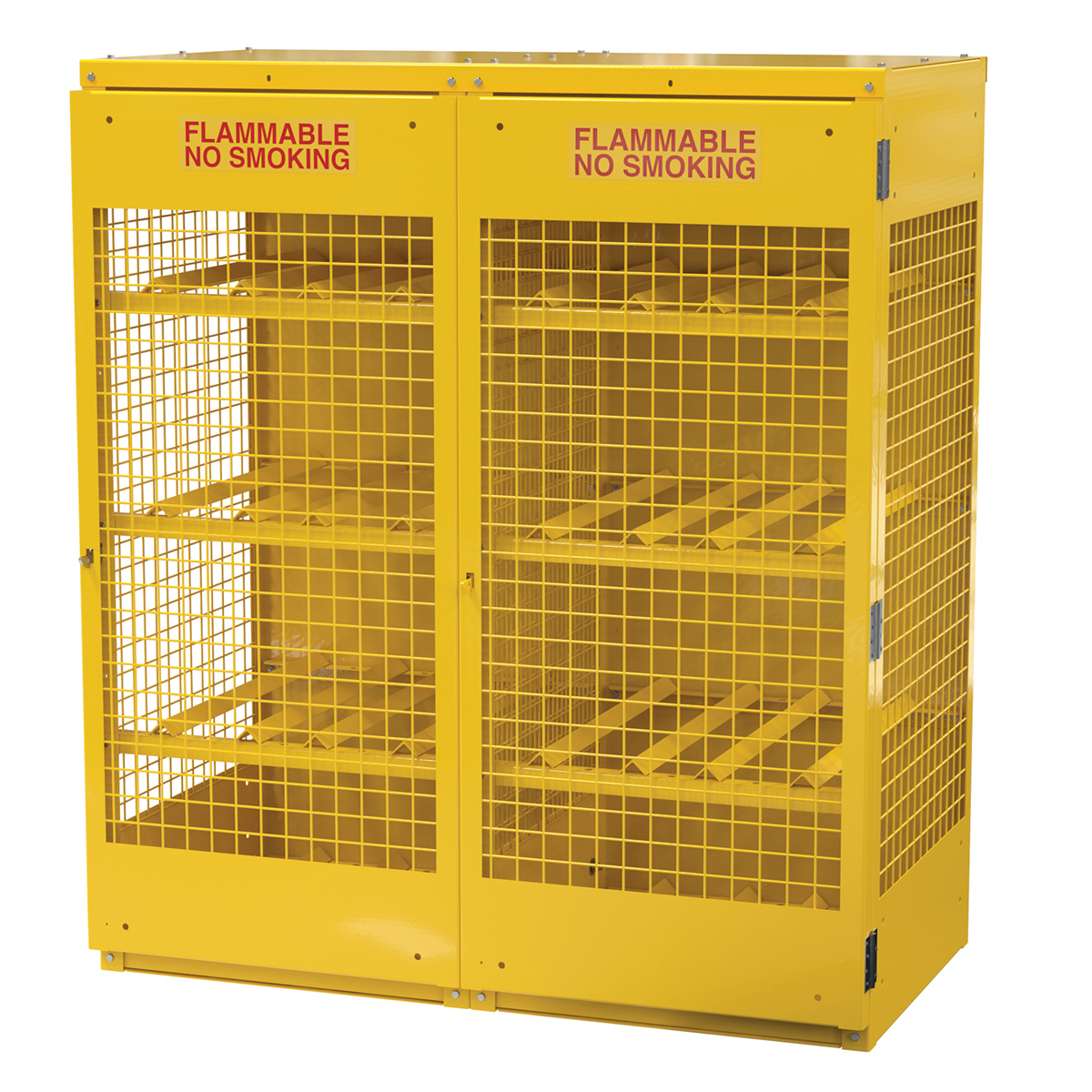

CYL-H-16-KD icon_approvaldrawings.jpgicon_warranty.jpg 16 60"x 32"x 68-1/4" Unassembled 495

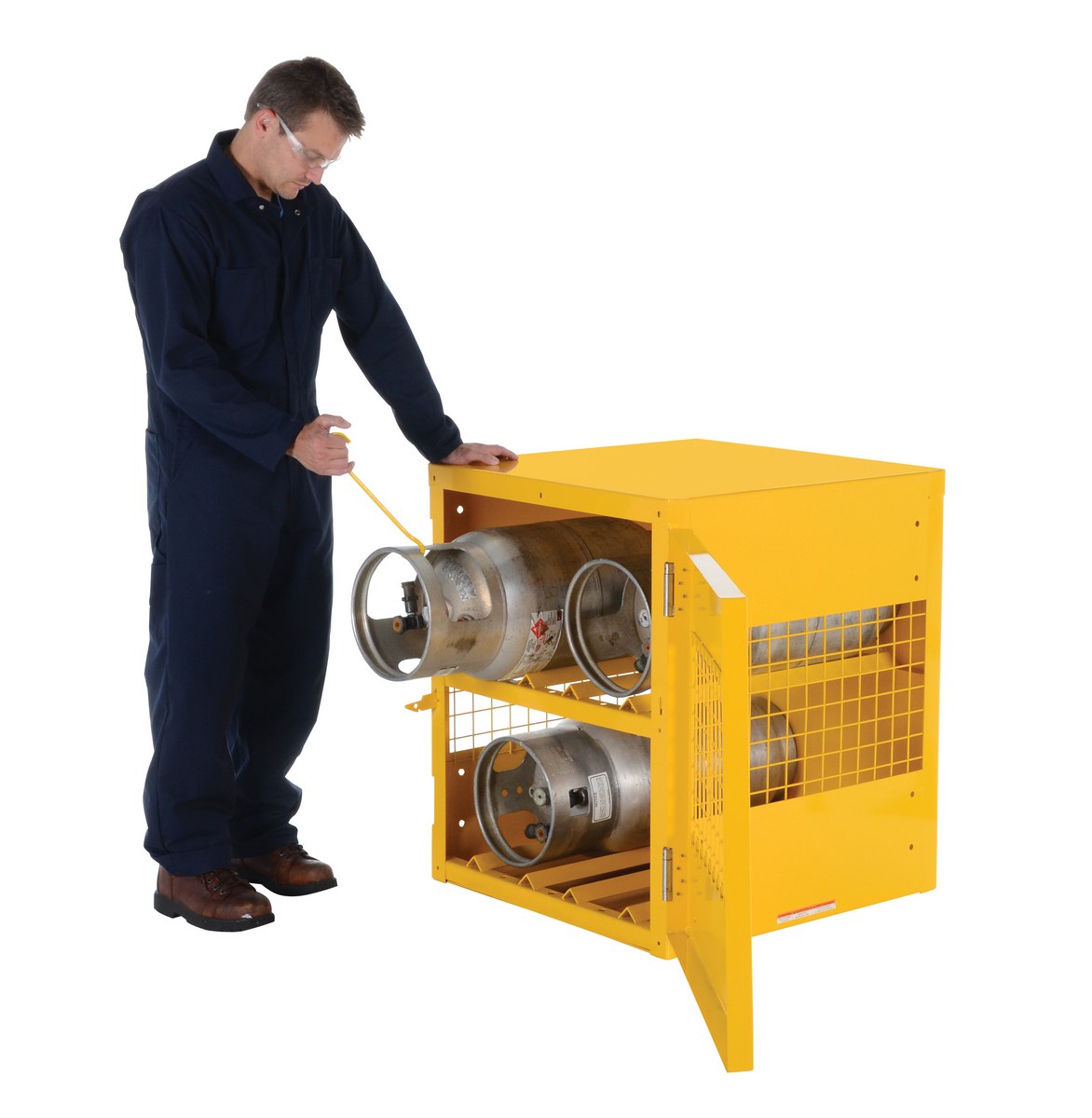

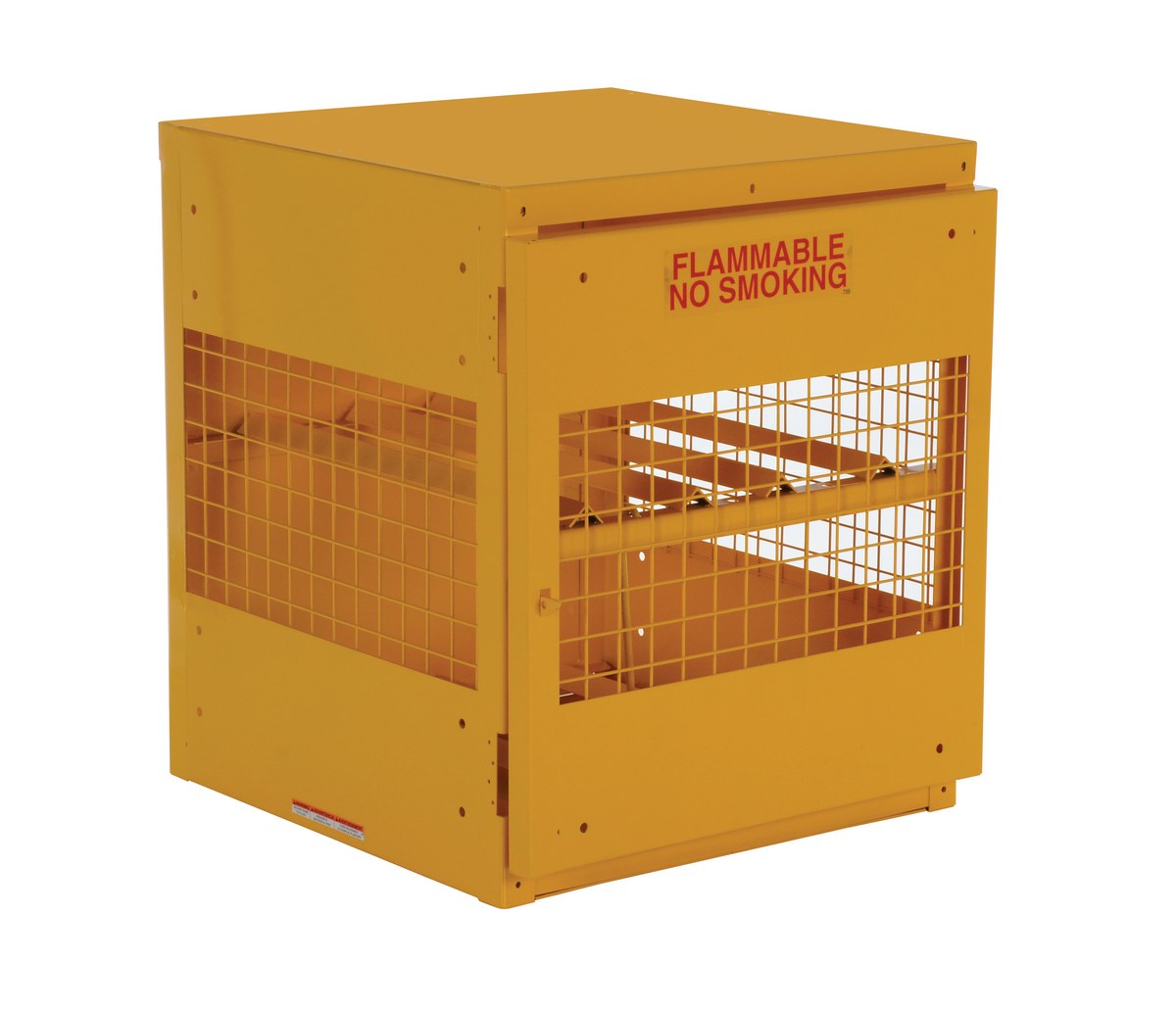

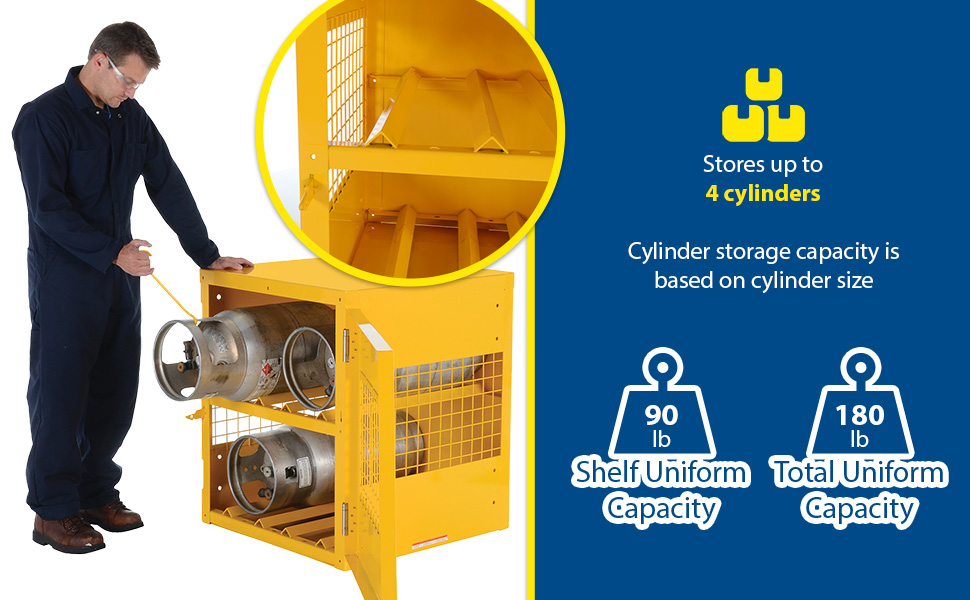

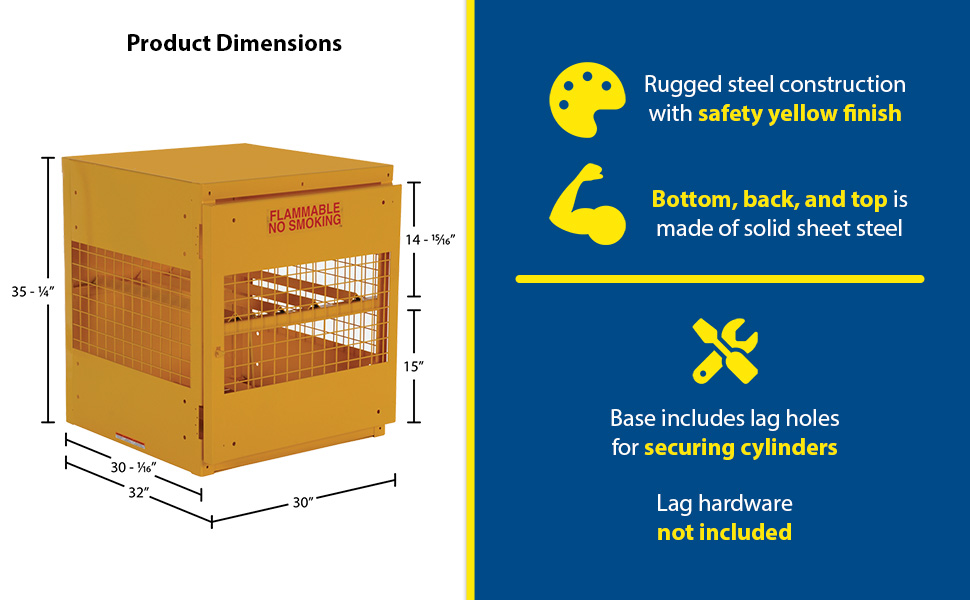

CYL-H-4 icon_approvaldrawings.jpgicon_warranty.jpg 4 30"x 32"x 35-1/4" Assembled 190

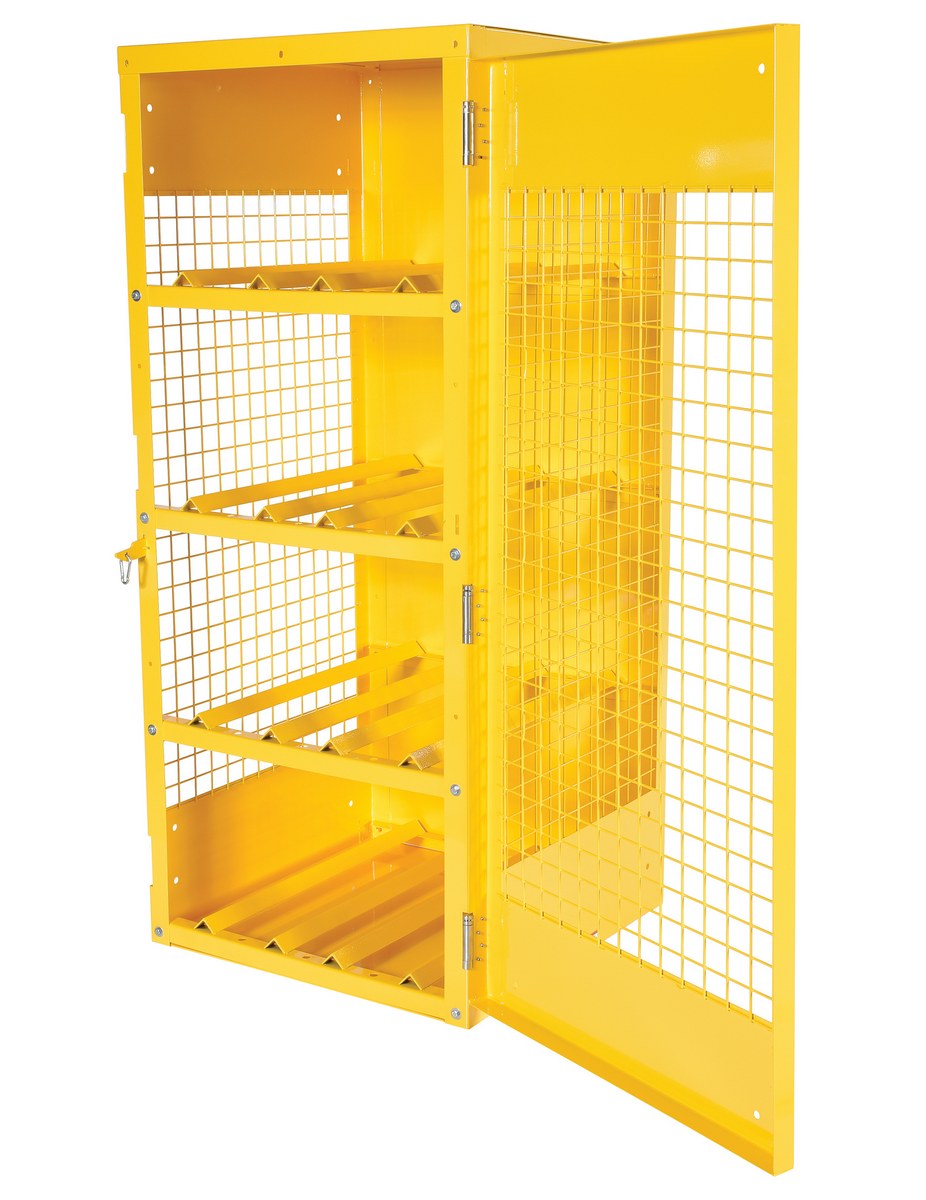

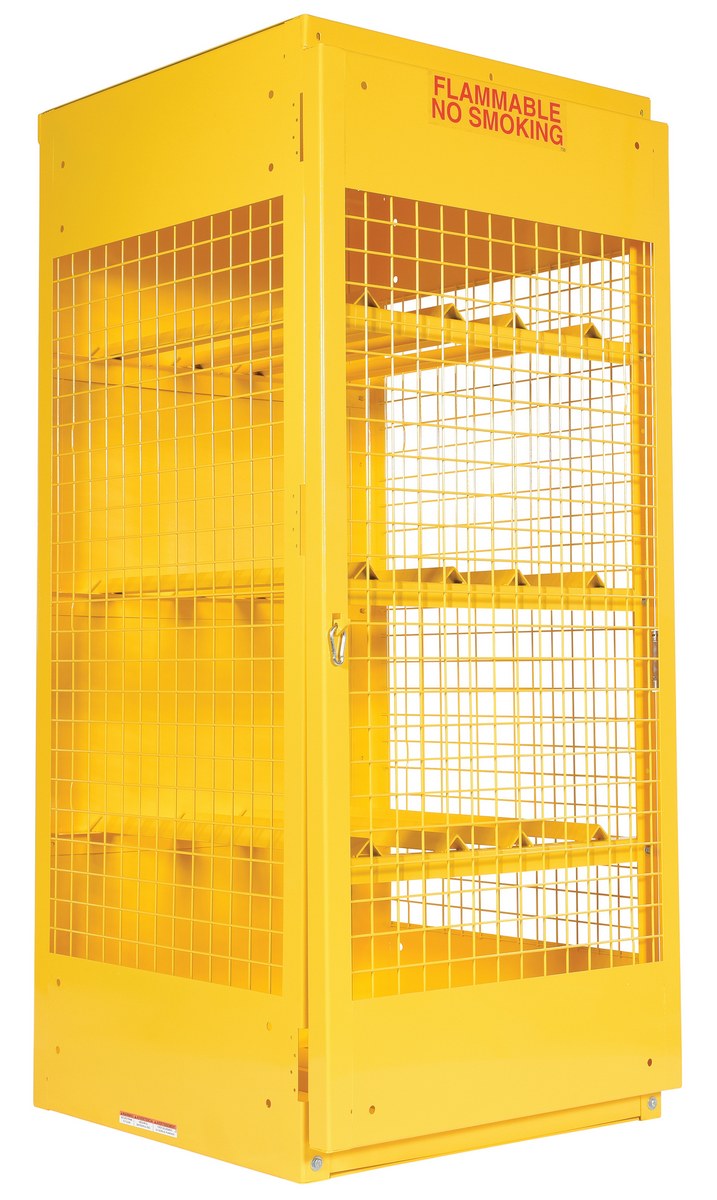

CYL-H-8 icon_approvaldrawings.jpgicon_warranty.jpg 8 30"x 32"x 68-1/4" Assembled 277

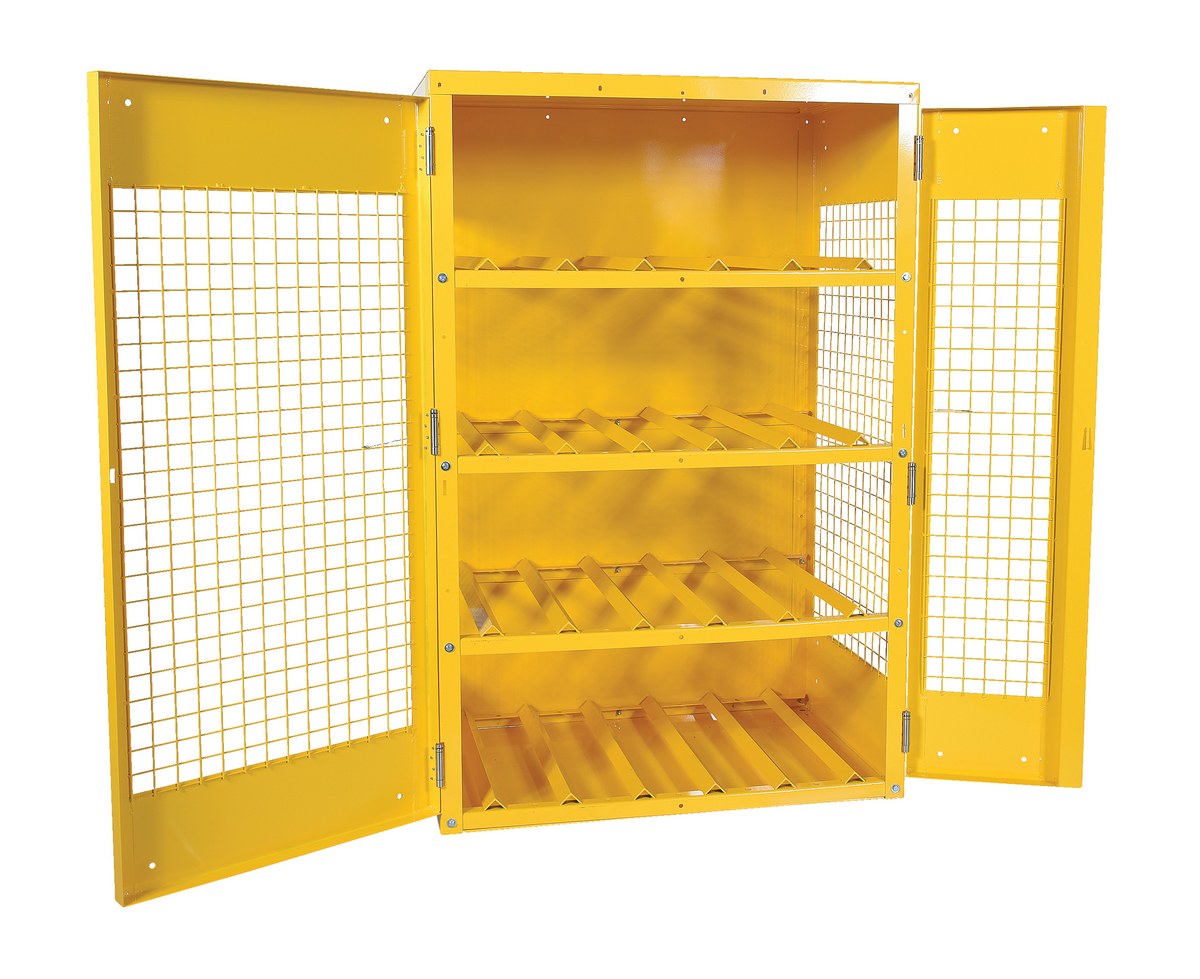

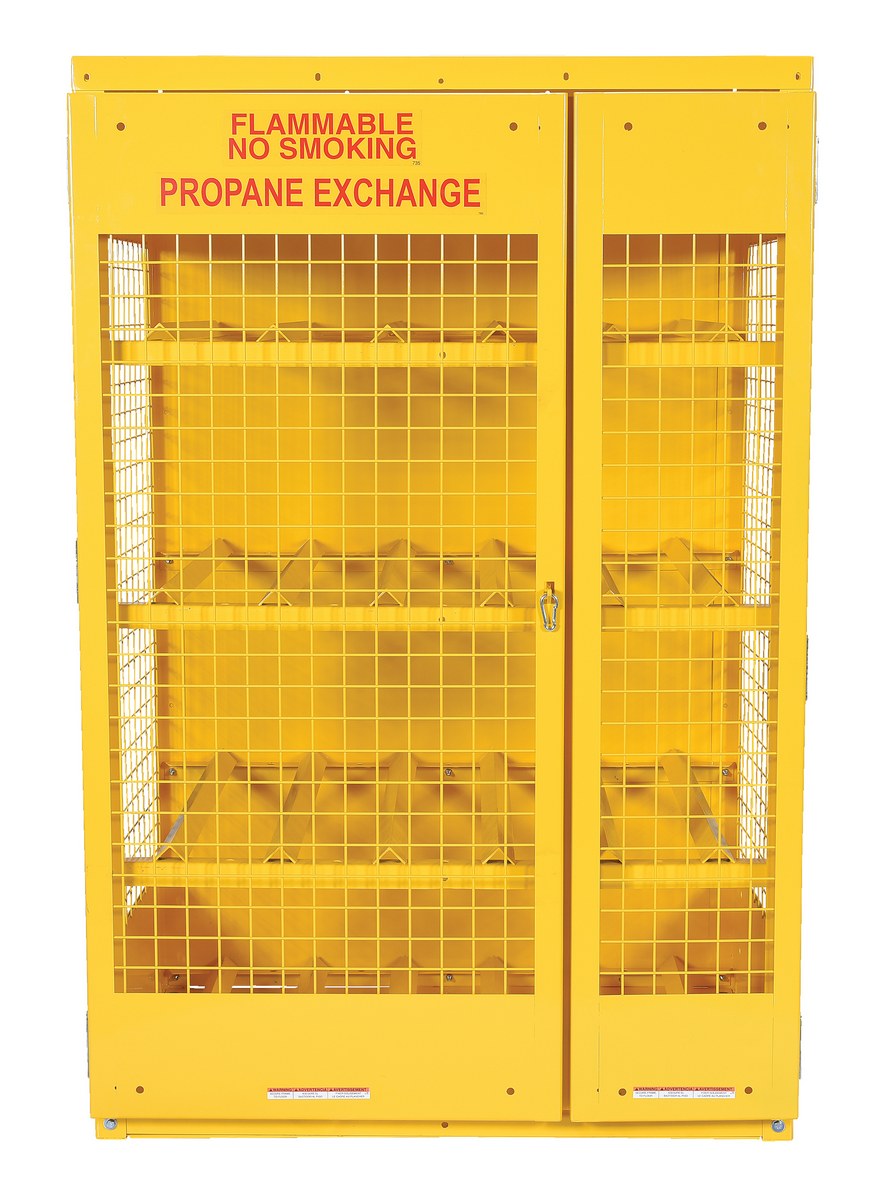

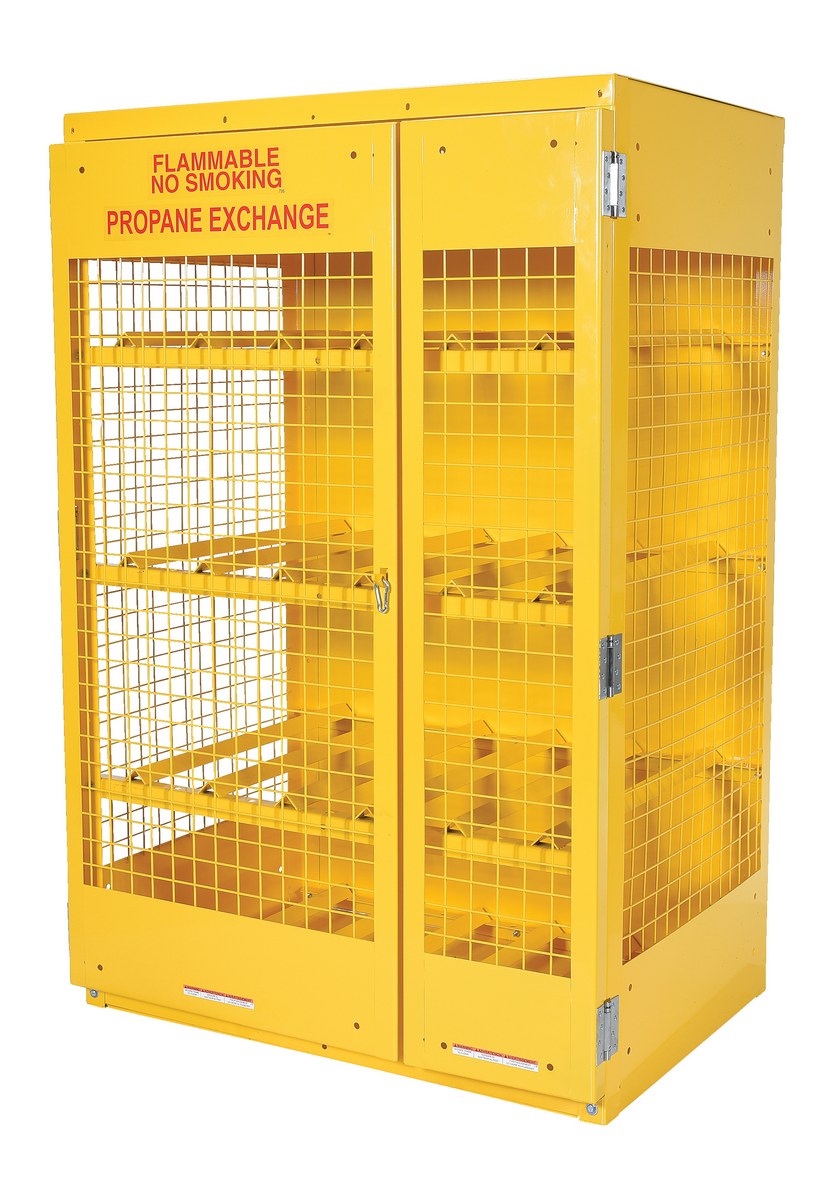

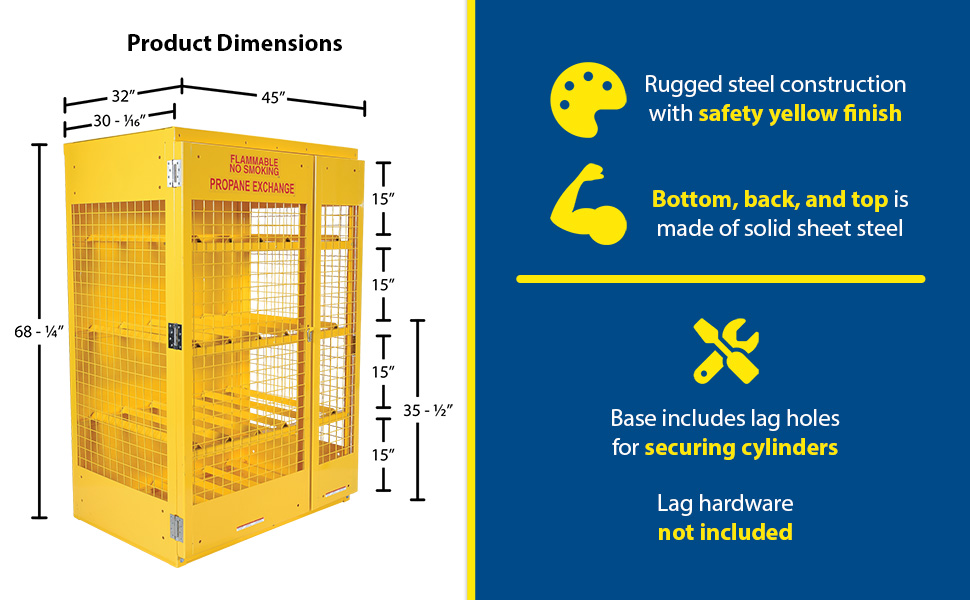

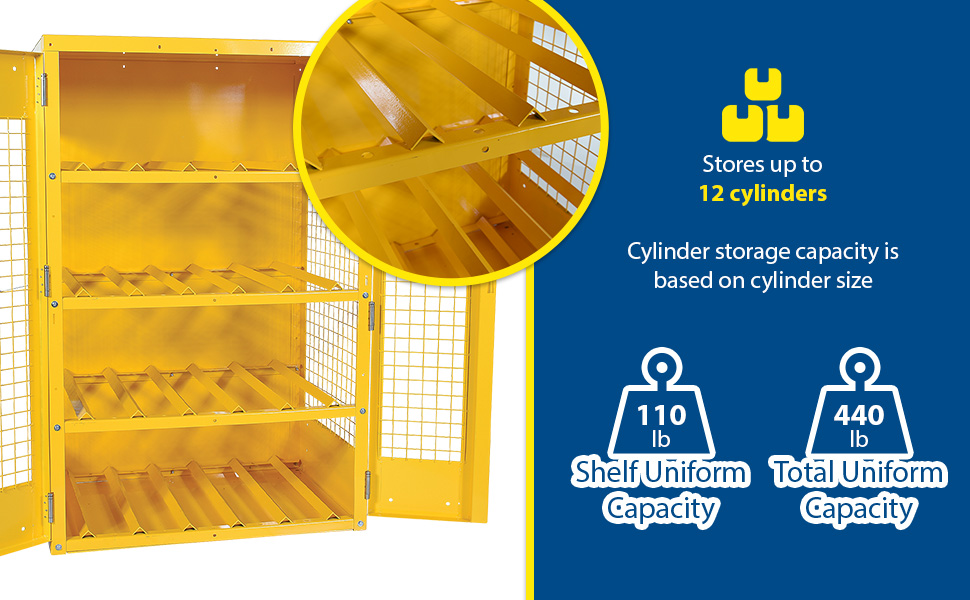

CYL-H-12 icon_approvaldrawings.jpgicon_warranty.jpg 12 45"x 32"x 68-1/4" Assembled 358

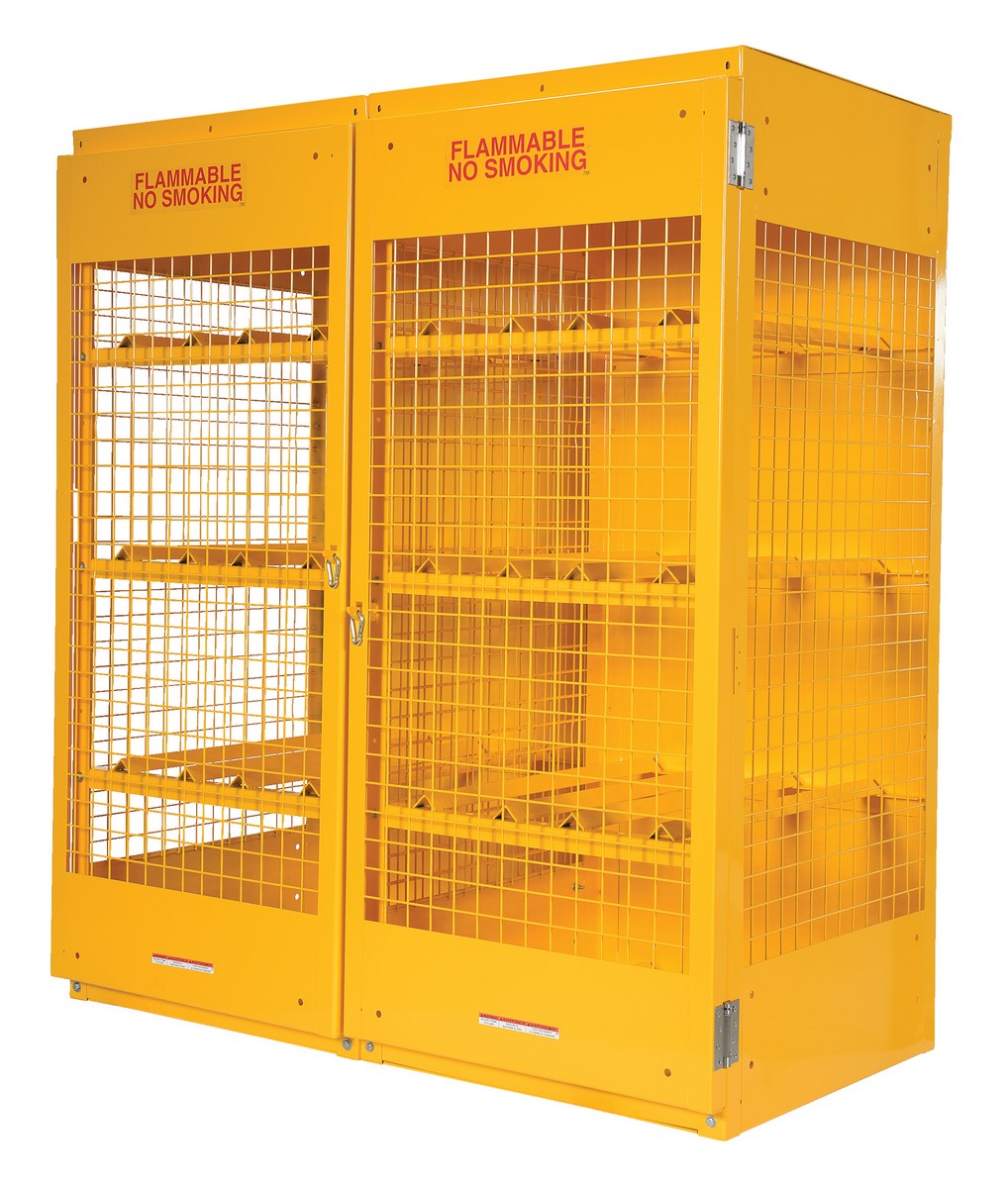

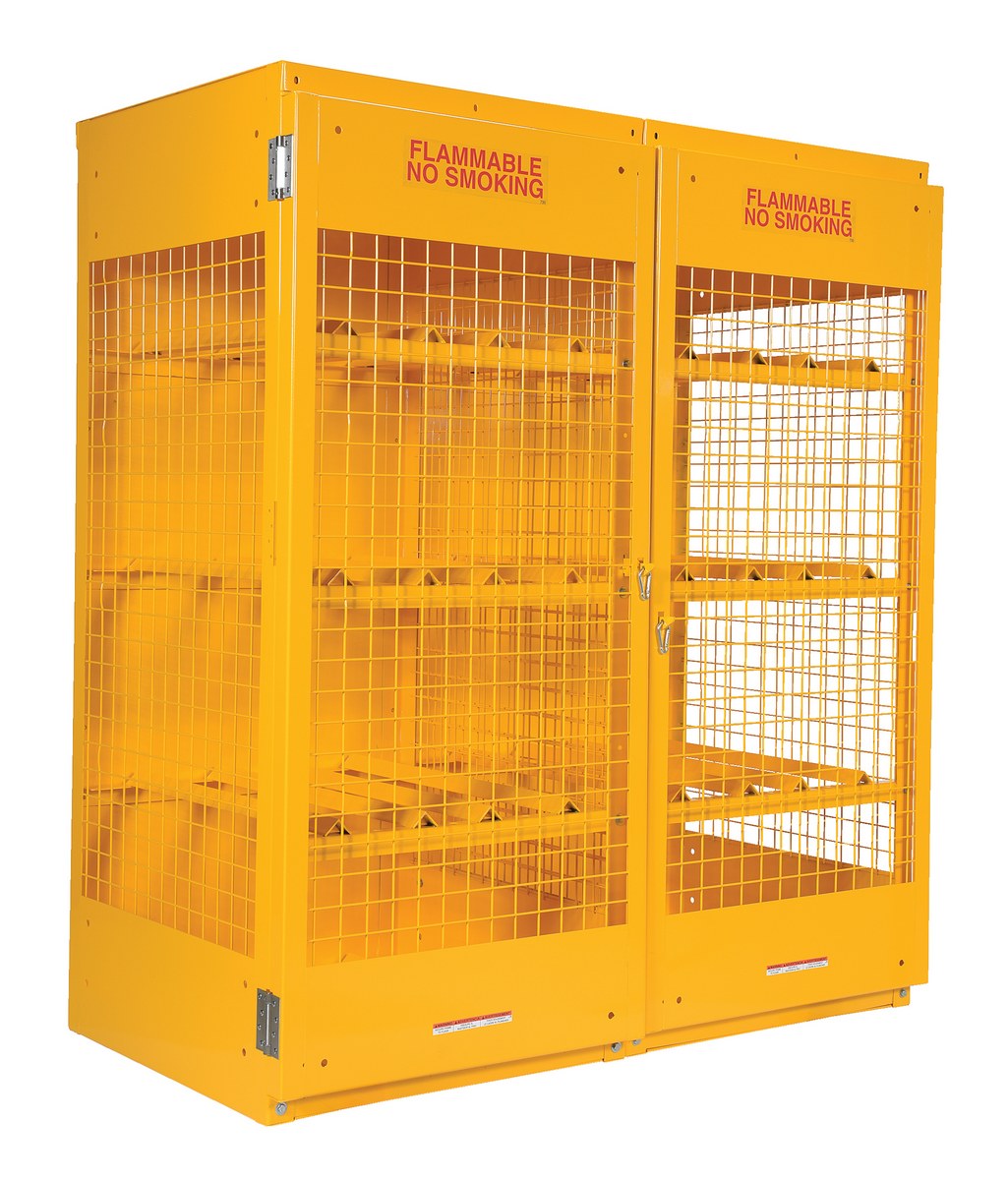

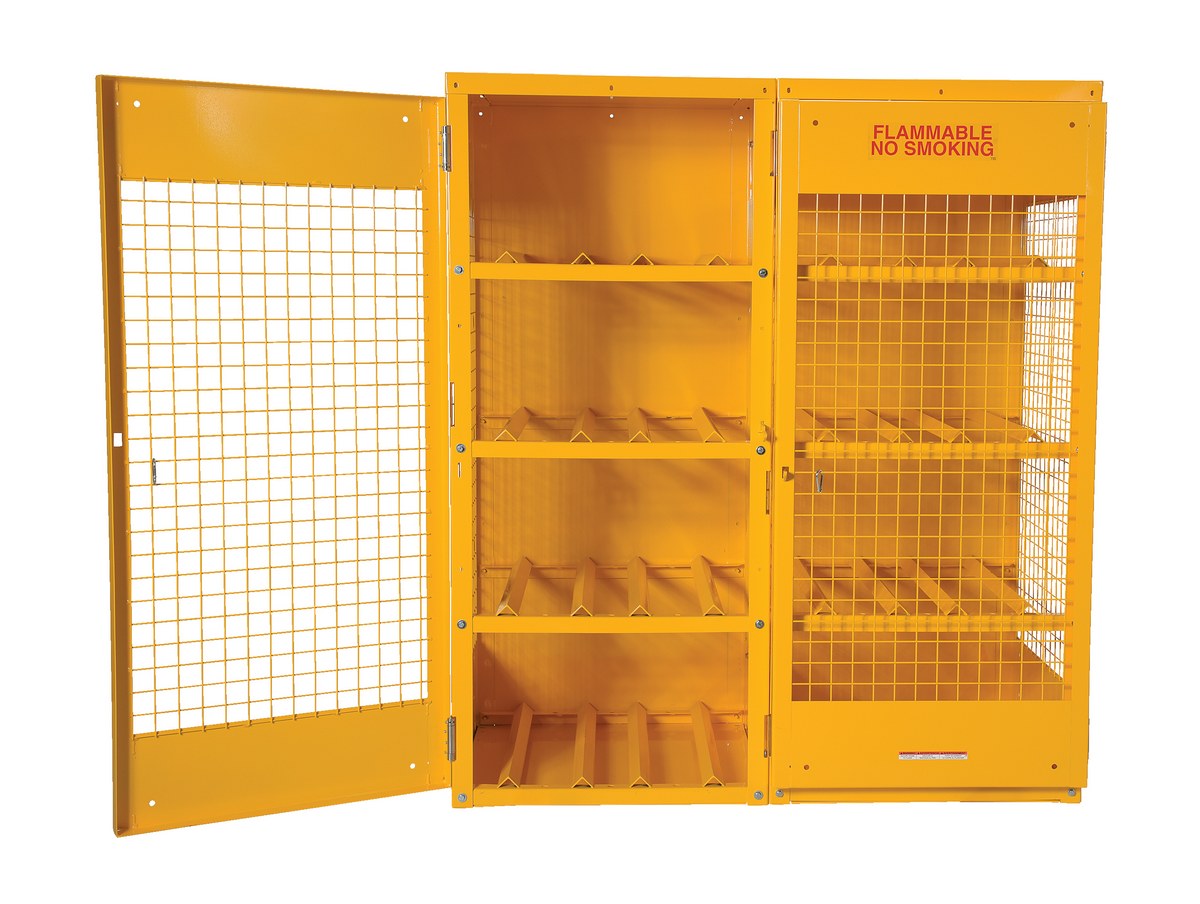

CYL-H-16 icon_approvaldrawings.jpgicon_warranty.jpg 16 60"x 32"x 68-1/4" Assembled 527

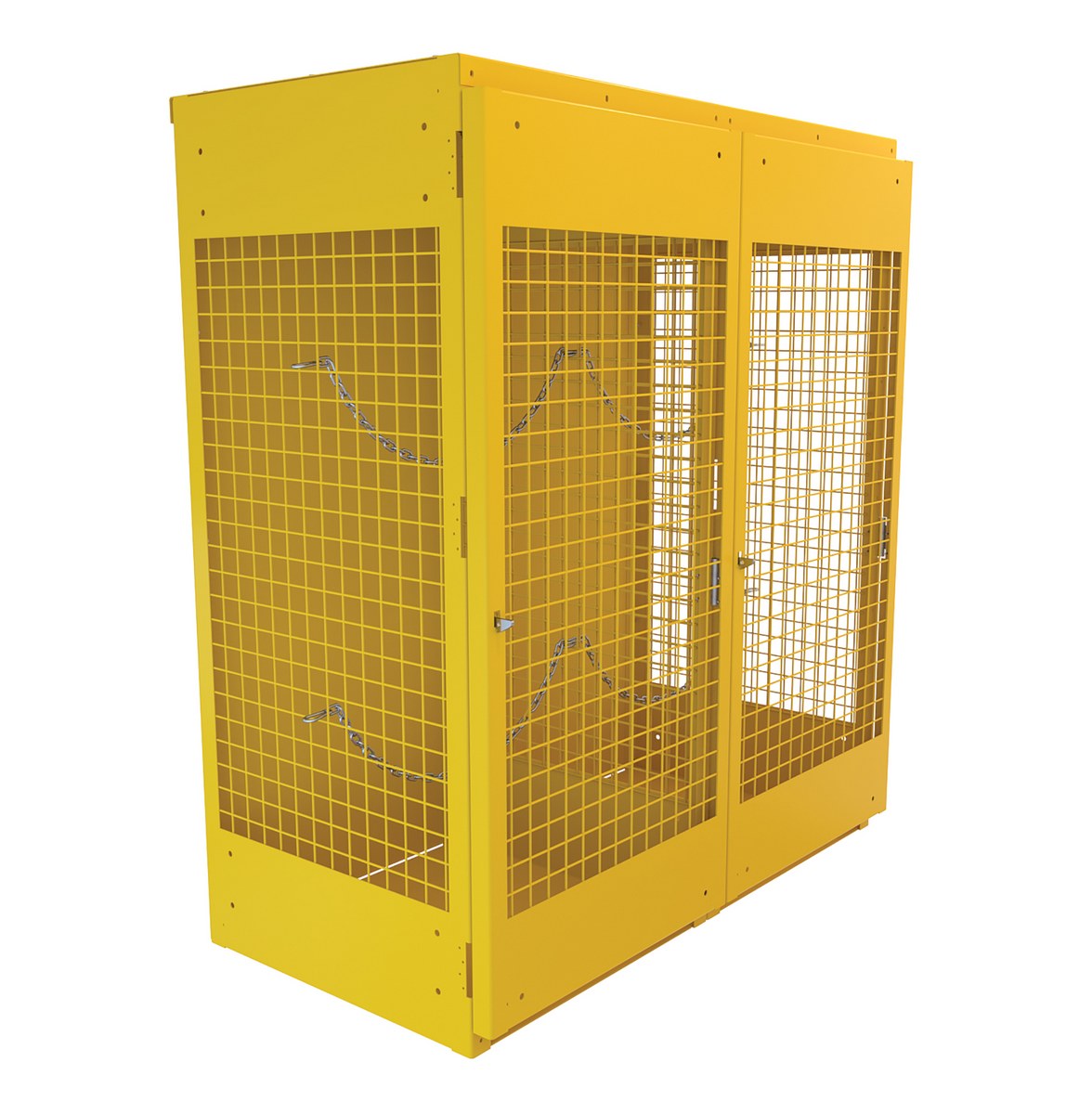

Vertical Storage Cabinets

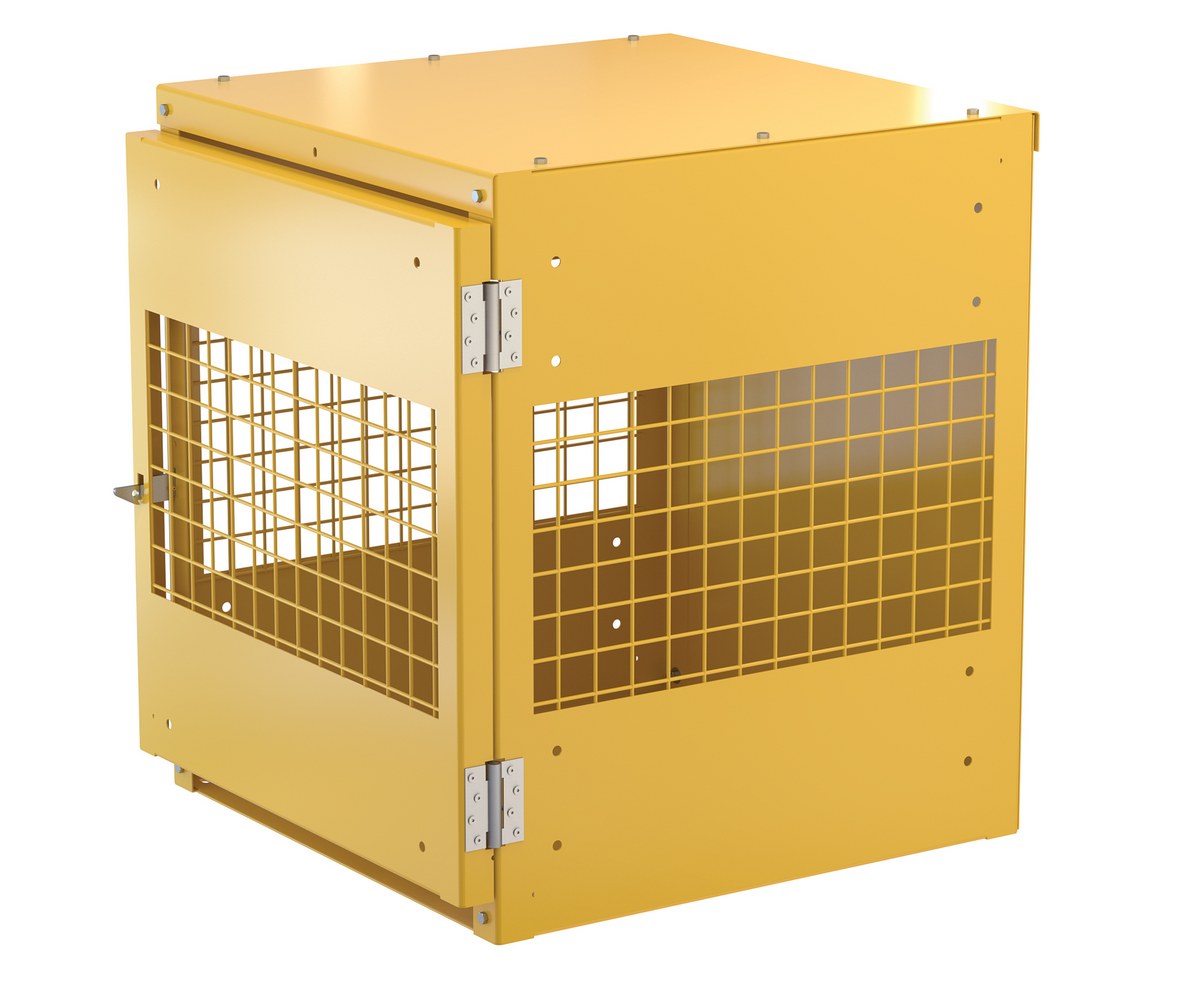

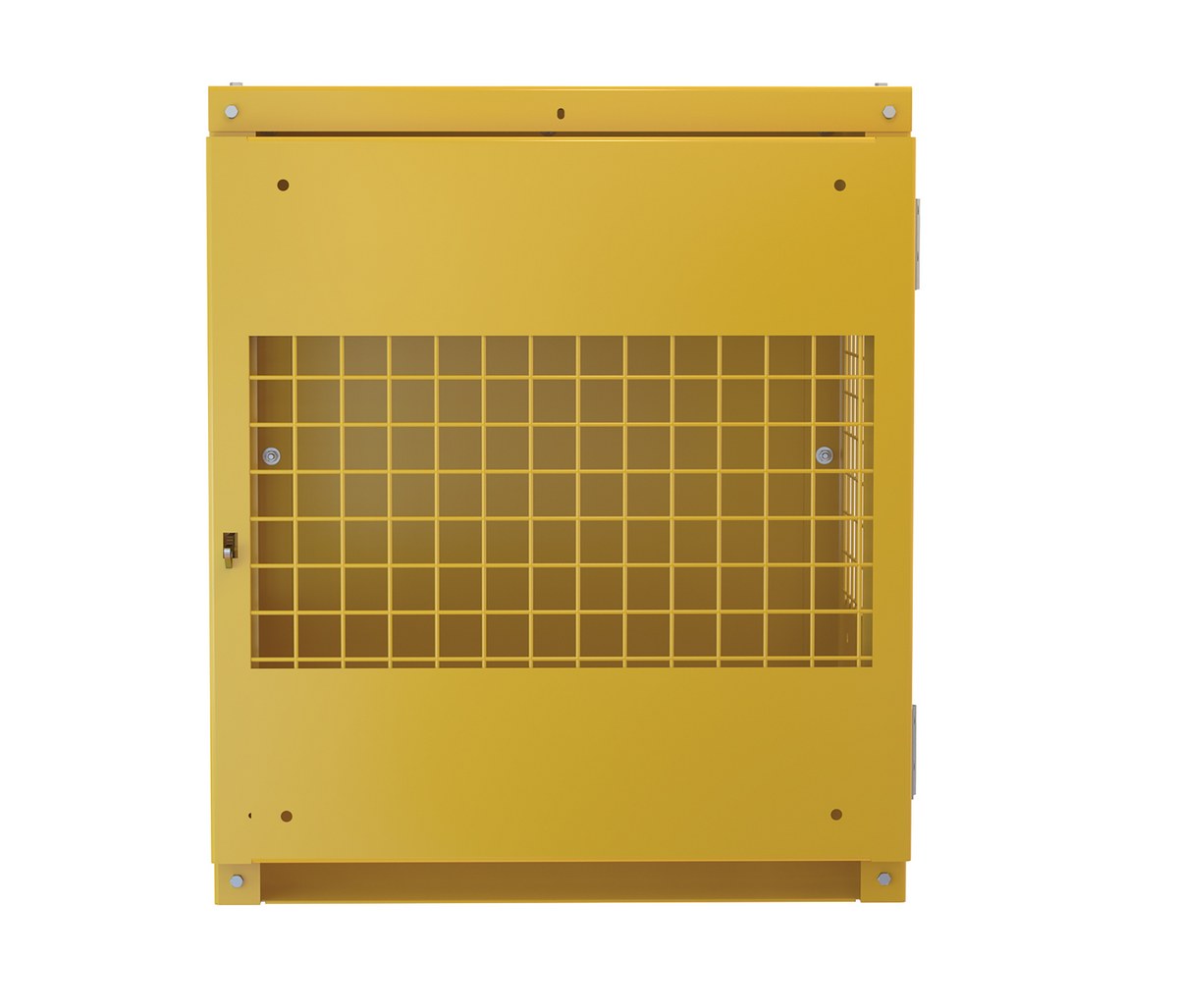

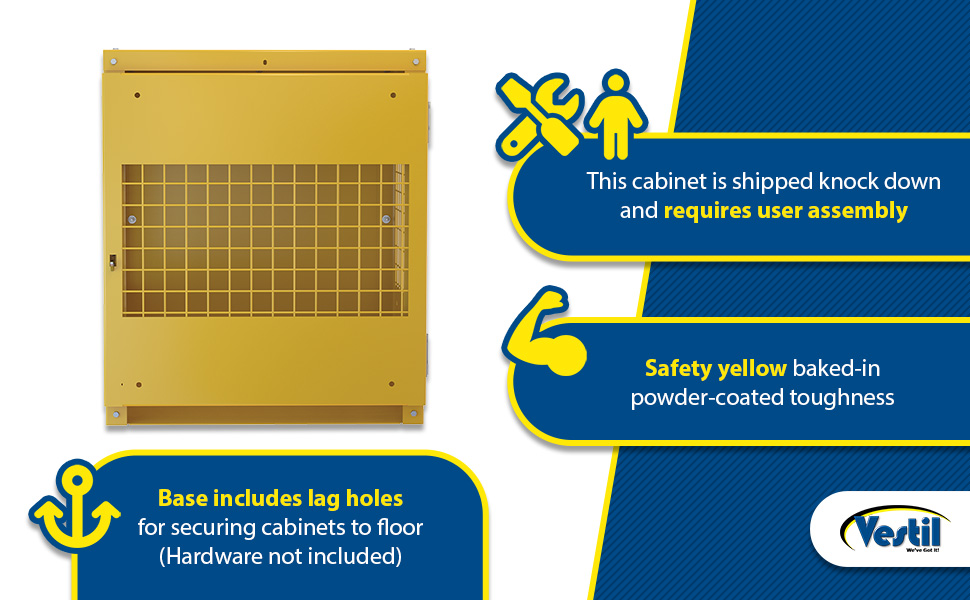

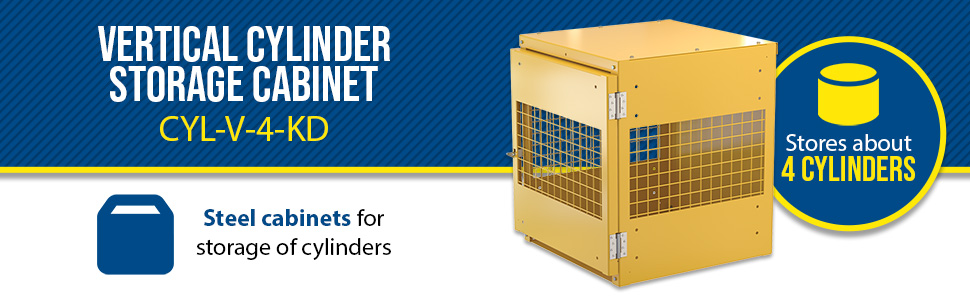

CYL-V-4-KD icon_approvaldrawings.jpgicon_warranty.jpg 4 30" x 32" x 35-1/4" Unassembled 220

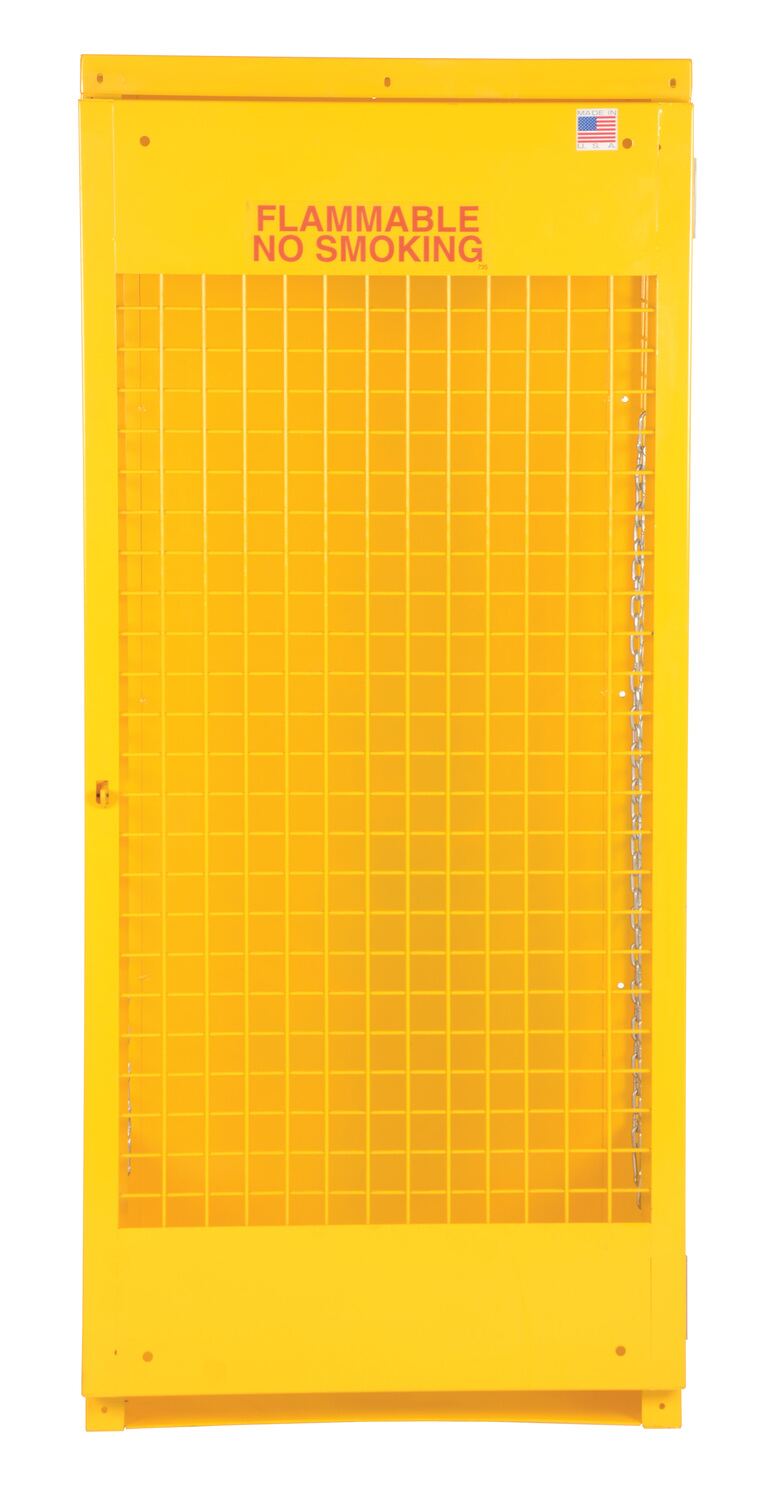

CYL-V-510-KD icon_approvaldrawings.jpgicon_warranty.jpg 5-10 30" x 32" x 68-1/4" Unassembled 287

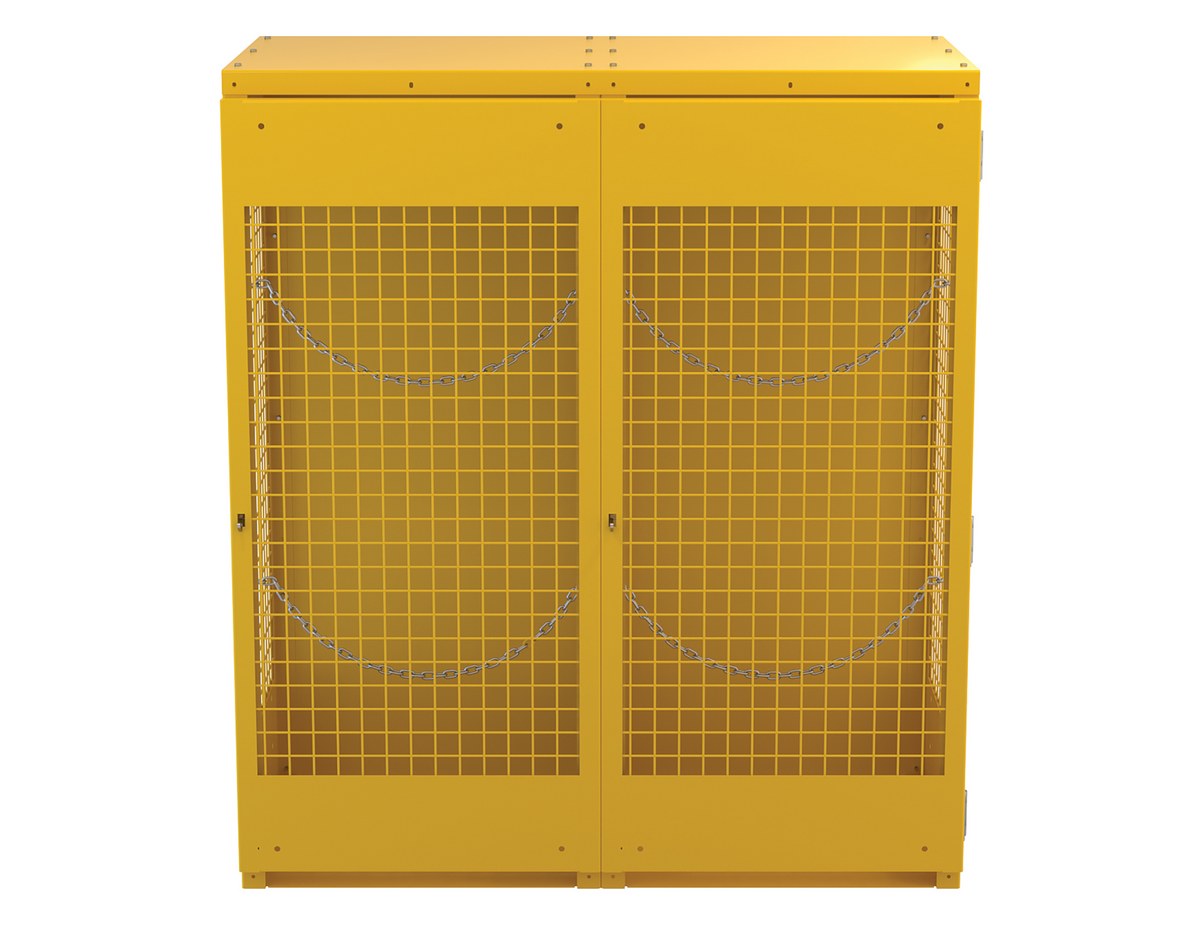

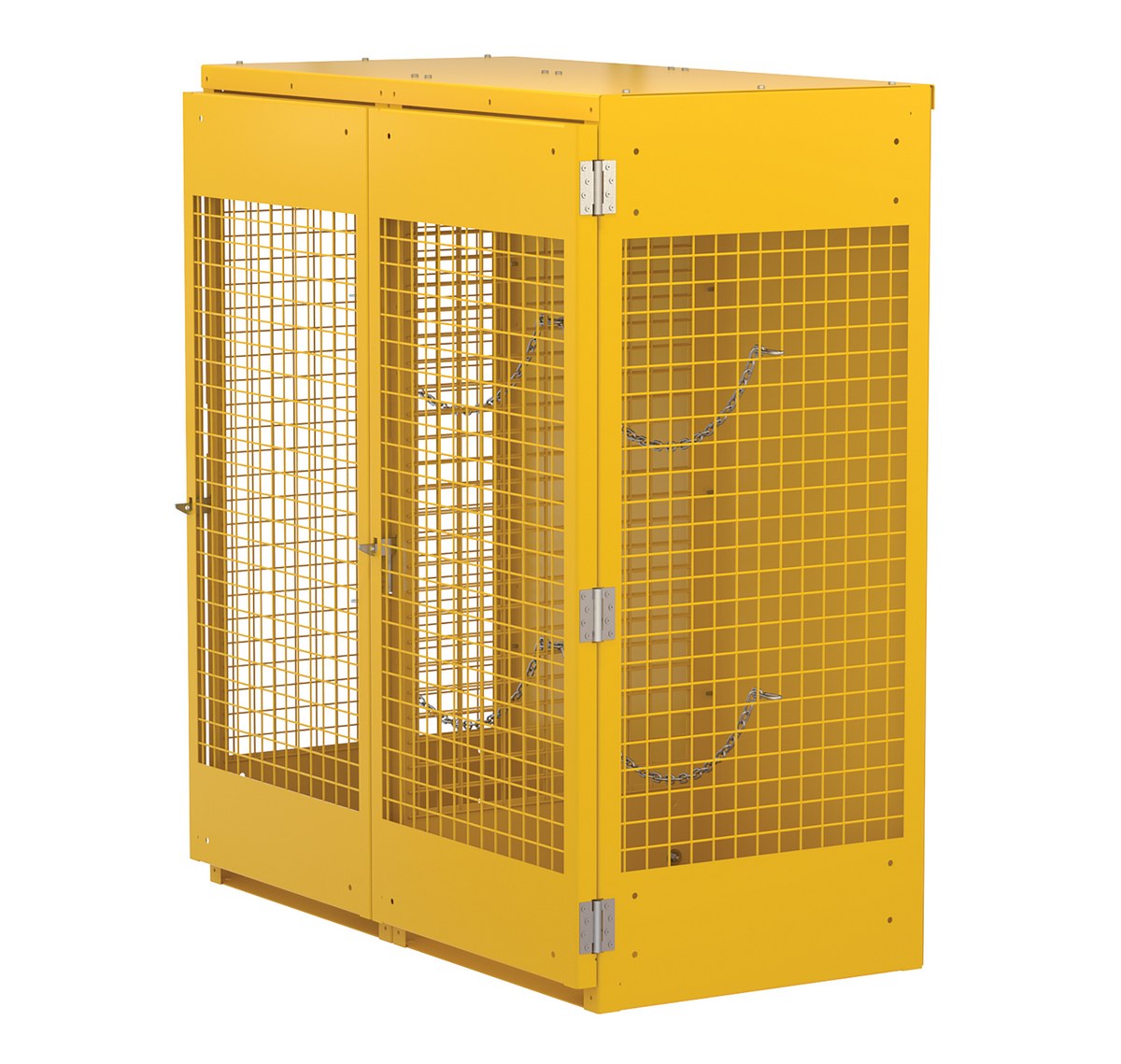

CYL-V-1020-KD icon_approvaldrawings.jpgicon_warranty.jpg 10-20 60"x 32"x 68-1/4" Unassembled 456

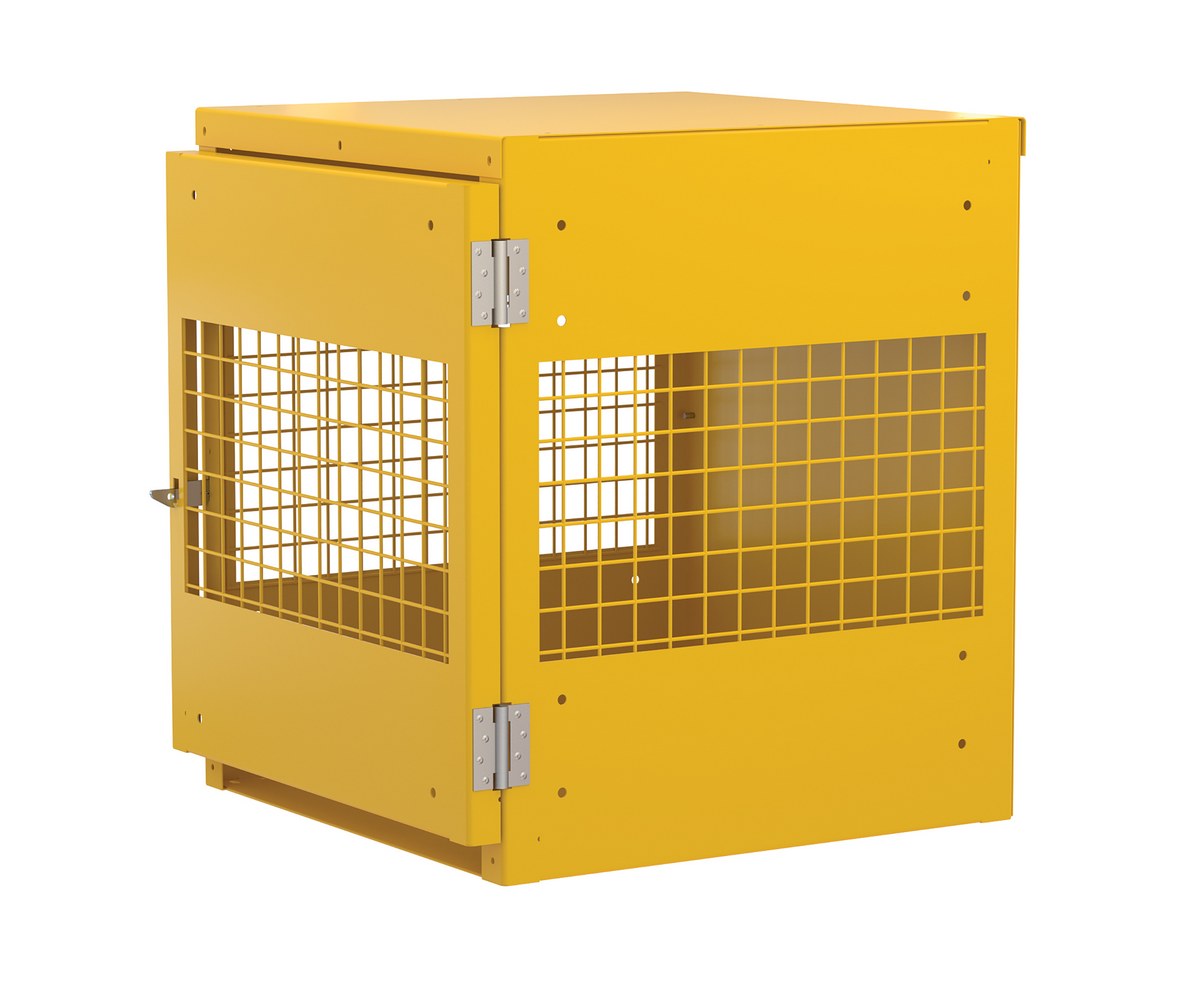

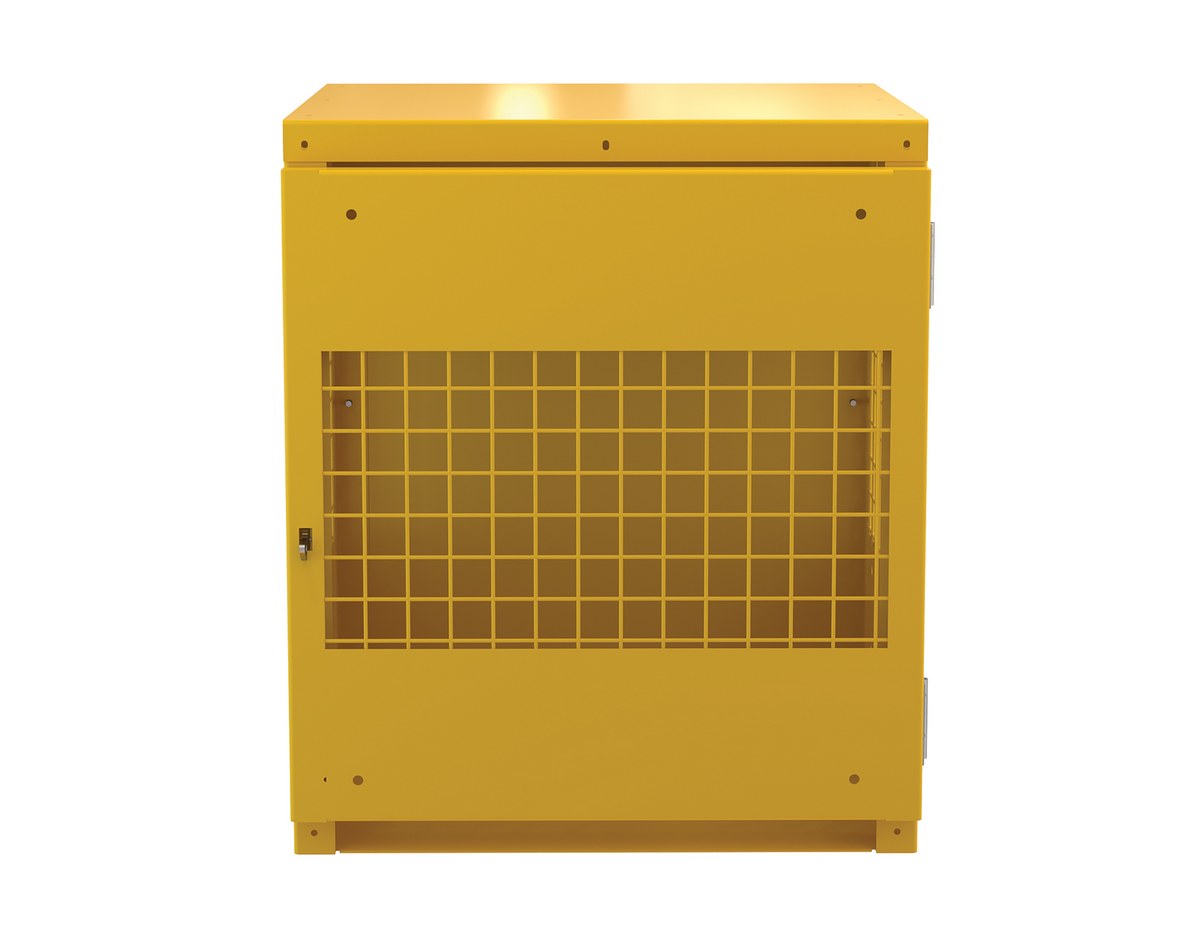

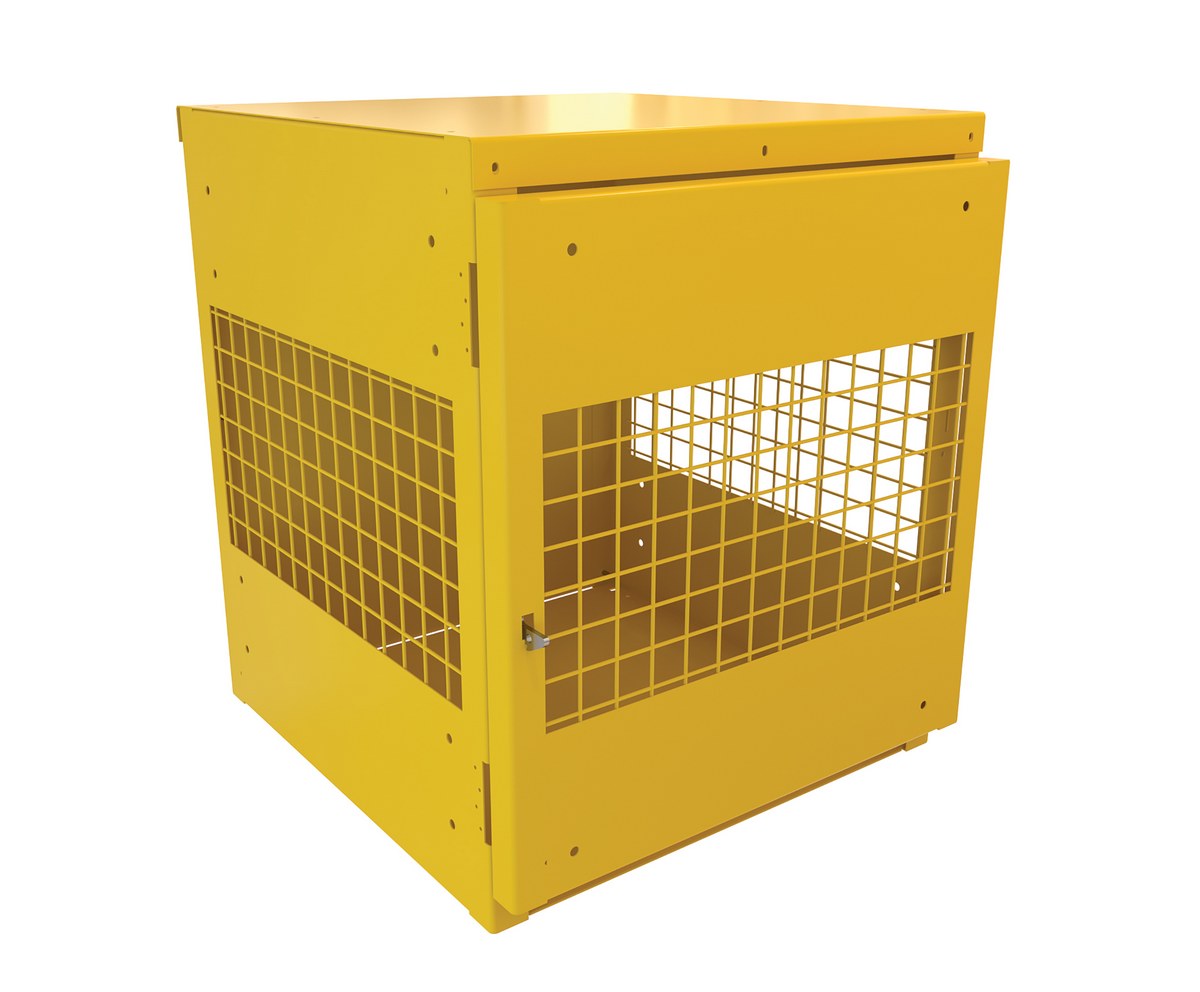

CYL-V-4 icon_approvaldrawings.jpgicon_warranty.jpg 4 30" x 32"x 35-1/4" Assembled 220

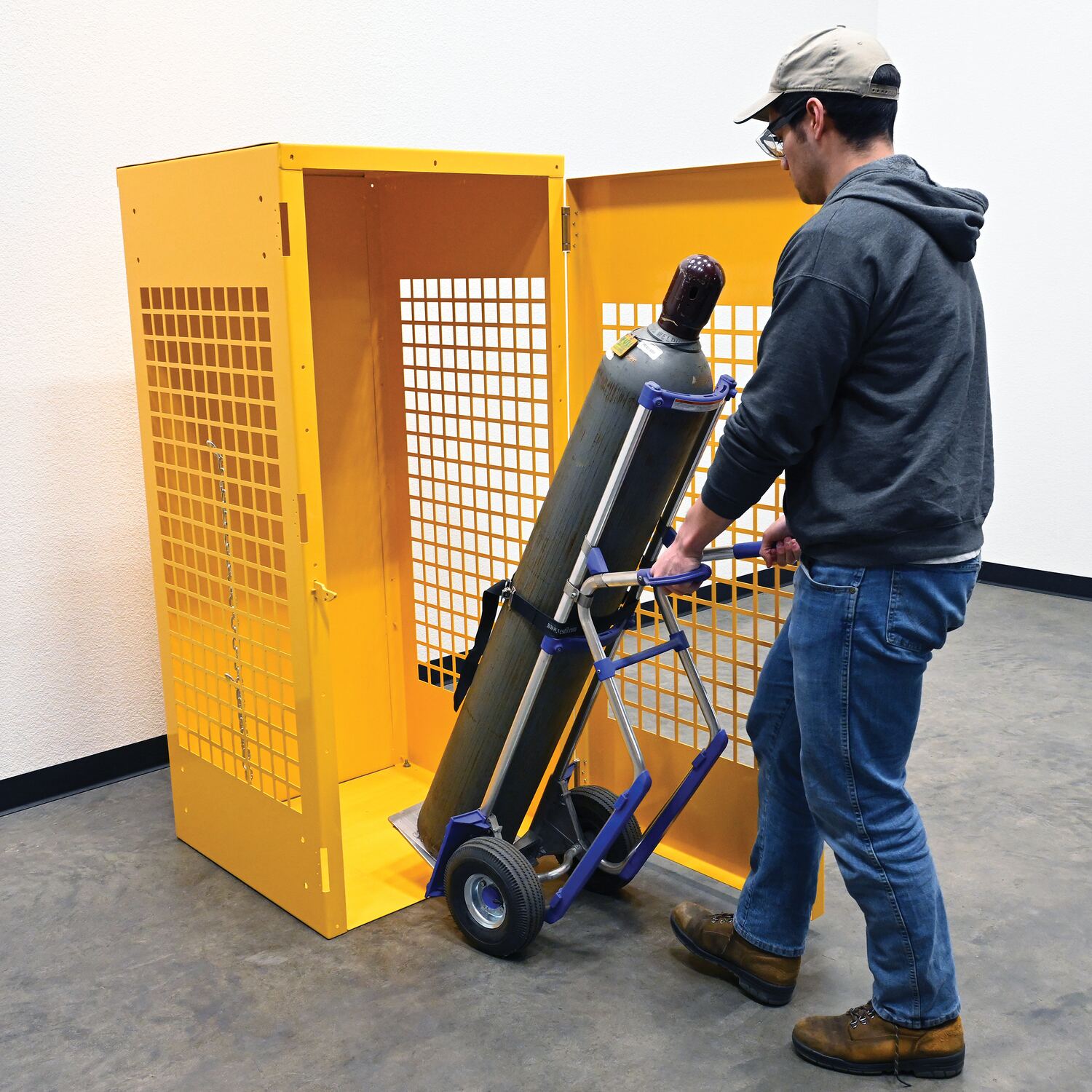

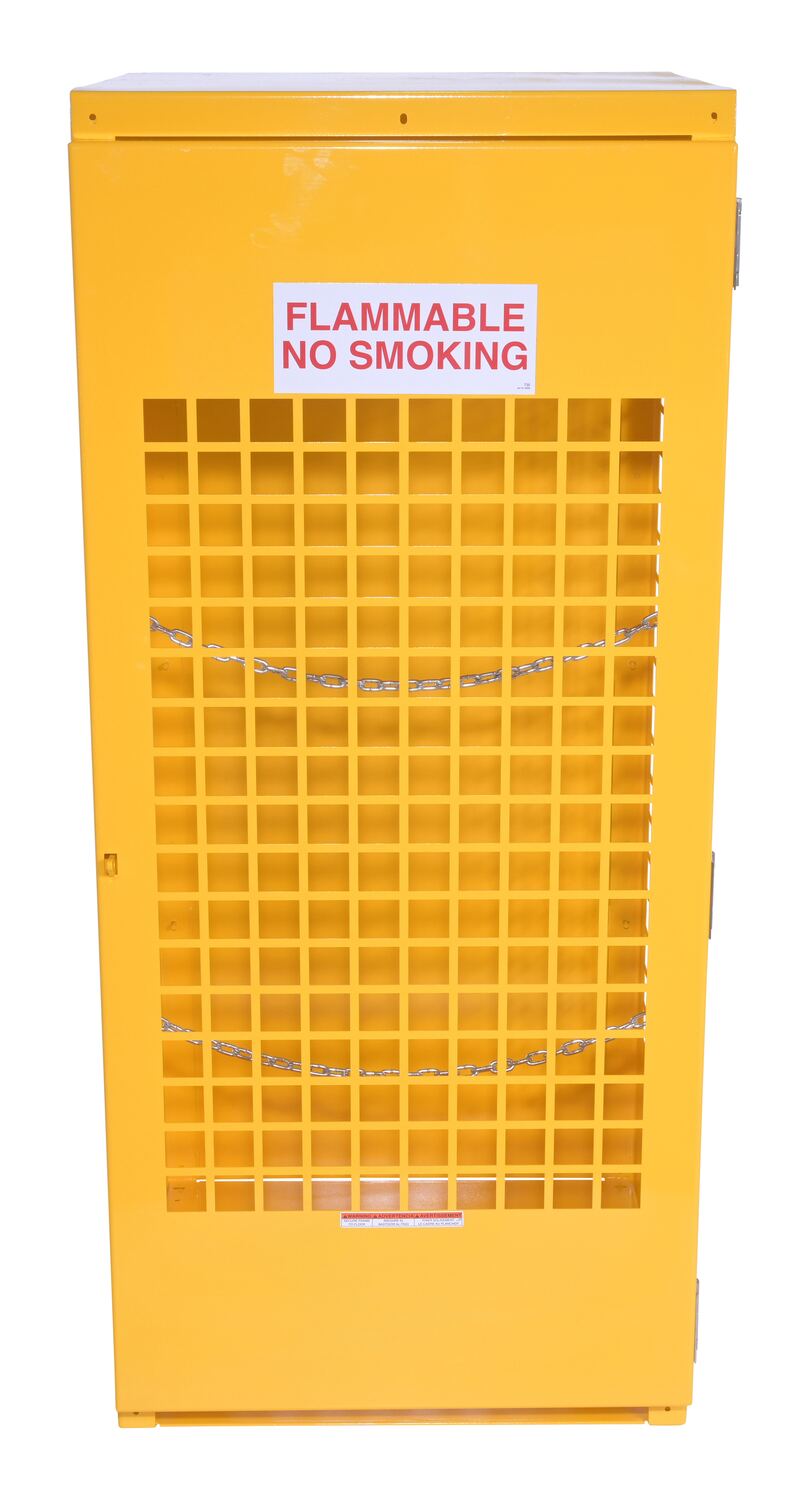

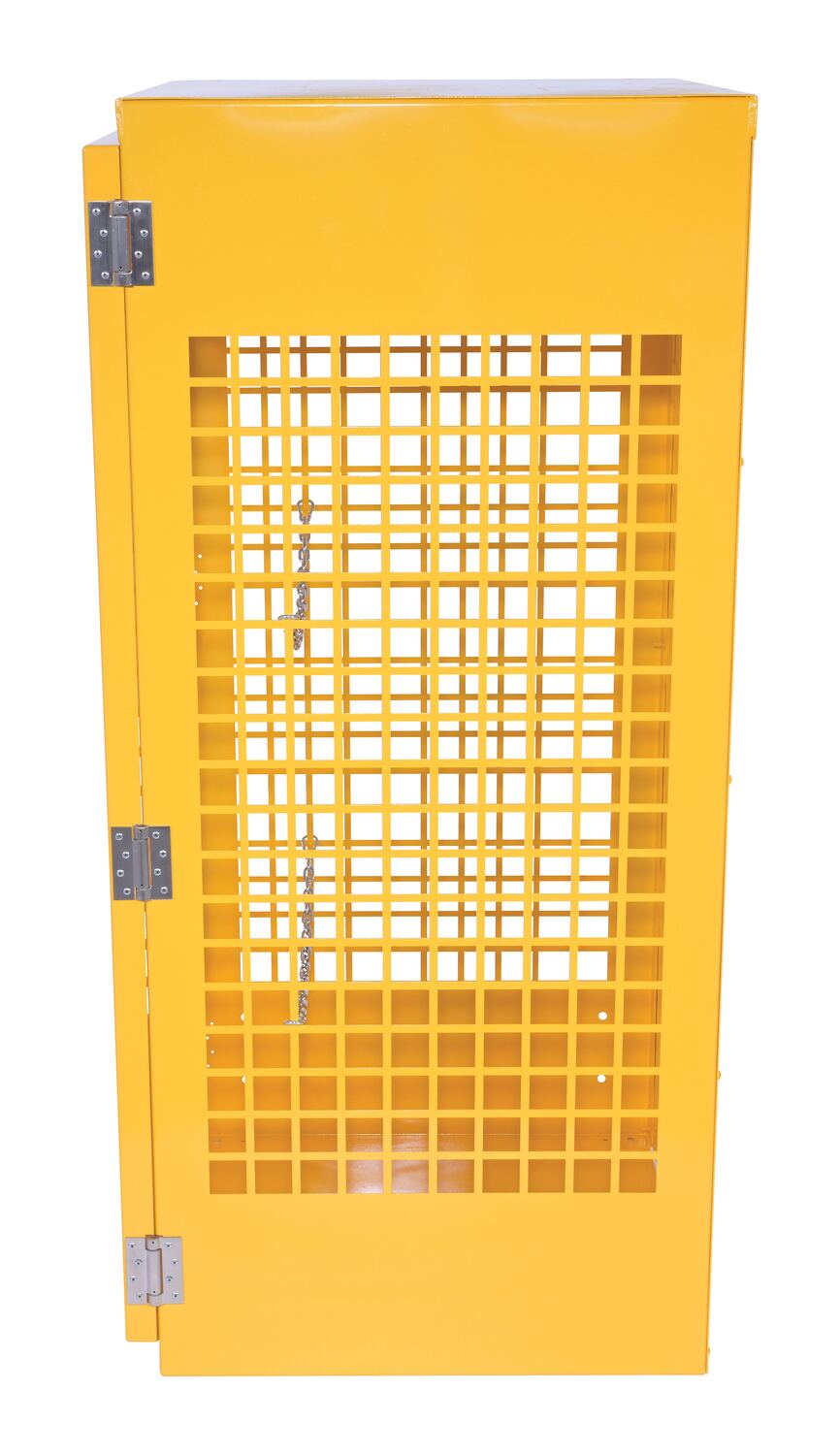

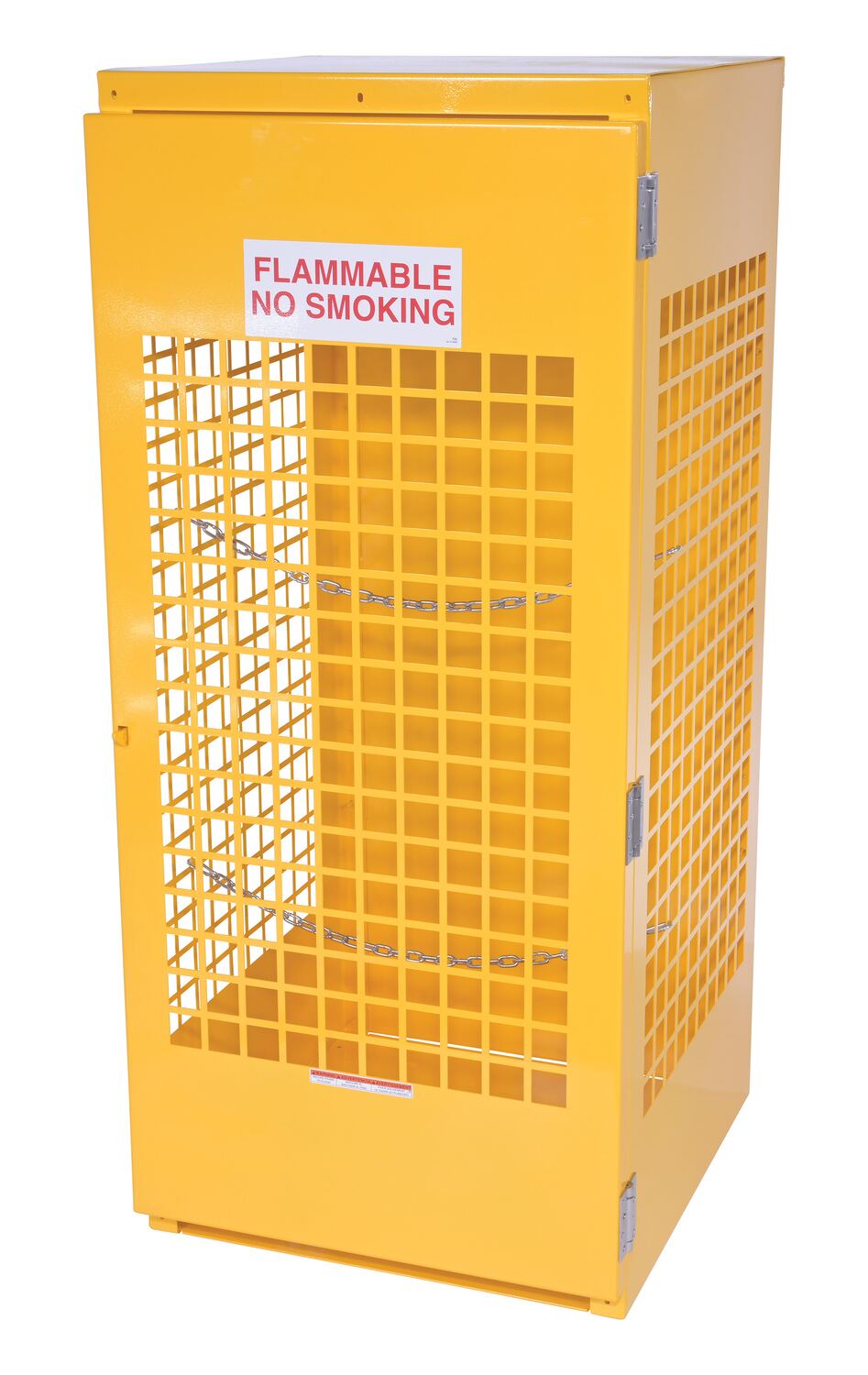

CYL-V-510 icon_approvaldrawings.jpgicon_warranty.jpg 5-10 30" x 32"x 68-1/4" Assembled 287

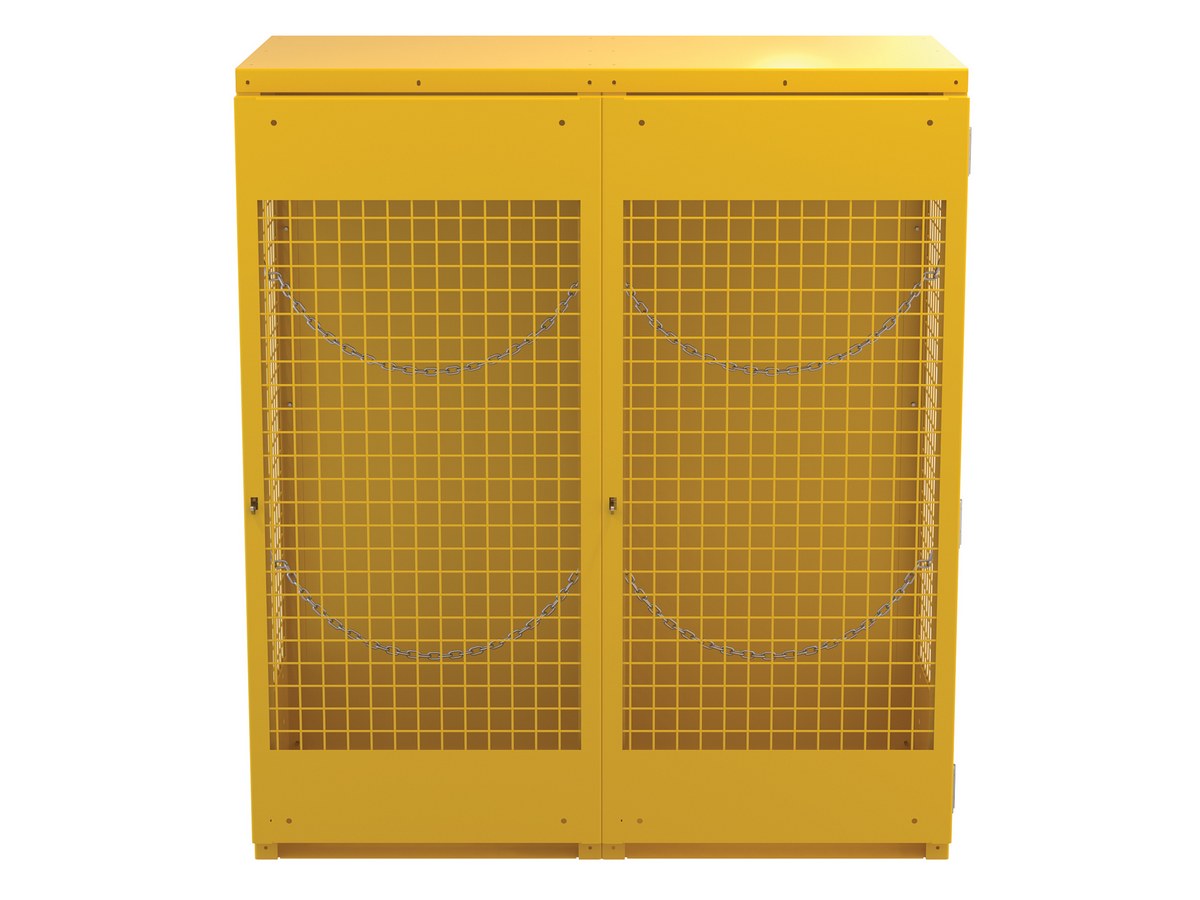

CYL-V-1020 icon_approvaldrawings.jpgicon_warranty.jpg 10-20 60"x 32"x 68-1/4" Assembled 456

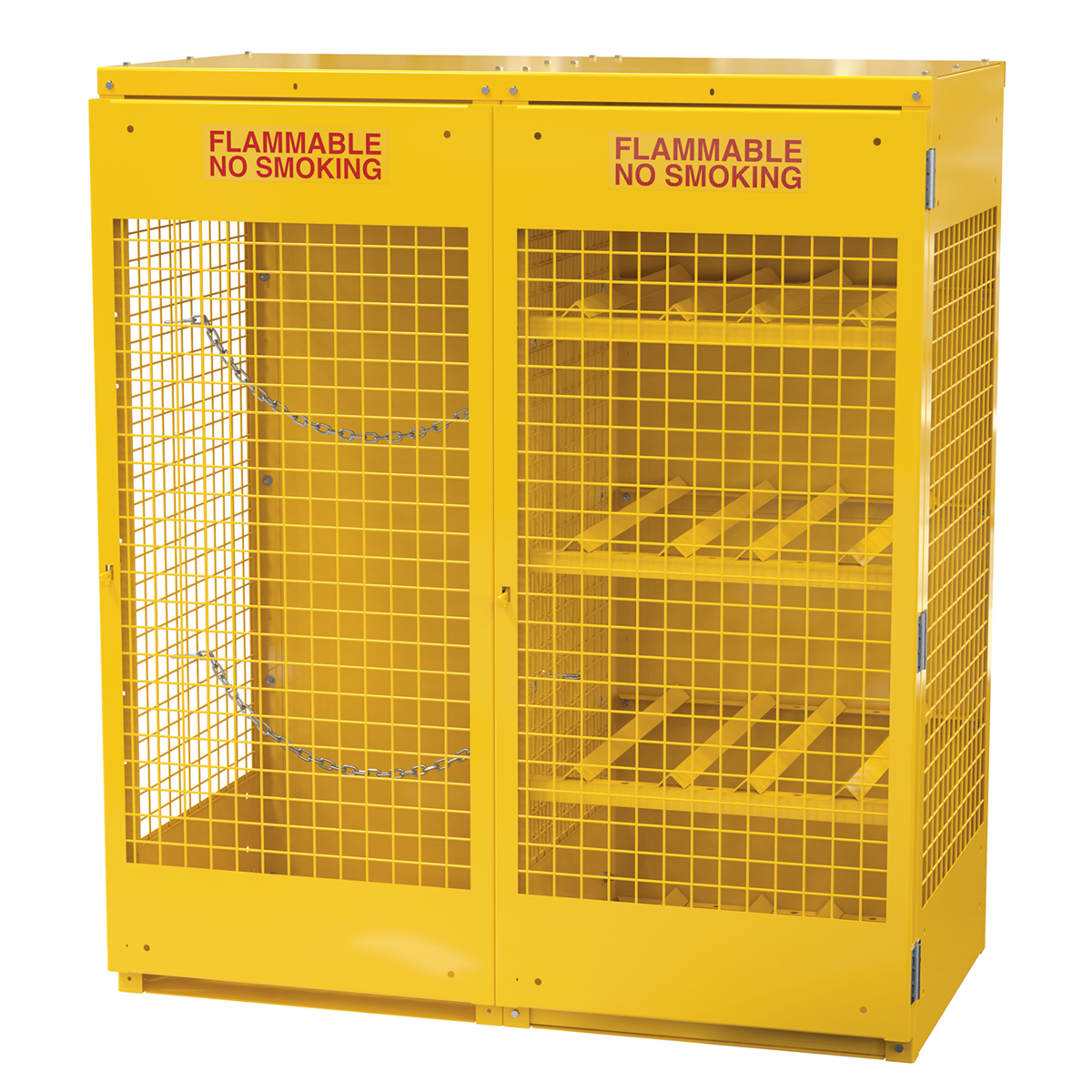

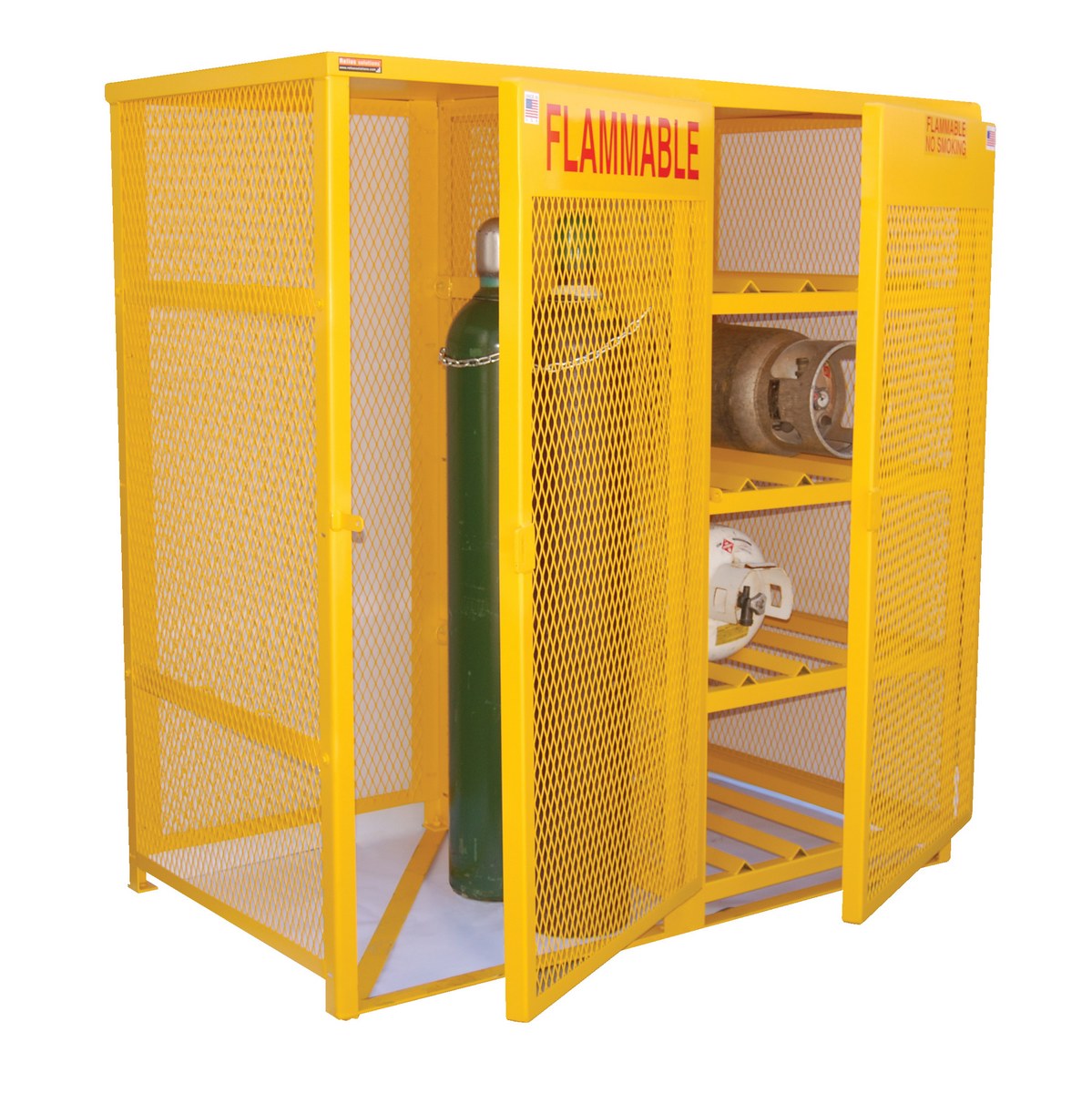

CYL-H8-V510 icon_approvaldrawings.jpgicon_warranty.jpg 8H/10V 60"x 32"x 68-1/4" Assembled 505
CYL-H8-V510-KD icon_approvaldrawings.jpgicon_warranty.jpg 8H/10V 60" x 32" x 68-1/4" Unassembled 505
