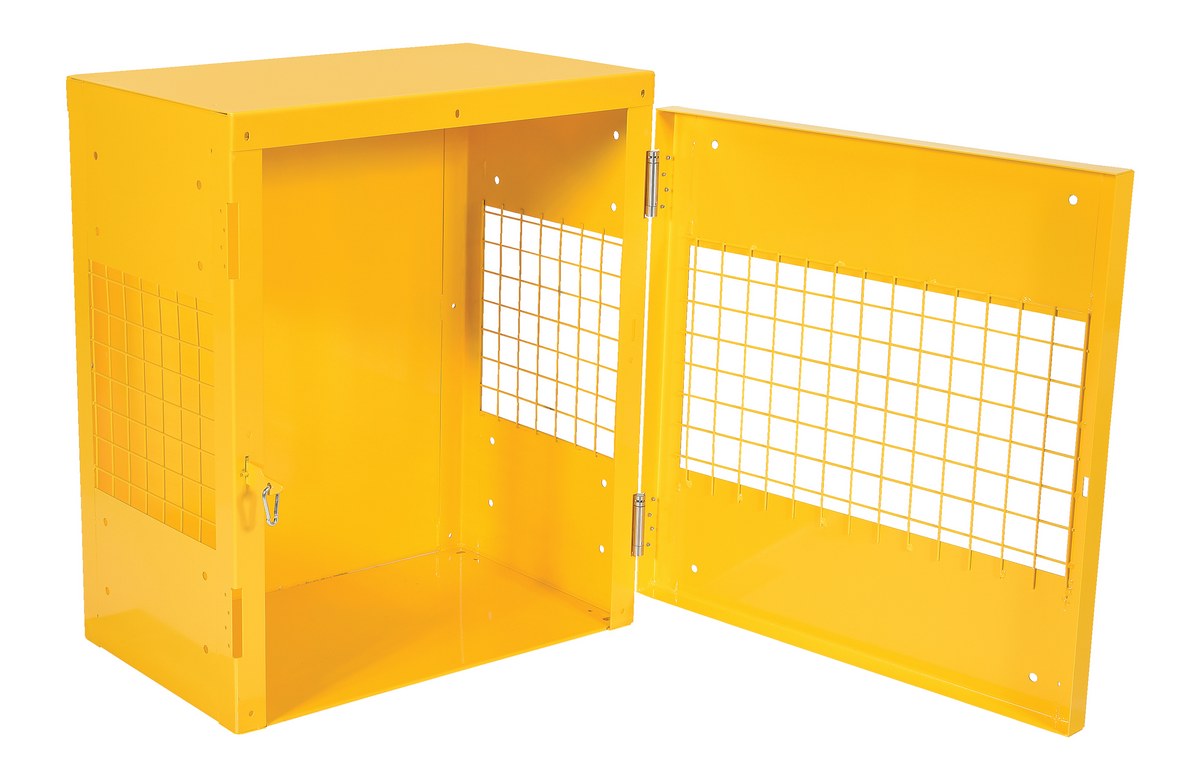

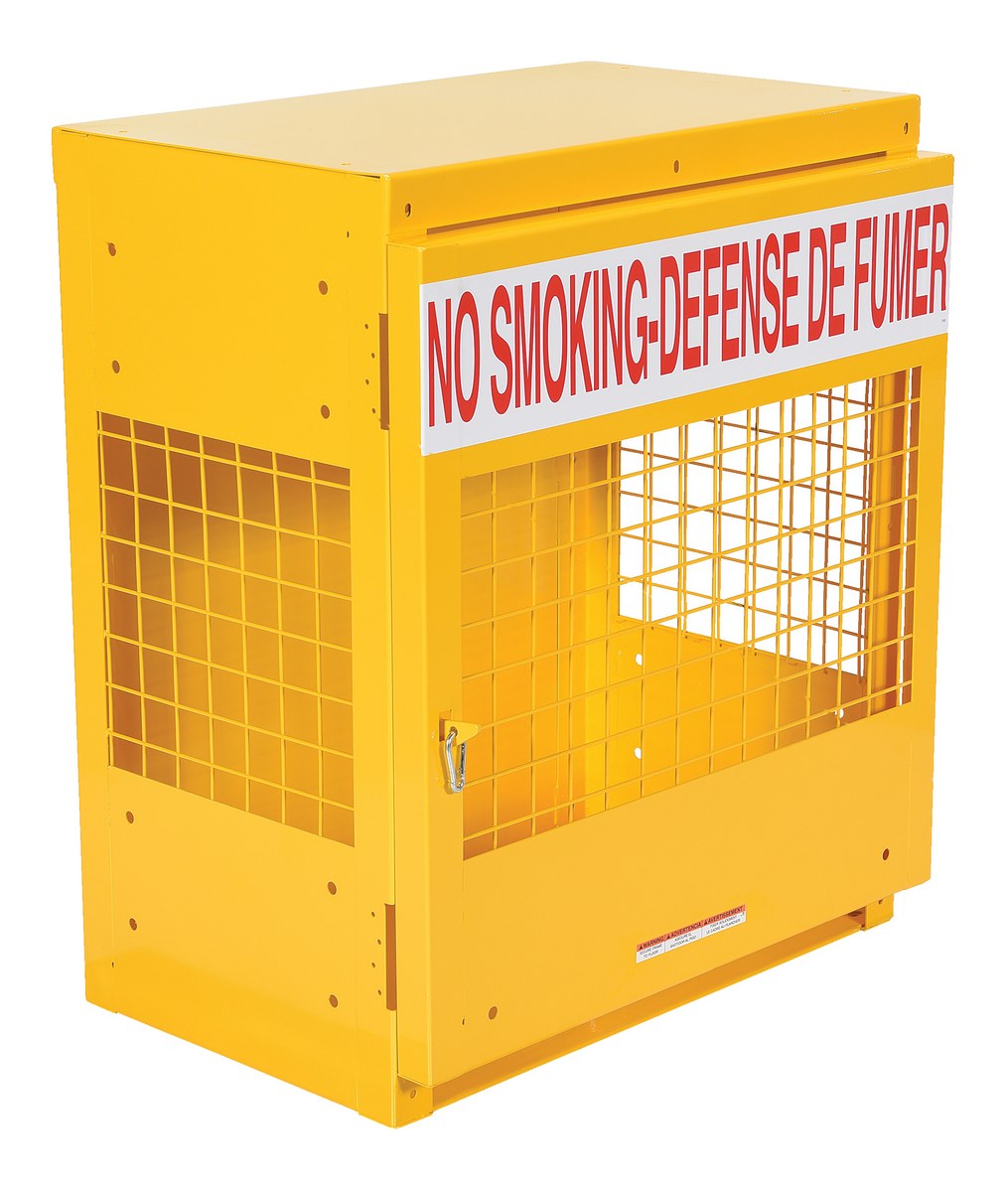

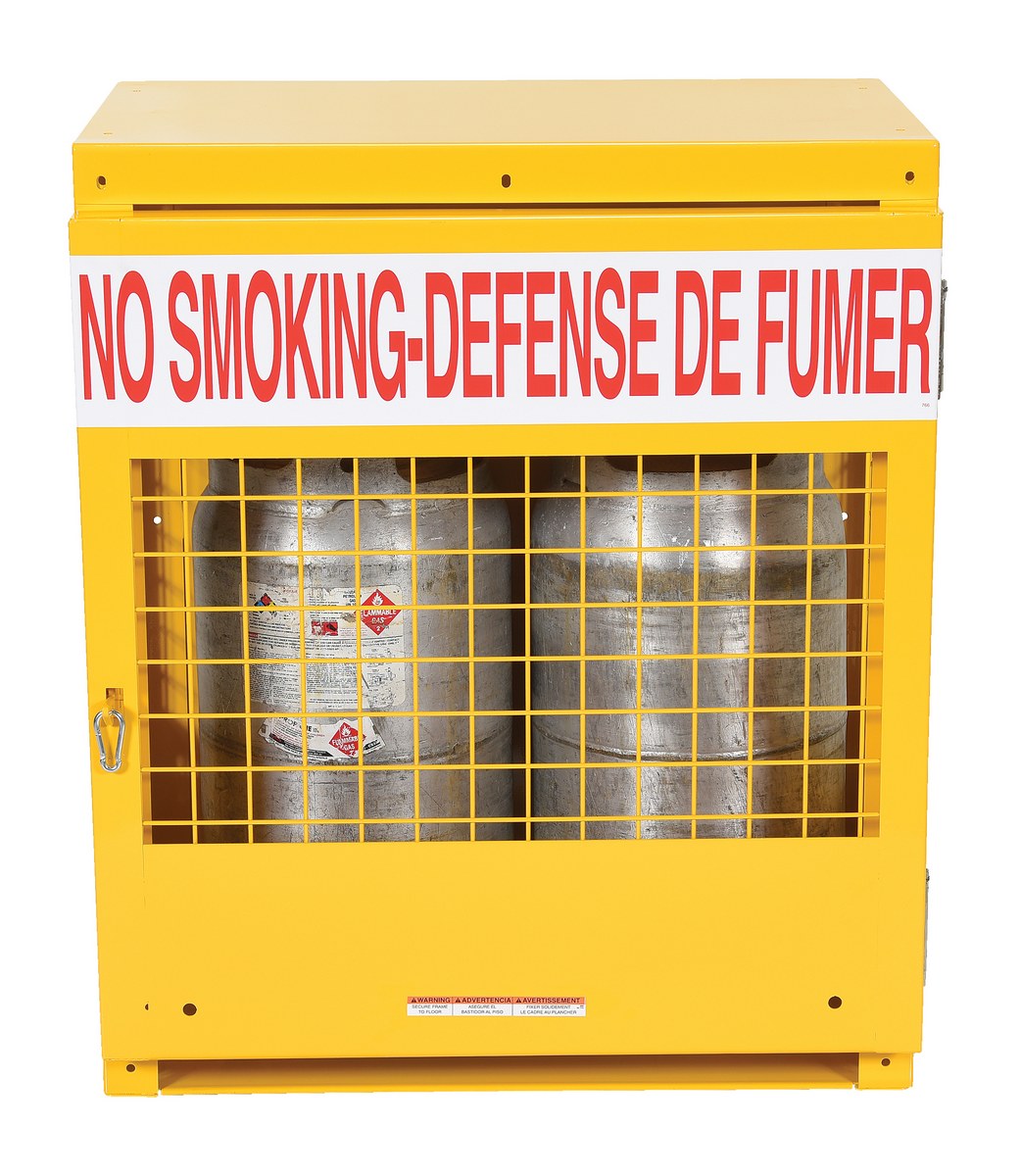

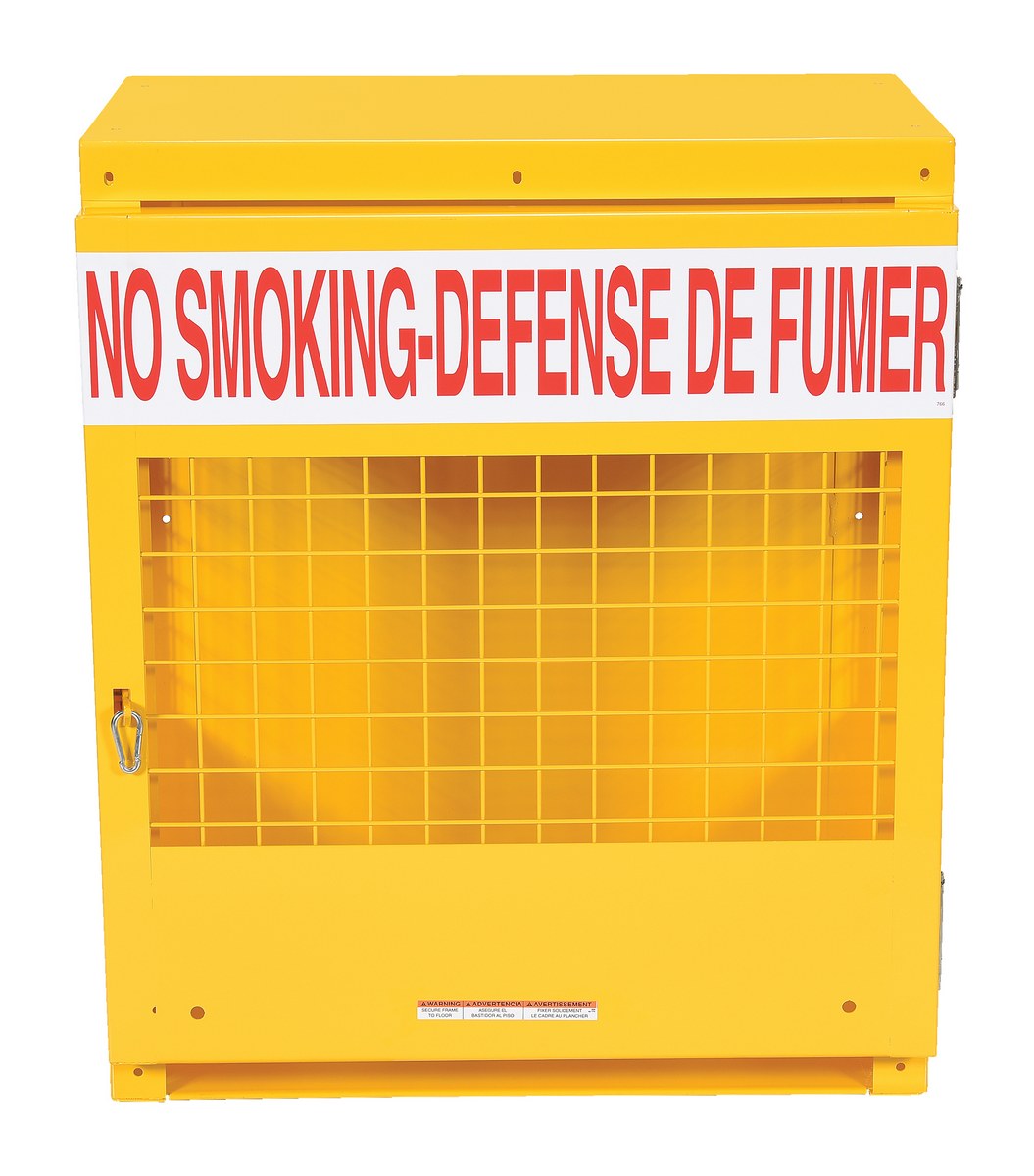

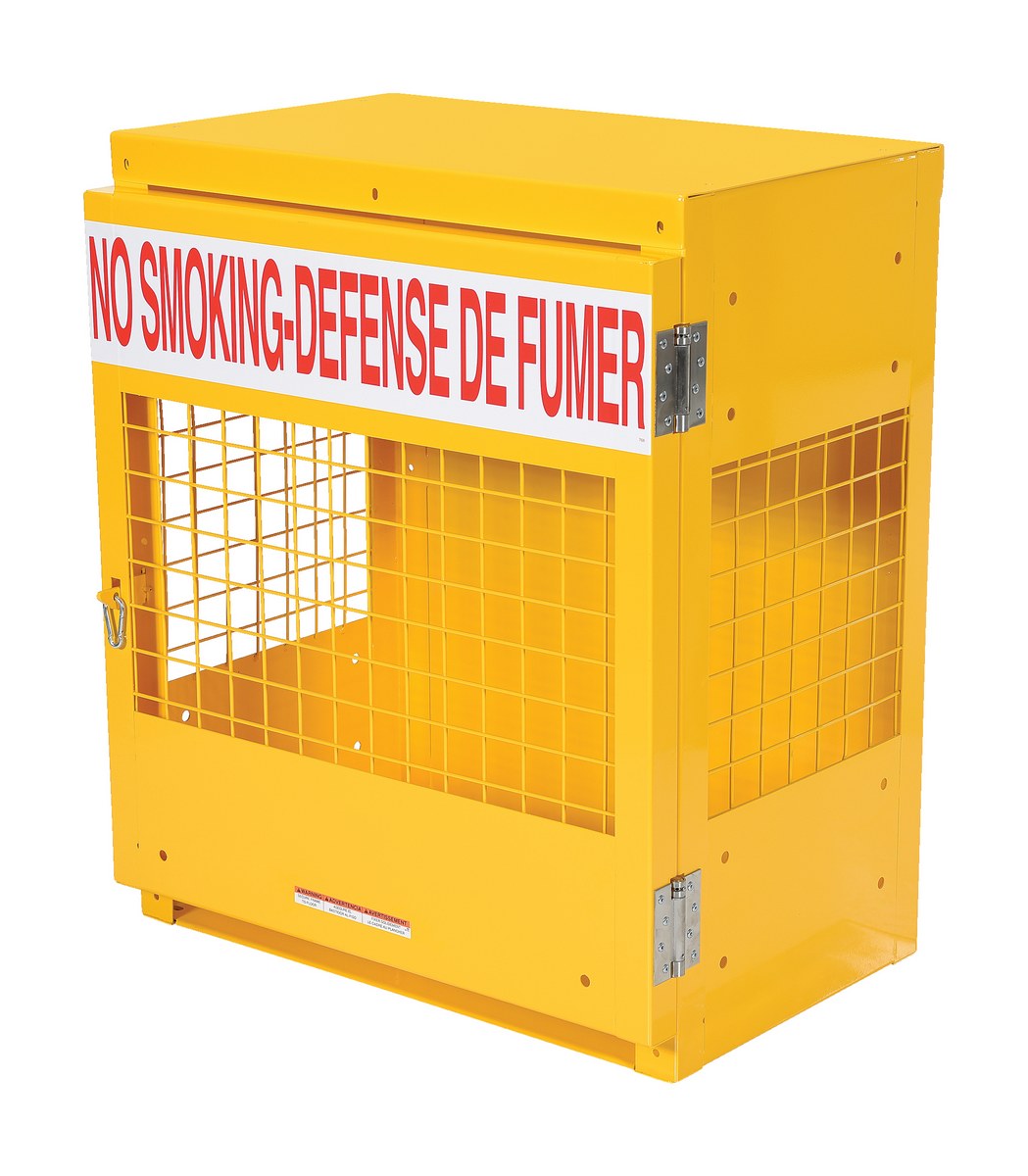

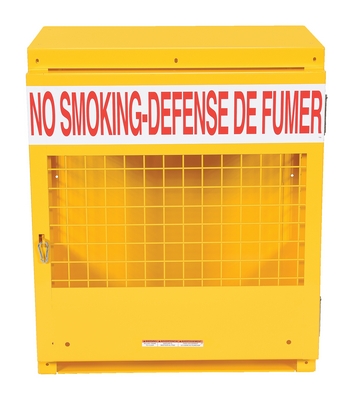

model CYL-LP-2-CA
SERIES: CYL


Cylinder Storage Cabinets (Canada sales)

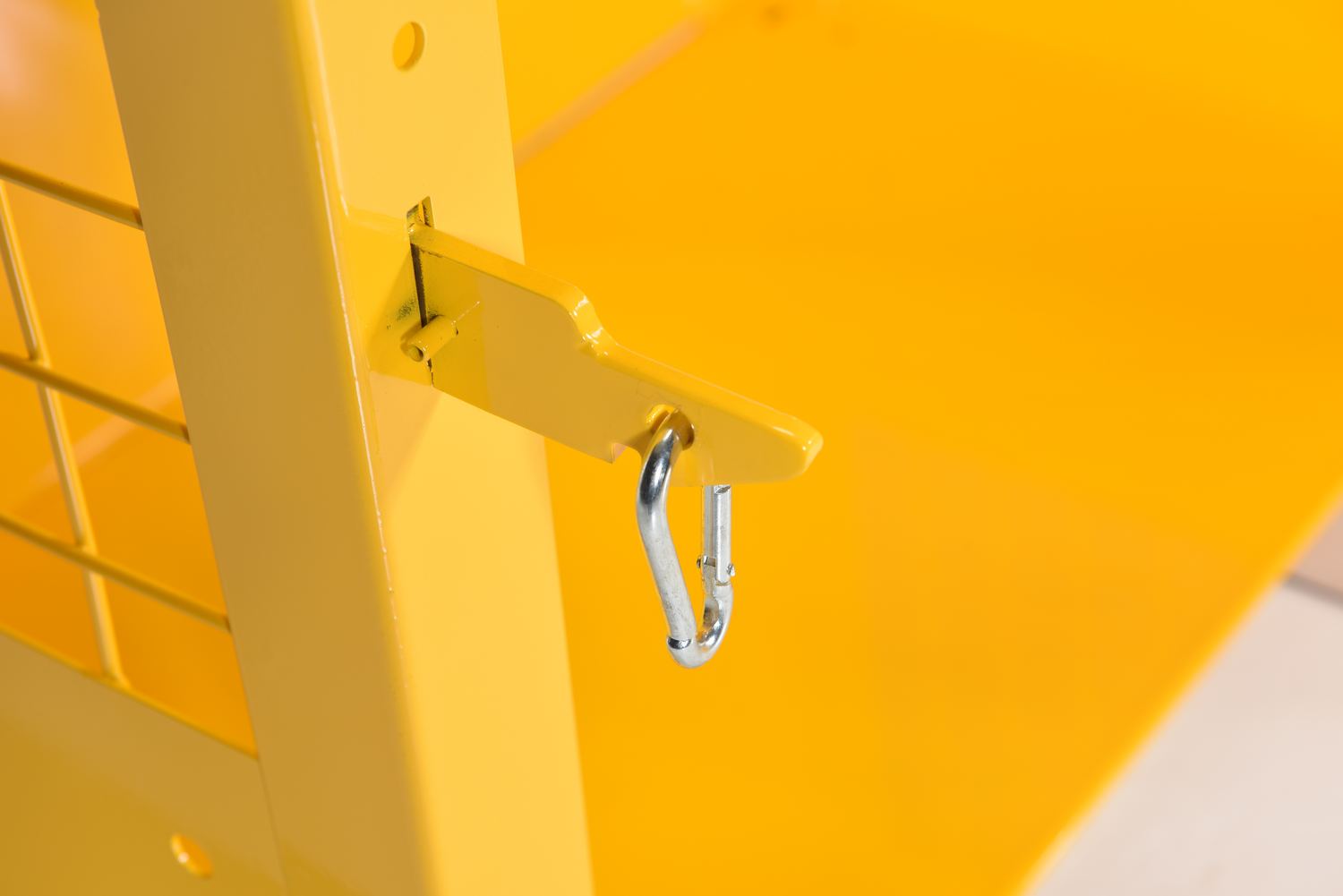

Durable steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel. The top, bottom, and back is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing unit to floor (hardware is not included). Vertical units include chains for securing cylinders. Includes red lettered signage noting "No Smoking" message in English and French. Meets CSA B-149.2, NFPA 58, and OSHA sec. 1910.110 (f)(6)(ii) design standards. Rugged welded steel construction with a baked in powder coate safety yellow finish for added toughness. All units shipped fully assembled.

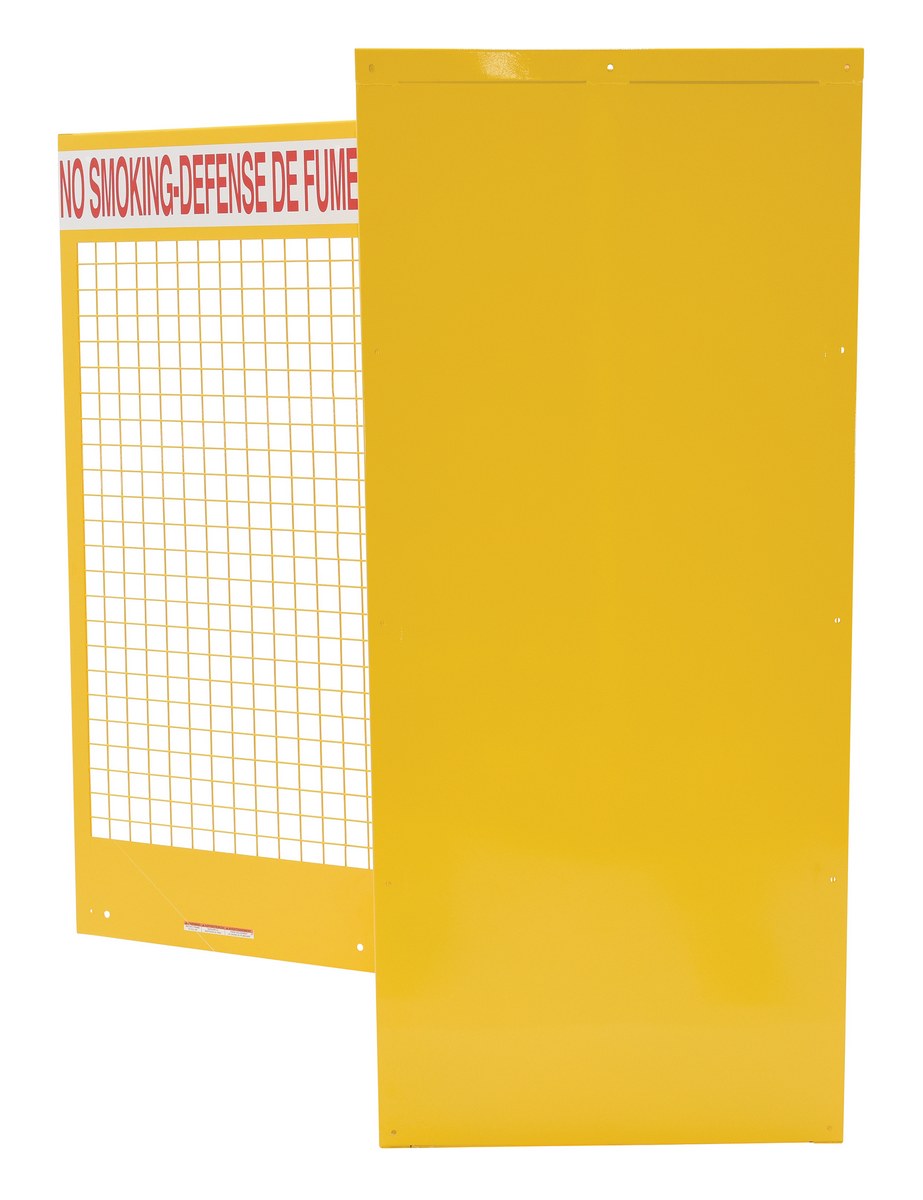

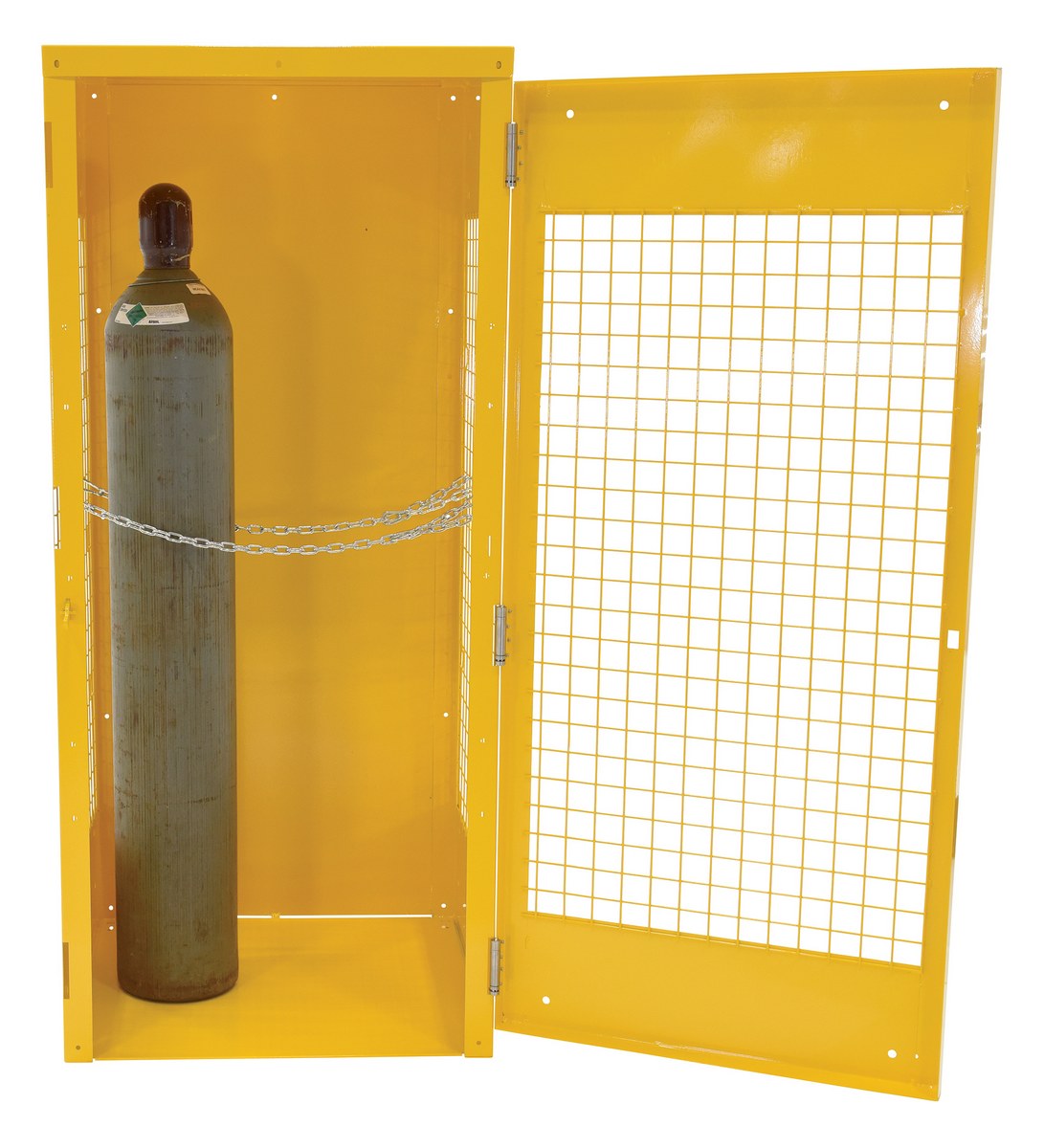

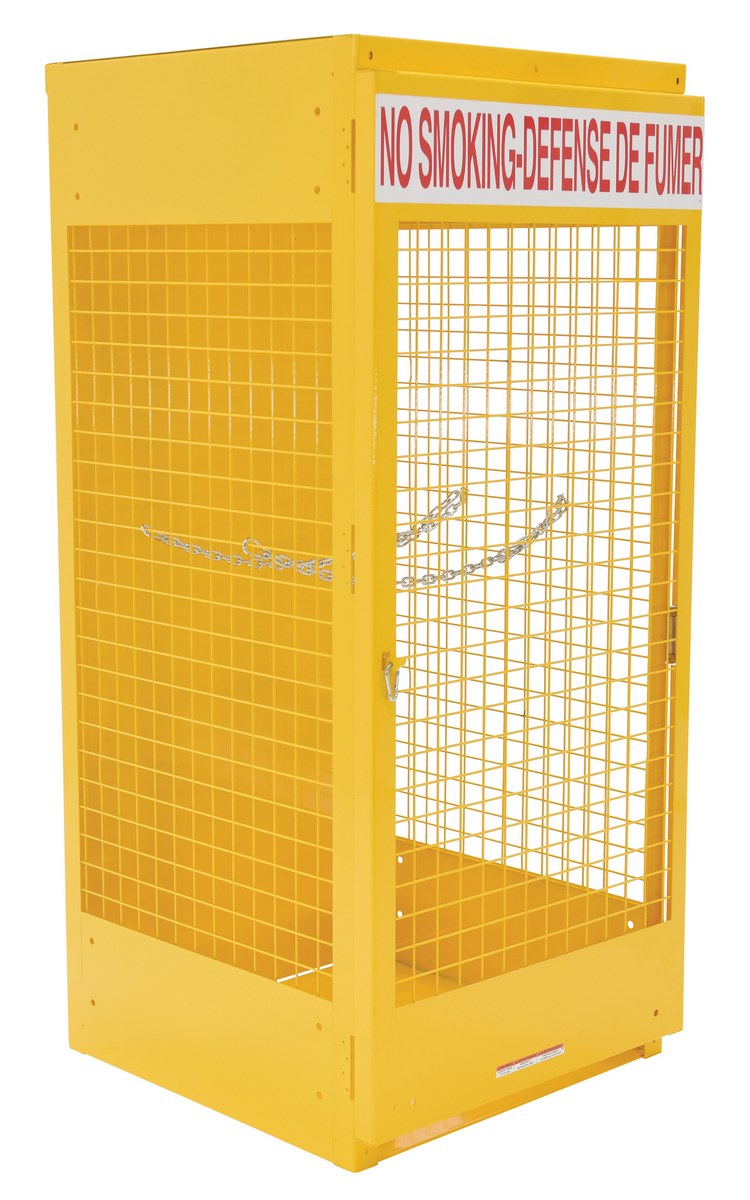

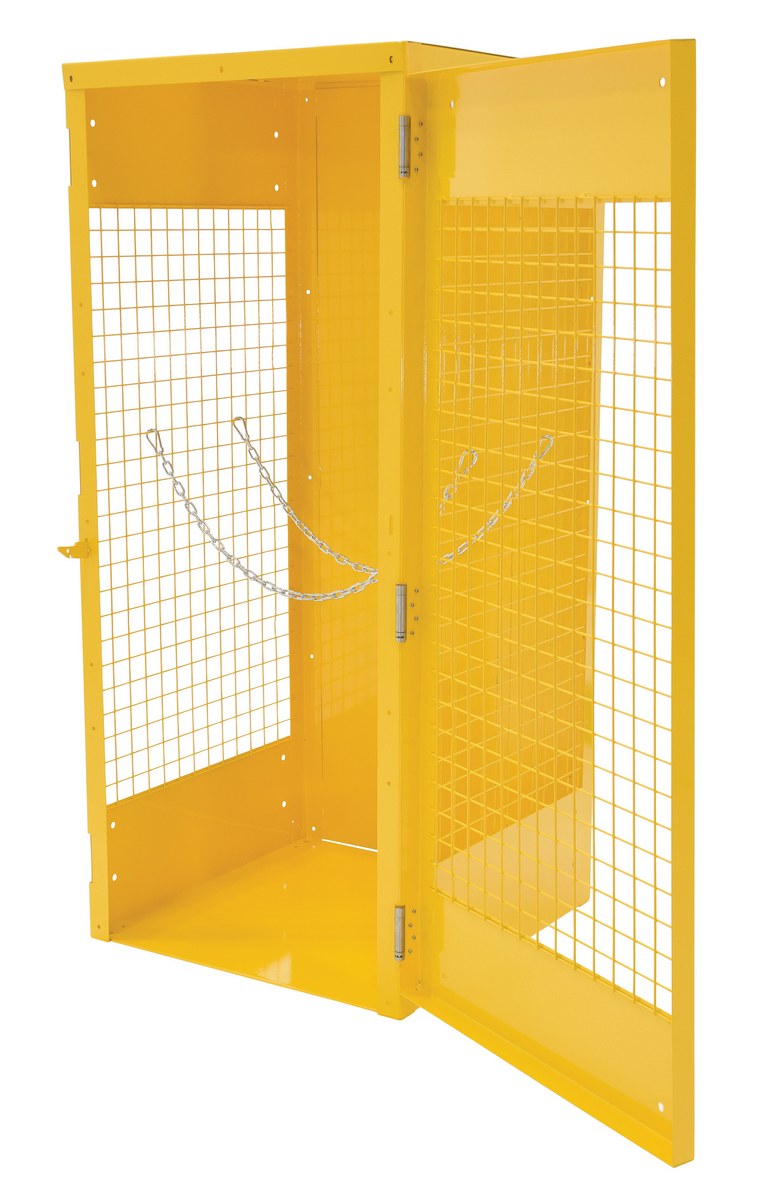

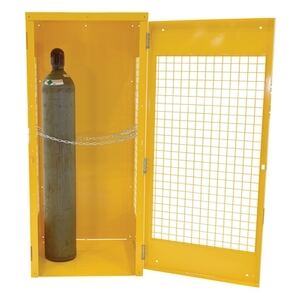

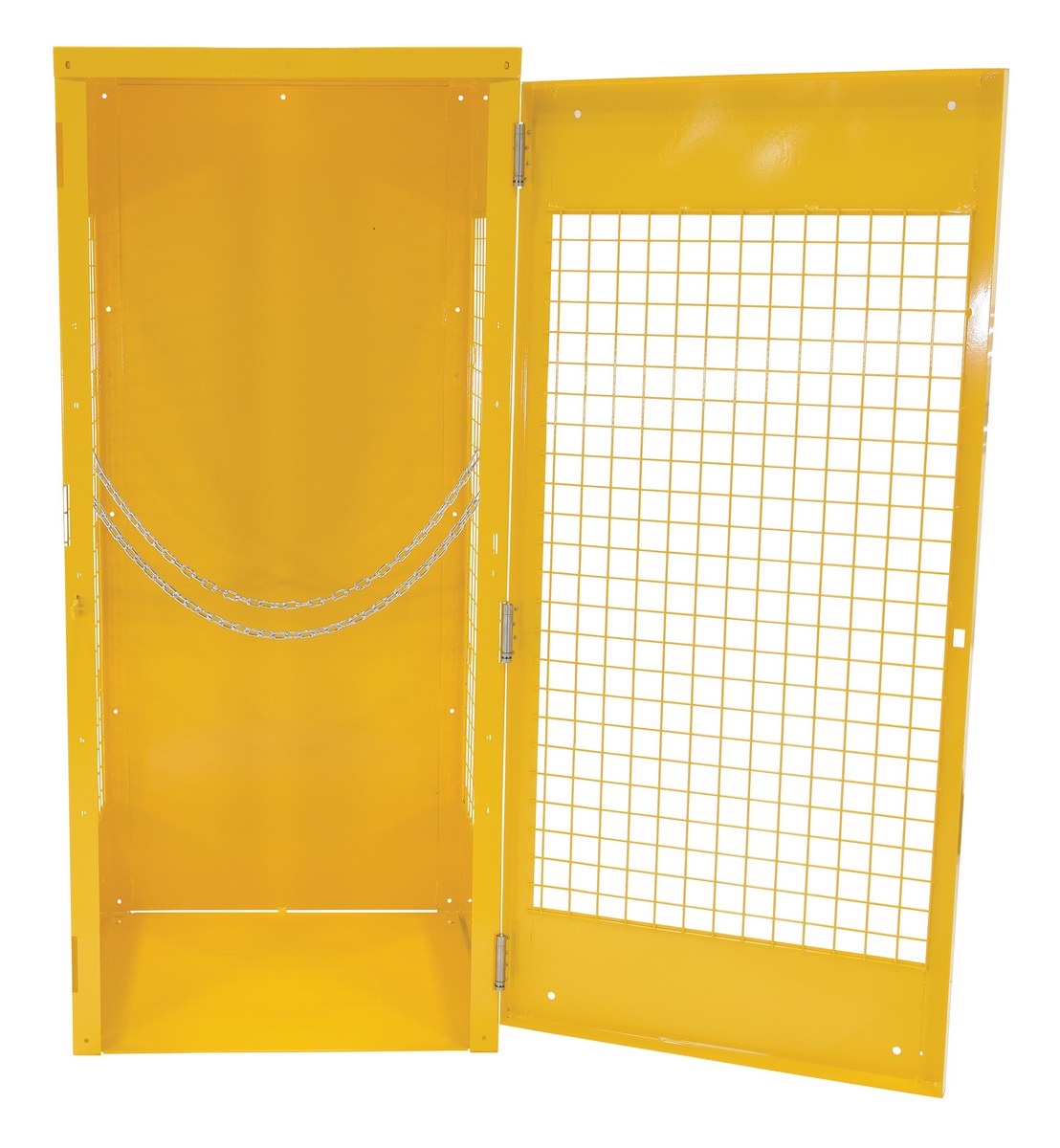

CYL-G-8-CA

model CYL-G-8-CA

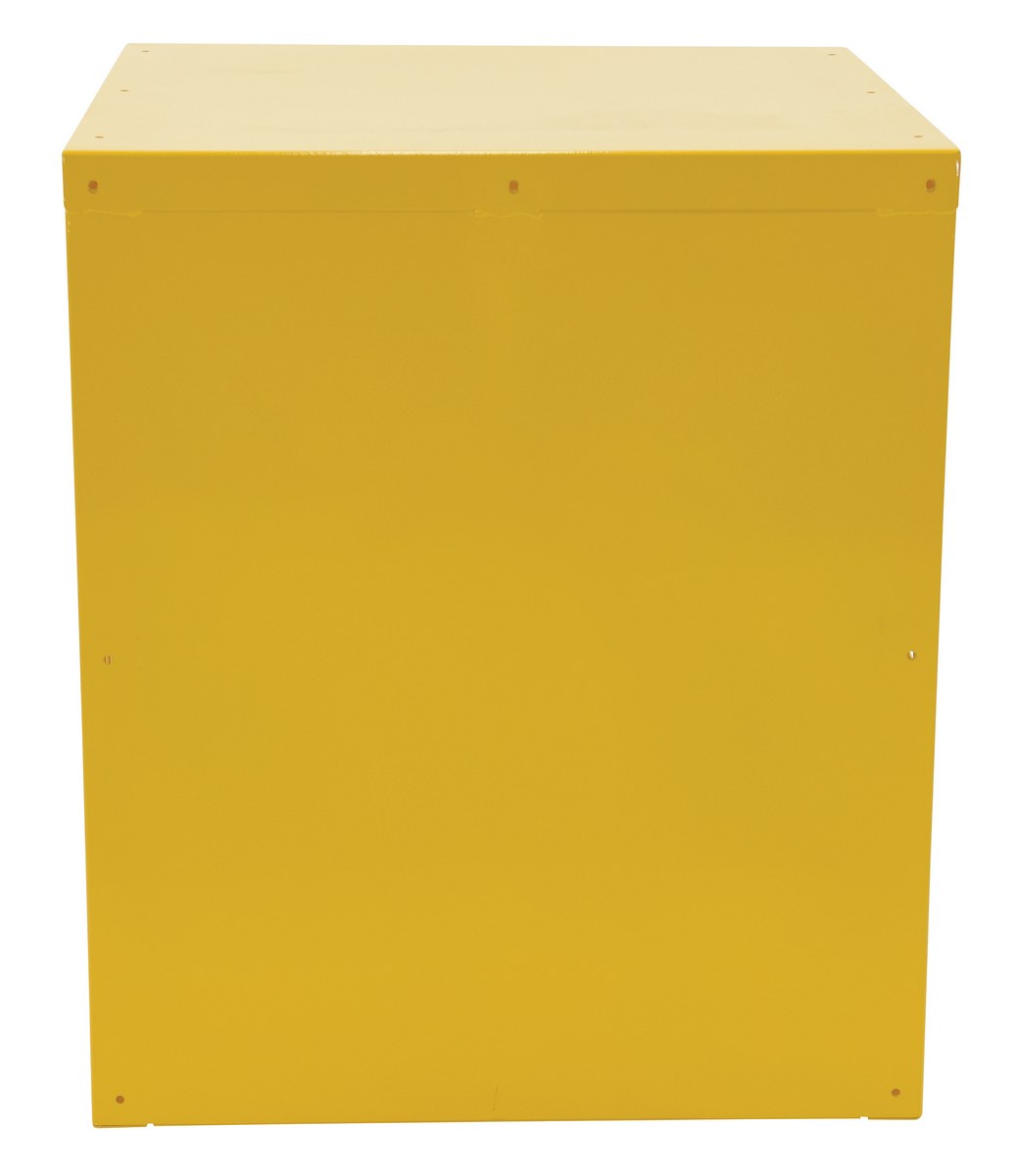

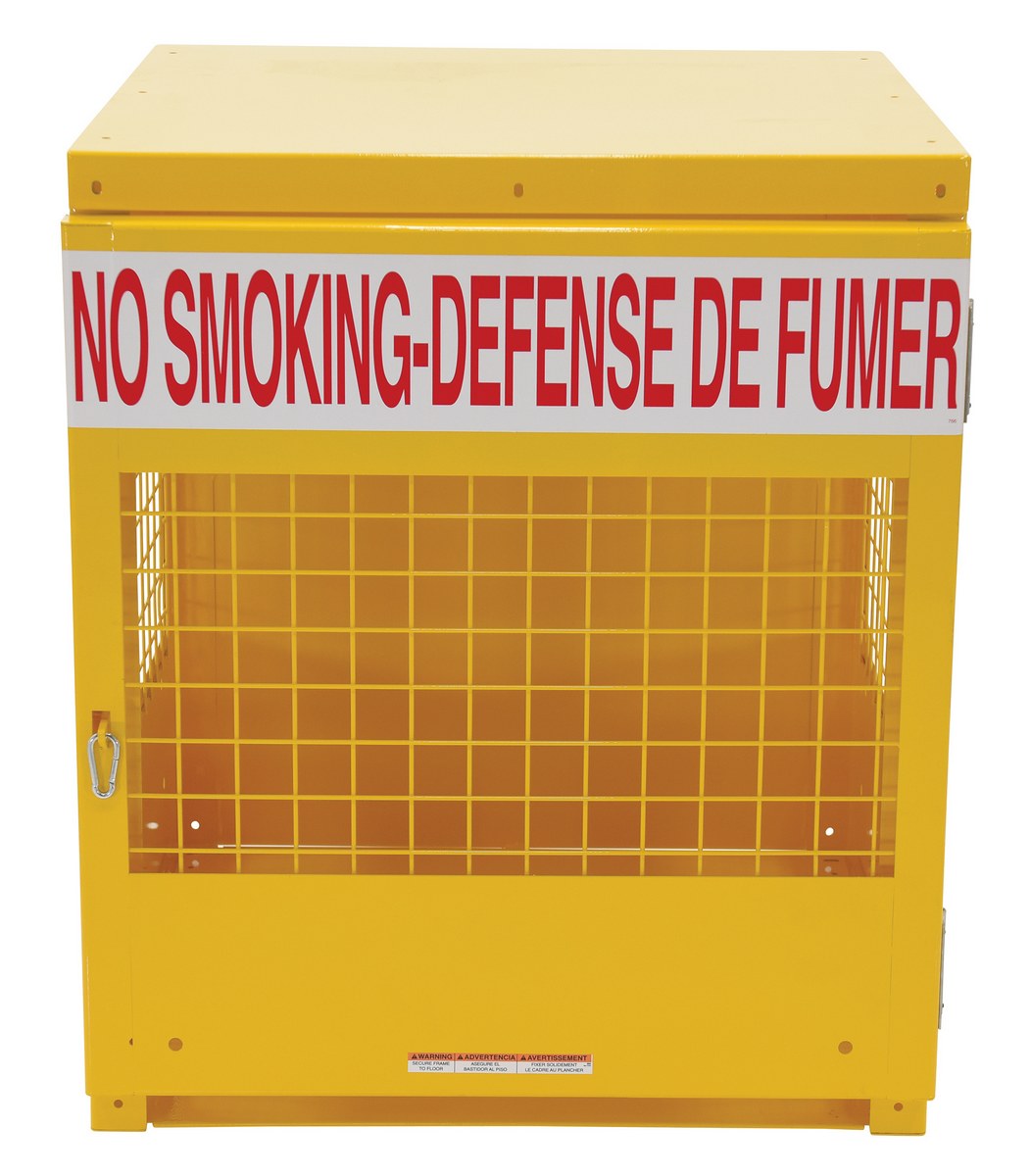

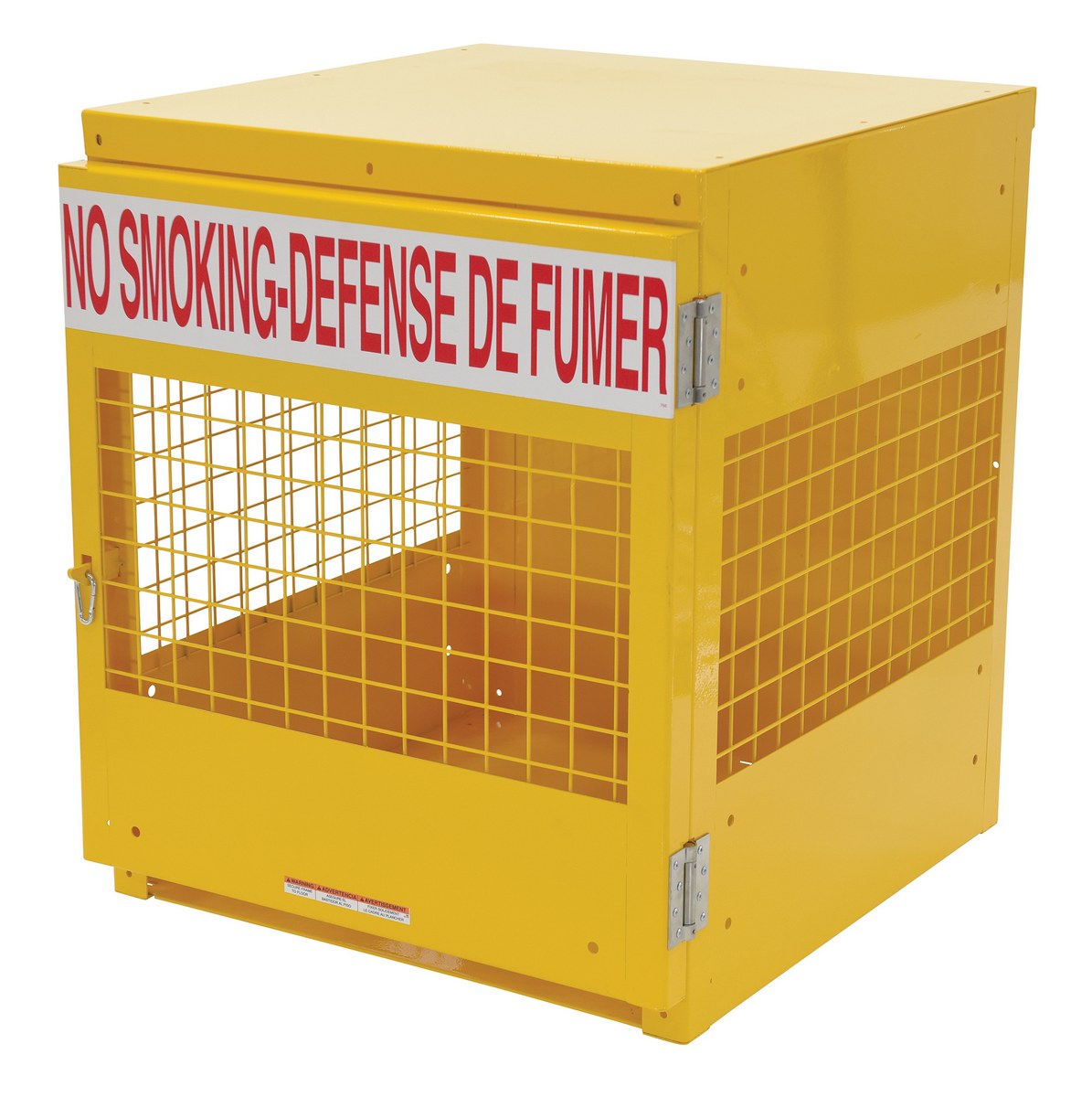

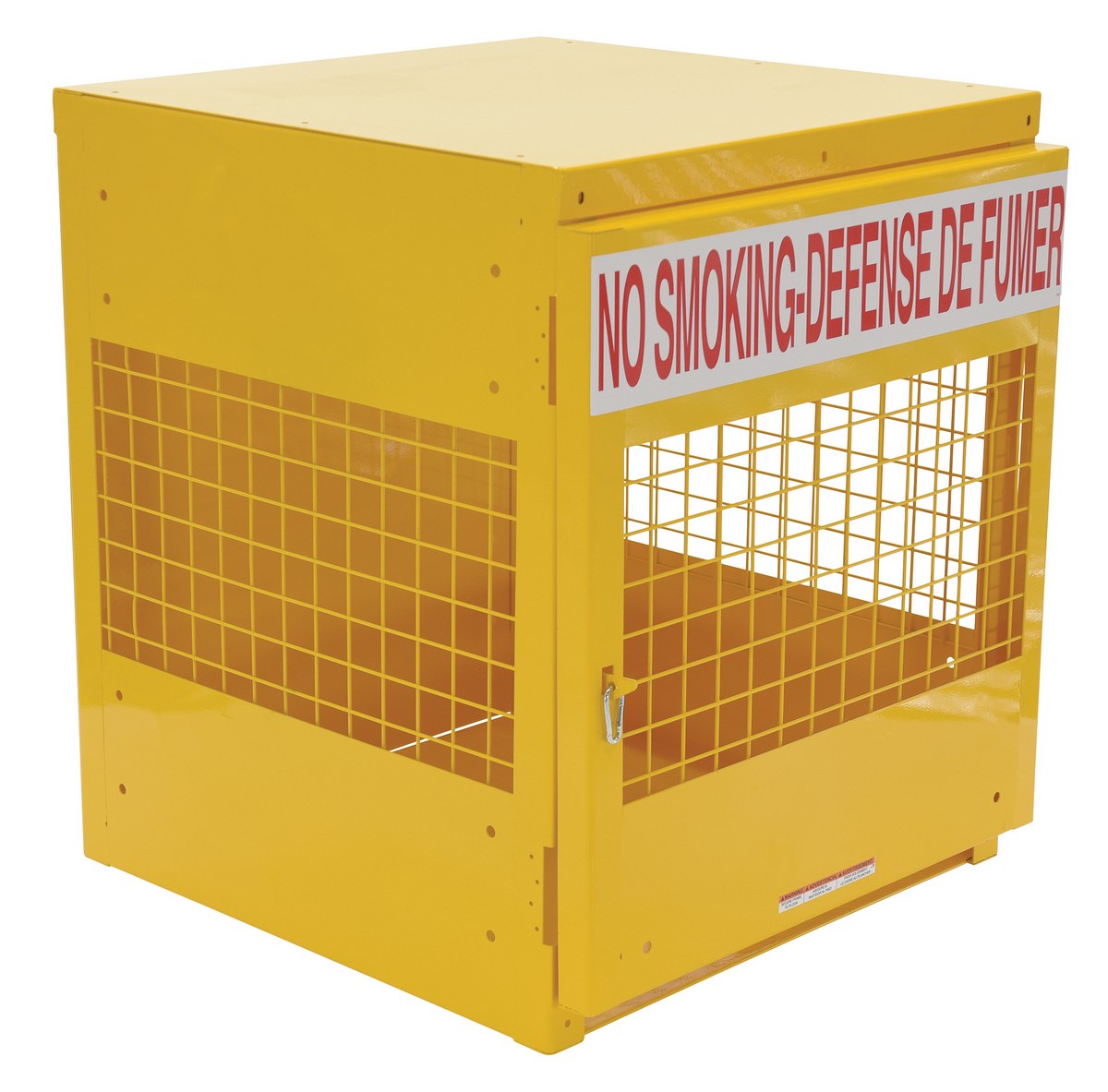

CYL-LP-4-CA

model CYL-LP-4-CA

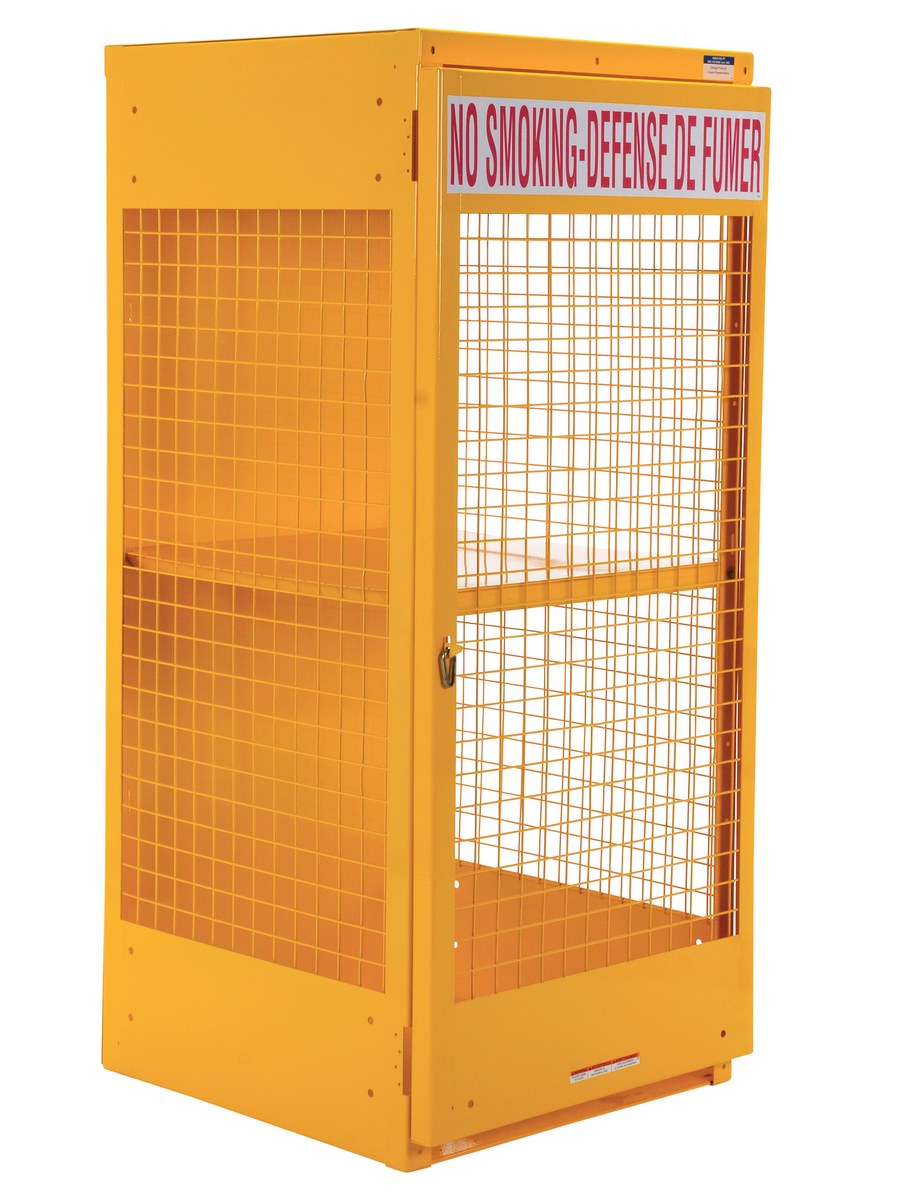

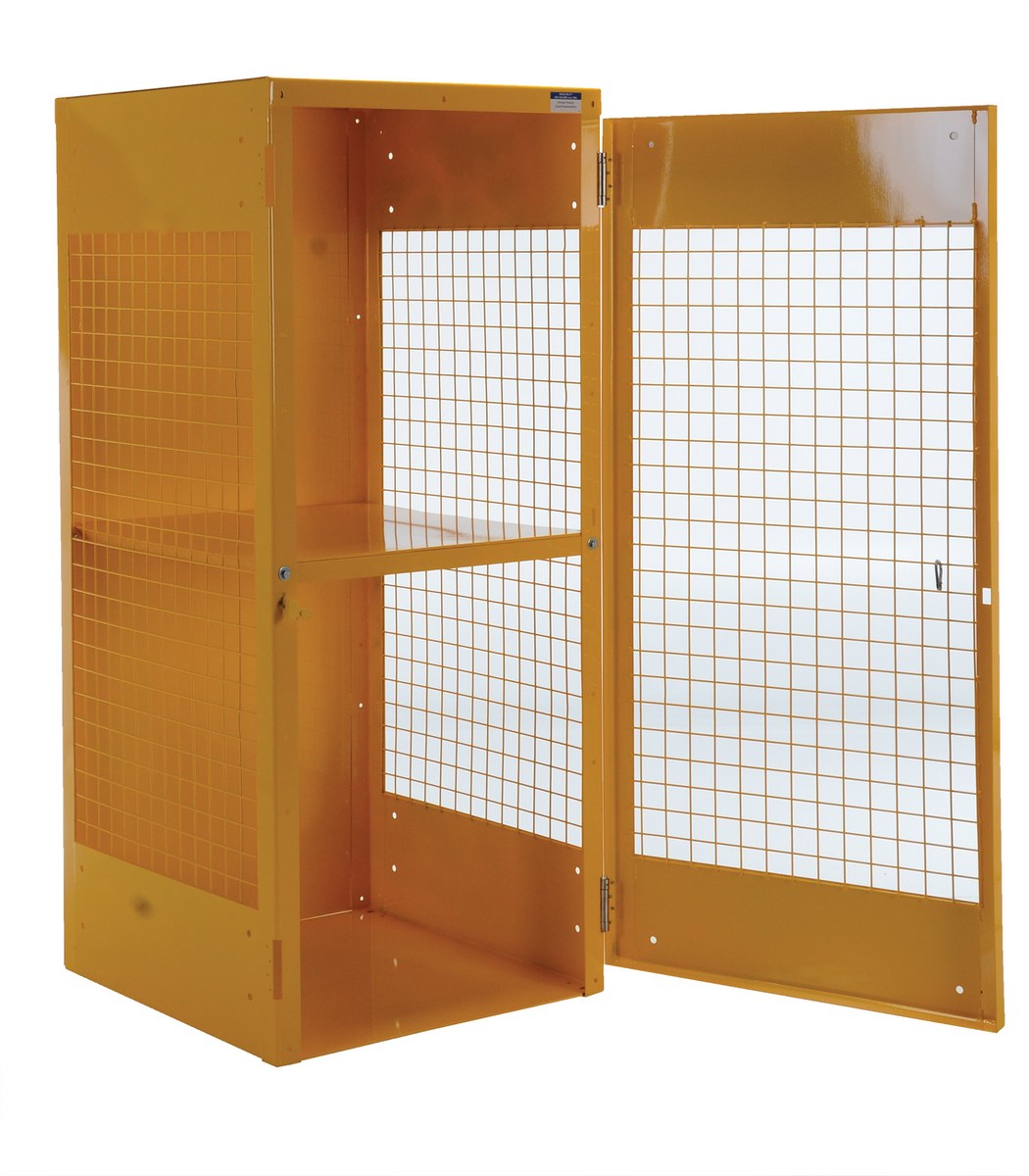

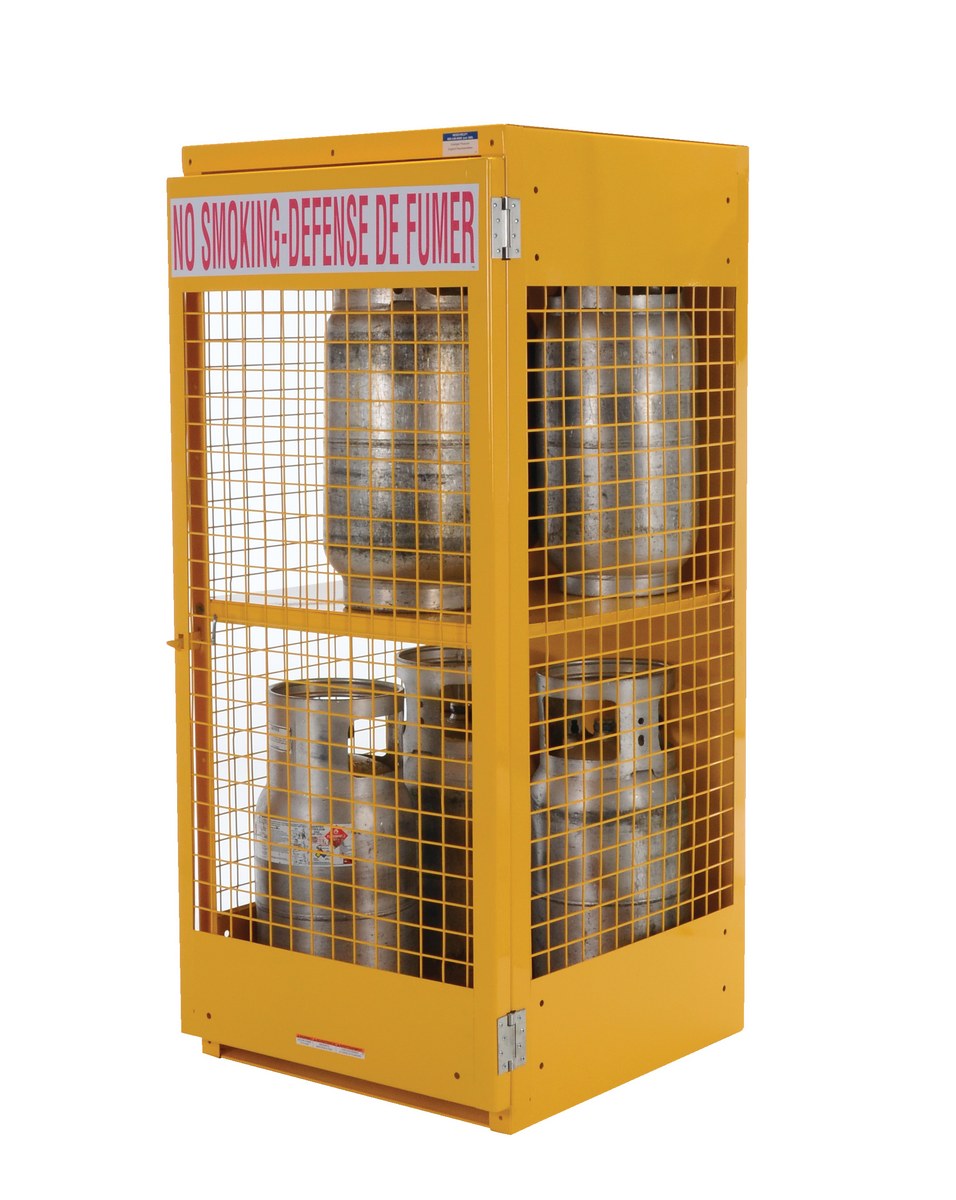

CYL-LP-8-CA

model CYL-LP-8-CA

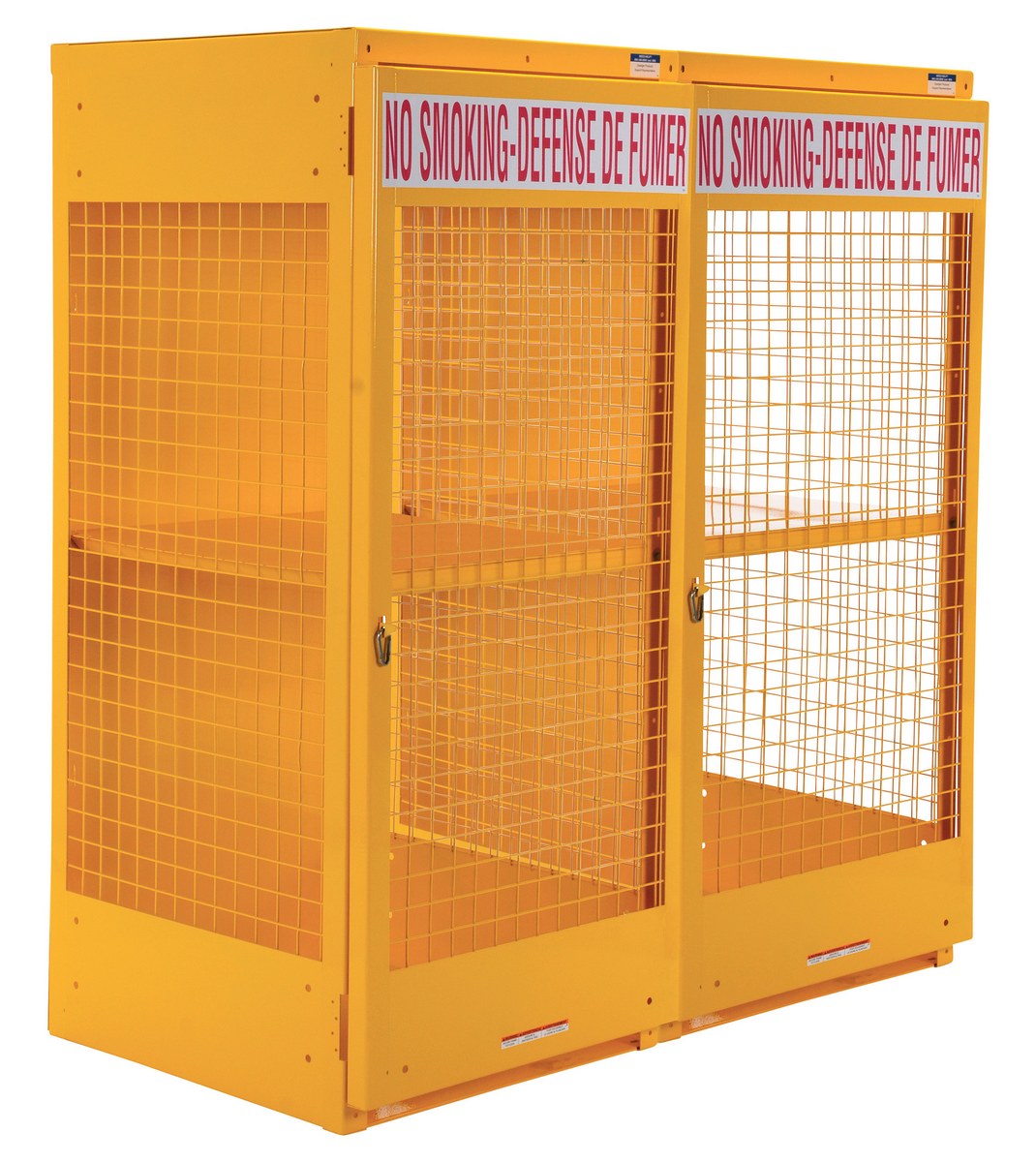

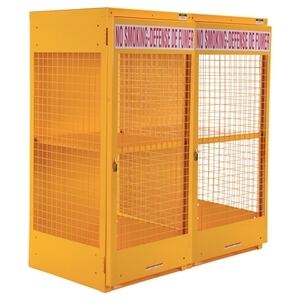

CYL-LP-16-CA

model CYL-LP-16-CA

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Cylinder Storage Cabinets (For Canada)
Model PDF Cylinder
Capacity
(lbs)
Overall Size
(WxLxH)
Number
Of
Shelves
Wt.
(lbs)
LP Cylinder Style
CYL-LP-2-CA icon_approvaldrawings.jpg 2 30"x 20"x 35-1/4" 0 177
CYL-LP-4-CA icon_approvaldrawings.jpgicon_warranty.jpg 4 30"x32"x 35-1/2" 0 255
CYL-LP-8-CA icon_approvaldrawings.jpgicon_warranty.jpg 8 30"x32"x 68-1/4" 1 284
CYL-LP-16-CA icon_approvaldrawings.jpgicon_warranty.jpg 16 60"x32"x 68-1/4" 2 501
 Other Gas Cylinder Style
CYL-G-8-CA icon_approvaldrawings.jpgicon_warranty.jpg 8 30"x 32"x 68-1/4" 0 231

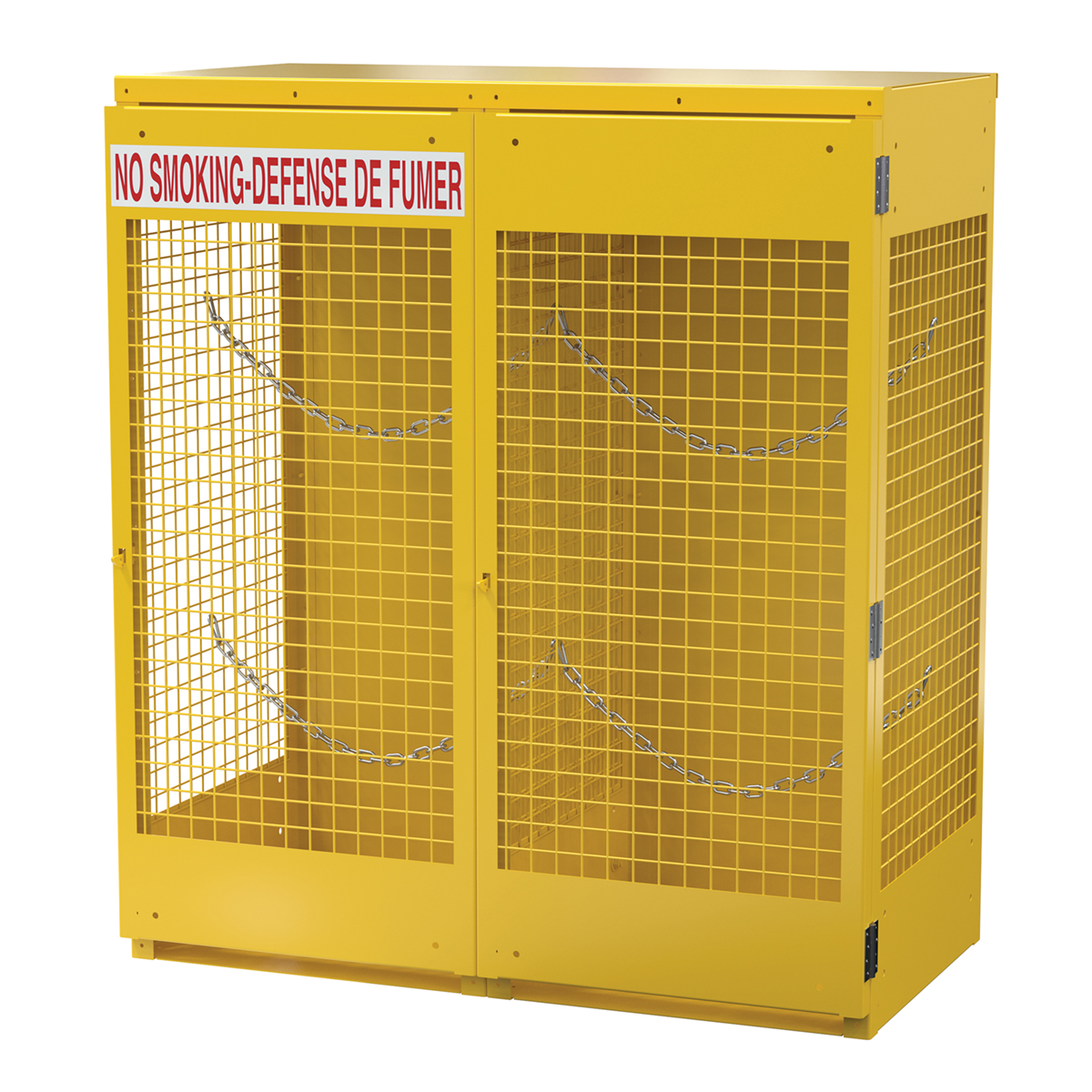

CYL-G-12-CA icon_approvaldrawings.jpgicon_warranty.jpg 12 60"x32"x 68-1/4" 0 432
