Click Image to Enlarge

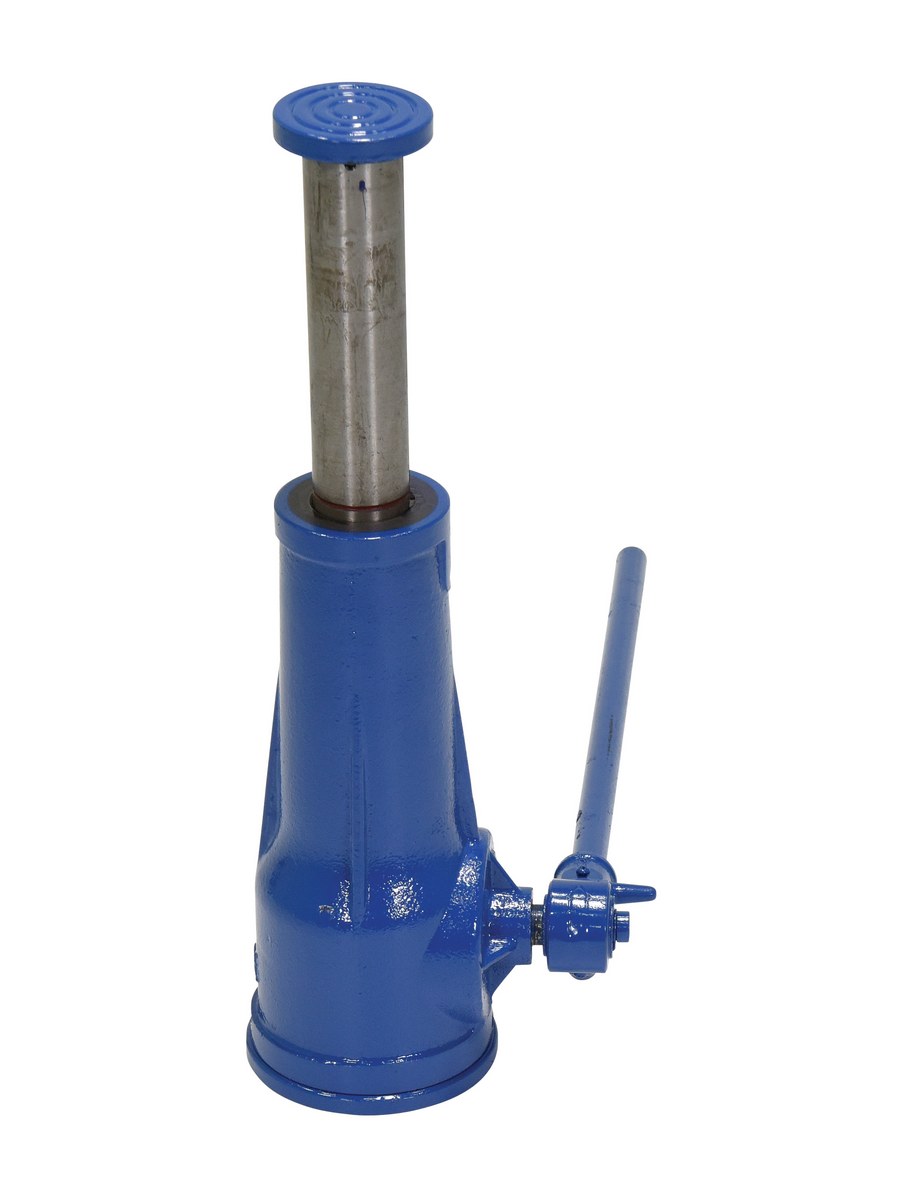

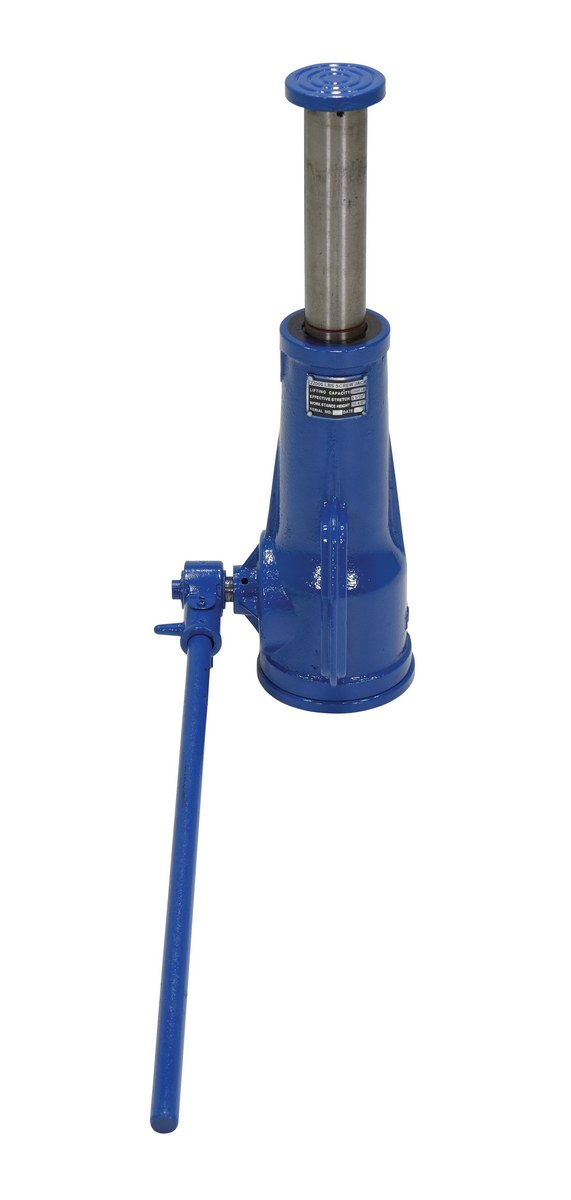

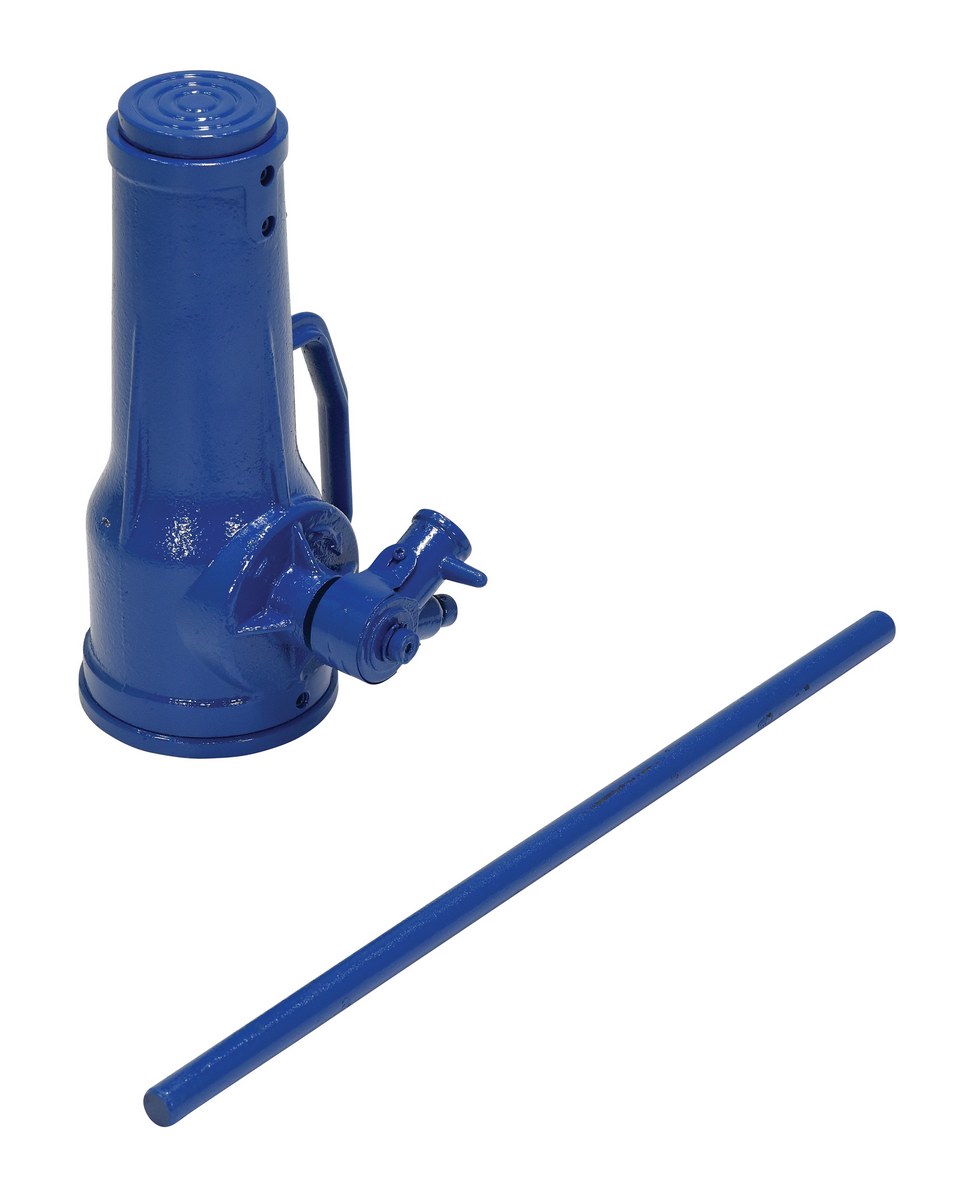

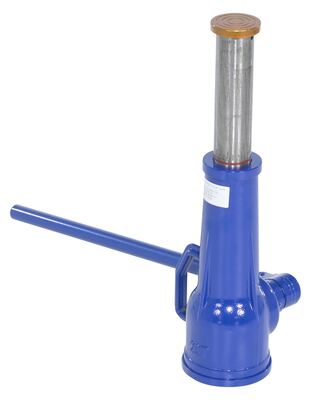

model: MSJ-10


Mechanical Screw Jacks
SERIES: MSJ

Acme thread post supports load. No seals to leak. Will not drift down even after an extended period of time.

Acme thread post supports load. No seals to leak. Will not drift down even after an extended period of time.

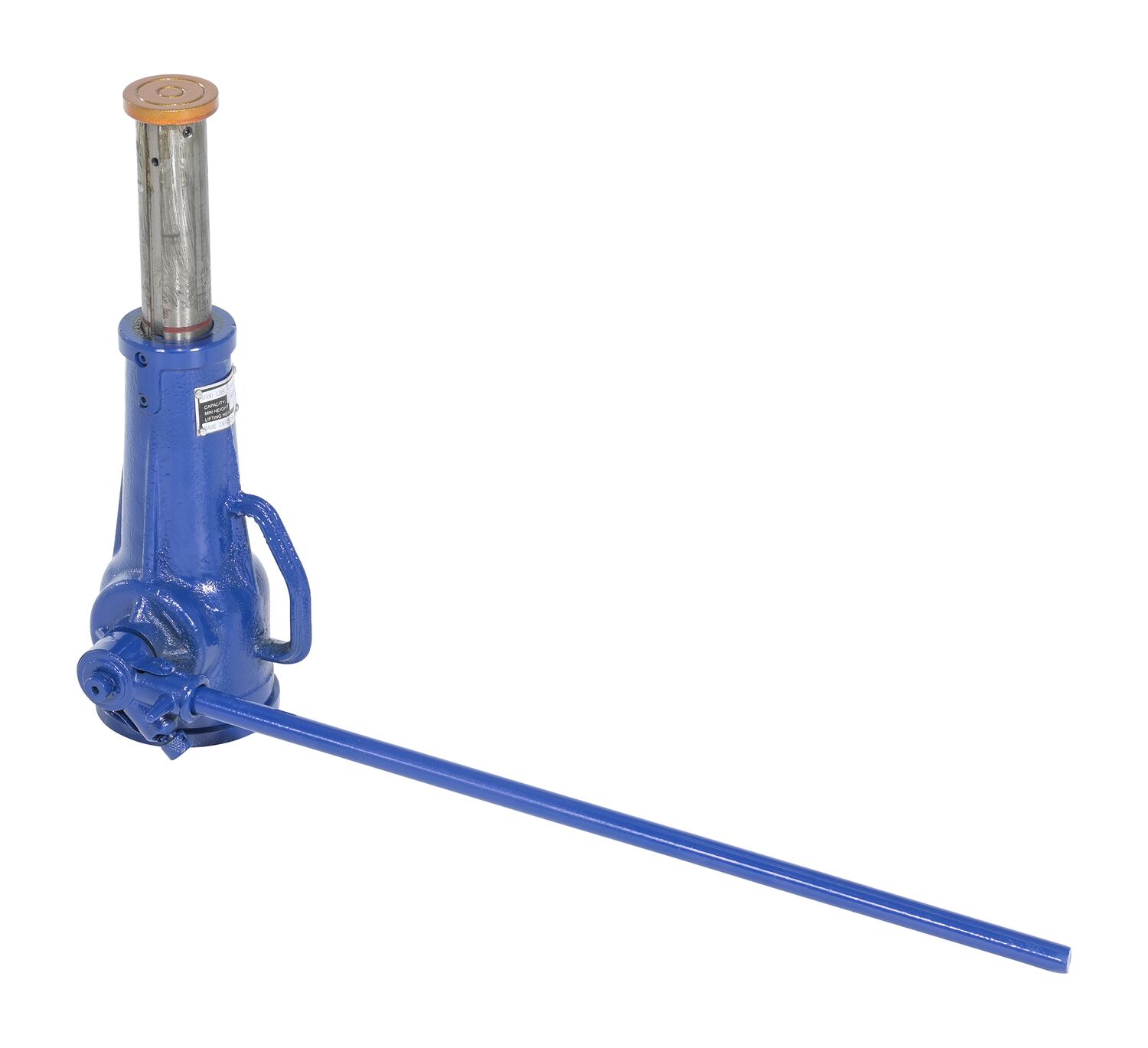

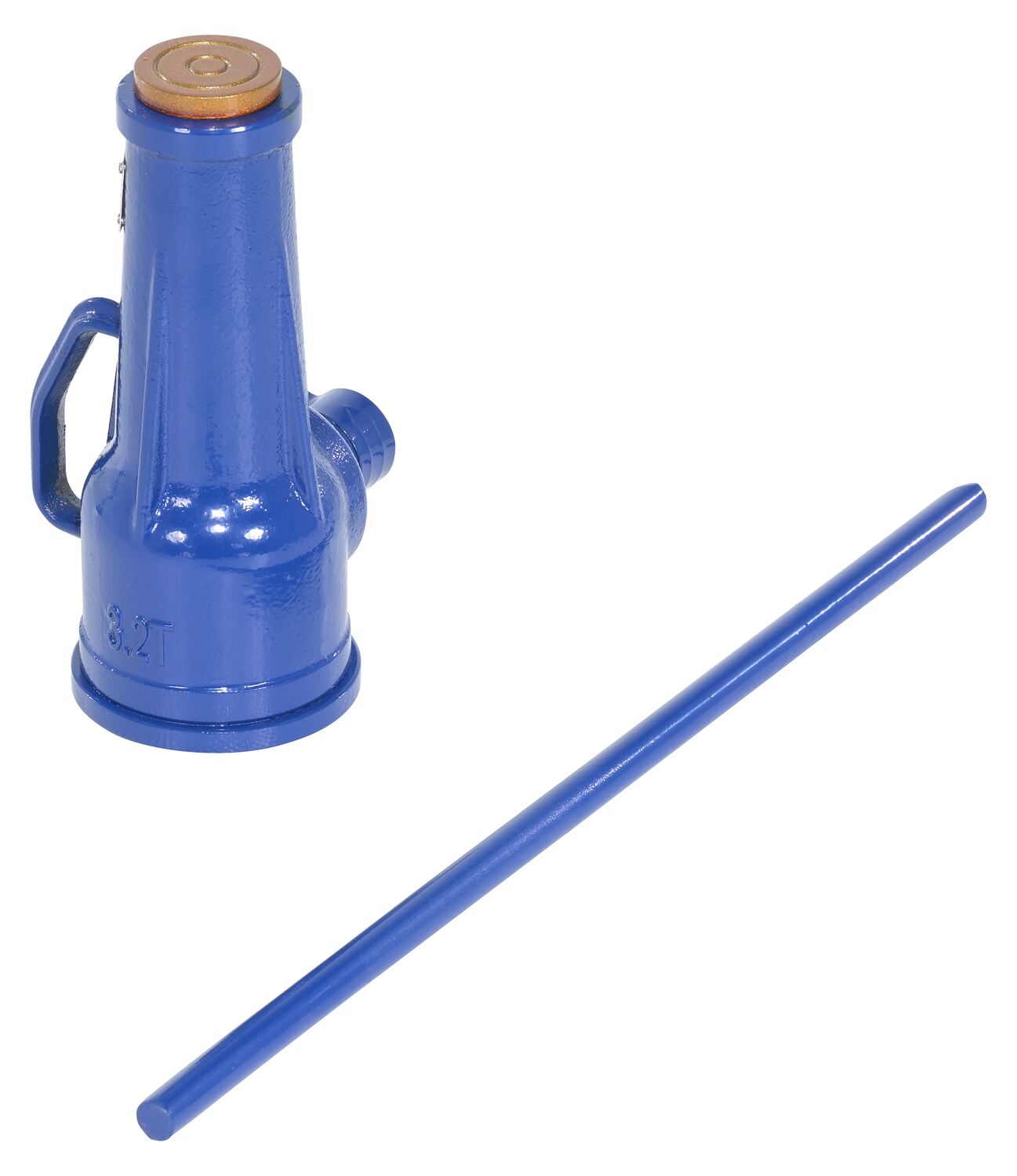

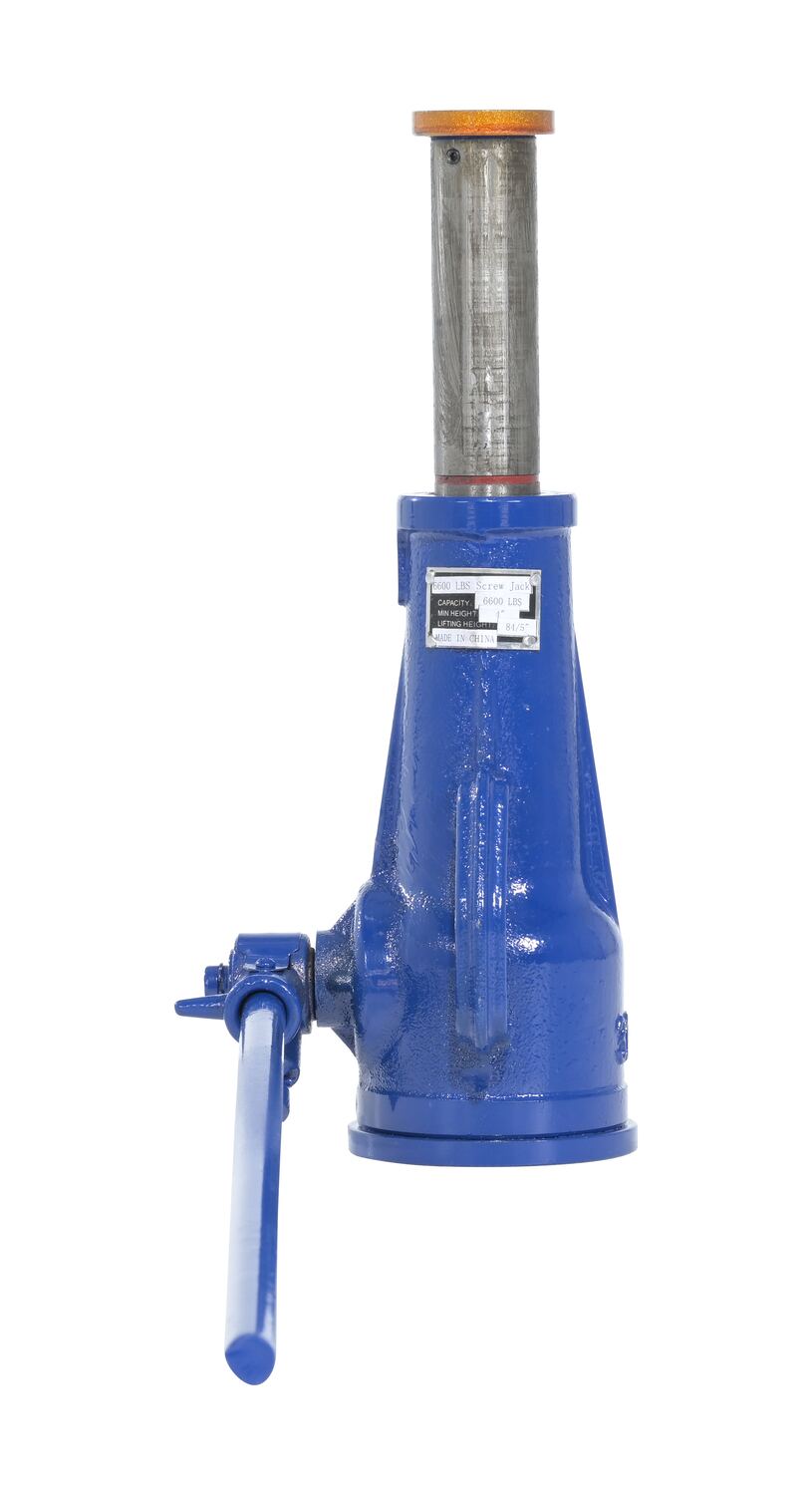

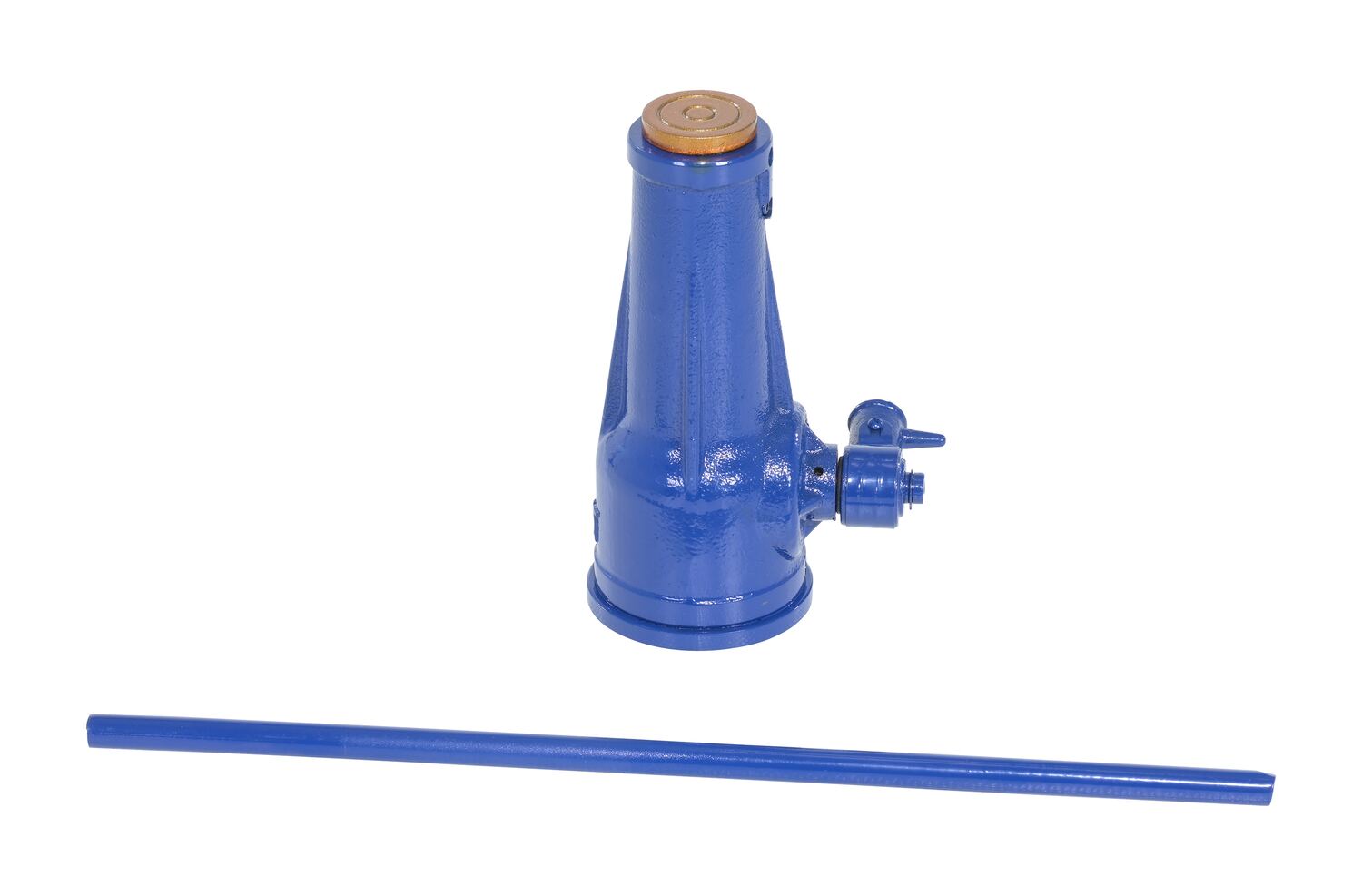

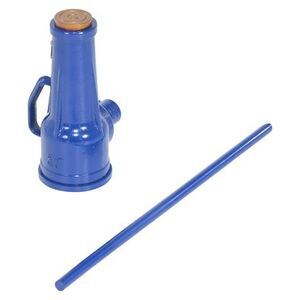

MSJ-3

model MSJ-3

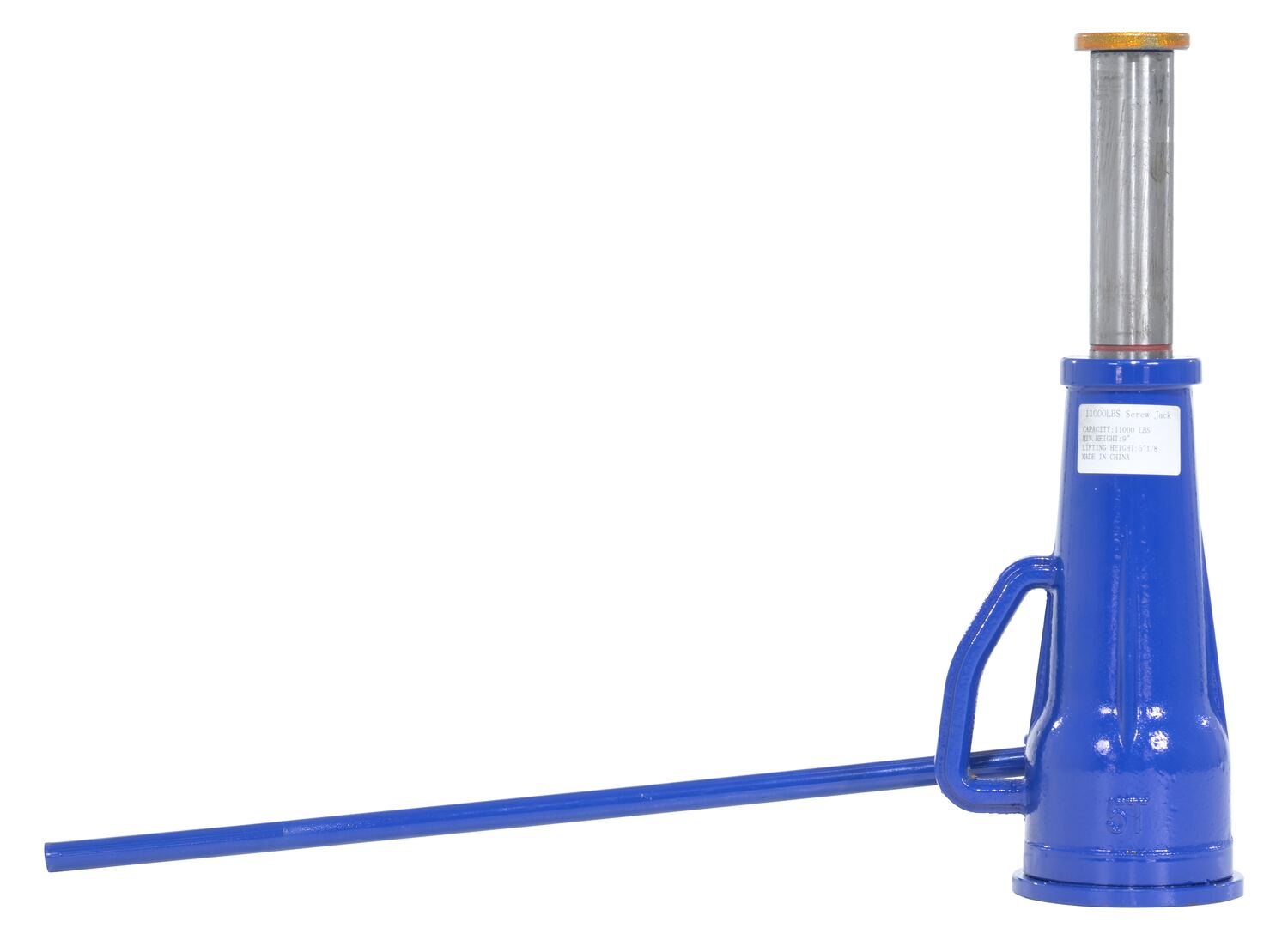

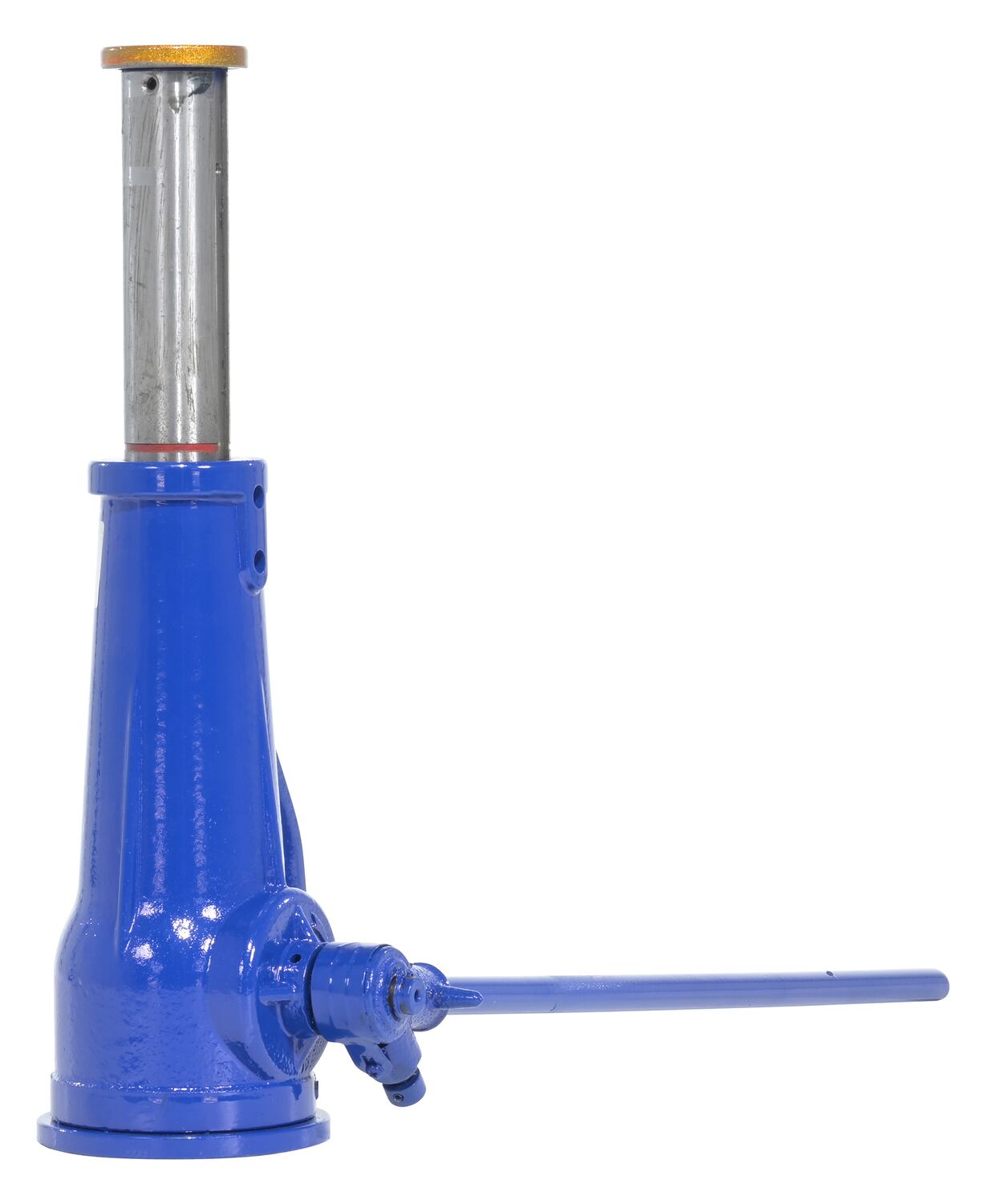

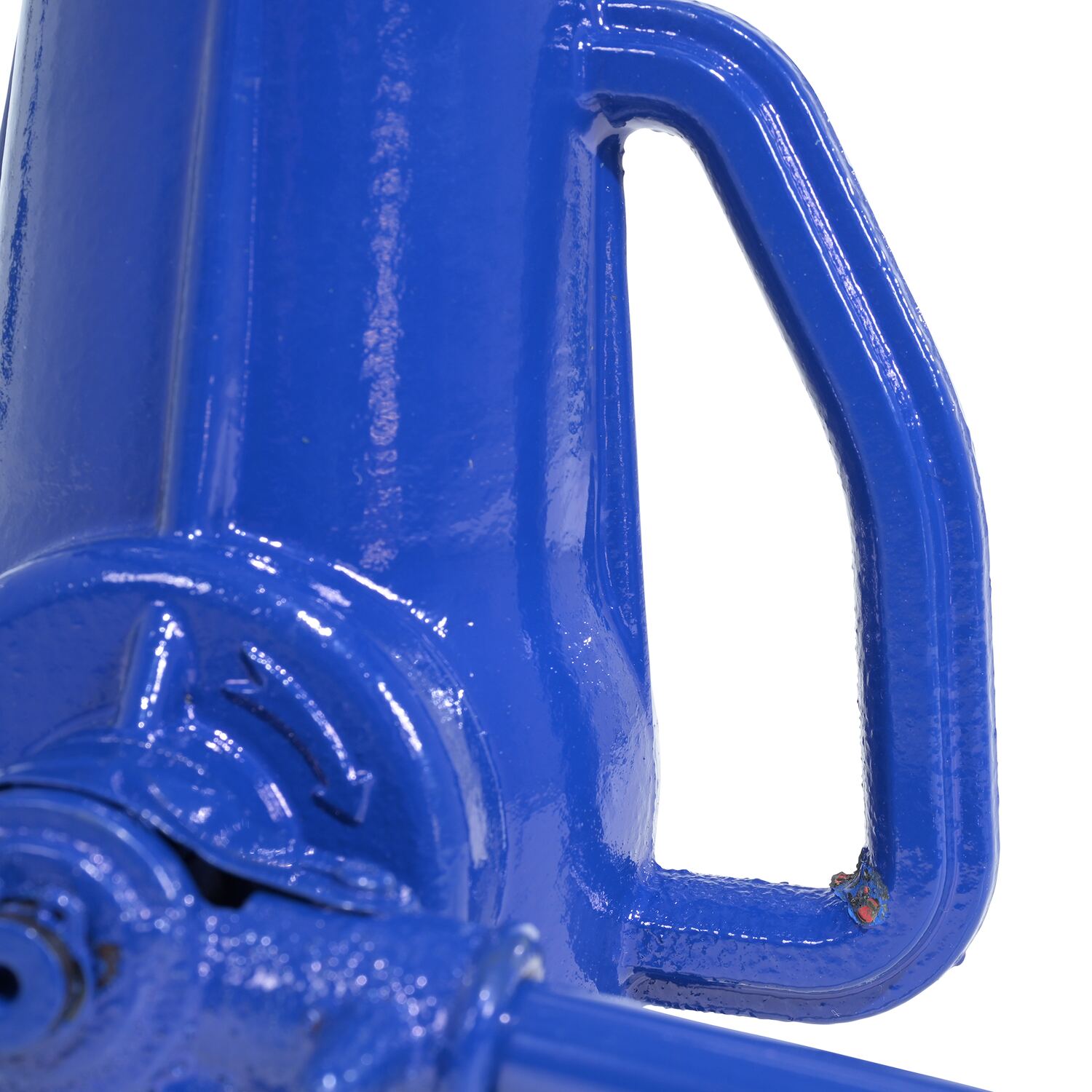

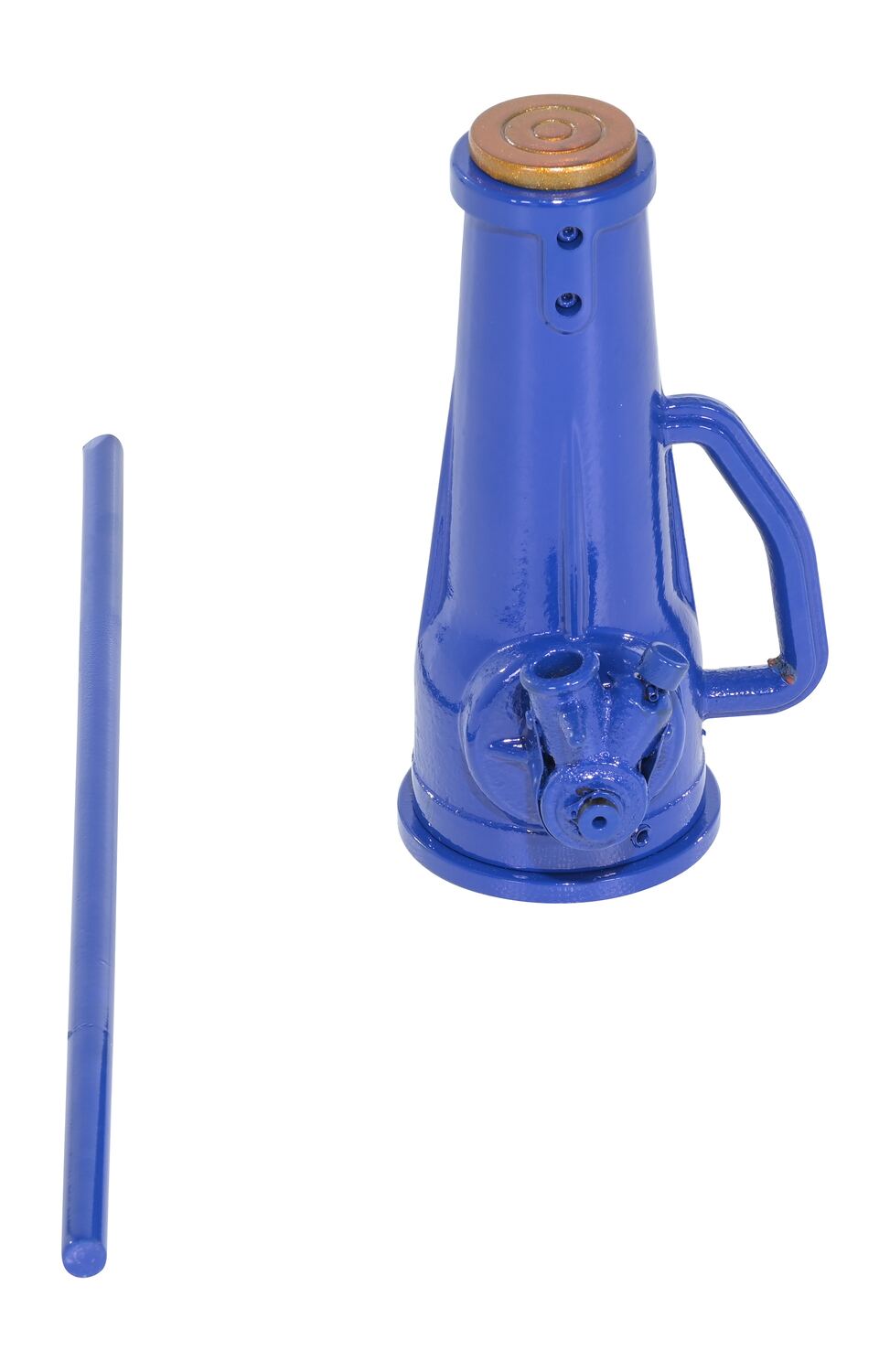

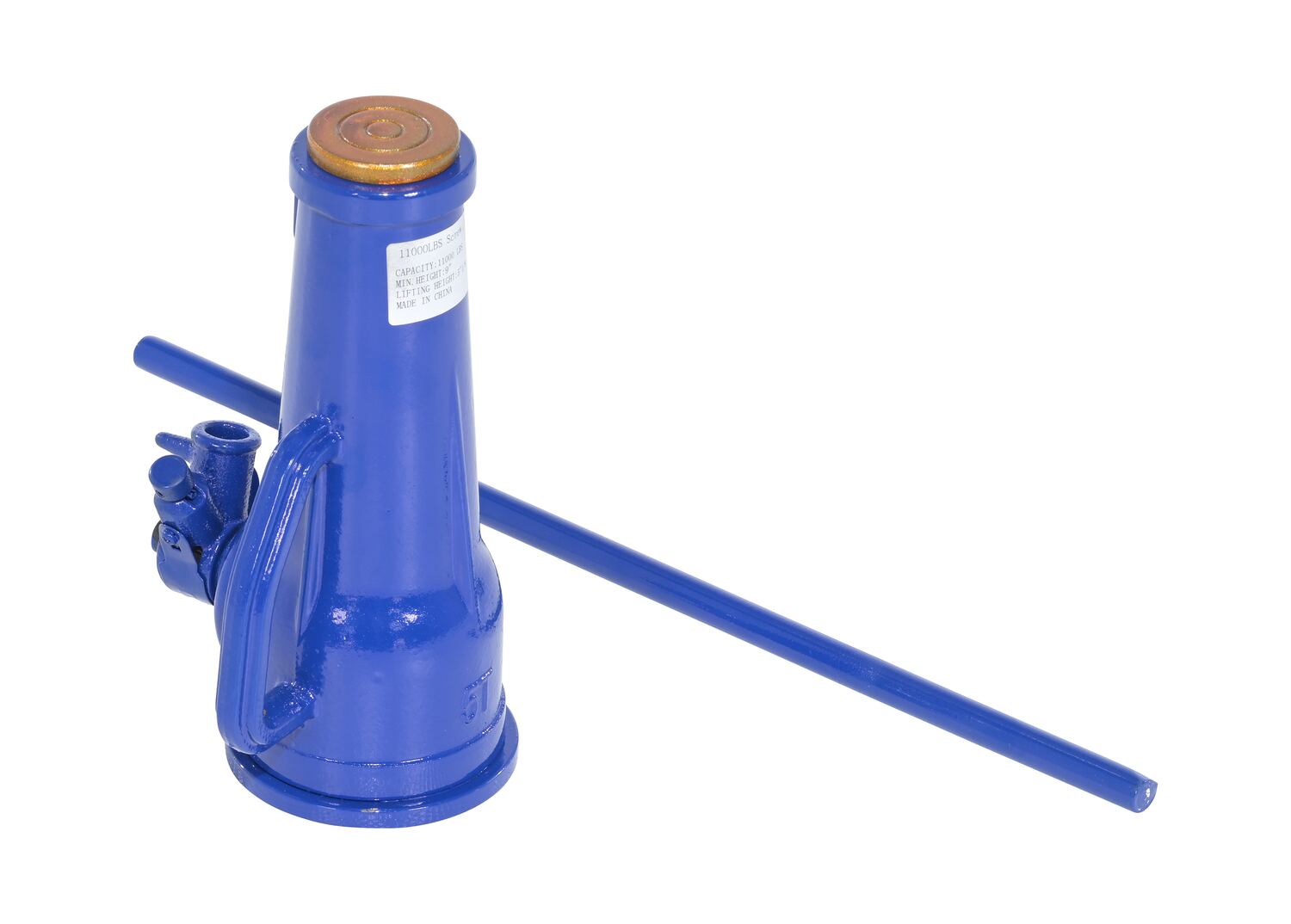

MSJ-5

model MSJ-5

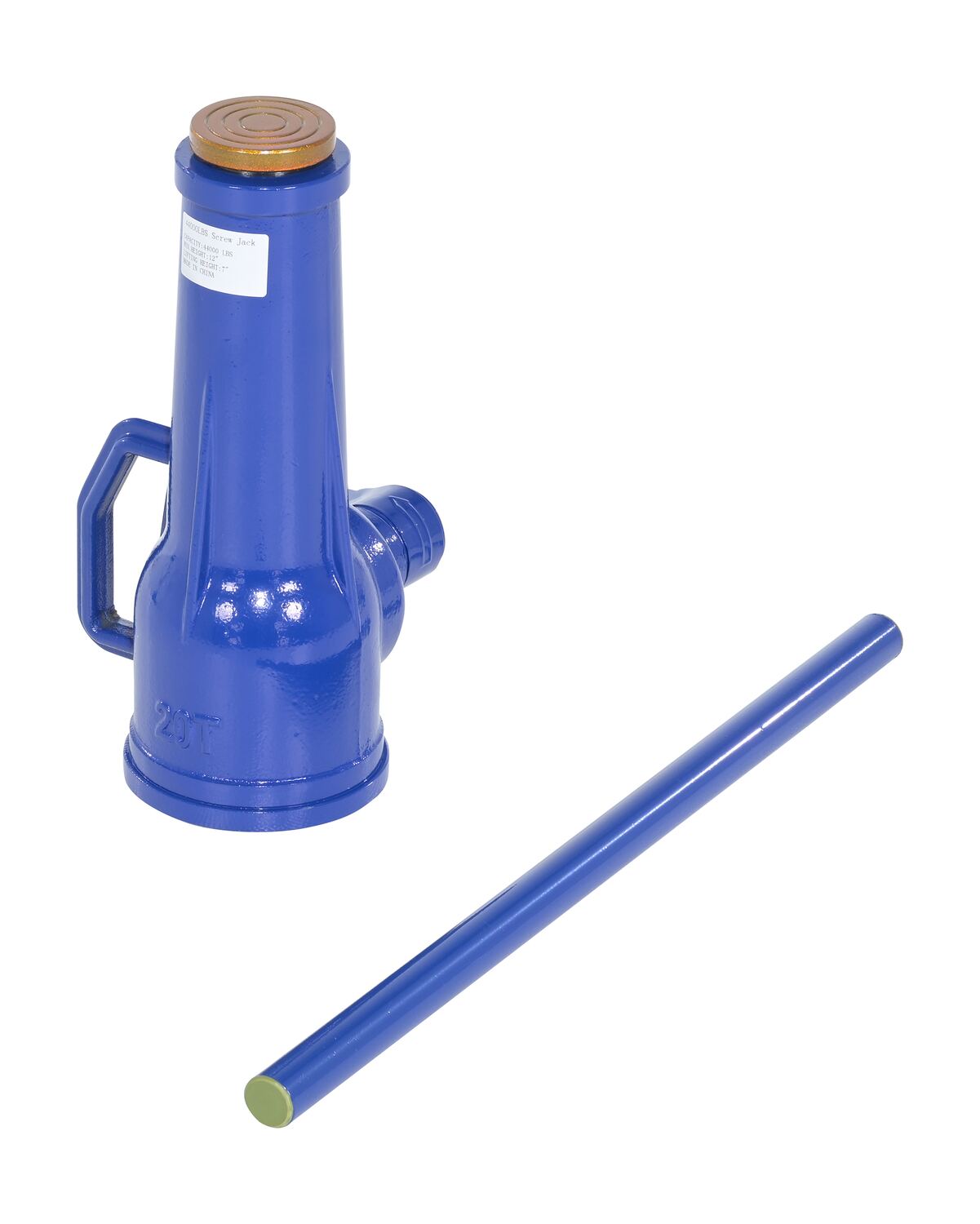

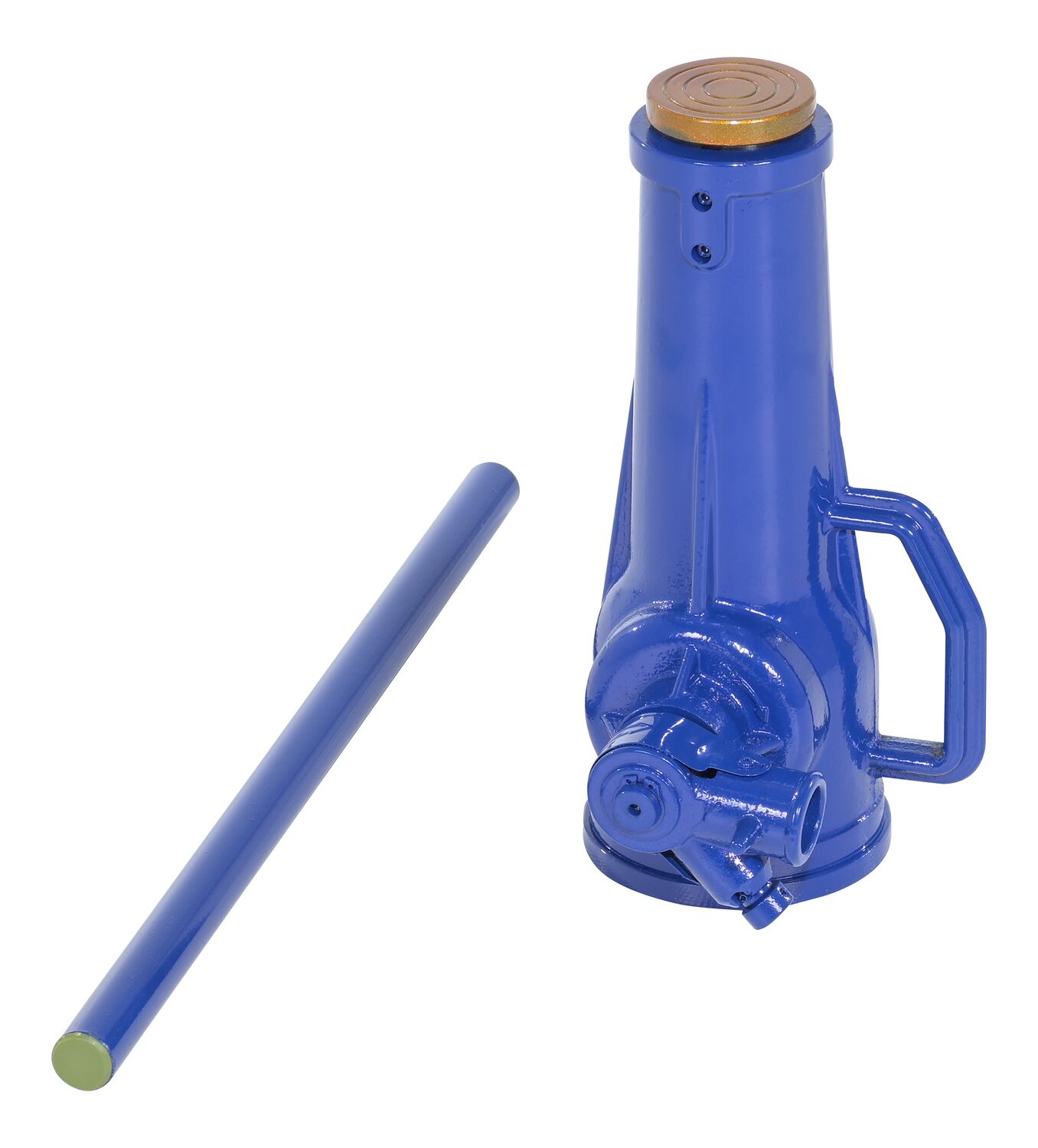

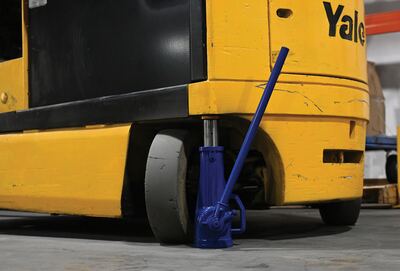

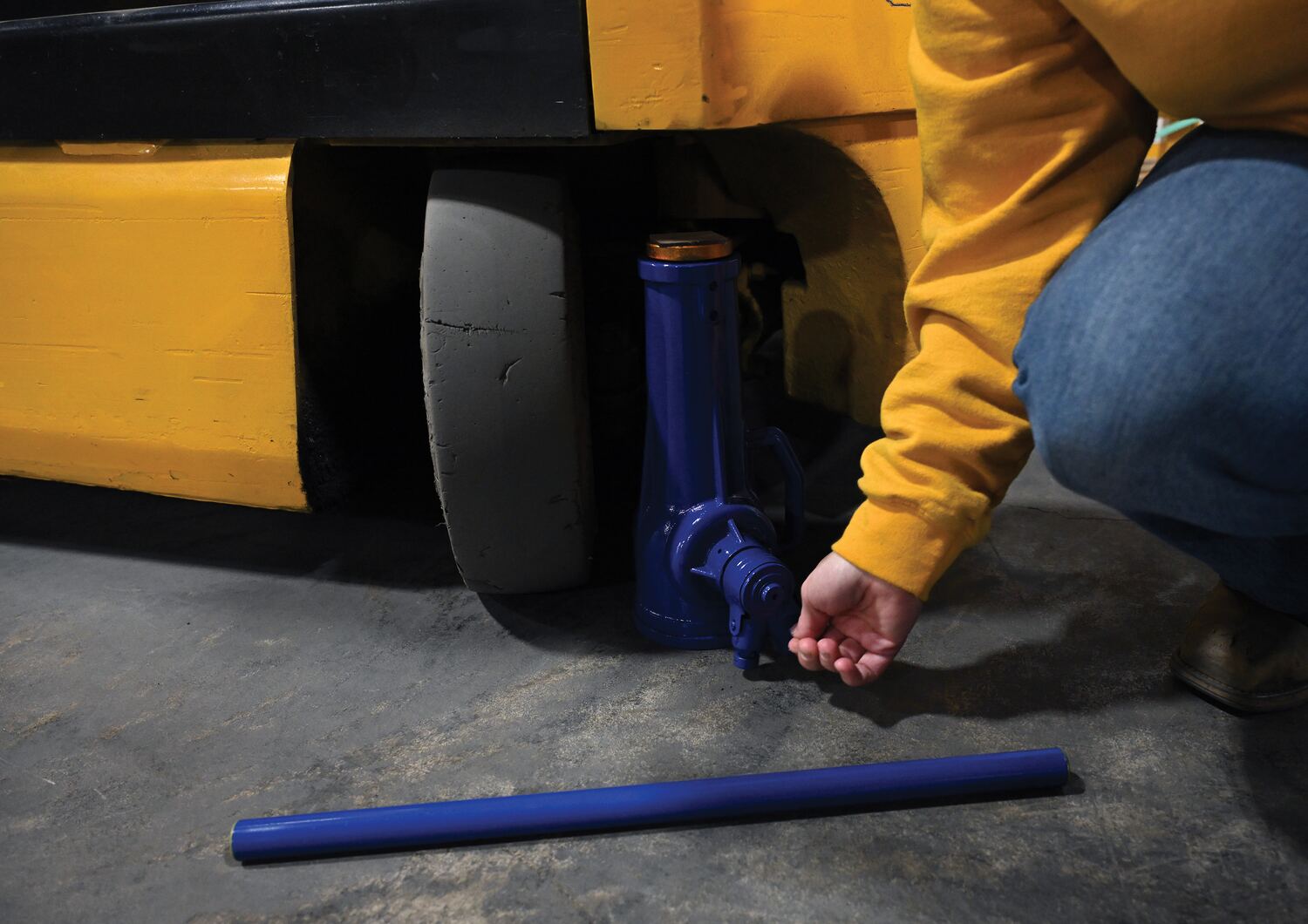

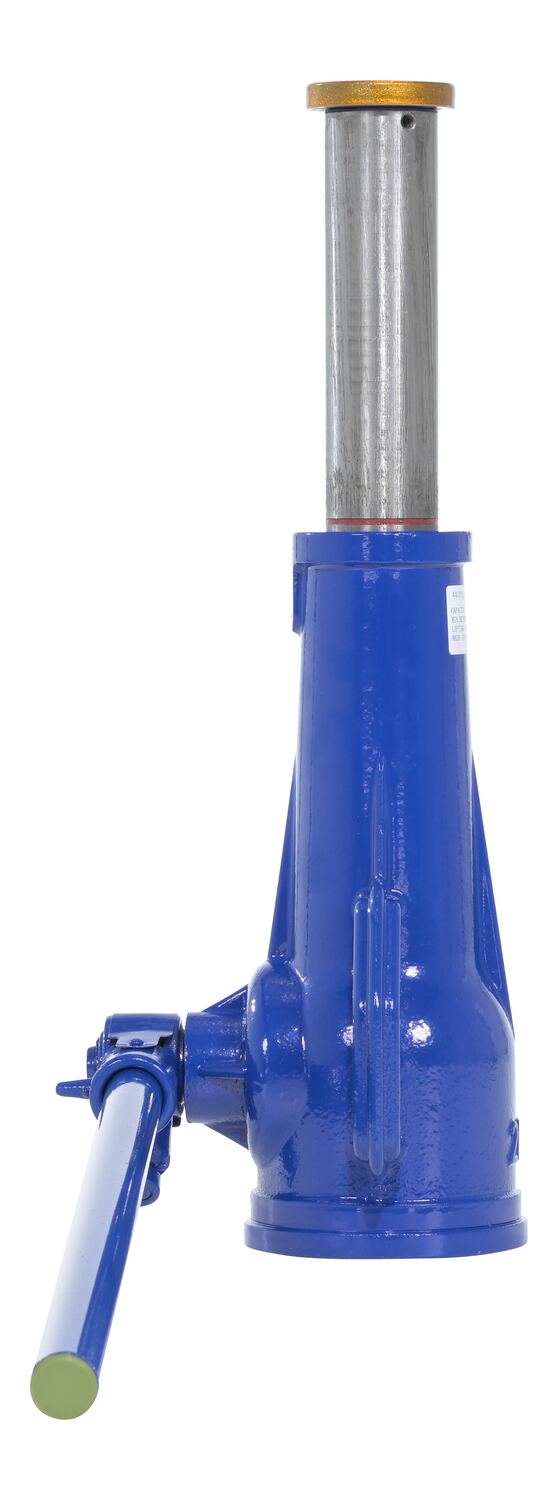

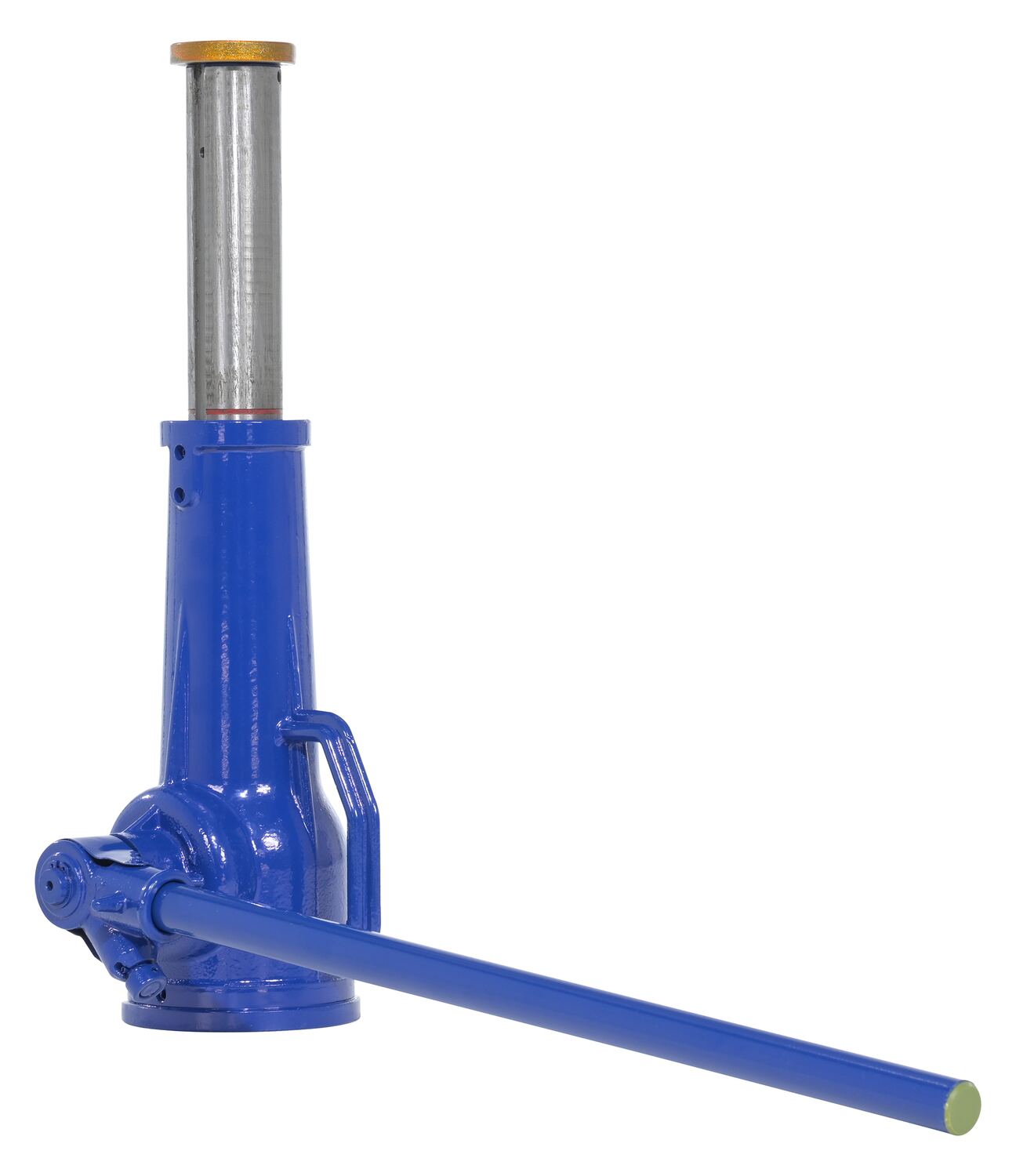

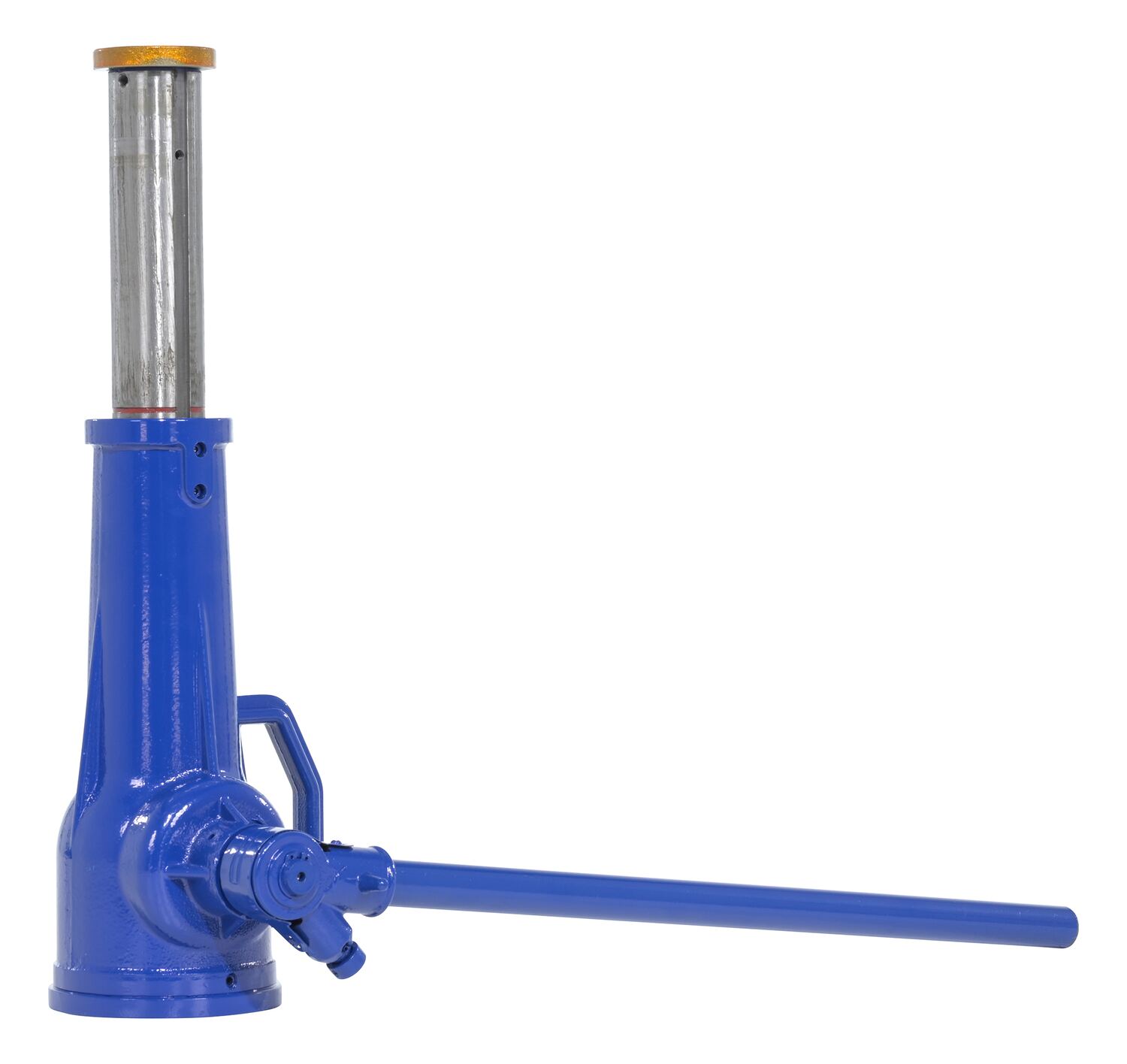

MSJ-20

model MSJ-20




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
MSJ-3 30 Days Limited WarrantyMECHANICAL SCREW JACK 6000 LB CAPACITYUniform Capacity (lb.): 6000
Lowered Height (in.): 8-3/4
12
MSJ-5 30 Days Limited WarrantyMECHANICAL SCREW JACK 10000 LB CAPACITYUniform Capacity (lb.): 10000
Lowered Height (in.): 9-3/4
18
MSJ-10 30 Days Limited WarrantyMECHANICAL SCREW JACK 20000 LB CAPACITYUniform Capacity (lb.): 20000
Lowered Height (in.): 11
20
MSJ-20 30 Days Limited WarrantyMECHANICAL SCREW JACK 40000 LB CAPACITYUniform Capacity (lb.): 40000
Lowered Height (in.): 12-3/4
28

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty




Mechanical Screw Jacks PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products





We are hoping to continue adding new product pictures to each gallery. Check back soon.


Q: What is the diameter of the base and the top pad?

A: The diameter of the base is 4-5/16". The diameter of the top pad is 2-3/8".


Q: What is the diameter of the base and the top pad?

A: The diameter of the base is 4-7/8". The diameter of the top pad is 2-11/16".


Q: What is the diameter of the base and the top pad?

A: The diameter of the base is 3-11/16". The diameter of the top pad is 1-7/8".


Q: What is the diameter of the base and the top pad?

A: The diameter of the base is 4-1/8". The diameter of the top pad is 2".






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Mechanical Screw Jacks




Acme thread post supports load. No seals to leak. Will not drift down even after an extended period of time.


Mechanical Screw Jacks
Model Image PDFs Capacity
(Tons)
Lowered
Height
Raised
Height
Travel
(inches)
Wt. (lbs)
MSJ-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3 8-3/4" 13" 4-1/4" 12
MSJ-5 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5 9-3/4" 14-3/4" 5-1/4" 18
MSJ-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 10 11" 16-13/16" 6" 24
MSJ-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20 12-3/4" 19-13/16" 7-1/4" 32
