model: DH-PH4-2436-D


SERIES: DH

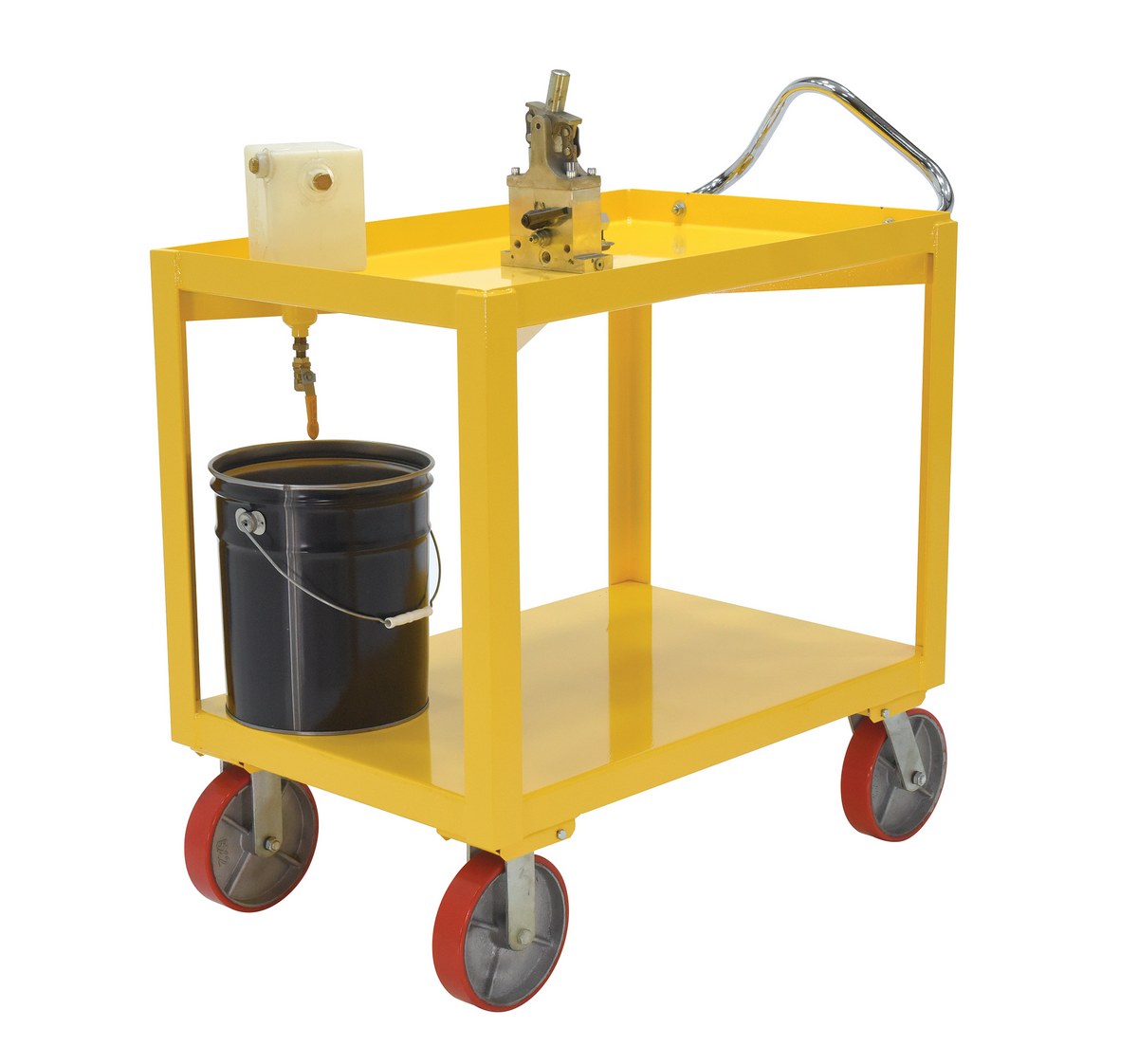

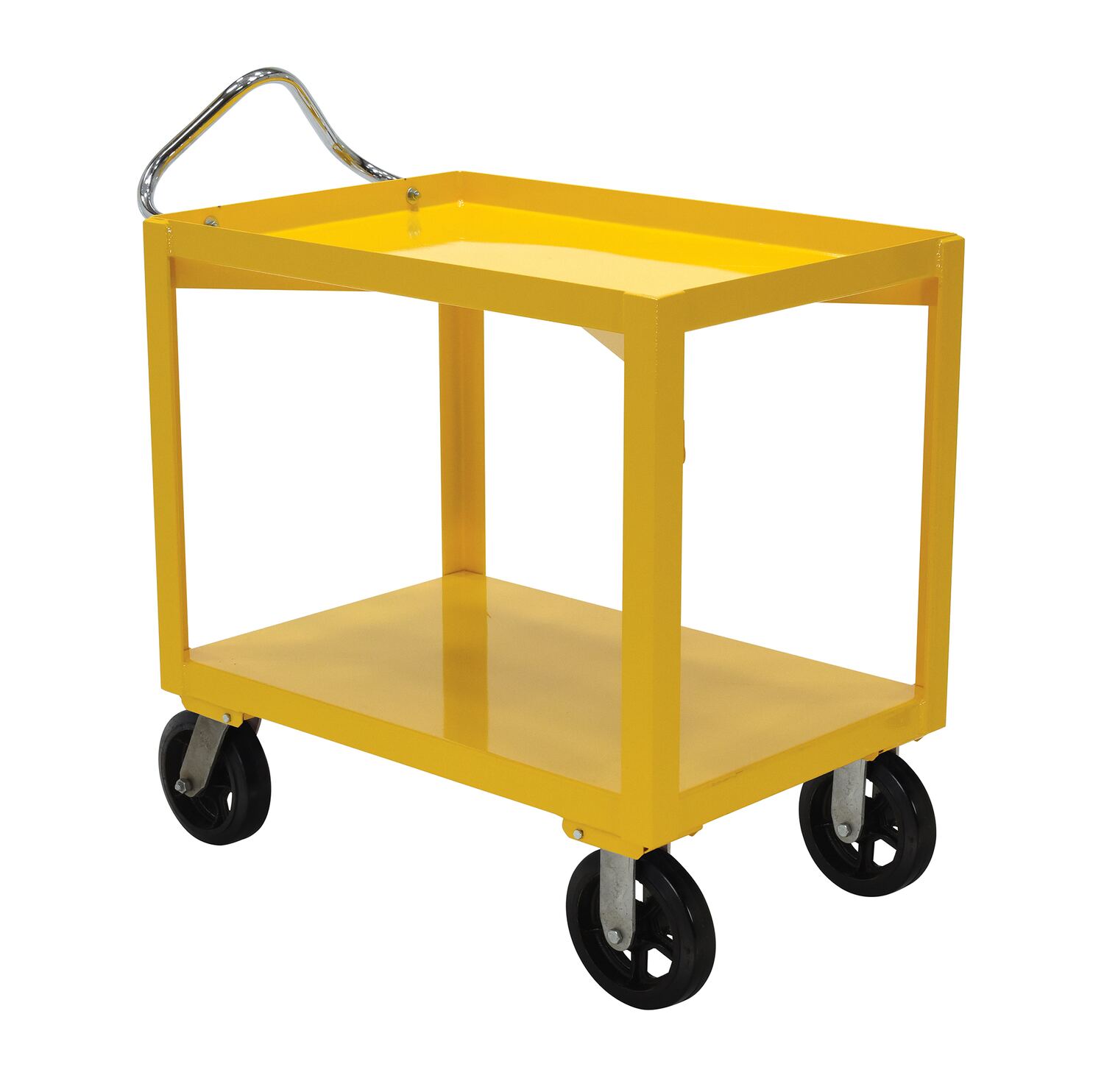

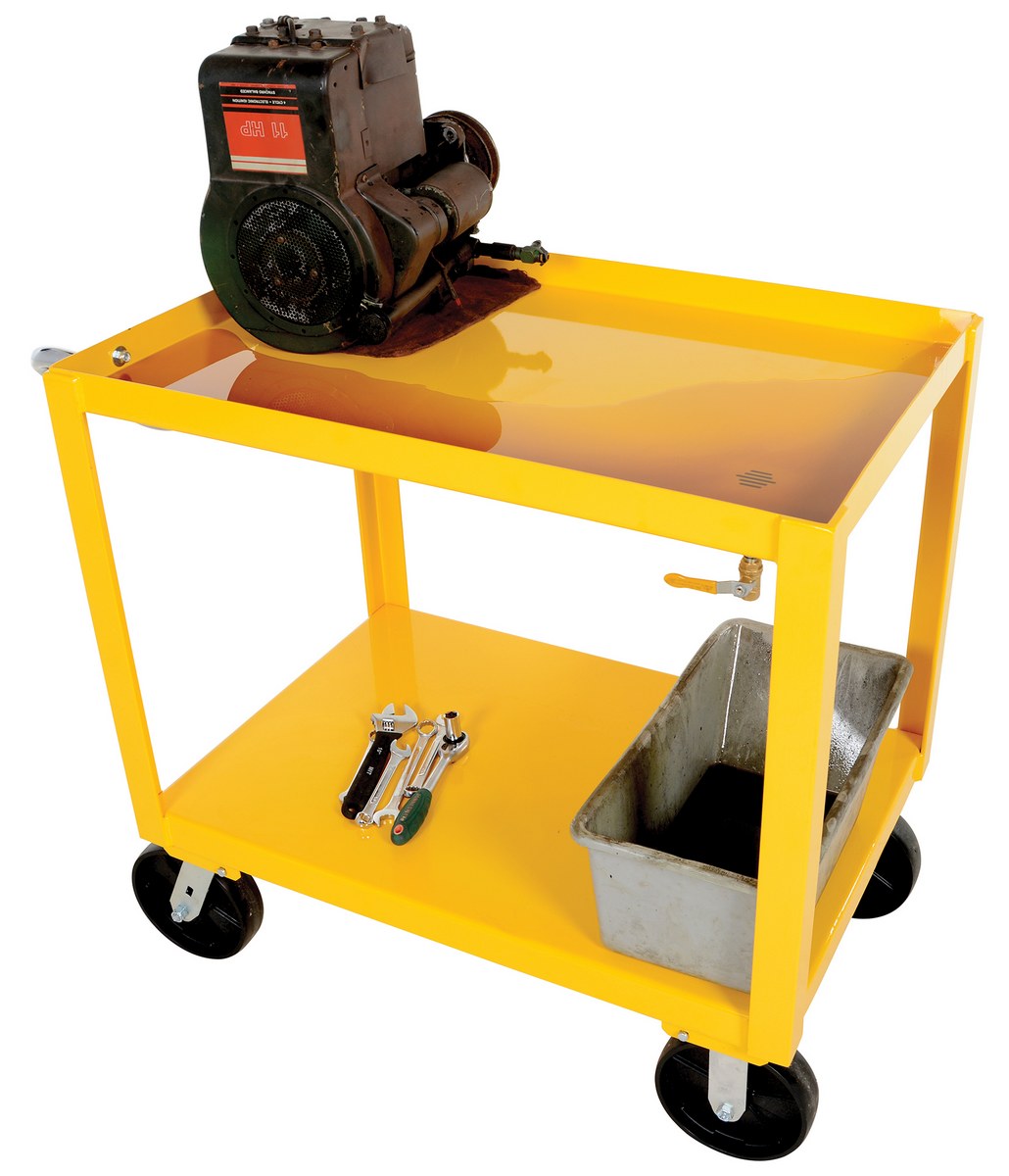

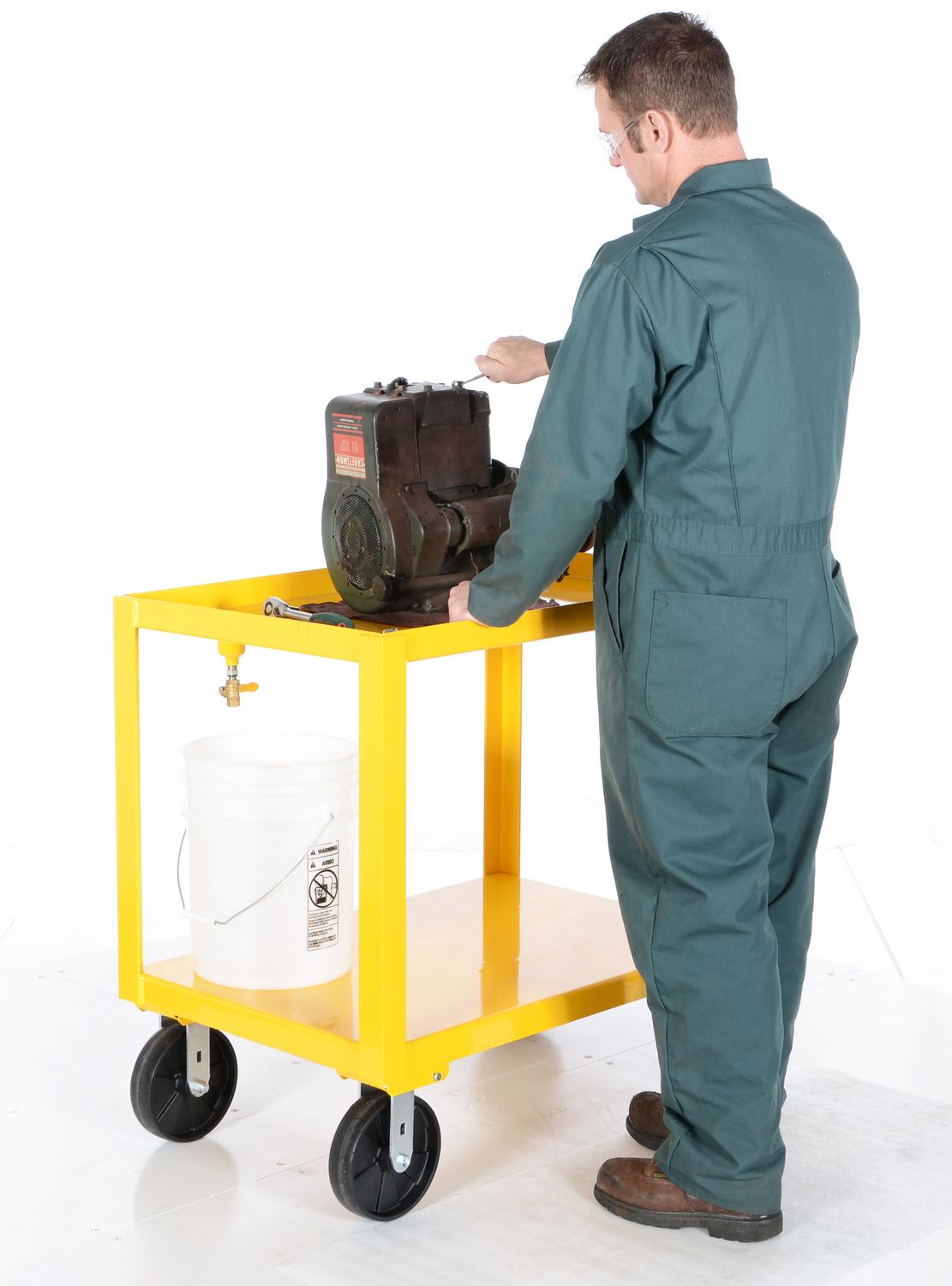

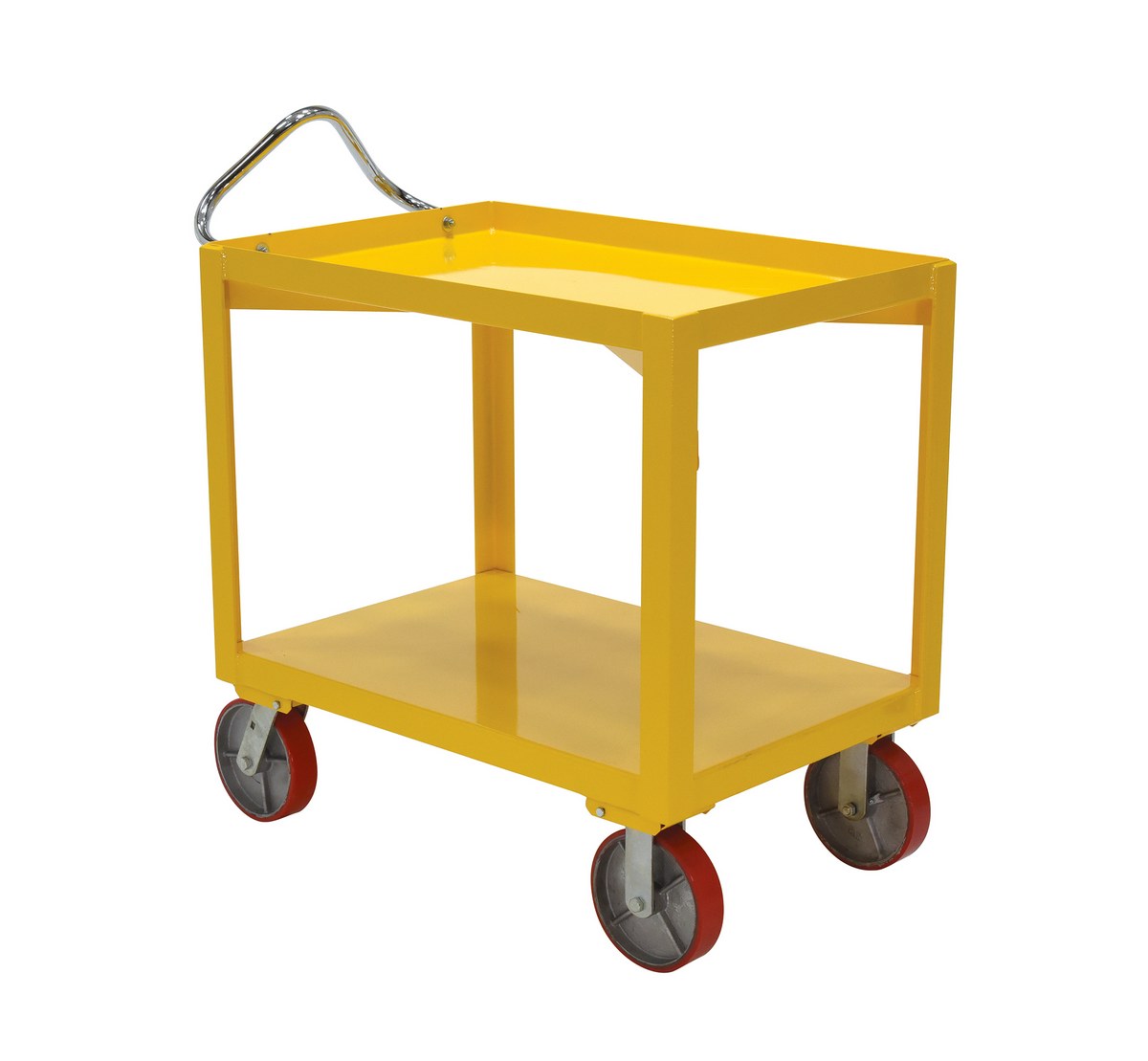

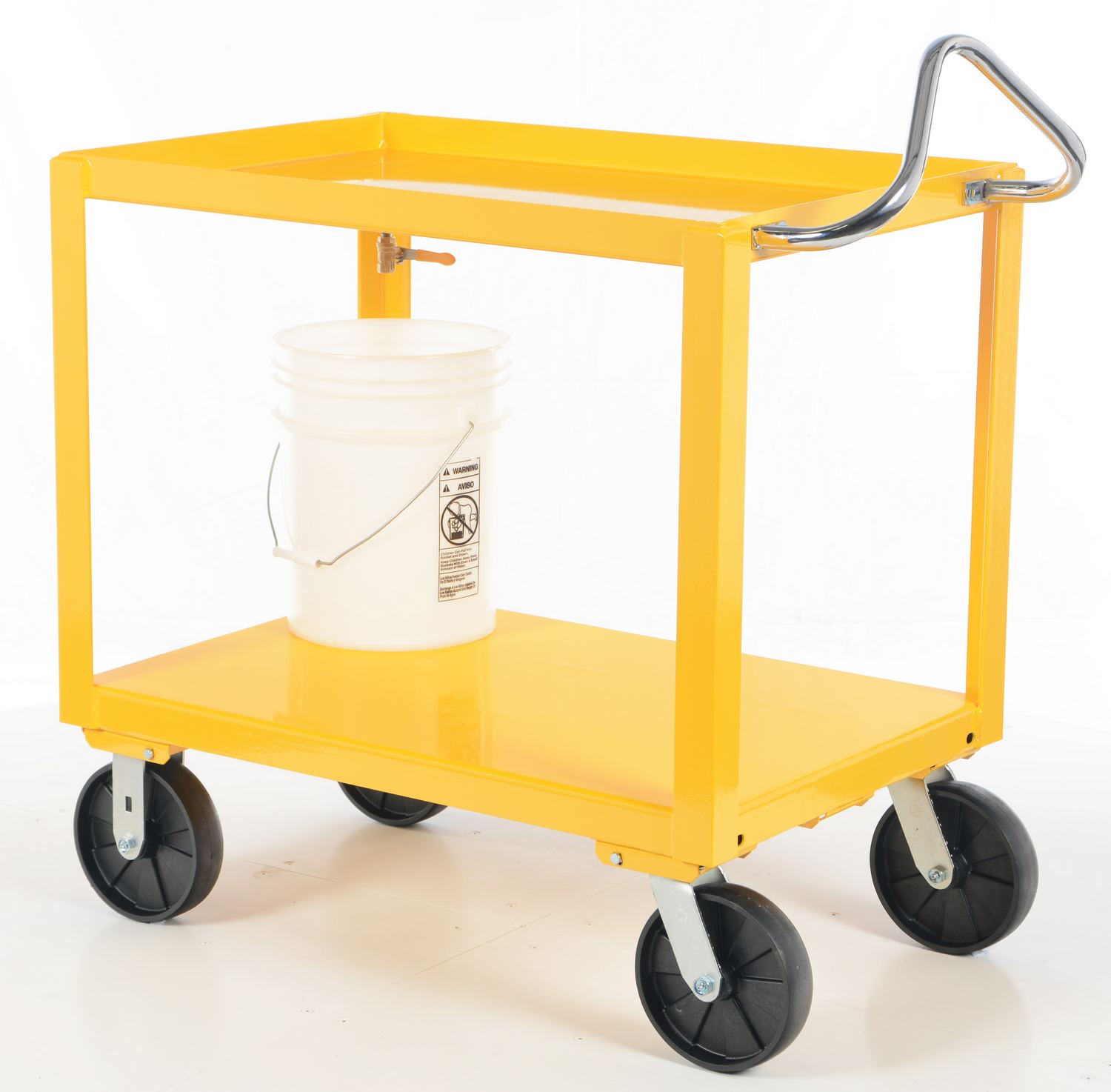

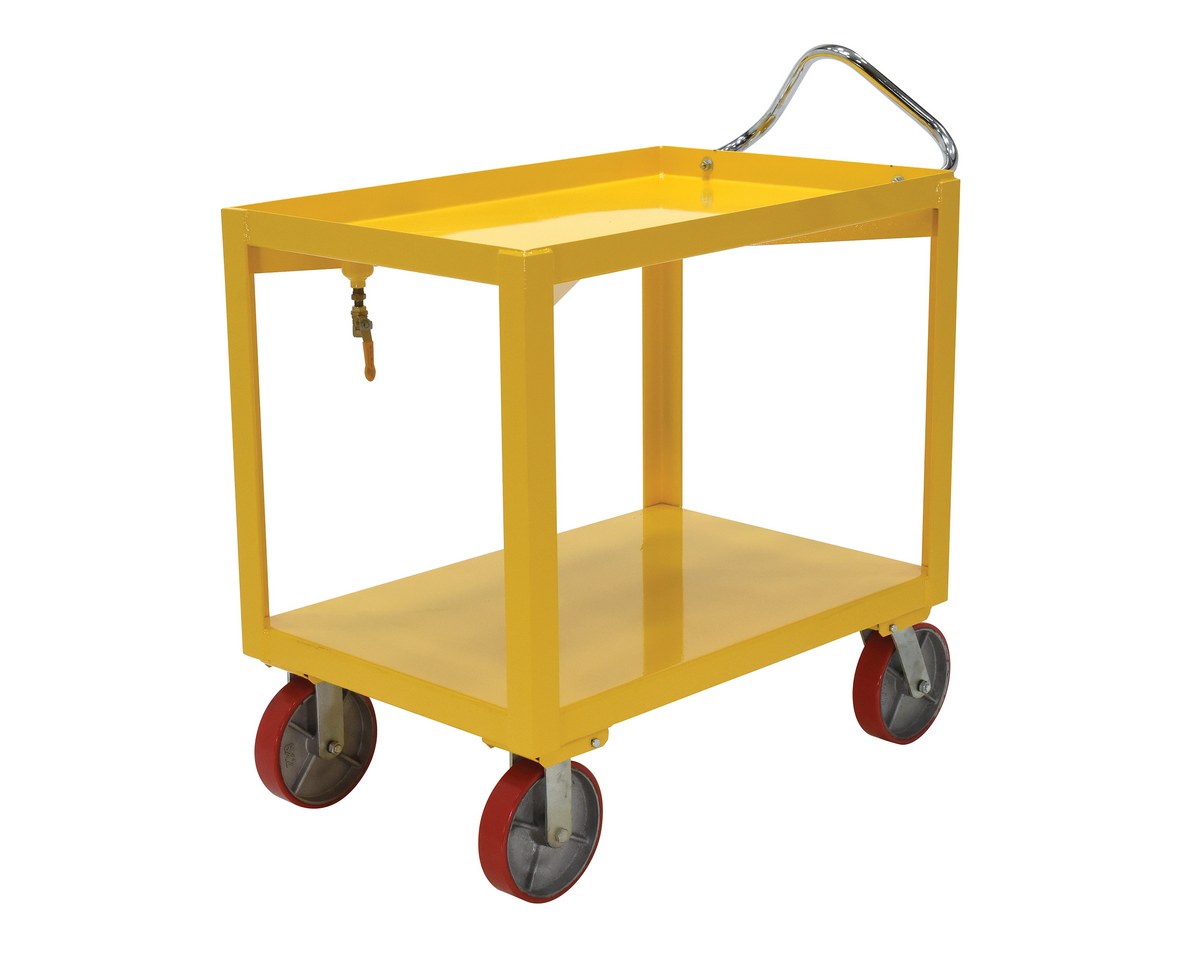

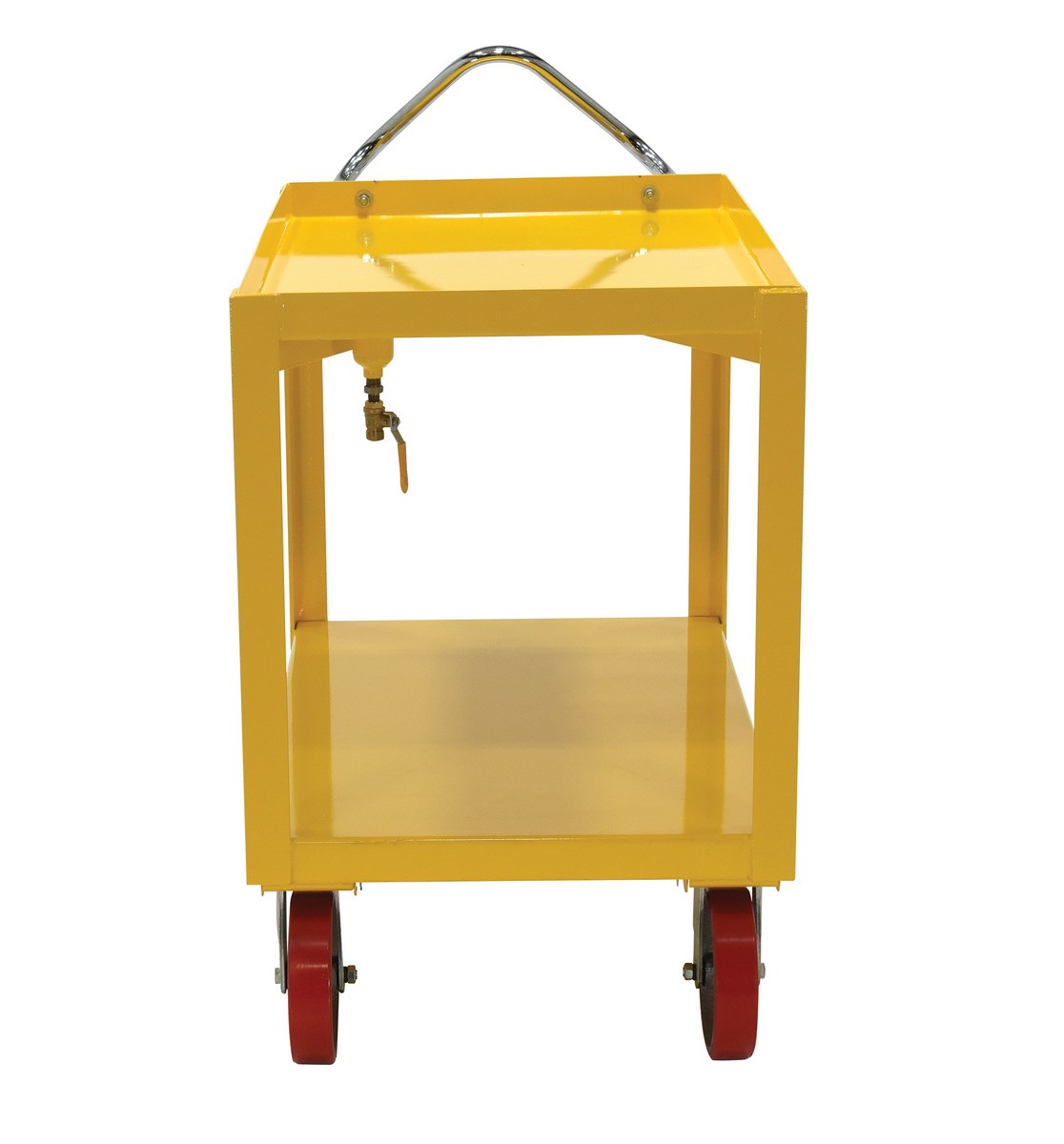

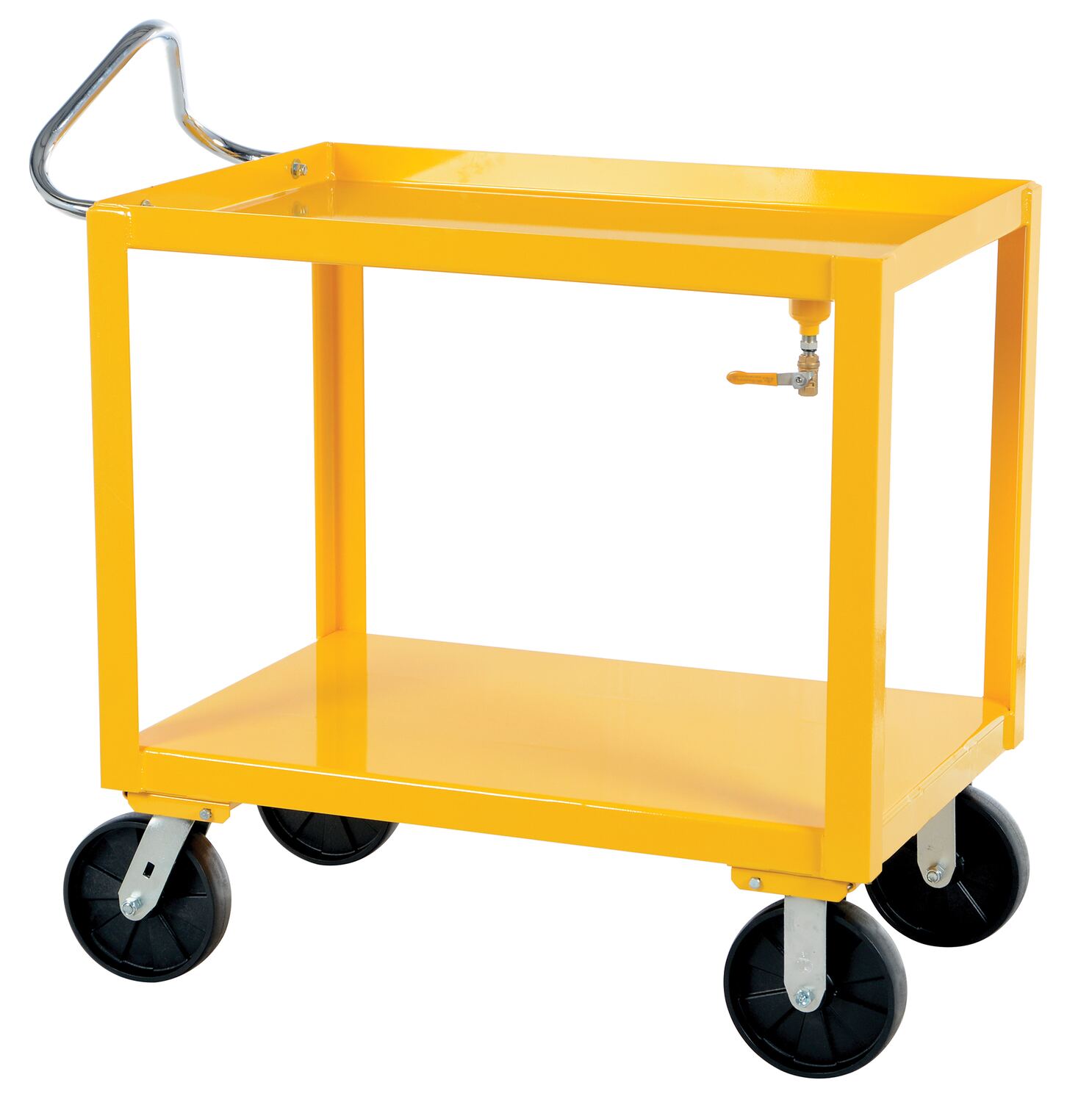

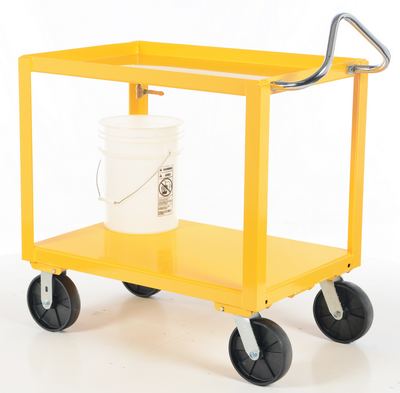

Ergo-Handle Carts with Drain

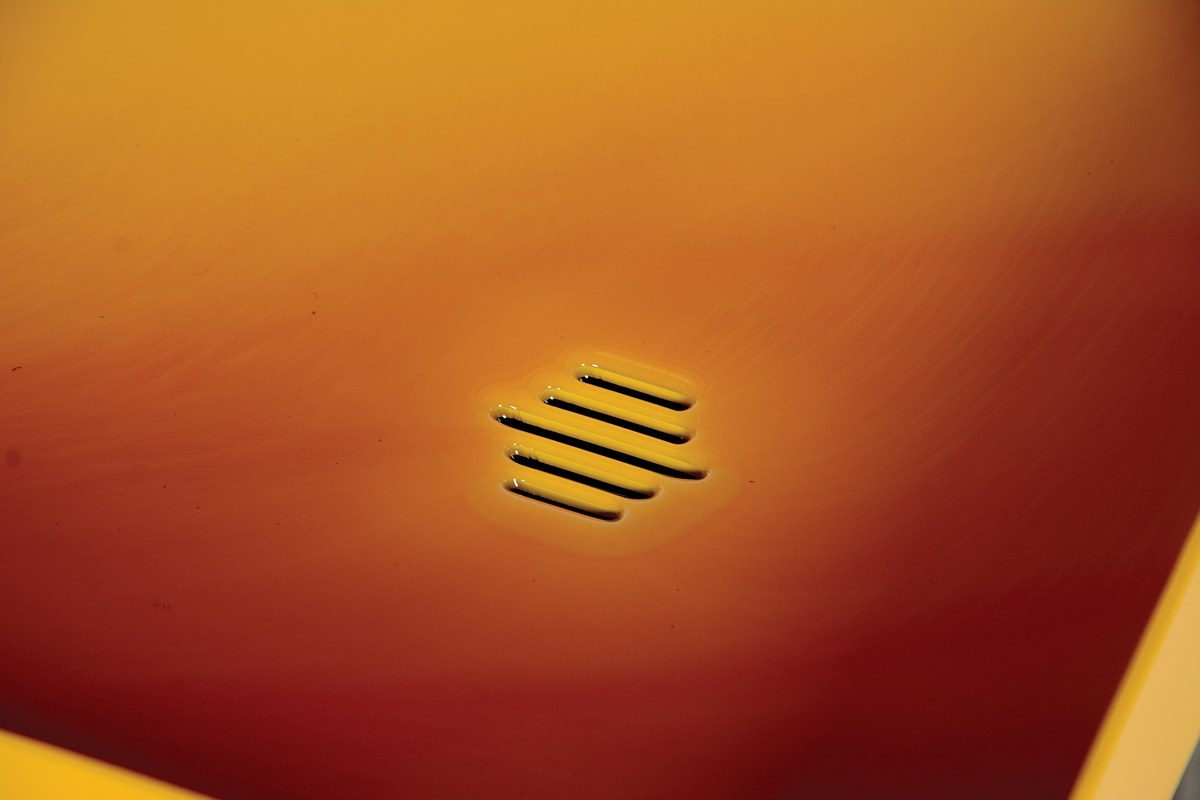

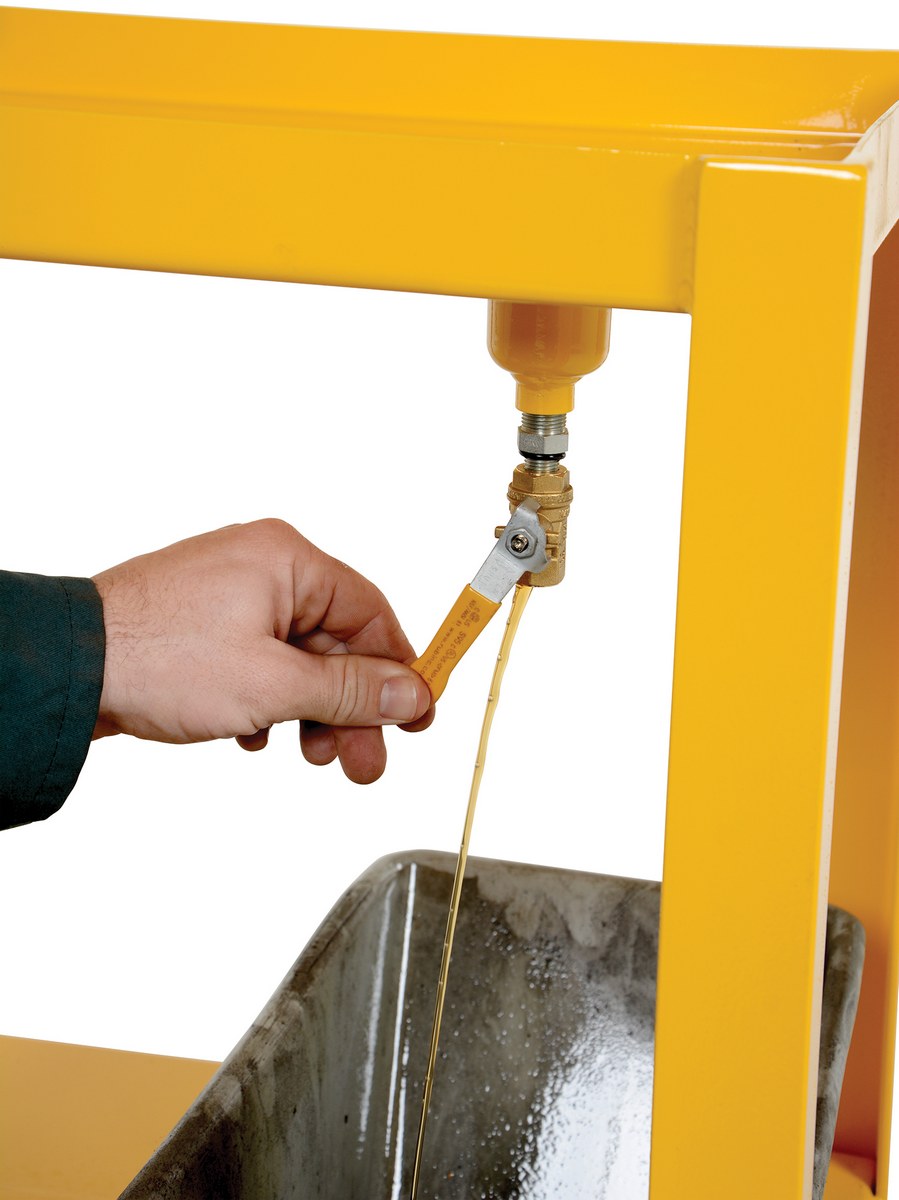

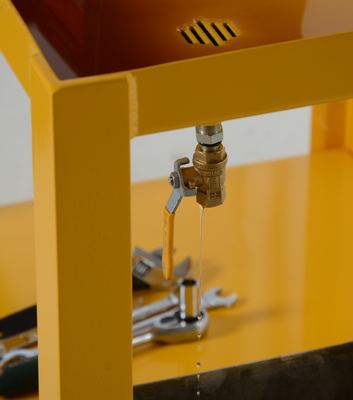

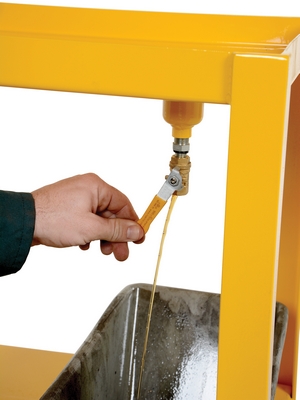

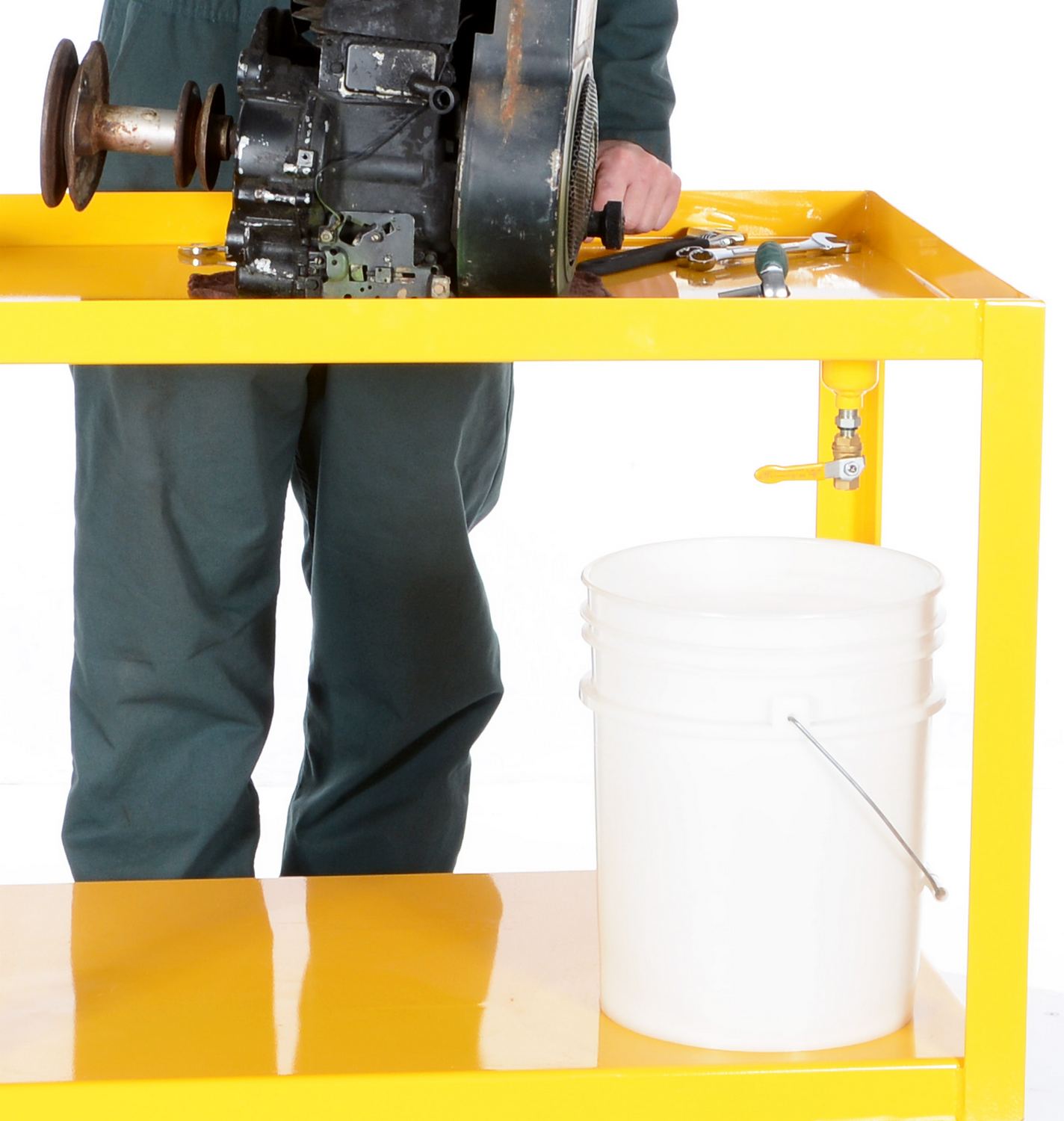

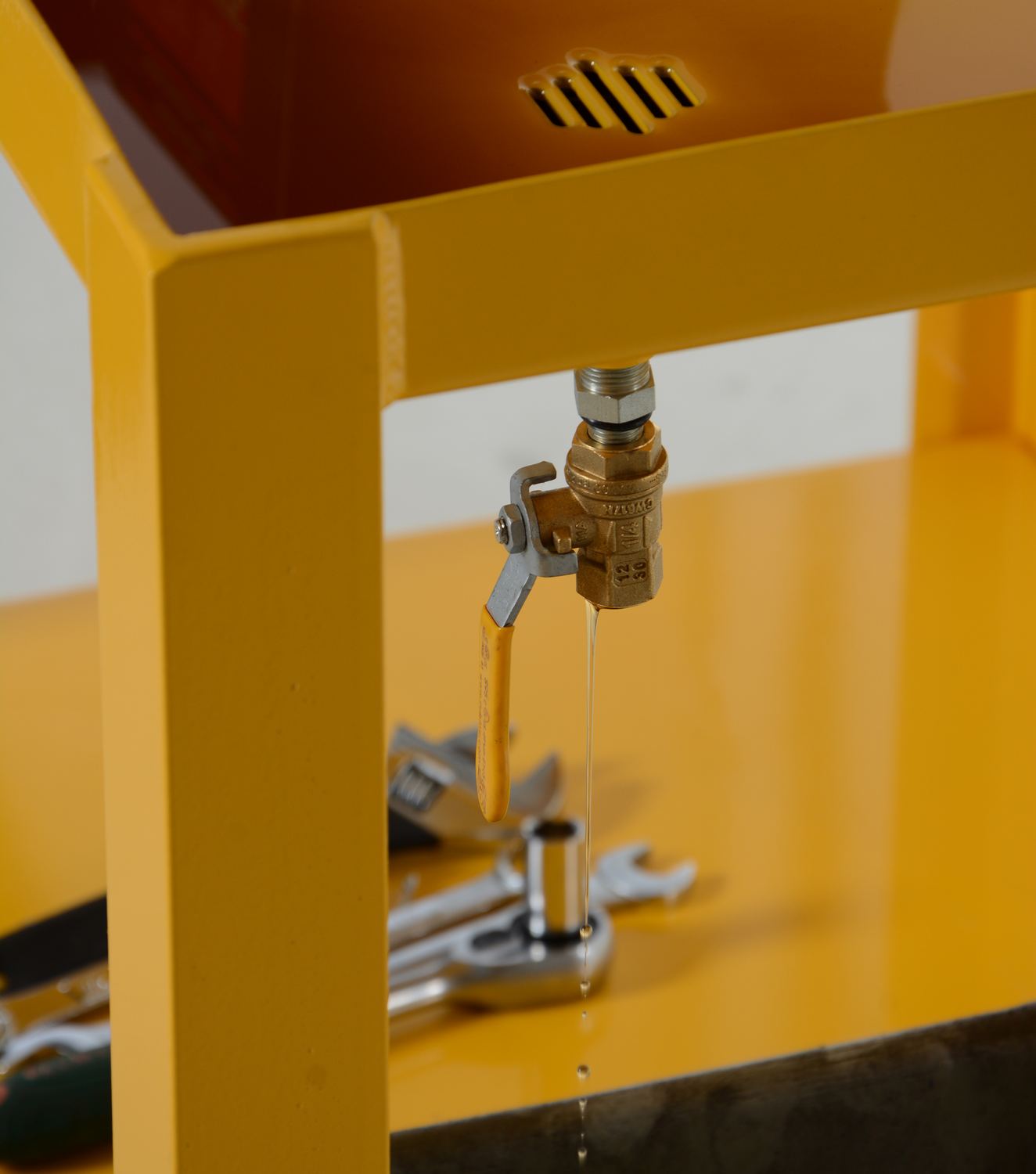

The Ergo-Handle Cart with Drain has the patented ergonomic handle that decreases fatigue by allowing the operator to easily maneuver the cart. The ergonomic handle has an invertible bolt-on chrome design that is great for individual height comfort and handling. The top shelf has a perimeter retaining edge that is slightly slanted towards the drain hole which gathers debris. To use the drain system, simply turn the ball valve to empty liquid into container of your choice. Each unit rolls on two (2) rigid and two (2) swivel casters with roller bearings.

Standard Features:

- Heavy-duty welded steel construction

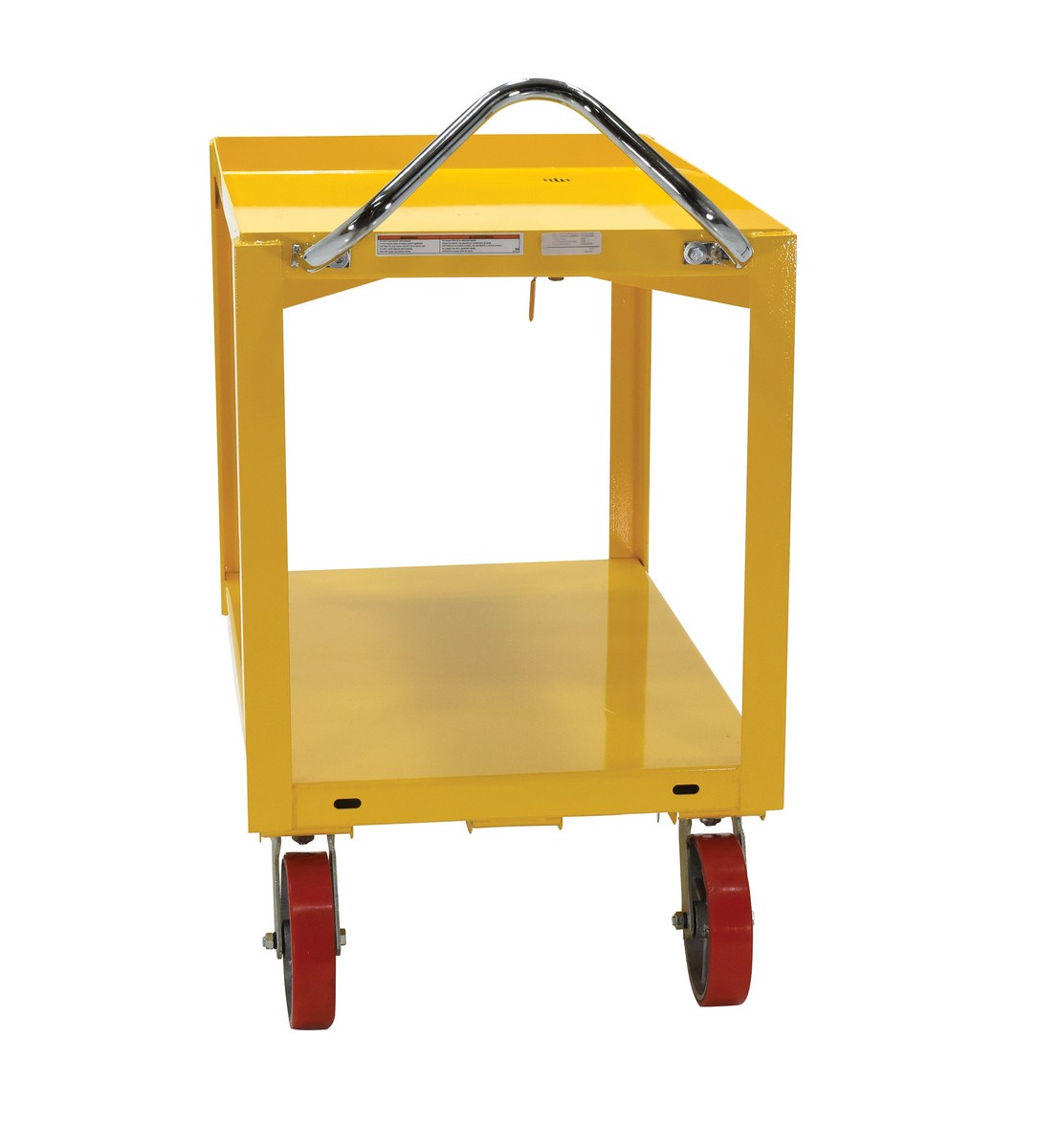

- Removable and reversible chrome-plated ergonomic handle

- Each unit includes (2) rigid and (2) swivel casters with roller bearings

- Powder coat yellow finish

- Available with optional foot-operated floor lock

The Ergo-Handle Cart with Drain has the patented ergonomic handle that decreases fatigue by allowing the operator to easily maneuver the cart. The ergonomic handle has an invertible bolt-on chrome design that is great for individual height comfort and handling. The top shelf has a perimeter retaining edge that is slightly slanted towards the drain hole which gathers debris. To use the drain system, simply turn the ball valve to empty liquid into container of your choice. Each unit rolls on two (2) rigid and two (2) swivel casters with roller bearings.

Standard Features:

- Heavy-duty welded steel construction

- Removable and reversible chrome-plated ergonomic handle

- Each unit includes (2) rigid and (2) swivel casters with roller bearings

- Powder coat yellow finish

- Available with optional foot-operated floor lock

Other Ergo-Handle Carts

Ergo-Handle Carts with Drain

Ergo-Handle Carts with Drain

Adjustable Ergo Carts

Adjustable Ergo Carts

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Ergo-Handle Carts with Drain
Model PDF Platform Size
(WxL)
Shelf
Clearance
Top Shelf
Height
Max. Capacity
Cart/Shelf
Wt.
(lbs)

8" x 2" Glass Filled Nylon Casters - DH-PH4

DH-PH4-2436-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 23-13/16"x35-13/16" 20 3/4" 36-3/16" 4,000/2,000 lb. 207
DH-PH4-2448-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 23-13/16"x47-13/16" 20 3/4" 36-3/16" 4,000/2,000 lb. 233
DH-PH4-2460-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 23-13/16"x59-13/16" 20 3/4" 36-3/16" 4,000/2,000 lb. 240
DH-PH4-2472-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 23-13/16"x71-13/16" 20 3/4" 36-3/16" 4,000/2,000 lb. 265
DH-PH4-3060-D Warranty PDFCompliance Certificate 29-13/16"x59-13/16" 20 3/4" 36-3/16" 4,000/2,000 lb. 267
DH-PH4-3448-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 34"x47-13/16" 20 3/4" 36-3/16" 4,000/2,000 lb. 256
DH-PH4-3460-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 34"x59-13/16" 20 3/4" 36-3/16" 4,000/2,000 lb. 288
DH-PH4-3472-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 34"x71-13/16" 20 3/4" 36-3/16" 4,000/2,000 lb. 320

8" x 2" Polyurethane Casters - DH-PU2

DH-PU2.4-2436-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 23-13/16"x35-13/16" 20 3/4" 36-3/8" 4,000/2,000 lb. 202
DH-PU2.4-2448-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 23-13/16"x47-13/16" 20 3/4" 36-3/8" 4,000/2,000 lb. 218
DH-PU2.4-3060-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30"x59-13/16" 20 3/4" 36-3/8" 4,000/2,000 lb. 298

8" x 2" Mold-on-Rubber Casters - DH-MR2

DH-MR2-2436-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 23-13/16"x35-13/16" 20 3/4" 36-1/8" 2,400/2,000 lb. 208
DH-MR2-2448-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 23-13/16"x47-13/16" 20 3/4" 36-1/8" 2,400/2,000 lb. 233
DH-MR2-3060-D icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 29-13/16"x59-13/16" 20 3/4" 36-1/8" 2,400/2,000 lb. 287
ERGO-FL Warranty PDFCompliance Certificate Optional manual foot-operated floor lock 6

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


ERGO-FL Warranty PDFCompliance Certificate Optional manual foot-operated floor lock 6
