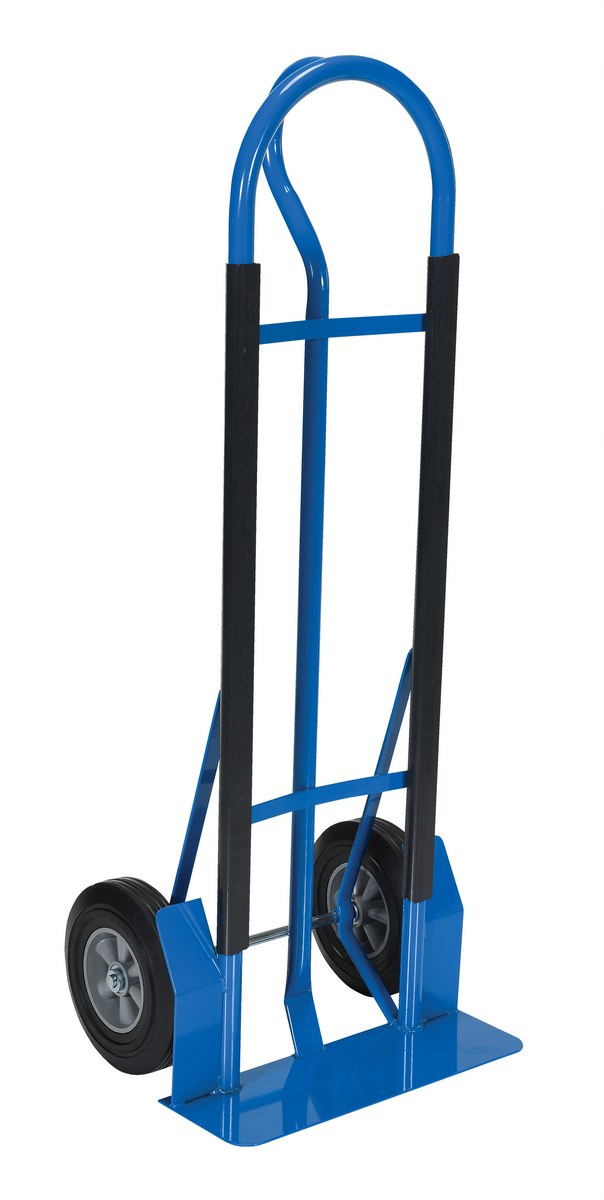

model: SPHT-500S-HD-HR


P Handle Hand Trucks
SERIES: SPHT,APHT

The "P" style hand trucks are ideal for transporting heavy and awkward loads. These trucks work well for the user that needs to free up one hand. The "P" shaped handle makes the truck easy to steer and maneuver.

The "P" style hand trucks are ideal for transporting heavy and awkward loads. These trucks work well for the user that needs to free up one hand. The "P" shaped handle makes the truck easy to steer and maneuver.




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)

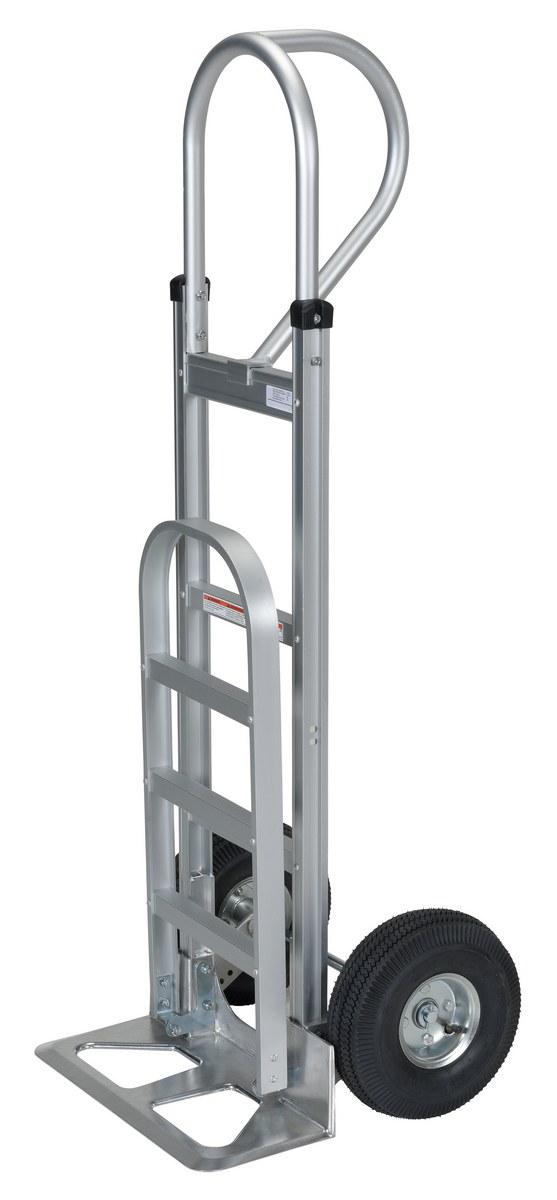

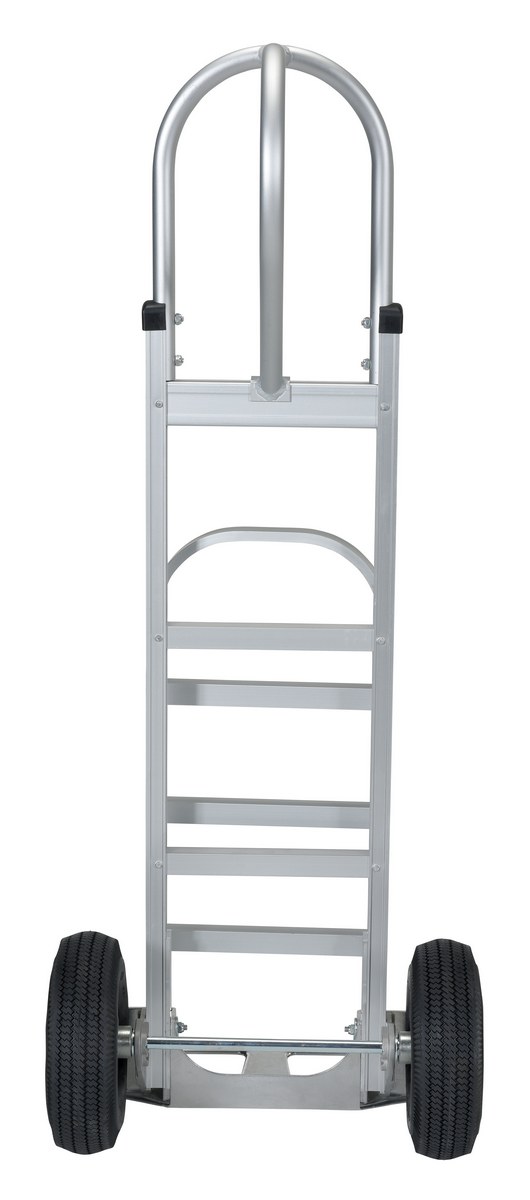

APHT-500A 90 Days Limited WarrantyAluminum P Handle Truck with Pneumatic Wheels 18-1/2 In. x 20-1/2 In. x 52-1/2 In. 500 Lb. CapacityUniform Capacity (lb.): 500
Uniform Capacity w/nose plate extended (lb.): 200
28

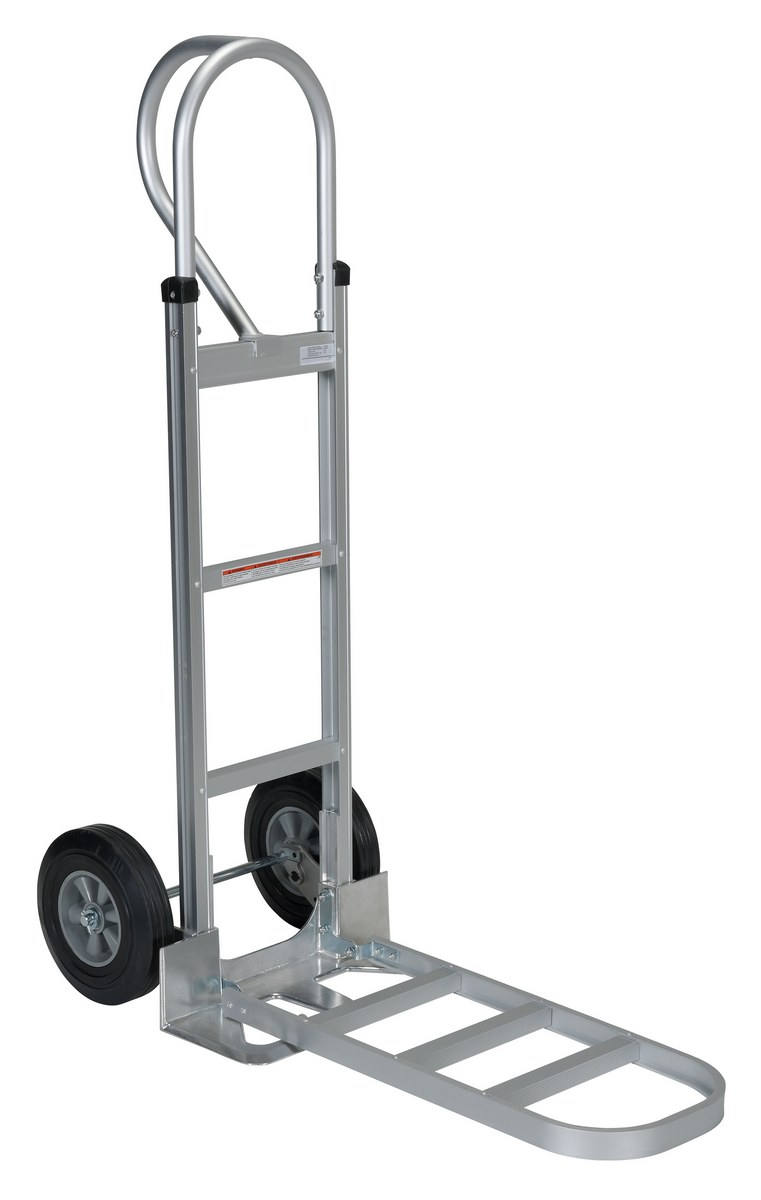

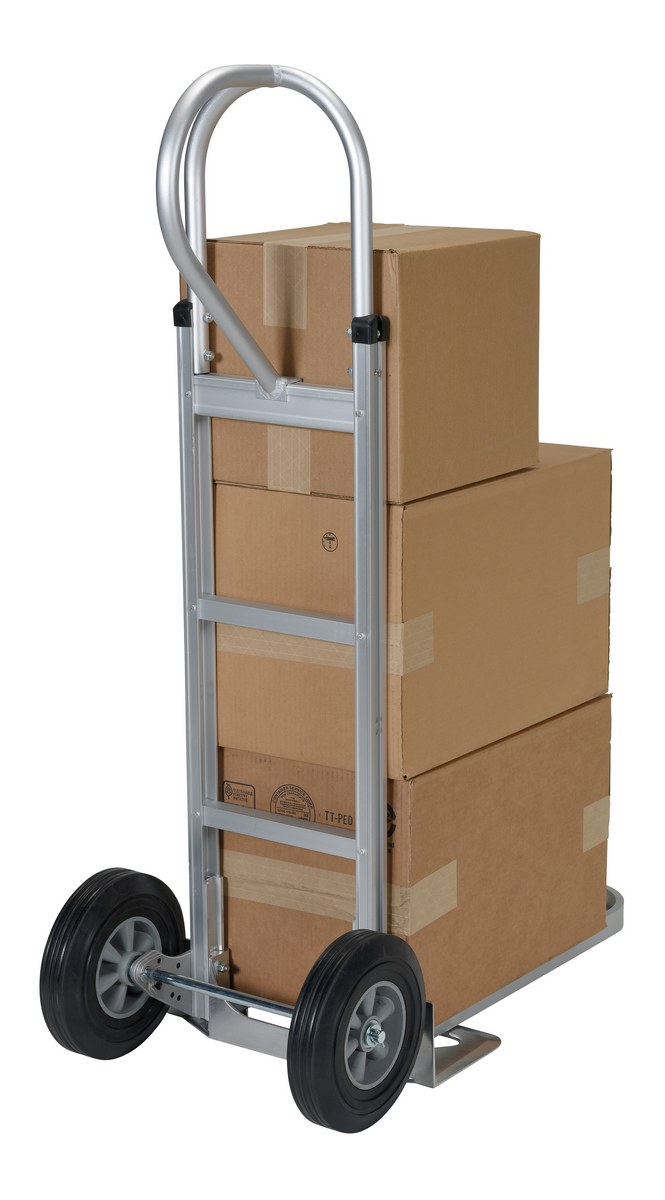

APHT-500A-HR 90 Days Limited WarrantyAluminum P Handle Truck with Hard Rubber Wheels 18-1/2 In. x 18-1/2 In. x 52-1/2 In. 500 Lb. CapacityUniform Capacity (lb.): 500
Uniform Capacity w/nose plate extended (lb.): 200
38

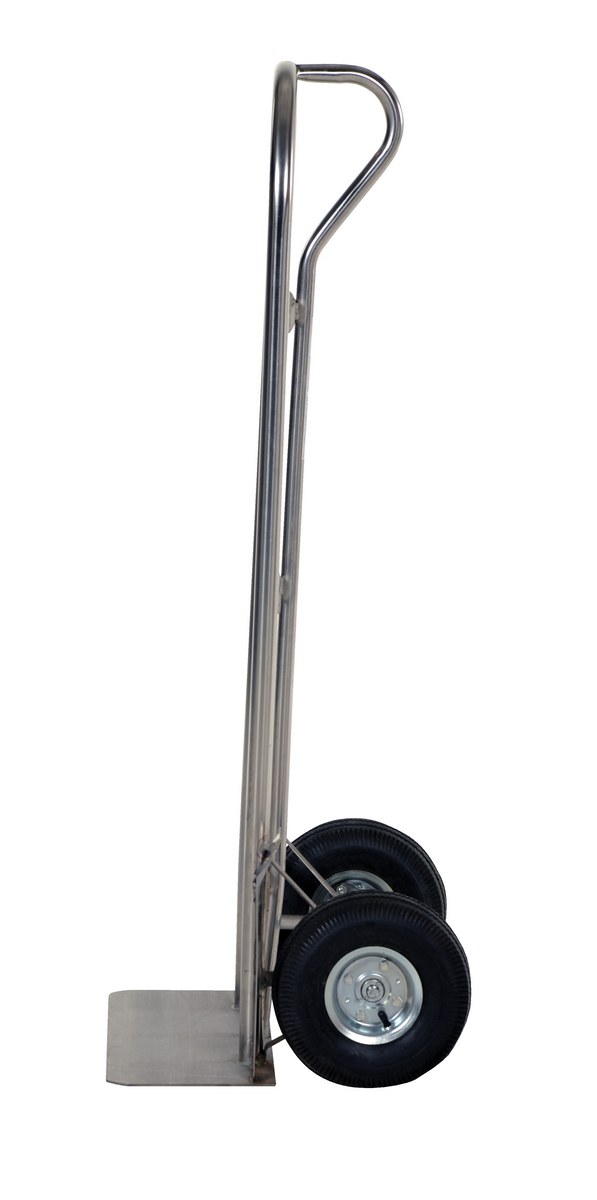

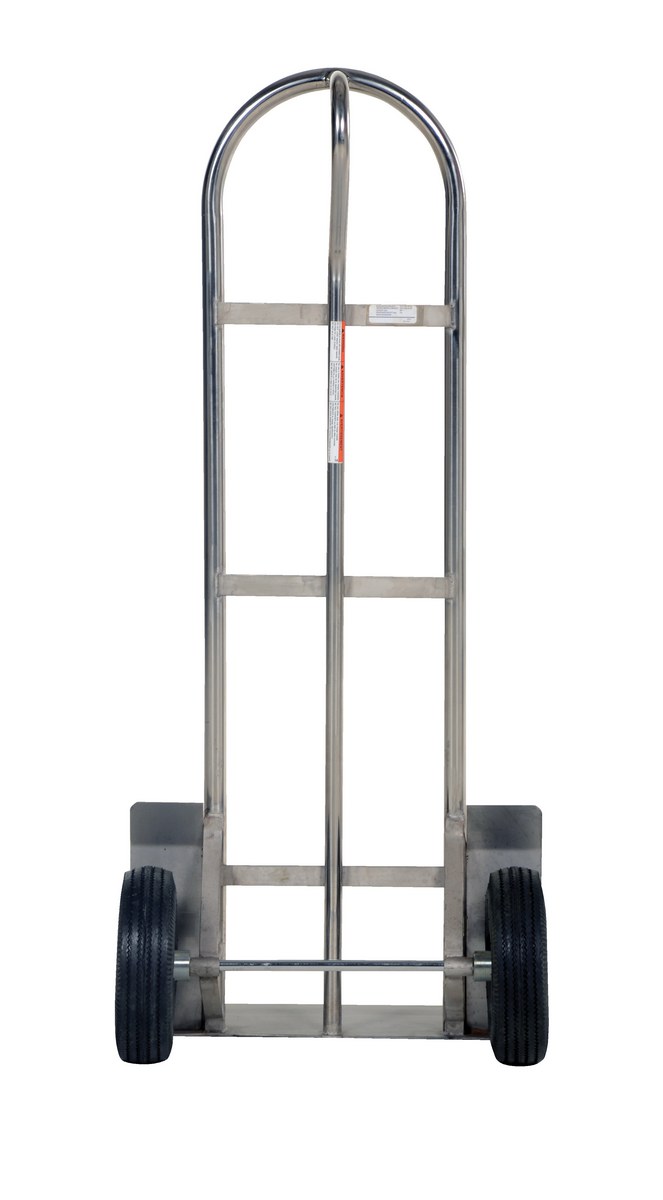

SPHT-500-HD-SS 90 Days Limited WarrantyStainless Steel Heavy Duty P-Handle Truck with Pneumatic Wheels 600 Lb. Capacity SilverUniform Capacity (lb.): 600
Nose Plate Width (in.): 22
35

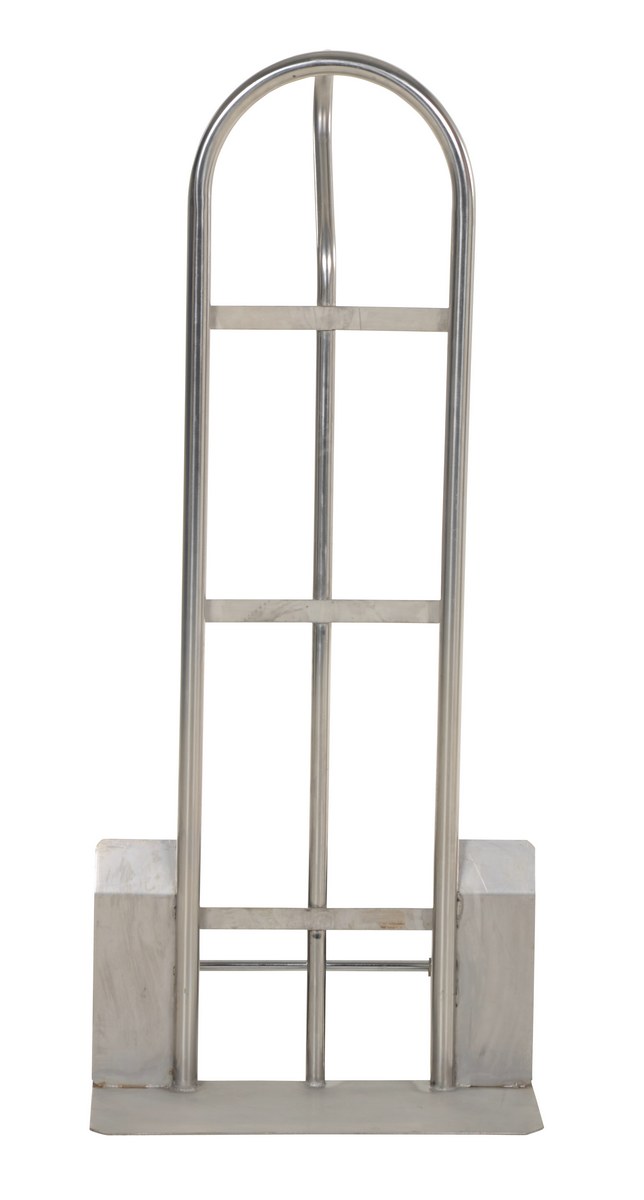

SPHT-500-HD-SS-HR 90 Days Limited WarrantyStainless Steel Heavy Duty P-Handle Truck with Hard Rubber Wheels 600 Lb. Capacity SilverUniform Capacity (lb.): 600
Nose Plate Width (in.): 22
45

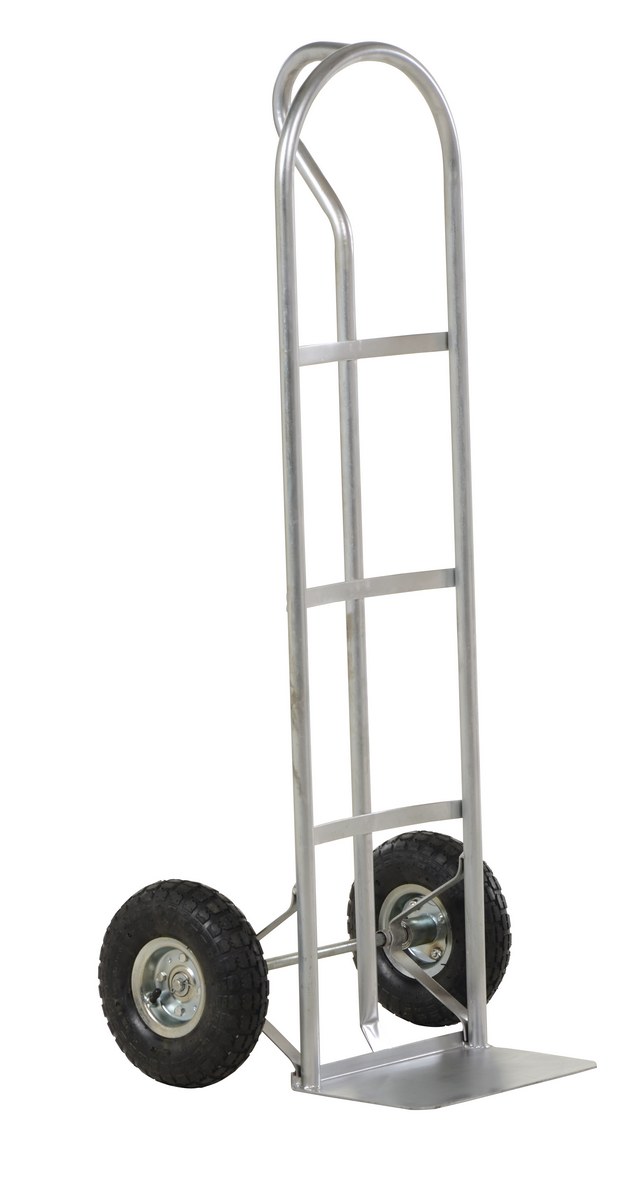

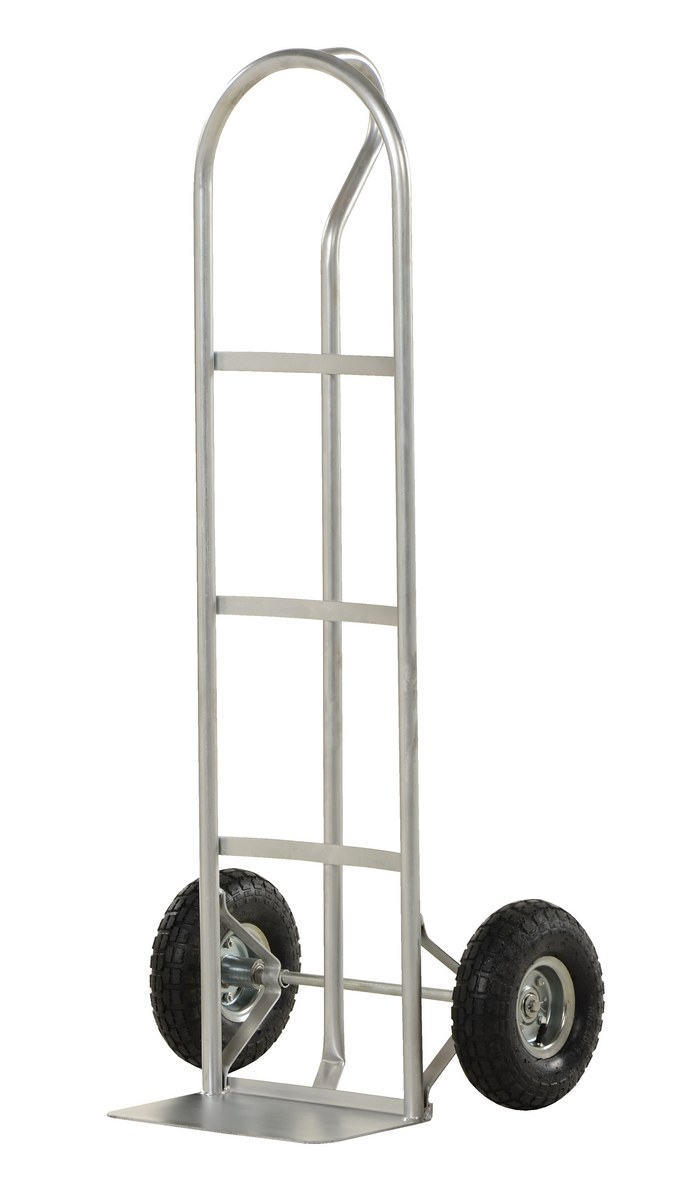

SPHT-500S 90 Days Limited WarrantyGalvanized Steel P-Handle Truck with Pneumatic Wheels 500 Lb. Capacity GrayUniform Capacity (lb.): 500
Nose Plate Width (in.): 14
23

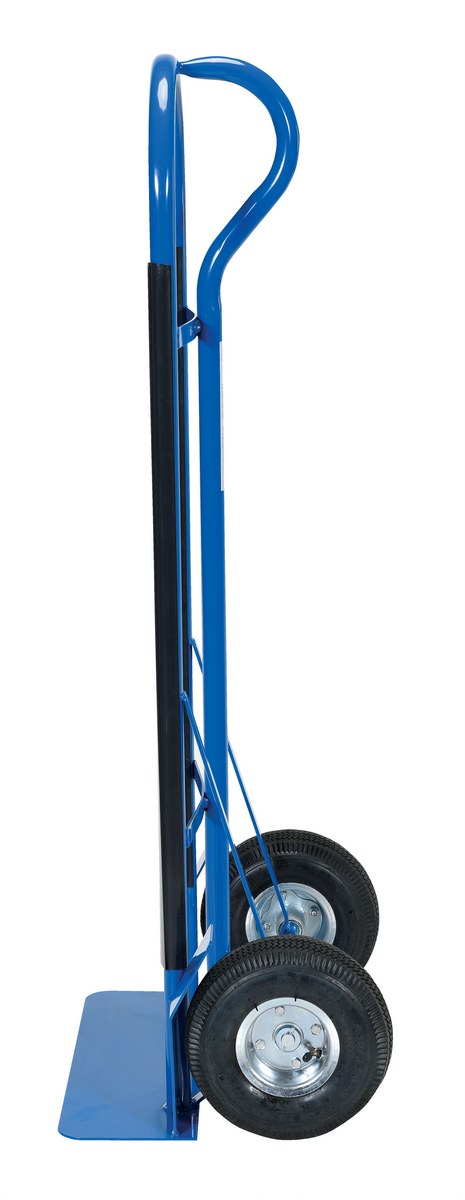

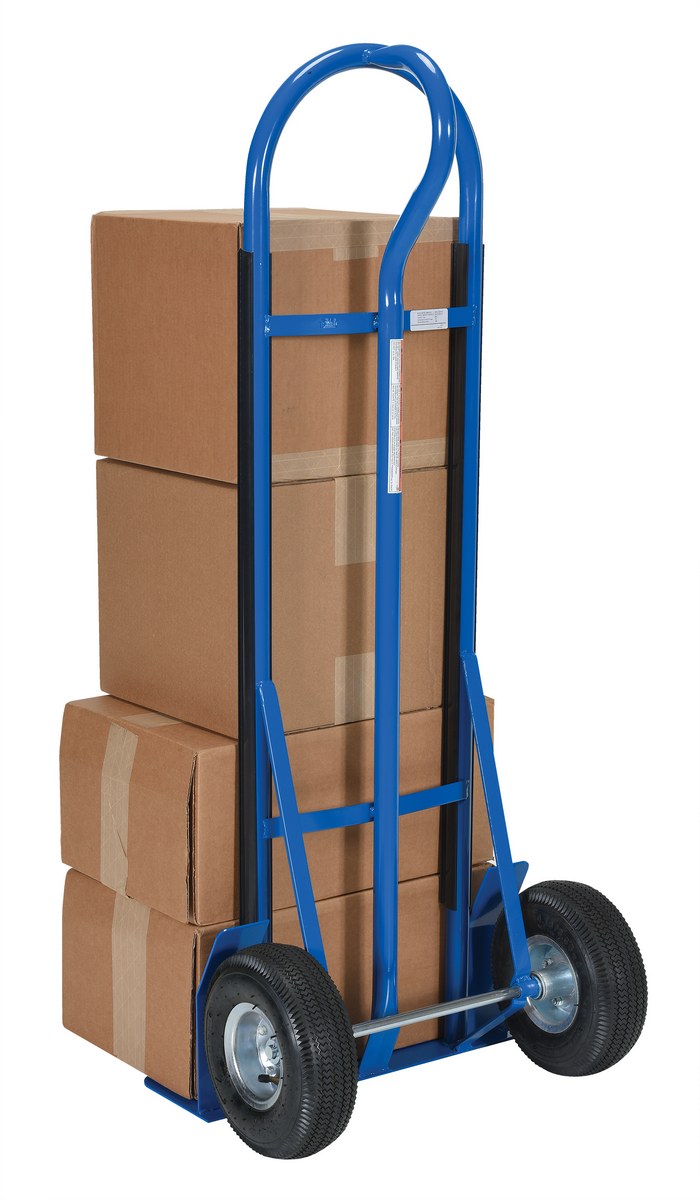

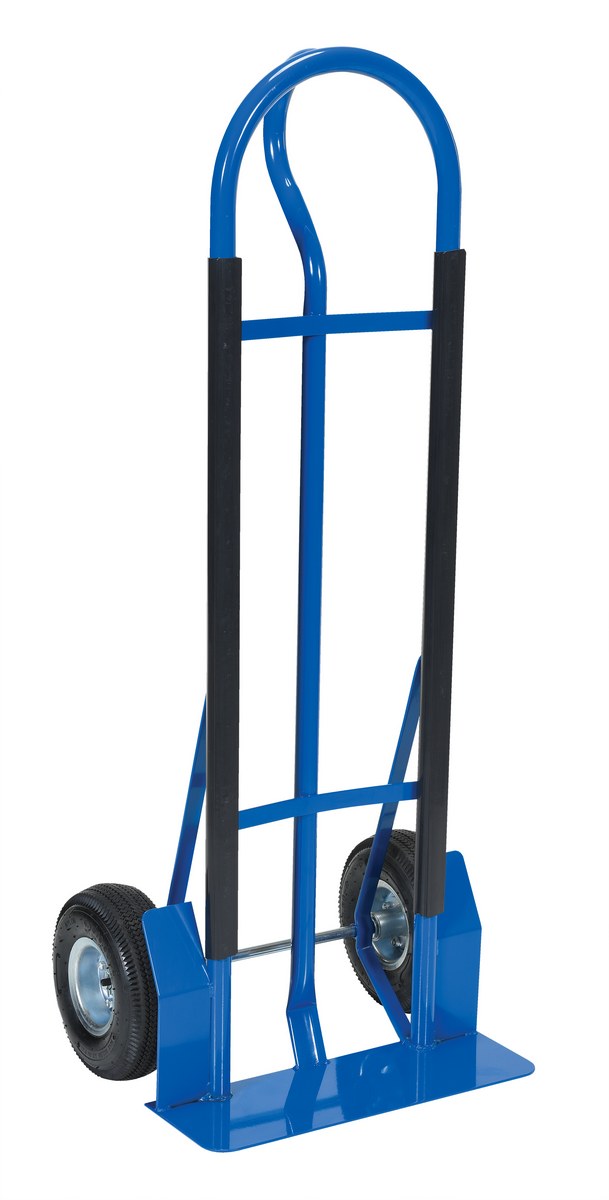

SPHT-500S-HD 90 Days Limited WarrantySteel Heavy Duty P-Handle Truck with Pneumatic Wheels 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Nose Plate Width (in.): 20
32

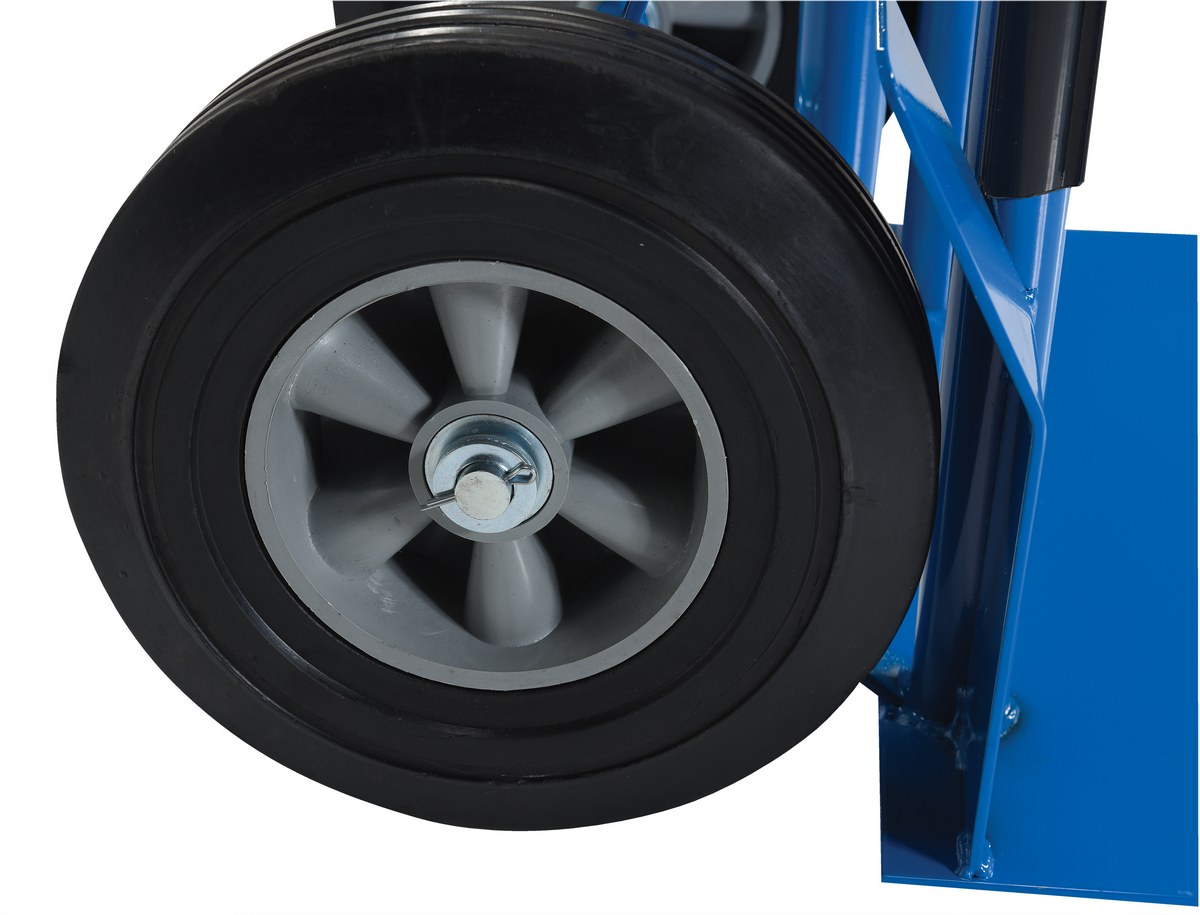

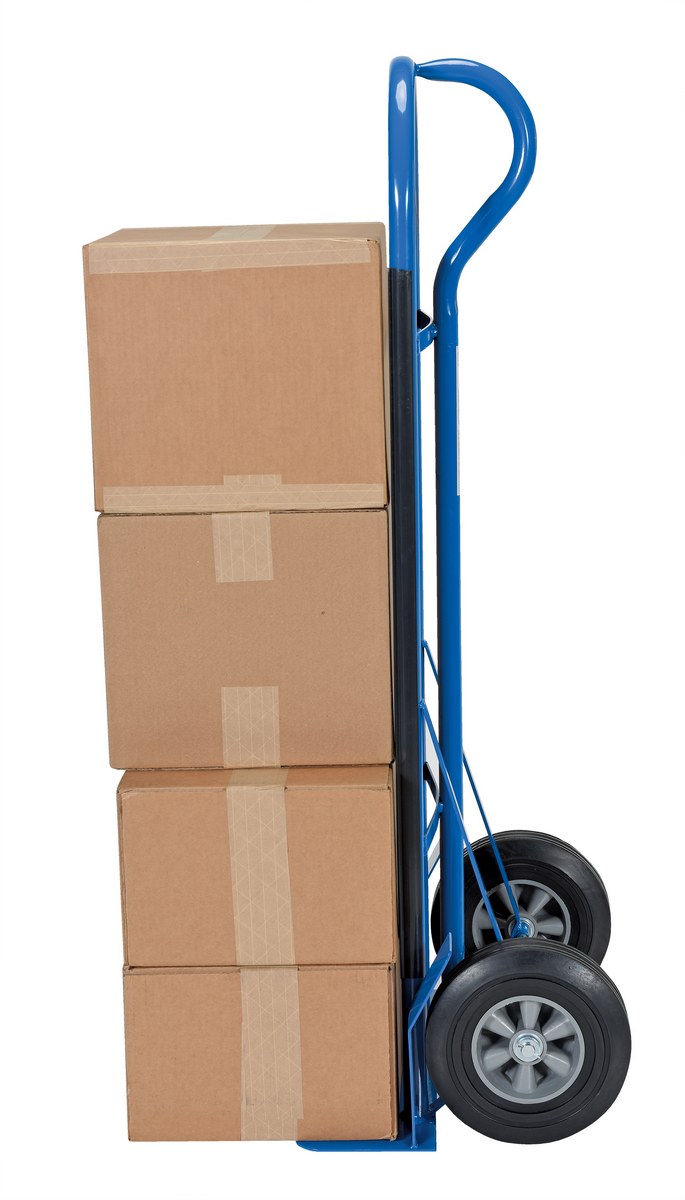

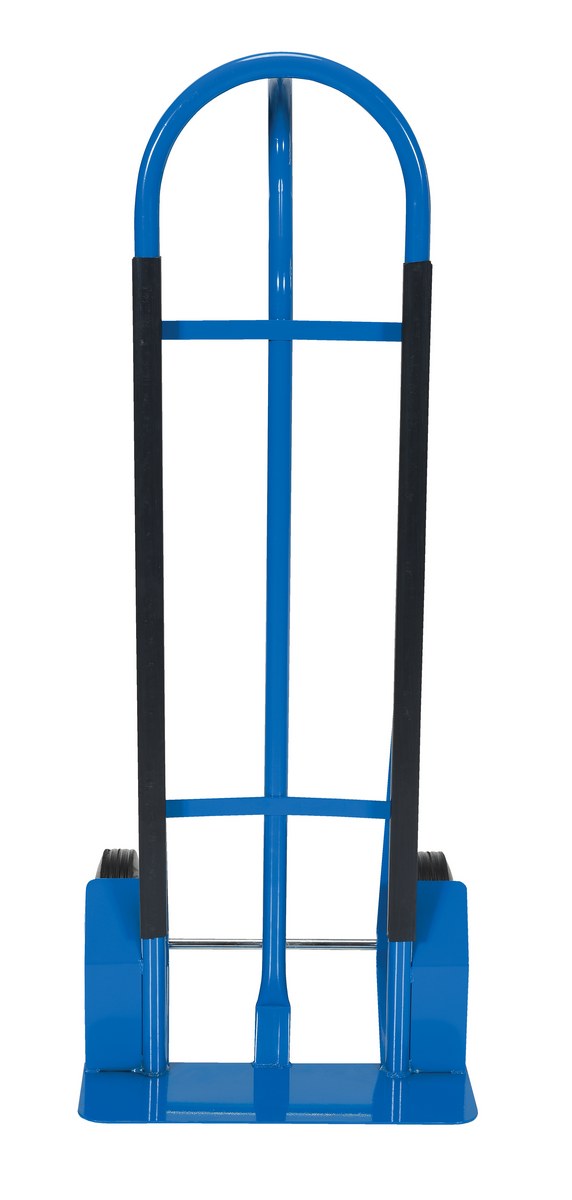

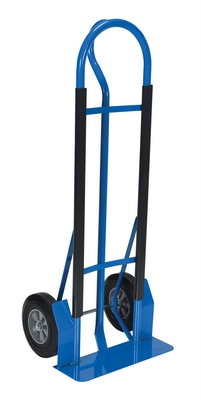

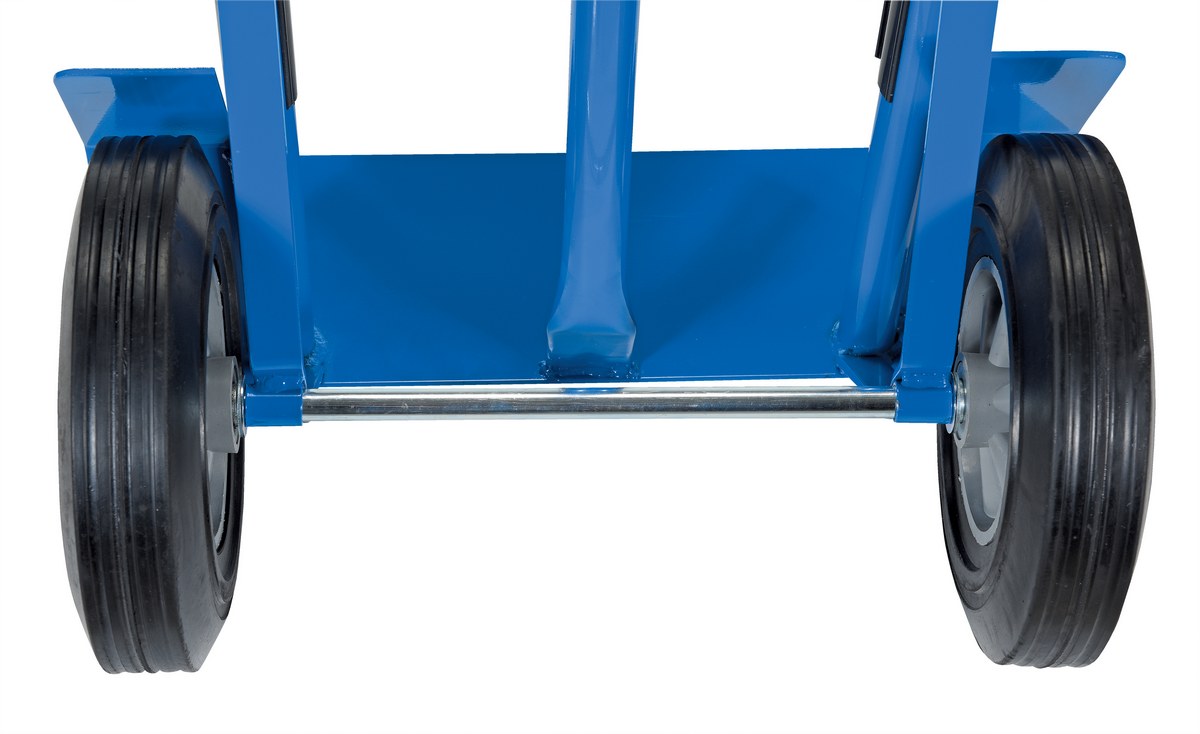

SPHT-500S-HD-HR 90 Days Limited WarrantySteel Heavy Duty P-Handle Truck with Hard Rubber Wheels 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Nose Plate Width (in.): 20
43

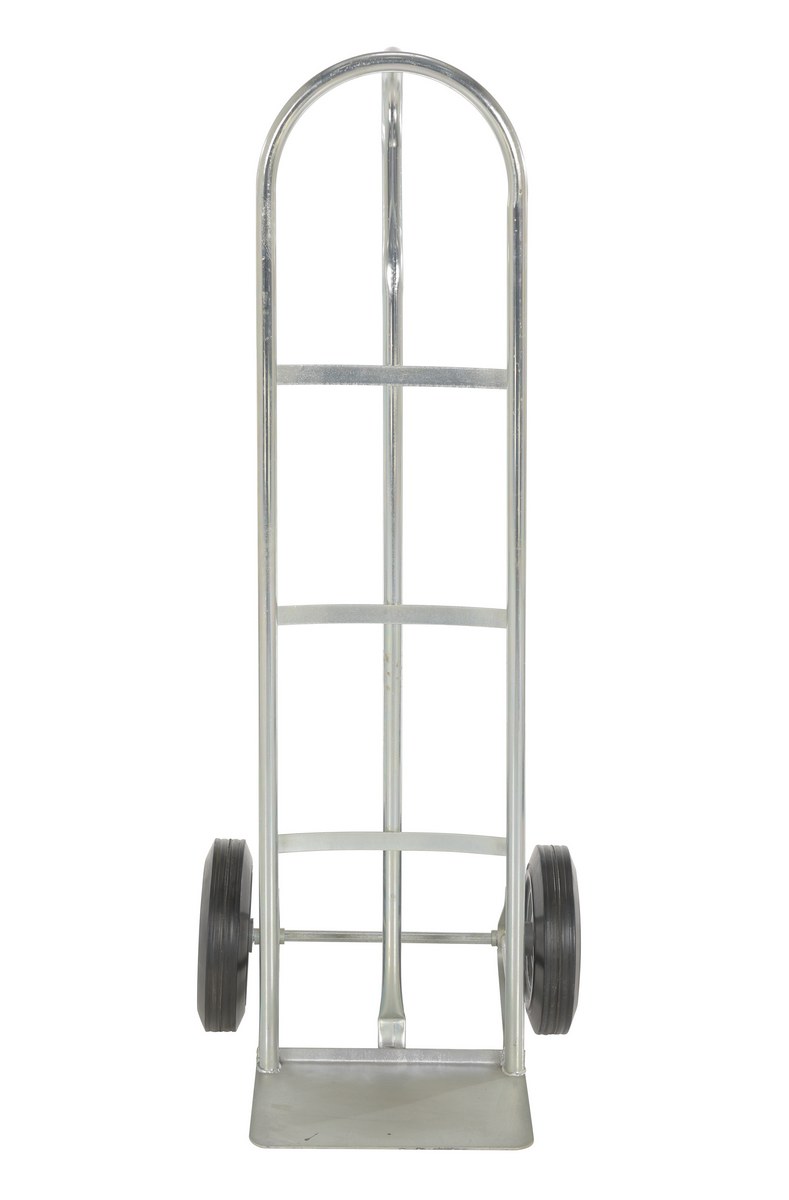

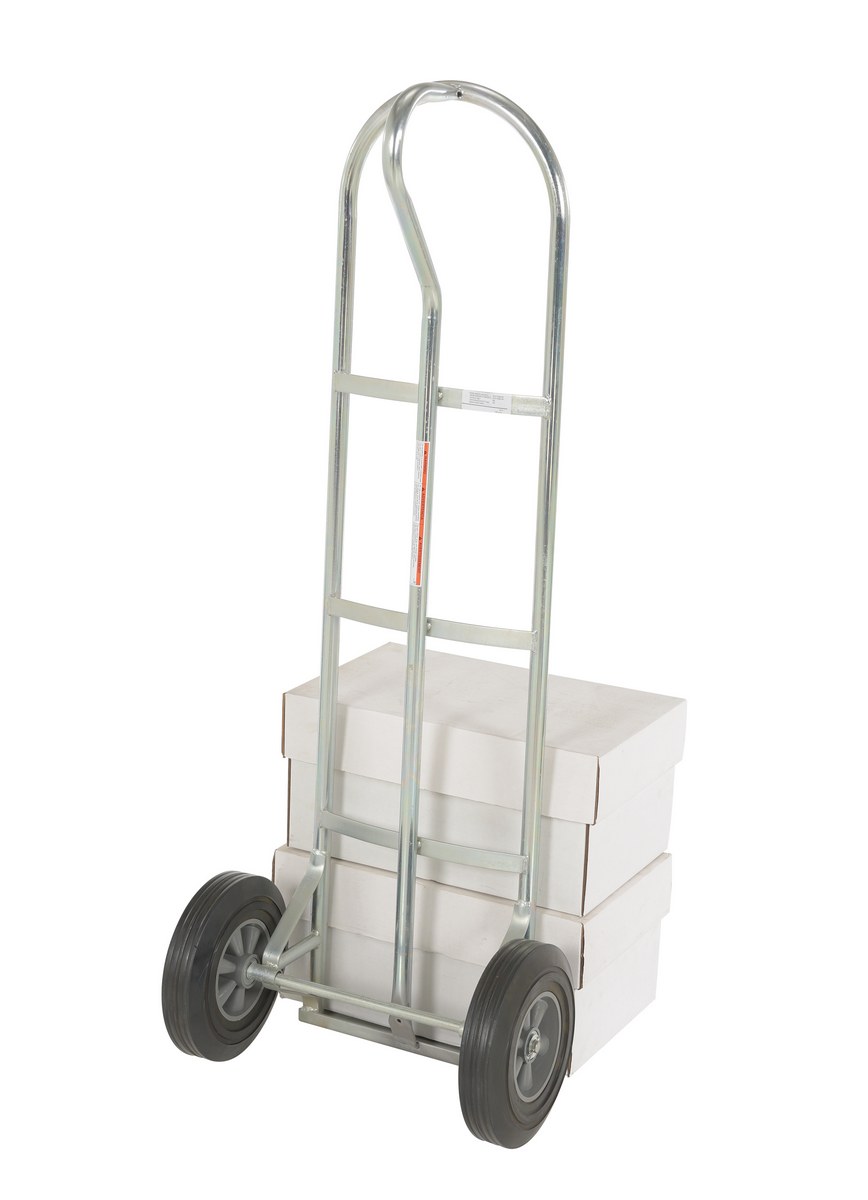

SPHT-500S-HR 90 Days Limited WarrantyGalvanized Steel P-Handle Truck with Hard Rubber Wheels 500 Lb. Capacity GrayUniform Capacity (lb.): 500
Nose Plate Width (in.): 14
33

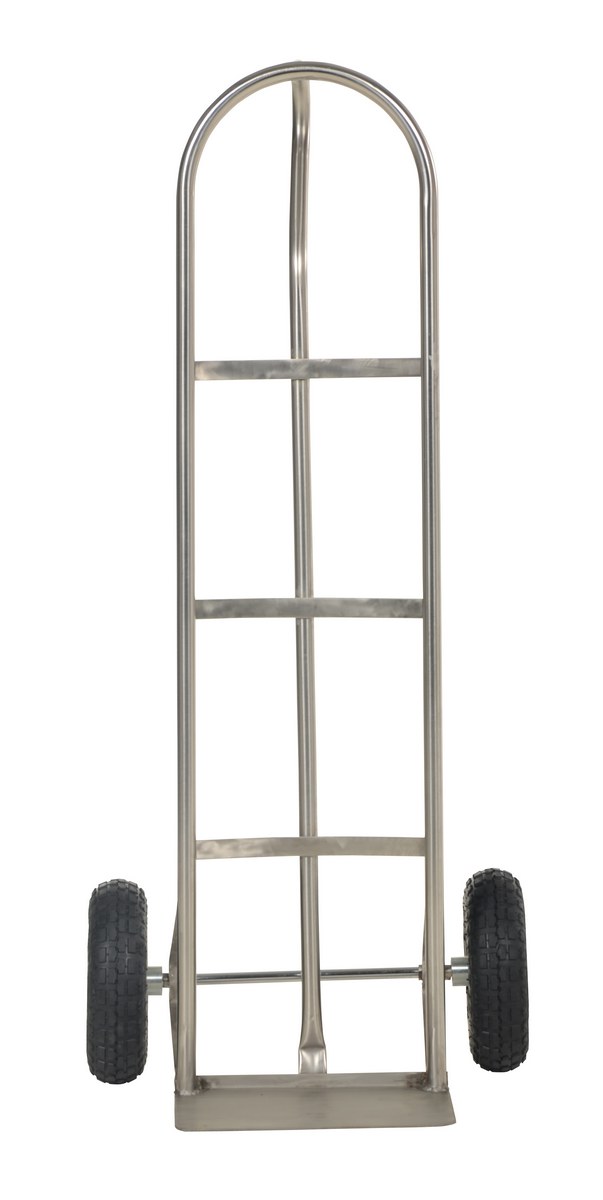

SPHT-500-SS 90 Days Limited WarrantyStainless Steel P-Handle Truck with Pneumatic Wheels 500 Lb. Capacity SilverUniform Capacity (lb.): 500
Nose Plate Width (in.): 14
24

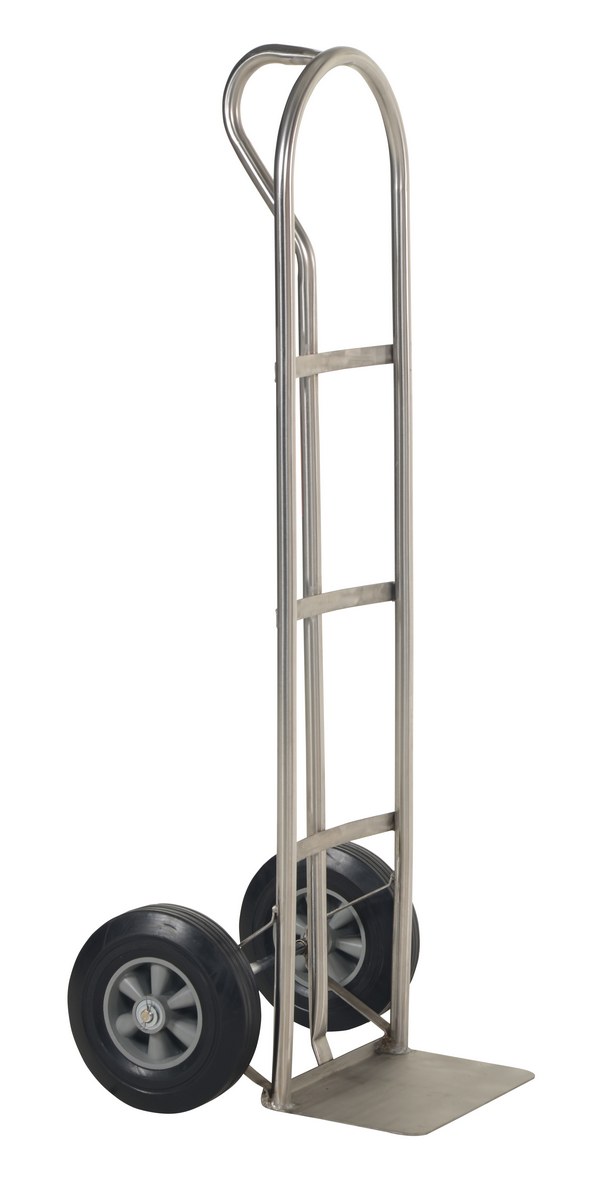

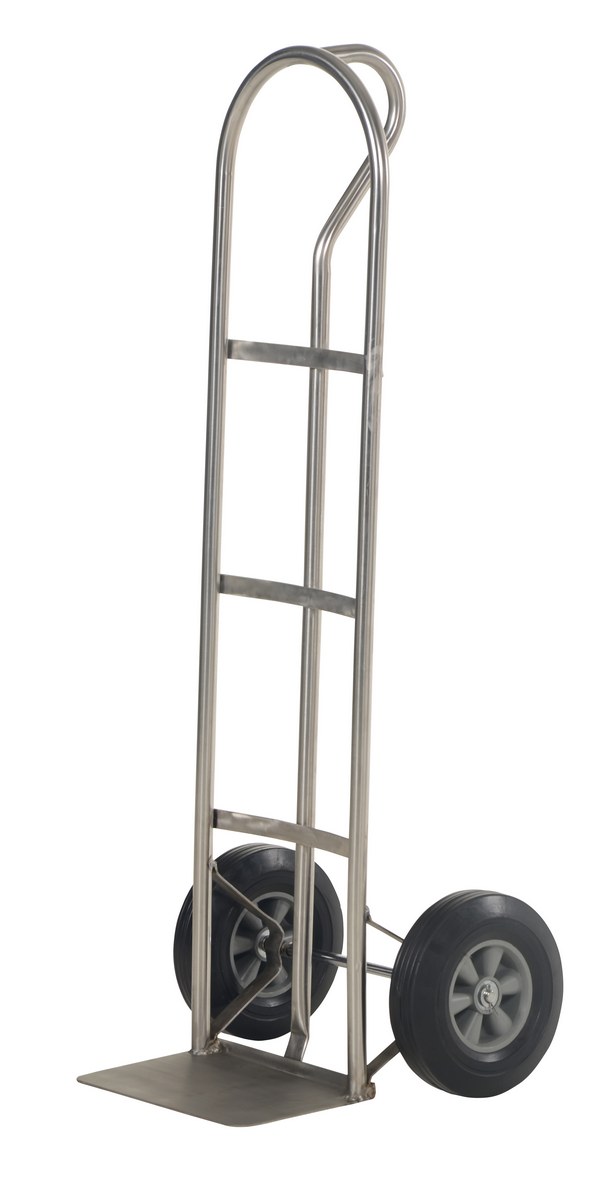

SPHT-500-SS-HR 90 Days Limited WarrantyStainless Steel P-Handle Truck with Hard Rubber Wheels 500 Lb. Capacity SilverUniform Capacity (lb.): 500
Nose Plate Width (in.): 14
45

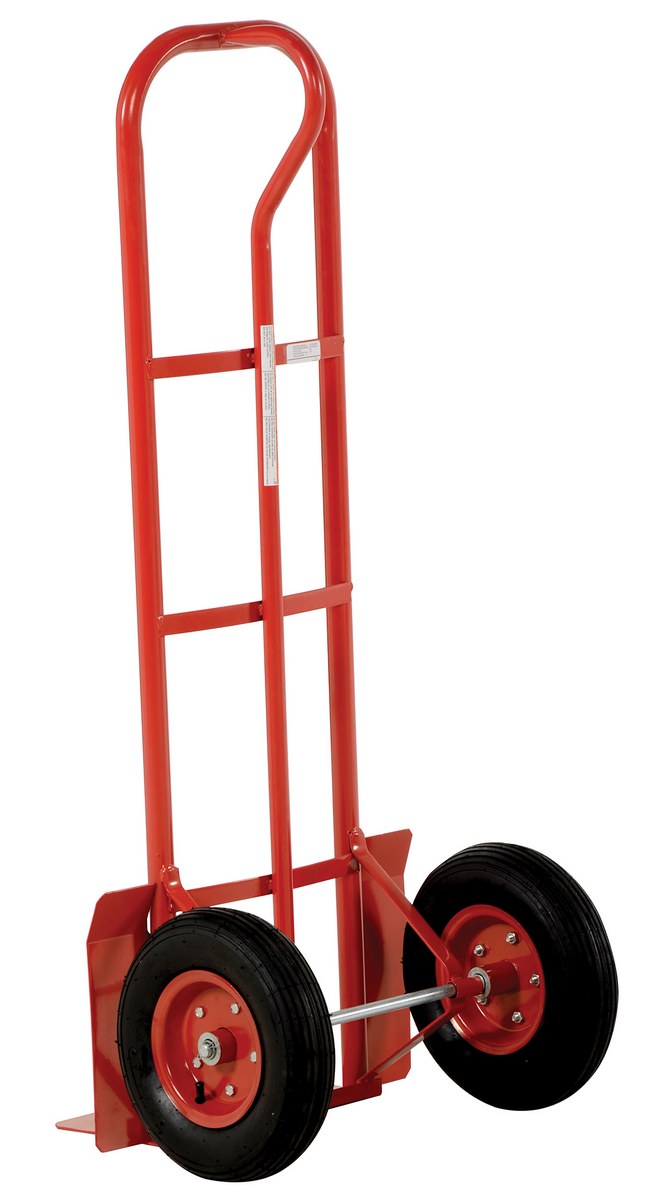

SPHT-600S-IND 90 Days Limited WarrantySteel P-Handle Truck with Pneumatic Wheels 600 Lb. Capacity RedUniform Capacity (lb.): 600
Nose Plate Width (in.): 14
31

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Aluminum P Handle Truck with Pneumatic Wheels 18-1/2 In. x 20-1/2 In. x 52-1/2 In. 500 Lb. Capacity


Unit: EACH
Size: 20.5W x 18.5L x 52.5H
Weight: 28
90 Days Limited Warranty
Uniform Capacity (lb.): 500
Uniform Capacity w/nose plate extended (lb.): 200
Uniform Capacity (lb.): 500
Uniform Capacity w/nose plate extended (lb.): 200

Aluminum P Handle Truck with Hard Rubber Wheels 18-1/2 In. x 18-1/2 In. x 52-1/2 In. 500 Lb. Capacity


Unit: EACH
Size: 18.5W x 18.5L x 52.5H
Weight: 38
90 Days Limited Warranty
Uniform Capacity (lb.): 500
Uniform Capacity w/nose plate extended (lb.): 200
Uniform Capacity (lb.): 500
Uniform Capacity w/nose plate extended (lb.): 200

Stainless Steel Heavy Duty P-Handle Truck with Pneumatic Wheels 600 Lb. Capacity Silver


Unit: EACH
Size: 22W x 19L x 52H
Weight: 35
90 Days Limited Warranty
Uniform Capacity (lb.): 600
Nose Plate Width (in.): 22
Uniform Capacity (lb.): 600
Nose Plate Width (in.): 22

Stainless Steel Heavy Duty P-Handle Truck with Hard Rubber Wheels 600 Lb. Capacity Silver


Unit: EACH
Size: 22W x 19L x 52H
Weight: 45
90 Days Limited Warranty
Uniform Capacity (lb.): 600
Nose Plate Width (in.): 22
Uniform Capacity (lb.): 600
Nose Plate Width (in.): 22

Galvanized Steel P-Handle Truck with Pneumatic Wheels 500 Lb. Capacity Gray


Unit: EACH
Size: 21W x 18L x 52H
Weight: 23
90 Days Limited Warranty
Uniform Capacity (lb.): 500
Nose Plate Width (in.): 14
Uniform Capacity (lb.): 500
Nose Plate Width (in.): 14

Steel Heavy Duty P-Handle Truck with Pneumatic Wheels 600 Lb. Capacity Blue


Unit: EACH
Size: 20W x 16.25L x 52H
Weight: 32
90 Days Limited Warranty
Uniform Capacity (lb.): 600
Nose Plate Width (in.): 20
Uniform Capacity (lb.): 600
Nose Plate Width (in.): 20

Steel Heavy Duty P-Handle Truck with Hard Rubber Wheels 600 Lb. Capacity Blue


Unit: EACH
Size: 20W x 16.25L x 52H
Weight: 43
90 Days Limited Warranty
Uniform Capacity (lb.): 600
Nose Plate Width (in.): 20
Uniform Capacity (lb.): 600
Nose Plate Width (in.): 20

Galvanized Steel P-Handle Truck with Hard Rubber Wheels 500 Lb. Capacity Gray


Unit: EACH
Size: 21W x 18L x 52H
Weight: 33
90 Days Limited Warranty
Uniform Capacity (lb.): 500
Nose Plate Width (in.): 14
Uniform Capacity (lb.): 500
Nose Plate Width (in.): 14

Stainless Steel P-Handle Truck with Pneumatic Wheels 500 Lb. Capacity Silver


Unit: EACH
Size: 21W x 18L x 52H
Weight: 24
90 Days Limited Warranty
Uniform Capacity (lb.): 500
Nose Plate Width (in.): 14
Uniform Capacity (lb.): 500
Nose Plate Width (in.): 14

Stainless Steel P-Handle Truck with Hard Rubber Wheels 500 Lb. Capacity Silver


Unit: EACH
Size: 21W x 18L x 52H
Weight: 45
90 Days Limited Warranty
Uniform Capacity (lb.): 500
Nose Plate Width (in.): 14
Uniform Capacity (lb.): 500
Nose Plate Width (in.): 14

Steel P-Handle Truck with Pneumatic Wheels 600 Lb. Capacity Red


Unit: EACH
Size: 22W x 22L x 52H
Weight: 31
90 Days Limited Warranty
Uniform Capacity (lb.): 600
Nose Plate Width (in.): 14
Uniform Capacity (lb.): 600
Nose Plate Width (in.): 14



P Handle Hand Trucks PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





P Handle Hand Trucks




The "P" style hand trucks are ideal for transporting heavy and awkward loads. These trucks work well for the user that needs to free up one hand. The "P" shaped handle makes the truck easy to steer and maneuver.


Steel "P" Handle Hand Trucks
Model Image PDF Nose Plate
(WxD)
Capacity
(lbs)
Overall Size
(WxDxH)
Wt. (lbs)

10" x 2" Hard Rubber Wheels

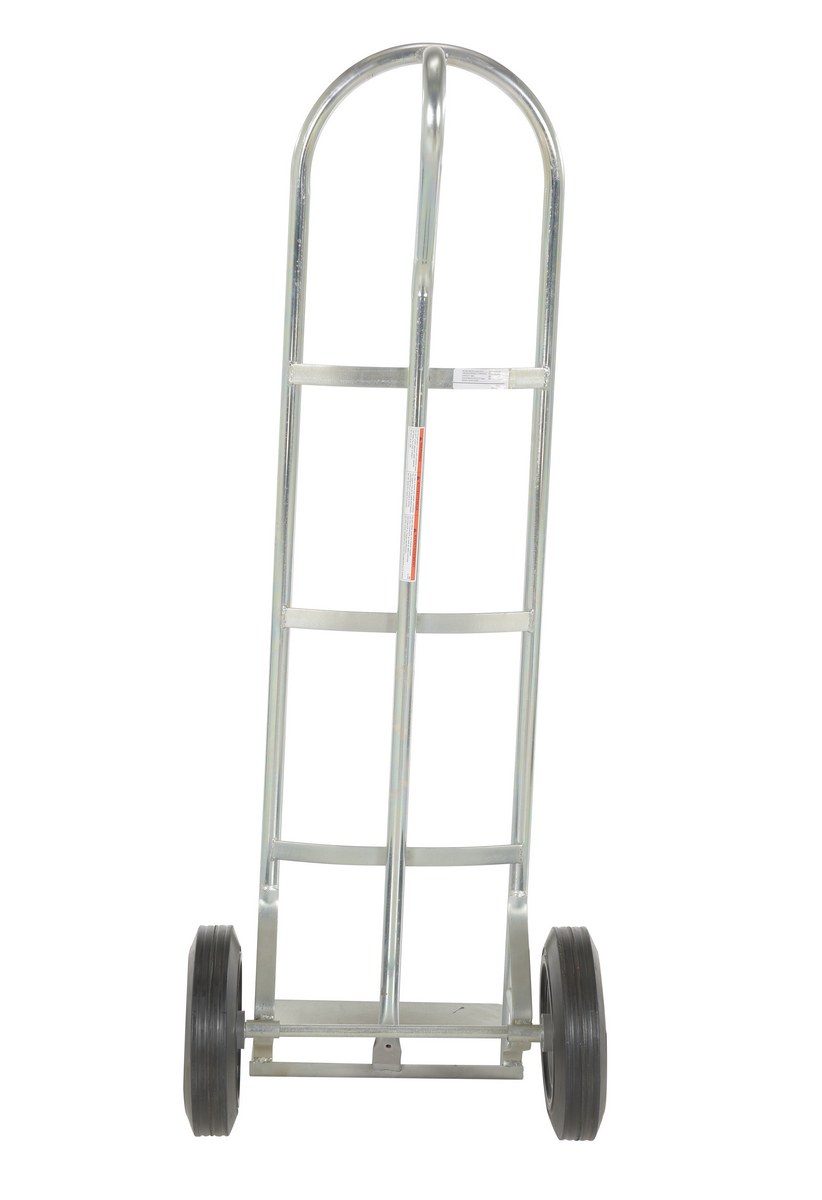

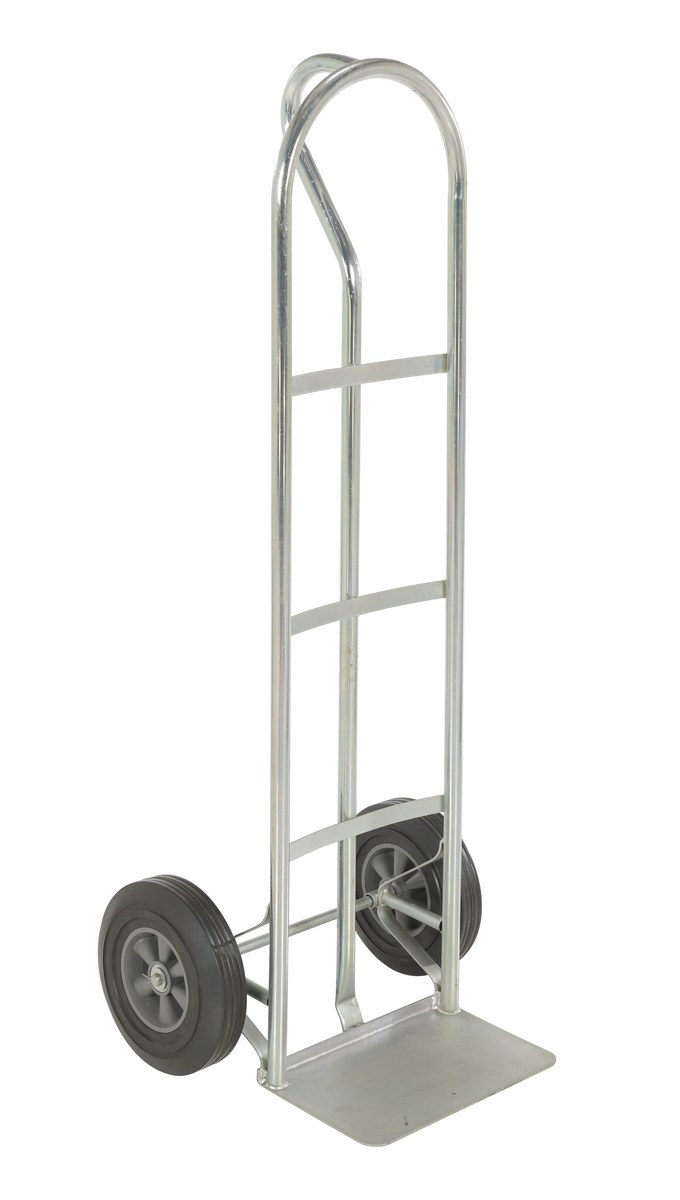

SPHT-500S-HR icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 14"x7-1/2" 500 21"x18"x52" 33

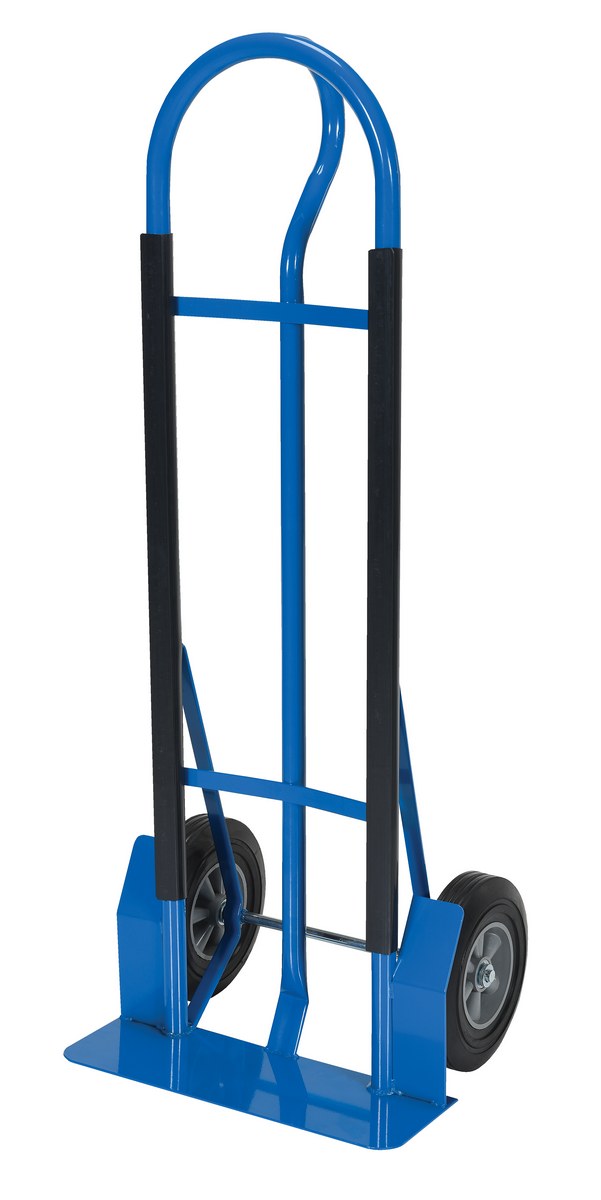

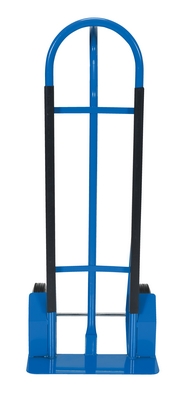

SPHT-500S-HD-HR icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x 5-1/8" 600 20"x16-1/4"x52" 42

10" x 3-1/2" Pneumatic Wheels

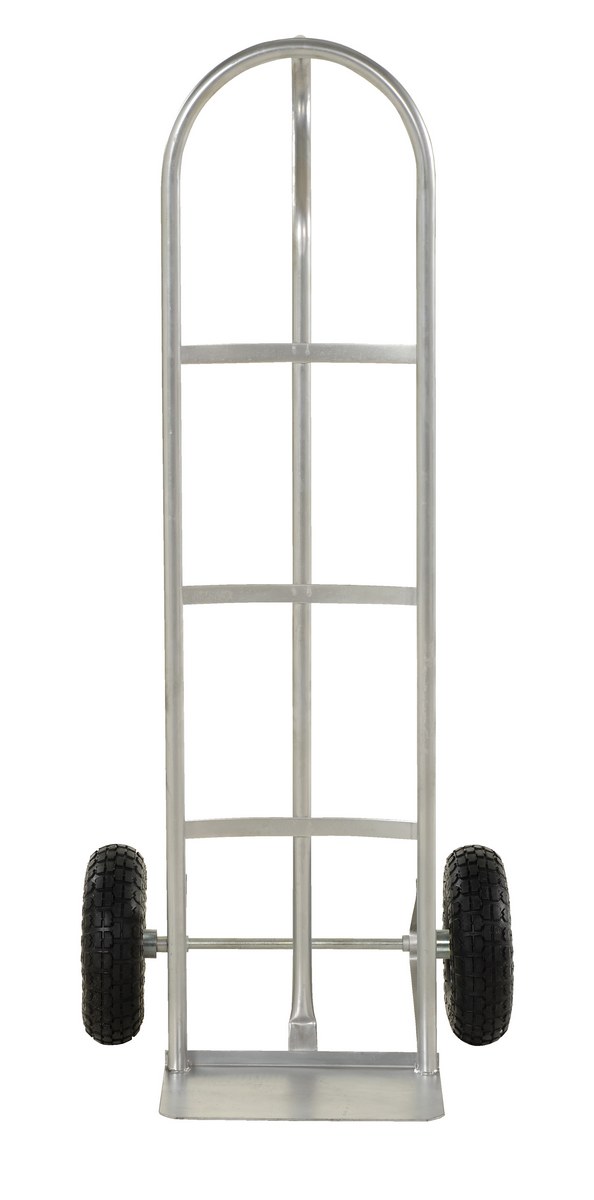

SPHT-500S Warranty PDFCompliance Certificate 14"x7-1/2" 500 21"x18"x52" 21
SPHT-500S-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x 5-1/8" 600 20"x16-1/4"x52" 32

13" x 4" Pneumatic Wheels

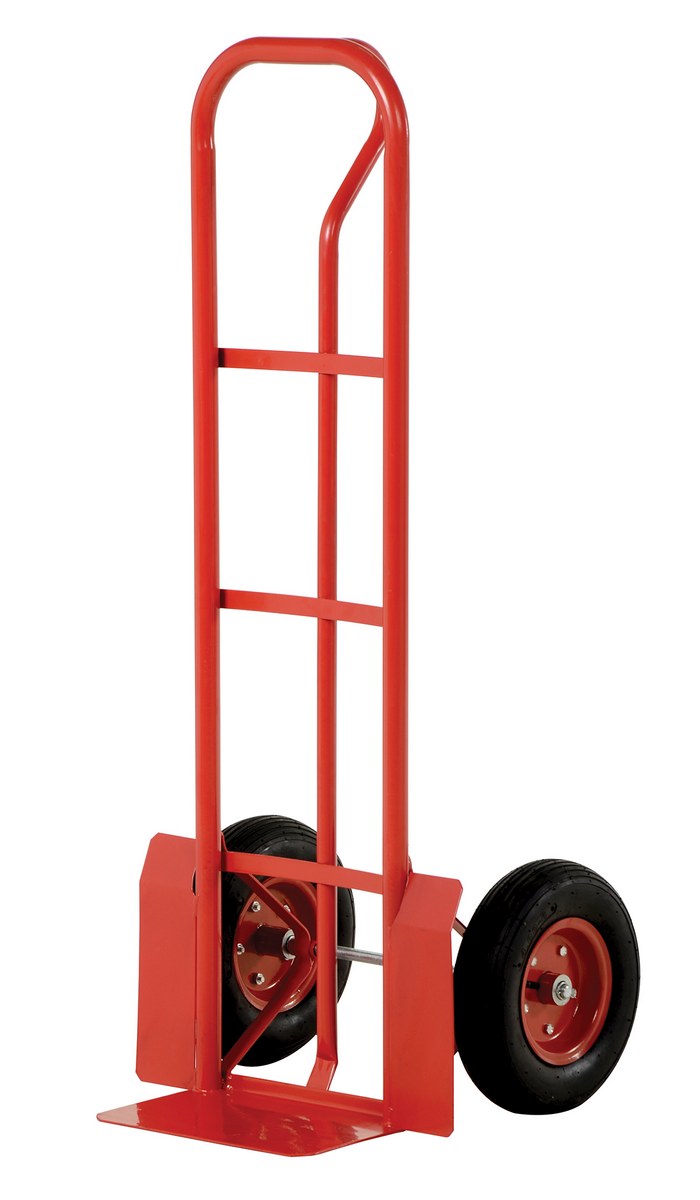

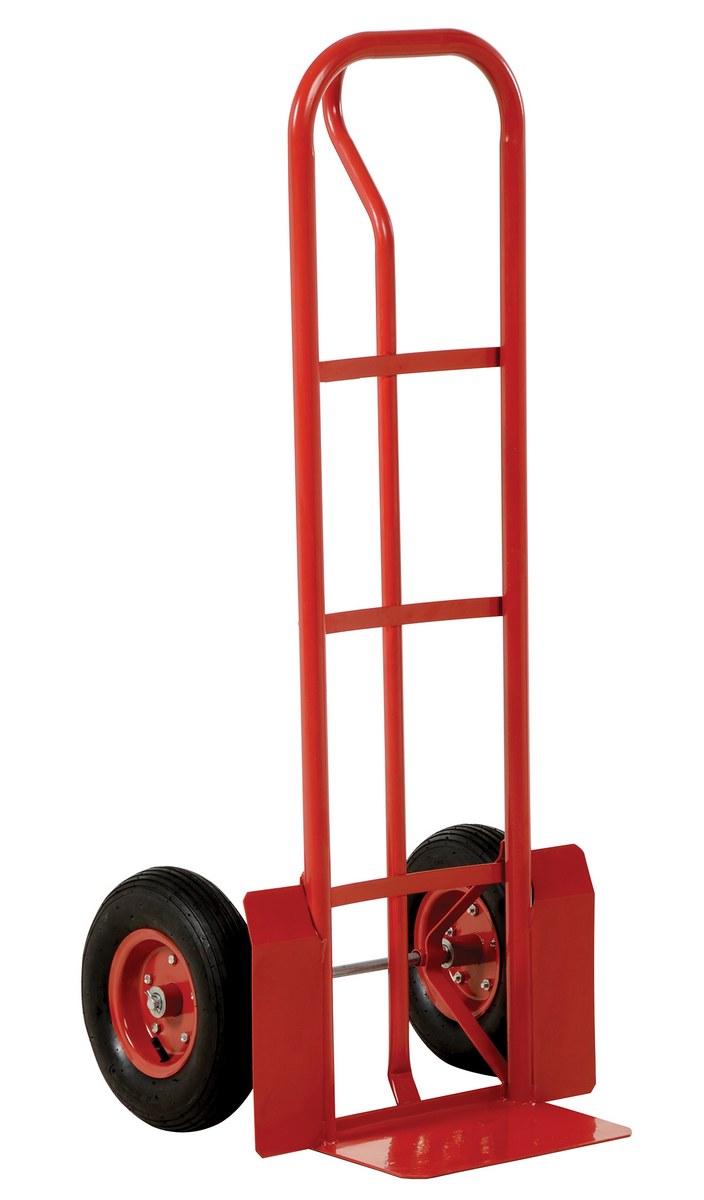

SPHT-600S-IND Warranty PDFCompliance Certificate 14"x7" 600 22"x22"x52" 31
Aluminum "P" Handle Hand Trucks
Model Image PDF Nose Plate/
Platform
(W x D)
Capacity (lbs)
Nose
Plate/Platform
Overall Size
(WxDxH)

Wt.
(lbs)

10" x 2" Hard Rubber Wheels

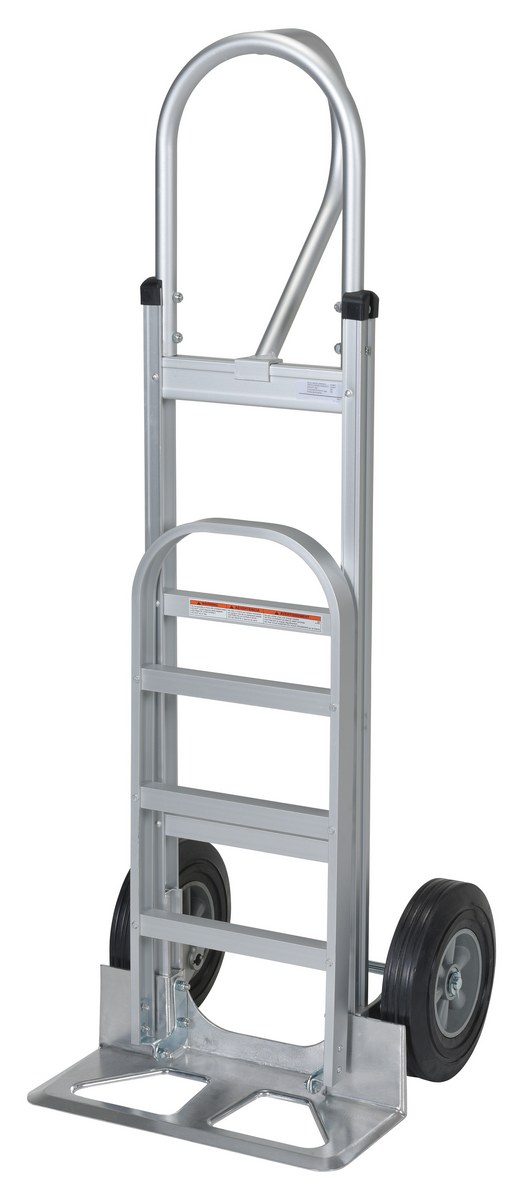

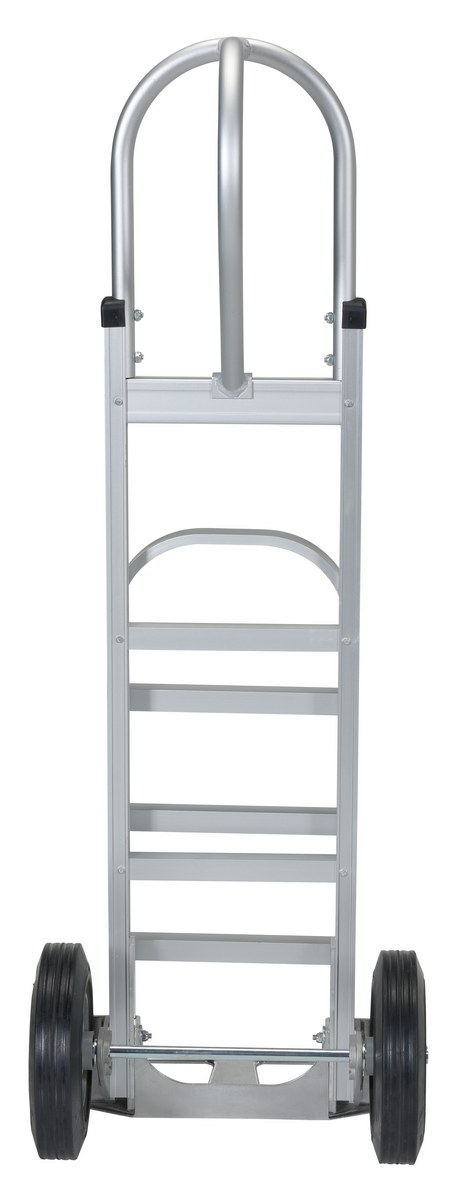

APHT-500A-HR icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 18"x 7-1/2" / 12" x 27" 500/200 18-1/2" x 18-1/2" x 52-1/2" 38

10" x 3-1/2" Pneumatic Wheels

APHT-500A icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 18"x 7-1/2" / 12" x 27" 500/200 20-1/2" x 18-1/2" x 52-1/2" 28
Stainless Steel "P" Handle Hand Trucks
Model Image PDF Nose Plate
(WxD)
Capacity
(lbs)
Overall Size (WxDxH)

Wt.
(lbs)

10" x 2" Hard Rubber Wheels

SPHT-500-SS-HR Warranty PDFCompliance Certificate 14"x7-1/2" 500 21"x18"x52" 45

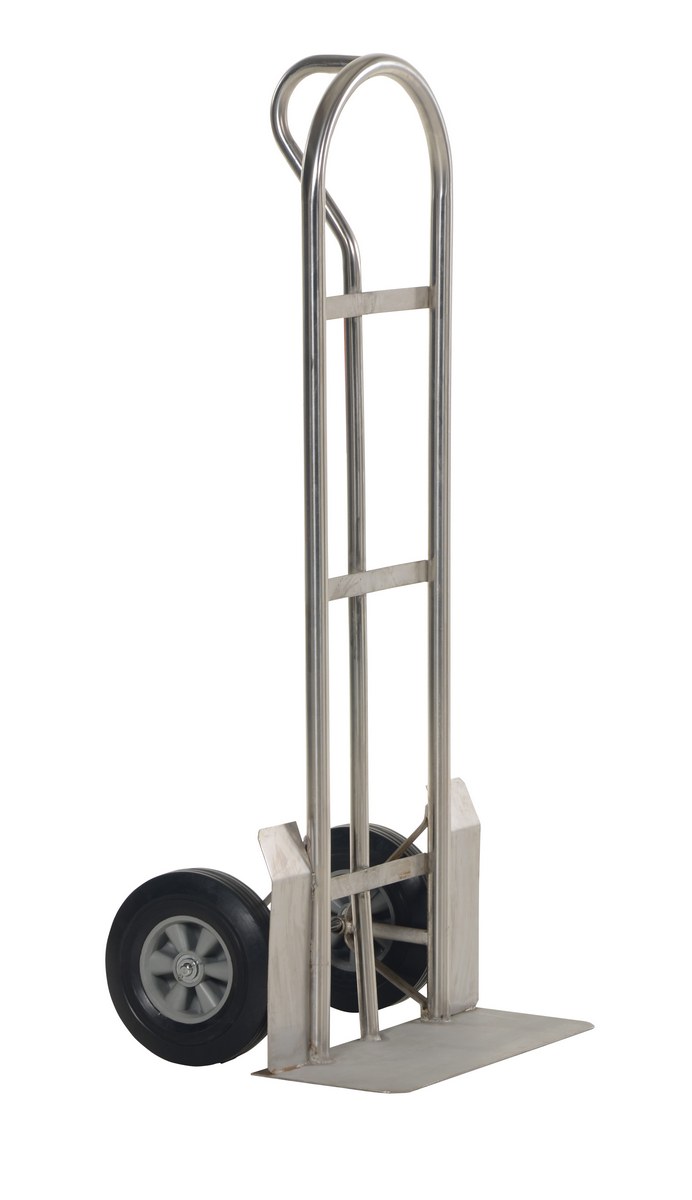

SPHT-500-HD-SS-HR Warranty PDFCompliance Certificate 22"x7-1/2" 600 22"x19"x52" 45

10" x 3-1/2" Pneumatic Wheels

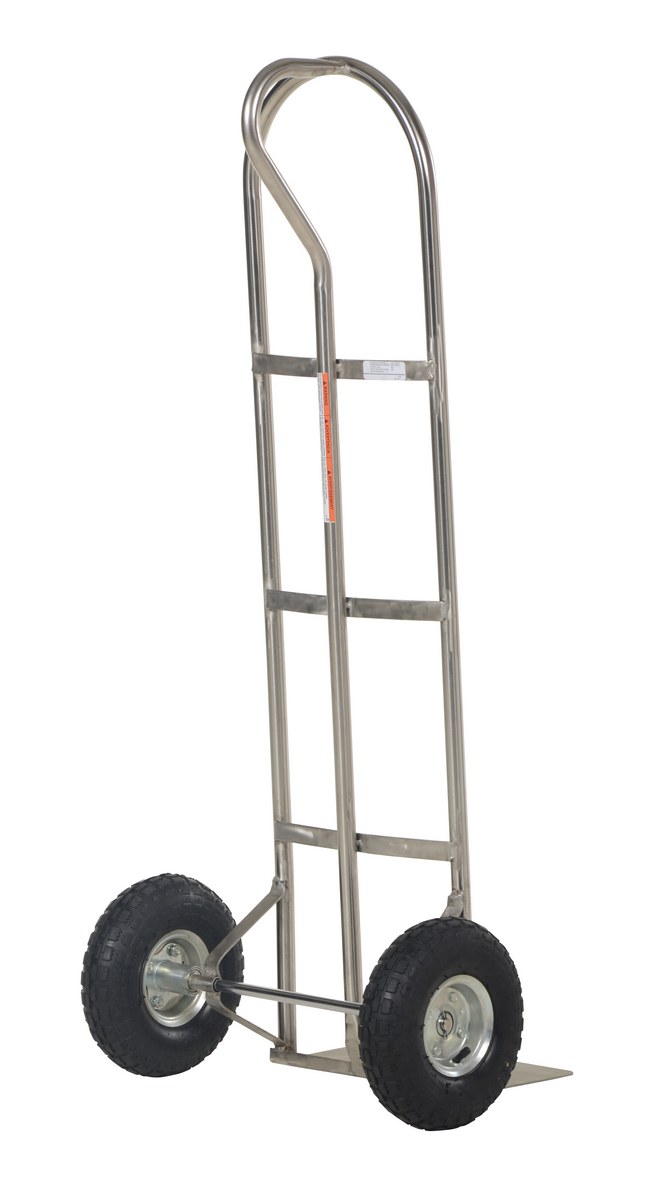

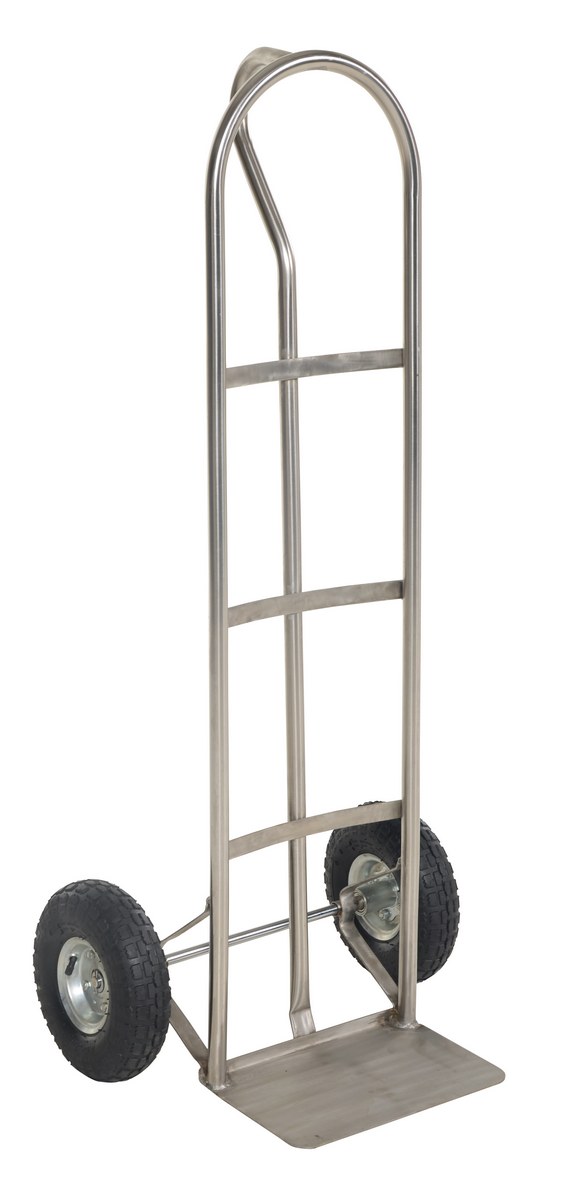

SPHT-500-SS Warranty PDFCompliance Certificate 14"x7-1/2" 500 21"x18"x52" 24

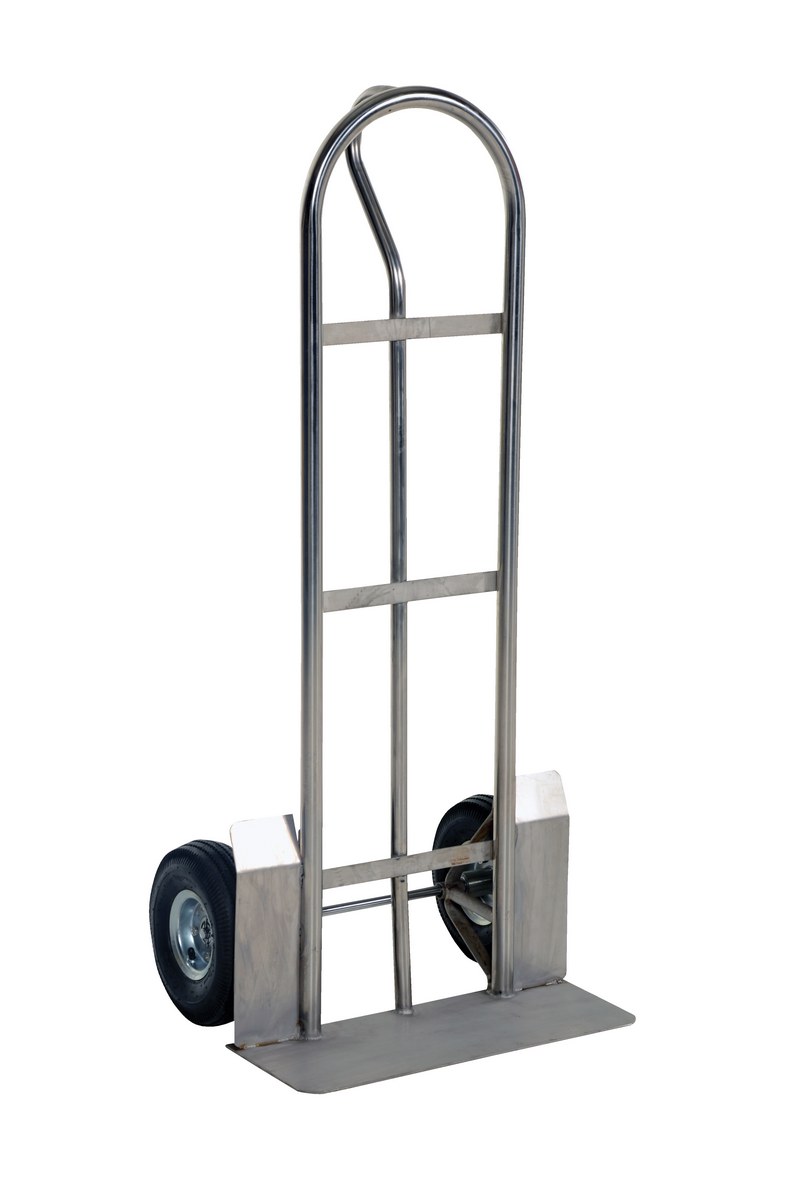

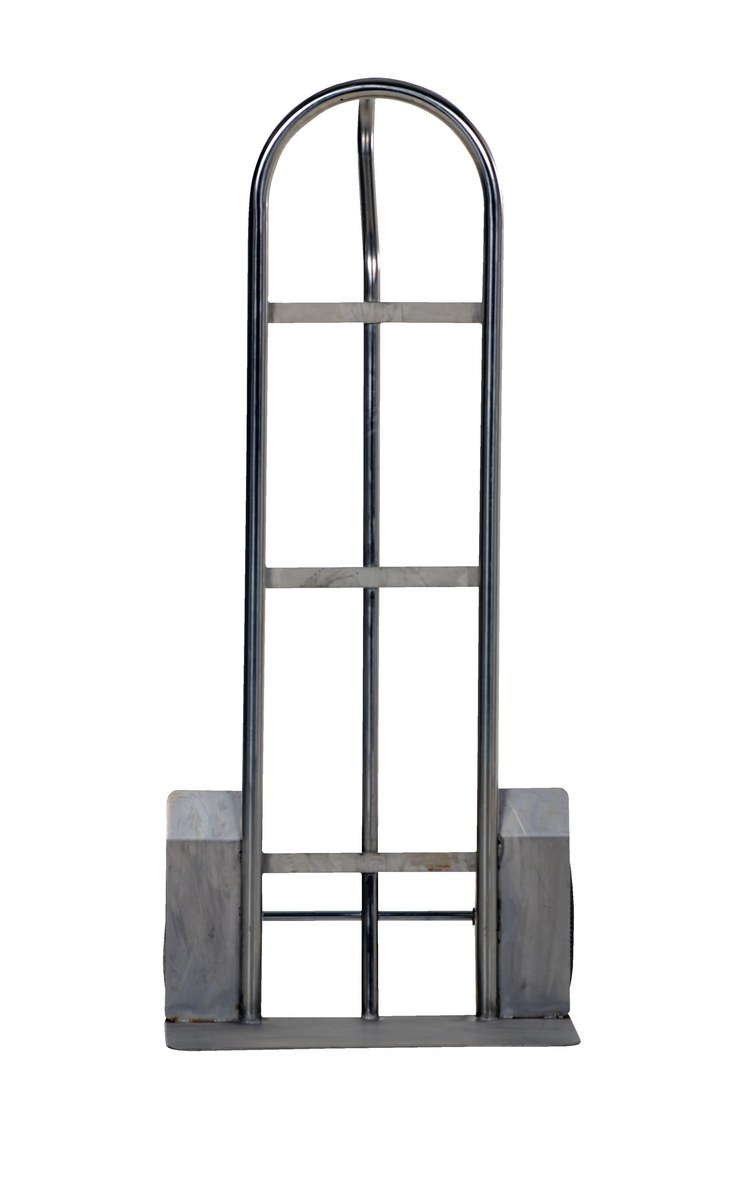

SPHT-500-HD-SS Warranty PDFCompliance Certificate 22"x7-1/2" 600 22"x19"x52" 35
