Click Image to Enlarge

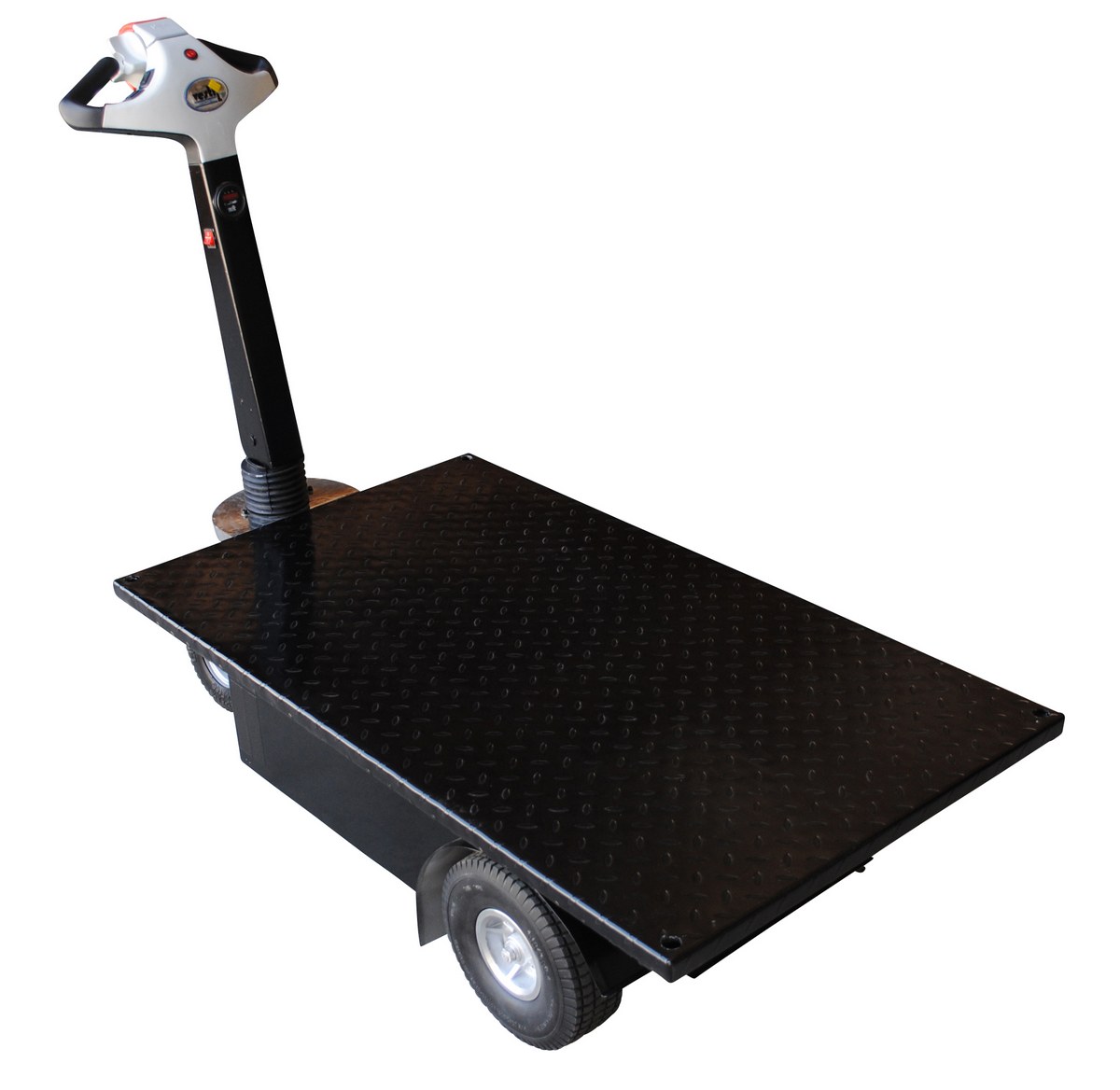

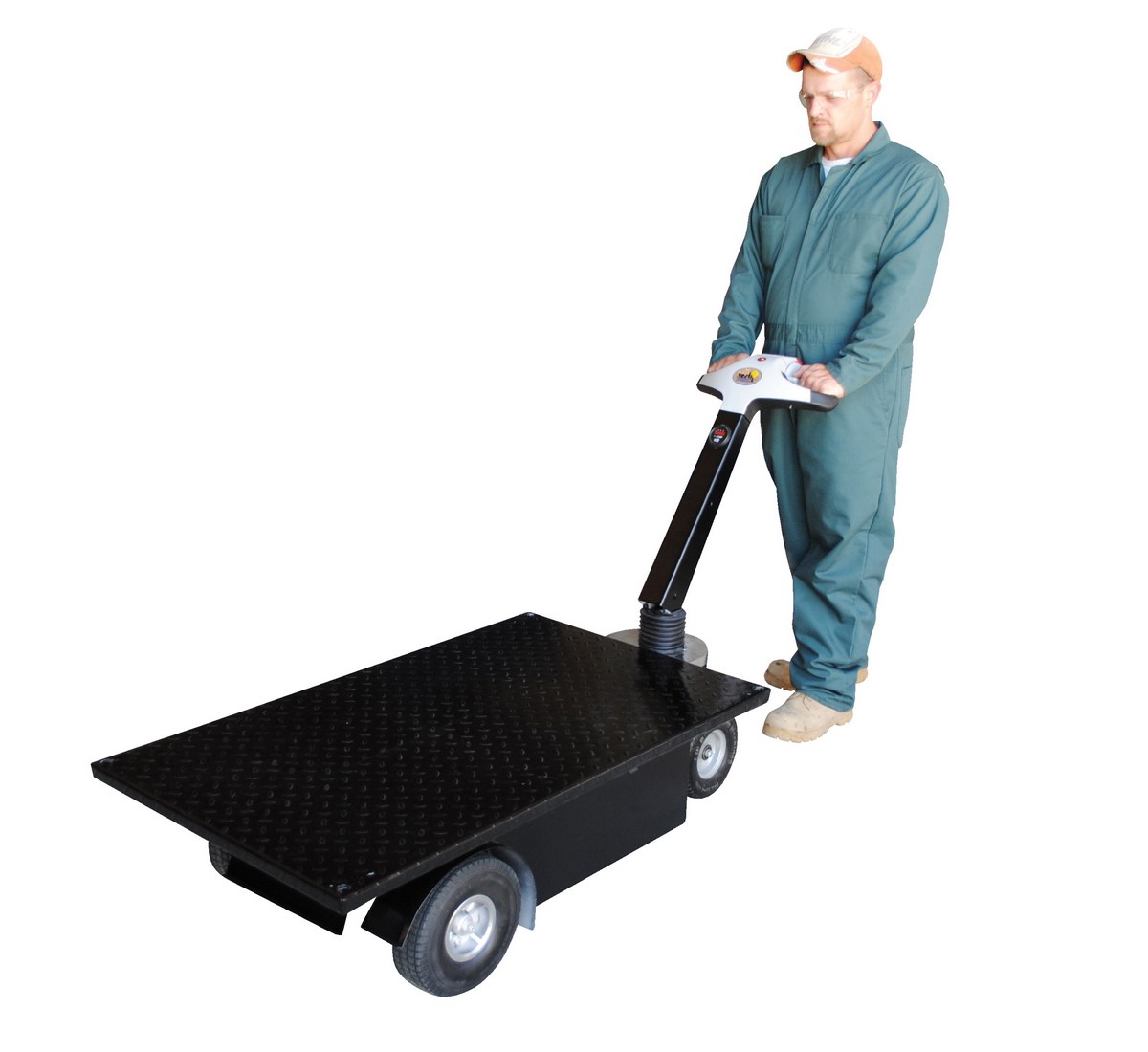

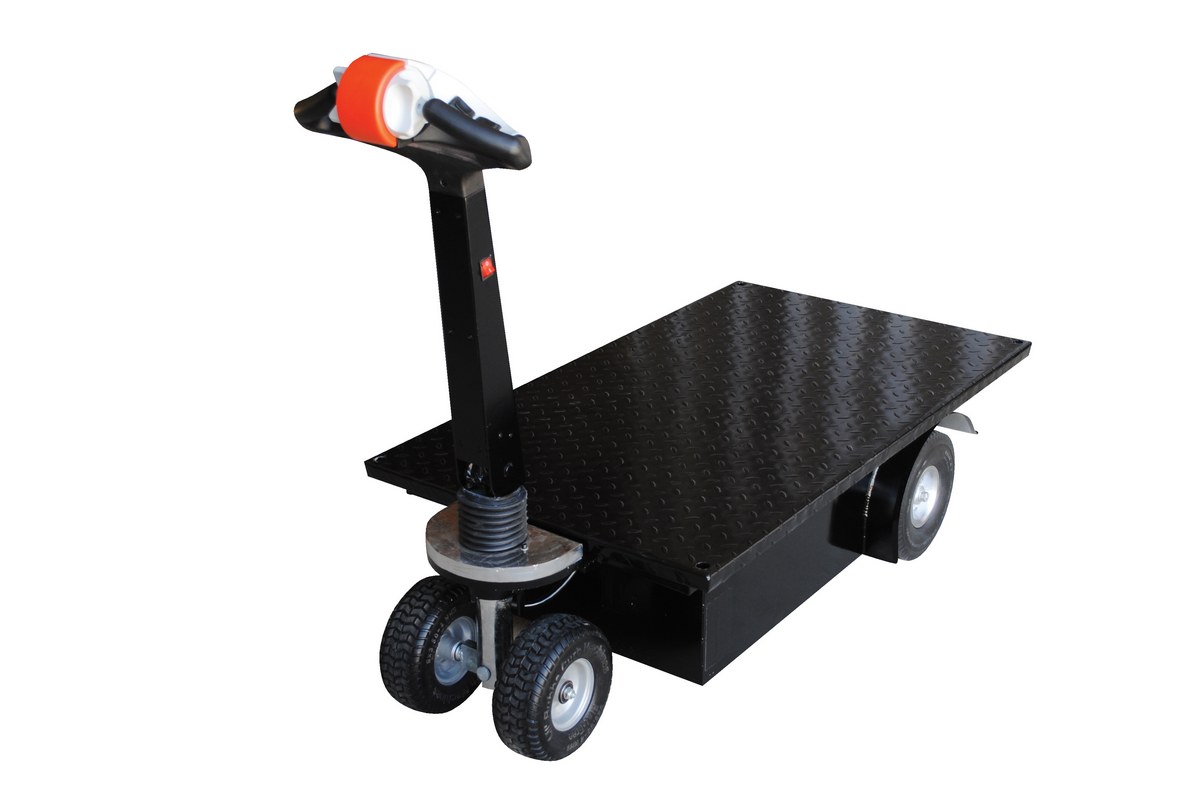

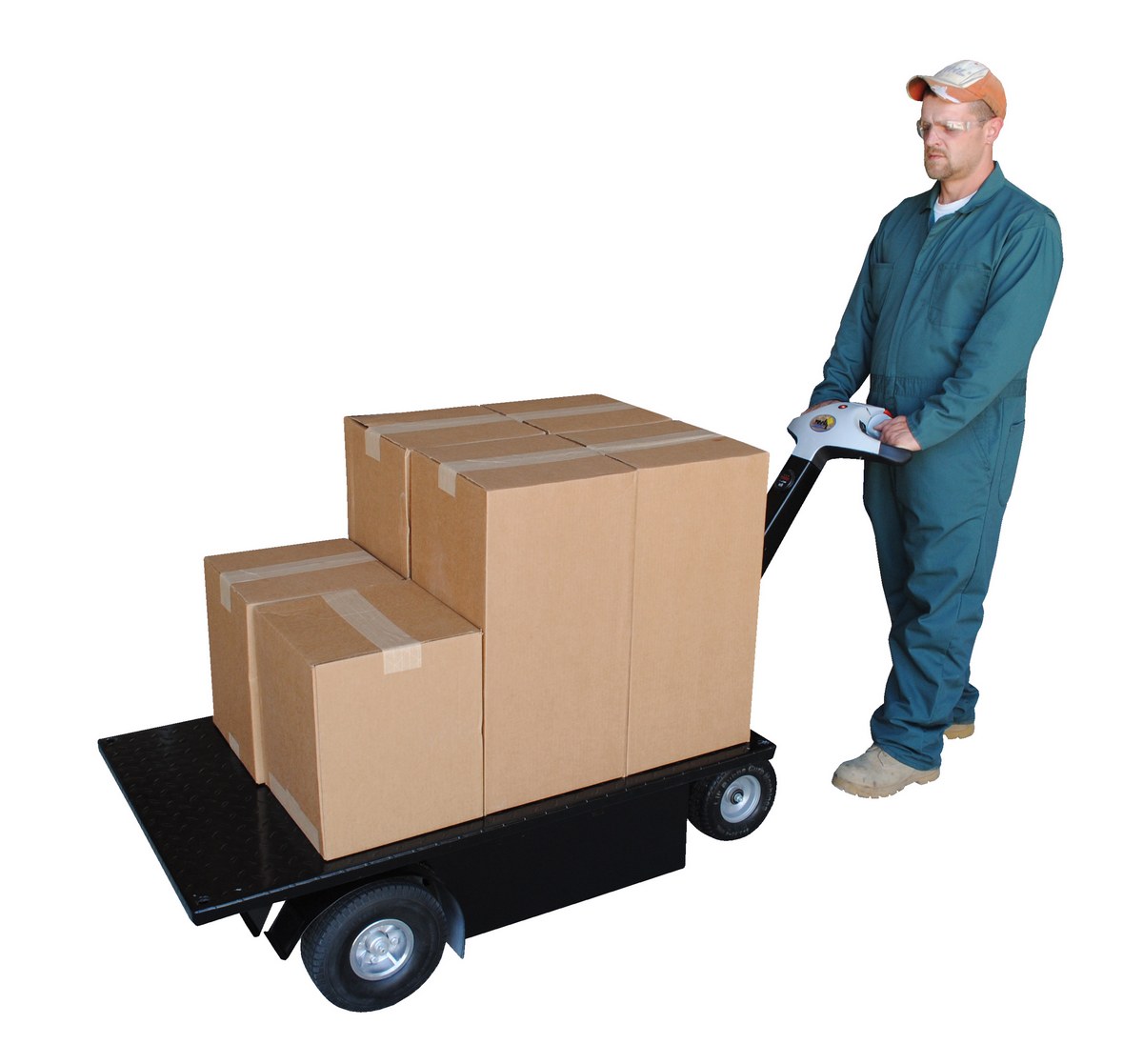

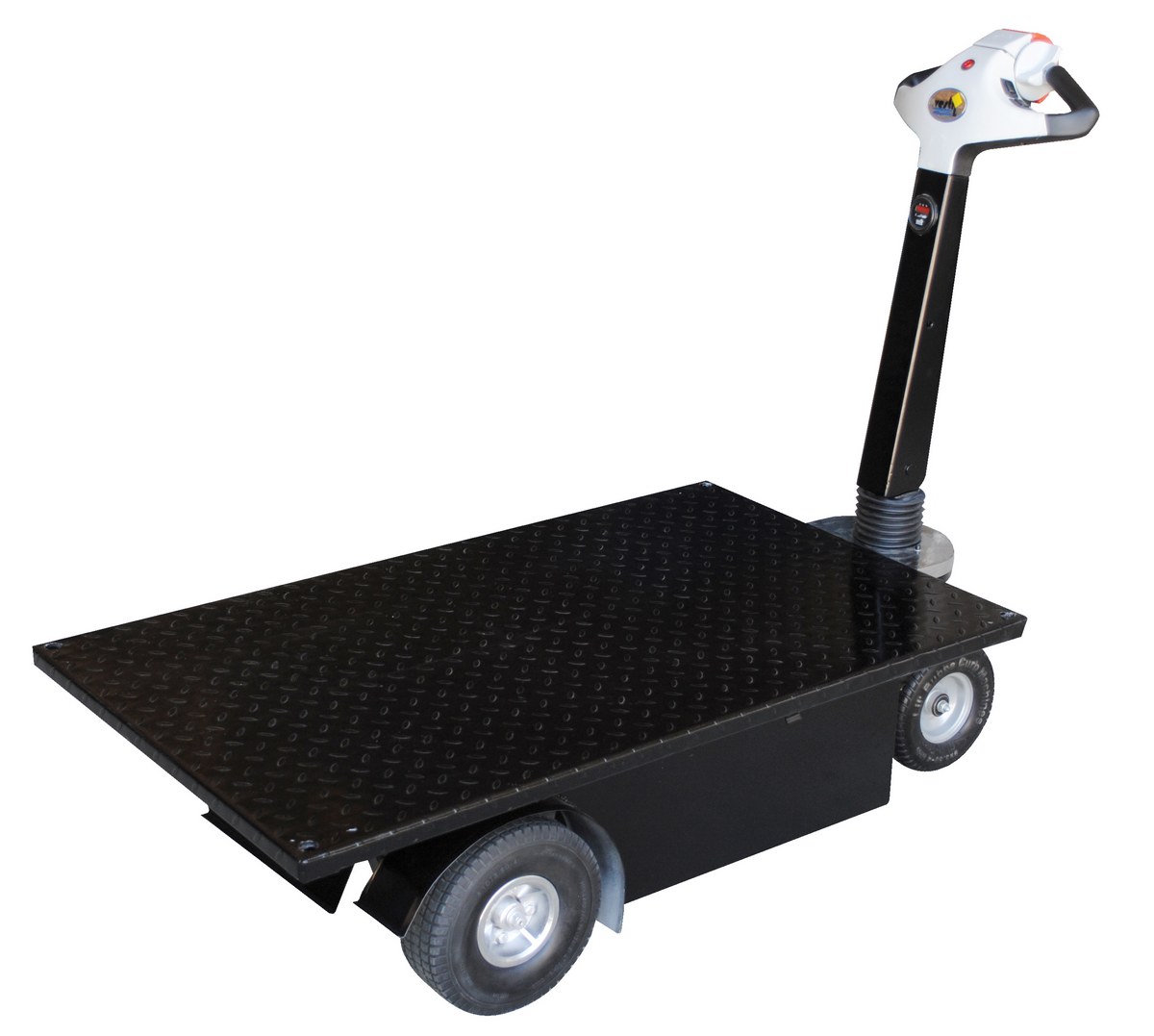

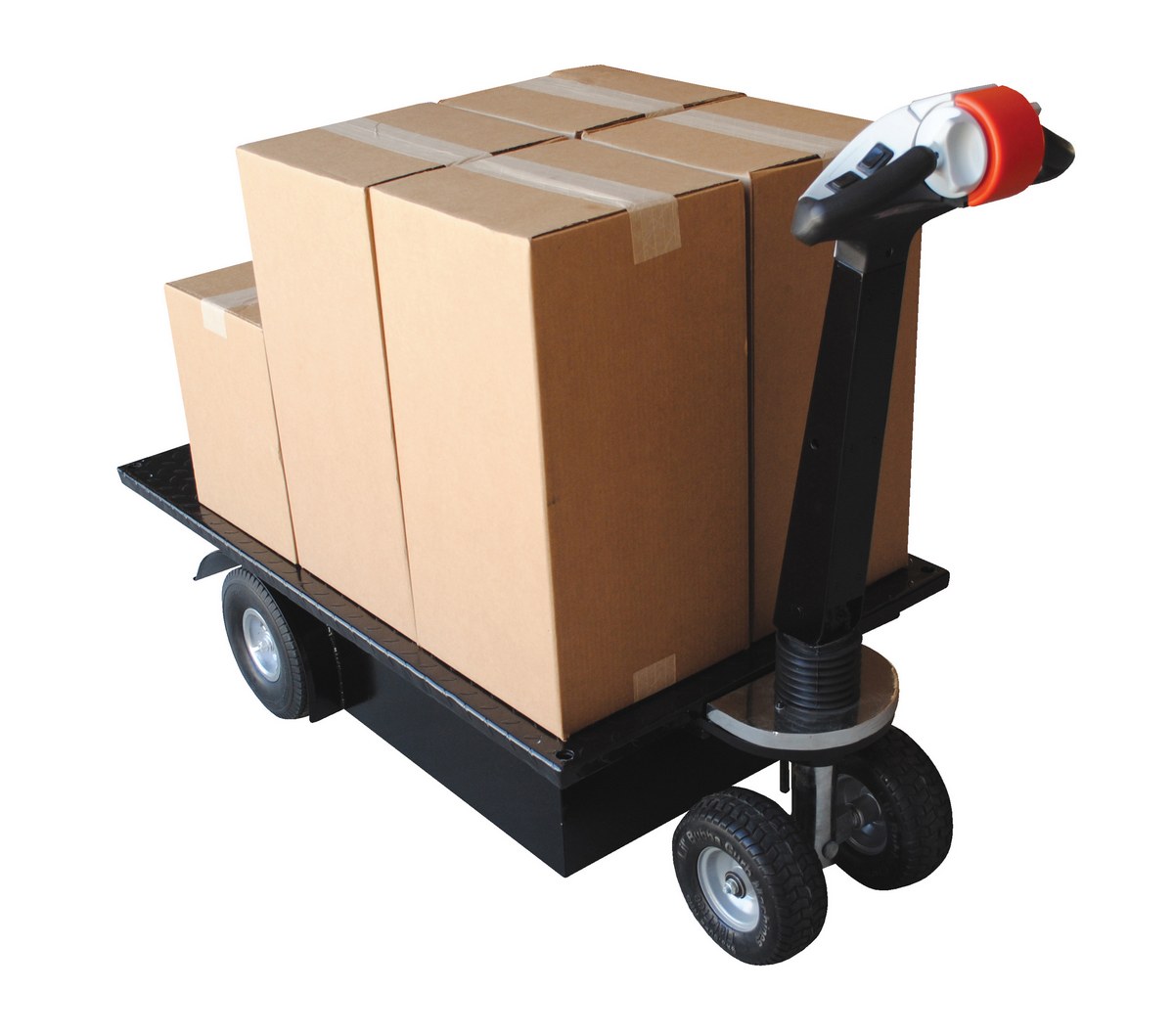

model: NE-CART-1


Traction-Drive Carts
SERIES: NE-CART

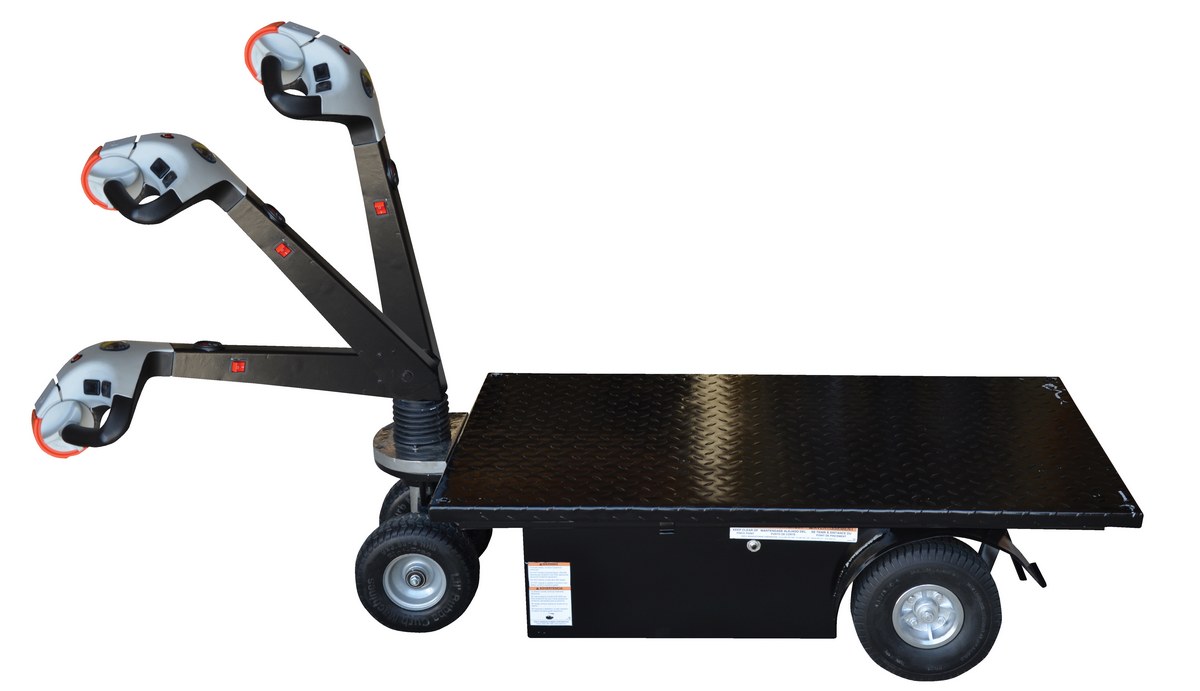

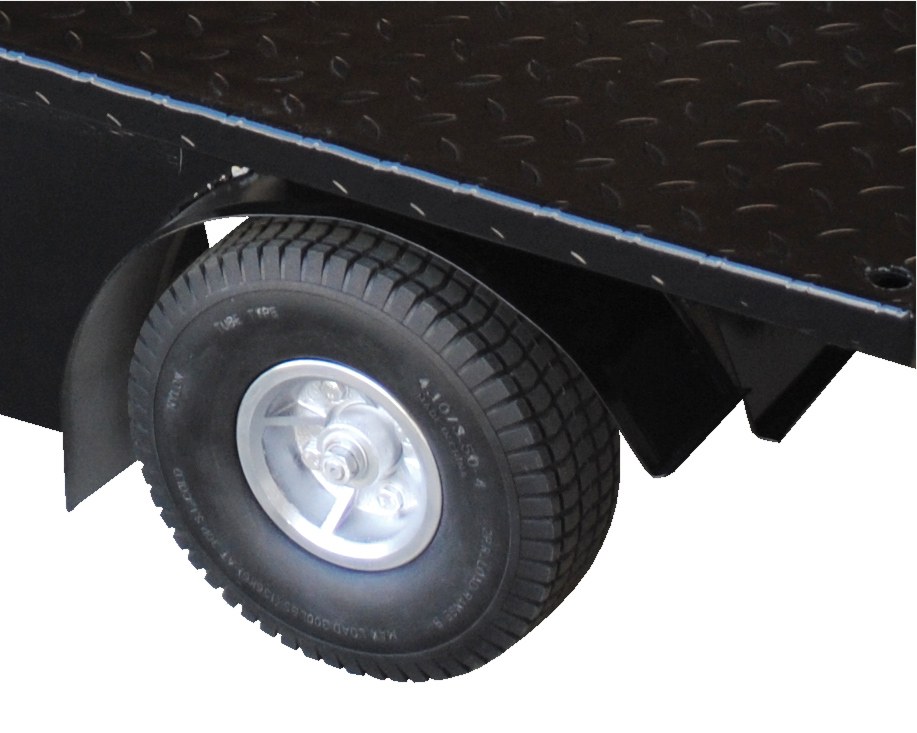

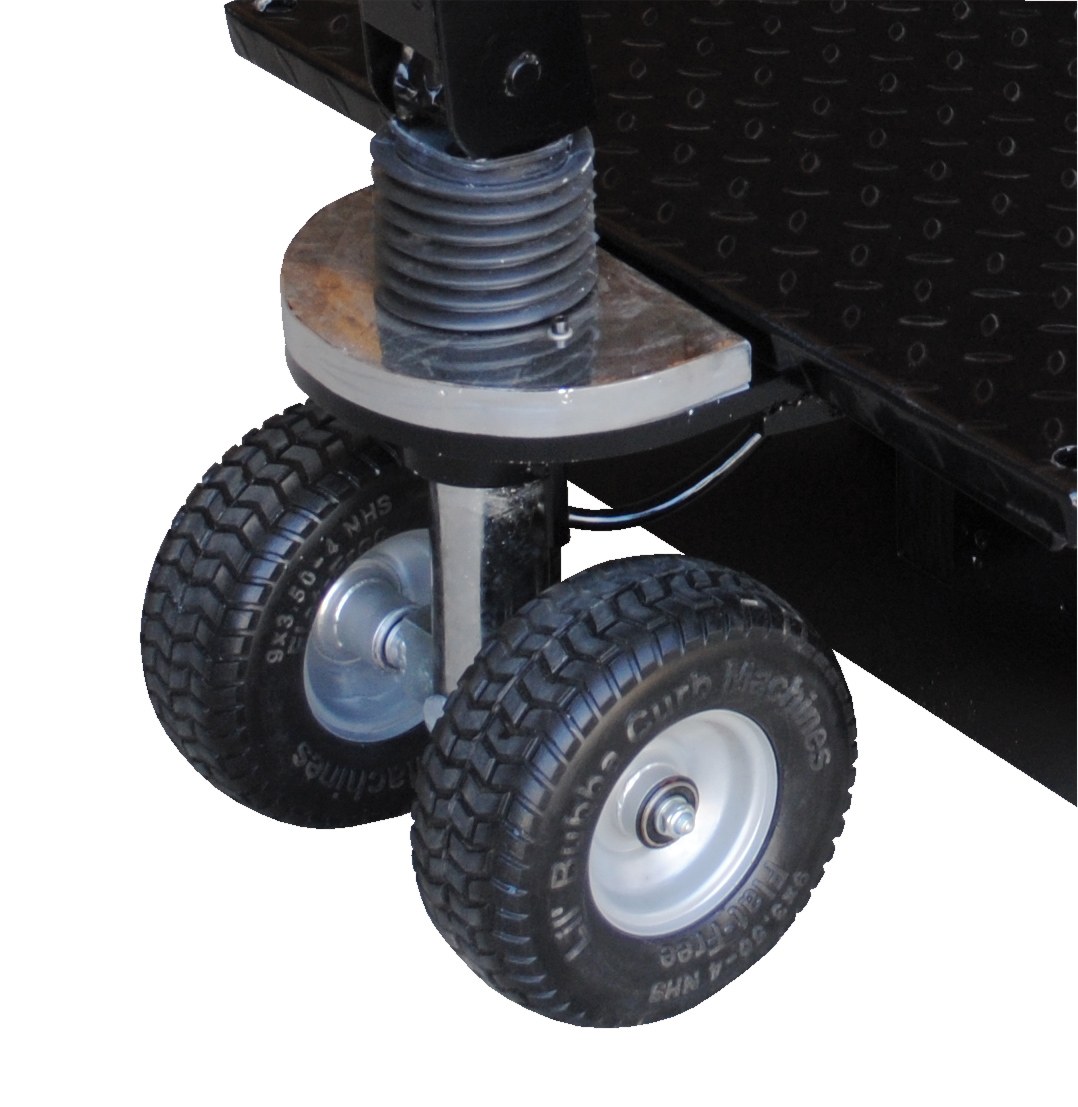

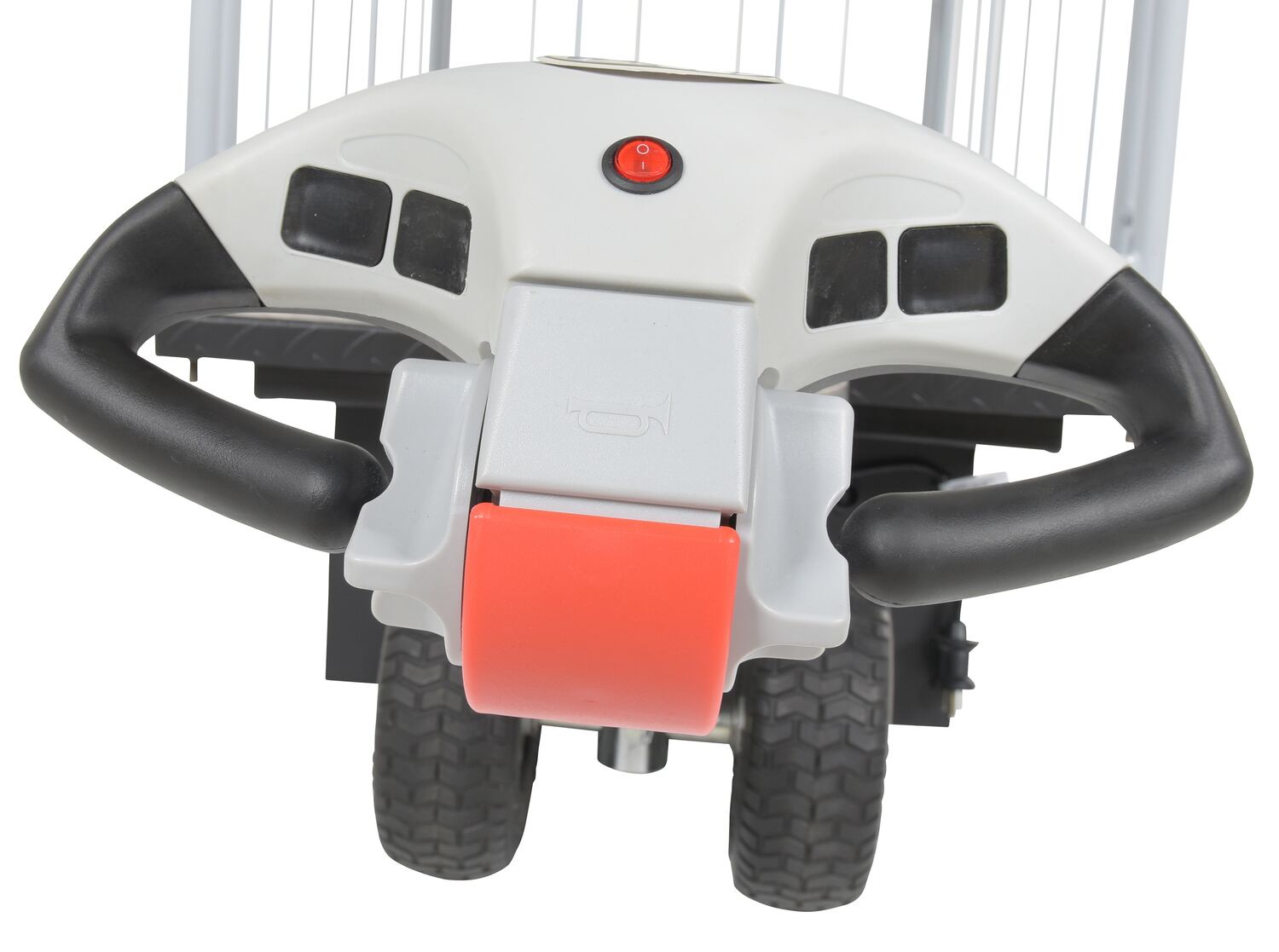

Unique carts feature built-in traction-drive system for easy transportability. Ideal for applications including mail rooms, hospitals, supermarkets, hotels and warehouses. Features 450W electric drive motor with two 70Ah batteries for power. 110V AC internal battery charger is included along with battery level indicator. Variable throttle speed control for precise maneuvering and positioning is located in the handle. Units roll smoothly on (2) 9" x 3-1/4" solid foam rubber steering wheels and (2) 10" x 3-1/4" solid foam drive wheels. Walking speed is 0-2.8 mph when unloaded and 0-1.5 mph when loaded. Speed control is conveniently located in handle. Handle pivots back towards operator and includes horn and emergency stop. Maximum incline is 7 degrees. Each shelf includes a tread plate surface. Deck height 14"

Unique carts feature built-in traction-drive system for easy transportability. Ideal for applications including mail rooms, hospitals, supermarkets, hotels and warehouses. Features 450W electric drive motor with two 70Ah batteries for power. 110V AC internal battery charger is included along with battery level indicator. Variable throttle speed control for precise maneuvering and positioning is located in the handle. Units roll smoothly on (2) 9" x 3-1/4" solid foam rubber steering wheels and (2) 10" x 3-1/4" solid foam drive wheels. Walking speed is 0-2.8 mph when unloaded and 0-1.5 mph when loaded. Speed control is conveniently located in handle. Handle pivots back towards operator and includes horn and emergency stop. Maximum incline is 7 degrees. Each shelf includes a tread plate surface. Deck height 14"

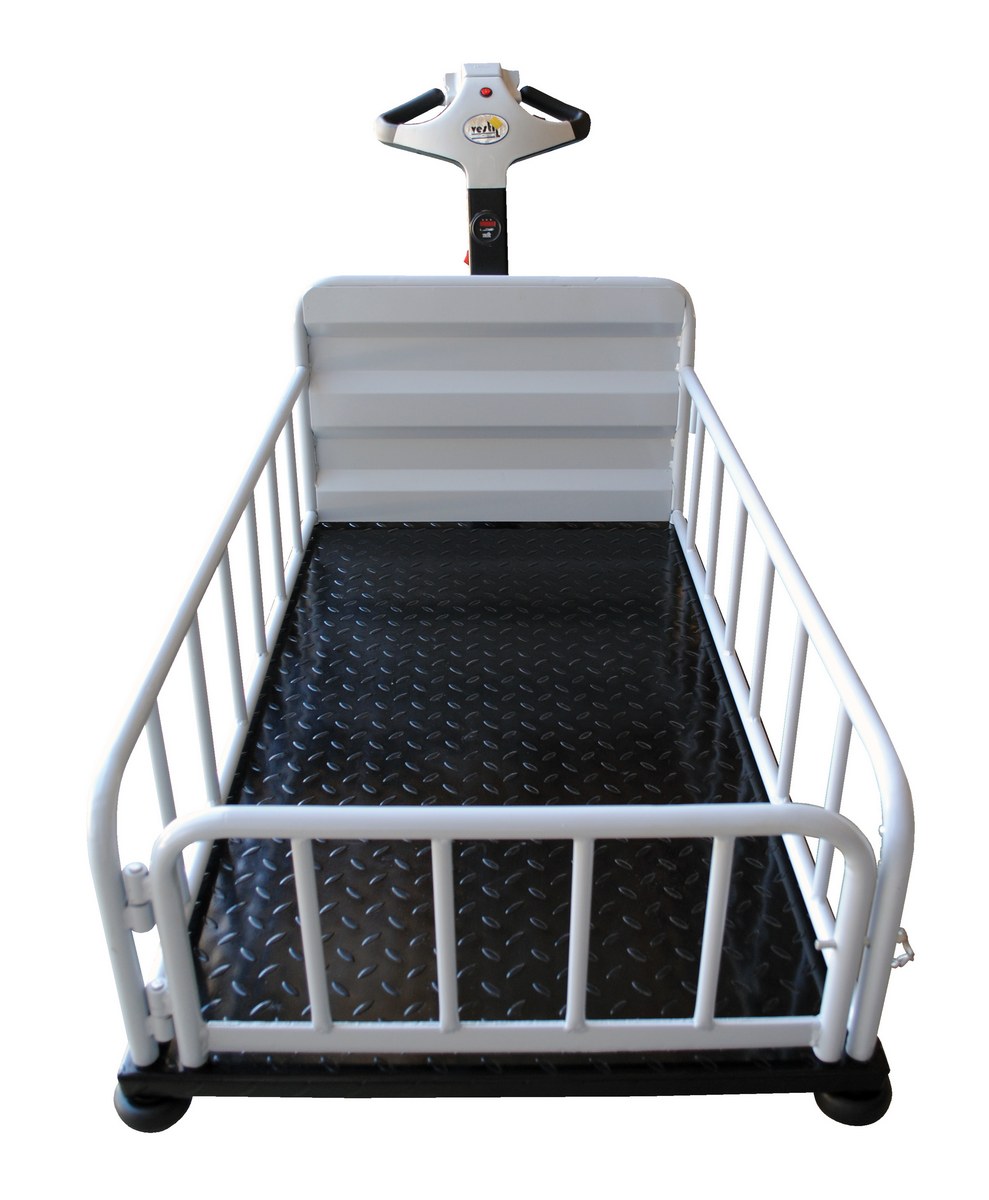

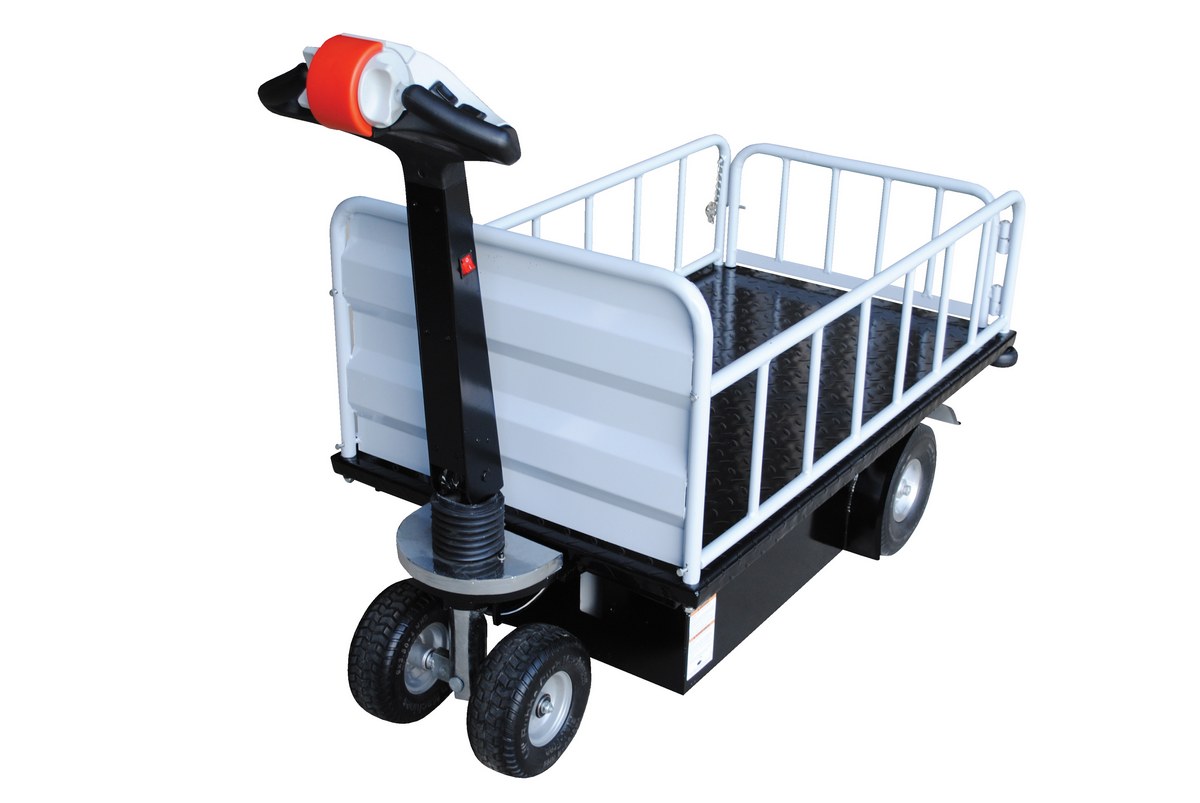

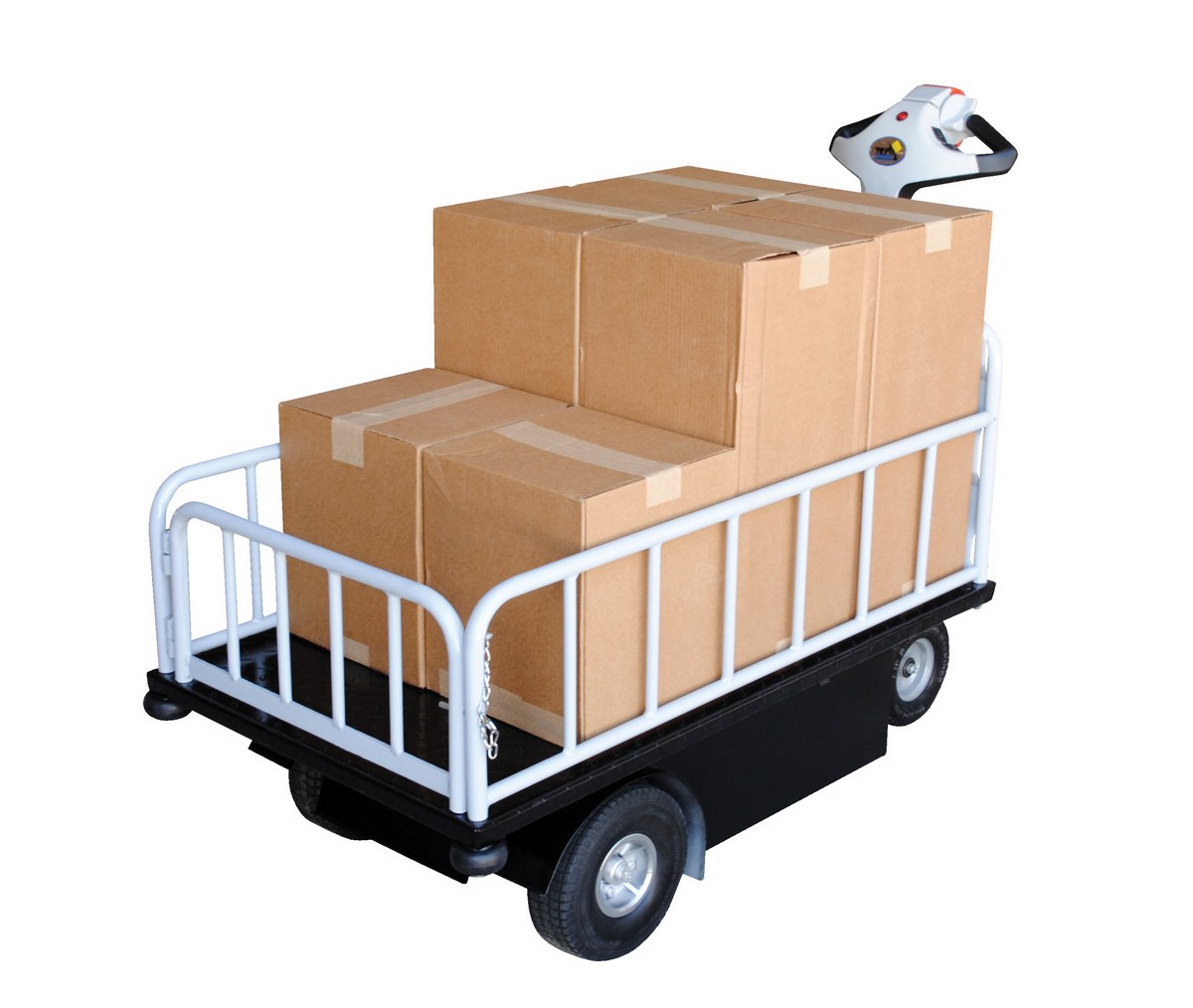

NE-CART-2

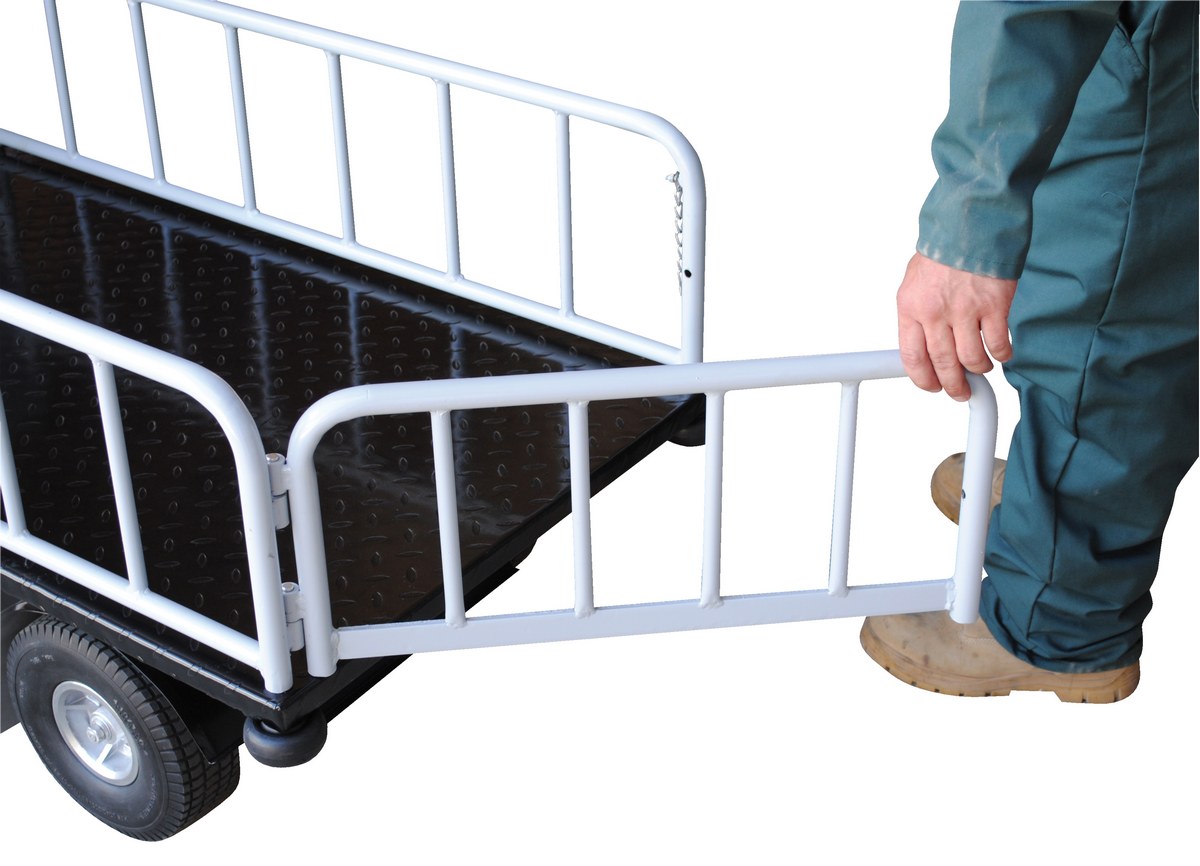

model NE-CART-2

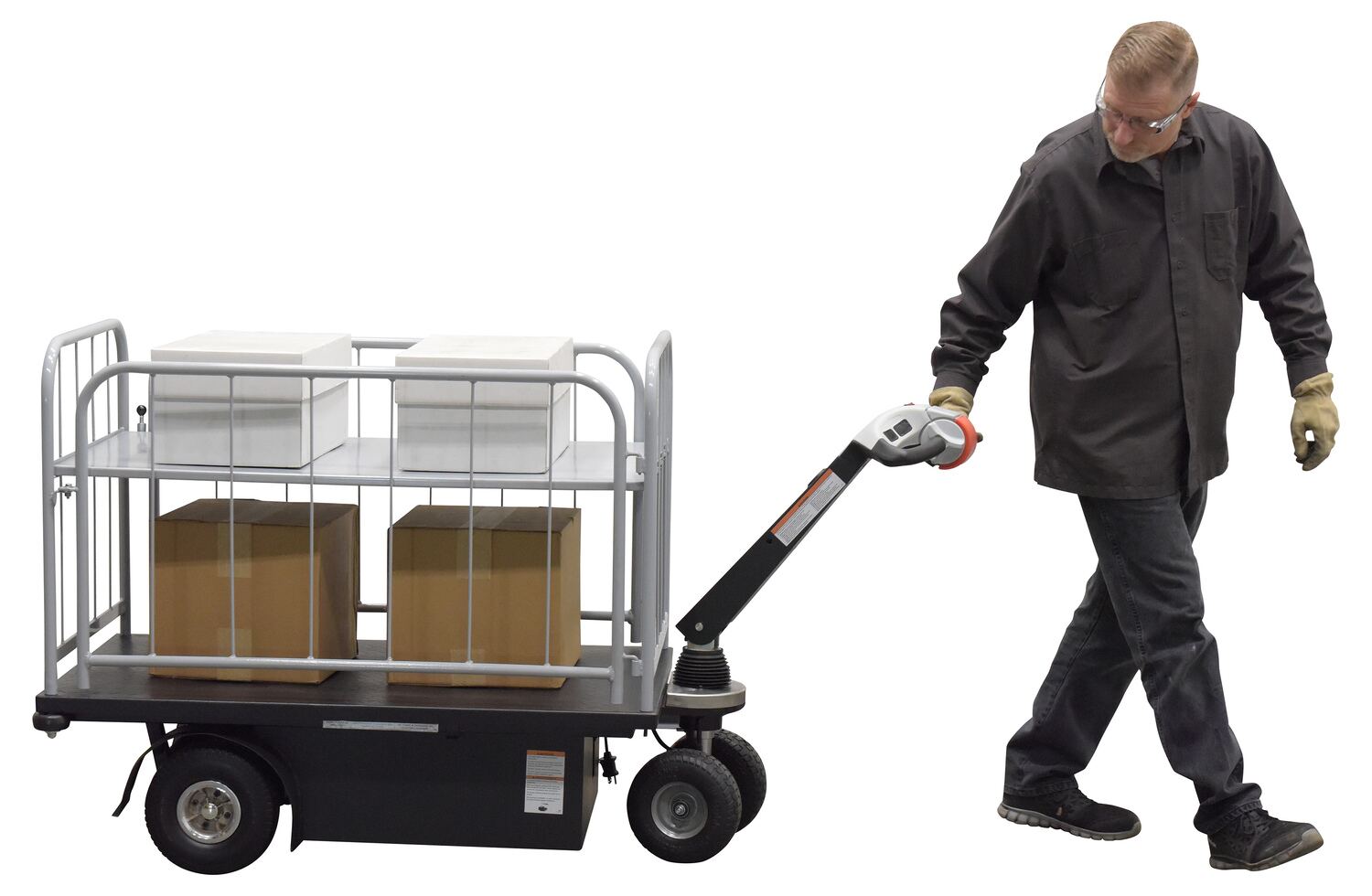

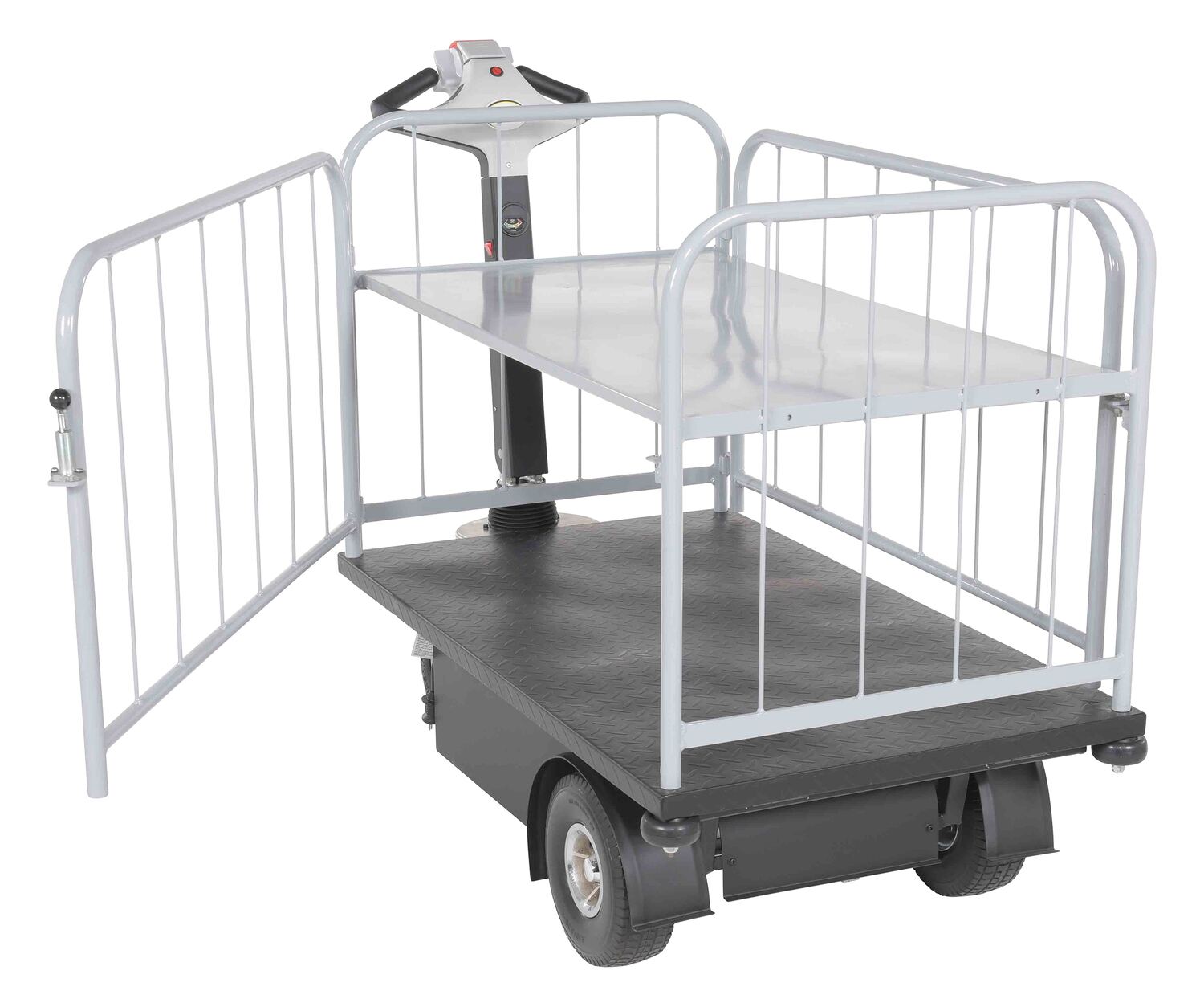

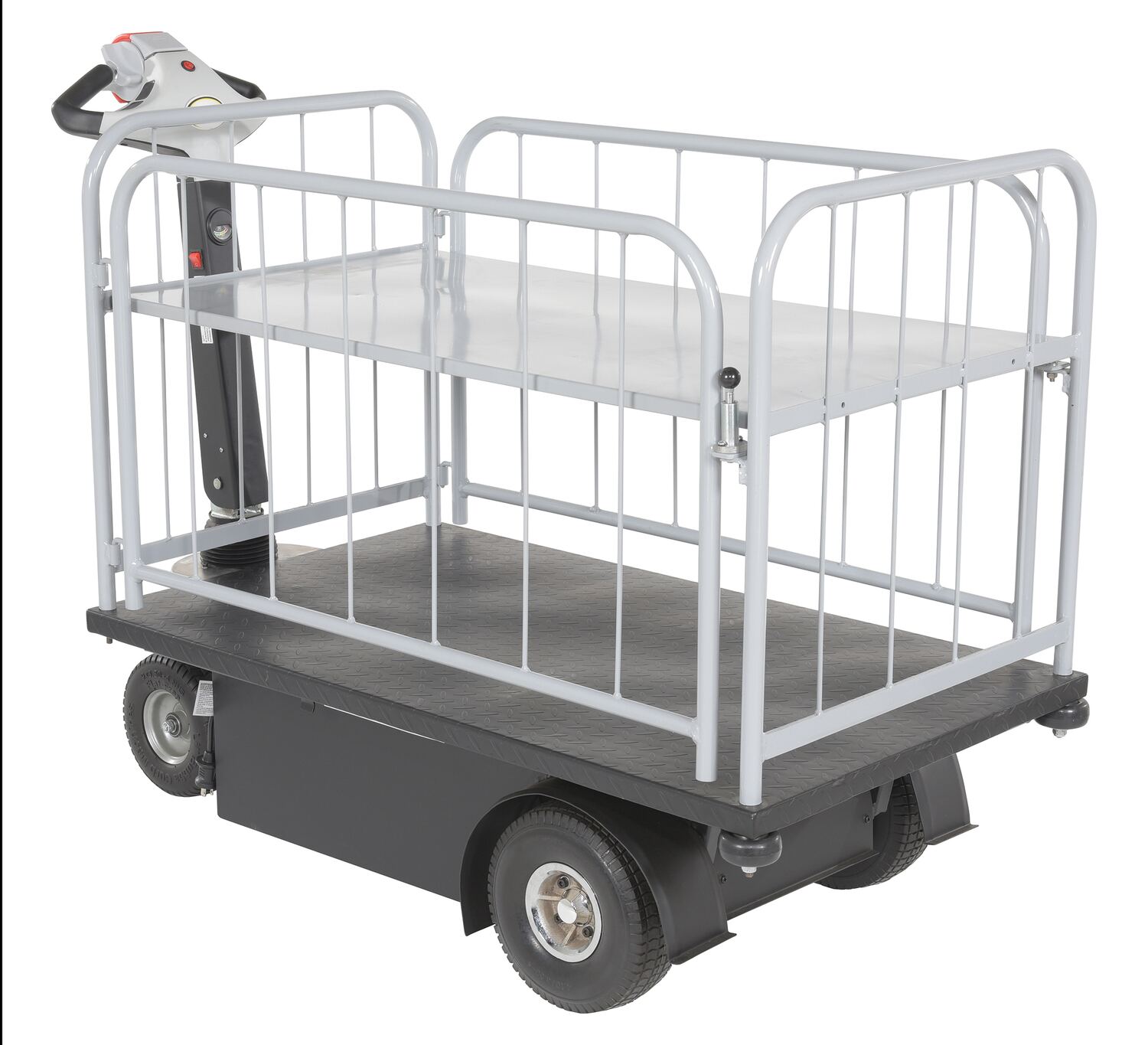

NE-CART-3

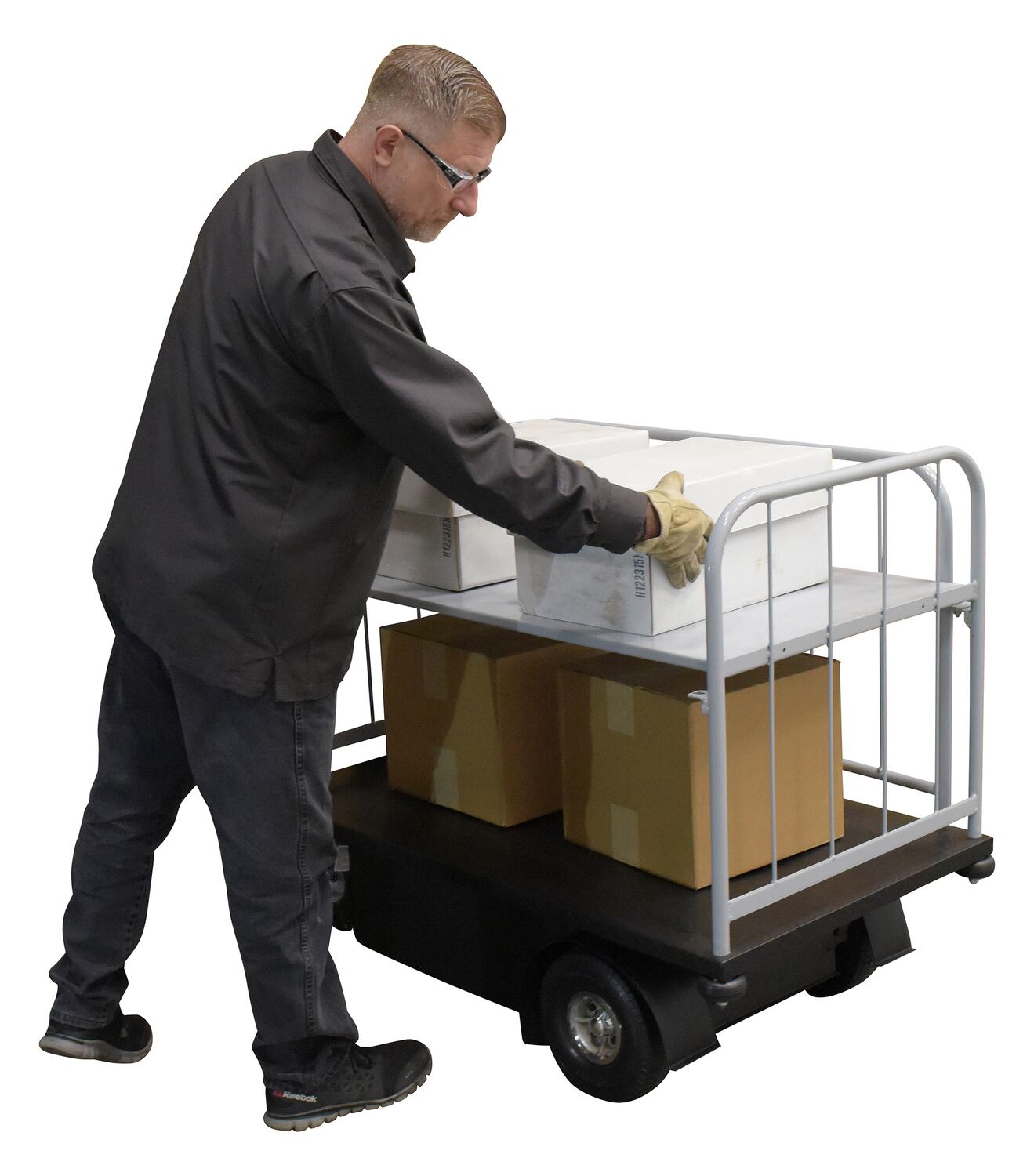

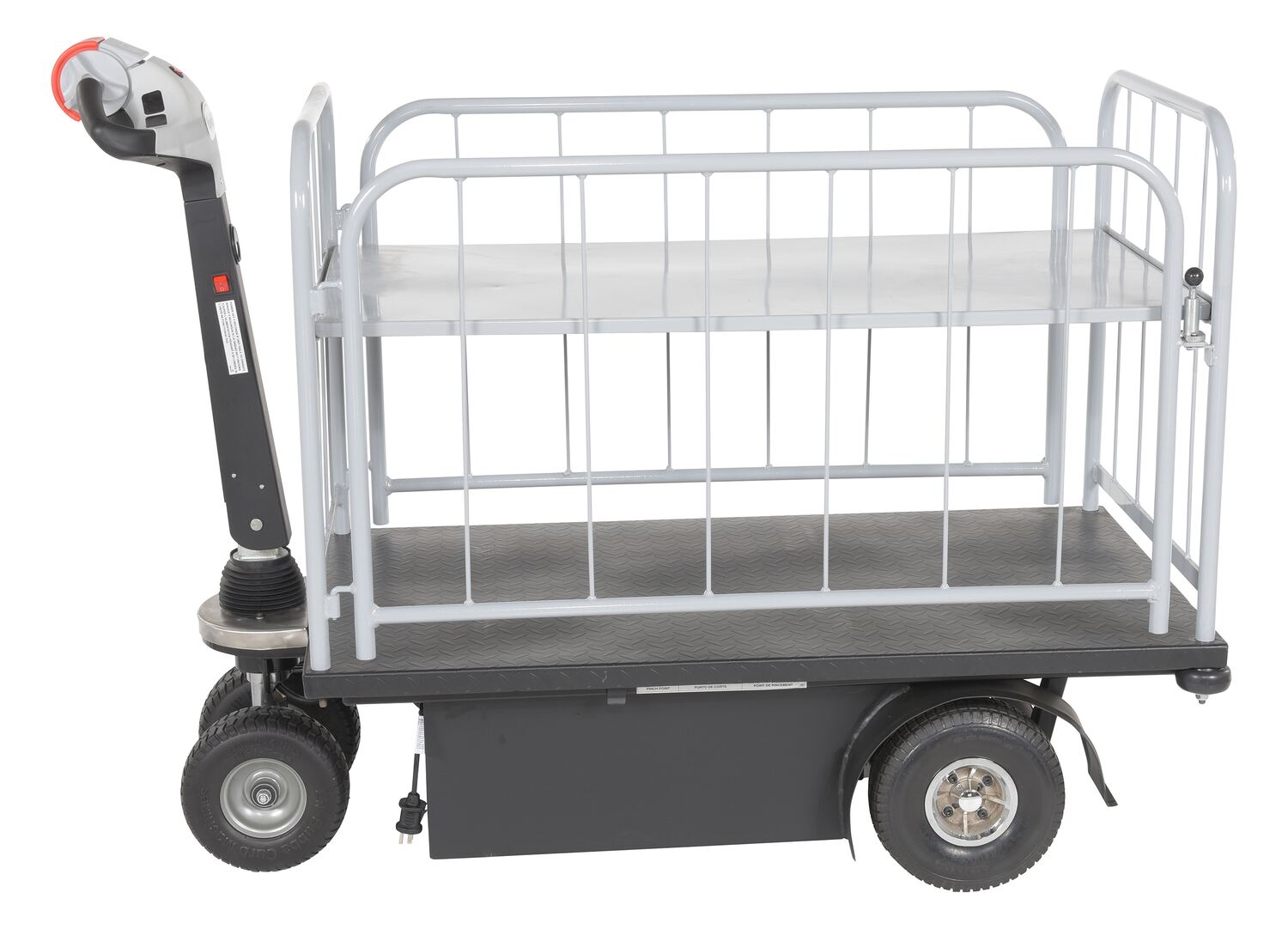

model NE-CART-3

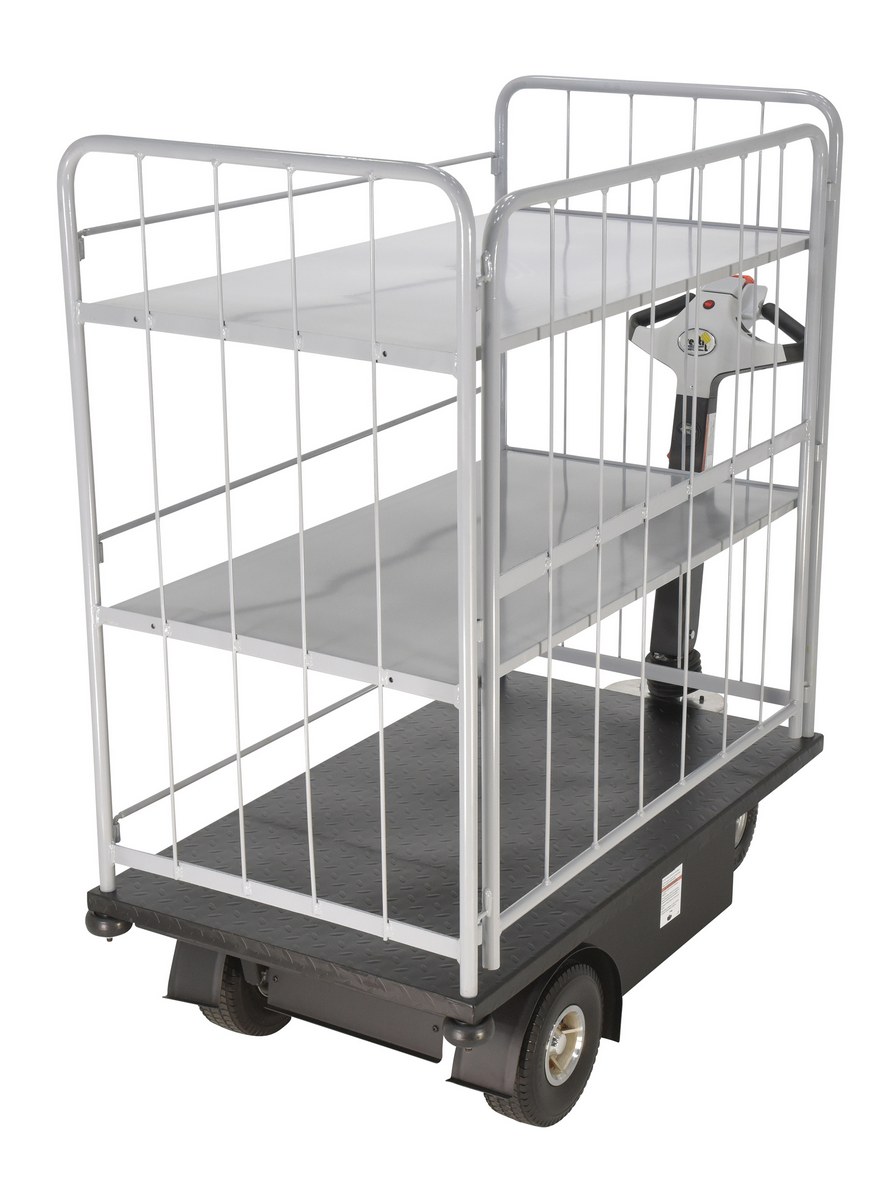

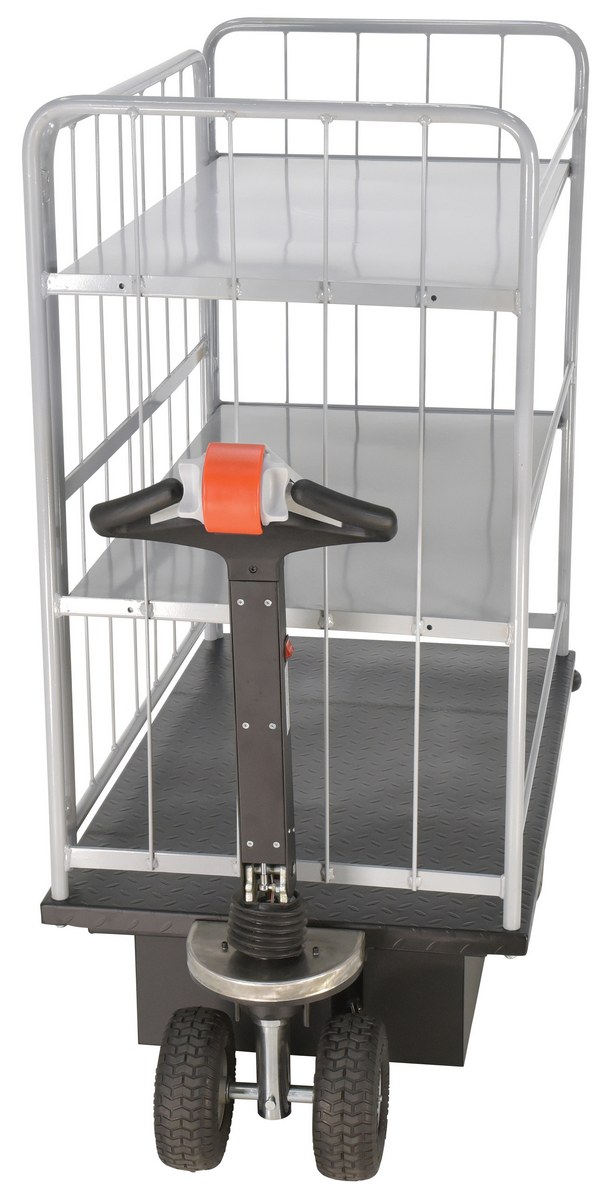

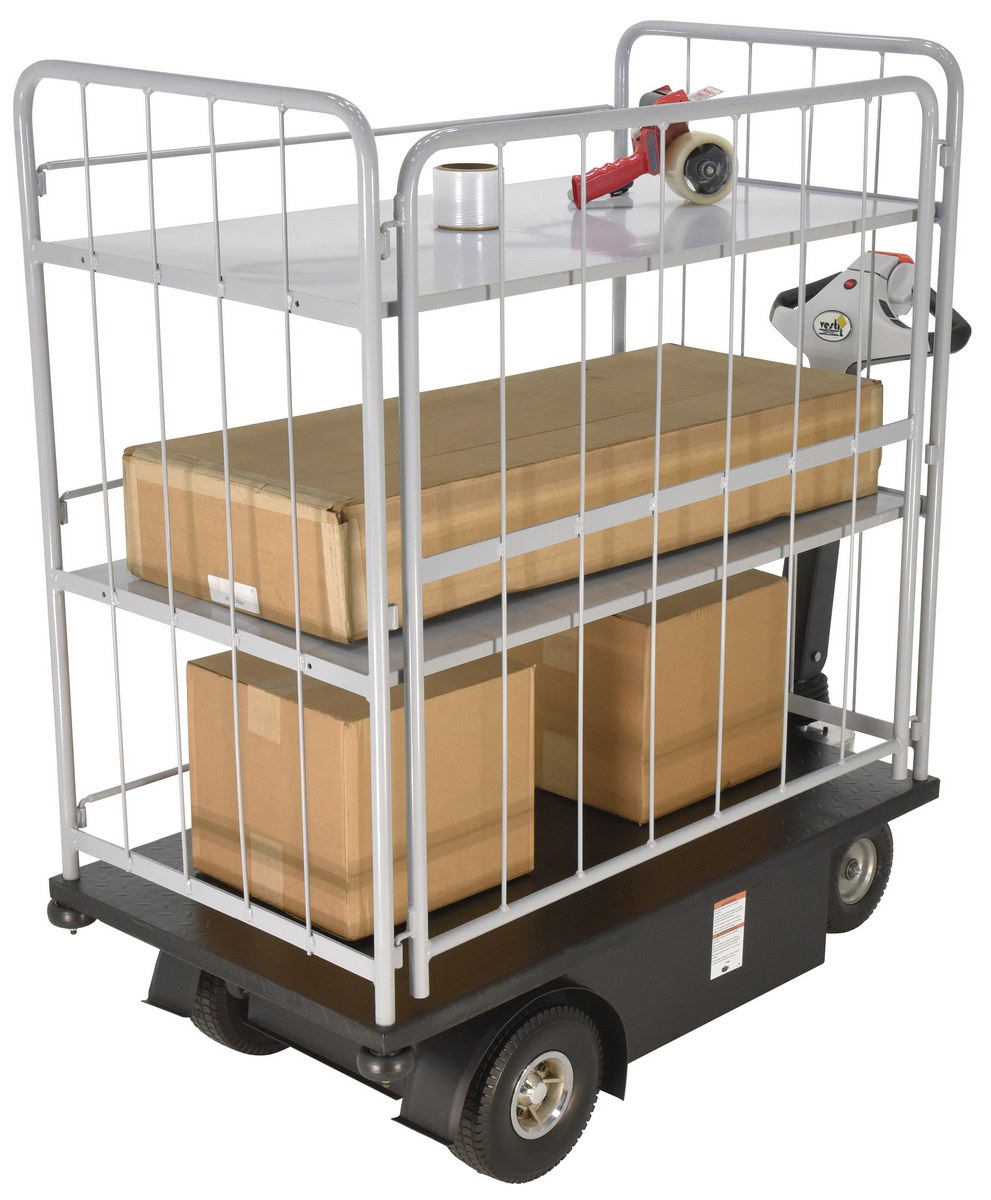

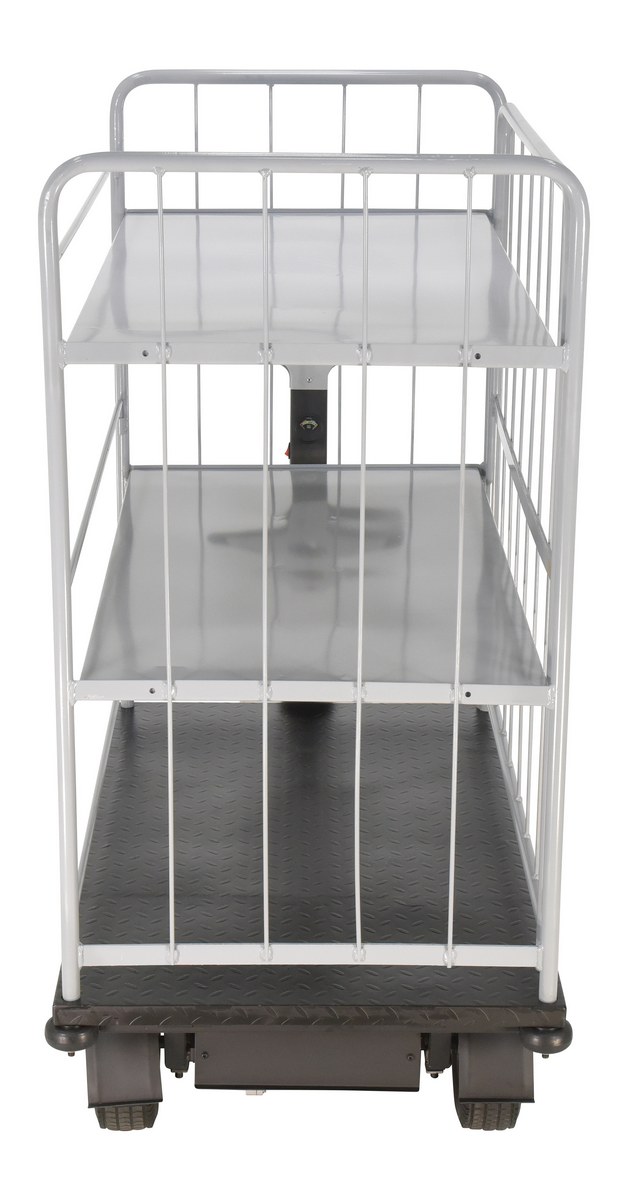

NE-CART-4

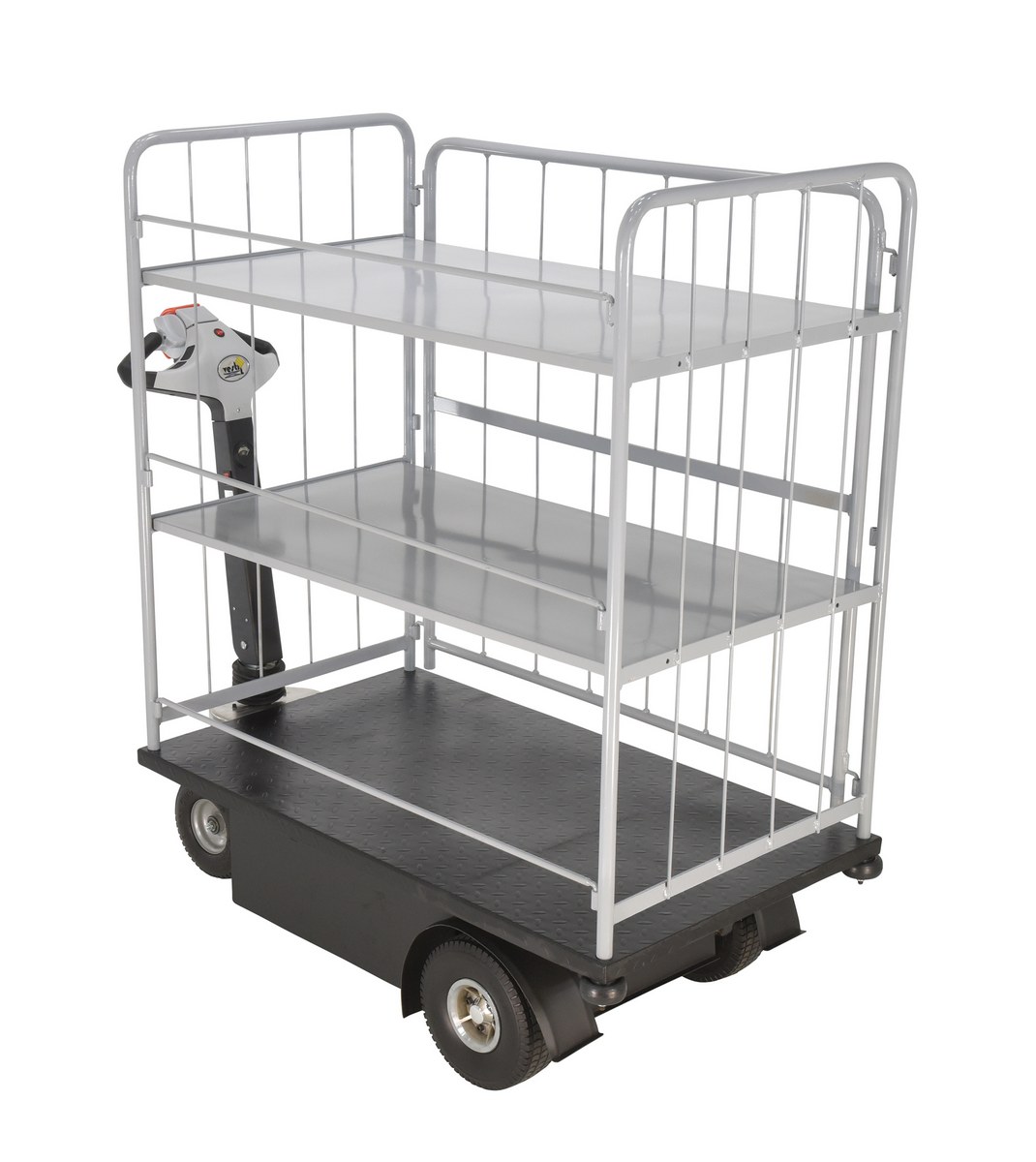

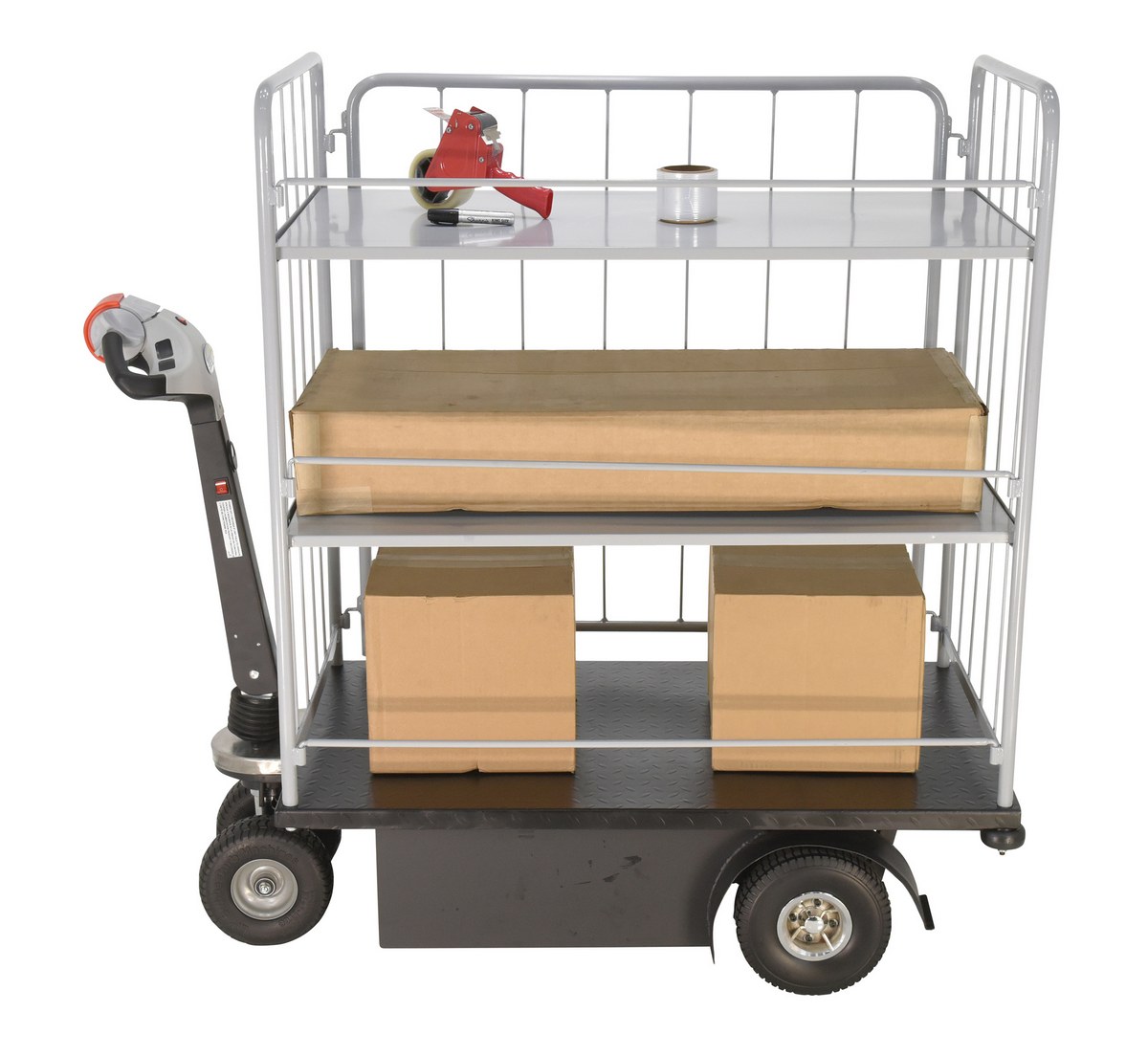

model NE-CART-4




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)

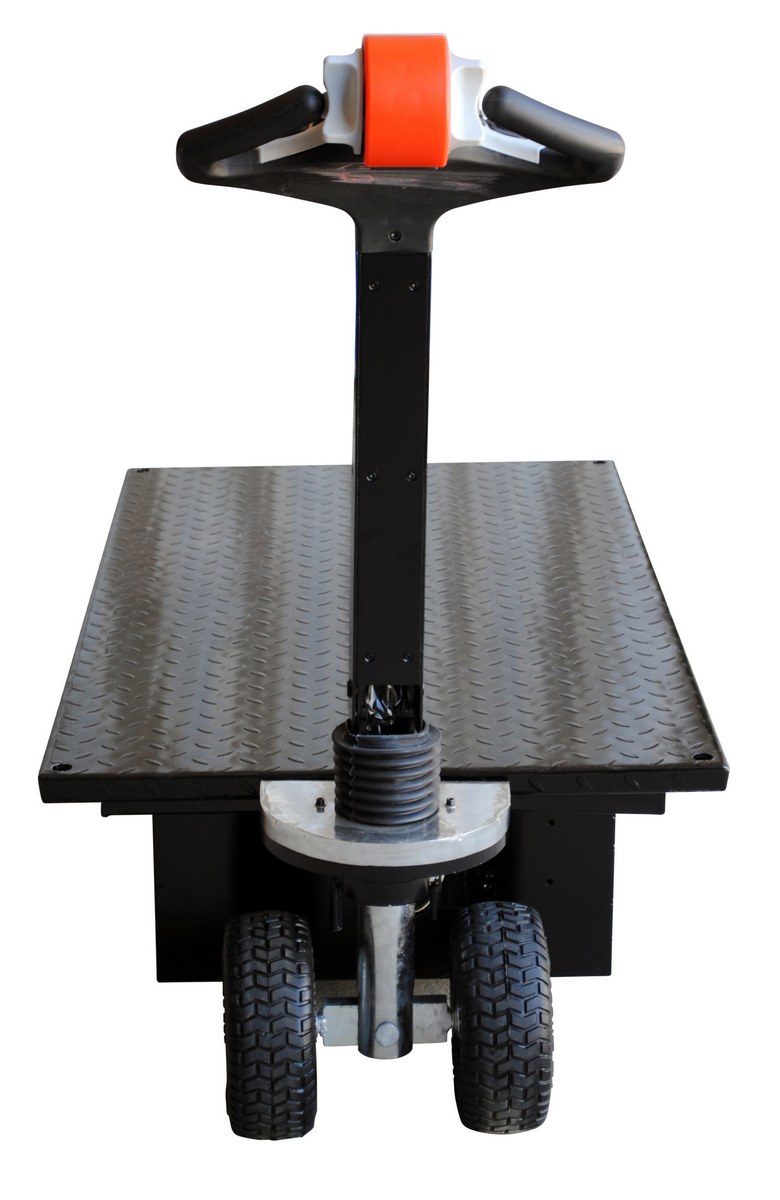

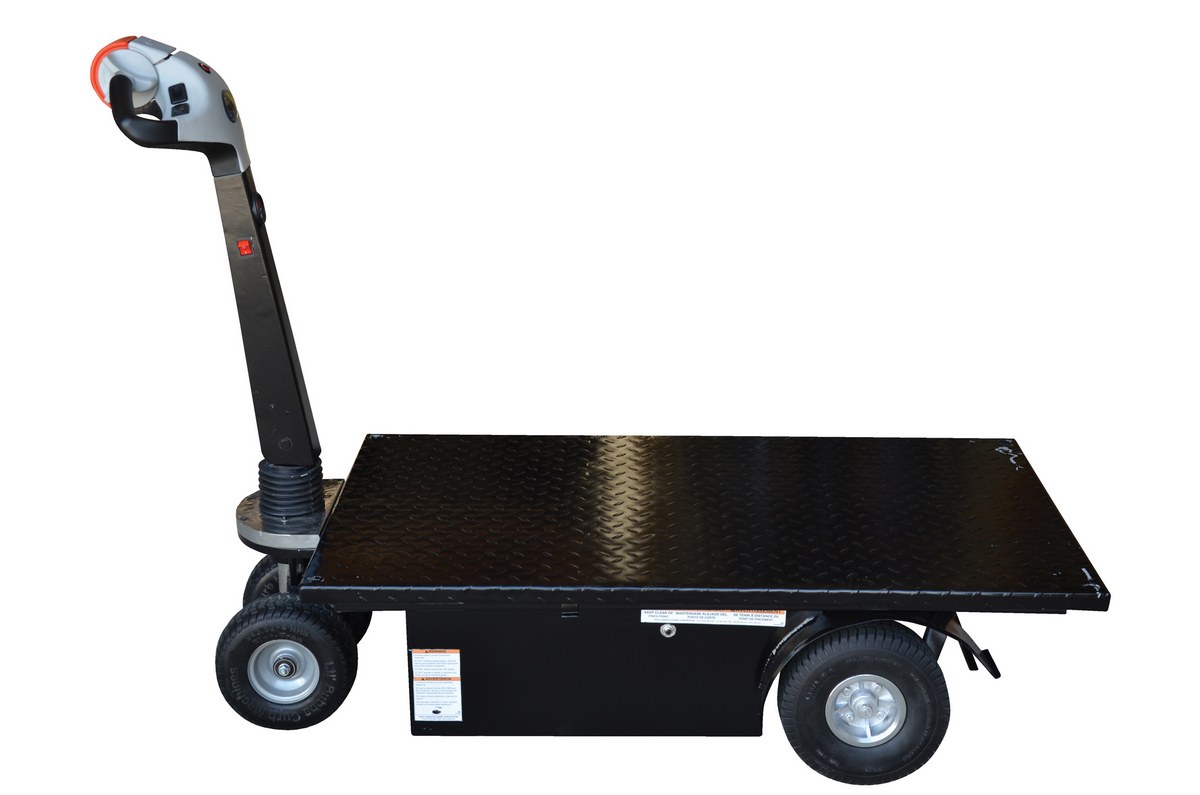

NE-CART-1 1 Year Limited WarrantyTRACTION DRIVE CART PLATFORM 0.75K LBOverall Capacity (lb.): 750
Platform Length (in.): 48
293

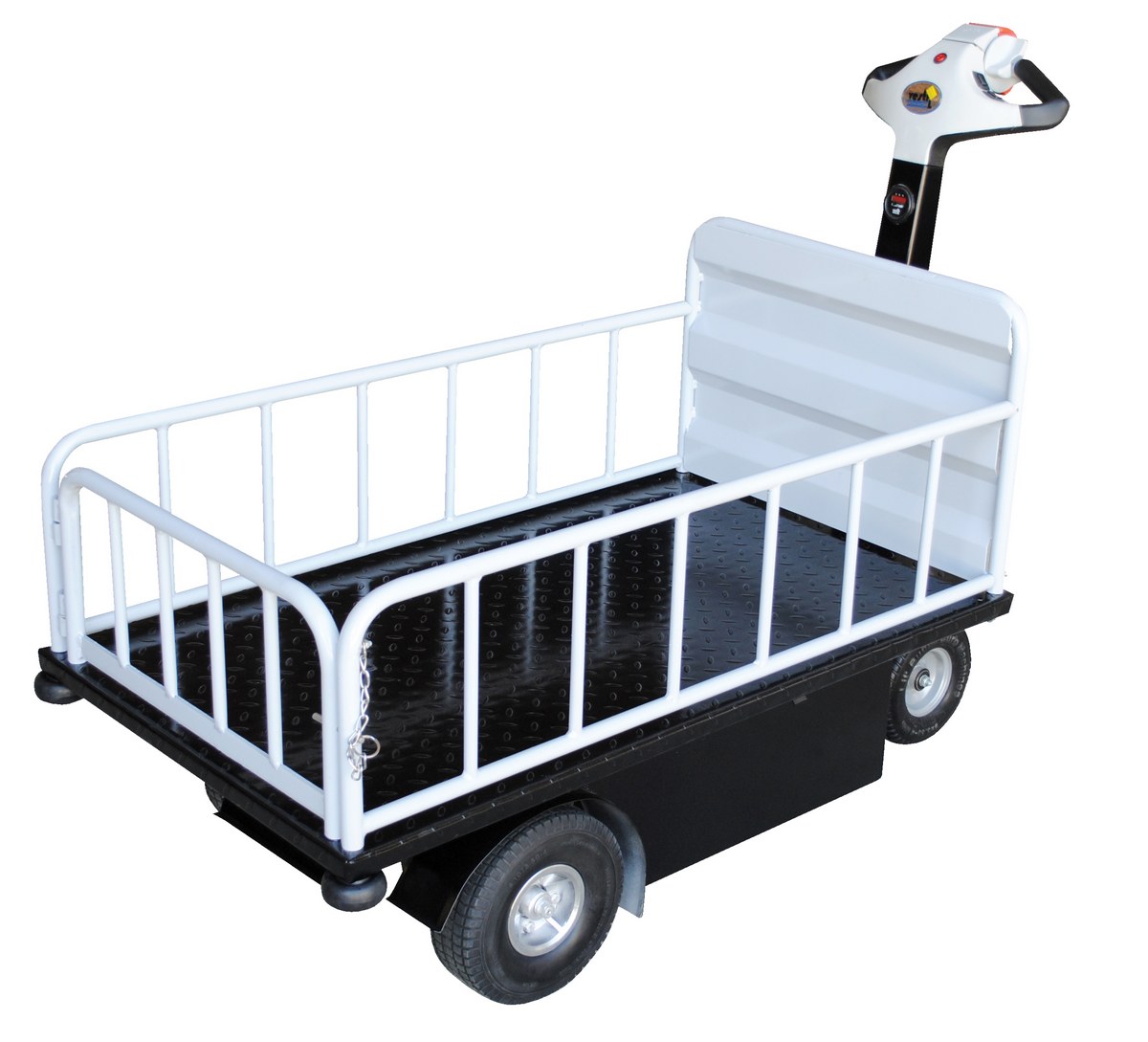

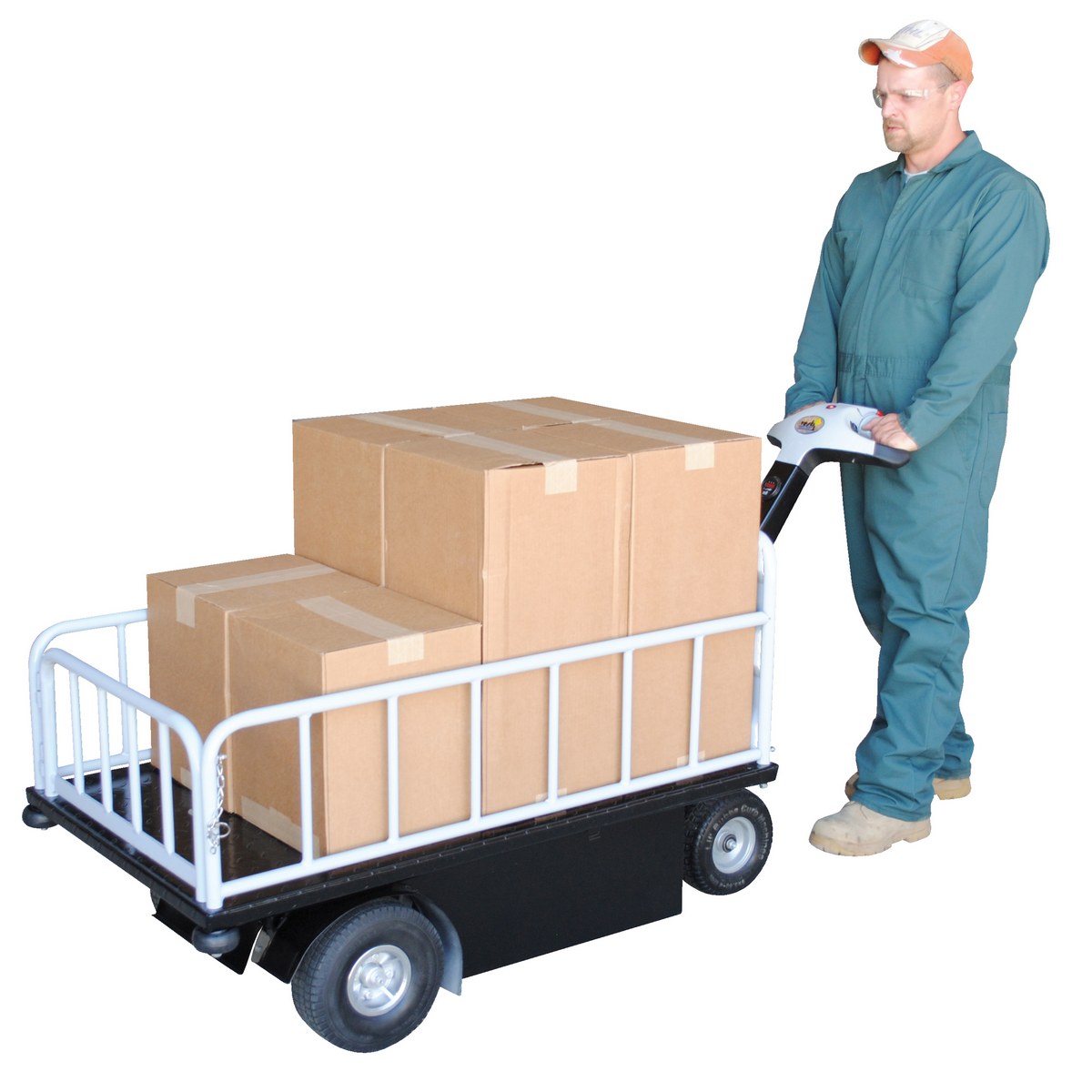

NE-CART-2 1 Year Limited WarrantyTRACTION DRIVE CART TOP LOAD W/ GATEOverall Capacity (lb.): 750
Platform Length (in.): 46
349

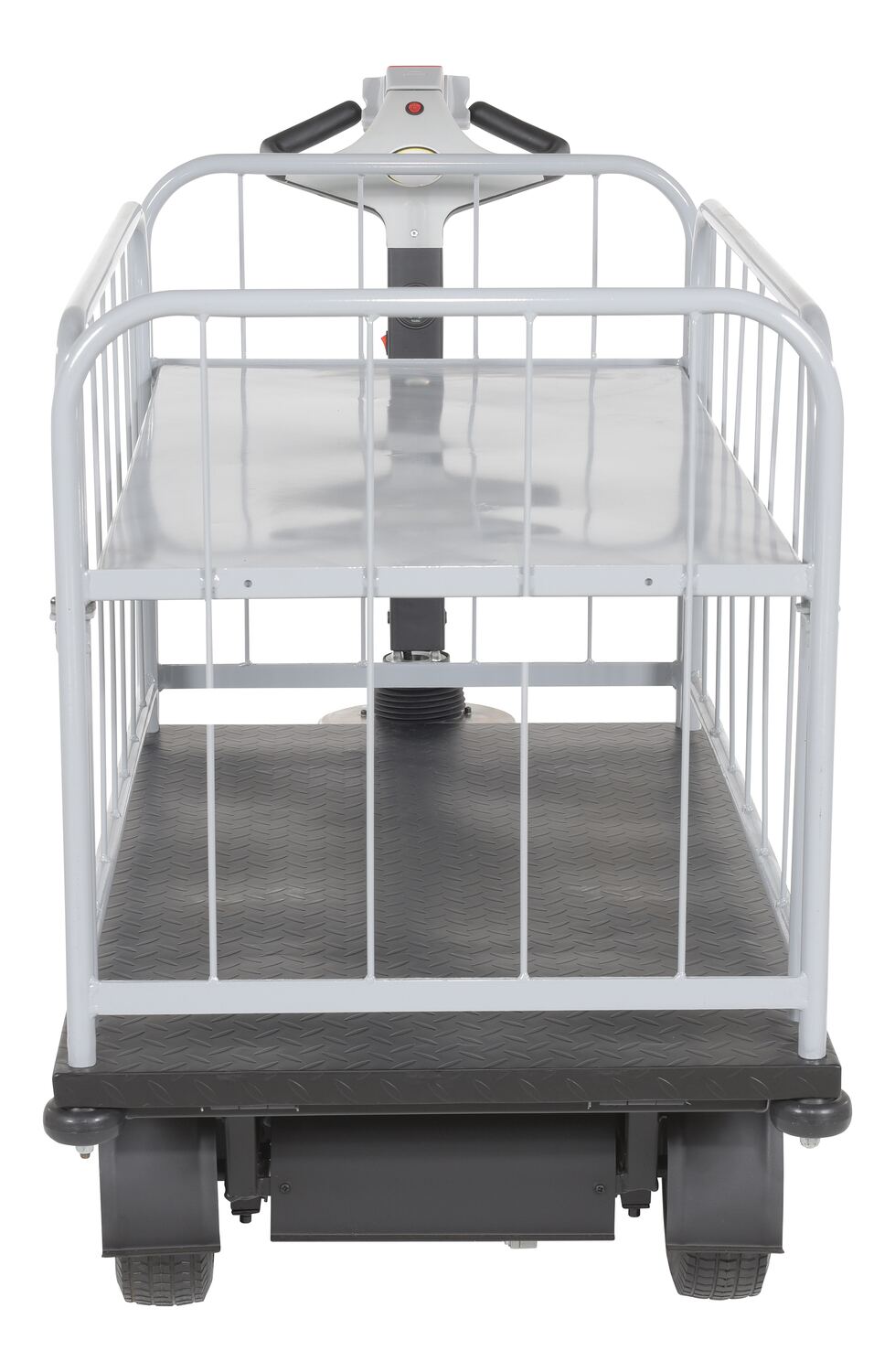

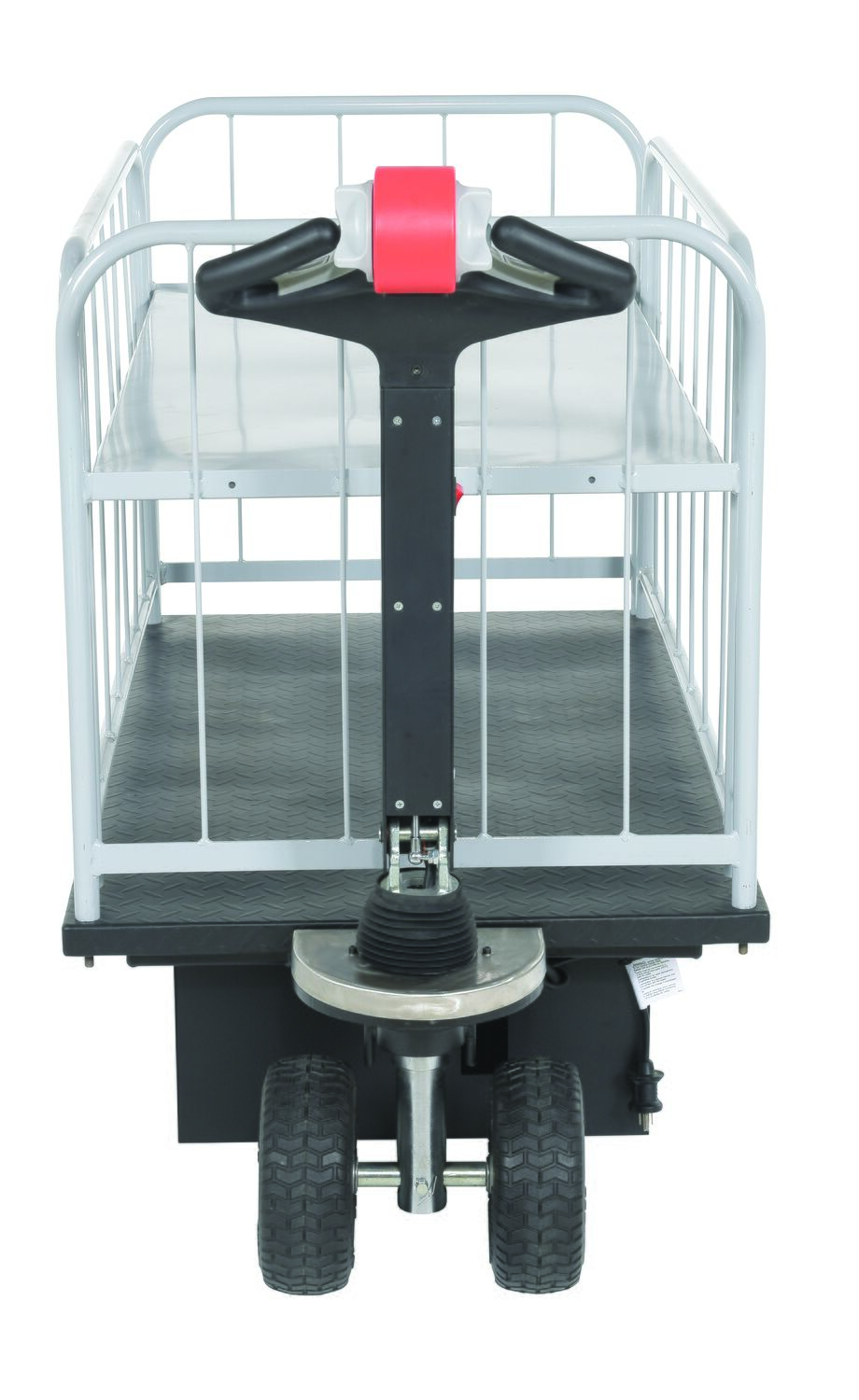

NE-CART-3 1 Year Limited WarrantyTRACTION DRIVE CART-1 SHELFS-SIDE LOADOverall Capacity (lb.): 750
Shelf Capacity (lb.): 250
395
NE-CART-4 1 Year Limited WarrantyTRACTION DRIVE CART-2 SHELFS-SIDE LOADOverall Capacity (lb.): 750
First Shelf Capacity (lb.): 200
423

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty




Traction-Drive Carts PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Traction-Drive Carts




Unique carts feature built-in traction-drive system for easy transportability. Ideal for applications including mail rooms, hospitals, supermarkets, hotels and warehouses. Features 450W electric drive motor with two 70Ah batteries for power. 110V AC internal battery charger is included along with battery level indicator. Variable throttle speed control for precise maneuvering and positioning is located in the handle. Units roll smoothly on (2) 9" x 3-1/4" solid foam rubber steering wheels and (2) 10" x 3-1/4" solid foam drive wheels. Walking speed is 0-2.8 mph when unloaded and 0-1.5 mph when loaded. Speed control is conveniently located in handle. Handle pivots back towards operator and includes horn and emergency stop. Maximum incline is 7 degrees. Each shelf includes a tread plate surface. Deck height 14"


"NE-CART" Traction Drive Cart
Model Image PDFs # Of
Shelves
Platform Size
(WxL)
Shelf
Heights
Total
Capacity (lbs)
1st Shelf
Capacity (lbs)
2nd Shelf
Capacity (lbs)
Wt.
(lbs)
NE-CART-1 Warranty PDFCompliance Certificate 0 28"x48" N/A 750 N/A N/A 526
NE-CART-2 Warranty PDFCompliance Certificate 0 24-3/4"x46" N/A 750 N/A N/A 586
NE-CART-3 Warranty PDFCompliance Certificate 1 24-3/4"x46" 33" 750 250 N/A 598
NE-CART-4 Warranty PDFCompliance Certificate 2 24-3/4"x46" 33"
49-3/4"
750 200 150 610
