Click Image to Enlarge

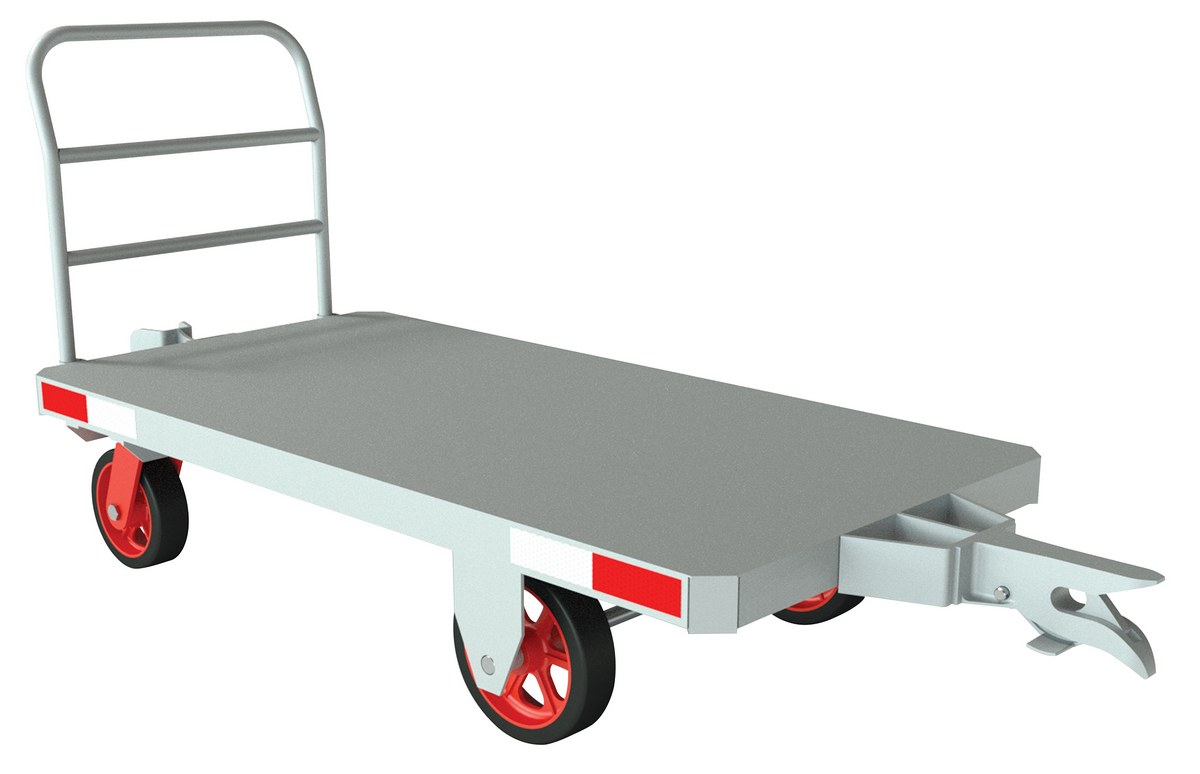

model: CSTT-36-4P


Caster Steer Towable Trailers
SERIES: CSTT

Caster Steer Trailers are engineered for power towing. Units are standard with heavy duty couplers and swivel casters drop-forged steel construction with integrally forged kingpin and precision thrust bearing. Standard wheels are 10"x3" swivel casters in the front, and 12"x3" polyurethane or mold on rubber casters in the back of the trailer (to make it easier to maneuver). Handle is 26" high above deck and channel reinforced pipe sockets at swivel end. Other custom deck sizes and hardwood decks available, contact factory.

Caster Steer Trailers are engineered for power towing. Units are standard with heavy duty couplers and swivel casters drop-forged steel construction with integrally forged kingpin and precision thrust bearing. Standard wheels are 10"x3" swivel casters in the front, and 12"x3" polyurethane or mold on rubber casters in the back of the trailer (to make it easier to maneuver). Handle is 26" high above deck and channel reinforced pipe sockets at swivel end. Other custom deck sizes and hardwood decks available, contact factory.




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
CSTT-36-4MR 1 Year Limited WarrantyCASTER STEER TOWABLE TRAILER 72 IN 3K LBUniform Capacity (lb.): 3,000
Front Swivel Caster Diameter/Width (in.): 10 x 3
551
CSTT-36-4P 1 Year Limited WarrantyCASTER STEER TOWABLE TRAILER 72 IN 4K LBUniform Capacity (lb.): 4,000
Front Swivel Caster Diameter/Width (in.): 10 x 3
551
CSTT-48-4MR 1 Year Limited WarrantyCASTER STEER TOWABLE TRAILER 96 IN 3K LBUniform Capacity (lb.): 3,000
Front Swivel Caster Diameter/Width (in.): 10 x 3
625
CSTT-48-4P 1 Year Limited WarrantyCASTER STEER TOWABLE TRAILER 96 IN 4K LBUniform Capacity (lb.): 4,000
Front Swivel Caster Diameter/Width (in.): 10 x 3
625

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty




Caster Steer Towable Trailers PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products





We are hoping to continue adding new product pictures to each gallery. Check back soon.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Caster Steer Towable Trailers




Caster Steer Trailers are engineered for power towing. Units are standard with heavy duty couplers and swivel casters drop-forged steel construction with integrally forged kingpin and precision thrust bearing. Standard wheels are 10"x3" swivel casters in the front, and 12"x3" polyurethane or mold on rubber casters in the back of the trailer (to make it easier to maneuver). Handle is 26" high above deck and channel reinforced pipe sockets at swivel end. Other custom deck sizes and hardwood decks available, contact factory.


Caster Steer Towable Trailers
Model Image PDFs Deck
Type
Platform
Size (WxL)
Capacity
(lbs)
Deck
Height
Wheels Wt.
(lbs)
CSTT-36-4MR Warranty PDFCompliance Certificate Smooth 12 gauge 36"x72" 3,000 15-3/4" Mold On Rubber 425
CSTT-36-4P Warranty PDFCompliance Certificate Smooth 12 gauge 36"x72" 4,000 15-3/4" Polyurethane on Iron 425
CSTT-48-4MR Warranty PDFCompliance Certificate Smooth 12 gauge 48"x96" 3,000 15-3/4" Mold On Rubber 595
CSTT-48-4P Warranty PDFCompliance Certificate Smooth 12 gauge 48"x96" 4,000 15-3/4" Polyurethane on Iron 595
