model: PAL-21

SERIES: PAL
Pallet Pullers

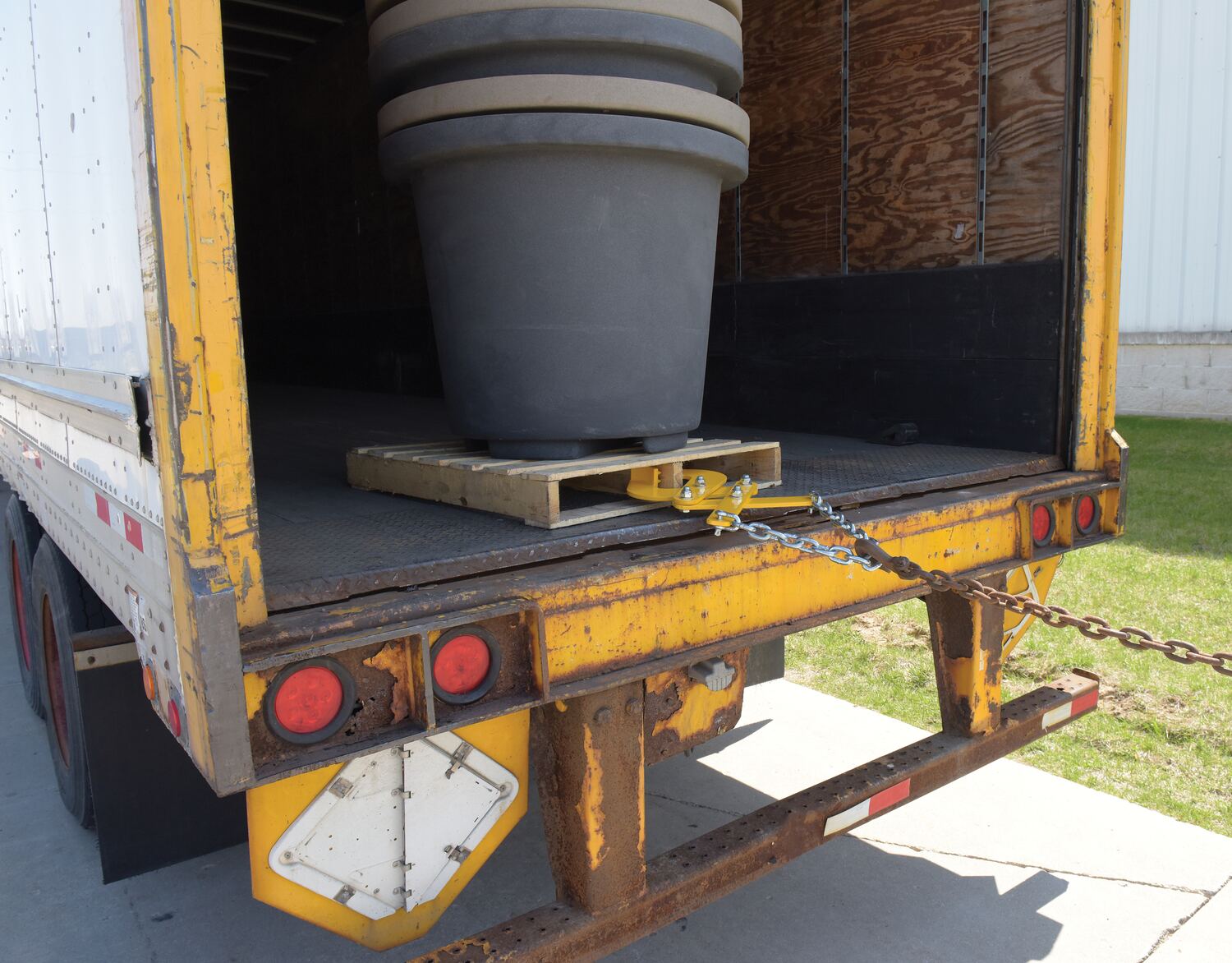

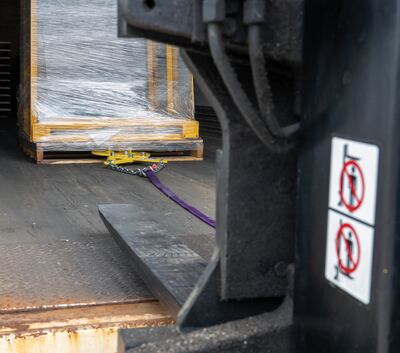

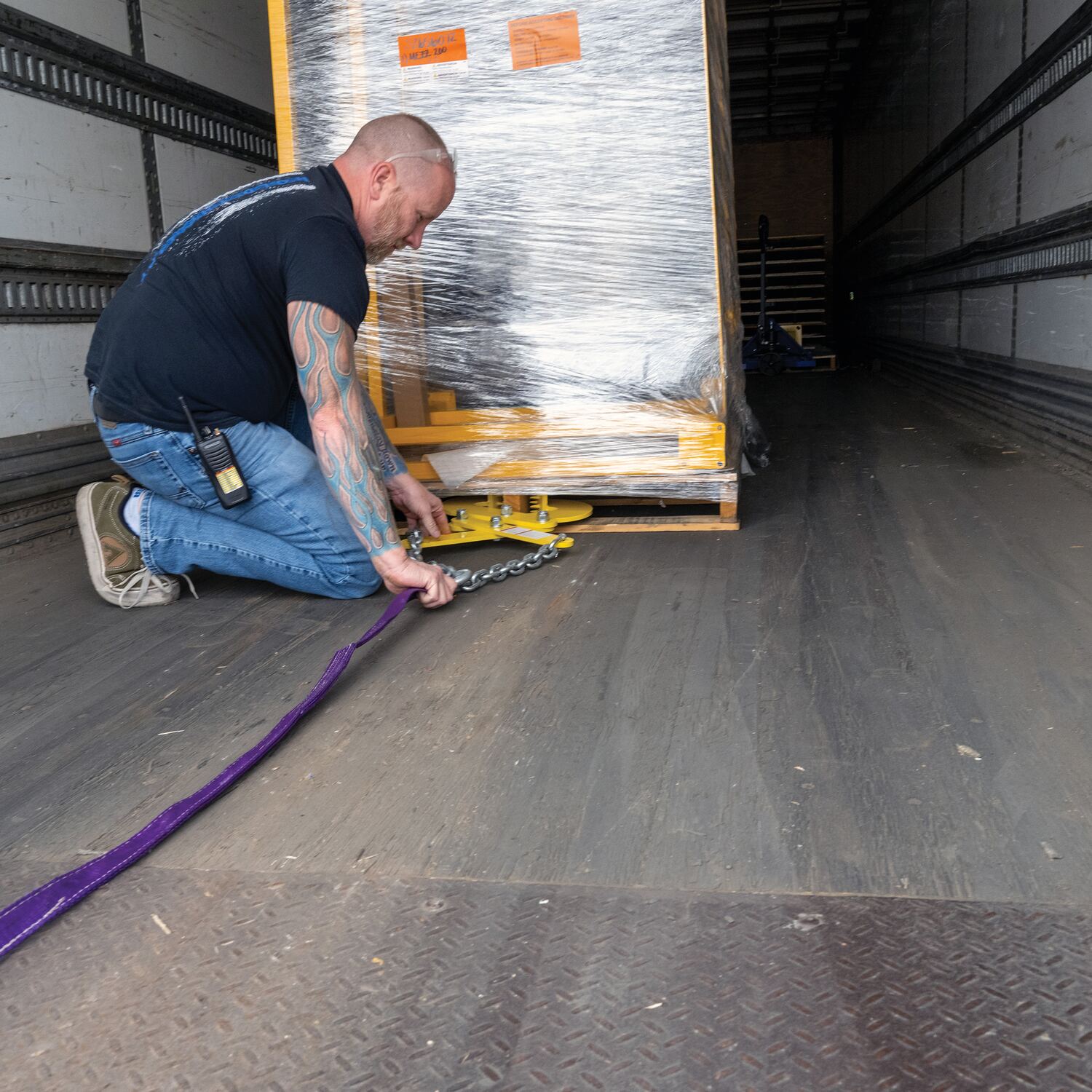

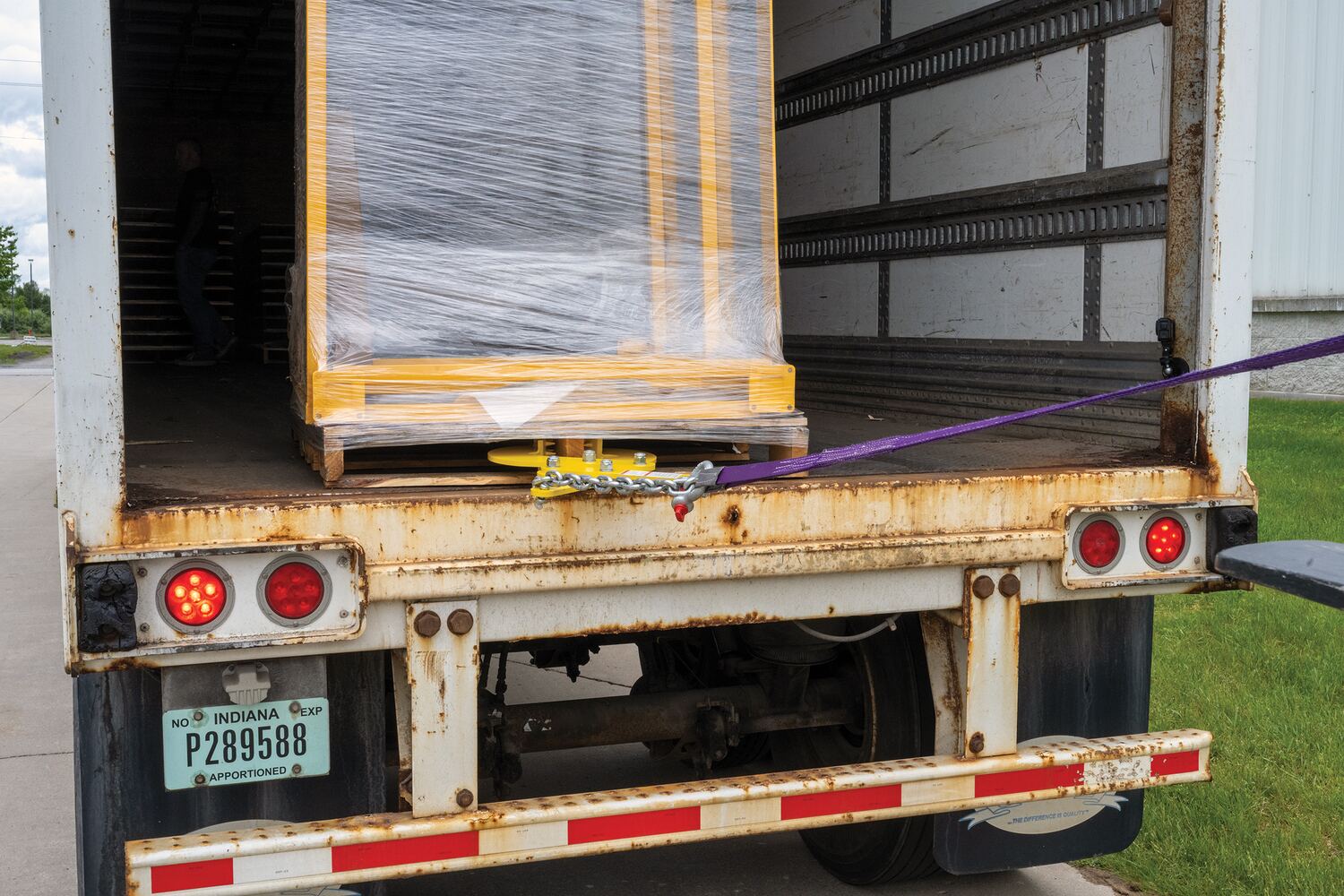

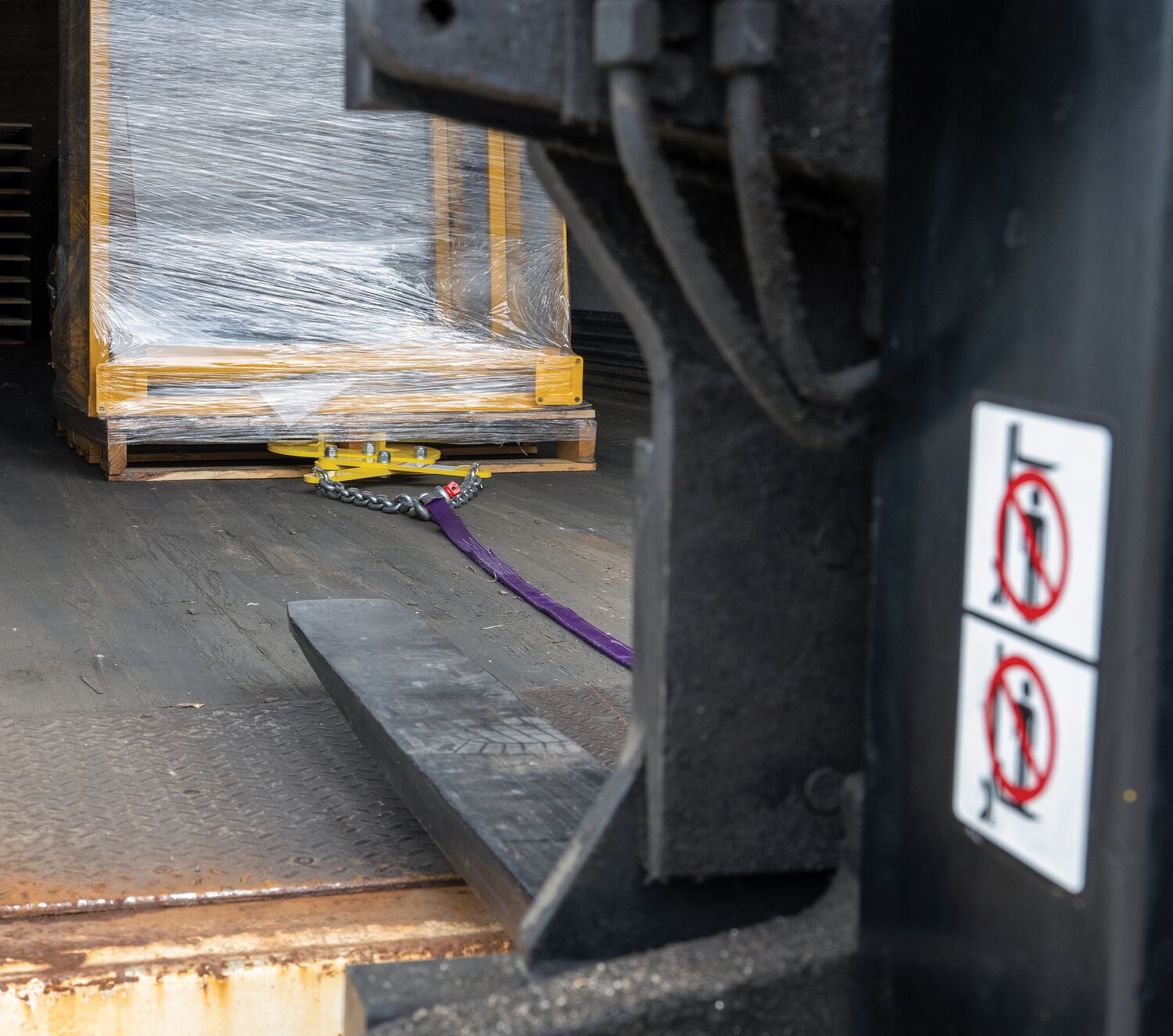

Pallet pullers are used to pull pallets to rear of trailers for easy fork truck access. Rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. Pallet pullers and chains are NOT designed for lifting.

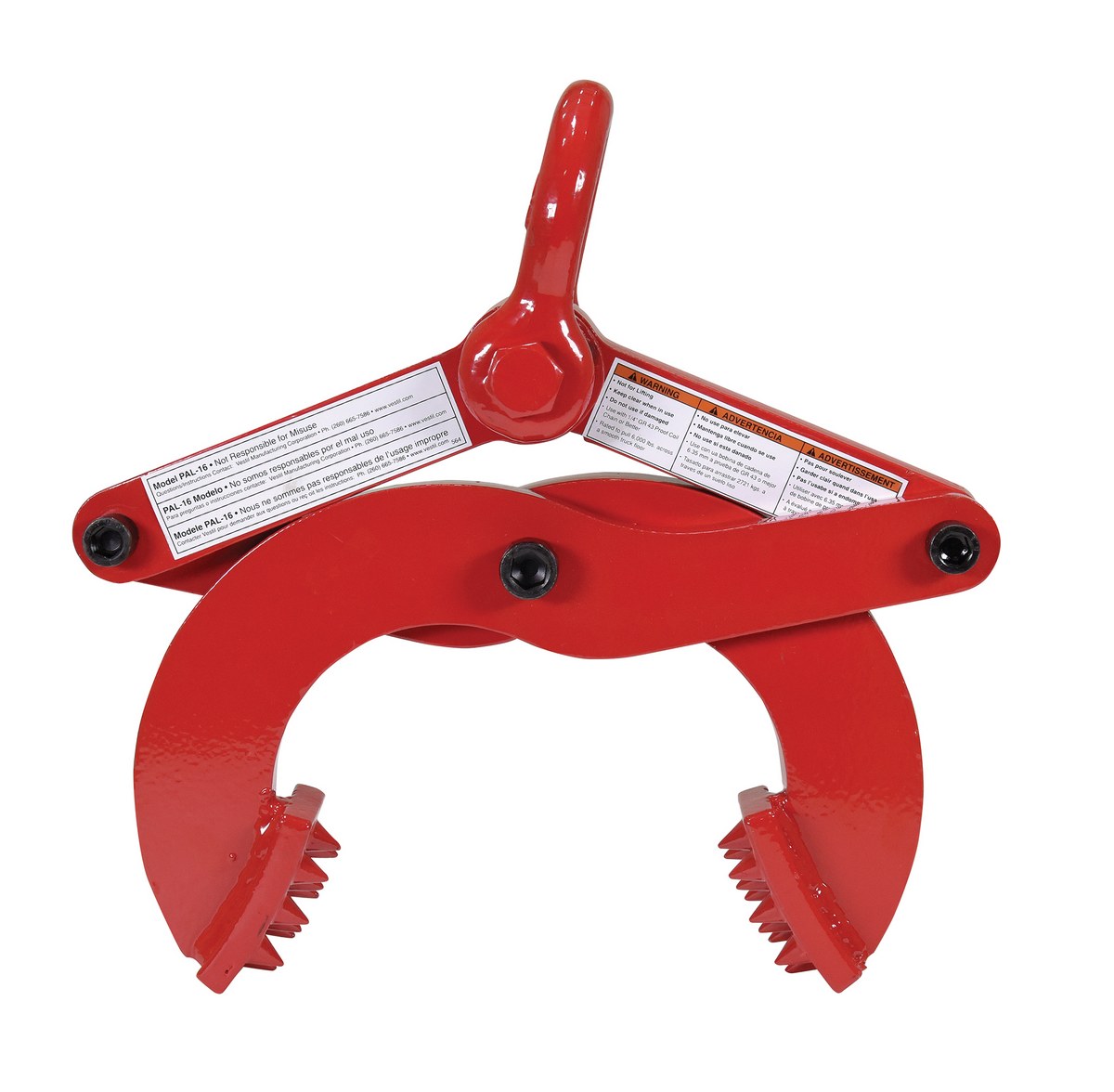

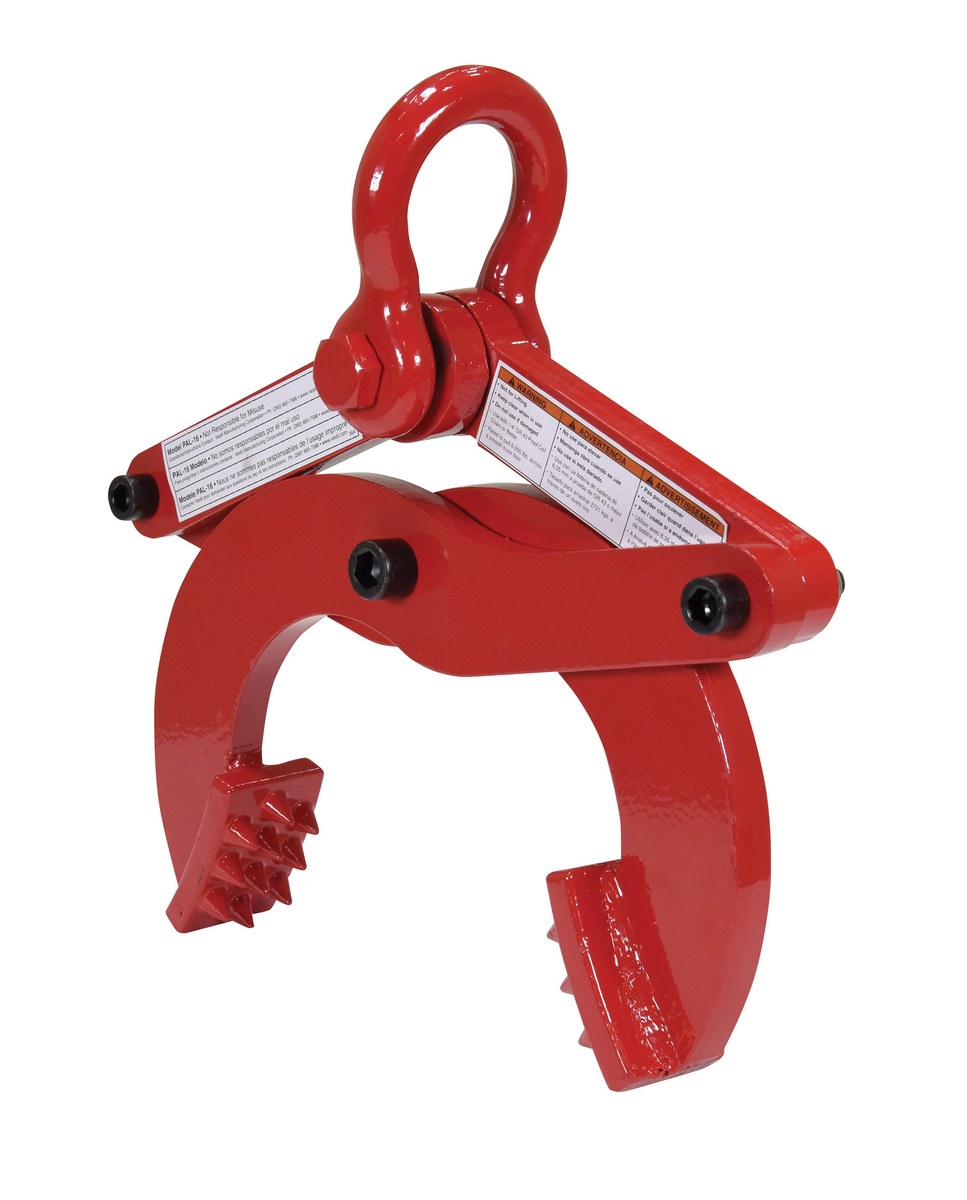

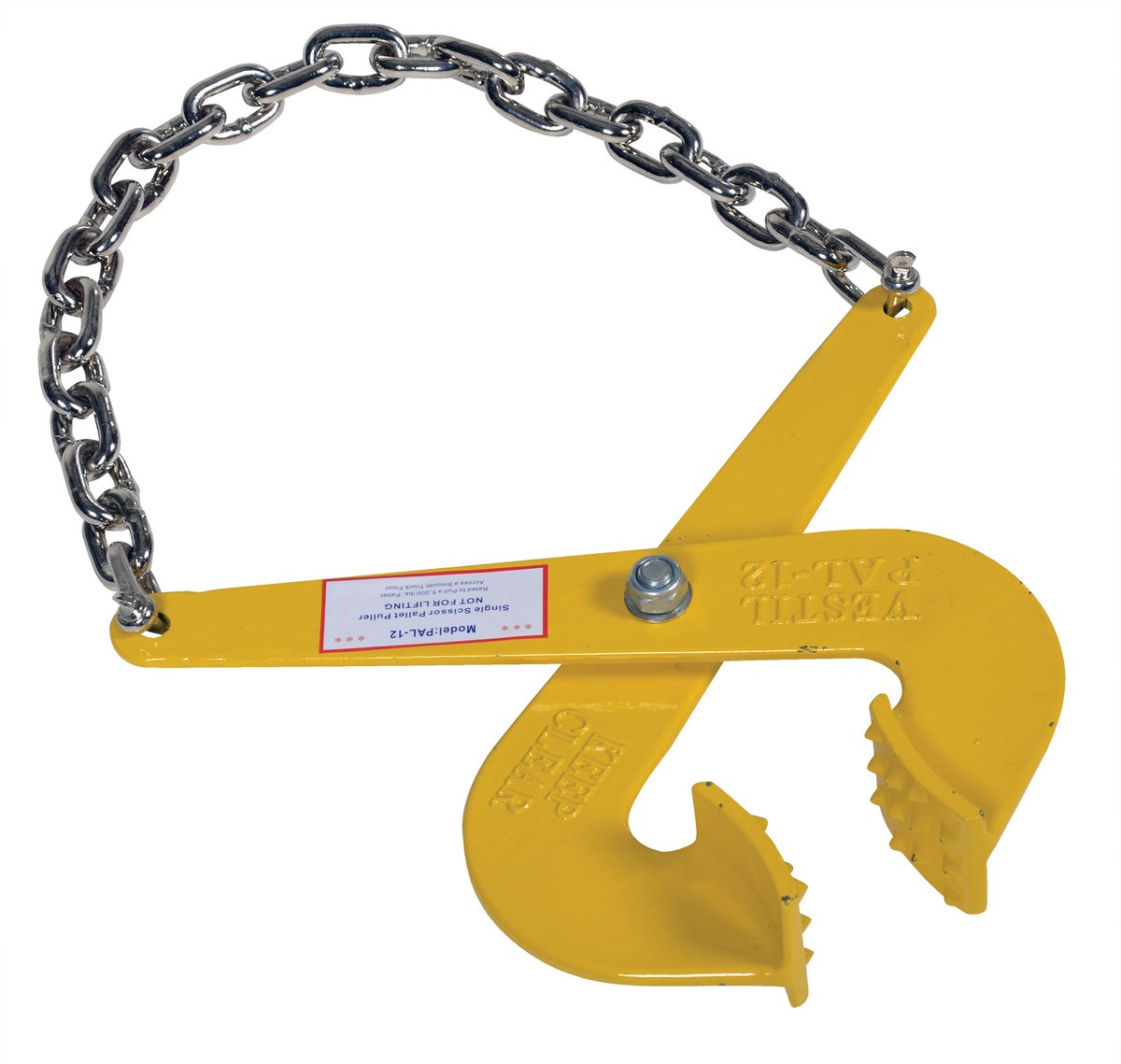

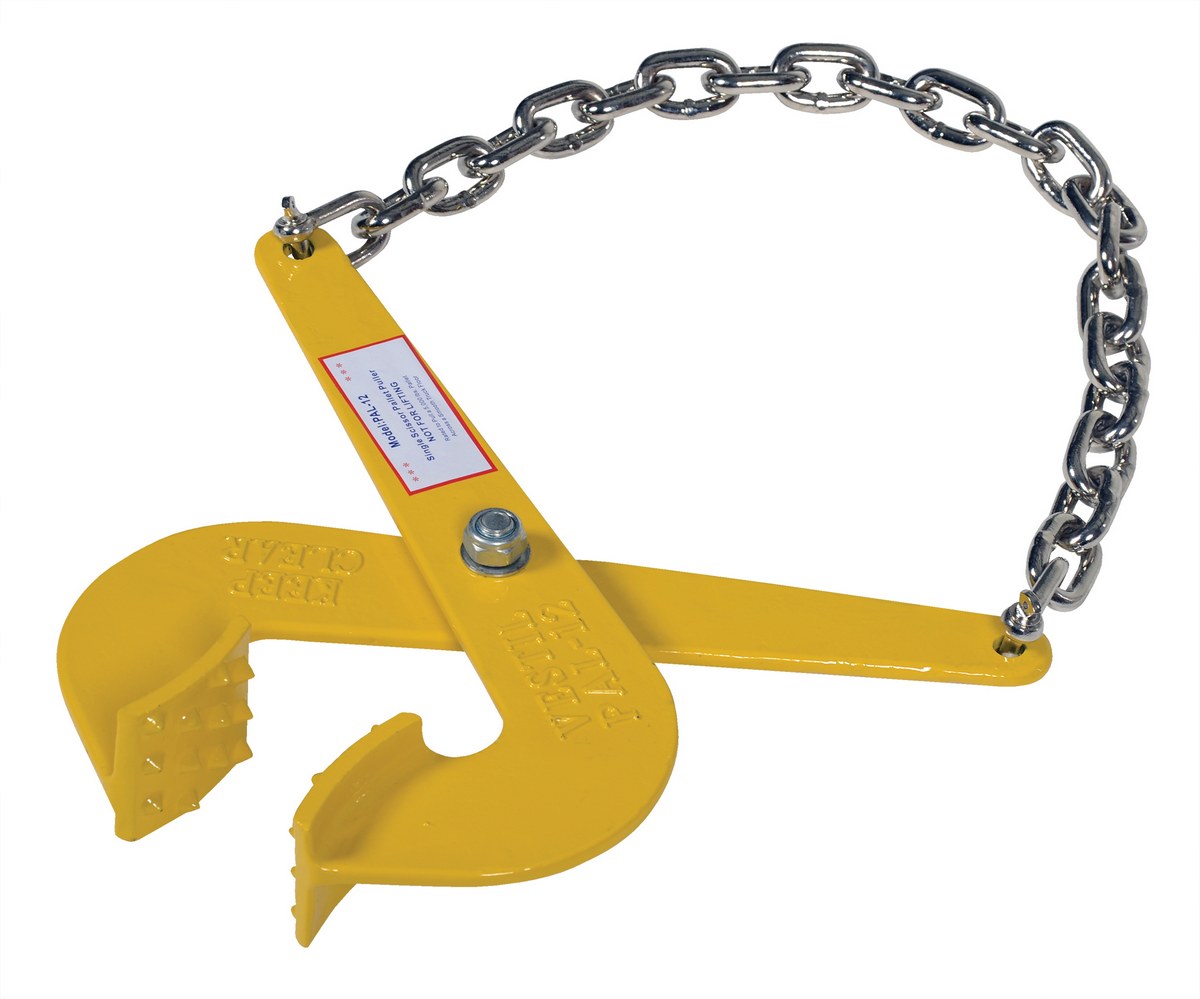

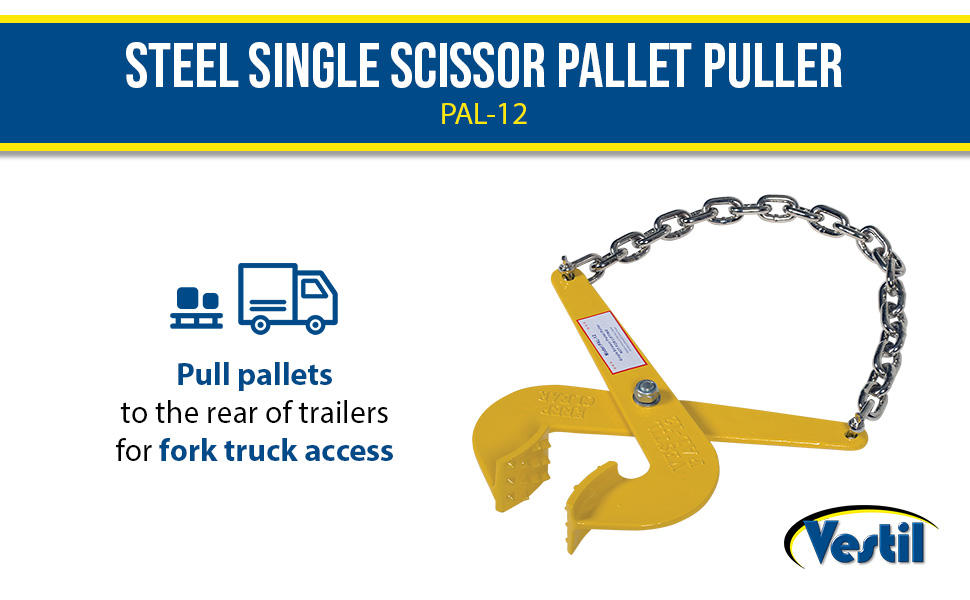

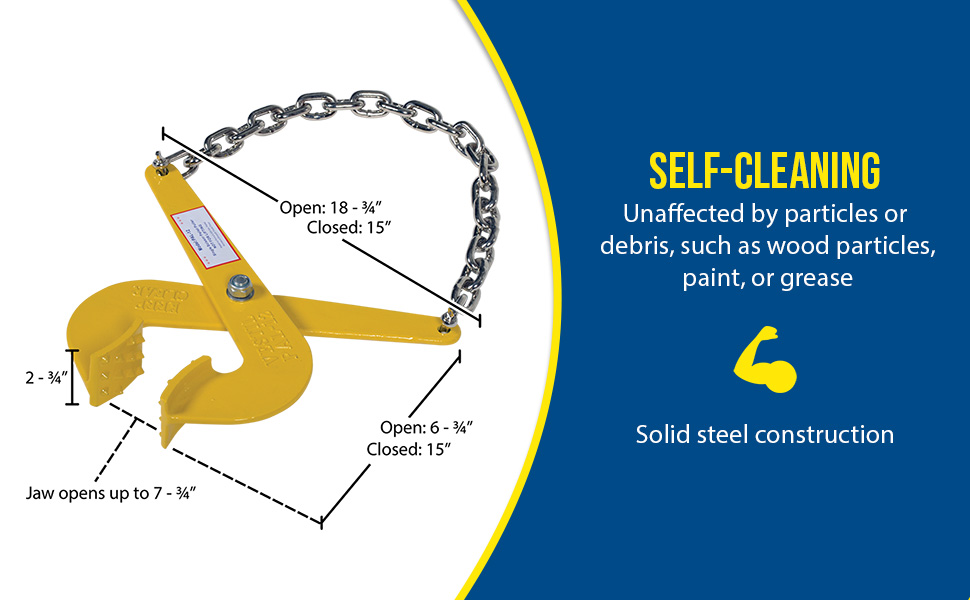

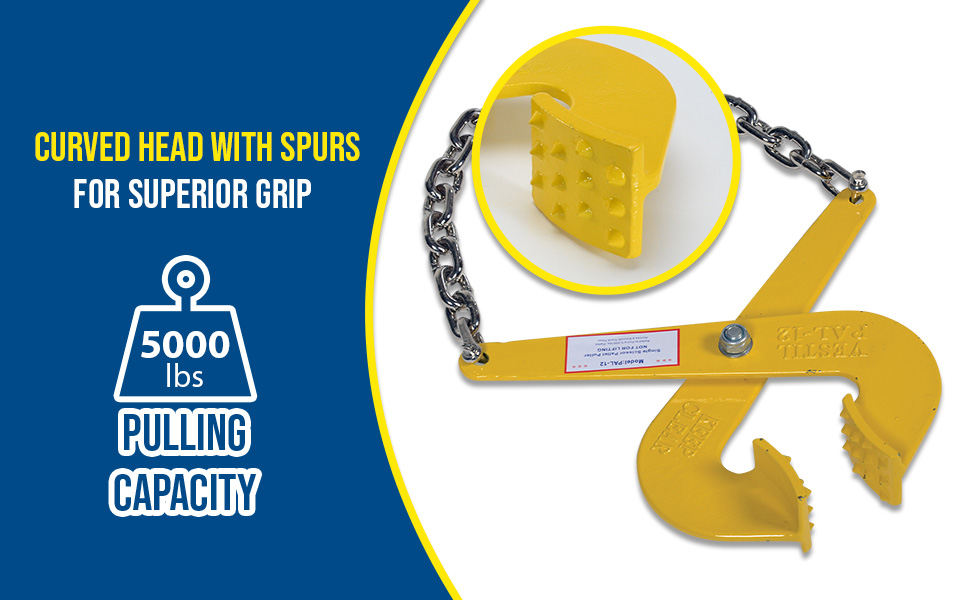

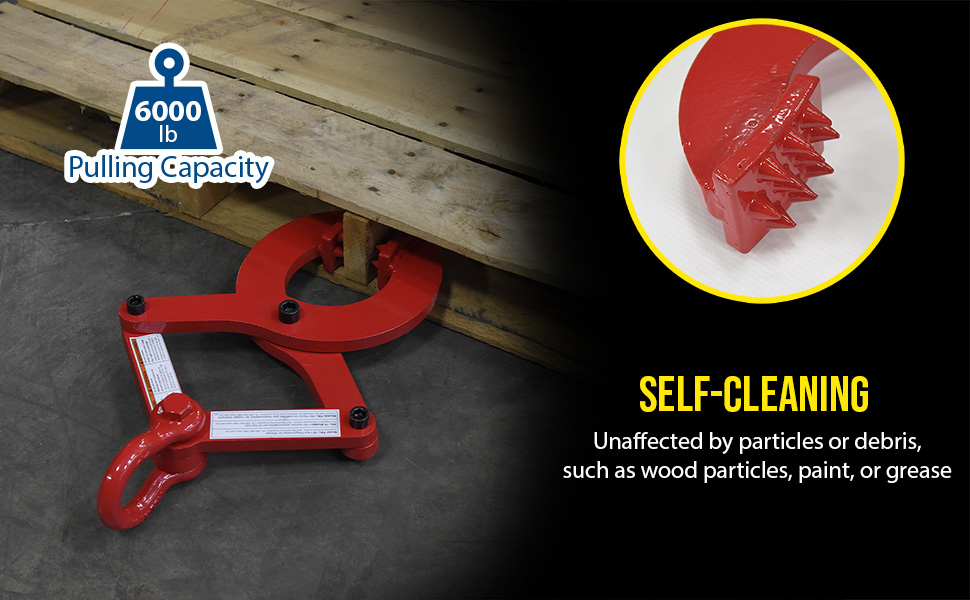

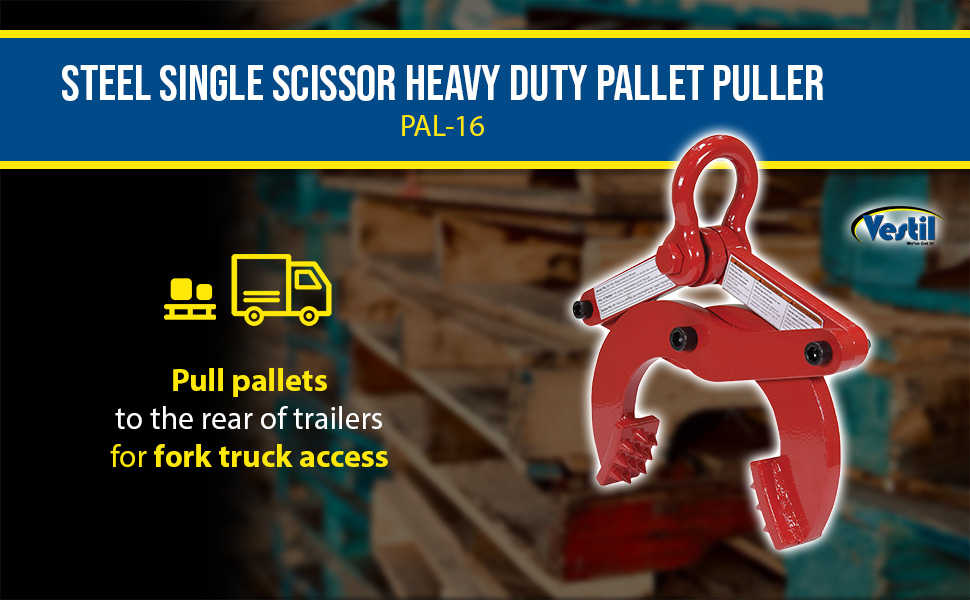

PAL-12 and PAL-16 - Single scissor action allows for wider jaw opening.

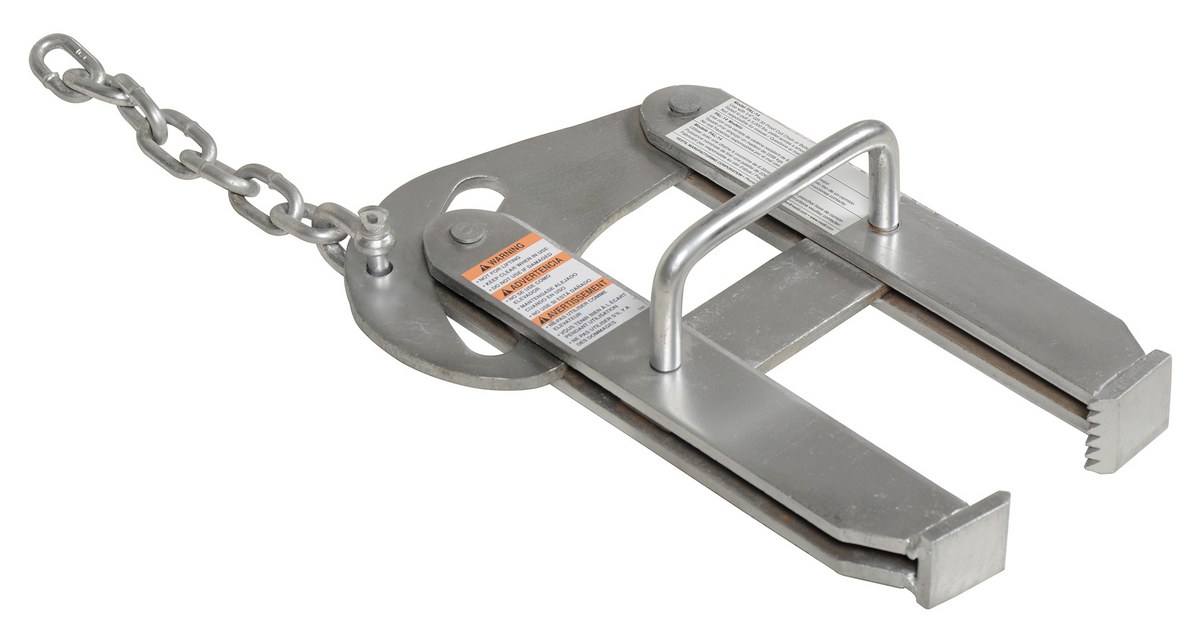

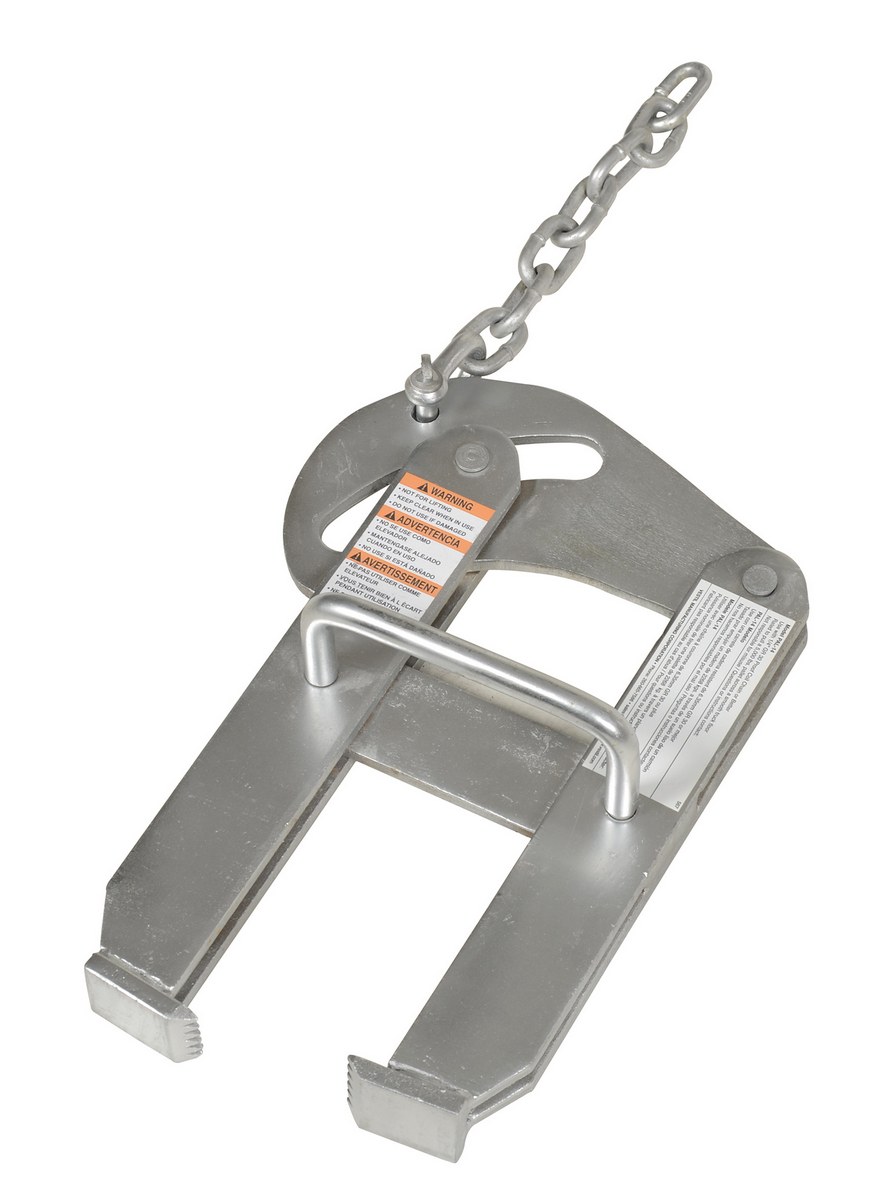

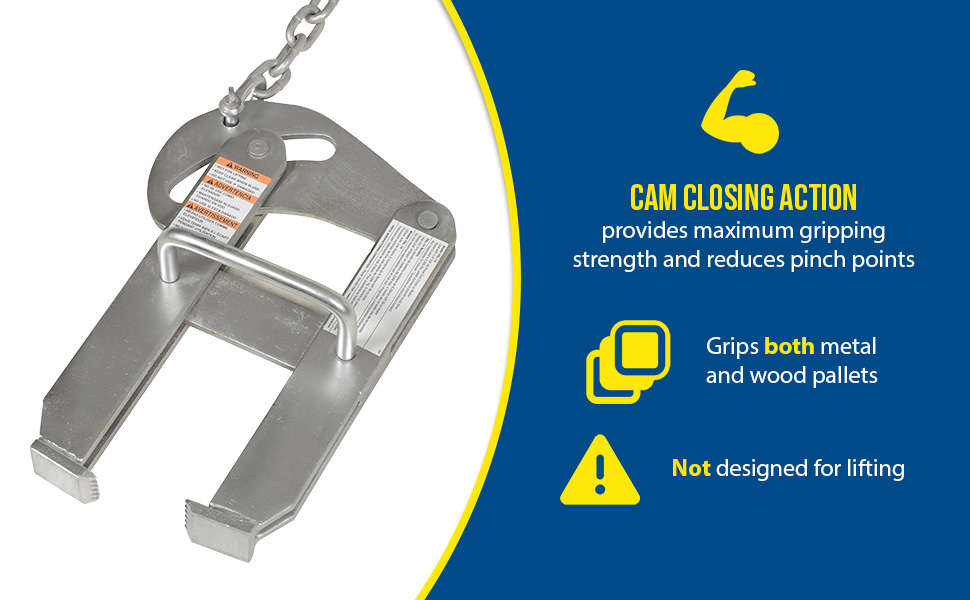

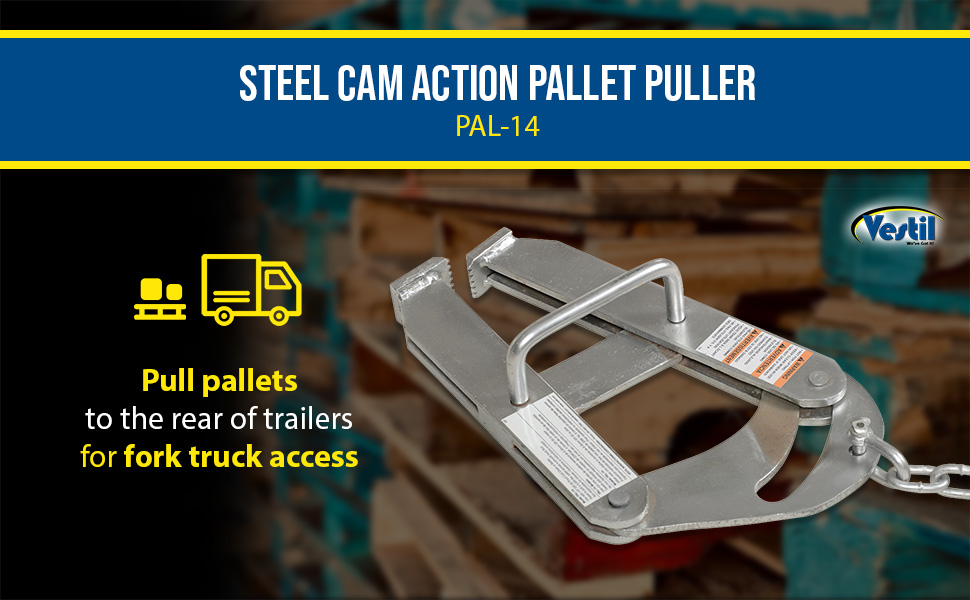

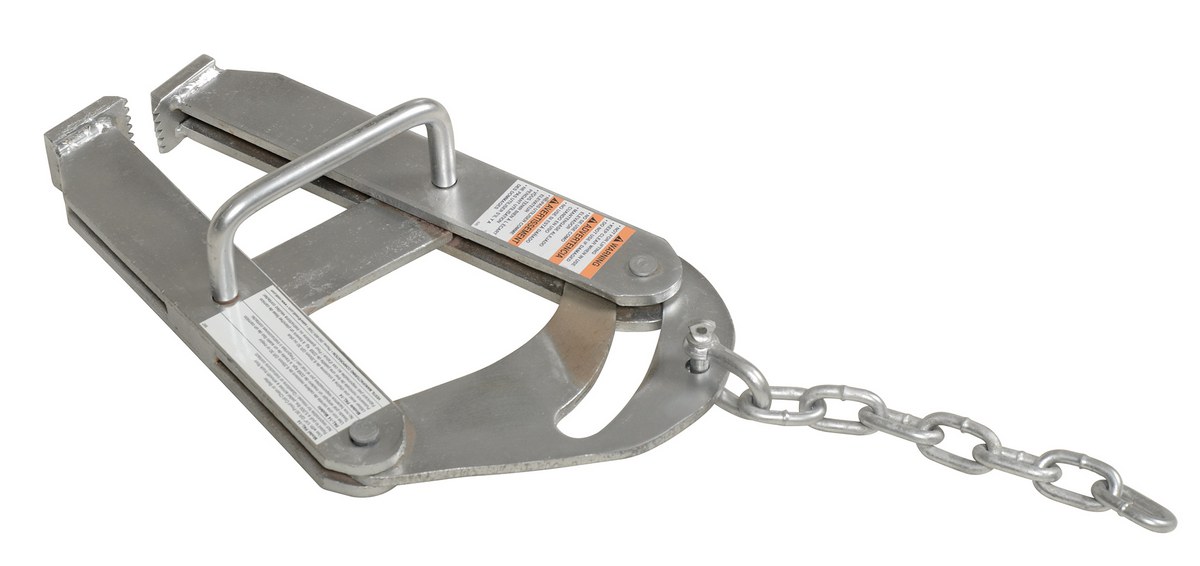

PAL-14 - Cam closing action provides maximum gripping strength and reduces pinch points. Safety handle enables easier positioning and removal. Grips both metal and wood pallets with biting action.

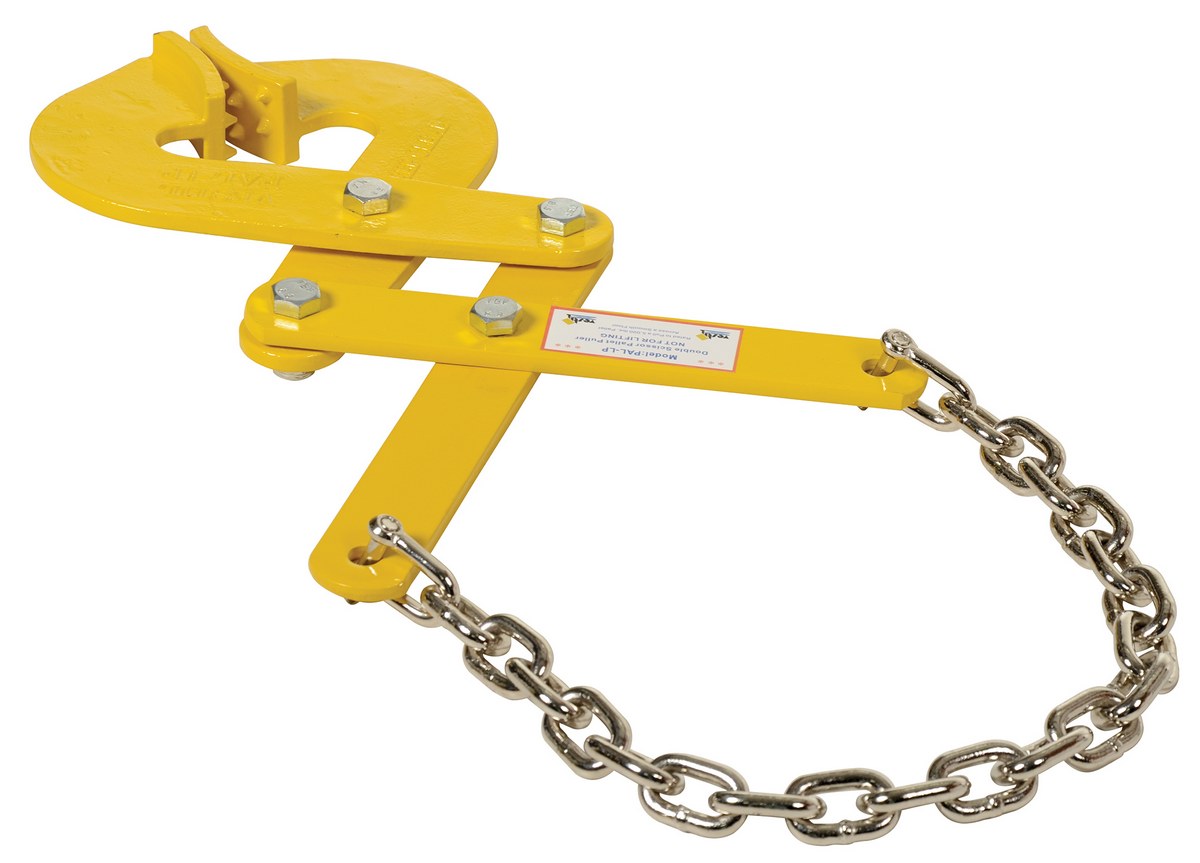

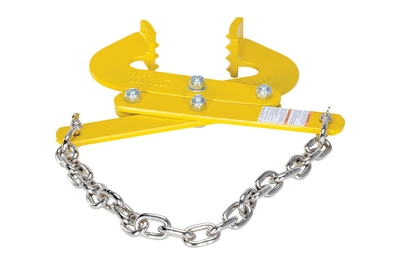

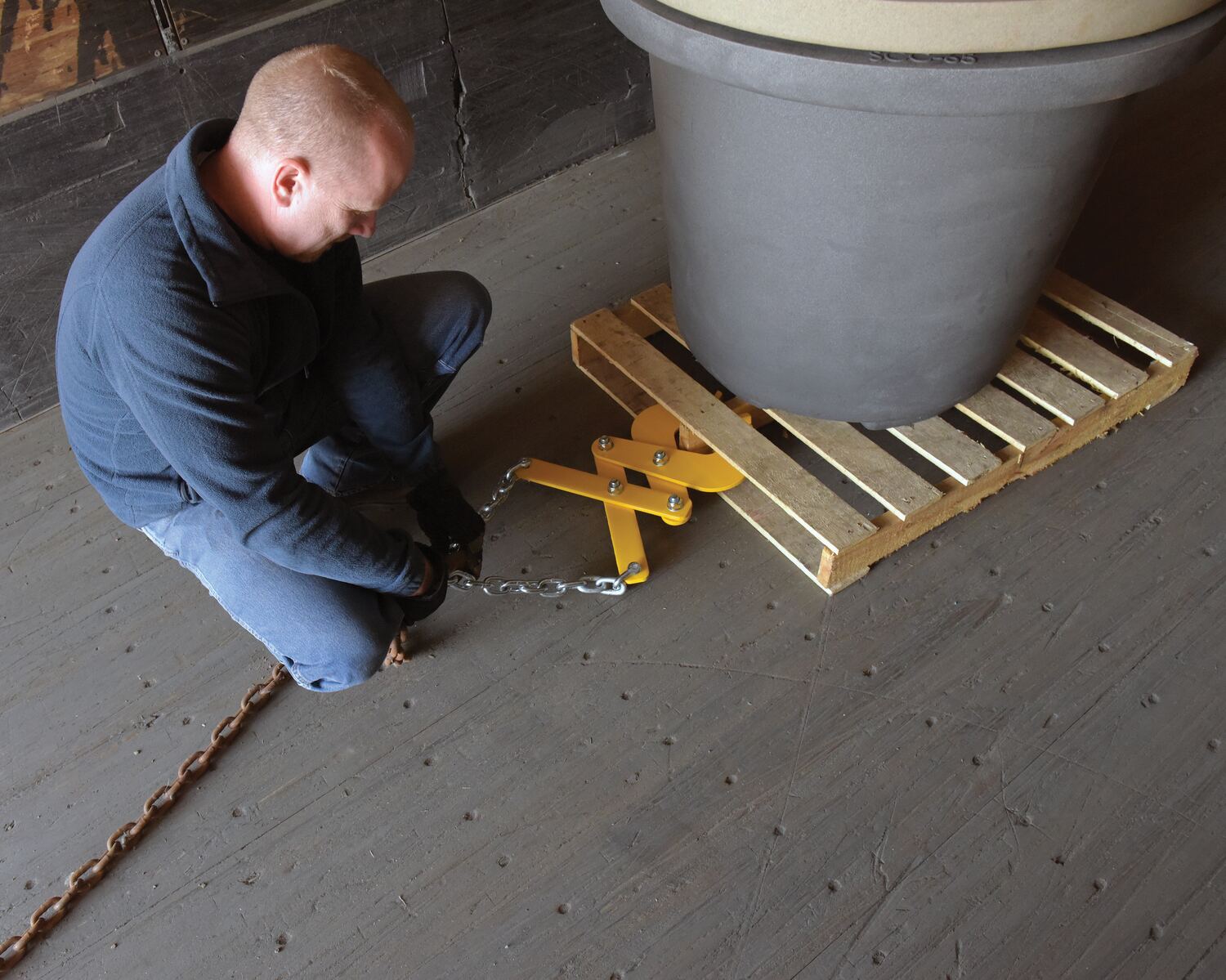

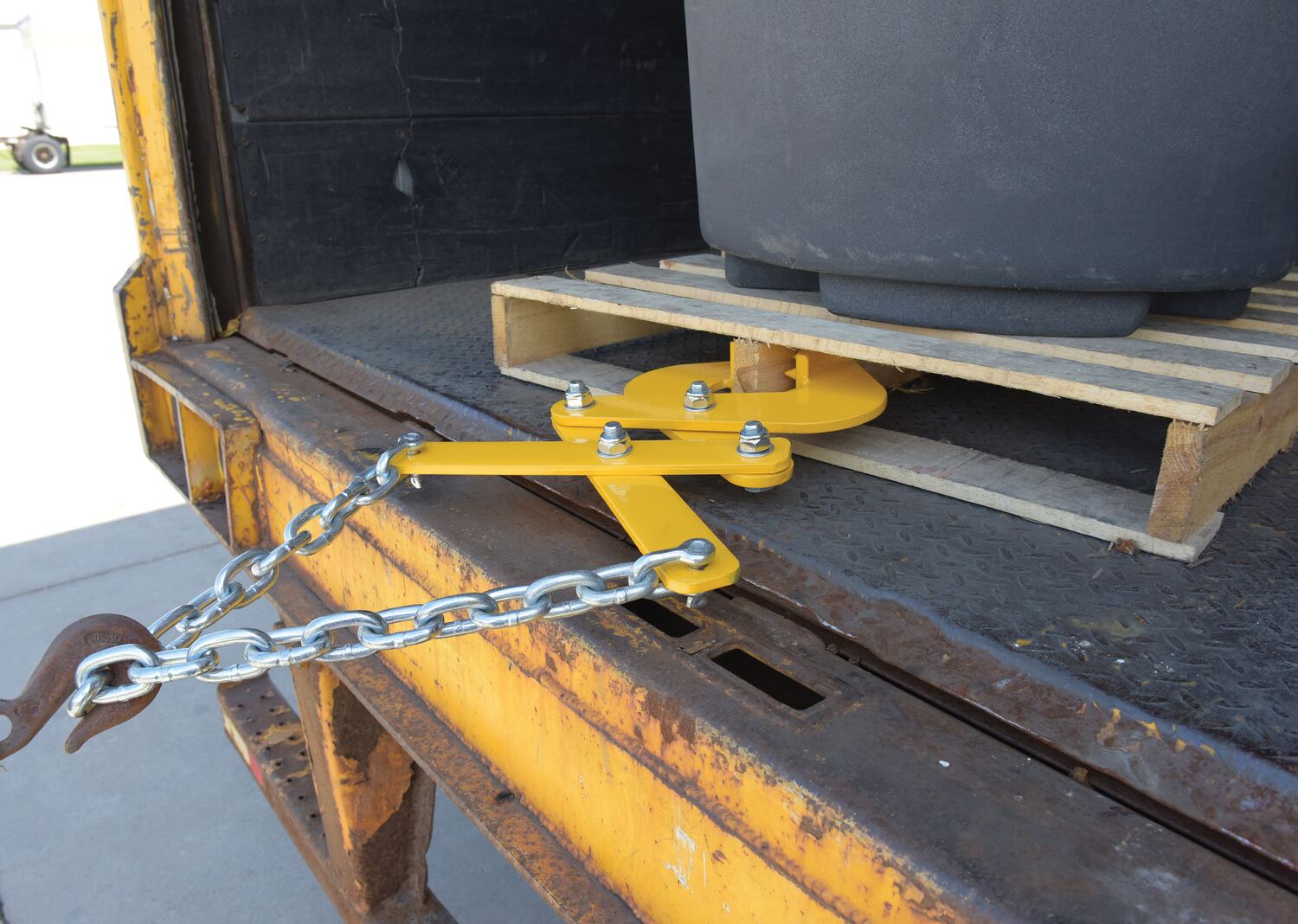

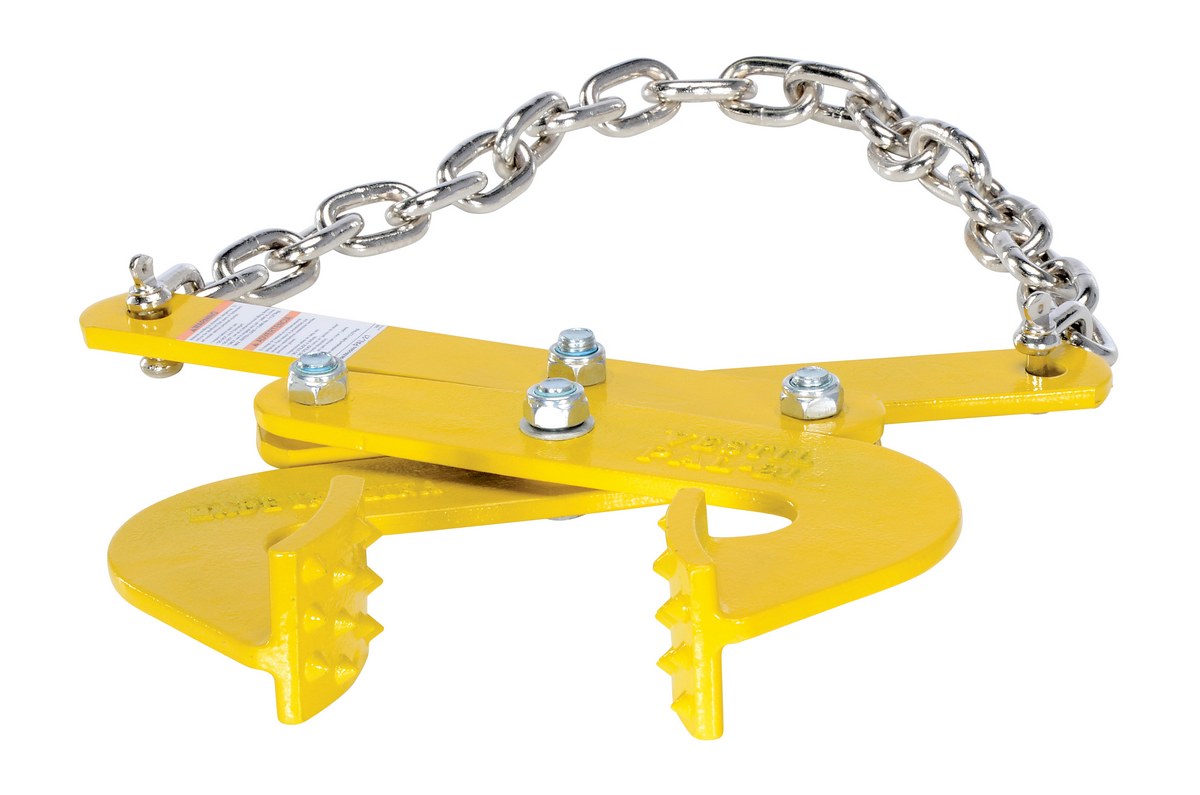

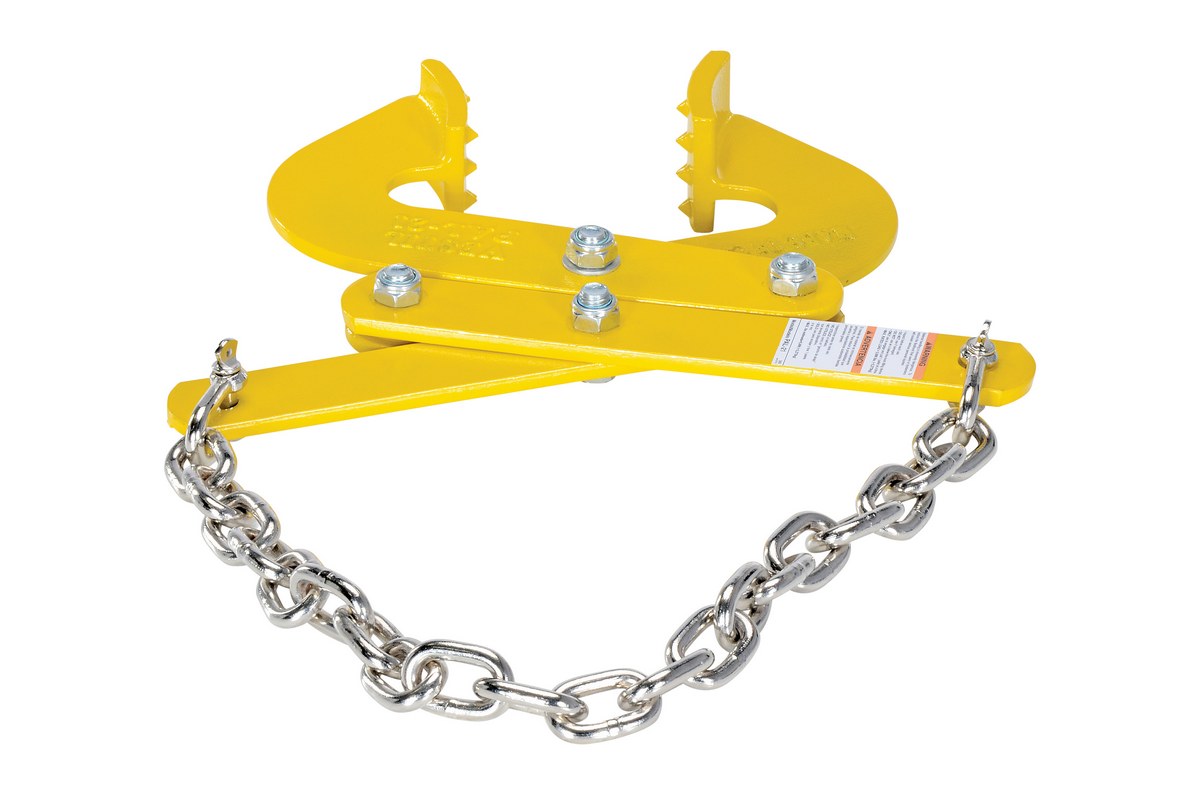

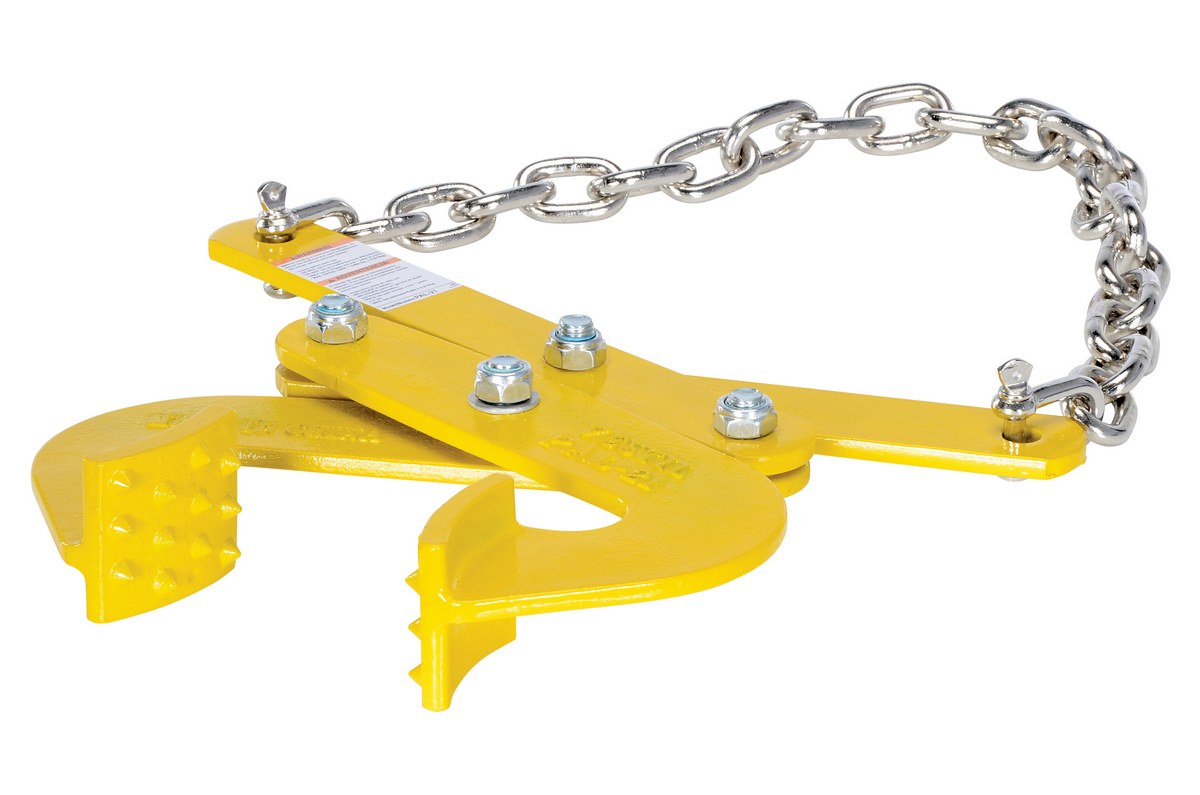

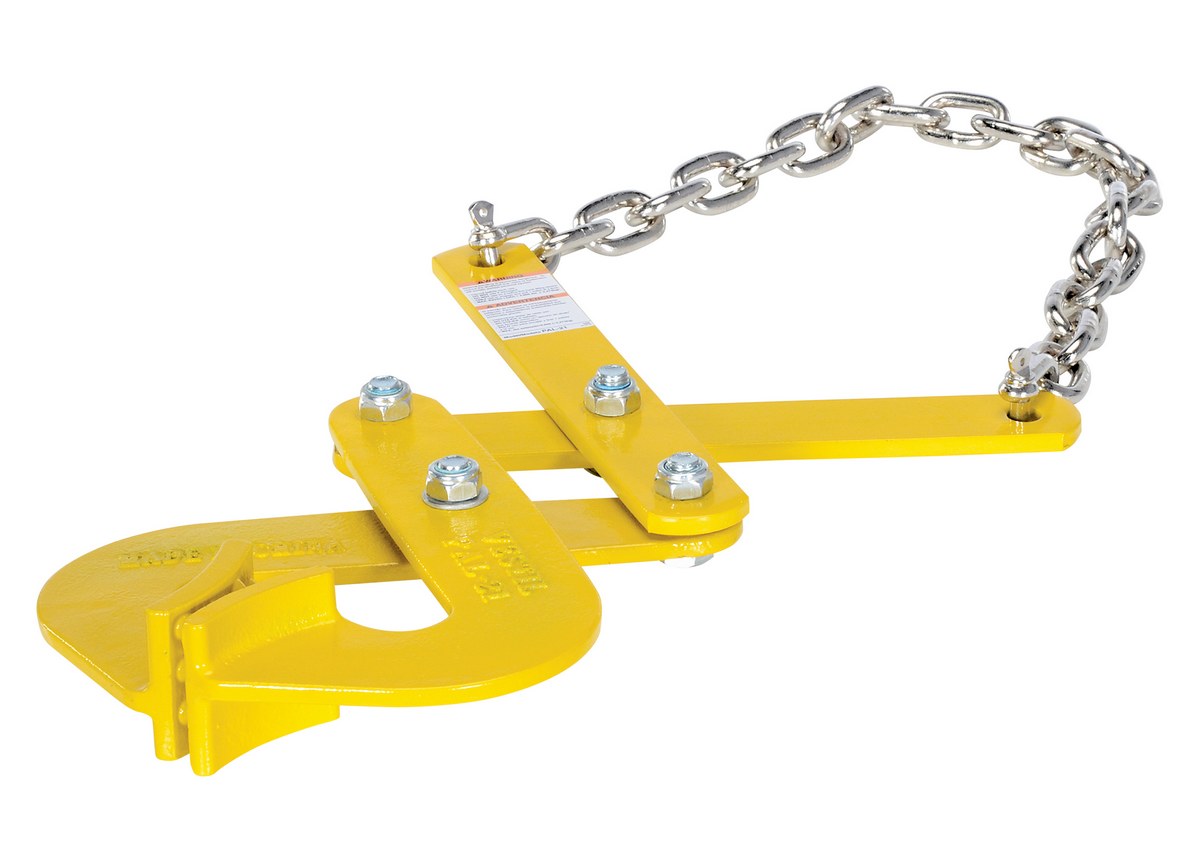

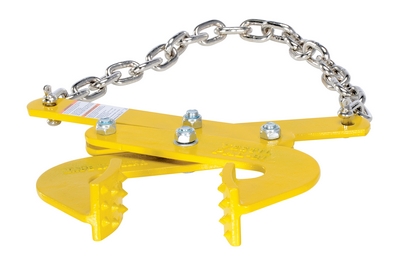

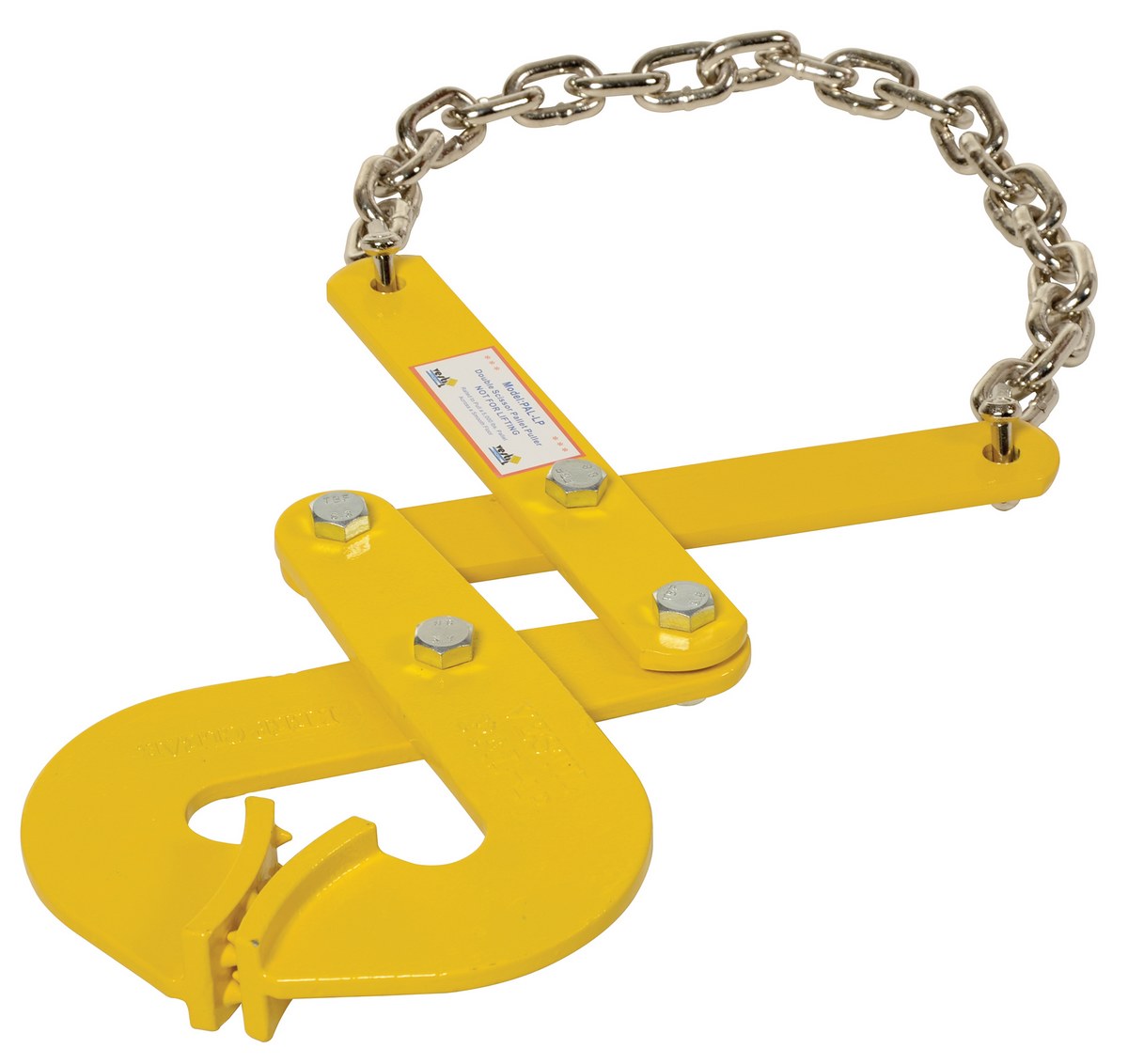

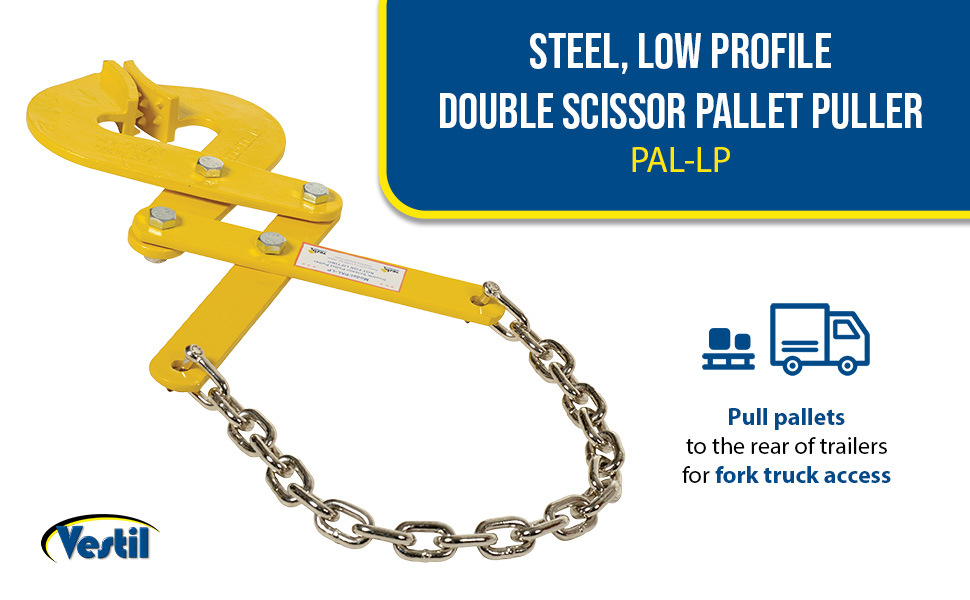

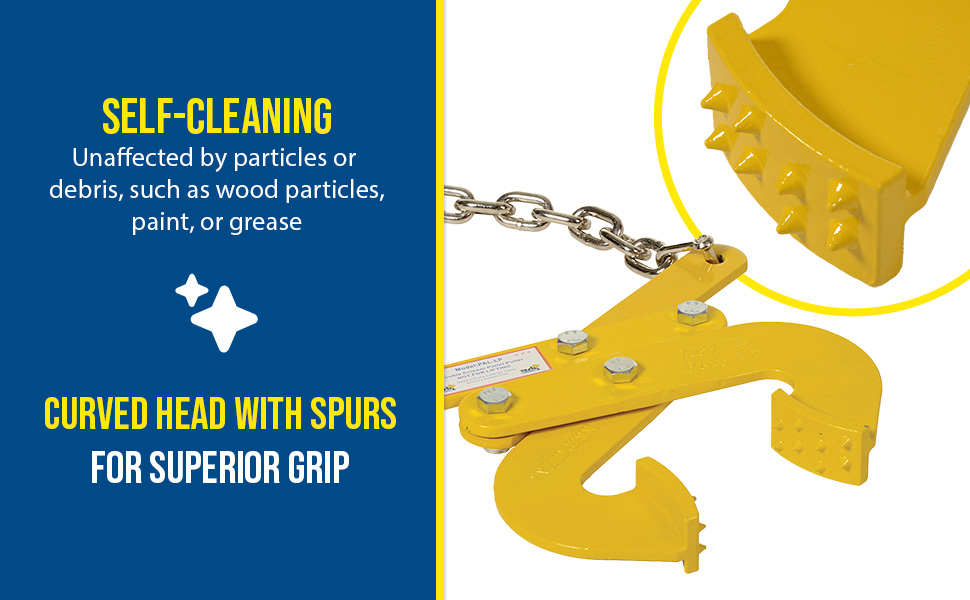

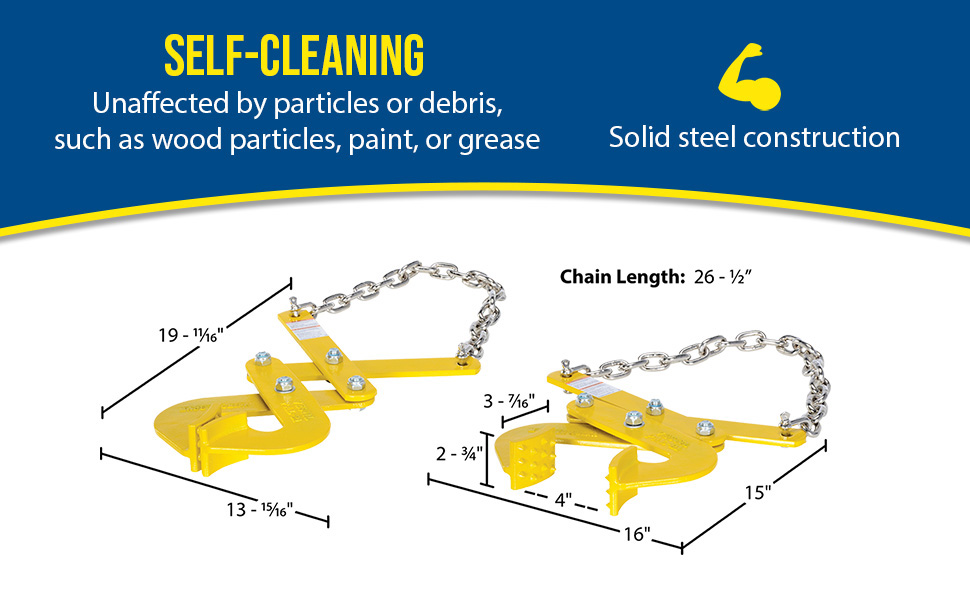

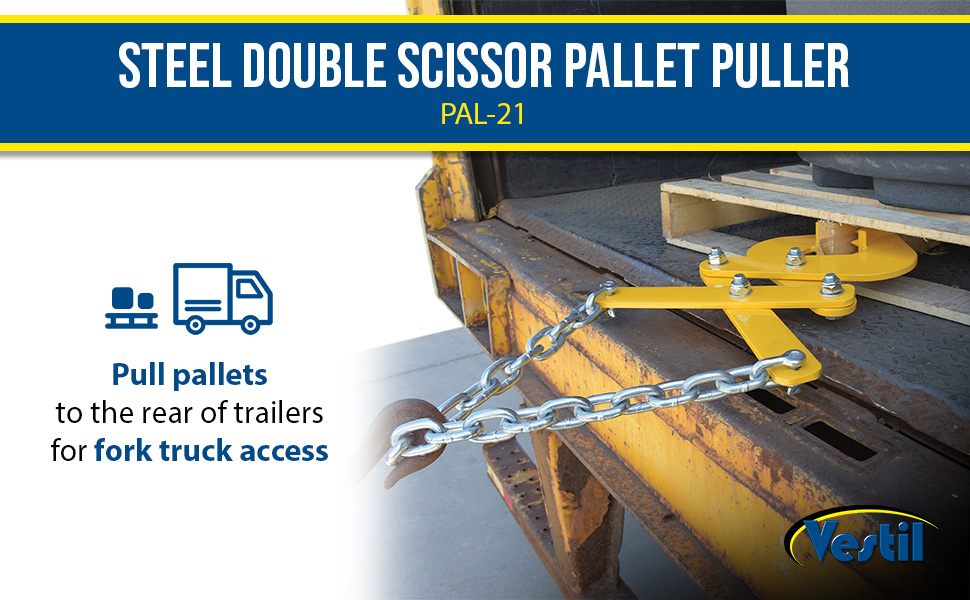

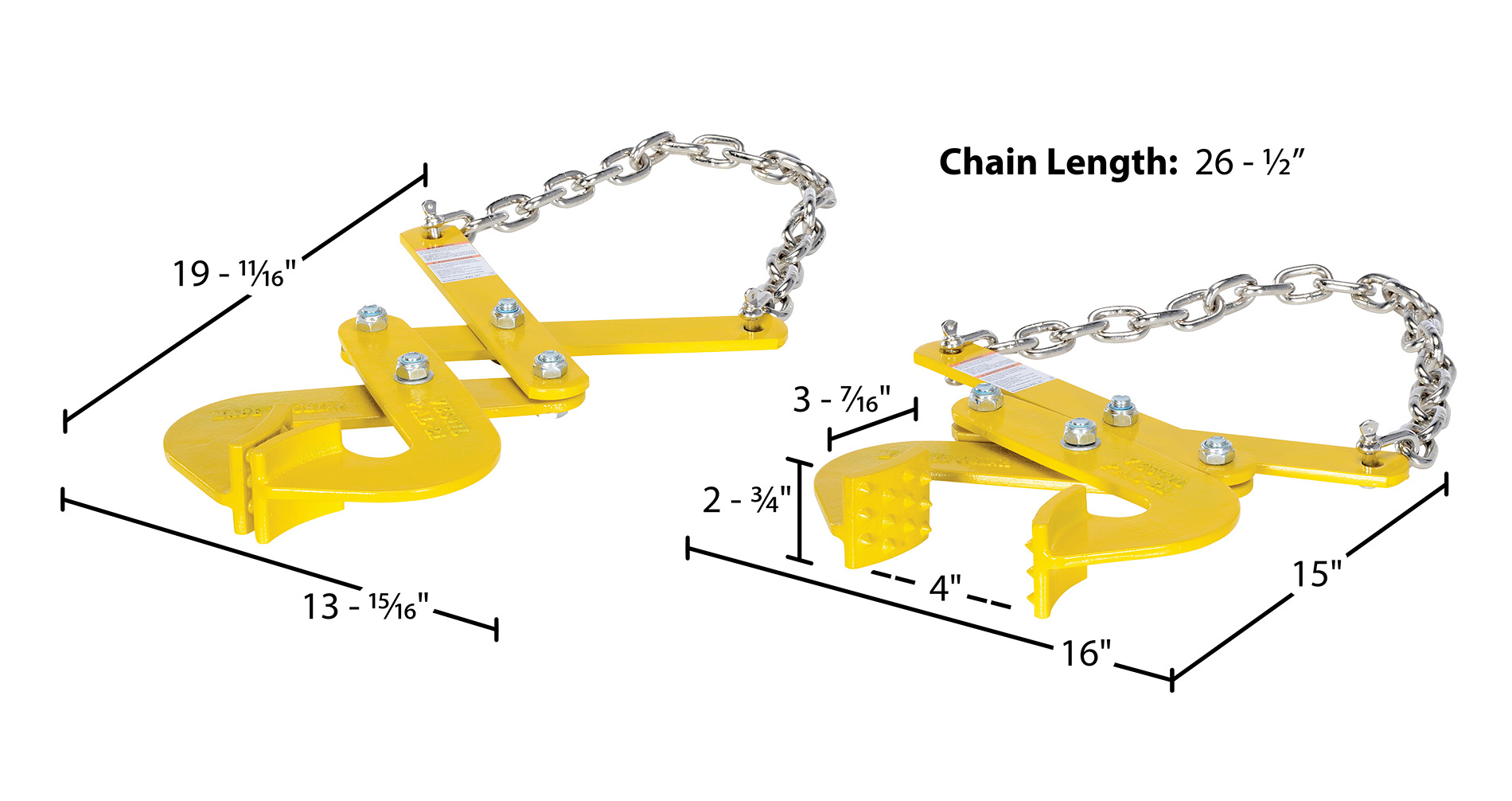

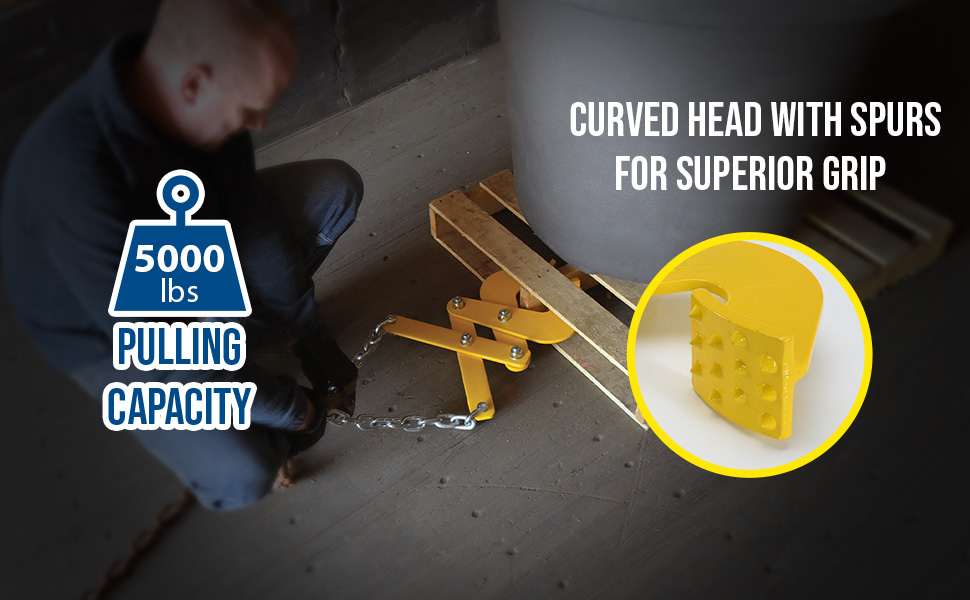

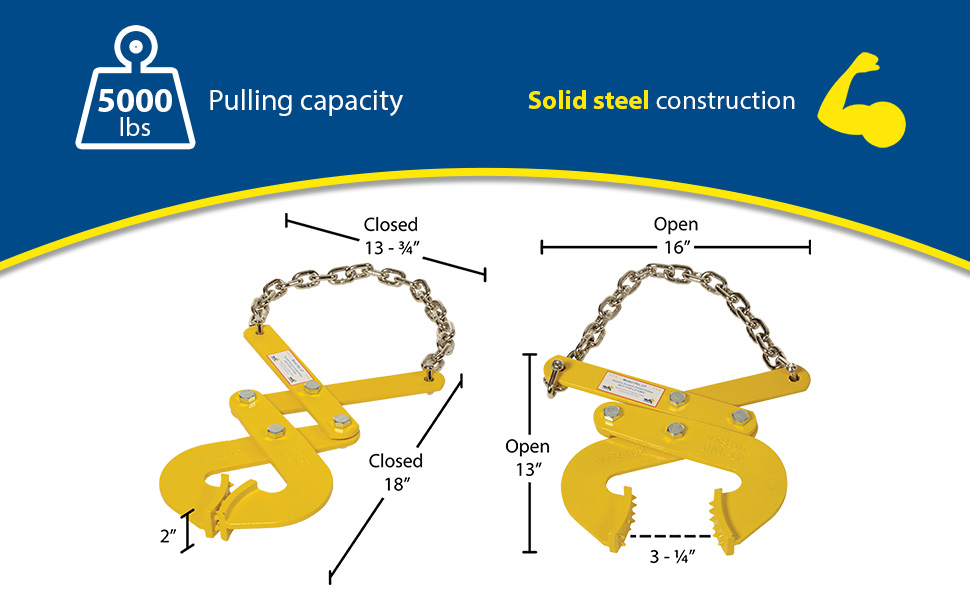

PAL-21 and PAL-LP - One piece curved heads have integral spurs for gripping pallet stringers.




PAL-14

model PAL-14

PAL-16

model PAL-16

PAL-12

model PAL-12

PAL-LP

model PAL-LP

PPC-20

model PPC-20

PPC-40

model PPC-40


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Pallet Puller
Model Image PDFs Description Pulling
Capacity (lbs)
Jaw
Height
Jaw
Opening
Wt.
(lbs)
PAL-12 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Single Scissor 5,000 2-3/4" 7" 14

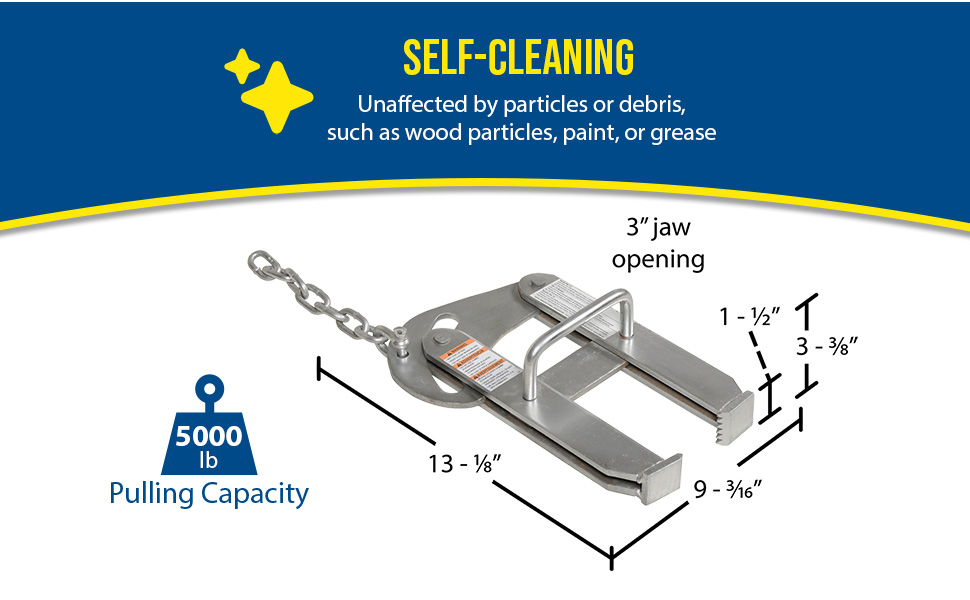

PAL-14 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Cam Action 5,000 1-1/2" 3" 17

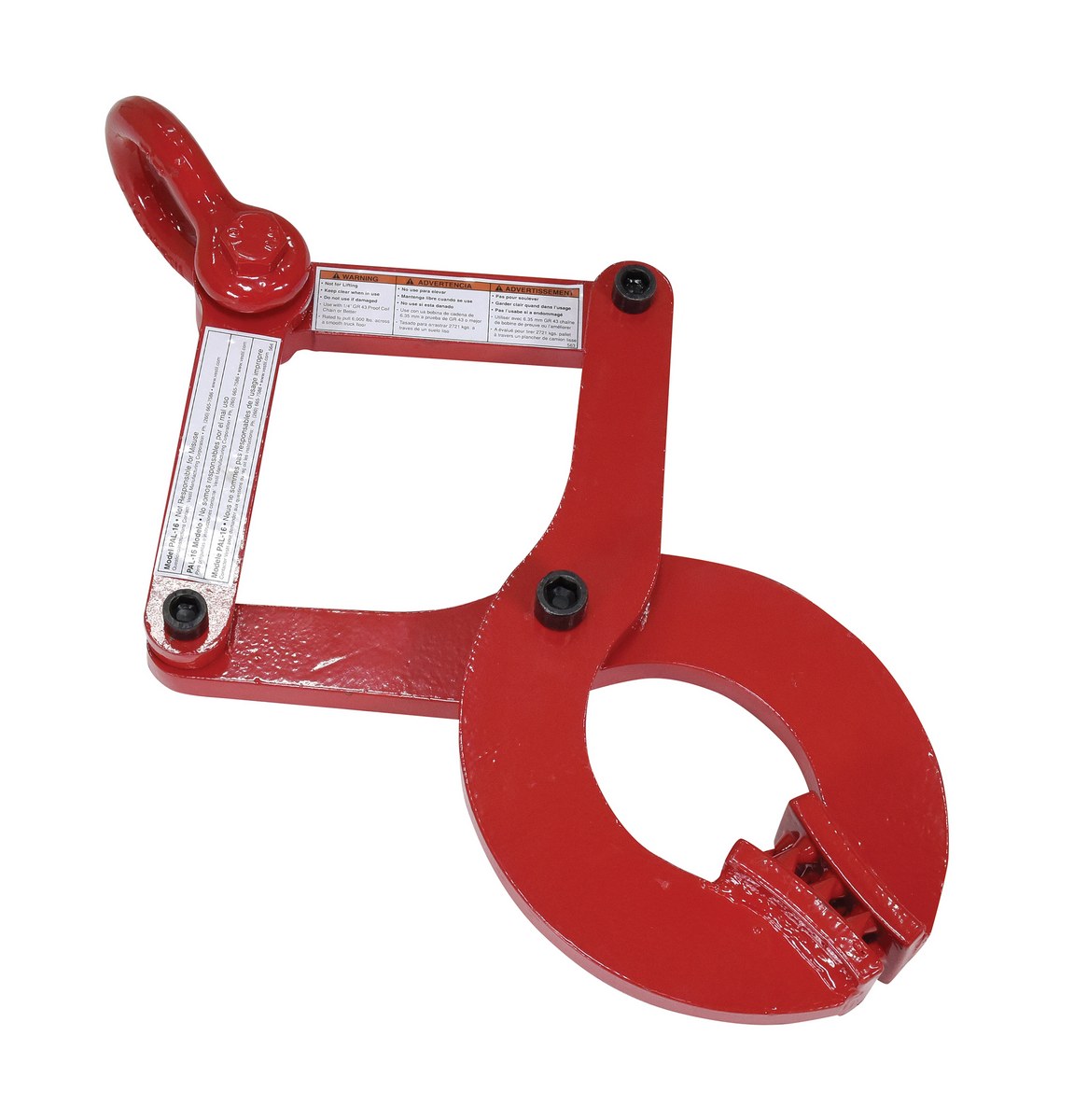

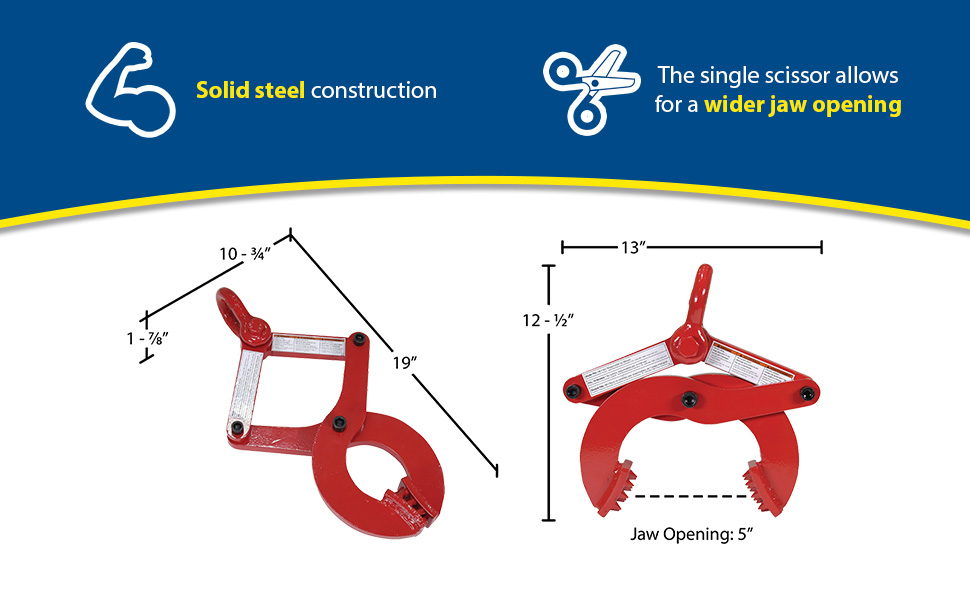

PAL-16 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Single Scissor Heavy Duty 6,000 2" 5" 21

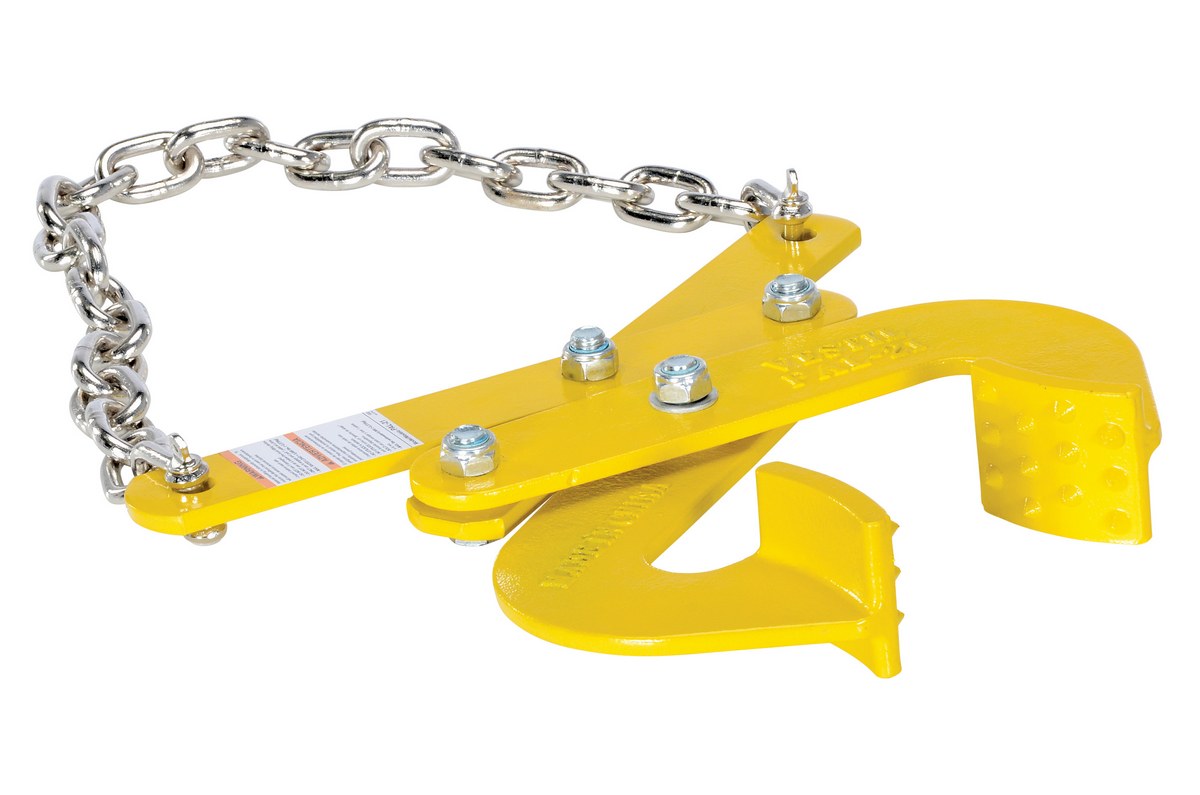

PAL-21 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Double scissor 5,000 2-3/4" 4" 25

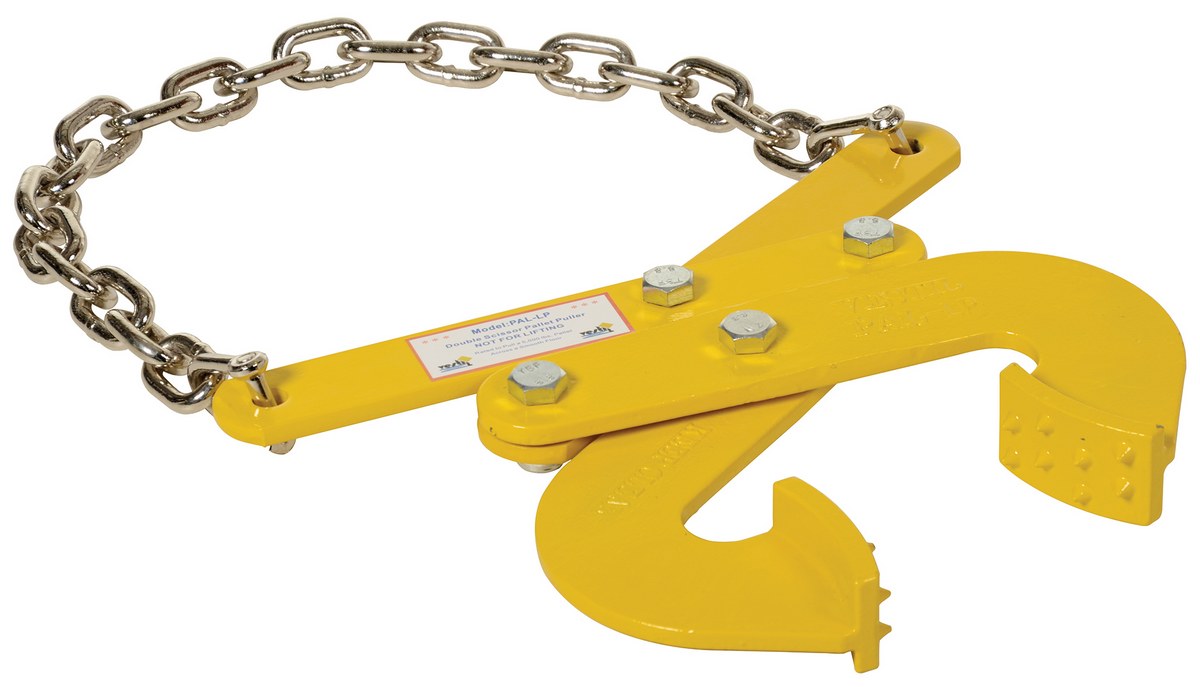

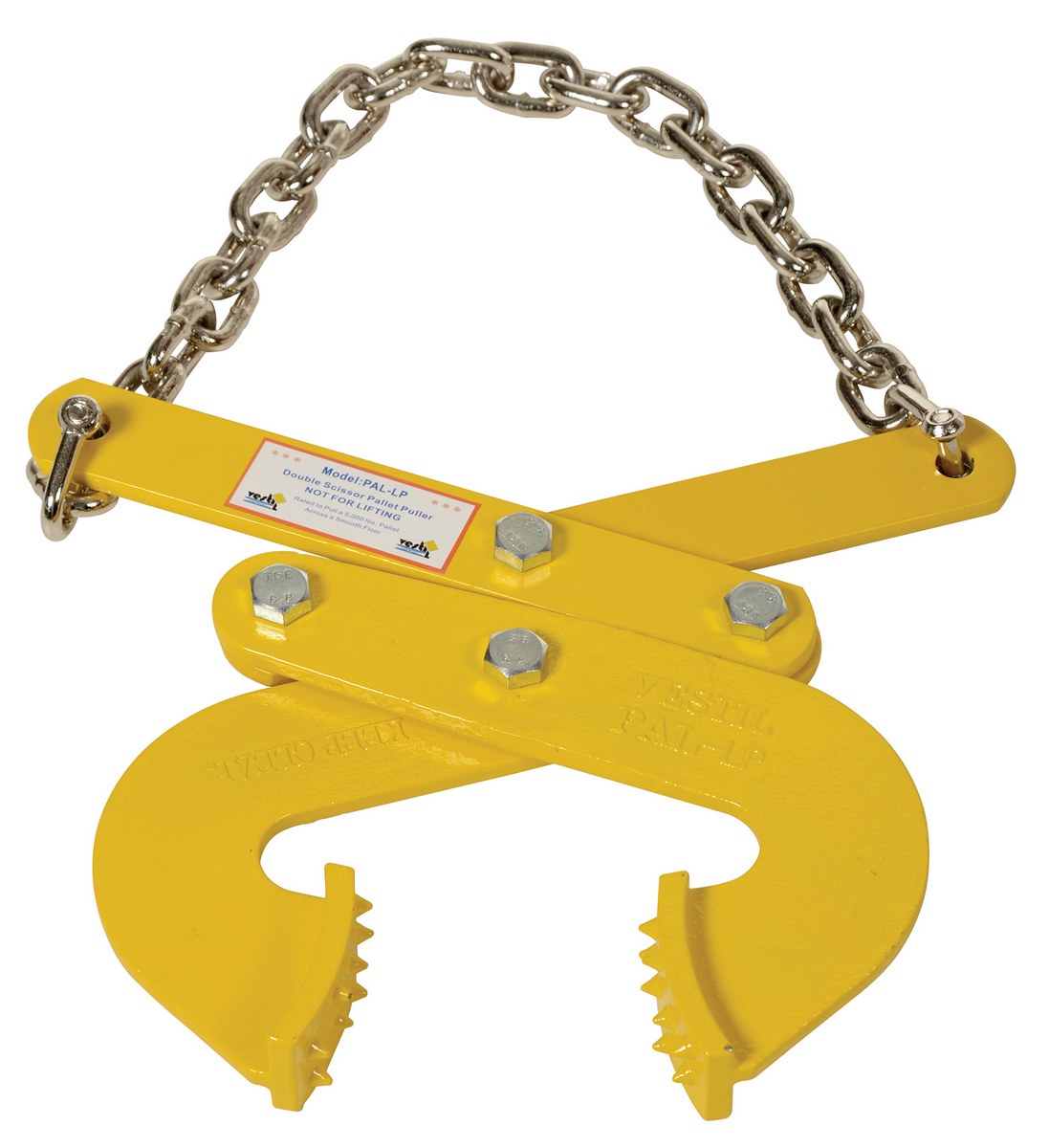

PAL-LP icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Double scissor low profile 5,000 2" 3-1/4" 24

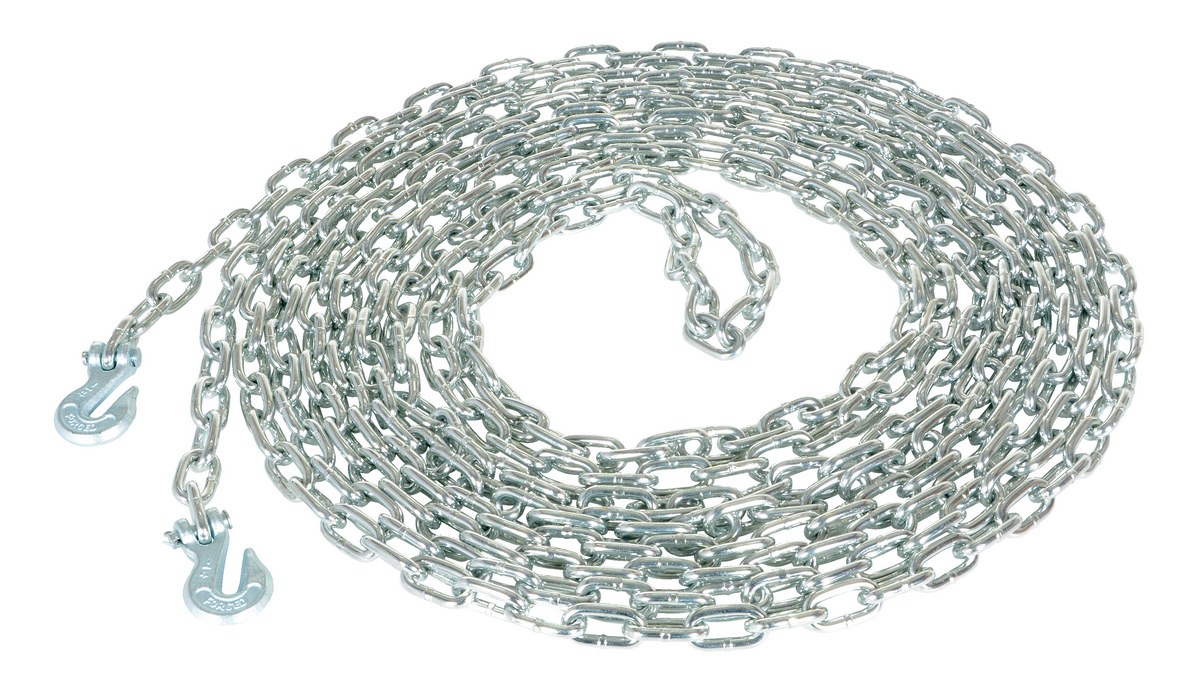

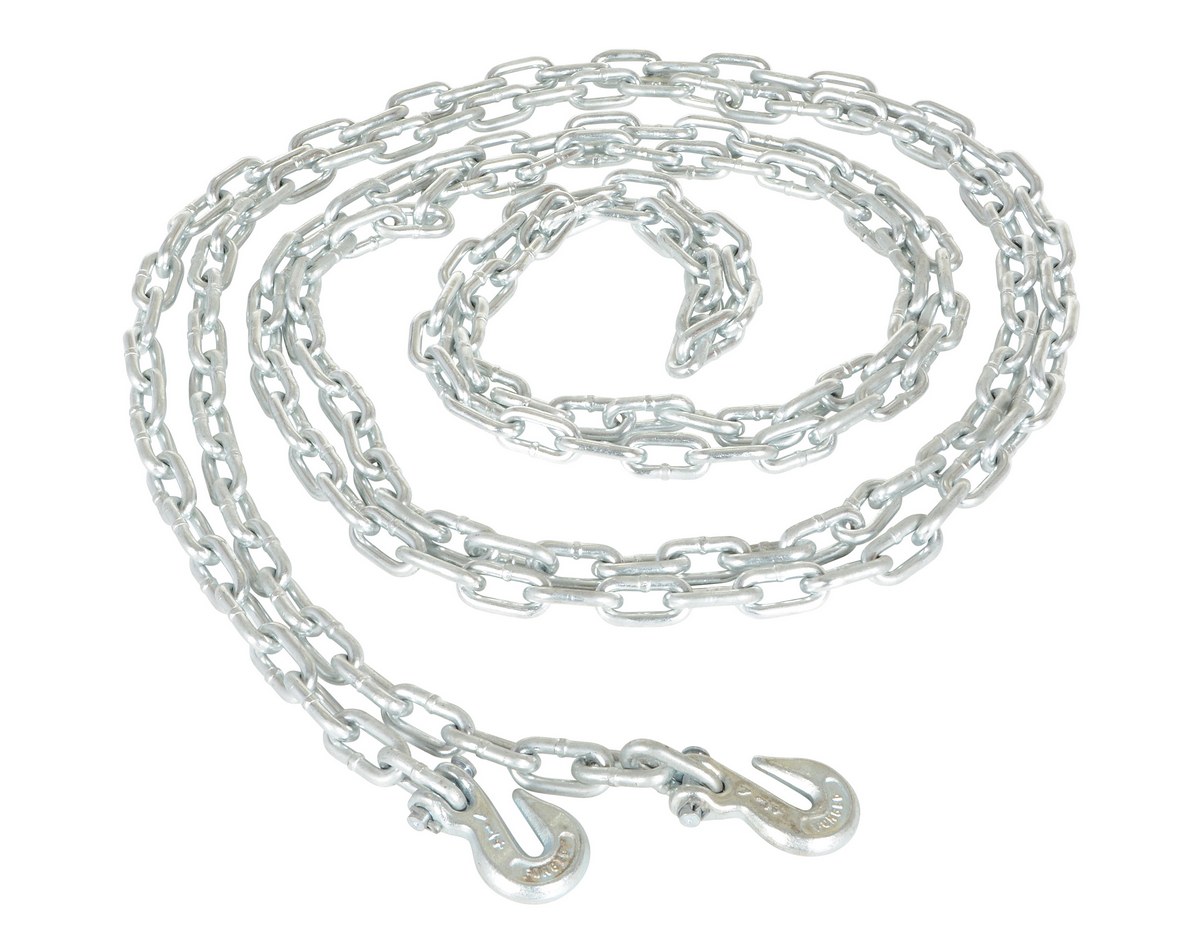

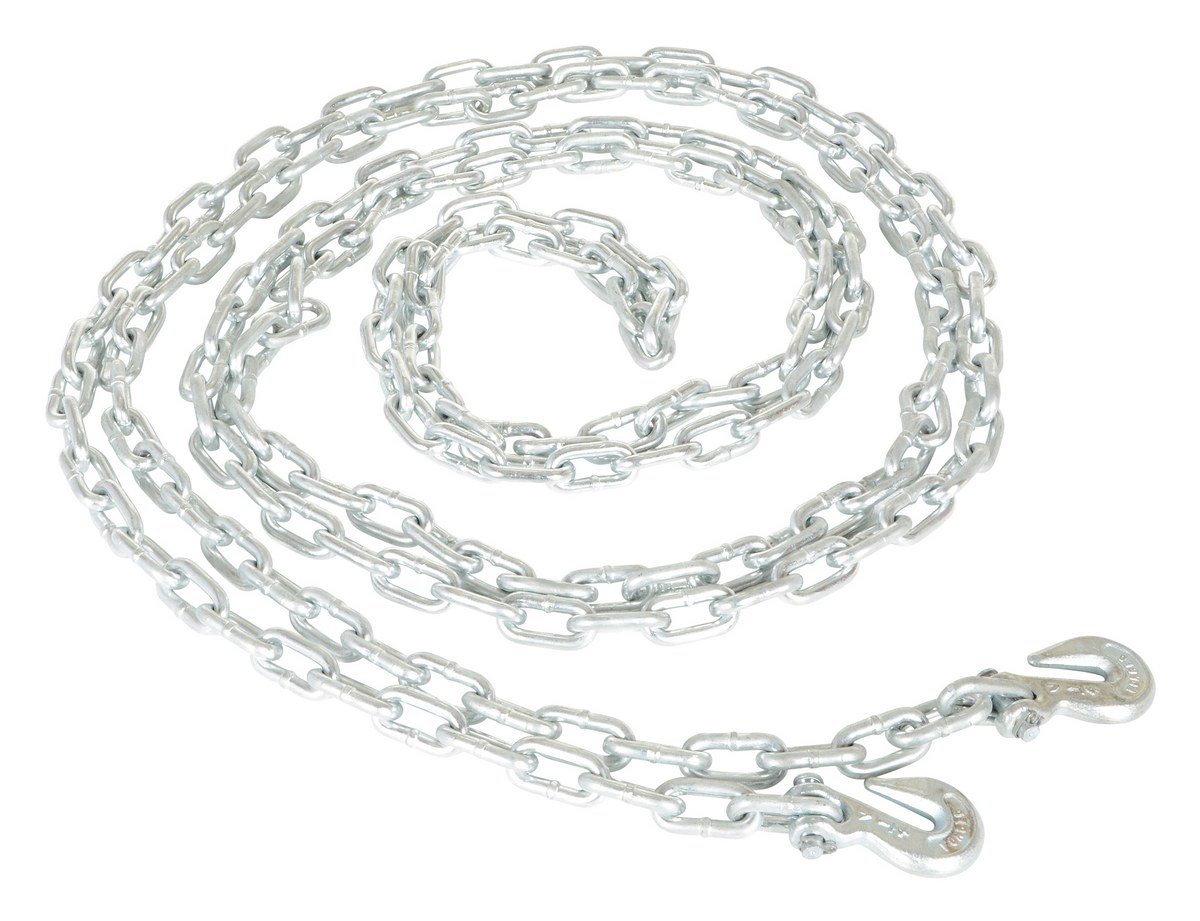

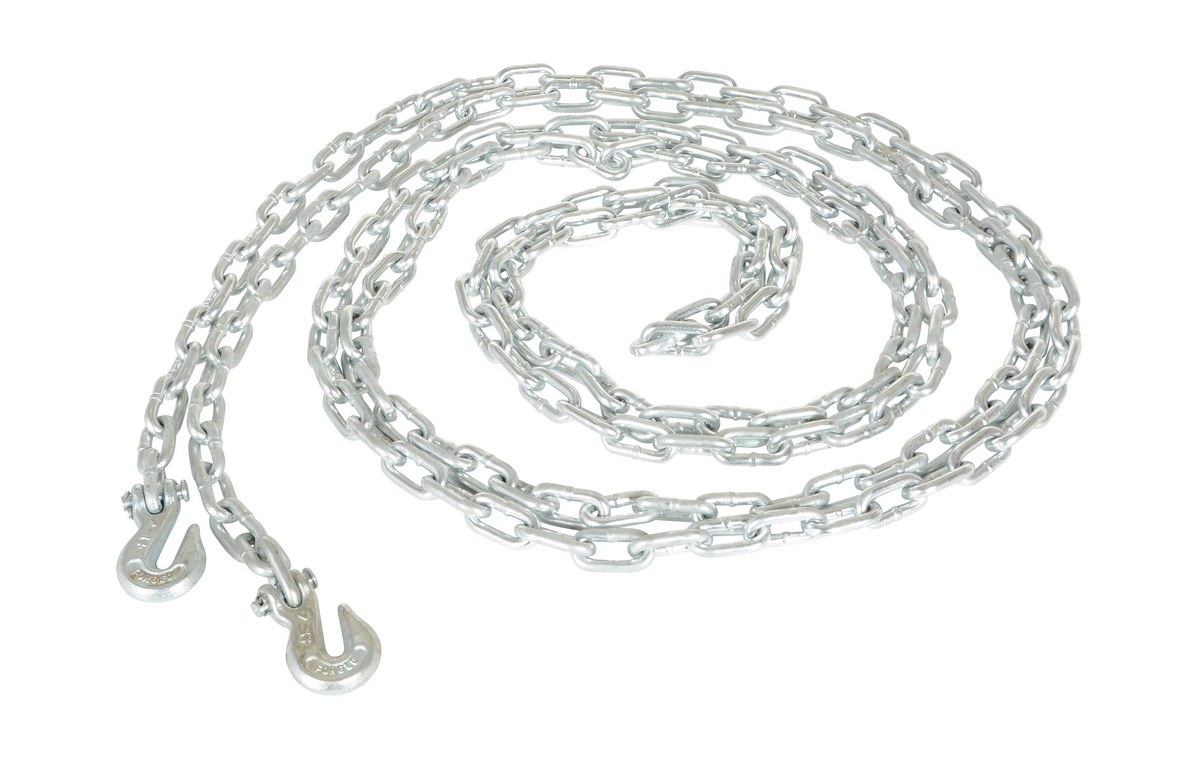

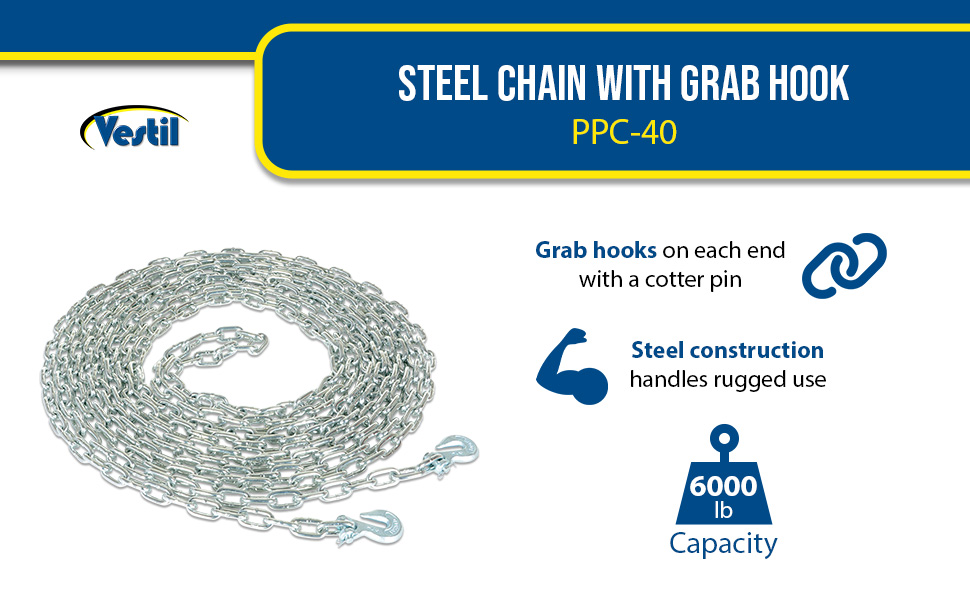

PPC-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20' of 1/4" chain w/ grab hook 6,000 --- --- 14

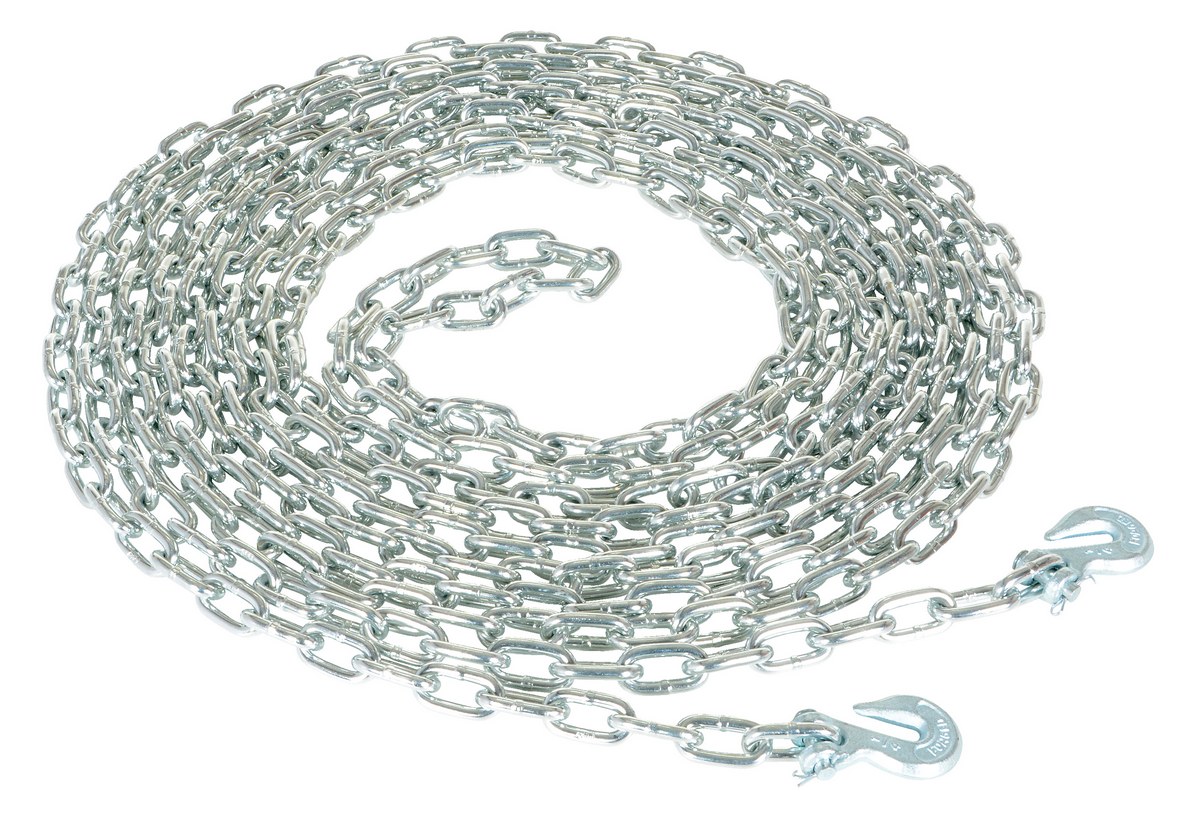

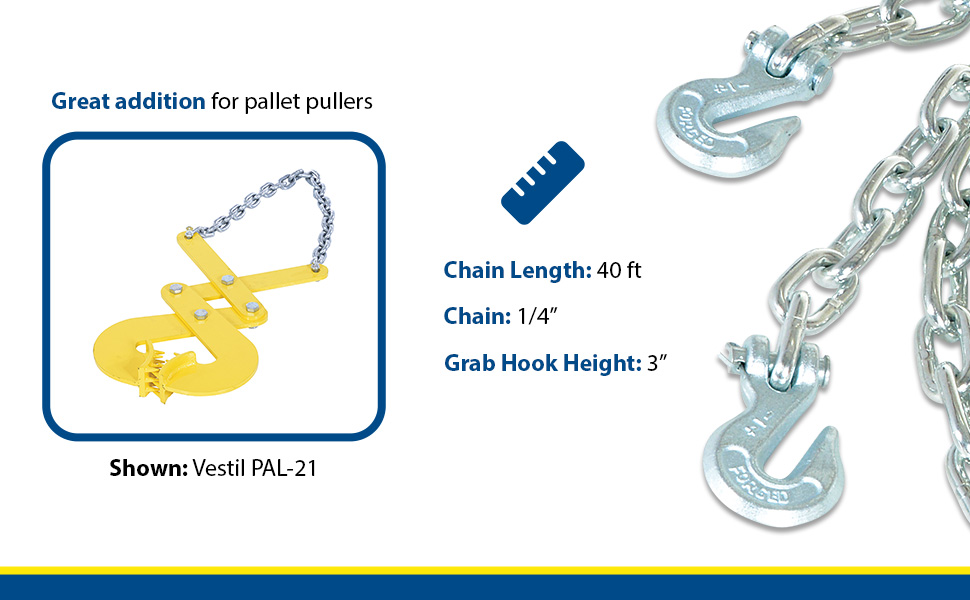

PPC-40 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 40' of 1/4" chain w/ grab hook 6,000 --- --- 28
