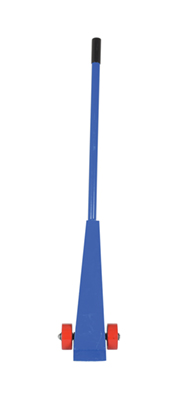

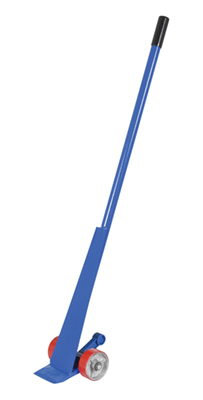

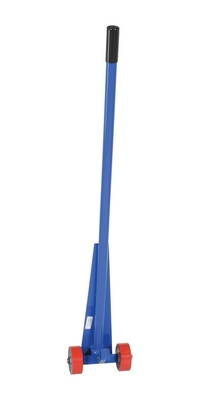

model: PLB-S-5


Pry-Lever Bars
SERIES: PLB

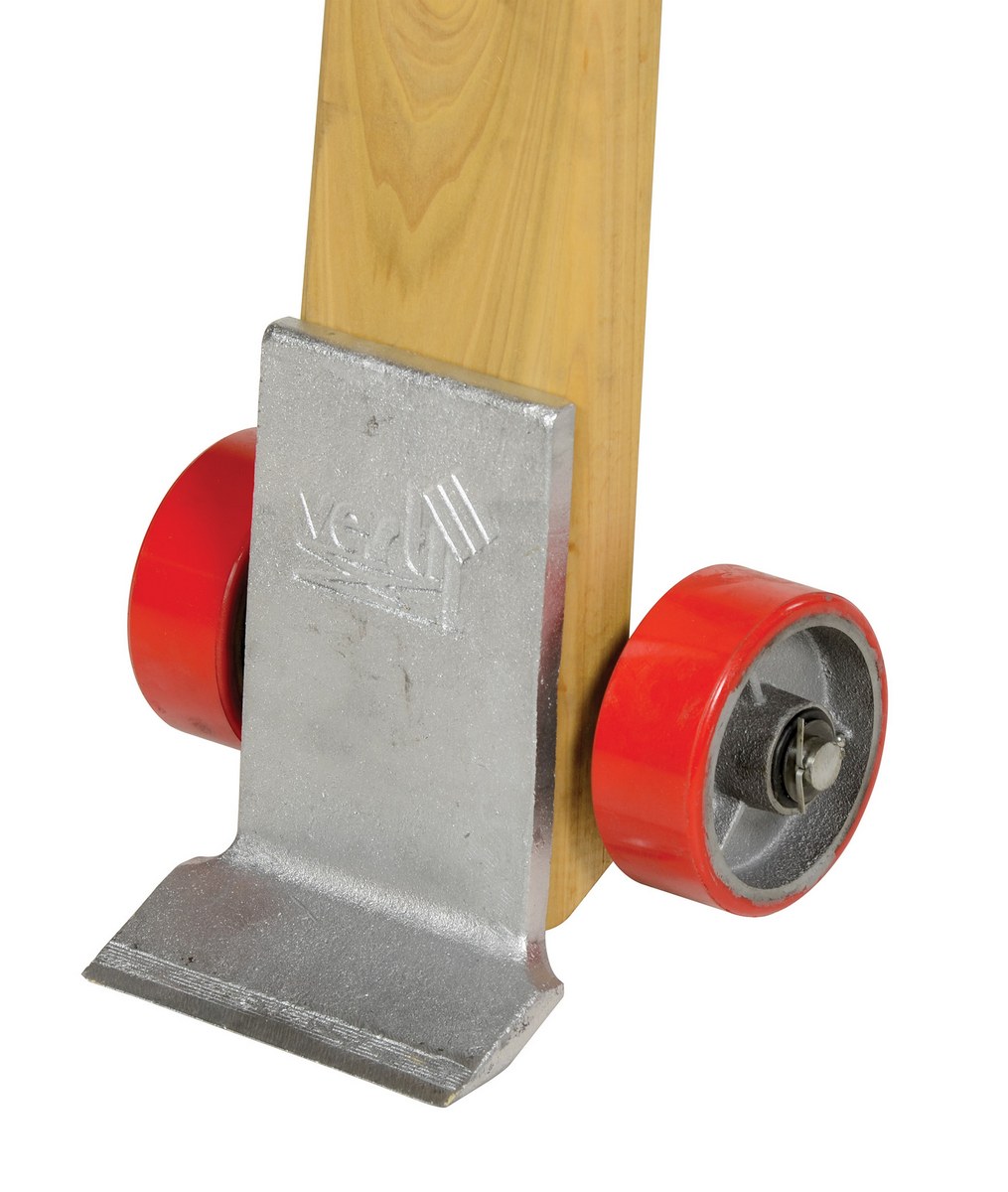

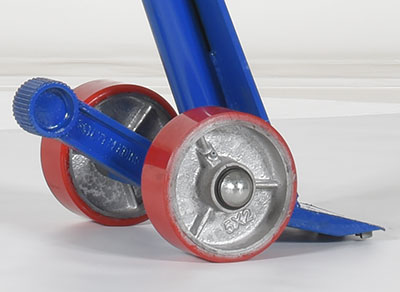

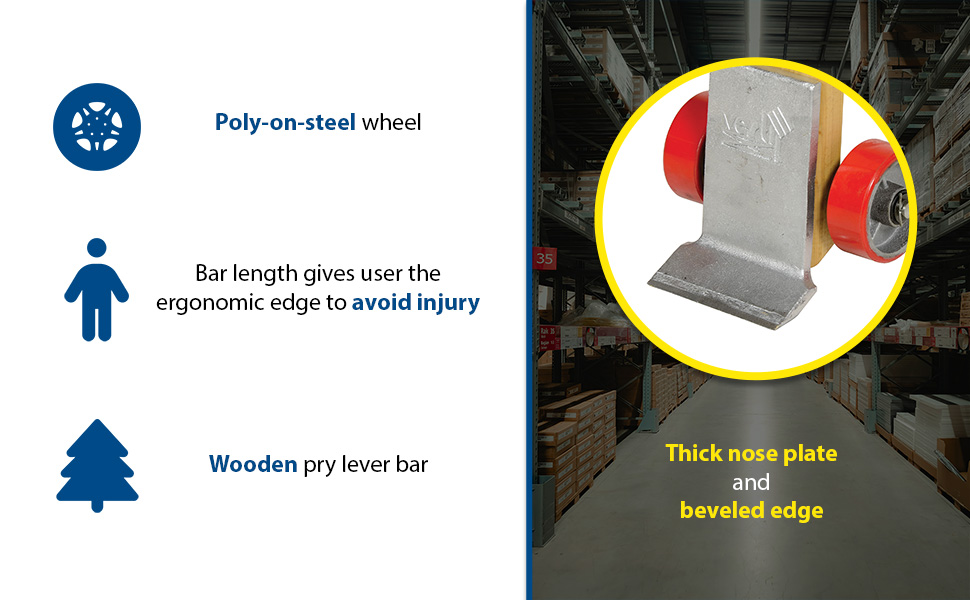

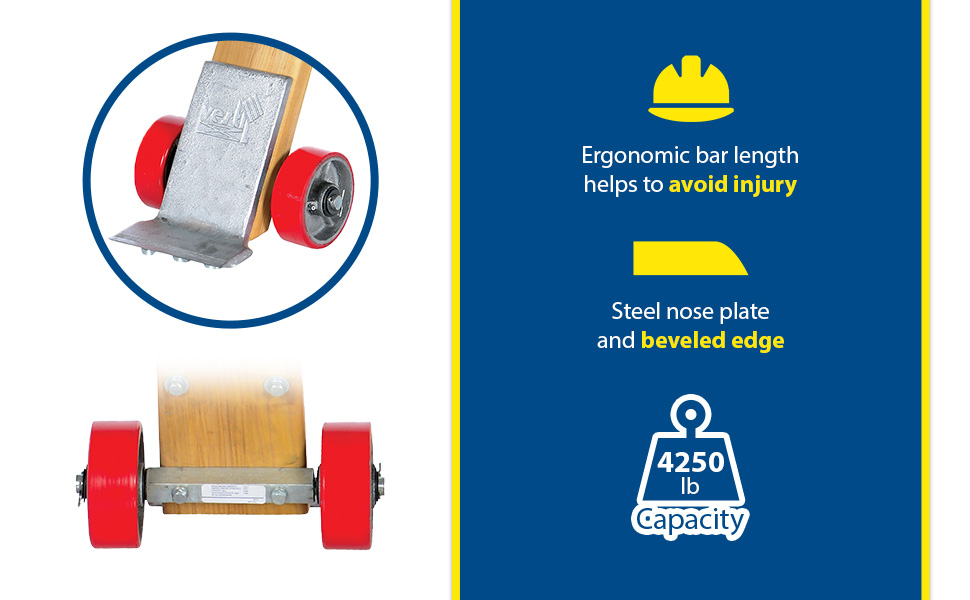

Provide dock workers, riggers, and freight handlers with the leverage needed to get underneath heavy objects for transporting with fork truck, hand truck, pallet truck, or machinery movers. Two (2) 5" x 2" poly-on-steel wheels. 5/8" thick steel nose plate with beveled edge is bolted on the wood handle units and welded on the steel units. Steel units feature baked-in powder-coated toughness.

Provide dock workers, riggers, and freight handlers with the leverage needed to get underneath heavy objects for transporting with fork truck, hand truck, pallet truck, or machinery movers. Two (2) 5" x 2" poly-on-steel wheels. 5/8" thick steel nose plate with beveled edge is bolted on the wood handle units and welded on the steel units. Steel units feature baked-in powder-coated toughness.

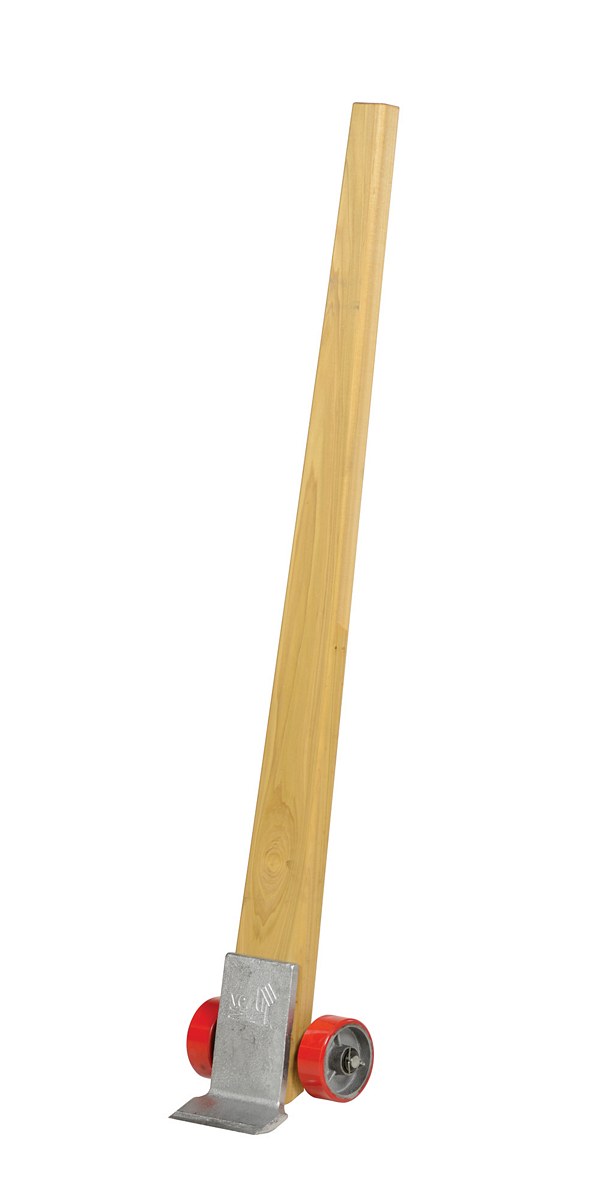

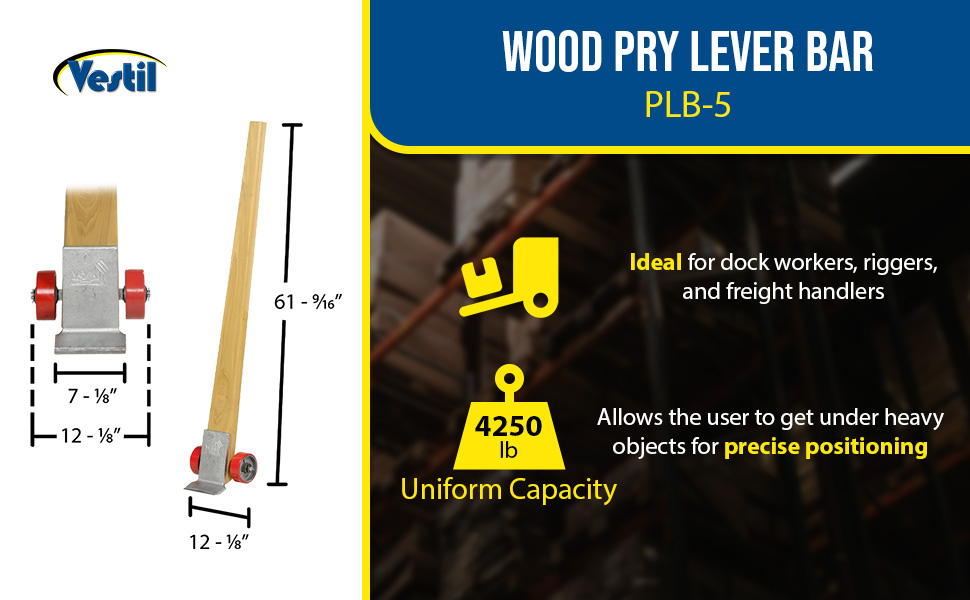

PLB-5

model PLB-5

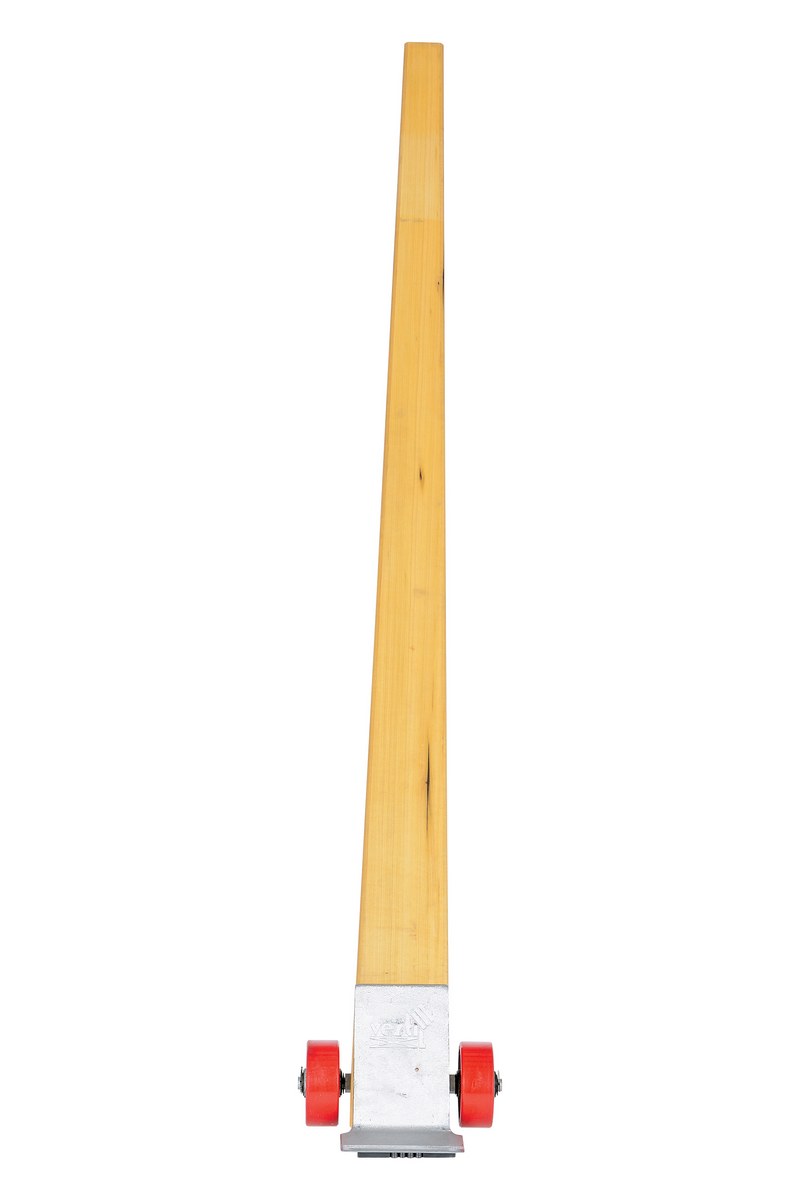

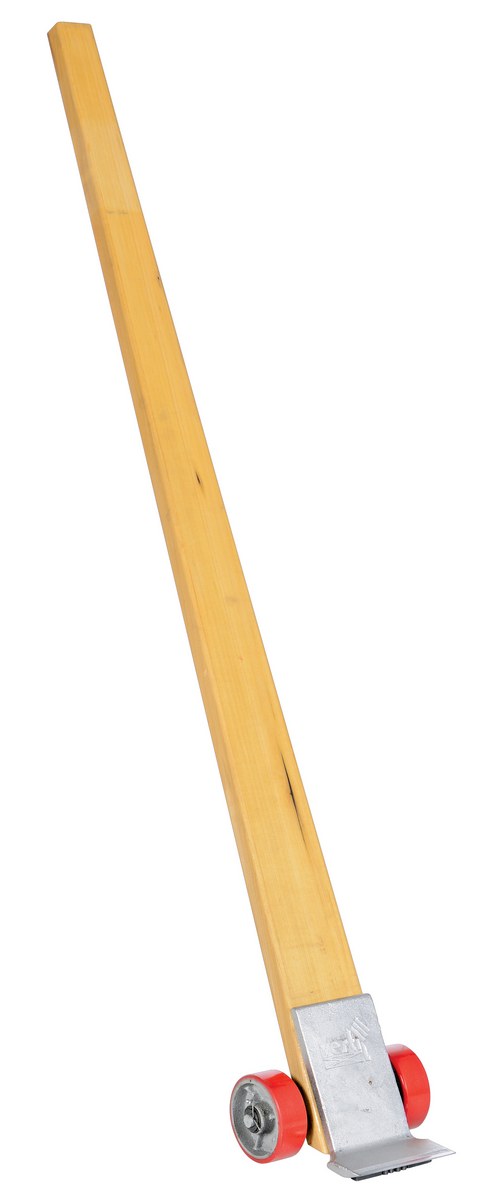

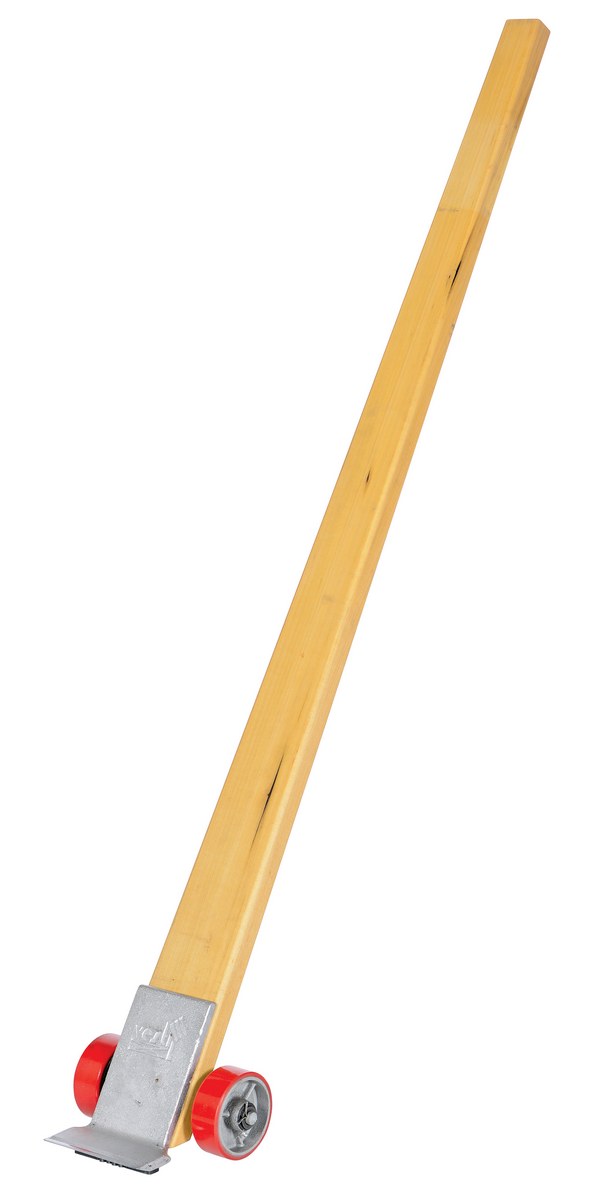

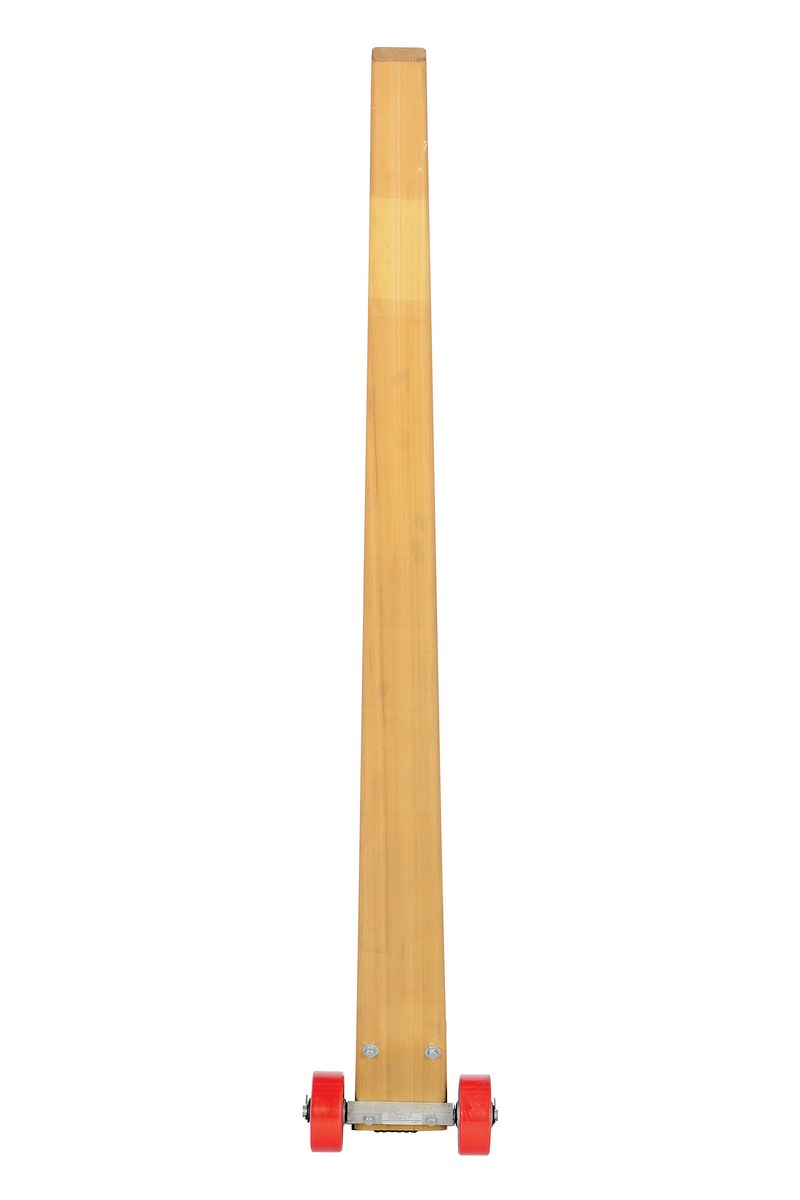

PLB-6

model PLB-6

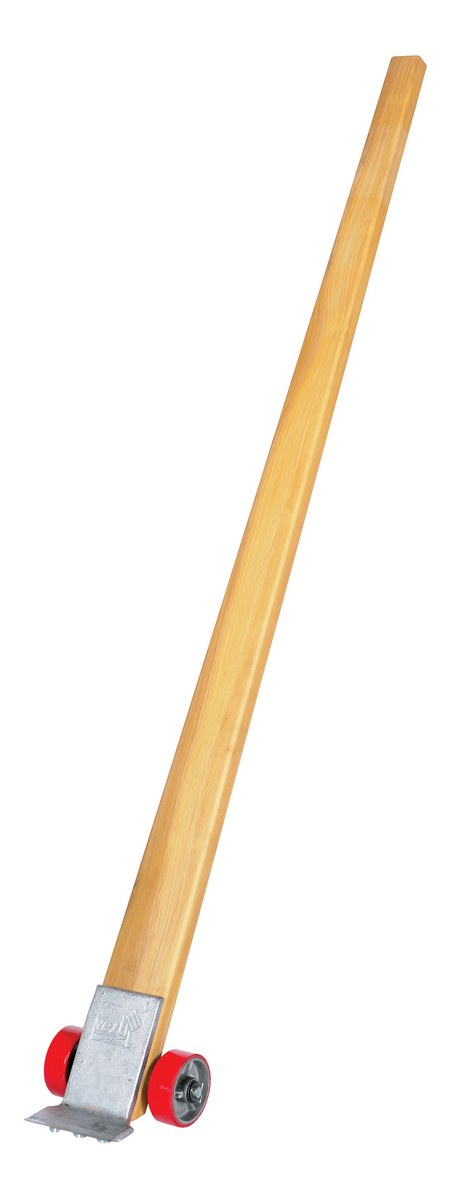

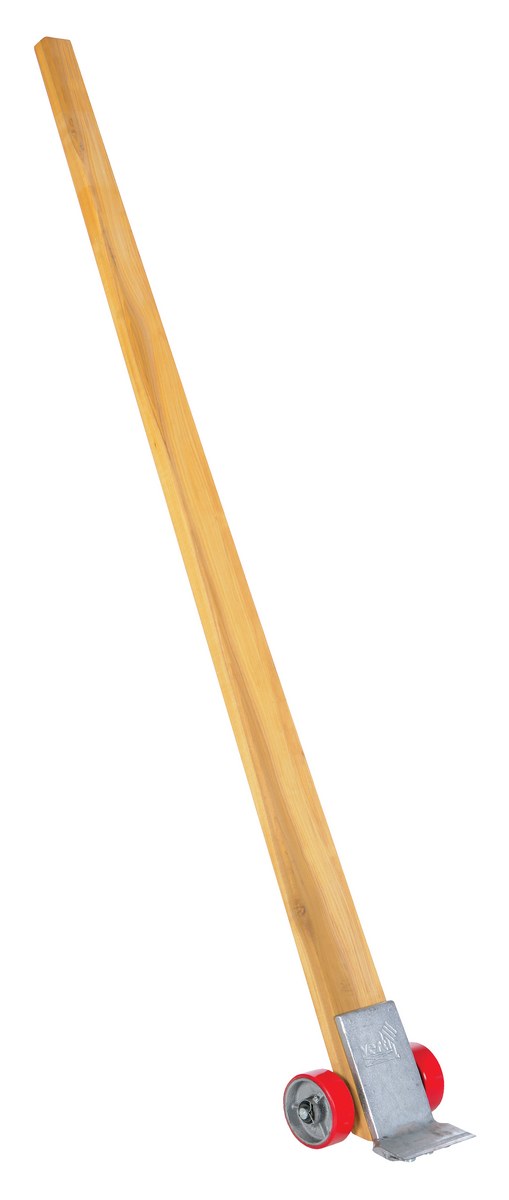

PLB-7

model PLB-7

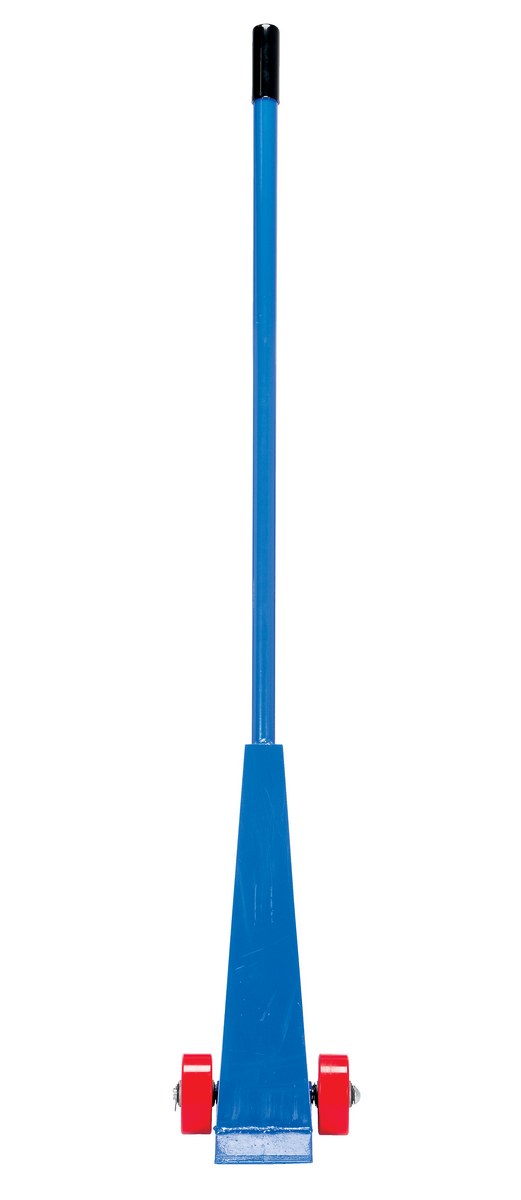

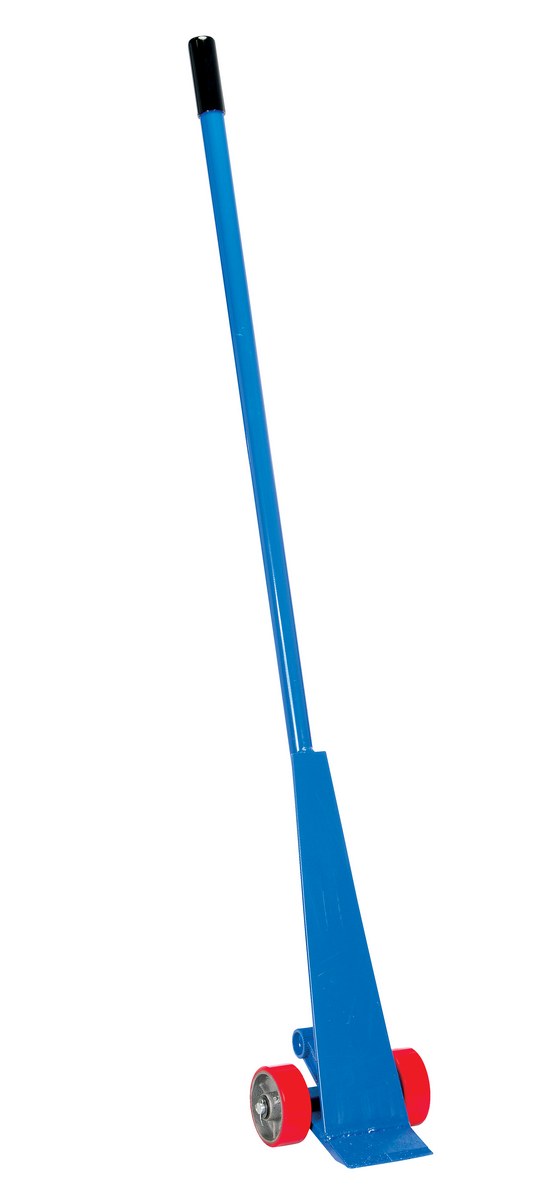

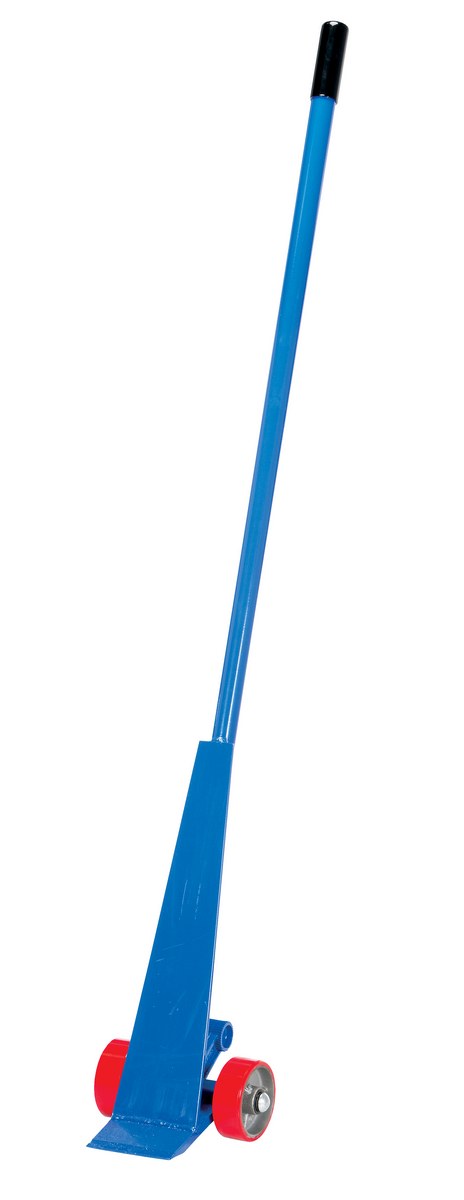

PLB-S-6

model PLB-S-6

PLB-S-7

model PLB-S-7




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
PLB-5 90 Days Limited WarrantyWood Pry Lever Bar 5 Ft. Height 4250 Lb. Capacity BrownUniform Capacity (lb.): 4250
Bar Length (in.): 60
22
PLB-6 90 Days Limited WarrantyWood Pry Lever Bar 6 Ft. Height 4250 Lb. Capacity BrownUniform Capacity (lb.): 4250
Bar Length (in.): 72
21

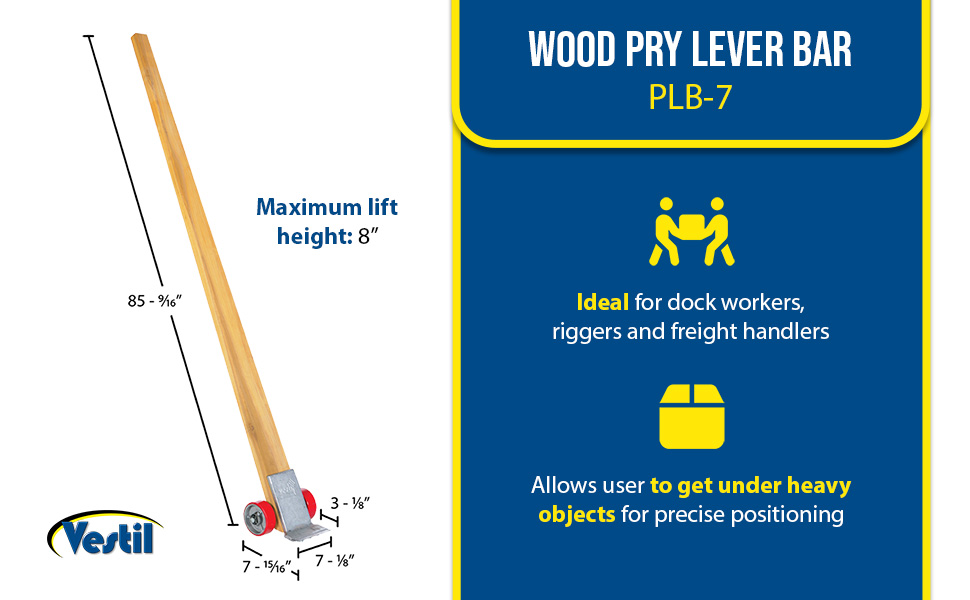

PLB-7 90 Days Limited WarrantyWood Pry Lever Bar 7 Ft. Height 4250 Lb. Capacity BrownUniform Capacity (lb.): 4250
Bar Length (in.): 84
21
PLB/S-5 90 Days Limited WarrantySteel Pry Lever Bar 5 Ft. Height 5000 Lb. Capacity BlueUniform Capacity (lb.): 5000
Bar Length (in.): 59-7/16
37

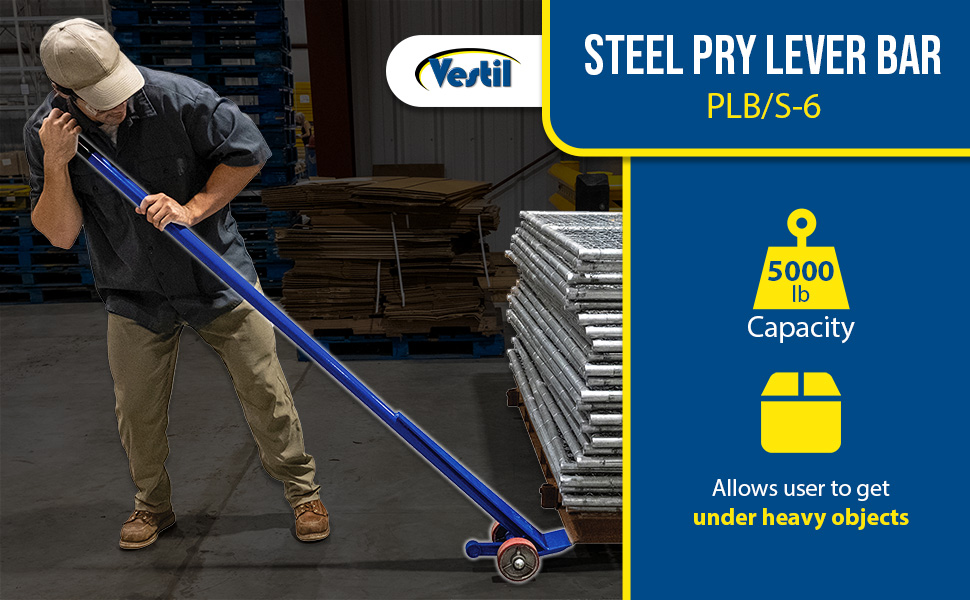

PLB/S-6 90 Days Limited WarrantySteel Pry Lever Bar 6 Ft. Height 5000 Lb. Capacity BlueUniform Capacity (lb.): 5000
Bar Length (in.): 71-7/16
41
PLB/S-7 90 Days Limited WarrantySteel Pry Lever Bar 7 Ft. Height 5000 Lb. Capacity BlueUniform Capacity (lb.): 5000
Bar Length (in.): 83-7/16
41

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

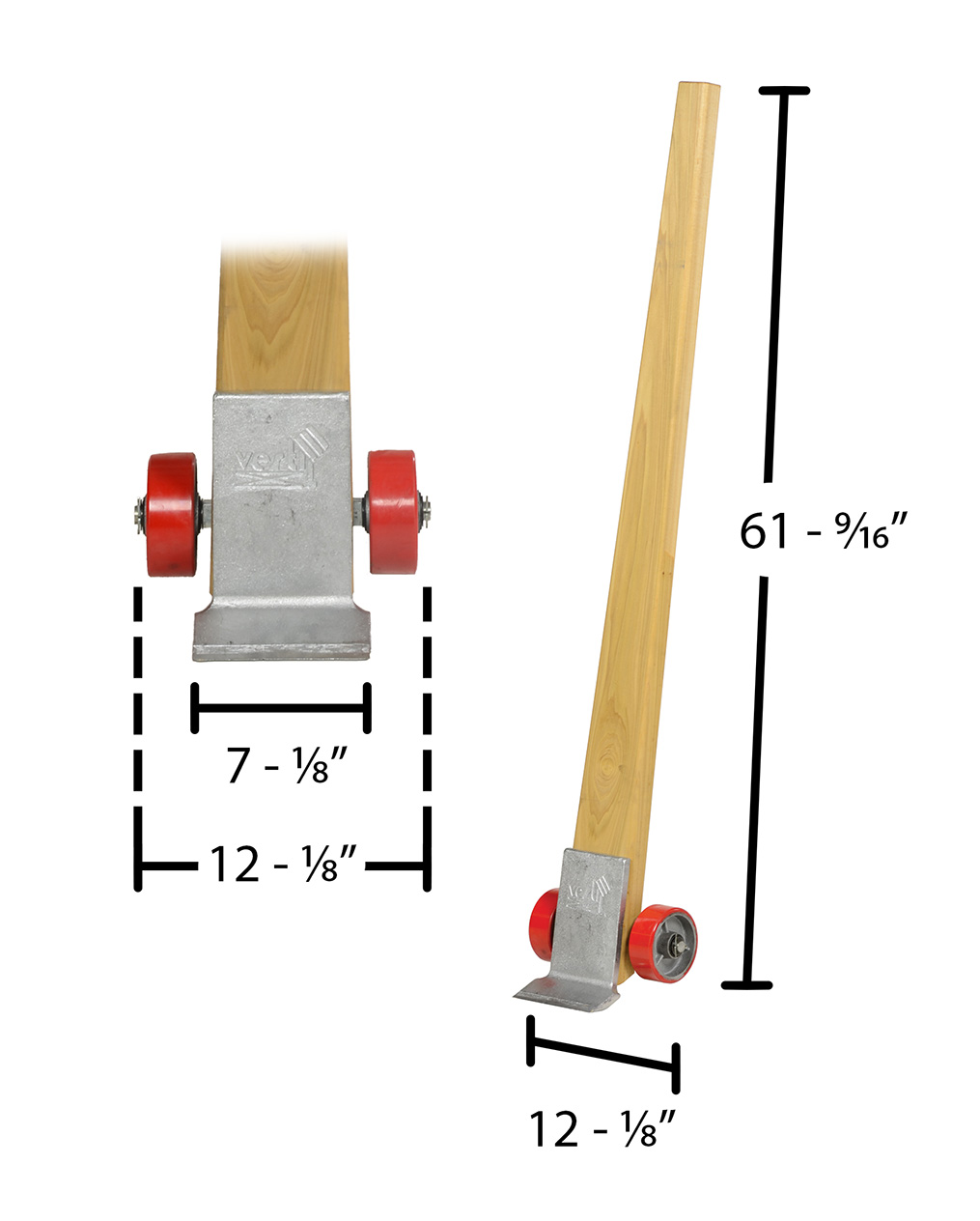

Wood Pry Lever Bar 5 Ft. Height 4250 Lb. Capacity Brown


Unit: EACH
Size: 12.125W x 7.9375L x 61.5625H
Weight: 22
90 Days Limited Warranty
Uniform Capacity (lb.): 4250
Bar Length (in.): 60
Uniform Capacity (lb.): 4250
Bar Length (in.): 60

Wood Pry Lever Bar 6 Ft. Height 4250 Lb. Capacity Brown


Unit: EACH
Size: 12.125W x 7.9375L x 73.5625H
Weight: 21
90 Days Limited Warranty
Uniform Capacity (lb.): 4250
Bar Length (in.): 72
Uniform Capacity (lb.): 4250
Bar Length (in.): 72

Wood Pry Lever Bar 7 Ft. Height 4250 Lb. Capacity Brown


Unit: EACH
Size: 12.125W x 7.9375L x 85.5625H
Weight: 21
90 Days Limited Warranty
Uniform Capacity (lb.): 4250
Bar Length (in.): 84
Uniform Capacity (lb.): 4250
Bar Length (in.): 84

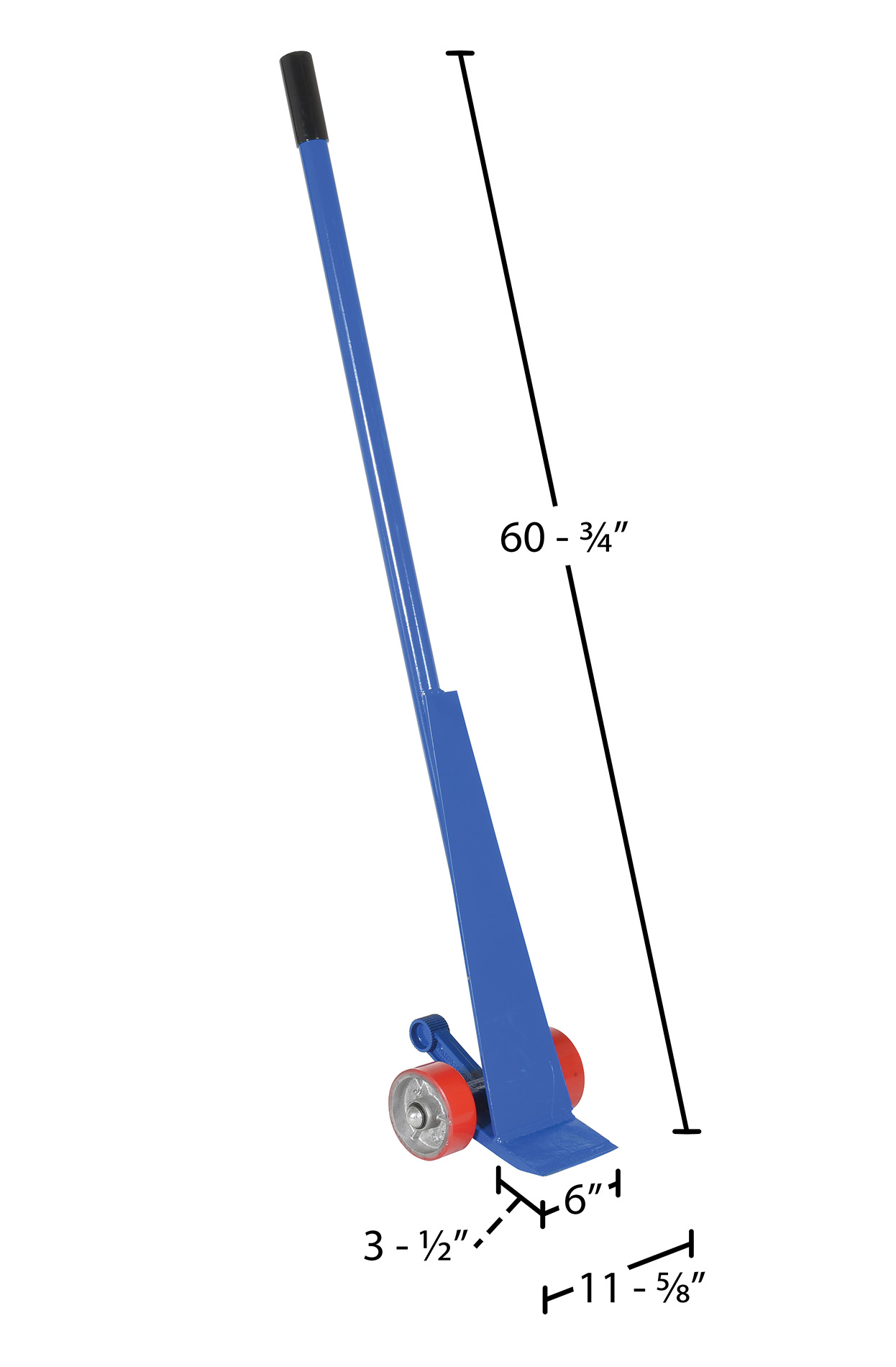

Steel Pry Lever Bar 5 Ft. Height 5000 Lb. Capacity Blue


Unit: EACH
Size: 11.625W x 13.25L x 60.75H
Weight: 37
90 Days Limited Warranty
Uniform Capacity (lb.): 5000
Bar Length (in.): 59-7/16
Uniform Capacity (lb.): 5000
Bar Length (in.): 59-7/16

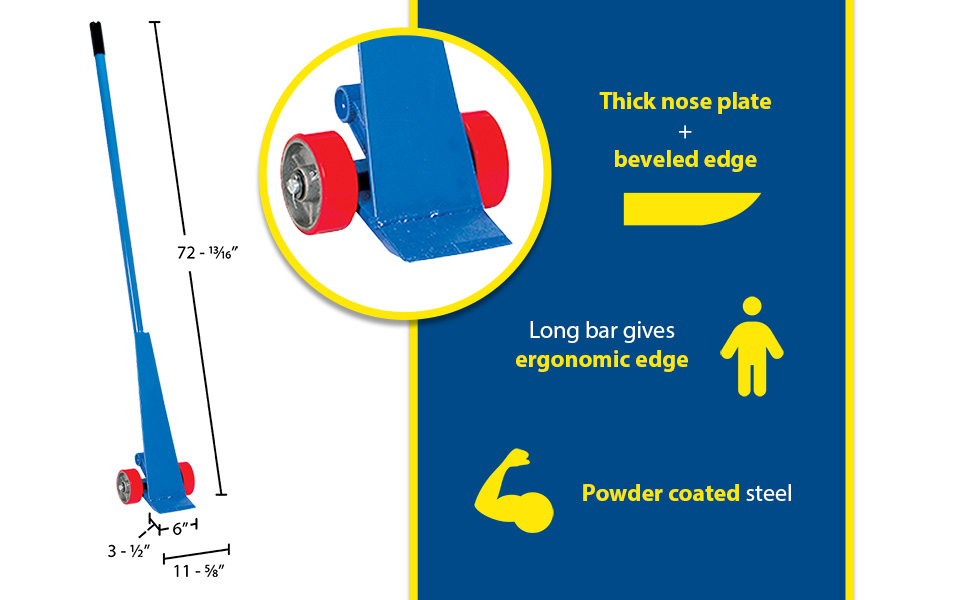

Steel Pry Lever Bar 6 Ft. Height 5000 Lb. Capacity Blue


Unit: EACH
Size: 11.625W x 13.25L x 72.8125H
Weight: 41
90 Days Limited Warranty
Uniform Capacity (lb.): 5000
Bar Length (in.): 71-7/16
Uniform Capacity (lb.): 5000
Bar Length (in.): 71-7/16

Steel Pry Lever Bar 7 Ft. Height 5000 Lb. Capacity Blue


Unit: EACH
Size: 11.625W x 13.25L x 84.8125H
Weight: 41
90 Days Limited Warranty
Uniform Capacity (lb.): 5000
Bar Length (in.): 83-7/16
Uniform Capacity (lb.): 5000
Bar Length (in.): 83-7/16



Pry-Lever Bars PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Pry-Lever Bars




Provide dock workers, riggers, and freight handlers with the leverage needed to get underneath heavy objects for transporting with fork truck, hand truck, pallet truck, or machinery movers. Two (2) 5" x 2" poly-on-steel wheels. 5/8" thick steel nose plate with beveled edge is bolted on the wood handle units and welded on the steel units. Steel units feature baked-in powder-coated toughness.


Pry-Lever Bars
Model Image PDF's Handle
Type
Bar
Length
Usable Nose
Plate (WxD)
Capacity
(lbs)
Weight
(lbs)
PLB-5 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Wood 60" 7-1/8"x3-1/8" 4,250 31
PLB-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Wood 72" 7-1/8"x3-1/8" 4,250 32
PLB-7 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Wood 84" 7-1/8"x3-1/8" 4,250 35
PLB/S-5 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Steel 59-7/16" 6"x3-1/2" 5,000 37
PLB/S-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Steel 71-7/16" 6"x3-1/2" 5,000 42
PLB/S-7 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Steel 83-7/16" 6"x3-1/2" 5,000 47
