Click Image to Enlarge

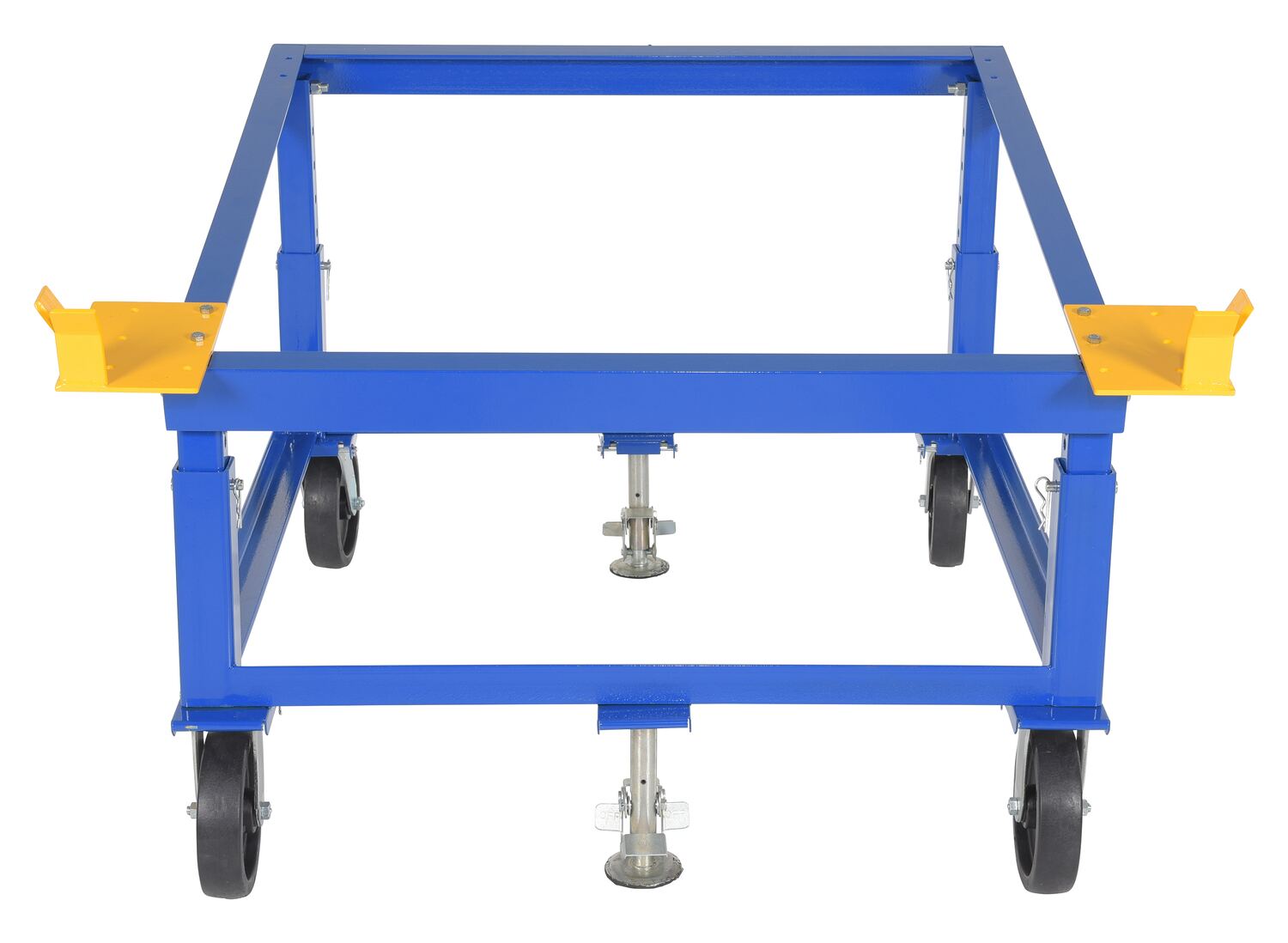

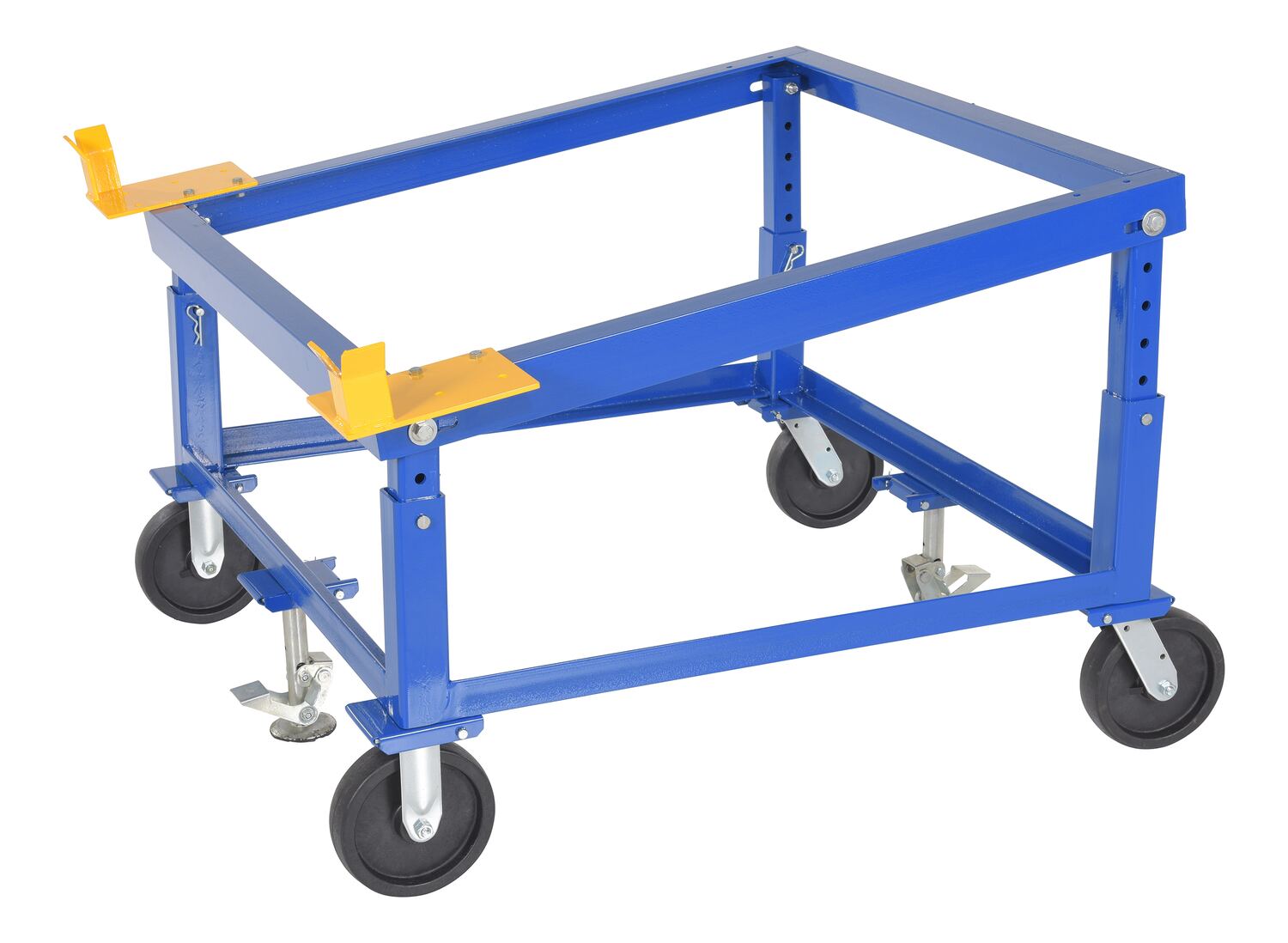

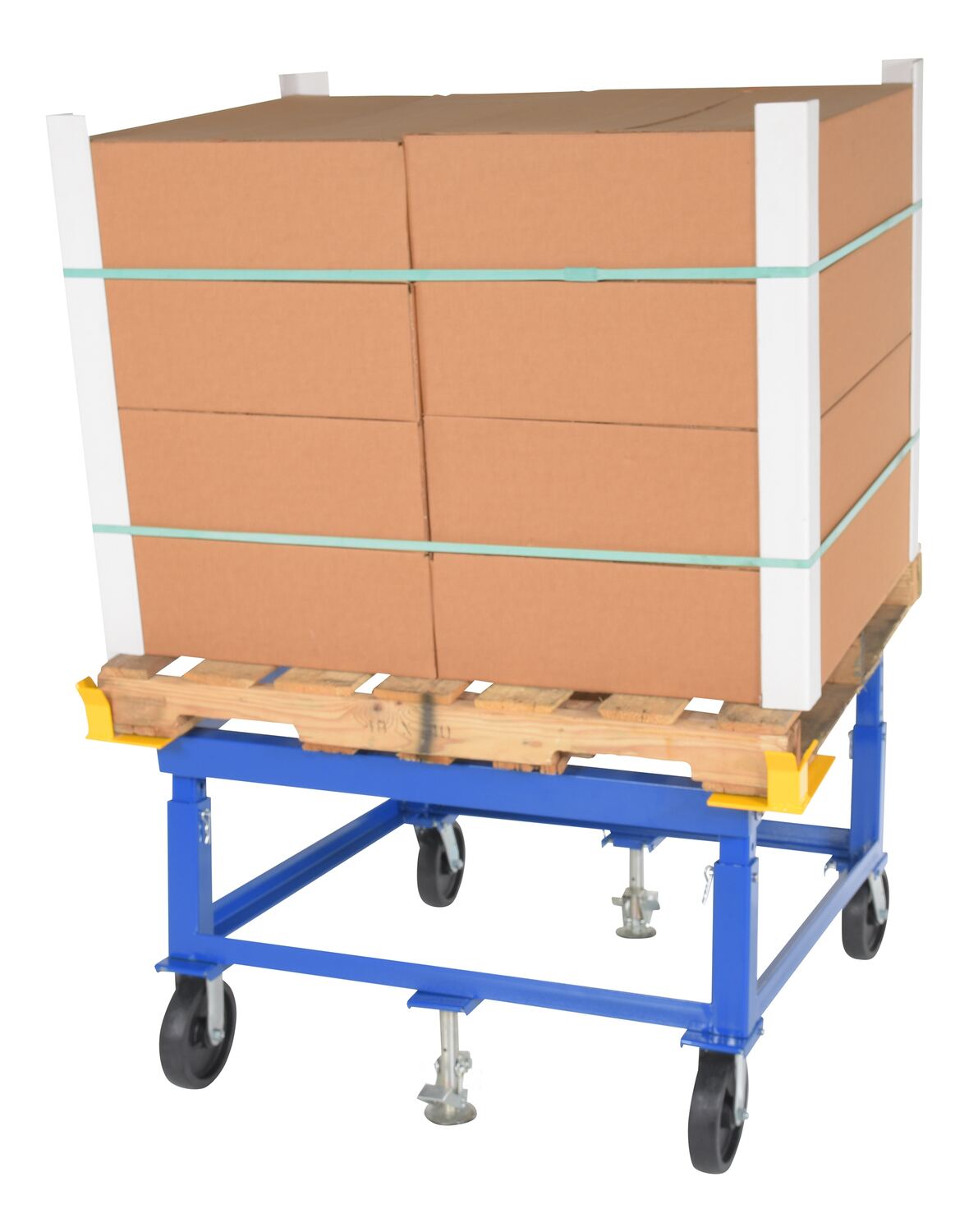

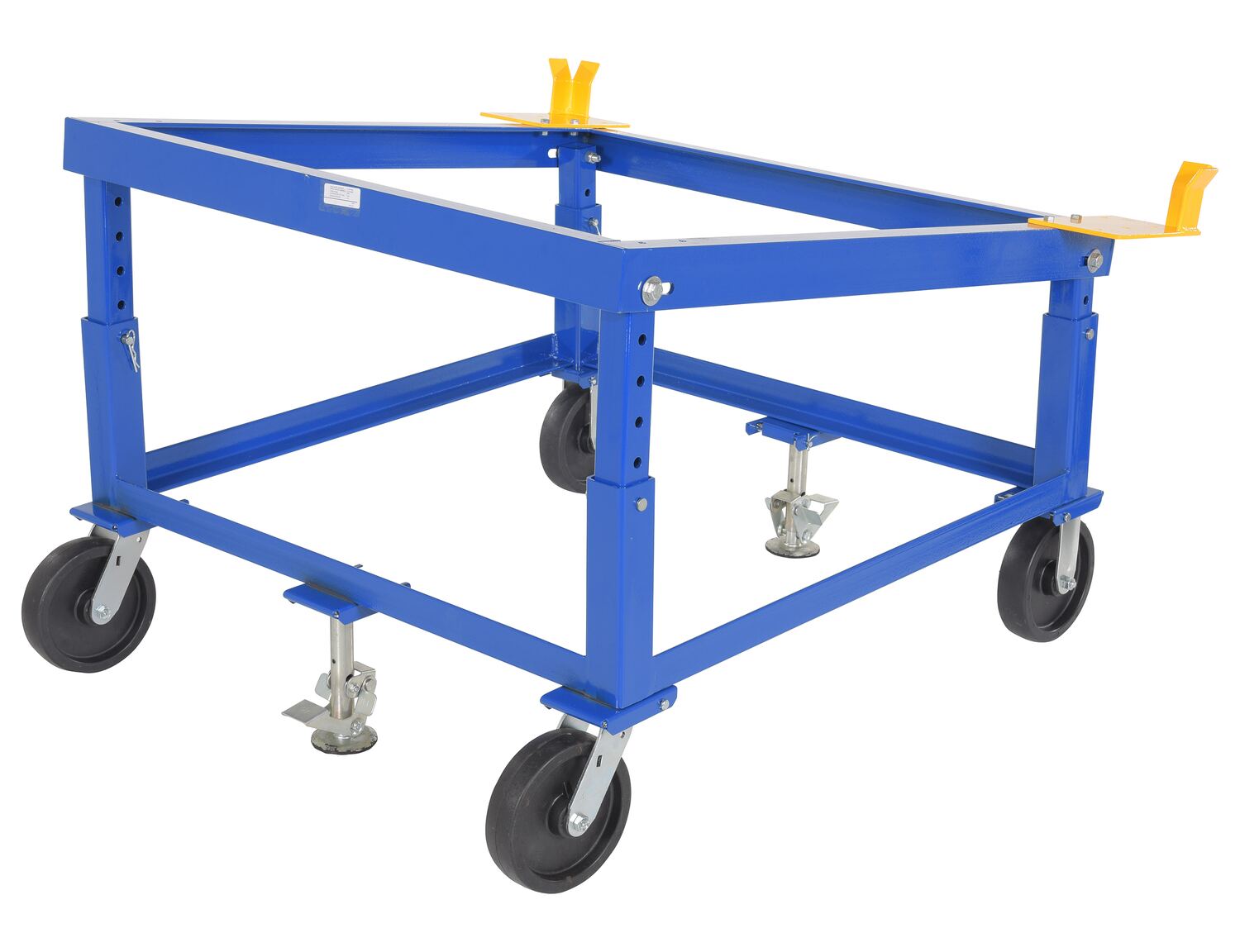

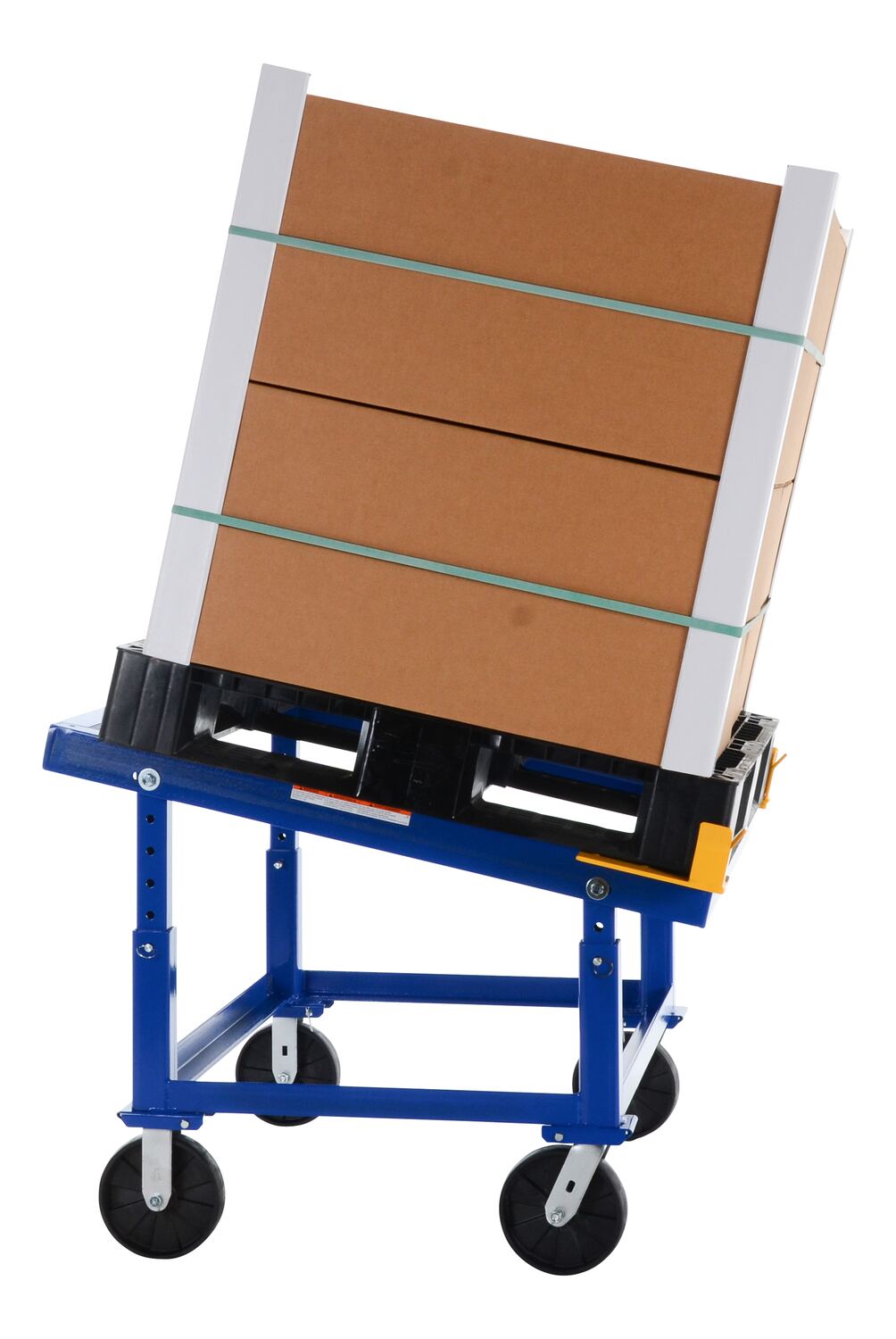

model: C-ATH-4048

SERIES: C
Economical Pallet & Container Transporters

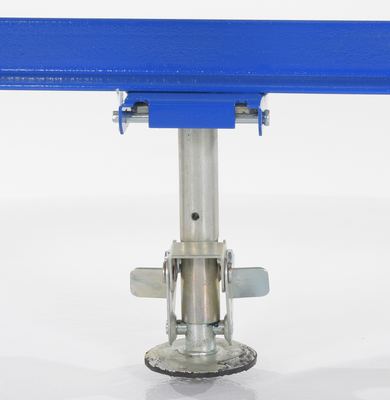

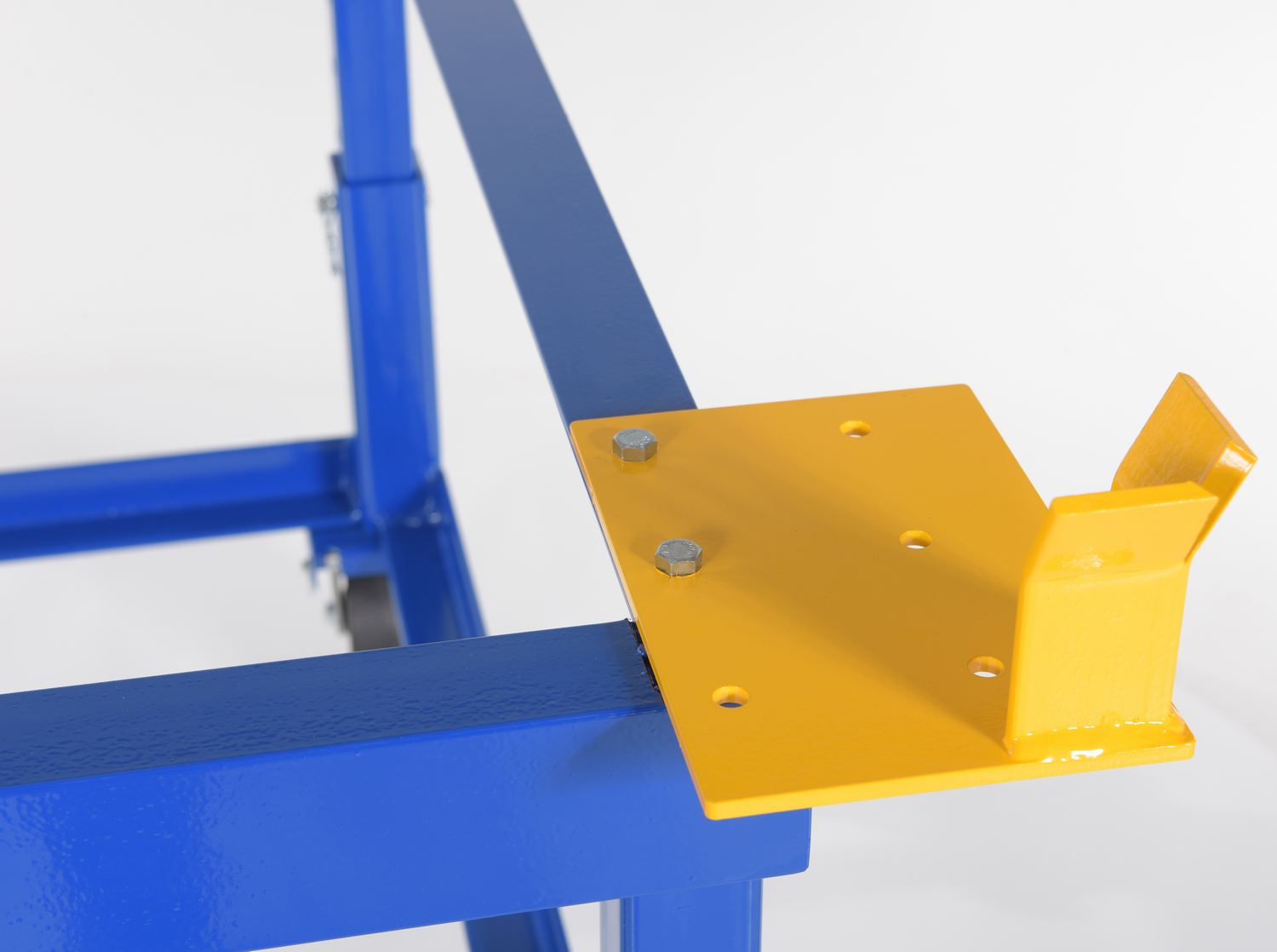

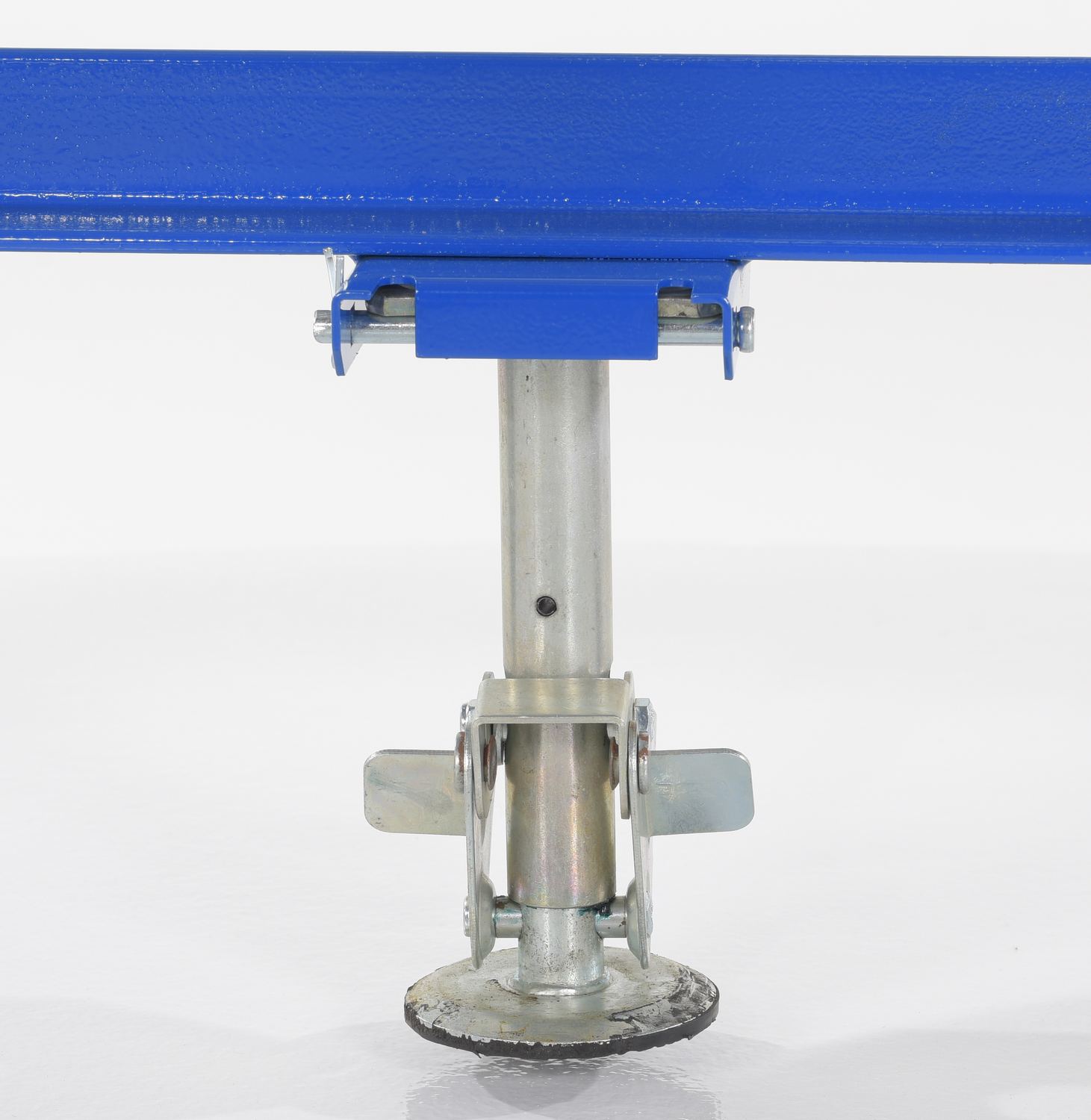

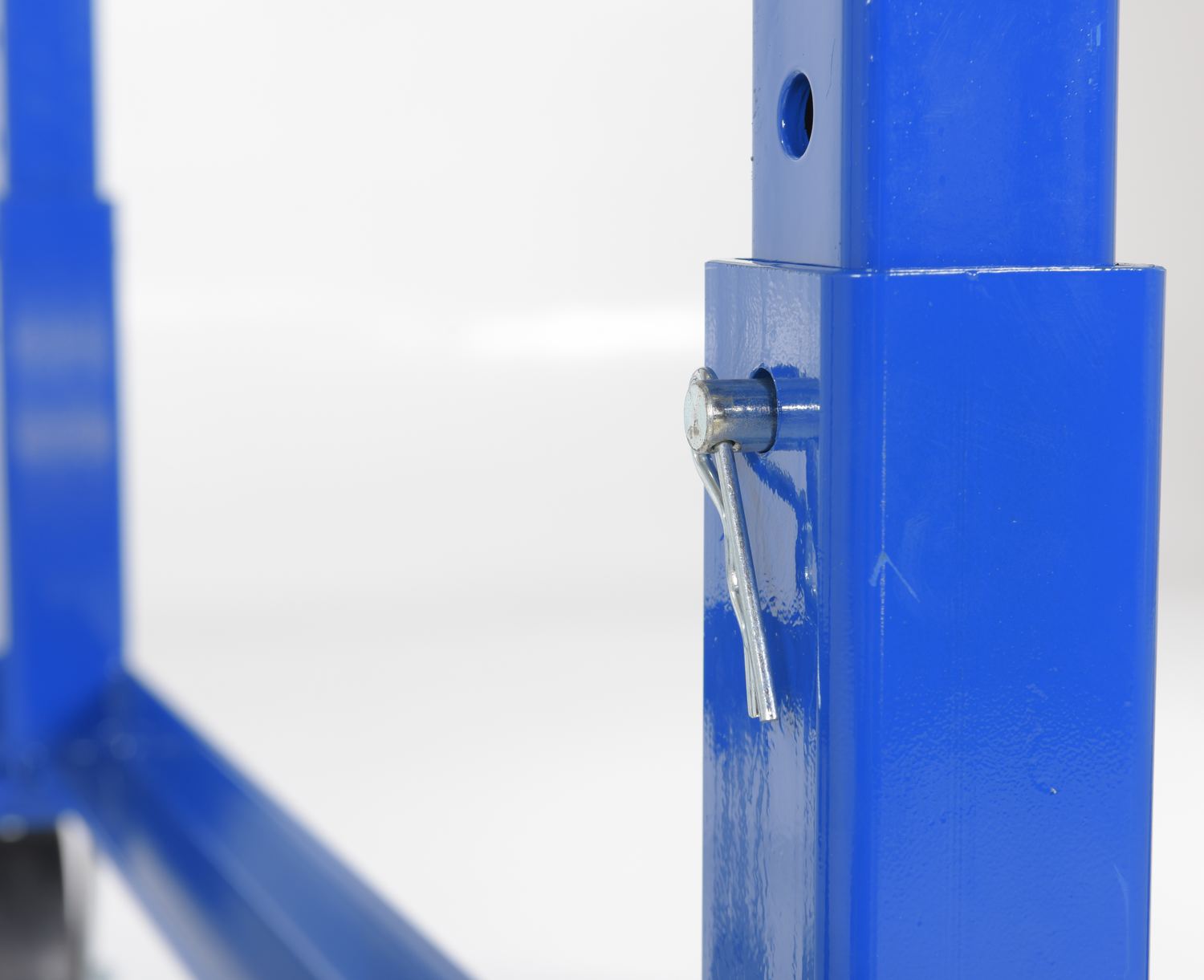

Reduce fork truck dependency by transporting pallets and crates to workstations with our Economical Pallet & Container Transporters. Units feature 8" glass-filled nylon casters for easier mobility. Choose from three different styles. Adjustable height models can only be adjusted when unloaded. Order optional corner guides for extra stability (2) come standard with model C-ATH-4048. Comes standard with two (2) rigid casters, two (2) swivel casters and (2) floor locks. Steel construction. Powder coat finish for added toughness.

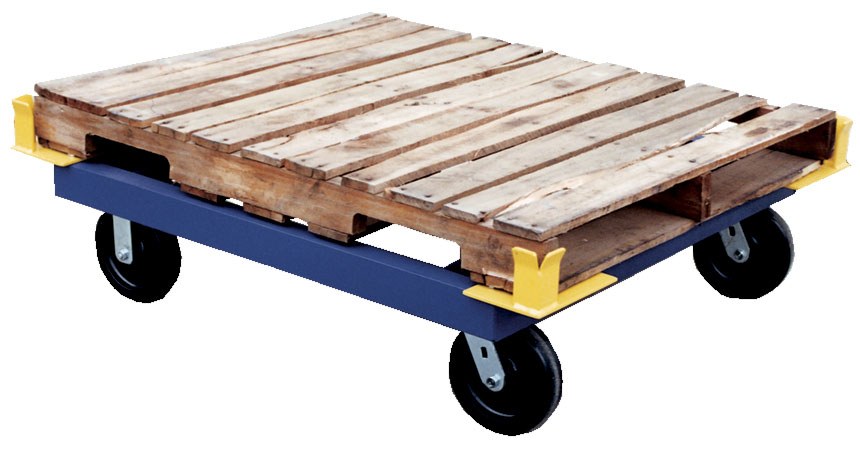

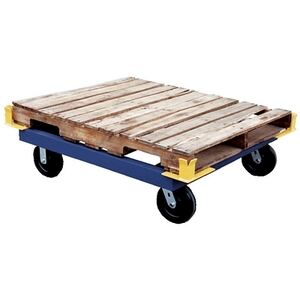

C-FH-4048

model C-FH-4048

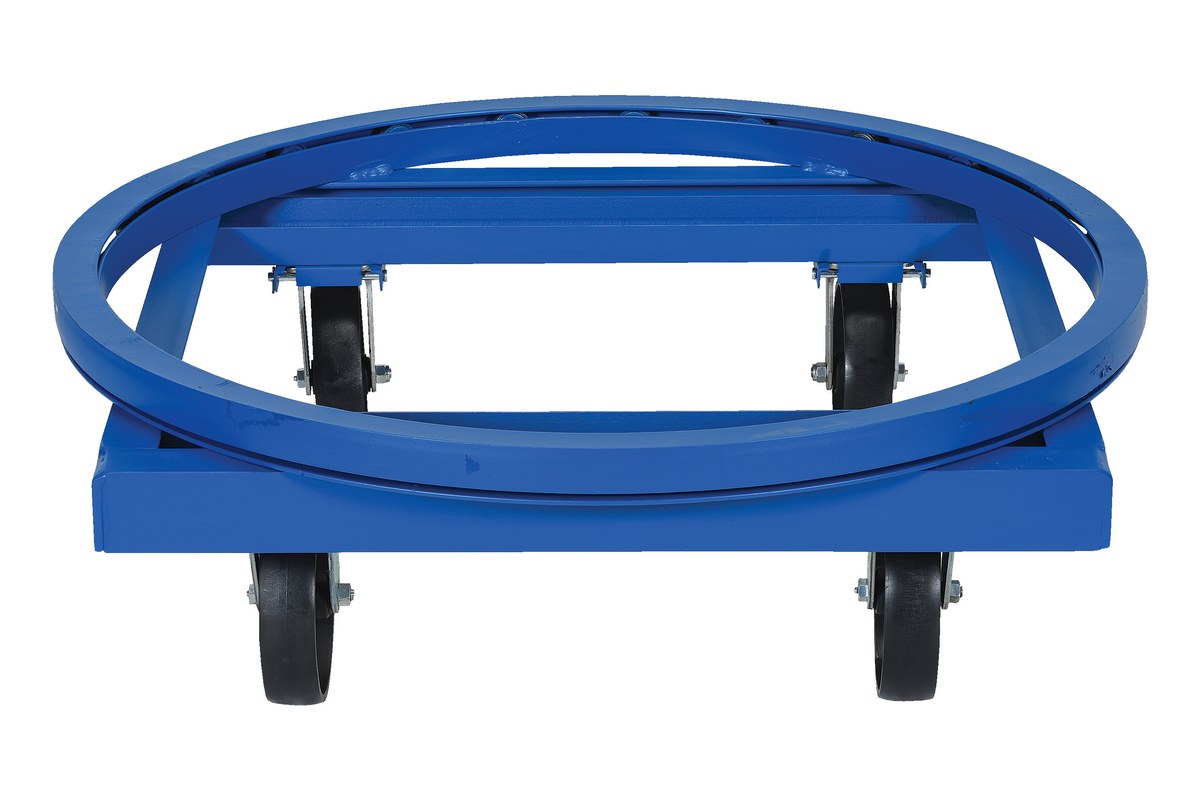

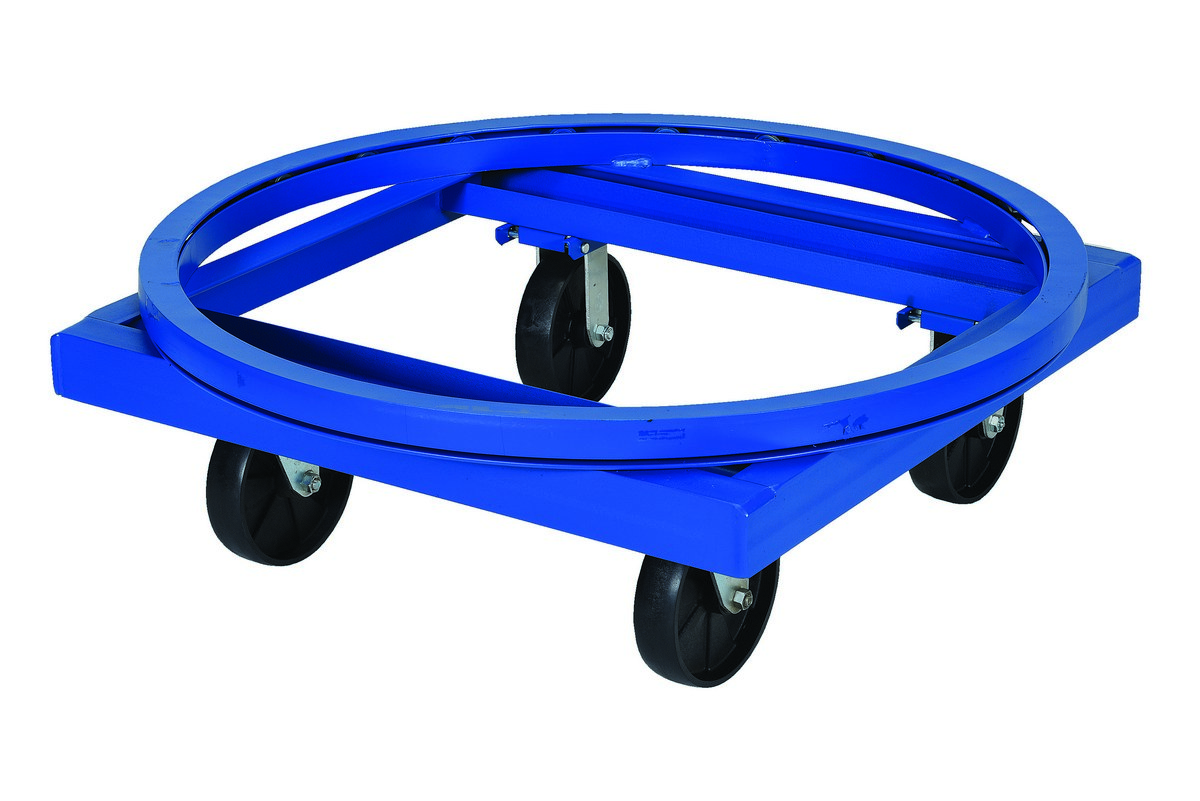

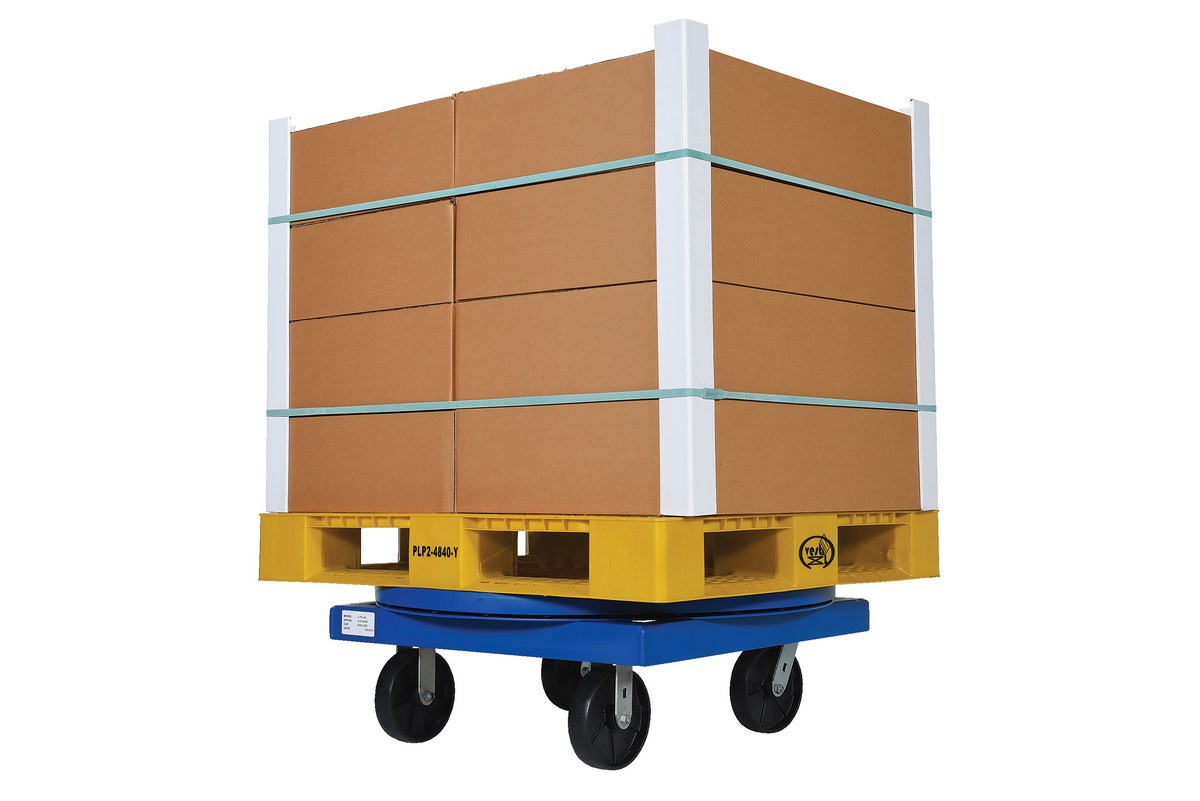

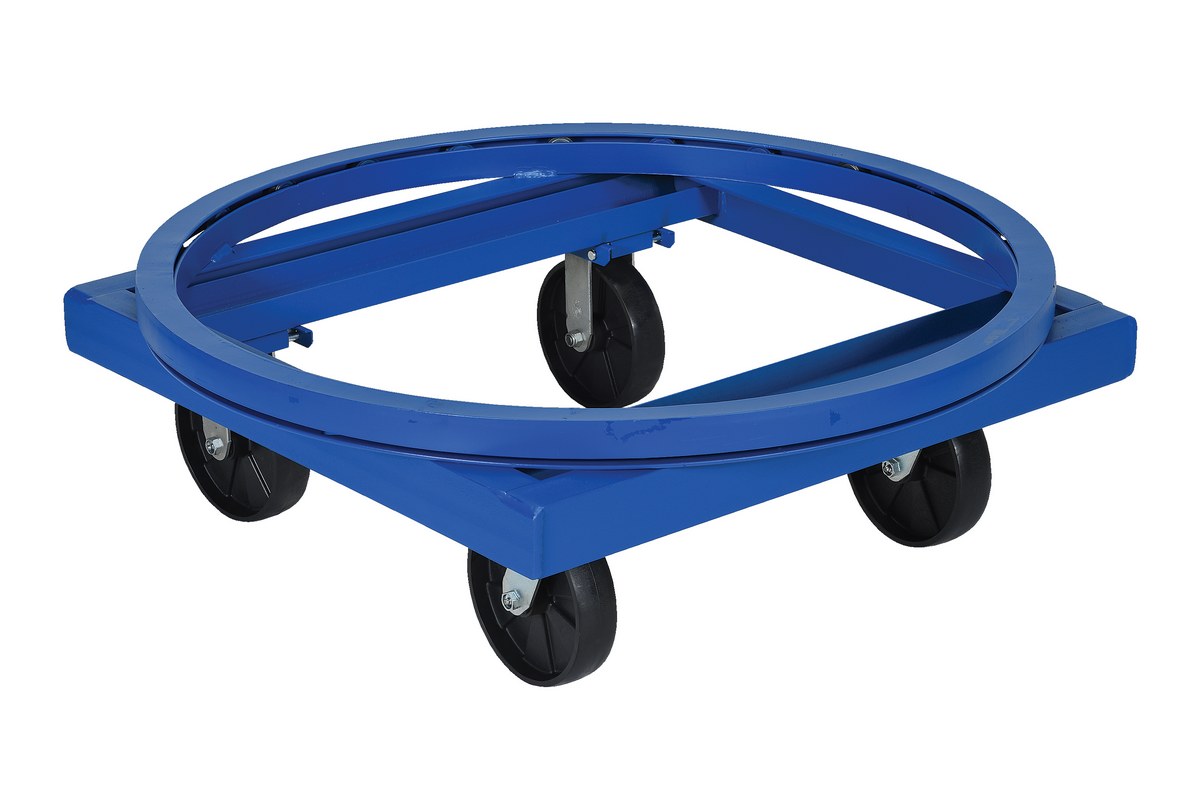

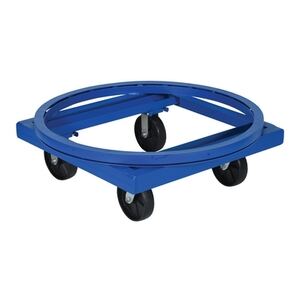

C-FC-40

model C-FC-40

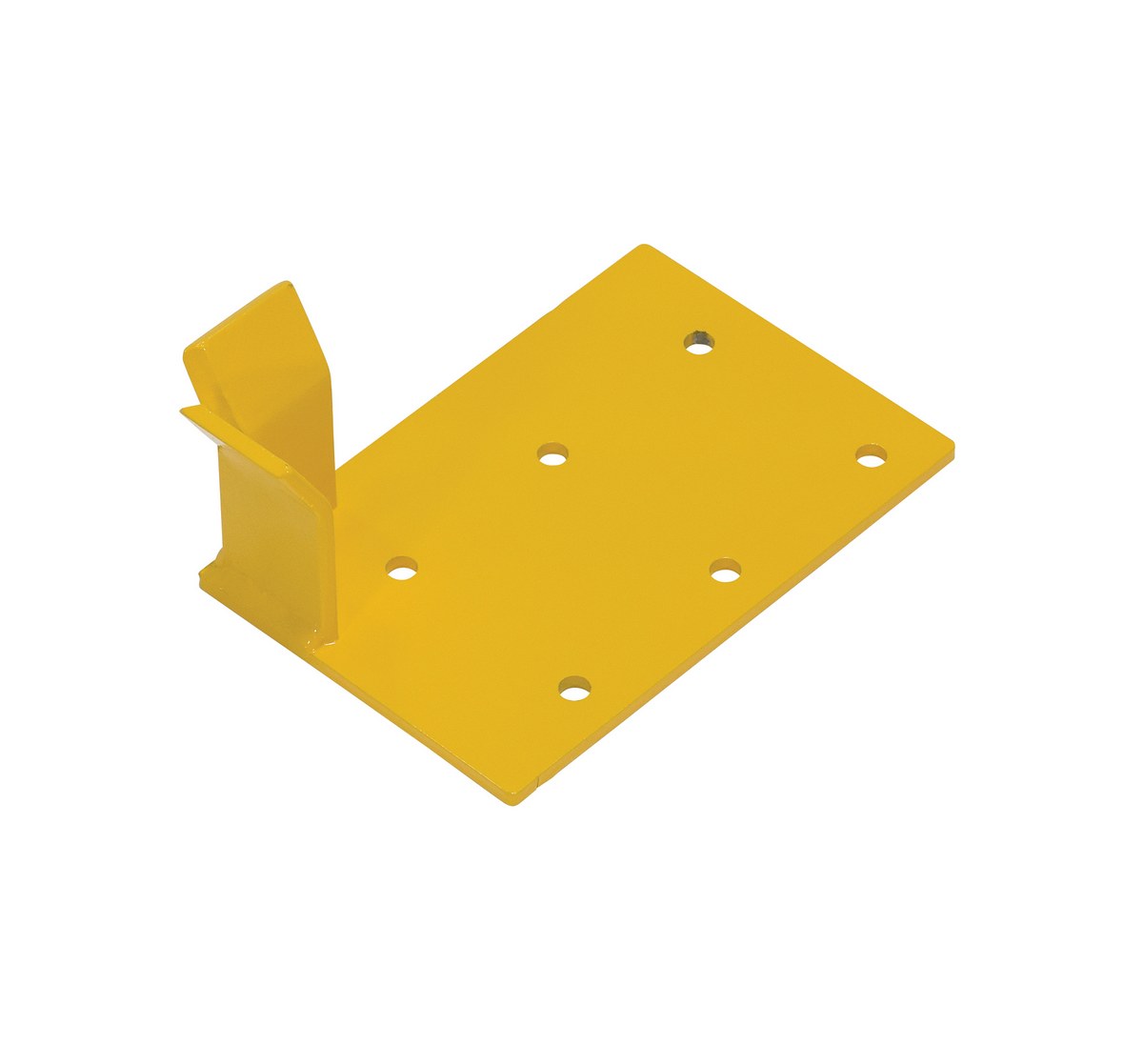

CG-12-R

model CG-12-R


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Economical Pallet & Container Transporters
Model PDFs Service
Range
Uniform Static
Capacity (lbs)
Caster
Size/ Style
Weight
(lbs)
C-ATH-4048 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24-1/4" to 32-1/4" 4,000 8" glass filled nylon 240
C-FH-4048 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 11-3/4" 4,000 8" glass filled nylon 192
C-FC-40 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 15" 4,000 8" glass filled nylon 191

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

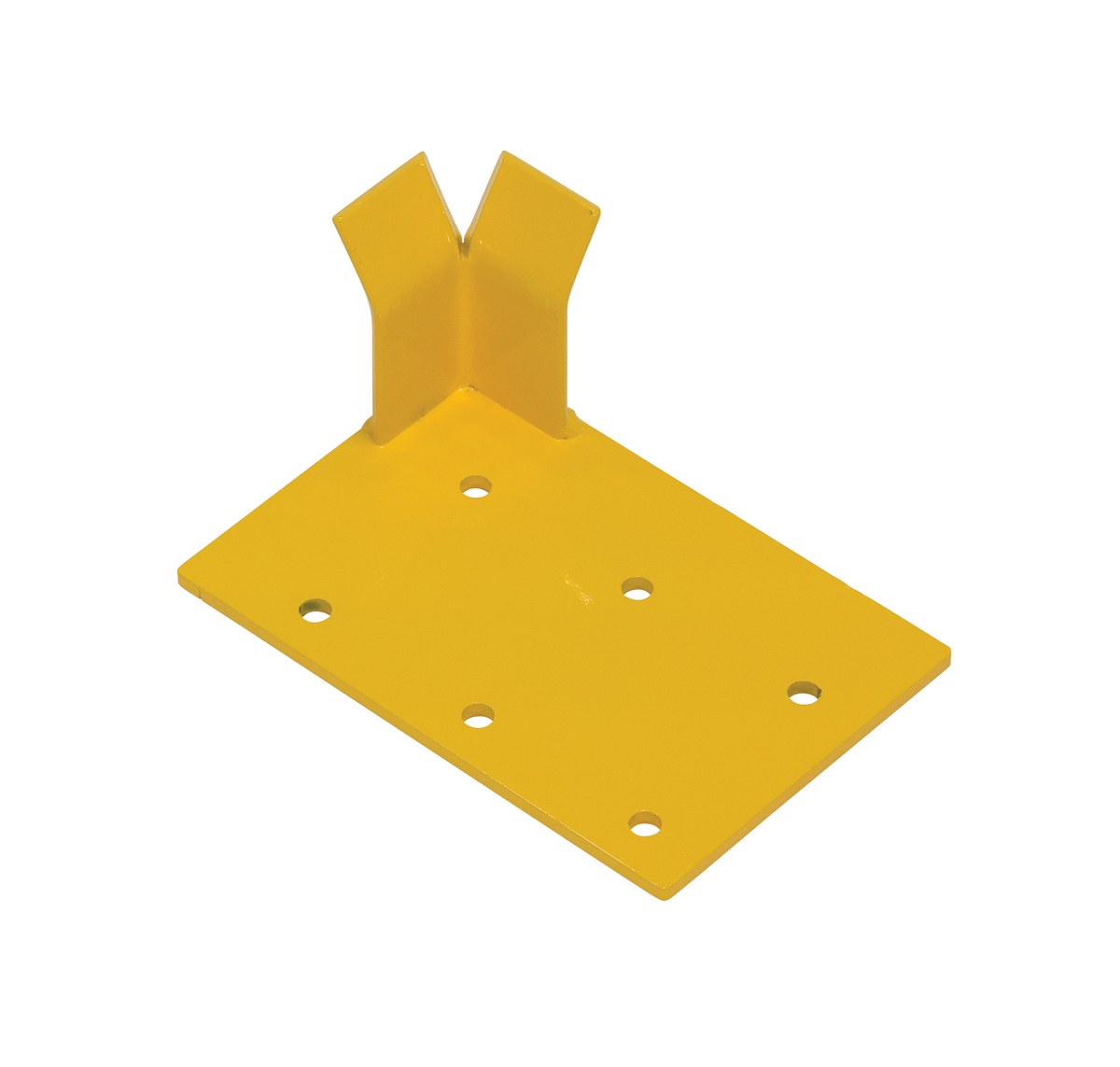

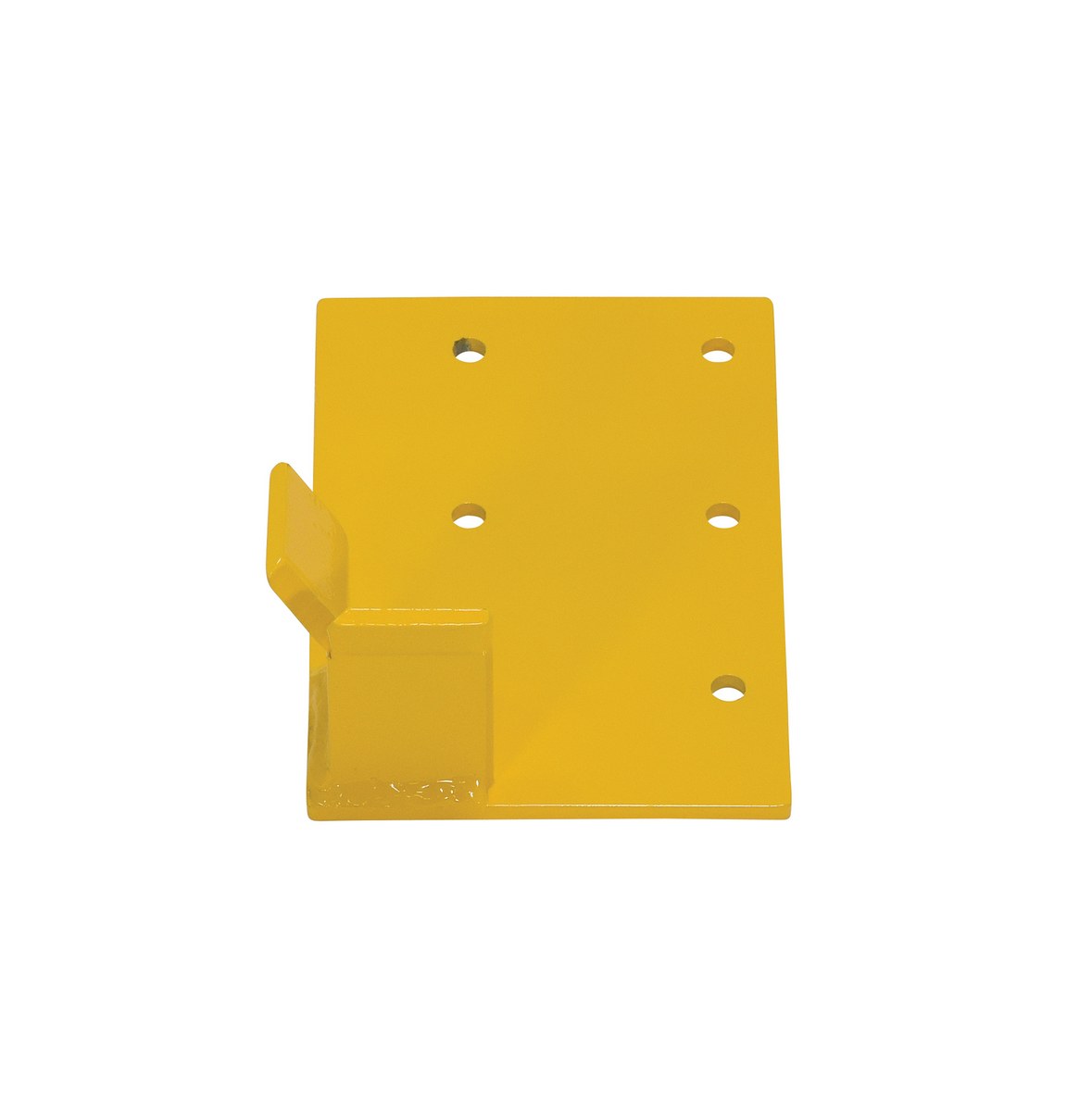

CG-12-R

icon_approvaldrawings.jpgOptional Corner Guide, Right (each)

12

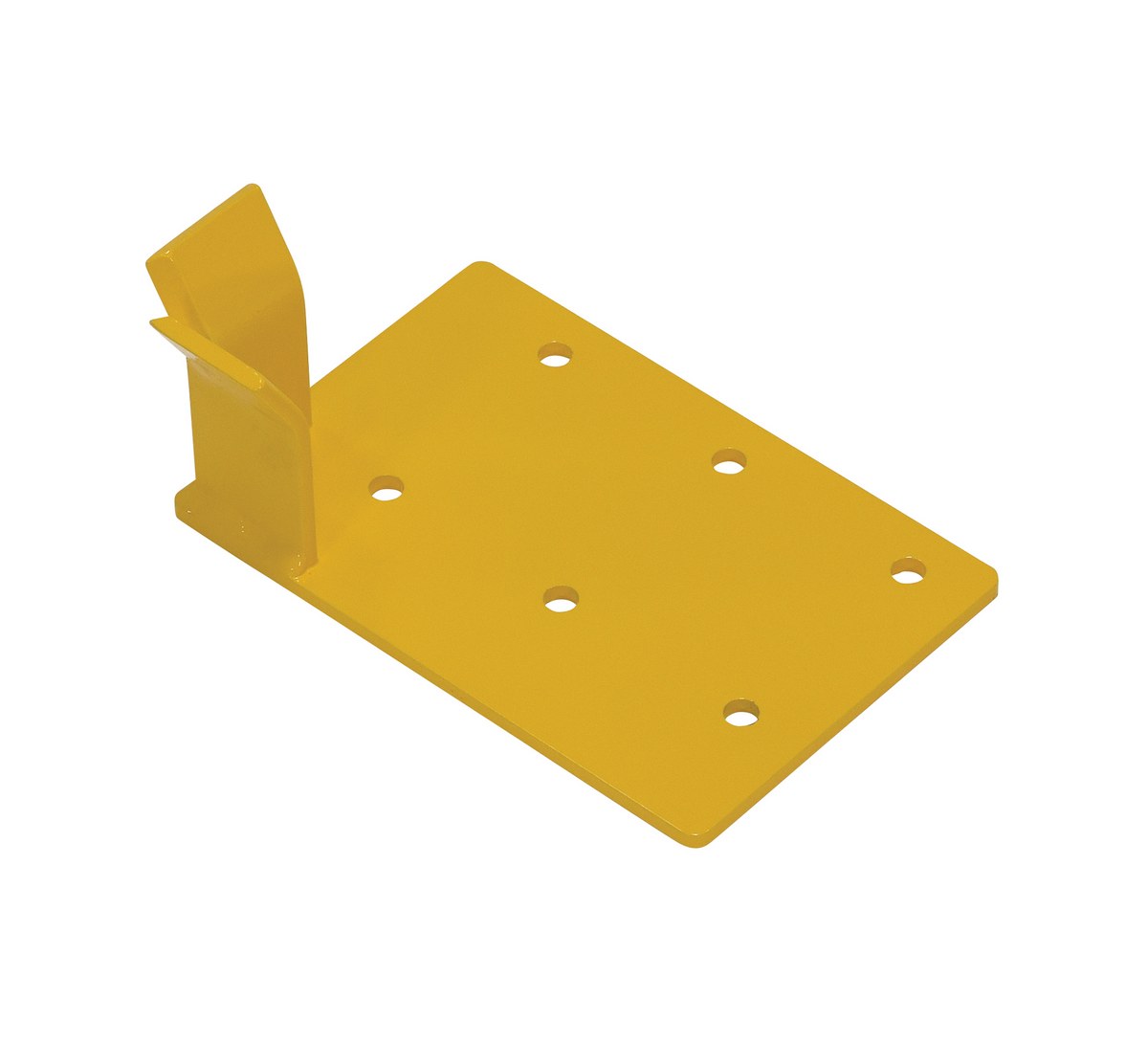

CG-12-L

icon_approvaldrawings.jpgOptional Corner Guide, Left (each) 12

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

C-ATH-4048

C-ATH-4048

C-FC-40

C-FC-40

C-FH-4048

C-FH-4048

CG-12-L

CG-12-L

CG-12-R

CG-12-R






Economical Pallet & Container Transporters PDF's will open in a new window when clicked.
