model: V-2


SERIES: V,VP
Versa Racks

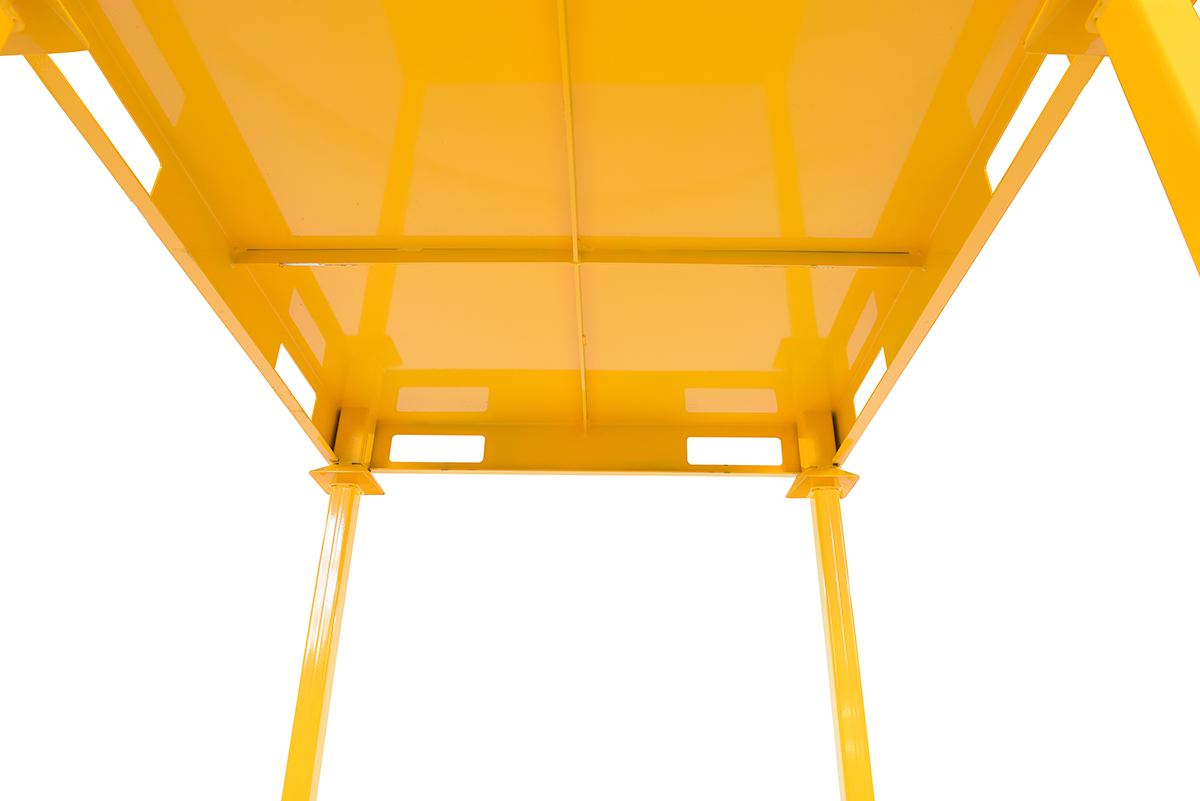

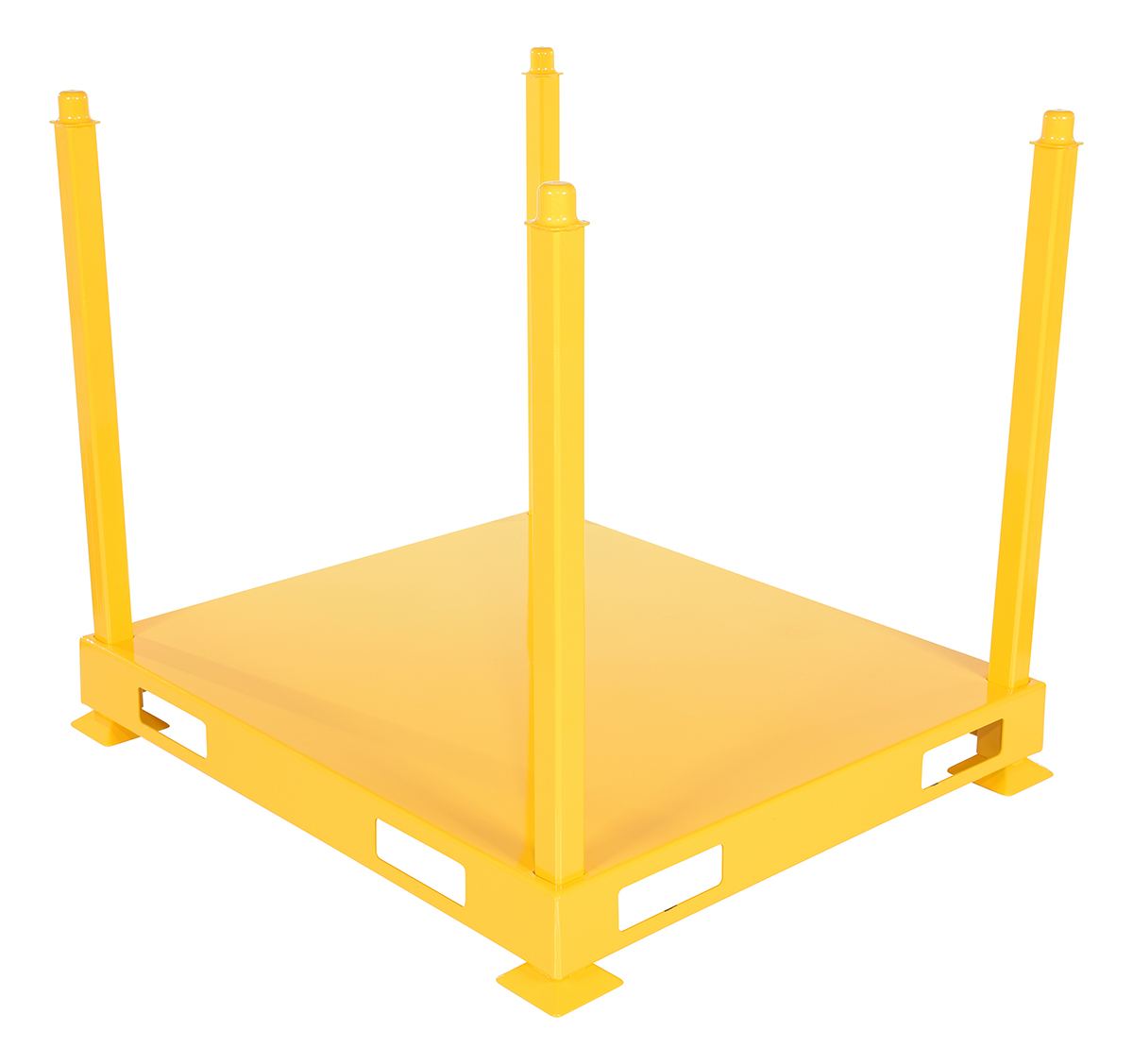

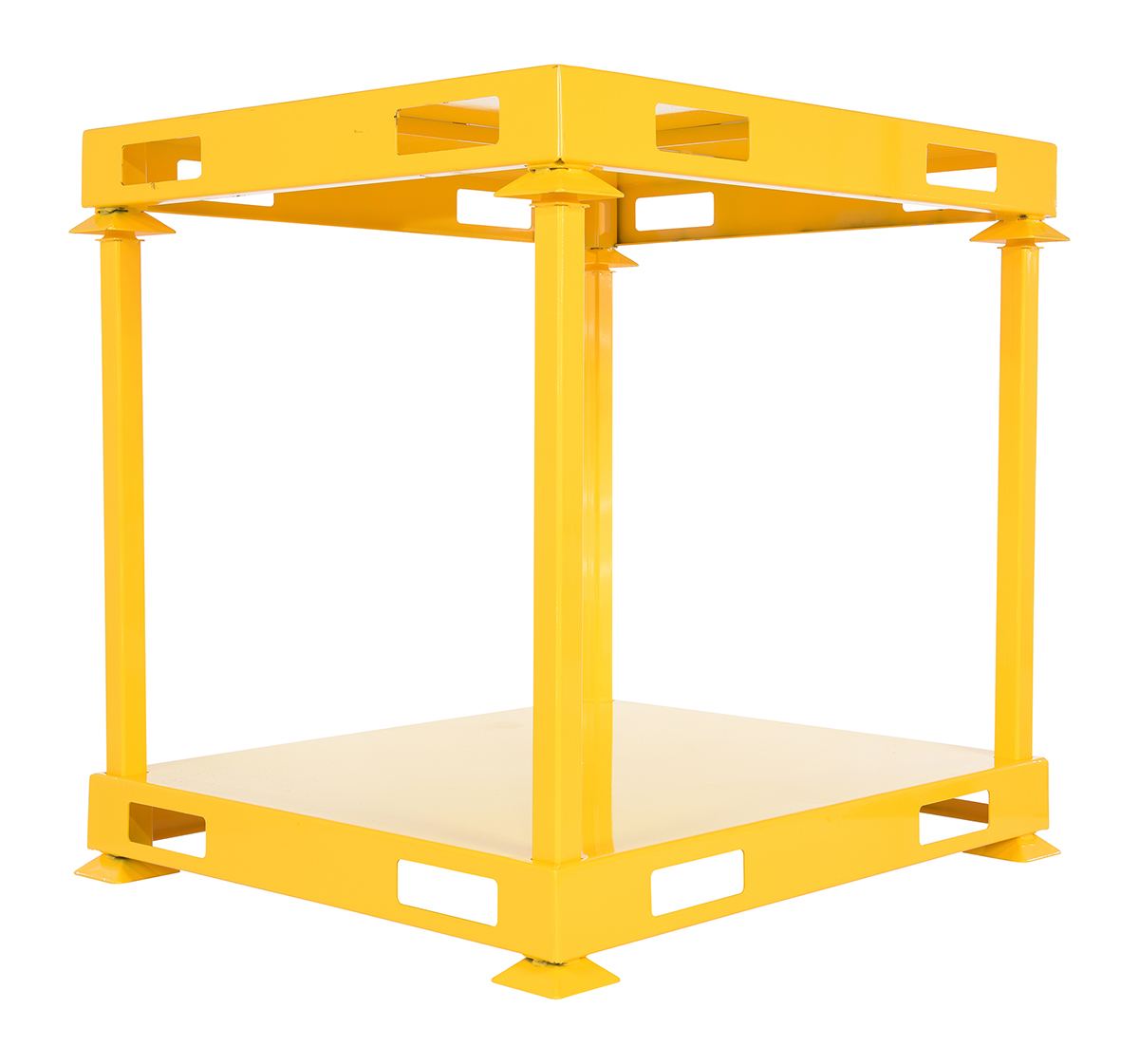

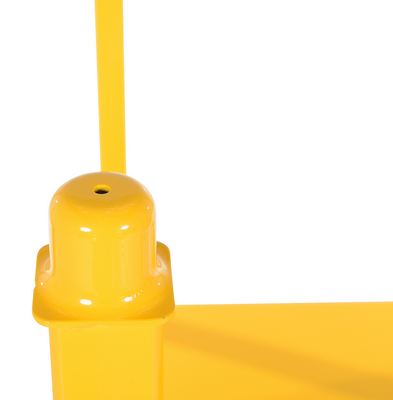

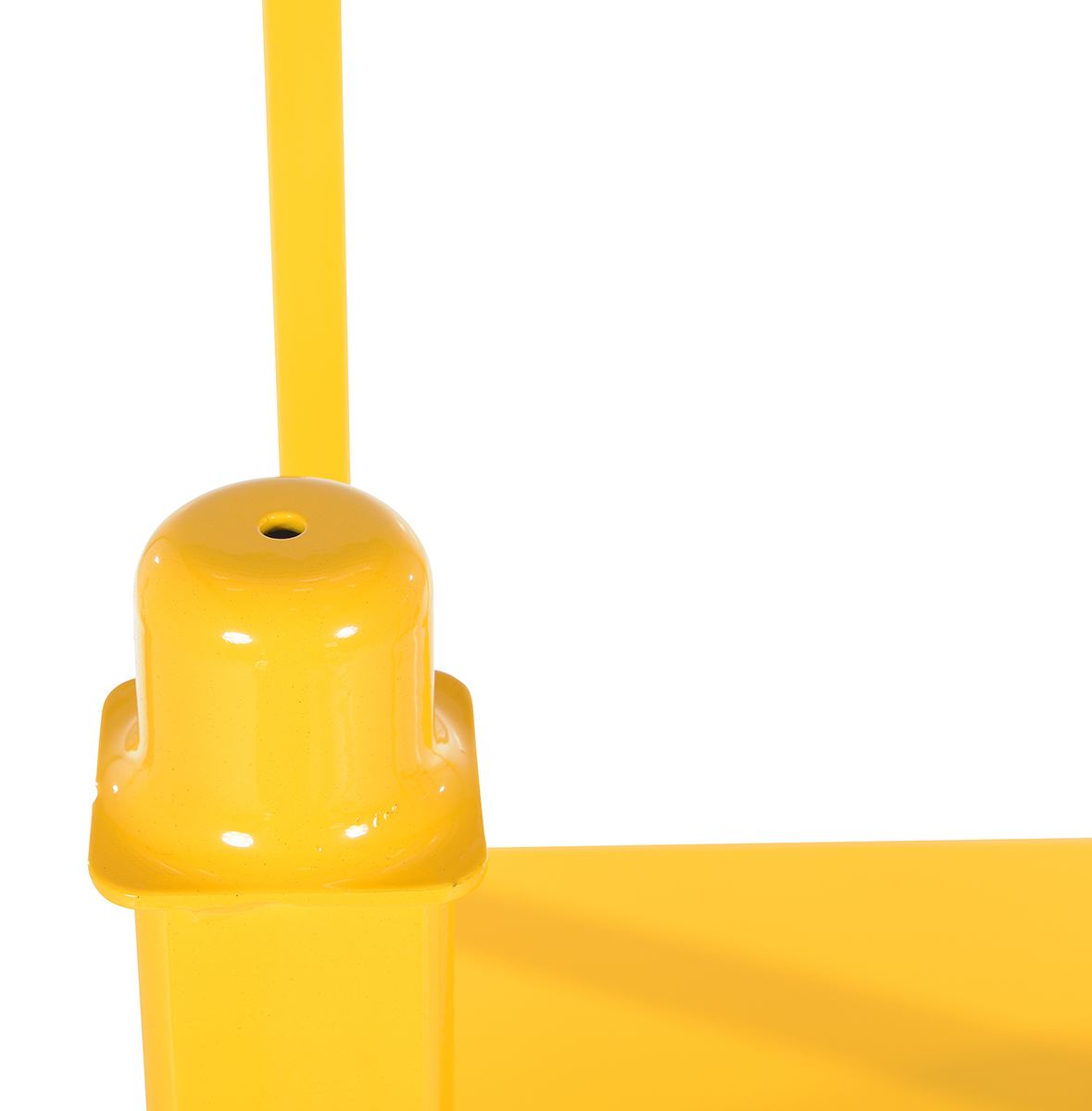

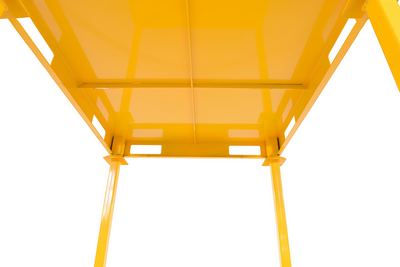

Versa Racks are great for transporting or storing items. Steel construction provides versatility, efficiency, and durability. Baked-in powder-coated toughness. Corner posts can be removed or changed to fit the needs of various applications. Double post pins provide support up to 4,000 uniform pounds. All models contain a four way fork entry for simple transference and can be stacked five (5) units high, while models using the 24"and 36" posts can be stacked three (3) high, during use. Four-way fork entry on all models. Usable fork opening is 8"W x 2-1/2"H. The overall model size is 49-7/16"W x 43-7/16"L. Custom sizes and configurations are available upon request.

Model V-1 has four adjustable-height non-removable posts, fixed base targets, 4-way fork entry, and solid steel deck. The usable height is adjustable in 1" increments from 11-1/4" to 17-1/4". These carts may be stacked no more than five (5) units high.

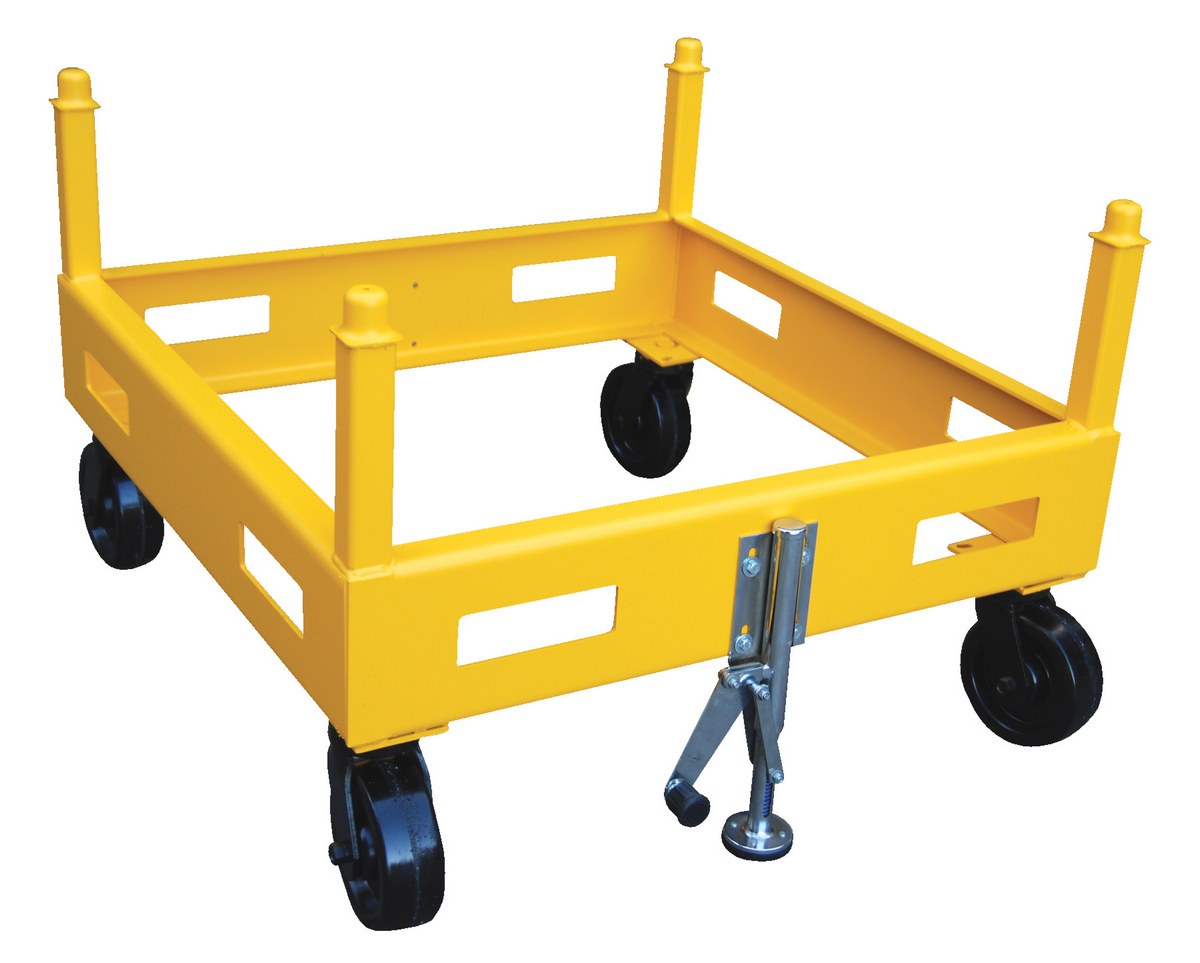

Model V-3 is ideal for transporting long, oversized loads of material. The model is a stand/ cart which has 8" phenolic caster and a floor lock. 12" high non-removable fixed-height corner posts. Overall height is 30-1/2".

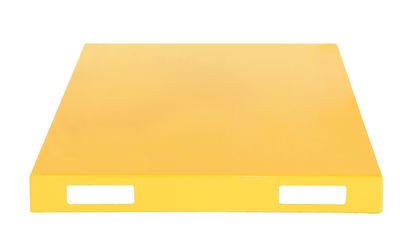

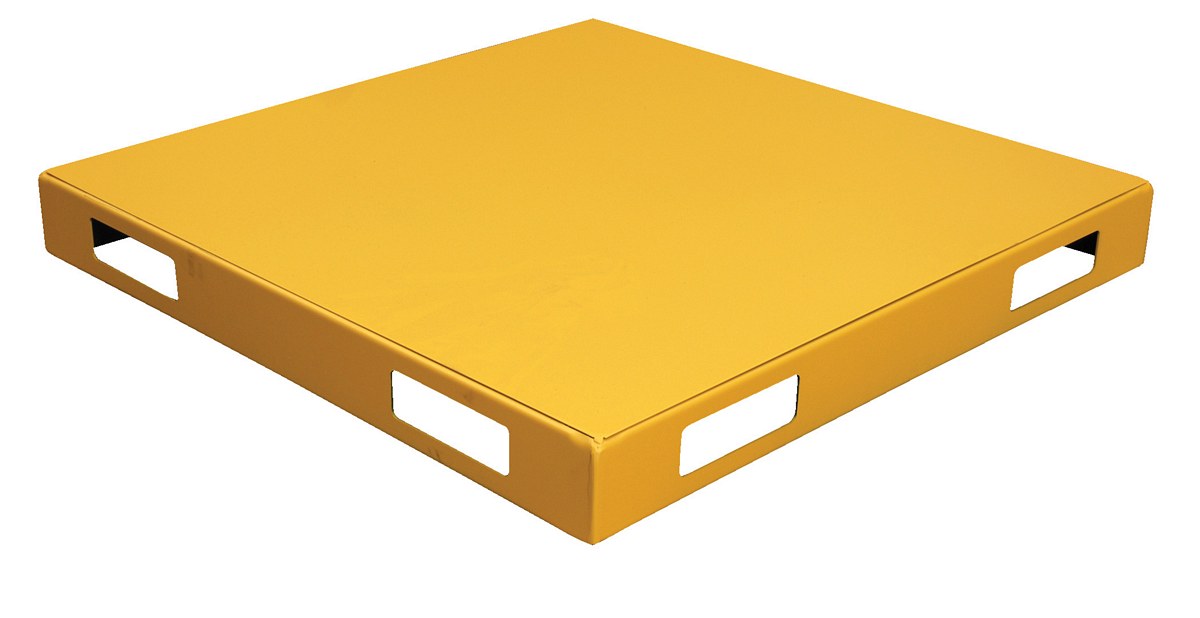

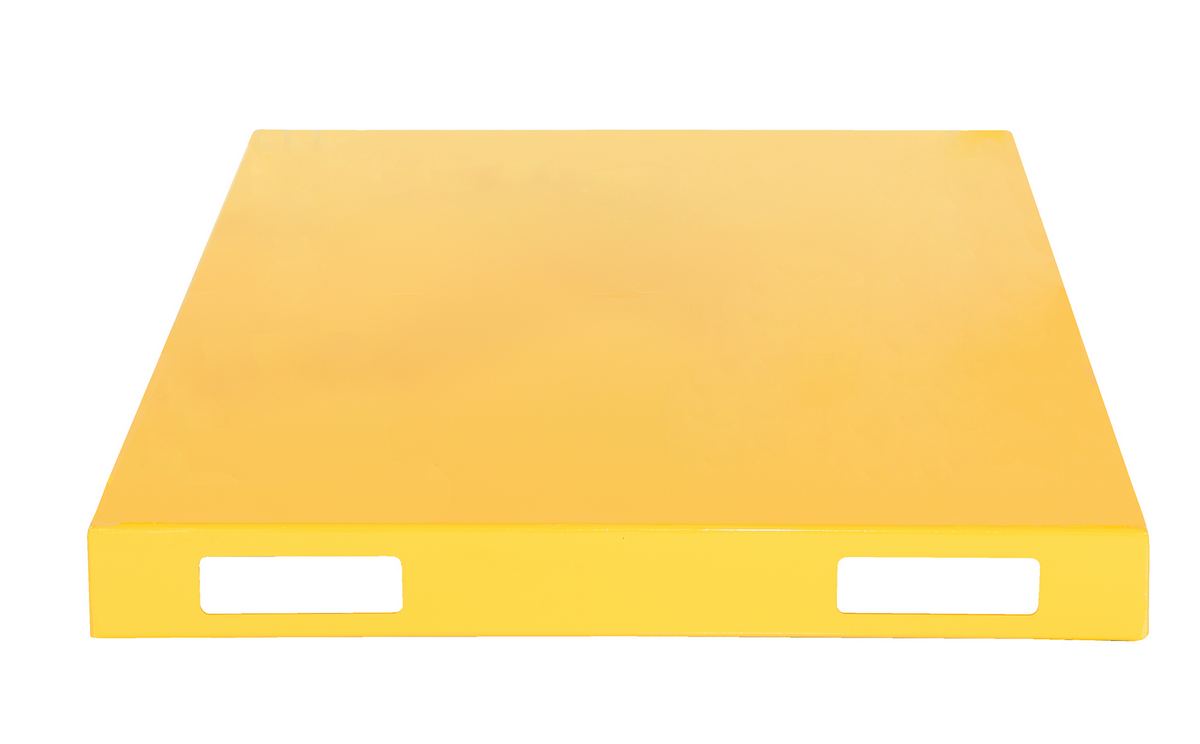

Model V-4 is a versa rack pallet with no posts or sockets. Solid deck steel pallet is a durable way to transfer products.

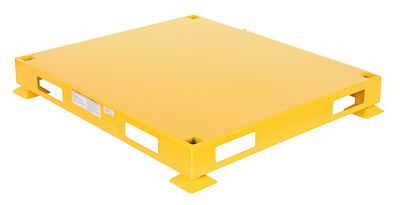

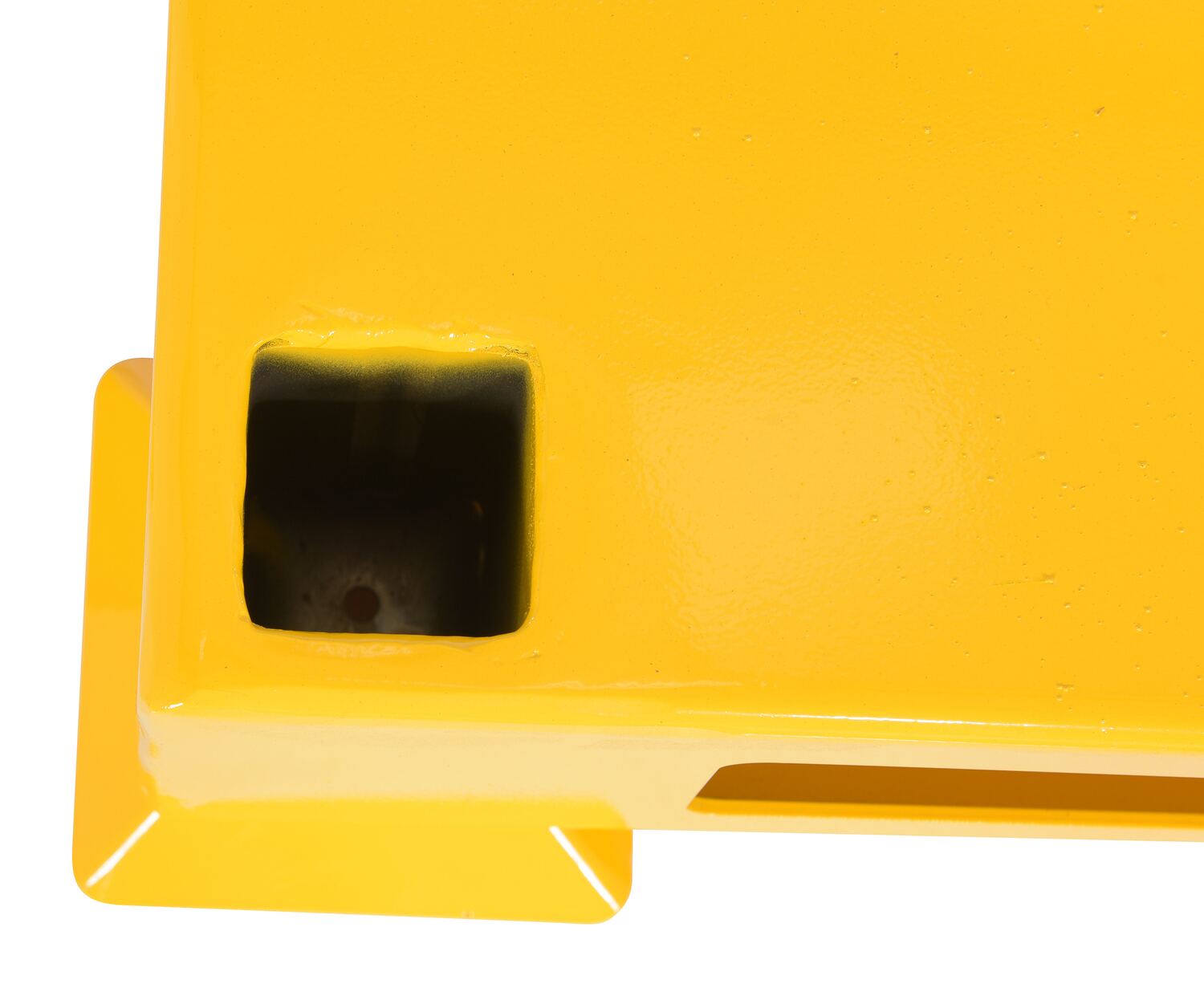

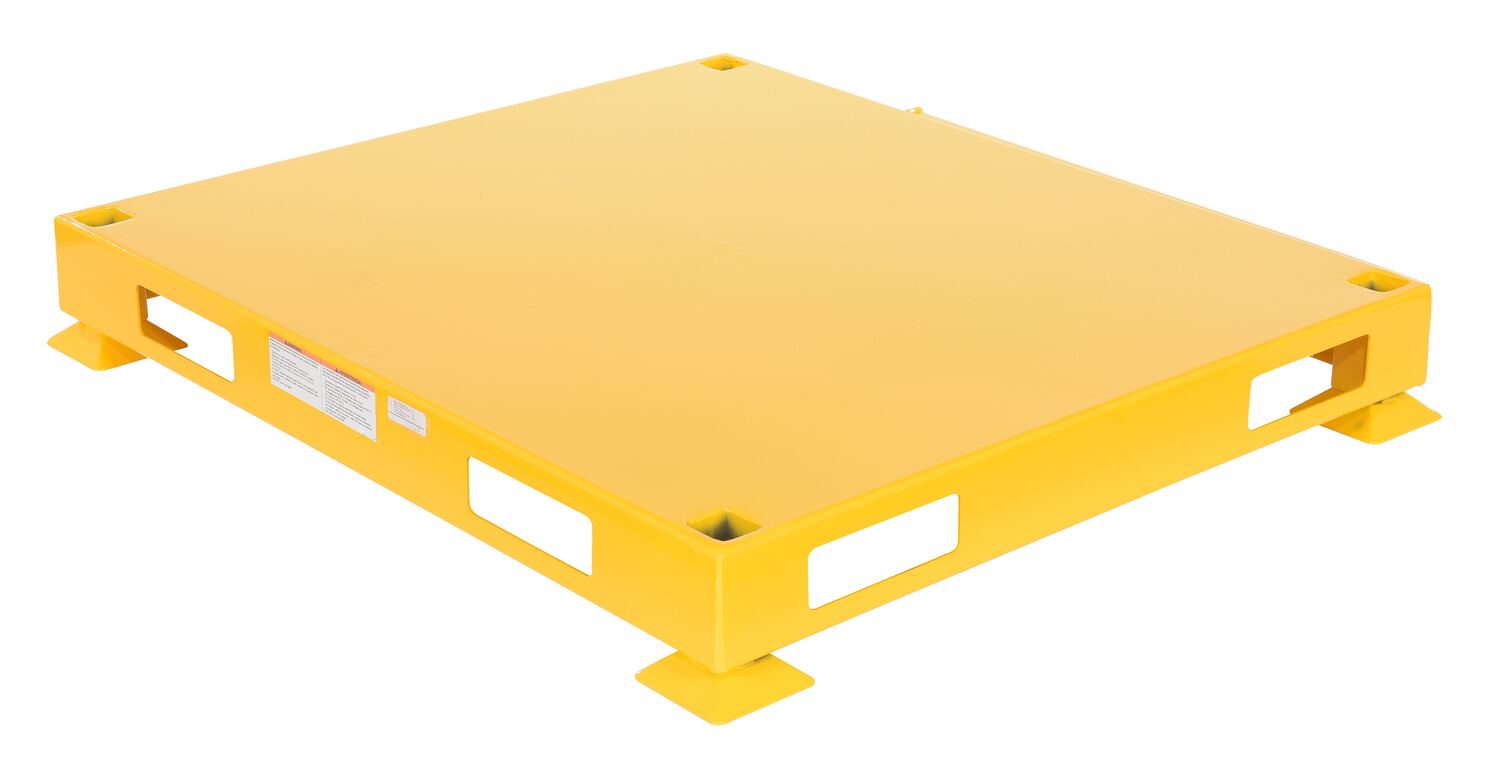

Model V-2 is a versa rack base, with no posts. Sockets included. The V-2 and V-3 can be used together by stacking a single V-2 onto a V-3 to create a larger, more versatile, model. A four way fork entrance enables the unit to be quickly transferred from workstation to workstation.




Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Versa Racks
Model PDF Description Usable Size
(WxL)
Wt.
(lbs)
V-1 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Base W/Non-removable Posts 48" x 42" 125
V-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Base Only, No Posts 48" x 42" 110
V-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Stand/Cart 48"x 42" 210
V-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Base, No Posts Or Sockets 48" x 42" 100

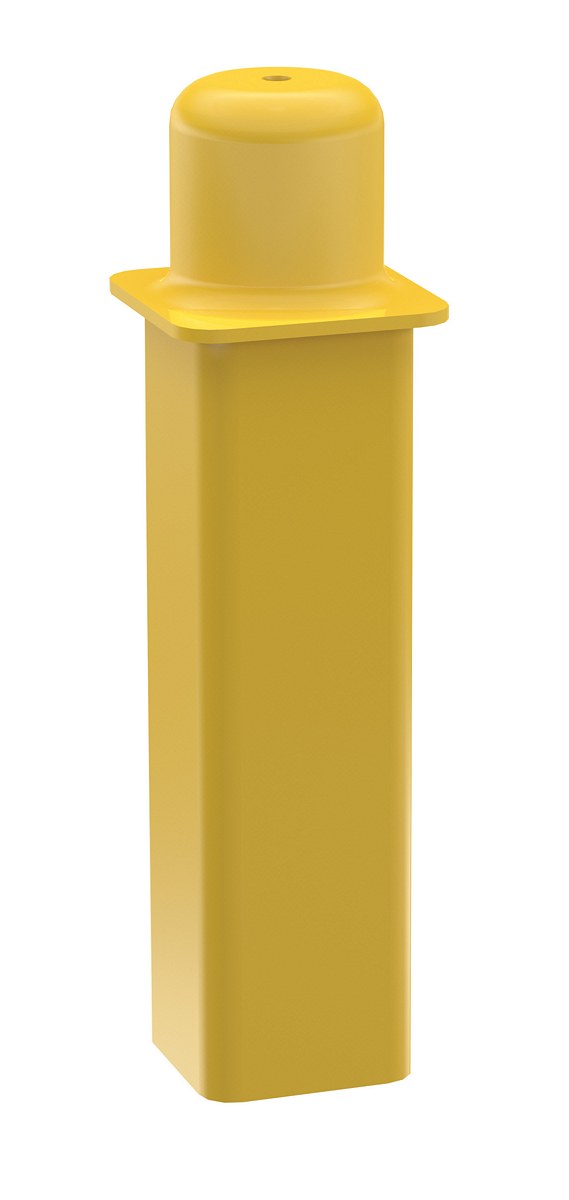

VP-4 Warranty PDFCompliance Certificate Removable Post Kit 4"H 15

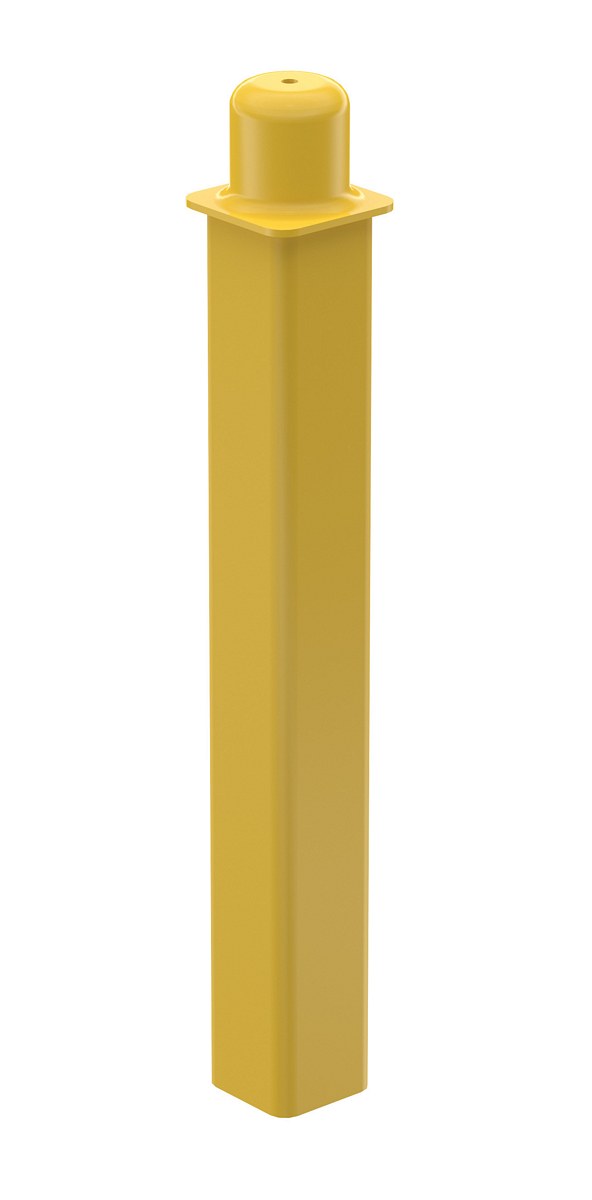

VP-12 Warranty PDFCompliance Certificate Removable Post Kit 12"H 25

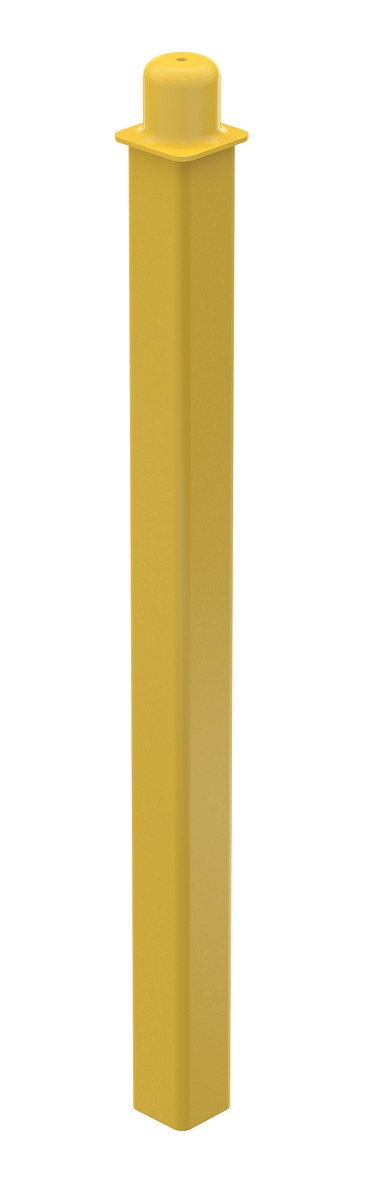

VP-24 Warranty PDFCompliance Certificate Removable Post Kit 24"H 30

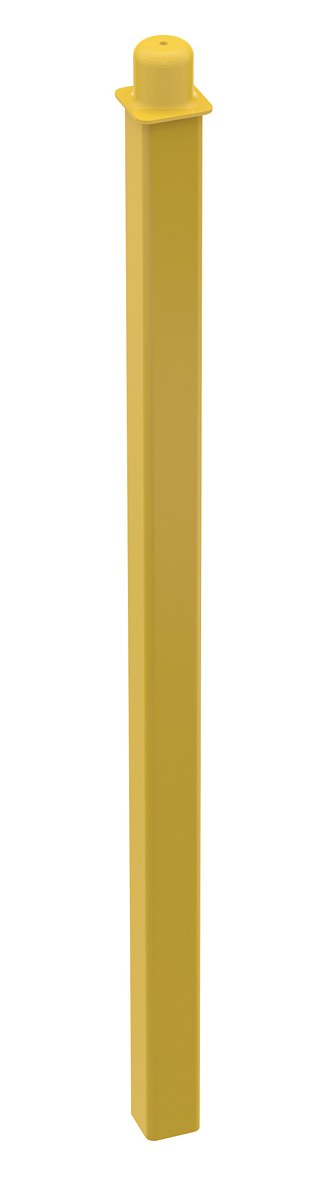

VP-36 Warranty PDFCompliance Certificate Removable Post Kit 36"H 50

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

V-1

V-1

V-2

V-2

V-3

V-3

V-4

V-4

VP-12

VP-12

VP-24

VP-24

VP-36

VP-36

VP-4

VP-4






Versa Racks PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

V-1
V-2
V-3
V-4

Testing Certificates

V-1
V-2
V-3
V-4
VP-4
VP-12
VP-24
VP-36

Other PDF's

No "Other PDFs" For This Product...
