Rubber (DK - Conductive) Casters

- - - -

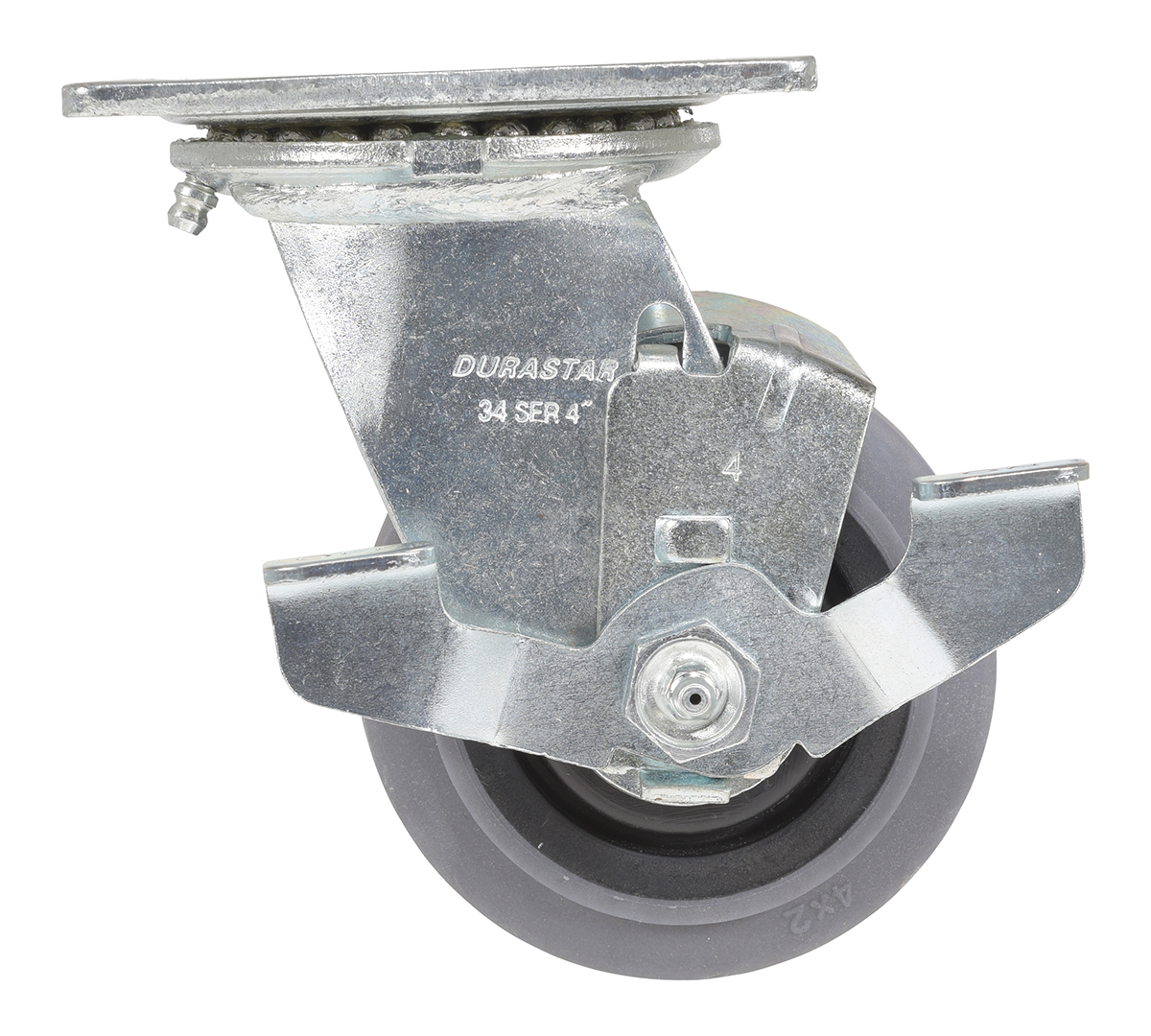

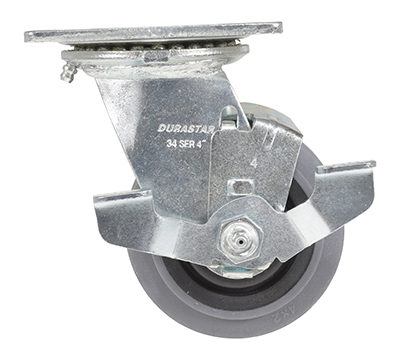

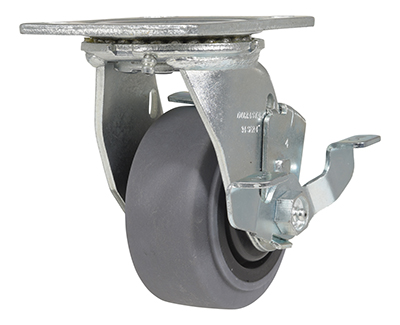

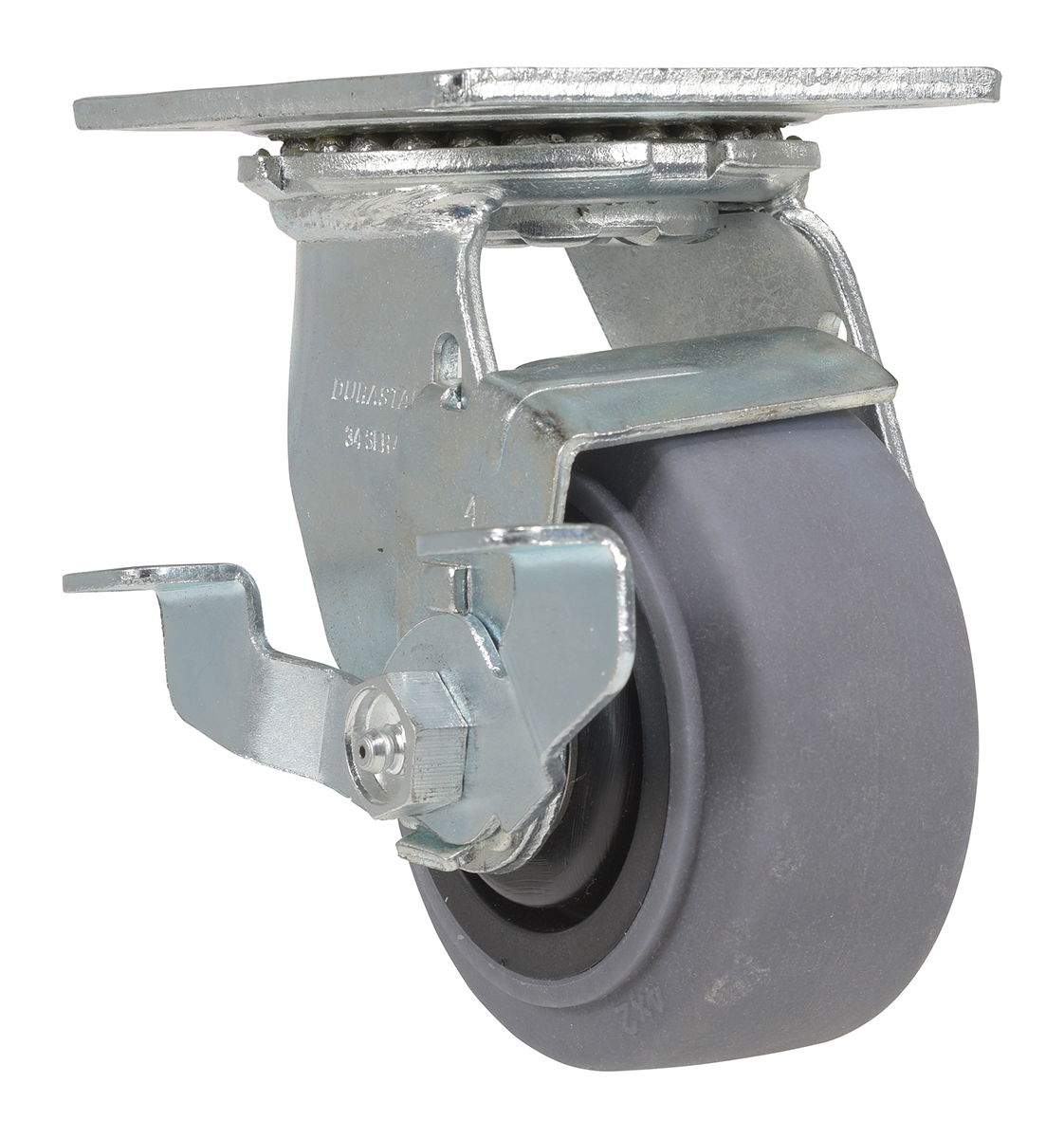

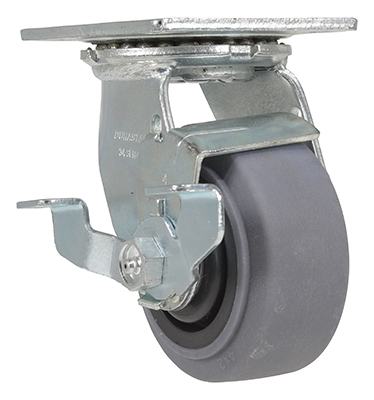

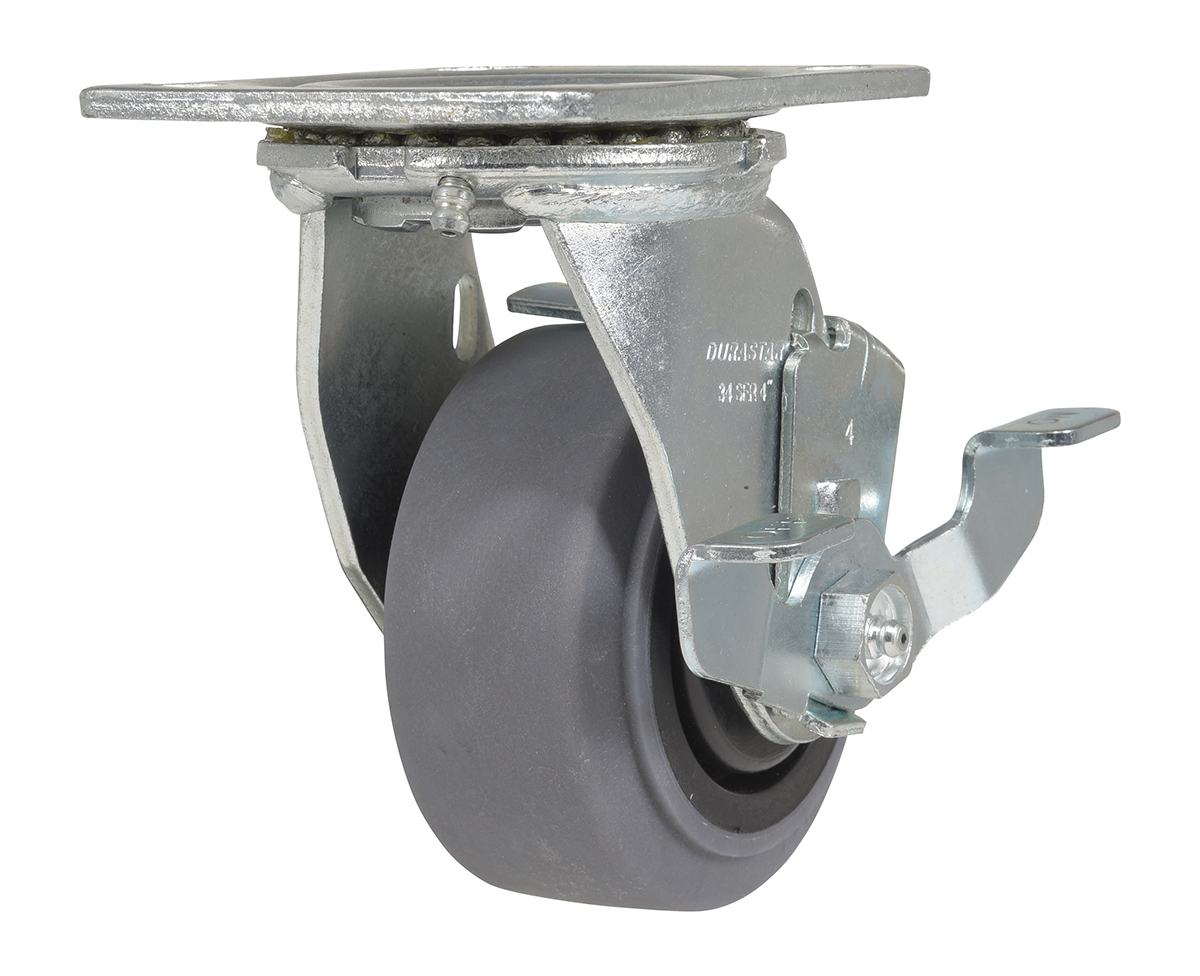

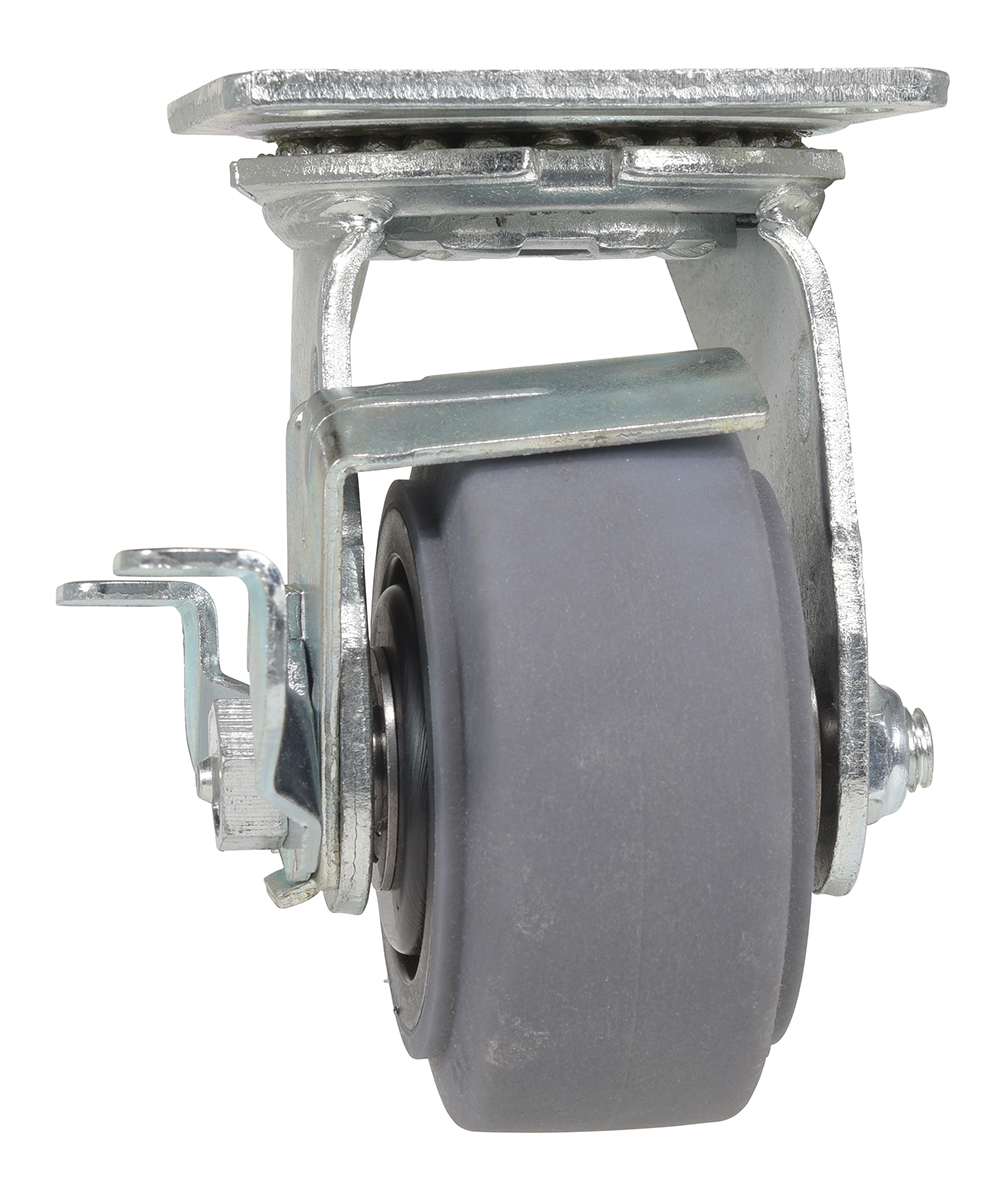

CST-F-4X2CR-SWB_A.jpg CST-F-4X2CR-SWB_B.jpg CST-F-4X2CR-SWB_C.jpg CST-F-4X2CR-SWB_D.jpg
Rubber (DK - Conductive) Casters

model: CST-F-4X2CR-SWB



Featured Casters & Wheels:


Stainless Steel Thermoplastic Rubber-Elastomer Casters
VE Wheel
High Quality Non-Marking Solid Rubber
Phenolic Casters
TPR - Thermoplatic Rubber (DK) Casters
Conductive Rubber (TPR) Wheel
High Quality Non-Marking Thermoplastic Polyurethane
High-Quality Non-Marking Thermoplastic Rubber
High Capacity Non-Marking Glass Filled Nylon Casters
model chart

Product Family Overview

Print Friendly
Rubber (DK - Conductive) Casters
SERIES: CST-F-CR

Constructed of high-grade thermoplastic rubber (tpr). Chemically bonded to core. protects against electrostatic build-up and discharge that can be generated by transport. ideal for electronic companies, medical engineering, and other environments where static build up is a concern. gray tread color. 65 shore a. wheel core is constructed of polyolefin.

  • Ohmic Resistance 10^3(omega) Exceed The Requirements Of Federal Standard Ff-c-88c
  • Non-marking
  • Smooth ride performance
  • Quiet operation
  • Exceptional floor preservation
  • Resists mosts solvents, oils, grease, wnd water
  • Premium rrecision ball bearings

Constructed of high-grade thermoplastic rubber (tpr). Chemically bonded to core. protects against electrostatic build-up and discharge that can be generated by transport. ideal for electronic companies, medical engineering, and other environments where static build up is a concern. gray tread color. 65 shore a. wheel core is constructed of polyolefin.

  • Ohmic Resistance 10^3(omega) Exceed The Requirements Of Federal Standard Ff-c-88c
  • Non-marking
  • Smooth ride performance
  • Quiet operation
  • Exceptional floor preservation
  • Resists mosts solvents, oils, grease, wnd water
  • Premium rrecision ball bearings

Other "Go-To" Casters

 Polyurethane (SI - Electrostatic Dissipating) Casters Polyurethane (DT, Green) Casters TPR - Thermoplastic Rubber (DK) Casters Rubber Casters

How To Order
Share:

Model Specific Details



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size		 Type Capacity
(lbs.)		 Overall
Height		 Top Plate
Size		 Net Wt.
(lbs)
CST-F-4X2CR-R 1 YEAR Limited Warranty4 x 2RIGID4505-1/2 4 x 4-1/22.83
CST-F-5X2CR-R 1 YEAR Limited Warranty5 x 2RIGID5006-1/2 4 x 4-1/23.18
CST-F-6X2CR-R 1 YEAR Limited Warranty6 x 2RIGID6007-1/2 4 x 4-1/23.66
CST-F-8X2CR-R 1 YEAR Limited Warranty8 x 2RIGID6759-1/2 4 x 4-1/24.46
CST-F-4X2CR-S 1 YEAR Limited Warranty4 x 2SWIVEL4505-1/2 4 x 4-1/23.58

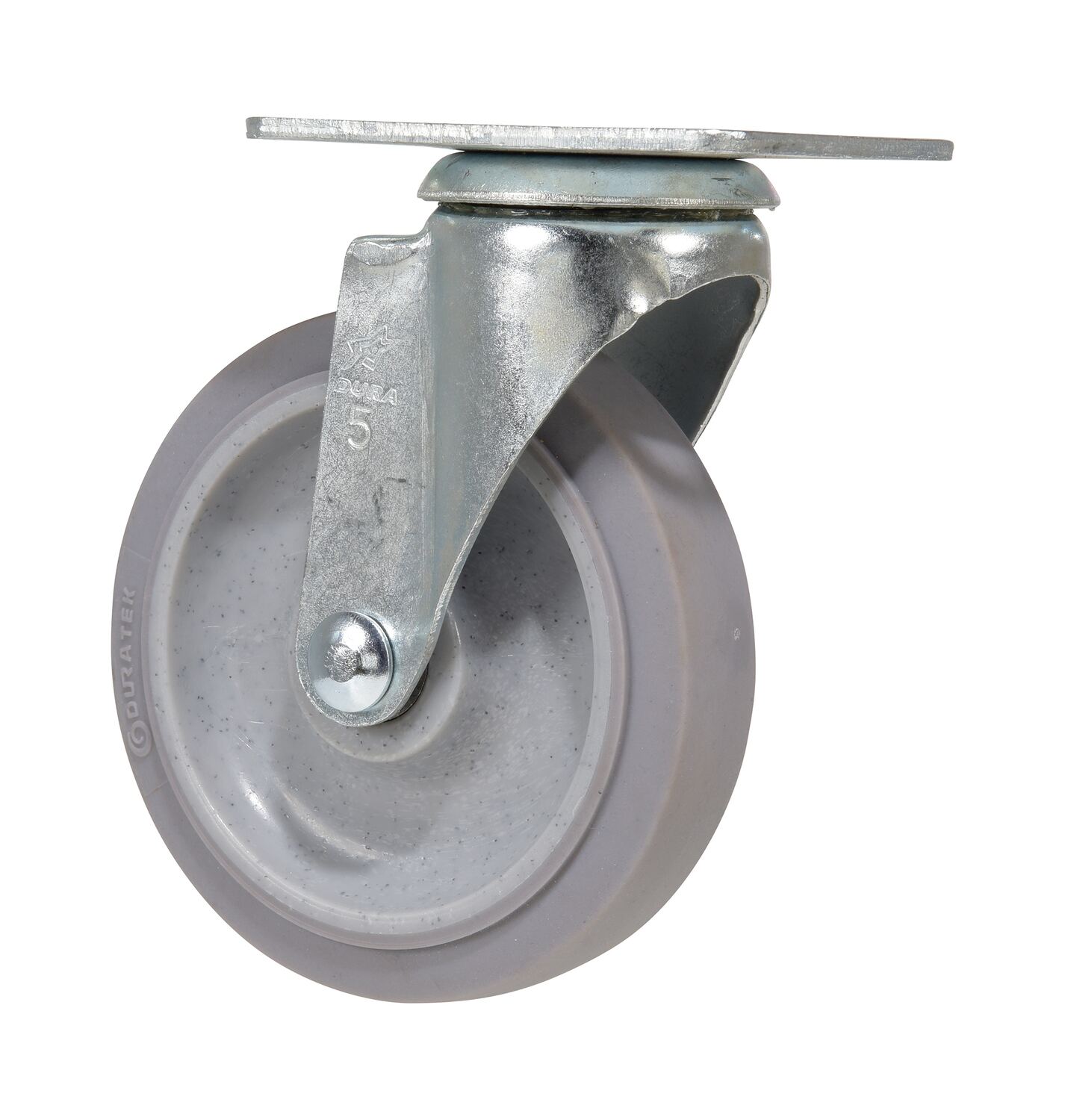

CST-F-5X1TPR-S 1 Year Limited Warranty5" x 1-1/4"Swivel3256.125 4-1/8" x 3-1/8"2.2
CST-F-5X2CR-S 1 YEAR Limited Warranty5 x 2SWIVEL5006-1/2 4 x 4-1/23.95
CST-F-6X2CR-S 1 YEAR Limited Warranty6 x 2SWIVEL6007-1/2 4 x 4-1/24.43
CST-F-8X2CR-S 1 YEAR Limited Warranty8 x 2SWIVEL6759-1/2 4 x 4-1/25.27
CST-F-4X2CR-SWB 1 YEAR Limited Warranty4 x 2SWIVEL W/BRAKE4505-1/2 4 x 4-1/23.93
CST-F-5X2CR-SWB 1 YEAR Limited Warranty5 x 2SWIVEL W/BRAKE5006-1/2 4 x 4-1/24.2
CST-F-6X2CR-SWB 1 YEAR Limited Warranty6 x 2SWIVEL W/BRAKE6007-1/2 4 x 4-1/24.83
CST-F-8X2CR-SWB 1 YEAR Limited Warranty8 x 2SWIVEL W/BRAKE6759-1/2 4 x 4-1/25.72
CST-F-4X2CR-SWTB1 1 YEAR Limited Warranty4 x 2Swivel w/Total Brake4505-1/2 4 x 4-1/24.095
CST-F-6X2CR-SWTB1 1 YEAR Limited Warranty6 x 2Swivel w/Total Brake6007-1/2 4 x 4-1/25
CST-F-8X2CR-SWTB1 1 YEAR Limited Warranty8 x 2Swivel w/Total Brake6759-1/2 4 x 4-1/25.9
CST-F-5X2CR-SWTB1 1 YEAR Limited Warranty5 x 2SWTB15006-1/2 4 x 4-1/24.5

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Rubber (DK - Conductive) Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-F-5X2CR-SWB

CST-F-5X2CR-SWTB1

CST-F-6X2CR-SWTB1

CST-F-8X2CR-SWTB1

SDS Sheets

No SDS Sheets For This Product

Other PDF's


"Go-To" Caster's Brochure
