Counter Balanced Drum Stackers

- - - -

Description
Model Chart
PDF's
Image Gallery

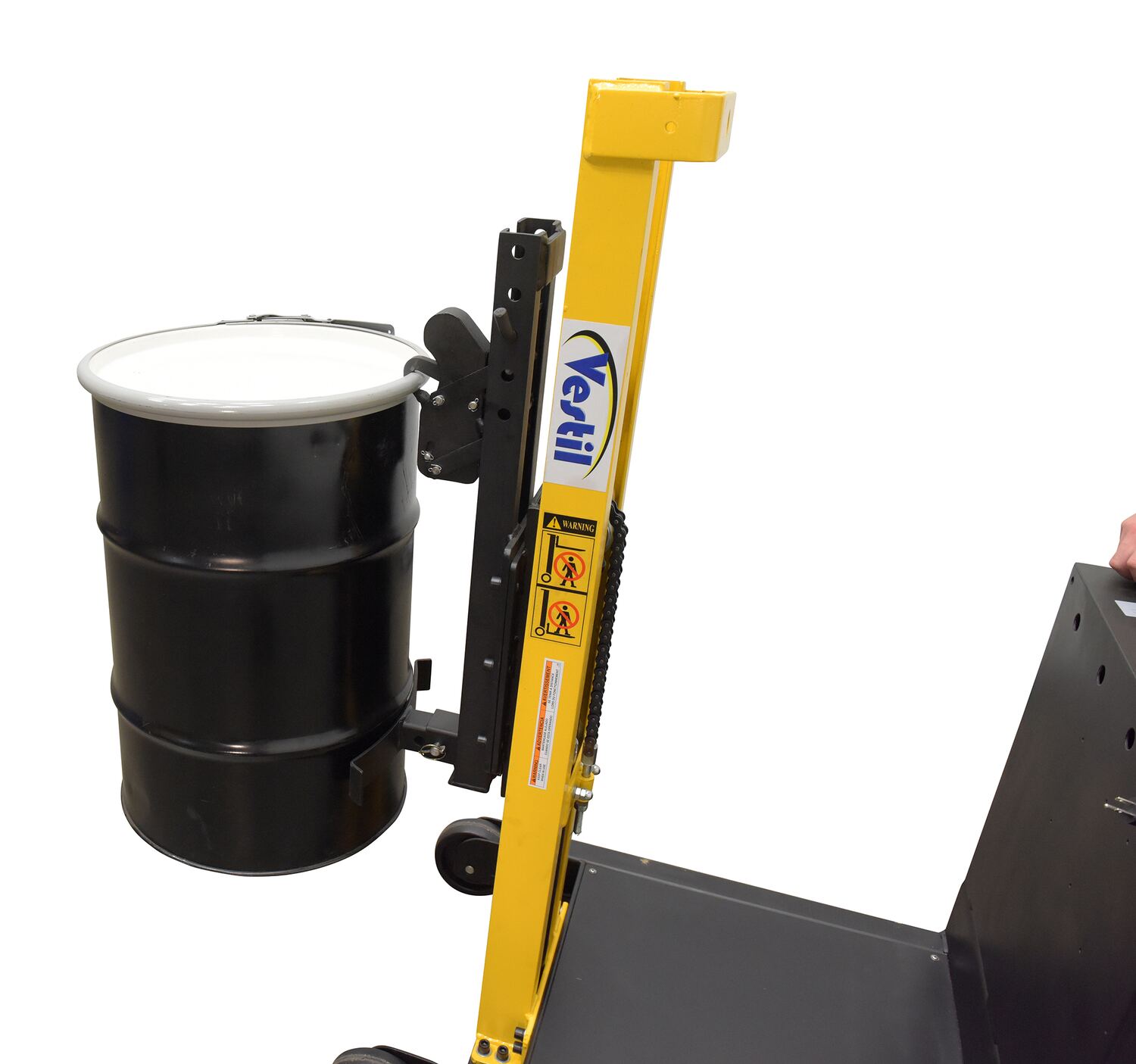

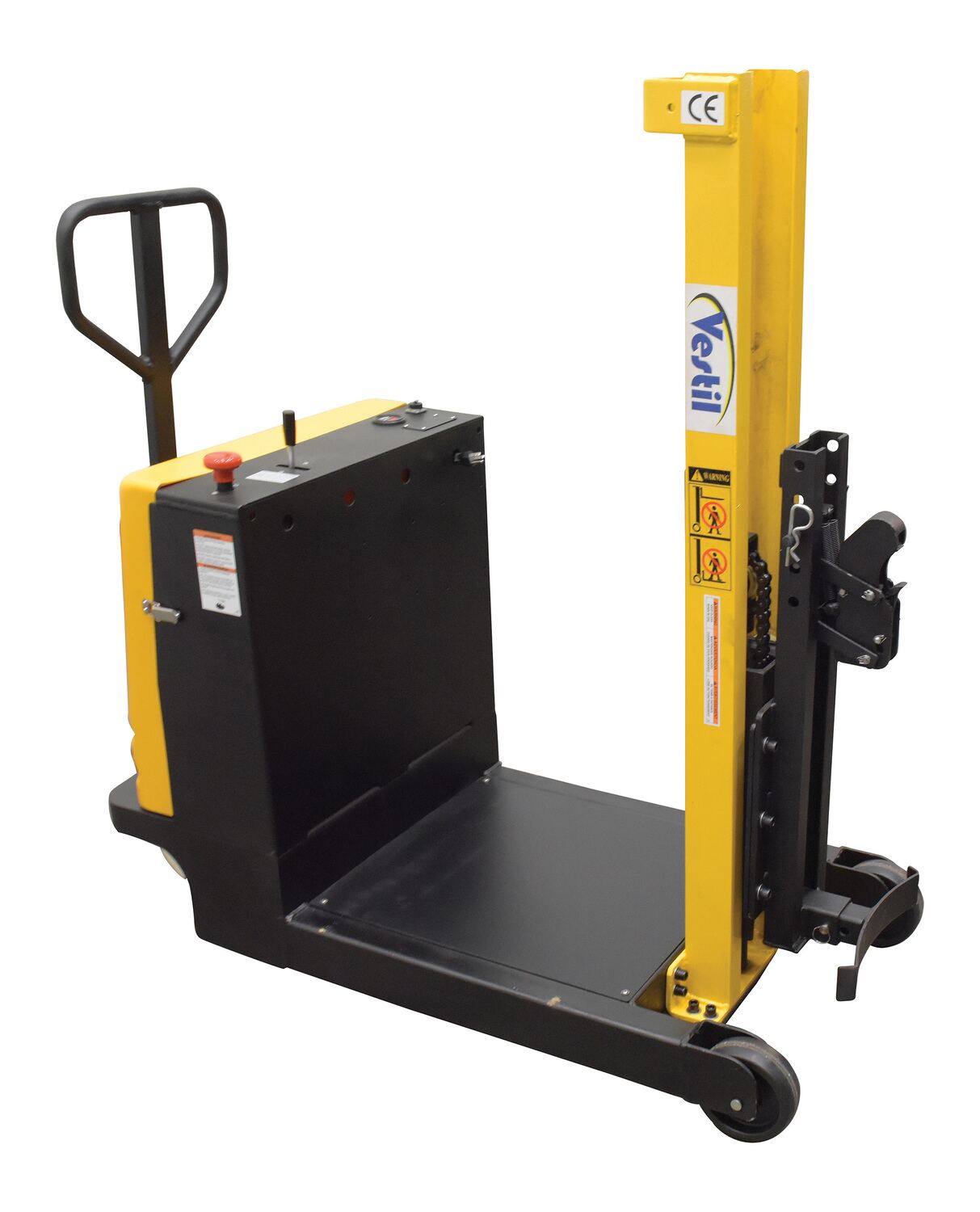

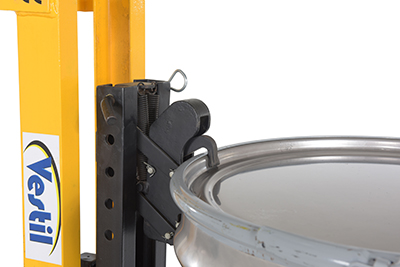

DRLT-CB-54-MDPL_A.jpg DRLT-CB-54-MDPL_B.jpg DRLT-CB-54-MDPL_G.jpg DRLT-CB-54-MDPL_D.jpg
DRLT-CB-54-MDPL_E.jpg DRLT-CB-54-MDPL_F.jpg DRLT-CB-54-MDPL_K.jpg DRLT-CB-54-MDPL_L.jpg
Counter Balanced Drum Stackers

model: DRLT-CB-54-MDPL



Featured Drum Handling Equipment


Horizontal Semi-Automatic Drum Tong
Welding Cylinder Carts
Lo-Profile Drum Caddies with Bung Wrench Handle
Dispensing Containment Cart
Polyethylene Drum Racks
Drum Impact Socket
Ergonomic Elevated Bucket & Pail Dolly
Deluxe Rotating Drum Carts
Economy Rotating Drum Carts
model chart

Product Family Overview

Print Friendly
Counter Balanced Drum Stackers
SERIES: DRLT

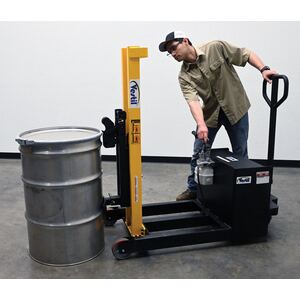

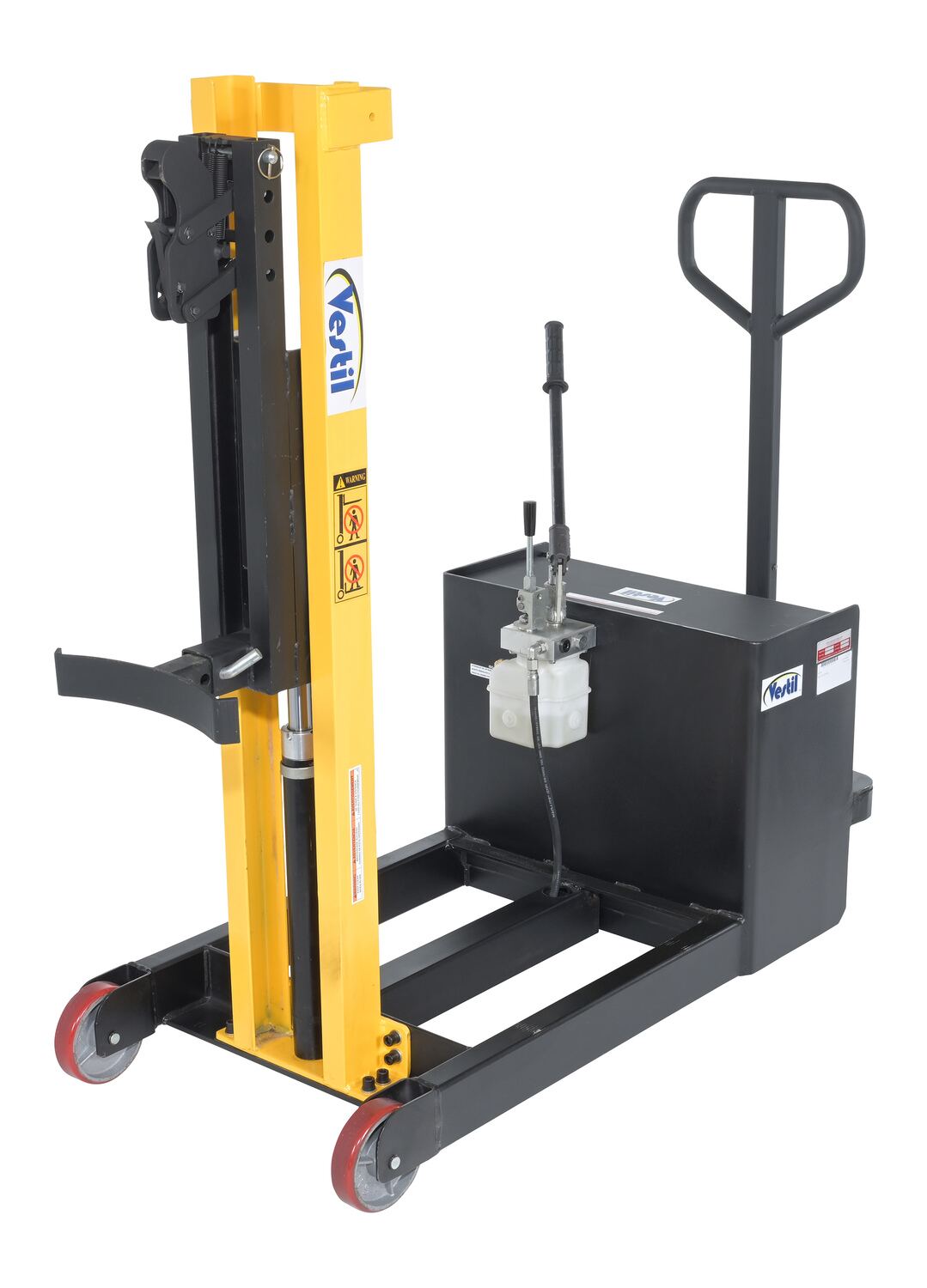

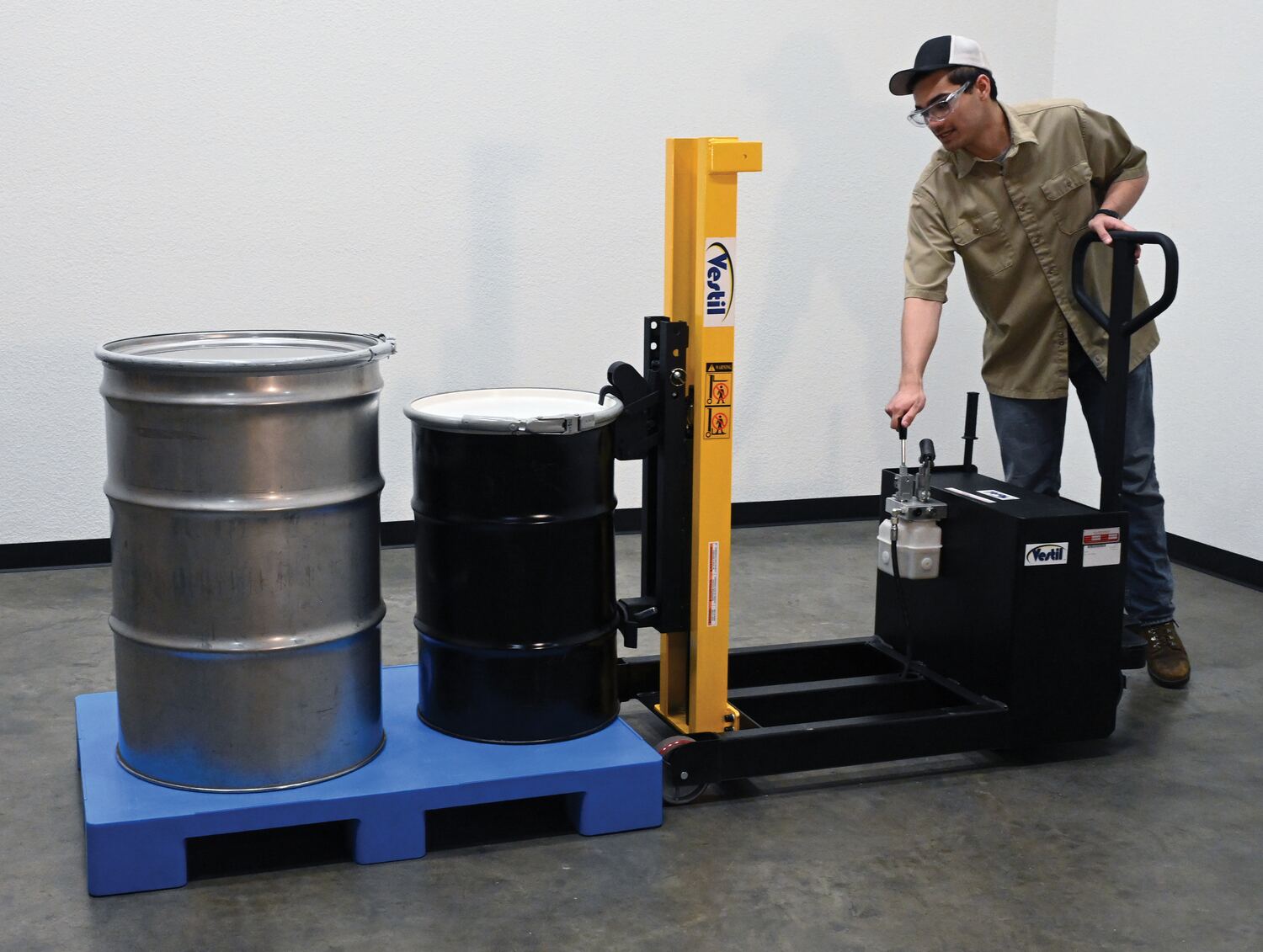

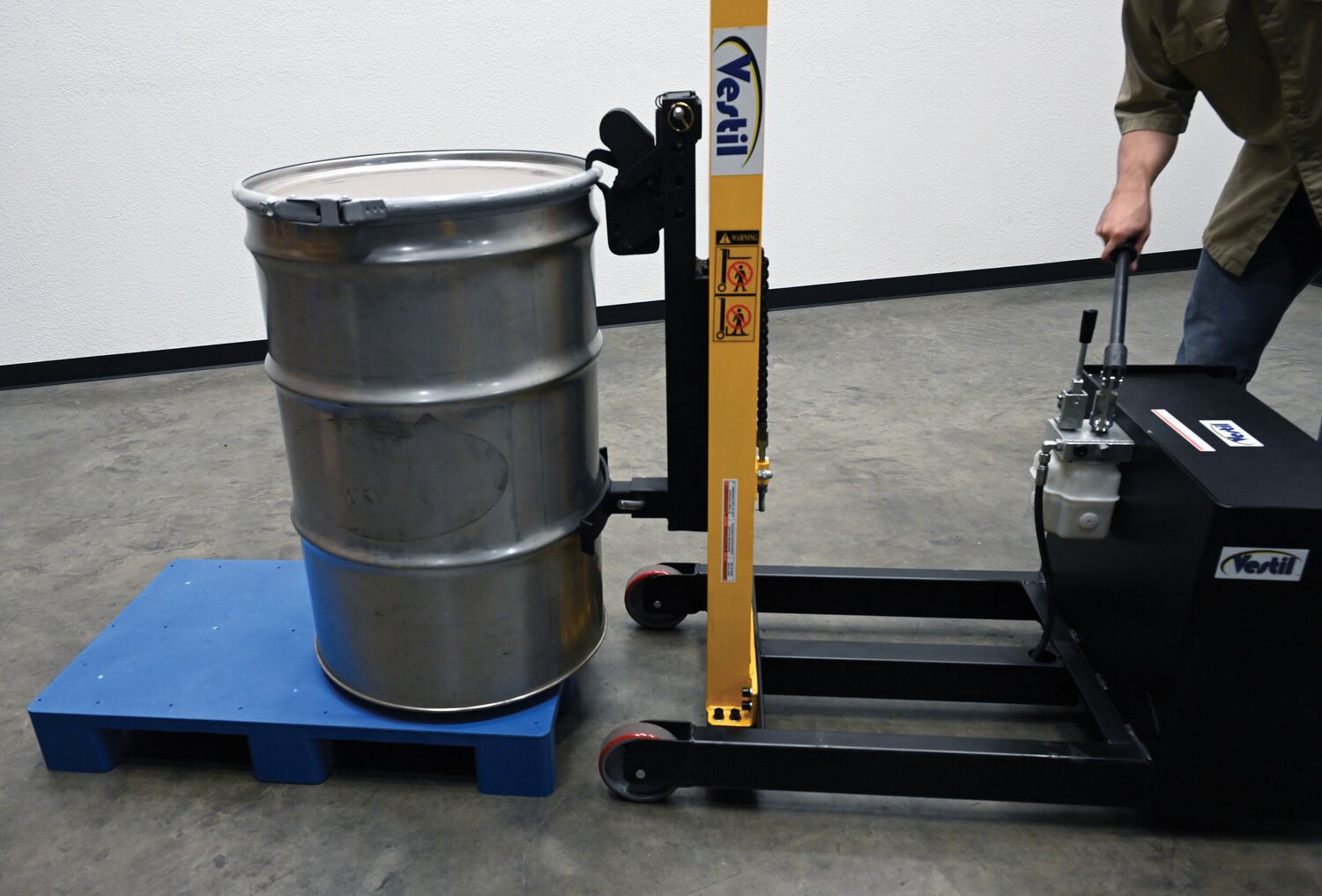

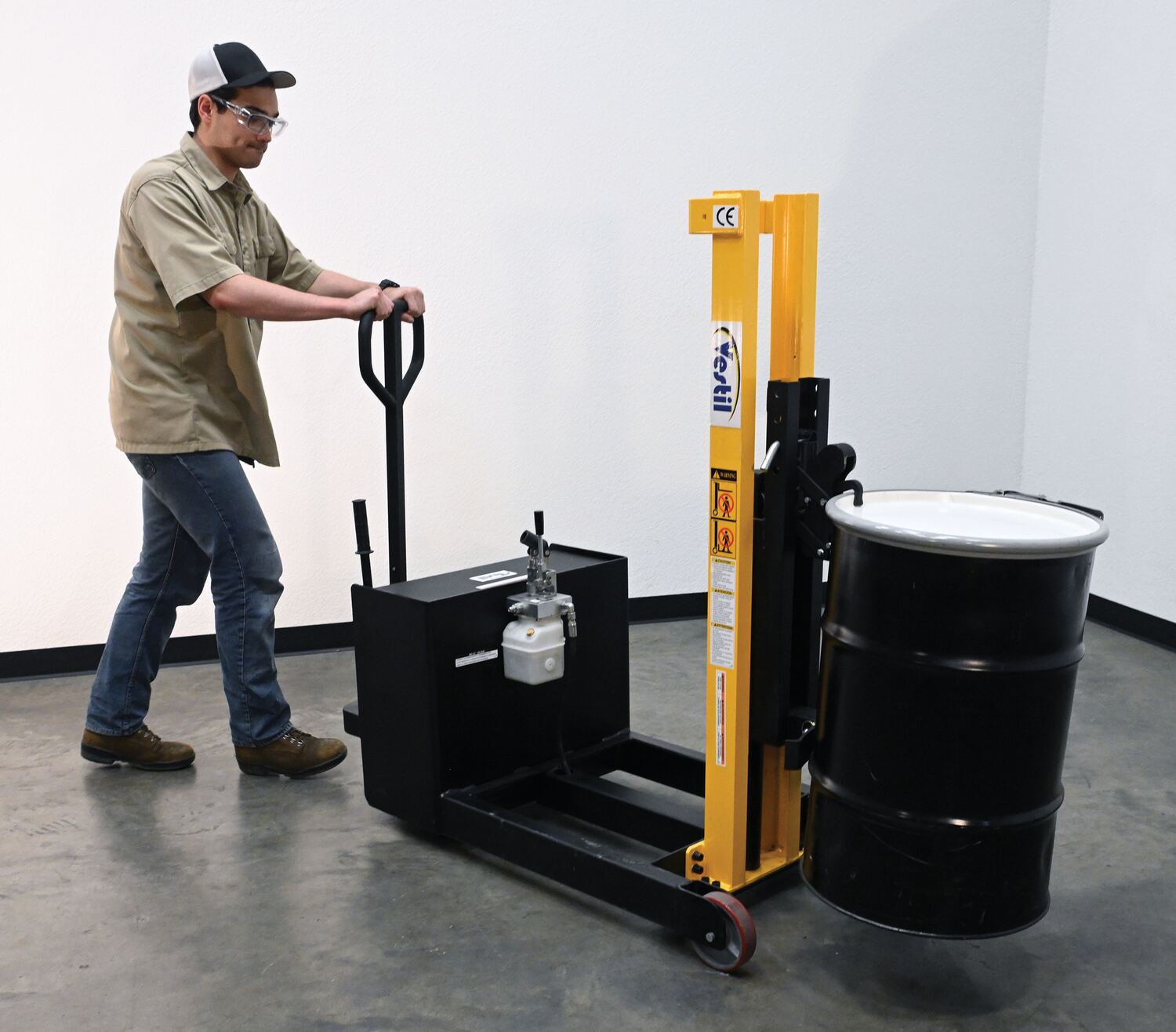

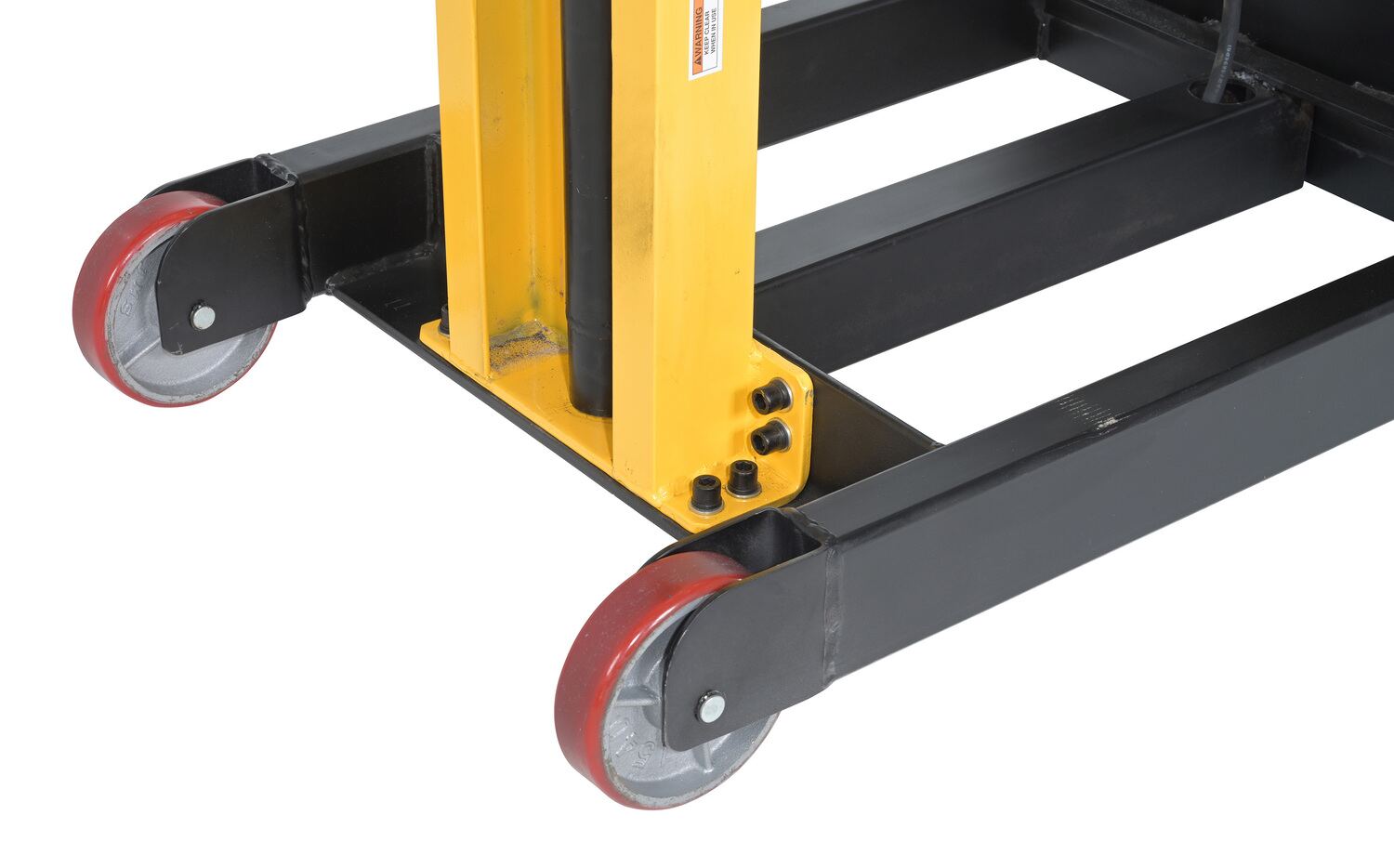

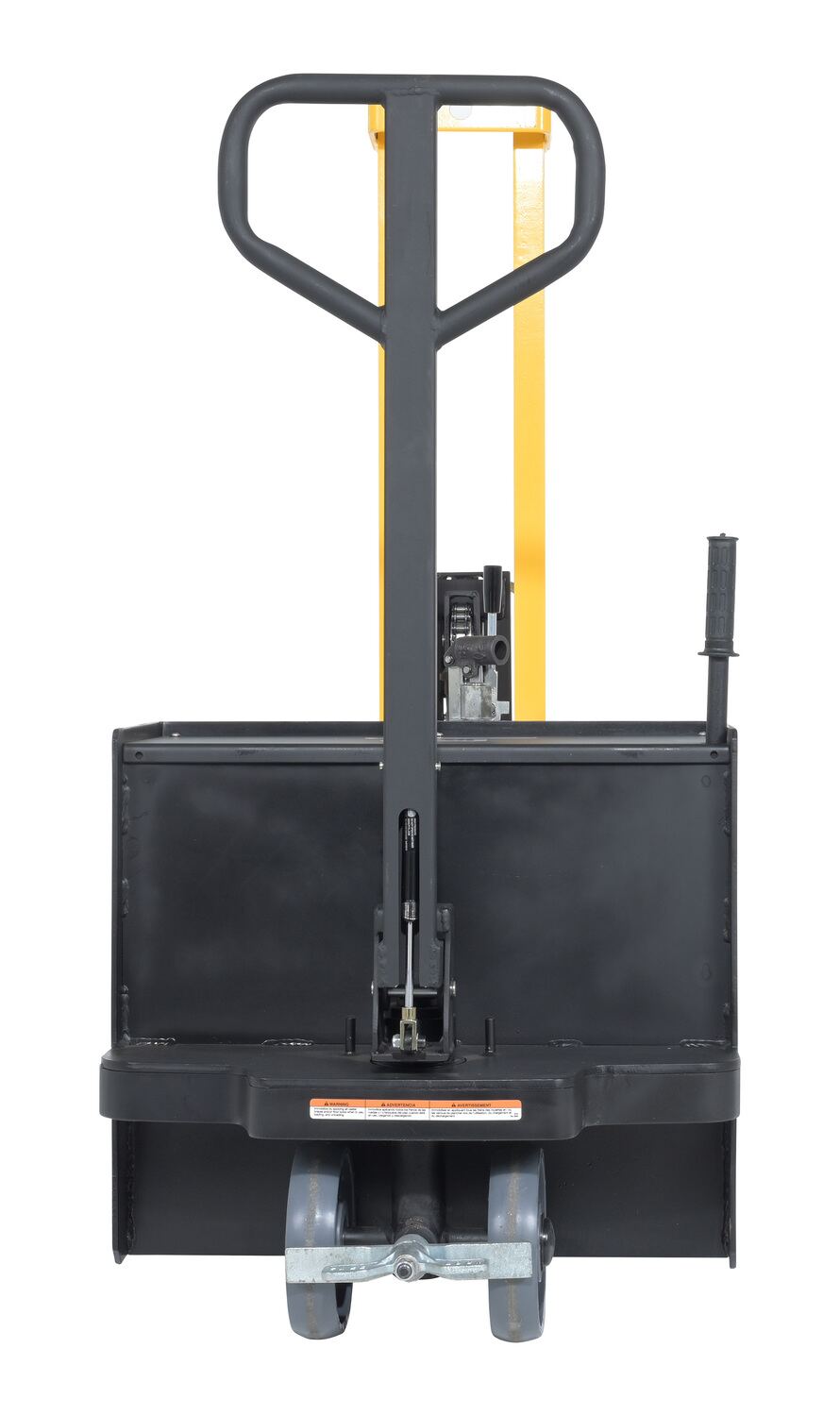

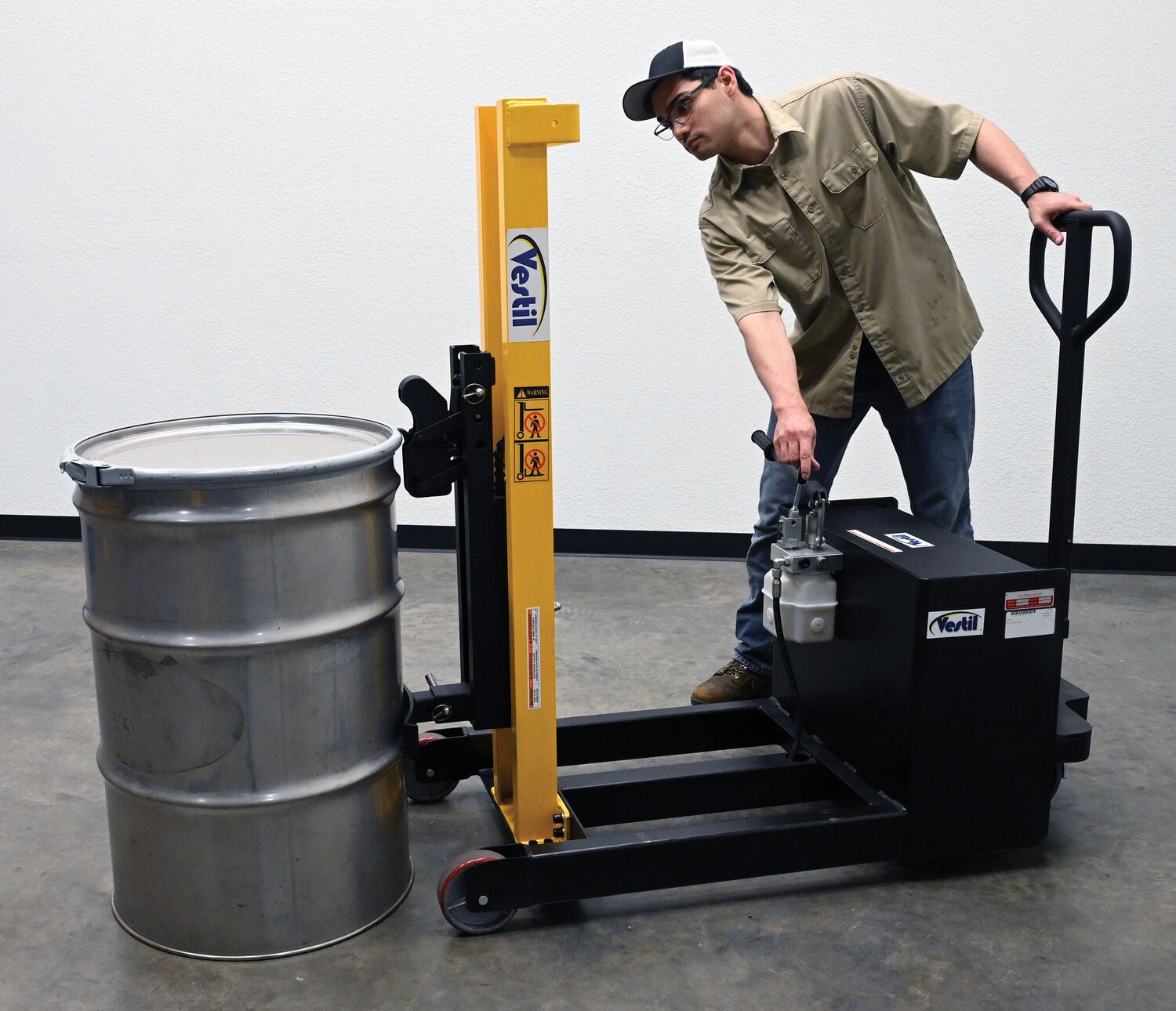

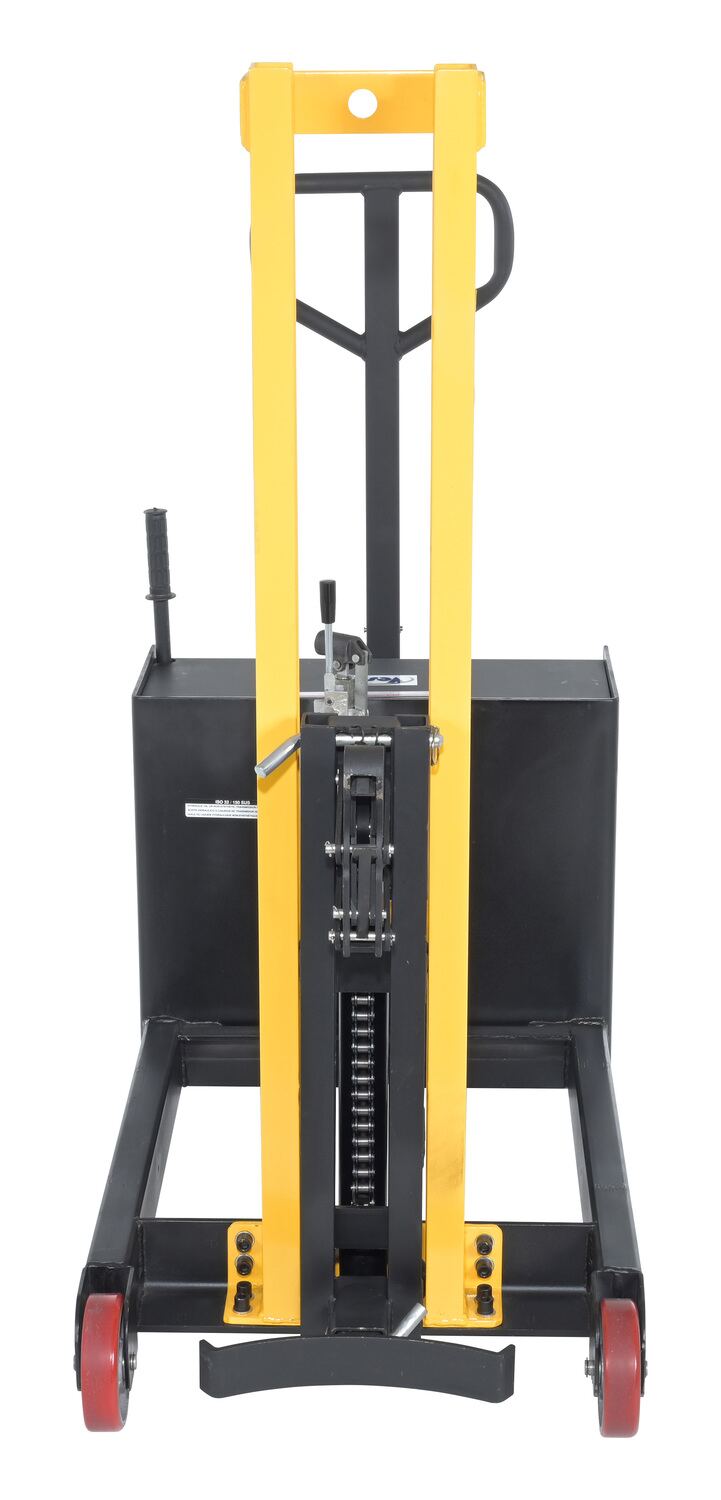

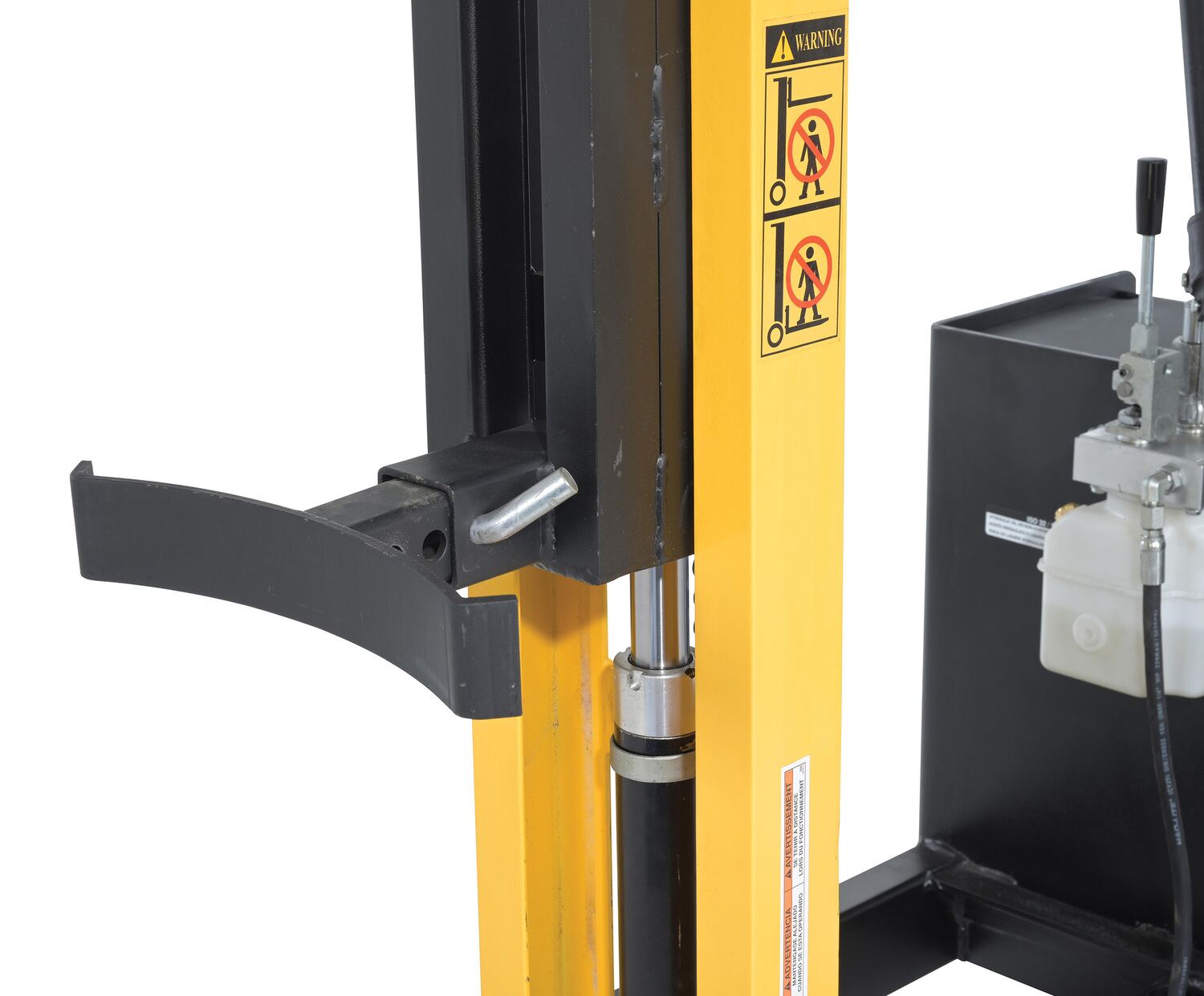

DRLT-CB-54-MDML_K.jpgManual Drive, Manual Lift - model DRLT-CB-54-MDML
A counter balanced drum lifter/transporter is an efficient way to move heavy and awkward drums. With a unique design, the structure of the lifter works well in compact areas and loading/unloading drums onto pallets or scales. This drum lifter is manually maneuvered between areas. Height adjustments, both raising and lowering, are made manually by utilizing the hydraulic hand pump handle.

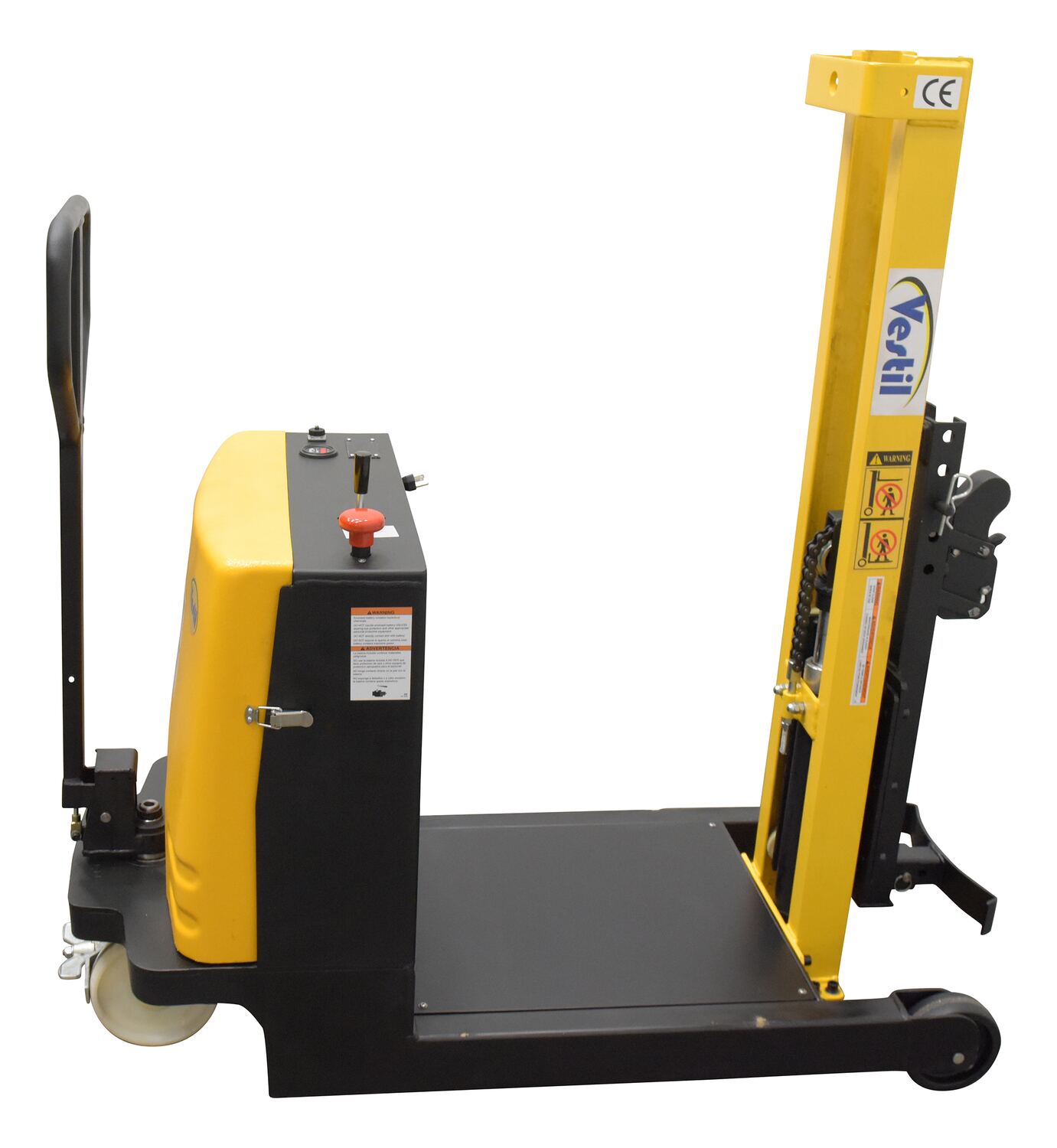

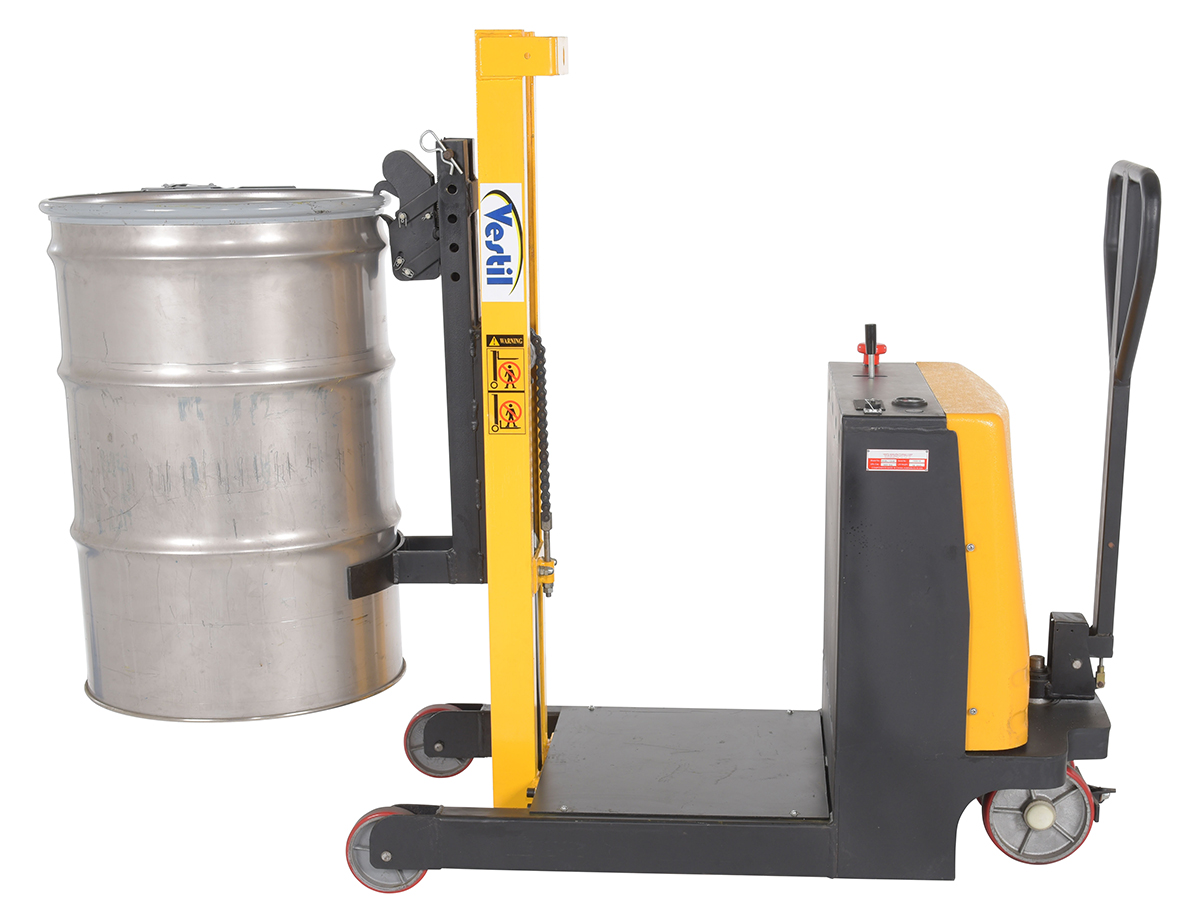

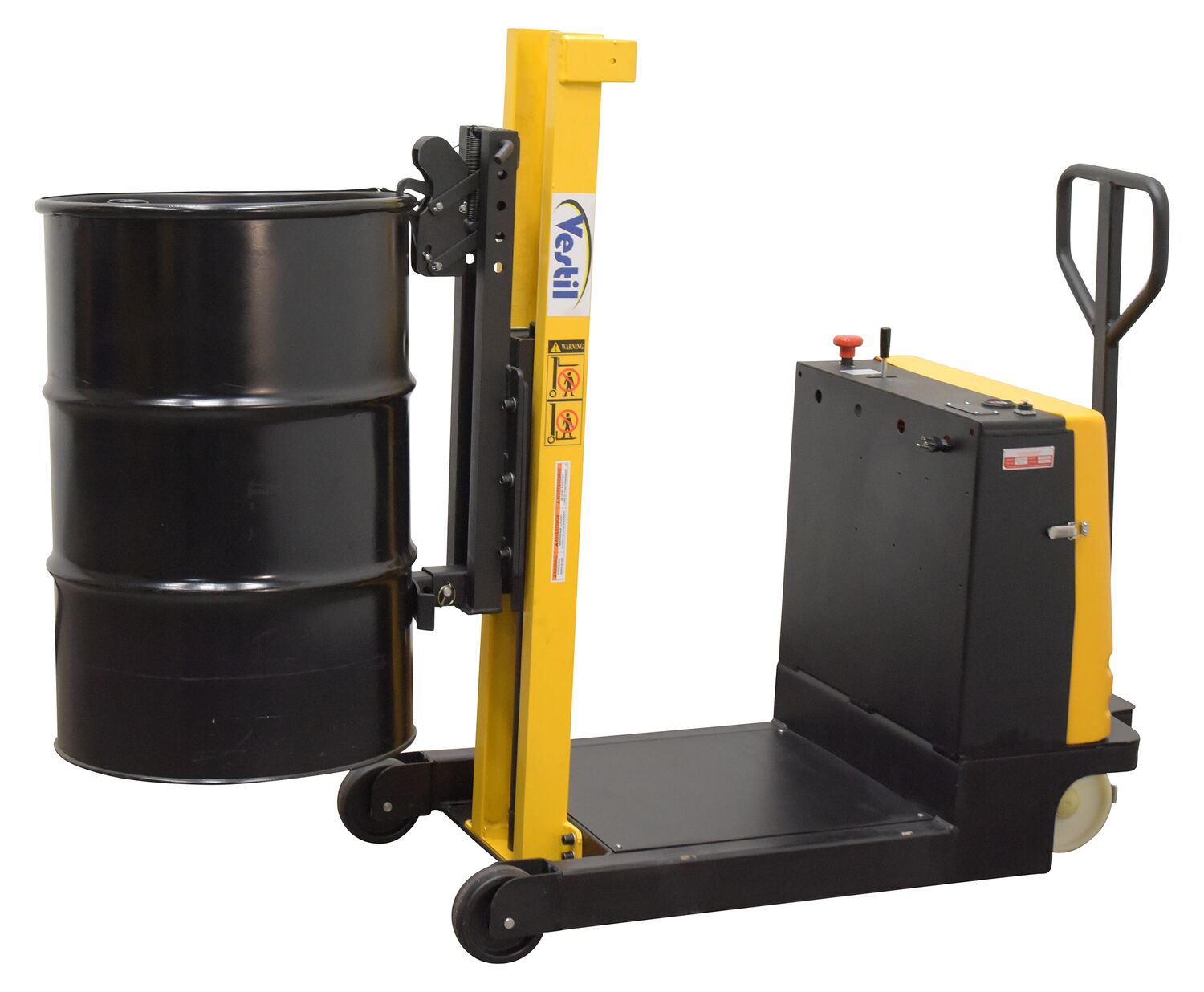

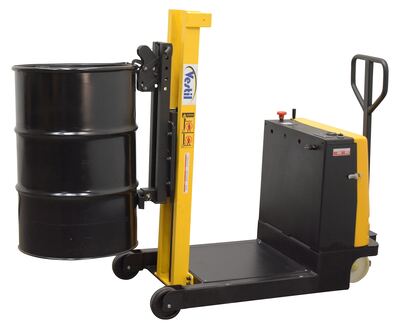

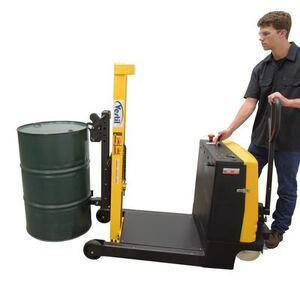

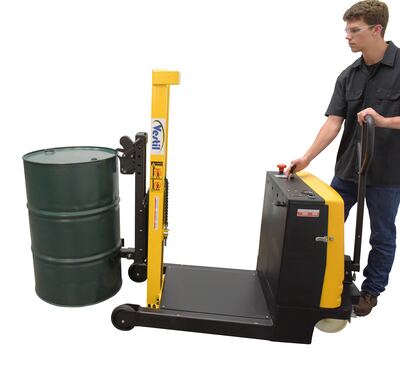

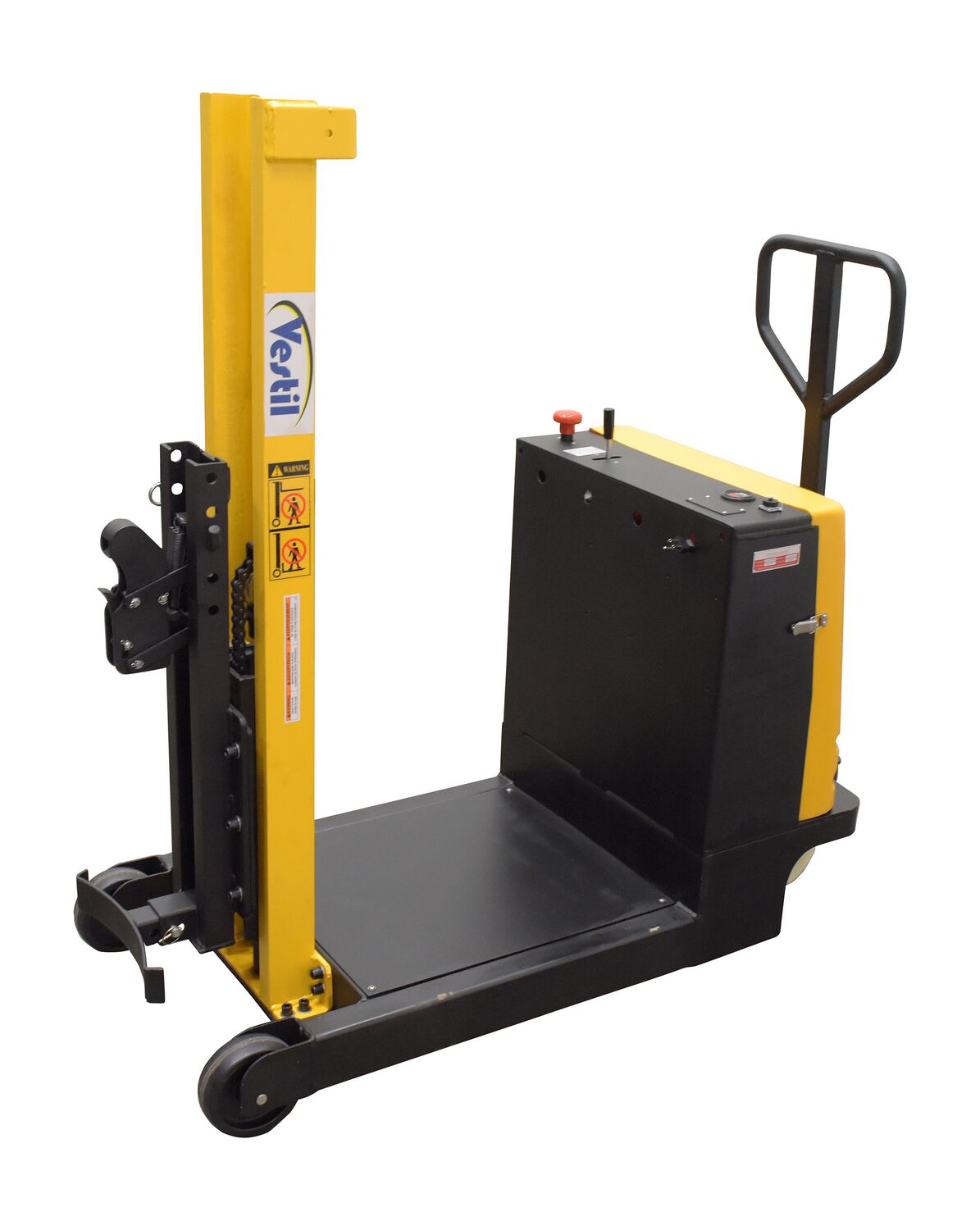

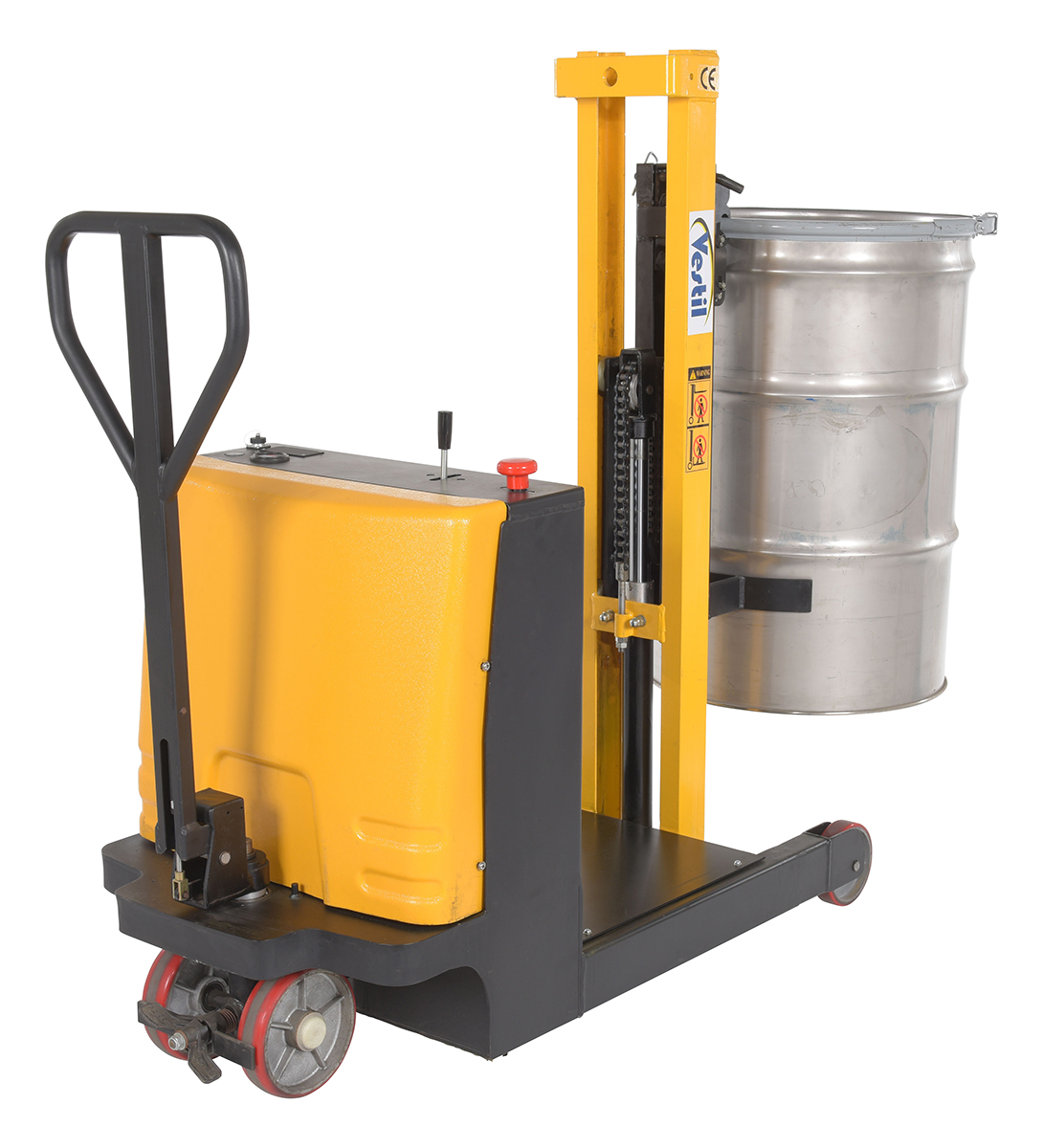

DRLT-CB-54-MDPLManual Drive, Powered Lift - model DRLT-CB-54-MDPL
A counter balanced drum lifter/transporter is an efficient way to move heavy and awkward drums. With a unique design, the structure of the lifter works well in compact areas and while loading/unloading onto pallets or scales. This drum lifter is manually maneuvered between work zones with the accessible driving handle. The 12V powered lift raises and lowers drums quickly and securely.

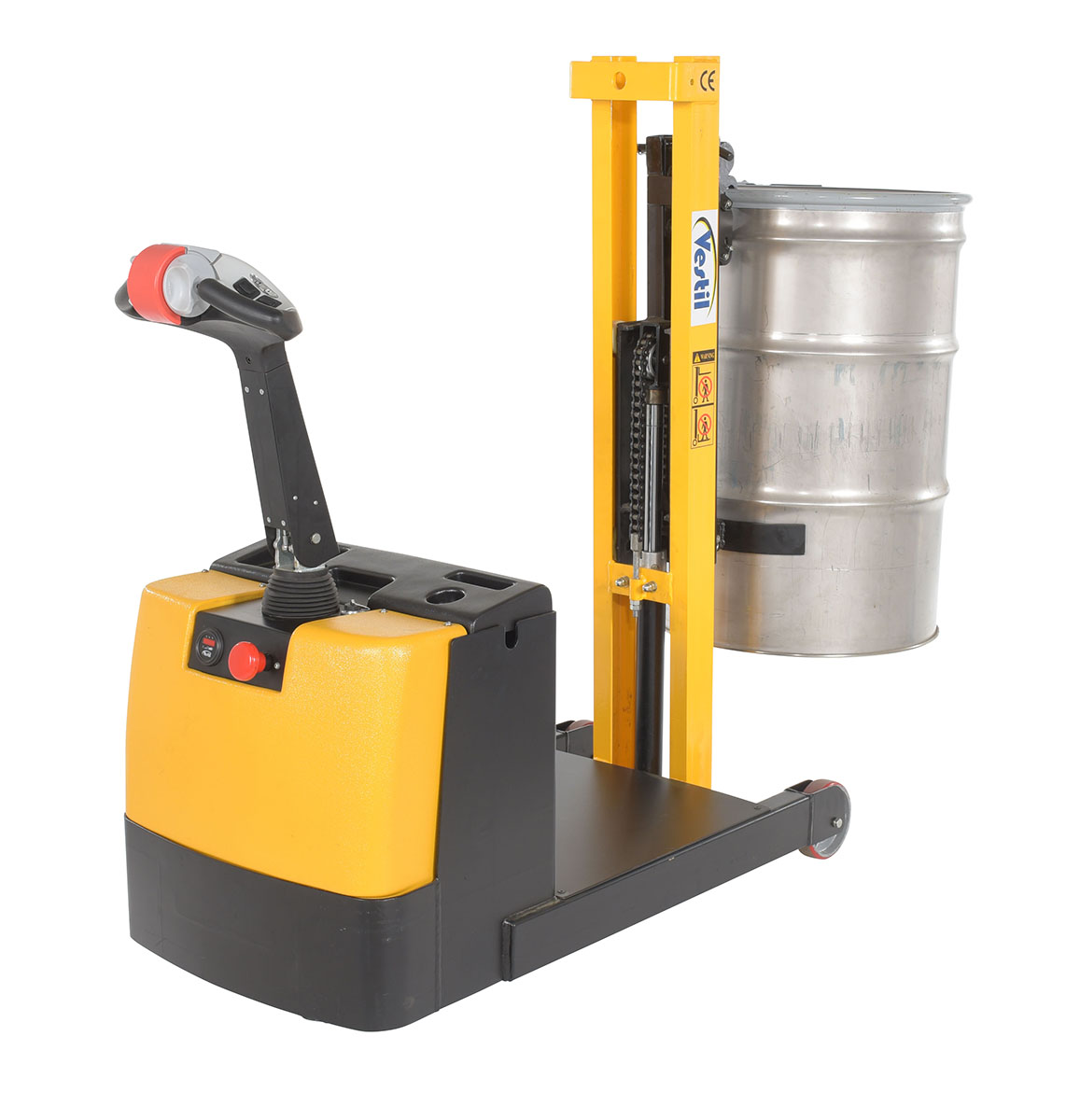

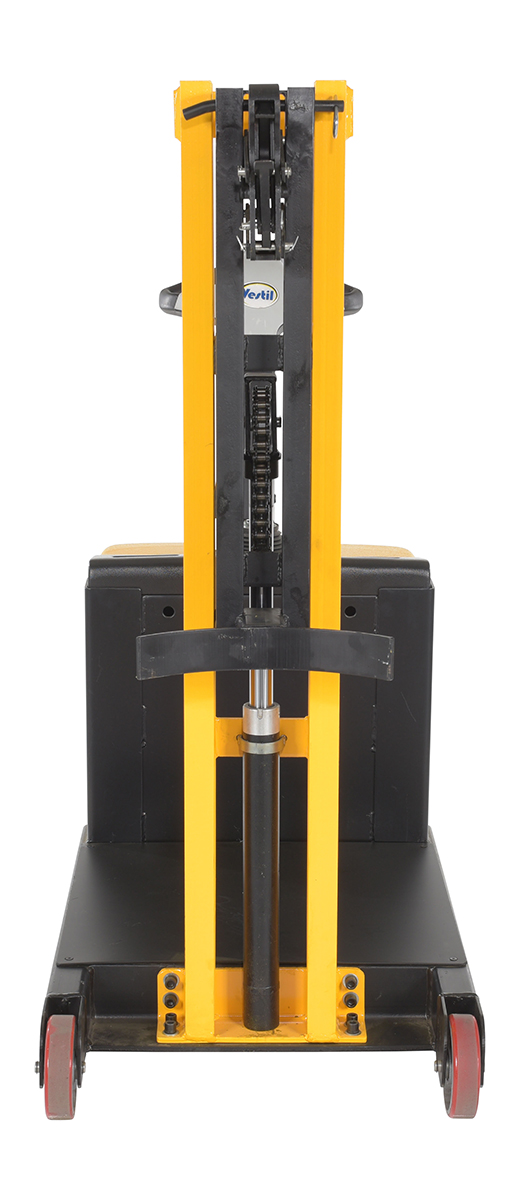

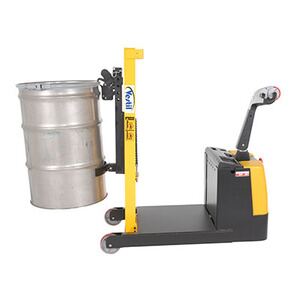

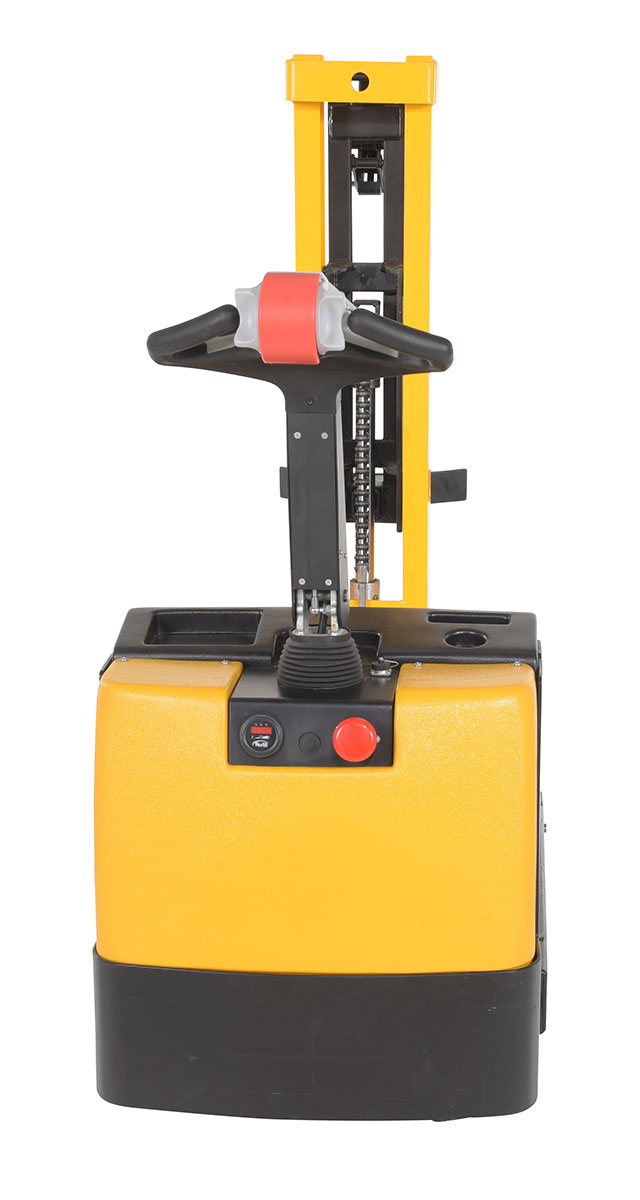

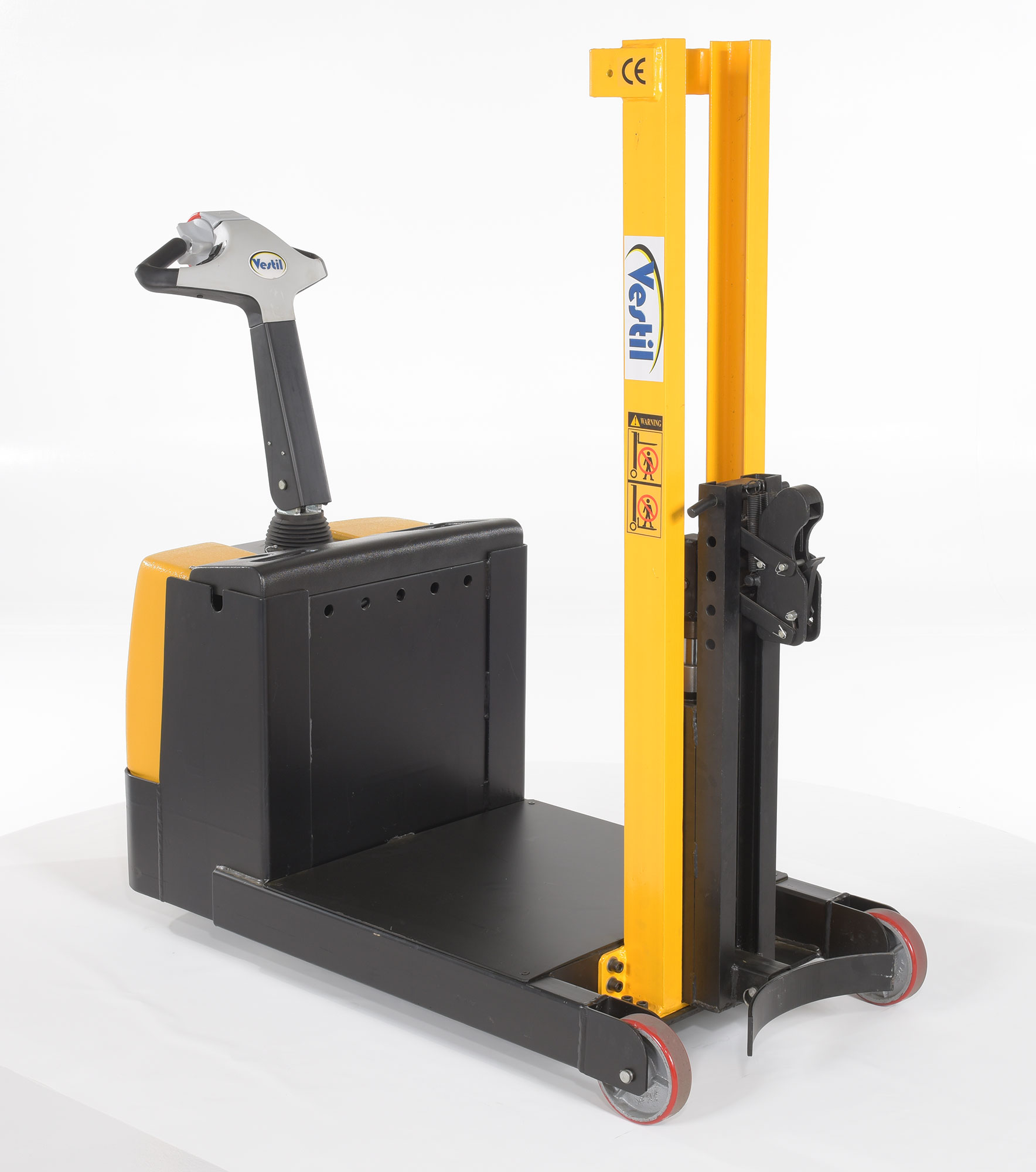

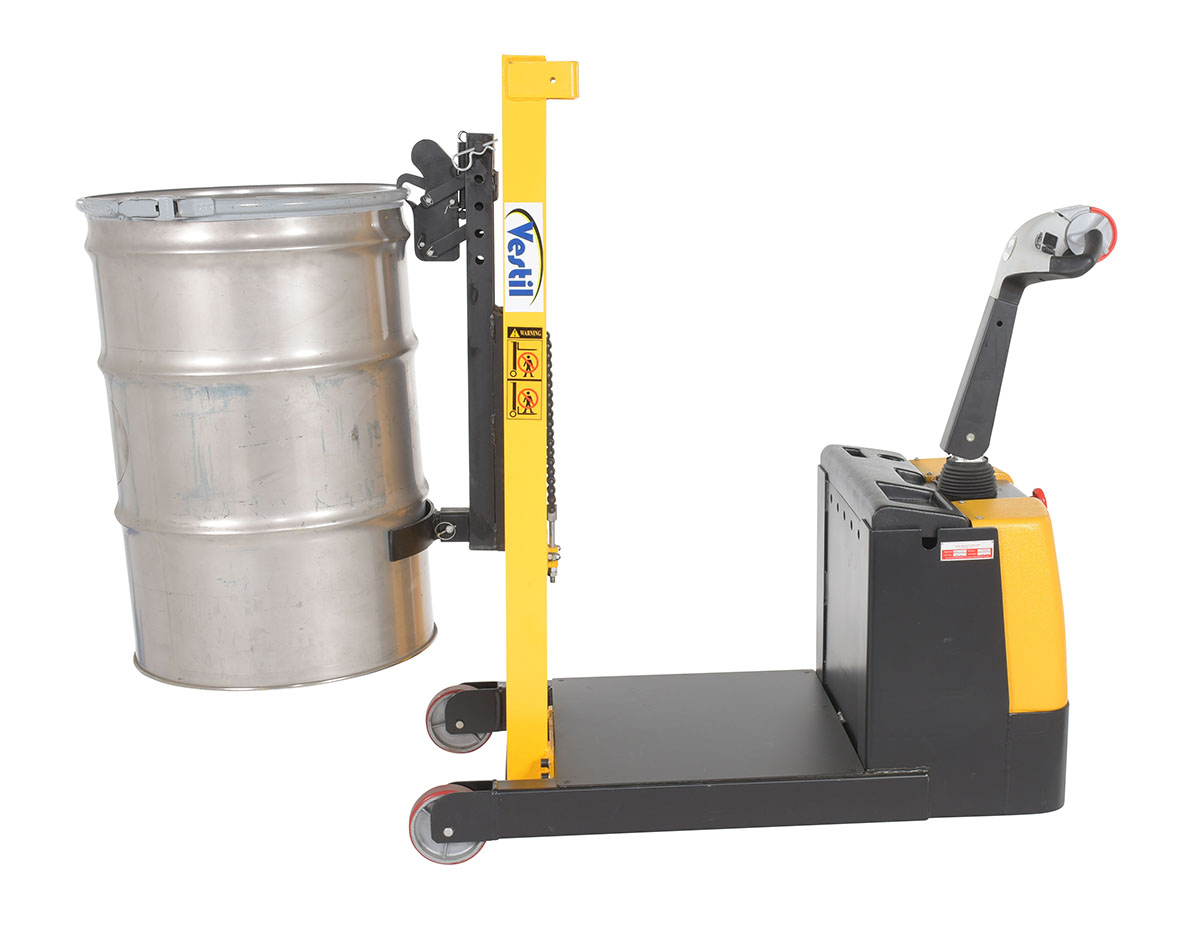

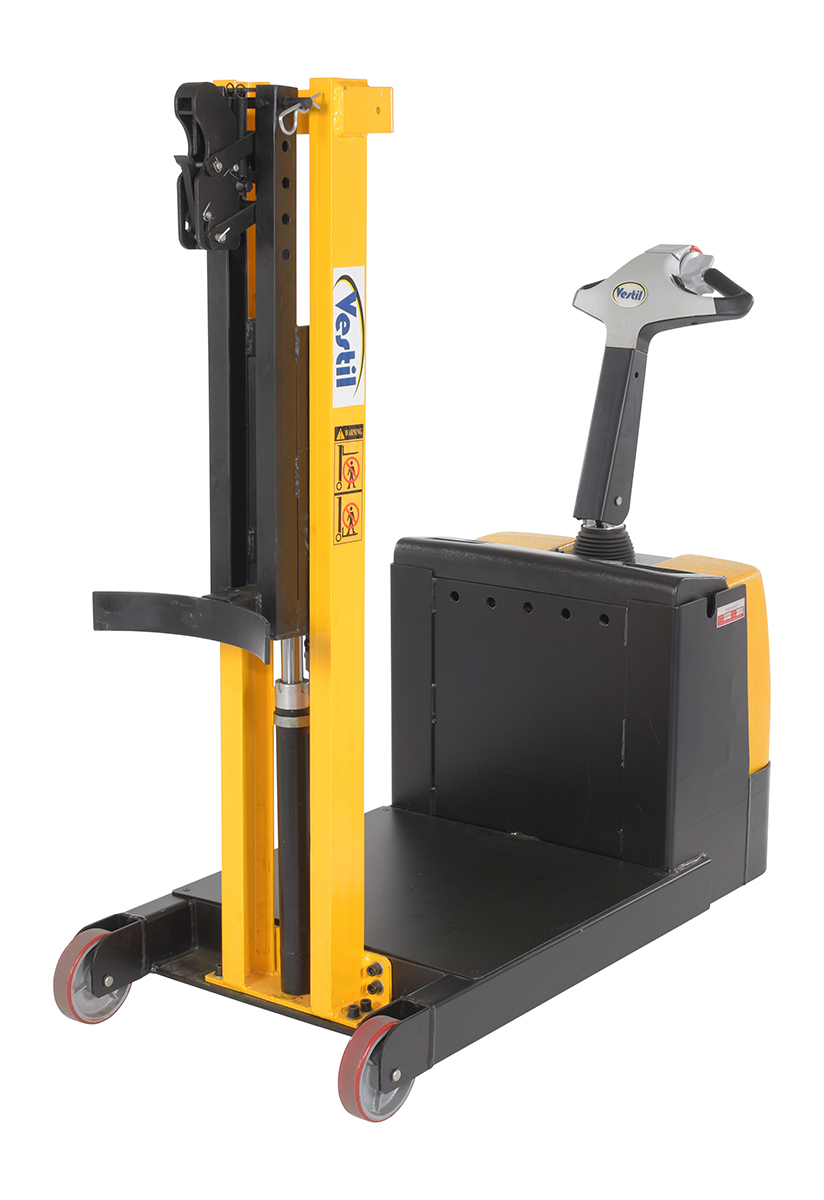

DRLT-CB-54-PDPLPowered Drive, Powered Lift - model DRLT-CB-54-PDPL
Drums have always been heavy and difficult to move. But, with the counter balanced drum lifter and transporter, those days are over. With a walk behind design and an ergonomic handle, the power and drive controls are quickly within the users' reach. Design is perfectly suited for tight areas and loading/unloading drums onto pallets or scales. This unit includes a 24V powered drive and a powered lift.

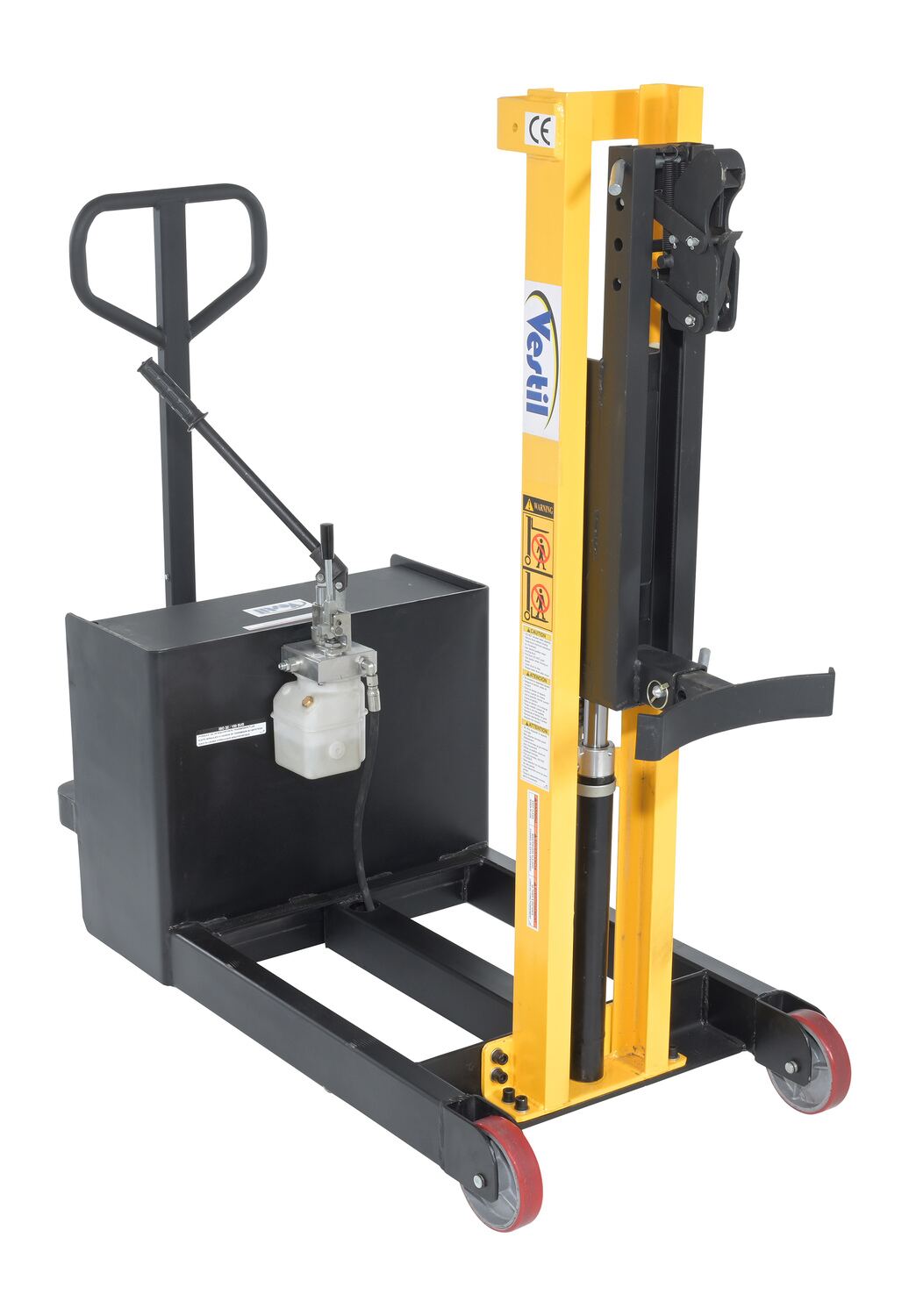

DRLT-CB-54-MDML_K.jpgManual Drive, Manual Lift - model DRLT-CB-54-MDML

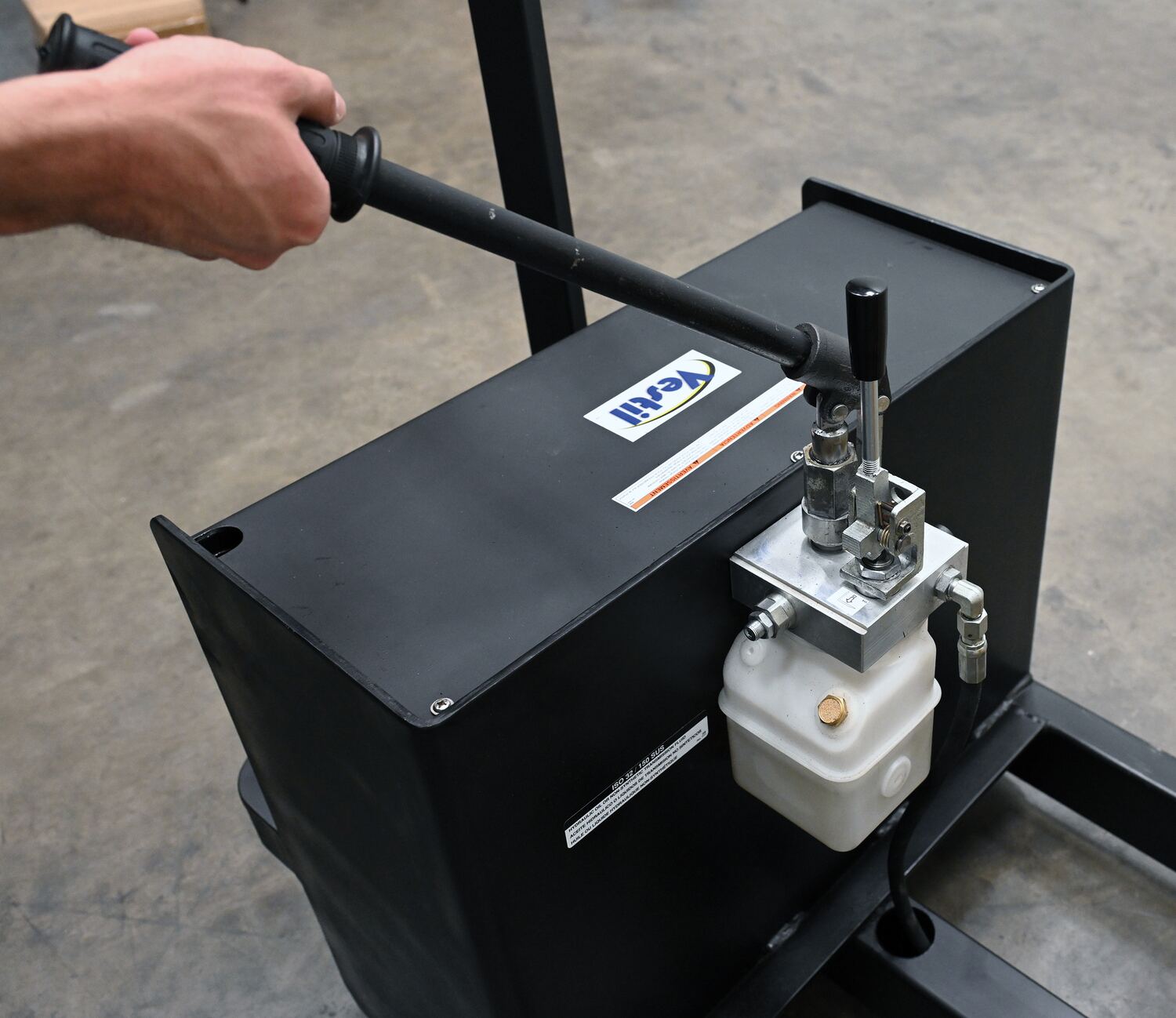

A counter balanced drum lifter/transporter is an efficient way to move heavy and awkward drums. With a unique design, the structure of the lifter works well in compact areas and loading/unloading drums onto pallets or scales. This drum lifter is manually maneuvered between areas. Height adjustments, both raising and lowering, are made manually by utilizing the hydraulic hand pump handle.

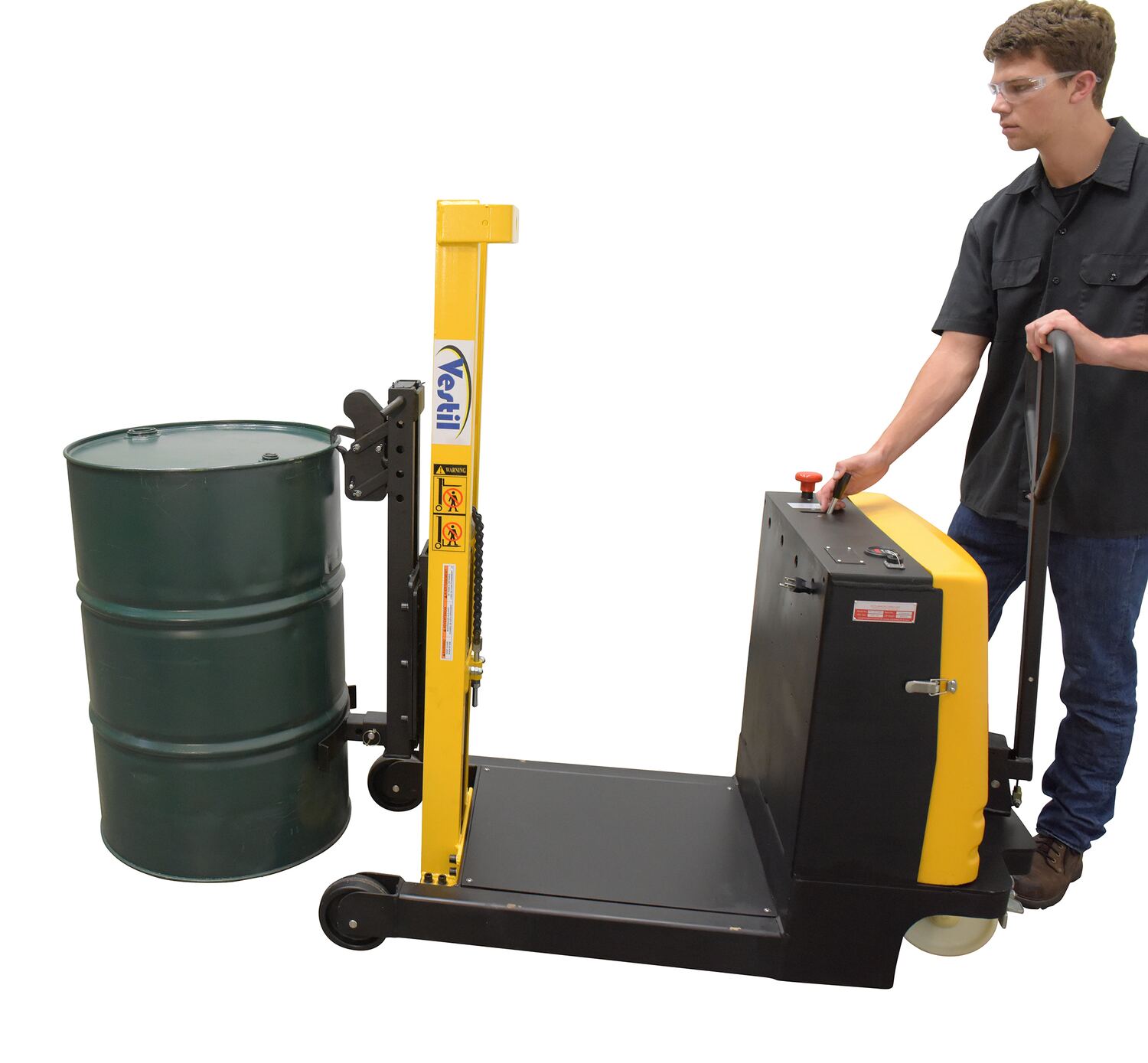

DRLT-CB-54-MDPLManual Drive, Powered Lift - model DRLT-CB-54-MDPL
A counter balanced drum lifter/transporter is an efficient way to move heavy and awkward drums. With a unique design, the structure of the lifter works well in compact areas and while loading/unloading onto pallets or scales. This drum lifter is manually maneuvered between work zones with the accessible driving handle. The 12V powered lift raises and lowers drums quickly and securely.

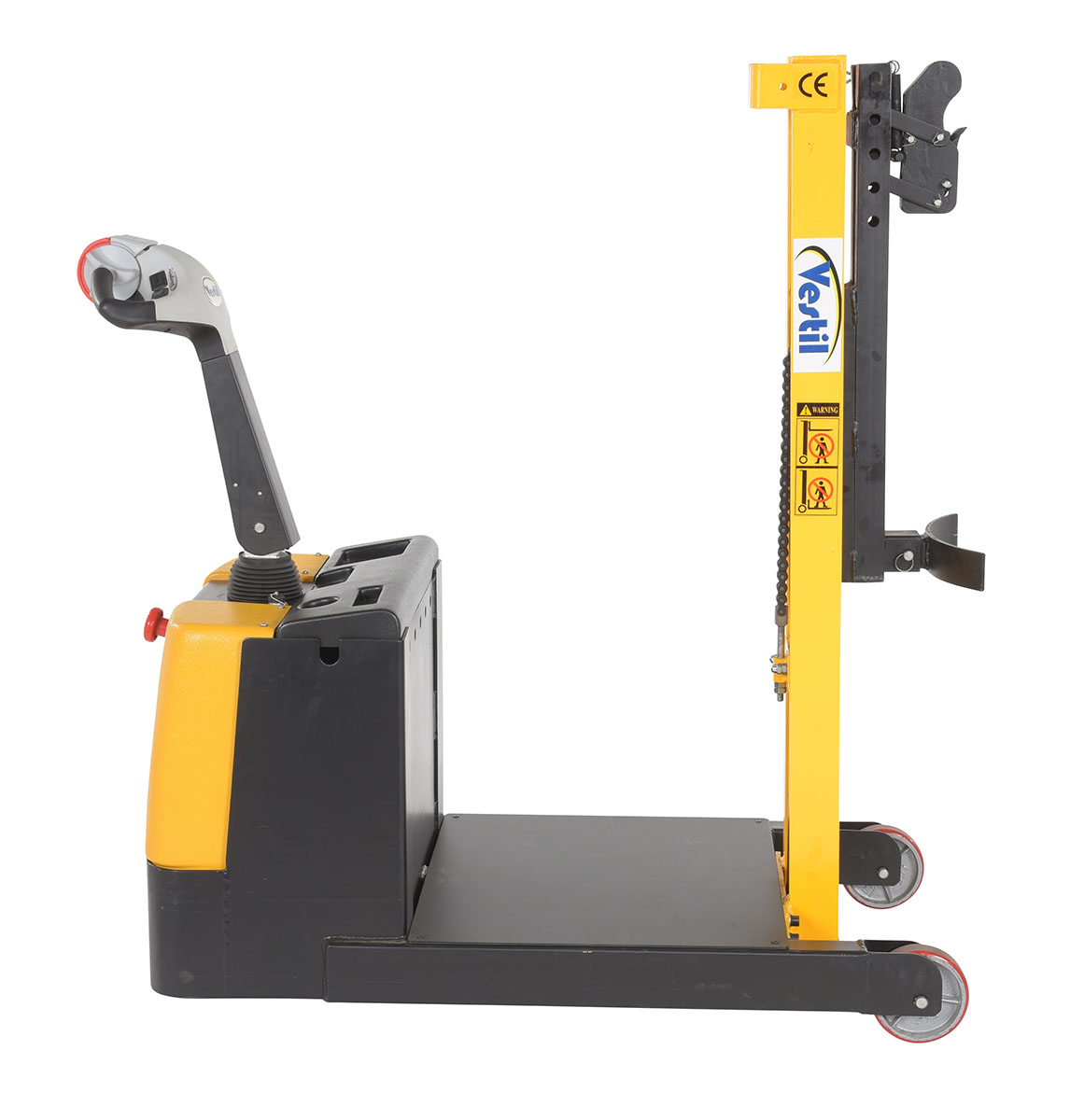

DRLT-CB-54-PDPLPowered Drive, Powered Lift - model DRLT-CB-54-PDPL

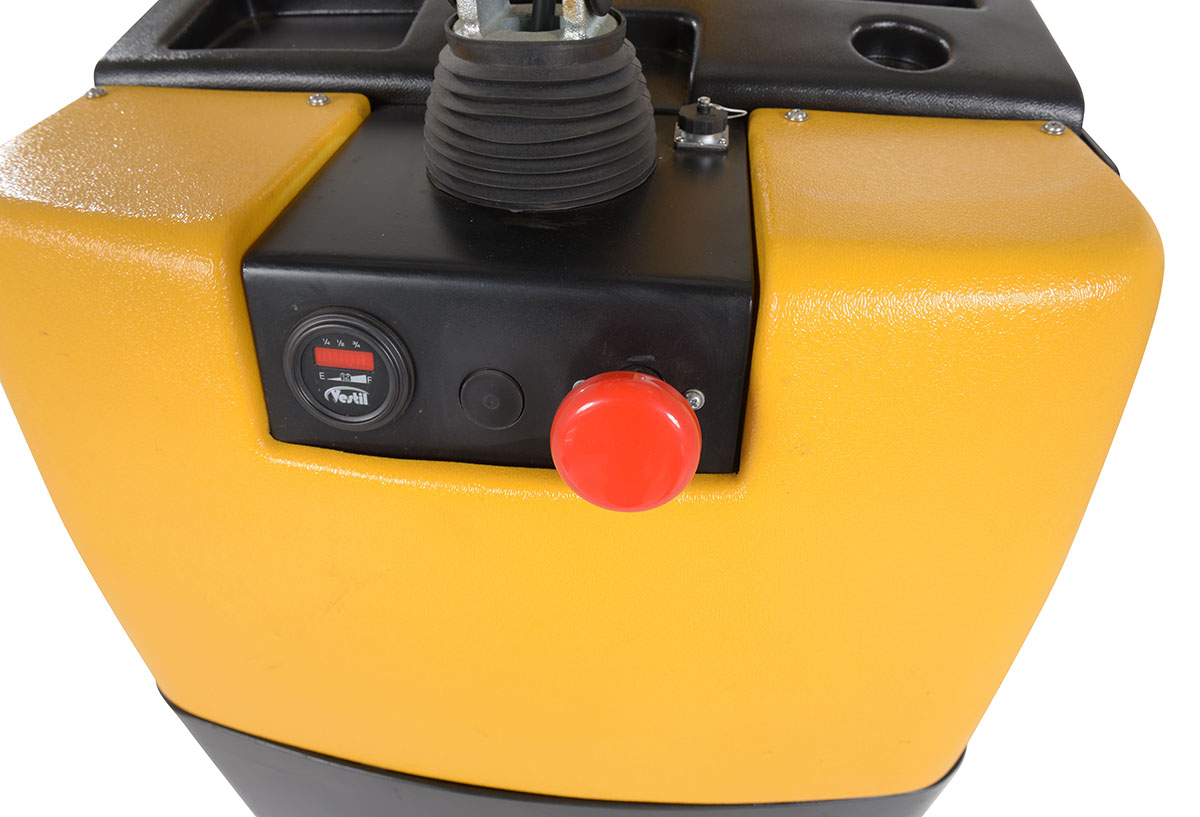

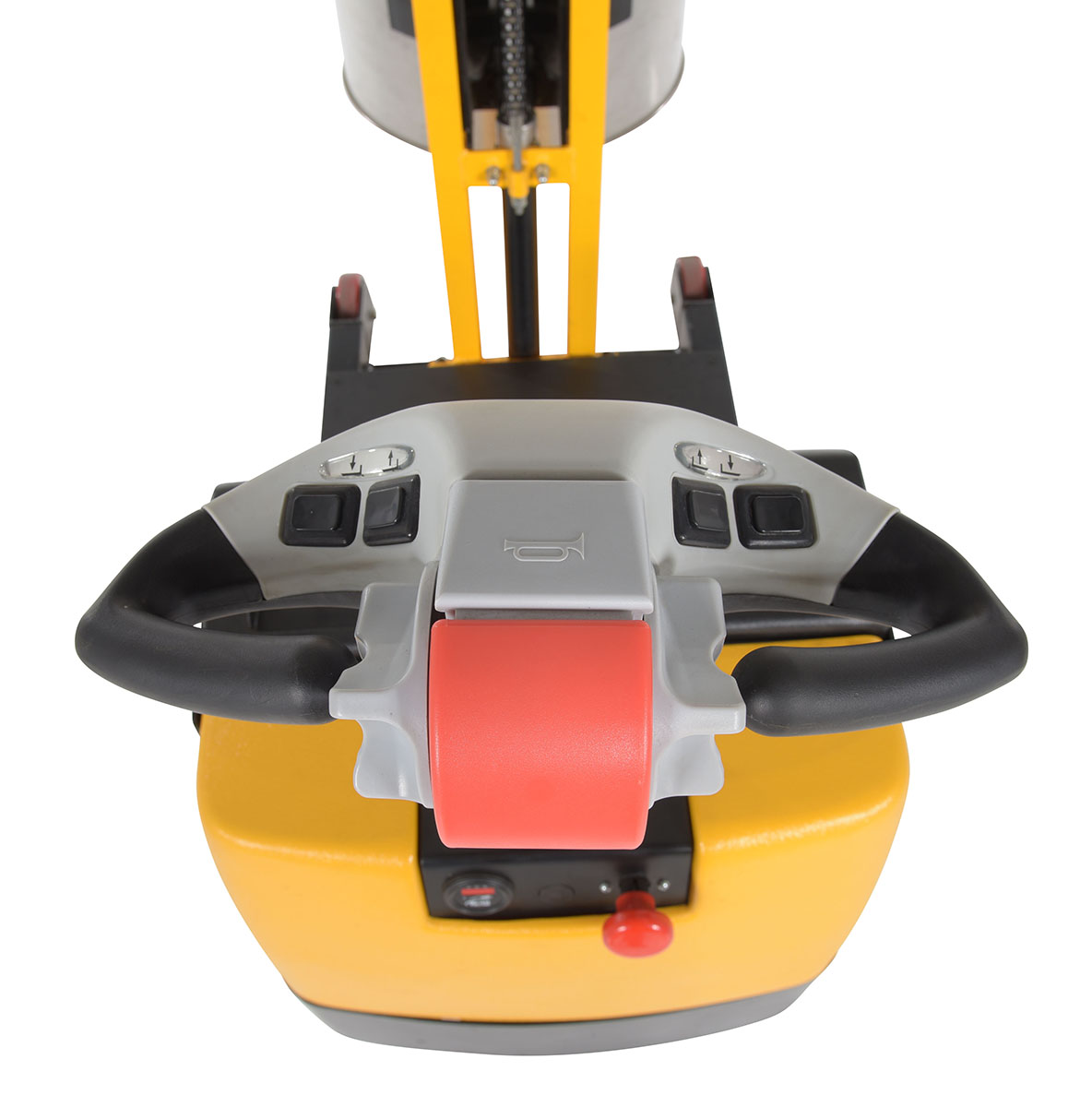

Drums have always been heavy and difficult to move. But, with the counter balanced drum lifter and transporter, those days are over. With a walk behind design and an ergonomic handle, the power and drive controls are quickly within the users' reach. Design is perfectly suited for tight areas and loading/unloading drums onto pallets or scales. This unit includes a 24V powered drive and a powered lift.

Other Drum Transporters, Trucks, Carts & Jacks

 Semi-Electric Powered Drum Gripper Counter Balanced Drum Stackers Manual Low Profile Hydraulic Drum Truck Stainless Steel Drum Trucks

Additional Models In This Family
view entire Image Gallery

DRLT-CB-54-MDML

DRLT-CB-54-MDML

DRLT-CB-54-MDML

DRLT-CB-54-MDML

DRLT-CB-54-PDPL

DRLT-CB-54-PDPL

DRLT-CB-54-PDPL

DRLT-CB-54-PDPL

DRLT-CB-54-MDPL

DRLT-CB-54-MDPL

DRLT-CB-54-MDML

DRLT-CB-54-MDML

DRLT-CB-54-MDPL

DRLT-CB-54-MDPL

DRLT-CB-54-MDML

DRLT-CB-54-MDML

DRLT-CB-54-MDML

DRLT-CB-54-MDML

DRLT-CB-54-MDML

DRLT-CB-54-MDML

DRLT-CB-54-PDPL

DRLT-CB-54-PDPL

DRLT-CB-54-PDPL

DRLT-CB-54-PDPL

DRLT-CB-54-MDML

DRLT-CB-54-MDML

DRLT-CB-54-MDPL

DRLT-CB-54-MDPL

DRLT-CB-54-MDML

DRLT-CB-54-MDML

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DRLT-CB-54-MDML DRLT-CB-54-MDML1 Year Limited WarrantySteel Manual Drive Manual Lift Counter Balanced Drum Stacker 12V 52 In. x 26 In. x 58 In. 700 Lb. Capacity YellowUniform Capacity (lbs.): 700
Raised Height (in.): 49.25		815
DRLT-CB-54-MDPL
DRLT-CB-54-MDPL1 Year Limited WarrantySteel Manual Drive Powered Lift Counter Balanced Drum Stacker 12V 52 In. x 26 In. x 58 In. 700 Lb. Capacity YellowUniform Capacity (lbs.): 700
Lowered Height (in.): 26-3/4"		819
DRLT-CB-54-PDPL
DRLT-CB-54-PDPL1 Year Limited WarrantySteel Powered Drive Powered Lift Counter Balanced Drum Stacker 24V 57 In. x 26 In. x 58 In. 700 Lb. Capacity YellowUniform Capacity (lbs.): 700
Lowered Height (in.): 26-3/4"		787

* Works well with 30, 55, and 85 gallons drums

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

DRLT-CB-54-MDML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 700
Raised Height (in.): 49.25
Uniform Capacity (lbs.): 700
Raised Height (in.): 49.25

DRLT-CB-54-MDPL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 700
Lowered Height (in.): 26-3/4"
Uniform Capacity (lbs.): 700
Lowered Height (in.): 26-3/4"

DRLT-CB-54-PDPL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 700
Lowered Height (in.): 26-3/4"
Uniform Capacity (lbs.): 700
Lowered Height (in.): 26-3/4"
Counter Balanced Drum Stackers PDF's will open in a new window when clicked.

Manuals


DRLT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


DRLT-CB-54-MDPL

DRLT-CB-54-PDPL

Testing Certificates


DRLT-CB-54-MDML

DRLT-CB-54-MDPL

DRLT-CB-54-PDPL

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: DRLT-CB-54-MDPL
Hydraulic Oil SDS Sheet for: DRLT-CB-54-MDPL
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: DRLT-CB-54-PDPL
Hydraulic Oil SDS Sheet for: DRLT-CB-54-PDPL

Other PDF's


Counter Balanced Drum Stackers Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Can the speeds of operation be adjusted?

A: The raise/lower speed is fixed. The drive speed forward/reverse can be adjusted.
