Product Family Overview


Lo-Profile Drum Caddies with Bung Wrench Handle
SERIES: LO-DC

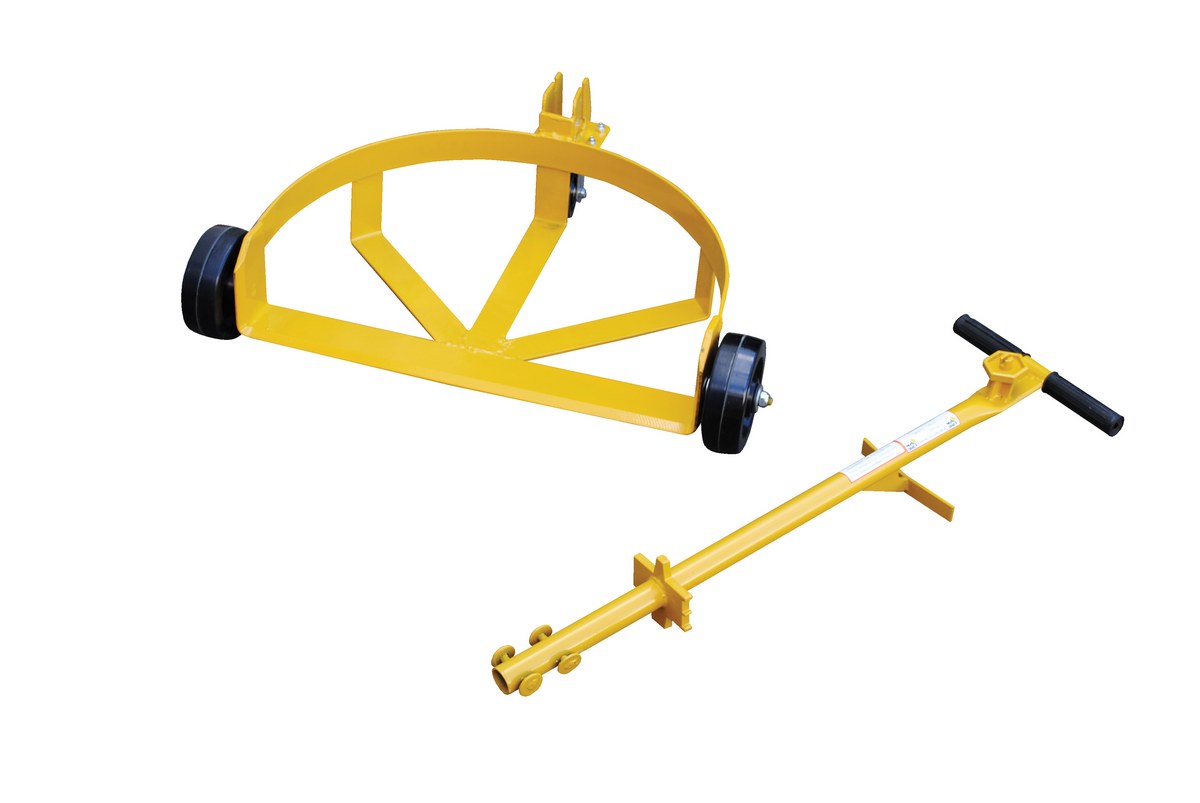

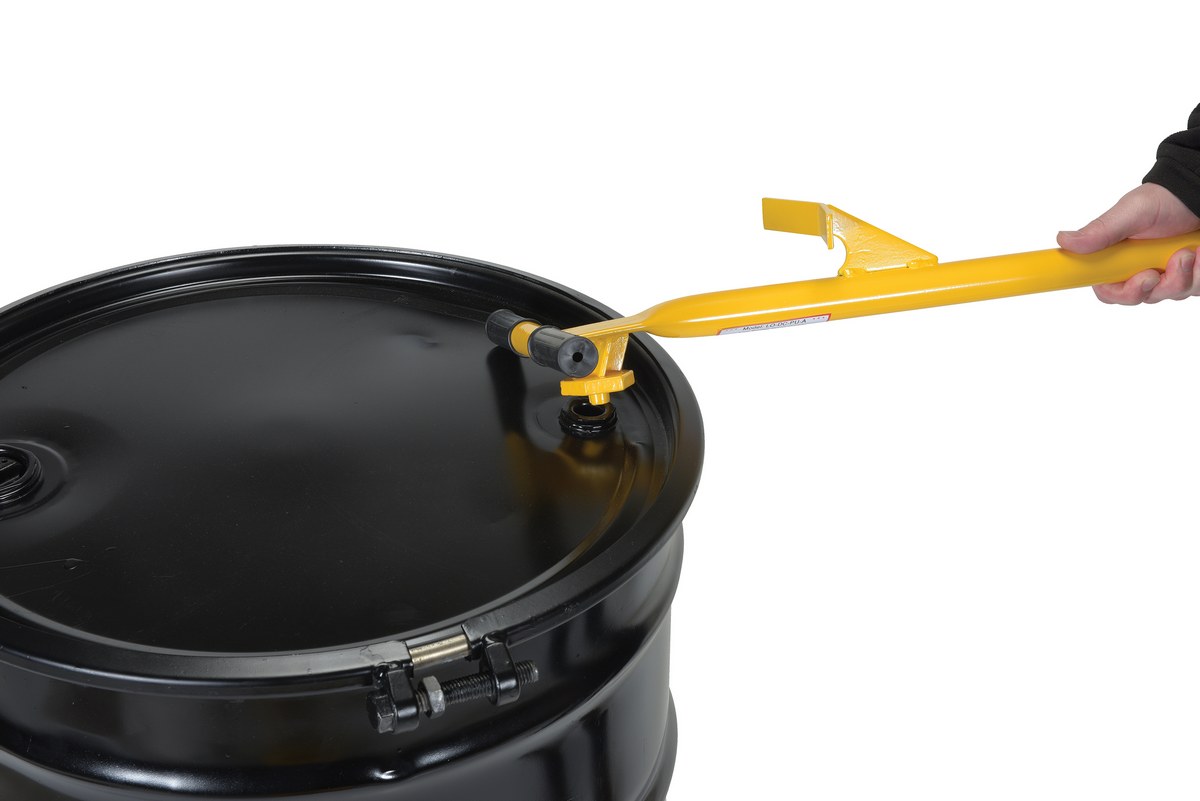

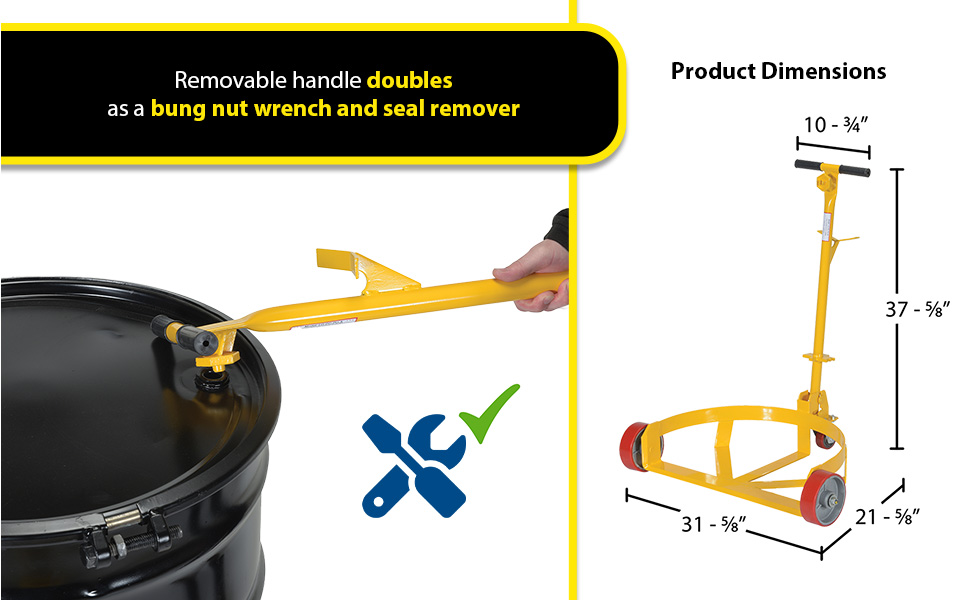

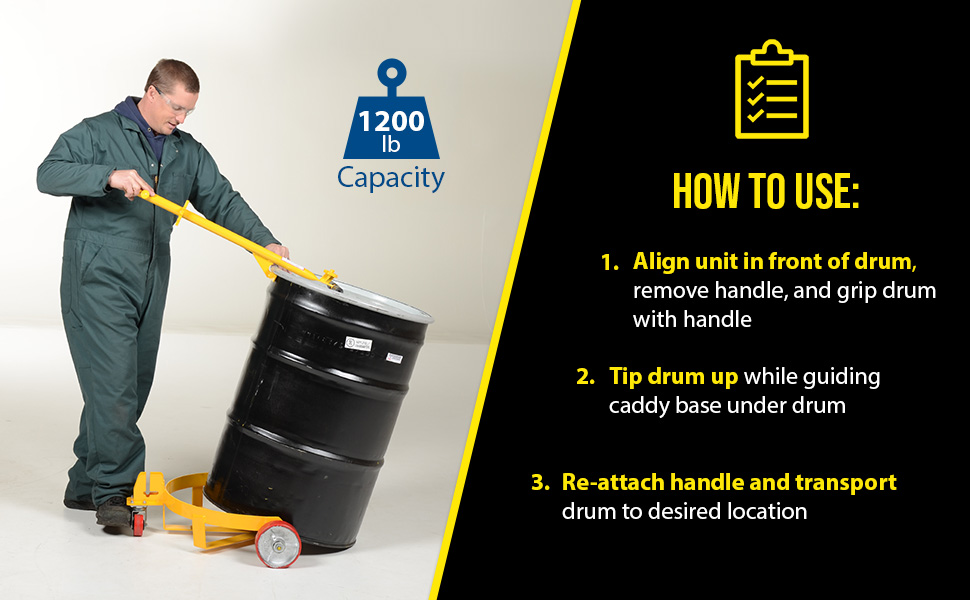

Reduce injuries caused by manually lifting and moving drums. Transport (1) 55 or 30 gallon drum or (2) 5 gallon pails with the Lo-Profile Drum Caddy. To use: align unit in front of drum, remove handle, and grip drum with the handle. Tip drum up while guiding the caddy base under the drum. Re-attach handle and transport drum to desired location. Unit rolls easily on two 6"x2" rigid wheels and one 3"x1" swivel caster. The removable handle doubles as a bung nut wrench and seal remover. Cradle height is 1/2". Inside cradle diameter is 23-1/2". Steel construction. Yellow painted finish. US Patent Number 6682084.

Reduce injuries caused by manually lifting and moving drums. Transport (1) 55 or 30 gallon drum or (2) 5 gallon pails with the Lo-Profile Drum Caddy. To use: align unit in front of drum, remove handle, and grip drum with the handle. Tip drum up while guiding the caddy base under the drum. Re-attach handle and transport drum to desired location. Unit rolls easily on two 6"x2" rigid wheels and one 3"x1" swivel caster. The removable handle doubles as a bung nut wrench and seal remover. Cradle height is 1/2". Inside cradle diameter is 23-1/2". Steel construction. Yellow painted finish. US Patent Number 6682084.

Additional Models In This Family

LO-DC-CI

model LO-DC-CI

LO-DC-MR

model LO-DC-MR

LO-DC-PH

model LO-DC-PH

LO-DC-SCL

model LO-DC-SCL

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

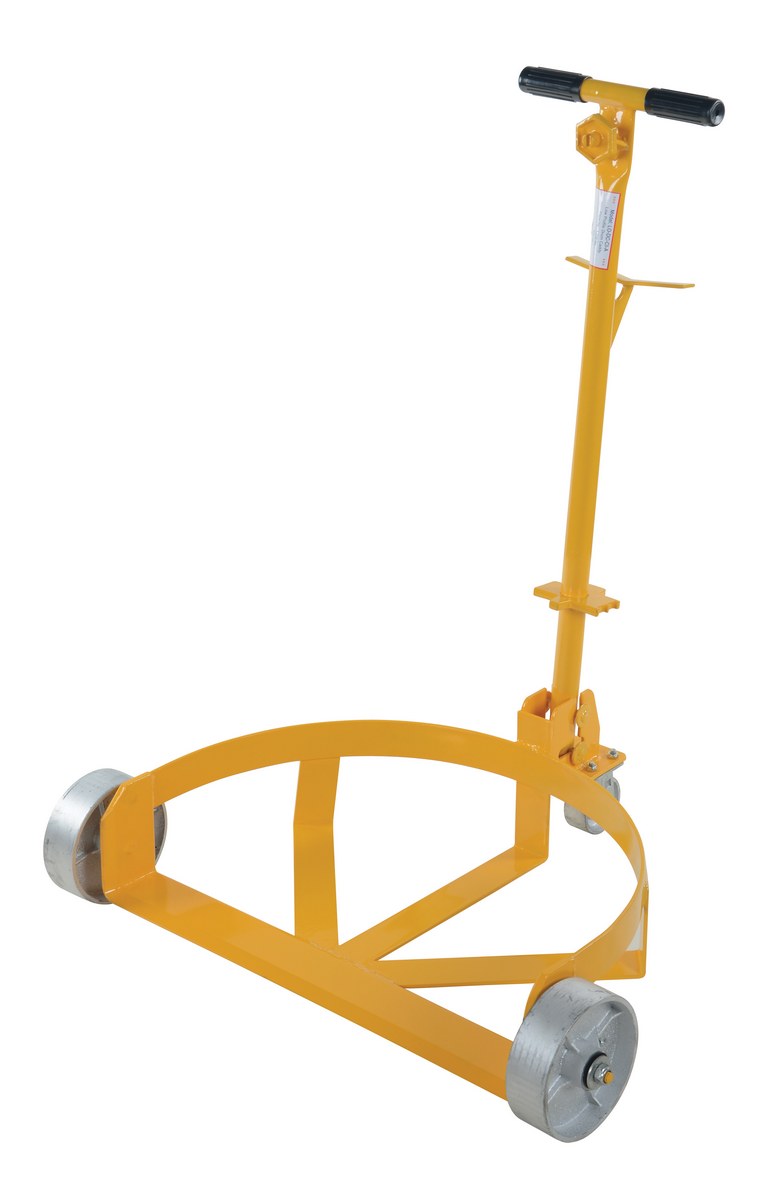

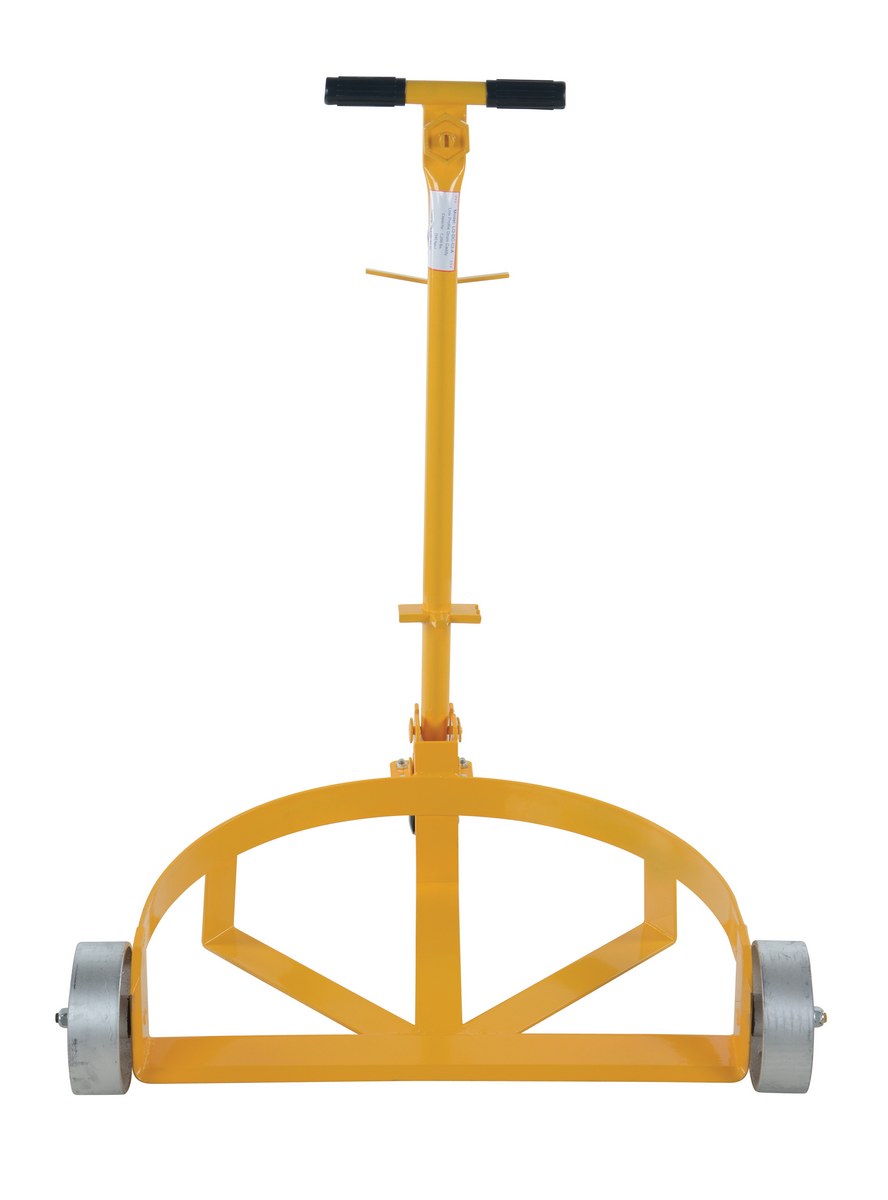

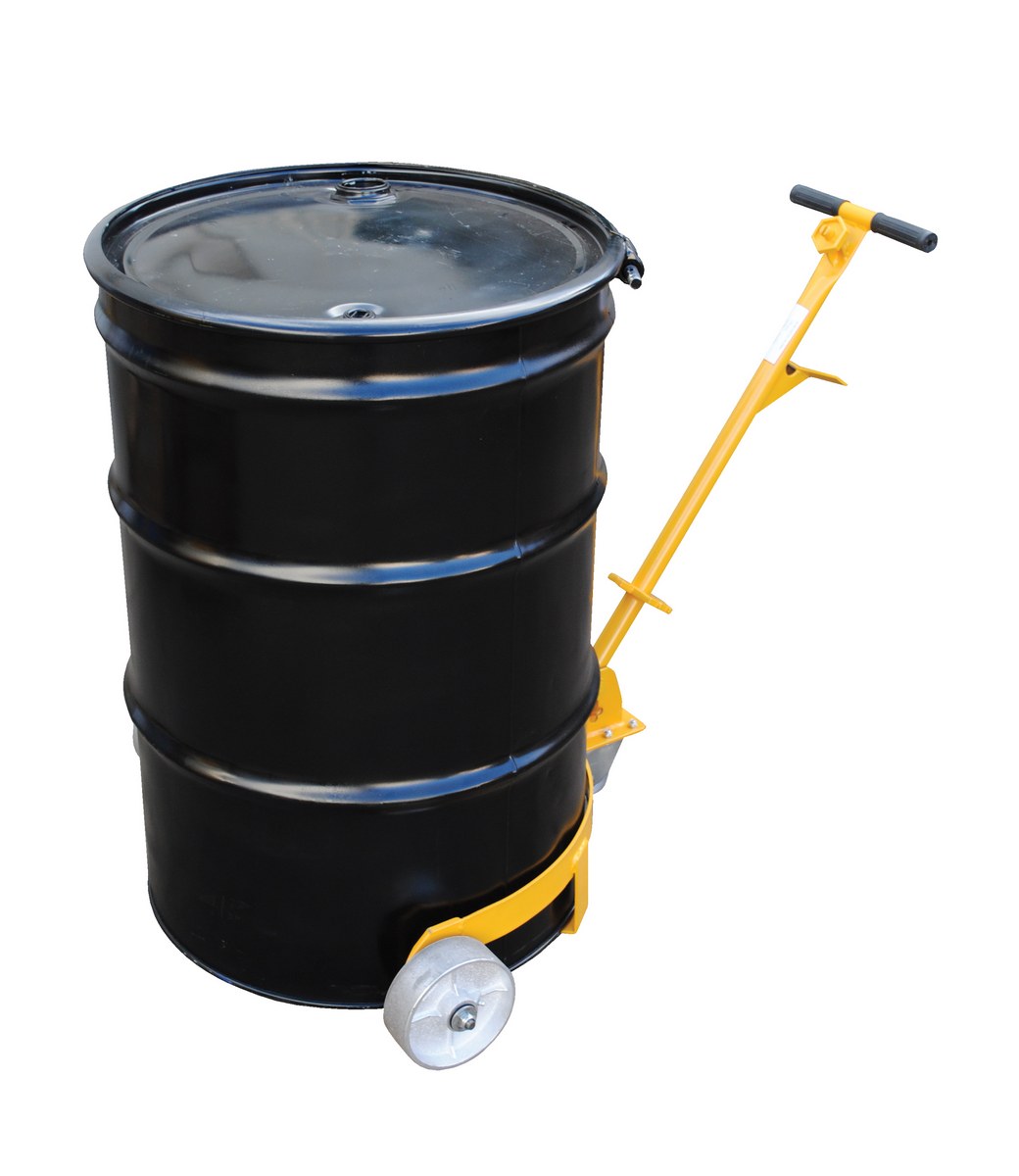

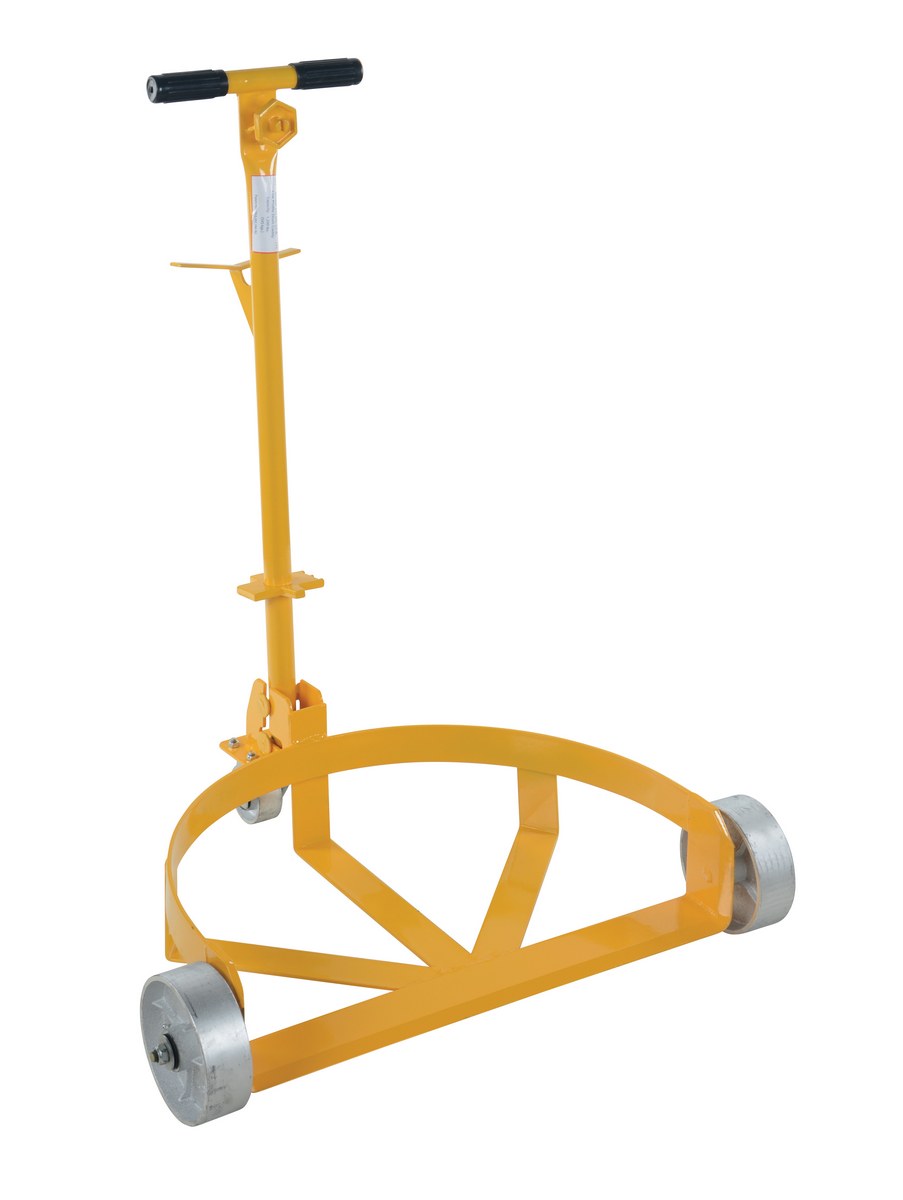

LO-DC-CI LO-DC-CI90 Days Limited WarrantySteel Low Profile Drum Dolly with Steel Casters 21-5/8 In. x 31-5/8 In. x 37-5/8 In. 1200 Lb. Capacity YellowUniform Capacity (lb.): 1,200
Transports (qty./type): (1) 55 gallon drum
47

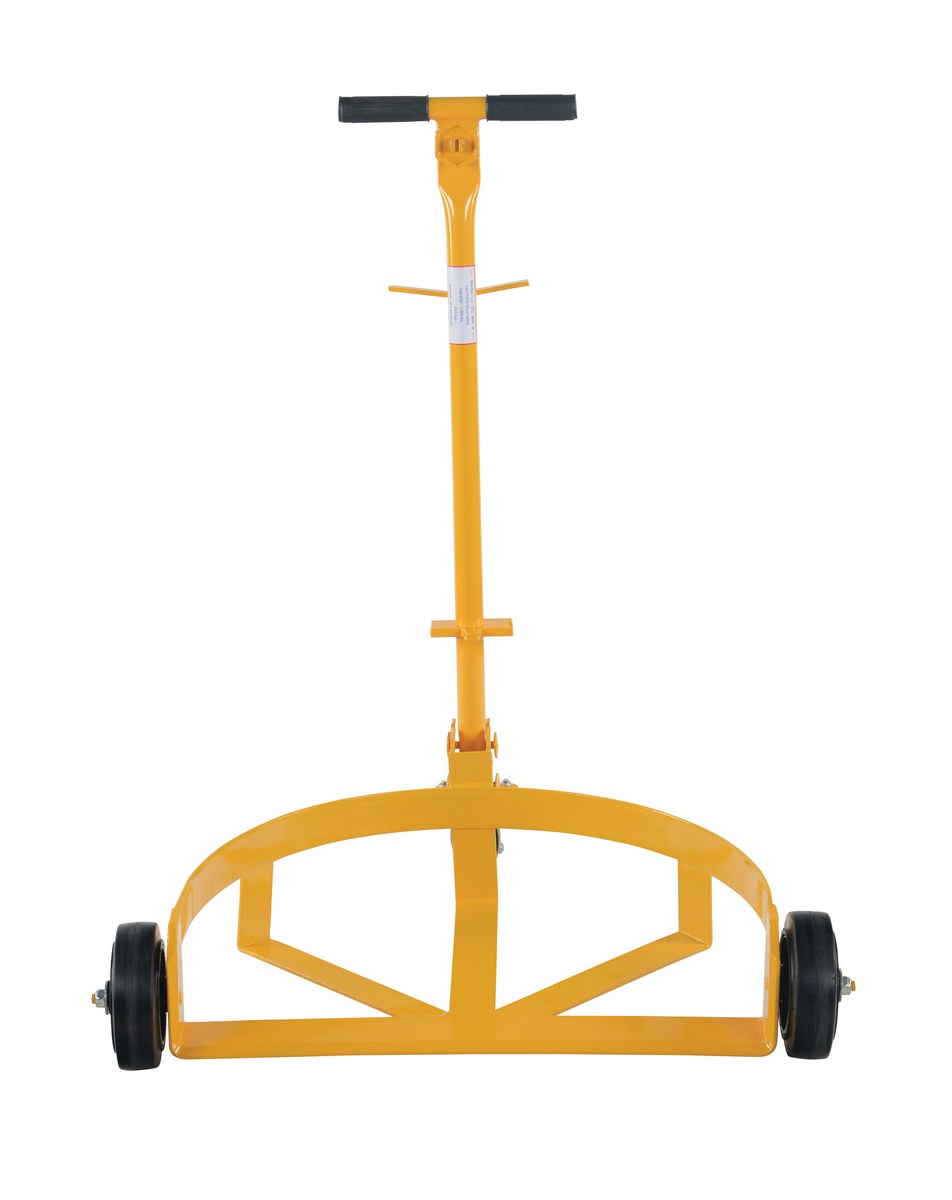

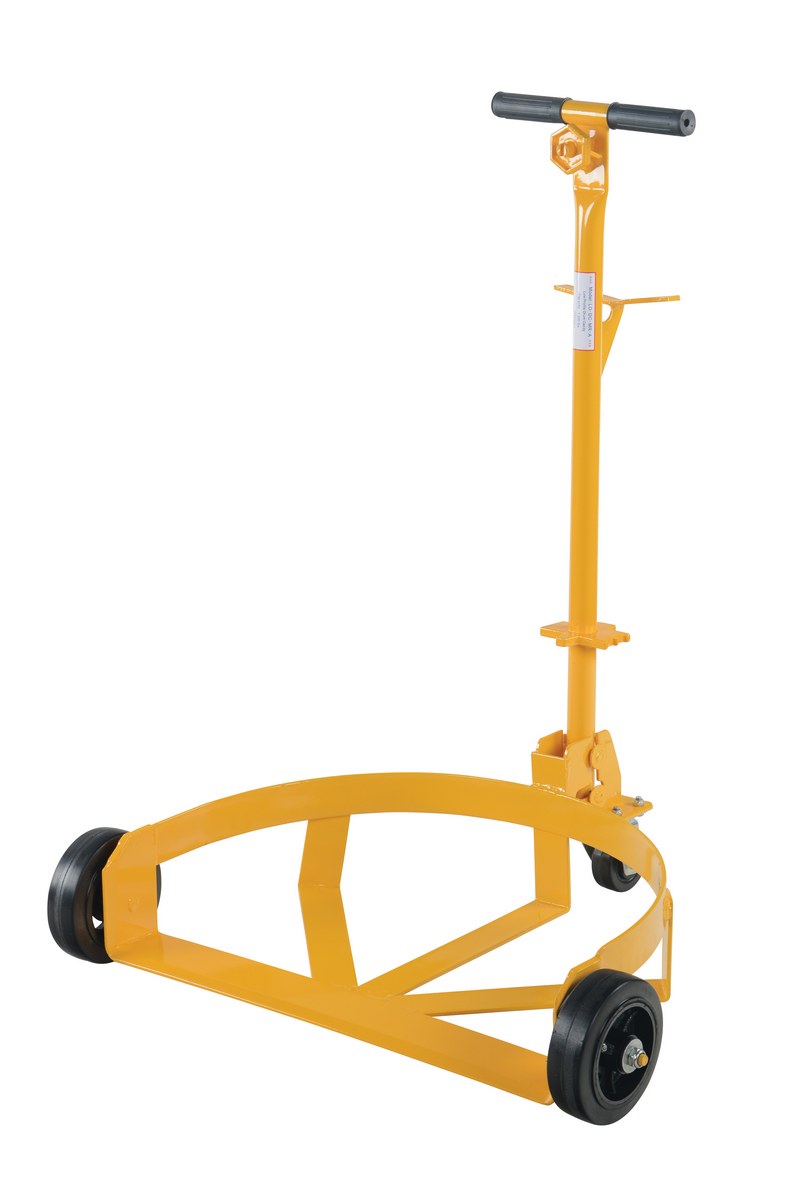

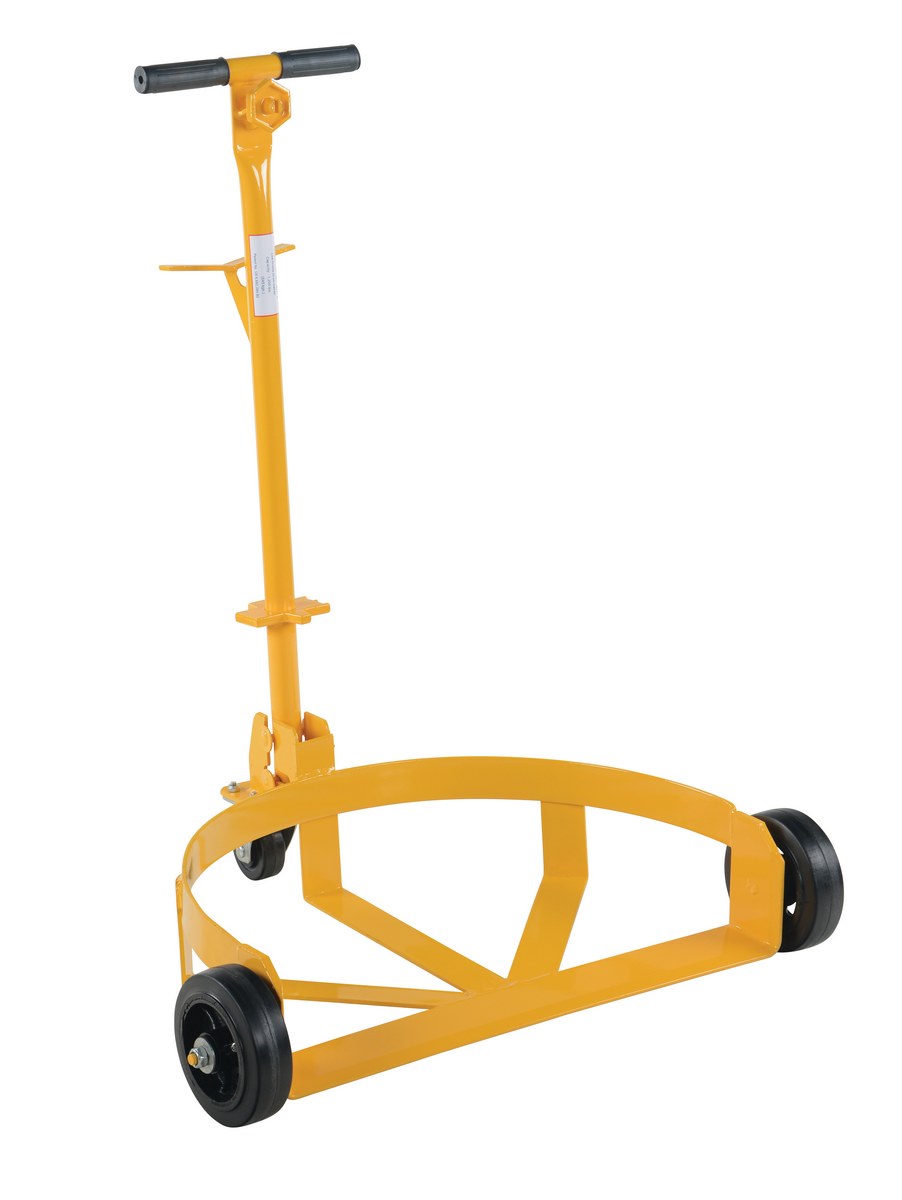

LO-DC-MR LO-DC-MR90 Days Limited WarrantySteel Low Profile Drum Dolly with Mold On Rubber Casters 21-5/8 In. x 31-5/8 In. x 37-5/8 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Transports (qty./type): (1) 55 gallon drum
41

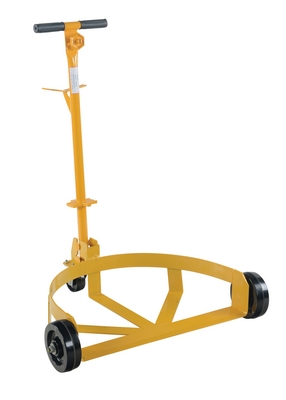

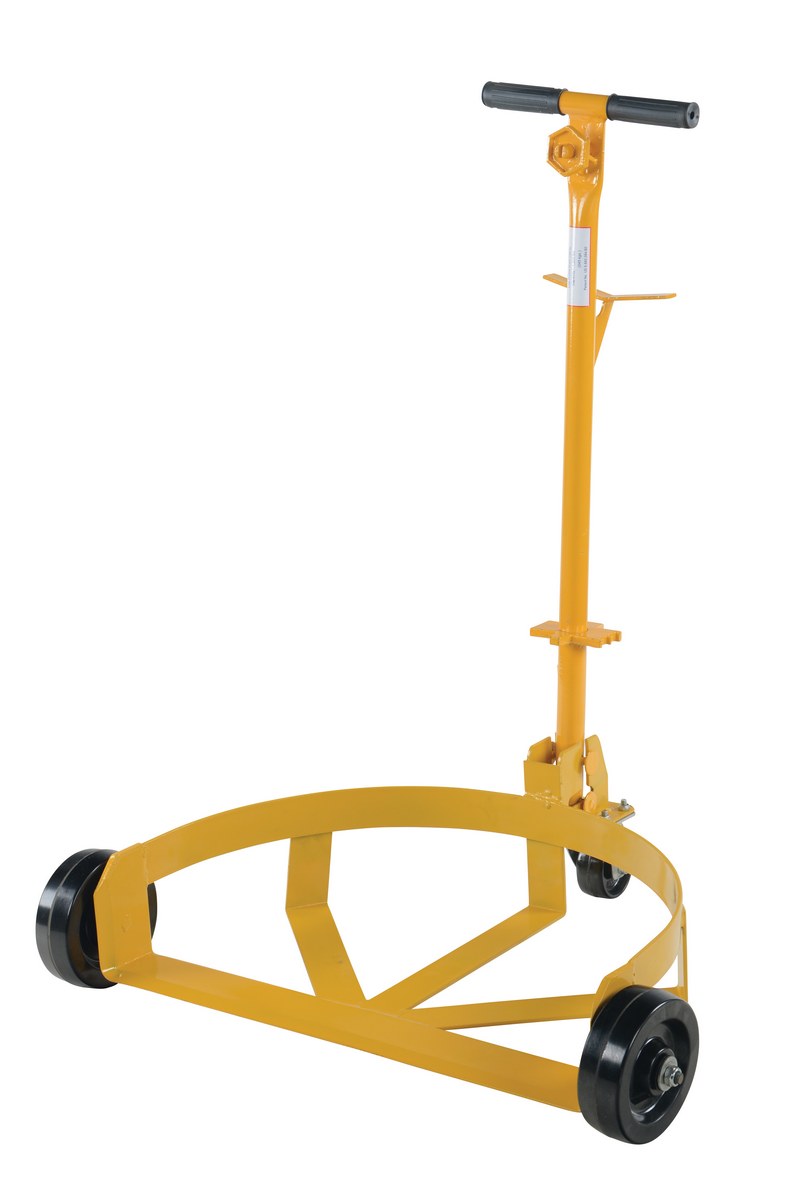

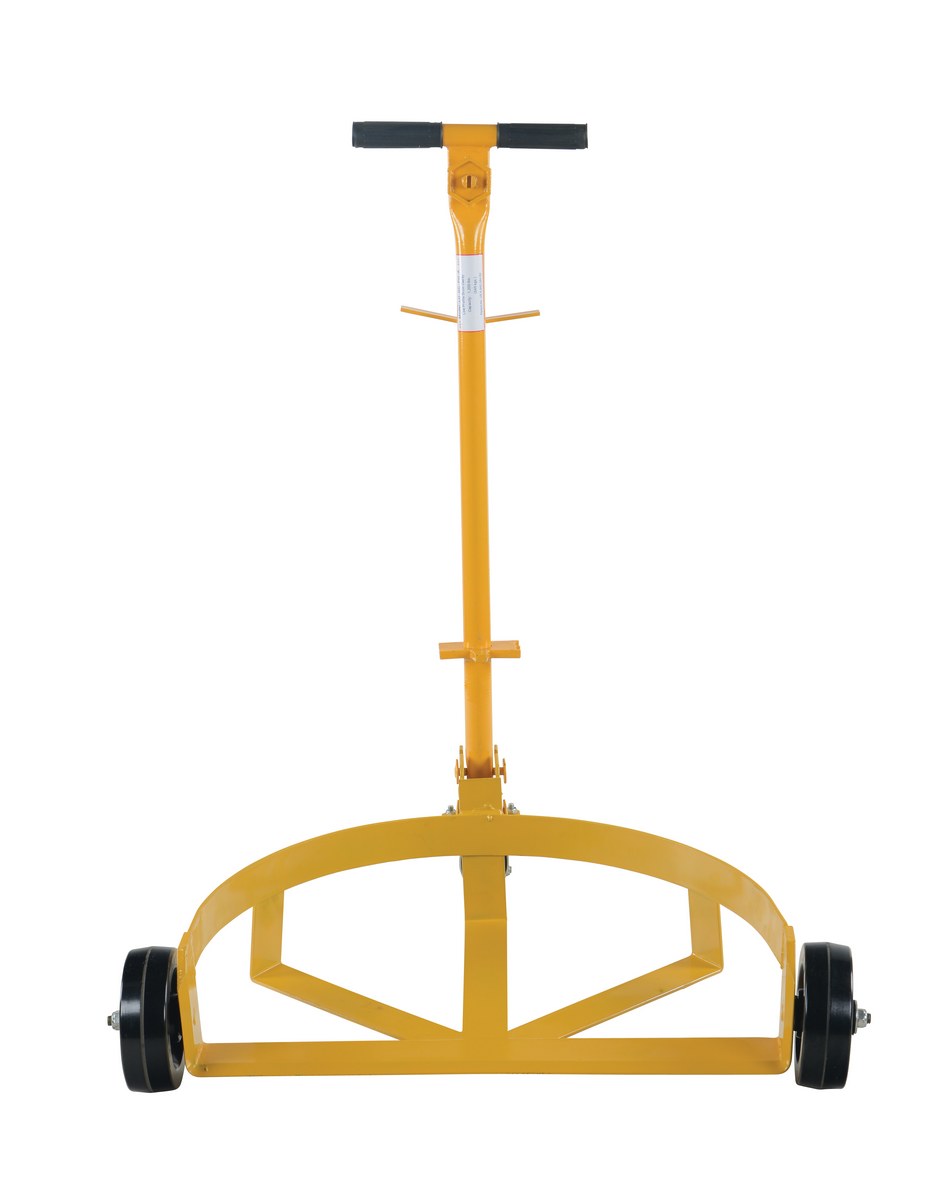

LO-DC-PH LO-DC-PH90 Days Limited WarrantySteel Low Profile Drum Dolly with Phenolic Casters 21-5/8 In. x 31-5/8 In. x 37-5/8 In. 1200 Lb. Capacity YellowUniform Capacity (lb.): 1,200
Transports (qty./type): (1) 55 gallon drum
46

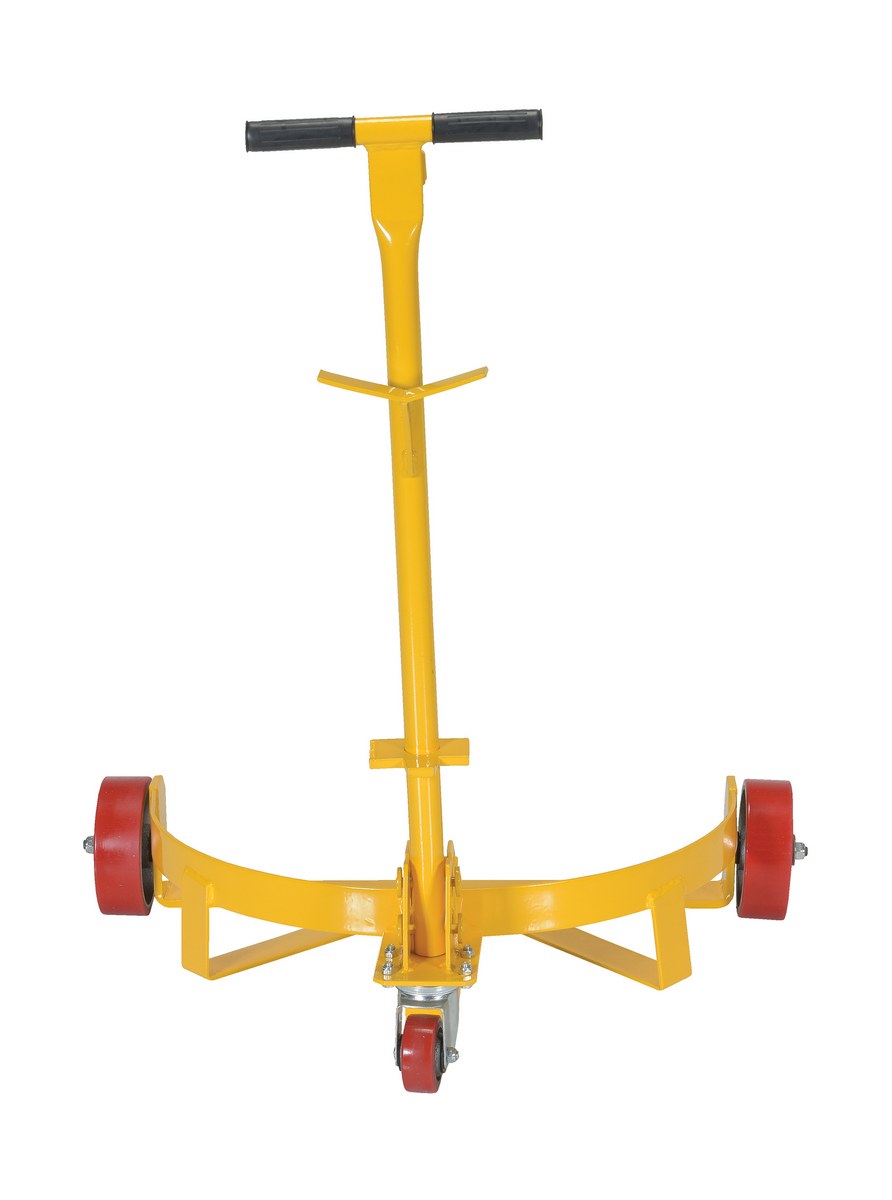

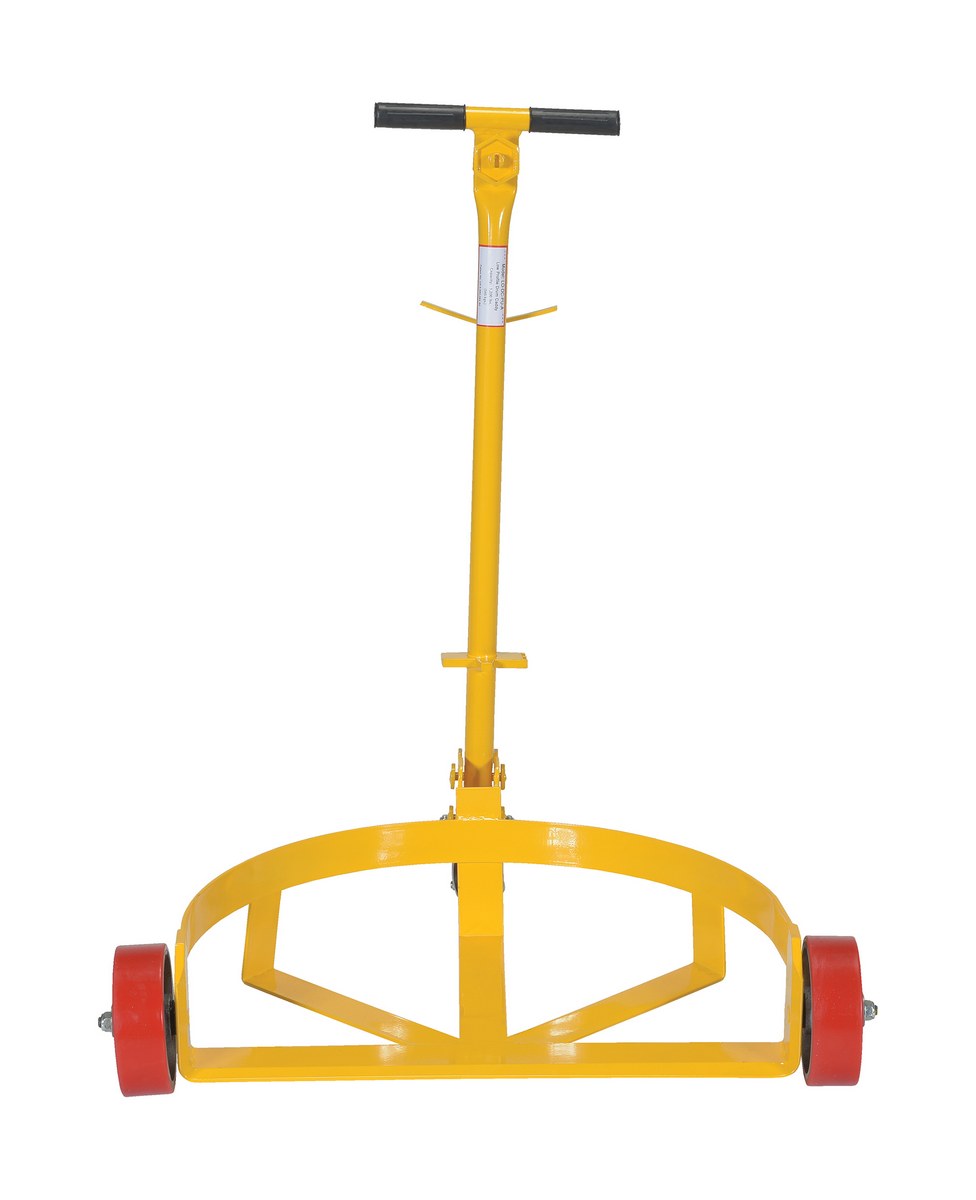

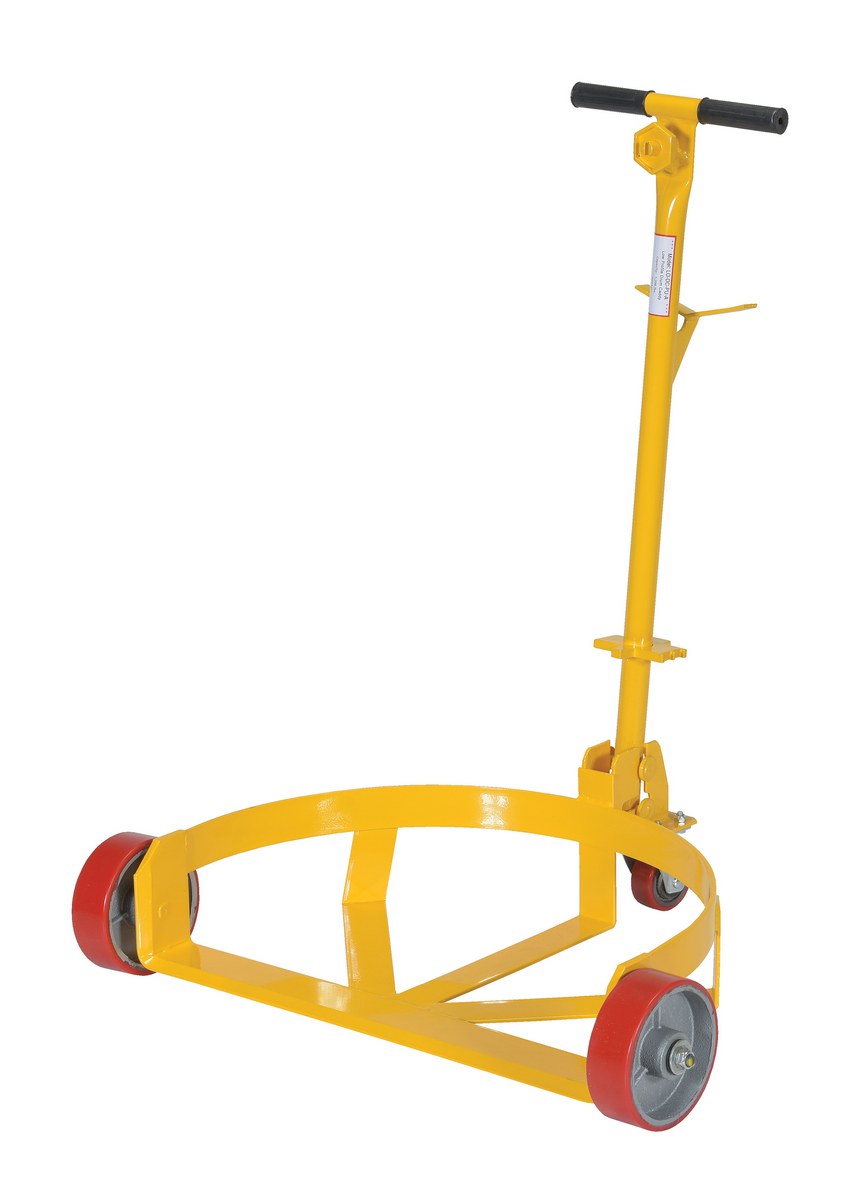

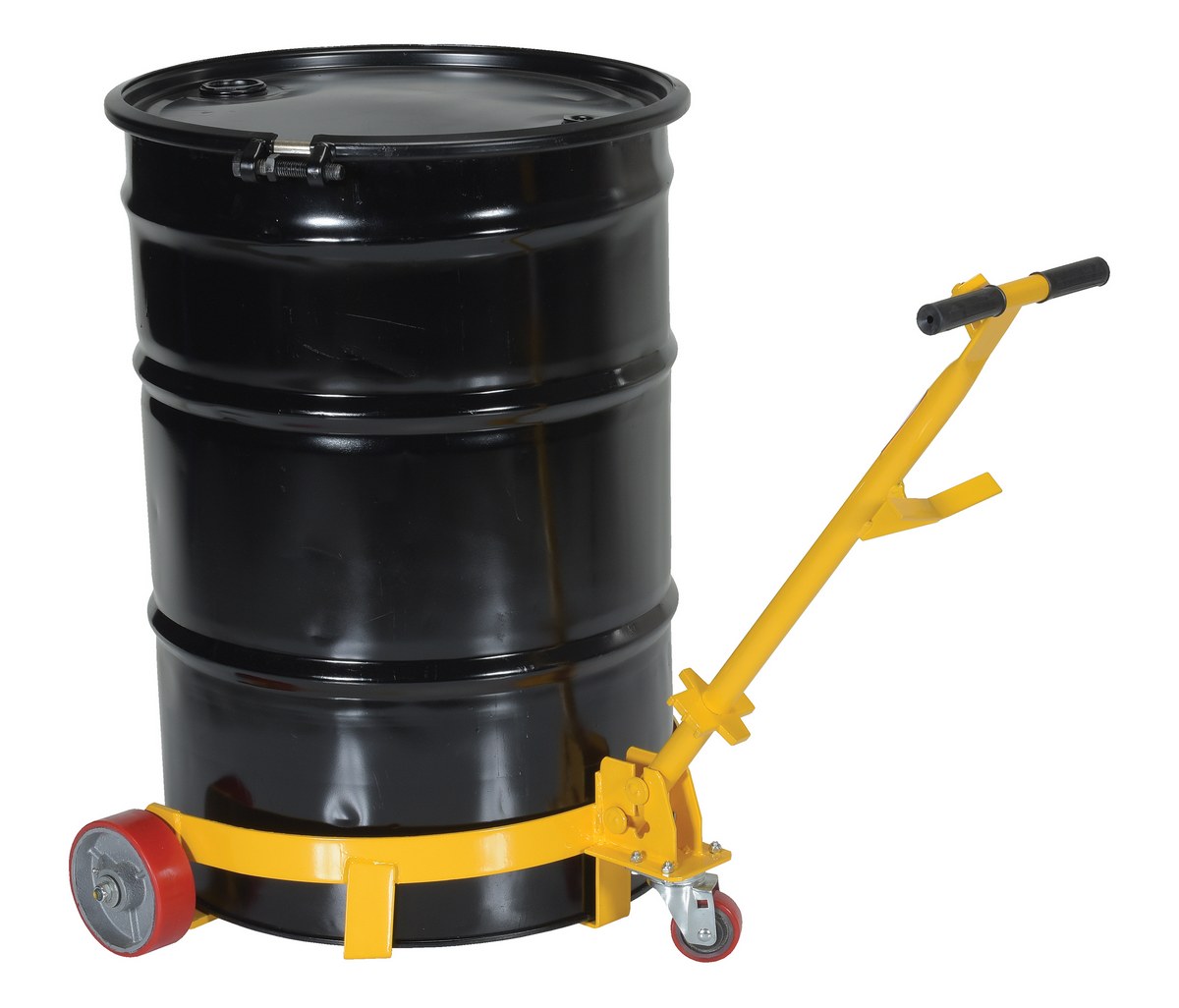

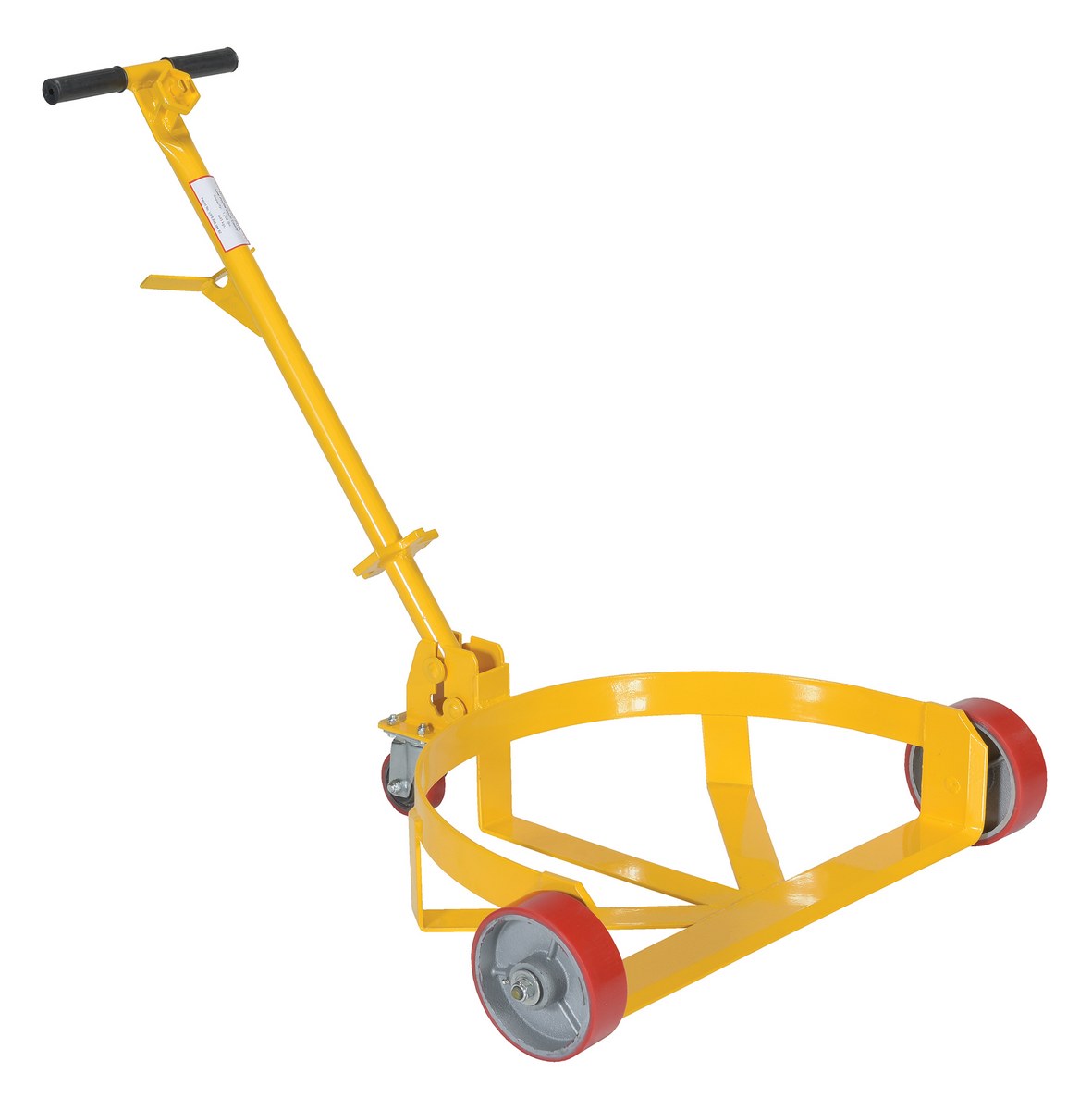

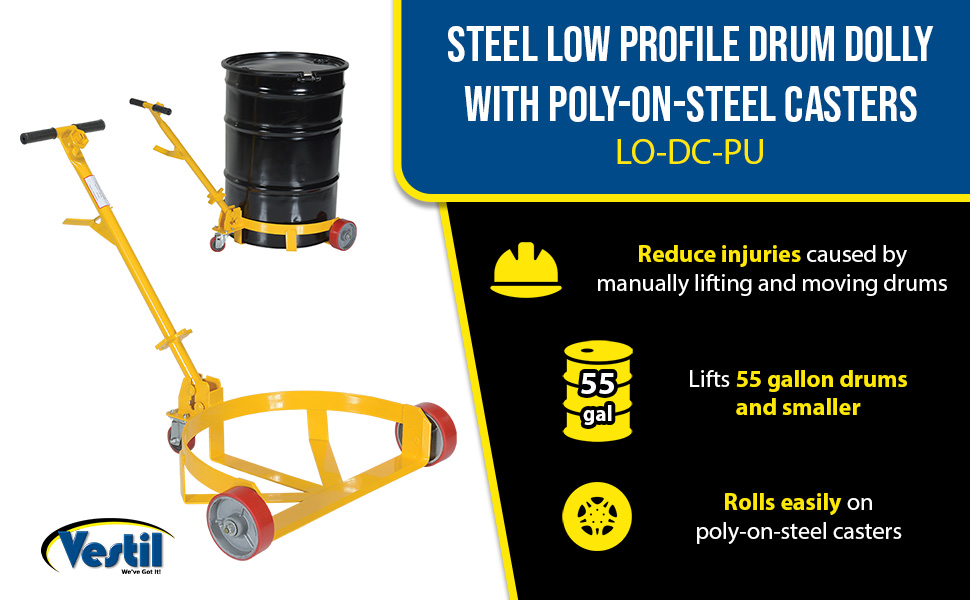

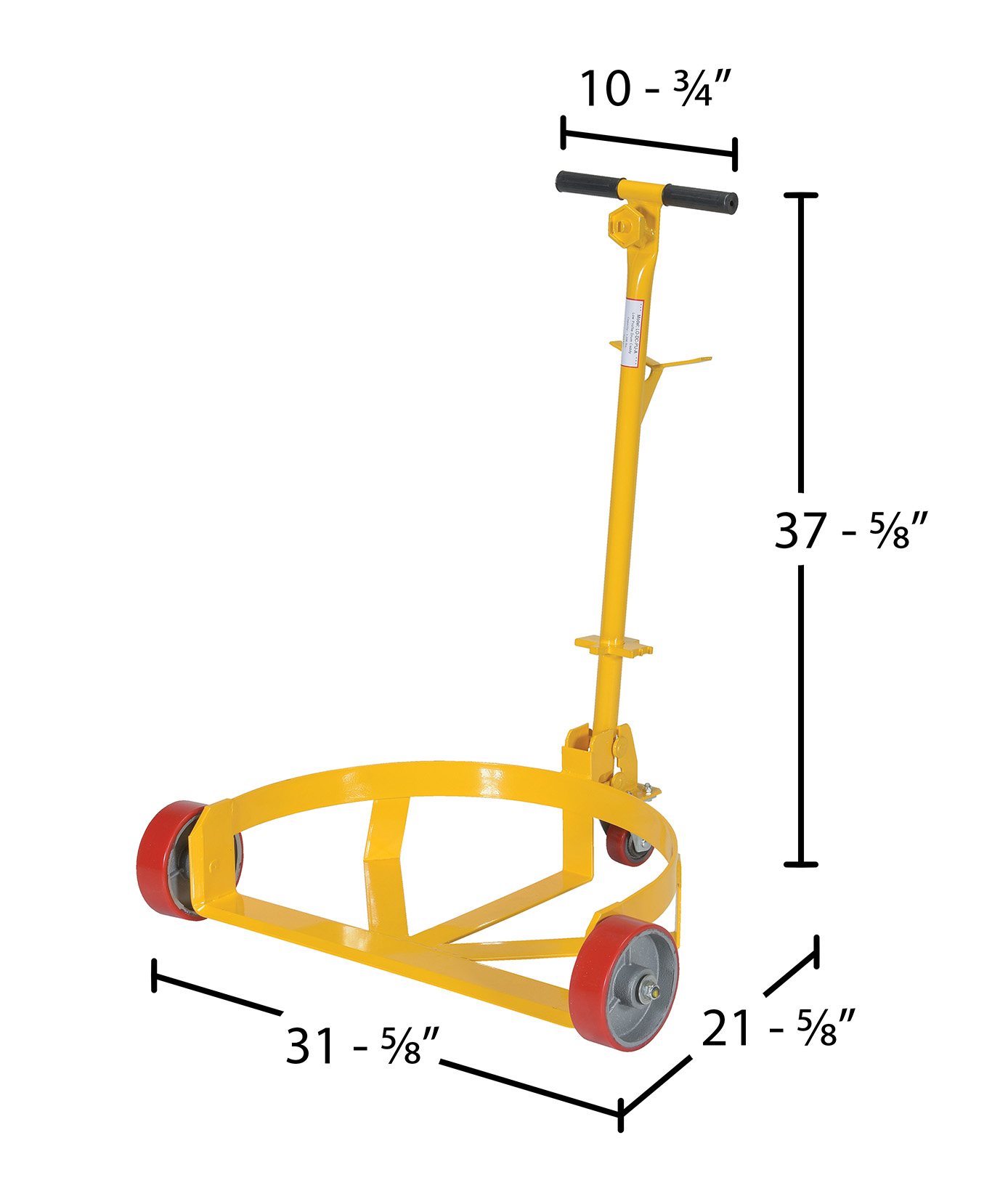

LO-DC-PU LO-DC-PU90 Days Limited WarrantySteel Low Profile Drum Dolly with Poly On Steel Casters 21-5/8 In. x 31-5/8 In. x 37-5/8 In. 1200 Lb. Capacity YellowUniform Capacity (lb.): 1,200
Transports (qty./type): (1) 55 gallon drum
46

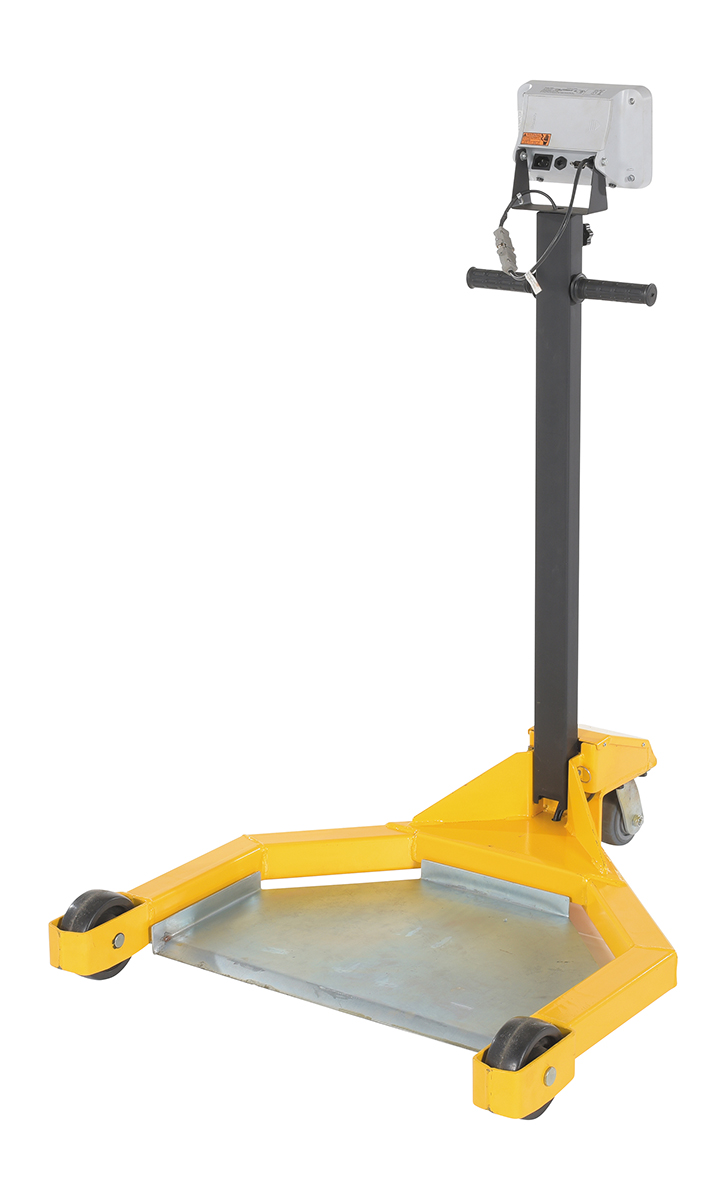

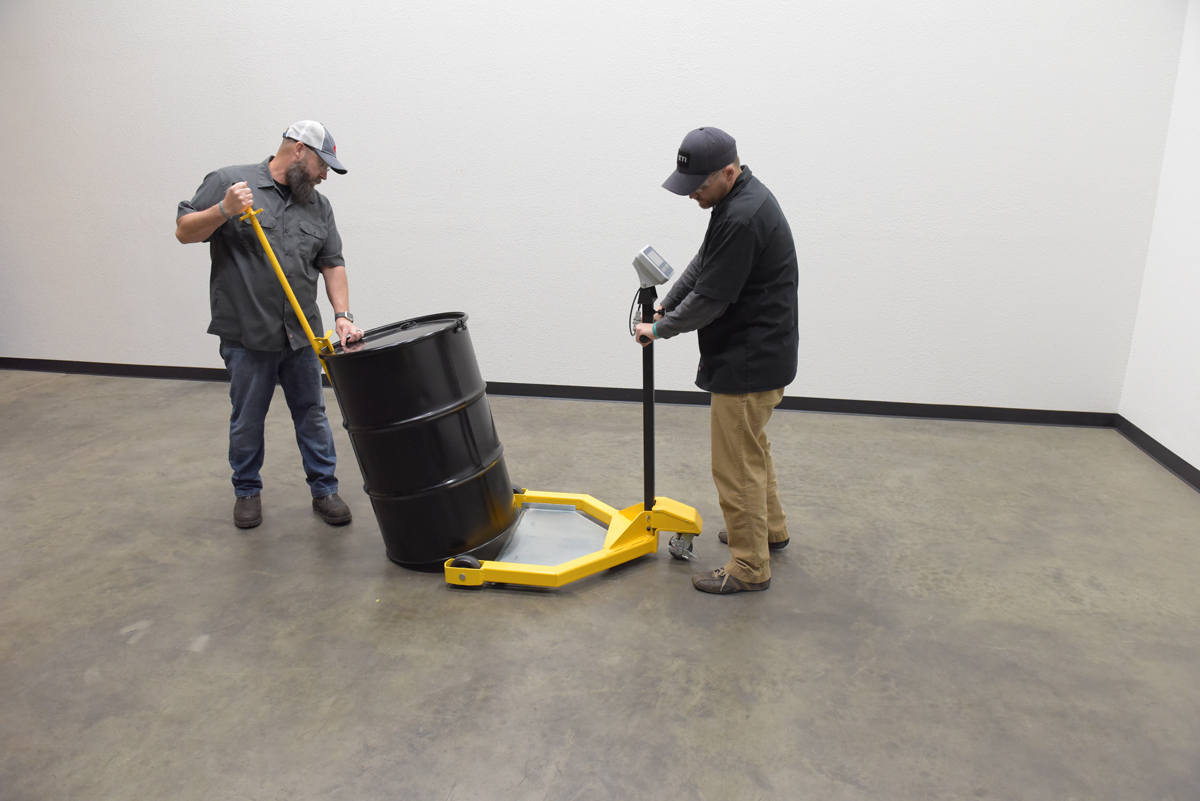

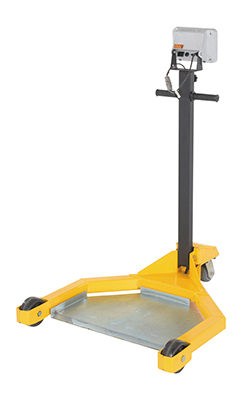

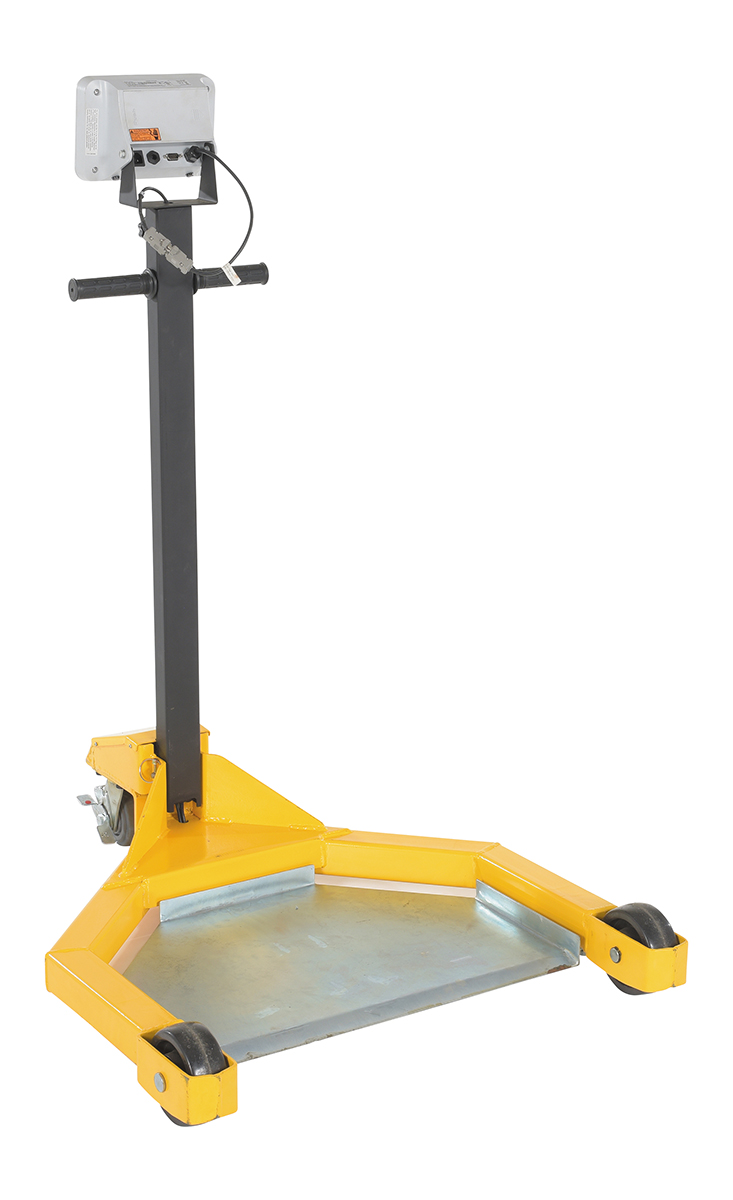

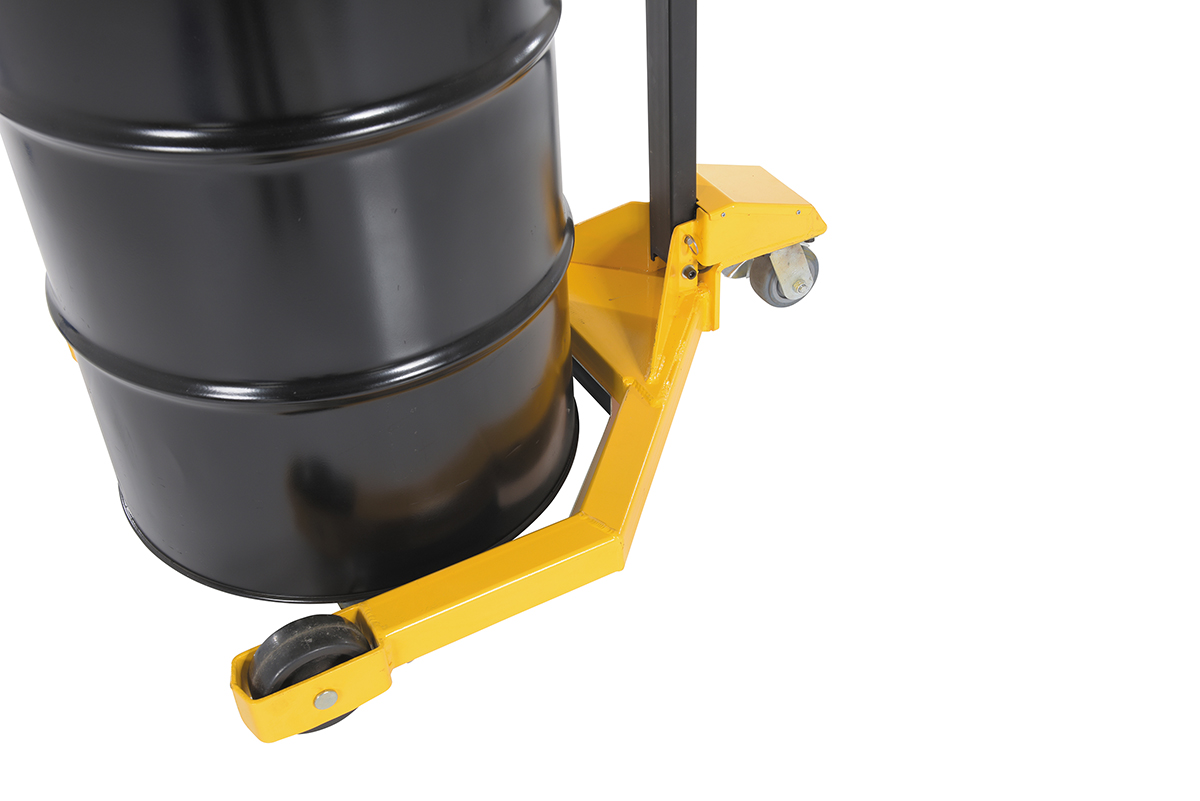

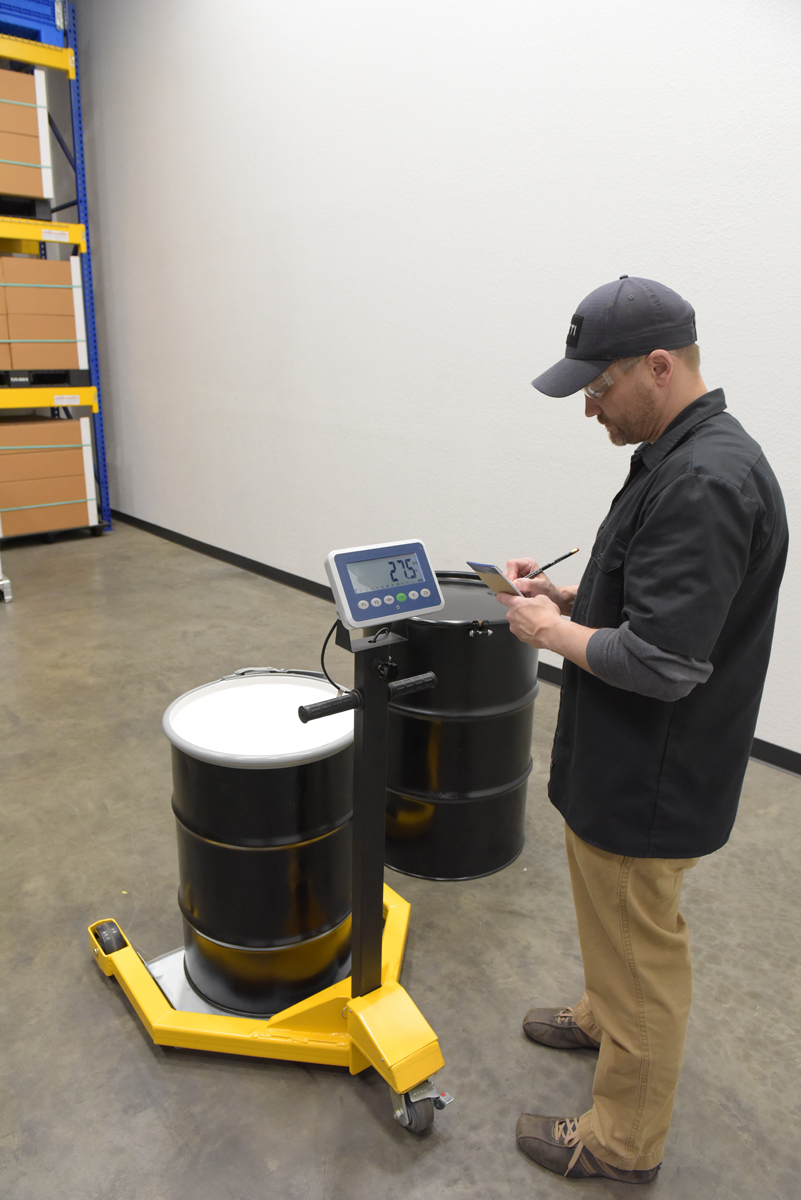

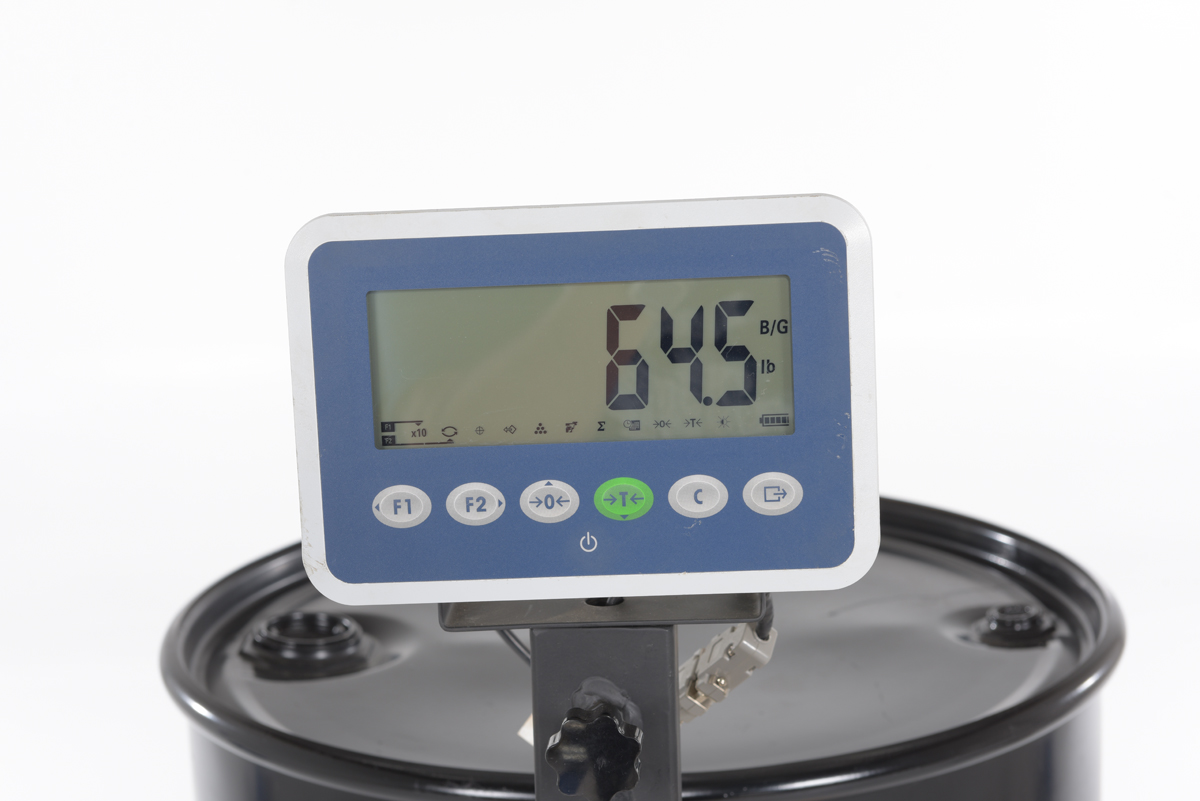

LO-DC-SCL LO-DC-SCL90 Days Limited WarrantySteel Low Profile Drum Dolly with Scale 38-1/2 In. x 31-1/2 In. x 49-1/4 In. 800 Lb. Capacity Black / YellowNet Capacity (lbs): 800
Scale Batteries: (6) AA
142

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

LO-DC-CI
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,200
Transports (qty./type): (1) 55 gallon drum
Uniform Capacity (lb.): 1,200
Transports (qty./type): (1) 55 gallon drum

LO-DC-MR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Transports (qty./type): (1) 55 gallon drum
Uniform Capacity (lb.): 1,000
Transports (qty./type): (1) 55 gallon drum

LO-DC-PH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,200
Transports (qty./type): (1) 55 gallon drum
Uniform Capacity (lb.): 1,200
Transports (qty./type): (1) 55 gallon drum

LO-DC-PU
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,200
Transports (qty./type): (1) 55 gallon drum
Uniform Capacity (lb.): 1,200
Transports (qty./type): (1) 55 gallon drum

LO-DC-SCL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Net Capacity (lbs): 800
Scale Batteries: (6) AA
Net Capacity (lbs): 800
Scale Batteries: (6) AA

Lo-Profile Drum Caddies with Bung Wrench Handle PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


LO-DC-CI

LO-DC-MR

LO-DC-PH

LO-DC-PU

LO-DC-SCL

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the dimension of the platform on the LO-DC-SCL?

A: The platform measures 24-3/4 in wide X 17 in deep.
