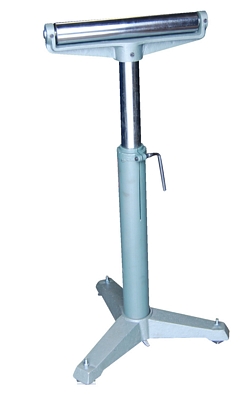

model STAND-G-H
SERIES: STAND


Deluxe Roller Stands

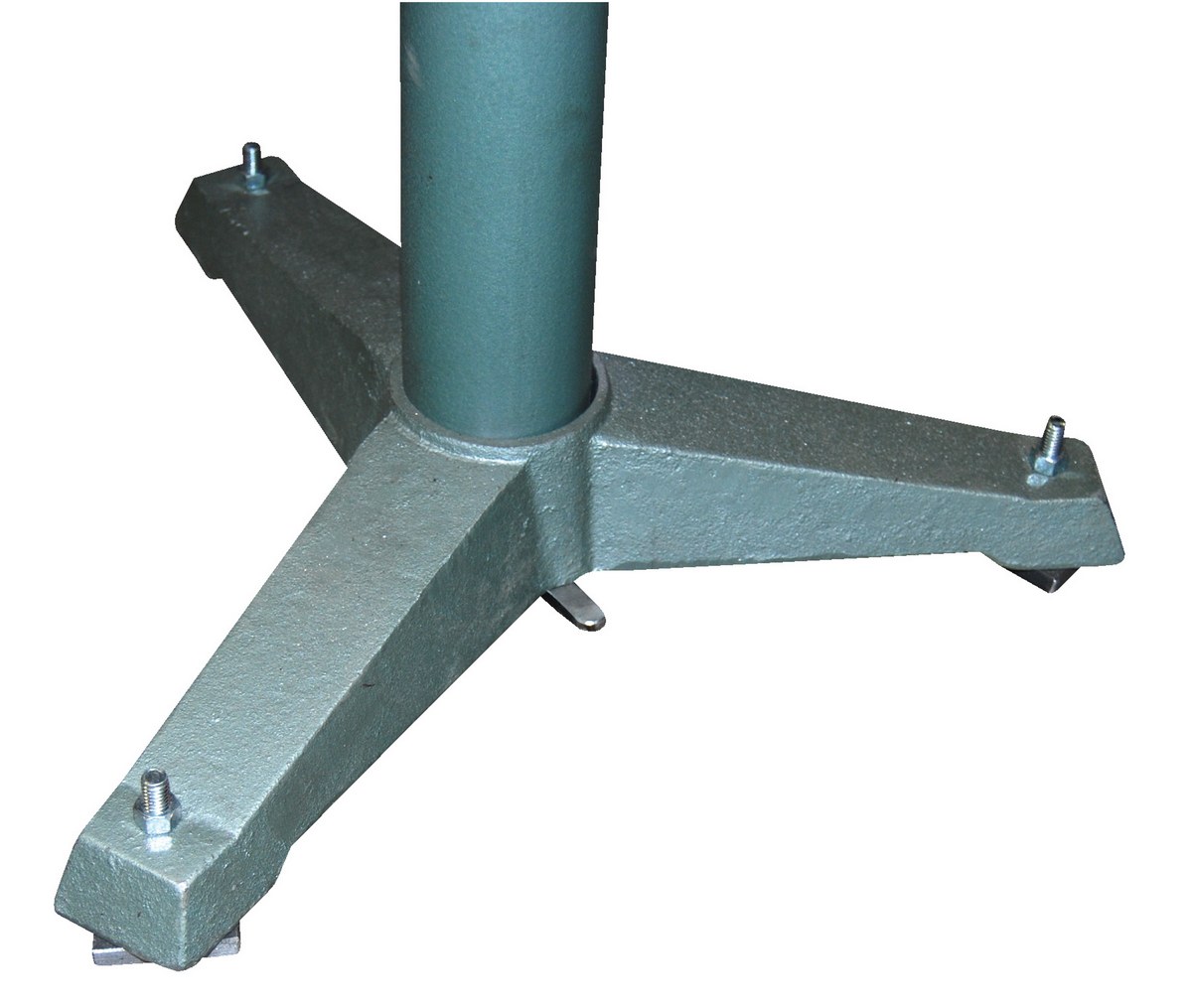

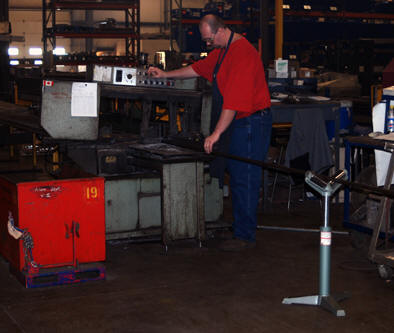

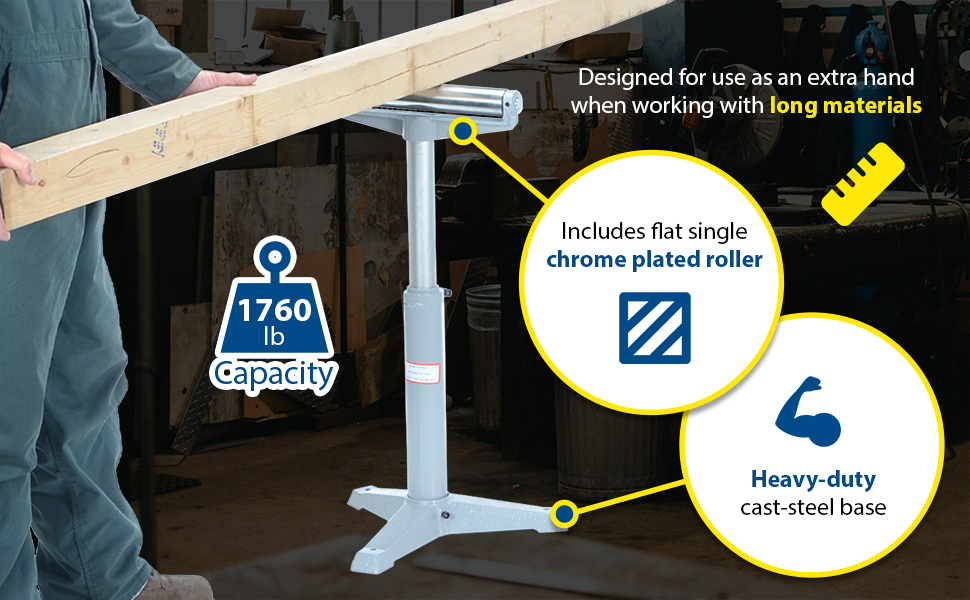

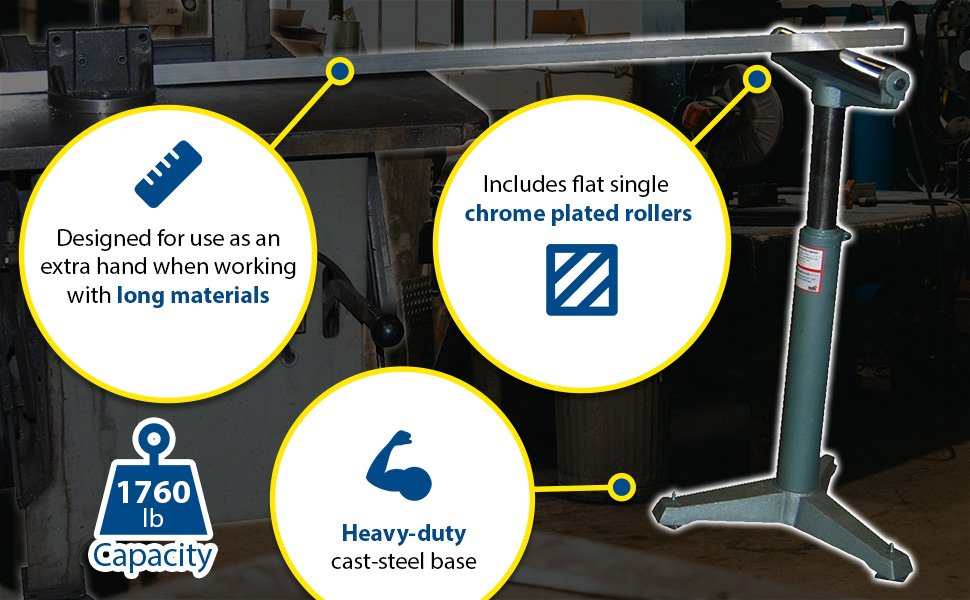

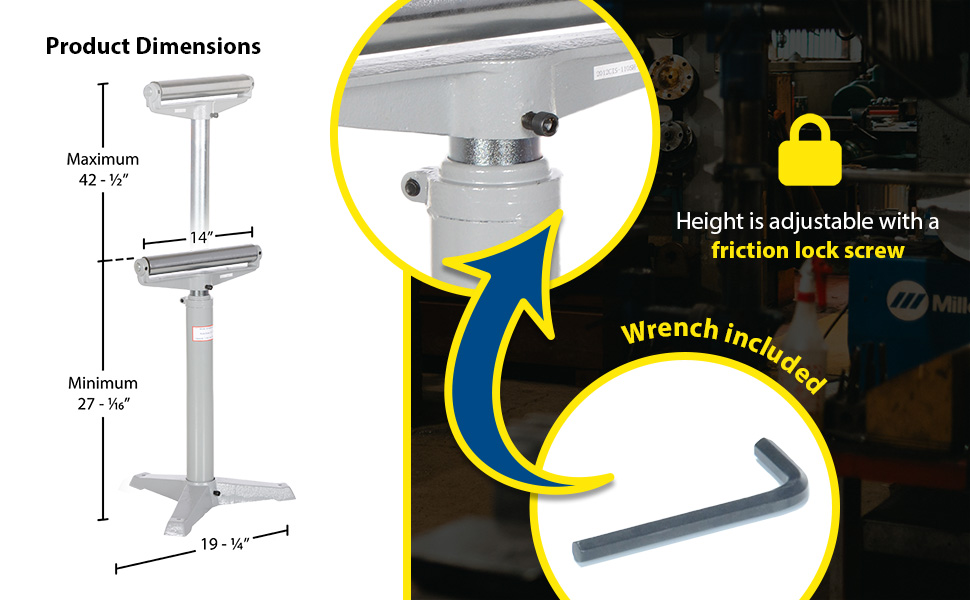

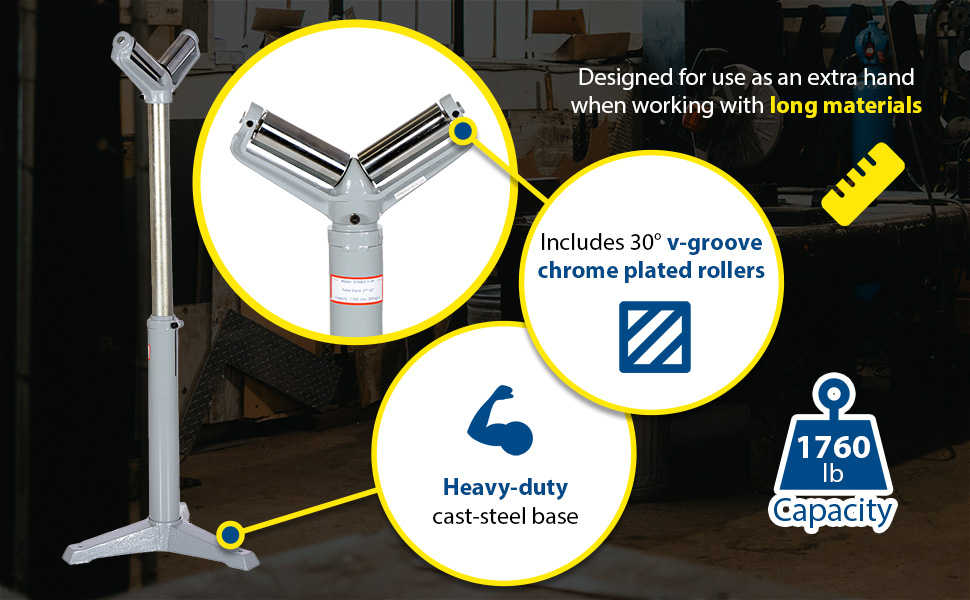

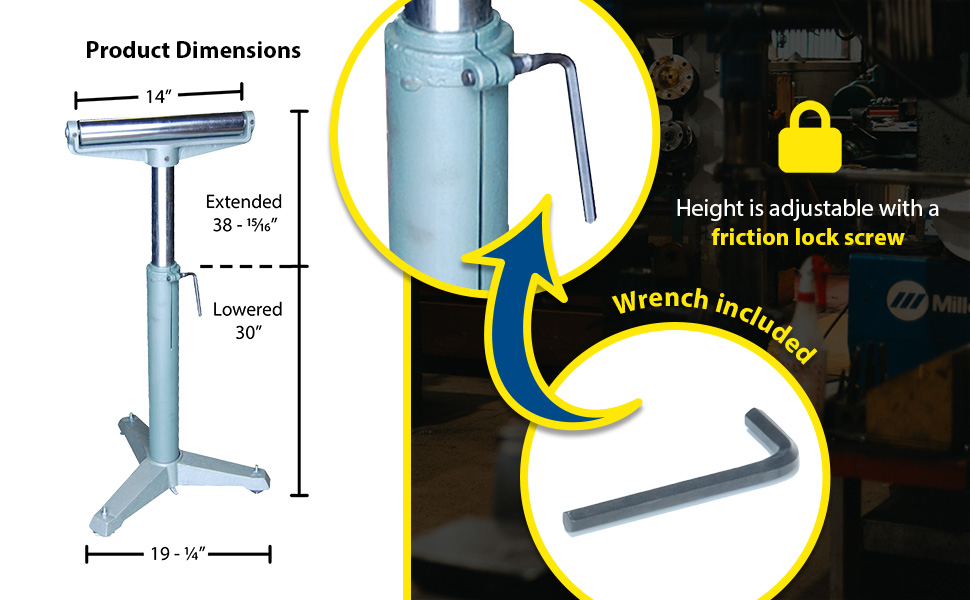

Designed for use as an extra hand when working with long materials. Each stand includes 2" chrome plated rollers and heavy-duty cast-steel base. Choose either v-groove roller design or flat single roller design. The height of each stand is adjusted with a friction lock screw or a gas charged cylinder. Great for use in machine and wood shops. Ships knockdown.

Stand-G models utilize a gas charged cylinder for maximum efficiency and precise positioning. The gas cylinder minimizes adjustment time and limits manual interaction with the unit.

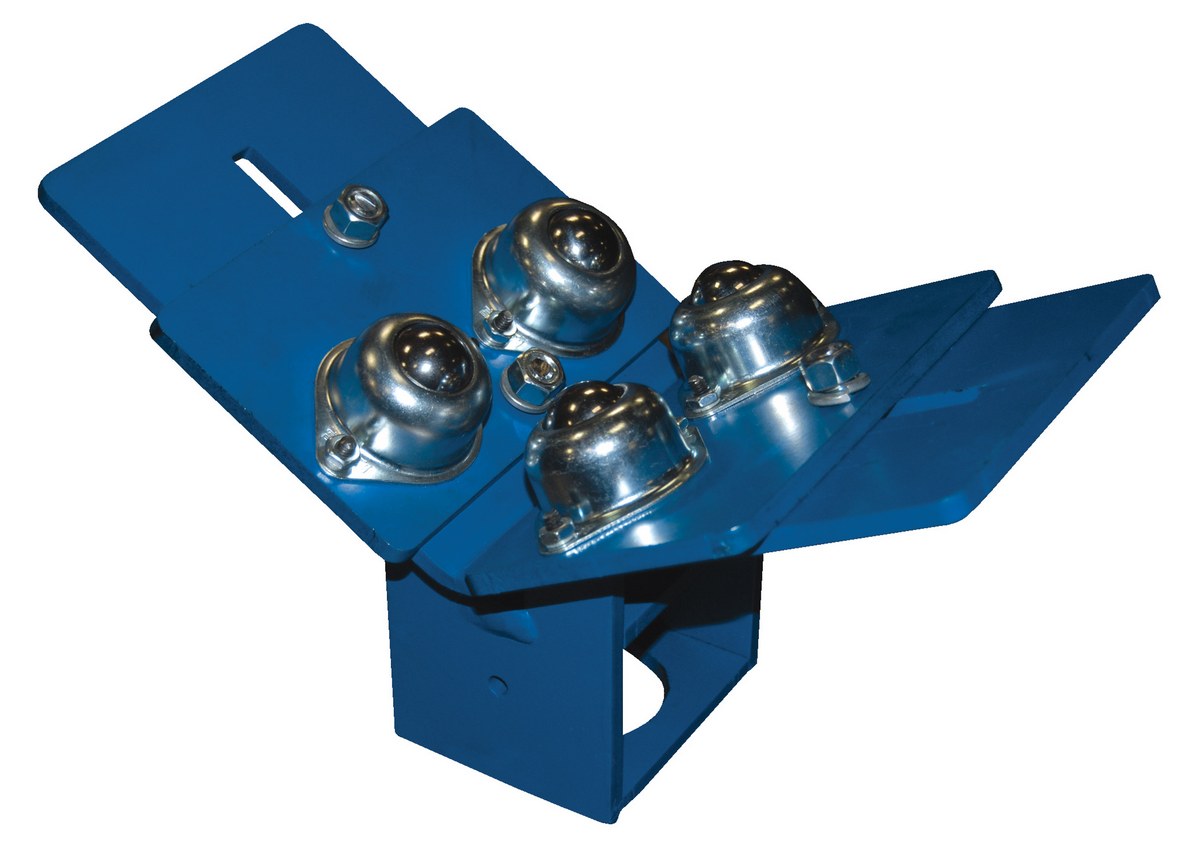

Model STAND-T is ideal for most tubing and bar stock applications. The STAND-T ball roller span is infinitely adjustable from 1-9/16" to 6-1/8". Roller plates can also be rotated 180 degrees to create different offsets and to handle larger diameter tubing. Blue baked-in powder-coat finish for added toughness. Does not work with STAND-MF.

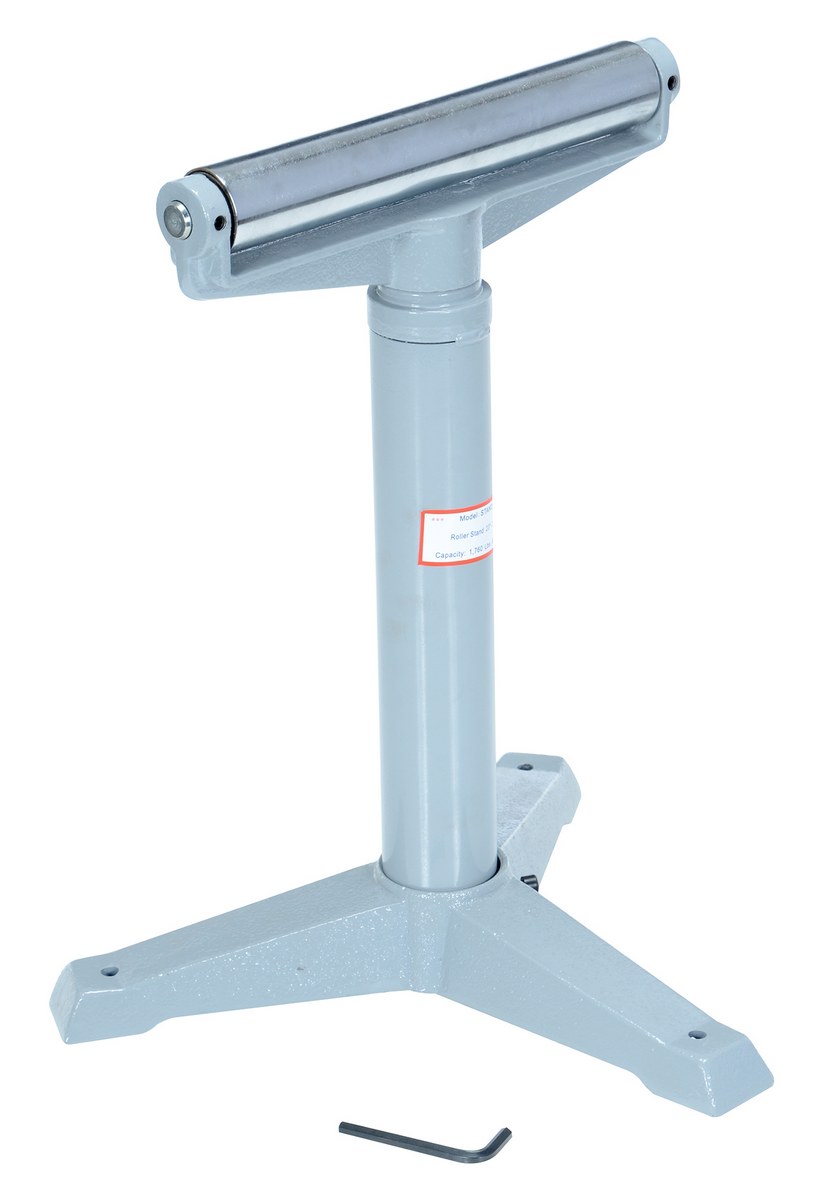

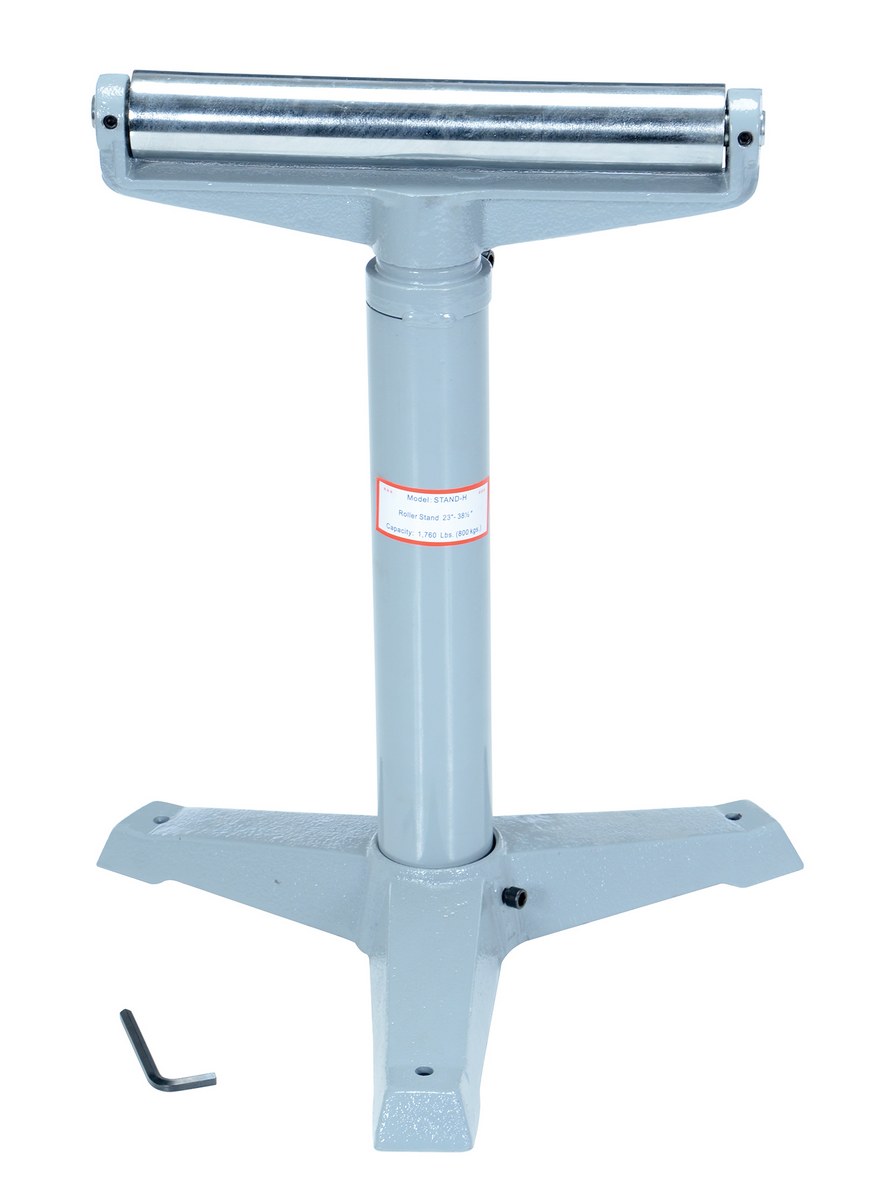

STAND-H

model STAND-H

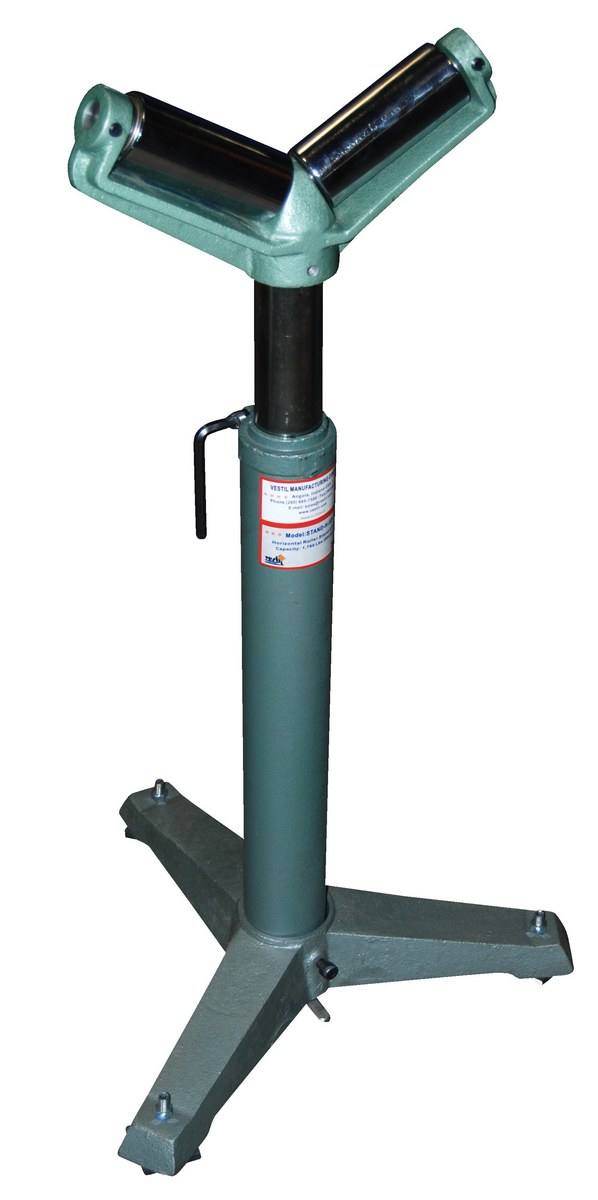

STAND-G-V

model STAND-G-V

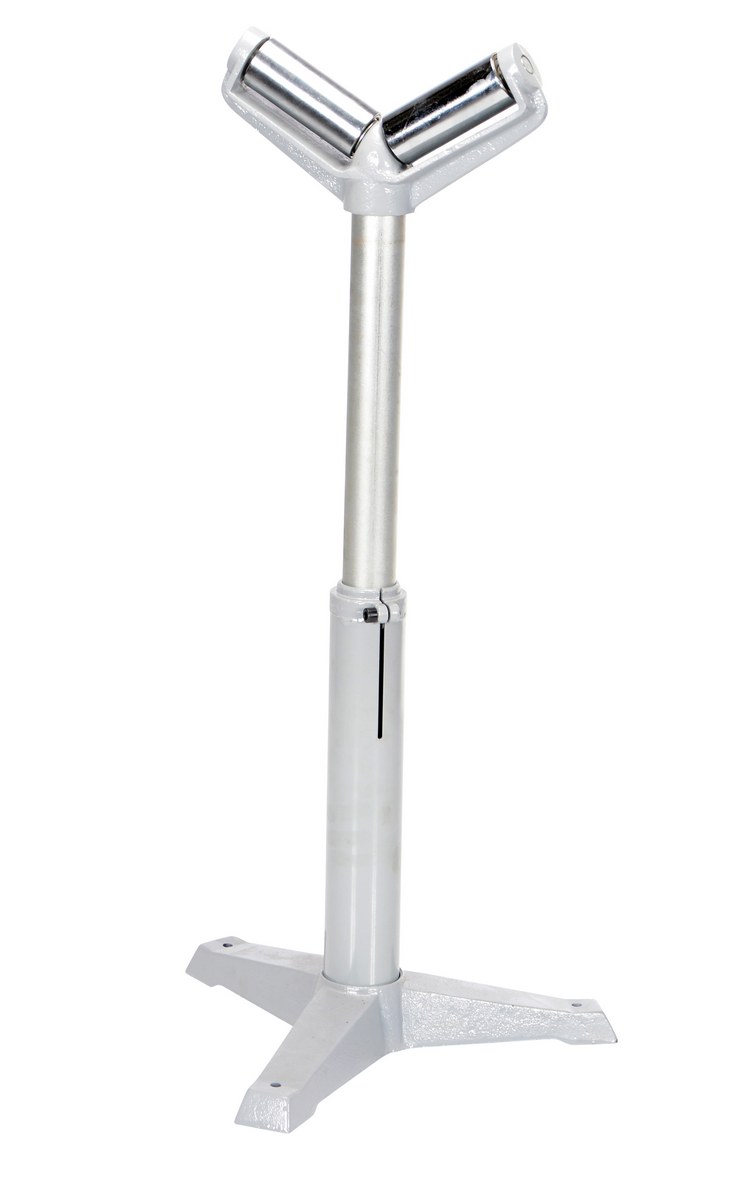

STAND-V

model STAND-V

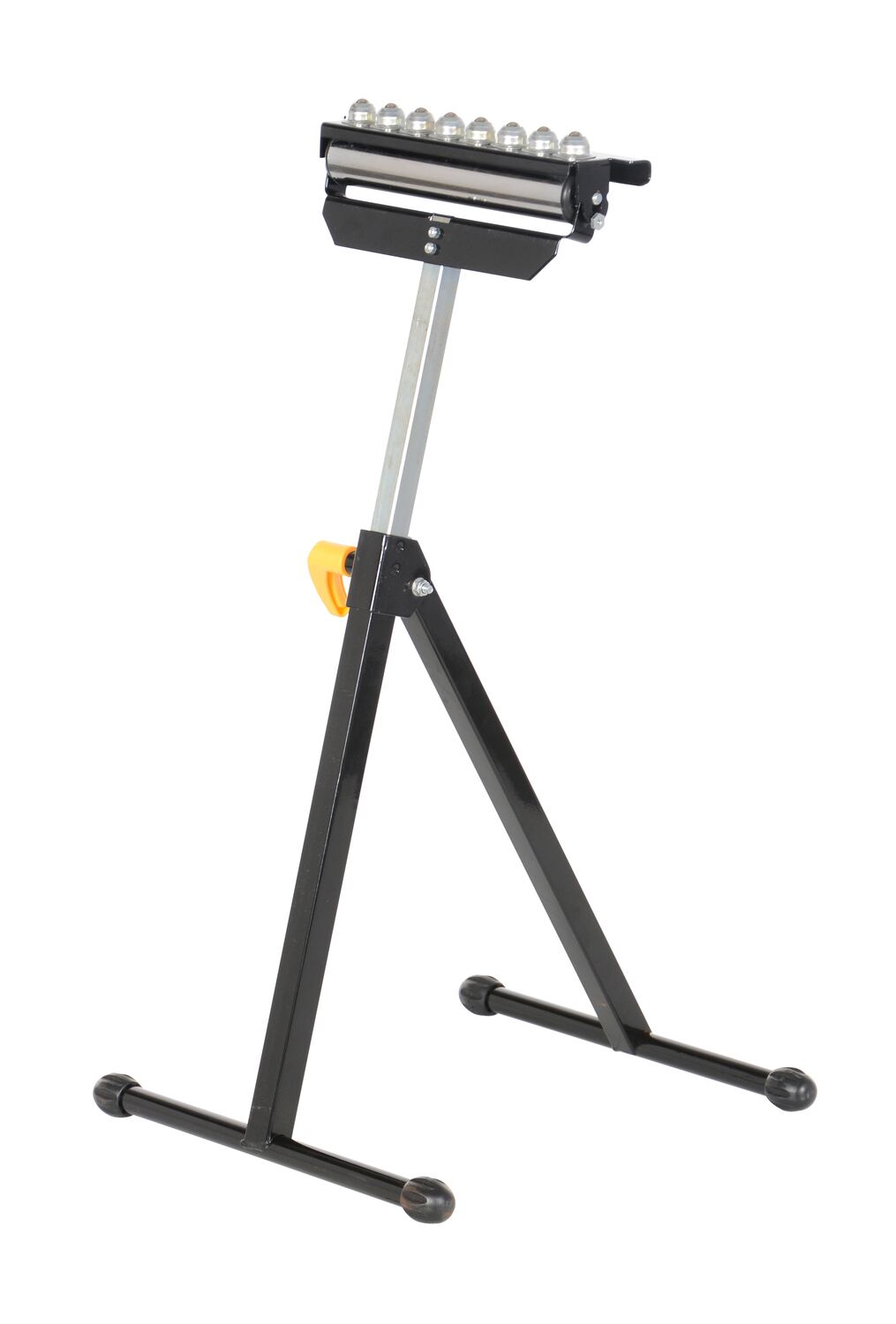

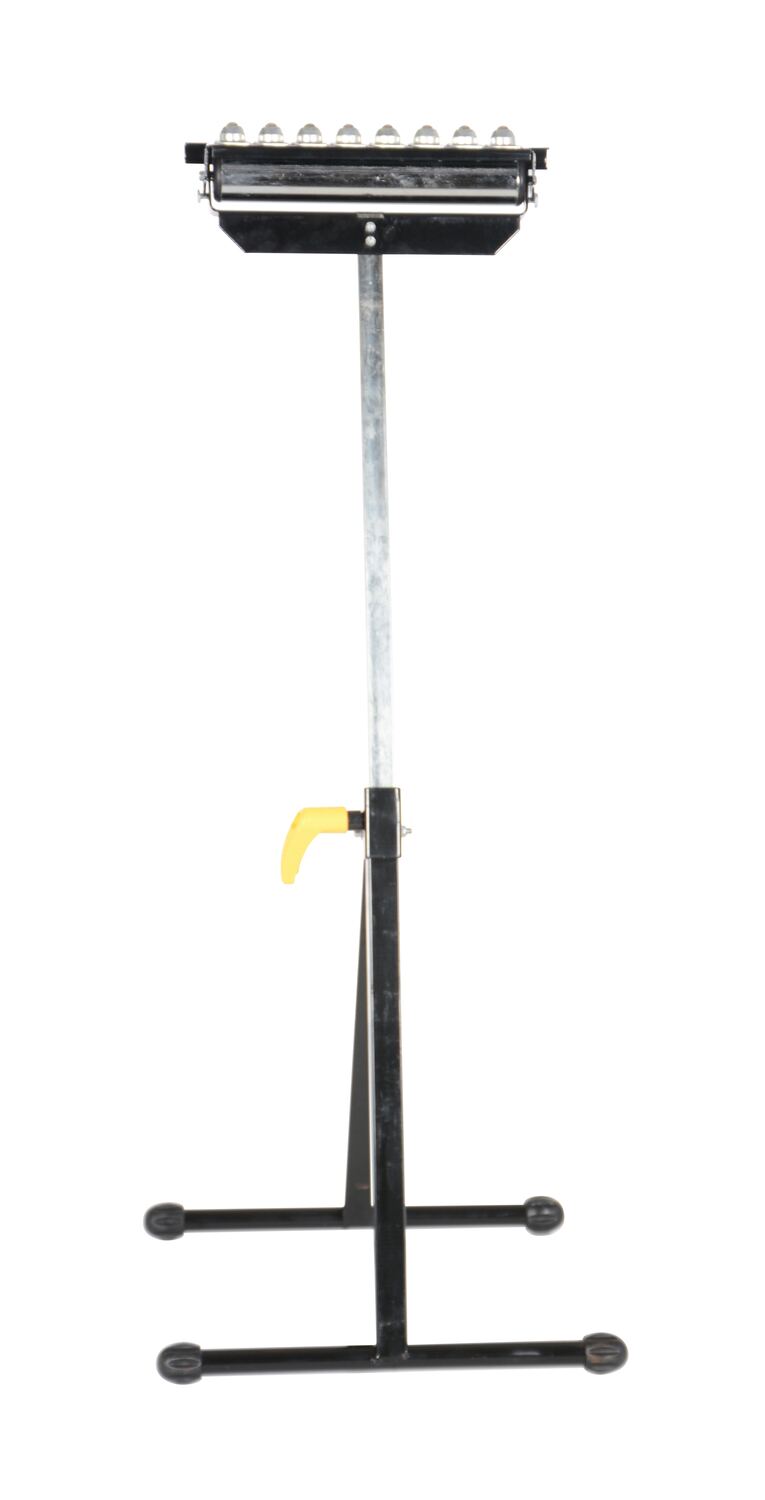

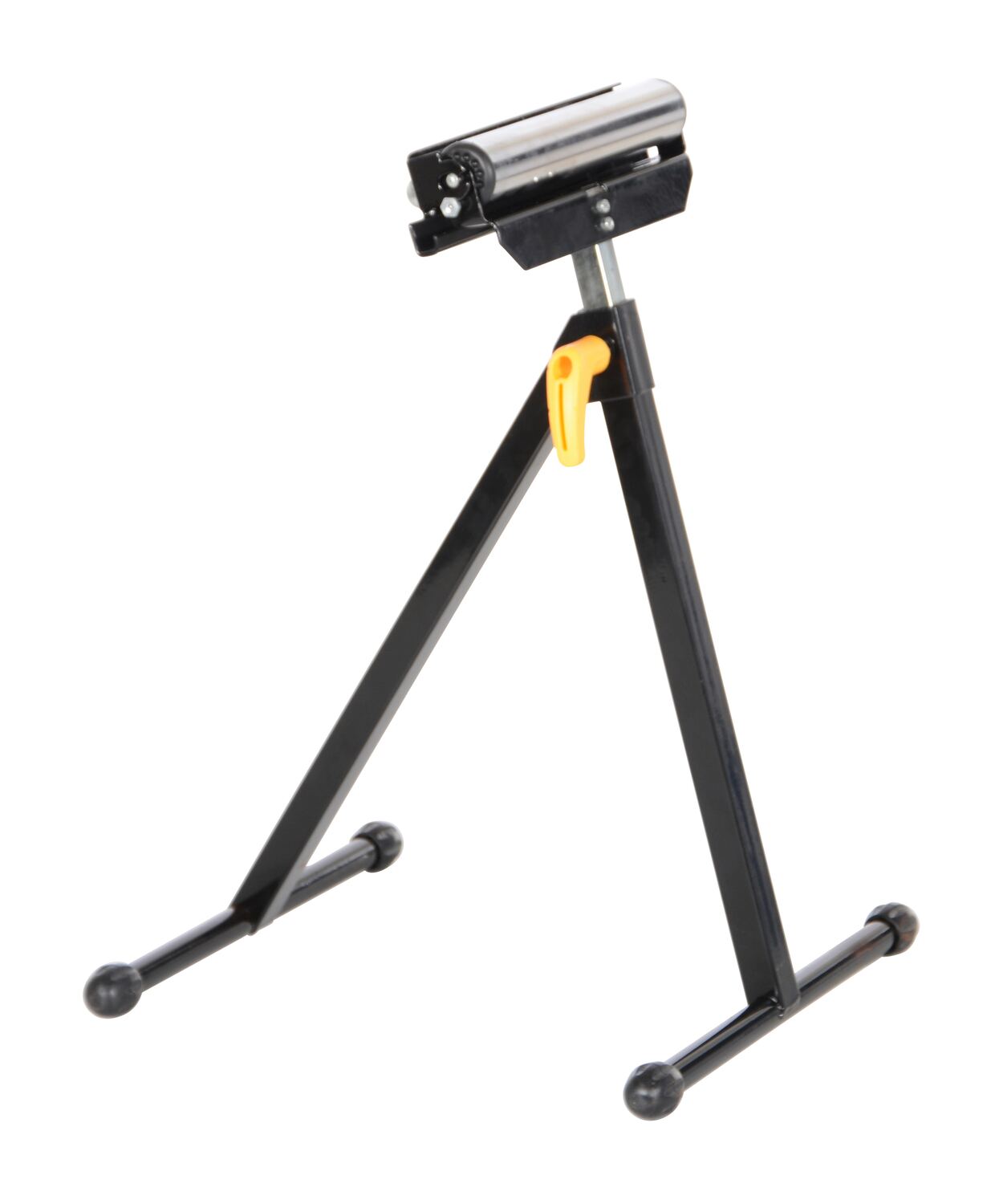

STAND-MF

model STAND-MF

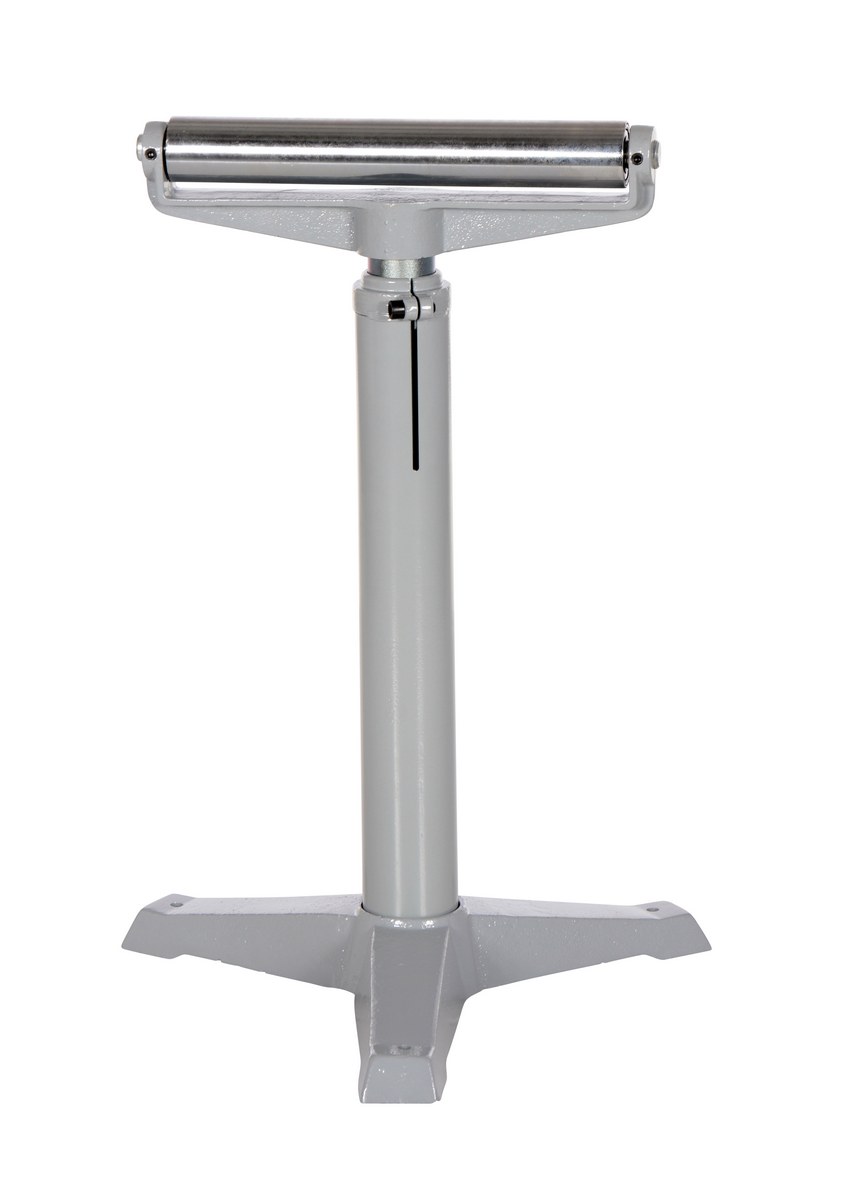

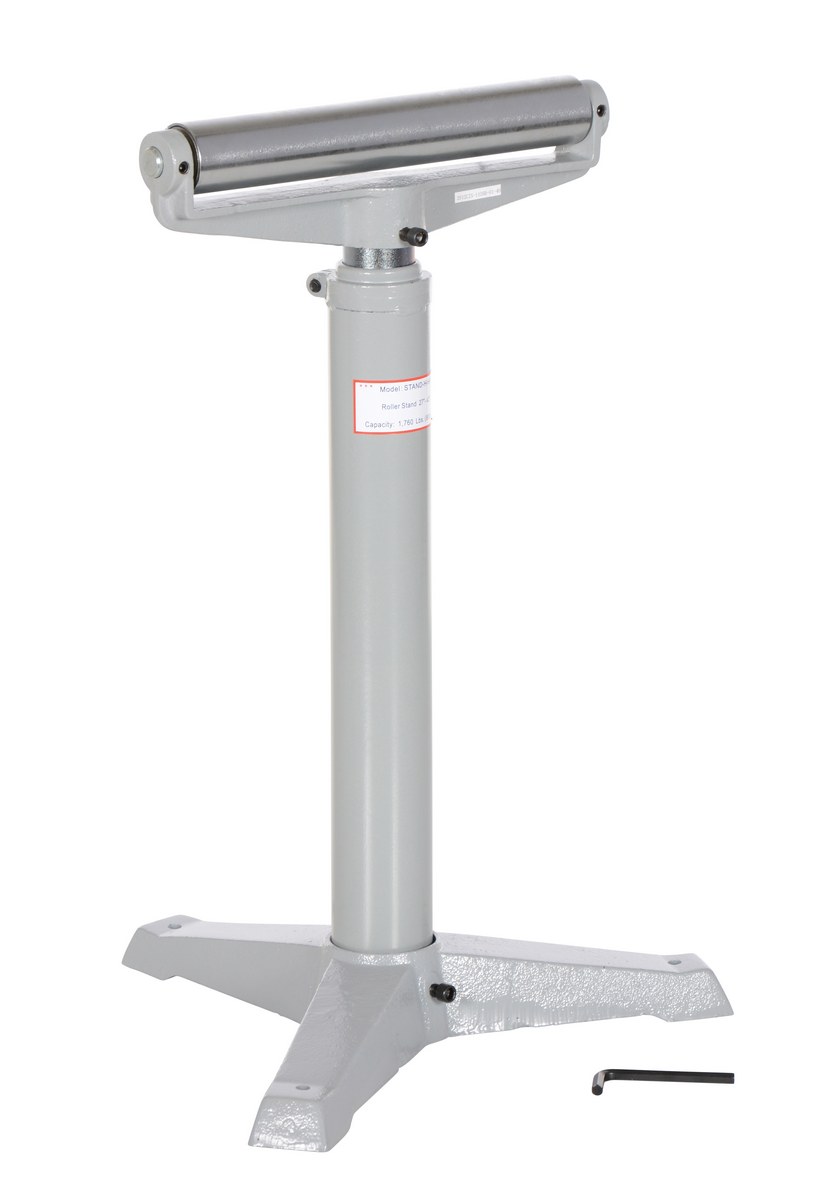

STAND-H-HP

model STAND-H-HP

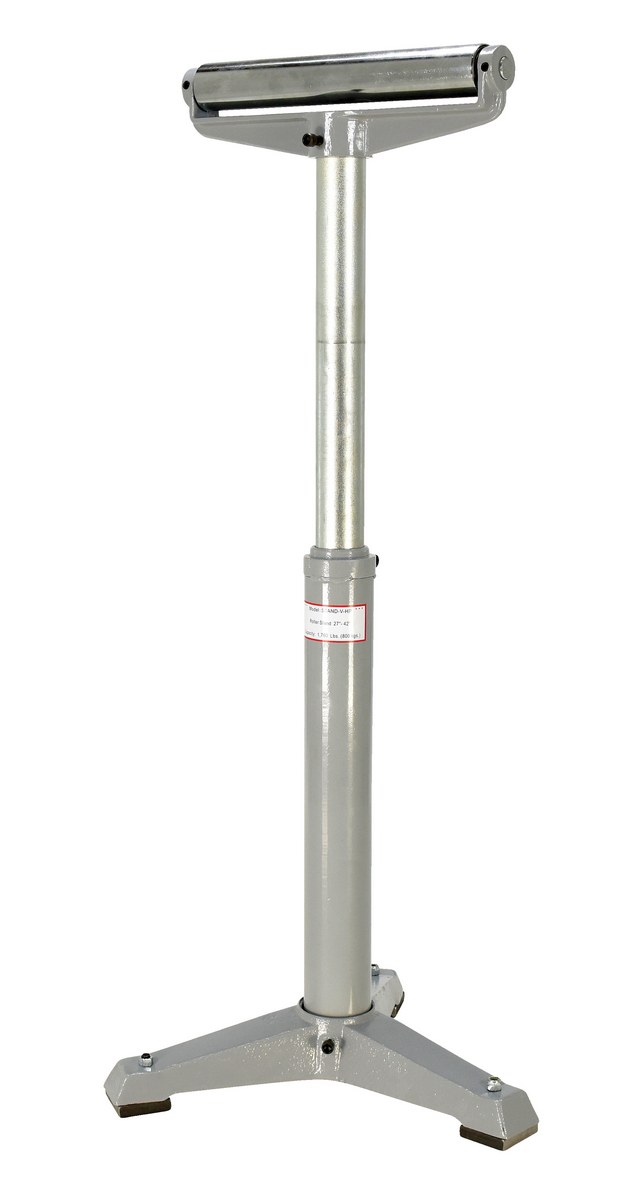

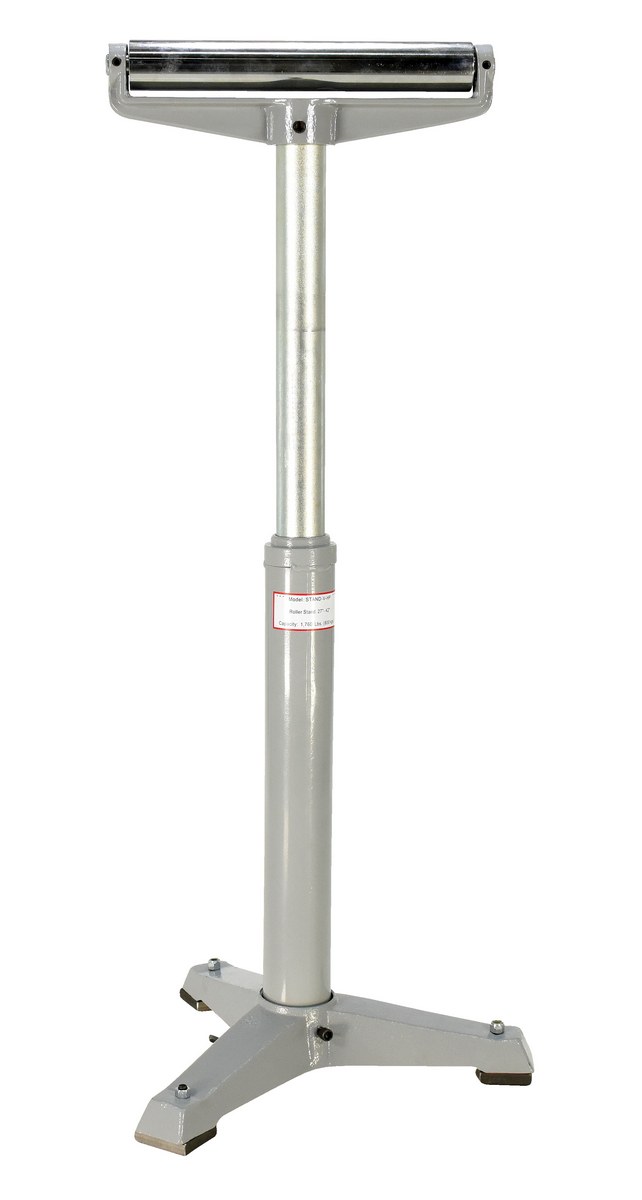

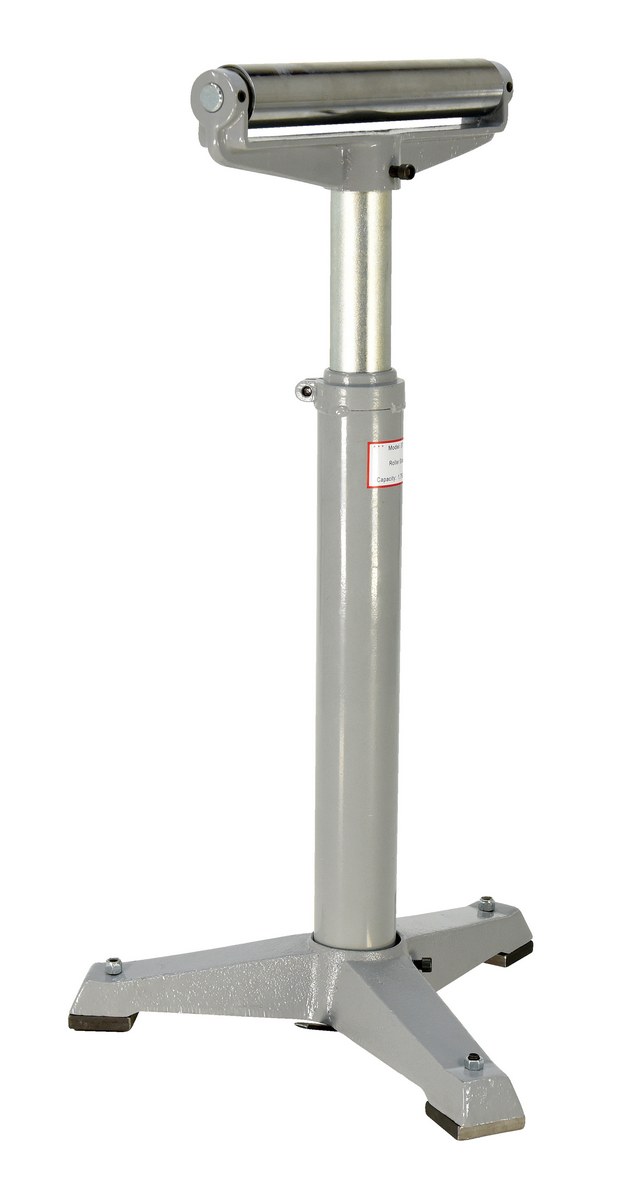

STAND-G-H-HP

model STAND-G-H-HP

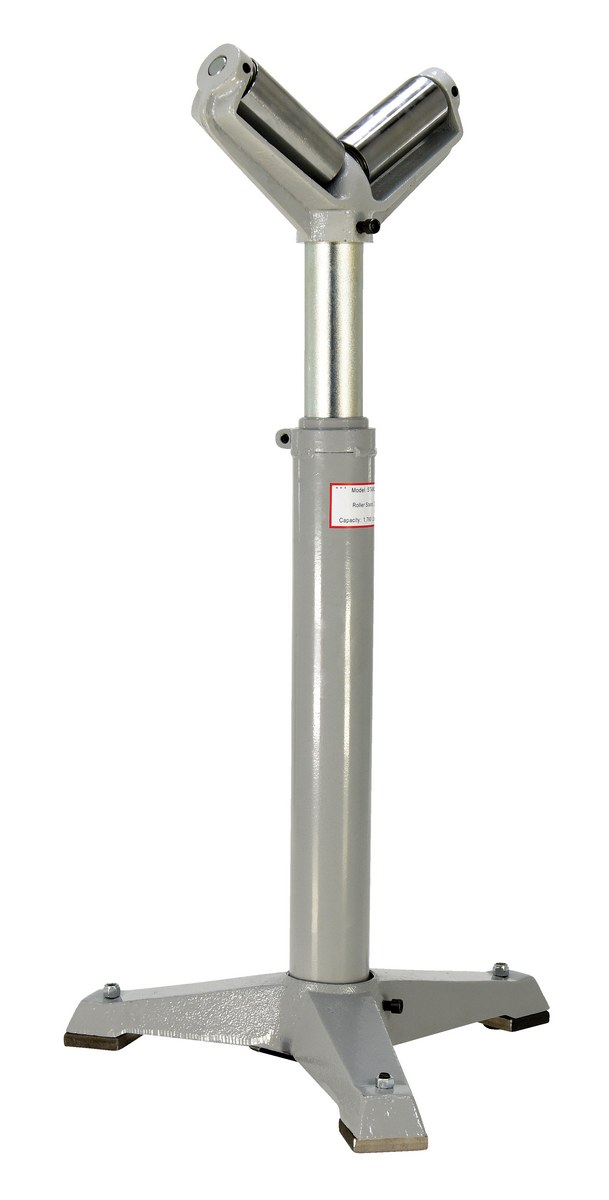

STAND-G-V-HP

model STAND-G-V-HP

STAND-V-HP

model STAND-V-HP

STAND-T

model STAND-T


Click a tab for more information. + Indicates items available under that tab.

Model Number & Specs Table

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Deluxe Roller Stands
Model PDFs Description Service
Range
Capacity
(lbs)
Wt.
(lbs)
Manual Operation

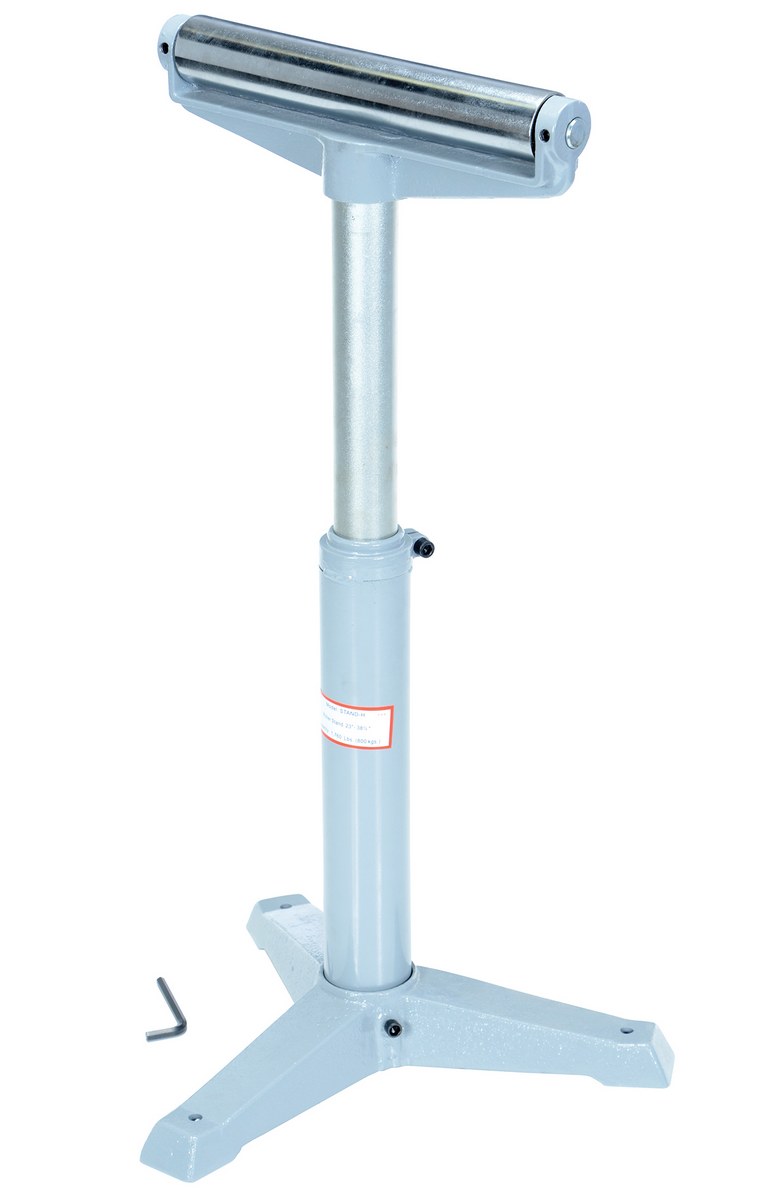

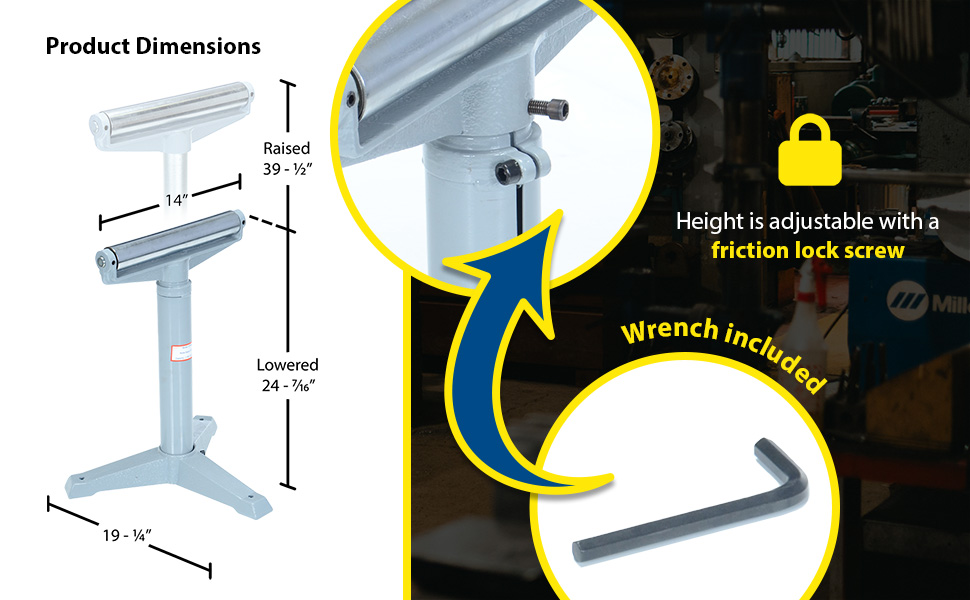

STAND-H icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 14" Horizontal Roller 24-7/16" to 39-1/2" 1,760 32

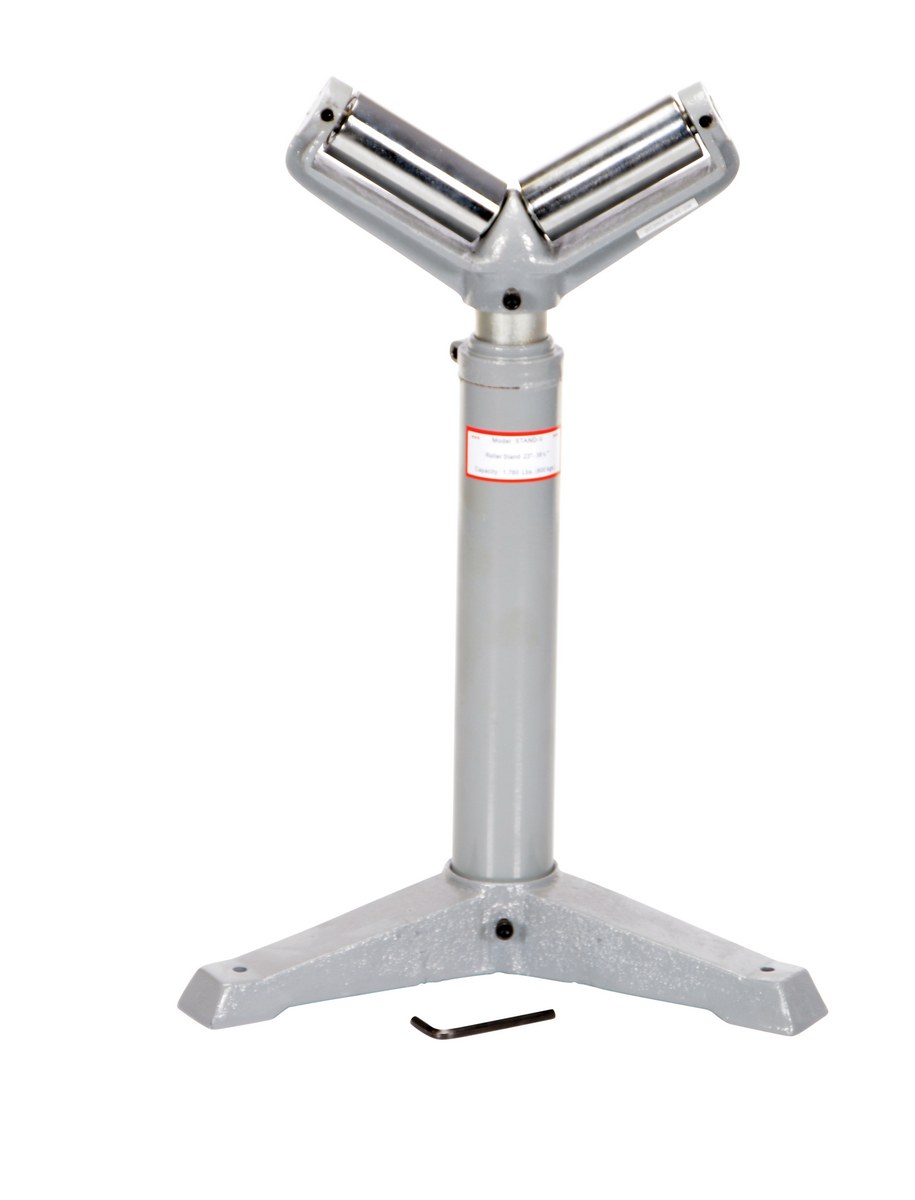

STAND-V icon_approvaldrawings.jpgWarranty PDFCompliance Certificate (2) 5" "V" Rollers (9" W across) 23-1/2" to 39-1/4" 1,760 35

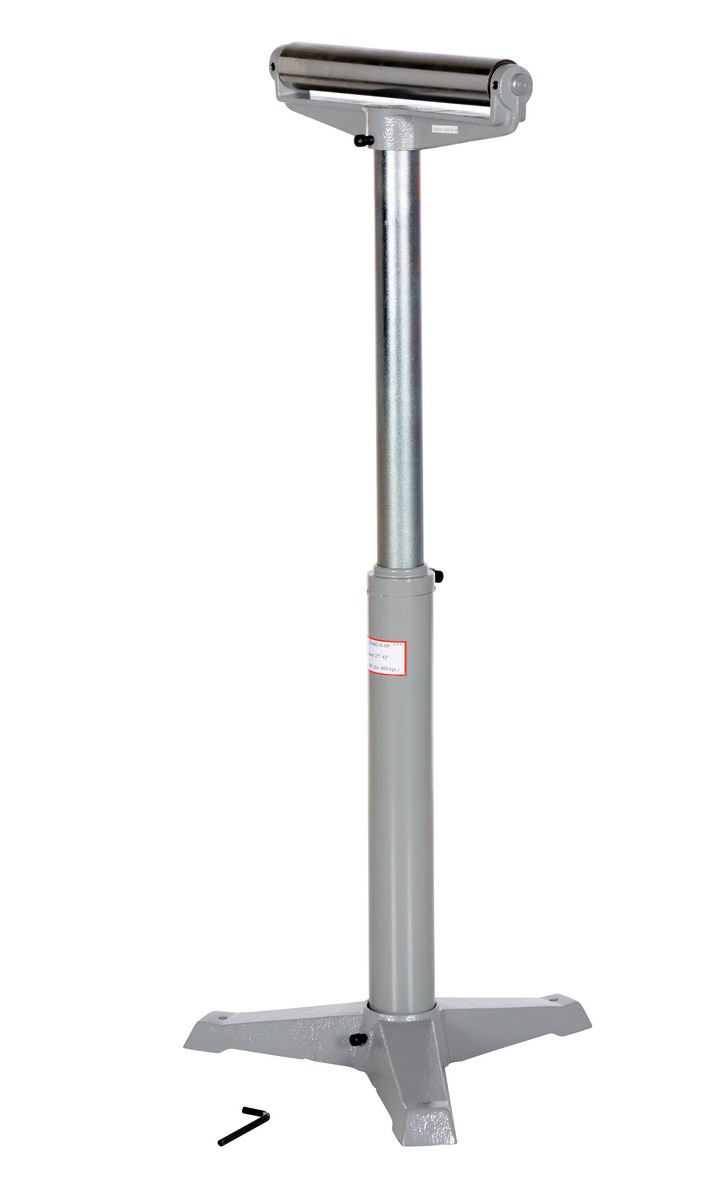

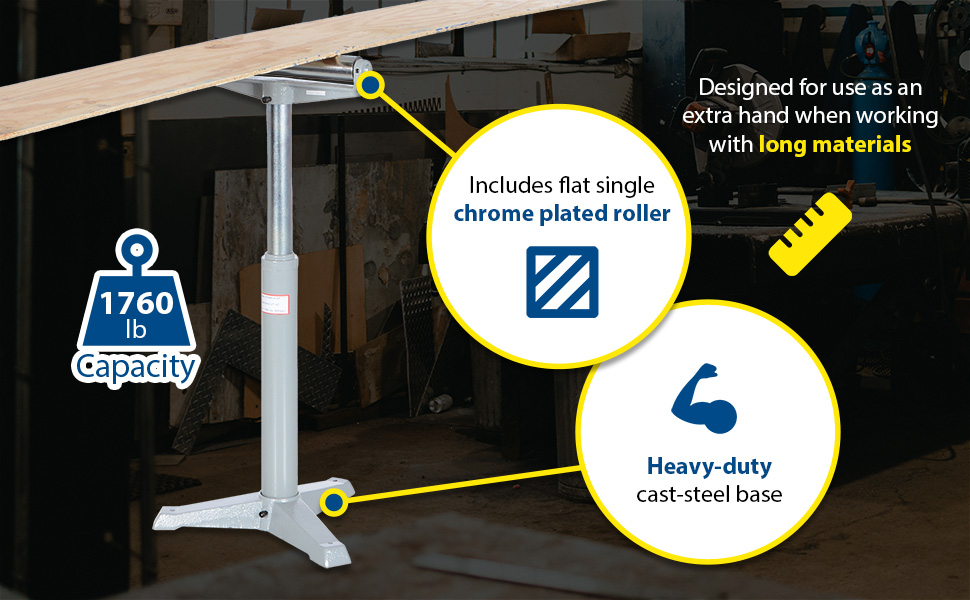

STAND-H-HP icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 14" Horizontal Roller 27-1/16" to 42-1/2" 1,760 36

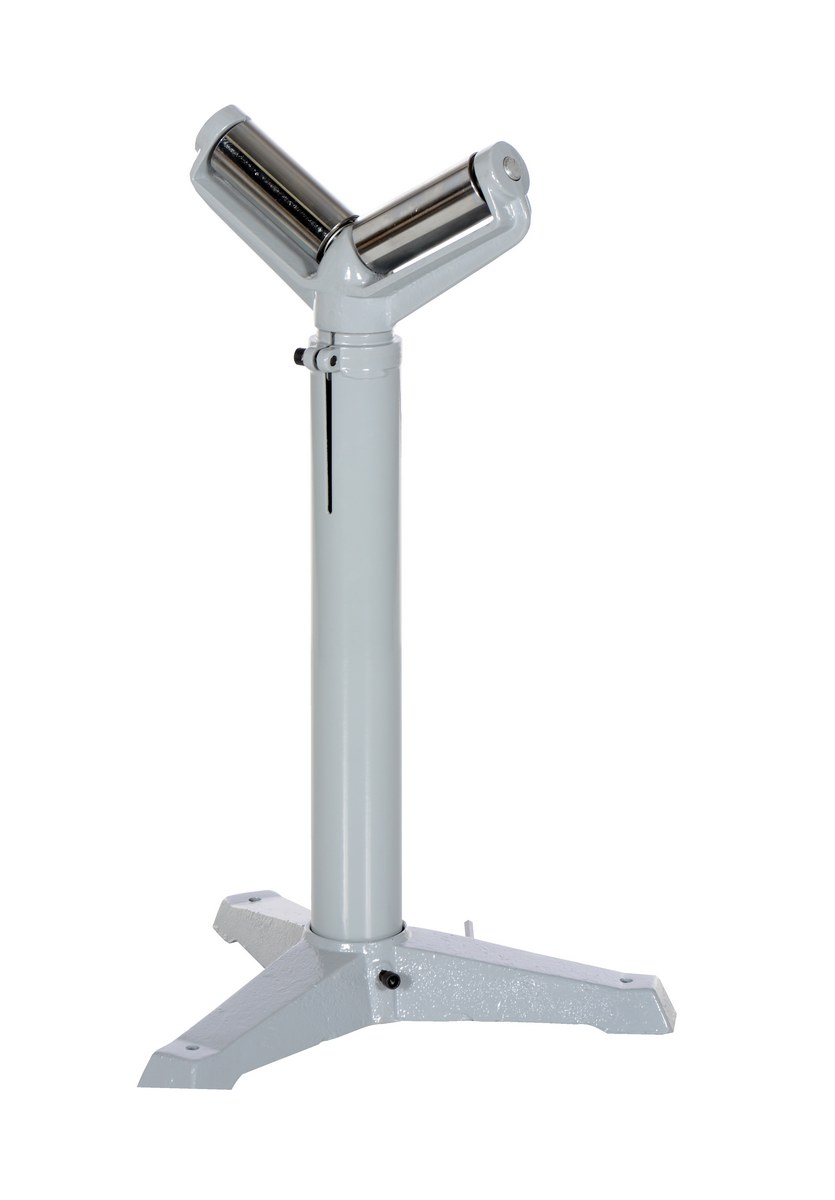

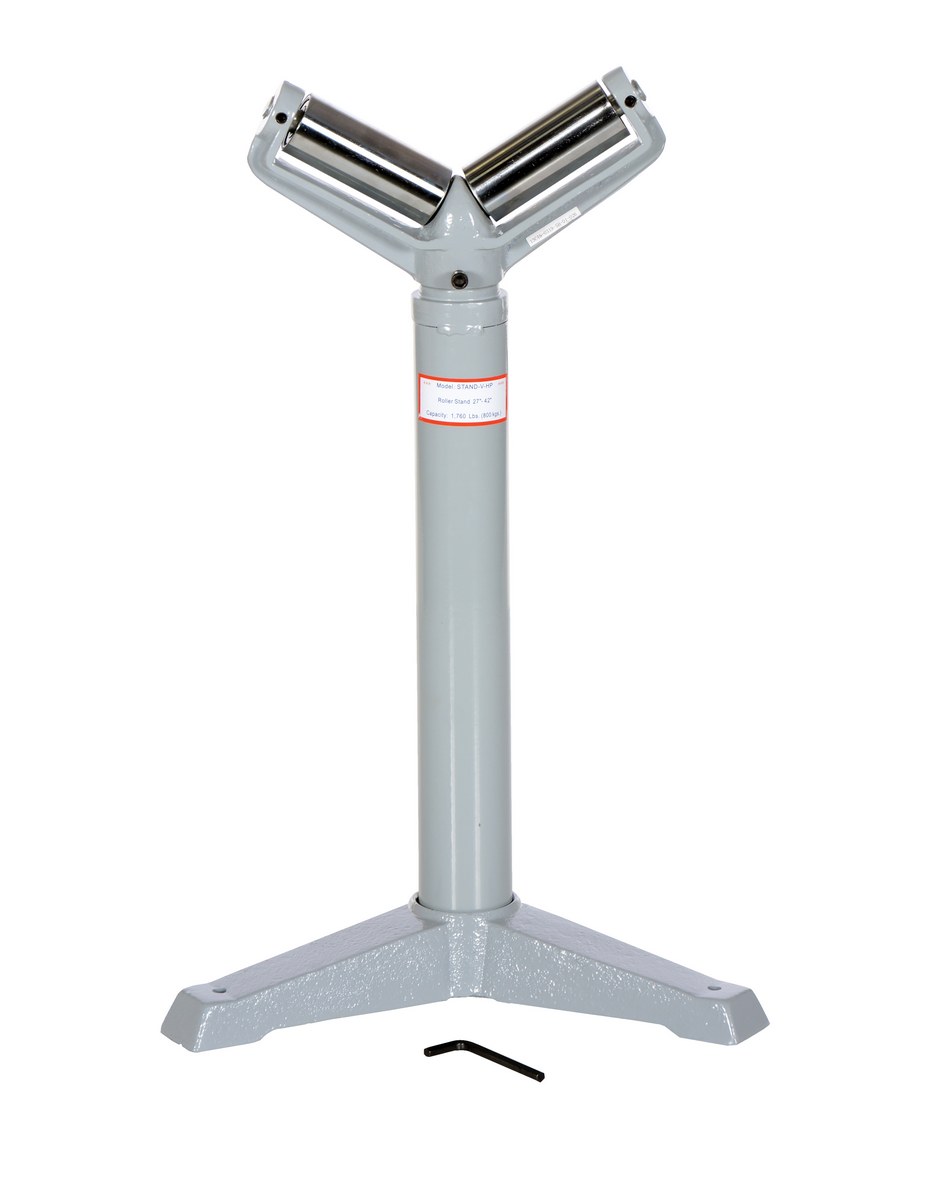

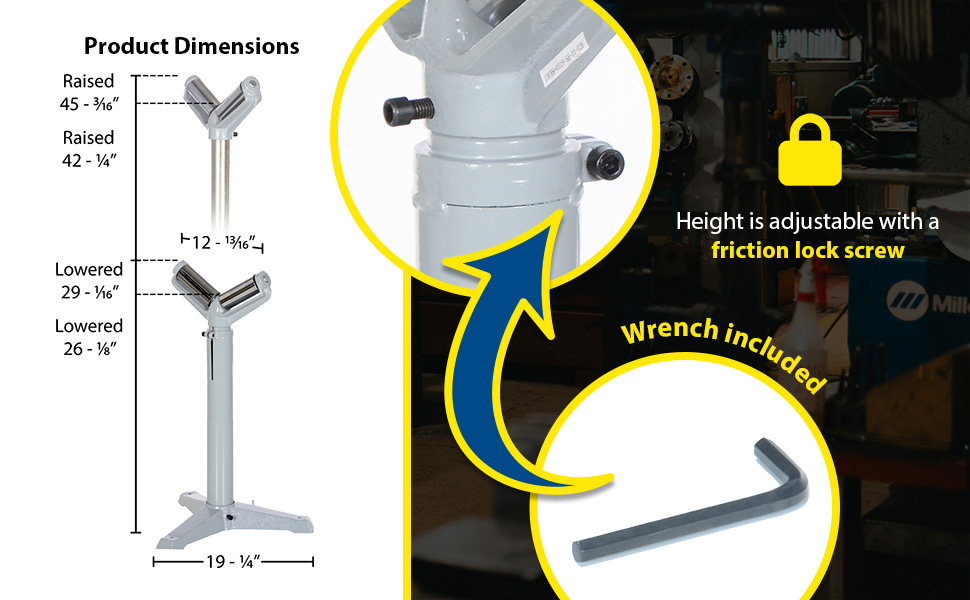

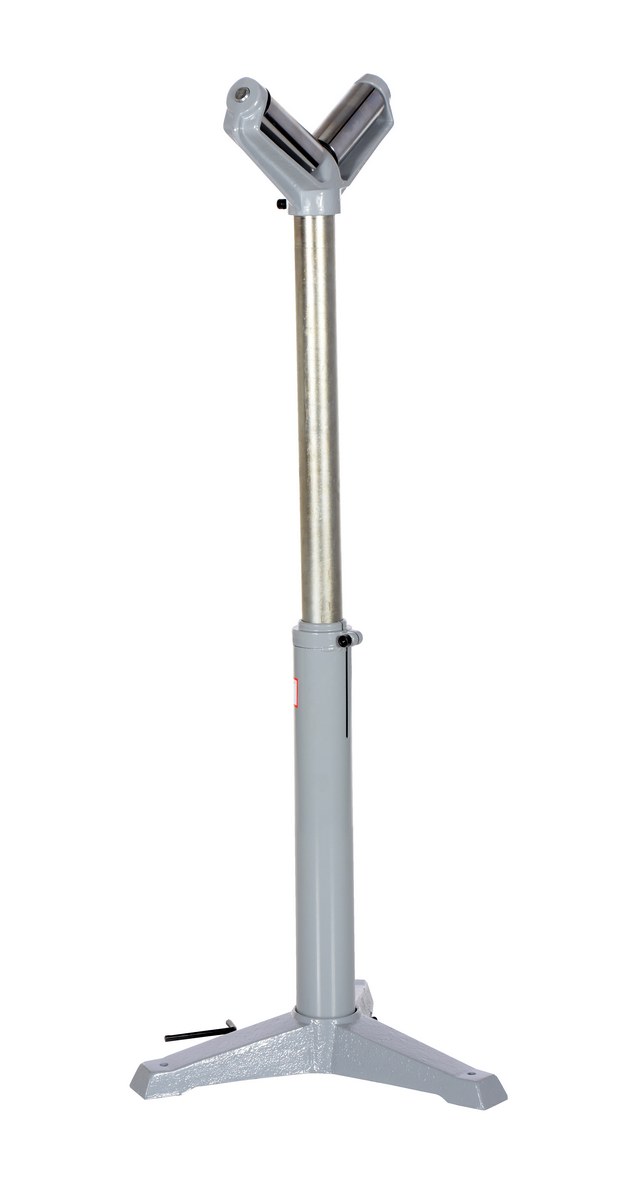

STAND-V-HP icon_approvaldrawings.jpgWarranty PDFCompliance Certificate (2) 5" "V" Rollers (9" W across) 26-1/8" to 42-1/4" 1,760 36
Gas Cylinder, Counter Balanced, Operation

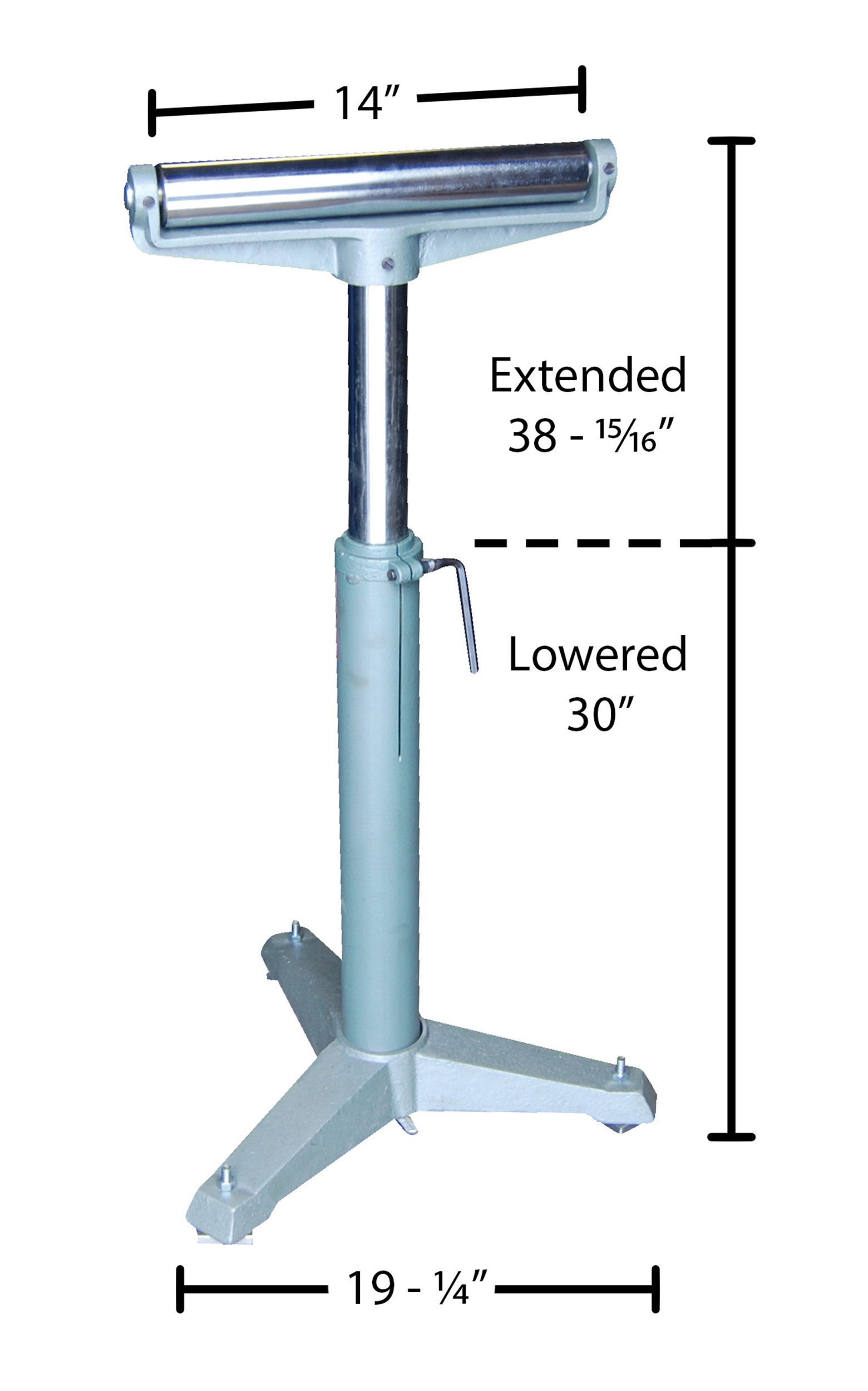

STAND-G-H Warranty PDFCompliance Certificate 14" Horizontal Roller 29" to 39-1/8" 1,760 40
STAND-G-V Warranty PDFCompliance Certificate (2) 5" "V" Rollers (9" W across) 26" to 38" 1,760 40
STAND-G-H-HP Warranty PDFCompliance Certificate 14" Horizontal Roller 33" to 43" 1,760 40

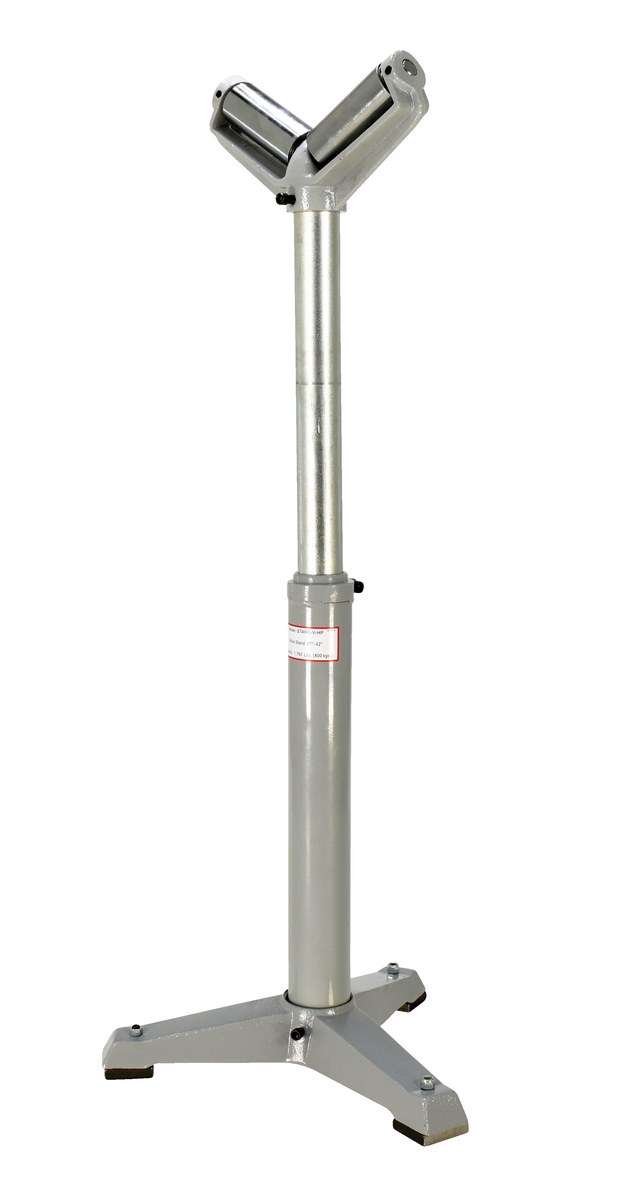

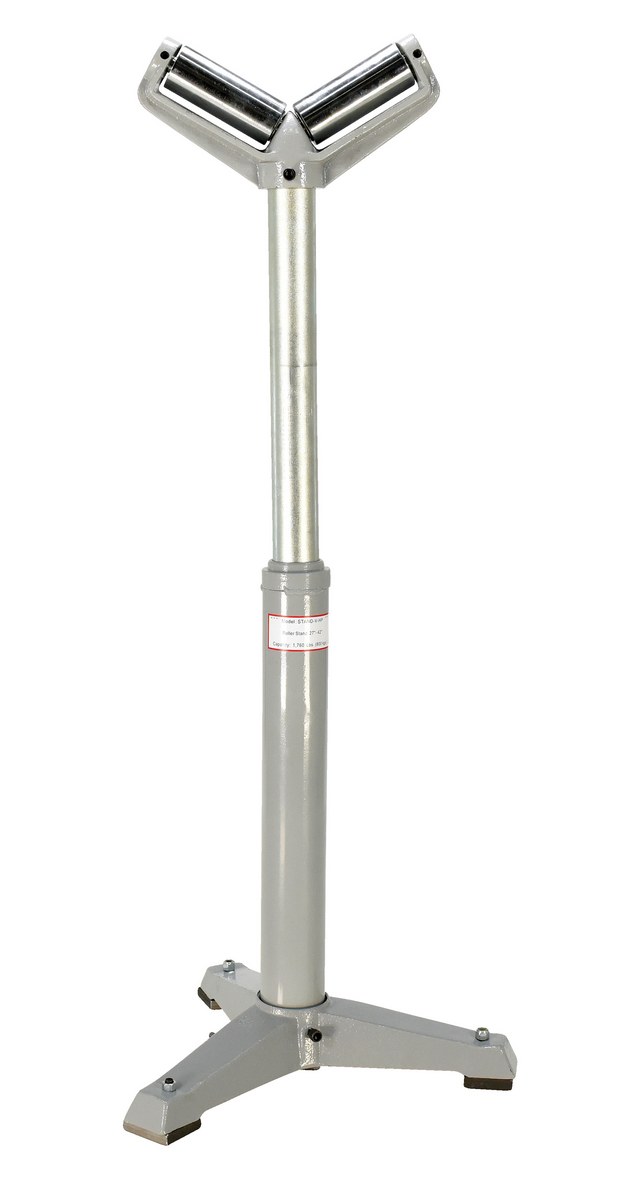

STAND-G-V-HP Warranty PDFCompliance Certificate (2) 5" "V" Rollers (9" W across) 33" to 43" 1,760 42
Multi-Function, 4-Way Roller Balls, 2-Way Roller, Fixed
STAND-MF Warranty PDFCompliance Certificate 11-1/4"x1.9" (8) Ball Rollers 27.5" to 44" 125 15

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Image Gallery

No Image Gallery for this product at this time. Please Check back.




Options

Options
STAND-T icon_approvaldrawings.jpgWarranty PDFCompliance Certificate "V" Shaped Stand Top (Ball Roller) 1-9/16" to 6-1/8" 300 12
