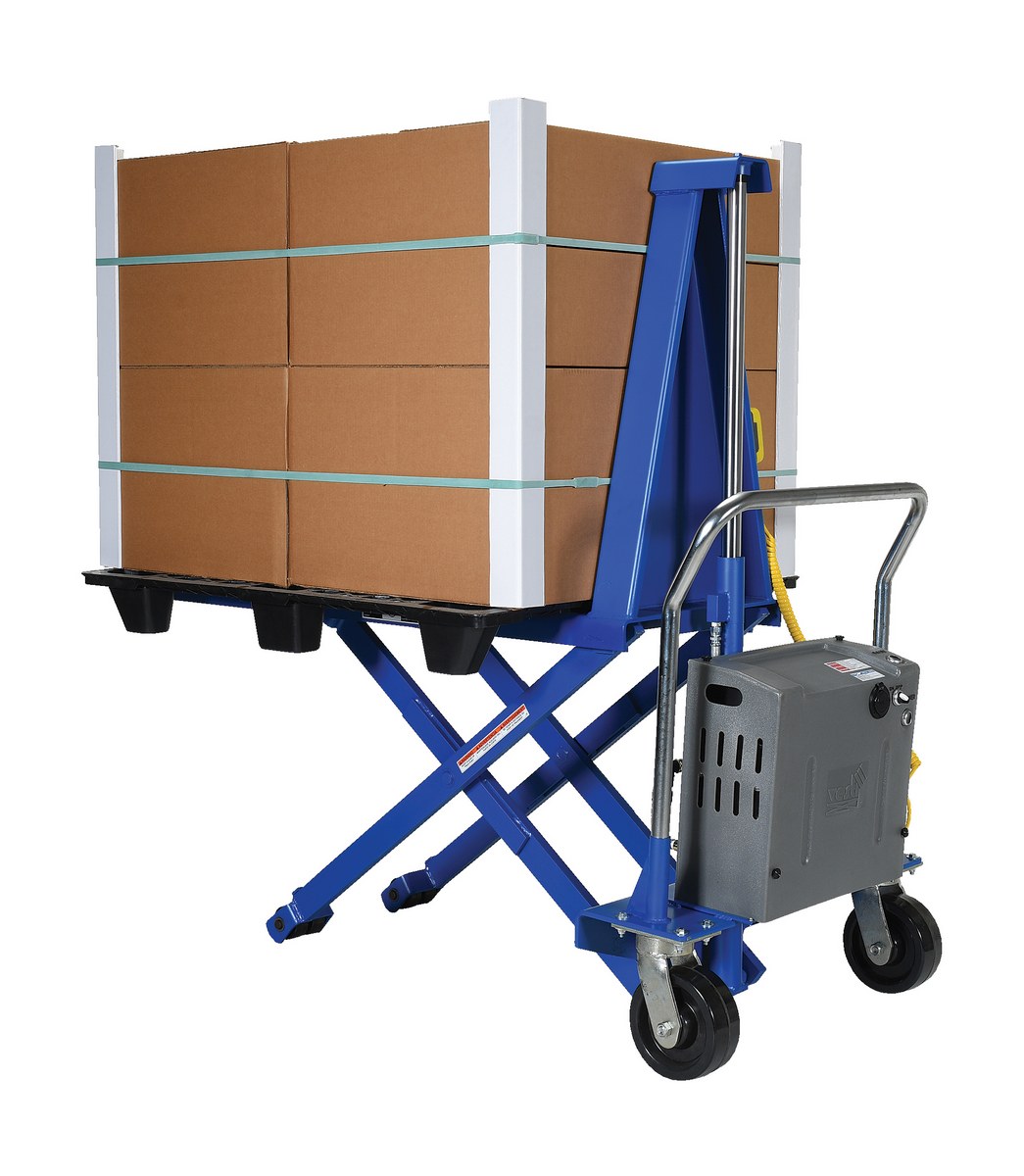

HIPM-2048-AC_E.jpg HIPM-2048-AC_A.jpg HIPM-2048-AC_B.jpg HIPM-2048-AC_C.jpg
HIPM-2048-AC_D.jpg HIPM-2048-AC_1.jpg HIPM-2048-AC_2.jpg HIPM-2048-AC_3.jpg
High Rise Lift Trucks

model: HIPM-2048-AC



Featured Ergonomic Solutions


Portable Worksite Lift
Roll Lifters and Transporters
Stackers
Linearizer Electric Worker Platforms
Specialty Vacuum Lifters
Air Hydraulic Carts
Electric Pallet Truck
Pallet Truck Caddies
Ergonomic Matting
model chart

Product Family Overview

Print Friendly
High Rise Lift Trucks
SERIES: HIPM

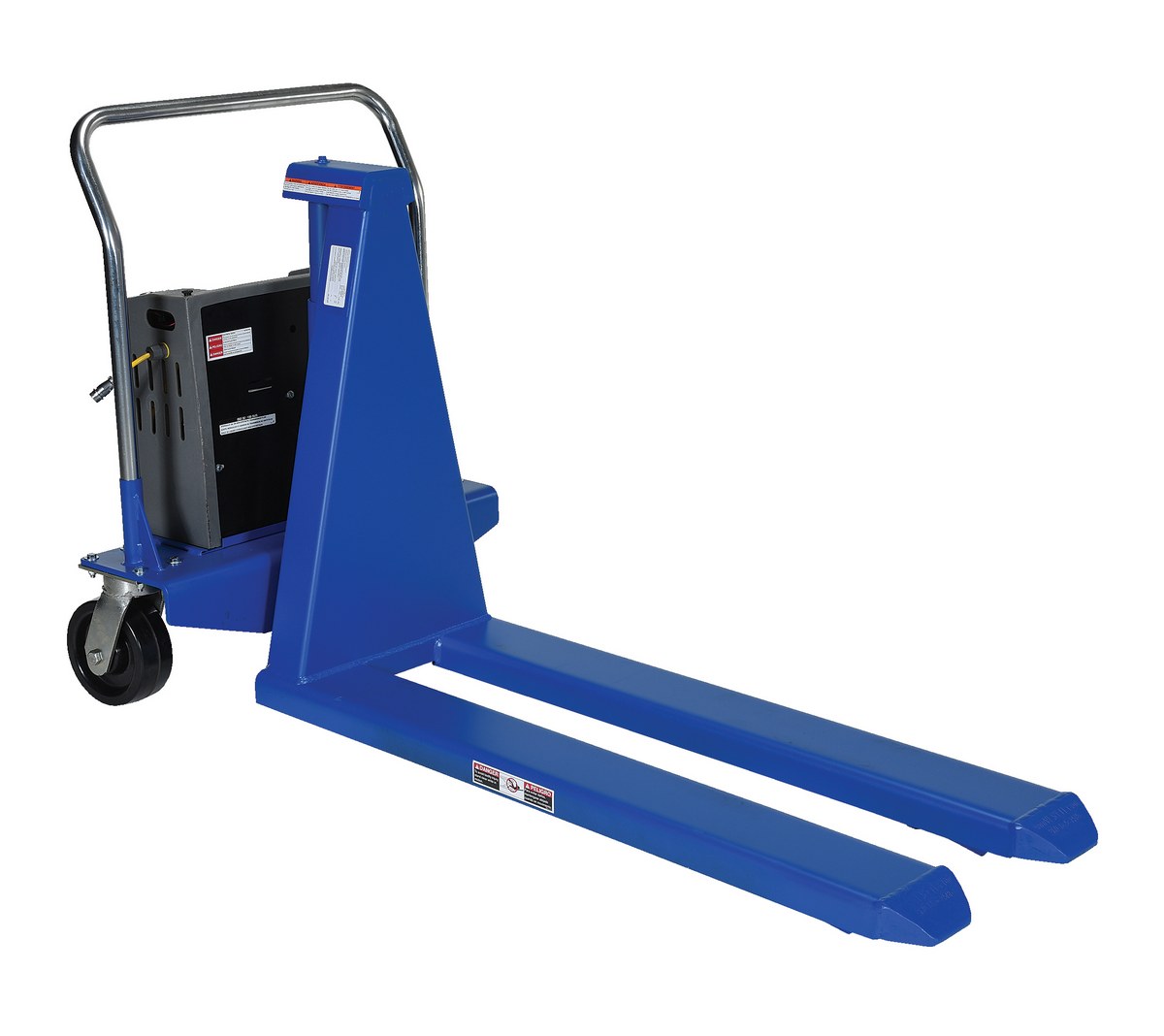

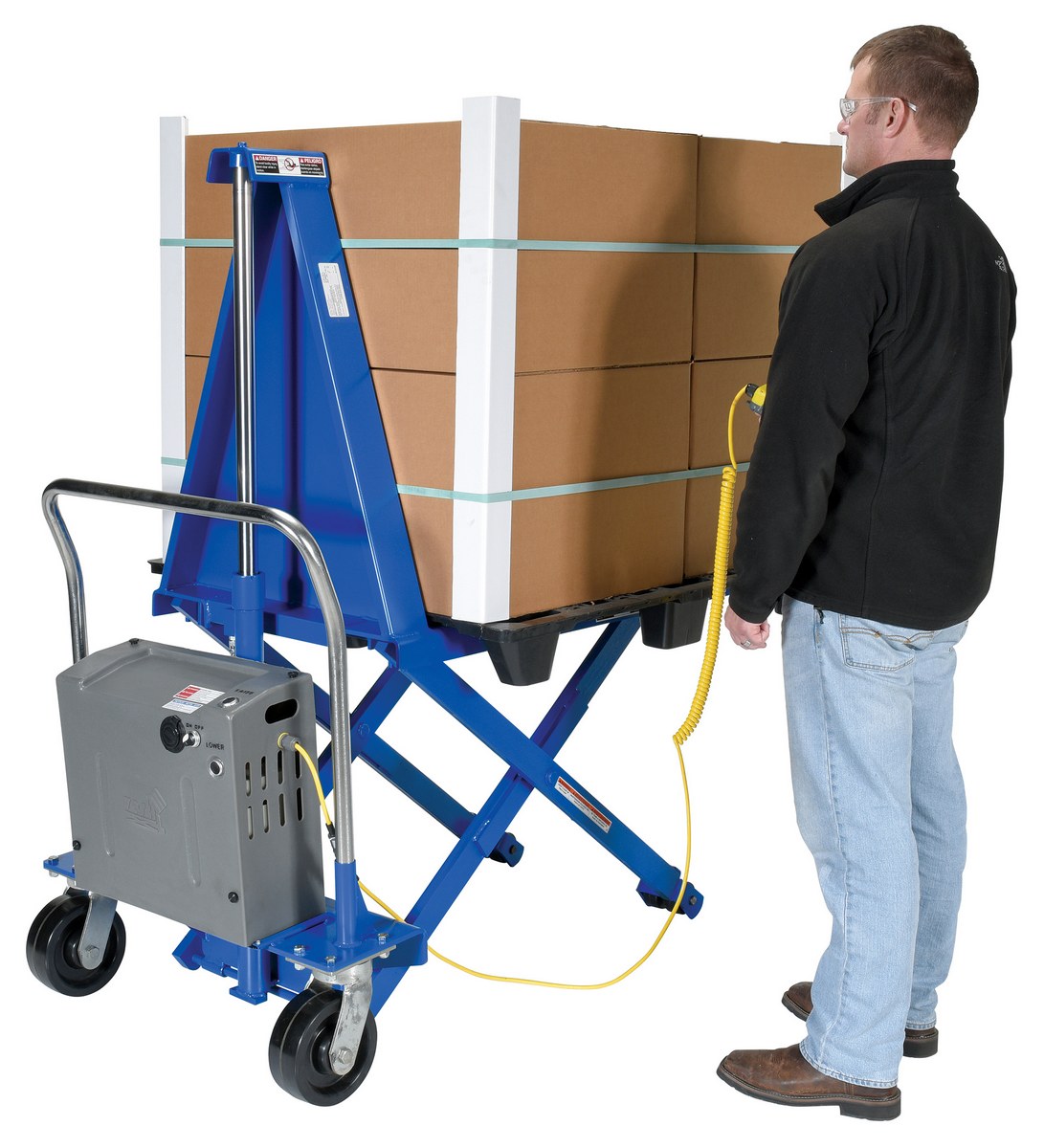

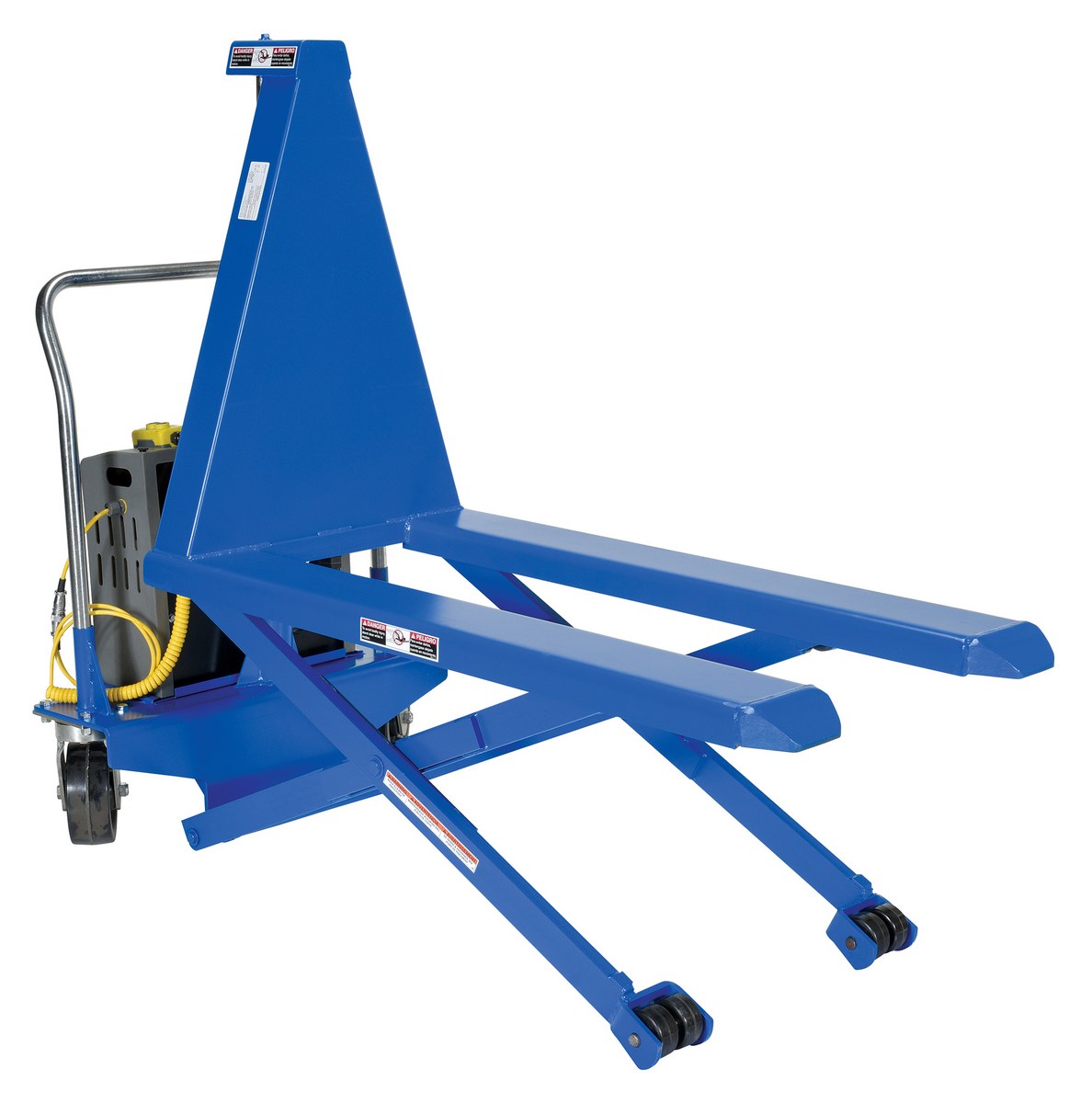

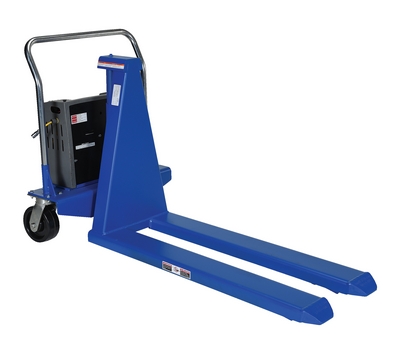

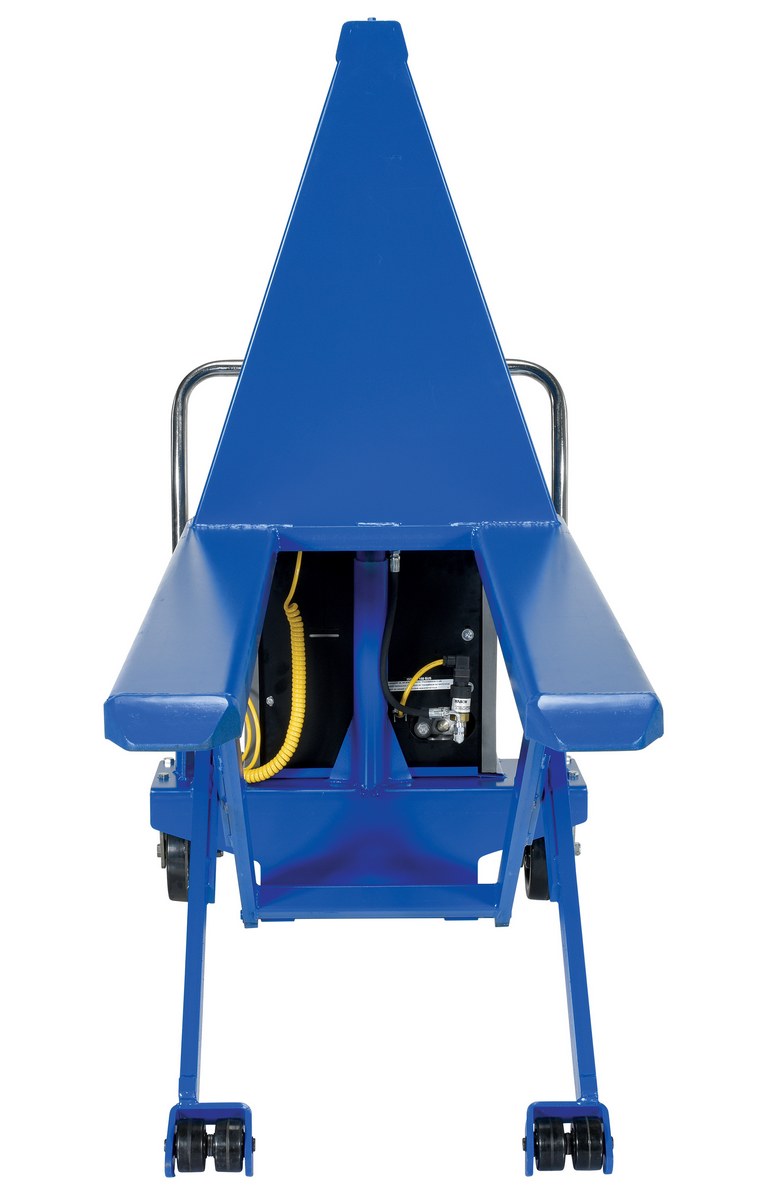

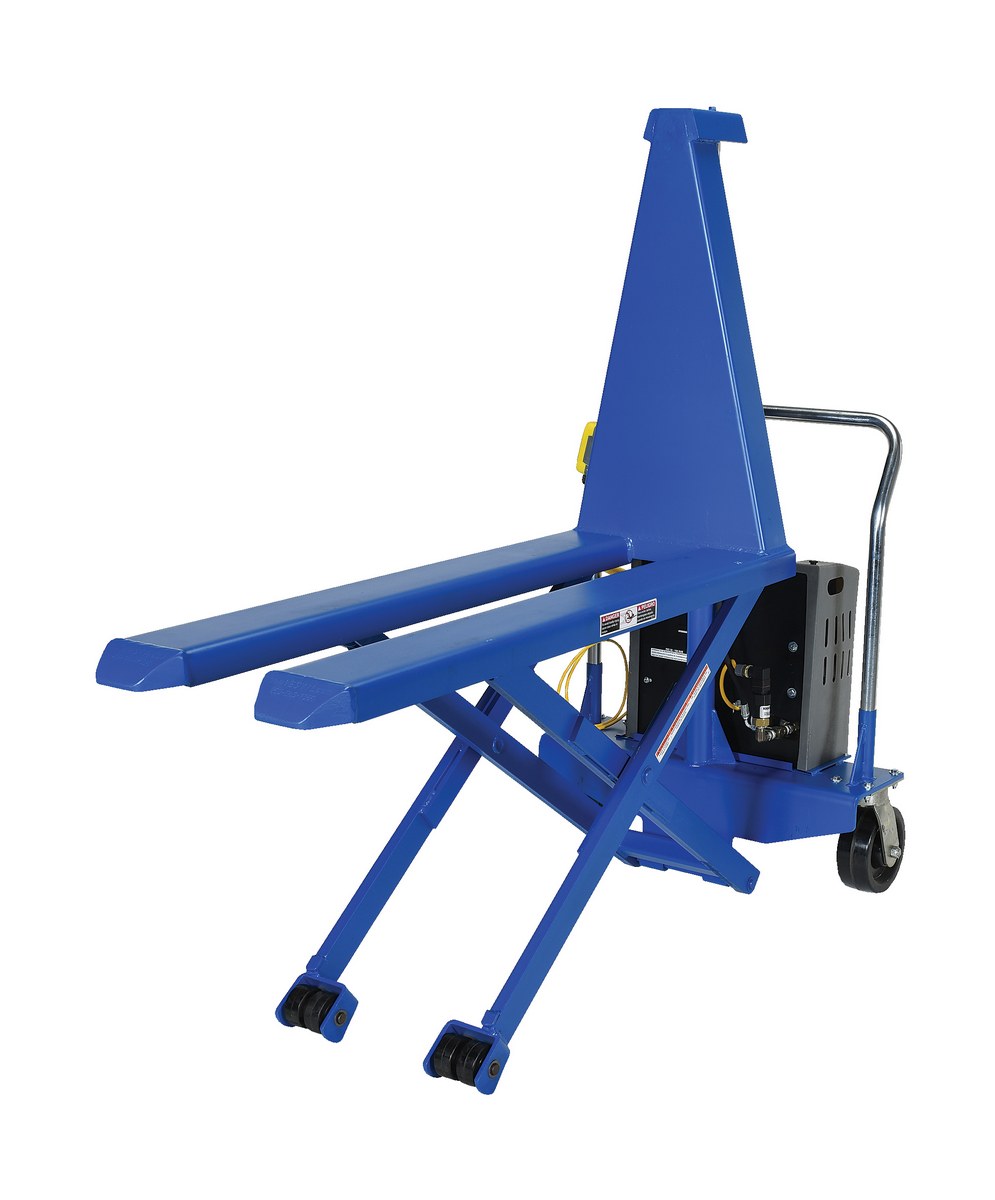

HIPM-2748-AC_E.jpgErgonomic lift truck increases worker and machine efficiency and productivity. Reduces muscle fatigue and body injuries by bringing material closer to actual worker height. 12V DC power features an onboard battery charger and a battery charge indicator gauge. Heavy loads can be lifted by electric hydraulic power and manually moved until auto brake engages at approximately 8". Push buttons to raise and lower lift are located on power unit. Unit rolls smoothly on phenolic 8" x 3" rear swivel casters and dual 3" front guide wheels.

Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. HIPM-PTDS-E includes: Combination throttle / direction controller, An auto reverse emergency "belly switch" , (2) 12V batteries

  • Increases employee ergonomics, machine efficiency, and productivity
  • Steel construction for robust lifting on a daily basis
  • Bringing material closer to actual worker height reduces fatigue and injuries

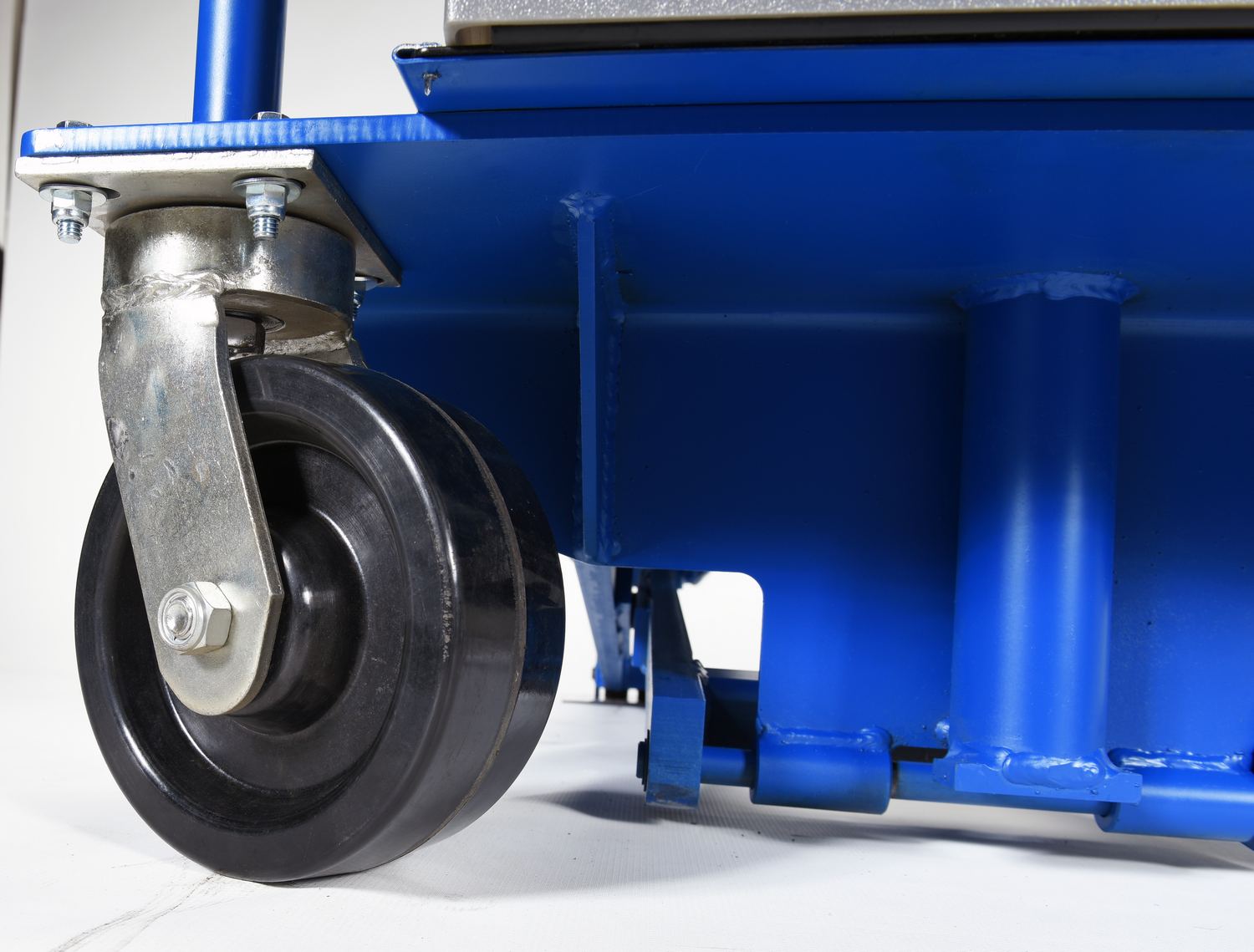

  • Unit rolls on phenolic casters for smooth maneuverability

Three power options to choose from:

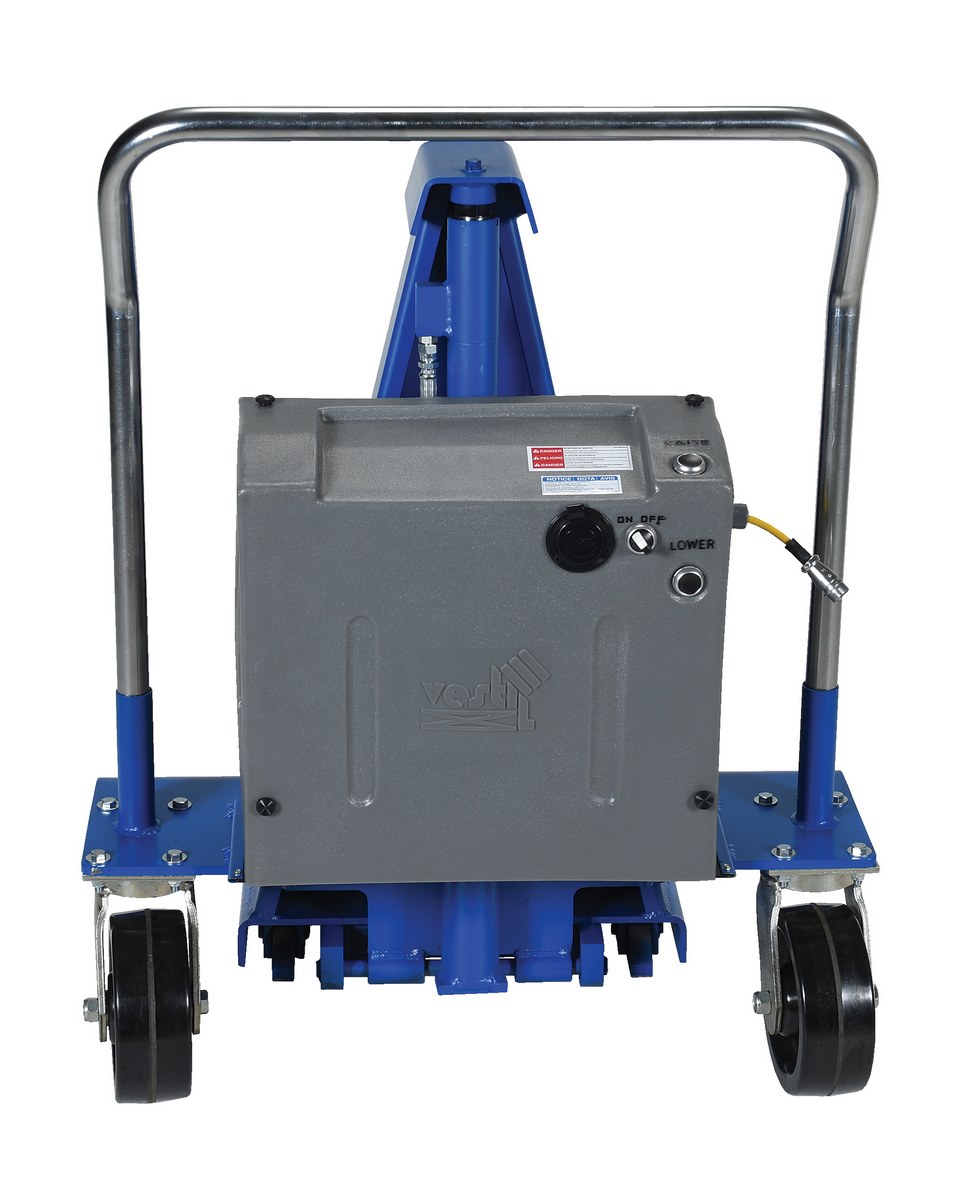

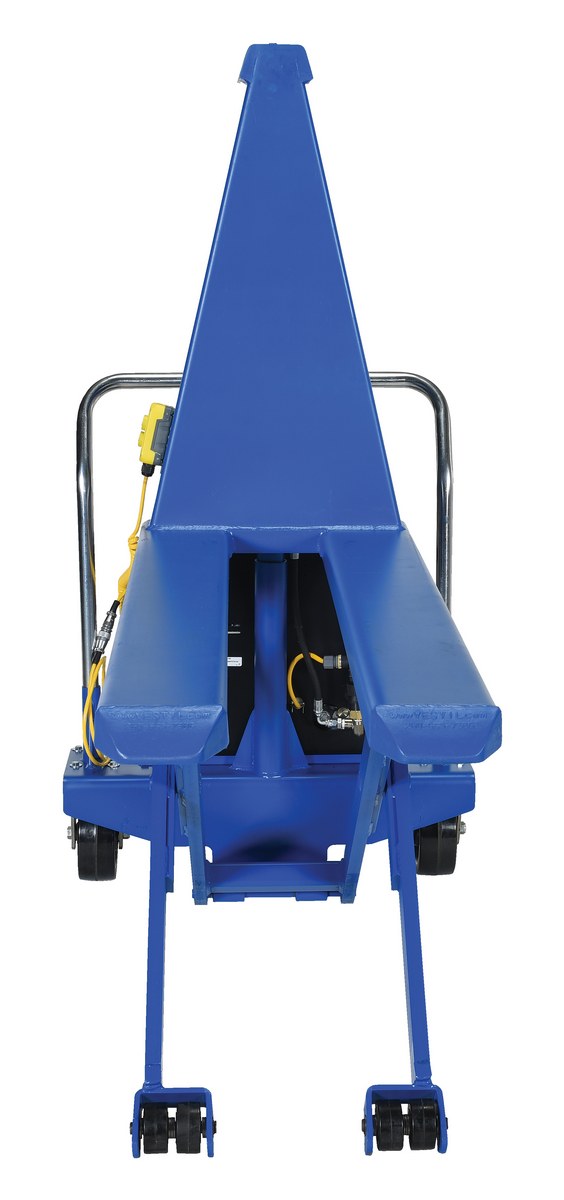

Suffix -- AC is 115V, 1 phase power with a push-button hand control.

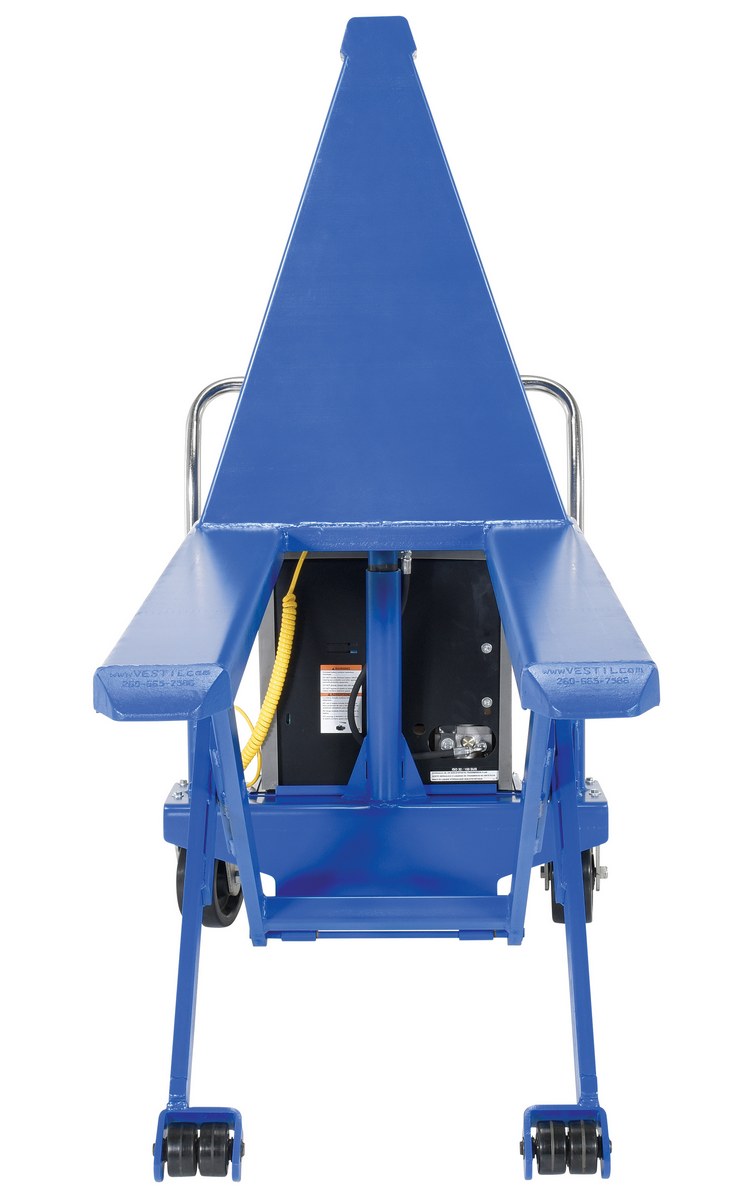

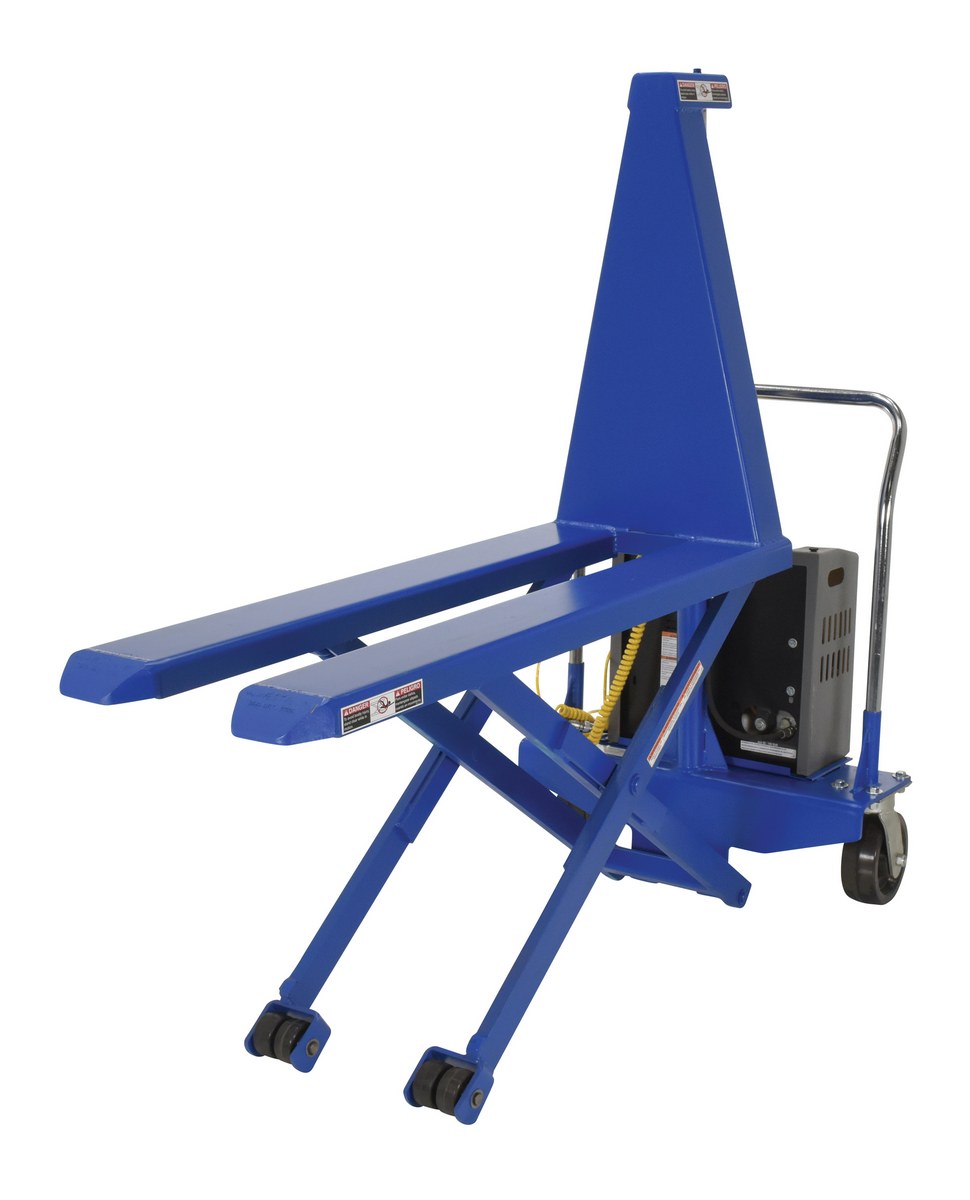

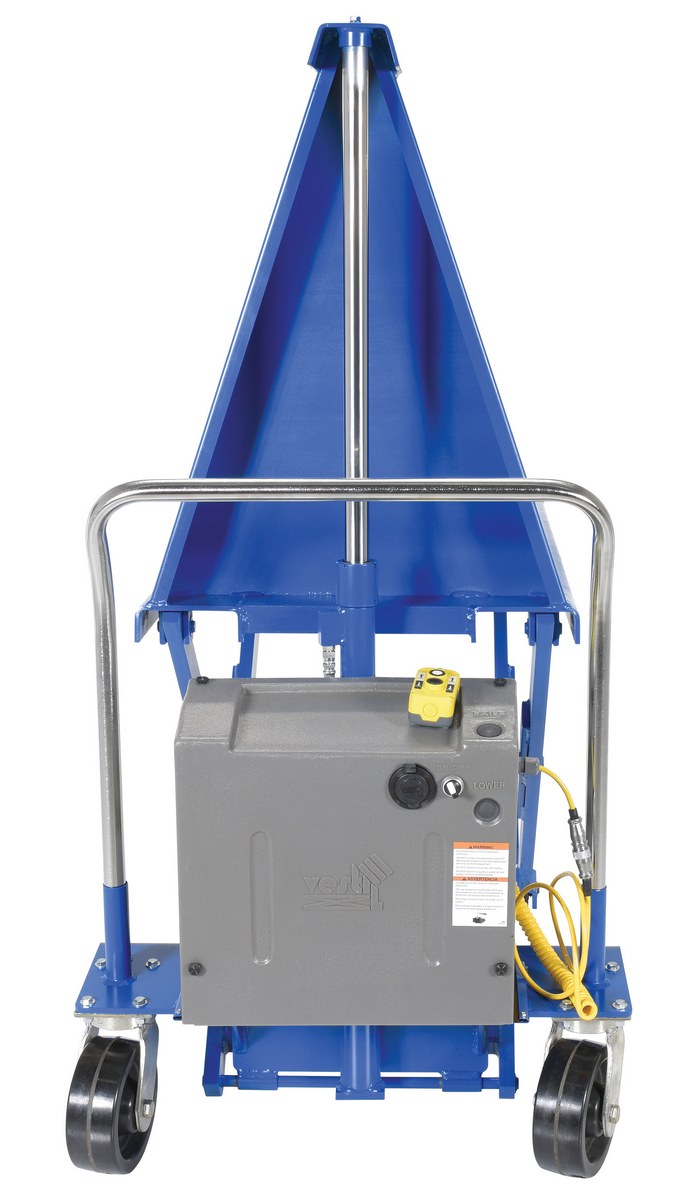

Suffix -- DC includes one (1) 12V battery, push-button hand control, an on-board charger, and a battery charge indicator gauge.

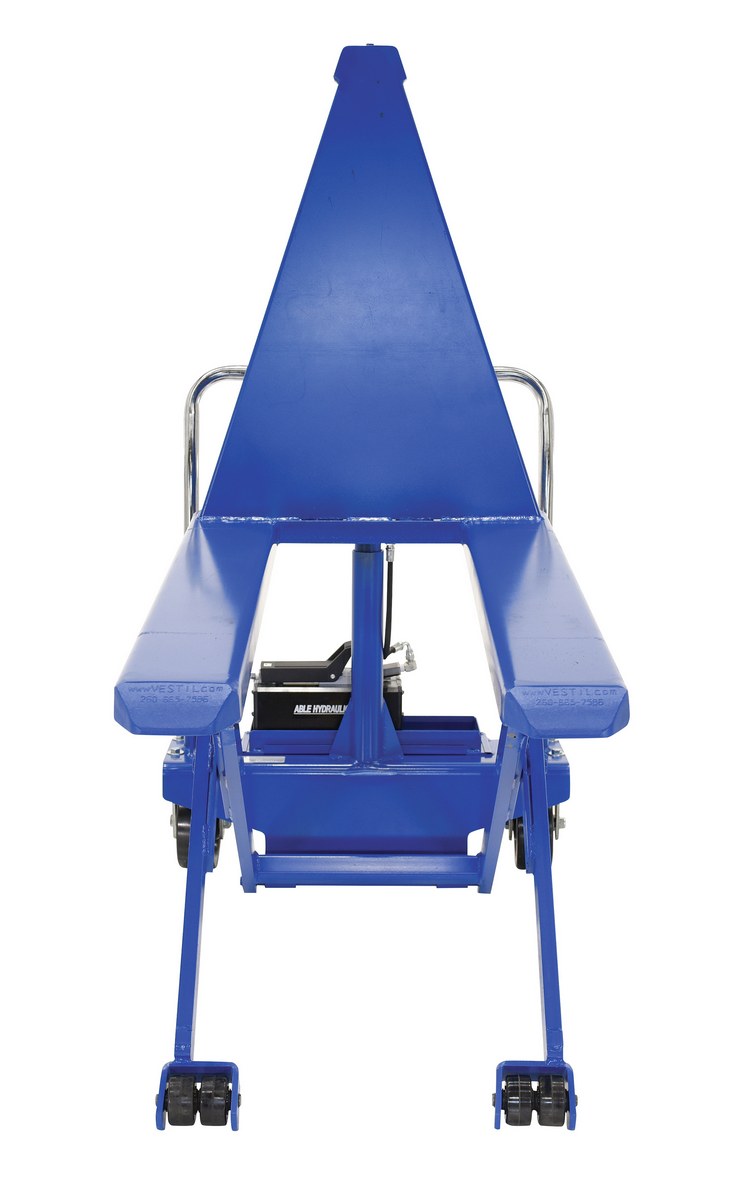

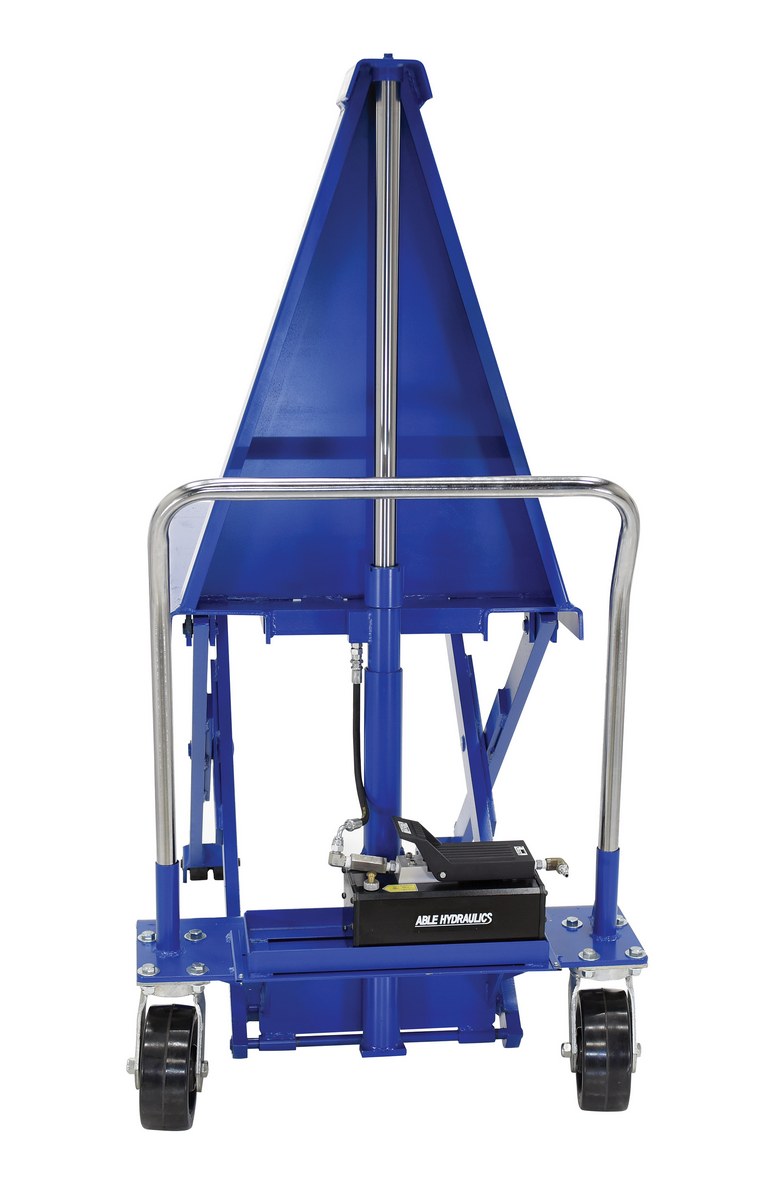

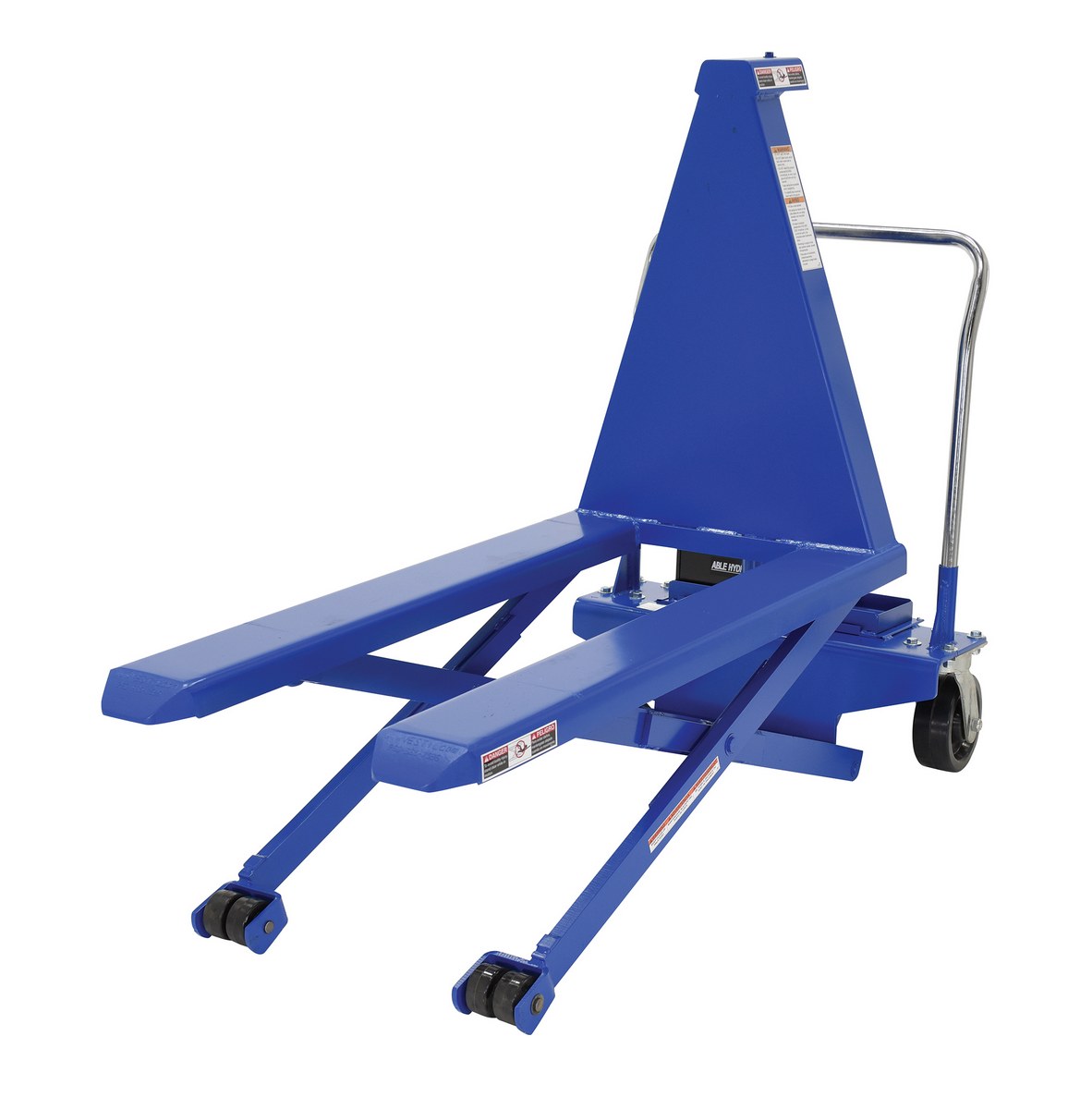

Suffix -- AIR features reciprocating air/oil power with a heel/toe foot treadle control.

HIPM-2748-AC_E.jpgErgonomic lift truck increases worker and machine efficiency and productivity. Reduces muscle fatigue and body injuries by bringing material closer to actual worker height. 12V DC power features an onboard battery charger and a battery charge indicator gauge. Heavy loads can be lifted by electric hydraulic power and manually moved until auto brake engages at approximately 8". Push buttons to raise and lower lift are located on power unit. Unit rolls smoothly on phenolic 8" x 3" rear swivel casters and dual 3" front guide wheels.

Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. HIPM-PTDS-E includes: Combination throttle / direction controller, An auto reverse emergency "belly switch" , (2) 12V batteries

  • Increases employee ergonomics, machine efficiency, and productivity
  • Steel construction for robust lifting on a daily basis
  • Bringing material closer to actual worker height reduces fatigue and injuries
  • Unit rolls on phenolic casters for smooth maneuverability

Three power options to choose from:

Suffix -- AC is 115V, 1 phase power with a push-button hand control.

Suffix -- DC includes one (1) 12V battery, push-button hand control, an on-board charger, and a battery charge indicator gauge.

Suffix -- AIR features reciprocating air/oil power with a heel/toe foot treadle control.

Other Tote/ Skid Lifters

 High Tote Lifter High Rise Lift Trucks Tote-A-Loads High Lift Trucks (Pramac)

Additional Models In This Family
view entire Image Gallery

HIPM-2772-AC

HIPM-2772-AC

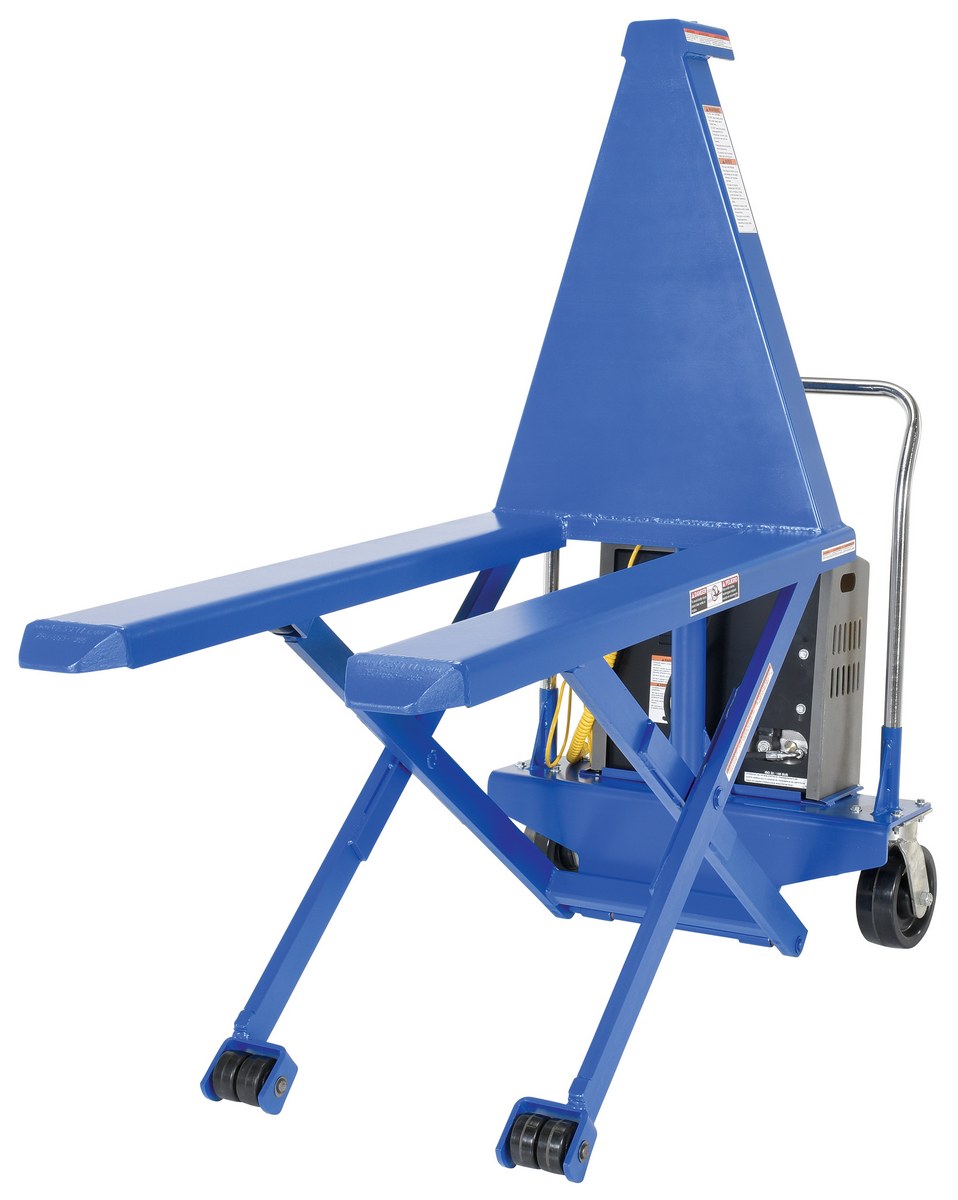

HIPM-2748-DC

HIPM-2748-DC

HIPM-PTDS-E

HIPM-PTDS-E

HIPM-2048-AC

HIPM-2048-AC

HIPM-2772-DC

HIPM-2772-DC

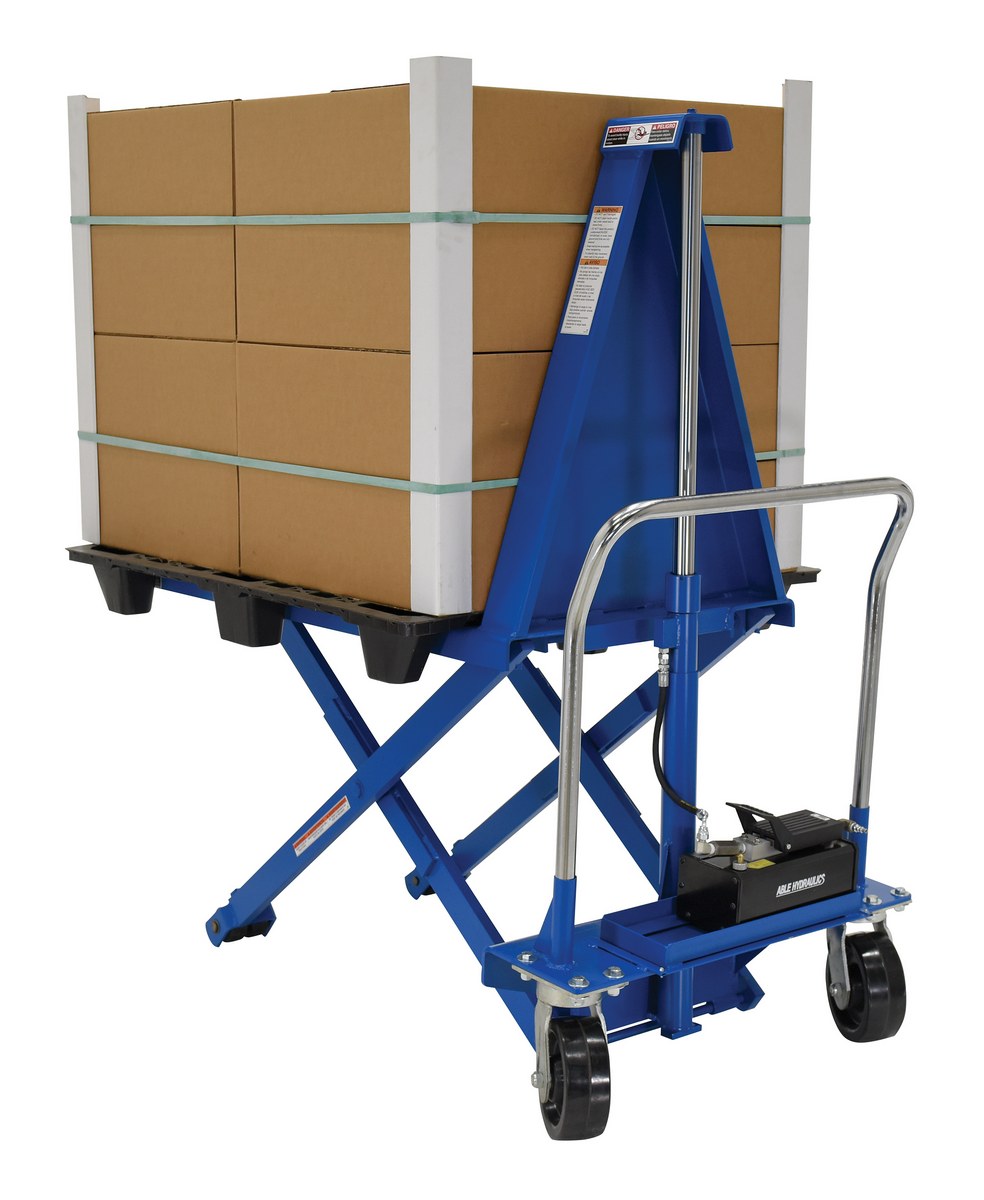

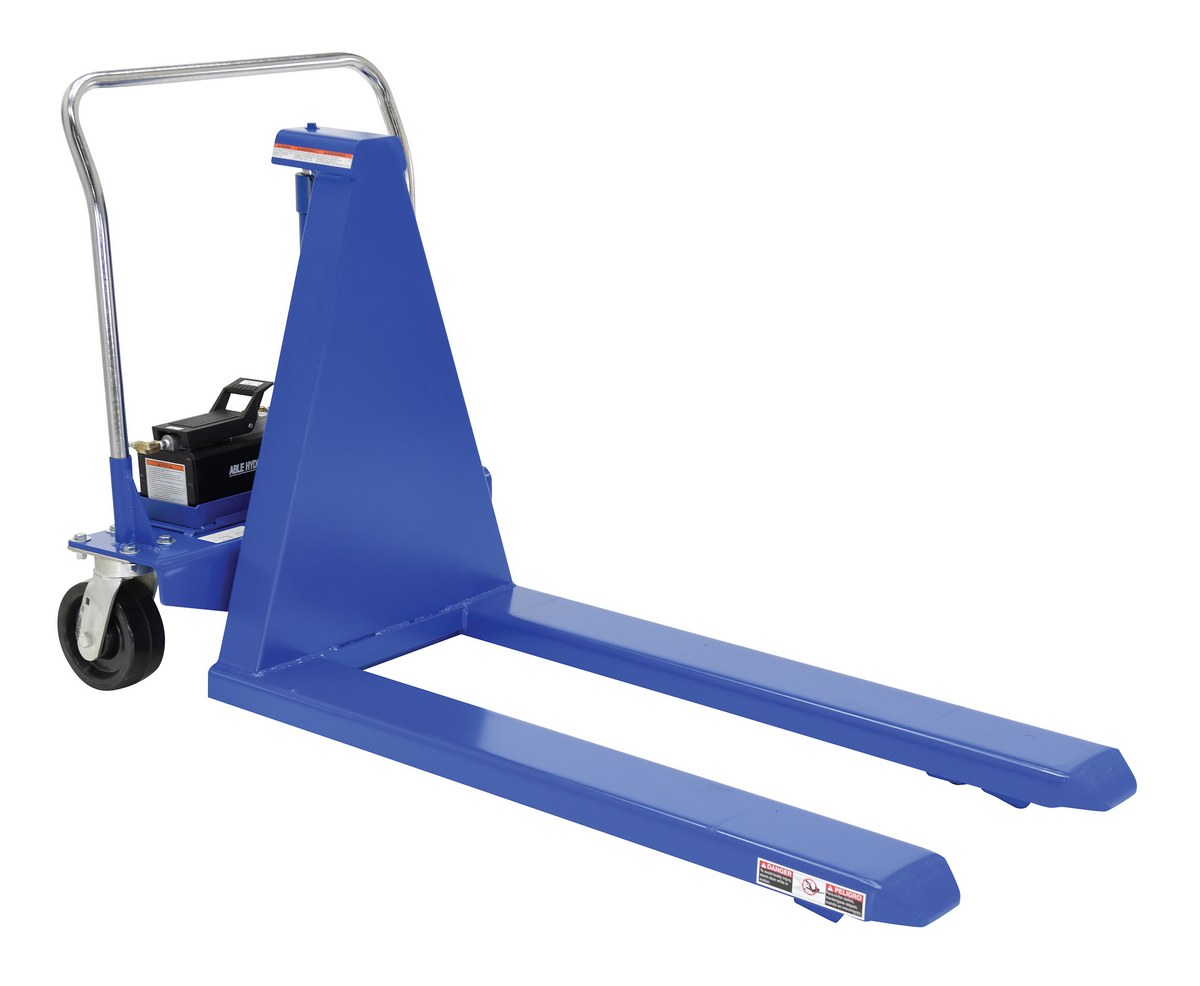

HIPM-2748-AIR

HIPM-2748-AIR

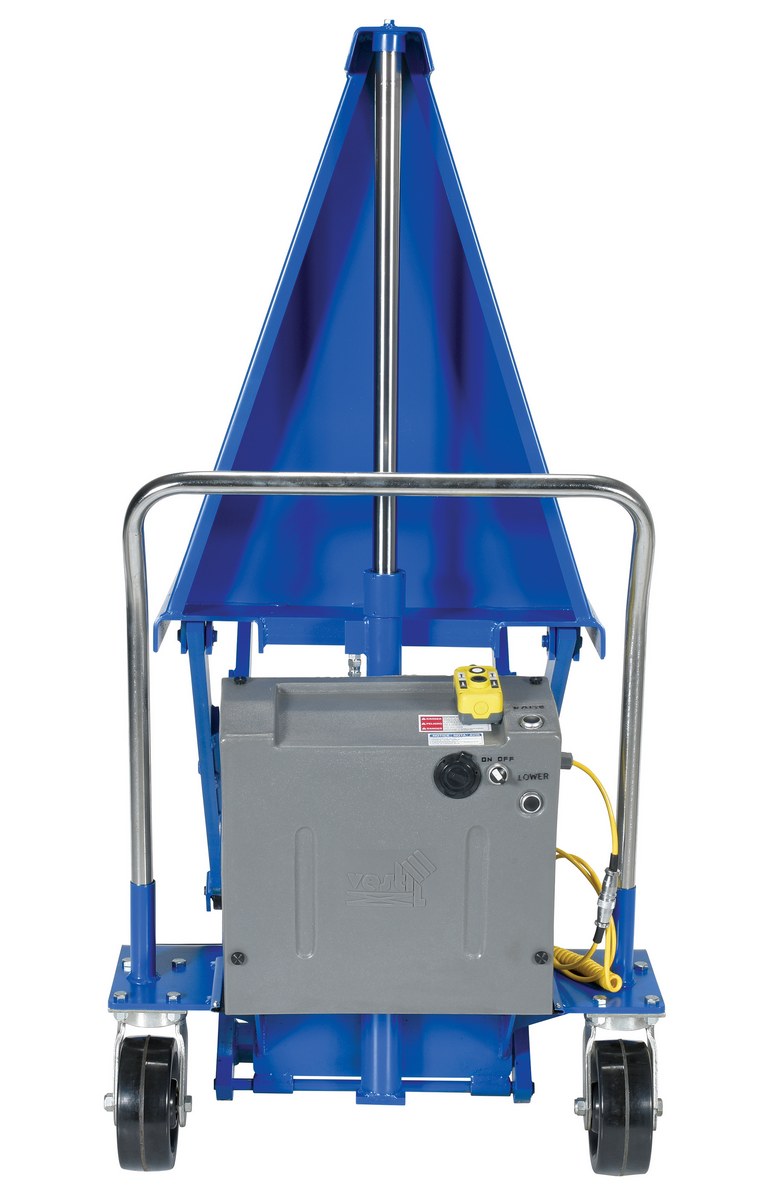

HIPM-2748-AC

HIPM-2748-AC

HIPM-2048-AC

HIPM-2048-AC

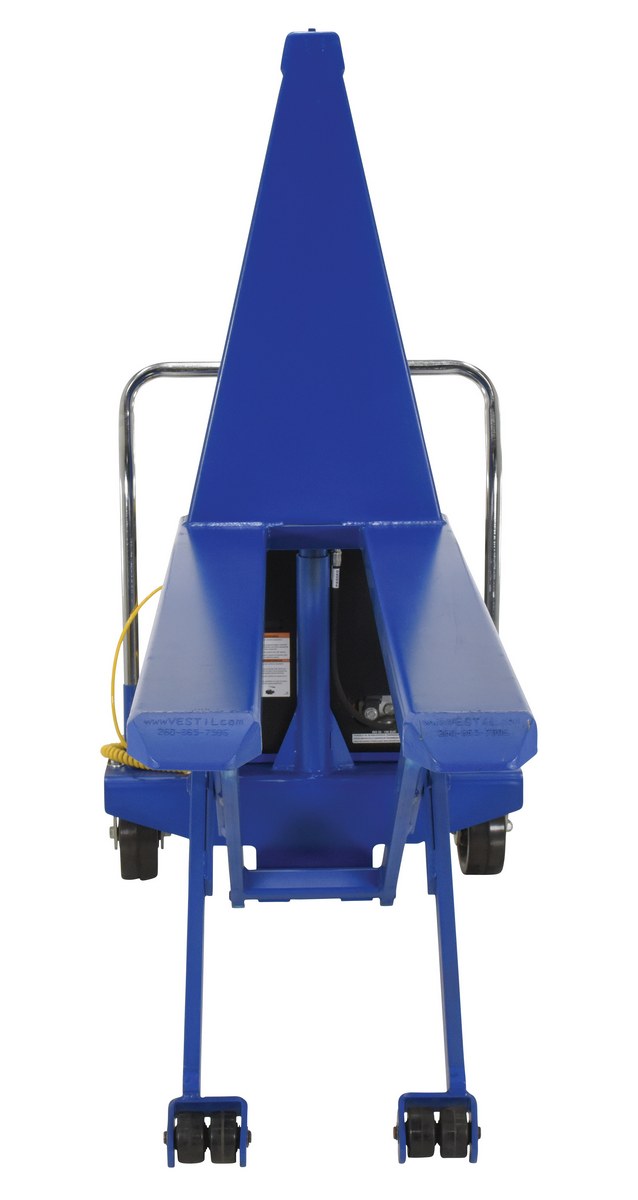

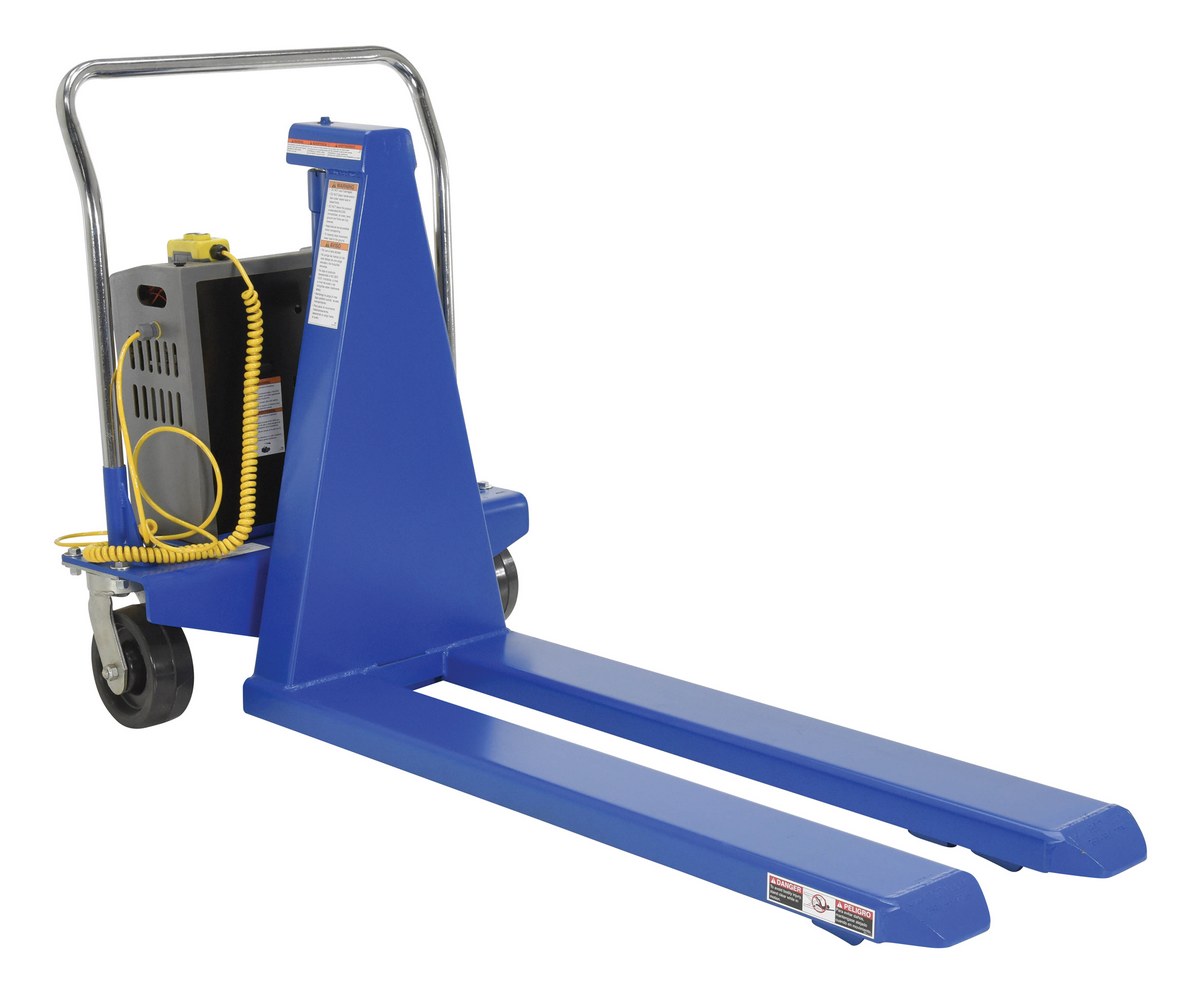

HIPM-2048-DC

HIPM-2048-DC

HIPM-2048-AIR

HIPM-2048-AIR

HIPM-2772-AIR

HIPM-2772-AIR

HIPM-2772-DC

HIPM-2772-DC

HIPM-2048-DC

HIPM-2048-DC

HIPM-PTDS-E

HIPM-PTDS-E

HIPM-2748-AC

HIPM-2748-AC

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HIPM-2048-AC
HIPM-2048-AC1 Year Limited WarrantySteel AC Powered High Lift Table 20 In. x 48 In. 2500 Lb. CapacityUniform Capacity (lb.): 2,500
Fork Width (in.): 20		598
HIPM-2048-AIR
HIPM-2048-AIR1 Year Limited WarrantySteel Air Reciprocating Powered High Lift Table 20 In. x 48 In. 2500 Lb. CapacityUniform Capacity (lb.): 2,500
Fork Width (in.): 20		515
HIPM-2048-DC HIPM-2048-DC1 Year Limited WarrantySteel DC Powered High Lift Table 20 In. x 48 In. 2500 Lb. CapacityUniform Capacity (lb.): 2,500
Fork Width (in.): 20		615
HIPM-2748-AC
HIPM-2748-AC1 Year Limited WarrantySteel AC Powered High Lift Table 27 In. x 48 In. 2500 Lb. CapacityUniform Capacity (lb.): 2,500
Fork Width (in.): 27		646
HIPM-2748-AIR
HIPM-2748-AIR1 Year Limited WarrantySteel Air Reciprocating Powered High Lift Table 27 In. x 48 In. 2500 Lb. CapacityUniform Capacity (lb.): 2,500
Fork Width (in.): 27		578
HIPM-2748-DC HIPM-2748-DC1 Year Limited WarrantySteel DC Powered High Lift Table 27 In. x 48 In. 2500 Lb. CapacityUniform Capacity (lb.): 2,500
Fork Width (in.): 27		615
HIPM-2772-AC
HIPM-2772-AC1 Year Limited WarrantySteel AC Powered High Lift Table 27 In x 72 In 2500 Lb. CapacityUniform Capacity (lb.): 2,500
Fork Width (in.): 27		696
HIPM-2772-AIR
HIPM-2772-AIR1 Year Limited WarrantySteel Air Reciprocating Powered High Lift Table 27 In x 72 In 2500 Lb. CapacityUniform Capacity (lb.): 2,500
Fork Width (in.): 27		628
HIPM-2772-DC HIPM-2772-DC1 Year Limited WarrantySteel DC Powered High Lift Table 27 In x 72 In 2500 Lb. CapacityUniform Capacity (lb.): 2,500
Fork Width (in.): 27		641

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HIPM-2048-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Fork Width (in.): 20
Uniform Capacity (lb.): 2,500
Fork Width (in.): 20

HIPM-2048-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Fork Width (in.): 20
Uniform Capacity (lb.): 2,500
Fork Width (in.): 20

HIPM-2048-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Fork Width (in.): 20
Uniform Capacity (lb.): 2,500
Fork Width (in.): 20

HIPM-2748-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27

HIPM-2748-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27

HIPM-2748-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27

HIPM-2772-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27

HIPM-2772-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27

HIPM-2772-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27
Uniform Capacity (lb.): 2,500
Fork Width (in.): 27
For More Details of the Option Click the Red Model Button

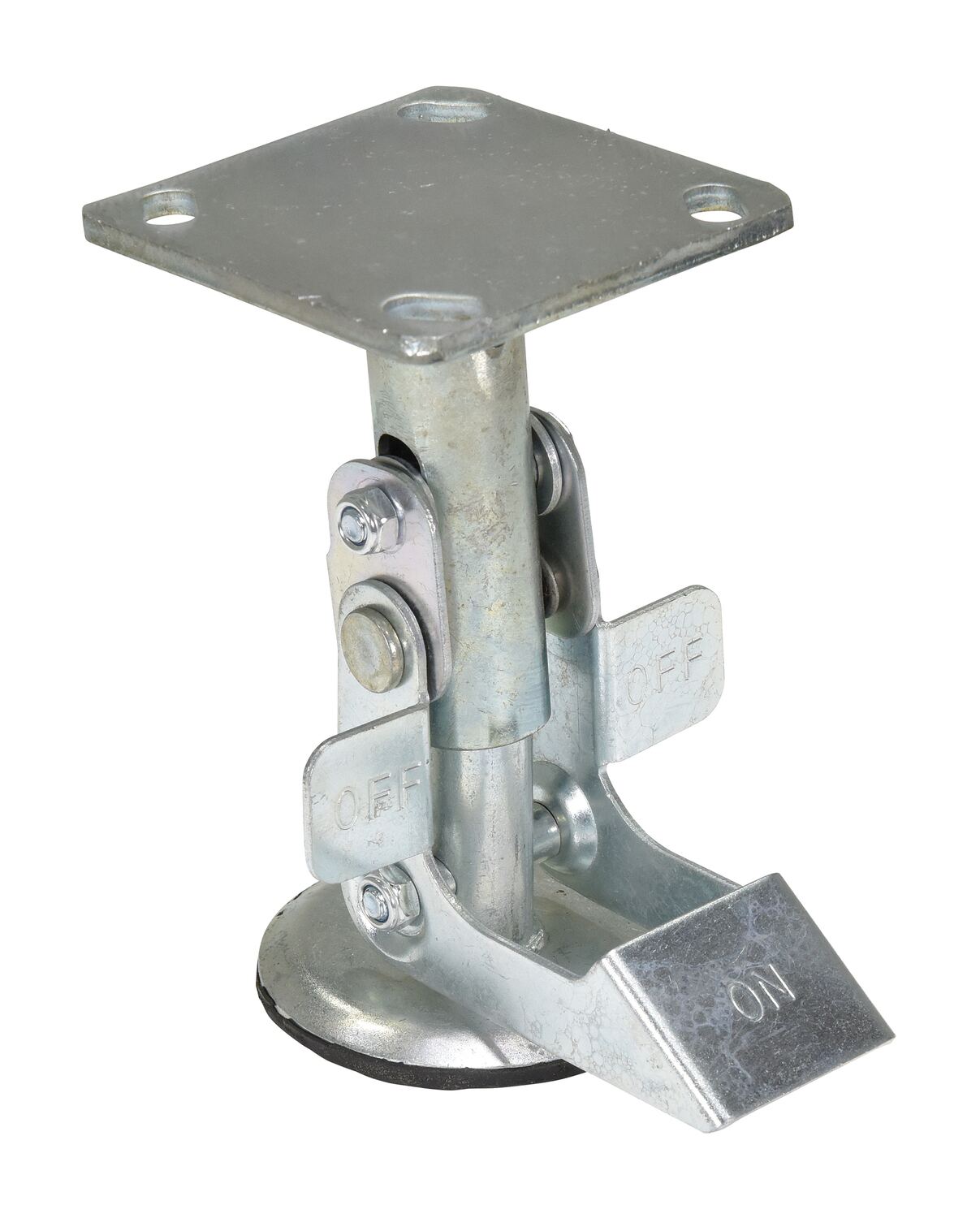

HIPM-FLK 90 Days Limited WarrantyFactory Installed Manual Floor Lock For High Rise Lift TruckRetracted Height (in): 6"
Extended Height (in): 7"		15
HIPM-PLATE 90 Days Limited WarrantyFactory Installed Steel Solid Platform To Fit Over High Rise Lift TruckSize: Fabricated to Fit Unit ( 27 (in.) or 20 (in.) Width )
40

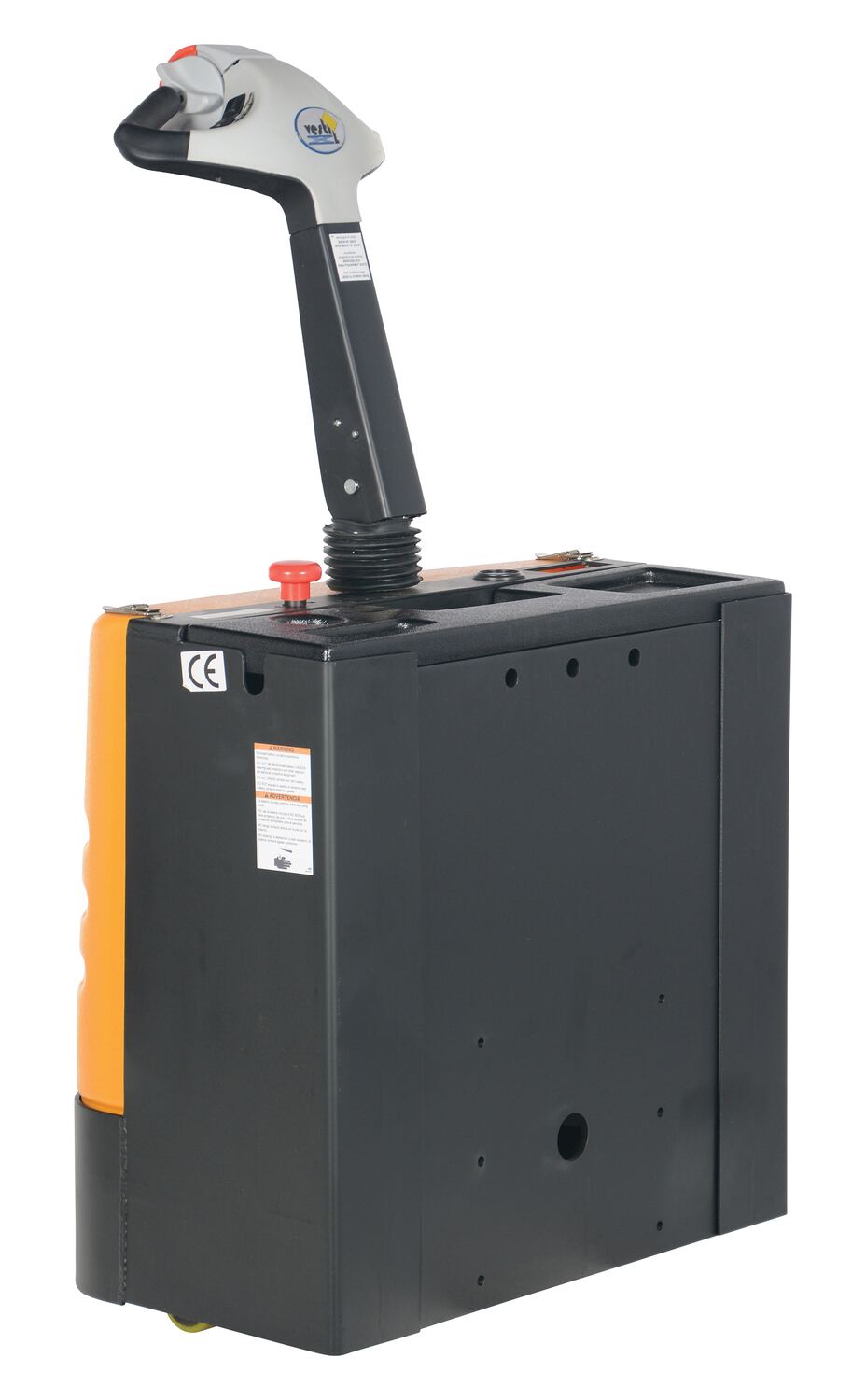

HIPM-PTDS-E HIPM-PTDS-E90 Days Limited WarrantyFactory Installed Power Traction Drive System For High Rise Lift Truck Black / Yellow-
558

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
High Rise Lift Trucks PDF's will open in a new window when clicked.

Manuals


HIPM
Owners Manual

PTDS
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


HIPM-2048-AC

HIPM-2048-AIR

HIPM-2048-DC

HIPM-2748-AC

HIPM-2748-AIR

HIPM-2748-DC

HIPM-2772-AC

HIPM-2772-AIR

HIPM-2772-DC

Testing Certificates


HIPM-2048-AC

HIPM-2048-AIR

HIPM-2048-DC

HIPM-2748-AC

HIPM-2748-AIR

HIPM-2748-DC

HIPM-2772-AC

HIPM-2772-AIR

HIPM-2772-DC

HIPM-FLK

HIPM-PLATE

HIPM-PTDS-E

SDS Sheets

Hydraulic Oil SDS Sheet for: HIPM-2048-AC
Hydraulic Oil SDS Sheet for: HIPM-2048-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HIPM-2048-DC
Hydraulic Oil SDS Sheet for: HIPM-2048-DC
Hydraulic Oil SDS Sheet for: HIPM-2748-AC
Hydraulic Oil SDS Sheet for: HIPM-2748-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HIPM-2748-DC
Hydraulic Oil SDS Sheet for: HIPM-2748-DC
Hydraulic Oil SDS Sheet for: HIPM-2772-AC
Hydraulic Oil SDS Sheet for: HIPM-2772-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HIPM-2772-DC
Hydraulic Oil SDS Sheet for: HIPM-2772-DC
Hydraulic Oil SDS Sheet for: HIPM-FLK
Hydraulic Oil SDS Sheet for: HIPM-PLATE
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HIPM-PTDS-E
Hydraulic Oil SDS Sheet for: HIPM-PTDS-E

Other PDF's


X-Tra Long High Rise Lift Truck Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Can the lift trucks be pushed while in the raised height?

A: No they cannot.
