Tote Lifters

  2. Ergonomic Solutions
  3. Tote/ Skid Lifters
  4. ...
Click Image to Enlarge

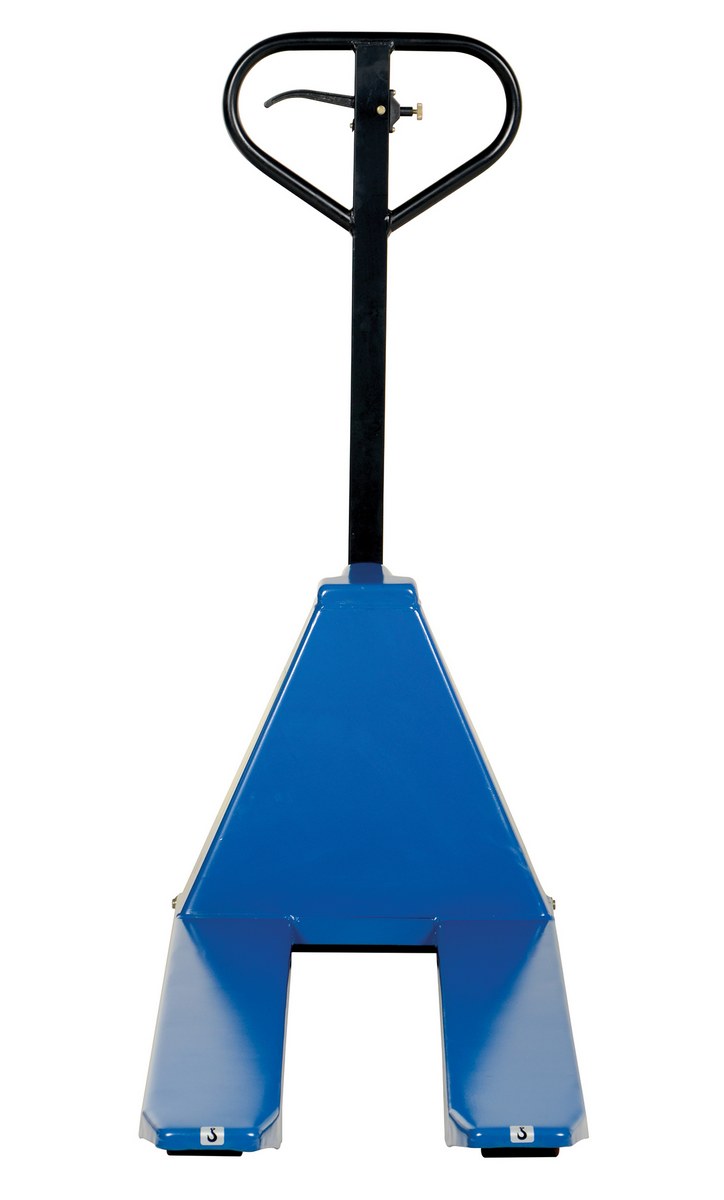

model: L-220-HD

L-220-HD_D.jpg L-220-HD_A.jpg L-220-HD_B.jpg L-220-HD_C.jpg
Print Friendly
Tote Lifters
SERIES: L

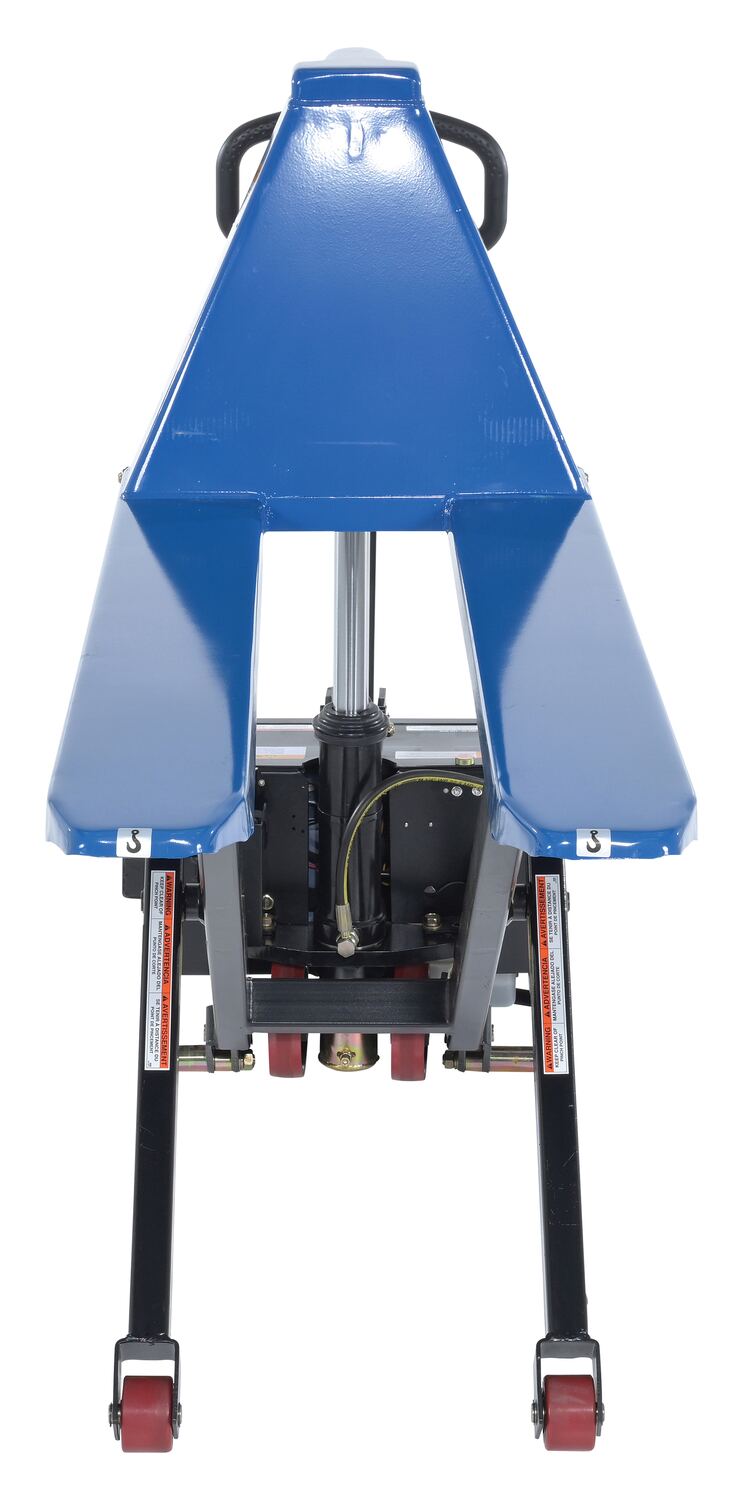

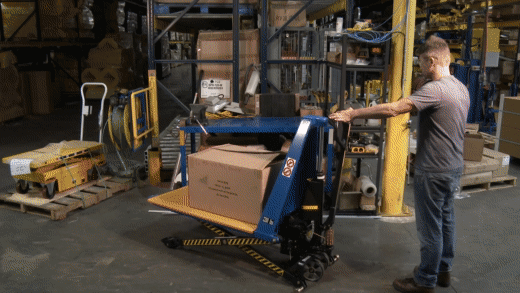

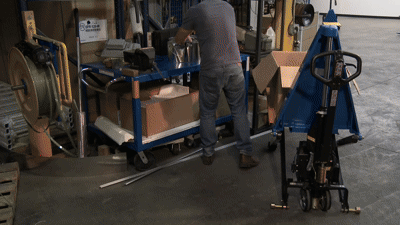

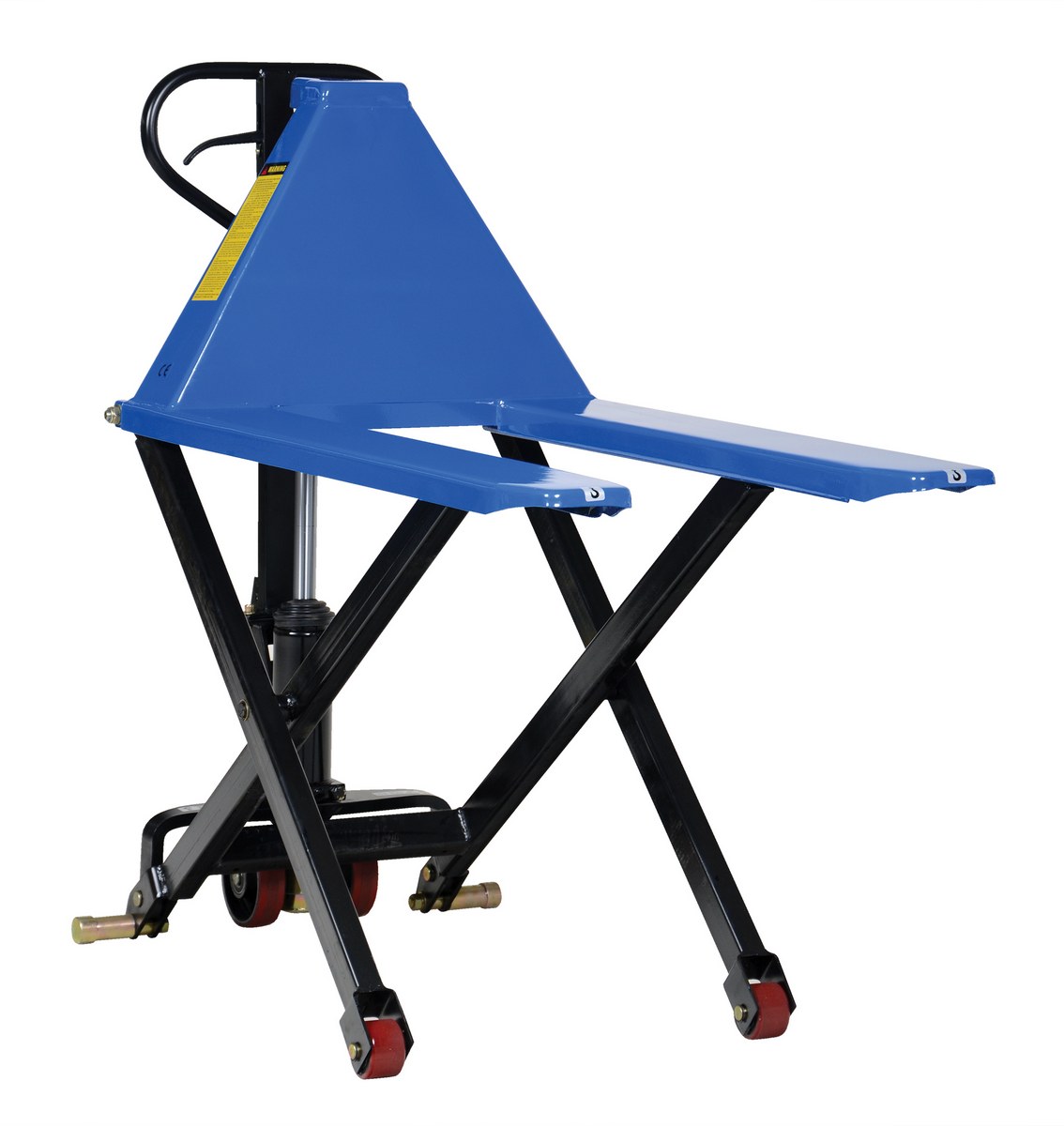

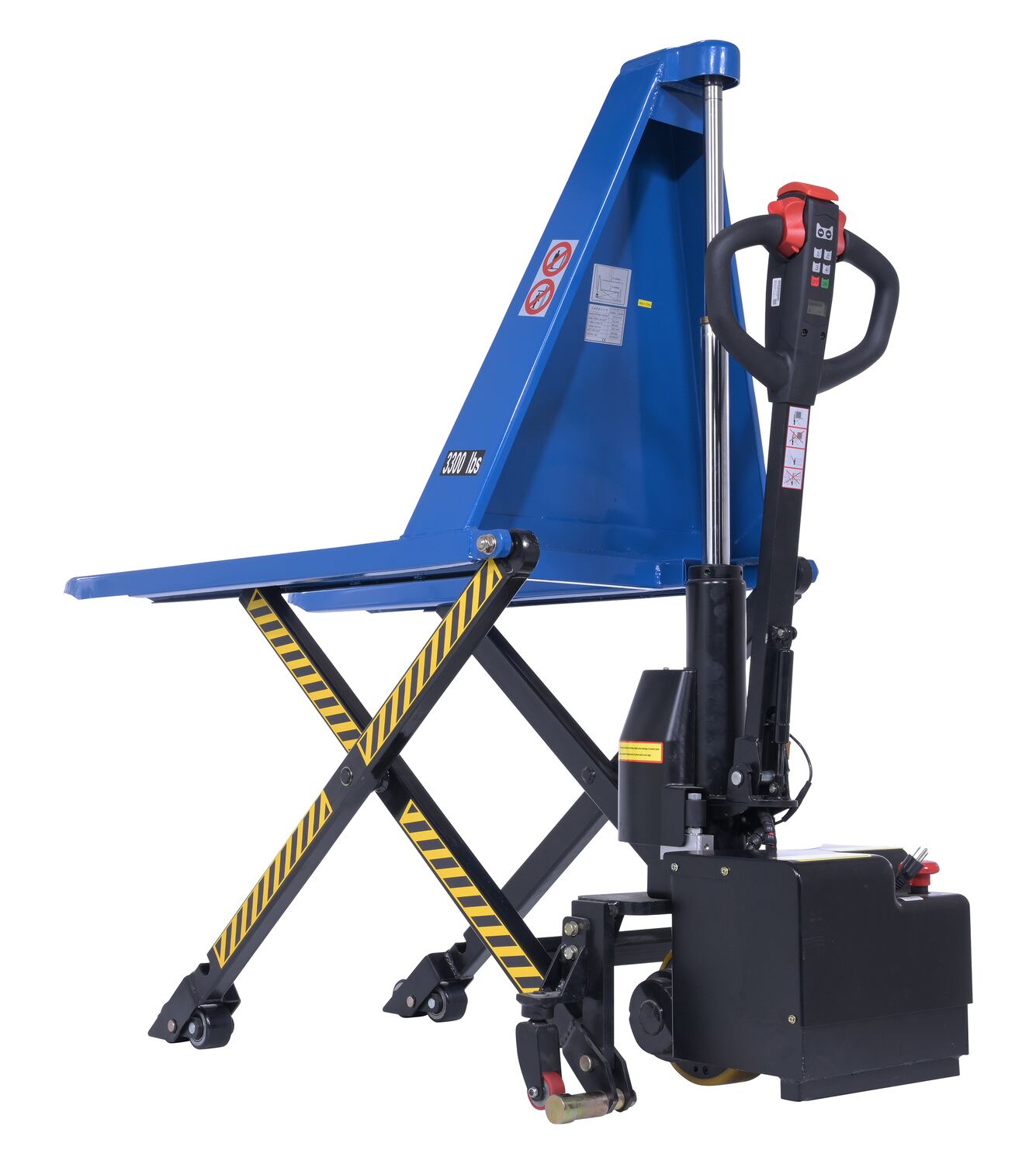

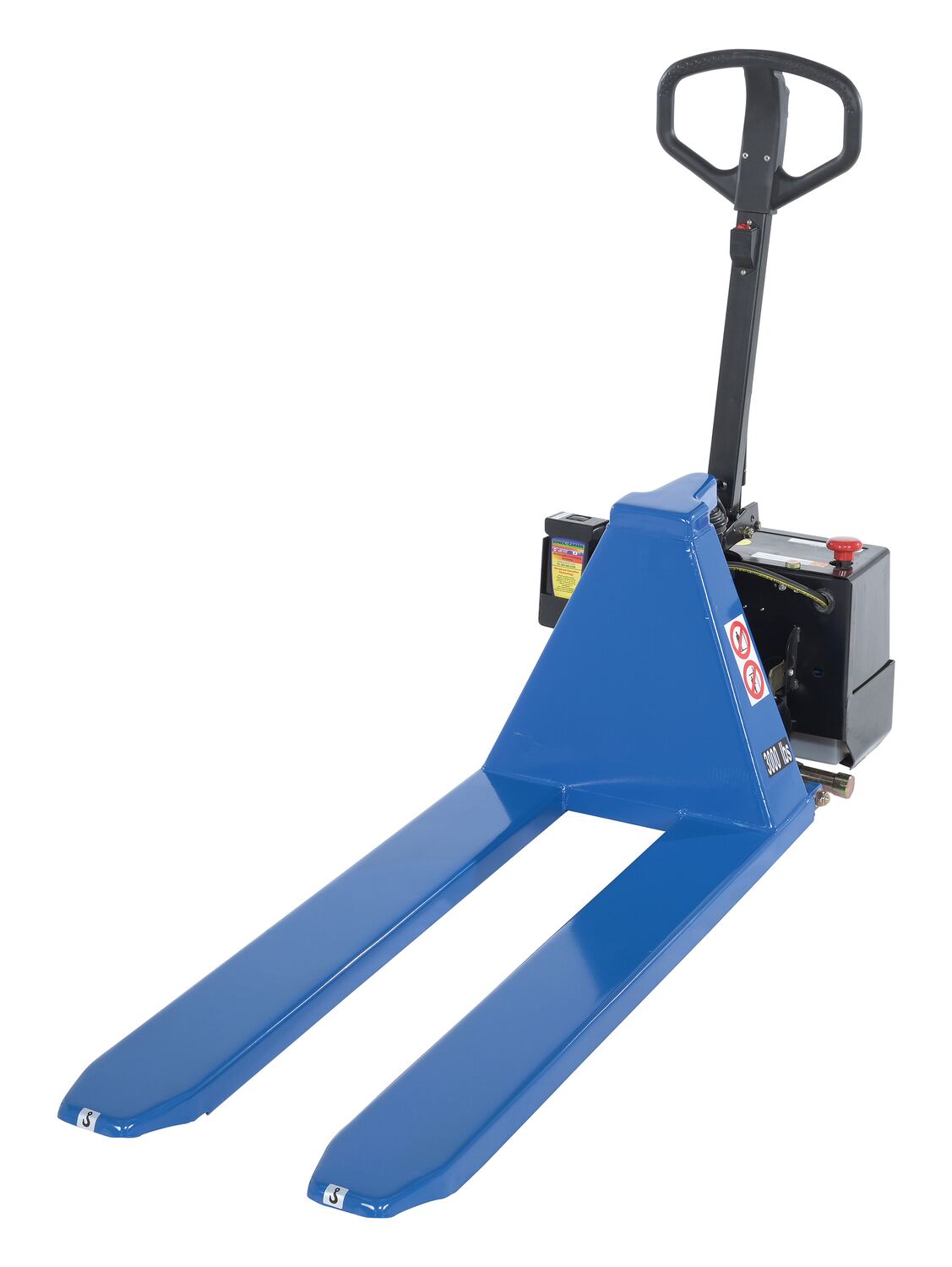

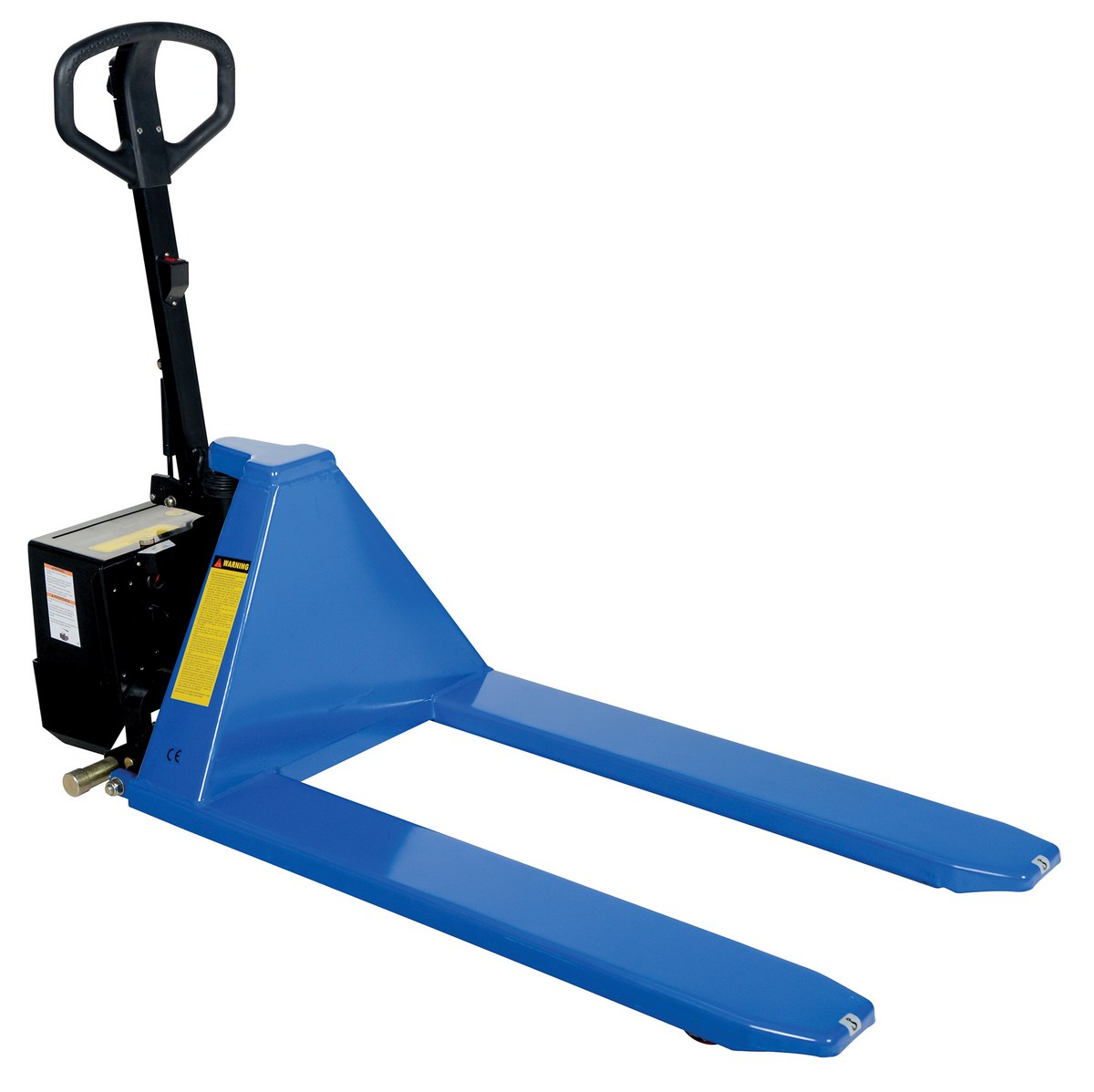

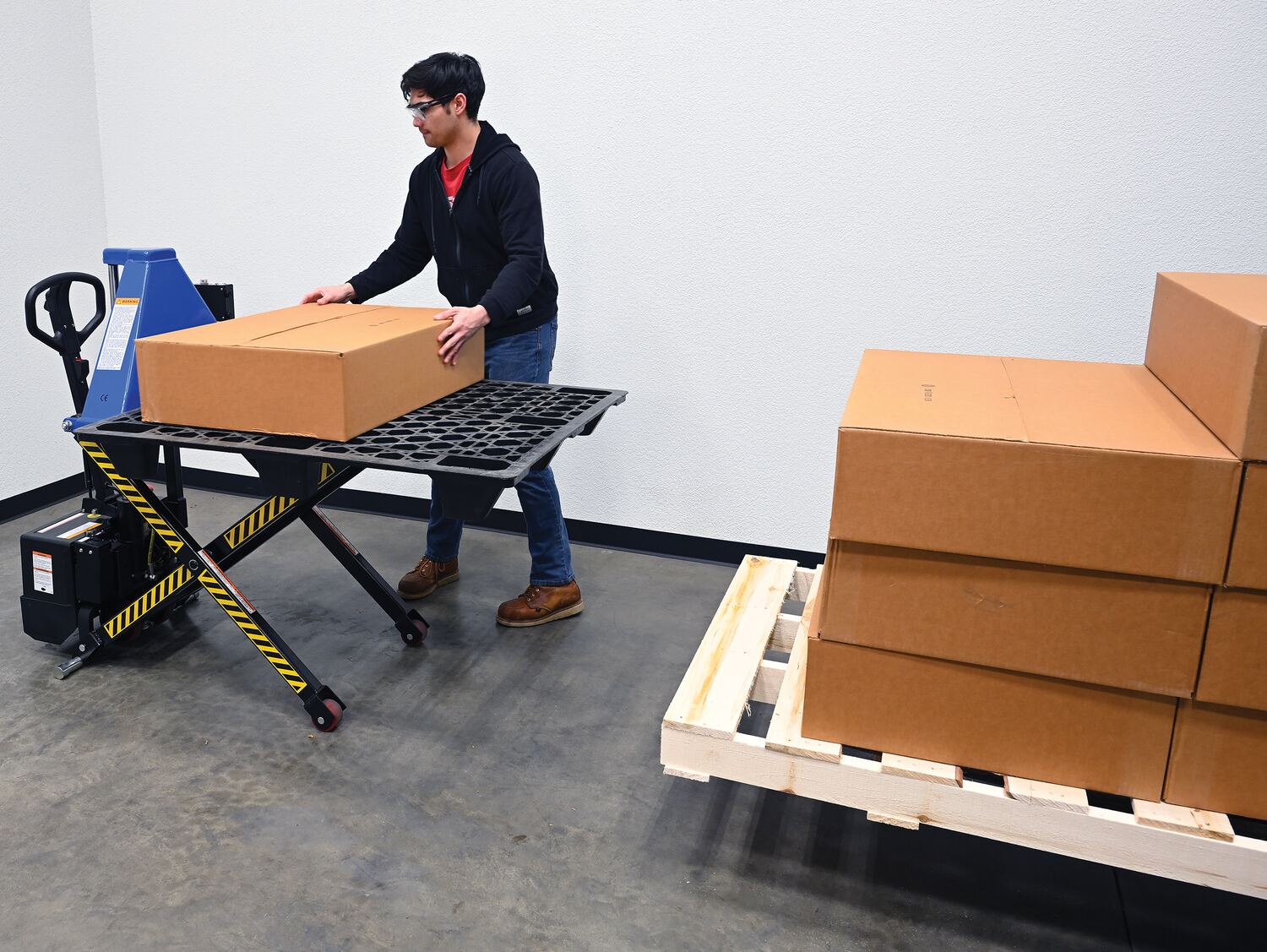

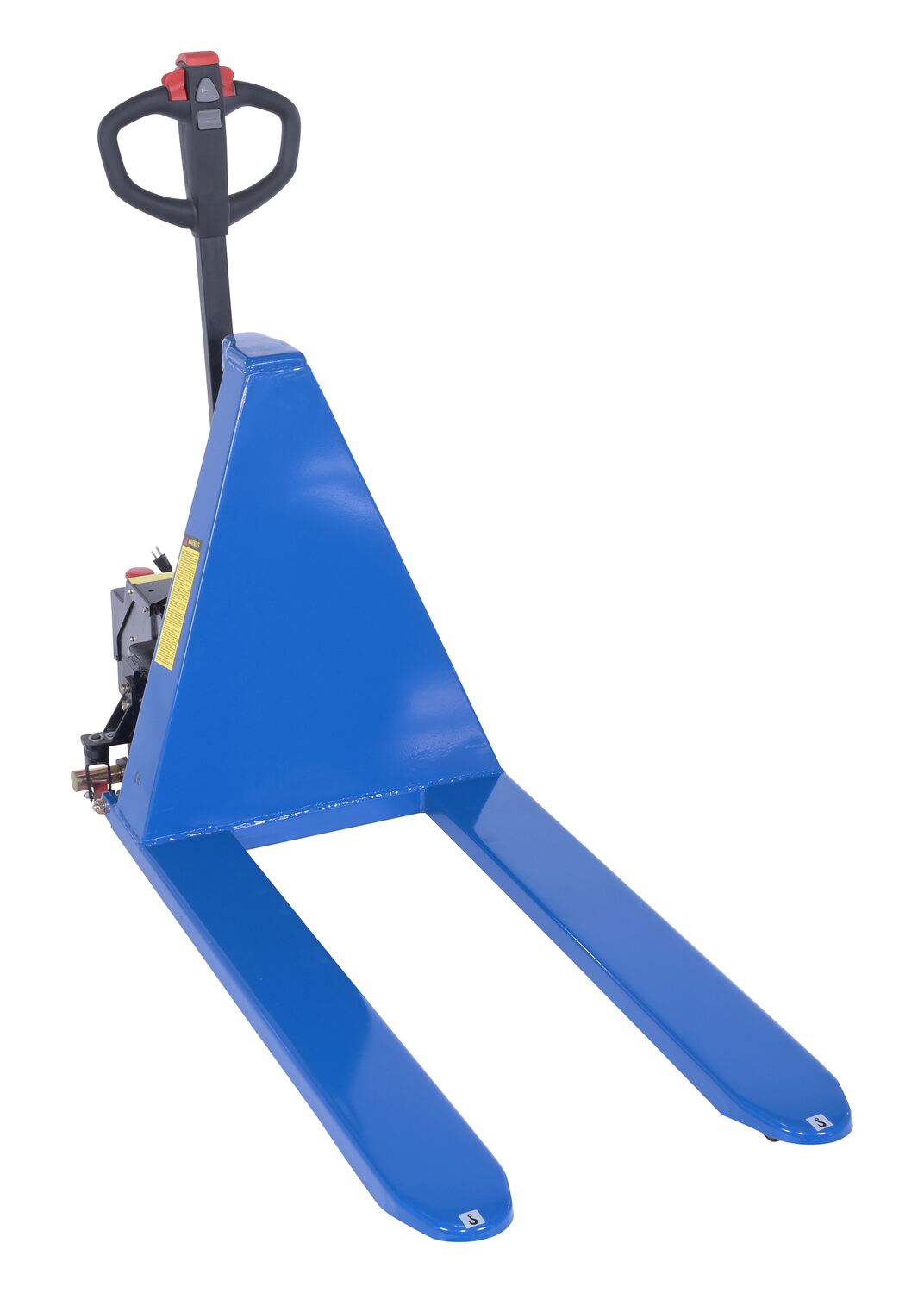

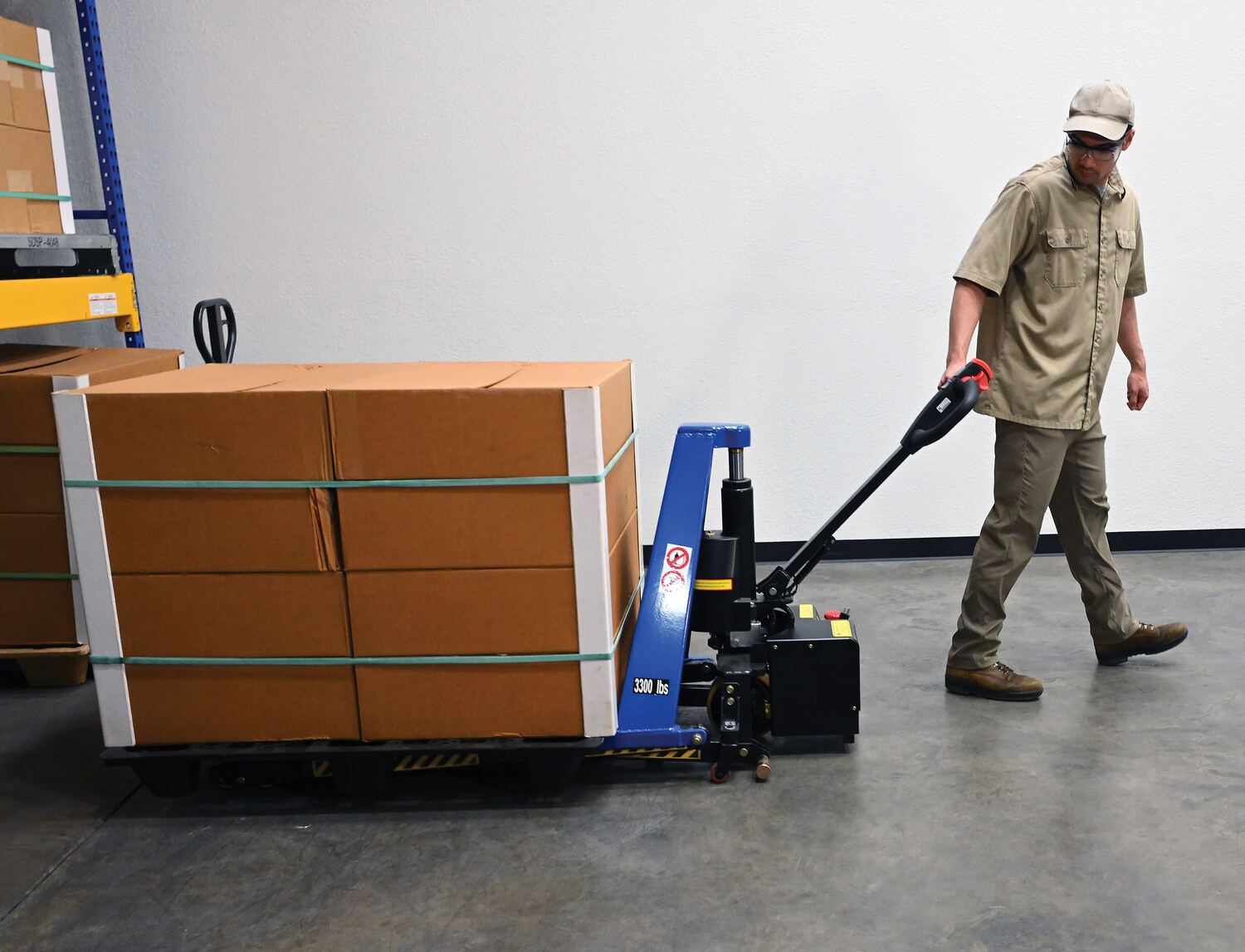

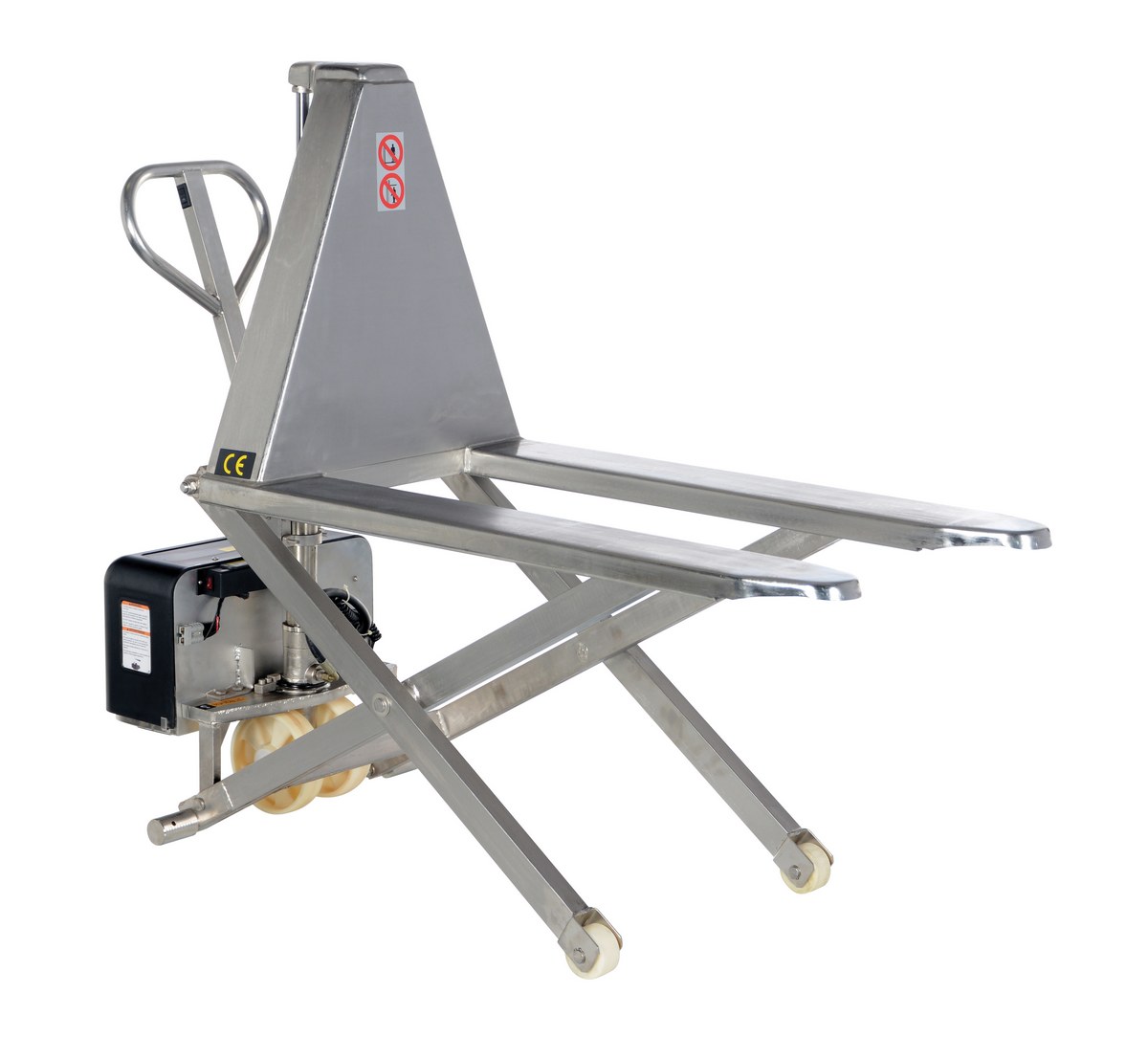

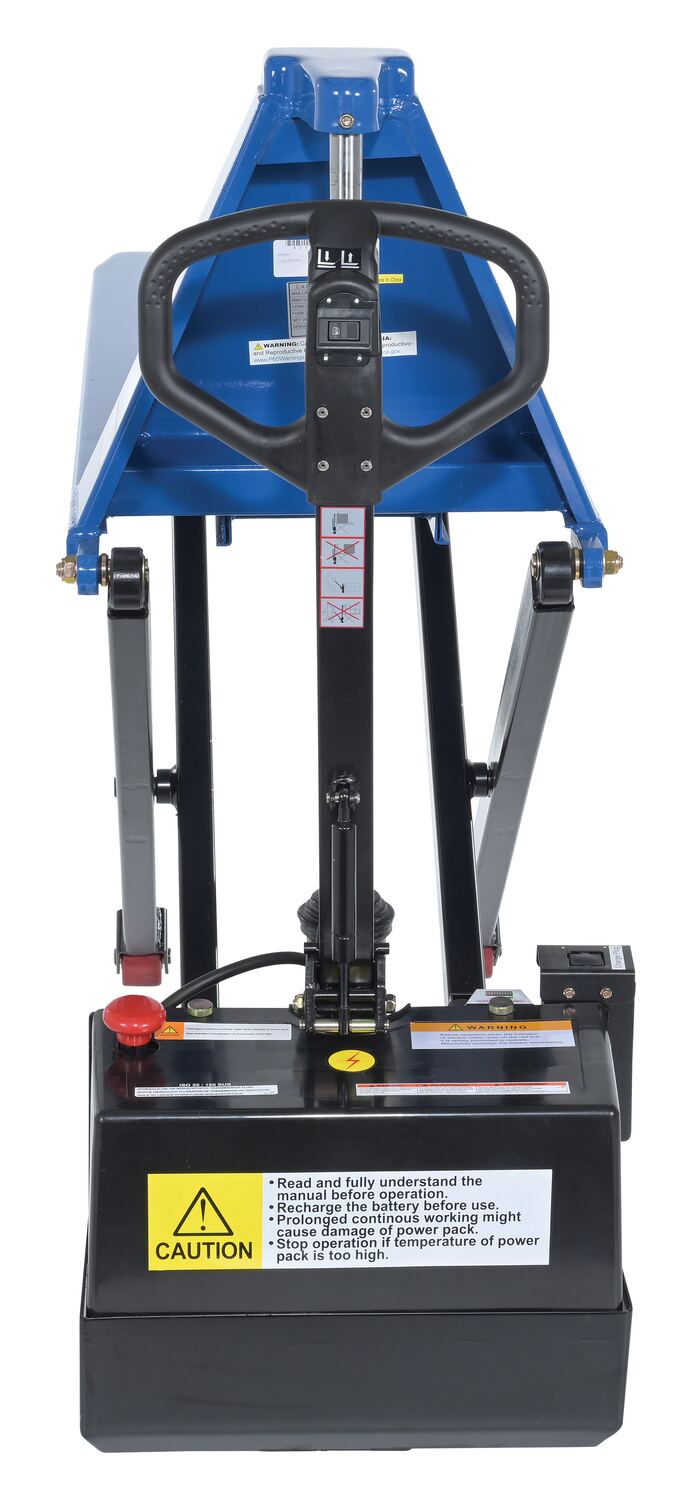

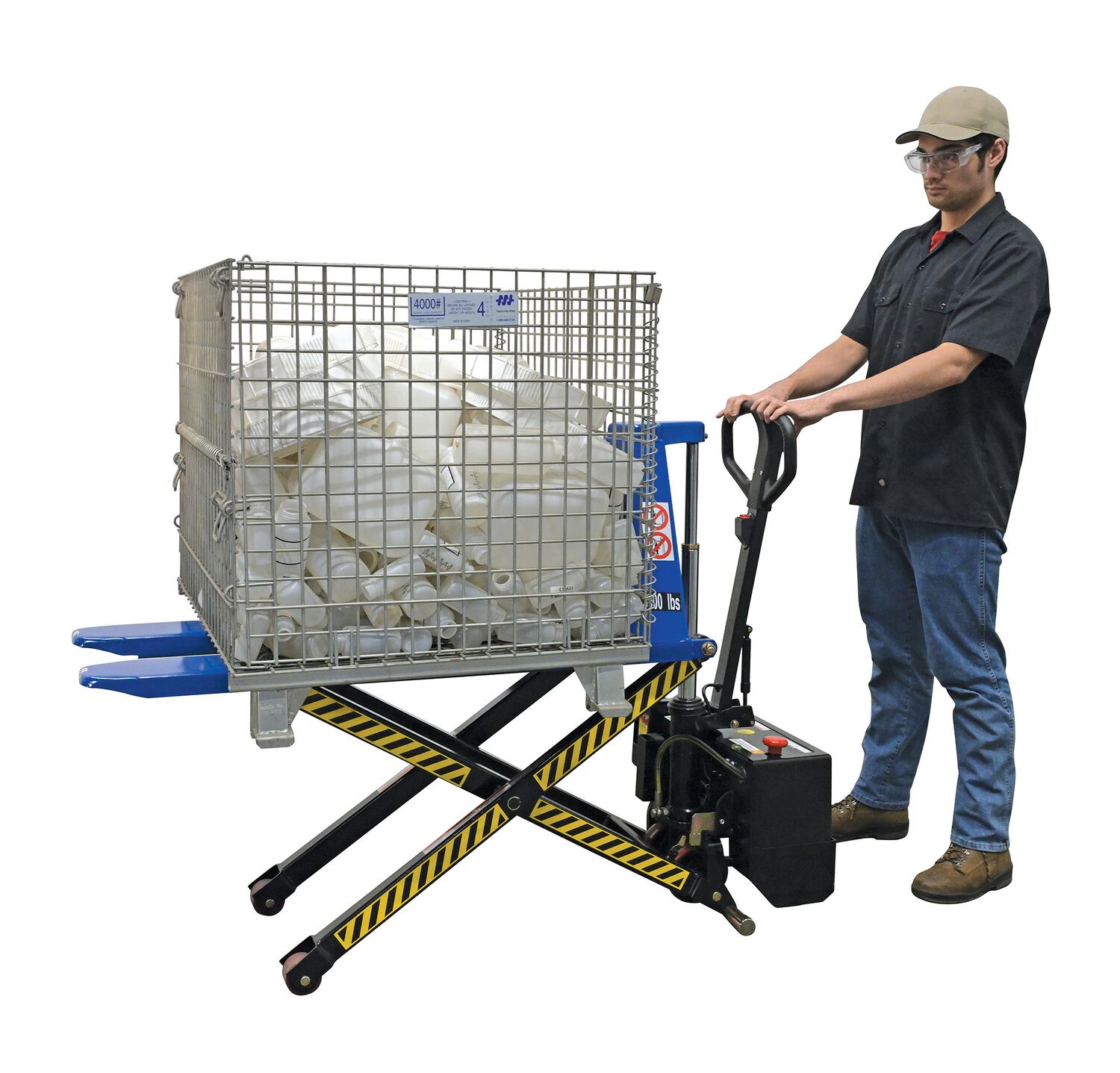

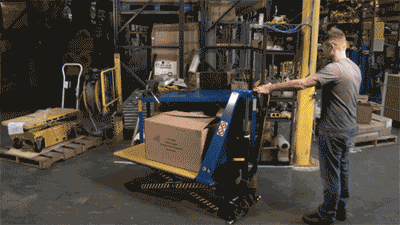

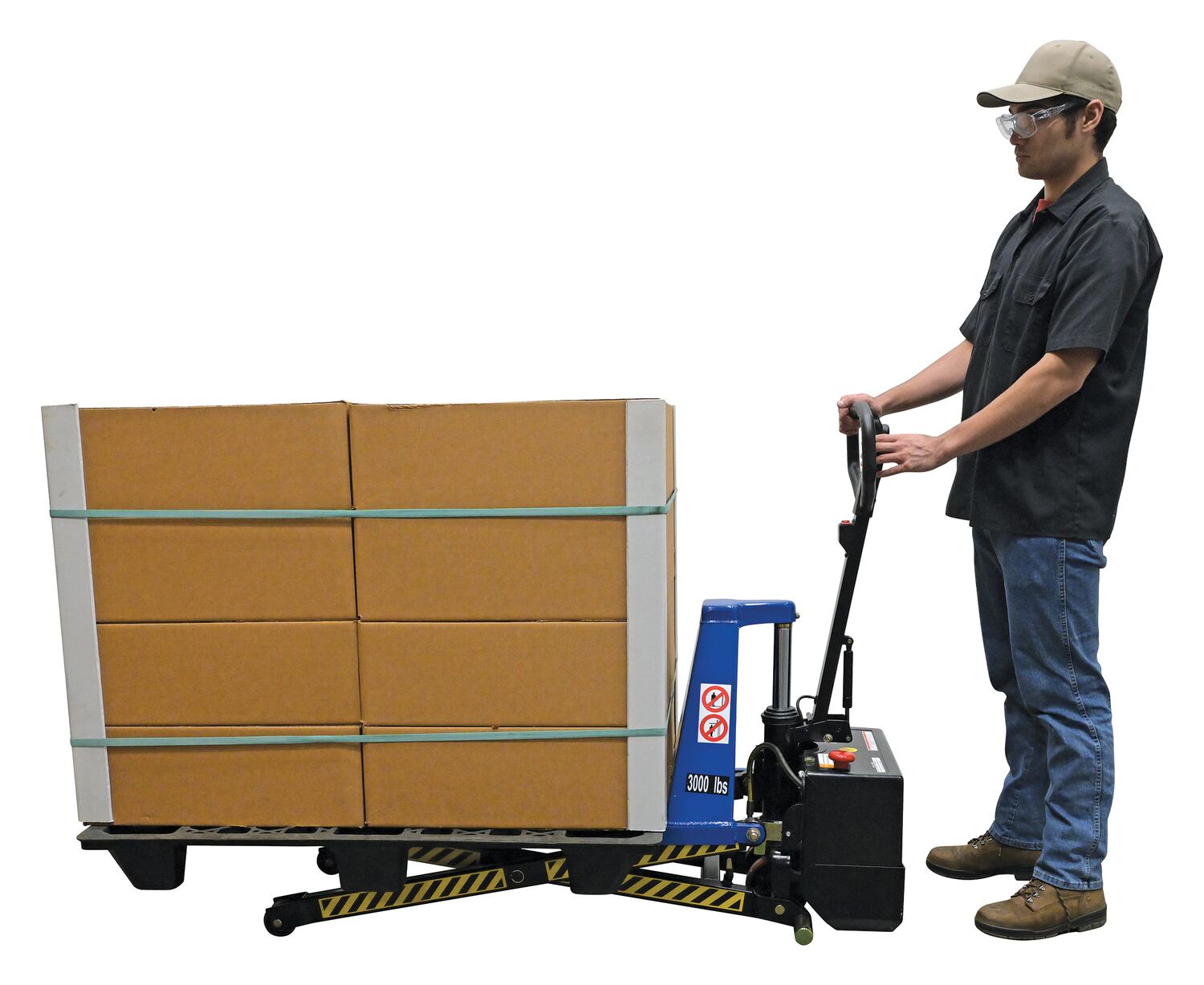

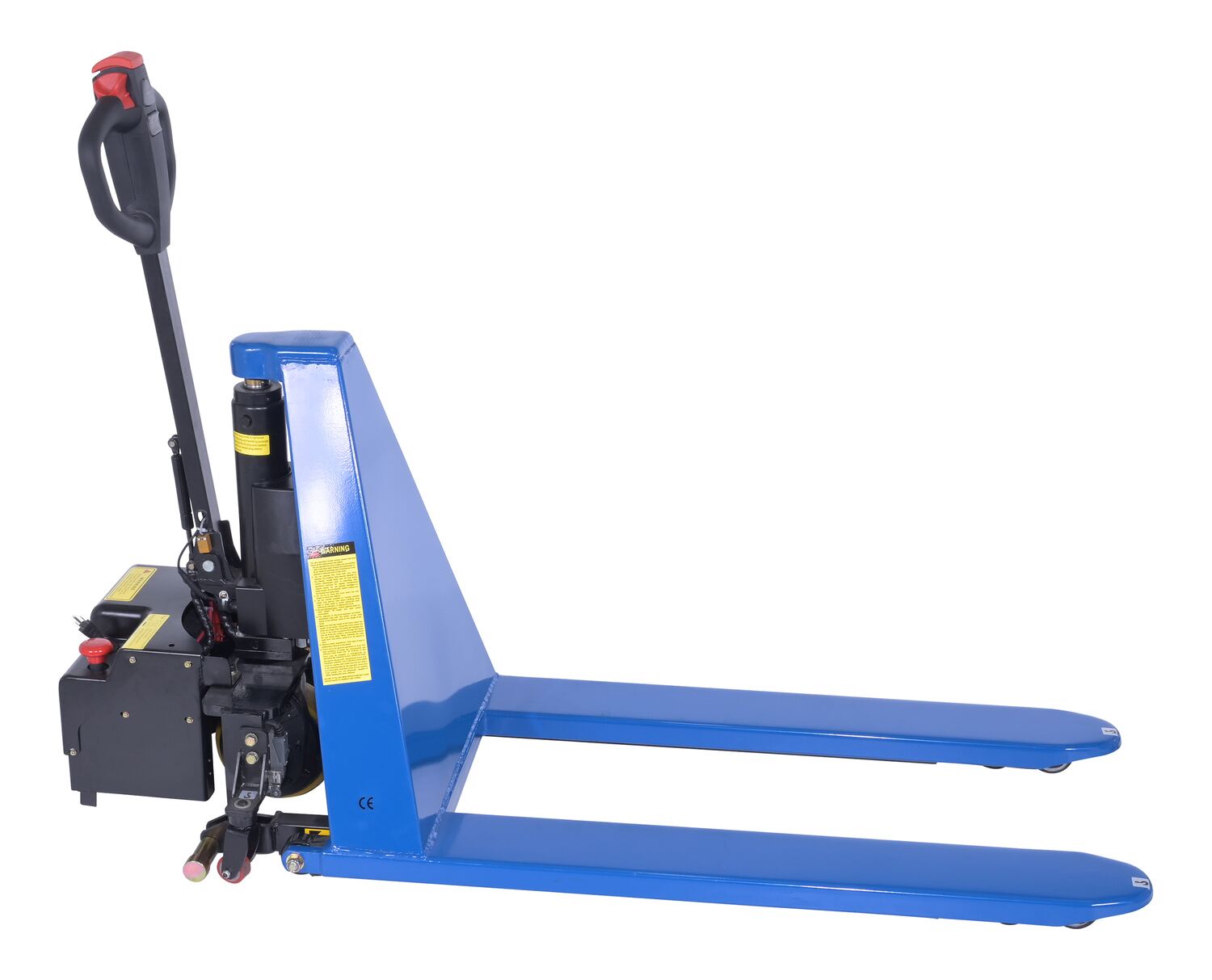

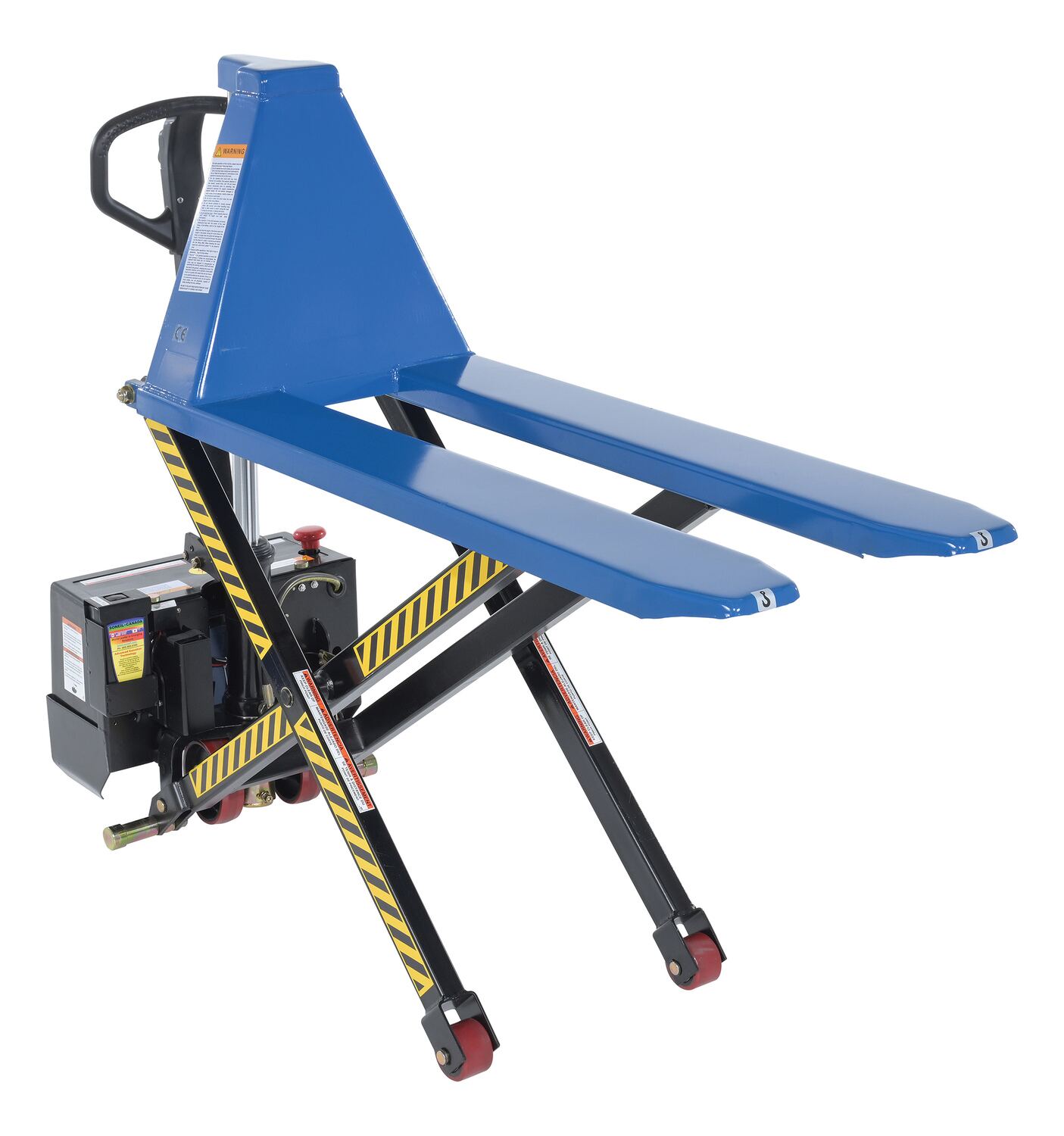

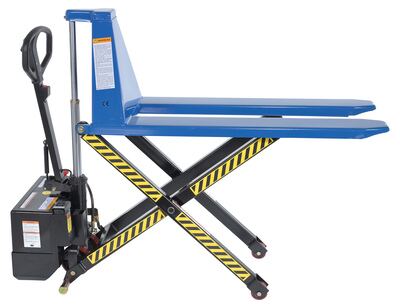

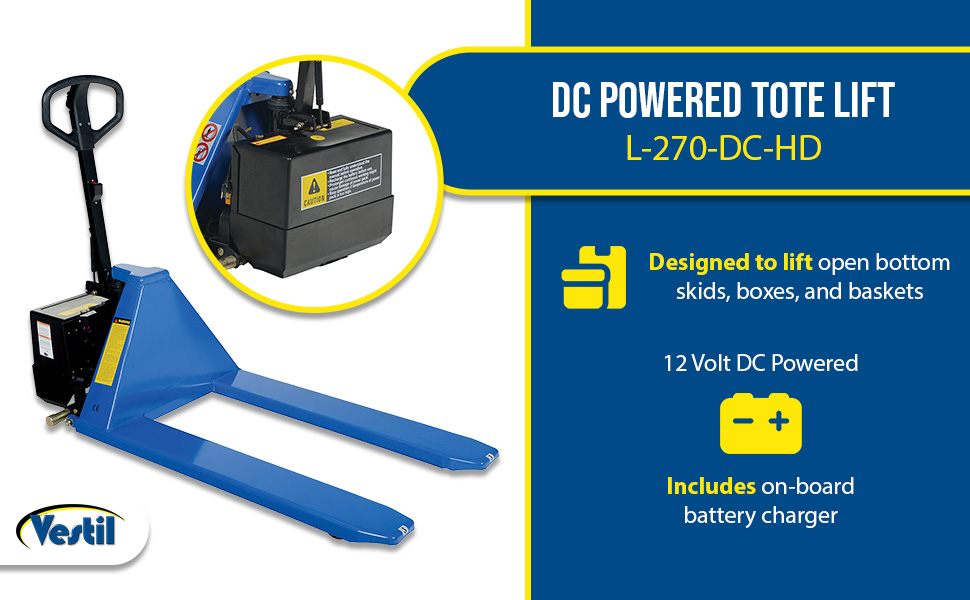

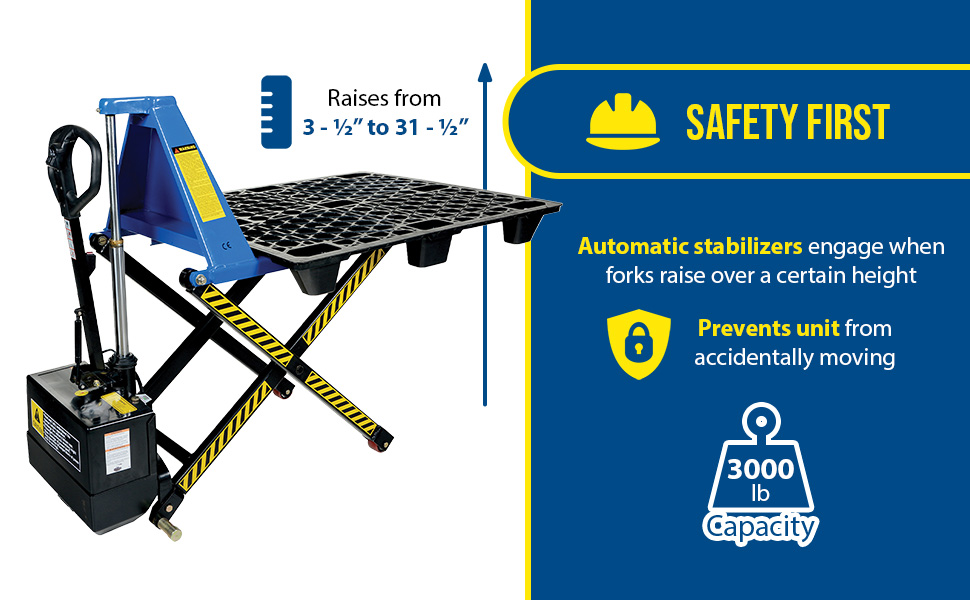

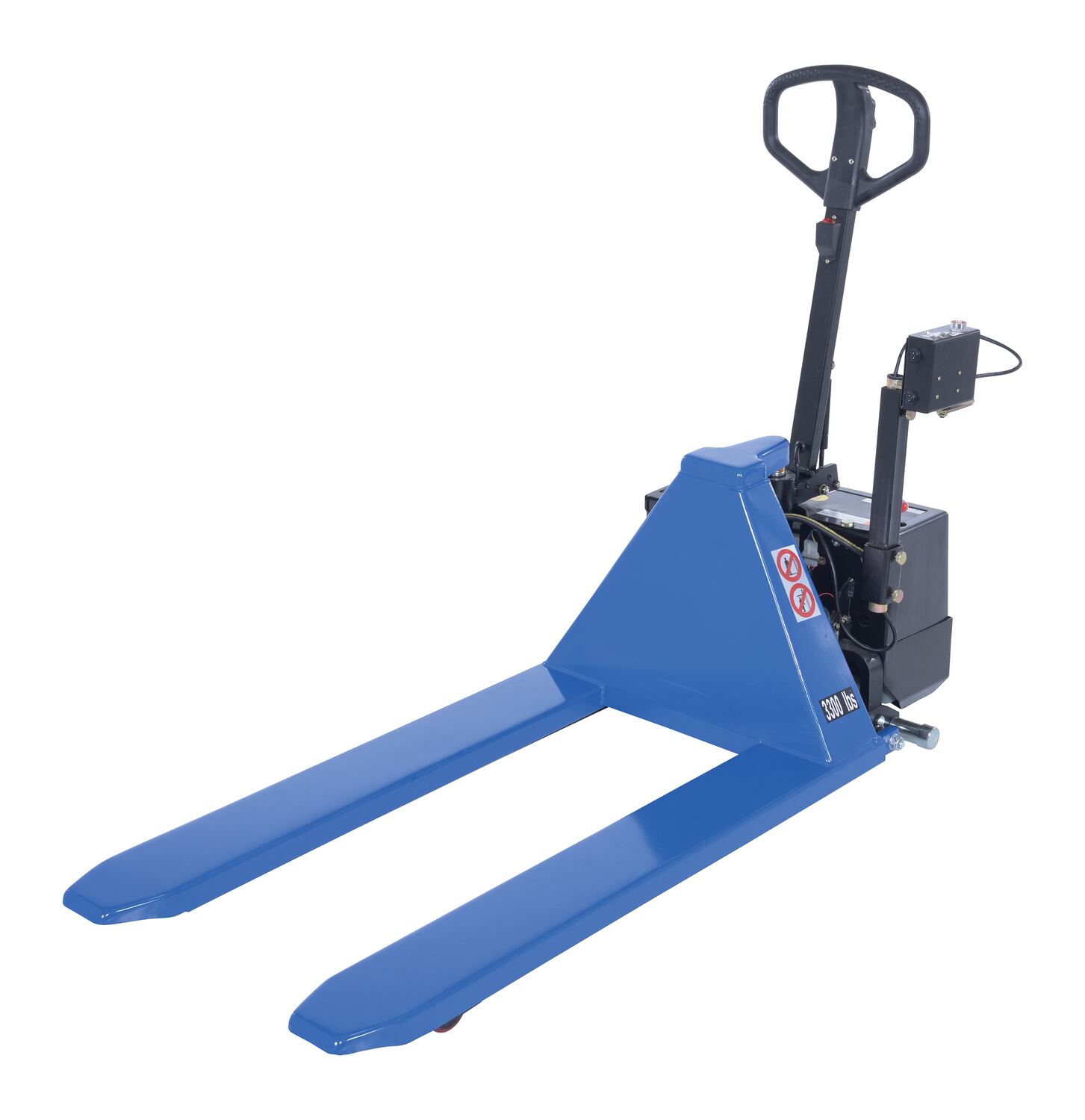

Designed to raise open bottom skids, boxes, and baskets. Two operations available: hand pump and DC power with rocker switch to raise or lower. Hand pump design features an ergonomic pump handle with two lifting speeds to accommodate for light or heavy loads. DC power units include one (1) 12V battery and on-board battery charger. Side stabilizers lock lift in place when load is raised above 20-1/2". Rolls smoothly on poly-on-steel wheels. Suffix "SS" stands for stainless steel units. Stainless steel units roll on nylon wheels.

Designed to raise open bottom skids, boxes, and baskets. Two operations available: hand pump and DC power with rocker switch to raise or lower. Hand pump design features an ergonomic pump handle with two lifting speeds to accommodate for light or heavy loads. DC power units include one (1) 12V battery and on-board battery charger. Side stabilizers lock lift in place when load is raised above 20-1/2". Rolls smoothly on poly-on-steel wheels. Suffix "SS" stands for stainless steel units. Stainless steel units roll on nylon wheels.

Other Tote/ Skid Lifters

 High Rise Lift Trucks Dual Power Tote Lifter Tote Lifters High Lift Trucks

Share This Page

How To Order

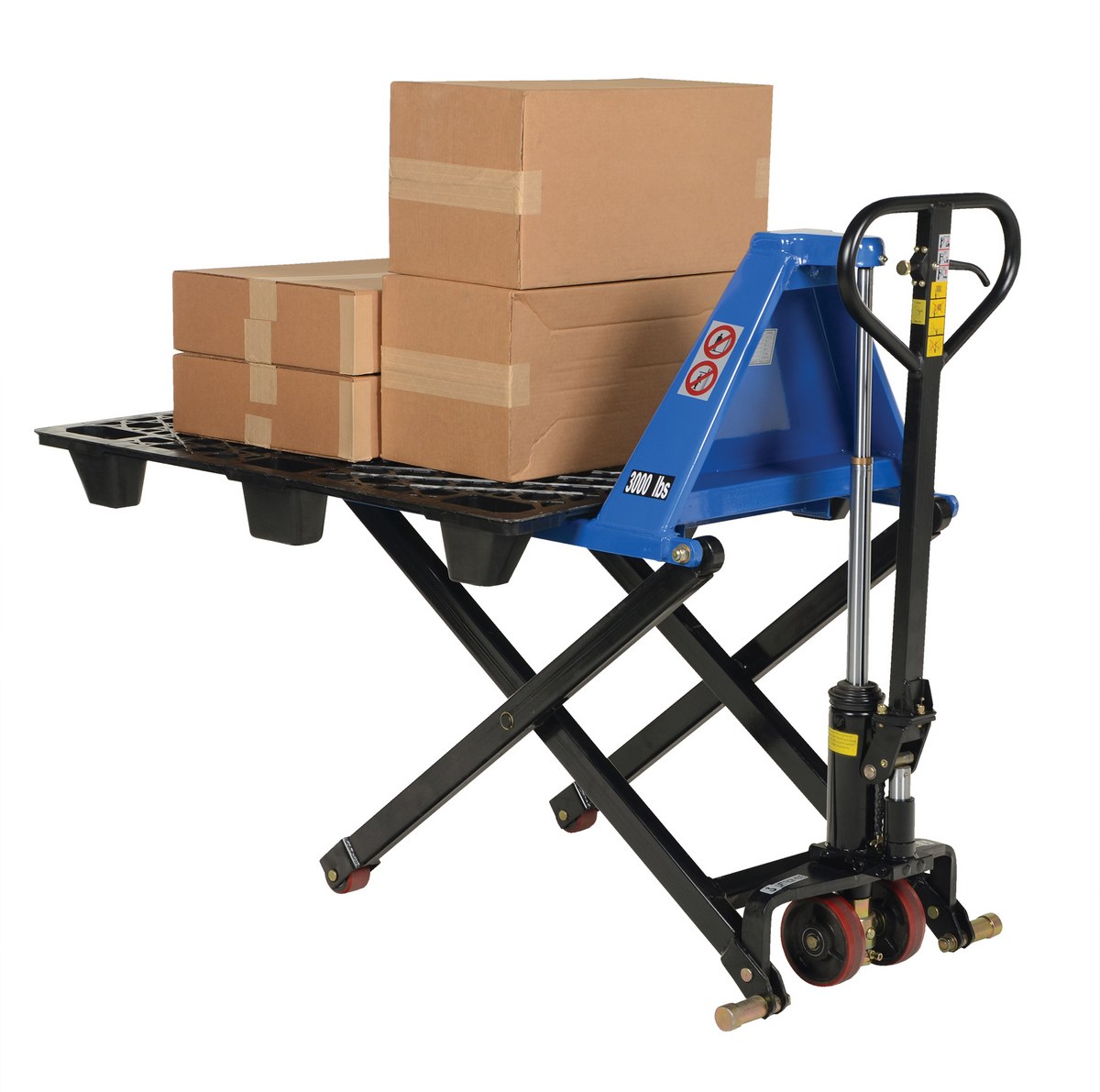

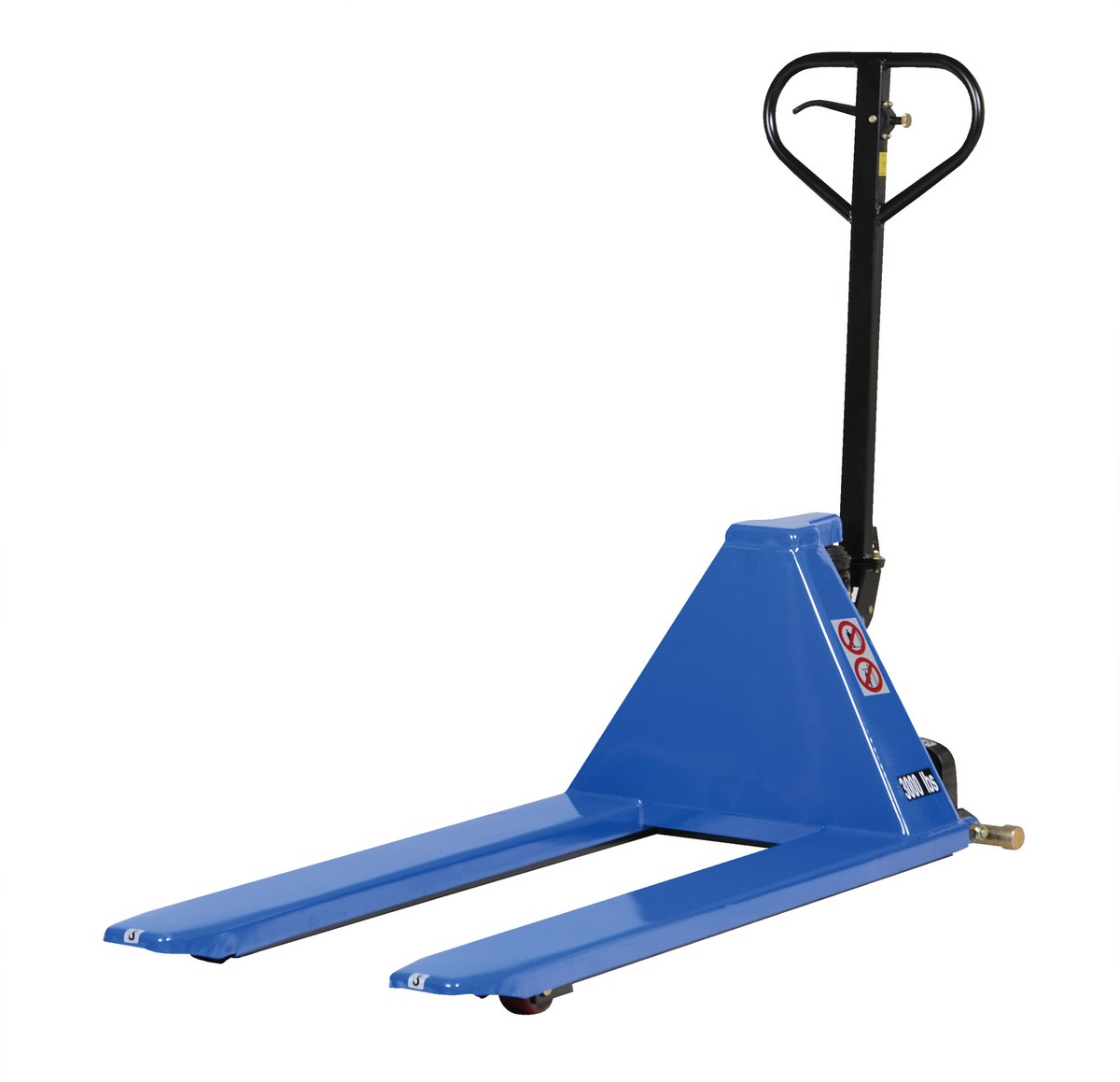

L-270-HD

model L-270-HD

L-220-DC-HD

model L-220-DC-HD

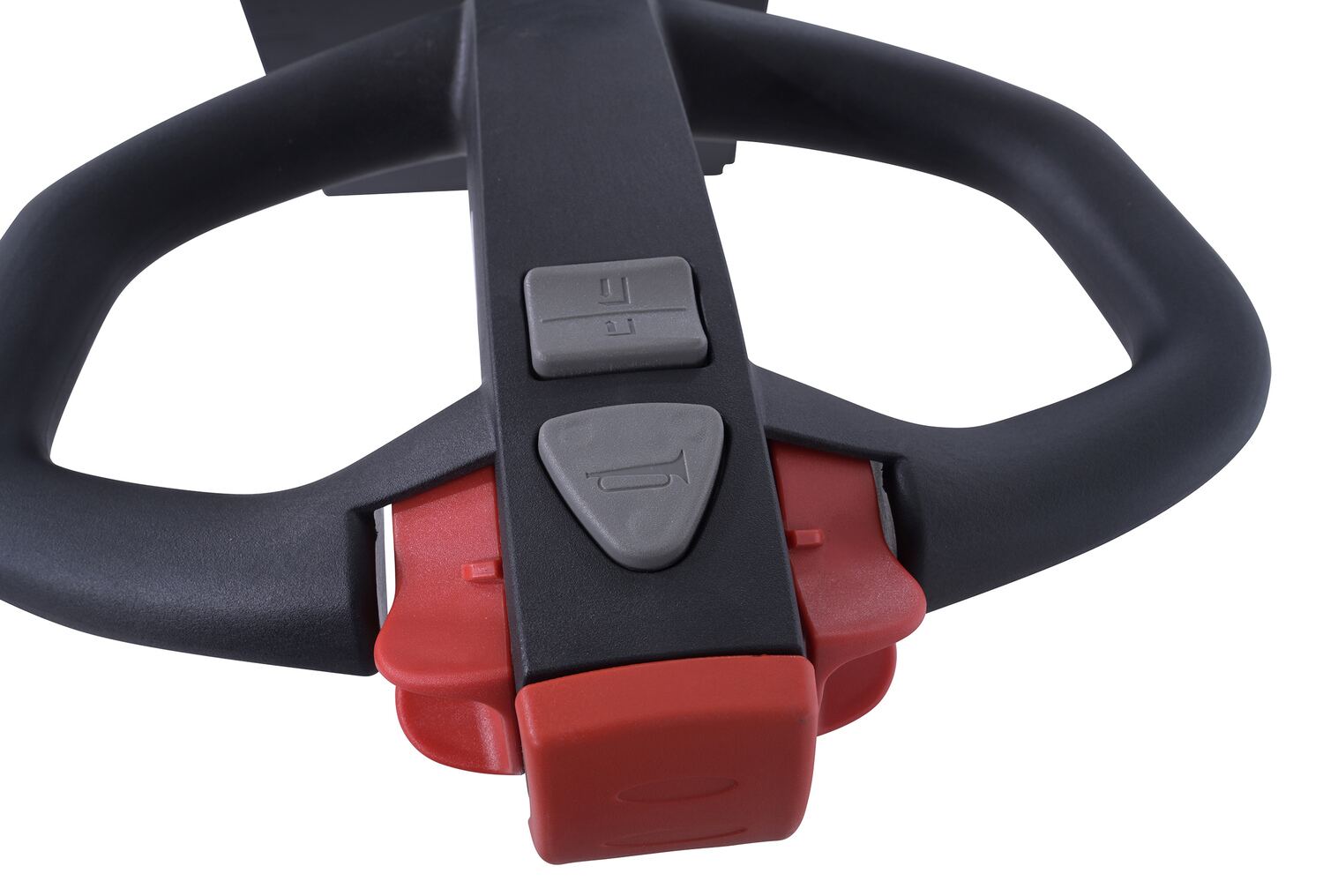

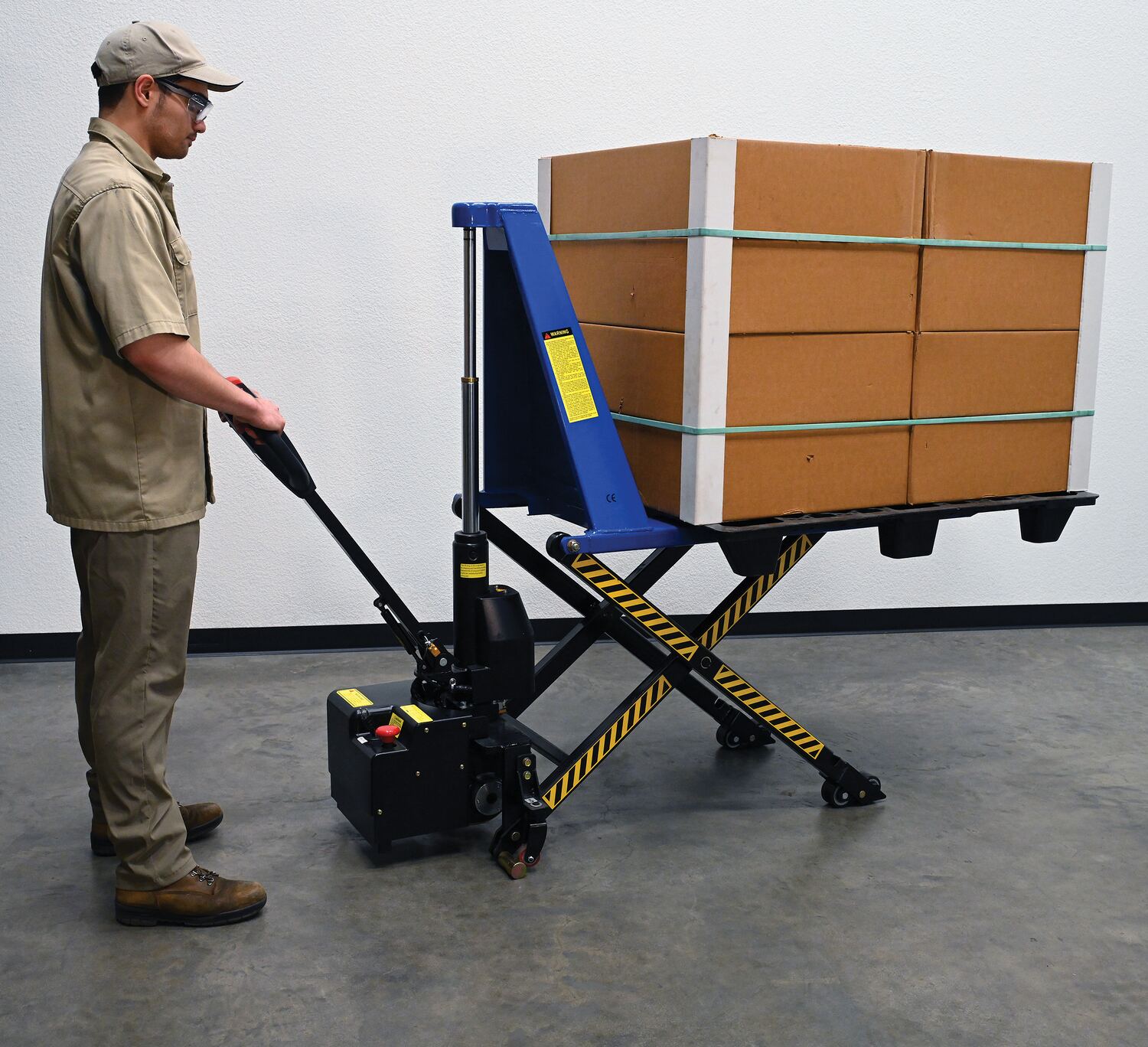

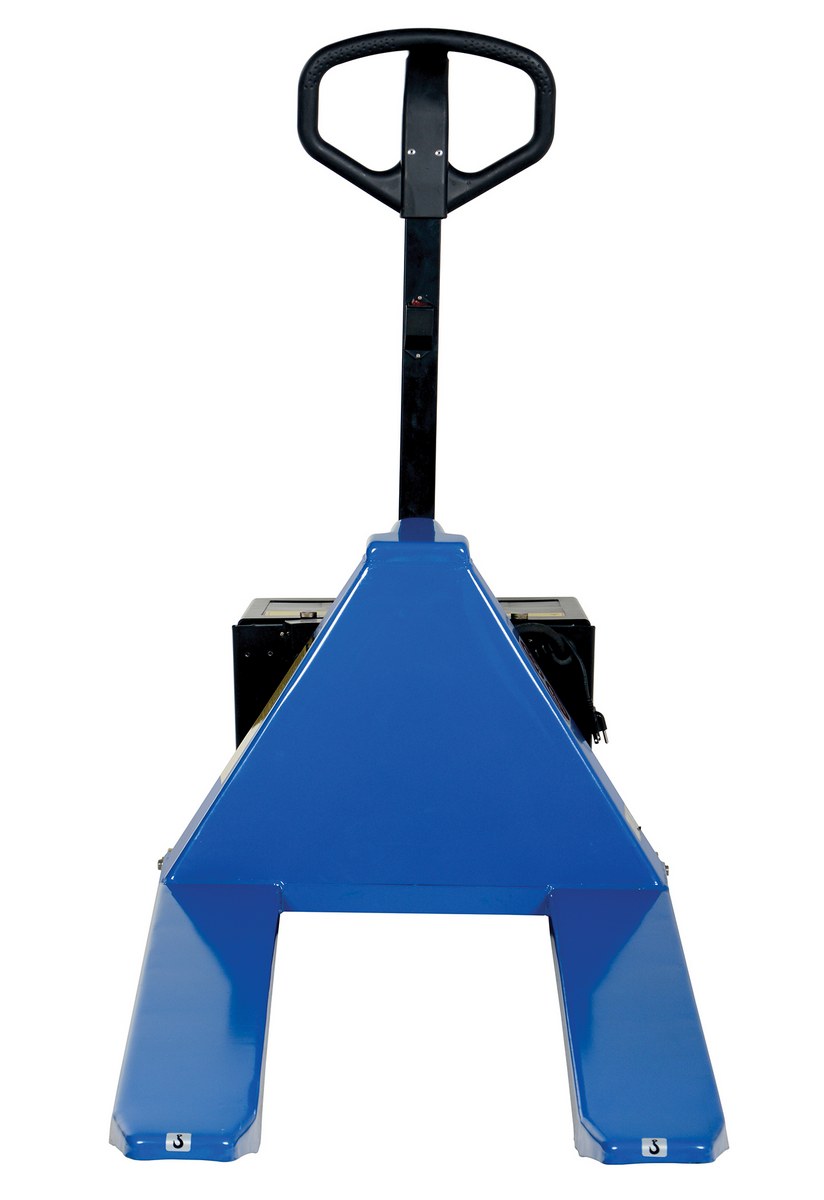

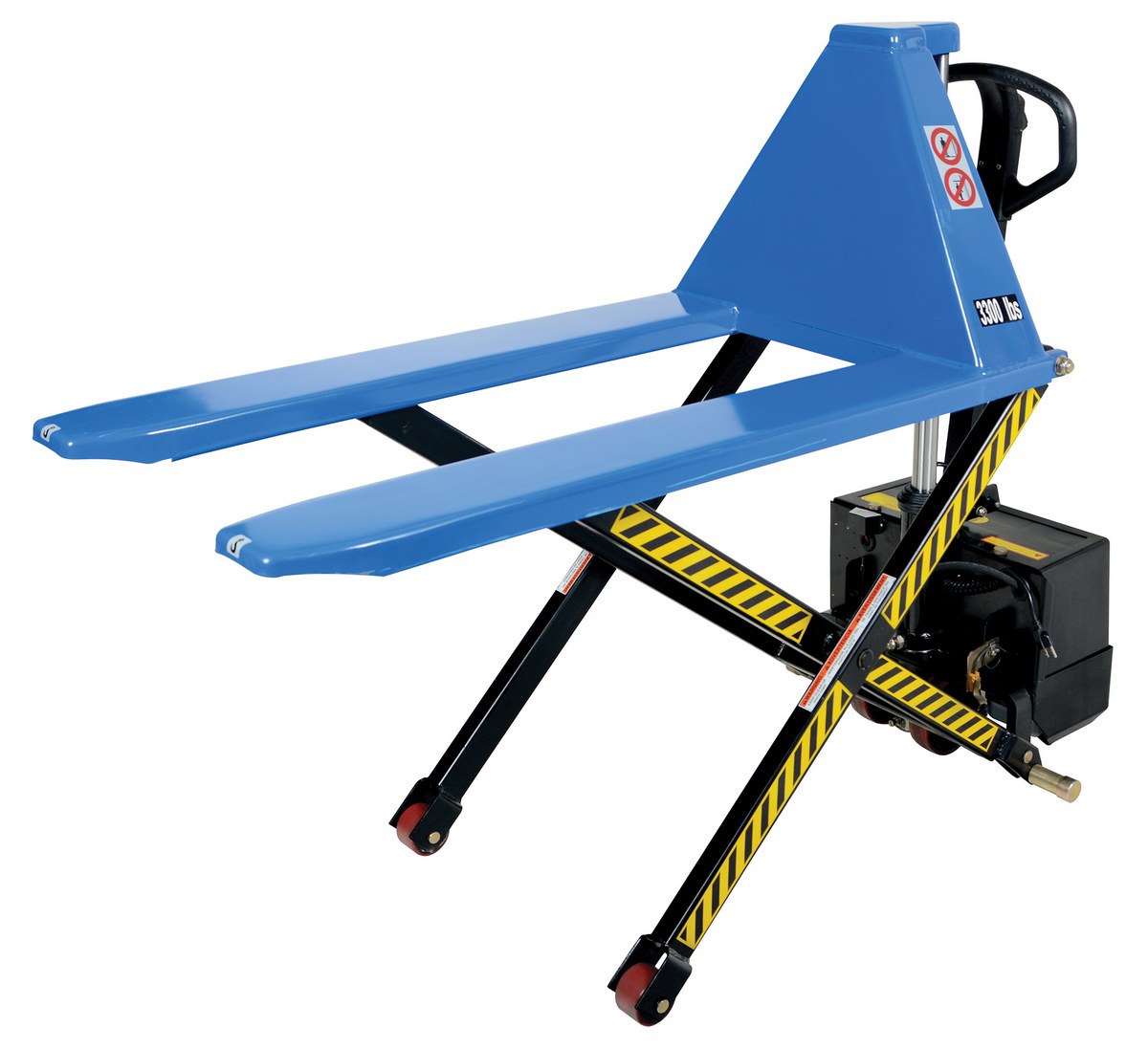

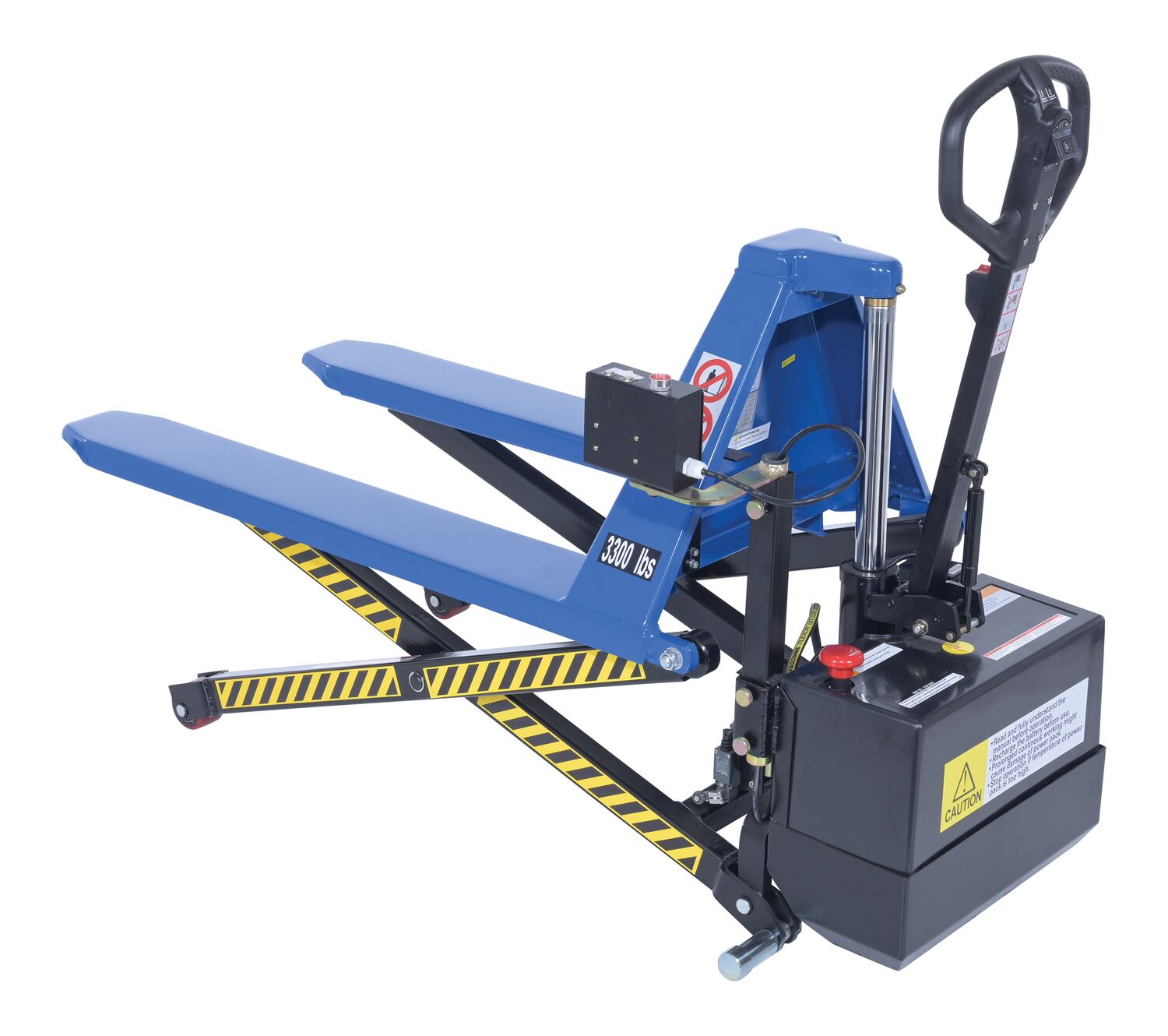

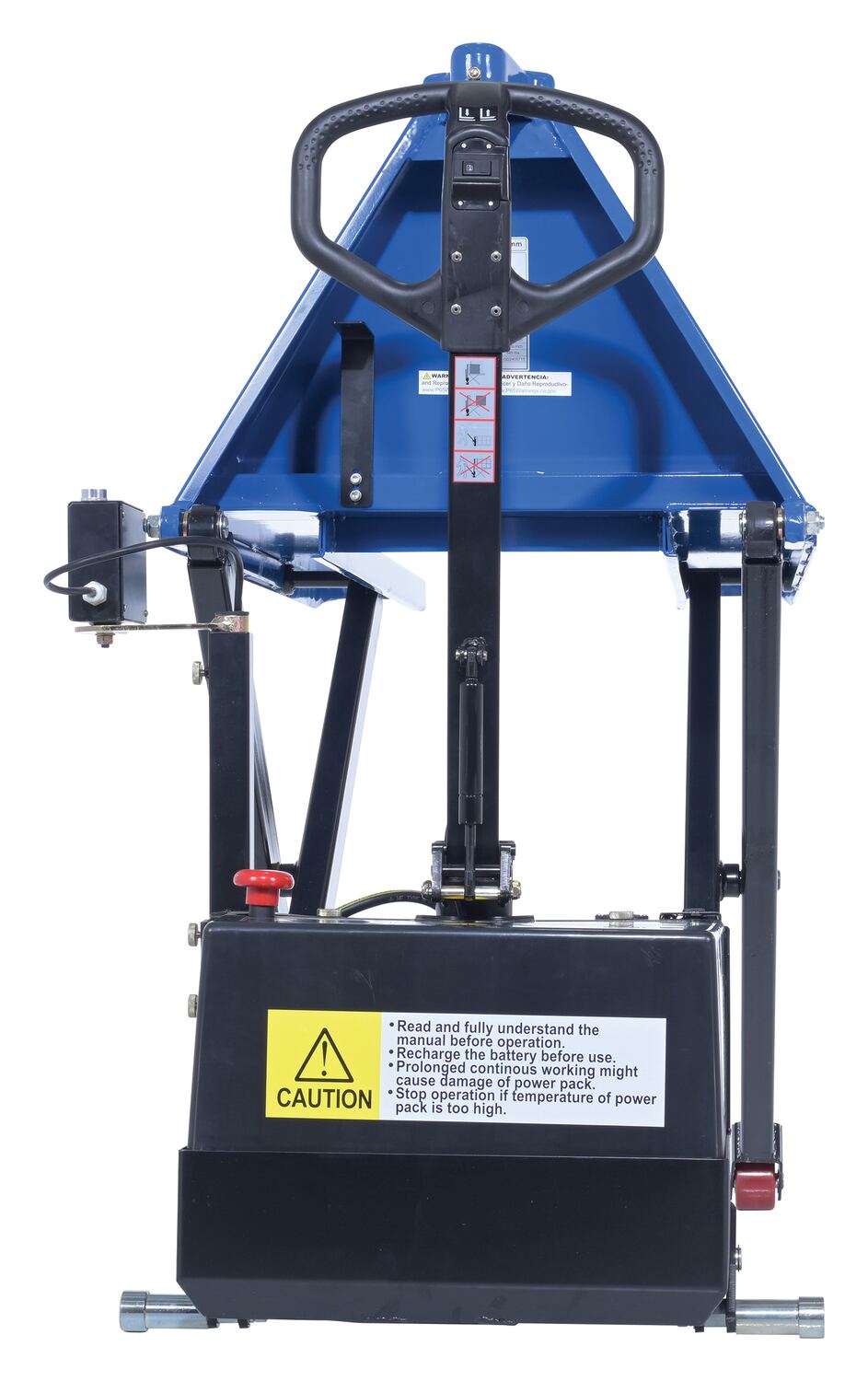

L-270-DC-HD

model L-270-DC-HD

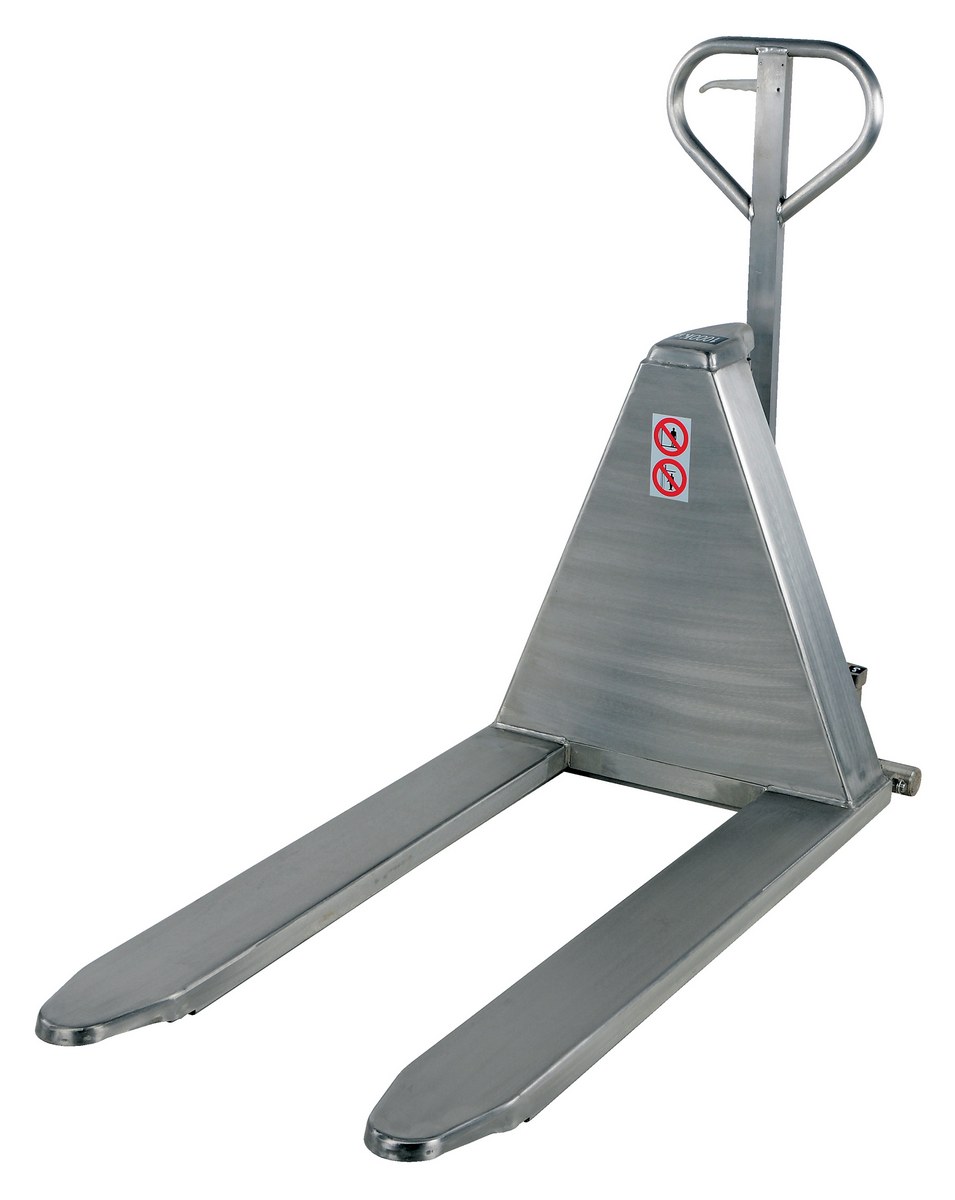

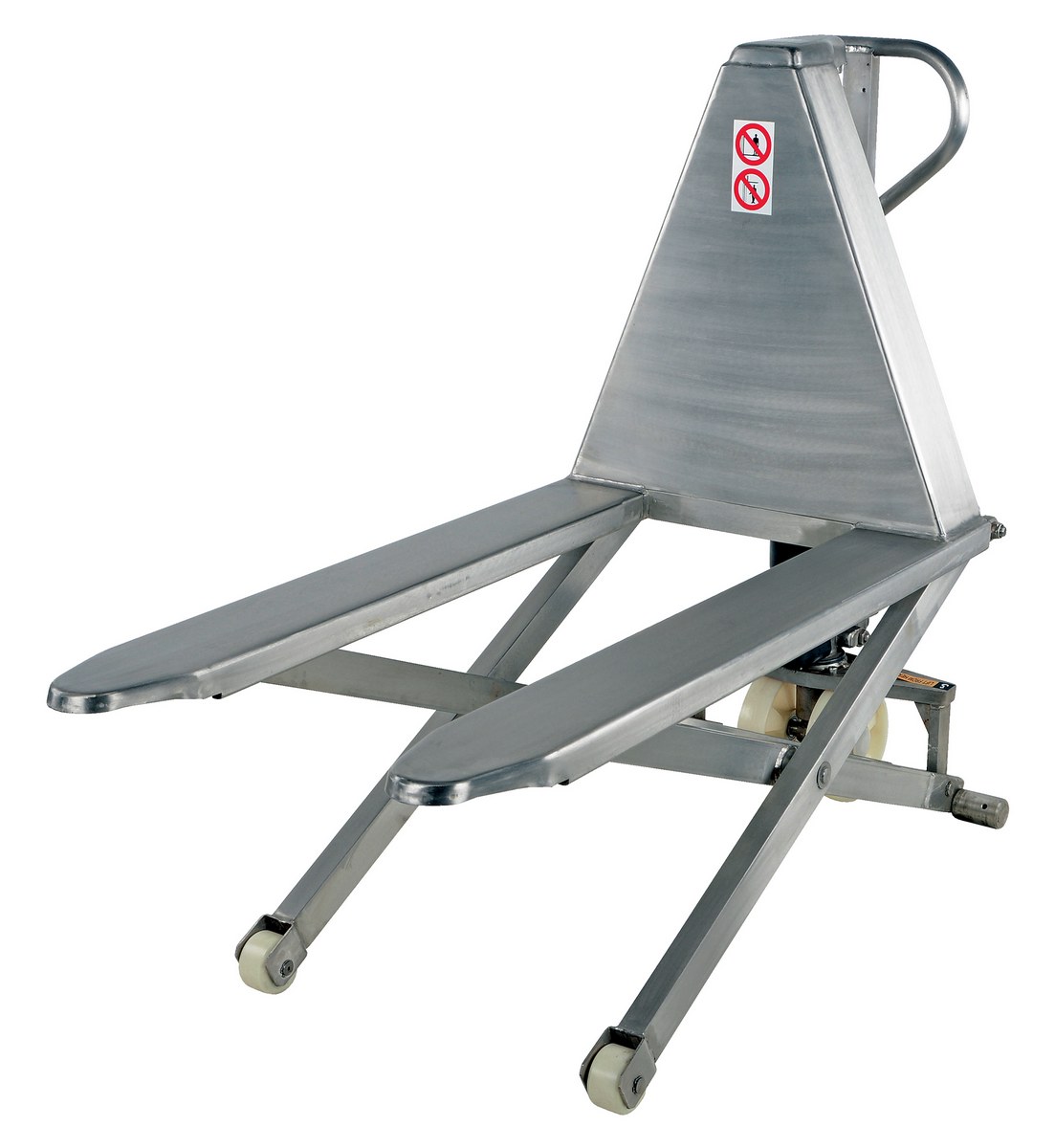

L-270-HD-SS

model L-270-HD-SS



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Tote Lifters
Model Image PDF's Operation Fork Size
(WxL)		 Service
Range		 Capacity
(lbs)		 Wt.
(lbs)

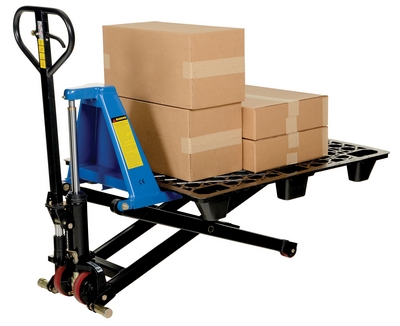

L-220-HD icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Hand Pump 20-1/2"x43" 3-1/2" to 31-1/2" 3,000 275
L-270-HD icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Hand Pump 26-3/4"x43" 3-1/2" to 31-1/2" 3,000 290

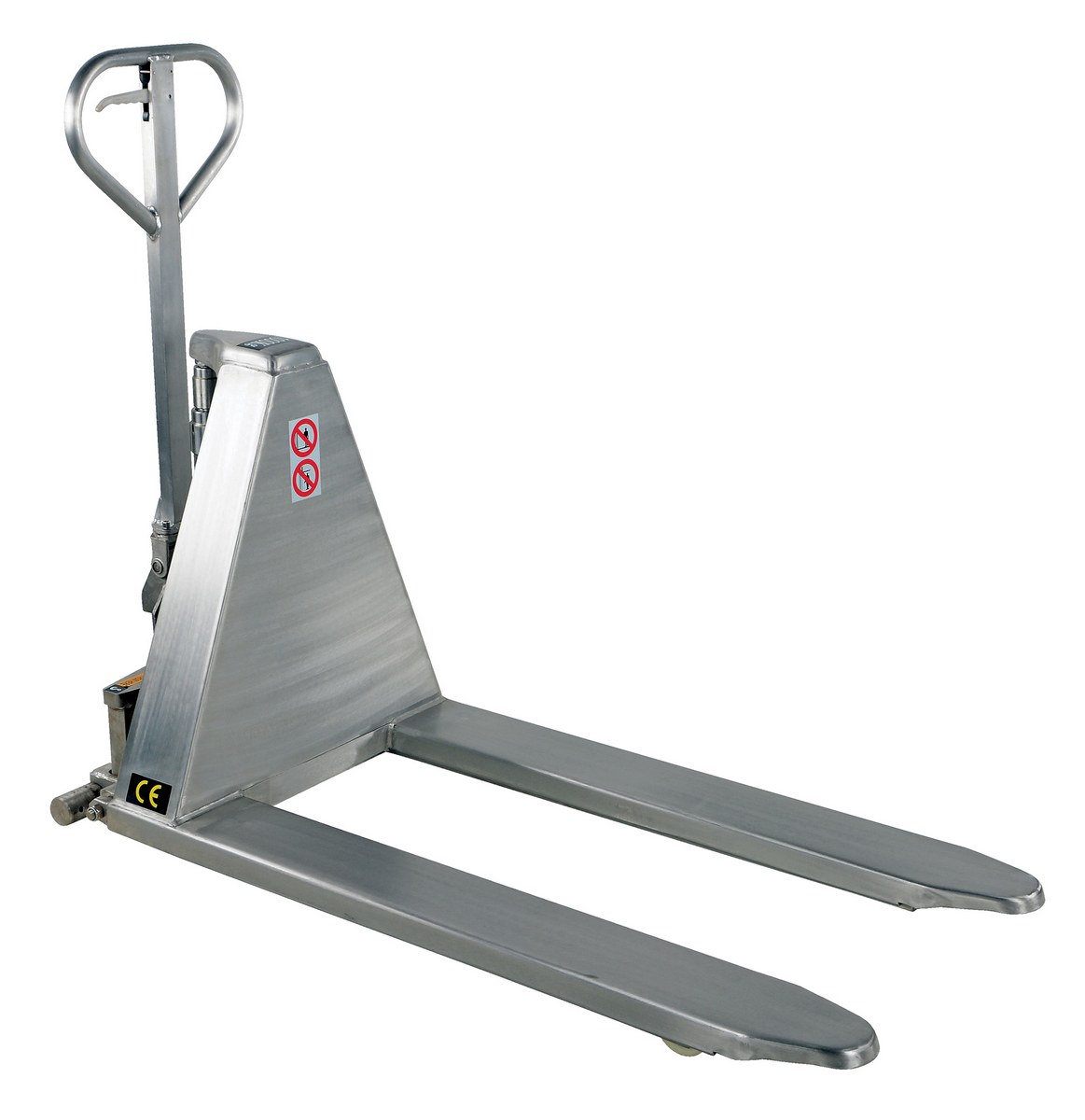

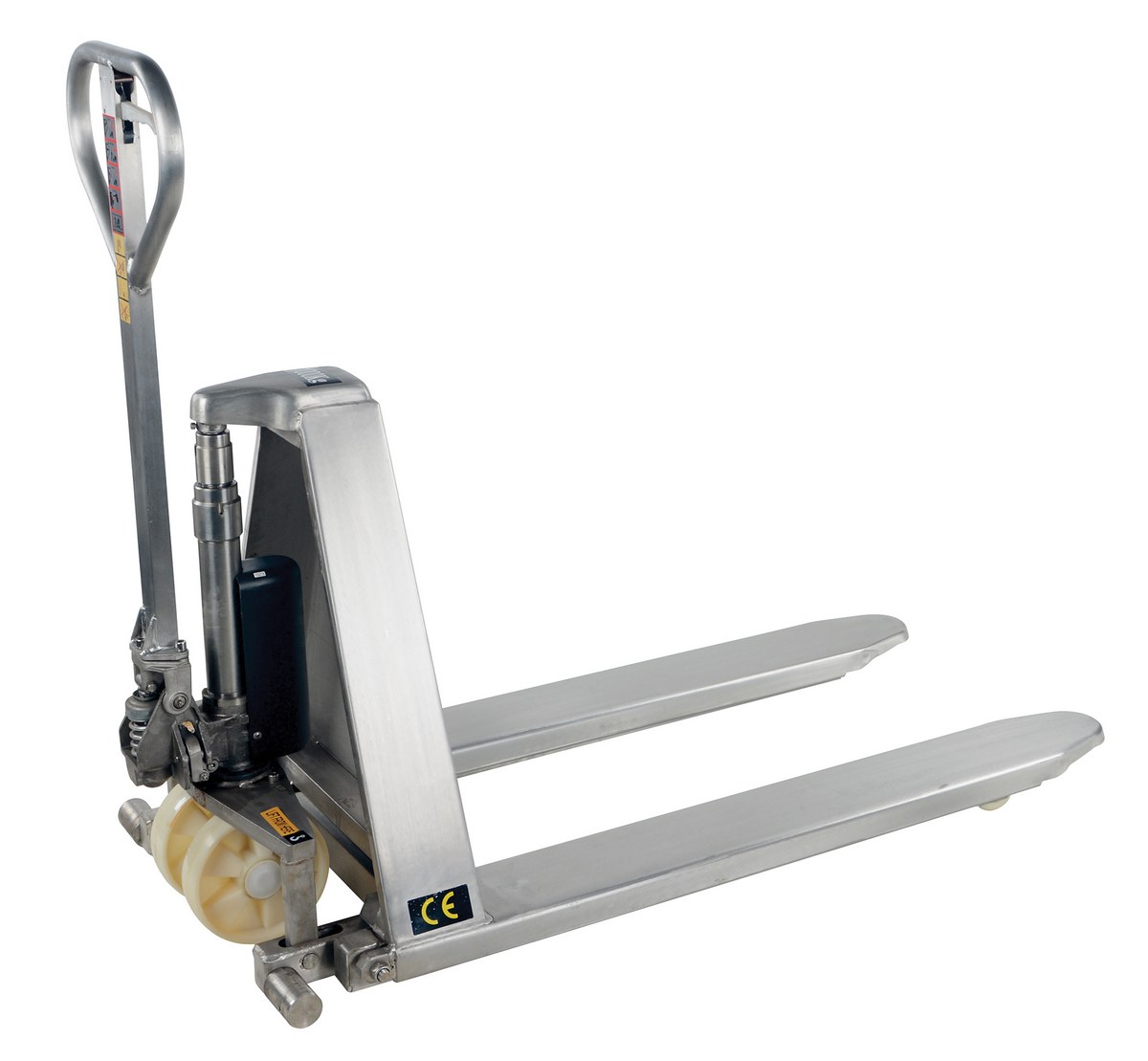

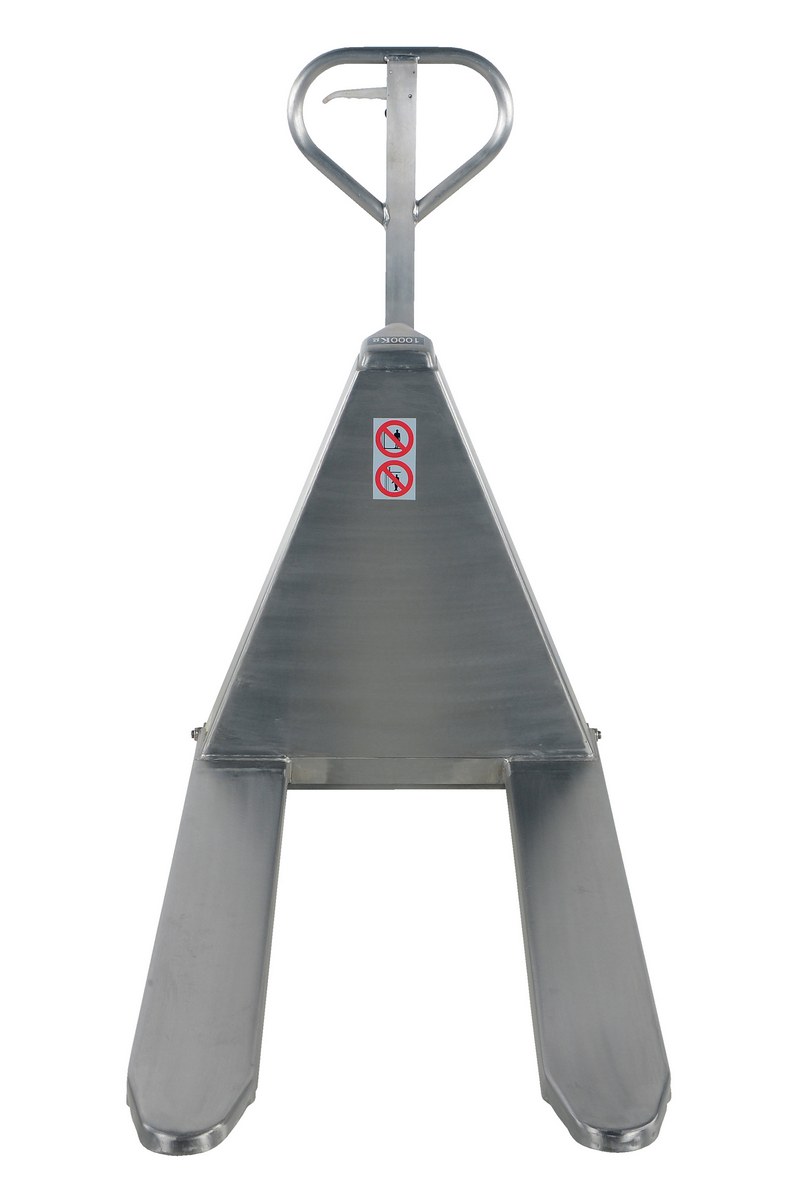

L-270-HD-SS icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Hand Pump 26-3/4"x45" 3-1/2" to 31-1/2" 2,000 310

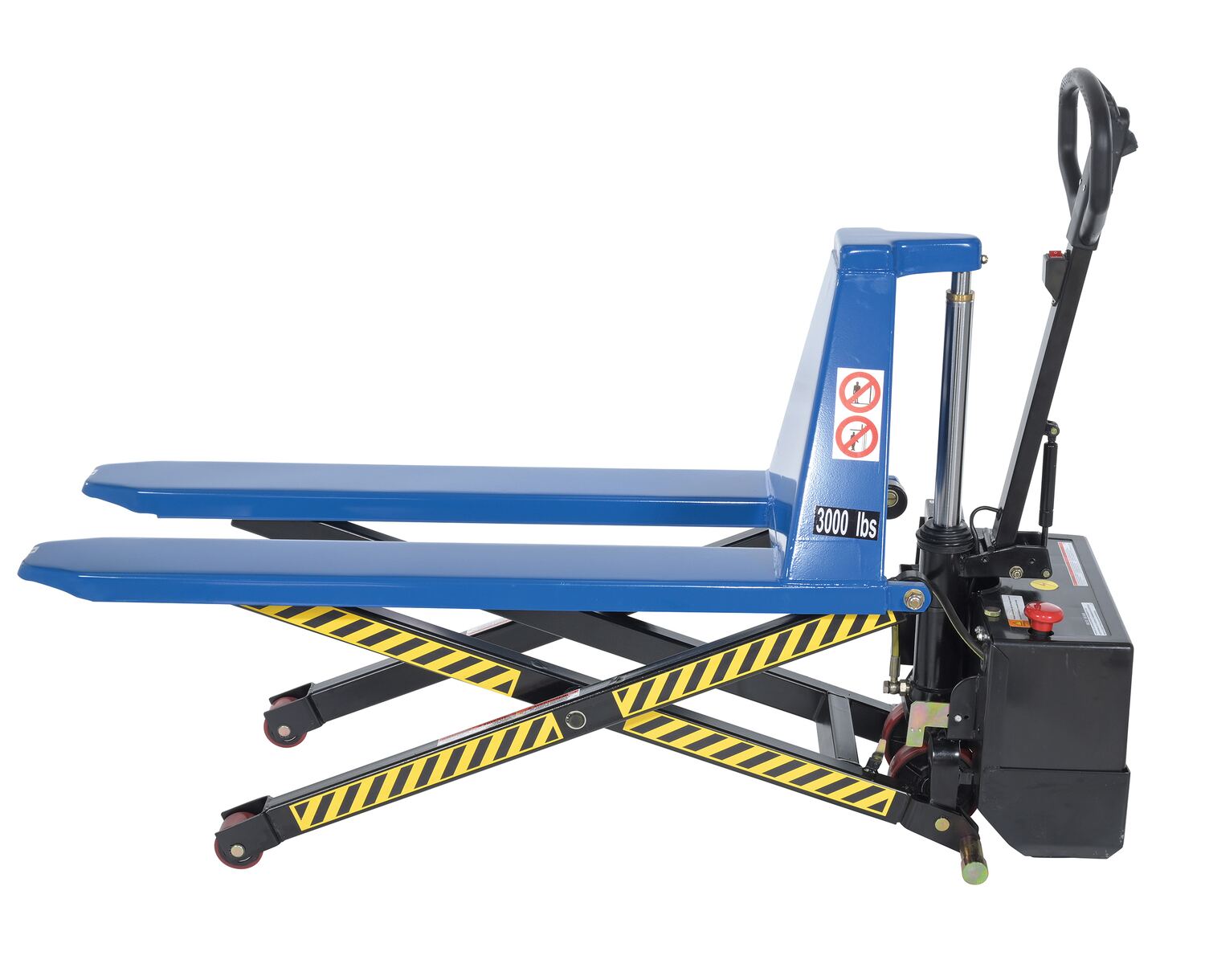

L-220-DC-HD icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 12V DC Powered 20"x45" 3-1/2" to 31-1/2" 3,000 400

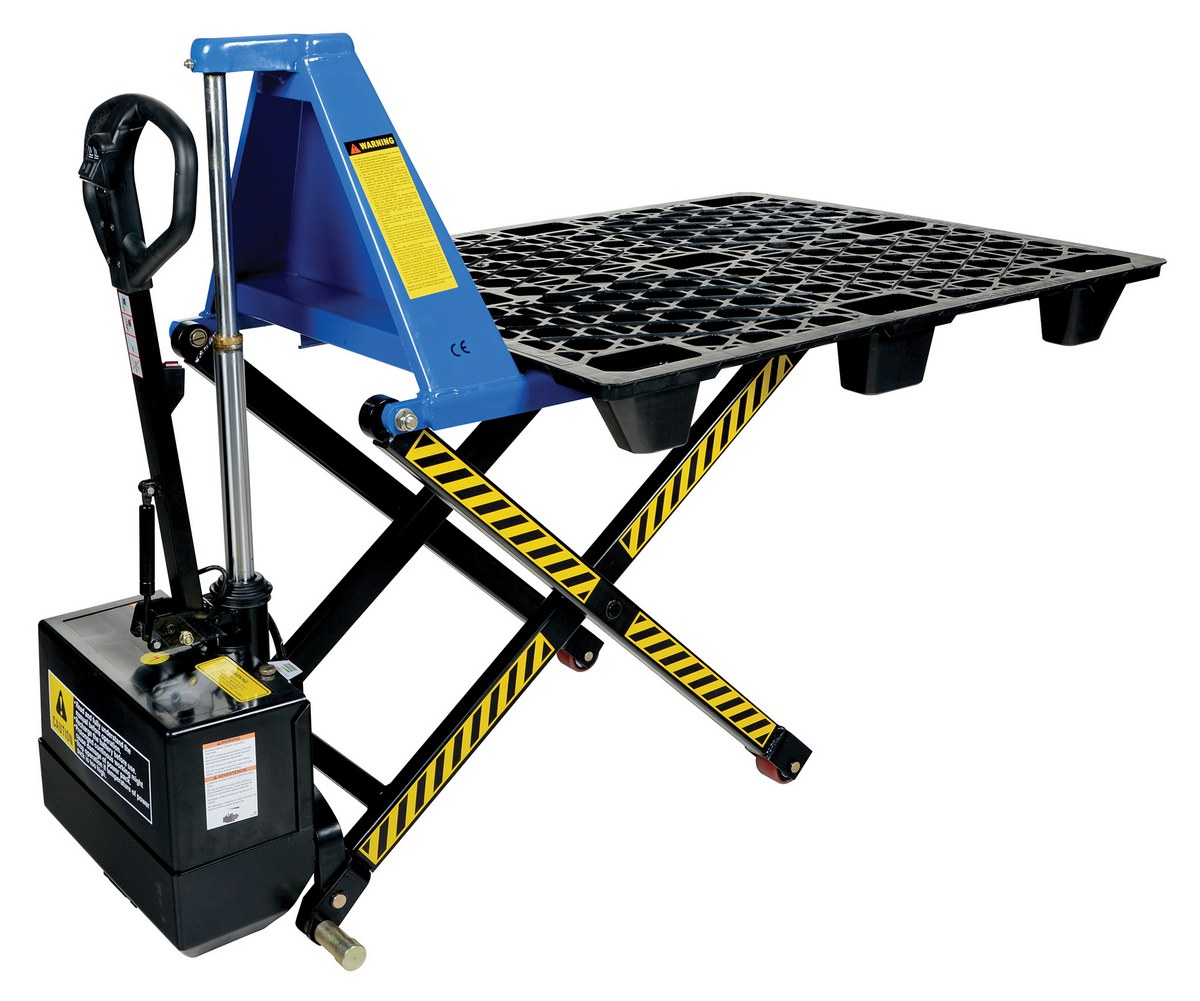

L-270-DC-HD icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 12V DC Powered 27"x45" 3-1/2" to 31-1/2" 3,000 468

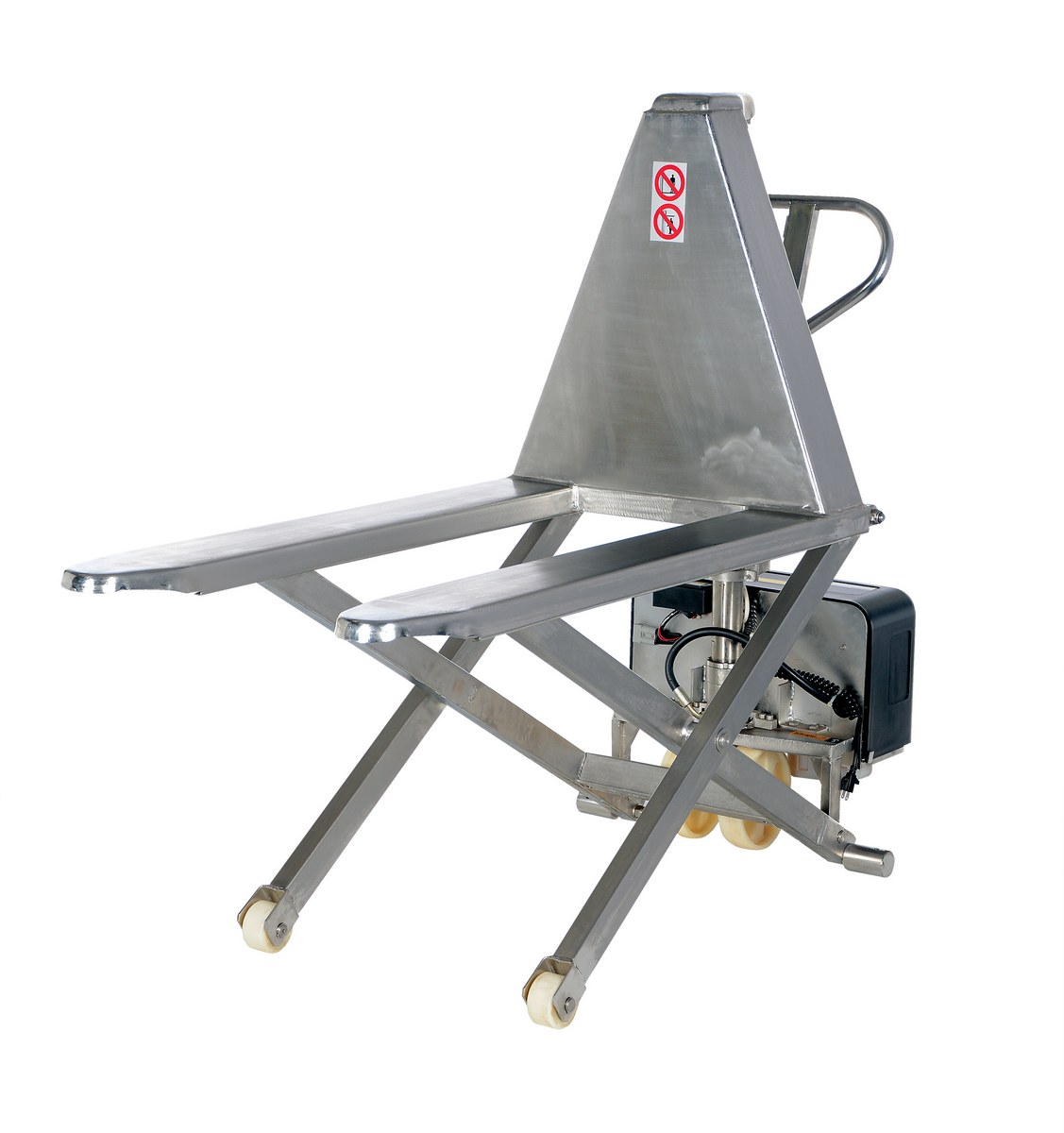

L-270-DC-HD-SS - 12V DC Powered 26-3/4" x 45" 3-1/2" to 31-1/2" 2,000 382

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

Tote Lifters Options
Model Image Description Wt.
(lbs)

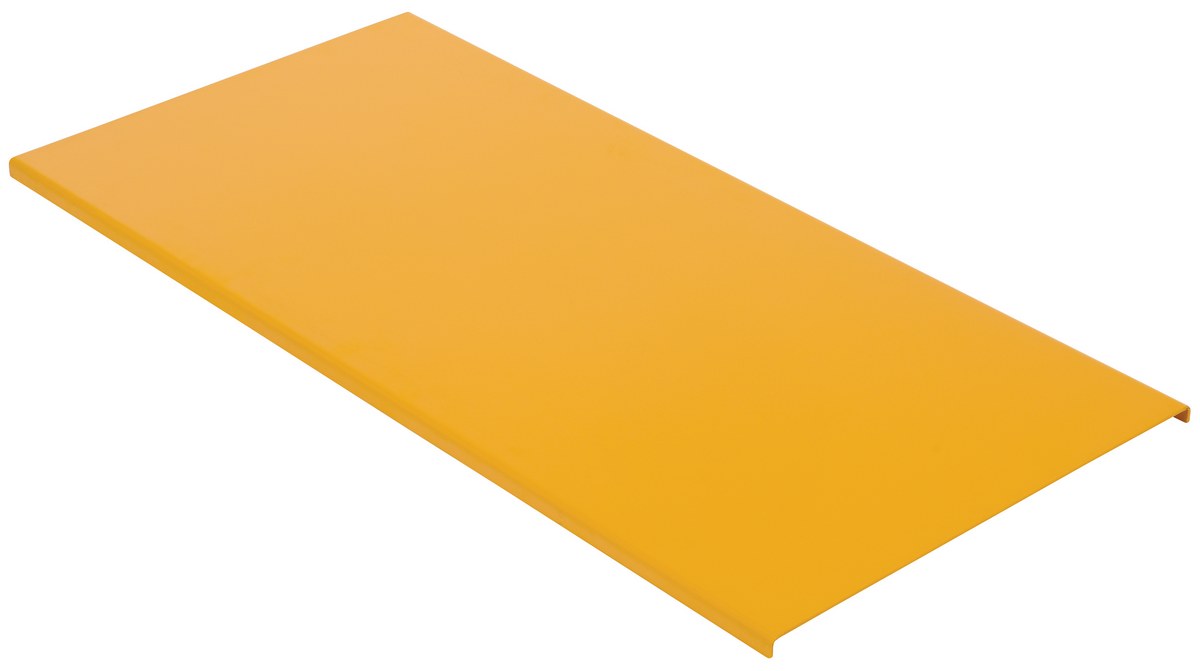

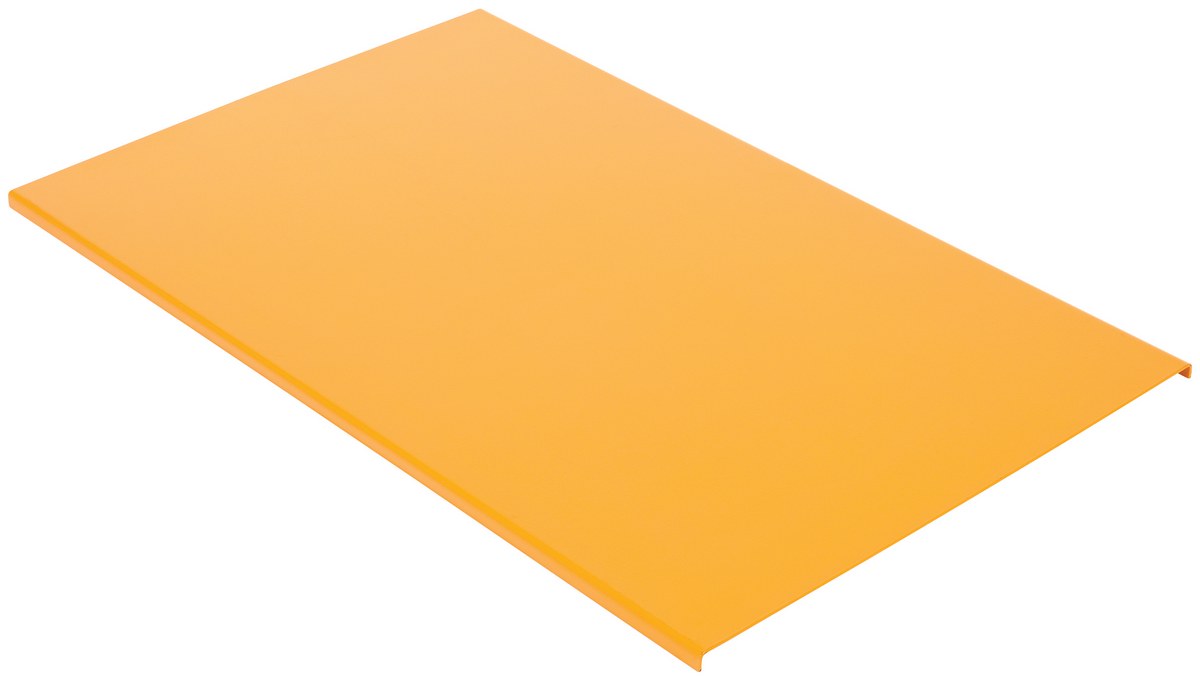

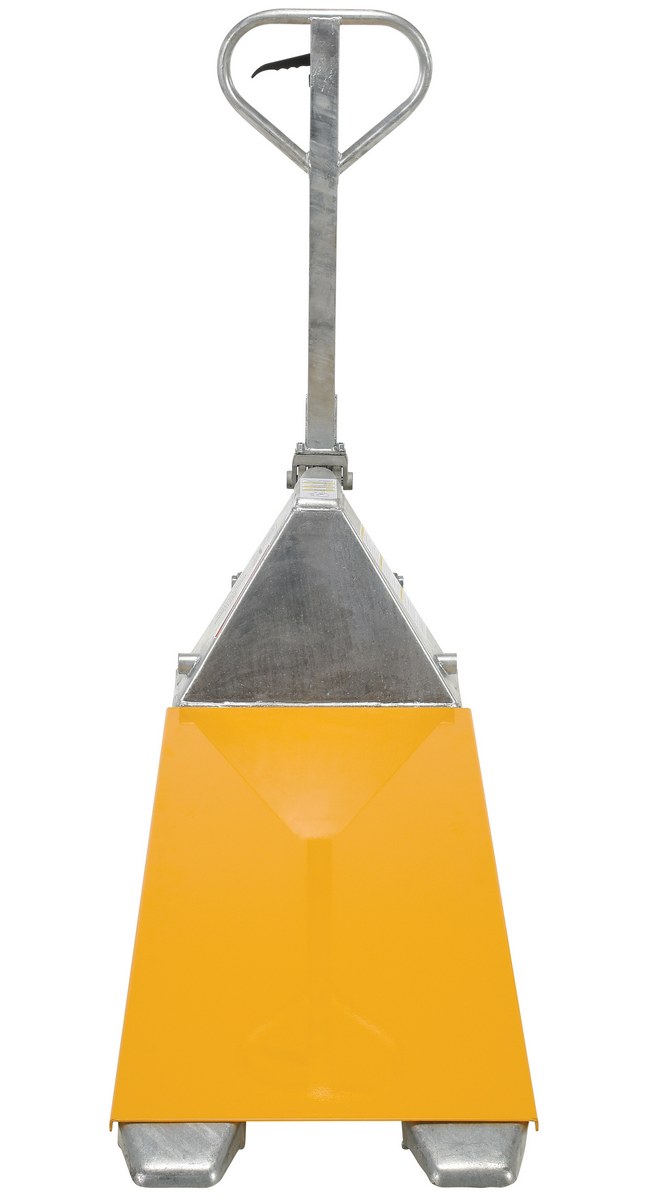

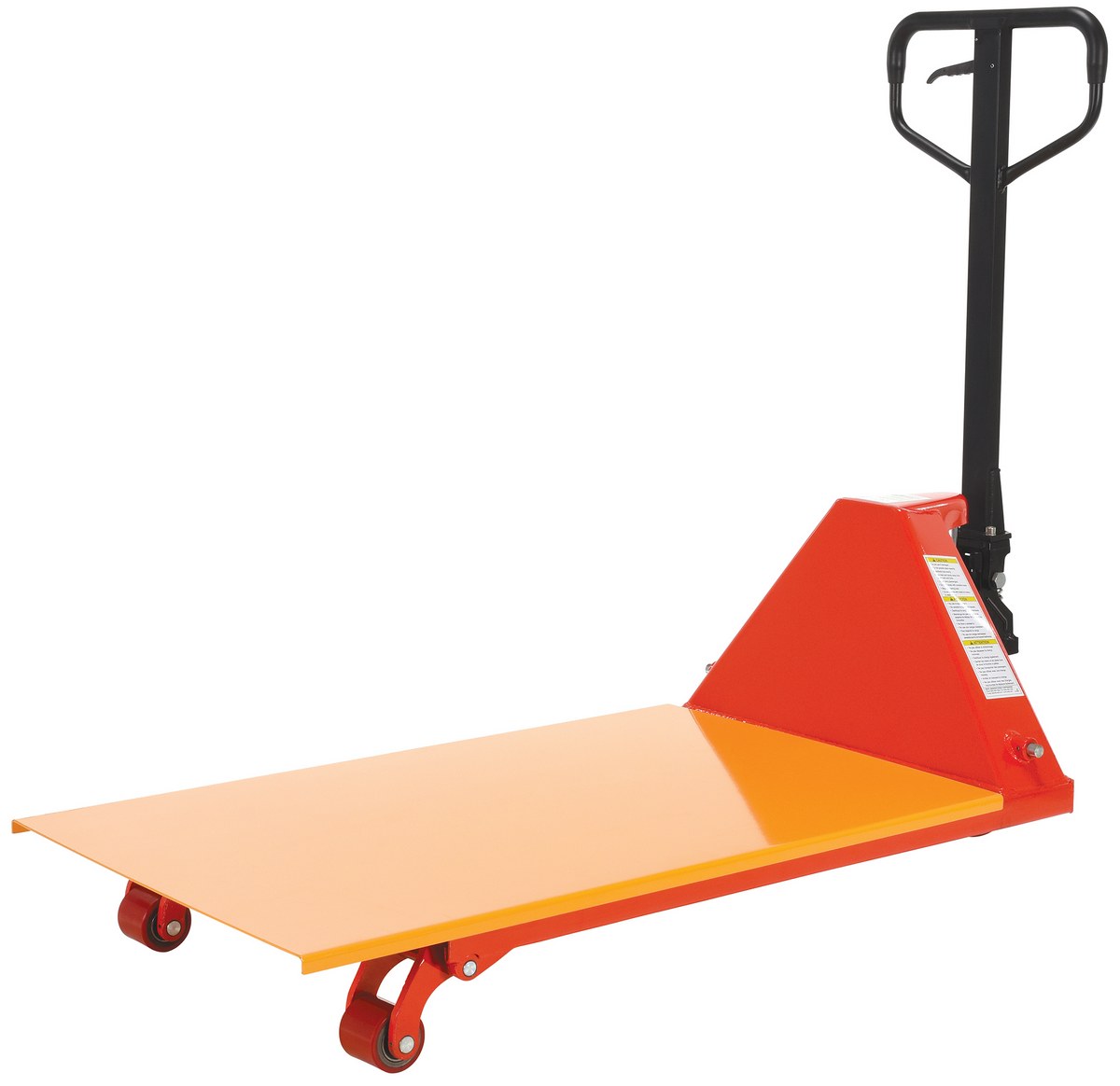

L-PLATE-20 Solid platform to fit over forks (21-1/4" wide unit) 36

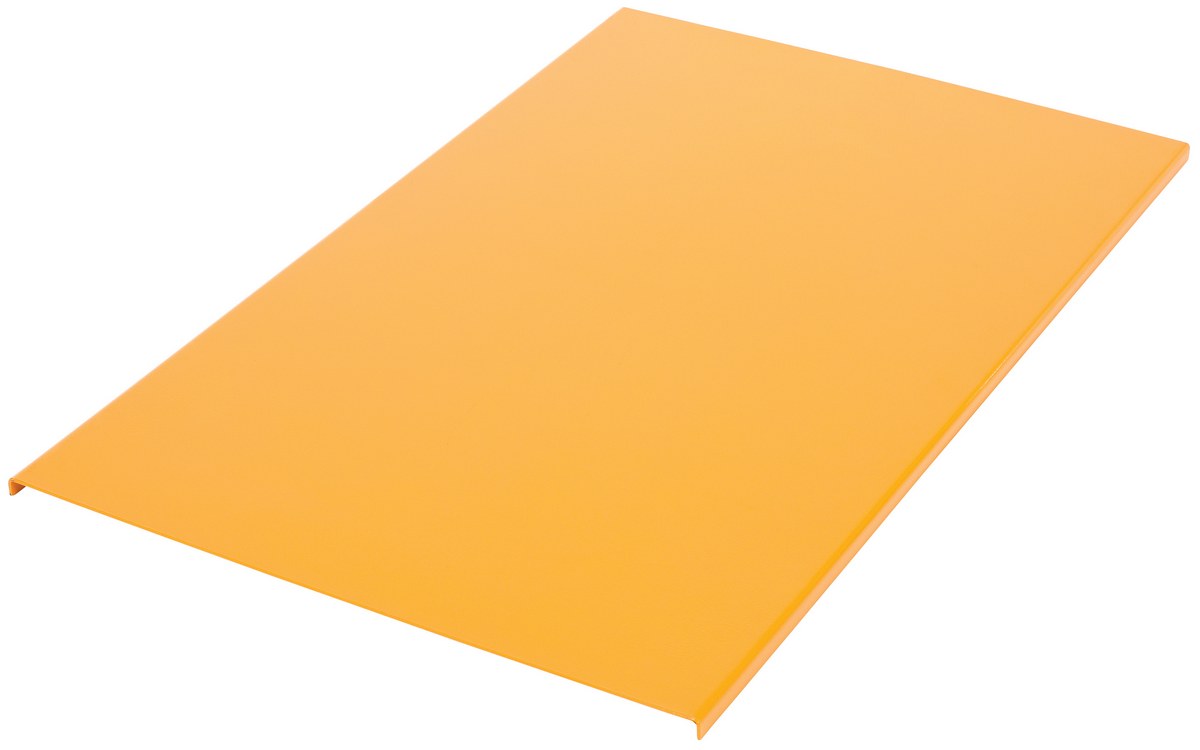

L-PLATE-27 Solid platform to fit over forks (27-3/4" wide unit) 48

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Model Image PDFs Description * Net Wt.
(lbs)
L-220-DC-HD download.gif1 Year WarrantyTOTE LIFT DC POWERED 3K 20 X 45Uniform Capacity (lb.): 3000368
L-220-HD download.gif1 Year WarrantyTOTE LIFT HAND PUMP 3K 20.5 X 43Uniform Capacity (lb.): 3000239
L-270-DC-HD download.gif1 Year WarrantyTOTE LIFT DC POWERED 3K 27 X 45Uniform Capacity (lb.): 3000378
L-270-DC-HD-SS download.gif1 Year WarrantyTOTE LIFT DC POWERED SS 2K 26.75 X 45Uniform Capacity (lb.): 2000387
L-270-HD download.gif1 Year WarrantyTOTE LIFT HAND PUMP 3K 26.75 X 43Uniform Capacity (lb.): 3000260
L-270-HD-SS download.gif1 Year WarrantyTOTE LIFT HAND PUMP SS 2K 26.75 X 45Uniform Capacity (lb.): 2000274
L-PLATE-20 30 Days WarrantyTOTE LIFT OPTION-SOLID PLATFORM 44X21.25: 33
L-PLATE-27 30 Days WarrantyTOTE LIFT OPTION-SOLID PLATFORM 44X27.75: 40


Tote Lifters PDF's will open in a new window when clicked.
L-220-DC,%20L-270-DC
Owners Manual
L-220-HD%20&%20L-270-HD
Owners Manual
L-27
Owners Manual
L-220,%20-270-DC,%2004-'04%20mfr's%20owner'
Owners Manual

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

L-220-DC-HD
L-220-HD
L-270-DC-HD
L-270-DC-HD-SS
L-270-HD
L-270-HD-SS

Testing Certificates

L-220-DC-HD
L-220-HD
L-270-DC-HD
L-270-DC-HD-SS
L-270-HD
L-270-HD-SS
L-PLATE-20
L-PLATE-27

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets









Visit Our Youtube Channel For All Available Videos For All Products


L-220-DC-HD
 L-220-DC-HD L-220-DC-HD
 L-220-DC-HD L-220-DC-HD
 L-220-DC-HD L-220-DC-HD
 L-220-DC-HD L-220-DC-HD
 L-220-DC-HD L-220-DC-HD
 L-220-DC-HD L-220-HD
 L-220-HD L-220-HD
 L-220-HD L-220-HD
 L-220-HD L-220-HD
 L-220-HD L-270-DC-HD
 L-270-DC-HD L-270-DC-HD
 L-270-DC-HD L-270-DC-HD
 L-270-DC-HD L-270-DC-HD
 L-270-DC-HD L-270-DC-HD
 L-270-DC-HD L-270-DC-HD-SS
 L-270-DC-HD-SS L-270-DC-HD-SS
 L-270-DC-HD-SS L-270-DC-HD-SS
 L-270-DC-HD-SS L-270-DC-HD-SS
 L-270-DC-HD-SS L-270-DC-HD-SS
 L-270-DC-HD-SS L-270-DC-HD-SS
 L-270-DC-HD-SS L-270-HD
 L-270-HD L-270-HD
 L-270-HD L-270-HD
 L-270-HD L-270-HD
 L-270-HD L-270-HD-SS
 L-270-HD-SS L-270-HD-SS
 L-270-HD-SS L-270-HD-SS
 L-270-HD-SS L-270-HD-SS
 L-270-HD-SS L-270-HD-SS
 L-270-HD-SS L-PLATE-20
 L-PLATE-20 L-PLATE-20
 L-PLATE-20 L-PLATE-20
 L-PLATE-20 L-PLATE-20
 L-PLATE-20 L-PLATE-27
 L-PLATE-27 L-PLATE-27
 L-PLATE-27 L-PLATE-27
 L-PLATE-27 L-PLATE-27
 L-PLATE-27
We are hoping to continue adding new product pictures to each gallery. Check back soon.

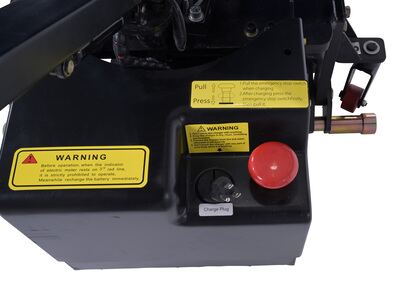

Q: Does the L-220-DC-HD have a battery charge indicator on it?

A: The L-220-DC-HD and the L-270-DC-HD come standard with a battery charge indicator.

Q: What is the run time for the pallet jack? How long should a pallet jack battery be charged for without causing damage?

A: Run time depends on the load being lifted but approximately 3-6 hours intermittently. Battery charger will turn off and on automatically as to avoid over charging.
