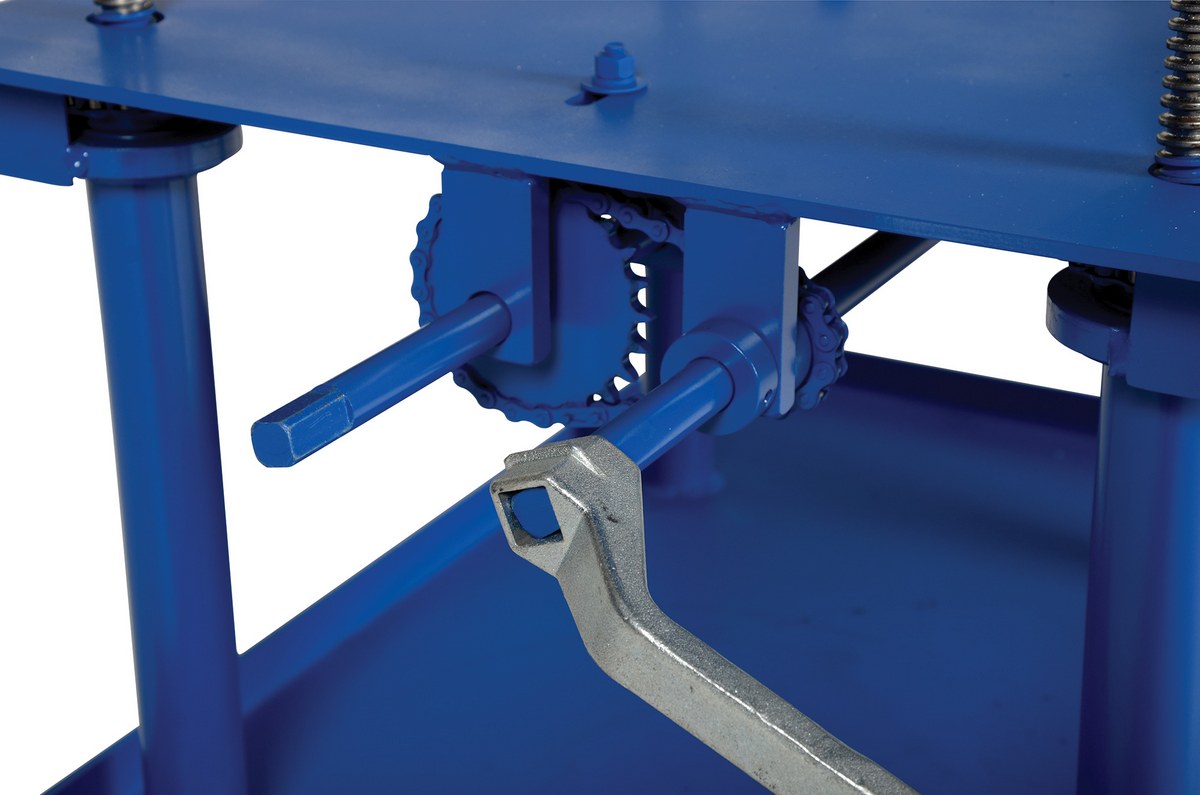

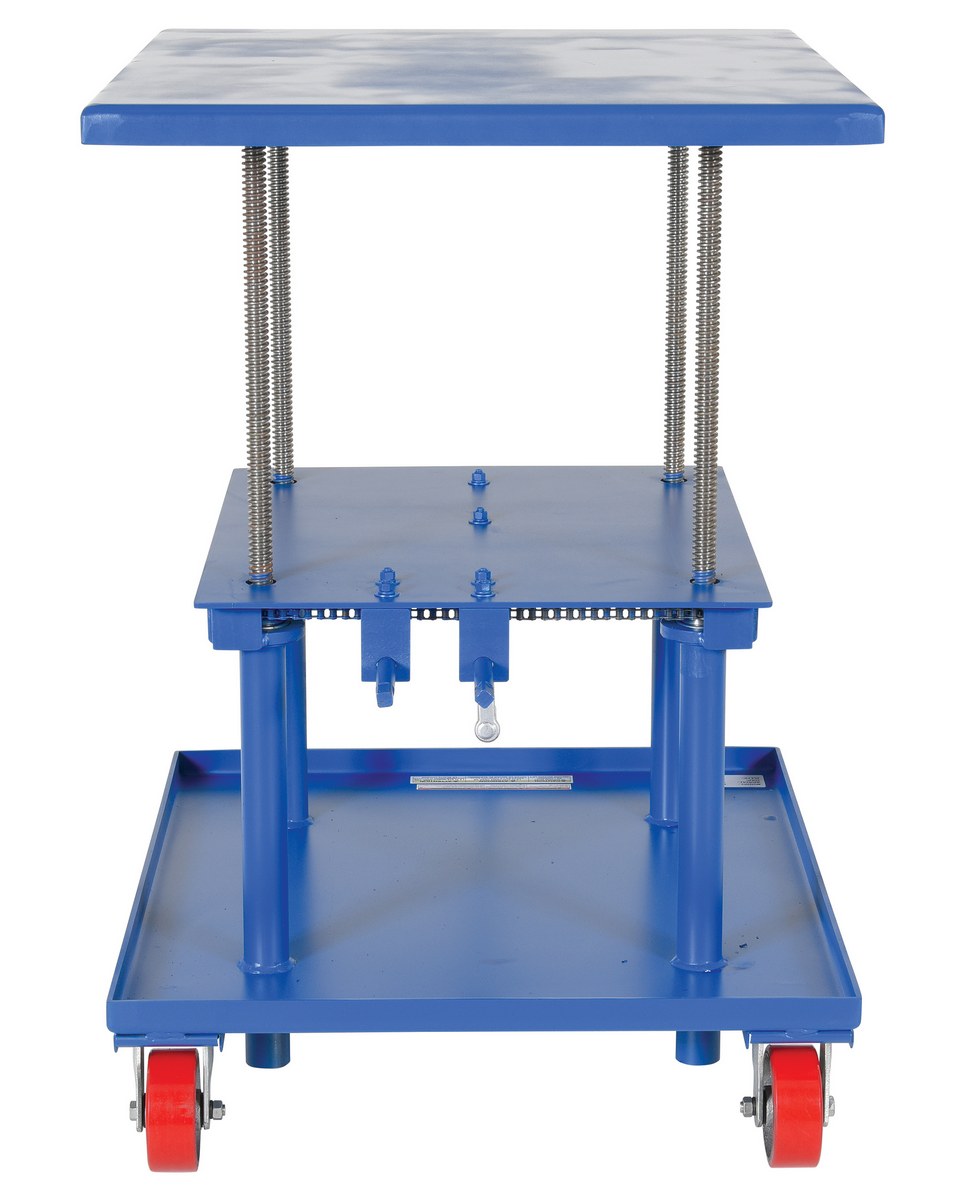

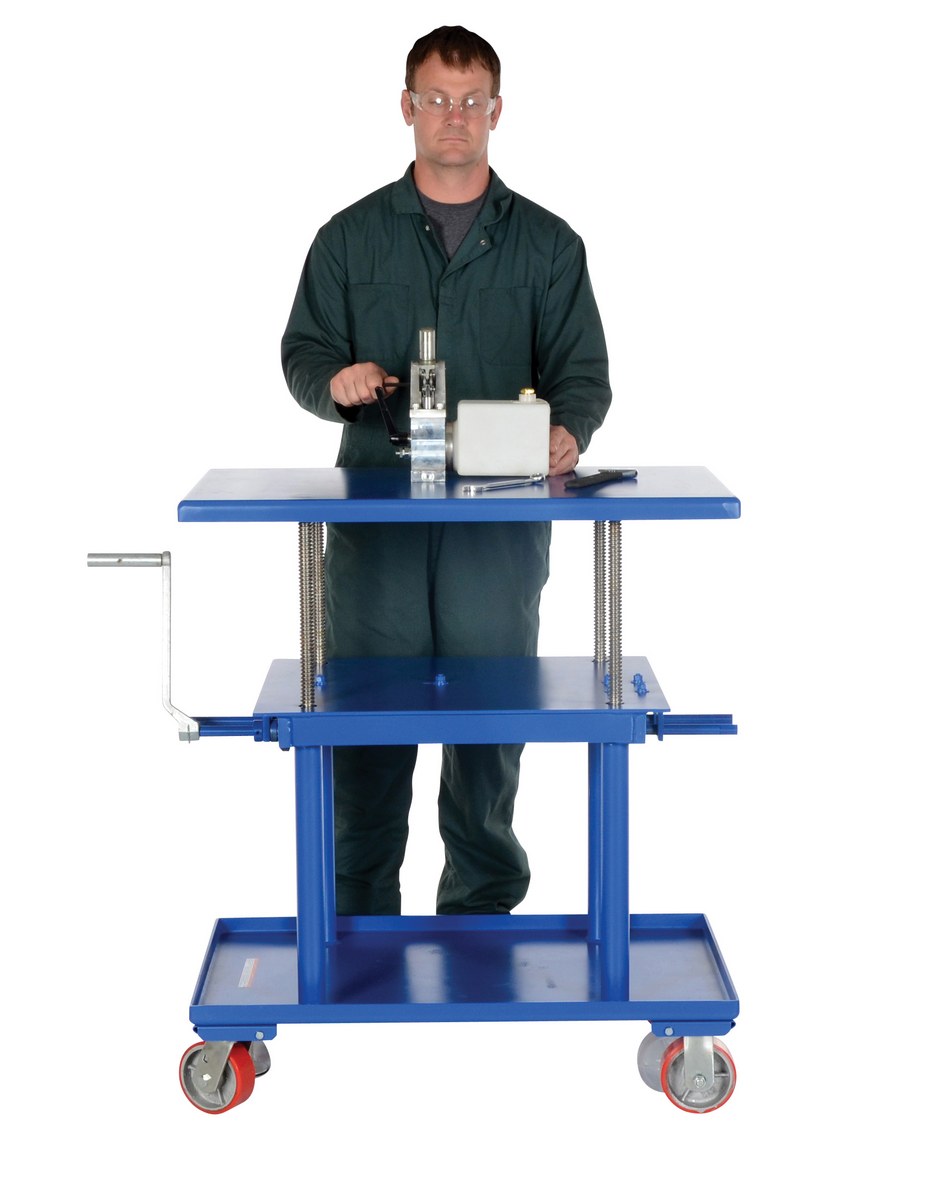

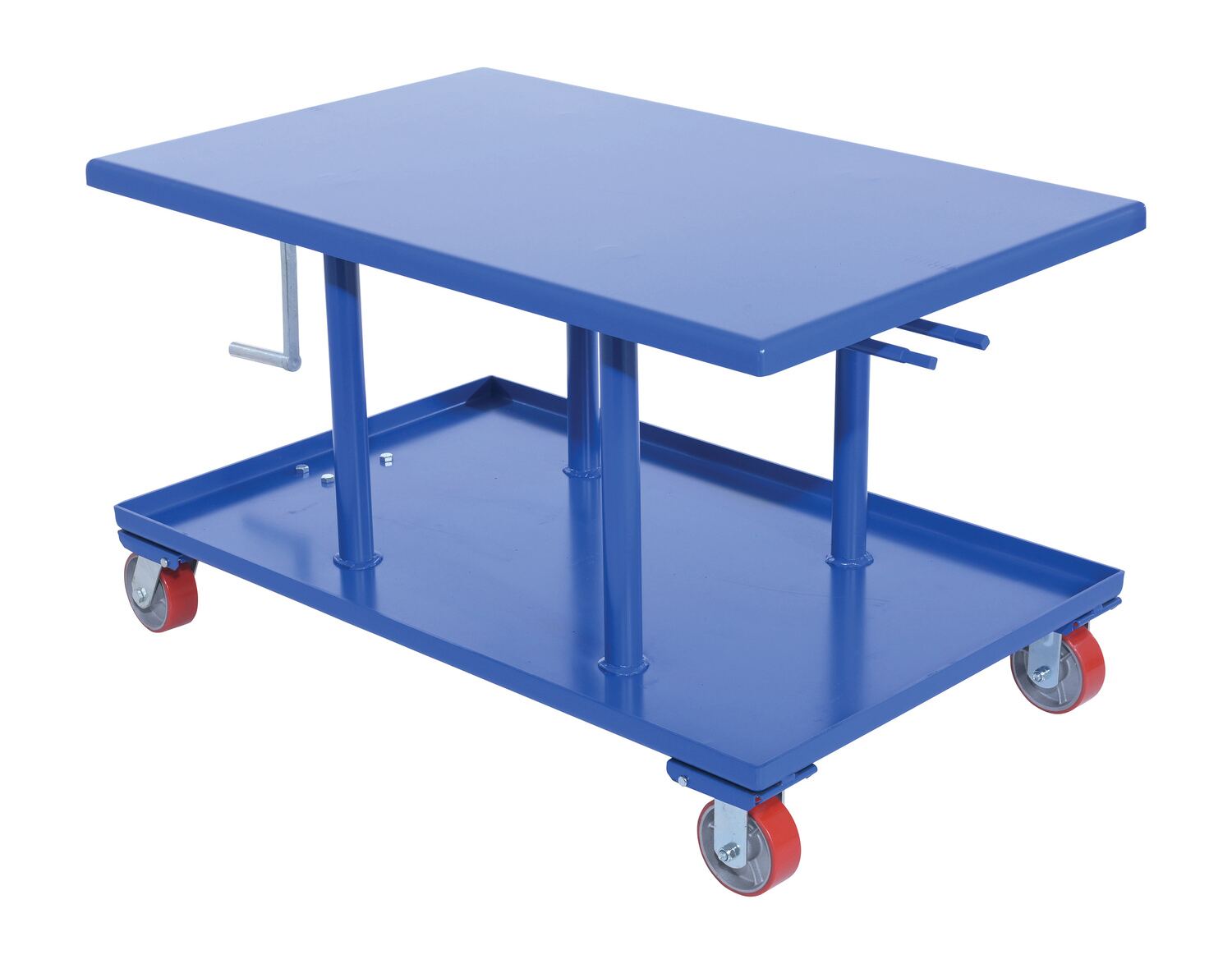

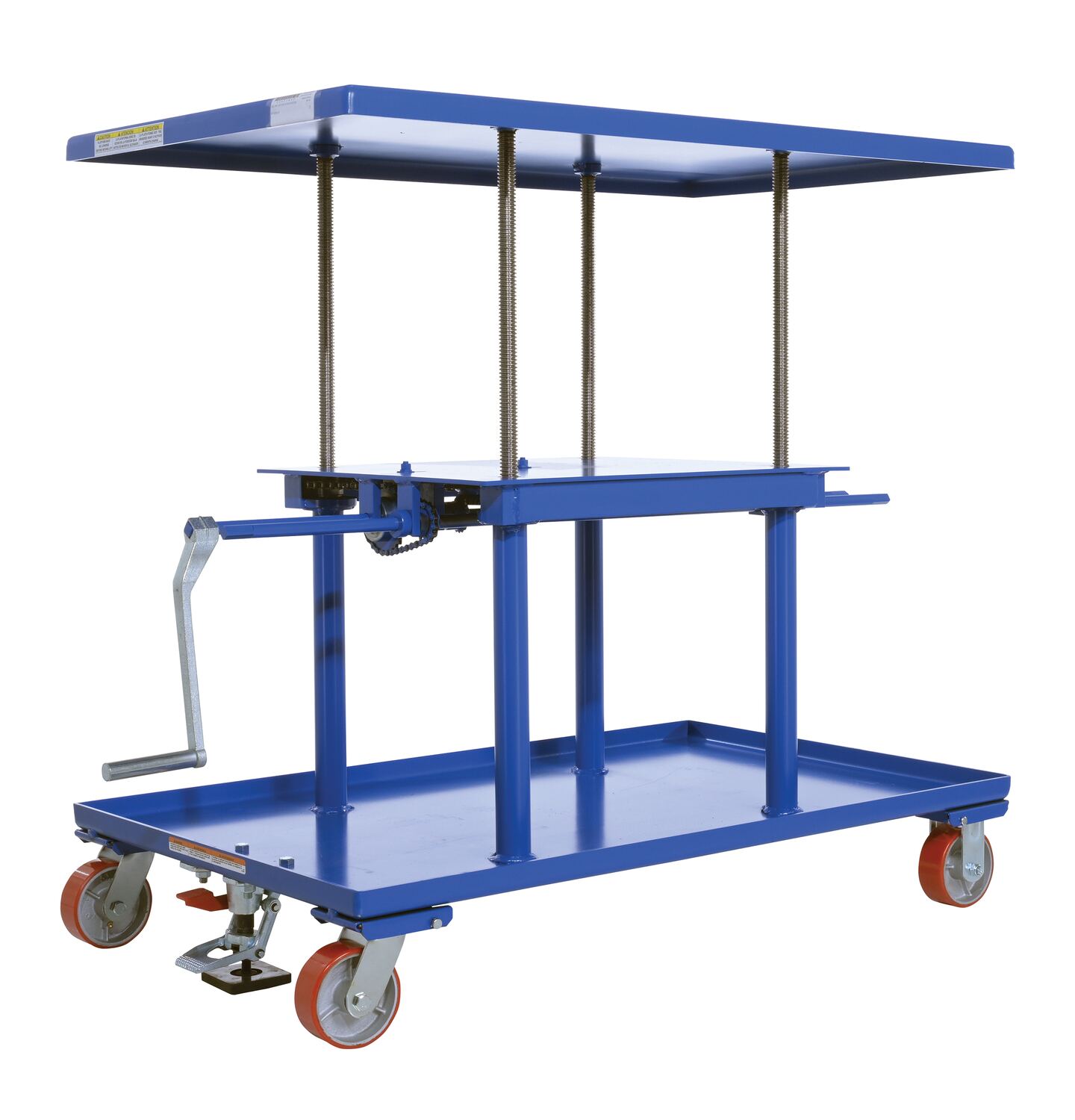

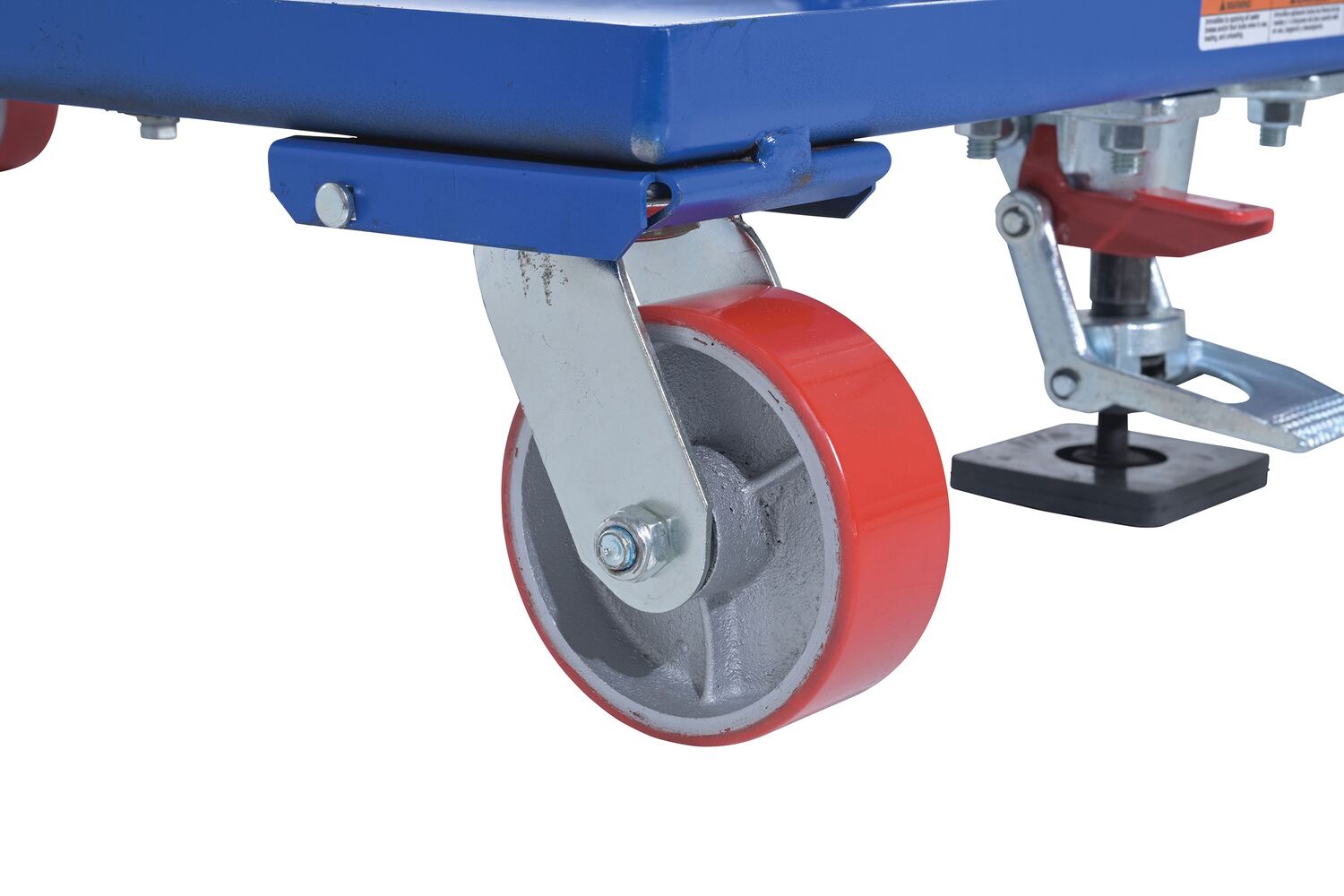

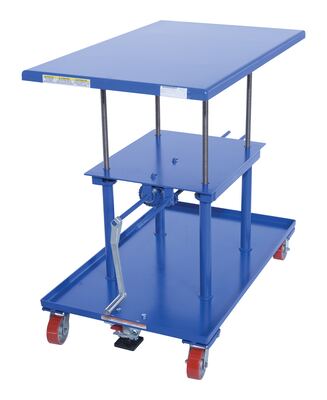

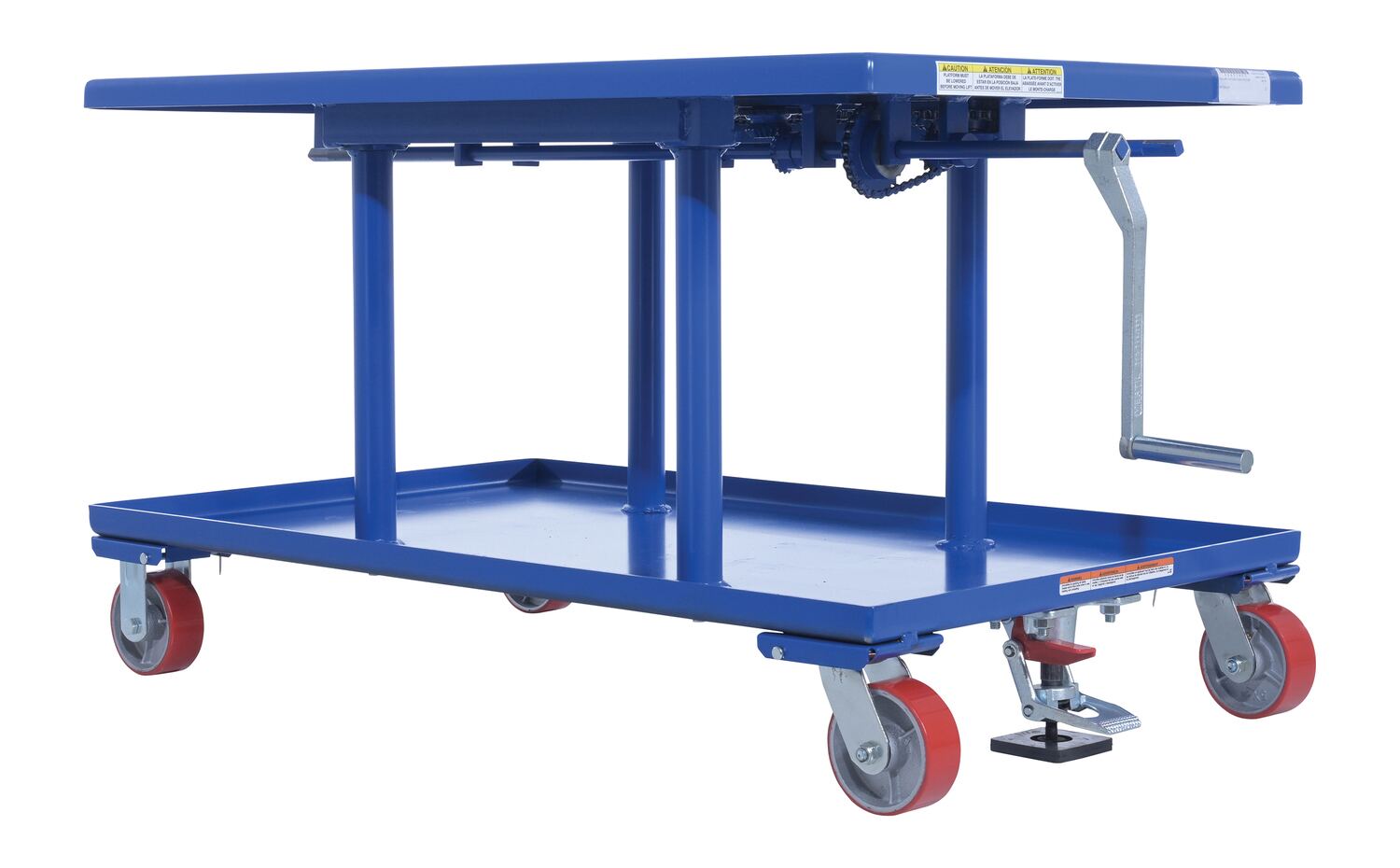

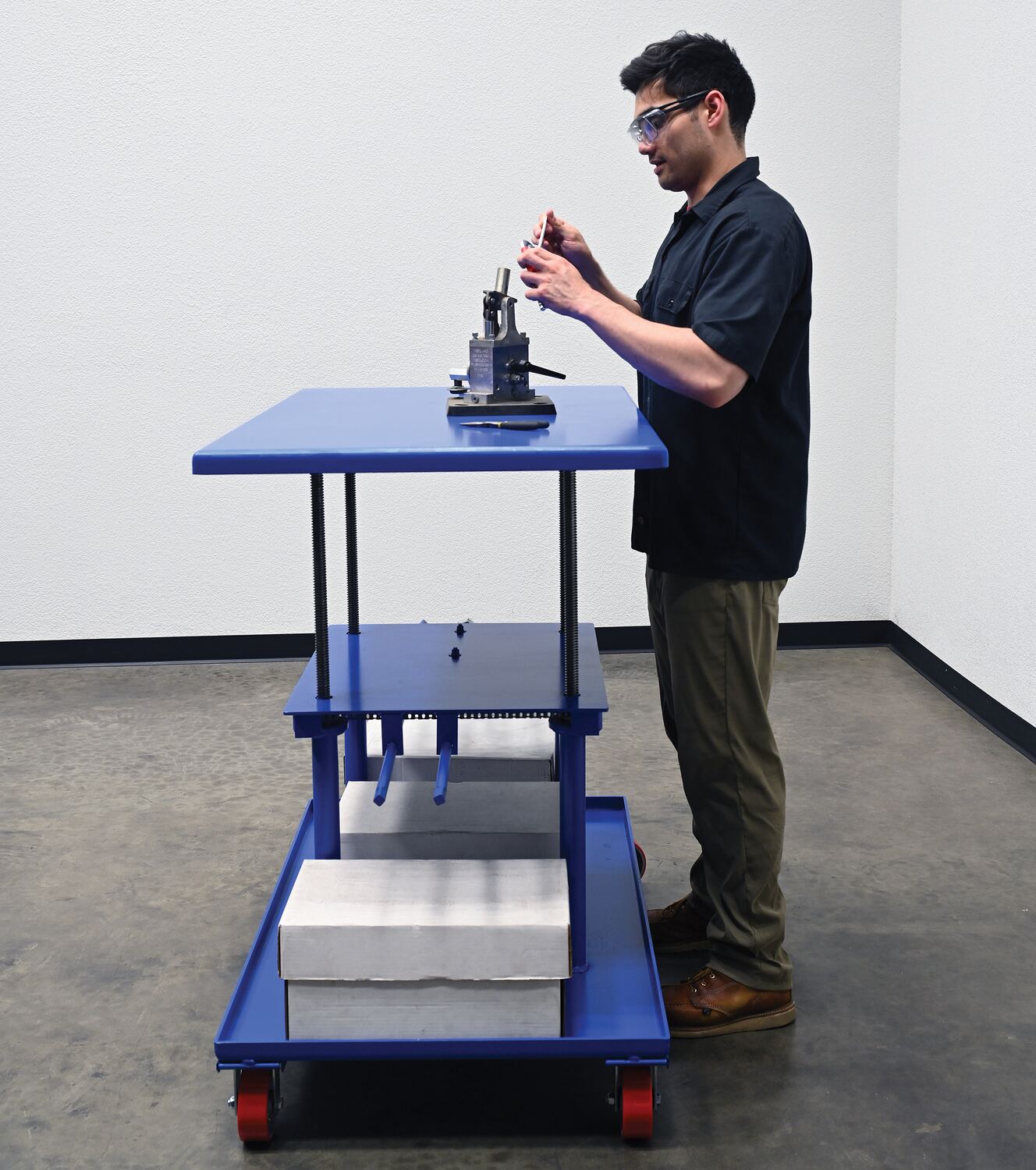

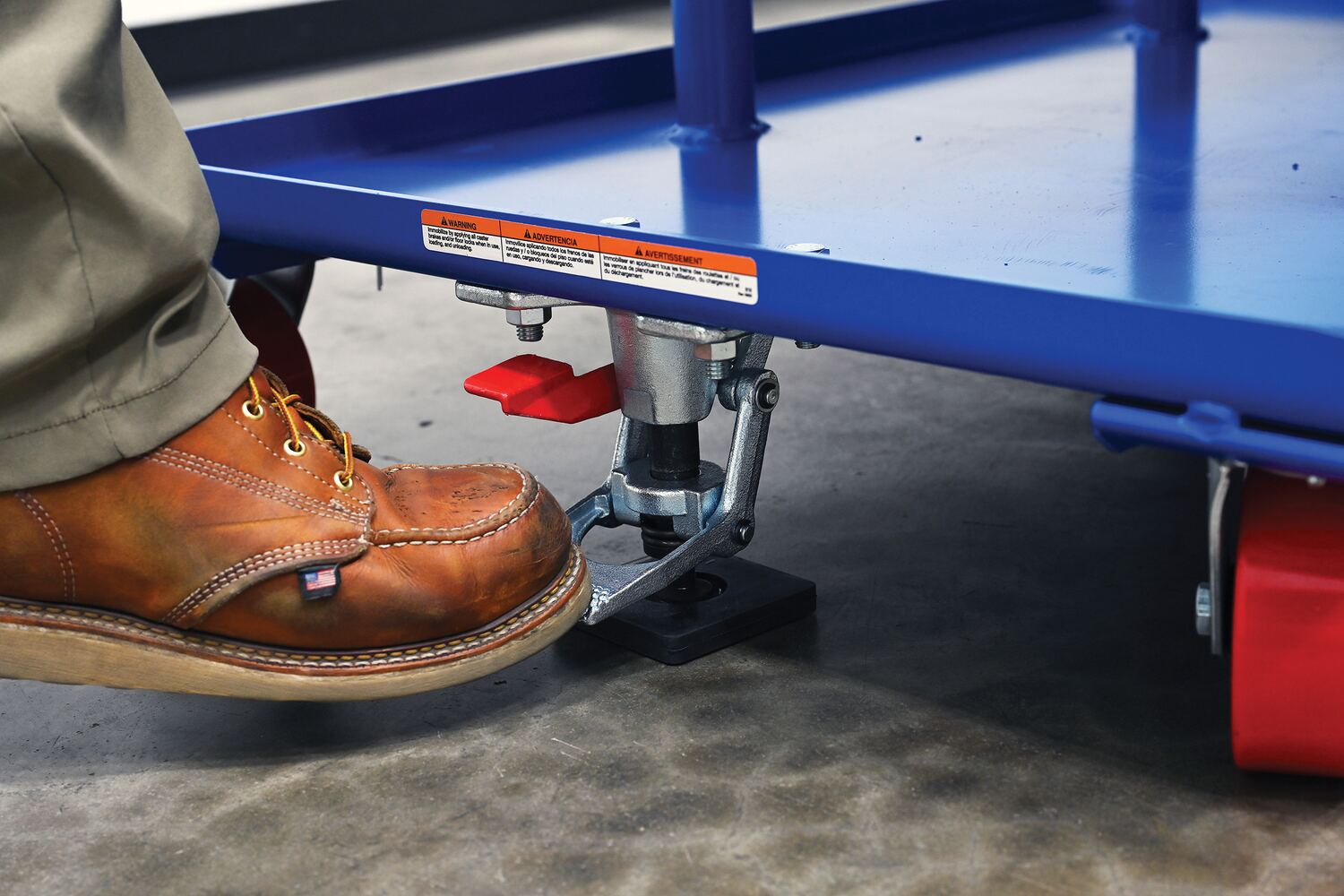

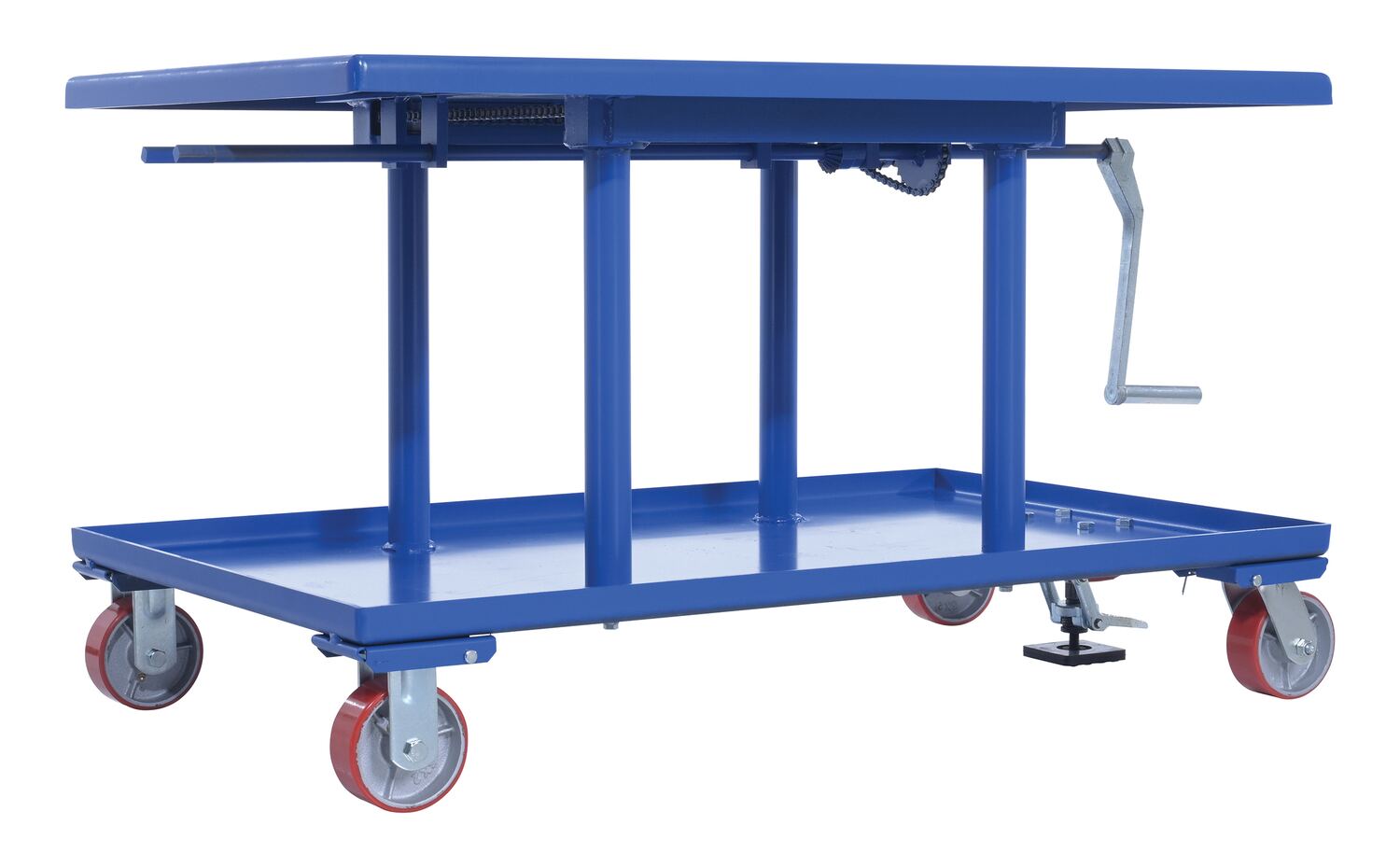

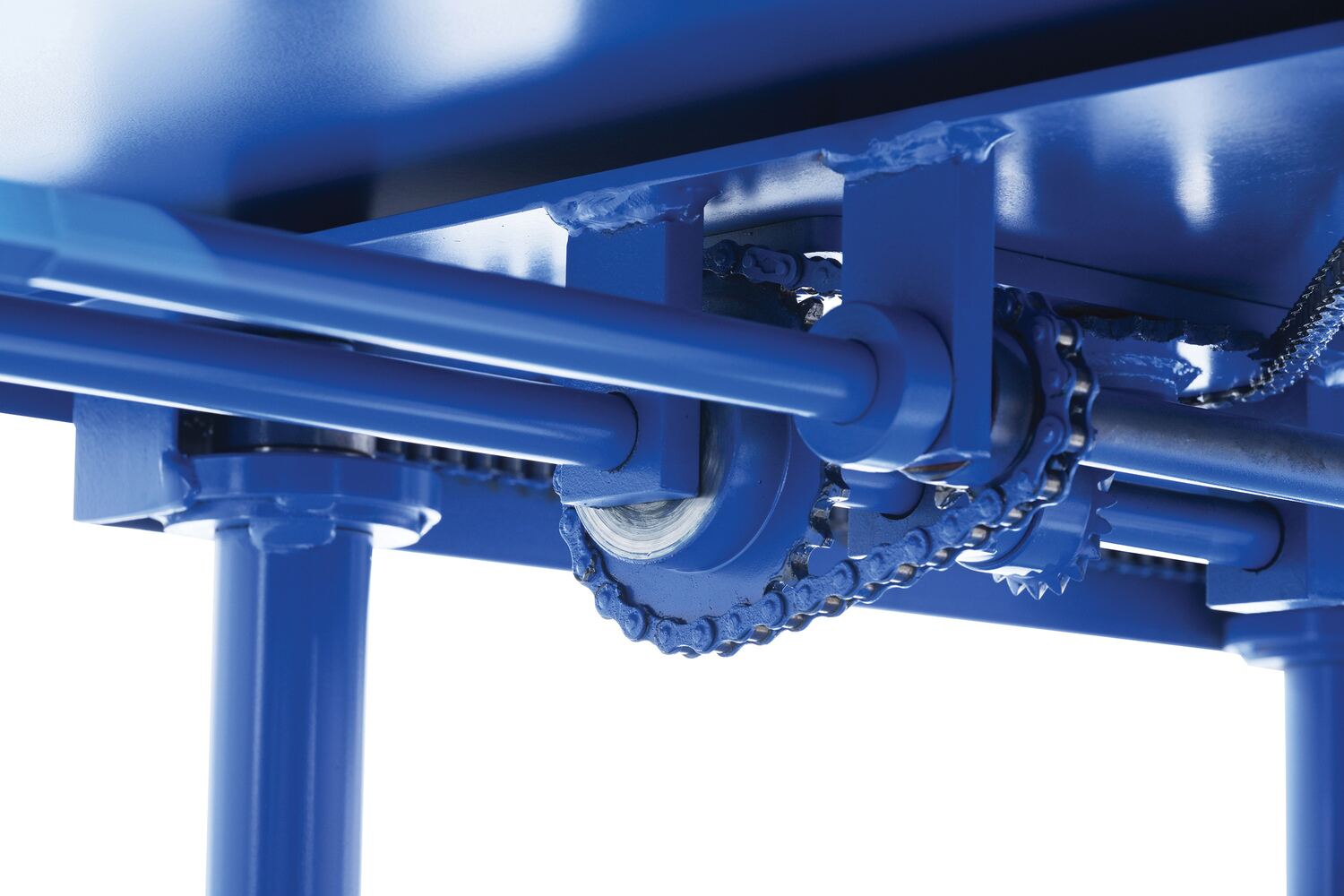

Adjustable height post tables are well suited for a wide variety of material handling applications. Moves smoothly on two (2) rigid and two (2) swivel 5" x 2" poly-on-steel casters with floor lock standard. All welded steel construction (deck) is blue. Provides positive height adjustment without downward drift. Features a two-speed manual gear mechanism to move heavy loads at 1/8" per crank rotation or lighter loads at 5/16" per crank rotation.
All Models are available with Power Options:
Other Post Tables: | |
Hydraulic Post Tables w/ Rectangular Top |
Linear Actuated Post Tables |
Air Hydraulic Post Tables |
Hydraulic Post Tables w/ Round Top |
Adjustable height post tables are well suited for a wide variety of material handling applications. Moves smoothly on two (2) rigid and two (2) swivel 5" x 2" poly-on-steel casters with floor lock standard. All welded steel construction (deck) is blue. Provides positive height adjustment without downward drift. Features a two-speed manual gear mechanism to move heavy loads at 1/8" per crank rotation or lighter loads at 5/16" per crank rotation.
All Models are available with Power Options:
Other Post Tables: | |
Hydraulic Post Tables w/ Rectangular Top |
Linear Actuated Post Tables |
Air Hydraulic Post Tables |
Hydraulic Post Tables w/ Round Top |
Model # | Description | Attributes | Net Wt. (lbs) |
||||
---|---|---|---|---|---|---|---|

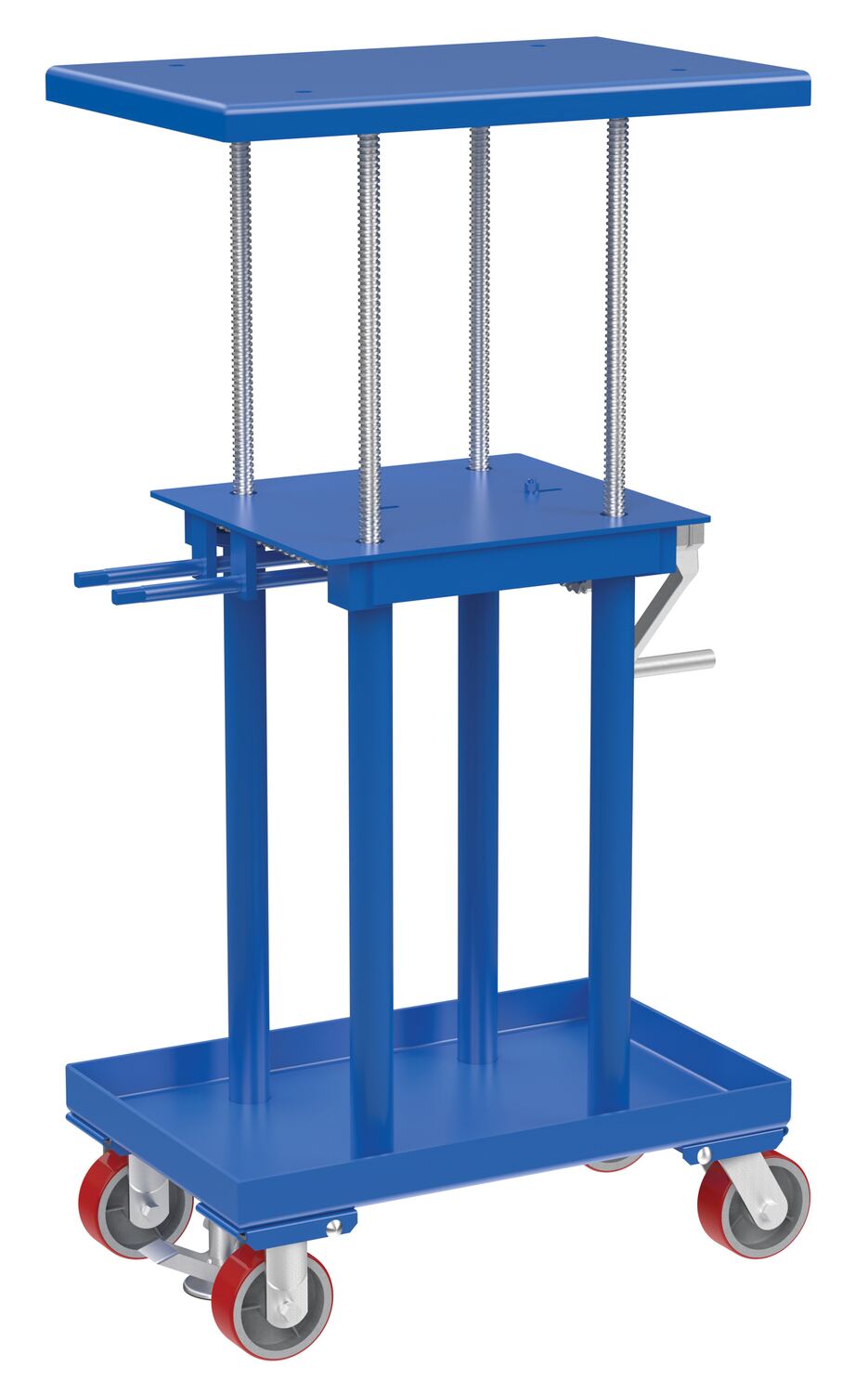

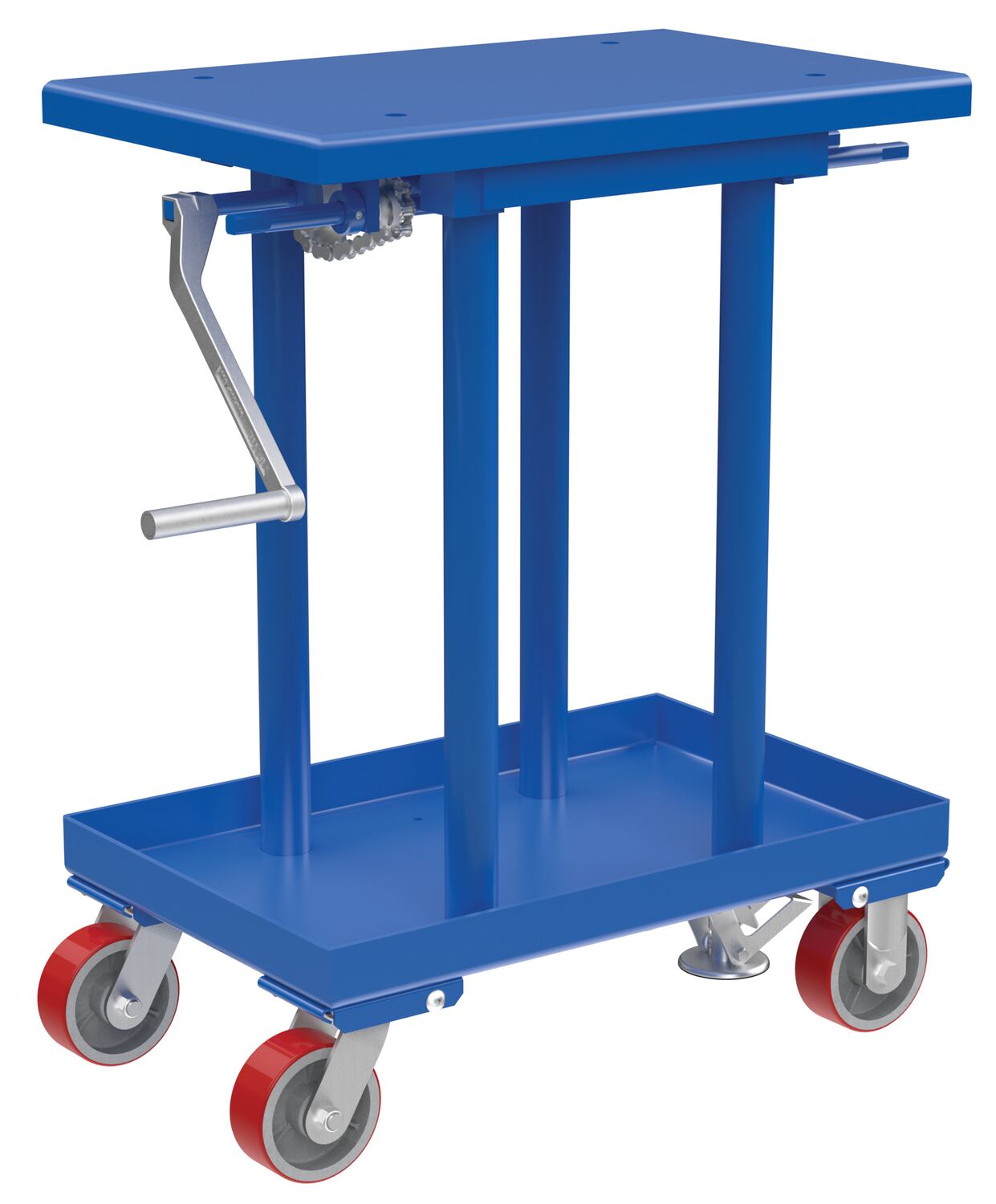

MT-1828-HP | NEW | 1 Year Limited Warranty | Steel High Profile Mechanical Post Table 18 in X 28 in 1000 lb Capacity Blue | Uniform Capacity (lbs.): 1,000 Top Platform Width (in.): 28 | 250 | ||

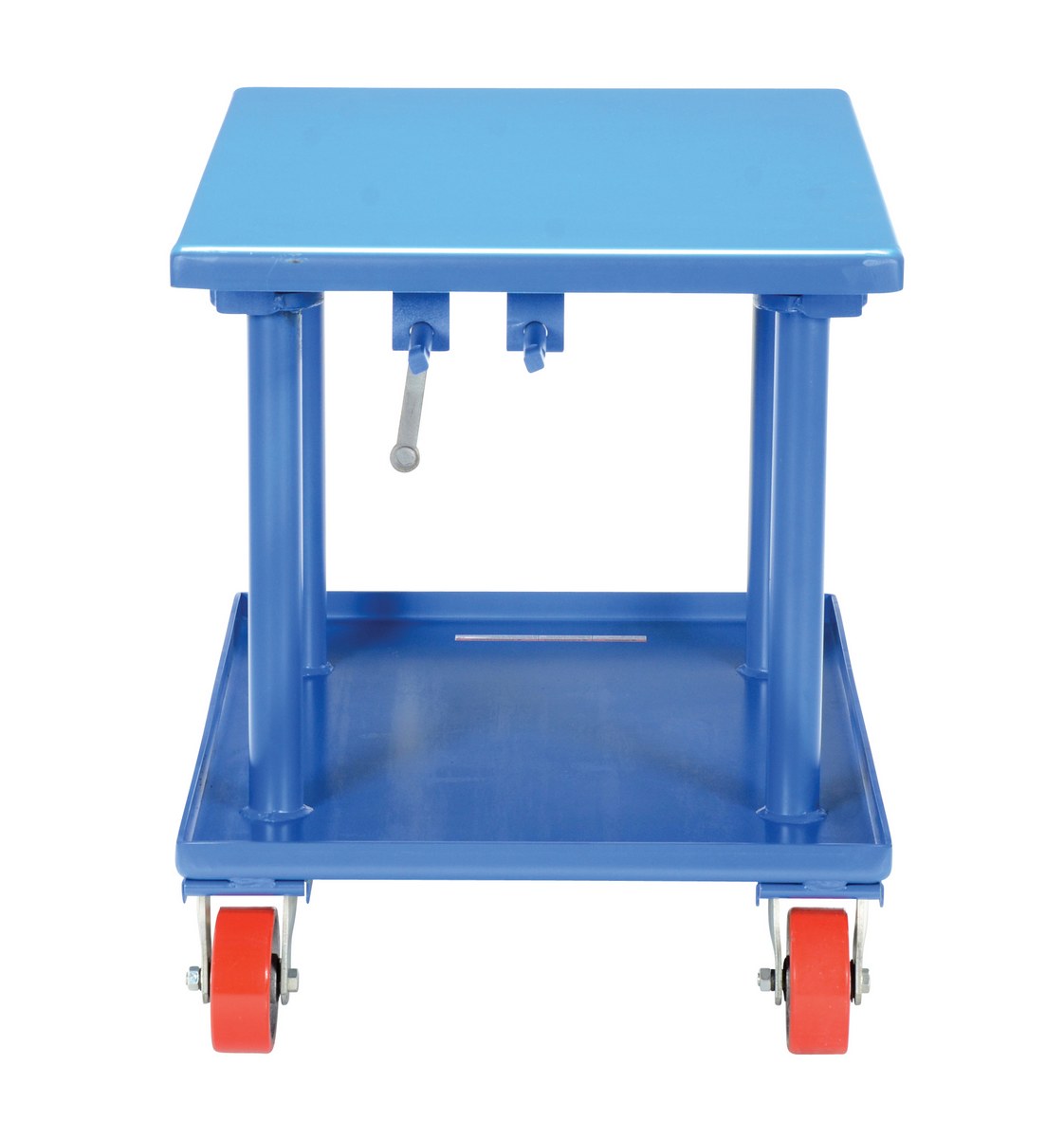

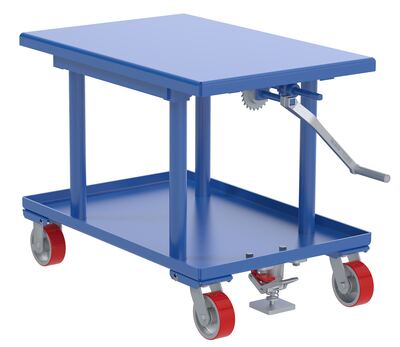

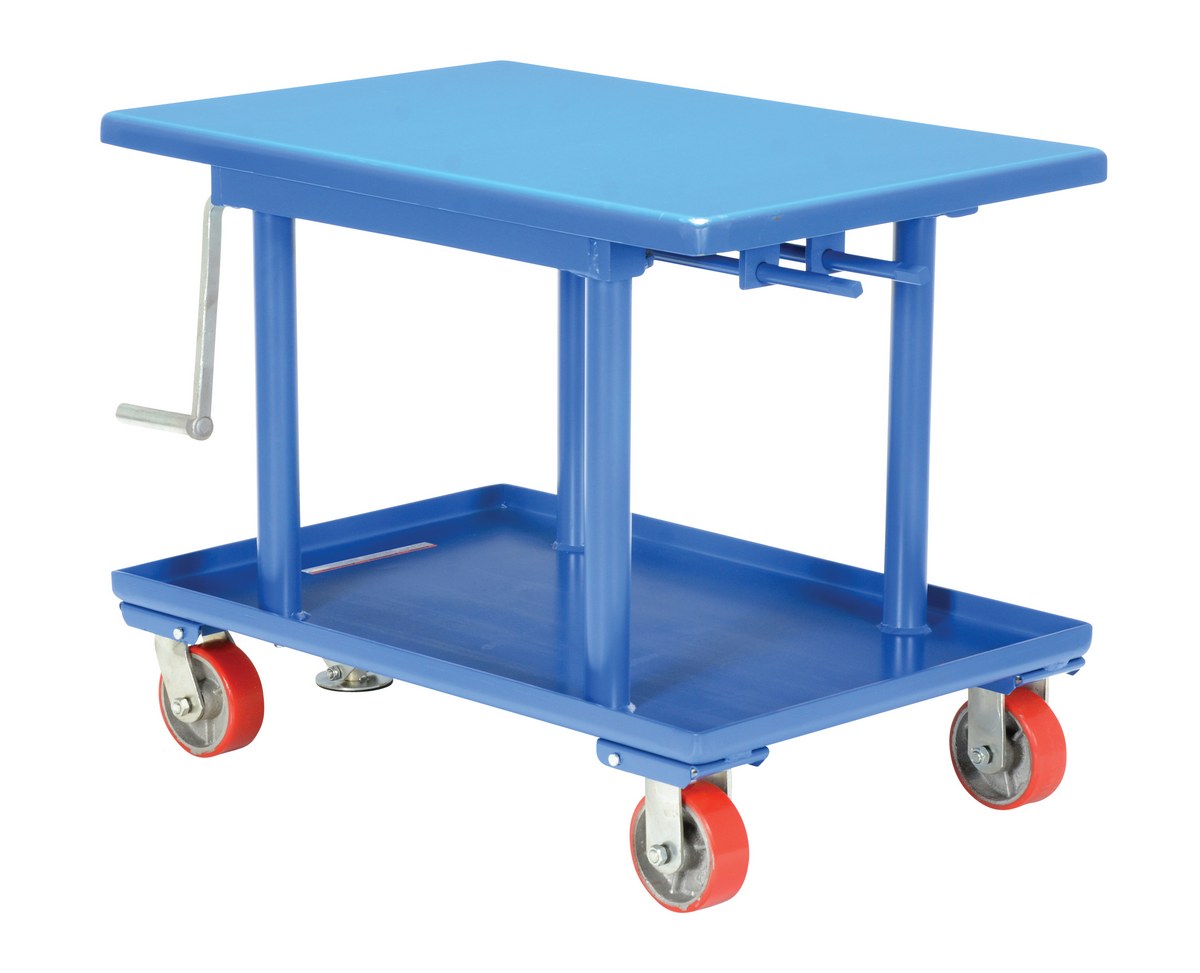

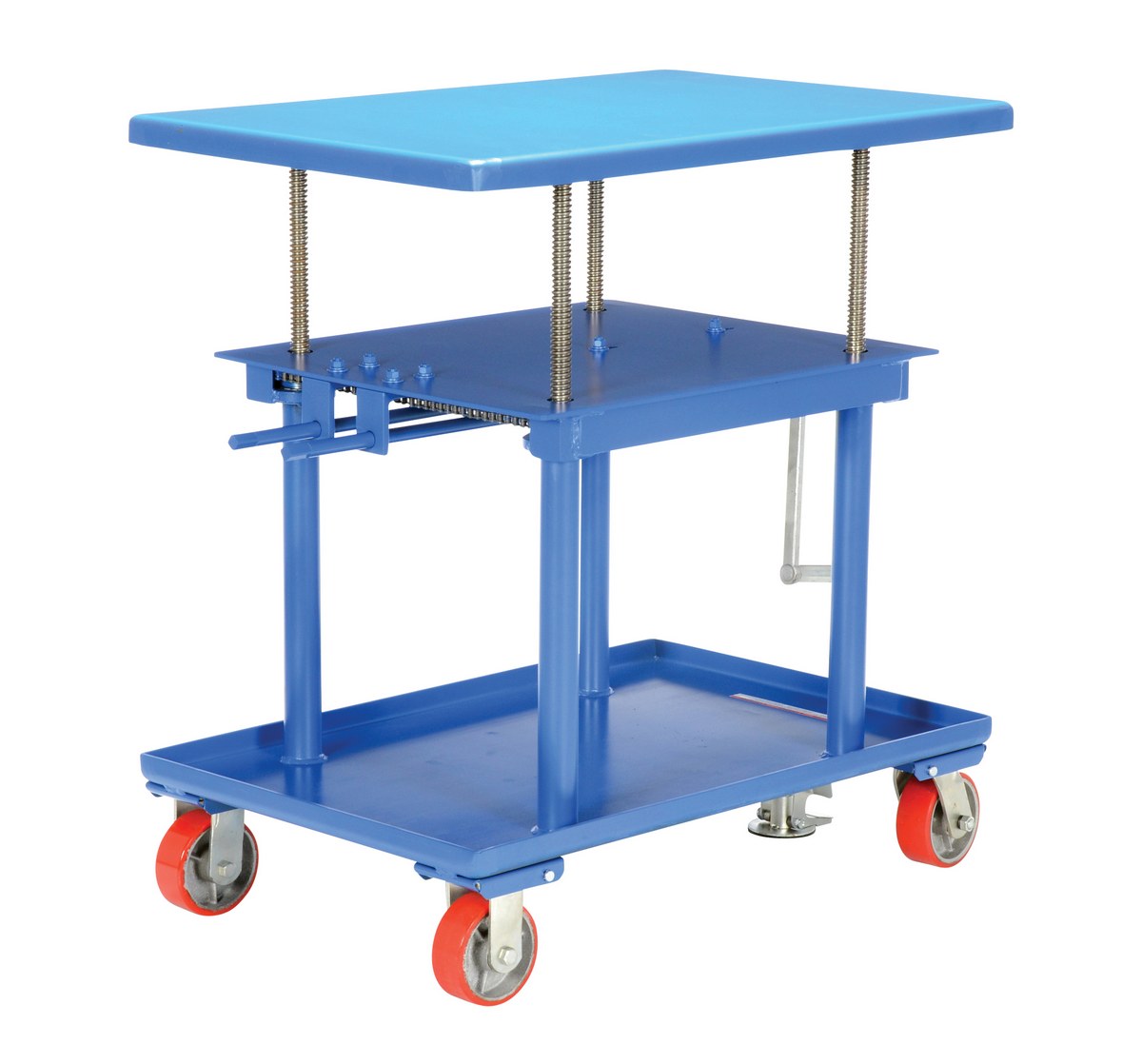

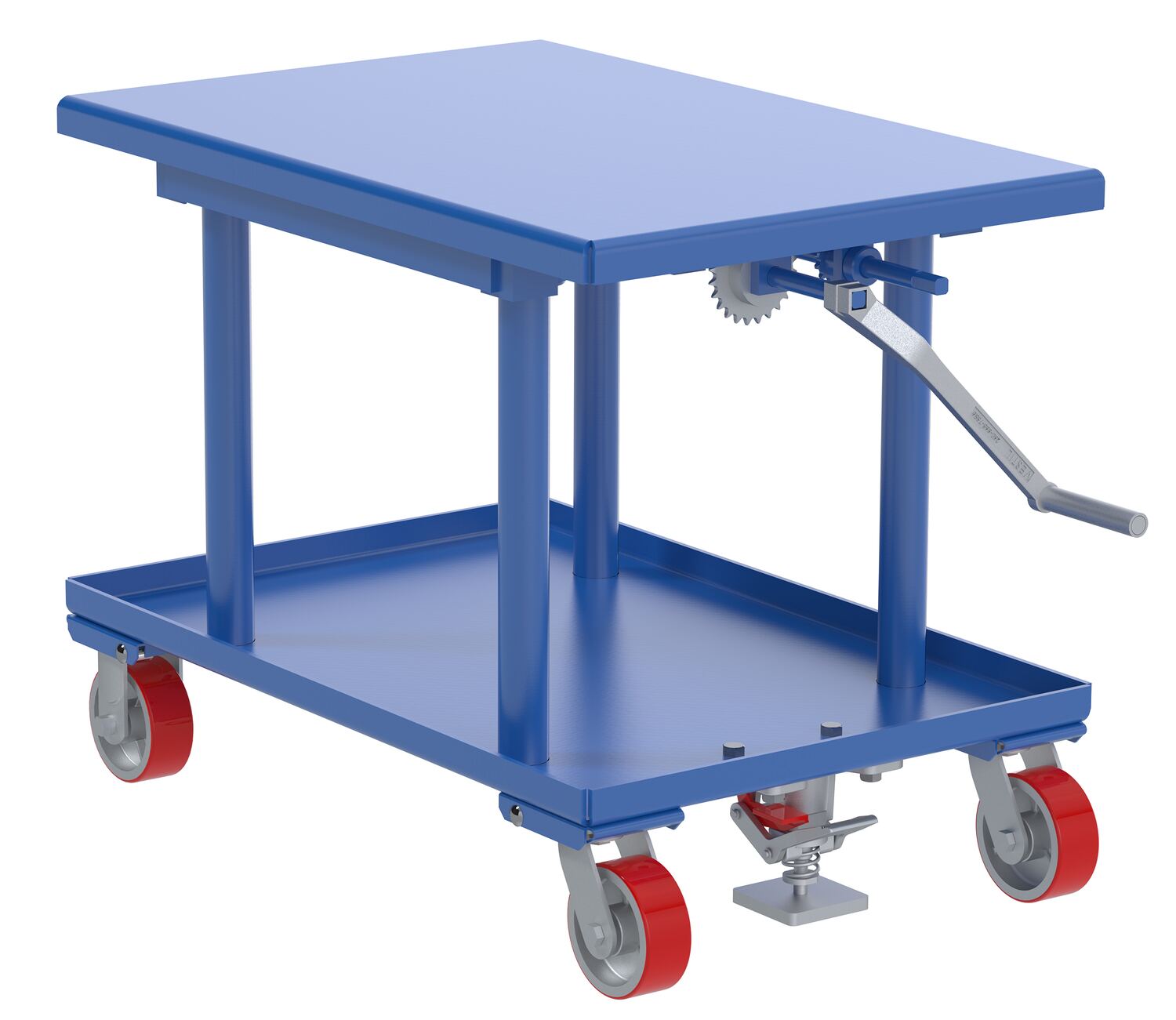

MT-2436-HP | 1 Year Limited Warranty | Steel High Profile Post Table 24 In. x 36 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 337 | |||
MT-2436-HP-AC | | 1 Year Limited Warranty | Steel AC Powered High Profile Post Table 24 In. x 36 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 387 | ||
MT-2436-HP-DC | 1 Year Limited Warranty | Steel DC Powered High Profile Post Table 24 In. x 36 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 473 | |||

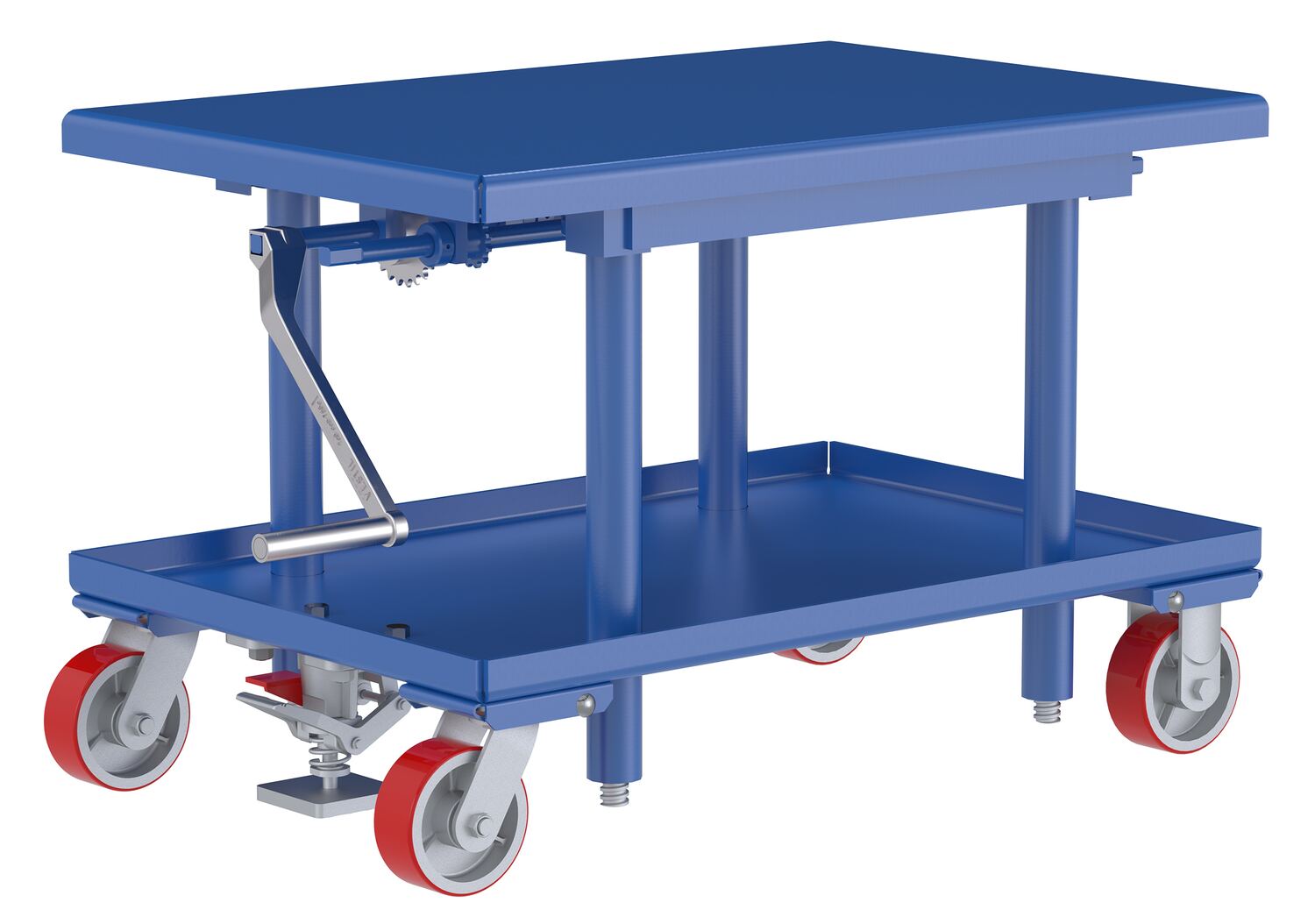

MT-2436-LP | 1 Year Limited Warranty | Steel Low Profile Post Table 24 In. x 36 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 334 | |||
MT-2436-LP-AC | | 1 Year Limited Warranty | Steel AC Powered Low Profile Post Table 24 In. x 36 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 473 | ||
MT-2436-LP-DC | 1 Year Limited Warranty | Steel DC Powered Low Profile Post Table 24 In. x 36 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 476 | |||

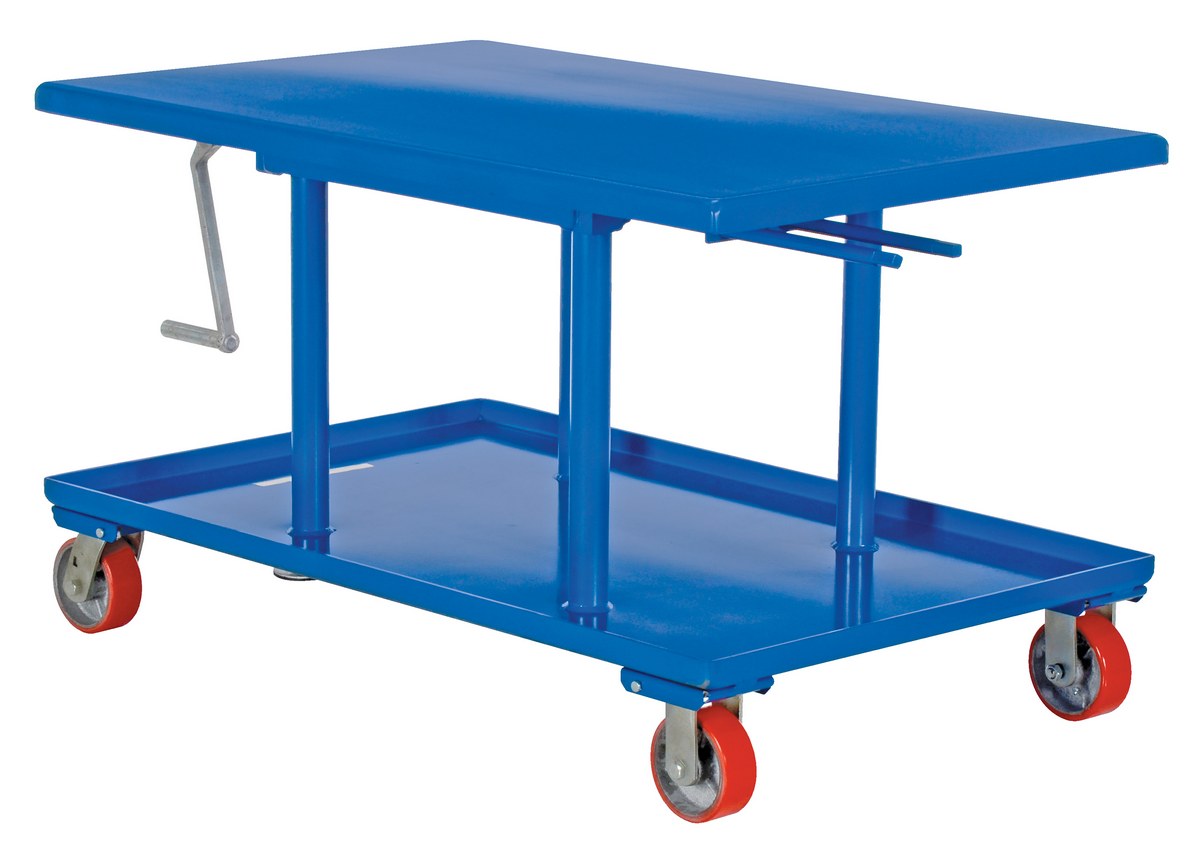

MT-2442-HP | 1 Year Limited Warranty | Steel High Profile Post Table 24 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 376 | |||
MT-2442-HP-AC | | 1 Year Limited Warranty | Steel AC Powered High Profile Post Table 24 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 426 | ||
MT-2442-HP-DC | 1 Year Limited Warranty | Steel DC Powered High Profile Post Table 24 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 546 | |||

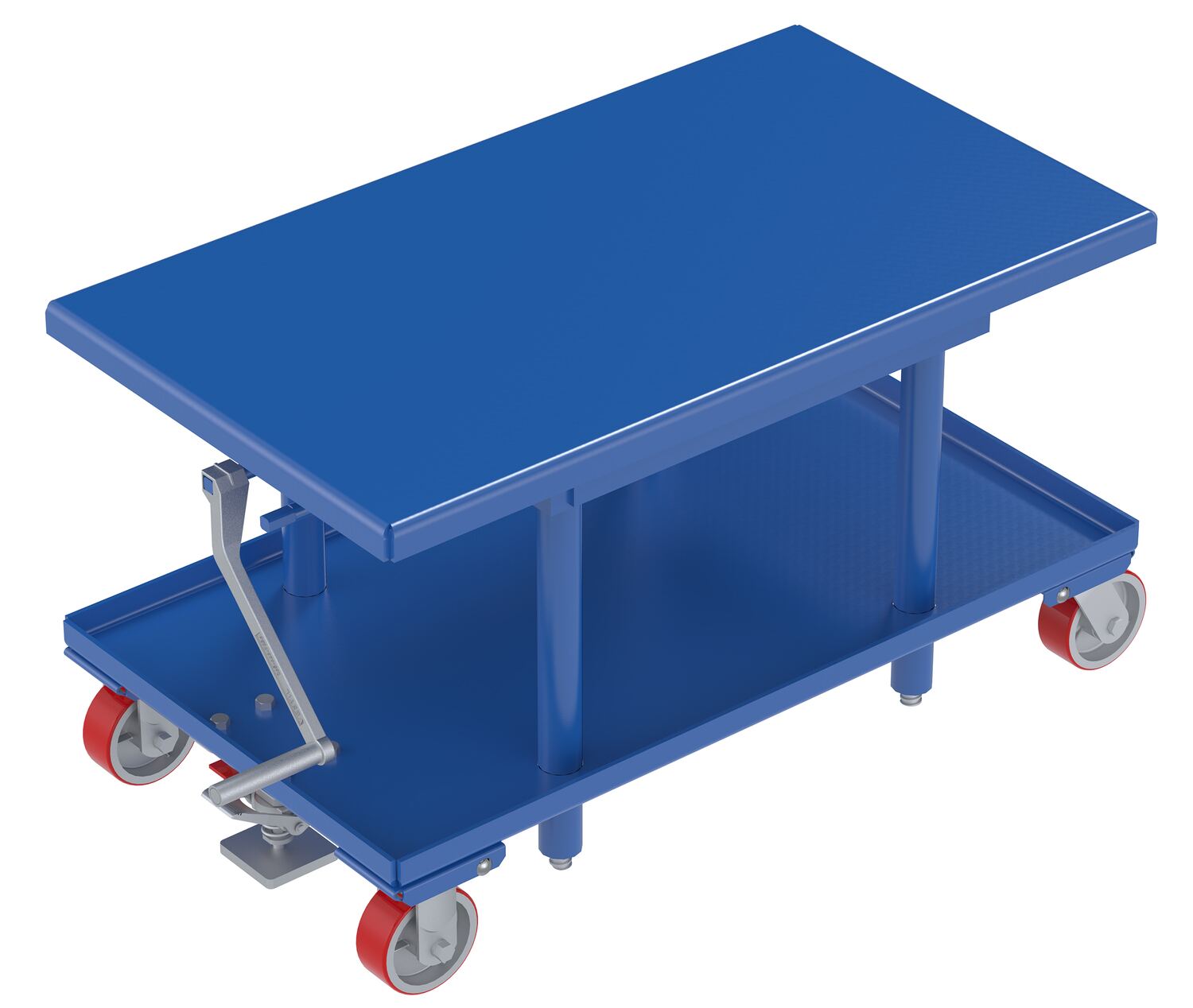

MT-2442-LP | 1 Year Limited Warranty | Steel Low Profile Post Table 24 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 357 | |||
MT-2442-LP-AC | | 1 Year Limited Warranty | Steel AC Powered Low Profile Post Table 24 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 407 | ||
MT-2442-LP-DC | 1 Year Limited Warranty | Steel DC Powered Low Profile Post Table 24 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 498 | |||

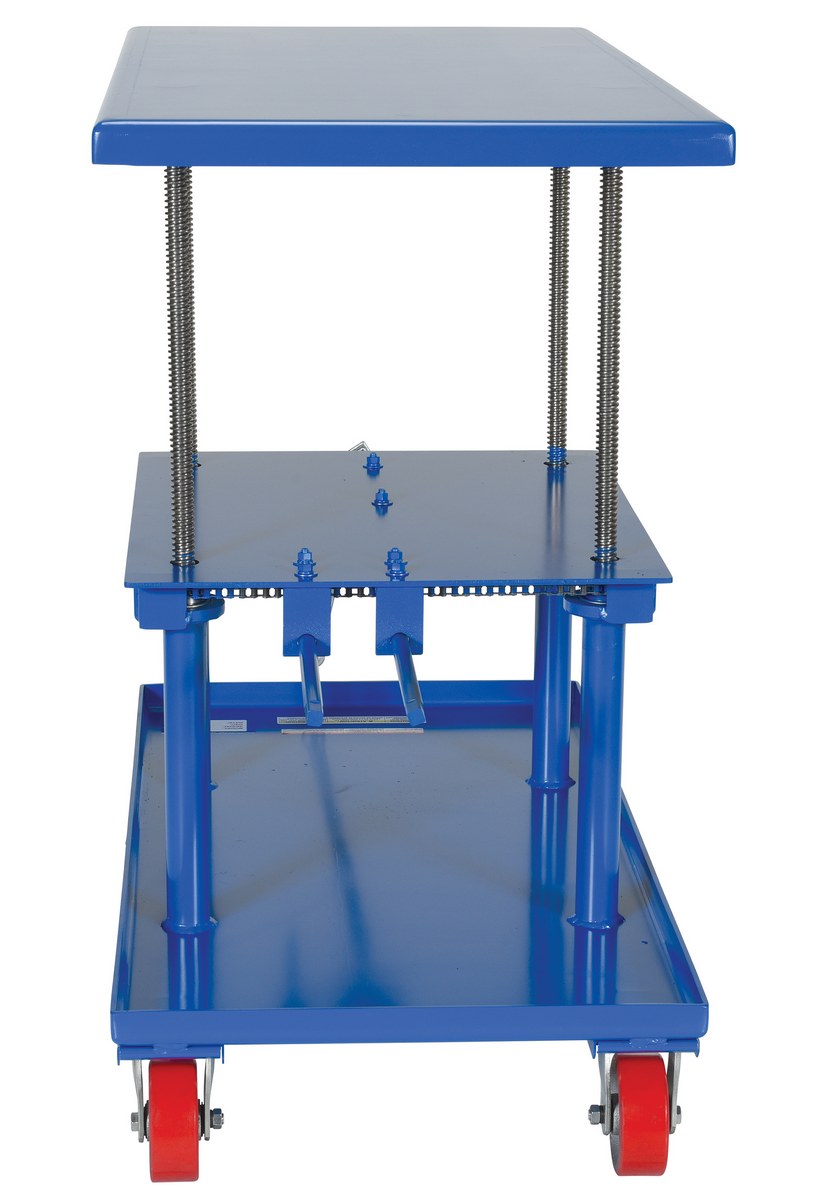

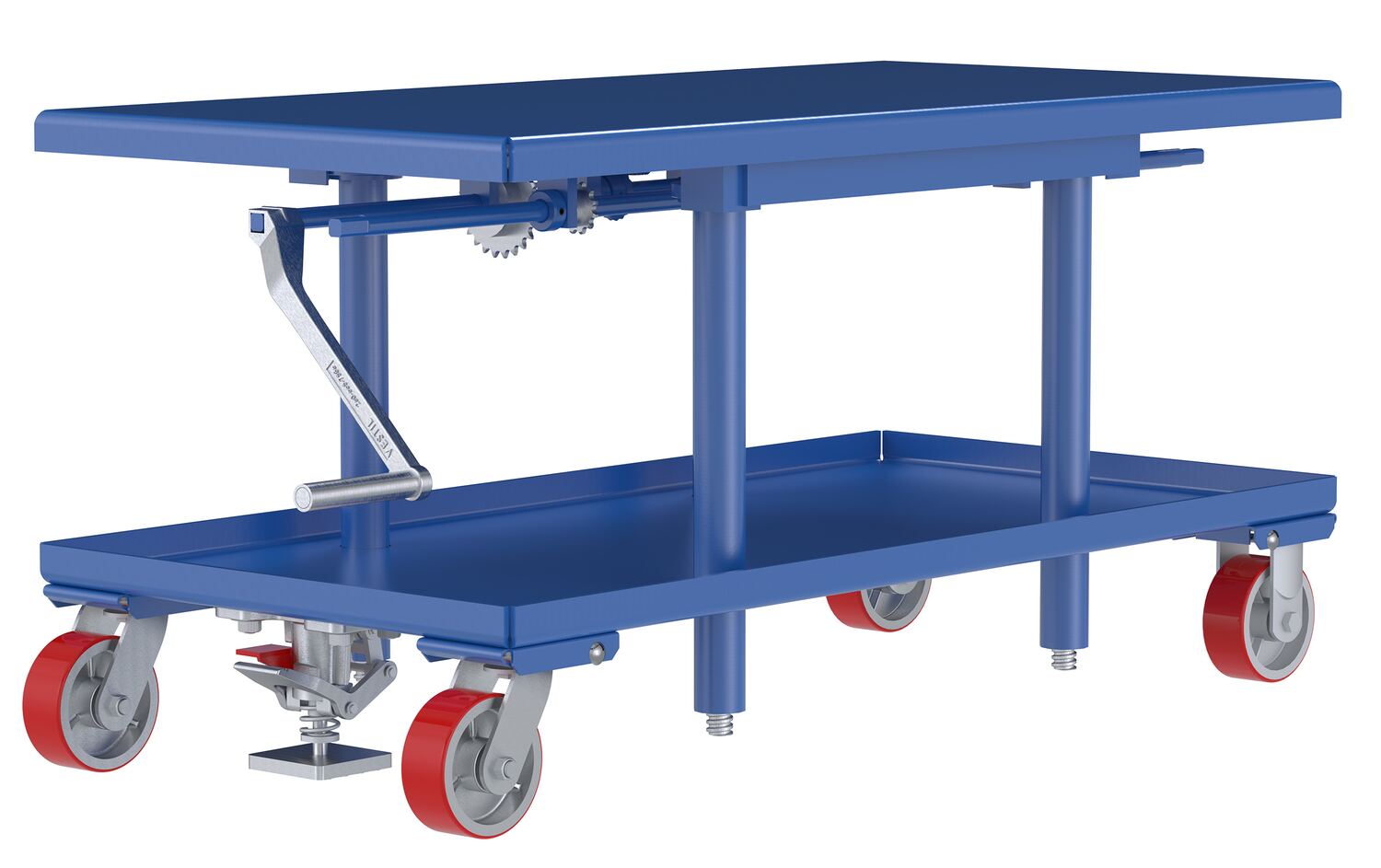

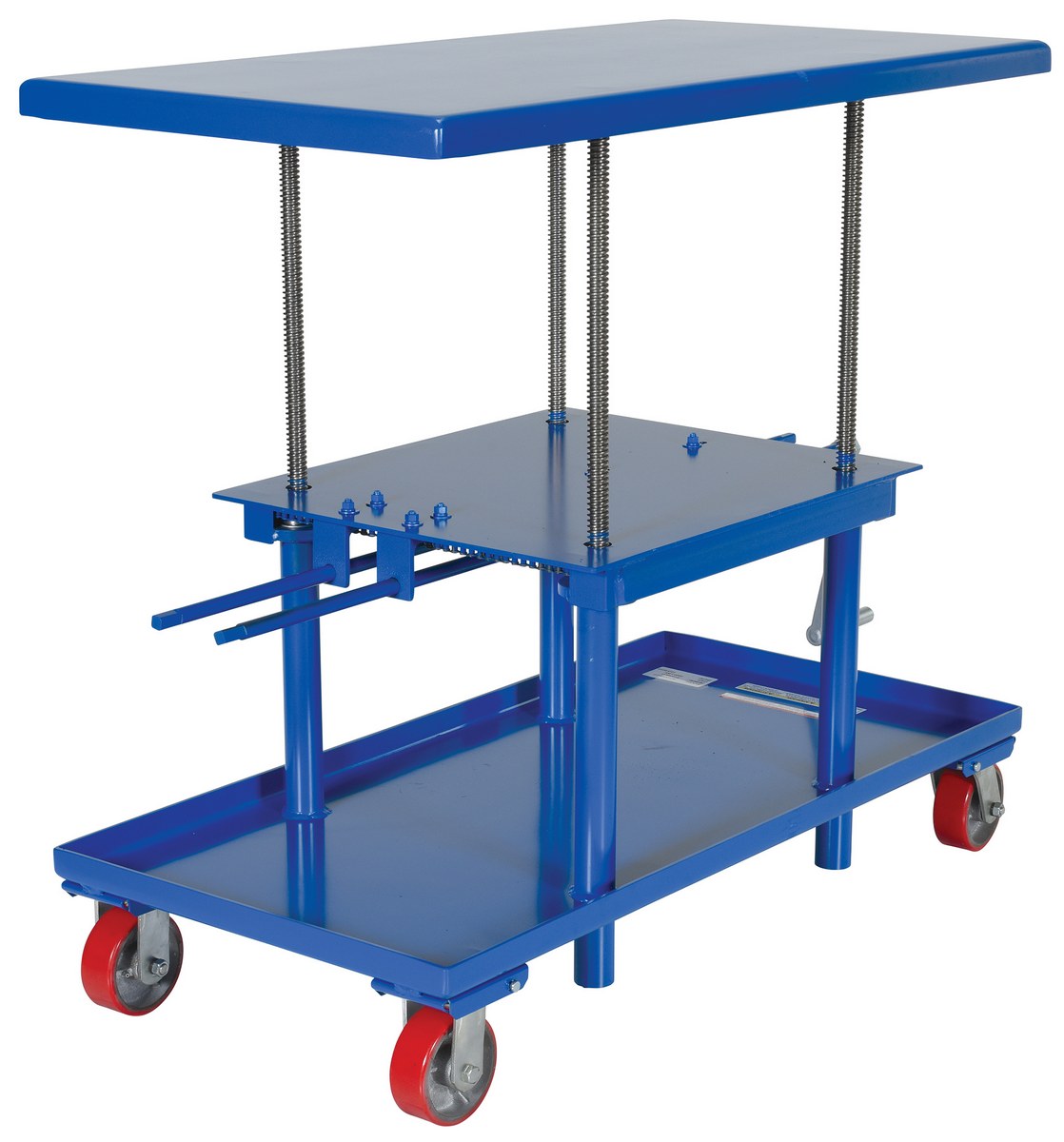

MT-2448-LP | 1 Year Limited Warranty | Steel Low Profile Post Table 24 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 390 | |||
MT-2448-LP-AC | | 1 Year Limited Warranty | Steel AC Powered Low Profile Post Table 24 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 437 | ||

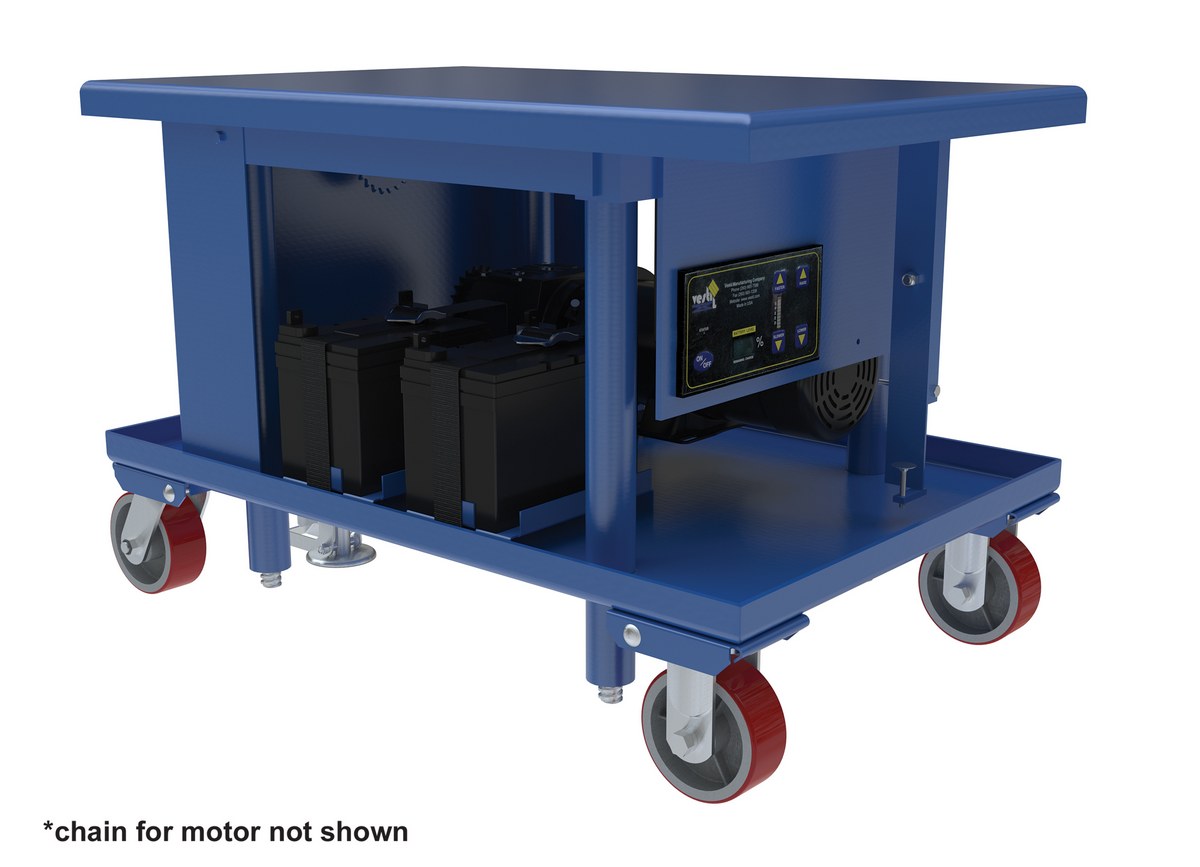

MT-2448-LP-DC | 1 Year Limited Warranty | Steel DC Powered Low Profile Post Table 24 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 522 | |||

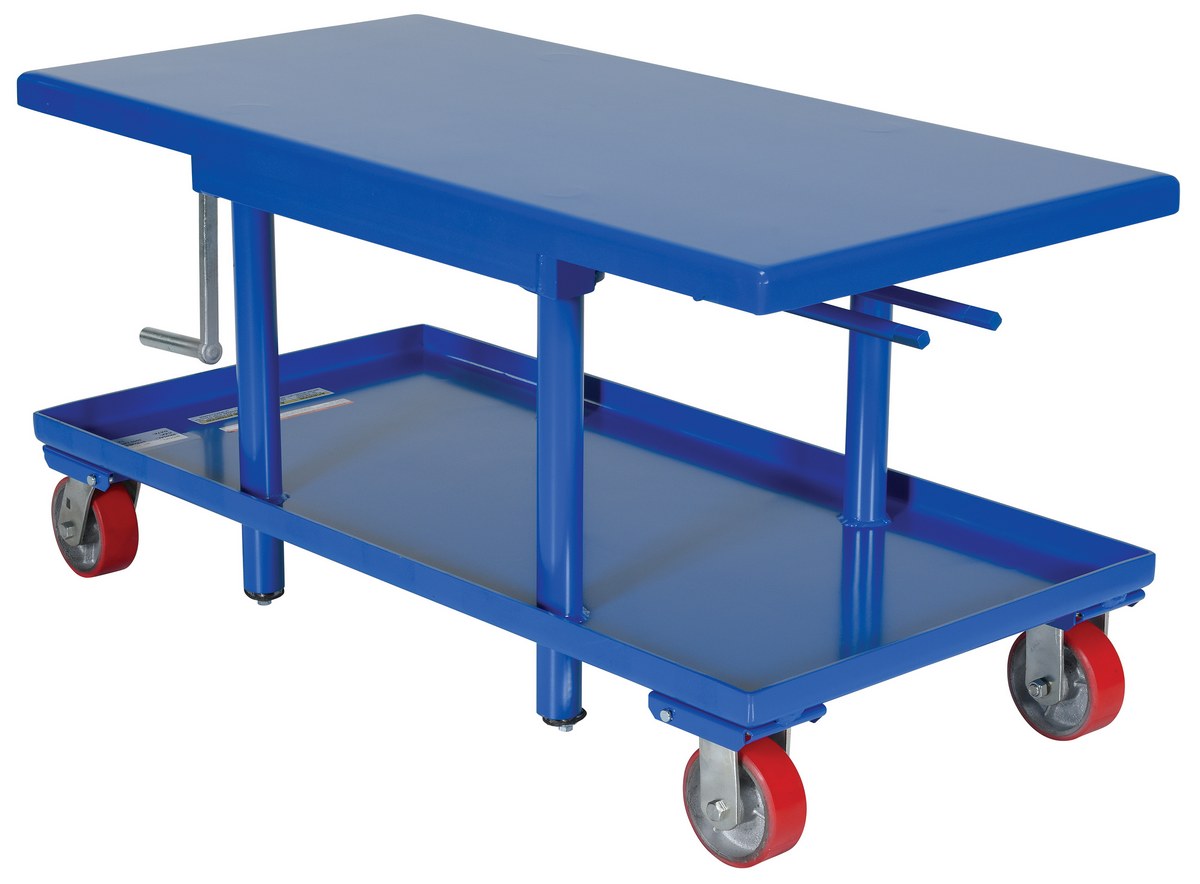

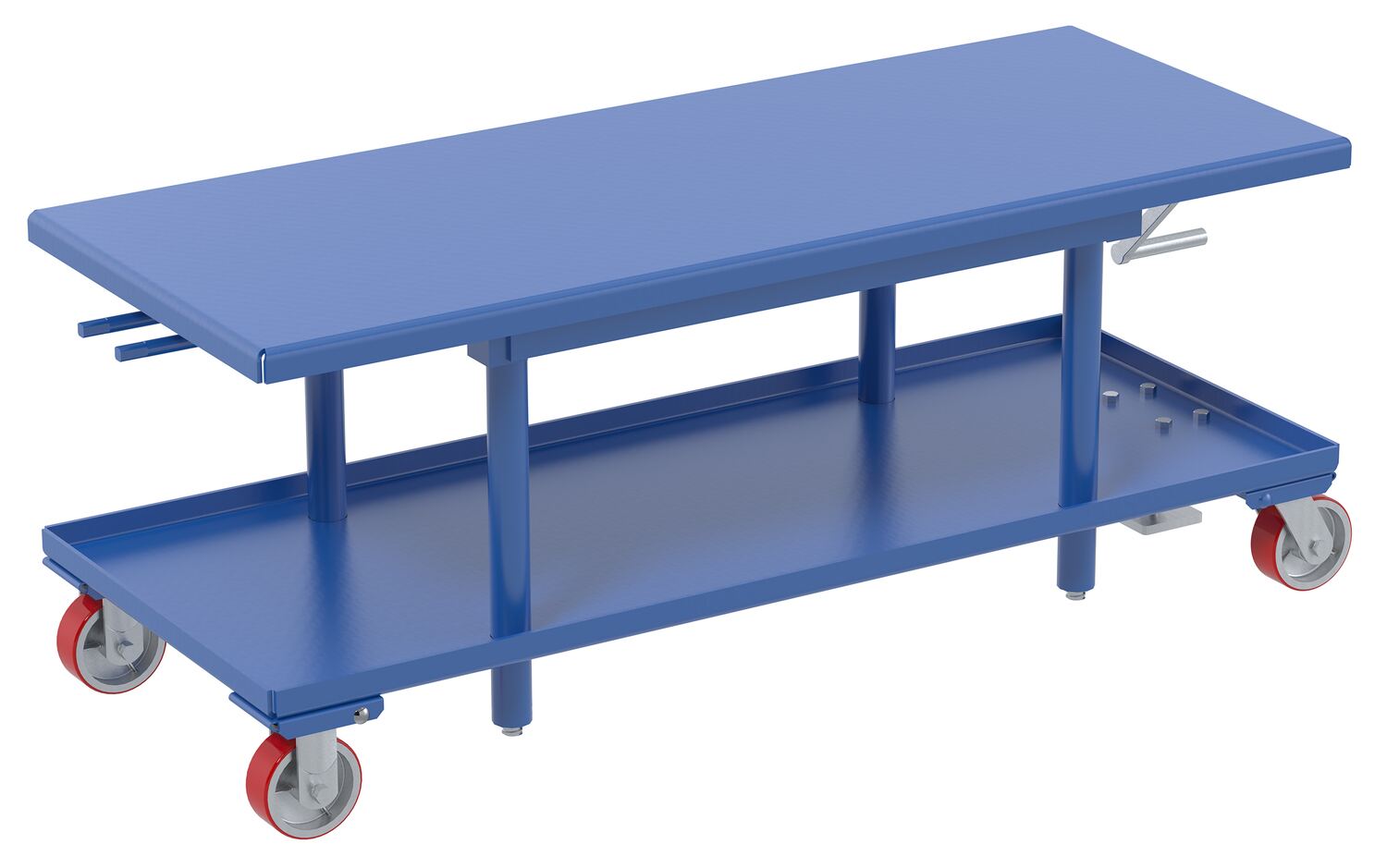

MT-2460-LP | 1 Year Limited Warranty | Steel Low Profile Post Table 24 In. x 60 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 444 | |||
MT-2460-LP-AC | | 1 Year Limited Warranty | Steel AC Powered Low Profile Post Table 24 In. x 60 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 490 | ||
MT-2460-LP-DC | 1 Year Limited Warranty | Steel DC Powered Low Profile Post Table 24 In. x 60 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 24 | 592 | |||

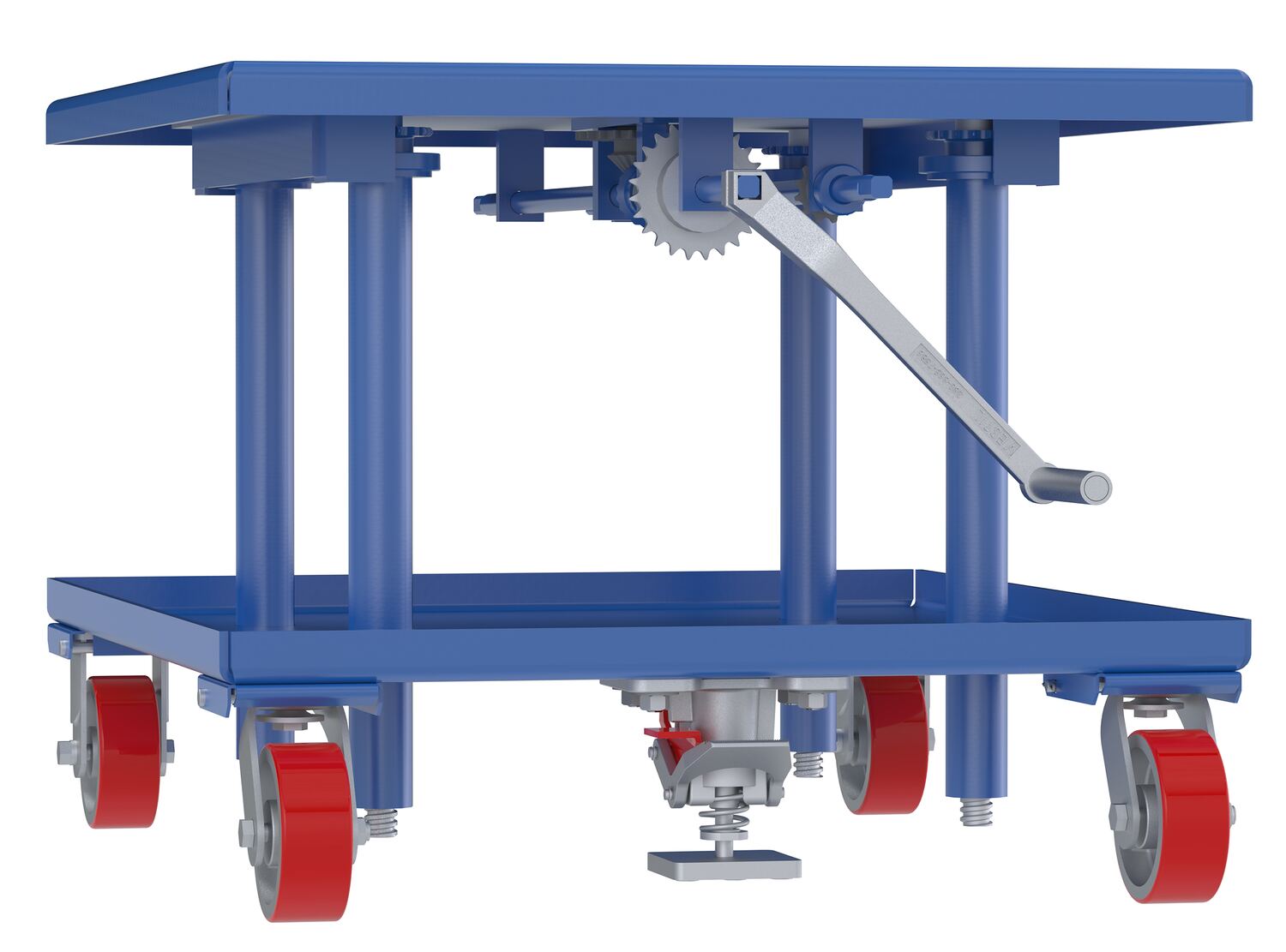

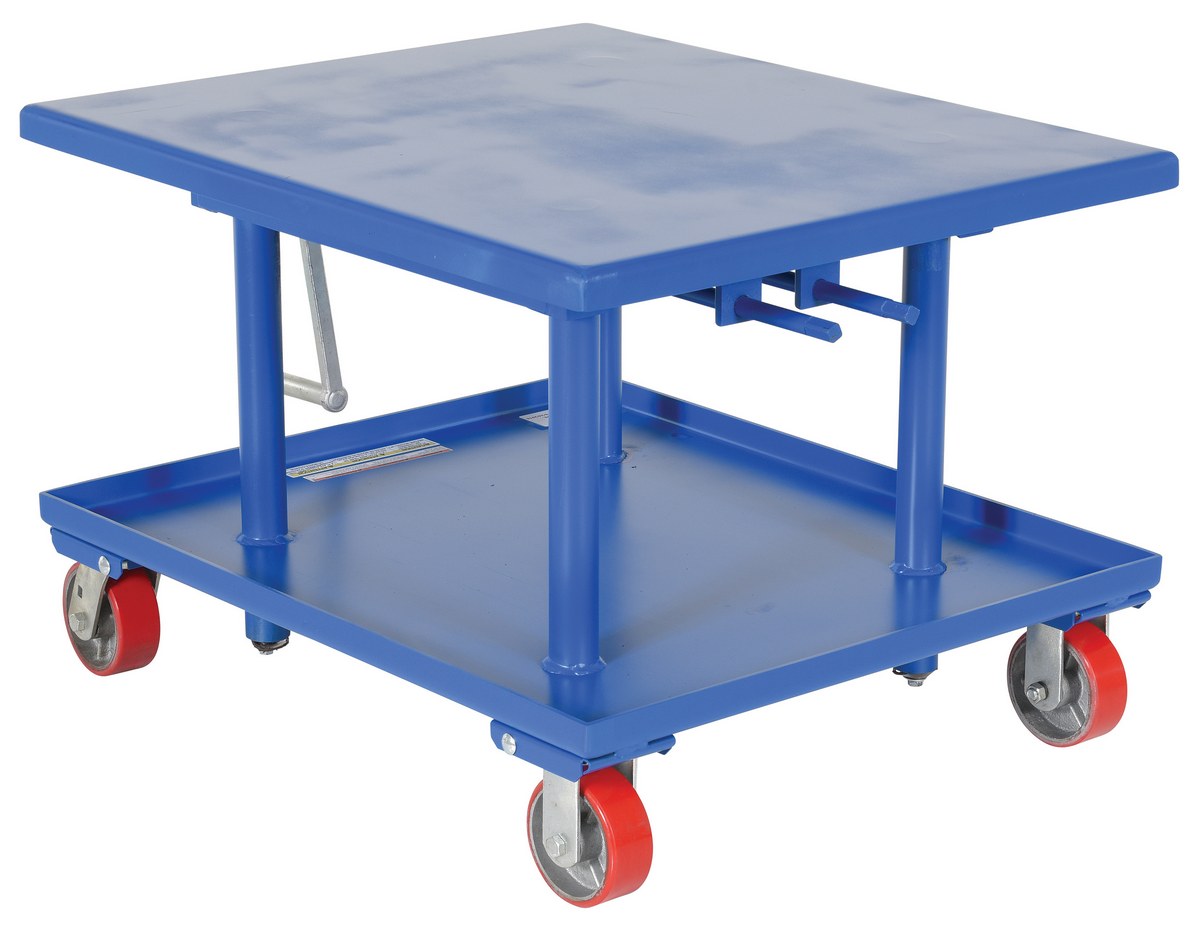

MT-3036-LP | 1 Year Limited Warranty | Steel Low Profile Post Table 30 In. x 36 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 352 | |||

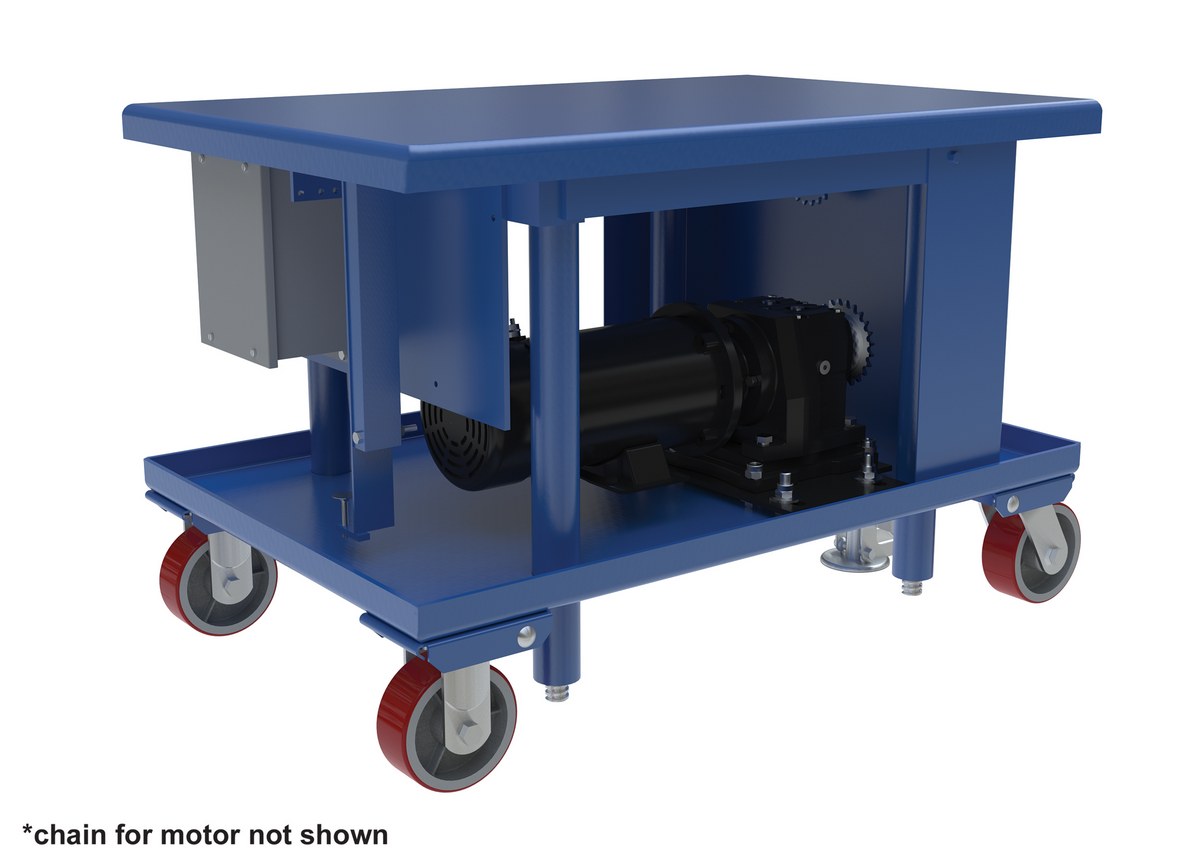

MT-3036-LP-AC | | 1 Year Limited Warranty | Steel AC Powered Low Profile Post Table 30 In. x 36 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 397 | ||
MT-3036-LP-DC | 1 Year Limited Warranty | Steel DC Powered Low Profile Post Table 30 In. x 36 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 507 | |||

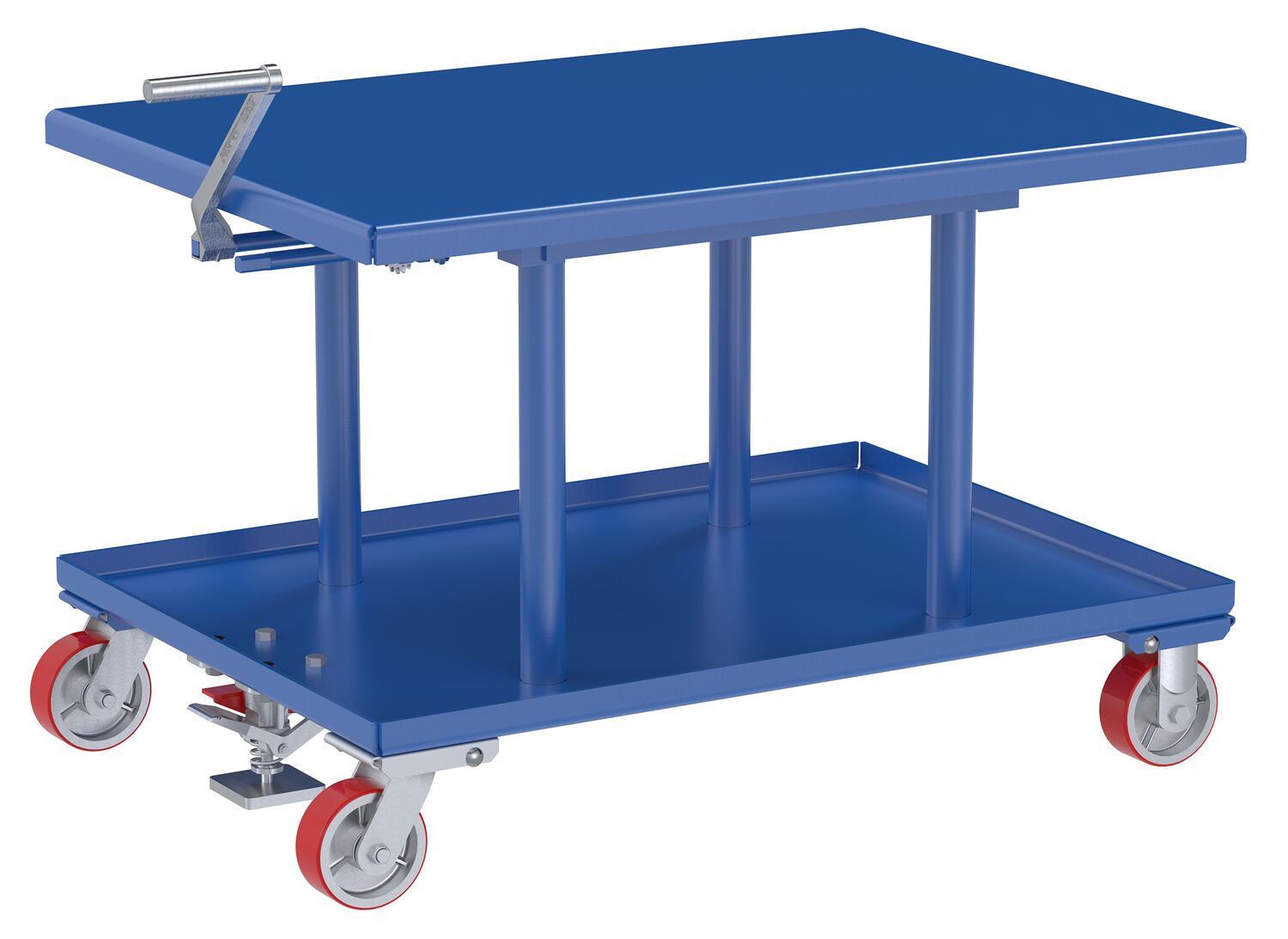

MT-3042-HP | 1 Year Limited Warranty | Steel High Profile Post Table 30 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 403 | |||

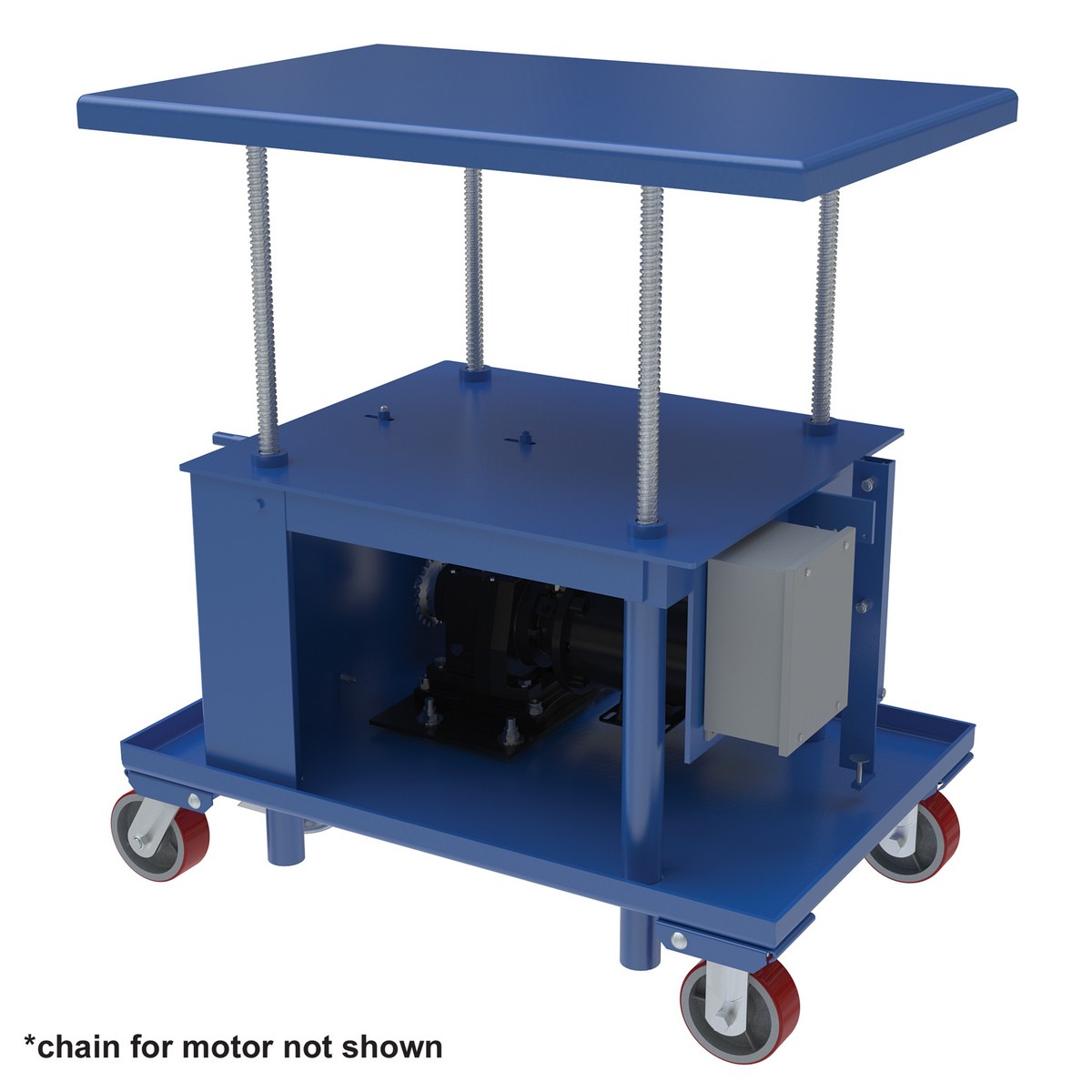

MT-3042-HP-AC | 1 Year Limited Warranty | Steel AC Powered High Profile Post Table 30 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 453 | |||
MT-3042-HP-DC | 1 Year Limited Warranty | Steel DC Powered High Profile Post Table 30 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 503 | |||

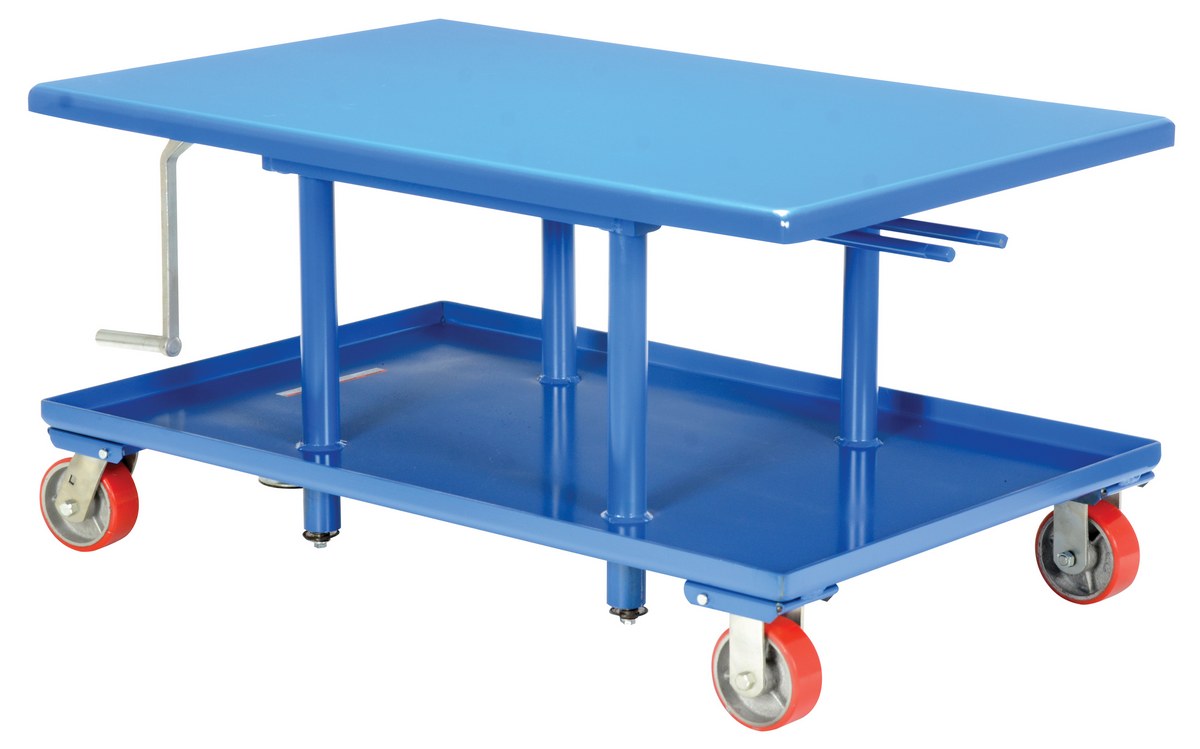

MT-3042-LP | 1 Year Limited Warranty | Steel Low Profile Post Table 30 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 365 | |||
MT-3042-LP-AC | | 1 Year Limited Warranty | Steel AC Powered Low Profile Post Table 30 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 405 | ||
MT-3042-LP-DC | 1 Year Limited Warranty | Steel DC Powered Low Profile Post Table 30 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 536 | |||

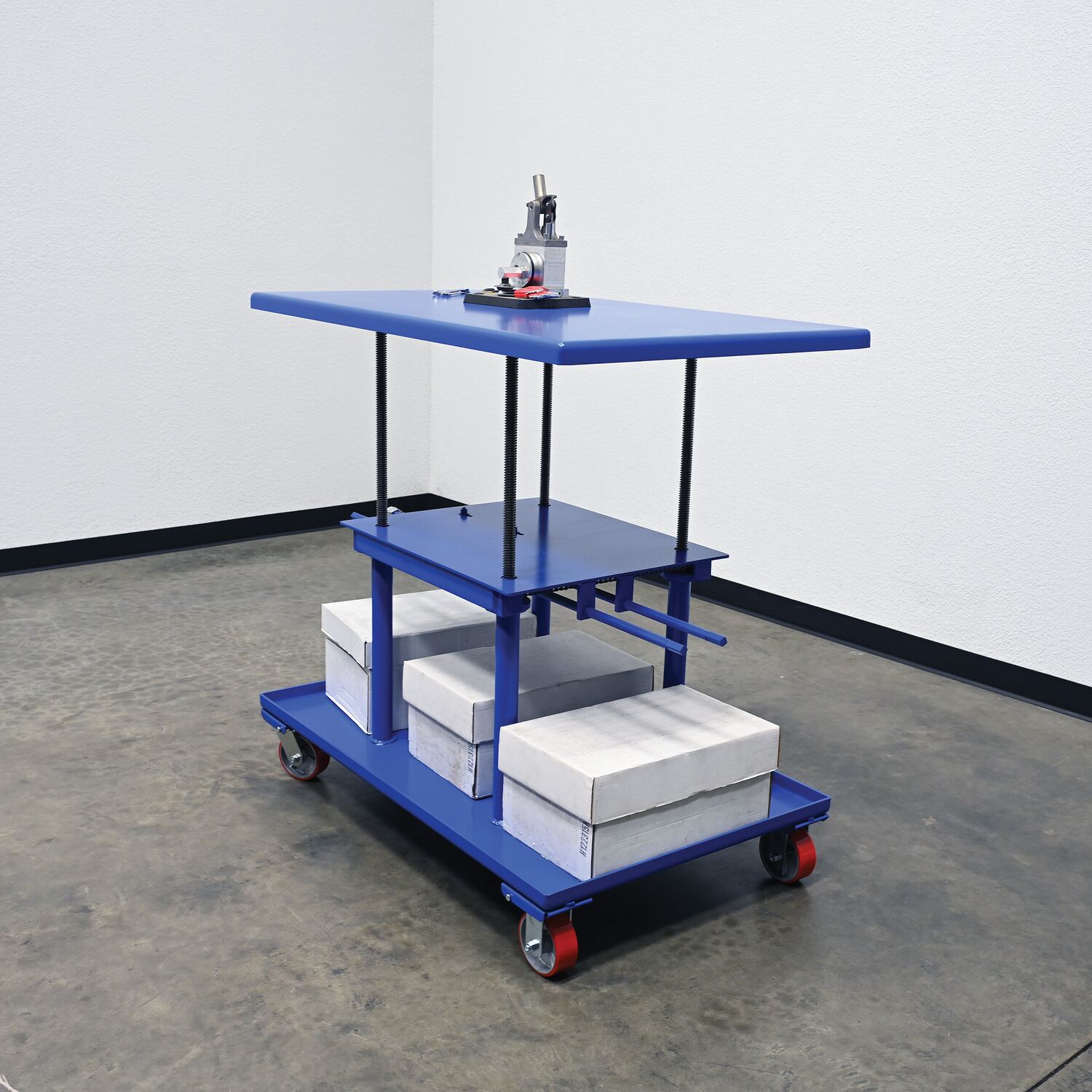

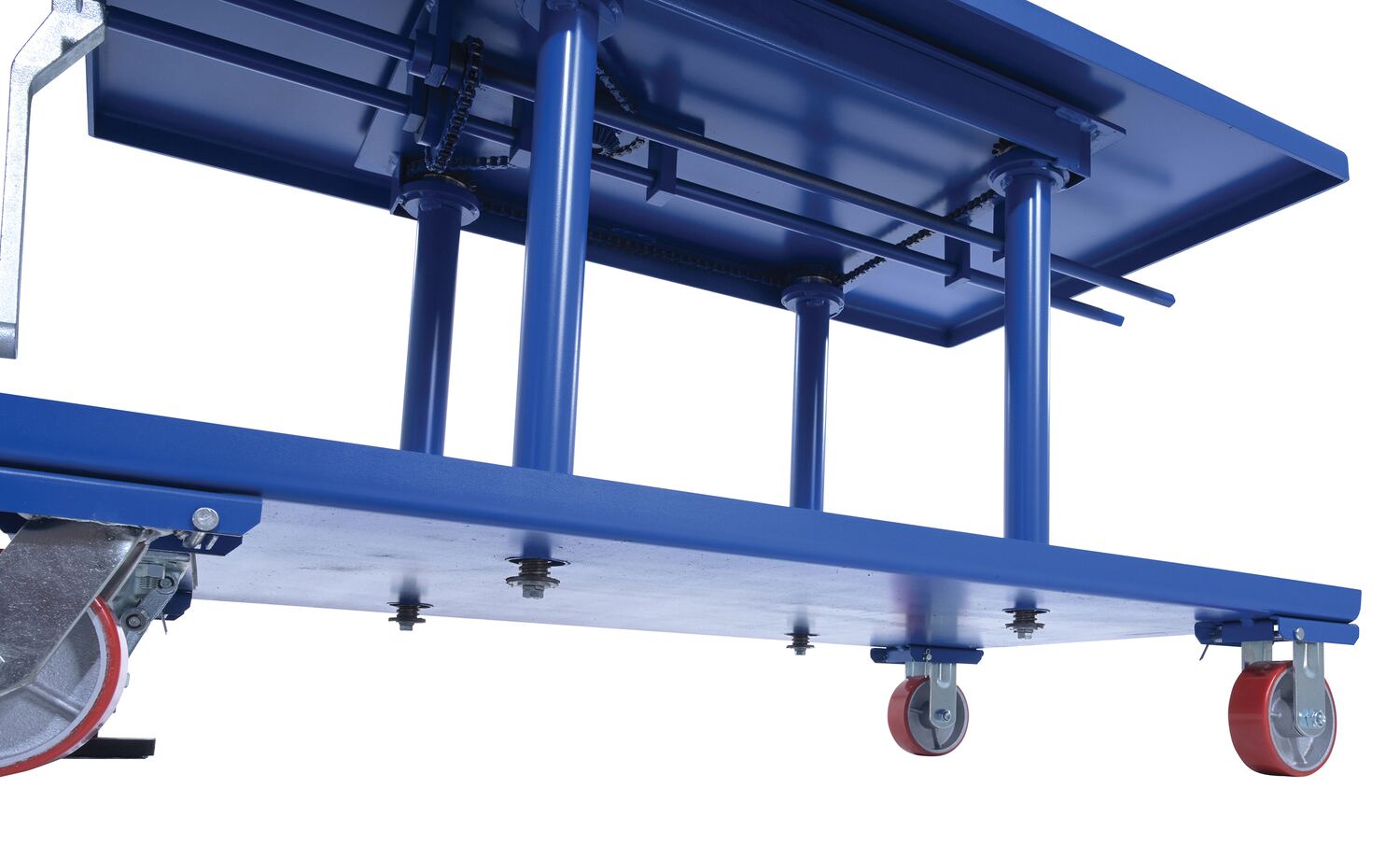

MT-3048-HP | 1 Year Limited Warranty | Steel High Profile Post Table 30 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 431 | |||
MT-3048-HP-AC | | 1 Year Limited Warranty | Steel AC Powered High Profile Post Table 30 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 481 | ||

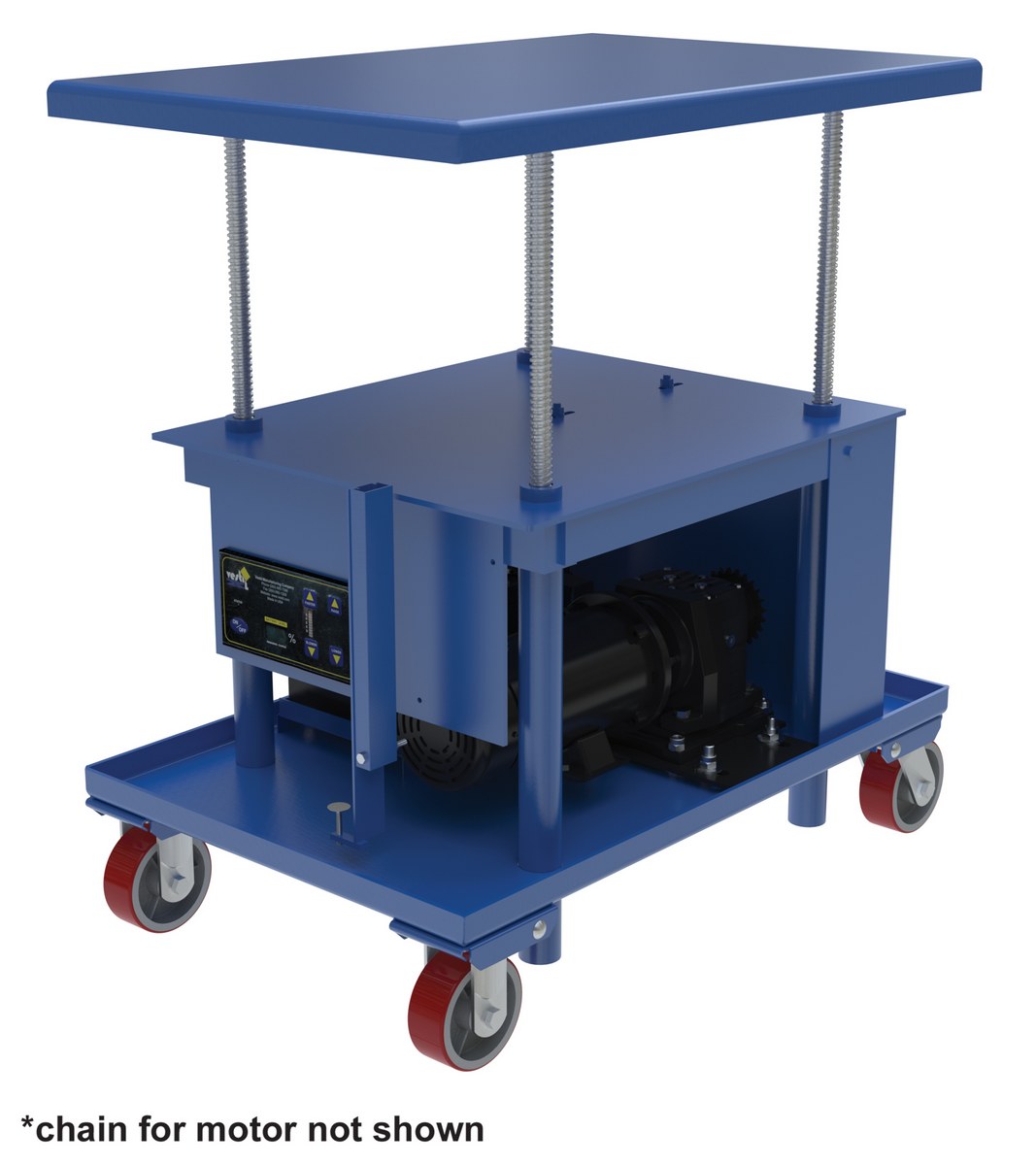

MT-3048-HP-DC | 1 Year Limited Warranty | Steel DC Powered High Profile Post Table 30 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 564 | |||

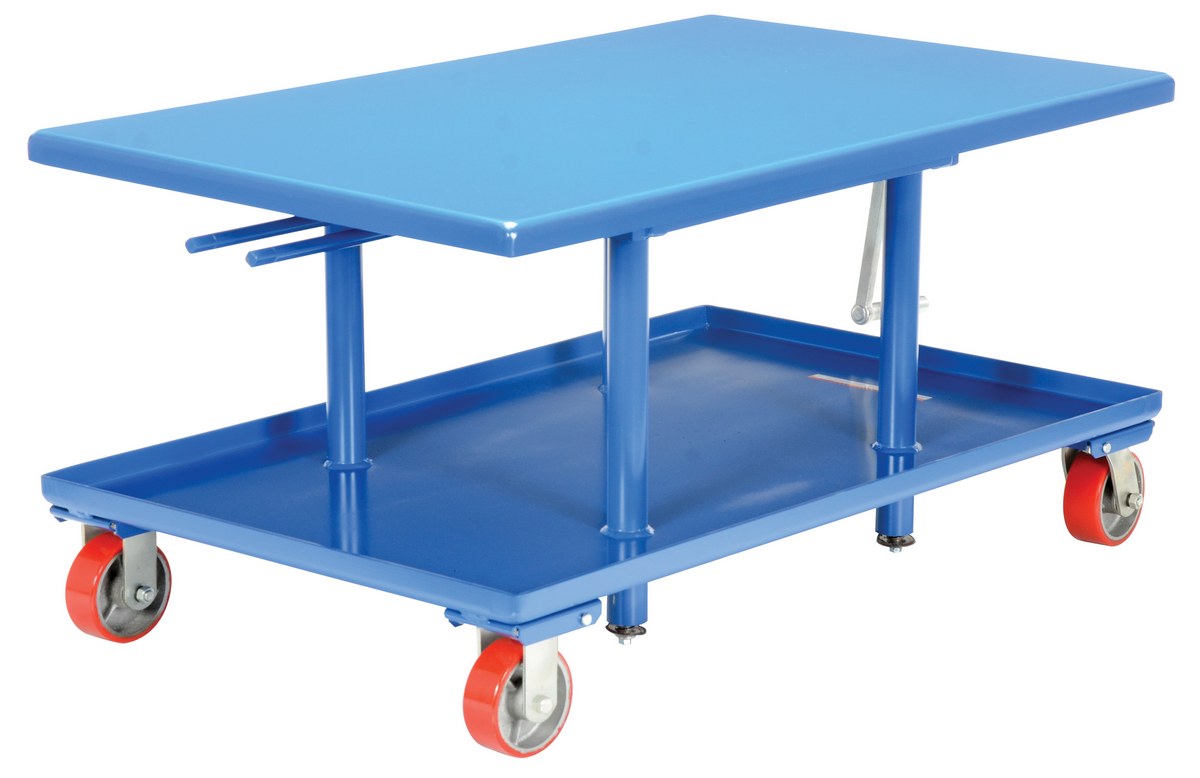

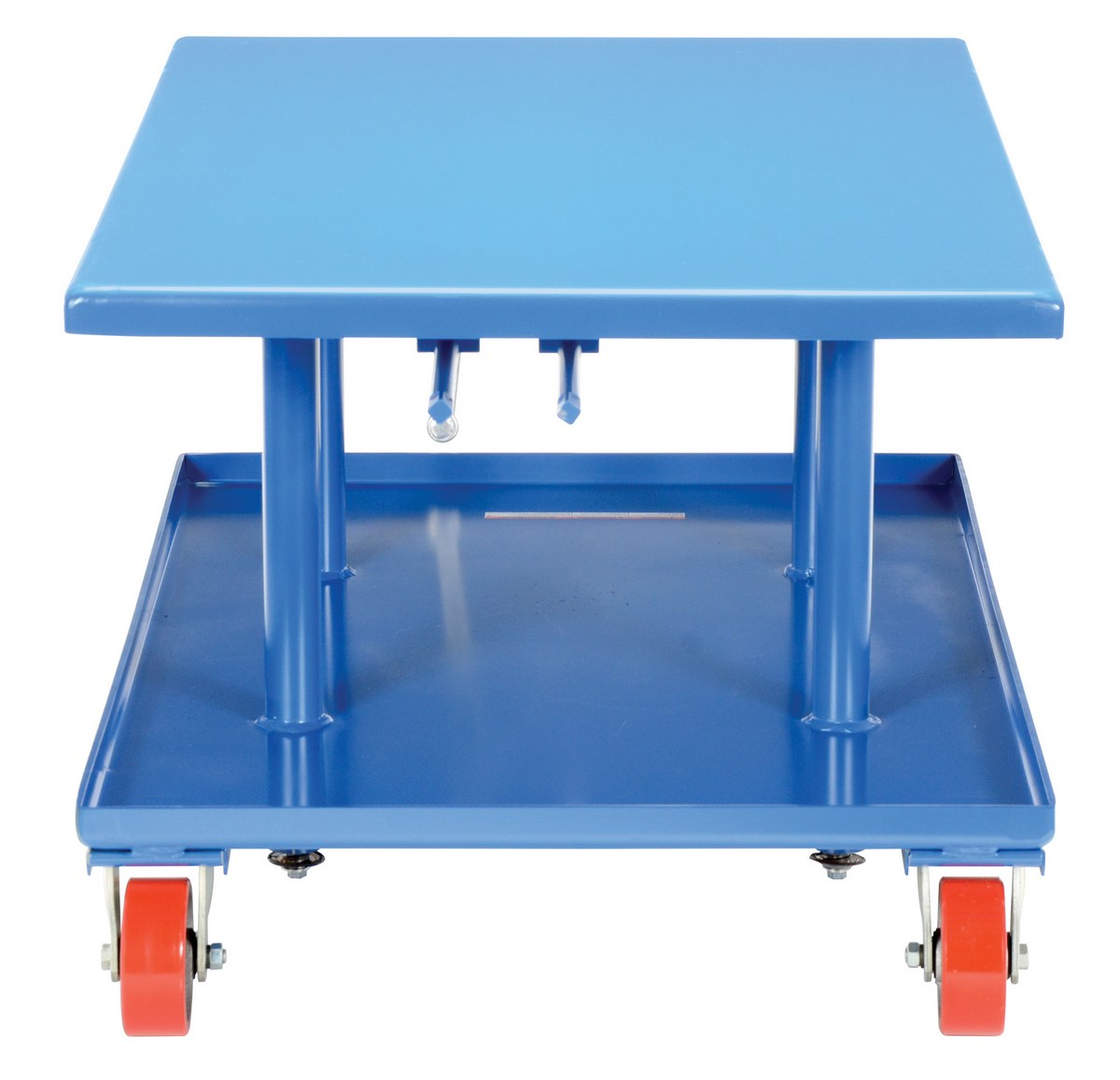

MT-3048-LP | 1 Year Limited Warranty | Steel Low Profile Post Table 30 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 414 | |||
MT-3048-LP-AC | | 1 Year Limited Warranty | Steel AC Powered Low Profile Post Table 30 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 463 | ||
MT-3048-LP-DC | 1 Year Limited Warranty | Steel DC Powered Low Profile Post Table 30 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 564 | |||
MT-3060-LP | 1 Year Limited Warranty | Steel Low Profile Post Table 30 In. 60 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 491 | |||
MT-3060-LP-AC | | 1 Year Limited Warranty | Steel AC Powered Low Profile Post Table 30 In. x 60 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 542 | ||
MT-3060-LP-DC | 1 Year Limited Warranty | Steel DC Powered Low Profile Post Table 30 In. x 60 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 30 | 645 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

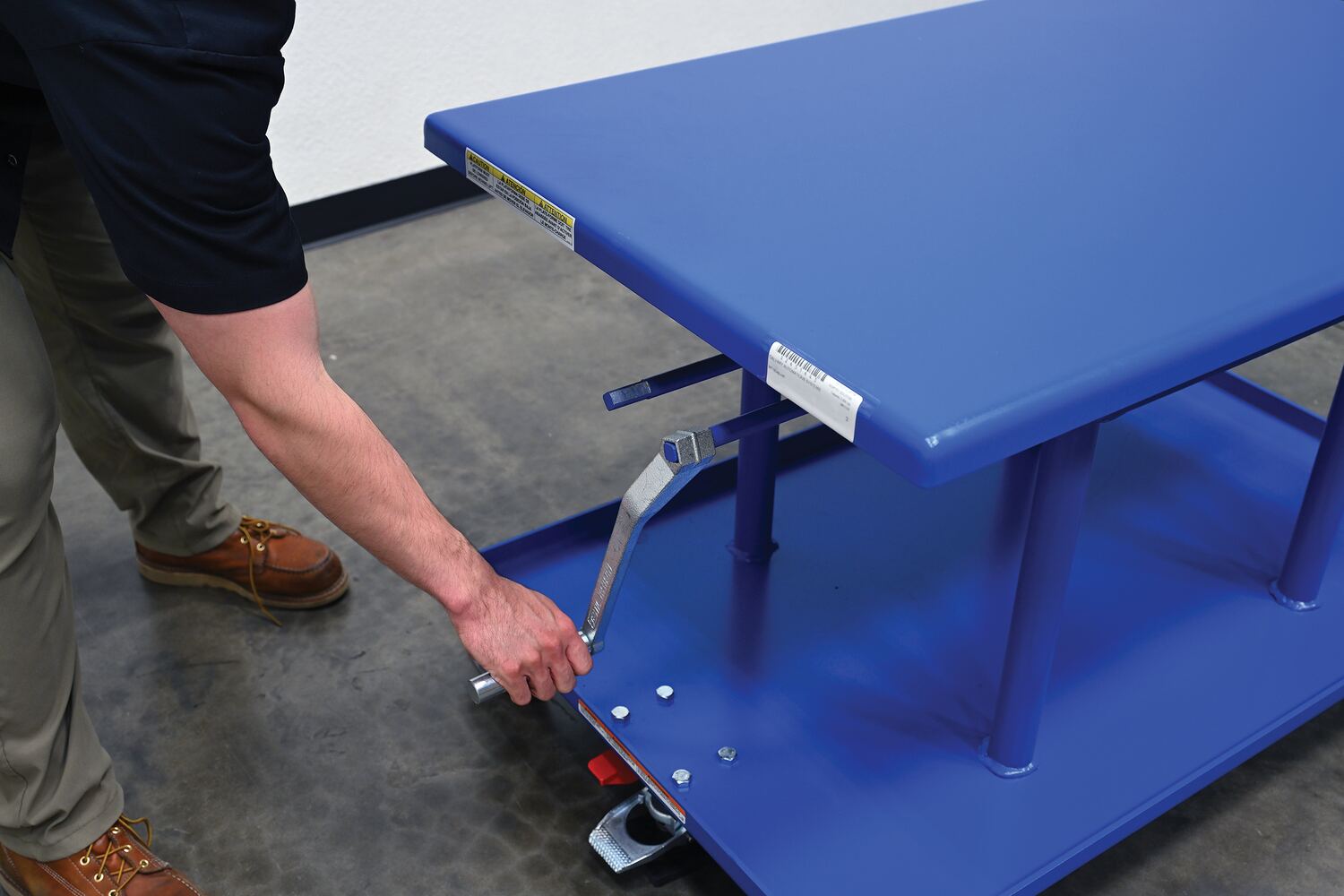

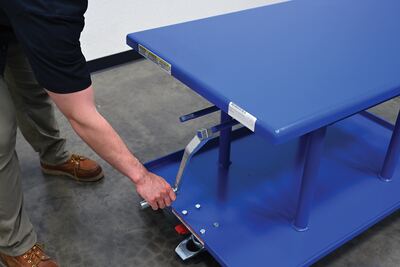

A: The crank radius is 8-3/8".
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
Mechanical Post Tables |
||||||||
Adjustable height post tables are well suited for a wide variety of material handling applications. Moves smoothly on two (2) rigid and two (2) swivel 5" x 2" poly-on-steel casters with floor lock standard. All welded steel construction (deck) is blue. Provides positive height adjustment without downward drift. Features a two-speed manual gear mechanism to move heavy loads at 1/8" per crank rotation or lighter loads at 5/16" per crank rotation. All Models are available with Power Options:
|
||||||||
|
||||||||
