model: CART-660-M-PSS


Mechanical Scissor Carts
SERIES: CART

When lifting and transporting are both essential, look no further than the Mechanical Scissor Cart. The centrally located hand crank allows the user to raise and lower the platform to a more exact level. A large platform gives the ability to load items in a variety of sizes. Since the platform can be maneuvered to a specific height, the unit can be positioned to best fit the users' needs for a more ergonomically friendly experience. Poly casters are included for a smooth roll on a variety of surfaces.*Smooth steel top minimizes abrasions

  • Hand crank for precise positioning
  • Large capacity for lifting objects both big and small
  • Powder coated finish for long term toughness
  • Smooth steel top minimizes abrasions

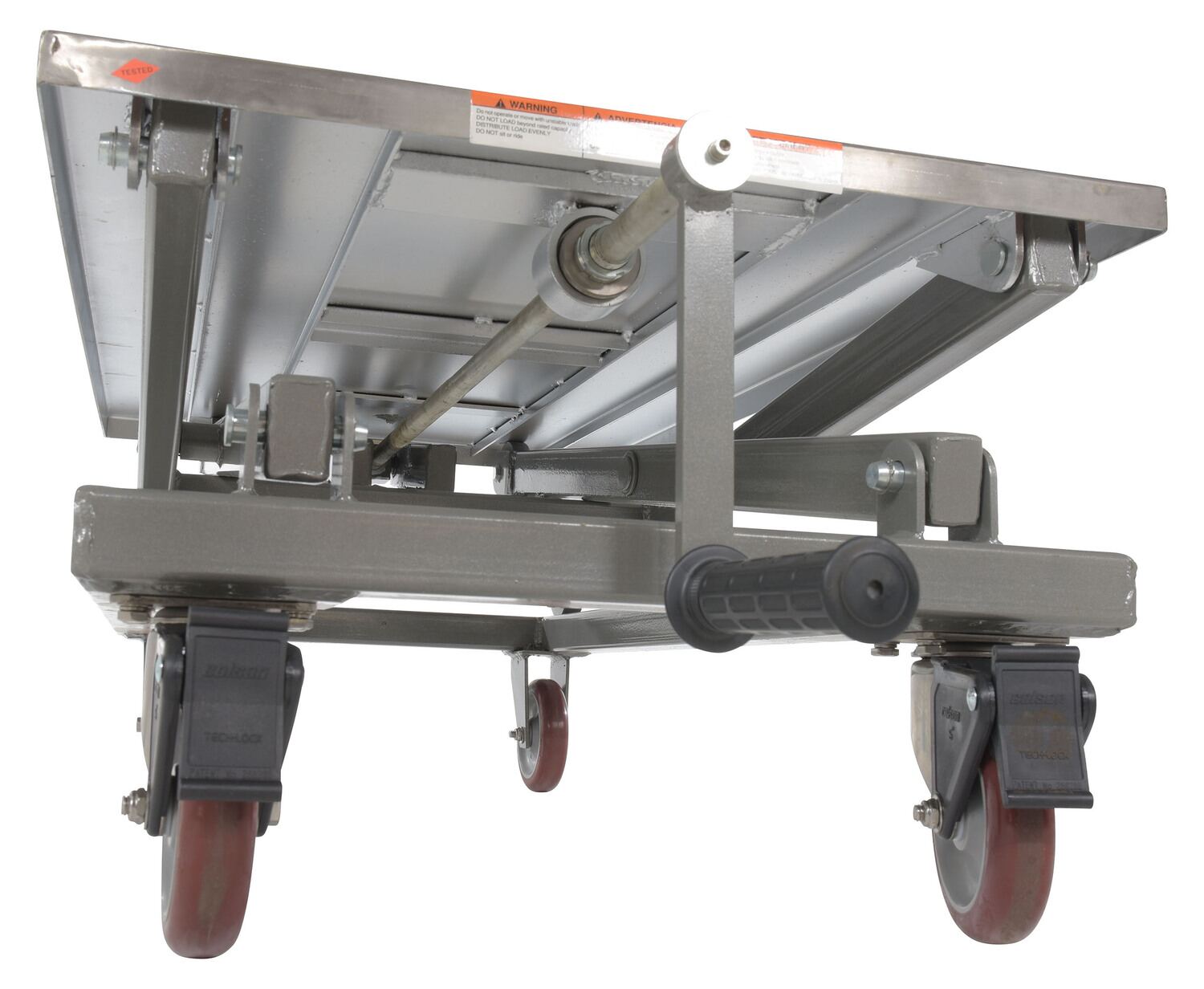

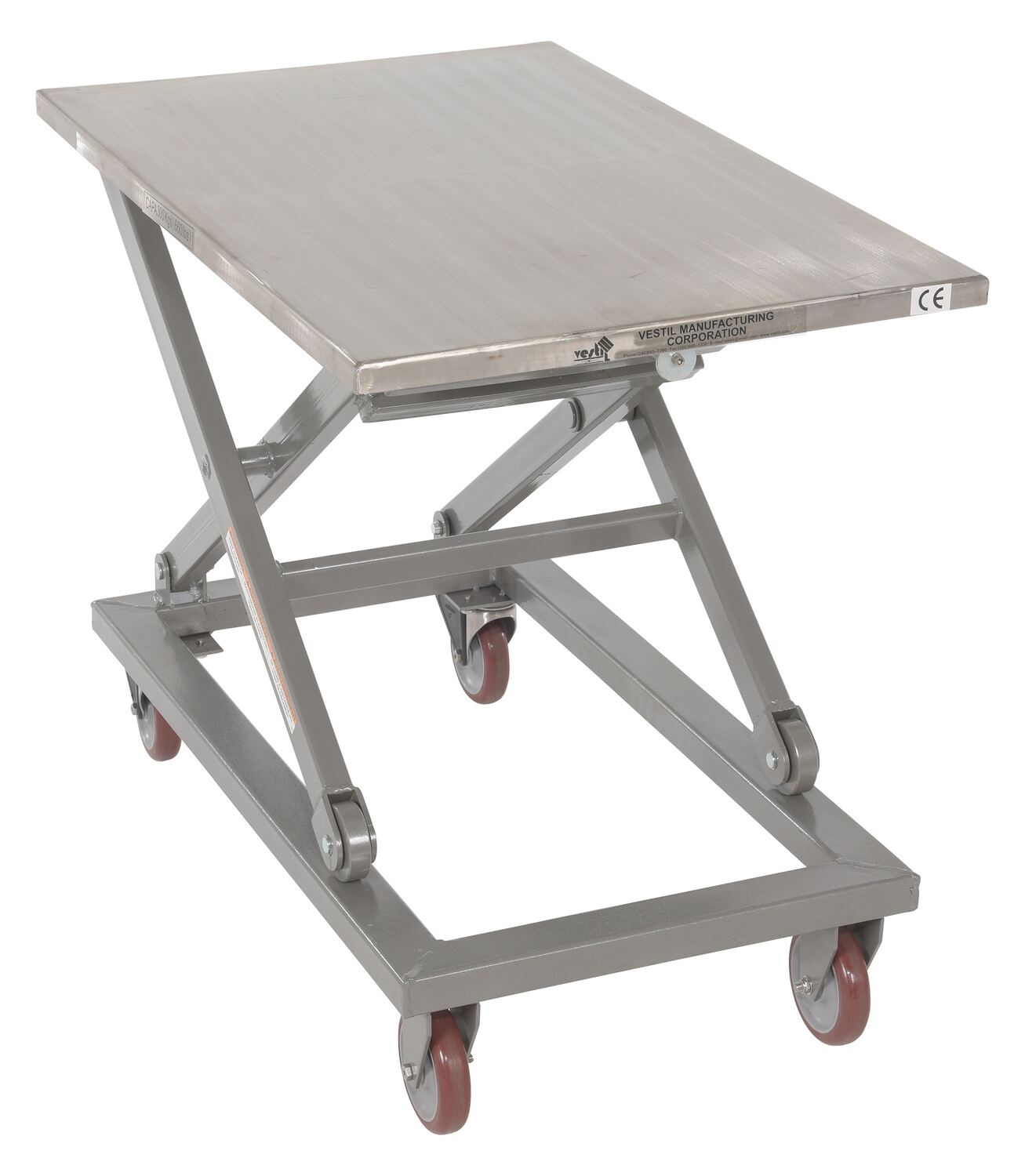

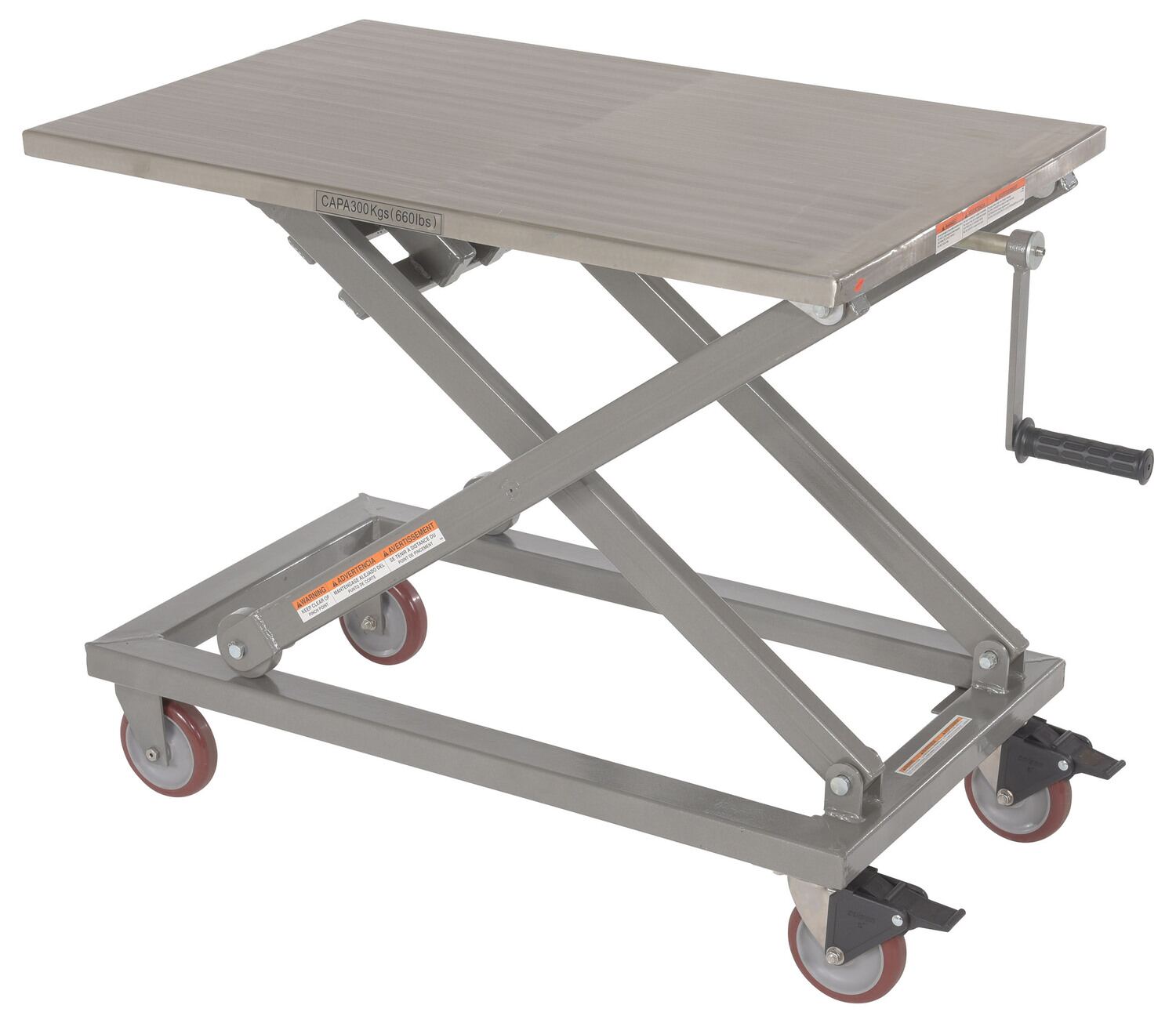

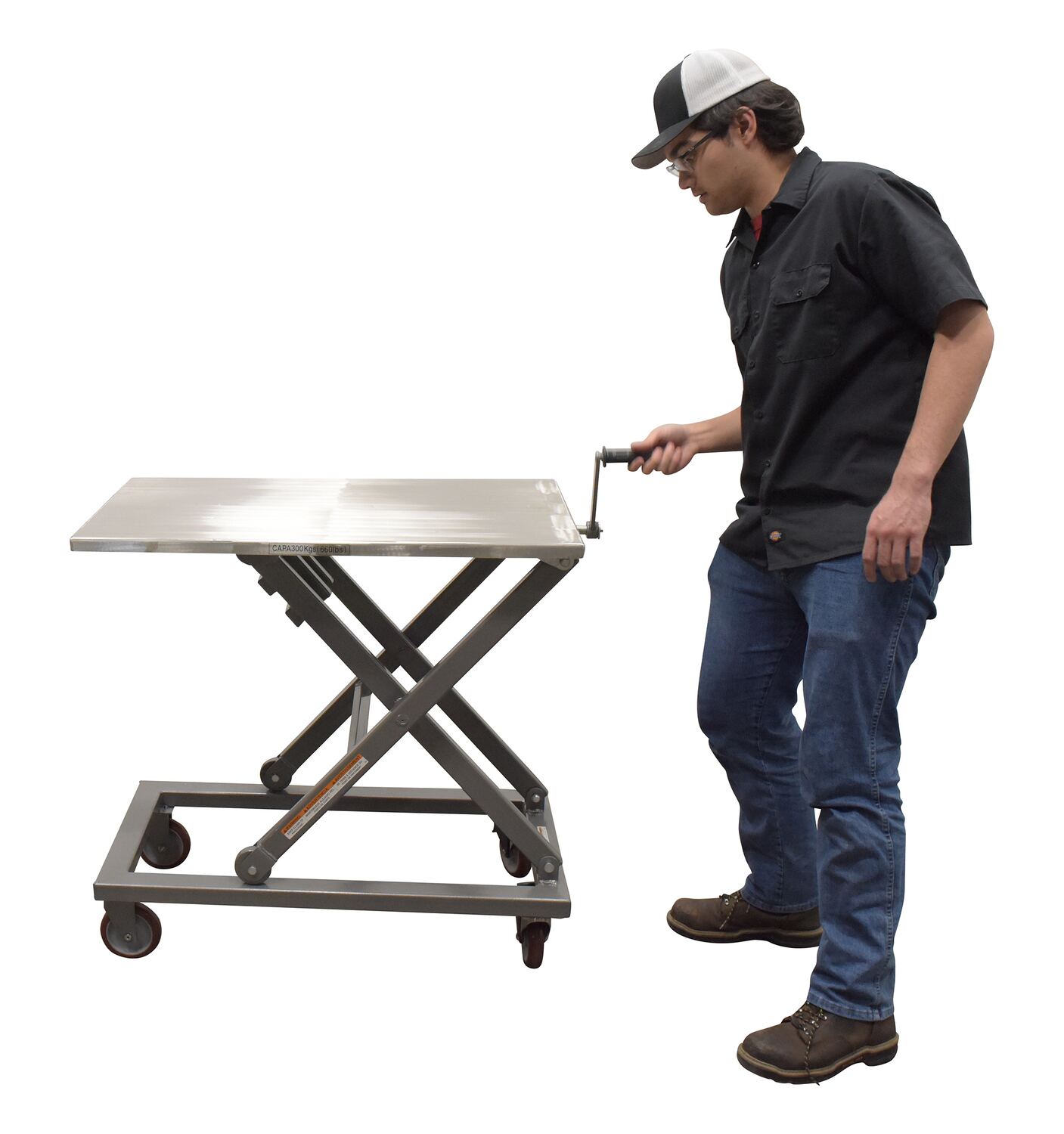

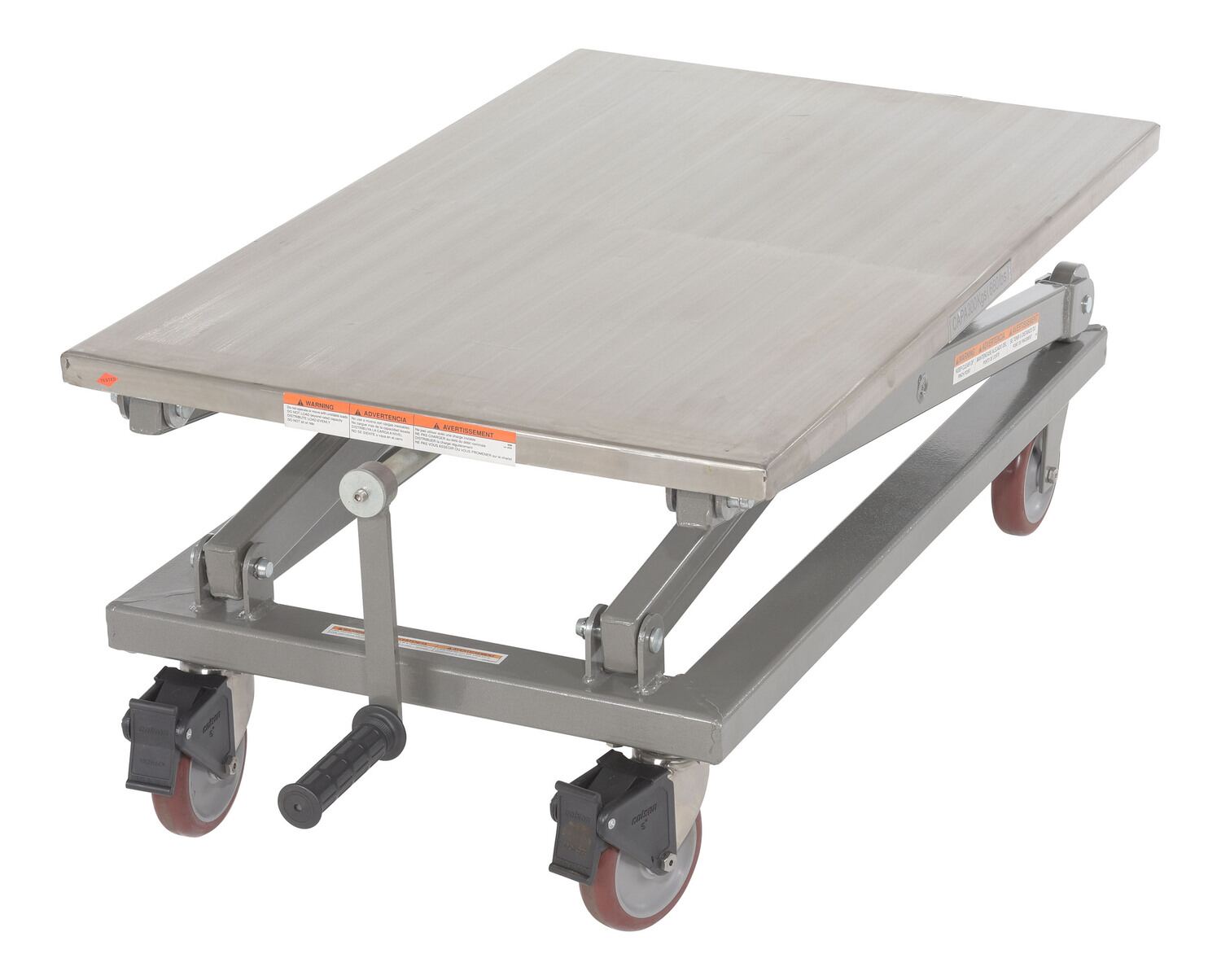

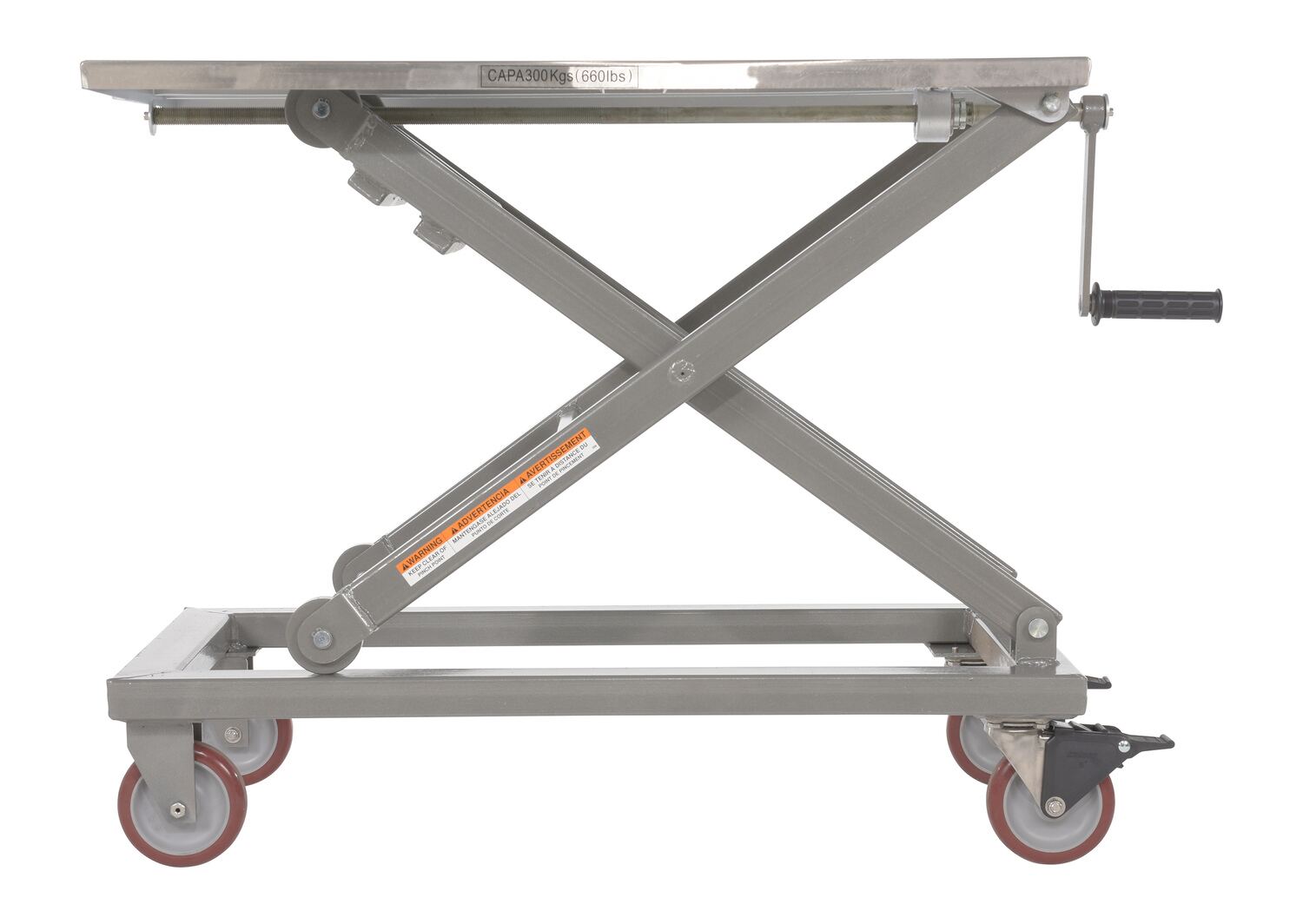

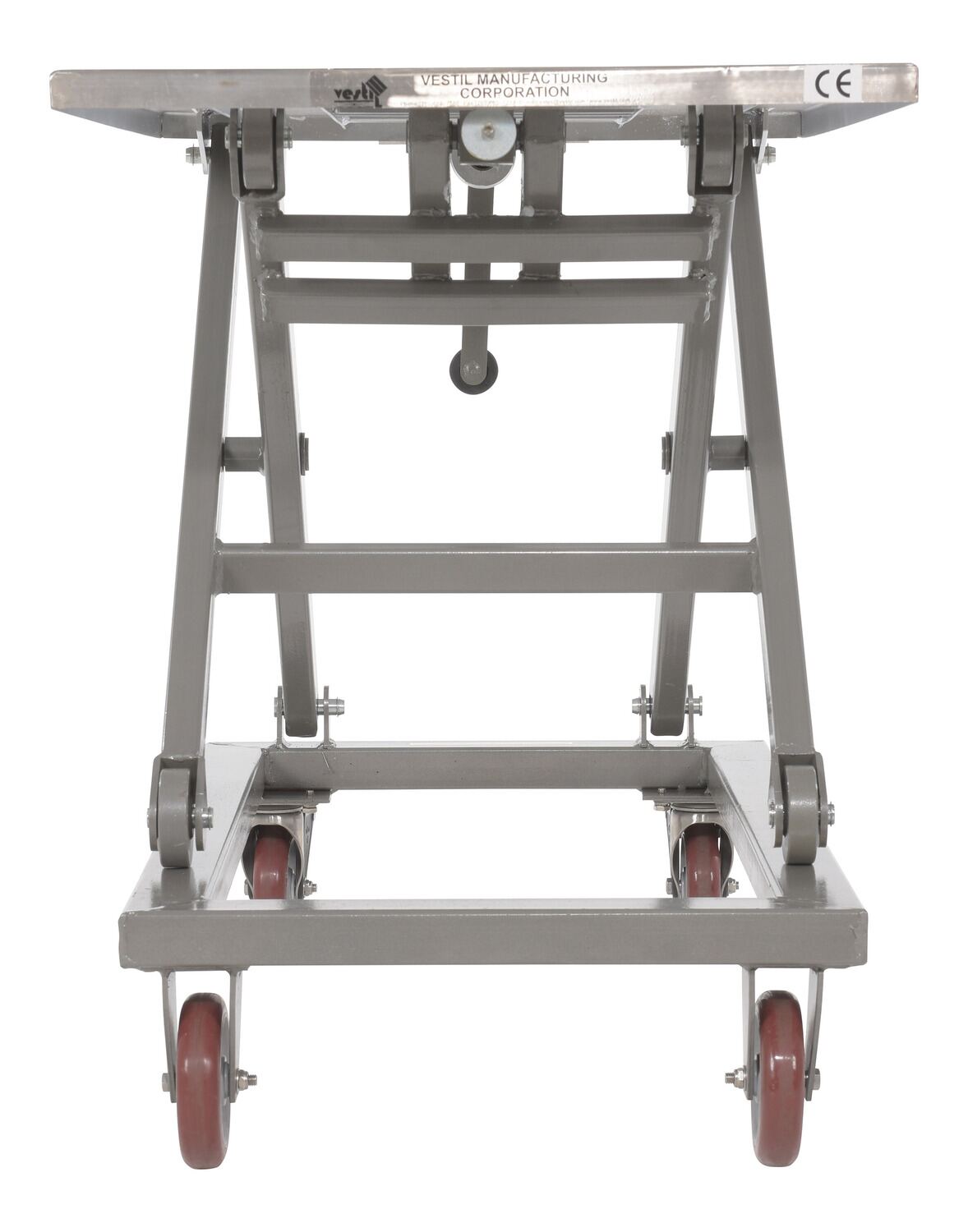

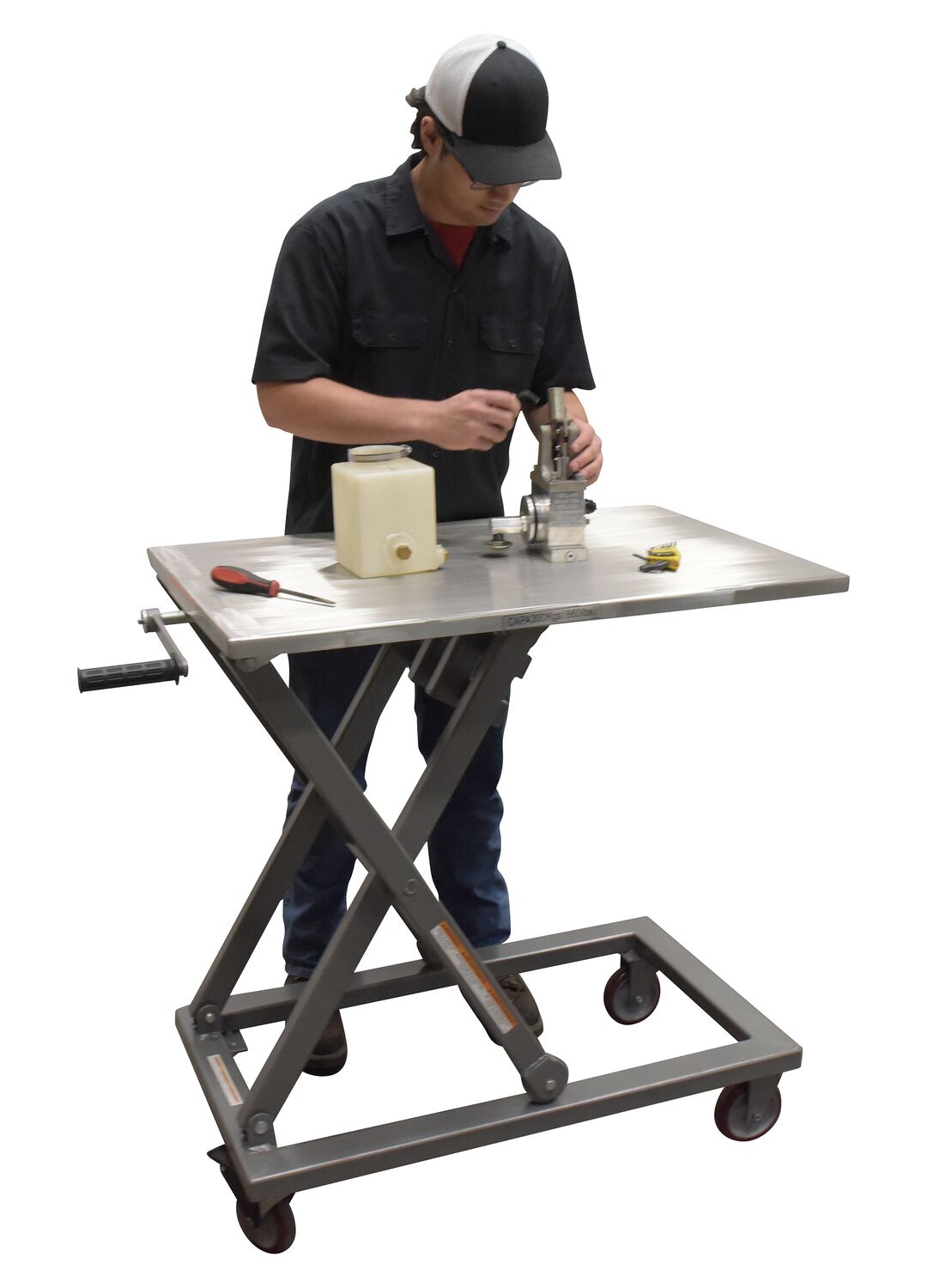

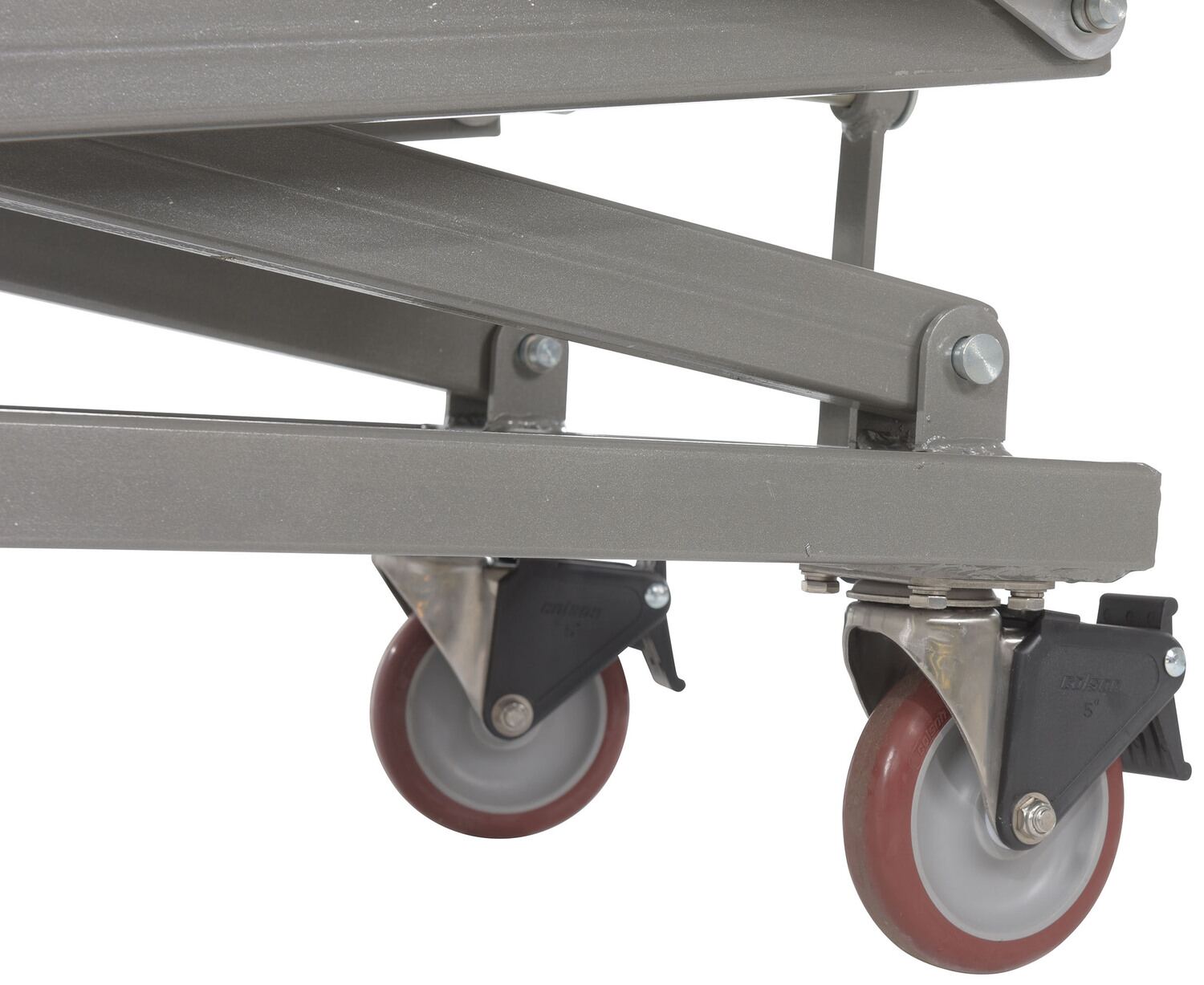

Partially Stainless Steel Unit (CART-660-M-PSS)

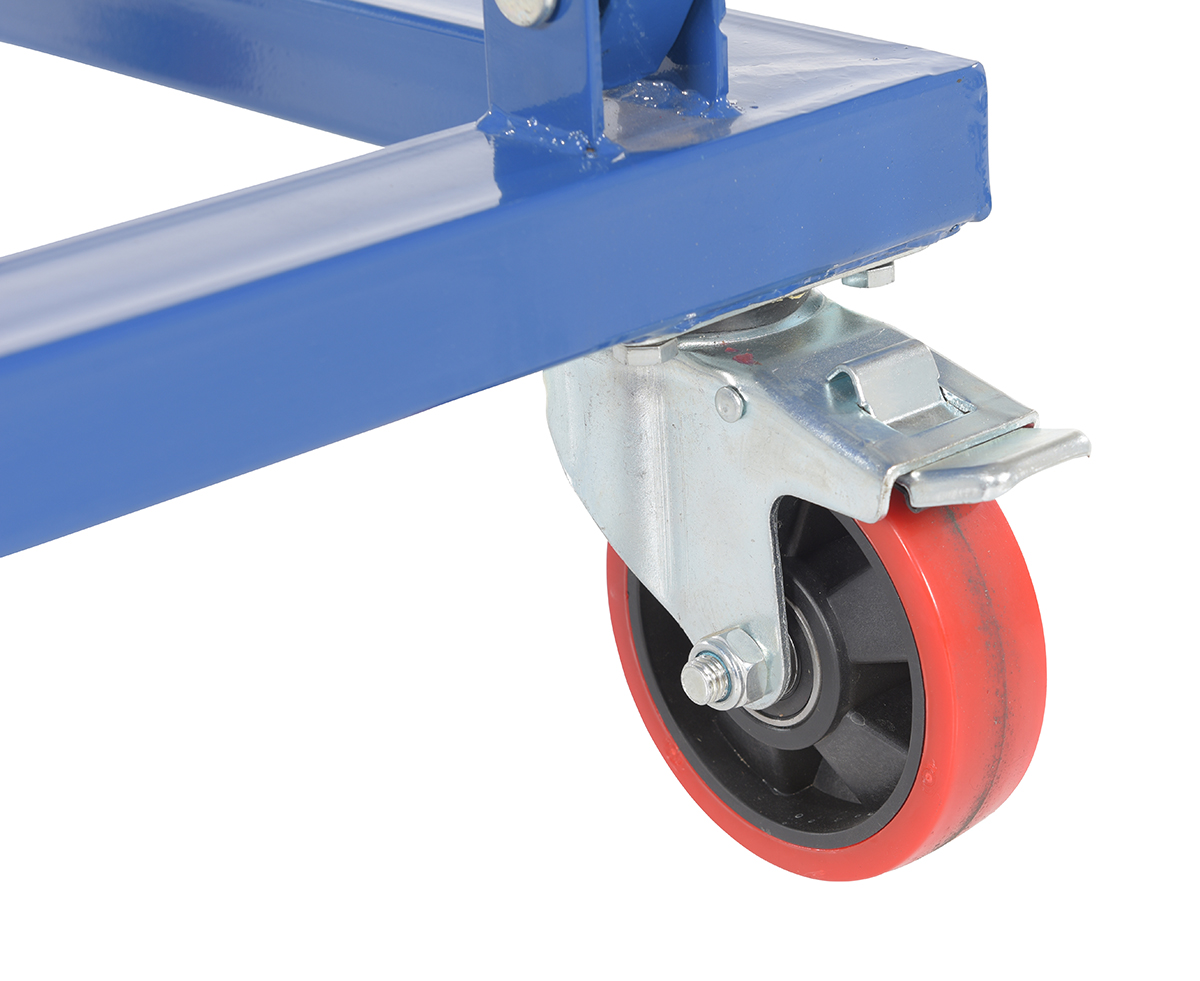

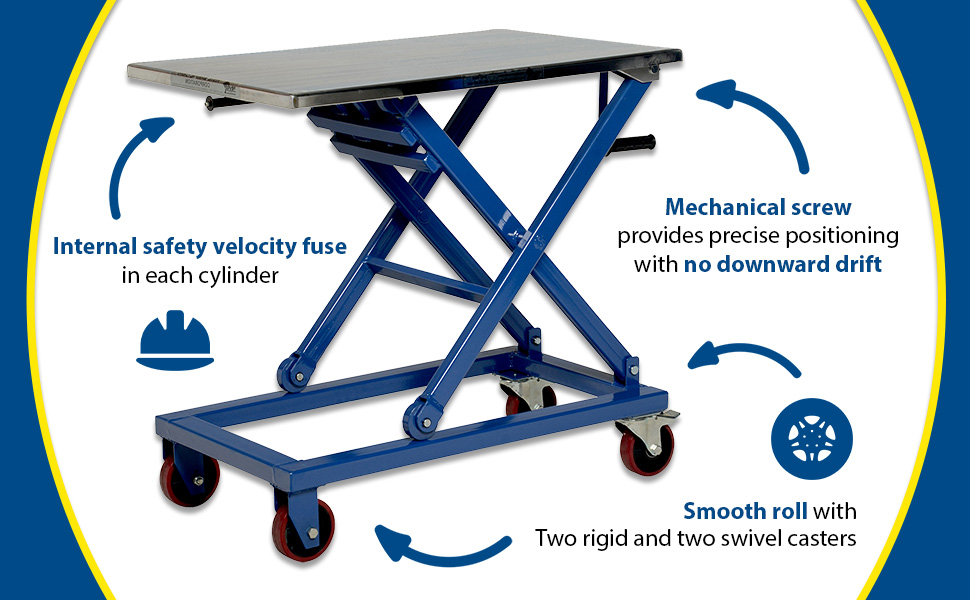

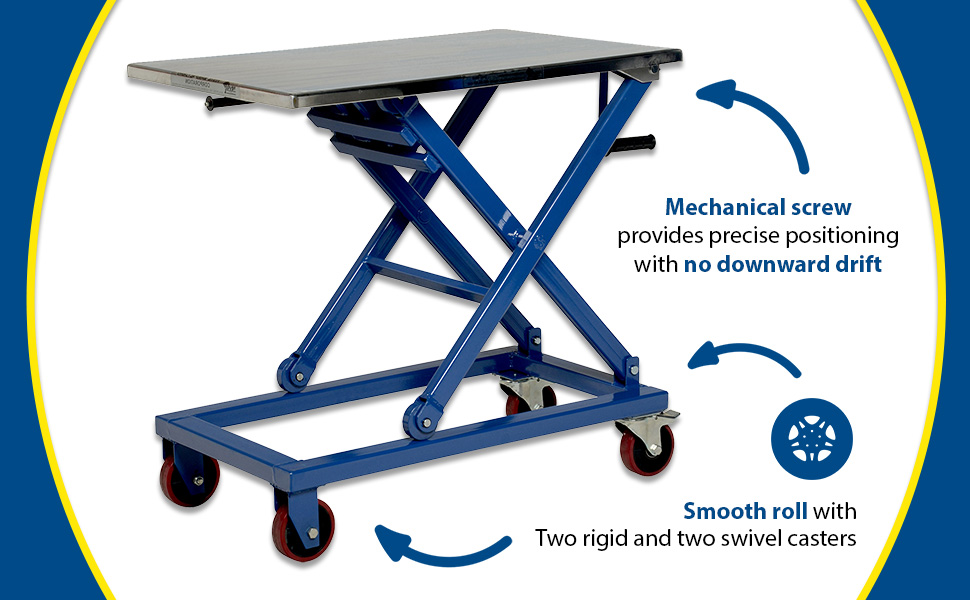

Raise and lower material quickly and easily with Mechanical Scissor Carts. Carts roll smoothly on two rigid and two swivel poly-on-ploy casters. Mechanical screw drive provides precise positioning with no downward drift. The partially stainless steel cart features a stainless steel platform, frame, handle, caster rigs and hardware. Crank assembly and scissor legs are zinc plated/painted.

When lifting and transporting are both essential, look no further than the Mechanical Scissor Cart. The centrally located hand crank allows the user to raise and lower the platform to a more exact level. A large platform gives the ability to load items in a variety of sizes. Since the platform can be maneuvered to a specific height, the unit can be positioned to best fit the users' needs for a more ergonomically friendly experience. Poly casters are included for a smooth roll on a variety of surfaces.*Smooth steel top minimizes abrasions

  • Hand crank for precise positioning
  • Large capacity for lifting objects both big and small
  • Powder coated finish for long term toughness
  • Smooth steel top minimizes abrasions

Partially Stainless Steel Unit (CART-660-M-PSS)

Raise and lower material quickly and easily with Mechanical Scissor Carts. Carts roll smoothly on two rigid and two swivel poly-on-ploy casters. Mechanical screw drive provides precise positioning with no downward drift. The partially stainless steel cart features a stainless steel platform, frame, handle, caster rigs and hardware. Crank assembly and scissor legs are zinc plated/painted.

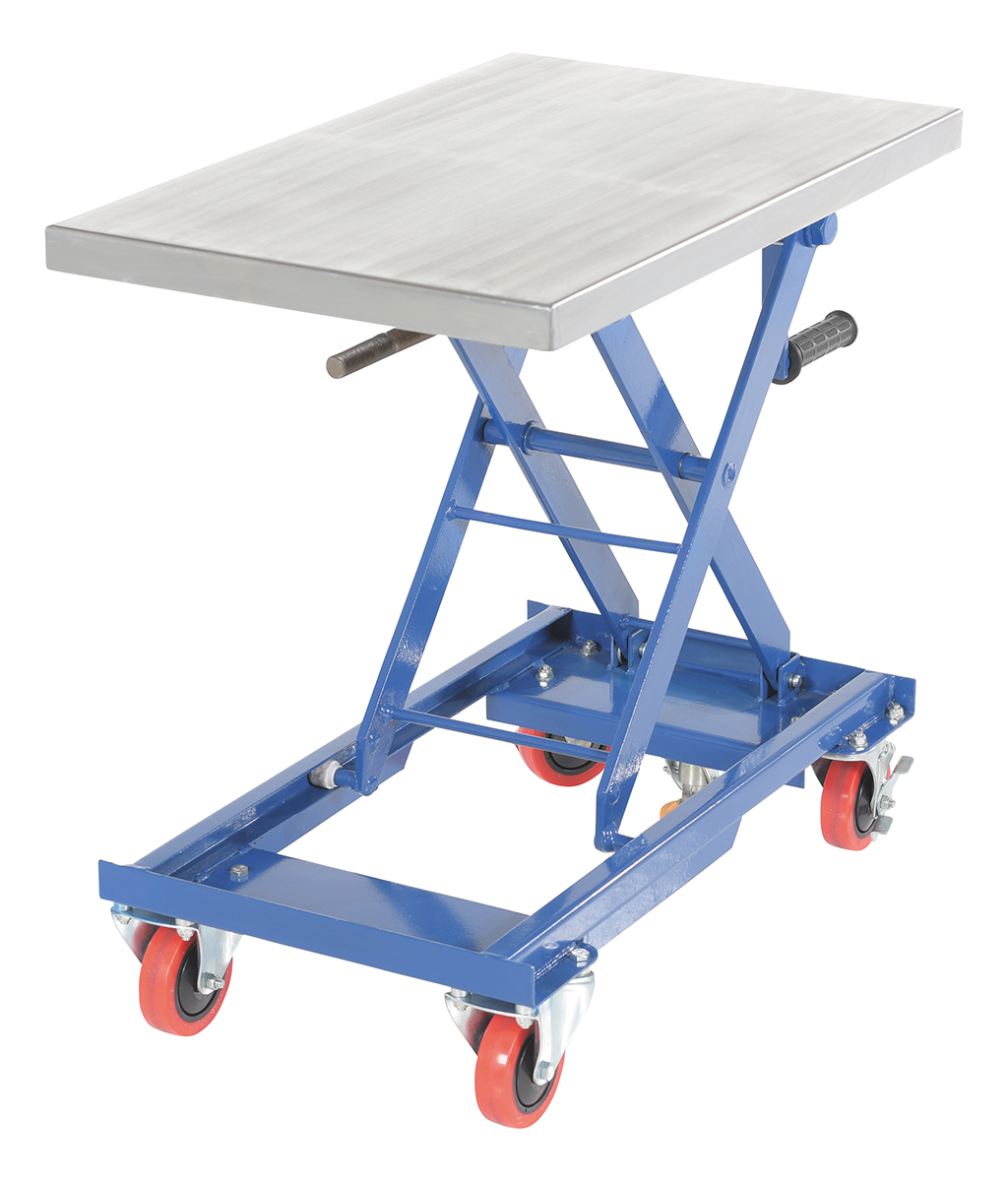

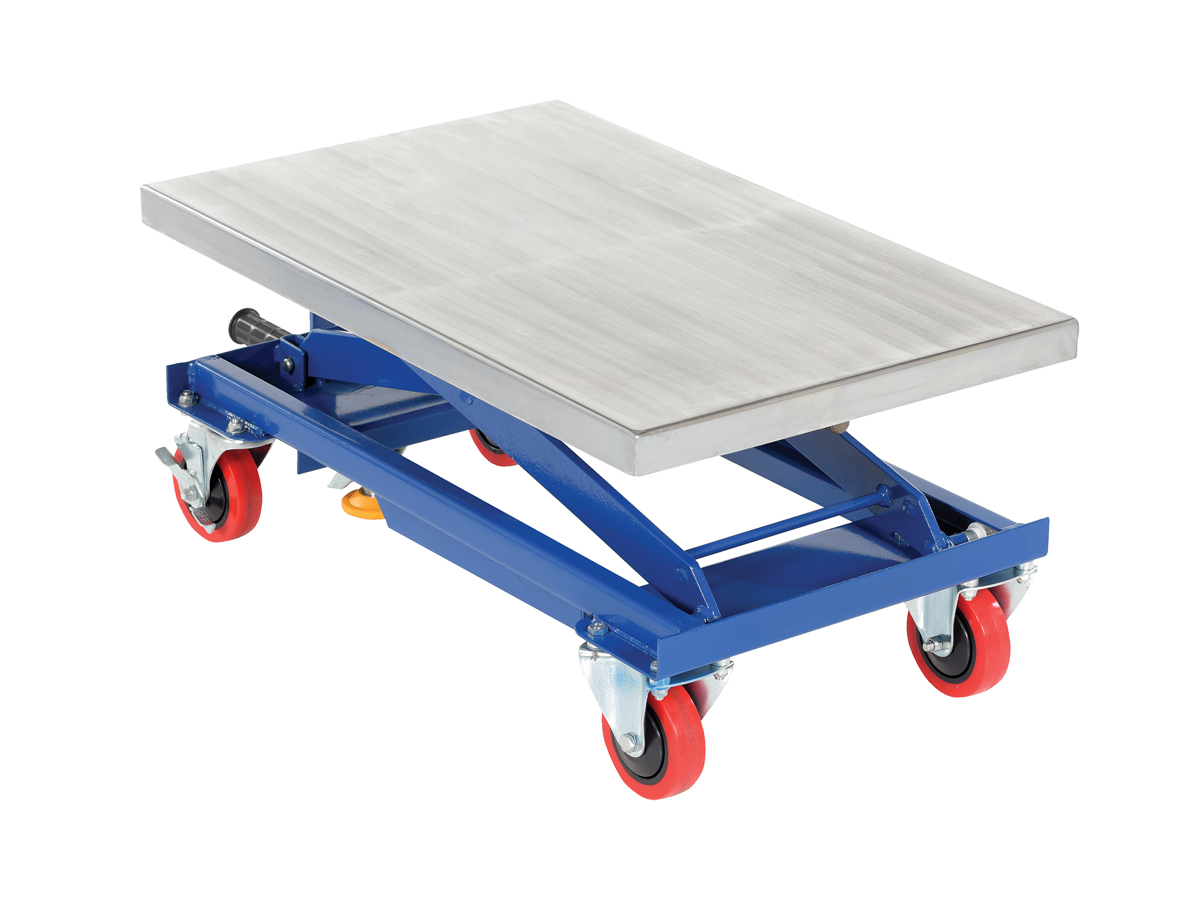

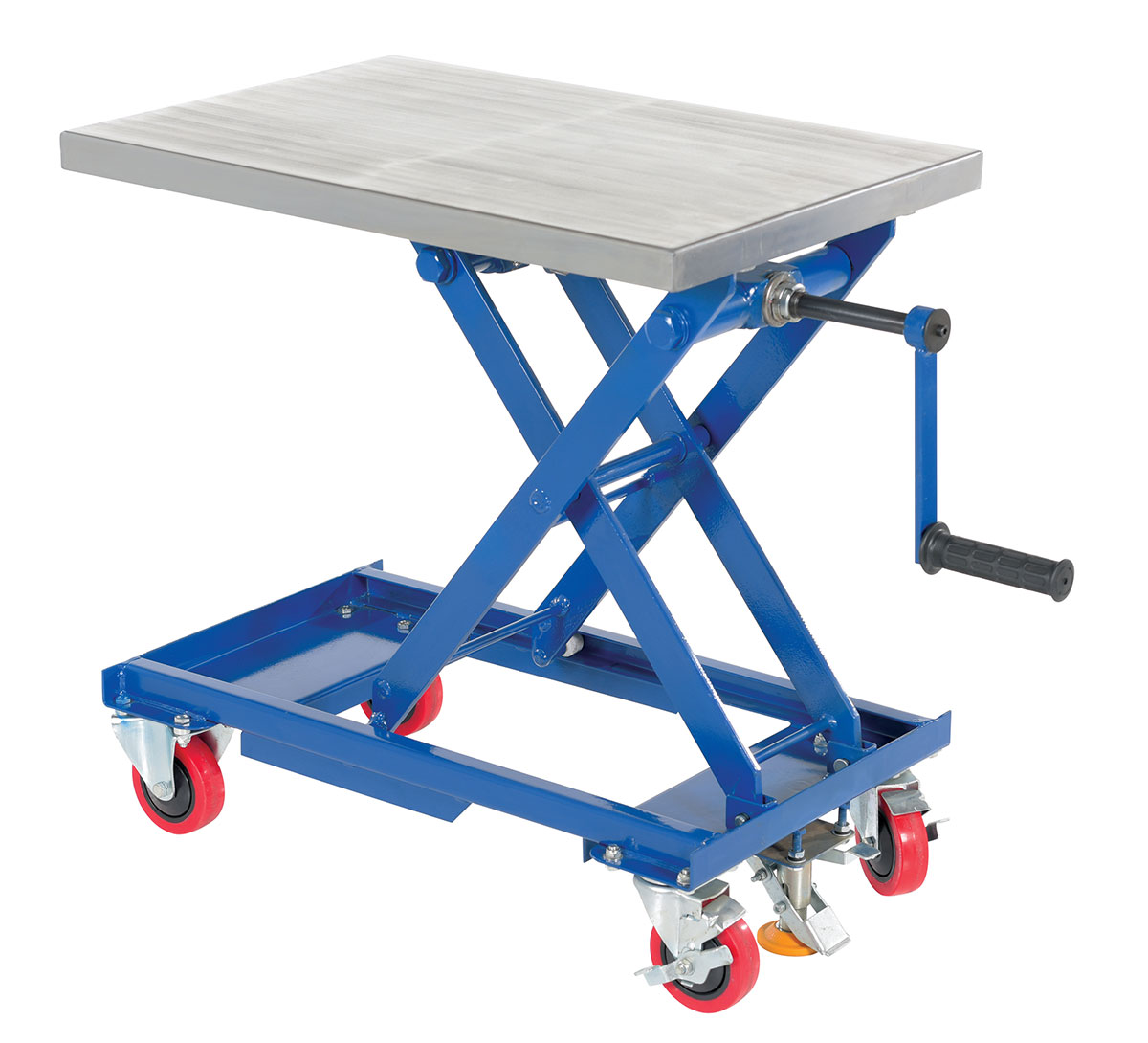

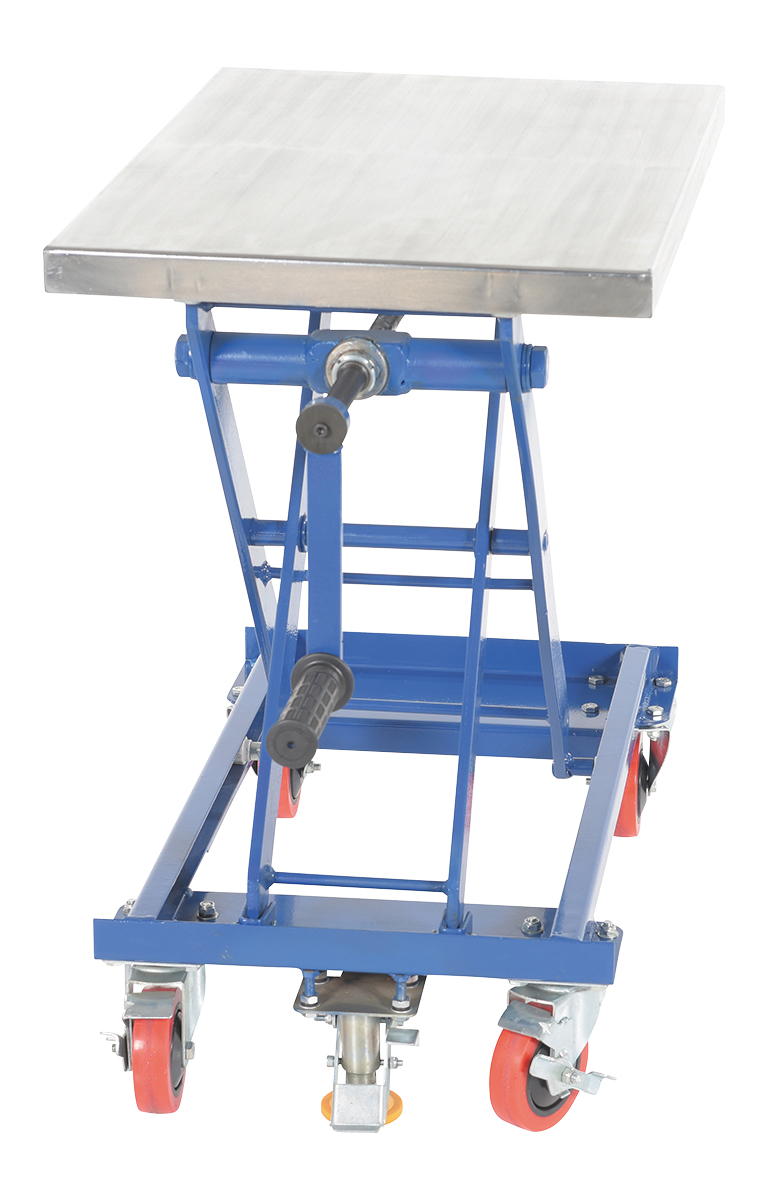

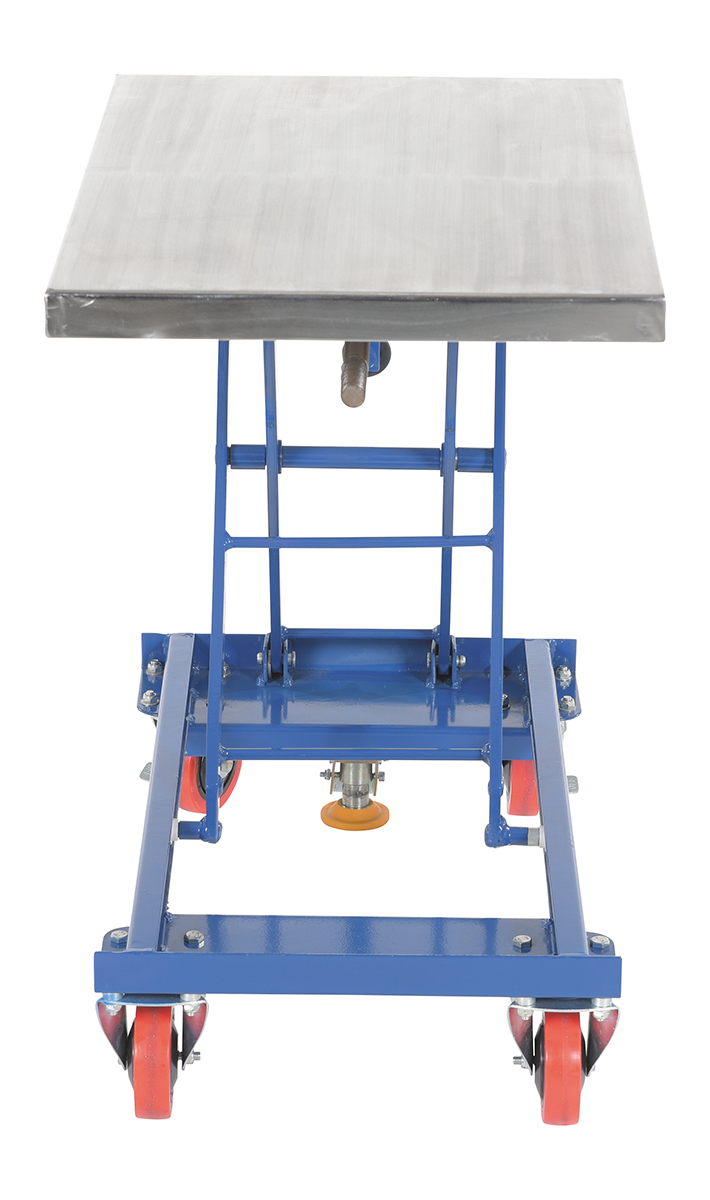

CART-330-M

model CART-330-M

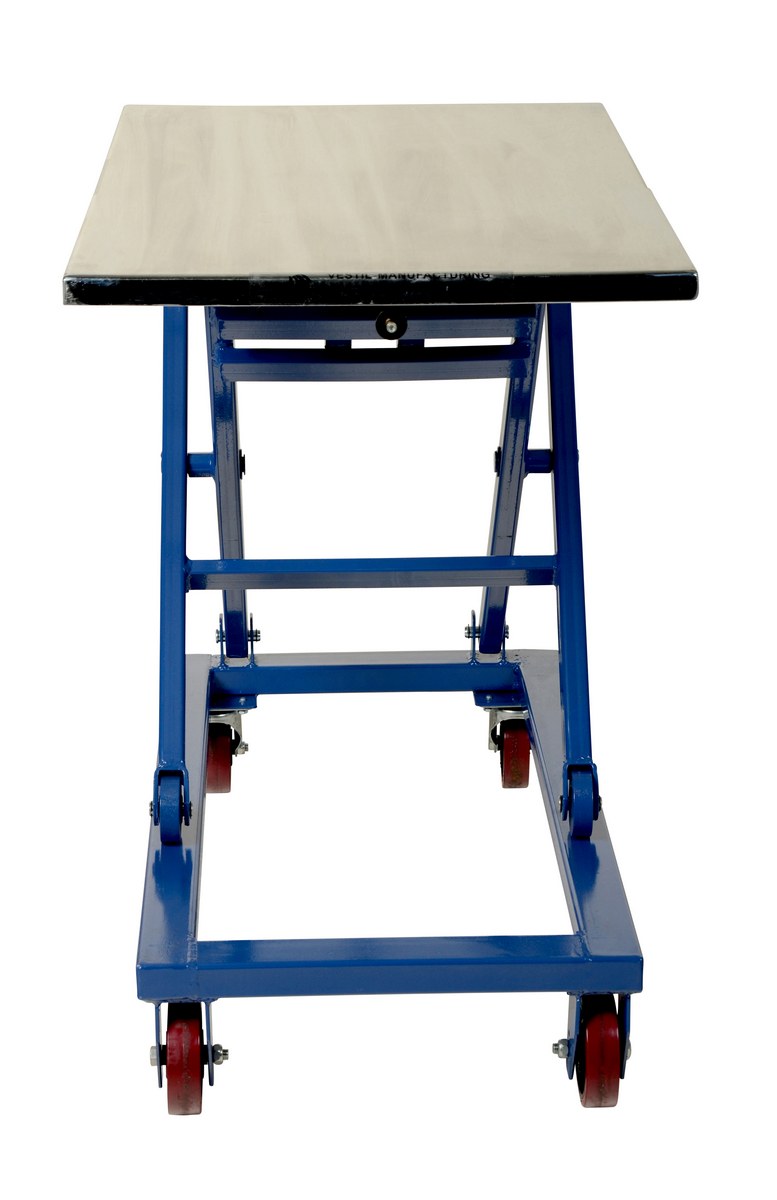

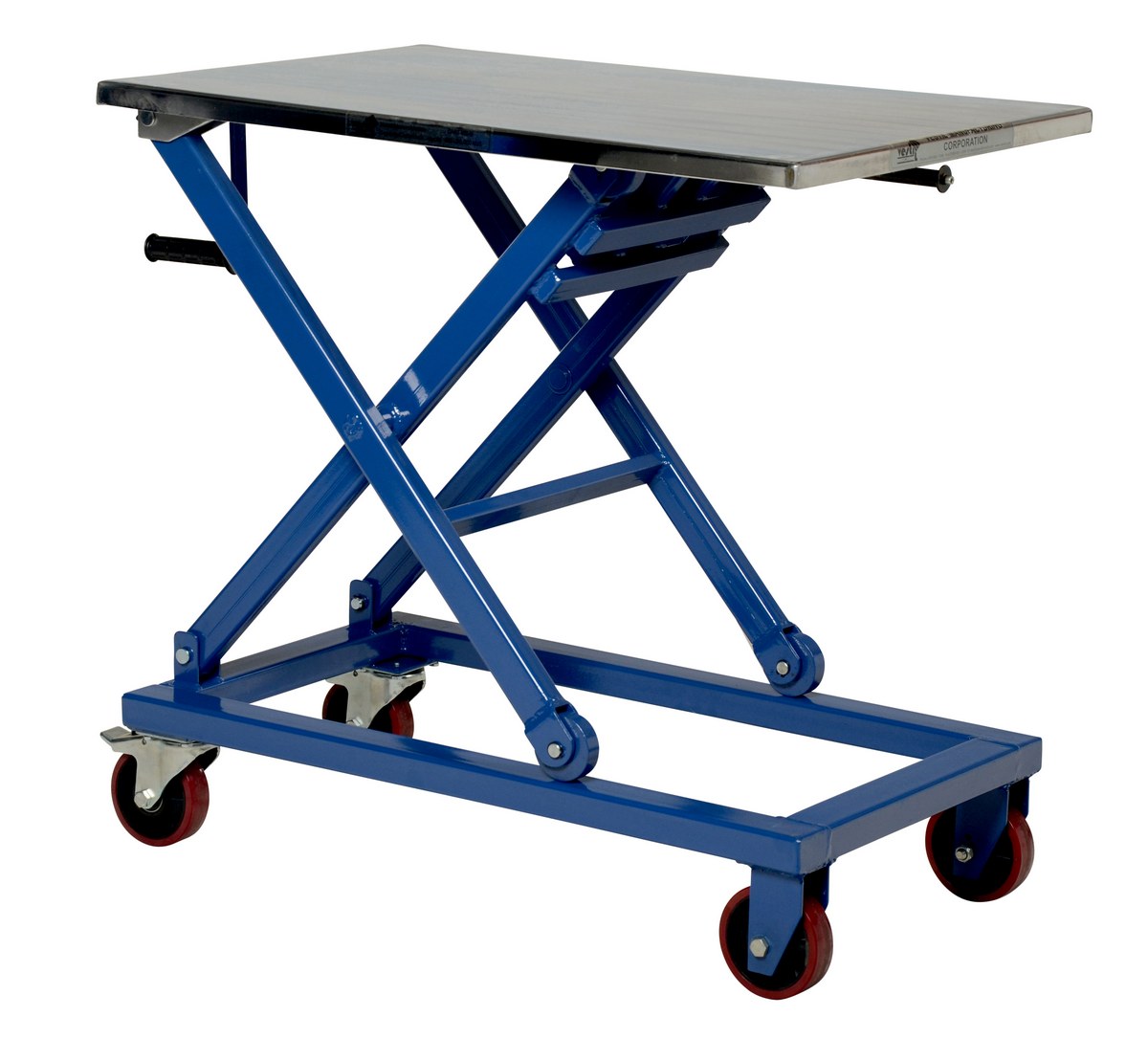

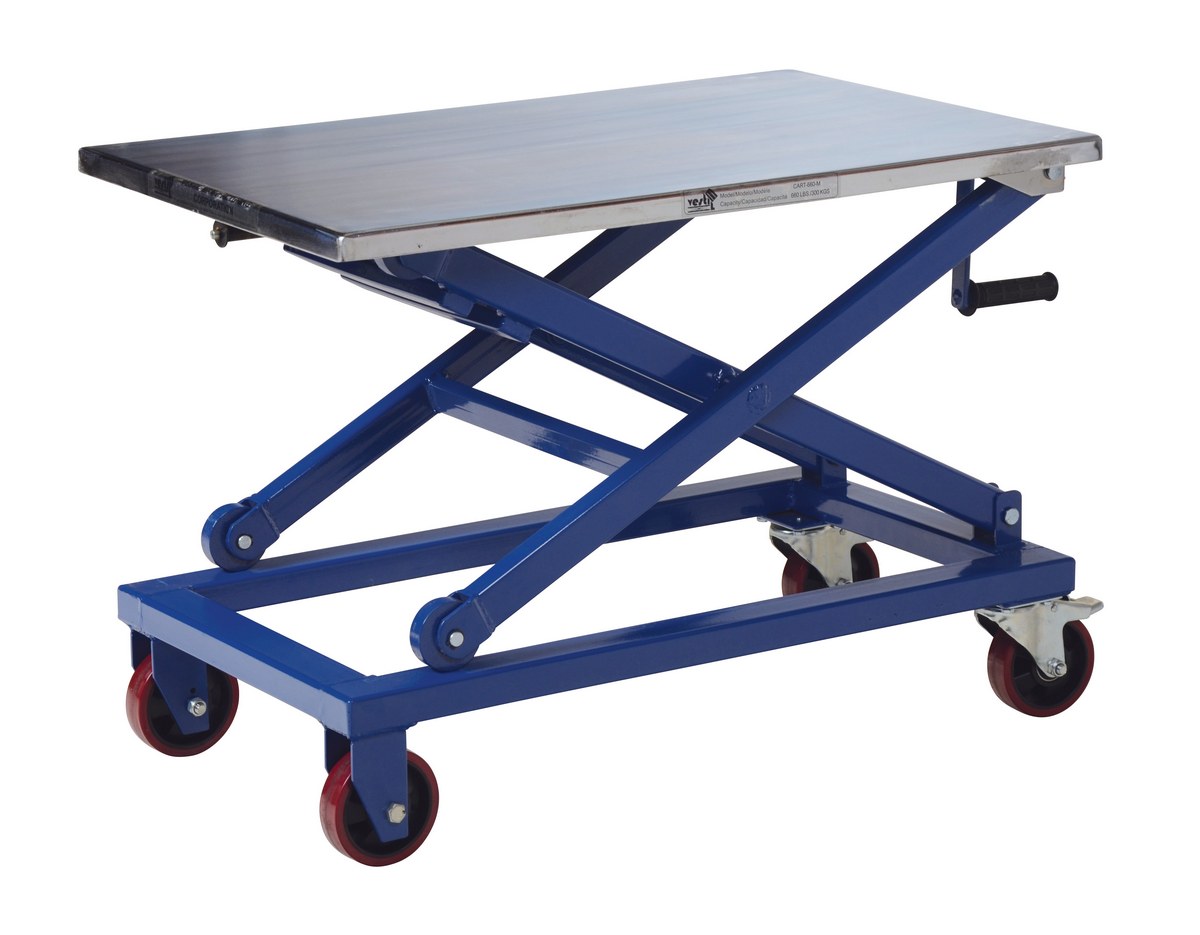

CART-660-M

model CART-660-M

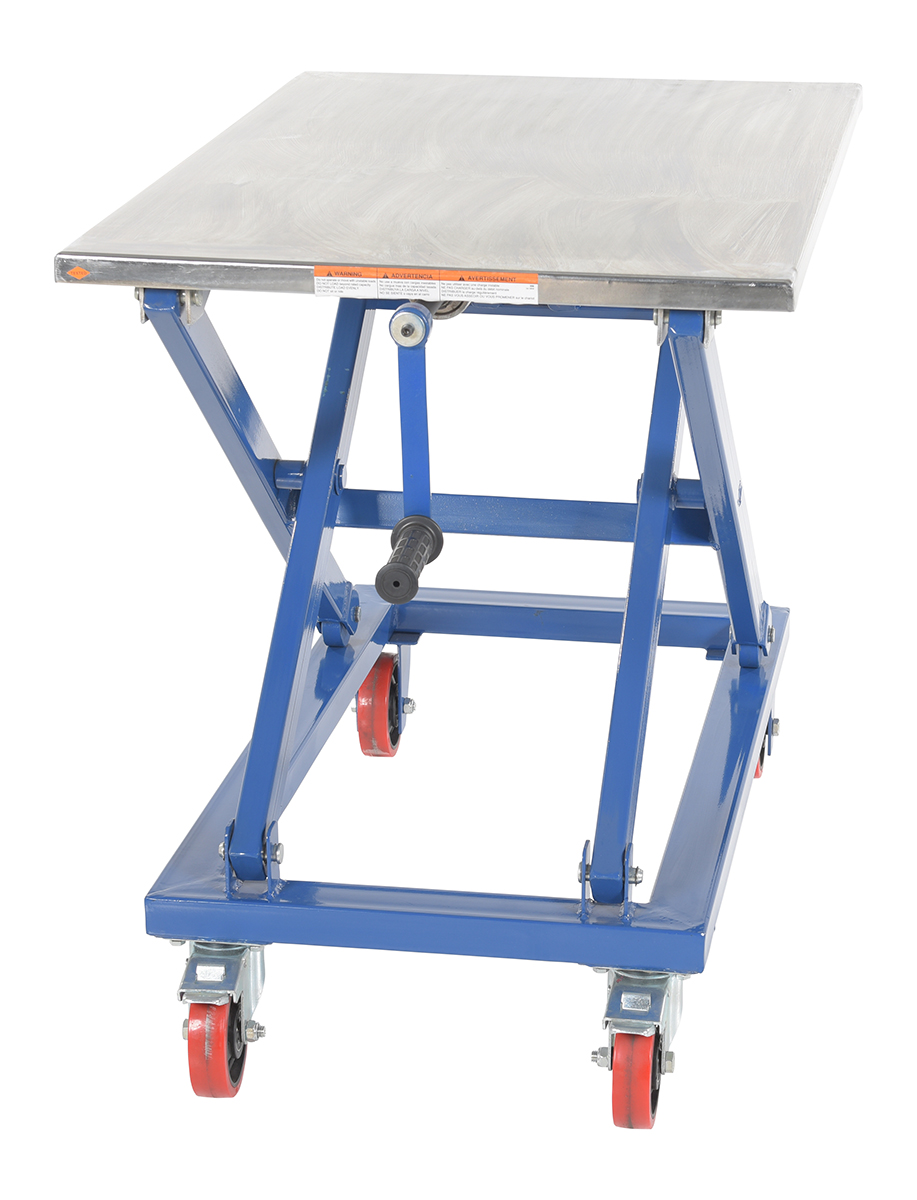

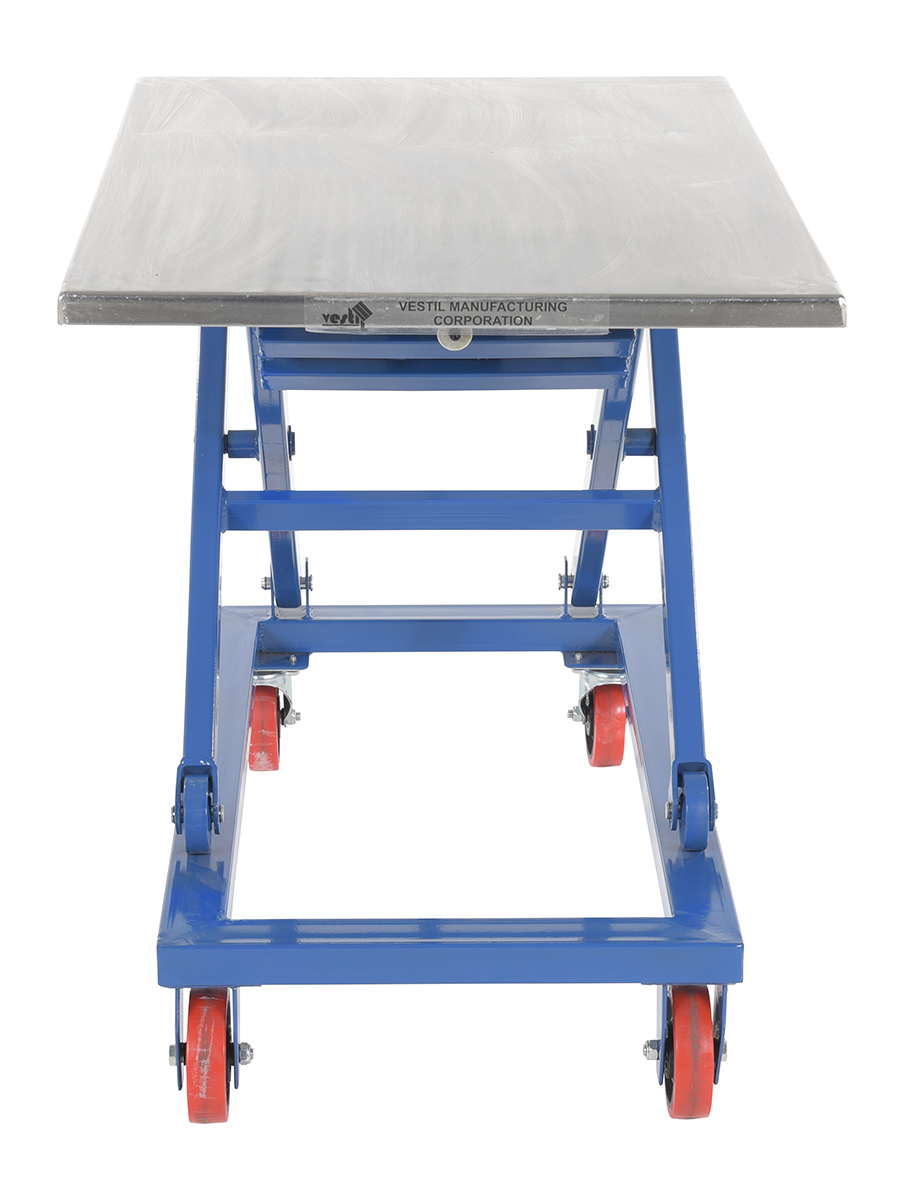

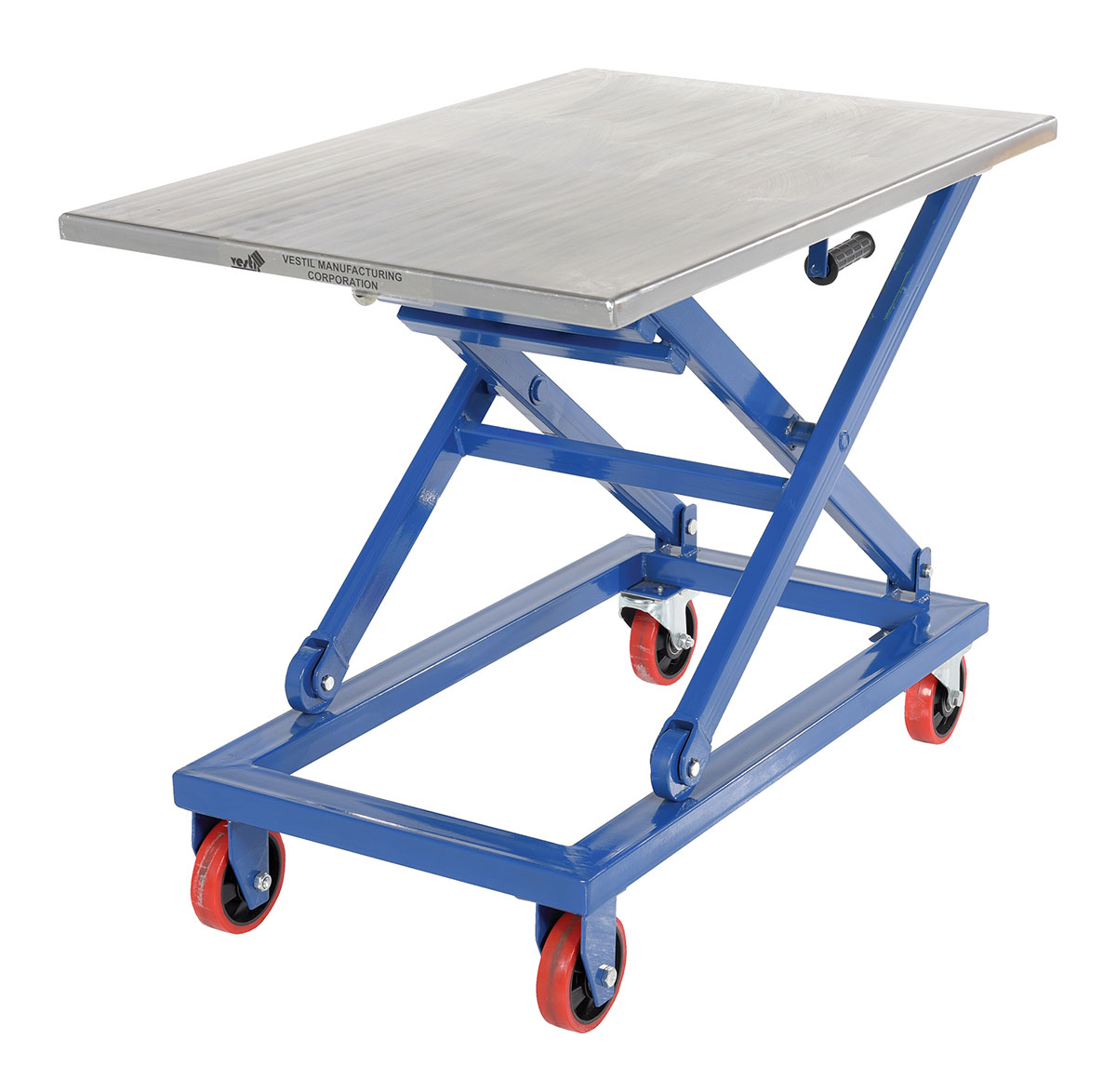

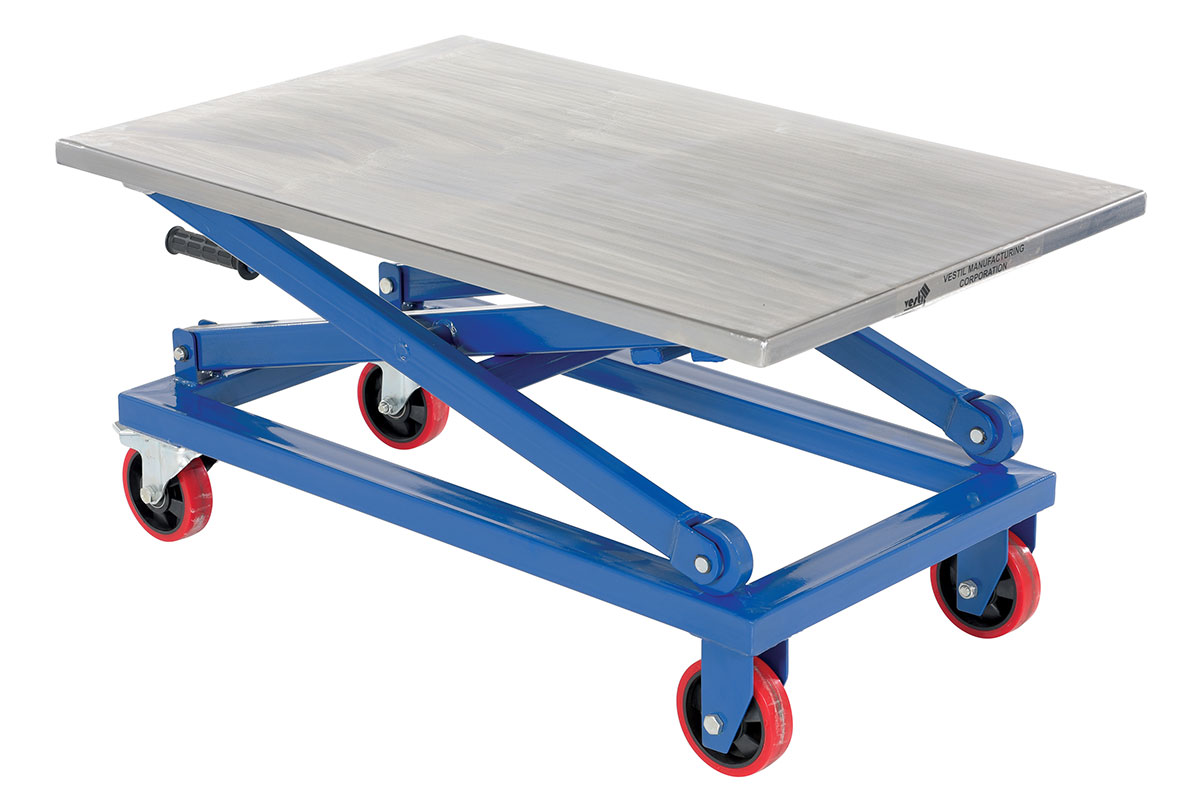

CART-1000-M

model CART-1000-M




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
CART-1000-M 1 Year Limited WarrantySteel Mechanical Scissor Cart 25-1/4 In. x 39-1/4 1000 Lb. Capacity BlueUniform Capacity (lb.): 330
Usable Width (in.): 26
162
CART-330-M 1 Year Limited WarrantySteel Mechanical Scissor Cart with Hand Crank 18 In. x 28 In. 330 Lb. Capacity Blue/SilverUniform Capacity (lb.): 330
Usable Width (in.): 17-3/4
85
CART-660-M 1 Year Limited WarrantySteel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/SilverUniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
190
CART-660-M-PSS 1 Year Limited WarrantyPartial Stainless Steel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/SilverUniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
148

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Steel Mechanical Scissor Cart 25-1/4 In. x 39-1/4 1000 Lb. Capacity Blue


Unit: EACH
Size: 26W x 39.5L x 40H
Weight: 162
1 Year Limited Warranty
Uniform Capacity (lb.): 330
Usable Width (in.): 26
Uniform Capacity (lb.): 330
Usable Width (in.): 26

Steel Mechanical Scissor Cart with Hand Crank 18 In. x 28 In. 330 Lb. Capacity Blue/Silver


Unit: EACH
Size: 17.75W x 35.5L x 28.5H
Weight: 85
1 Year Limited Warranty
Uniform Capacity (lb.): 330
Usable Width (in.): 17-3/4
Uniform Capacity (lb.): 330
Usable Width (in.): 17-3/4

Steel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/Silver


Unit: EACH
Size: 23.625W x 47L x 18H
Weight: 190
1 Year Limited Warranty
Uniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
Uniform Capacity (lb.): 660
Platform Width (in.): 23-1/2

Partial Stainless Steel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/Silver


Unit: EACH
Size: 23.625W x 47L x 18H
Weight: 148
1 Year Limited Warranty
Uniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
Uniform Capacity (lb.): 660
Platform Width (in.): 23-1/2



Mechanical Scissor Carts PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Mechanical Scissor Carts




When lifting and transporting are both essential, look no further than the Mechanical Scissor Cart. The centrally located hand crank allows the user to raise and lower the platform to a more exact level. A large platform gives the ability to load items in a variety of sizes. Since the platform can be maneuvered to a specific height, the unit can be positioned to best fit the users' needs for a more ergonomically friendly experience. Poly casters are included for a smooth roll on a variety of surfaces.*Smooth steel top minimizes abrasions

  • Hand crank for precise positioning
  • Large capacity for lifting objects both big and small
  • Powder coated finish for long term toughness
  • Smooth steel top minimizes abrasions

Partially Stainless Steel Unit (CART-660-M-PSS)

Raise and lower material quickly and easily with Mechanical Scissor Carts. Carts roll smoothly on two rigid and two swivel poly-on-ploy casters. Mechanical screw drive provides precise positioning with no downward drift. The partially stainless steel cart features a stainless steel platform, frame, handle, caster rigs and hardware. Crank assembly and scissor legs are zinc plated/painted.


Mechanical Scissor Cart
Model Image PDFs Platform
Size (WxL)
Capacity
(lbs)
Lowered
Height
Raised
Height
Wt.
(lbs)

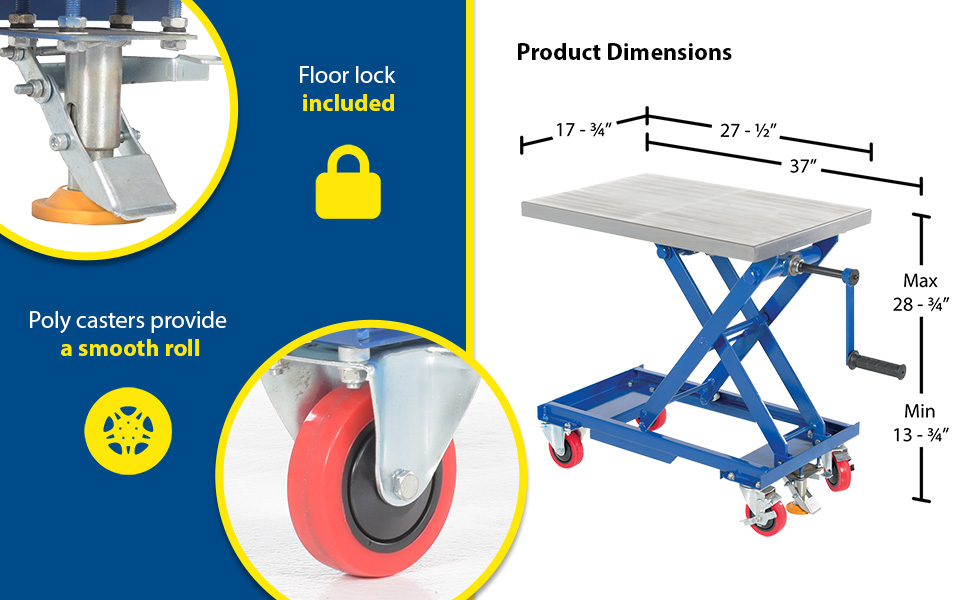

CART-330-M icon_approvaldrawings.jpgWarranty PDF 17-3/4"x27-1/2" 330 13-1/2" 28-1/4" 128

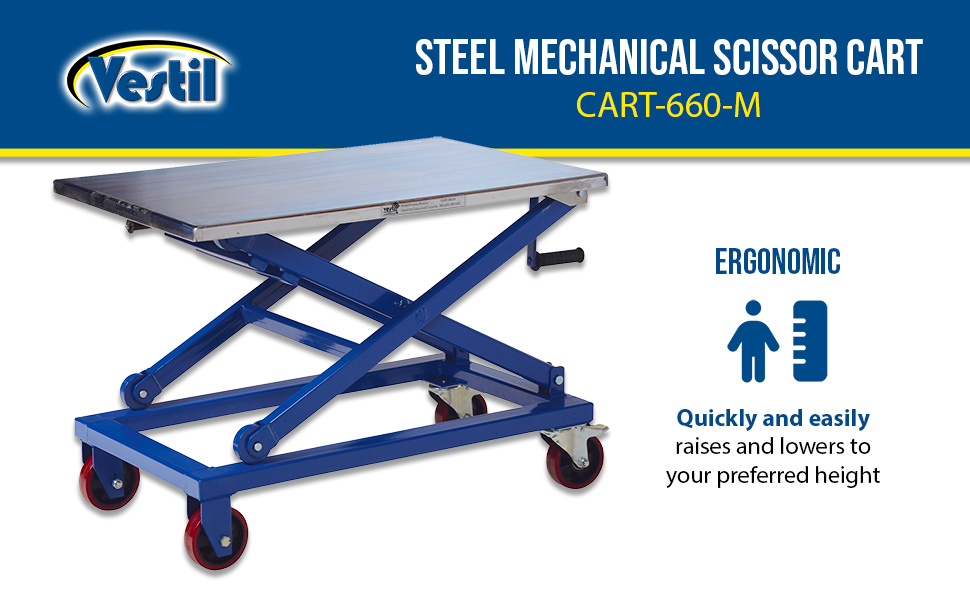

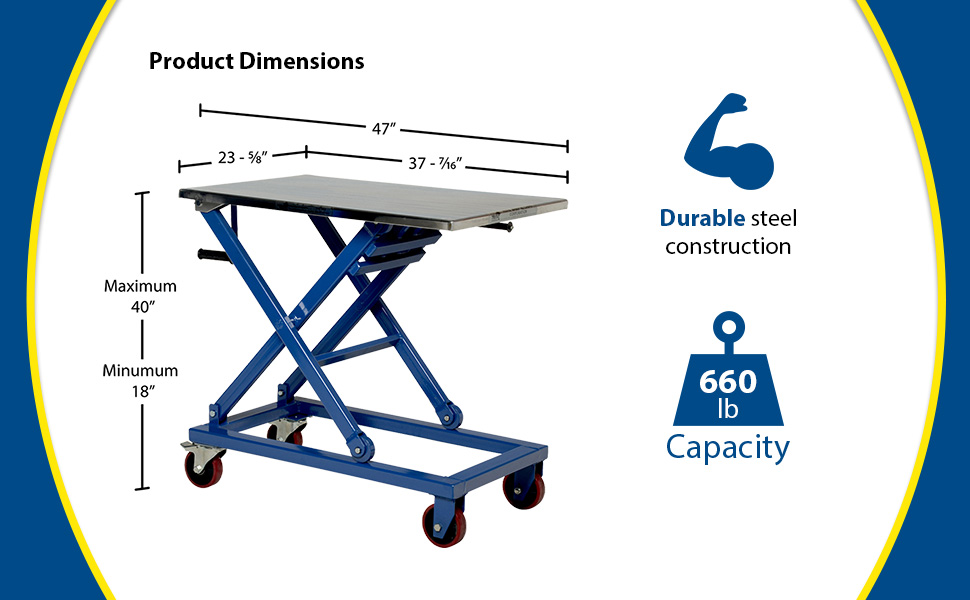

CART-660-M icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 23-1/2"x37" 660 18" 39-1/2" 190

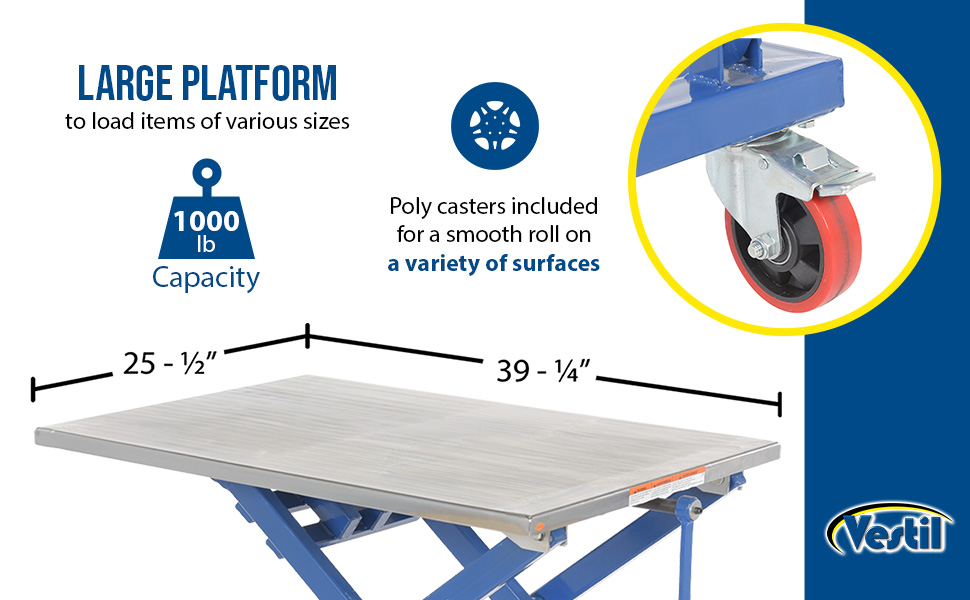

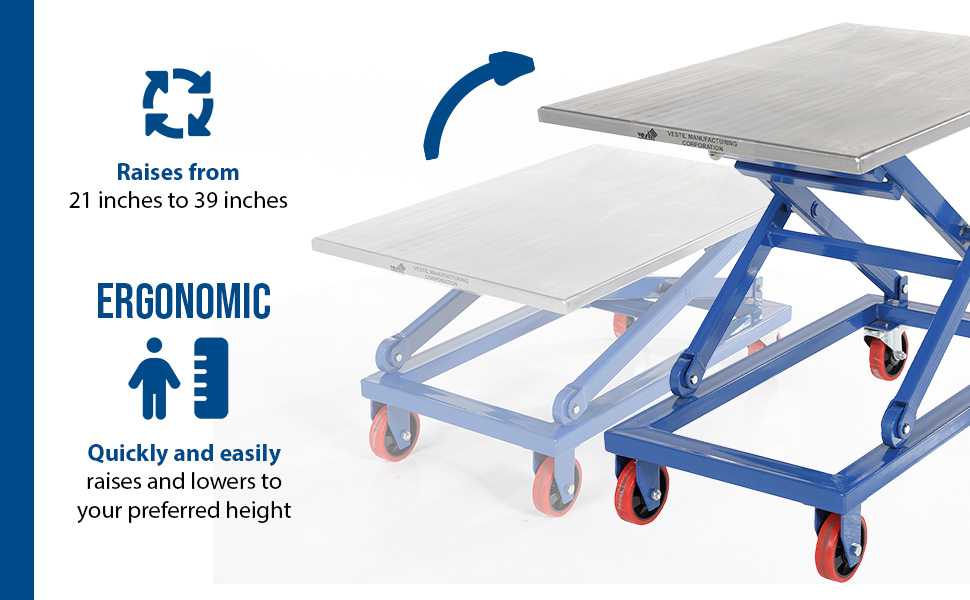

CART-1000-M Warranty PDF 25-1/4"x39-1/4" 1000 21" 40" 234
Partial Stainless Steel Construction
CART-660-M-PSS Warranty PDFCompliance Certificate 23-1/2"x37" 660 17-1/4" 39-1/4" 148
