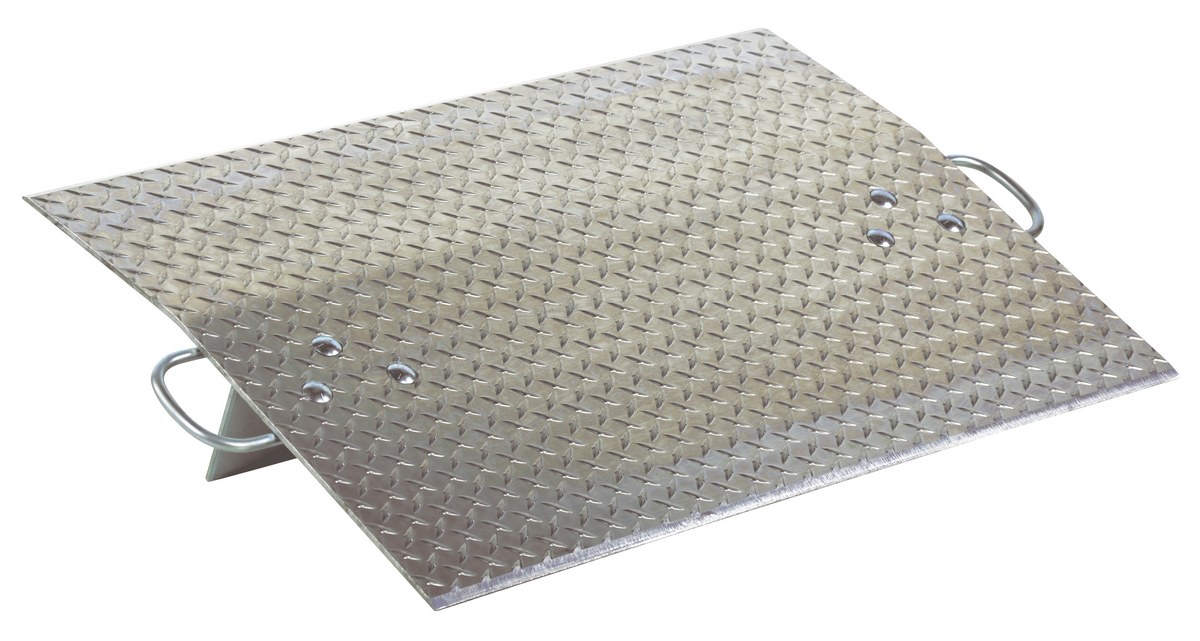

model AH-3624
SERIES: A,AH

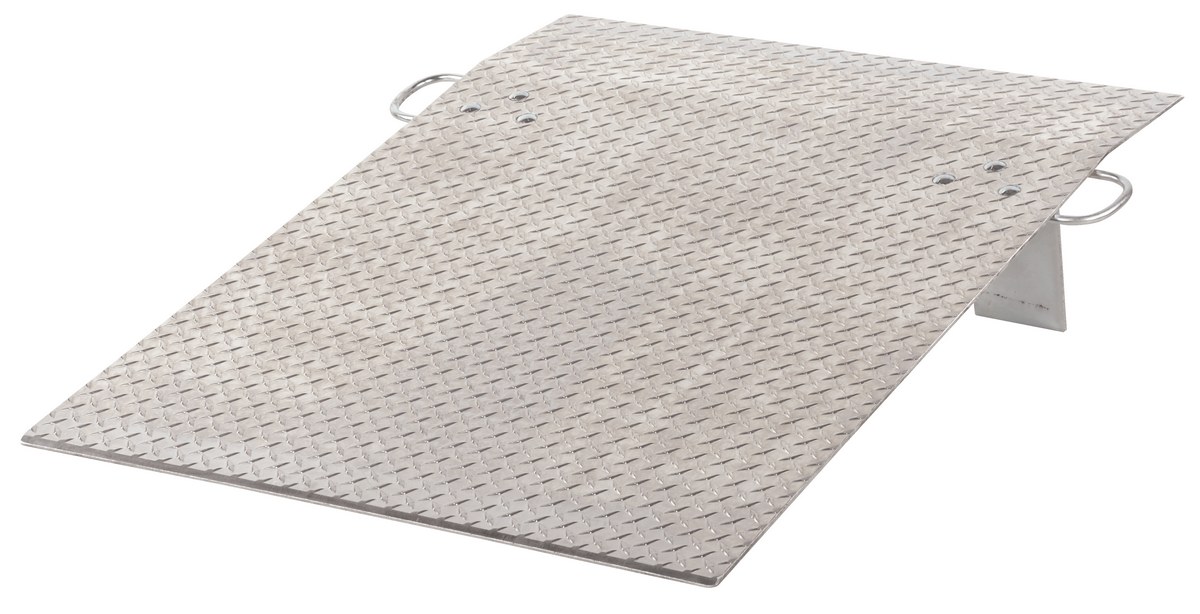

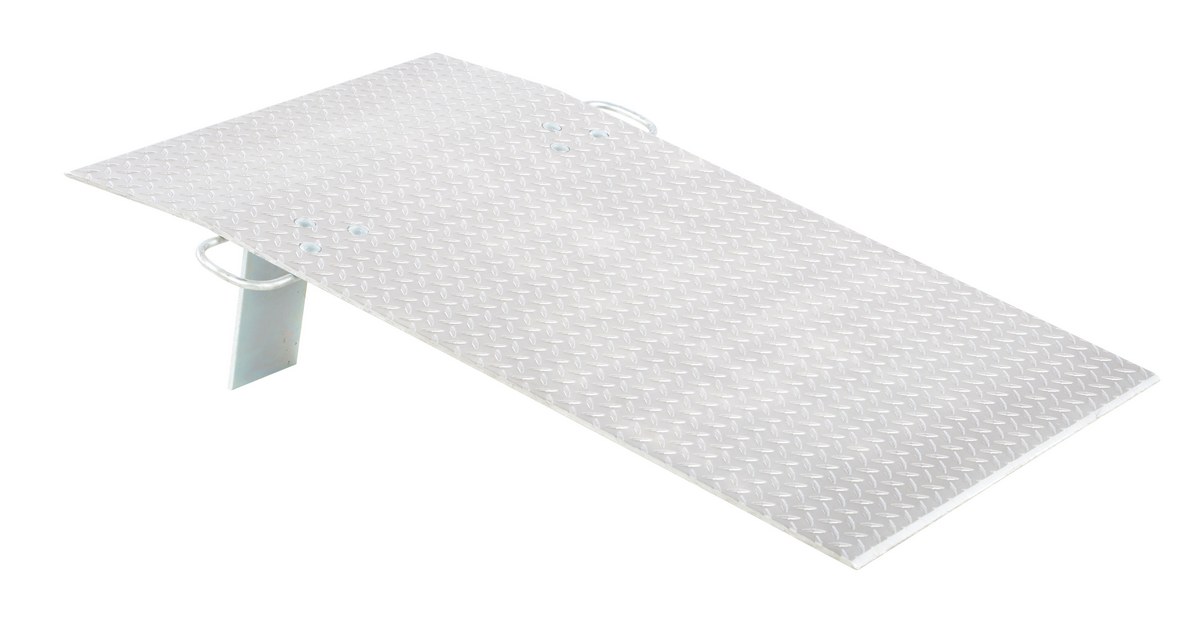

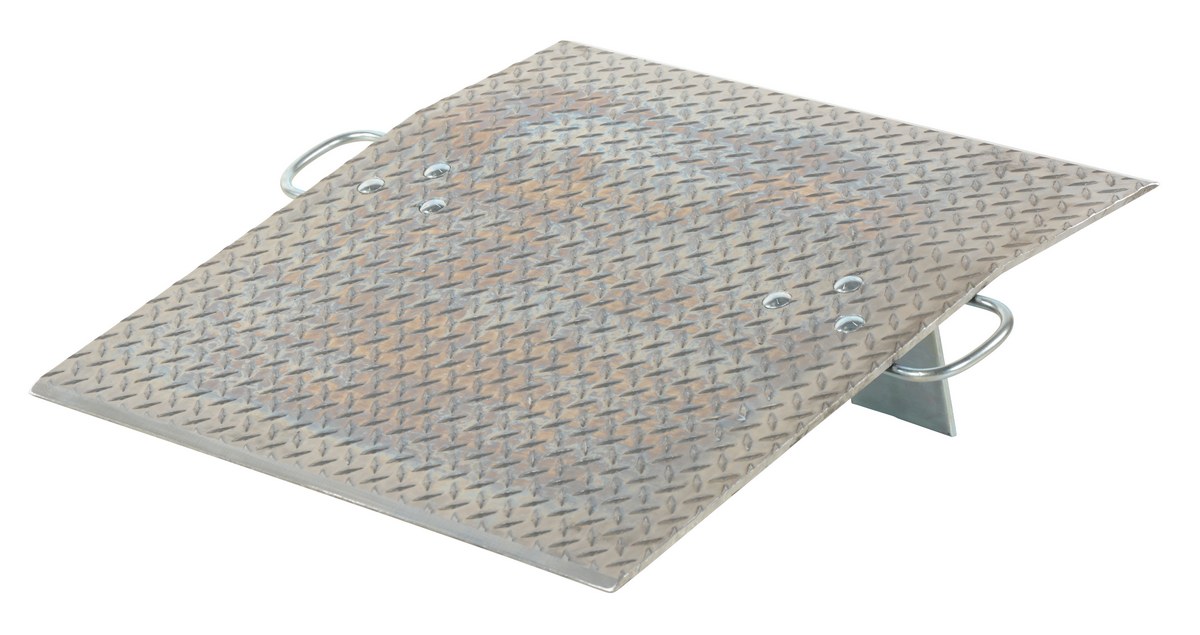

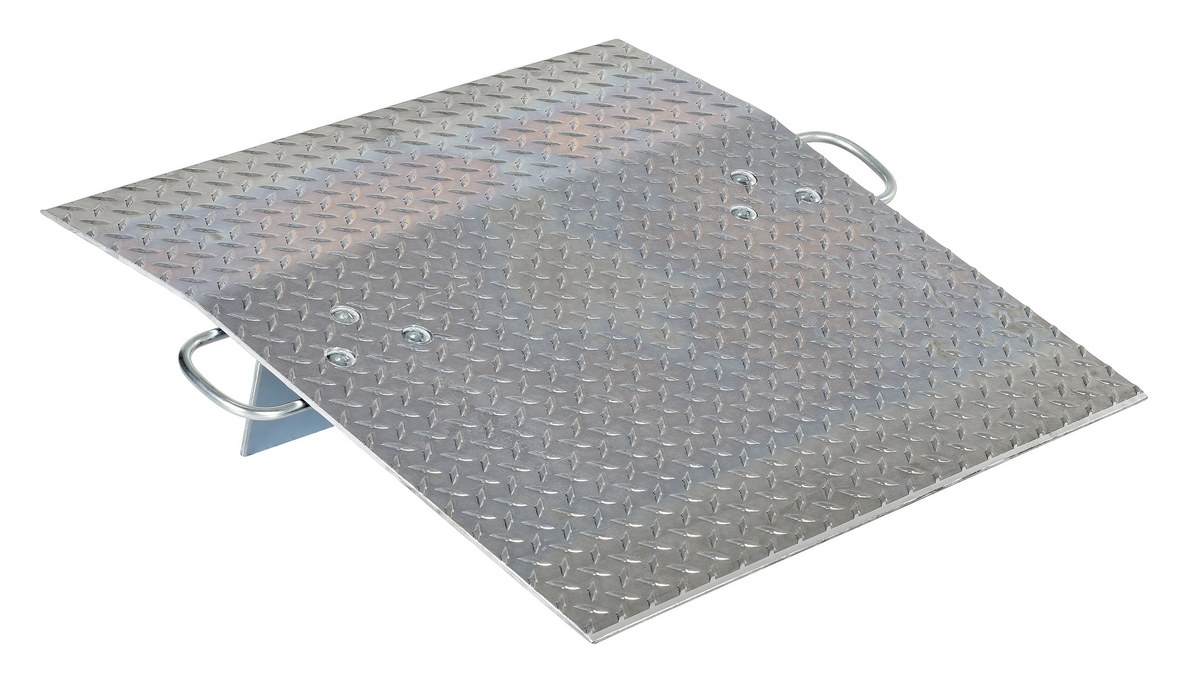

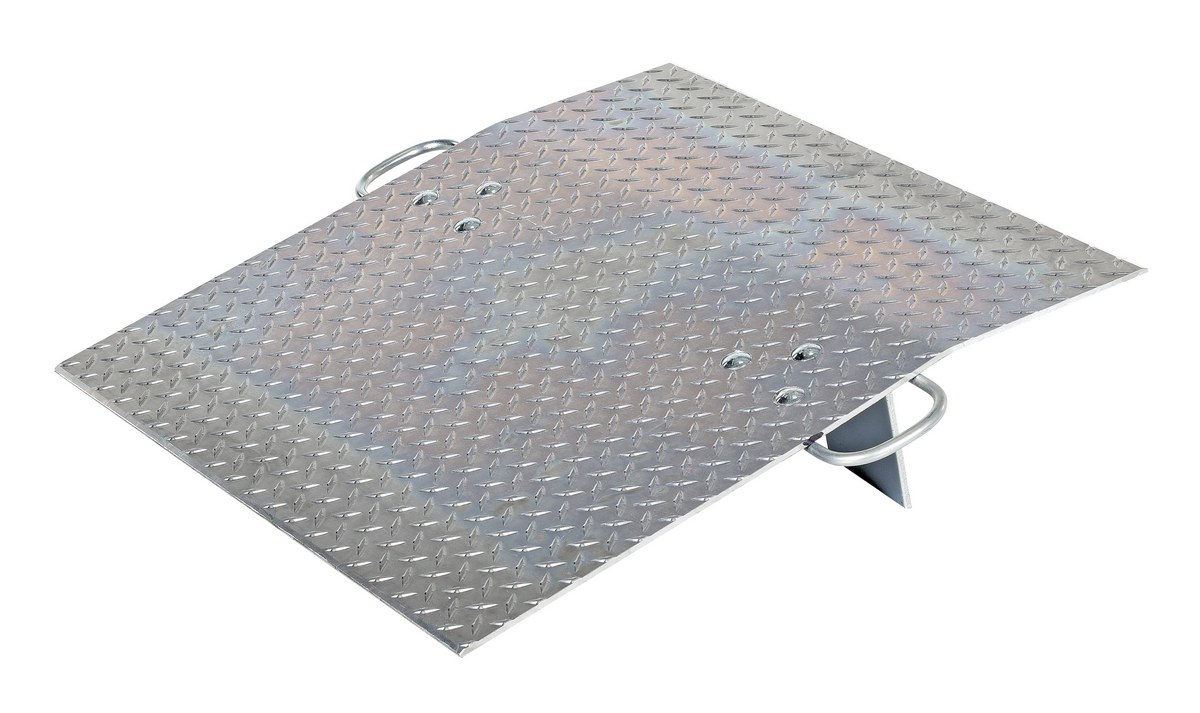

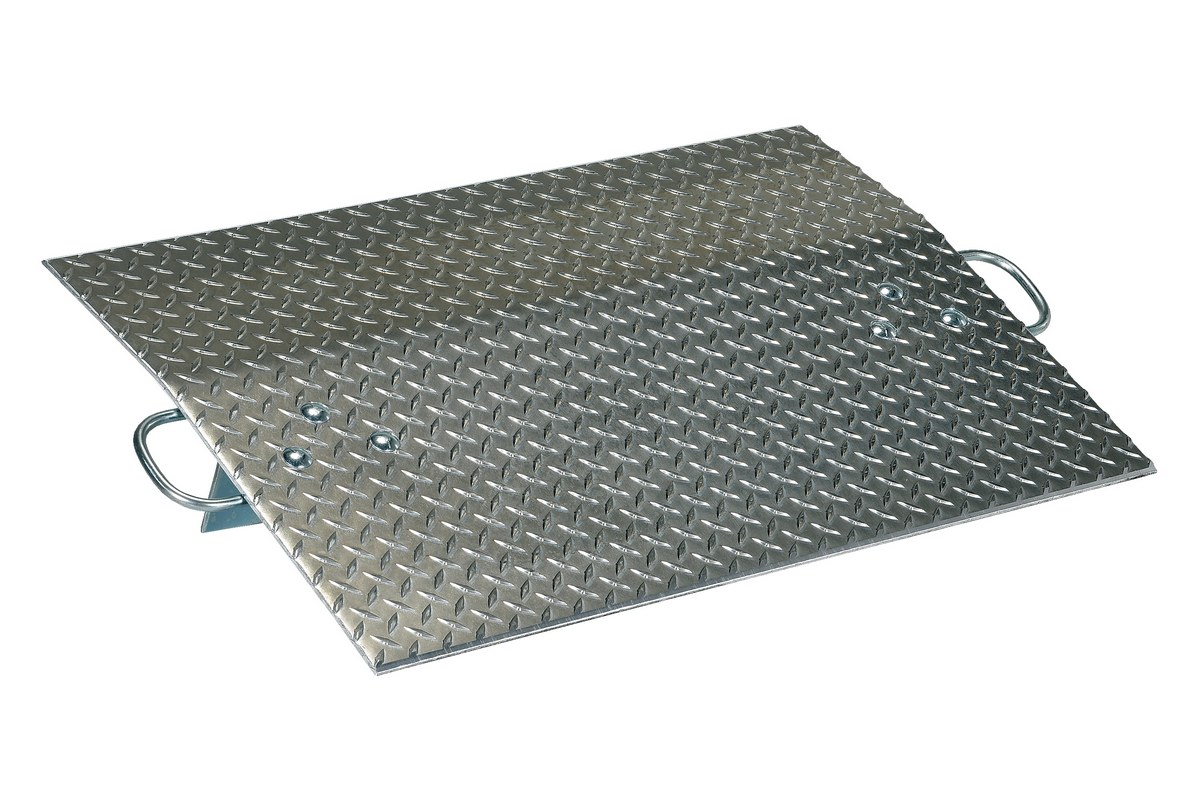

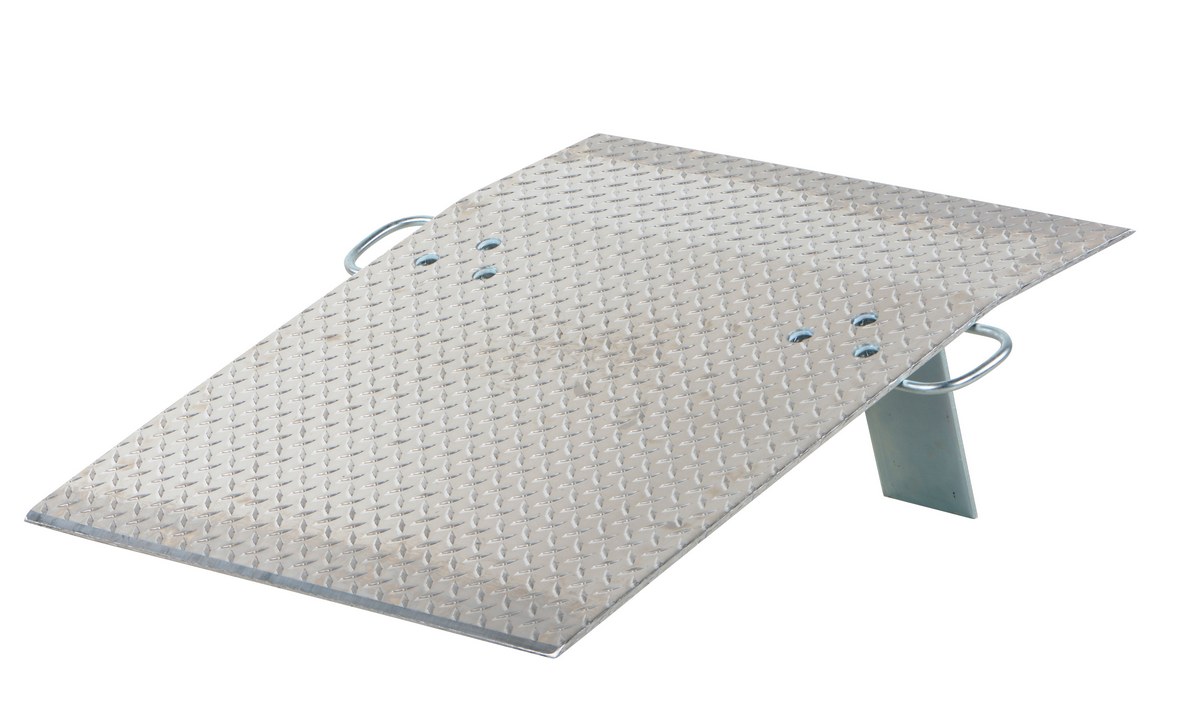

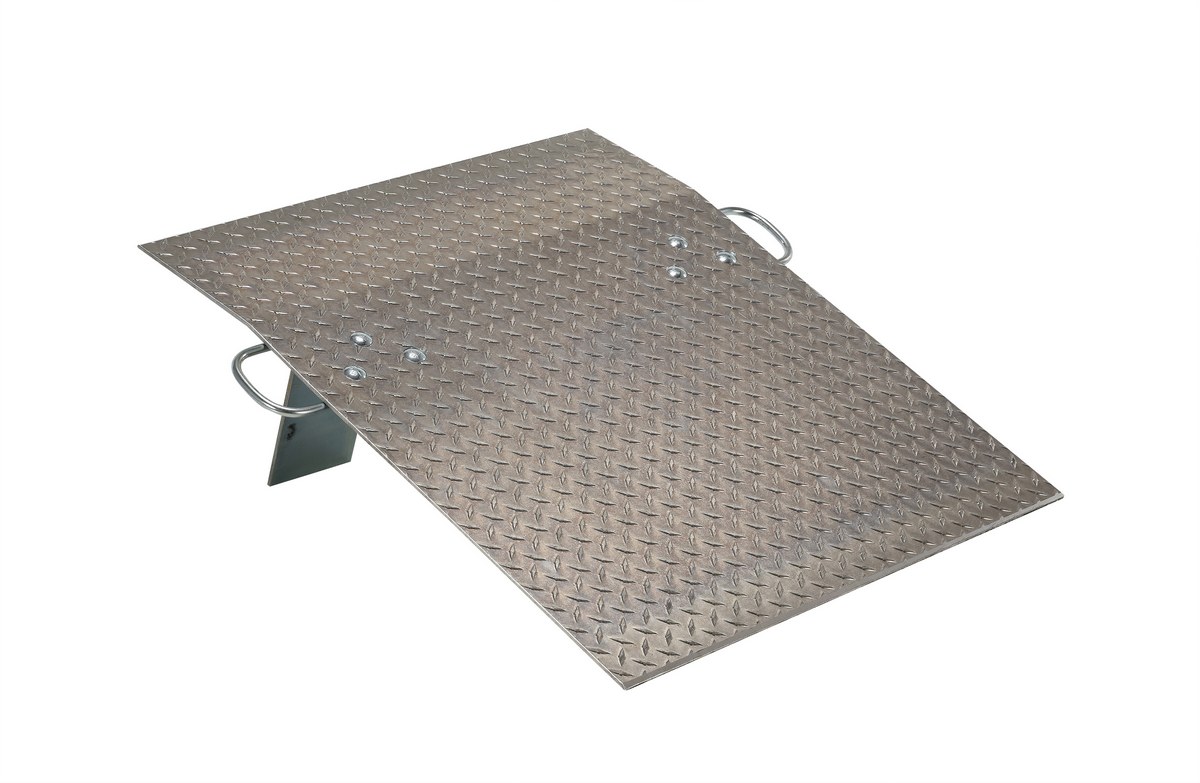

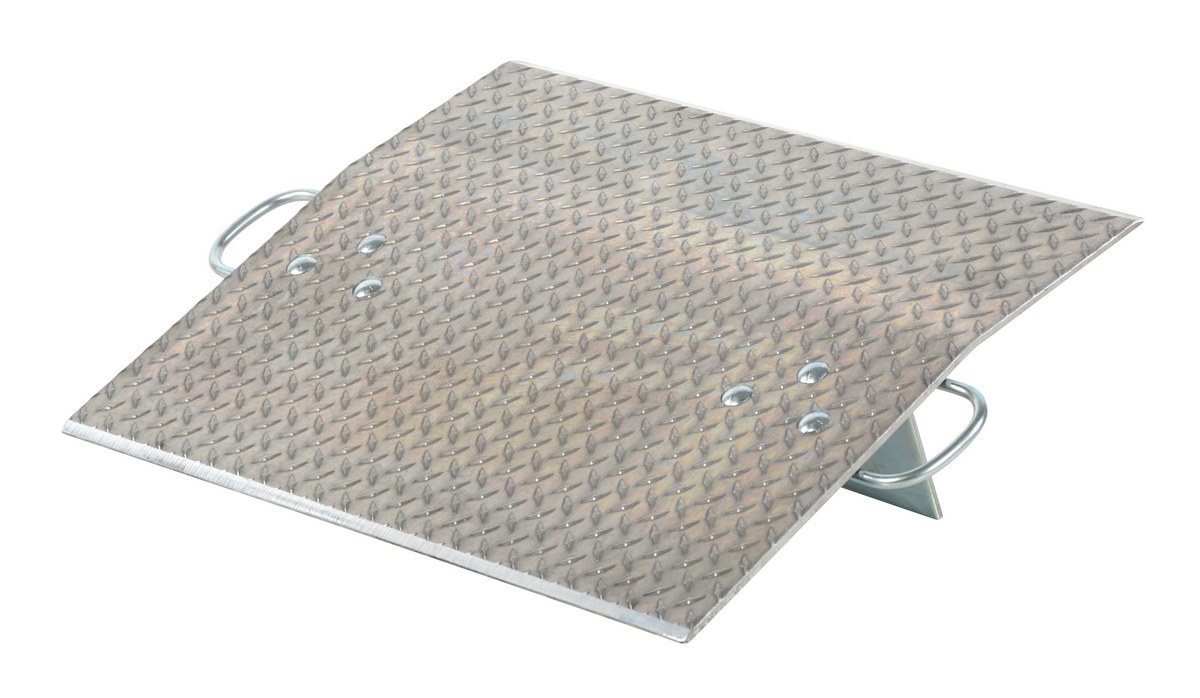

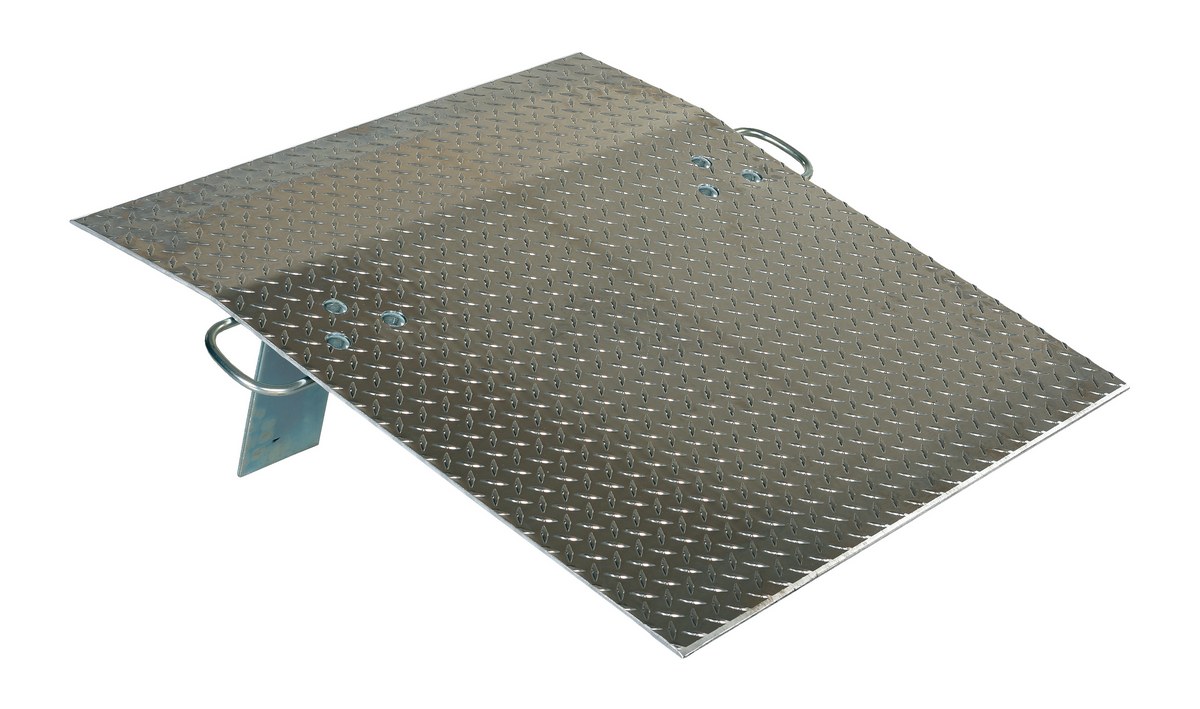

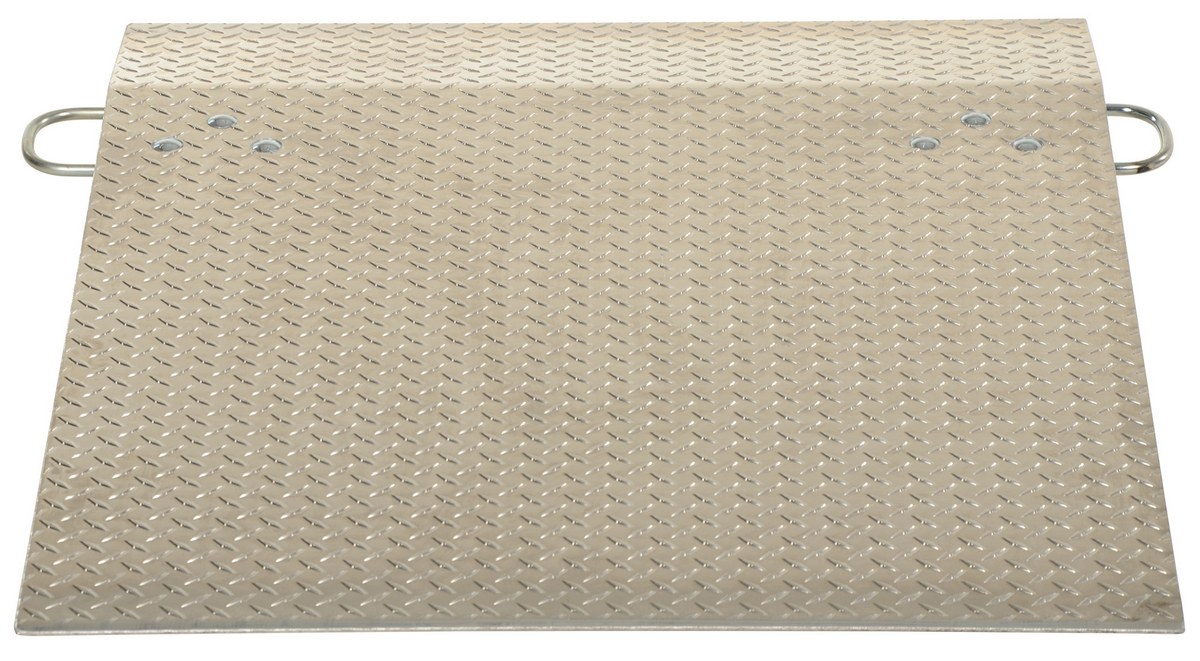

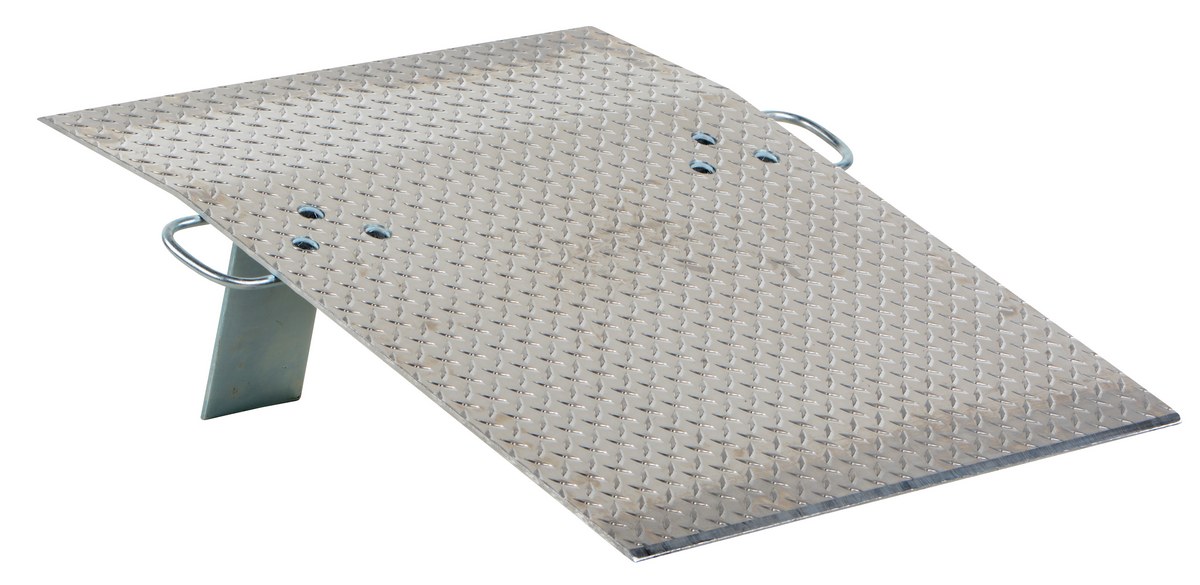

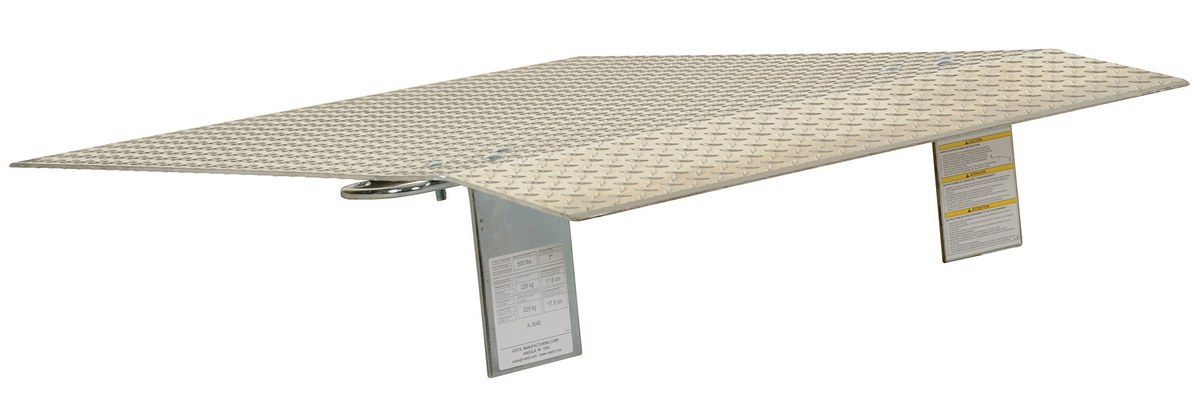

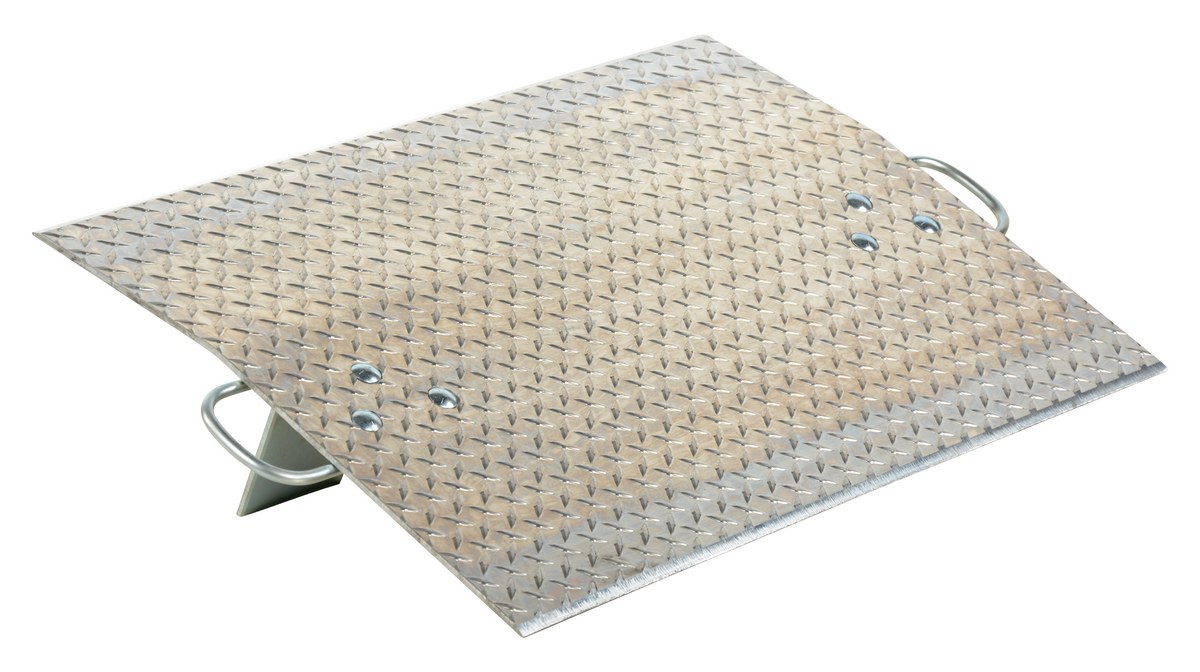

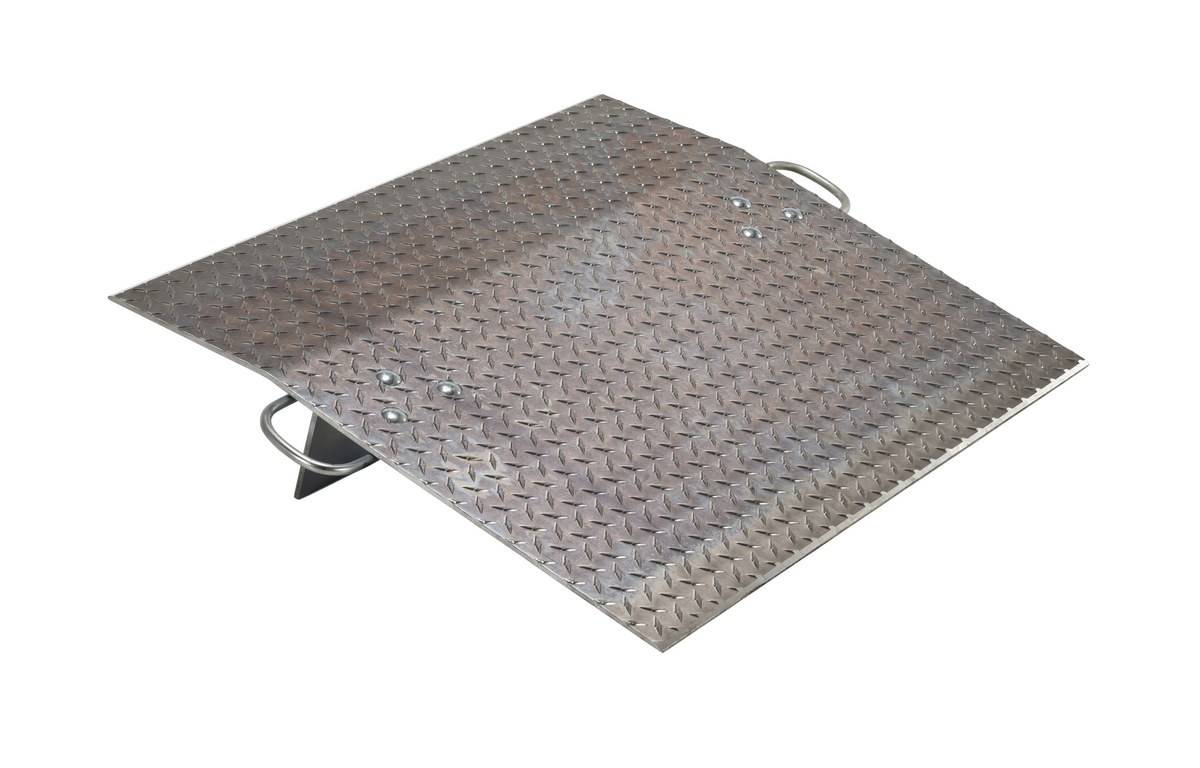

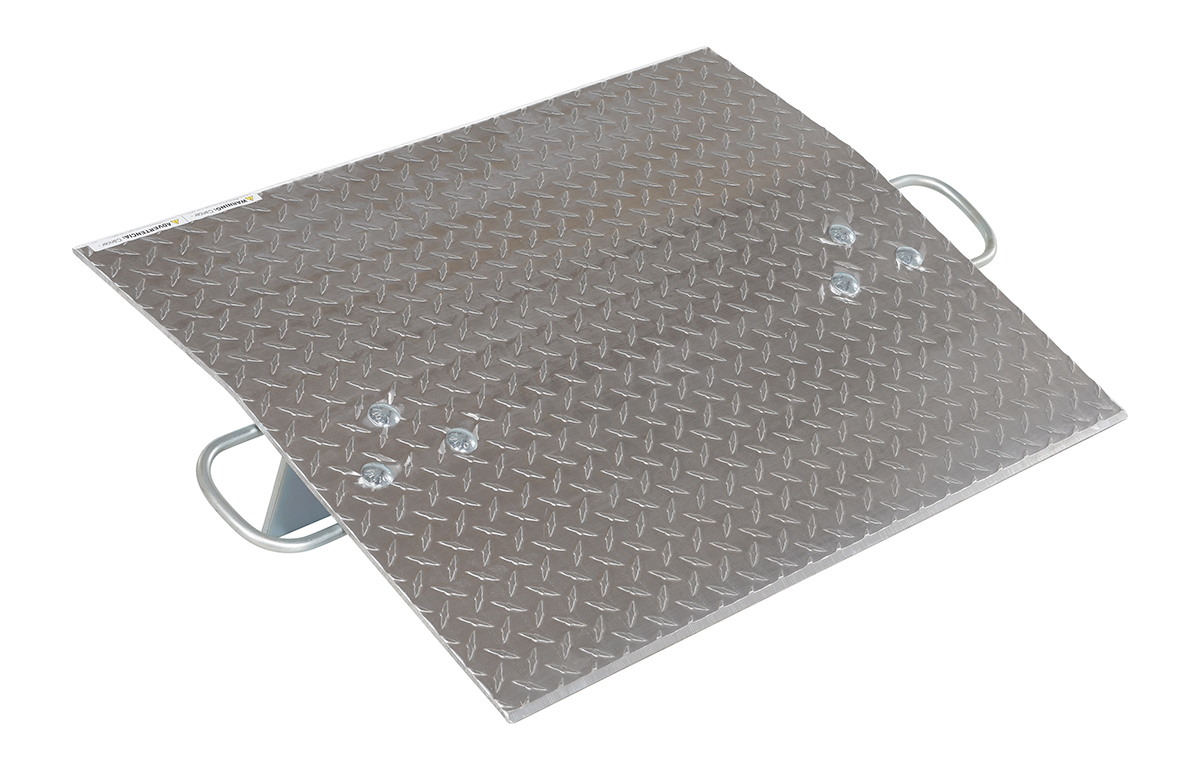

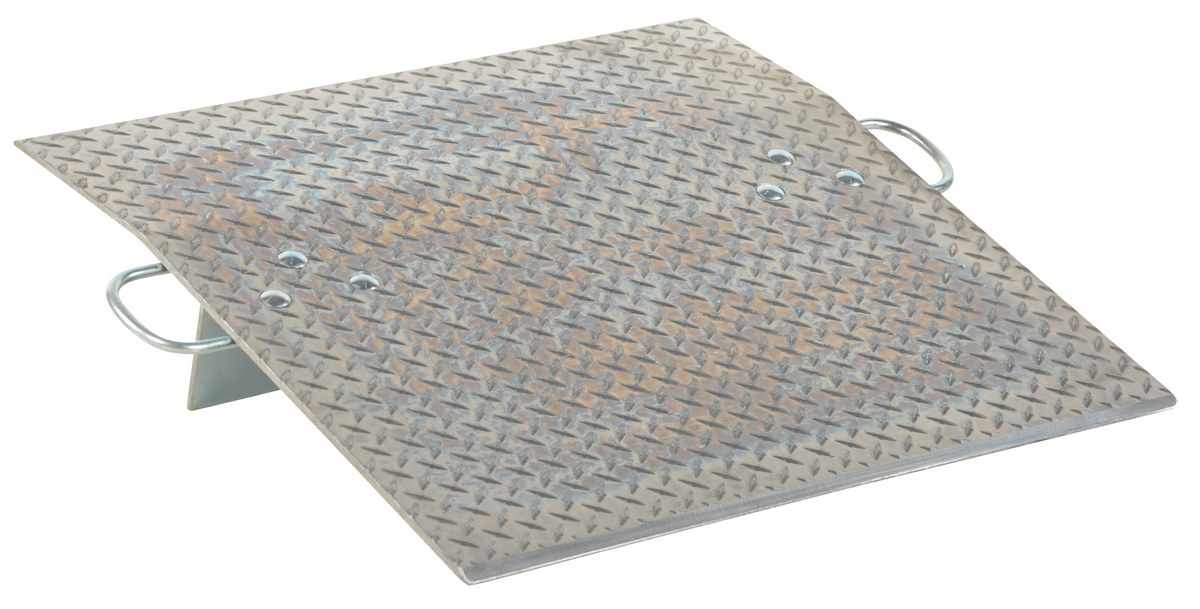

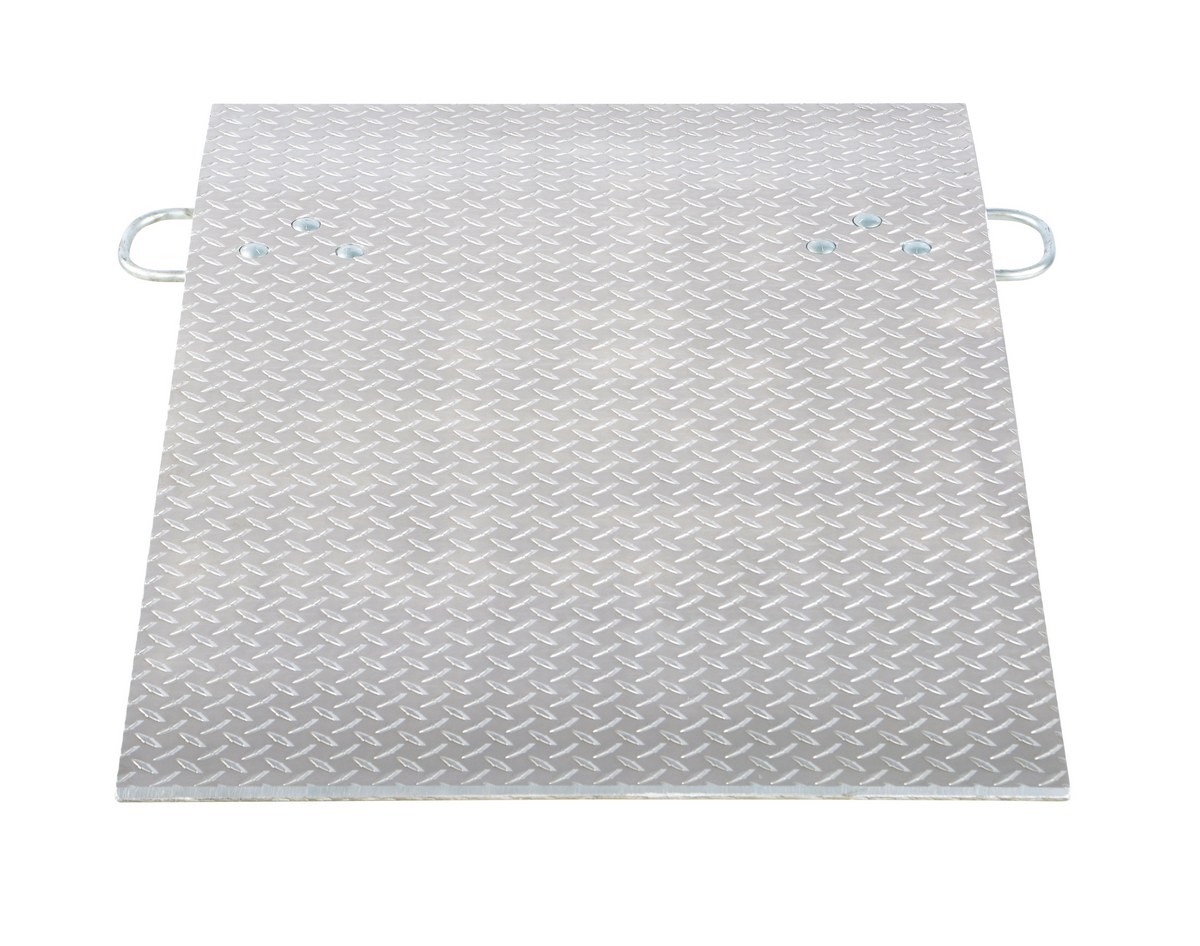

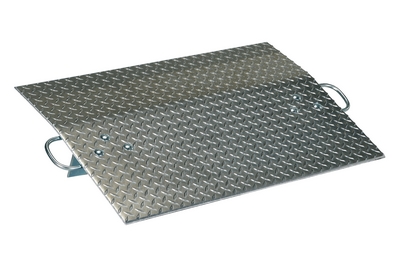

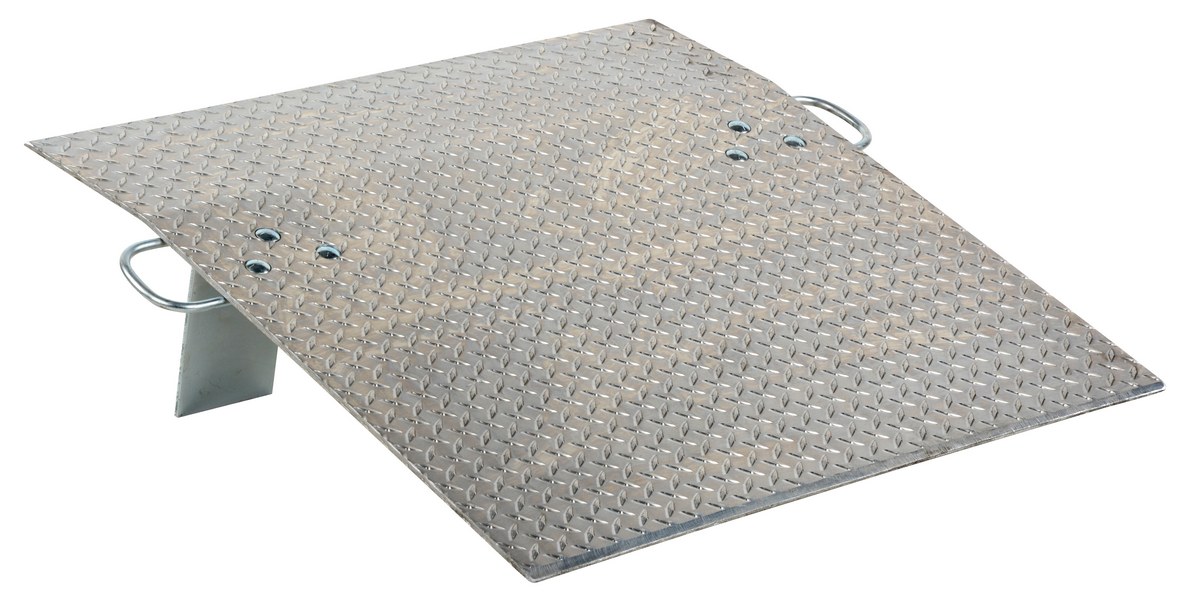

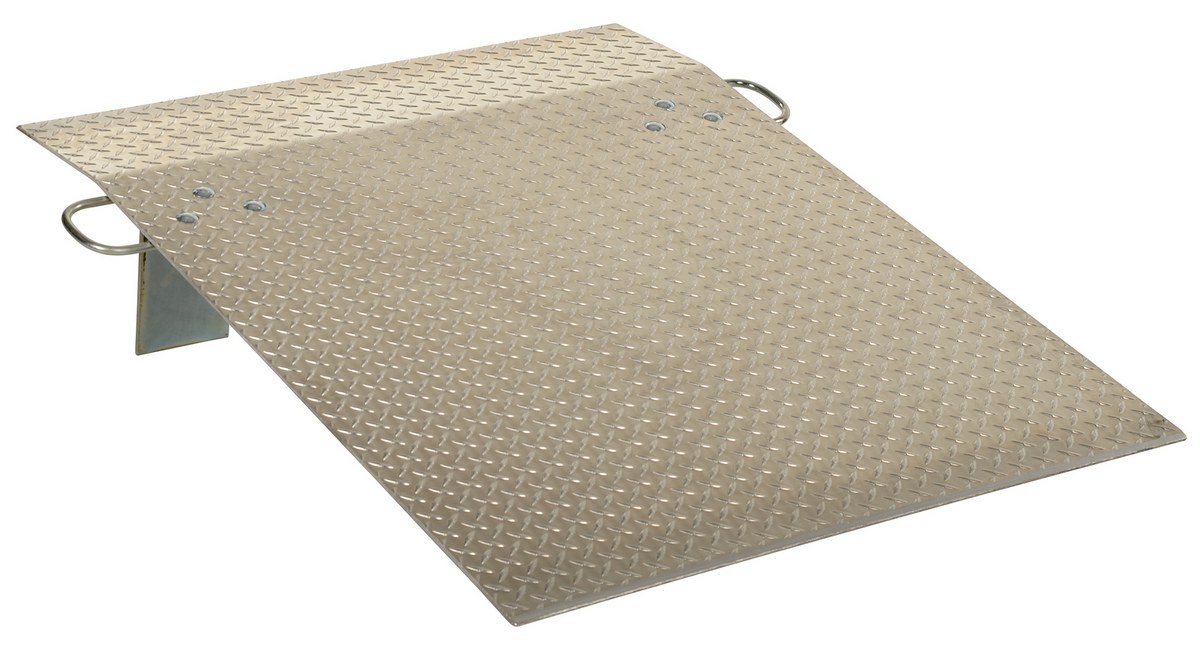

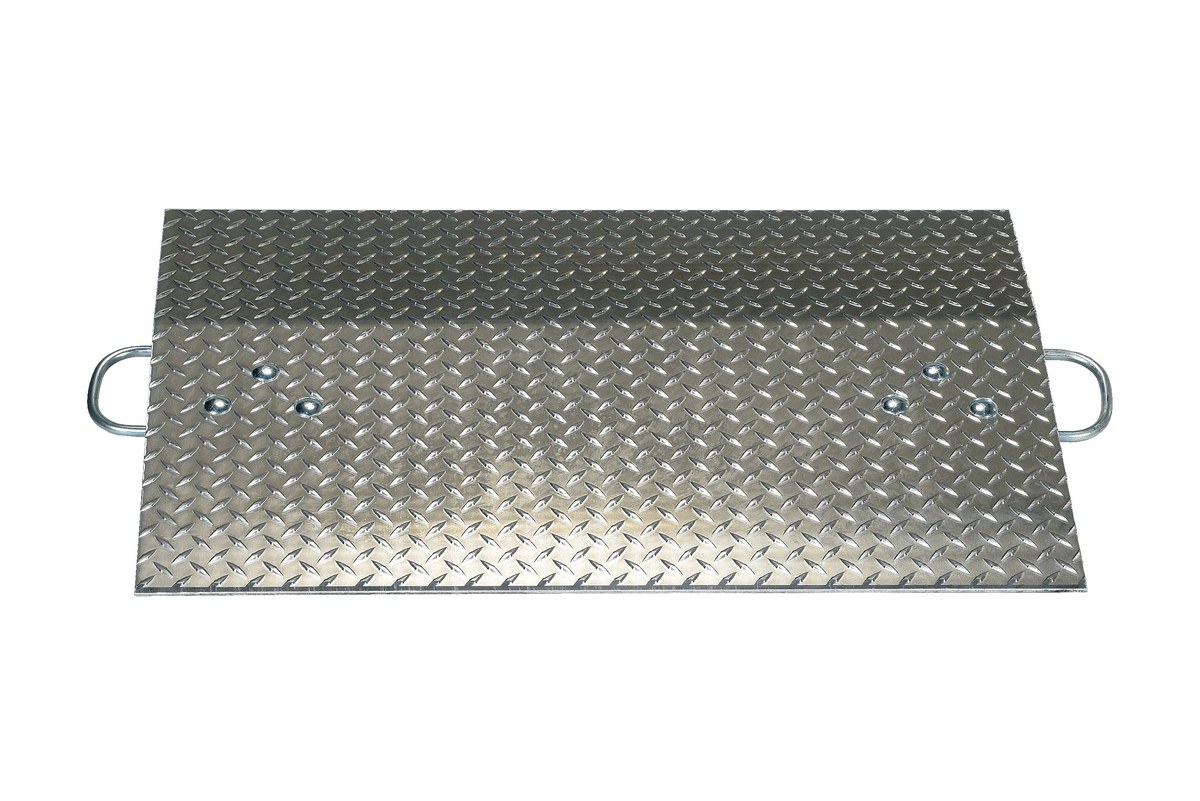

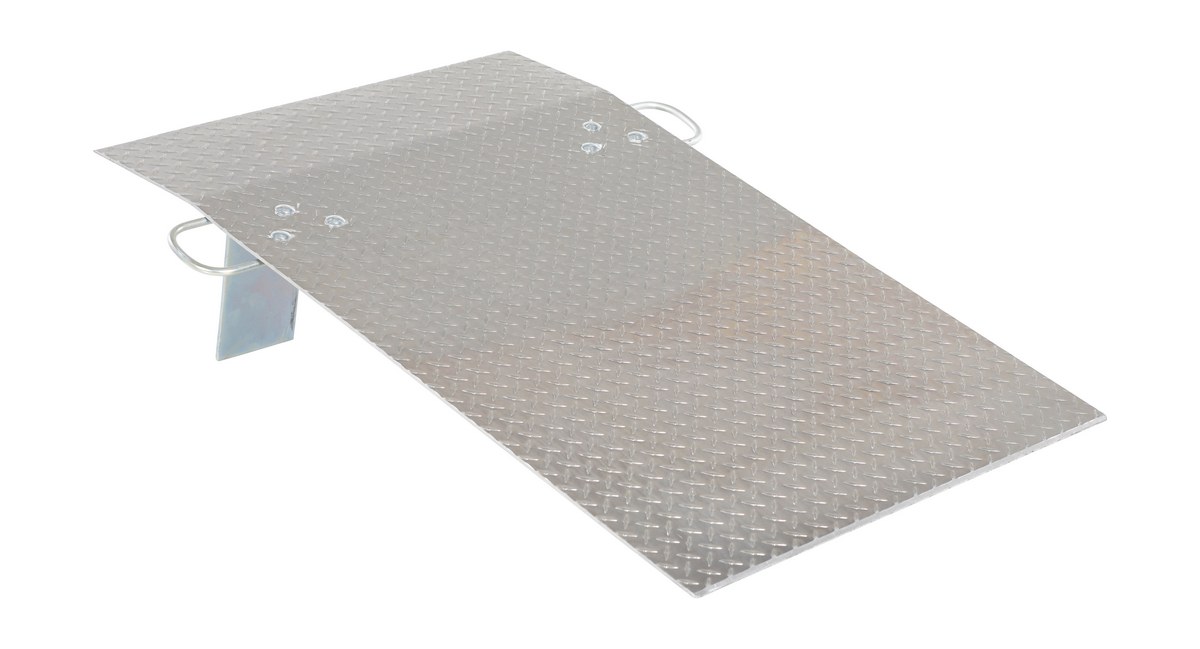

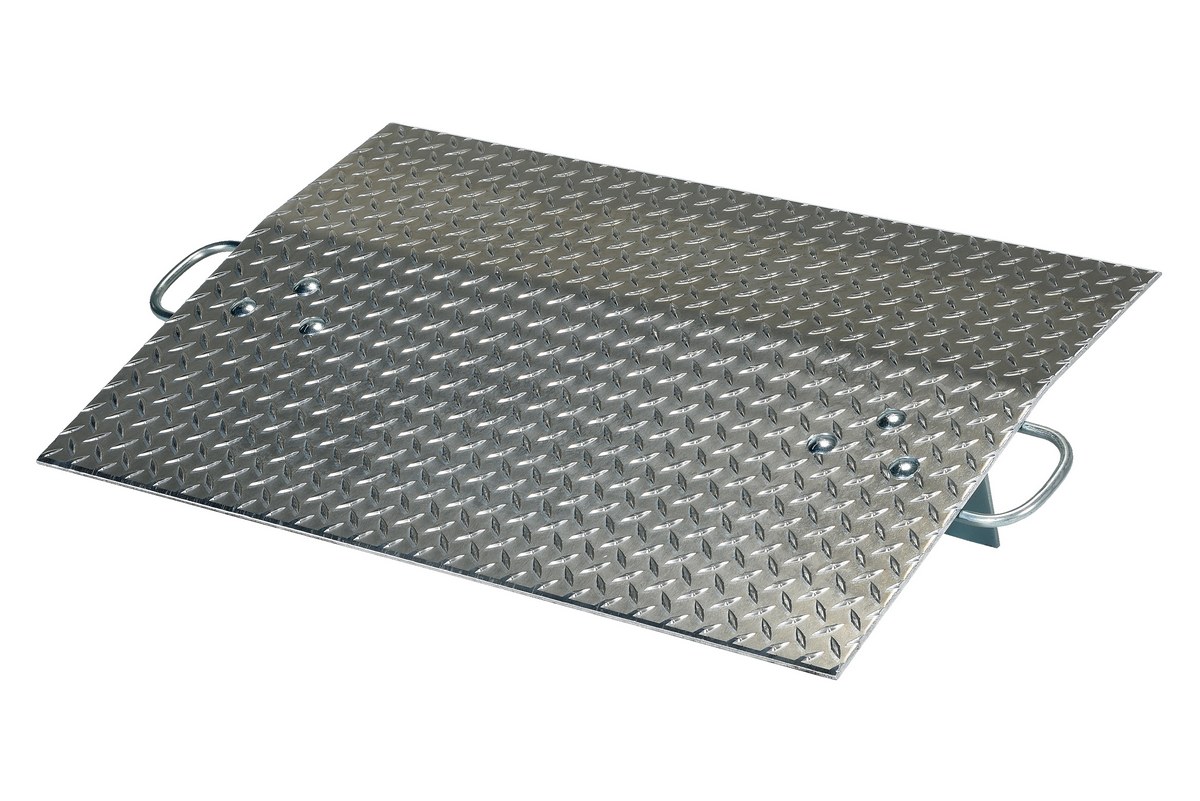

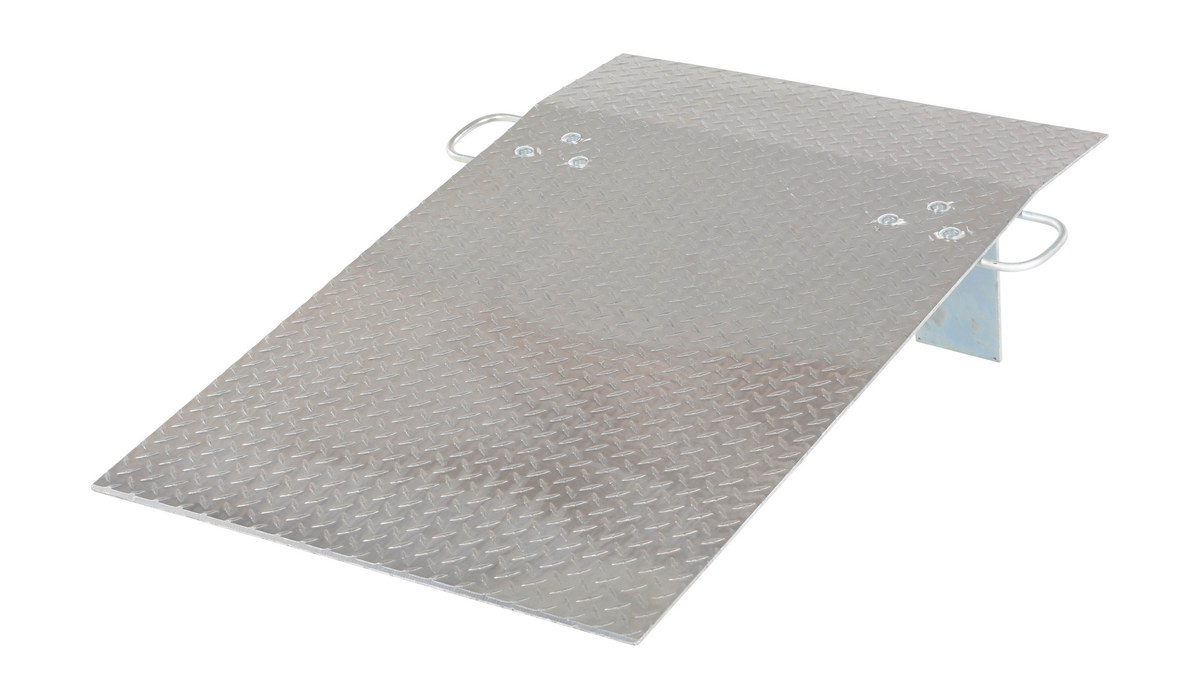

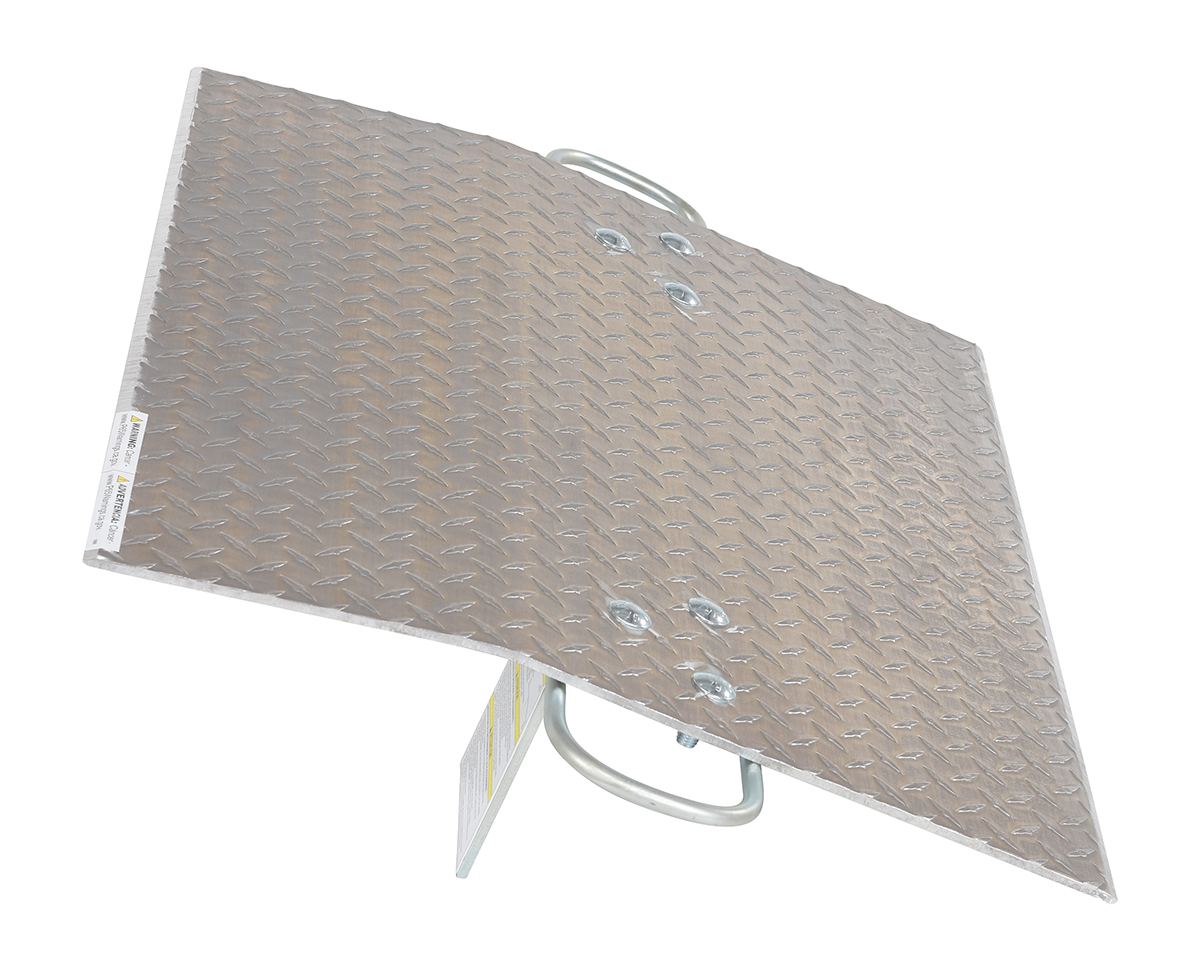

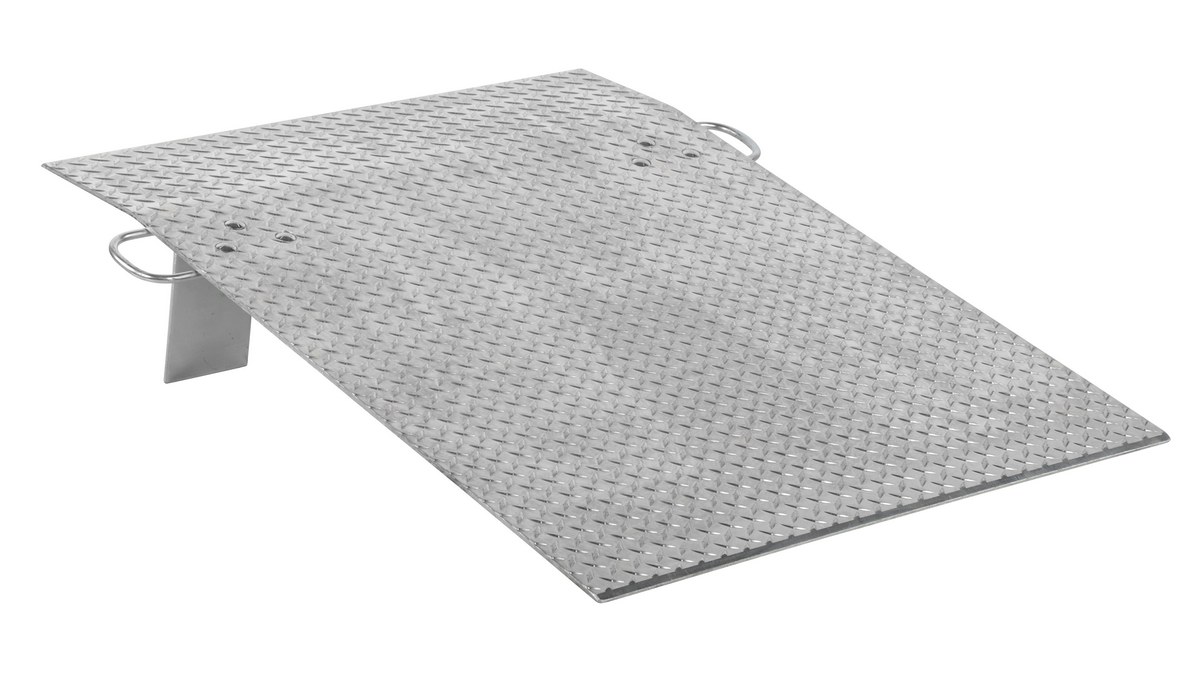

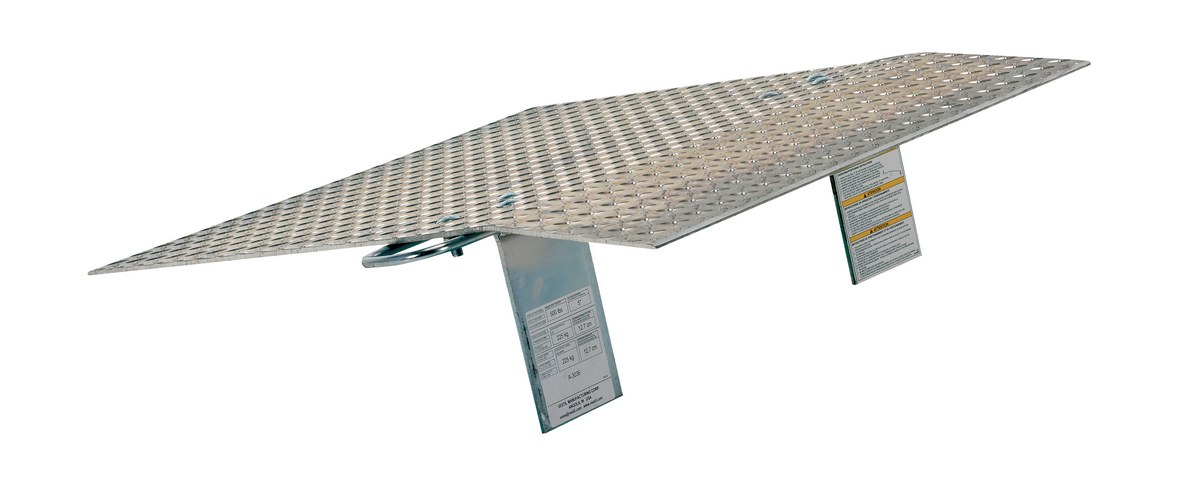

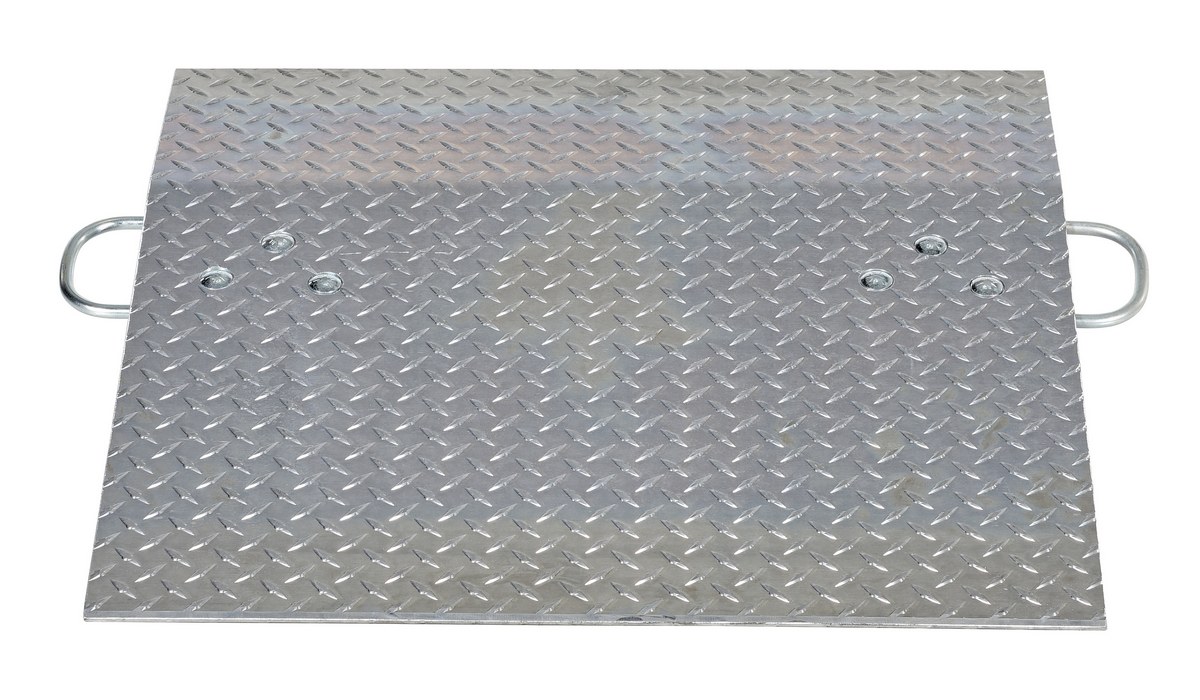

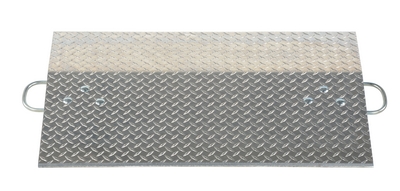

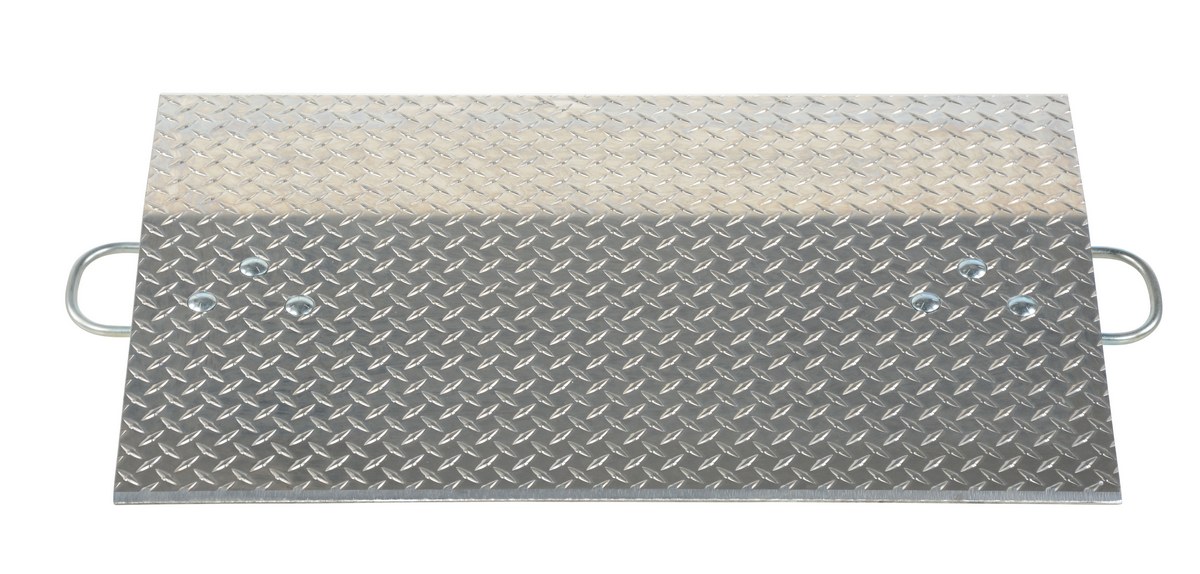

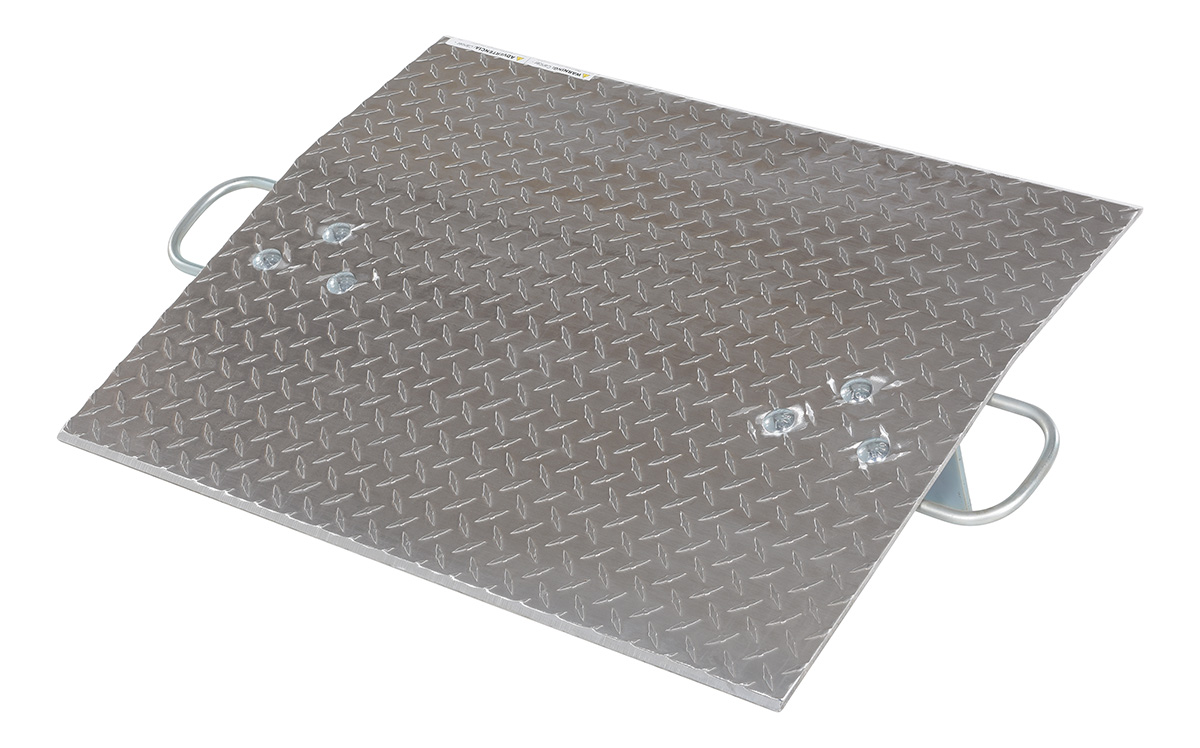

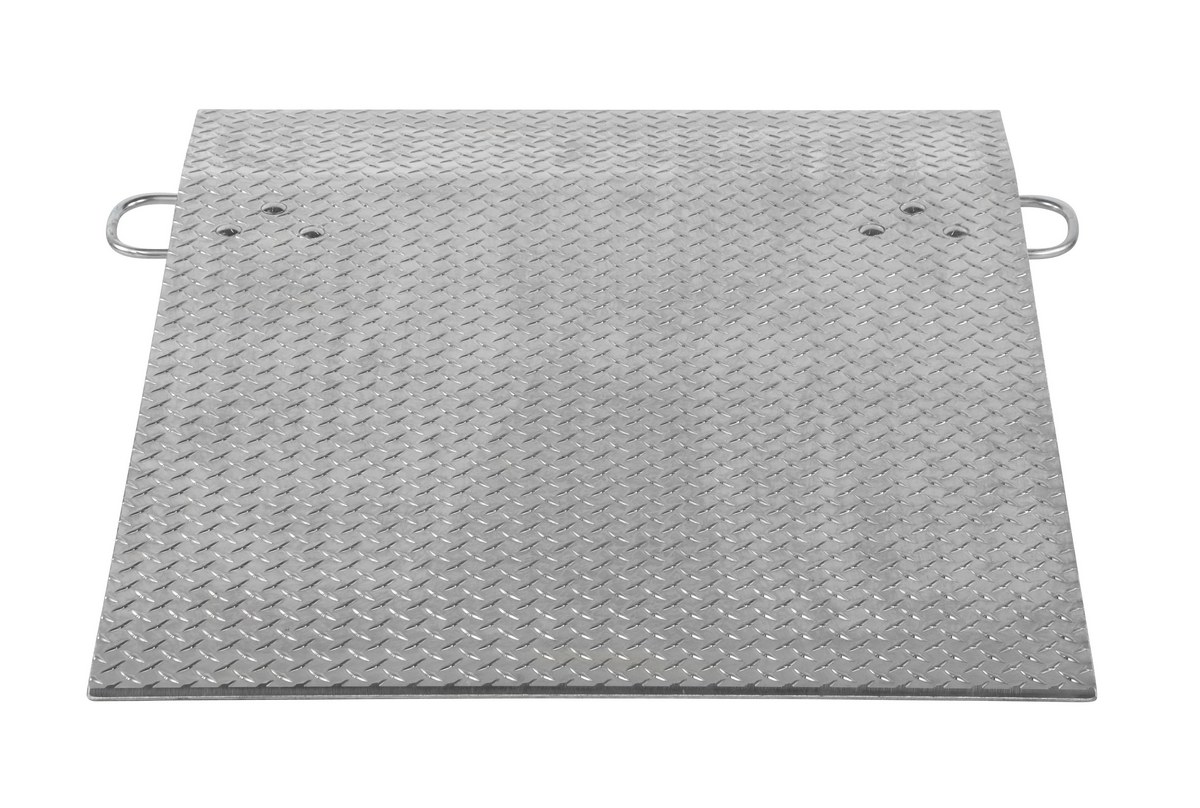

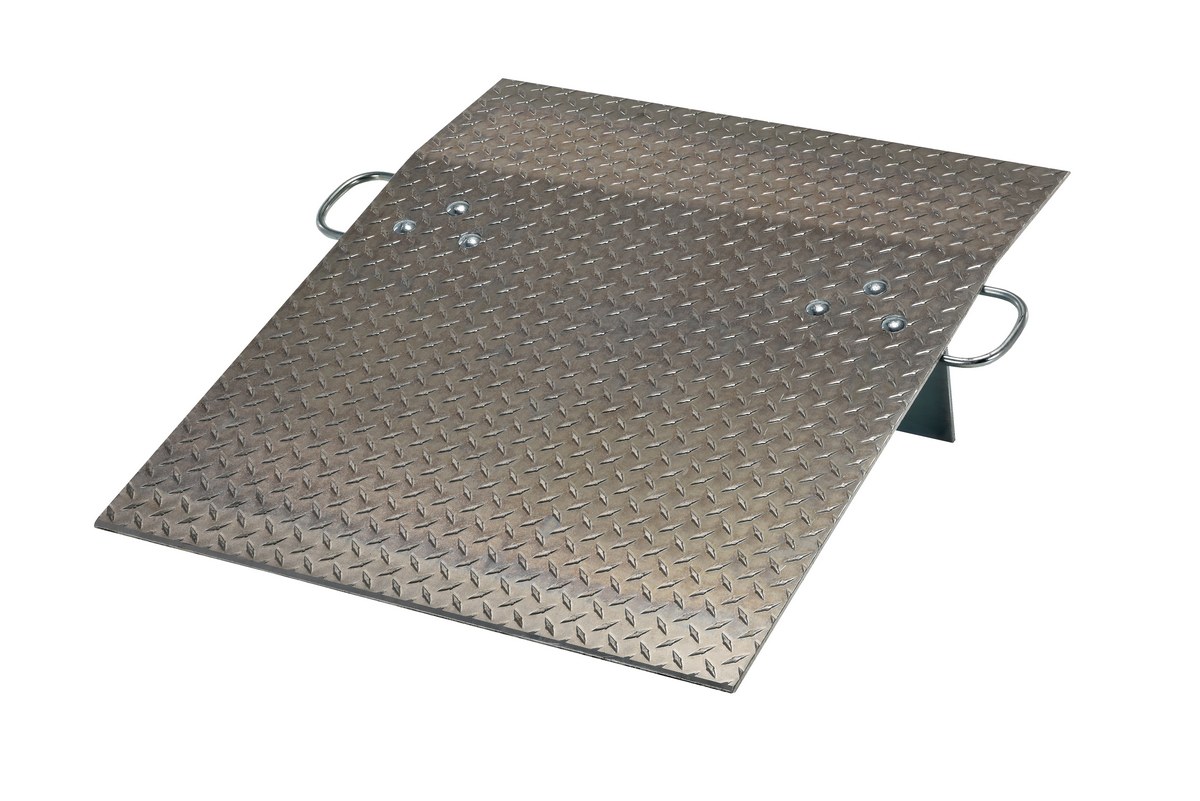

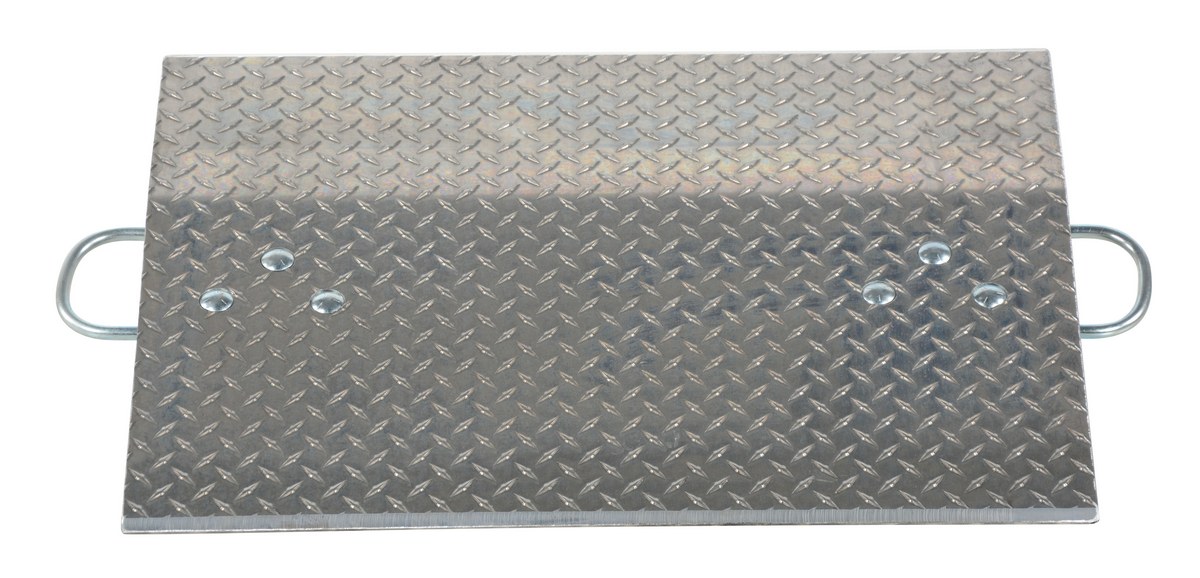

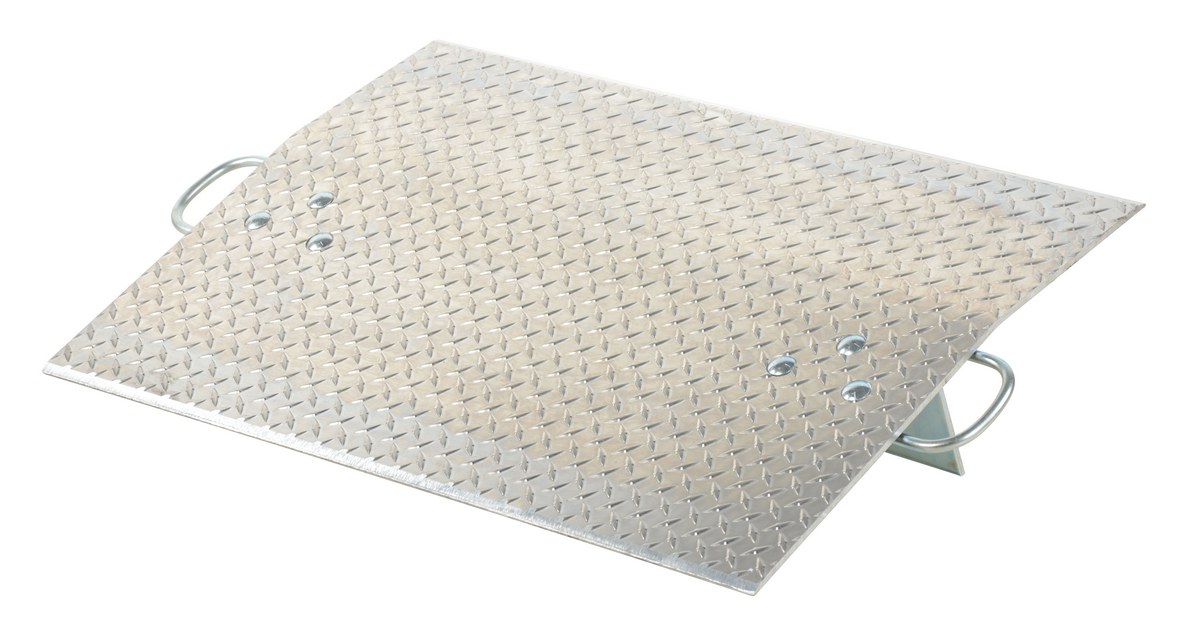

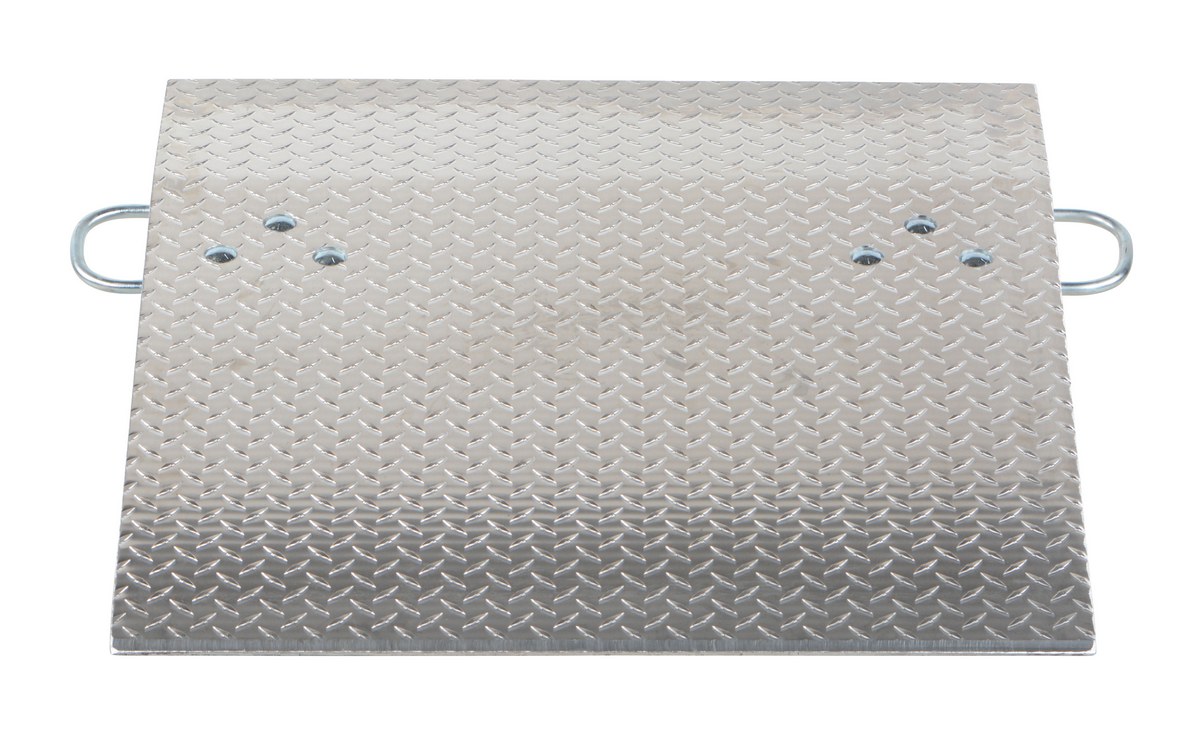

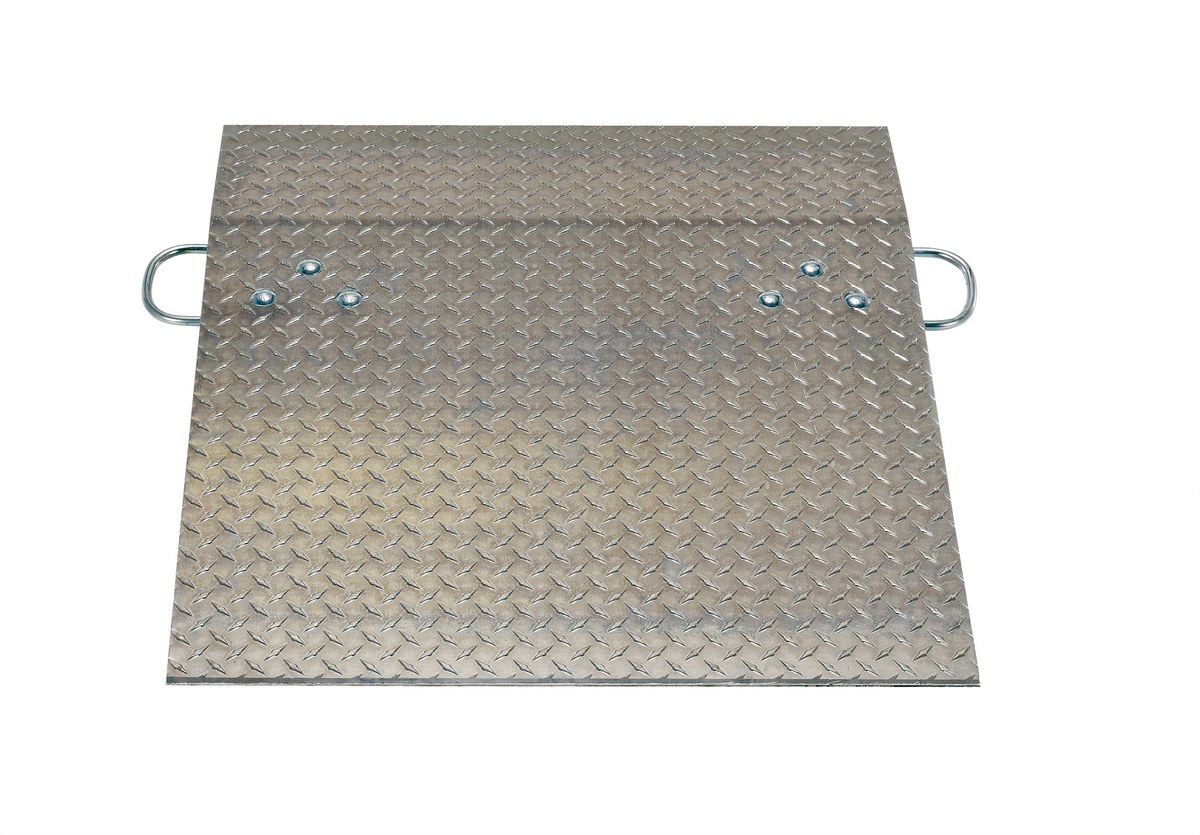

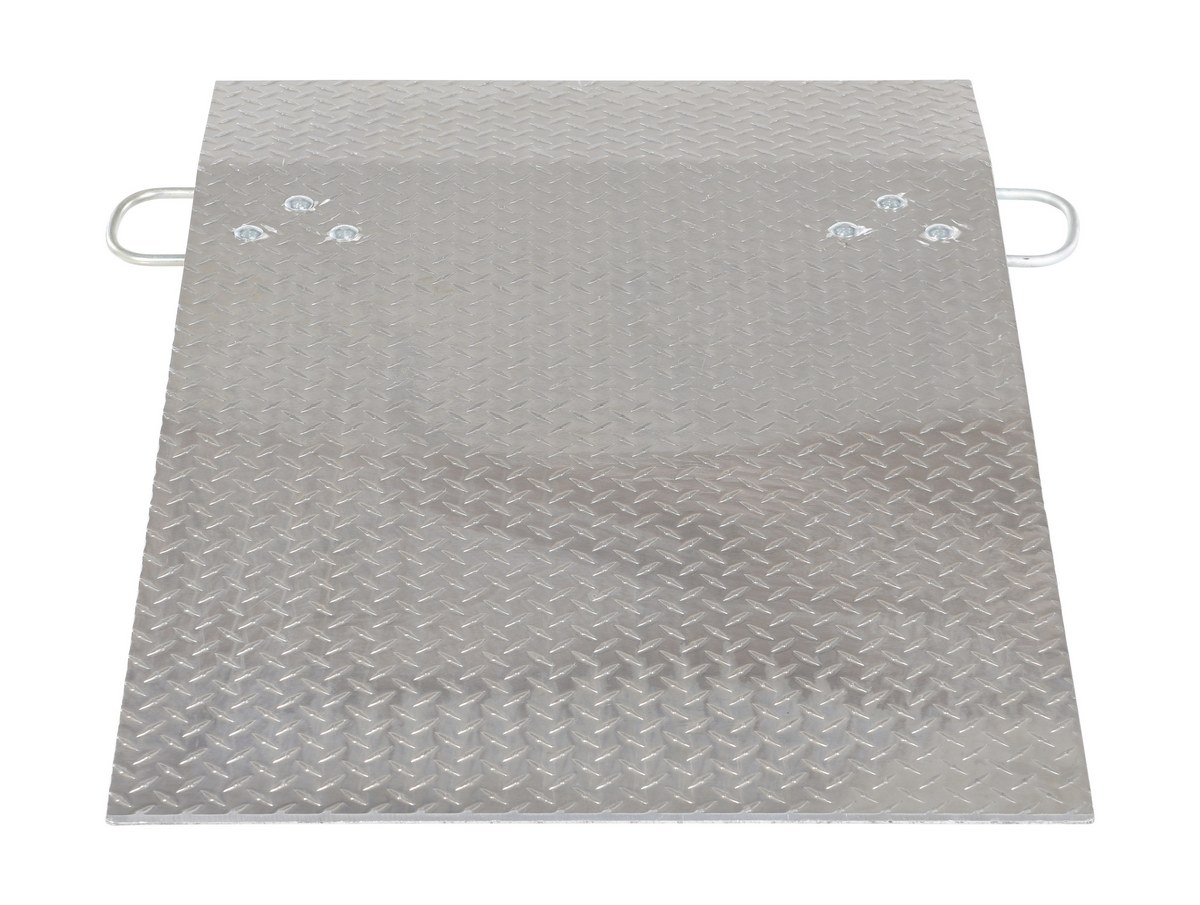

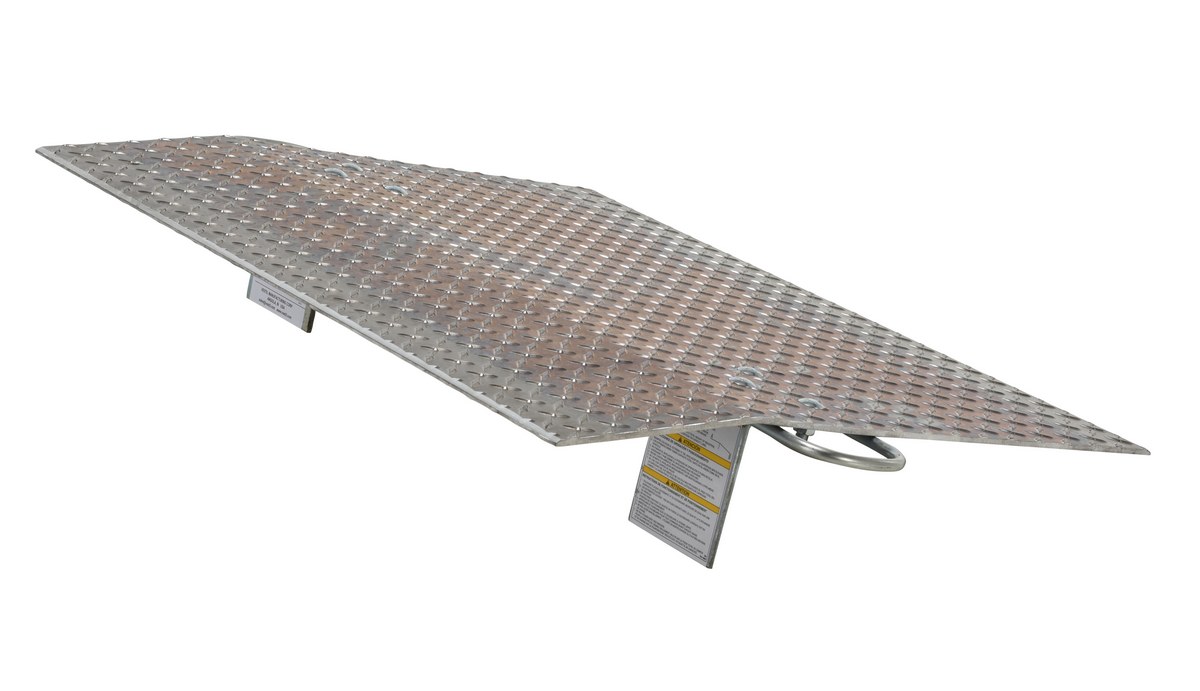

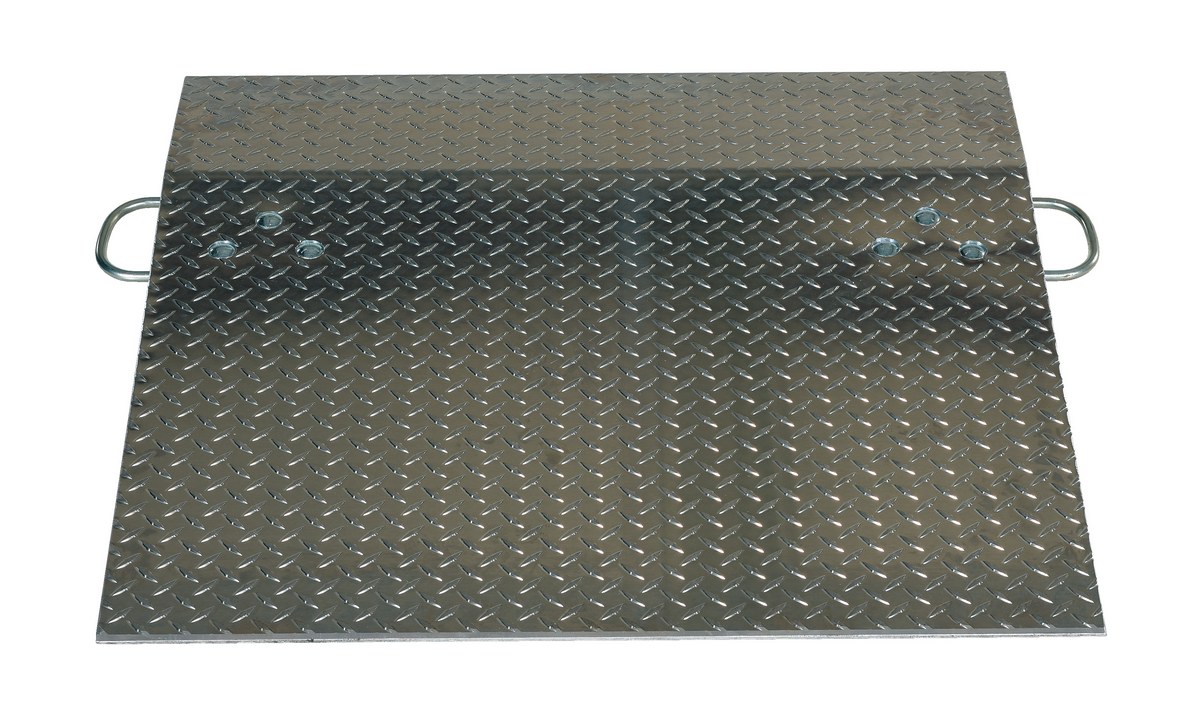

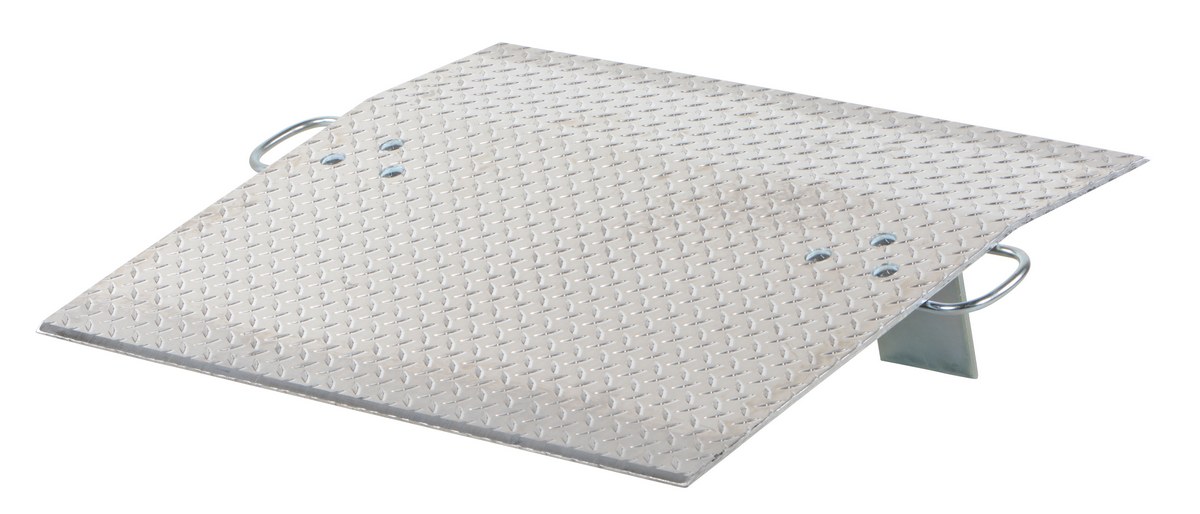

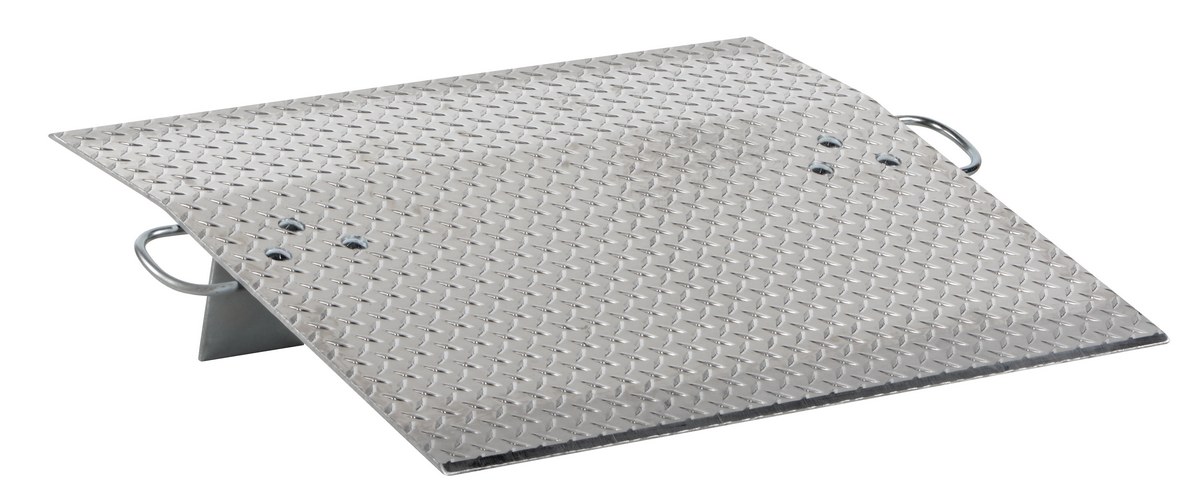

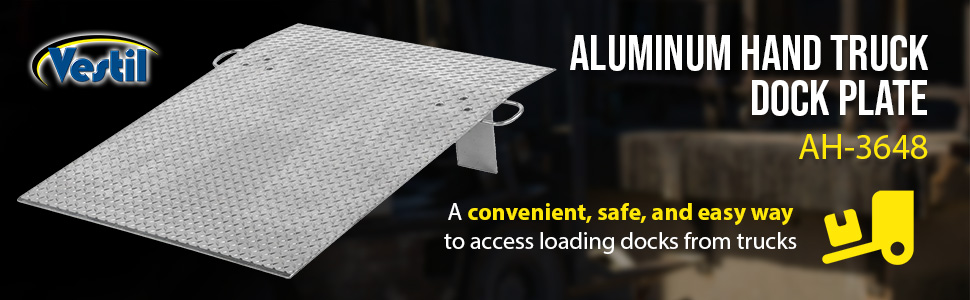

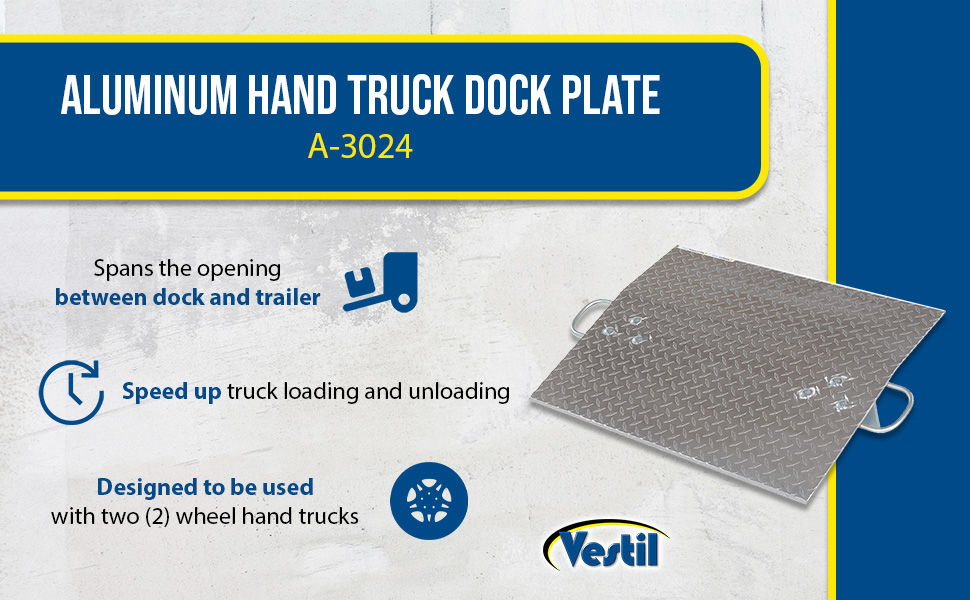

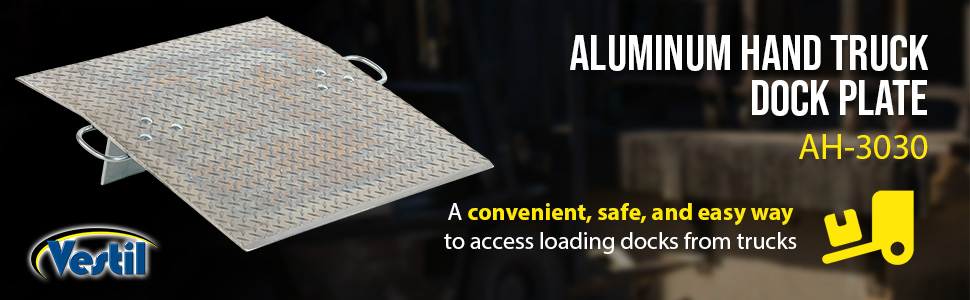

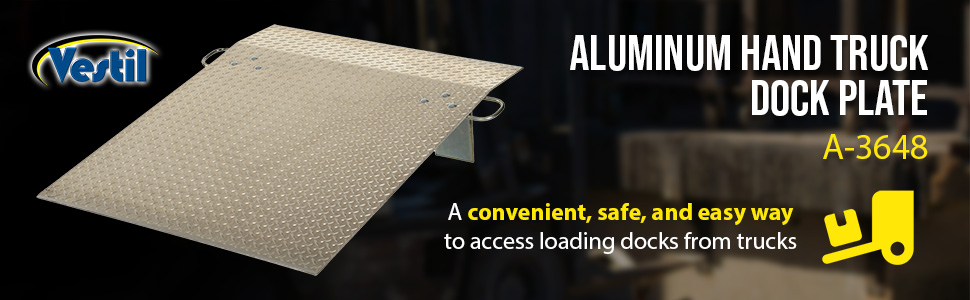

Aluminum Hand Truck Dockplates

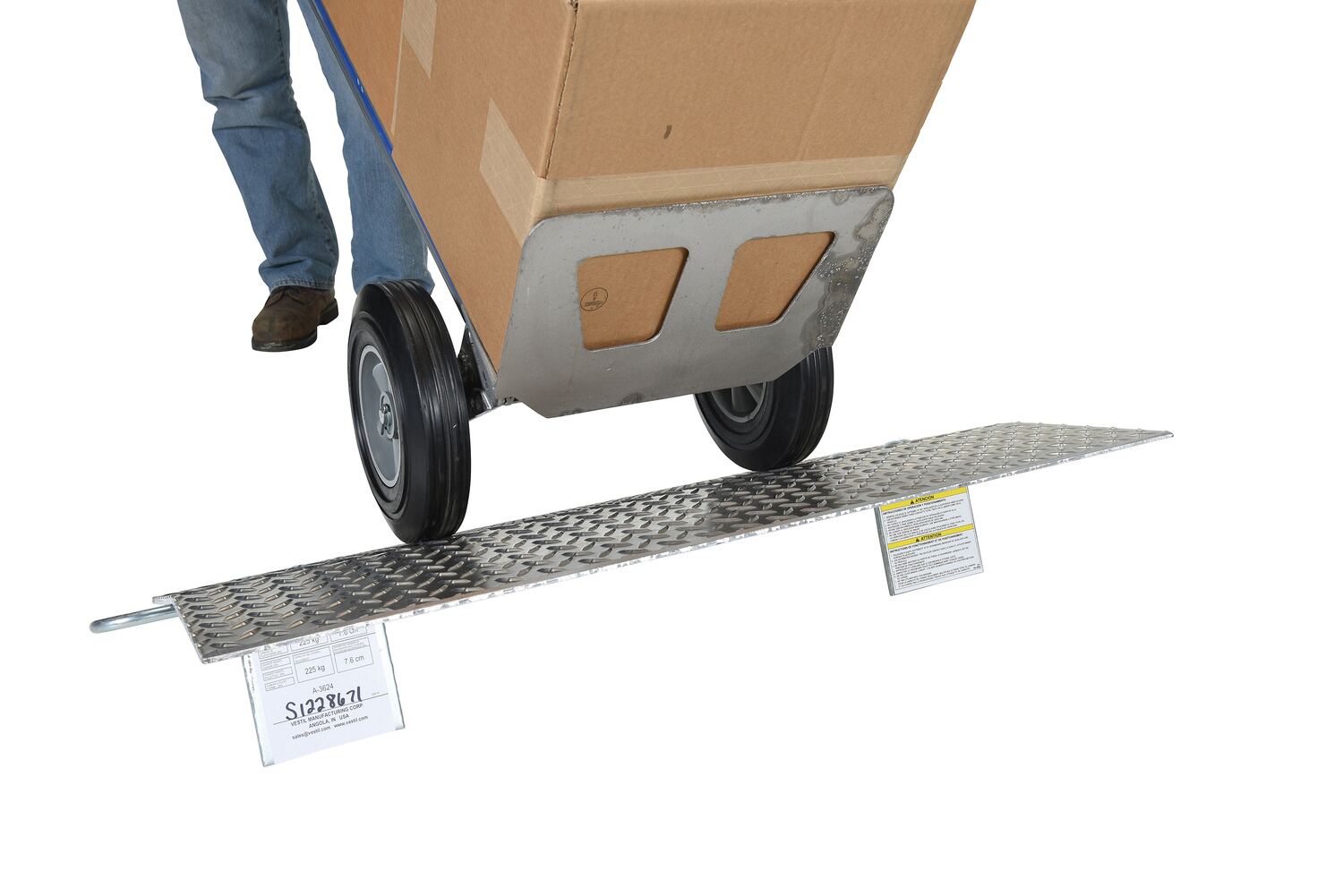

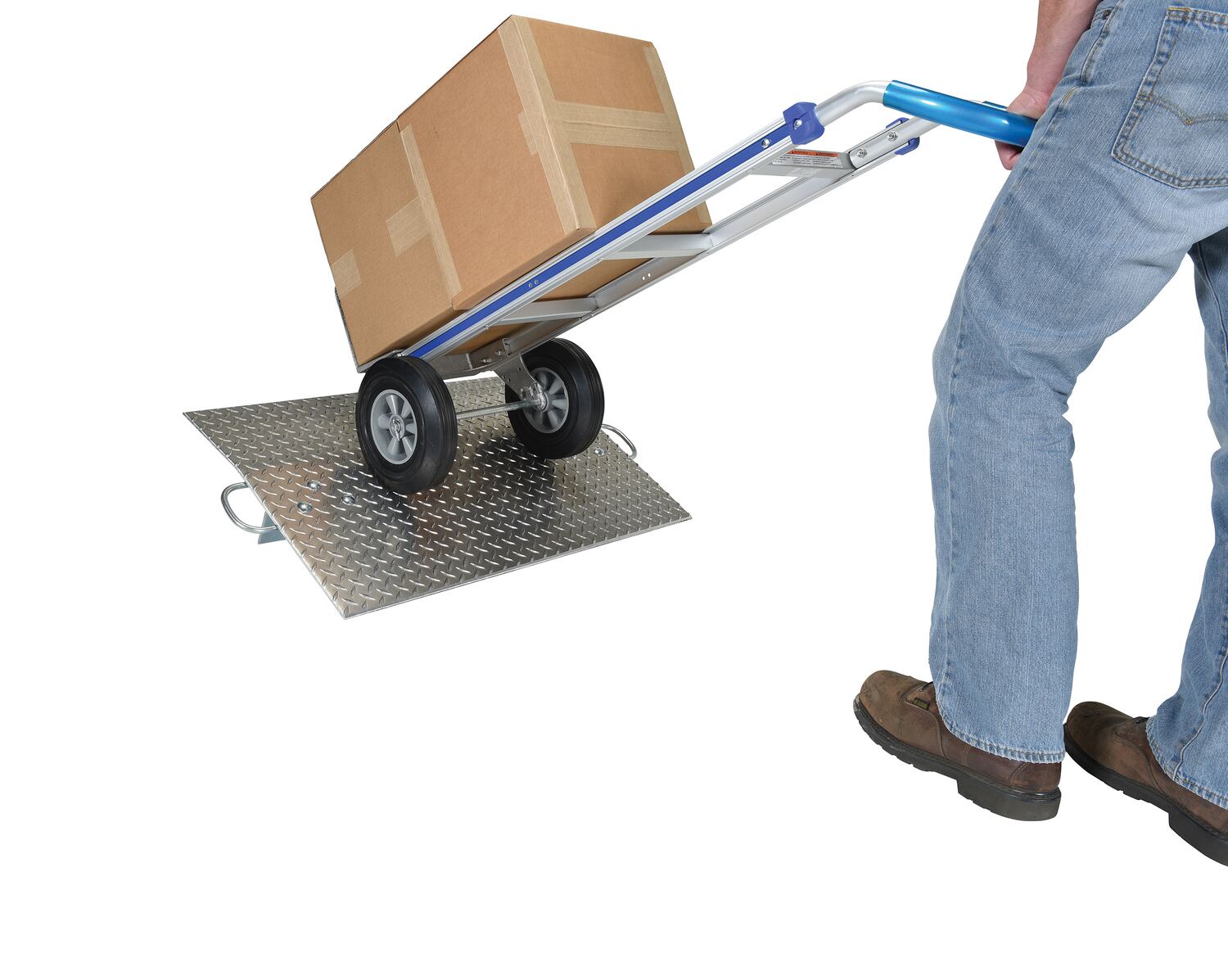

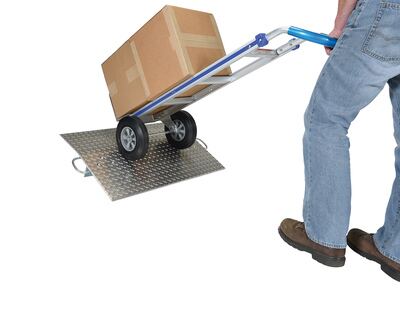

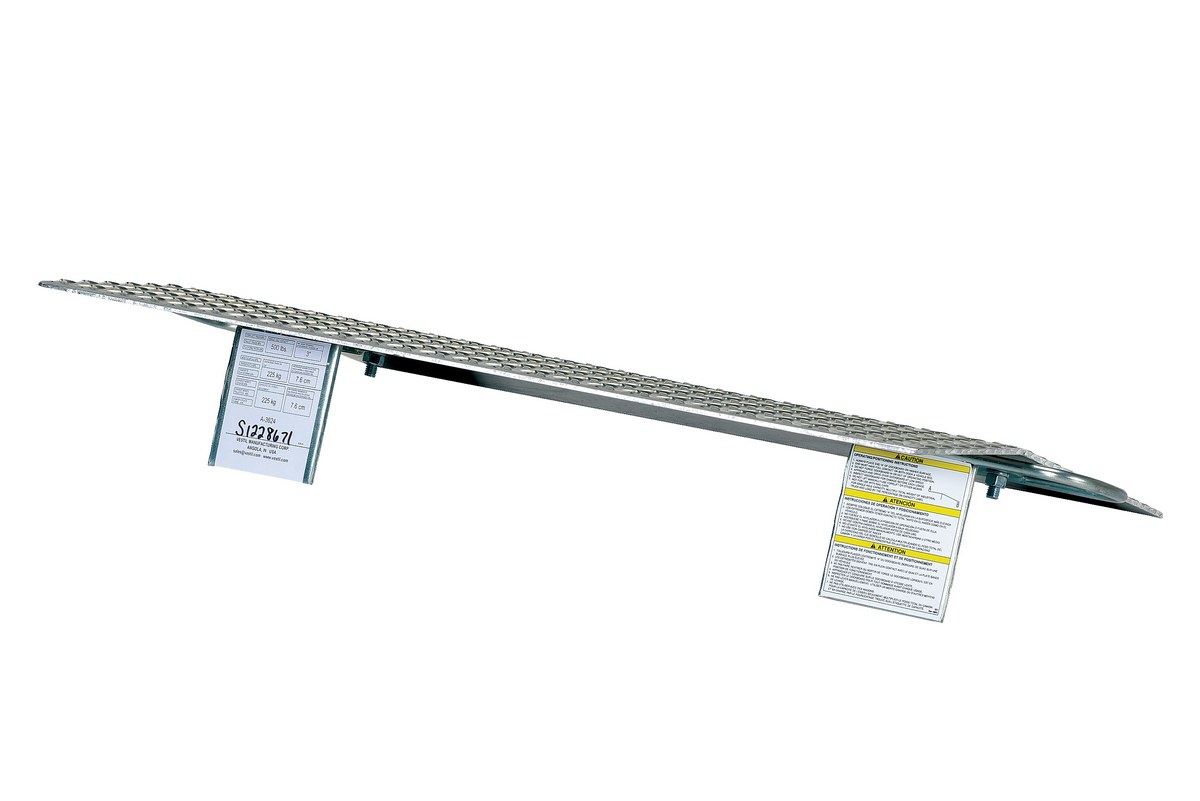

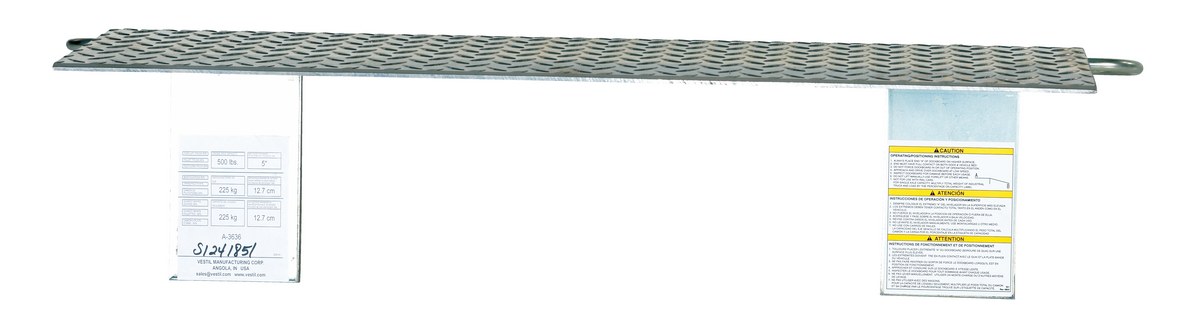

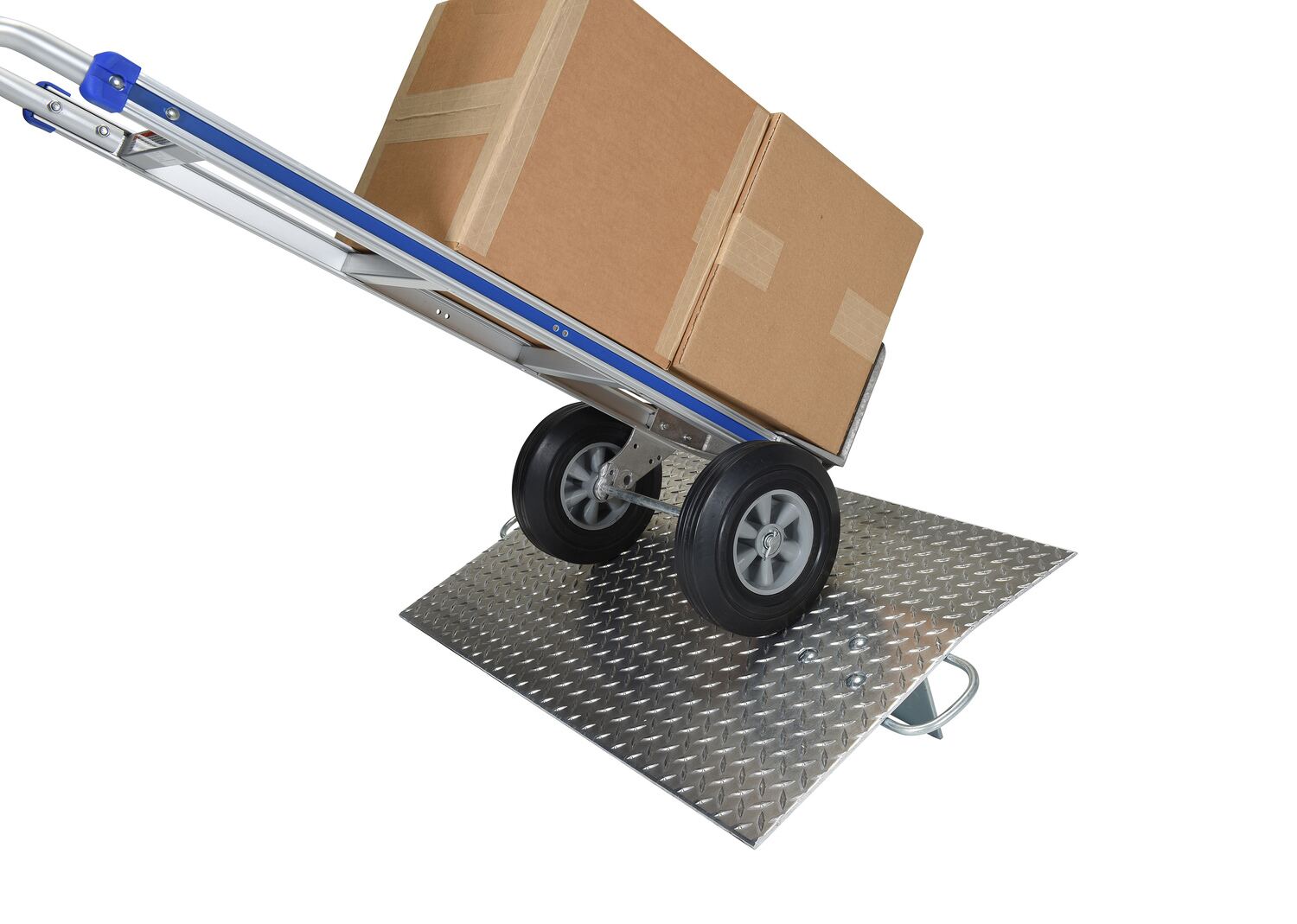

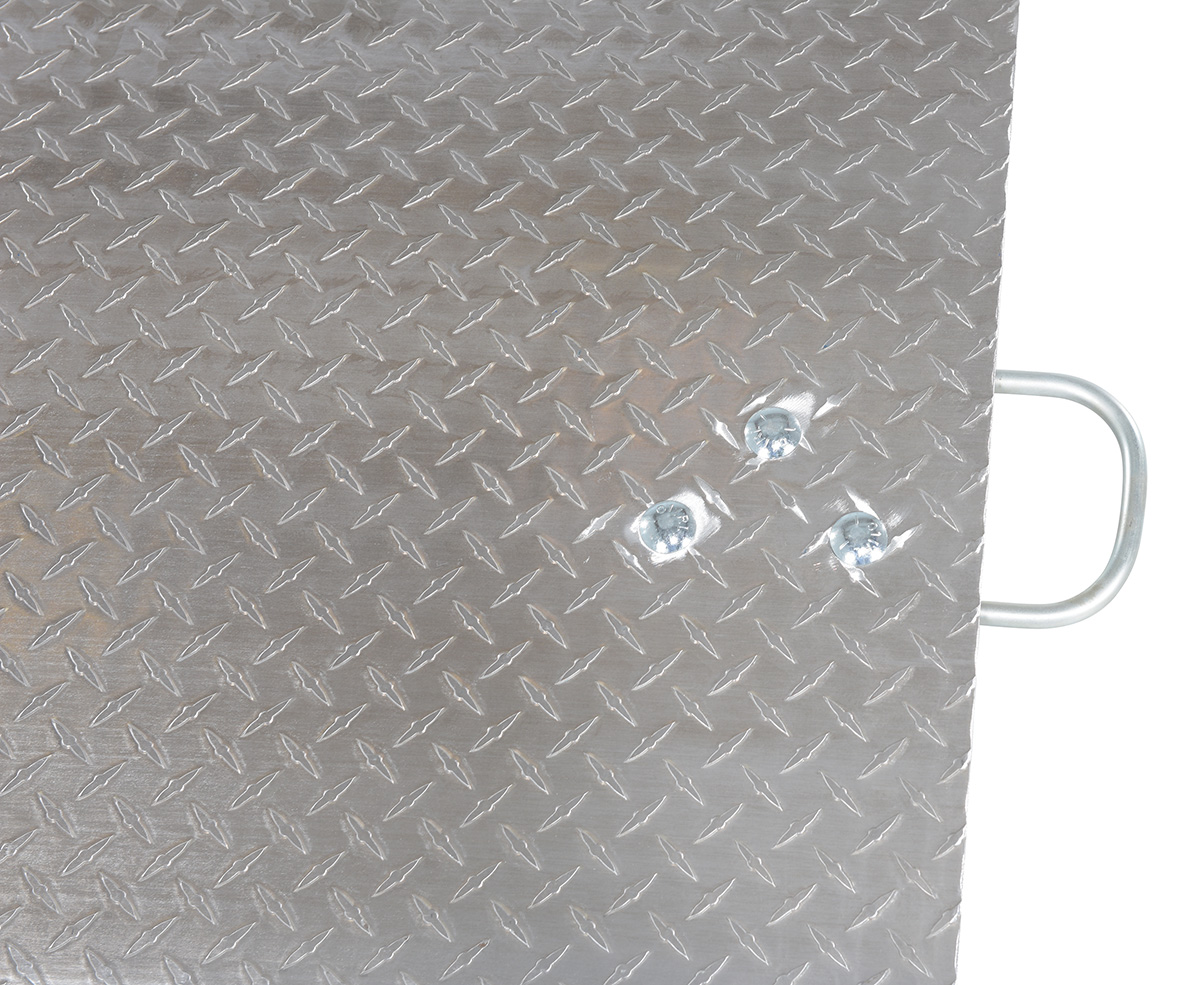

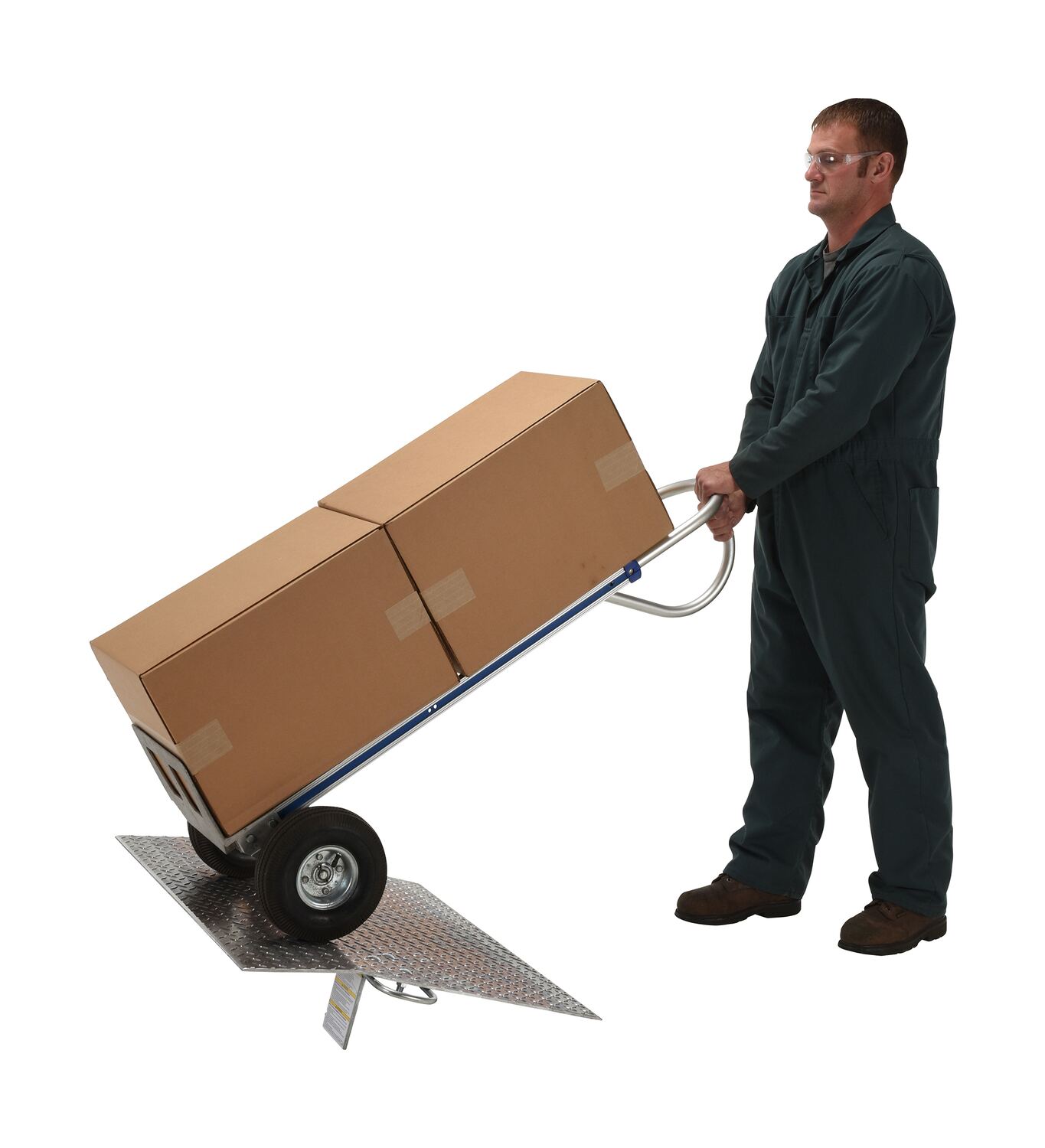

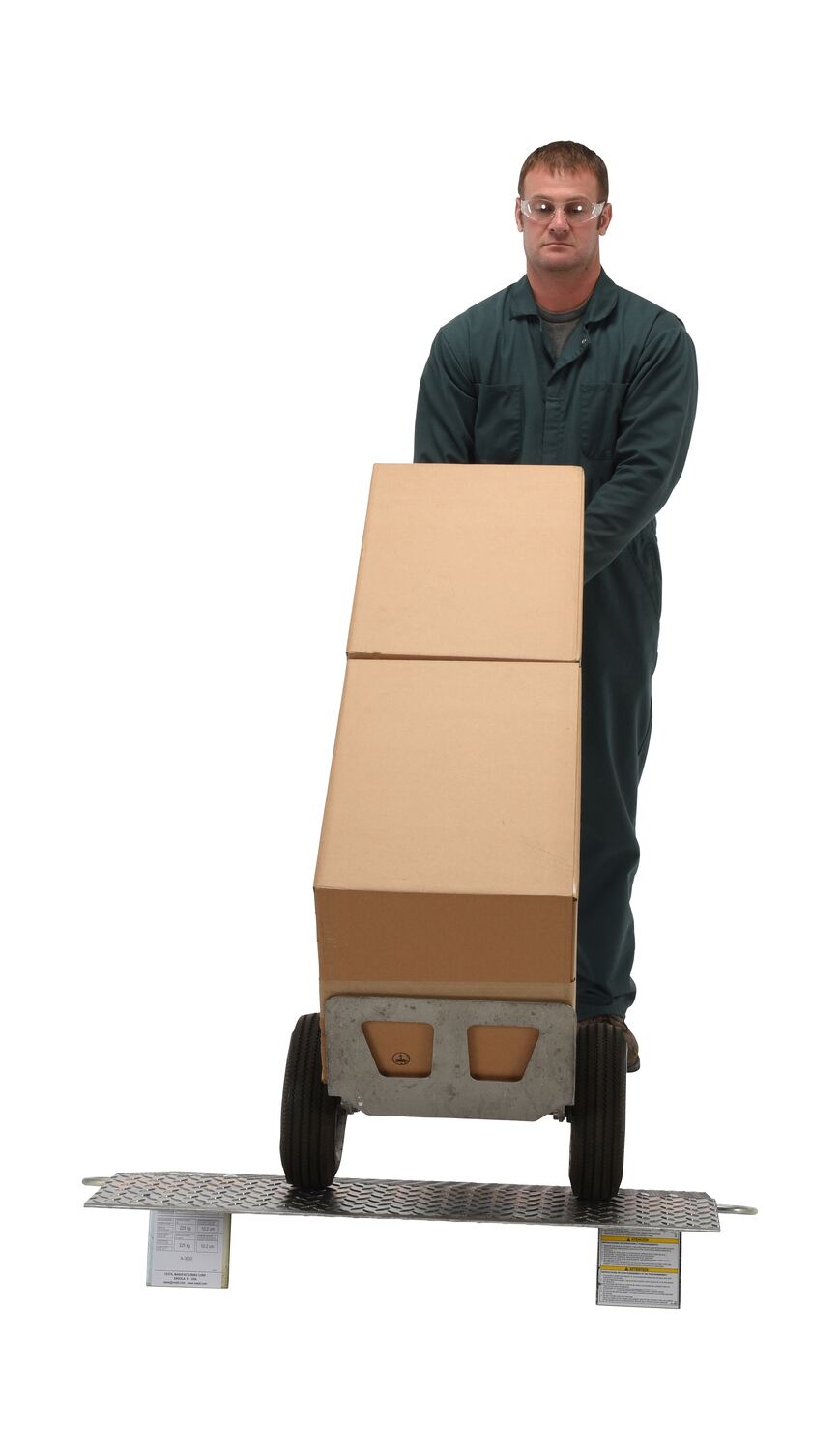

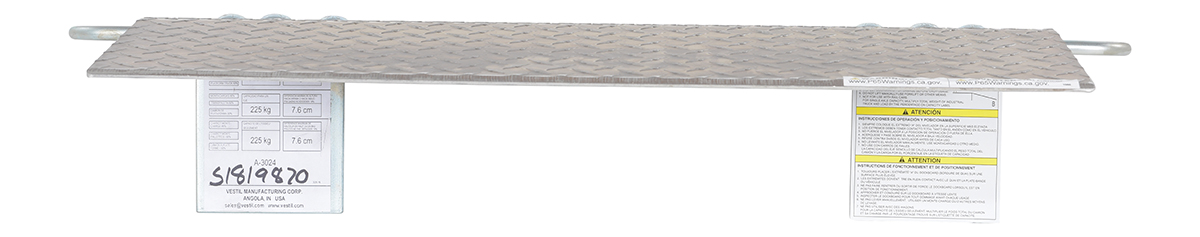

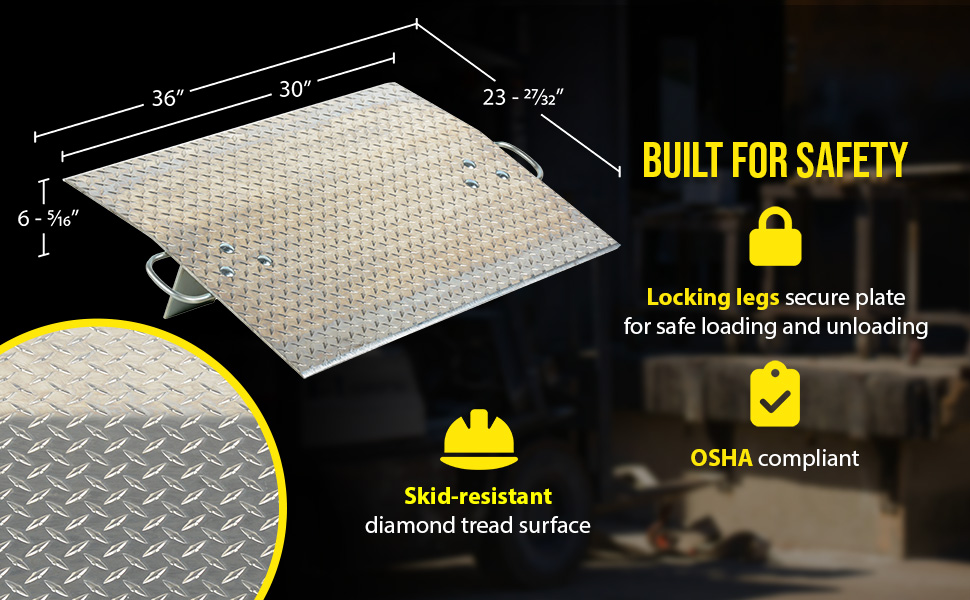

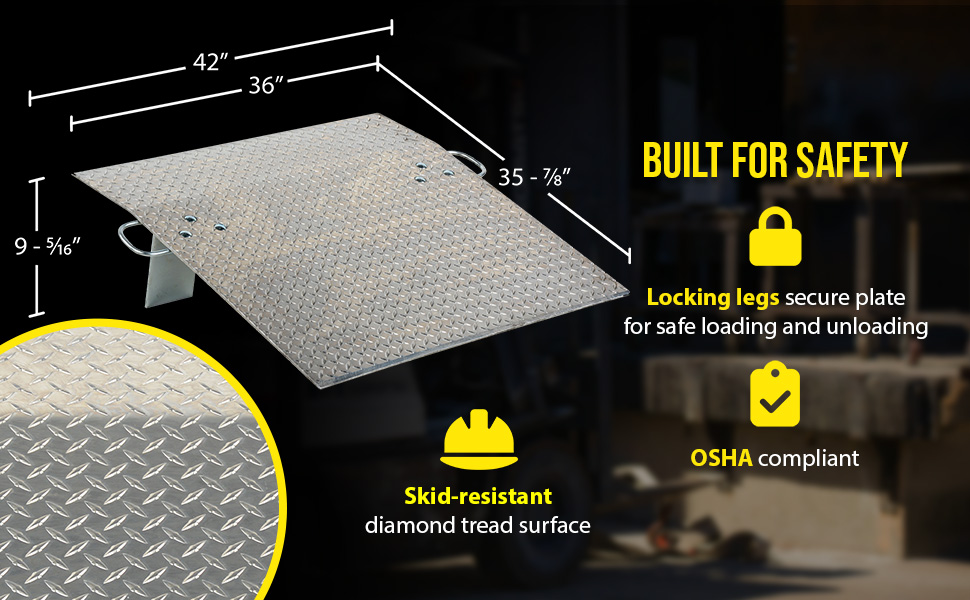

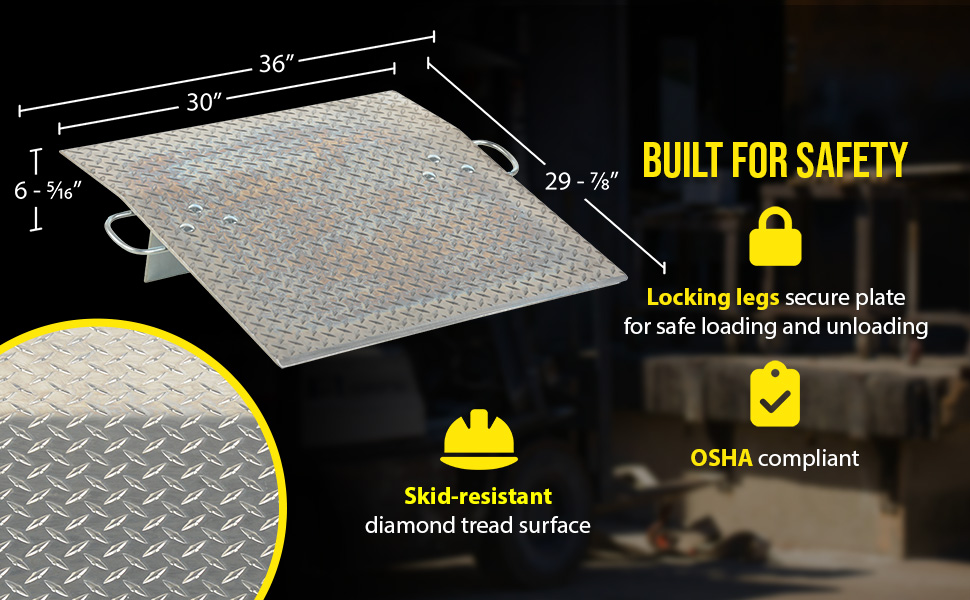

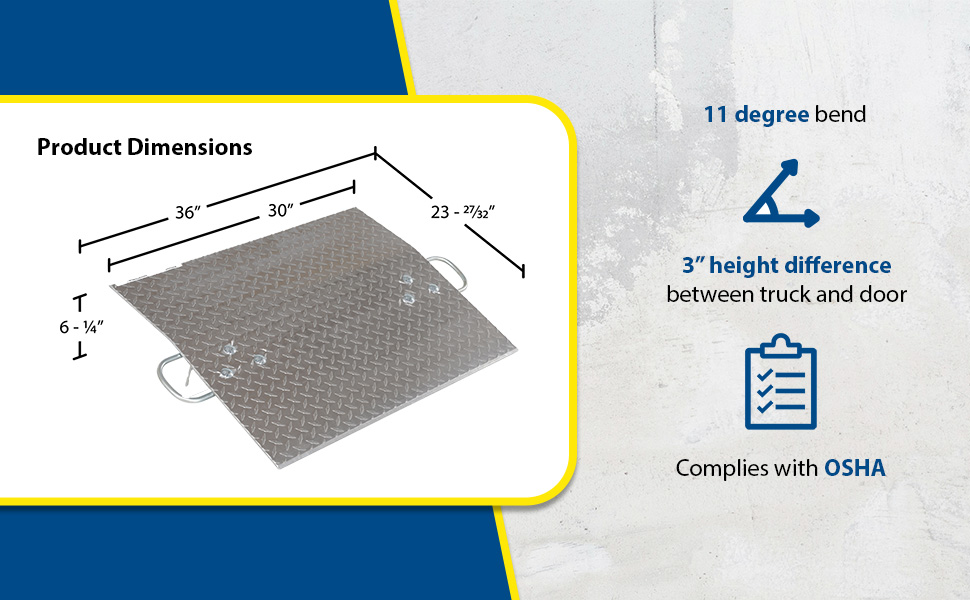

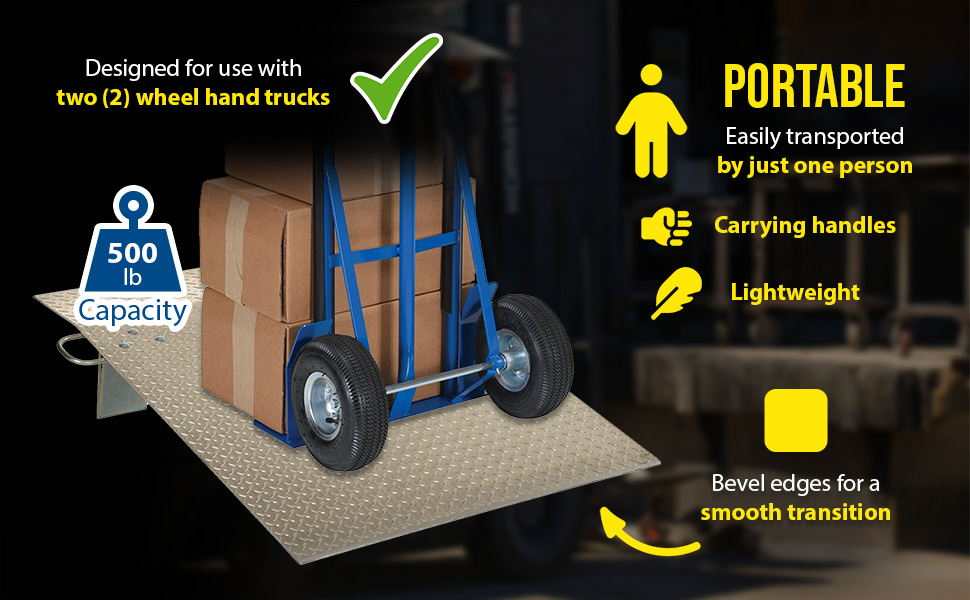

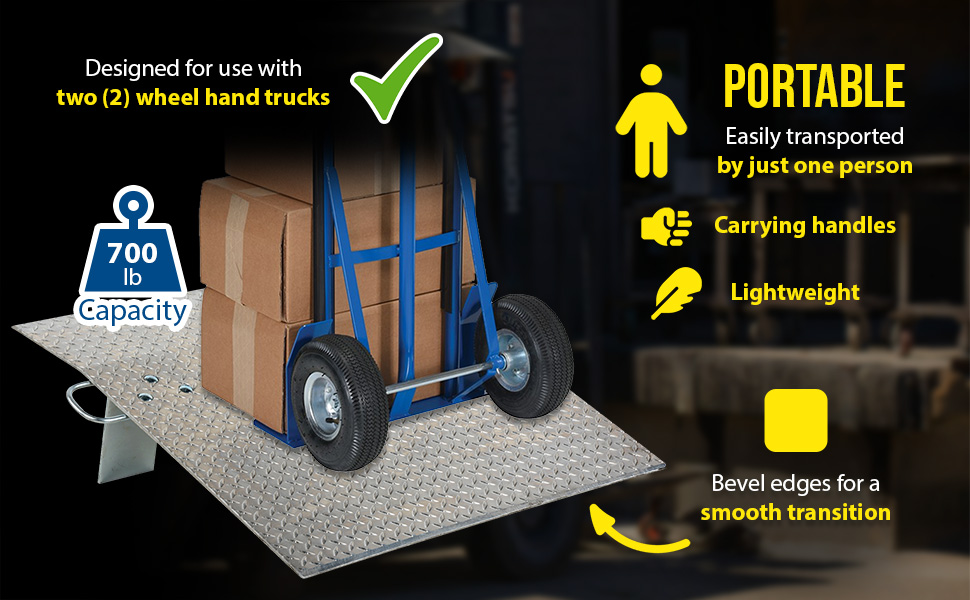

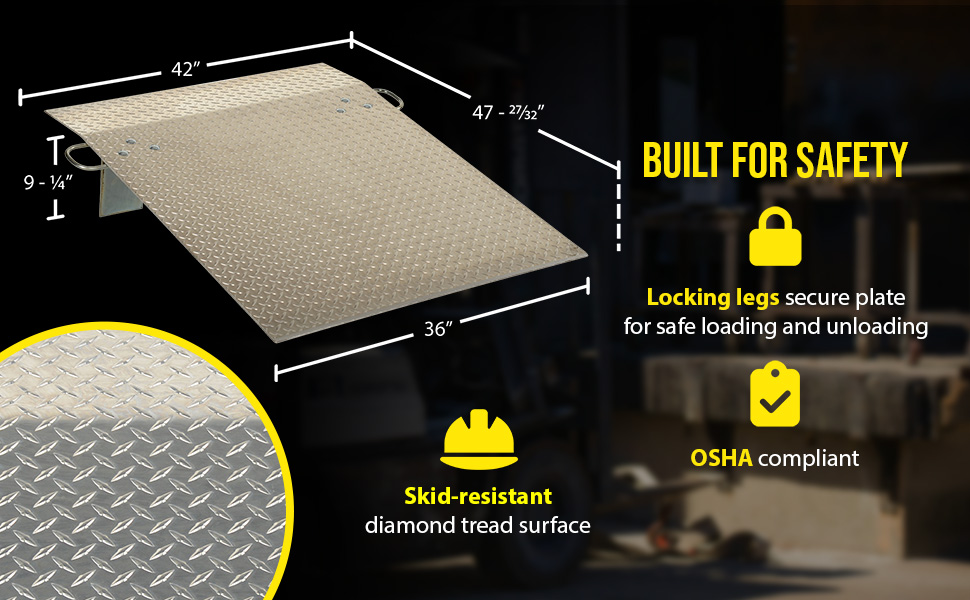

Designed for use with two wheel hand trucks. A convenient, safe and easy way to access loading docks from trucks. Lightweight and easily portable by just one person. Treadplate surface ensures skid-resistant safe traction. Locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs. The bend or crown is 11 degrees and located 9" from edge of dockplate.


Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

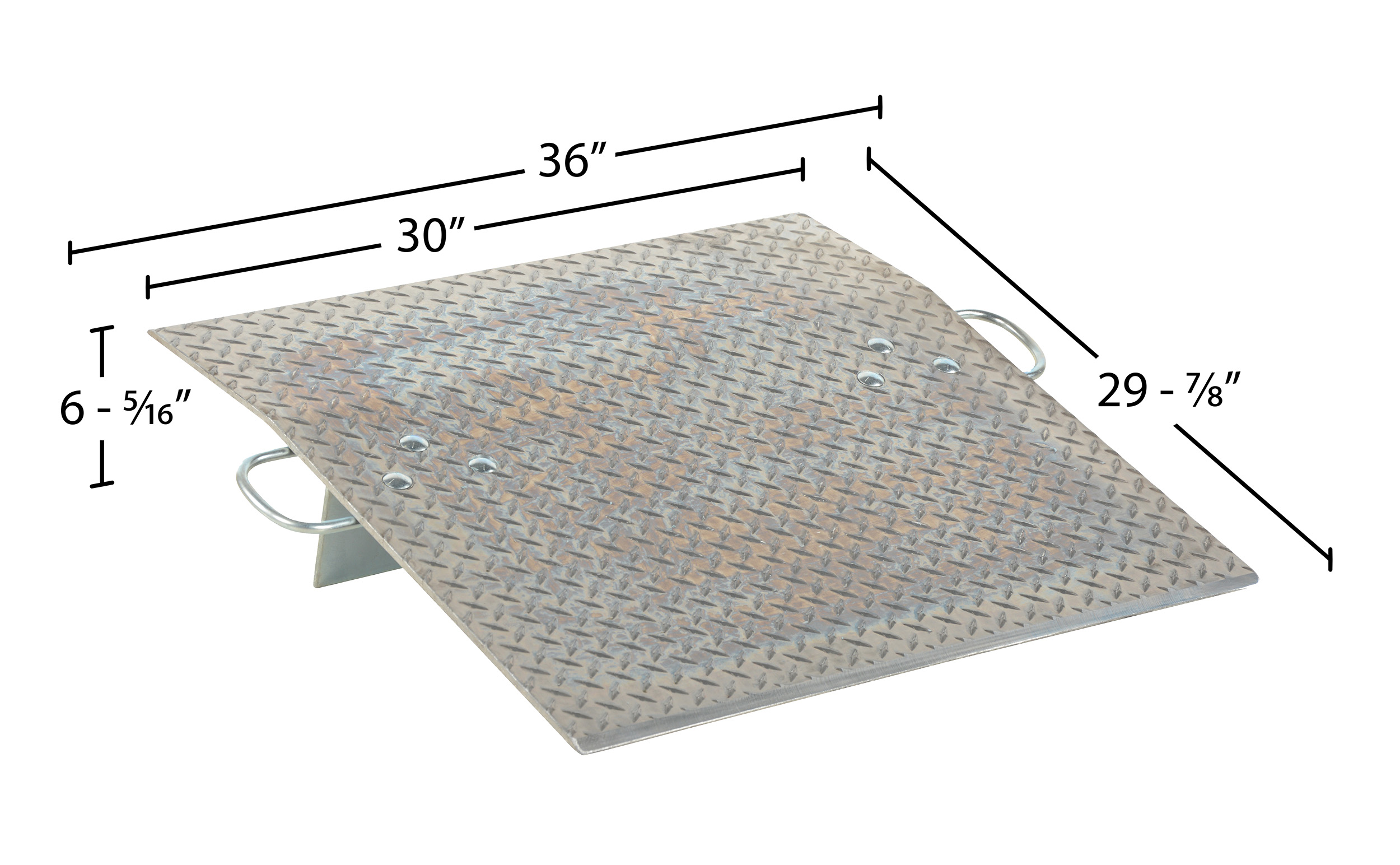

Model Number & Specs Table

Aluminum Hand Truck Dockplates
Model PDFs Plate
Width
Plate
Length
Height
Diff.
Capacity
(lbs)
Wt.
(lbs)

1/4" Plate Thickness

A-3024 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" 24" 3" 500 28
A-3030 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" 30" 4" 500 33
A-3036 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" 36" 5" 500 40
A-3048 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" 48" 7" 500 44

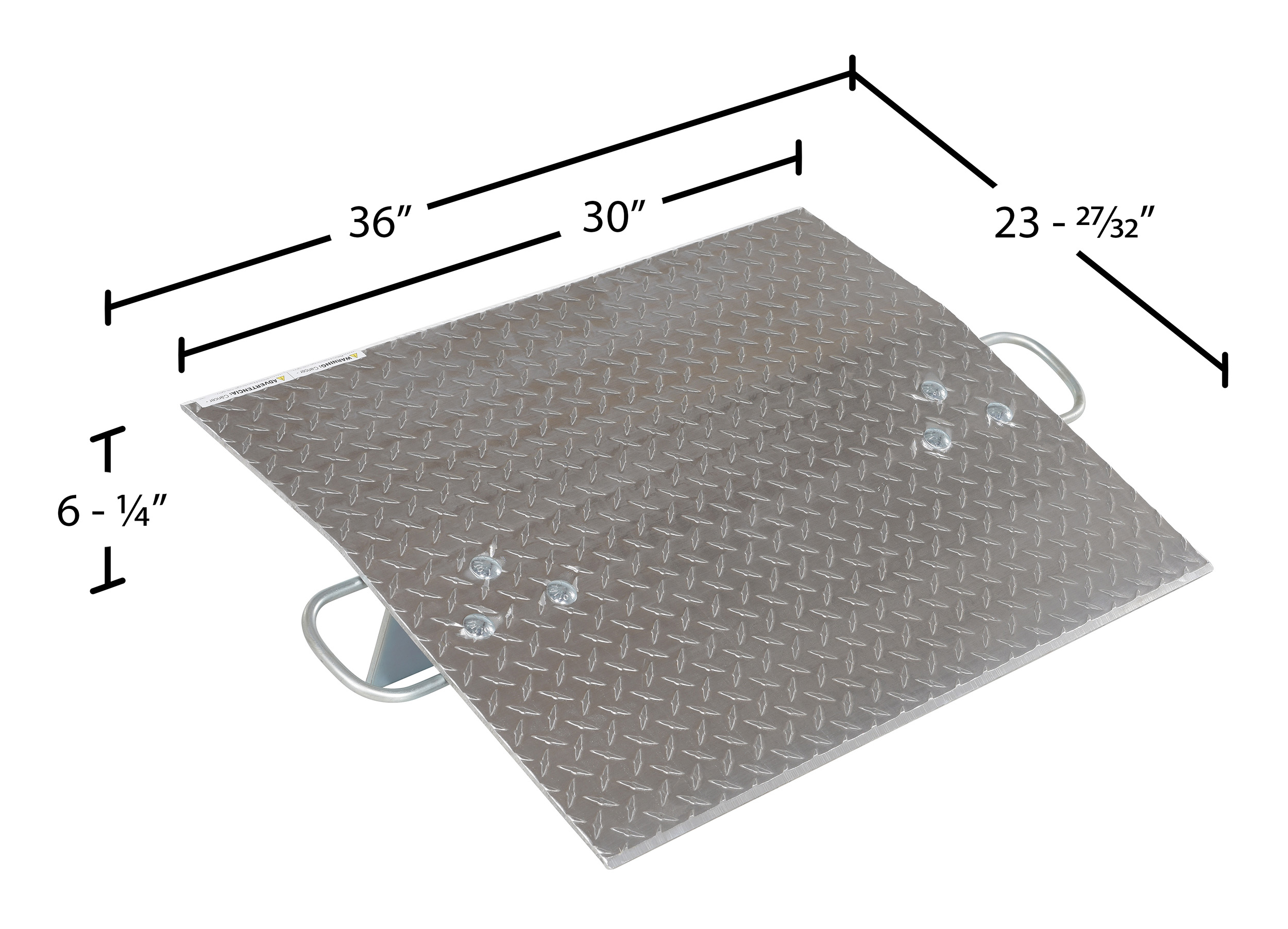

A-3624 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 24" 3" 500 32
A-3630 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 30" 4" 500 37
A-3636 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 36" 5" 500 46
A-3648 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 48" 7" 500 55

5/16" Plate Thickness

AH-3024 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" 24" 3" 700 31
AH-3030 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" 30" 4" 700 35
AH-3036 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" 36" 5" 700 45
AH-3048 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" 48" 7" 700 53

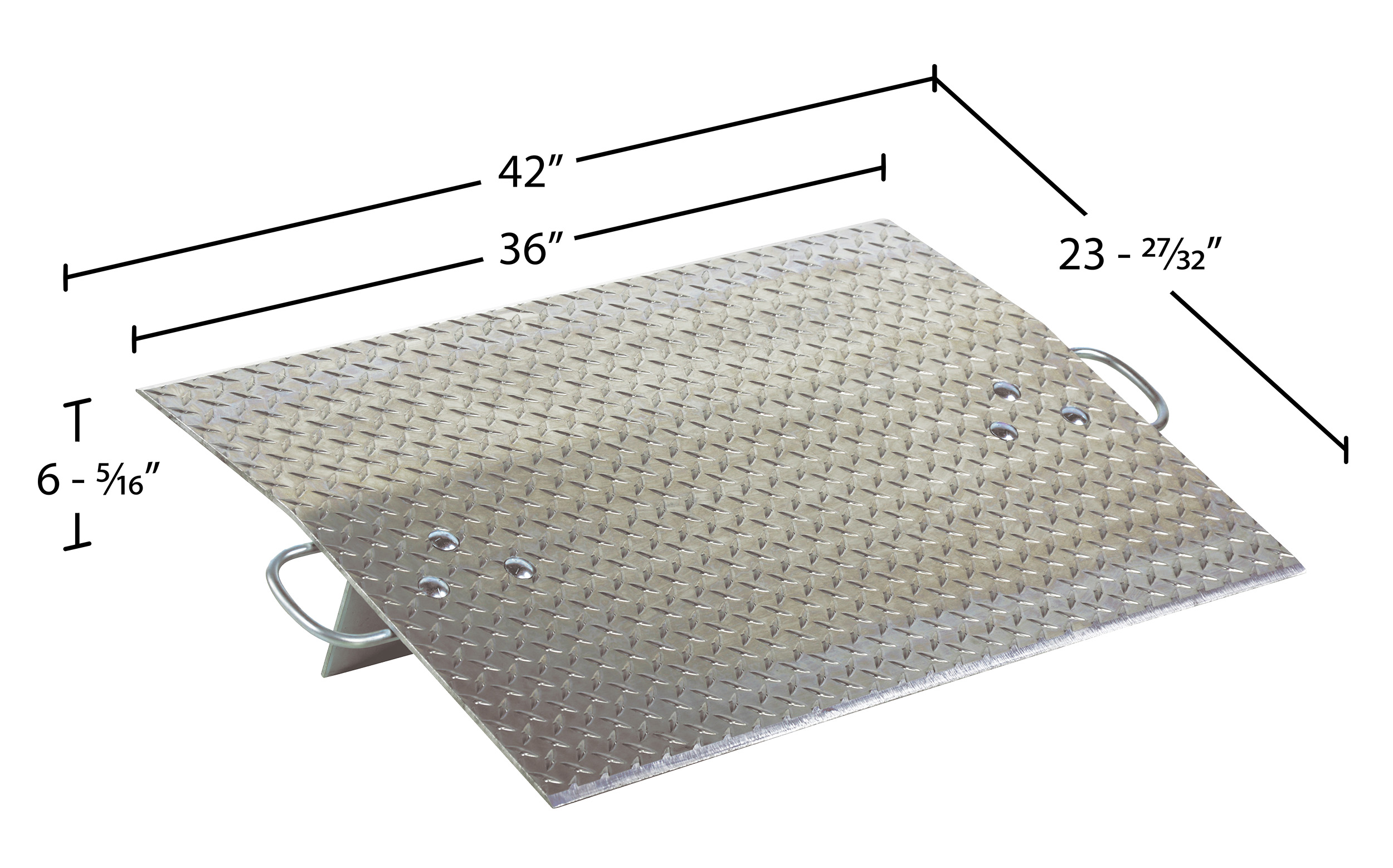

AH-3624 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 24" 3" 700 37
AH-3630 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 30" 4" 700 43

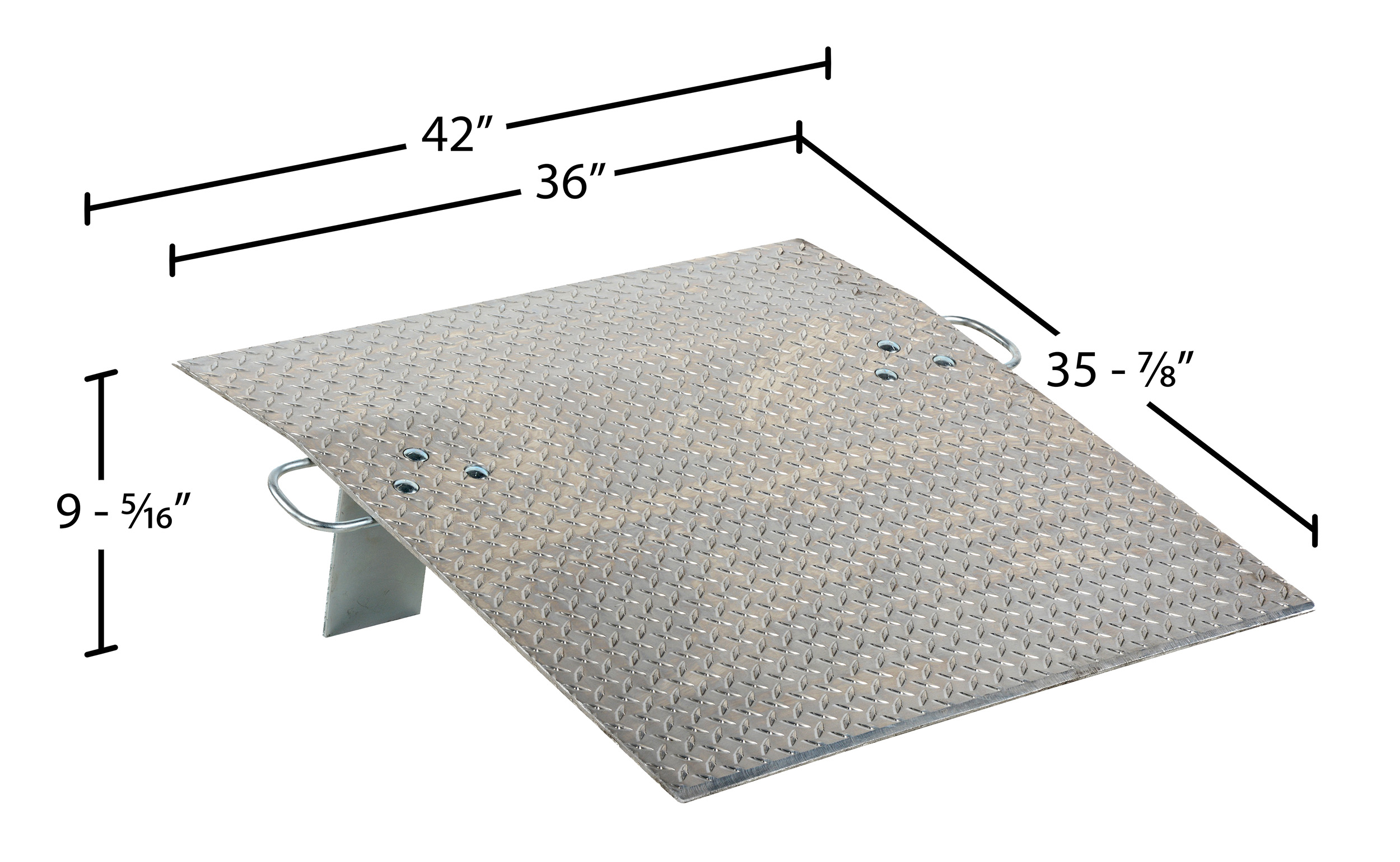

AH-3636 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 36" 5" 700 54
AH-3648 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 48" 7" 700 63

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # on this page, try the Options Tab.
PDF's will open in a new window when clicked.

Owner's Manuals

No Owners Manuals For This Product.


Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

A-3024
A-3030
A-3036
A-3048
A-3624
A-3630
A-3636
A-3648
AH-3024
AH-3030
AH-3036
AH-3048
AH-3624
AH-3630
AH-3636
AH-3648

Testing Certificates

AH-3630
AH-3636
A-3636
AH-3030
AH-3036
AH-3048
AH-3648
AH-3624
AH-3024
A-3648
A-3630
A-3624
A-3048
A-3036
A-3030
A-3024

Other PDF's

* No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

Aluminum Dockplate Options - Series A, AH
Model Description
DPR-2616 Compliance CertificateDock Plate Rack
OHDL Compliance CertificateNo Handles
1HDL Compliance CertificateOne Handle
SDP Compliance CertificateSmooth Deck Plate (Diamond side down with grip tape)
SBL Special Bend Location
S2B Special 2nd Bend Location
SLL Compliance CertificateSpecial Location of Legs
ATC-12 Compliance CertificateAnti-Theft Chain (144 in.)
LHDL Compliance CertificateExtra Pair of Legs with Handles & Hardware
TRADE Compliance CertificateTrade in Allowance (F.O.B. IN)

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # on this page, try the Specifications Tab.
