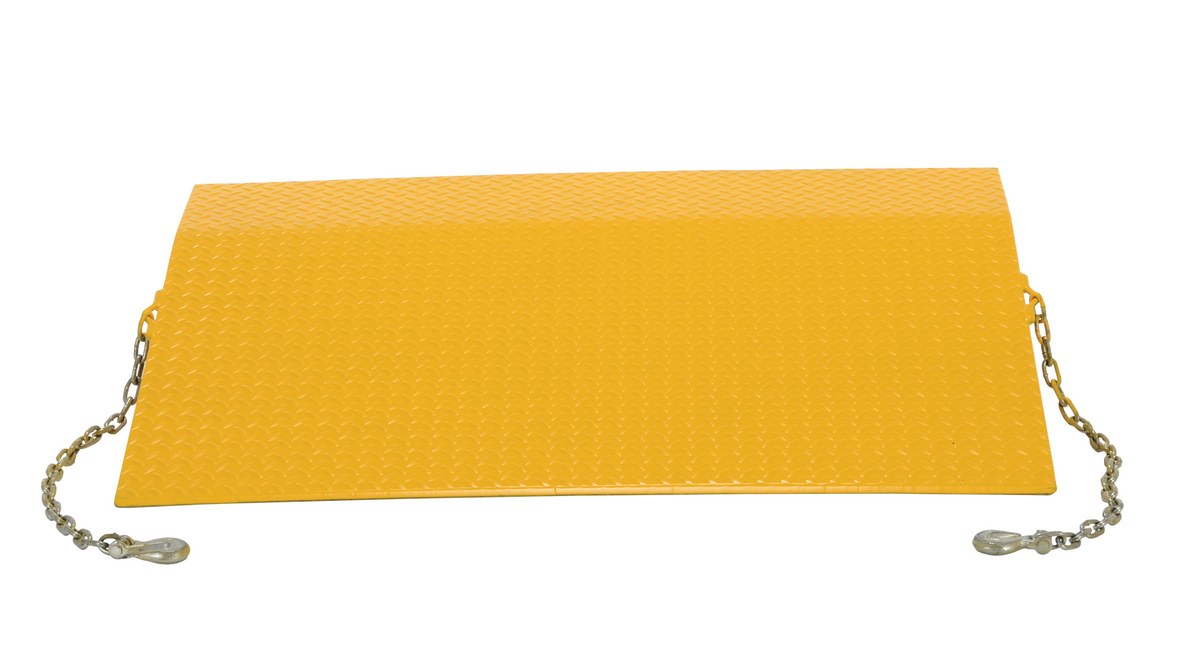

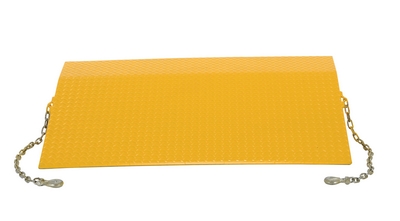

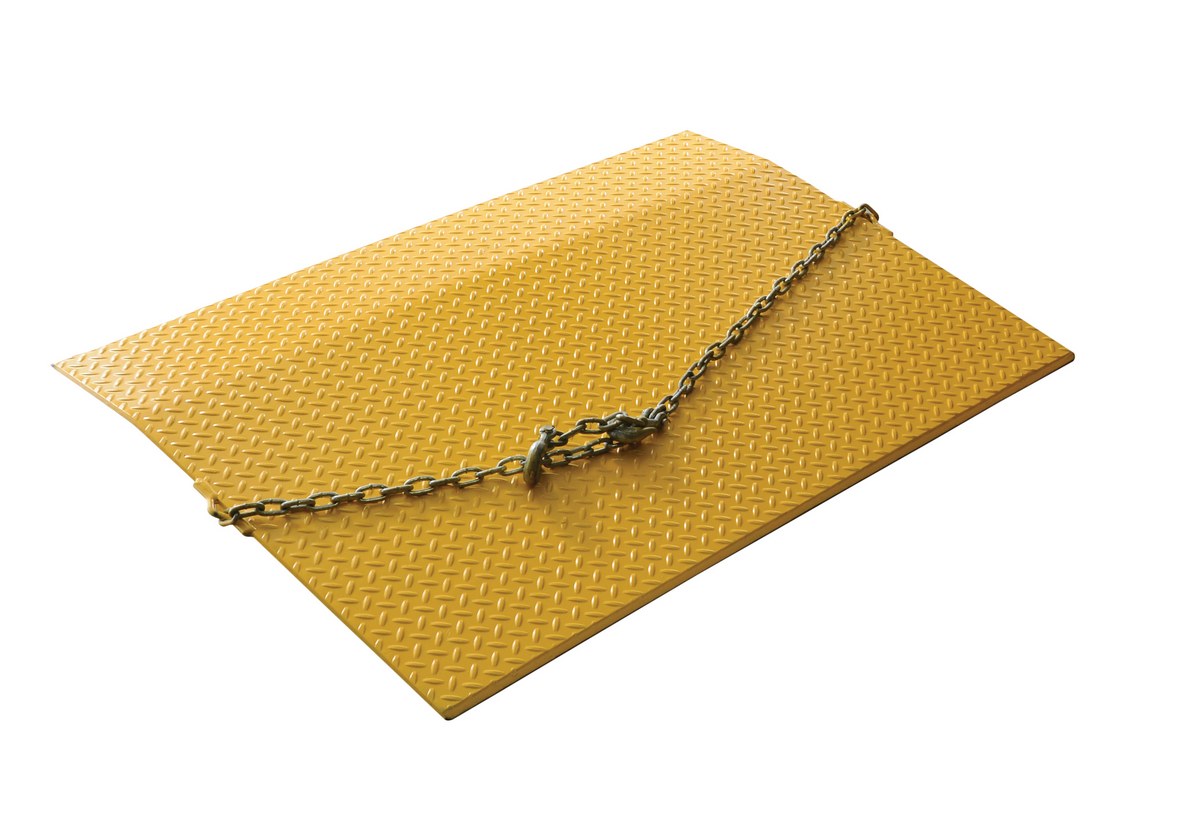

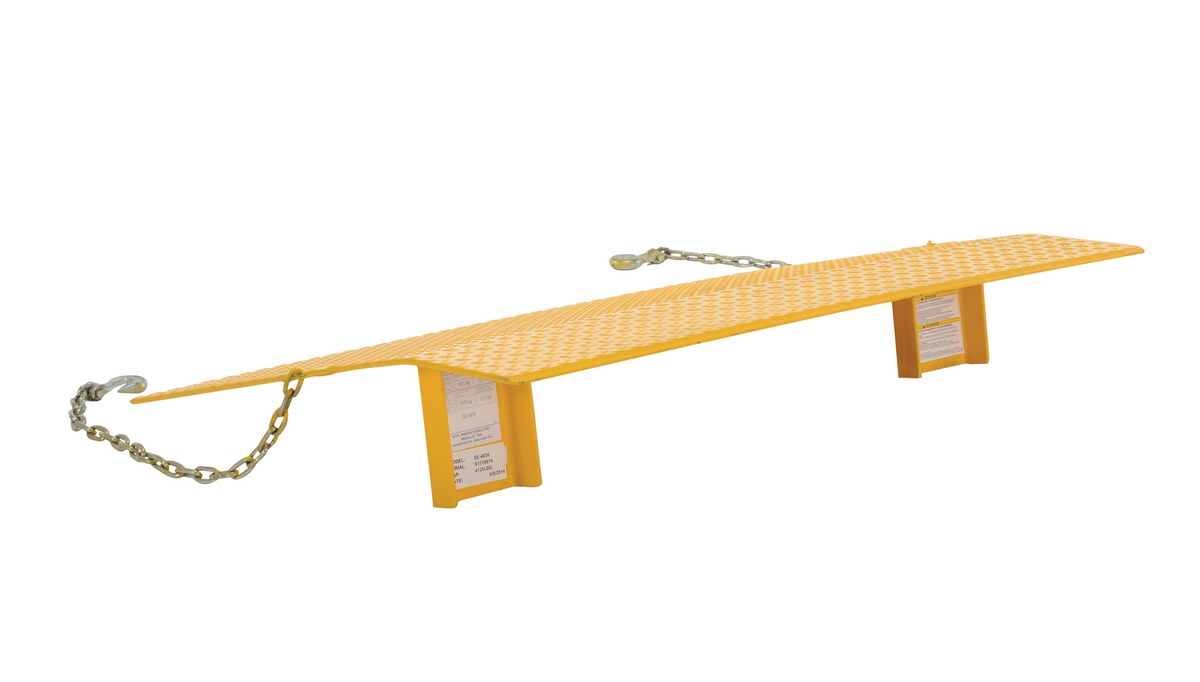

SE-4836_A.jpg SE-4836_B.jpg SE-4836_C.jpg SE-4836_D.jpg

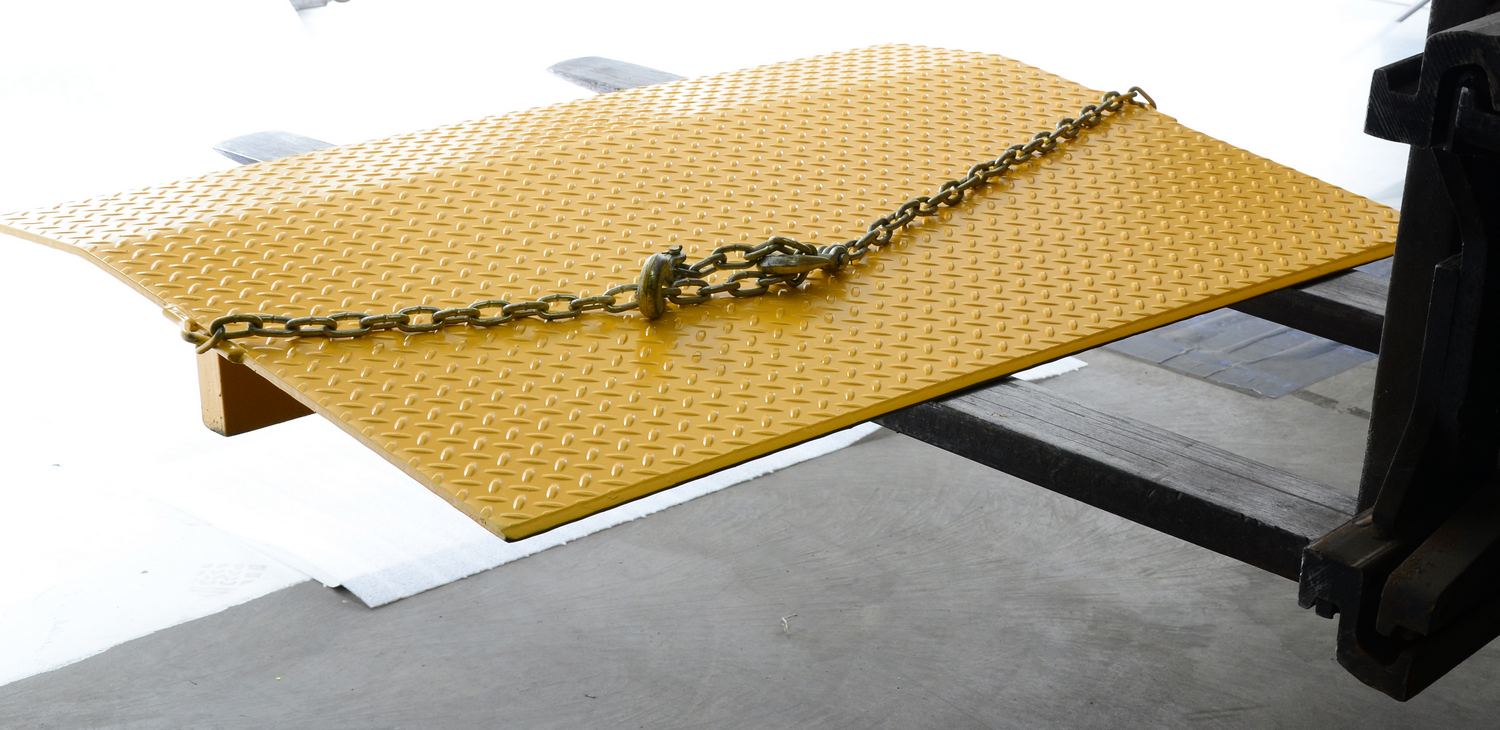

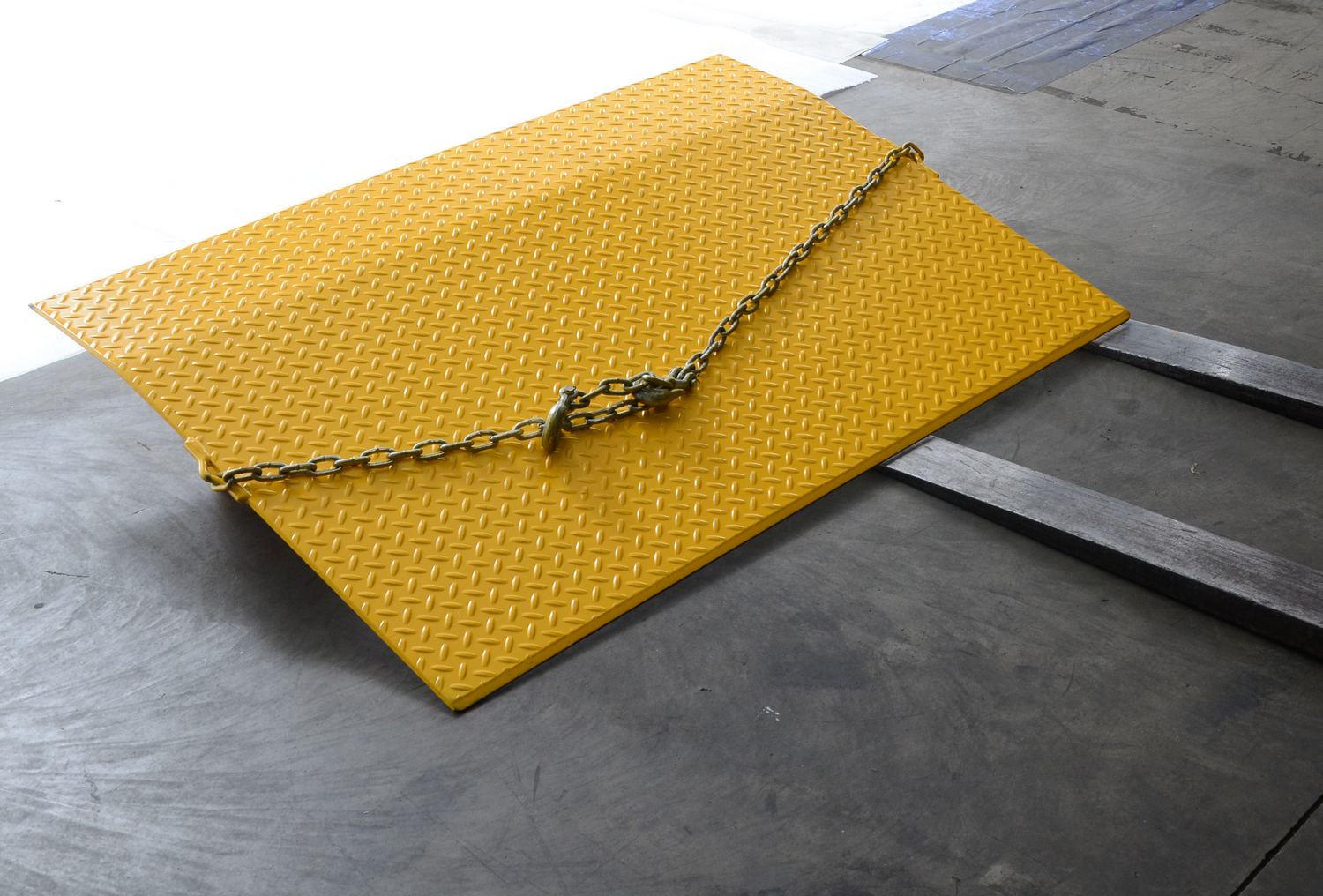

SE-4836_1.jpg SE-4836_2.jpg SE-4836_3.jpg SE-4836_4.jpg

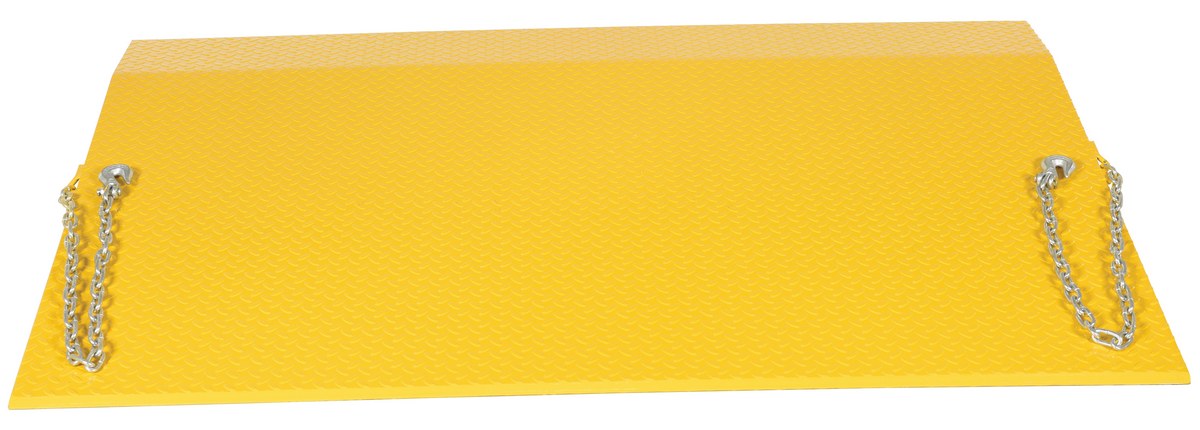

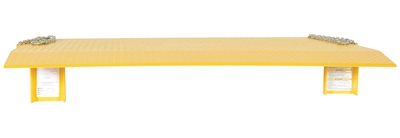

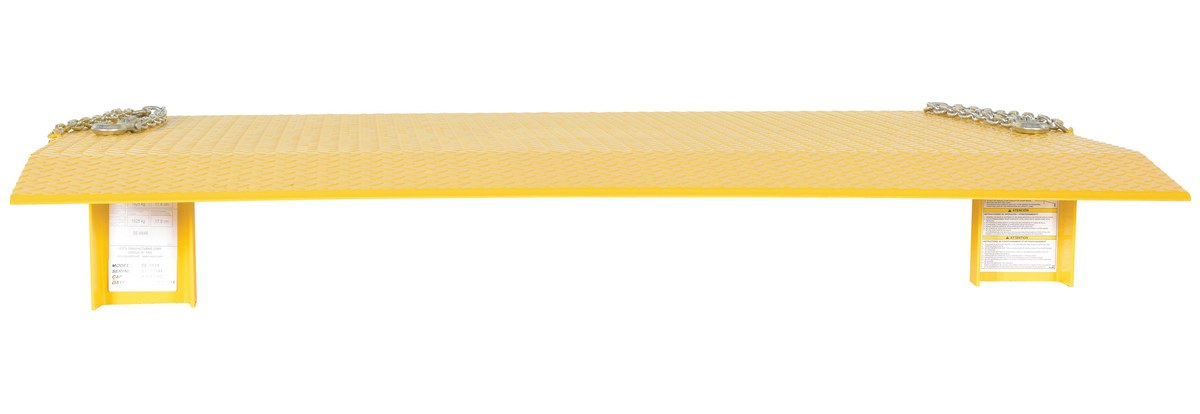

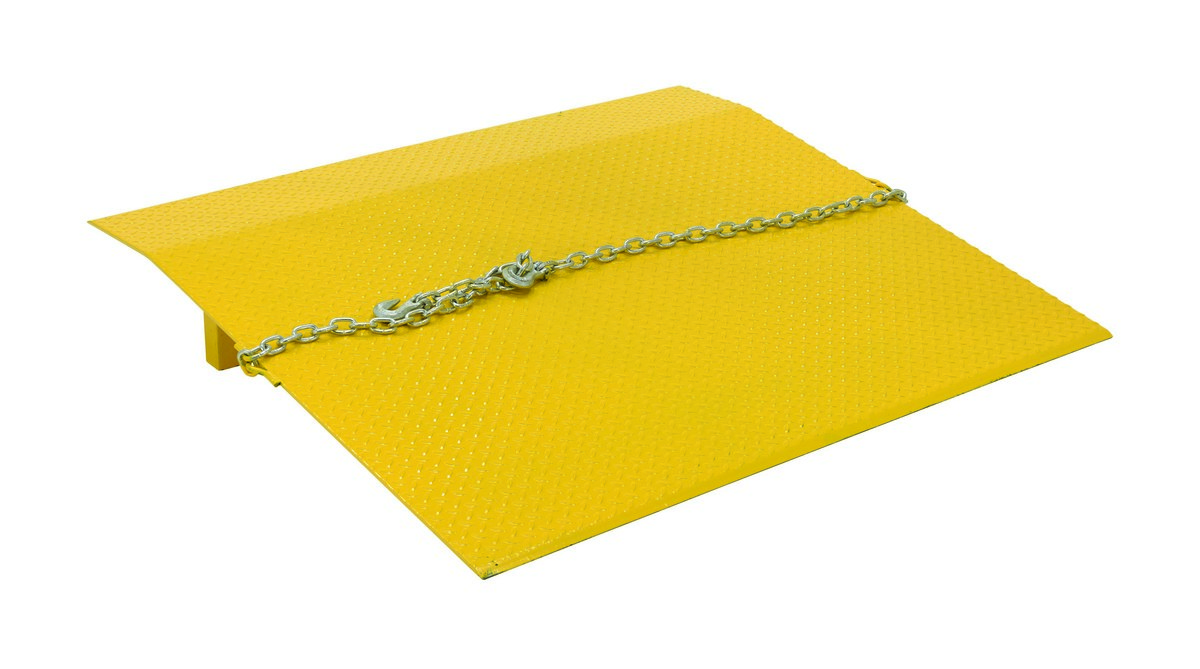

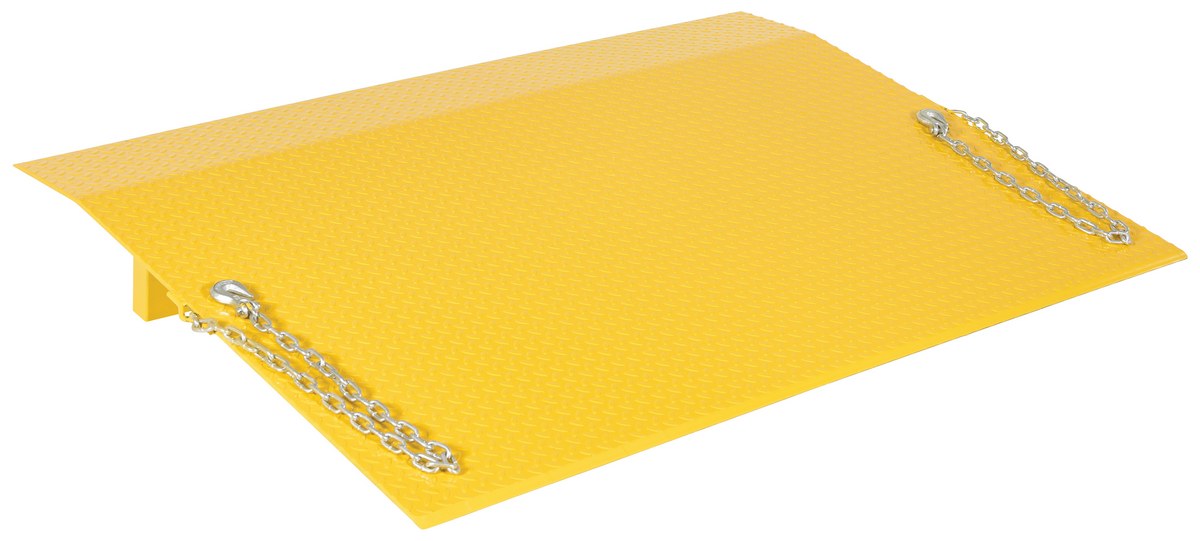

Steel Truck Dockplates

model: SE-4836



Steel Truck Dockplates

model: SE-4836

Featured Loading Dock Equipment


Dock Seal Draft Blockers
Fabricated Aluminum Hose & Cable Crossovers
Extruded Bumpers
Industrial Rubber Wedges
Hardened Molded Bumpers
Shelter Guard Posts
Pallet Cargo Decker
Truck Actuated Dock Levelers
Heavy Duty LED Dock Loading Lights
model chart

Product Family Overview

Print Friendly

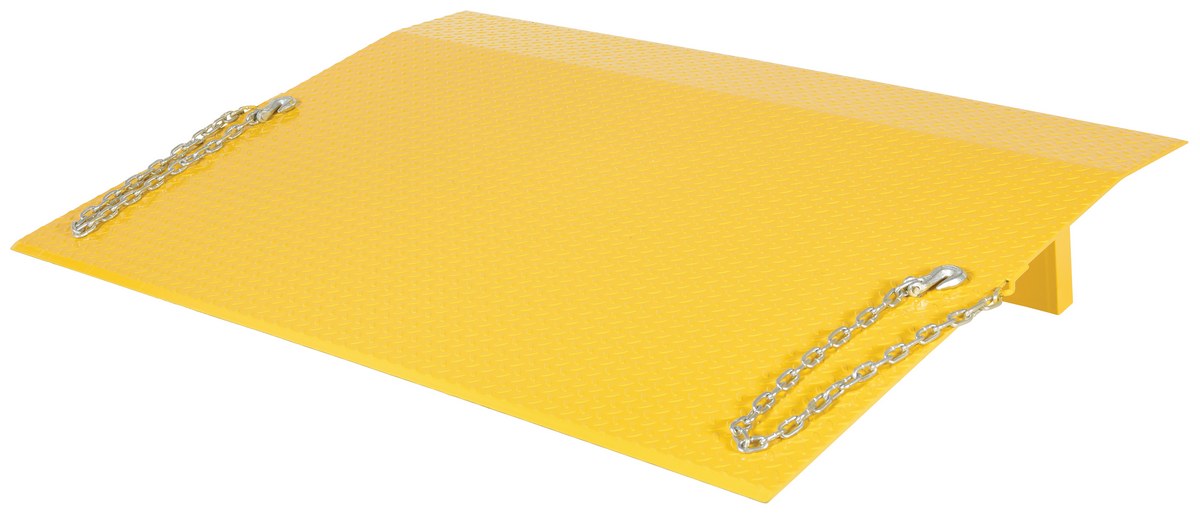

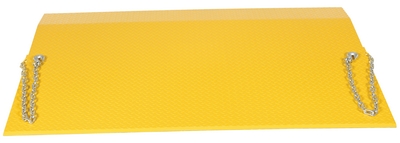

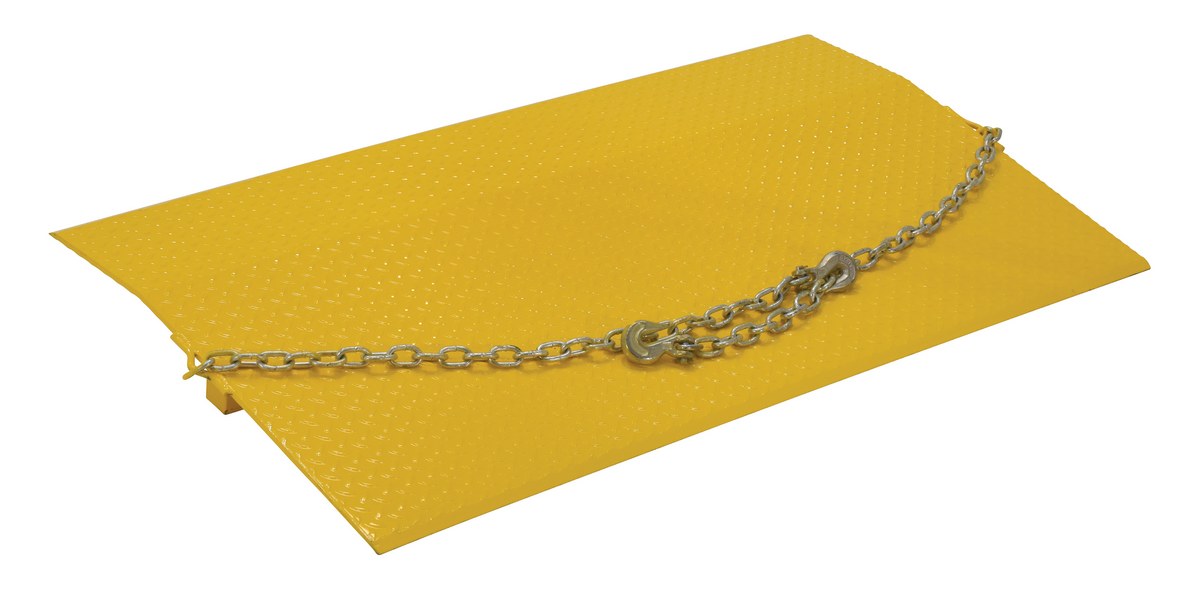

Steel Truck Dockplates
SERIES: SE,SEH

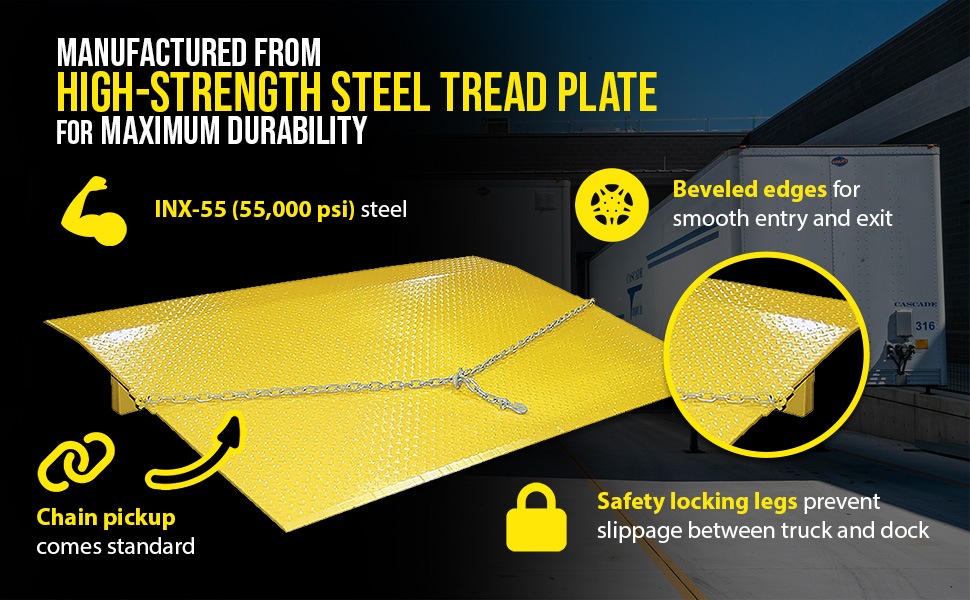

Steel Truck Dockplates are constructed of high strength (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degree bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Raised pattern safety tread plate helps provide positive traction
  • OSHA compliant locking legs secure dock plate when in use
  • Beveled entry and exit edges provide a smooth transition

Steel Truck Dockplates are constructed of high strength (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degree bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Raised pattern safety tread plate helps provide positive traction
  • OSHA compliant locking legs secure dock plate when in use
  • Beveled entry and exit edges provide a smooth transition

Other Dockplates & Dockboards

 Steel Truck Dockplates Steel Truck Dockboards Fiberglass Dockplate Aluminum Truck Dockboards (Welded Aluminum Curbs)

Additional Models In This Family
view entire Image Gallery

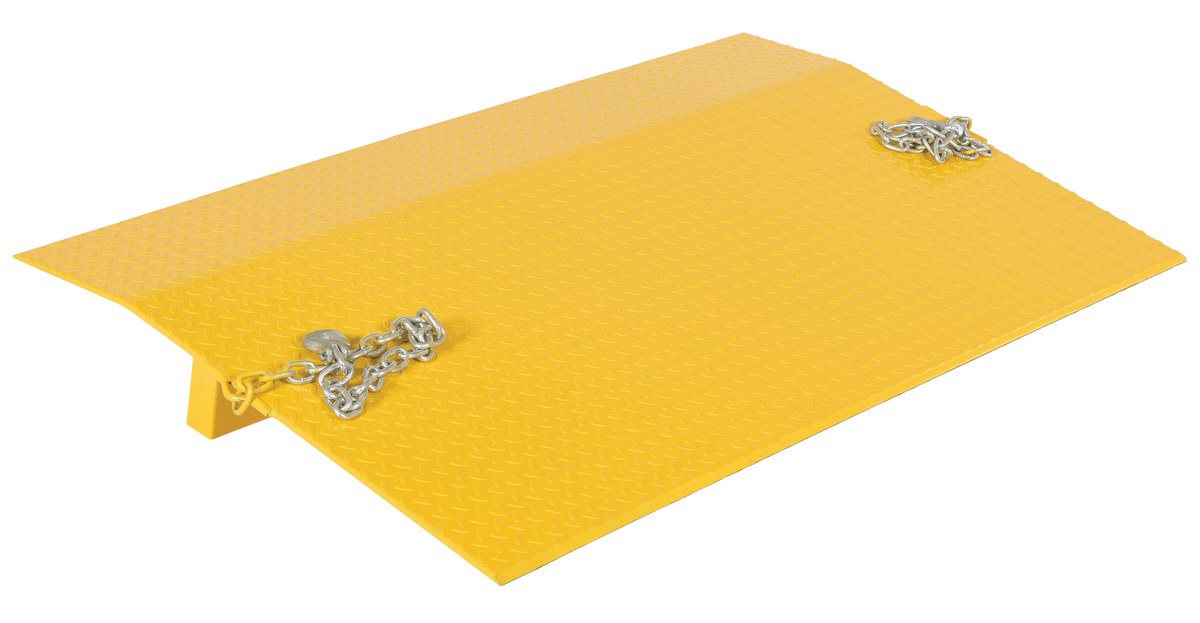

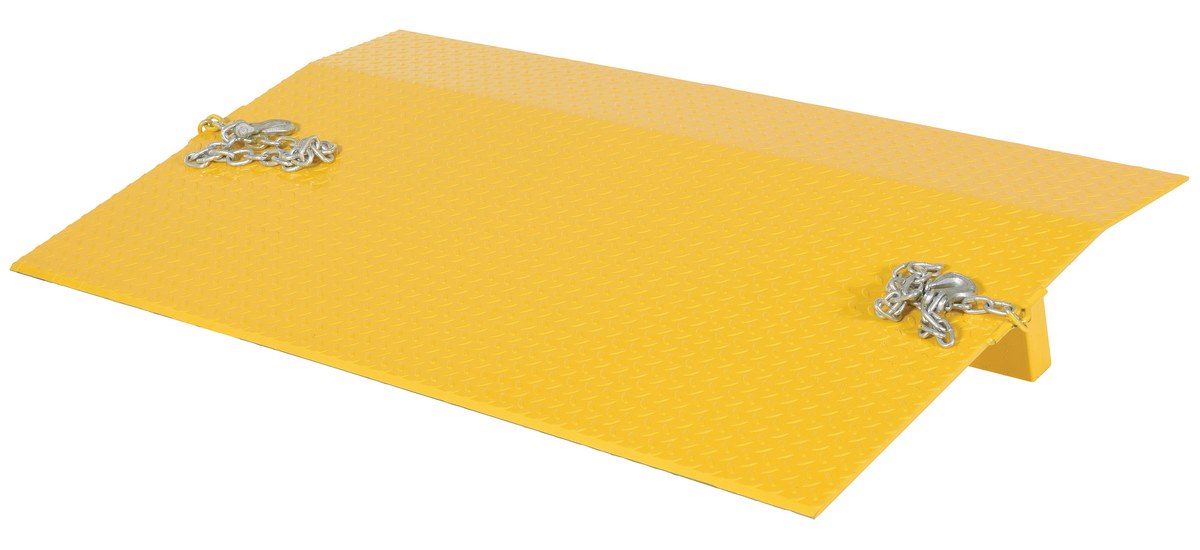

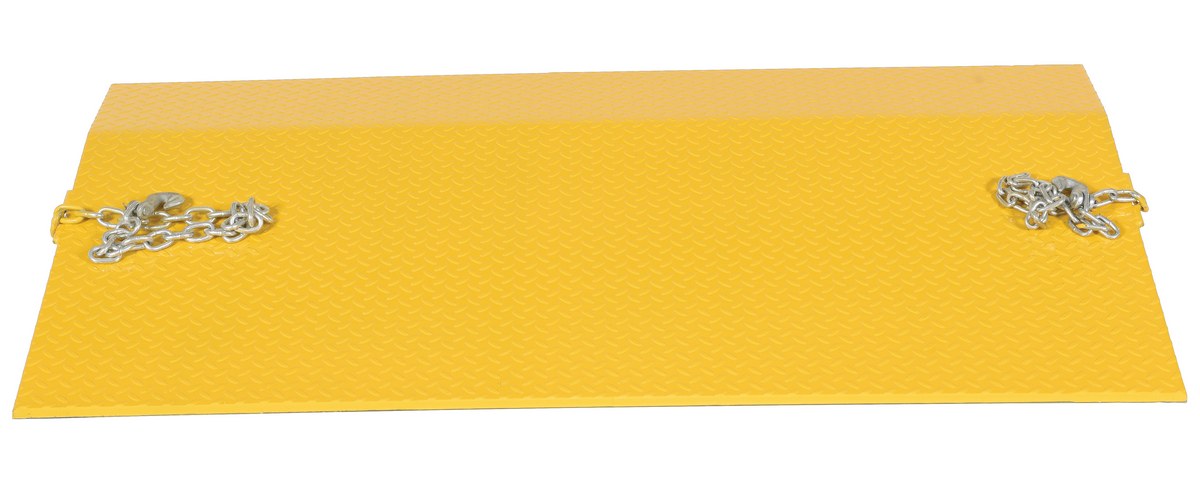

SE-6036

SE-6036

SE-7260

SE-7260

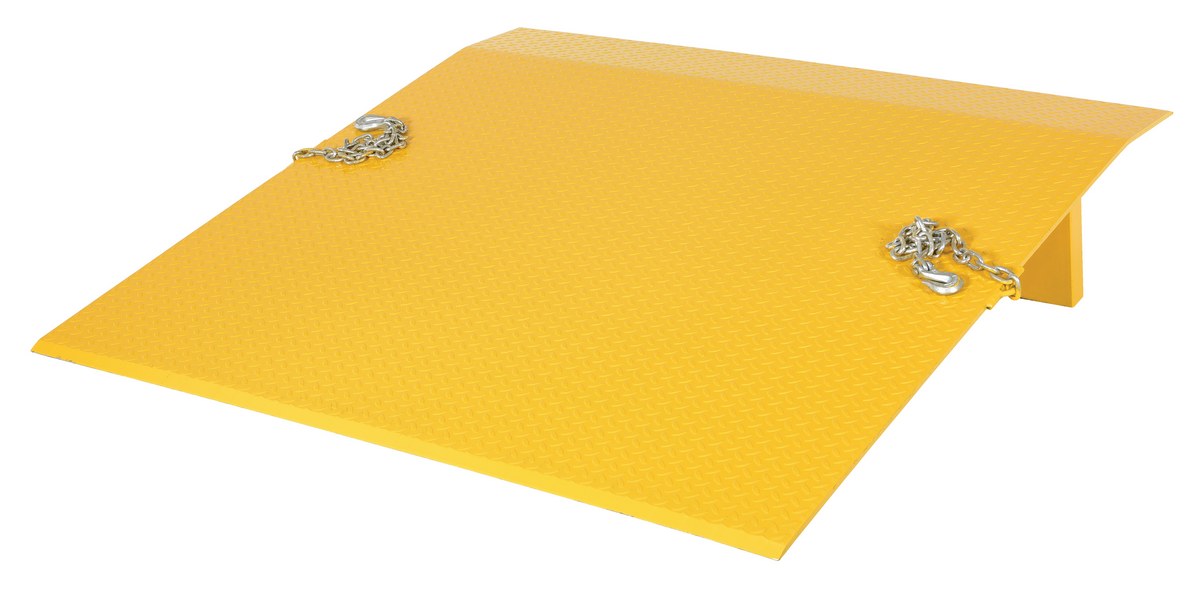

SEH-6036

SEH-6036

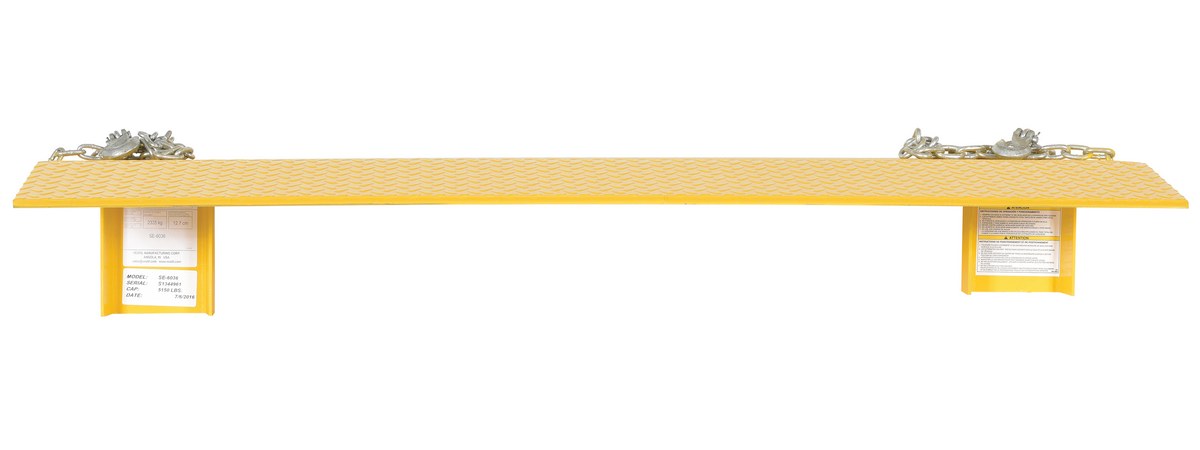

SE-6036

SE-6036

SEH-7230

SEH-7230

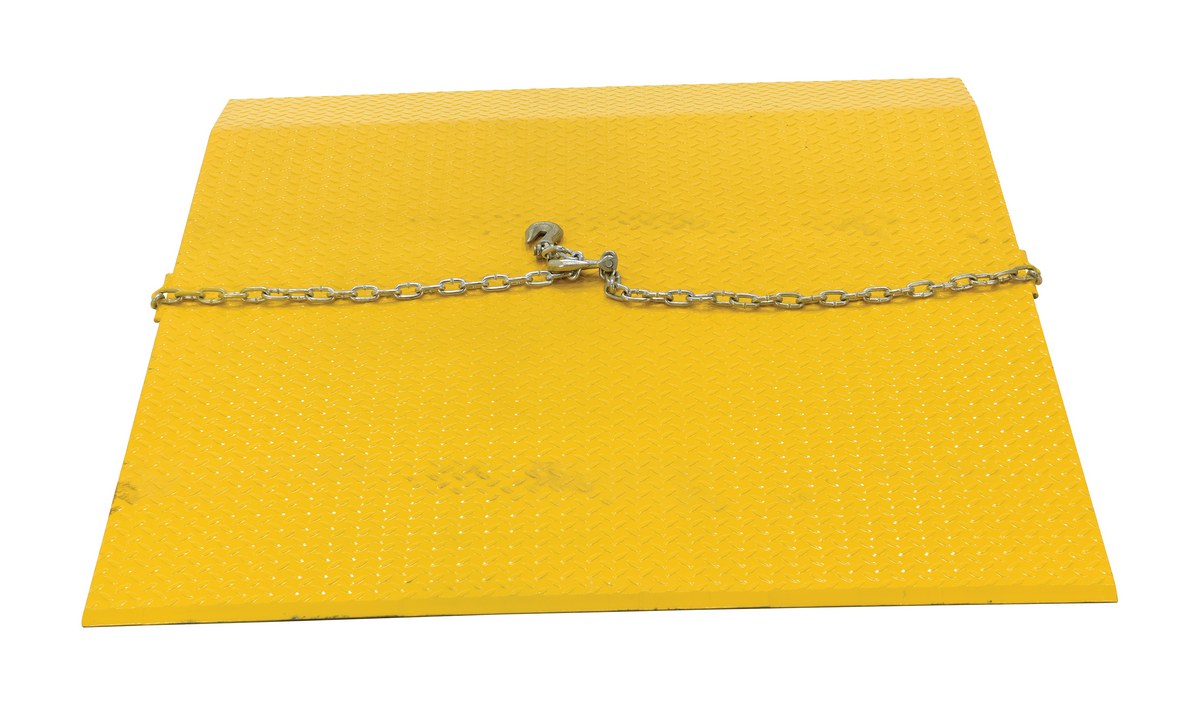

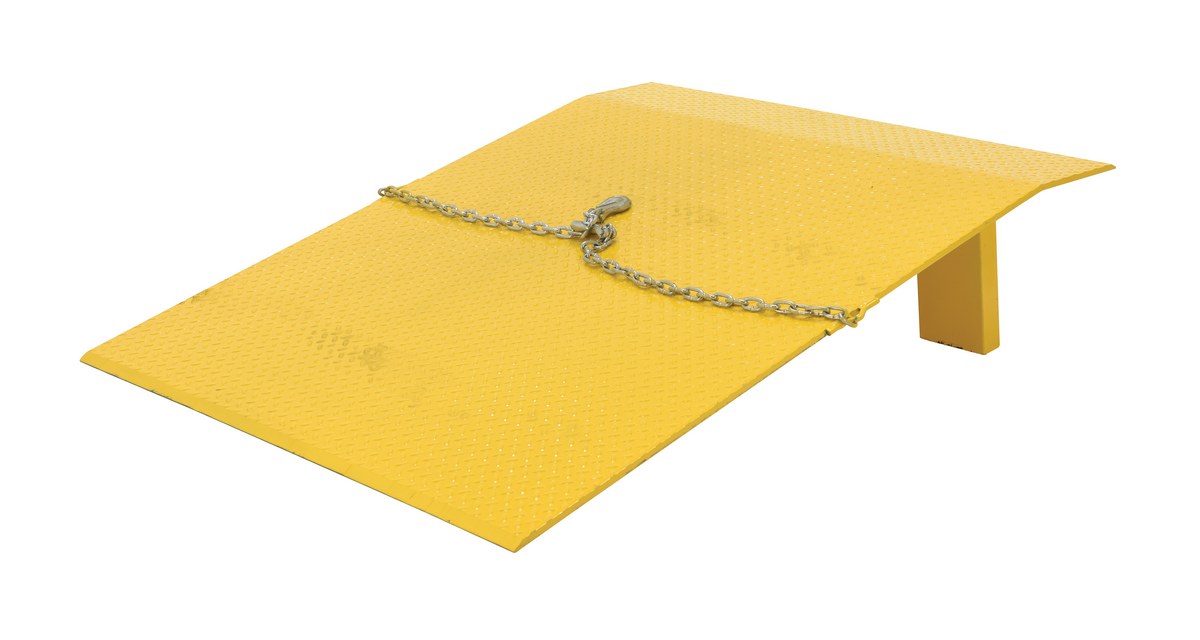

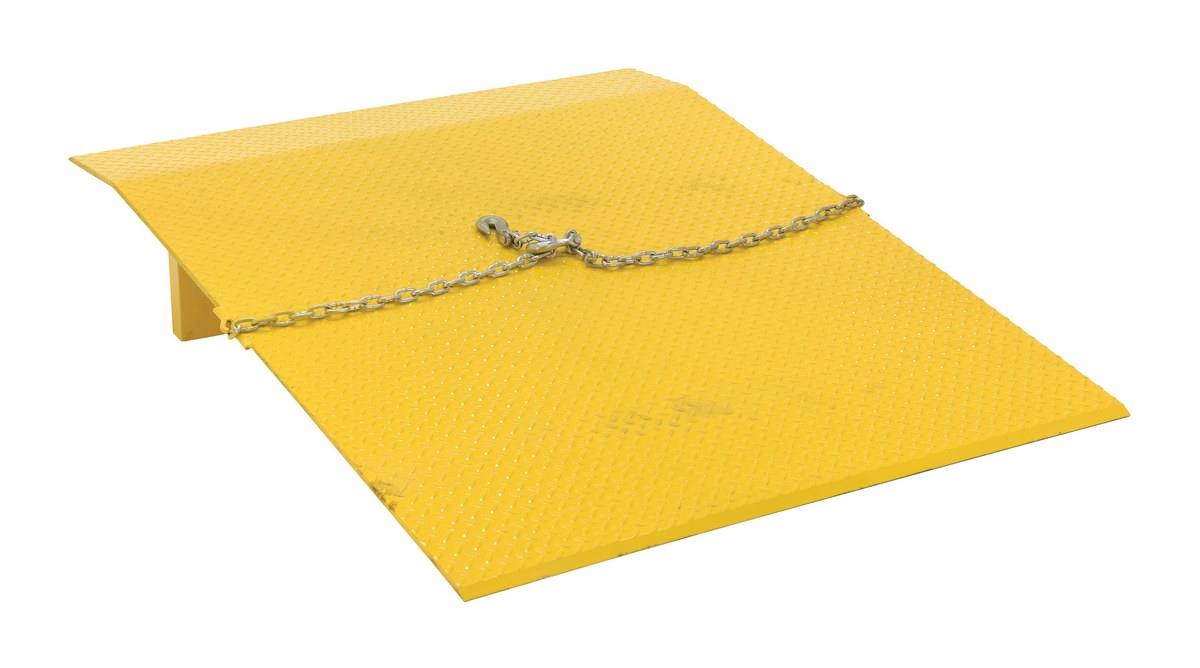

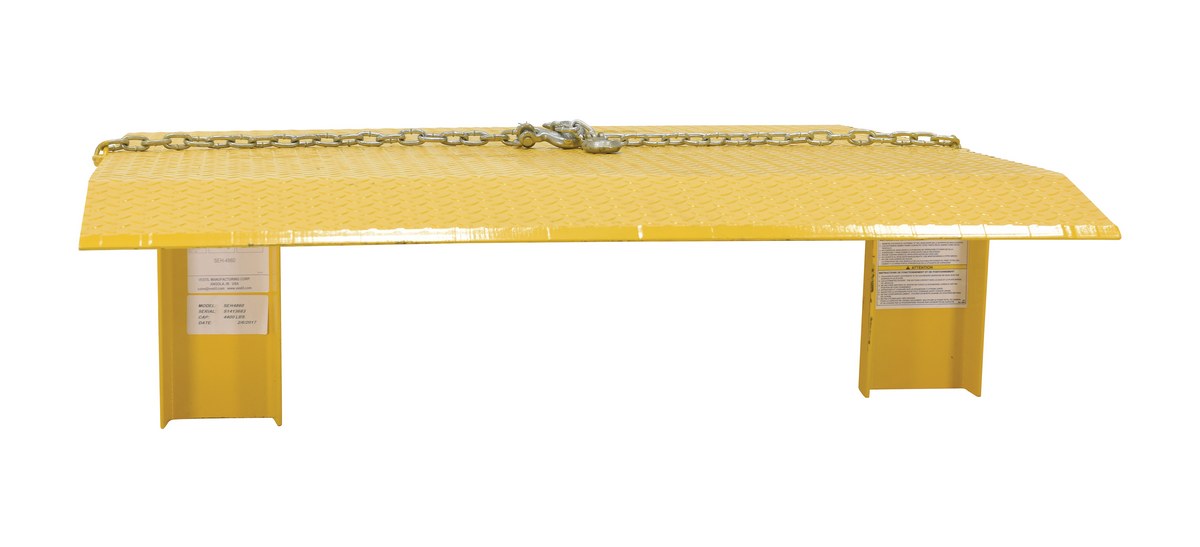

SEH-4860

SEH-4860

SEH-4860

SEH-4860

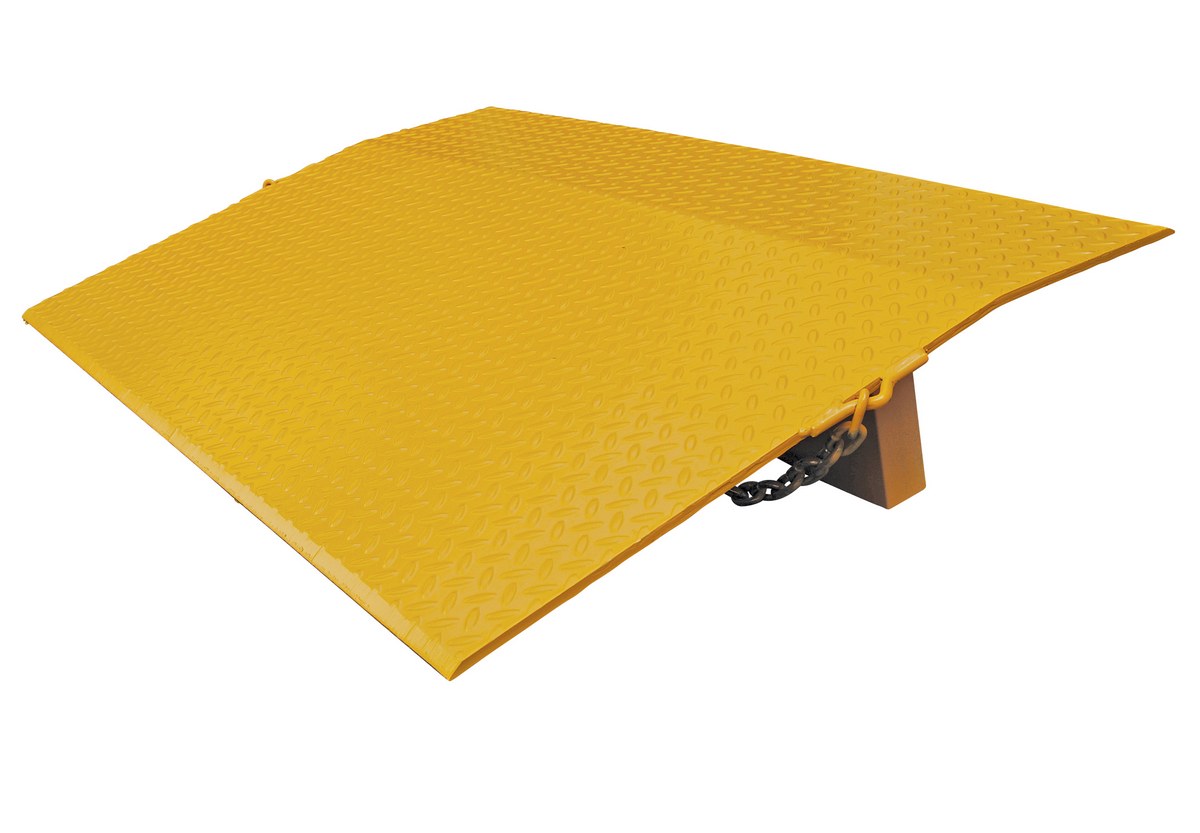

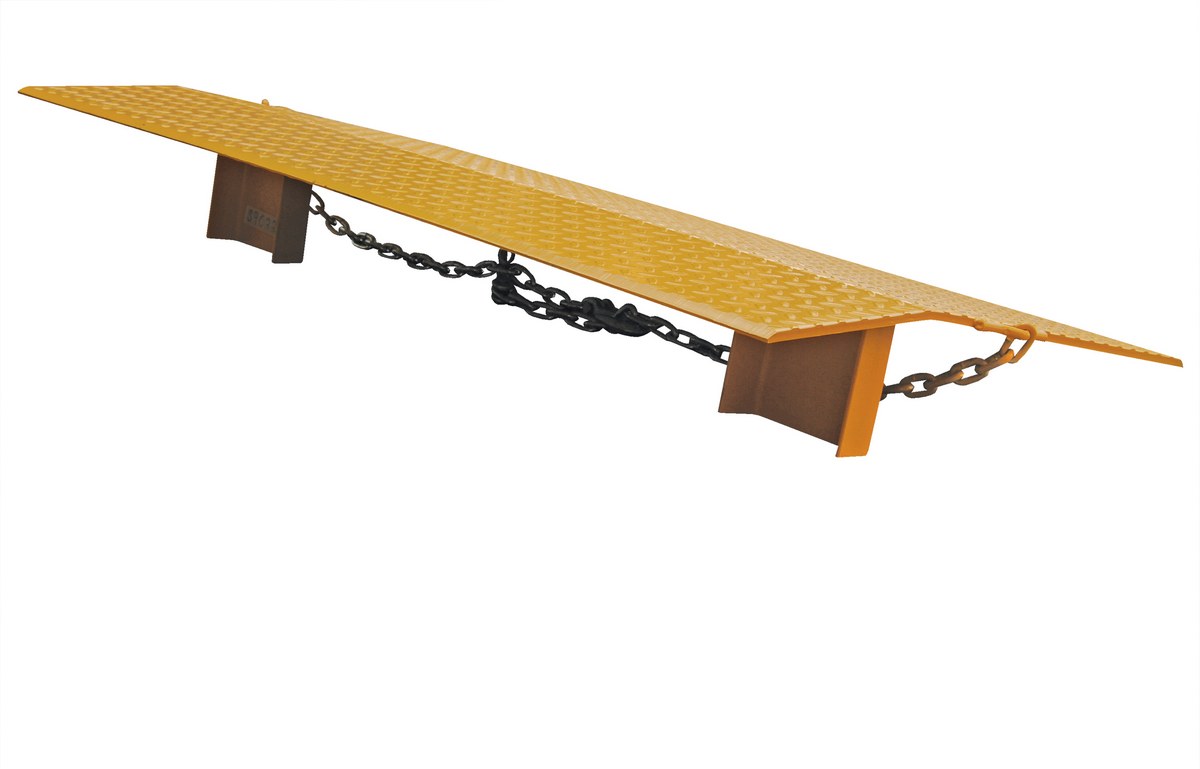

SE-4830

SE-4830

SE-7248

SE-7248

SEH-4830

SEH-4830

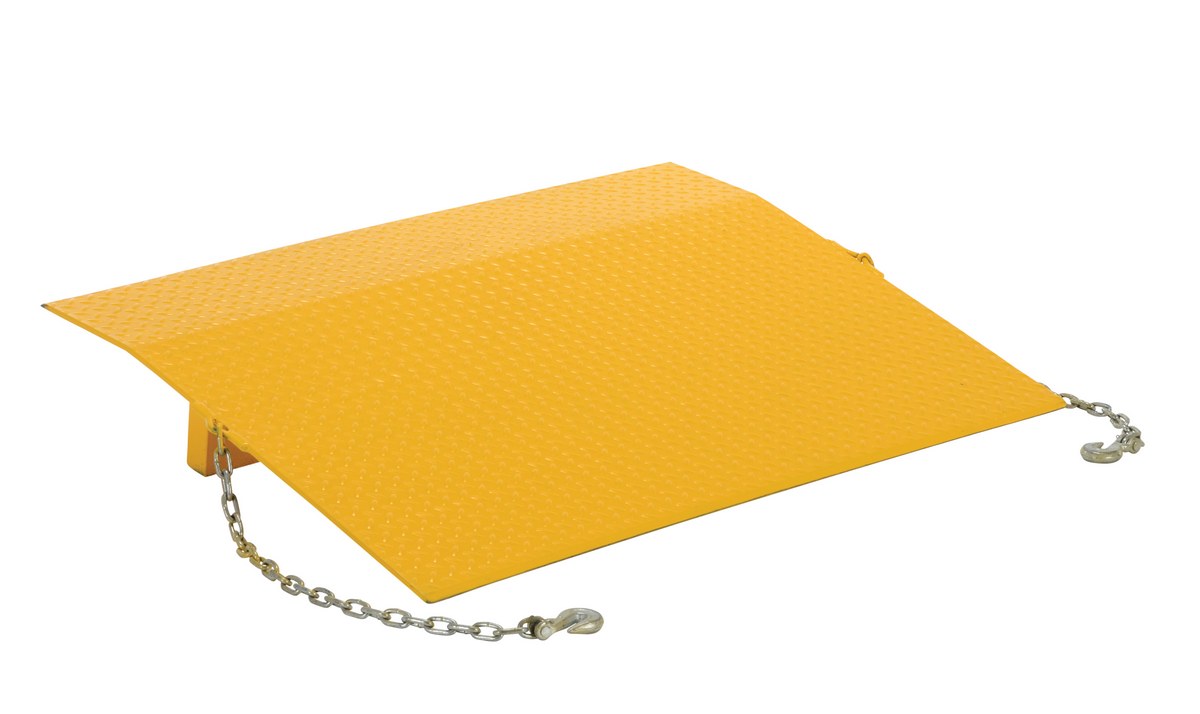

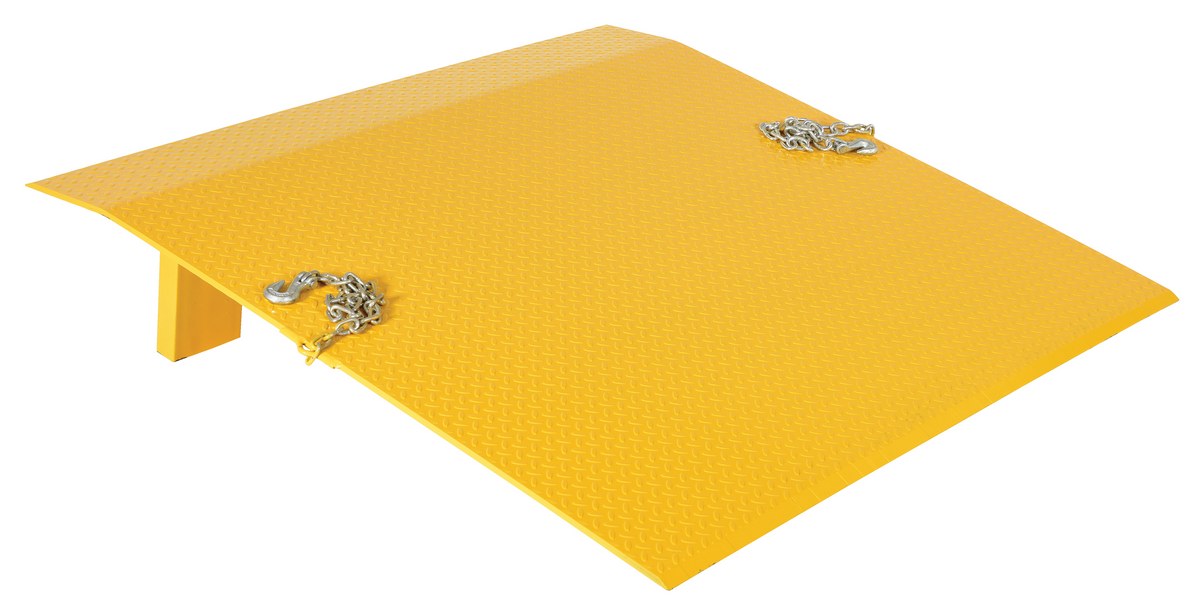

SE-6060

SE-6060

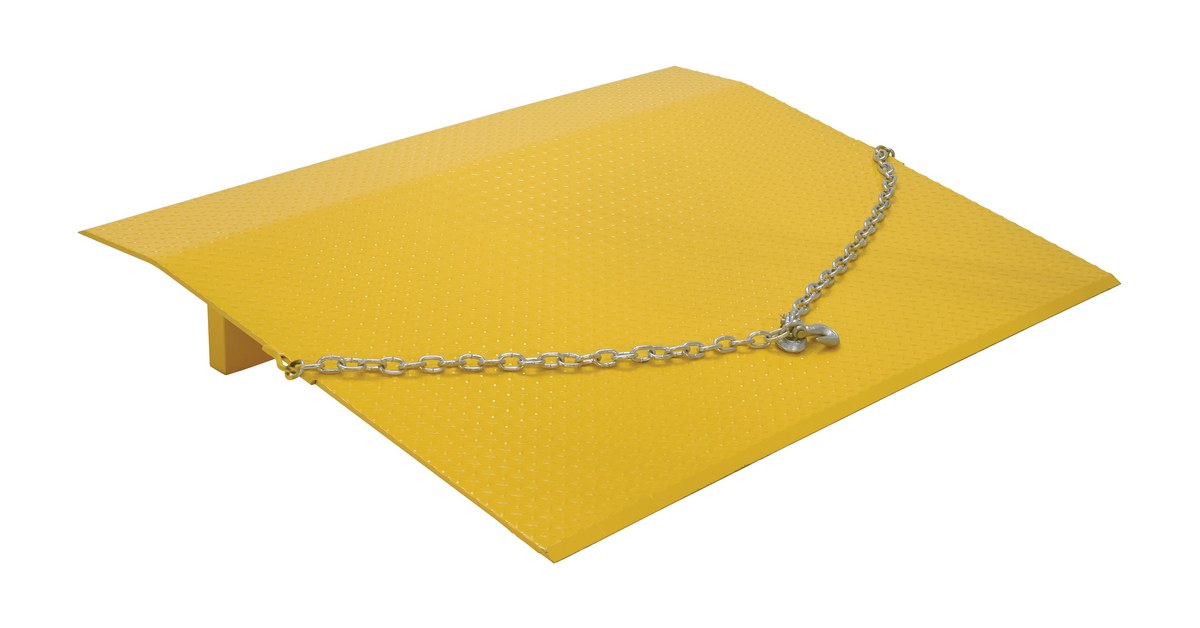

SE-6048

SE-6048

SEH-4836

SEH-4836

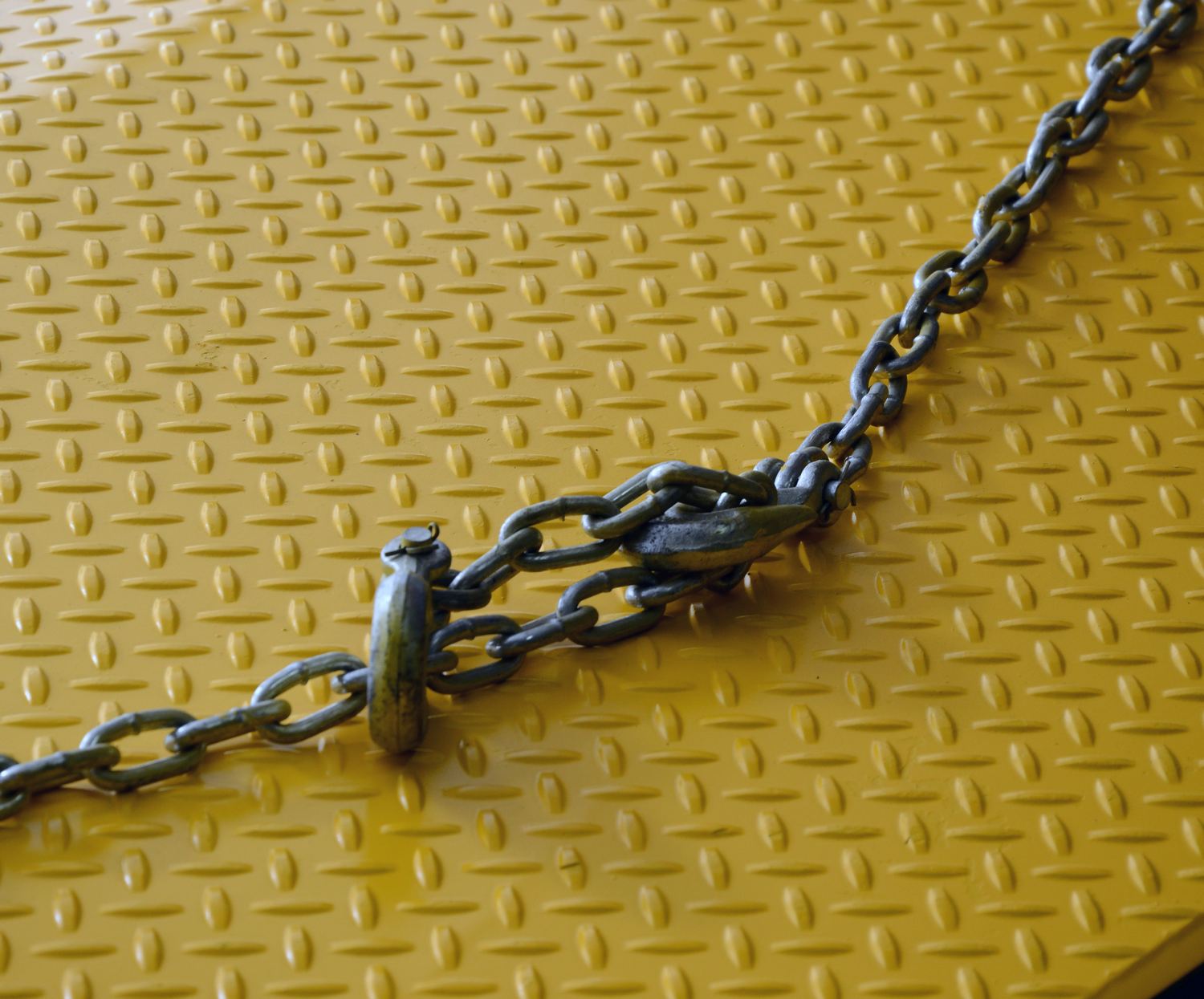

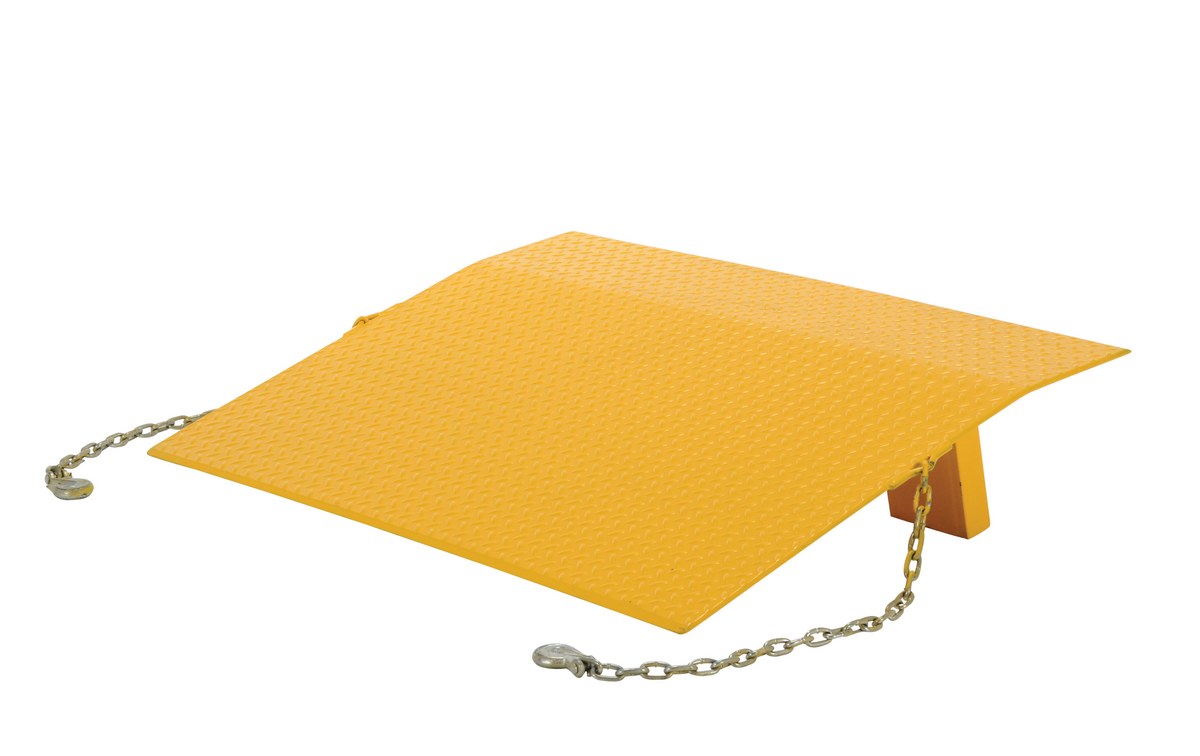

SE-4836

SE-4836

SE-4836

SE-4836

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SE-4830 SE-483090 Days Limited WarrantySteel Truck Dock Plate 30 In. x 48 In. x 7-9/16 In. 5,000 Lb. Capacity YellowUniform Capacity (lb.): 5000
Height Difference (in.): 4		177
SE-4836 SE-483690 Days Limited WarrantySteel Truck Dock Plate 36 In. x 48 In. x 8-9/16 In. 4,125 Lb. Capacity YellowUniform Capacity (lb.): 4125
Height Difference (in.): 5		215
SE-4848 SE-484890 Days Limited WarrantySteel Truck Dock Plate 48 In. x 48 In. x 9-9/16 In. 3,090 Lb. Capacity YellowUniform Capacity (lb.): 3090
Height Difference (in.): 7		324
SE-4860 SE-486090 Days Limited WarrantySteel Truck Dock Plate 60 In. x 48 In. x 12-1/2 In. 2,475 Lb. Capacity YellowUniform Capacity (lb.): 2475
Height Difference (in.): 9		341
SE-6036 SE-603690 Days Limited WarrantySteel Truck Dock Plate 36 In. x 60 In. x 8-9/16 In. 5,150 Lb. Capacity YellowUniform Capacity (lb.): 5150
Height Difference (in.): 5		261
SE-6048 SE-604890 Days Limited WarrantySteel Truck Dock Plate 48 In. x 60 In. x 9-9/16 In. 3,860 Lb. Capacity YellowUniform Capacity (lb.): 3860
Height Difference (in.): 7		362
SE-6060 SE-606090 Days Limited WarrantySteel Truck Dock Plate 60 In. x 60 In. x 12-1/2 In. 3,090 Lb. Capacity YellowUniform Capacity (lb.): 3090
Height Difference (in.): 9		498
SE-7230 SE-723090 Days Limited WarrantySteel Truck Dock Plate 30 In. x 72 In. x 7-9/16 In. 7,720 Lb. Capacity YellowUniform Capacity (lb.): 7720
Height Difference (in.): 4		289
SE-7236 SE-723690 Days Limited WarrantySteel Truck Dock Plate 36 In. x 72 In. x 8-9/16 In. 6,430 Lb. Capacity YellowUniform Capacity (lb.): 6430
Height Difference (in.): 5		303
SE-7248 SE-724890 Days Limited WarrantySteel Truck Dock Plate 48 In. x 72 In. x 9-9/16 In. 4,820 Lb. Capacity YellowUniform Capacity (lb.): 4820
Height Difference (in.): 7		413
SE-7260 SE-726090 Days Limited WarrantySteel Truck Dock Plate 60 In. x 72 In. x 12-1/2 In. 3,860 Lb. Capacity YellowUniform Capacity (lb.): 3860
Height Difference (in.): 9		475
SEH-4830 SEH-483090 Days Limited WarrantySteel Truck Dock Plate 30 In. x 48 In. x 7-11/16 In. 8,800 Lb. Capacity YellowUniform Capacity (lb.): 8800
Height Difference (in.): 4		227
SEH-4836 SEH-483690 Days Limited WarrantySteel Truck Dock Plate 36 In. x 48 In. x 8-11/16 In. 7,300 Lb. Capacity YellowUniform Capacity (lb.): 7300
Height Difference (in.): 5		263
SEH-4848 SEH-484890 Days Limited WarrantySteel Truck Dock Plate 48 In. x 48 In. x 9-11/16 In. 5,500 Lb. Capacity YellowUniform Capacity (lb.): 5500
Height Difference (in.): 7		429
SEH-4860 SEH-486090 Days Limited WarrantySteel Truck Dock Plate 60 In. x 48 In. x 12-5/8 In. 4,400 Lb. Capacity YellowUniform Capacity (lb.): 4400
Height Difference (in.): 9		528
SEH-6036 SEH-603690 Days Limited WarrantySteel Truck Dock Plate 36 In. x 60 In. x 8-11/16 In. 9,160 Lb. Capacity YellowUniform Capacity (lb.): 9160
Height Difference (in.): 5		317

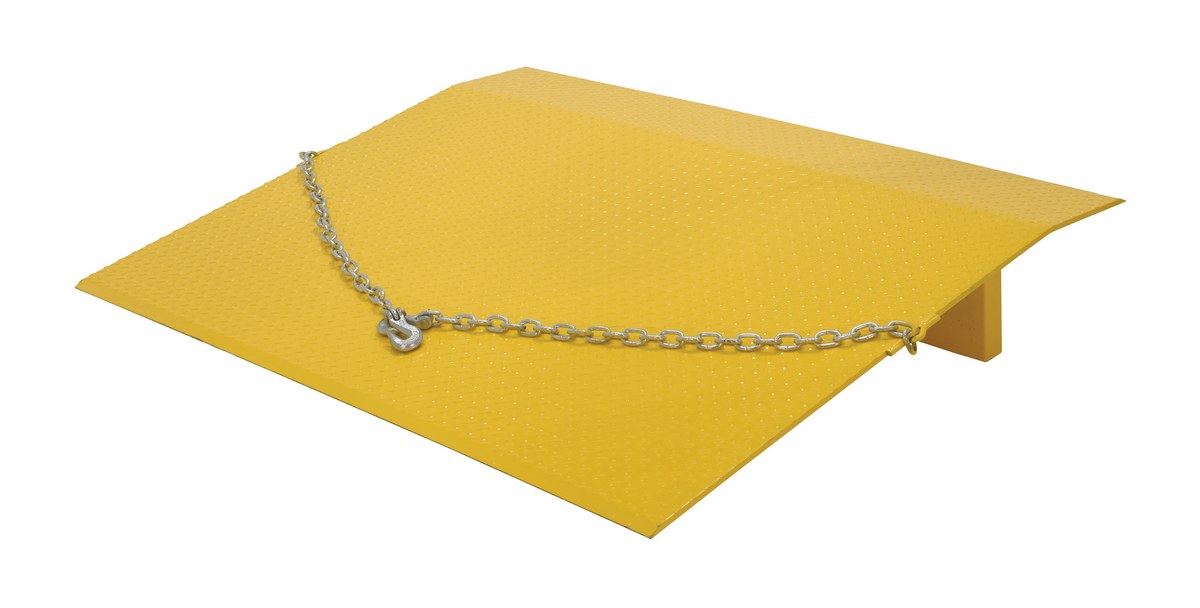

SEH-6048 SEH-604890 Days Limited WarrantySteel Truck Dock Plate 48 In. x 60 In. x 9-11/16 In. 6,875 Lb. Capacity YellowUniform Capacity (lb.): 6875
Height Difference (in.): 7		445
SEH-6060 SEH-606090 Days Limited WarrantySteel Truck Dock Plate 60 In. x 60 In. x 12-5/8 In. 5,500 Lb. Capacity YellowUniform Capacity (lb.): 5500
Height Difference (in.): 9		554

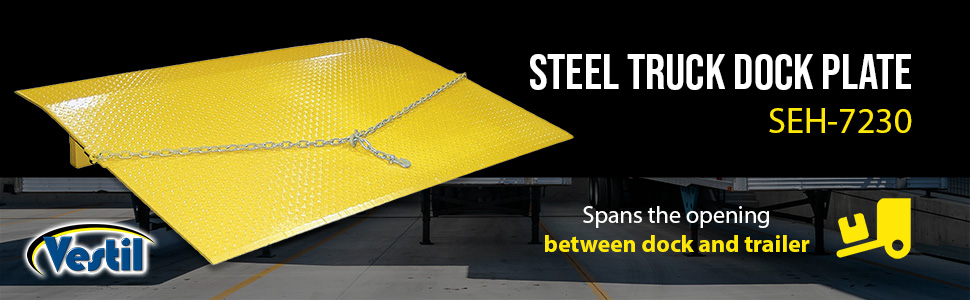

SEH-7230 SEH-723090 Days Limited WarrantySteel Truck Dock Plate 30 In. x 72 In. x 7-11/16 In. 13,200 Lb. Capacity YellowUniform Capacity (lb.): 13200
Height Difference (in.): 4		369
SEH-7236 SEH-723690 Days Limited WarrantySteel Truck Dock Plate 36 In. x 72 In. x 8-11/16 In. 11,000 Lb. Capacity YellowUniform Capacity (lb.): 11000
Height Difference (in.): 5		385
SEH-7248 SEH-724890 Days Limited WarrantySteel Truck Dock Plate 48 In. x 72 In. x 9-11/16 In. 8,250 Lb. Capacity YellowUniform Capacity (lb.): 8250
Height Difference (in.): 7		528
SEH-7260 SEH-726090 Days Limited WarrantySteel Truck Dock Plate 60 In. x 72 In. x 12-5/8 In. 6,600 Lb. Capacity YellowUniform Capacity (lb.): 6600
Height Difference (in.): 9		627

* Custom Sizes Available As Special Order

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SE-4830
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Height Difference (in.): 4
Uniform Capacity (lb.): 5000
Height Difference (in.): 4

SE-4836
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4125
Height Difference (in.): 5
Uniform Capacity (lb.): 4125
Height Difference (in.): 5

SE-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3090
Height Difference (in.): 7
Uniform Capacity (lb.): 3090
Height Difference (in.): 7

SE-4860
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2475
Height Difference (in.): 9
Uniform Capacity (lb.): 2475
Height Difference (in.): 9

SE-6036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5150
Height Difference (in.): 5
Uniform Capacity (lb.): 5150
Height Difference (in.): 5

SE-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3860
Height Difference (in.): 7
Uniform Capacity (lb.): 3860
Height Difference (in.): 7

SE-6060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3090
Height Difference (in.): 9
Uniform Capacity (lb.): 3090
Height Difference (in.): 9

SE-7230
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 7720
Height Difference (in.): 4
Uniform Capacity (lb.): 7720
Height Difference (in.): 4

SE-7236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6430
Height Difference (in.): 5
Uniform Capacity (lb.): 6430
Height Difference (in.): 5

SE-7248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4820
Height Difference (in.): 7
Uniform Capacity (lb.): 4820
Height Difference (in.): 7

SE-7260
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3860
Height Difference (in.): 9
Uniform Capacity (lb.): 3860
Height Difference (in.): 9

SEH-4830
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8800
Height Difference (in.): 4
Uniform Capacity (lb.): 8800
Height Difference (in.): 4

SEH-4836
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 7300
Height Difference (in.): 5
Uniform Capacity (lb.): 7300
Height Difference (in.): 5

SEH-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5500
Height Difference (in.): 7
Uniform Capacity (lb.): 5500
Height Difference (in.): 7

SEH-4860
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4400
Height Difference (in.): 9
Uniform Capacity (lb.): 4400
Height Difference (in.): 9

SEH-6036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 9160
Height Difference (in.): 5
Uniform Capacity (lb.): 9160
Height Difference (in.): 5

SEH-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6875
Height Difference (in.): 7
Uniform Capacity (lb.): 6875
Height Difference (in.): 7

SEH-6060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5500
Height Difference (in.): 9
Uniform Capacity (lb.): 5500
Height Difference (in.): 9

SEH-7230
Unit:
Size: W x L x H
Weight:
Limited Warranty

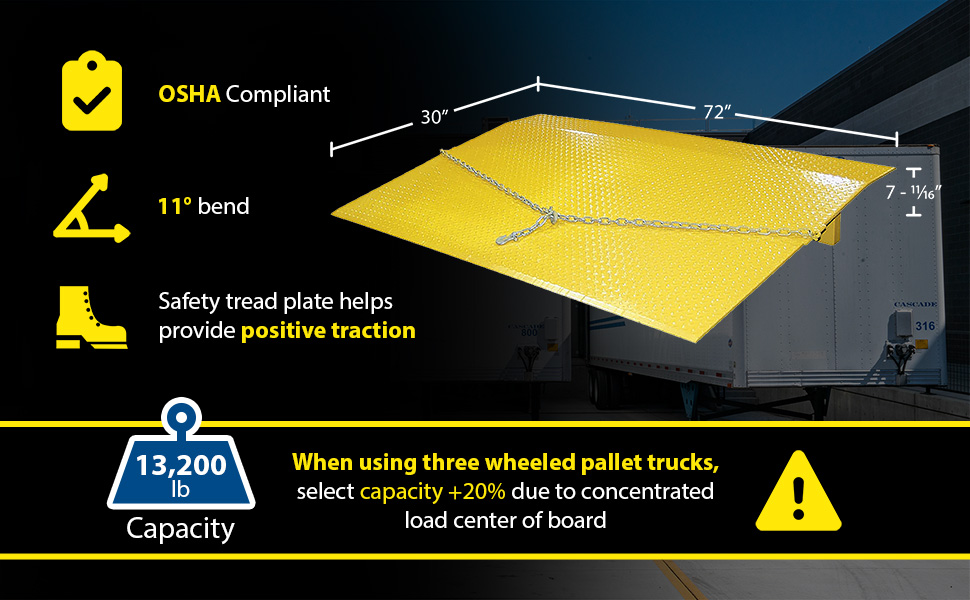

Uniform Capacity (lb.): 13200
Height Difference (in.): 4
Uniform Capacity (lb.): 13200
Height Difference (in.): 4

SEH-7236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 11000
Height Difference (in.): 5
Uniform Capacity (lb.): 11000
Height Difference (in.): 5

SEH-7248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8250
Height Difference (in.): 7
Uniform Capacity (lb.): 8250
Height Difference (in.): 7

SEH-7260
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6600
Height Difference (in.): 9
Uniform Capacity (lb.): 6600
Height Difference (in.): 9
For More Details of the Option Click the Red Model Button
Model Image PDF Descriptions
RPL-STL Compliance Certificate Removable Pickup Loops
SP-STL Compliance Certificate Span Pins & Holes (4)
HOLE-STL Compliance Certificate Extra Span Holes
PIN-STL Compliance Certificate Extra Span Pins

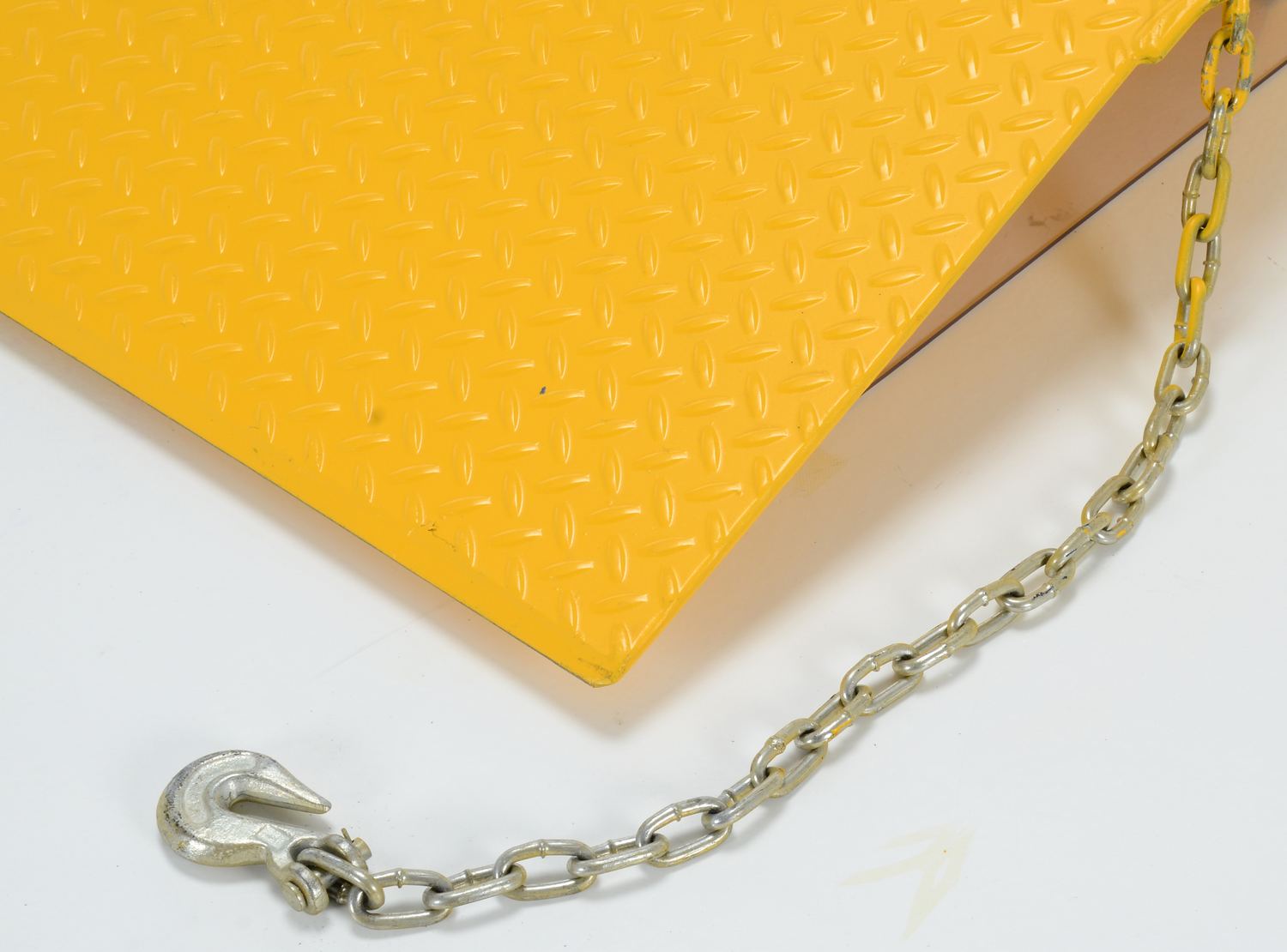

ATC-12 Compliance Certificate Anti-Theft Chain (144")
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Steel Truck Dockplates PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SE-4830

SE-4836

SE-4848

SE-4860

SE-6036

SE-6048

SE-6060

SE-7230

SE-7236

SE-7248

SE-7260

SEH-4830

SEH-4836

SEH-4848

SEH-4860

SEH-6036

SEH-6048

SEH-6060

SEH-7230

SEH-7236

SEH-7248

SEH-7260

Testing Certificates


SE-4830

SE-4836

SE-4848

SE-4860

SE-6036

SE-6048

SE-6060

SE-7230

SE-7236

SE-7248

SE-7260

SEH-4830

SEH-4836

SEH-4848

SEH-4860

SEH-6036

SEH-6048

SEH-6060

SEH-7230

SEH-7236

SEH-7248

SEH-7260

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Steel Truck Dockboards
Product

Steel Truck Dockboards

Aluminum Mini Dockplates
Product

Aluminum Mini Dockplates

Aluminum Hand Truck Dockboards
Product

Aluminum Hand Truck Dockboards

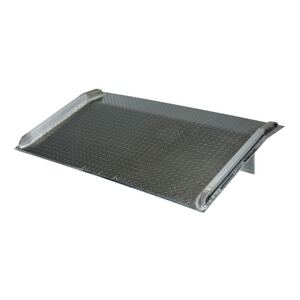

Aluminum Truck Dockboards with Steel Safety Curbs
Product

Aluminum Truck Dockboards with Steel Safety Curbs

Aluminum Truck Dockboards (Welded Aluminum Curbs)
Product

Aluminum Truck Dockboards (Welded Aluminum Curbs)

Aluminum Economizer Dockplates
Product

Aluminum Economizer Dockplates

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Steel Truck Dockplates




Steel Truck Dockplates are constructed of high strength (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degree bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Raised pattern safety tread plate helps provide positive traction
  • OSHA compliant locking legs secure dock plate when in use
  • Beveled entry and exit edges provide a smooth transition

Model # Description Attributes Net Wt.
(lbs)
SE-4830 SE-4830Steel Truck Dock Plate 30 In. x 48 In. x 7-9/16 In. 5,000 Lb. Capacity YellowUniform Capacity (lb.): 5000
Height Difference (in.): 4		177
SE-4836 SE-4836Steel Truck Dock Plate 36 In. x 48 In. x 8-9/16 In. 4,125 Lb. Capacity YellowUniform Capacity (lb.): 4125
Height Difference (in.): 5		215
SE-4848 SE-4848Steel Truck Dock Plate 48 In. x 48 In. x 9-9/16 In. 3,090 Lb. Capacity YellowUniform Capacity (lb.): 3090
Height Difference (in.): 7		324
SE-4860 SE-4860Steel Truck Dock Plate 60 In. x 48 In. x 12-1/2 In. 2,475 Lb. Capacity YellowUniform Capacity (lb.): 2475
Height Difference (in.): 9		341
SE-6036 SE-6036Steel Truck Dock Plate 36 In. x 60 In. x 8-9/16 In. 5,150 Lb. Capacity YellowUniform Capacity (lb.): 5150
Height Difference (in.): 5		261
SE-6048 SE-6048Steel Truck Dock Plate 48 In. x 60 In. x 9-9/16 In. 3,860 Lb. Capacity YellowUniform Capacity (lb.): 3860
Height Difference (in.): 7		362
SE-6060 SE-6060Steel Truck Dock Plate 60 In. x 60 In. x 12-1/2 In. 3,090 Lb. Capacity YellowUniform Capacity (lb.): 3090
Height Difference (in.): 9		498
SE-7230 SE-7230Steel Truck Dock Plate 30 In. x 72 In. x 7-9/16 In. 7,720 Lb. Capacity YellowUniform Capacity (lb.): 7720
Height Difference (in.): 4		289
SE-7236 SE-7236Steel Truck Dock Plate 36 In. x 72 In. x 8-9/16 In. 6,430 Lb. Capacity YellowUniform Capacity (lb.): 6430
Height Difference (in.): 5		303
SE-7248 SE-7248Steel Truck Dock Plate 48 In. x 72 In. x 9-9/16 In. 4,820 Lb. Capacity YellowUniform Capacity (lb.): 4820
Height Difference (in.): 7		413
SE-7260 SE-7260Steel Truck Dock Plate 60 In. x 72 In. x 12-1/2 In. 3,860 Lb. Capacity YellowUniform Capacity (lb.): 3860
Height Difference (in.): 9		475
SEH-4830 SEH-4830Steel Truck Dock Plate 30 In. x 48 In. x 7-11/16 In. 8,800 Lb. Capacity YellowUniform Capacity (lb.): 8800
Height Difference (in.): 4		227
SEH-4836 SEH-4836Steel Truck Dock Plate 36 In. x 48 In. x 8-11/16 In. 7,300 Lb. Capacity YellowUniform Capacity (lb.): 7300
Height Difference (in.): 5		263
SEH-4848 SEH-4848Steel Truck Dock Plate 48 In. x 48 In. x 9-11/16 In. 5,500 Lb. Capacity YellowUniform Capacity (lb.): 5500
Height Difference (in.): 7		429
SEH-4860 SEH-4860Steel Truck Dock Plate 60 In. x 48 In. x 12-5/8 In. 4,400 Lb. Capacity YellowUniform Capacity (lb.): 4400
Height Difference (in.): 9		528
SEH-6036 SEH-6036Steel Truck Dock Plate 36 In. x 60 In. x 8-11/16 In. 9,160 Lb. Capacity YellowUniform Capacity (lb.): 9160
Height Difference (in.): 5		317
SEH-6048 SEH-6048Steel Truck Dock Plate 48 In. x 60 In. x 9-11/16 In. 6,875 Lb. Capacity YellowUniform Capacity (lb.): 6875
Height Difference (in.): 7		445

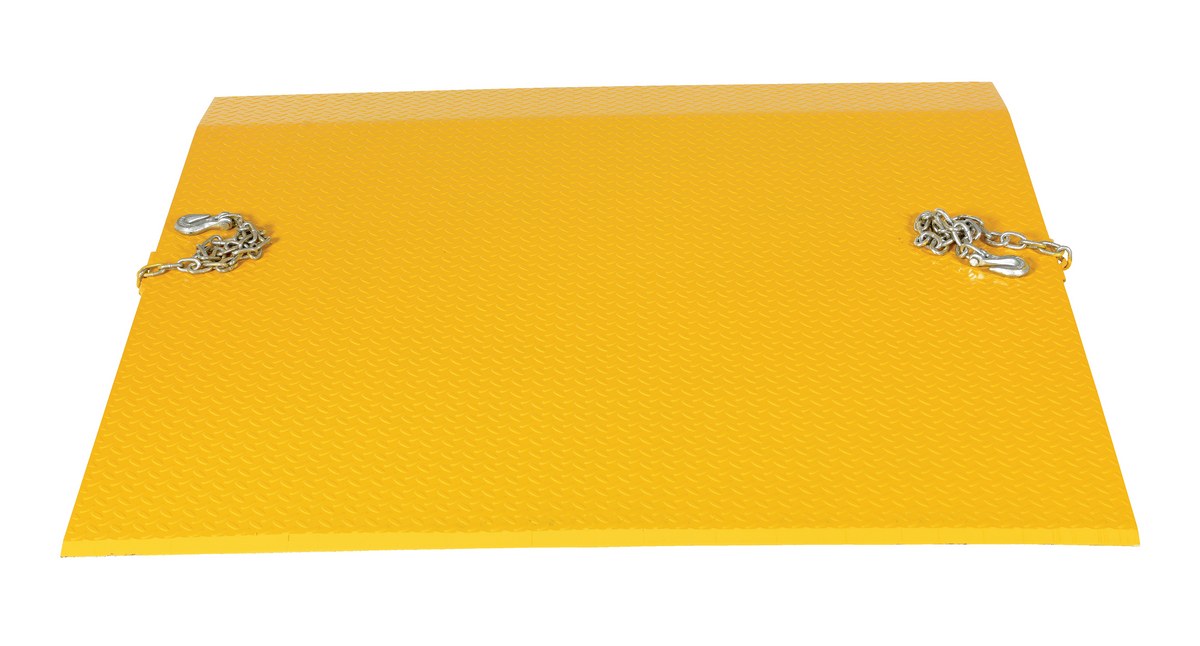

SEH-6060 SEH-6060Steel Truck Dock Plate 60 In. x 60 In. x 12-5/8 In. 5,500 Lb. Capacity YellowUniform Capacity (lb.): 5500
Height Difference (in.): 9		554
SEH-7230 SEH-7230Steel Truck Dock Plate 30 In. x 72 In. x 7-11/16 In. 13,200 Lb. Capacity YellowUniform Capacity (lb.): 13200
Height Difference (in.): 4		369
SEH-7236 SEH-7236Steel Truck Dock Plate 36 In. x 72 In. x 8-11/16 In. 11,000 Lb. Capacity YellowUniform Capacity (lb.): 11000
Height Difference (in.): 5		385
SEH-7248 SEH-7248Steel Truck Dock Plate 48 In. x 72 In. x 9-11/16 In. 8,250 Lb. Capacity YellowUniform Capacity (lb.): 8250
Height Difference (in.): 7		528

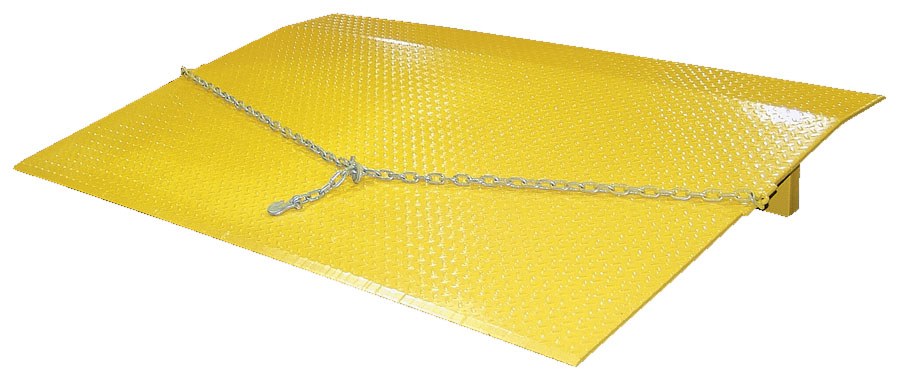

SEH-7260 SEH-7260Steel Truck Dock Plate 60 In. x 72 In. x 12-5/8 In. 6,600 Lb. Capacity YellowUniform Capacity (lb.): 6600
Height Difference (in.): 9		627

Options


Model Image PDF Descriptions
RPL-STL Compliance Certificate Removable Pickup Loops
SP-STL Compliance Certificate Span Pins & Holes (4)
HOLE-STL Compliance Certificate Extra Span Holes
PIN-STL Compliance Certificate Extra Span Pins
ATC-12 Compliance Certificate Anti-Theft Chain (144")

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
