Product Family Overview

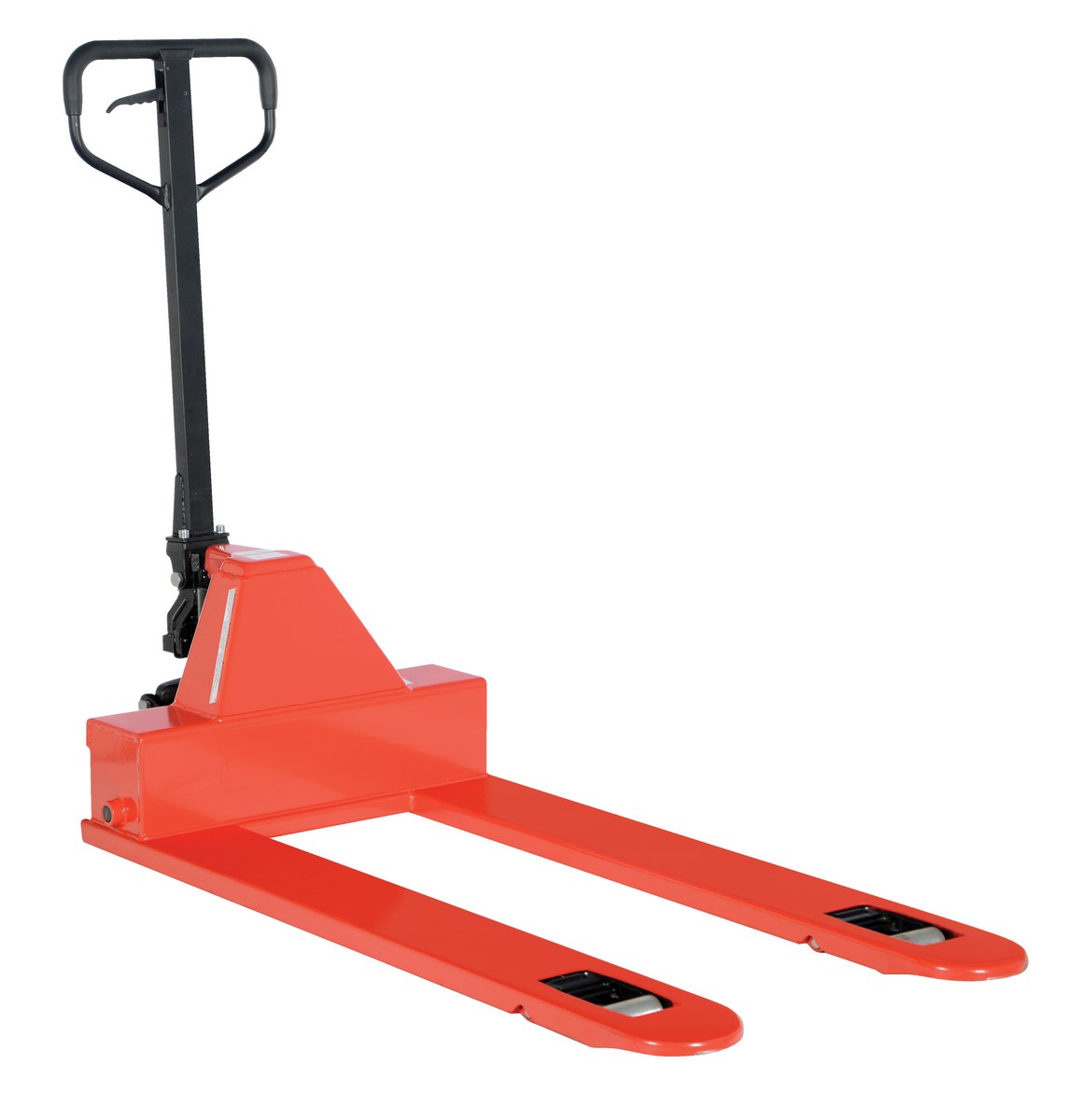

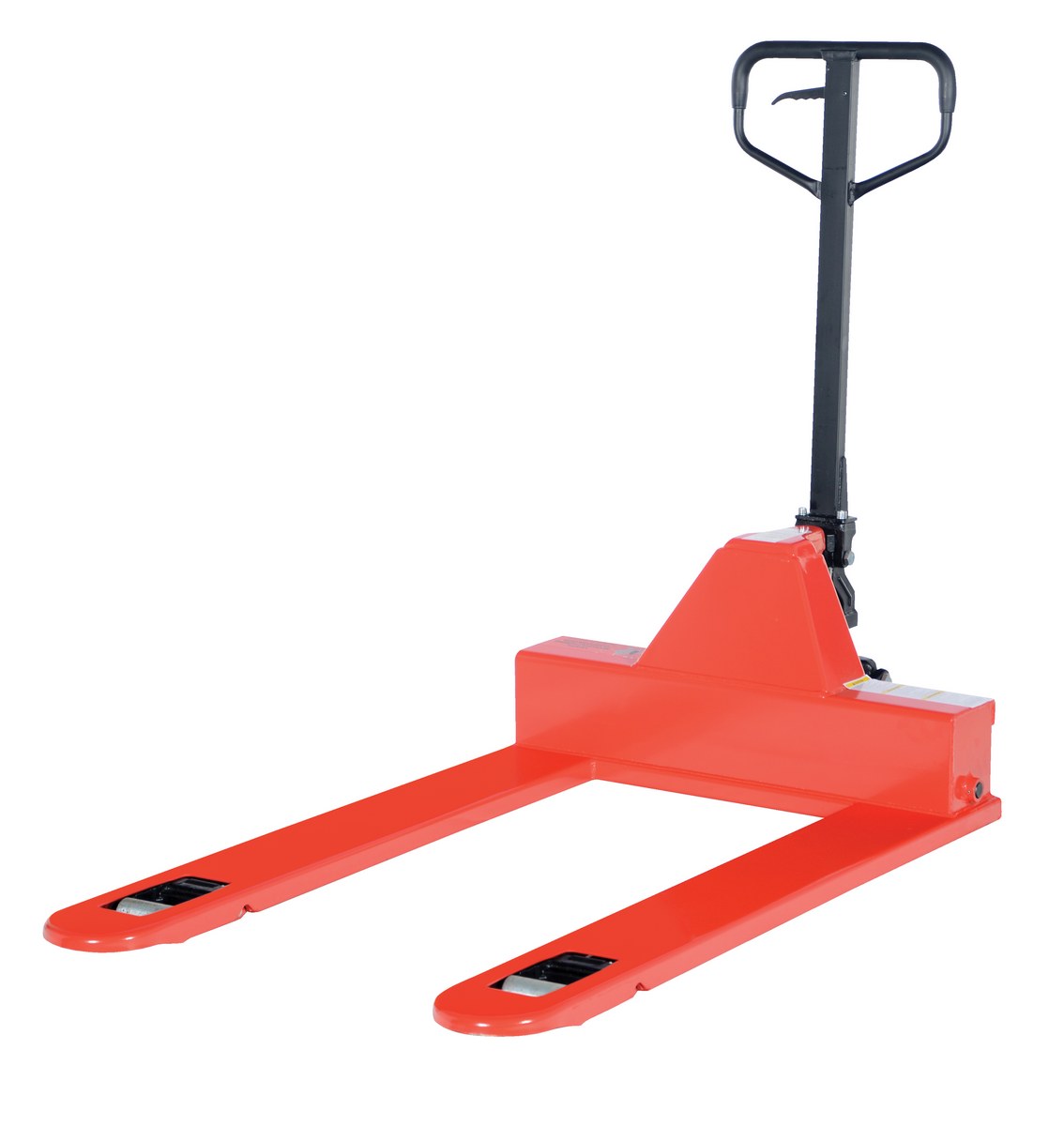

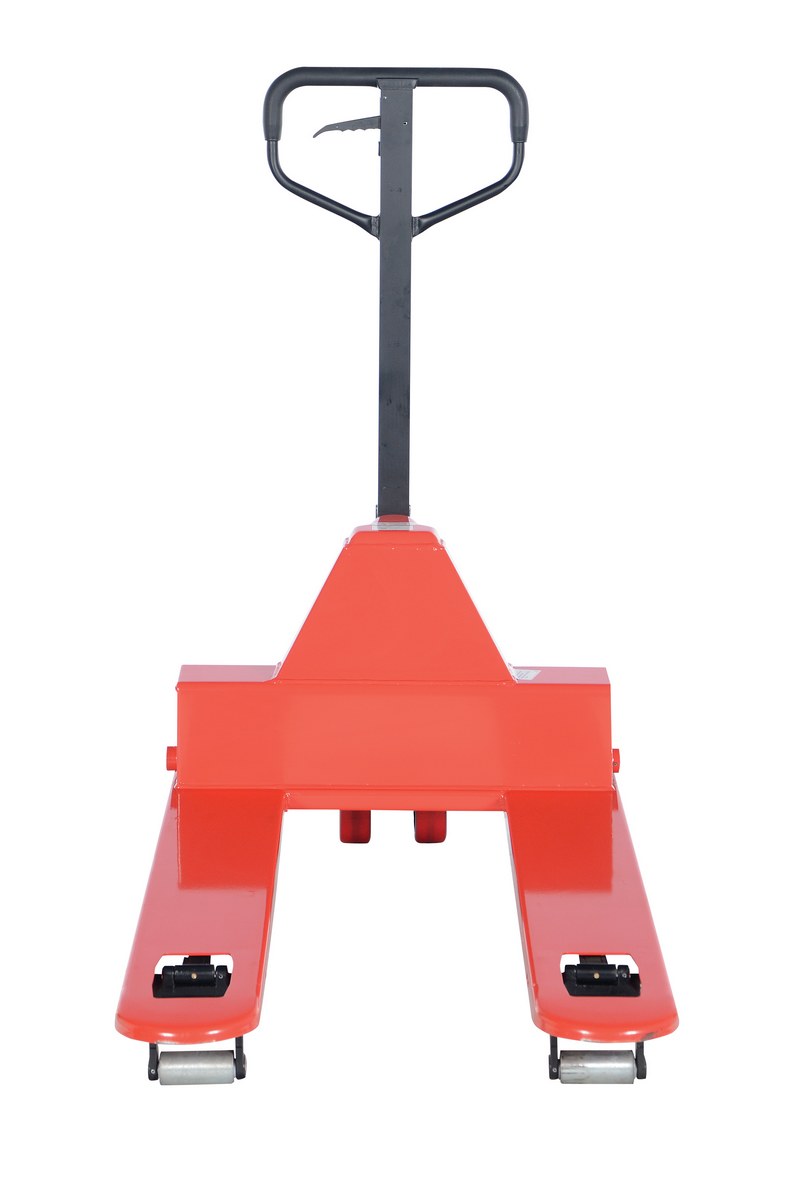

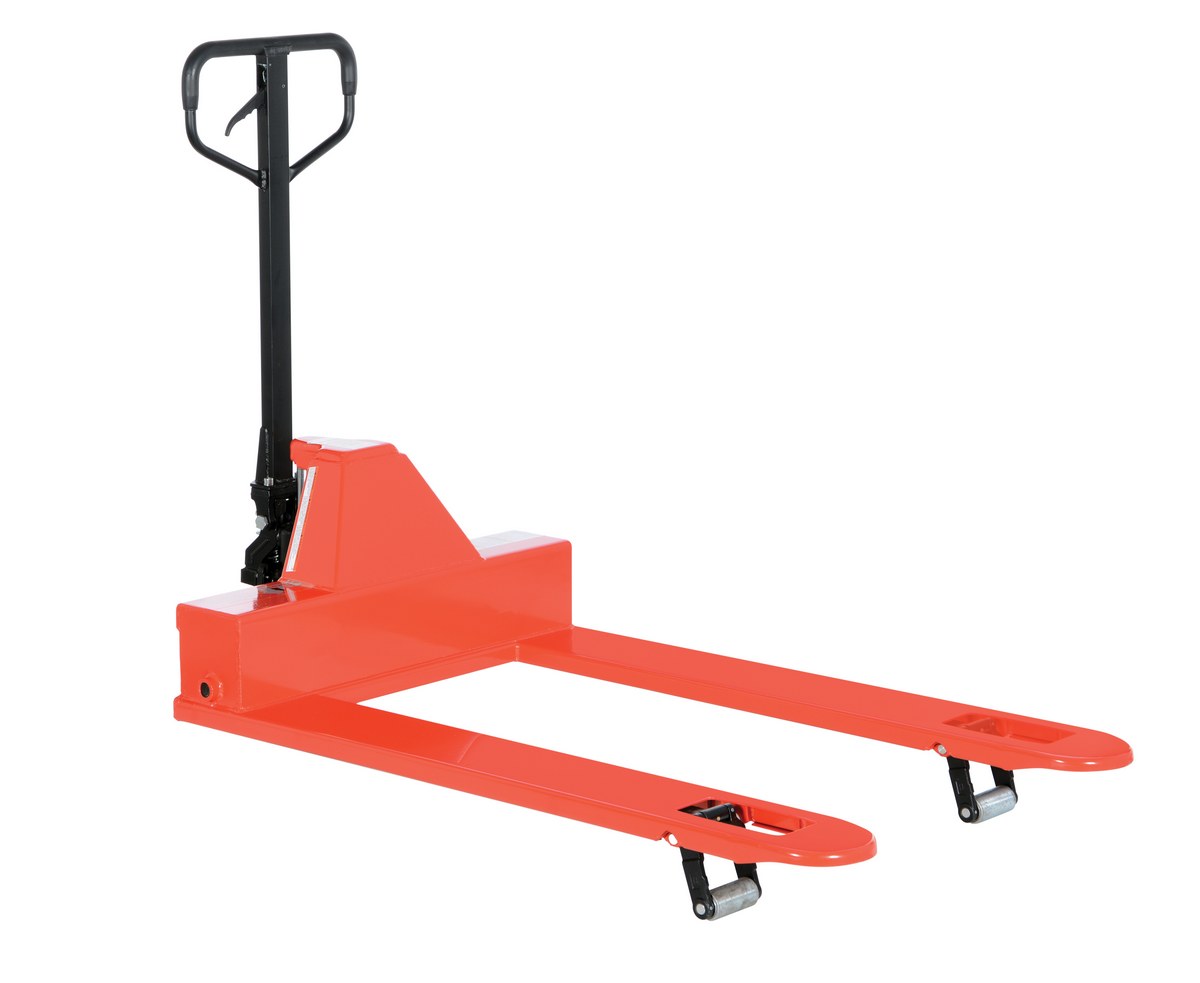

Low Profile Pallet Trucks
SERIES: PM4

Ships with the Handle Detached Standard

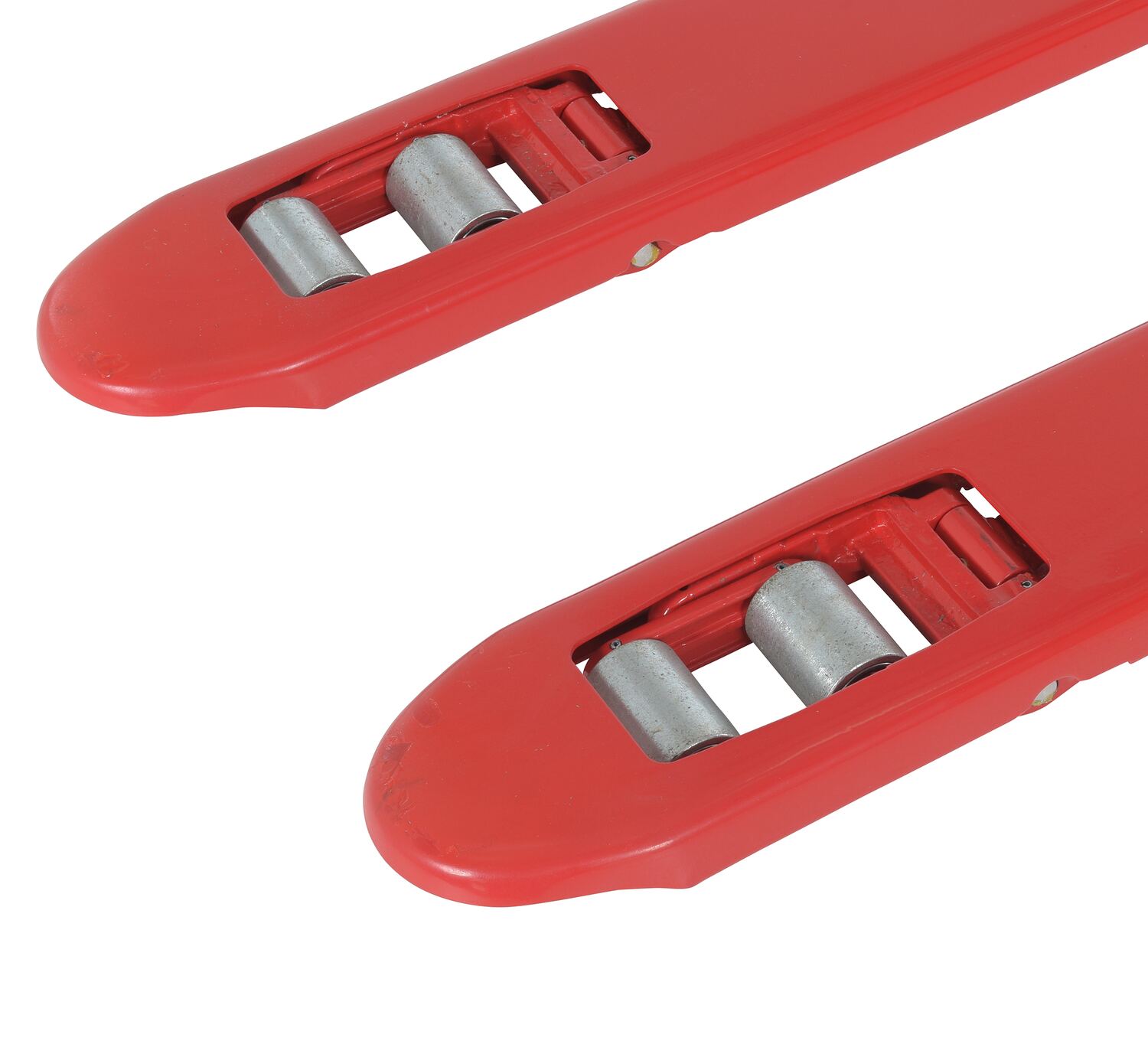

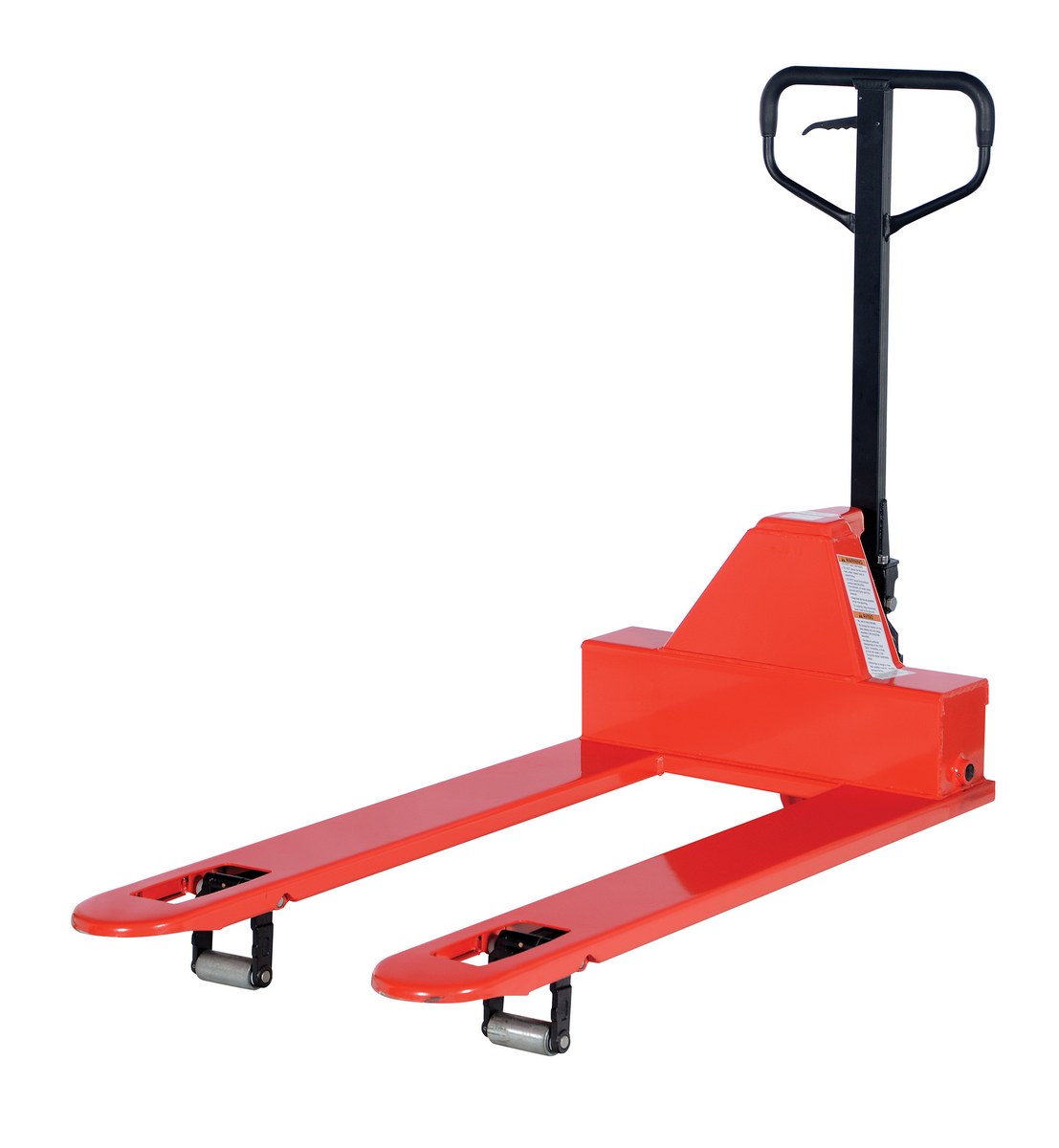

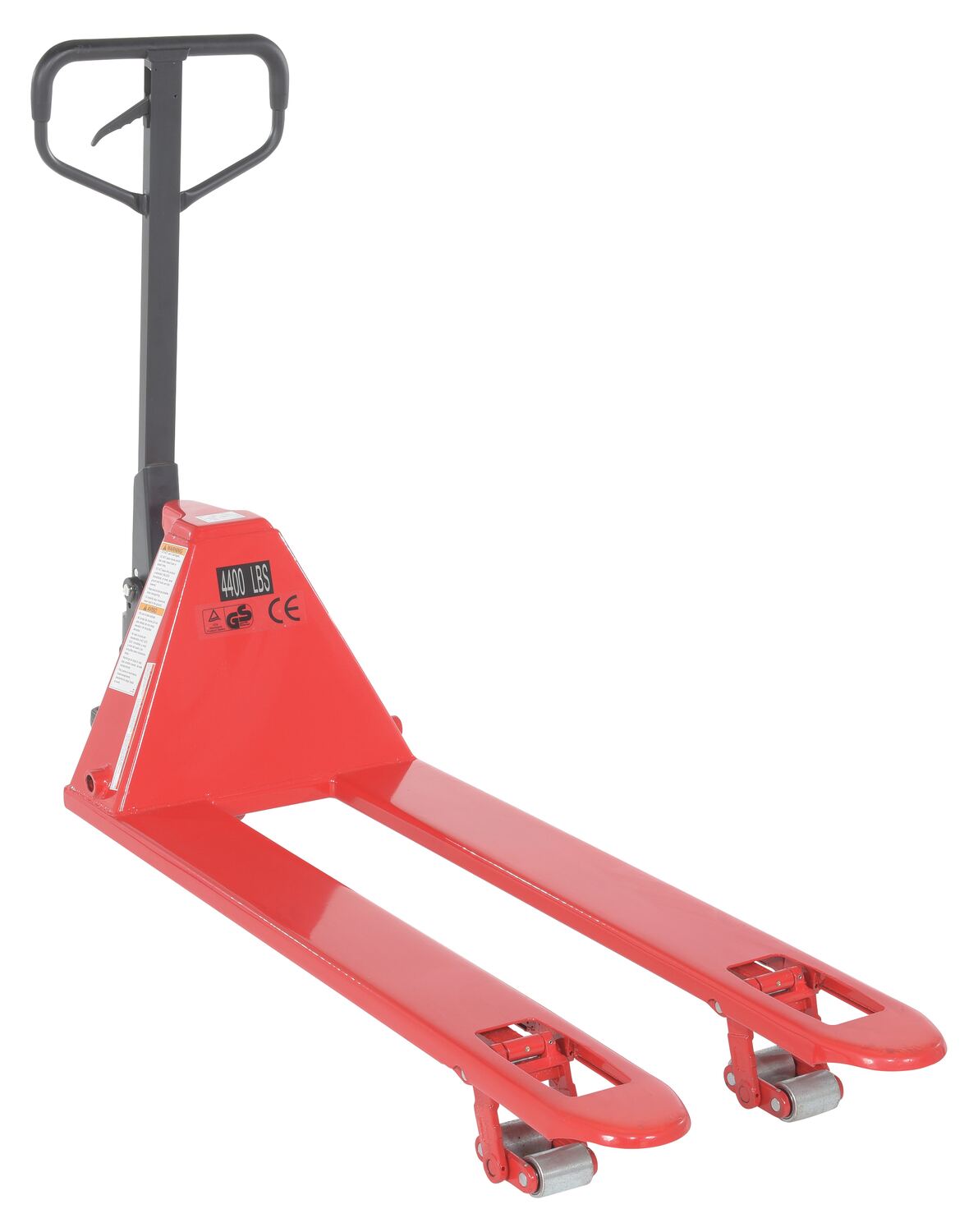

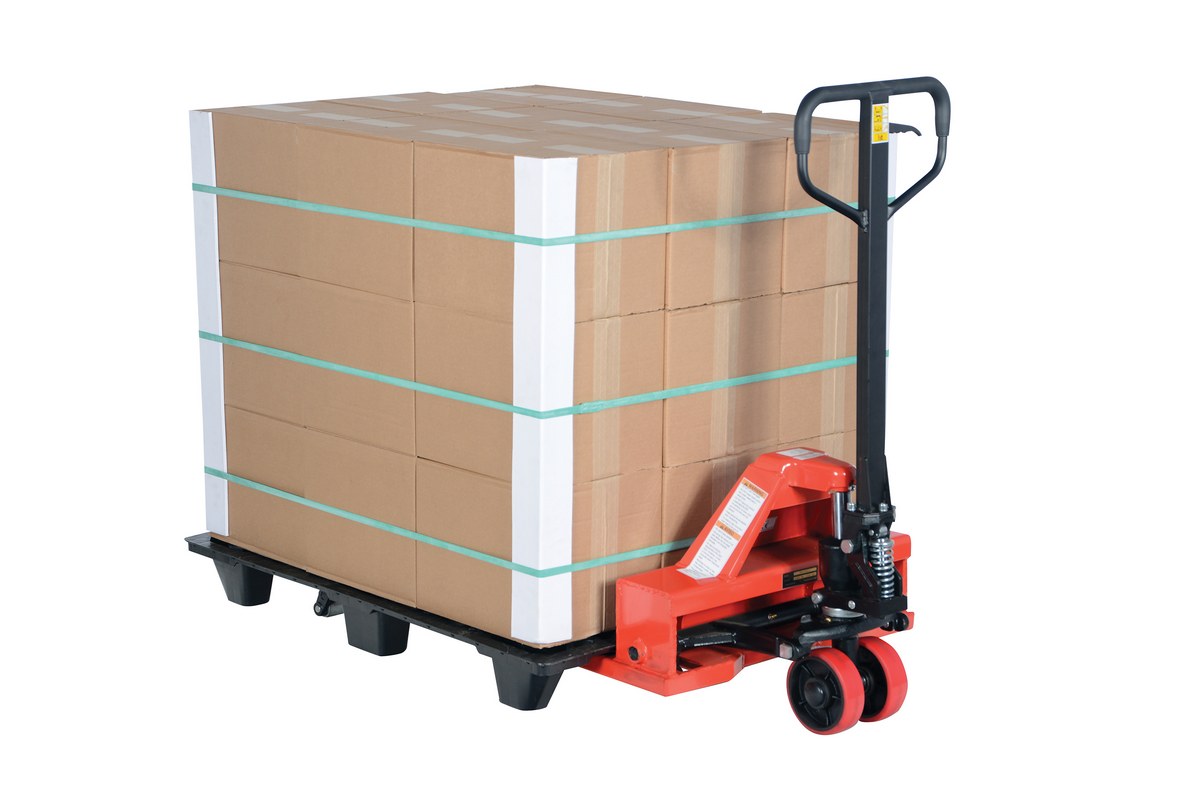

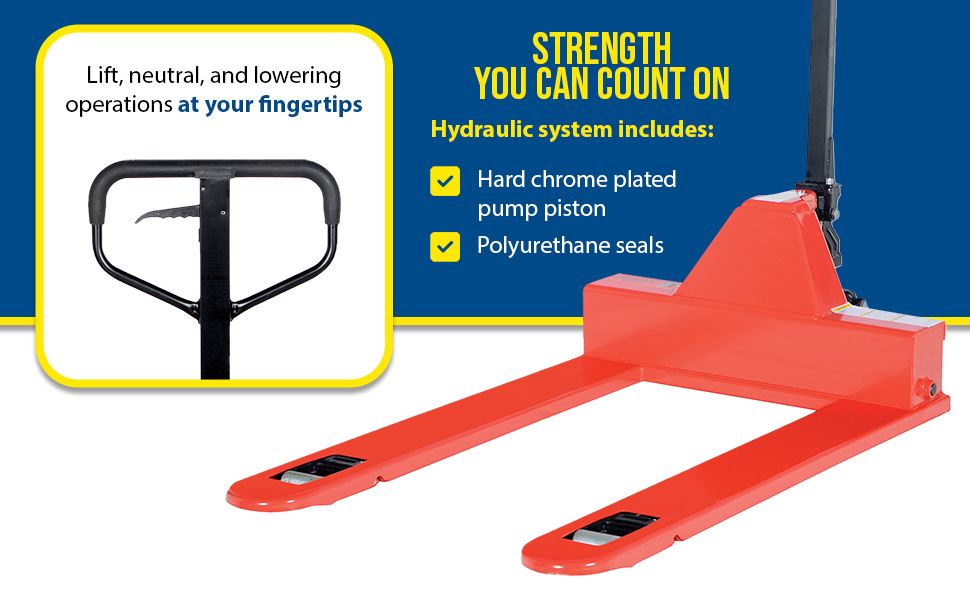

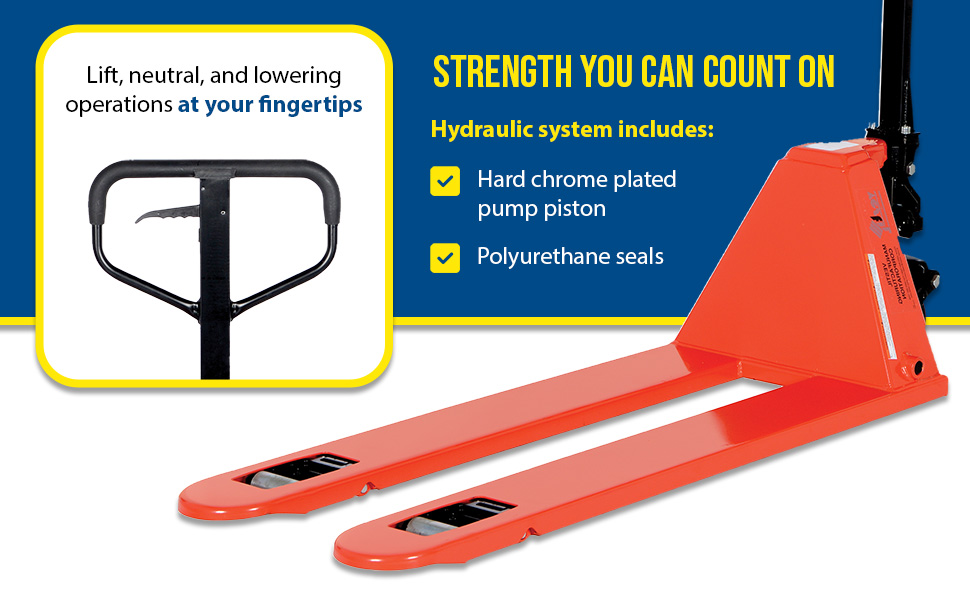

The Low Profile Pallet Truck enters pallets from all four sides. All steel frame is reinforced to handle 4,000 lb. capacity loads. Individual fork width is 7" wide. Wide loop control handle with lift, neutral, and lower functions provides fingertip control. Lifetime lubricated bearings. Hydraulic system has hard chrome plated pump piston with polyurethane seals. Suspension system has a heavy-duty thrust bearing. Complete with adjustable push rods, polyurethane wheels, steel load rollers and red baked-in powder-coated toughness.

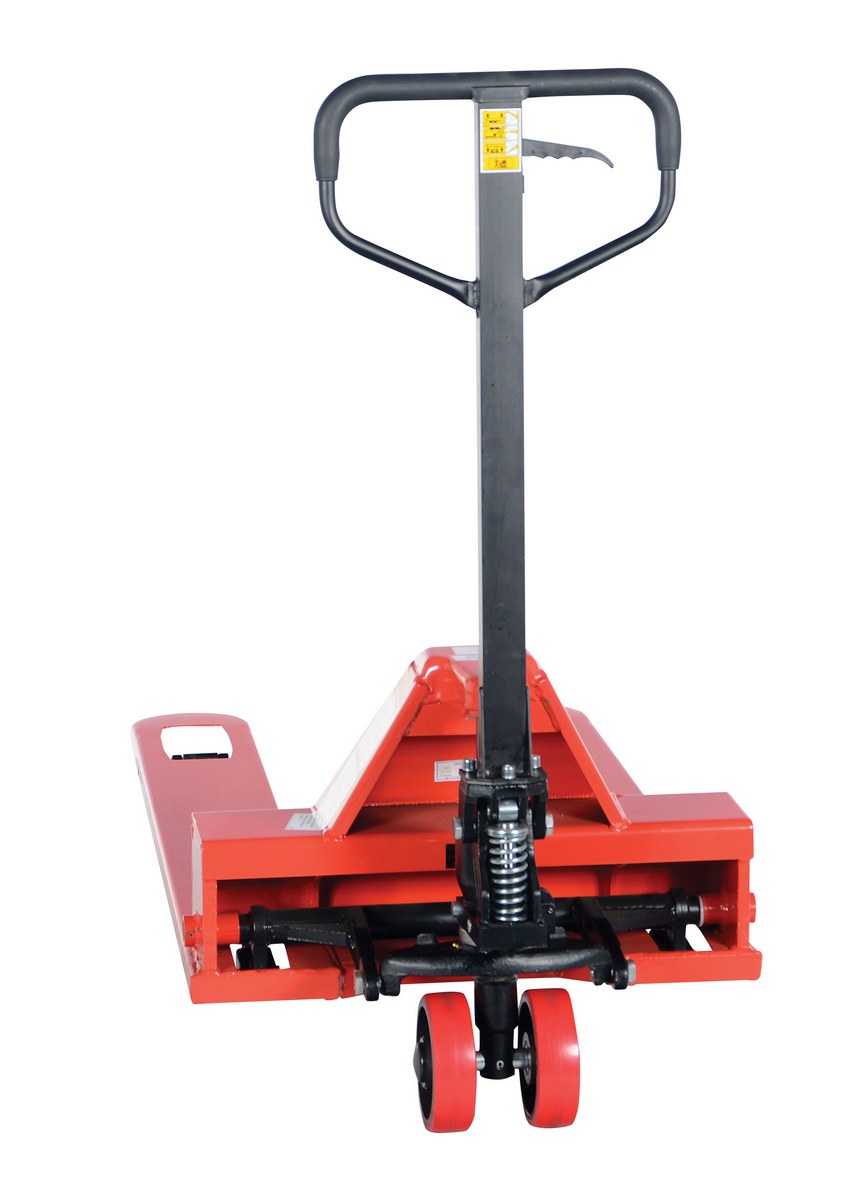

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation

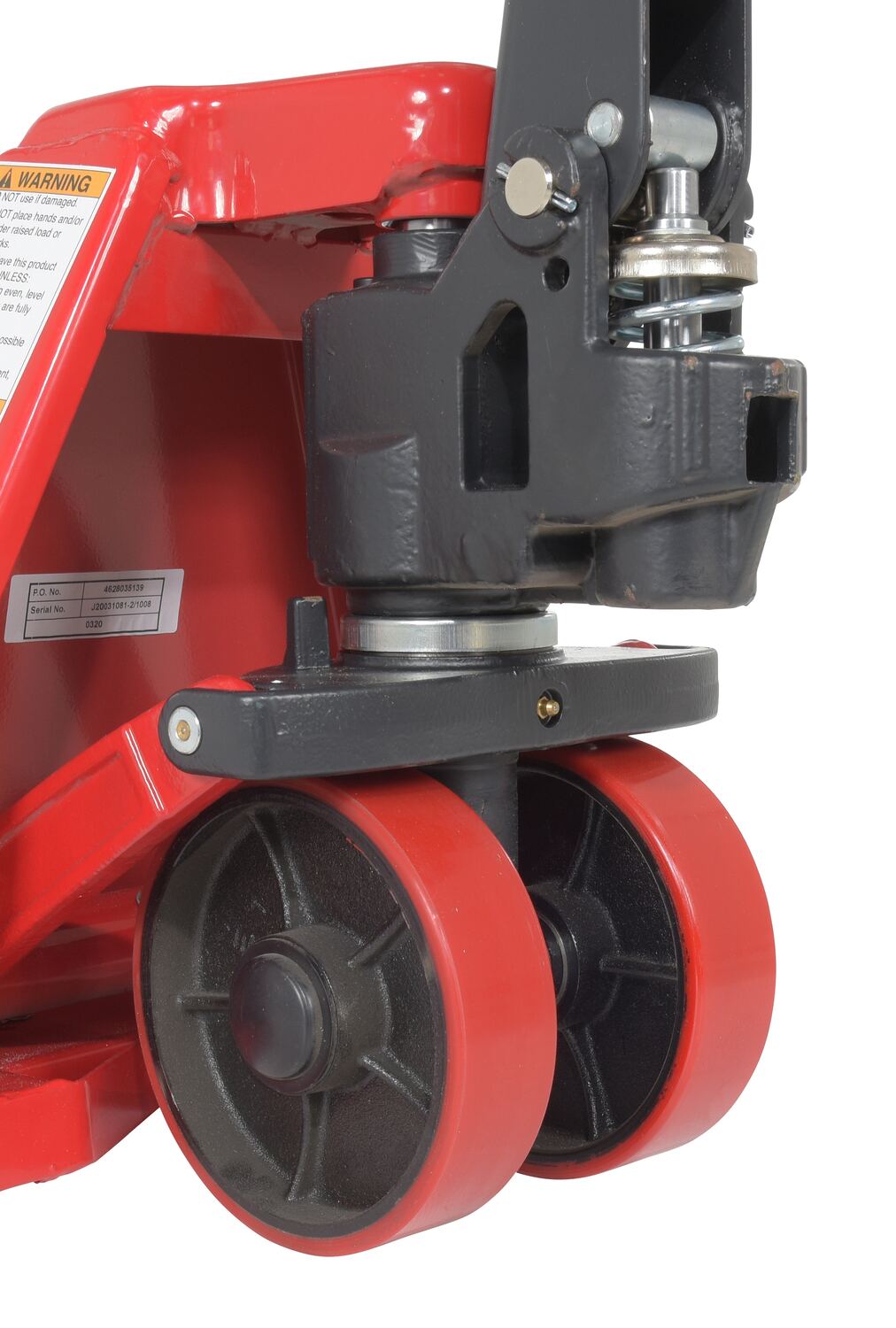

  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work

Ships with the Handle Detached Standard

The Low Profile Pallet Truck enters pallets from all four sides. All steel frame is reinforced to handle 4,000 lb. capacity loads. Individual fork width is 7" wide. Wide loop control handle with lift, neutral, and lower functions provides fingertip control. Lifetime lubricated bearings. Hydraulic system has hard chrome plated pump piston with polyurethane seals. Suspension system has a heavy-duty thrust bearing. Complete with adjustable push rods, polyurethane wheels, steel load rollers and red baked-in powder-coated toughness.

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation
  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work

Additional Models In This Family

PM4-2048-LP

model PM4-2048-LP

PM4-3348-LP

model PM4-3348-LP

PM4-2148-LP

model PM4-2148-LP

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

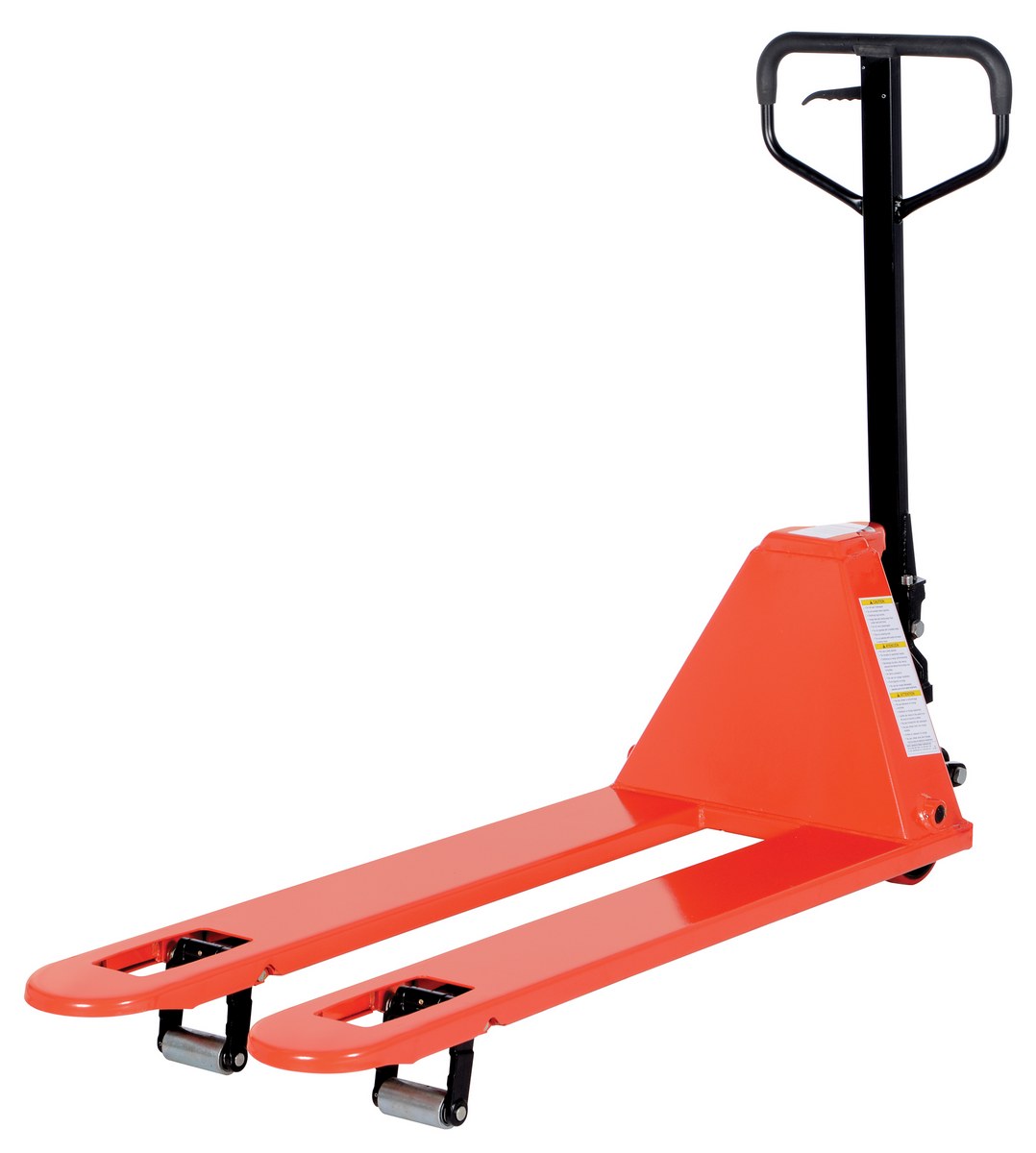

PM4-2048-LP PM4-2048-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 61 In. x 20-1/2 In. x 49 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8
229

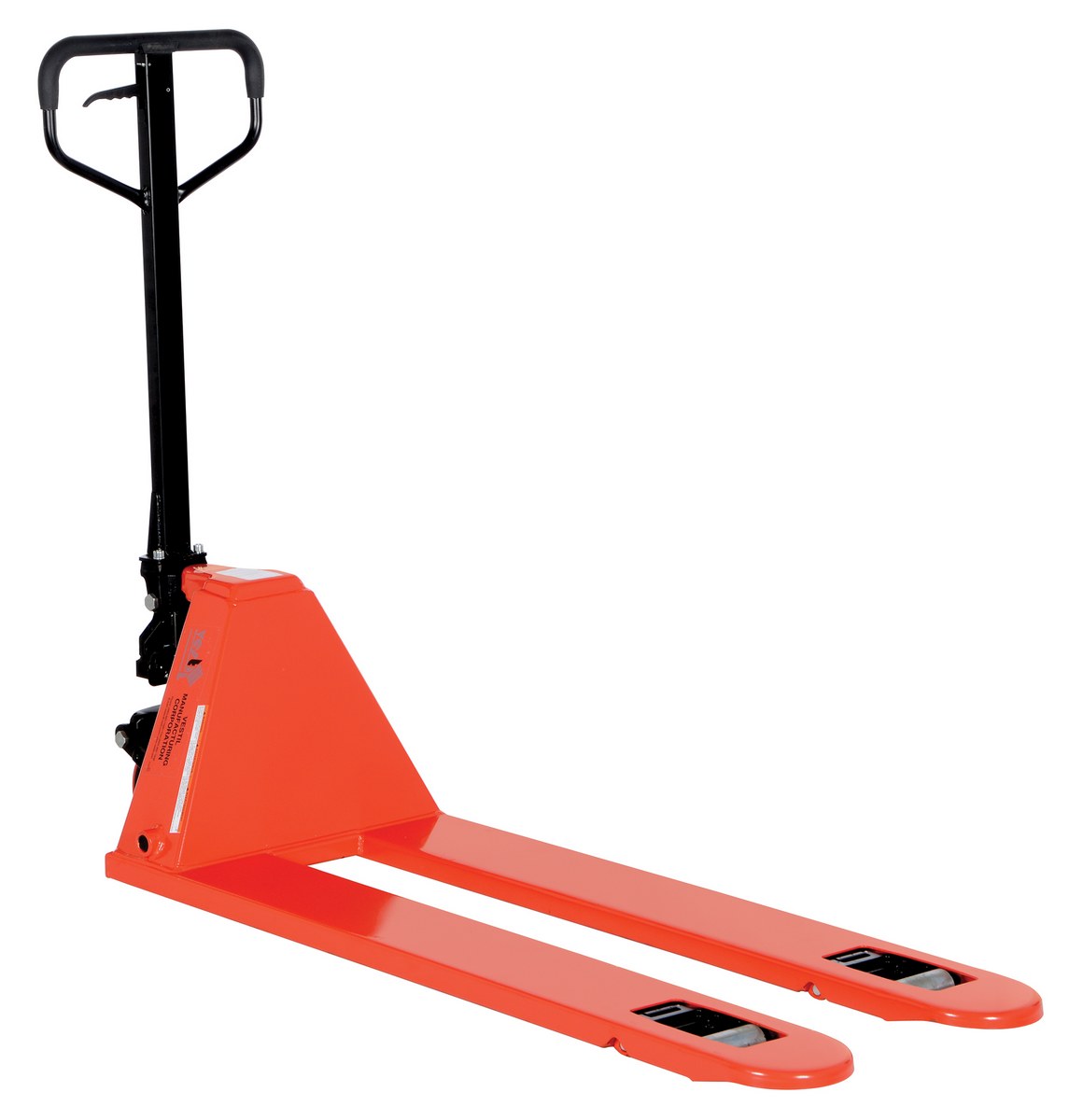

PM4-2048-LP-6PKG PM4-2048-LP-6PKG1 Year Limited WarrantySteel (Quantity 6) Low Profile Pallet Truck 61 In. x 20-1/2 In. x 49 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8
1123

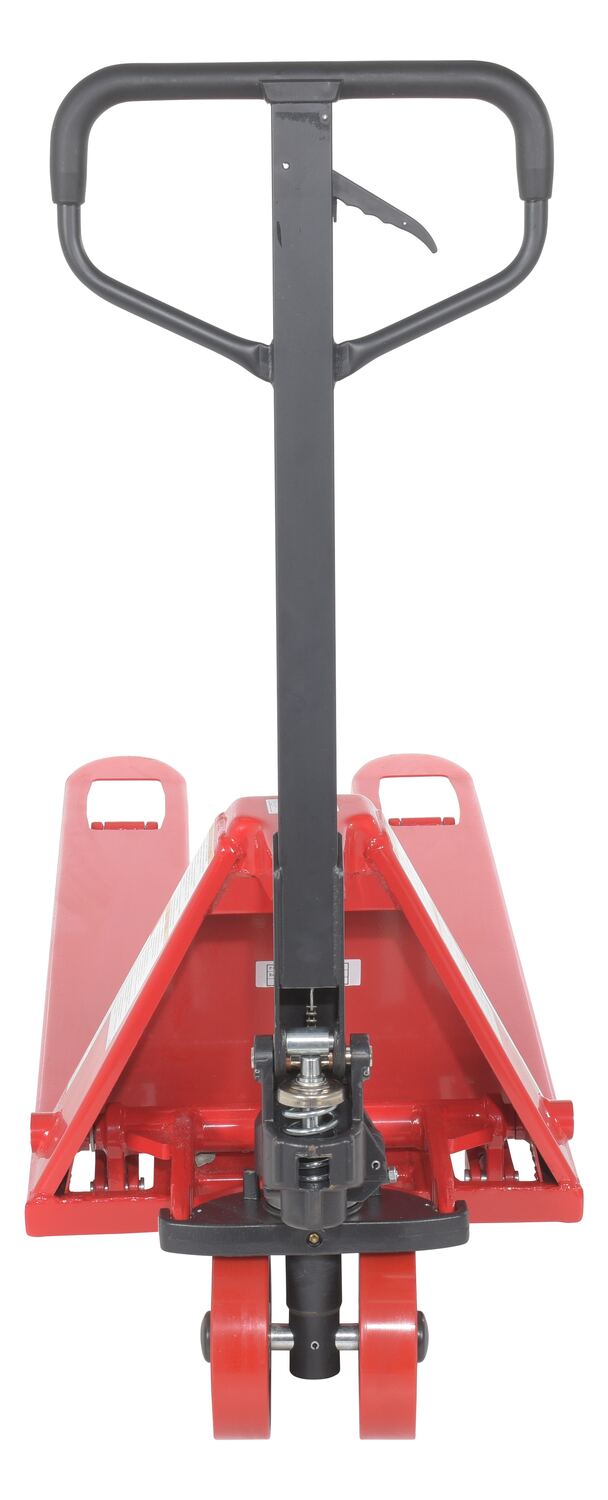

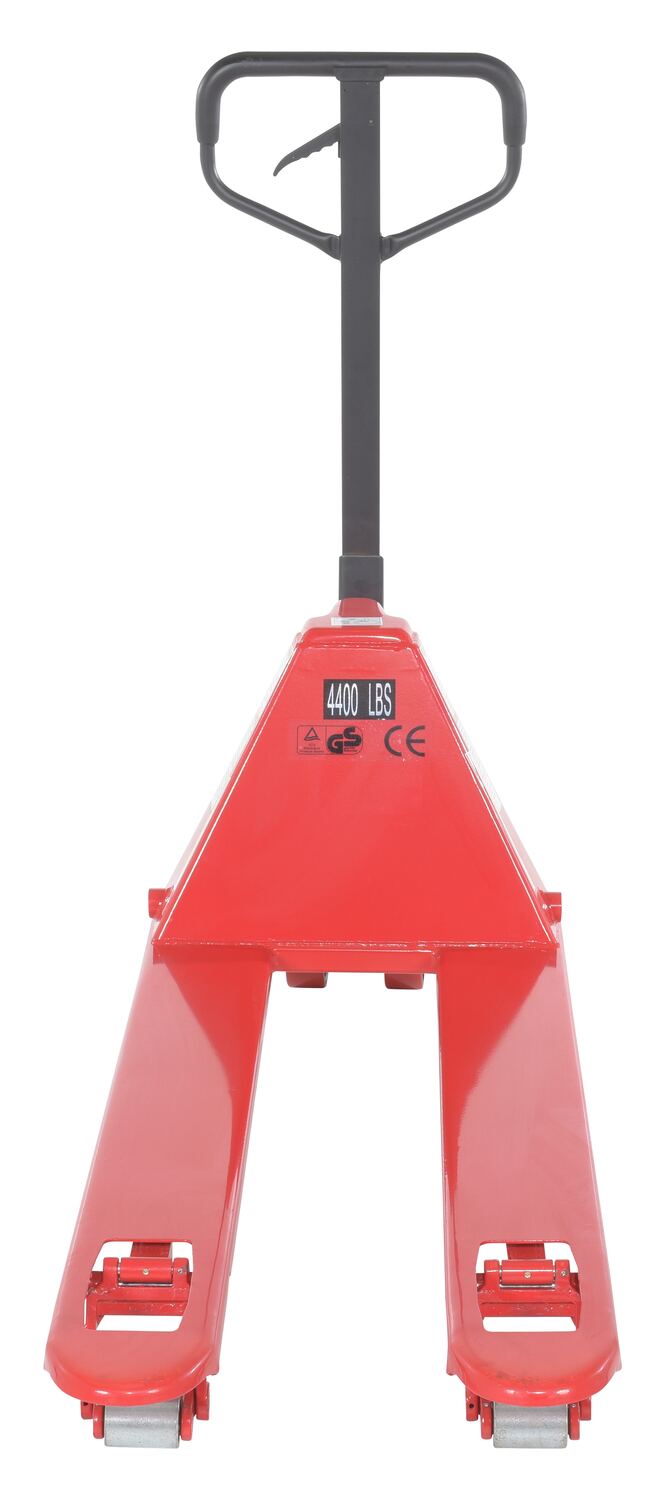

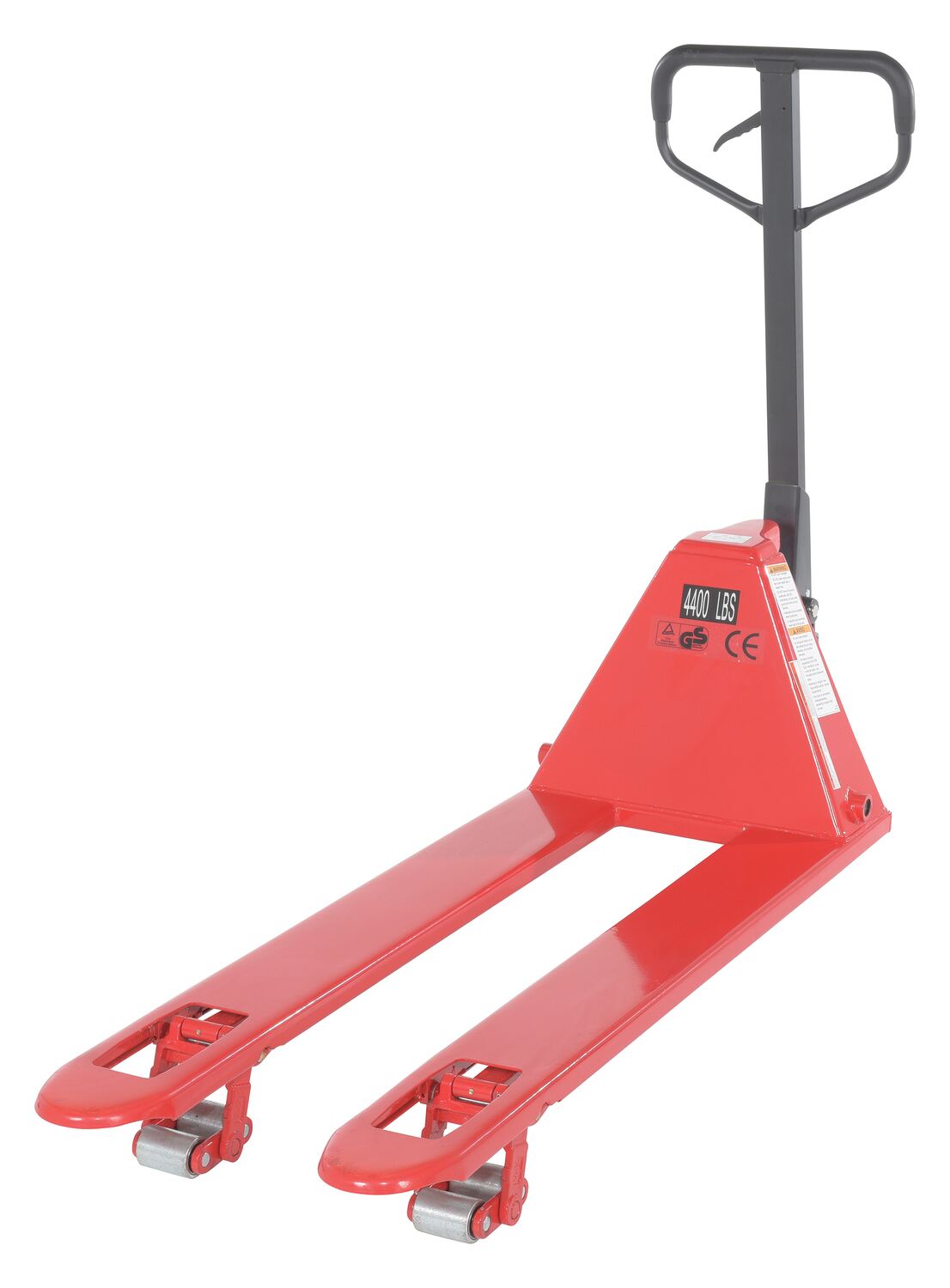

PM4-2148-LP PM4-2148-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 21 In. x 48 In. 4,000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 21
241

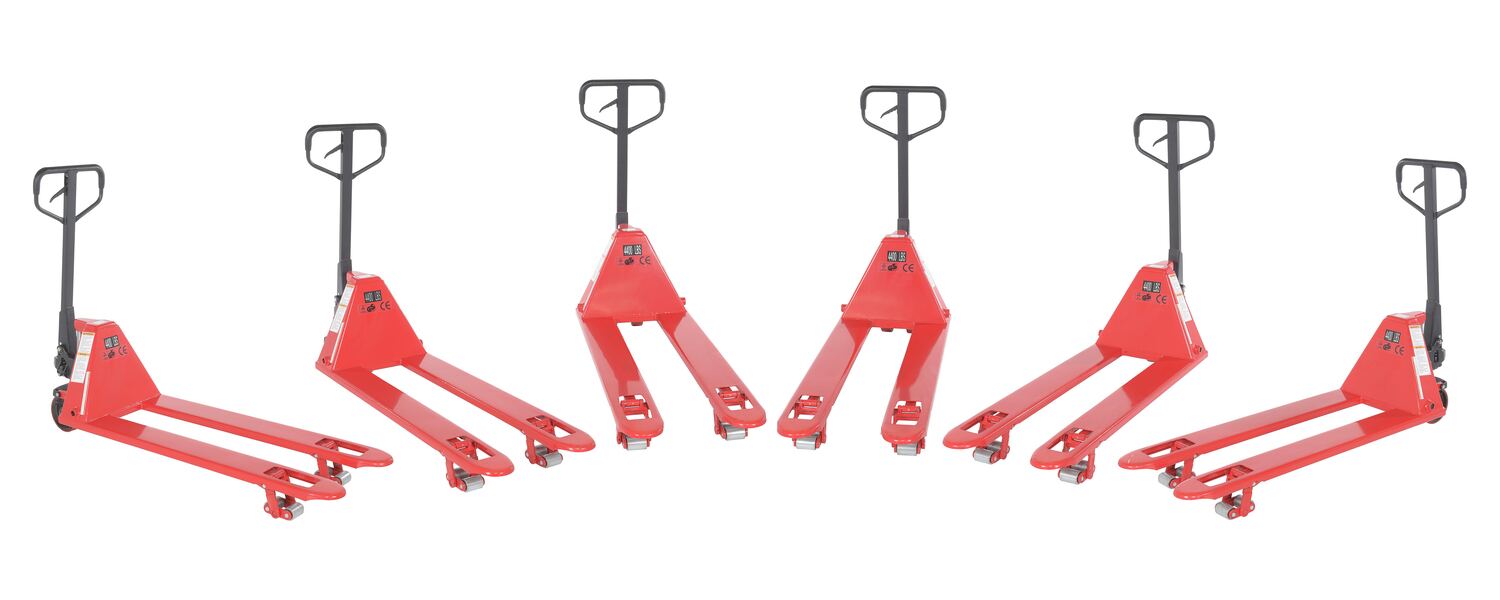

PM4-2148-LP-6PKG PM4-2148-LP-6PKG1 Year Limited WarrantySteel Low Profile Pallet Trucks 6 Pack 21 In. x 48 In. 4,000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 21
1140

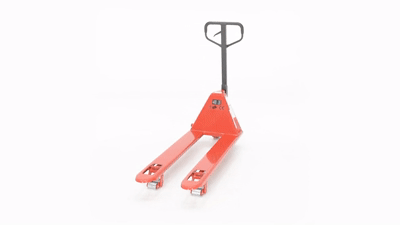

PM4-2748-LP PM4-2748-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 64 In. x 27 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 27
253
PM4-2748-LP-6PKG PM4-2748-LP-6PKG1 Year Limited WarrantySteel (Quantity 6) Low Profile Pallet Truck 64 In. x 27 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 27
1372
PM4-3348-LP PM4-3348-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 63 In. x 33 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 33
271
PM4-3348-LP-6PKG PM4-3348-LP-6PKG1 Year Limited WarrantySteel (Quantity 6) Low Profile Pallet Truck 63 In. x 33 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 33
1465

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

PM4-2048-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8

PM4-2048-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8

PM4-2148-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21

PM4-2148-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21

PM4-2748-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27

PM4-2748-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27

PM4-3348-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33

PM4-3348-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33


Low Profile Pallet Trucks PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


PM4-2048-LP

PM4-2048-LP-6PKG

PM4-2148-LP

PM4-2148-LP-6PKG

PM4-2748-LP

PM4-2748-LP-6PKG

PM4-3348-LP

PM4-3348-LP-6PKG

SDS Sheets

Hydraulic Oil SDS Sheet for: PM4-2048-LP
Hydraulic Oil SDS Sheet for: PM4-2048-LP-6PKG
Hydraulic Oil SDS Sheet for: PM4-2748-LP
Hydraulic Oil SDS Sheet for: PM4-2748-LP-6PKG
Hydraulic Oil SDS Sheet for: PM4-3348-LP
Hydraulic Oil SDS Sheet for: PM4-3348-LP-6PKG

Other PDF's


Directory Links Of Available PDF's For All Products



Q: What is the distance in between the forks, please?

A: The distance between the forks is about 8.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Low Profile Pallet Trucks




Ships with the Handle Detached Standard

The Low Profile Pallet Truck enters pallets from all four sides. All steel frame is reinforced to handle 4,000 lb. capacity loads. Individual fork width is 7" wide. Wide loop control handle with lift, neutral, and lower functions provides fingertip control. Lifetime lubricated bearings. Hydraulic system has hard chrome plated pump piston with polyurethane seals. Suspension system has a heavy-duty thrust bearing. Complete with adjustable push rods, polyurethane wheels, steel load rollers and red baked-in powder-coated toughness.

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation
  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work


Low Profile Pallet Truck
Model Number Image PDF's Description Capacity
(lbs)
Overall Fork
Dimensions
Service
Range
Wt.
(lbs)

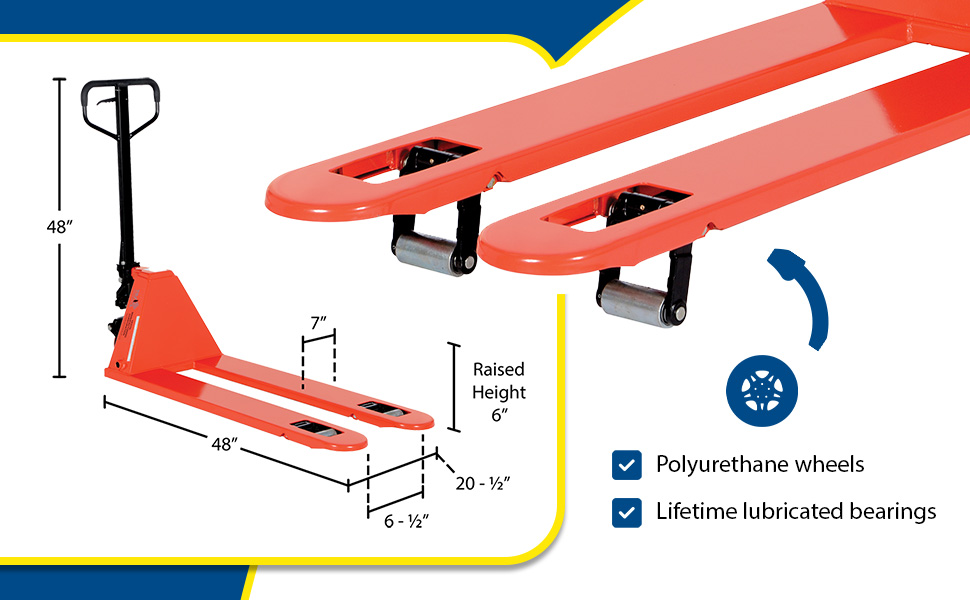

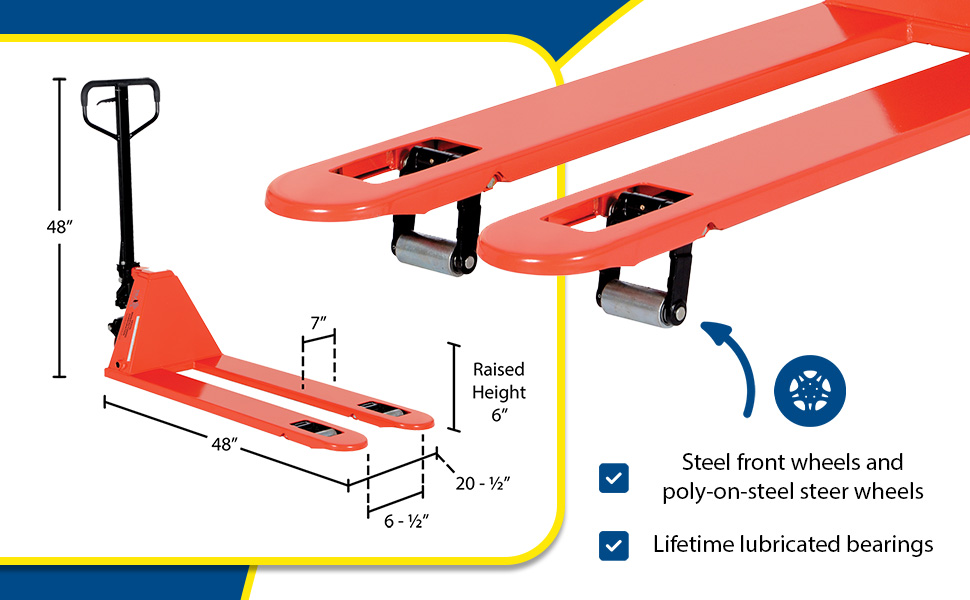

PM4-2048-LP* icon_approvaldrawings.jpg Warranty PDF Low Profile 4,000 20-5/8"Wx48"L 1-7/8"-6" 229
PM4-2748-LP icon_approvaldrawings.jpg Warranty PDF Low Profile 4,000 27"Wx48"L 1-7/8"-6" 253

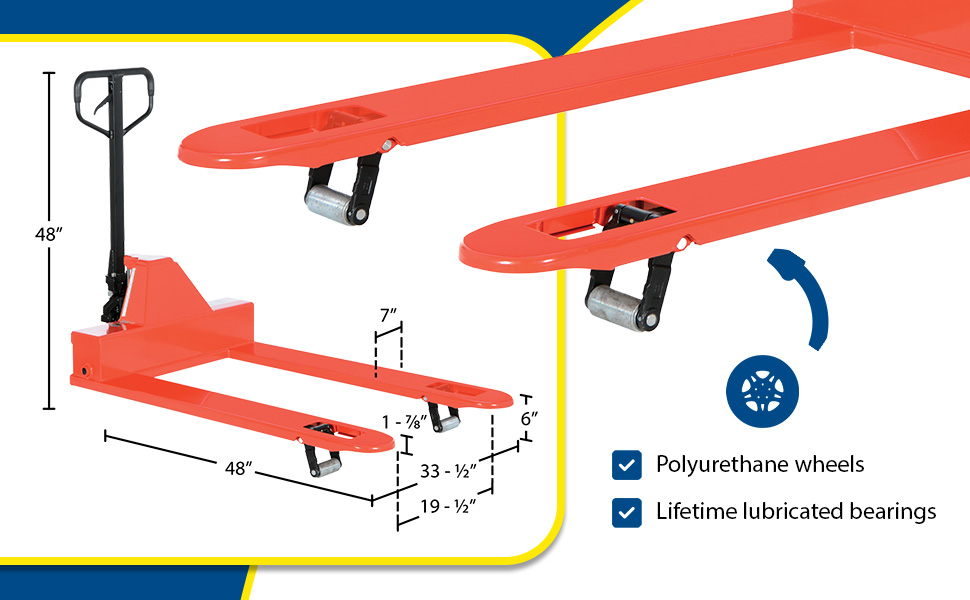

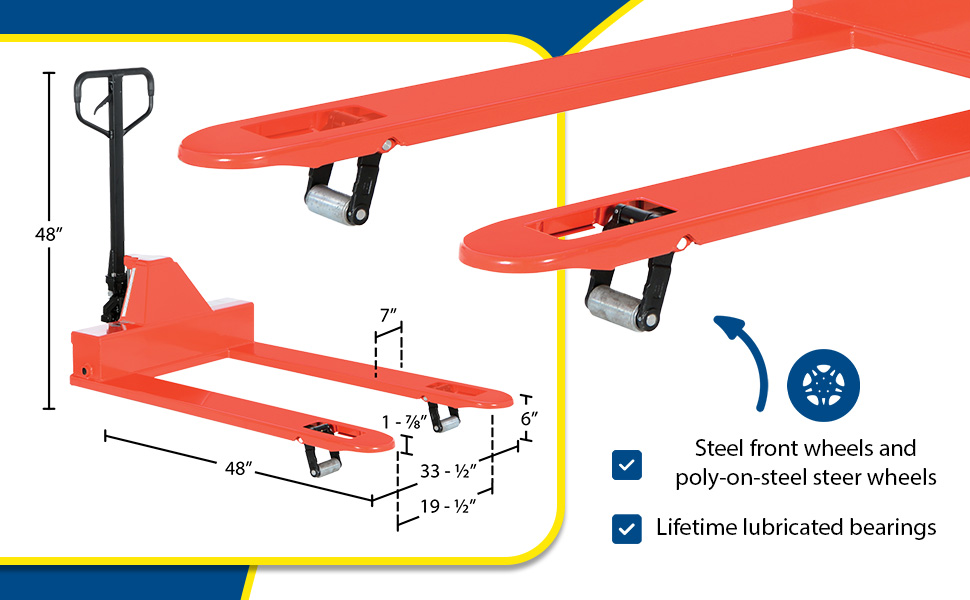

PM4-3348-LP icon_approvaldrawings.jpg Warranty PDF Low Profile 4,000 33"Wx48"L 1-7/8"-6" 271
(6) SIX PACKS - CRATED
PM4-2048-LP-6PKG*
icon_approvaldrawings.jpg Warranty PDF Low Profile 4,000 20-5/8"Wx48"L 1-7/8"-6" 1163
PM4-2748-LP-6PKG
icon_approvaldrawings.jpg Warranty PDF Low Profile 4,000 27"Wx48"L 1-7/8"-6" 1307
PM4-3348-LP-6PKG
icon_approvaldrawings.jpg Warranty PDF Low Profile 4,000 33"Wx48"L 1-7/8"-6" 1475
* MODEL PM4-2048-LP HAS A TRIANGULAR APRON
