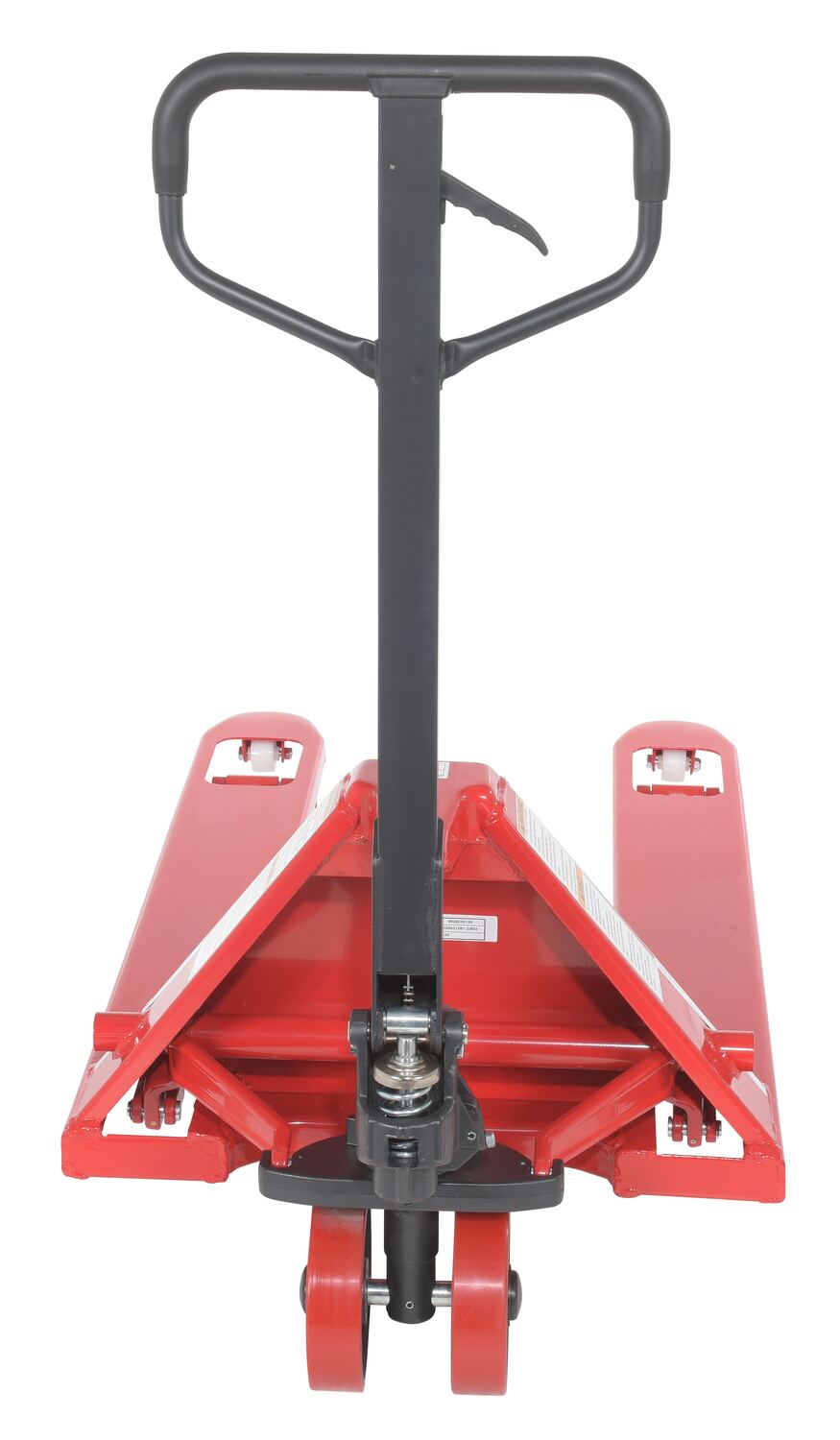

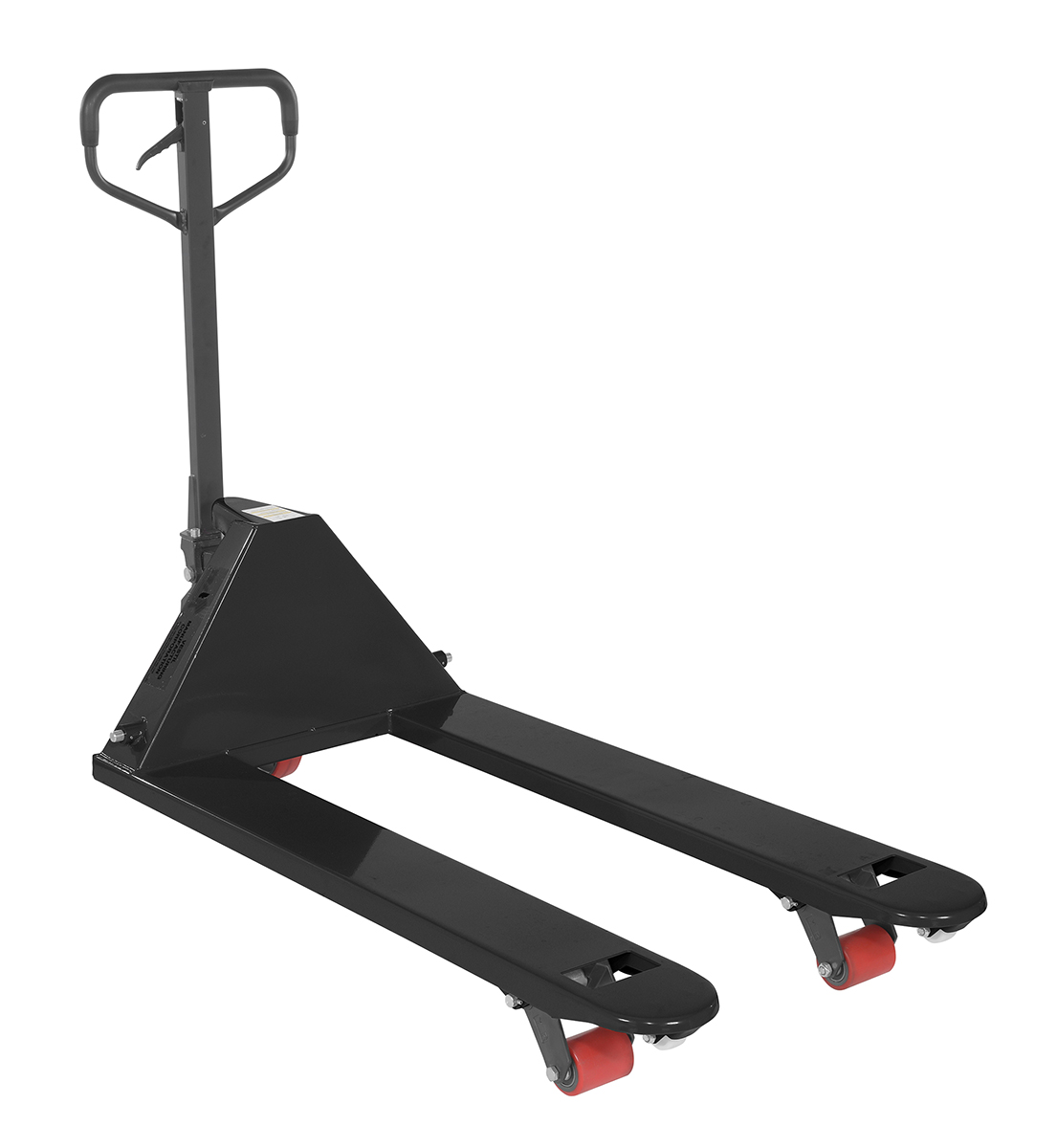

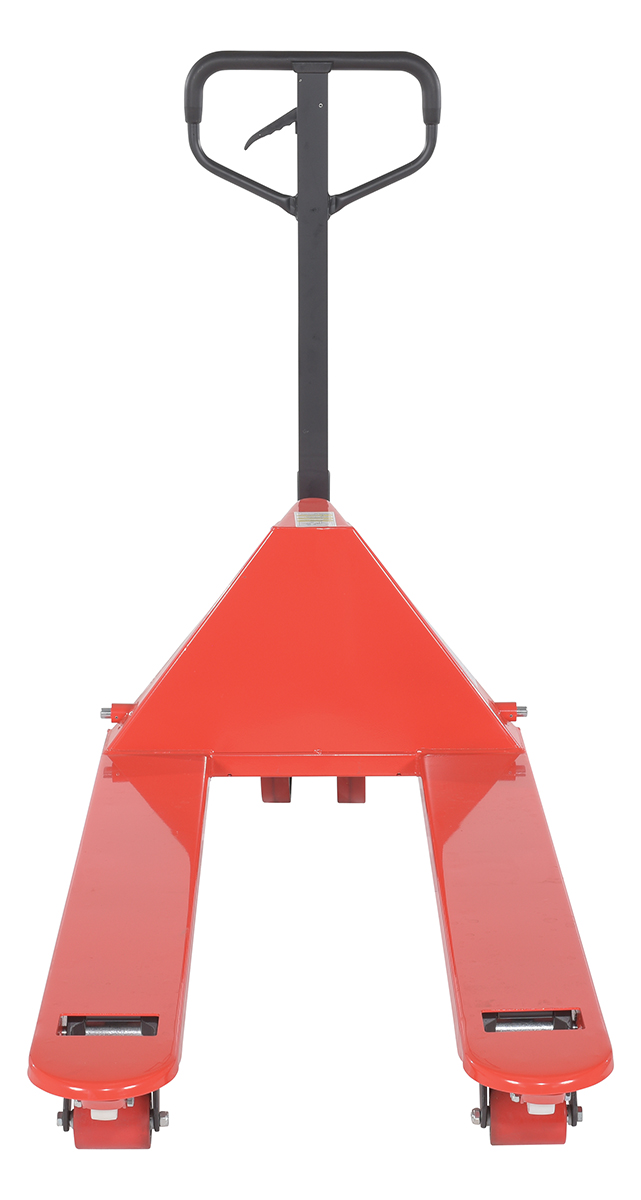

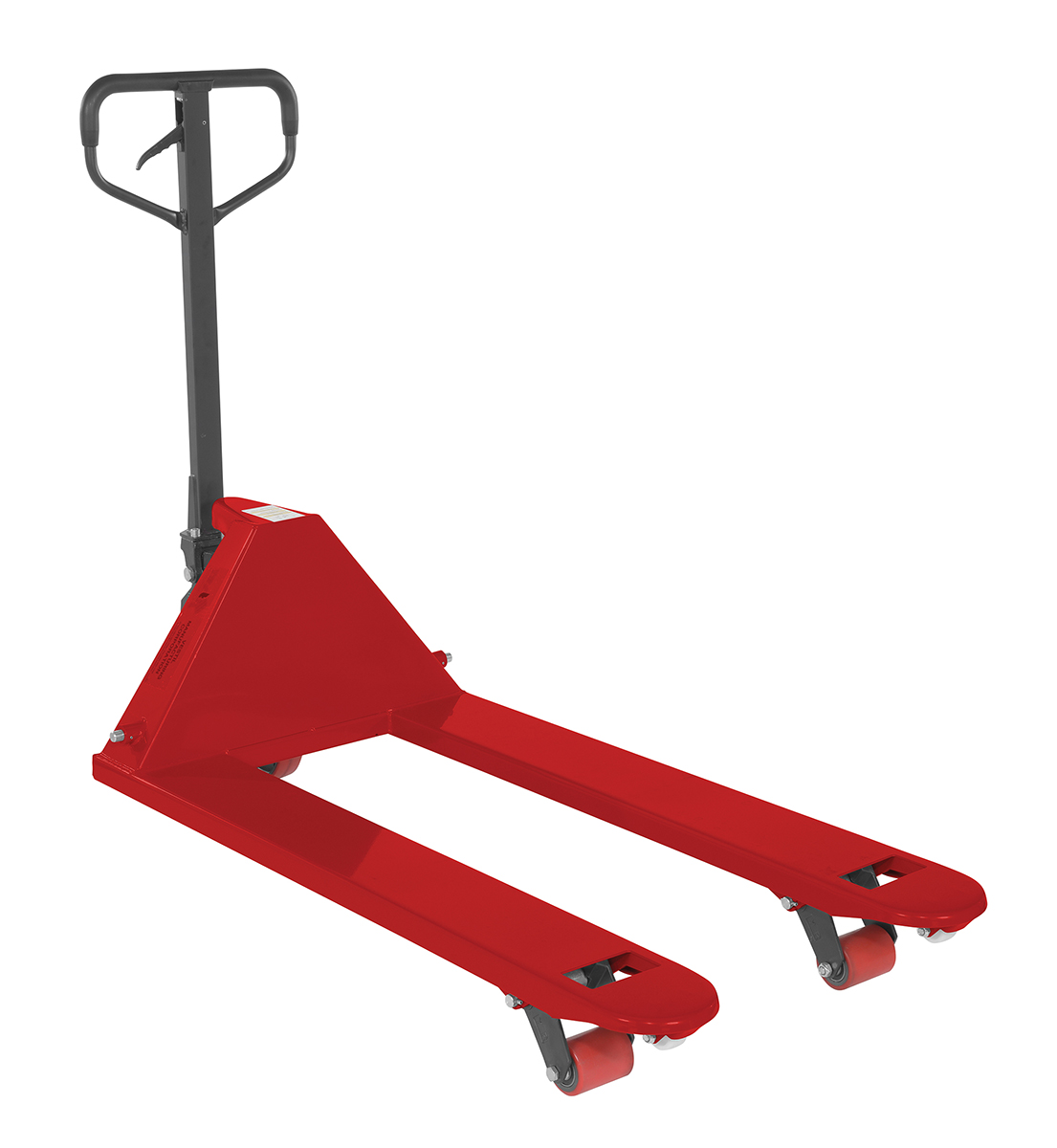

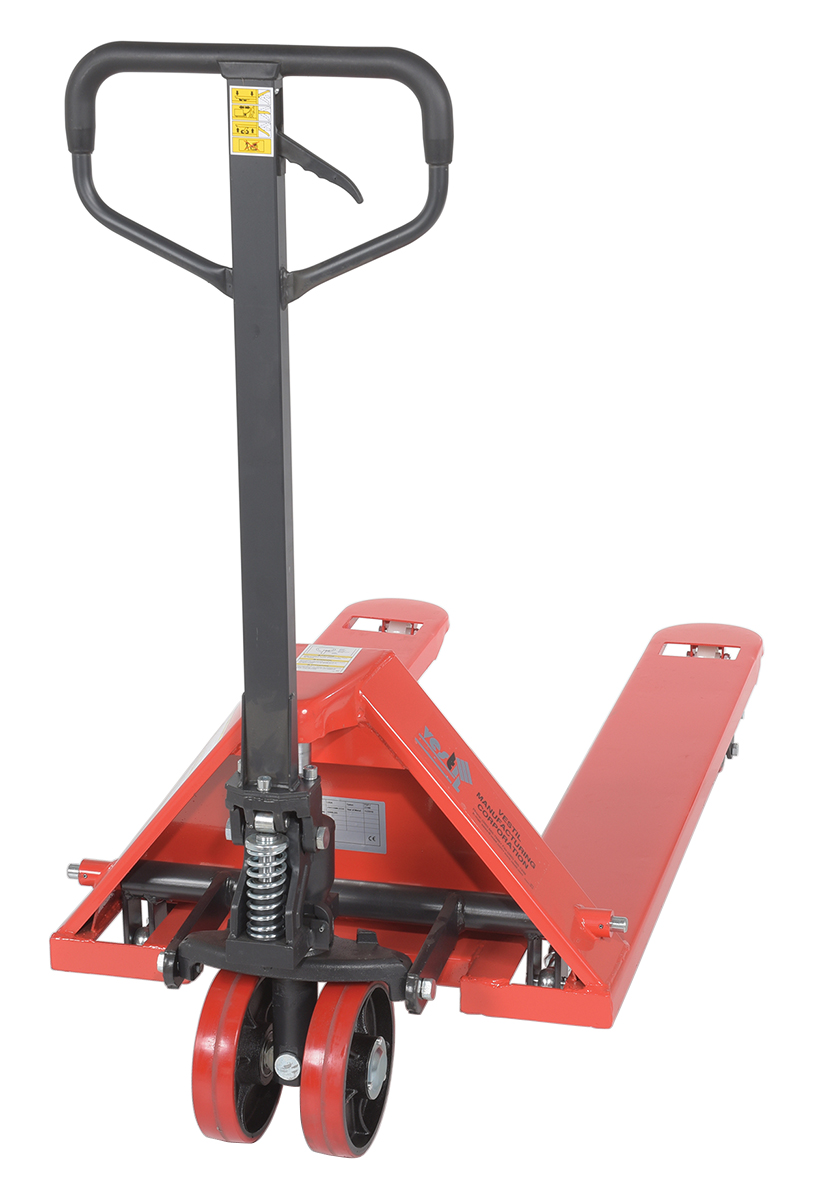

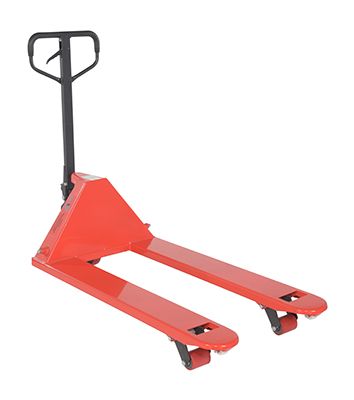

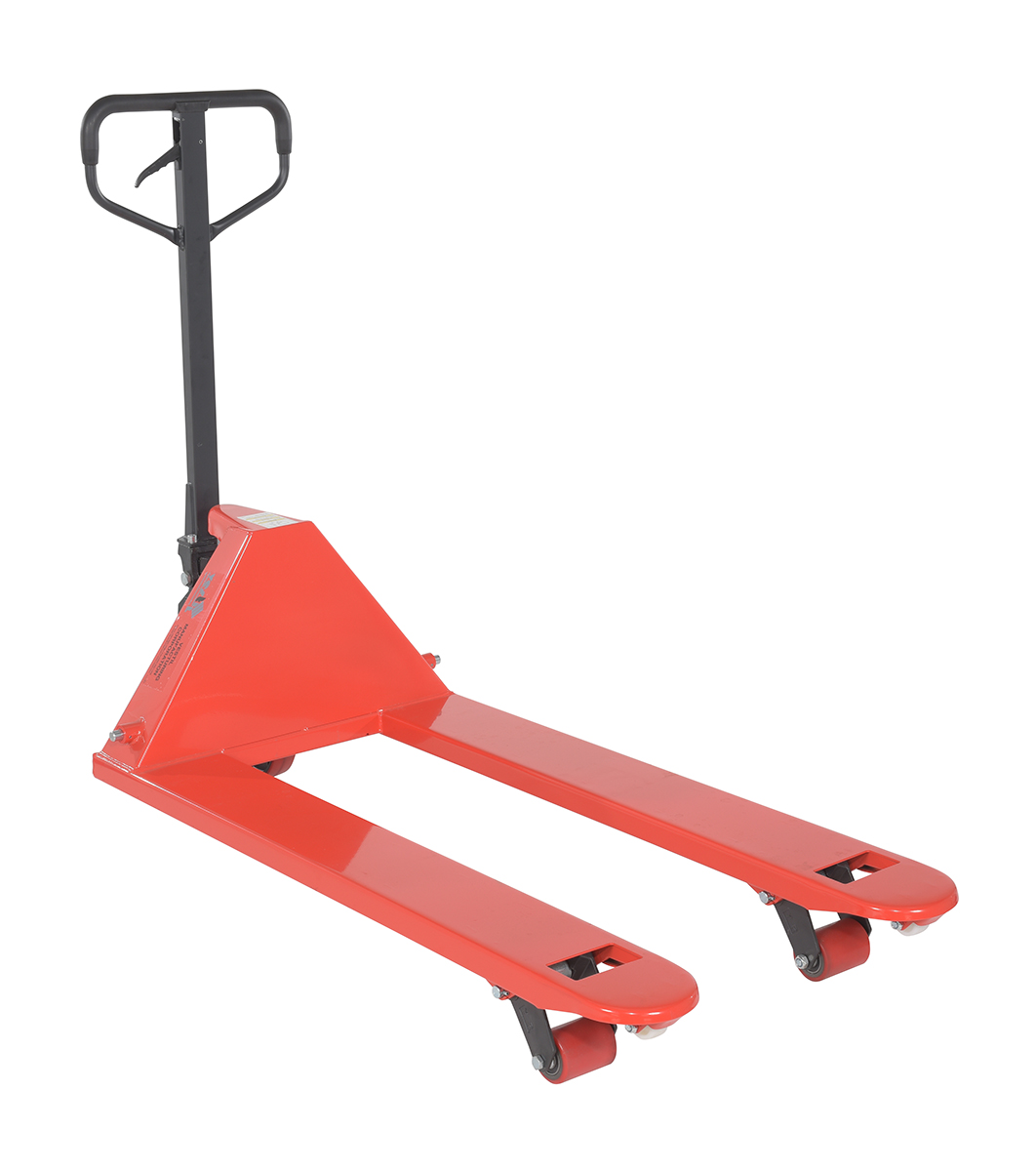

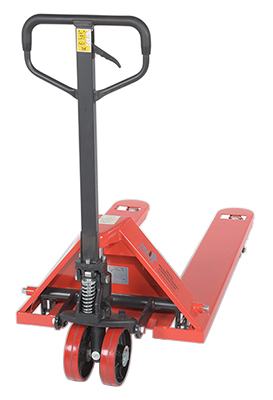

model: PM5-2748


SERIES: PM5,PM4,PM6,PM10

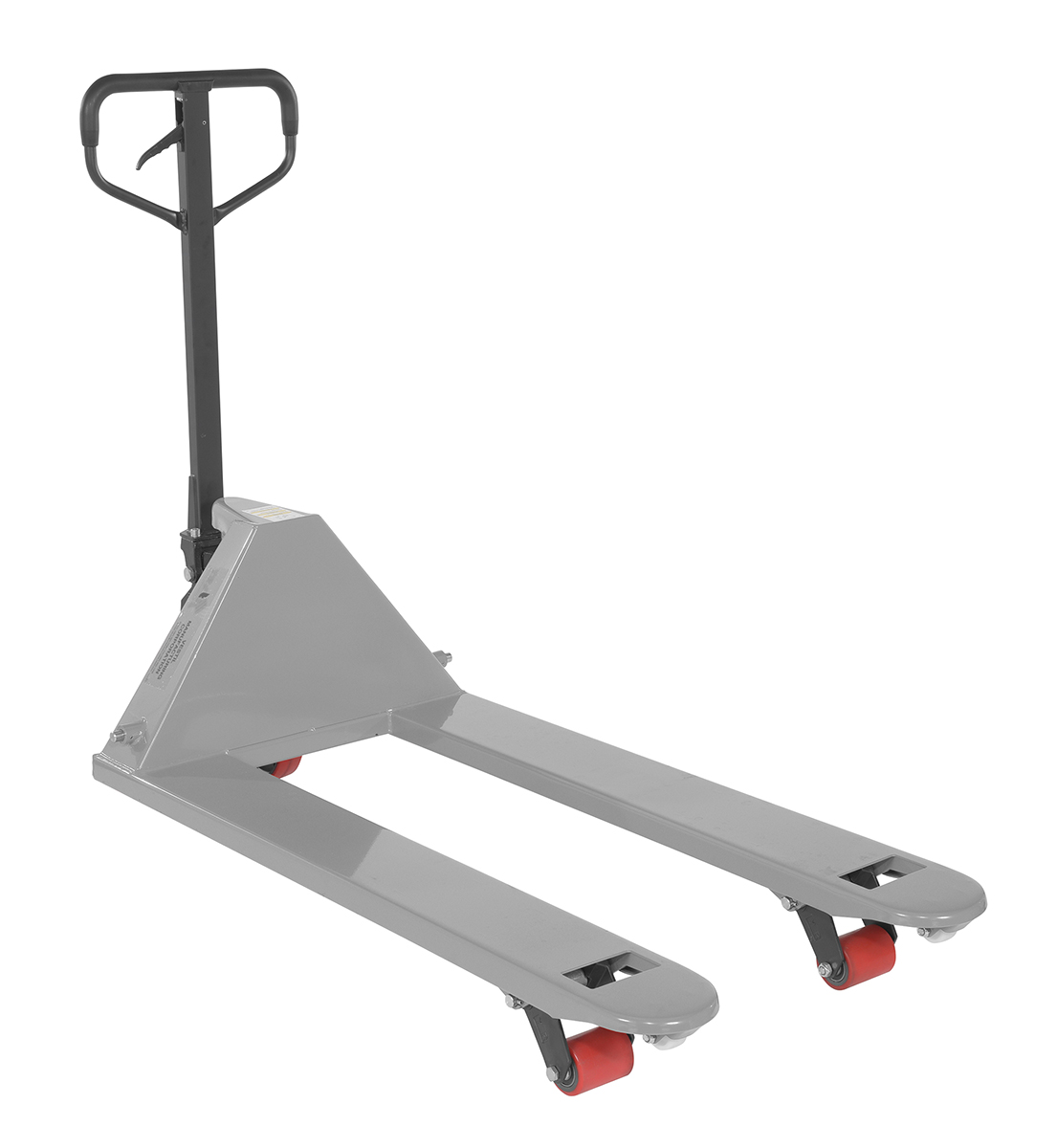

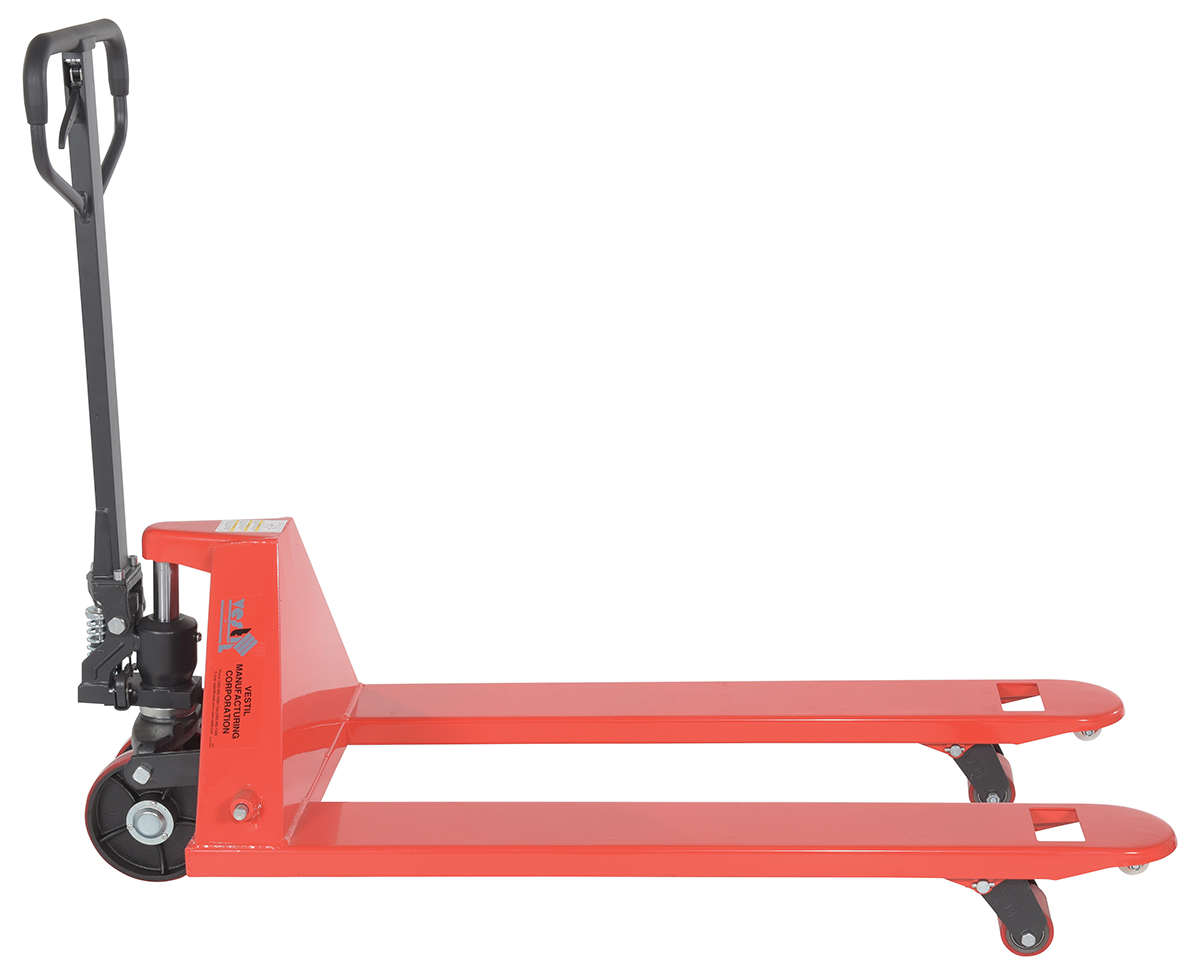

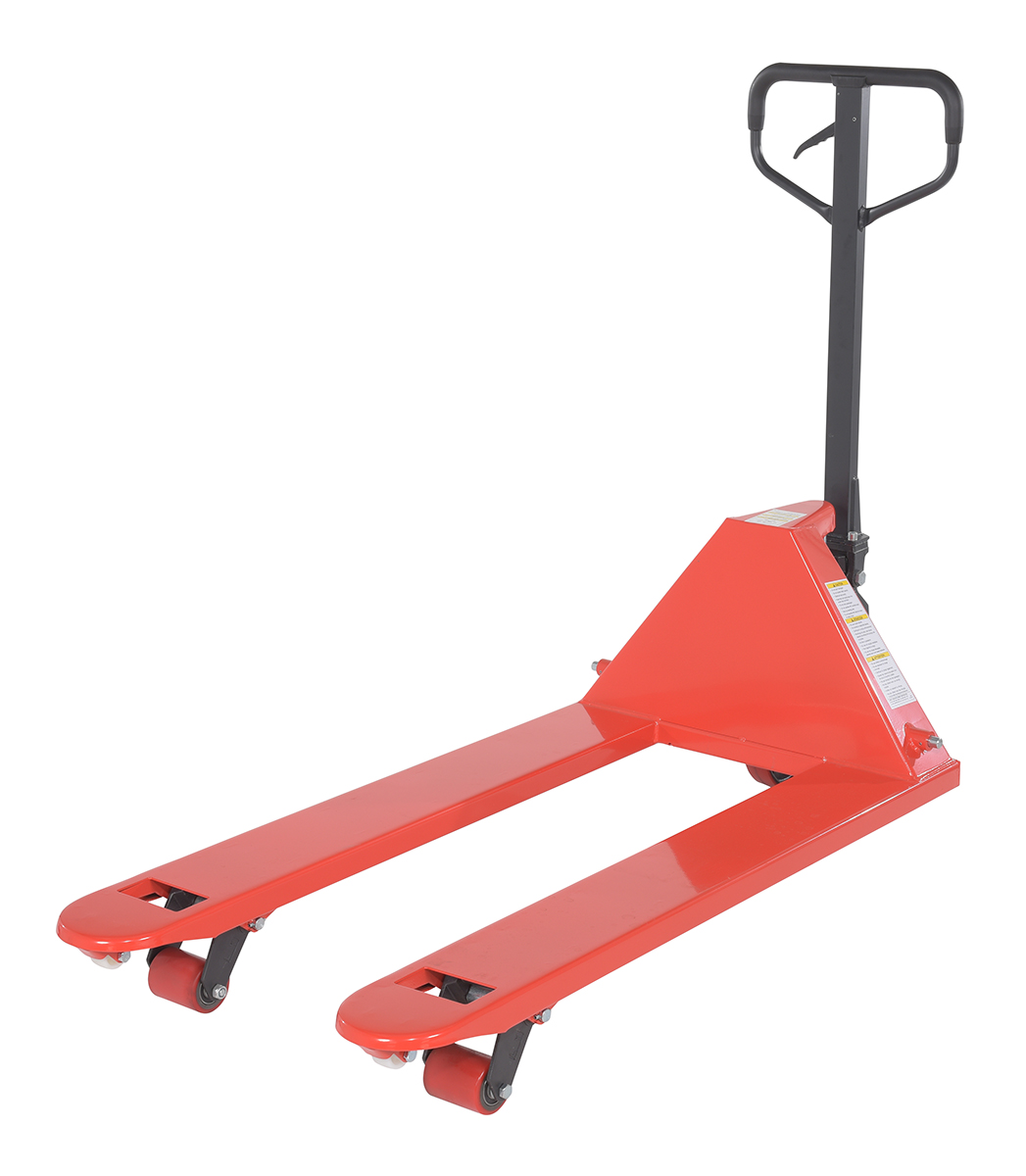

Full Featured Pallet Trucks

Ships with the Handle Detached

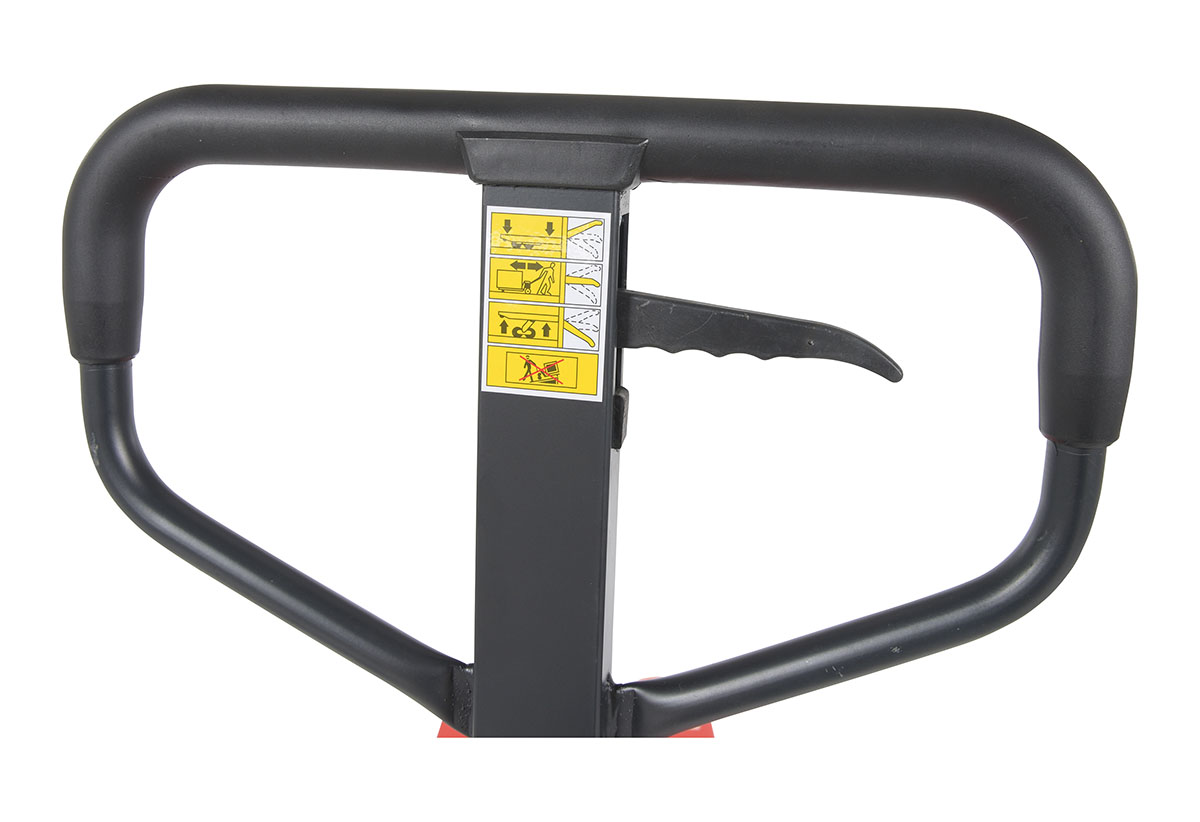

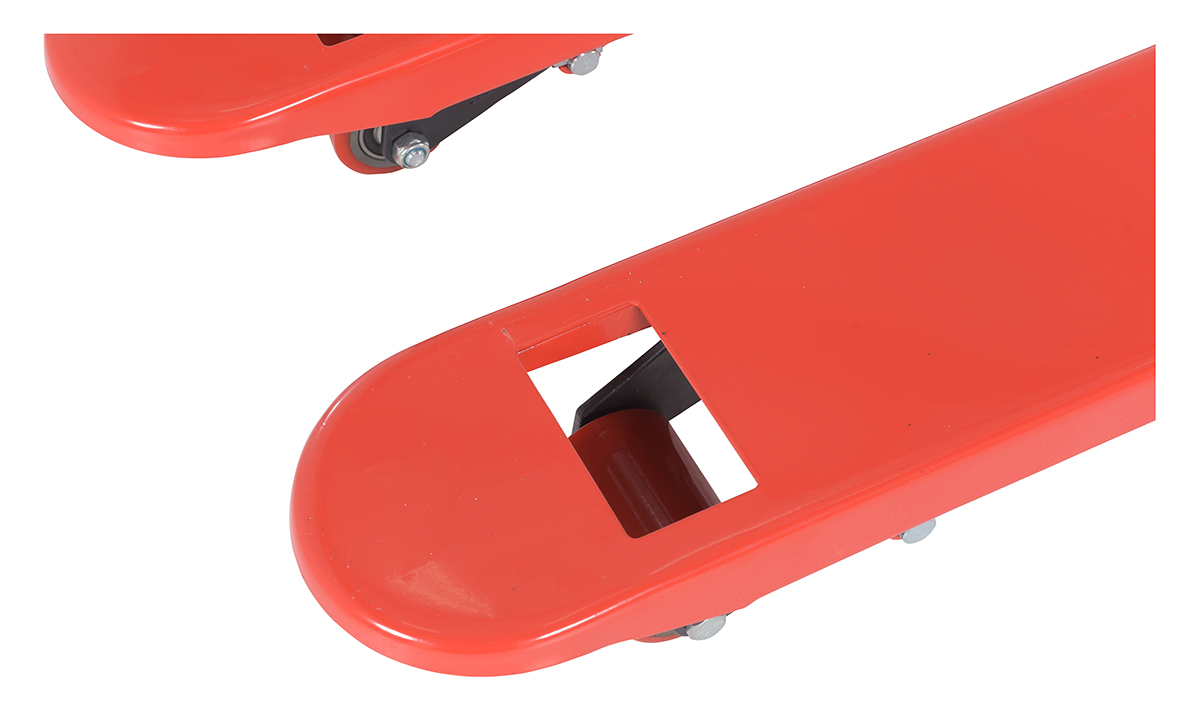

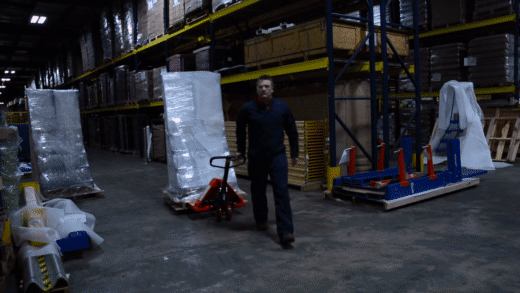

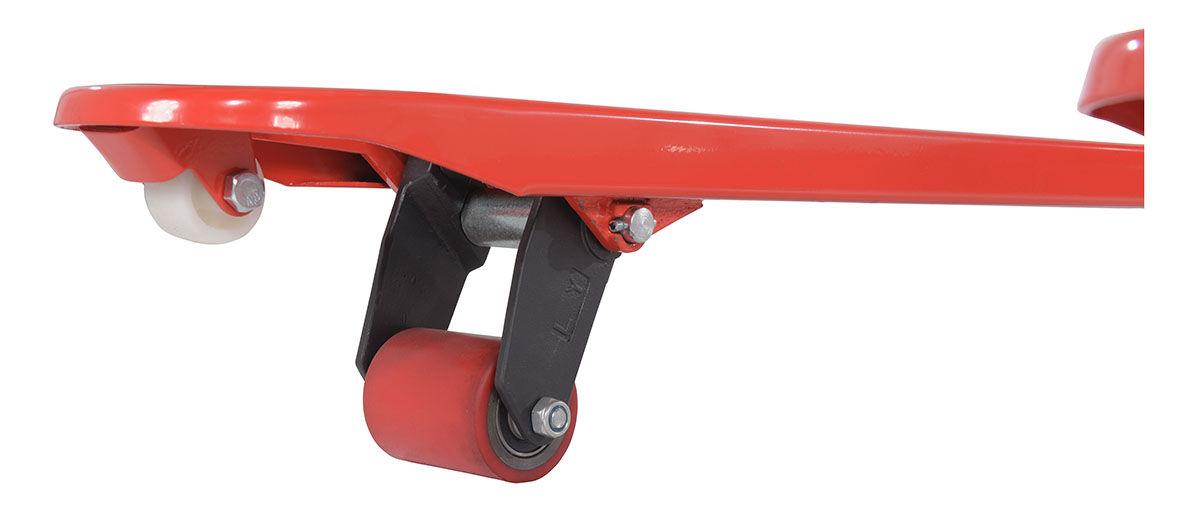

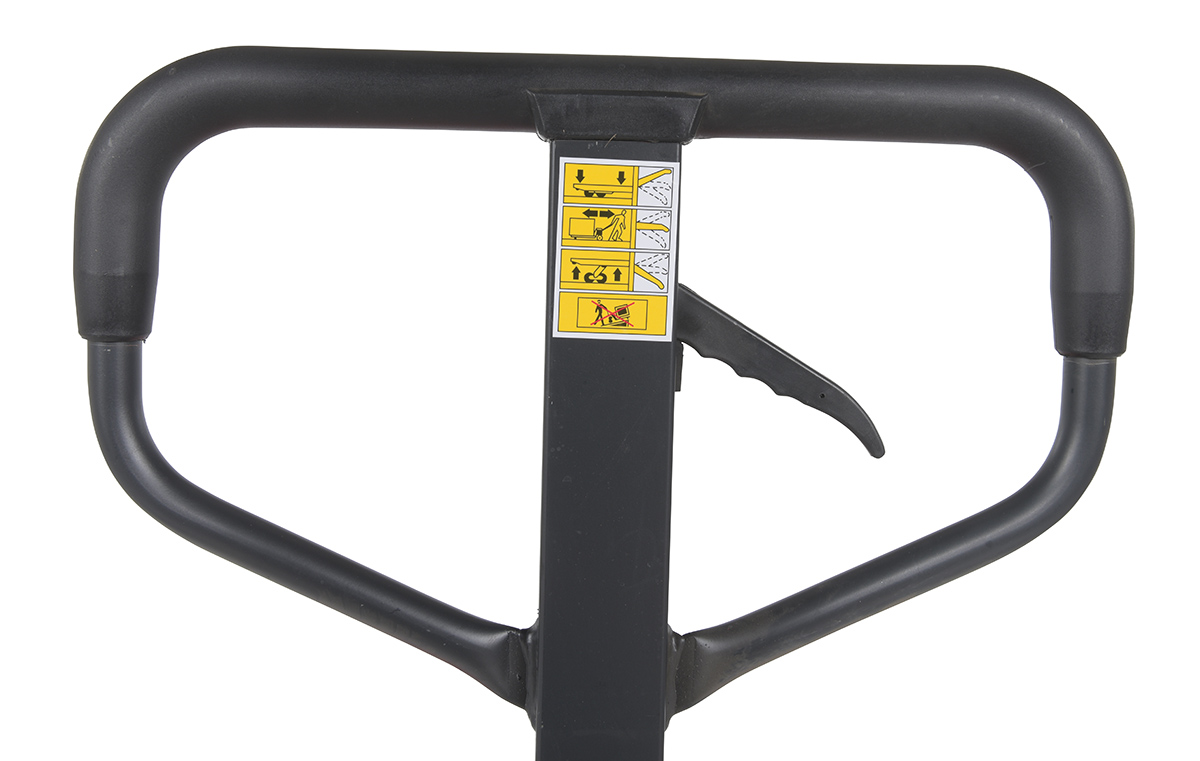

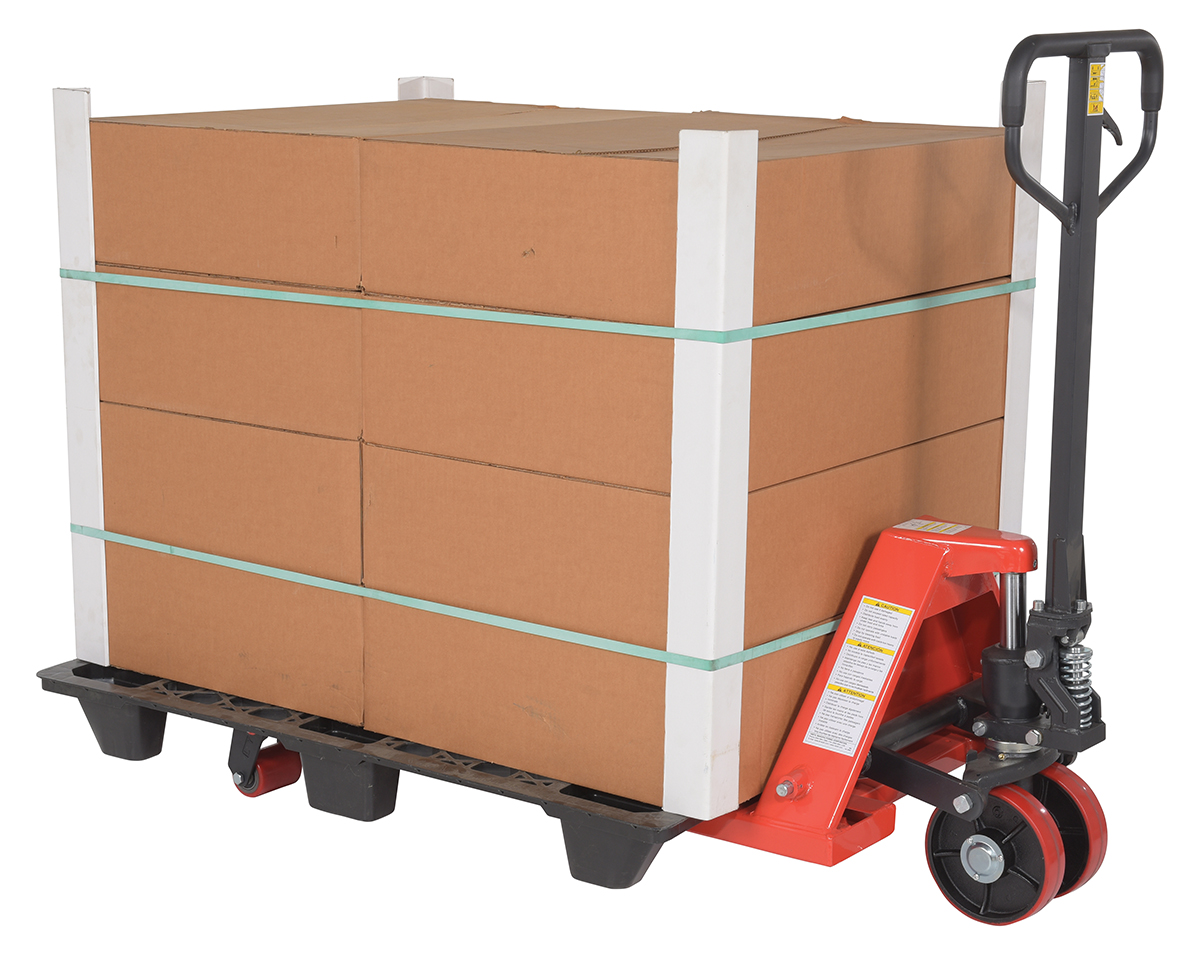

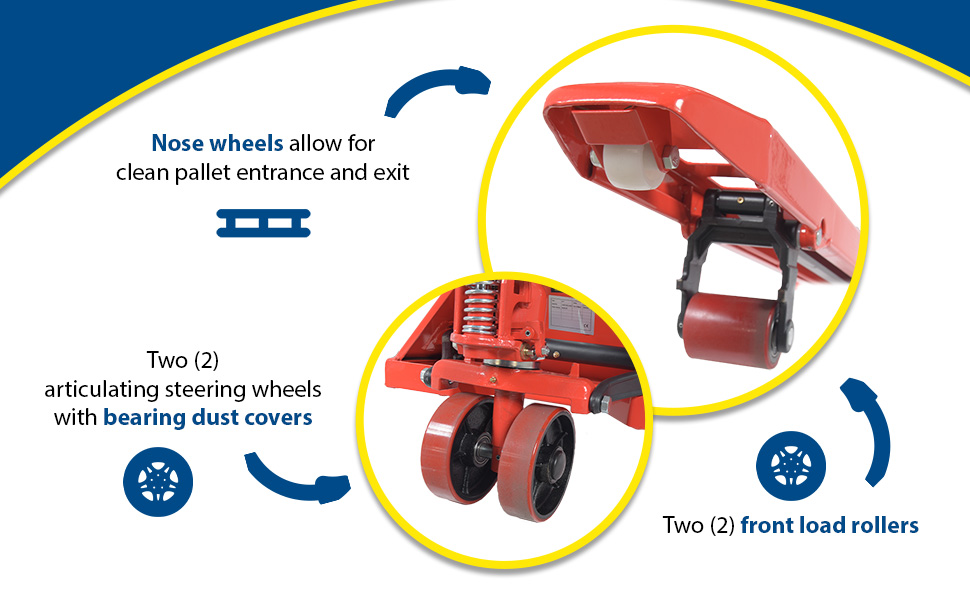

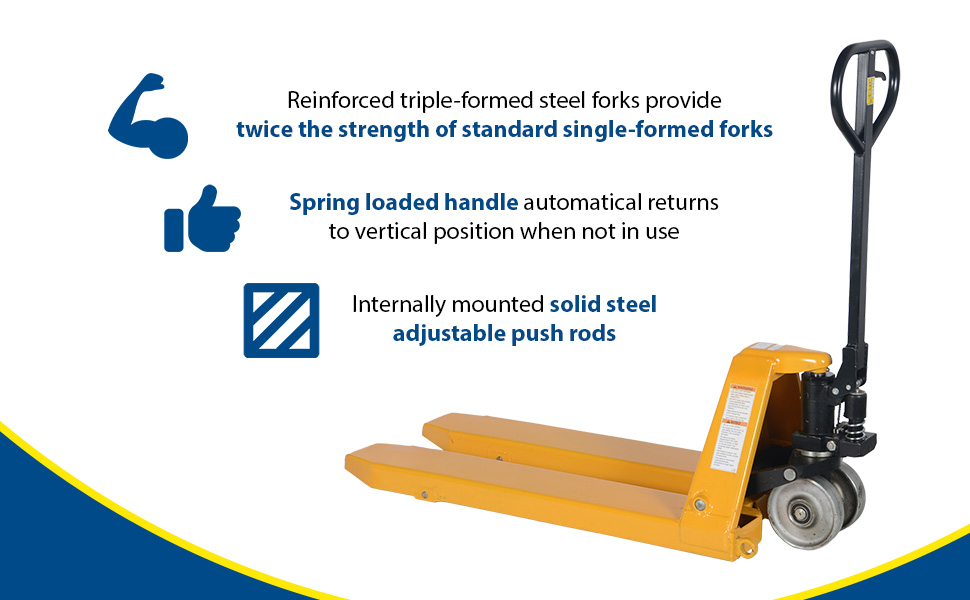

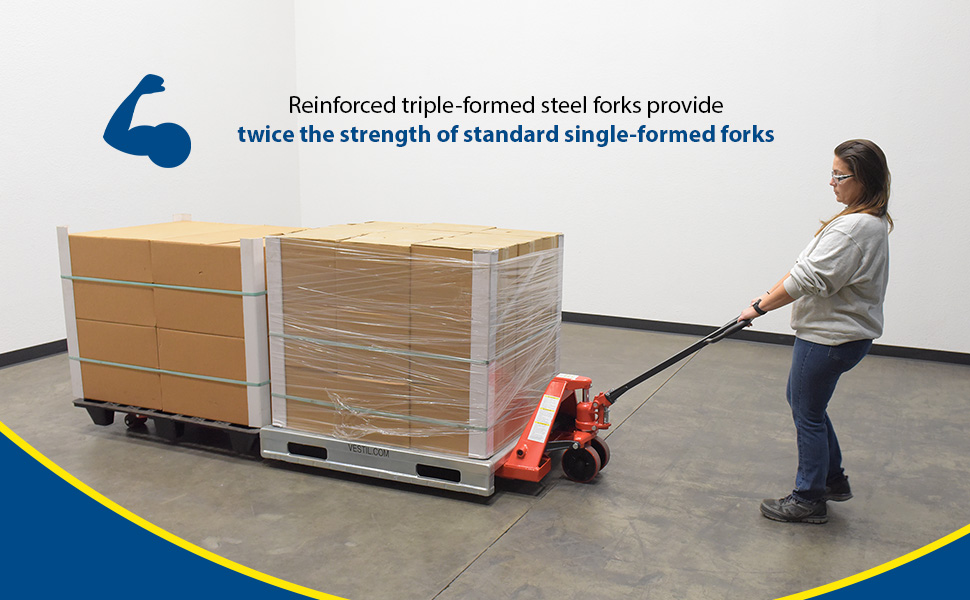

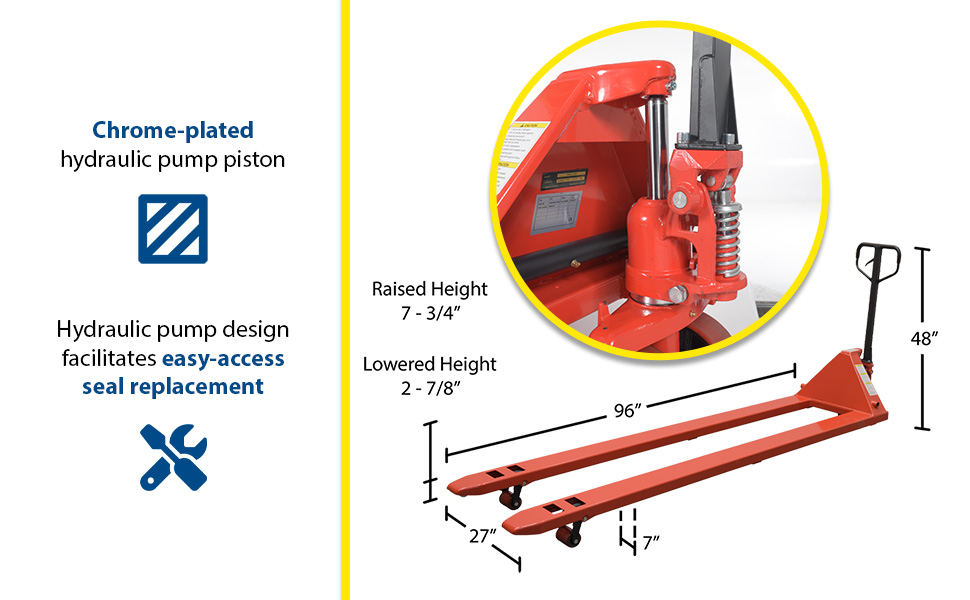

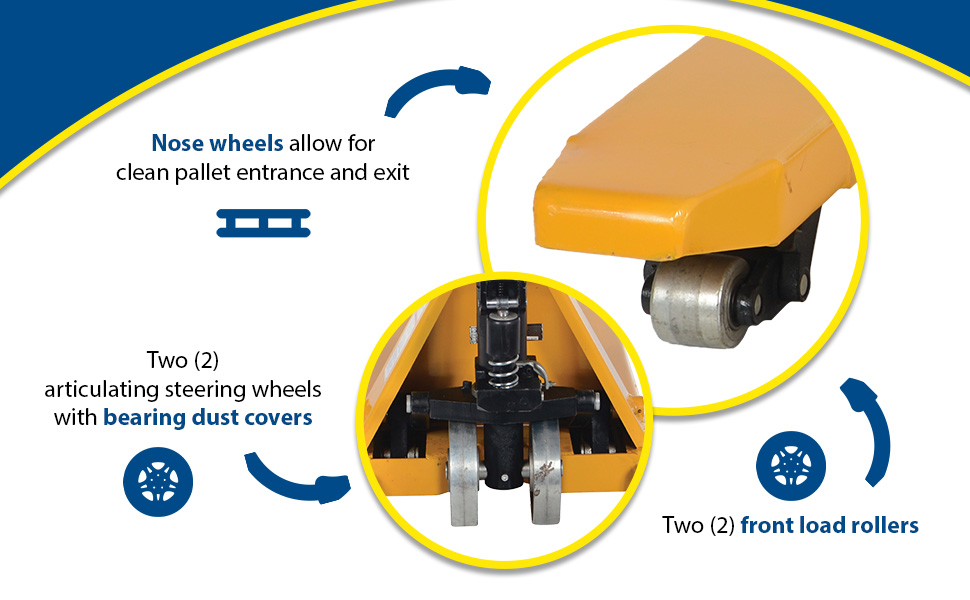

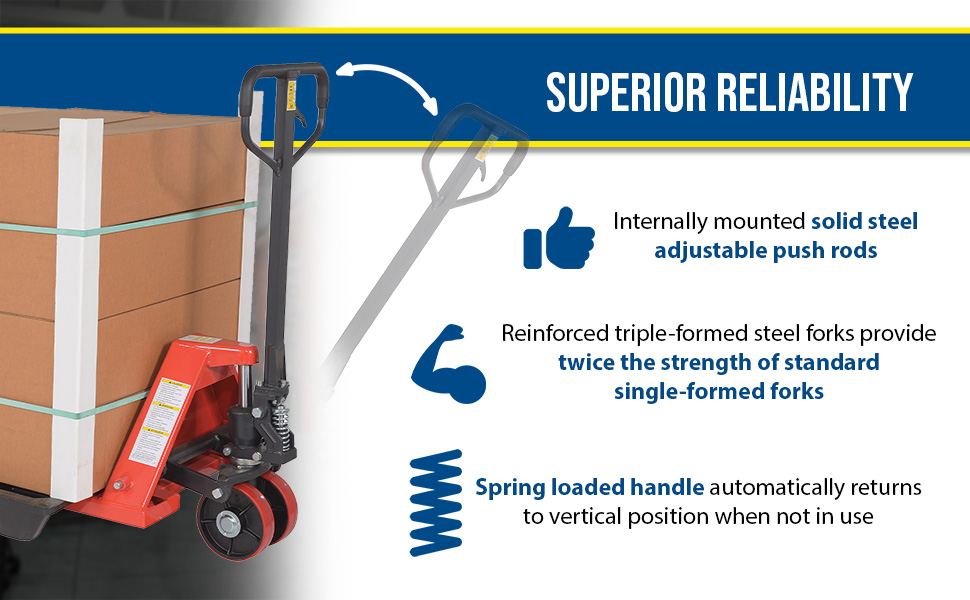

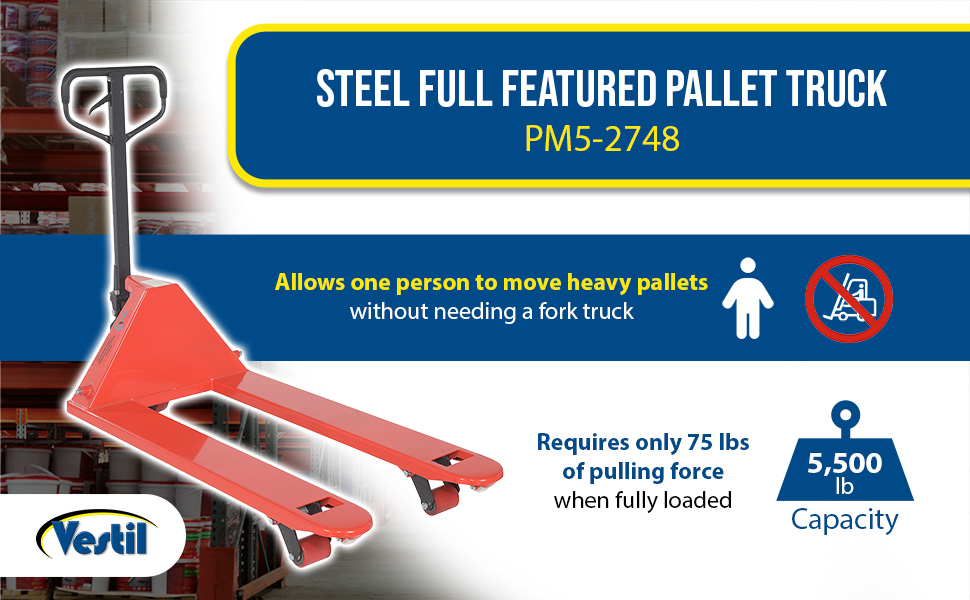

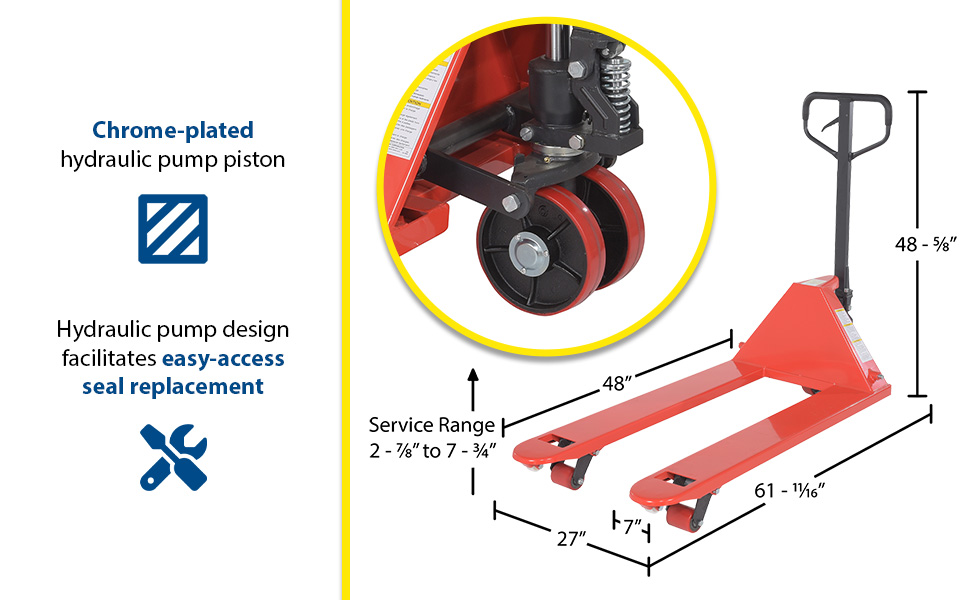

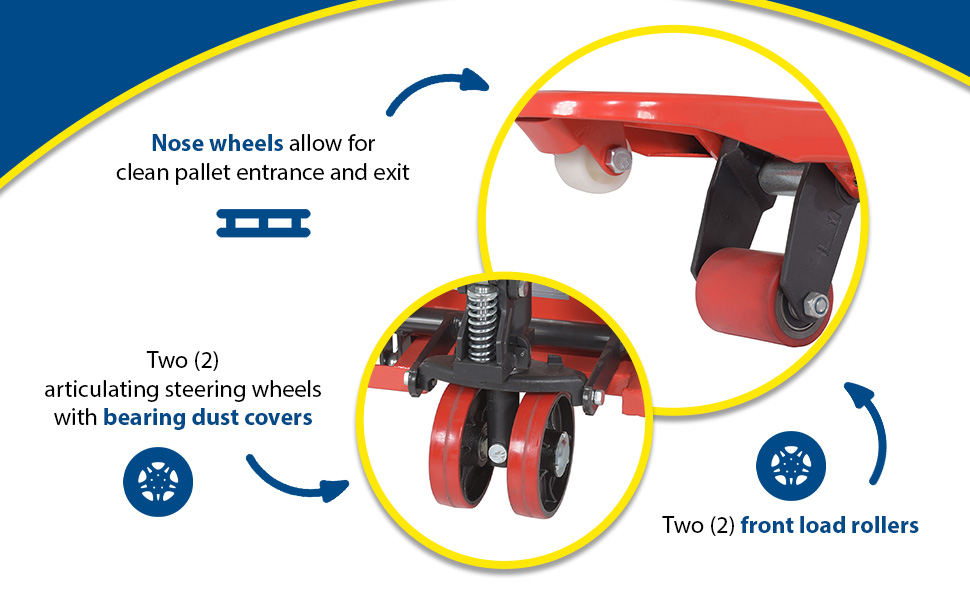

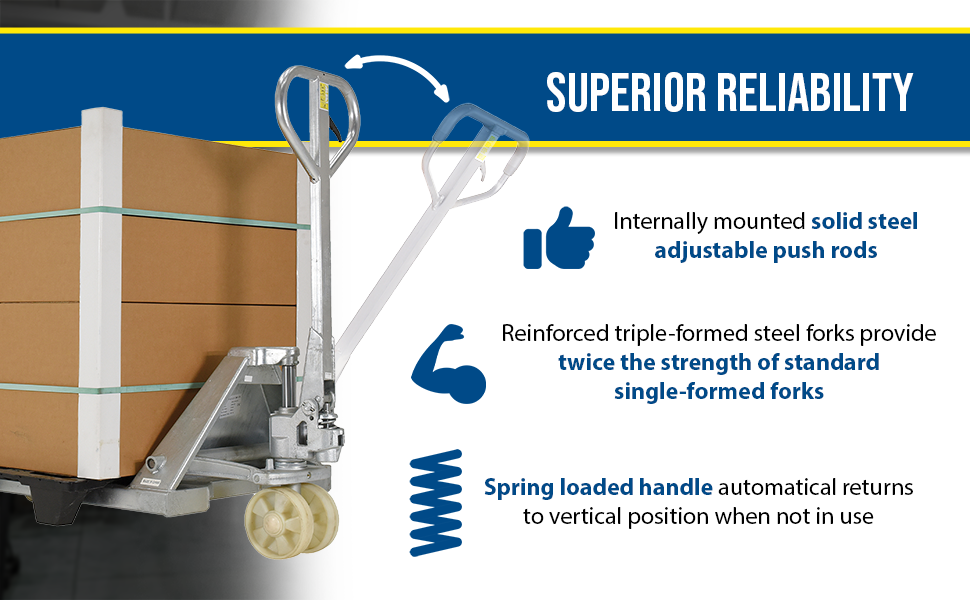

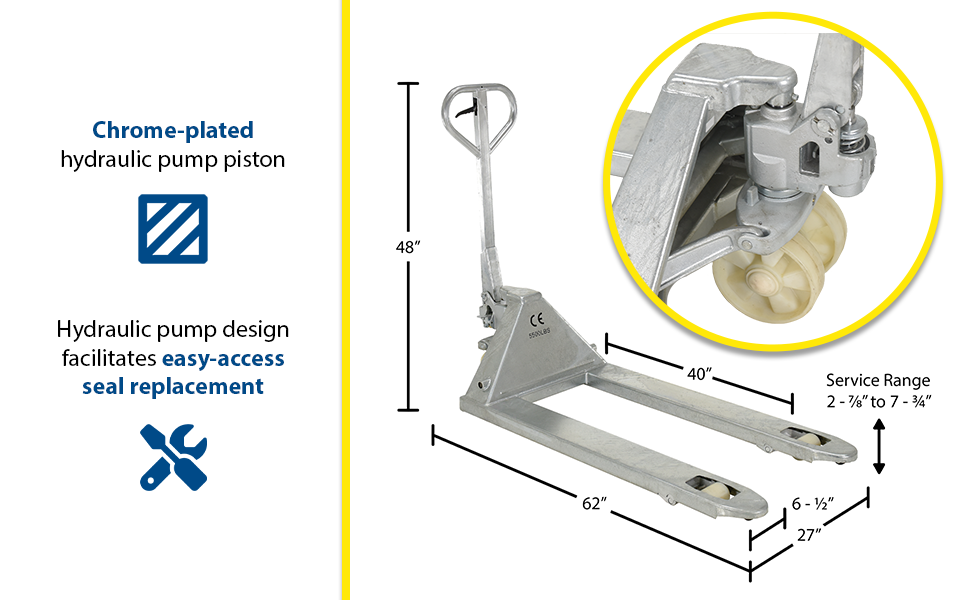

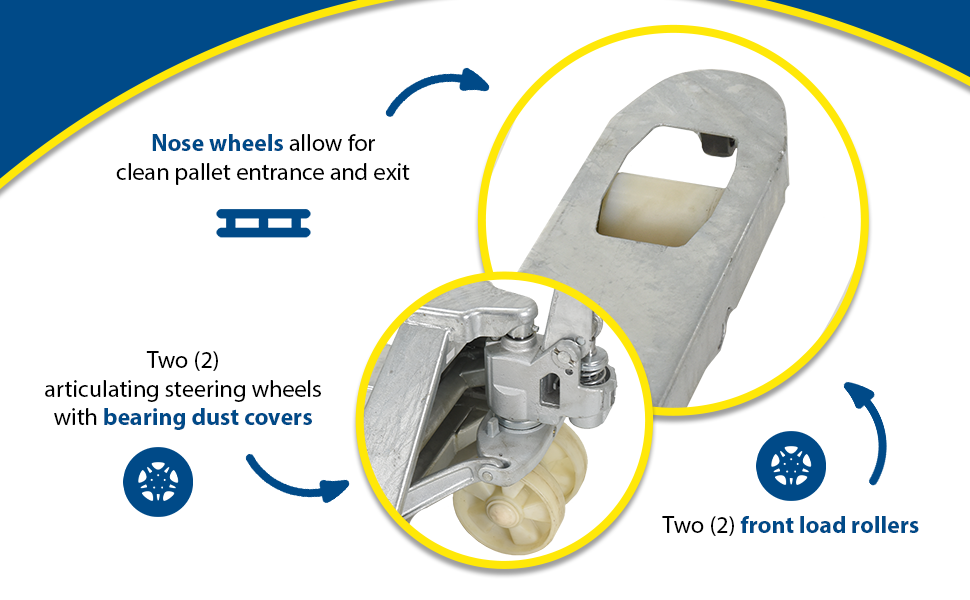

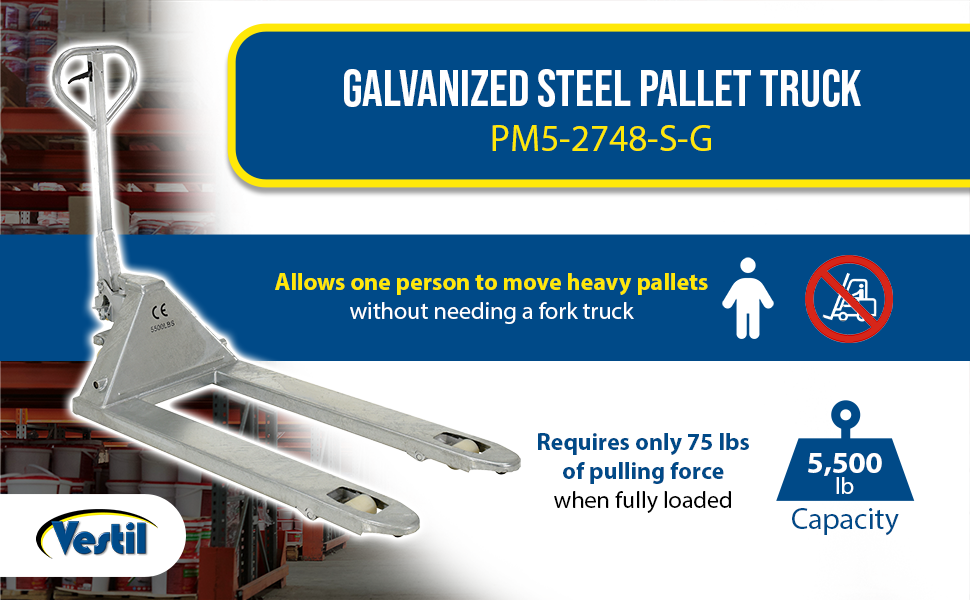

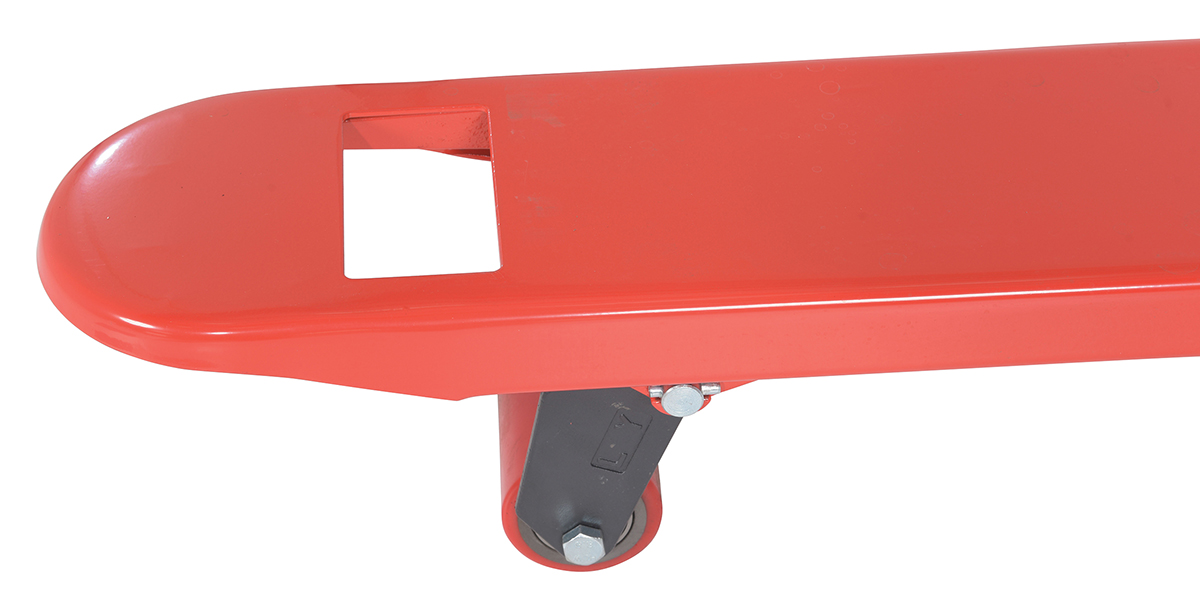

An economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two articulating steering wheels and two front load rollers. Ergonomic design requires only 75 pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Wheels are constructed of Poly-on-Steel unless otherwise noted. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. 7" wide forks are standard, except for model PM10-2245 which are 8-1/4" wide forks. Equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life.

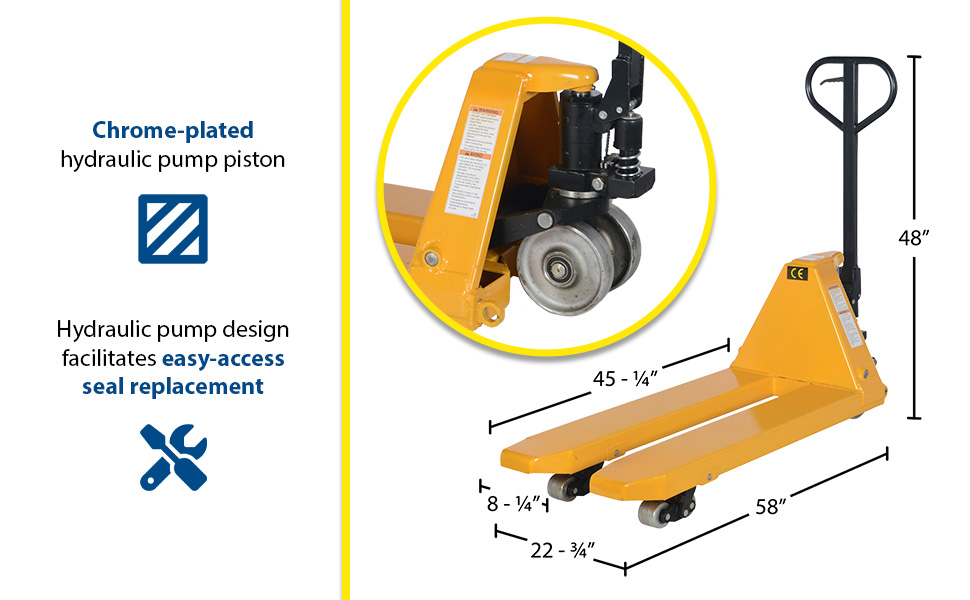

Model PM10-2245 has Tow loops for simple towing of the truck. Pallet truck is rated for 5T capacity. A full capacity 5T load can be pulled/pushed manually for short distance, but for longer distance it needs to be towed.

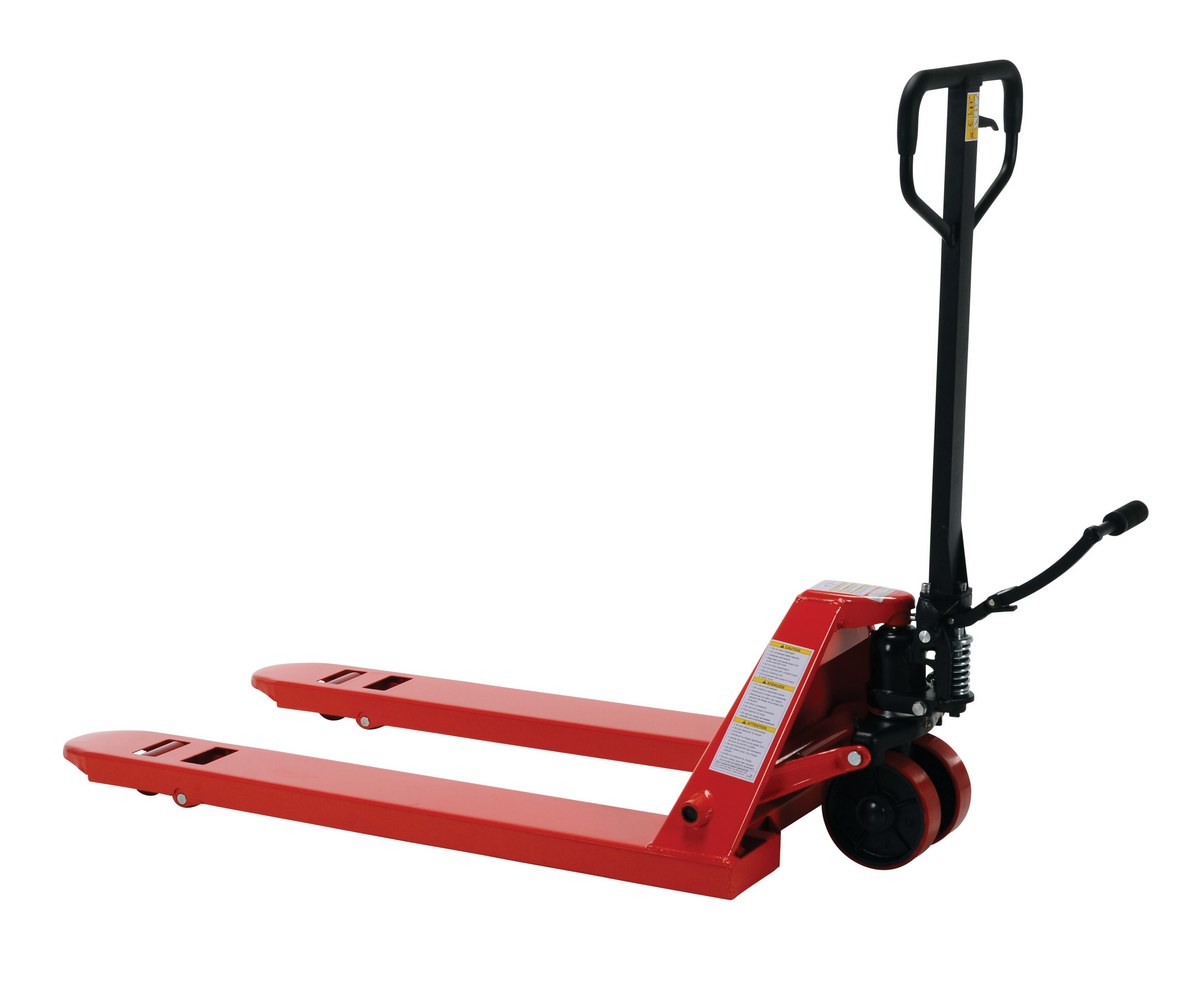

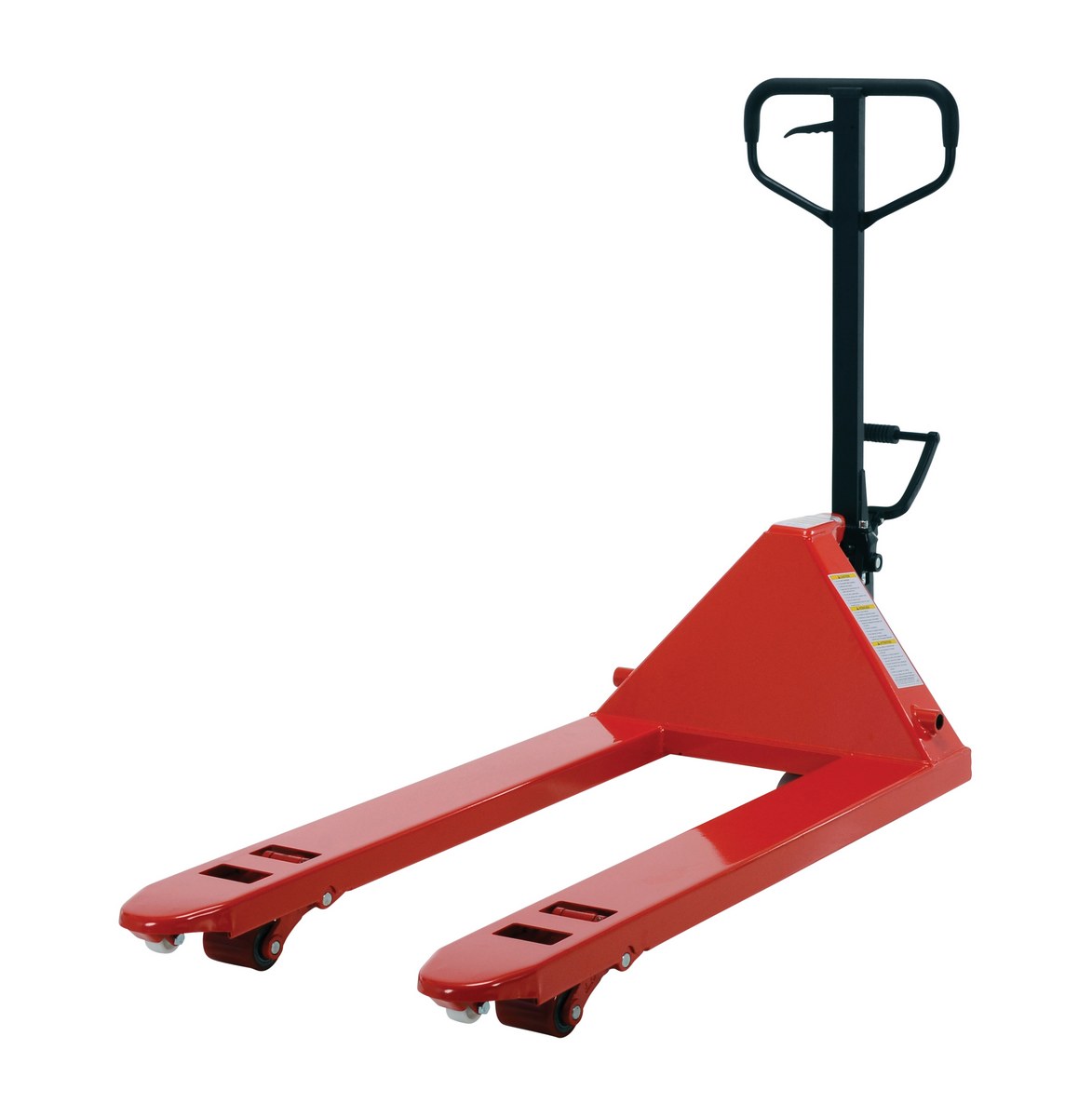

Model PM5-2748-FP raises and lowers with a foot pump mechanism.

Ships with the Handle Detached

An economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two articulating steering wheels and two front load rollers. Ergonomic design requires only 75 pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Wheels are constructed of Poly-on-Steel unless otherwise noted. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. 7" wide forks are standard, except for model PM10-2245 which are 8-1/4" wide forks. Equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life.

Model PM10-2245 has Tow loops for simple towing of the truck. Pallet truck is rated for 5T capacity. A full capacity 5T load can be pulled/pushed manually for short distance, but for longer distance it needs to be towed.

Model PM5-2748-FP raises and lowers with a foot pump mechanism.

Other Pallet Trucks (Pallet Jacks)

Hand Pallet Trucks

Hand Pallet Trucks

Full Featured Pallet Trucks

Full Featured Pallet Trucks

Low Profile Pallet Trucks

Low Profile Pallet Trucks

Super Low Profile Pallet Trucks

Super Low Profile Pallet Trucks

Standard Pallet Truck

Standard Pallet Truck

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Full Featured Deluxe Pallet Jacks

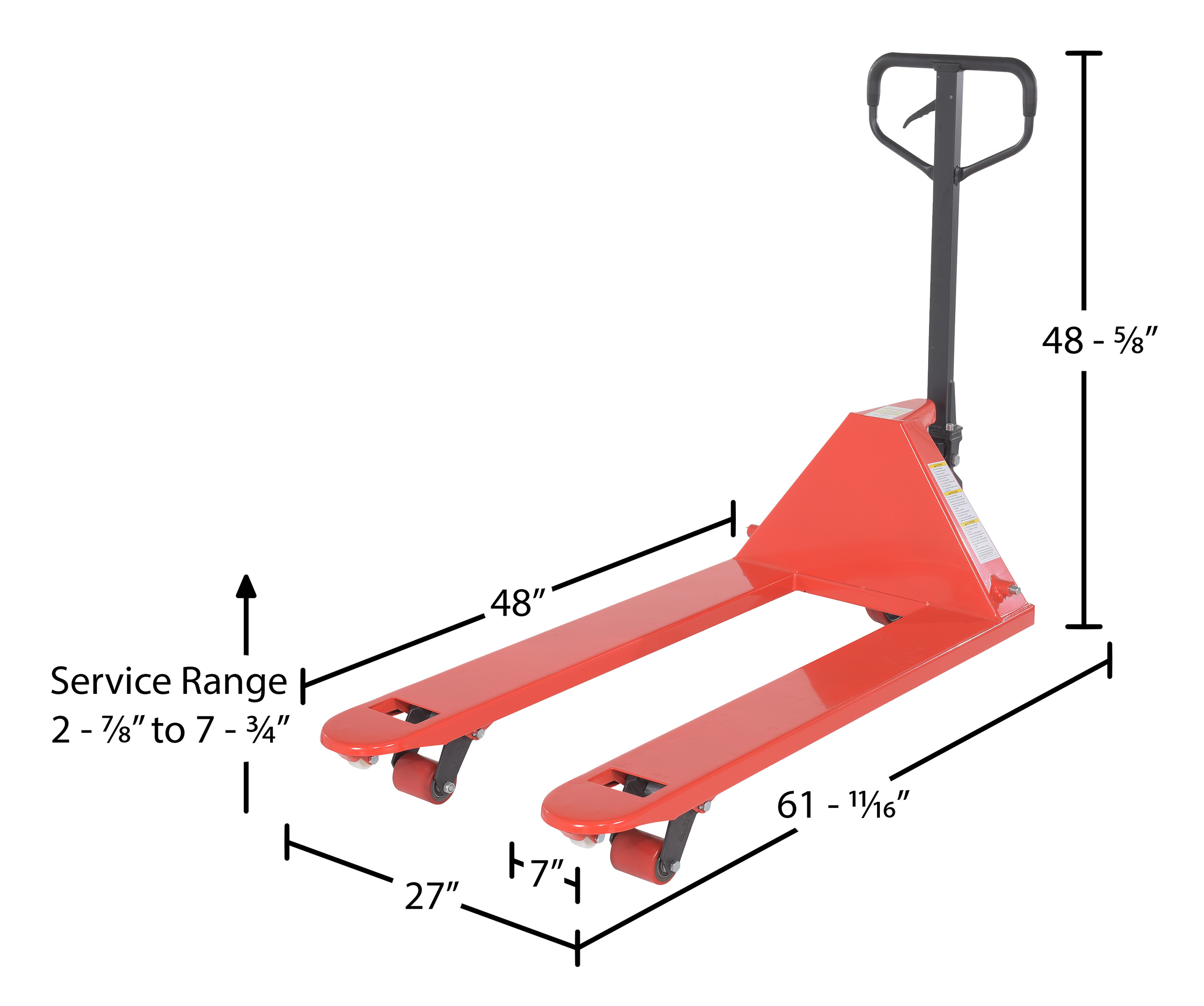

Model Number Image PDF's Capacity
(lbs)
Overall
Fork Dim.
Service
Range
Wt.
(lbs)

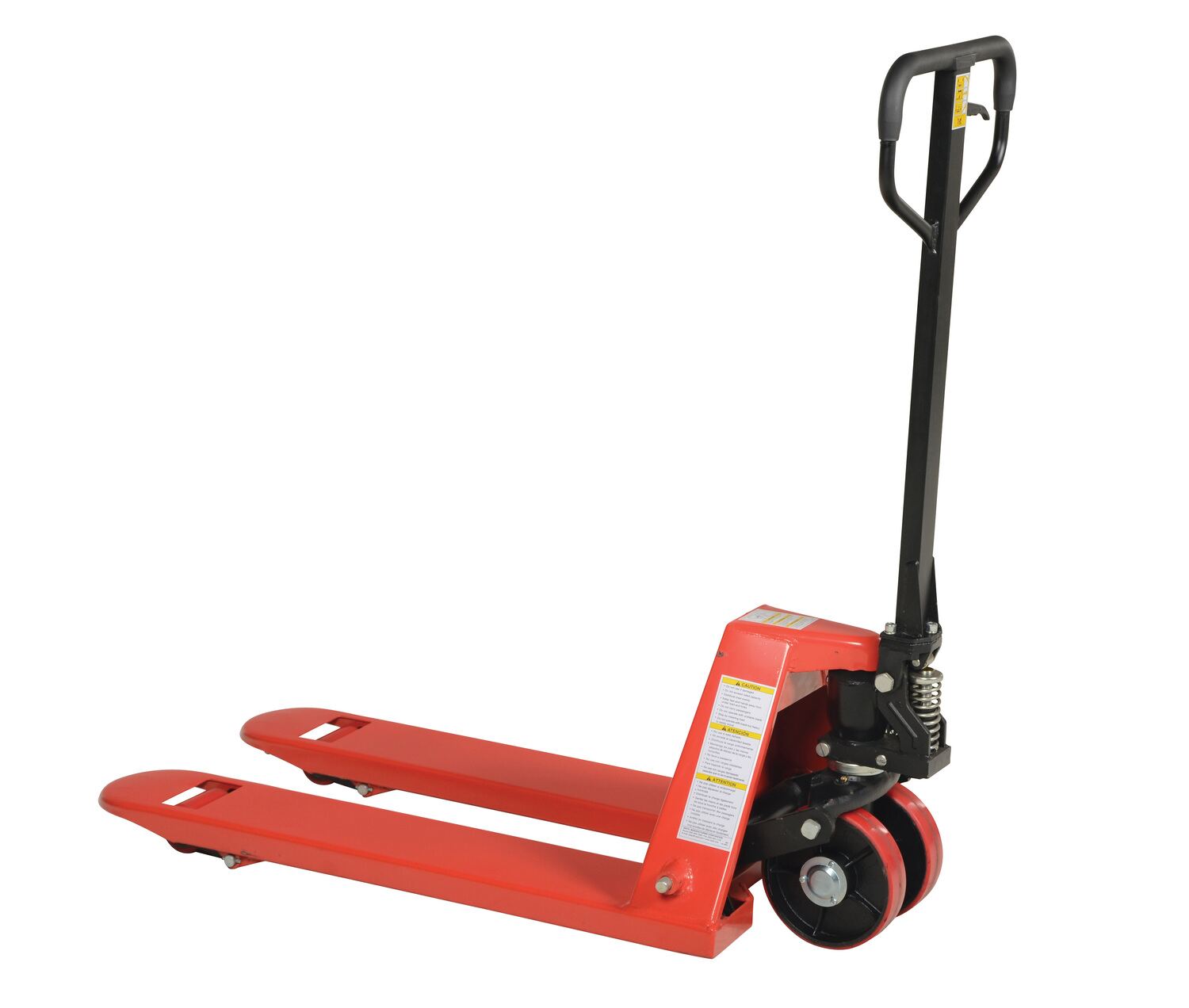

PM5-2036 icon_approvaldrawings.jpg Warranty PDF 5,500 20"Wx36"L 2-7/8"-7-3/4" 210

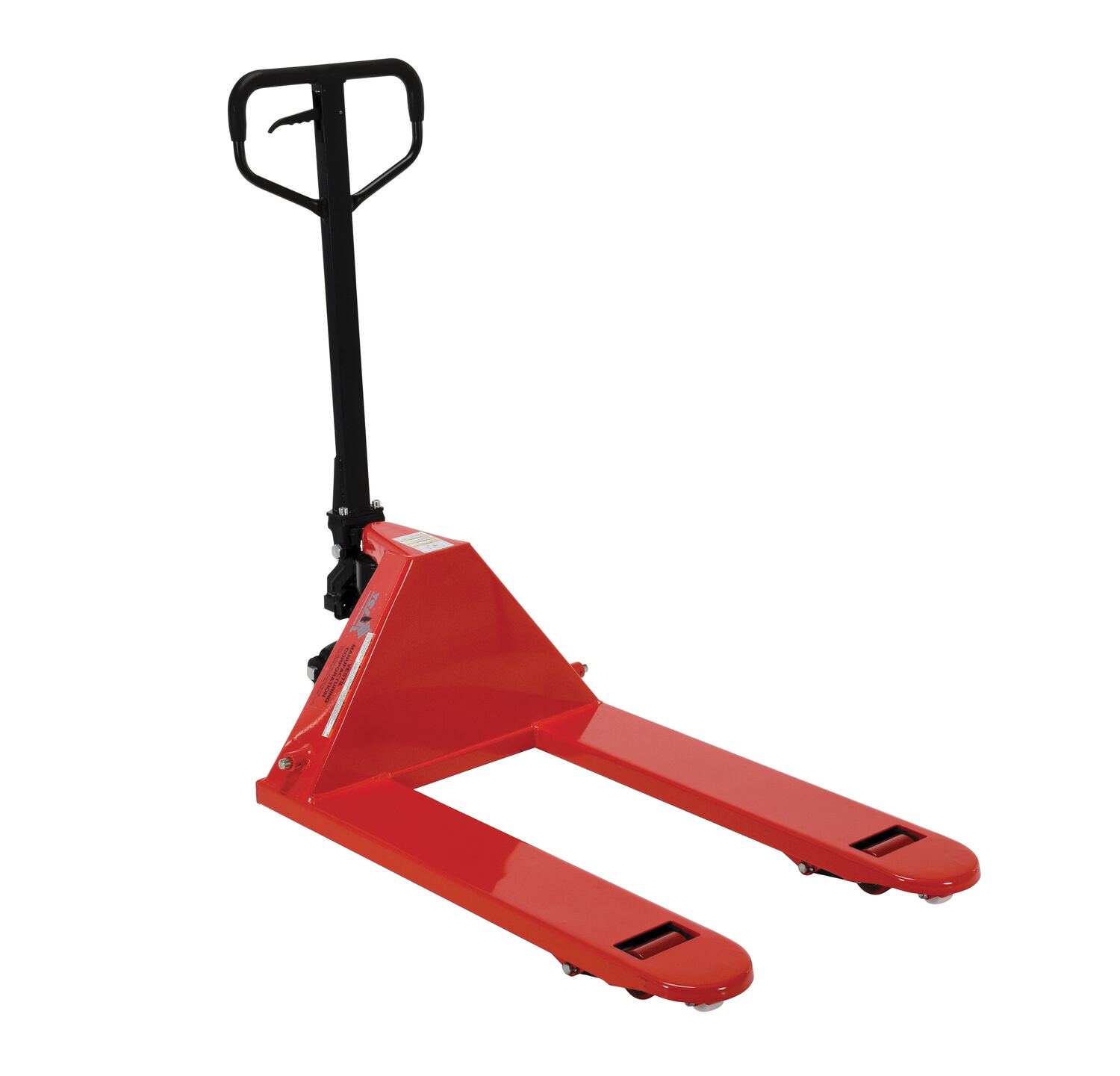

PM5-2736
icon_approvaldrawings.jpgWarranty PDF 5,500 27"Wx36"L 2-7/8"-7-3/4" 210

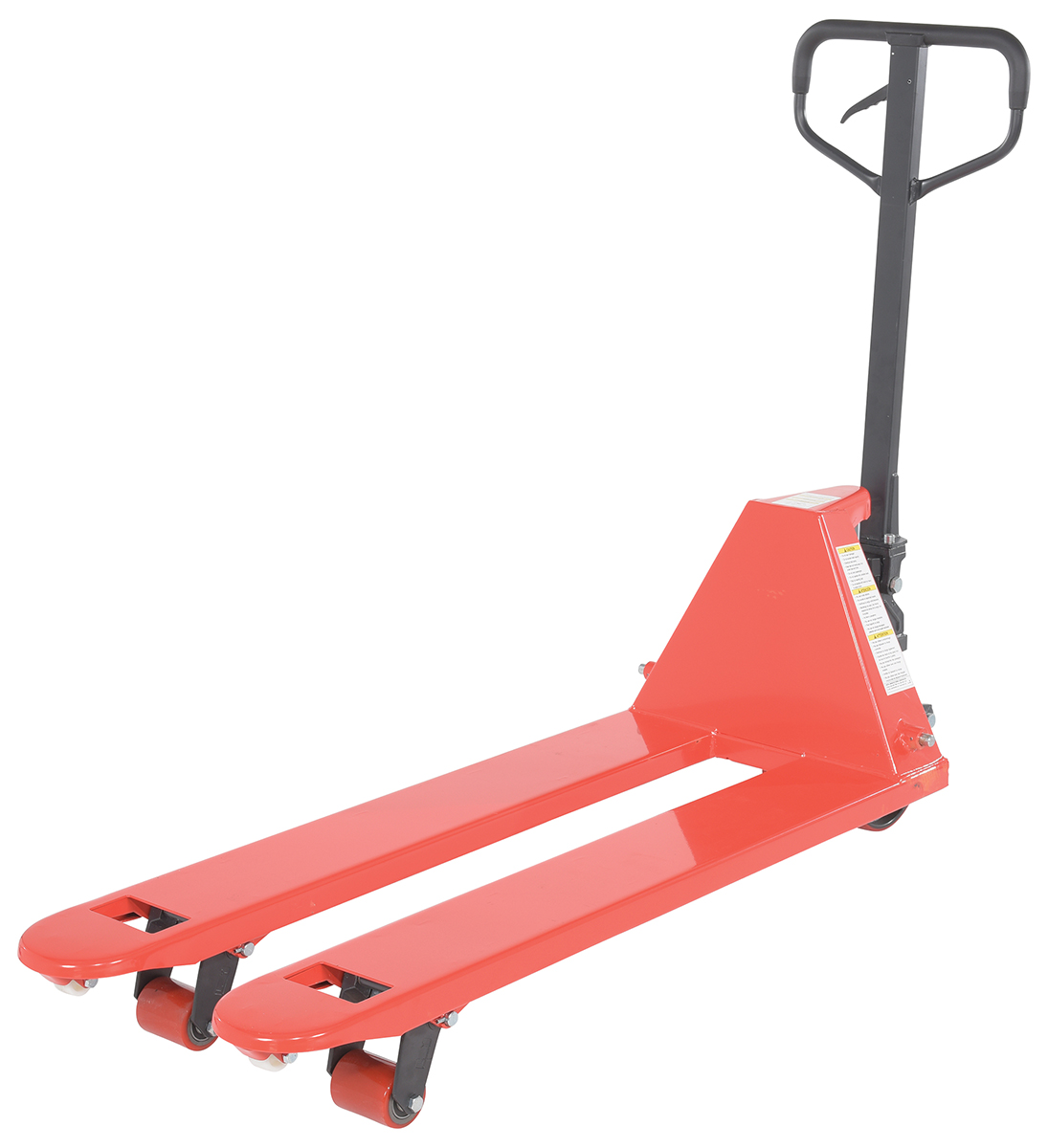

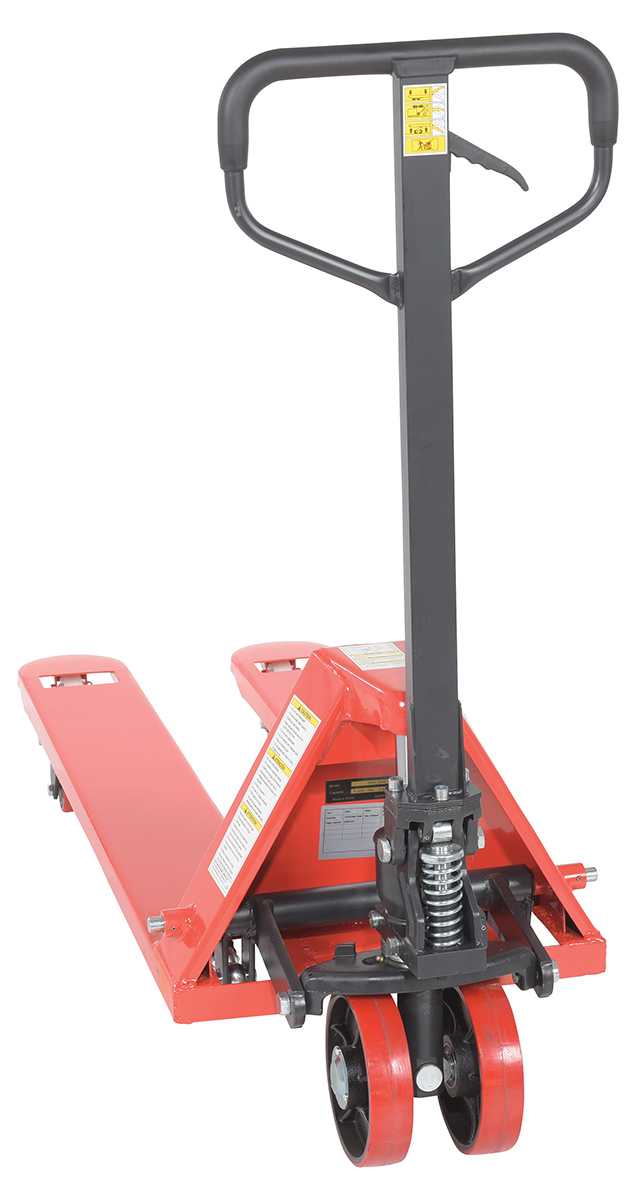

PM5-2048
icon_approvaldrawings.jpgWarranty PDF 5,500 20-5/8"Wx48"L 2-7/8"-7-3/4" 210
PM5-2748
icon_approvaldrawings.jpgWarranty PDF 5,500 27"Wx48"L 2-7/8"-7-3/4" 210

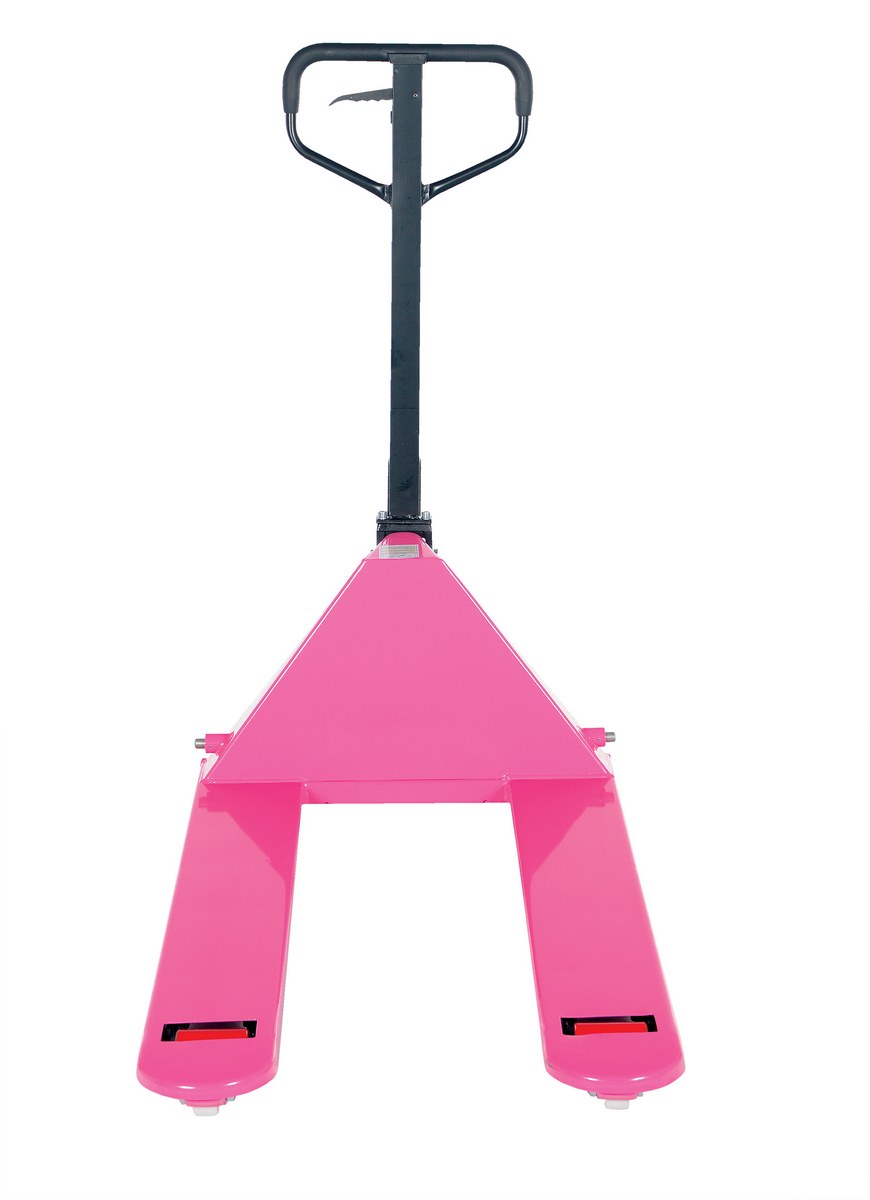

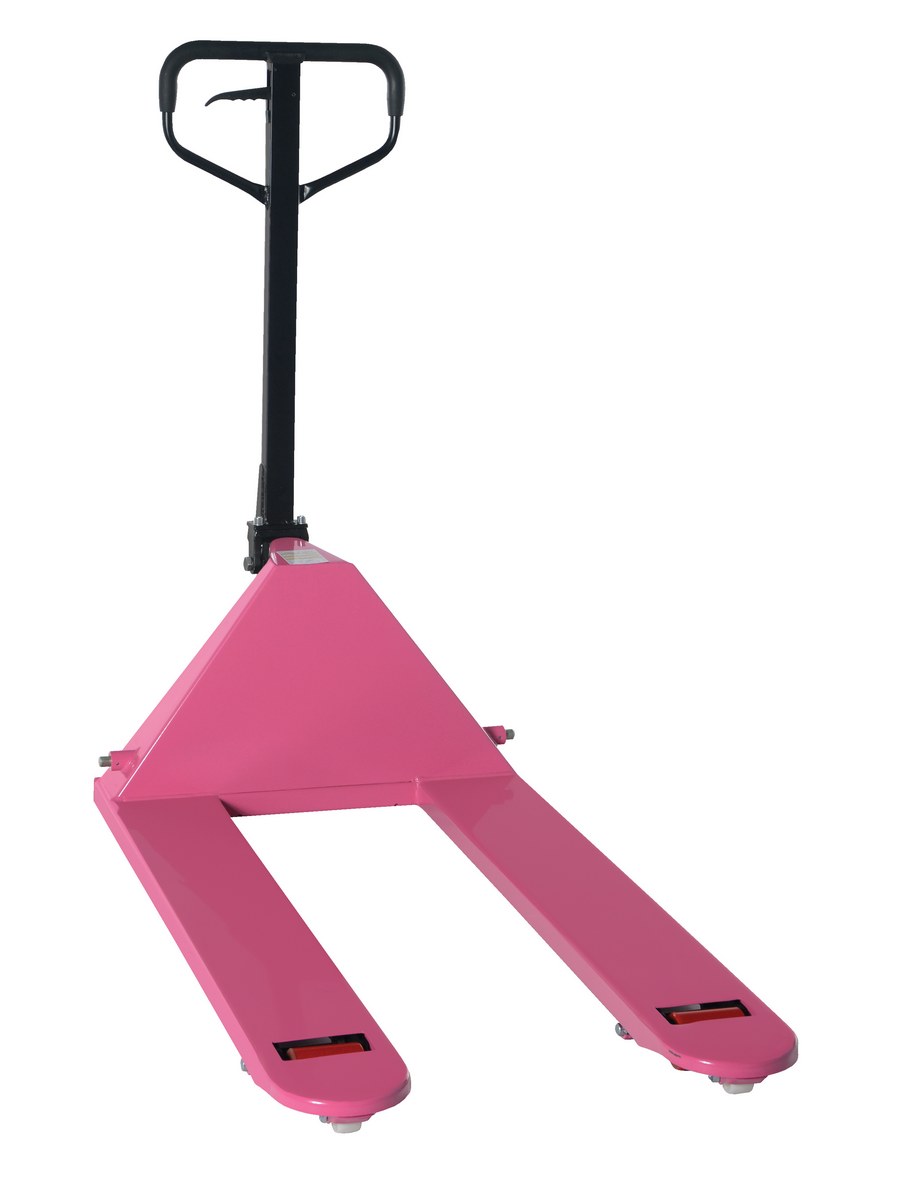

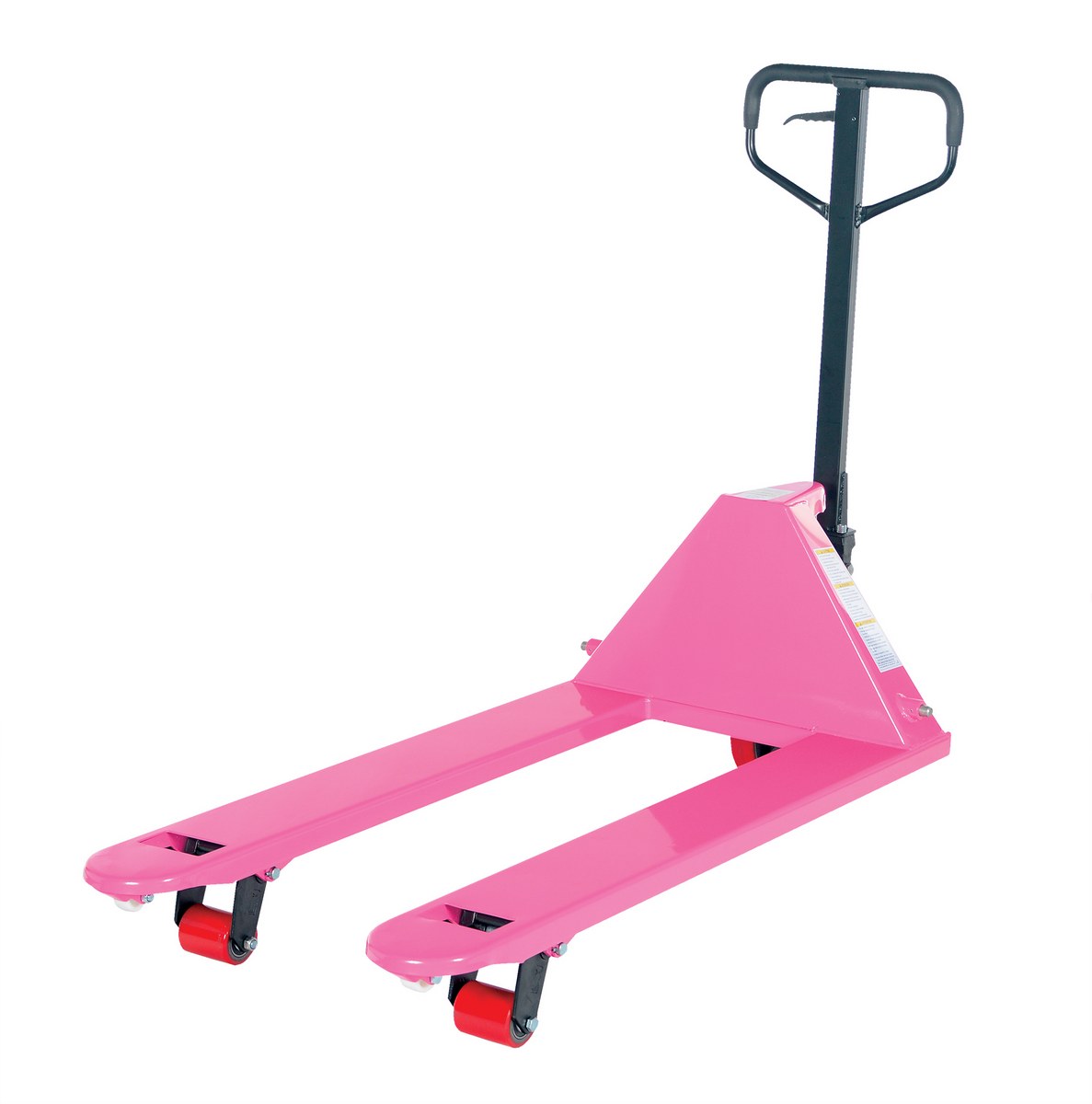

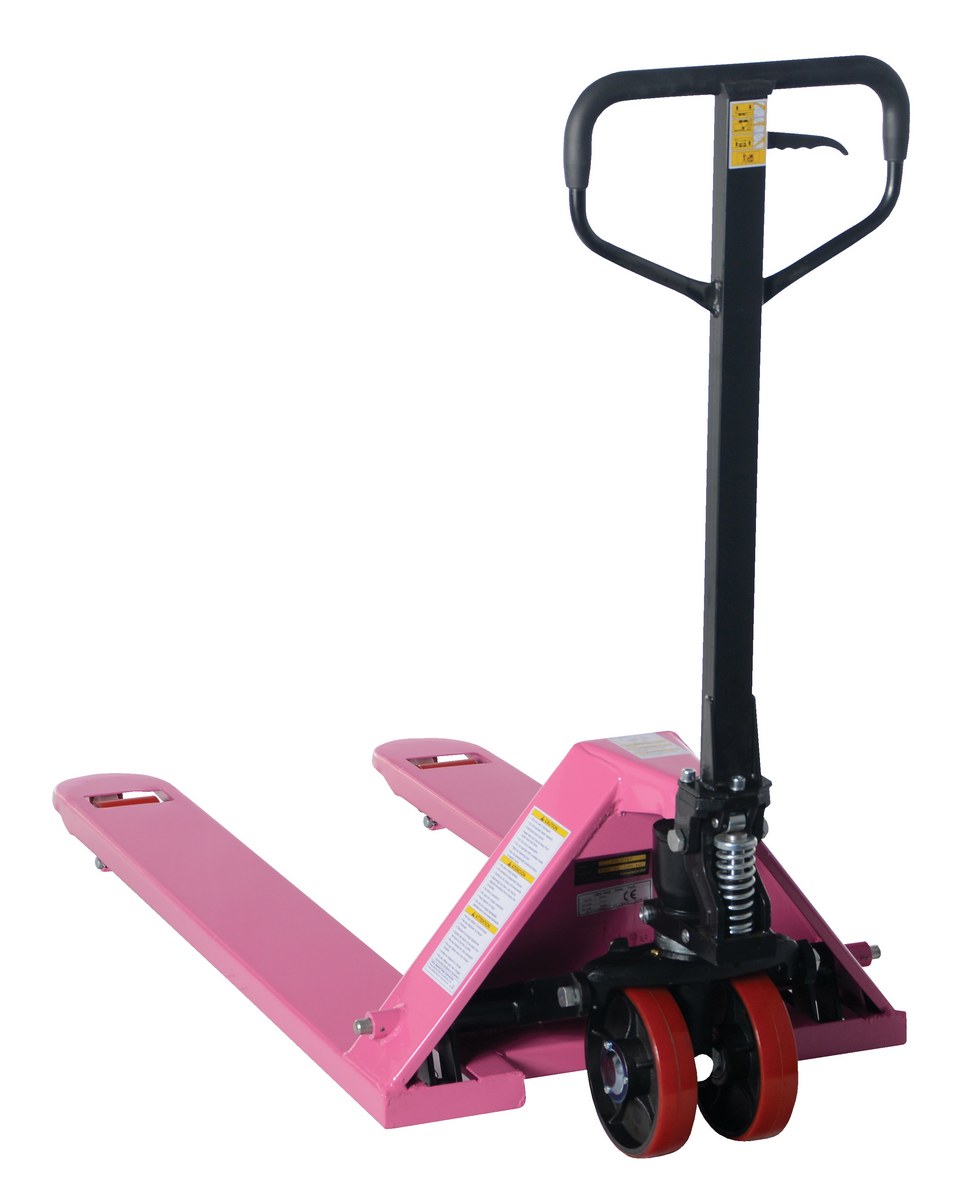

PM5-2748-PINK
Warranty PDF 5,500 27"Wx48"L 2-7/8"-7-3/4" 216

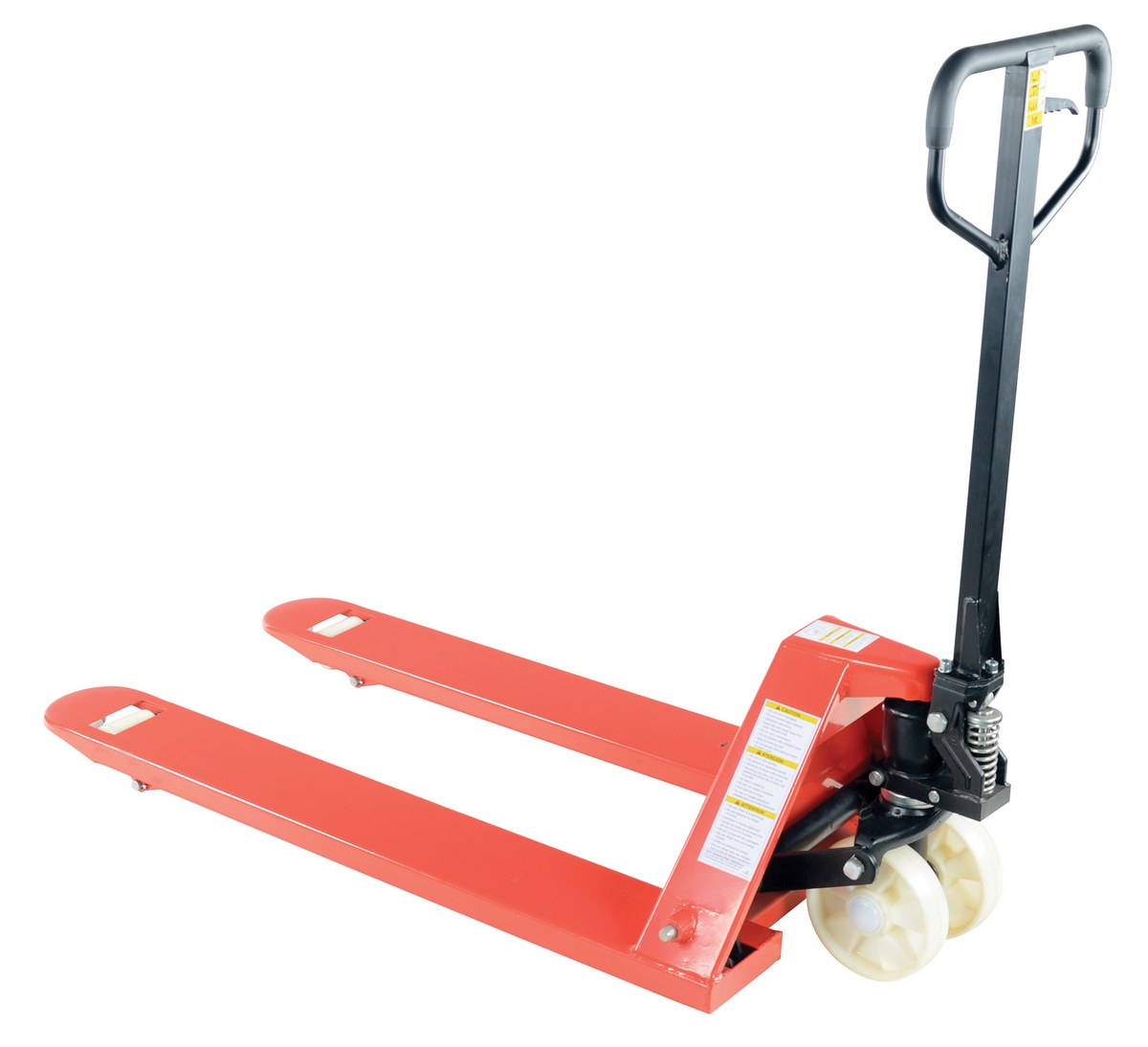

PM5-2748-N*
icon_approvaldrawings.jpgWarranty PDF 5,500 27"Wx48"L 2-7/8"-7-3/4" 227

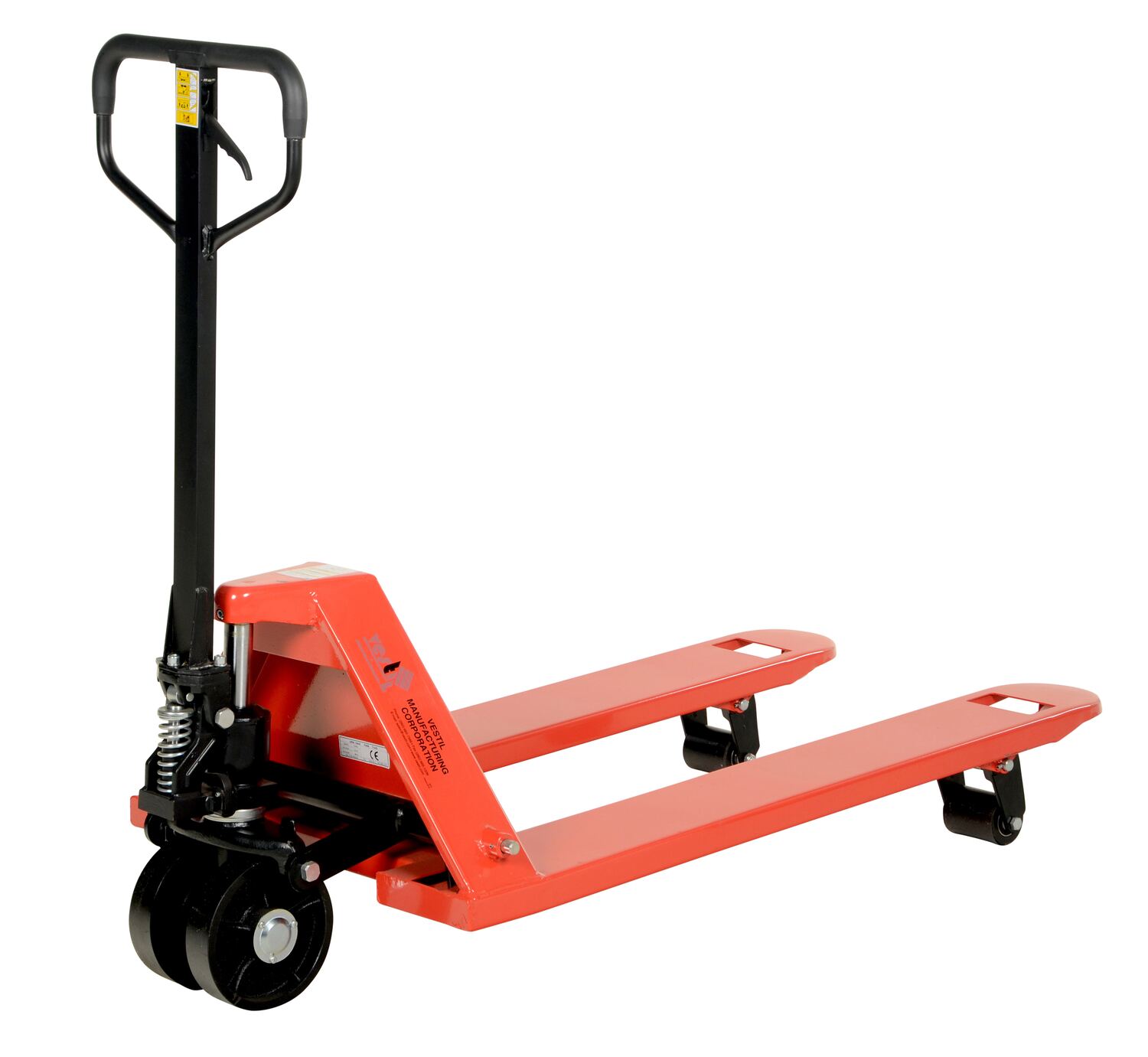

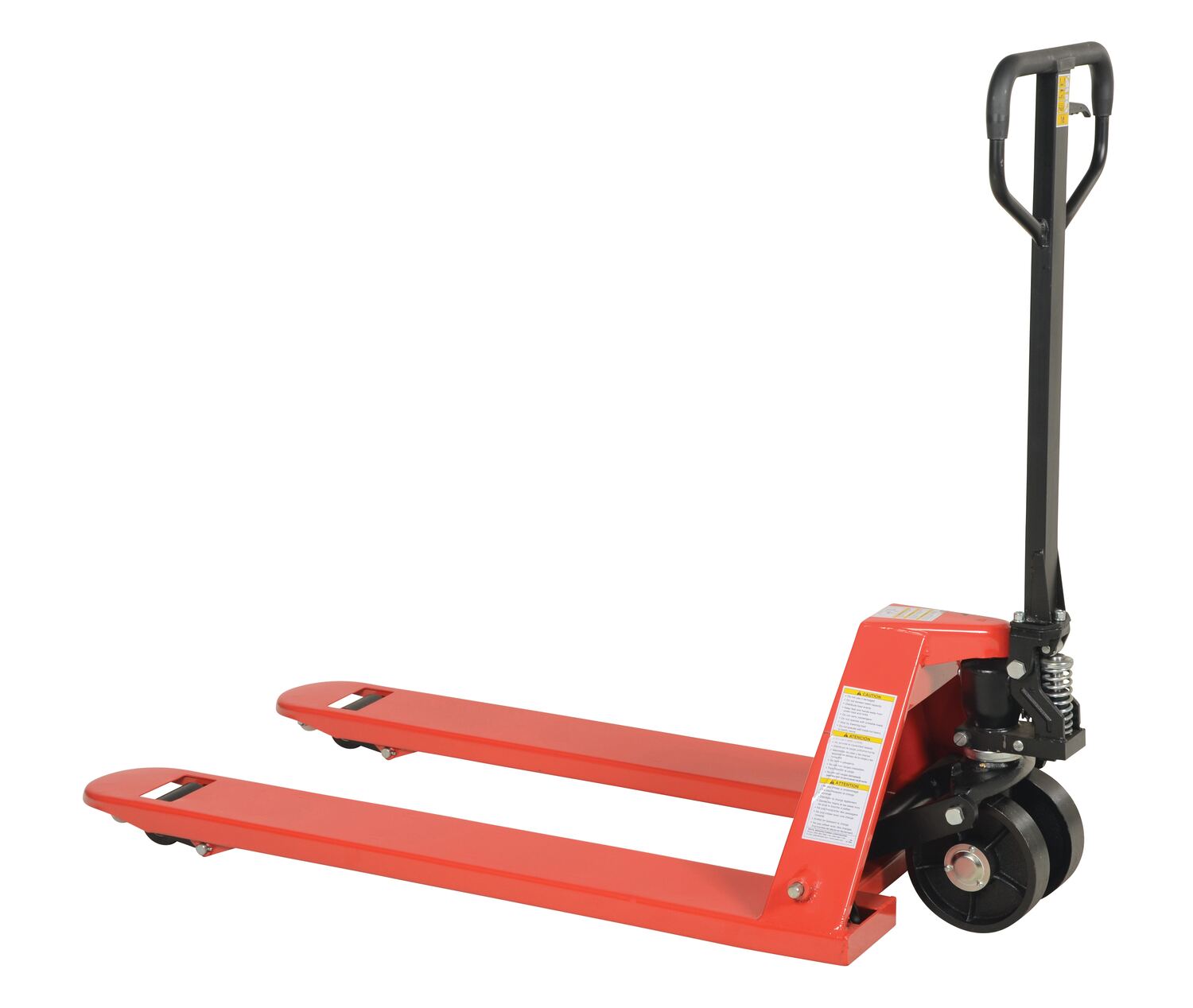

PM5-2748-S** icon_approvaldrawings.jpgWarranty PDF 5,500 27"Wx48"L 2-7/8"-7-3/4" 222
PM5-2748-FP Warranty PDF 5,500 27"Wx48"L 2-7/8"-7-3/4" 220

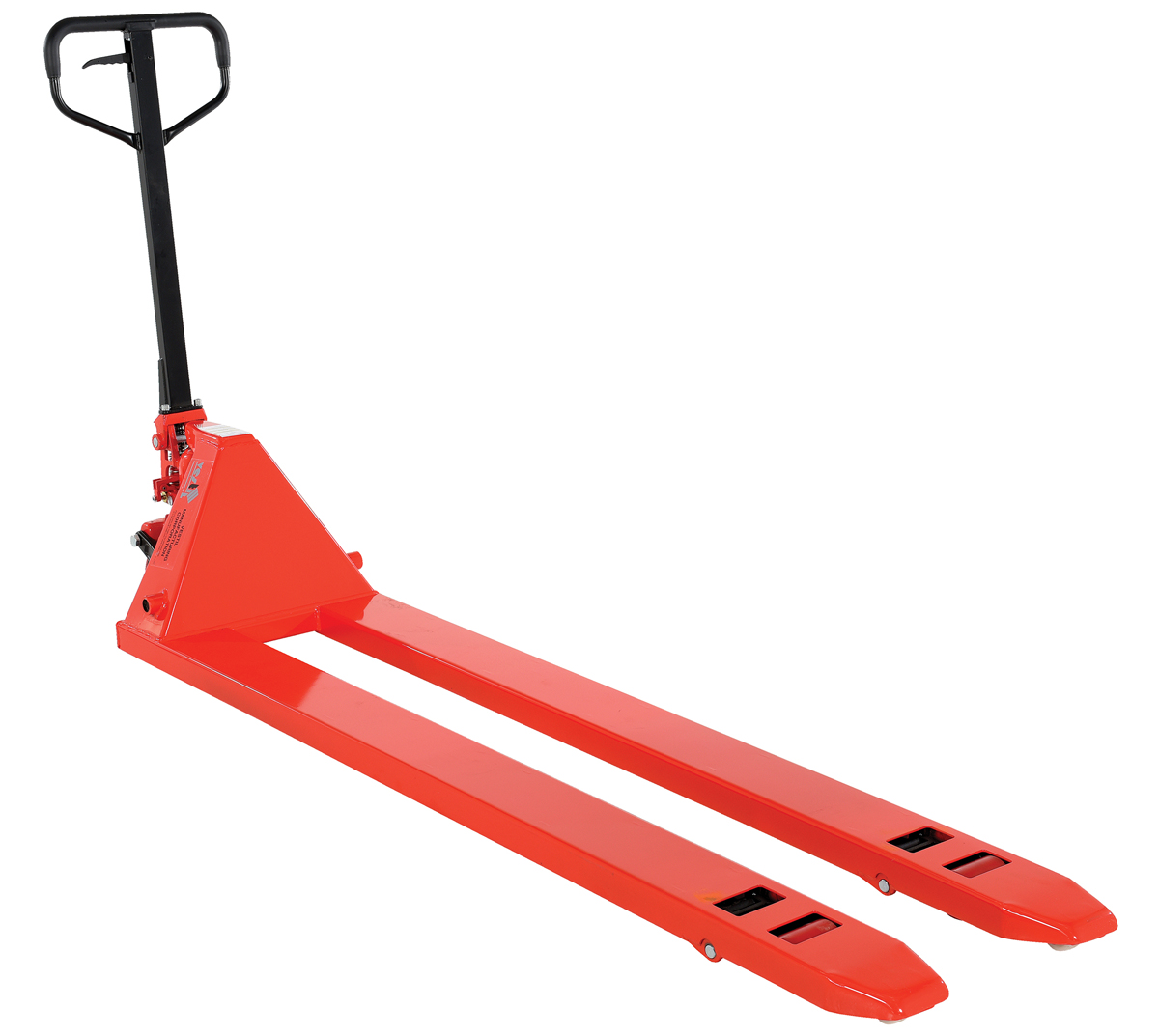

PM4-2072 icon_approvaldrawings.jpgWarranty PDF 4,400 20-5/8"Wx72"L 2-7/8"-7-3/4" 284

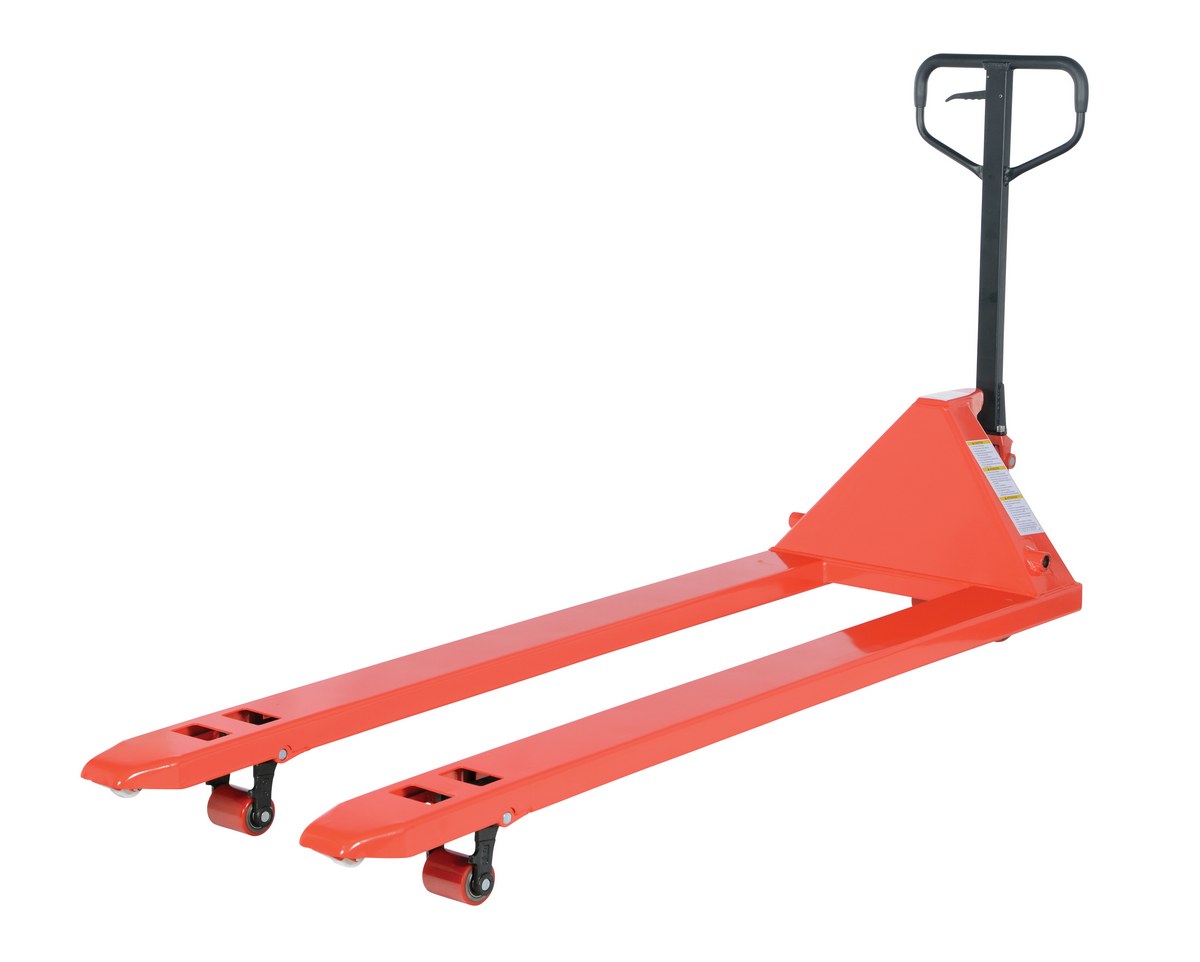

PM4-2772 icon_approvaldrawings.jpgWarranty PDF 4,400 27"Wx72"L 2-7/8"-7-3/4" 301
PM4-2096 icon_approvaldrawings.jpgWarranty PDF 4,000 20-5/8"Wx96"L 2-7/8"-7-3/4" 402

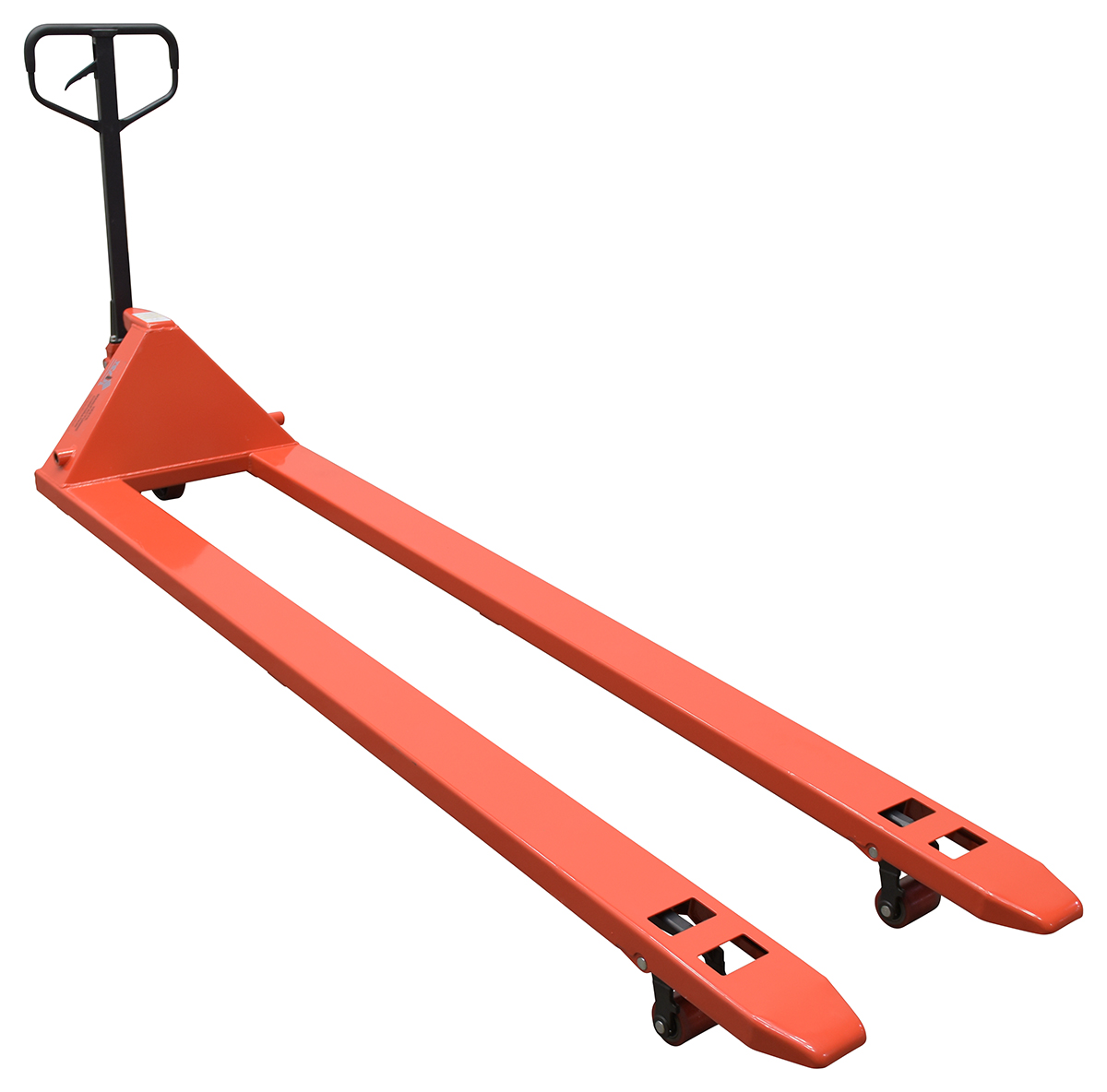

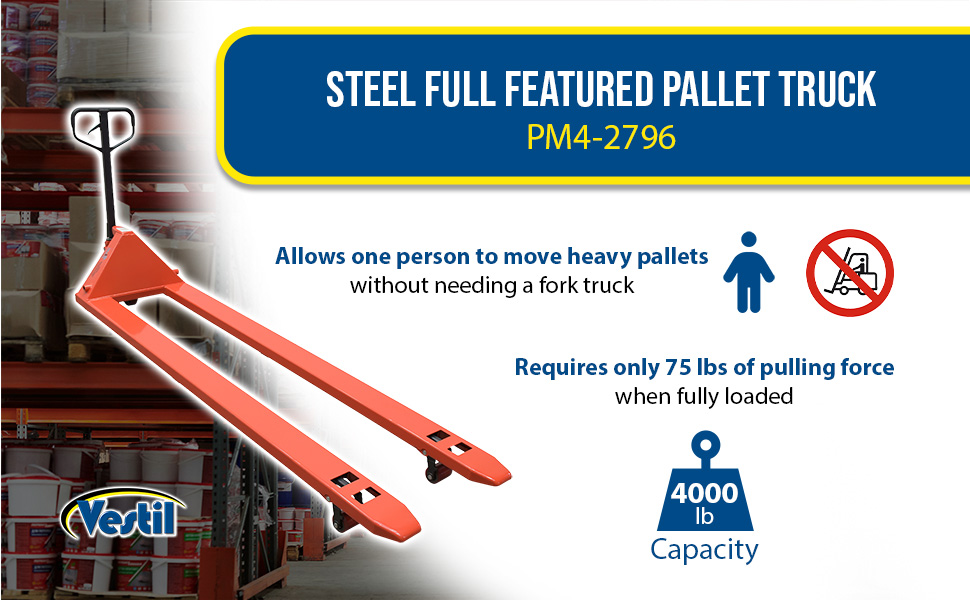

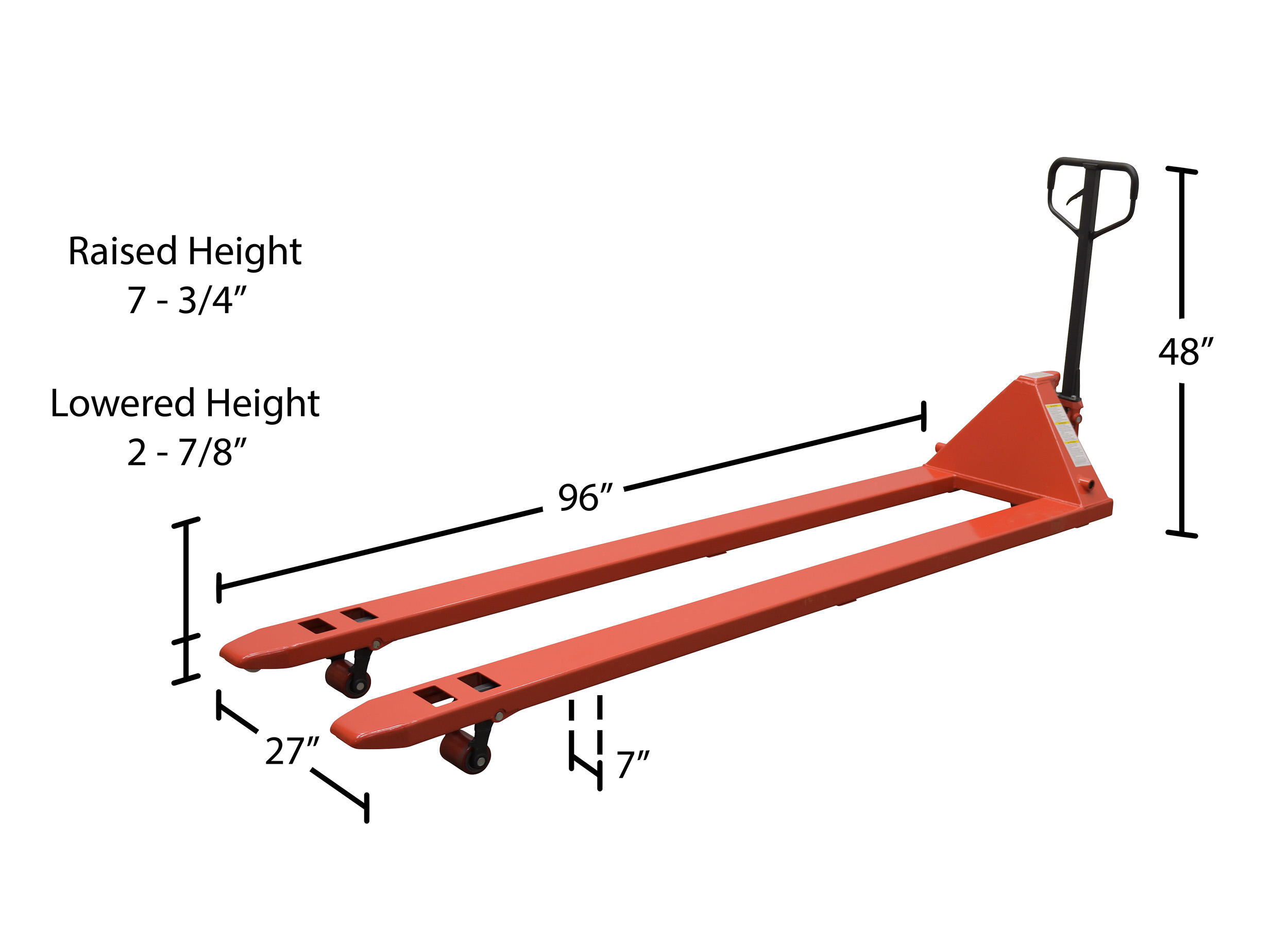

PM4-2796 icon_approvaldrawings.jpgWarranty PDF 4,000 27"Wx96"L 2-7/8"-7-3/4" 382

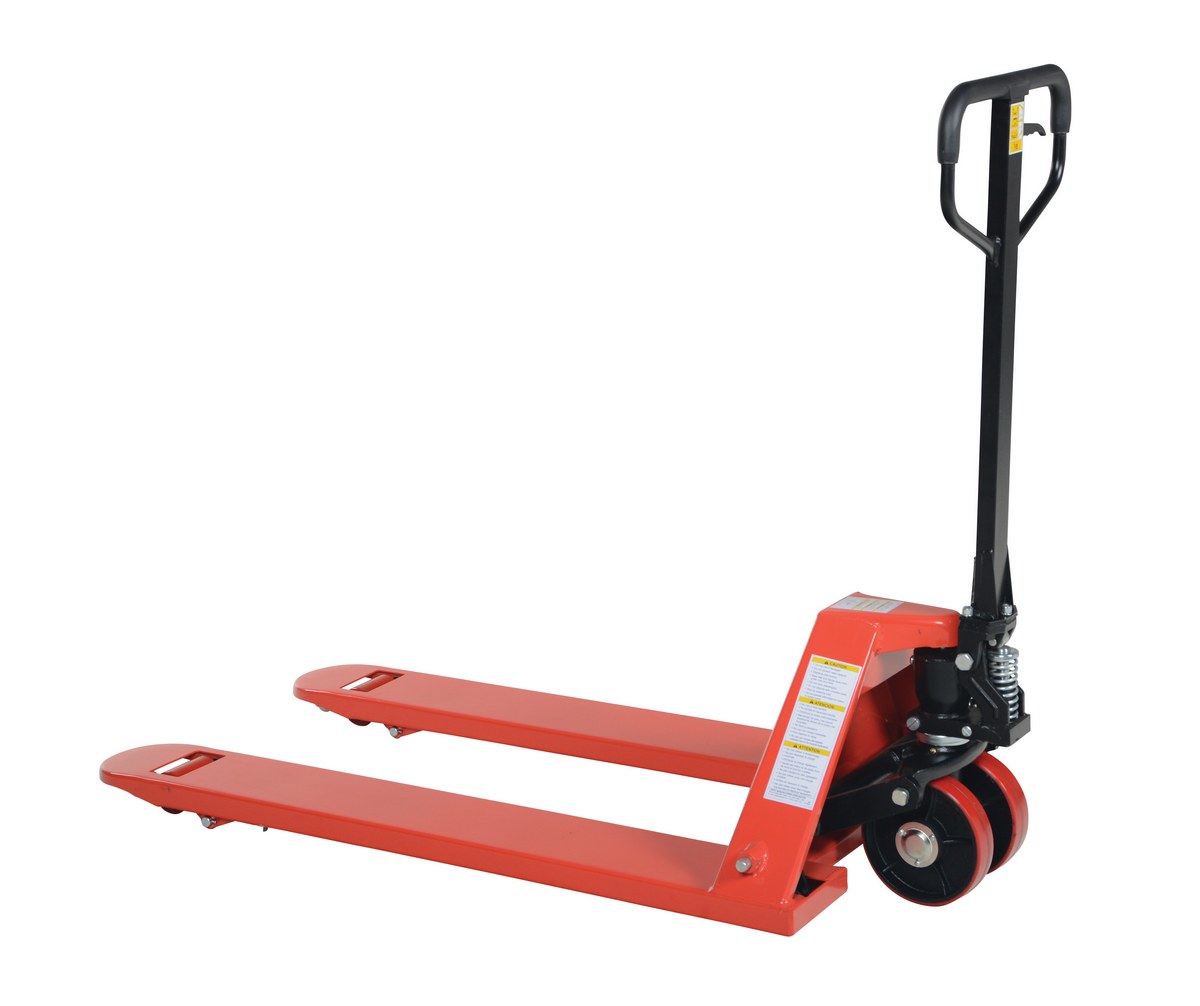

PM6-2748 icon_approvaldrawings.jpgWarranty PDF 6,000 27"Wx48"L 2-7/8"-7-3/4" 212

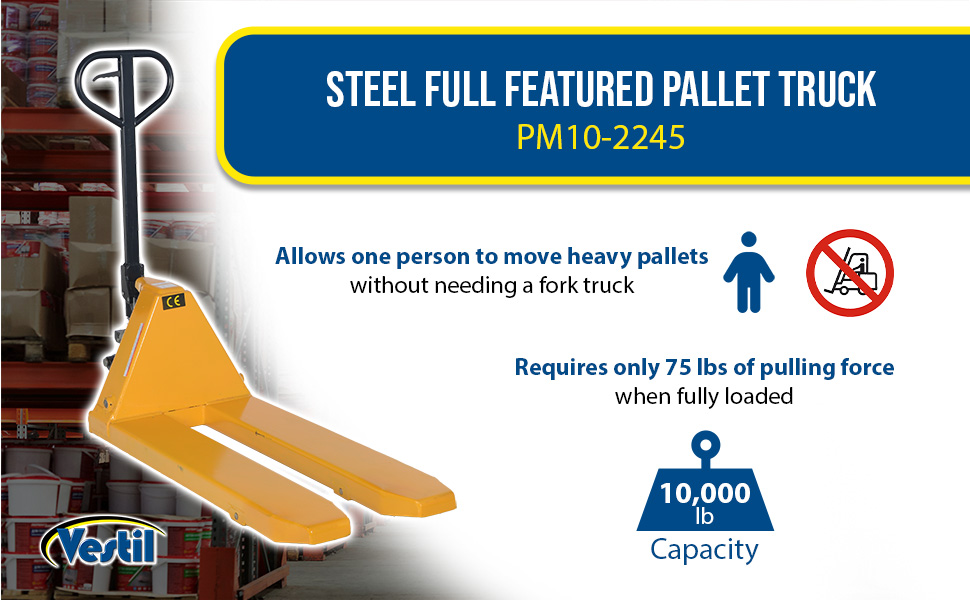

PM10-2245** icon_approvaldrawings.jpgWarranty PDF 10,000 22-3/4"Wx45-1/4"L 3-1/2"to7-7/8" 423

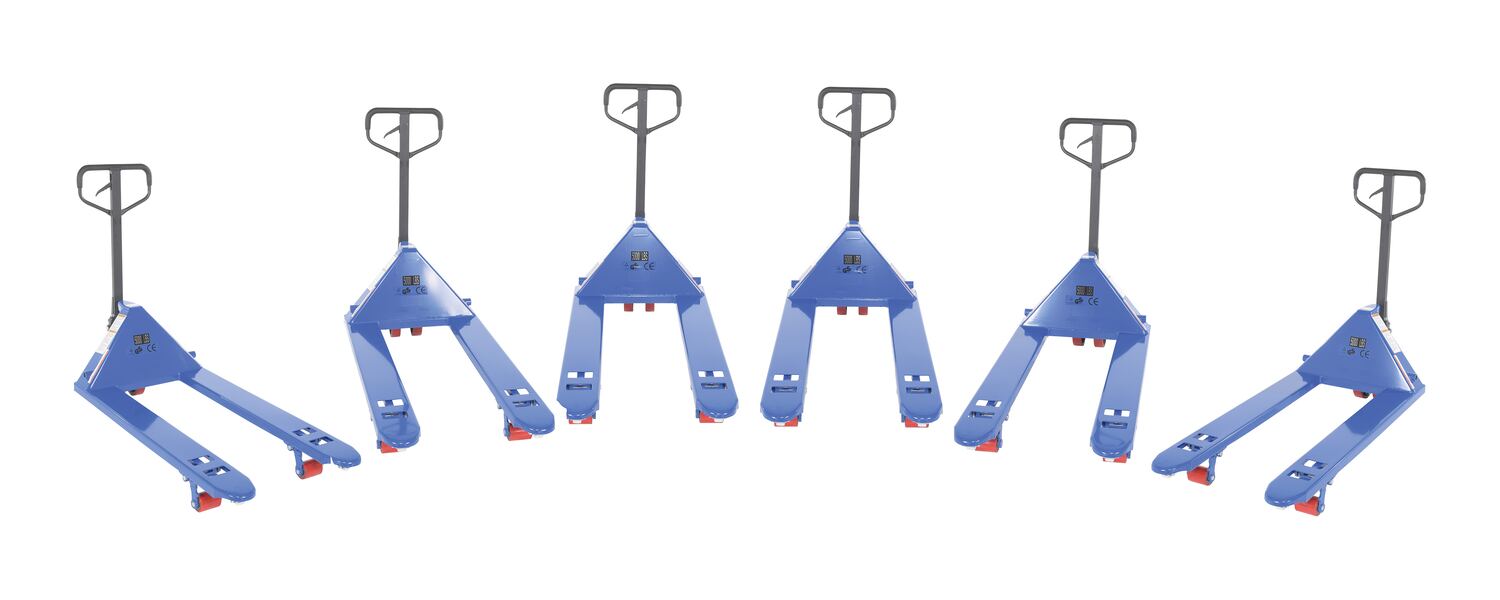

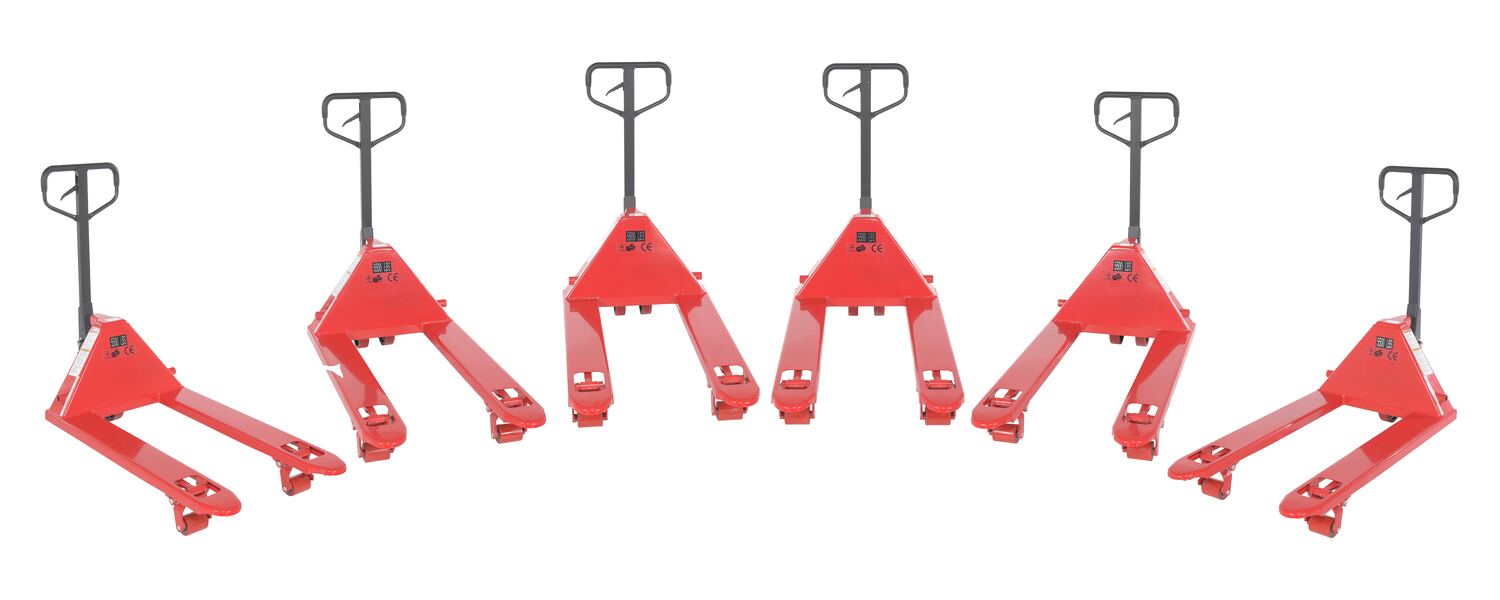

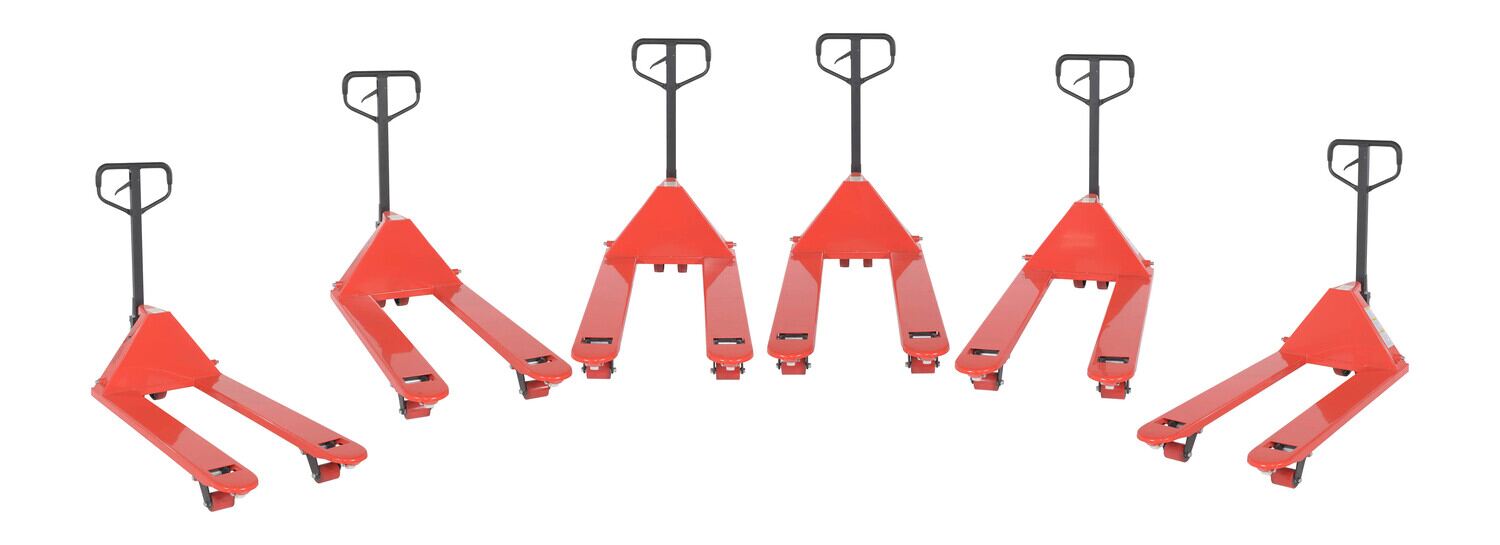

(6) SIX PACKS - CRATED

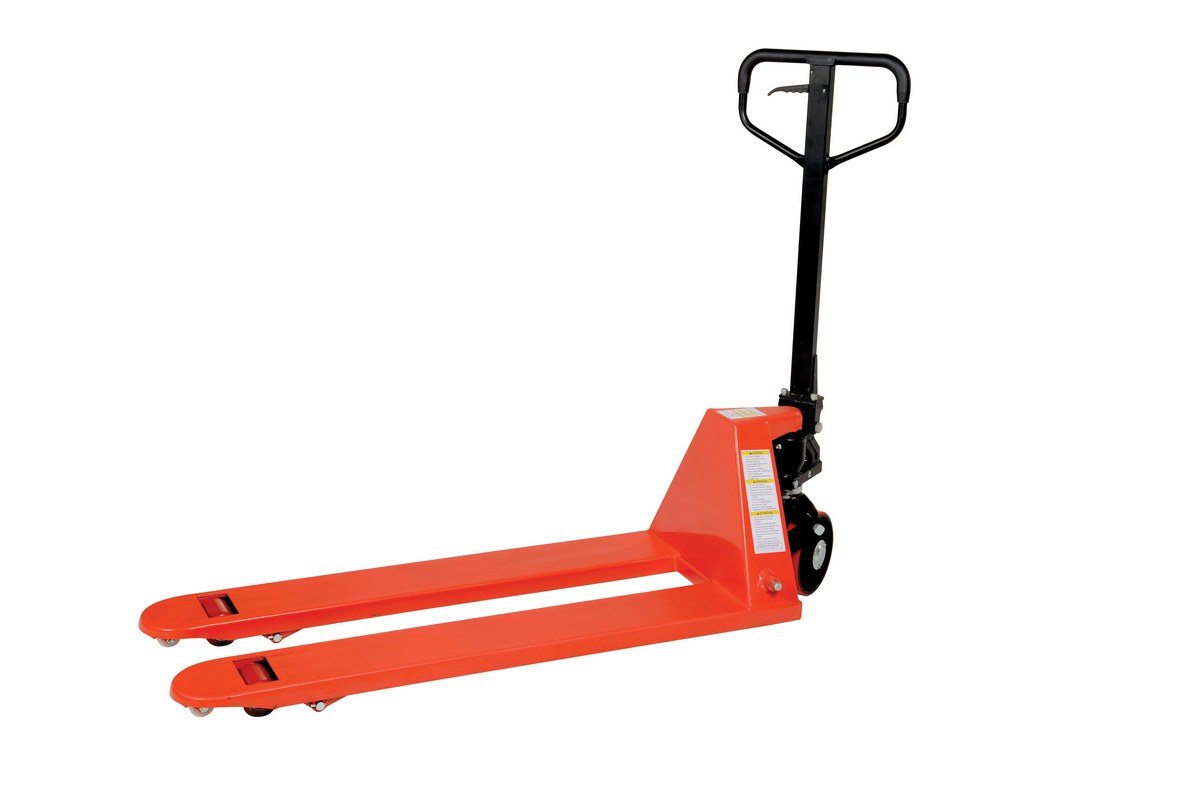

PM5-2048-6PKG - icon_approvaldrawings.jpg 5,500 20-5/8"Wx48"L 2-7/8"-7-3/4" 1130
PM5-2748-6PKG - icon_approvaldrawings.jpg 5,500 27"Wx48"L 2-7/8"-7-3/4" 1372
PM6-2748-6PKG - icon_approvaldrawings.jpg 6,000 27"Wx48"L 2-7/8"-7-3/4" 1444
* Nylon Wheels / **Steel Wheels (ALL OTHERS ARE POLY-ON-STEEL)

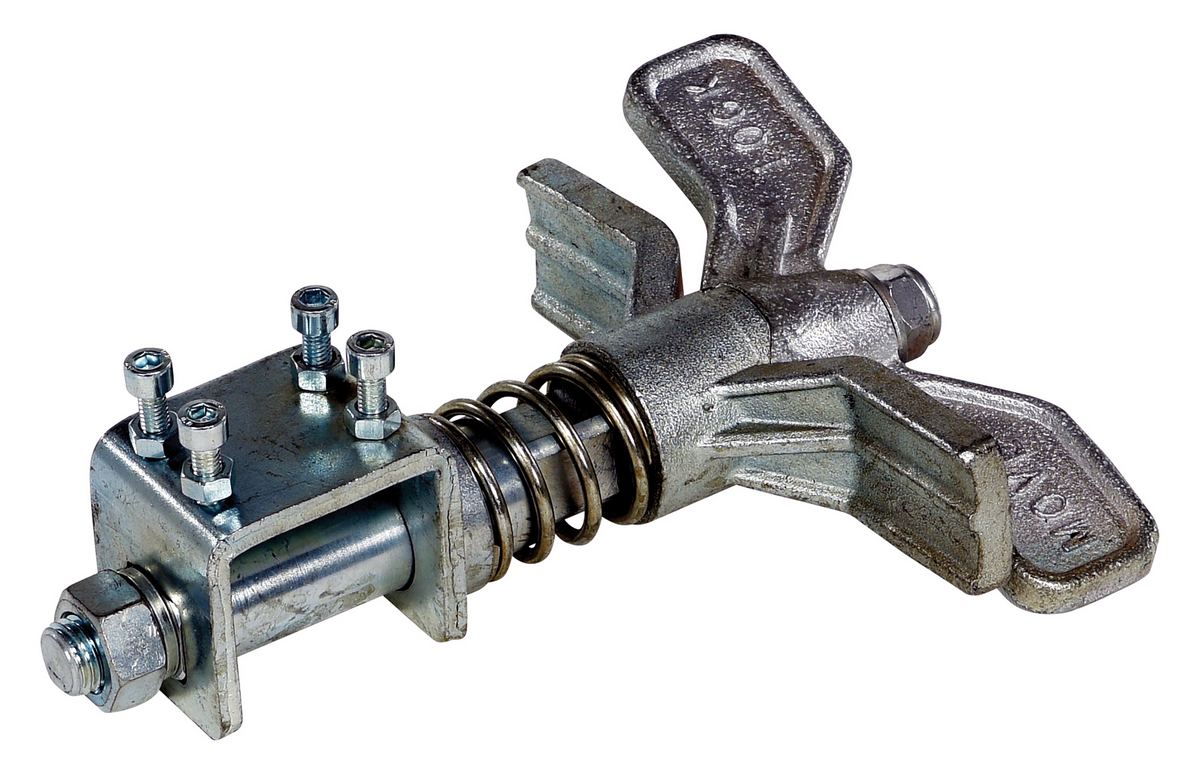

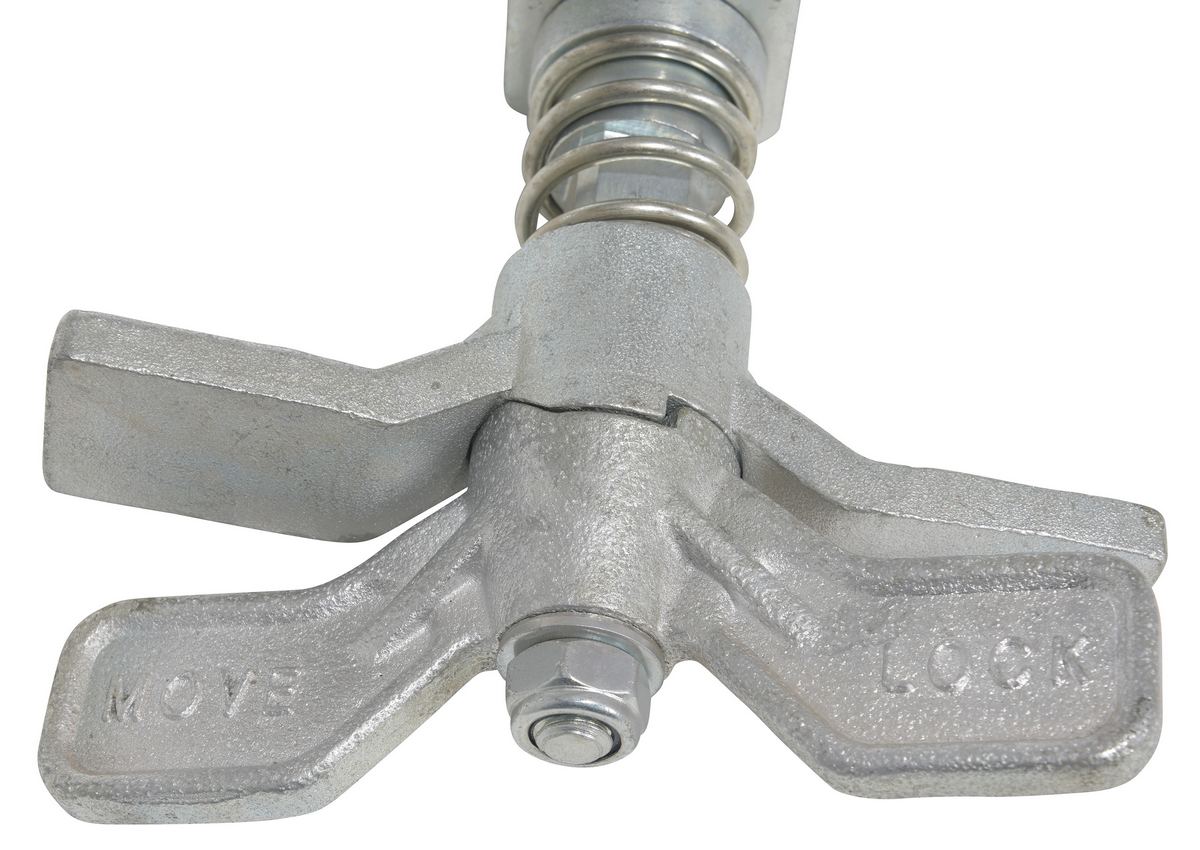

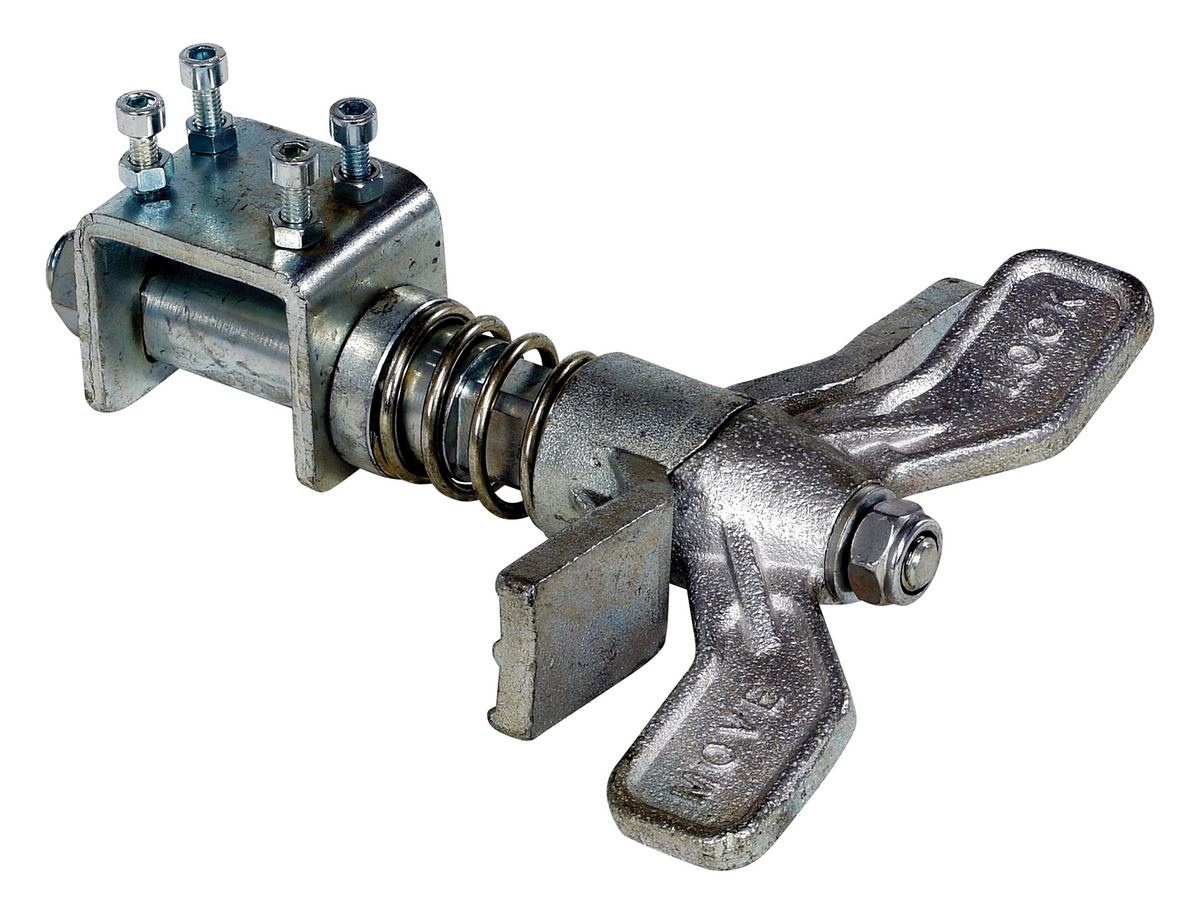

Foot Brake Kit Option, model PM5-FB
Low Temp Oil For Freezer Applications, model CWHF-SM
