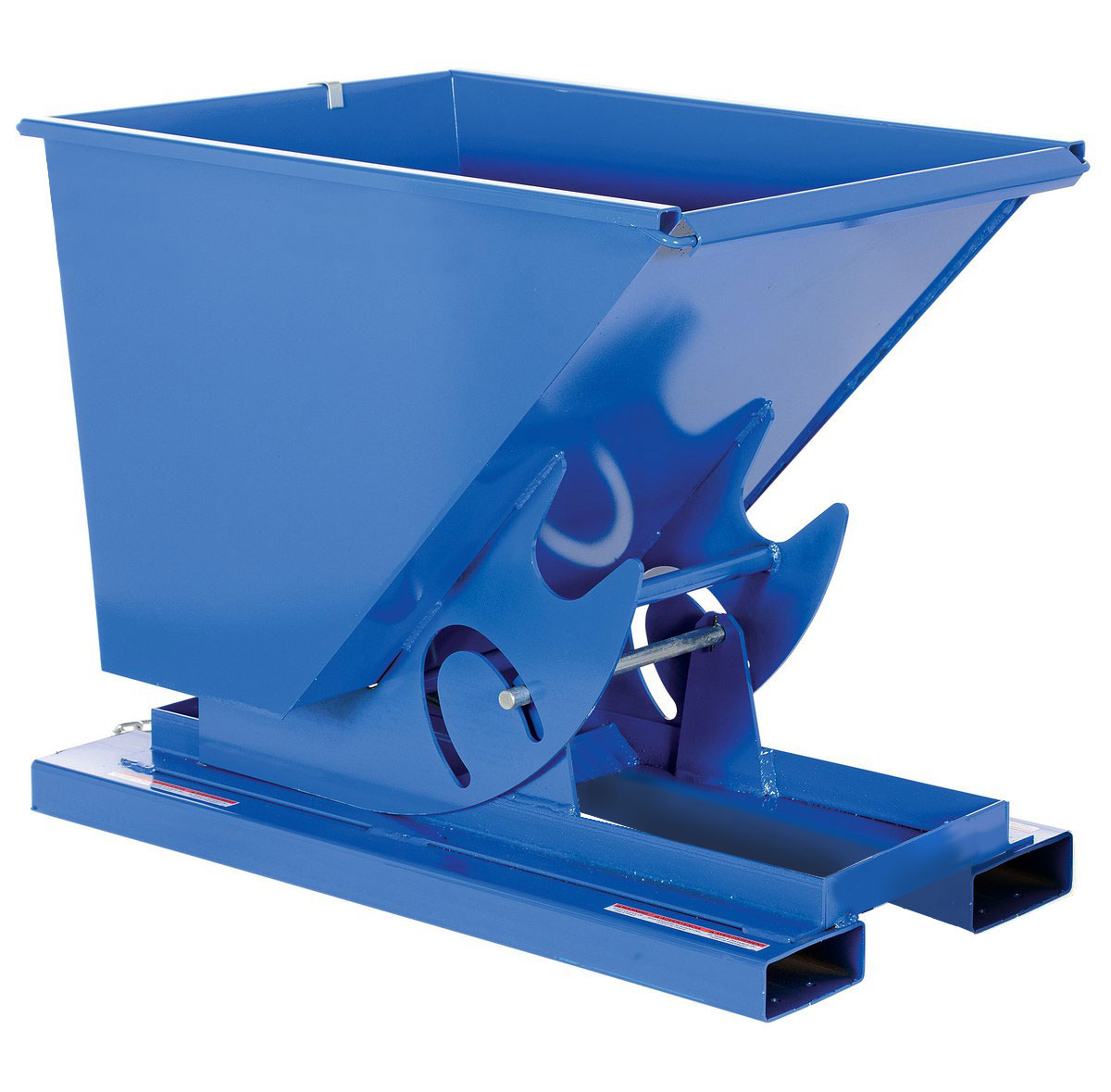

D-Style Hoppers, No Bump & Dump

model: D-50-HD-NB

Featured Fork Truck Attachments:

"Skid Loader" Multi-Purpose Lifting Attachment

Fork Lifter

Fork Truck Safety & Warning Light

Round or Triangular Fork Extensions

Fork Truck Snow Plow

Work Platforms

Fork Rear Spacers

Rug Rams & Carpet Poles

Bulk Containers

Product Family Overview

Print Friendly

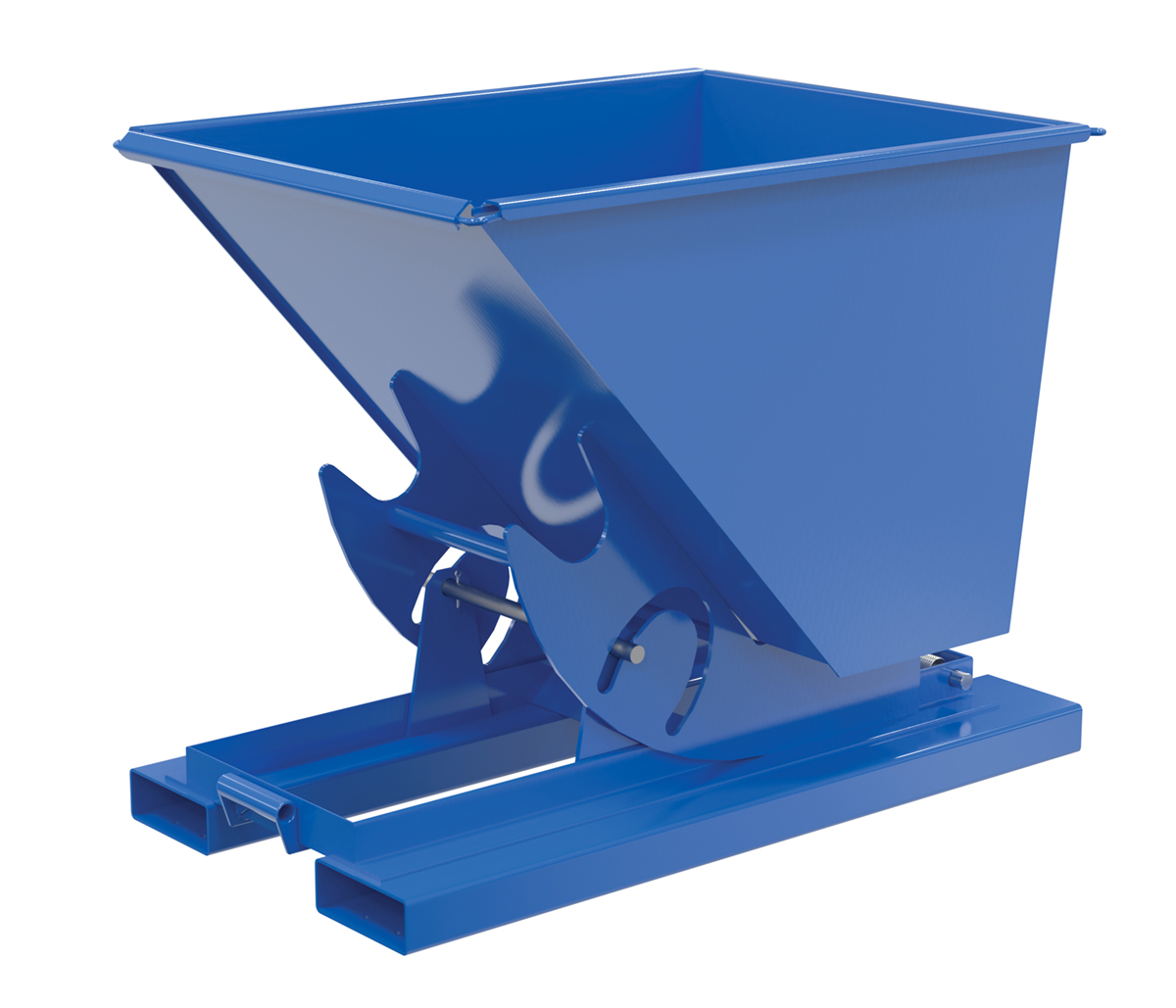

D-Style Hoppers, No Bump & Dump

SERIES: D-NB

This steel Hopper is the perfect resolution for loading and unloading large amounts of items. With a steel construction, the hopper maintains a structural strength that endures the strain of consistent daily use. The manual release feature gives the forklift driver the ability to never leave the driving position, which allows personnel to stay at a safe distance throughout the dumping process. In addition to the smooth surface, the contoured edges let items flow freely out of the hopper for a complete clearing of loaded goods. Must be attached to fork truck when dumping.

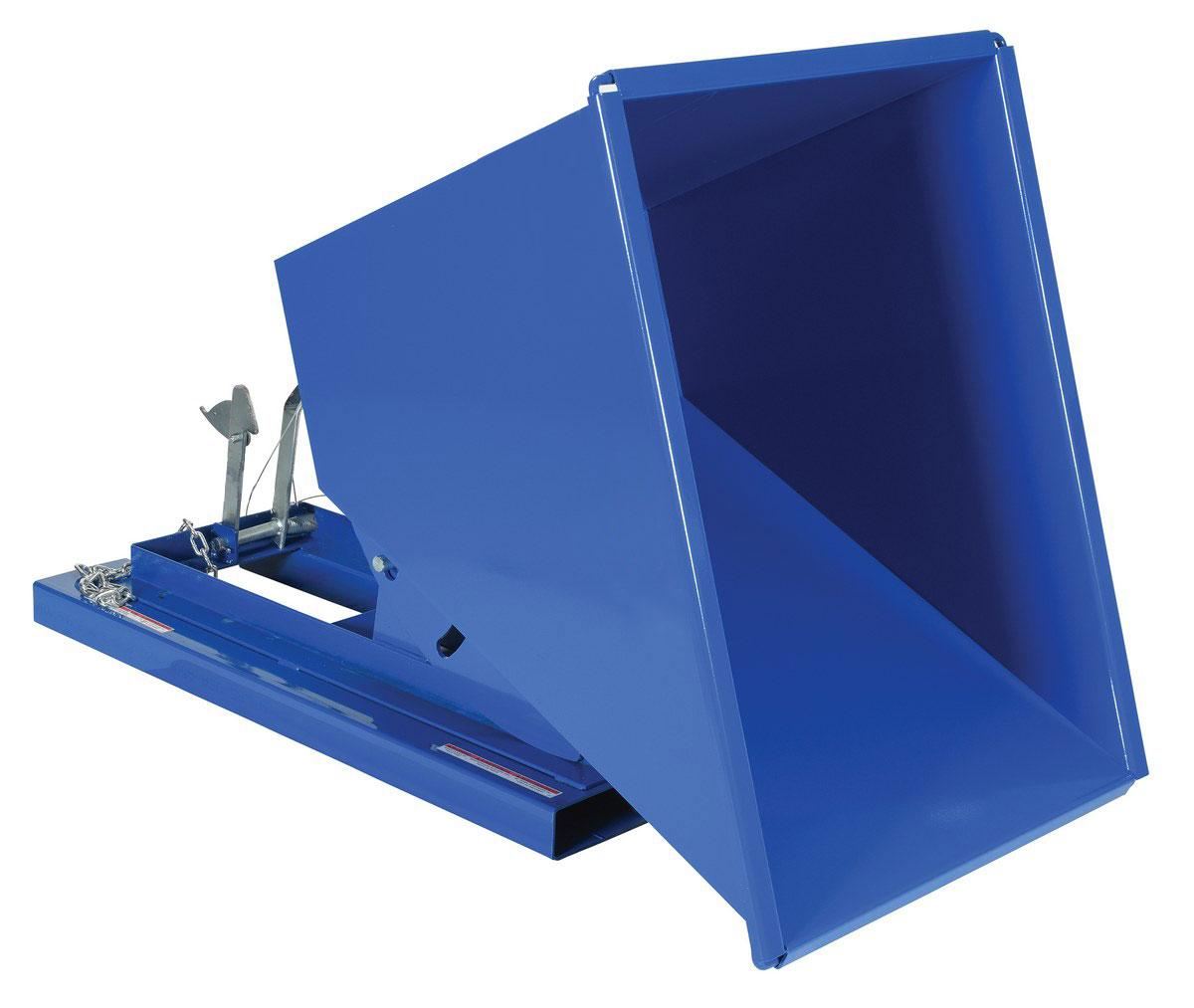

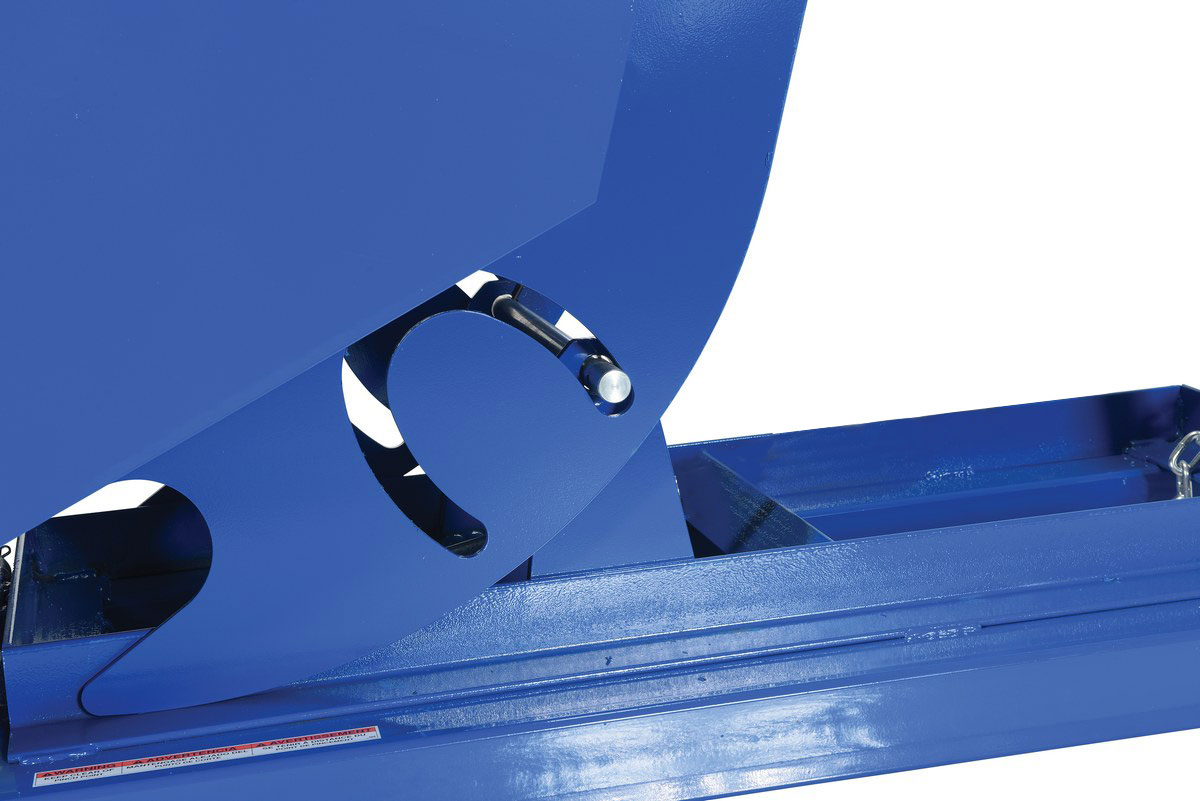

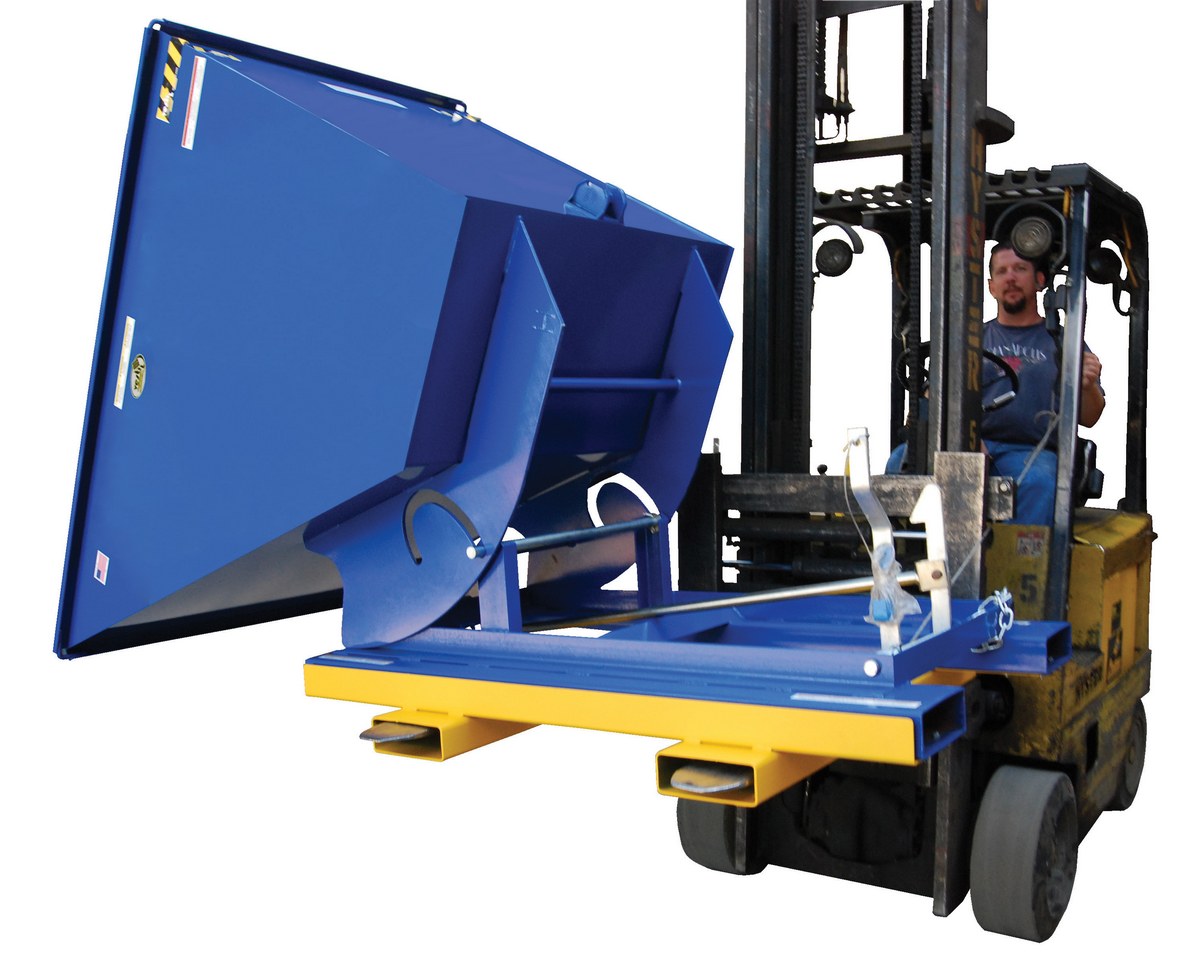

Pull chain release for quick dumping
Powder coated finish for added baked in toughness.
Fork pockets provide a solid lifting foundation

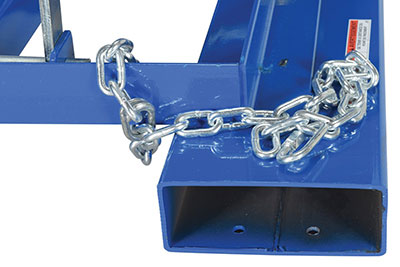

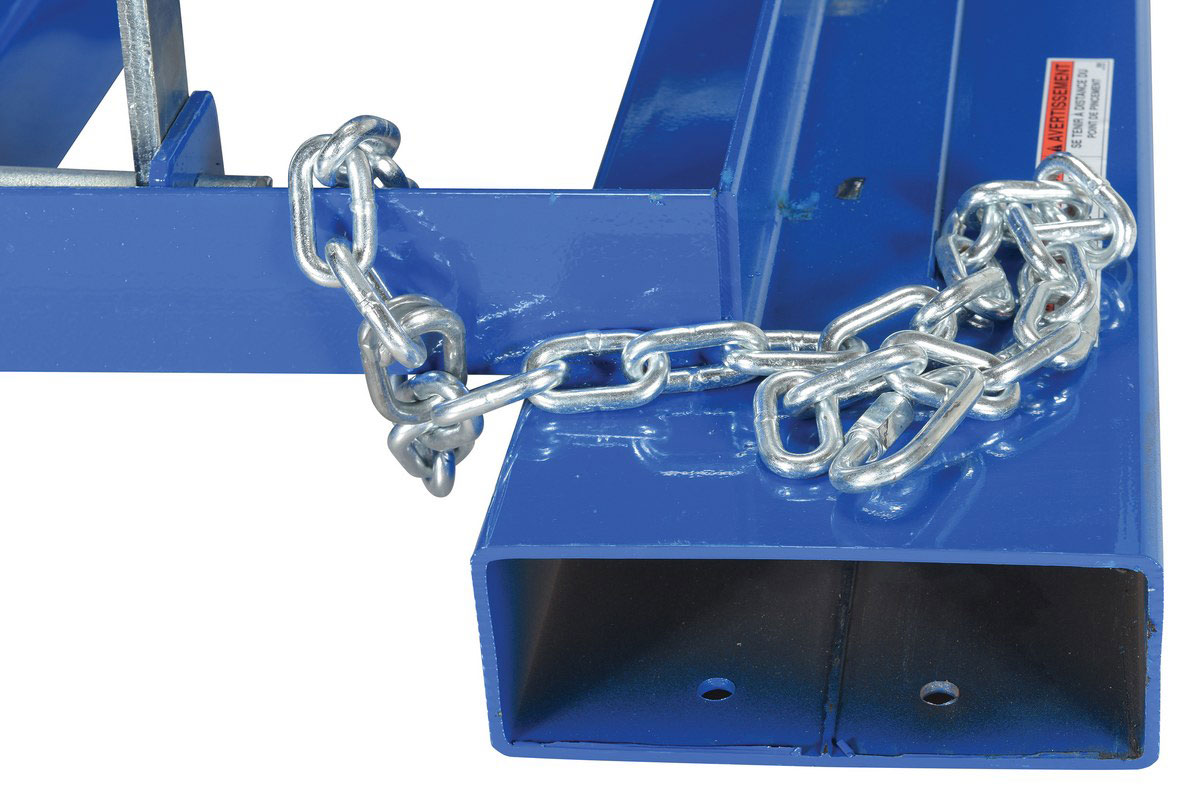

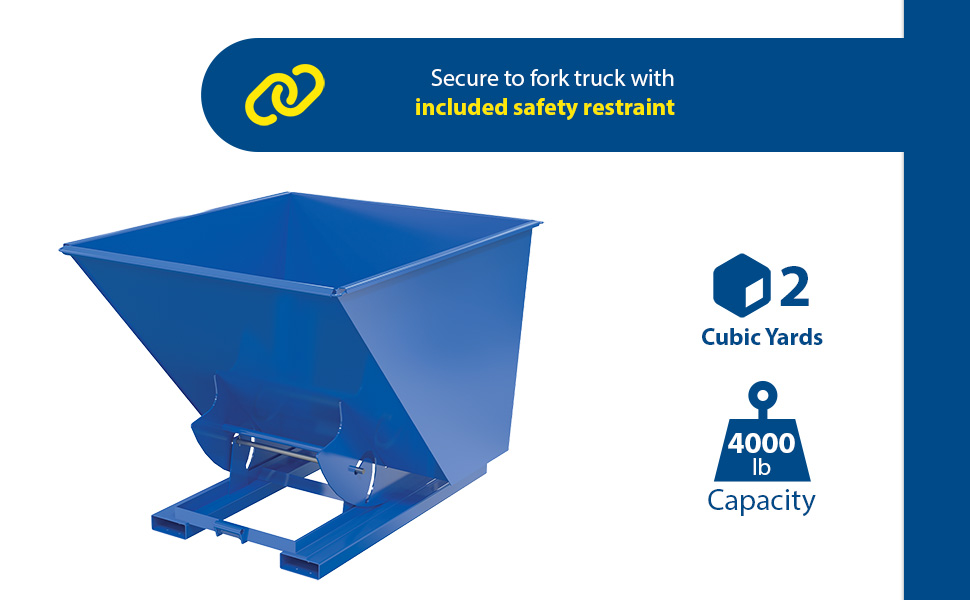

Safety restraint secures the hopper to the fork truck

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)-NB	.25 Cubic Yard
D-33-(strength)-NB	.33 Cubic Yard
D-50-(strength)-NB	.50 Cubic Yard
D-75-(strength)-NB	.75 Cubic Yard
D-100-(strength)-NB	1 Cubic Yard
D-150-(strength)-NB	1.5 Cubic Yard

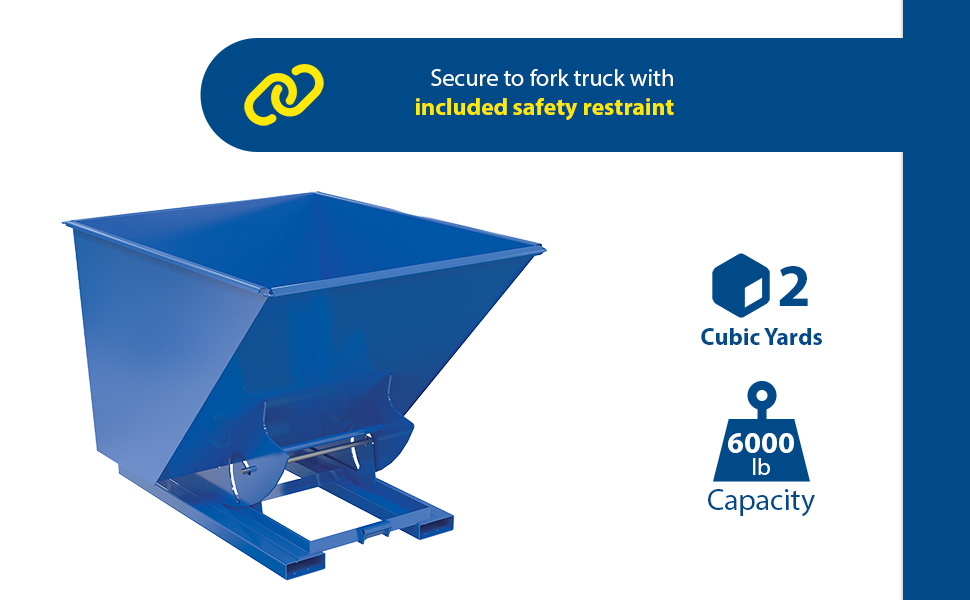

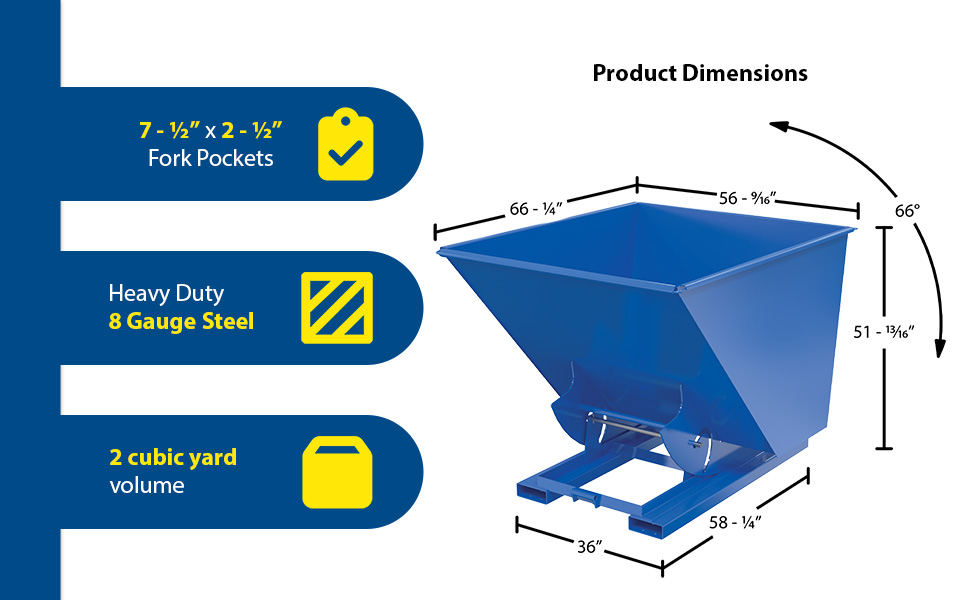

D-200-(strength)-NB	2 Cubic Yard

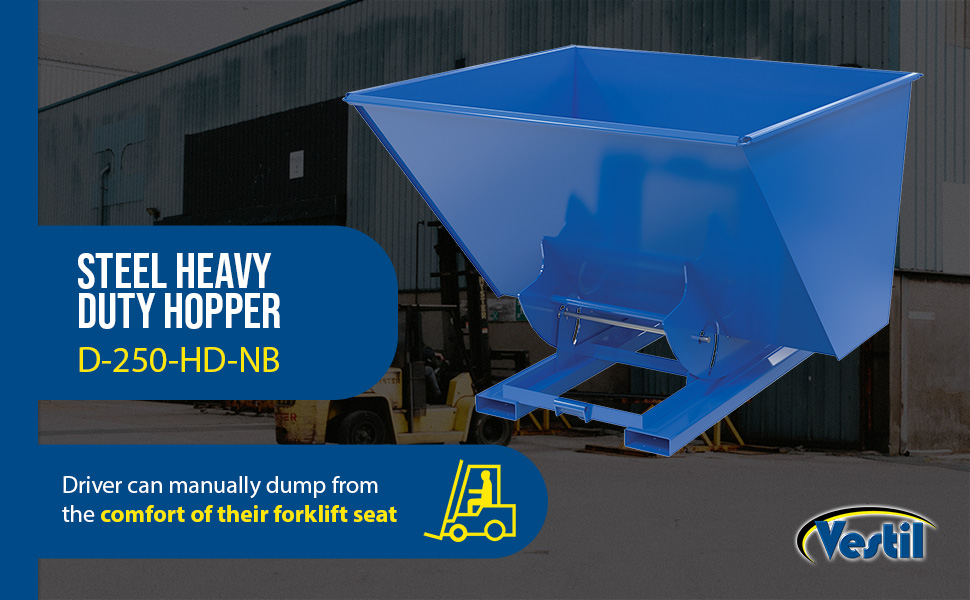

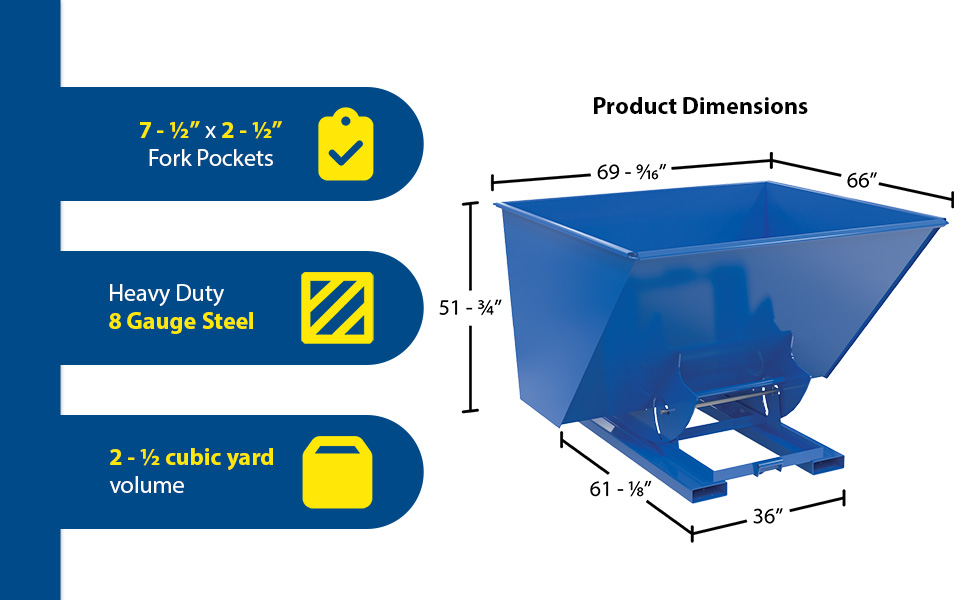

D-250-(strength)-NB	2.5 Cubic Yard
D-300-(strength)-NB	3 Cubic Yard
D-350-(strength)-NB	3.5 Cubic Yard
D-400-(strength)-NB	4 Cubic Yard
D-500-(strength)-NB	5 Cubic Yard

D-Style WITH BUMPER RELEASE

Caster Options | Optional Lids

Pull chain release for quick dumping
Powder coated finish for added baked in toughness.
Fork pockets provide a solid lifting foundation
Safety restraint secures the hopper to the fork truck

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)-NB	.25 Cubic Yard
D-33-(strength)-NB	.33 Cubic Yard
D-50-(strength)-NB	.50 Cubic Yard
D-75-(strength)-NB	.75 Cubic Yard
D-100-(strength)-NB	1 Cubic Yard
D-150-(strength)-NB	1.5 Cubic Yard
D-200-(strength)-NB	2 Cubic Yard
D-250-(strength)-NB	2.5 Cubic Yard
D-300-(strength)-NB	3 Cubic Yard
D-350-(strength)-NB	3.5 Cubic Yard
D-400-(strength)-NB	4 Cubic Yard
D-500-(strength)-NB	5 Cubic Yard

D-Style WITH BUMPER RELEASE

Caster Options | Optional Lids

Other Hoppers

Steel Chute Hoppers

Self-Dumping Steel Hoppers with Fold Down Front

Rotator Box Hoppers

Portable Steel Hoppers

Follow @vestilmfg

model D-25-MD-NB

model D-33-MD-NB-YEL

model D-50-MD-NB-GRN-T

model D-100-HD-NB-GAL

model D-150-MD-NB-ORG-C

model D-200-MD-NB-SR

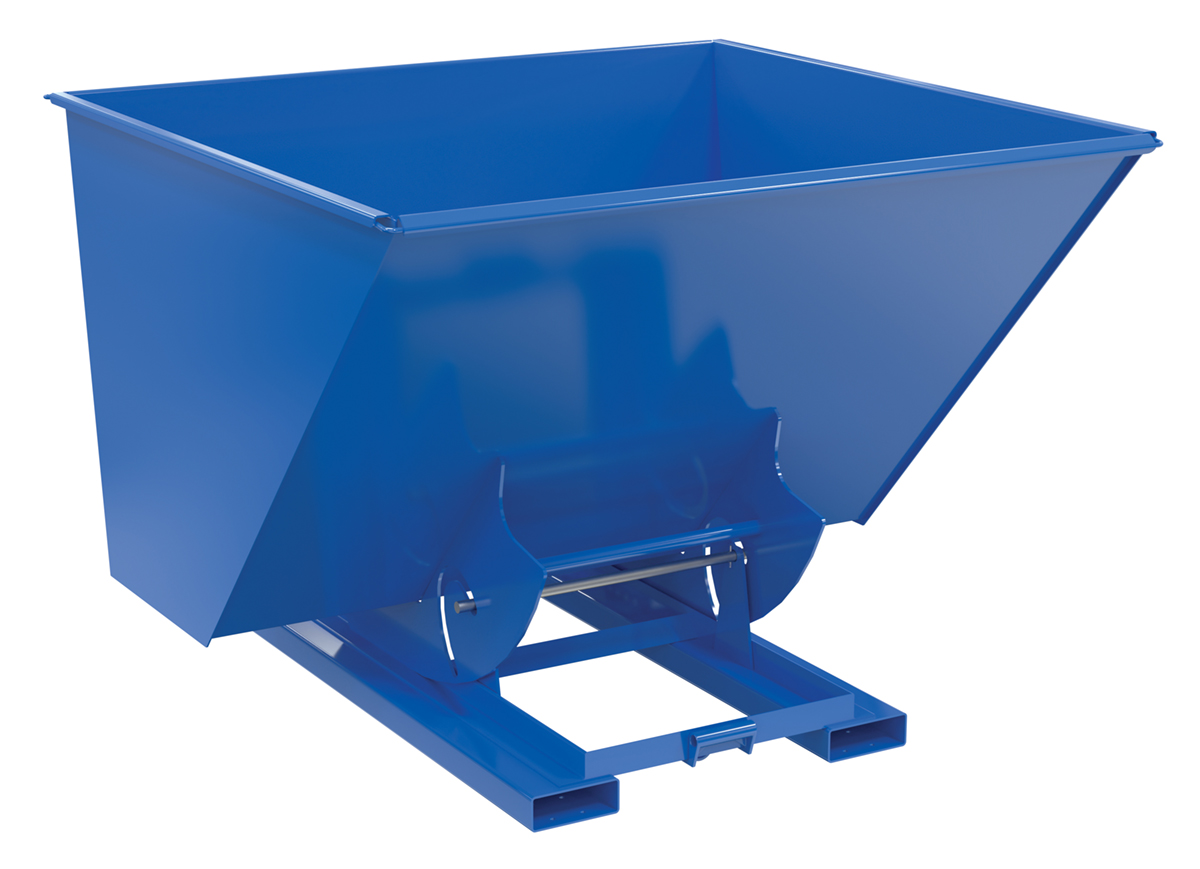

model D-250-MD-NB

model D-300-HD-NB-GAL

model D-400-MD-NB-GRN-T

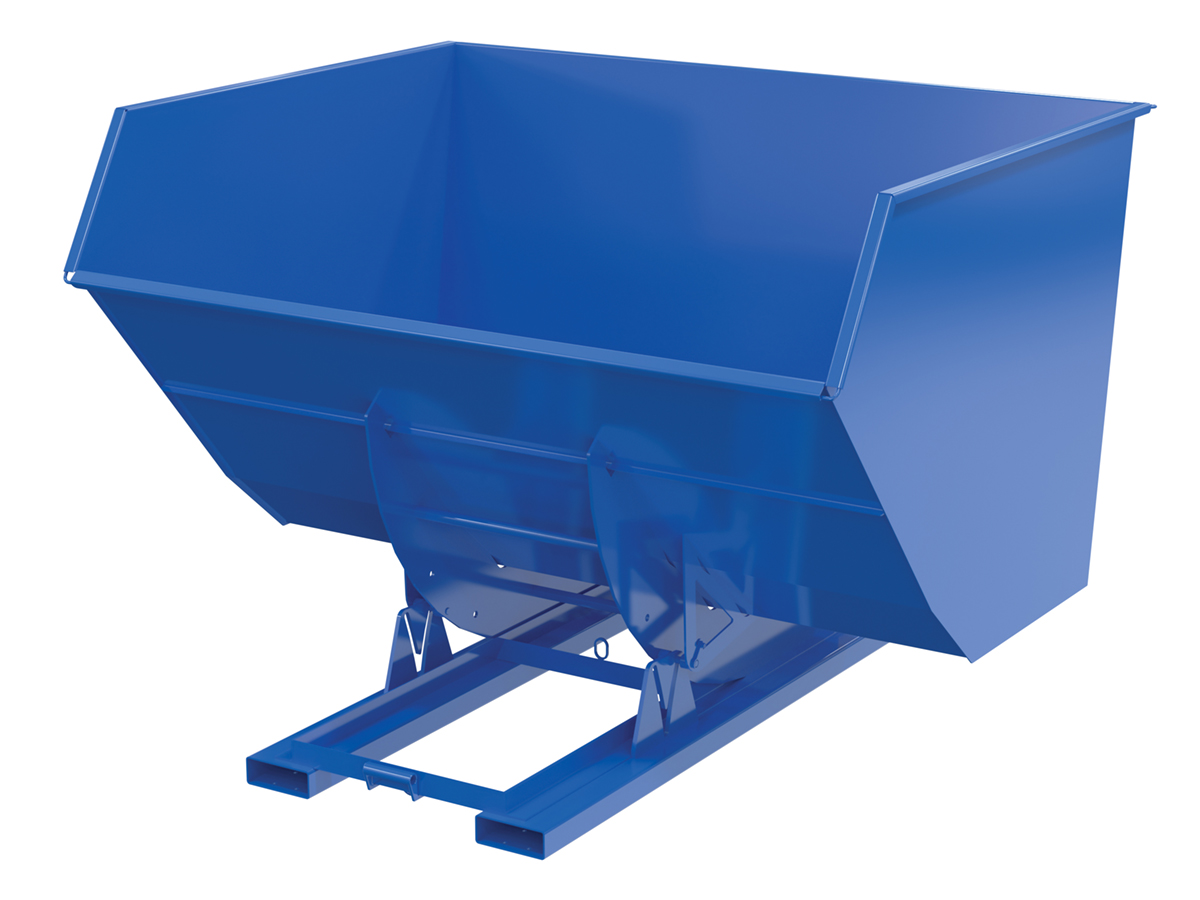

model D-500-MD-NB-ORG-C

Check Out All Of Our Specialty Colors Available!

SODA RED

SODA RED
Suggested Use: Hazard
Model Suffix: -SR

WHITE

WHITE
Suggested Use: Paper
Model Suffix: -WHT

BATTLE SHIP GRAY

BATTLE SHIP GRAY
Suggested Use: Metal
Model Suffix: -GY-SG

TRACTOR GREEN

TRACTOR GREEN
Suggested Use: Organic
Model Suffix: -GRN-T

BLUE (Standard)

BLUE (Standard Color)
Suggested Use: Plastic
Model Suffix: -

YELLOW

YELLOW
Suggested Use: Glass
Model Suffix: -YEL

ORANGE

ORANGE
Suggested Use: Corrosive Fluid
Model Suffix: -ORG-C

HOT DIPPED GALVANIZED

HOT DIPPED GALVANIZED
Suggested Use: Wet Environment
Model Suffix: -GAL

EARTH BROWN

EARTH BROWN
Suggested Use: Combustible Fluids
Model Suffix: -BRN-EB

KHAKI TAN

KHAKI TAN
Suggested Use: User Defined
Model Suffix: -BRN-KT

SANDY BEIGE

SANDY BEIGE
Suggested Use: User Defined
Model Suffix: -BRN-SB

BUBBLE GUM PINK

BUBBLE GUM PINK
Suggested Use: User Defined
Model Suffix: -BG

BLACK - HIGH GLOSS

BLACK - HIGH GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-HG

BLACK - SEMI-GLOSS

BLACK - SEMI-GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-SG

HUNTER GREEN

HUNTER GREEN
Suggested Use: User Defined
Model Suffix: -GRN-H

SILVER LINING

SILVER LINING
Suggested Use: User Defined
Model Suffix: -SL

SKY BLUE

SKY BLUE
Suggested Use: User Defined
Model Suffix: -BL-S

MACHINE GRAY

MACHINE GRAY
Suggested Use: User Defined
Model Suffix: -GY-MG

Notice These swatches are a representation of the colors available, and may not be exact.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart on this page. Not an entire site search.

Model	PDFs	Description	Attributes	Net Wt. (lbs)
D-100-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 1 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	560
D-100-LD-NB	90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 1 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	446
D-100-MD-NB	90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 1 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	513
D-150-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	671
D-150-LD-NB	90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	540
D-150-MD-NB	90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	669

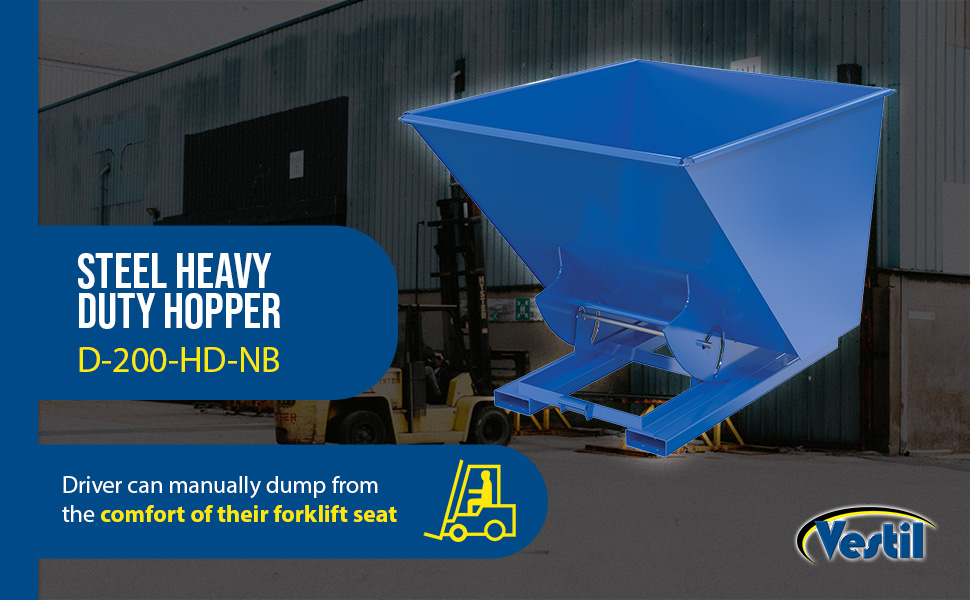

D-200-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	763

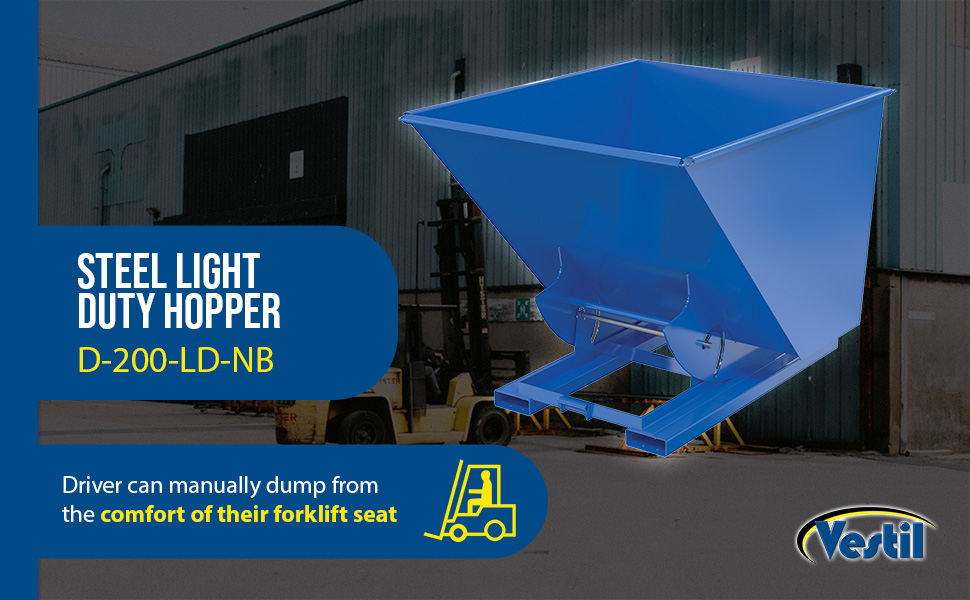

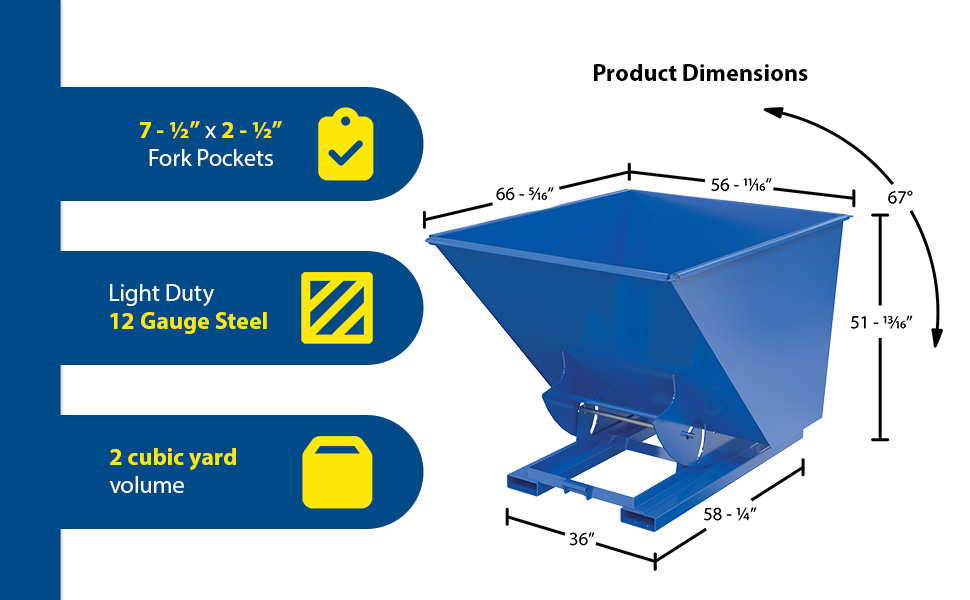

D-200-LD-NB	90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	608

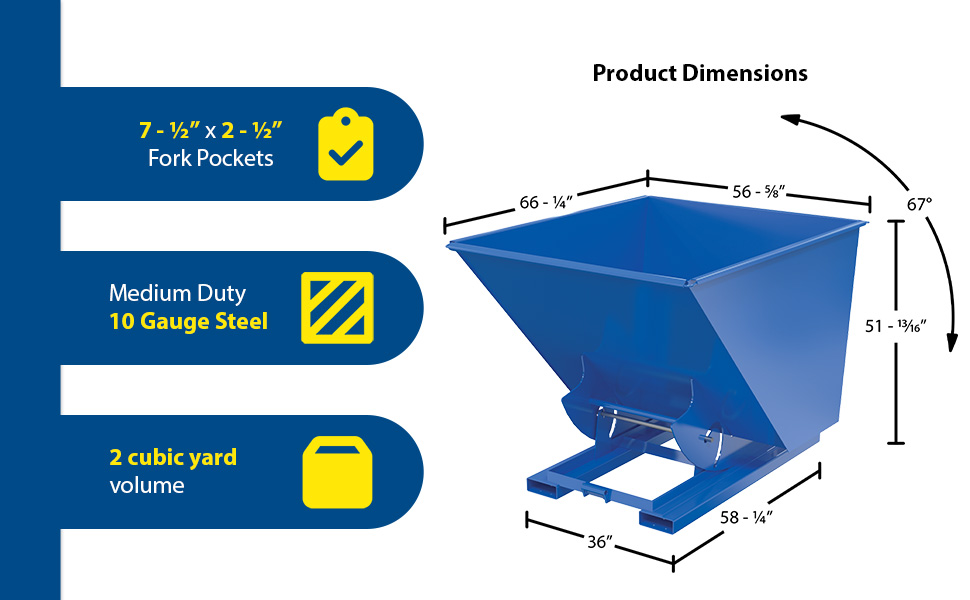

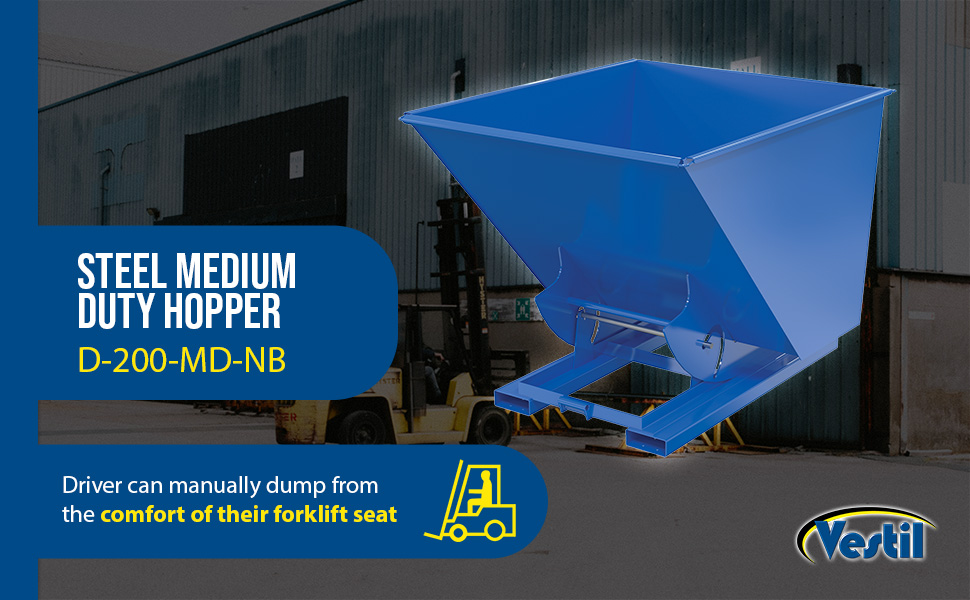

D-200-MD-NB	90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	683
D-25-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 1/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	374
D-25-LD-NB	90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 1/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	329
D-25-MD-NB	90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 1/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	374

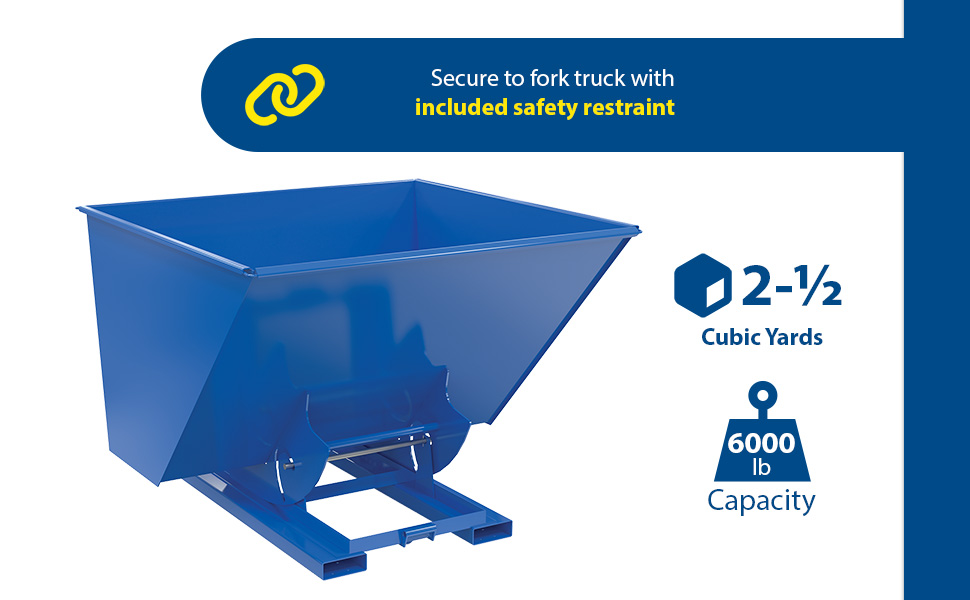

D-250-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	827
D-250-LD-NB	90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	827
D-250-MD-NB	90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	827

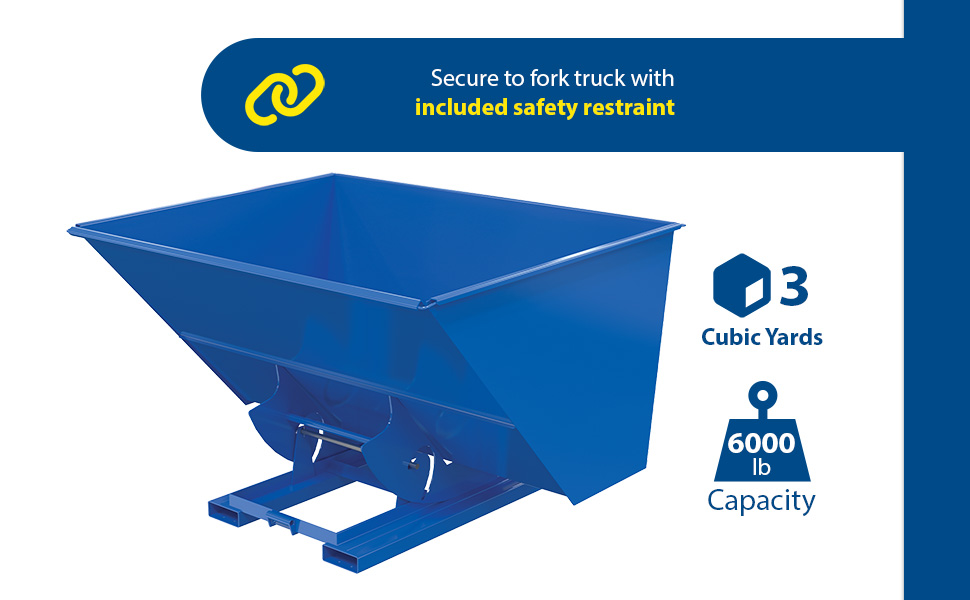

D-300-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	908
D-300-LD-NB	90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	908
D-300-MD-NB	90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	908
D-33-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	374
D-33-LD-NB	90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	329
D-33-MD-NB	90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	374

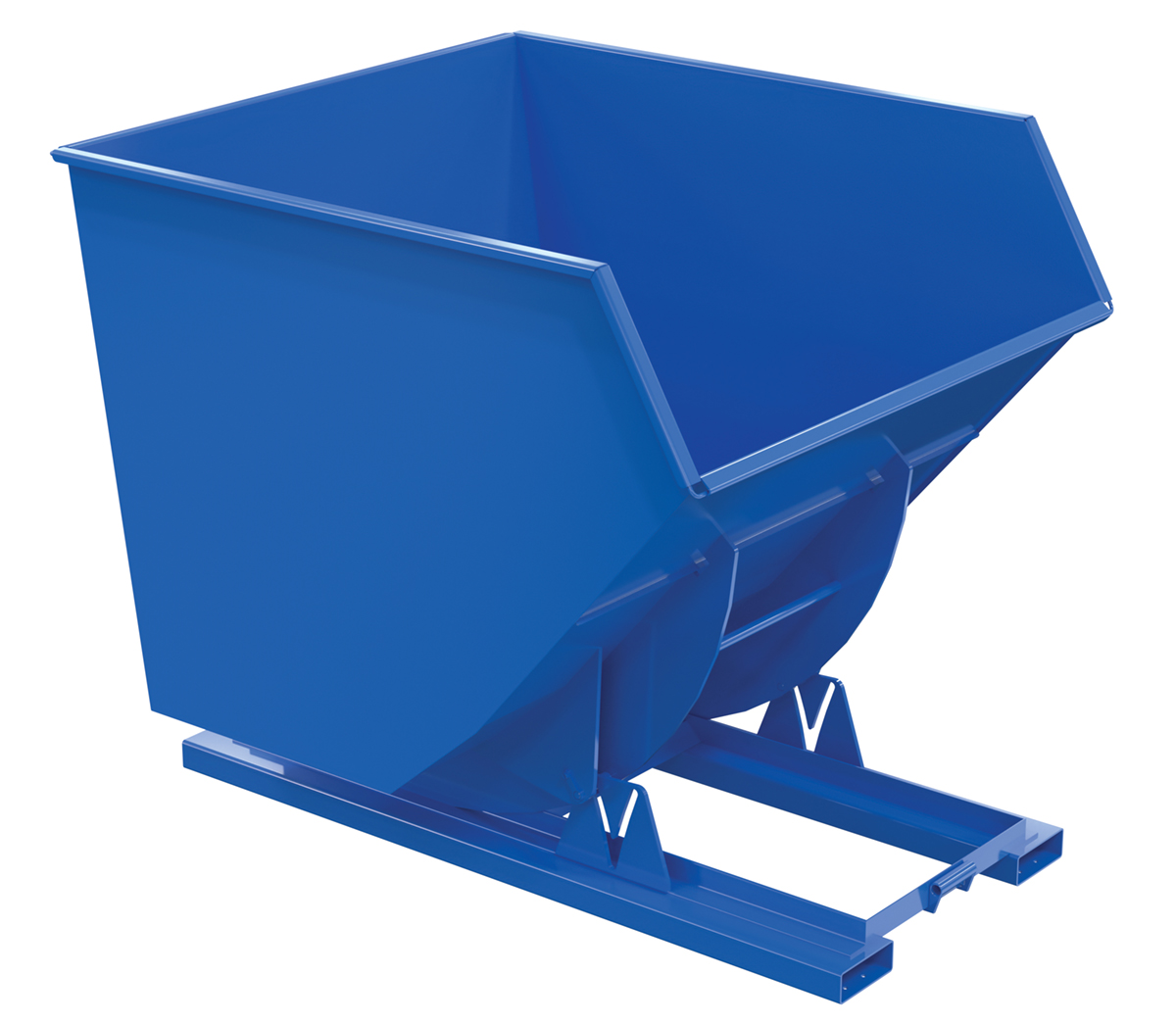

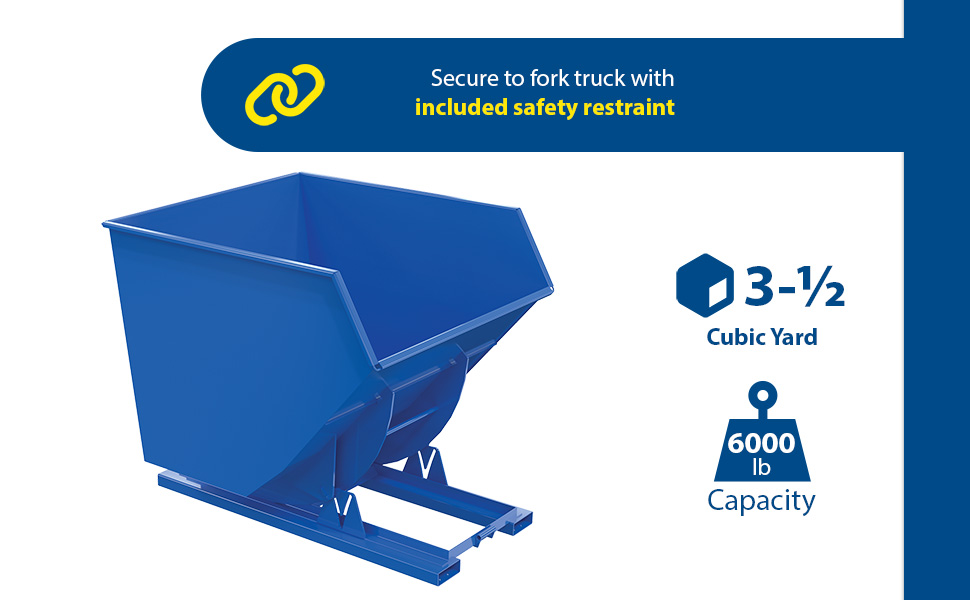

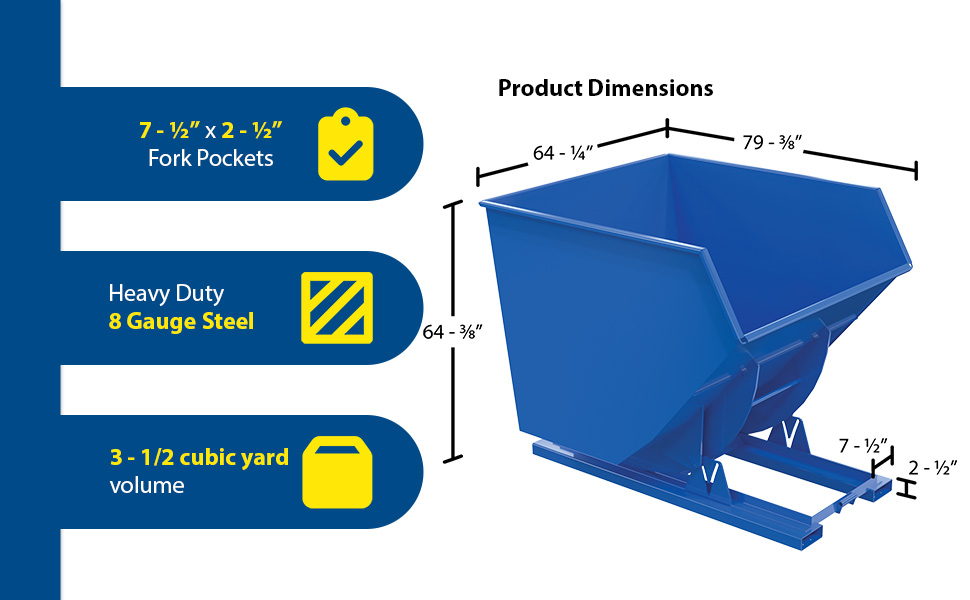

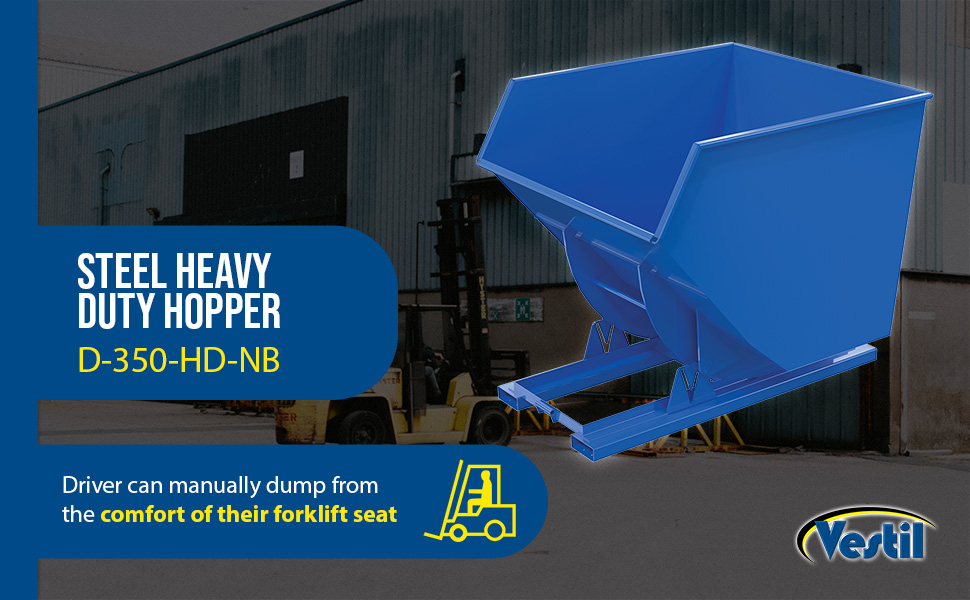

D-350-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1128
D-400-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1445
D-50-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	384
D-50-LD-NB	90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	352
D-50-MD-NB	90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	410
D-500-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 5 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1554
D-75-HD-NB	90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	529
D-75-LD-NB	90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	433
D-75-MD-NB	90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	529

KEY: = Click For Expanded Model Details -- = 48hr Quickship item -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

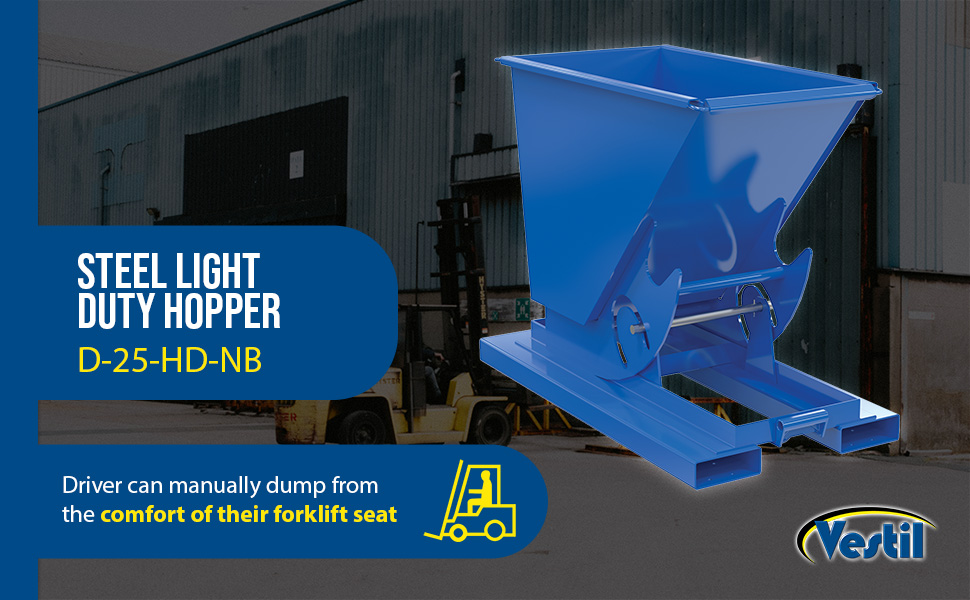

D-25-HD-NB

Steel Heavy Duty No Bump & Dump Hopper .25 Cubic Yard 6000 Lb. Capacity Blue

Unit: EACH
Size: 26W x 53L x 39H
Weight: 374
Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 18

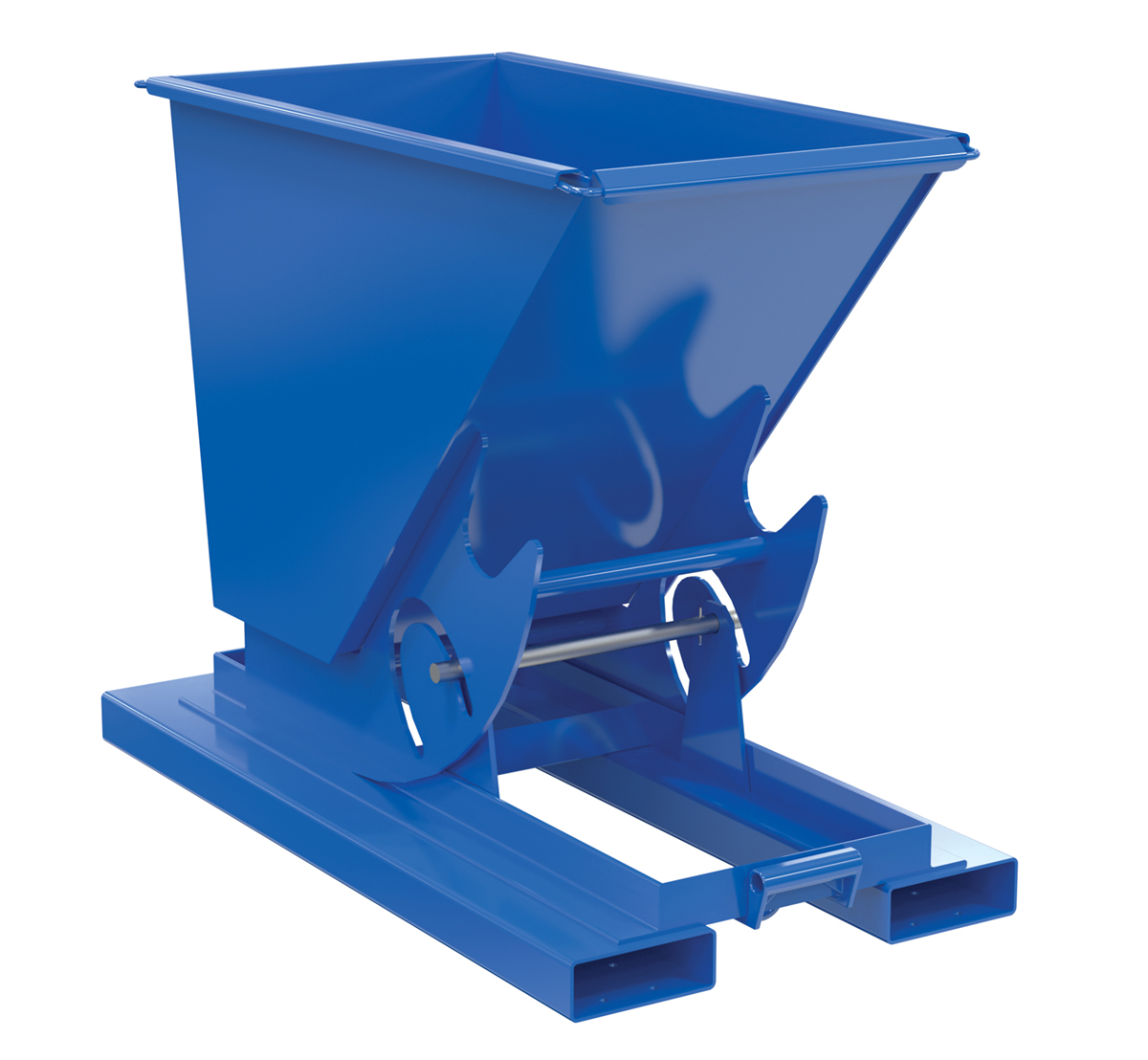

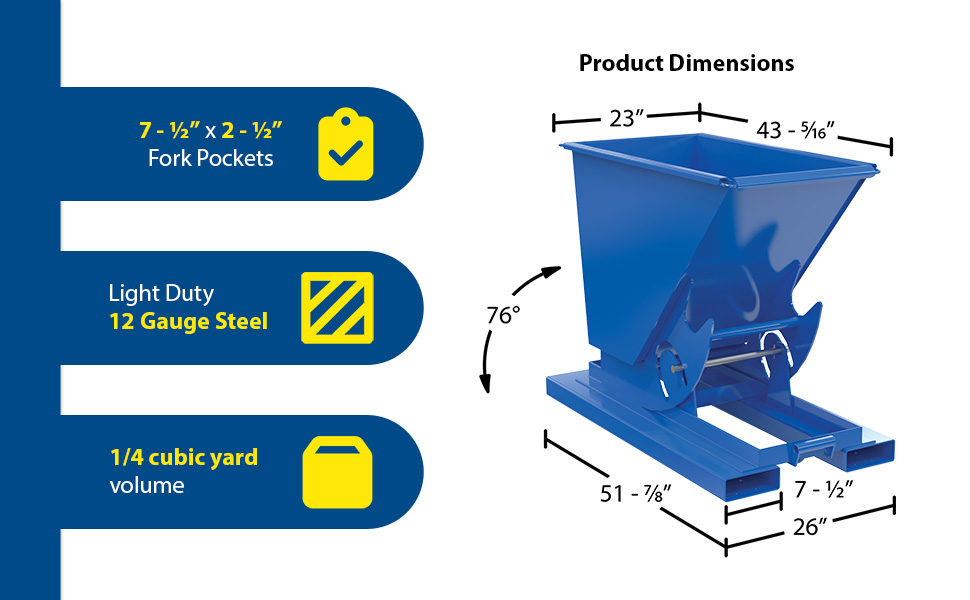

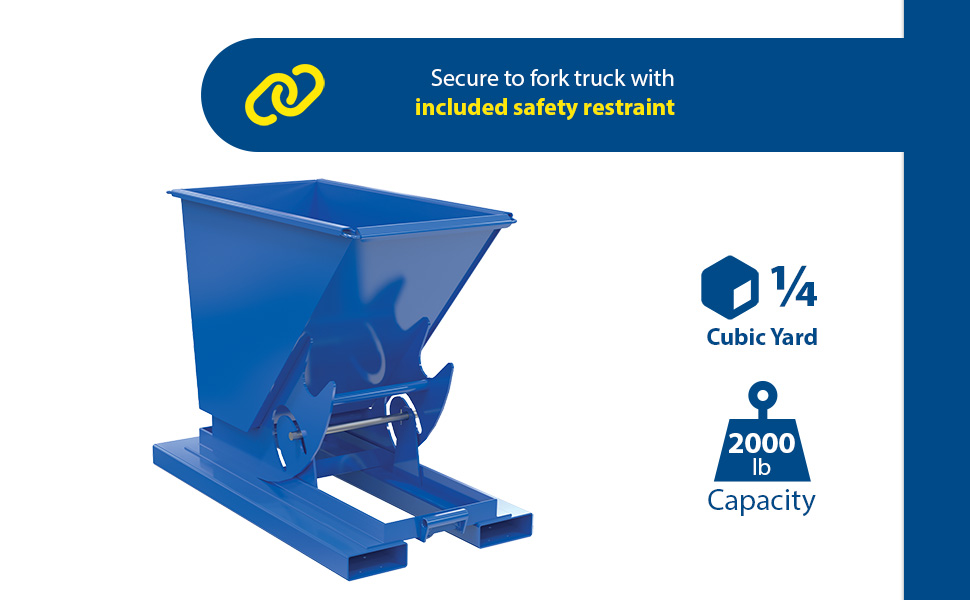

D-25-LD-NB

Steel Heavy Duty No Bump & Dump Hopper .25 Cubic Yard 2000 Lb. Capacity Blue

Unit: EACH
Size: 26W x 53L x 39H
Weight: 329
Limited Warranty
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 18

D-25-MD-NB

Steel Heavy Duty No Bump & Dump Hopper .25 Cubic Yard 4000 Lb. Capacity Blue

Unit: EACH
Size: 26W x 53L x 39H
Weight: 374
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 18

D-33-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue

Unit: EACH
Size: 26W x 53L x 39H
Weight: 374
90 Days Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 18

D-33-LD-NB

Steel Heavy Duty No Bump & Dump Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue

Unit: EACH
Size: 26W x 53L x 39H
Weight: 329
90 Days Limited Warranty
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 18

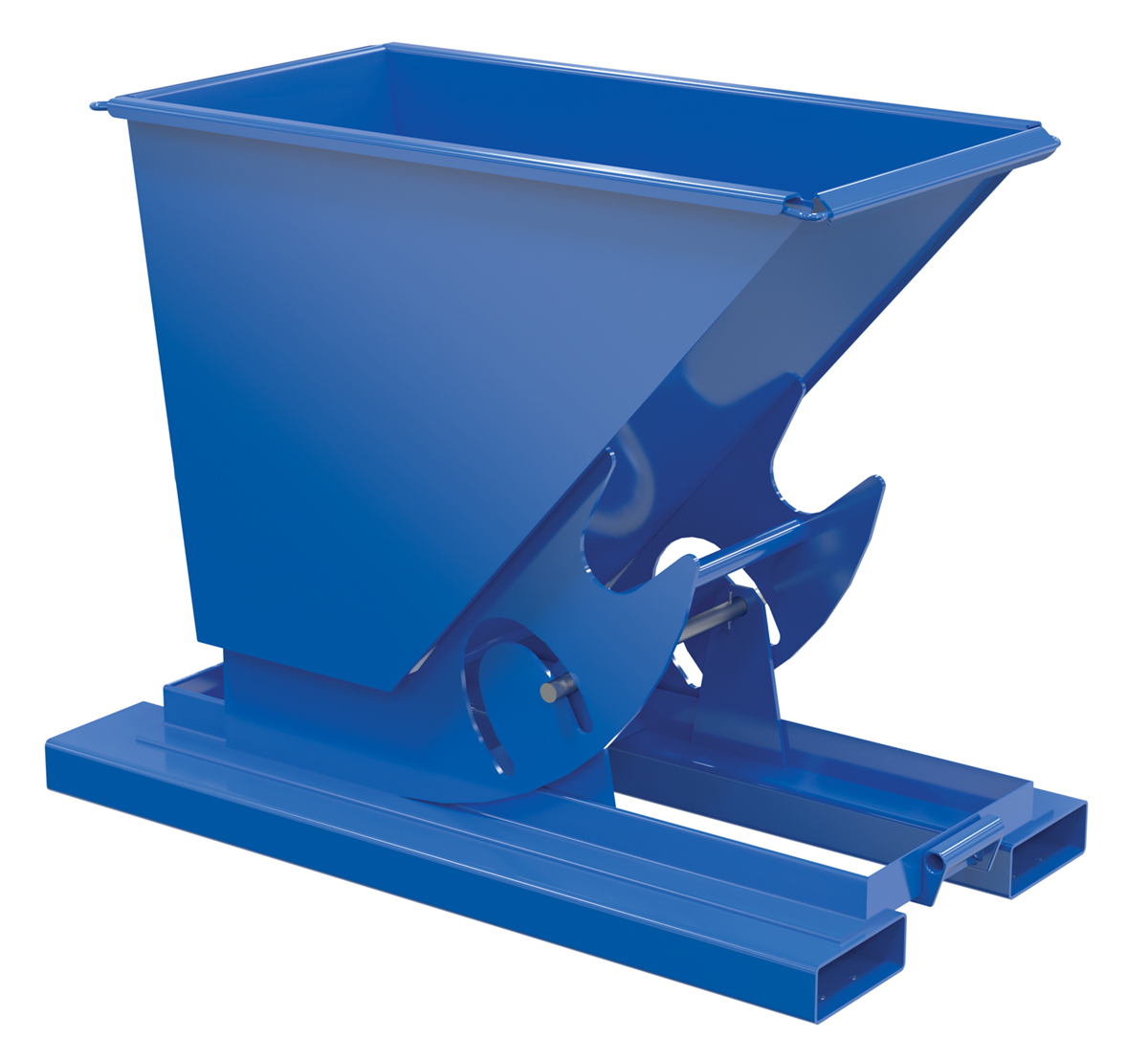

D-33-MD-NB

Steel Heavy Duty No Bump & Dump Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue

Unit: EACH
Size: 26W x 53L x 39H
Weight: 374
90 Days Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 18

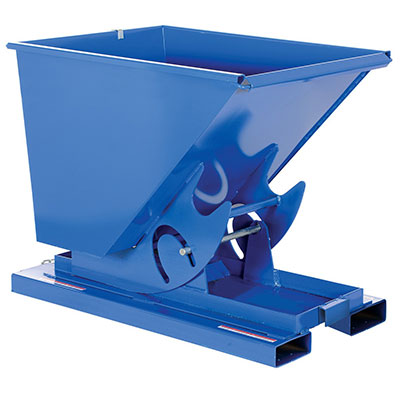

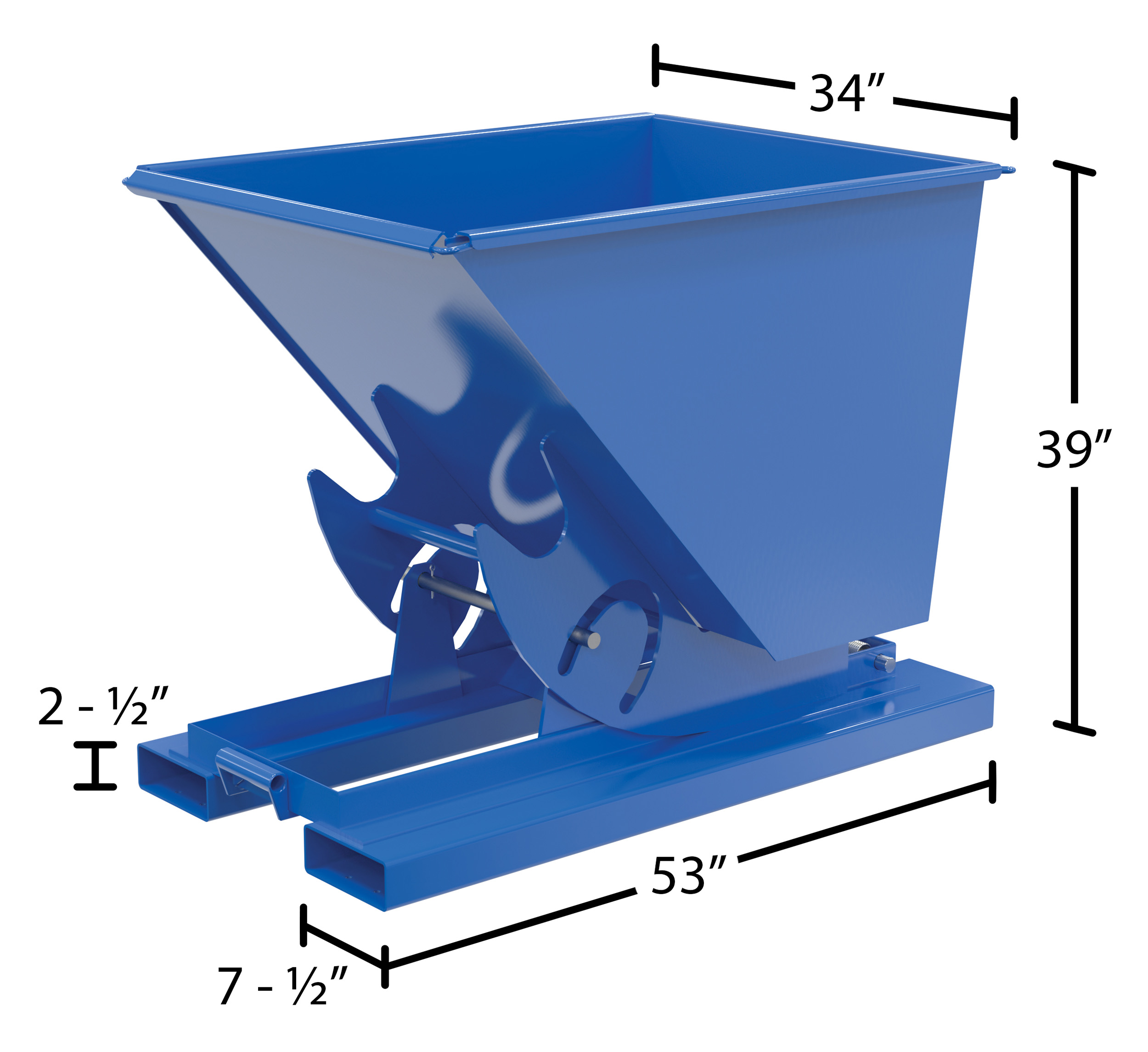

D-50-HD-NB

Steel Heavy Duty No Bump & Dump Hopper .5 Cubic Yard 6000 Lb. Capacity Blue

Unit: EACH
Size: 34W x 53L x 39H
Weight: 384
90 Days Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 18

D-50-LD-NB

Steel Heavy Duty No Bump & Dump Hopper .5 Cubic Yard 2000 Lb. Capacity Blue

Unit: EACH
Size: 34W x 53L x 39H
Weight: 352
90 Days Limited Warranty
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 18

D-50-MD-NB

Steel Heavy Duty No Bump & Dump Hopper .5 Cubic Yard 4000 Lb. Capacity Blue

Unit: EACH
Size: 34W x 53L x 39H
Weight: 410
90 Days Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 18

D-75-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue

Unit: EACH
Size: 32W x 62L x 43H
Weight: 529
90 Days Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 18

D-75-LD-NB

Steel Light Duty No Bump & Dump Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue

Unit: EACH
Size: 32W x 62L x 43H
Weight: 433
90 Days Limited Warranty
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 18

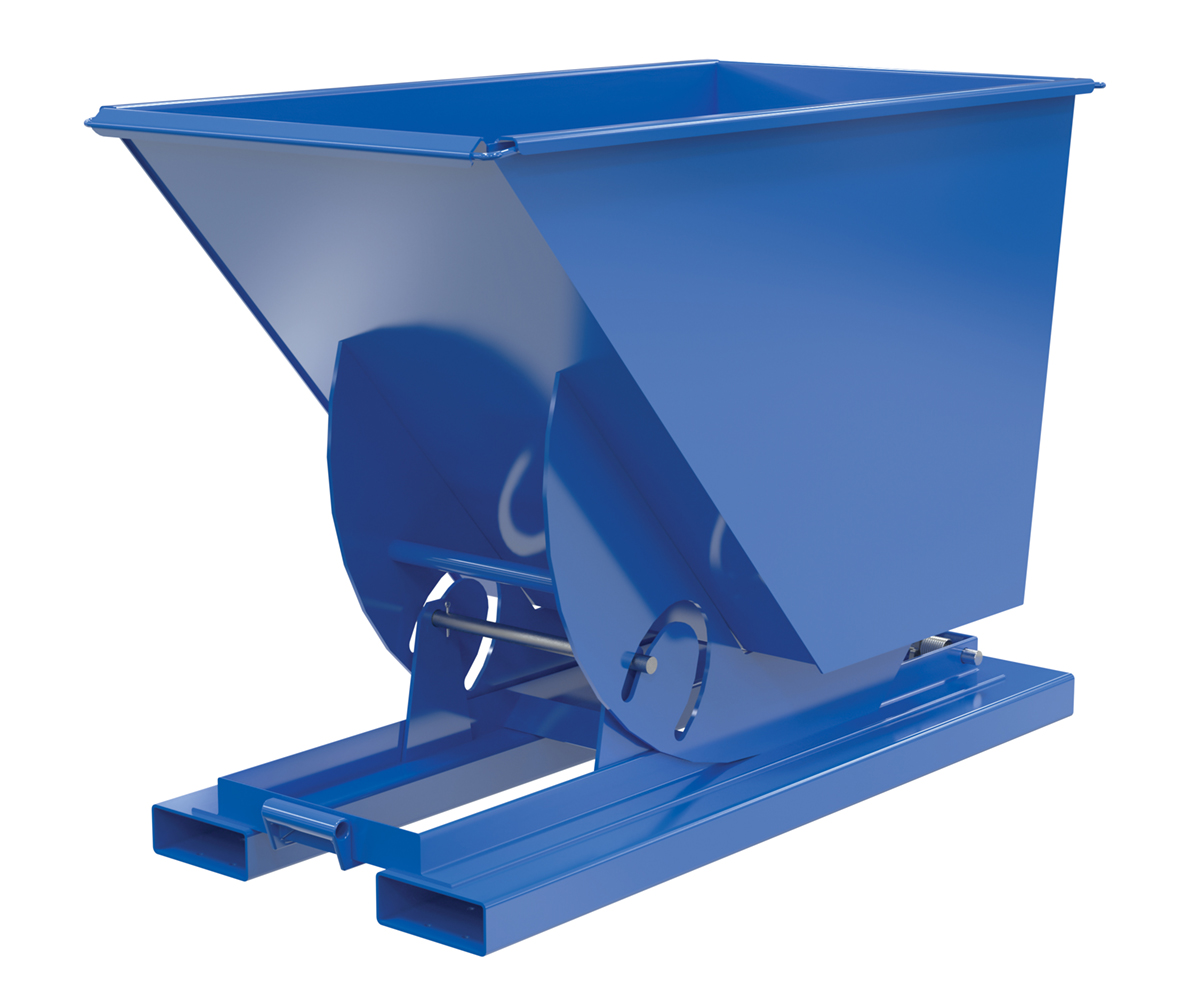

D-75-MD-NB

Steel Medium Duty No Bump & Dump Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue

Unit: EACH
Size: 32W x 62L x 43H
Weight: 529
90 Days Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 18

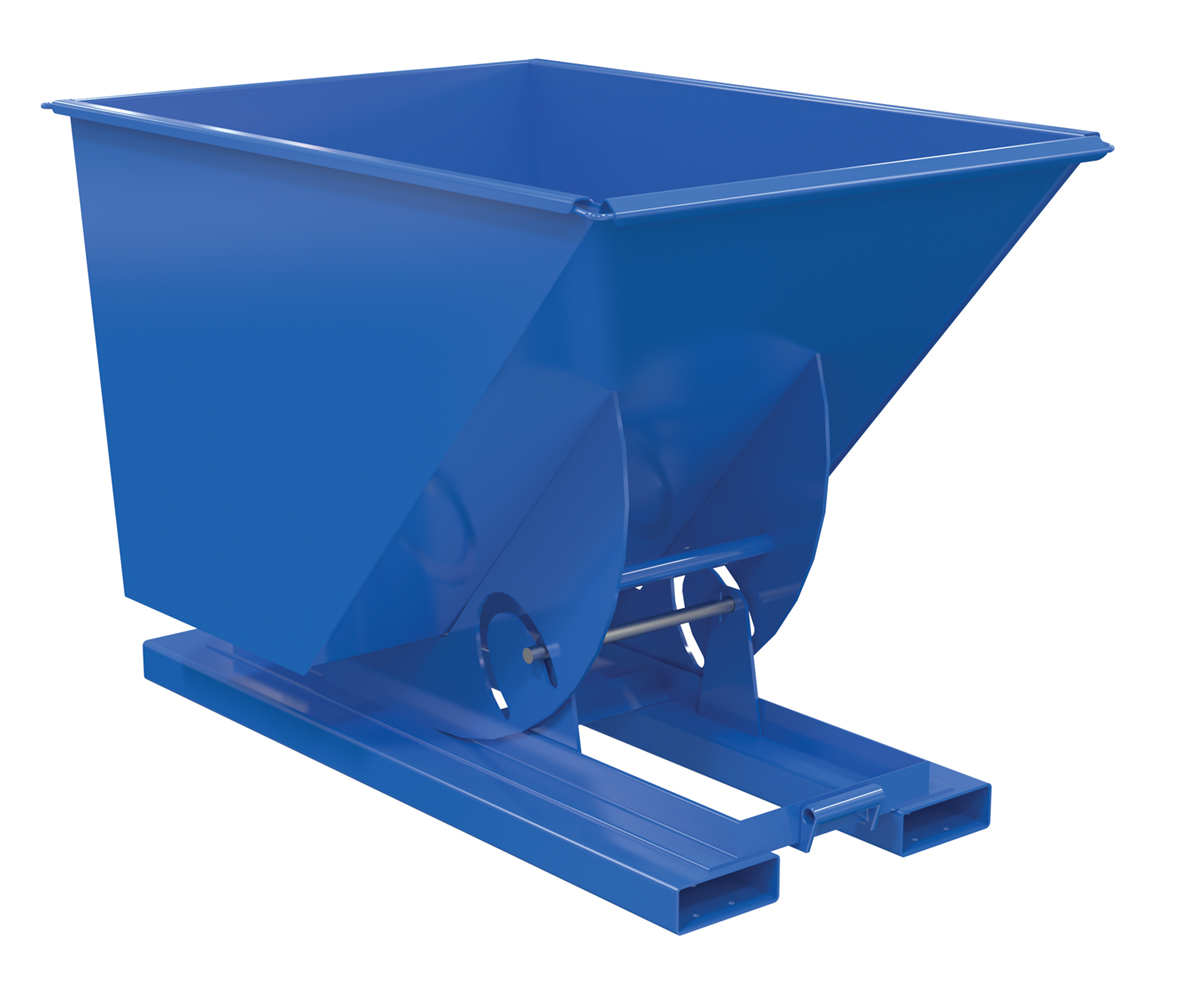

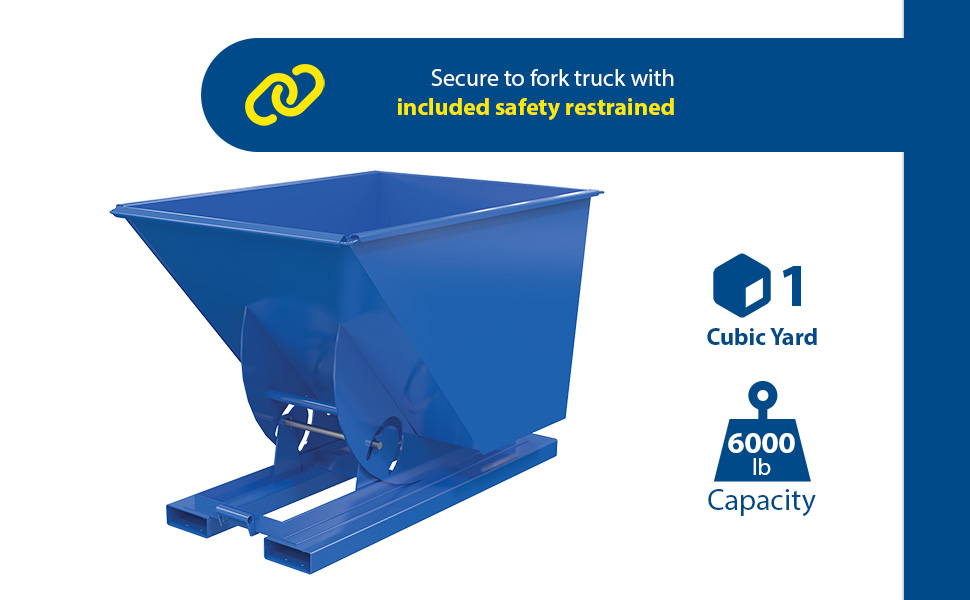

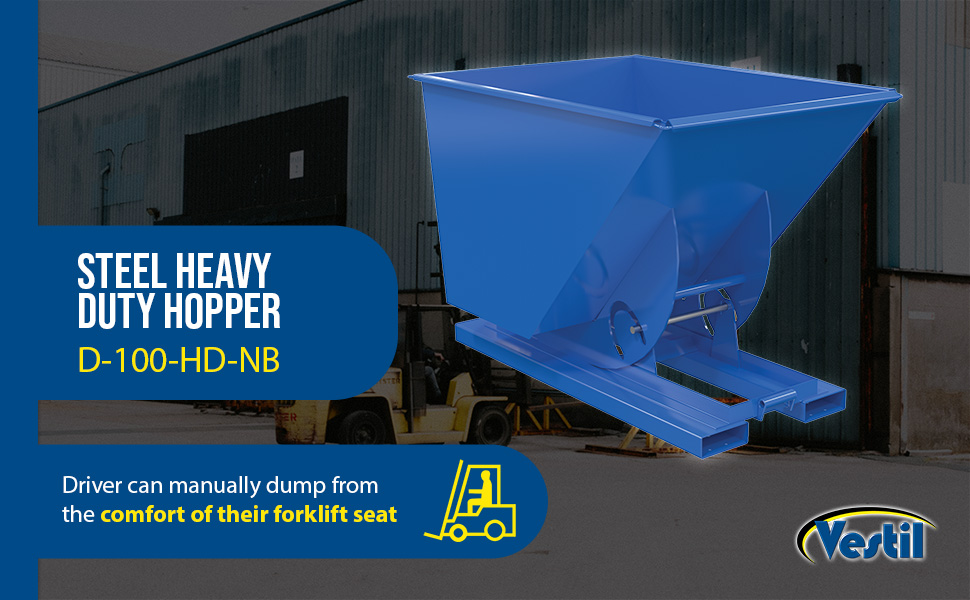

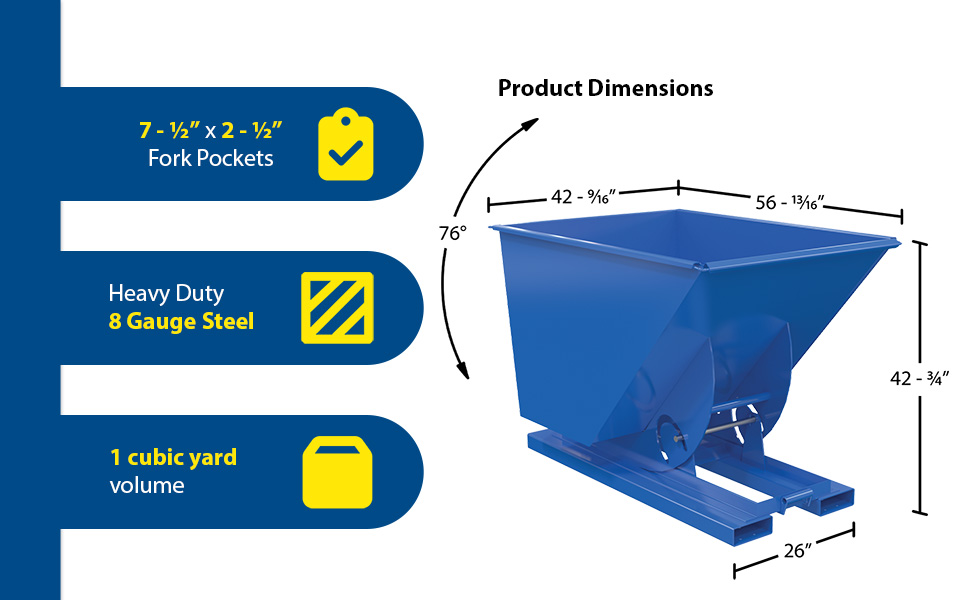

D-100-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 1 Cubic Yard 6000 Lb. Capacity Blue

Unit: EACH
Size: 42W x 62L x 43H
Weight: 560
90 Days Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 18

D-100-LD-NB

Steel Heavy Duty No Bump & Dump Hopper 1 Cubic Yard 2000 Lb. Capacity Blue

Unit: EACH
Size: 42W x 62L x 43H
Weight: 446
90 Days Limited Warranty
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 18

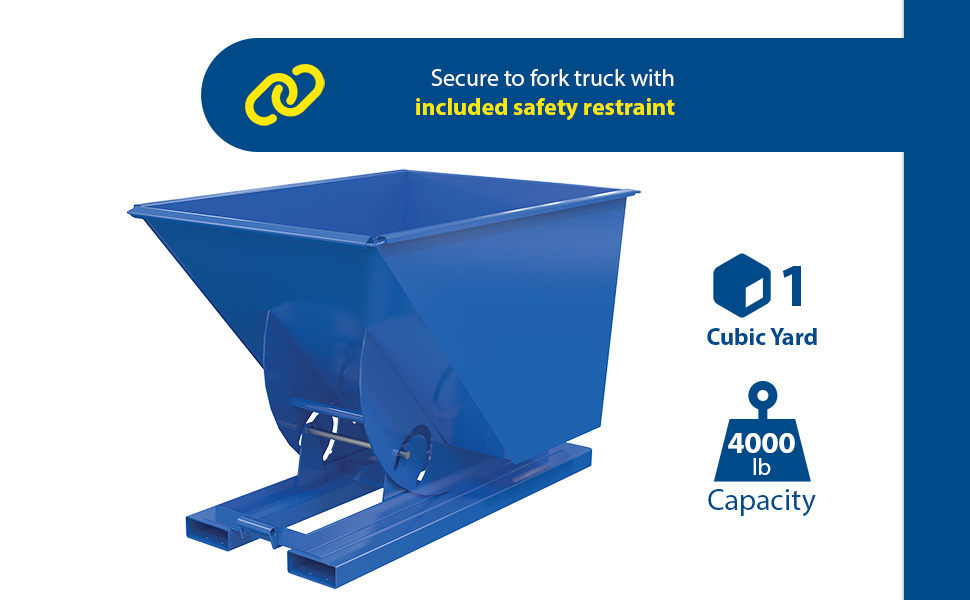

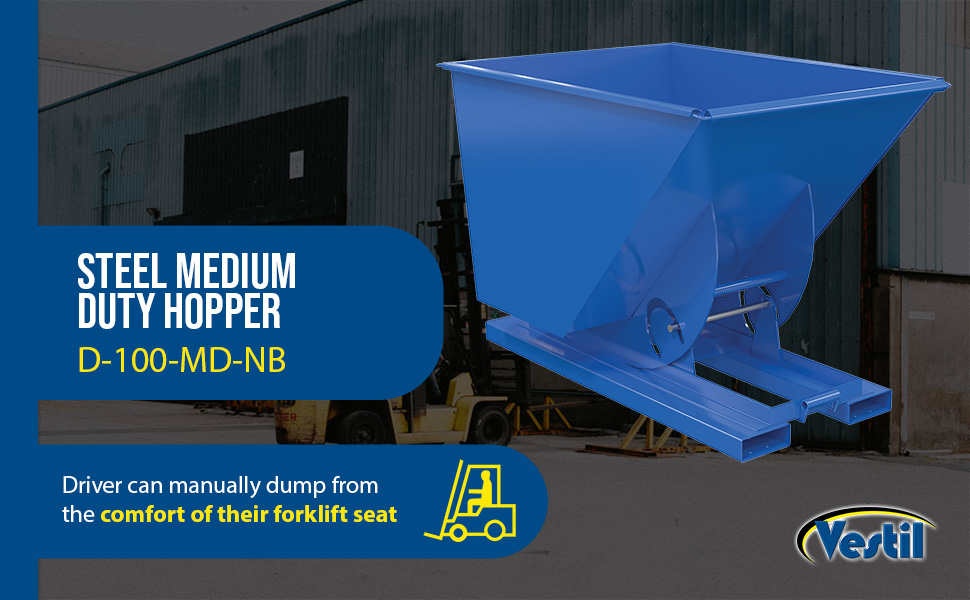

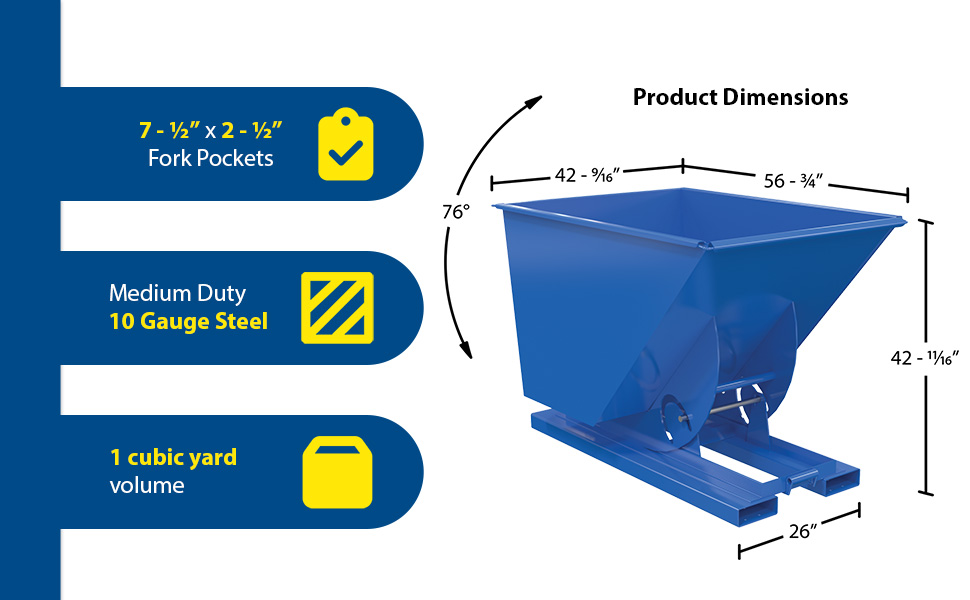

D-100-MD-NB

Steel Heavy Duty No Bump & Dump Hopper 1 Cubic Yard 4000 Lb. Capacity Blue

Unit: EACH
Size: 42W x 62L x 43H
Weight: 513
90 Days Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 18
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 18

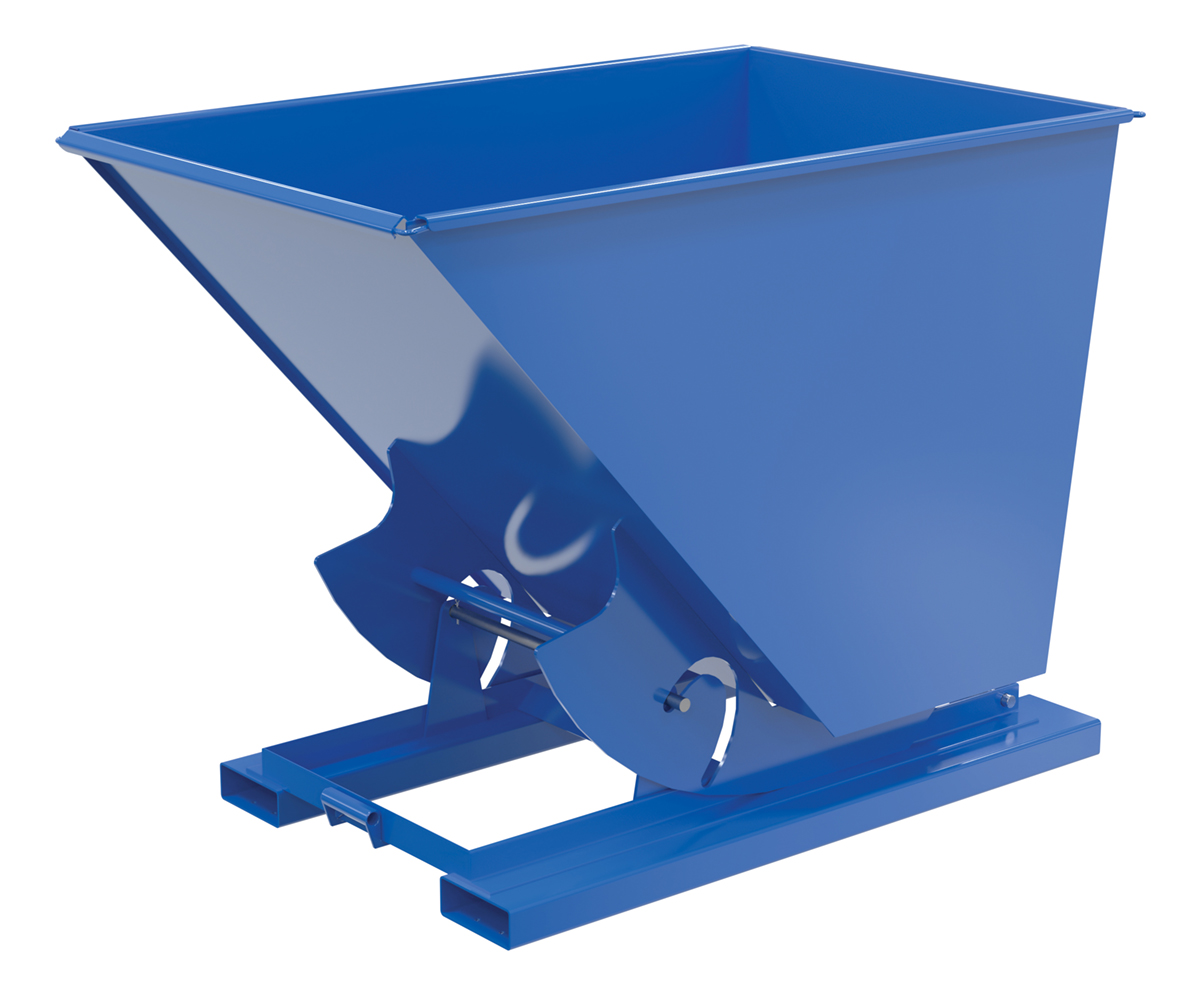

D-150-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 1.5 Cubic Yard 6000 Lb. Capacity Blue

Unit: EACH
Size: 43W x 69L x 52H
Weight: 671
90 Days Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28

D-150-LD-NB

Steel Heavy Duty No Bump & Dump Hopper 1.5 Cubic Yard 2000 Lb. Capacity Blue

Unit: EACH
Size: 43W x 69L x 52H
Weight: 540
90 Days Limited Warranty
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 28

D-150-MD-NB

Steel Heavy Duty No Bump & Dump Hopper 1.5 Cubic Yard 4000 Lb. Capacity Blue

Unit: EACH
Size: 43W x 69L x 52H
Weight: 669
90 Days Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 28

D-200-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 6000 Lb. Capacity Blue

Unit: EACH
Size: 57W x 69L x 51H
Weight: 763
90 Days Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28

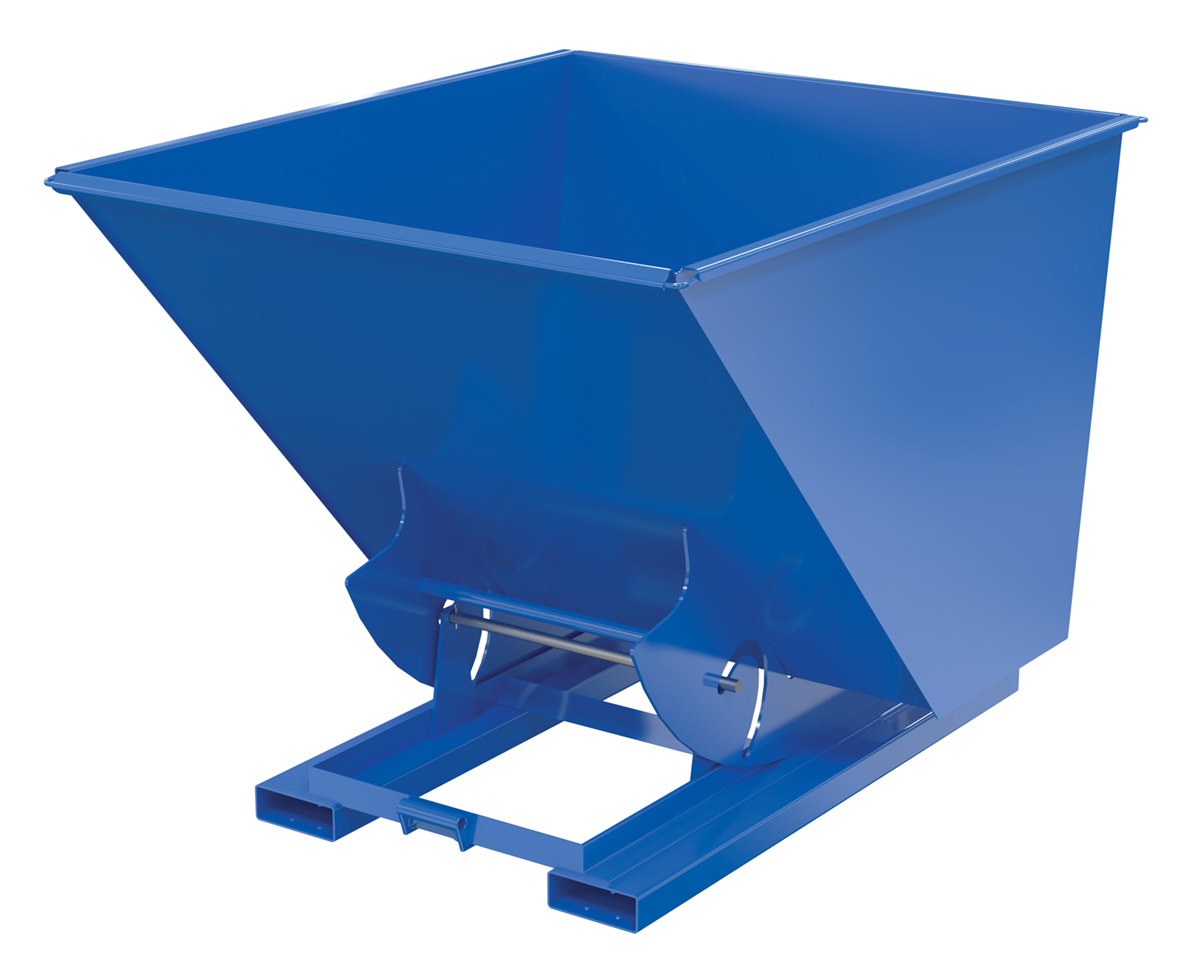

D-200-LD-NB

Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 2000 Lb. Capacity Blue

Unit: EACH
Size: 57W x 69L x 52H
Weight: 608
90 Days Limited Warranty
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 28

D-200-MD-NB

Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 4000 Lb. Capacity Blue

Unit: EACH
Size: 57W x 69L x 52H
Weight: 683
90 Days Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 28

D-250-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 2.5 Cubic Yard 6000 Lb. Capacity Blue

Unit: EACH
Size: 70W x 69L x 52H
Weight: 827
90 Days Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28

D-250-LD-NB

Steel Heavy Duty No Bump & Dump Hopper 2.5 Cubic Yard 2000 Lb. Capacity Blue

Unit: EACH
Size: 70W x 69L x 52H
Weight: 827
90 Days Limited Warranty
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 28

D-250-MD-NB

Steel Heavy Duty No Bump & Dump Hopper 2.5 Cubic Yard 4000 Lb. Capacity Blue

Unit: EACH
Size: 70W x 69L x 52H
Weight: 827
90 Days Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 28

D-300-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 3 Cubic Yard 6000 Lb. Capacity Blue

Unit: EACH
Size: 82W x 69L x 51H
Weight: 908
90 Days Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28

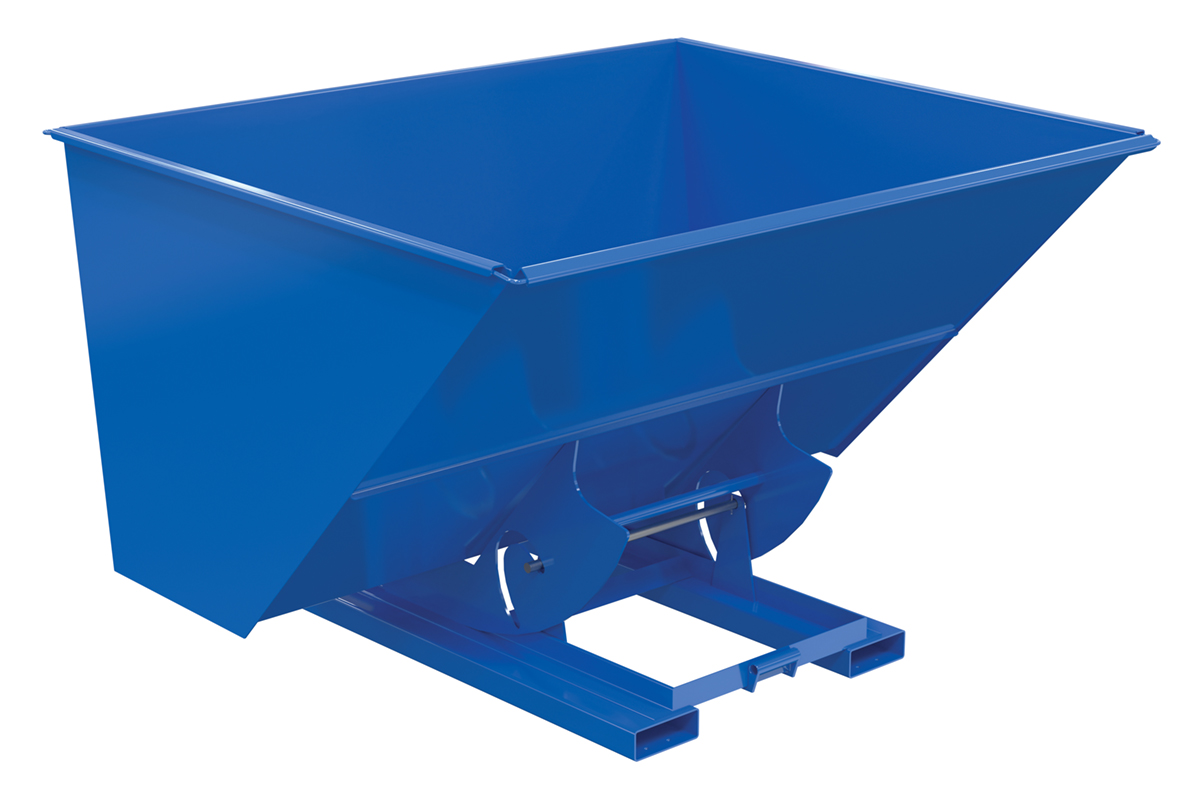

D-300-LD-NB

Steel Light Duty No Bump & Dump Hopper 3 Cubic Yard 2000 Lb. Capacity Blue

Unit: EACH
Size: 82W x 69L x 51H
Weight: 908
90 Days Limited Warranty
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 2000
Fork Pocket Center (in.): 28

D-300-MD-NB

Steel Medium Duty No Bump & Dump Hopper 3 Cubic Yard 4000 Lb. Capacity Blue

Unit: EACH
Size: 82W x 69L x 51H
Weight: 908
90 Days Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 4000
Fork Pocket Center (in.): 28

D-350-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 3.5 Cubic Yard 6000 Lb. Capacity Blue

Unit: EACH
Size: 64.25W x 79.375L x 64.375H
Weight: 1128
Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28

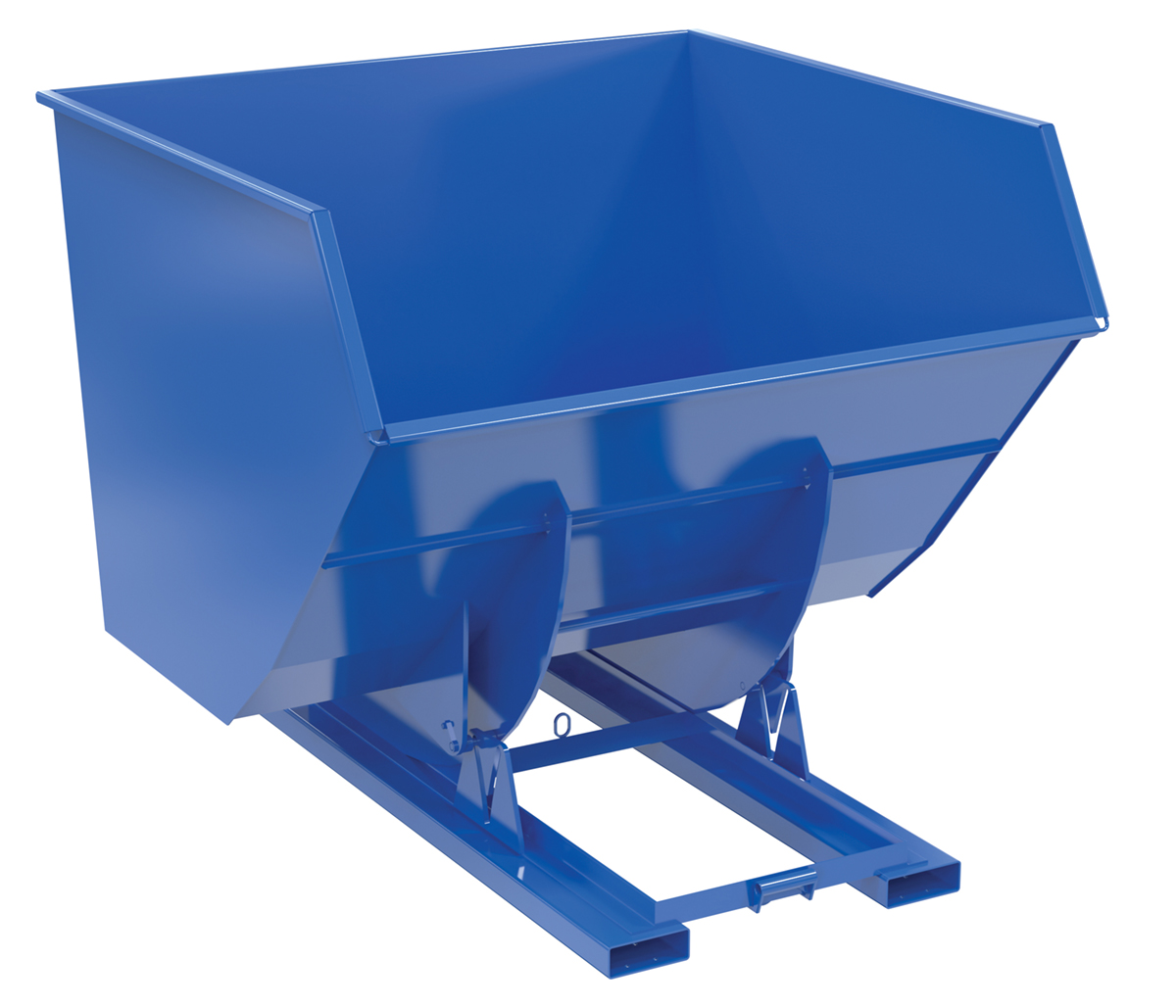

D-400-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 3.5 Cubic Yard 2000 Lb. Capacity Blue

Unit: EACH
Size: 79.375W x 72.9375L x 64.375H
Weight: 1445
Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28

D-500-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 5 Cubic Yard 4000 Lb. Capacity Blue

Unit: EACH
Size: 79.375W x 90.25L x 64.375H
Weight: 1554
Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28
Uniform Capacity (lb.): 6000
Fork Pocket Center (in.): 28

Options for "D" Style Hoppers

- Caster Options | - Optional Lids

"D" Style Hoppers Options
Model Number	Image	Description	Wt. (lbs.)
D-TILT		Sideways Tilt Option (only available for models D-75-LD & D-100-LD)	130

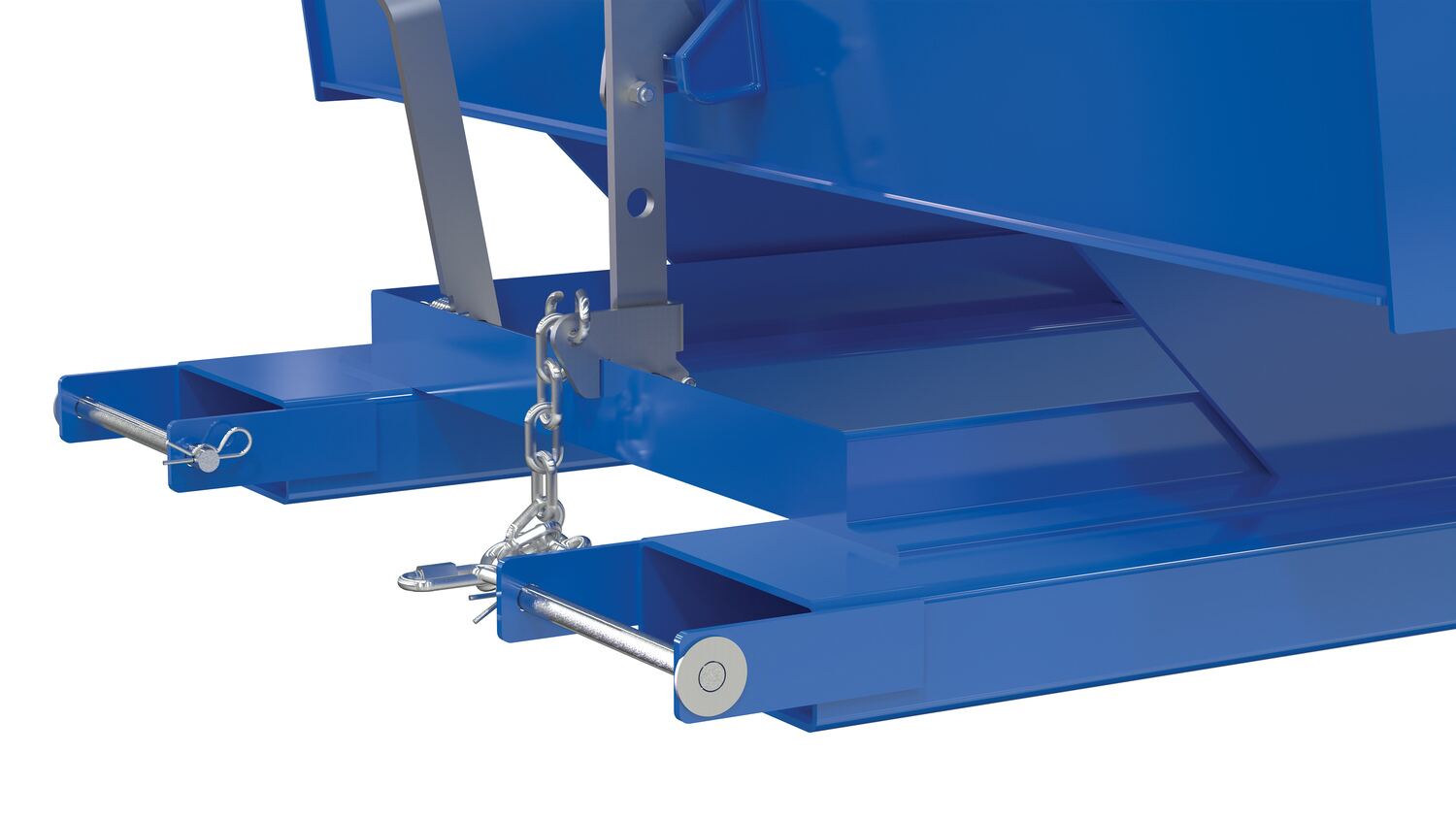

D-PIN		Steel Fork Retaining Pin Option	5
LEKP		Welded leak proof Option	5

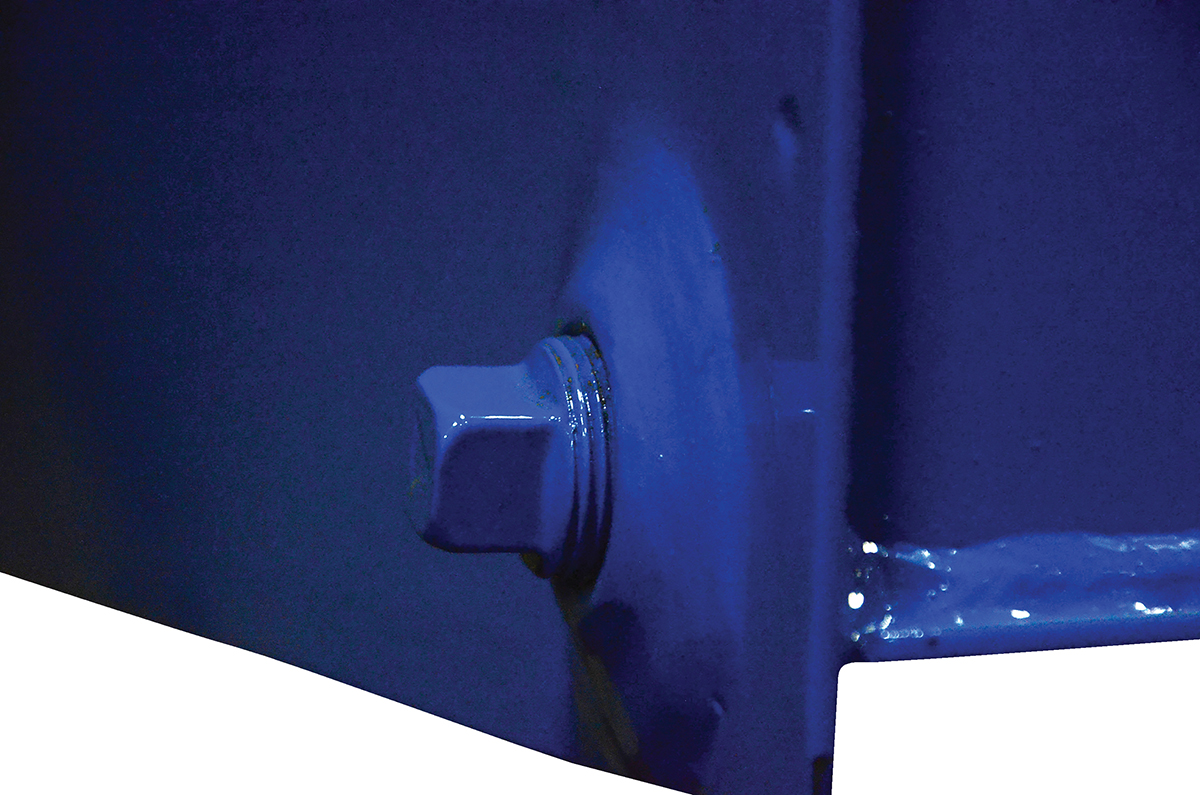

D-DPLG-75*		0.75" Threaded Drain, Located in Left Corner	2
D-DPLG-2*		2" Threaded Drain, Located in Left Corner	2

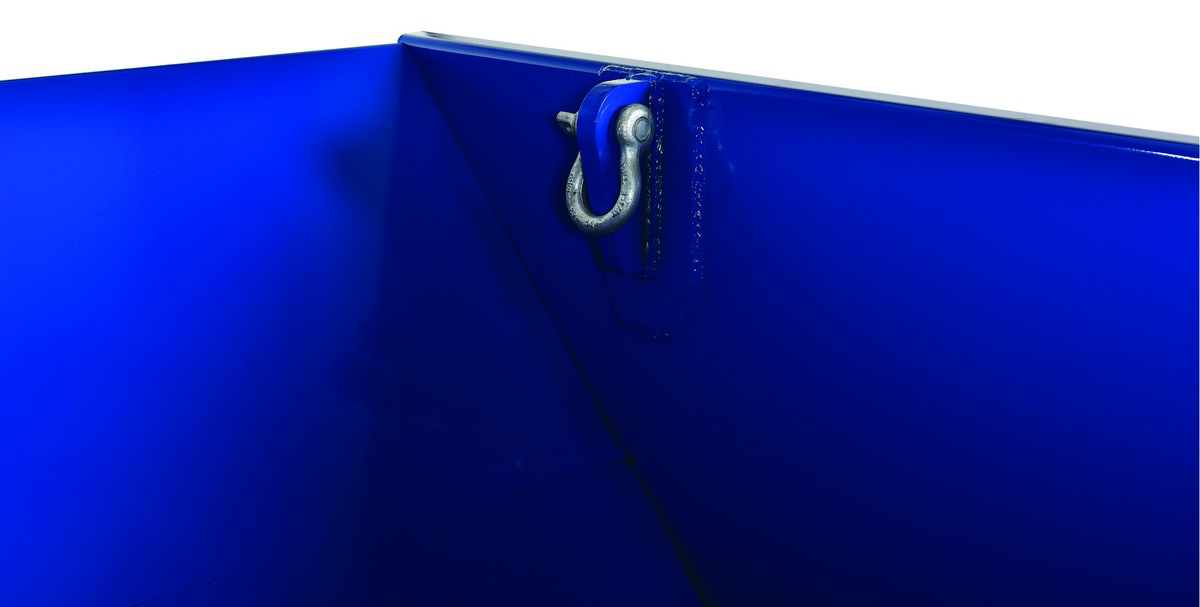

LUG		(4) Lifting Lugs (Welded) One on Each Corner	23
*D-DPLG option includes leak proof chute welds

OPTION: D-150-EXT-SMY

Side Extensions, are great addition for material handling and construction facilities. The extended sides are constructed of steel mesh for high strength durability during transference of goods, while the yellow painted finish delivers great visibility.

Side Extensions For "D" Style Hoppers
Model Number	Extension Height	Works With Hopper Series	Wt. (lbs.)
D-150-EXT-SMY	15-11/16"	D-150	37
D-200-EXT-SMY	15-11/16"	D-200	40
D-250-EXT-SMY	15-11/16"	D-250	45
D-300-EXT-SMY	15-11/16"	D-300	50

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

D-Style Hoppers, No Bump & Dump PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

No Approval Drawings For This Product

Testing Certificates

D-25-HD-NB

D-25-LD-NB

D-25-MD-NB

D-33-HD-NB

D-33-LD-NB

D-33-MD-NB

D-50-HD-NB

D-50-LD-NB

D-50-MD-NB

D-75-HD-NB

D-75-LD-NB

D-75-MD-NB

D-100-HD-NB

D-100-LD-NB

D-100-MD-NB

D-150-HD-NB

D-150-LD-NB

D-150-MD-NB

D-200-HD-NB

D-200-LD-NB

D-200-MD-NB

D-250-HD-NB

D-250-LD-NB

D-250-MD-NB

D-300-HD-NB

D-300-LD-NB

D-300-MD-NB

D-350-HD-NB

D-400-HD-NB

D-500-HD-NB

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...

Directory Links Of Available PDF's For All Products

Print Friendly

Related or Similar Products:

Product

Hydraulic Dumping Hoppers

Product

Casters For Self-Dumping Hoppers (D & H)

Product

Heavy-Duty Poly Lids for D & H series Hoppers

Product

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

Product

D Style - Self-Dumping Steel Hoppers with Bumper Release

Product

DC Power Trash Can Dumper

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date

D-Style Hoppers, No Bump &...

Pull chain release for quick dumping
Powder coated finish for added baked in toughness.
Fork pockets provide a solid lifting foundation
Safety restraint secures the hopper to the fork truck

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)-NB	.25 Cubic Yard
D-33-(strength)-NB	.33 Cubic Yard
D-50-(strength)-NB	.50 Cubic Yard
D-75-(strength)-NB	.75 Cubic Yard
D-100-(strength)-NB	1 Cubic Yard
D-150-(strength)-NB	1.5 Cubic Yard
D-200-(strength)-NB	2 Cubic Yard
D-250-(strength)-NB	2.5 Cubic Yard
D-300-(strength)-NB	3 Cubic Yard
D-350-(strength)-NB	3.5 Cubic Yard
D-400-(strength)-NB	4 Cubic Yard
D-500-(strength)-NB	5 Cubic Yard

D-Style WITH BUMPER RELEASE

Caster Options | Optional Lids

D-Style Hoppers, No Bump & Dump
Colors Available (Add -SUFFIX): Soda Red (-SR), White (-WHT), Battle Ship Gray (GY-SG), Tractor Green (-GRN-T), Blue (Standard no suffix), Yellow (-YEL), Orange (-ORG-C), Galvanized (-GAL), Earth Brown (-BRN-EB), Khaki Tan (-BRN-KT), Sandy Beige (-BRN-SB), Bubble Gum Pink (-BG), Black High Gloss (-BLK-HG), Black Semi-Gloss (-BLK-SG), Hunter Green (-GRN-H), Silver Lining (-SL), Sky Blue (-BL-S), Machine Gray (-GY-MG)
Model Number	PDF's	Volume Cubic Yards	Capacity (lbs)	Overall (WxLxH)	Fork Pocket Centers	Wt. (lbs)
Light Duty- (12 Gauge Steel)
D-25-LD-NB		1/4	2,000	26"x51-7/8"x38"	18"	329
D-33-LD-NB		1/3	2,000	26"x51-7/8"x38"	18"	329
D-50-LD-NB		1/2	2,000	33-11/16"x51-3/4"x38"	18"	352
D-75-LD-NB		3/4	2,000	31-11/16"x 61-1/8x 42-11/16"	18"	433
D-100-LD-NB		1	2,000	41-11/16"x 61-1/8"x 42-11/16"	18"	446
D-150-LD-NB		1-1/2	2,000	43-11/16"x 68-5/16"x 51-13/16"	28"	540
D-200-LD-NB		2	2,000	56-11/16"x 68-5/16"x 51-13/16"	28"	608
D-250-LD-NB		2-1/2	2,000	69-9/16"x 68-3/8"x 51-3/4"	28"	827
D-300-LD-NB		3	2,000	81-3/4"x 68-5/8" x 51-13/16"	28"	908
Medium Duty - (10 Guage Steel)
D-25-MD-NB		1/4	4,000	26"x51-7/8"x38-1/16"	18"	374
D-33-MD-NB		1/3	4,000	26"x 51-7/8"x 38-1/16"	18"	374
D-50-MD-NB		1/2	4,000	33-9/16"x51-7/8"x38-1/16"	18"	410
D-75-MD-NB		3/4	4,000	31-9/16"x 61-1/8"x 42-3/4"	18"	529
D-100-MD-NB		1	4,000	41-1/2"x 61-1/8"x42-11/16"	18"	513
D-150-MD-NB		1-1/2	4,000	43-9/16"x 68-3/8"x51-13/16"	28"	669
D-200-MD-NB		2	4,000	56-5/8"x 68-5/16"x51-13/16"	28"	683
D-250-MD-NB		2-1/2	4,000	69-9/16"x 68-3/8"x 51-3/4"	28"	827
D-300-MD-NB		3	4,000	81-3/4"x 68-5/8"x 51-13/16"	28"	908
Heavy Duty- (8 Gauge Steel)
D-25-HD-NB		1/4	6,000	26"x51-7/8"x38-1/16"	18"	374
D-33-HD-NB		1/3	6,000	26"x51-7/8"x 38-1/16"	18"	374
D-50-HD-NB		1/2	6,000	33-9/16"x 51-7/8"x 38-1/16"	18"	384
D-75-HD-NB		3/4	6,000	31-9/16"x 61-1/8"x 42-3/4"	18"	529
D-100-HD-NB		1	6,000	41-9/16"x 61-1/8"x 42-3/4"	18"	560
D-150-HD-NB		1-1/2	6,000	43-9/16"x 68-3/8"x 51-13/16"	28"	671
D-200-HD-NB		2	6,000	56-9/16"x 68-5/16"x 51-13/16"	28"	763
D-250-HD-NB		2-1/2	6,000	69-9/16"x 68-3/8"x 51-3/4"	28"	827
D-300-HD-NB		3	6,000	81-3/4"x 68-5/8"x 51-13/16"	28"	908
D-350-HD-NB		3-1/2	6,000	64-1/4"x 79-3/8"x 64-3/8"	28"	1128
D-400-HD-NB		4	6,000	72-15/16"x 79-3/8"x 64-3/8"	28"	1445
D-500-HD-NB		5	6,000	90-1/4"x79-3/8"x 64-3/8"	28"	1554

Options

Options for "D" Style Hoppers

- Caster Options | - Optional Lids

"D" Style Hoppers Options
Model Number	Image	Description	Wt. (lbs.)
D-TILT		Sideways Tilt Option (only available for models D-75-LD & D-100-LD)	130
D-PIN		Steel Fork Retaining Pin Option	5
LEKP		Welded leak proof Option	5

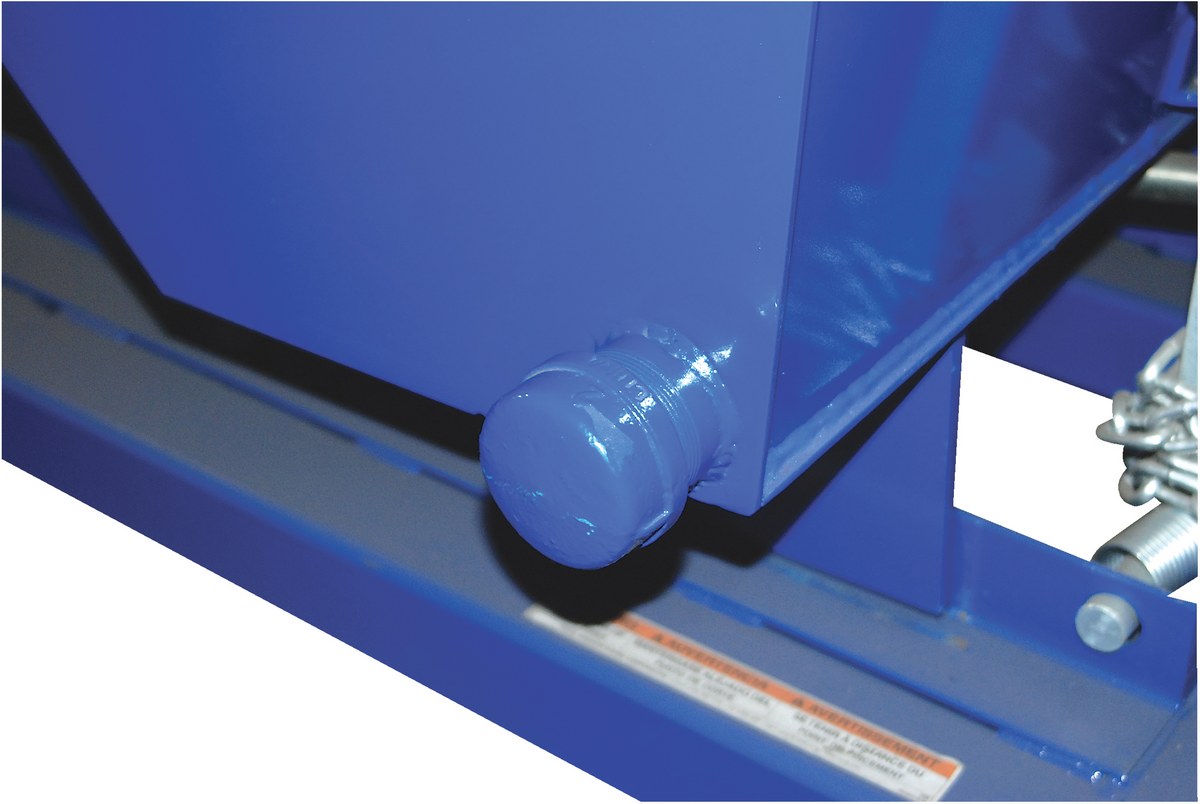

D-DPLG-75*		0.75" Threaded Drain, Located in Left Corner	2

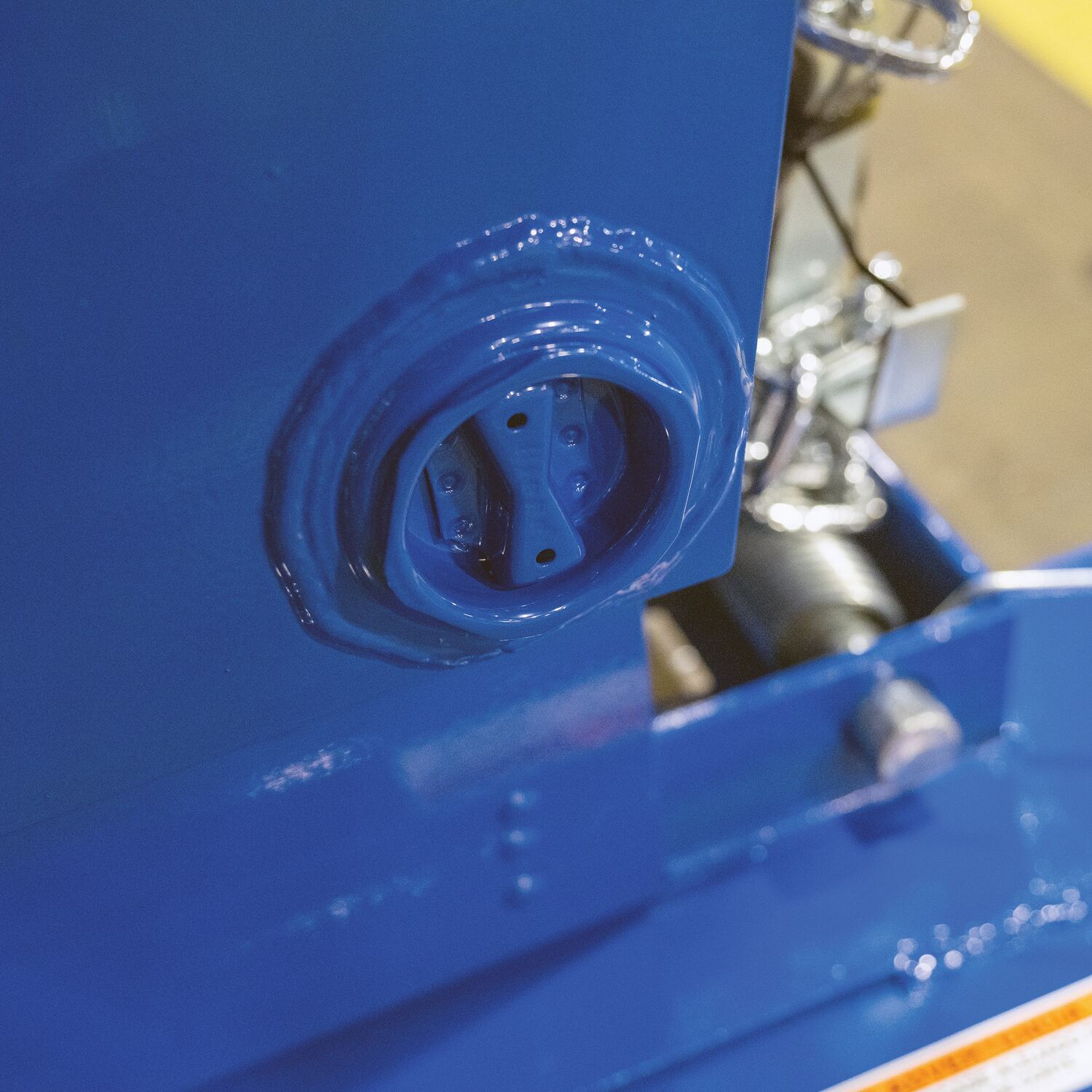

D-DPLG-2*		2" Threaded Drain, Located in Left Corner	2
LUG		(4) Lifting Lugs (Welded) One on Each Corner	23
*D-DPLG option includes leak proof chute welds

OPTION: D-150-EXT-SMY

Side Extensions For "D" Style Hoppers
Model Number	Extension Height	Works With Hopper Series	Wt. (lbs.)
D-150-EXT-SMY	15-11/16"	D-150	37
D-200-EXT-SMY	15-11/16"	D-200	40
D-250-EXT-SMY	15-11/16"	D-250	45
D-300-EXT-SMY	15-11/16"	D-300	50

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

BROWSE ALL PRODUCTS

BROWSE NEW PRODUCTS

Browse Specialty Products

ERGONOMIC SOLUTIONS

FORK TRUCK ATTACH.

LOADING DOCK EQUIP.

OVERHEAD LIFTING

PROTECTIVE BARRIERS

DRUM HANDLING EQUIP.

CARTS & DOLLIES

STORAGE SOLUTIONS

PACKAGING EQUIPMENT

INDUSTRIAL LADDERS

FACILITY MAINTENANCE

BRONZE & STAINLESS STEEL

CASTERS & WHEELS

D-Style Hoppers, No Bump & Dump

D-Style Hoppers, No Bump & Dump

Featured Fork Truck Attachments:

Product Family Overview

Other Hoppers

Check Out All Of Our Specialty Colors Available!

Model Specific Details

Steel Heavy Duty No Bump & Dump Hopper .25 Cubic Yard 6000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper .25 Cubic Yard 2000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper .25 Cubic Yard 4000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper .5 Cubic Yard 6000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper .5 Cubic Yard 2000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper .5 Cubic Yard 4000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue

Steel Light Duty No Bump & Dump Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue

Steel Medium Duty No Bump & Dump Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue

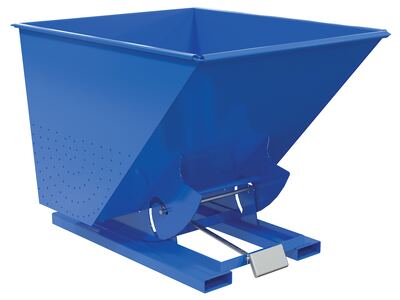

Steel Heavy Duty No Bump & Dump Hopper 1 Cubic Yard 6000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 1 Cubic Yard 2000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 1 Cubic Yard 4000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 1.5 Cubic Yard 6000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 1.5 Cubic Yard 2000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 1.5 Cubic Yard 4000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 6000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 2000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 4000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 2.5 Cubic Yard 6000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 2.5 Cubic Yard 2000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 2.5 Cubic Yard 4000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 3 Cubic Yard 6000 Lb. Capacity Blue

Steel Light Duty No Bump & Dump Hopper 3 Cubic Yard 2000 Lb. Capacity Blue

Steel Medium Duty No Bump & Dump Hopper 3 Cubic Yard 4000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 3.5 Cubic Yard 6000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 3.5 Cubic Yard 2000 Lb. Capacity Blue

Steel Heavy Duty No Bump & Dump Hopper 5 Cubic Yard 4000 Lb. Capacity Blue

Manuals

Survey Sheets

Approval Drawings

Testing Certificates

SDS Sheets

Other PDF's

Directory Links Of Available PDF's For All Products

Freight Quote

Parts Request

Ask An Expert

Find A Distributor

PROP 65 Warning

Related or Similar Products:

Hydraulic Dumping Hoppers

Casters For Self-Dumping Hoppers (D & H)

Heavy-Duty Poly Lids for D & H series Hoppers

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

D Style - Self-Dumping Steel Hoppers with Bumper Release

DC Power Trash Can Dumper

D-Style Hoppers, No Bump &...

Options

Our Customer Service Associates Are Here To Assist You!Call Vestil At 260-665-7586 Or info@vestil.com

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
