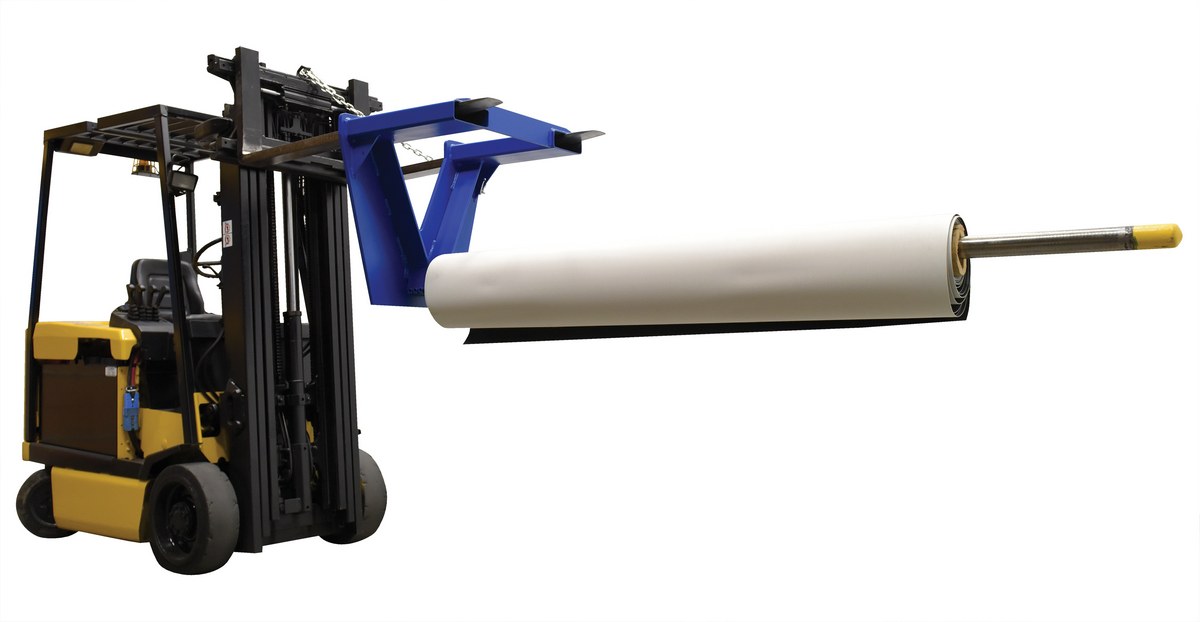

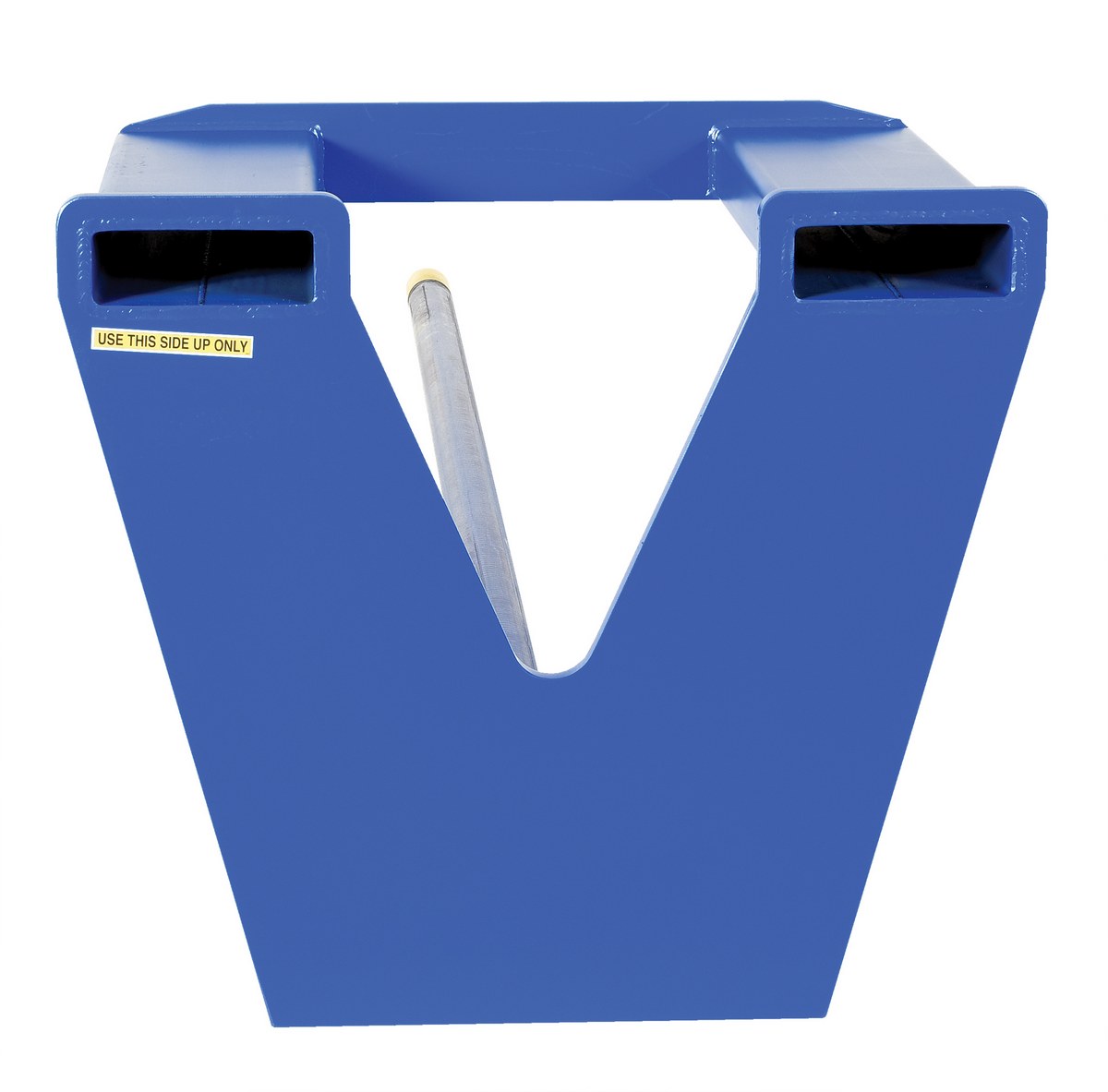

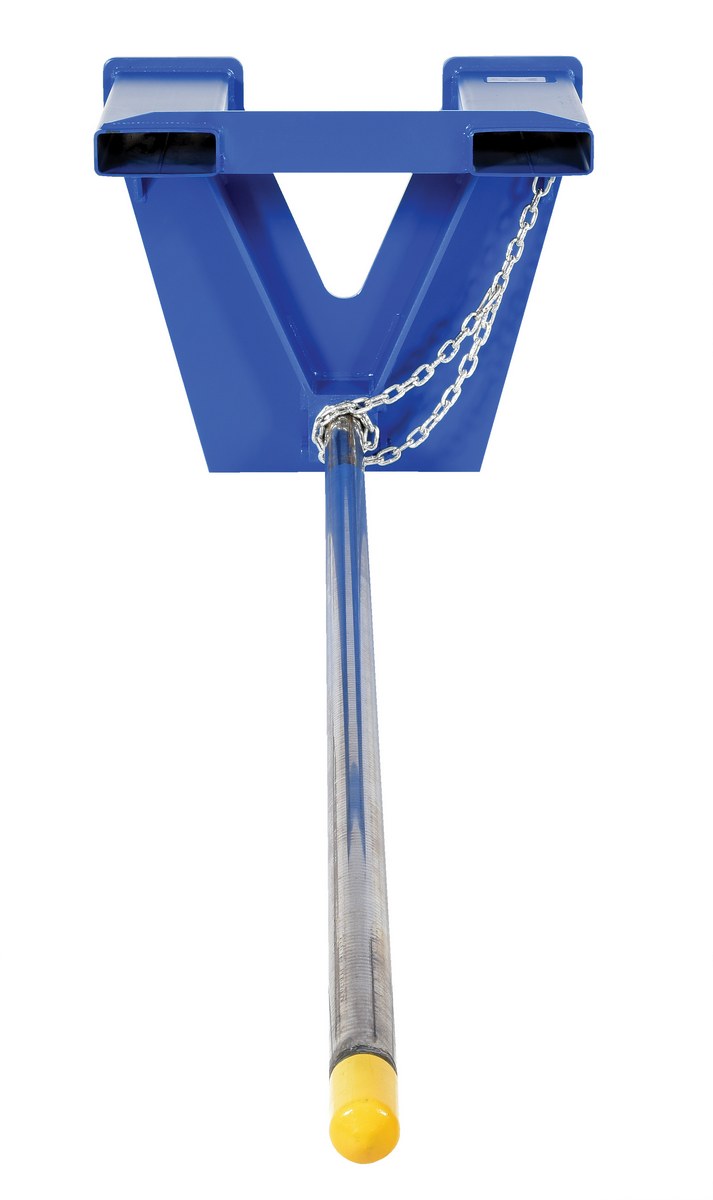

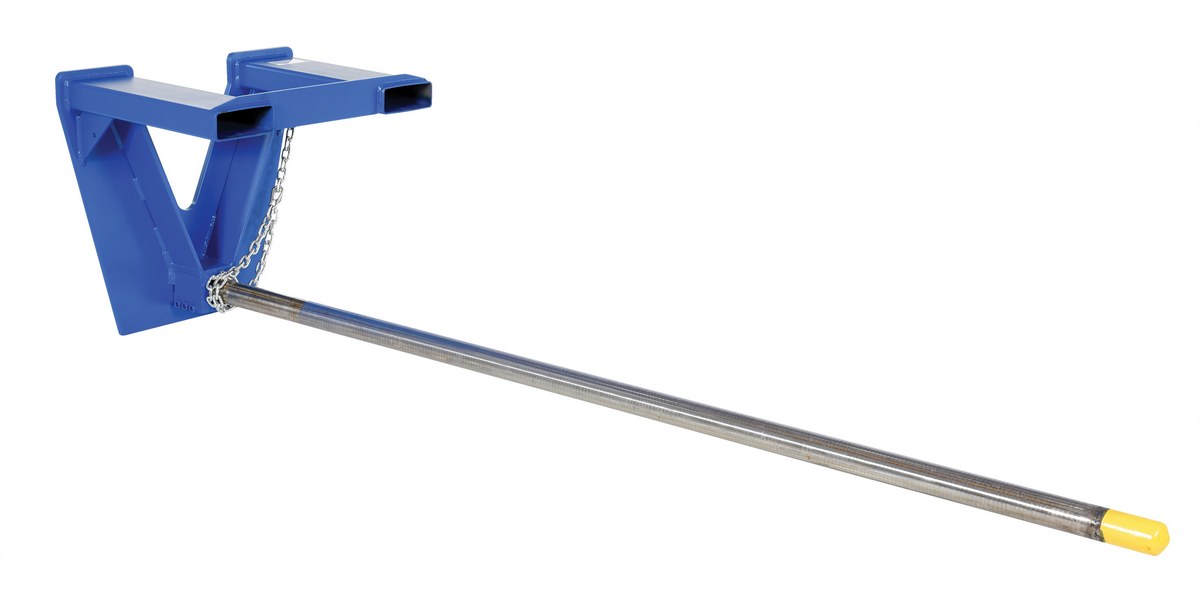

CRP-108_E.jpg CRP-108_A.jpg CRP-108_B.jpg CRP-108_C.jpg

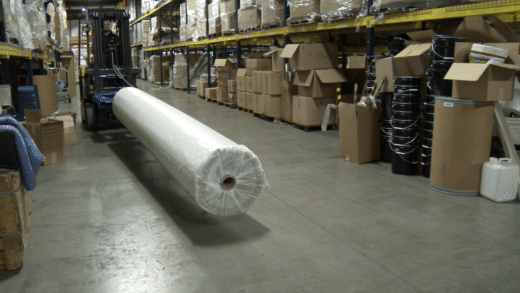

CRP-108_D.jpg CRP_Z.gif
Rug Rams/Carpet Poles

model: CRP-108



Featured Fork Truck Attachments


Drum Roll Reel Forks
Fork Truck Safety & Warning Light
Fork Extension Storage Rack
Overhead Drum Lifter
Forklift Lifting Beam
Chip & Waste Trucks
Fabric Hoppers
Multi-Person Work Platforms
Fork Lift Loading Attachment
model chart

Product Family Overview

Print Friendly
Rug Rams/Carpet Poles
SERIES: CRP,CRF,CR

Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage or fork mounted style. 2-3/4" diameter high strength, rotatable, replaceable pole has tapered tip. All units are made of steel construction and painted blue.

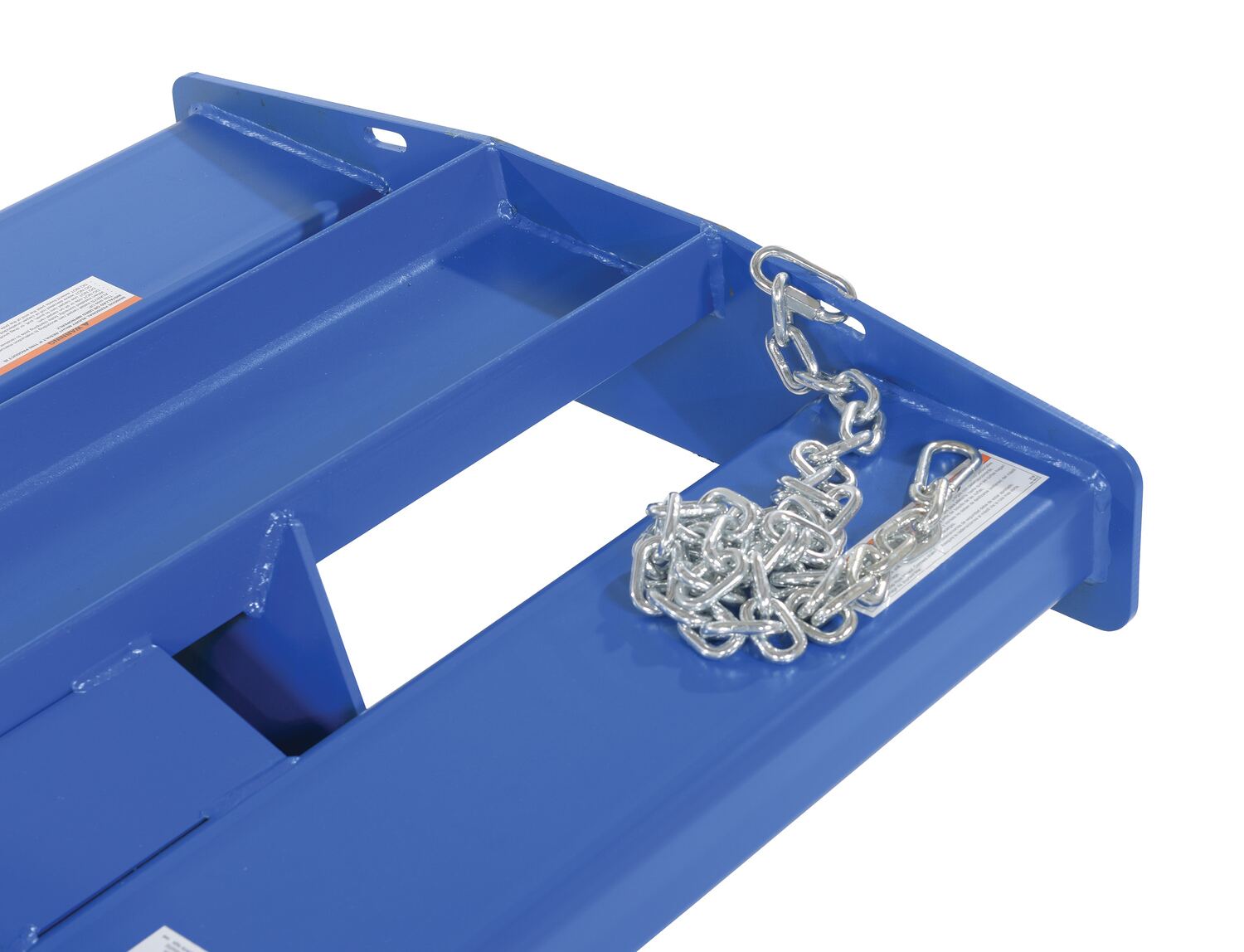

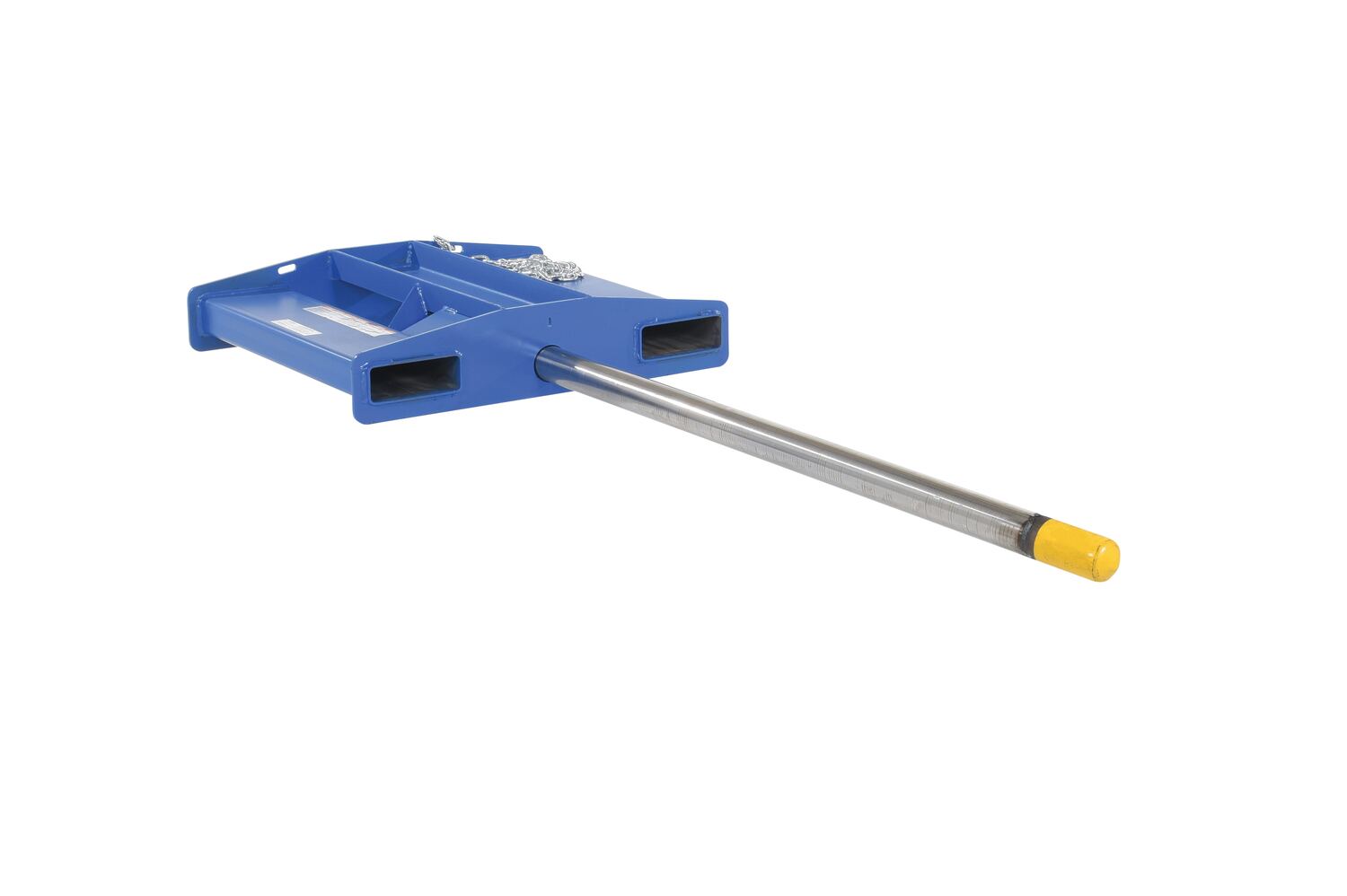

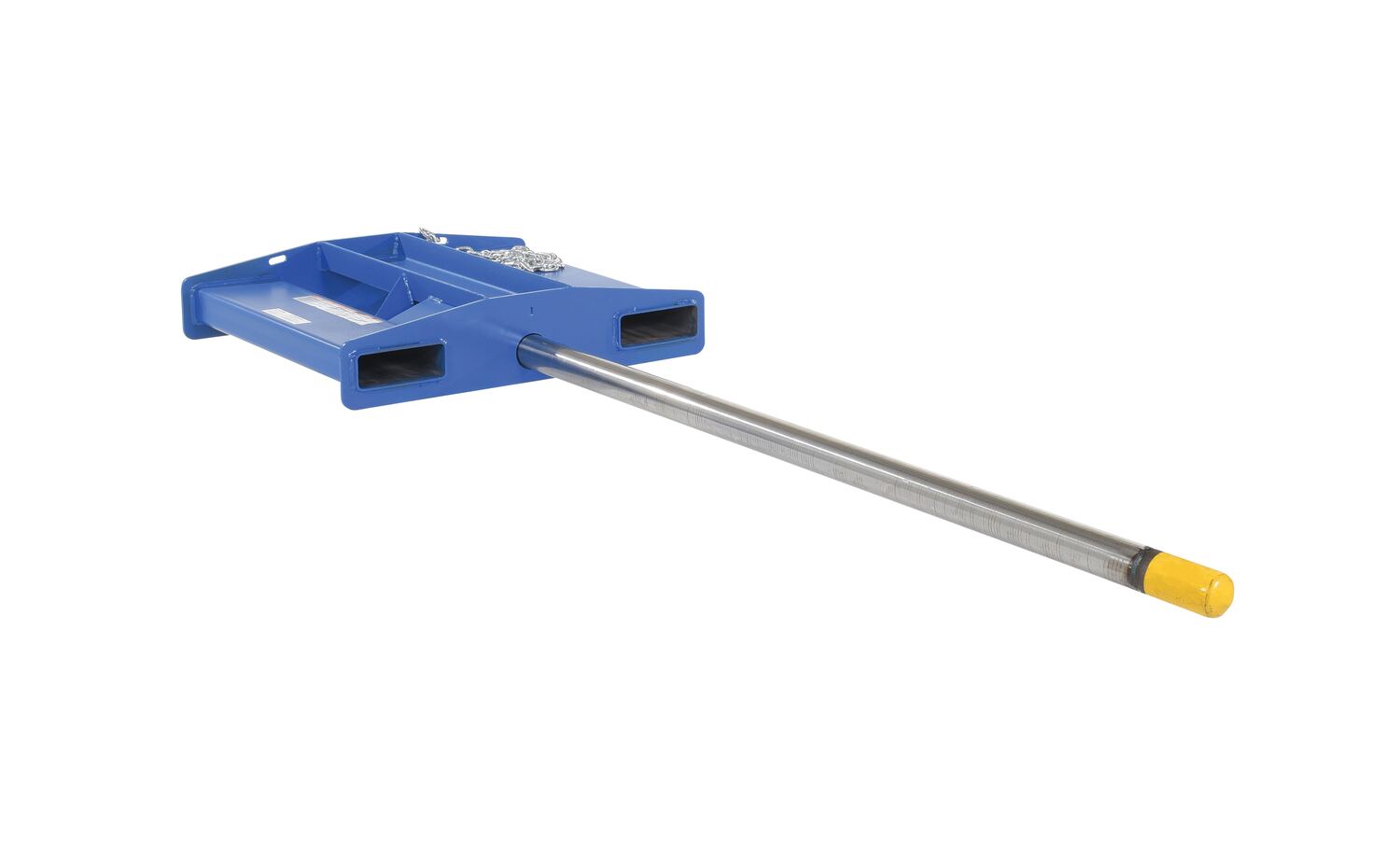

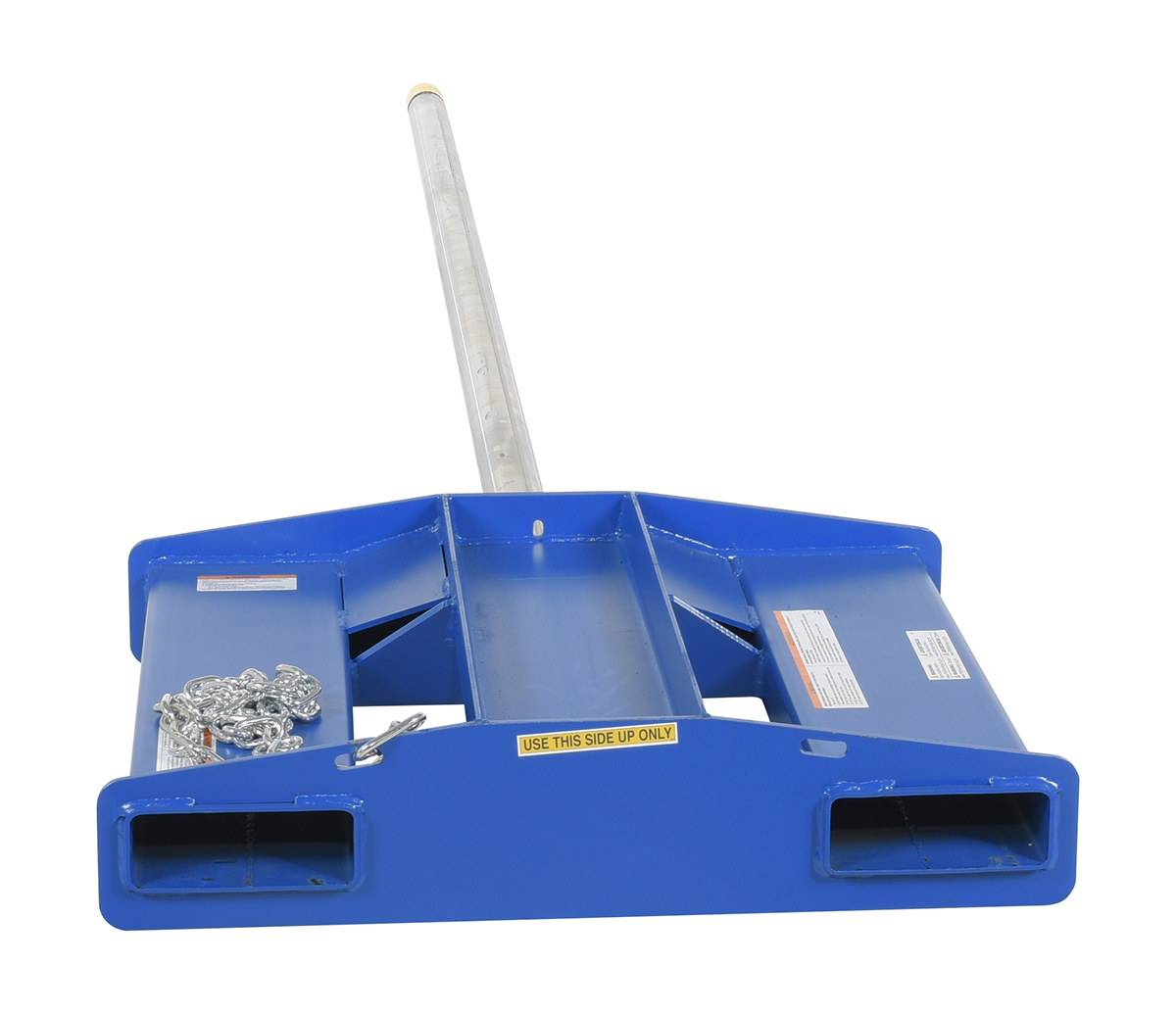

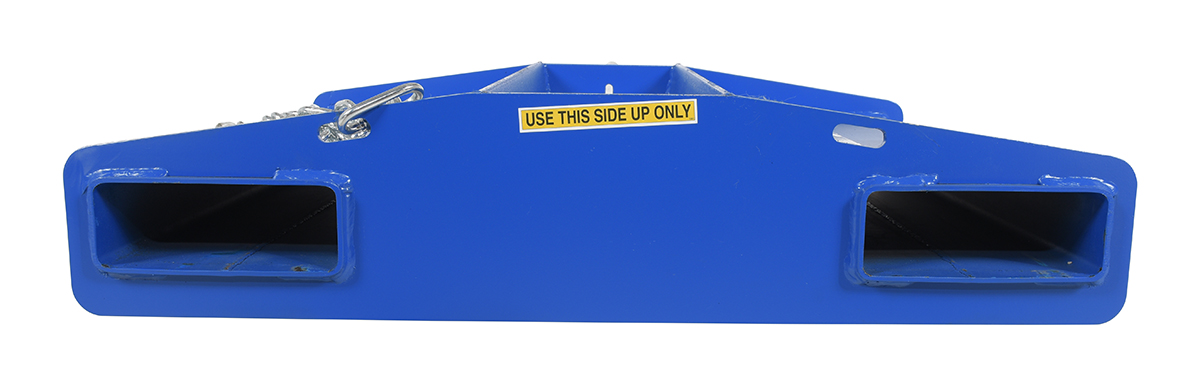

Fork Mounted Rug Rams feature 7-1/2"W x 2-1/2"H fork pockets on models CRP, 7-5/8"Wx2-5/8"H on CRF models, with 24" centers. Safety chain is included to secure unit to fork truck.

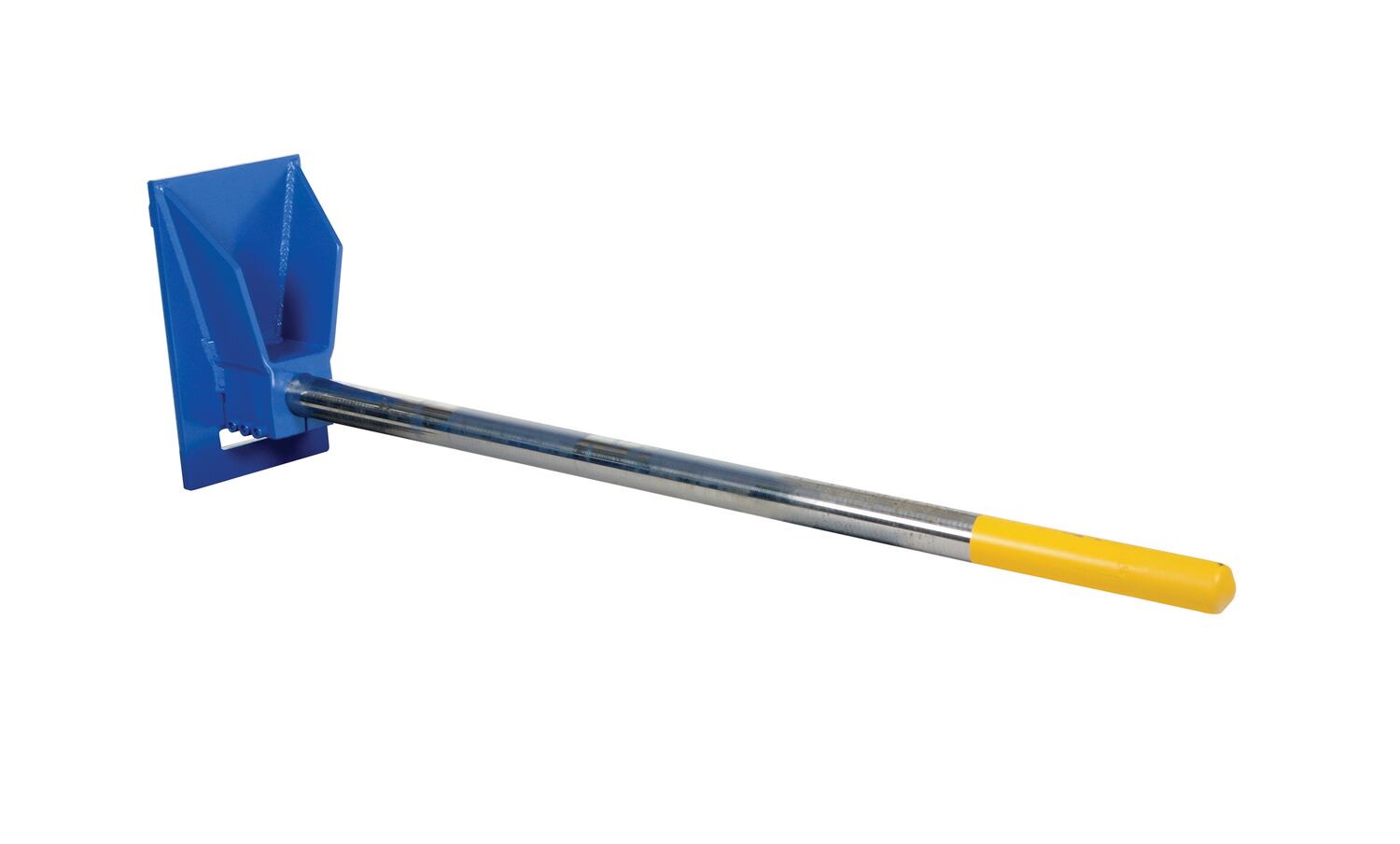

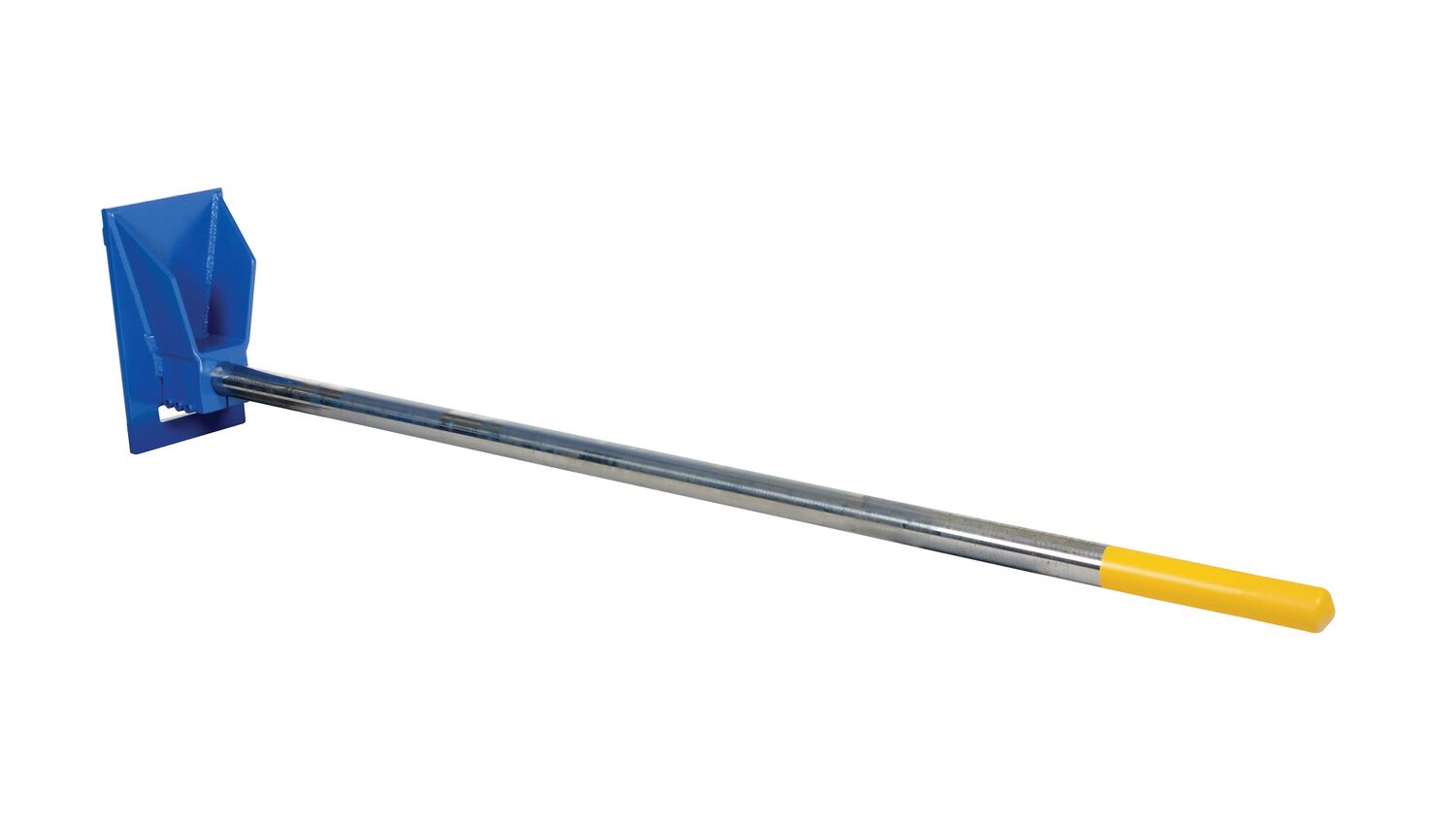

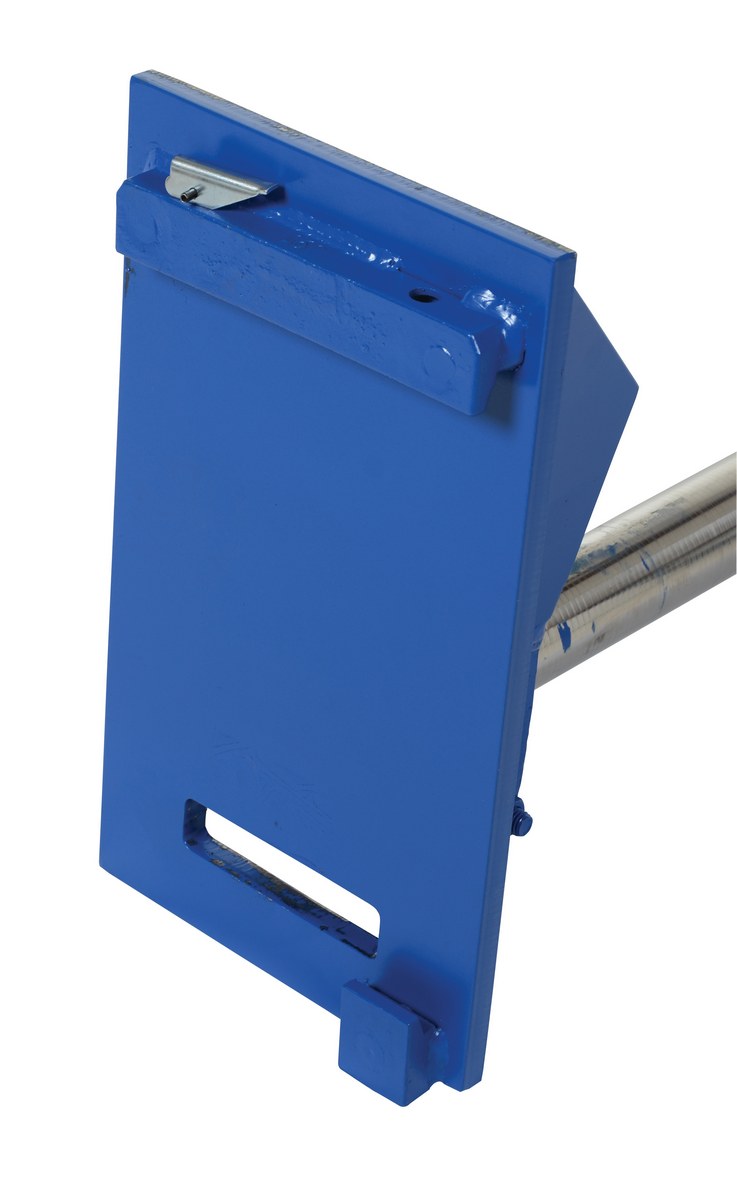

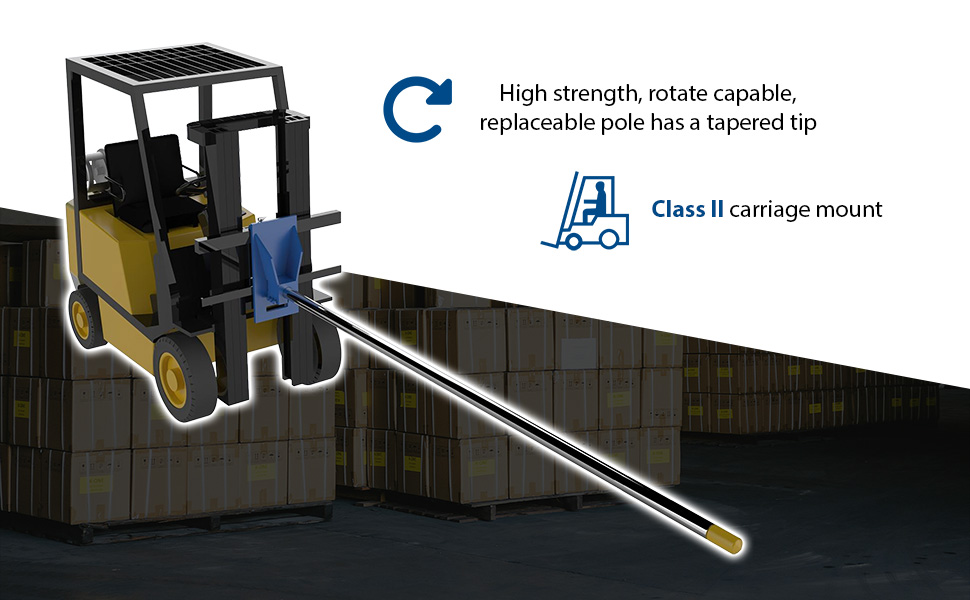

Carriage Mounted Rug Rams are available in class II or III mount and feature a spring loaded locking pin to secure them to the carriage.

Rug Ram Pole Length Recommended Carpet Roll Length
108" Models Recommended to be used for 9 foot (or shorter) carpet rolls
120" Models Recommended to be used for 10 foot (or shorter) carpet rolls
144" Models Recommended to be used for 12 foot (or shorter) carpet rolls

The carpet roll must not hang over the end of the pole. Carpet rolls must be loaded onto the pole having full contact with the mounting frame

Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage or fork mounted style. 2-3/4" diameter high strength, rotatable, replaceable pole has tapered tip. All units are made of steel construction and painted blue.

Fork Mounted Rug Rams feature 7-1/2"W x 2-1/2"H fork pockets on models CRP, 7-5/8"Wx2-5/8"H on CRF models, with 24" centers. Safety chain is included to secure unit to fork truck.

Carriage Mounted Rug Rams are available in class II or III mount and feature a spring loaded locking pin to secure them to the carriage.

Rug Ram Pole Length Recommended Carpet Roll Length
108" Models Recommended to be used for 9 foot (or shorter) carpet rolls
120" Models Recommended to be used for 10 foot (or shorter) carpet rolls
144" Models Recommended to be used for 12 foot (or shorter) carpet rolls

The carpet roll must not hang over the end of the pole. Carpet rolls must be loaded onto the pole having full contact with the mounting frame

Other Rug Rams & Carpet Poles

 Rug Rams/Carpet Poles

Additional Models In This Family
view entire Image Gallery

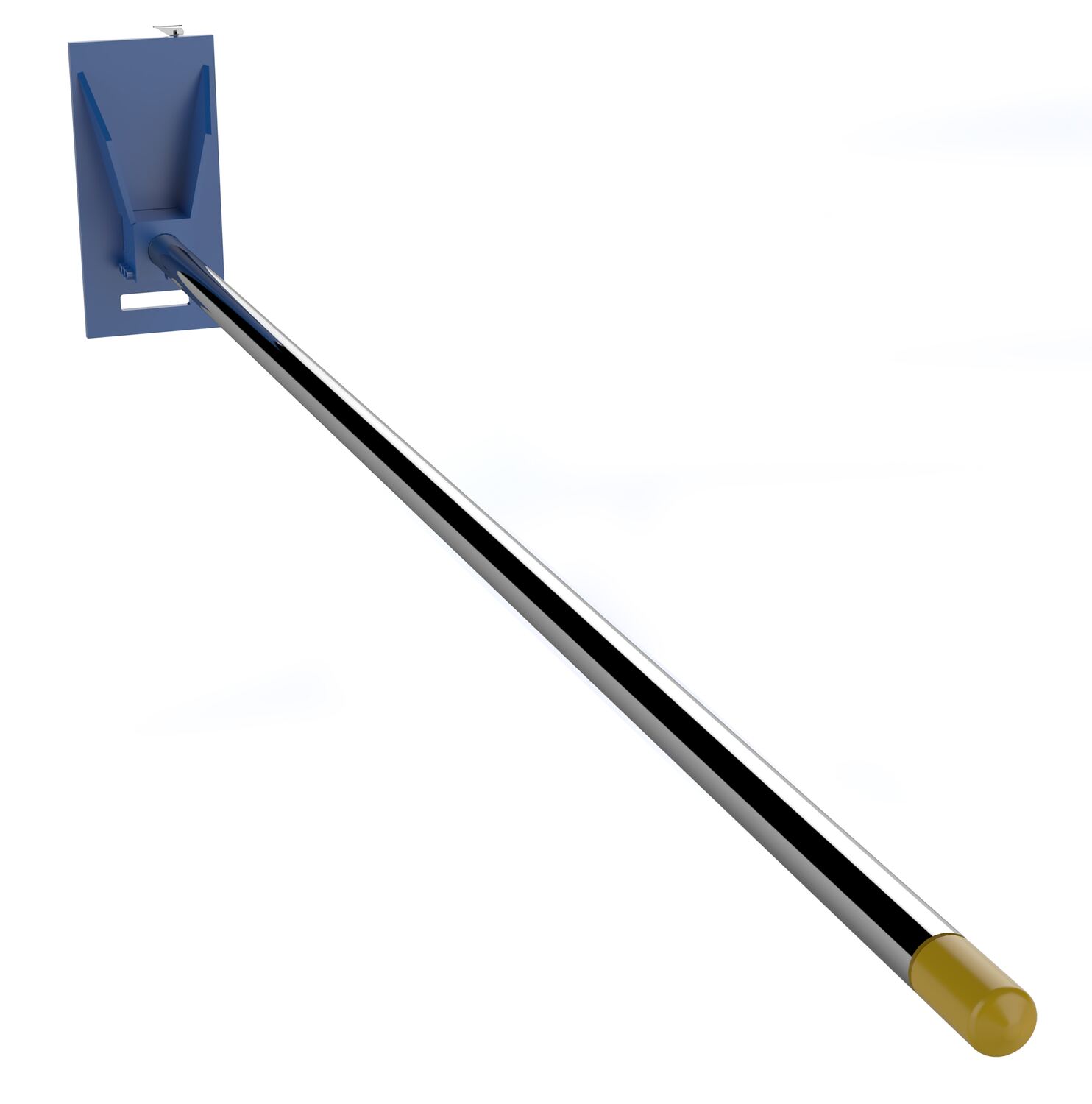

CR-144-3

CR-144-3

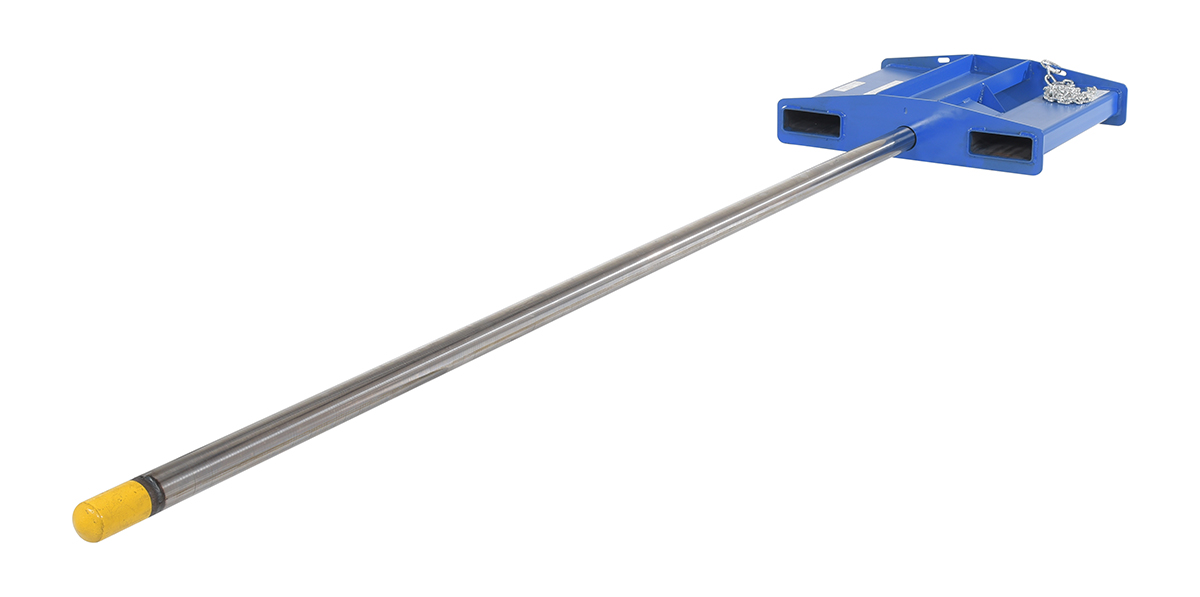

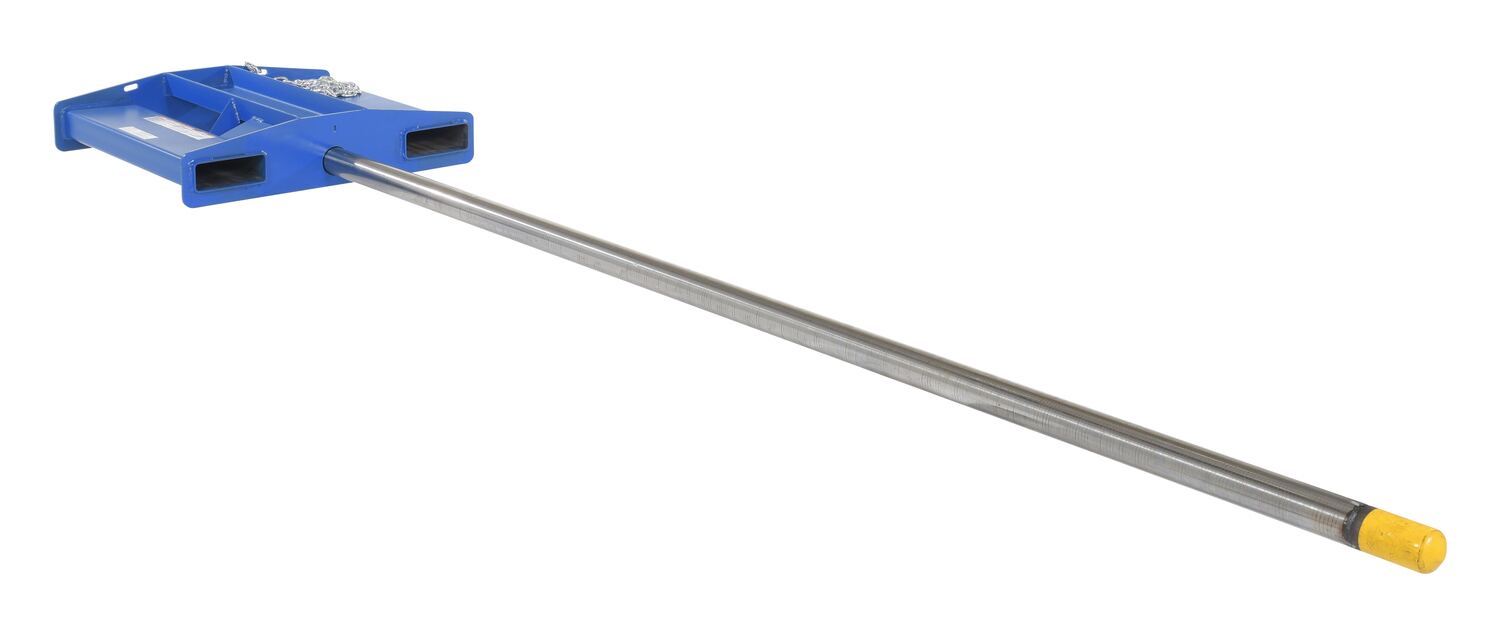

CRF-120

CRF-120

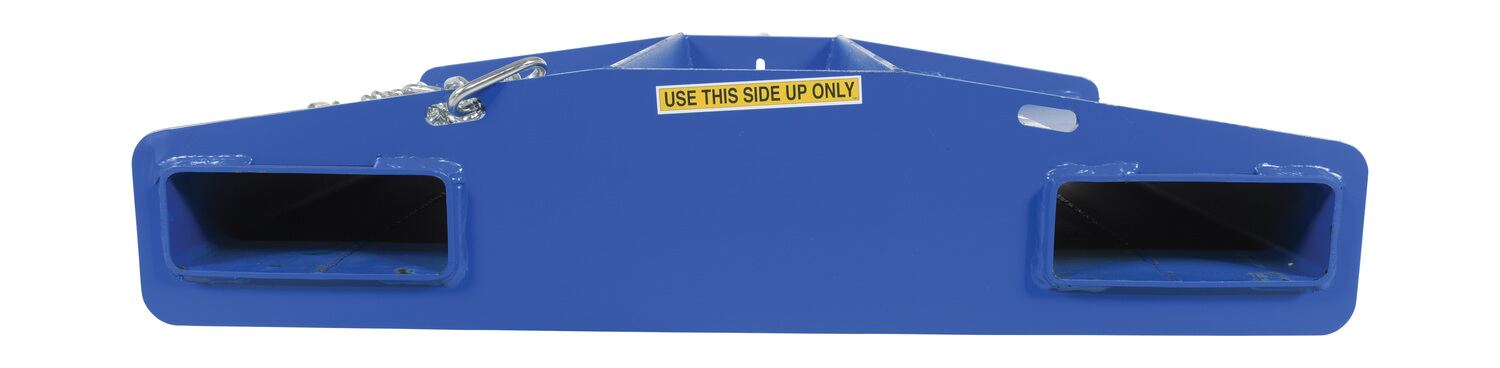

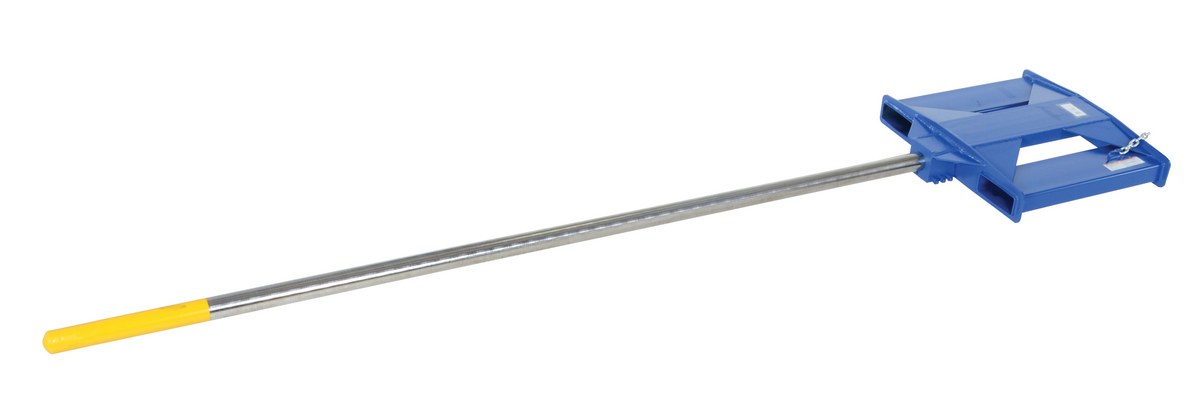

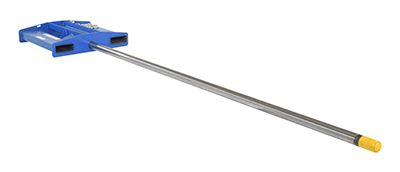

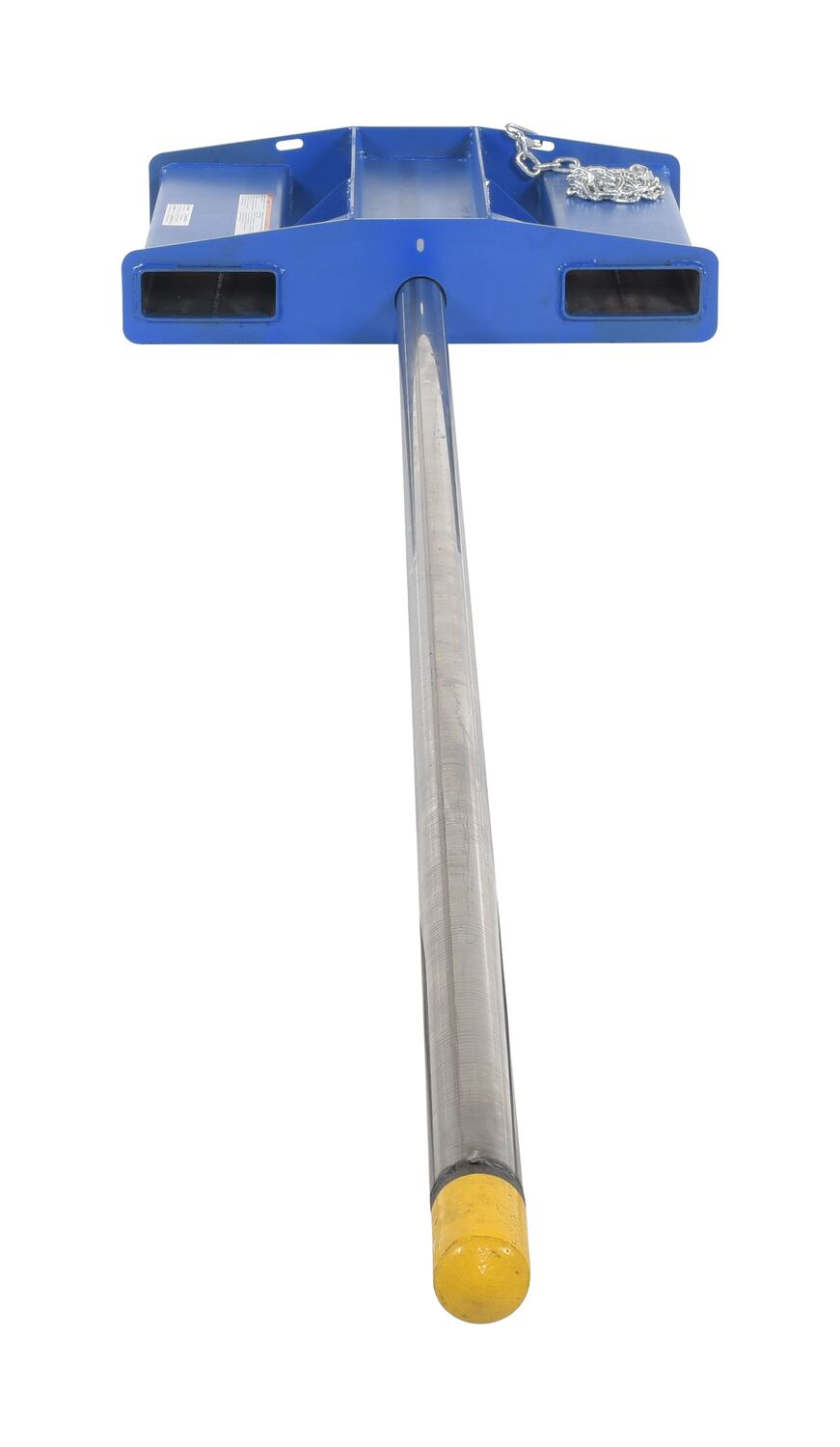

CRF-144

CRF-144

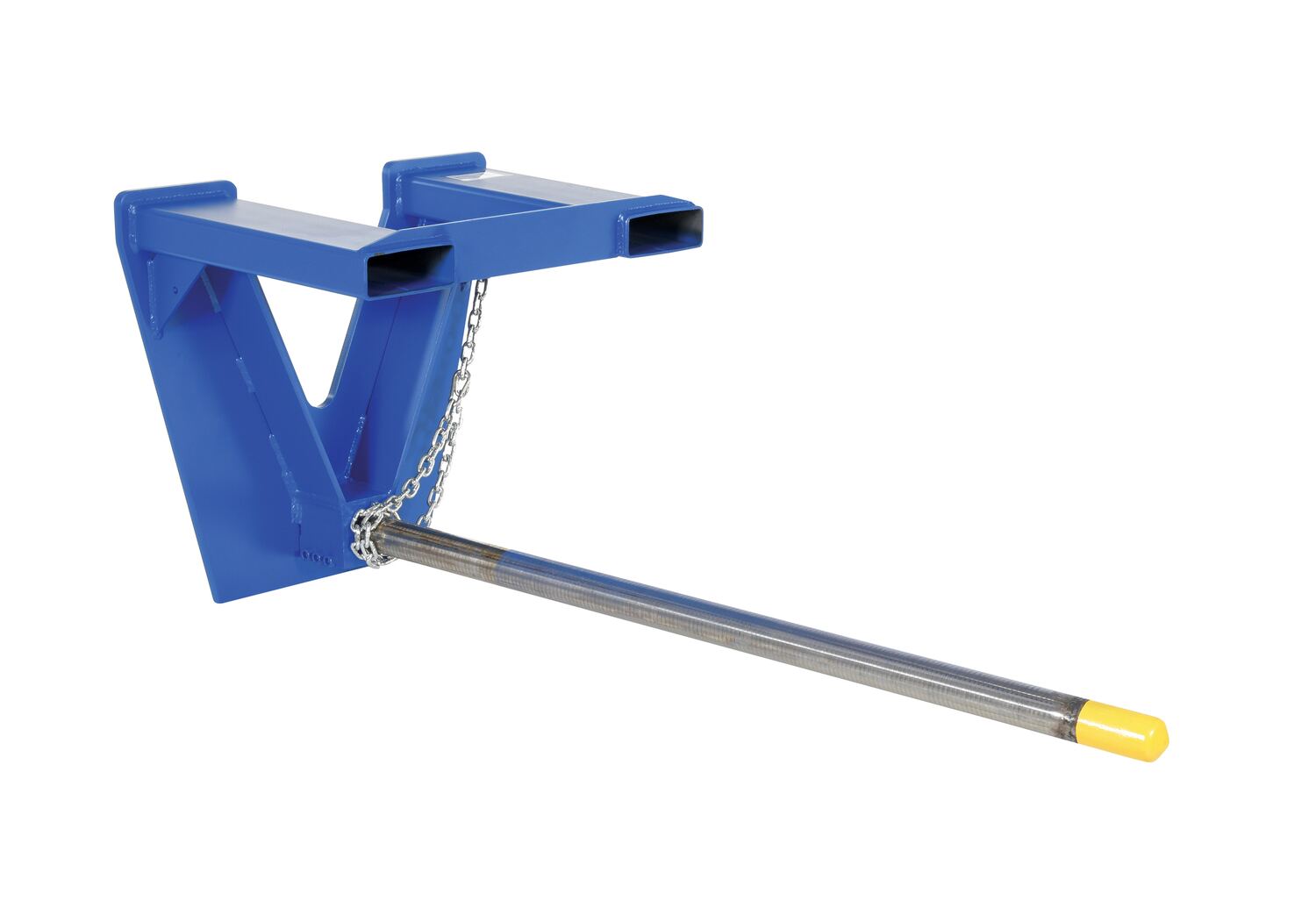

CRP-108

CRP-108

CR-144-2

CR-144-2

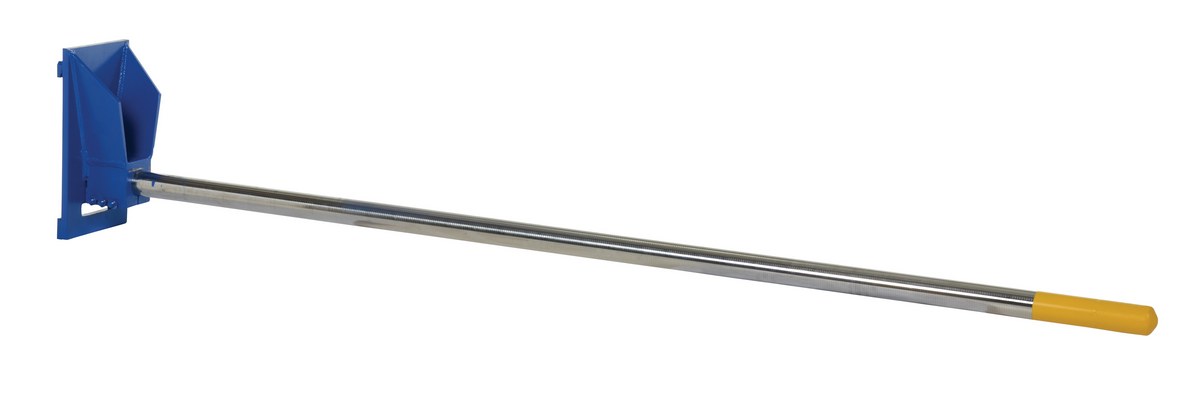

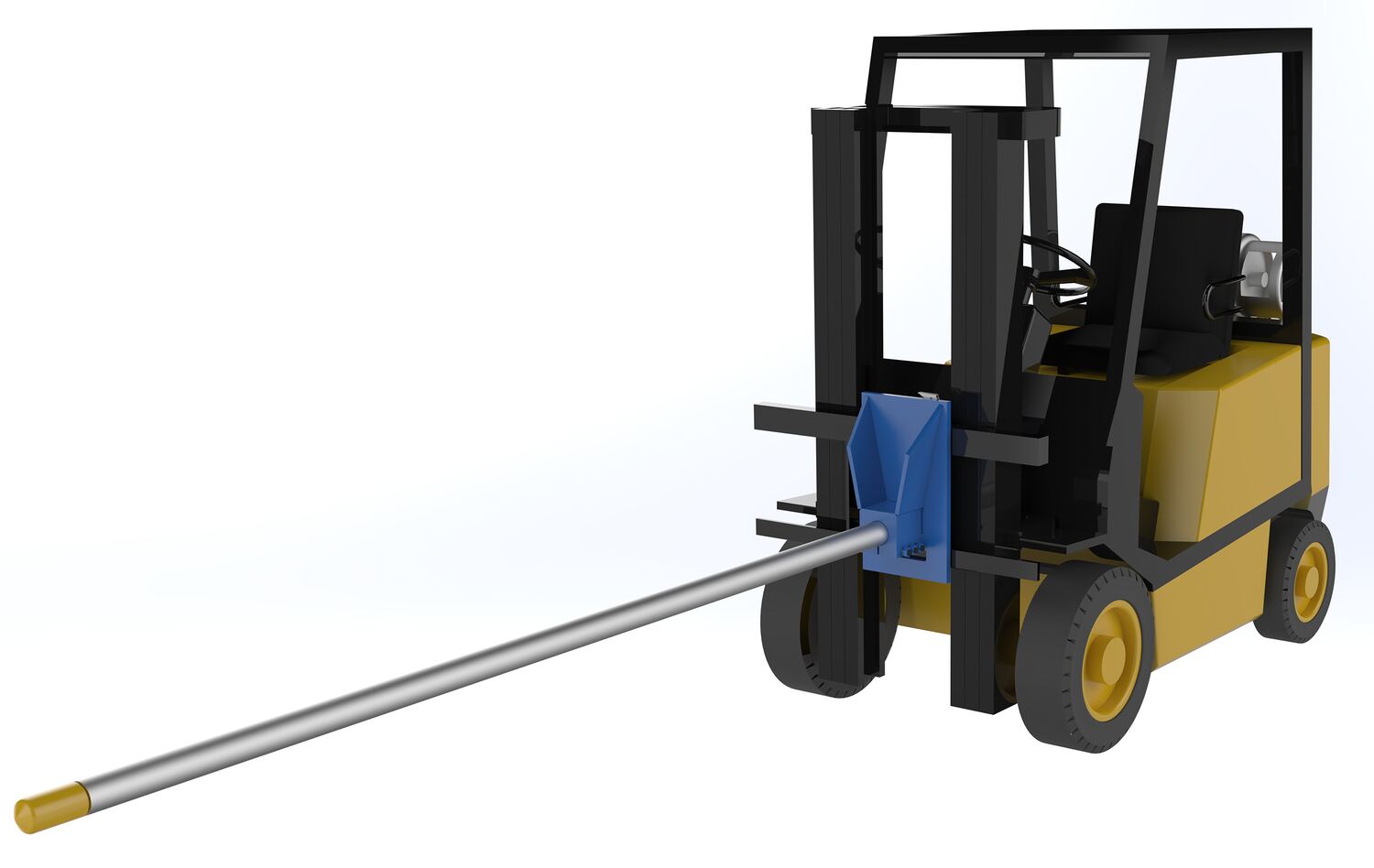

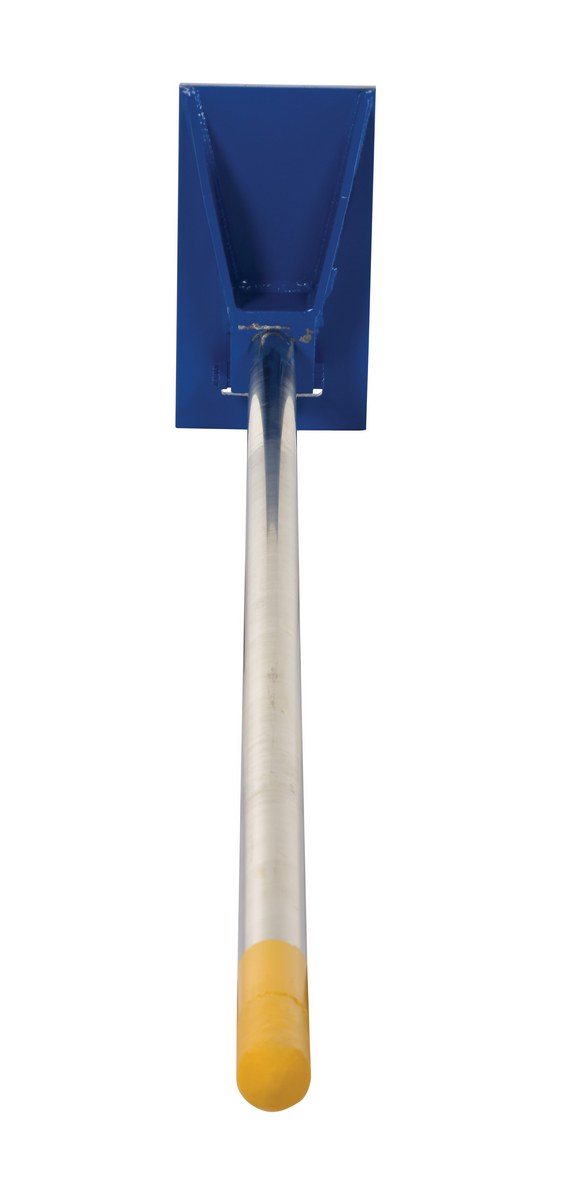

CR-108-2

CR-108-2

CRF-144

CRF-144

CRF-144

CRF-144

CRF-144

CRF-144

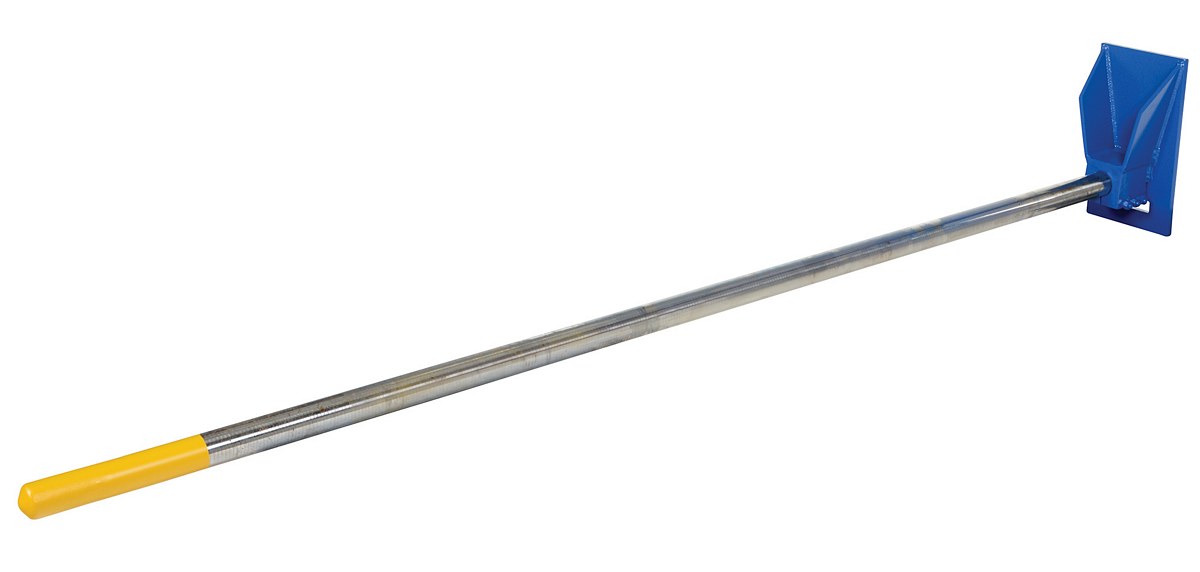

CR-120-2

CR-120-2

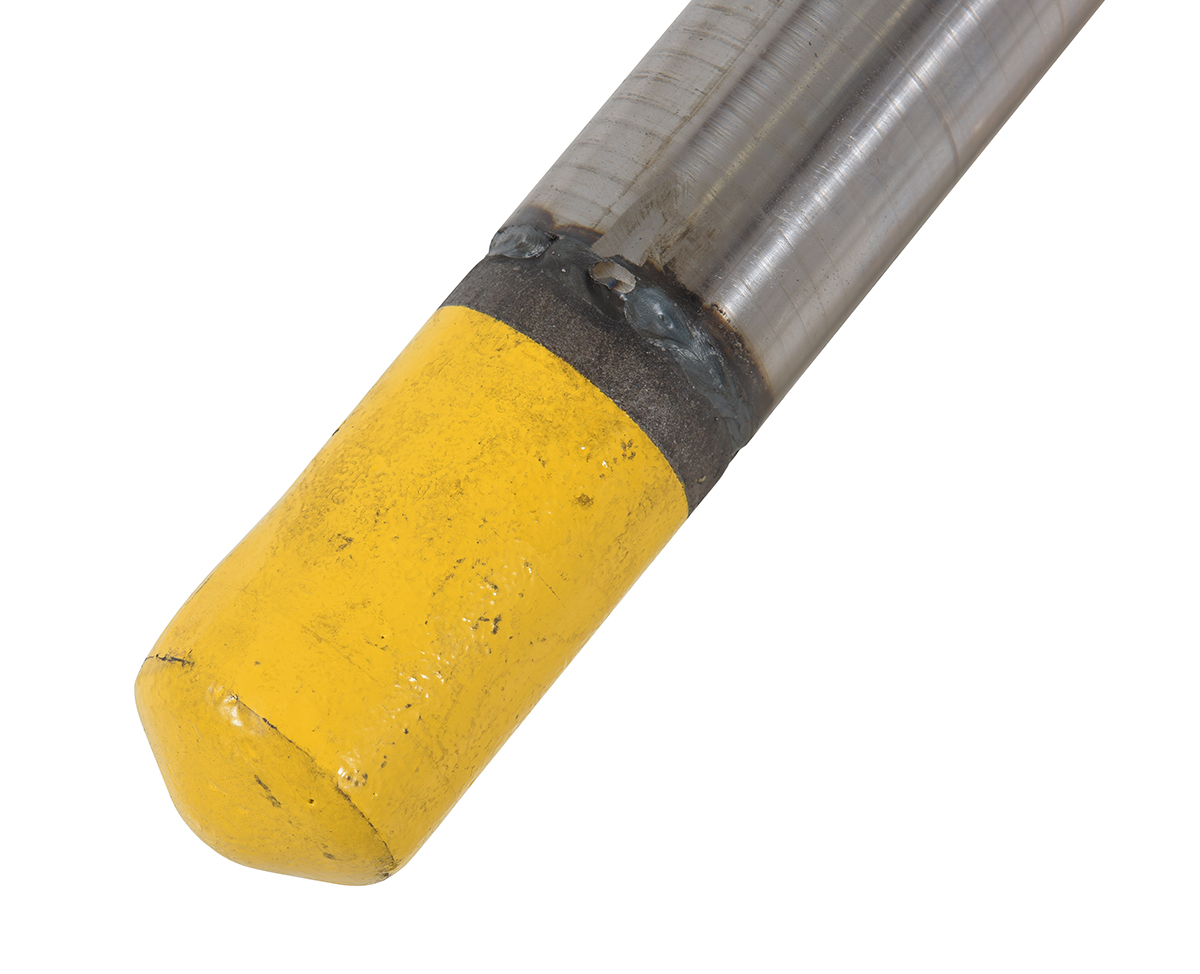

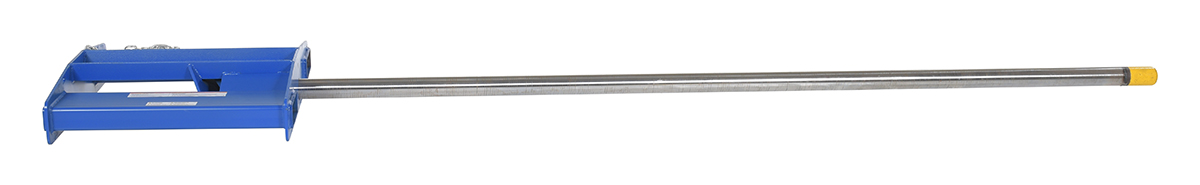

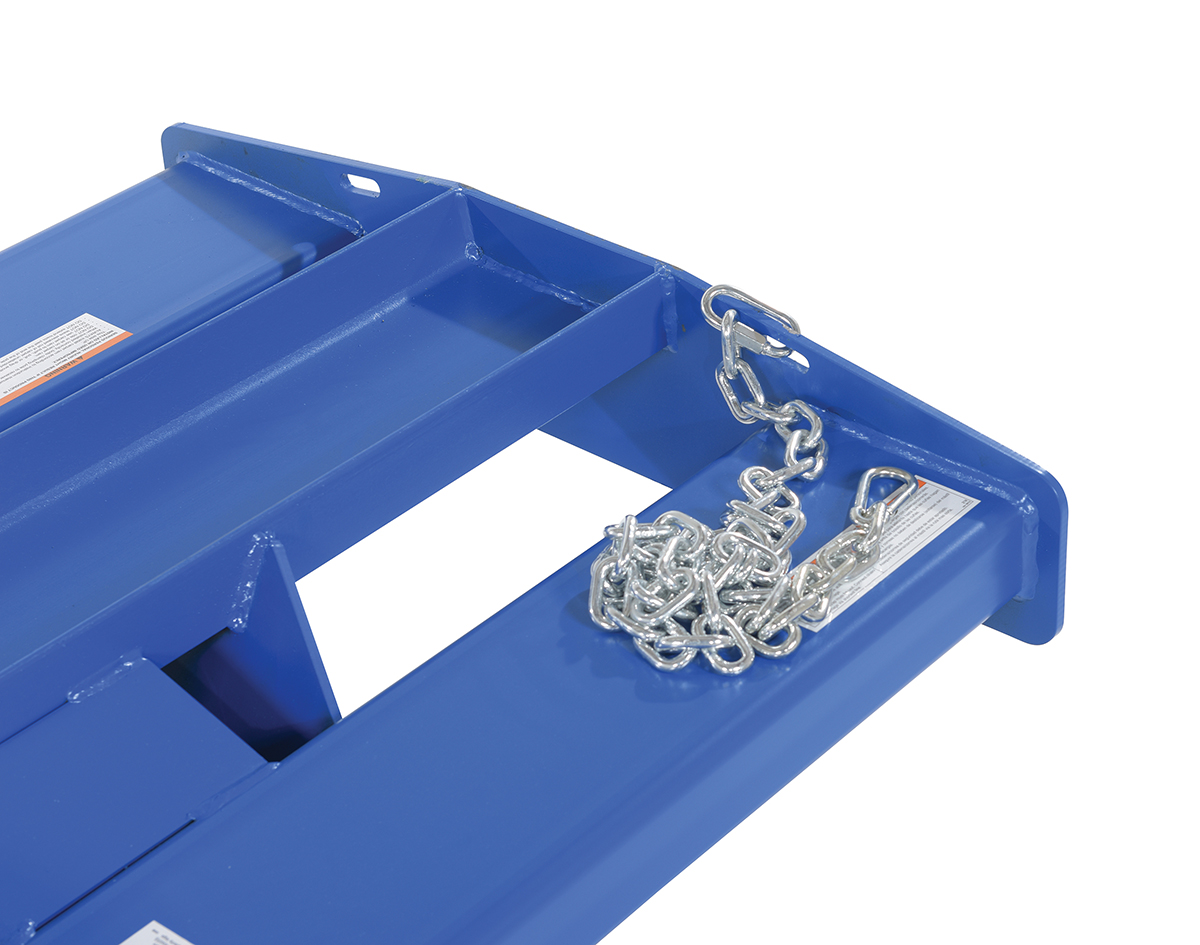

CRF-120

CRF-120

CRF-144

CRF-144

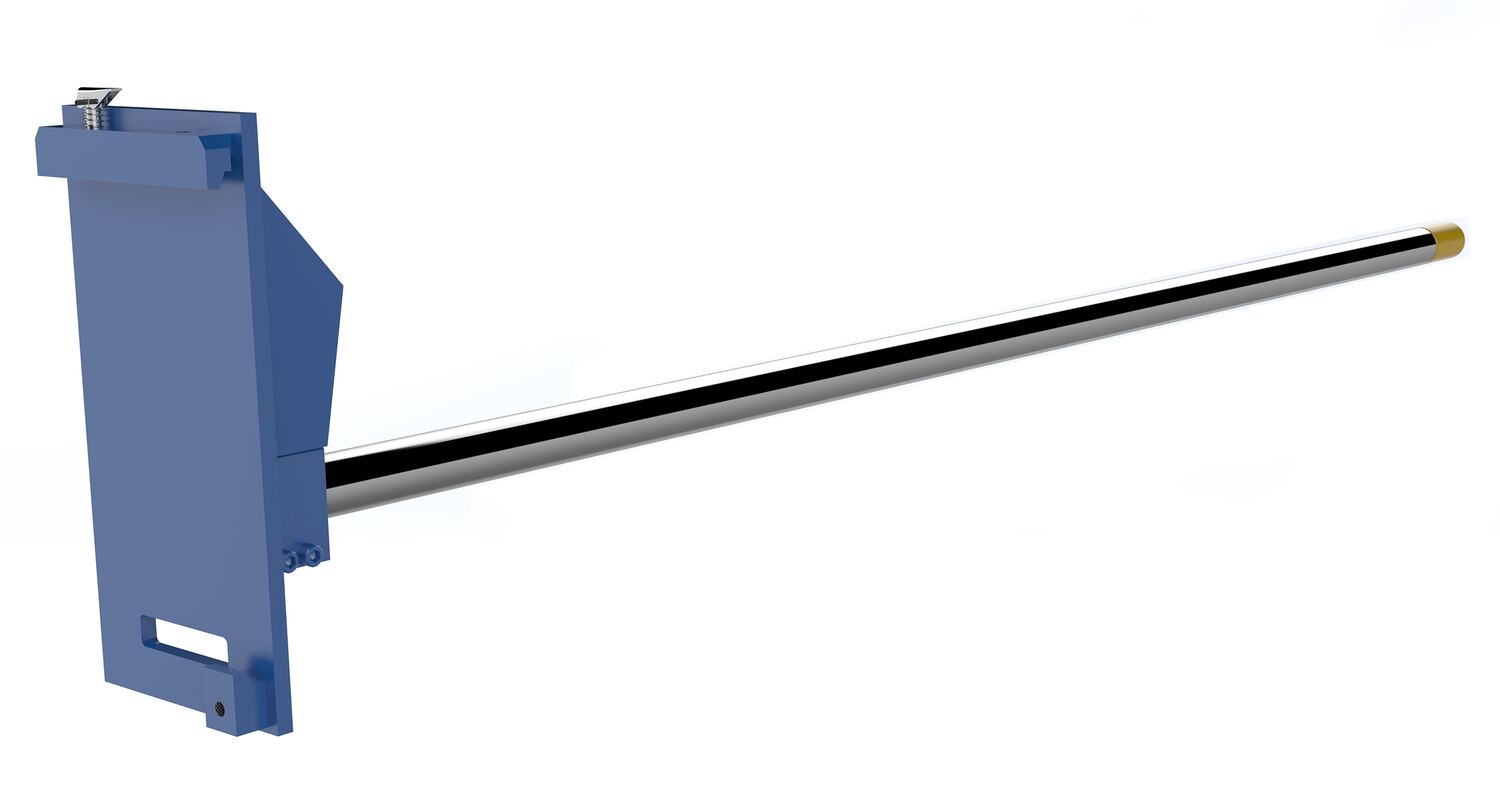

CR-108-3

CR-108-3

CR-108-2

CR-108-2

CRF-120

CRF-120

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

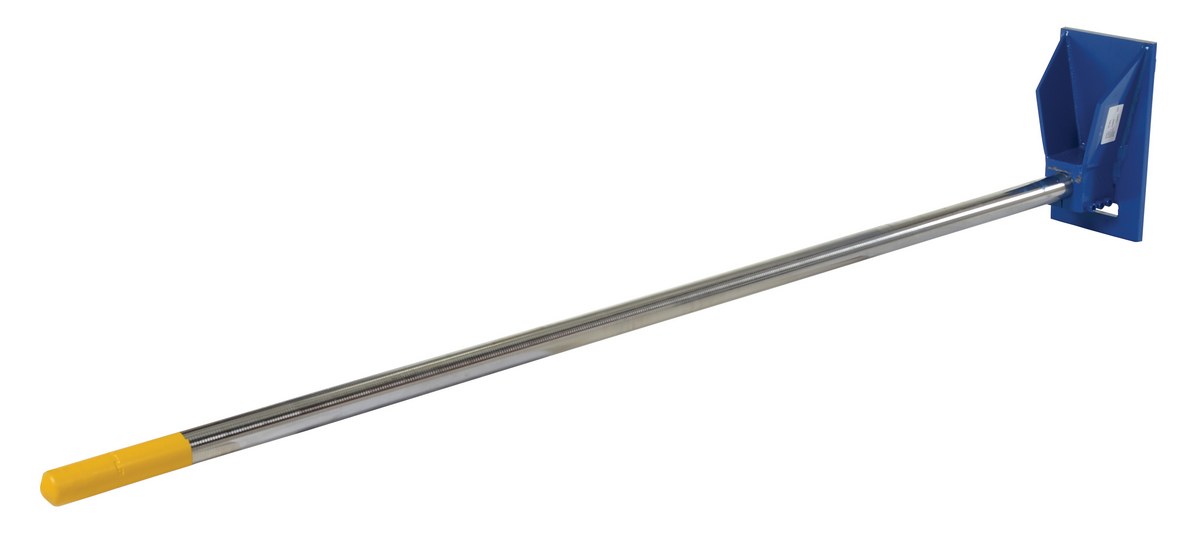

CR-108-2 CR-108-290 Days Limited WarrantySteel Carriage Mount Class II Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		287
CR-108-3 CR-108-390 Days Limited WarrantySteel Carriage Mount Class III Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		296

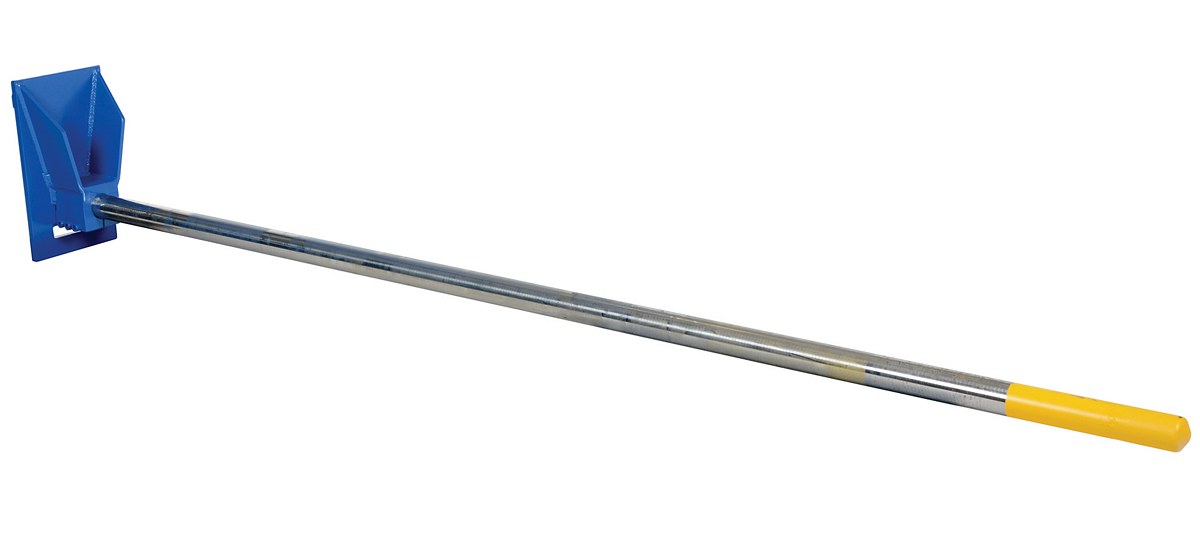

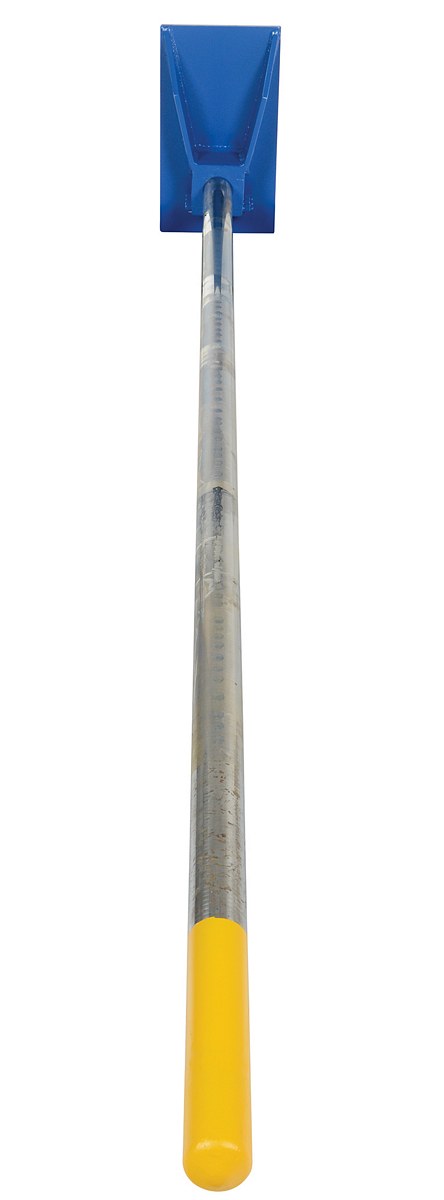

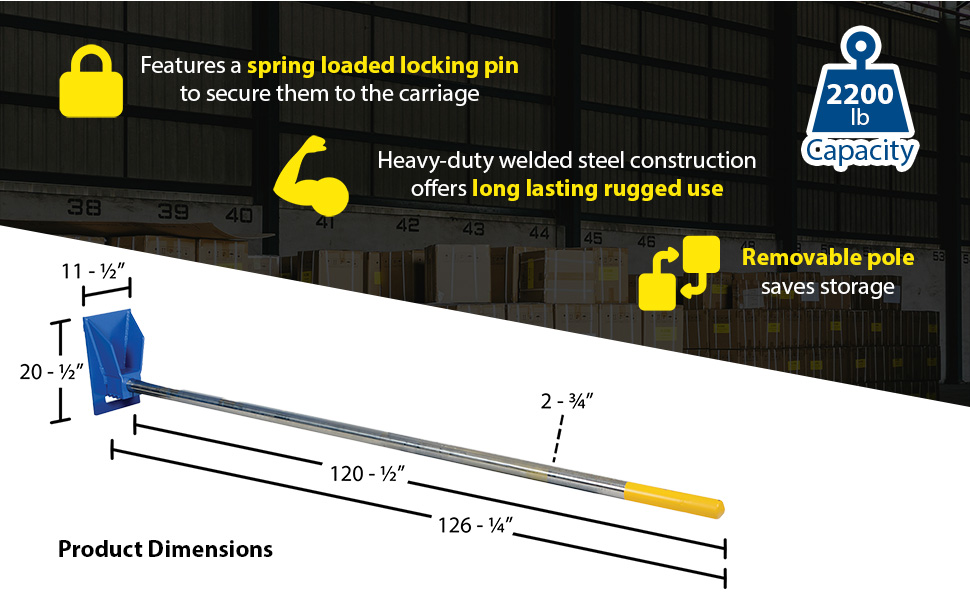

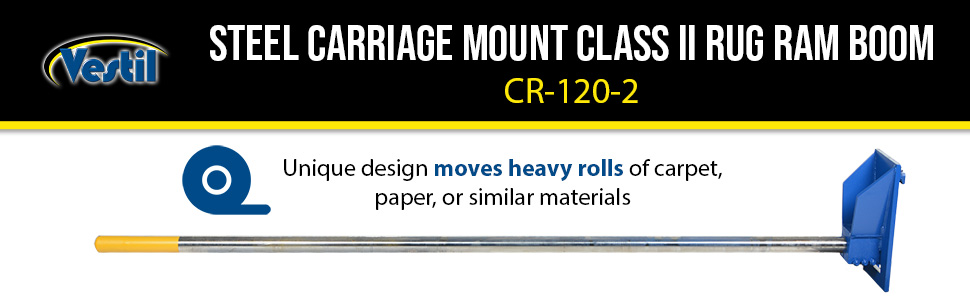

CR-120-2 CR-120-290 Days Limited WarrantySteel Carriage Mount Class II Rug Ram Boom 120 In. 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4		310
CR-120-3 CR-120-390 Days Limited WarrantySteel Carriage Mount Class III Rug Ram Boom 120 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4		316

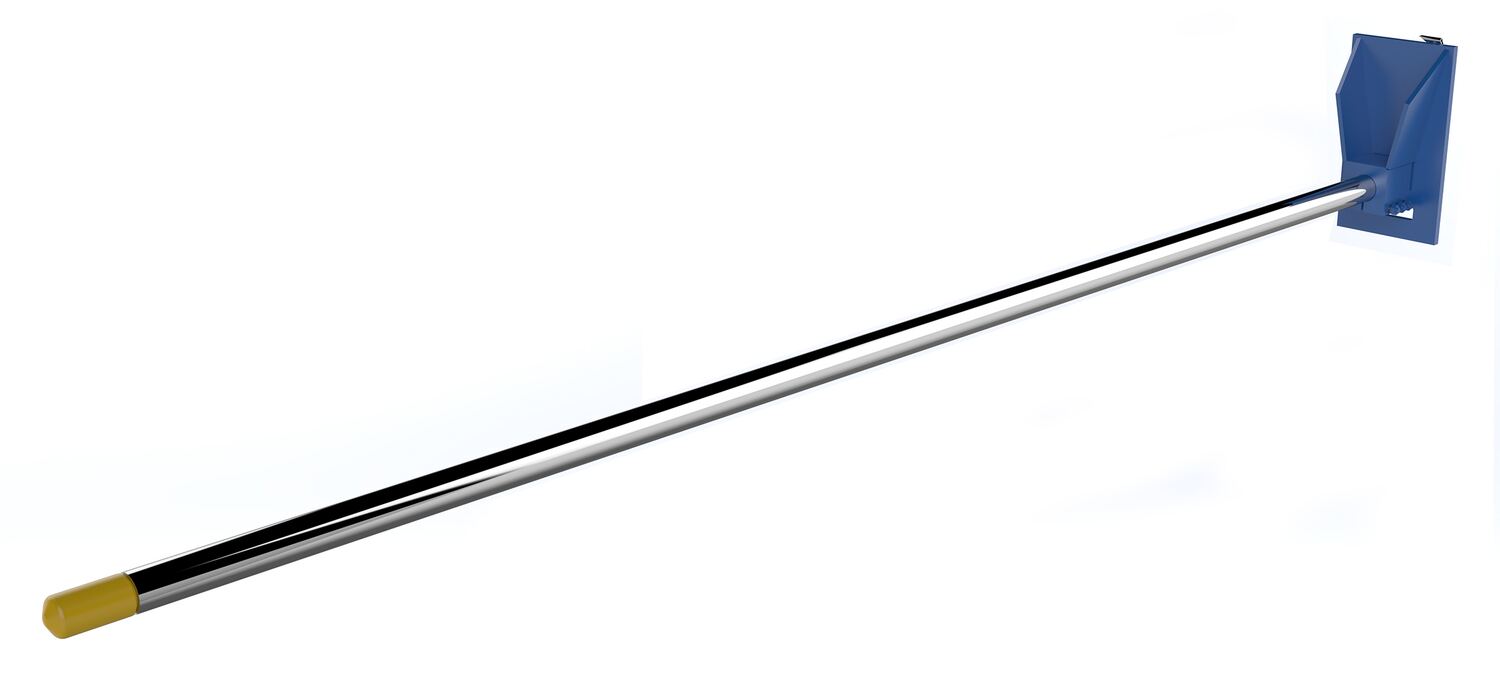

CR-144-2 CR-144-290 Days Limited WarrantySteel Carriage Mount Class II Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4		342
CR-144-3 CR-144-390 Days Limited WarrantySteel Carriage Mount Class III Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4		478
CRF-108 CRF-10890 Days Limited WarrantySteel Fork Mounted Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		389
CRF-120 CRF-12090 Days Limited WarrantySteel Fork Mounted Rug Ram Boom 120 In. 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4		424

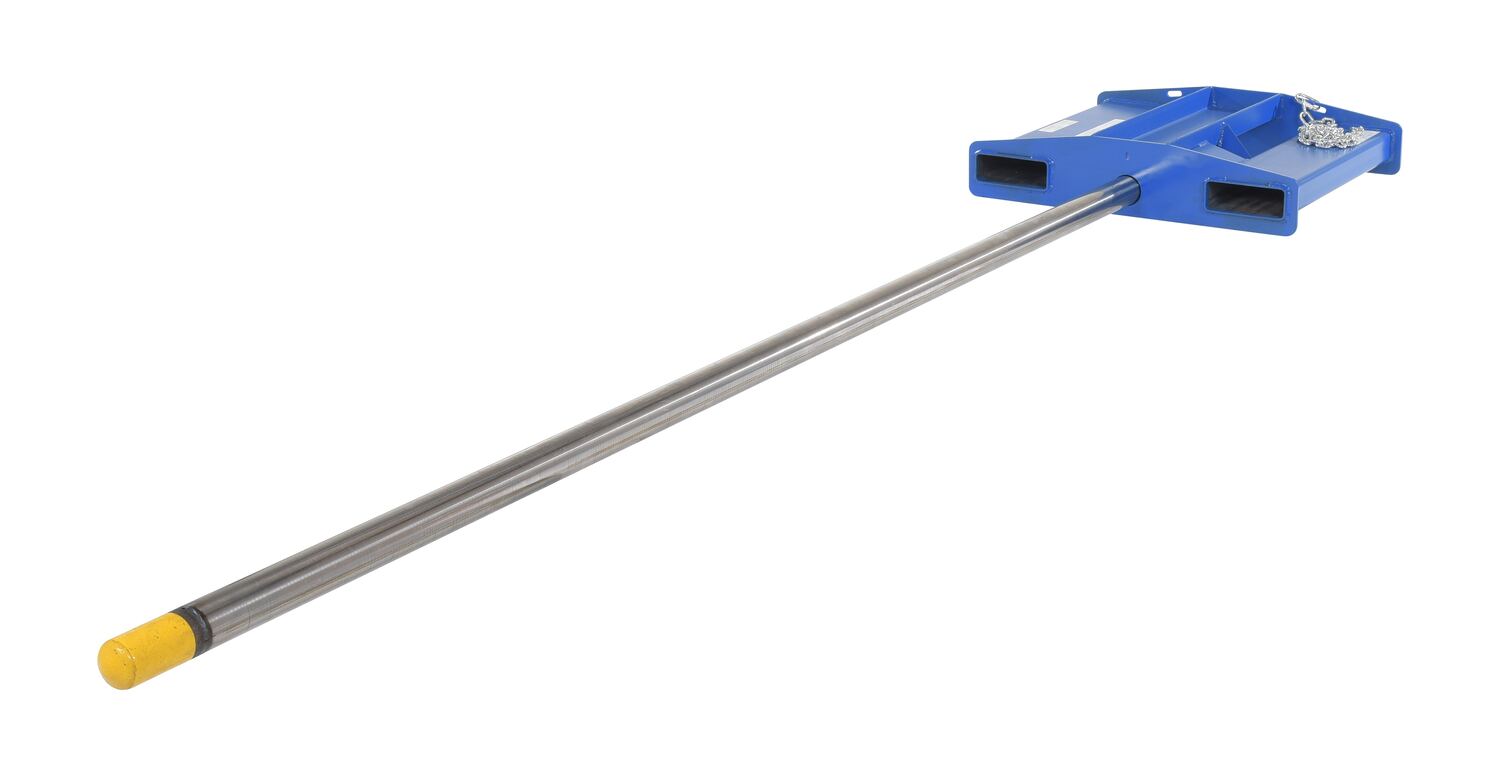

CRF-144 CRF-14490 Days Limited WarrantySteel Fork Mounted Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4		450

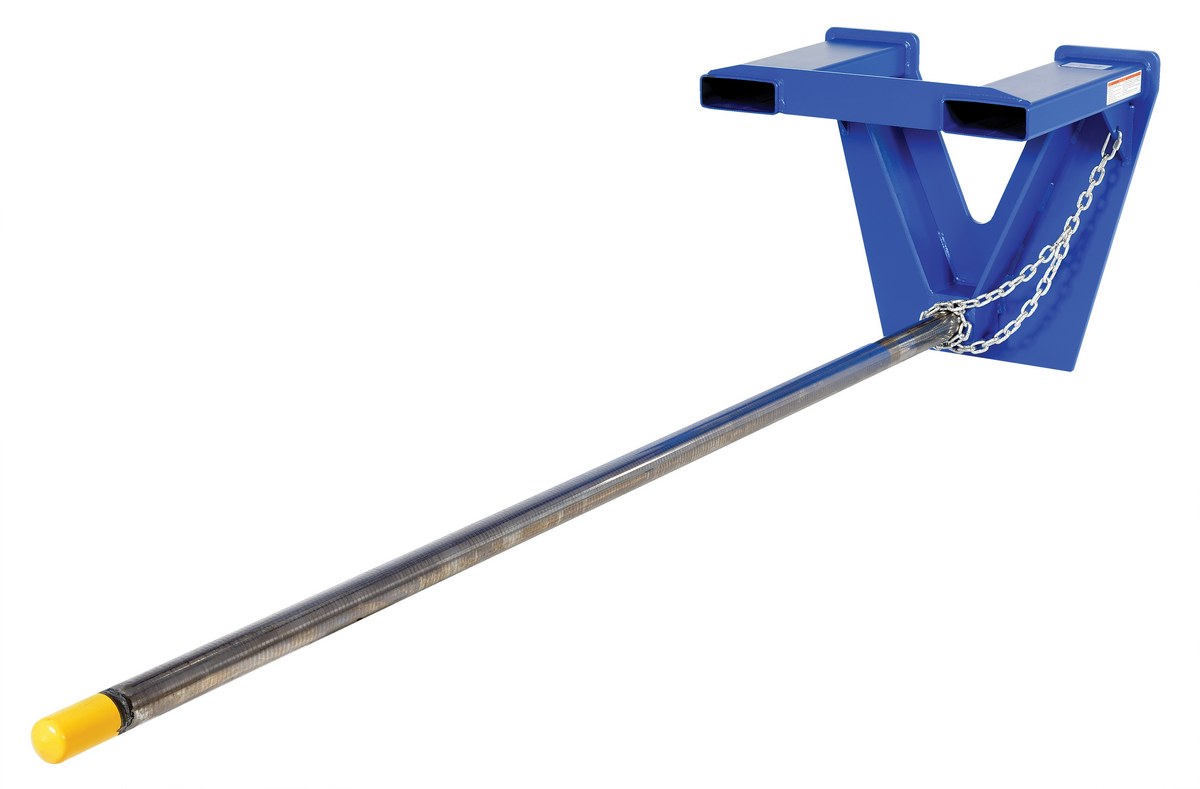

CRP-108 CRP-10890 Days Limited WarrantySteel Fork Mounted Inverted Rug Ram Boom 108 In 2500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4		466

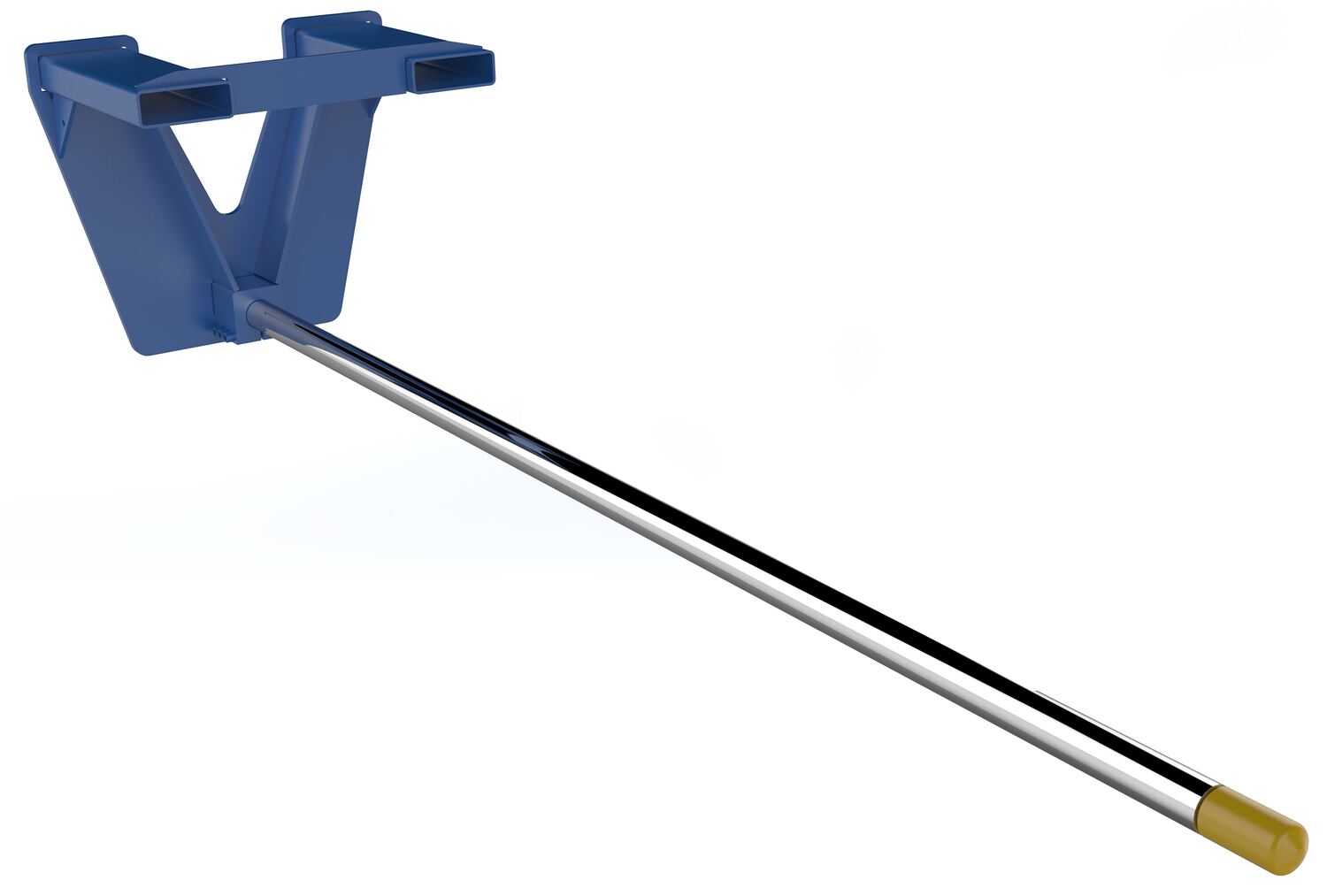

CRP-120 CRP-12090 Days Limited WarrantySteel Fork Mounted Inverted Rug Ram Boom 120 In 2200 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4		488

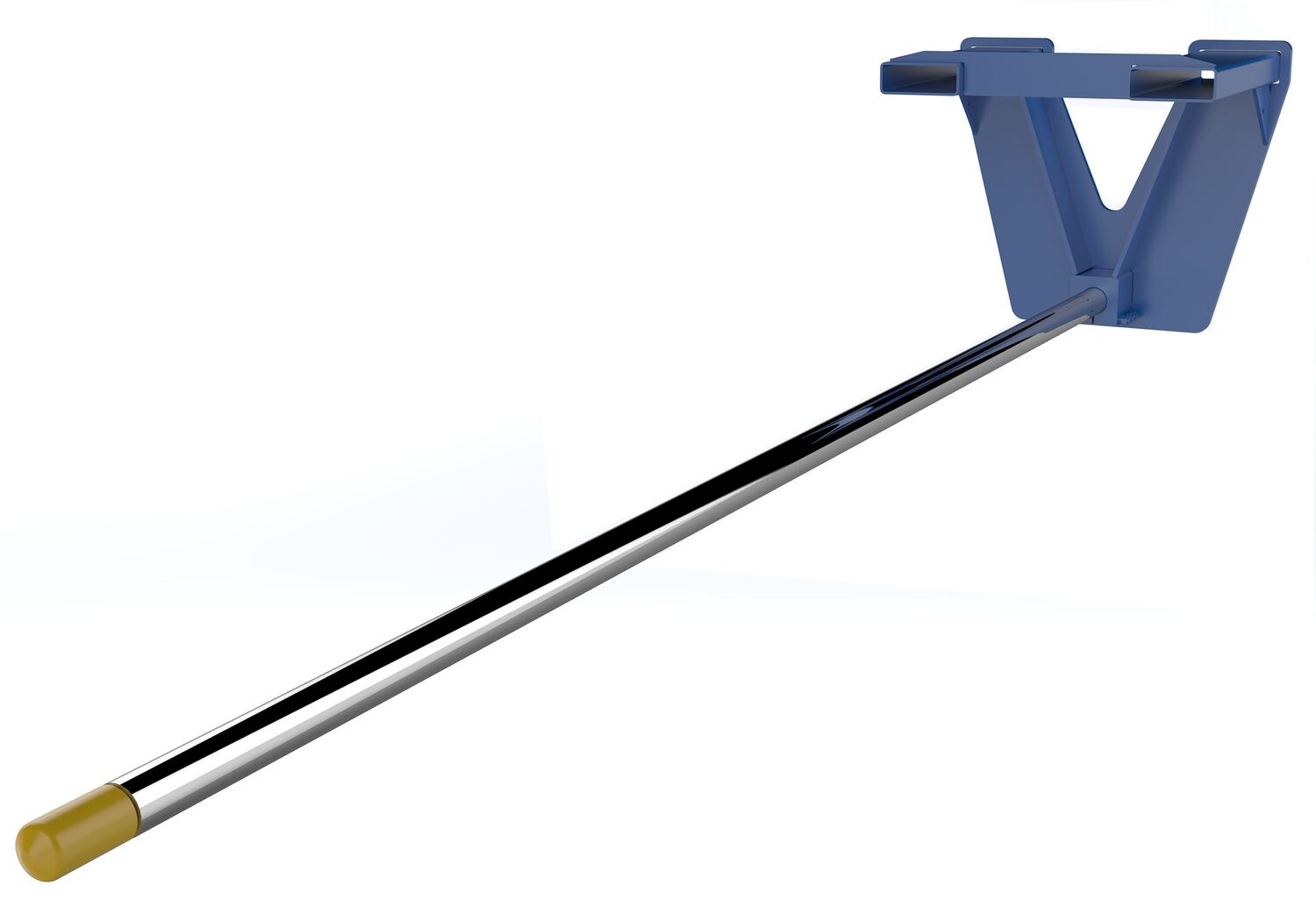

CRP-144 CRP-14490 Days Limited WarrantySteel Fork Mounted Inverted Rug Ram Boom 144 In 1800 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4		528

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CR-108-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CR-108-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CR-120-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4

CR-120-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4

CR-144-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4

CR-144-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4

CRF-108
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CRF-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4

CRF-144
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4

CRP-108
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4

CRP-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4

CRP-144
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Rug Rams/Carpet Poles PDF's will open in a new window when clicked.

Manuals


CRP
Owners Manual

CRF
Owners Manual

CR
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


CR-108-2

CR-108-3

CR-120-2

CR-120-3

CR-144-2

CR-144-3

CRF-108

CRF-120

CRF-144

CRP-108

CRP-120

CRP-144

Testing Certificates


CR-108-2

CR-108-3

CR-120-2

CR-120-3

CR-144-2

CR-144-3

CRF-108

CRF-120

CRF-144

CRP-108

CRP-120

CRP-144

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: I'm not able to find the size of carpet pole I need. Are there additional length poles?

A: The carpet poles are available in lengths of 40" to 144". Please contact a sales associate for details.

Q: Do you have a carpet pole diameter larger than 2 3/4"?

A: We do not have alternate carpet pole sizes.

Q: I see the pole diameter is 2 3/4". Is that a solid pole or hollow?

A: The carpet pole/rug rams poles are solid.
