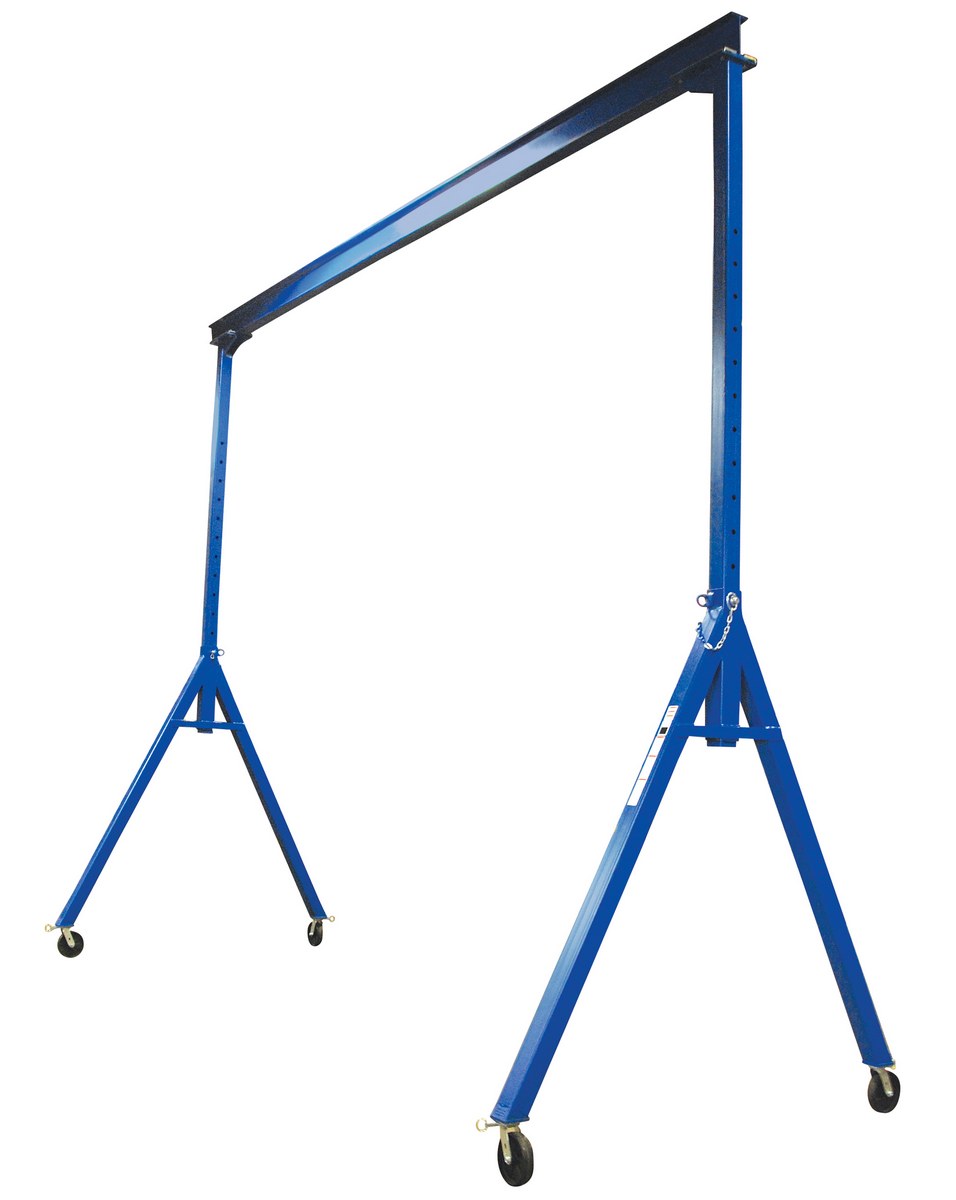

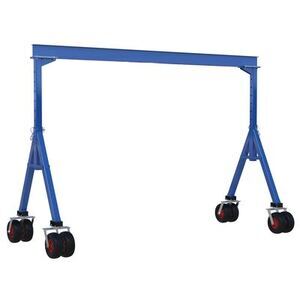

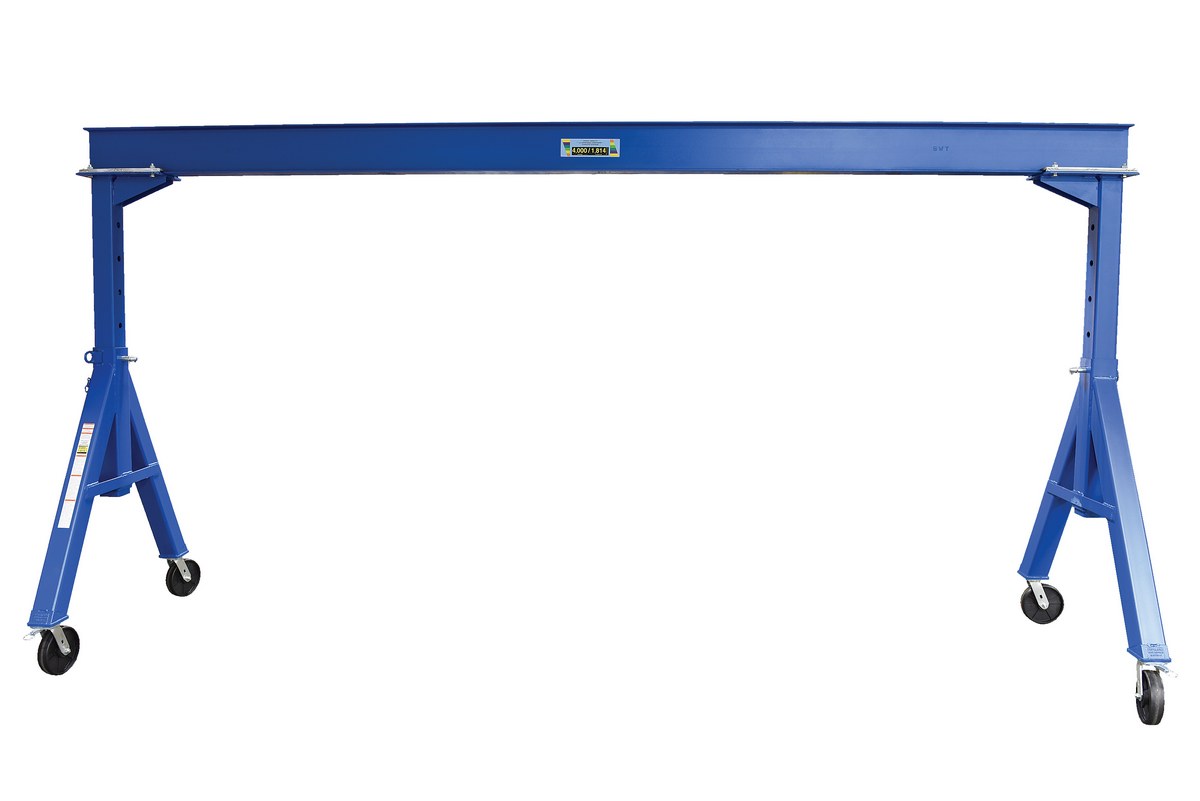

model: AHS-4-15-7

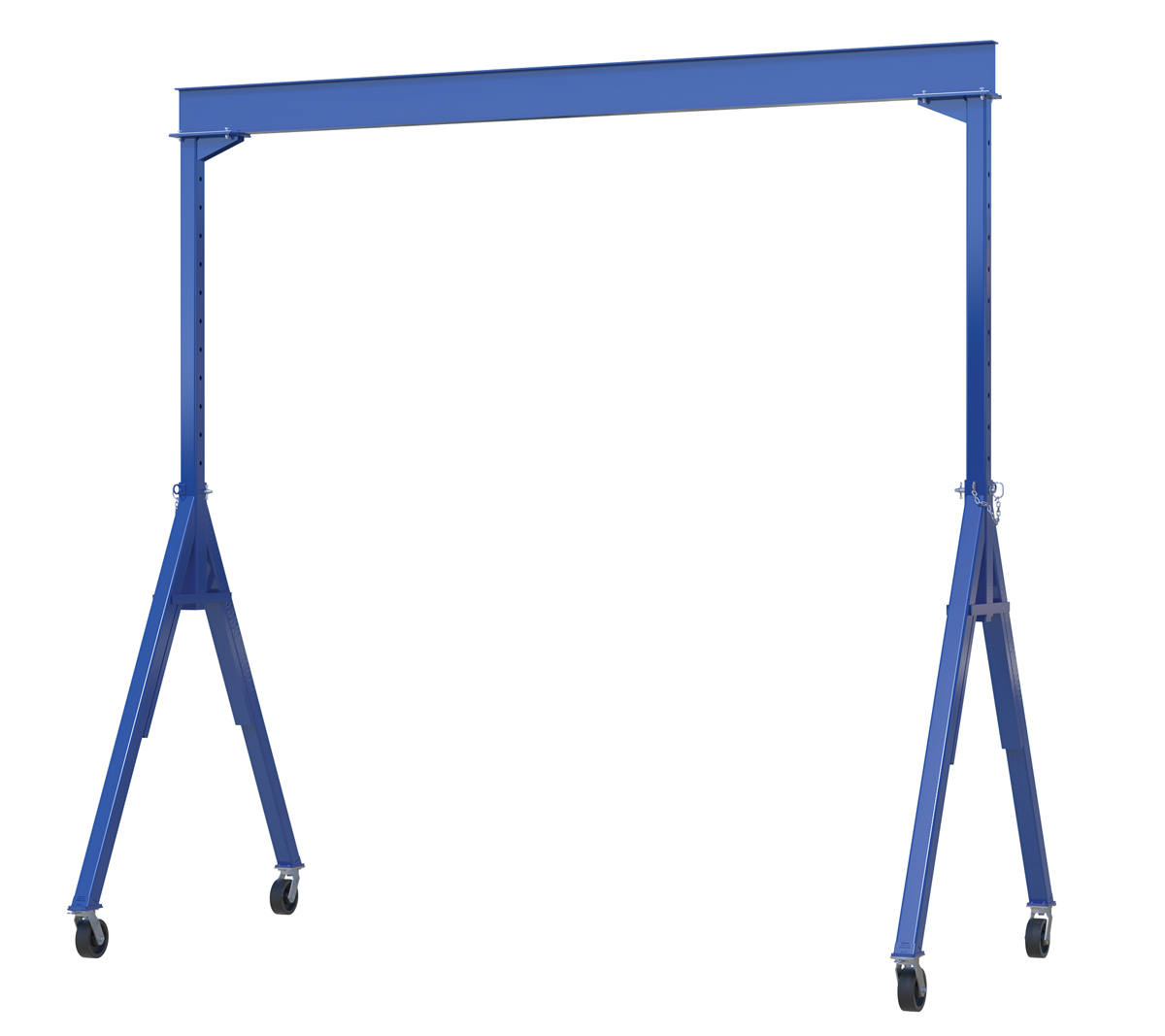

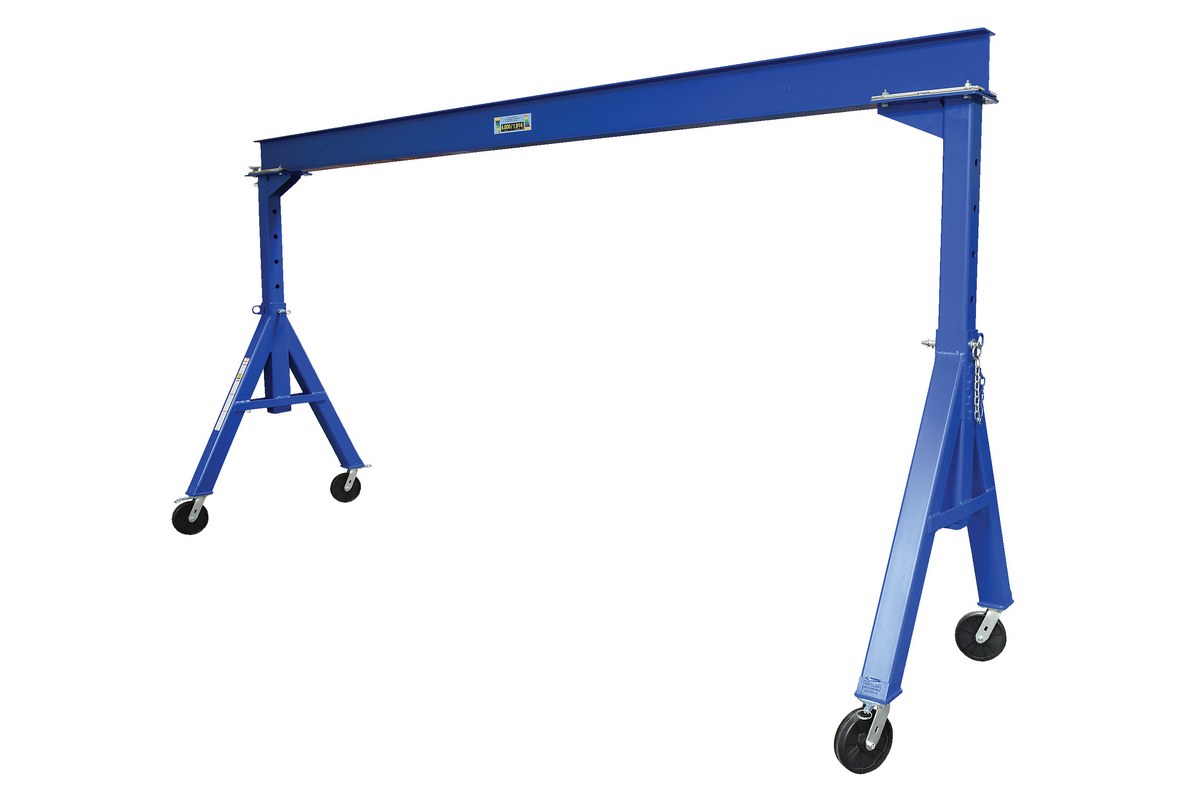

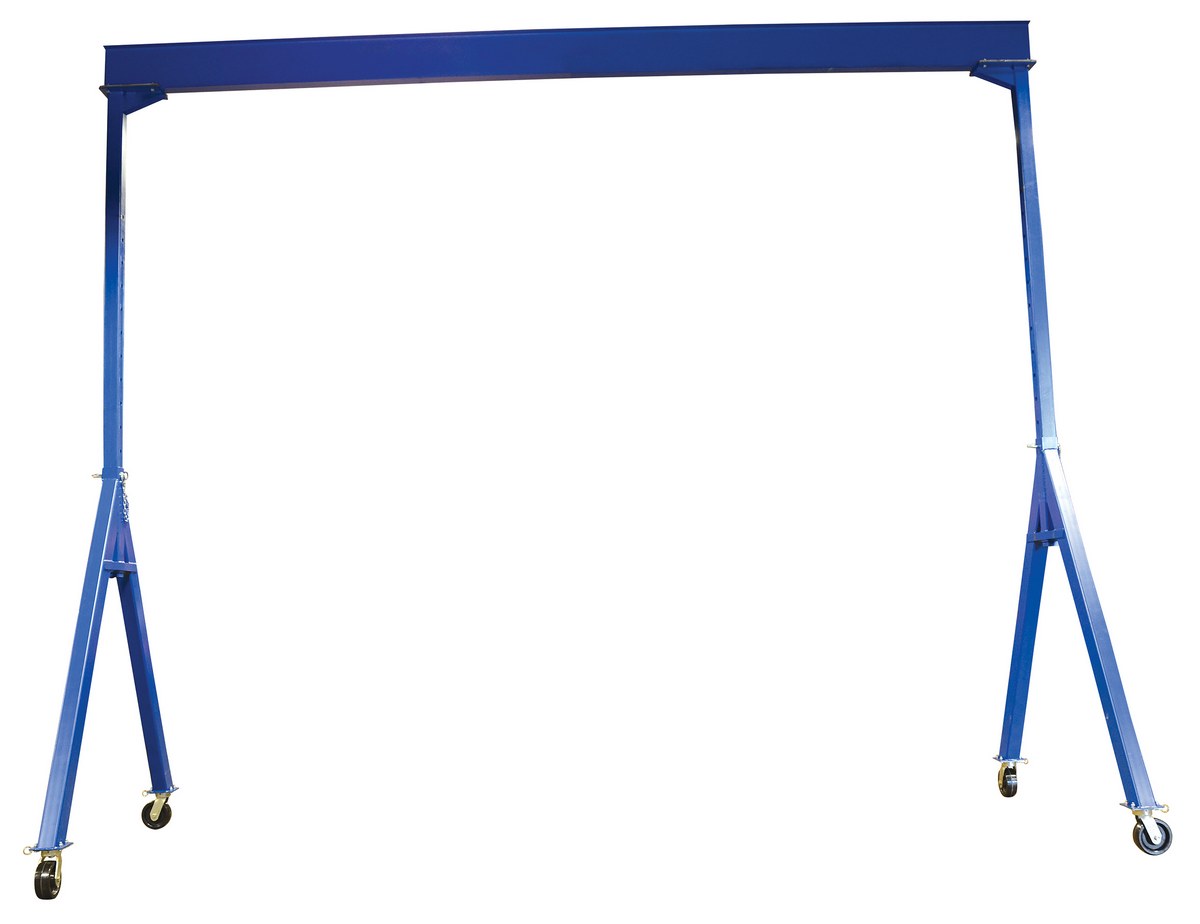

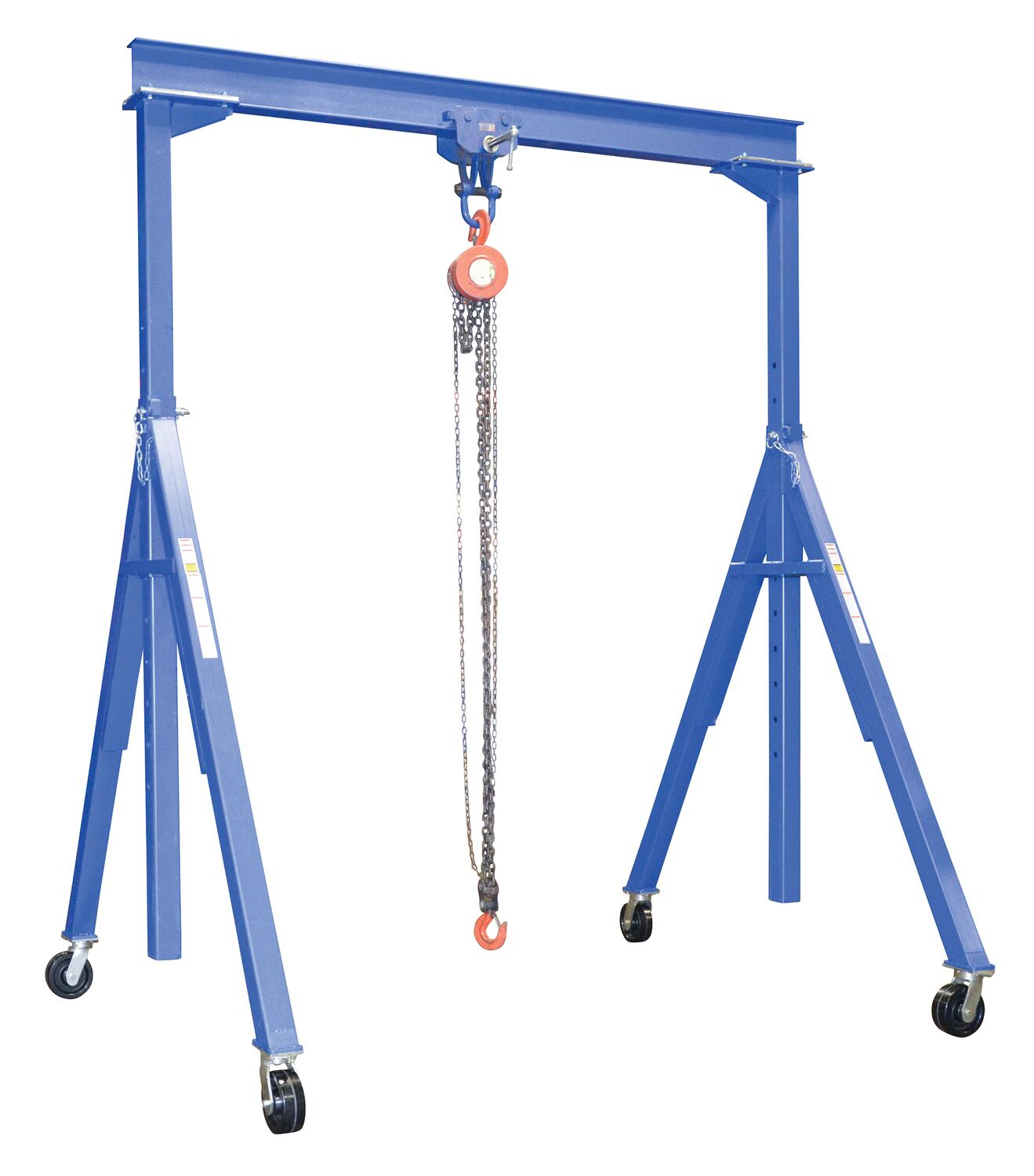

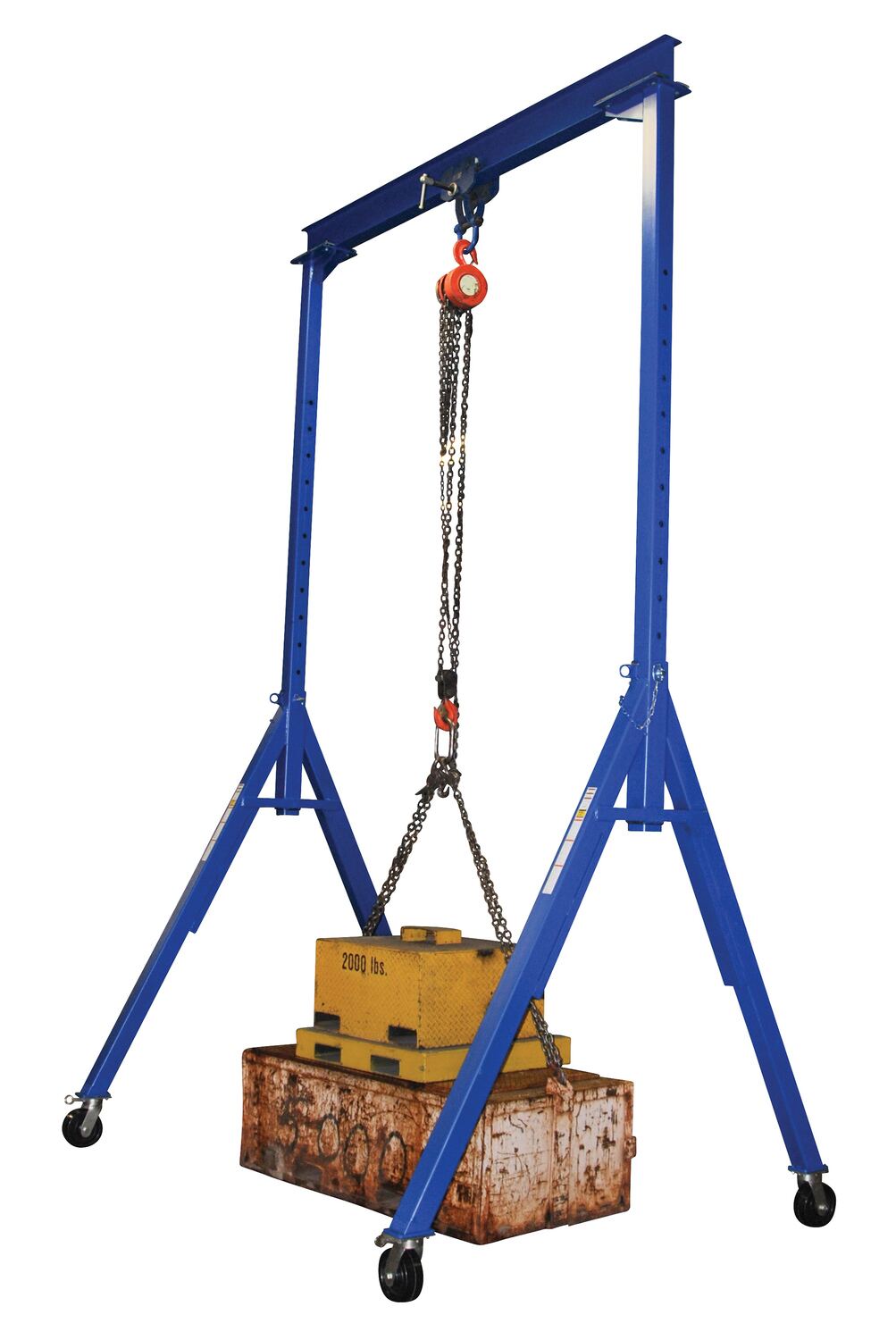

Adjustable Steel Gantry Cranes
SERIES: AHS

Adjustable Steel Gantry Cranes are designed for positioning materials along the beam's length. Facilitate easy mobility from one area to another with four (4) 8" swivel casters with four-position locks. 2K-4K models have glass filled nylon casters, 6K-8K models have phenolic casters, and 10K model has steel casters. The height can be adjusted by a fork truck or other overhead lifting device. For a more simple, one person height adjustment, an optional AHS-KIT may be purchased separately. Height is adjustable in 6" increments. Do not move units while loaded unless using V-Groove Caster and Track Option. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Hoist and trolley sold separately.

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection is left to end user after final assembly has been completed. For further details see ASME B30.17.

Adjustable Steel Gantry Cranes are designed for positioning materials along the beam's length. Facilitate easy mobility from one area to another with four (4) 8" swivel casters with four-position locks. 2K-4K models have glass filled nylon casters, 6K-8K models have phenolic casters, and 10K model has steel casters. The height can be adjusted by a fork truck or other overhead lifting device. For a more simple, one person height adjustment, an optional AHS-KIT may be purchased separately. Height is adjustable in 6" increments. Do not move units while loaded unless using V-Groove Caster and Track Option. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Hoist and trolley sold separately.

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection is left to end user after final assembly has been completed. For further details see ASME B30.17.



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description * Net Wt.
(lbs)
AHS-2-10-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 10 X 12Uniform Capacity (lb.): 2,000710
AHS-2-10-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 10 X 14Uniform Capacity (lb.): 2,000780
AHS-2-10-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 10 X 16Uniform Capacity (lb.): 2,000812
AHS-2-15-7 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 15 X 7Uniform Capacity (lb.): 2,000539
AHS-2-15-9 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 15 X 9Uniform Capacity (lb.): 2,000597
AHS-2-15-10 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 15 X 10Uniform Capacity (lb.): 2,000601
AHS-2-15-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 15 X 12Uniform Capacity (lb.): 2,000698
AHS-2-15-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 15 X 14Uniform Capacity (lb.): 2,000777
AHS-2-15-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 15 X 16Uniform Capacity (lb.): 2,000843
AHS-2-20-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 20 X 12Uniform Capacity (lb.): 2,000707
AHS-2-20-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 20 X 14Uniform Capacity (lb.): 2,000796
AHS-2-20-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 2K 20 X 16Uniform Capacity (lb.): 2,000827
AHS-4-10-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 10 X 12Uniform Capacity (lb.): 4,000710
AHS-4-10-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 10 X 14Uniform Capacity (lb.): 4,000775
AHS-4-10-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 10 X 16Uniform Capacity (lb.): 4,000812
AHS-4-15-7 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 15 X 7Uniform Capacity (lb.): 4,000514
AHS-4-15-9 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 15 X 9Uniform Capacity (lb.): 4,000591
AHS-4-15-10 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 15 X 10Uniform Capacity (lb.): 4,000621
AHS-4-15-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 15 X 12Uniform Capacity (lb.): 4,000705
AHS-4-15-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 15 X 14Uniform Capacity (lb.): 4,000830
AHS-4-15-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 15 X 16Uniform Capacity (lb.): 4,000843
AHS-4-20-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 20 X 12Uniform Capacity (lb.): 4,000695
AHS-4-20-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 20 X 14Uniform Capacity (lb.): 4,000891
AHS-4-20-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 4K 20 X 16Uniform Capacity (lb.): 4,000823
AHS-6-10-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 10 X 12Uniform Capacity (lb.): 6,000777
AHS-6-10-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 10 X 14Uniform Capacity (lb.): 6,000895
AHS-6-10-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 10 X 16Uniform Capacity (lb.): 6,000872
AHS-6-15-7 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 15 X 7Uniform Capacity (lb.): 6,000577
AHS-6-15-9 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 15 X 9Uniform Capacity (lb.): 6,000661
AHS-6-15-10 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 15 X 10Uniform Capacity (lb.): 6,000699
AHS-6-15-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 15 X 12Uniform Capacity (lb.): 6,000784
AHS-6-15-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 15 X 14Uniform Capacity (lb.): 6,000875
AHS-6-15-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 15 X 16Uniform Capacity (lb.): 6,000935
AHS-6-20-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 20 X 12Uniform Capacity (lb.): 6,000793
AHS-6-20-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 20 X 14Uniform Capacity (lb.): 6,000893
AHS-6-20-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 6K 20 X 16Uniform Capacity (lb.): 6,000912
AHS-8-10-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 10 X 12Uniform Capacity (lb.): 8,000783
AHS-8-10-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 10 X 14Uniform Capacity (lb.): 8,000900
AHS-8-10-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 10 X 16Uniform Capacity (lb.): 8,000971
AHS-8-15-7 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 15X 7Uniform Capacity (lb.): 8,000571
AHS-8-15-9 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 15X 9Uniform Capacity (lb.): 8,000672
AHS-8-15-10 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 15X 10Uniform Capacity (lb.): 8,000727
AHS-8-15-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 15 X 12Uniform Capacity (lb.): 8,000811
AHS-8-15-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 15 X 14Uniform Capacity (lb.): 8,000899
AHS-8-15-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 15 X 16Uniform Capacity (lb.): 8,000961
AHS-8-20-12 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 20 X 12Uniform Capacity (lb.): 8,000786
AHS-8-20-14 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 20 X 14Uniform Capacity (lb.): 8,000894
AHS-8-20-16 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 8K 20 X 16Uniform Capacity (lb.): 8,000962
AHS-10-15-10 1 Year Limited WarrantyADJ HEIGHT STEEL GANTRY CRANE 10K 15 X10Uniform Capacity (lb.): 10,000839

* Usable Distance Between Uprights is Overall Beam Length Minus 12" * Usable Trolley Travel Length is Overall Beam Length Minus 30"

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below
Adjustable Height Steel Gantry Cranes
Model Image PDF's Overall I-Beam Length/ Height Under I-Beam Usable Height Base Width I-Beam Flange Width Capacity (lbs) Wt. (lbs)
AHS-2-10-12 icon_approvaldrawings.jpgWarranty PDF 10' /6" 7'6"to 12' 76-1/8" 4" 2,000 828
AHS-2-10-14 icon_approvaldrawings.jpgWarranty PDF 10' /6" 8'6"to14' 88-1/2" 4" 2,000 898
AHS-2-10-16 icon_approvaldrawings.jpgWarranty PDF 10/6" 10'6"to16' 88-1/2" 4" 2,000 930
AHS-2-15-7 icon_approvaldrawings.jpgWarranty PDF 15' /6" 5'to7' 46-3/8" 4" 2,000 716
AHS-2-15-9 icon_approvaldrawings.jpgWarranty PDF 15' /6" 6'to9' 58-3/8" 4" 2,000 774
AHS-2-15-10 icon_approvaldrawings.jpgWarranty PDF 15' /6" 6'6"to10' 64-1/4" 4" 2,000 778
AHS-2-15-12 icon_approvaldrawings.jpgWarranty PDF 15' /6" 7'6"to 12' 76-1/8" 4" 2,000 875
AHS-2-15-14 icon_approvaldrawings.jpgWarranty PDF 15' /6" 8'6"to14' 88-1/2" 4" 2,000 954
AHS-2-15-16 icon_approvaldrawings.jpgWarranty PDF 15' /6" 10'6"to16' 88-1/2" 4" 2,000 1020
AHS-2-20-12 icon_approvaldrawings.jpgWarranty PDF 20' /10-1/8" 7'6"to 12' 76-1/8" 4" 2,000 1074
AHS-2-20-14 icon_approvaldrawings.jpgWarranty PDF 20' /10-1/8" 8'6"to14' 88-1/2" 4" 2,000 1163
AHS-2-20-16 icon_approvaldrawings.jpgWarranty PDF 20' /10-1/8" 10'6"to16' 88-1/2" 4" 2,000 1194
AHS-4-10-12 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 7'6"to 12' 76-1/8" 4" 4,000 860
AHS-4-10-14 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 8'6"to14' 88-1/2" 4" 4,000 925
AHS-4-10-16 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 10'6"to16' 88-1/2" 4" 4,000 962
AHS-4-15-7 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 5'to7' 46-3/8" 4" 4,000 739
AHS-4-15-9 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 6'to9' 58-3/8" 4" 4,000 816
AHS-4-15-10 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 6'6"to10' 64-1/4" 4" 4,000 846
AHS-4-15-12 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 7'6"to 12' 76-1/8" 4" 4,000 930
AHS-4-15-14 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 8'6"to14' 88-1/2" 4" 4,000 1055
AHS-4-15-16 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 10'6"to16' 88-1/2" 4" 4,000 1068
AHS-4-20-12 icon_approvaldrawings.jpgWarranty PDF 20' /12-3/16" 7'6"to 12' 76-1/8" 4" 4,000 1076
AHS-4-20-14 icon_approvaldrawings.jpgWarranty PDF 20' /12-3/16" 8'6"to14' 88-1/2" 4" 4,000 1155
AHS-4-20-16 icon_approvaldrawings.jpgWarranty PDF 20' /12-3/16" 10'6"to16' 88-1/2" 4" 4,000 1204
AHS-6-10-12 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 7'7"to 12'1" 77-3/8" 4" 6,000 927
AHS-6-10-14 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 8'7"to14"1" 89-3/4" 4" 6,000 1045
AHS-6-10-16 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 10'7"to16'1" 89-3/4" 4" 6,000 1022
AHS-6-15-7 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 5'1"to7'1" 47-5/8" 4" 6,000 810
AHS-6-15-9 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 6'1"to9'1" 59-5/8" 4" 6,000 894
AHS-6-15-10 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 6'7"to10'1" 65-1/2" 4" 6,000 932
AHS-6-15-12 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 7'7"to 12'1" 77-3/8" 4" 6,000 1017
AHS-6-15-14 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 8'7"to14'1" 89-3/4" 4" 6,000 1108
AHS-6-15-16 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 10'7"to16'1" 89-3/4" 4" 6,000 1168
AHS-6-20-12 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 7'7"to 12'1" 77-3/8" 6-1/2" 6,000 1413
AHS-6-20-14 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 8'7"to14'1" 89-3/4" 6-1/2" 6,000 1513
AHS-6-20-16 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 10'7"to16'1" 89-3/4" 6-1/2" 6,000 1532
AHS-8-10-12 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 7'7"to 12'1" 76-1/8" 4" 8,000 933
AHS-8-10-14 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 8'7"to14'1" 88-1/2" 4" 8,000 1050
AHS-8-10-16 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 10'7"to16'1" 88-1/2" 4" 8,000 1121
AHS-8-15-7 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 5'1"to7'1" 46-3/8" 4" 8,000 804
AHS-8-15-9 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 6'1"to9'1" 58-3/8" 4" 8,000 905
AHS-8-15-10 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 6'7"to10'1" 64-1/4" 4" 8,000 960
AHS-8-15-12 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 7'7"to 12'1" 76-1/8" 4" 8,000 1044
AHS-8-15-14 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 8'7"to14'1" 88-1/2" 4" 8,000 1132
AHS-8-15-16 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 10'7"to16'1" 88-1/2" 4" 8,000 1194
AHS-8-20-12 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 7'7"to 12'1" 76-1/8" 6-1/2" 8,000 1406
AHS-8-20-14 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 8'7"to14'1" 88-1/2" 6-1/2" 8,000 1514
AHS-8-20-16 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 10'7"to16'1" 88-1/2" 6-1/2" 8,000 1582
AHS-10-15-10* icon_approvaldrawings.jpgWarranty PDF 15' /12-1/8" 6'6"to10' 64-1/2" 4" 10,000 1352

Usable Distance Between Uprights is Overall Beam Length Minus 12"
Usable Trolley Travel Length is Overall Beam Length Minus 30"

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Steel Gantry Crane Options
Model Image PDFs Description
AHS-2/4-TLC - Total Locking Casters (for 2,000 & 4,000 lb. capacity cranes only) (set of 4)
AHS-6/8-TLC - Total Locking Casters (for 6,000 & 8,000 lb. capacity cranes only) (set of 4)
AHS-2/4-V - 8"x2" V-Groove Casters for 2,000 & 4,000 lbs. units (set of 4)
AHS-6/8-V - 8"x3" V-Groove Casters for 6,000 & 8,000 lbs. units (set of 4)

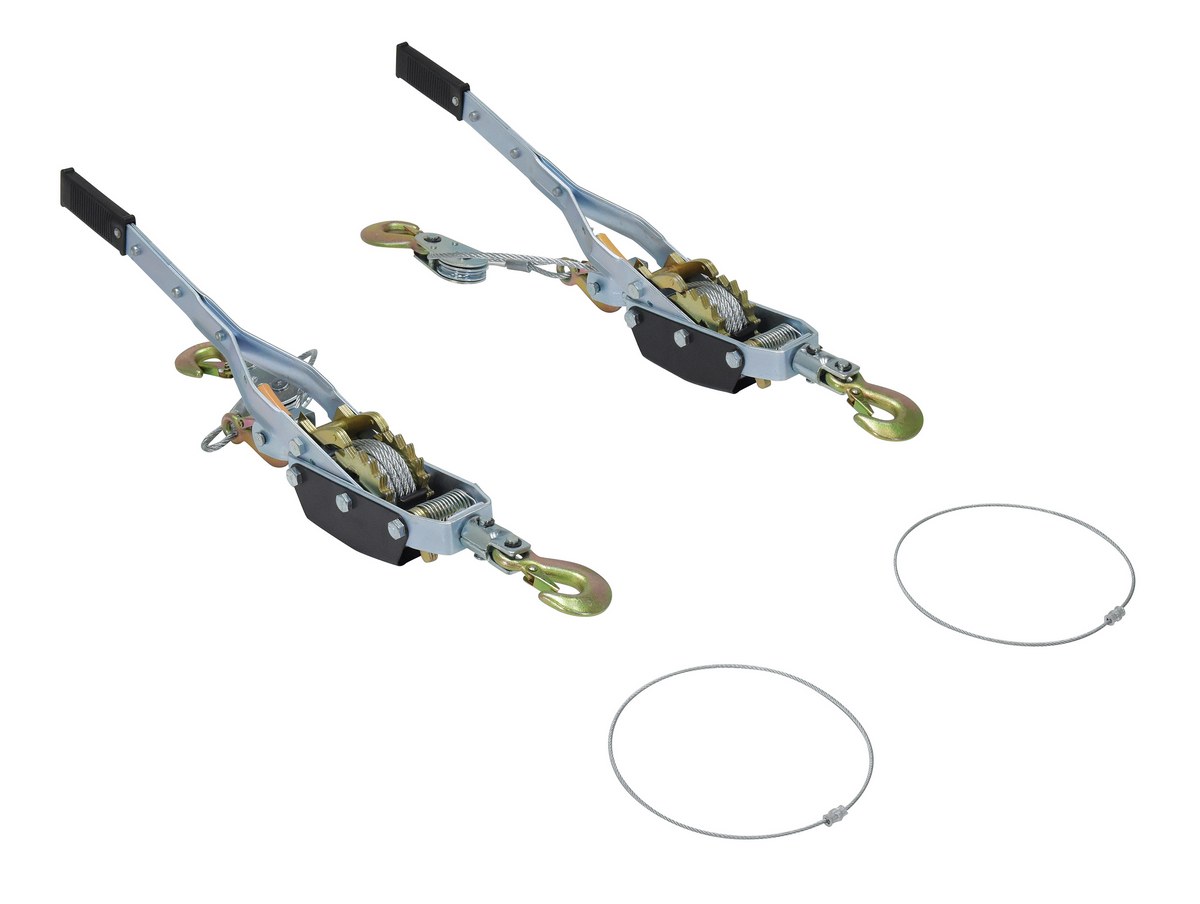

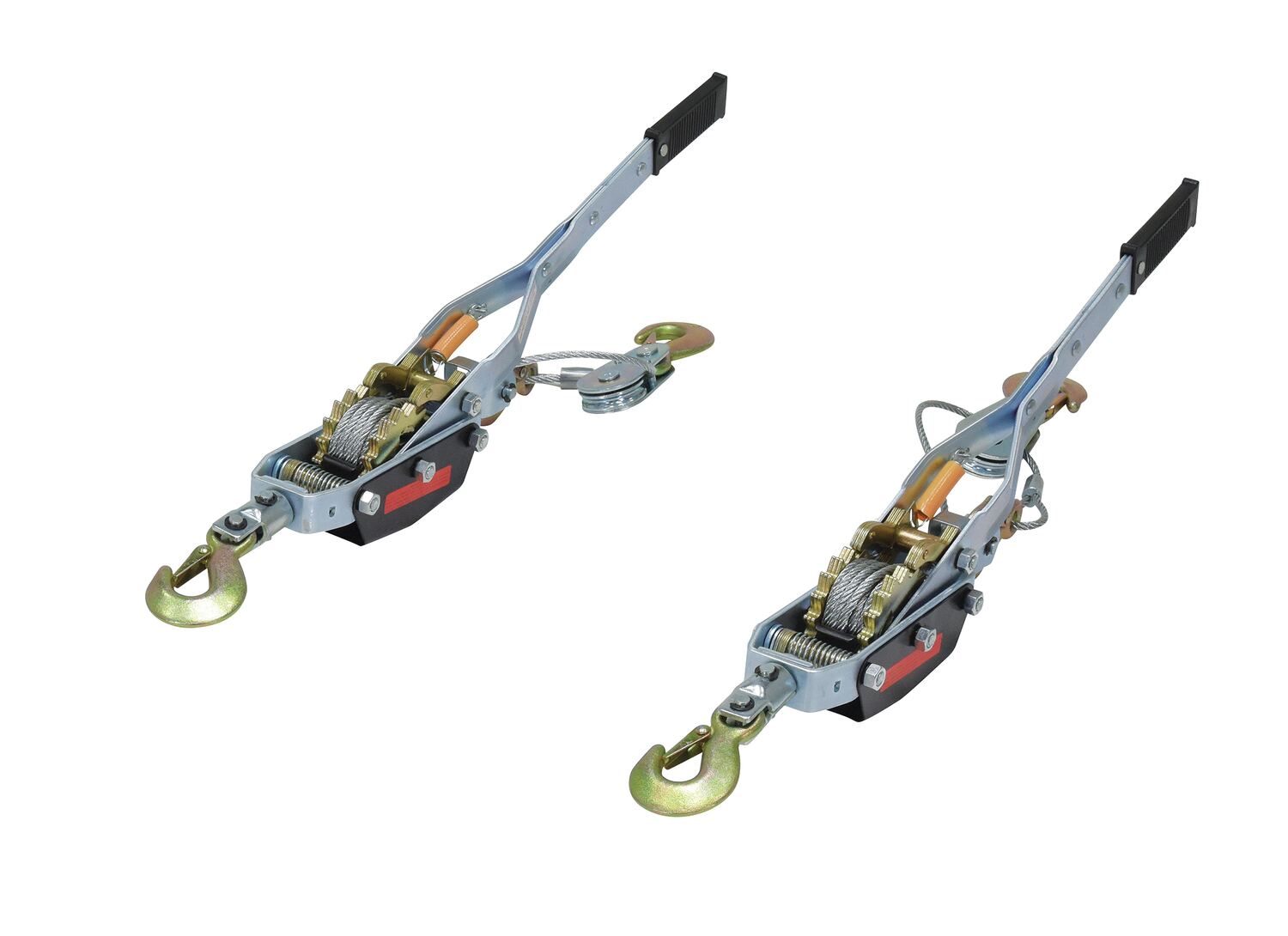

AHS-KIT - (2) Come-A-Longs for height adjustment (Not for lifting)

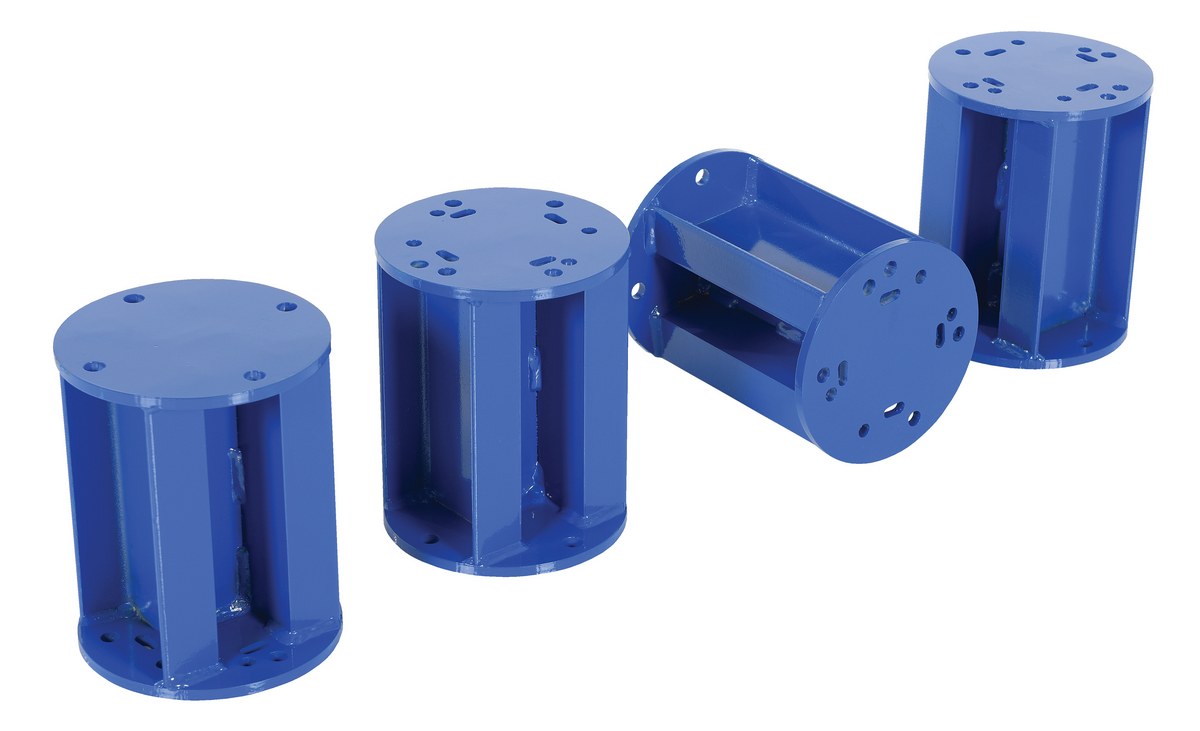

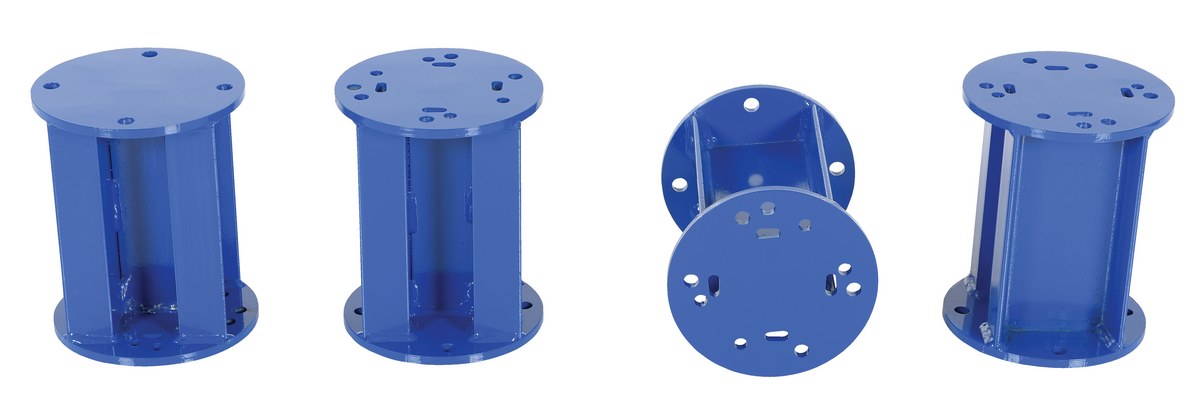

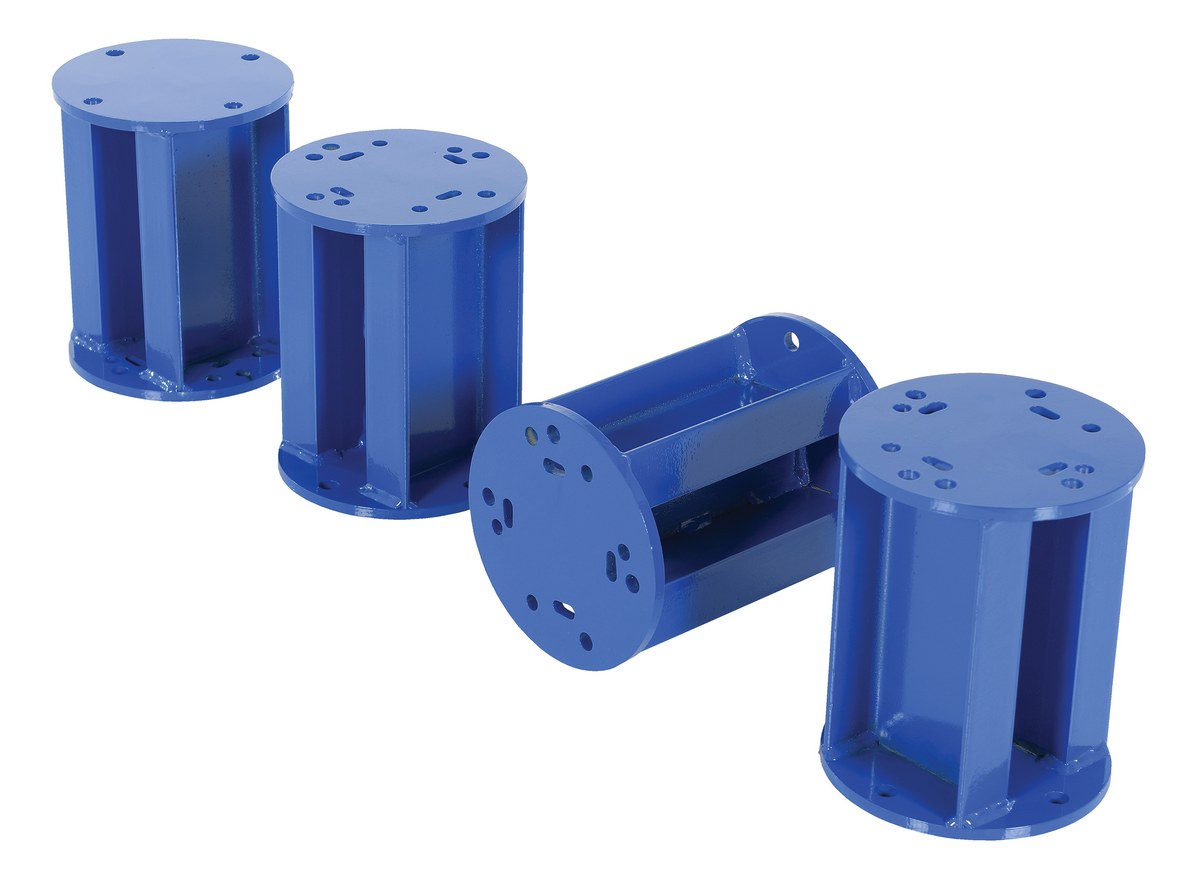

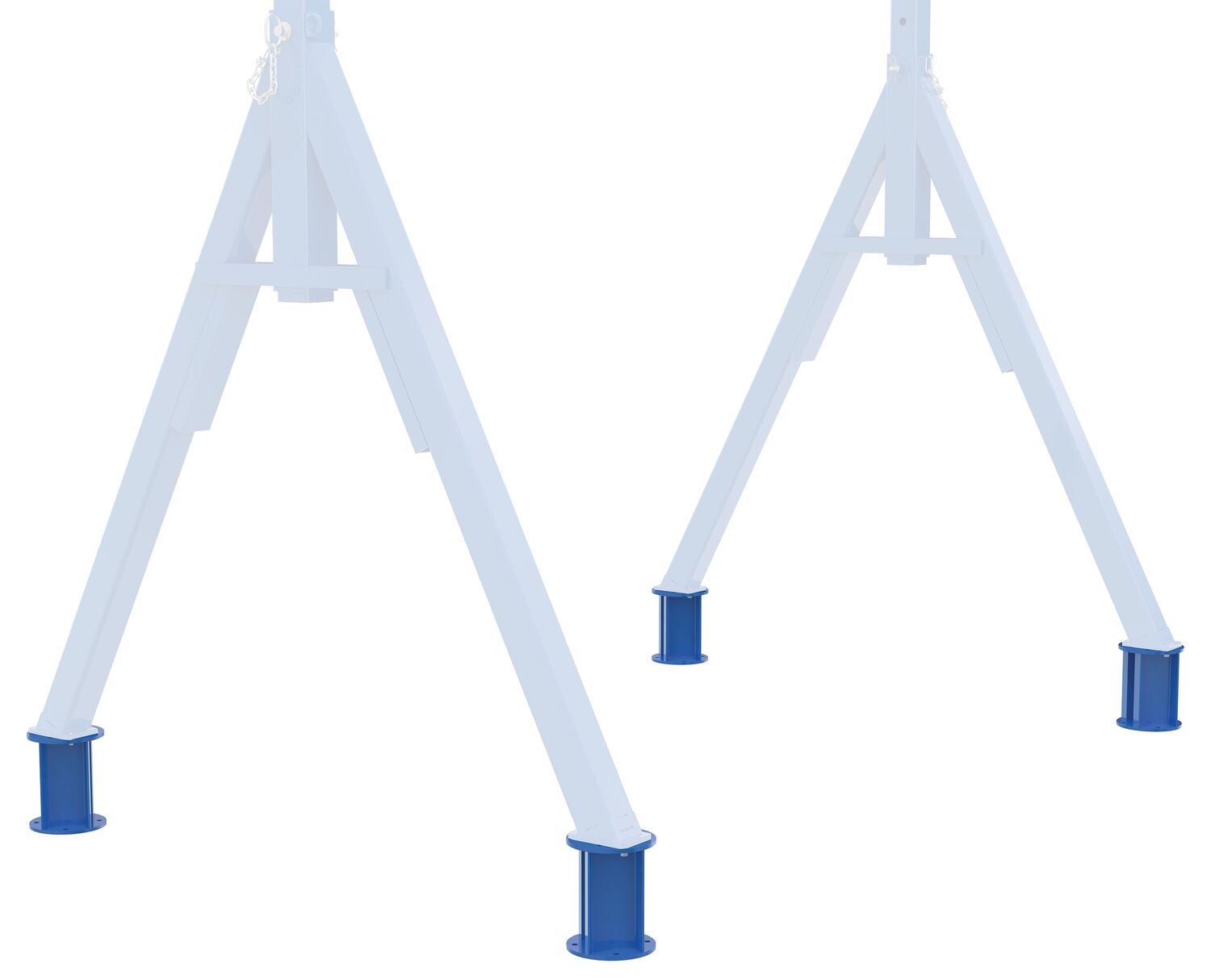

AHS-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed) *Not compatible with ASH-10-15-10*
AHS-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed) *Not compatible with ASH-10-15-10*
GPTD-2 icon_approvaldrawings.jpg 2,000 to 4,000 lbs. capacity / standard with 3 button hand control
GPTD-4 icon_approvaldrawings.jpg 6,000 to 8,000 lbs capacity / standard with 3 button hand control
V-TRACK
icon_approvaldrawings.jpg 10 foot section of v-groove track (One side only)

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Adjustable Steel Gantry Cranes PDF's will open in a new window when clicked.

Survey Sheets


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: Does the gantry come with a hoist?

A: The hoists and trolleys for the adjustable height steel gantry cranes are sold separately. You'll find multiple options available.


Q: If we order the V-Groove system, is it possible to keep the gantry on the rail if we only have one person pushing the crane on one side?

A: We recommend pushing the gantry on both sides when re-positioning it. The V-groove options makes moving much easier.


Q: Can the uprights be attached to the I-Beam in multiple locations to adjust the usable width?

A: The vertical upright can be positioned inward on the I-Beam for a shorter usable width.


Q: What type of I-Beam is used on the AHS?

A: W Beams are used on the adjustable height steel gantry cranes.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Adjustable Steel Gantry Cranes




Adjustable Steel Gantry Cranes are designed for positioning materials along the beam's length. Facilitate easy mobility from one area to another with four (4) 8" swivel casters with four-position locks. 2K-4K models have glass filled nylon casters, 6K-8K models have phenolic casters, and 10K model has steel casters. The height can be adjusted by a fork truck or other overhead lifting device. For a more simple, one person height adjustment, an optional AHS-KIT may be purchased separately. Height is adjustable in 6" increments. Do not move units while loaded unless using V-Groove Caster and Track Option. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Hoist and trolley sold separately.

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection is left to end user after final assembly has been completed. For further details see ASME B30.17.

Adjustable Height Steel Gantry Cranes
Model Image PDF's Overall I-Beam Length/ Height Under I-Beam Usable Height Base Width I-Beam Flange Width Capacity (lbs) Wt. (lbs)
AHS-2-10-12 icon_approvaldrawings.jpgWarranty PDF 10' /6" 7'6"to 12' 76-1/8" 4" 2,000 828
AHS-2-10-14 icon_approvaldrawings.jpgWarranty PDF 10' /6" 8'6"to14' 88-1/2" 4" 2,000 898
AHS-2-10-16 icon_approvaldrawings.jpgWarranty PDF 10/6" 10'6"to16' 88-1/2" 4" 2,000 930
AHS-2-15-7 icon_approvaldrawings.jpgWarranty PDF 15' /6" 5'to7' 46-3/8" 4" 2,000 716
AHS-2-15-9 icon_approvaldrawings.jpgWarranty PDF 15' /6" 6'to9' 58-3/8" 4" 2,000 774
AHS-2-15-10 icon_approvaldrawings.jpgWarranty PDF 15' /6" 6'6"to10' 64-1/4" 4" 2,000 778
AHS-2-15-12 icon_approvaldrawings.jpgWarranty PDF 15' /6" 7'6"to 12' 76-1/8" 4" 2,000 875
AHS-2-15-14 icon_approvaldrawings.jpgWarranty PDF 15' /6" 8'6"to14' 88-1/2" 4" 2,000 954
AHS-2-15-16 icon_approvaldrawings.jpgWarranty PDF 15' /6" 10'6"to16' 88-1/2" 4" 2,000 1020
AHS-2-20-12 icon_approvaldrawings.jpgWarranty PDF 20' /10-1/8" 7'6"to 12' 76-1/8" 4" 2,000 1074
AHS-2-20-14 icon_approvaldrawings.jpgWarranty PDF 20' /10-1/8" 8'6"to14' 88-1/2" 4" 2,000 1163
AHS-2-20-16 icon_approvaldrawings.jpgWarranty PDF 20' /10-1/8" 10'6"to16' 88-1/2" 4" 2,000 1194
AHS-4-10-12 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 7'6"to 12' 76-1/8" 4" 4,000 860
AHS-4-10-14 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 8'6"to14' 88-1/2" 4" 4,000 925
AHS-4-10-16 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 10'6"to16' 88-1/2" 4" 4,000 962
AHS-4-15-7 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 5'to7' 46-3/8" 4" 4,000 739
AHS-4-15-9 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 6'to9' 58-3/8" 4" 4,000 816
AHS-4-15-10 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 6'6"to10' 64-1/4" 4" 4,000 846
AHS-4-15-12 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 7'6"to 12' 76-1/8" 4" 4,000 930
AHS-4-15-14 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 8'6"to14' 88-1/2" 4" 4,000 1055
AHS-4-15-16 icon_approvaldrawings.jpgWarranty PDF 15' /8-1/8" 10'6"to16' 88-1/2" 4" 4,000 1068
AHS-4-20-12 icon_approvaldrawings.jpgWarranty PDF 20' /12-3/16" 7'6"to 12' 76-1/8" 4" 4,000 1076
AHS-4-20-14 icon_approvaldrawings.jpgWarranty PDF 20' /12-3/16" 8'6"to14' 88-1/2" 4" 4,000 1155
AHS-4-20-16 icon_approvaldrawings.jpgWarranty PDF 20' /12-3/16" 10'6"to16' 88-1/2" 4" 4,000 1204
AHS-6-10-12 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 7'7"to 12'1" 77-3/8" 4" 6,000 927
AHS-6-10-14 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 8'7"to14"1" 89-3/4" 4" 6,000 1045
AHS-6-10-16 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 10'7"to16'1" 89-3/4" 4" 6,000 1022
AHS-6-15-7 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 5'1"to7'1" 47-5/8" 4" 6,000 810
AHS-6-15-9 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 6'1"to9'1" 59-5/8" 4" 6,000 894
AHS-6-15-10 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 6'7"to10'1" 65-1/2" 4" 6,000 932
AHS-6-15-12 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 7'7"to 12'1" 77-3/8" 4" 6,000 1017
AHS-6-15-14 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 8'7"to14'1" 89-3/4" 4" 6,000 1108
AHS-6-15-16 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 10'7"to16'1" 89-3/4" 4" 6,000 1168
AHS-6-20-12 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 7'7"to 12'1" 77-3/8" 6-1/2" 6,000 1413
AHS-6-20-14 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 8'7"to14'1" 89-3/4" 6-1/2" 6,000 1513
AHS-6-20-16 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 10'7"to16'1" 89-3/4" 6-1/2" 6,000 1532
AHS-8-10-12 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 7'7"to 12'1" 76-1/8" 4" 8,000 933
AHS-8-10-14 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 8'7"to14'1" 88-1/2" 4" 8,000 1050
AHS-8-10-16 icon_approvaldrawings.jpgWarranty PDF 10' /8-1/8" 10'7"to16'1" 88-1/2" 4" 8,000 1121
AHS-8-15-7 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 5'1"to7'1" 46-3/8" 4" 8,000 804
AHS-8-15-9 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 6'1"to9'1" 58-3/8" 4" 8,000 905
AHS-8-15-10 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 6'7"to10'1" 64-1/4" 4" 8,000 960
AHS-8-15-12 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 7'7"to 12'1" 76-1/8" 4" 8,000 1044
AHS-8-15-14 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 8'7"to14'1" 88-1/2" 4" 8,000 1132
AHS-8-15-16 icon_approvaldrawings.jpgWarranty PDF 15' /10-1/8" 10'7"to16'1" 88-1/2" 4" 8,000 1194
AHS-8-20-12 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 7'7"to 12'1" 76-1/8" 6-1/2" 8,000 1406
AHS-8-20-14 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 8'7"to14'1" 88-1/2" 6-1/2" 8,000 1514
AHS-8-20-16 icon_approvaldrawings.jpgWarranty PDF 20' /12-5/16" 10'7"to16'1" 88-1/2" 6-1/2" 8,000 1582
AHS-10-15-10* icon_approvaldrawings.jpgWarranty PDF 15' /12-1/8" 6'6"to10' 64-1/2" 4" 10,000 1352

Usable Distance Between Uprights is Overall Beam Length Minus 12"
Usable Trolley Travel Length is Overall Beam Length Minus 30"


Options


Steel Gantry Crane Options
Model Image PDFs Description
AHS-2/4-TLC - Total Locking Casters (for 2,000 & 4,000 lb. capacity cranes only) (set of 4)
AHS-6/8-TLC - Total Locking Casters (for 6,000 & 8,000 lb. capacity cranes only) (set of 4)
AHS-2/4-V - 8"x2" V-Groove Casters for 2,000 & 4,000 lbs. units (set of 4)
AHS-6/8-V - 8"x3" V-Groove Casters for 6,000 & 8,000 lbs. units (set of 4)
AHS-KIT - (2) Come-A-Longs for height adjustment (Not for lifting)
AHS-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed) *Not compatible with ASH-10-15-10*
AHS-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed) *Not compatible with ASH-10-15-10*
GPTD-2 icon_approvaldrawings.jpg 2,000 to 4,000 lbs. capacity / standard with 3 button hand control
GPTD-4 icon_approvaldrawings.jpg 6,000 to 8,000 lbs capacity / standard with 3 button hand control
V-TRACK
icon_approvaldrawings.jpg 10 foot section of v-groove track (One side only)

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com

VESTIL.COM
