Magnetic Lifters

- - - -

Description
Model Chart
PDF's
Image Gallery
ML-6_A.jpg ML-6_B.jpg ML-6_C.jpg ML-6_D.jpg
ML-6_E.jpg ML-6_F.jpg
Magnetic Lifters

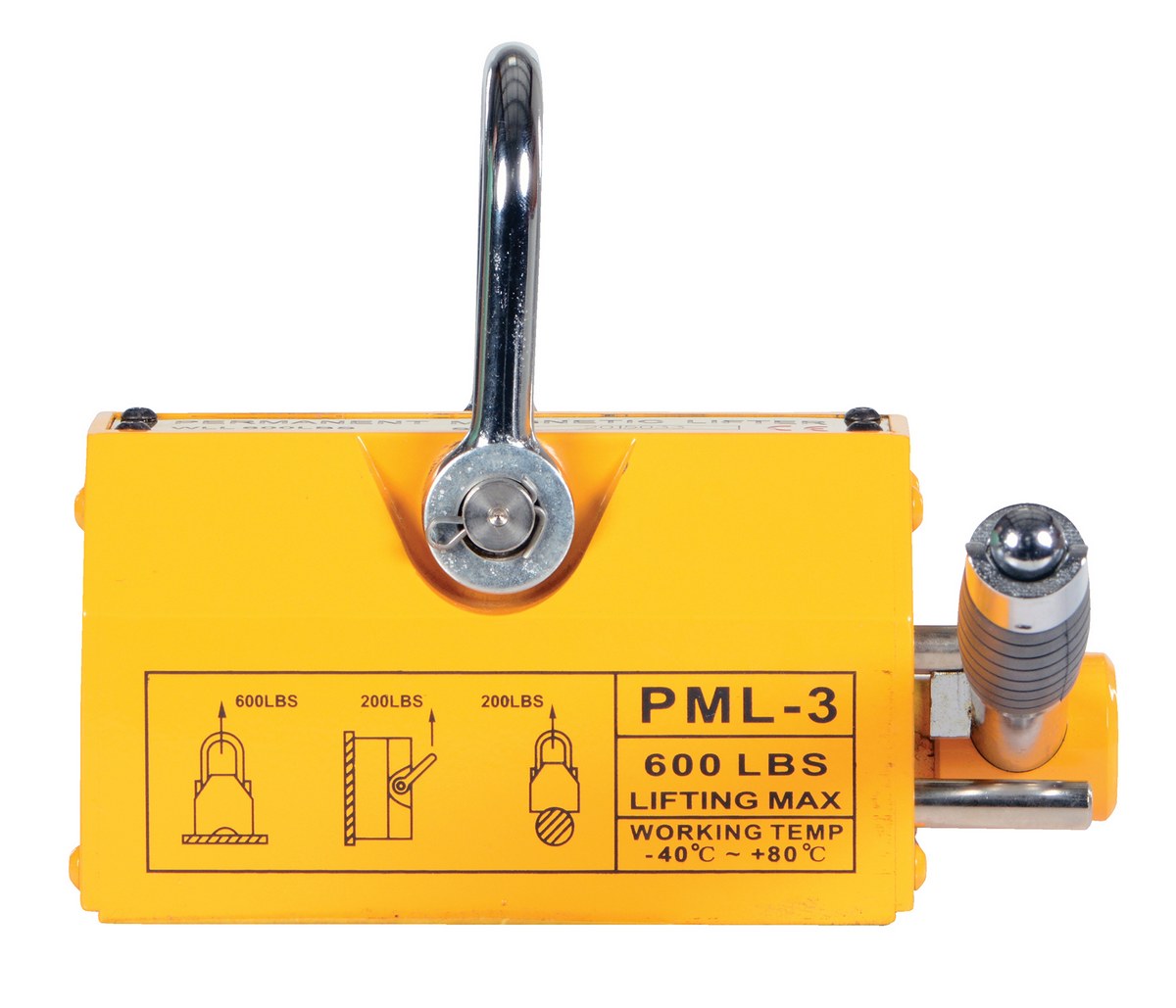

model: ML-6



Magnetic Lifters

model: ML-6

Featured Overhead Lifting


Chain Hoists - Electric
Pallet Lifters
Portable Jib Cranes
Adjustable Steel Gantry Cranes with V-Groove Casters - Knockdown
Short Span Steel Lifting Plate
Horizontal Plate Clamps
Jib Cranes
Non-Sparking Chain Hoists
Heavy-Duty Pipe Grabs
model chart

Product Family Overview

Print Friendly
Magnetic Lifters
SERIES: ML

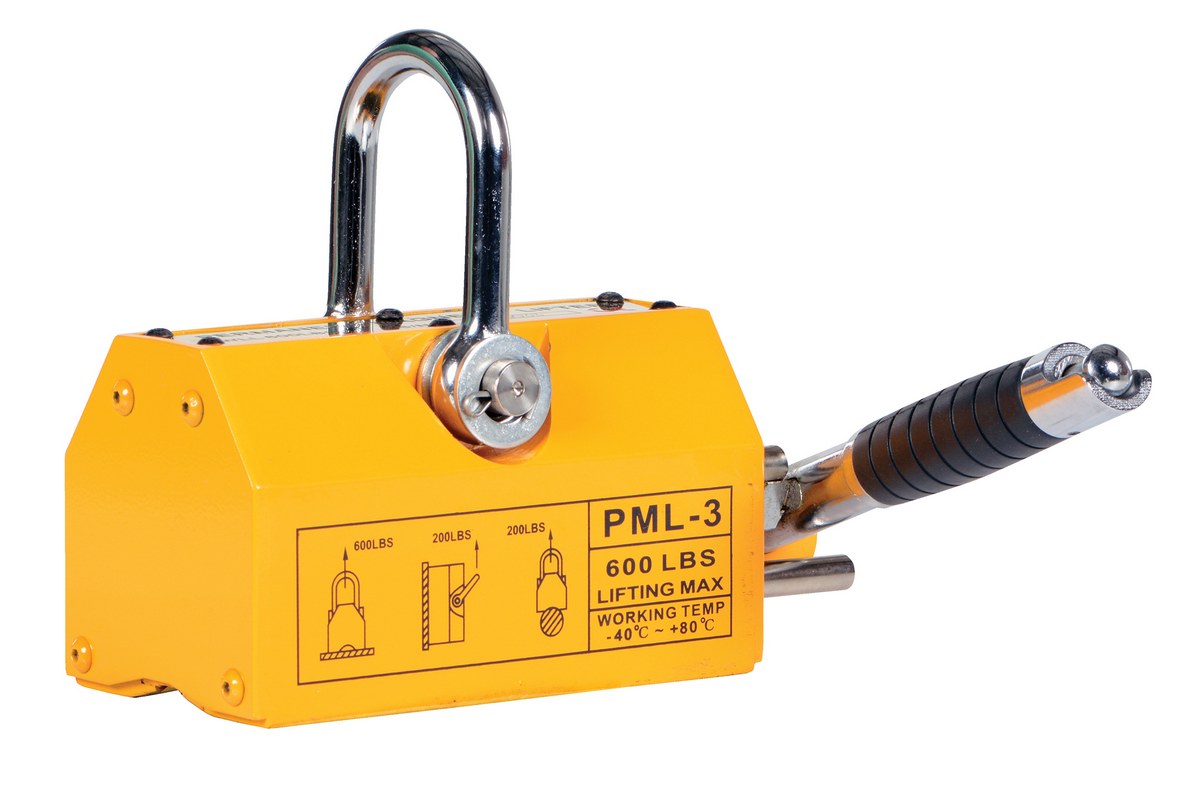

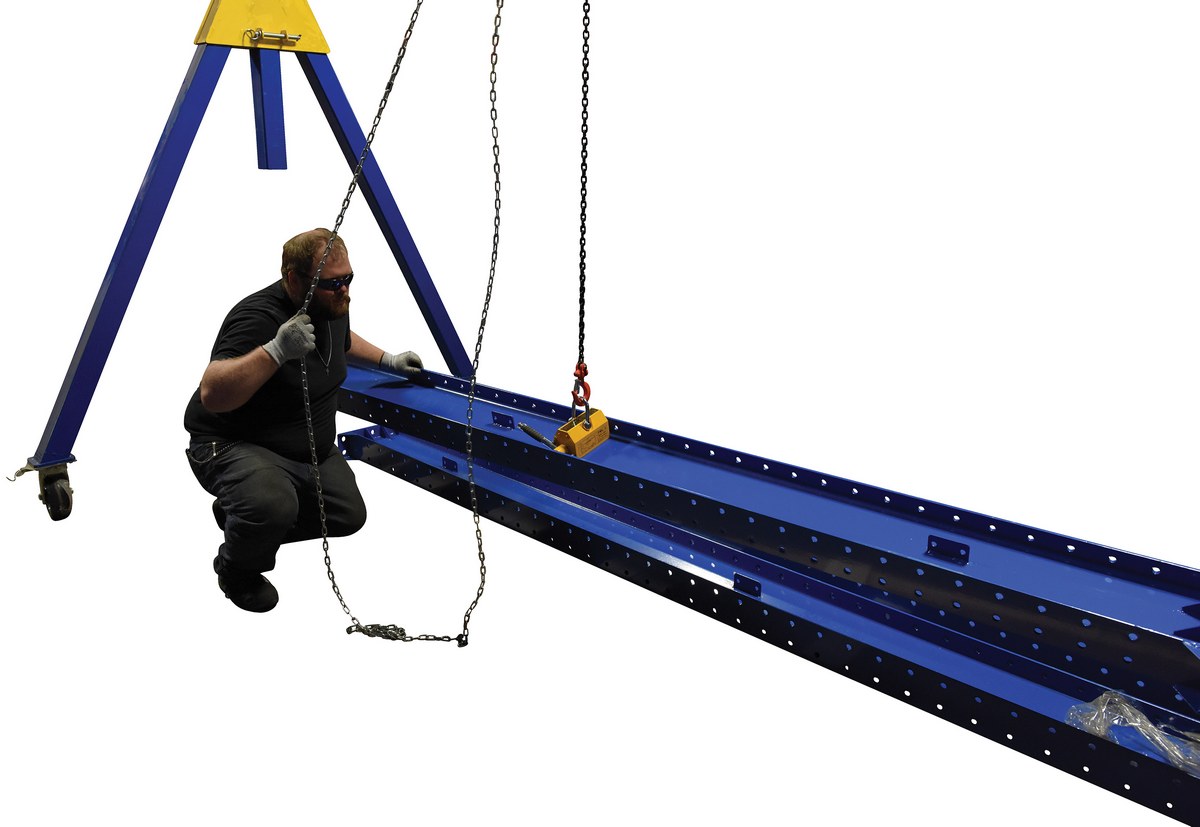

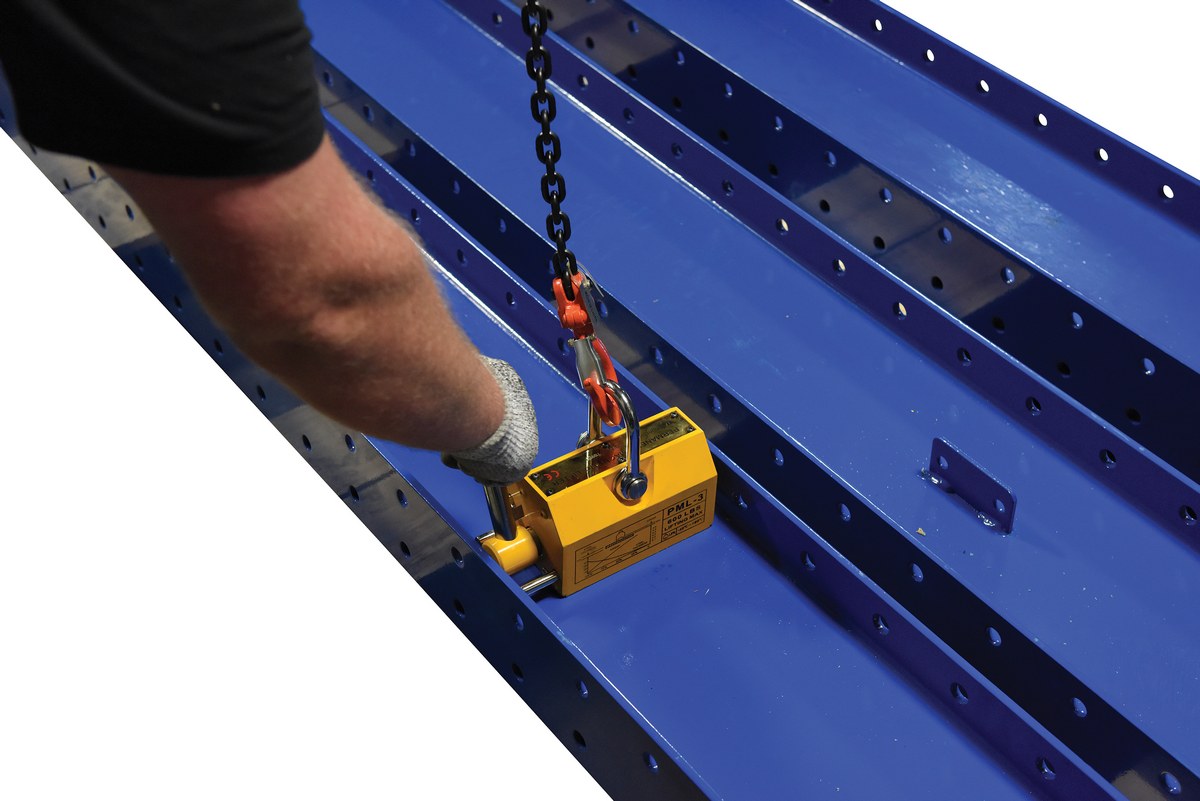

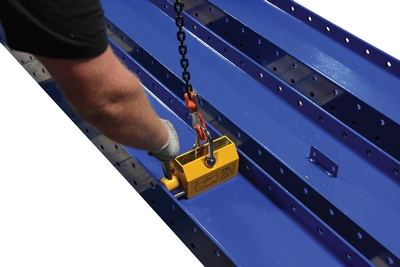

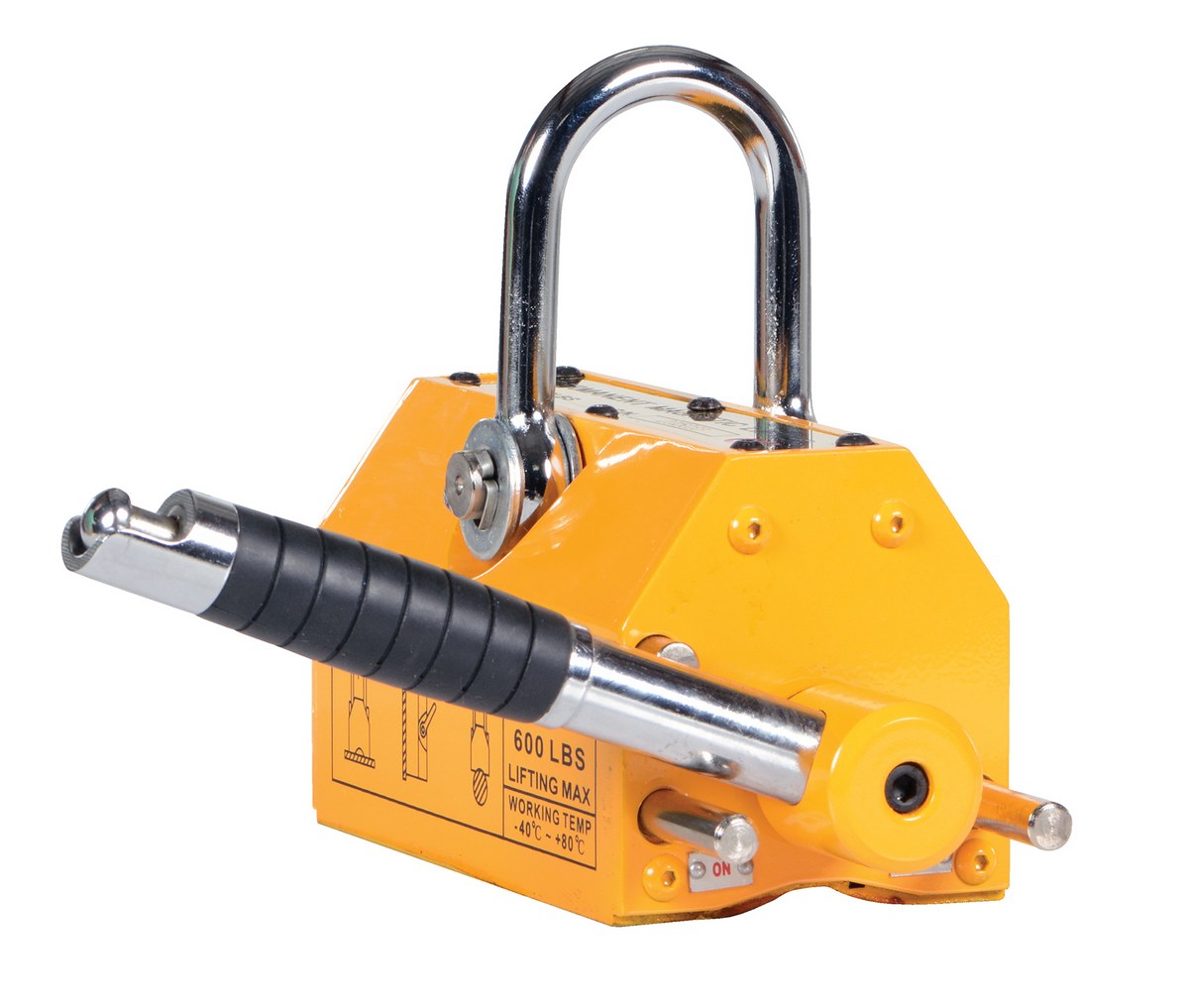

ML-6Pick up sheets of material by use of overhead crane or chain with the permanent Magnetic Lifter. Magnet is activated or deactivated by simply rotating the lever. Units are lightweight, so transporting from work area to work area is convenient.

  • Pick up sheets of material by use of overhead crane or chain
  • Magnet is activated or deactivated by simply rotating the lever
  • Transporting from work area to work area is convenient
  • Lifter is permanent lightweight

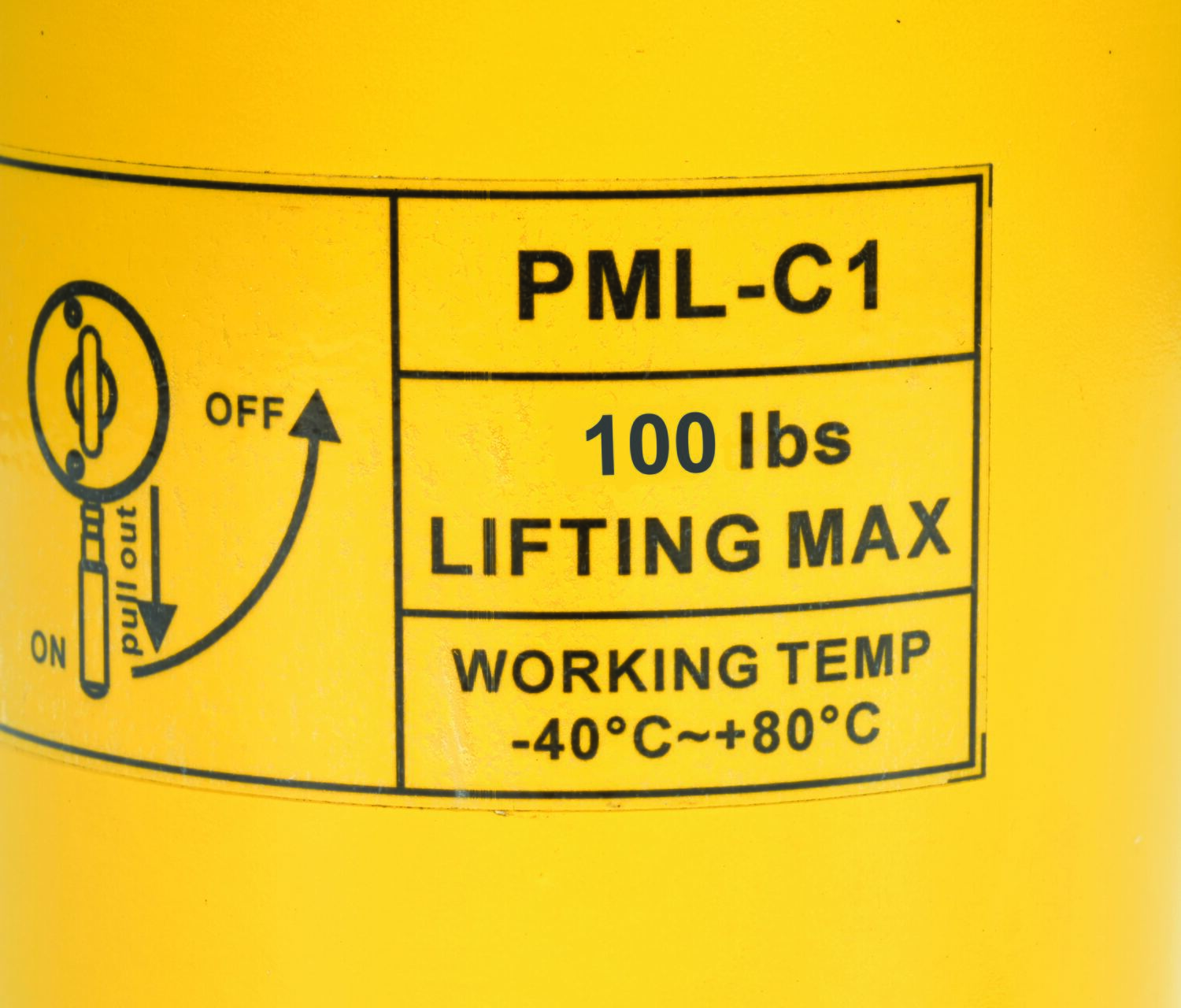

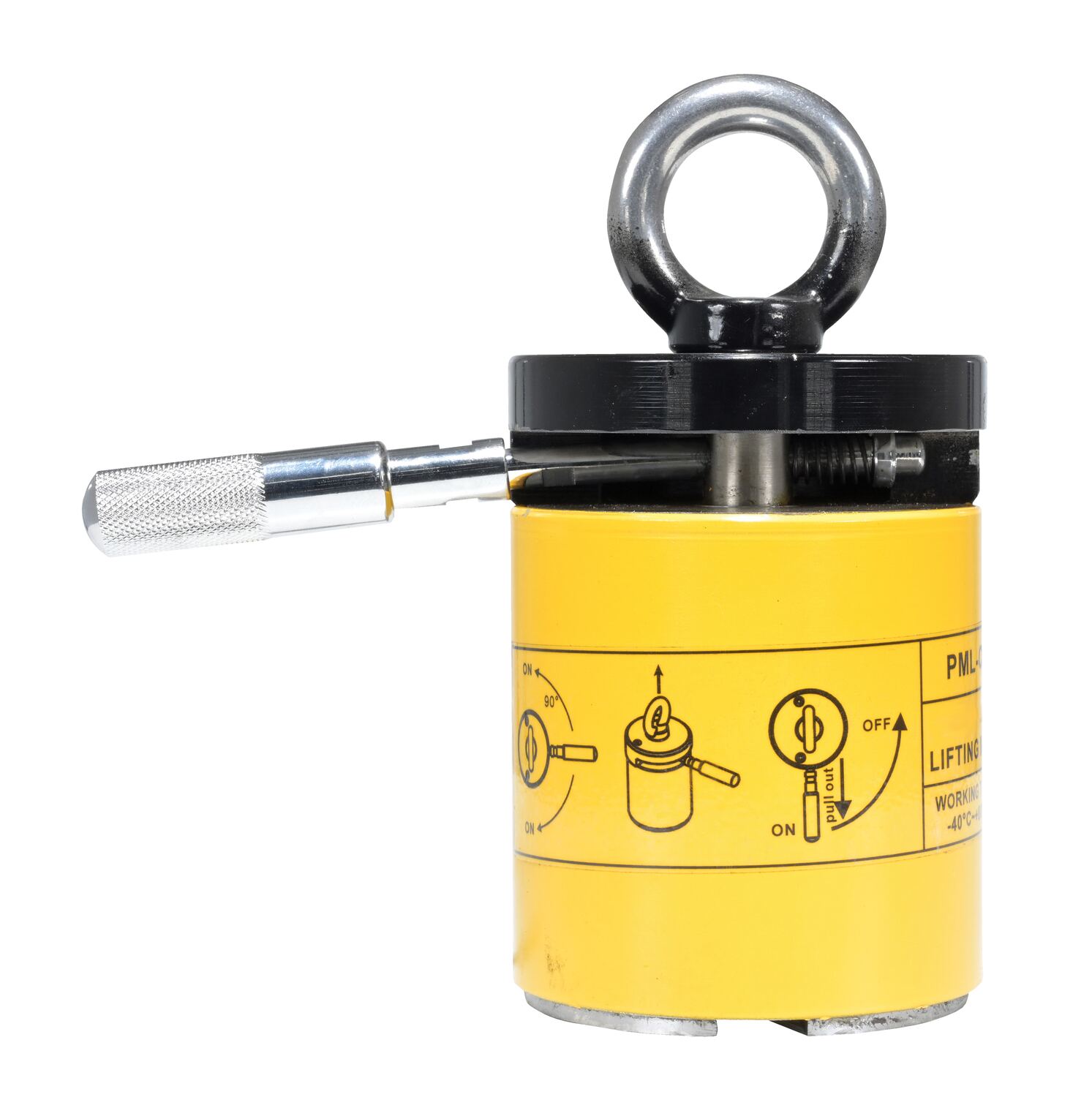

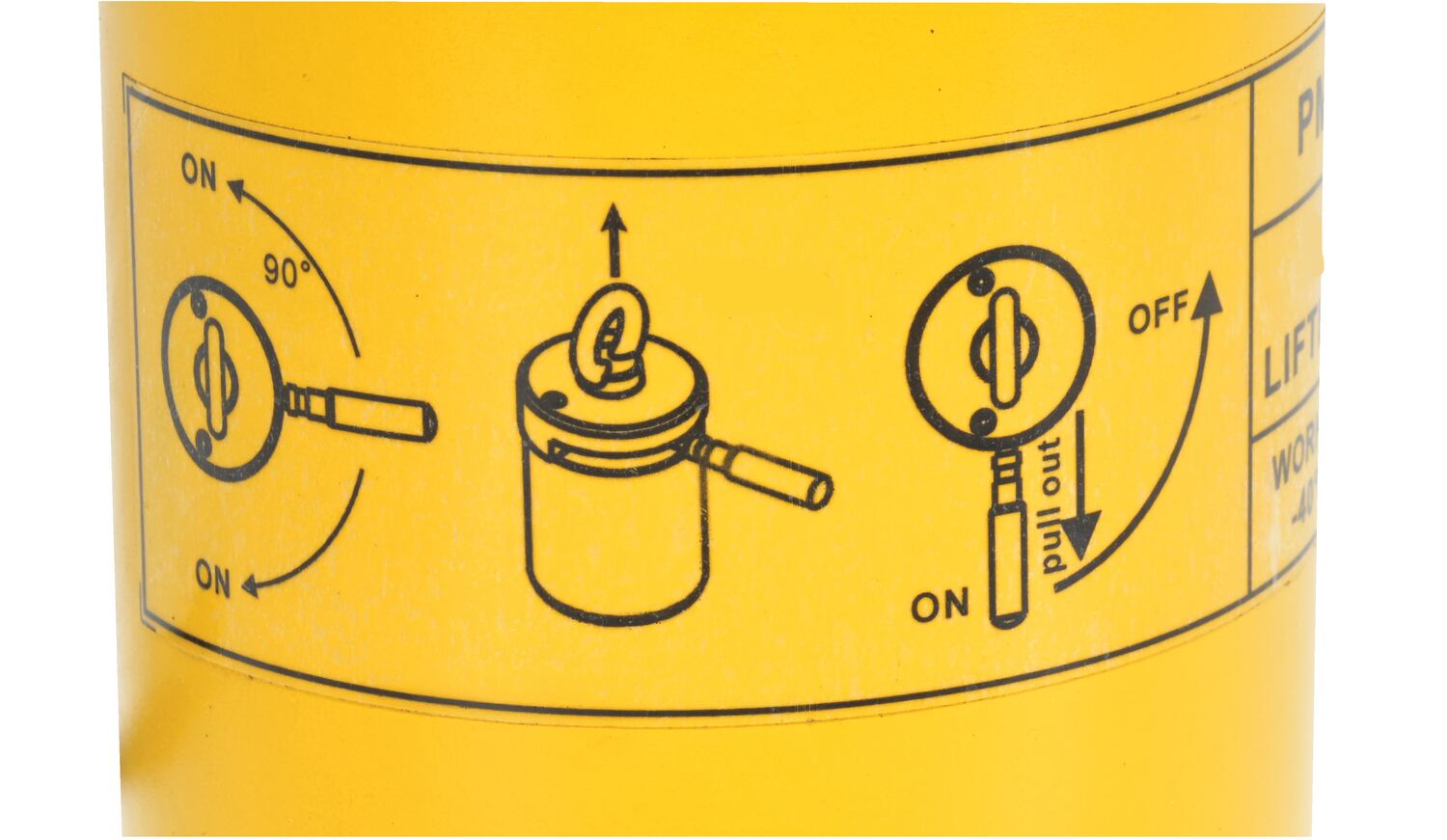

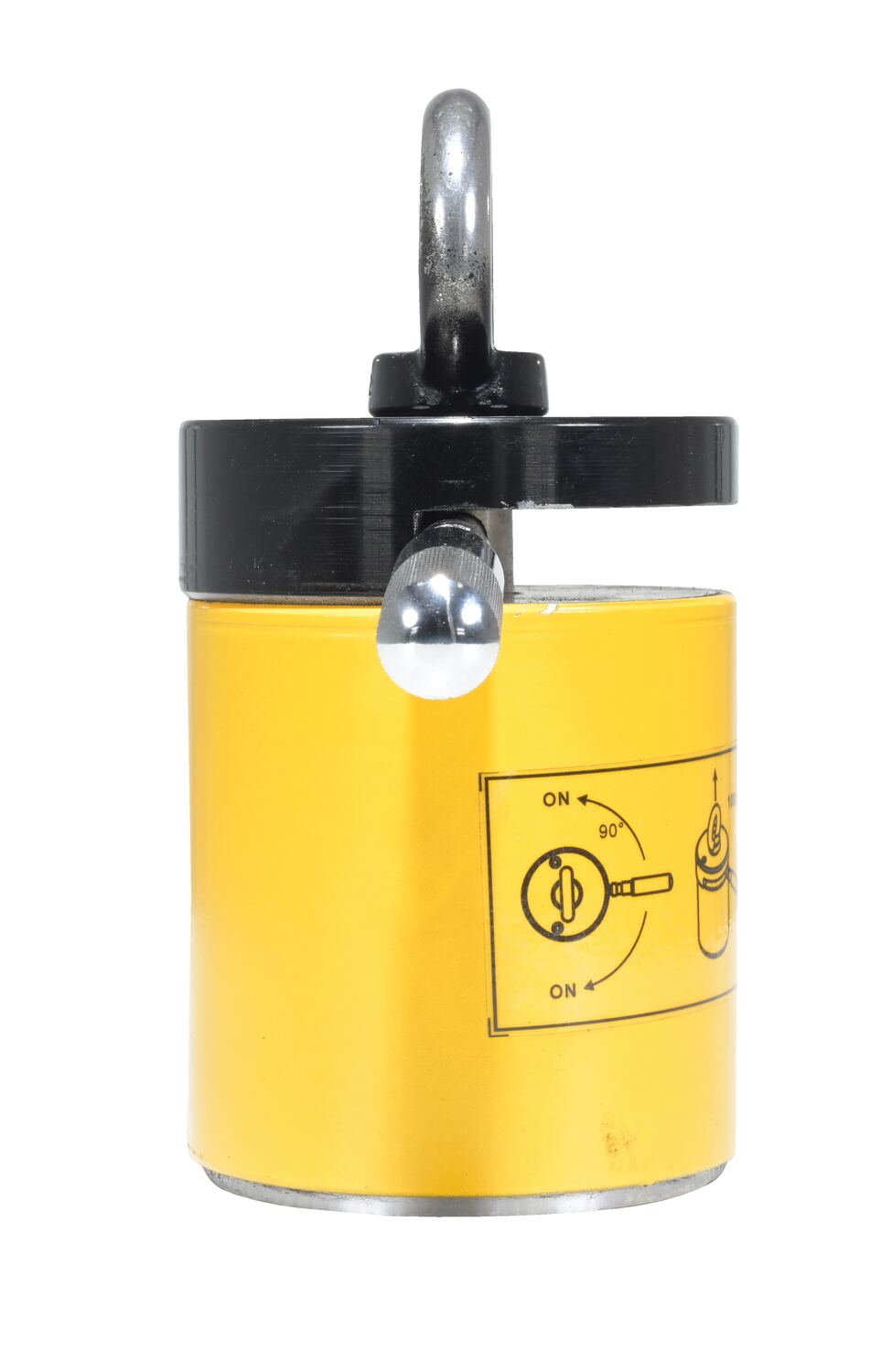

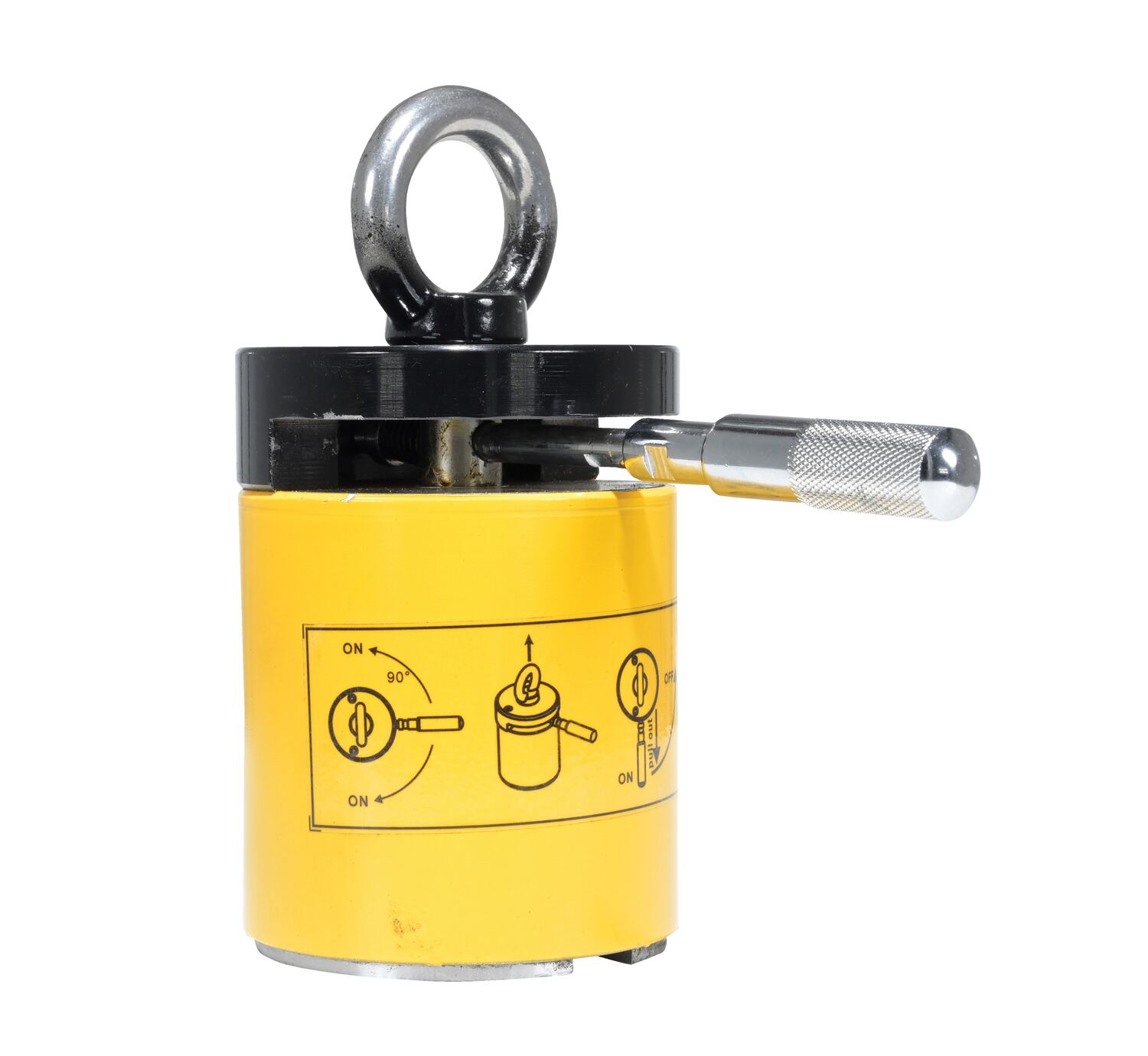

ML-C-2_B.jpgCylindrical Magnetic Lifter
Model ML-C-2 is a 3.5" cylinder diameter providing a substantial lifting force in a condensed area, making it a convenient choice for lifting large and small items with an overhead lift. This magnet is built of steel with a yellow powder coat finish.

Model Description Chart
Rated lifting Capacity (lbs) Size (in.) Weight
(lbs)
Flat
Steel		 Round
Steel		 L B H R
ML-2 200 60 3.5 2.5 2.7 5.7 6
ML-6 600 200 6.7 3.7 3.9 6.3 22
ML-12 1200 400 8.7 5.5 4.9 9.1 52
ML-22 2200 990 10.2 5.7 5.7 11 110

KEY
L = Plate Length B = Plate Width H = Magnet Height R = Handle Length

ML-6Pick up sheets of material by use of overhead crane or chain with the permanent Magnetic Lifter. Magnet is activated or deactivated by simply rotating the lever. Units are lightweight, so transporting from work area to work area is convenient.

  • Pick up sheets of material by use of overhead crane or chain
  • Magnet is activated or deactivated by simply rotating the lever
  • Transporting from work area to work area is convenient
  • Lifter is permanent lightweight

ML-C-2_B.jpgCylindrical Magnetic Lifter
Model ML-C-2 is a 3.5" cylinder diameter providing a substantial lifting force in a condensed area, making it a convenient choice for lifting large and small items with an overhead lift. This magnet is built of steel with a yellow powder coat finish.

Model Description Chart
Rated lifting Capacity (lbs) Size (in.) Weight
(lbs)
Flat
Steel		 Round
Steel		 L B H R
ML-2 200 60 3.5 2.5 2.7 5.7 6
ML-6 600 200 6.7 3.7 3.9 6.3 22
ML-12 1200 400 8.7 5.5 4.9 9.1 52
ML-22 2200 990 10.2 5.7 5.7 11 110

KEY
L = Plate Length B = Plate Width H = Magnet Height R = Handle Length

Other Magnets

 Magnetic Lifters Magnetic Catcher Magnetic Easy Lift Sheet Handlers

Additional Models In This Family
view entire Image Gallery

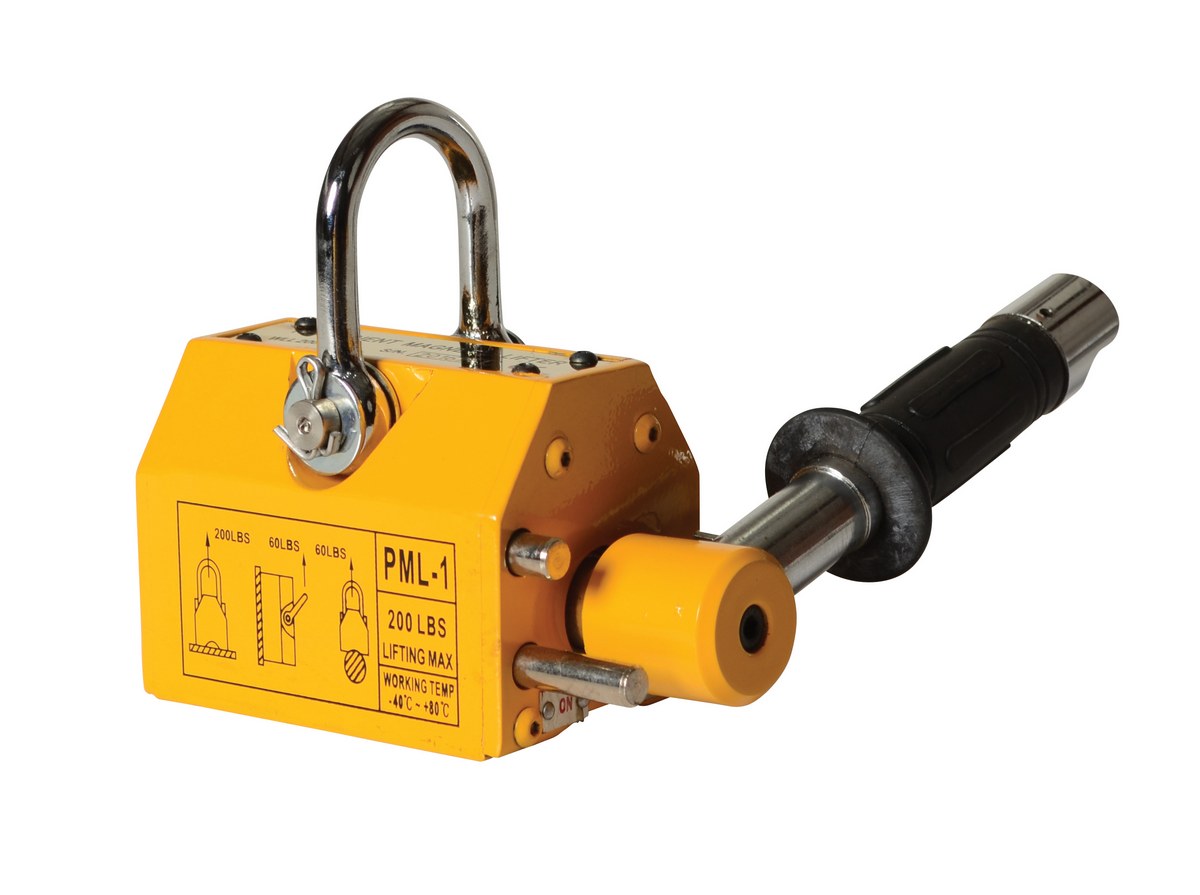

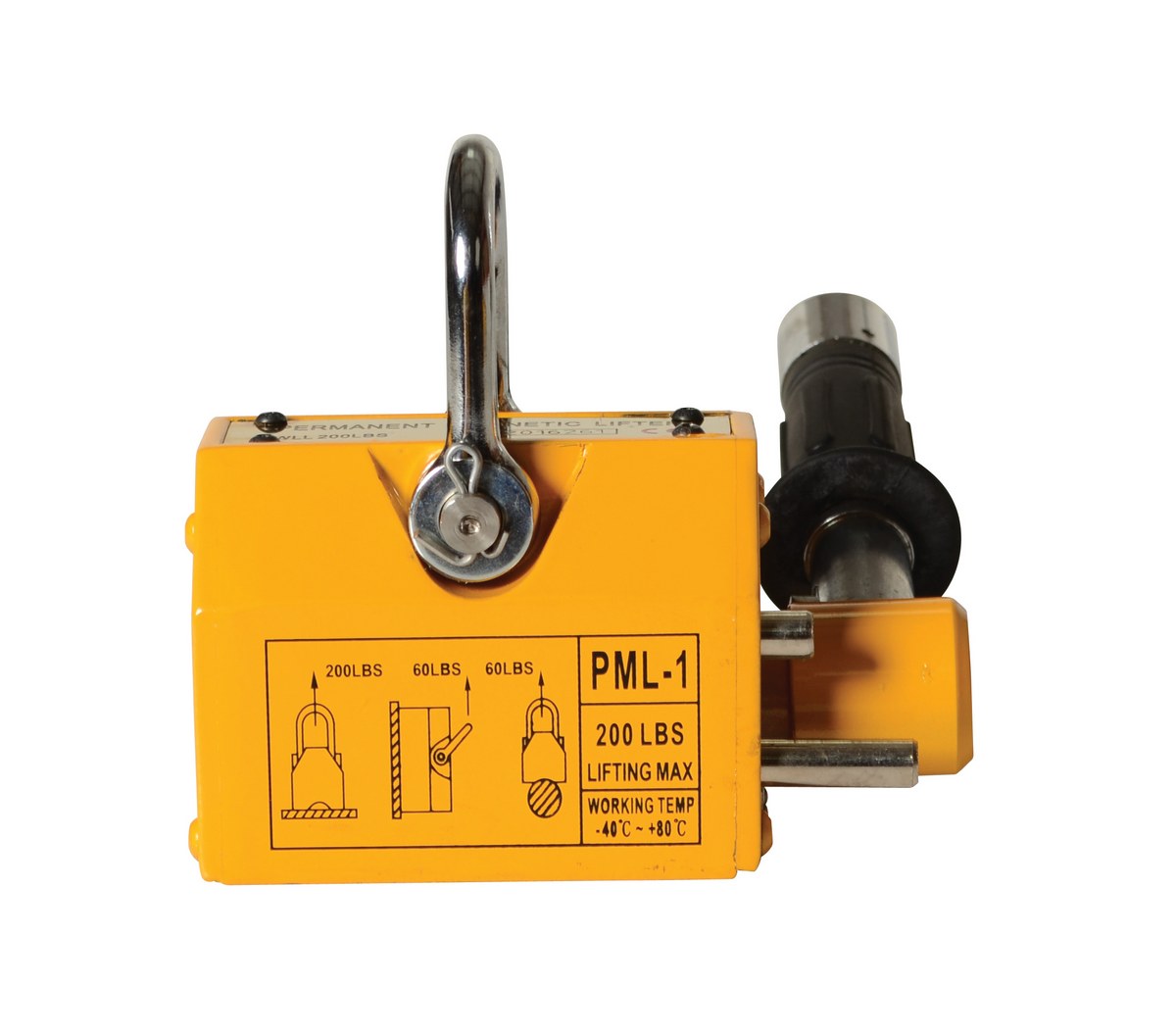

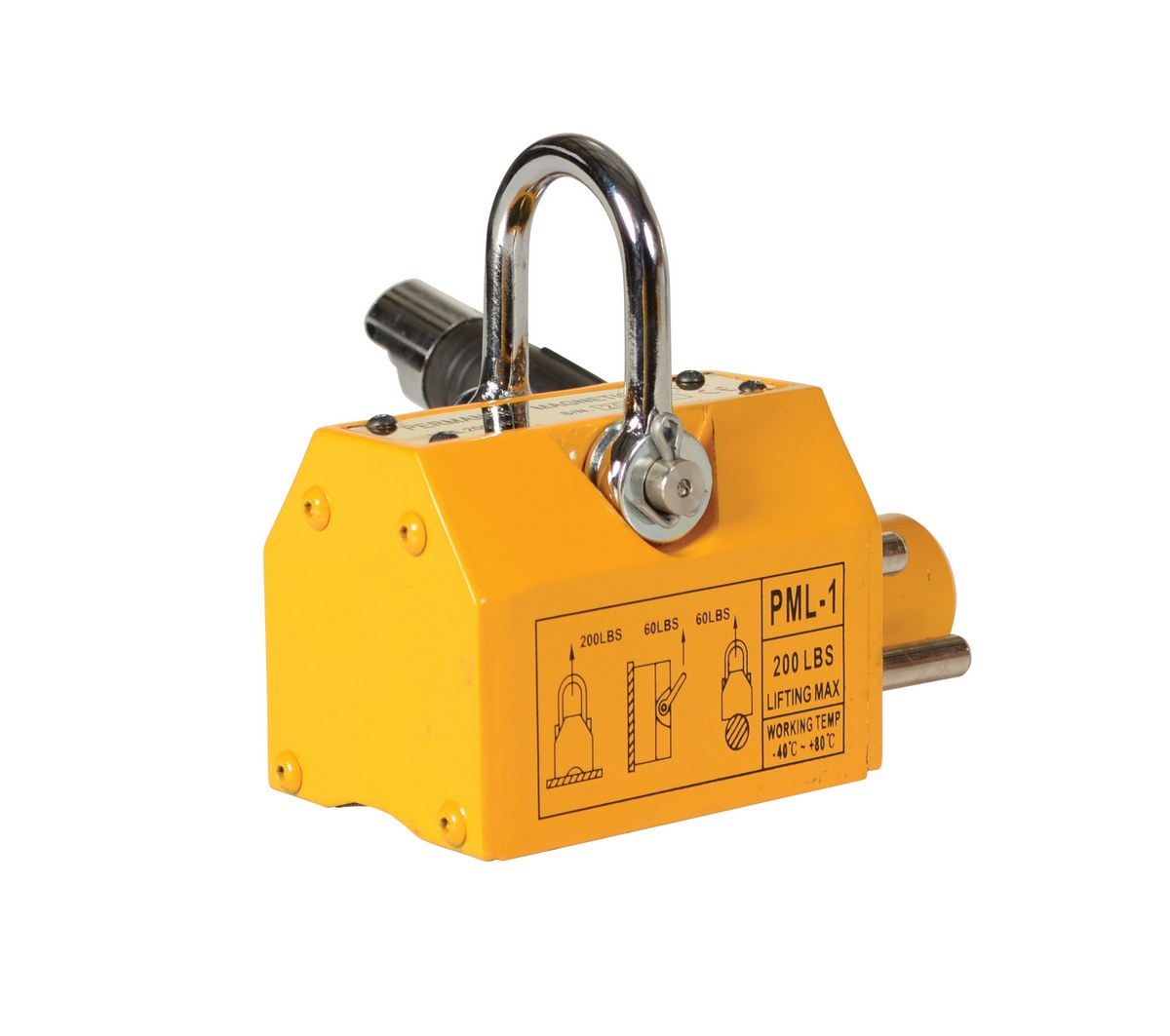

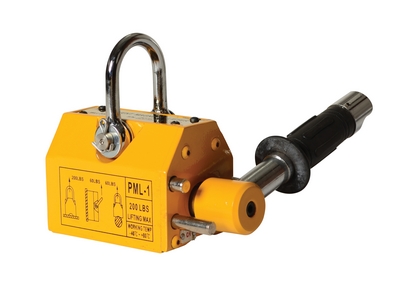

ML-2

model ML-2

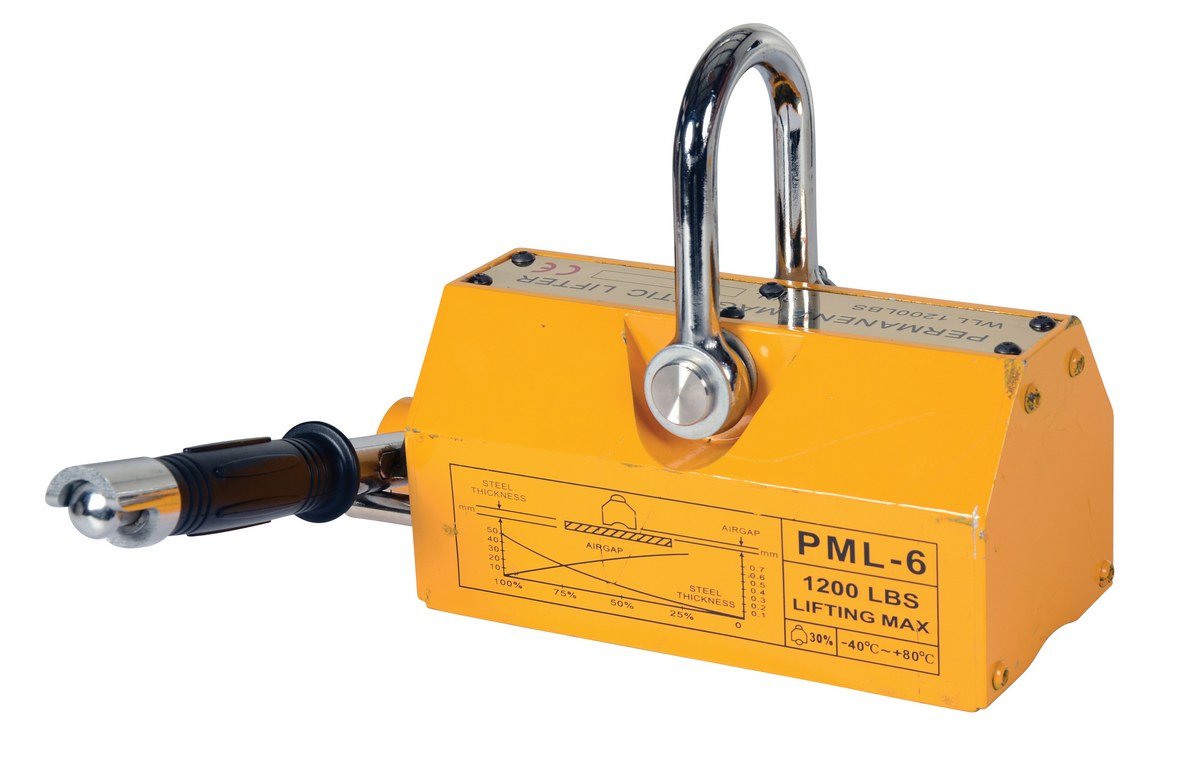

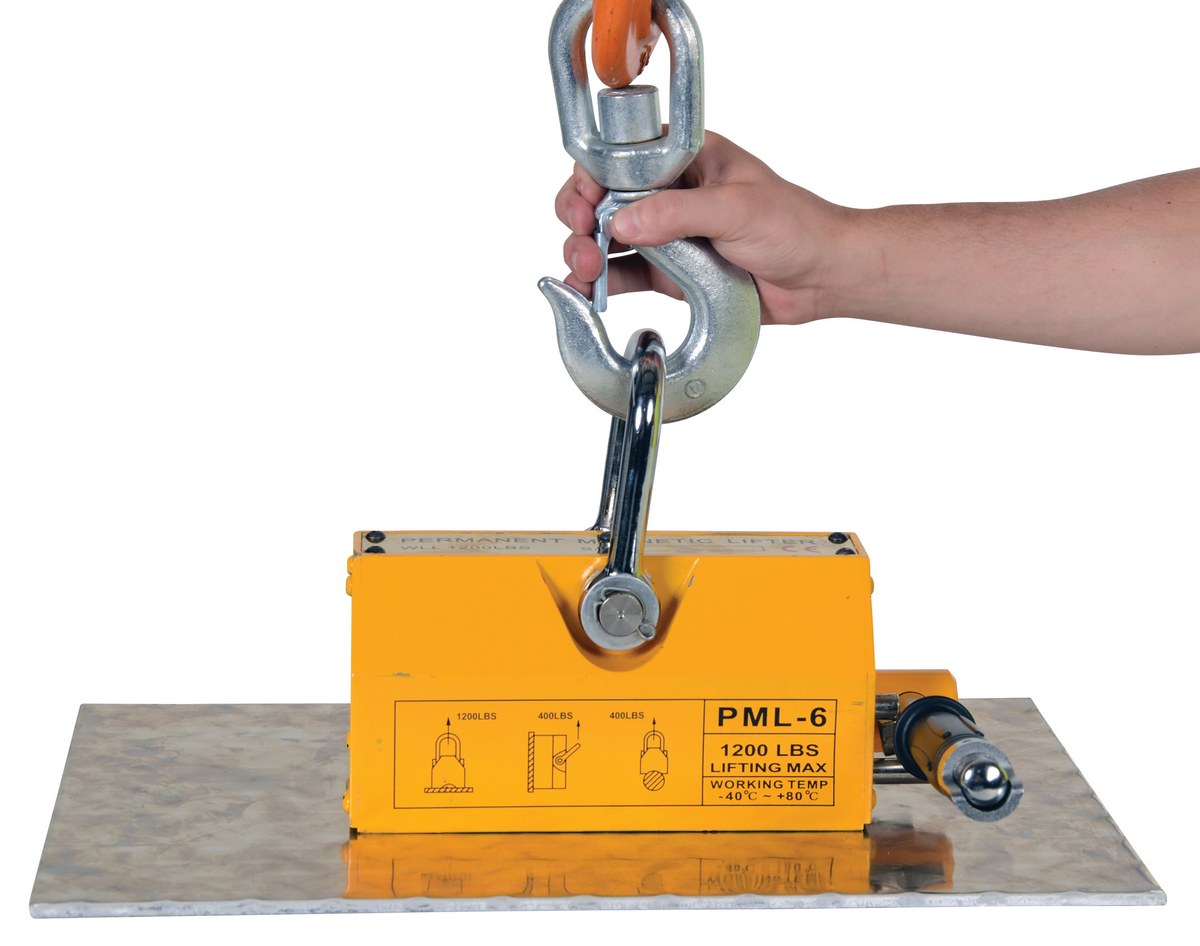

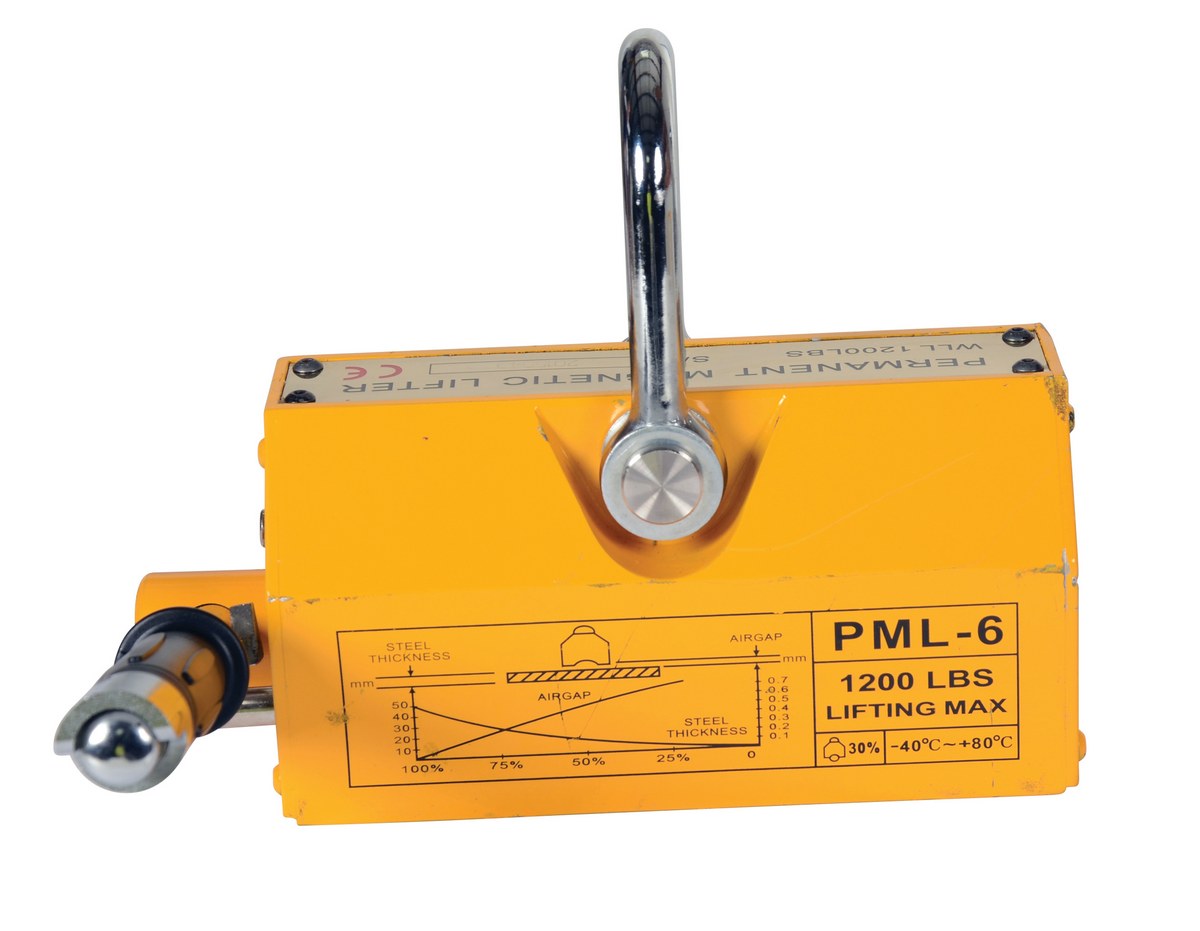

ML-12

model ML-12

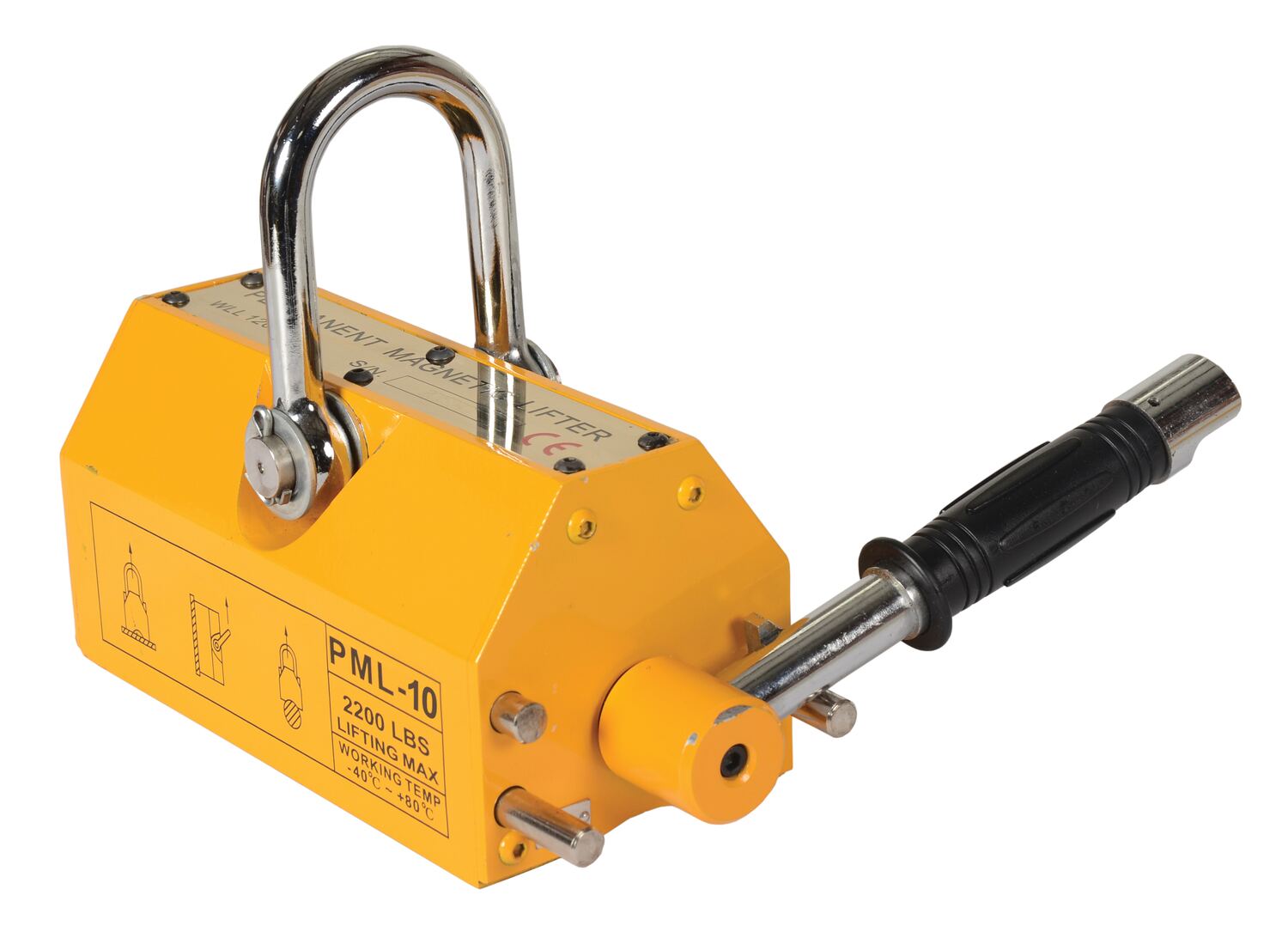

ML-22

model ML-22

ML-C-2

model ML-C-2

ML-2 - Nominal Capacity 220 lbs ML-6 - Nominal Capacity 660 lbs.
Min. Thickness (in) Holding Power (%) Actual Capacity (lbs) Min. Thickness (in) Holding Power (%) Actual Capacity (lbs)
1/16 60 132 1/8 40 264
Up to 1/4 100 220 1/4 70 462
- 3/8 & Up 100 660
ML-12 - Nominal Capacity 1320 lbs ML-22 - Nominal Capacity 2200 lbs
Min. Thickness (in) Holding Power (%) Actual Capacity (lbs) Min. Thickness (in) Holding Power (%) Actual Capacity (lbs)
1/8 20 264 1/8 15 330
1/4 40 528 1/4 30 660
3/8 60 792 3/8 40 880
5/8 85 1122 5/8 65 1430
3/4 95 1254 3/4 70 1540
1 & Up 100 1320 1 87 1914
- 1-1/4 & Up 100 2200
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ML-12 POPULAR ML-1290 Days Limited WarrantySteel and Neodymium Magnetic Lifter 10-3/4 In. x 11 In. x 8-1/2 In. 1,200 Lb. Capacity YellowUniform Flat Surface Capacity (lb.): 1,200
Uniform Round Surface Capacity (lb.): 400		52
ML-2 ML-290 Days Limited WarrantySteel and Neodymium Magnetic Lifter 5-15/16 In. x 6-3/4 In. x 4-29/32 In. 200 Lb. Capacity YellowUniform Flat Surface Capacity (lb.): 200
Uniform Round Surface Capacity (lb.): 60		7
ML-22 NEW ML-2290 Days Limited WarrantySteel and Neodymium Magnetic Lifter 10-3/8 In. x 6-5/8 In. x 6-5/8 In. 2,200 Lb. Capacity YellowUniform Flat Surface Capacity (lbs): 2,200
Uniform Round Surface Capacity (lbs): 990		115
ML-6 ML-690 Days Limited WarrantySteel and Neodymium Magnetic Lifter 8 In. x 8-11/16 In. x 6-13/16 In. 600 Lb. Capacity YellowUniform Flat Surface Capacity (lb.): 600
Uniform Round Surface Capacity (lb.): 200		22
ML-C-2 NEW ML-C-290 Days Limited WarrantySteel Magnetic Lifter Cylindrical 3-1/2 x 6-7/8 x6-7/8 100 Lb. Capacity YellowUniform Flat Surface Capacity (lb.): 100
Uniform Round Surface Capacity (lb.): 40		11

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ML-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Flat Surface Capacity (lb.): 1,200
Uniform Round Surface Capacity (lb.): 400
Uniform Flat Surface Capacity (lb.): 1,200
Uniform Round Surface Capacity (lb.): 400

ML-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Flat Surface Capacity (lb.): 200
Uniform Round Surface Capacity (lb.): 60
Uniform Flat Surface Capacity (lb.): 200
Uniform Round Surface Capacity (lb.): 60

ML-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Flat Surface Capacity (lb.): 600
Uniform Round Surface Capacity (lb.): 200
Uniform Flat Surface Capacity (lb.): 600
Uniform Round Surface Capacity (lb.): 200

ML-22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Flat Surface Capacity (lbs): 2,200
Uniform Round Surface Capacity (lbs): 990
Uniform Flat Surface Capacity (lbs): 2,200
Uniform Round Surface Capacity (lbs): 990

ML-C-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Flat Surface Capacity (lb.): 100
Uniform Round Surface Capacity (lb.): 40
Uniform Flat Surface Capacity (lb.): 100
Uniform Round Surface Capacity (lb.): 40
Magnetic Lifters PDF's will open in a new window when clicked.

Manuals


ML-12
Owners Manual

ML-2
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


ML-12

ML-2

ML-6

Testing Certificates


ML-12

ML-2

ML-6

ML-C-2

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: I am looking for the safety factor on the magnetic lifter. ASME uses a 3:1 but I didn't see that.

A: The safety factor on the magnetic lifters depends on the material thickness of the plate.

Q: What does uniform round capacity mean?

A: Uniform round capacity is the total capacity of the unit when lifting round steel. Because there is less surface contact with a round pipe the capacity is depleted.
