Click Image to Enlarge

model: CABLE-P4


SERIES: CABLE

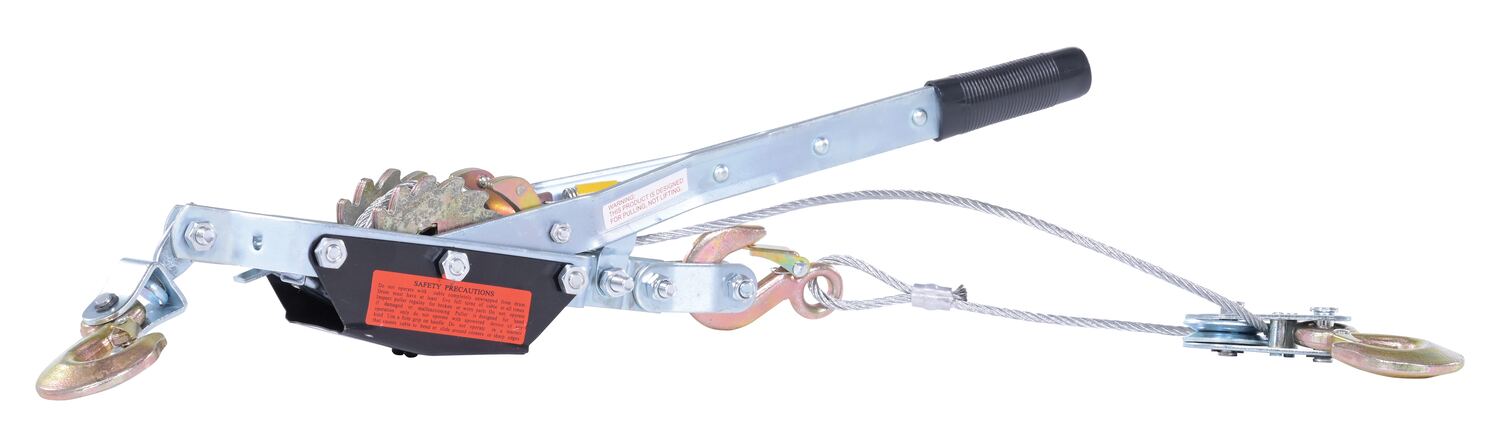

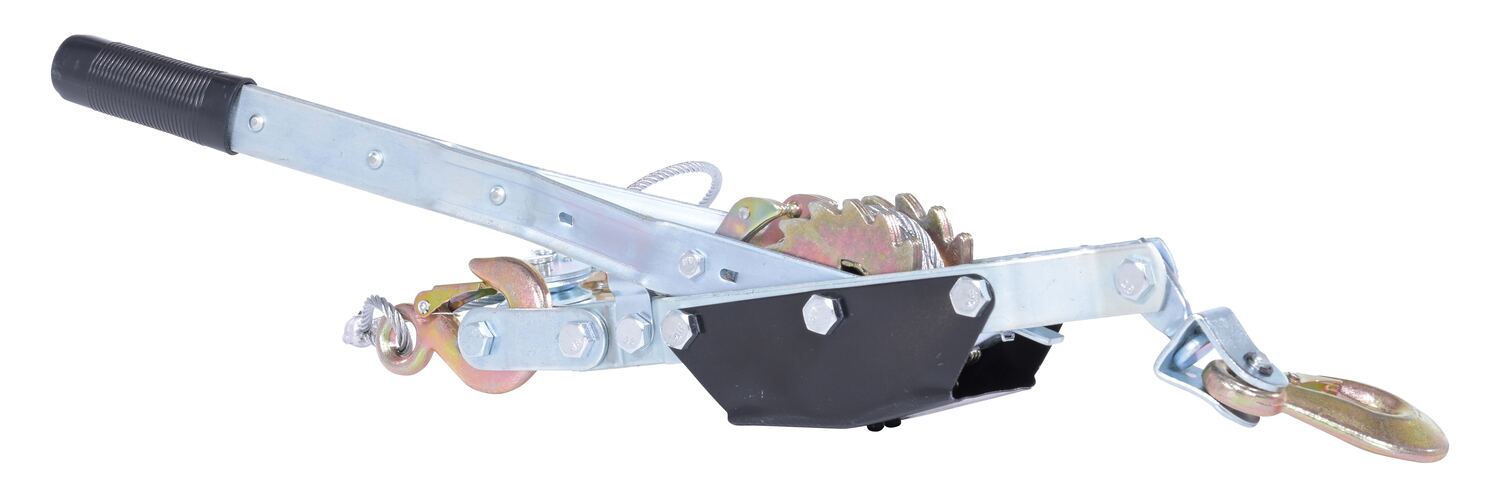

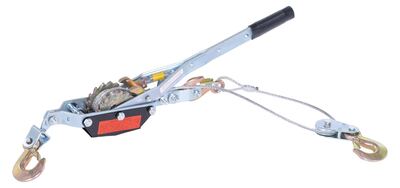

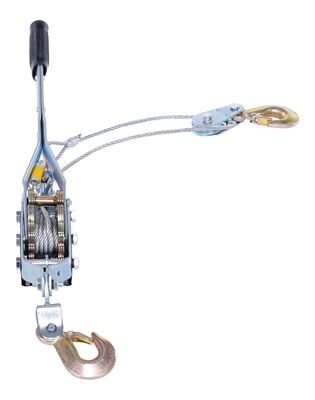

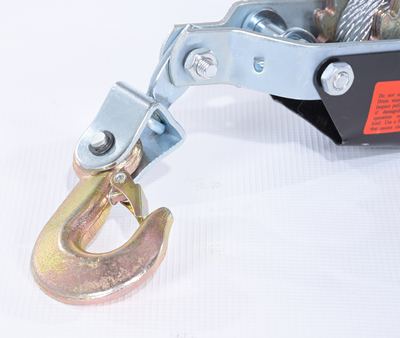

Galvanized Two-Speed Cable Puller

Great for use in horizontal pulling applications such as positioning equipment, stringing lines and emergencies. Can be used in both single and double-line pulling applications. Handle ratchets to take-up cable. When handle is rotated all the way back, the cable reel will free-wheel. Handle length is 30". Minimum headroom is 24". Single-line cable length is 1/4" x 120" (Cable length is 60" when used double-line). Not for use in vertical lifting applications.




Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Galvanized Two-Speed Cable Puller
Model PDF's Single-Line
Capacity
Double-Line
Capacity
Single-Line
Cable Length
Wt.
(lbs)
CABLE-P4 Warranty PDFCompliance Certificate 2,000 lbs. 4,000 lbs. 1/4"x120" 14

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

CABLE-P4

CABLE-P4






Galvanized Two-Speed Cable Puller PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

CABLE-P4

Other PDF's

No "Other PDFs" For This Product...
