model: HWG-600


SERIES: HWG
Manual and Worm Gear Hand Winches

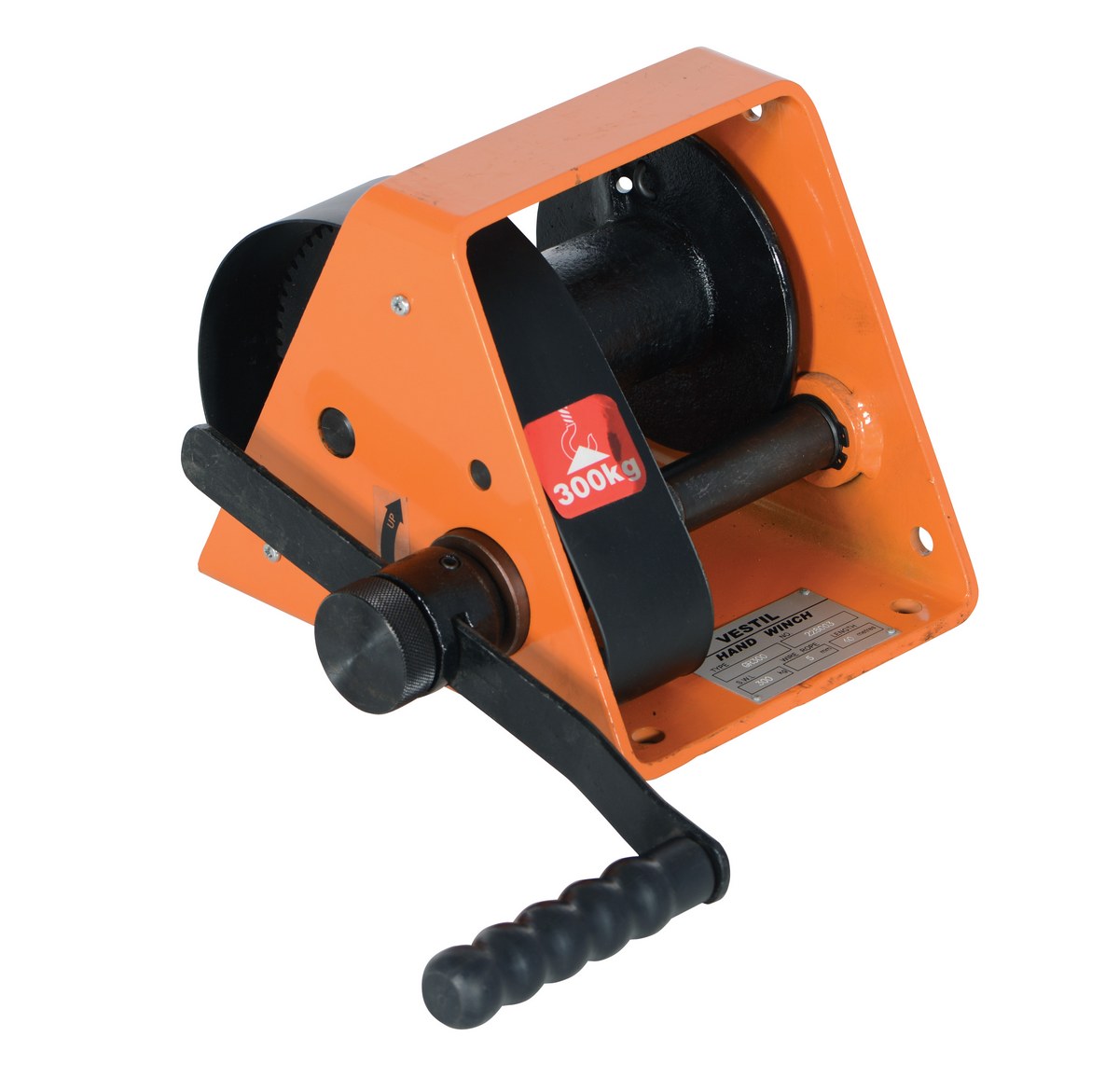

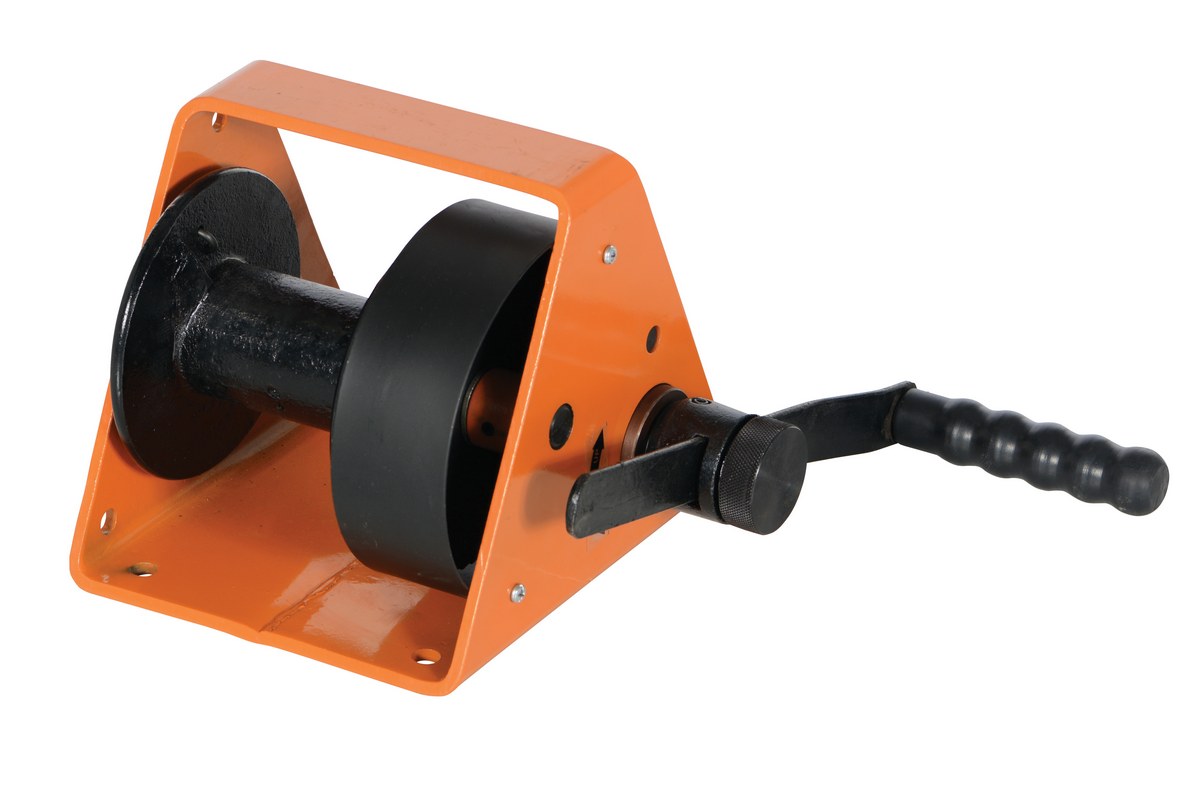

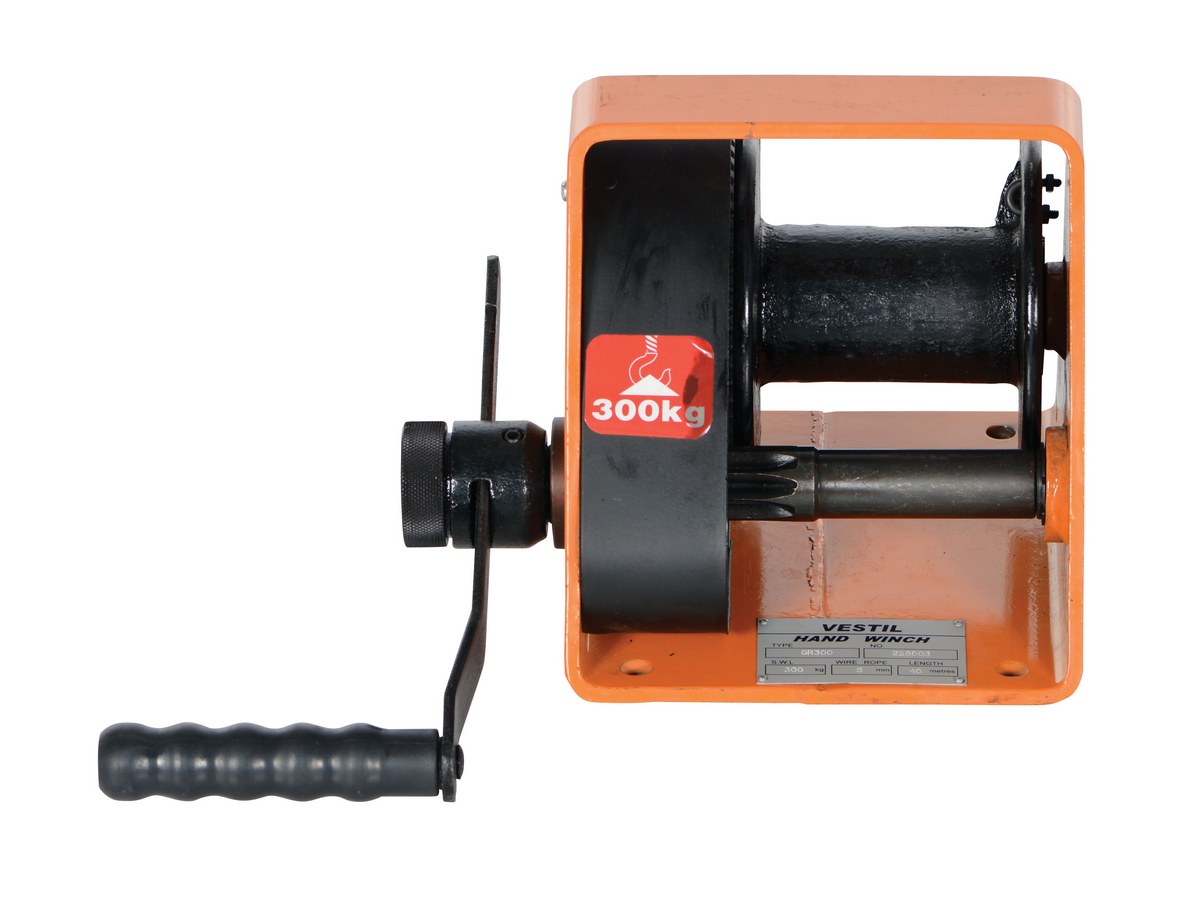

Manual hand-operated gear drive winches, model HWG-600, are designed for many lifting, lowering and pulling applications. Equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering and prevents and unintentional lowering of the load. Adjustable crank handle for fast lifting of smaller loads, resulting in lowest possible handle effort and rapid winding of he rope. All rotating parts are maintenance-free. Suitable for operation in ambient temperatures of 14 degrees through 120 degrees Fahrenheit. Capacity 600 lbs.

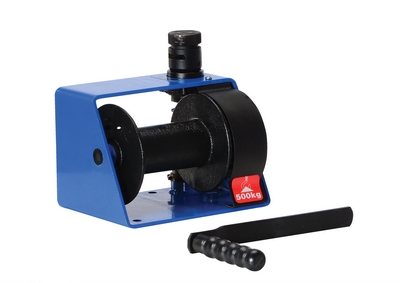

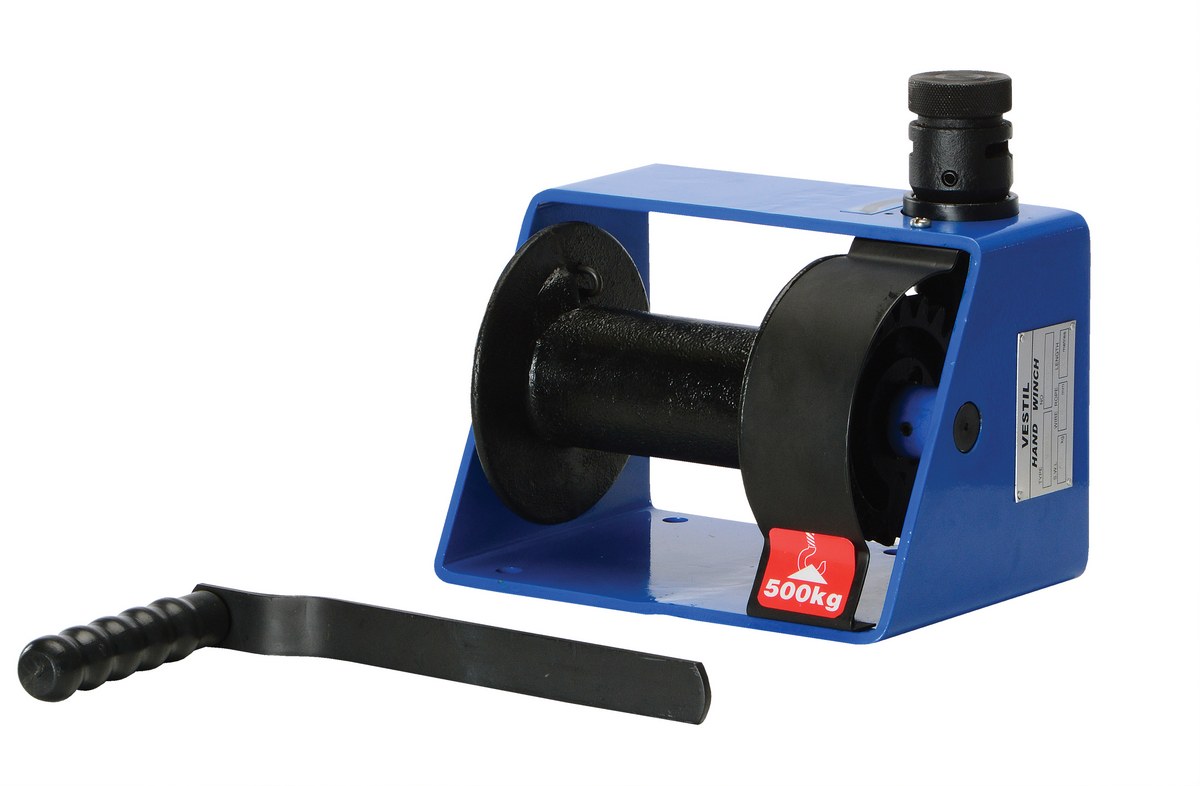

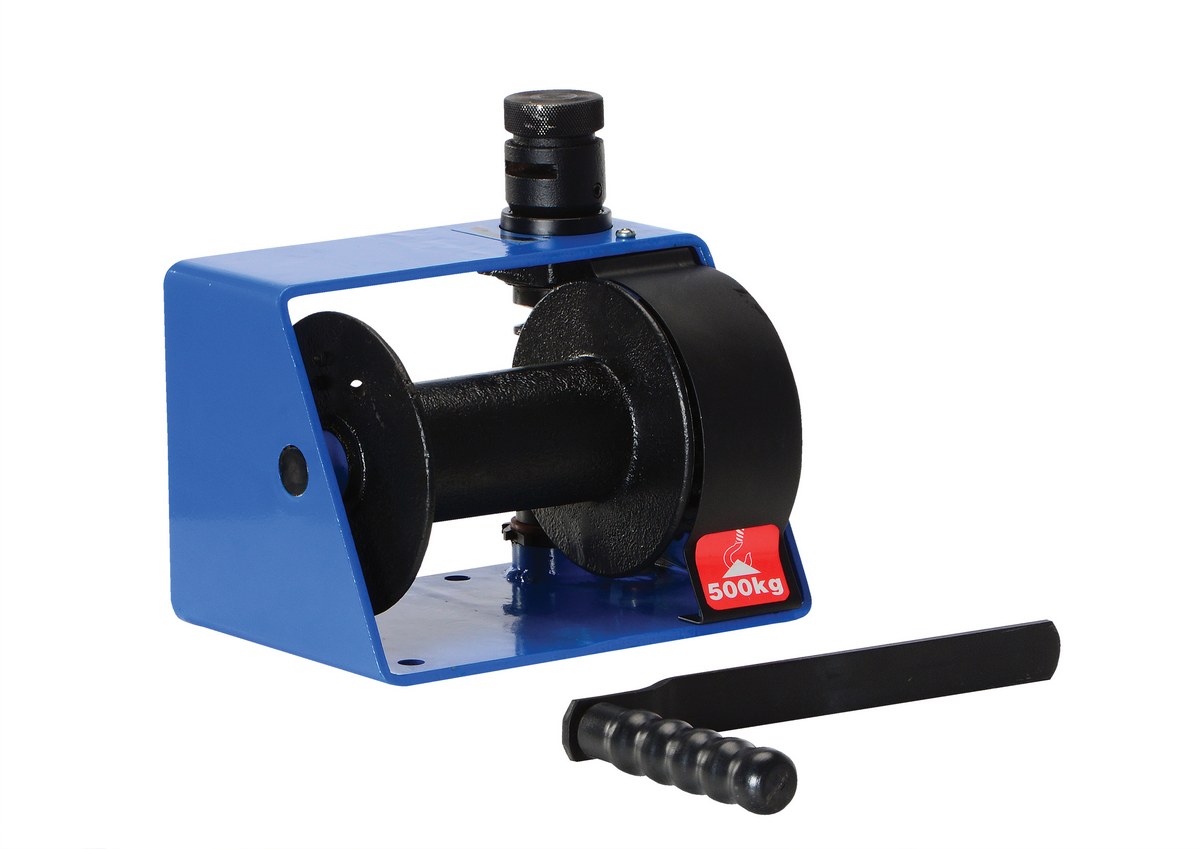

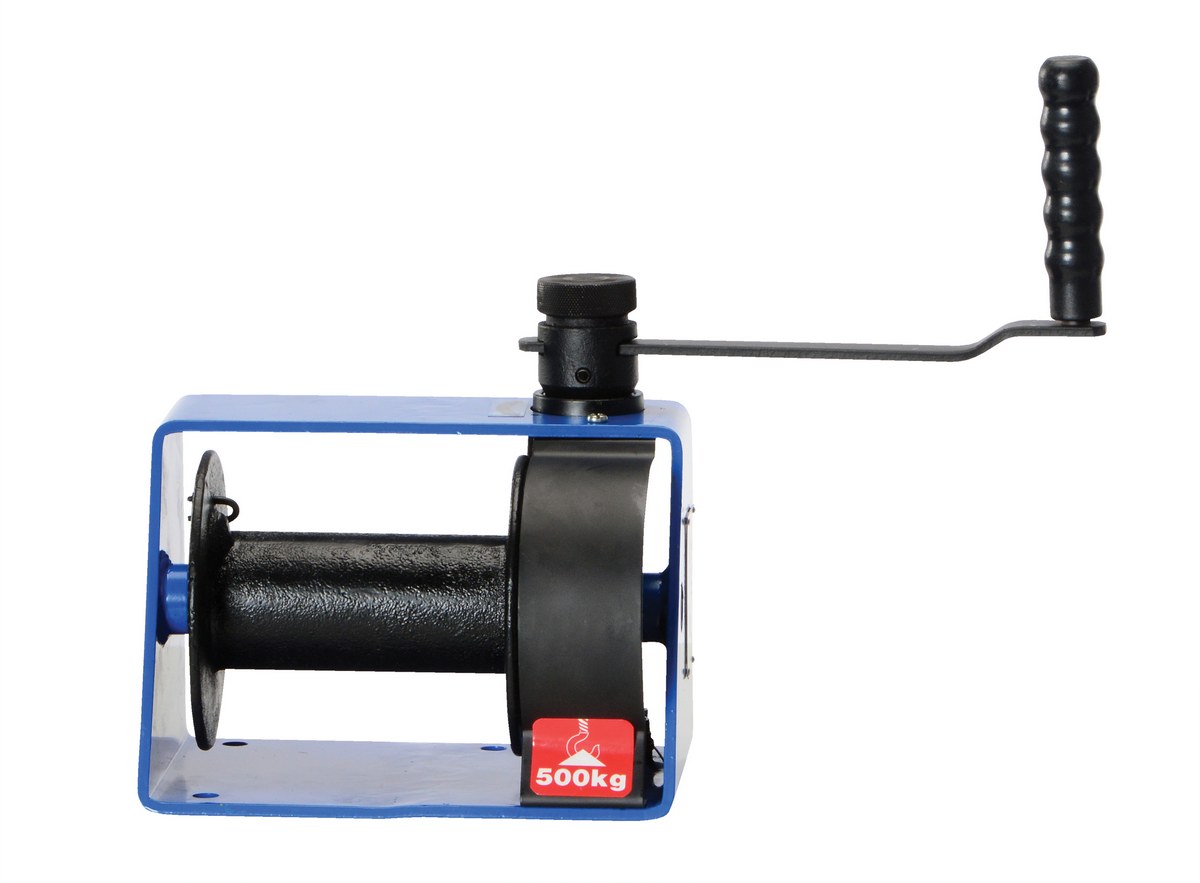

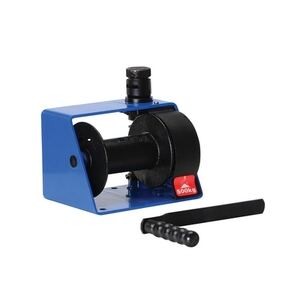

Worm gear winch, model HWV-1000, allows for better load control and features a reinforced frame, comfort-grip handle. Worm gear provides load holding capability when handle is released. Reel stops automatically, locking load in place whenever the handle is released. High quality enamel paint finish, dipped and baked. Crank handle can be adjusted in length. Winch housing and rope drum are made from robust steel plate. Capacity 1,000 lbs. Cable not included.



HWV-1000

model HWV-1000


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Hand Winch
Model Image PDF Gear
Type
Wire
Rope
Drum
Capacity (ft.)
Overall Size
(L x W x H)
Wt.
(lbs)
HWG-600 Warranty PDF MANUAL (cable not included) 3/16" 65' 9-1/2" x 7-7/8" x 7-7/8" 36
HWV-1000 icon_approvaldrawings.jpgWarranty PDF WORM (cable not included) 1/4" 45' 7" x 10-1/4" x 7" 35
