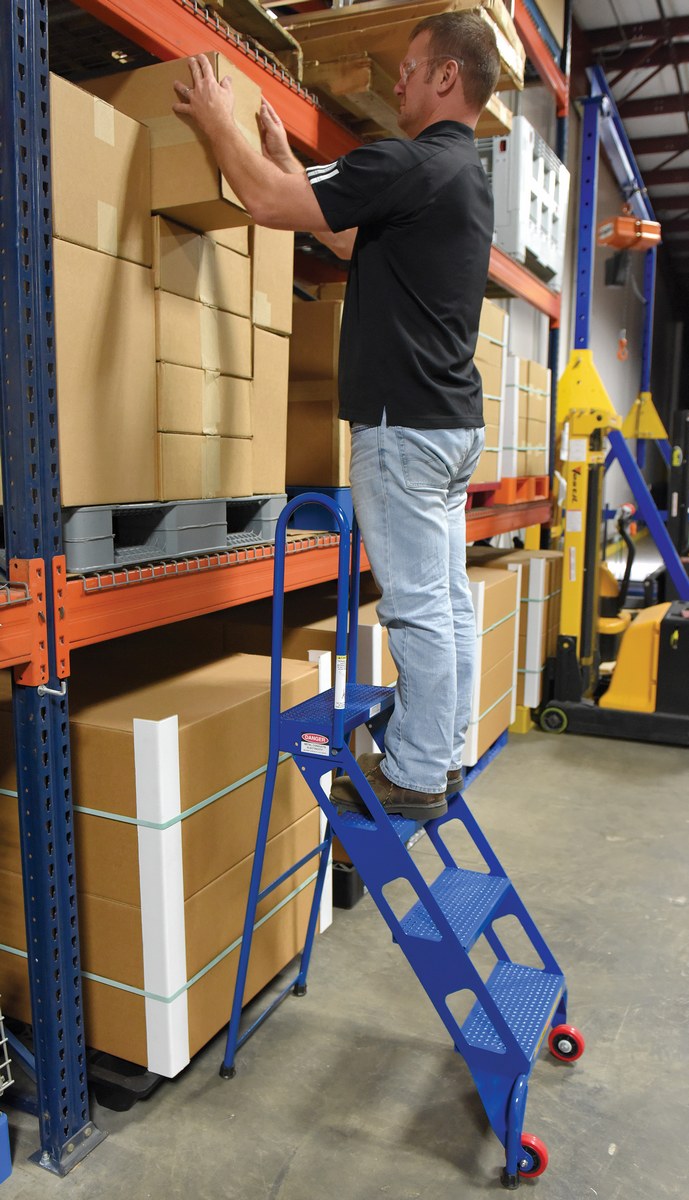

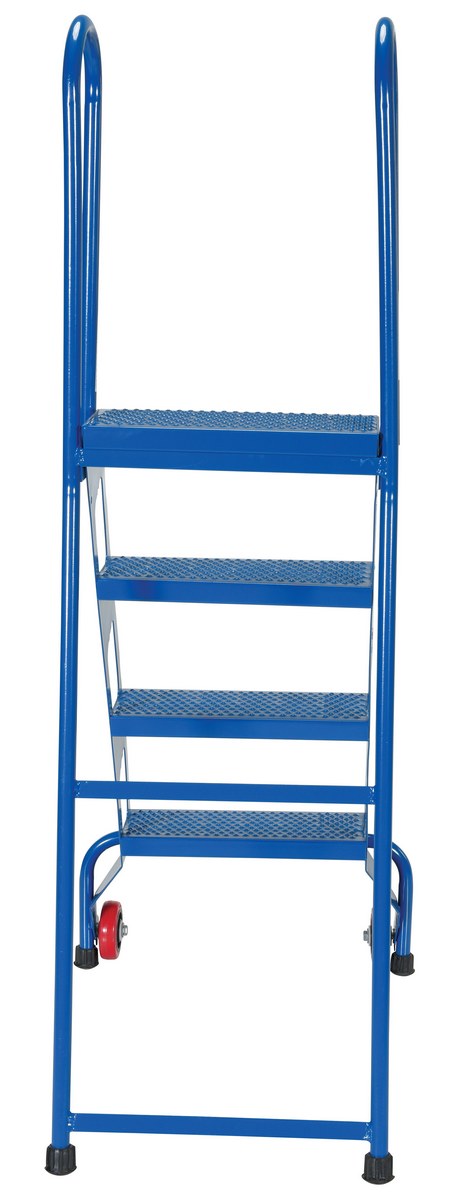

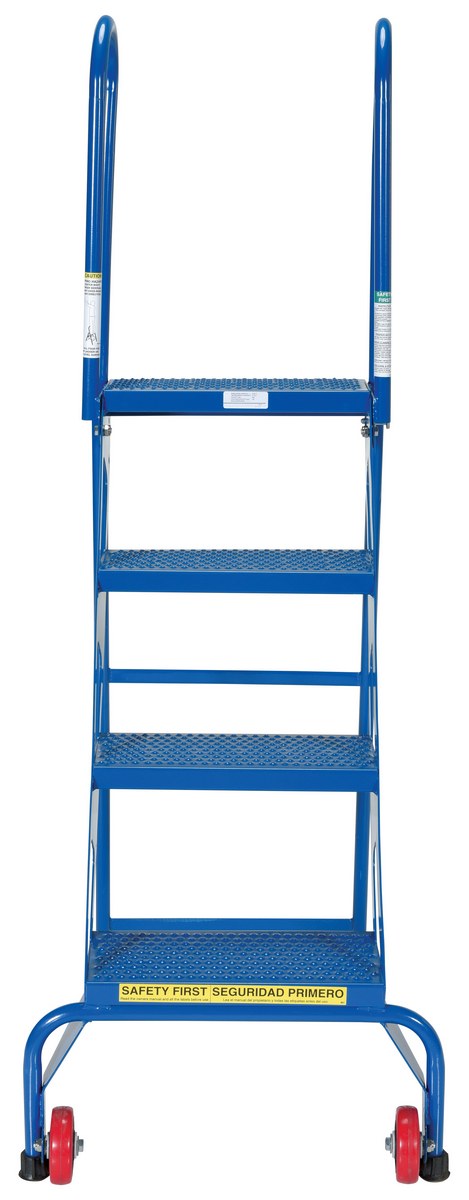

model: FLAD-4

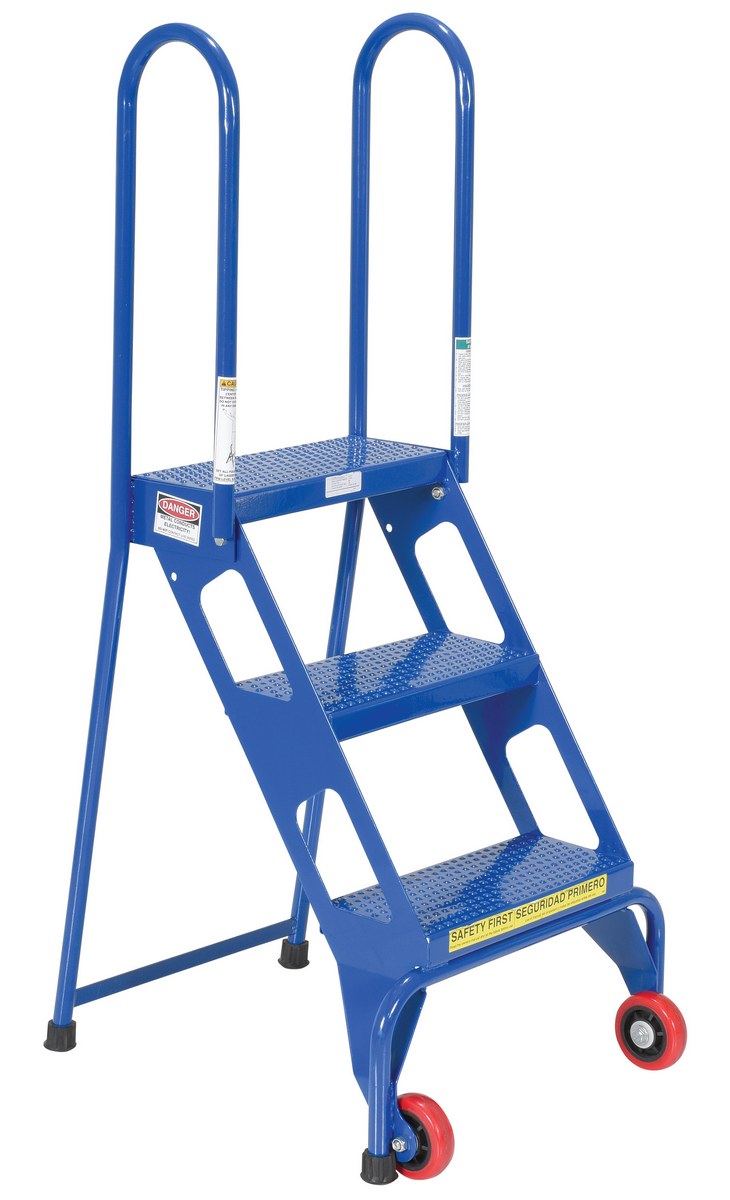

Folding Ladders with Wheels
SERIES: FLAD

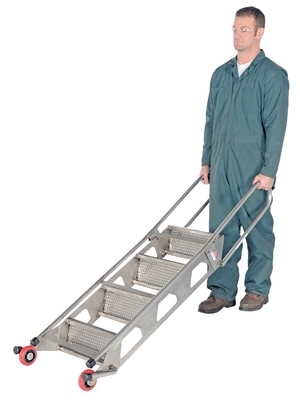

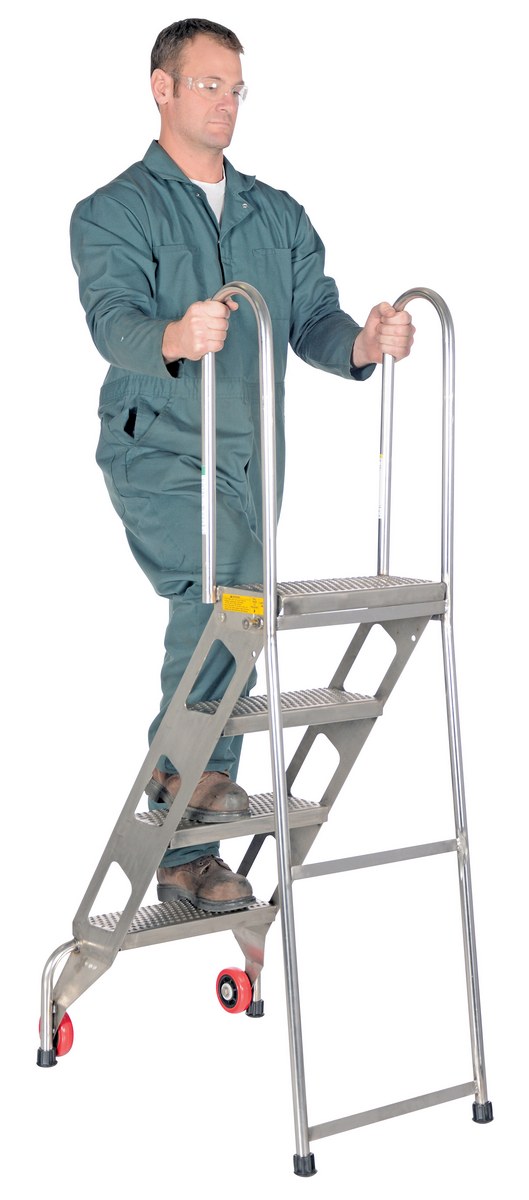

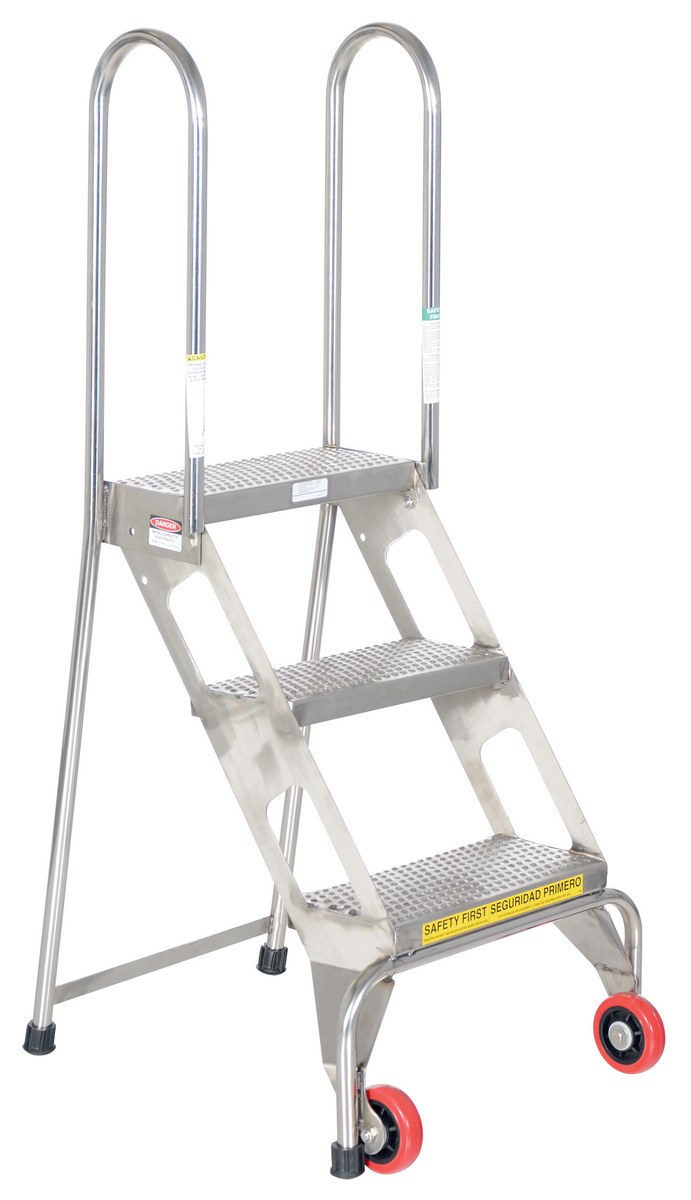

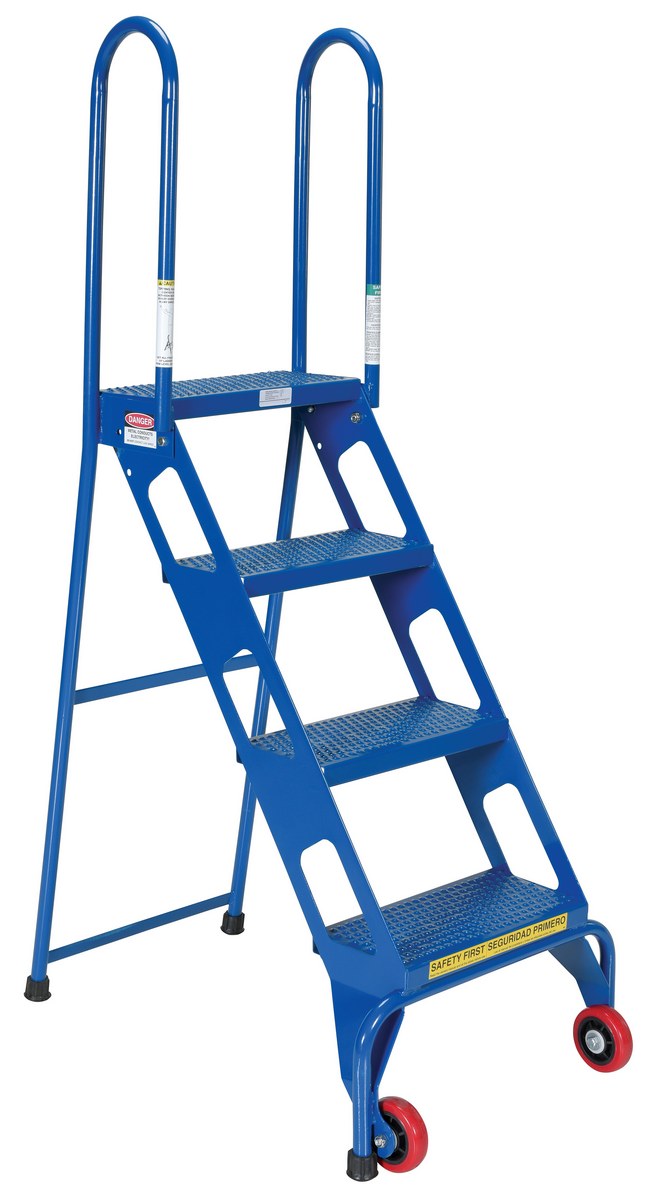

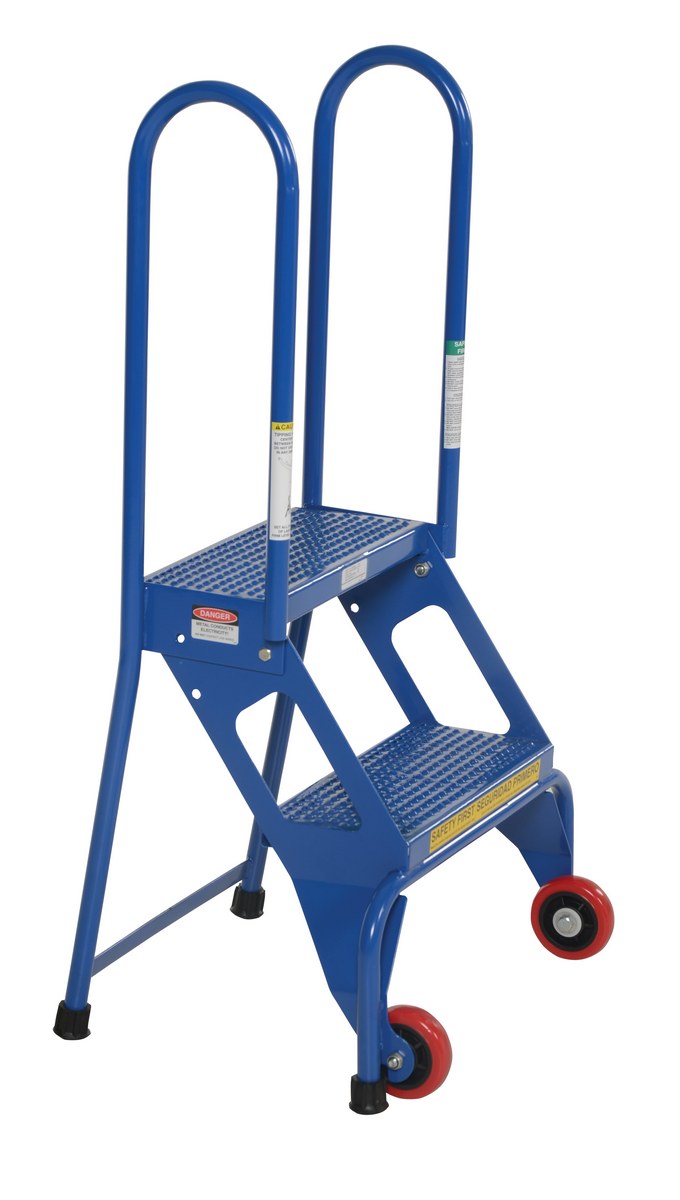

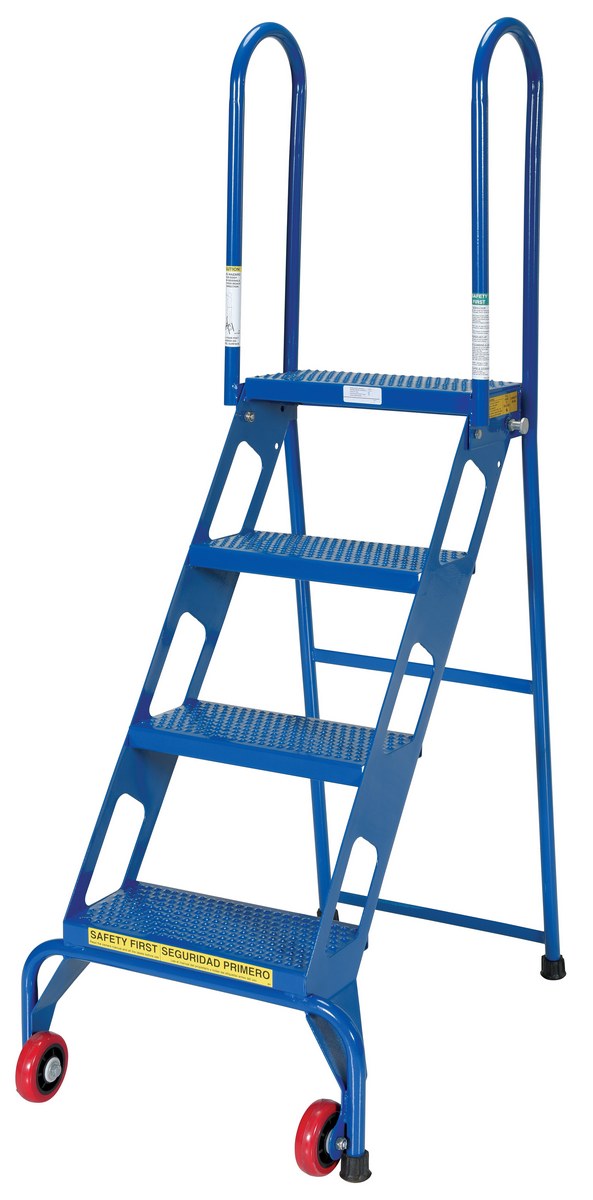

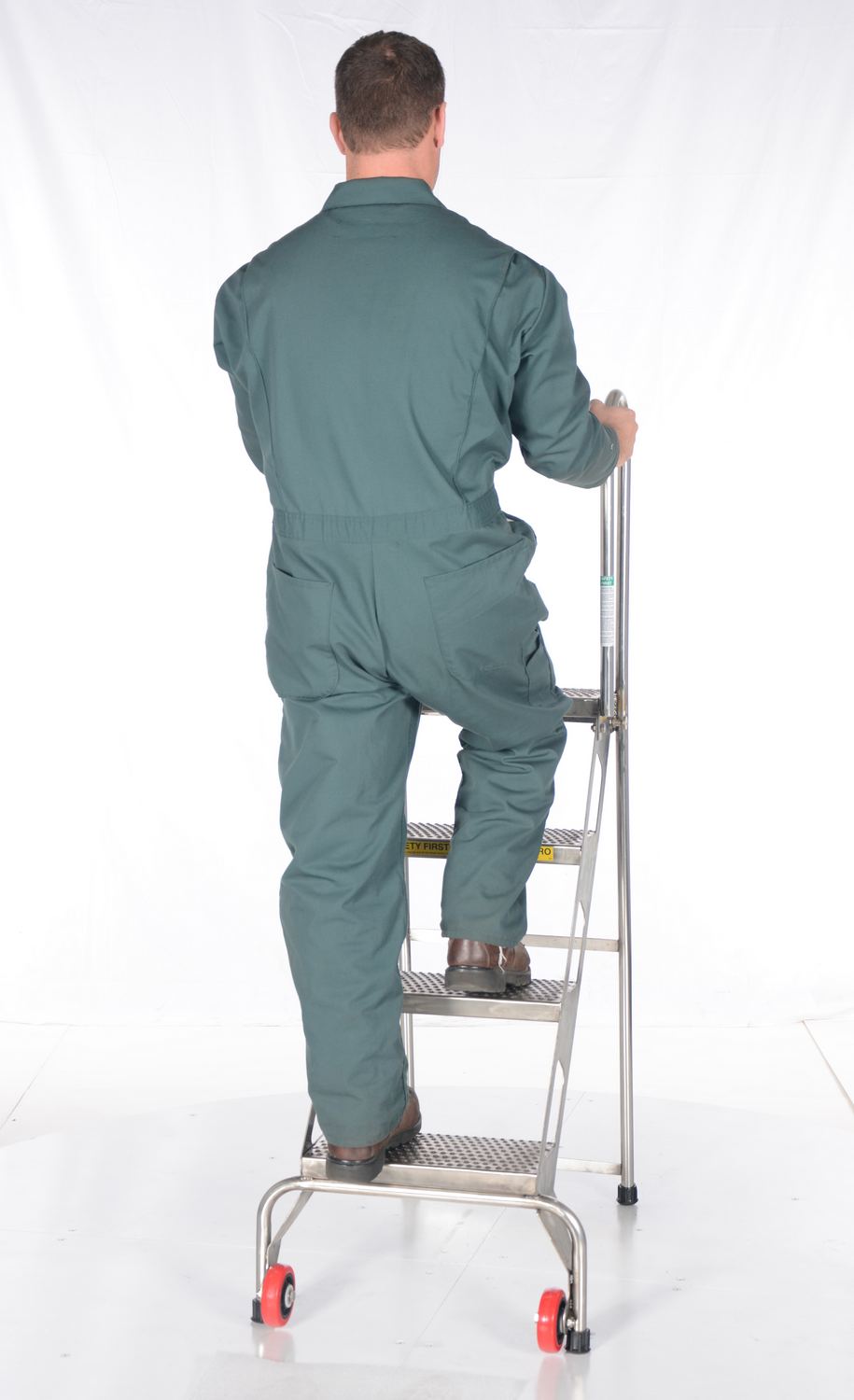

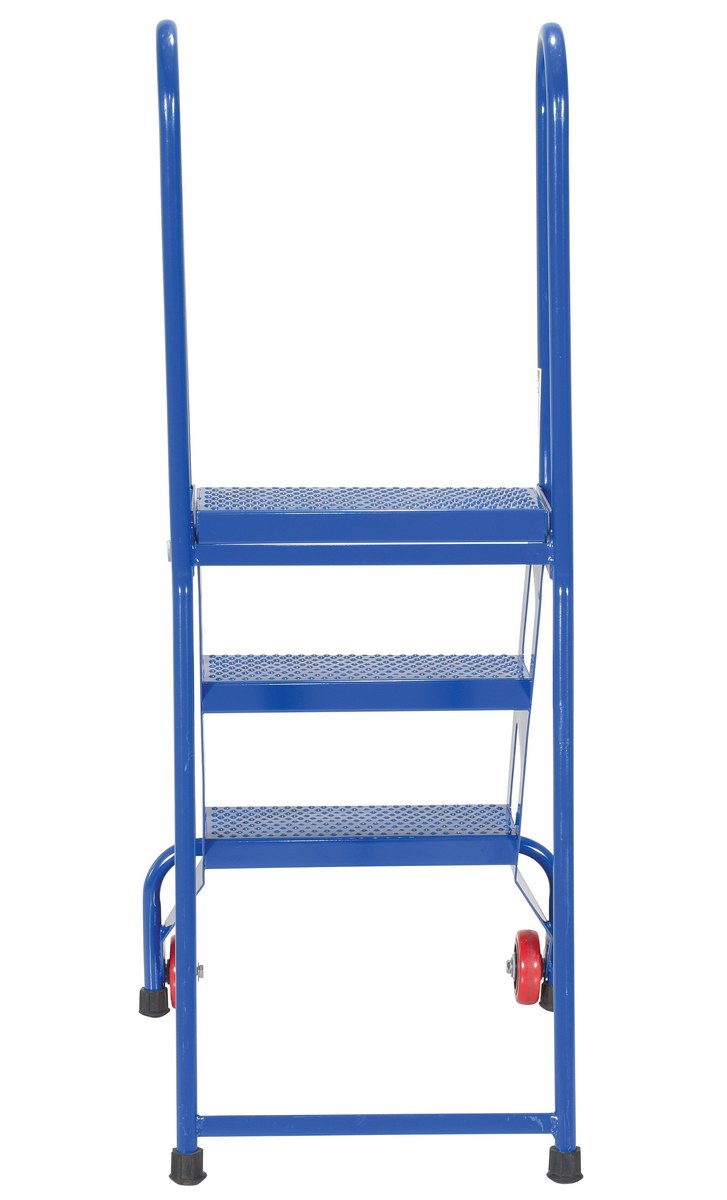

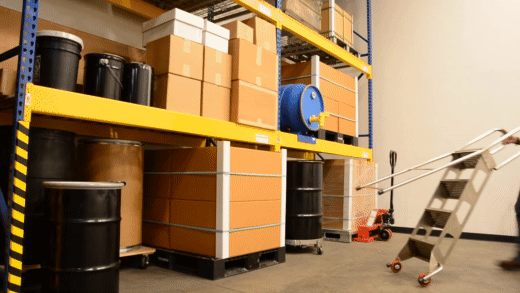

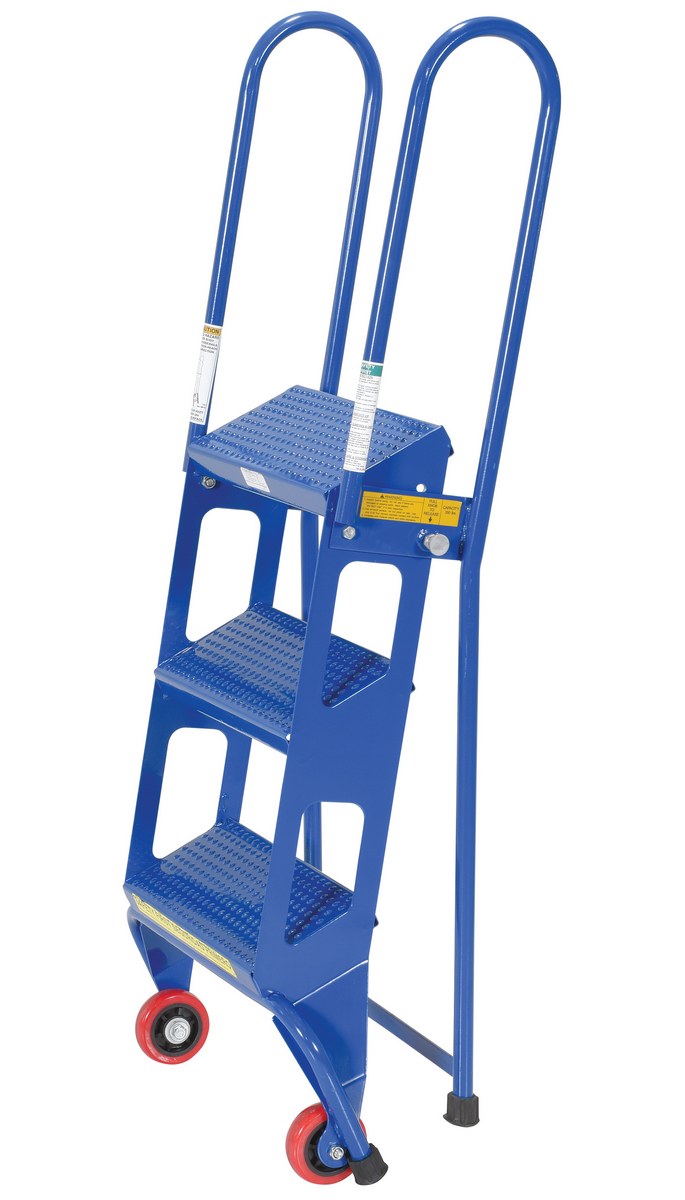

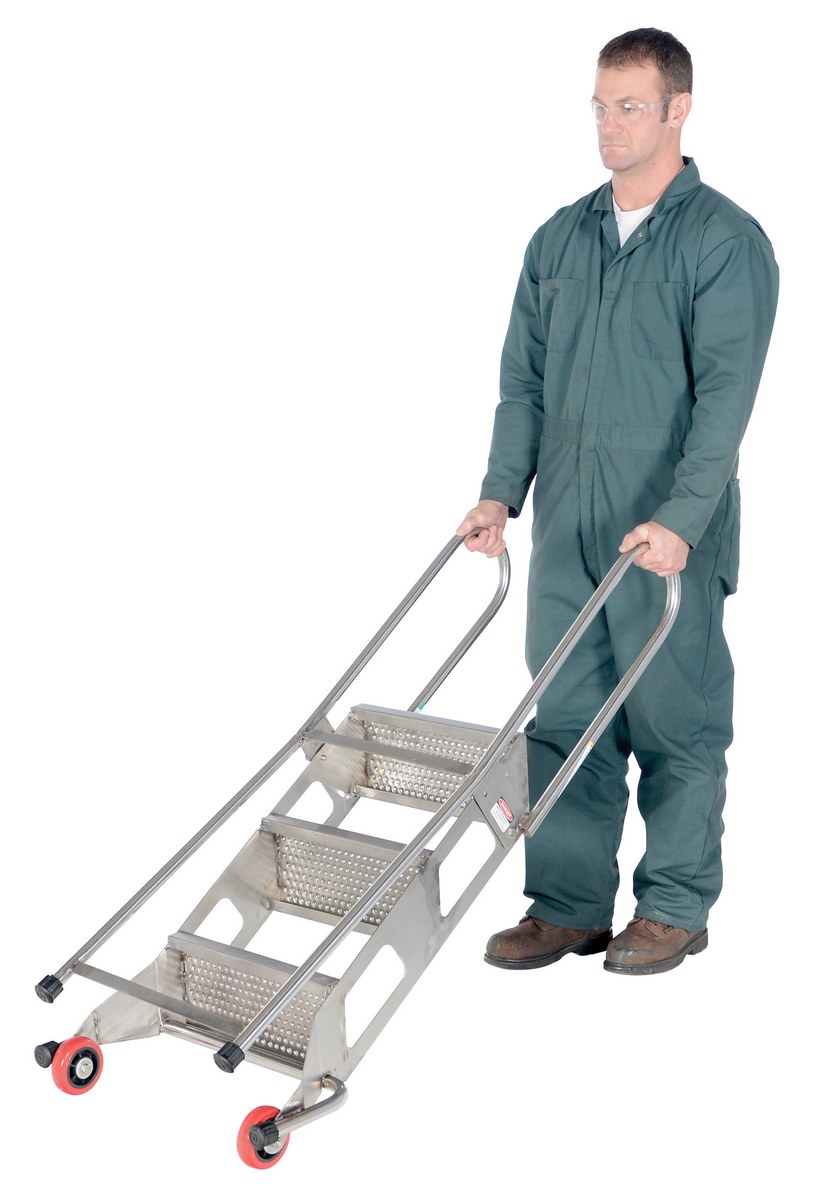

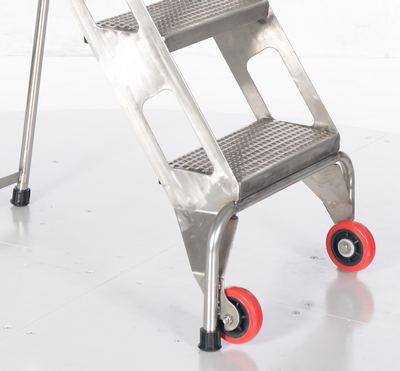

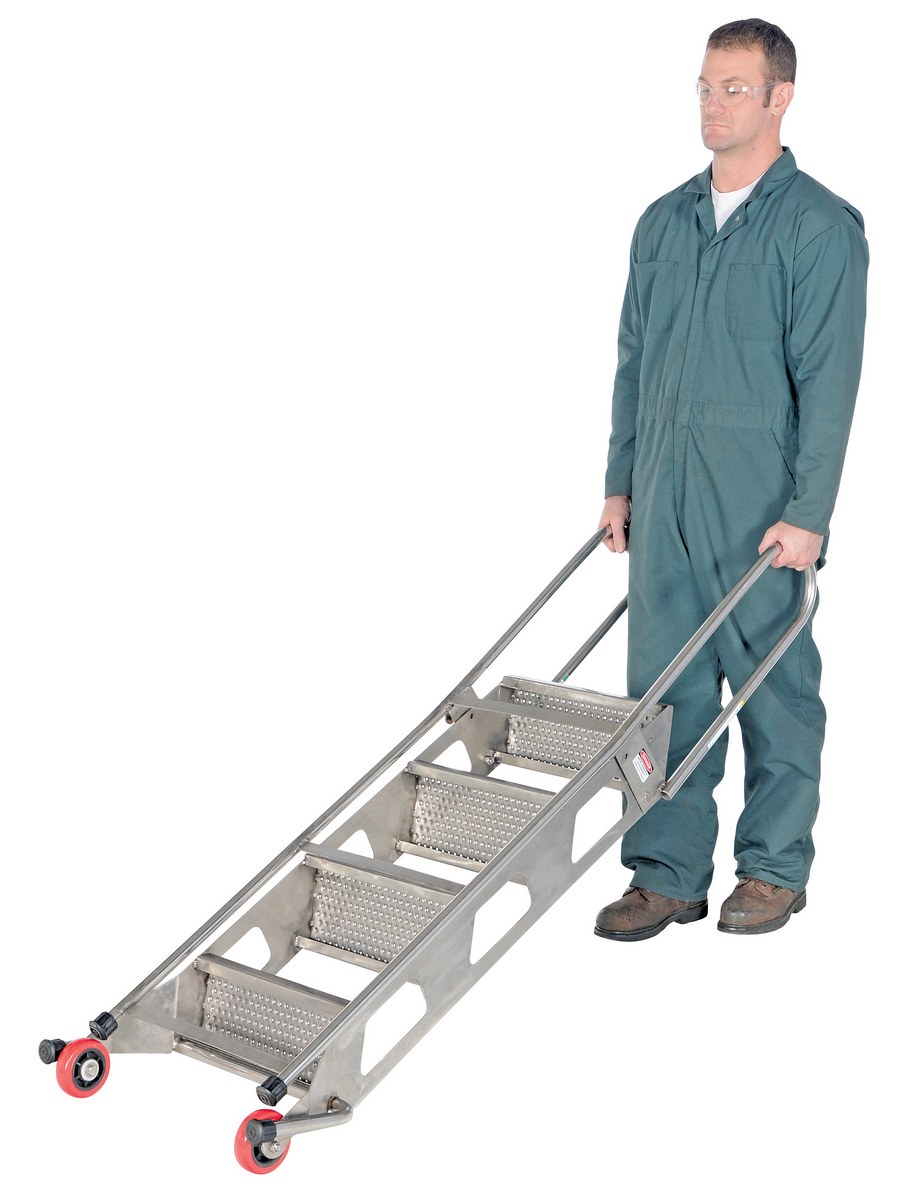

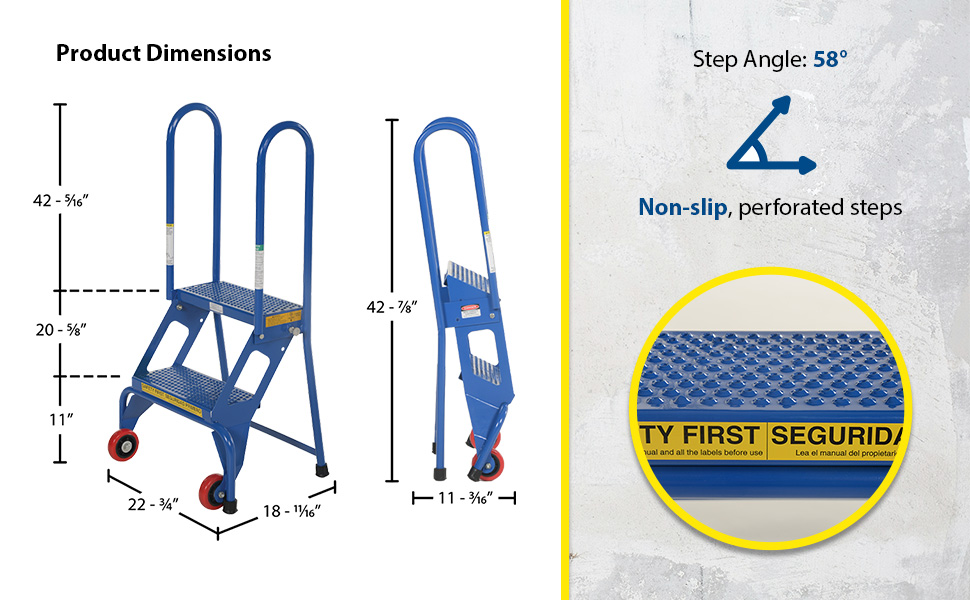

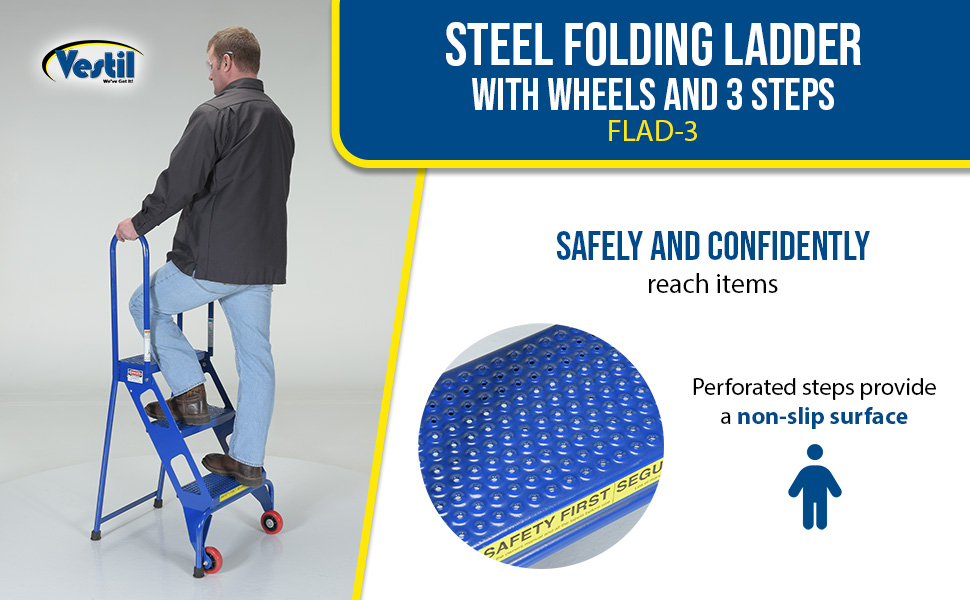

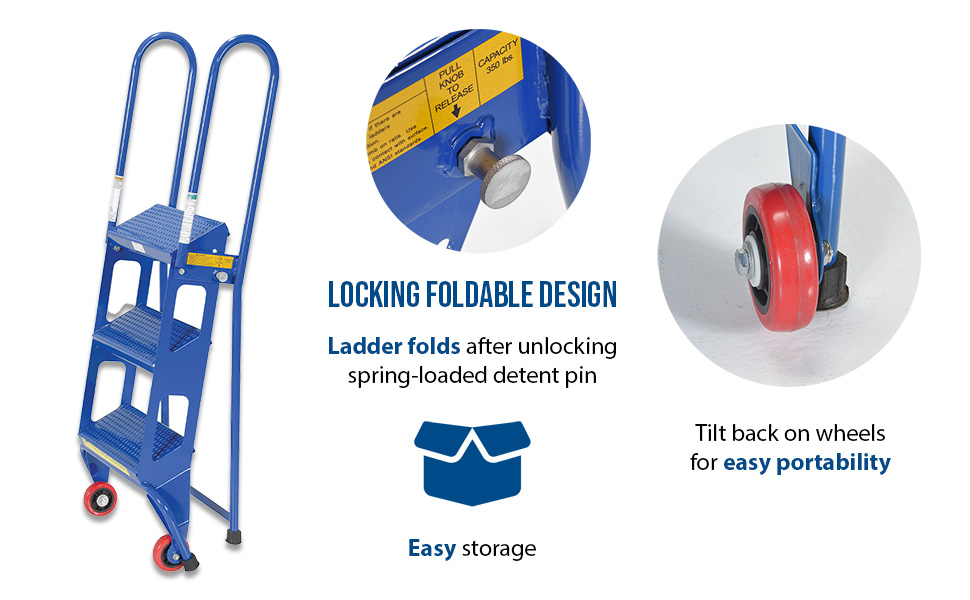

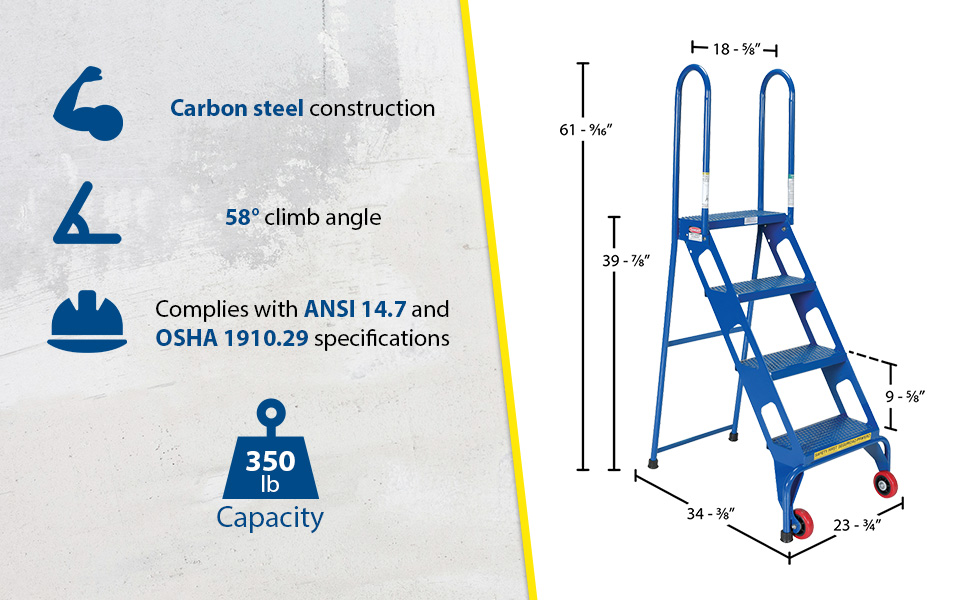

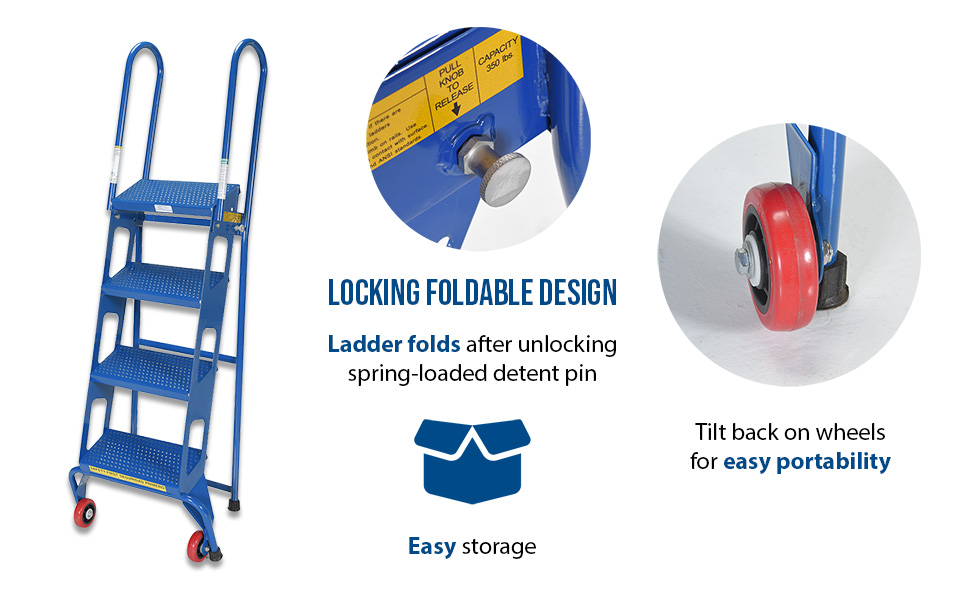

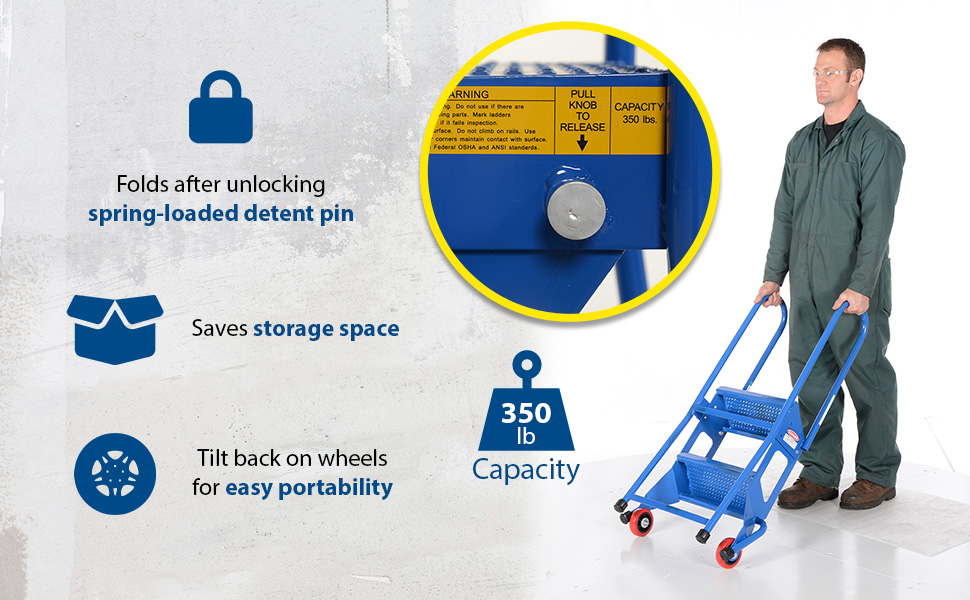

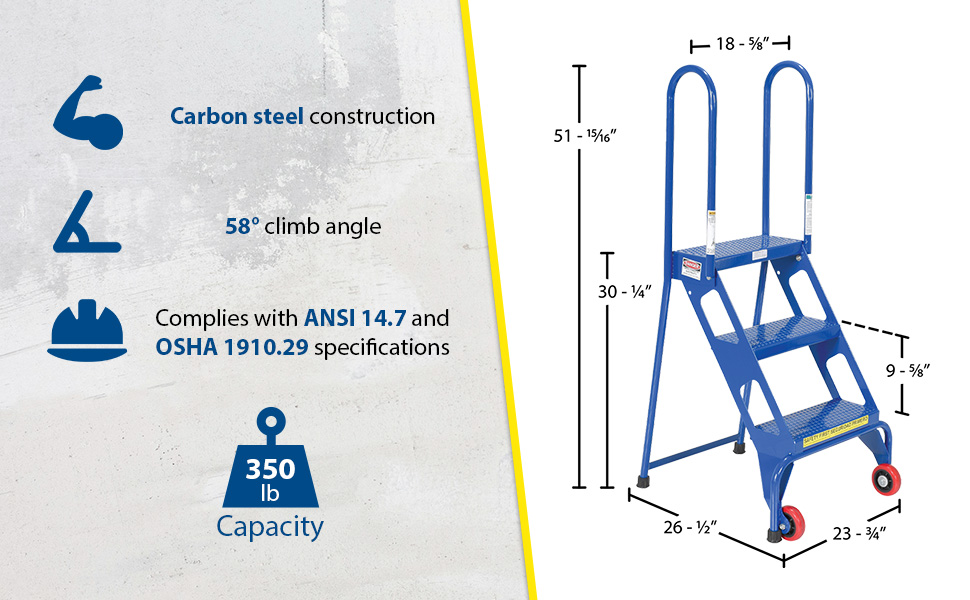

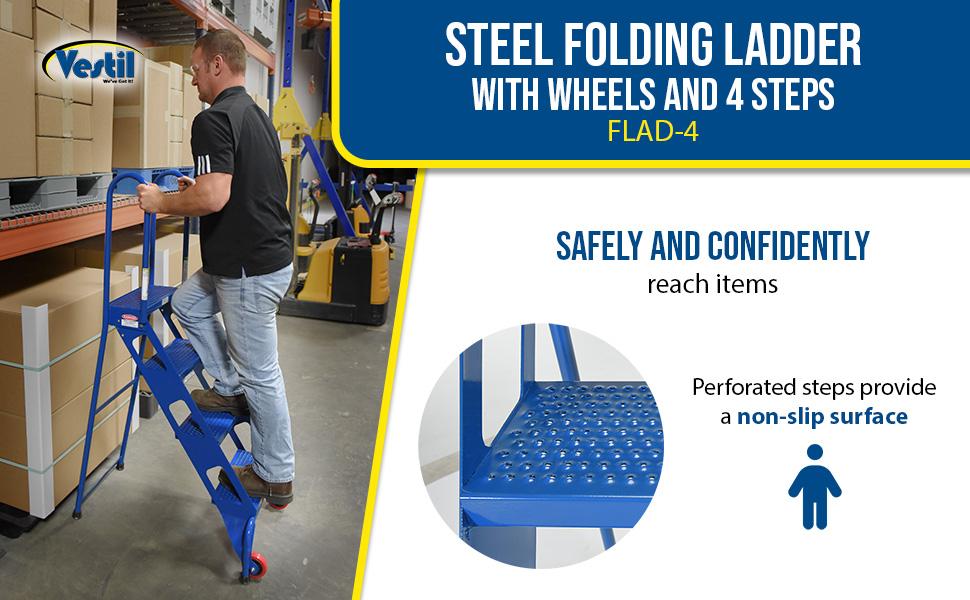

Locking foldable design saves on storage space when ladder is not in use. Ladder folds after unlocking spring-loaded detent pin. Once unit is folded, tilt back on wheels for easy portability. Available in either carbon steel or stainless steel. The steps are perforated to provide a non-slip surface. The ladders have 7" deep steps and a climb angle of 58 degrees. Stainless steel models are 202 grade. Complies with ANSI 14.7 and OSHA 1910.29 specifications.

Locking foldable design saves on storage space when ladder is not in use. Ladder folds after unlocking spring-loaded detent pin. Once unit is folded, tilt back on wheels for easy portability. Available in either carbon steel or stainless steel. The steps are perforated to provide a non-slip surface. The ladders have 7" deep steps and a climb angle of 58 degrees. Stainless steel models are 202 grade. Complies with ANSI 14.7 and OSHA 1910.29 specifications.

Share This Page

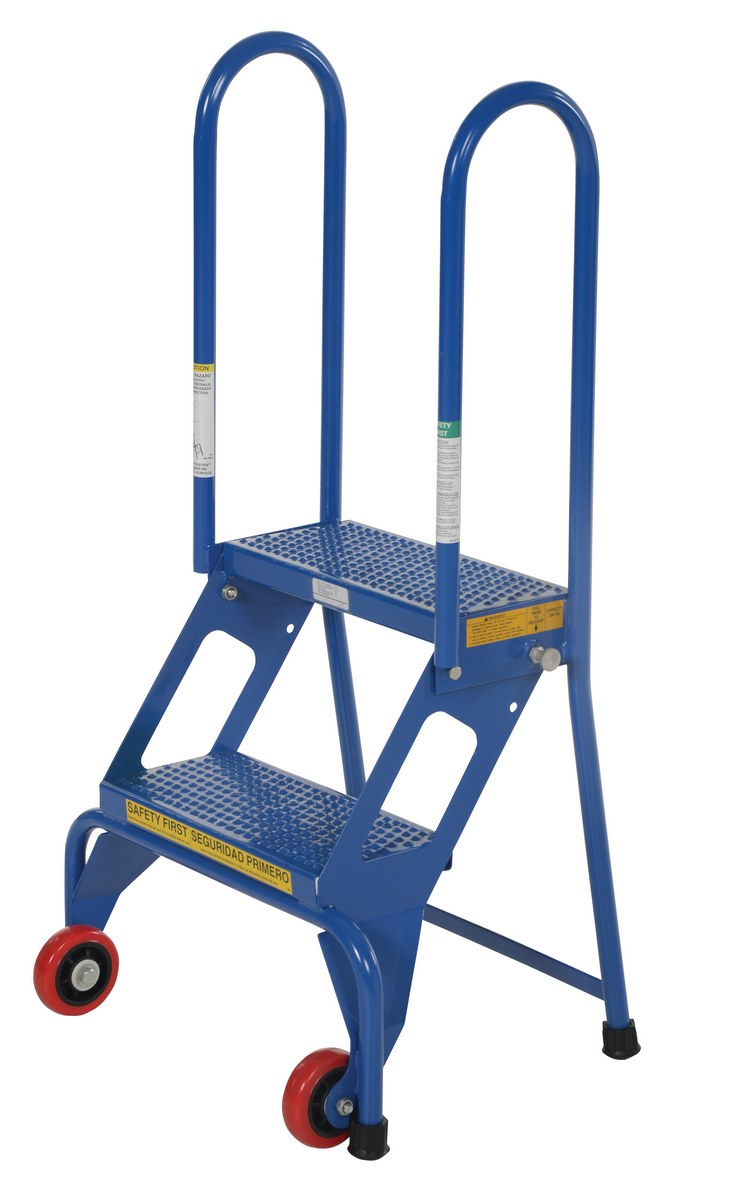

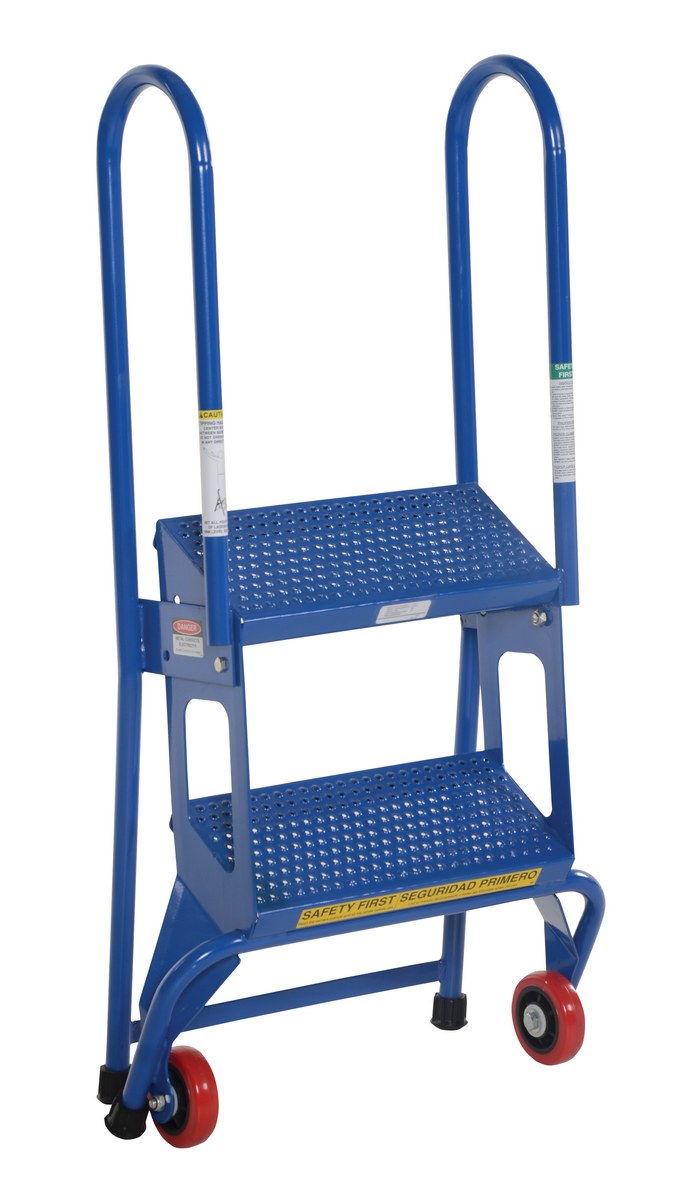

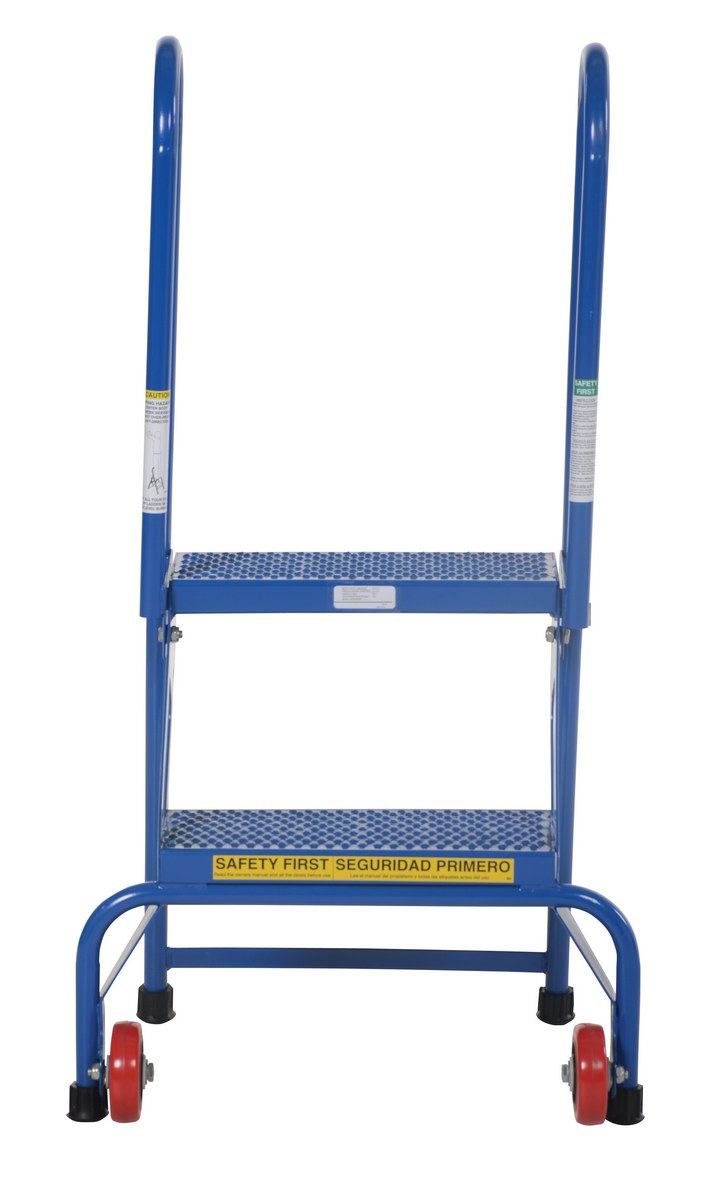

FLAD-2

model FLAD-2

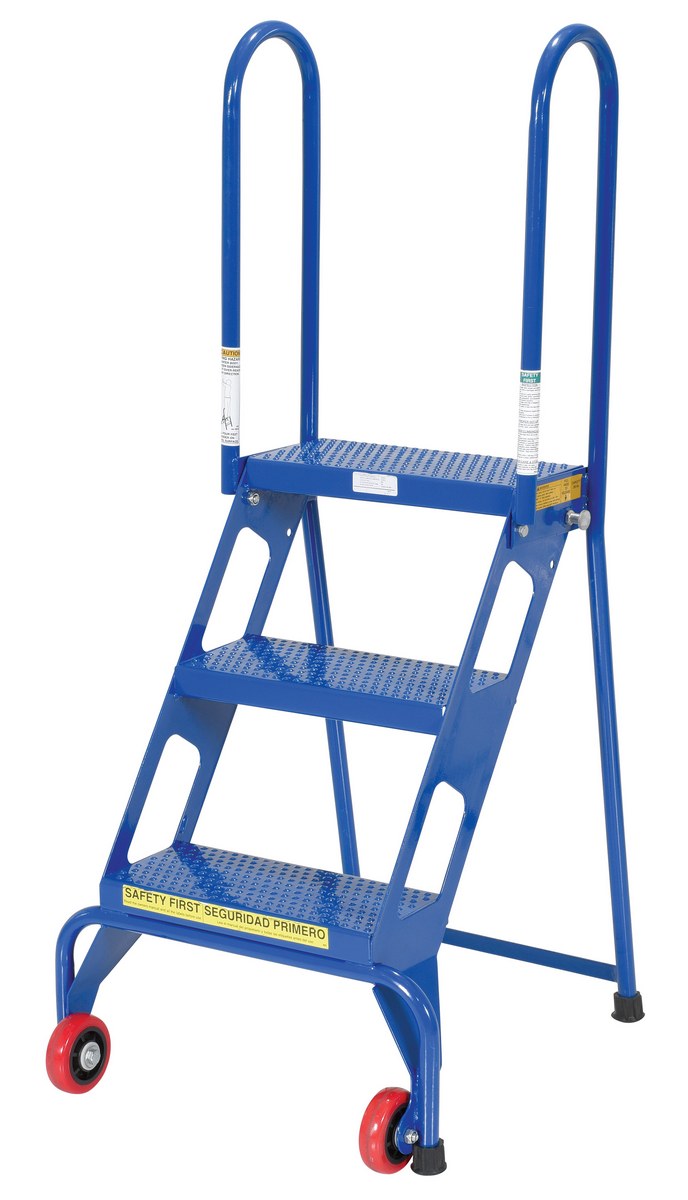

FLAD-3

model FLAD-3

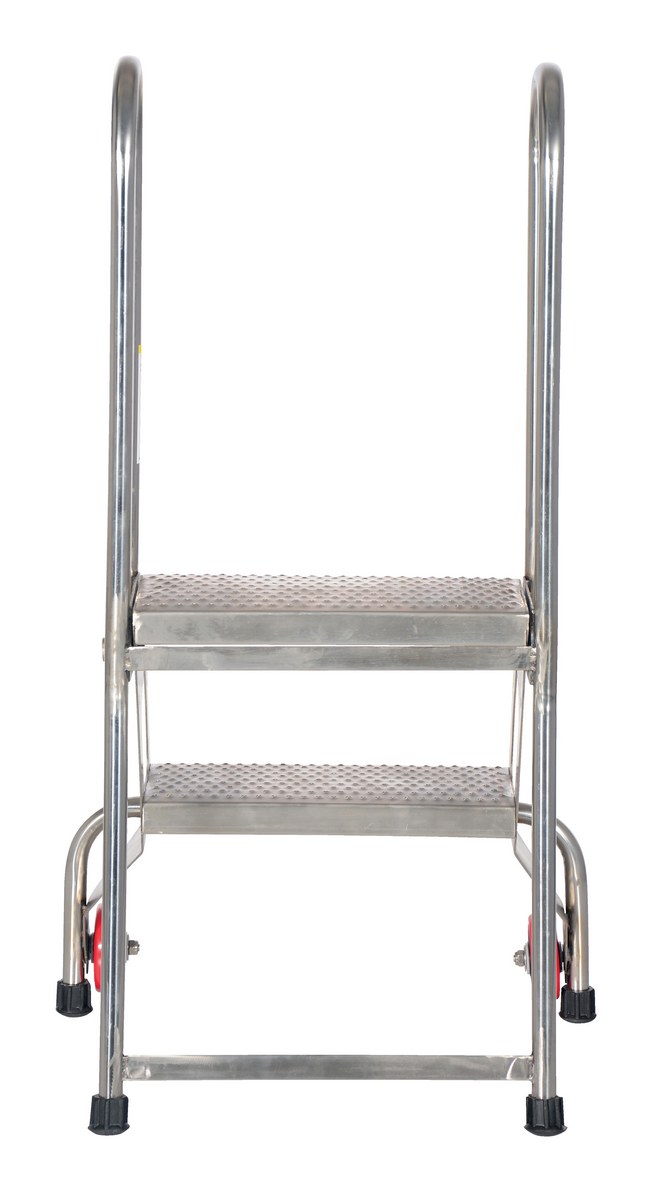

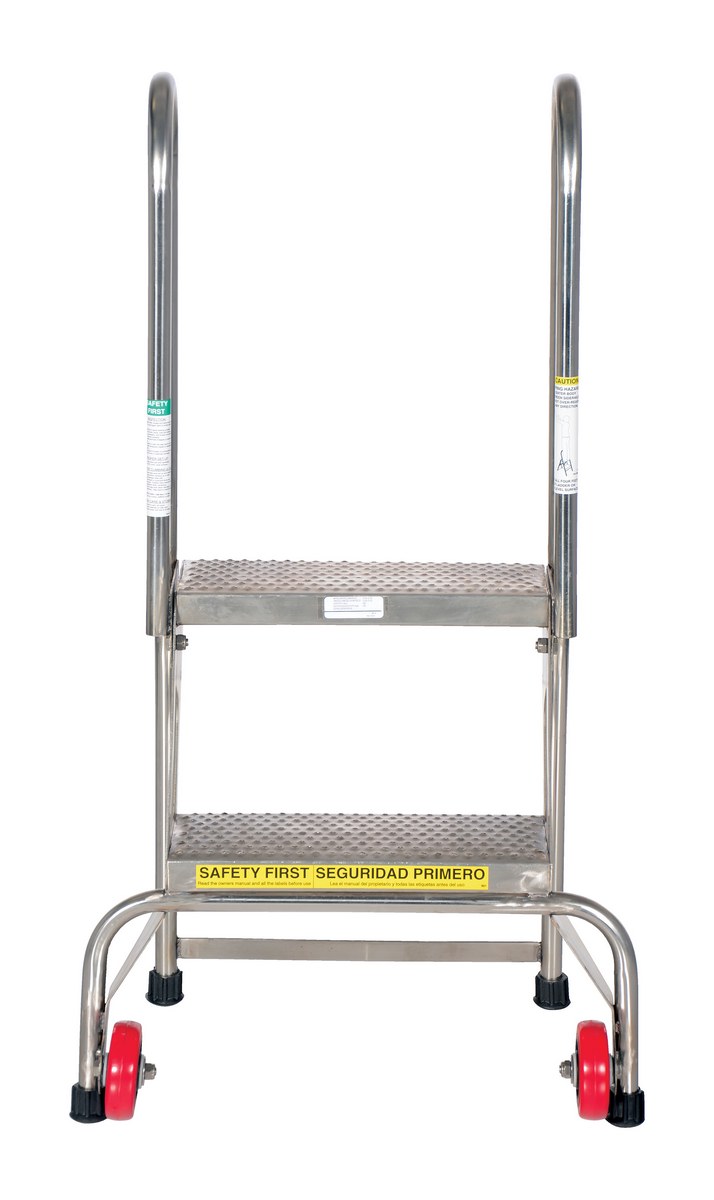

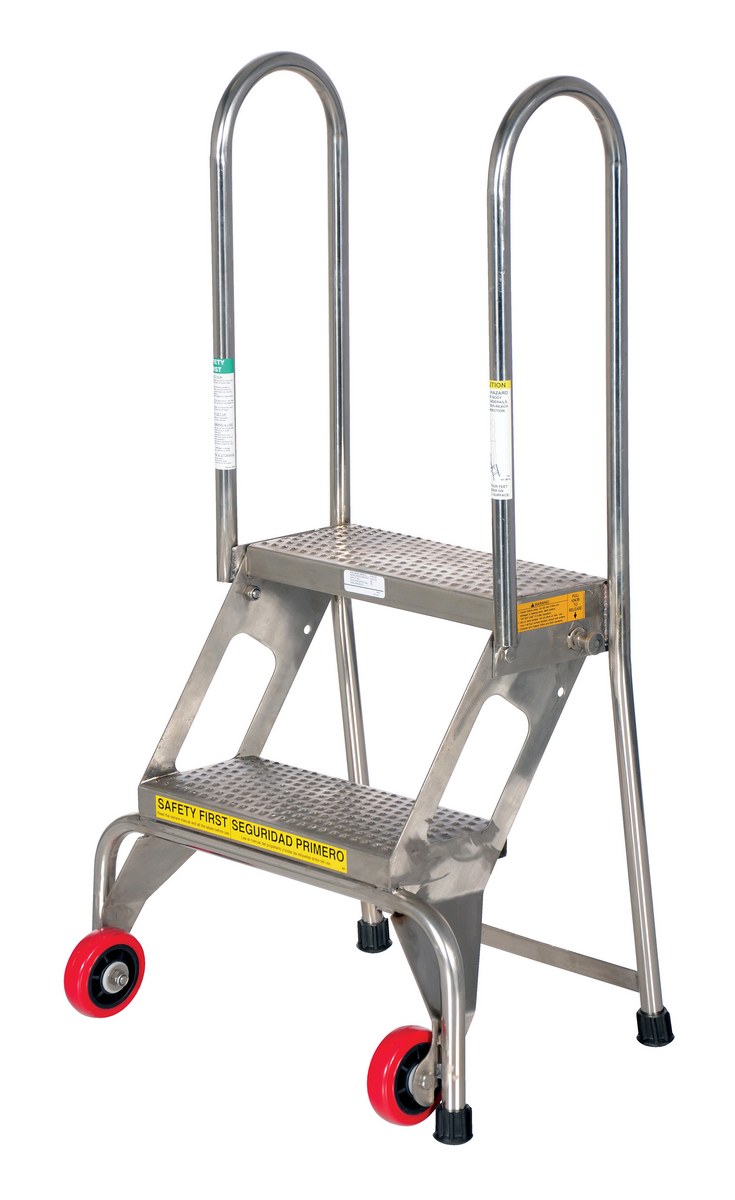

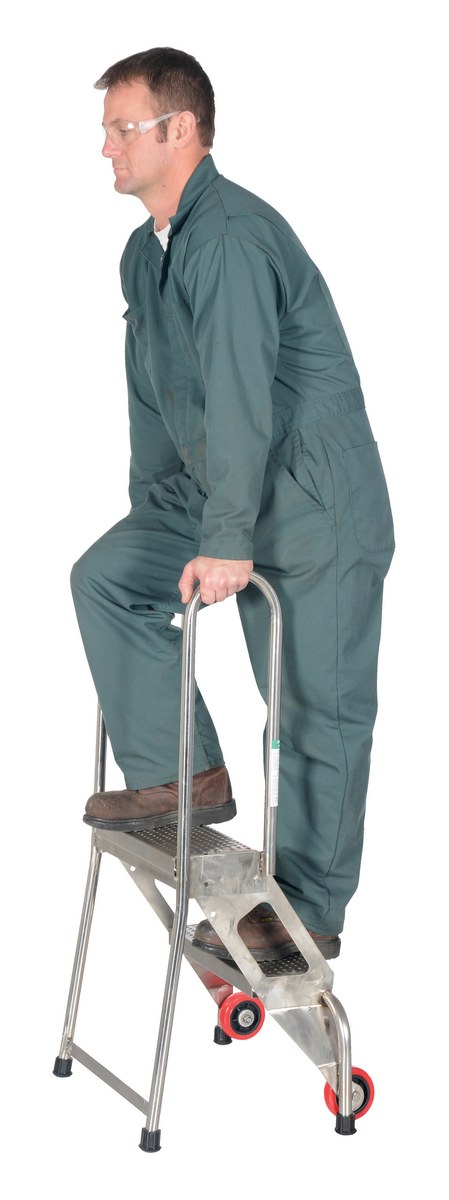

FLAD-2-SS

model FLAD-2-SS

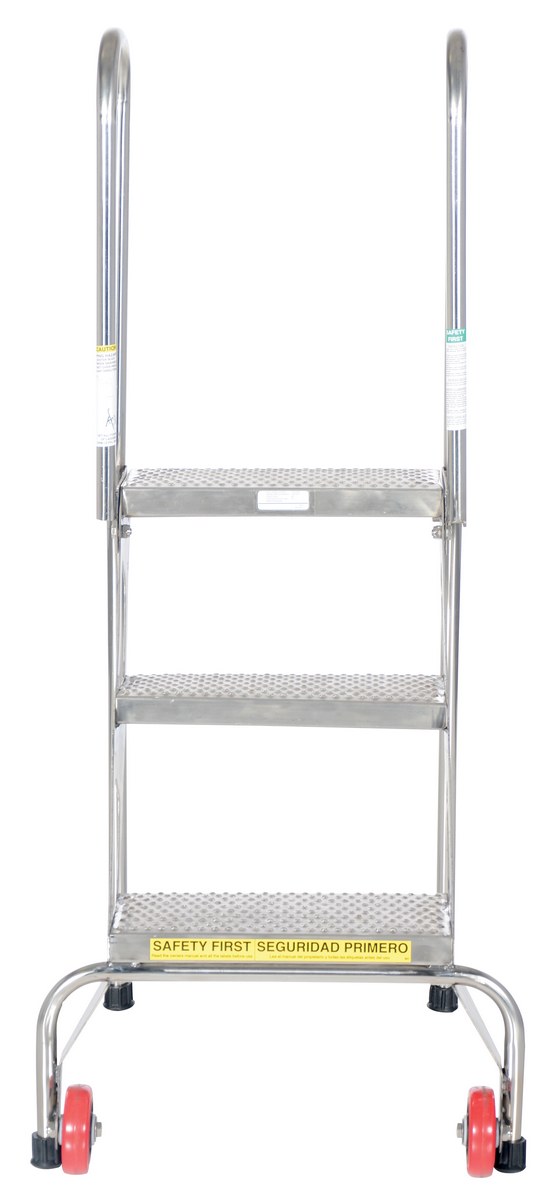

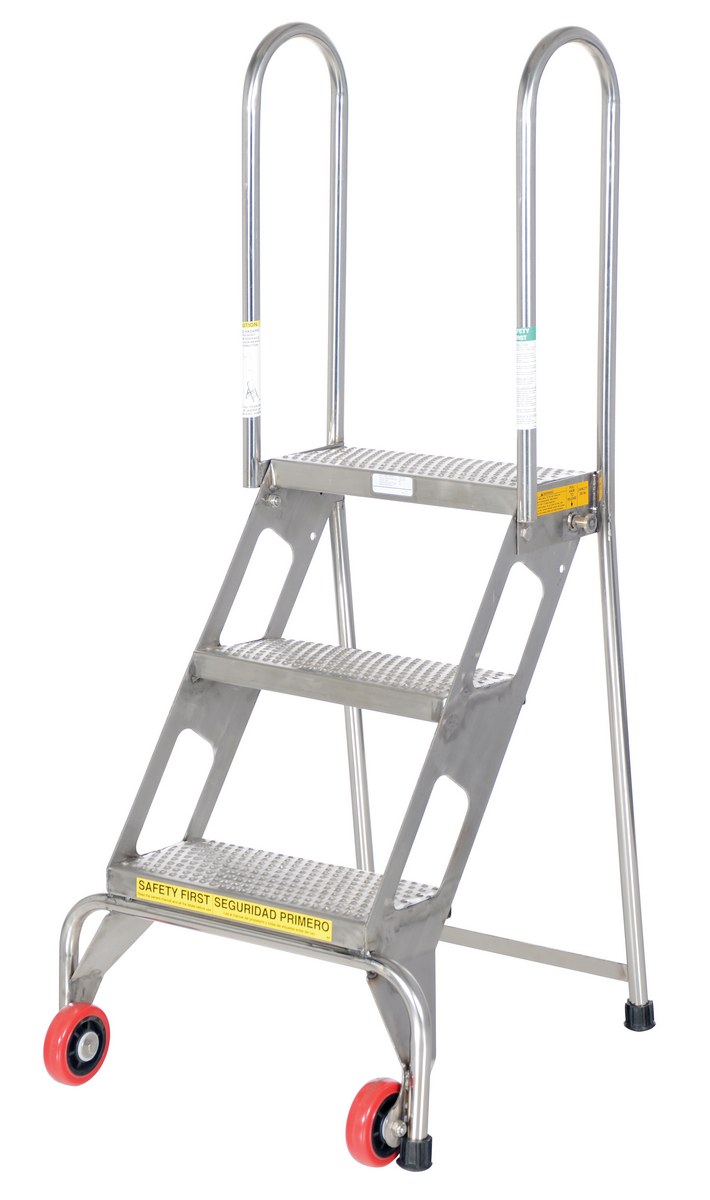

FLAD-3-SS

model FLAD-3-SS

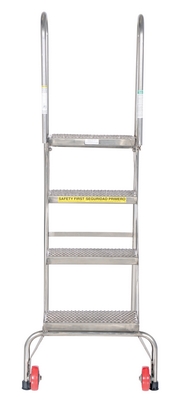

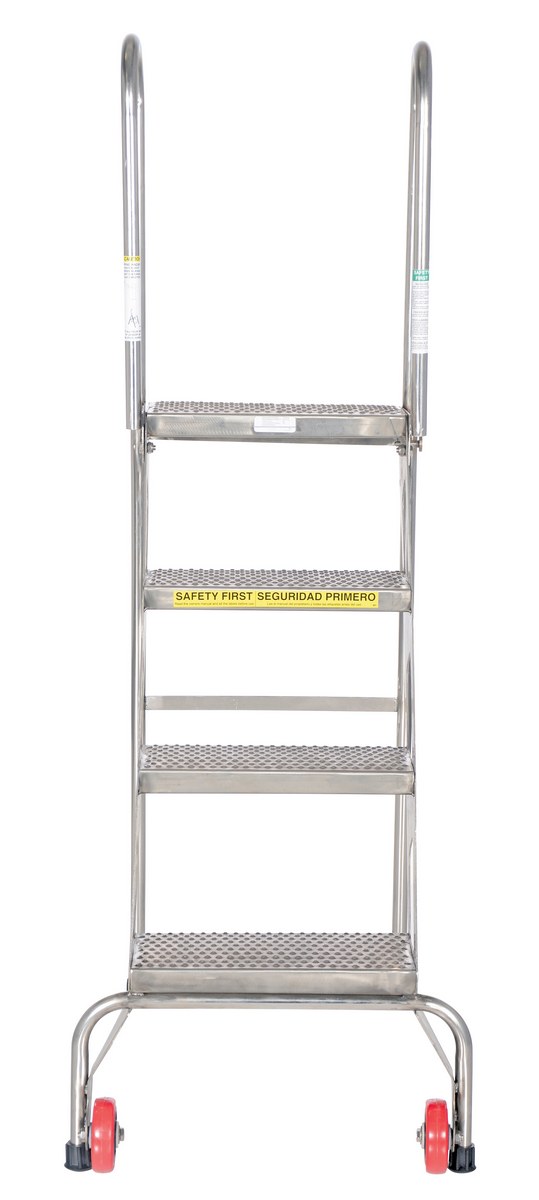

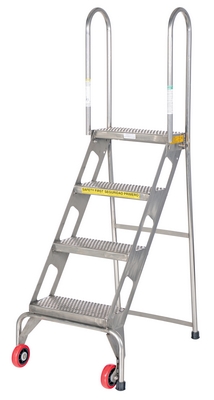

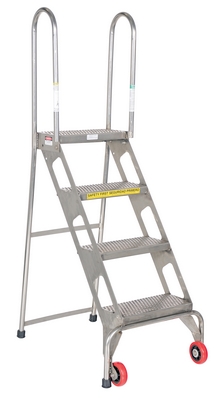

FLAD-4-SS

model FLAD-4-SS




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Portable Folding Step Ladders

Model Number

Image PDFs

Number
of Steps

Top Step
Height
Capacity
(lbs)
Construction Wt.
(lbs.)
FLAD-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2 20-5/8" 350

Carbon Steel

31
FLAD-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3 30-1/4" 350 Carbon Steel 39
FLAD-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4 39-7/8" 350 Carbon Steel 47
FLAD-2-SS icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2 20-5/8" 350 Stainless Steel 31
FLAD-3-SS icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3 30-1/4" 350 Stainless Steel 39
FLAD-4-SS icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4 39-7/8" 350 Stainless Steel 47

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate


Model Image PDFs Description * Net Wt.
(lbs)
FLAD-2 download.gif90 Days Limited WarrantyFOLDING 2 STEP LADDER WITH WHEELSUniform Capacity (lb.): 35026
FLAD-2-SS download.gif90 Days Limited WarrantyFOLDING 2 STEP LADDER W/WHEELS SSUniform Capacity (lb.): 35026
FLAD-3 download.gif90 Days Limited WarrantyFOLDING 3 STEP LADDER WITH WHEELSUniform Capacity (lb.): 35039
FLAD-3-SS download.gif90 Days Limited WarrantyFOLDING 3 STEP LADDER W/WHEELS SSUniform Capacity (lb.): 35039
FLAD-4 download.gif90 Days Limited WarrantyFOLDING 4 STEP LADDER WITH WHEELSUniform Capacity (lb.): 35047
FLAD-4-SS download.gif90 Days Limited WarrantyFOLDING 4 STEP LADDER W/WHEELS SSUniform Capacity (lb.): 35047



Folding Ladders with Wheels PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

Testing Certificates

FLAD-2
FLAD-2-SS
FLAD-3
FLAD-3-SS
FLAD-4
FLAD-4-SS

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Folding Ladders with Wheels




Locking foldable design saves on storage space when ladder is not in use. Ladder folds after unlocking spring-loaded detent pin. Once unit is folded, tilt back on wheels for easy portability. Available in either carbon steel or stainless steel. The steps are perforated to provide a non-slip surface. The ladders have 7" deep steps and a climb angle of 58 degrees. Stainless steel models are 202 grade. Complies with ANSI 14.7 and OSHA 1910.29 specifications.


Portable Folding Step Ladders

Model Number

Image PDFs

Number
of Steps

Top Step
Height
Capacity
(lbs)
Construction Wt.
(lbs.)
FLAD-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2 20-5/8" 350

Carbon Steel

31
FLAD-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3 30-1/4" 350 Carbon Steel 39
FLAD-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4 39-7/8" 350 Carbon Steel 47
FLAD-2-SS icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2 20-5/8" 350 Stainless Steel 31
FLAD-3-SS icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3 30-1/4" 350 Stainless Steel 39
FLAD-4-SS icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4 39-7/8" 350 Stainless Steel 47
